user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

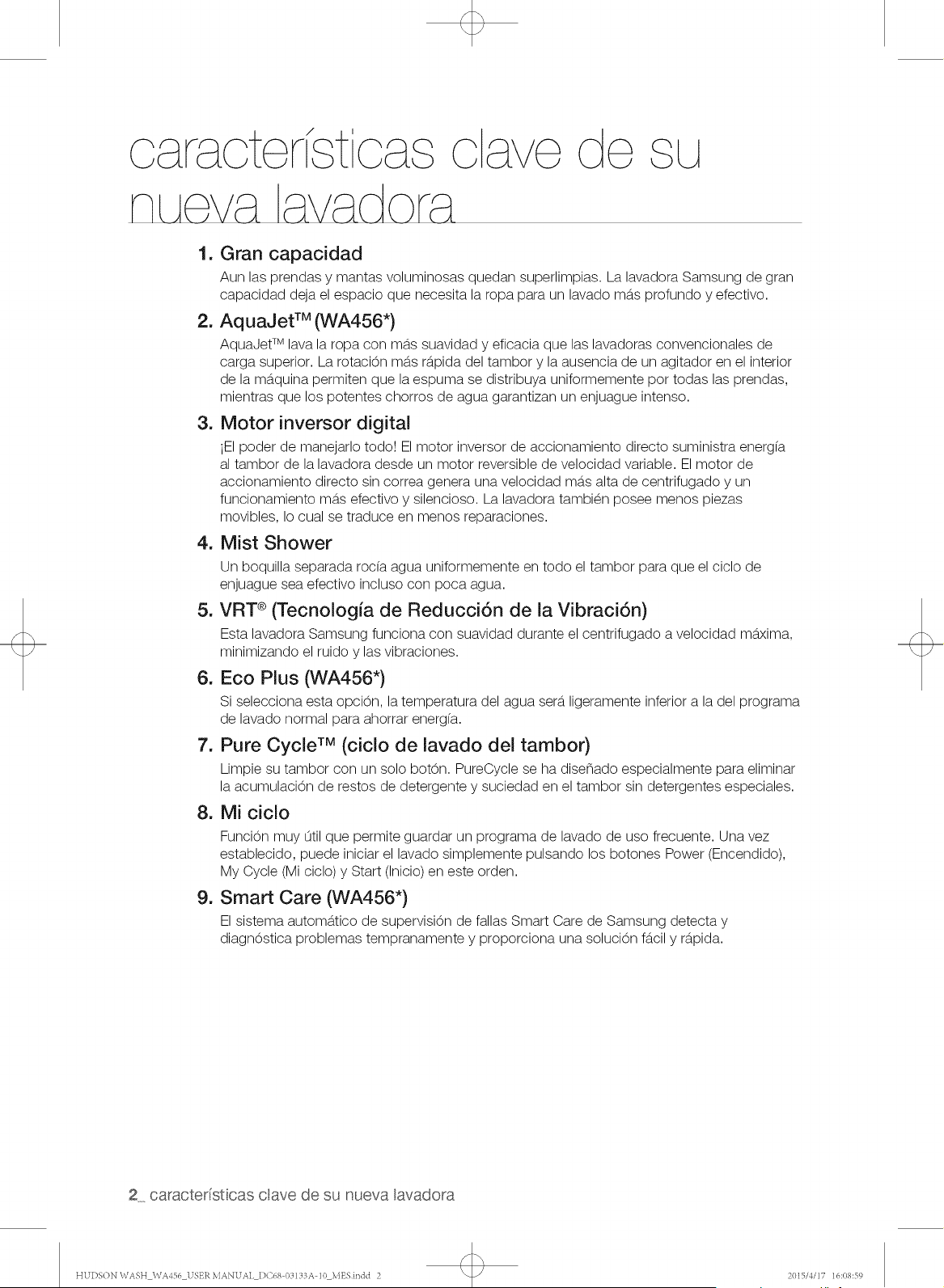

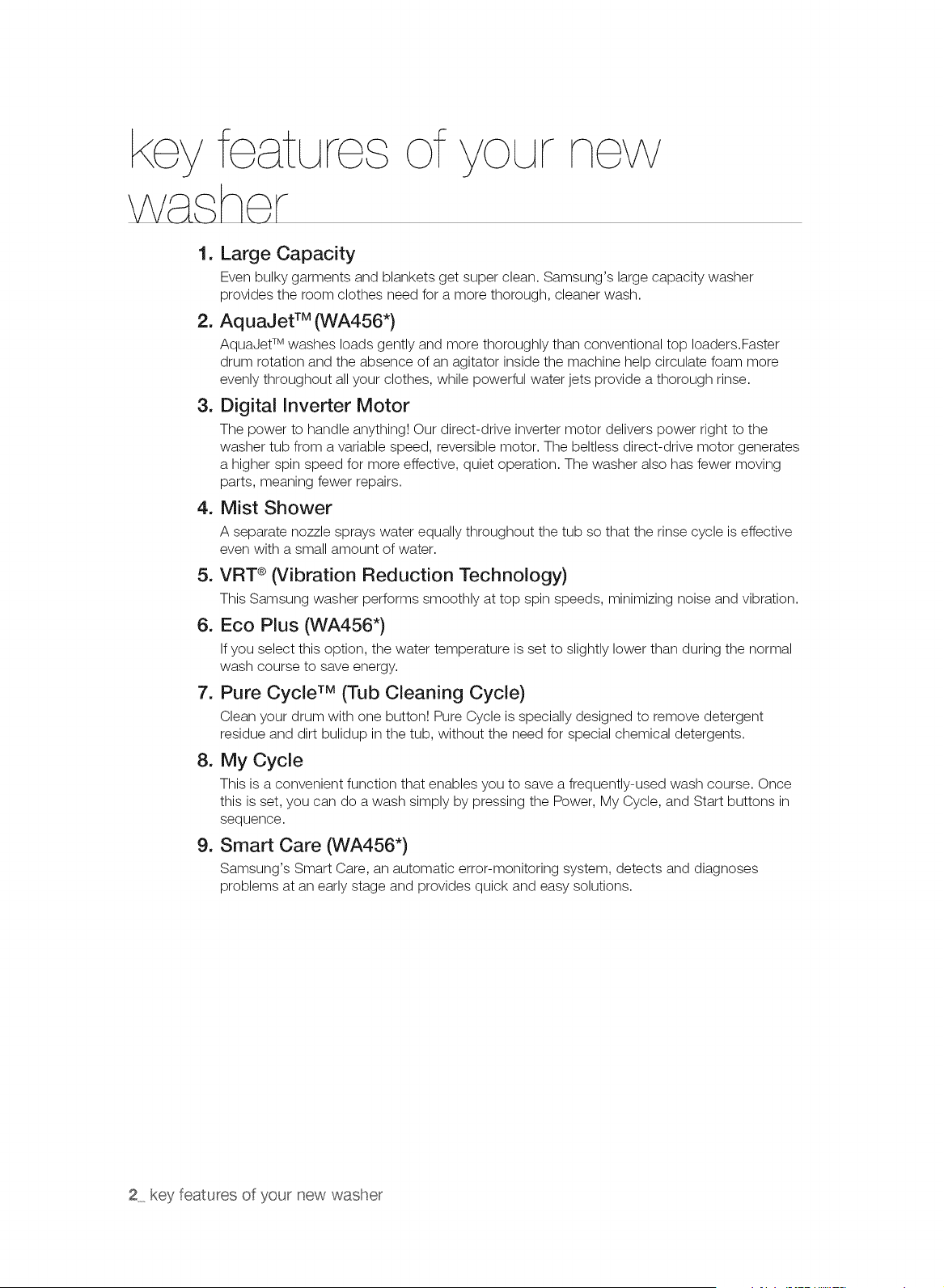

key fo tuFos of

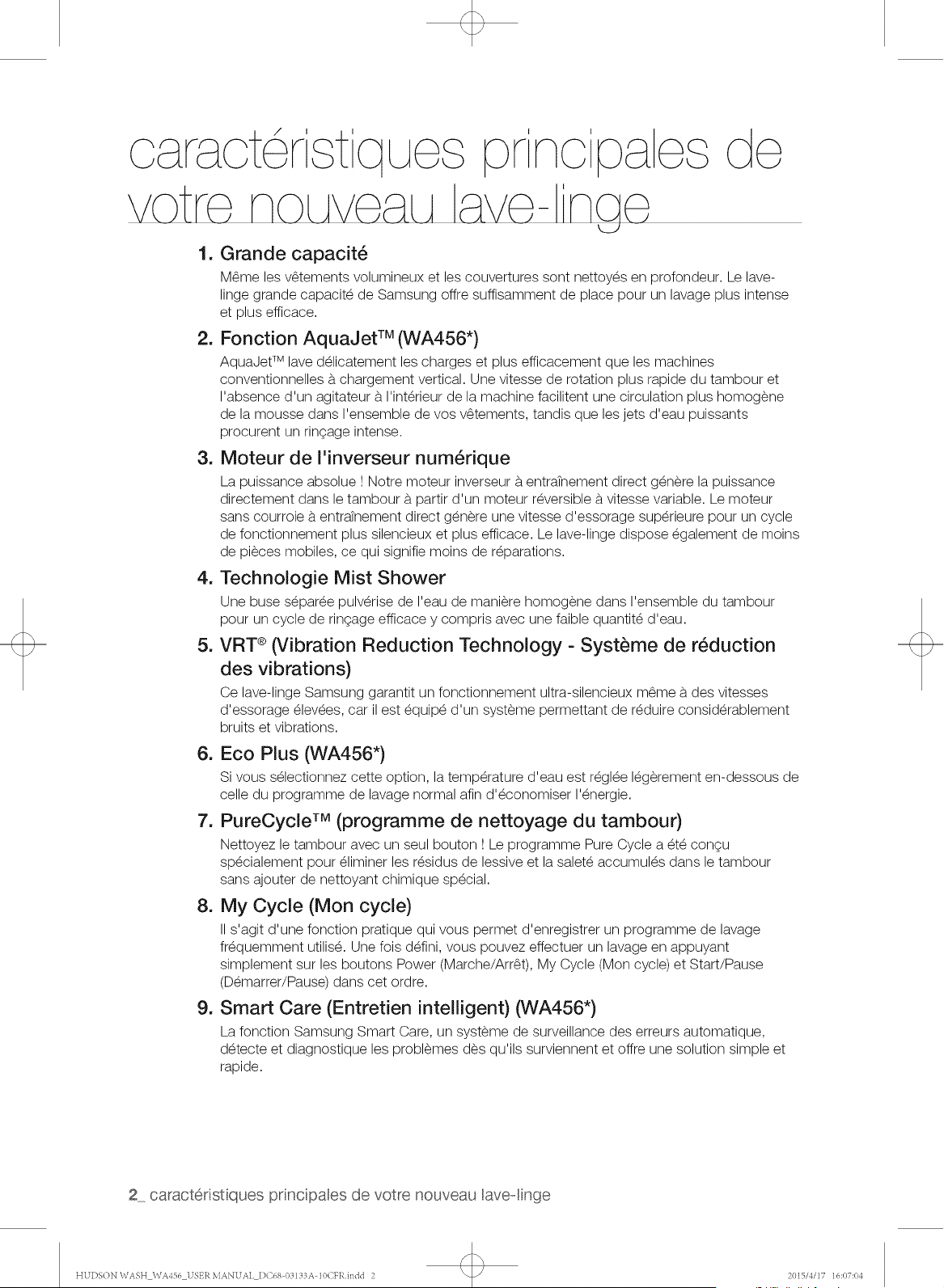

1. Large Capacity

Even bulky garments and blankets get super clean. Samsung's large capacity washer

provides the room clothes need for a more thorough, cleaner wash.

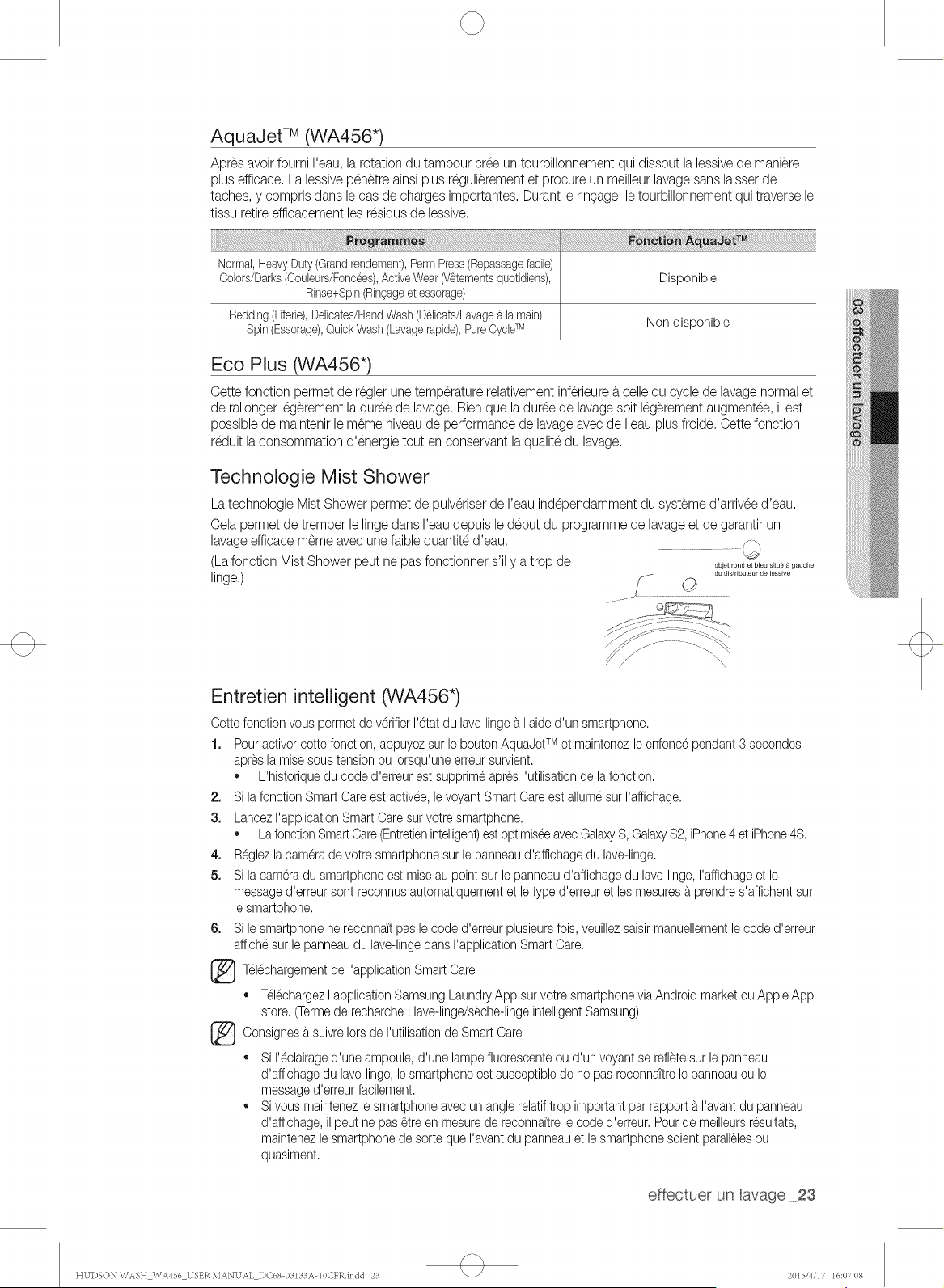

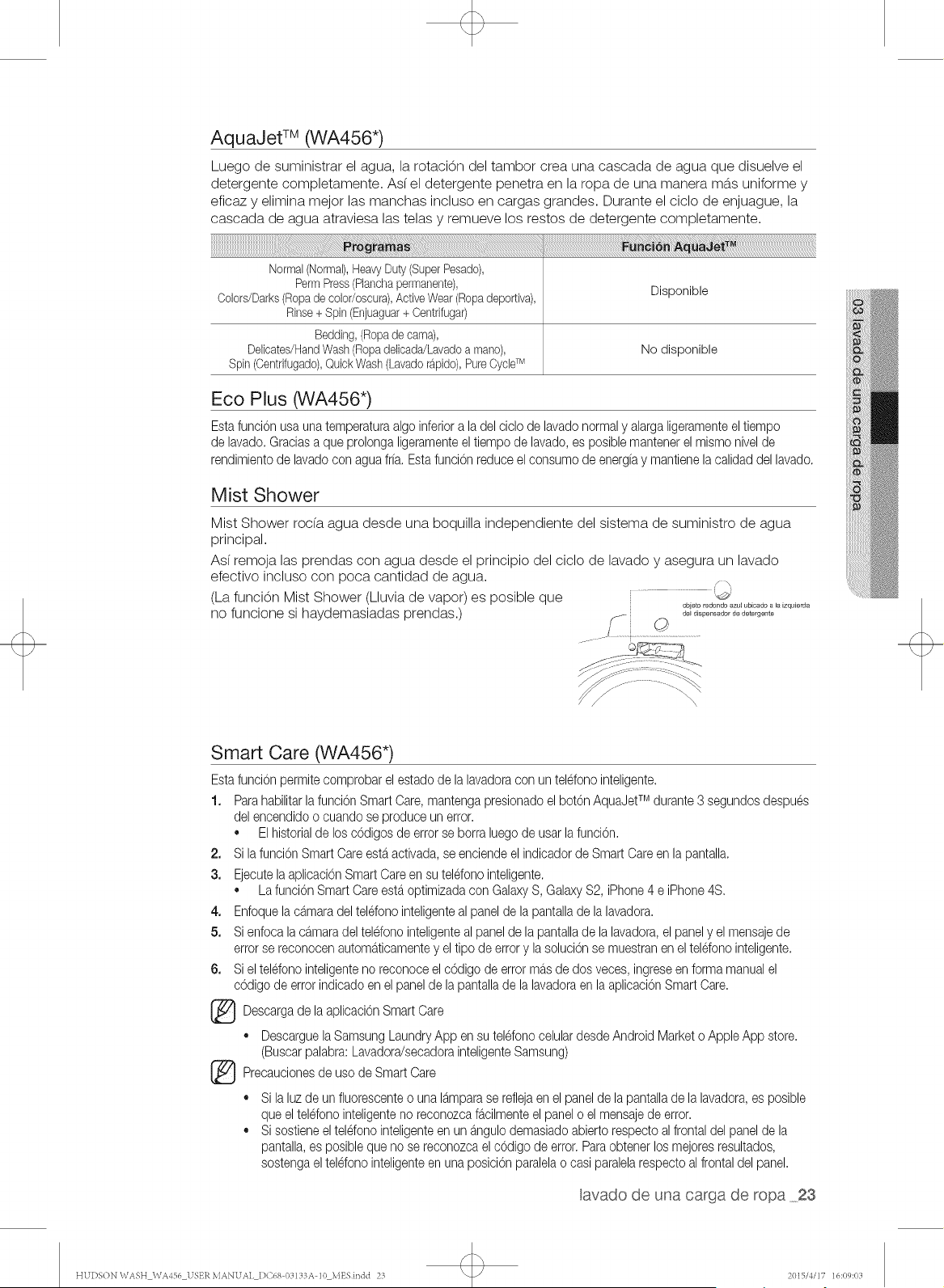

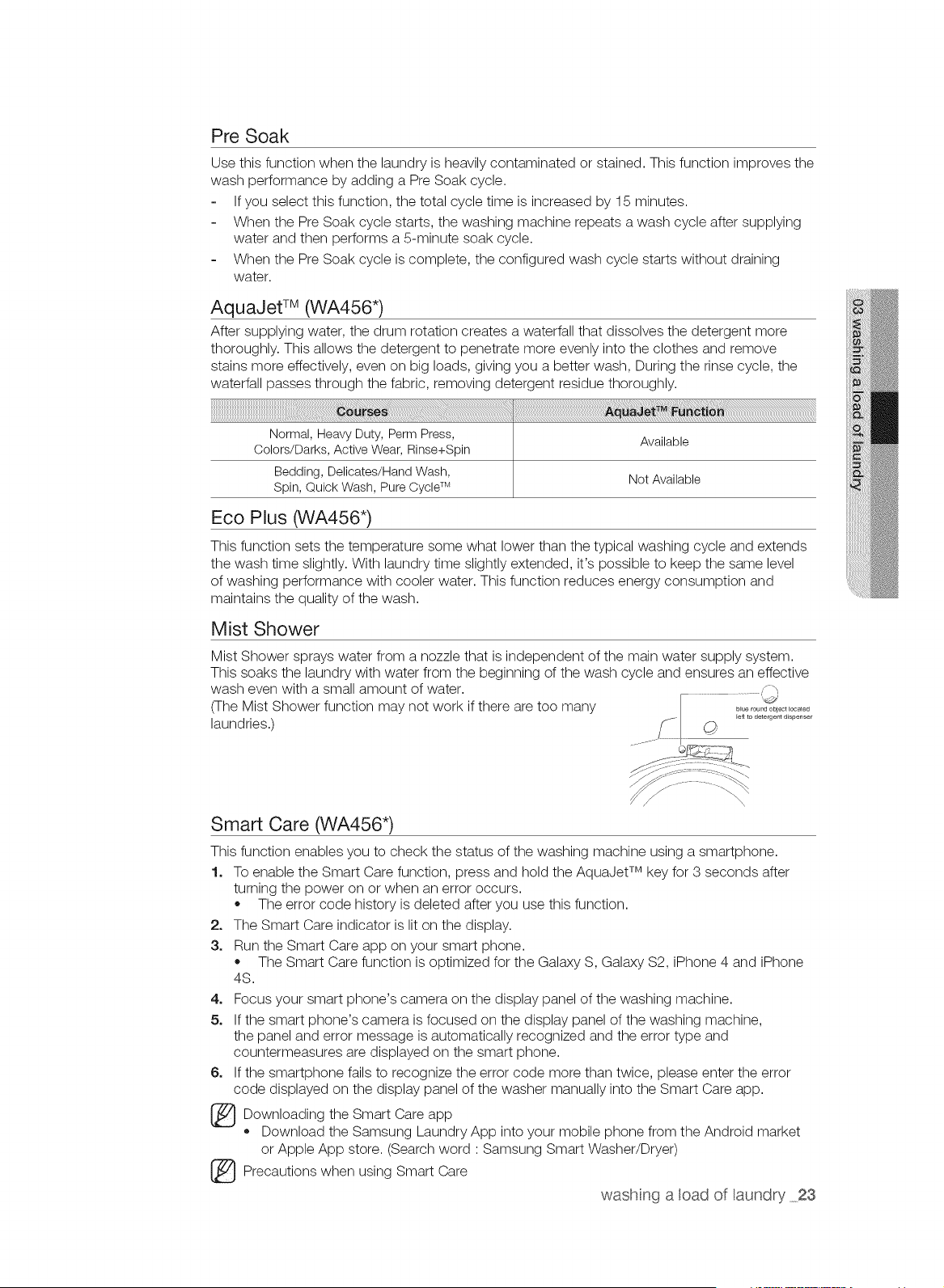

2. AquaJet TM (WA456")

AquaJet TM washes loads gently and more thoroughly than conventional top loaders.Faster

drum rotation and the absence of an agitator inside the machine help circulate foam more

evenly throughout all your clothes, while powerful water jets provide a thorough rinse.

3. Digital Inverter Motor

The power to handle anything! Our direct-drive inverter motor delivers power right to the

washer tub from a variable speed, reversible motor. The beltless direct-drive motor generates

a higher spin speed for more effective, quiet operation. The washer also has fewer moving

parts, meaning fewer repairs.

4. Mist Shower

A separate nozzle sprays water equally throughout the tub so that the rinse cycle is effective

even with a small amount of water.

5. VRT ® (Vibration Reduction Technology)

This Samsung washer performs smoothly at top spin speeds, minimizing noise and vibration.

6. Eco Plus 0NA456")

If you select this option, the water temperature is set to slightly lower than during the normal

wash course to save energy.

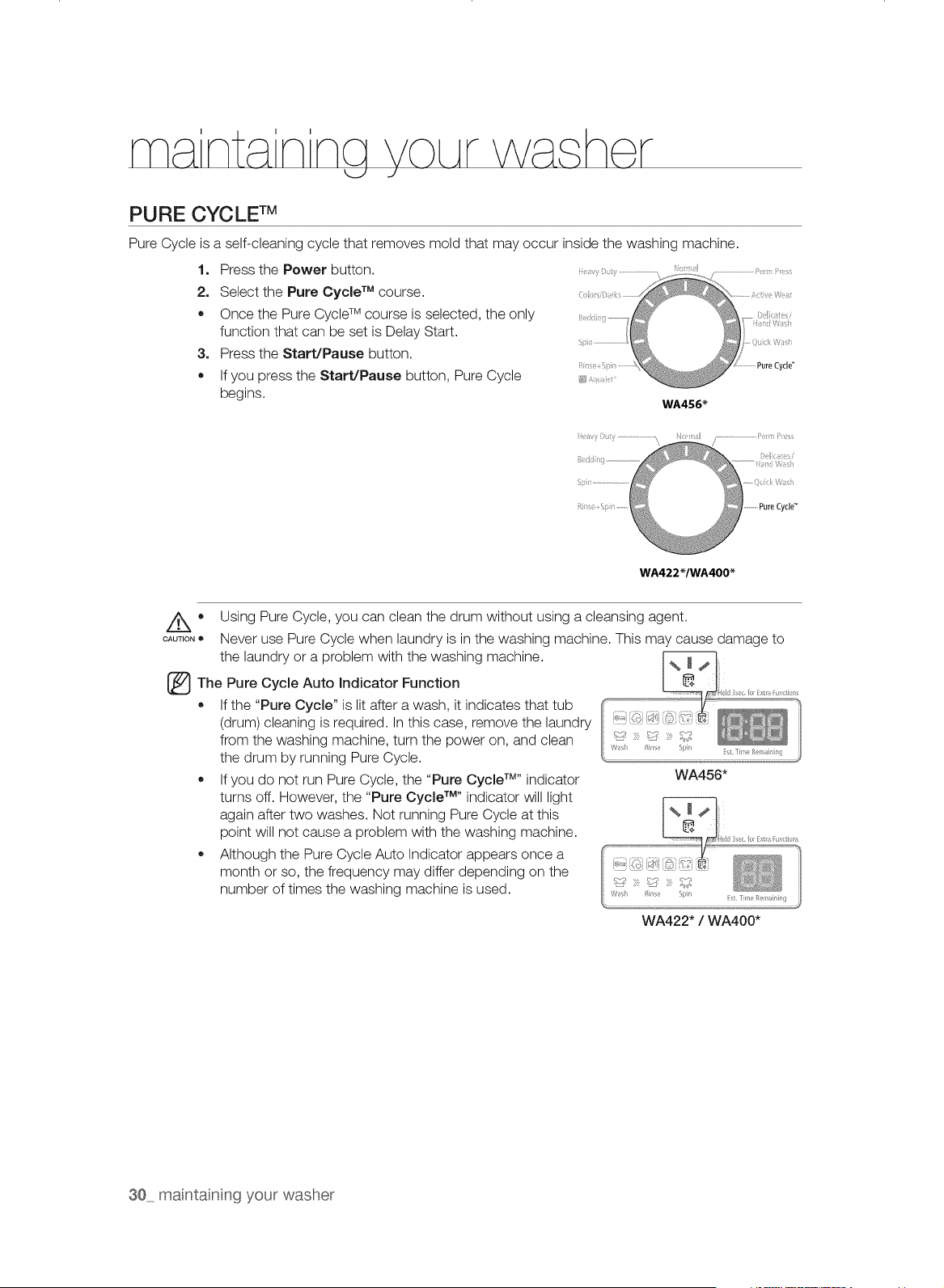

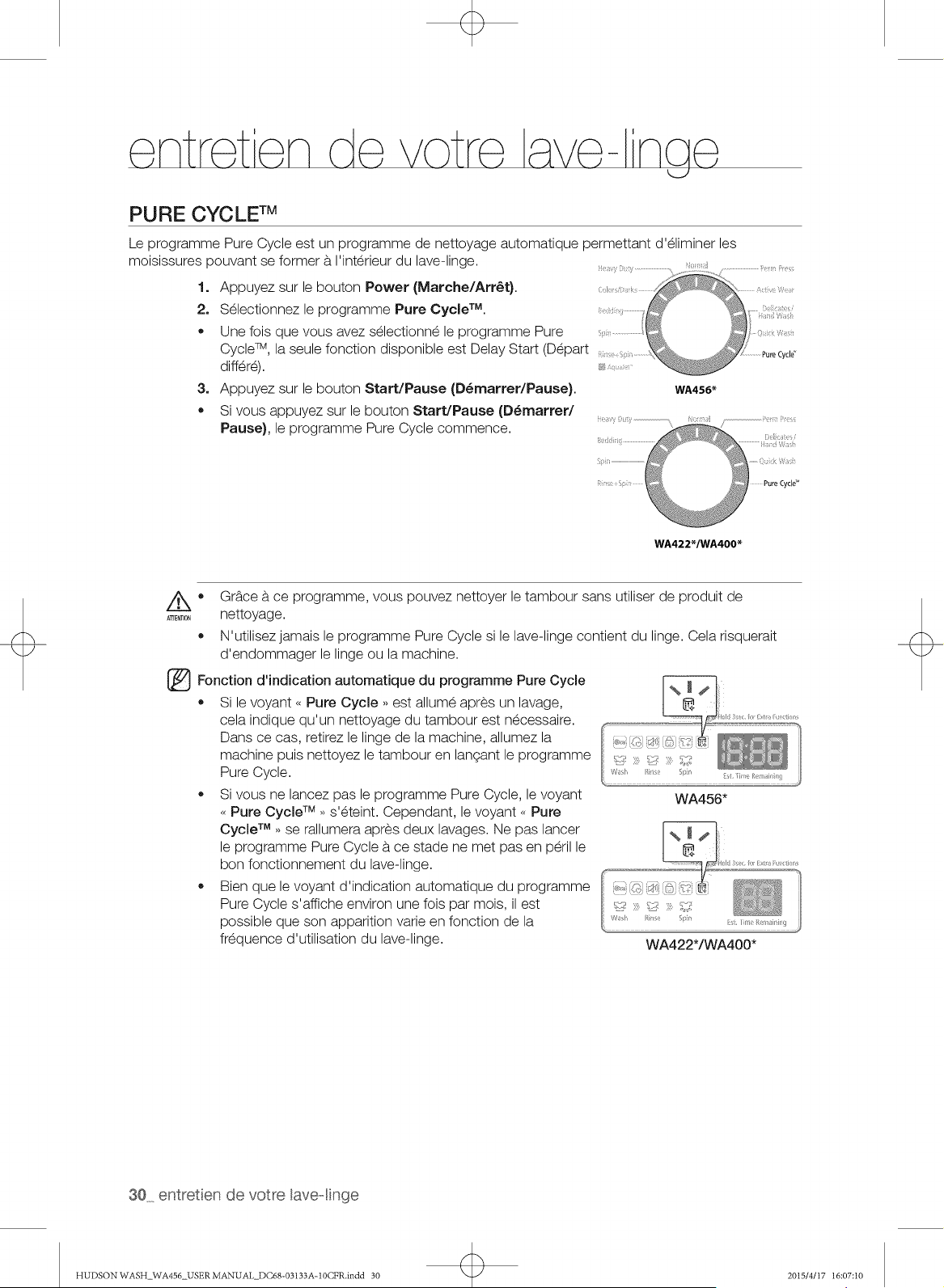

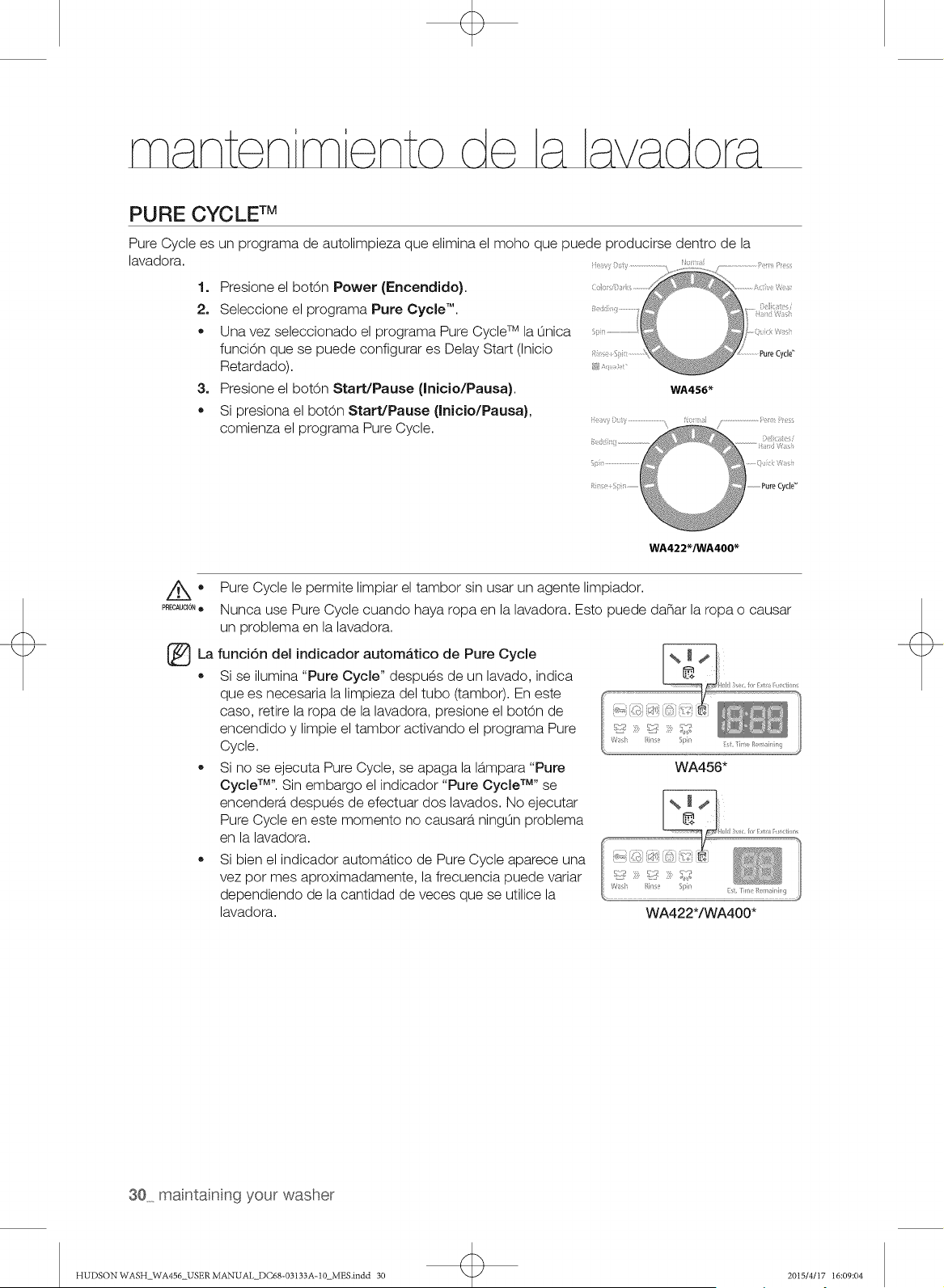

7. Pure Cycle TM (Tub Cleaning Cycle)

Clean your drum with one button! Pure Cycle is specially designed to remove detergent

residue and dirt buildup in the tub, without the need for special chemical detergents.

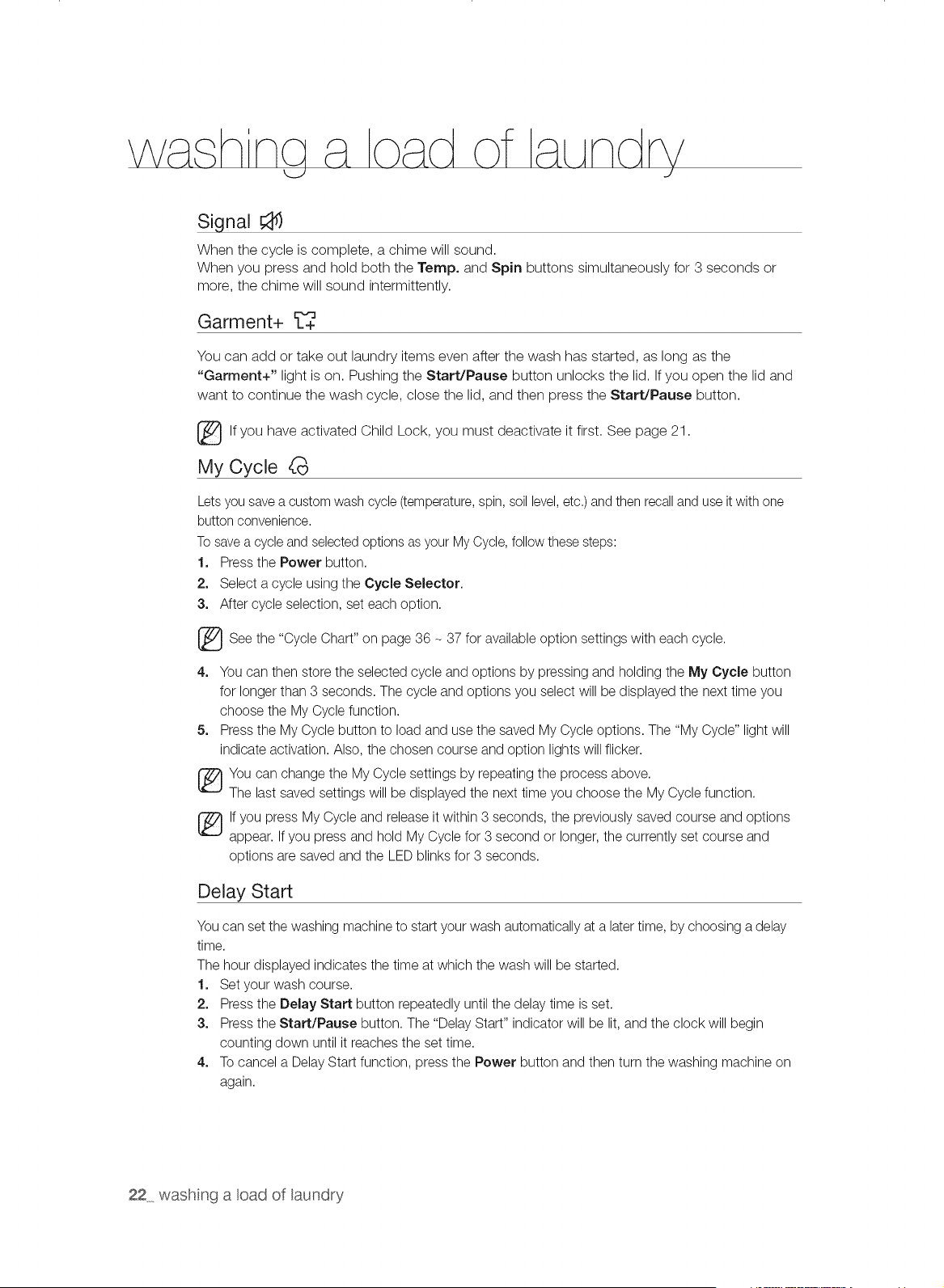

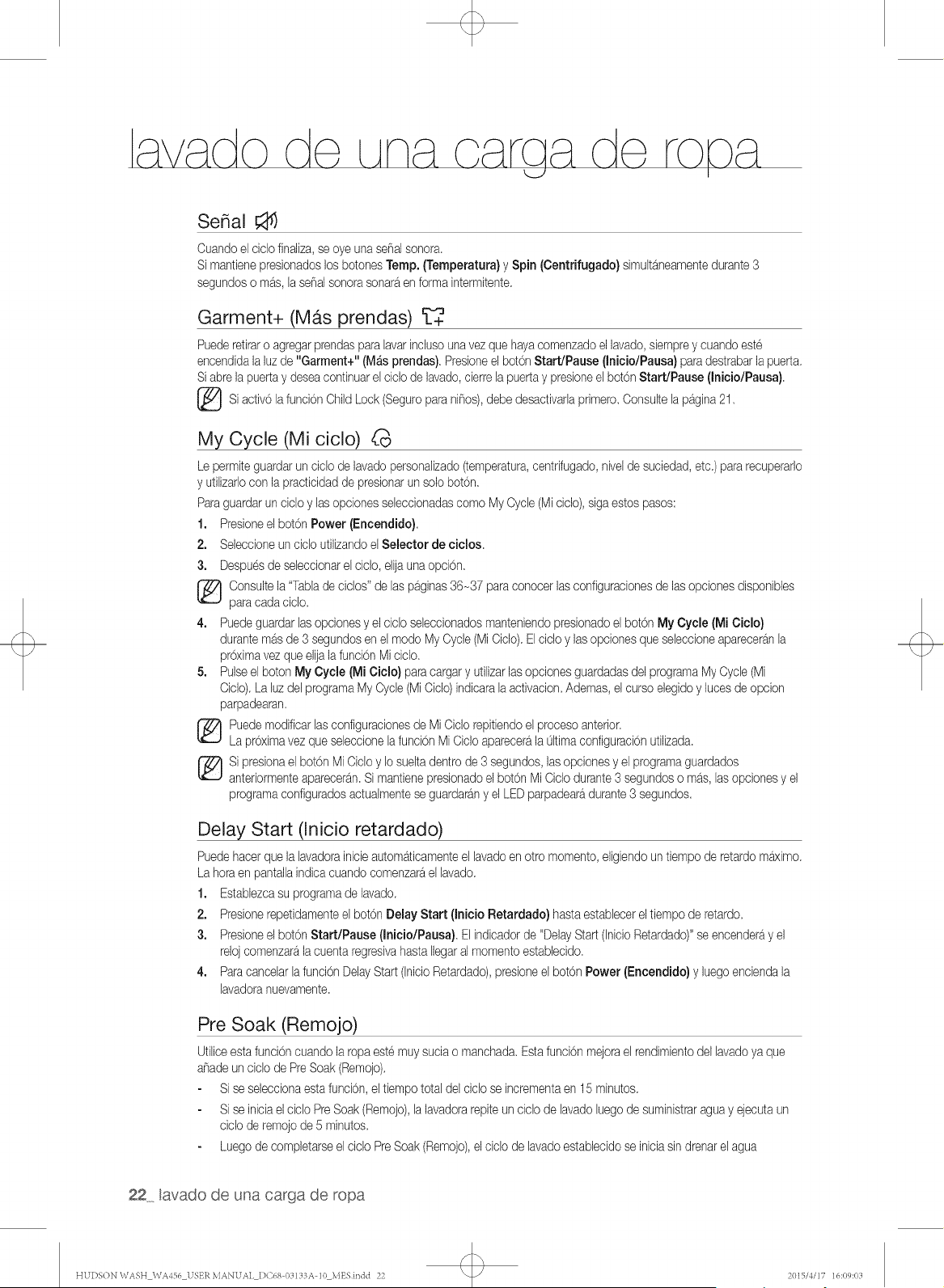

8. My Cycle

This is a convenient function that enables you to save a frequently-used wash course. Once

this is set, you can do a wash simply by pressing the Power, My Cycle, and Start buttons in

sequence.

9. Smart Care 0NA456")

Samsung's Smart Care, an automatic error-monitoring system, detects and diagnoses

problems at an early stage and provides quick and easy solutions.

2 key features of your new washer

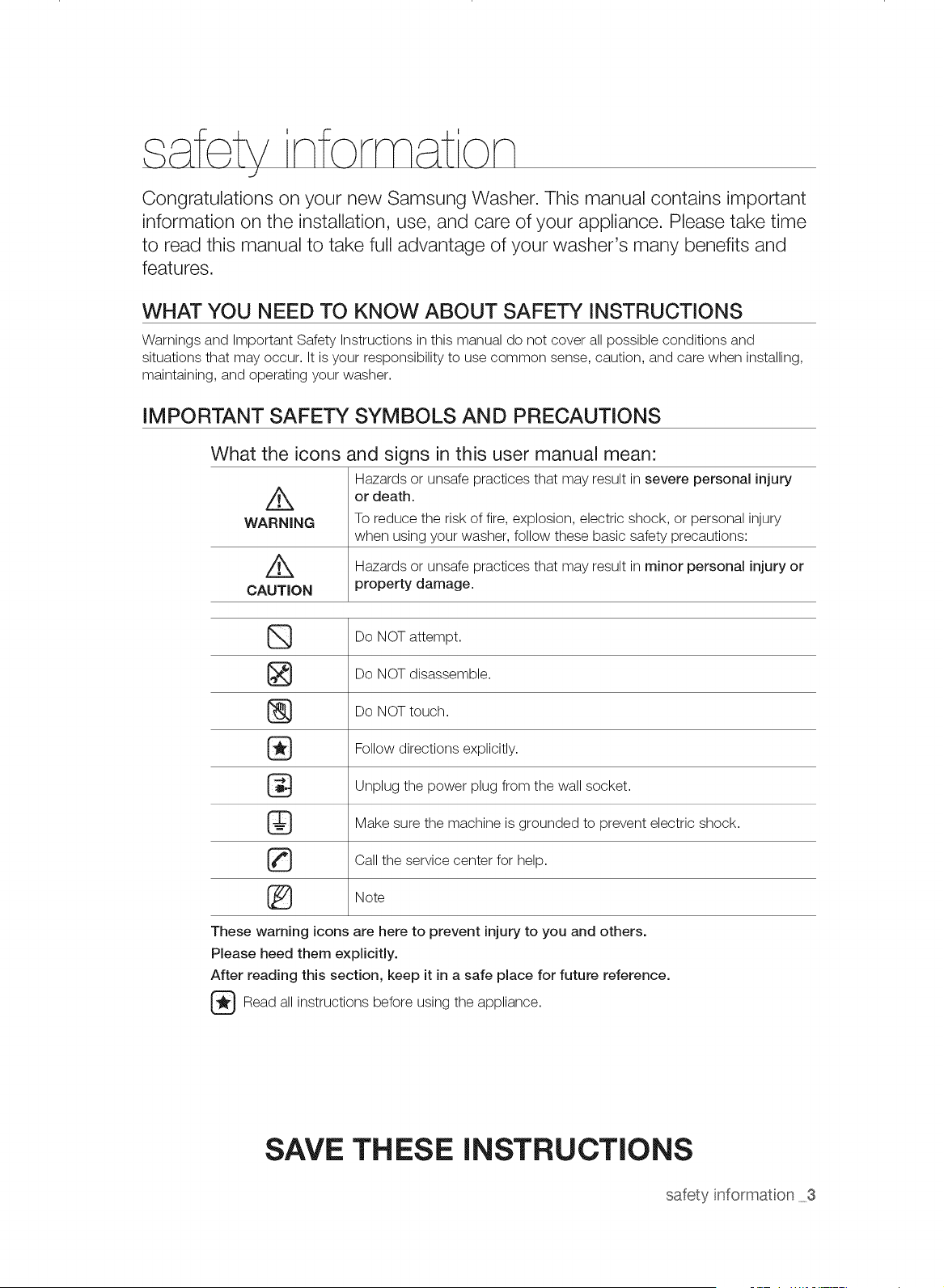

_f tv nforrn _ton

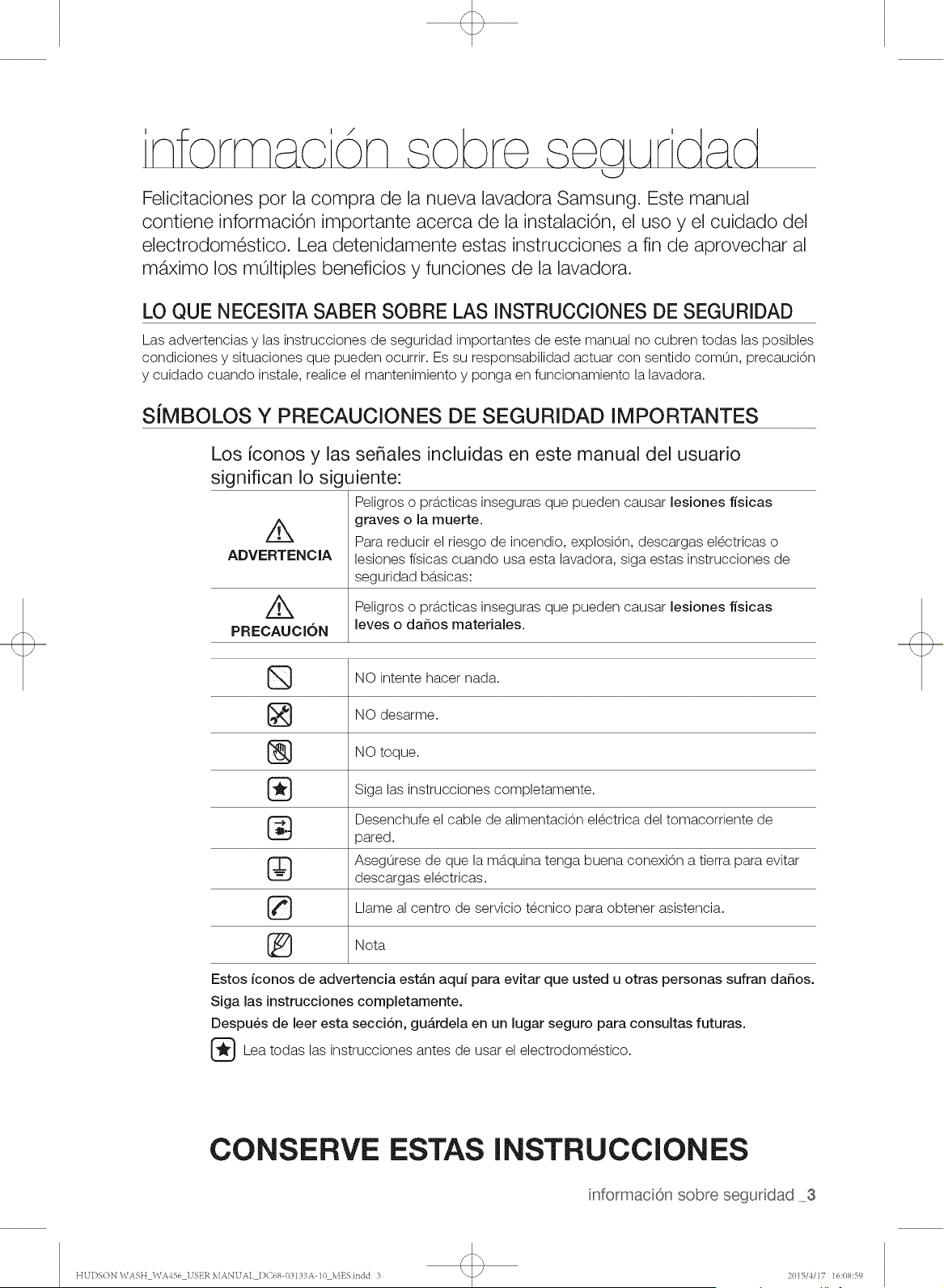

Congratulations on your new Samsung Washer. This manual contains important

information on the installation, use, and care of your appliance. Please take time

to read this manual to take full advantage of your washer's many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, and operating your washer.

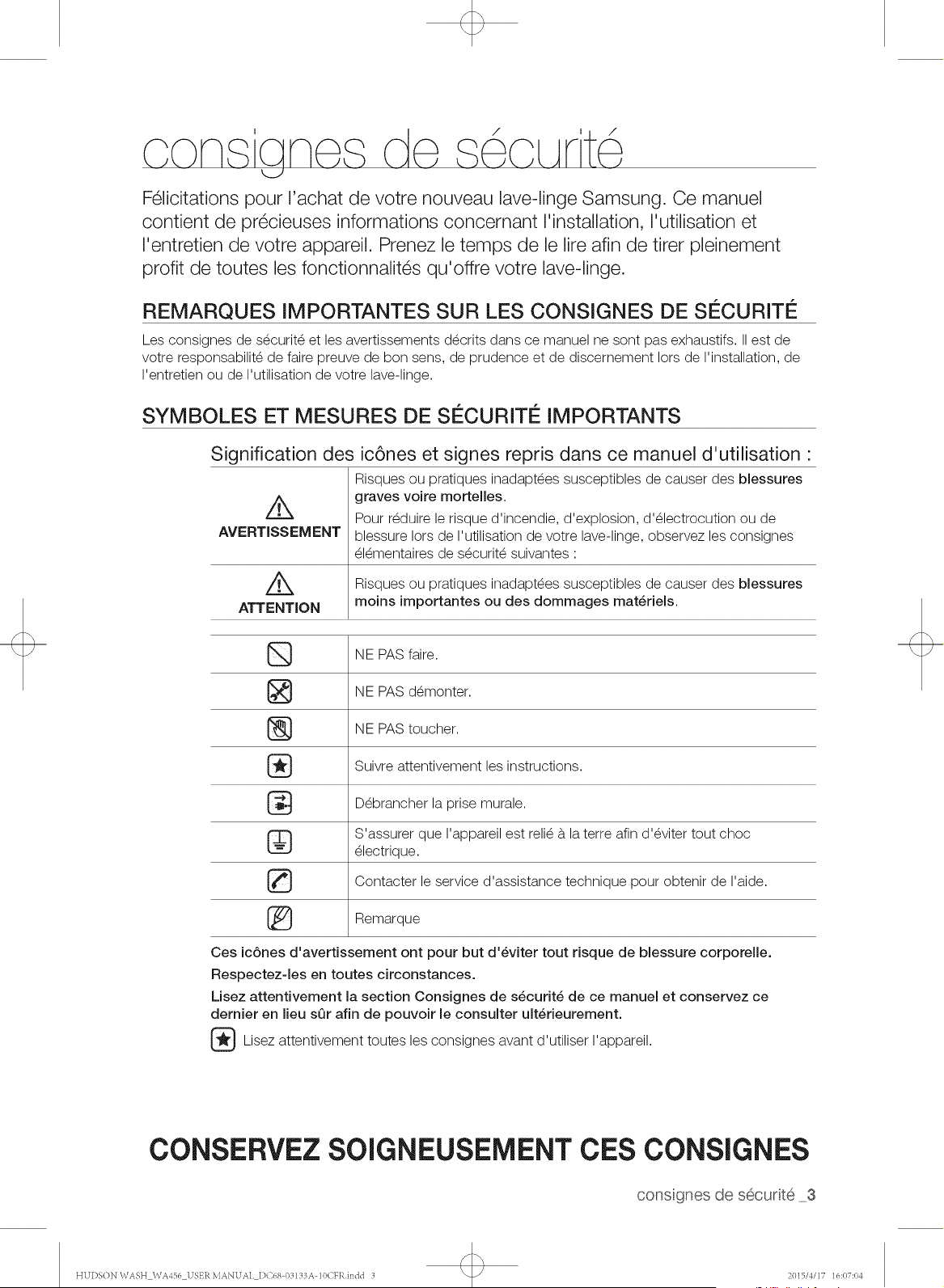

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

Hazards or unsafe practices that may result in severe personal injury

or death.

WARNING To reduce the risk of fire, explosion, electric shock, or personal injury

when using your washer, follow these basic safety precautions:

/_ Hazards or unsafe practices that may result in minor personal injury or

CAUTION property damage.

Do NOT attempt.

Do NOT disassemble.

(_ Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning icons are here to prevent injury to you and others.

Please heed them explicitly.

After reading this section, keep it in a safe place for future reference.

_Read all instructions before the

using appliance.

SAVE THESE INSTRUCTIONS

safety information 3

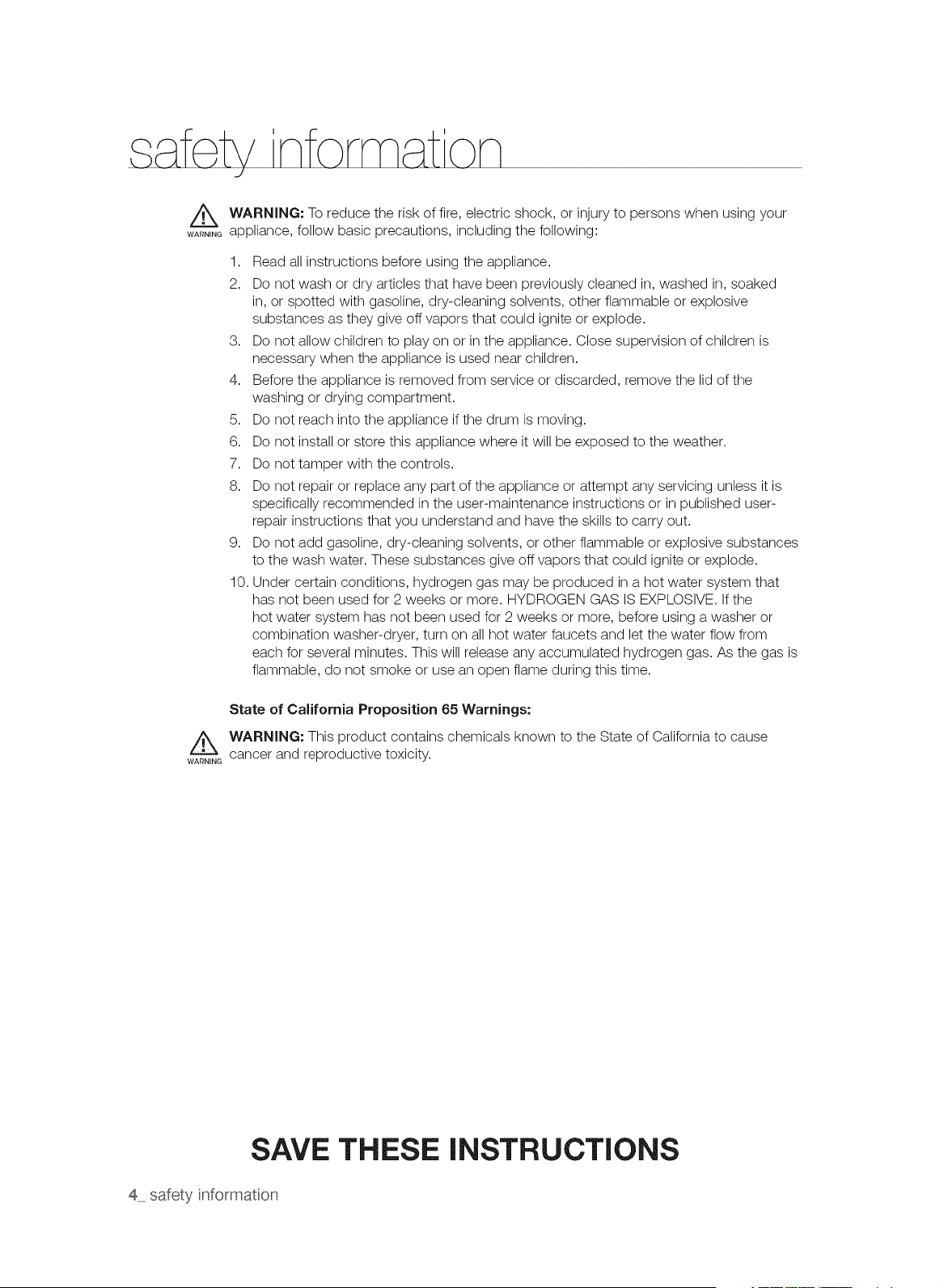

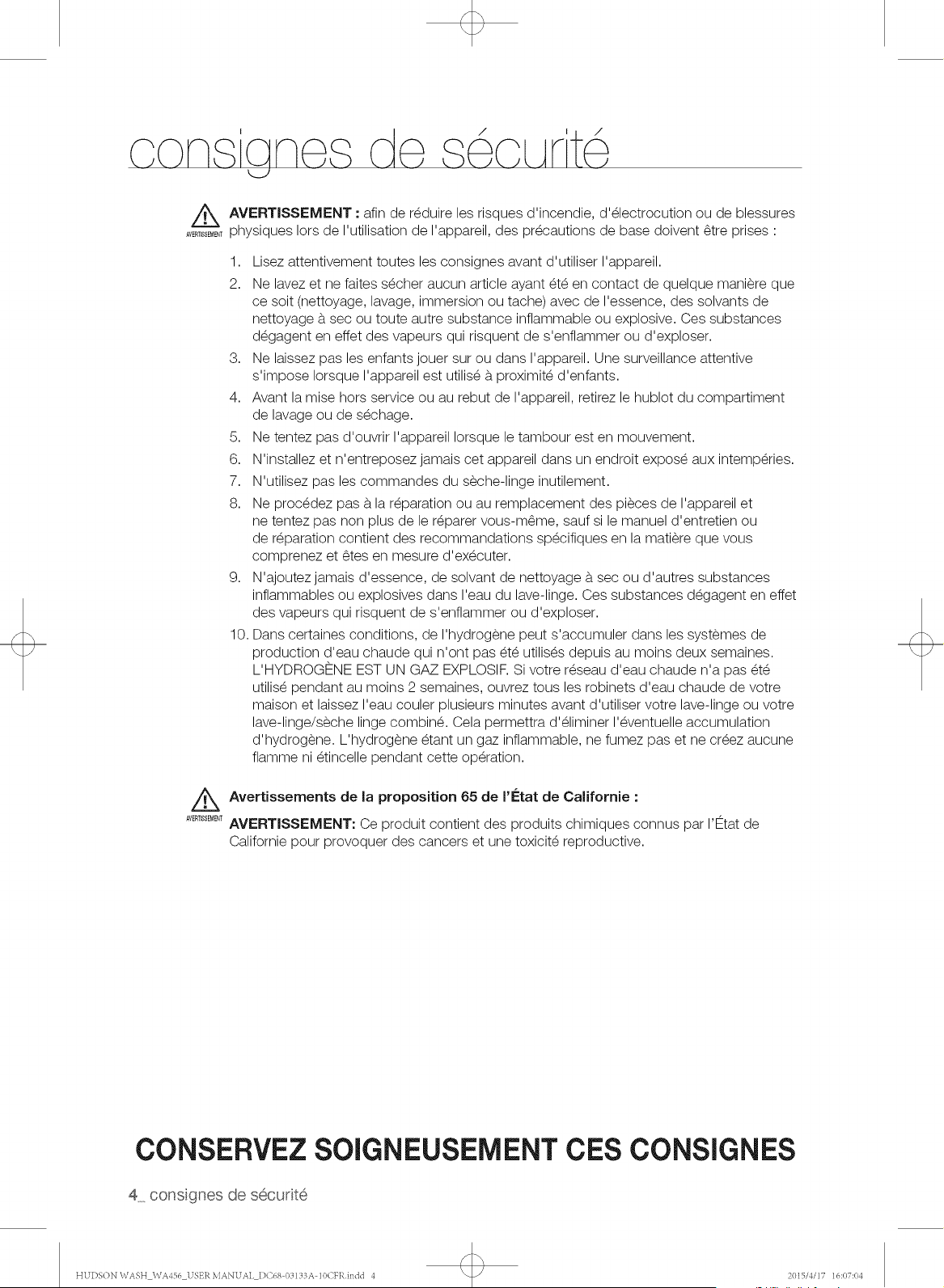

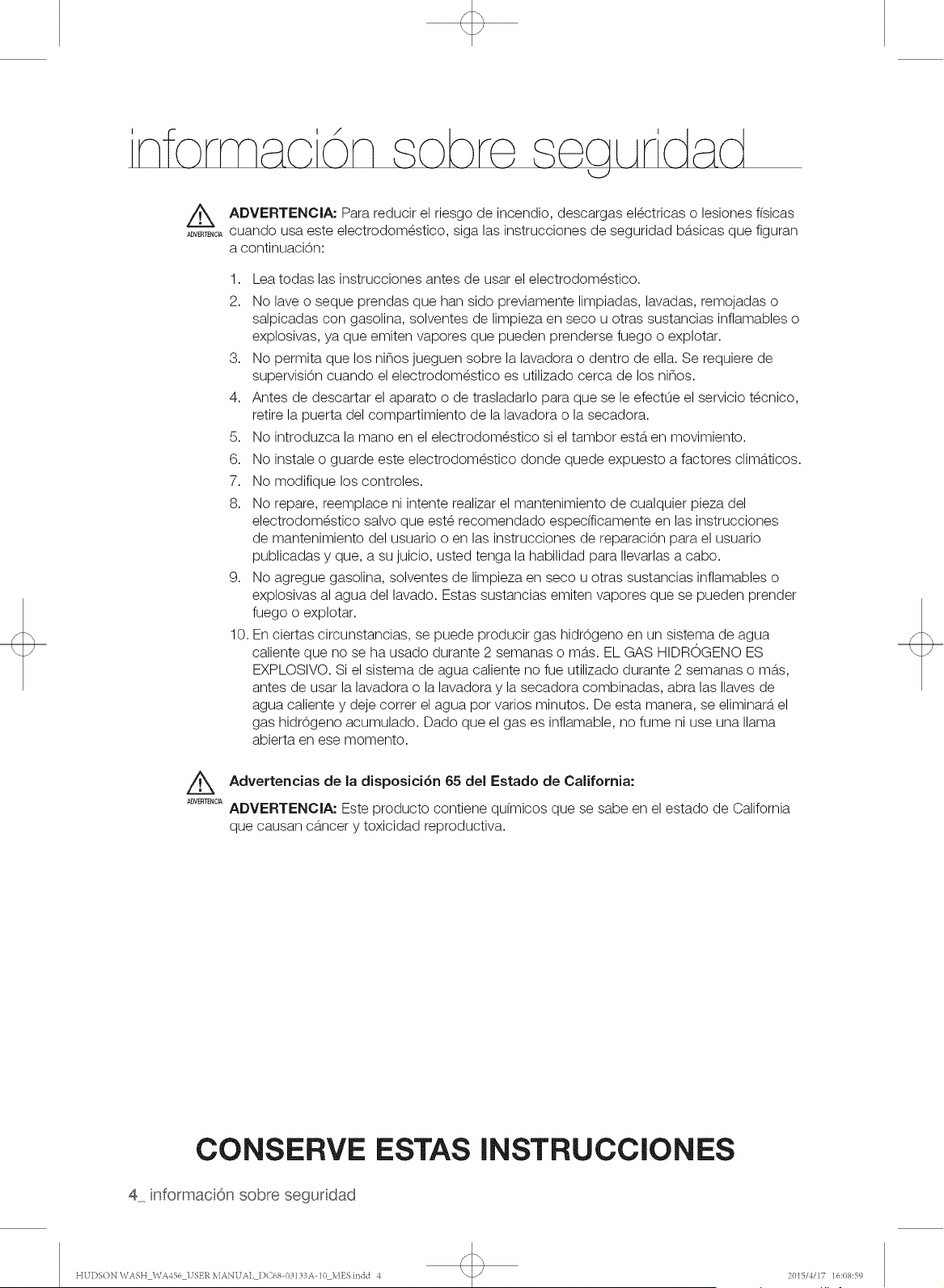

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

WAnNiNGappliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.

2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked

in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive

substances as they give off vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the lid of the

washing or drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with the controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless it is

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances

to the wash water. These substances give off vapors that could ignite or explode.

10. Under certain conditions, hydrogen gas may be produced in a hot water system that

has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the

hot water system has not been used for 2 weeks or more, before using a washer or

combination washer-dryer, turn on all hot water faucets and let the water flow from

each for several minutes. This will release any accumulated hydrogen gas. As the gas is

flammable, do not smoke or use an open flame during this time.

State of California Proposition 65 Warnings:

WARNING: This product contains chemicals known to the State of California to cause

WAnNiNGcancer and reproductive toxicity.

SAVE THESE INSTRUCTIONS

4 safety informaton

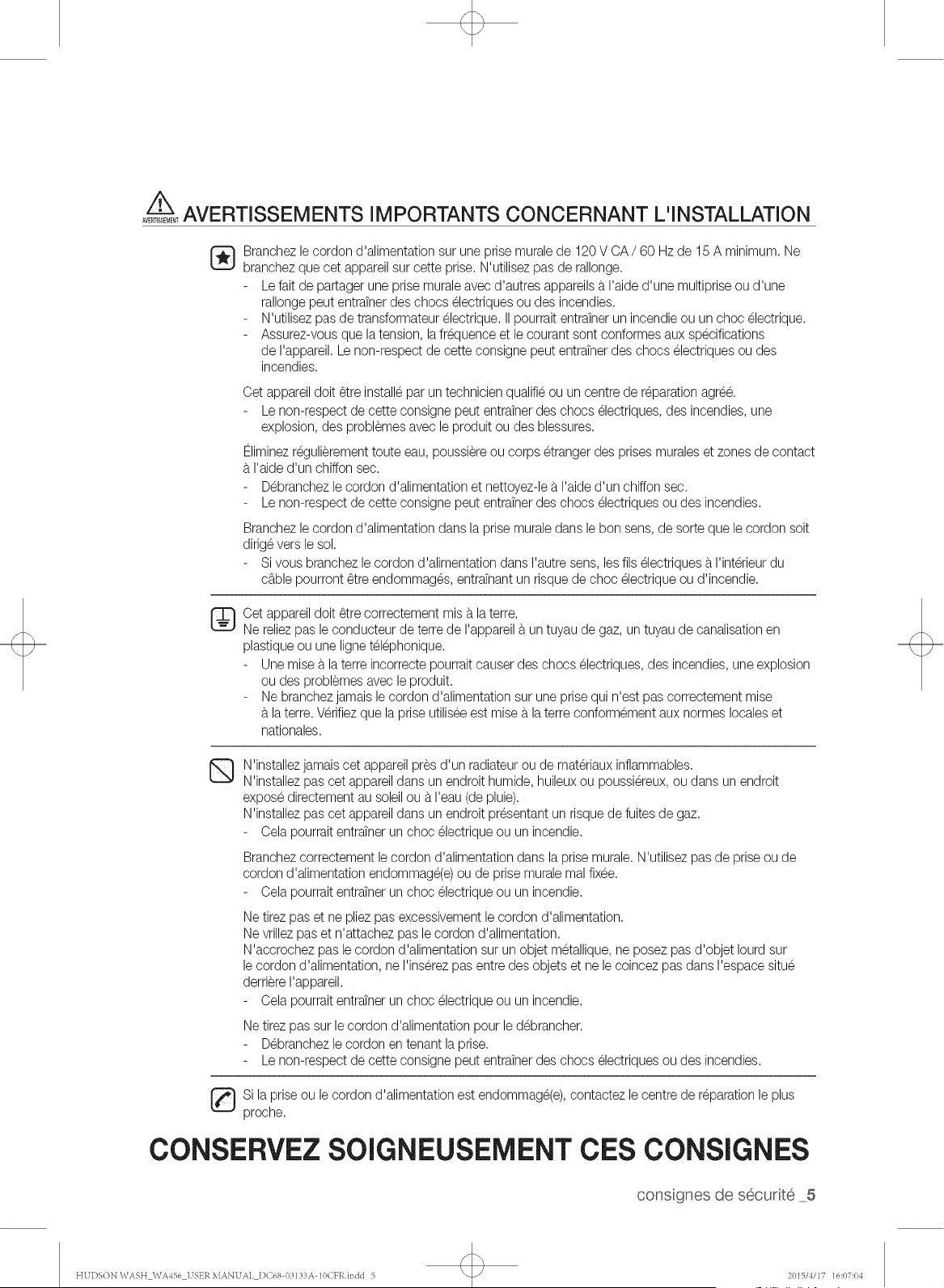

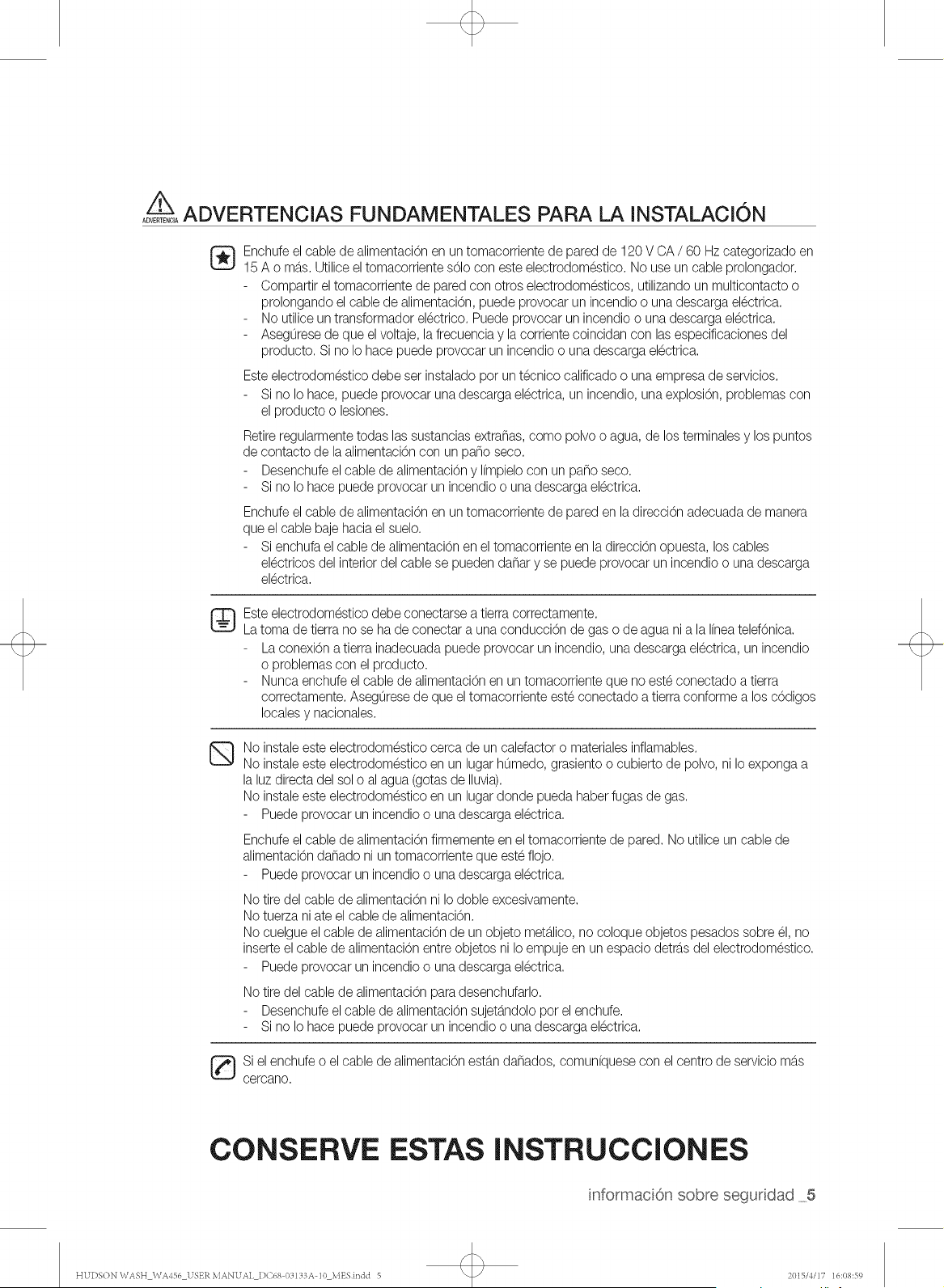

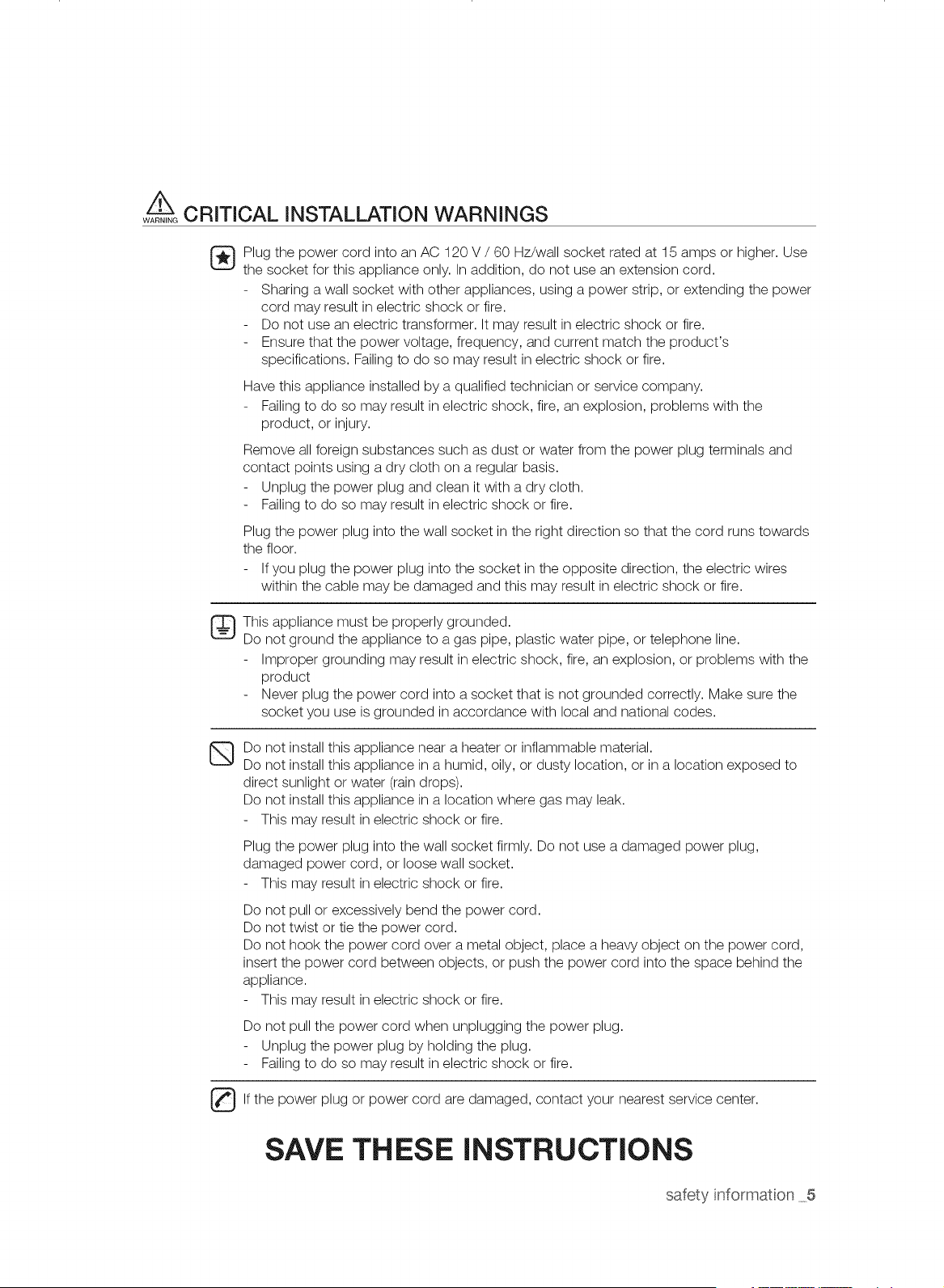

CRiTiCAL iNSTALLATiON WARNINGS

WARNING

Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use

the socket for this appliance only. In addition, do not use an extension cord.

Sharing a wall socket with other appliances, using a power strip, or extending the power

cord may result in electric shock or fire.

Do not use an electric transformer. It may result in electric shock or fire.

Ensure that the power voltage, frequency, and current match the product's

specifications. Failing to do so may result in electric shock or fire.

Have this appliance installed by a qualified technician or service company.

Failing to do so may result in electric shock, fire, an explosion, problems with the

product, or injury.

Remove all foreign substances such as dust or water from the power plug terminals and

contact points using a dry cloth on a regular basis.

Unplug the power plug and clean it with a dry cloth.

Failing to do so may result in electric shock or fire.

Plug the power plug into the wall socket in the right direction so that the cord runs towards

the floor.

If you plug the power plug into the socket in the opposite direction, the electric wires

within the cable may be damaged and this may result in electric shock or fire.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

Improper grounding may result in electric shock, fire, an explosion, or problems with the

product

Never plug the power cord into a socket that is not grounded correctly. Make sure the

socket you use is grounded in accordance with local and national codes.

Do not install this appliance near a heater or inflammable material.

Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to

direct sunlight or water (rain drops).

Do not install this appliance in a location where gas may leak.

This may result in electric shock or fire.

Plug the power plug into the wall socket firmly. Do not use a damaged power plug,

damaged power cord, or loose wall socket.

This may result in electric shock or fire.

Do not pull or excessively bend the power cord.

Do not twist or tie the power cord.

Do not hook the power cord over a metal object, place a heavy object on the power cord,

insert the power cord between objects, or push the power cord into the space behind the

appliance.

This may result in electric shock or fire.

Do not pull the power cord when unplugging the power plug.

Unplug the power plug by holding the plug.

Failing to do so may result in electric shock or fire.

_lf the power plug or power cord are damaged, contact your nearest service center.

SAVE THESE INSTRUCTIONS

safety information 5

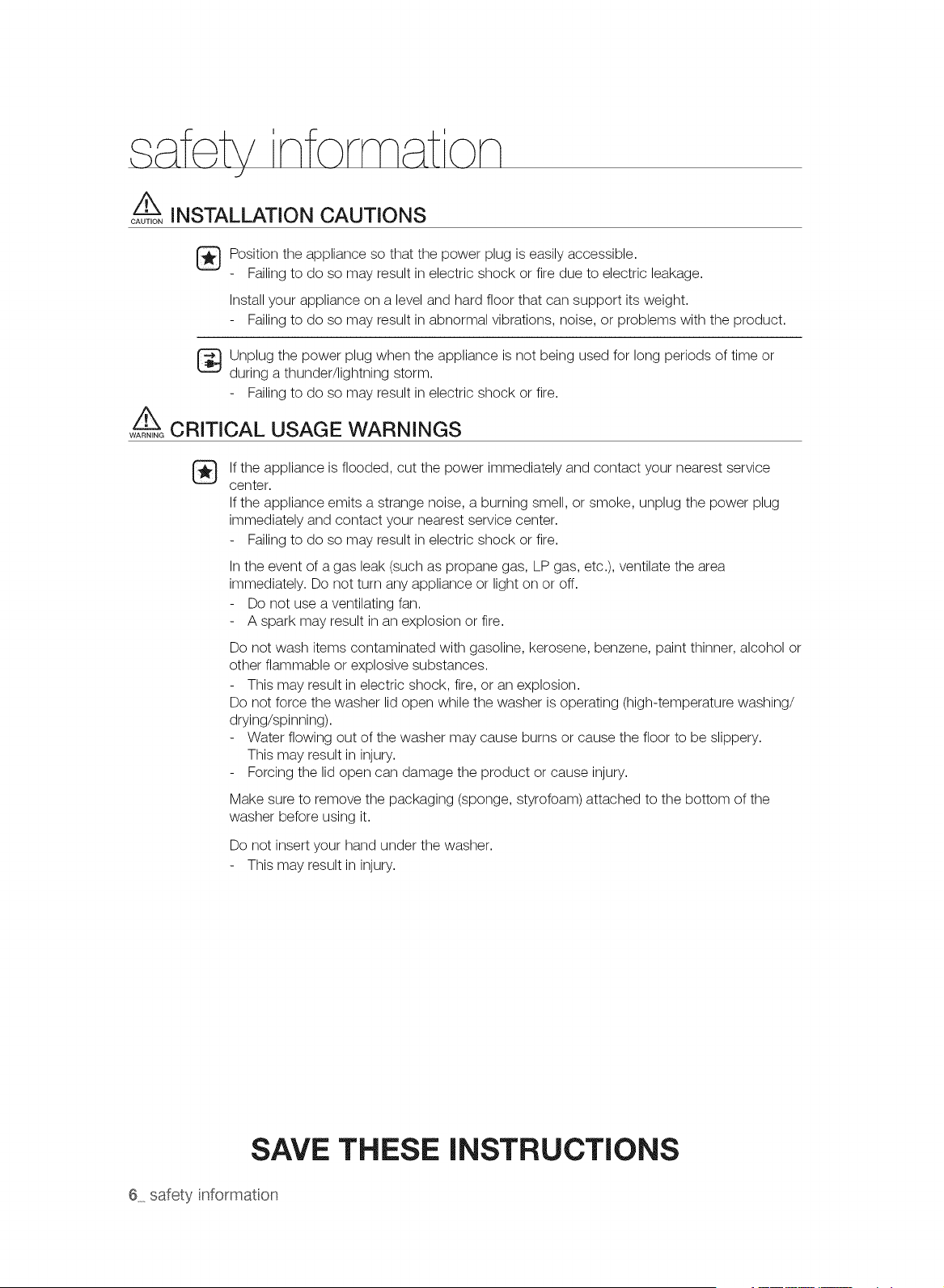

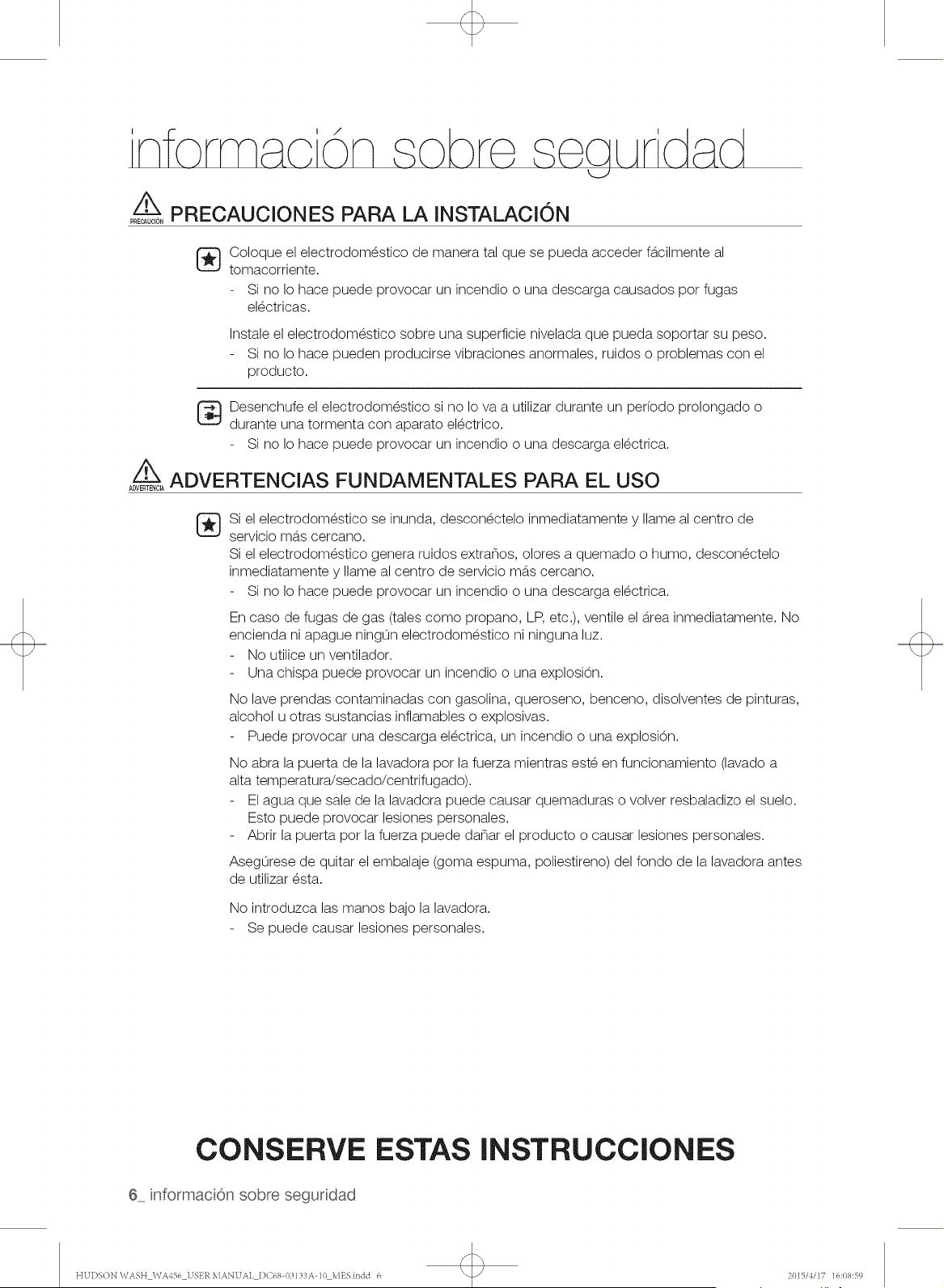

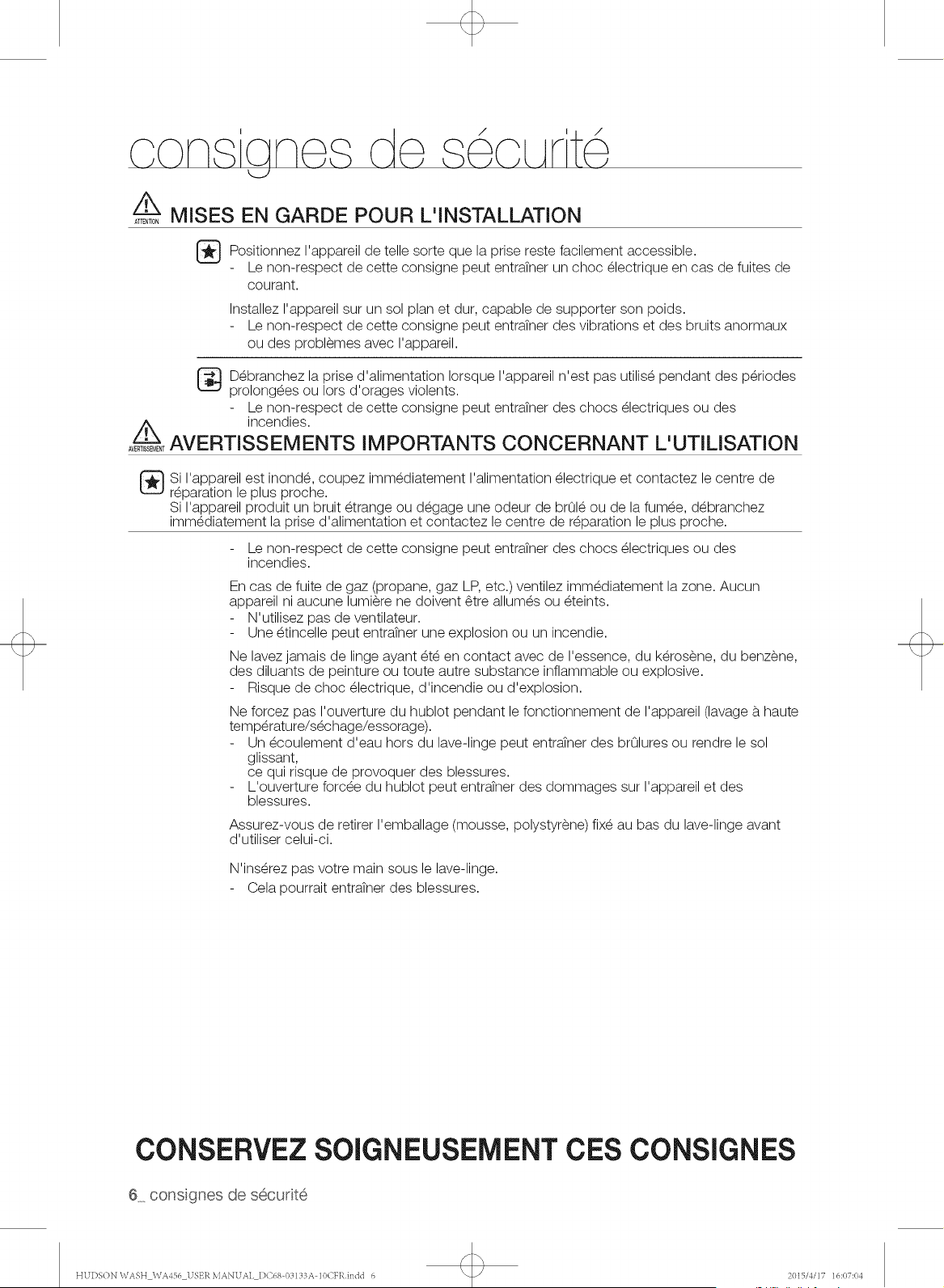

INSTALLATION CAUTIONS

CAUTION

_ Position the appliance so that the power plug is easily accessible.

Failing to do so may result in electric shock or fire due to electric leakage.

Install your appliance on a level and hard floor that can support its weight.

Failing to do so may result in abnormal vibrations, noise, or problems with the product.

_ nplug the power plug when the appliance is not being used for long periods of time or

during a thunder/lightning storm.

Failing to do so may result in electric shock or fire.

CRITICAL USAGE WARNINGS

WARNING

If the appliance is flooded, cut the power immediately and contact your nearest service

center.

If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug

immediately and contact your nearest service center.

Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area

immediately. Do not turn any appliance or light on or off.

Do not use a ventilating fan.

A spark may result in an explosion or fire.

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or

other flammable or explosive substances.

This may result in electric shock, fire, or an explosion.

Do not force the washer lid open while the washer is operating (high-temperature washing/

drying/spinning).

Water flowing out of the washer may cause burns or cause the floor to be slippery.

This may result in injury.

Forcing the lid open can damage the product or cause injury.

Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the

washer before using it.

Do not insert your hand under the washer.

This may result in injury.

SAVE THESE INSTRUCTIONS

6 safety informaton

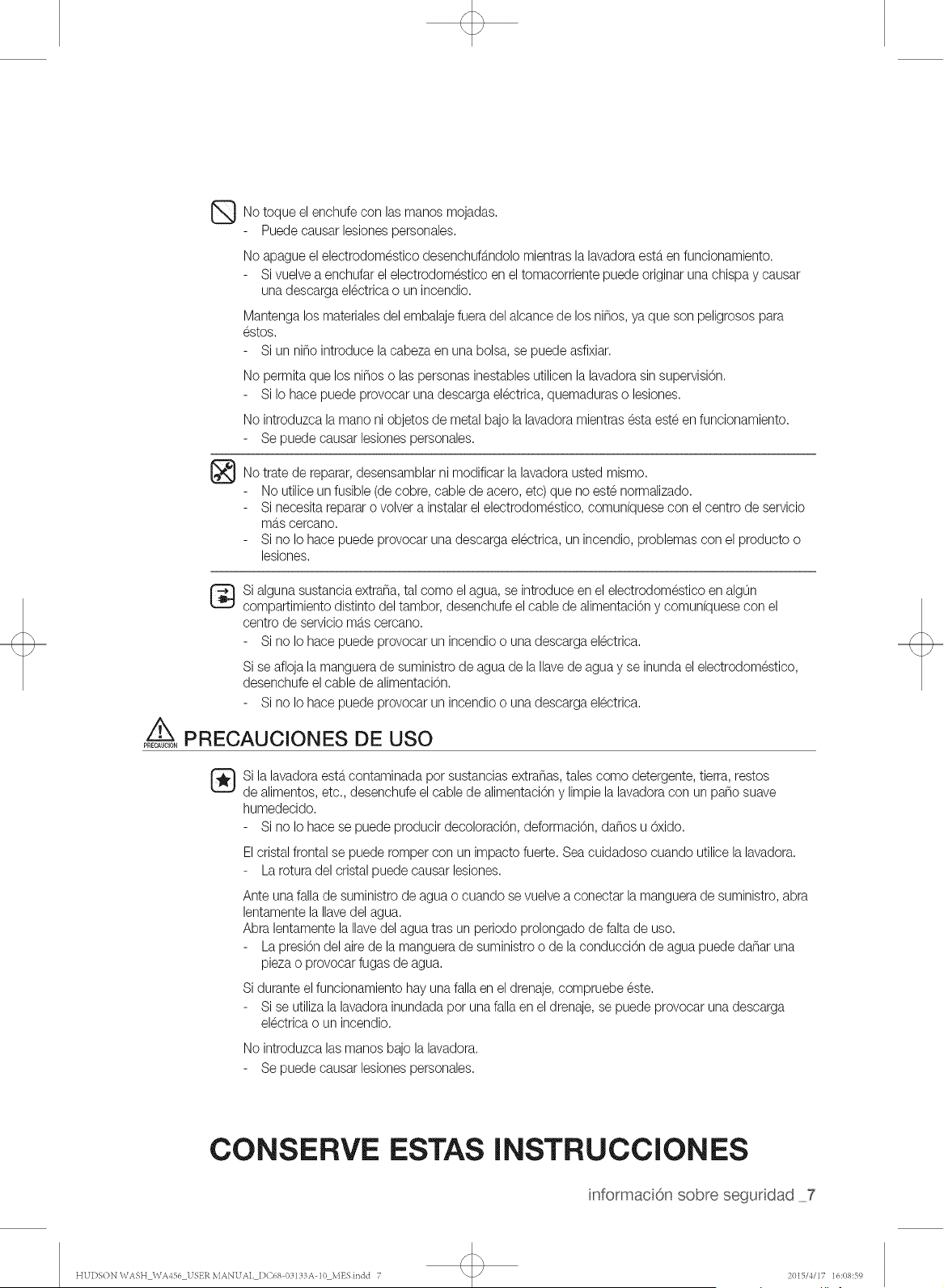

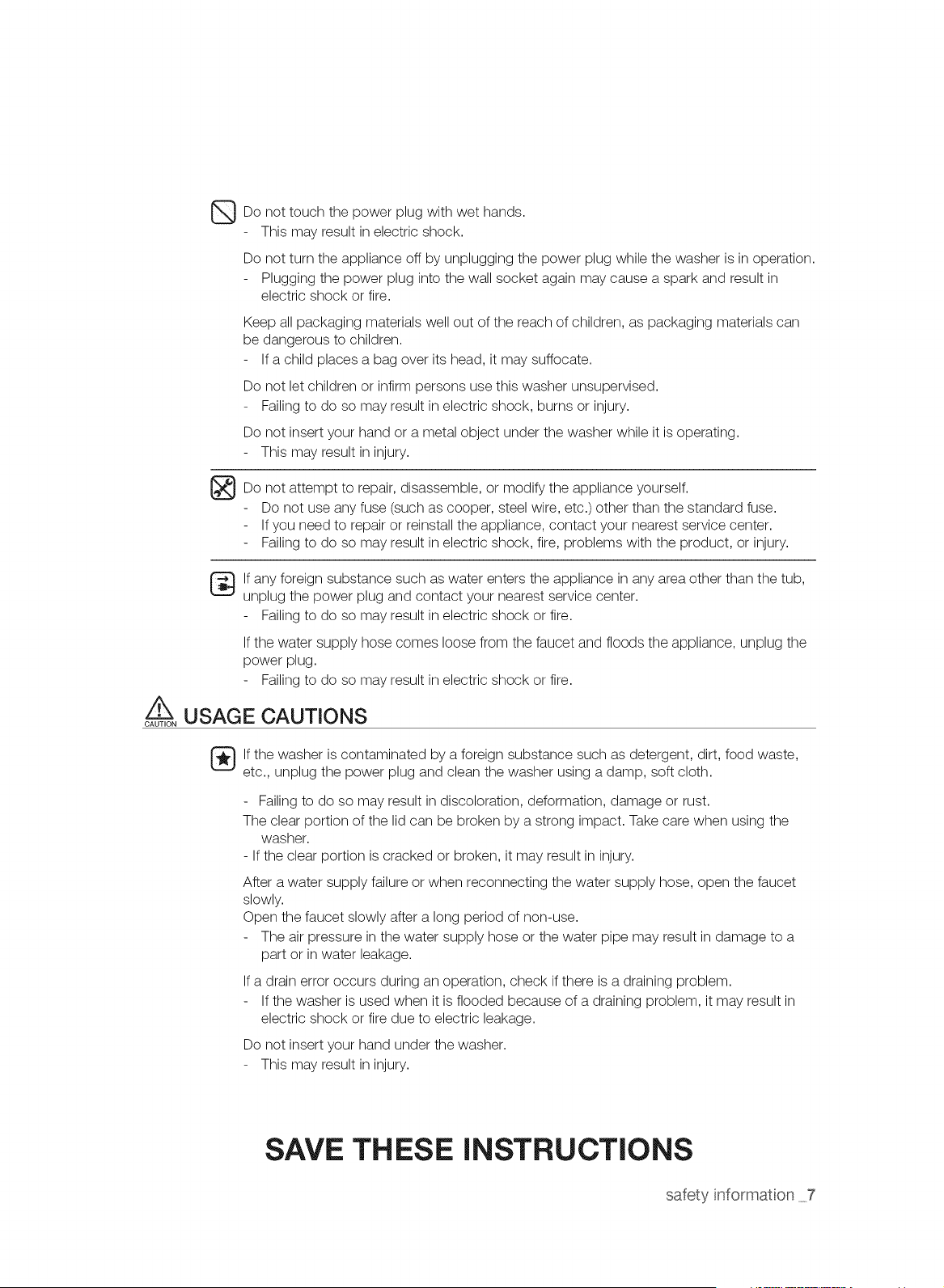

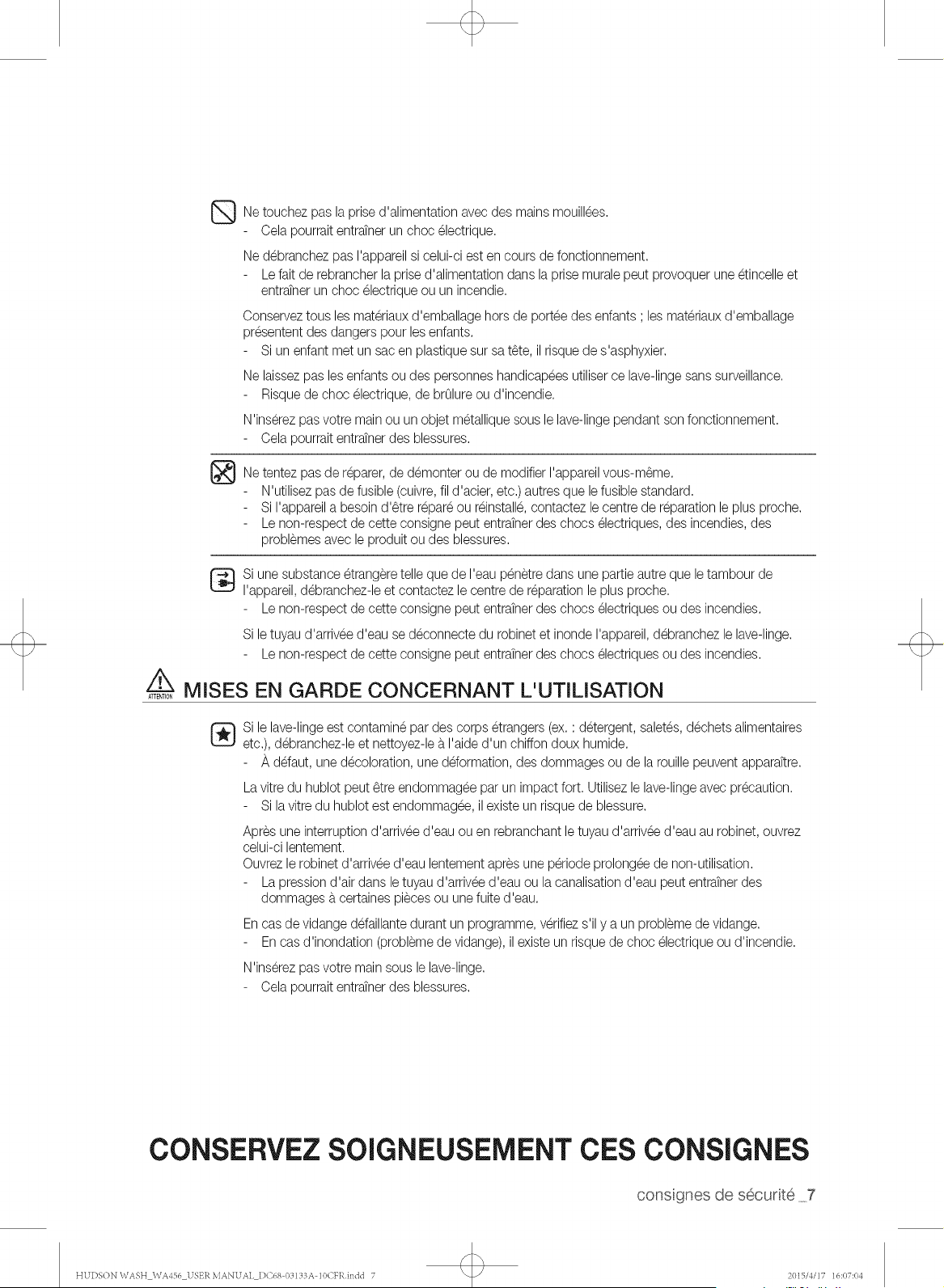

Q Do not touch the with wet hands.

power plug

This may result in electric shock.

Do not turn the appliance off by unplugging the power plug while the washer is in operation.

Plugging the power plug into the wall socket again may cause a spark and result in

electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can

be dangerous to children.

If a child places a bag over its head, it may suffocate.

Do not let children or infirm persons use this washer unsupervised.

Failing to do so may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the washer while it is operating.

This may result in injury.

_Do not attempt to repair, disassemble, or modify appliance yourself.

the

Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.

If you need to repair or reinstall the appliance, contact your nearest service center.

Failing to do so may result in electric shock, fire, problems with the product, or injury.

lf any foreign substance such as water enters the appliance in any area other than the tub,

unplug the power plug and contact your nearest service center.

Failing to do so may result in electric shock or fire.

If the water supply hose comes loose from the faucet and floods the appliance, unplug the

power plug.

Failing to do so may result in electric shock or fire.

USAGE CAUTIONS

CAUTION

lf the washer is contaminated by a foreign substance such as detergent, dirt, food waste,

etc., unplug the power plug and clean the washer using a damp, soft cloth.

Failing to do so may result in discoloration, deformation, damage or rust.

The clear portion of the lid can be broken by a strong impact. Take care when using the

washer.

- If the clear portion is cracked or broken, it may result in injury.

After a water supply failure or when reconnecting the water supply hose, open the faucet

slowly.

Open the faucet slowly after a long period of non-use.

The air pressure in the water supply hose or the water pipe may result in damage to a

part or in water leakage.

If a drain error occurs during an operation, check if there is a draining problem.

If the washer is used when it is flooded because of a draining problem, it may result in

electric shock or fire due to electric leakage.

Do not insert your hand under the washer.

This may result in injury.

SAVE THESE INSTRUCTIONS

safety information 7

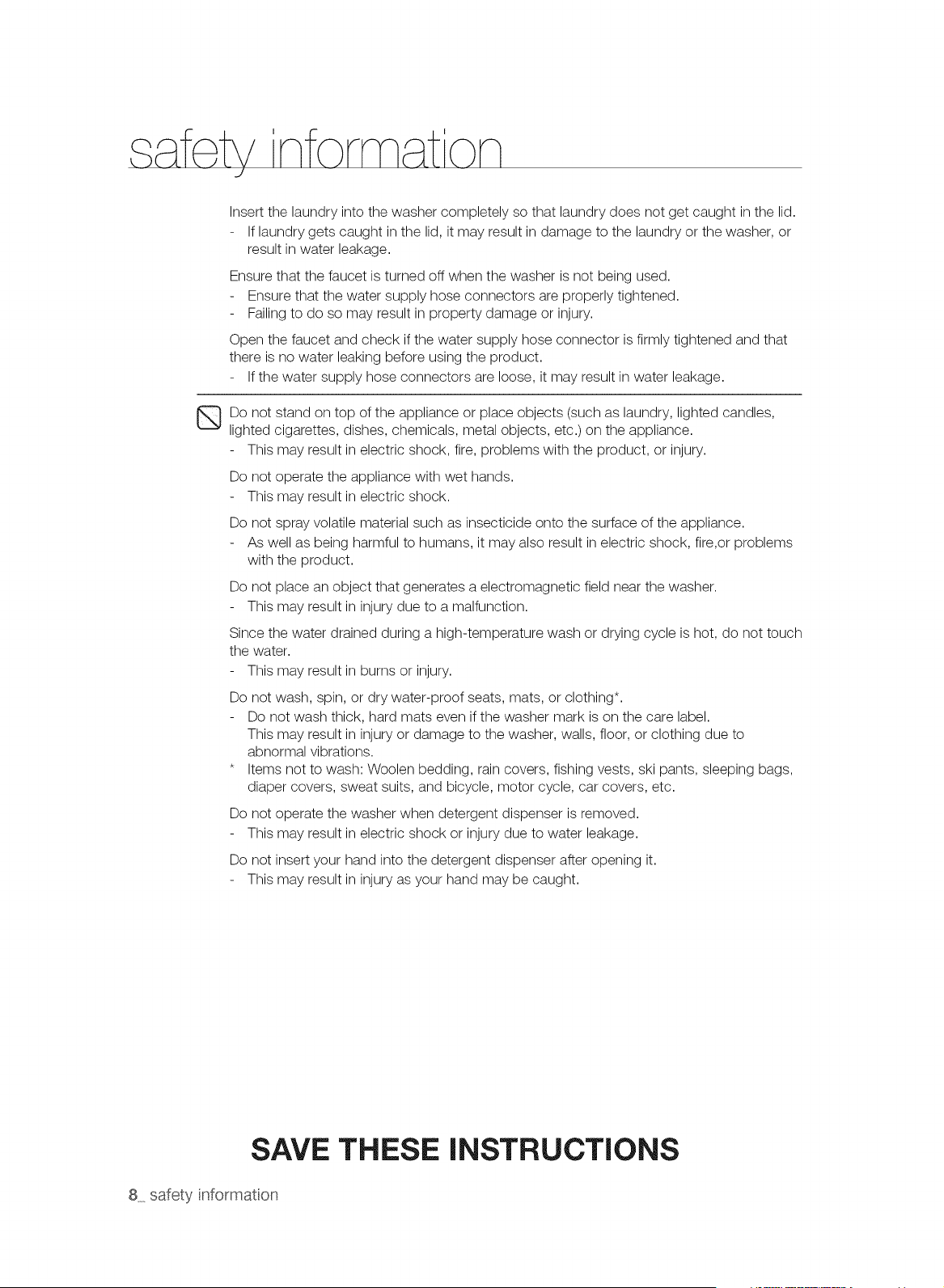

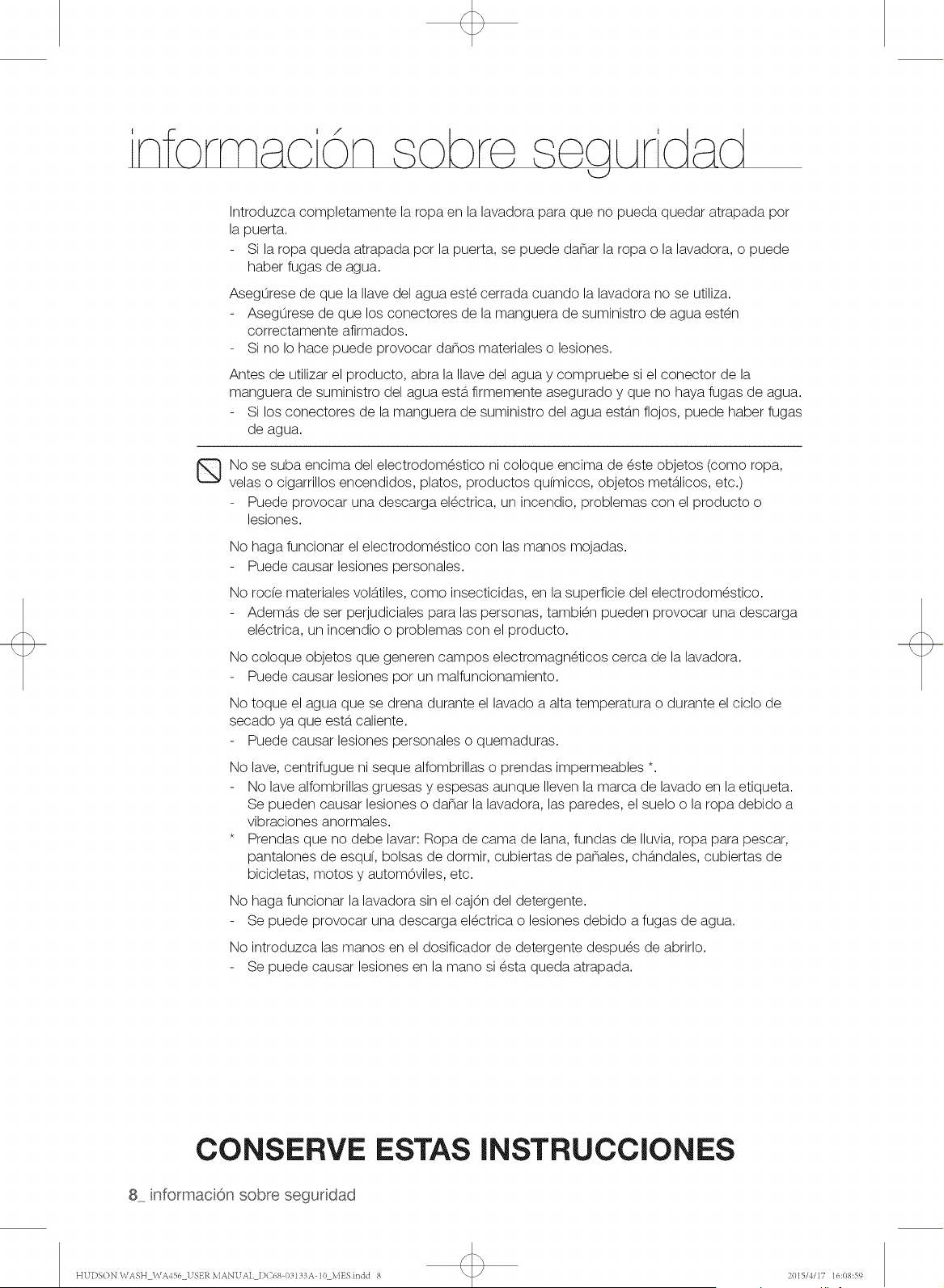

Insert the laundry into the washer completely so that laundry does not get caught in the lid.

If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or

result in water leakage.

Ensure that the faucet is turned off when the washer is not being used.

Ensure that the water supply hose connectors are properly tightened.

Failing to do so may result in property damage or injury.

Open the faucet and check if the water supply hose connector is firmly tightened and that

there is no water leaking before using the product.

If the water supply hose connectors are loose, it may result in water leakage.

Q o not stand on top of the appliance or place objects (such as laundry, lighted candles,

lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the appliance.

As well as being harmful to humans, it may also result in electric shock, fire,or problems

with the product.

Do not place an object that generates a electromagnetic field near the washer.

This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not touch

the water.

This may result in burns or injury.

Do not wash, spin, or dry water-proof seats, mats, or clothing*.

Do not wash thick, hard mats even if the washer mark is on the care label.

This may result in injury or damage to the washer, walls, floor, or clothing due to

abnormal vibrations.

* Items not to wash: Woolen bedding, rain covers, fishing vests, ski pants, sleeping bags,

diaper covers, sweat suits, and bicycle, motor cycle, car covers, etc.

Do not operate the washer when detergent dispenser is removed.

This may result in electric shock or injury due to water leakage.

Do not insert your hand into the detergent dispenser after opening it.

This may result in injury as your hand may be caught.

SAVE THESE INSTRUCTIONS

8 safety informaton

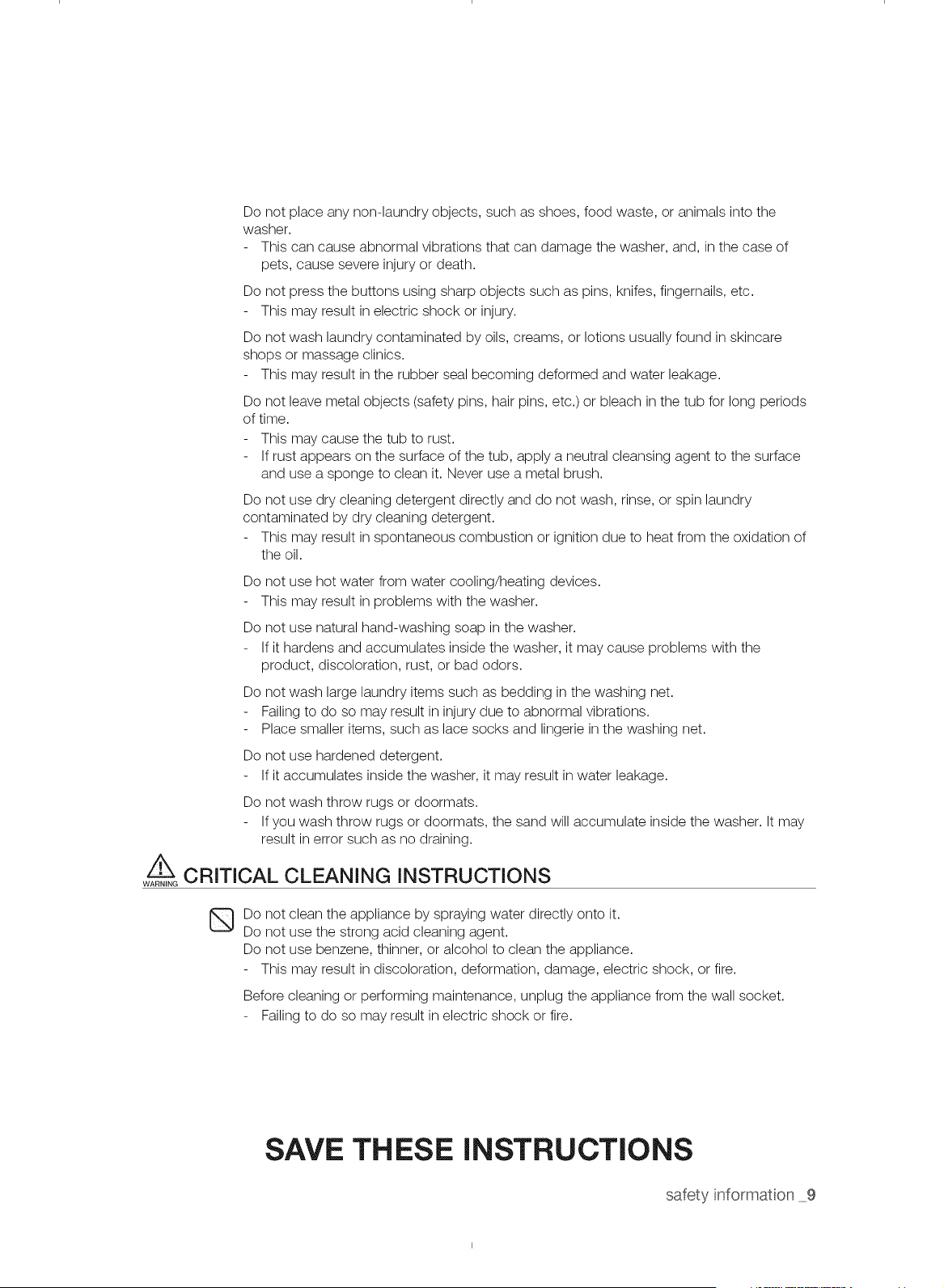

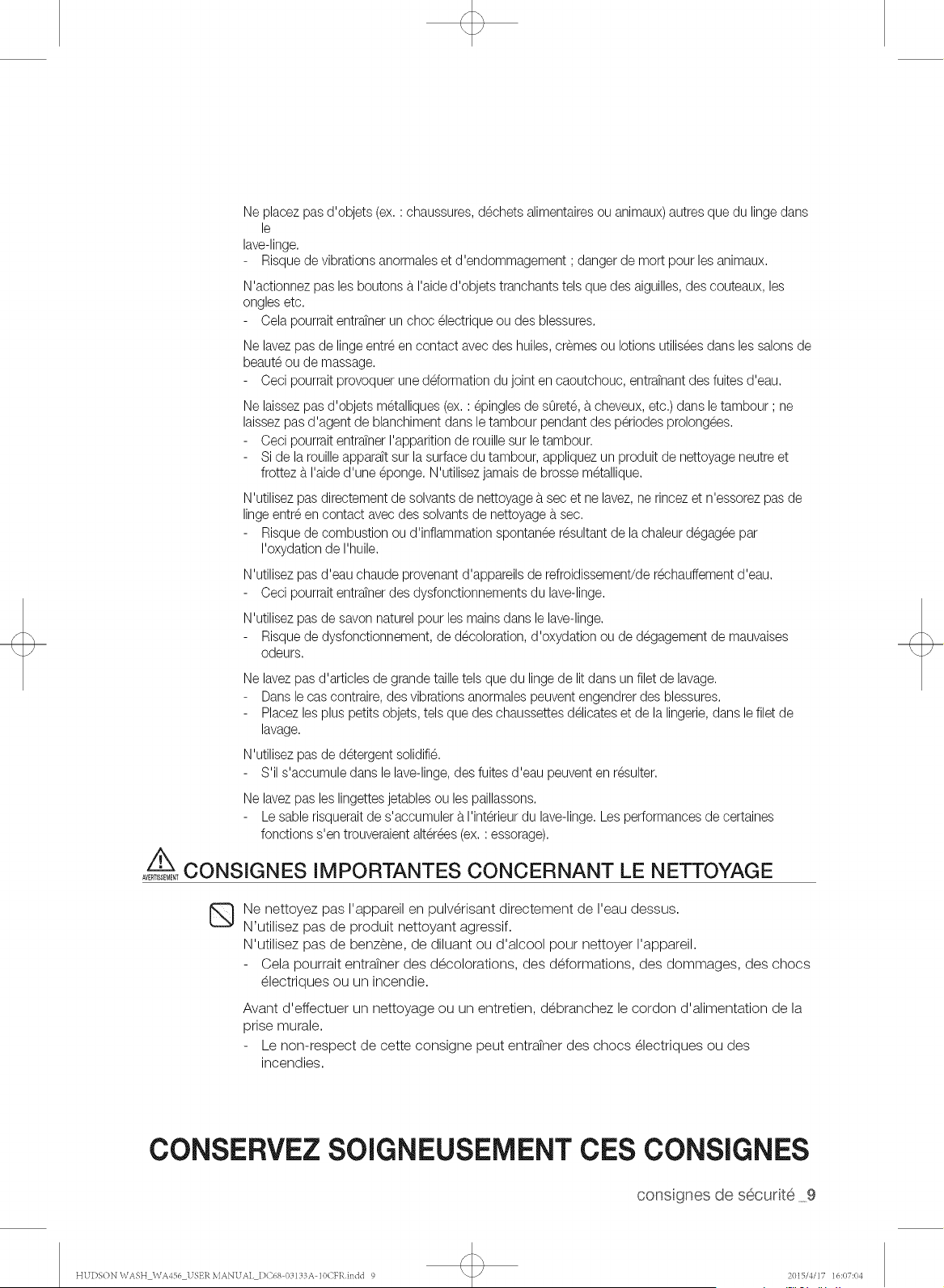

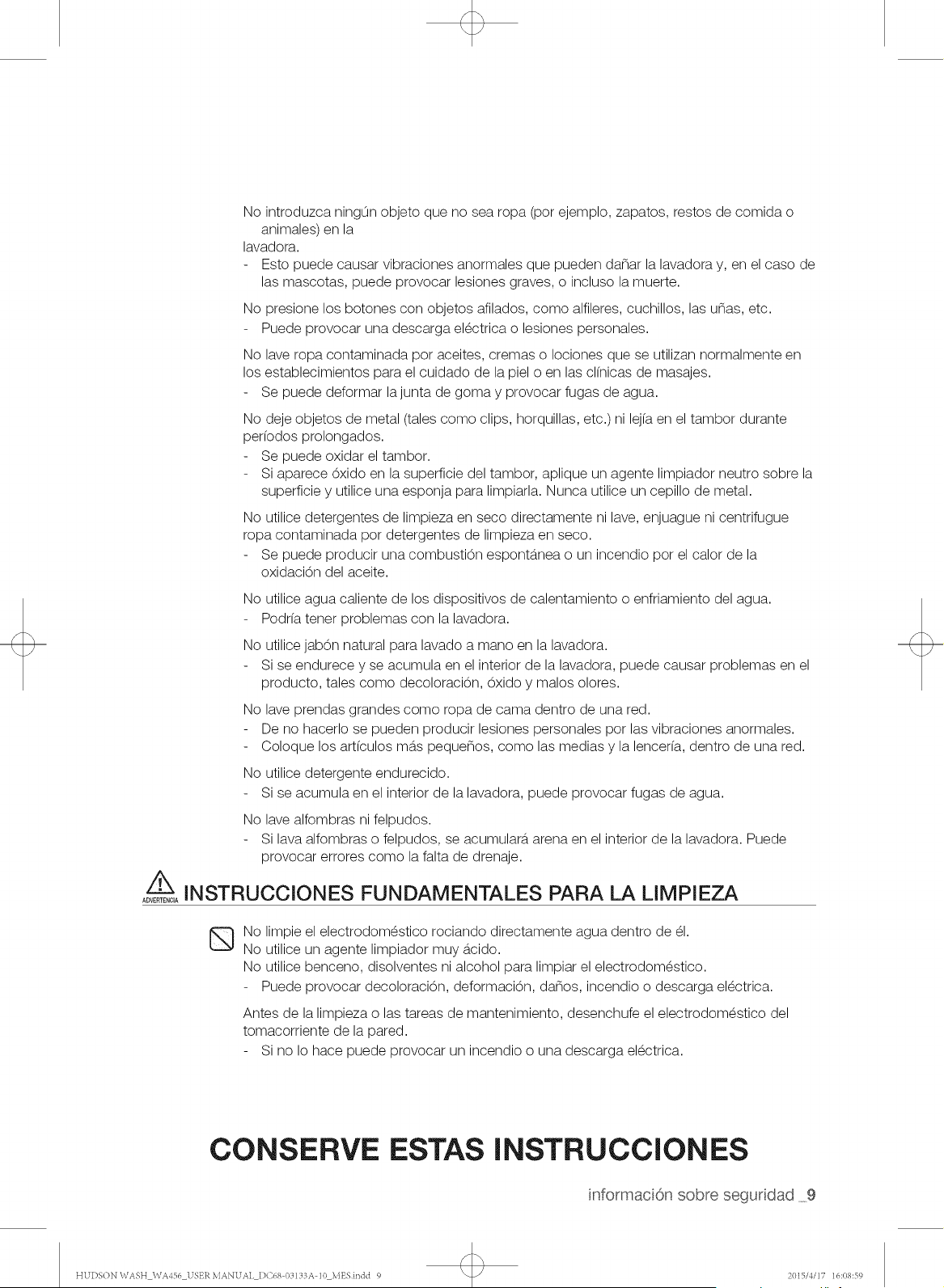

Do not place any non-laundry objects, such as shoes, food waste, or animals into the

washer.

This can cause abnormal vibrations that can damage the washer, and, in the case of

pets, cause severe injury or death.

Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.

This may result in electric shock or injury.

Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare

shops or massage clinics.

This may result in the rubber seal becoming deformed and water leakage.

Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods

of time.

This may cause the tub to rust.

If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface

and use a sponge to clean it. Never use a metal brush.

Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry

contaminated by dry cleaning detergent.

This may result in spontaneous combustion or ignition due to heat from the oxidation of

the oil.

Do not use hot water from water cooling/heating devices.

This may result in problems with the washer.

Do not use natural hand-washing soap in the washer.

If it hardens and accumulates inside the washer, it may cause problems with the

product, discoloration, rust, or bad odors.

Do not wash large laundry items such as bedding in the washing net.

Failing to do so may result in injury due to abnormal vibrations.

Place smaller items, such as lace socks and lingerie in the washing net.

Do not use hardened detergent.

If it accumulates inside the washer, it may result in water leakage.

Do not wash throw rugs or doormats.

If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may

result in error such as no draining.

CRITICAL CLEANING INSTRUCTIONS

WARNING

Do not clean the appliance by spraying water directly onto it.

Do not use the strong acid cleaning agent.

Do not use benzene, thinner, or alcohol to clean the appliance.

This may result in discoloration, deformation, damage, electric shock, or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

Failing to do so may result in electric shock or fire.

SAVE THESE iNSTRUCTiONS

safety information 9

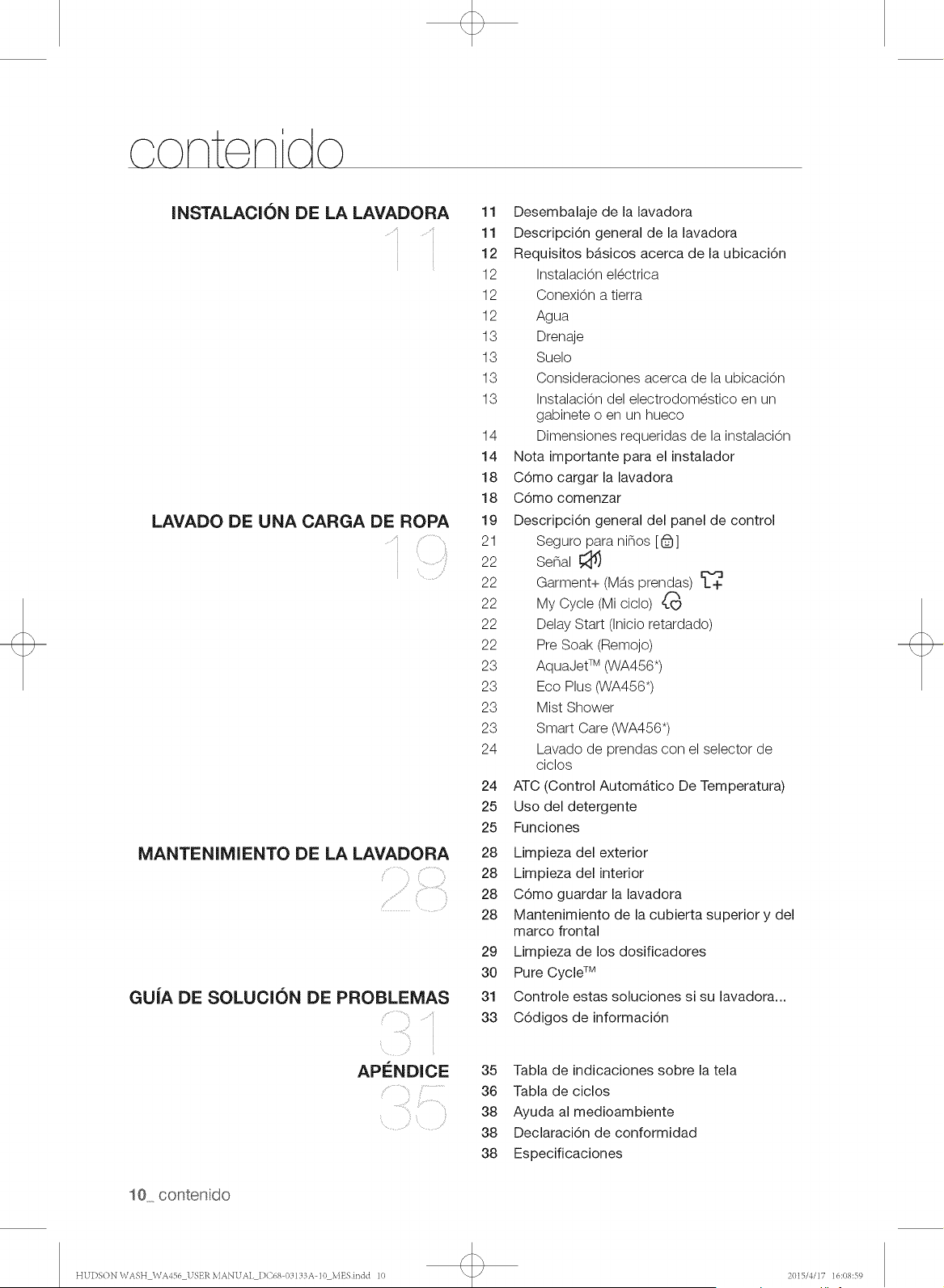

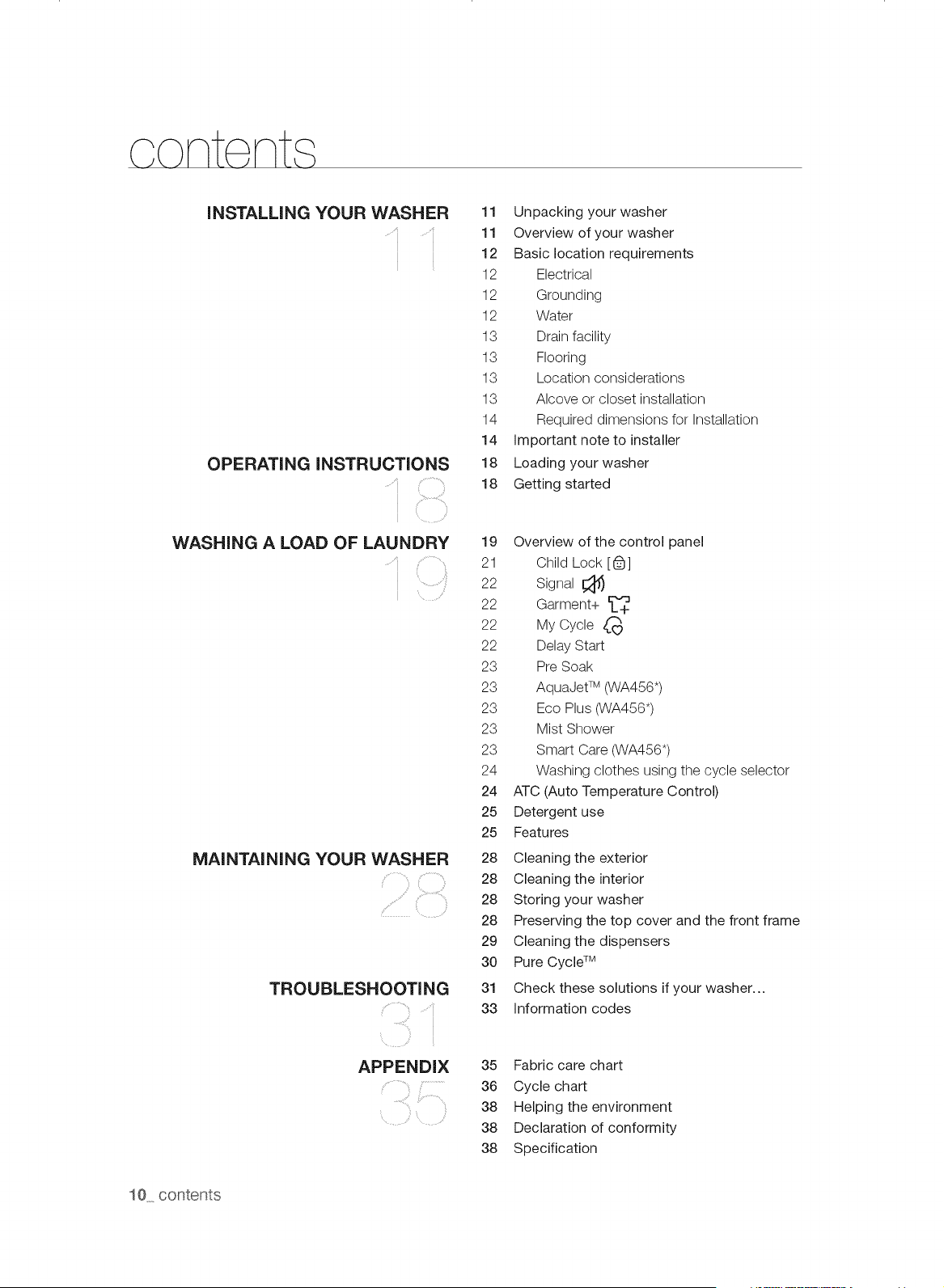

cont nt

INSTALLING YOUR WASHER

OPERATING iNSTRUCTiONS

WASHING A LOAD OF LAUNDRY

MAiNTAiNiNG YOUR WASHER

TROUBLESHOOTING

APPENDIX

11 Unpacking your washer

11 Overview of your washer

12 Basic location requirements

12 Electrical

12 Grounding

12 Water

13 Drain facility

13 Flooring

13 Location considerations

13 Alcove or closet installation

14 Required dimensions for Installation

14 Important note to installer

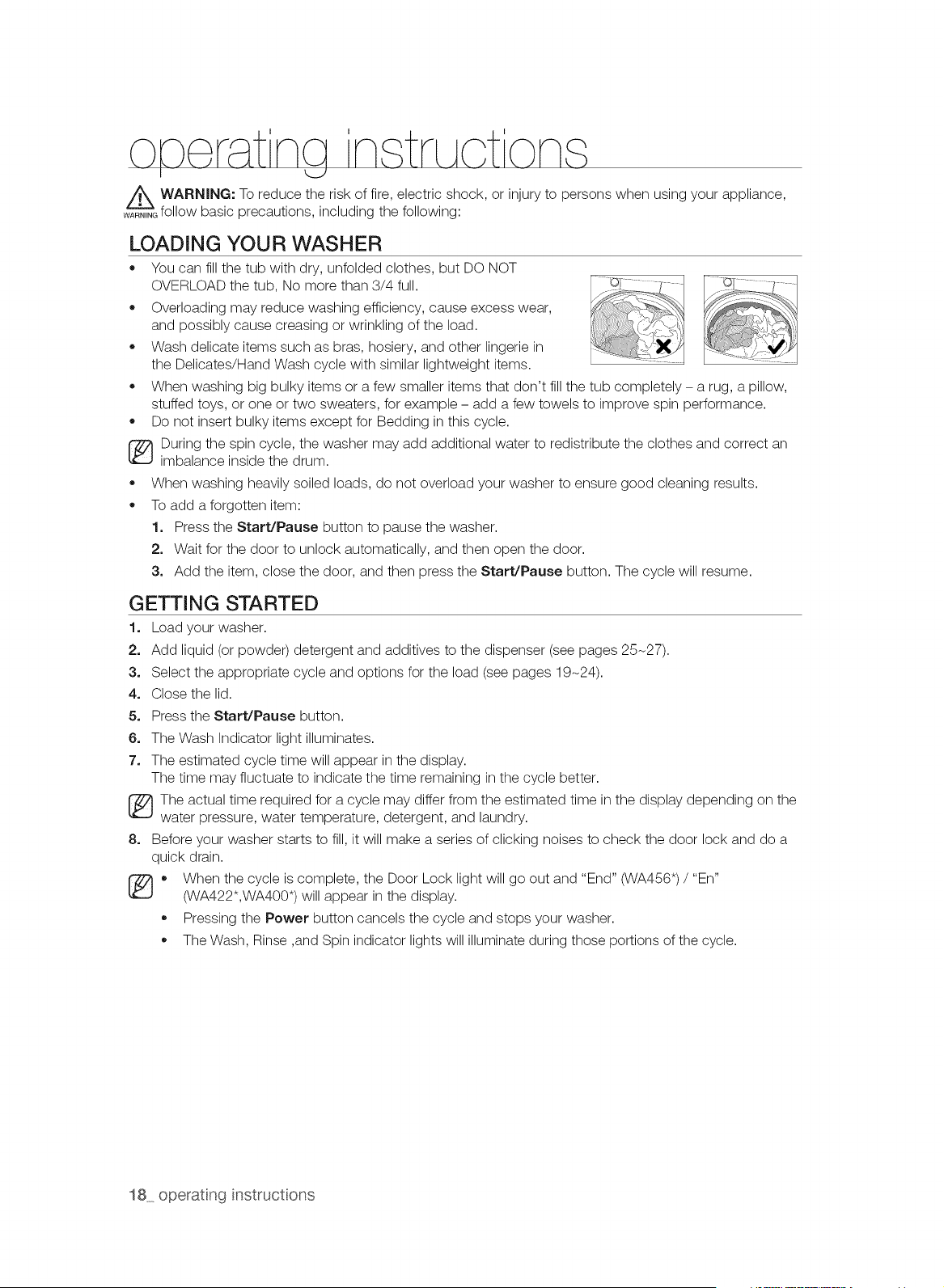

18 Loading your washer

18 Getting started

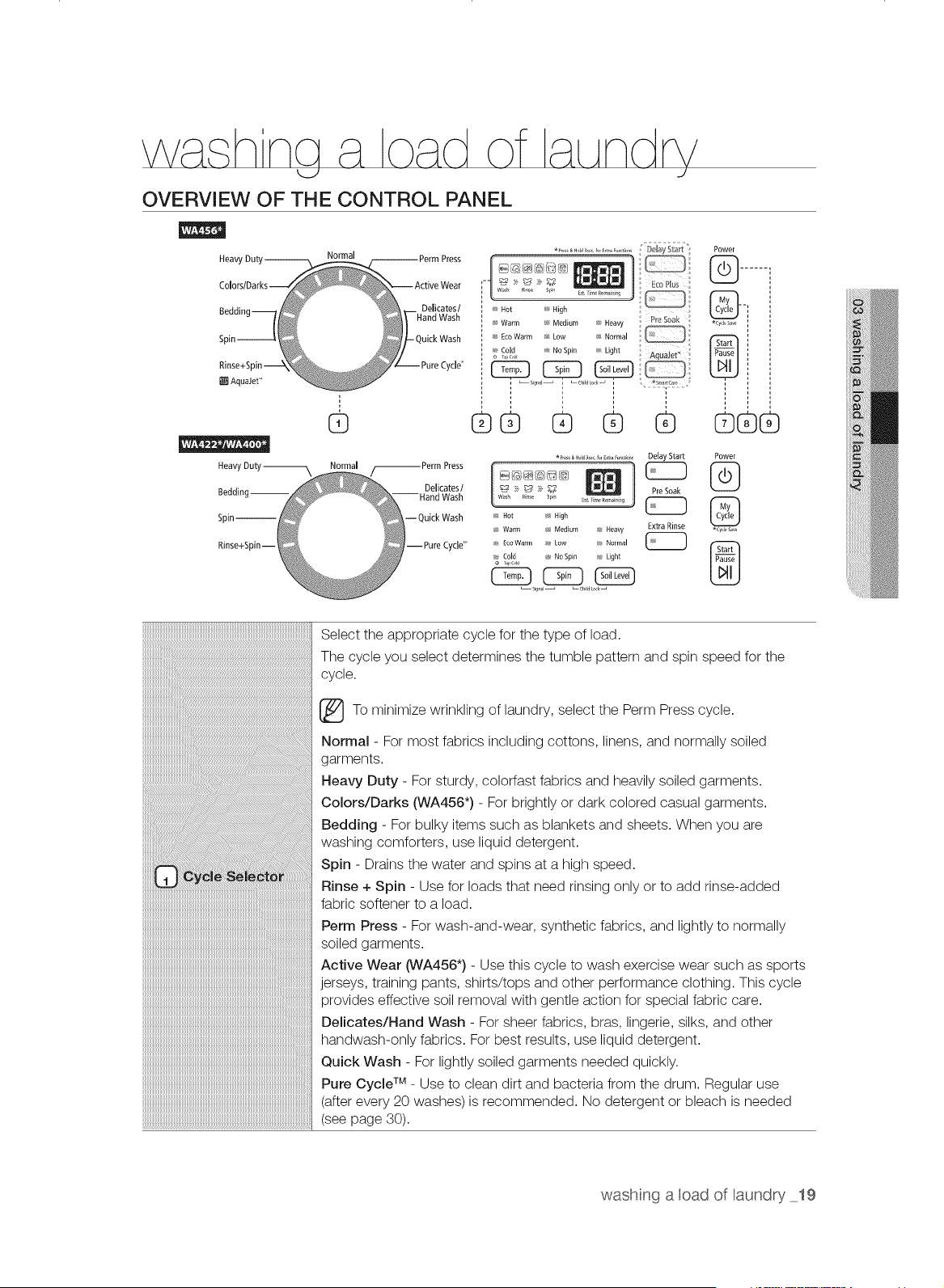

Overview of the control panel

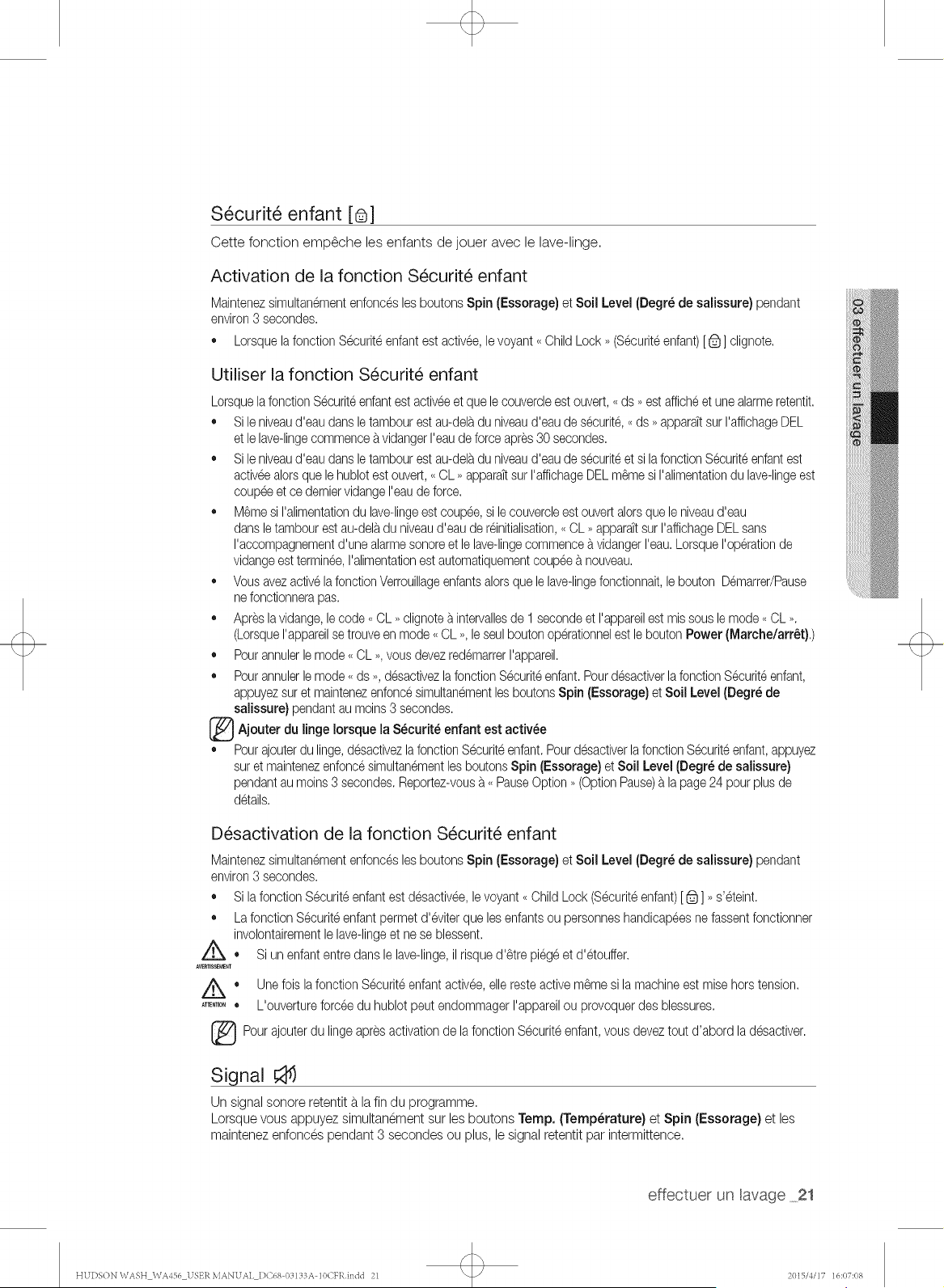

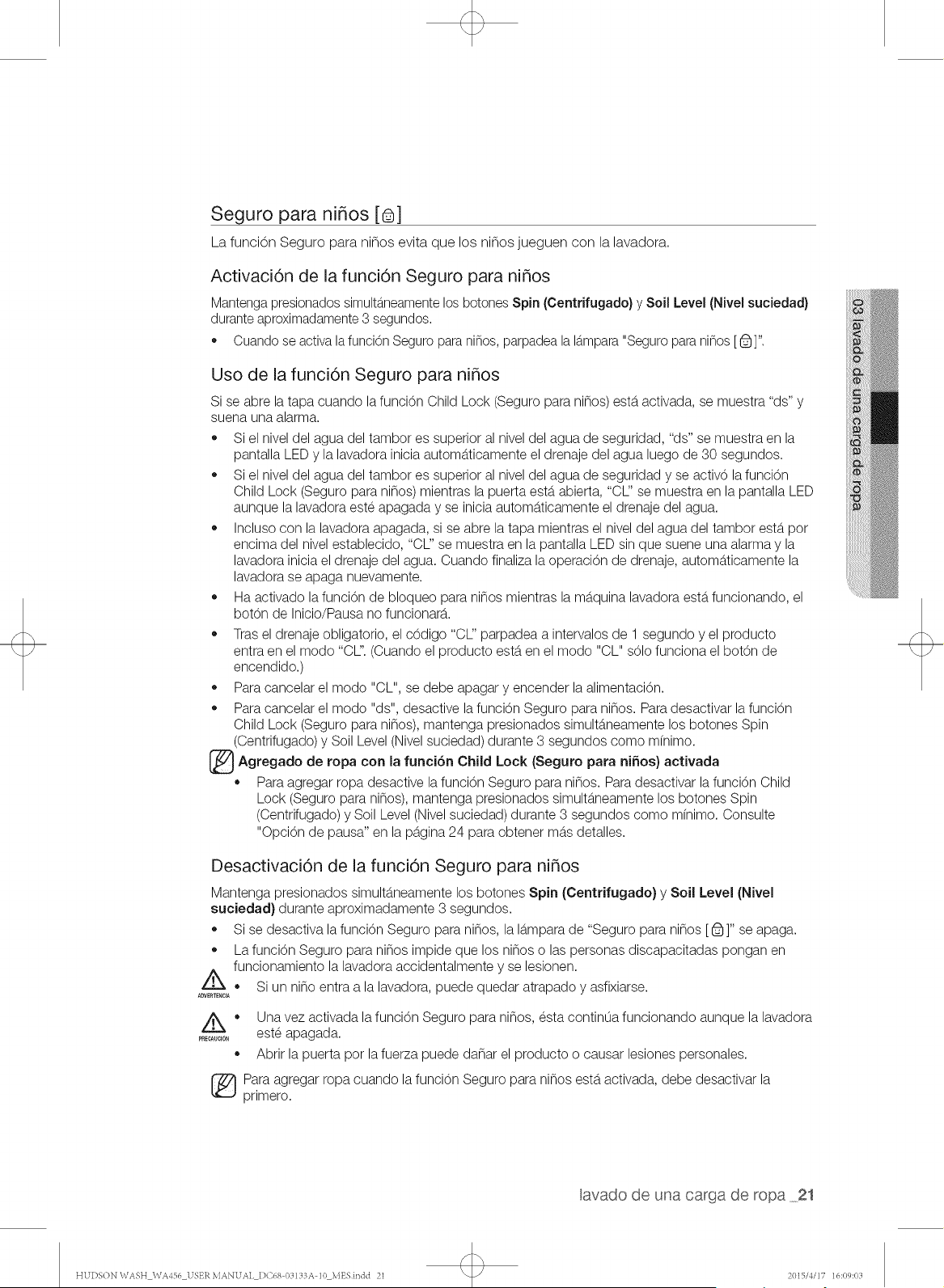

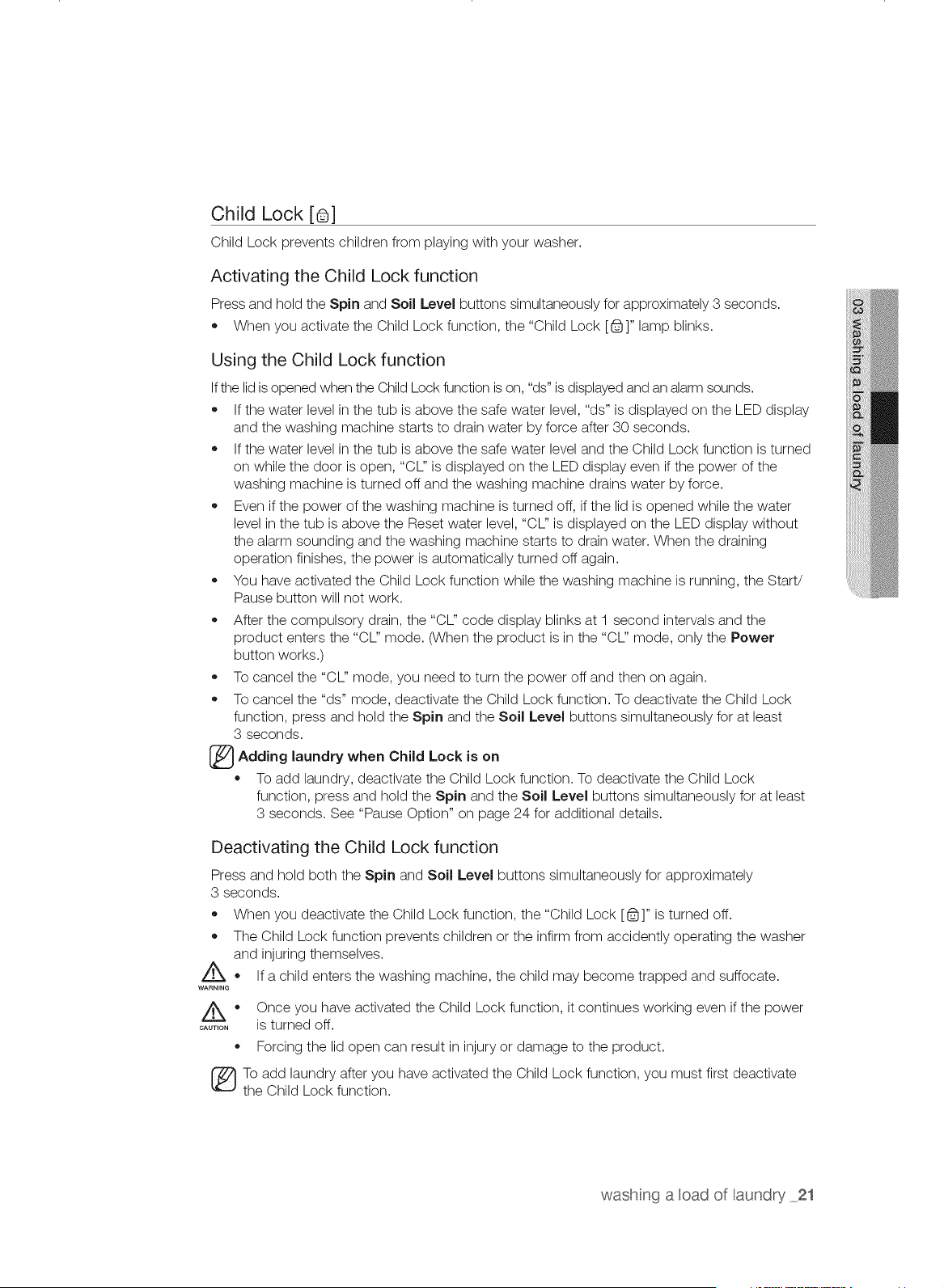

Child Lock [@]

Signal _

Garment+

My Cycle @

Delay Start

Pre Soak

AquaJet TM (WA456")

Eco Plus (WA456")

Mist Shower

Smart Care (WA456")

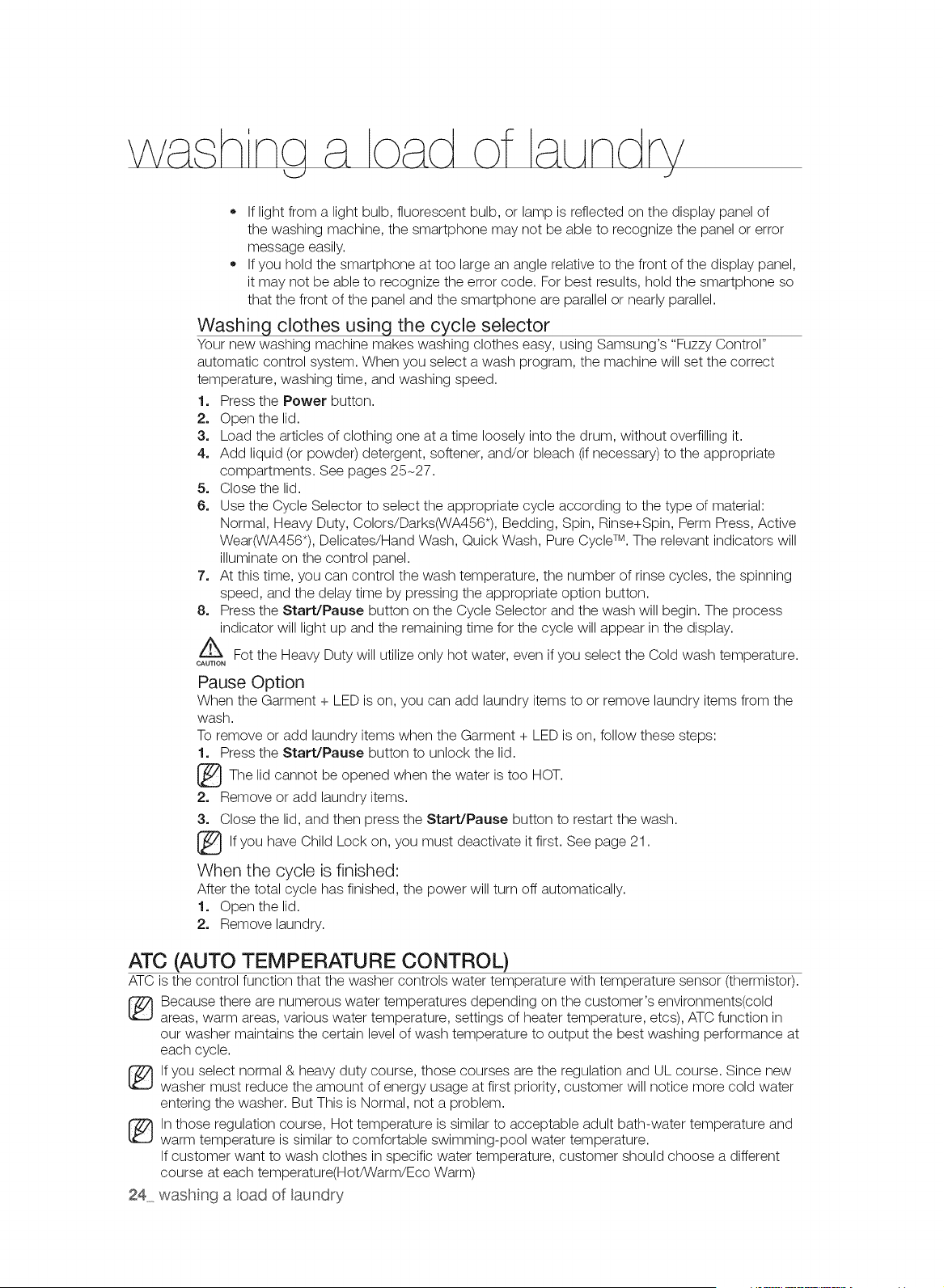

Washing clothes using the cycle selector

ATC (Auto Temperature Control)

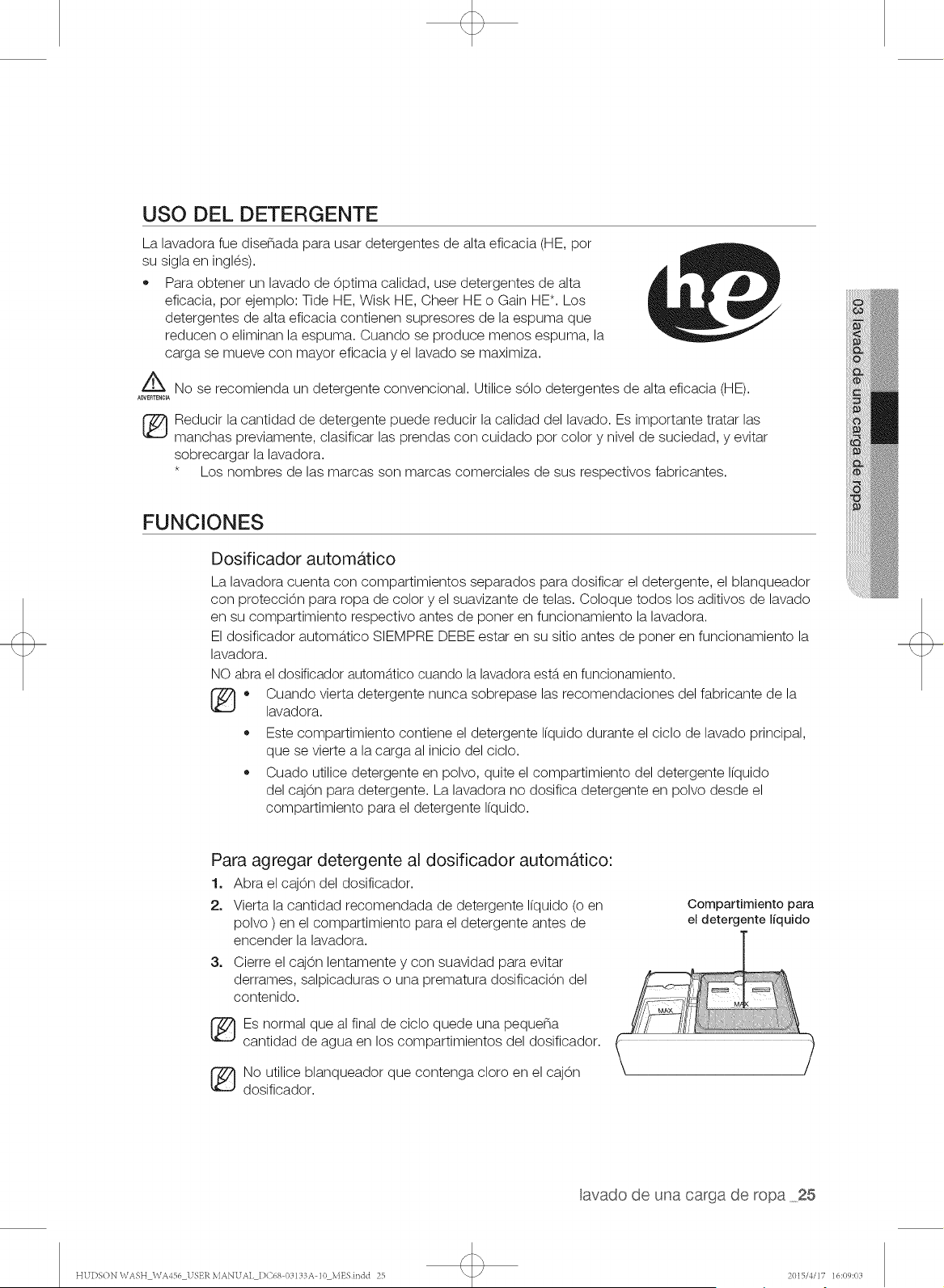

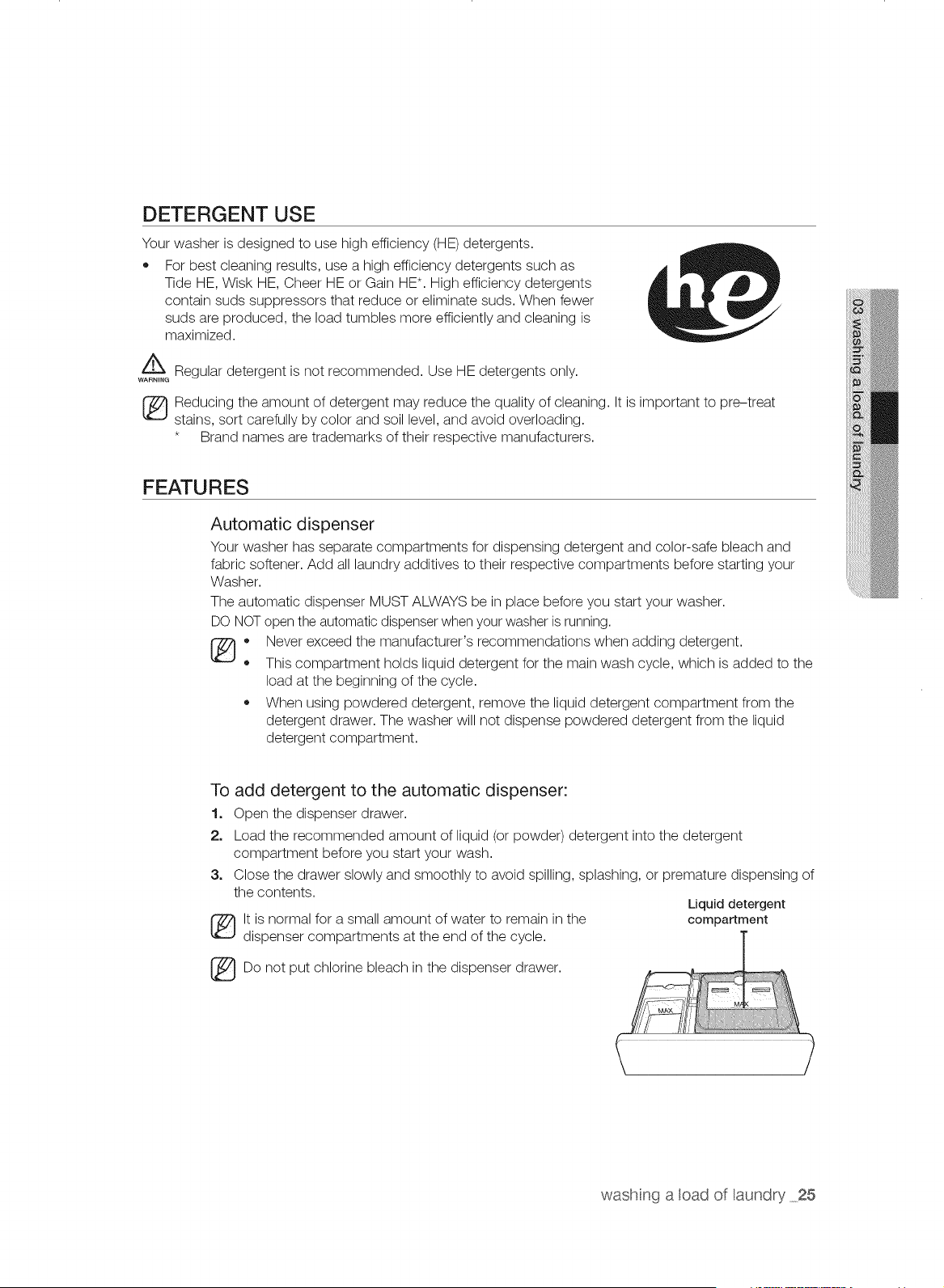

Detergent use

Features

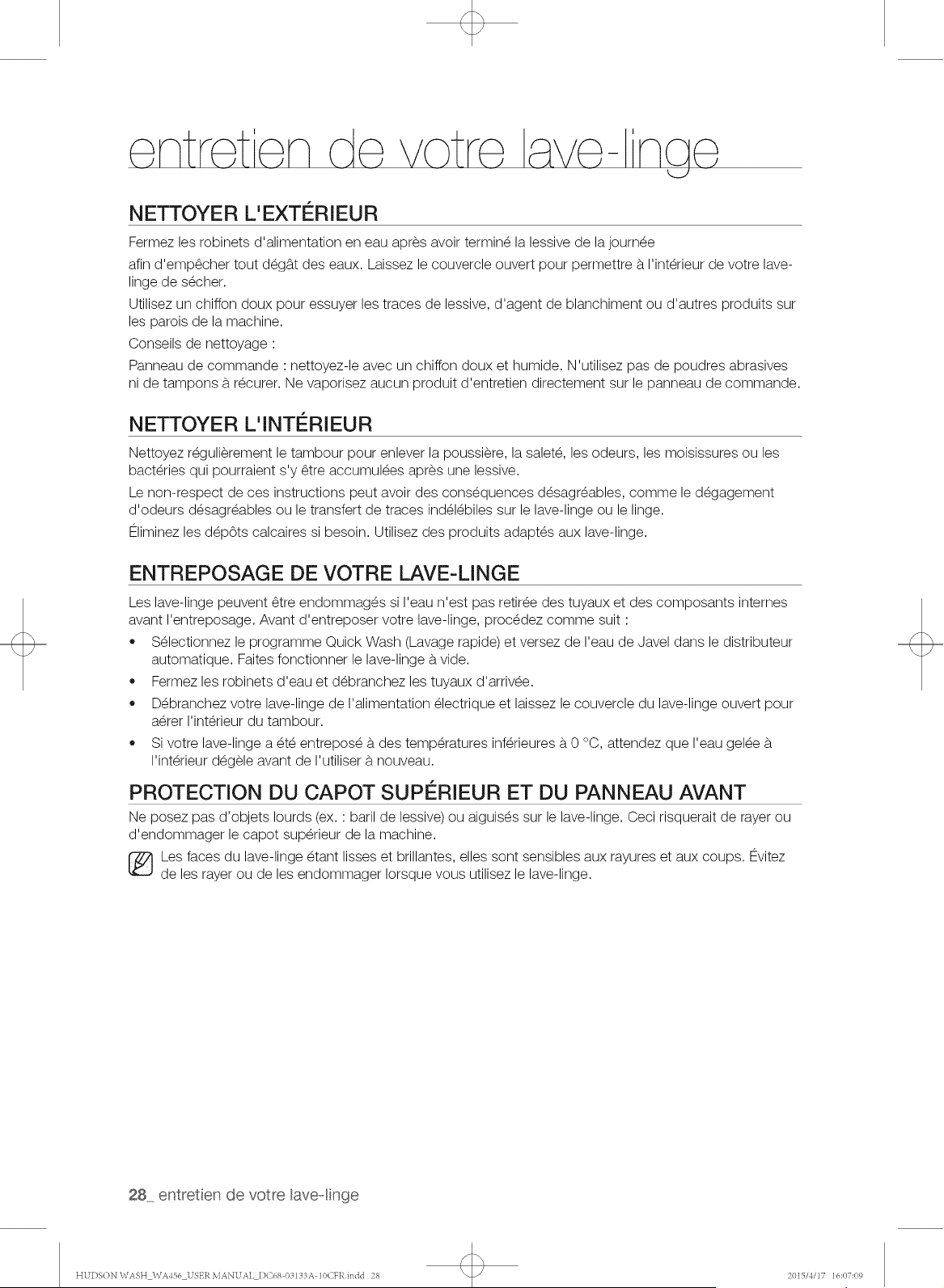

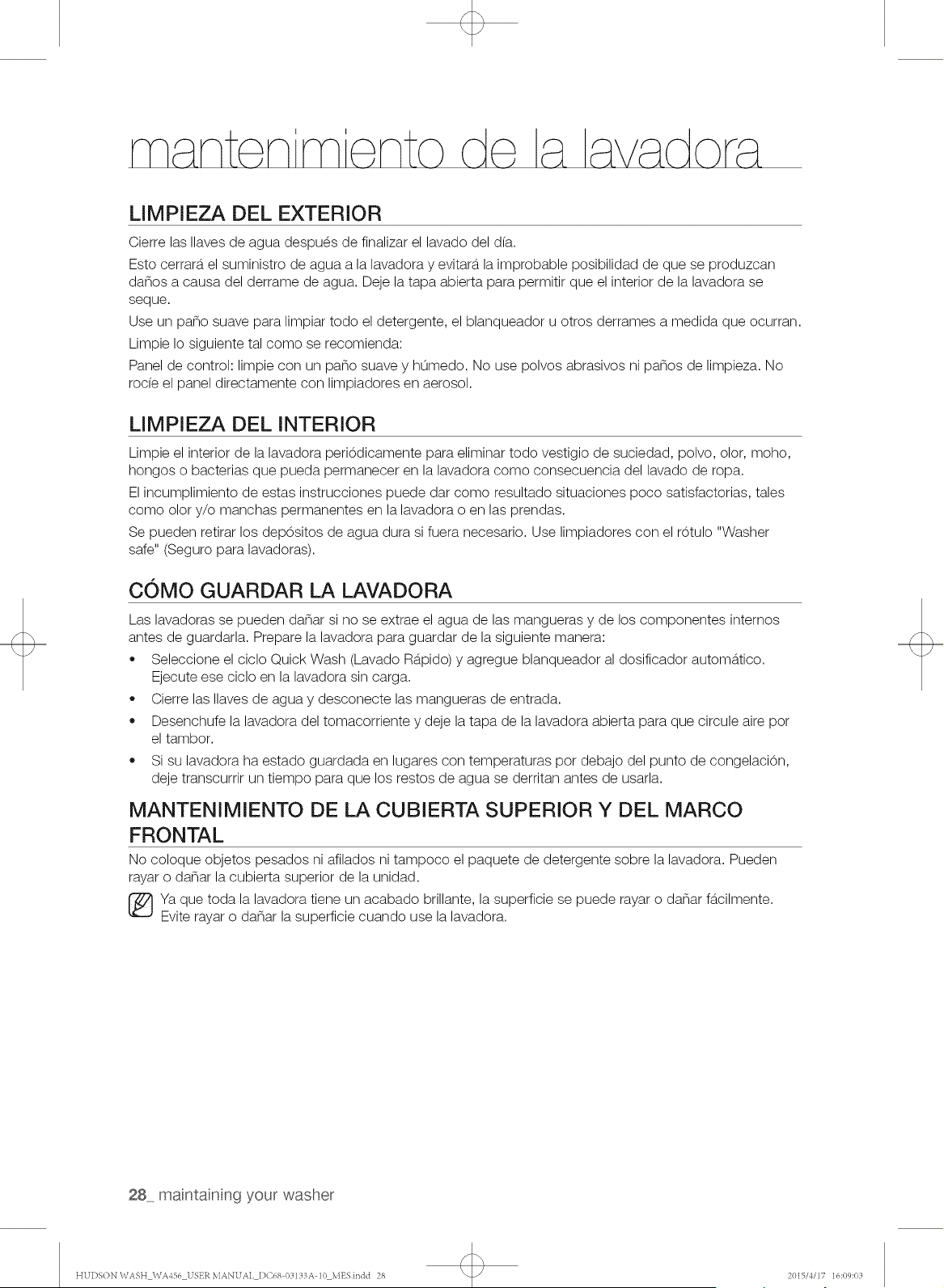

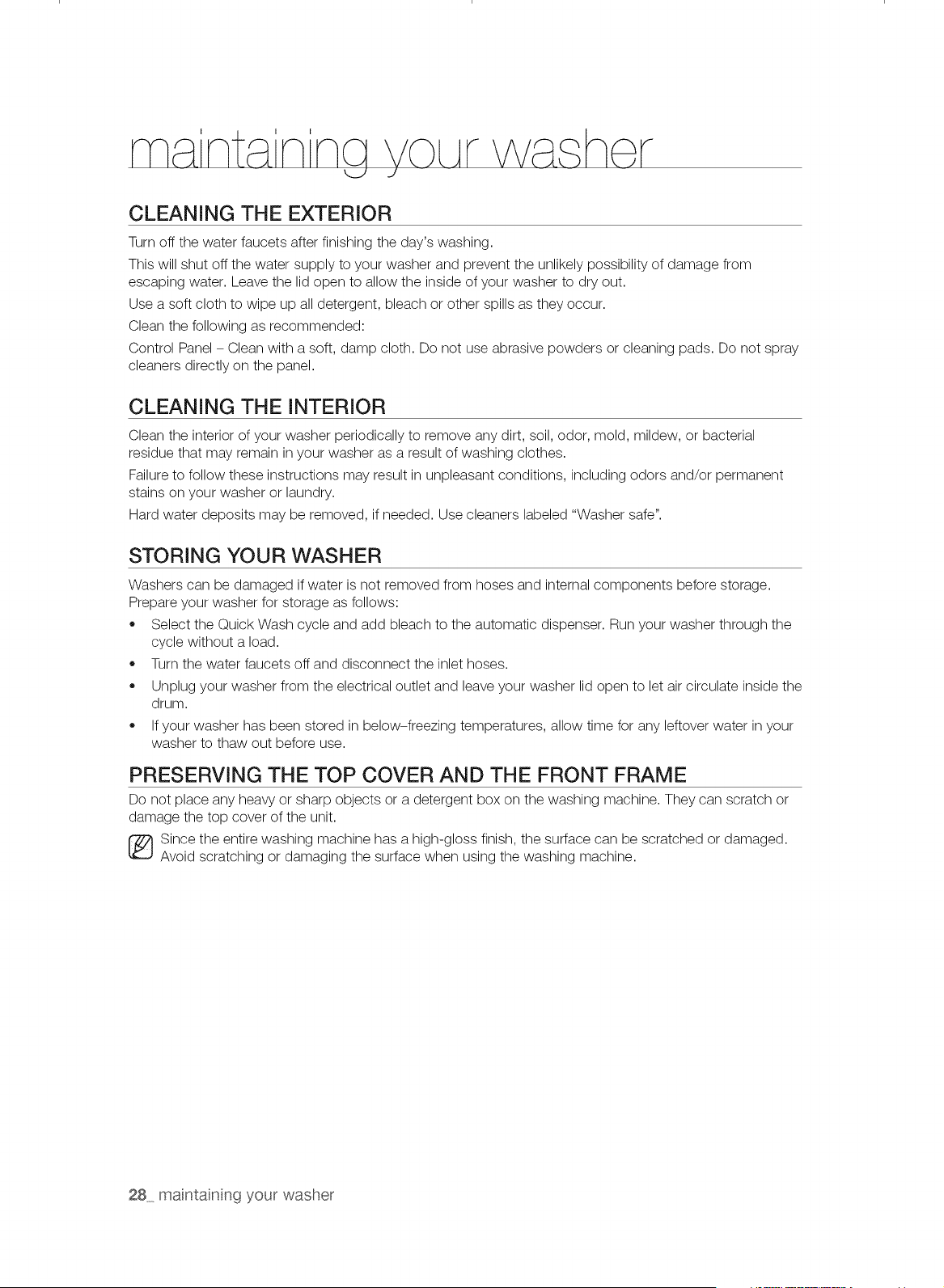

Cleaning the exterior

Cleaning the interior

Storing your washer

Preserving the top cover and the front frame

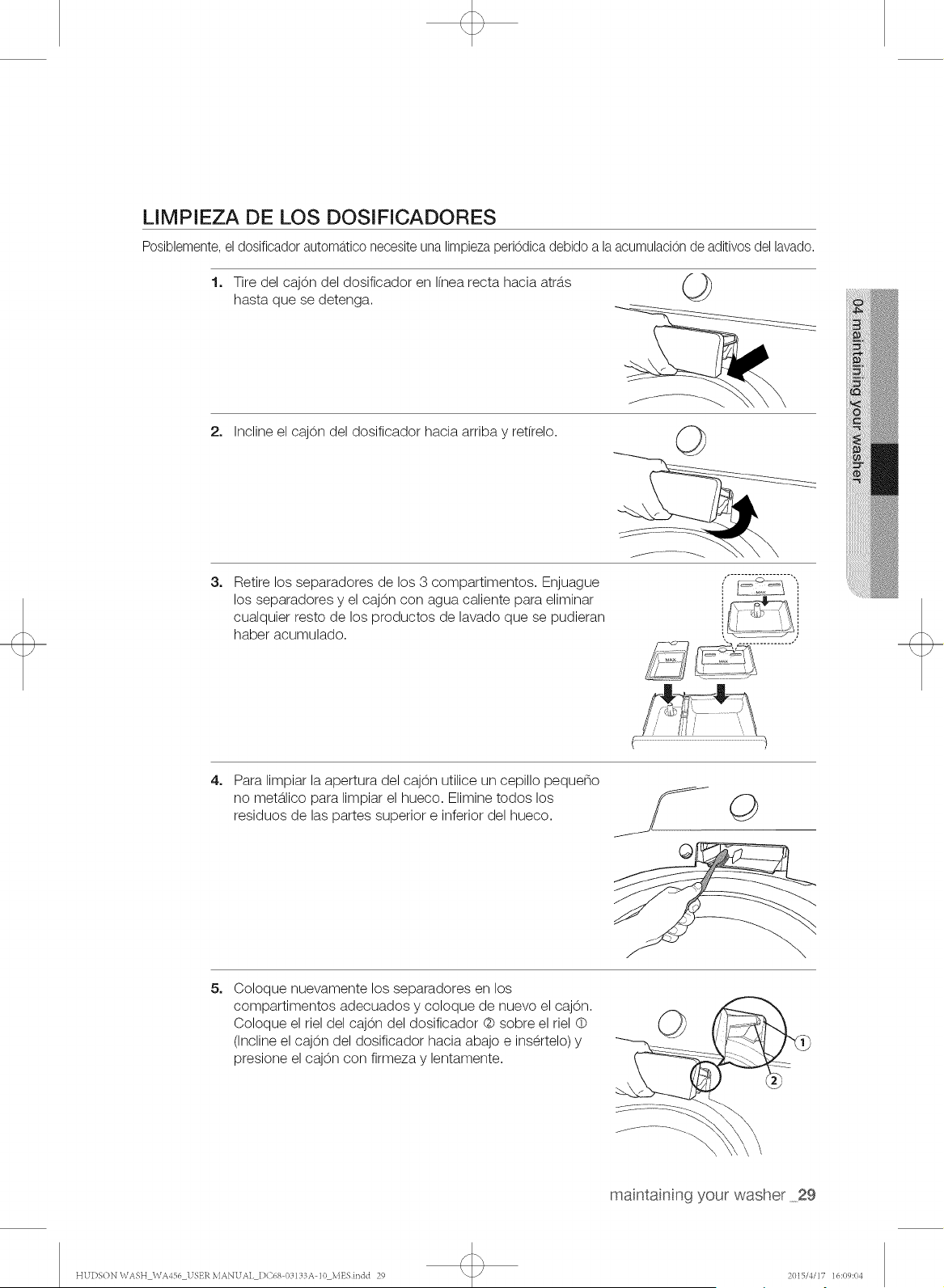

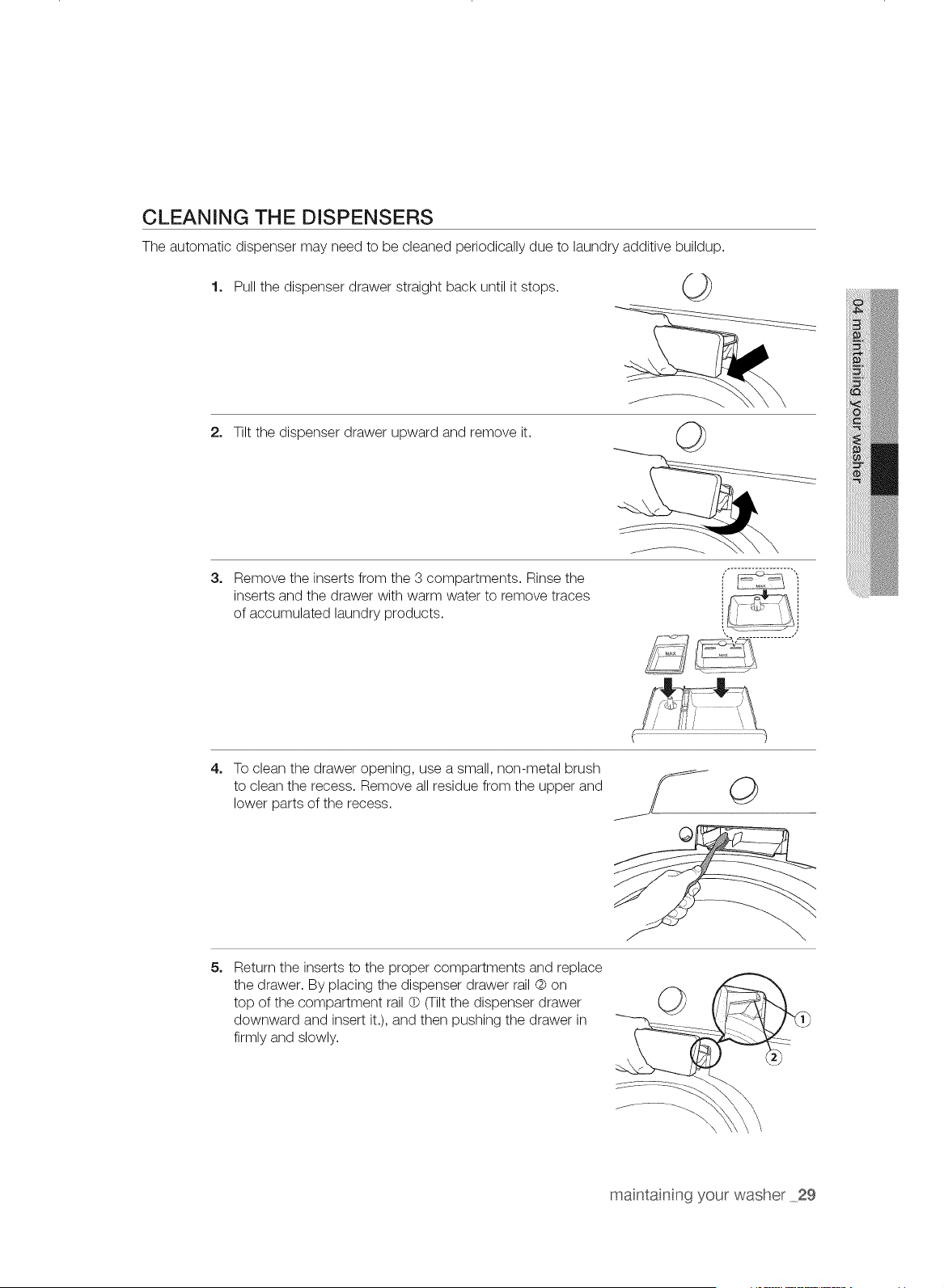

Cleaning the dispensers

Pure Cycle TM

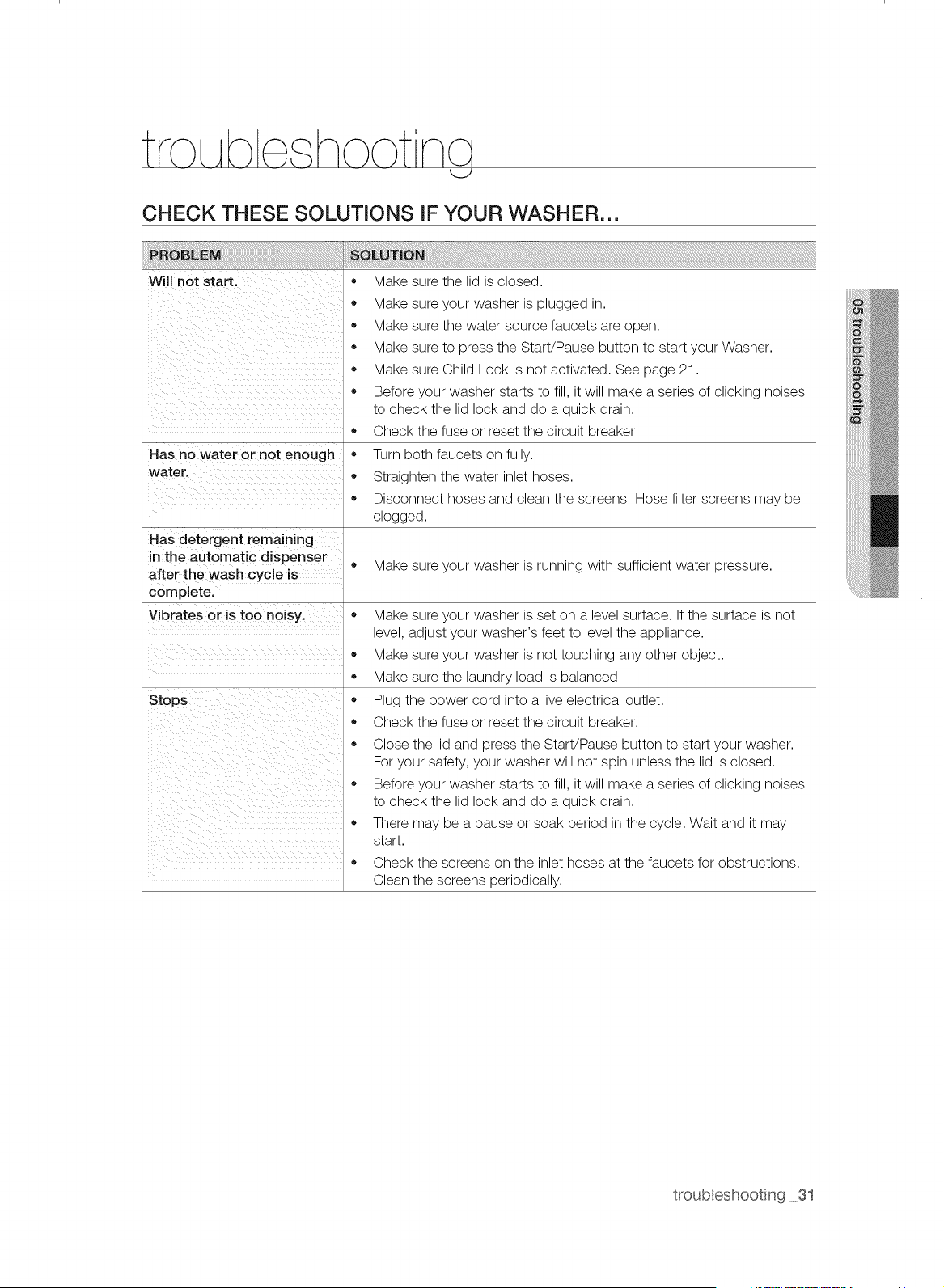

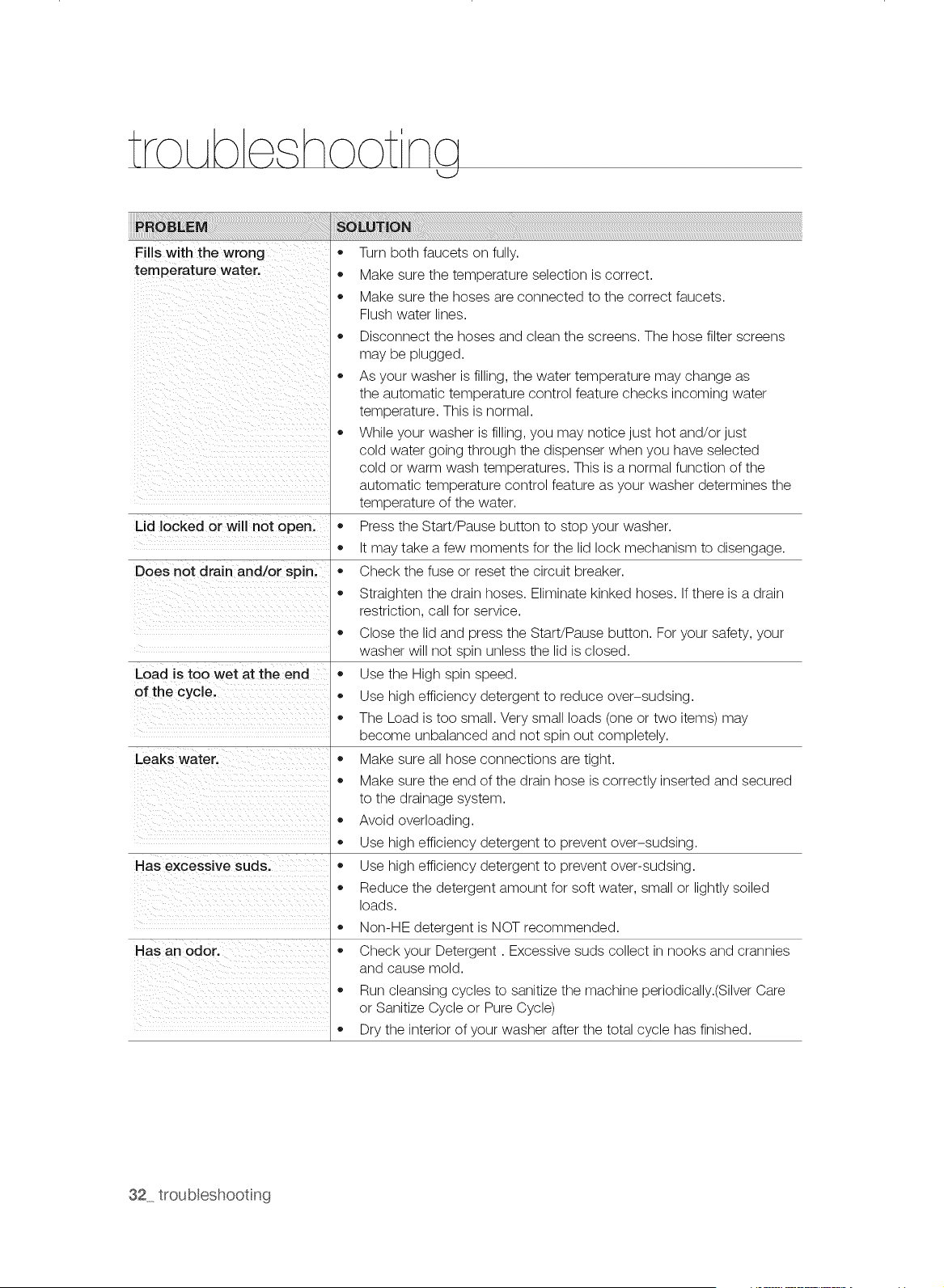

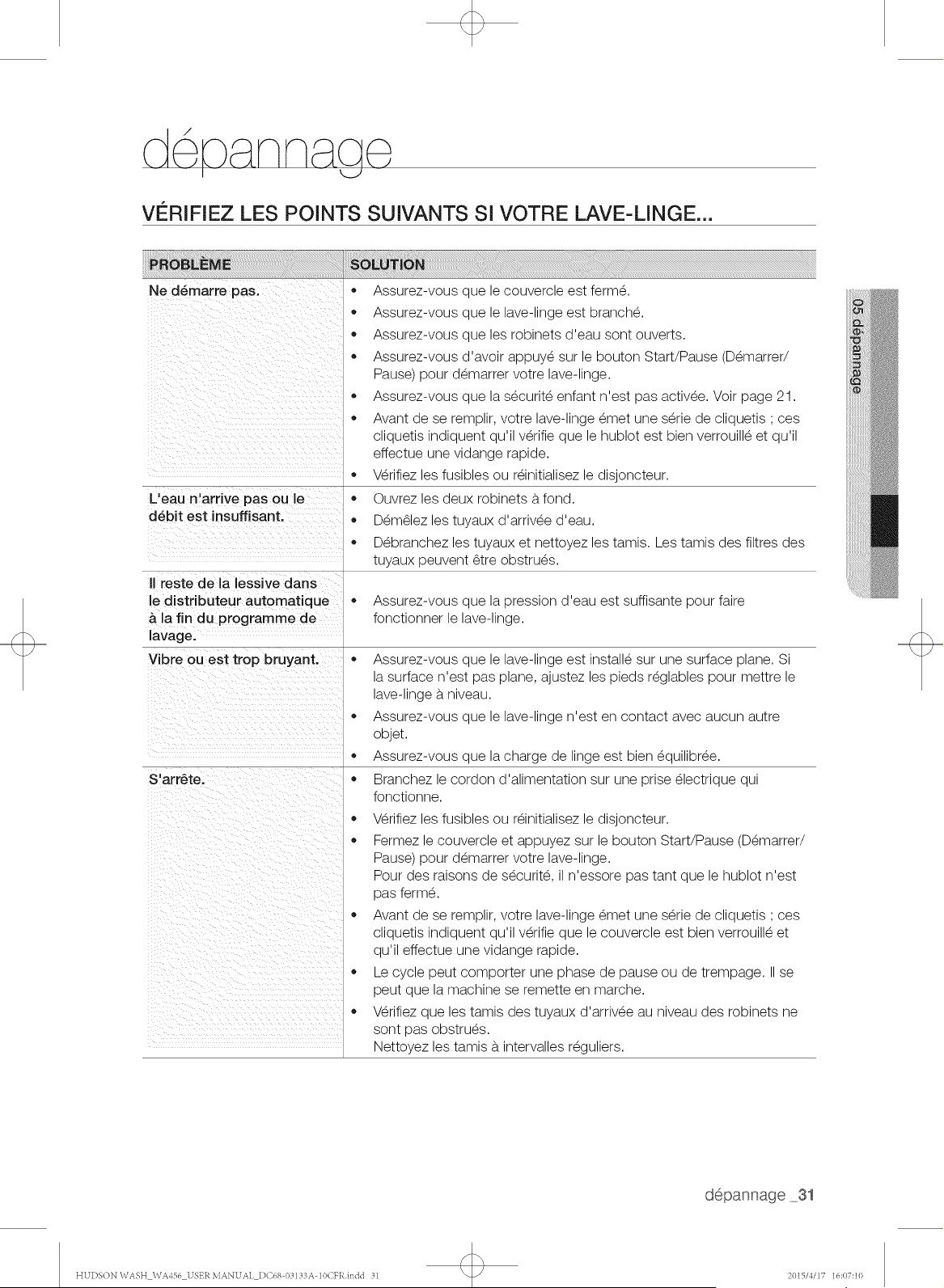

Check these solutions if your washer...

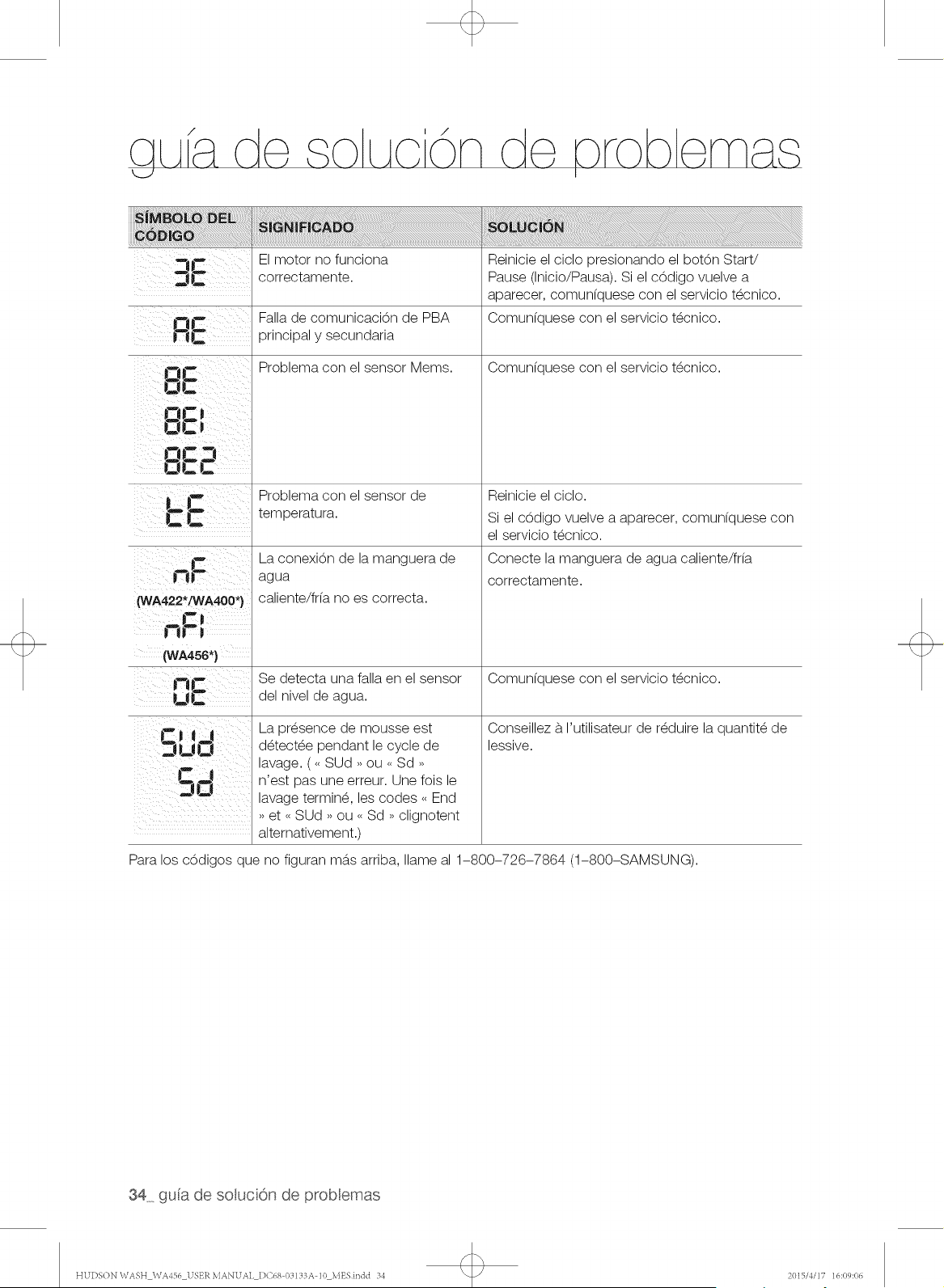

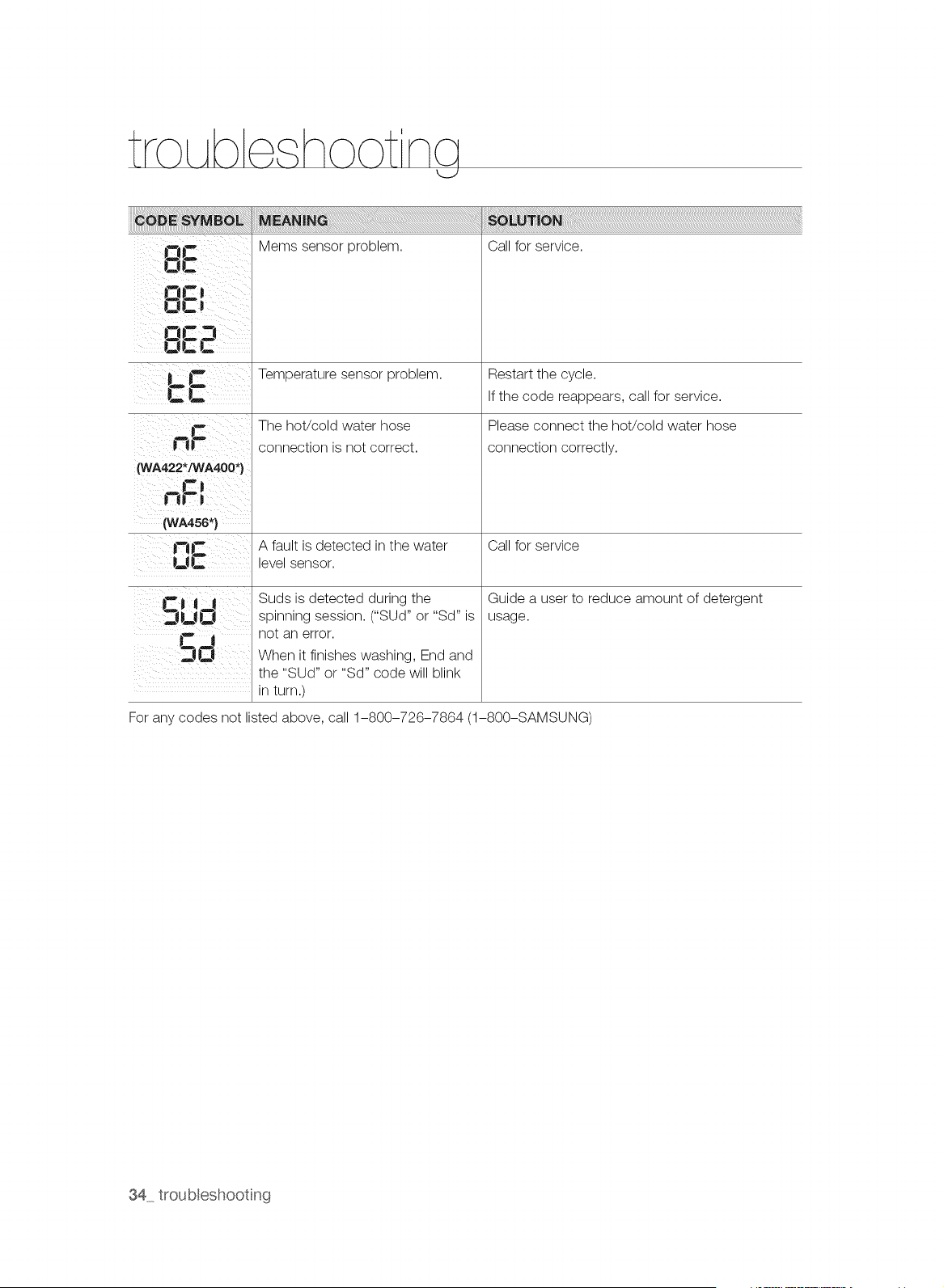

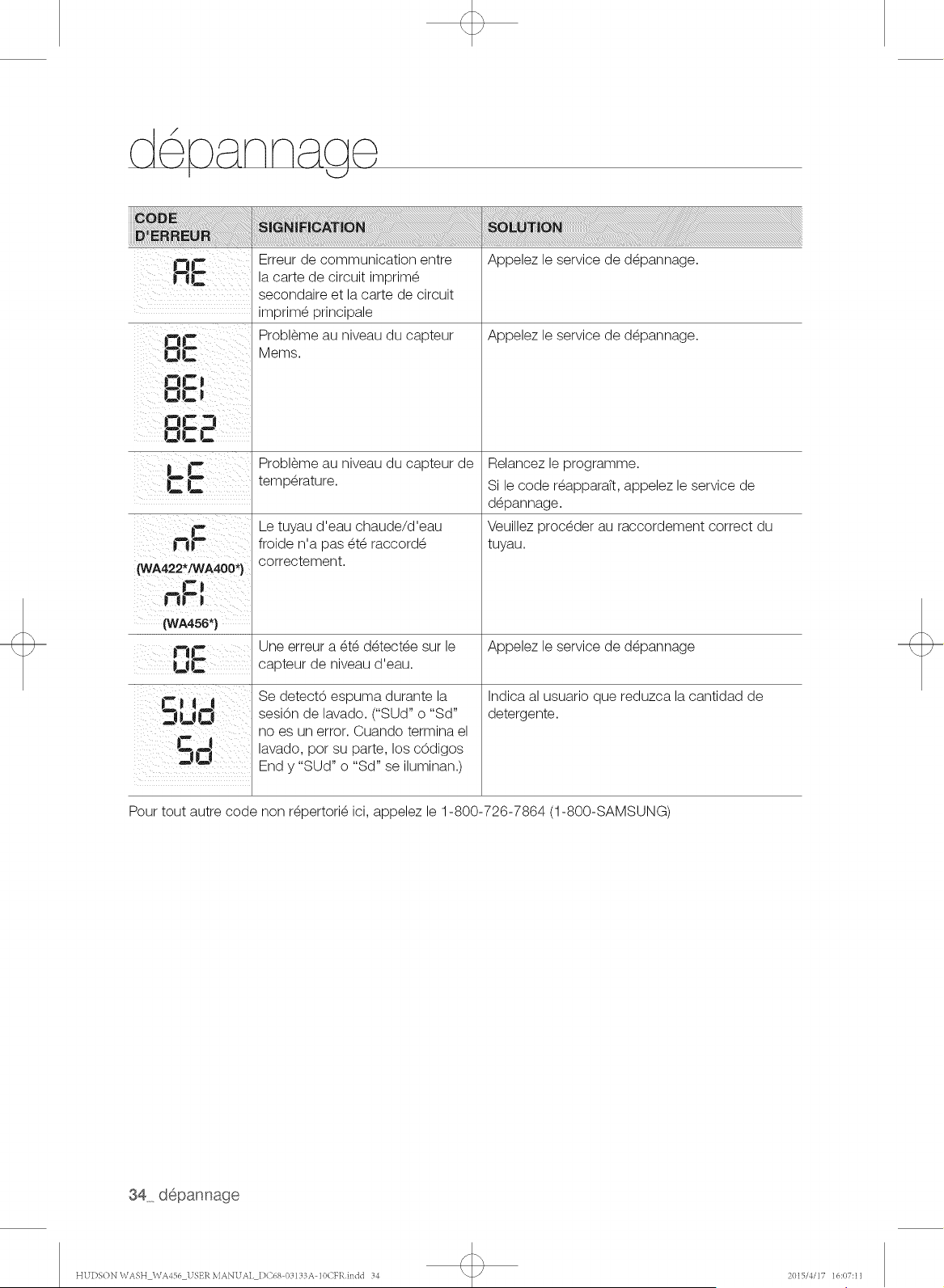

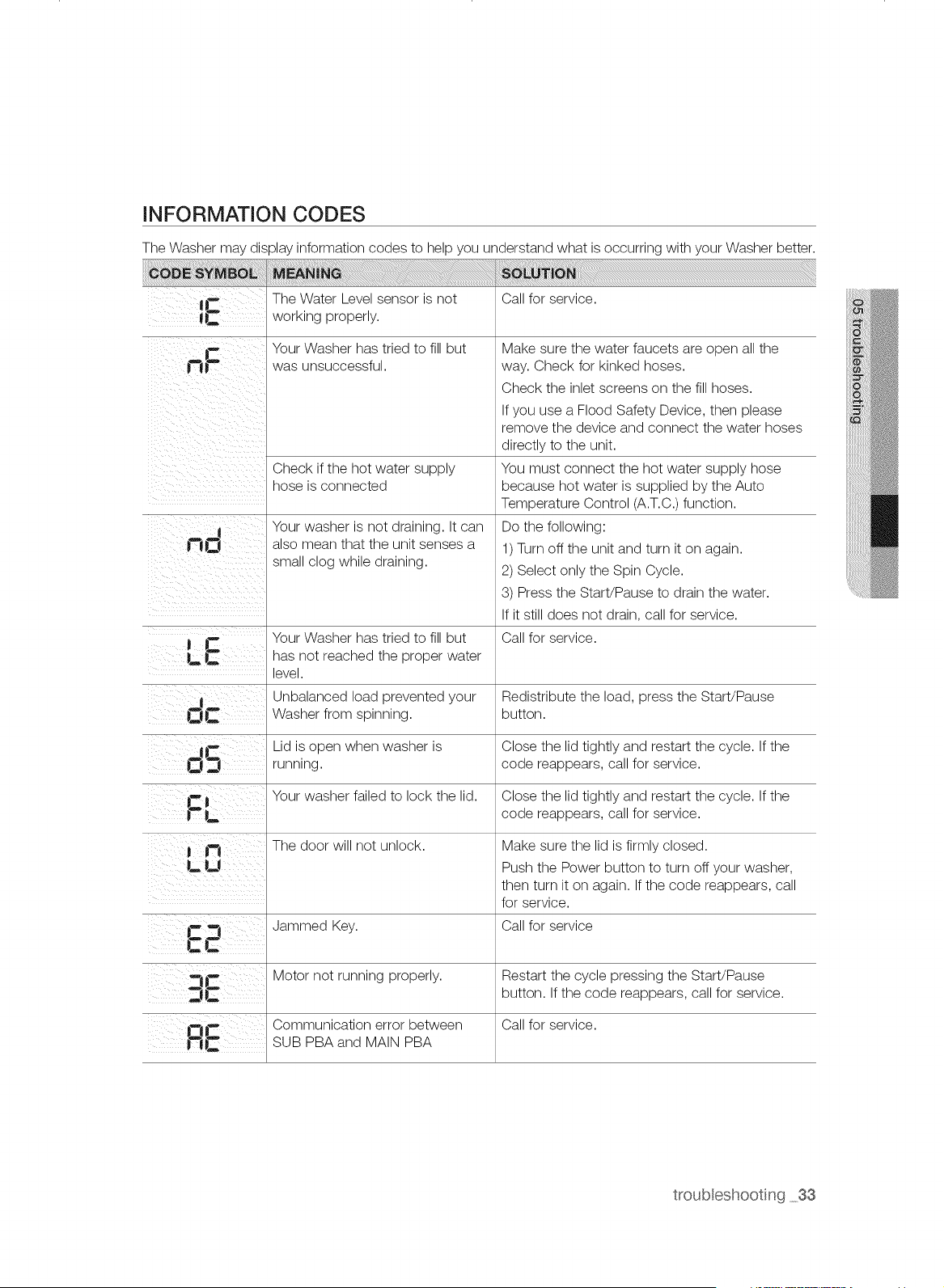

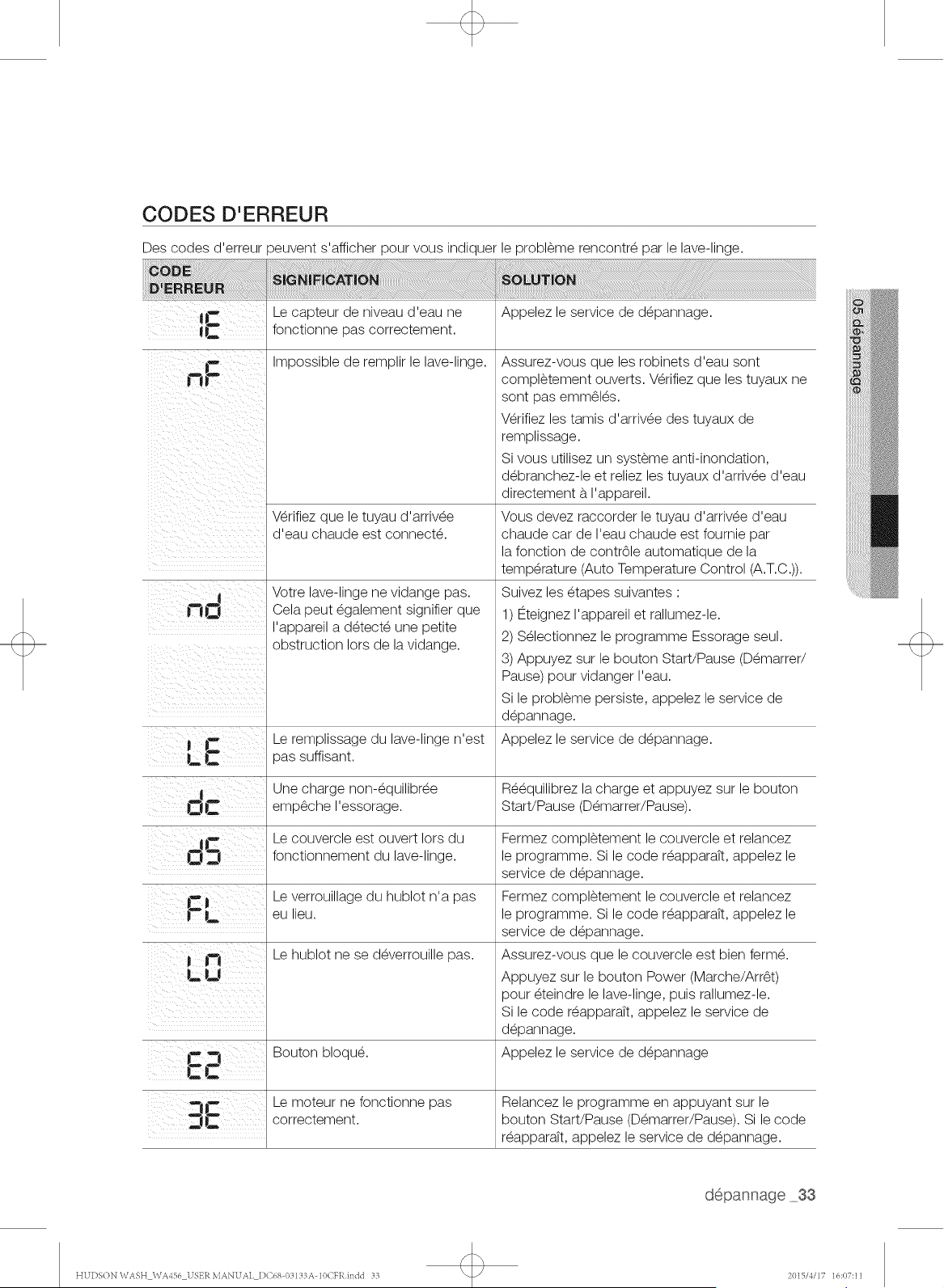

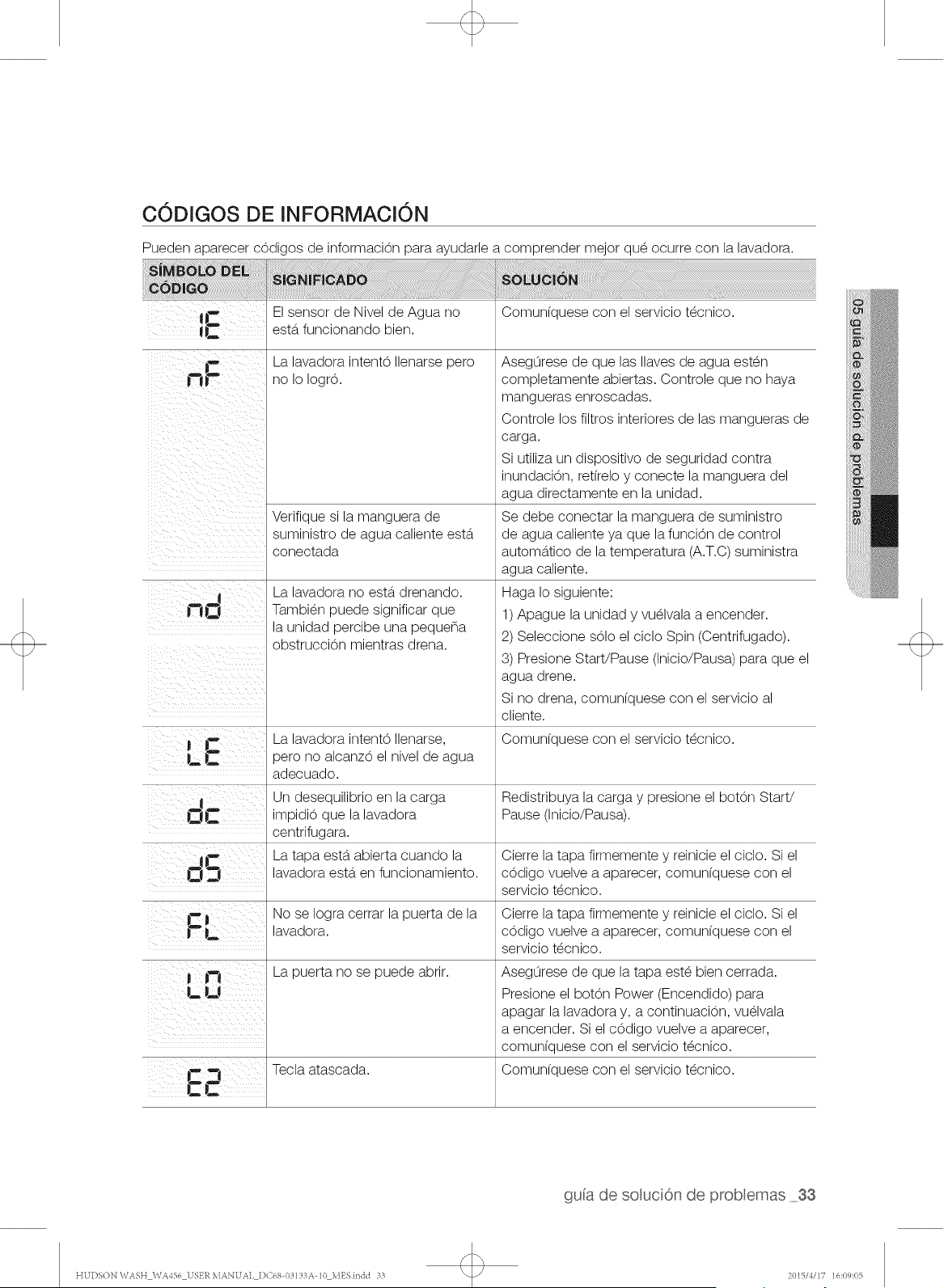

Information codes

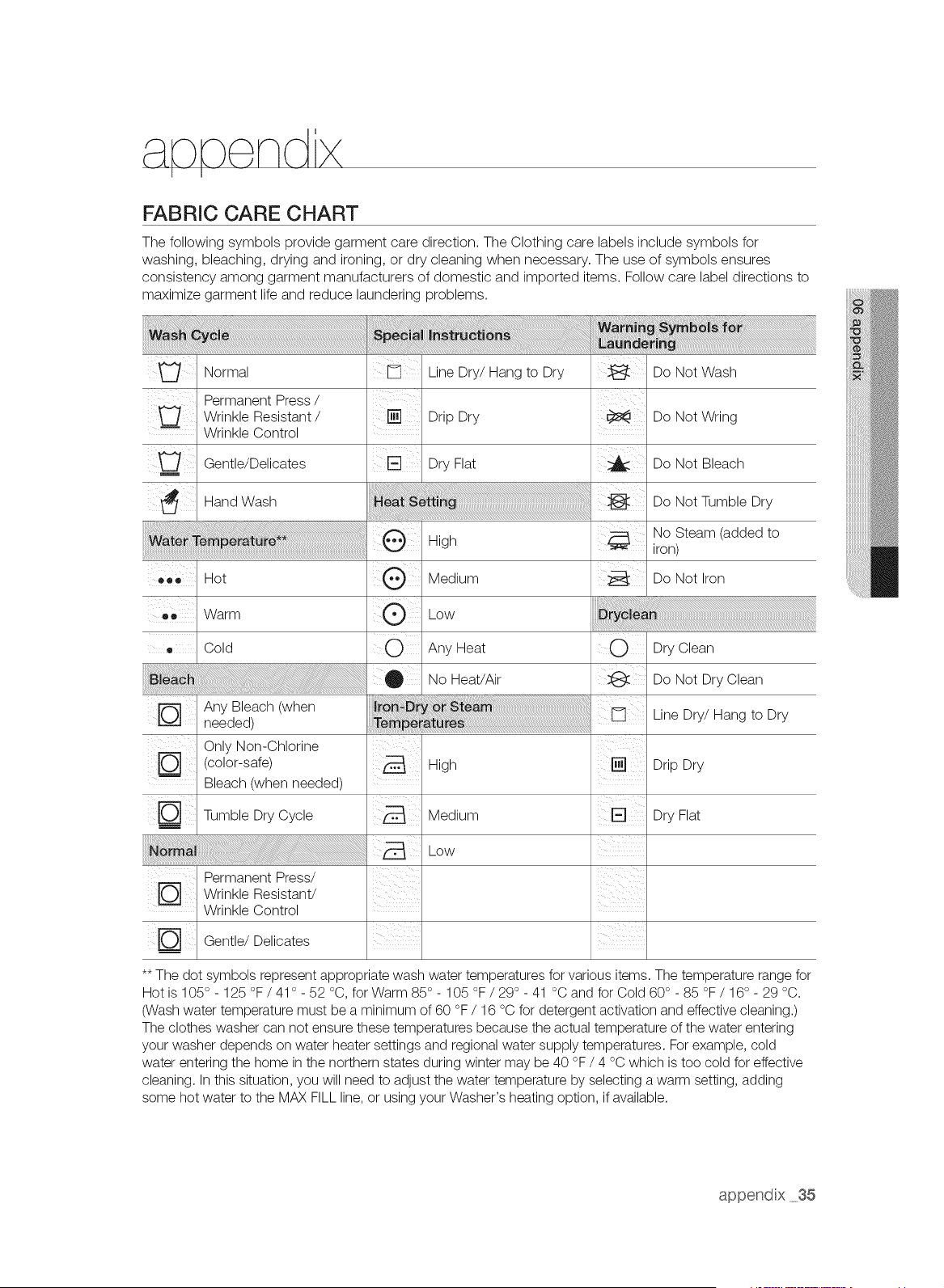

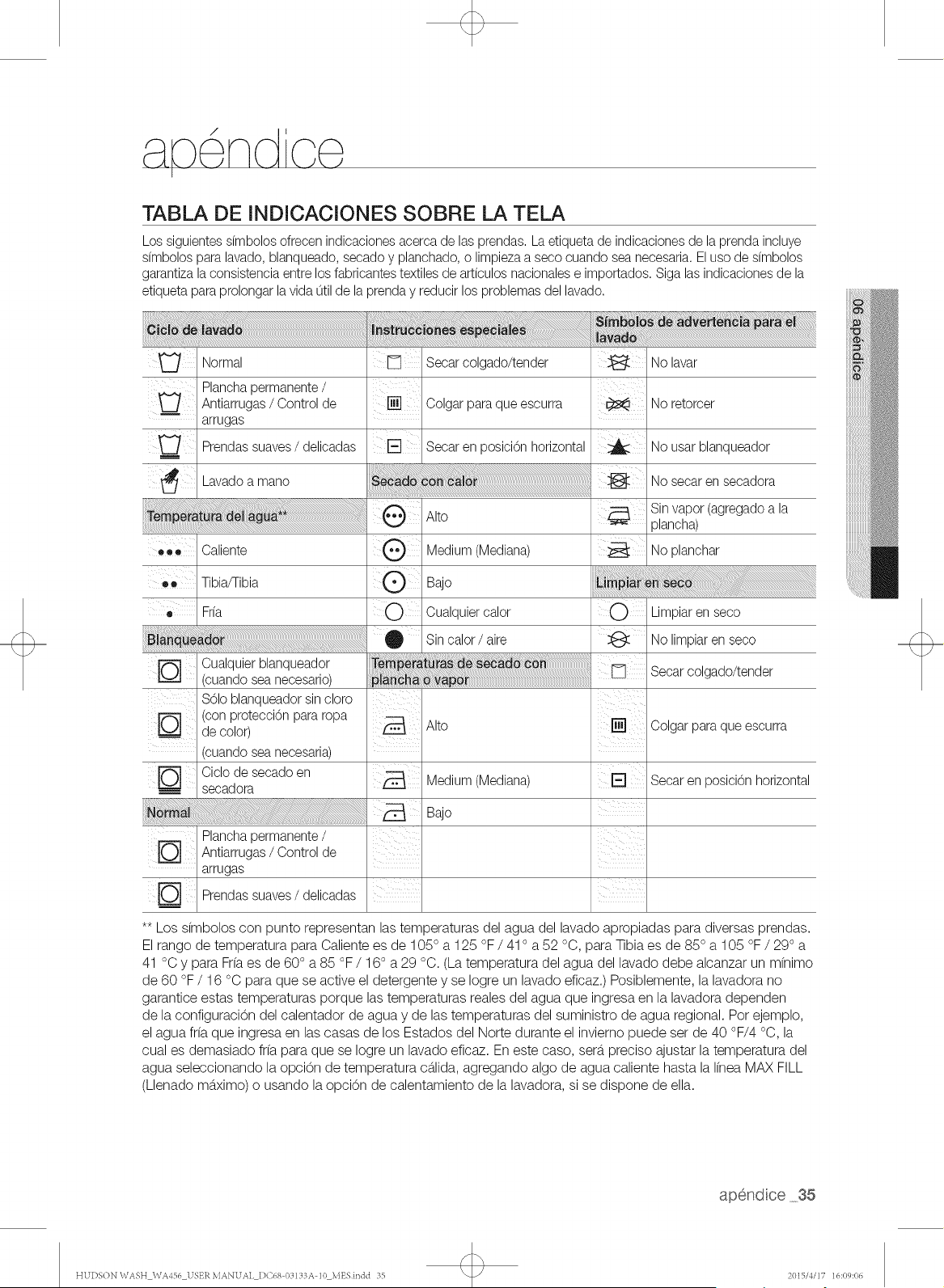

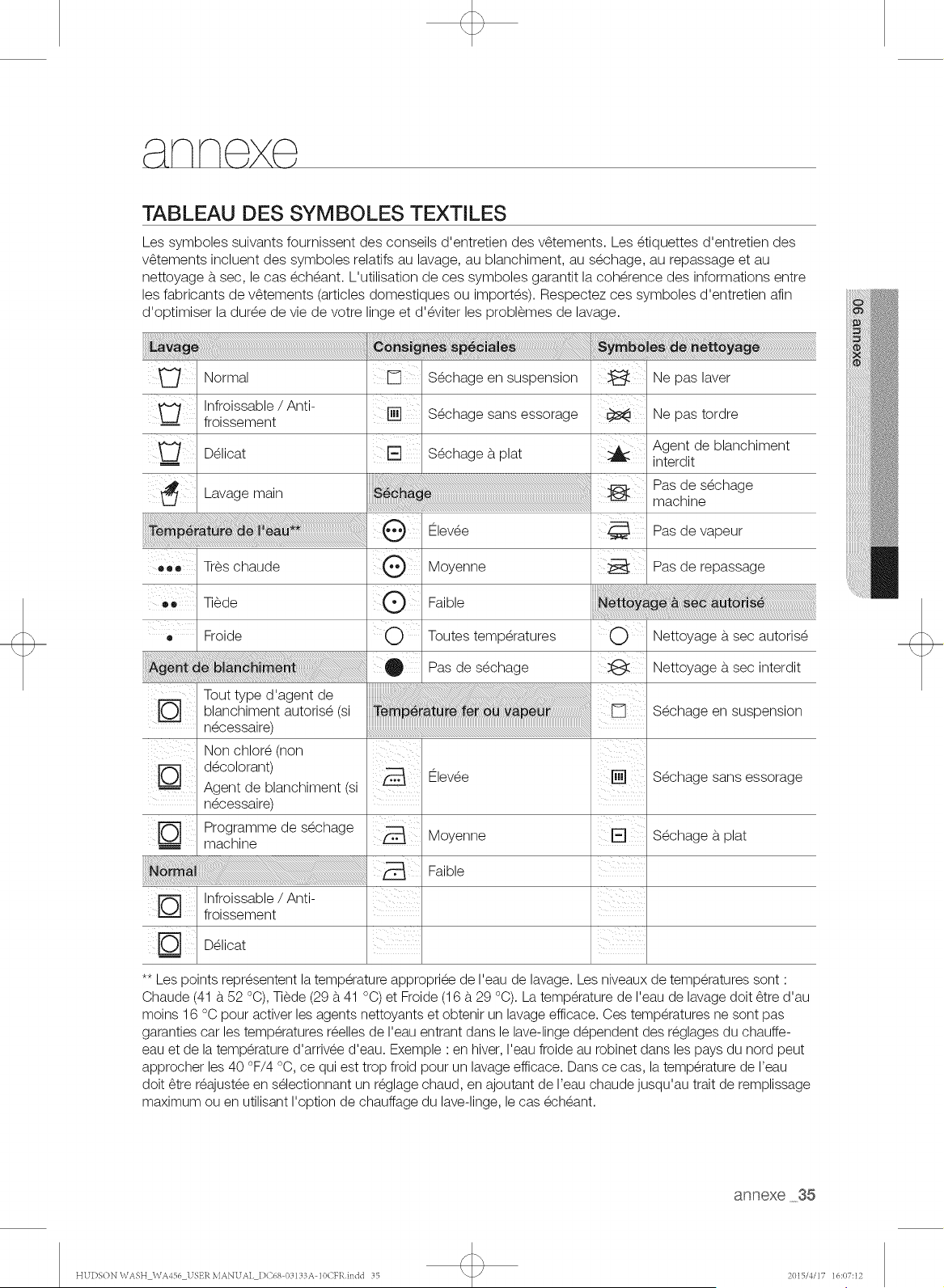

35 Fabric care chart

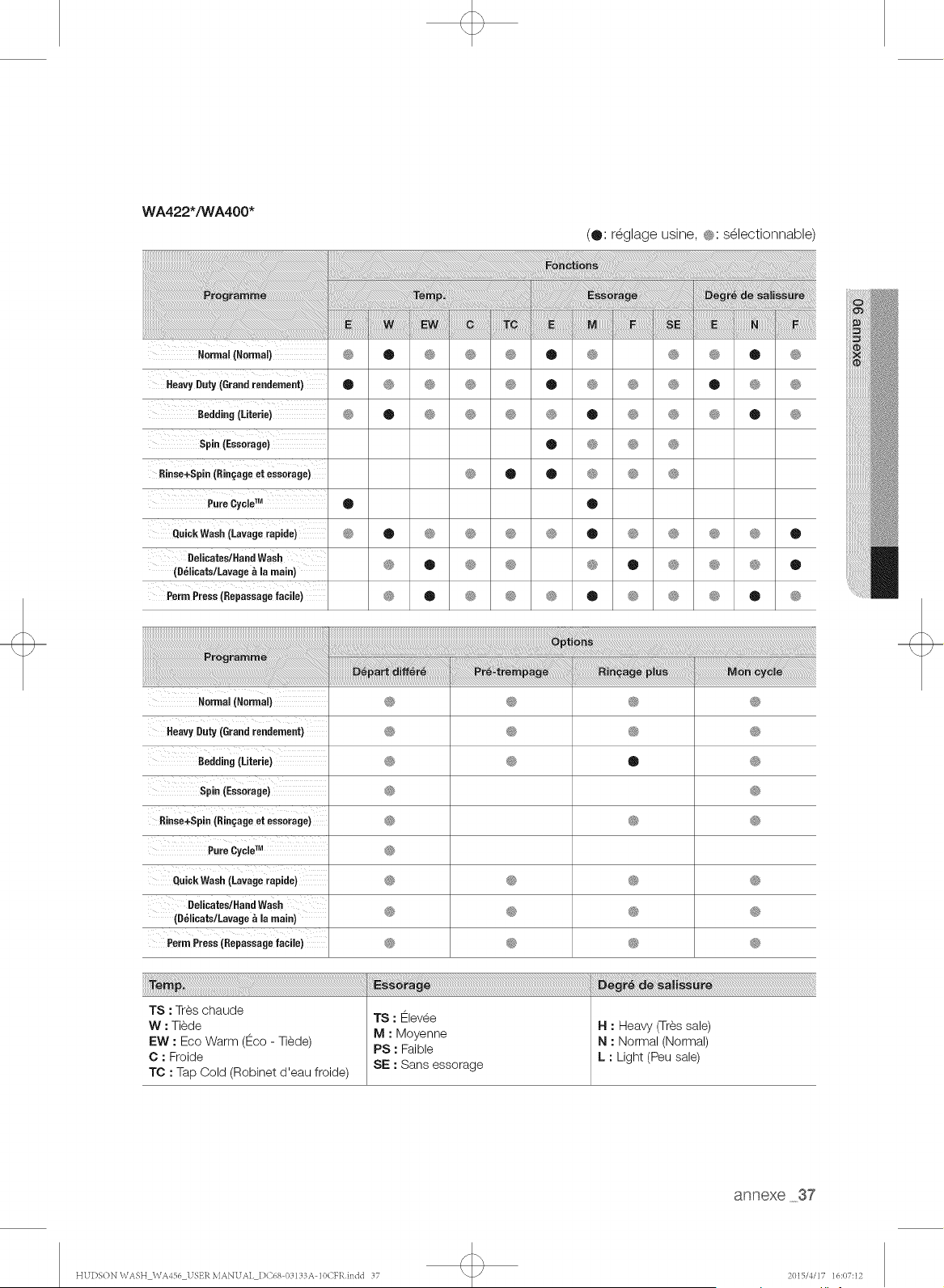

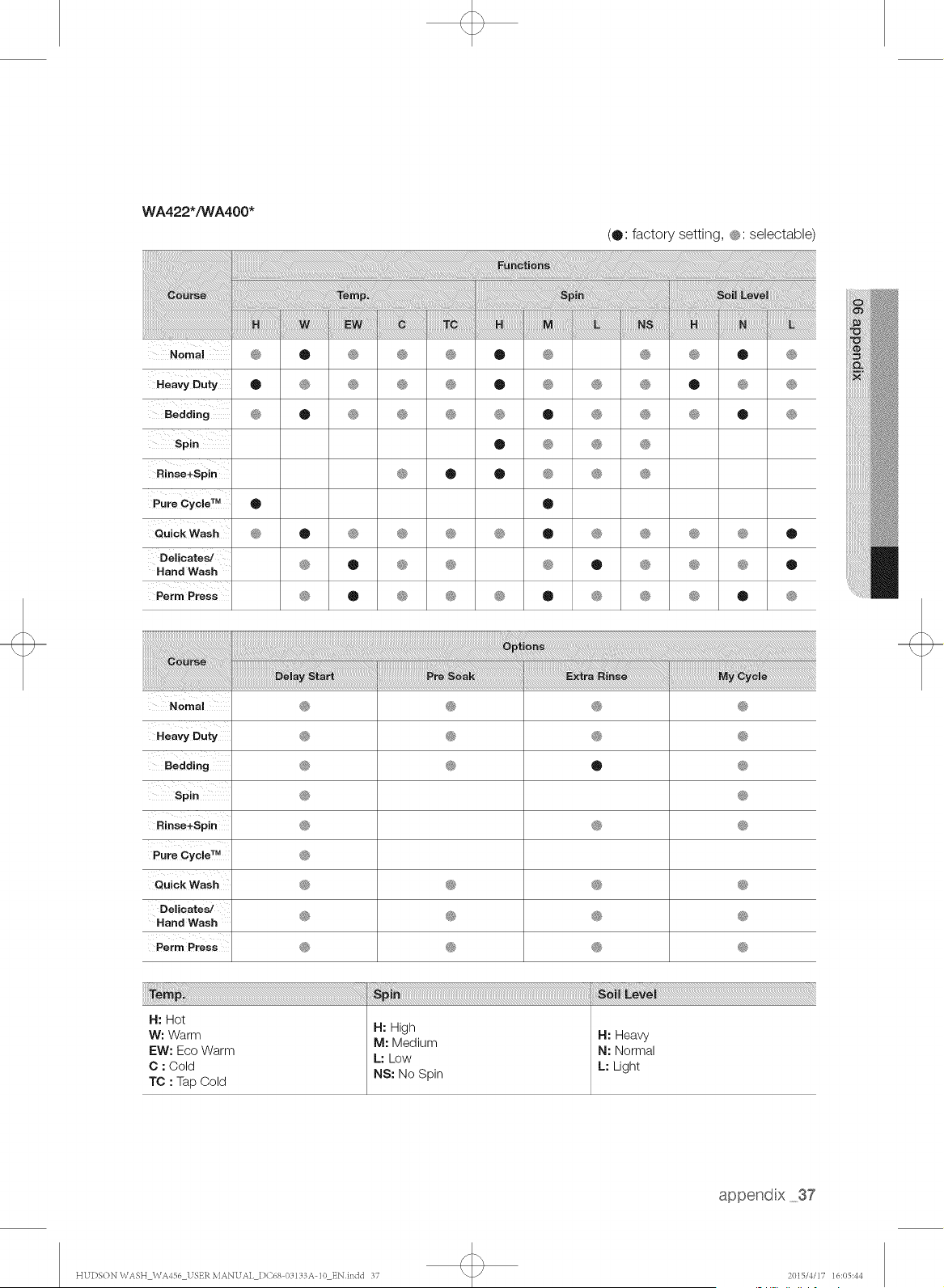

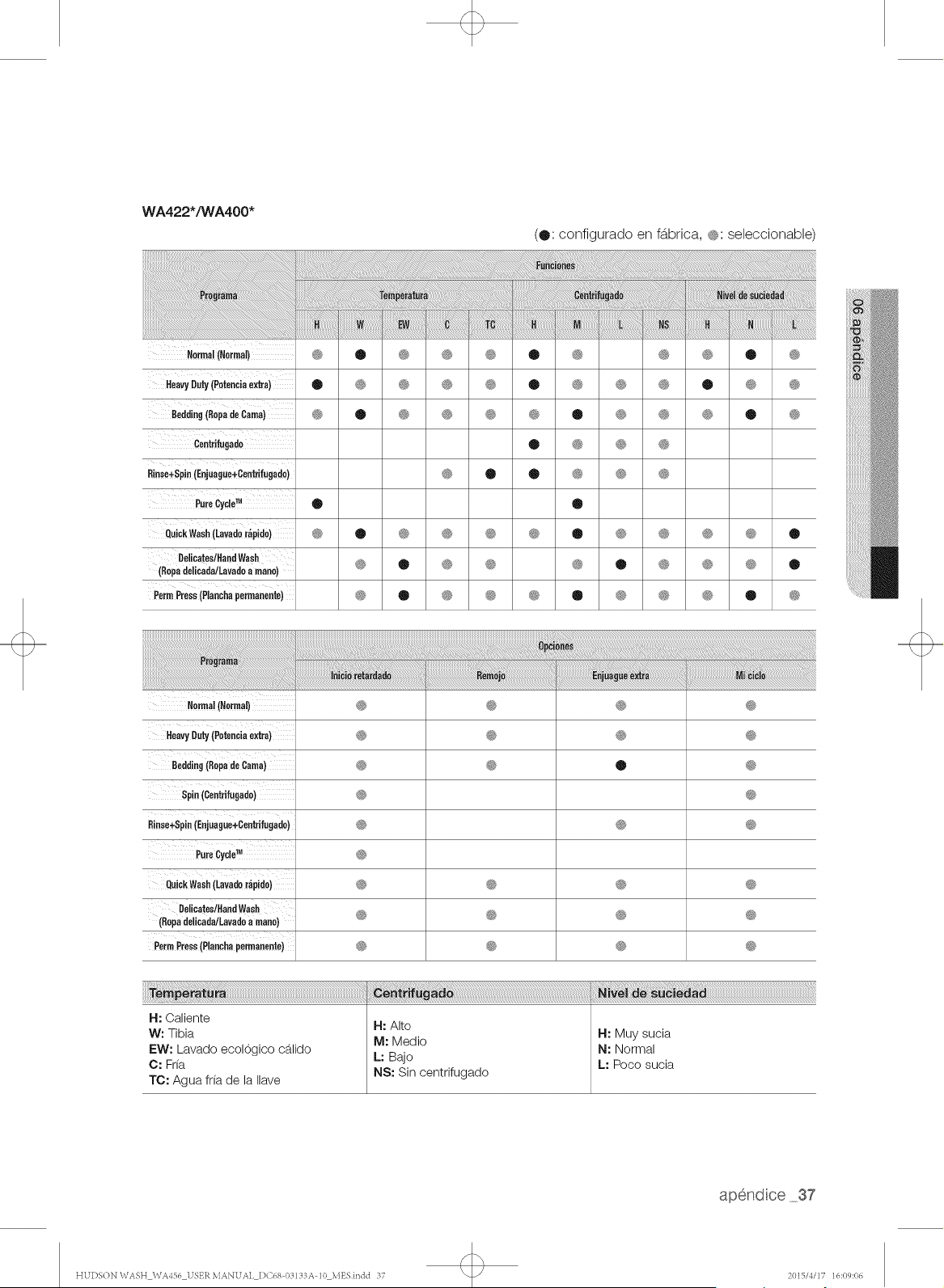

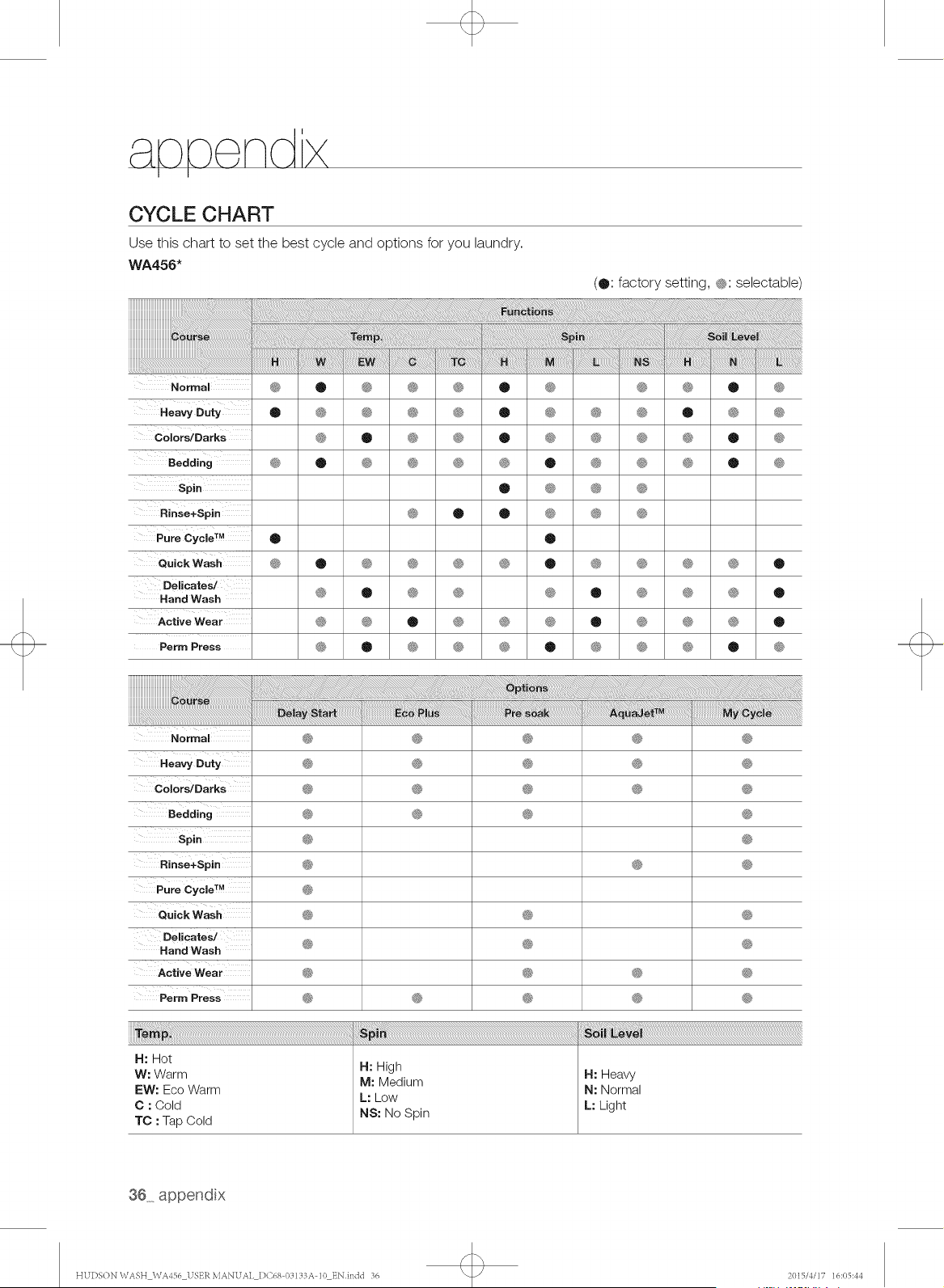

36 Cycle chart

38 Helping the environment

38 Declaration of conformity

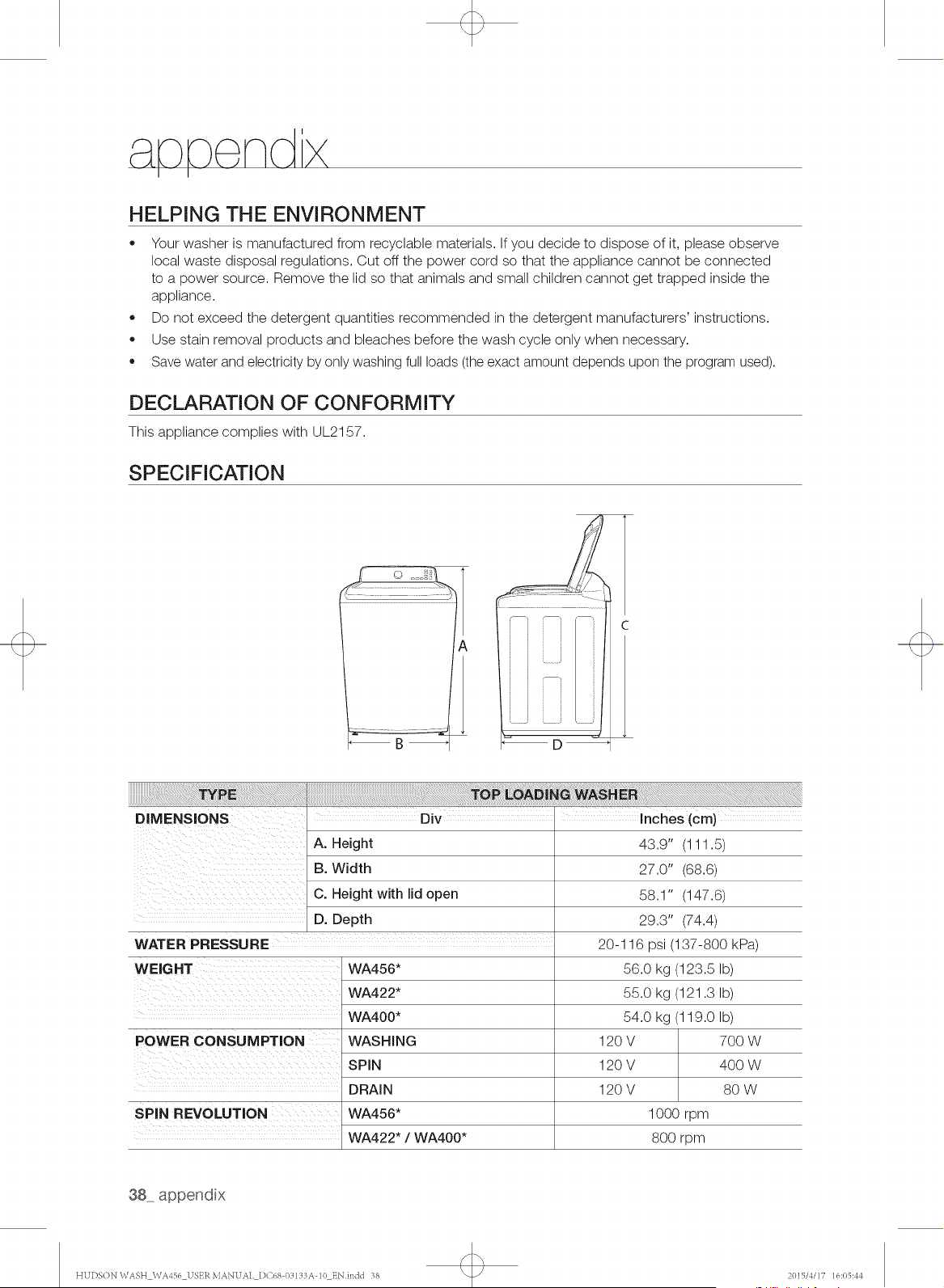

38 Specification

10 contents

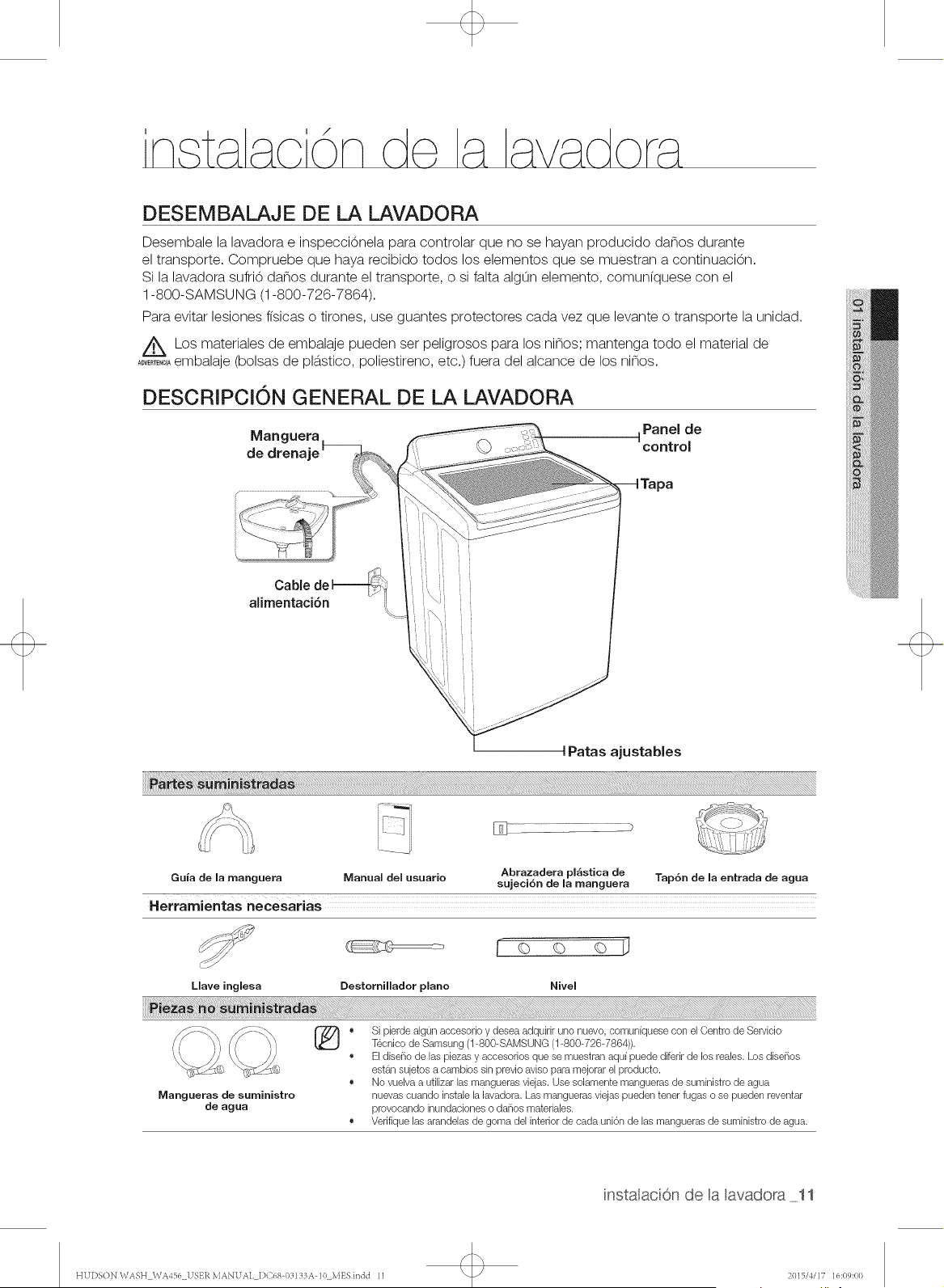

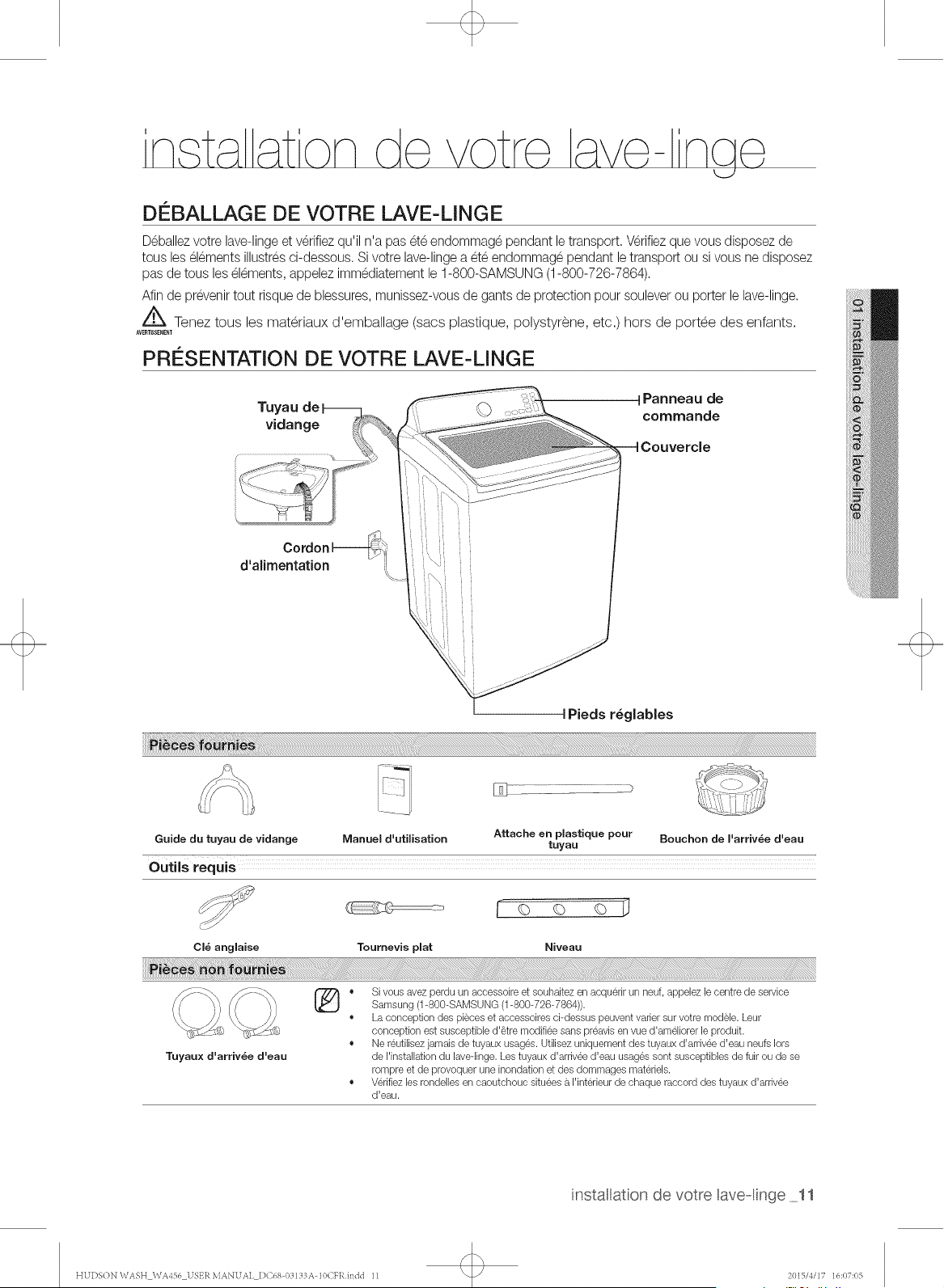

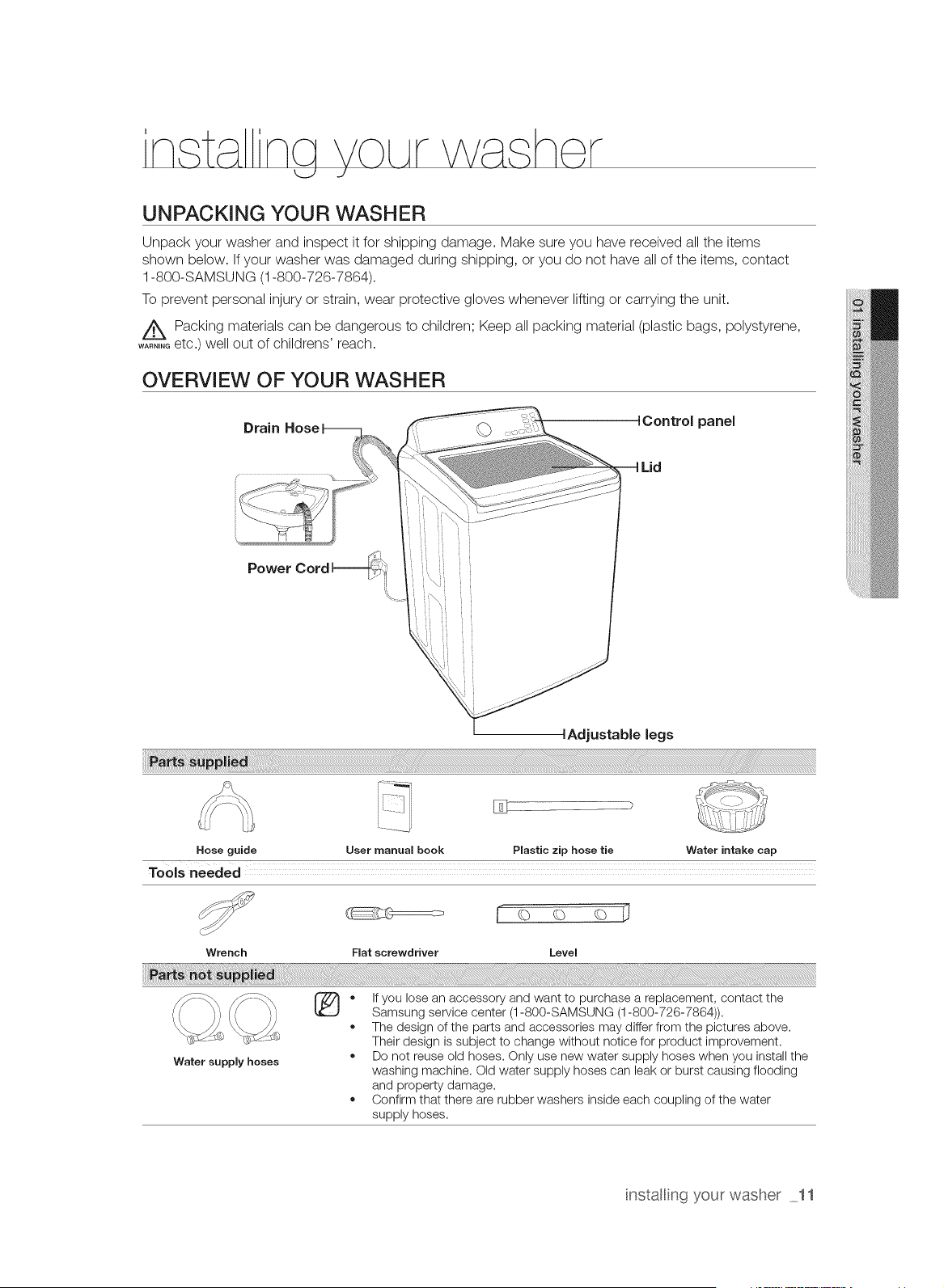

UNPACKING YOUR WASHER

Unpack your washer and inspect it for shipping damage. Make sure you have received all the items

shown below. If your washer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSUNG (1-800-726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

Z_ Packing materials can be dangerous to children; Keep all packing material (plastic bags, polystyrene,

....... etc.) well out of childrens' reach.

OVERVIEW OF YOUR WASHER

Drain Hose

1Control panel

owerCord

1Adjustable legs

Hose guide User manuambook PNasticzip hose tie Water intake cap

Tools needed

Wrench Flat screwdriver Level

Water suppmy hoses

If you lose an accessory and want to purchase a replacement, contact the

Samsung service center (1-800-SAMSUNG (1-800-726-7864)).

The design of the parts and accessories may differ from the pictures above.

Their design is subject to change without notice for product improvement.

Do not reuse old hoses. Only use new water supply hoses when you install the

washing machine. Old water supply hoses can leak or burst causing flooding

and property damage.

Confirm that there are rubber washers inside each coupling of the water

supply hoses.

instaling your washer 11

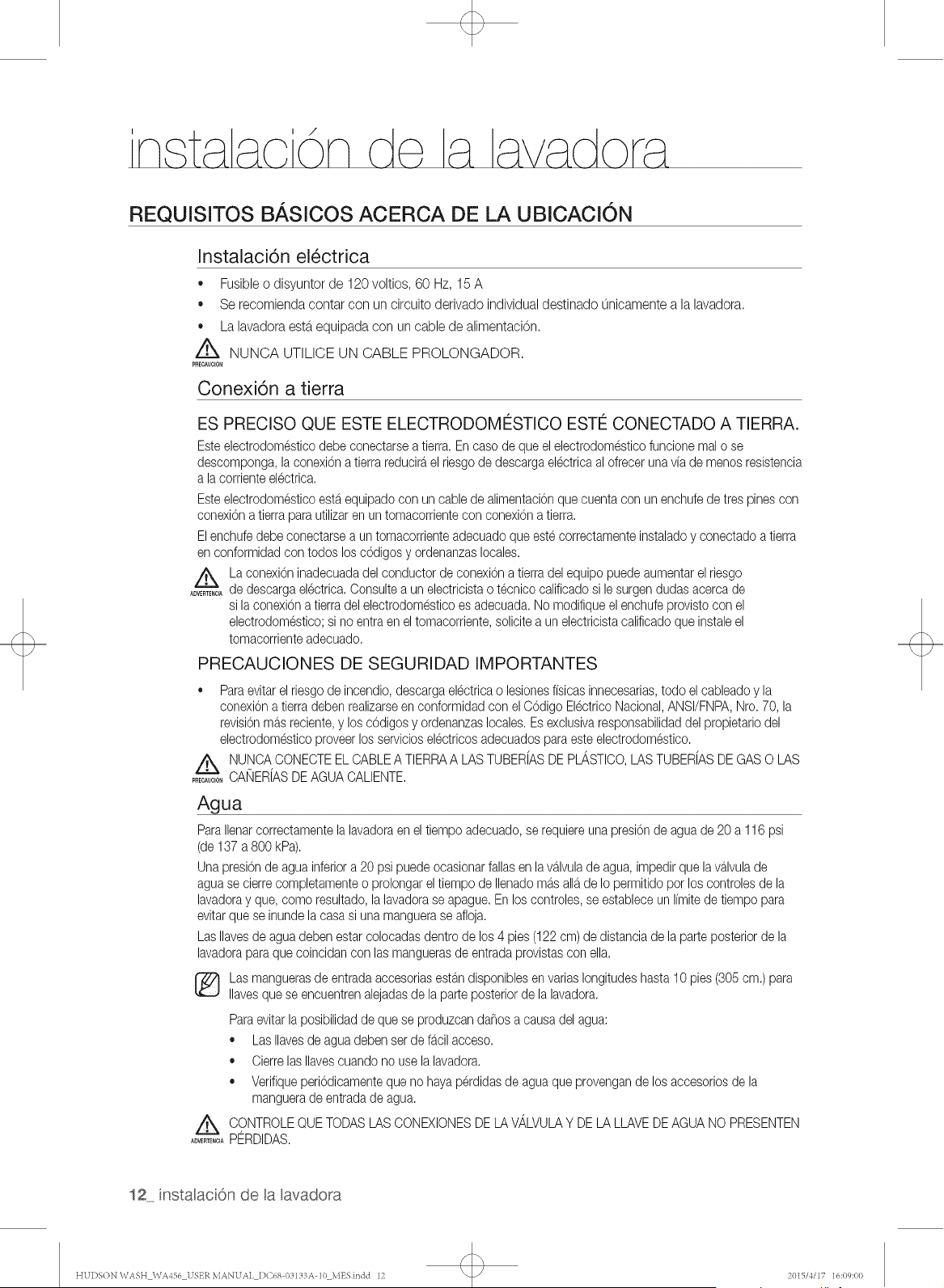

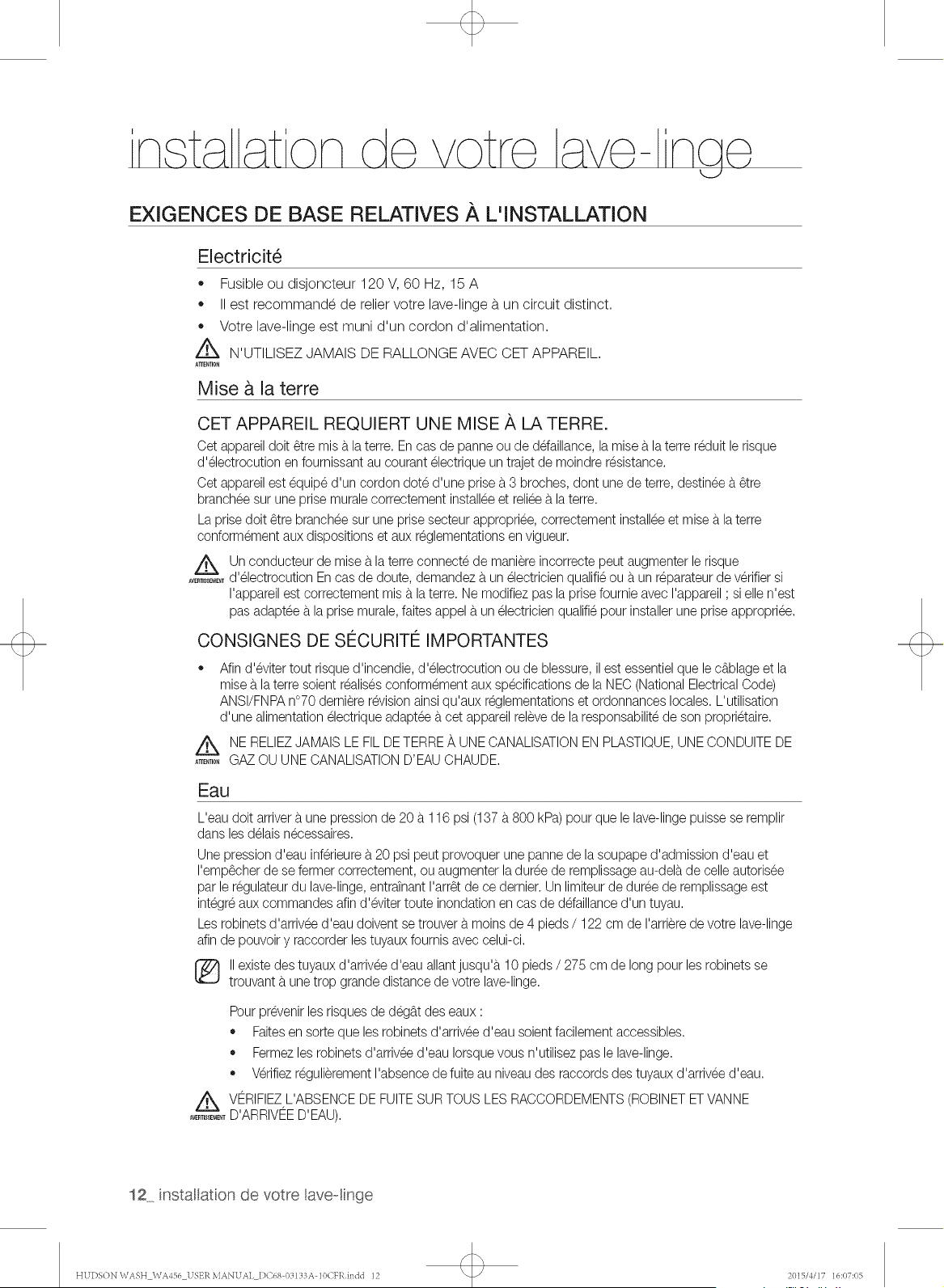

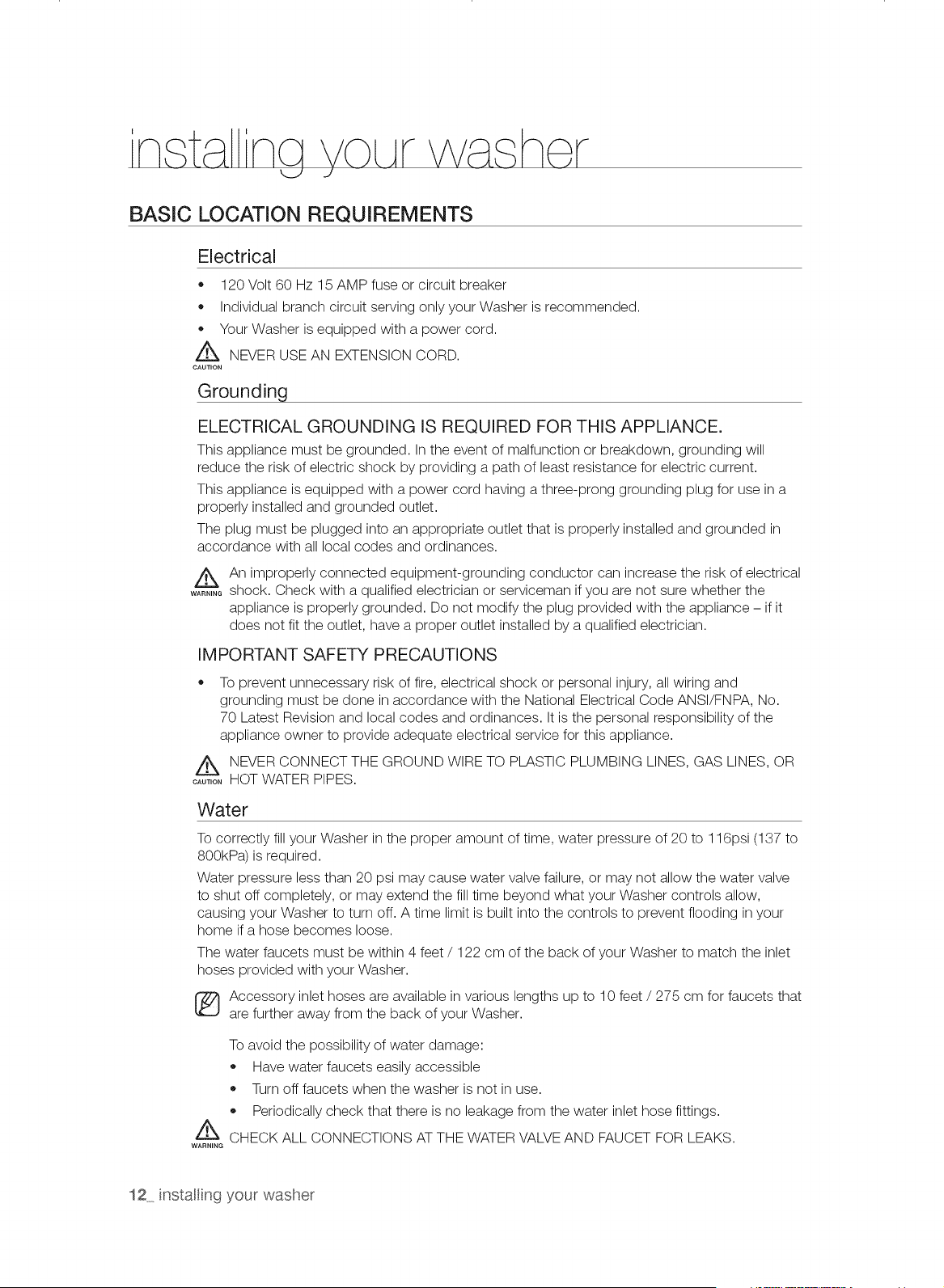

BASIC LOCATION REQUIREMENTS

Electrical

120 Volt 60 Hz 15 AMP fuse or circuit breaker

Individual branch circuit serving only your Washer is recommended.

Your Washer is equipped with a power cord.

NEVER USE AN EXTENSION CORD.

CAUTION

Grounding

ELECTRICAL GROUNDING IS REQUIRED FOR THIS APPLIANCE,

This appliance must be grounded. In the event of malfunction or breakdown, grounding will

reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a power cord having a three-prong grounding plug for use in a

properly installed and grounded outlet.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Z_ An improperly connected equipment-grounding conductor can increase the risk of electrical

....... shock. Check with a qualified electrician or serviceman if you are not sure whether the

appliance is properly grounded. Do not modify the plug provided with the appliance - if it

does not fit the outlet, have a proper outlet installed by a qualified electrician.

IMPORTANT SAFETY PRECAUTIONS

To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and

grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.

70 Latest Revision and local codes and ordinances. It is the personal responsibility of the

appliance owner to provide adequate electrical service for this appliance.

A NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR

....... HOT WATER PIPES.

Water

To correctly fill your Washer in the proper amount of time, water pressure of 20 to 116psi (137 to

800kPa) is required.

Water pressure less than 20 psi may cause water valve failure, or may not allow the water valve

to shut off completely, or may extend the fill time beyond what your Washer controls allow,

causing your Washer to turn off. A time limit is built into the controls to prevent flooding in your

home if a hose becomes loose.

The water faucets must be within 4 feet / 122 cm of the back of your Washer to match the inlet

hoses provided with your Washer.

Accessory inlet hoses are available in various lengths up to 10 feet / 275 cm for faucets that

are further away from the back of your Washer.

z£

WARNING

To avoid the possibility of water damage:

,, Have water faucets easily accessible

,, Turn off faucets when the washer is not in use.

,, Periodically check that there is no leakage from the water inlet hose fittings.

CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.

12 instaling your washer

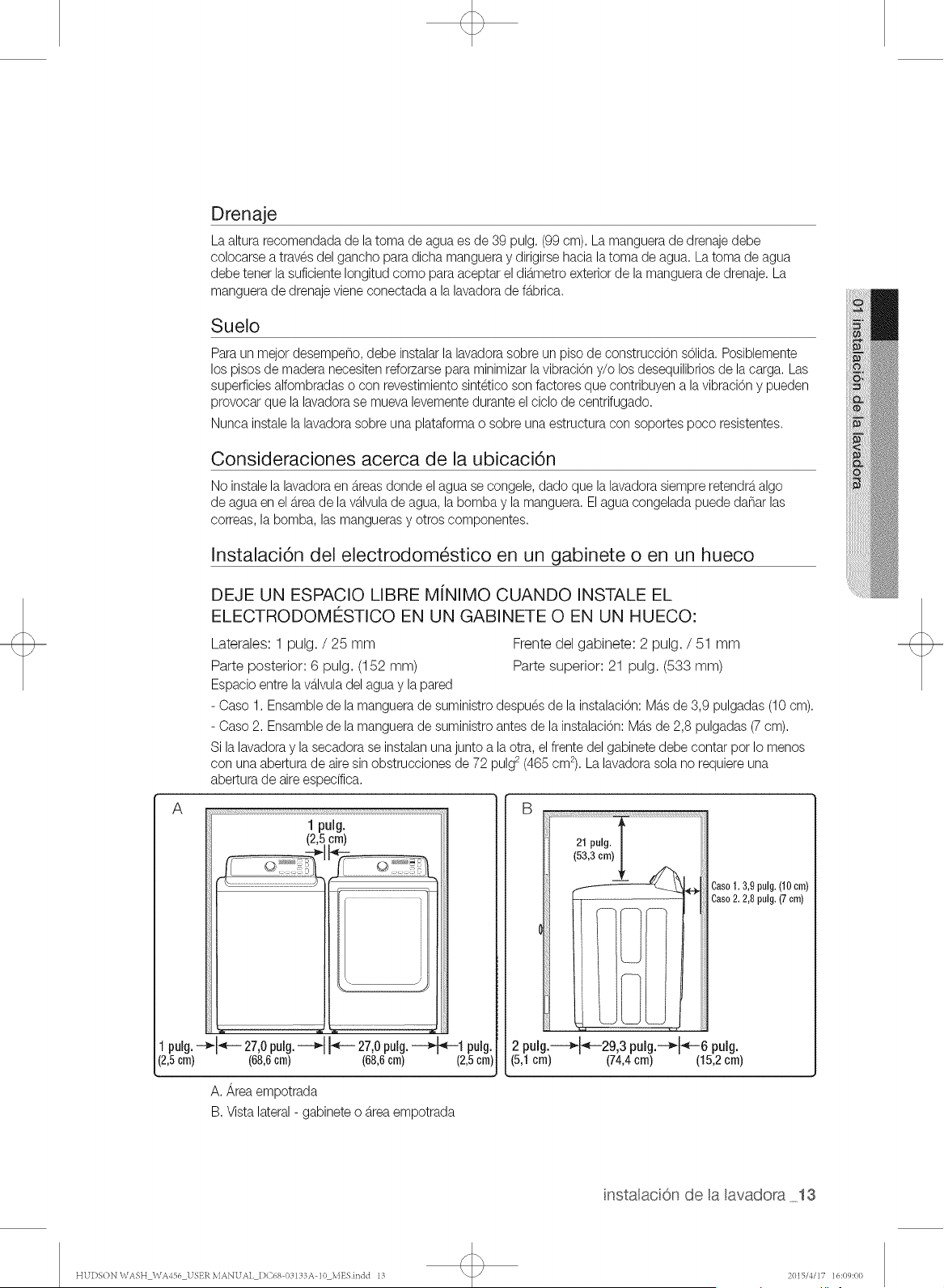

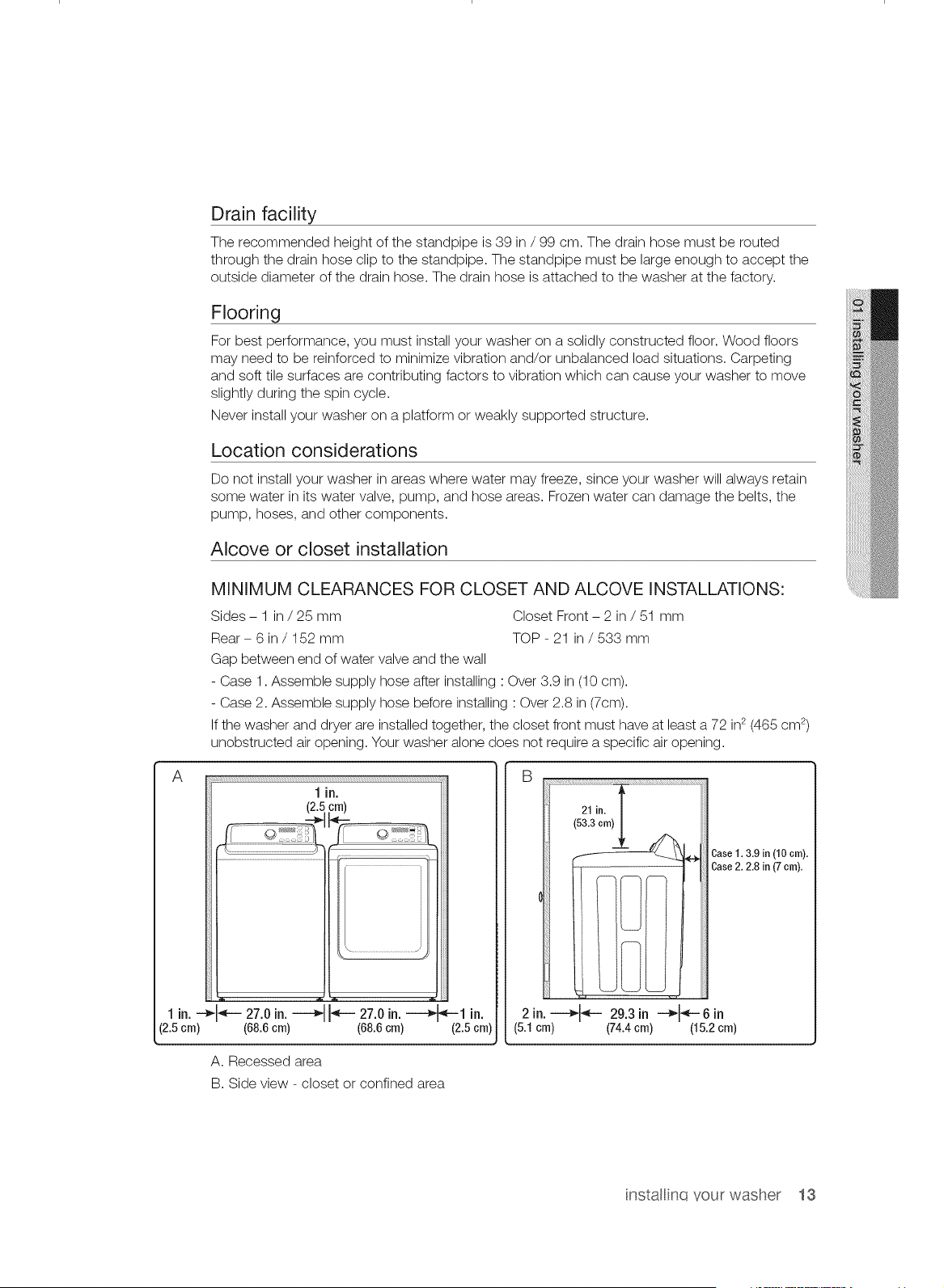

Drain facility

The recommended height of the standpipe is 39 in / 99 cm. The drain hose must be routed

through the drain hose clip to the standpipe. The standpipe must be large enough to accept the

outside diameter of the drain hose. The drain hose is attached to the washer at the factory.

Flooring

For best performance, you must install your washer on a solidly constructed floor. Wood floors

may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting

and soft tile surfaces are contributing factors to vibration which can cause your washer to move

slightly during the spin cycle.

Never install your washer on a platform or weakly supported structure.

Location considerations

Do not install your washer in areas where water may freeze, since your washer will always retain

some water in its water valve, pump, and hose areas. Frozen water can damage the belts, the

pump, hoses, and other components.

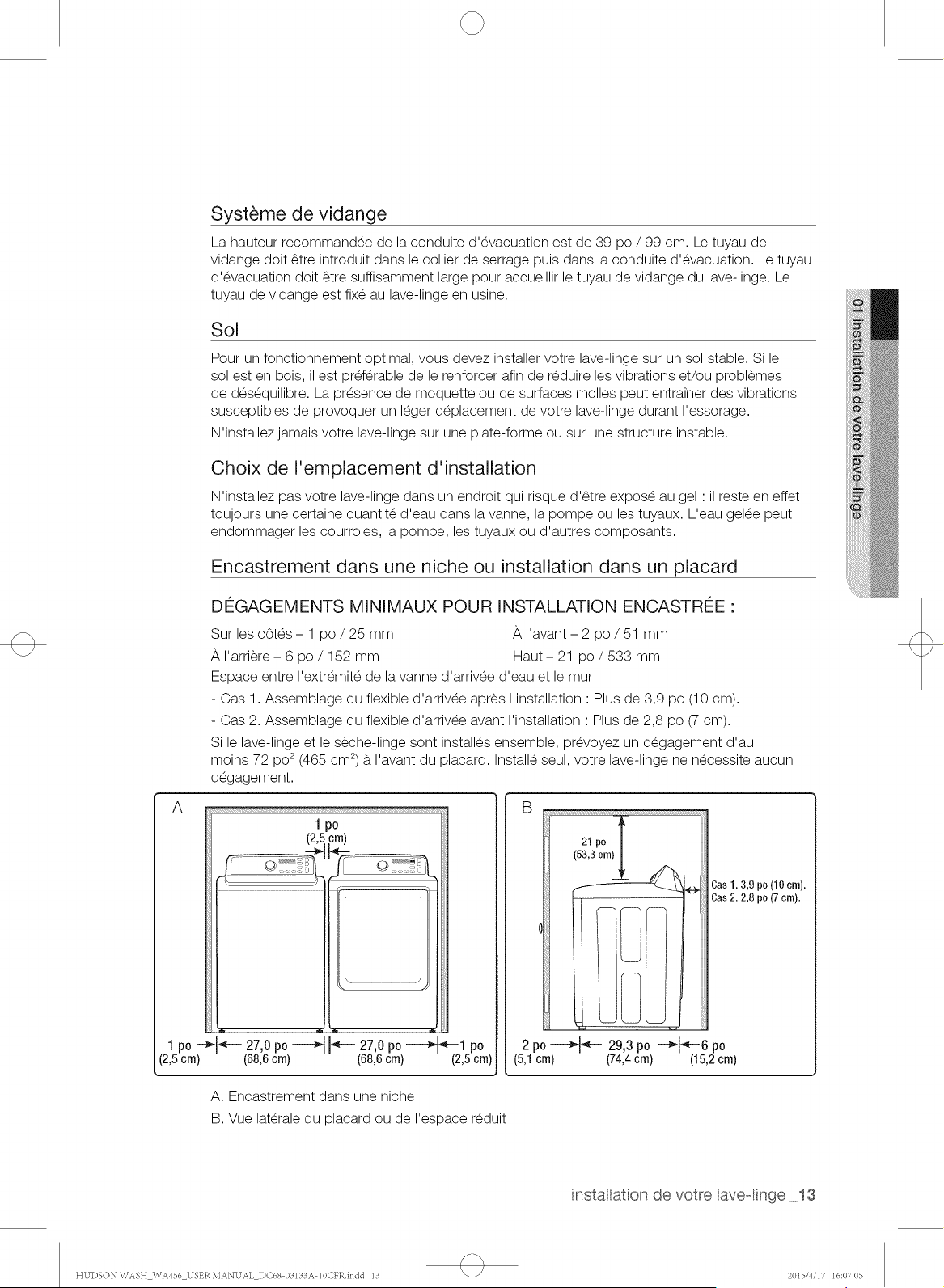

Alcove or closet installation

MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:

Sides - 1 in / 25 mm Closet Front - 2 in / 51 mm

Rear- 6 in / 152 mm TOP- 21 in / 533 mm

Gap between end of water valve and the wall

- Case 1. Assemble supply hose after installing : Over 3.9 in (10 cm).

- Case 2. Assemble supply hose before installing : Over 2.8 in (7cm).

If the washer and dryer are installed together, the closet front must have at least a 72 in2 (465 cm 2)

unobstructed air opening. Your washer alone does not require a specific air opening.

1 in.

(2Z cm)

l in.--_1 _--- 27.0 in.---_11 _-- 27.0 in. _lin.

(2.5cm) (68.6cm) (68.6cm) (2.5cm)

A. Recessed area

i_ ///._, '(5_'1i_m}_

I] _1 Case 1.3.9 in (10 cm).

2 in. -----_1__-- 29.3 in --_1_F- 6 in

(5.1cm) (74.4cm) (15.2cm)

B. Side view - closet or confined area

instalinq your washer 13

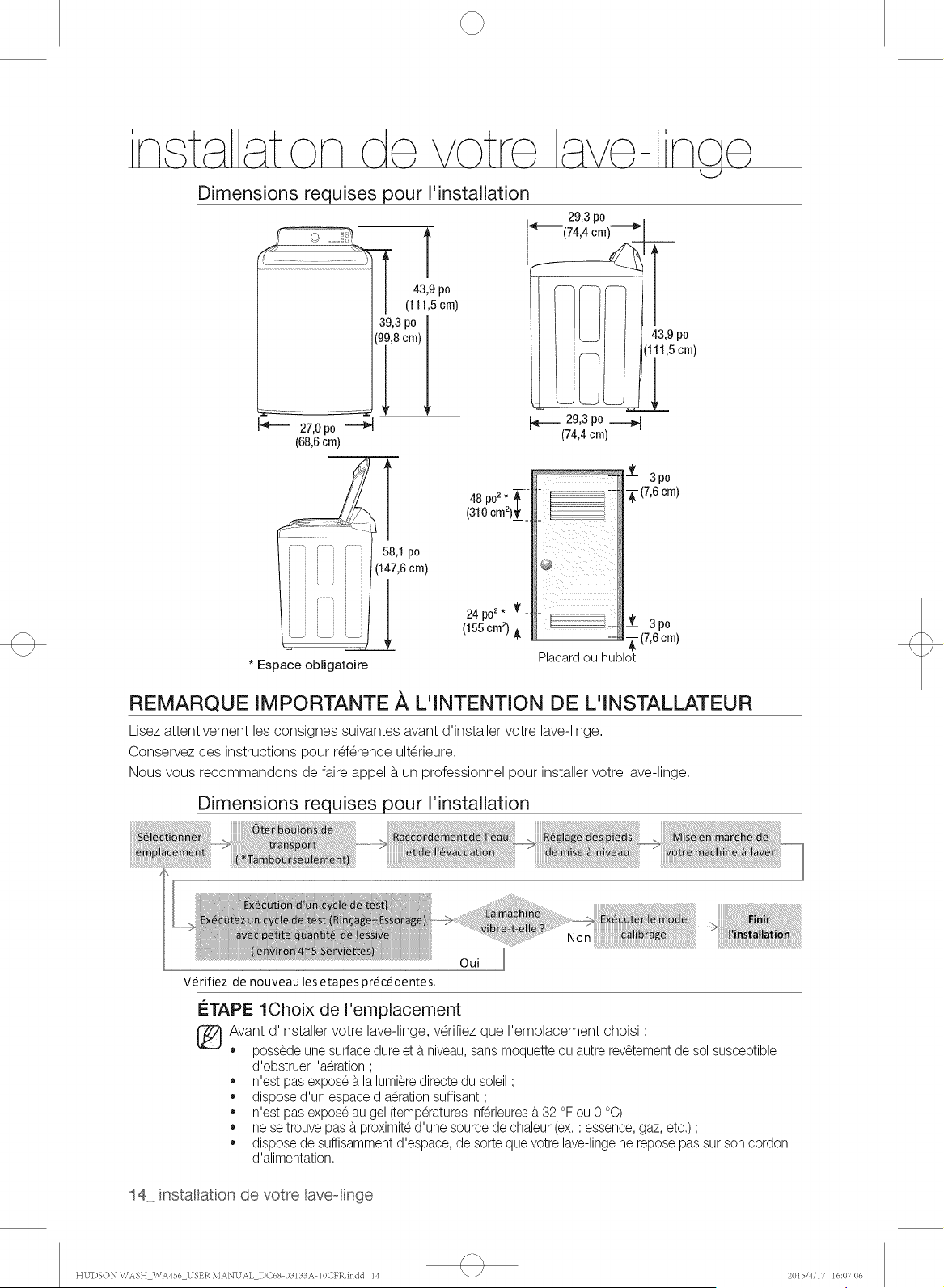

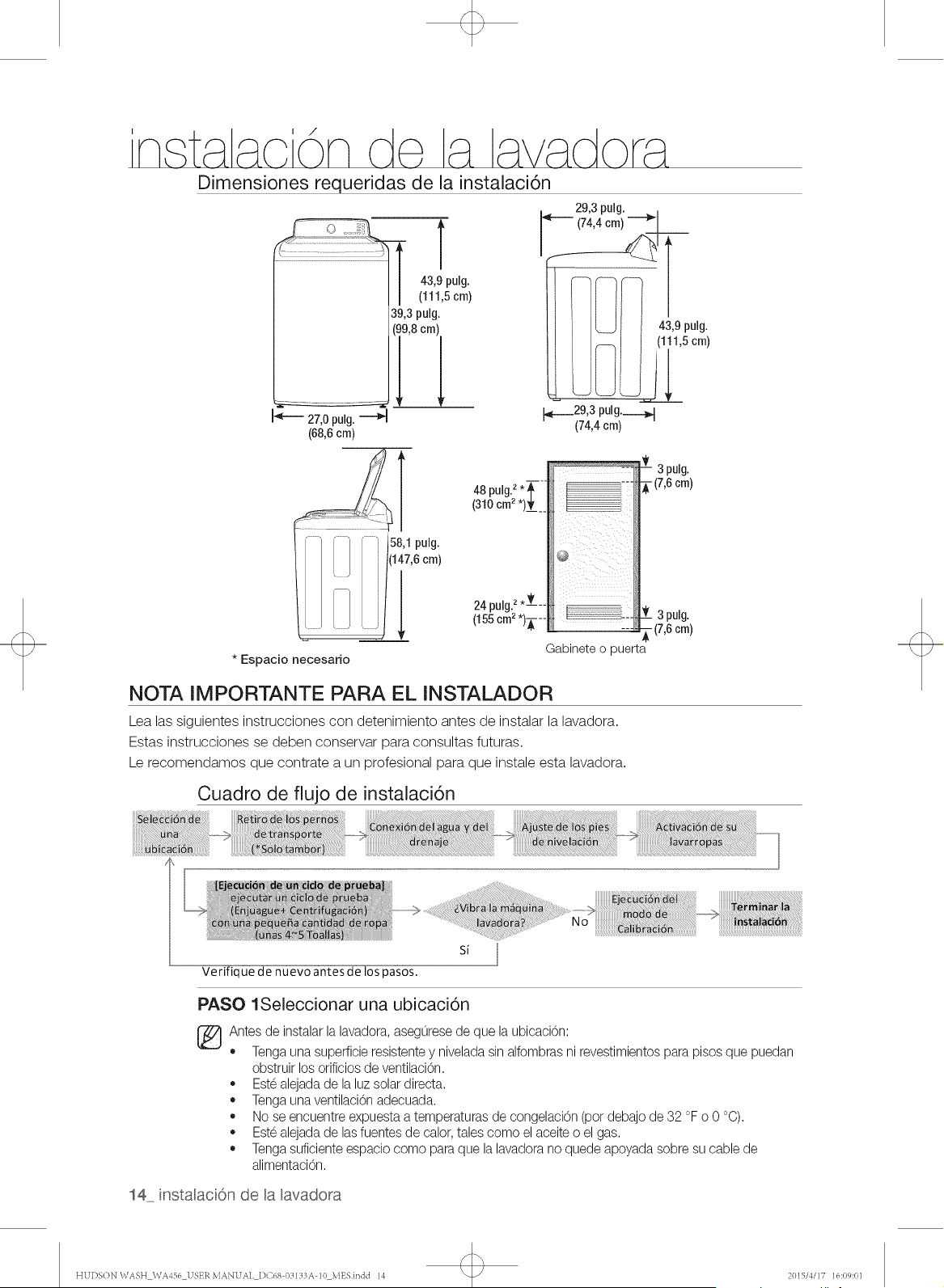

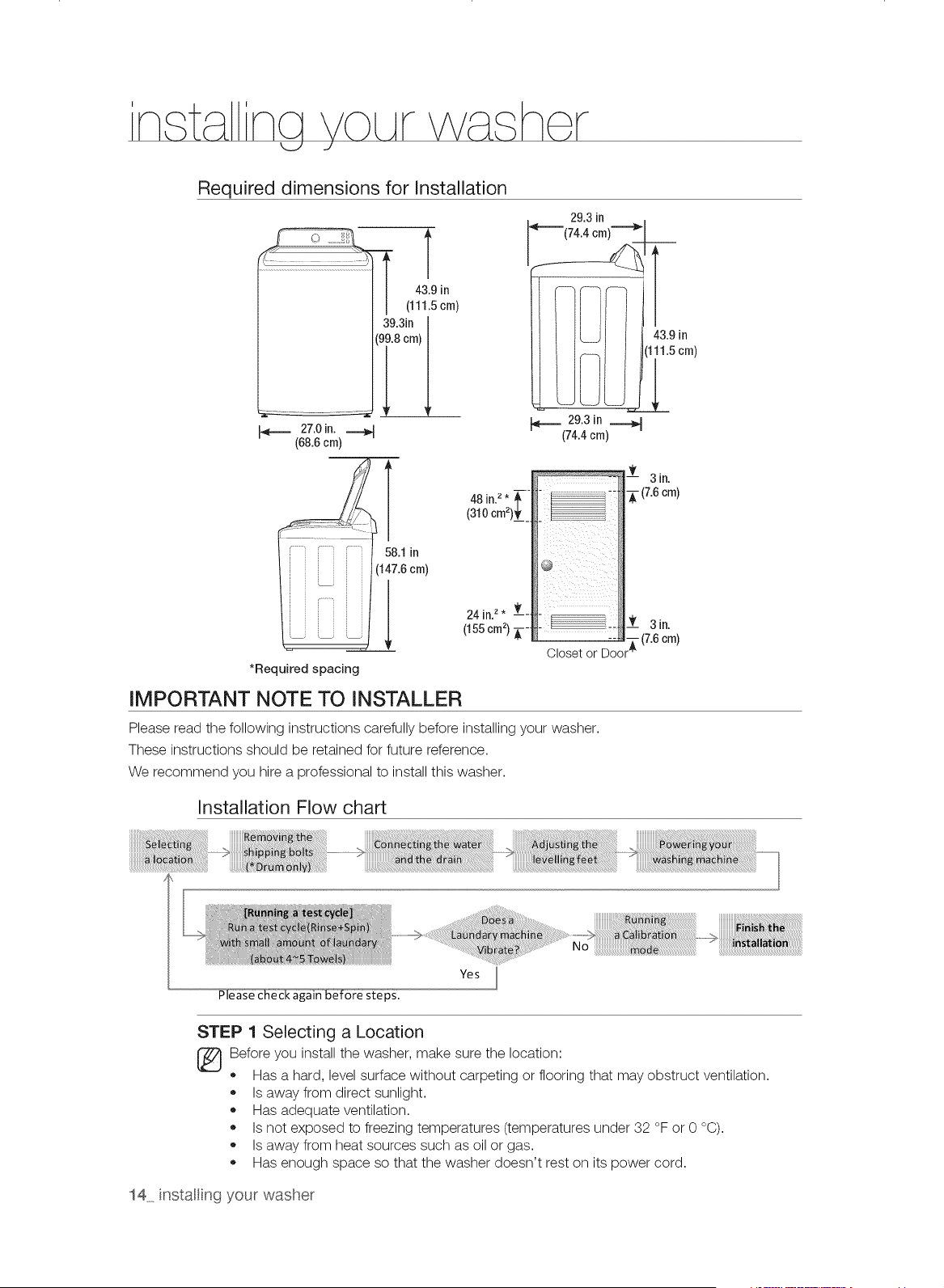

Required dimensions for Installation

(68.6cm)

_r 43.! in

(111.5cm)

[

58.1in

147.6cm)

*Required spacing

29.3in

(74.4cm)

[

43.9in

(111.5cm)

48 i[i. 2 *

(310crn2)_

IMPORTANT NOTE TO INSTALLER

Please read the following instructions carefully before installing your washer.

These instructions should be retained for future reference.

We recommend you hire a professional to install this washer.

Installation Flow chart

_steps.

Yes

STEP 1 Selecting a Location

[_ Before you install the washer, make sure the location:

• Has a hard, level surface without carpeting or flooring that may obstruct ventilation.

• Is away from direct sunlight.

• Has adequate ventilation.

• Is not exposed to freezing temperatures (temperatures under 32 °F or 0 °C).

• Is away from heat sources such as oil or gas.

• Has enough space so that the washer doesn't rest on its power cord.

14 instaling your washer

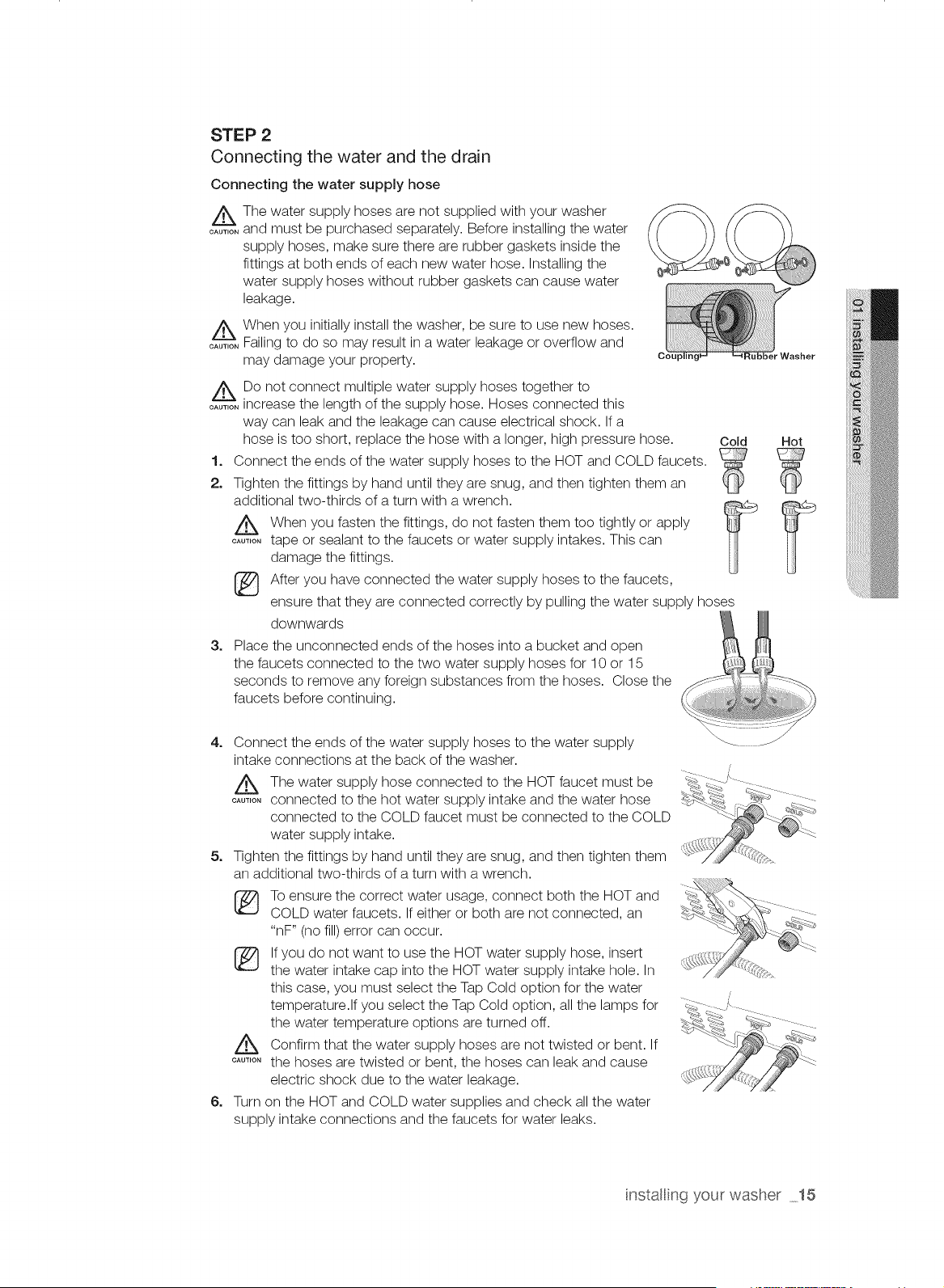

STEP 2

Connecting the water and the drain

Connecting the water supply hose

_The water supply hoses are not supplied with your washer

....... and must be purchased separately. Before installing the water

supply hoses, make sure there are rubber gaskets inside the

fittings at both ends of each new water hose. Installing the

water supply hoses without rubber gaskets can cause water

leakage.

_When you initially install the washer, be sure to use new hoses.

....... Failing to do so may result in a water leakage or overflow and

may damage your property.

ADo not connect multiple water supply hoses together to

....... increase the length of the supply hose. Hoses connected this

way can leak and the leakage can cause electrical shock. If a

hose is too short, replace the hose with a longer, high pressure hose.

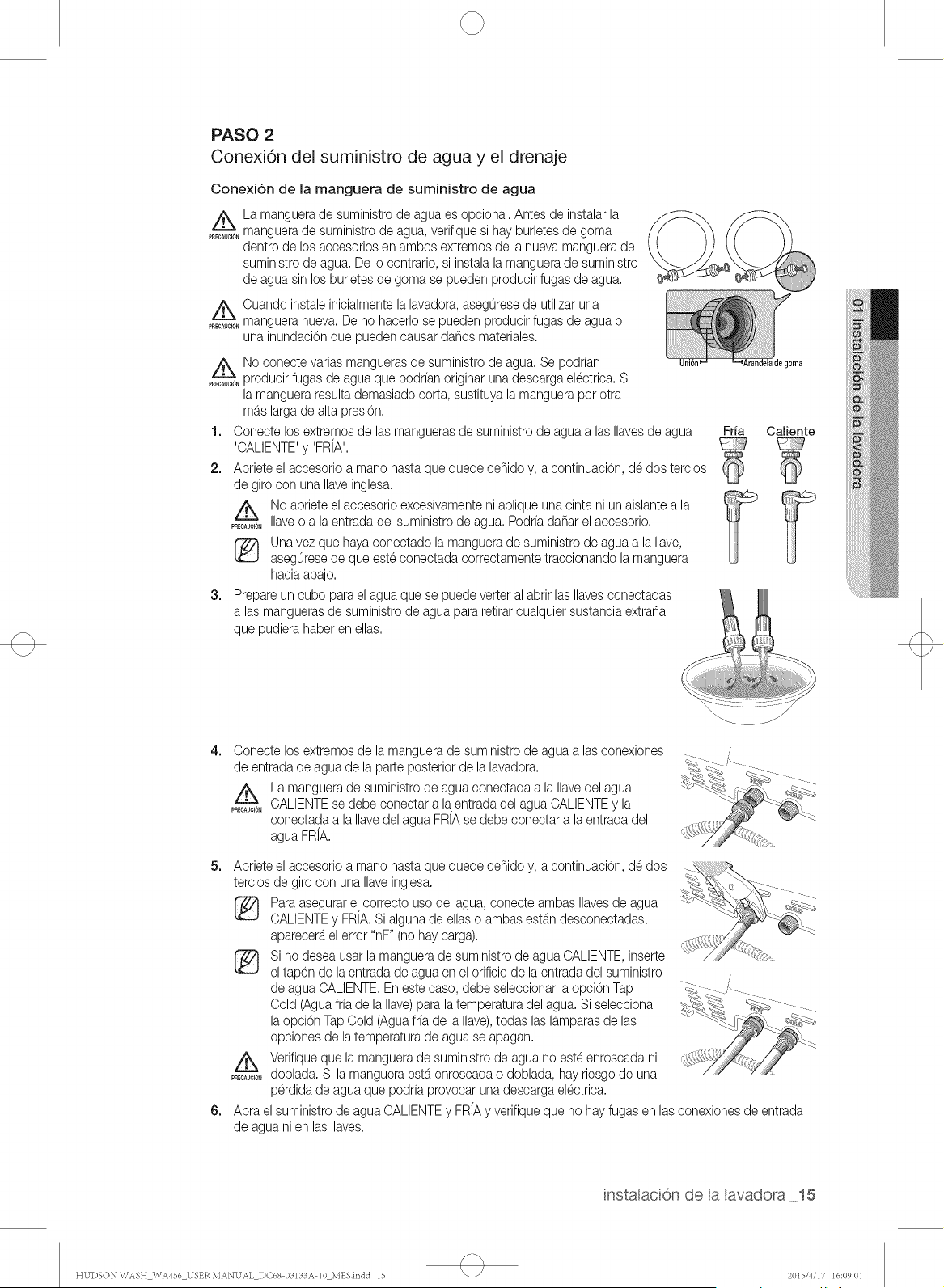

1. Connect the ends of the water supply hoses to the HOT and COLD faucets.

2. Tighten the fittings by hand until they are snug, and then tighten them an

additional two-thirds of a turn with a wrench.

Z_ When you fasten the fittings, do not fasten them too tightly or apply

....... tape or sealant to the faucets or water supply intakes. This can

damage the fittings.

After you have connected the water supply hoses to the faucets,

ensure that they are connected correctly by pulling the water supply hoses

downwards

3. Place the unconnected ends of the hoses into a bucket and open

the faucets connected to the two water supply hoses for 10 or 15

seconds to remove any foreign substances from the hoses. Close the

faucets before continuing.

Cold

Washer

Hot

4. Connect the ends of the water supply hoses to the water supply

intake connections at the back of the washer.

Z_ The water supply hose connected to the HOT faucet must be

....... connected to the hot water supply intake and the water hose

connected to the COLD faucet must be connected to the COLD

water supply intake.

5. Tighten the fittings by hand until they are snug, and then tighten them

an additional two-thirds of a turn with a wrench.

To ensure the correct water usage, connect both the HOT and

COLD water faucets. If either or both are not connected, an

"nF" (no fill) error can occur.

If you do not want to use the HOT water supply hose, insert

the water intake cap into the HOT water supply intake hole. In

this case, you must select the Tap Cold option for the water

temperature.If you select the Tap Cold option, all the lamps for

the water temperature options are turned off.

//_ Confirm that the water supply hoses are not twisted or bent. If

....... the hoses are twisted or bent, the hoses can leak and cause

electric shock due to the water leakage.

6. Turn on the HOT and COLD water supplies and check all the water

supply intake connections and the faucets for water leaks.

instaling your washer 15

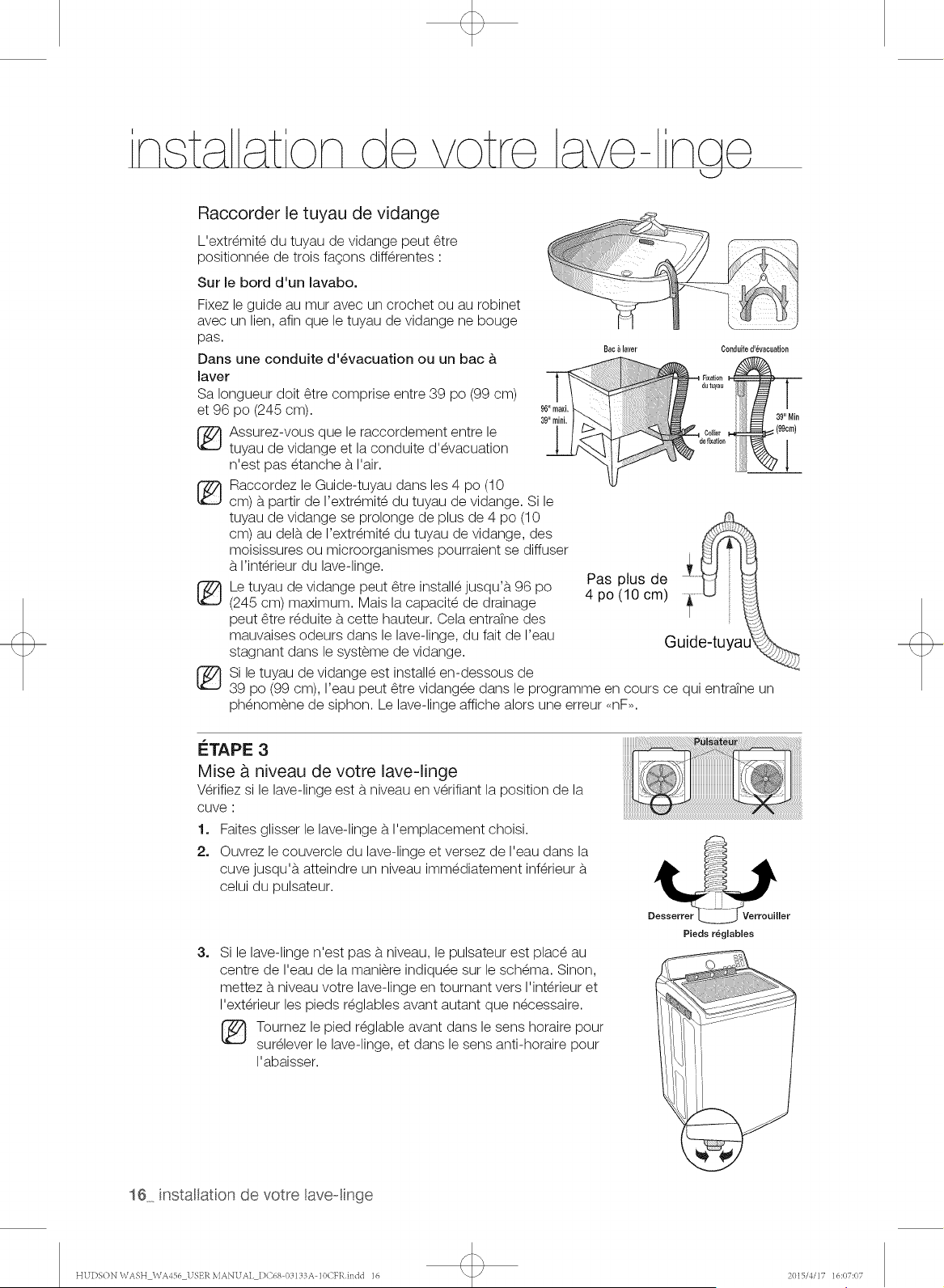

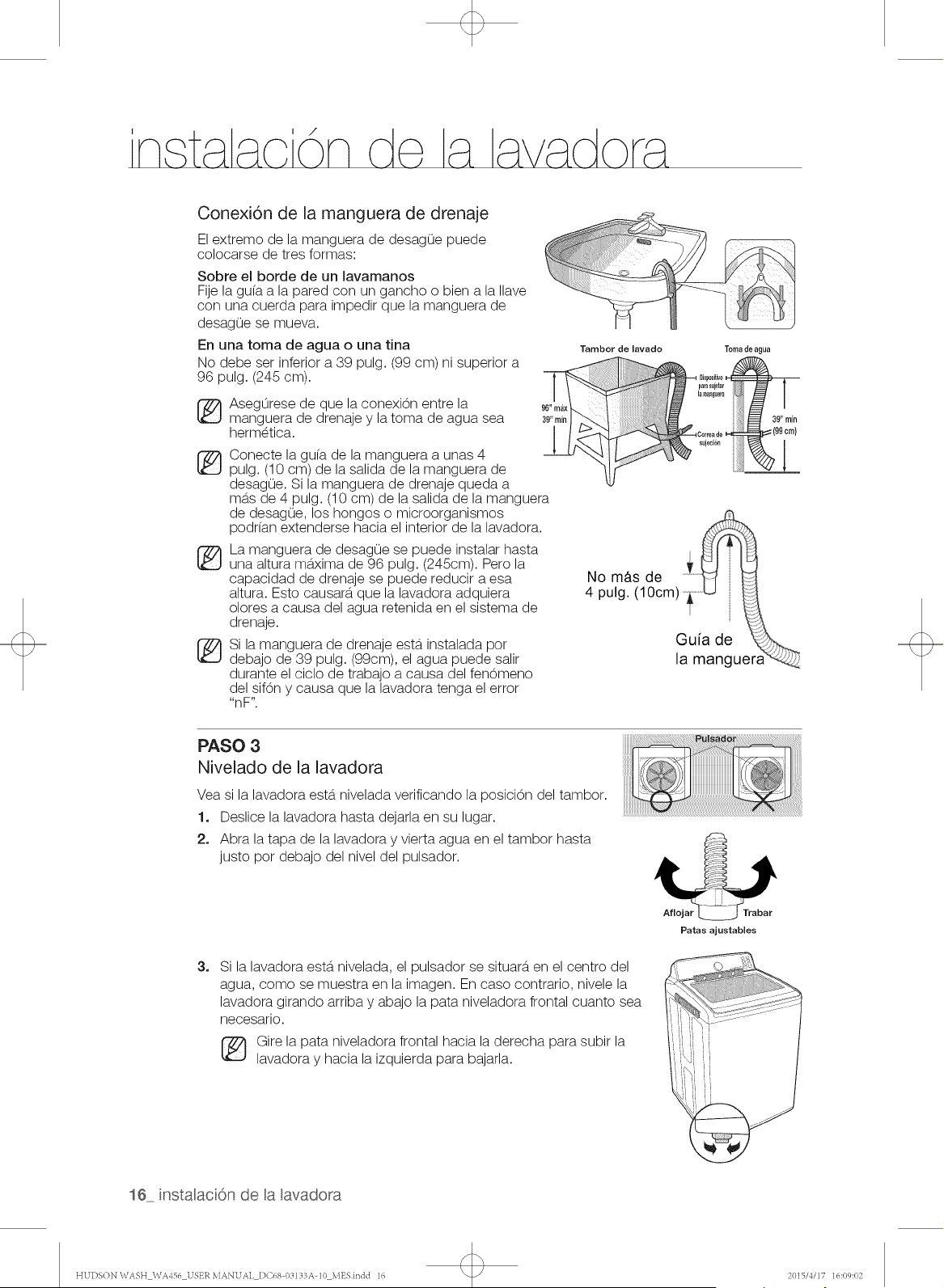

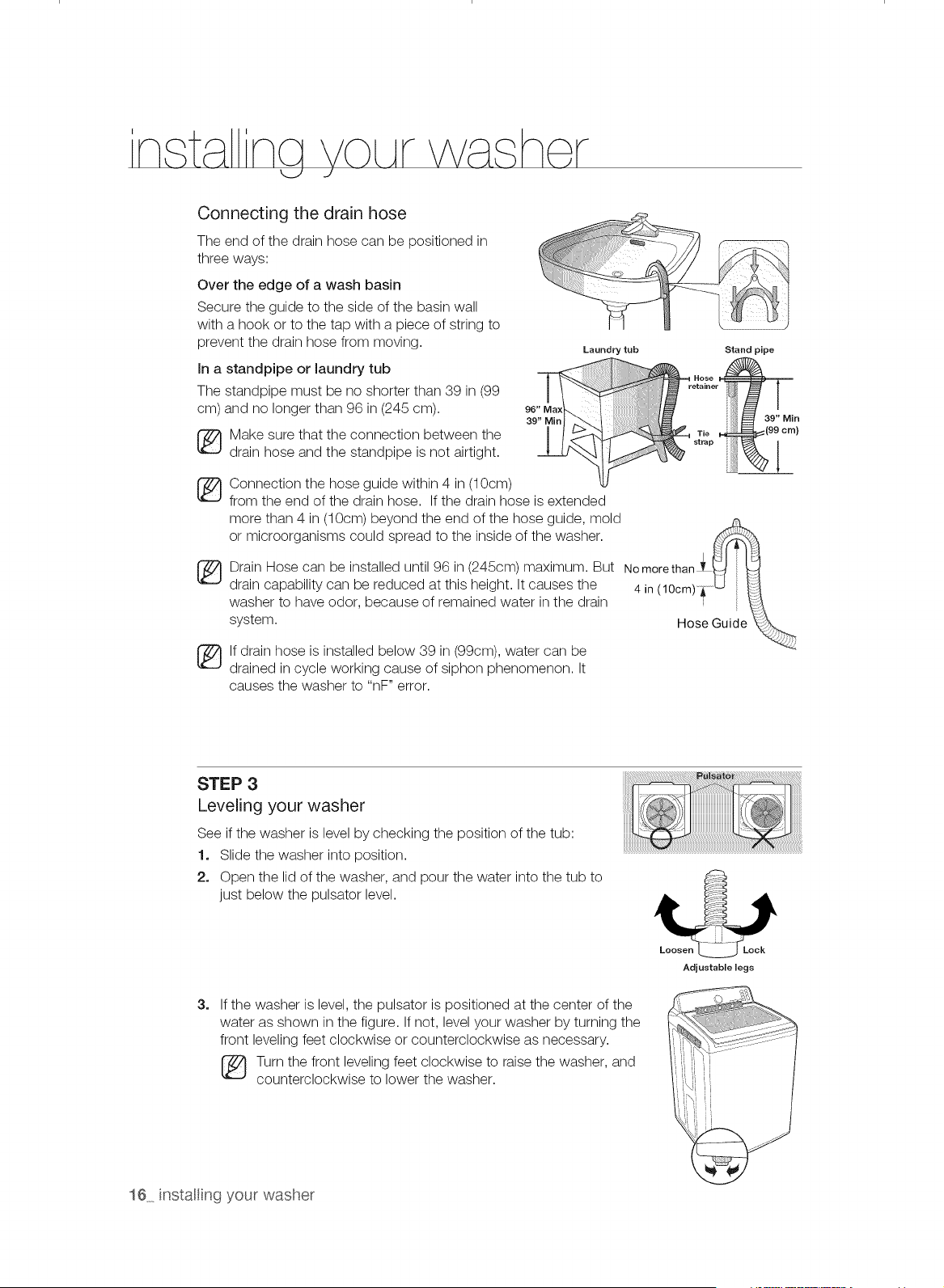

Connecting the drain hose

The end of the drain hose can be positioned in

three ways:

Over the edge of a wash basin

Secure the guide to the side of the basin wall

with a hook or to the tap with a piece of string to

prevent the drain hose from moving.

In a standpipe or laundry tub

The standpipe must be no shorter than 39 in (99

cm) and no longer than 96 in (245 cm).

Laundry tub Stand pipe

retainer

39 " "

Make sure that the connection between the T_e ...... _( )

strap

drain hose and the standpipe is not airtight.

Connection the hose guide within 4 in (10cm)

from the end of the drain hose. If the drain hose is extended

more than 4 in (10cm) beyond the end of the hose guide, mold ,_

or microorganisms could spread to the inside of the washer. ,'_

Drain Hose can be installed until 96 in (245cm) maximum. But Nomorethan

drain capability can be reduced at this height. It causes the 4 in (10cm) _ LJ I

washer to have odor, because of remained water in the drain

system. Hose Guide

lf drain hose is installed below 39 in (99cm), water can be

drained in cycle working cause of siphon phenomenon. It

causes the washer to "nF" error.

STEP 3

Leveling your washer

See if the washer is level by checking the position of the tub:

1o Slide the washer into position.

2. Open the lid of the washer, and pour the water into the tub to

just below the pulsator level.

If the washer is level, the pulsator is positioned at the center of the

water as shown in the figure. If not, level your washer by turning the

front leveling feet clockwise or counterclockwise as necessary.

Turn the front leveling feet clockwise to raise the washer, and

counterclockwise to lower the washer.

Adjustable legs

16 instaling your washer

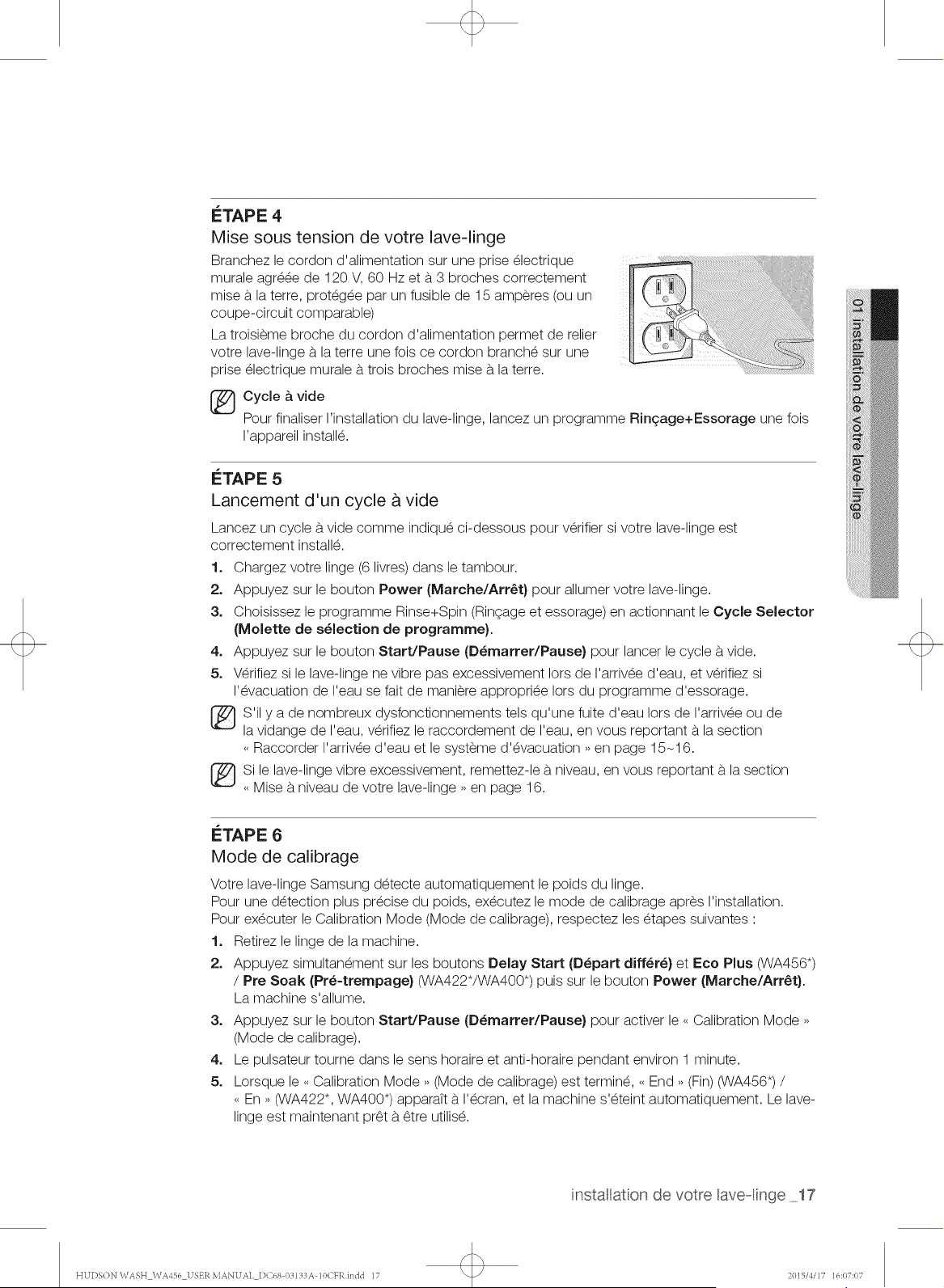

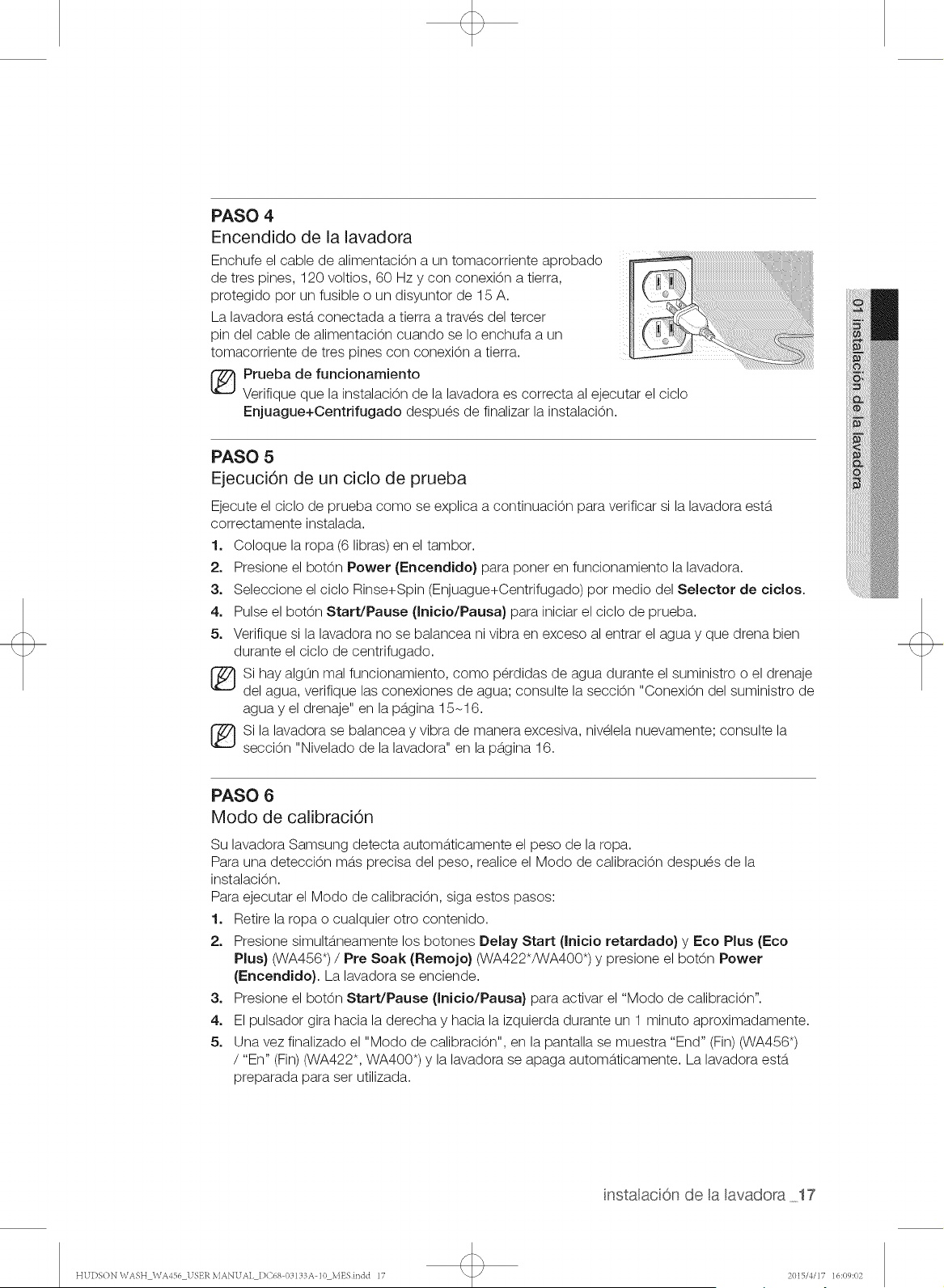

STEP 4

Powering your washer

Plug the power cord into a 3-prong, well grounded 120 volt 60

Hz approved electrical outlet protected by a 15-amp fuse or

comparable circuit breaker.

Your washer is grounded through the third prong of the power

cord when plugged into a three-prong grounded electrical

outlet.

Test run

Make sure that you install your washing machine correctly by running the Rinse+Spin cycle

after the installation is complete.

STEP 5

Running a test cycle

Run a test cycle as follows to check if your washer is properly installed.

1. Load about 6 pounds of laundry into the tub.

2. Press the Power button to turn on your washer.

3. Select the Rinse+Spin cycle by turning the Cycle Selector.

4. Press the Start/Pause button to start the test cycle.

5. The washer should not rock or vibrate excessively when water is supplied or when washing

or spinning, and should drain well during the spin cycle.

lf water leaks while water is being supplied or drained, check the water connections. Refer

to the "Connecting the water and the drain" section on pages 15-16 for instructions.

lf the washer rocks and vibrates excessively, level your washer again. Refer to the "Leveling

your washer" section on page 16 for instructions.

STEP 6

Calibration mode

Your Samsung washing machine detects the laundry weight automatically.

For more accurate weight detection, please run Calibration Mode after the installation.

To run Calibration Mode, follow these steps:

1. Remove laundry or any contents in the machine.

2. On the WA456, press the Delay Start and Eeo Plus buttons simultaneously, and then press

the Power button. On the WA422 or WA400, press the Delay Start and Pre Soak buttons

simultaneously, and then press the Power button. The machine turns on.

3. Press the Start/Pause button to activate "Calibration Mode".

4. The pulsator rotates clockwise and counterclockwise for approximately 1 minute.

5. When "Calibration Mode" is finished, "End" (WA456") /"En" (WA422", WA400*) appears on

the display, and the machine automatically turns off. The washing machine is now ready for

use.

instaling your washer 17

na n tnActon

WAR_N,NGWARNING: To reduce the risk of fire, electric shock, or injury to when using appliance,

persons your

follow basic precautions, including the following:

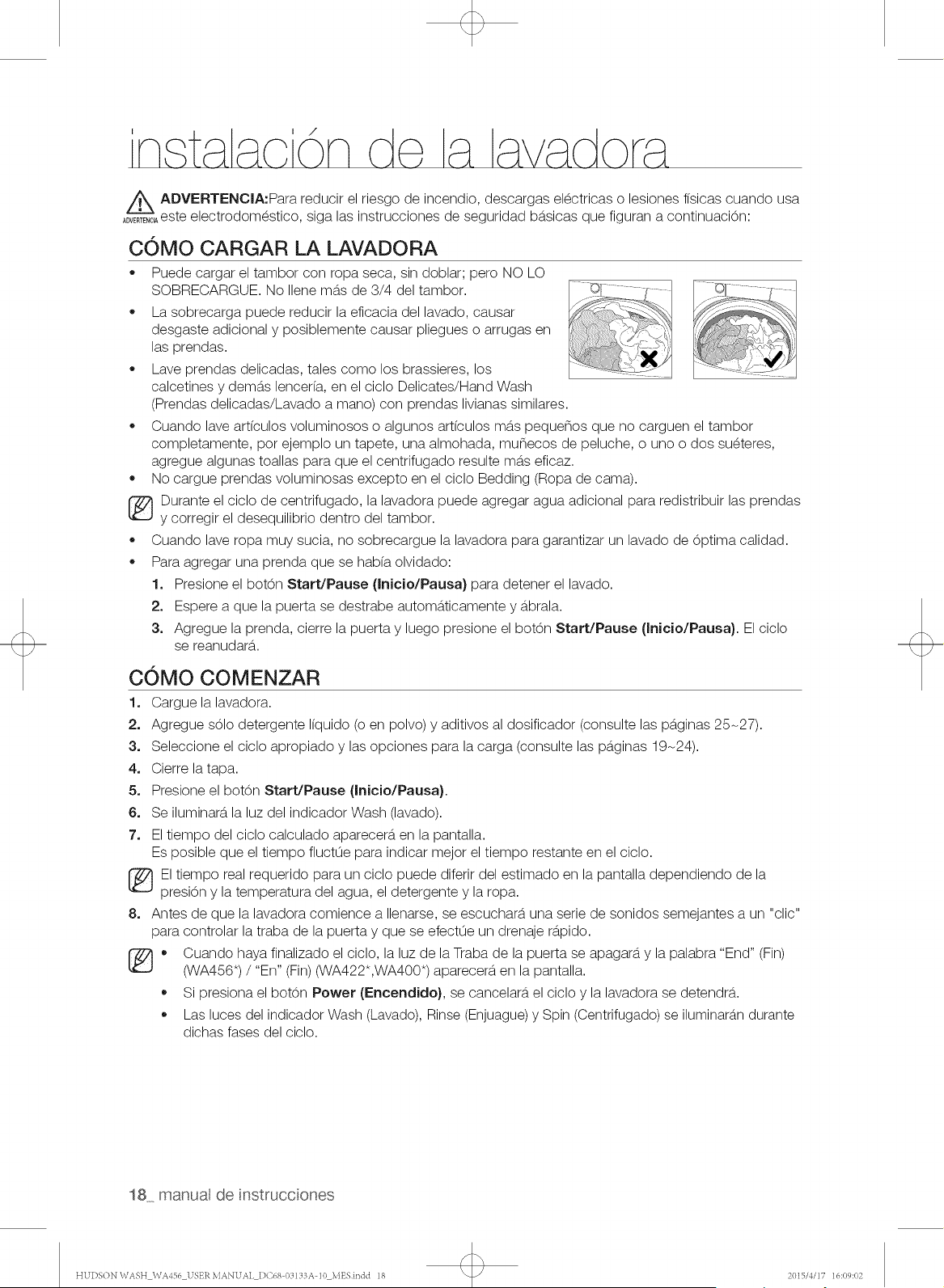

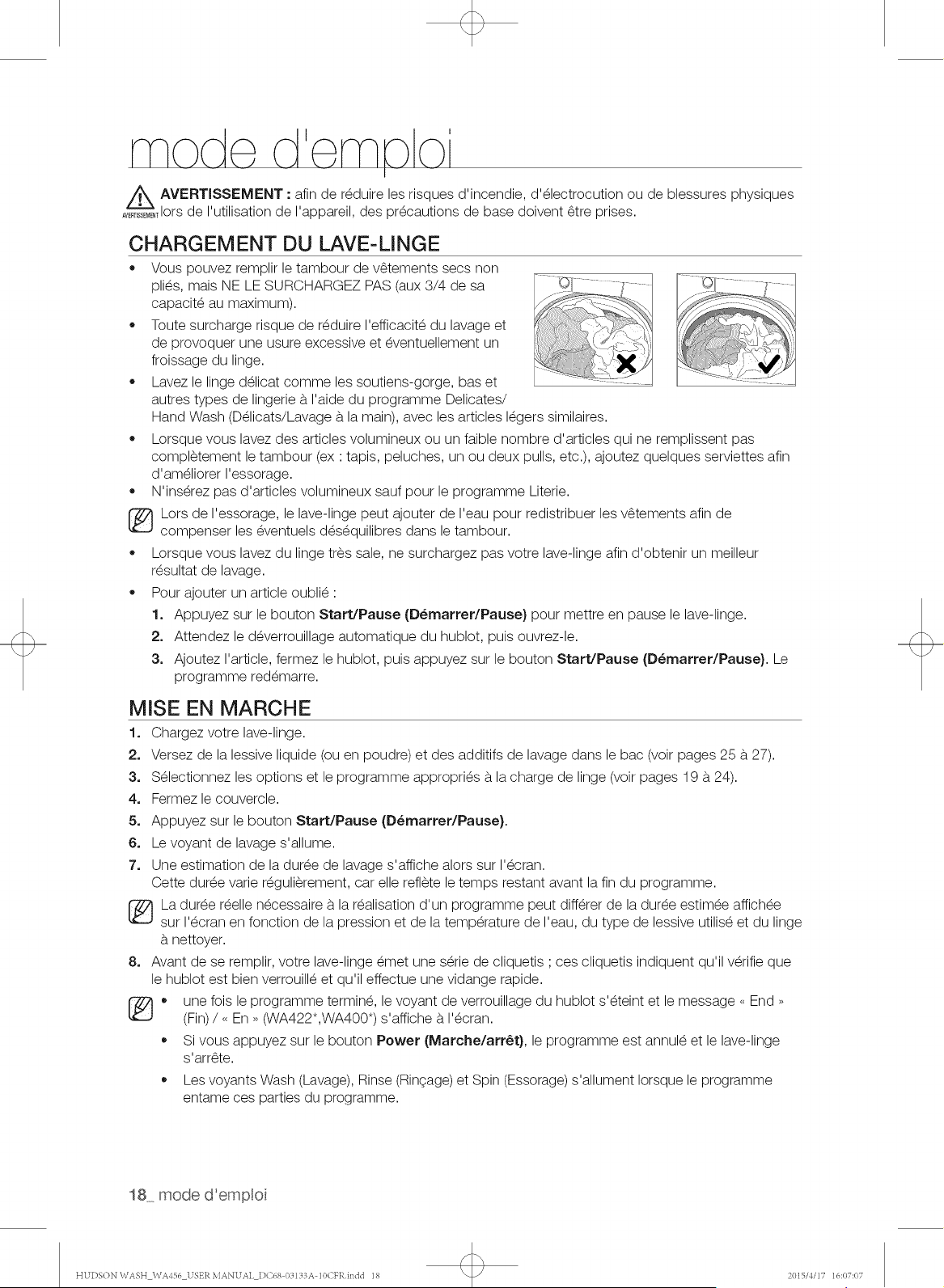

LOADING YOUR WASHER

,, You can fill the tub with dry, unfolded clothes, but DO NOT

OVERLOAD the tub, No more than 3/4 full.

,, Overloading may reduce washing efficiency, cause excess wear,

and possibly cause creasing or wrinkling of the load.

Wash delicate items such as bras, hosiery, and other lingerie in

the Delicates/Hand Wash cycle with similar lightweight items.

,, When washing big bulky items or a few smaller items that don't fill the tub completely - a rug, a pillow,

stuffed toys, or one or two sweaters, for example - add a few towels to improve spin performance.

,, Do not insert bulky items except for Bedding in this cycle.

_ During the spin cycle, the washer may add additional water to redistribute the clothes and correct an

imbalance inside the drum.

,, When washing heavily soiled loads, do not overload your washer to ensure good cleaning results.

,, To add a forgotten item:

1. Press the Start/Pause button to pause the washer.

2. Wait for the door to unlock automatically, and then open the door.

3. Add the item, close the door, and then press the Start/Pause button. The cycle will resume.

GETTING STARTED

1. Load your washer.

2. Add liquid (or powde0 detergent and additives to the dispenser (see pages 25-27).

3. Select the appropriate cycle and options for the load (see pages 19-24).

4. Close the lid.

5. Press the Start/Pause button.

6. The Wash Indicator light illuminates.

7. The estimated cycle time will appear in the display.

The time may fluctuate to indicate the time remaining in the cycle better.

The actual time required for a cycle may differ from the estimated time in the display depending on the

water pressure, water temperature, detergent, and laundry.

8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a

quick drain.

_* When the cycle is complete, the Door Lock light will go out and "End" (WA456") /"En"

(WA422*,WA400*) will appear in the display.

,, Pressing the Power button cancels the cycle and stops your washer.

,, The Wash, Rinse ,and Spin indicator lights will illuminate during those portions of the cycle.

18 operatng nstructons

Heavy

[] AquaJet '°

Heavy Duty

Spin-

Rinse+Spin-

Normal

Delicates 1

- Quick Wash

Press

DelicatesI

-- Quick Wash

--Pure Cycle"

_ Hot _ High

:r °° :to,

_< Cold _ No Spin _ Ught AquaJet _

Sg I Id : _,1;# 9r_ . ;

l l

®® @ ® @

*prt_s & H_ld 31e¢ _E Exlr_ F_nctior_ Delay Start

as_ L_-se L_, E_t Eme _emai_,i _ _

<_ Hot _ High

Warm _# Medium _ Heavy Extra Rinse

_ EcoWarm _ Low _ Normal

Cold _ No Spin _£ Light

Power

...... ,

@-i

@@@

Power

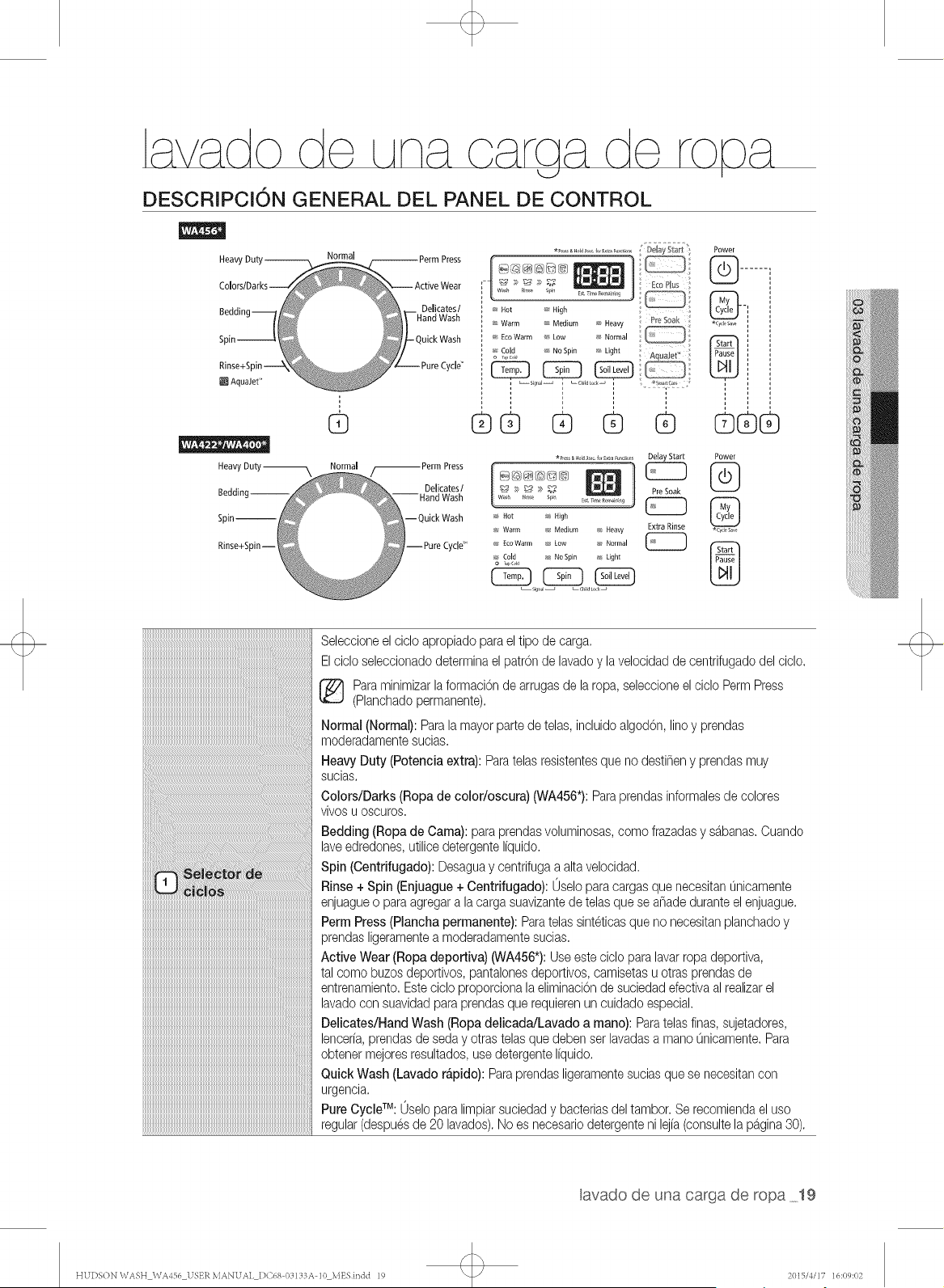

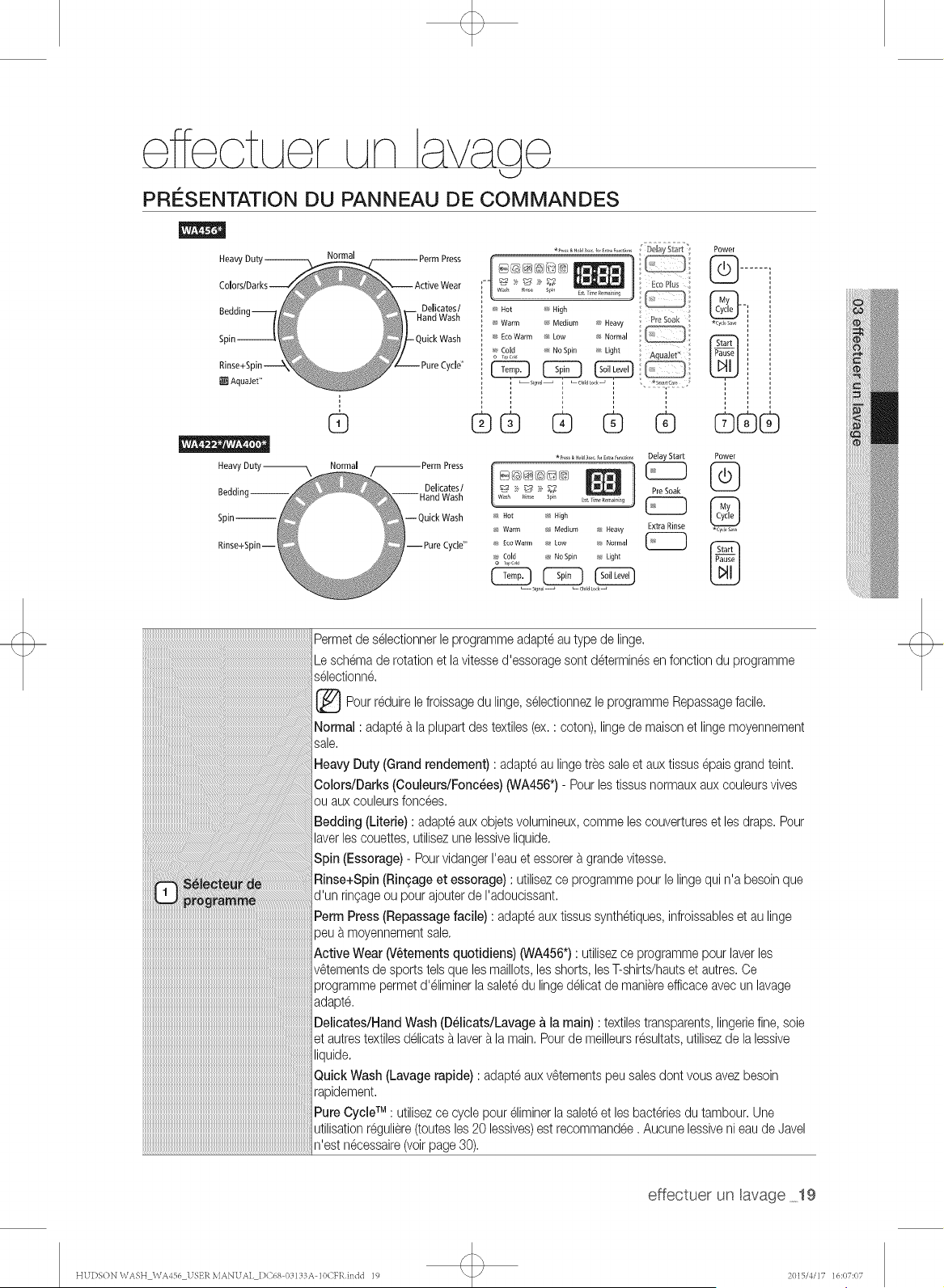

Select the appropriate cycle for the type of load.

The cycle you select determines the tumble pattern and spin speed for the

cycle.

To minimize wrinkling of laundry, select the Perm Press cycle.

Normal - For most fabrics including cottons, linens, and normally soiled

garments.

Heavy Duty - For sturdy, colorfast fabrics and heavily soiled garments.

Colors/Darks (WA456") - For brightly or dark colored casual garments.

Bedding - For bulky items such as blankets and sheets. When you are

washing comforters, use liquid detergent.

Spin - Drains the water and spins at a high speed.

Rinse + Spin - Use for loads that need rinsing only or to add rinse-added

fabric softener to a load.

Perm Press - For wash-and-wear, synthetic fabrics, and lightly to normally

soiled garments.

Active Wear (WA456") - Use this cycle to wash exercise wear such as sports

jerseys, training pants, shirts/tops and other performance clothing. This cycle

provides effective soil removal with gentle action for special fabric care.

Delicates/Hand Wash - For sheer fabrics, bras, lingerie, silks, and other

handwash-only fabrics. For best results, use liquid detergent.

Quick Wash - For lightly soiled garments needed quickly.

Pure Cycle TM - Use to clean dirt and bacteria from the drum. Regular use

(after every 20 washes) is recommended. No detergent or bleach is needed

(see page 30).

washng a oad of aundry 19

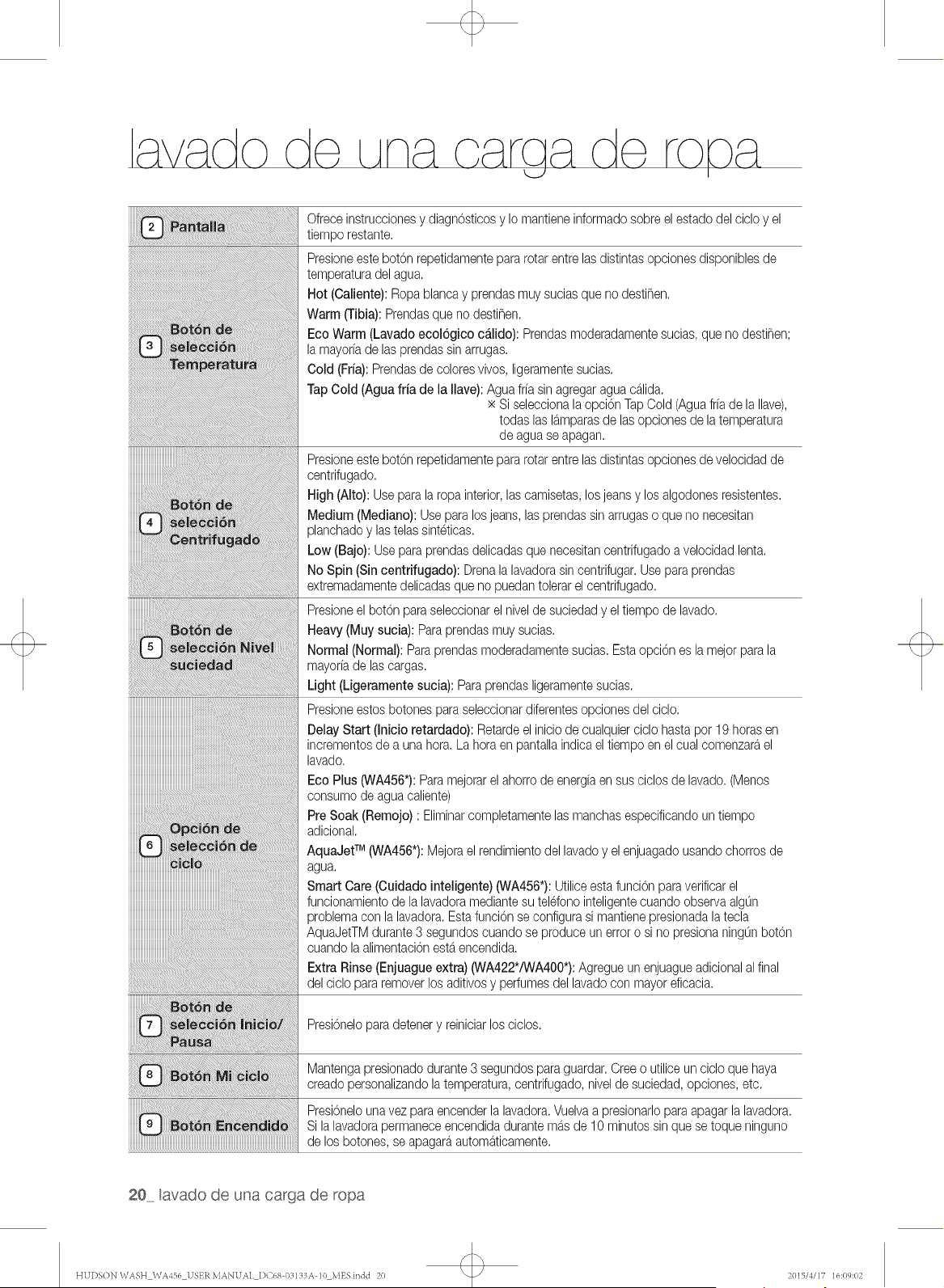

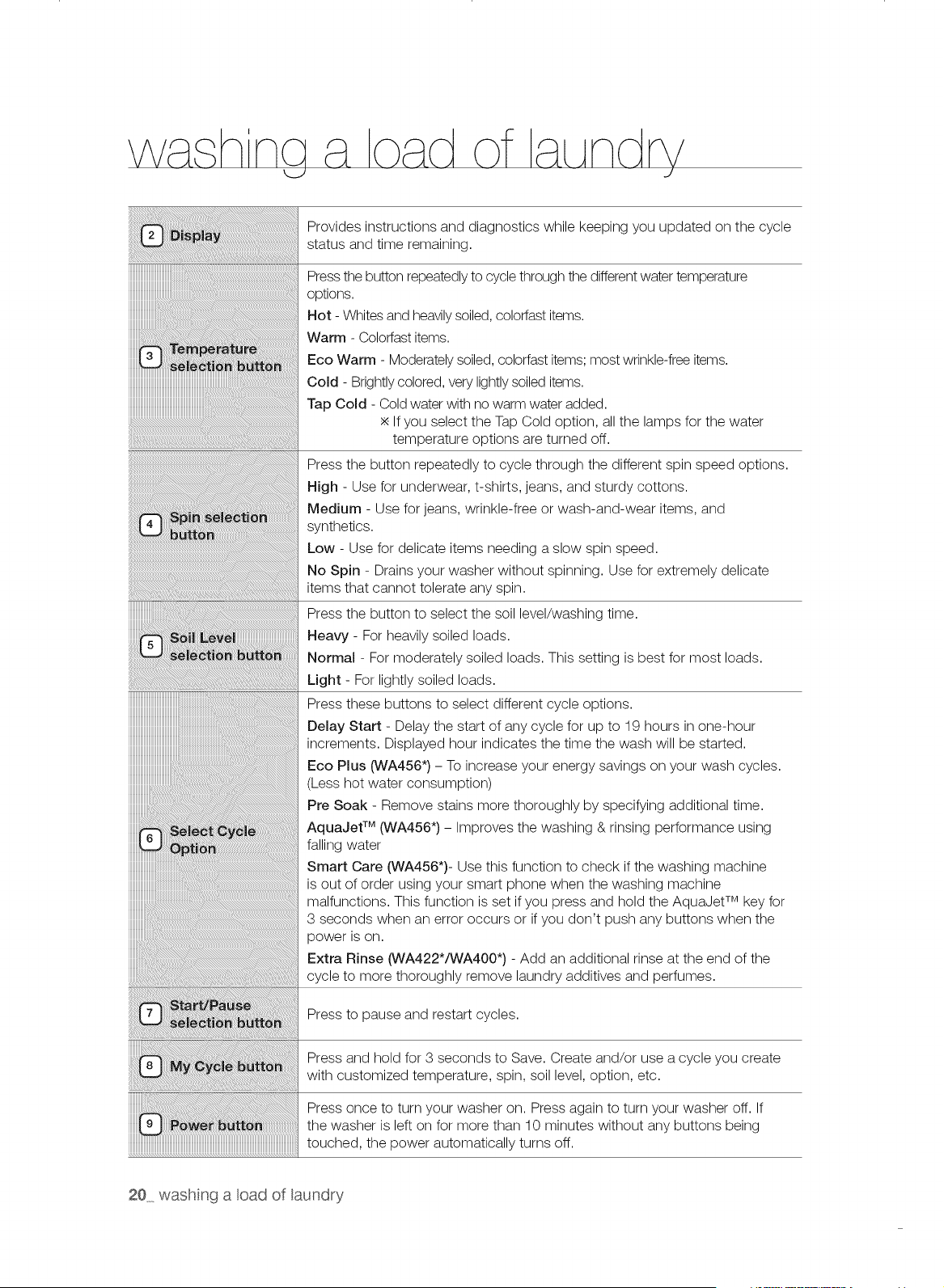

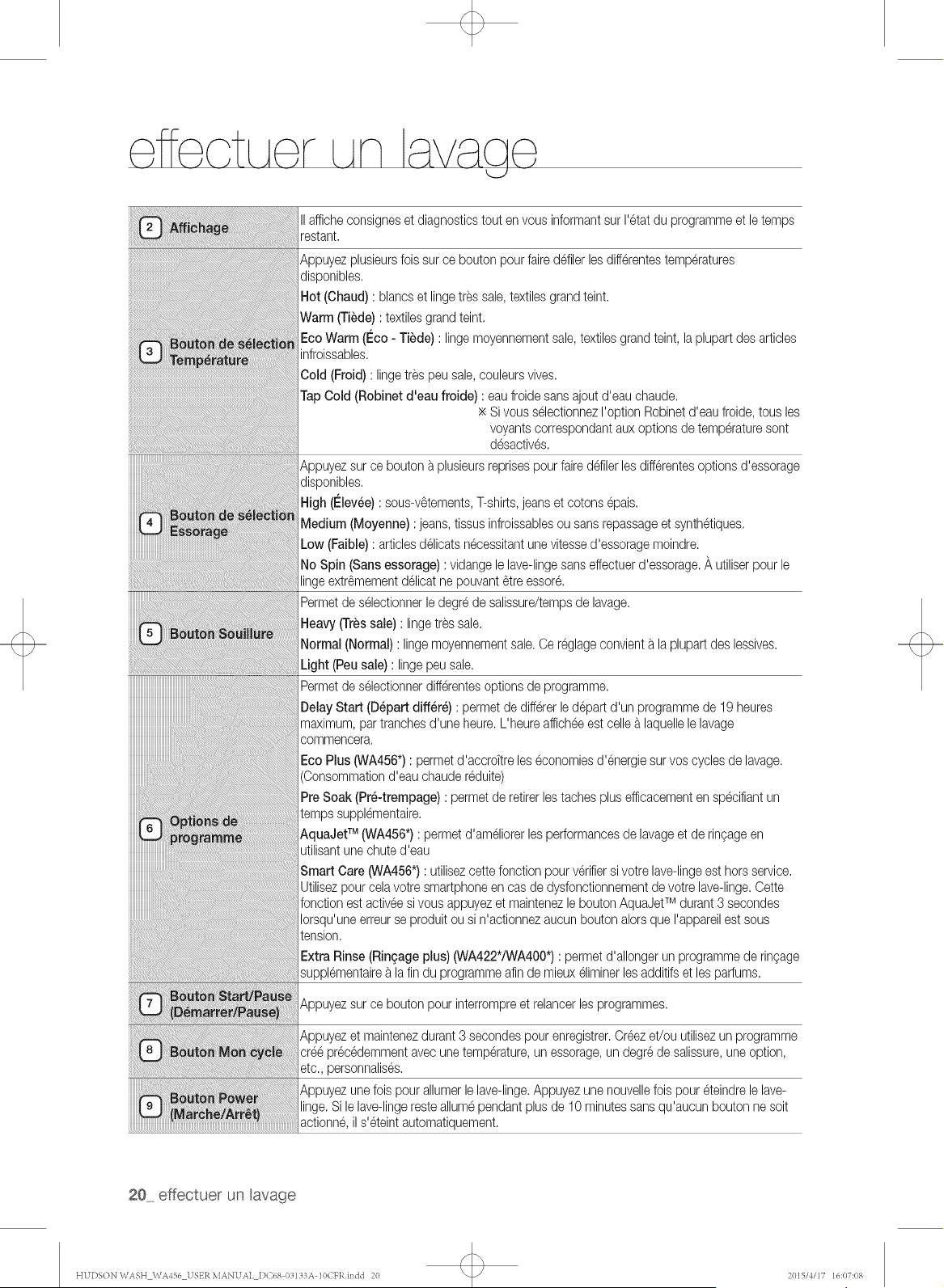

Provides instructions and diagnostics while keeping you updated on the cycle

status and time remaining.

Press the button repeatedly to cycle through the different water temperature

options.

Hot - Whites and heavily soiled, colorfast items.

Warm - Colorfast items.

Eco Warm - Moderately soiled, colorfast items; most wrinkle-free items.

Cold - Brightly colored, very lightly soiled items.

Tap Cold - Cold water with no warm water added.

If you select the Tap Cold option, all the lamps for the water

temperature options are turned off.

Press the button repeatedly to cycle through the different spin speed options.

High - Use for underwear, t-shirts, jeans, and sturdy cottons.

Medium - Use for jeans, wrinkle-free or wash-and-wear items, and

synthetics.

Low - Use for delicate items needing a slow spin speed.

No Spin - Drains your washer without spinning. Use for extremely delicate

items that cannot tolerate any spin.

Press the button to select the soil level/washing time.

Heavy - For heavily soiled loads.

Normal - For moderately soiled loads. This setting is best for most loads.

Light - For lightly soiled loads.

Press these buttons to select different cycle options.

Delay Start - Delay the start of any cycle for up to 19 hours in one-hour

increments. Displayed hour indicates the time the wash will be started.

Eco Plus 0NA456") - To increase your energy savings on your wash cycles.

(Less hot water consumption)

Pre Soak - Remove stains more thoroughly by specifying additional time.

AquaJet TM (WA456") - Improves the washing & rinsing performance using

falling water

Smart Care (WA456")- Use this function to check if the washing machine

is out of order using your smart phone when the washing machine

malfunctions. This function is set if you press and hold the AquaJet TM key for

3 seconds when an error occurs or if you don't push any buttons when the

power is on.

Extra Rinse (WA422*/WA400*) - Add an additional rinse at the end of the

cycle to more thoroughly remove laundry additives and perfumes.

Press to pause and restart cycles.

Press and hold for 3 seconds to Save. Create and/or use a cycle you create

with customized temperature, spin, soil level, option, etc.

Press once to turn your washer on. Press again to turn your washer off. If

the washer is left on for more than 10 minutes without any buttons being

touched, the power automatically turns off.

20 washng a cad of aundry

Child Lock [@]

Child Lock prevents children from playing with your washer.

Activating the Child Lock function

Press and hold the Spin and Soil Level buttons simultaneously for approximately 3 seconds.

When you activate the Child Lock function, the "Child Lock [@]" lamp blinks.

Using the Child Lock function

Ifthe lid is opened when the Child Lock function is on, "ds" is displayed and an alarm sounds.

If the water level in the tub is above the safe water level, "ds" is displayed on the LED display

and the washing machine starts to drain water by force after 30 seconds.

If the water level in the tub is above the safe water level and the Child Lock function is turned

on while the door is open, "CL" is displayed on the LED display even if the power of the

washing machine is turned off and the washing machine drains water by force.

Even if the power of the washing machine is turned off, if the lid is opened while the water

level in the tub is above the Reset water level, "CL" is displayed on the LED display without

the alarm sounding and the washing machine starts to drain water. When the draining

operation finishes, the power is automatically turned off again.

You have activated the Child Lock function while the washing machine is running, the Start/

Pause button will not work.

After the compulsory drain, the "CL" code display blinks at 1 second intervals and the

product enters the "CU' mode. (When the product is in the "CU' mode, only the Power

button works.)

To cancel the "CL" mode, you need to turn the power off and then on again.

To cancel the "ds" mode, deactivate the Child Lock function. To deactivate the Child Lock

function, press and hold the Spin and the Soil Level buttons simultaneously for at least

3 seconds.

_ Adding when Child Lock is

laundry

To add laundry, deactivate the Child Lock function. To deactivate the Child Lock

function, press and hold the Spin and the Soil Level buttons simultaneously for at least

3 seconds. See "Pause Option" on page 24 for additional details.

WARNING

CAUTION

Deactivating the Child Lock function

Press and hold both the Spin and Soil Level buttons simultaneously for approximately

3 seconds.

When you deactivate the Child Lock function, the "Child Lock [@]" is turned off.

The Child Lock function prevents children or the infirm from accidently operating the washer

and injuring themselves.

If a child enters the washing machine, the child may become trapped and suffocate.

Once you have activated the Child Lock function, it continues working even if the power

is turned off.

Forcing the lid open can result in injury or damage to the product.

To add laundry after you have activated the Child Lock function, you must first deactivate

the Child Lock function.

wash n9 a cad of aundry 21

Signal

When the cycle is complete, a chime will sound.

When you press and hold both the Temp. and Spin buttons simultaneously for 3 seconds or

more, the chime will sound intermittently.

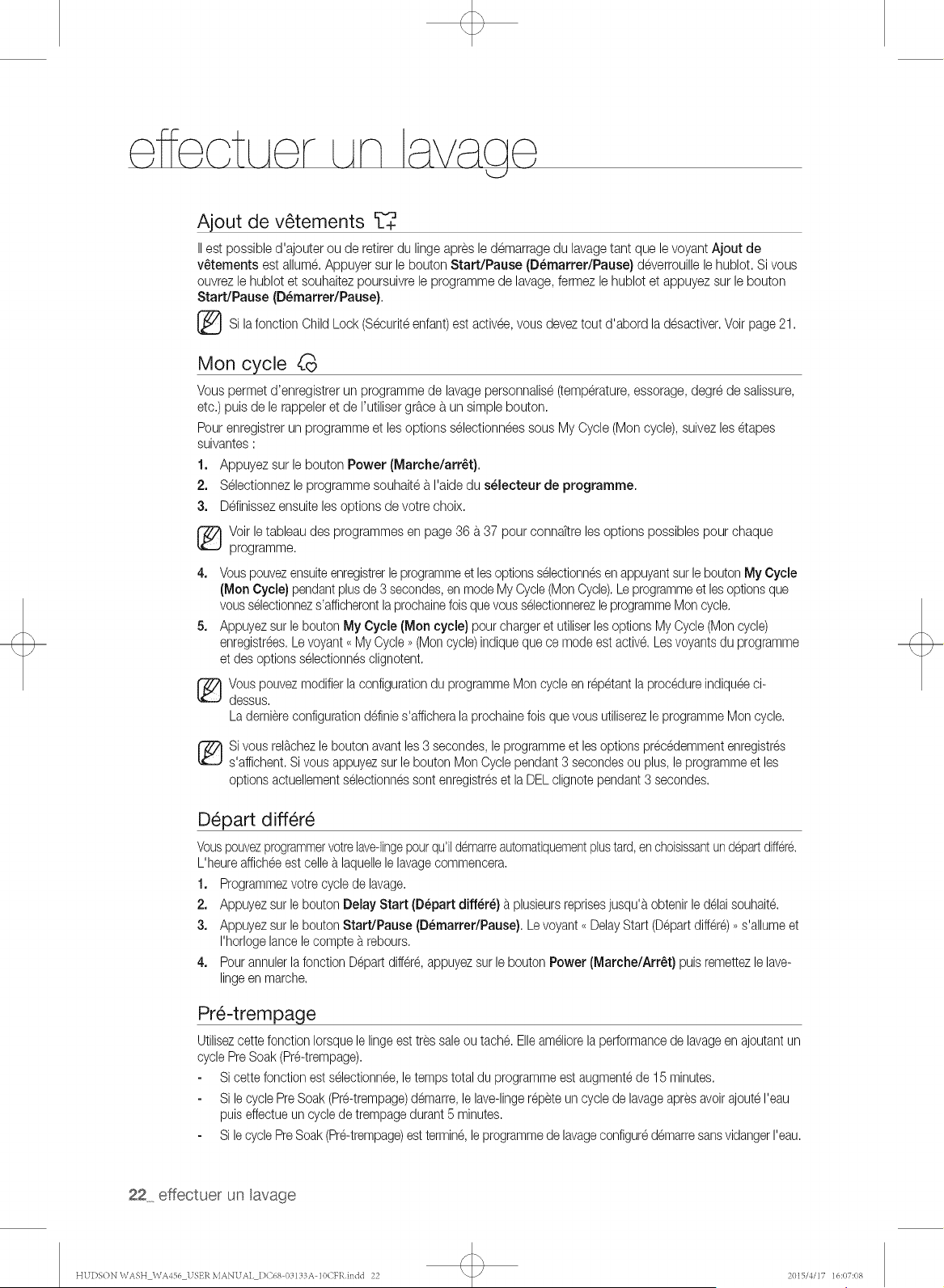

Garment+

You can add or take out laundry items even after the wash has started, as long as the

"Garment+" light is on. Pushing the Start/Pause button unlocks the lid. If you open the lid and

want to continue the wash cycle, close the lid, and then press the Start/Pause button.

lf you have activated Child Lock, you must deactivate it first. See page 21.

My Cycle

Letsyou save a custom wash cycle (temperature, spin, soil level,etc.) and then recall and use it with one

button convenience.

To save a cycle and selected options as your My Cycle, follow these steps:

1. Press the Power button.

2. Select a cycle using the Cycle Selector.

3. After cycle selection, set each option.

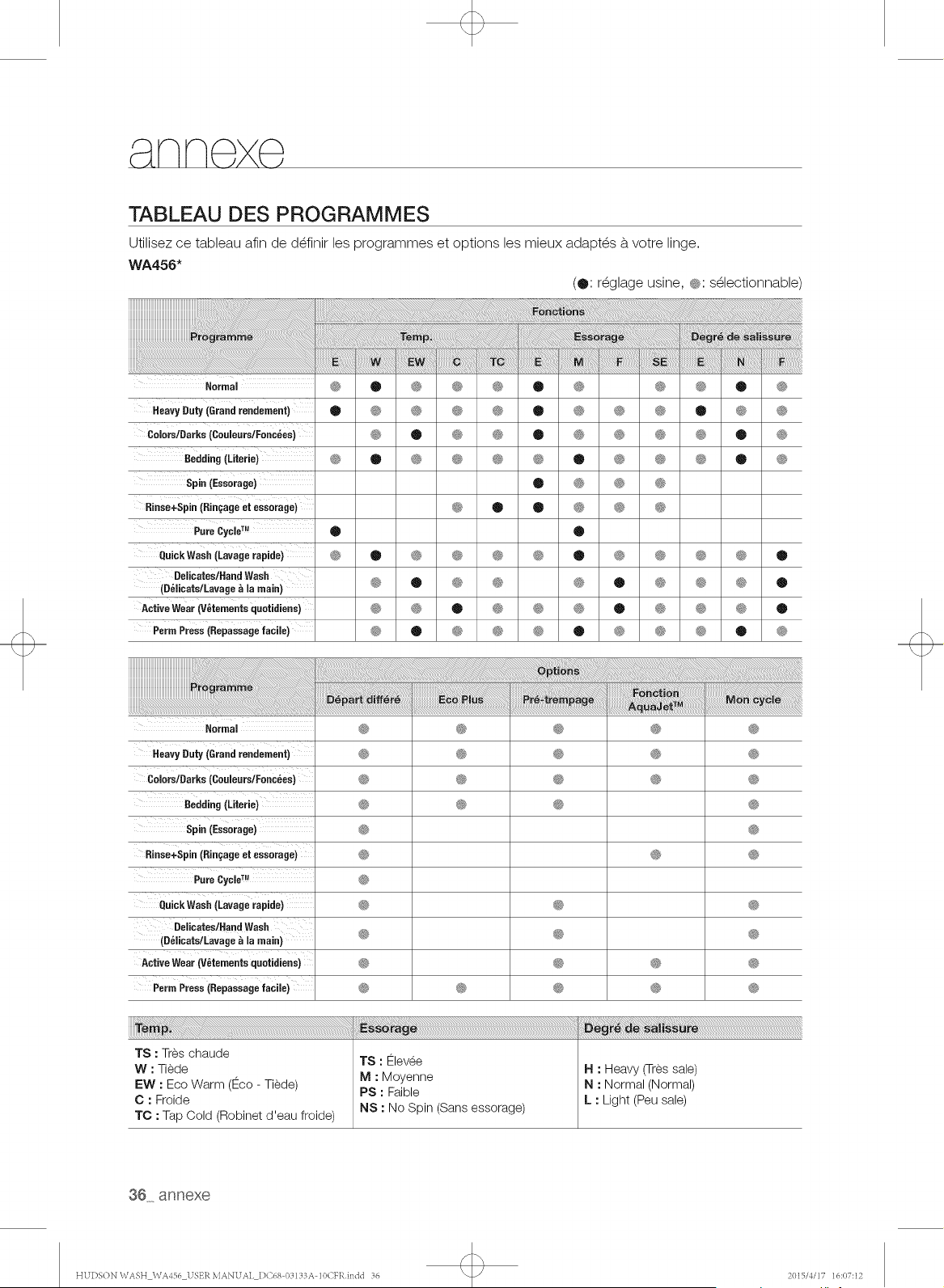

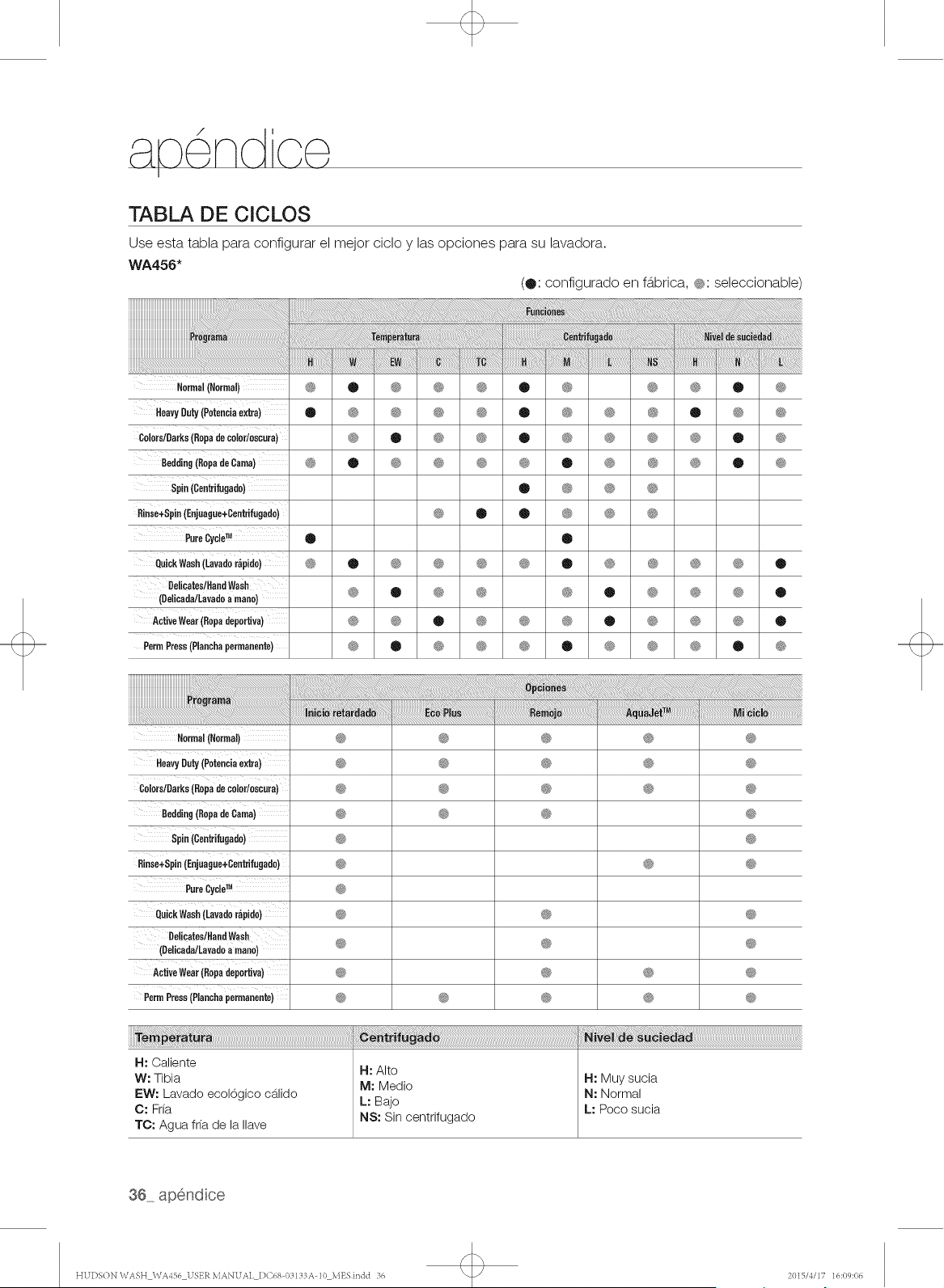

_See the Chart" 36 37 for available with each

"Cycle

page option settings cycle.

4. You can then store the selected cycle and options by pressing and holding the My Cycle button

for longer than 3 seconds. The cycle and options you select will be displayed the next time you

choose the My Cycle function.

5. Press the My Cycle button to load and use the saved My Cycle options. The "My Cycle" light will

indicate activation. Also, the chosen course and option lights will flicker.

You can change the My Cycle settings by repeating the process above.

The last saved settings will be displayed the next time you choose the My Cycle function.

lf you press My Cycle and release it within 3 seconds, the previously saved course and options

appear. If you press and hold My Cycle for 3 second or longer, the currently set course and

options are saved and the LED blinks for 3 seconds.

Delay Start

You can set the washing machine to start your wash automatically at a later time, by choosing a delay

time.

The hour displayed indicates the time at which the wash will be started.

1. Set your wash course.

2. Press the Delay Start button repeatedly until the delay time is set.

3. Press the Start/Pause button. The "Delay Start" indicator will be lit, and the clock will begin

counting down until it reaches the set time.

4. To cancel a Delay Start function, press the Power button and then turn the washing machine on

again.

22 washng a oad of aundry

Pre Soak

Use this function when the laundry is heavily contaminated or stained. This function improves the

wash performance by adding a Pre Soak cycle.

If you select this function, the total cycle time is increased by 15 minutes.

When the Pre Soak cycle starts, the washing machine repeats a wash cycle after supplying

water and then performs a 5-minute soak cycle.

When the Pre Soak cycle is complete, the configured wash cycle starts without draining

water.

AquaJet TM (WA456")

After supplying water, the drum rotation creates a waterfall that dissolves the detergent more

thoroughly. This allows the detergent to penetrate more evenly into the clothes and remove

stains more effectively, even on big loads, giving you a better wash, During the rinse cycle, the

waterfall passes through the fabric, removing detergent residue thoroughly.

Normal, Heavy Duty, Perm Press,

Colors/Darks, Active Wear, Rinse+Spin

Bedding, Delicates/Hand Wash,

Spin, Quick Wash, Pure Cycle TM

Available

Not Available

Eco Plus (WA456")

This function sets the temperature some what lower than the typical washing cycle and extends

the wash time slightly. With laundry time slightly extended, it's possible to keep the same level

of washing performance with cooler water. This function reduces energy consumption and

maintains the quality of the wash.

Mist Shower

Mist Shower sprays water from a nozzle that is independent of the main water supply system.

This soaks the laundry with water from the beginning of the wash cycle and ensures an effective

wash even with a small amount of water.

(The Mist Shower function may not work if there are too many ...........b,..........

laundries.) ..........................

Smart Care (WA456")

This function enables you to check the status of the washing machine using a smartphone.

1, To enable the Smart Care function, press and hold the AquaJet TM key for 3 seconds after

turning the power on or when an error occurs.

The error code history is deleted after you use this function.

2. The Smart Care indicator is lit on the display.

3. Run the Smart Care app on your smart phone.

The Smart Care function is optimized for the Galaxy S, Galaxy $2, iPhone 4 and iPhone

4S.

4. Focus your smart phone's camera on the display panel of the washing machine.

5, If the smart phone's camera is focused on the display panel of the washing machine,

the panel and error message is automatically recognized and the error type and

countermeasures are displayed on the smart phone.

6, If the smartphone fails to recognize the error code more than twice, please enter the error

code displayed on the display panel of the washer manually into the Smart Care app.

[_) Downloading the Smart Care

app

Download the Samsung Laundry App into your mobile phone from the Android market

or Apple App store. (Search word : Samsung Smart Washer/Dryer)

_ Precautions when Smart Care

using

wash n9 a oad of aundry 23

Iflightfromalightbulb,fluorescentbulb,orlampisreflectedonthedisplaypanelof

thewashingmachine,thesmartphonemaynotbeabletorecognizethepanelorerror

messageeasily.

Ifyouholdthesmartphoneattoolargeananglerelativetothefrontofthedisplaypanel,

itmaynotbeabletorecognizetheerrorcode.Forbestresults,holdthesmartphoneso

thatthefrontofthepanelandthesmartphoneareparallelornearlyparallel.

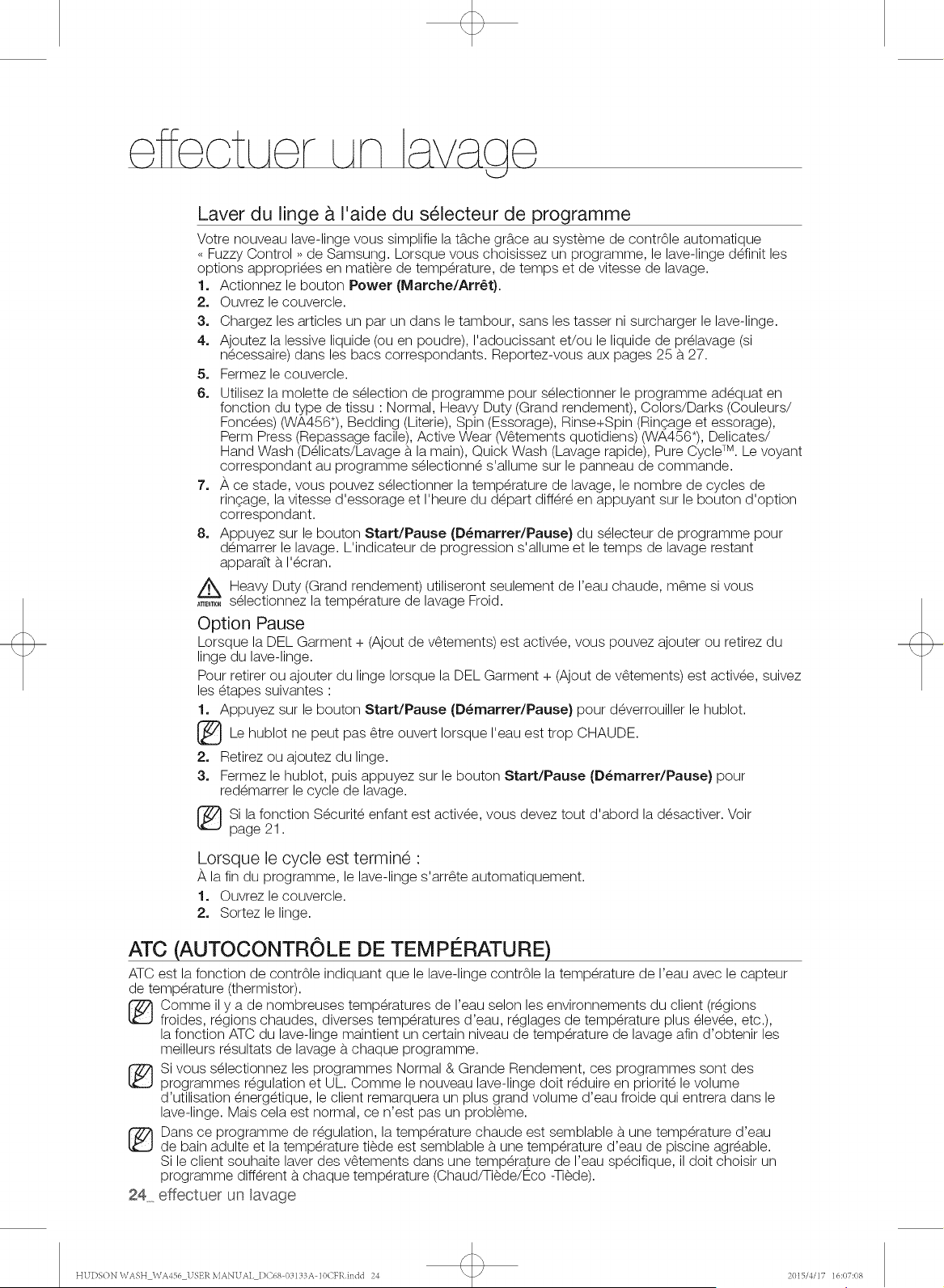

Washing clothes using the cycle selector

Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Control"

automatic control system. When you select a wash program, the machine will set the correct

temperature, washing time, and washing speed.

1. Press the Power button.

2. Open the lid.

3. Load the articles of clothing one at a time loosely into the drum, without overfilling it.

4. Add liquid (or powder) detergent, softener, and/or bleach (if necessary) to the appropriate

compartments. See pages 25-27.

5. Close the lid.

6. Use the Cycle Selector to select the appropriate cycle according to the type of material:

Normal, Heavy Duty, Colors/Darks(WA456*), Bedding, Spin, Rinse+Spin, Perm Press, Active

Wear(WA456*), Delicates/Hand Wash, Quick Wash, Pure Cycle TM. The relevant indicators will

illuminate on the control panel.

7. At this time, you can control the wash temperature, the number of rinse cycles, the spinning

speed, and the delay time by pressing the appropriate option button.

8. Press the Start/Pause button on the Cycle Selector and the wash will begin. The process

indicator will light up and the remaining time for the cycle will appear in the display.

Fot the Heavy Duty will utilize only hot water, even if you select the Cold wash temperature.

CAUTION

Pause Option

When the Garment + LED is on, you can add laundry items to or remove laundry items from the

wash.

To remove or add laundry items when the Garment + LED is on, follow these steps:

1. Press the Start/Pause button to unlock the lid.

_The lid cannot be when the water is too HOT.

opened

2. Remove or add laundry items.

3. Close the lid, and then press the Start/Pause button to restart the wash.

[_lf have Child Lock must deactivate it first. See 21.

you on, you page

When the cycle is finished:

After the total cycle has finished, the power will turn off automatically.

1. Open the lid.

2. Remove laundry.

ATC (AUTO TEMPERATURE CONTROL)

ATC is the control function that the washer controls water temperature with temperature sensor (thermistor).

_ ecause there are numerous water temperatures depending on the customer's environments(cold

areas, warm areas, various water temperature, settings of heater temperature, etcs), ATC function in

our washer maintains the certain level of wash temperature to output the best washing performance at

each cycle.

lf you select normal & heavy duty course, those courses are the regulation and UL course. Since new

washer must reduce the amount of energy usage at first priority, customer will notice more cold water

entering the washer. But This is Normal, not a problem.

ln those regulation course, Hot temperature is similar to acceptable adult bath-water temperature and

warm temperature is similar to comfortable swimming-pool water temperature.

If customer want to wash clothes in specific water temperature, customer should choose a different

course at each temperature(Hot/Warm/Eco Warm)

24 washng a oad of aundry

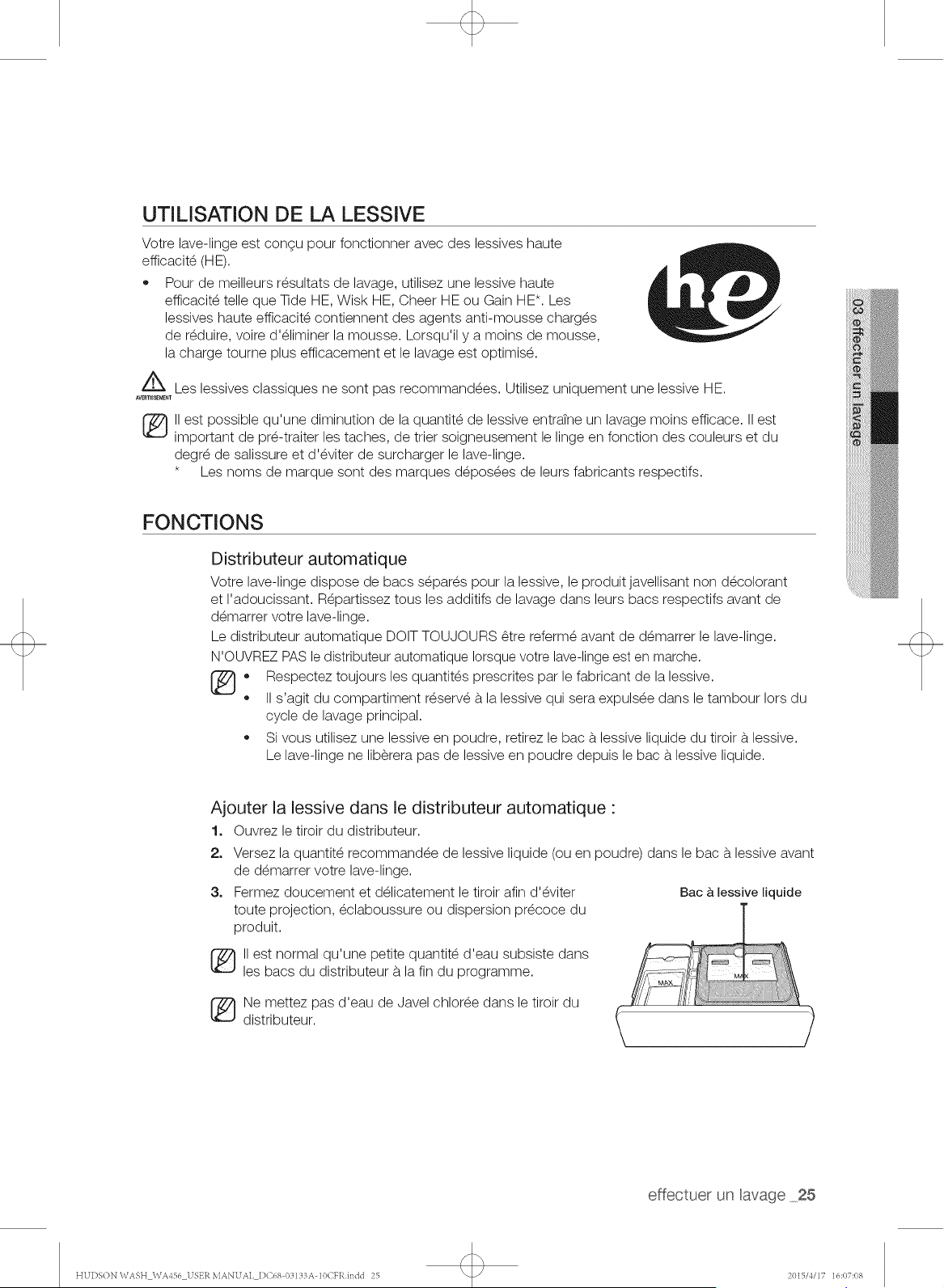

DETERGENT USE

Your washer is designed to use high efficiency (HE) detergents.

,, For best cleaning results, use a high efficiency detergents such as

Tide HE, Wisk HE, Cheer HE or Gain HE*. High efficiency detergents

contain suds suppressors that reduce or eliminate suds. When fewer

suds are produced, the load tumbles more efficiently and cleaning is

maximized.

,_ Regular detergent is not recommended. Use HE detergents only.

WARNING

_ educing the amount of detergent may reduce the quality of cleaning. It is important to pre-treat

stains, sort carefully by color and soil level, and avoid overloading.

* Brand names are trademarks of their respective manufacturers.

FEATURES

Automatic dispenser

Your washer has separate compartments for dispensing detergent and color-safe bleach and

fabric softener. Add all laundry additives to their respective compartments before starting your

Washer.

The automatic dispenser MUST ALWAYS be in place before you start your washer.

DO NOTopen the automatic dispenser when your washer is running.

_* Never exceed the manufacturer's recommendations when adding detergent.

,, This compartment holds liquid detergent for the main wash cycle, which is added to the

load at the beginning of the cycle.

,, When using powdered detergent, remove the liquid detergent compartment from the

detergent drawer. The washer will not dispense powdered detergent from the liquid

detergent compartment.

To add detergent to the automatic dispenser:

1. Open the dispenser drawer.

2. Load the recommended amount of liquid (or powder) detergent into the detergent

compartment before you start your wash.

3. Close the drawer slowly and smoothly to avoid spilling, splashing, or premature dispensing of

the contents.

Liquid detergent

compartment

lt is normal for a small amount of water to remain in the

dispenser compartments at the end of the cycle.

Do not put chlorine bleach in the dispenser drawer.

wash nga oad of aundry 25

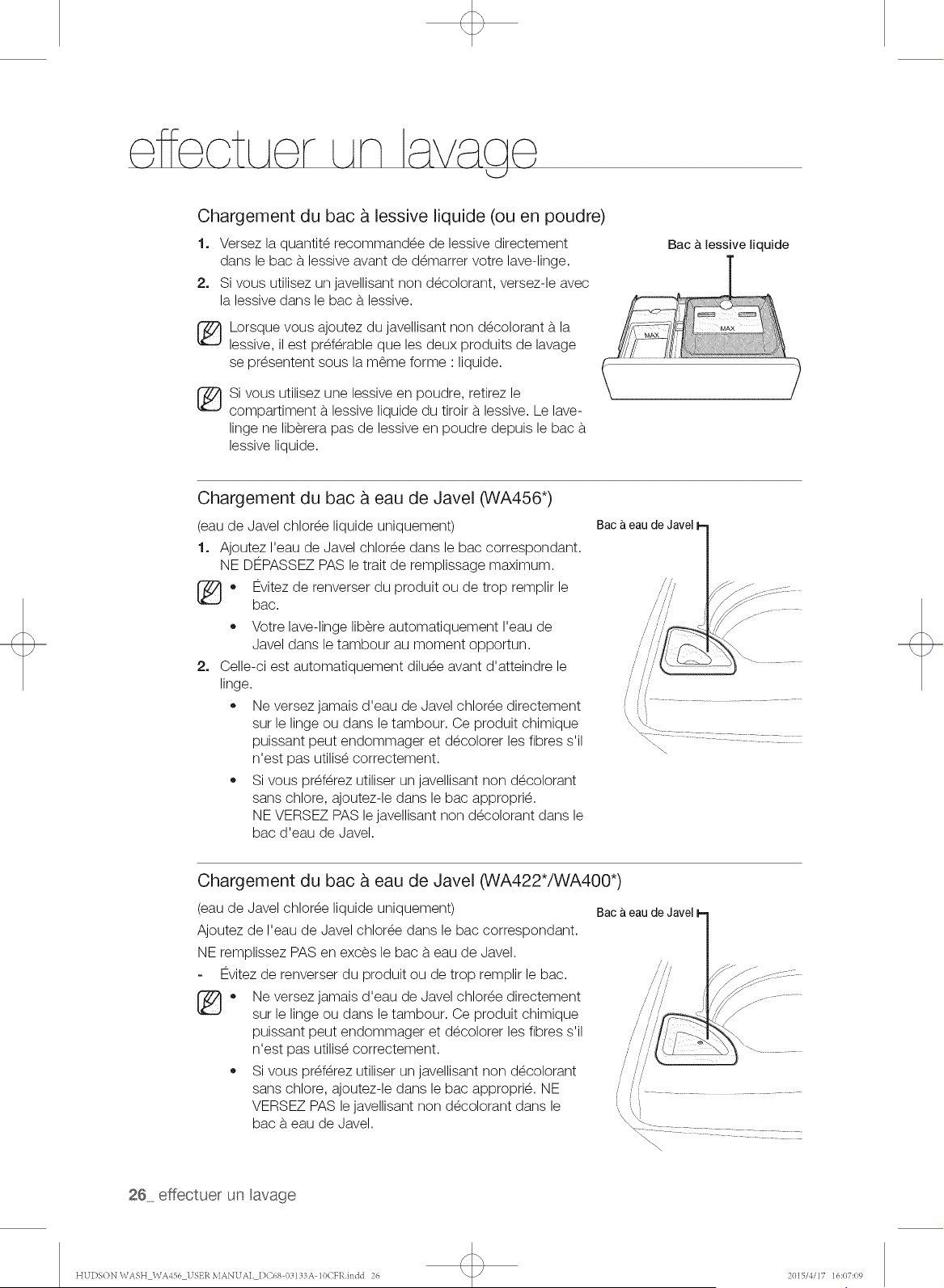

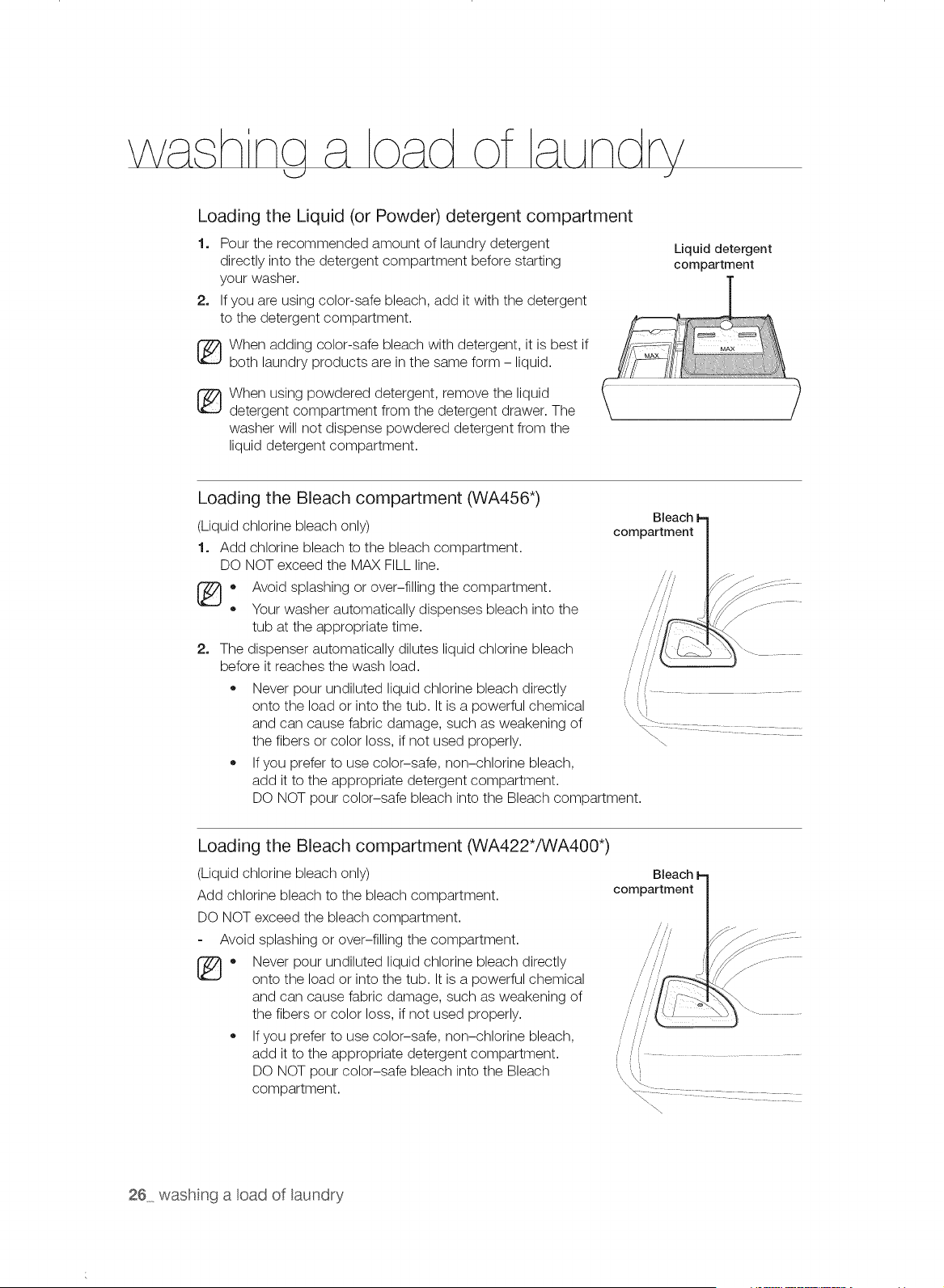

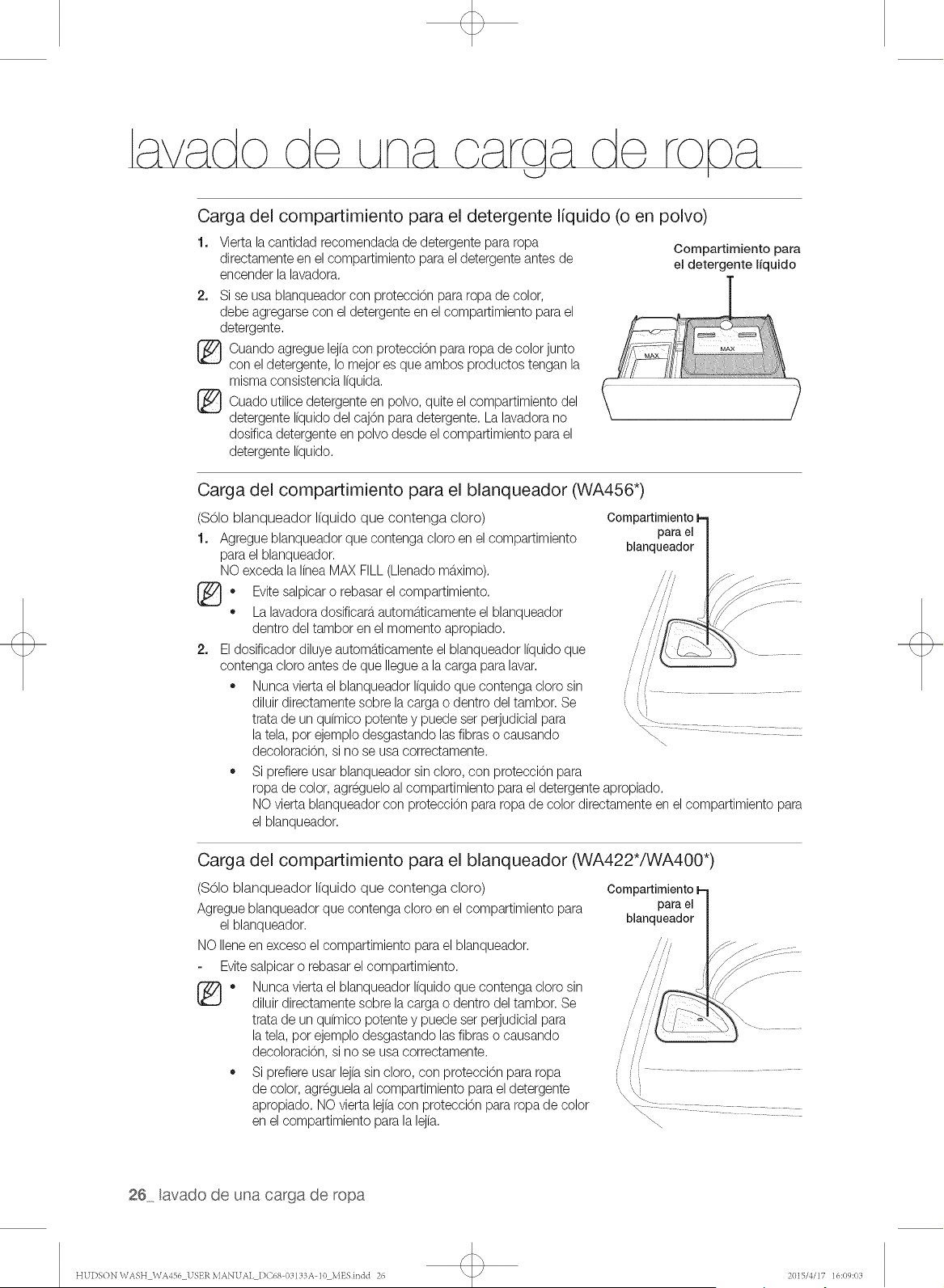

Loading the Liquid (or Powder) detergent compartment

1o Pour the recommended amount of laundry detergent

directly into the detergent compartment before starting

your washer.

2o If you are using color-safe bleach, add it with the detergent

to the detergent compartment.

When adding color-safe bleach with detergent, it is best if

both laundry products are in the same form - liquid.

When using powdered detergent, remove the liquid

detergent compartment from the detergent drawer. The

washer will not dispense powdered detergent from the

liquid detergent compartment.

Liquid detergent

compartment

Loading the Bleach compartment (WA456")

(Liquid chlorine bleach only)

1, Add chlorine bleach to the bleach compartment.

DO NOT exceed the MAX FILL line.

Bleach

compartment

* void splashing or over-filling the compartment.

Your washer automatically dispenses bleach into the

tub at the appropriate time.

2. The dispenser automatically dilutes liquid chlorine bleach

before it reaches the wash load.

Never pour undiluted liquid chlorine bleach directly

onto the load or into the tub. It is a powerful chemical

and can cause fabric damage, such as weakening of

the fibers or color loss, if not used properly.

If you prefer to use color-safe, non-chlorine bleach,

add it to the appropriate detergent compartment.

DO NOT pour color-safe bleach into the Bleach compartment.

Loading the Bleach compartment (WA422*/WA400*)

(Liquid chlorine bleach only)

Add chlorine bleach to the bleach compartment.

DO NOT exceed the bleach compartment.

: Avoid splashing or over-filling the compartment.

_ Never pour undiluted liquid chlorine bleach directly

onto the load or into the tub. It is a powerful chemical

and can cause fabric damage, such as weakening of

the fibers or color loss, if not used properly.

If you prefer to use color-safe, non-chlorine bleach,

add it to the appropriate detergent compartment.

DO NOT pour color-safe bleach into the Bleach

compartment.

Bleach I-

compartment

26 washn9 a oad of aundry

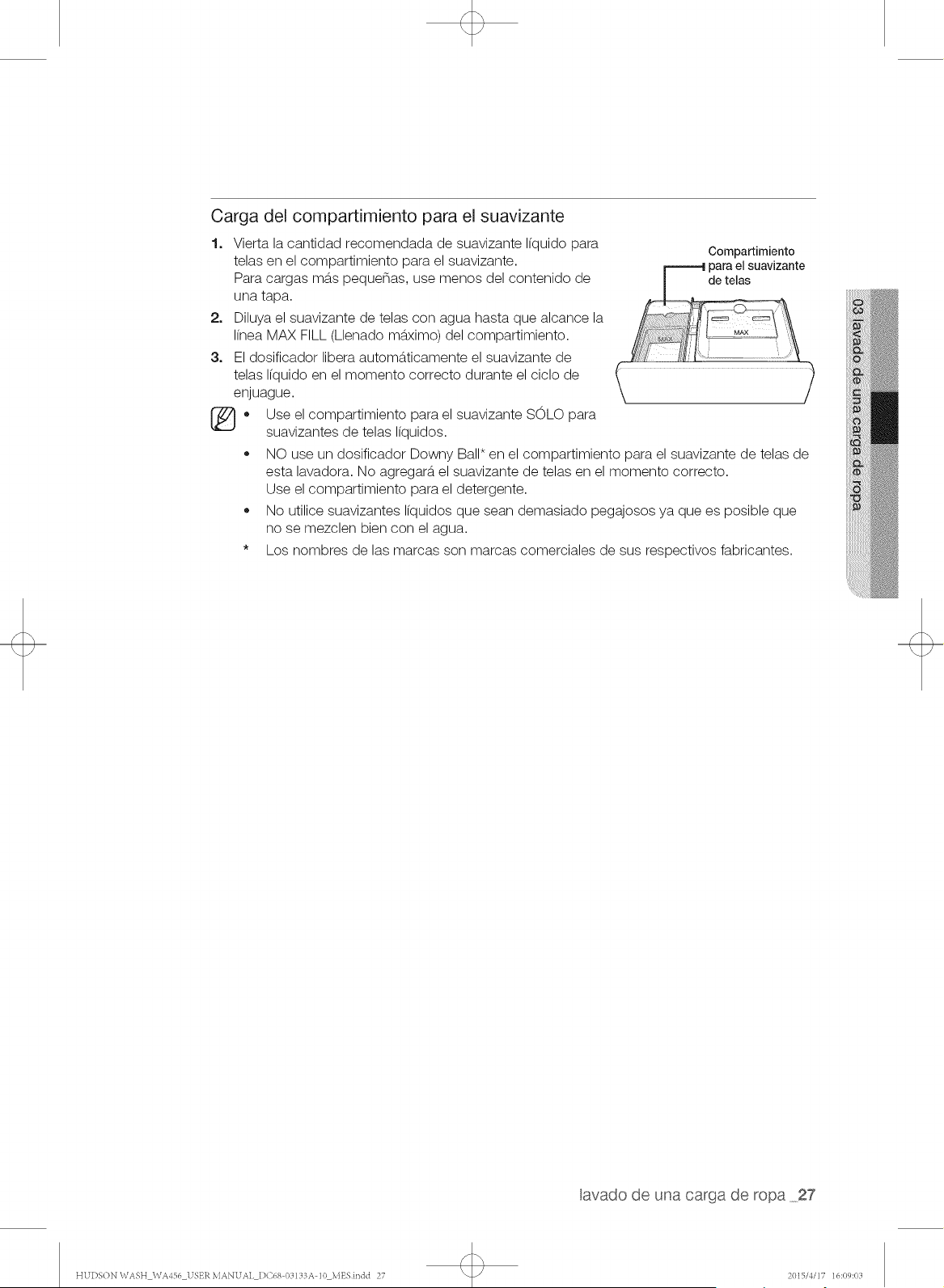

Loading the Fabric softener compartment

®.

Pour the recommended amount of liquid fabric softener

into the softener compartment.

For smaller loads, use less than one capful.

Dilute the fabric softener with water until it reaches MAX

FILL in the compartment.

The dispenser automatically releases liquid fabric softener

at the proper time during the rinse cycle.

Use the softener compartment ONLY for liquid fabric

softeners.

DO NOT use the Downy Ball* in the fabric softener

compartment with this washer. It will not add fabric

softener at the appropriate time.

Use the detergent compartment.

Do not use liquid fabric softener that is too sticky as it may not mix with the water

sufficiently.

* Brand names are trademarks of their respective manufacturers.

Fabric softener

wash nga oad of aundry 27

CLEANING THE EXTERIOR

Turn off the water faucets after finishing the day's washing.

This will shut off the water supply to your washer and prevent the unlikely possibility of damage from

escaping water. Leave the lid open to allow the inside of your washer to dry out.

Use a soft cloth to wipe up all detergent, bleach or other spills as they occur.

Clean the following as recommended:

Control Panel - Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray

cleaners directly on the panel.

CLEANING THE INTERIOR

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial

residue that may remain in your washer as a result of washing clothes.

Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent

stains on your washer or laundry.

Hard water deposits may be removed, if needed. Use cleaners labeled "Washer safe".

STORING YOUR WASHER

Washers can be damaged if water is not removed from hoses and internal components before storage.

Prepare your washer for storage as follows:

Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your washer through the

cycle without a load.

,, Turn the water faucets off and disconnect the inlet hoses.

Unplug your washer from the electrical outlet and leave your washer lid open to let air circulate inside the

drum.

If your washer has been stored in below-freezing temperatures, allow time for any leftover water in your

washer to thaw out before use.

PRESERVING THE TOP COVER AND THE FRONT FRAME

Do not place any heavy or sharp objects or a detergent box on the washing machine. They can scratch or

damage the top cover of the unit.

_ ince the entire washing machine has a high-gloss finish, the surface can be scratched or damaged.

Avoid scratching or damaging the surface when using the washing machine.

28 maintain n9 your washer

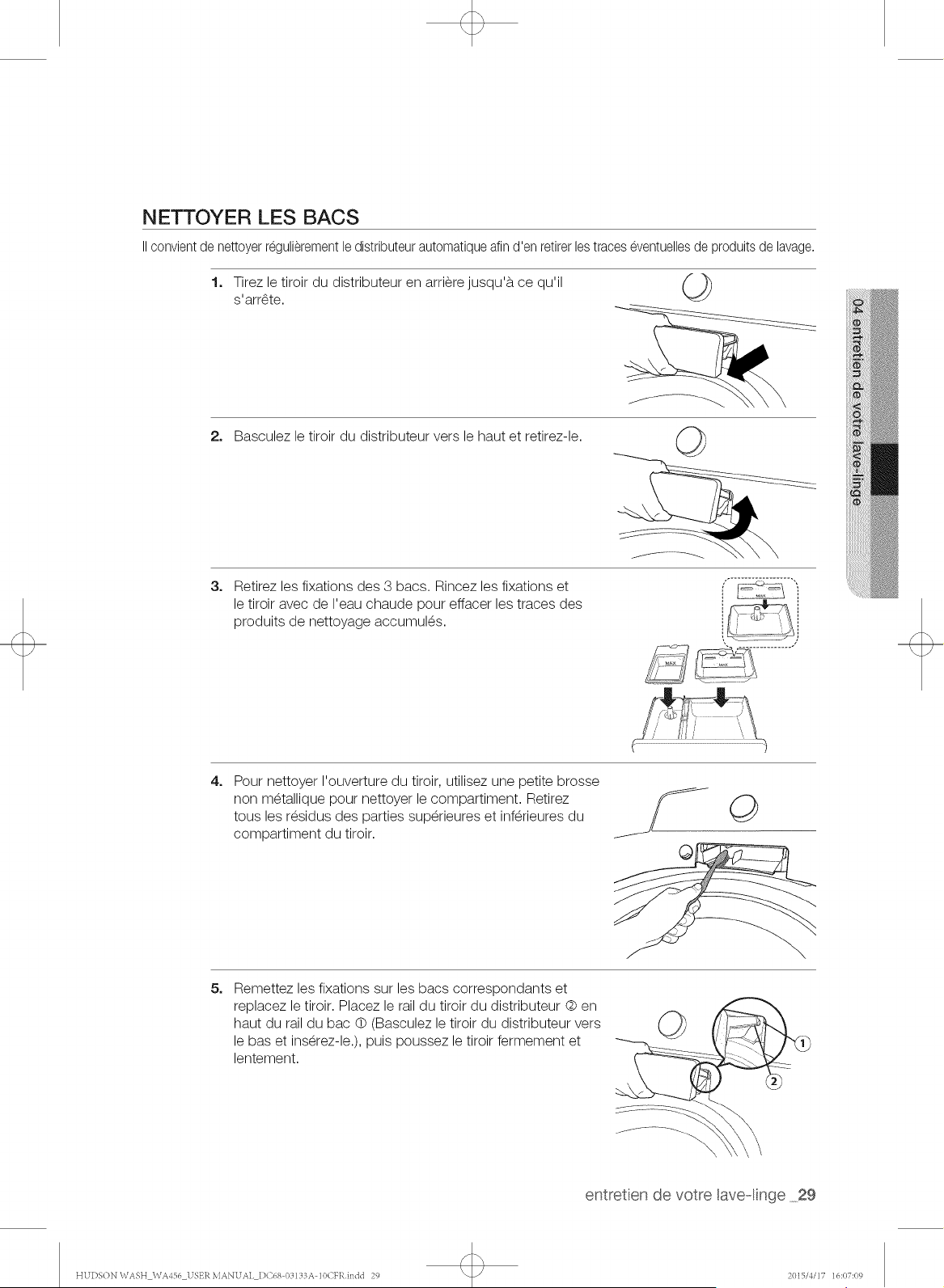

CLEANING THE DISPENSERS

The automatic dispenser may need to be cleaned periodically due to laundry additive buildup.

1. Pull the dispenser drawer straight back until it stops. ()_

2. Tilt the dispenser drawer upward and remove it.

Remove the inserts from the 3 compartments. Rinse the

inserts and the drawer with warm water to remove traces

of accumulated laundry products.

To clean the drawer opening, use a small, non-metal brush

to clean the recess. Remove all residue from the upper and

lower parts of the recess.

Return the inserts to the proper compartments and replace

the drawer. By placing the dispenser drawer rail @ on

top of the compartment rail ¢_ (Tilt the dispenser drawer

downward and insert it.), and then pushing the drawer in

firmly and slowly.

maintainng your washer 29

PURE CYCLE TM

Pure Cycle is a self-cleaning cycle that removes mold that may occur inside the washing machine.

1, Press the Power button.

2, Select the Pure Cycle TM course.

• Once the Pure CycleTM course is selected, the only

function that can be set is Delay Start.

3, Press the Start/Pause button.

If you press the Start/Pause button, Pure Cycle

begins.

WA456"

................................

WA422_/WA400 _

CAUTION ®

the laundry or a problem with the washing machine.

[_ The Pure Auto Indicator Function

Cycle

If the "Pure Cycle" is lit after a wash, it indicates that tub

(drum) cleaning is required. In this case, remove the laundry

from the washing machine, turn the power on, and clean

the drum by running Pure Cycle.

If you do not run Pure Cycle, the "Pure Cycle TM'' indicator

turns off. However, the "Pure Cycle TM''indicator will light

again after two washes. Not running Pure Cycle at this

point will not cause a problem with the washing machine.

Although the Pure Cycle Auto Indicator appears once a

month or so, the frequency may differ depending on the

number of times the washing machine is used.

Using Pure Cycle, you can clean the drum without using a cleansing agent.

Never use Pure Cycle when laundry is in the washing machine. This may cause damage to

WA456"

WA422" / WA400*

30 maintainng your washer

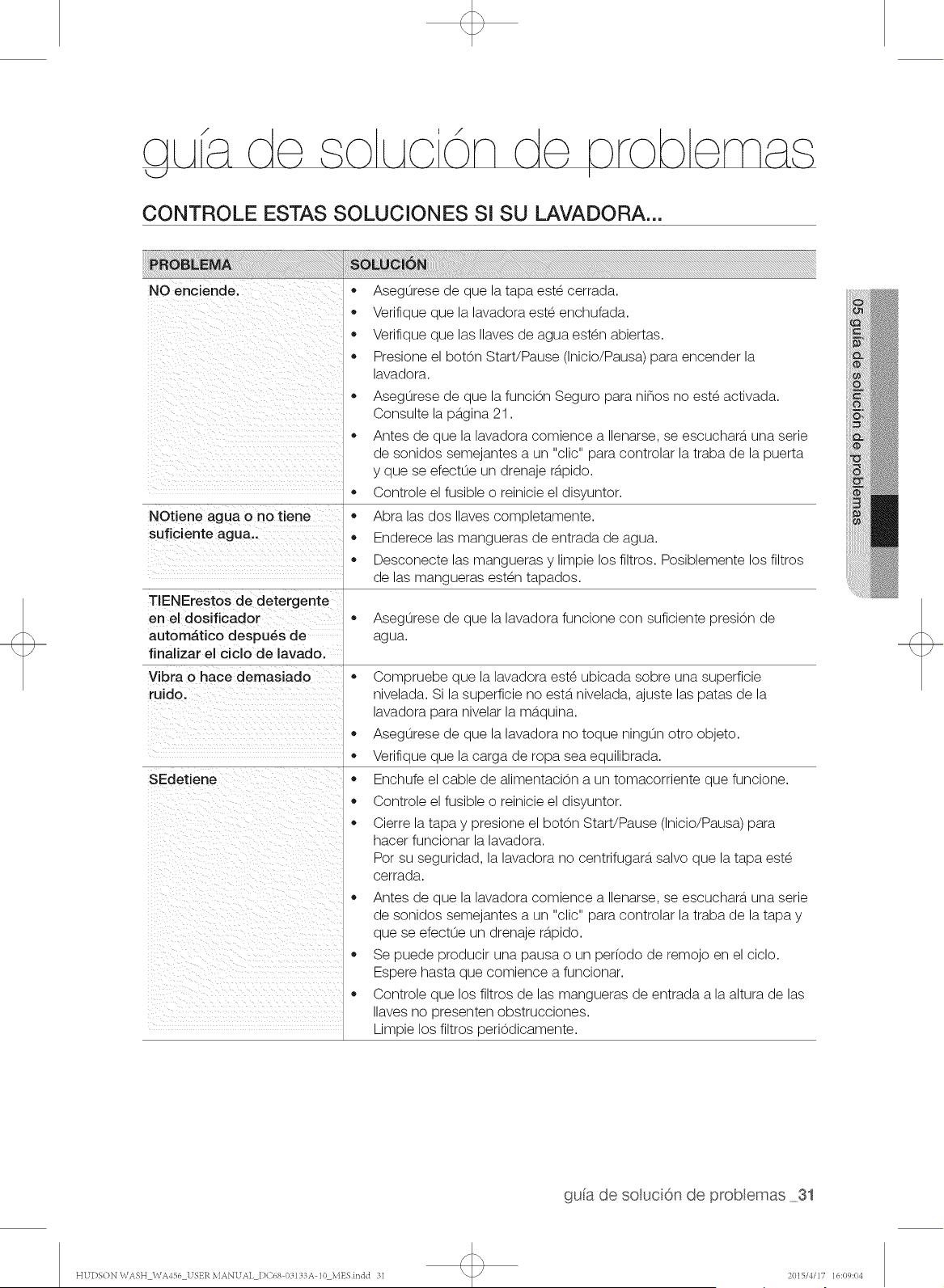

CHECK THESE SOLUTIONS IF YOUR WASHER...

Will not start.

Has no water or not enough

water.

_, Make sure the lid is closed.

Make sure your washer is plugged in.

Make sure the water source faucets are open.

Make sure to press the Start/Pause button to start your Washer.

Make sure Child Lock is not activated. See page 21.

_, Before your washer starts to fill, it will make a series of clicking noises

to check the lid lock and do a quick drain.

_, Check the fuse or reset the circuit breaker

Turn both faucets on fully.

_, Straighten the water inlet hoses.

_, Disconnect hoses and clean the screens. Hose filter screens may be

clogged.

Has detergent remaining

in the automatic dispenser _, Make sure your washer is running with sufficient water pressure.

after the wash cycle is

complete.

Vibrates or is too noisy.

Stops

Make sure your washer is set on a level surface. If the surface is not

level, adjust your washer's feet to level the appliance.

Make sure your washer is not touching any other object.

Make sure the laundry load is balanced.

_, Plug the power cord into a live electrical outlet.

_, Check the fuse or reset the circuit breaker.

Close the lid and press the Start/Pause button to start your washer.

For your safety, your washer will not spin unless the lid is closed.

_, Before your washer starts to fill, it will make a series of clicking noises

to check the lid lock and do a quick drain.

_, There may be a pause or soak period in the cycle. Wait and it may

start.

_, Check the screens on the inlet hoses at the faucets for obstructions.

Clean the screens periodically.

troub eshooting 31

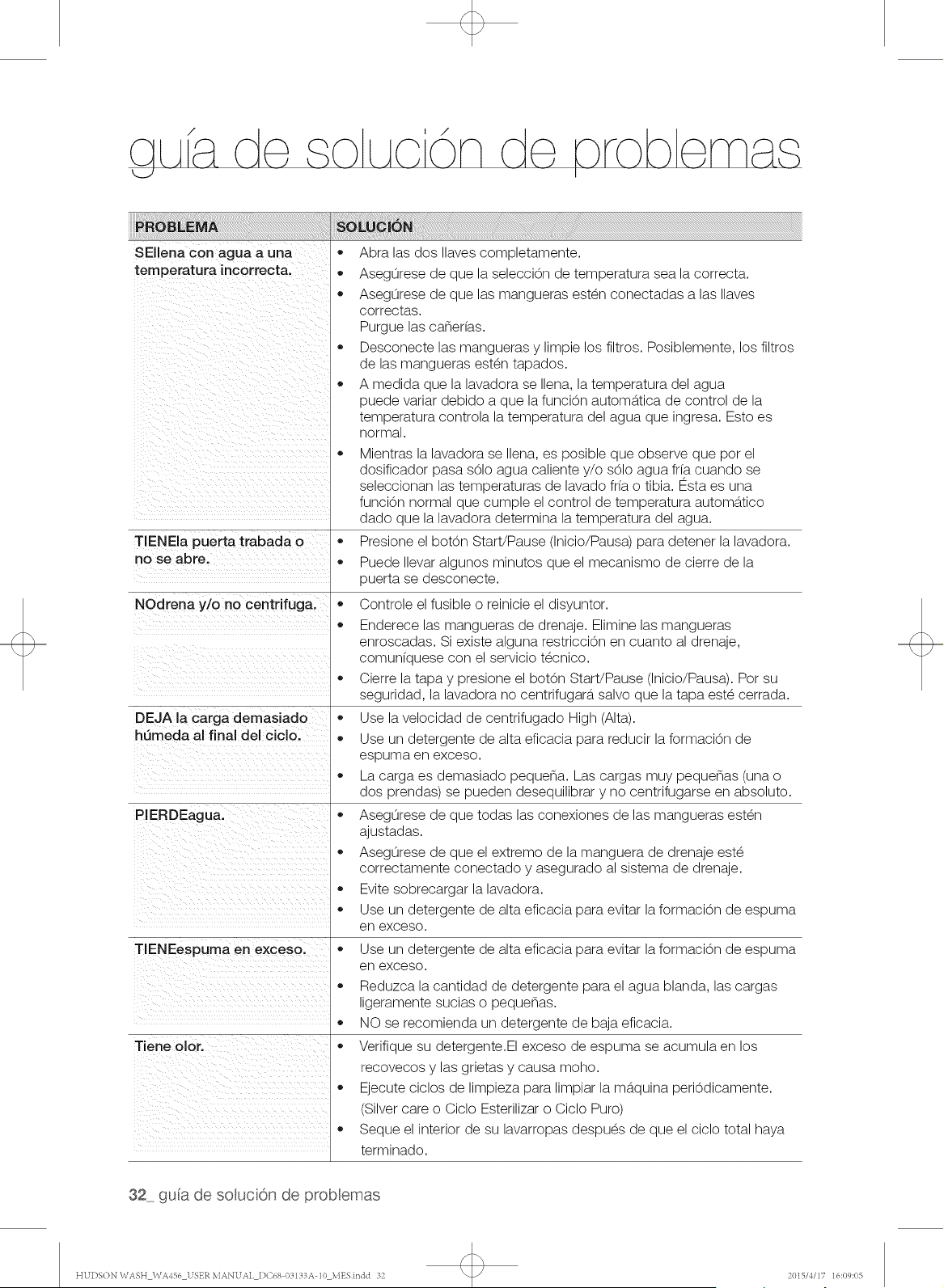

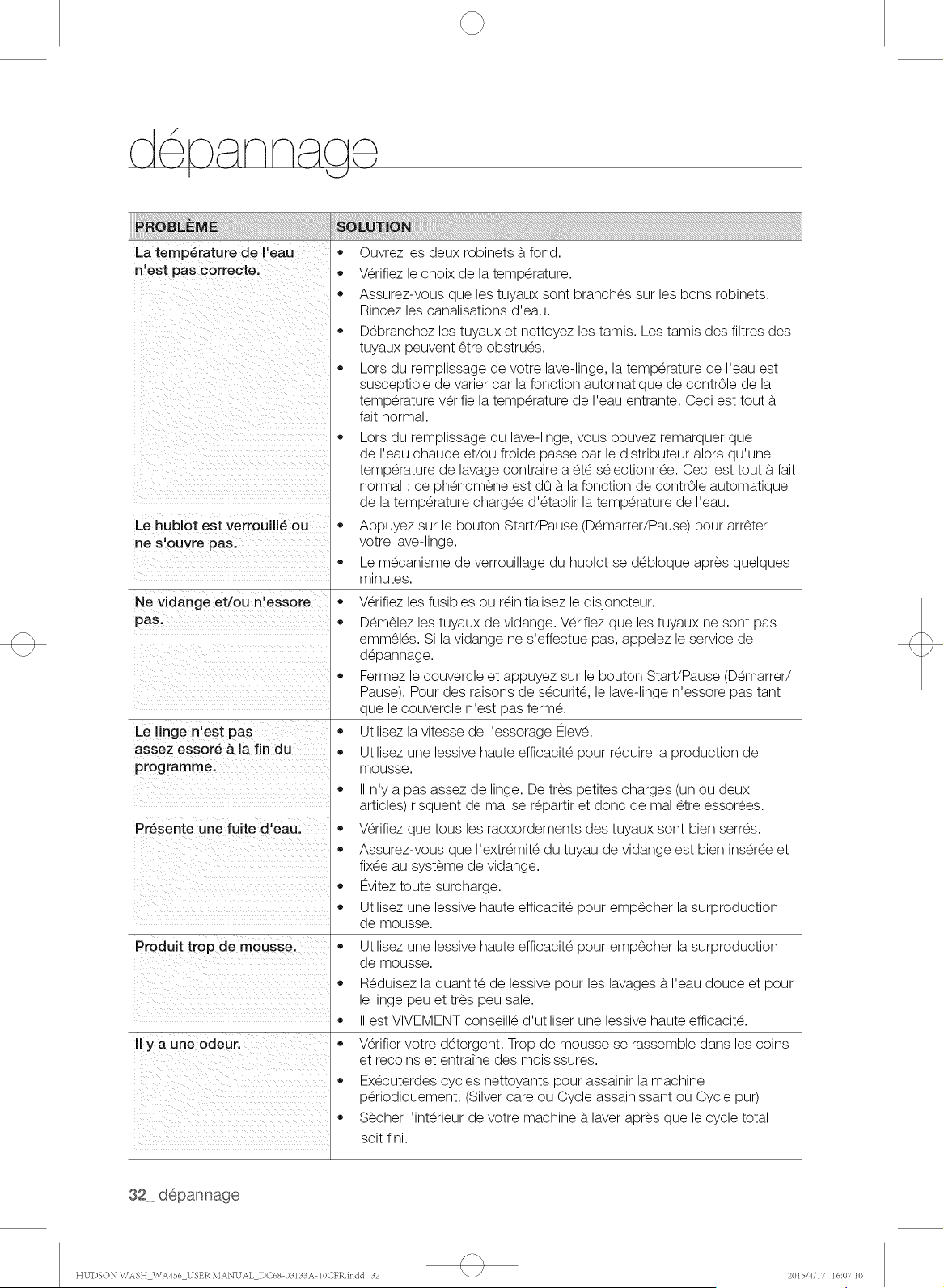

tro Abe hoot ncj

Fills with the wrong

temperature water.

Lid locked or will not open.

Does not drain and/or spin.

Load is too wet at the end

of the cycle.

Leaks water.

Has excessive suds.

Has an odor.

Turn both faucets on fully.

Make sure the temperature selection is correct.

Make sure the hoses are connected to the correct faucets.

Flush water lines.

Disconnect the hoses and clean the screens. The hose filter screens

may be plugged.

• As your washer is filling, the water temperature may change as

the automatic temperature control feature checks incoming water

temperature. This is normal.

• While your washer is filling, you may notice just hot and/or just

cold water going through the dispenser when you have selected

cold or warm wash temperatures. This is a normal function of the

automatic temperature control feature as your washer determines the

temperature of the water.

• Press the Start/Pause button to stop your washer.

It may take a few moments for the lid lock mechanism to disengage.

Check the fuse or reset the circuit breaker.

Straighten the drain hoses. Eliminate kinked hoses. If there is a drain

restriction, call for service.

• Close the lid and press the Start/Pause button. For your safety, your

washer will not spin unless the lid is closed.

• Use the High spin speed.

Use high efficiency detergent to reduce over-sudsing.

• The Load is too small. Very small loads (one or two items) may

become unbalanced and not spin out completely.

Make sure all hose connections are tight.

• Make sure the end of the drain hose is correctly inserted and secured

to the drainage system.

• Avoid overloading.

Use high efficiency detergent to prevent over-sudsing.

Reduce the detergent amount for soft water, small or lightly soiled

loads.

Non-HE detergent is NOT recommended.

• Check your Detergent. Excessive suds collect in nooks and crannies

and cause mold.

Run cleansing cycles to sanitize the machine periodically.(Silver Care

or Sanitize Cycle or Pure Cycle)

Dry the interior of your washer after the total cycle has finished.

32 troubleshooting

INFORMATION CODES

The Washer may display information codes to help you understand what is occurring with your Washer better.

The Water Level sensor is not Call for service.

working properly.

Your Washer has tried to fill but

was unsuccessful.

Check if the hot water supply

hose is connected

Your washer is not draining. It can

also mean that the unit senses a

small clog while draining.

l Your Washer has tried to fill but

L,, IX has not reached the proper water

level.

Unbalanced load prevented your

Washer from spinning.

Make sure the water faucets are open all the

way. Check for kinked hoses.

Check the inlet screens on the fill hoses.

If you use a Flood Safety Device, then please

remove the device and connect the water hoses

directly to the unit.

You must connect the hot water supply hose

because hot water is supplied by the Auto

Temperature Control (A.T.C.) function.

Do the following:

1)Turn off the unit and turn it on again.

2) Select only the Spin Cycle.

3) Press the Start/Pause to drain the water.

If it still does not drain, call for service.

Call for service.

Redistribute the load, press the Start/Pause

button.

_C Lid is open when washer is Close the lid tightly and restart the cycle. If the

!_! _t running, code reappears, call for service.

F Your washer failed to lock the lid. Close the lid tightly and restart the cycle. If the

code reappears, call for service.

|_'t The door will not unlock. Make sure the lid is firmly closed.

l_ Push the Power button to turn off your washer,

then turn it on again. If the code reappears, call

for service.

_ Jammed Key. Call for service

Motor not running properly. Restart the cycle pressing the Start/Pause

button. If the code reappears, call for service.

ttt|,m Communication error between Call for service.

n_ SUB PBA and MAIN PBA

troub eshooting 33

tro Abe hoot ncj

Mems sensor problem.

Temperature sensor problem.

The hot/cold water hose

connection is not correct.

(WA422*/WA400*)

Call for service.

Restart the cycle.

If the code reappears, call for service.

Please connect the hot/cold water hose

connection correctly.

(WA456')

t-,,-

| _ A fault is detected in the water Call for service

level sensor.

Suds is detected during the Guide a user to reduce amount of detergent

spinning session. ("SUd" or "Sd" is usage.

not an error.

When it finishes washing, End and

the "SUd" or "Sd" code will blink

in turn.)

For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG)

34_ troubleshooting

appendx

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for

washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures

consistency among garment manufacturers of domestic and imported items. Follow care label directions to

maximize garment life and reduce laundering problems.

Gentle/Delicates Dry Flat Do Not Bleach

Hand Wash Do Not Tumble Dry

W_te _ _ Q High iron)N°Steam (added to

Medium Do Not Iron

oo® Hot

,. Warm Low

® Cold O Any Heat O Dry Clean

No Heat/Air Do Not Dry Clean

Any Bleach (when

needed)

Only Non-Chlorine

(color-safe)

Bleach (when needed)

Tumble Dry Cycle

Line Dry/Hang to Dry

High Drip Dry

Medium Dry Flat

i i i i !, ! i ii! i!iiii ii i! i! ii i ii ii{iiiii:ii!ii!!i !i !i !i ! ! ! ! !! ! ! i ii iiiiiiiiiiiiiiiiiiiii iii ii ii ii ii ii ii ii ii ii ii ii ii iiiiiiiiiiiiiiiiiiiiii ii iiiiiii iiiiiiiiiii!ii!!!!! iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ii iiiiiii i iii i i i i i i!i!i!i!i!i!i!i i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii iiiiiii ! ! !!!!!JJ

Permanent Press/

Wrinkle Resistant/

Wrinkle Control

Gentle/Delioates

Low

** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for

Hot is 105° - 125 °F / 41 o _52 °C, for Warm 85 ° - 105 °F / 29 ° - 41 °C and for Cold 60° - 85 °F / 16° - 29 °C.

(Wash water temperature must be a minimum of 60 °F / 16 °C for detergent activation and effective cleaning.)

The clothes washer can not ensure these temperatures because the actual temperature of the water entering

your washer depends on water heater settings and regional water supply temperatures. For example, cold

water entering the home in the northern states during winter may be 40 °F / 4 °C which is too cold for effective

cleaning. In this situation, you will need to adjust the water temperature by selecting a warm setting, adding

some hot water to the MAX FILL line, or using your Washer's heating option, if available.

append x 35

appendx

CYCLE CHART

Use this chart to set the best cycle and options for you laundry.

WA456"

(O: factory setting, @: selectable)

Normal @ @ @ @ @ @ @ @ @ @ @

Heavy Duty @ @ @ @ @ @ @ @ @ @ @ @

Colors/Darks @ @ @ @ @ @ @ @ @ @ @

Bedding @ @ @ @ @ @ @ @ @ @ @ @

Spin @ @ @ @

Rinse+Spin @ @ @ @ @ @

Pure CycleTM @ @

Quick Wash @ @ @ @ @ @ @ @ @ @ @ @

Delicates/

Hand Wash @ @ @ @ @ @ @ @ @ @

Active Wear @ @ @ @ @ @ @ @ @ @ @

Perm Press @ @ @ @ @ @ @ @ @ @ @

Normal

Heavy Duty

Celors/Darks ......

Bedding

Rinse+Spin

Pure CycleTM

Quick Wash

Delicates/

Hand Wash

Active Wear

Perm Press

36 appendix

HUDSON \_'ASH 1_'A456 USER .\IANUAL DC68 03133A 10 ENindd 36 2(}15/4/17 16:05:44

WA422*/WA400*

(0: factory setting, @: selectable)

Nomal

HeavyDUty

Bedding

Rinse÷Spin

Quick Wash

Delicates!

Hand Wash

Perm Press

@ @ @ @ @ @ @ @ @

@ @ @ @ @ @ @ @ @ @

@ @ @ @

@ @ @ @ @ @

@ @

@ @ @ @ @ @ @ @ @ @

@ @ @ @ @ @ @ @

@ @ @ @ @ @ @ @ @

!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ii ii{i{i{i{i{i{i{i{i{i{i{i{i i! !i

i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!iI

Nomal

HeavyDUty

Bedding

Spin

Rinse÷Spin

Pure Cyc!eTM

Quick Wash @ @ @

Delieates/

Hand Wash @ @ @

Perm Press @ @ @

append x 37

HUDSON \_'ASH %'A456 USER .\IANUAL DC68 03133A 10 ENindd 37 2(}15/4/17 16:05:44

appondx

HELPING THE ENVIRONMENT

Your washer is manufactured from recyclable materials. If you decide to dispose of it, please observe

local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected

to a power source. Remove the lid so that animals and small children cannot get trapped inside the

appliance.

,, Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.

Use stain removal products and bleaches before the wash cycle only when necessary.

Save water and electricity by only washing full loads (the exact amount depends upon the program used).

DECLARATION OF CONFORMITY

This appliance complies with UL2157.

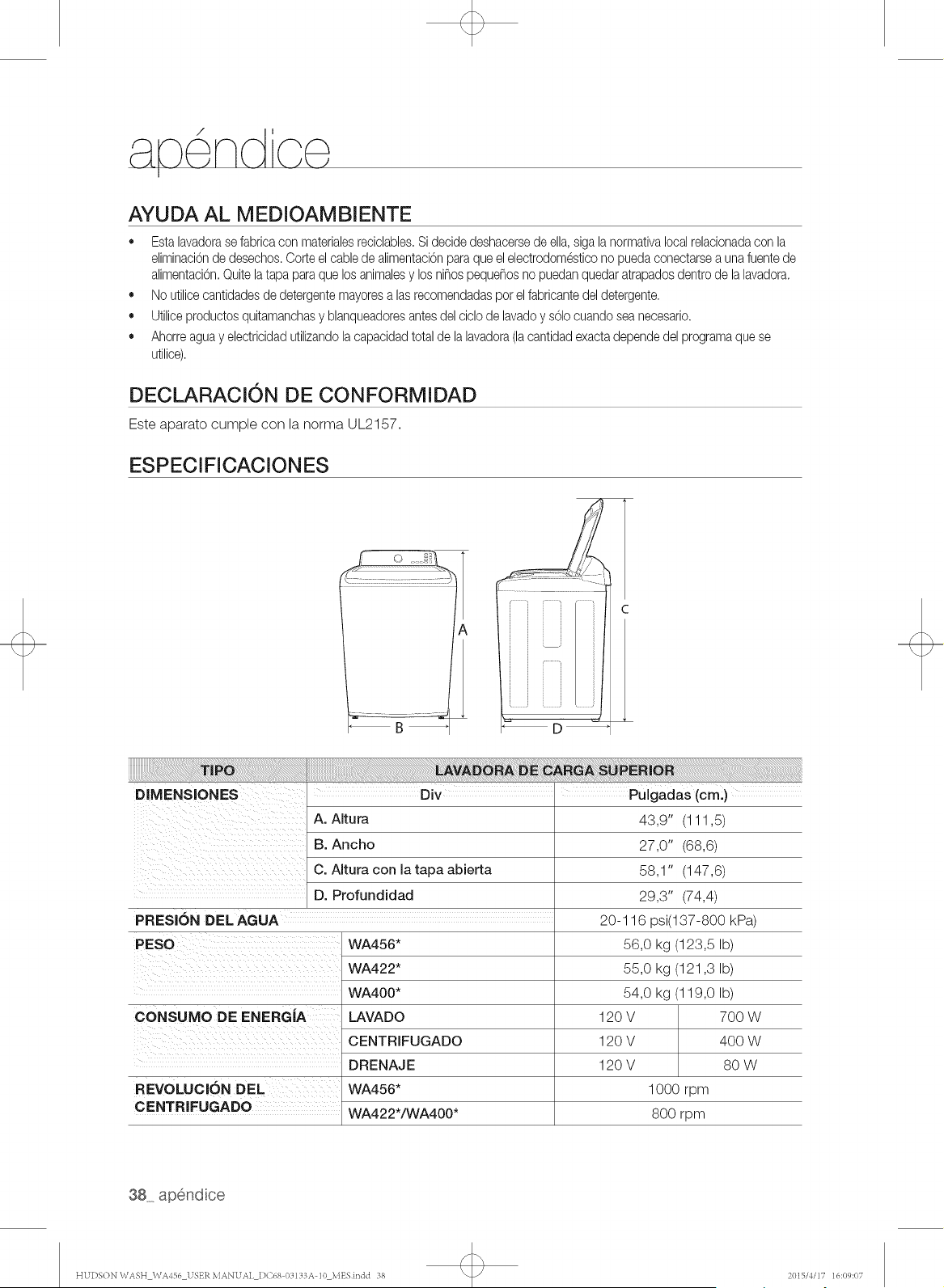

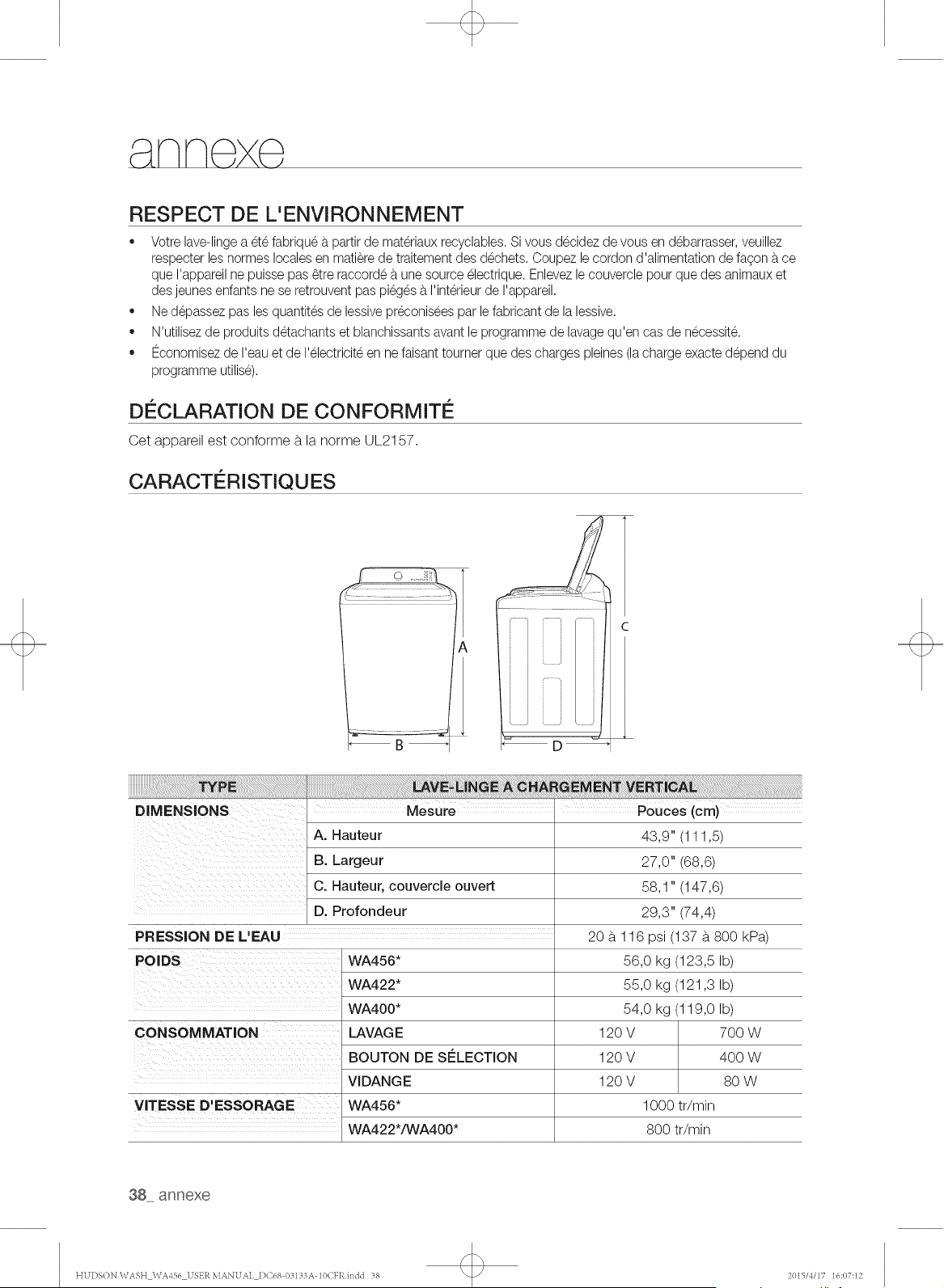

SPECIFICATION

............i

DIM ENSIONS

WATER PRESSURE

WEIGHT

POWER CONSUMPTION

SPIN REVOLUTION

ToPL DJNG SHE.

Div Inches (cm)

A. Height

B. Width

C. Height with lid open

D. Depth

WA456"

WA422"

WA400*

WASHING

SPIN

DRAIN

WA456"

WA422" / WA400*

43.9" (111.5)

27.0" (68.6)

58.1" (147.6)

29.3" (74.4)

20-116 psi (137-800 kPa)

56.0 kg (123.5 Ib)

55.0 kg (121.3 Ib)

54.0 kg (119.0 Ib)

120 V 700 W

120 V 400 W

120 V 80 W

1000 rpm

800 rpm

38 appendix

HUDSON \_'ASH 1_'A456 USER .\IANUAL DC68 03133A 10 ENindd 38 2(}15/4/17 16:05:44

SAMSUNG WASHER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor, Two (2) years Control Board Parts (Part Only), Three (3) years stainless tub part

(Part Only), Ten (10) years washing DD motor part (Part Only).

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem

determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized

service center. The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the

warranty period at no charge, subject to availability within the contiguous United States. In-home service is

not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service

is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized

service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specified above. All replaced parts and products become the property of SAMSUNG and must be returned

to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90)

days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship

encountered in normal, noncommercial use of this product and shall not apply to the following: damage

that occurs in shipment; delivery and installation; applications and uses for which this product was not

intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect,

fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services,

parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied

or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical

line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,

maintenance and environmental instructions that are covered and prescribed in the instruction book;

product removal and reinstallation; problems caused by pest infestations. This limited warranty does not

cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house

wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant

uninterrupted or error-free operation of the product.

append x 39

HUDSON WASH _\'A456 USER MANUAL DC68 03133A 10 ENindd 39 2(}15/4/17 16:05:44

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS

OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR

PURPOSE.

NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT

TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS

OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY

TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,

AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,

DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED

WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS

PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This

warranty gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, Inc.

85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG (726=7864)

www.samsung.com/us/support

Visits by a Service Engineer to explain functions, maintenance or installation

is not covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

40 warranty

HUDSON WASH _VA456 USER MANUAL DC68 03133A 10 ENindd 40 2(}15/4/17 16:05:44

SAMSUNG WASHER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor, Ten (10) years washing DD motor part (Part Only).

This limited warranty begins on the original date of purchase, and is valid only on products purchased

and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem

determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized

service center. The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the

warranty period at no charge, subject to availability within the Canada. In-home service is not available in all

areas.
