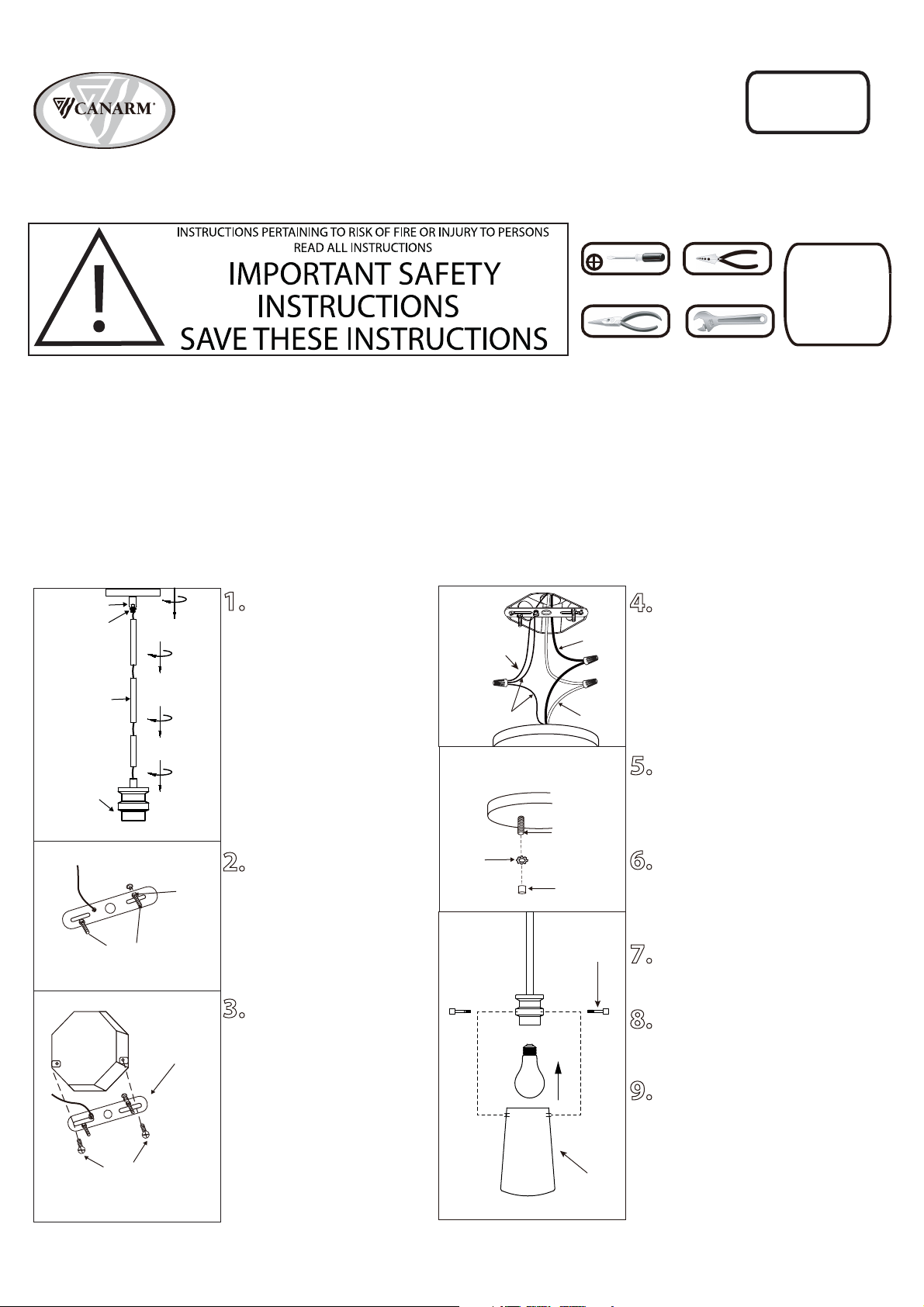

INSTALLATION:
PENDANT LIGHT
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
SAFETY PRECAUTIONS:
1. Install the length of rod
that is required by threading
wire through the rod and
screwing it to the fixture. Install
swivel to the rod, ensuring that
the sleeve is at the swivel.
2. Loosen “B”. Adjust stud to
desired length and lock in place
with “B”
3. Mount the mounting
bracket to electrical box using
electrical box screws (not
included). Make sure the studs
on the mounting bracket are
facing out from the electrical
box.
4. Connect the ground wires (bare
copper or green) from your fixture to
the ground wire (bare copper or green)
or ground screw in the electrical box.
Connect the black wire (or wire with
marking) from the fixture to the black
wire in the electrical box and connect
the white wire from the fixture to the
white wire in the electrical box.
5. Once connections of wires are
completed, carefully tuck wires and
wire nuts into the electrical box making
sure no bare wire (on the black and
white) is visible at the wire nuts.
6. Position fixture over studs on
mounting bracket assembly. Secure
fixture in place with star washer(s) and
cap nut(s).
7. Install specified bulb type and
wattage (not included).
8. Remove the thumb screws that
are already on your fixture.
9. Attach the glass shade to the
fixture using the thumb screws
(tighten with fingers only).
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
Fixture
Sleeve
Rod
Swivel
IPL623A01
10/15
Star
Washer
Cap
Nut
Fixture
Stud
NOTE: Product May Not Look Exactly As Shown In Figures.
“B”
Studs
Electrical Box Screws
(not included)
Electrical
Box
Mounting
Bracket
White
Black
House supply
Ground wire
Fixture
Ground wire
Bulb
Shade
Thumb
Screw
