Delonghi ESAM5600SL Perfecta Automatic Espresso Machine, User Manual

www.delonghi.com

5713216311/06.11

FULLY AUTOMATIC COFFEE CENTER

MACHINE À CAFÈ AUTOMATIQUE

CAFETERA SUPERAUTOMATICA

ESAM5600

Instructions for use. Keep these instructions

Mode d’emploi. Conservez cette notice

Instrucciones para el uso. Repase y guarde

estas instrucciones.

Lea cuidadosamente este

instructivo antes de usar su aparato

trial issue of Cook’s Illustrated. Visit www.

delonghiregistration.com. Visit www.delonghiusa.com

for a list of service centers near you.

(U.S. and Canada Only)

Enregistrez ce produit en ligne et recevez un

numéro gratuit de Cook’s Illustrated. Visitez www.

delonghiregistration.com.

Visitez www.delonghiusa.com

pour y voir une liste des centres de réparation proches de

chez vous. (É.-U. et Canada uniquement)

Registre este producto en línea y reciba un ejemplar

gratis de Cook’s Illustrated. Visite www.delonghire-

gistration.com.

Visite www.delonghiusa.com para ver la

lista de centros de servicios cercanos a usted. (Solamente

en los Estados Unidos y Canada)

Electronic Characteristics: Caractéristiques électriques: Caracteristicas electricas:

120V ~60 HZ 1 350 W

C12

C11

C10

C5C6C7C8C9

A22

A7A12 A10A11 A8A9

A13

A14

A15 A16

A23

A20

A21

A18

A17

A19

14 15

8 11

2524

28 29

CLEAN

36 3837

CONTENTS

IMPORTANT SAFEGUARDS ....................................... 8

SAVE THESE INSTRUCTIONS ...................................................... 8

SHORT CORD INSTRUCTIONS .................................... 8

INTRODUCTION ...................................................... 9

Symbols used in these instructions .......................................... 9

Letters in brackets .................................................................... 9

Troubleshooting and repairs .................................................... 9

DESCRIPTION ............................................................................ 9

Description of the appliance .................................................... 9

Description of milk container ................................................... 9

Description of graphic touch screen ......................................... 9

Meaning of animations .......................................................... 10

PRELIMINARY CHECKS .......................................... 10

Checking the appliance .......................................................... 10

Connecting the appliance ...................................................... 10

Using the appliance for the rst time ..................................... 10

TURNING THE APPLIANCE ON ................................ 11

TURNING THE APPLIANCE OFF ............................... 11

MENU SETTINGS ................................................... 11

Setting the language ............................................................. 11

Energy Saving ........................................................................ 12

Coee temperature ................................................................ 12

Beep ...................................................................................... 12

Default values (reset) ............................................................. 12

Descaling ............................................................................... 12

Statistics function .................................................................. 12

Adjust time ............................................................................ 13

Auto-Start .............................................................................. 13

Auto-O (Stand-by) ............................................................... 13

MAKING COFFEE ................................................... 13

Selecting the coee taste ....................................................... 13

Selecting the quantity of coee in the cup ............................. 13

“Quantity” bar ........................................................................ 14

Coee selected ....................................................................... 14

Customising the “my coee” quantity .................................... 14

Regulating the coee mill ...................................................... 14

Tips for a hotter coee: .......................................................... 14

Preparing coee using coee beans ....................................... 14

Making coee using pre-ground coee ................................. 15

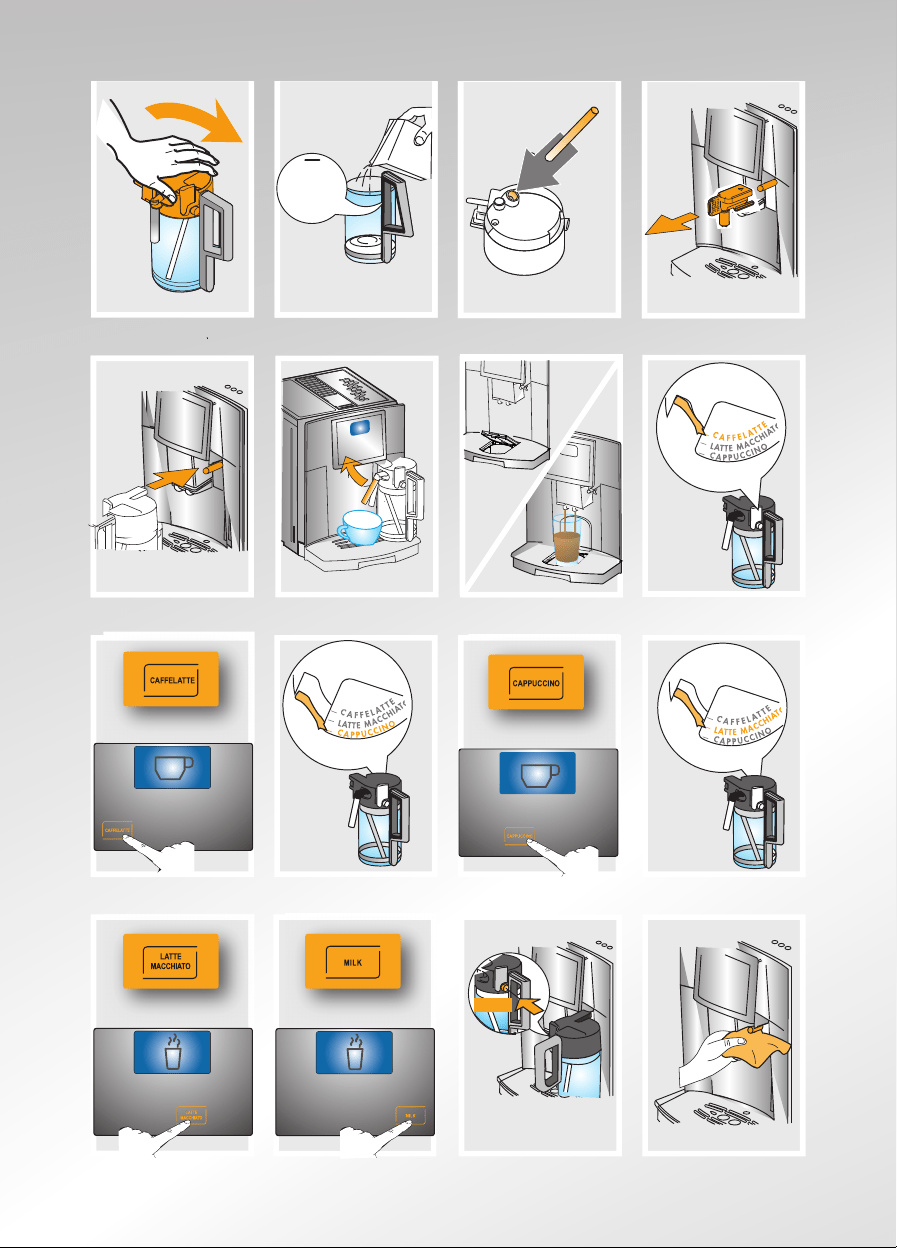

MAKING DRINKS WITH MILK.................................. 15

Filling and attaching the milk container ................................ 15

Making caelatte ................................................................... 15

Making cappuccino ................................................................ 15

Making macchiato ................................................................. 16

Making milk ........................................................................... 16

Cleaning the milk container after use .................................... 16

Programming the quantities of coee and milk in the cup .... 16

HEATING WATER ................................................... 16

Preparation ............................................................................ 16

Changing the quantity ........................................................... 17

CLEANING ............................................................ 17

Cleaning the coee maker ..................................................... 17

Cleaning the coee grounds container ................................... 17

Cleaning the drip tray ............................................................ 17

Cleaning the inside of the machine ........................................ 17

Cleaning the water tank ......................................................... 18

Cleaning the coee spouts ..................................................... 18

Cleaning the pre-ground coee funnel .................................. 18

Cleaning the infuser ............................................................... 18

Cleaning the milk container ................................................... 18

Cleaning the graphic touch screen ........................................ 18

DESCALING ........................................................... 19

SETTING WATER HARDNESS ................................... 19

Measuring water hardness ..................................................... 19

Set water hardness ................................................................ 19

TECHNICAL SPECIFICATION .................................... 20

DISPLAYED MESSAGES .......................................... 21

TROUBLESHOOTING .............................................. 22

LIMITED WARRANTY ............................................. 24

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following.

•Readallinstructionscarefully.

•Makesurethevoltageofyourelectricalsystemcorrespondstothevoltageshownonthebottomofthemachine.

•Donottouchhotsurfaces.Usehandlesorknobs.

•Toprotectagainstre,electricalshockandpersonalinjury,donotimmersecord,plugorapplianceinwaterorother

liquid.

•Keeptheapplianceoutofthereachofchildrenanddonotleaveapplianceunattendedwhileinoperation.

•Unplugfromtheoutletwhennotinuseandbeforecleaning.

•Donotoperatewithadamagedcordorplug,oraftertheappliancemalfunctions,orhasbeendamagedinany

manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

•Theuseofaccessoryattachmentsnotrecommendedbythemanufacturermayresultinre,electricalshock,or

personal injury.

•Donotuseoutdoors.

•Makesurethepowercorddoesnothangovertheedgeofthetableorcounter-toptoavoidgettingaccidentally

caught or entangled.

•Donotplacetheapplianceoritselectricalpartsonornearelectricstoves,cookingsurfaces,orgasburners.

•Plugcordintothewalloutlet.Todisconnect,rstturnmachine“o”,thenremoveplugfromwalloutlet.

•Donotusetheapplianceforotherthantheintendeduse.Thisapplianceistobeutilizedfordomesticuseonly.The

manufacturer declines all responsibility for any damage caused by improper, incorrect, or irresponsible use.

WARNING: To reduce the risk of re or electric shock, do not remove the cover or the exterior of the unit. Don’t at-

tempt to repair or modify the machine, doing so will void the warranty. Repair should be done by authorized service

personnel only!

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

SHORT CORD INSTRUCTIONS

A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

- Longer, detachable power supply cords or extension cords are available and may be used if care is exercised in their use.

- If an extension cord is used, the marked electrical rating should be at least as great as the electrical rating of the appliance. If the

appliance is provided with 3- wire, grounding type cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The longer

cord should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped

over.

- Your product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug

will t into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to t, contact your electrician to replace your obsolete outlet. Do not defeat the

safety purpose of the polarized plug.

INTRODUCTION

Thank you for choosing this coee machine. To get the very

best out of your new coee machine it is advisable to read

these instructions before using the appliance. This is the only

way to ensure optimum results and ma ximum safety.

The manufacturer is not liable for damage deriving from the

failure to comply with the user instructions.

Symbols used in these instructions

Important warnings are identied by these symbols.

These warnings must absolutely be respected.

Danger!

Failure to observe the warning could result in possibly life thre-

atening injury from electric shock.

Important!

Failure to observe the warning could result in injury or damage

to the appliance.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

Please Note :

This symbol identies important advice or information for the

user.

Letters in brackets

The letters in brackets refer to the legend in the Description of

the appliance on page 9.

Troubleshooting and repairs

In the event of problems, rst try and resolve them following

the information given in the sections “Displayed messages” on

page 21 and “Troubleshooting” on page 22

If this does not resolve the problem or you require further

information, you should consult Customer Services. Please see

enclosed guarantee leaet.

If repairs are required, contact De’Longhi Customer Services

only.

The addresses are given in the guarantee certicate provided

with the appliance.

DESCRIPTION

Description of the appliance

(page 3 - A )

A1. Grinding adjustment dial

A2. Beans container lid

A3. Beans container

A4. Pre-ground coee funnel

A5. Measure compartment

A6. Cup shelf (cup warmer active when Energy Saving is

disabled)

A7. Water tank

A8. Infuser

A9. Grounds container

A10. Cup tray

A11. Compartment for macchiato/milk glass

A12. Drip tray

A13. Service door

A14. Coee guide

A15. Coee spout (adjustable height)

A16. Hot water and steam nozzle

A17. Power cable

A18. Main switch

A19. ON/STAND-BY button

A20. Hot water spout

A21. Measure

A22. Graphic touch screen

A23. Cleaning brush

Description of milk container

(page 3 - B )

B1. Froth regulator

B2. Milk container handle

B3. CLEAN button

B4. Milk intake tube

B5. Frothed milk spout

B6. Lid with milk frother

Description of graphic touch screen

(page 3 - C )

Only the icons relating to the controls enabled for the particular

function currently being used will be lit on the touch screen.

C1. Display: guides the user in using the appliance.

C2.

icon: to deliver one cup of coee.

C3.

icon: to deliver two cups of coee.

C4. Selection icons to choose the coee taste. (When in

the settings MENU, they change function according to

the text shown above the icon).

C5. MILK icon: to deliver a cup of milk.

C6. LATTE MACCHIATO icon: to deliver a cup of macchia-

to.

C7.

icon to perform a manual rinse.

(When in the settings MENU, they change function ac-

cording to the text shown above the icon).

C8. CAPPUCCINO icon: to deliver a cappuccino.

C9. CAFFELATTE icon: to deliver a caelatte.

C10. Selection icon to choose the coee quantity.

(When in the settings MENU, it changes function accor-

ding to the text shown above the icon).

C11. icon: to activate the hot water function.

C12. P icon: to access or exit the settings menu.

Please Note :

A light touch is enough to activate the icon.

Meaning of animations

Below is an explanation of the animations describing the ope-

ration the appliance is currently performing:

RINSING.

HEATING UP.

IMPORTANT MESSAGE

(see section: “Displayed messages”).

PLEASE WAIT...

FILLTANK!

HOT WATER

PRELIMINARY CHECKS

Checking the appliance

After removing the packaging, make sure the product is com-

plete and undamaged and that all accessories are present. Do

not use the appliance if it is visibly damaged. Contact De’Longhi

Customer Services. Please see enclosed guarantee leaet.

Installing the appliance

Important!

When you install the appliance, you should respect the fol-

lowing safety warnings:

•Theappliancegivesoheat.Afterpositioningtheap-

pliance on the worktop, leave a space of at least 3 cm

between the surfaces of the appliance and the side and

rear walls and at least 15 cm above the coee maker.

•Waterpenetratingtheappliancecouldcausedamage.Do

not place the appliance near water faucets or sinks.

•Theappliancecouldbedamagedifthewateritcontains

freezes. Do not install the appliance in a room where the

temperature could drop below freezing point.

•Arrangethepowercableinsuchawaythatitcannotbe

damaged by sharp edges or contact with hot surfaces

(e.g. electric hot plates).

Connecting the appliance

Important!

Check that the mains power supply voltage corresponds to

the value indicated on the rating plate on the bottom of the

appliance.

Connect the appliance to an eciently earthed and correctly

installed socket with a minimum current rating of 10A only.

If the power socket does not match the plug on the appliance,

have the socket replaced with a suitable type by a qualied

professional.

Using the appliance for the rst time

Please Note :

•Coeehasbeenusedtofactorytesttheapplianceandit

is, therefore, completely normal for there to be traces of

coee in the mill. The machine is, however, guaranteed to

be new.

•Youshouldcustomizewaterhardnessassoonaspossible

following the instructions in the section “Setting water

hardness” on page 19.

1. Plug the appliance into the mains socket and place the

main switch on the back of the appliance in the I position

(g. 1).

You must rst choose the language on the display (the langua-

ges scroll through at intervals of about 3 seconds).

2. When English appears, press the selection icon corre-

spondingtoOKonthedisplayforafewseconds(g.2).

Once the language has been saved, the message “English

installed” is displayed.

Follow the instructions indicated by the appliance:

3.“FILLTANK!”:removethewatertank,lltotheMAXline

with fresh water then replace in the appliance (g. 3).

4.“INSERTWATERSPOUT!“:Checkthatthehotwaterspoutis

inserted on the nozzle and place a container with a mini-

mum capacity of 100 ml underneath (g. 4).

5.“PressOK”:thenpresstheiconcorrespondingtoOKonthe

display (g. 2). “Please wait...” is displayed and the applian-

ce begins to deliver water from the hot water spout.

The appliance ends the rst start up procedure and goes o.

The coee maker is now ready for normal use.

Please Note:

•Whenusingtheapplianceforthersttime,youneedto

make 4/5 cups of coee or 4/5 cappuccinos before the ap-

pliance starts to give satisfactory results.

TURNING THE APPLIANCE ON

Please Note:

Before turning the appliance on, make sure the main switch on

the back of the appliance is in the I position (g. 1).

Each time the appliance is turned on, it performs an automatic

preheat and rinse cycle which cannot be interrupted.

A drop animation indicates that rinsing is underway (see sec-

tion “Meaning of animations”).

The appliance is ready for use only after completion of this

cycle.

Danger of burns!

During rinsing, a little hot water comes out of the coee spouts

and is collected in the drip tray underneath.

Avoid contact with splashes of water.

•Toturntheapplianceon,pressthe

button (g. 5).

The appliance begins the heating cycle indicated by a

thermometer icon (g. 6) which lls as the cycle advan-

ces. During heating, the machine performs an automatic

rinse cycle: as well as heating the boiler, the appliance

also heats the internal circuits by circulating hot water.

Once heating is complete, the appliance shows the time and

the coee taste and quantity selection bars set to the standard

values (“standard” quantity and taste). The coee maker is now

ready for use.

TURNING THE APPLIANCE OFF

Each time the appliance is turned o, it performs an automatic

rinse cycle which cannot be interrupted.

Important!

To avoid damaging the appliance, always press the

(g.

5) button to turn o.

Danger of burns!

During rinsing, a little hot water ows from the coee spouts.

Avoid contact with splashes of water.

To turn the appliance o, press the

button (g. 5). The

appliance performs the rinse cycle then goes o.

Please Note:

If the appliance is not used for an extended period, place the

main switch in the 0 position (g. 7).

Important!

Never place the main switch in the 0 position while the ap-

pliance is on.

MENU SETTINGS

The settings menu is divided into 3 sections indicated by dierent icons.

Each section is divided into groups as described below:

SETTINGS

•Language

•EnergySaving

•Coeetemperature

•Waterhardness

•Displaycontrast

•Beep

•Defaultvalues

MAINTENANCE

•Descaling

•Statistics

CLOCK

•Adjusttime

•Auto-Start

•Auto-O(Stand-by)

To access the required section, press the P icon and use the se-

lection icons (C4 and C10) to scroll until the image you want is

displayed. Then press the icon to conrm (or the P icon

again to exit).

Please Note!

When navigating in the settings menu and you want to exit,

press the P icon a number of times.

Setting the language

To modify the language on the display, proceed as follows:

1. Choose the “SETTINGS” section as described above;

2. Press the selection icons < or > until “Language” is displa-

yed;

3. Press the icon to conrm;

4. Press the selection icons < or > until the required langua-

ge is displayed;

5. Press the icon to conrm;

The language is set. Press the P icon a number of items to exit

the menu.

Energy Saving

Use this function to enable or disable energy saving mode.

When enabled, the function reduces energy consumption in

compliance with European regulations.

1. Choose the “SETTINGS” section as described above;

2. Press the selection icons < or > until “Energy saving” is

displayed;

3. Press the icon to conrm. “Disable?” is displayed (or

“Enable?” if the function has already been disabled).

4. Press the icon to disable or enable the function.

5. Press the P icon a number of times to exit the menu.

When the function is enabled, if the appliance is not used for

about 1 minute, “Energy Saving” is displayed.

Please note:

•Afewsecondsmayelapsebetween“EnergySaving”mode

and delivery of the rst drink. This is indicated by the rapid

increase then decrease of the progress bar and display of

the message “Preparation underway”.

•When“EnergySaving”isdisabled,theapplianceturnsthe

cup warmer on automatically.

Coee temperature

To modify the temperature of the water used to make the cof-

fee, proceed as follows:

1. Choose the “SETTINGS” section as described above;

2. Press the < or > until “Coee temperature” is displayed;

3. Press the icon to conrm.

4. Press the < or > icon until “Coee temperature” is displa-

yed (l = low; llll = high);

5. Press the icon to conrm.

6. Press the P icon a number of times to exit the menu.

Setting water hardness

For instructions on setting water hardness, see page 19.

Setting display contrast

To increase or reduce the contrast of the display, proceed as

follows:

1. Choose the “SETTINGS” section as described above;

2. Press the selection icons < or > until “Display contrast” is

displayed;

3. Press the

icon to conrm;

4. Press the selection icons < or > until the required display

contrast is reached. The progressive bar indicates the level

of contrast selected.

5. Then press the

icon to conrm or the P icon to exit

the menu;

6. Press the P icon a number of times to exit the menu.

Beep

This enables or disables the beep emitted by the machine each

time an icon is pressed or an accessory is inserted/removed. The

beep is active by default.

1. Choose the “SETTINGS” section as described above;

2. Press the selection icons < or > until “Beep” is displayed;

3. Press the icon to conrm; “Disable?” is displayed (or

“Enable?” if the function is already disabled);

4. Press the icon to conrm and enable or disable the

function.

5. Press the P icon a number of times to exit the menu.

Default values (reset)

This resets all menu settings and programmed quantities back

to the default values (with the exception of the language

which remains as set).

1. Choose the “SETTINGS” section as described above;

2. Press the selection icons < or > until “Default Values” is

displayed;

3. Press the icontoconrm.“OKtoconrm”isdispla-

yed.

4. Press the icon to return to the original settings (or

the P icon to cancel the operation).

The appliance is automatically ready for use again with the

default settings.

Descaling

For instructions on descaling, see page 19.

Statistics function

This displays statistics relating to the machine.

To display, proceed as follows:

1. Choose the “MAINTENANCE” section as described above.

2. Press the selection icons < or > until “Statistics” is displa-

yed.

3. Press the icon to conrm;

4. Press the selection icons < or > to verify:

- how many coees have been made;

- how many drinks with milk have been made;

- how many times the machine has been descaled.

- the total number of litres of water delivered.

5. Press the

icon to conrm or the P icon to exit the

menu.

Adjust time

To adjust the time on the display, proceed as follows:

1.Choosethe“CLOCK”sectionasdescribedabove.

2. Press the selection icons < or > until “Adjust time” is di-

splayed.

3. Press the icon to conrm: the hours ash on the di-

splay;

4. Press the selection icons < or > to modify the hours.

5. Press the icon to conrm. The minutes ash on the

display;

6. Press the selection icons < or > to modify the minutes.

7. Press the icon to conrm (or the P icon to cancel the

operation).

The time has been set. Press the P icon a number of times to

exit the menu.

Auto-Start

You can set the auto-start time in order to have the appliance

ready at a certain time (for example in the morning) so you can

make coee immediately.

Please Note!

To enable this function, the time must already be set cor-

rectly (adjust time).

1.Choosethe“CLOCK”sectionasdescribedabove.

2. Press the selection icons < or > until “Auto-Start” is di-

splayed.

3. Press the icon to conrm. “Enable?” is displayed (or

“Disable?” if the function is already enabled).

4. Press the icon to conrm. The hours ash on the di-

splay;

5. Press the selection icons < or > to modify the hours.

6. Press the icon to conrm. The minutes ash on the

display;

7. Press the selection icons < or > to modify the minutes;

8. Press the icon to conrm. “Auto-Start enabled” is di-

splayed.

9. Press the P icon a number of times to exit the menu. The

symbol appears next to the clock to indicate that

auto-start has been programmed.

To disable the function:

1. Choose the “Clock” section as described above.

2. Press the selection icons < or > until “Auto-Start” is

displayed.k

3. Press the

icon to conrm. “Disable?” is displayed.

4. Press the icon to conrm. This disables the function

and the symbol disappears from the display.

5. Press the P icon a number of times to exit the menu.

To change the auto-start time when the function is already

enabled:

1.Choosethe“CLOCK”sectionasdescribedabove.

2. Press the selection icons < or > until “Auto-Start” is displa-

yed.

3. Press the icon to conrm; “Disable?” is displayed.

4. Press the selection icons < or > until “Adjust time” is di-

splayed.

5. Adjust the time as described above.

Auto-O (Stand-by)

The appliance is set by default to go o if not used for two

hours.

The time can be changed so that the appliance switches o

after 15 or 30 minutes, or after 1, 2 or 3 hours.

1.Choosethe“CLOCK”sectionasdescribedabove.

2. Press the selection icons < or > icons until “Auto-O” is

displayed.

3. Press the icon to conrm;

4. Press the selection icons < or > until the required number

of hours operation (15 or 30 minutes, or 1, 2 or 3 hours) is

displayed.

5. Press the icon to conrm (or the P icon to cancel the

operation).

Auto-O is programmed. Press the P icon a number of times

to exit the menu.

MAKING COFFEE

Selecting the coee taste

The appliance is set by default to make coee with a standard

taste.

To change the taste, press the selection icon (C4) until the “ta-

ste” bar has lled as follows:

Extra-mild taste

Mild taste

Standard taste

Strong taste

Extra-strong taste

The bar lls up progressively each time you press the selection

icon.

Selecting the quantity of coee in the cup

The appliance is set by default to make a standard quantity of

coee.

To choose the quantity of coee, press the selection icon (C10)

until the “quantity” bar has lled as follows:

“Quantity” bar Coee

selected

Quantity

(. oz.)

MY COFFEE Program from

≃0.68 to ≃6.1

EXTRASHORT

COFFEE

≃ 1

SHORT COFFEE

≃ 1.35

STANDARD

COFFEE

≃ 2.35

LONG COFFEE

≃ 3.04

EXTRALONG

COFFEE

≃ 4.06

The quantity bar lls up progressively each time you press the

selection icon.

Customizing the “my coee” quantity

The appliance is set by default to automatically deliver 30 ml

of “my coee”.

To modify these settings, proceed as follows:

1. Place a cup under the coee spouts ( g. 8).

2. Press the selection icon (C10) repeatedly until the

bar on the display corresponds to the “MY COFFEE”

3. Press the icon (g. 9) until “MY COFFEE Program

Quantity” and the symbol are displayed, then release.

The appliance starts delivering coee and the icon

ashes;

4. As soon as the coee in the cup reaches the required level,

press the icon again.

The quantity set has now been programmed.

Regulating the coee mill

The coee mill is set by default to prepare coee correctly and

should not require regulating initially. However, if after making

the rst few coees you nd that delivery is either too fast or

too slow (a drop at a time), this can be corrected by adjusting

the grinding adjustment dial (g. 10).

Please Note!

The grinding adjustment dial must only be turned when the

coee mill is in operation.

For full bodied creamier coee, turn

one click anticlockwise towards “1”

(ner ground coee). For faster

delivery (not a drop at a time), turn

one click clockwise towards “7” (co-

arser ground coee).

These adjustments will only be evident af-

ter at least 2 cups of coee have been delivered.

If delivery is still too fast or too slow, repe-

at the correction, turning the dial another click.

Tips for a hotter coee:

For a hotter coee, you are recommended to:

•performarinsecyclebeforedeliveringthecoee:press

the

icon to select the “Rinsing...” function. Hot water

is delivered from the spout, heating the internal circuits

and making the coee delivered hotter;

•if“EnergySaving”modeisdisabled,placethecupsonthe

cup warmer until they are warm;

•warmthecupsbyrinsingthemwithhotwater(usingthe

hot water function);

•inthemenu,setcoeetemperatureto“high”

(llll).

Preparing coee using coee beans

Important!

Do not use caramelized or candied coee beans as they could

stick to the coee mill and make it unusable.

1. Fill the container with coee beans (g. 12).

2. Place under the coee spouts:

- 1 cup, if you want 1 coee (g. 8);

- 2 cups, if you want 2 coees;

3. Lower the spouts as near as possible to the cup. This ma-

kes a creamier coee (g. 13).

4. Press the icon corresponding to the number of coees

required (1 cup

or 2 cups ) (g. 9 and 14).

5. Preparation begins. One or two cups appear on the display

and gradually ll as preparation progresses.

Once the coee has been made, the appliance prepares for use

again.

Please Note:

•Whilethemachineismakingcoee,deliverycanbein-

terrupted at any moment by pressing the icon selected

previously.

•Attheendofdelivery,toincreasethequantityofcoee

in the cup, just press (within 3 seconds) the icon selected

previously.

•Forhottercoee,seethesection“Tipsforahottercoee”.

Important!

If the coee is delivered a drop at a time, too fast and not cre-

amy enough or too cold, read the tips in the “Troubleshooting”

section on page 22.

Various alarm messages could be displayed while the machine

is in use. Their meaning is explained in the section “Displayed

messages” (page 21).

Making coee using pre-ground coee

Important!

•Neveraddpre-groundcoeewhenthemachineisoorit

could spread through the inside of the machine and dirty

it. This could damage the appliance.

•Neverusemorethanonelevelmeasureoritcoulddirty

the inside of the machine or block the funnel.

Please Note!

If you use pre-ground coee, you can

only make one cup of coee at a time.

1. Repeatedly press the selection icon

(C4) corresponding to the “taste”

bar until “Ground” and

ash on the di-

splay.

2. Put one level measure of pre-ground coee into the fun-

nel (g. 15).

3. Place a cup under the coee spouts (g. 8).

4. Press the 1 cup coee icon (g. 9).

5. Preparation begins. A cup appears on the display and gra-

dually lls as preparation progresses.

Once the coee has been made, the appliance prepares for use

again.

MAKING DRINKS WITH MILK

Please Note!

If “Energy Saving” mode is enabled, you may have to wait a few

seconds before the drink is delivered.

Filling and attaching the milk container

1. Turn the lid of the milk container clockwise until it beco-

mes noticeably dicult to turn, then remove the lid (g.

16).

2. Fill the milk container with a sucient quantity of milk,

notexceedingtheMAXlevelmarkedonthehandle(g.

17).

Please Note!

For a richer denser froth, use skim or 2% milk at refrigerator

temperature (about 41°F / 5°C).

To avoid milk with poor froth or large bubbles, always clean

the milk lid and hot water nozzle as described in the section

“Cleaning the milk container” on page 16 and 18.

3. Make sure the milk intake tube is correctly inserted in the

bottom of the milk container lid (g. 18).

4. Replace the milk container lid and turn anticlockwise as

far as it will go.

5. Remove the hot water spout from the nozzle (g. 19).

6. Attach the container to the nozzle and push as far as it

will go (g. 20). The machine emits a beep (if the beep

function is enabled).

7. Place a suciently large cup under the coee spouts and

frothed milk spout (g. 21). To use particularly tall cups/

glasses, raise the lid of the special compartment in the

cup tray (g. 22).

8. Follow the instructions below for each function.

Making caelatte

1. After attaching the milk container (see previous section),

position the froth regulator on CAFFELATTE (g. 23) prin-

ted on the milk container lid.

2. Press the CAFFELATTE icon (g. 24).

A cup is displayed and gradually lls as preparation pro-

gresses. After a few seconds, frothed milk is delivered

from the milk spout into the cup below. Milk delivery

stops automatically and coee delivery begins.

3. At the end of delivery, the machine is automatically ready

for use again.

Please Note!

If during delivery you want to stop preparing milk, press the

CAFFELATTE icon or interrupt preparation of the coee by

pressing the icon.

Making cappuccino

1. After attaching the milk container (see previous section),

position the froth regulator on CAPPUCCINO printed on

the milk container lid (g. 25).

The quality of froth can be adjusted during delivery by

moving the regulator slightly towards LATTE MACCHIA-

TO for a denser froth.

2. Press the CAPPUCCINO icon (g. 26). A cup is displayed

and gradually lls as preparation progresses. After a few

seconds, frothed milk ows out of the milk spout into the

cup below. Milk delivery stops automatically and coee

delivery begins.

Please Note!

If during delivery you want to stop preparing milk, press the

CAPPUCCINO icon or interrupt preparation of the coee by

pressing the icon.

Making macchiato

1. After attaching the milk container (see previous section),

position the froth regulator on LATTE MACCHIATO (g. 27)

printed on the milk container lid.

2. Press the LATTE MACCHIATO icon (g. 28). A glass is di-

splayed and gradually lls as preparation progresses. Af-

ter a few seconds, frothed milk ows out of the milk spout

into the glass below. Milk delivery stops automatically

and coee delivery begins.

3. At the end of delivery, the machine is automatically ready

for use again.

Please Note!

If during delivery you want to stop preparing milk, press the

LATTE MACCHIATO icon or interrupt preparation of the coee by

pressing the icon.

Making milk

1. After attaching the milk container (See section: “Filling

and attaching the milk container”), position the froth re-

gulator according to the quantity of froth you require (pos.

3 caelatte = little froth; pos. 1 cappuccino = abundant

froth).

2.PresstheMILKicon(g.29).Aglassisdisplayedandgra-

dually lls as preparation progresses. After a few seconds,

frothed milk is delivered from the milk spout into the cup

below.

3. After delivery, the machine is automatically ready for use

again.

Please Note!

If during delivery you want to stop preparing milk, press the

MILK icon once.

Cleaning the milk container after use

Important! Danger of burns

When cleaning the internal tubes of the milk container, a little

hot water leaks out of the frothed milk tube (B5). Avoid contact

with splashes of water.

When “Press CLEAN button” ashes on the display (each time

you use a milk function):

1. Leave the milk container in the machine (you do not need

to empty it);

2. Place a cup or other recipient under the frothed milk spout

(g. 21).

3. Press the CLEAN button (g. 30) and keep pressing until

the progress bar which appears on the display together

with the message “Cleaning...” is complete.

4. Remove the milk container and always clean the nozzle

with a sponge (g. 31).

Please Note!

•When“PressCLEANbutton”ashesonthedisplay,youcan

still prepare any type of coee or milk. If you have to make

a number of drinks with milk, wait until you have delive-

red the last cup before cleaning the container.

•Themilkleftinthecontainercanbekeptintherefrigera-

tor.

•Insomecases,tocleanyoumustwaitfortheapplianceto

heat up, holding the CLEAN button down.

Programming the quantities of coee and milk in the

cup

The appliance is set by default to automatically deliver stan-

dard quantities.

To change these quantities, proceed as follows:

1. Place a cup/glass under the coee spouts and milk spout

(g. 21).

2. Press the icon corresponding to the function you want to

program until “Program Quantity Milk For...” is displayed

together with the

or icon according to the fun-

ction selected.

3. Release the icon. The appliance starts delivering milk.

4. When the required quantity of milk has been delivered

into the cup, press the icon again.

5. After a few seconds, the appliance starts delivering coee

into the cup and the message “Coee for... Program quan-

tity”isdisplayed(withtheexceptionoftheMILKfunction)

and the icon ashes.

6. As soon as the coee in the cup reaches the required level,

press the icon. Coee delivery stops.

The machine is now reprogrammed with the new quantities.

HEATING WATER

Preparation

Important! Danger of burns.

Never leave the machine unsupervised while delivering hot

water.

The hot water spout becomes hot while water is delivering and

must be handled by the handle only.

1. Make sure the hot water spout is attached correctly (g.

4).

2. Place a container under the spout (as close as possible to

avoid splashes).

3 Press the icon (g. 32). Preparation begins. “Hot

Water” and the corresponding animation are displayed.

4. Water ows out of the spout. Delivery stops automatically

after 250 ml / 0.25 liters.

5. To interrupt delivery of hot water manually, press the

icon again.

Please Note!

•Ifenergysavinghasbeenenabled,deliverycouldbedela-

yed a few seconds.

Changing the quantity

The appliance is set by default to automatically deliver about

250ml /0.25 liters.. To modify these quantities, proceed as fol-

lows:

1. Position a container under the spouts.

2. Press the

icon (the appliance starts delivering hot

water) until the message “Hot Water Program Quantity” is

displayed and the icon ashes, then release.

3. When the hot water in the cup reaches the required level,

press the icon again.

The machine is now reprogrammed with the new quantities.

CLEANING

Cleaning the coee maker

The following parts of the machine must be cleaned regularly:

- coee grounds container (A9),

- drip tray (A12),

- inside the machine, accessible after opening the service

door (A13),

- water tank (A7),

- coee spouts (A15) and hot water nozzle (A16),

- pre-ground coee funnel (A4),

- infuser (A8),

- milk container (B)

- touch screen (C)

Important!

•Donotusesolvents,abrasivedetergentsoralcoholtocle-

an the coee maker. With De’Longhi superautomatic cof-

fee makers, you need not use chemical products to clean

the machine.

•Noneofthecomponentsoftheappliancecanbewashed

in a dishwasher with the exception of the milk container

(B).

•Donotusemetalobjectstoremoveencrustationsorcoee

deposits as they could scratch metal or plastic surfaces.

Cleaning the coee grounds container

When “EMPTY GROUNDS CONTAINER” is displayed, the grounds

container must be emptied and cleaned.

Until the grounds container has been cleaned, the appliance

continues to display the message and coee cannot be made.

Even if not full, the empty grounds container message is displa-

yed 72 hours after the last coee has been prepared. For the

72 hours to be calculated correctly, the machine must never be

turned o with the main switch in the 0 position.

To clean (with the machine on):

•Opentheservicedooronthefrontoftheappliance(g.

33), extract the drip tray (g. 34), empty and clean.

•Emptythegroundscontainerandcleanthoroughlyto

remove all residues left on the bottom. This can be done

with the spatula on the brush (A23) provided.

Important!

When removing the drip tray, the grounds container must be

emptied, even if it contains few grounds.

If this is not done, when you make the next coees, the groun-

ds container may ll up more than expected and clog the ma-

chine.

Cleaning the drip tray

Important!

If the drip tray is not emptied regularly, the water could over-

ow from the edge and seep inside or around the machine.

This could damage the machine, the surface it rests on or the

surrounding area.

The drip tray is tted with a level indicator (red) showing the

level of water it contains (g. 35).

Before the indicator protrudes from the cup tray, the drip tray

must be emptied and cleaned.

To remove the drip tray:

1. Open the service door (g. 33);

2. Remove the drip tray and the grounds container (g. 34);

3. Empty the drip tray and grounds container (A9) and wash

them;

4. Replace the drip tray complete with grounds container;

5. Close the service door.

Cleaning the inside of the machine

Danger of electric shock!

Before cleaning internal parts, the machine must be turned

o (see “Turning o”) and unplugged from the mains power

supply. Never immerse the coee maker in water.

1. Check regularly (about every 100 coees) that the inside

of the appliance (accessible after removing the drip tray)

is not dirty. If necessary, remove coee deposits with the

brush provided and a sponge.

2. Remove the residues with a vacuum cleaner (g. 36).

Cleaning the water tank

1. Clean the water tank (A13) regularly (about once a month)

with a damp cloth and a little mild washing up liquid.

2. After cleaning the water tank rinse it thoroughly to remo-

ve all washing up liquid residues.

Cleaning the coee spouts

1. Clean the coee spouts with a sponge or cloth (g. 37).

2. Check the holes in the coee spout are not blocked. If ne-

cessary, remove coee deposits with a toothpick (g. 38).

Cleaning the pre-ground coee funnel

Check regularly (about once a month ) that the pre-ground cof-

fee funnel is not blocked. If necessary, remove coee deposits

with the brush provided (A23).

Cleaning the infuser

The infuser (A8) must be cleaned at least once a month.

Important!

The infuser may not be extracted when the machine is on.

1. Make sure the machine is correctly turned o (see section:

“Turning o”).

2. Open the service door (g. 33).

3. Remove the drip tray and grounds container (g. 34).

4. Press the two red release buttons inwards and at the same

time pull the infuser outwards (g. 39).

Important!

RINSE WITH WATER ONLY

NO DISH SOAP  NO DISH WASHER

Do not use dish soap to clean the infuser as it could cause da-

mage.

5. Soak the infuser in water for about 5 minutes, then rinse

under the tap.

6. After cleaning, replace the infuser by sliding it onto the in-

ternal support and pin at the bottom, then push the PUSH

symbol fully in until it clicks into place.

Please Note!

If you encounter diculty inser-

ting the infuser, before inserting

it you must adapt it to the right

dimension by pressing it forceful-

ly from the bottom and top as

shown in the gure.

7. Once inserted, make sure the two red

buttons have snapped out.

8. Replace the drip tray and grounds con-

tainer.

9. Close the service door.

Cleaning the milk container

Clean the milk container each time you prepare milk as descri-

bed below:

1. Turn the lid of the milk

container clockwise then

remove it.

2. Remove the milk spout and

intake tube.

3. Remove the froth regulator

by pulling it outwards.

4. Wash all the components

thoroughly with hot wa-

ter and mild dish soap.

All components can be

washed in a dishwa-

sher, placing them in

the top basket of the

dishwasher.

Make sure there are no

milk residues left inside

the holes and the groove

on the ne end of the froth regulator.

5. Use the brush supplied (certain models only) or another

brush (not metal) to remove residues from the milk hole.

6. Check that the intake tube and spout are not clogged with

milk residues.

7. Replace the froth regulator, milk spout and intake tube.

8. Replace the lid on the milk container, turning it anti-

clockwise to hook it in place.

Cleaning the graphic touch screen

1. If the machine is on, turn o by pressing the

button

(g. 5) to avoid starting it accidentally during cleaning.

2. Clean the graphic touch screen with a damp cloth. Do not

use solvents, aggressive detergents and/or sharp objects

as they could damage the surface of the screen.

DESCALING

Descalethemachinewhenthemessage“DESCALE!”asheson

the display.

Important!

Descaler contains acids which may irritate the skin and eyes.

It is vital to respect the manufacturer’s safety warnings given

on the descaler pack and the warnings relating to the procedu-

re to follow in the event of contact with the skin and eyes.

Please Note!

Use De’Longhi descaler only.

Under no circumstances should you use sulphamic or acetic

based descalers. Their use invalidates the guarantee. Failure

to descale the appliance as described also invalidates the gua-

rantee.

1. Turn the machine on.

2. Choose the “MAINTENANCE” section as described in the

section “Menu settings”.

3. Press the selection icons until “Descale” is displayed.

4. Press the

icon to conrm.“OKtoconrm”isdispla-

yed. Press the icon again to enable the function.

5.Themessage“AdddescalerPressOK”isdisplayed.

6. Before conrming, empty the water tank (A7).

Pour the descaler diluted with water (respecting the pro-

portions indicated on the descaler pack) into the water

tank and replace it in the appliance.

Place an empty container with a minimum capacity of 1.5

liters under the hot water spout.

Important! Danger of burns

Hot water containing acid ows out of the hot water spout.

Avoid contact with splashes of water.

7.PresstheselectioniconcorrespondingtoOKtostartthe

descaling program.

8. The message “Descaling...” is displayed.

The descaling program starts and the descaler liquid co-

mes out of the water spout.

The descale program automatically performs a series of

rinses and pauses to remove limescale deposits from in-

side the machine.

Afterabout30minutes,themessage“RinsingFILLTANK!”is

displayed.

9. The appliance is now ready for rinsing through with clean

water.

Remove the water tank, empty, rinse under running wa-

ter,llwithcleanwaterandreplace.“Rinsing...PressOK”

is displayed.

10. Empty the container used to collect the descaler solution

and replace it under the hot water spout.

11.PresstheselectioniconcorrespondingtoOKtostartrin-

sing. Hot water ows out of the spout and the message

“Rinsing...” is displayed.

12. When the water tank is completely empty, the message

“RinsingComplete...PressOK”isdisplayed.

13. Press the selection icon corresponding to OK. The applian-

ce goes o.

To use it again, turn the appliance on by pressing the

button.

SETTING WATER HARDNESS

The DESCALE message is displayed after a period of time esta-

blished according to water hardness.

The machine is set by default for a hardness value of 4.

The machine can also be programmed according to the actual

hardness of the main water supply in the various regions, va-

rying the frequency with which the message is displayed.

Measuring water hardness

1. Remove the “TOTAL HARDNESS TEST” indicator paper from

its pack.

2. Immerse the paper completely in a glass of water for one

second.

3. Remove the paper from the water and shake lightly. After

about a minute, 1, 2, 3, or 4 red squares form, depending

on the hardness of the water. Each square corresponds to

one level.

soft water

  mmml

slightly hard water

  mmll

hard water

mlll

very hard water

  llll

Set water hardness

1. Choose the “SETTINGS” section as described in the section

“Menu settings”.

Press the selection icons until “Water Hardness” is displayed.

3. Press the icon to conrm.

4. Press the selection icons to set the level corresponding to

the water hardness identied by the indicator paper (see

gure (see gure above).

5. Press the

icon to conrm the setting.

6. Press the P icon a number of times to exit the menu.

The machine is now reprogrammed with the new water

hardness setting.

TECHNICAL SPECIFICATION

Voltage: 120 V~ 60 Hz max. 10A

Absorbed power: 1350W

Pressure: 15 bar

Water tank capacity: 1,8 L

Size: LxHxD: 282x380x441 mm

Cable length: 1,5 m

Weight:11,5Kg

Beans container capacity 250 g

DISPLAYED MESSAGES

DISPLAYED MESSAGE POSSIBLE CAUSE SOLUTION

FILLTANK!

•Insucientwaterinthetank.•Fillthetankwithwaterand/orinsertitcorrectly,

pushing it as far as it will go until it clicks into place.

GROUND TOO FINE ADJUST

MILL!

Insert water spout and press

•Thegrindingistooneandthecoeeisdelivered

too slowly or not at all.

•Repeatcoeedeliveryandturnthegrinding

adjustment dial one click clockwise towards “7”

while the coee mill is in operation. If after making

at least 2 coees delivery is still too slow, repeat

the correction procedure, turning the grinding

adjustment dial another click until delivery is correct.

If the problem persists, press the icon corresponding

toOKanddeliverwaterfromthespoutuntilitows

out normally.

INSERTWATERSPOUT!

•Thewaterspoutisnotinsertedorisinserted

incorrectly.

•Insertwaterspoutasfarasitwillgo.

EMPTY GROUNDS

CONTAINER!

•Thegroundscontaineristoofullormorethan3

days have passed since you last made coee (this

guarantees correct hygiene of the machine).

•Emptythegroundscontainerandclean,then

replace. Important: when removing the drip tray,

the grounds container must be emptied, even if it

contains few grounds. If this is not done, when you

make the next coees, the grounds container may ll

up more than expected and clog the machine.

INSERT GROUNDS CONTAINER

•Aftercleaning,thegroundscontainerhasnotbeen

replaced.

•Opentheservicedoor,removethedriptrayand

insert the grounds container.

ADD PREGROUND COFFEE

•The“groundcoee”functionhasbeenselected

without placing any pre-ground coee in the funnel.

•Placepre-groundcoeeinthefunnelordeselectthe

“ground coee” function.

•Thefunnelisclogged.•Emptythefunnelwiththehelpofthespatulaonthe

cleaning brush provided , as described in the section

“Cleaning the pre-ground coee funnel”.

DESCALE!

•Themachinemustbedescaled.•Thedescalingproceduredescribedinthe“Descaling”

section needs to be performed as soon as possible.

LESSCOFFEE!

•Toomuchcoeehasbeenused.•Selectamildertasteorreducethequantityofpre-

ground coee and then request the coee again.

FILLBEANSCONTAINER!

•Thecoeebeanshaverunout.•Fillthebeanscontainer

•Thepre-groundcoeefunnelisclogged.•Emptythefunnelwiththehelpofabrushas

described in the section “Cleaning the pre-ground

coee funnel”.

INSERTINFUSERASSEMBLY!

•Theinfuserhasnotbeenreplacedaftercleaning.•Inserttheinfuserasdescribedintheparagraph

“Cleaning the infuser”.

DISPLAYED MESSAGE POSSIBLE CAUSE SOLUTION

INSERTMILKCONTAINER

•Themilkcontainerisnotinsertedcorrectly.•Insertthemilkcontainerasfarasitwillgo.

CLOSEDOOR!

•Theservicedoorisopen•Closetheservicedoor.

PRESS CLEAN BUTTON

•Milkhasbeendeliveredrecentlyandthetubes

inside the milk container must be cleaned.

•PresstheCLEANbuttonandkeepitpresseduntilthe

progress bar which appears on the display together

with the message “Cleaning...” is complete.

Energy Saving

•Thefunctionisactiveandreduceselectricity

consumption.

•Disablethefunctioninthemenu(seesection:

“Energy Saving”).

GENERALALARM!

•Theinsideoftheapplianceisverydirty.

•Cleantheinsideoftheappliancethoroughly,as

described in the section “Cleaning”. If the message is

still displayed after cleaning, contact a service center.

TROUBLESHOOTING

Below is a list of some of the possible malfunctions.

If the problem cannot be resolved as described, contact a Service Center.

PROBLEM POSSIBLE CAUSE SOLUTION

The coee is not hot

•Thecupswerenotpreheated.•Enablethecupwarmer,leavethecupsatleast20

minutes to warm up.

•Warmthecupsbyrinsingthemwithhotwater

(using the hot water function).

•Theinfuserhascooleddownbecause2/3minutes

have elapsed since the last coee was made.

•Beforemakingthecoee,heattheinfuserby

pressing the

icon (see the sections “Tips for a

hotter coee”).

•Alowcoeetemperatureisset.•Setahighcoeetemperatureinthemenu.

The coee is not creamy

enough.

•Thecoeeisgroundtoocoarsely.•Turnthegrindingadjustmentdialoneclick

anticlockwise towards “1” while the coee mill is

in operation (g. 10). Continue one click at a time

until coee delivery is satisfactory. The eect is only

visible after delivering 2 coees.

•Wrongtypeofcoee•Useatypeofcoeeforespressocoeemakers.

The coee is delivered too

slowly or a drop at a time.

•Thecoeeisgroundtoonely.•Turnthegrindingadjustmentdialoneclickclockwise

towards “7” while the coee mill is in operation

(g. 10). Continue one click at a time until coee

delivery is satisfactory. The eect is only visible after

delivering 2 coees.

The coee does not come out

of the spouts, but from around

the service door.

•Theholesinthespoutsarecloggedwithdrycoee

dust.

•Cleanthespoutswithatoothpick,spongeorhard

bristled kitchen brush.

•Thecoeeguideinsidetheservicedoorisblocked

and cannot swing.

•Thoroughlycleanthecoeeguide,particularlynear

the hinges.

PROBLEM POSSIBLE CAUSE SOLUTION

The coee is delivered too

quickly.

•Thecoeeisgroundtoocoarsely.

•Turnthegrindingadjustmentdialoneclick

anticlockwise towards “1” while the coee mill is

in operation (g. 10). Avoid turning the grinding

adjustment dial excessively otherwise when you

select two cups, the coee may be delivered a drop

at a time.

Coee does not come out of

one of the spouts.

•Thespoutsareblocked.•Cleanthespoutswithatoothpick(g.38).

Water comes out of the spouts

instead of coee.

•Thepre-groundcoeemaybeblockedinthefunnel

(A4).

•Emptythefunnelwiththehelpofthespatulaon

the cleaning brush provided , as described in the

section “Cleaning the pre-ground coee funnel”.

The milk contains bubbles or

squirts out of the milk spout.

•Themilkisnotcoldenoughorisnotskimor2%

milk.

•Youshouldideallyuseskimor2%milkatrefrigerator

temperature (about 41°F / 5°C). If the result is not as

you wished, try changing brand of milk.

•Thefrothregulatorisincorrectlyadjusted.•Adjustfollowingtheinstructionsinthesectionon

preparing drinks with milk.

•Themilkcontainerlidisdirty.•Cleanthemilkcontainerlidasdescribedinthe

section “Cleaning the milk container”.

The milk is not frothed.

•Thefrothregulatorisincorrectlyadjusted.•Adjustfollowingtheinstructionsinthesectionon

preparing drinks with milk.

•Themilkcontainerlidisdirty.•Cleanthemilkcontainerlidasdescribedinthe

section “Cleaning the milk container”.

The appliance does not come

on.

•Itisnotpluggedintothemainssocket.•Plugintothemainssocket.

•Themainswitchisnotturnedon.•PlacethemainswitchintheIposition(g.1).

The milk does not come out of

the milk spout.

•Themilkcontainerlidisdirty.•Cleanthemilkcontainerlidasdescribedinthe

section “Cleaning the milk container”.

“Energy Saving” mode is

enabled, but the cup warmer

is hot.

•Anumberofdrinkshavebeenpreparedinrapid

succession.

LIMITED WARRANTY

ThiswarrantyappliestoallproductswithDe’LonghiorKenwoodbrandnames.

What does the warranty cover?

We warrant each appliance to be free from defects in material and workmanship. Our obligation under this warranty is limited to re-

pair at our factory or authorized service center of any defective parts or part thereof, other than parts damaged in transit. In the event

of a products replacement or return, the unit must be returned transportation prepaid. The repaired or new model will be returned

at the company expense.

This warranty shall apply only if the appliance is used in accordance with the factory directions, which accompany it, and on an

Alternating current ( AC ) circuit.

How long does the coverage last?

This warranty runs for two years (2) from the purchase date found on your receipt and applies only to the original purchaser for use.

What is not covered by the warranty?

The warranty does not cover defects or damage of the appliance, which result from repairs or alterations to the appliance outside

our factory or authorized service centers, nor shall it apply to any appliance, which has been subject to abuse, misuse, negligence or

accidents. Also, consequential and incidental damage resulting from the use of this product or arising out of any breach of contract or

breach of this warranty are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or

consequential damage, so the above limitation may not apply to you.

How do you get service?

If repairs become necessary, see contact information below:

U.S. Residents: Please contact our toll free hotline at 1-866-528-8323 (1-866-Latte-Best) or log onto our website at www.delon-

ghi.com

Residents of Canada: Please contact our toll free hotline at 1-888-335-6644 or log onto our website at www.delonghi.com

Residents of Mexico: Please contact our toll free number 01-800-711-8805 for assistance or log onto our website at www.delon-

ghi.com

The above warranty is in lieu of all other express warranties and representations. All implied warranties are limited to the applicable

warranty period set forth above. This limitation does not apply if you enter into an extended warranty with De’Longhi. Some states/

countries do not allow limitations on how long an implied warranty lasts, so the above exclusions may not apply to you. De’Longhi

does not authorize any other person or company to assume for it any liability in connection with the sale or use of its appliance.

How does country law apply?

This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state/country to country.

Delonghi ESAM5600SL Perfecta Automatic Espresso Machine, Cappuccino Maker - ESAM 5600.S

Product's Documents

User Manual

Specifications

Delonghi ESAM5600SL Questions and Answers

Related Products

Delonghi EXAM44055B Rivelia Automatic Espresso Machine

Delonghi ECAM45760S Eletta Automatic Espresso Machine

Delonghi ESAM04110B Magnifica Automatic Espresso Machine, Cappuccino Maker

Delonghi ESAM5600S Perfecta Automatic Espresso Machine, Cappuccino Maker

Delonghi ESAM3300 Magnifica Automatic Espresso Machine
