BUILT-IN ELECTRIC HOB
INSTALLATION AND OPERATION MANUAL
Please read the instruction manual carefully before operating your new hob.
Dear Owner:
Thank you for purchasing our hob which is designed to give you many years of cooking
pleasure. Before using your new appliance please read the user manual carefully and keep
Description of the hot plates
Use
Directions for Use
it in a safe place for future reference.
Small Plate
Large Plate
Knob
Indicator Light
Red Spot
Large Plate
3 Cooking soups ,larger dishes
1 MIN.Warming up
2 Stewing vegetables,slow cooking
4 Slow frying
5-6 Grilling meat,fish
0 Switch off
Technical Data
Model Power Supply
Electric Plate Power(W)
Size
Built-in Hole Size
1000
AC 220-240 V
/ 50Hz
580X76
557(L)X477(W)
145mm
Small Plate
500X
2000
(Red) 185mm
1500
185mm
0
1
2
3
4
5
6
Good Bad Bad Bad Bad Bad Bad
(recessed base) (convex base) (undersize) (oversize) (moisture on hotplate) (no Pan)
Cod:
THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED PERSON ONLY, IN COMPLI-
ANCE WITH THE INSTRUCTIONS PROVIDED. THE MANUFACTURER DECLINES ALL
RESPONSIBILITY FOR IMPROPER INSTALLATION, WHICH MAY HARM PERSONS AND
ANIMALS OR CAUSE DAMAGE TO PROPERTY. THE APPLIANCE MUST BE USED
ONLY FOR THE PURPOSE FOR WHICH IT WAS EXPRESSLY DESIGNED. ANY OTHER
USE (EG. HEATING ROOMS) IS CONSIDERED TO BE IMPROPER AND DANGEROUS
USE.
IMPORTANT NOTICE
Please register your warranty card and return the enclosed certificate of guarantee, duly dated
and signed.

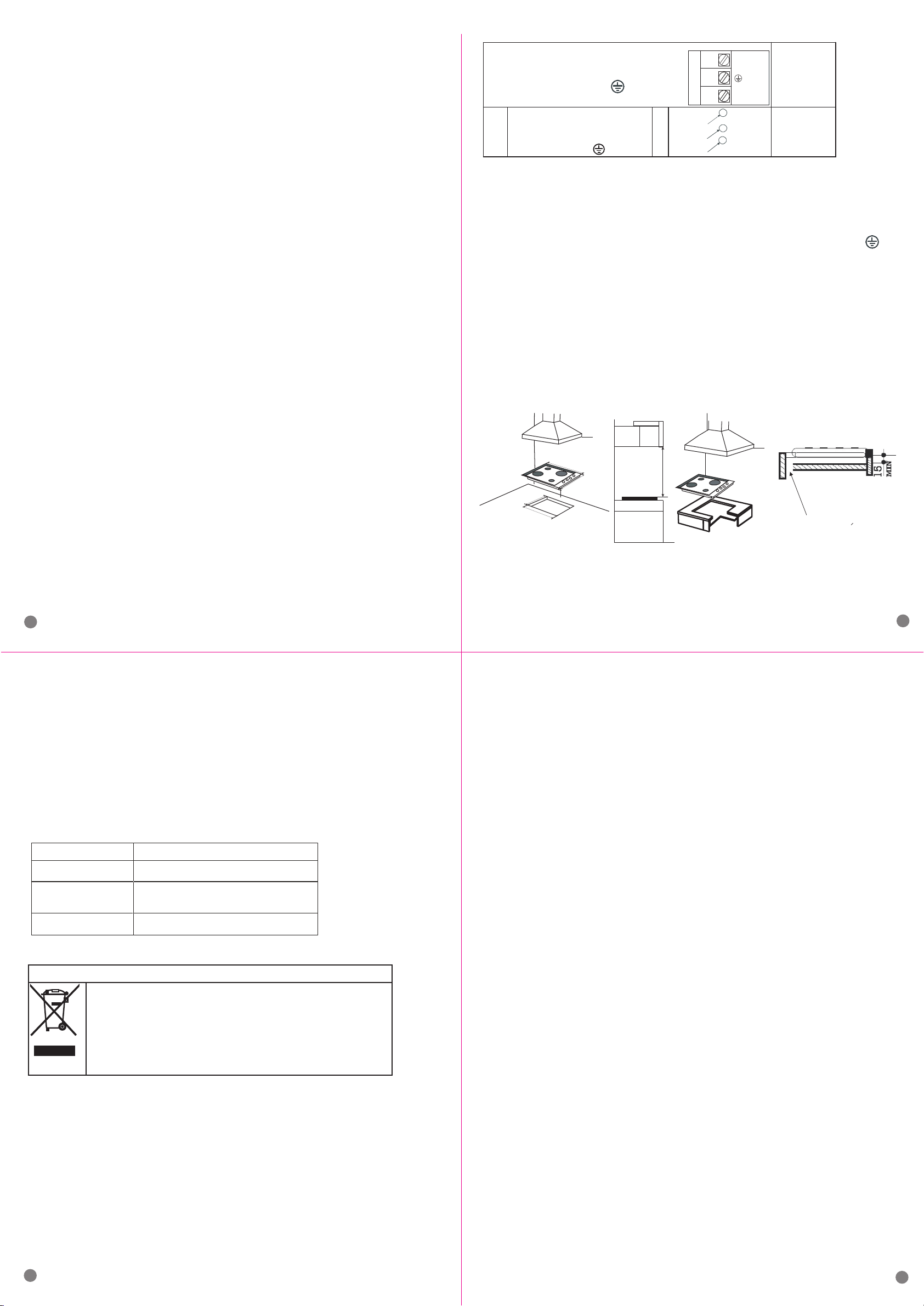

A duplicate data label and wiring diagram are contained in this booklet. Please keep these in
a safe place.
The manufacturer shall not be held responsible for any inaccuracies in this instruction booklet
due to printing errors and the designs in the diagrams are purely indicative.
The manufacturer also reserves the right to make any modifications to the products as may be
considered necessary or useful, without jeopardising the main function or safety features of
the products.
WARNING
1. Please check the condition of the appliance after opening the package. If there are any
problems, please refer to the supplier.
2. Do not throw the packaging materials (plastic bag, foam, cardboard etc) where children can
easily reach them. Please dispose of packaging in an environmentally-friendly manner.
3. Do not attempt to change the wiring under any circumstances.
4. At the end of its life, please dispose of the appliance in an environmentally-friendly manner.
5. If the power cable is damaged, it must be replaced by a professionally qualified electrician.
6. The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge.
7. Children should be supervised to ensure that they do not play with the appliance.
1. Do not touch the appliance with wet hands.
2. Do not operate the appliance when barefoot.
3. Do not allow children to operate the hob.
4. Please disconnect the power supply before any maintenance and cleaning.
5. When the hob is working, the temperature of the hob top increases. Please do not touch and
keep children away from it.
6. A steam cleaner must not be used to clean the appliance.
7. The appliance is not intended to be operated by means of an external timer or separate
remote-control system.
8. The power supply should use H05VV-F,3x4mm².
9. The hob must be built into a heat-resistant cabinet. Smoke may be visible when first used – this
is normal. Please leave on for a few minutes to burn off excess oils used during manufacture.
Operation
The electric plates can either be standard or rapid type. The latter feature a red spot in the centre.
According to requirements, the plates can be adjusted by turning the knobs either clockwise or
anti-clockwise to any of the 6 positions besides the 0 position (Off). The higher the number, the
greater the output of heat (see table below). When using rapid plates, a thermostat automatically
reduces the power when the selected temperature is reached and the plate cycles intermittently to
keep a constant cooking temperature. The indicator light is a signal that the electric plates are
switched on.
The level of heat can be adjusted gradually by turning the appropriate knob to the right or left.
The indicator light can be found on the control panel – please see above diagrams.
An appropriately sized pan saves energy.
The correct pan should have a thick, flat base, with a diameter equal to the plate diameter,
so that heat is transferred more efficiently.
Advice on the Use of Electric Plates
Never leave the plates on without pans on them, or with empty pans and never use the
plates to heat crockery. Switch on the plates after having set the pans on them.
Once switched off, the plates remain warm for a while, do not touch.
Switch off the heating plate before removing the pans.
Pans
- Use pans with flat bottoms. Uneven or thin bottoms will waste energy and are slow to
cook.
- Smaller pans will waste energy.
- Do not use oversized pans. More than 50mm overhang can cause components to
overheat and cause fine cracks in enamel or even damage heating elements.
- Use only dry pans. Do not place wet or condensated items (eg. lids) on the hotplates.
Use
- Do not use pots and pans that are unsteady and likely to rock or overturn.
- Do not operate the hob for an extended time without a pan on the hotplate.
CAEH1
CAEH1
1
2
3
Danger of fire: Do not store items on the cooking surfaces.
CAUTION: The cooking process has to be supervised. short term
cooking process has to be supervised continuously.
WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in a fire.
