Serial plate is located behind the broil or storage drawer on the lower right side of the appliance frame.

Congratulations on your purchase of a new range! At Electrolux Home Products. we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new range and Thank You for choosing our product.

We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model.

Use your appliance only as instructed in this manual. These instructions are not meant to cover every possible condition or situation that may occur.

Common sense & caution must be practiced when installing. operating & maintaining any appliance.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your range may not have all the described features. The graphics shown are representative.

The graphics on your range may not look exactly like those shown.

Product Registration

Be sure to register your product. The self-addressed PRODUCT REGiSTRATiON CARD should be filled in completely. signed and returned to Electrolux Home Products.

Grounding Instructions

(electric ignition models only)

Avoid fire hazard or electrical shock. Do not use an adapter plug.

This appliance is equipped with a 3-prong grounding plug for your

For personal safety this appliance must be properly grounded.

For maximum safety. the power cord must be plugged into an electrical outlet that is correctly polarized and properlygrounded.

2006 Electrolux Home Products.

Inc.

All rights reserved.

Grounding type

Do not. under any circumstance. cut. remove. or bypass the grounding prong.

Power suppmy cord with 3-prong grounding plug

See the iNSTALLATiON INSTRUCTIONS packaged with this appliance for complete installation grounding instructions.

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.

This sYmbol will he!p alert YOUto situations that may Cause serious bodily harml death or property damagel

This symbol will help alert you to situations that may Cause bodily injury or property damagel

FOR YOUR SAFETY:

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO iF YOU SMELL GAS: Do not try to light any appliance. Do not touch any electrical switch; do not use any phone in your building. Immediately call your gas supplier from neighbor's phone.

Follow the gas supplier's instructions. if you cannot reach your gas supplier. call the fire department.

Installation and service must be performed by a qualified installer. servicer or the gas supplier.

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.

• Proper Installation--Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Fuel Gas Code ANSI Z223.= latest edition. or in Canada CAN/CGA B149.1. and CAN/CGA B149.2. and the the National Electrical Code ANSI/NFPA No.70=latest edition. or in Canada CSA Standard C22.1. Canadian Electrical Code.

Part 1. and local code requirements. install only per installation instructions provided in the literature package for this range.

Ask your dealer to recommend a qualified technician and an autho fized repai rse rvice. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

• User servicing--Do not repair or replace any part of the appliance unless specifically recommended in the manuals.

All other servicing should be done only by a qualified technician.

This may reduce the risk of personal injury and damage to the range.

• Never modify or alter the construction of a range by removing leveling legs. panels. wire covers. anti=tip brackets/screws. or any other part of the product.

Do not use the oven or warmer drawer (if equipped) for storage.

+ All ranges can tip. injury to persons could result.

+ install anti-tip device packed with range.

See installation instructions.

To reduce the risk of tipping. the rangemust be secured by properly installed anti-tip bracket provided with the range. To check if the bracket is installed properly. visually check that rear leveling leg is inserted into and fully secured by the anti-tip bracket by removing lower panel or storage drawer.

For models with a warmer drawer. grasp the top rear edge of the range and carefully attempt to tilt it forward. Refer to the installation instructions for proper anti tip bracket installation.

NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning.

NEVER coveranyslots. holes or passages inthe oven bottom or cover an entire rack with materials such as

Stepping. leaning or sitting on the doors or drawers of this range can result in serious injuries and also cause damage to the range. Do not allow children to climb or play around the range. The weight of a child on an open door may cause the range to tip. resulting in serious burns or otherinjury.

Do not store items of interest to children in

• Do Not Leave Children Alone--Children should not be

Use Proper Flame Size--Adjust flame size

• Never Leave Surface Burners Unattended at High Heat Settings--Boilovers cause smoking and greasy spillovers that may ignite. or a pan that has boiled dry may melt.

• Protective Liners--Do not use aluminum foil to line surface burner pans. or oven bottom. except as suggested in this manual. Improper installation of these liners may result in risk of electric shock. or fire.

• Glazed Cooking Utensils--Only certain types of glass. glass/ceramic. ceramic. earthenware. or other glazed utensils are suitable for cooktop service without breaking due to the sudden change in temperature.

Check the manufacturer's recommendations for cooktop use.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use Care When Opening Oven Door or Warmer Drawer Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.

• Keep Oven Vent Ducts Unobstructed.

The oven vent is located below the backguard.

Touching the surfaces in this area when the oven is operating may cause severe burns.

Also. do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.

• Placement of Oven Racks.

Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot use extreme caution.

Use potholders and grasp the rack with both hands to reposition.

Do not let potholders contact the hot heating elements in the oven.

Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The broiler pan and itsinsert allow dripping fat to drain and be kept away from the high heat of the broiler.

• Do not cover the broiler insert with aluminum foil.

Exposed fat and grease could ignite.

• Cold temperatures can damage the electronic control. When using the appliance for the first time. or when the appliance has not been used for an extended period of time. be certain the unit has been intemperatures above 32 °F (0°C) for at least 3 hours before turning on the power to the appliance.

IMPORTANTINSTRUCTIONSFORCLEANINGYOURRANGE

• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area underneath each surface element. Do not allowgrease to accumulate.

Refer tothe range manufacturer's instructions forcleaning.

• Kitchen cleaners and aerosols--Always follow the manufacturer's recommended directions for use.

Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer. birth defects or other reproductive harm. and requires businesses to warn customers of potential exposure to such substances.

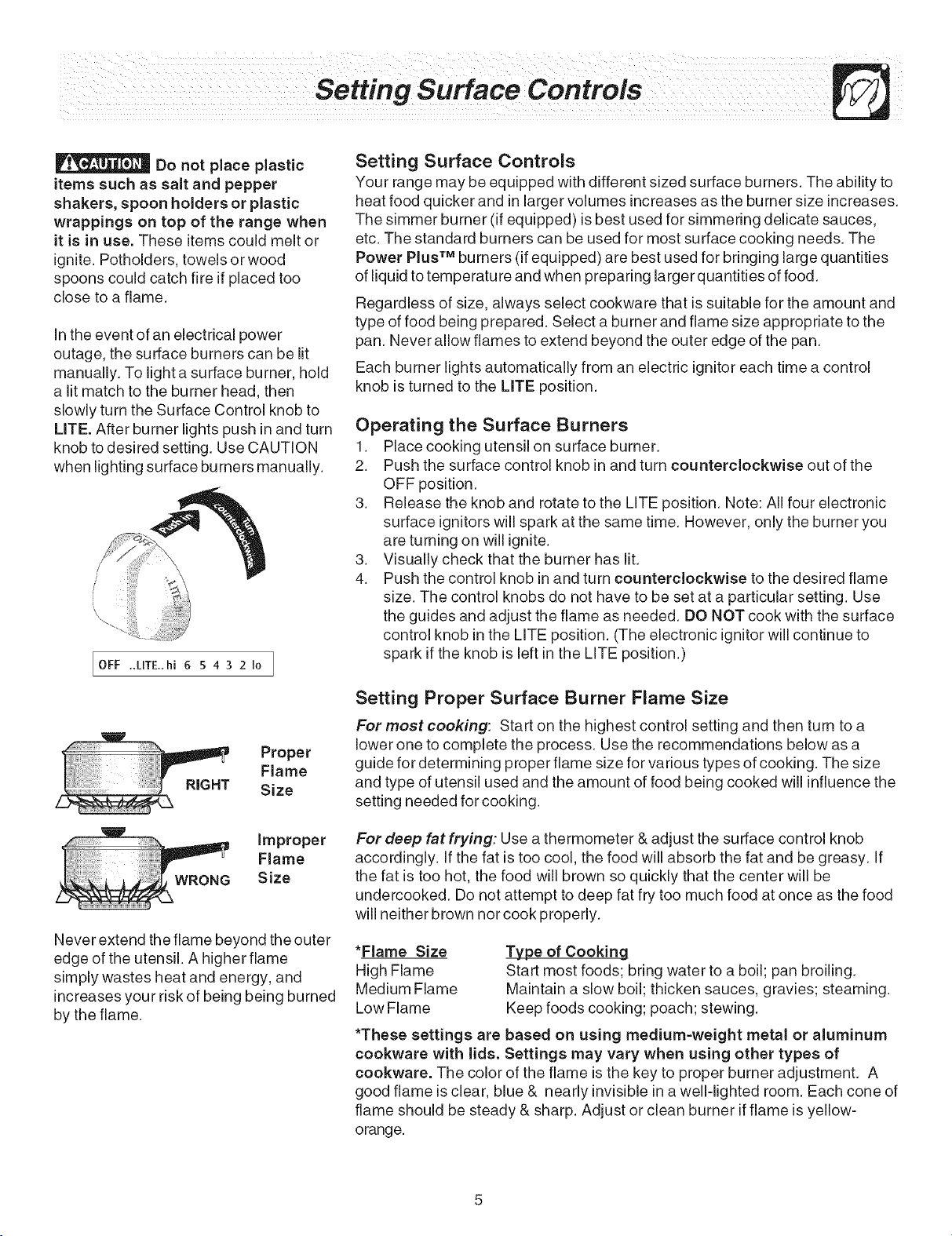

Setting Surface Controls

Do not place plastic items such as salt and pepper shakers. spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders. towels or wood spoons could catch fire if placed too close to a flame.

In the event of an electrical power outage. the surface burners can be lit manually. To light a surface burner. hold a lit match to the burner head. then slowly turn the Surface Control knob to LITE. After burner lights push in and turn knob to desired setting. Use CAUTION when lighting surface burners manually.

OFF LITE..hi 3 2 Io

Proper Flame Size

Improper Flame

WRONG Size

Never extend the flame beyond the outer edge of the utensil. A higher flame simply wastes heat and energy. and increases your risk of being being burned by the flame.

Setting Surface Controls Your range may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases.

The simmer burner (if equipped) is best used for simmering delicate sauces. etc. The standard burners can be used for most surface cooking needs. The Power Plus TM burners (if equipped) are best used for bringing large quantities of liquid to temperature and when preparing larger quantities of food.

Regardless of size. always select cookware that is suitable for the amount and type of food being prepared. Select a burner and flame size appropriate to the pan. Never allow flames to extend beyond the outer edge of the pan.

Each burner lights automatically from an electric ignitor each time a control knob is turned to the LITE position.

Operating the Surface Burners t.

Place cooking utensil on surface burner.

Push the surface control knob in and turn counterclockwise out of the OFF position.

Release the knob and rotate to the LITE position.

Note: All four electronic surface ignitors will spark at the same time. However. only the burner you are turning on will ignite.

Visually check that the burner has lit.

Push the control knob in and turn counterclockwise to the desired flame size. The control knobs do not have to be set at a particular setting. Use the guides and adjust the flame as needed. DO NOT cook with the surface control knob in the LITE position. (The electronic ignitor will continue to spark if the knob is left in the LITE position.)

Setting Proper Surface Burner Flame Size

For most cooking: Start on the highest control setting and then turn to a lower one to complete the process. Use the recommendations below as a guide for determining proper flame size for various types of cooking. The size and type of utensil used and the amount of food being cooked will influence the setting needed for cooking.

For deep fat frying: Use a thermometer & adjust the surface control knob accordingly.

If the fat is too cool. the food will absorb the fat and be greasy. If the fat is too hot. the food will brown so quickly that the center will be undercooked.

Do not attempt to deep fat fry too much food at once as the food will neither brown nor cook properly.

+Flame Size Type of Cooking High Flame Start most foods; bring water to a boil; pan broiling.

Medium Flame Maintain a slow boil; thicken sauces. gravies; steaming.

Low Flame Keep foods cooking; poach; stewing.

+These settings are based on using medium-weight metal or aluminum cookware with lids. Settings may vary when using other types of cookware.

The color of the flame is the key to proper burner adjustment. good flame is clear. blue & nearly invisible in a well-lighted room. Each cone of flame should be steady & sharp. Adjust or clean burner if flame is yellow orange.

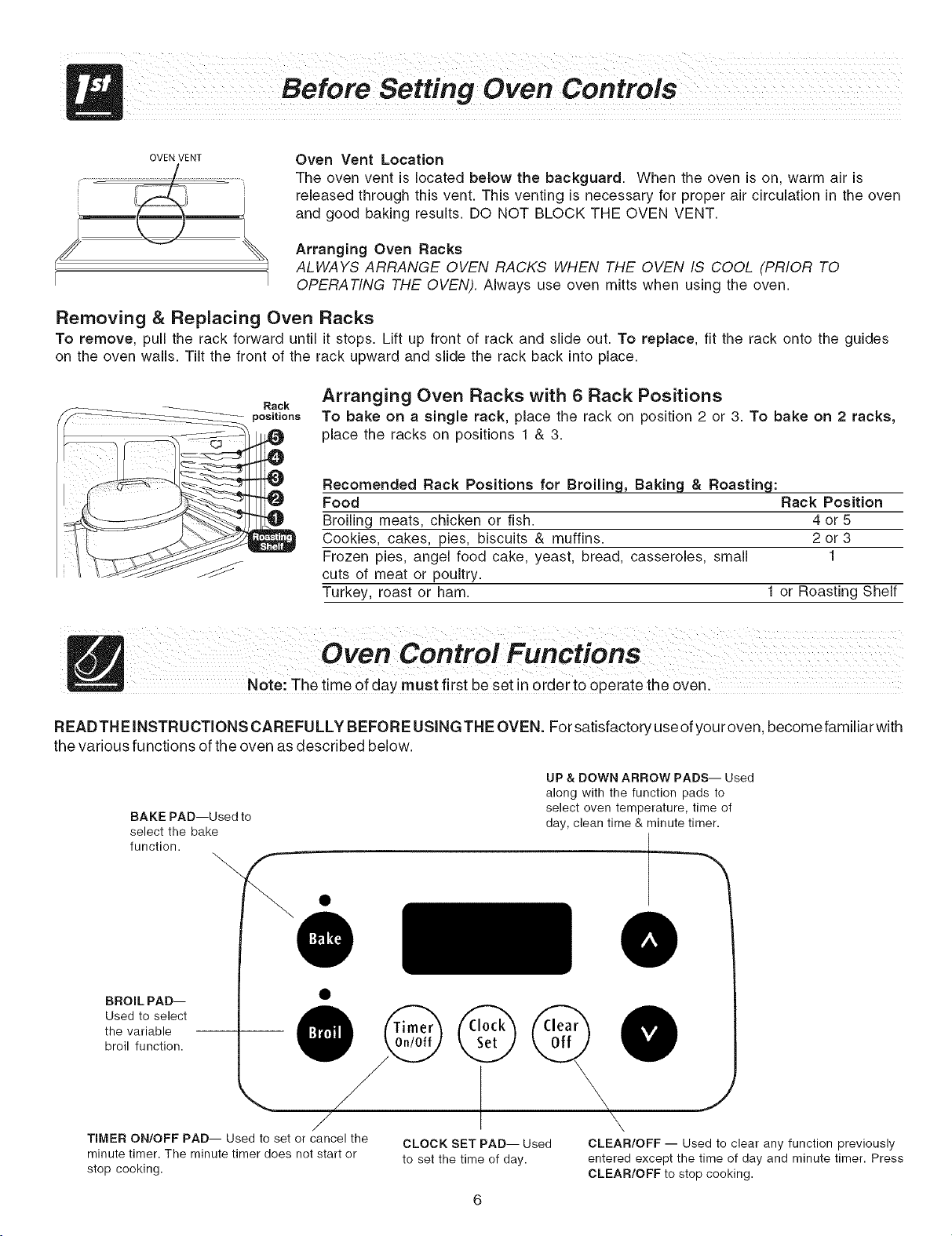

OVEN VENT Oven Vent Location

The oven vent is located below the backguard.

When the oven is on. warm air is released through this vent.

This venting is necessary for proper air circulation in the oven and good baking results.

DO NOT BLOCK THE OVEN VENT.

Arranging Oven Racks ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN).

Always use oven mitts when using the oven.

Removing & Replacing Oven Racks

To remove. pull the rack forward until it stops.

Lift up front of rack and slide out.

To replace. fit the rack onto the guides on the oven walls.

Tilt the front of the rack upward and slide the rack back into place.

Arranging Oven Racks with 6 Rack Positions To bake on a single rack. place the rack on position 2 or 3. To bake on 2 racks. place the racks on positions 1 & 3.

Recomended Rack Positions for Broiling.

Baking & Roasting: Food Rack Position Broiling meats. chicken or fish.

4 or 5 Cookies. cakes. pies. biscuits & muffins.

2 or 3 Frozen pies. angel food cake. yeast. bread. casseroles. small cuts of meat or poultry.

Turkey. roast or ham.

1 or Roasting Shelf

READTHEINSTRUCTIONSCAREFULLY BEFORE USINGTHE OVEN. For satisfactory useof youroven. become familiarwith the various functions of the oven as described below.

BAKE PAD--Used to select the bake function.

UP & DOWN ARROW PADS Used

BROIL PAD Used to select the variable broil function.

TIMER ON/OFF PAD Used to set or cancel the minute timer. The minute timer does not start or

CLOCK SET PAD-- Used to set the time of day.

CLEAR/OFF -- Used to clear any function previously entered except the time of day and minute timer. Press CLEAR/OFF to stop cooking.

Note: The time of day must first be set in order t0 operate the oven

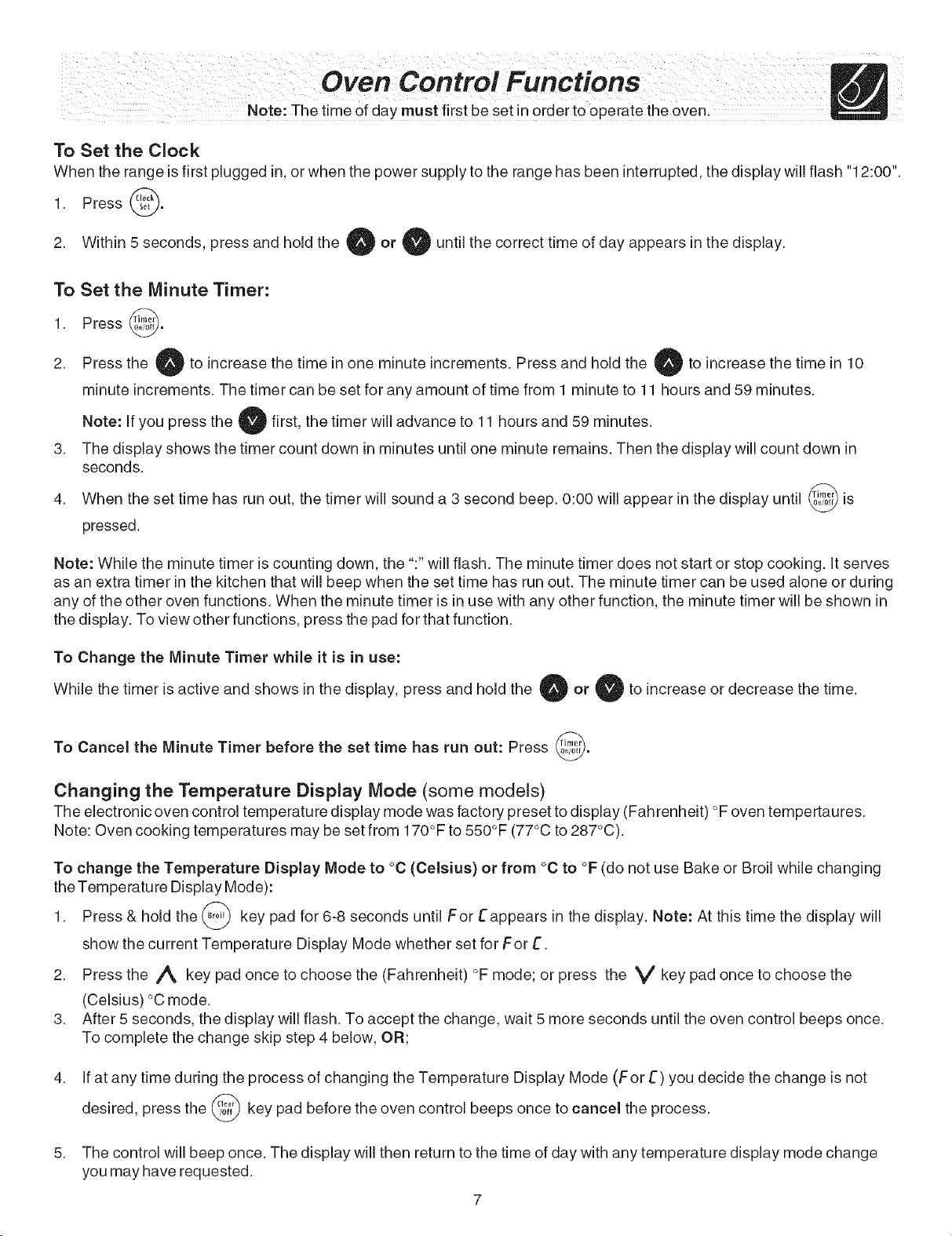

To Set the Clock

When the range is first plugged in. or when the power supply to the range has been interrupted. the display will flash "12:00".

Press @.

Within 5 seconds. press and hold the or until the correct time of day appears in the display.

To Set the Minute Timer:

Press _.

Press the to increase the time in one minute increments.

Press and hold the to increase the time in 10

Note: If you press the. first. the timer will advance to 11 hours and 59 minutes.

The display shows the timer count down in minutes until one minute remains. Then the display will count down in seconds.

When the set time has run out. the timer will sound a 3 second beep. 0:00 will appear in the display until @ is

Note: While the minute timer is counting down. the ":" will flash. The minute timer does not start or stop cooking.

It serves as an extra timer in the kitchen that will beep when the set time has run out. The minute timer can be used alone or during any of the other oven functions.

When the minute timer is in use with any other function. the minute timer will be shown in the display. To view other functions. press the pad for that function.

To Change the Minute Timer while it is in use:

While the timer is active and shows in the display. press and hold the or I to increase or decrease the time.

To Cancel the Minute Timer before the set time has run out: Press @.

Changing the Temperature Display Mode (some models) The electronic oven control temperature display mode was factory preset to display (Fahrenheit) °F oven tempertaures.

Note: Oven cooking temperatures may be set from 170°F to 550°F (77°C to 287°C).

To change the Temperature Display Mode to °C (Celsius) or from °C to °F (do not use Bake or Broil while changing the Temperature Display Mode):

Press & hold the key pad for 6-8 seconds until For Cappears in the display. Note: At this time the display will

Press the ik key pad once to choose the (Fahrenheit) °F mode; or press the V key pad once to choose the

(Celsius) °C mode.

After 5 seconds. the display will flash. To accept the change. wait 5 more seconds until the oven control beeps once.

To complete the change skip step 4 below. OR;

If at any time during the process of changing the Temperature Display Mode (For C) you decide the change is not

The control will beep once. The display will then return to the time of day with any temperature display mode change you may have requested.

Note: T he timeO f day mUSt first be set in rdei!o 0peiate the

To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from t 70°F to 500°F.

To Set the Controls for Baking:

Press appears in the display.

Within 5 seconds. press the or The display will show "350°F." By pressing and holding the or

When the or is released. the oven will begin heating to the selected temperature.

When the displayed

To cancel the baking function. press @.

To Change the Oven Temperature after Baking has Started:

Press and make sure the bake temperature is displayed.

Press the or to increase or decrease the set temperature.

Setting Oven Controls

Note: The time OfdaY must first beSet in 0rdeite 0peiate the even

To Broil

Slide broiler drawer out to the stop position.

Remove broiler pan & insert (See Fig. 1).

Position rack before setting control; while range is cool.

Position rack by tilting front of rack up & pulling rack out from locating holes in rear of broiler drawer.

Reposition back of rack in the desired locating holes & allow front of rack to slide down into the corresponding slots in front of broiler drawer (See Fig. 2). NOTE: For medium rare meats. position the rack closer to the burner (upper position). For medium foods use middle position.

For well-done foods such as chicken. lobster tails or thick cuts of meat. position the rack further from the burner (lower position).

3 REAR HOLE TiLT UP FRONT OF RACK

POSiTiONS TO ADJUST

PICK UP BROIL PAN AND INSERT FROM SIDES

Fig. 2

Place insert on broiler pan. then place meat on insert.

DO NOT use the broiler pan without the insert. DO NOT cover the insert with aluminum foil. The exposed fat could ignite.

Place broibr pan on rack; make sure the broiler pan with the insert is positioned as shown (See Fig.l).

Be sure front of pan is positioned correctly in rack.

Slide the broiler drawer all the way into the range. Press

Fig. 1 Fig. 3

NOTE: The broiler pan & insert allows grease to drain and be kept away from the high heat of the broiler (See Fig. 3). DO NOT use the pan without the insert.

DO NOT cover the insert with foil; the exposed grease could ignite.

Press and hold the O or until the desired broil setting level appears in the display. Press the for HI (high)

10. When broiling is finished. press @.

11. When removing broiler pan from broiler drawer always use pot holders.

DO NOT use the broiler drawer for storage.

Items placed in the broiler drawer will catch fire.

Should an oven fire occur. close the oven door and turn off the oven. If the fire continues. use a fire extinguisher.

DO NOT put water or flour on the fire. Flour may be explosive.

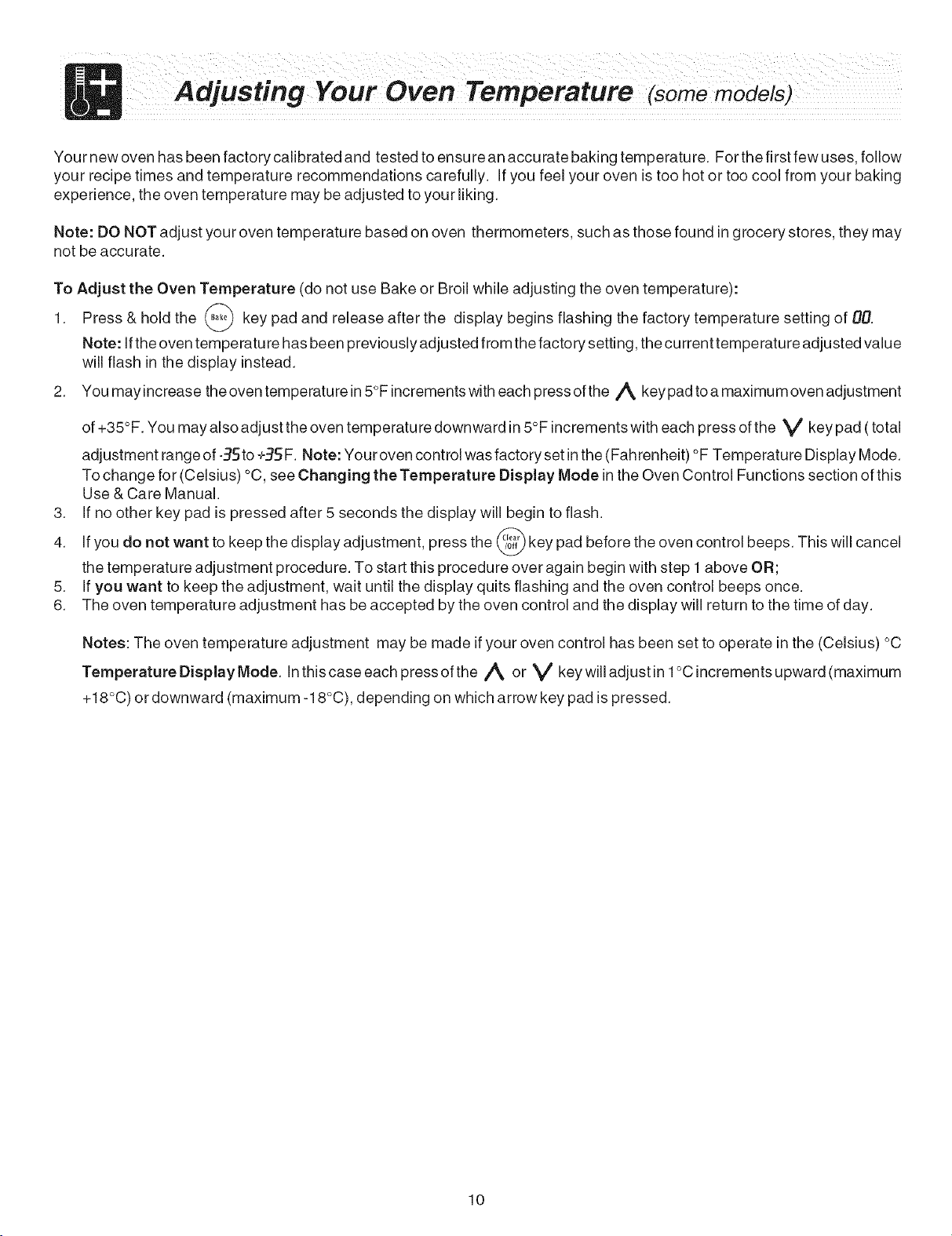

Press& holdthe

Note: If the oven temperatu re has been previously adjusted from the factory setting. the current temperature adjusted value will flash in the display instead.

You may increase the oven temperatu re in 5°F increments with each press of the . _ key pad to a maximu m oven adjustment

If no other key pad is pressed after 5 seconds the display will begin to flash.

If you do not want to keep the display adjustment. press the key pad before the oven control beeps. This will cancel

Notes: The oven temperature adjustment may be made if your oven control has been set to operate in the (Celsius) °C

Temperature Display Mode. In this case each press of the . or V key will adjust in 1°C increments upward (maximum

+18°C) or downward (maximum -18°C). depending on which arrow key pad is pressed.

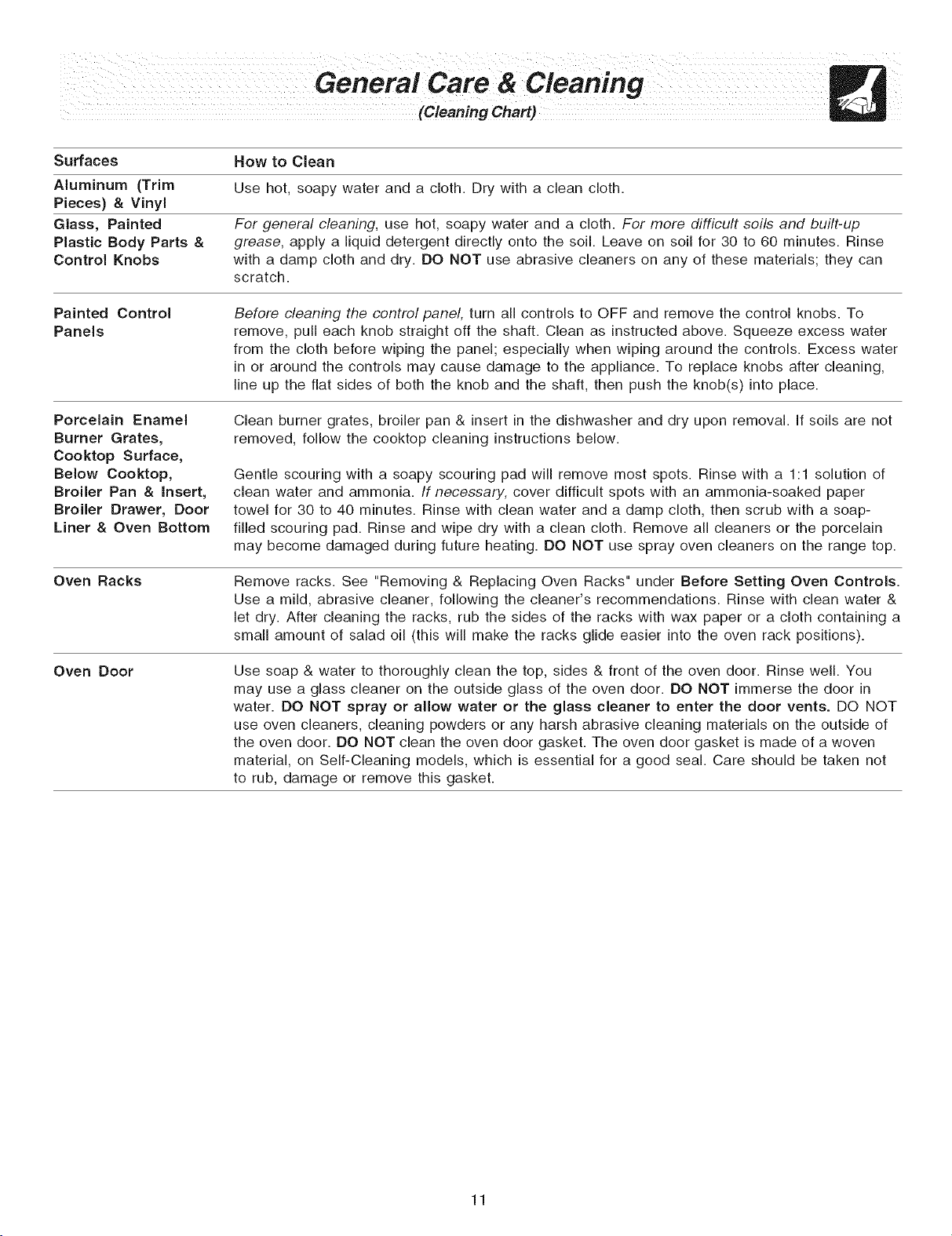

General Care & Cleaning (Cleaning Chart)

Surfaces How to Clean

Aluminum (Trim Use hot. soapy water and a cloth.

Dry with a clean cloth.

Pieces) & Vinyl

Glass.

Painted For general cleaning. use hot. soapy water and a cloth.

For more difficult soils and built-up Plastic Body Parts grease. apply a liquid detergent directly onto the soil.

Leave on soil for 30 to 60 minutes.

Rinse Control Knobs with a damp cloth and dry.

DO NOT use abrasive cleaners on any of these materials; they can scratch.

Painted Control Panels

Porcelain Enamel BurRer Grates.

Cooktop Surface.

Below Cooktop.

Broiler Pan insert.

Broiler Drawer.

Door Liner & Over Bottom

Oven Racks

Oven Door

Before cleaning the control panel turn all controls to OFF and remove the control knobs.

To remove. pull each knob straight off the shaft.

Clean as instructed above.

Squeeze excess water from the cloth before wiping the panel; especially when wiping around the controls.

Excess water in or around the controls may cause damage to the appliance.

To replace knobs after cleaning. line up the flat sides of both the knob and the shaft. then push the knob(s) into place.

Clean burner grates. broiler pan & insert in the dishwasher and dry upon removal. If soils are not removed. follow the cooktop cleaning instructions below.

Gentle scouring with a soapy scouring pad will remove most spots.

Rinse with a 1:1 solution of clean water and ammonia.

If necessary. cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes.

Rinse with clean water and a damp cloth. then scrub with a soap filled scouring pad.

Rinse and wipe dry with a clean cloth.

Remove all cleaners or the porcelain may become damaged during future heating.

DO NOT use spray oven cleaners on the range top.

Remove racks.

See "Removing & Replacing Oven Racks" under Before Setting Oven Controls.

Use a mild. abrasive cleaner. following the cleaner's recommendations.

Rinse with clean water let dry.

After cleaning the racks. rub the sides of the racks with wax paper or a cloth containing small amount of salad oil (this will make the racks glide easier into the oven rack positions).

Use soap & water to thoroughly clean the top. sides & front of the oven door.

Rinse well.

You may use a glass cleaner on the outside glass of the oven door.

DO NOT immerse the door in water.

DO NOT spray or allow water or the glass cleaner to enter the door vents.

DO NOT use oven cleaners. cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.

DO NOT clean the oven door gasket.

The oven door gasket is made of a woven material. on Self-Cleaning models. which is essential for a good seal.

Care should be taken not to rub. damage or remove this gasket.

(C!eaning Chart cont'd)

Surfaces How to Clean

Stainless Steel (some models) Clean stainless steel with a dishcloth using hot. soapy water.

Rinse with clean water & a cloth.

Do not use cleaners with high concentrations of chlorides or chlorines.

Do not use harsh scrubbing cleaners.

Only use kitchen cleaners that are especially made for cleaning stainless steel.

Always be sure to rinse the cleaners from the surface as bluish stains may occur during heating that cannot be removed.

Cleaning the Cooktop The cooktop is designed to make cleaning easier. Because the four burners are sealed cleanups are easy when spillovers are cleaned up immediately. To clean. wipe with a dean. damp cloth and wipe dry.

Cleaning the Contoured Well Areas.

Burner Caps.

Head & Drip Pans (some models) The contoured well areas. burner caps. burner heads and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following section for instructions.

Surface Burner Grate

NOTE: THE COOKTOP IS NOT REMOVABLE.

Do not attempt to remove or lift the cooktop.

To Clean the Recessed and Contoured Areas of the Cooktop If a spill occurs on or in the recessed or contoured areas. blot up spill with an absorbent cloth. Rinse with a clean. damp cloth and wipe dry.

(Surface Burner Cap

To Remove and Replace the Surface Burner Caps and Surface Burner Heads Remove in the following order: (1st) surface burner grate. (2nd) surface burner cap. (3rd) surface burner head and (4th) surface burner drip pan (some models).

JOrifice Reverse the procedure above to replace the surface burner cap.

Hold surface burner head and surface burner drip pans (if equipped).

Do not remove any parts from the cooktop until they have completely cooled and are safe to handle.

Do not operate the surface burners without the surface burner cap and surface burner head properly in place.

To Clean the Surface Burner Cap. Surface Burner Head & Surface Burner Drip Pan (if equipped) - Use a soap-filled scouring pad or a mild abrasive cleanser to clean the surface burner caps. surface burner heads and surface burnerdrip pans (if equipped).

The ports (or slots) around the burner head must be routinely cleaned. If residue still remains in these ports. use a small-gauge wire or needle to clean the slots or holes. For proper flow of gas and ignition of the burner DO NOT ALLOW SPILLS. FOOD. CLEANING AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING. ALWAYS keep the surface burner cap and surface burner head inplace whenever a surface burner is in use.

Surface Burner Head

Removable Burner Drip Pan (on some models)

Use caution when replacing the burner cap so the electrode is not damaged.

This may cause a delayed ignition or prevent the burner from igniting.

Any additions. changes or conversions required in order for this appliance to satisfactorily meet the application needs must be made by an authorized Electrolu× Distributor or Qualified Agency.

Fig. 2

Door

Oven Door

Hinge

Fig. 3

Oven Lig ht

:IZ• iii?!ii¸_ .

Removing & Replacing the Oven Door (all models)

The door is heavy. For safe. temporary storage. lay the door fiat with the inside of the door facing down.

To Remove Oven Door:

Open oven door completely (horizontal with floor- See Fig. 1).

Remove 2 screws located on the inside of the oven door liner (See A Fig. 2).

Insert the 2 screws into the door hinge holes located on the side of the hinge arm. one into each hinge (See B Fig. 2).

Close oven door until the door stops. (Do not force the door to close any further). The placement of these screws should keep door open in about a 45 degree position.

Grasp oven door firmly on both sides and slide door up and off hinges at the same angle. (See Fig. 3)

To clean oven door. follow the instructions provided in the Cleaning Chart at the beginning of the Care & Cleaning section (See Door Liner).

To Replace Oven Door:

Be sure the hinge arms remain at the 45 degree angle position. Be sure the screws are still locking the hinge arms from moving. If the screws fail out of the hinge holes. the hinge(s) may snap back against the oven frame and could pinch fingers or chip the porcelain finish on the oven front frame.

Hold door at the sides near the top while resting the lower front of door on your knee. Insert the door channels at the bottom of door over the door hinges. (See Fig. 3).

Allow the door to slide down into the door hinges evenly at the same 45 degree angle. The hinge arms should be inserted into the bottom corners as far as they can go.

Open door completely (horizontal with floor) and remove both screws from holes in door hinges.

Reinstall the 2 screws into the door liner (See C Fig. 2).

If the door is not in alignment with the oven frame. remove door and repeatthe above steps.

Changing the Oven Light (some models) On some models. the oven light automatically turns on when the door is opened.

Some models have a switch located on the control panel to turn on the light. The oven light is located at the rear of the oven.

To replace the oven light:

Turn electrical power off at the main source or unplug the range.

Replace bulb with a new 40 watt appliance bulb.

Turn power back on again at the main source (or plug the range back in).

The clock will then need to be reset. To reset. see "Setting the Clock" and "Setting the Minute Timer" under Setting Oven Controls in this Use & Care Manual.

Be sure the range is unplugged and all parts are COOL before replacing oven light. Wear a leather-faced glove for protection against possible broken glass.

Before You Call

Solutions to Common Problems

Before you call for service. review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these problems are provided with the problem listed:

Range is not level - (1) Poor installation.

Place oven rack in center of oven.

Place a level on the oven rack. Adjust leveling legs at base of range until the oven rack is level. (2) Be sure floor is level. strong & stable enough to adequately support range. (3) If floor is sagging or sloping. contact a carpenter to correct the situation. (4) Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square & have sufficient room for range clearance.

Cannot move appliance easily.

Appliance must be accessible for service (1) Cabinets not square or are built in too tightly.

Contact builder or installer to make appliance accessible. Carpet interferes with range.

Provide sufficient space so range can be lifted over carpet.

Surface Burners do not li¢ht- (1) Surface Control knob was not completely turned to LITE. Push in & turn the Surface Control knob to LITE until burner ignites and then turn control knob to desired flame size. (2) Burner ports are clogged.

With the burner OFF. use a small-gauge wire or needle to clean ports. See "Cleaning the Contoured Well Areas.

Burner Caps.

Head & Drip Pans" in the General Care & Cleaning section for additional cleaning instructions. (3) Range power cord is disconnected from outlet (electric ignition models only).

Be sure power cord is securely plugged into the outlet. Electrical power outage (electric ignition models only).

Burners can be lit manually.

See section on Setting Surface Controls.

Surface burner flame burns only part way around burner cap (1) Burner ports are clogged.

With the gas burner OFF. clean ports with a small-gauge wire or needle. (2) Moisture is present after cleaning.

Lightly fan the flame & allow burner to operate until flame is full.

Dry the burners thoroughly following the instructions under "Cleaning the Contoured Well Areas.

Burner Caps. Head & Drip Pans" in the General Care & Cleaning section.

Surface burner flame is orange (1) Dust particles in gas main line. Allow the gas burner to operate a few minutes until flame turns blue in color. (2) In coastal areas a slightly orange flame may be unavoidable due to salt in air.

Oven does not operate (1) Be sure the oven controls are set properly for the desired function.

See Setting Oven Controls in this Use & Care Manual or read the instructions for "Entire appliance does not operate" listed below. (2) Be sure the Gas Regulator Valve is in the "ON" position.

Refer to the Installation instructions to for more information.

Entire appliance does not operate (1) The time of day is not set. The time of day must first be set in order to operate the oven. See "To Set the Clock" in the Setting Oven Controls section.(2) Make sure cord/plug is plugged correctly into outlet. (3) Service wiring is not complete.

Contact your dealer. installing agent or authorized service agent. (4) Electrical power outage (electric ignition models only).

Check house lights to be sure. Call your local electric company for service.

Surface gas burners can be lit manually.

See Setting Surface Controls in this Use & Care Manual.

Poor baking results Many factors affect baking results. Make sure the proper oven rack position is used.

Center food in the oven & space pans to allow air to circulate.

Allow the oven to preheat to the set temperature before placing food in the oven.

Try adjusting the recipe's recommended temperature or baking time.

Oven light does not work (some models) - Replace or tighten bulb.

See Changing Oven Light section in this Use & Care Manual.

Oven smokes excessively during broiling. (1) Control(s) not set properly.

Follow Broil instructions under Setting Oven Controls. (2) Broiler Drawer is open. The Broiler Drawer should be closed while broiling. (3) Meat too close to the broil element.

Reposition the broil rack to provide proper clearance between the meat & the element.

Preheat the broil element for searing. (4) Meat not properly prepared.

Remove excess fat from meat.

Cut remaining fatty edges to prevent curling. but do not cut into lean. (5) Insert on broiler pan wrong side up & grease not draining. Always place grid on the broiler pan with ribs up & slots down to allow grease to drip into pan (some models). Grease has built up on oven surfaces.

Regular cleaning is necessary when broiling frequently.

Old grease or food spatters cause excessive smoking.

Flames inside oven or smoking from oven vent - Excessive spillovers in oven. This will especially be the case for pie spillovers or large amounts of grease on the oven bottom.

Wipe up excessive spillovers before starting oven. if flames or excessive smoke are present see "To Broil" in the Setting Oven Controls section.

Oven control beeps & displays any F code error (for example Ft 1; some models) Electronic control has detected a fault condition.

Press CLEAR/OFF to clear the display & stop beeping.

Try the Bake or Broil function again. If the F code error repeats. remove power suppy to appliance. wait 5 minutes and then repower the appliance and set clock time of day. Try the Bake or Broil function again. If the fault recurs. record fault number. press CLEAR/OFF & contact an authorized service agent.

Oven control beeps and displays any "F" code error (for example F3; some models) Electronic control has detected a fault condition.

Press CLEAR/OFF to clear the display & stop beeping.

Reprogram oven.

If fault recurs. record fault number.

Press CLEAR/OFF & contact your authorized service agent.

Poor baking results Many factors affect baking results. Make sure the proper oven rack position is used.

Center food in the oven & space pans to allow air to circulate.

Allow the oven to preheat to the set temperature before placing food in the oven.

Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool. see Adjusting Your Oven Temperature in this Use & Care Manual (some models).

Your appliance is covered by a one year limited warranty.

For one year from your original date of purchase.

Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed. used and maintained in accordance with the provided instructions.

Exclusions This warranty does not cover the following:

Products with original serial numbers that have been removed. altered or cannot be readily determined.

Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

Rust on the interior or exterior of the unit.

Products purchased "as-is" are not covered by this warranty.

Food loss due to any refrigerator or freezer failures.

Products used in a commercial setting.

Service calls which do not involve malfunction or defects in materials or workmanship. or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

Expenses for making the appliance accessible for servicing. such as removal of trim. cupboards. shelves. etc. which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs. air filters. water filters. other consumables. or knobs. handles. or other cosmetic parts.

11. Surcharges including. but not limited to. any after hour. weekend. or holiday service calls. tolls. ferry trip charges. or mileage expense for service calls to remote areas. including the state of Alaska.

Damages to the finish of appliance or home incurred during installation. including but not limited to floors. cabinets. walls. etc.

Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse. misuse. inadequate power supply. accidents. fires. or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLEAND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENTAS PROVIDED HEREIN.

CLAIMS BASED ON IMPLIED WARRANTIES.

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIODALLOWED BY LAW. BUT NOT LESS THAN ONE YEAR.

ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.

SOME STATES AND PROVINCES DO NOTALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES.

SO THESE LIMITATIONS OR EXCLUSIONS MAY NOTAPPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Keep your receipt. delivery slip. or some other appropriate payment record to establish the warranty period Service should service be required.

If service is performed. it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada.

In the USA. your appliance is warranted by Electrolux Major Appliances North America. a division of Electrolux Home Products.

Inc. In Canada. your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty.

Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company.

Product features or specifications as described or illustrated are subject to change without notice.

USA 1.800.944.9044

Electrolux Major Appliances North America P.O. Box 212378

Augusta.

GA 30907 [] Electrolux

Canada 1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way Mississauga.

Ontario.

Canada LSV 3E4


Tappan TGF336FSA | Pages: 16 | File type: PDF | Filename: 82271007_tgf336fsa.pdf | Size: 2.65 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com

Tappan TGF336FSA Questions and Answers


Tappan

Tappan

Owner manual PDF of TGF336FSA Tappan gas range.

Use manuals file type: PDF. Tappan

Related Products
