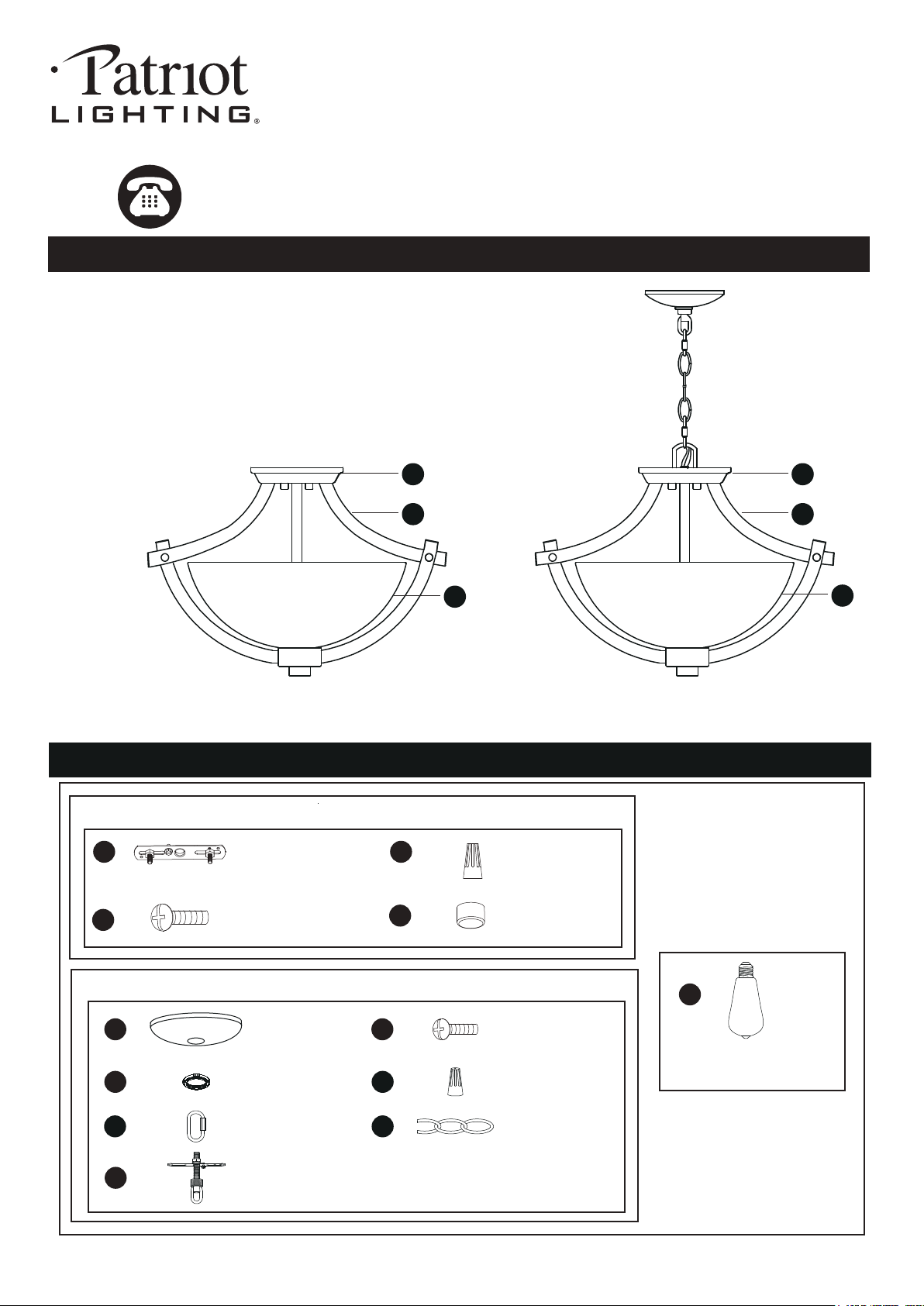

Page 1 of 4
Sku Number: 351-8465
3L DUAL MOUNT
PENDANT
Model Number: H0073
HARDWARE CONTENTS
PACKAGE CONTENTS
(For Semi-Flush)
Mounting Screw
X2
Mounting Strap Unit
X1
Wire Connector
X3
AA
BB
CC
DD
Ball Nut
X2
Loop Lock
X2
Chain
X1
Mounting Strap Unit
X1
Wire Connector
X3
Mounting Screw
X2
GG
JJ
KK
HH
EE
FF
II
Canopy
X1
Collar
X1
For Semi-Flush
For Pendant
(For Pendant)
A
190614
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Vintage Bulb 60W
8080CEB
LL
B
A
B
C
C
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire Stripper.
Pag
190614
e 2 of 4

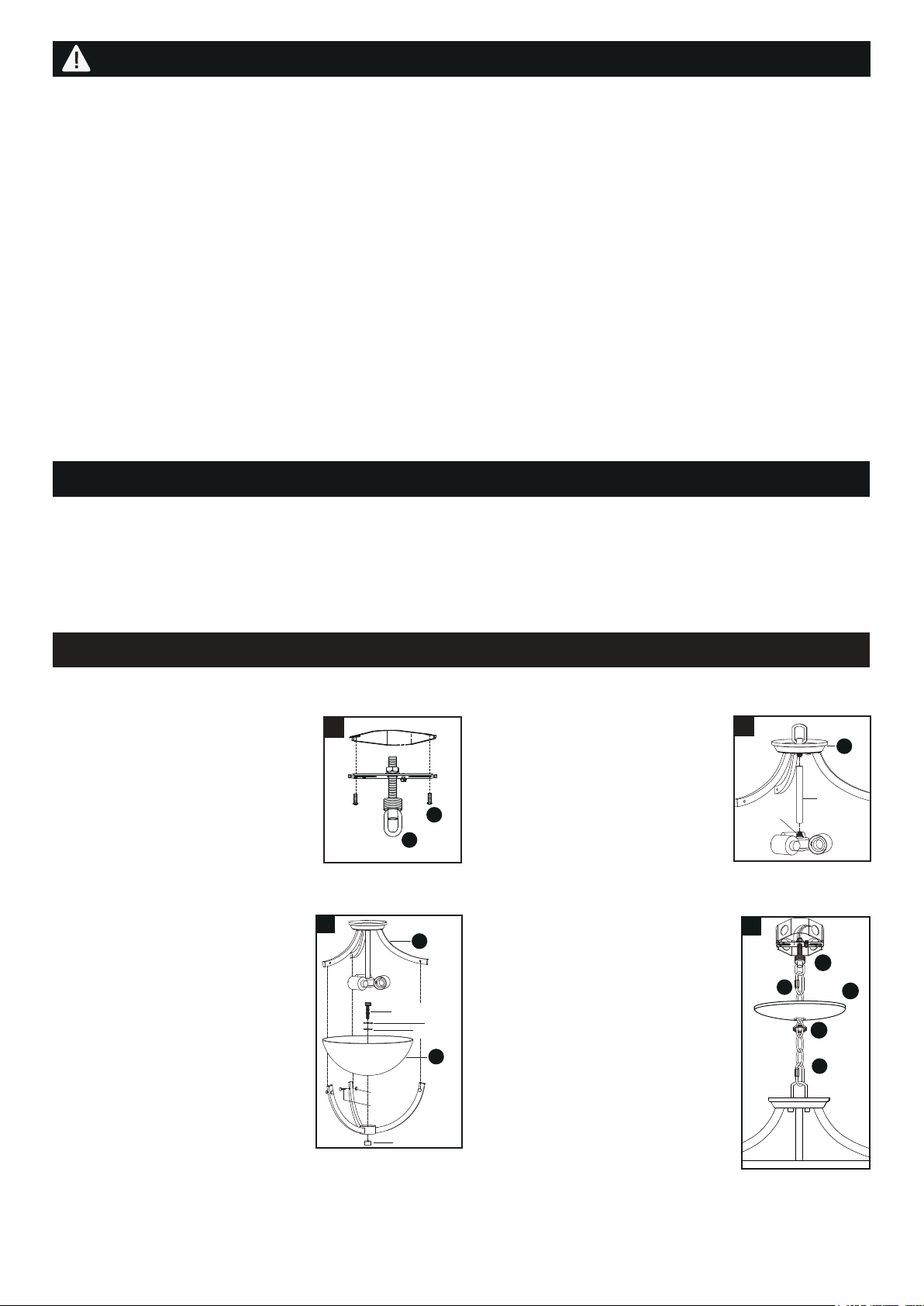

SAFETY INFORMATION
PREPARATION
ASSEMBLY INSTRUCTIONS (For Pendant)
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
•
Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
•
Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do
not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
•
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
Turn off the power at fuse or circuit box.
2. Secure the tube onto fixture
canopy (A), thread threaded pipe
through tube .
Tube
4. - Determine length of chain (KK)
needed to achieve desired fixture
height. (To remove excess chain
section, use pliers to bend link
open.)
- Weave the fixture wires and fixture
ground wire through the chain (KK),
and the canopy (EE).
- Connect the chain (KK) to the loop
and the top loop on the mounting
strap unit (HH) with the two loop
locks (GG).
- Thread the fixture wires and fixture
ground wire through the center of
the mounting strap unit (HH).
1
2
1
1. Secure the mounting strap unit (HH)
to the outlet box with mounting
screws (II) .
II
HH
3. Slip the glass shade (C), metal pad
and washer through the threaded
pipe. Secure the fixture arms (B) as
the figure (See page 1) shows, then
secure the set screws and bolt nuts.
Finally tighten the fixture with the
finial.
Threaded
Pipe
FF
EE
HH
GG
KK
4
3
Threaded Pipe
Washer
Metal Pad
Finial
Bolt Nut
Set Screw
B
C
A
A
Page 3
of 4

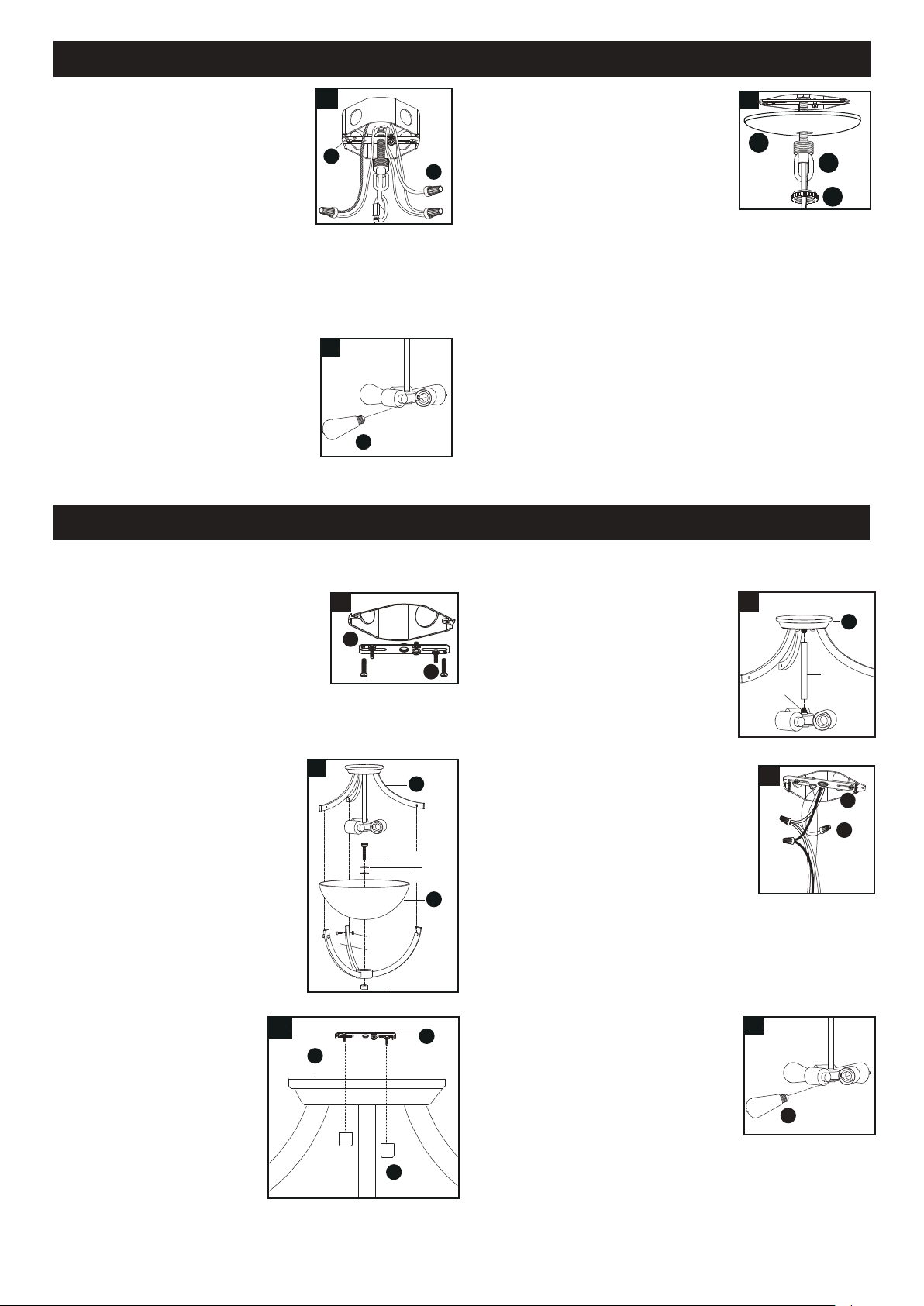

ASSEMBLY INSTRUCTIONS (continued)
Turn on the power at the main fuse or circuit breaker box.
Turn on the power at the main fuse or circuit breaker box.
ASSEMBLY INSTRUCTIONS (For Semi-Flush)
Turn off the power at fuse or circuit box.
1. Secure the mounting strap unit (AA)
to the outlet box by using two short
mounting screws (BB).
1
1
BB
AA
6. Secure the canopy (EE) to the
mounting strap unit (HH), then
secure it by tightening the collar (FF).
7. Install 3 X 60W medium base ST15
vintage bulbs (LL) (included).
See relamping label at socket area
or packaging for maximum allowed
wattage.
190614
2. Secure the tube onto fixture canopy
(A), thread threaded pipe through
tube.
Tube
2
Threaded
Pipe
6
HH
EE
FF
7
LL
6. Install 3 X 60W medium base ST15
vintage bulbs (LL) (included).
See relamping label at socket area
or packaging for maximum allowed
wattage.
6
LL
3. Slip the glass shade (C), metal
pad and washer through the
threaded pipe. Secure the fixture
arms (B) as the figure (See page
1) shows, then secure the set
screws and bolt nuts. Finally
tighten the fixture with the finial.
5. Secure the fixture canopy
(A) to the mounting strap
unit (AA) and secure it with
the ball nuts (DD).
3
Threaded Pipe
Washer
Metal Pad
Finial
Bolt Nut
Set Screw
B
C
4. Connect the smooth wire from the
fixture (marked) to black wire from the
outlet box (power), the ribbed wire from
the fixture (unmarked) to white wire
from the outlet box (neutral) with the
wire connectors (CC) provided. Connect
the copper wire on the light fixture to
the mounting strap unit (AA) by
securing it with the preinstalled ground screw, then
connect it to the house ground wire with wire connectors (CC).
Carefully put all the wires into outlet box.
AA
CC
4
5
HH
JJ
5. Connect the smooth wire from the
fixture (marked) to black wire from
the outlet box (power), the ribbed
wire from the fixture (unmarked) to
white wire from the outlet box
(neutral) with the wire connectors
(JJ) provided. Connect the copper
wire on the light fixture to the
mounting strap unit (HH) by securing it with the
preinstalled ground screw, then connect it to the house
ground wire with wire connectors (JJ).
Carefully put all the wires into outlet box.
5
A
AA
DD
Page
190614
4 of 4

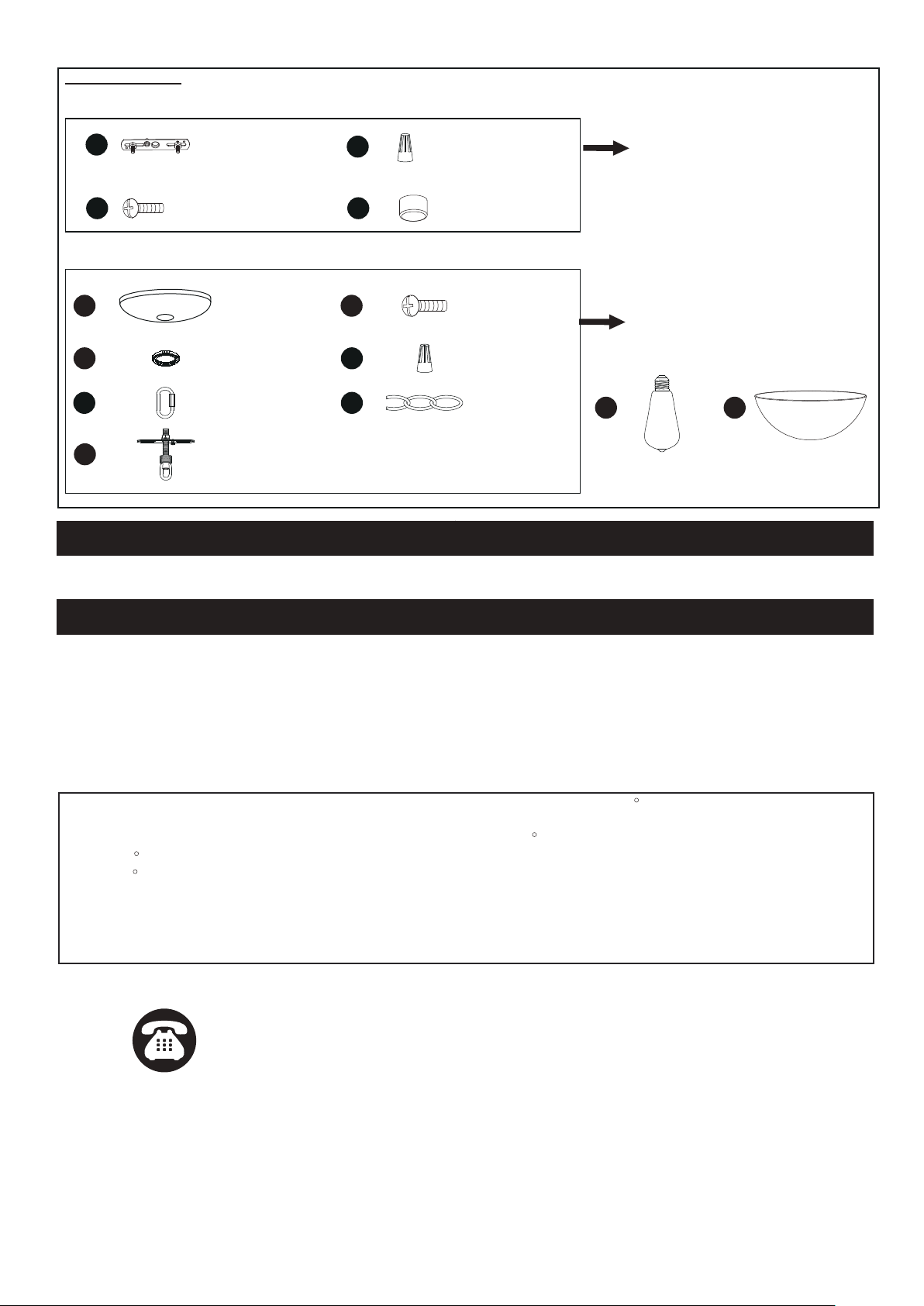

Spare Parts List:
The following parts are available for re-order if damaged or missing. Call our toll free at 1-800-887-6326.
Assembly Kit
6117MM (1 SET)
TROUBLESHOOTING
CARE AND MAINTENANCE
● To clean, turn off and wipe with a damp, non-abrasive cloth.
1) The light does not work:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when light is turned on.
Check for crossed wires, ensure wiring is correct.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due
to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting
fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
If unable to fix any of the above issues, please consult a certified electrician.
Assembly Kit
6118MM (1 SET)
Wire conector
X3
AA
BB
CC
DD
Ball Nut
X2
Mounting Screw
X2
Mounting Strap Unit
X1
Glass Shade
10099CE
Vintage Bulb 60W
8080CEB
LL C
Loop Lock
X2
Chain
X1
Mounting Strap Unit
X1
Wire Connector
X3
Mounting Screw
X2
GG
JJ
KK
HH
EE
FF
II
Canopy
X1
Collar
X1
Parts Number (6118MM) For Semi-Flush:
Parts Number (6117MM) For Pendant:
