1) Center idler pulley into EXTENDED header rail slot. Insert clevis pin through header rail
hole and idler pulley. Secure with cotter pin. Fig. 1.
2) Insert 5/16”-18 x 2” bolt into EXTENDED header rail and secure with nut.
3) Proceed with the assembly of the rail per Assembly Poster until step 1f.
4) Prior to step 1f, discard original belt assembly.
5) Install extended belt assembly at step 1f. Fig. 2.
6) Continue with the installation poster at step 1g.
7) Discard original RED emergency release cord and install extended RED emergency
release cord included with this kit at step 6 on assembly poster.
Preparation: Refer to Assembly/Installation Poster, replace the header section of rail with the extension rail included with this kit.
Discard original Belt and add extended Belt prior to Step 1G. Add extended RED emergency release cord.
39031502639

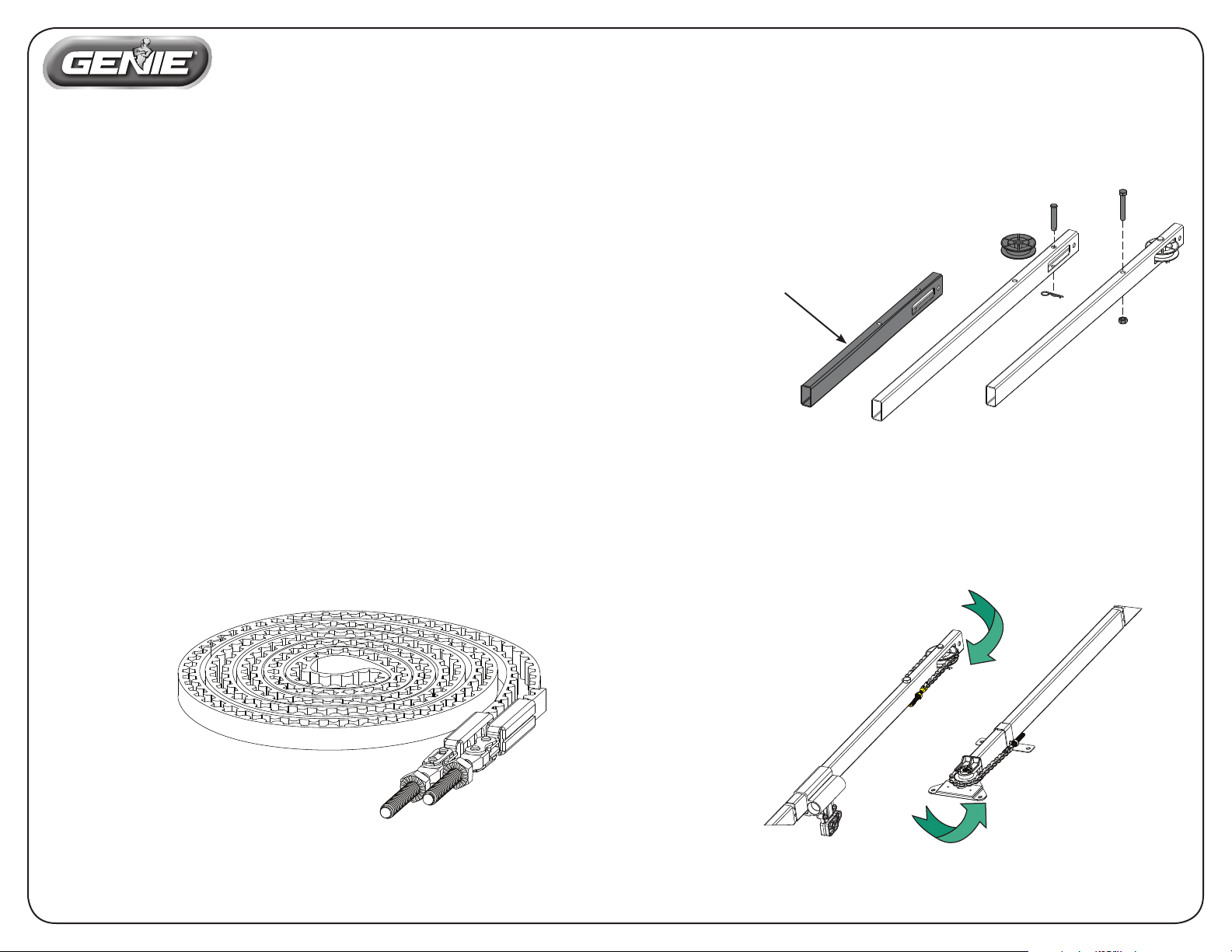

RAIL EXTENSION KIT INSTRUCTIONS (Tube Type Belt Rail)
A Supplement To The Chain/Belt Drive Assembly & Instructions Poster
Installation Procedure
Fig. 1
ELO-02/2015
Discard original rail section
Extended rail section step 1a & 1b from assembly poster
1g
GOLD THREADED
HEADER END ONLY
SILVER THREADED
MOTOR END ONLY
Continue at step 1g from assembly poster
Fig. 2
Extended Belt Assembly
