Craftsman 917271833 lawn tractor User Manual

Owner's Manual

JCRIIFTSMRN°J

21.0 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.271833

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and fellow all

Safety Rules and Instructions

before operating this equip-

ment,

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL60179

Visit our Craftsman website: www.sears.com/craftsman

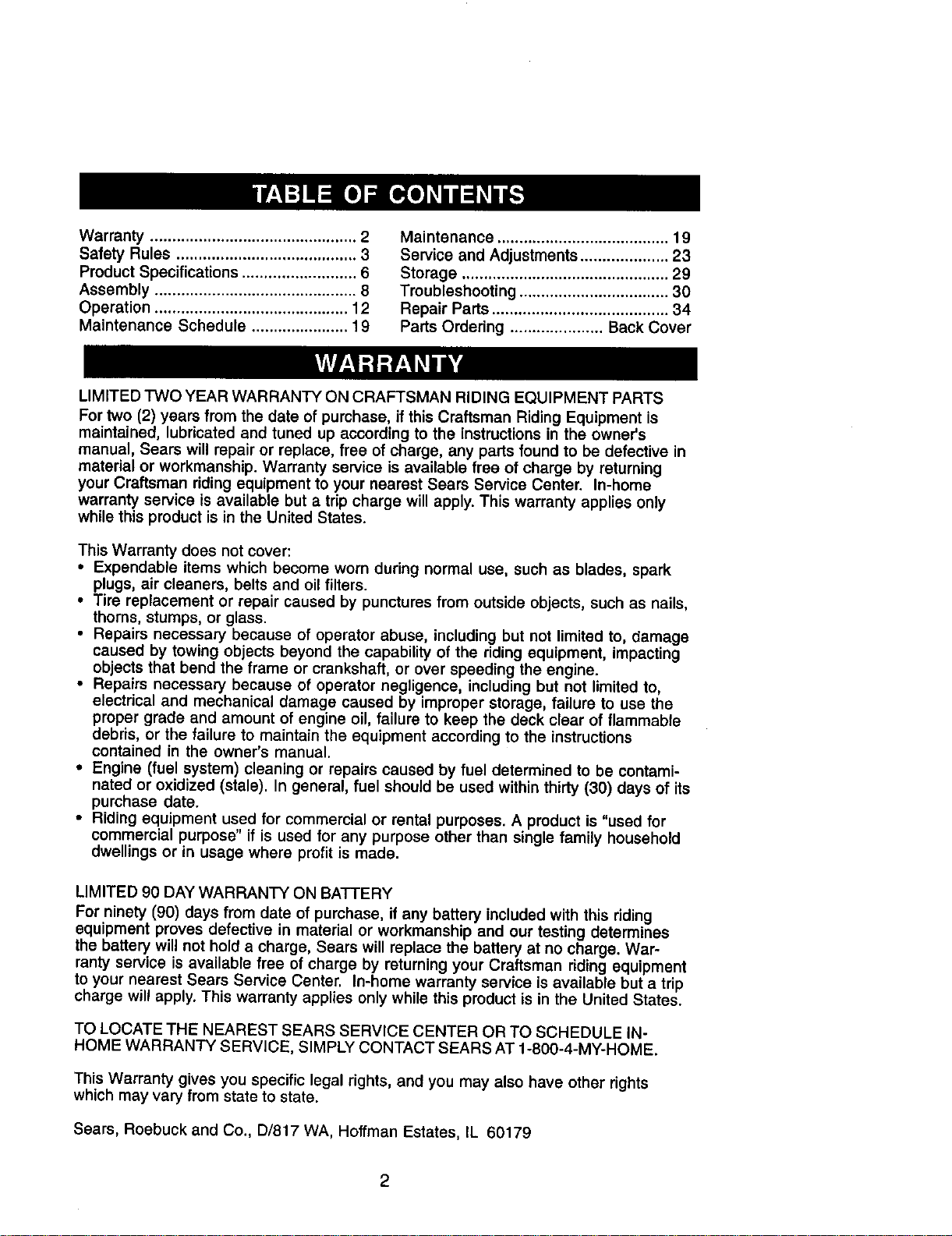

Warranty ............................................... 2

Safety Rules ......................................... 3

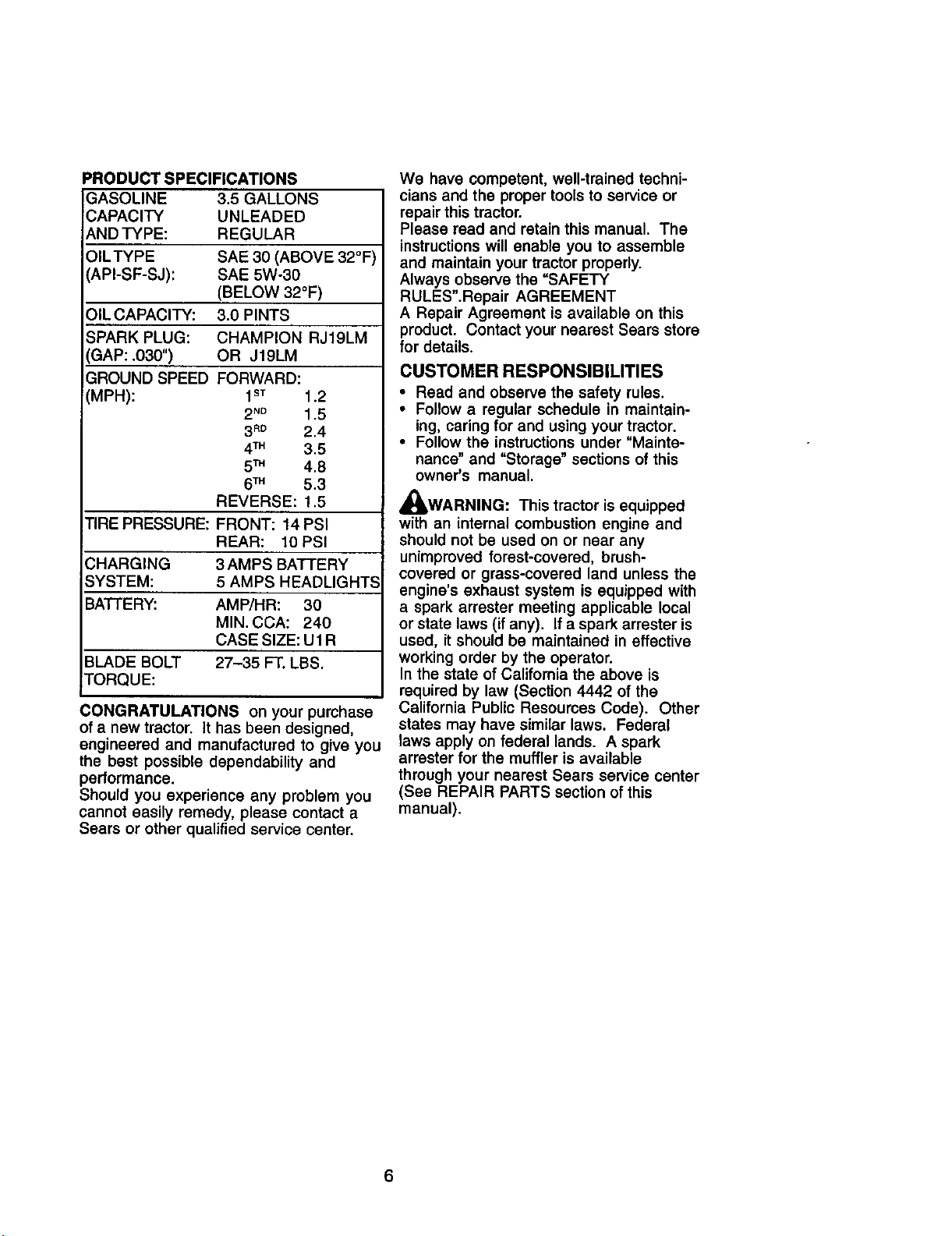

Product Specifications .......................... 6

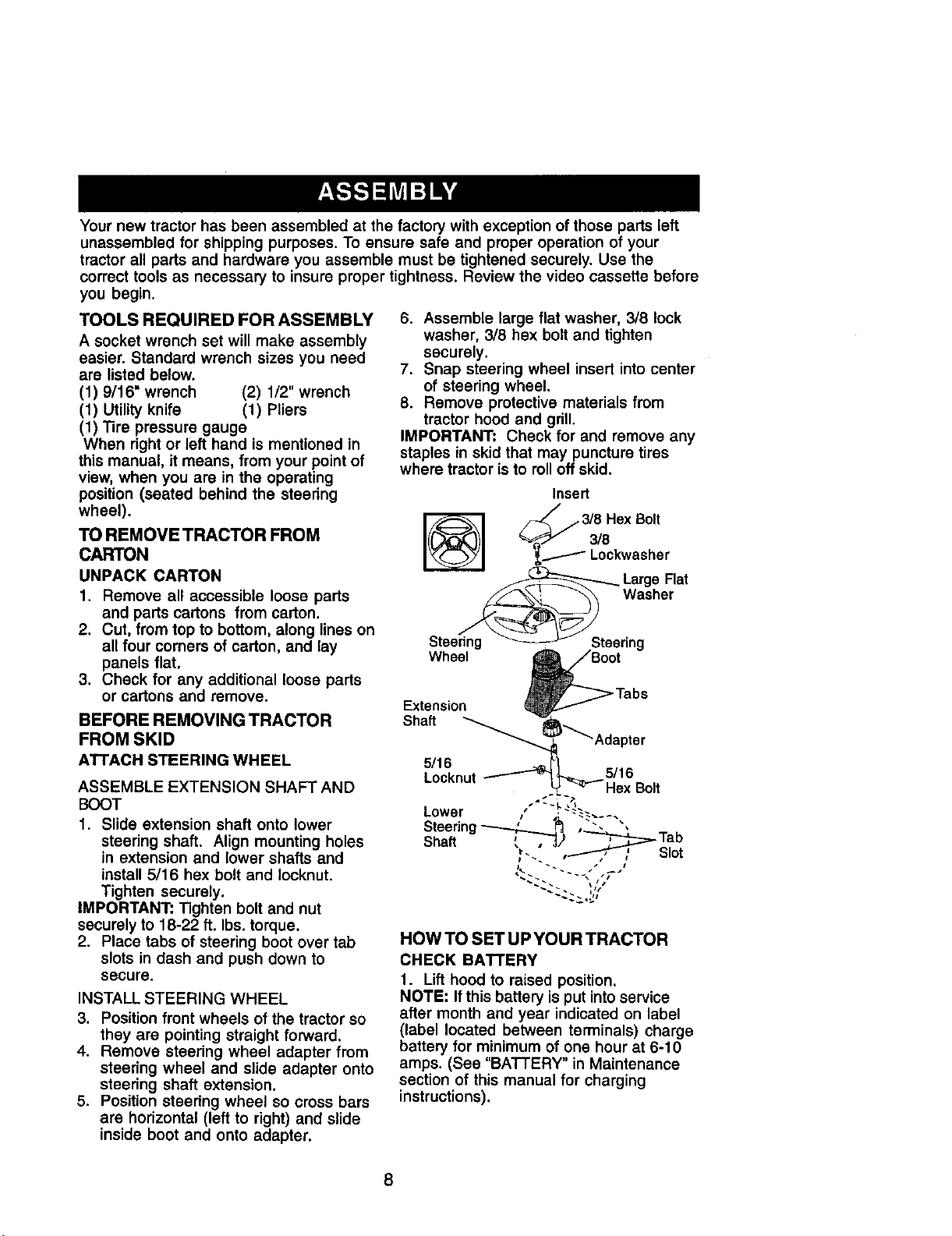

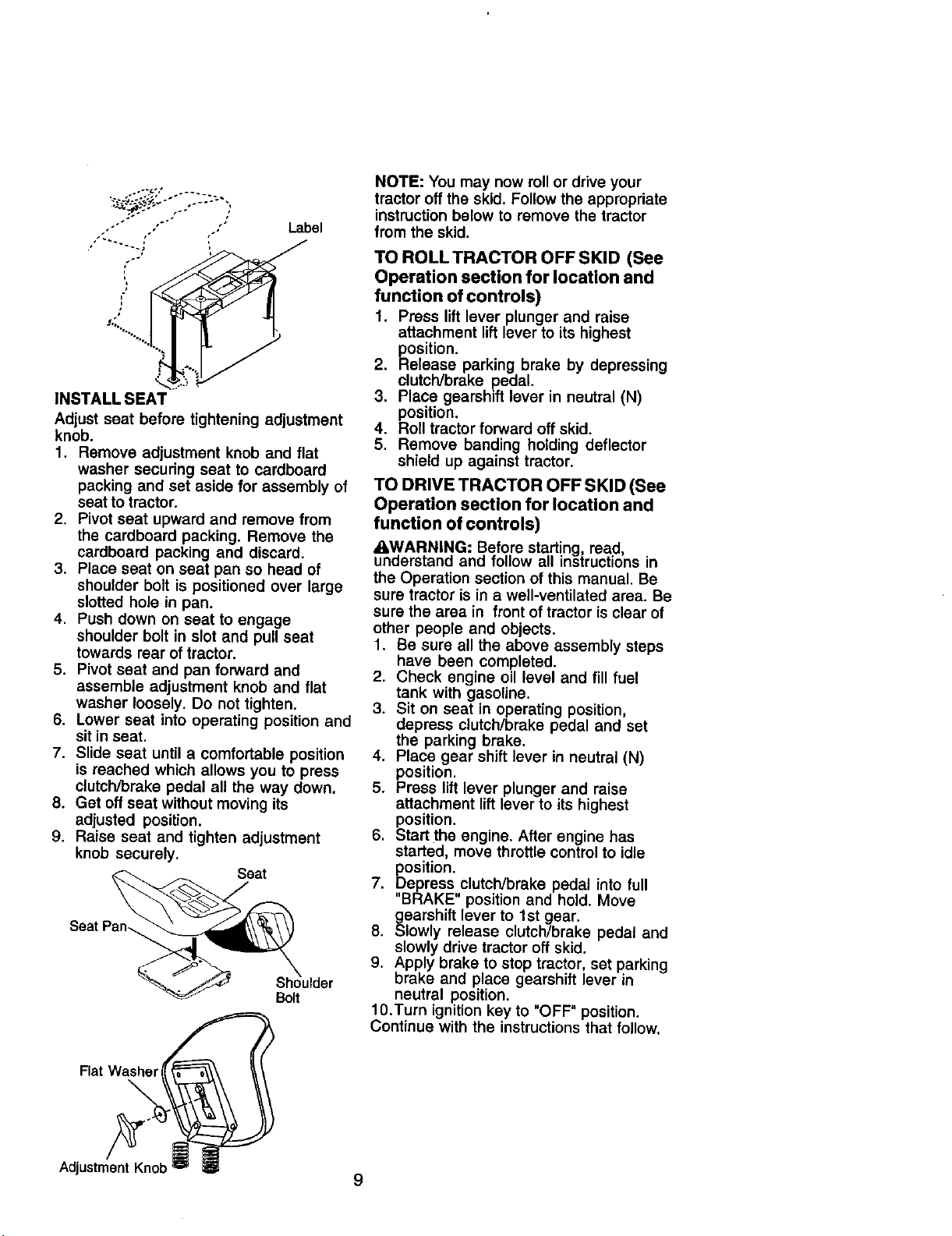

Assembly .............................................. 8

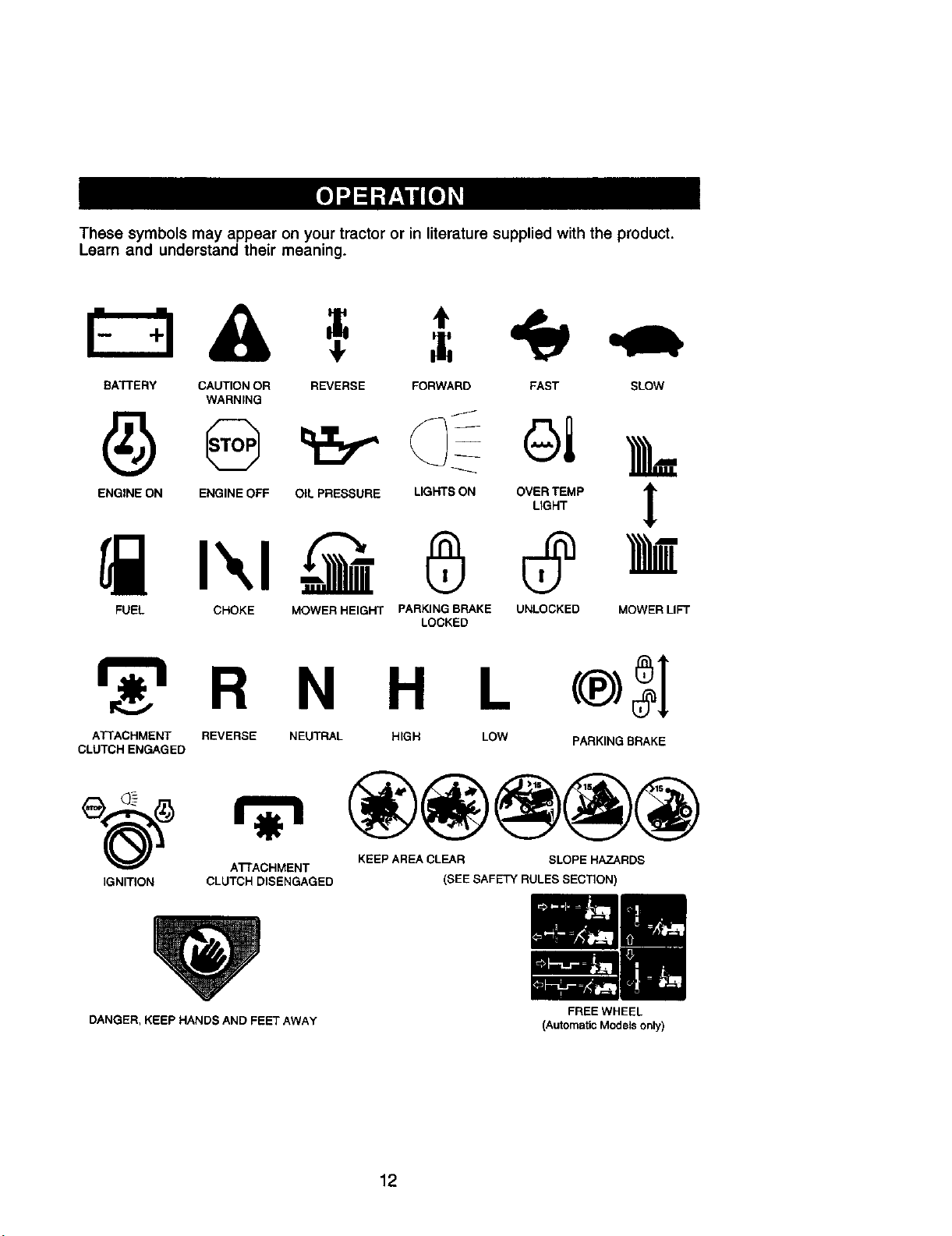

Operation ............................................ 12

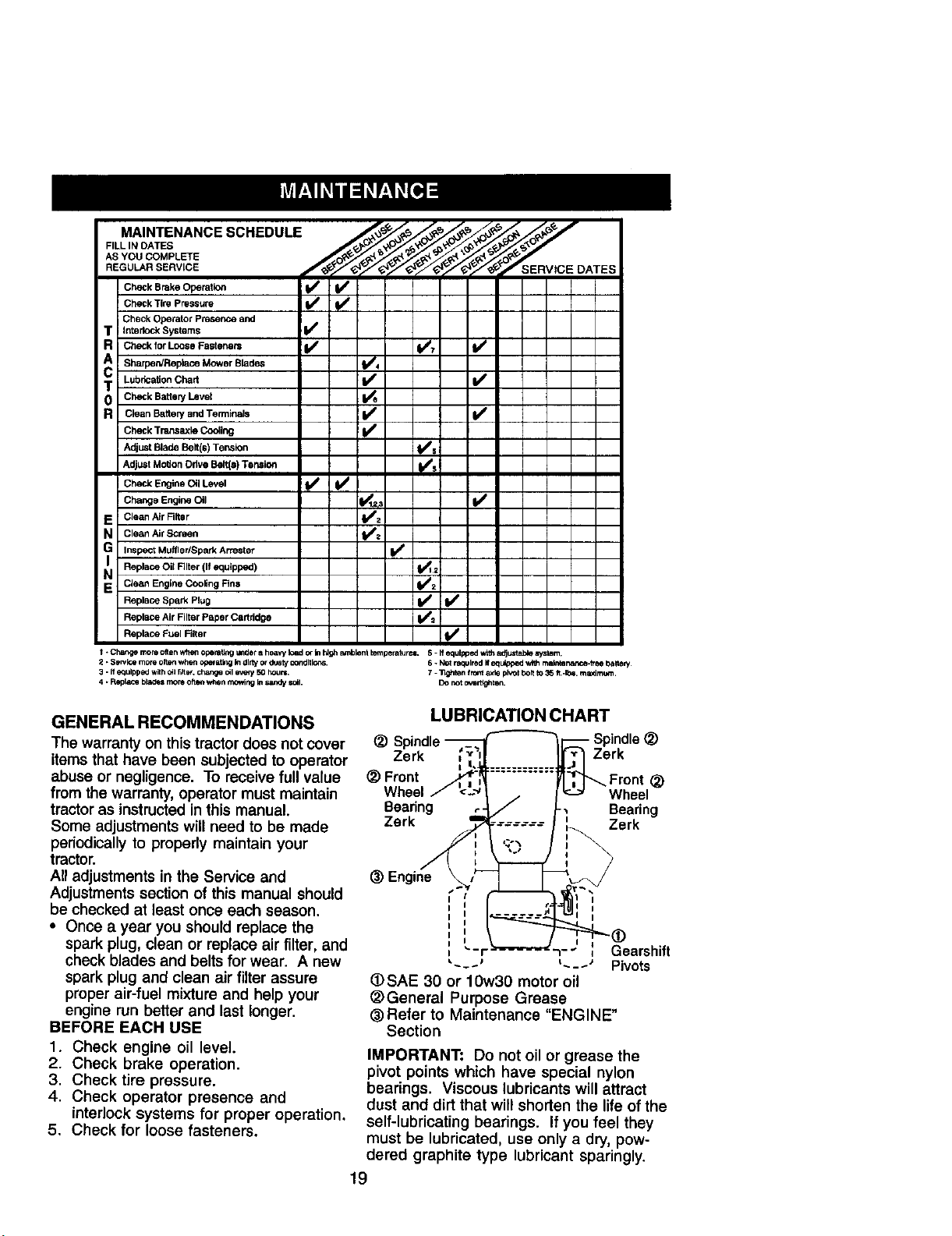

Maintenance Schedule ...................... 19

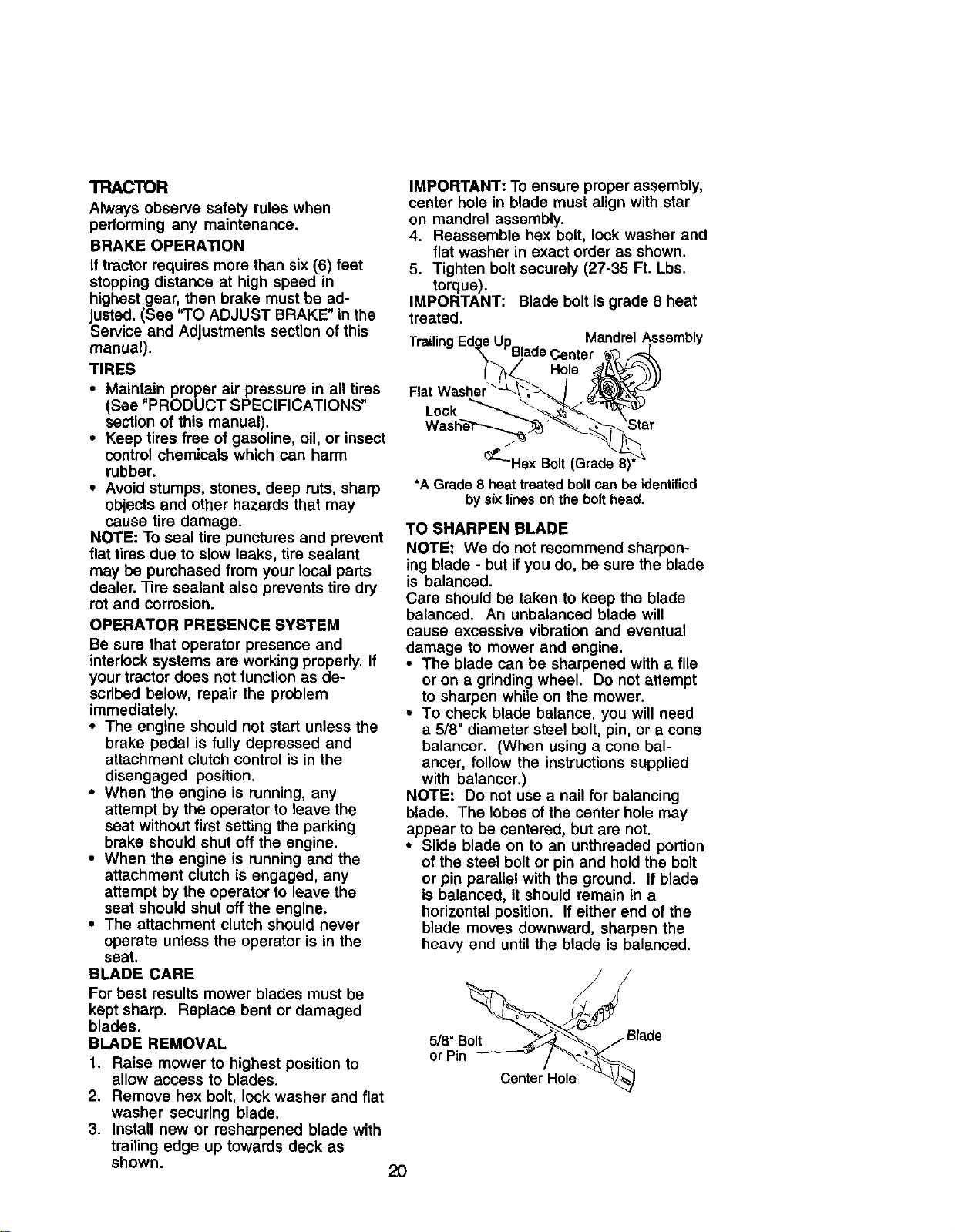

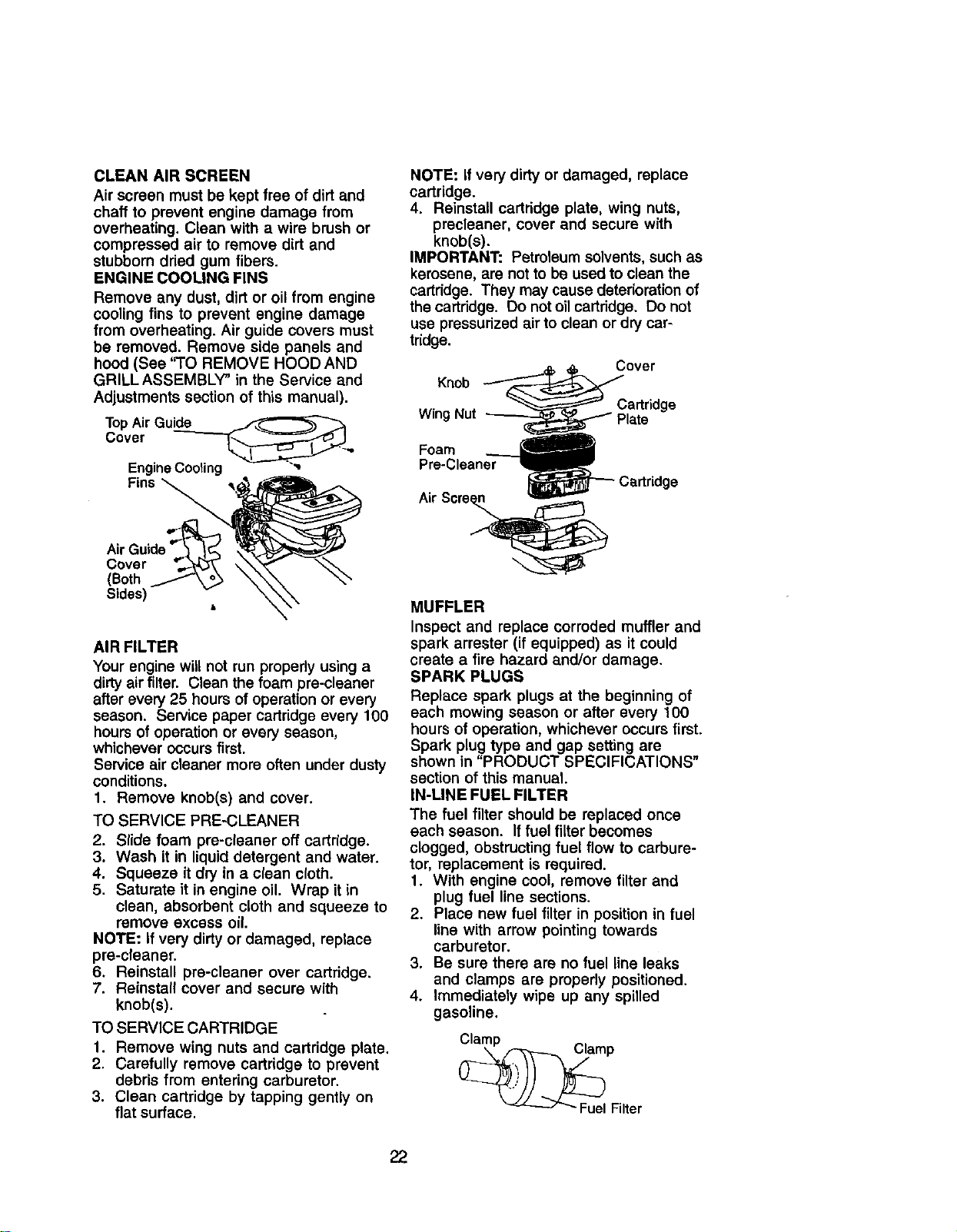

Maintenance ....................................... 19

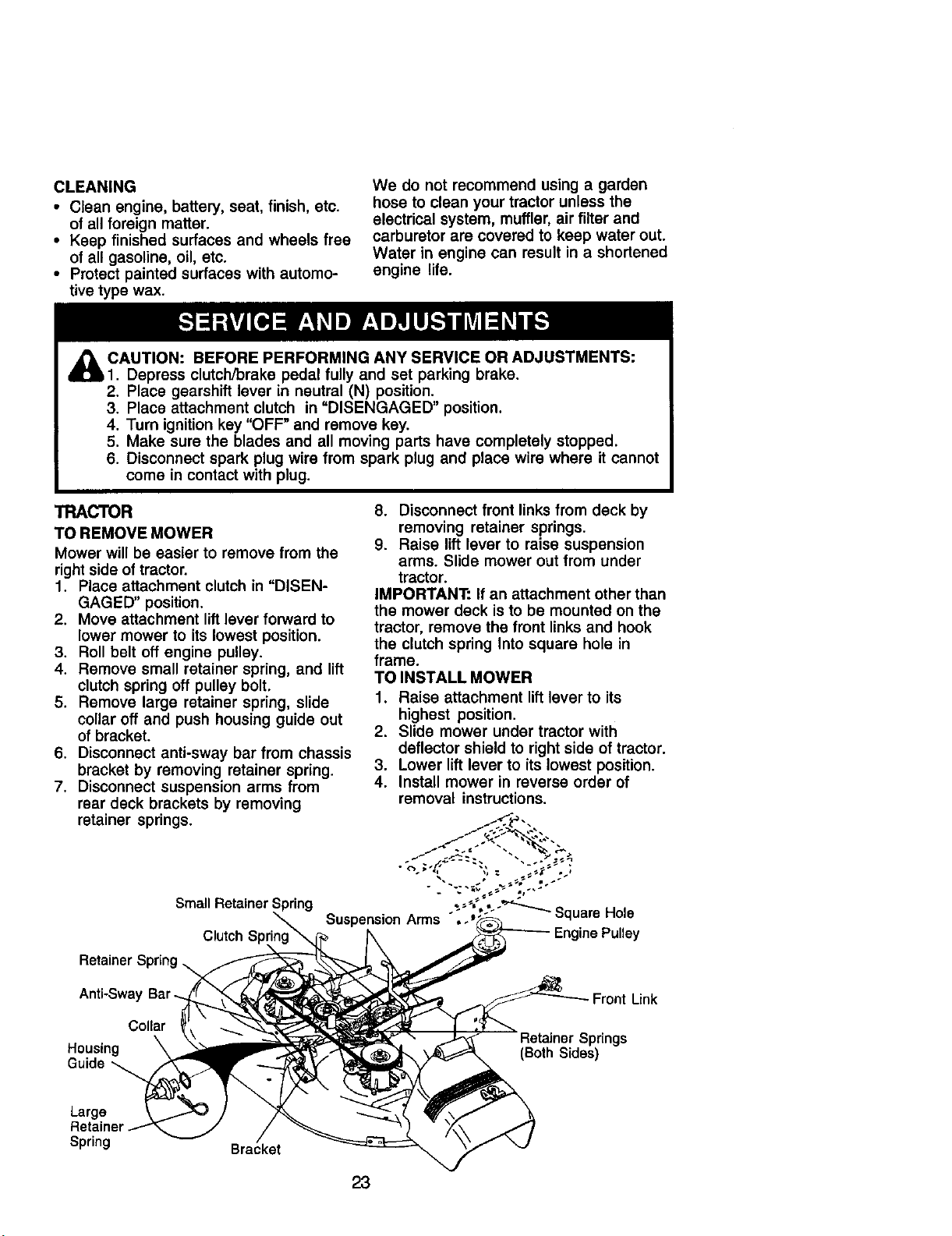

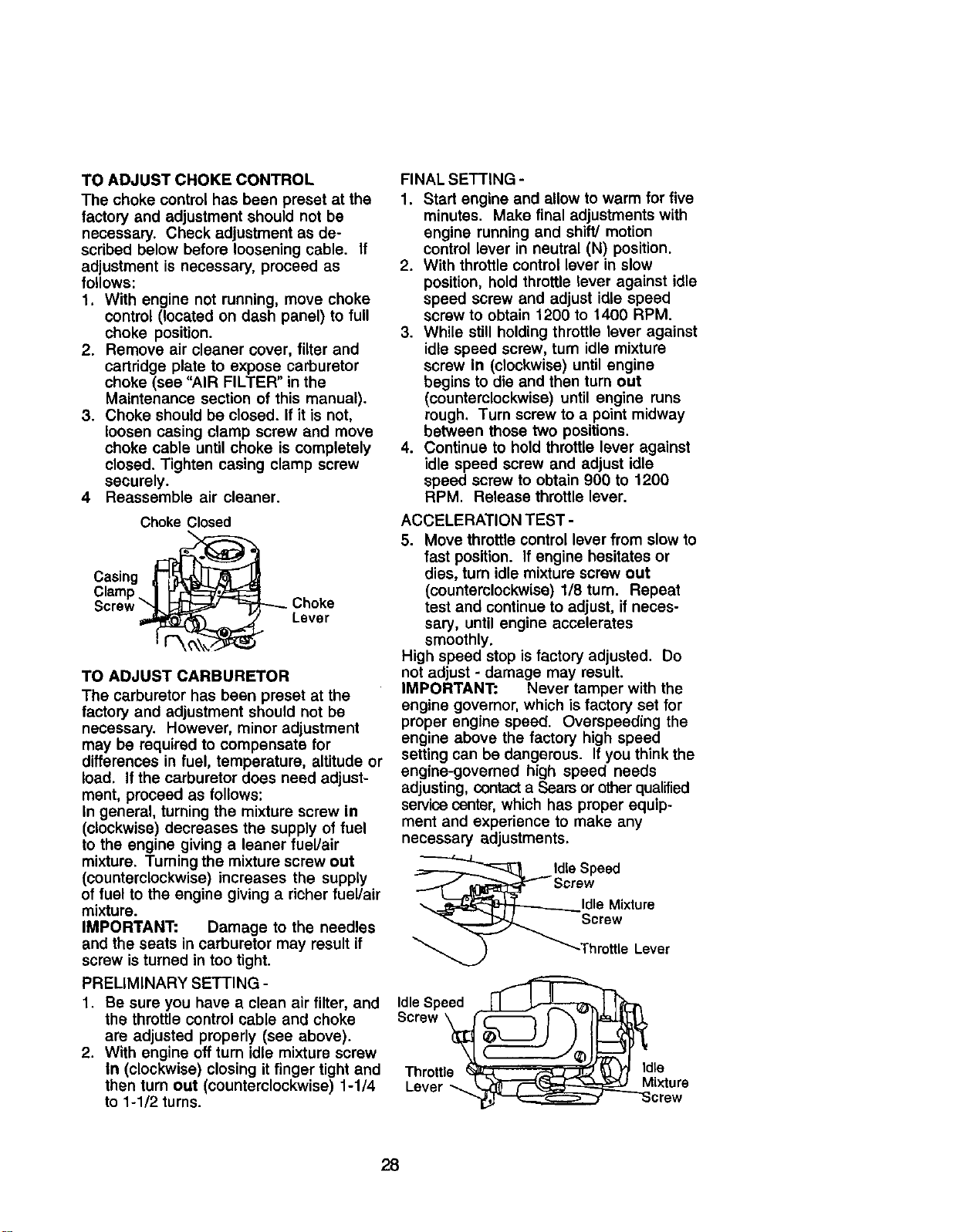

Service and Adjustments .................... 23

Storage ............................................... 29

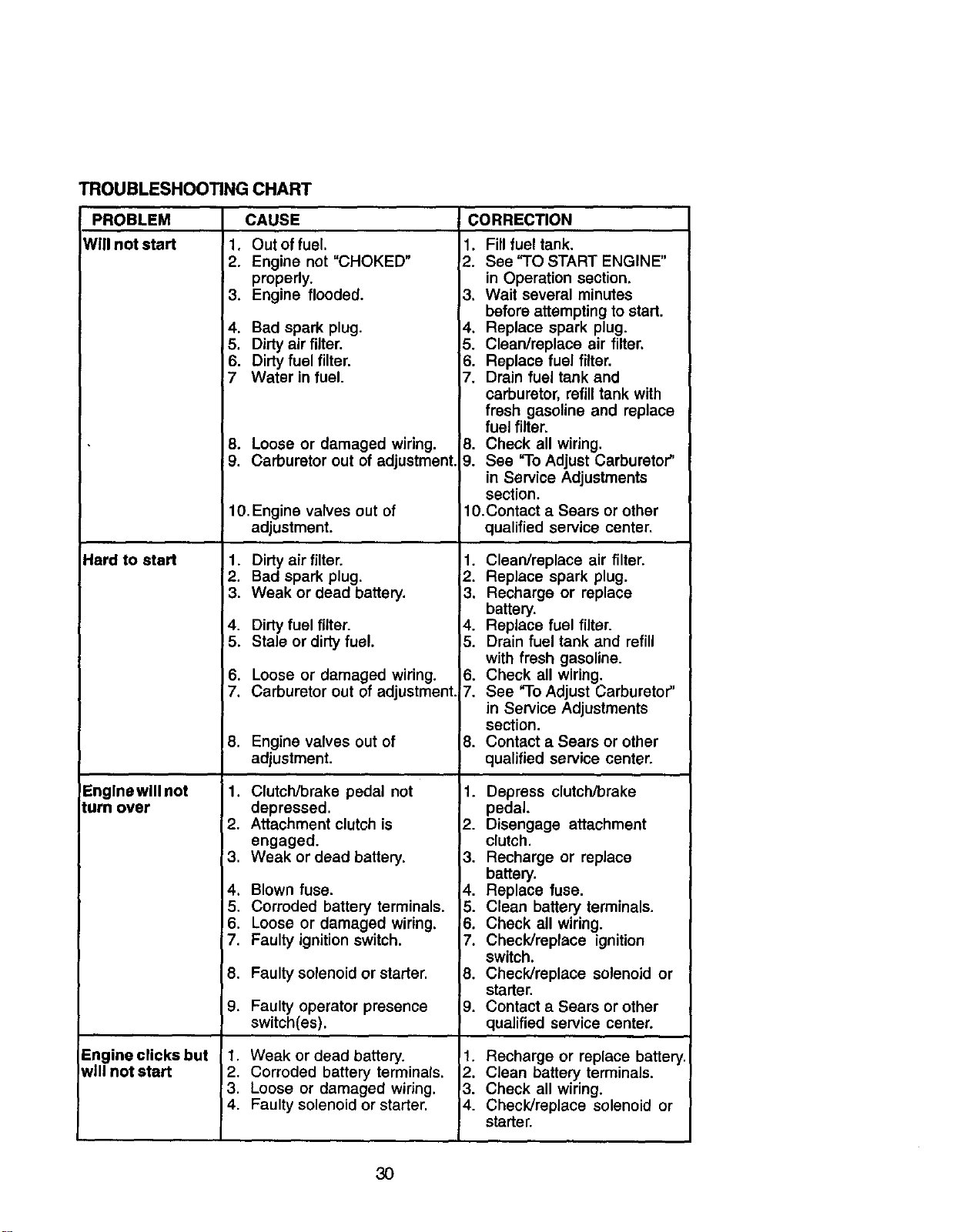

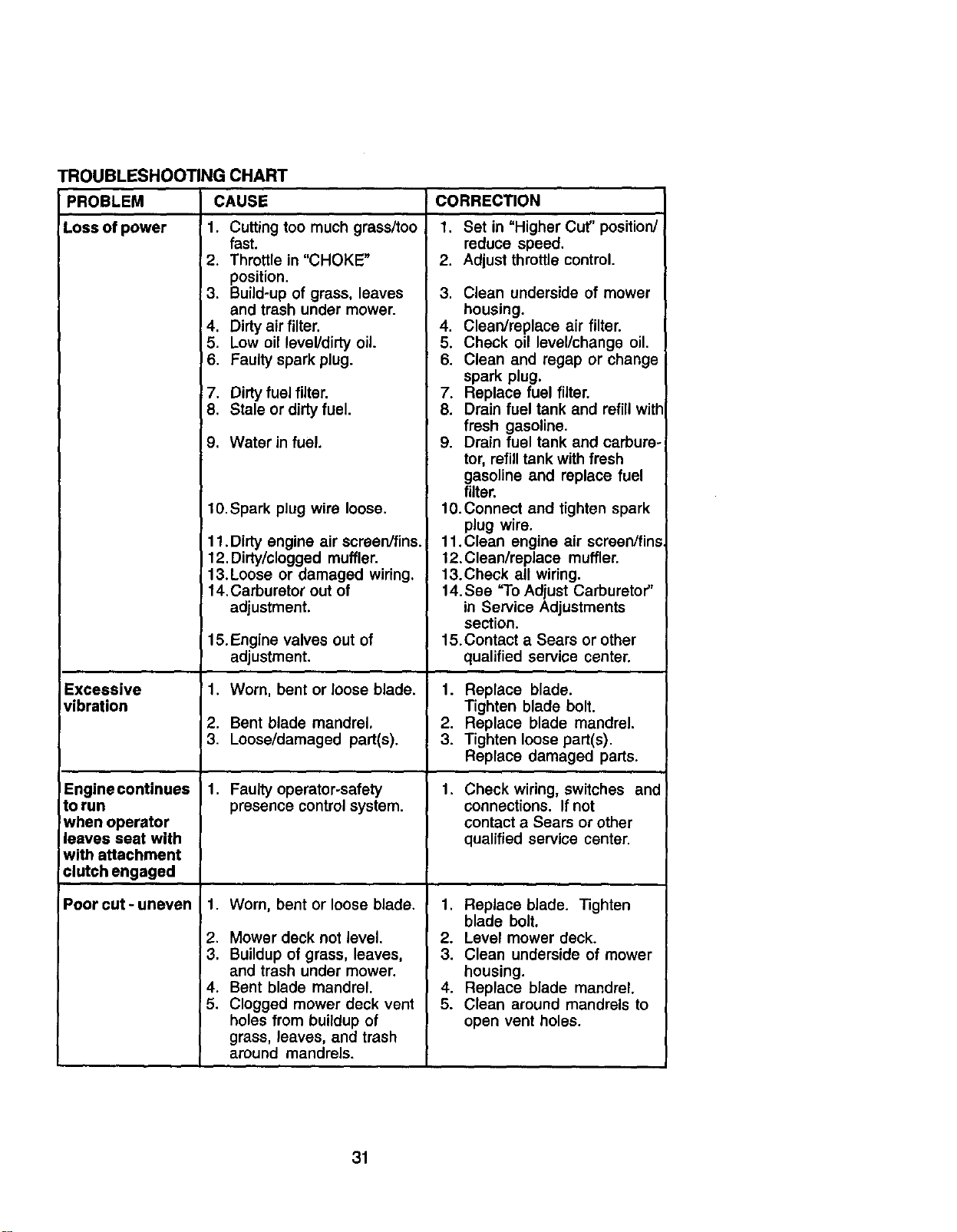

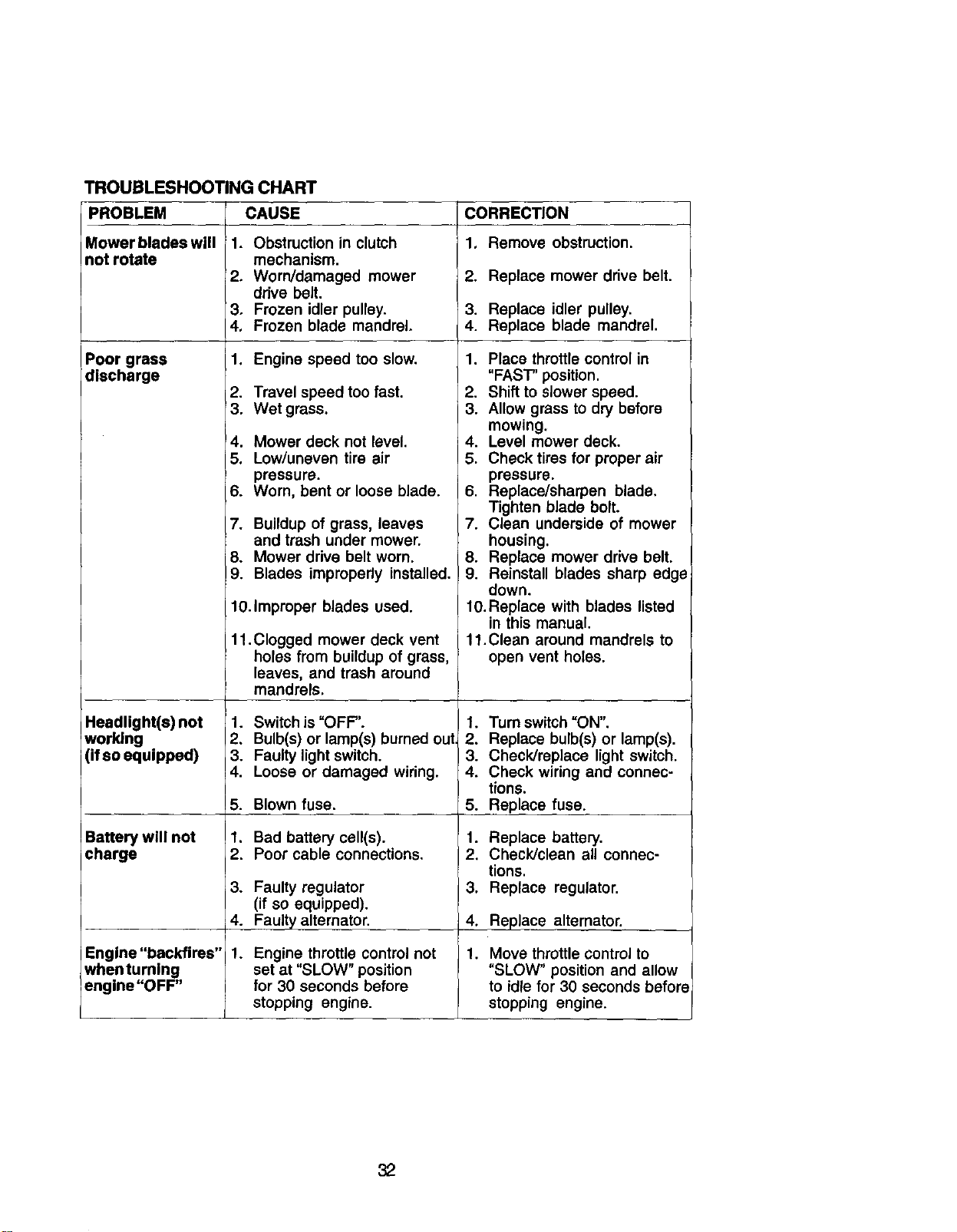

Troubleshooting .................................. 30

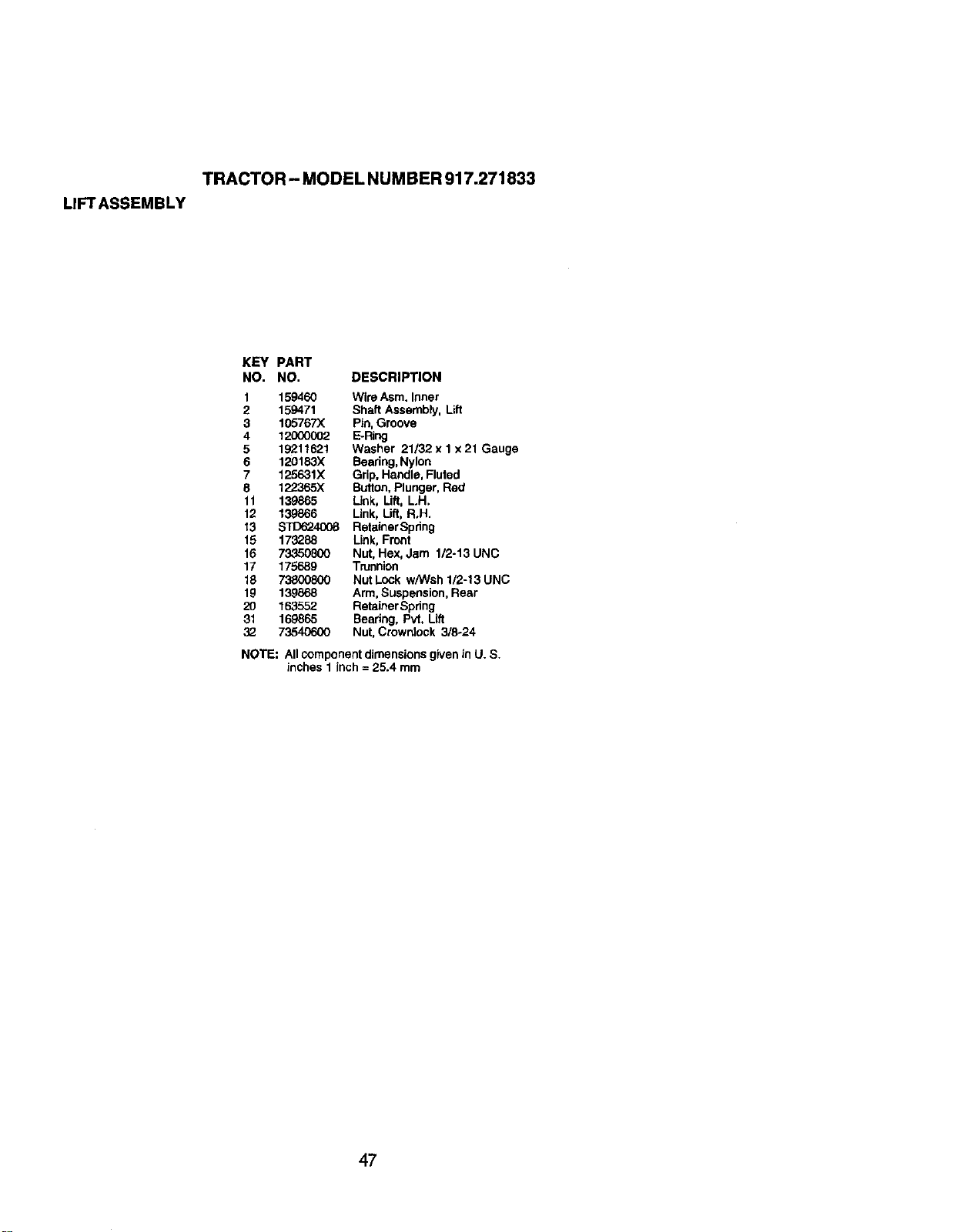

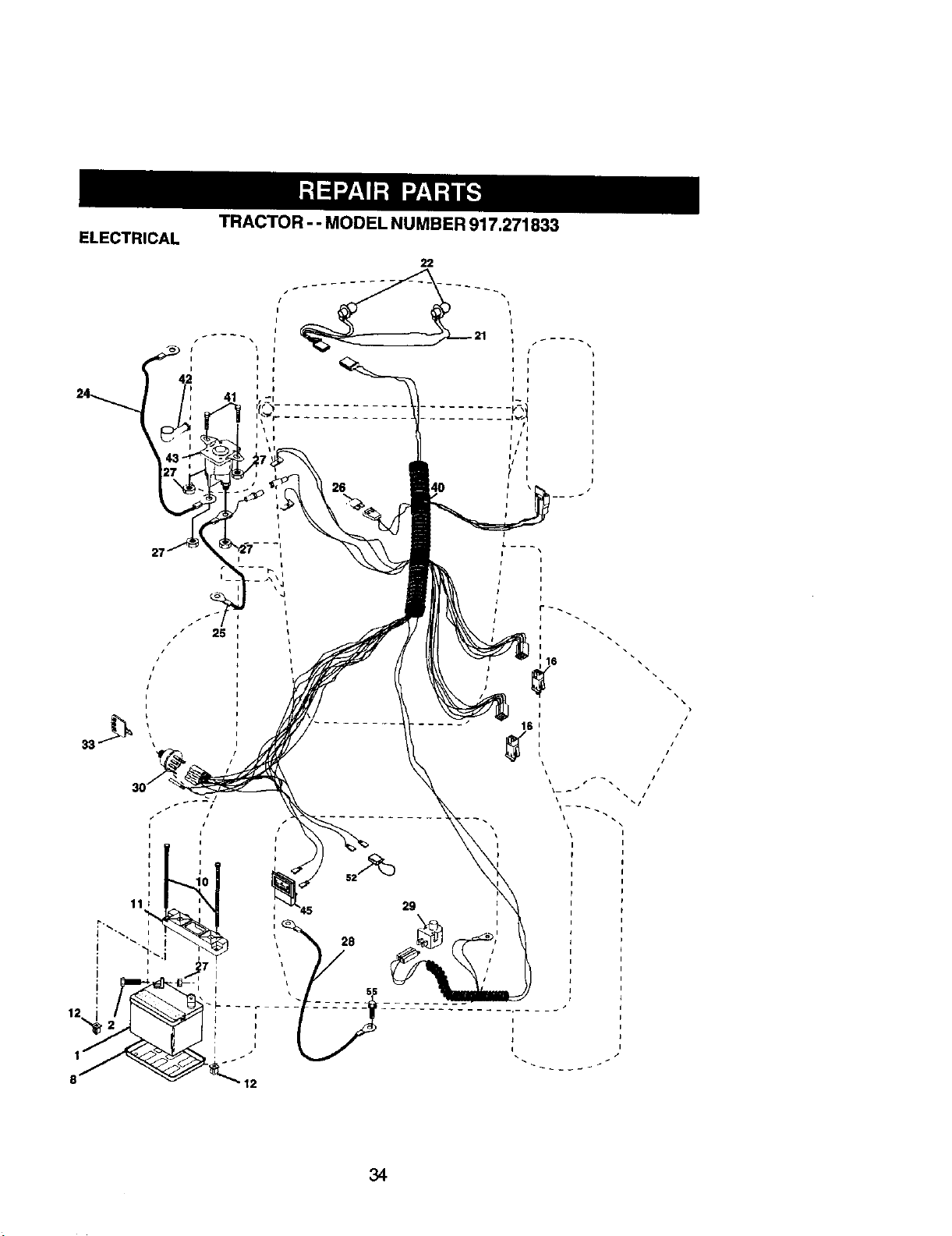

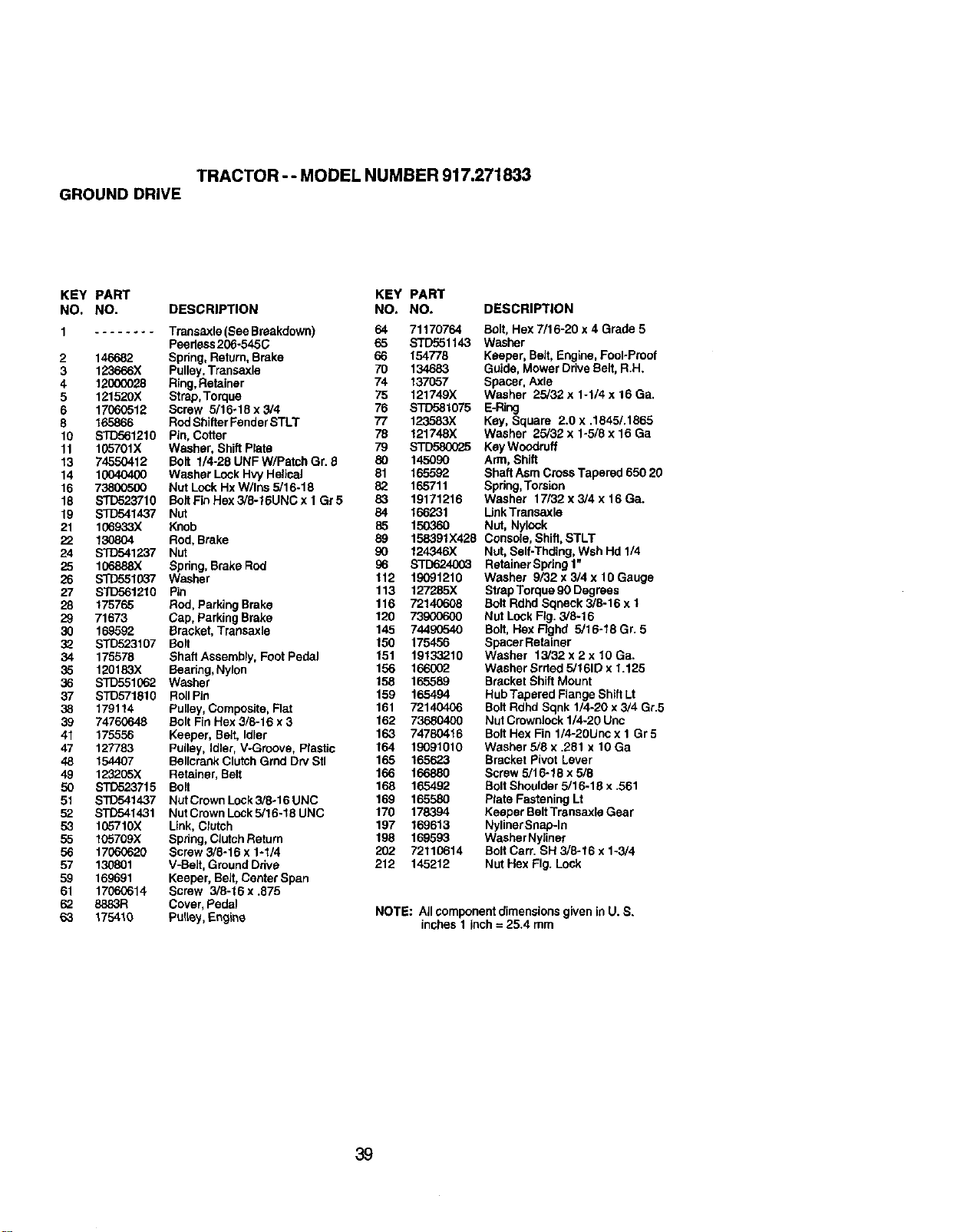

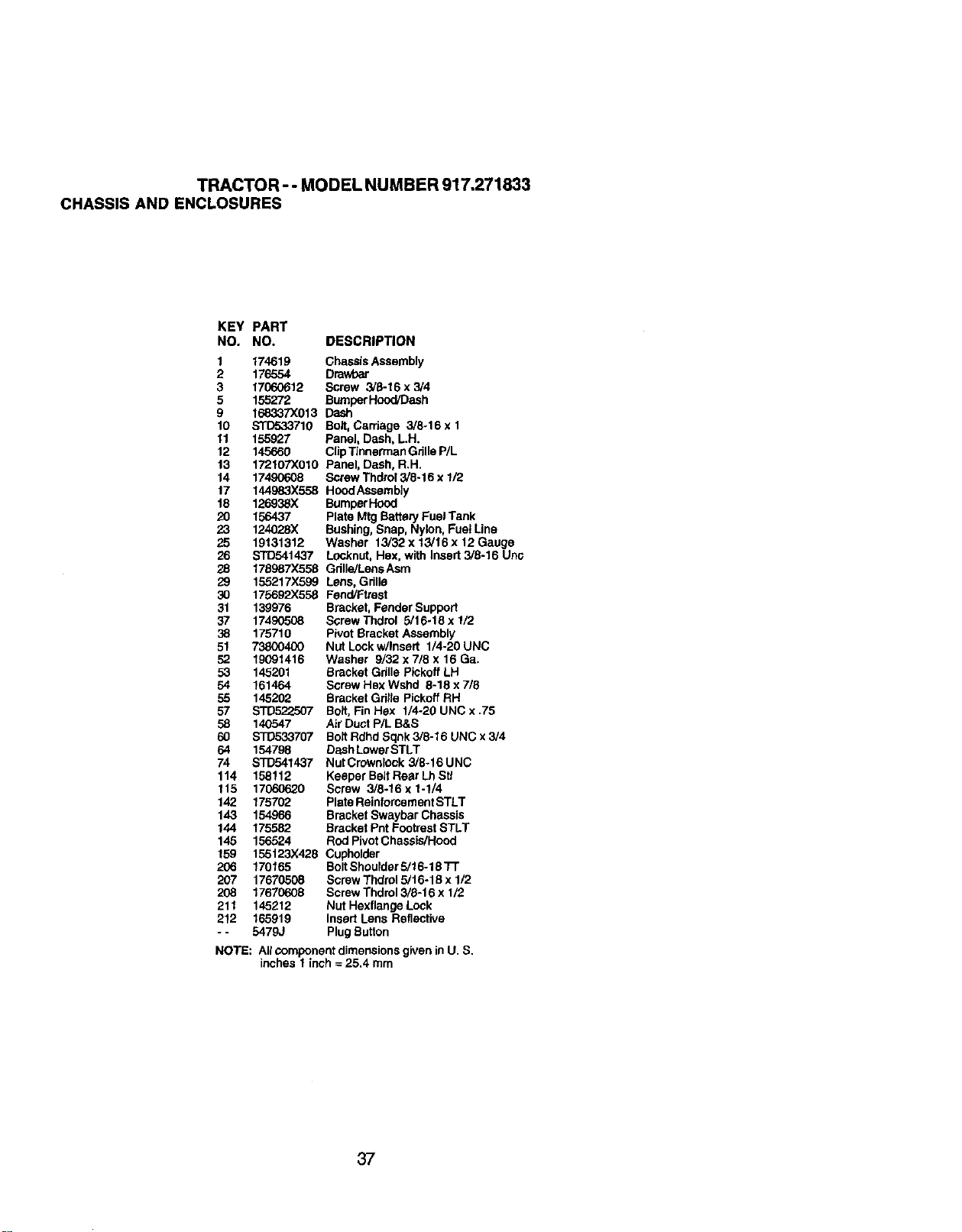

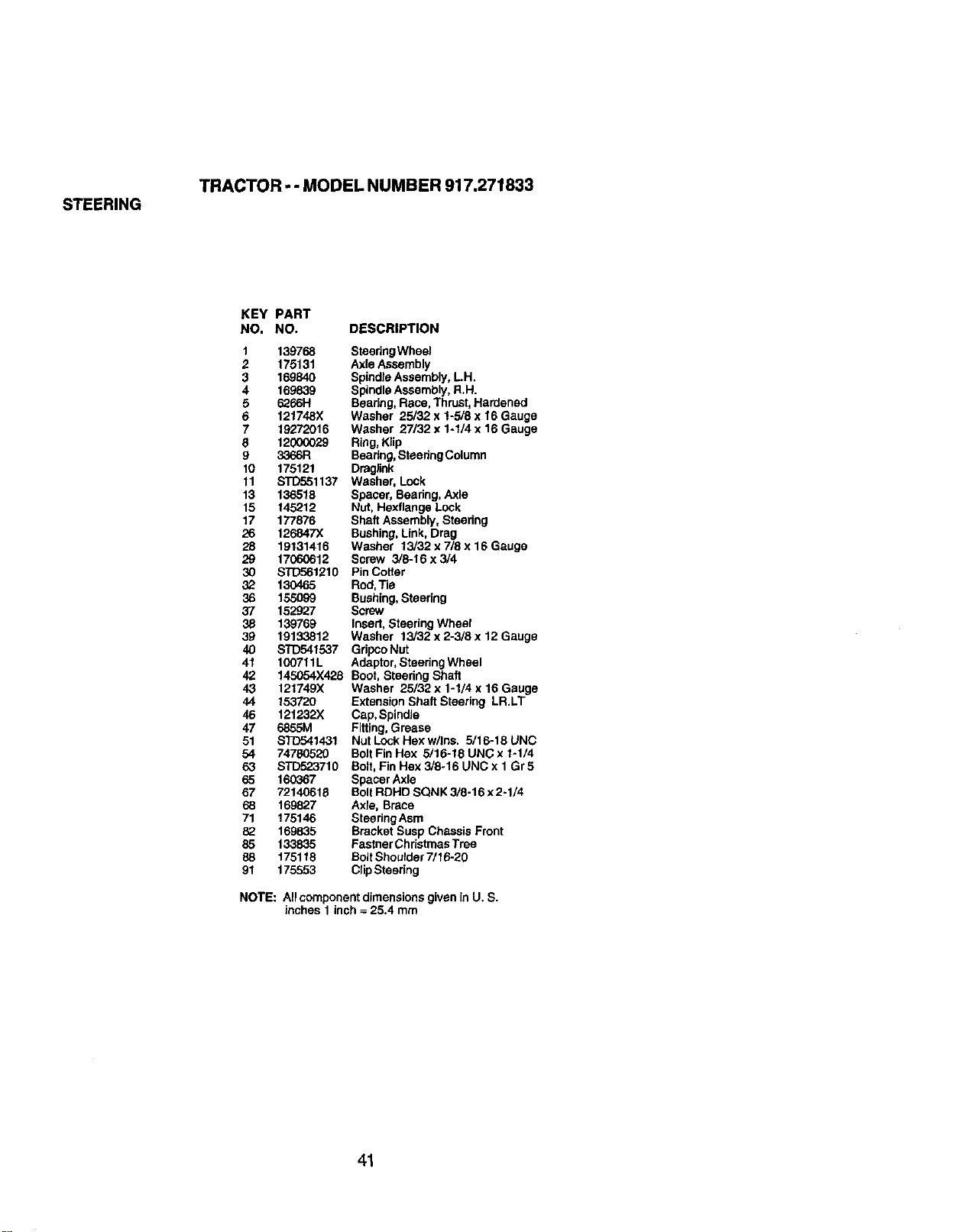

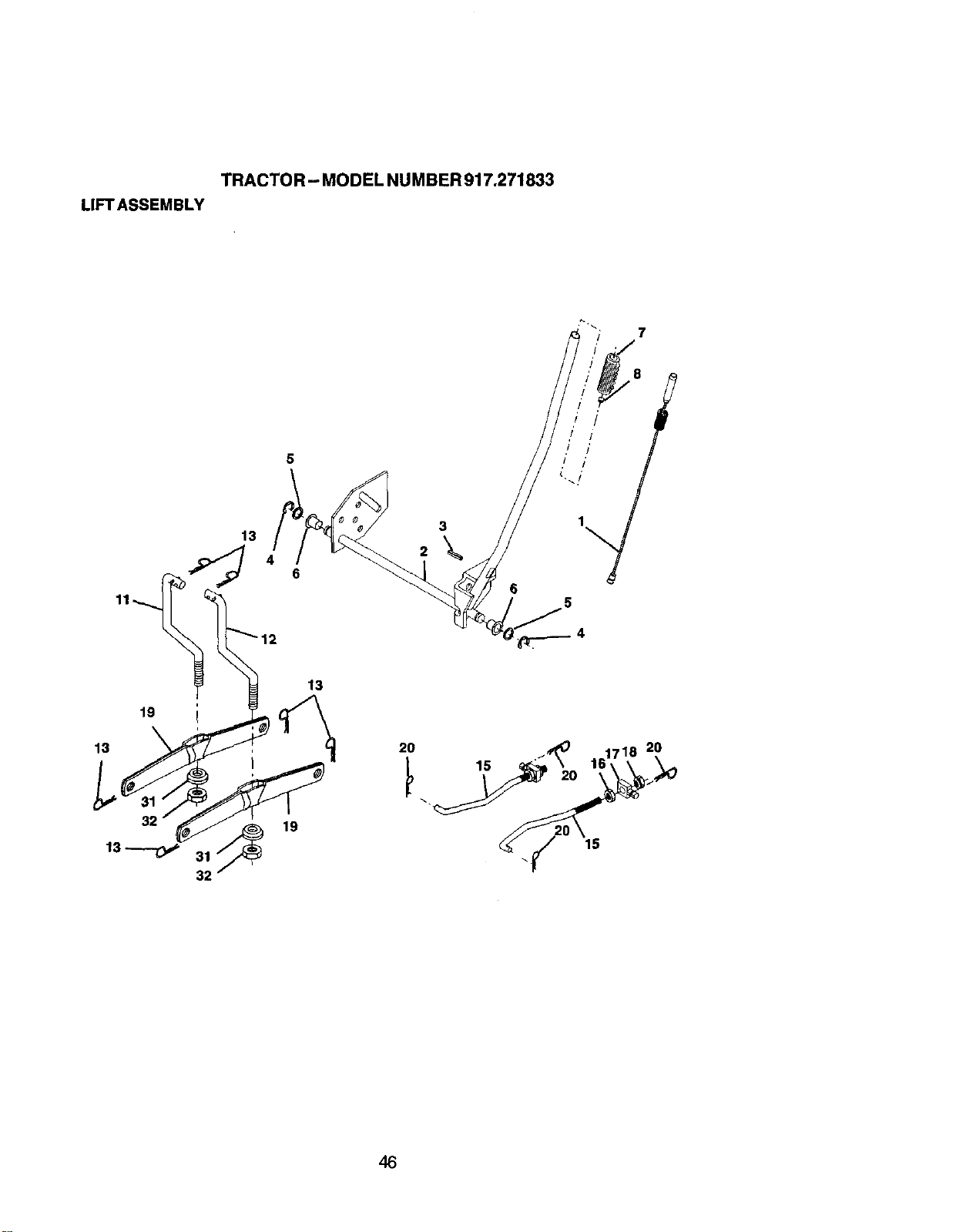

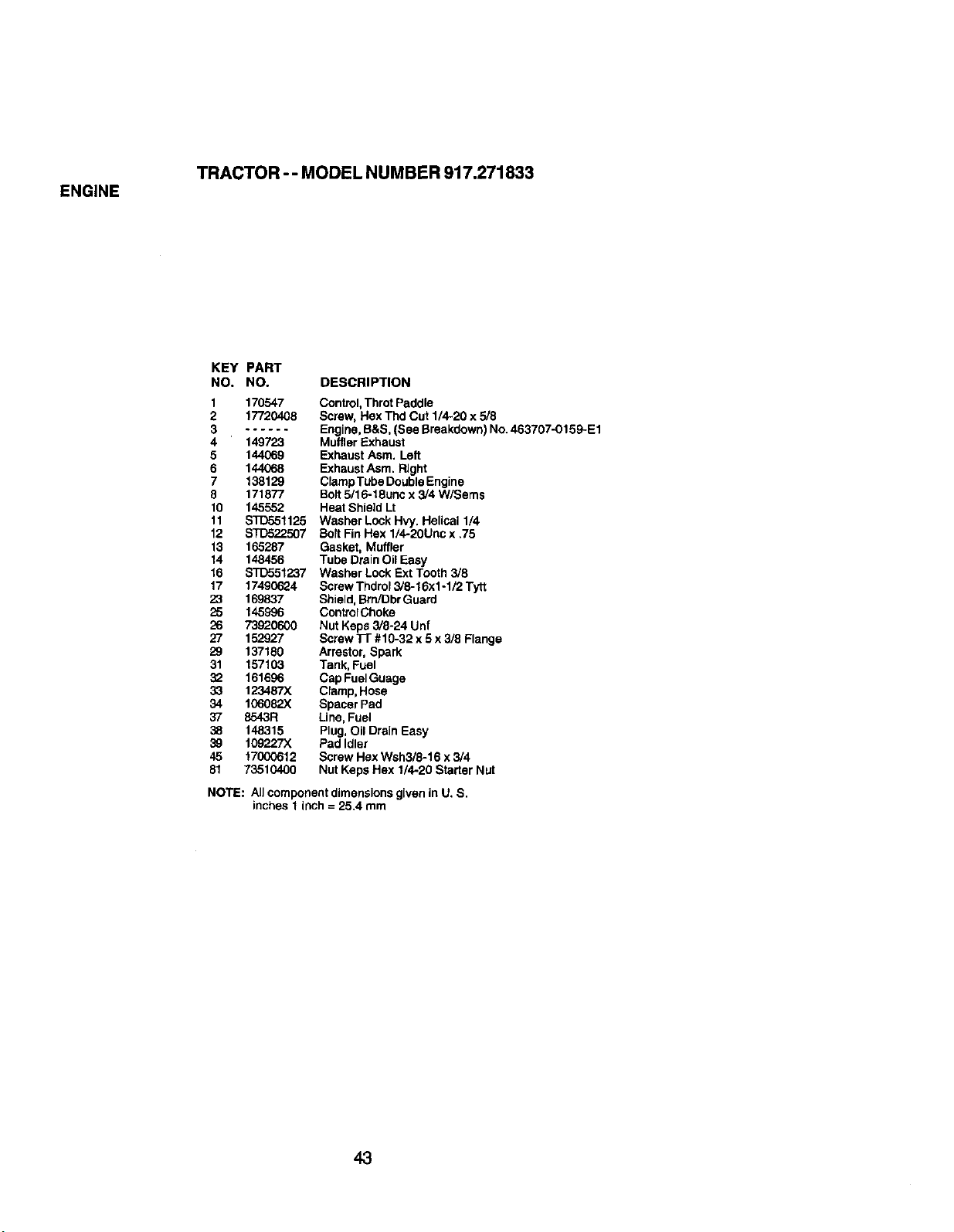

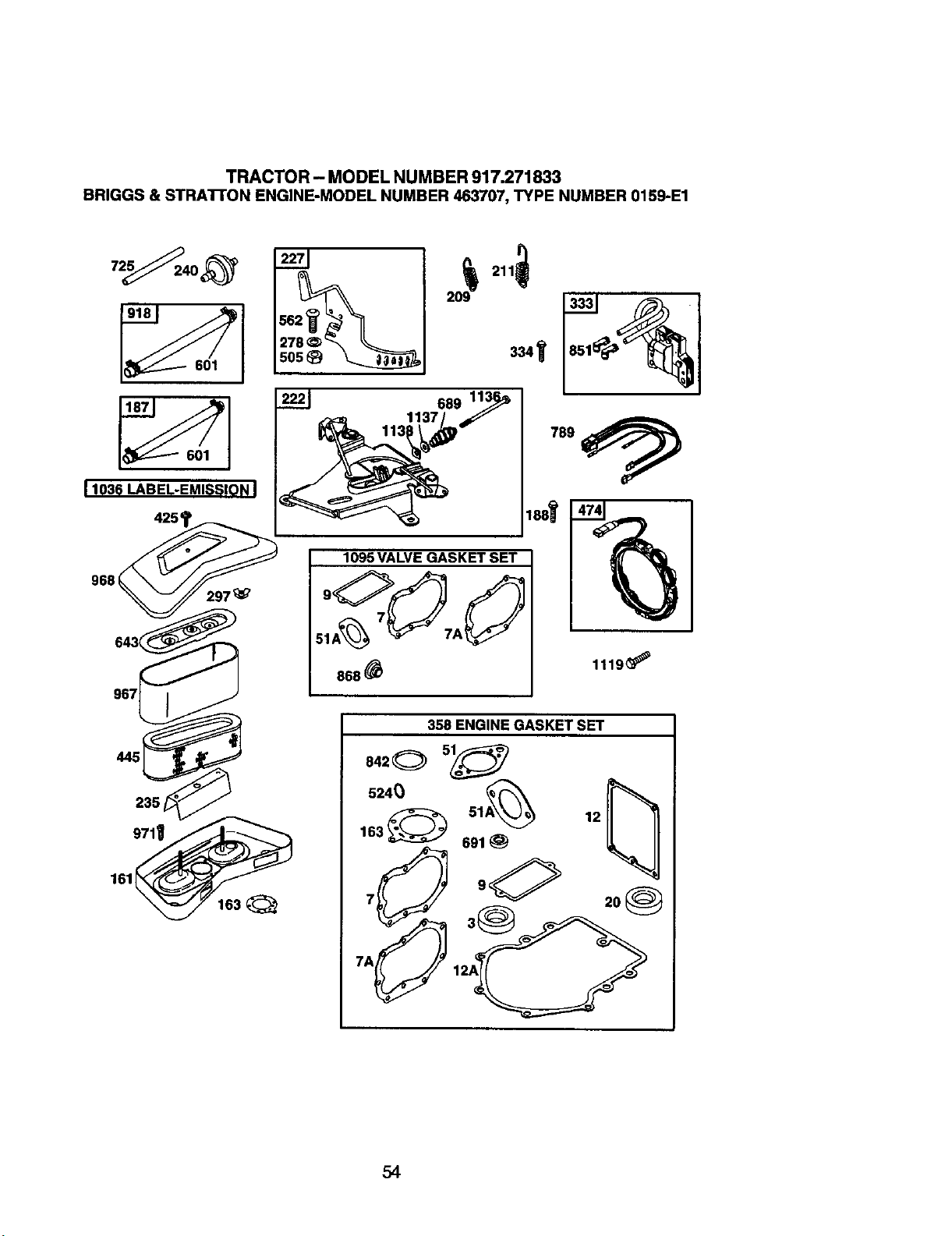

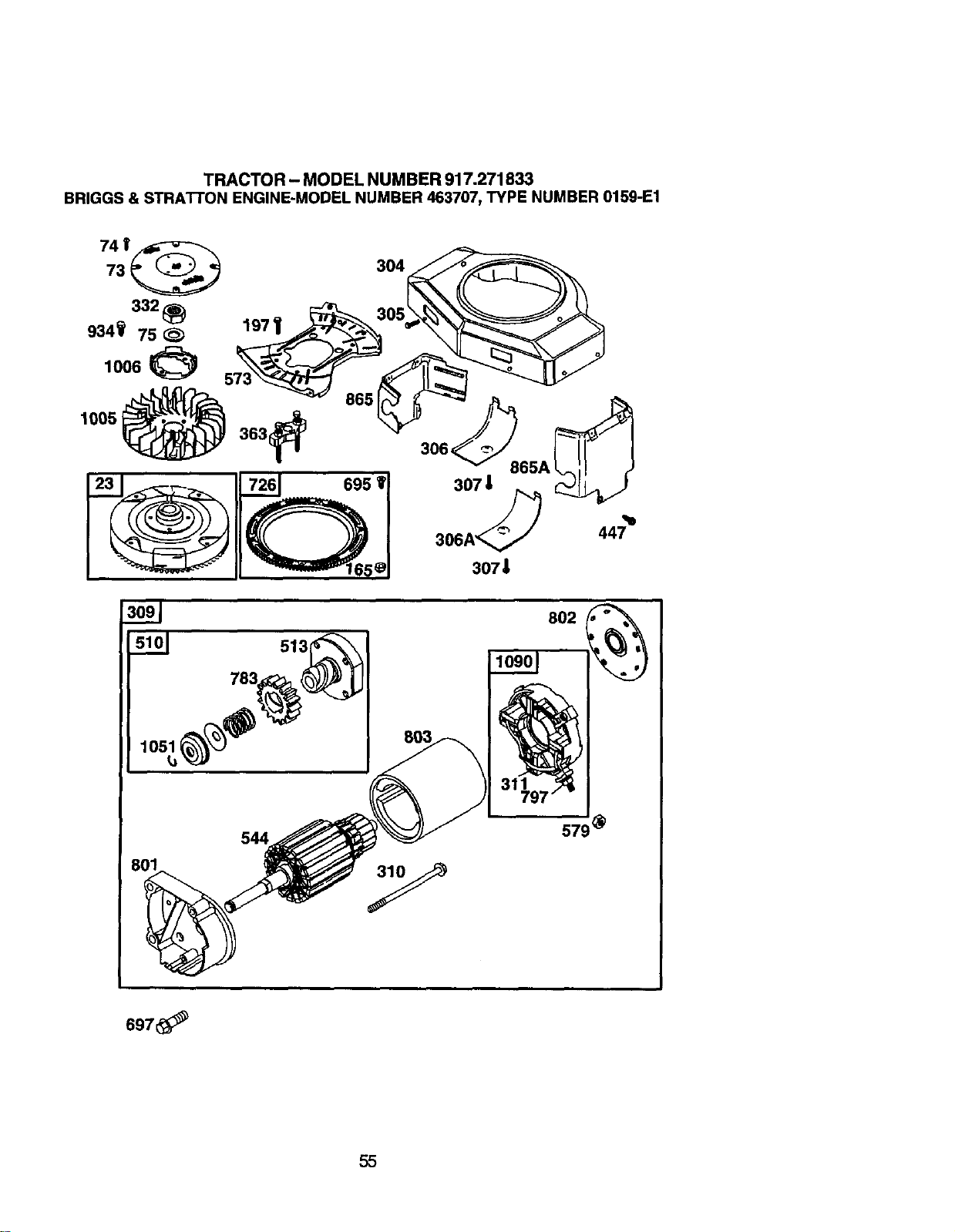

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning

your Craftsman riding equipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by returning your Craftsman riding equipment

to your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME.

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

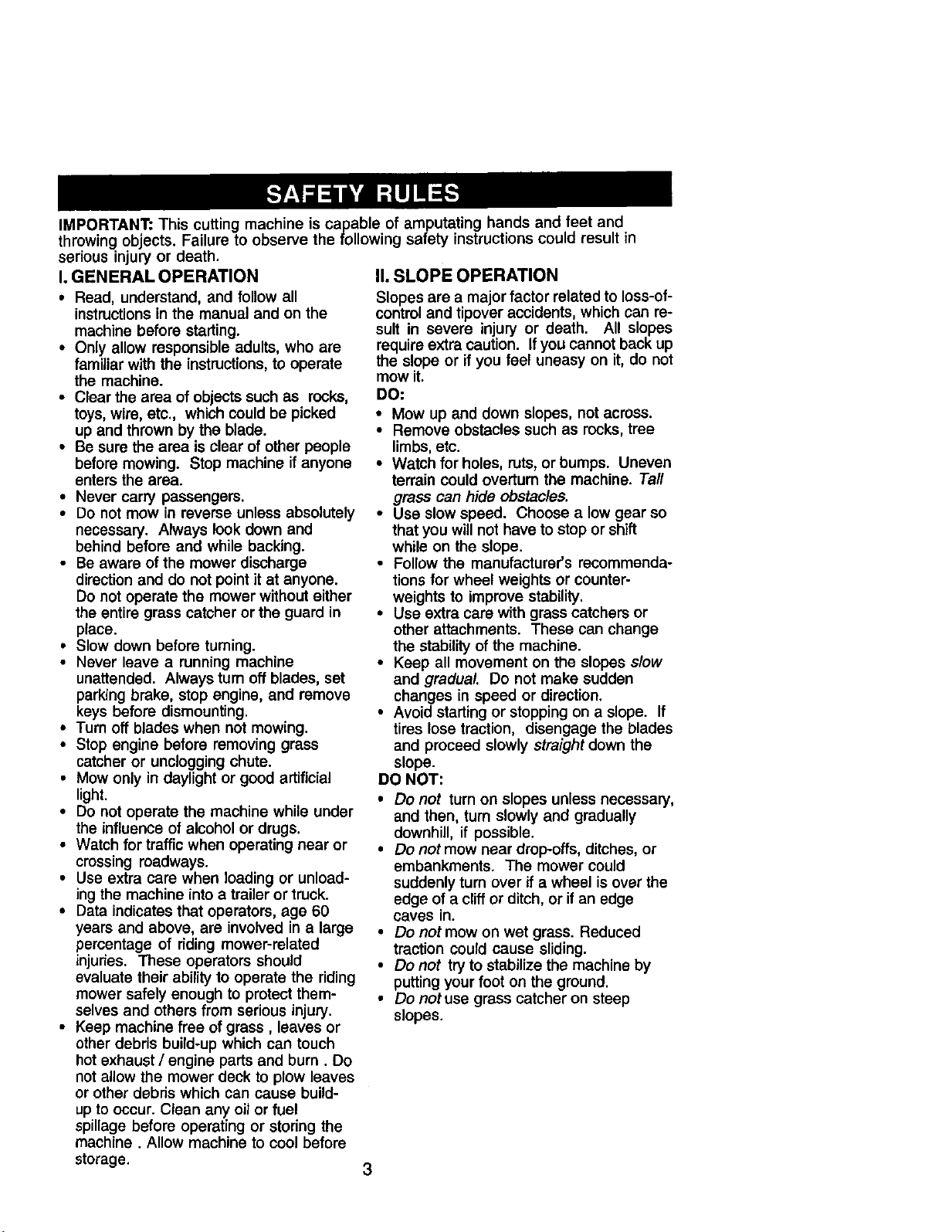

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I, GENERAL OPERATION

• Read, understand, and follow all

instructionsin the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions,to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ingthe machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debds which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a ma or factor related to loss-of-

control and tipover acc dents, whch can re-

sult in severe injury or death. All slopes

require extra caution. Ifyou cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO"

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overtum the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, tum slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or ifan edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not tryto stabilize the machine by

puttingyour foot on the ground.

• Do not use grass catcher on steep

slopes.

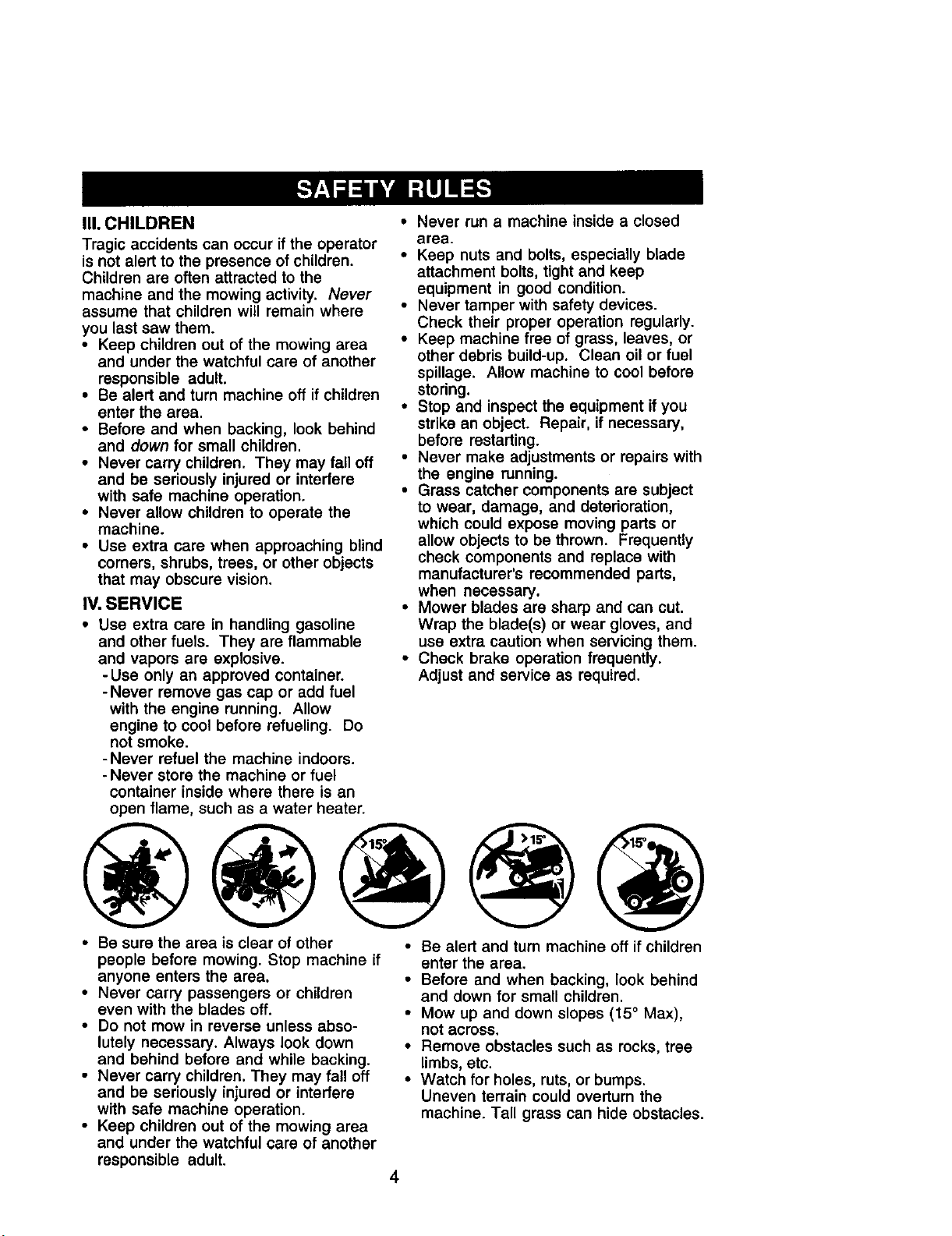

III, CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other • Be alert and turn machine off if children

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

enter the area.

• Before and when backing, look behind

and down for small children.

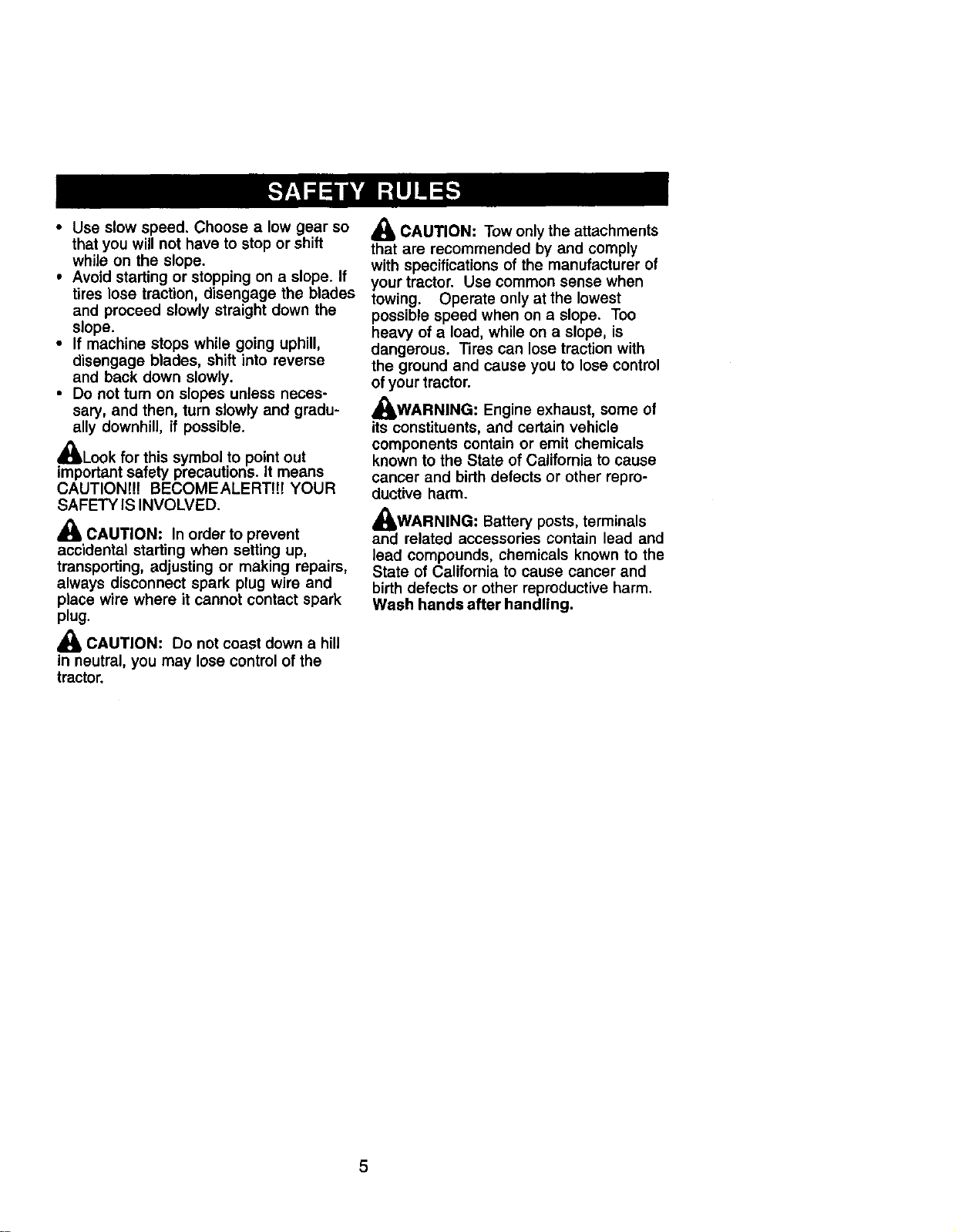

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

Look for this symbol to point out

important safety precautions. It means

CAUTIONt!f BECOMEALERTlt! YOUR

SAFETY IS INVOLVED.

,_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_1_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor,

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth detects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

_)ILTYPE SAE 30 (ABOVE 32°F)

API-SF-SJ): SAE 5W-30

(BELOW 32°F)

OILCAPACITY: 3.0 PINTS

SPARK PLUG: CHAMPION RJ19LM

GAP: .030") OR J19LM

GROUND SPEED FORWARD:

(MPH): 1sT 1.2

2"° 1.5

3R° 2.4

4TM 3.5

5TM 4,8

6TM 5.3

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING 3 AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY

RULES".Rapair AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears store

for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available

through your nearest Sears service center

(See REPAIR PARTS section of this

manual).

Steedng

Wheel Insert

Steering Wheel

(1) Hex Bolt

3/8-16 x 1

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Locknut 5/16-18

_ Steedng Wheel

, , Adapter

i i

(1) Large Rat Washer

(1) Lockwasher 3/8

Steering

Extension

Steering Shaft 0

Boot

Seat

(1) Washer

_ 7/32 x 1-3/16 x 12 Gauge

(1) Knob

Keys

(2) Keys

For Future Use

Slope Sheet

Video Cassette

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (2) 1/2" wrench

(1) Utility knife (t) Pliers

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four comers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs. torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT. Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Insert

r_ _3_sHeXBOlt

_,_ Lockwasher

_--_..._ Large Flat

Wheel _'Boot

_Tabs

Extension

Shaft _

5/16 "'_ _Adapter

Locknut -_'_-- 5/16

._ _- Hex Bolt

Lower , ":_-.....,

Steering _ _ ,"- ",

, , Tab

Shaft _,'_'_, _ ','-_-"_ .

,_-. ,-----'T_/ ,_ Slol

HOW TO SET U P YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: Ifthis battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

.~ t

INSTALL SEAT

..J

"" Label

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat Into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Flat Washer_

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor,

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_i_WARNING: Before starting, read,

unoerstana and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level end fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4, Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "OFF" position,

Continue with the instructions that follow,

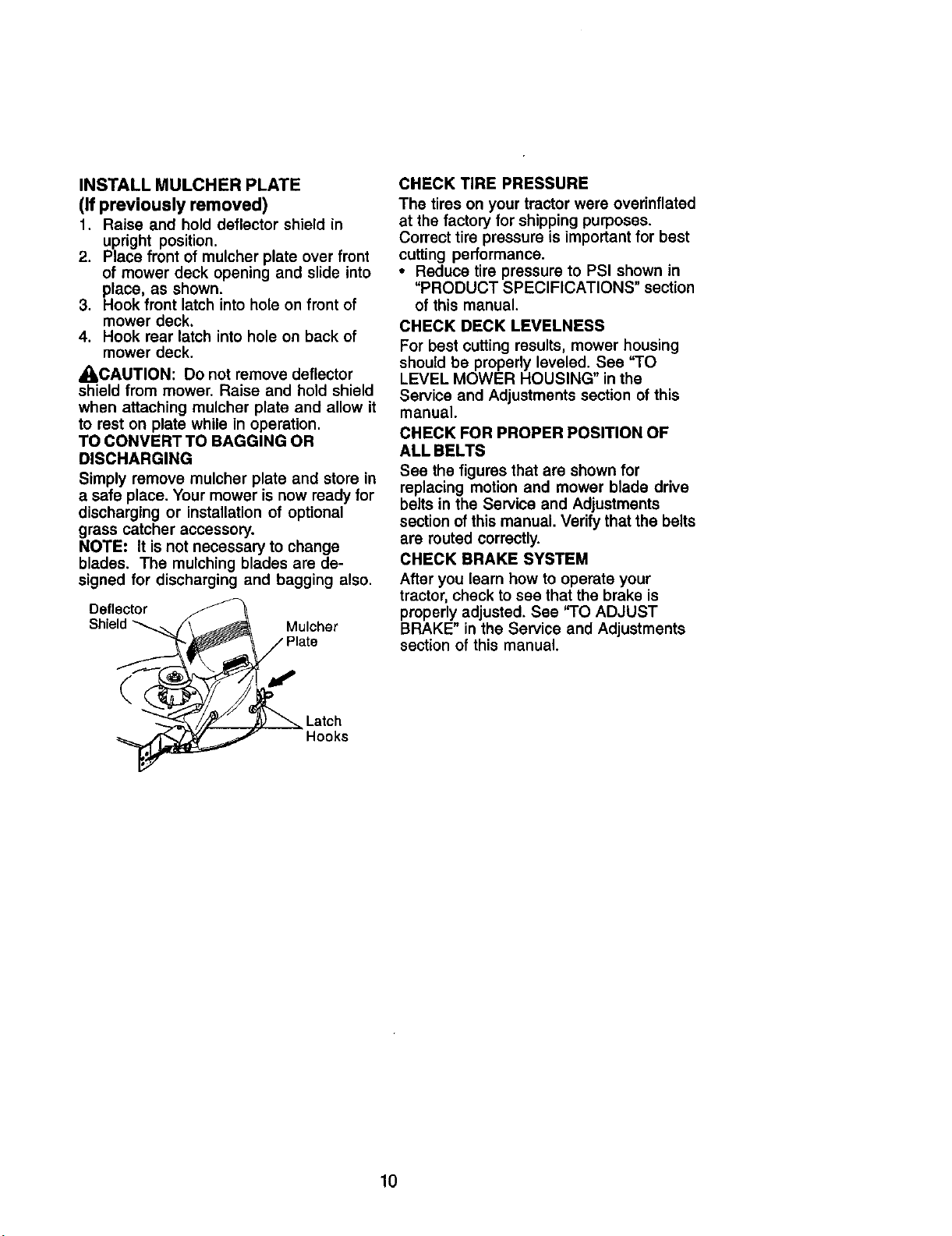

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

,_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation,

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory,

NOTE: It is not necessary to change

blades. The mulching blades are de-

signed for discharging and bagging also,

Deflector

Mulcher

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual, Verify that the belts

are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

Latch

Hooks

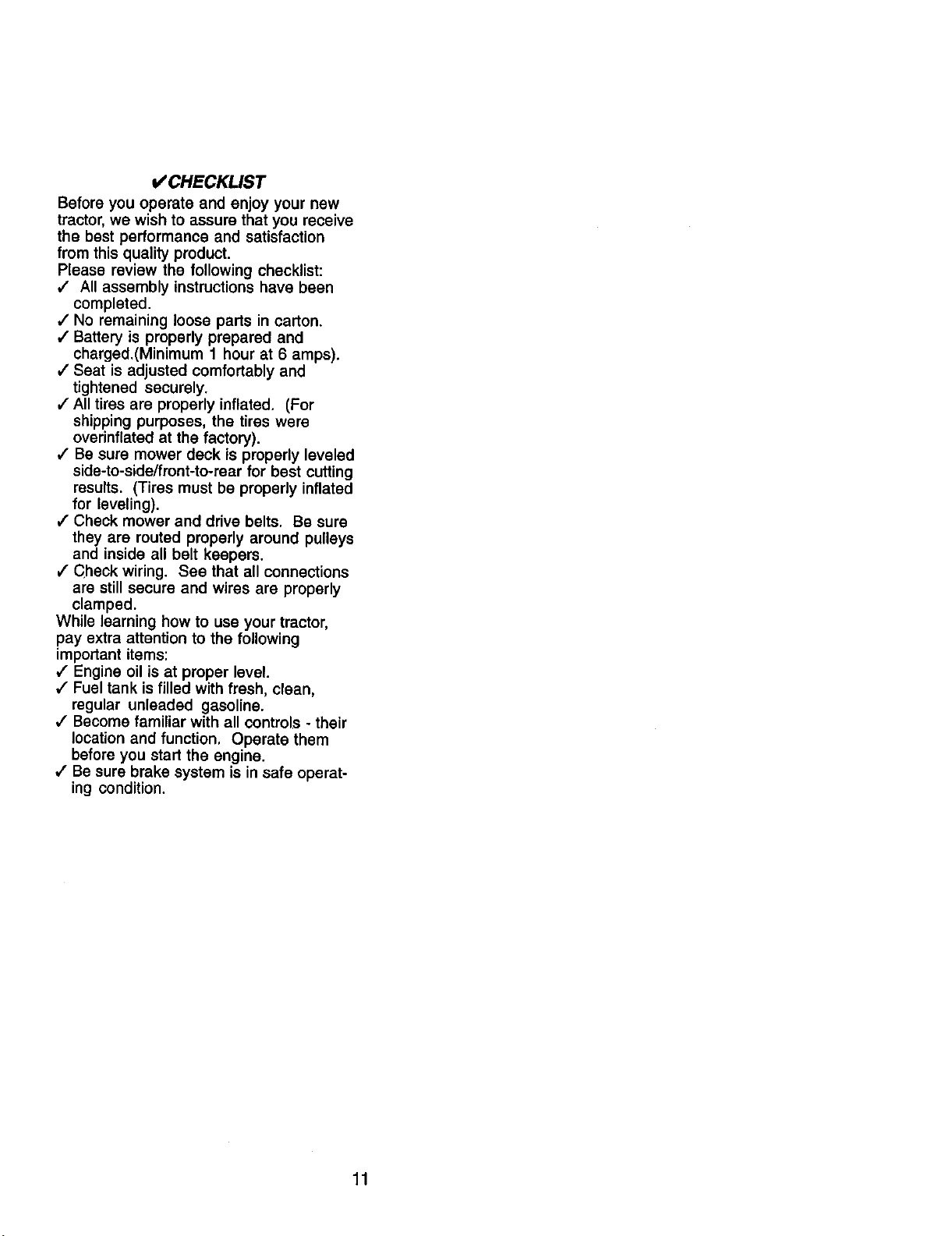

o/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this quality product.

Please review the following checklist:

/ All assembly instructions have been

completed.

#' No remaining loose parts in carton.

/ Battery is properly prepared and

oharged.(Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

/ Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

/ Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

4' Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

Become familiar with all controls - their

location and function, Operate them

before you start the engine.

/ Be sure brake system is in safe operat-

ing condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENO,NEONENG,NEOPFO,CPRE,SUREL,GHTSONOV,%_MPT

41,

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

_r_'1R N H L c®_I

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

IGNITION

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(AutomaticModels only)

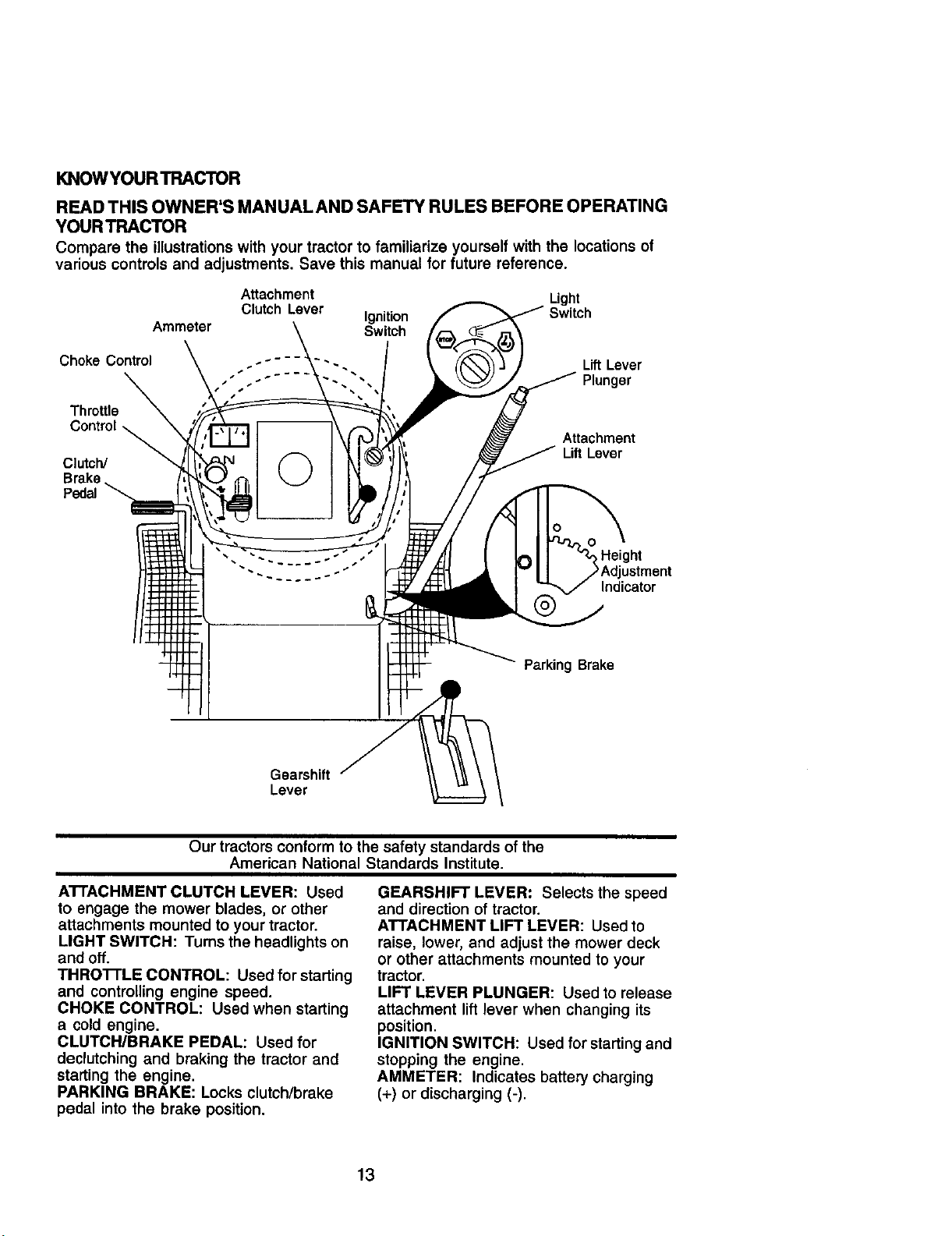

KNOWYOURTRACTOR

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING

YOURTRACTOR

Comparethe illustrationswithyourtractorto familiarizeyourselfwiththe locationsof

variouscontrolsand adjustments.Save this manualforfuturereference.

Attachment Light

Clutch Lever Ignition Switch

Ammeter Switch

Choke Control --. Lift Lever

ger

Throttle

Control _

Clutch/

Brake

Pedal

Attachment

Lilt Lever

Height

Jstment

Indicator

ParkingBrake

Gearshift

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL: Used for starting

and controlling engine speed.

CHOKE CONTROL: Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

PARKING BRAKE: Locks clutch/brake

pedal into the brake position.

GEARSHIFT LEVER: Selects the speed

and direction of tractor.

ATTACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging

(+) or discharging (-).

_ he operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles, or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

"BRAKE" position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position. Make sure parking brake will

hold tractor secure.

Choke Attachment Clutch Lever

Control "Engaged" Position

Ignition Key

Throttle gaged"

Control "_ , Position

Cluteh/Brak Parking Brake

Pedal Position

Position

"Disengaged" "Brake"

Position Position

Gearshift

Lever

STOPPING

MOWER BLADES -

• To stop mower blades,move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to =OFF' position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will cause

the battery to be discharged, (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_I, CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THRO'n'LE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACK-

WARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

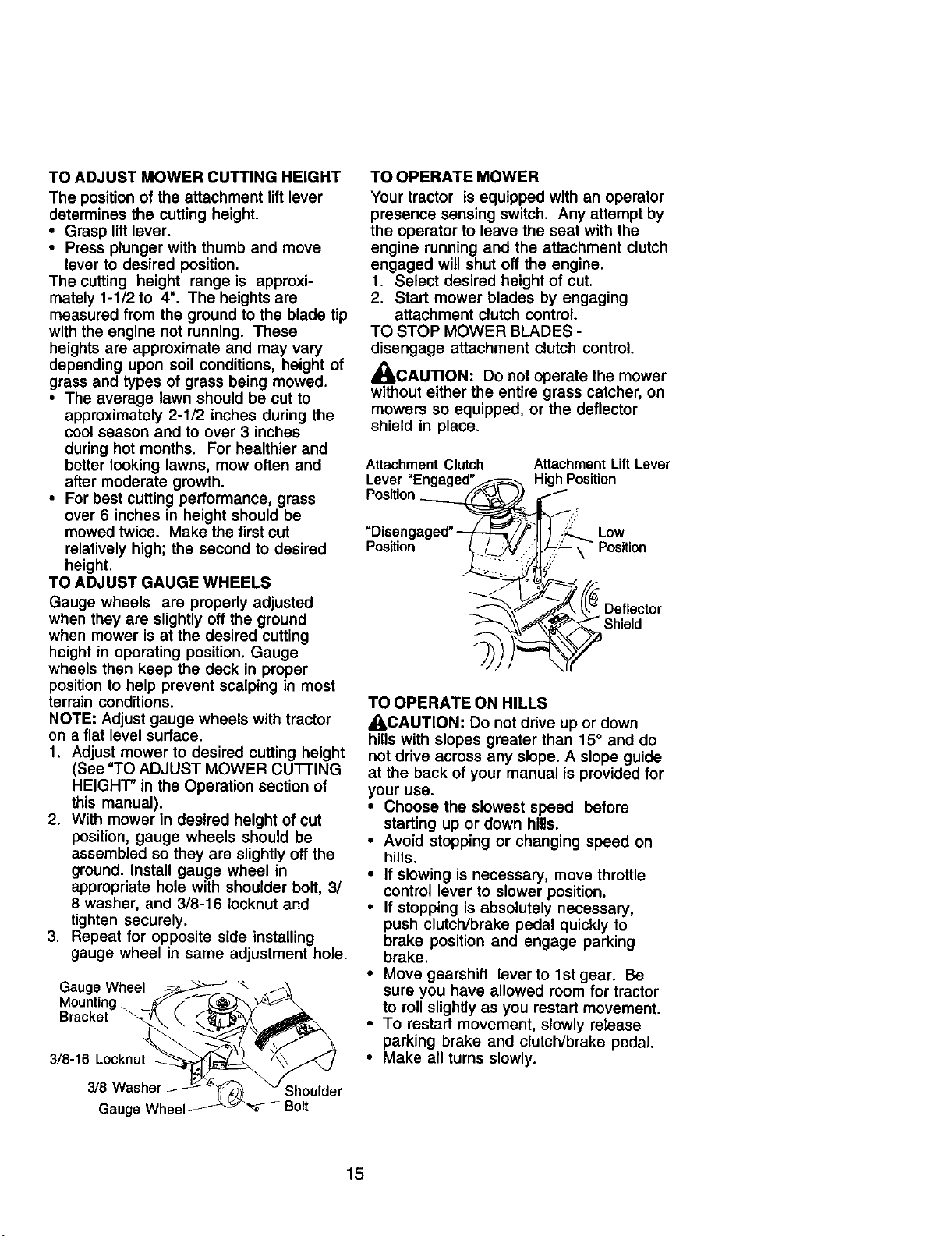

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp liftlever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side installing

gauge wheel in same adjustment hole.

Gauge Wheel _ _ _

Mounting \ ___d_-_-_

Broc e,

3/8 Washer_ 'YF)_ _' Shoulder

Gauge Wheel__ Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut oft the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control

_I_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

AttachmentClutch

Position

Attachment LiftLever

HighPosition

=Disen Low

Position Position

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. A slope guide

at the back of your manual is provided for

your use.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

ofyour tractor.

BEFORE STARTING THE ENGINE

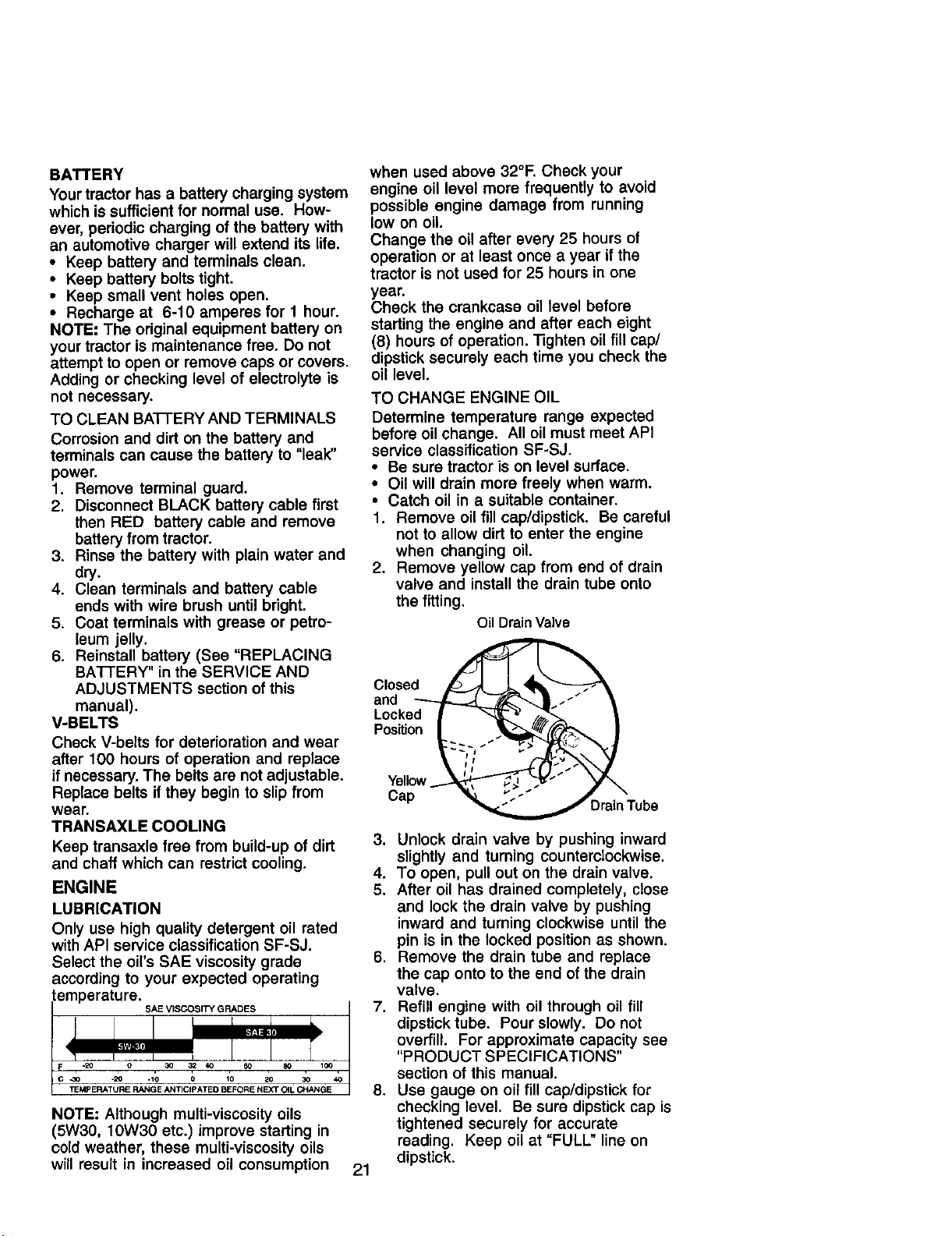

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_t, CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

When starting the enginefor the first time or if

the engine has runout offuel, it willtake extra

cranking time to move fuel from the tank to the

engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to "DISEN-

GAGED" position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

Ifthe engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

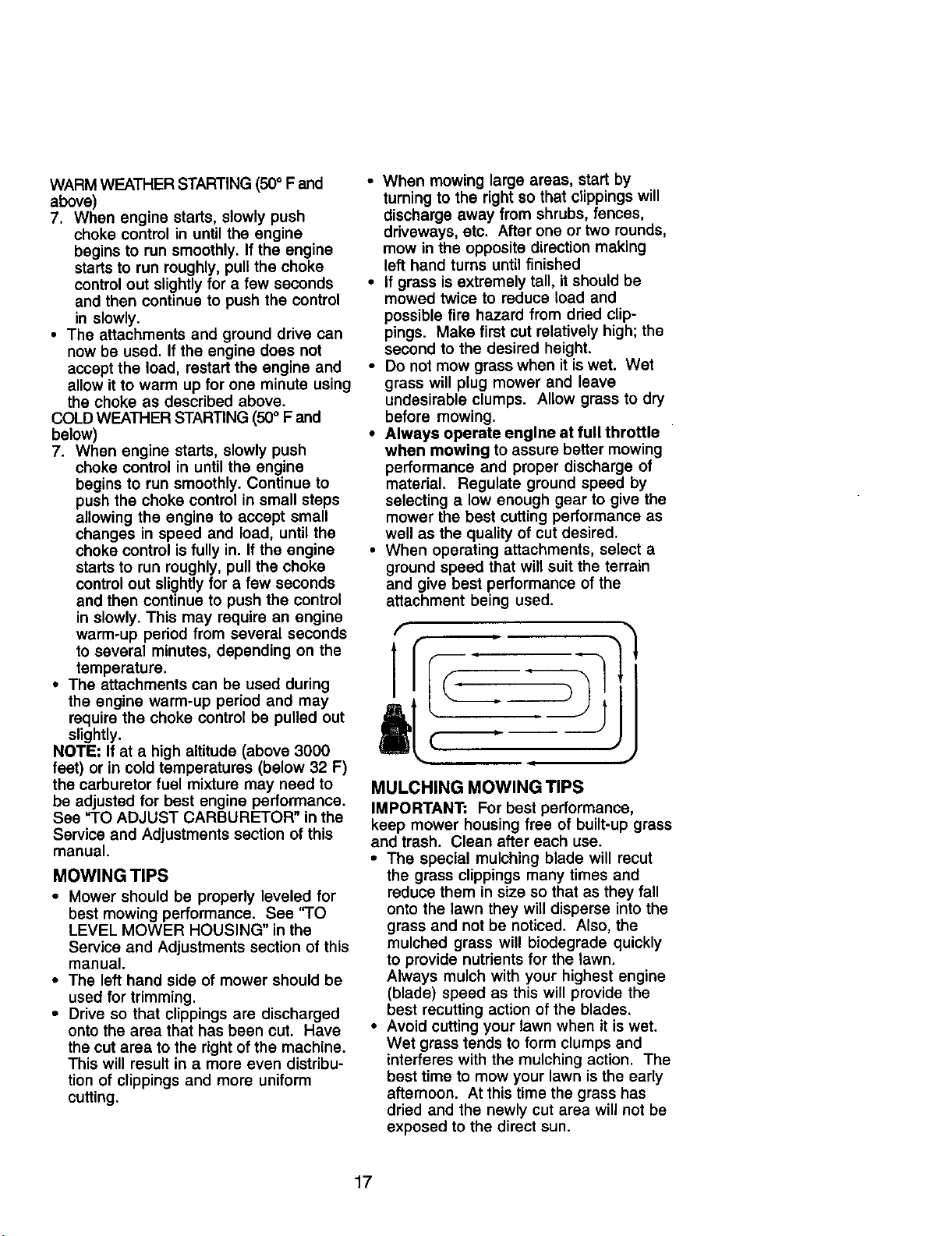

WARM WEATHER STARTING (50° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50oF and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Mower should be propedy leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the dght of the machine.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

l J

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up grass

and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

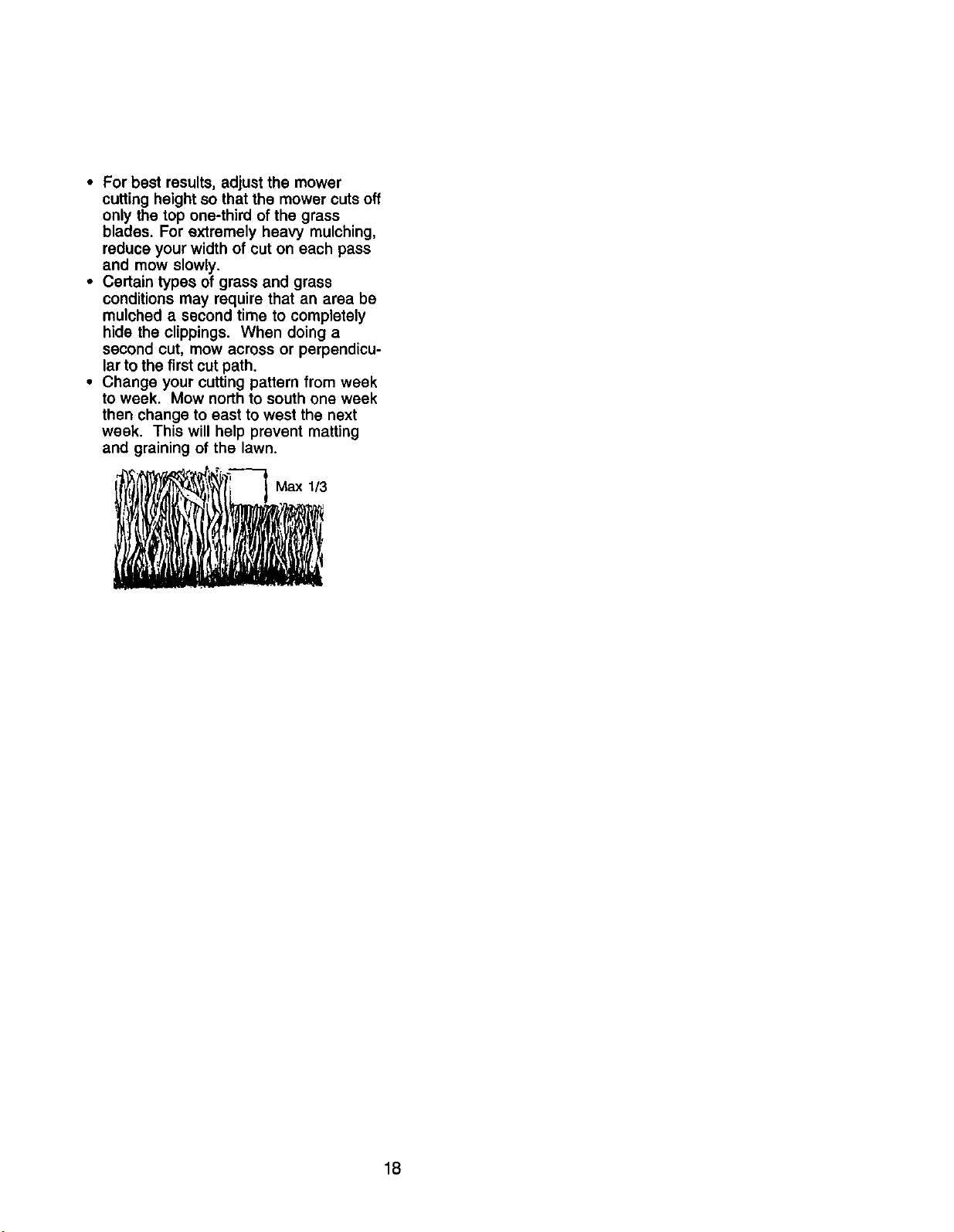

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

,,,,TE,,,CESC,EDULE

Check TirePressure II//

Check Operator Prasenee and

T InterlockSyslams If

R Check for Loose Fasteners If _f7 I#/

SharpeNReplace Mower Blades V'4

T LubricationChart If V'

0 Check BatteryLevel

R Clean Battery and Termi_ala I_ I_

Check Trans_xleCooling i/

Adjust BladeBeR(s)Tension II_s

Adjust MotionDrive Belt(e)Ter_ion Ks

Check EngineOil Level ik_ I1_

ChangeEngineOil Ik/_ b/

E Clean Air F'gtor Ifz

N Clean Ak Screen If=

Inspect Muffler/Spark An'ester I_

NE Replace Oil Rlter (If equipped) I_t;

Clean EngineCooing Fins (1_2

Replace Spark Plug if

Replace AirFilter PaperCartridge If=

Replace Fuel Filter

t "Change morec4tan _len operatingundera heaw load or In h/ghsmblenttemperate. 5 - Ifequippedw_hadjus_ble system.

2 - Servicemoreolten whenoperatingI_dirtyordeatycondltlor4, 6 - Notrequiredif eq_ed with main_nat_e-free bal_ee/

3 - Ifequippedwilh O1151te_chsngeo_1evee/50 houri, 7 - Tlgt_n fro_t axle pivotboltto 35 It,.l_:_,maritaL*m,

4 - Replacebladesmoreoftenw_n mowinginsandy =o_1, Do notm,ertighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5, Check for loose fasteners.

LUBRICATION CHART

_) Spindle

Zerk __'.:_

®Front

Wheel / i<,.,,;

Bearing _-

Zerk /

(_ Engifie _,,_-

I I

II "-r

Spindle ®

--, Bearing

_'===-----= ',_ Zerk

---' Pivots

(_SAE 30 or 10w30 motor oil

@General Purpose Grease

@Refer to Maintenance "ENGINE"

Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pew-

dered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See 'q'O ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

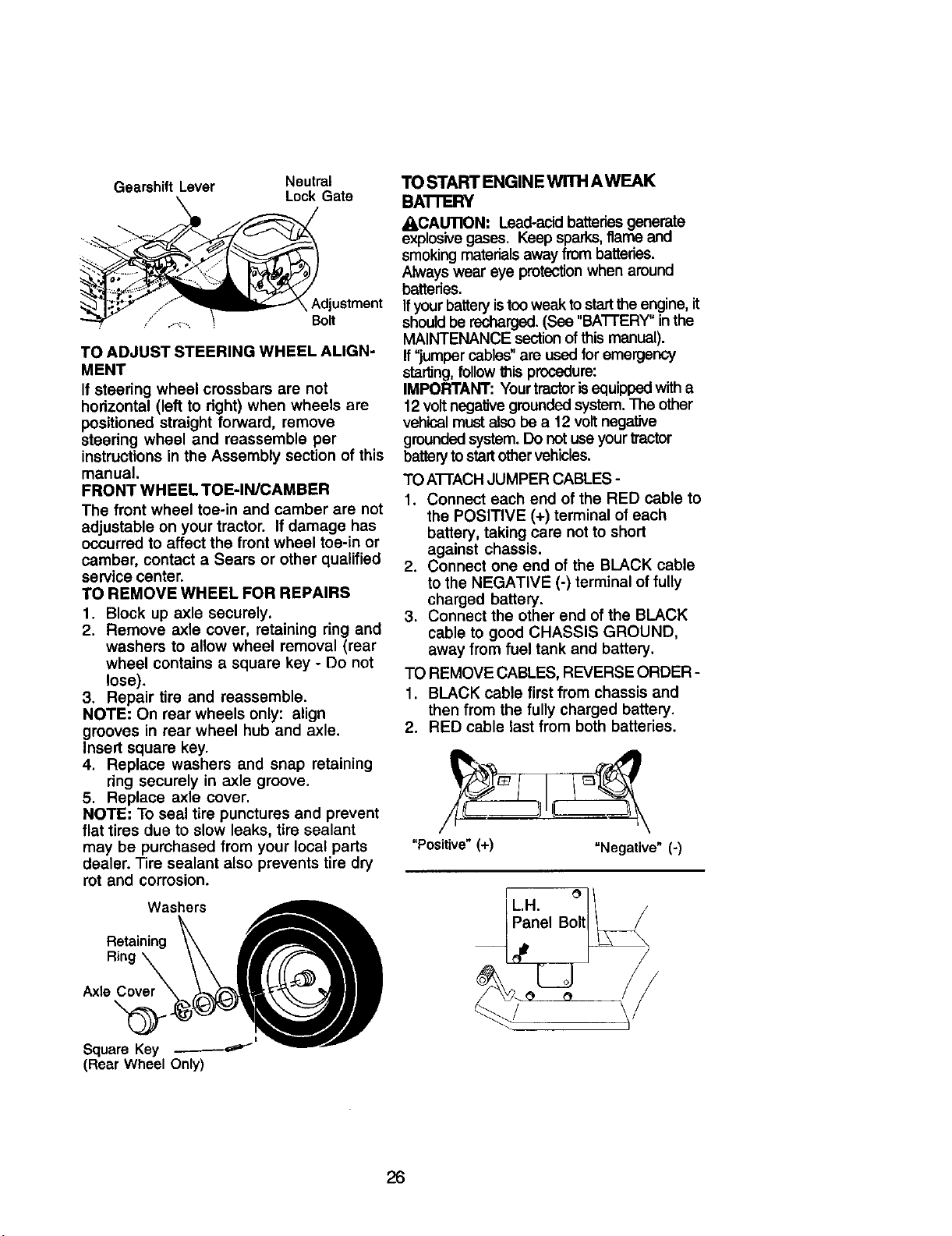

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. l]re sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as de-

scribed below, repair the problem

immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown. 20

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Trailing ,Up Mandrel Assembly

BladeCenter

Hole

c_L"Hex Bolt(Grade 8)

*A Grade8 heattreated bolt can be identified

by sixlines on the bolthead.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the blade

is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BAI-I-ERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BAI-rERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

.10 0 10 20 3=O

TEMPERATURE _ ANTIC_ATEO BEFORE NEXT OIL CPIA.NGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°E Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil DrainValve

Closed

Position _,_ ._

Ye,ow 2"-.

Cap _Drain'Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See 'q'O REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

Top Air Guide

Cover _.D

Engine Cooling "'

Fins

Air

Cover

(Both

Sides)

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every 100

hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and cartridge plate.

2. Carefully remove cartridge to prevent

debris from entering carburetor,

3. Clean cartridge by tapping gently on

flat surface.

NOTE: if very dirty or damaged, replace

cartridge.

4. Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such as

kerosene, are not to be used to clean the

cartridge. They may cause deterioration of

the cartridge. Do not oilcartridge, Do not

use pressurized air to clean or dry car-

tridge.

Cover

Knob

Wing Nut

Ca_ddge

Foam

Pre-Cleaner

Air Scre_

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline,

Clamp

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_ CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

SmallRetainer Spring

Retainer Spring

Anti-Sway

Collar

Housing

Guide

Clutch

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: Ifan attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Install mower in reverse order of

removal instructions.

Front Link

Springs

(Both Sides)

Large

Spring Bracket

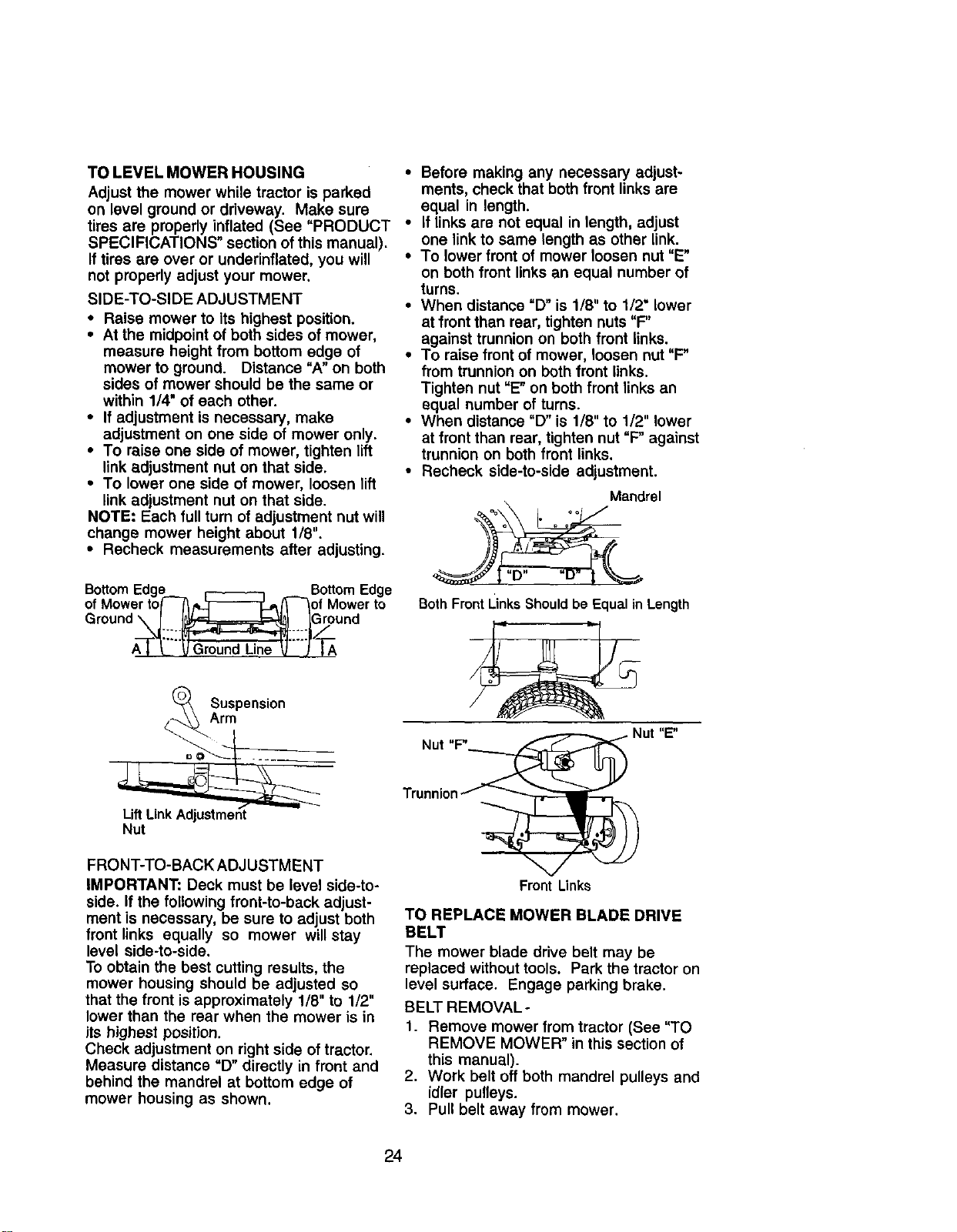

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PRODUCT

SPECIFICATIONS" section of this manual).

If tires ere over or underinflated, you will

not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut will

change mower height about 1/8".

• Recheck measurements after adjusting,

Bottom Edge _ _ Bottom Edge

ofMowerto/-_/_[_----_-'_of Mowerto

Ground\ I I_l [Ground

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front L_inksShould be Equal in Length

Suspension

Arm

Lift Link Adjustment

Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

Trunnion

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL-

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower,

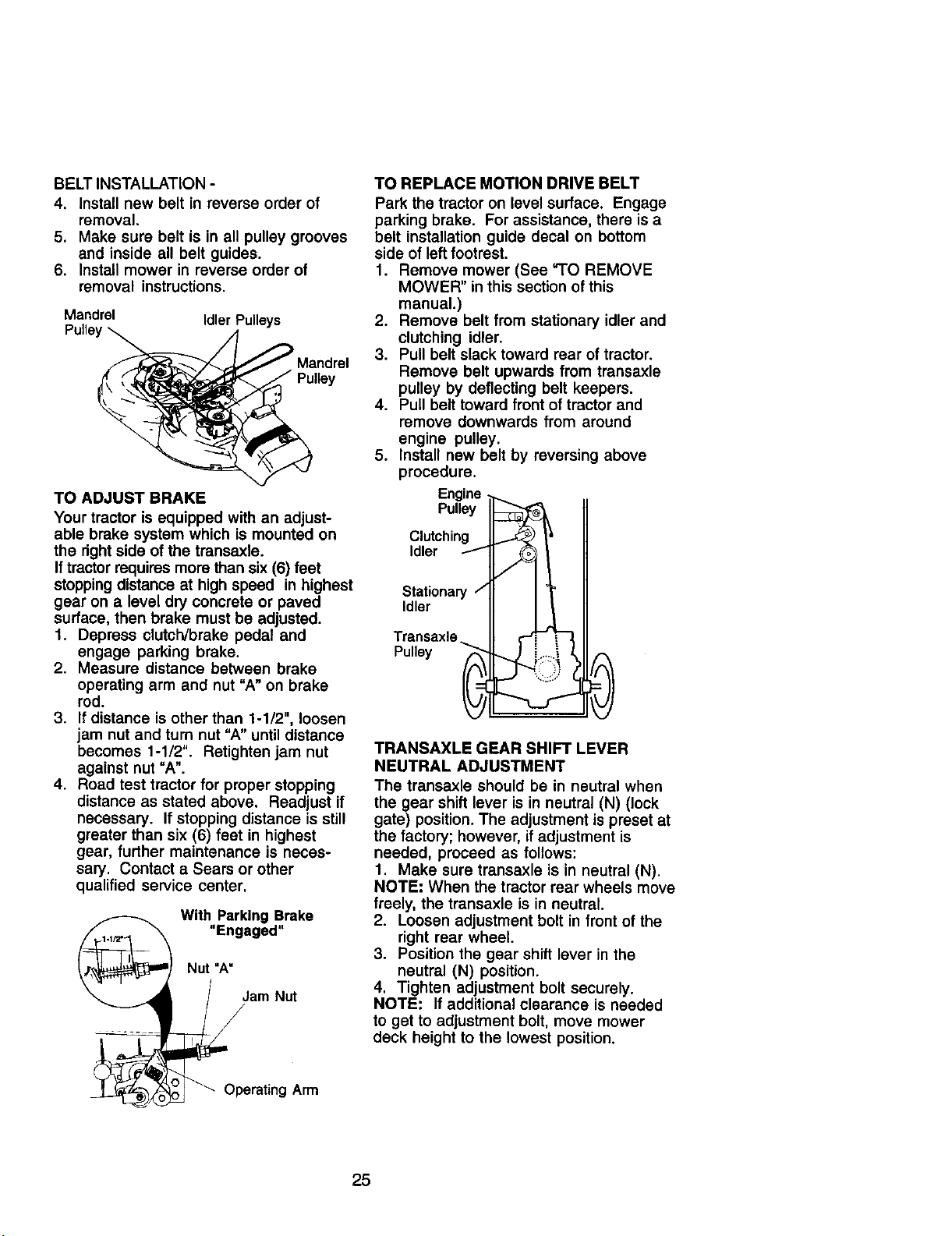

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

Mandrel Idler Pulleys

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the dght side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

san/. Contact a Sears or other

qualified service center.

With Parking Brake

"Engaged"

Nut "A"

Jam Nut

_ Operating Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

3. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

4. Pull belt toward front of tractor and

remove downwards from around

engine pulley.

5. Install new belt by reversing above

procedure.

Engine

Pulley

Clutching

Idler

Stationary /

Idler

Transaxle

Pulley

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the

neutral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral

Lock Gate

Adjustment

.... " _ Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of this

manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining _

Ring

Axle Cover \

Square Key _"

(Rear Wheel Only)

TO START ENGINE WITH AWEAK

BATFERY

_;I,CAUTION: Lead-acidbatteries generate

explosivegases. Keep spades,flame and

smokingmaterials away from batteries.

Always wear eye protectionwhen around

batteries.

Ifyourbatteryistooweak to starttheengine, it

shouldbe recharged.(Sea "BA'I-rERY" inthe

MAINTENANCE sectionofthis manual).

If "jumper cables"are used for emergency

starting,follow this procedure:

IMPORTANT: Yourtractorisequippedwitha

12 voltnegativegroundedsystem.The other

vehicalmustalso be a 12 voltnegative

groundedsystem. Do not useyour tractor

batterytostartothervehicles.

TO AI-rACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Positive" (+) =Negative" (-)

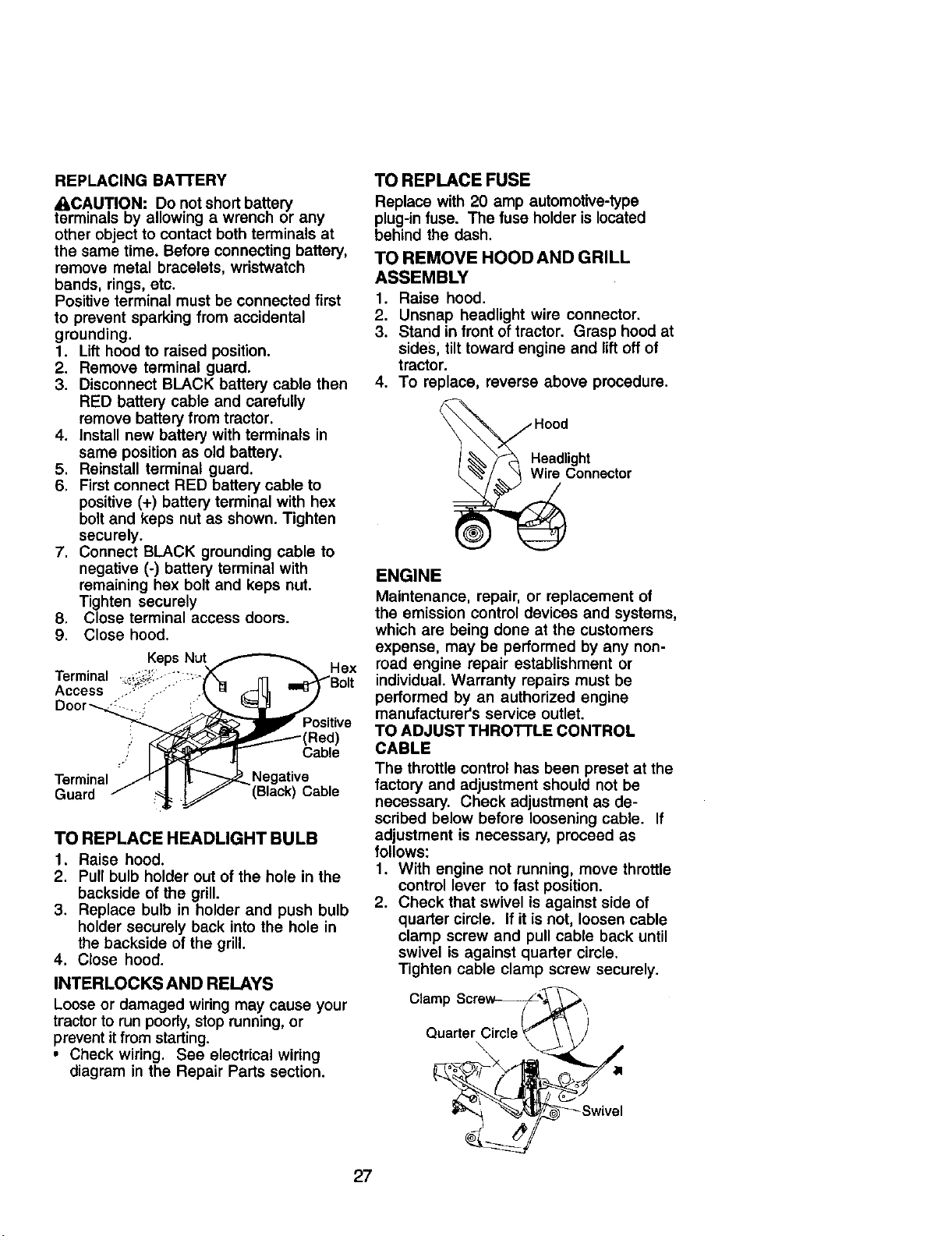

REPLACING BA'n'ERY

_,CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

boltand keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doom.

9. Close hood.

Hex

Positive

Cable

Terminal Negative

Guard Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged widng may cause your

tractorto run poorly, stop running, or

prevent it from starting.

• Check wiring• See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood•

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. To replace, reverse above procedure.

H::_ight

onnector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

read engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

Clamp Screw_,,_ ,J_\

Quarter Circle V _ \/

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Choke Closed

Casing _

sCIcarempq _ Choke

Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude or

load. If the carburetor does need adjust-

ment, proceed as follows:

In general, turning the mixture screw in

(clockwise) decreases the supply of fuel

to the engine giving a leaner fuel/air

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable and choke

are adjusted properly (see above).

2. With engine off turn idle mixture screw

In (clockwise) closing it finger tight and

then turn out (counterclockwise) 1-1/4

to 1-1/2 turns.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift] motion

control lever in neutral (N) position.

2. With throttle control lever in slow

position, hold throttle lever against idle

speed screw and adjust idle speed

screw to obtain 1200 to 1400 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

screw In (clockwise) until engine

begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any

necessary adjustments.

ldleSpeed

crew

Idle Mixture

Screw

_Throttle Lever

IdleSpeed

Screw

Throttle Idle

Lever "_. Mixture

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_I, CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower isto be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BA'I-]ERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOO_NG CHART

PROBLEM

Will not start

Nard to start

!Engine will not

turn over

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

10. Engine valves out of

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

Check all wiring.

See "To Adjust Carburetor"

in Service Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service Adjustments

section.

Contact a Sears or other

qualified service center.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

Loose or damaged wiring. 8.

Carburetor out of adjustment. 9.

adjustment.

Dirty air filter.

Bad spark plug.

Weak or dead battery.

Dirty fuel filter. 4.

Stale or dirty fuel. 5.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

Engine valves out of 8.

adjustment.

Clutch/brake pedal not 1.

depressed.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

Depress clutch/brake

pedal.

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Engine clicks but 1. Recharge or replace battery.

!2 Clean battery terminals.

will not start ,,i Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART

CORRECTIONPROBLEM

LOSSof power

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves 3.

and trash under mower.

4. Dirty air filter. 4.

5. Low oil level/didy oil. 5.

6. Faulty spark plug. 6.

7. Dirty fuel filter. 7.

8. Stale or dirty fuel. 8.

9, Water in fuel. 9.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

f4. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety 1.

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure-

tor, refilltank with fresh

gasoline and replace fuel

tilter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged pads.

Check wiring, switches and

connections, If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Mower blades will 1. Remove obstruction.

not rotate

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel,

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

_1. Obstruction in clutch

mechanism.

'2, Worn/damaged mower

ddve belt.

3, Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

'3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

' and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

i 1. Switch is"OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade,

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4._lace alternatoc

1. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

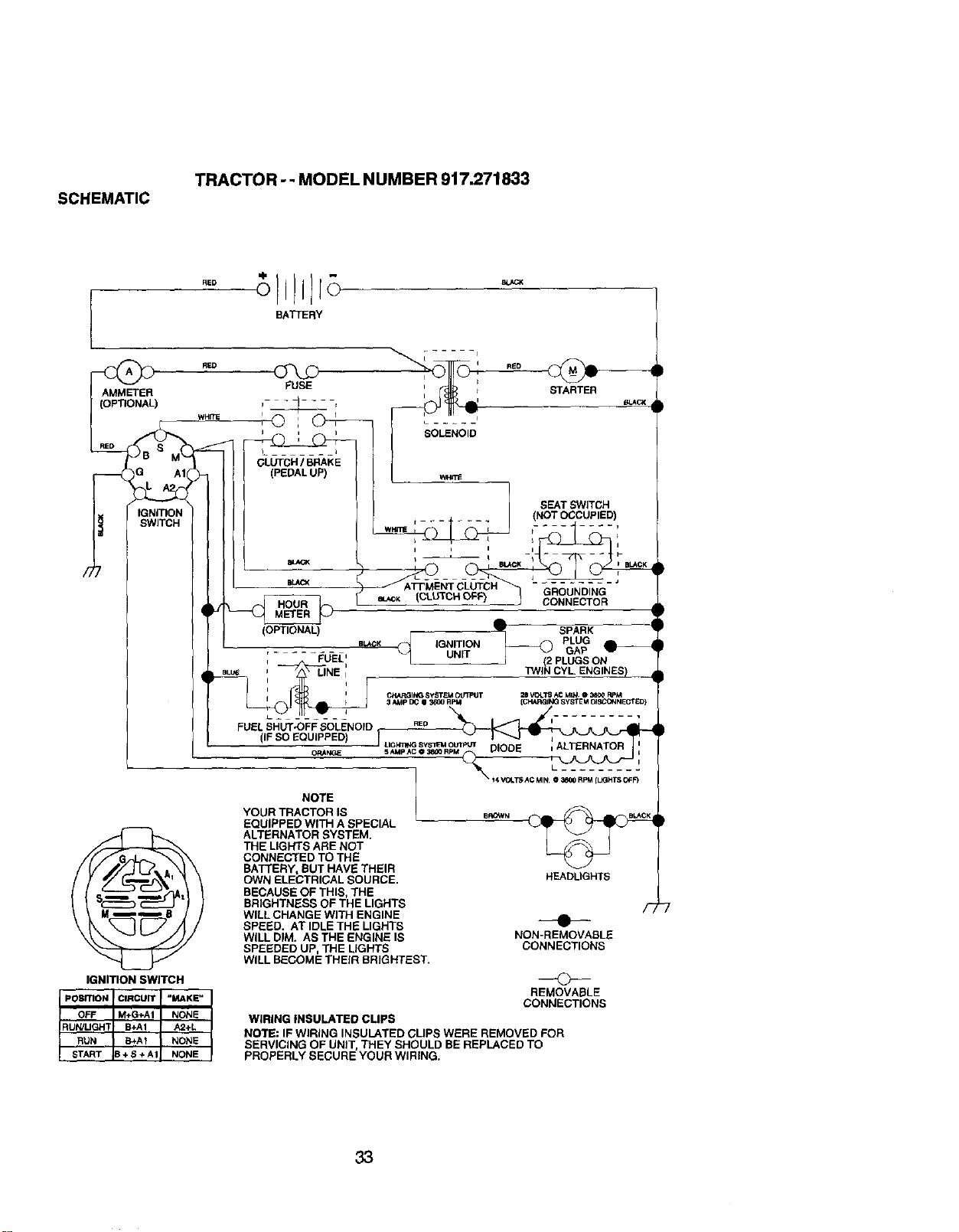

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.271833

BATTERY

RED

AMMETER

(OPTIONAL)

WHIT_

)G AI(

IGNITION

SWITCH

IGNmON SWITCH

FUSE

L ..... I

SOLENOID

(CLUTCHOFF)

,,E0 _ )

STARTER

SEATSWITCH

(NOTOCCUPIED)

_(2 SPARK

(_ IGNITION PLUG

UNIT GAP

PLUGSON

TWiNCYL ENGINES __9

2B VOLTi3 AC M,_ O 3_O0 RPM

3AMp DC g 3_00 RPM (CP:ARGING SYSTEM OISCCNN_'_D)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, RUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LfGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

REMOVASLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.271833

iI II

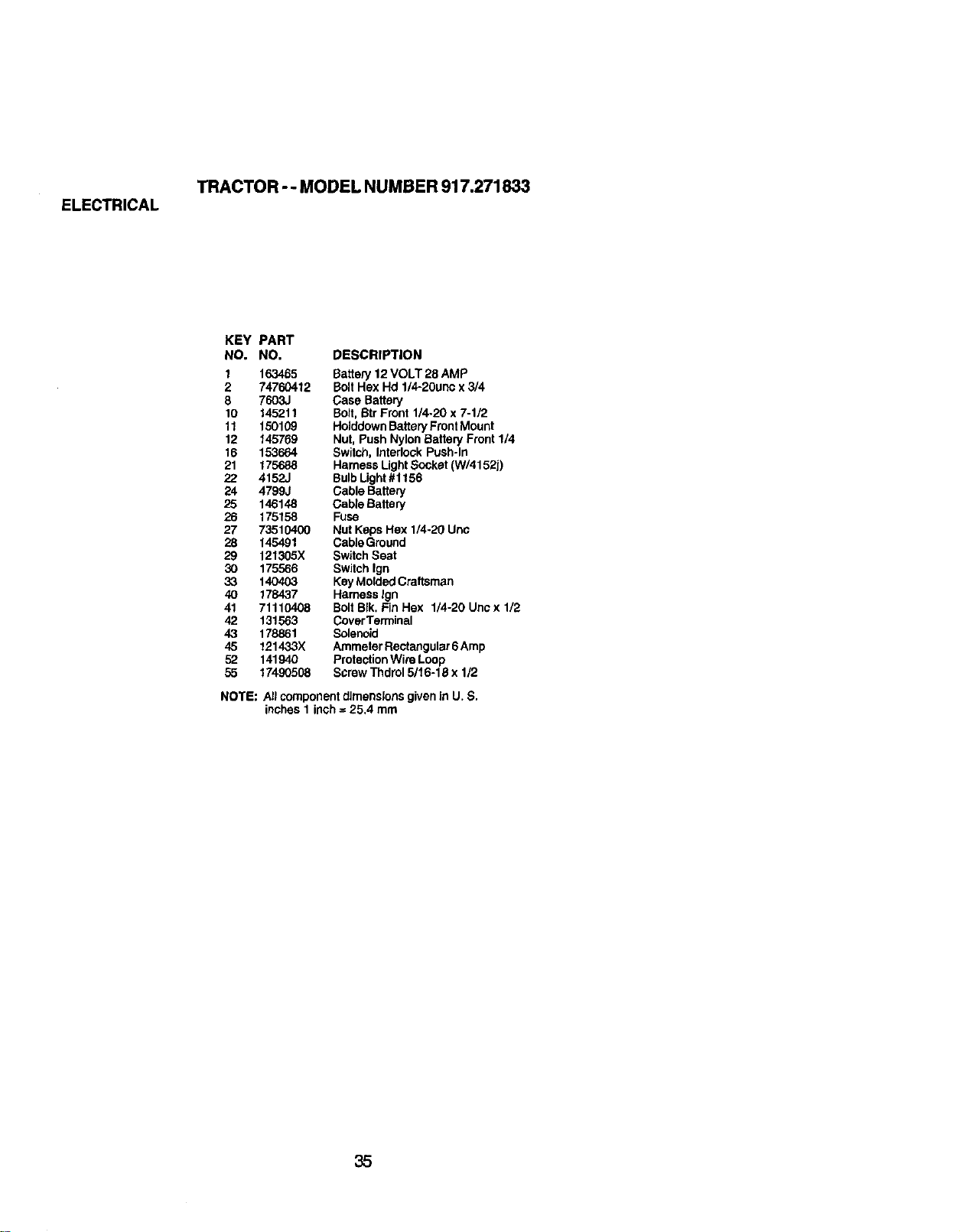

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.271833

KEY PART

NO. NO, DESCRIPTION

1 163465 Battery 12 VOLT 28 AMP

2 74760412 Bolt Hex Hd 1/4-20unc x 3/4

8 7603J Case Battery

10 145211 Bolt, Rtr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery FrontMount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch, Interlock Push-In

21 175688 Harness Ught Socket (W/4152j)

22 4152J Bulb Light #1156

24 4799J Gable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 145491 Cable Ground

29 121305X Switch Seat

30 175566 Switch Ign

33 140403 KeyMolded Craftsman

40 178437 Harness Ign

41 71110408 Bolt BIk. Fin Hex 1/4-20 Unc x 1/2

42 131563 CoverTerminal

43 178861 Solenoid

45 121433X Ammeter Rectangular 6Amp

52 141940 Protection Wire Loop

55 17490508 ScmwThdro15/'T6-18x112

NOTE: Allcomponent dimensions given in U. S.

inches I inch = 25.4 mm

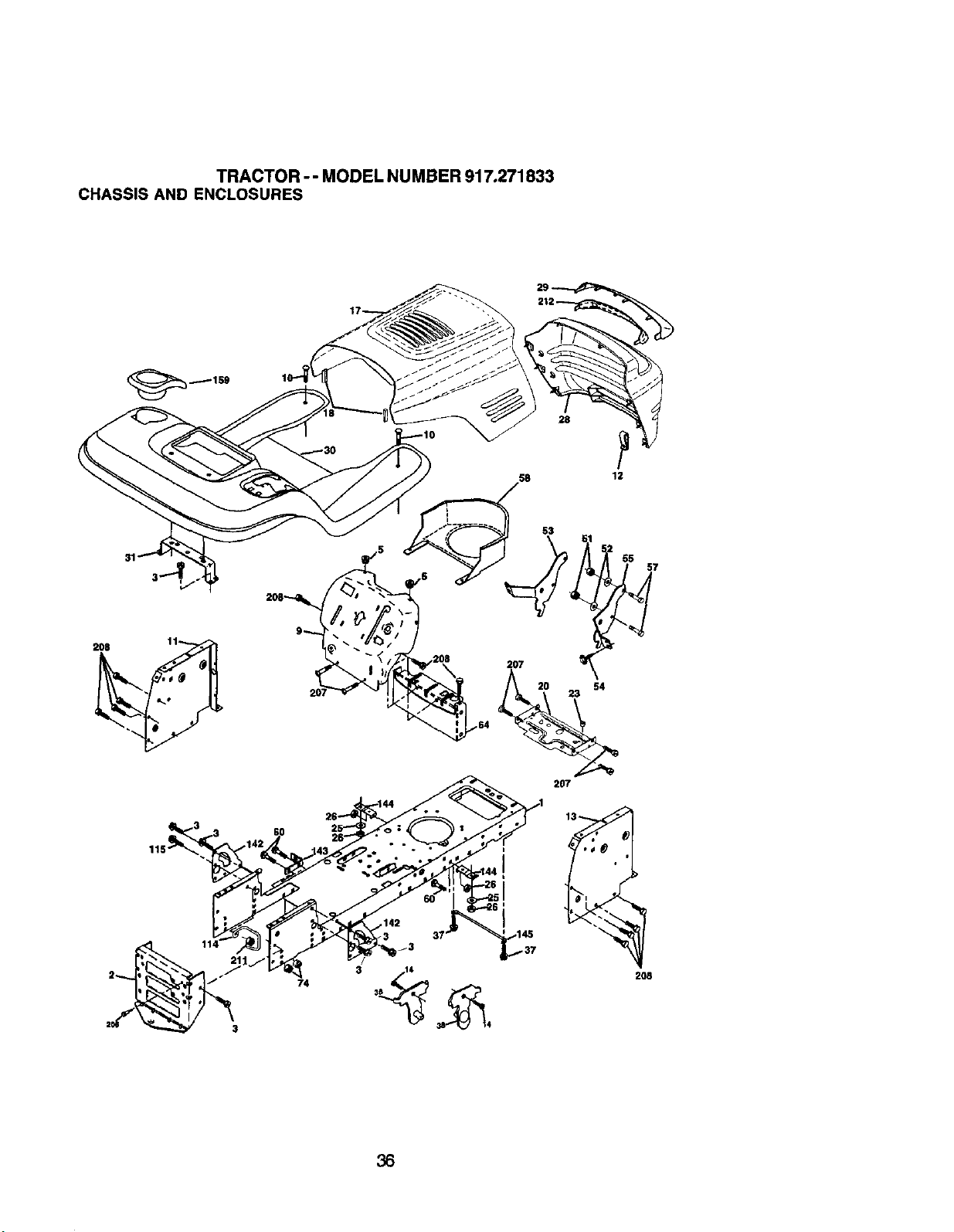

TRACTOR- - MODEL NUMBER 917.271833

CHASSIS AND ENCLOSURES

3 14

2O7

2O8

TRACTOR-- MODEL NUMBER 917,271833

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis Assembly

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 Bumper Hood/Dash

9 168337X013 Dash

10 TD533710 Bolt, Carriage 3/8_16 x 1

11 155927 Panel, Dash, L.H.

12 145660 ClipTInnerman Grille P/L

13 172107)(010 Panel, Dash, R.H.

14 17490608 Screw Thdrut 3/3-16 x 1/2

17 144983X55B HoodAssembJy

t8 126938X BumperHood

20 156437 Plate Mtg BatteP/Fuel Tank

23 124028X Bushing, Snap, Nylon, Fuel Line

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Locknut, Hex, with Insert 3/9-16 Uns

28 178987X555 Grille/Lens Asm

29 155217X599 Lens, Gdlle

30 175692X558 Fend/Ftrast

31 139976 Bracket, Fender Support

37 17490508 Scraw Thdrol 5/16-18 x ti2

38 175710 Pivot Bracket Assembly

51 73800400 Nut Lock w/Insert 1/4-20 UNC

52 19G91416 Washer 9/32 x 7/8 x 16 Ga.

53 145201 Bracket Grille Pickoff LH

54 161464 Screw Hex Wshd 8-18 x 7/8

55 145202 Bracket Grille Pickoff RH

57 STD522507 Bolt, Fin Hex 1/4-20 UNC x .75

58 140547 Air Duct P/L B&S

60 STD533707 Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

64 154798 Dash LowerSTLT

74 STD541437 NutCrownlock 3/8-16UNC

1t4 158112 Keeper Belt Rear Lh Stl

115 17060620 Screw 3/8-16 x 1-1/4

142 175702 Plate Reinfomement STLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Rood

159 155t23X428 Cupholder

206 170165 BoltShoulder 5/16-18 Tr

207 17670508 Screw Thdrol 5/16-16 x 1/2

208 17670609 Scraw Thdrol 3/8-16 x 1/2

211 145212 Nut Hexflange Lock

212 165919 Insert Lens Reflective

- - 5479J Plug Button

NOTE: Afl Component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR- - MODEL NUMBER 917.271833

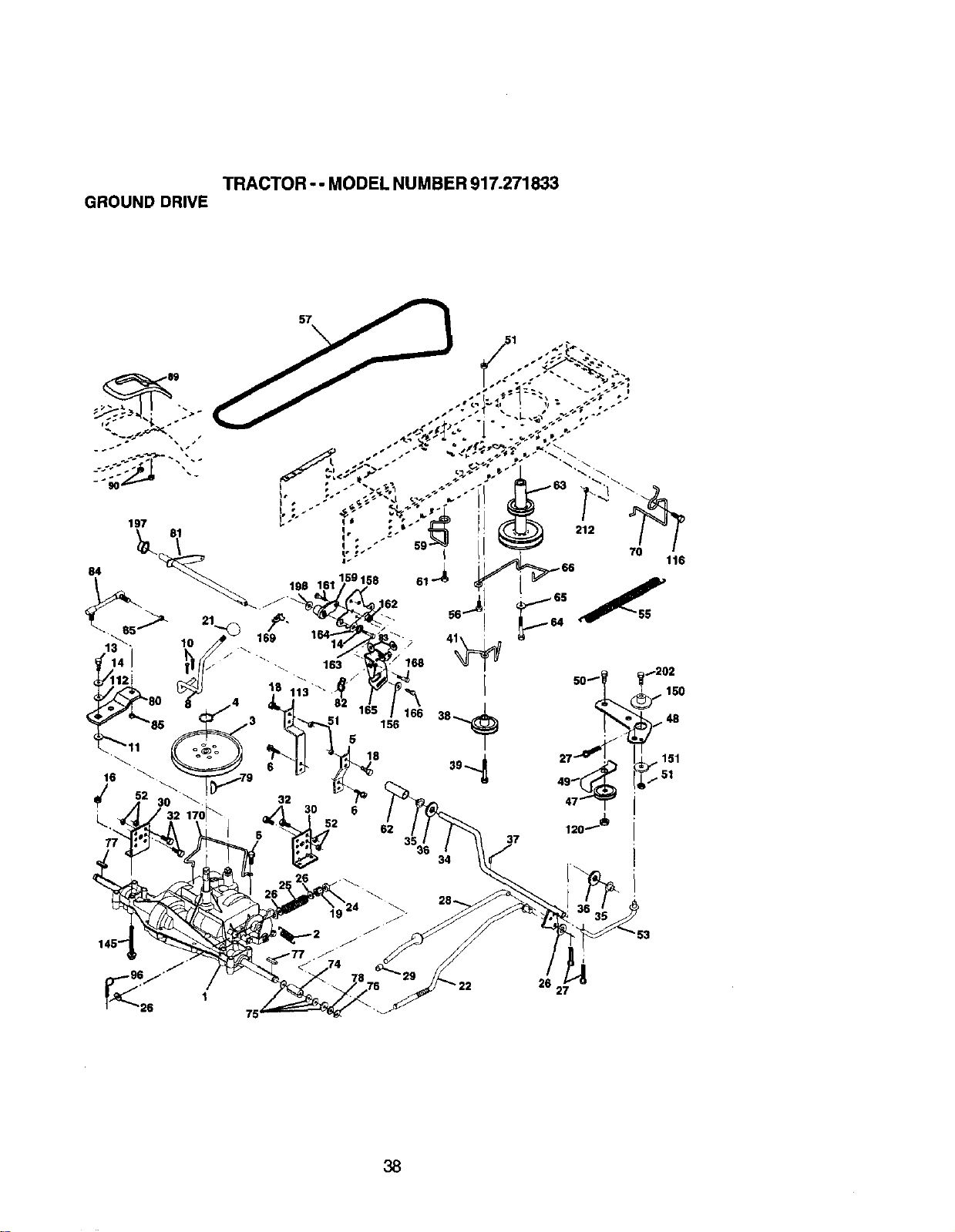

GROUND DRIVE

TRACTOR - - MODEL NUMBER 917.271833

GROUND DRIVE

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 ........ Tronsaxle (See Breakdown) 64 71170764 Bolt, Hex 7/18-20 x 4 Grade 5

Peedeas 206-545C 65 STD551143 Washer

2 146682 Spdng, Return, Broke 66 154778 Keeper, Belt, Engine, Fool-Proof

3 123666X Pulley, Transaxle 70 134683 Guide, Mower Drive Belt, R.H.

4 12000028 Ring, Retainer 74 137057 Spacer, Axle

5 121520X Strap,Torque 75 121749X Washer 25/32 x 1-1/4 x 18 Ga.

6 17060512 Screw 5/18-16 x 3/4 78 STD581075 E-Ring

8 165866 RodShifterFenderSTLT 77 123583X Kay, Square 2.0 x .1845/.1865

10 STD561210 Pin, Cotter 78 !21748X Washer 25/32 x 1-5/8 x 16 Ga

11 105701X Washer, Shift Plata 79 STD580025 Key Woodruff

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 80 145090 Arm, Shift

14 10040400 Washer Lock Hvy Helical 81 165592 Shaft Asm Cross Tapered 650 20

16 73800500 Nut Lock Hx W/Ins 5/16-18 82 165711 Spring, Torsion

18 STD523710 SoltFinHex3/8-16UNCx1Gr5 83 19171216 Washer 17i32x3/4x16Ga.

19 STD541437 Nut 84 166231 Unk Tronsaxle

21 106933X Knob 85 150360 Nut, Nylock

22 130804 Rod, Brake 89 15839tX428 Console, Shift, STLT

24 STD541237 NUt 90 124346X Nut, Salf-Thding, Wsh Hd 1/4

25 106888X Spdng, Broke Rod 96 STD62.4003 RetainerSpring 1"

26 S'1"D551037 Washer 112 18091210 Washer 9/32 x 3/4 x 10 Gauge

27 S'f0561210 Pin 113 127285X StropTorquegODegroas

28 175765 Rod, Parking Brake 116 72140608 Bolt Rdhd Sqneck 3/8-16 x 1

29 71673 Cap, Parking Brake 120 73_X)600 Nut Lock Fig. 3/8-16

30 169592 Bracket, Transaxle 145 74490540 Bolt, Hex F3ghd 5/16-18 Gr. 5

32 S'rD523107 Bolt 150 175456 SpacerRetainar

34 175578 Shaft Assembly, Foot Pedal 151 19133210 Washer 13/32 x 2 x 10 Ga.

35 120183X Bearing, Nylon 156 166002 Washer Srrtecl 5/161D x 1.125

36 STD551062 Washer 158 165589 Bracket Shift Mount

37 STD571810 Roll Pin 159 165494 Hub Tapered Flange Shift Lt

38 179114 Pulley, Composite, Flat 161 72140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

39 74760648 Bolt Fin Hex 3/8-16 x 3 162 73680400 Nut Crownlock 1/4-20 Unc

41 175556 Keeper, Bait, Idler 163 74780416 Bolt Hex Fin 1/4-20Unc x 1 Gr 5

47 127783 Pulley, Idler, V-Groove, Plastic 164 19091010 Washer 5/8 x .281 x 10 Ga

48 154407 Bellcronk Clutch Grnd Dr,,'Stl 165 165623 Bracket Pivot Lever

49 123205X Retainer, Belt 166 166880 Screw 5/16-18 x 5/8

50 STD523715 Bolt 168 165492 Bolt Shoeldar 5/16-18 x .561

51 $17D541437 NutCrownLock3/8o16UNC 169 165580 Plata Fastening Lt

52 STD541431 NutCrownLock5/16-18UNC 170 178394 KeaperBeltTransaxleGear

53 105710X Link, Clutch 197 169613 NylinerSnap-ln

55 105709X Spdng, Clutch Return 198 169593 Washer Nyiiner

56 17060520 Screw 3/8-16 x 1-1/4 202 72110614 Bolt Carr. SH 3/8-16 x 1-3/4

57 130801 V-Belt, Ground Drive 212 145212 Nut Hex Fig. Lock

59 169691 Keeper, Belt, Center Span

61 17060614 Screw 3/8-18 x .875

62 8883R Cover, Pedal NOTE: All component dimensions given in U. S.

63 175410 PUtLe'J,1Engine inches 1 inch = 25,4 mm

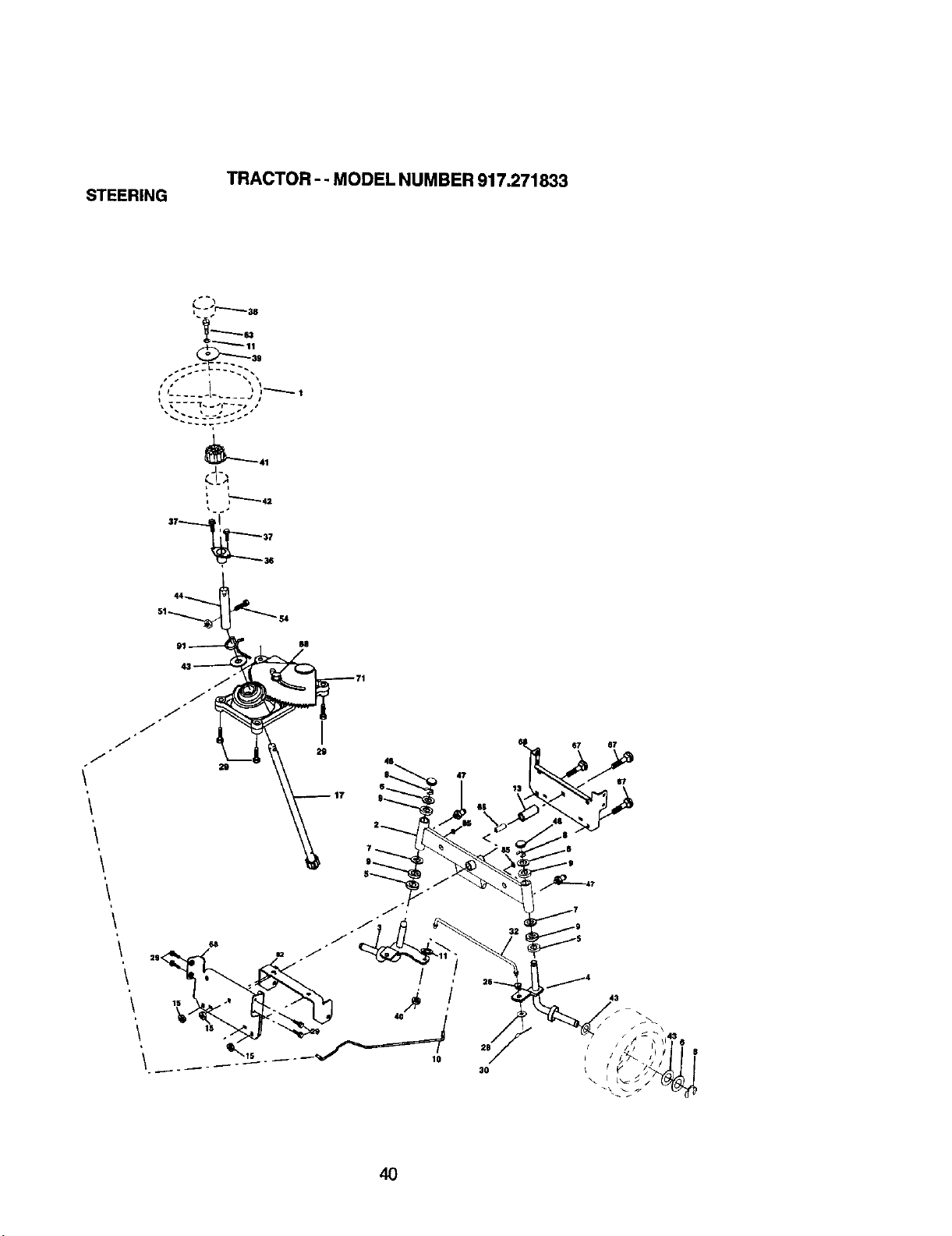

STEERING

TRACTOR - - MODEL NUM BER 917.271833

STEERING

TRACTOR - - MODEL NUMBER 917.271833

KEY PART

NO. NO. DESCRIPTION

139768 SteedngWheel

175131 Axle Assembly

169840 Spindle Assembly, L.H.

169839 Spindle Assembly, R.H.

6266H Beadng, Race, Thrust, Hardened

121748X Washer 25/32 x 1-5/8 x 16 Gauge

19272016 Washer 27/32 x 1-1/4 x 16 Gauge

12000029 Ring,Klip

3366R Beadng, Steering Column

175121 Draglink

STD551137 Washer, Lock

136518 Spacer, Bearing, Axle

145212 Nut, Hexflange Lock

177876 Shaft Assembly, Steedng

126847X Bushing, Link, Drag

19131416 Washer 13/32 x 7/8 x 16 Gauge

17060612 Screw 3/8-16 x 3/4

STO561210 Pin Cotter

130465 Rod,Tie

155099 Bushing, Steering

152927 Screw

139769 Insert, Steering Wheel

19133812 Washer 13/32 x 2-3/8 x 12 Gauge

STD541537 Gripco Nut

100711L Adaptor, Steering Wheel

145054X428 Boot, Steedng Shaft

121749)( Washer 25/32 x 1-1/4 x 16 Gauge

153720 Extension Shaft Steering LR.LT

121232X Cap, Spindle

6855M Fitting, Grease

BTD541431 NutLockHexw/Ins. 5/16-18UNC

74780520 BoltFin Hex 5/16-16 UNC x 1-1/4

STD523710 Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

160367 Spaser Axle

72140616 BoltRDHDSQNK3/8-16X2-1/4

169827 Axle, Brace

175146 SteedngAsm

169835 Bracket Susp Chassis Front

133835 Fastner Christmas Tree

175118 Bolt Shoulder TI16-20

175553 ClipSteering

NOTE: Allcomponentdimensionsgivenin U.S.

inches 1inch= 26.4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.271833

1_ 14

1 27

32 34

I OPTIONAL EQUIPMENT

Spark Arrester

ENGINE

TRACTOR - - MODEL NUMBER 917.271833

KEY PART

NO, NO. DESCRIPTION

170547 Control,Throt Paddle

17720408 Screw, Hex Thd Cut 1/4-20 x 5/8

...... Engine, B&S, (See Breakdown) NO.463707-0159-E1

149723 Muffler Exhaust

144069 Exhaust Asm. Left

144068 Exhaust Asm. Right

138129 Clamp Tube Double Engine

171877 Bolt 5/16-18unc x 3/4 W/Sems

145552 Heat Shield Lt

STD551125 Washer Lock Hvy. Helical 1/4

STD522507 BoRFin Hex 1/4-20Unc x .75

165287 Gasket, Muffler

148456 Tube Drain Oil Easy

STD551237 Washer Lock Ext Tooth 3/8

17490624 Screw Thdrol 3/8-16x1-1/2 Tytt

169837 Shield, BrrVDbr Guard

145996 ControfChoke

73920600 Nut Keps 3/8-24 Unf

152927 Screw TI- #10-32 x 5 x 3/8 Flange

137180 Arrestor, Spark

157103 Tank, Fuel

161696 Cap FuelGuaga

123487X Clamp, Hose

106082X Spacer Pad

8543R Line, Fuel

148315 Plug, Oil Drain Easy

t09227X Pad Idler

17000612 Screw Hex Wsh3/8-16 x 3/4

73510400 Nut Keps He:<1/4-20 Starter Nut

NOTE: All component dimensions given in U, S.

inches 1 inch = 25,4 mm

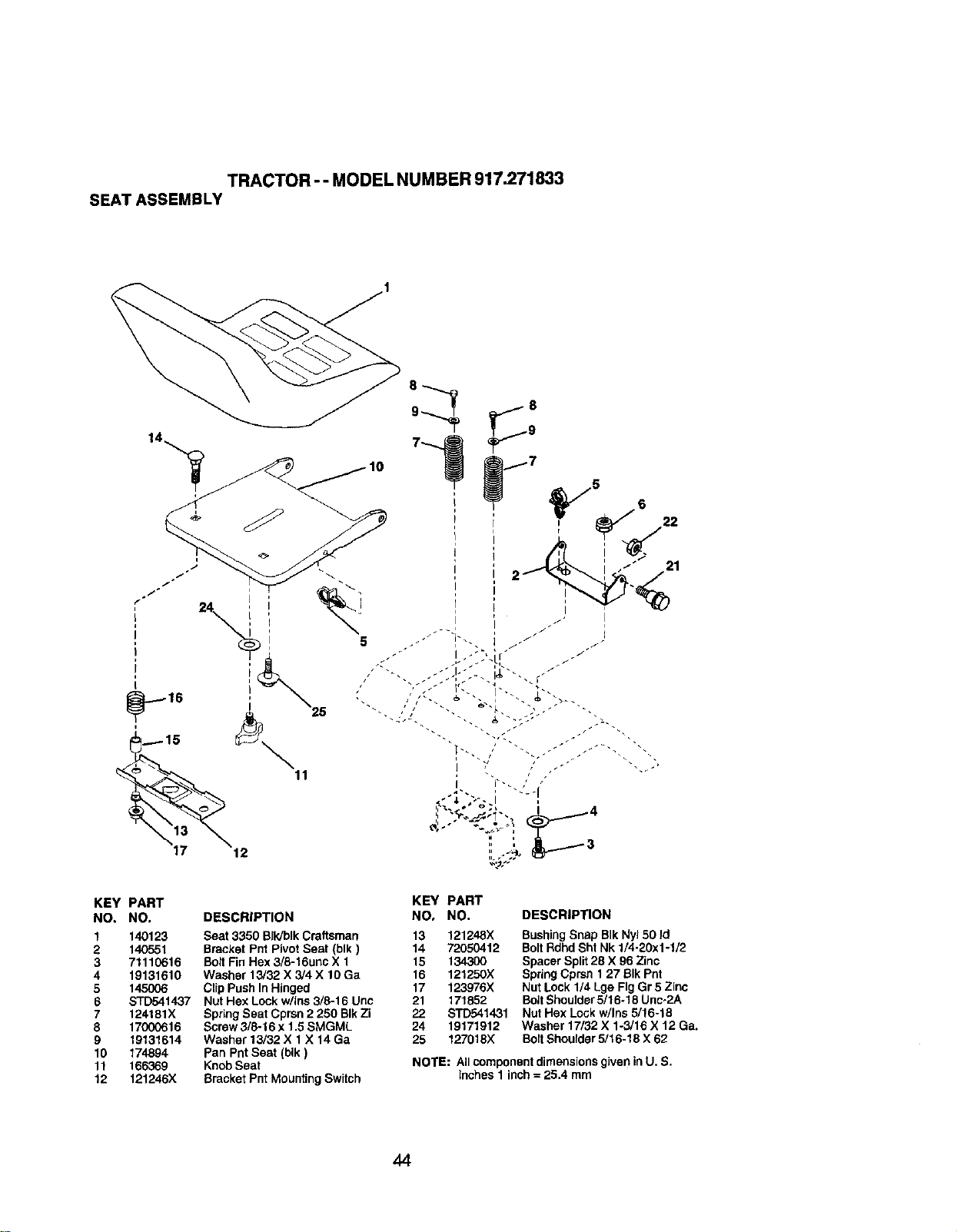

TRACTOR-- MODEL NUMBER 917.271833

SEAT ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 140123

2 140351

3 71110616

4 19131610

5 145OO6

6 STD541437

7 124181X

8 17000616

9 19131614

10 174894

11 166369

12 121246X

Seat 3350 BIWblkCraftsman

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 3/4 X 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1.5 SMGML

Washer t3/32 X 1 X 14Ga

Pan Pnt Seat (blk)

Knob Seat

Bracket Pnt Mounting Switch

KEY PART

NO, NO. DESCRIPTION

121248X

72050412

1343OO

121250X

123976X

171852

STD541431

19171912

127018X

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 SIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc*2A

Nut Hex Lock w/Ins 5/16-18

Washer 17132 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

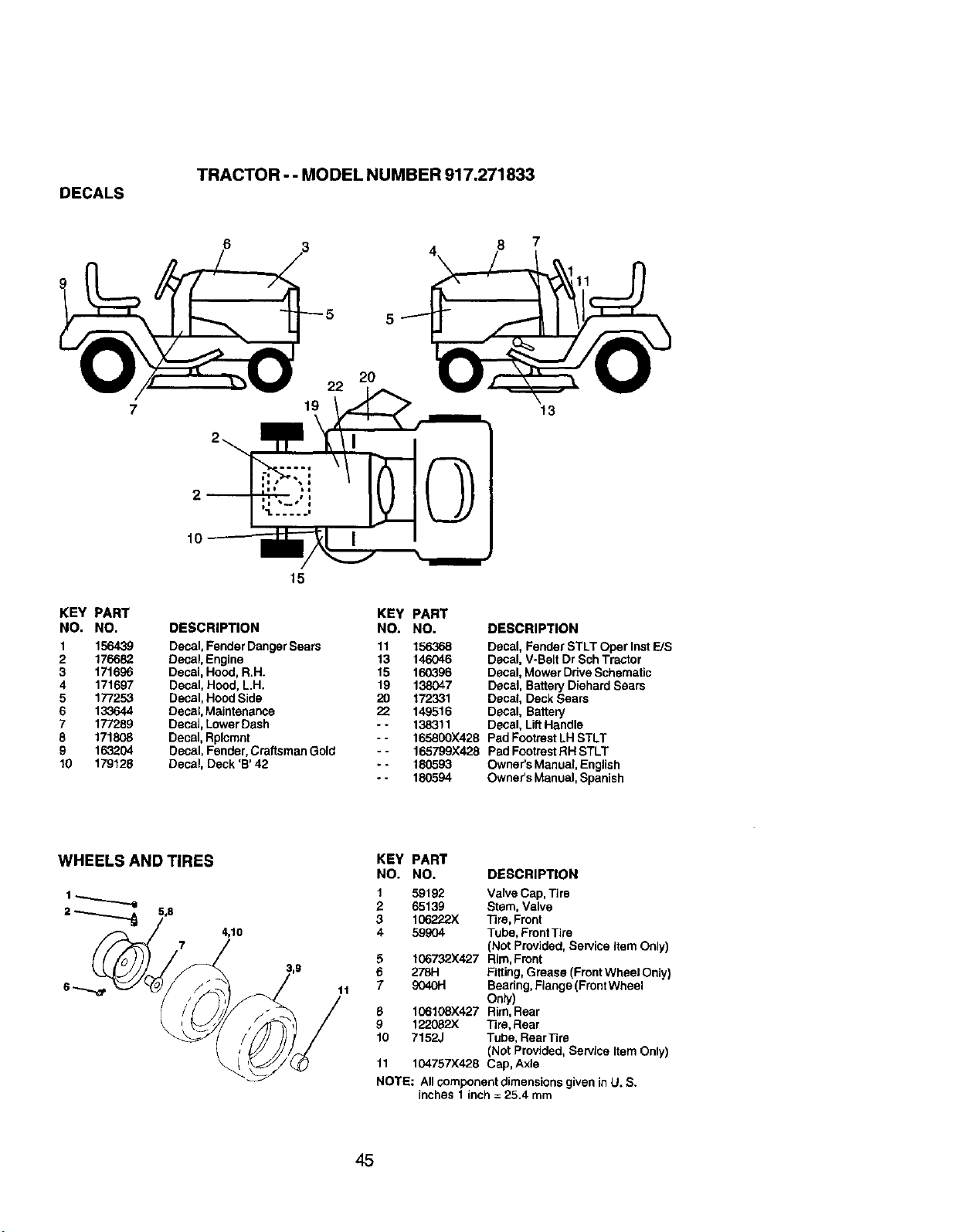

DECALS

TRACTOR - - MODEL NUMBER 917.271833

KEY PART

NO. NO.

1 156439

2 176682

3 1716_

4 171_7

5 1_2_

6 133644

7 l_g

8 171808

9 1632_

10 1_1_

DESCRIPTION

Decal, Fender Danger Sears

Decal, Engine

Decal, Hood, R.H.

Decal, Hood, L.H.

Decal, Hood Side

Decal, Maintenance

Decal, Lower Dash

Decal, Rplcmnt

Decal, Fender, Craftsman Gold

Decal, Deck 'B' 42

KEY PART

NO. NO. DESCRIPTION

11 156368 Decal, Fender STLT Oper Inst FJS

13 146046 Decal, V-Belt Dr Sch Tractor

15 160396 Decal, Mower Drive Schematic

19 138047 Decal, Batten] Diehard Sears

20 172331 Decal, Deck Sears

22 149516 Decal, Battery

- - 138311 Decal, LiftHandle

- - 165800X428 Pad Footrest LH STLT

- - 165799)(428 Pad Footrest RH STLT

- - 180593 Owner's Man ual, English

- - 180594 Owners Manual, Spanish

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire, Front

4 59904 Tube, FrontTire

(Not Provided, Sec/ice item Only)

5 106732X427 Rim, Front

6 278H Fitting, Grease (Front Wheel Only)

7 904OH Beadng, Flange (Front Wheel

Onty)

8 106108X427 Riro,Rear

9 122082X Tire, Rear

10 7152J Tube, RearTire

(Not Provided, Service Item Only)

11 104757X428 Cap, Axle

NOTE; All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR- MODELNUMBER917.271833

LIFTASSEMBLY

TRACTOR- MODELNUMBER917.271833

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Wire Asm, Inner

2 159471 Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x 21 Gauge

6 120183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, L.H.

12 139866 Link, Lift, R,H.

13 STD624008 Retainer Spdng

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-t3 UNC

17 175689 Trunnion

19 73800800 Nut Lock w/Wsh 1/2-13 UNC

1g 139868 Arm, Suspension, Rear

20 163552 Retainer Spdng

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crownlock 3/8o24

NOTE: Allcomponentdimensionsgivenin U.S.

inches 1inch=25.4 mm

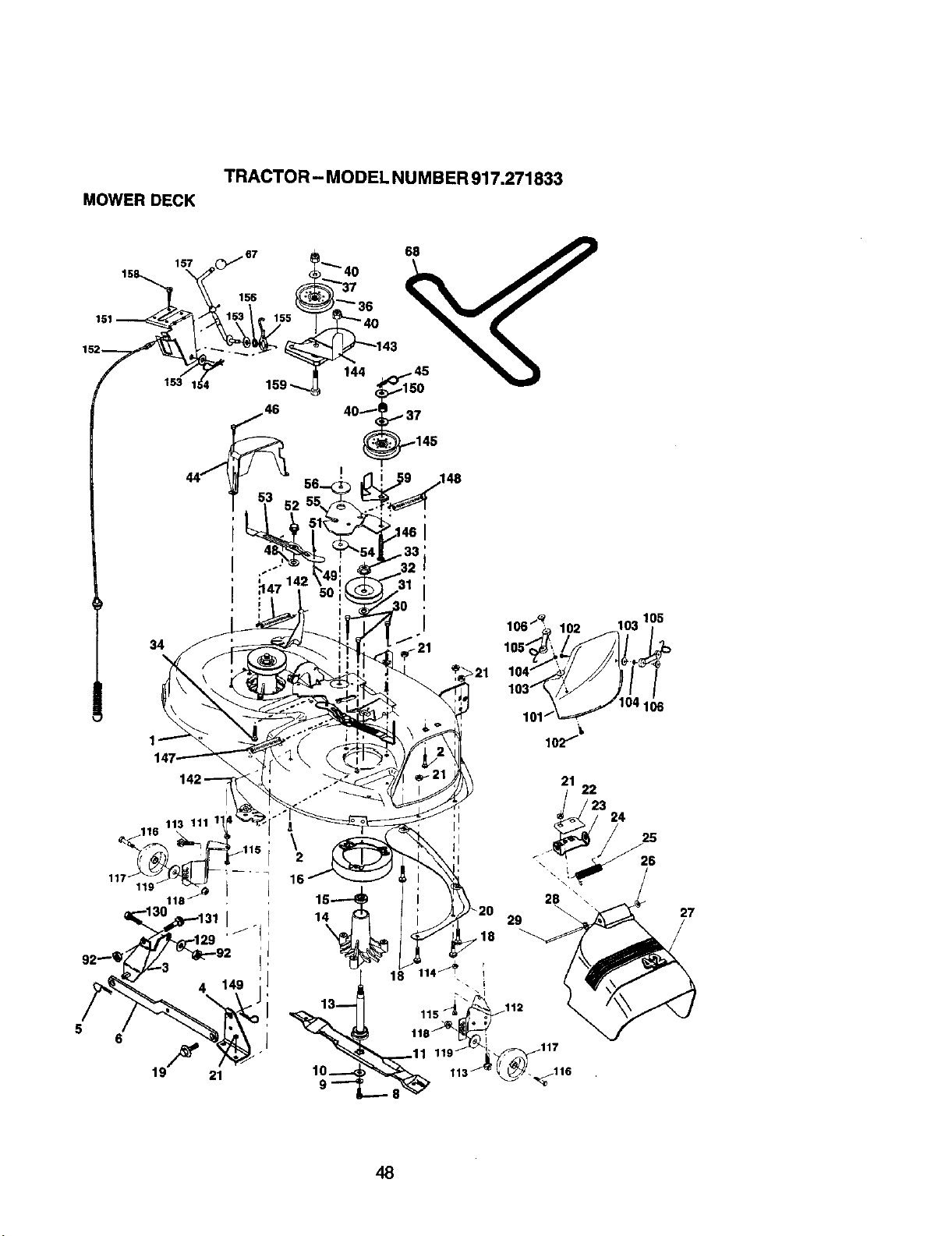

TRACTOR- MODELNUMBER917.271833

MOWERDECK

157 _ 67 _''_ 40 ,_llml_ 7 f

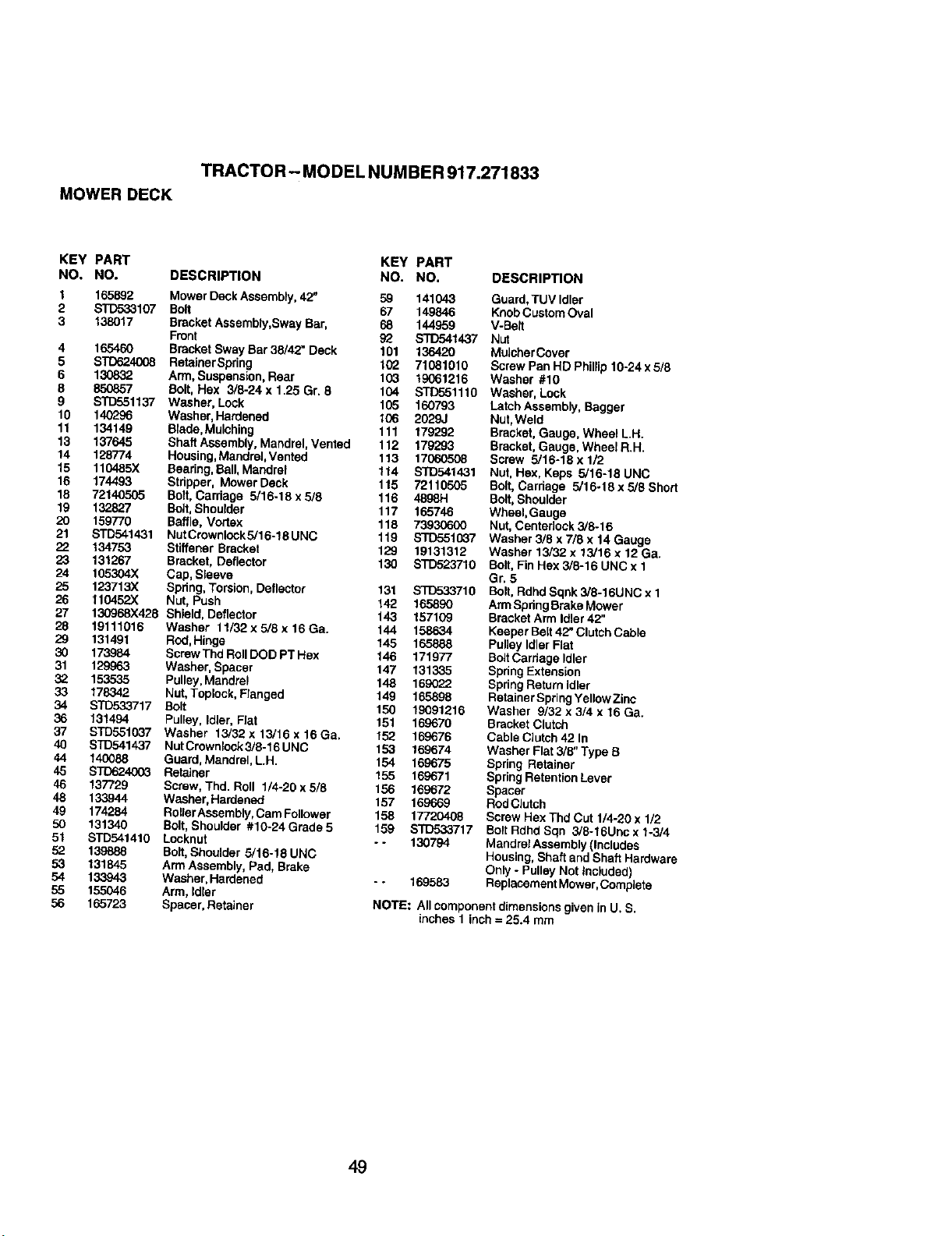

MOWER DECK

TRACTOR - MODEL NUMBER 917.271833

KEY PART

NO, NO.

1 165892

2 STD533107

3 138017

4 165460

5 STD624008

6 13O832

8 85O857

9 STD551137

10 140296

11 134149

13 137645

14 128774

15 110485X

16 174493

16 721405_5

19 132827

20 159770

21 ST0541431

22 134753

23 131267

24 105304X

25 123713)(

26 110452X

27 130968X428

28 19111016

29 131491

30 173984

31 129963

32 153535

33 178342

34 STD533717

36 131494

37 STD551037

40 STD541437

44 140088

45 STD624003

46 137729

48 133944

49 174284

50 131340

51 STD541410

52 139888

53 131845

54 133943

55 155046

56 165723

KEY PART

DESCRIPTION NO. NO, DESCRIPTION

Mower Deck Assembly, 42" 59 141043

Bolt 67 149846

Bracket Asasmbly,Swey Bar, 68 144959

Front 92 STD5414,37

Bracket Sway Bar 38/42" Deck 101 136420

Retainer Spring 102 71081010

Arm, Suspension, Rear 103 19061216

Bolt, Hex 3/8-24 x 1.25 Gr. 8 104 STD551110

Washer, Lock 105 160793

Washer, Hardened 106 2029J

Blade, Mulching 111 179292

Shaft Assembly, Mandrel, Vented 112 179293

Hoasing, Maodrel, Vected 113 17060508

Bearing, Ball, Mandrel 114 $3D541431

Stripper, MowerDeck 115 72110505

Bo_t, Carriege 5/16-18x5/6 116 4898H

Bolt, Shoulder 117 165746

Baffle, Vortex 118 73930600

NutCrowntock 5,'16-18 UNC 119 ST0551037

Stiffener Bracket 129 19131312

Bracket, Deflector 130 STD523710

Cap, Sleeve

Spring, Torsion, Deflector 131 _710

Nut, Push 142 165890

Shield, Deflector t43 167109

Washer 11/32x5/8x16Ga. 144 158634

Rod, Hinge 145 165888

Screw Thd Roll DOD PT Hex 146 171977

Washer, Spacer 147 131335

Pulley, Mandral 148 169022

Nut, Topleck, Flanged 149 165896

Bolt 150 19091219

Pulley, Idler, Flat 151 169670

Washer 13/32 x 13/16 x 16 Ga. 152 169676

Nut Cmwnlock 3/6-16 UNC 153 169674

Guard, MandreI, L.H. 154 169675

Retainer 155 169671

Screw, Thd. Rolt 1/4-20 x 5/8 156 169672

Washer, Hardened 157 169669

RollerAssembly, CamFollowar 158 17720406

Bolt, Shouldar #10-24 Grade 5 "159 $30533717

Locknut . - 130794

Bolt, Shoulder 5/16-16 UNC

Arm Assembly, Pad, Brake

Washer, Hardened - - 169583

Arm, Idler

Spacer, Reta:mar

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Muichar Cover

Screw Pan HD Phillip 10-24 x5/6

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut,Wetd

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

Screw 5/16-18 x 1/2

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16-18 x 5/6 Short

BOLt,Shoukter

Wheel, Gauge

Nut, Centedock 3/8-16

Washer 3/6 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1

Gr. 5

Bolt, Rdhd Sqnk 3/8-16UNC x 1

Ann Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42 In

Washer Rat 3/6" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x 1/2

Bo_t Rdhd Sqn 3/8-16Unc x %3/4

Mandrel Assembly (Includes

Housing, Shaft and Shaft Hardware

Only - Pulley Not Included)

Replacement Mower, Complete

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

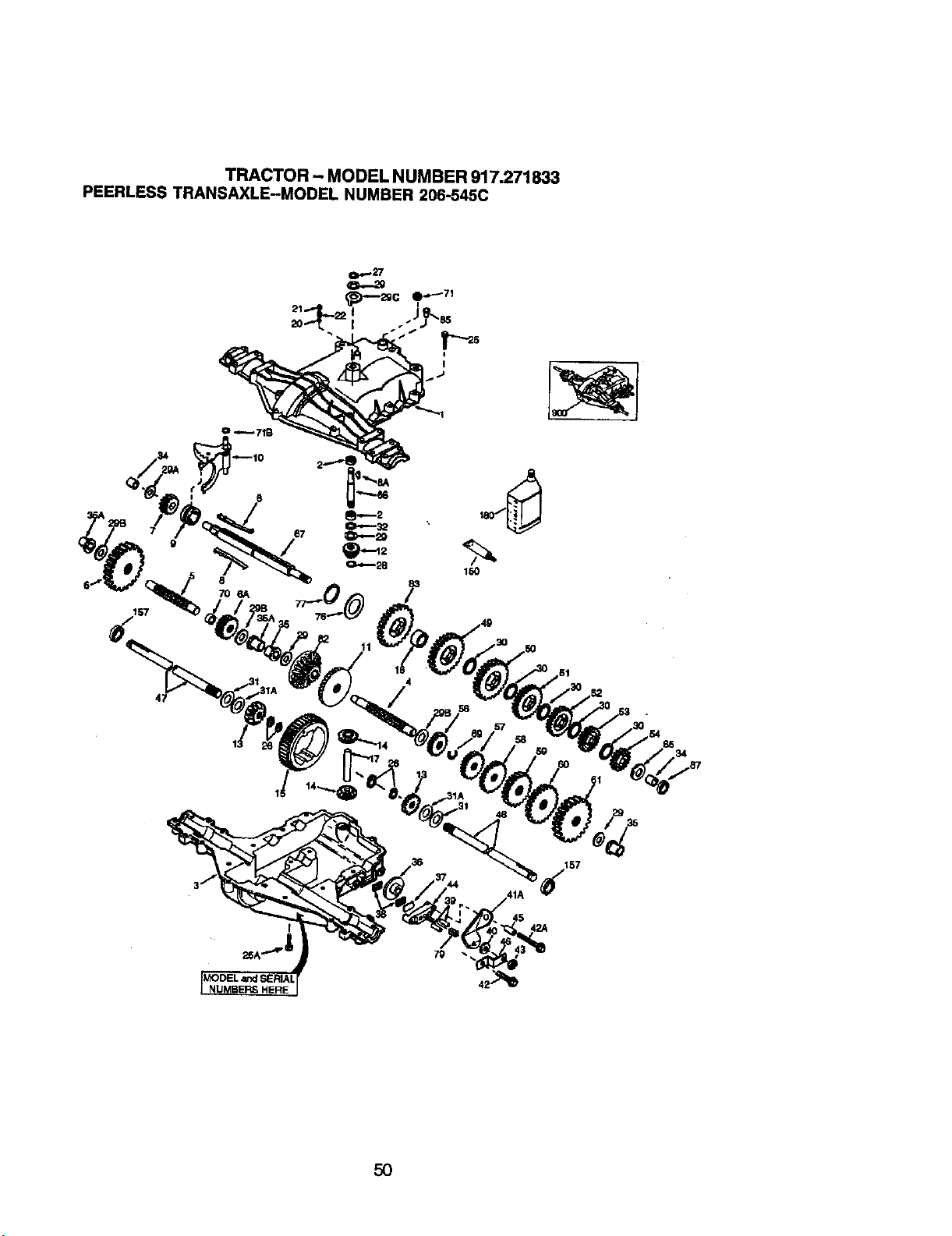

TRACTOR- MODELNUMBER917.271833

PEERLESSTRANSAXLE-MODELNUMBER206-545C

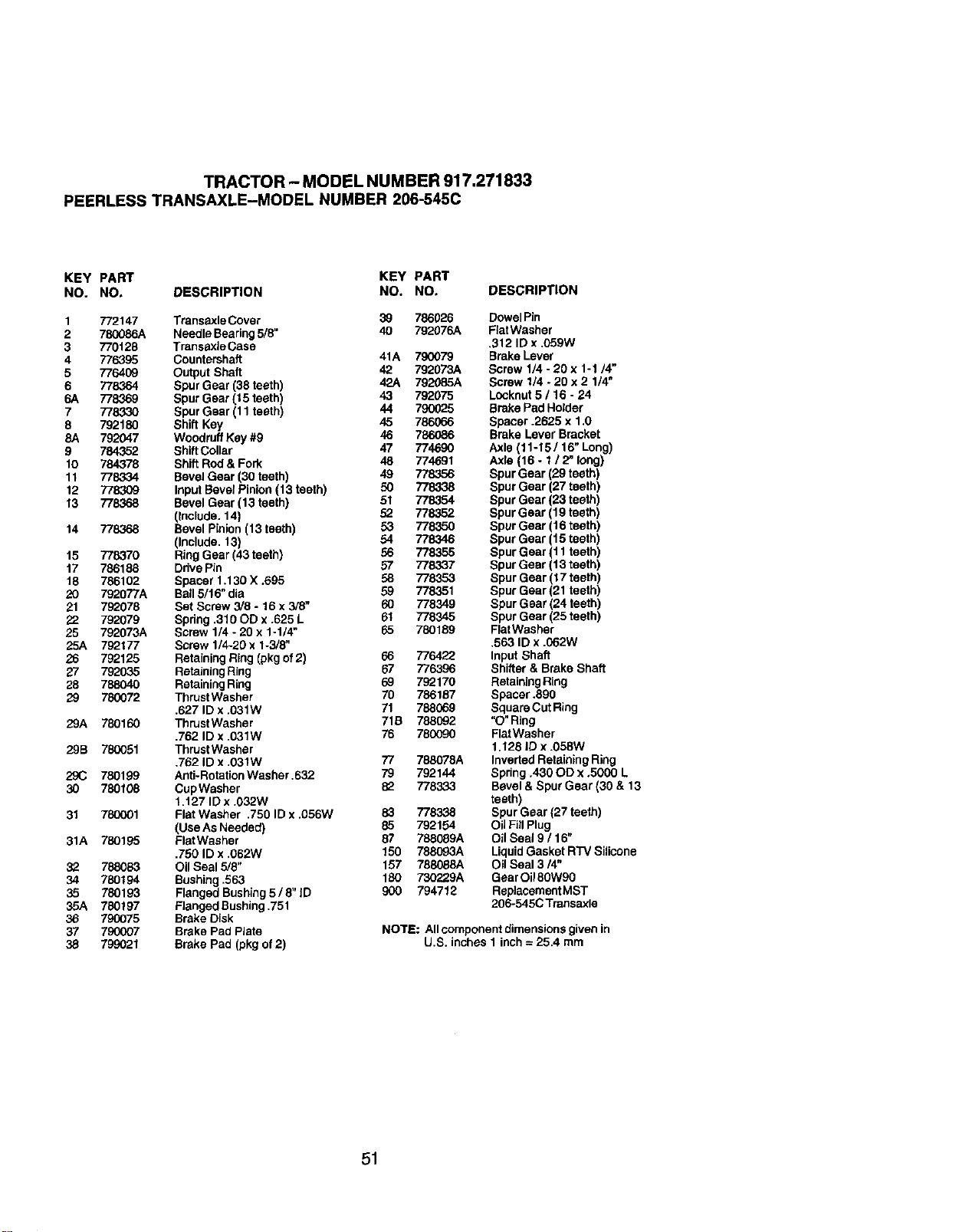

TRACTOR- MODELNUMBER917.271833

PEERLESSTRANSAXLE-MODELNUMBER206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 772147 Transaxle Cover 39 786026 Dowel Pin

2 780086A Needle Bearing 5/8" 40 792076A Flat Washer

3 770126 TransaxleCase .312 ID x .059W

4 776,395 Countershaft 41A 790079 Brake Lever

5 776409 Output Shaft 42 792073A Screw 1/4 - 20 x 1-1/4"

6 778364 Spur Gear (38 teeth) 42A 792085A Screw 1/4 - 20 x 2 1/4'

6A 778369 Spur Gear (15 teeth) 43 792075 Locknut 5 / 16 - 24

7 778330 Spur Gear (11 teeth) 44 790025 Brake Pad Holder

8 792180 Shift Key 45 786066 Spacer .2625 x 1.0

8A 792047 Woodruff Key #9 46 786(}86 Brake Lever Bracket

9 784352 Shift Collar 47 774690 Axle (11-15 / 16" Long)

10 784378 Shift ROd& Fork 48 774691 Axle (16 - 1/ 2" long)

11 778334 Bevel Gear (30 teeth) 49 778356 Spur Gear (29 teeth)

12 778309 Input Bevel Pinion (13 teeth) 50 778338 Spur Gear (27 teeth)

13 778368 Bevel Gear (13 teeth) 51 778354 Spur Gear (23 teeth)

(Include. 14) 52 778352 Spur Gear (19 teeth)

14 778368 Bevel Pinion (13 teeth) 53 778350 Spur Gear (16 teeth)

(Include, 19) 54 778346 Spur Gear (t5 teeth)

15 778370 Ring Gear (43 teeth) 56 778355 Spur Gear (t 1 teeth)

t7 786186 Ddve Pin 57 778337 Spur Gear (13 teeth)

t8 786102 Spacer 1.130 X .695 58 778353 Spur Gear (17 teeth)

20 792077A Ball5/16" die 59 778351 Spur Gear (21 teeth)

21 792078 Set Screw 3/8 - 16 x 3/8" 60 778349 Spur Gear (24 teeth)

22 792079 Spdng .310 OD x .625 L 61 778345 Spur Gear (25 teeth)

25 792073A Screw 1/4 - 20 x 1-1/4" 55 780189 Flat Washer

25A 792177 Screw 1/4-20 x 1-3/8" ,563 ID x .062W

26 792125 Retaining Ring (pkg of 2) 66 776422 Input Shaft

27 792035 Retaining Ring 67 776396 Shifter & Brake Shaft

28 788040 Retaining Ring 69 792170 Retaining Ring

29 780072 ThrustWasher 70 786167 Spacer.890

.627 ID x ,031W 71 788069 SquaraCut Ring

29A 780160 ThrustWasher 716 788092 "O"Ring

,762 ID x .031W 76 780090 FlatWasher

29B 780051 ThrustWashar 1.128 ID x.058W

,762 ID x .031W 77 788078A Inverted Retaining Ring

29C 780199 Anti-Rotation Washer ,632 79 792144 Spdng ,430 GD x ,5000 L

30 780108 Cup Washer 82 776333 Bevel & Spur Gear (39 & 13

1.t27 ID x .032W teeth)

31 780001 Flat Washer .750 ID x .056W 83 778338 Spur Gear (27 teeth)

(Use As Needed) 85 792154 Oil Fill Plug

31A 780195 Flat Washer 87 788069A Oil Seal 9 / 16"

.750 ID x ,062W 150 788093A Liquid Gasket RTV Silicone

32 788083 Oil Seal 5/8" 157 788088A Oil Seal 3/4"

34 780194 Bushing .563 180 73G229A GeerOil80W0

35 780193 Flanged Bushing 5 / 8" ID 900 794712 Replacement MST

35A 780197 Flanged Bushing .751 206-545C Transaxle

36 790075 Brake Disk

37 790007 Brake Pad Plate NOTE: All component dimensions given in

38 799021 Brake Pad (pkg of 2) U.S. inches 1 inch = 25.4 mm

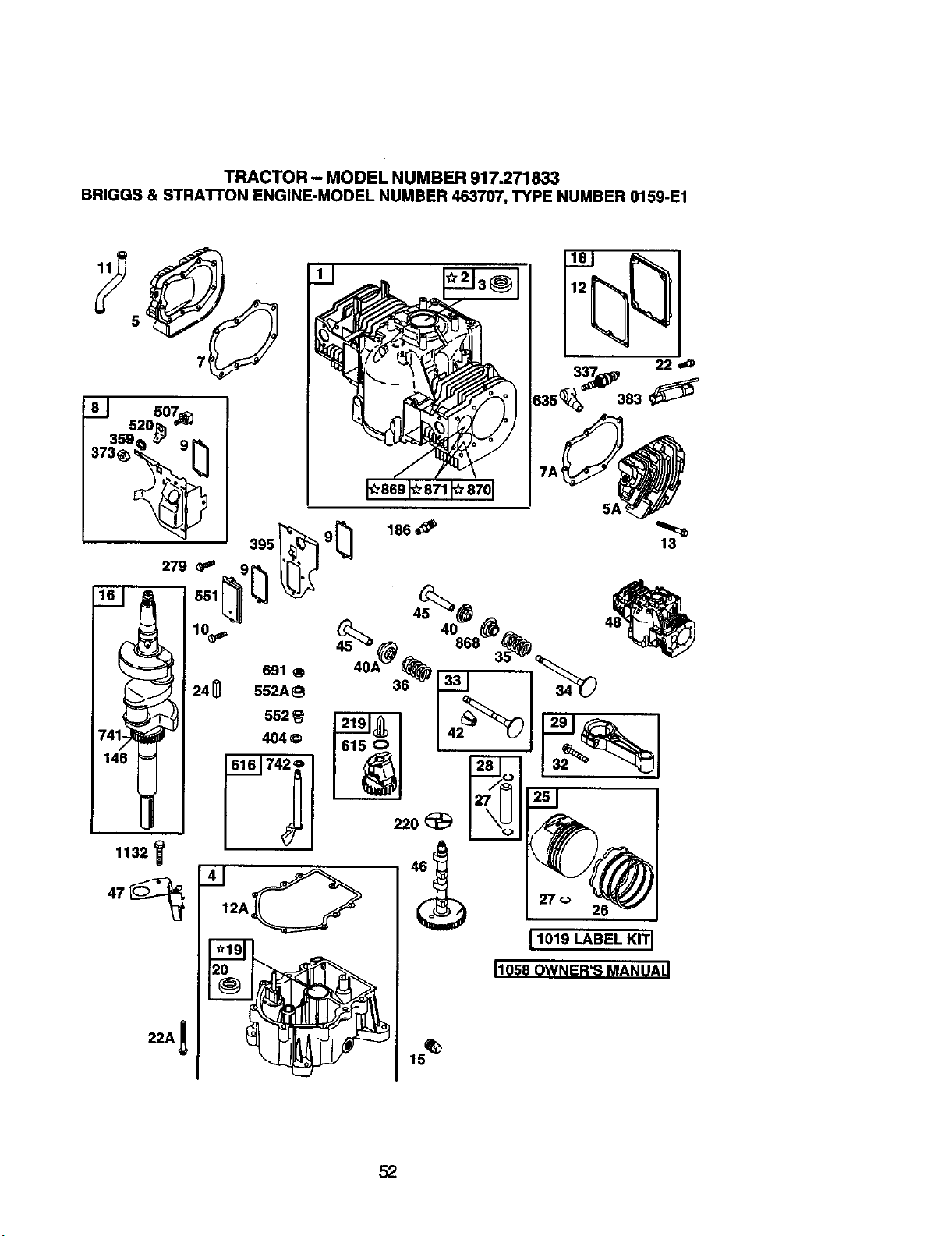

TRACTOR- MODELNUMBER917.271833

BRIGGS&STRA'n'ONENGINE-MODELNUMBER463707,TYPENUMBER0159-E1

520

359_

373_

3_i_ 22

635_ 383

24 [_ 552A

404 @

220

1132

22,

4_ 27 _ 26

11019_BELKITI

1 NEW AN

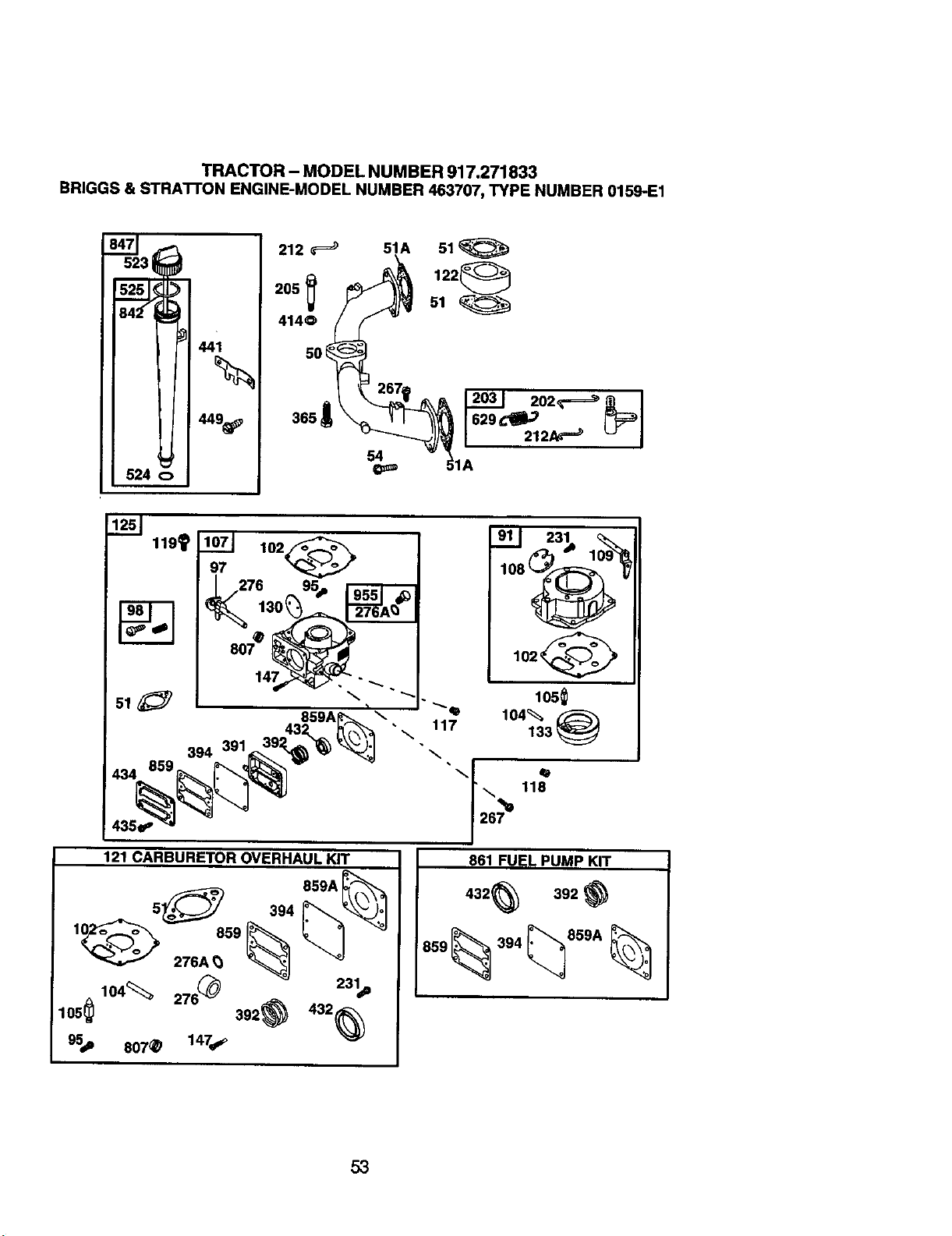

TRACTOR- MODELNUMBER917.271833

BRIGGS& STRA'I-I'ONENGINE-MODELNUMBER463707,TYPENUMBER0159-E1

524 o

212

414o

365 _

51A 51

I 267

L _1 _ ]629C_J_ _1

119_

859

434

102_

276 9s,.

394 391 859A .I_ \

121 CARBURETOR OVERHAUL KIT

276A _ "_,._'_1

104_ 276_ "_ 231_

105_ 392_ 432_

95_ 807_P 147_

23_

108 _

105_

117 3

861 FUEL PUMP KIT

TRACTOR- MODELNUMBER917.271833

BRIGGS&STRATFONENGINE-MODELNUMBER463707,TYPENUMBER0159-E1

11036 LABEL-EMISS!_)_IJ

425

278_

6o6_

209_ 211_

334'_

689 11

1137

968

297 _'

967

445

1095 VALVE GASKET SET

61A%7_ 7A_

868_

1119_

358 ENGINE GASKET SET

TRACTOR - MODEL NUMBER 917.271833

BRIGGS & STRAX'I'ONENGINE-MODELNUMBER 463707, TYPE NUMBER 0159-E1

447

802

544

311

579 _

697

(I-800-469-4663) (u.s_ andCanada)

V_NW,_,ca

For repairofcarry-in products like vacuums, lawn equipment, and

electronics, callfor the nearest Sears Parts and Repair Center.

1-800-488-1222 Any_me,dayornifft (U.SA only)

Forthe replacement parts, accessories and owner'smanuals

that you need todo-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6a.m.-11 p.m., 7days aweek

(1-800-366-7278) (U.S.A.only)

www.sears.coe_irect

To purchase or inquire about a Sears ServiceAgreement

or Sears Maintenance Agreement:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

7 a.m.- 5 p.m., CST, Mon. - Sat 9 am.- 8p.m. EST, M- F, 4 p.m.Sat

ParapedirsewiciodereparackSna AuCanadapoursemiceenfranqais:

domicilio,y para ordenarpiezas: 1.800.LE.FOYERMC

1"888"SU'HOGARSM (1-800-533-6,937)

co. k.H°meCentral®]

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fdbrlca / SMMarca de Servicto de Sears, Roebuck and Co,

uc Marque de commerce / MOMarque d6pos_e de Sears, Roebuck and Co,

180593 9.10.01 JH Printedin U.S.A.

Craftsman 917271833 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917271833 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
