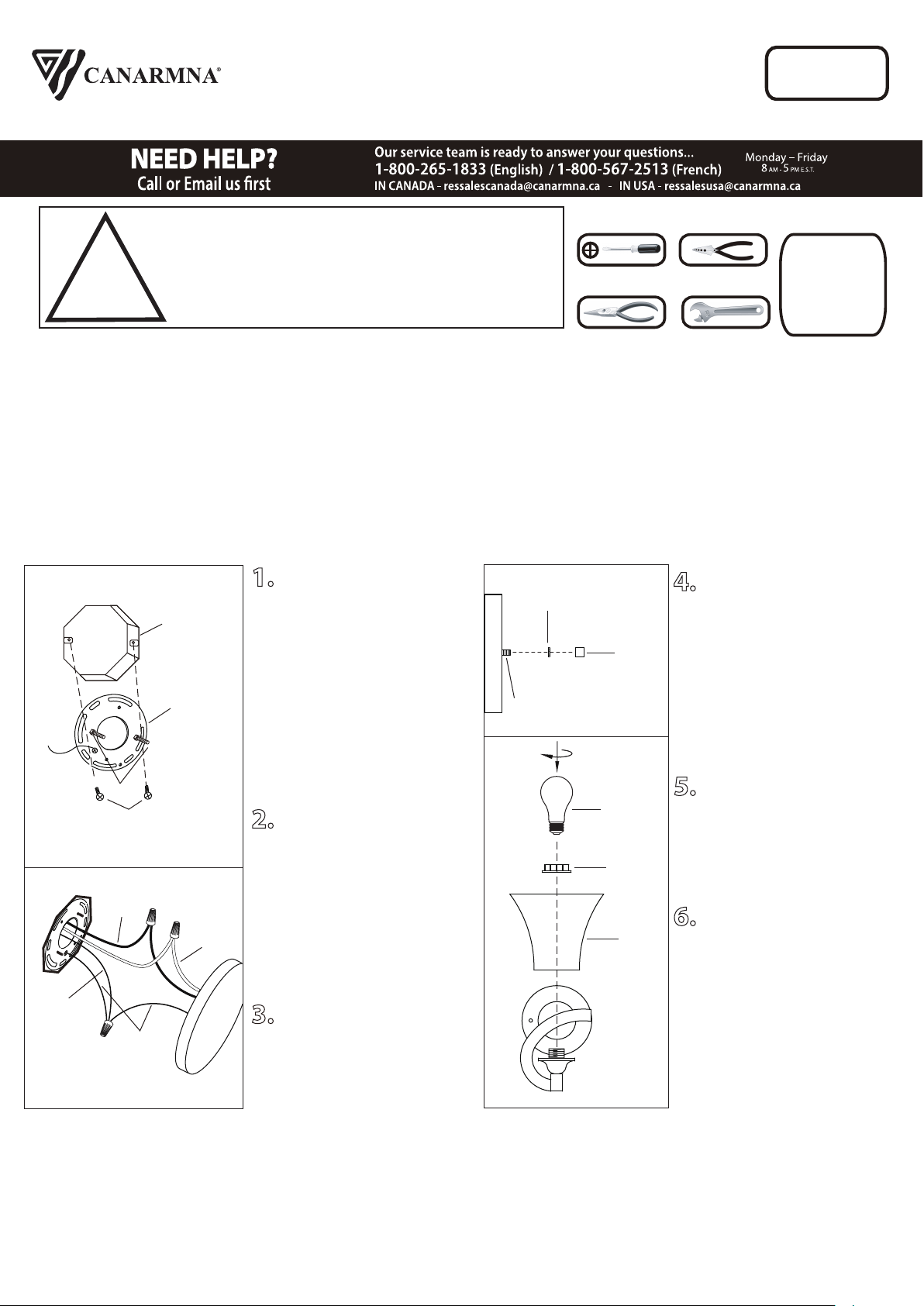

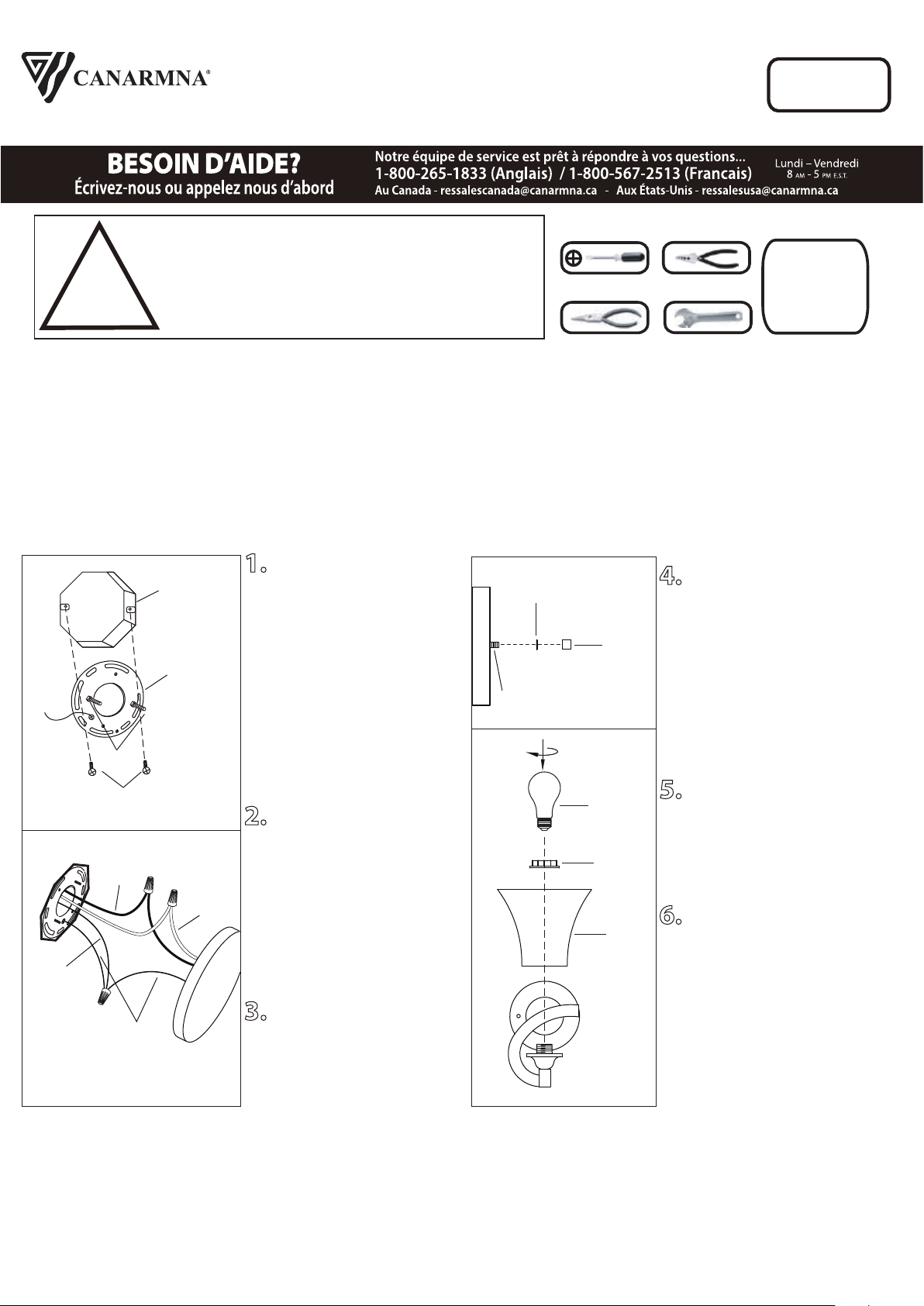

1. Mount the mounting
bracket to electrical box using
electrical box screws (not
included). Make sure the studs
on the mounting bracket are
facing out from the electrical
box.
2. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground screw
in the electrical box. Connect the
black wire (or wire with marking)
from the fixture to the black wire
in the electrical box and connect
the white wire from the fixture to
the white wire in the electrical
box.
3. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
electrical box making sure no
bare wire (on the black and
white) is visible at the wire nuts.
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5. Remove spinner nut from
socket. Position glass on the
fixture and secure with spinner
nut.
6. Install proper bulb type
and wattage (not included).
Tel: (613) 342-5424, Fax: (800) 263-4598
Stud
Cap
Nut
Star
Washer
Fixture
Fixture
INSTALLATION:
Bulb
Spinner
Nut
Glass
VANITY
LIGHTING
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
SAFETY PRECAUTIONS:
Electrical Box Screws
(not Included)
Electrical
Box
Mounting
Bracket
Studs
White
Black
House
supply
Ground
wire
Fixture
Ground
wire
