IVL587A03-C
02/21
Electrical
box screws
1. Feed power cords from
the electrical box through
the center hole of the back
cover. Align holes of back
cover over electrical box and
secure with electrical box
screws (not included).
NOTE: Make sure the back
cover is level before
tightening the screws.
2. Additional support may
be required for fixtures
longer than 20” . Position the
fixture and add wood screws
(one on each side) for the
wooden studs or plastic wall
anchor and wood screws for
dry wall.
3. Connect the ground
wires (bare copper or green)
from your fixture to the
ground wire (bare copper or
green) or ground screw in
the electrical box. Connect
black wire from fixture to
black wire in electrical box
and connect the white wire
from fixture to white wire in
electrical box.
NOTE: Do not disconnect any
pre-wired connections.
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5. Remove spinner nut from
socket. Position glass on the
fixture and secure with spinner
nut.
6. Install proper bulb type
and wattage (not included).
Back
Cover
Wood Screw
Stud
Cap
Nut
Star
Washer
Tel: (613) 342-5424, Fax: (800) 263-4598

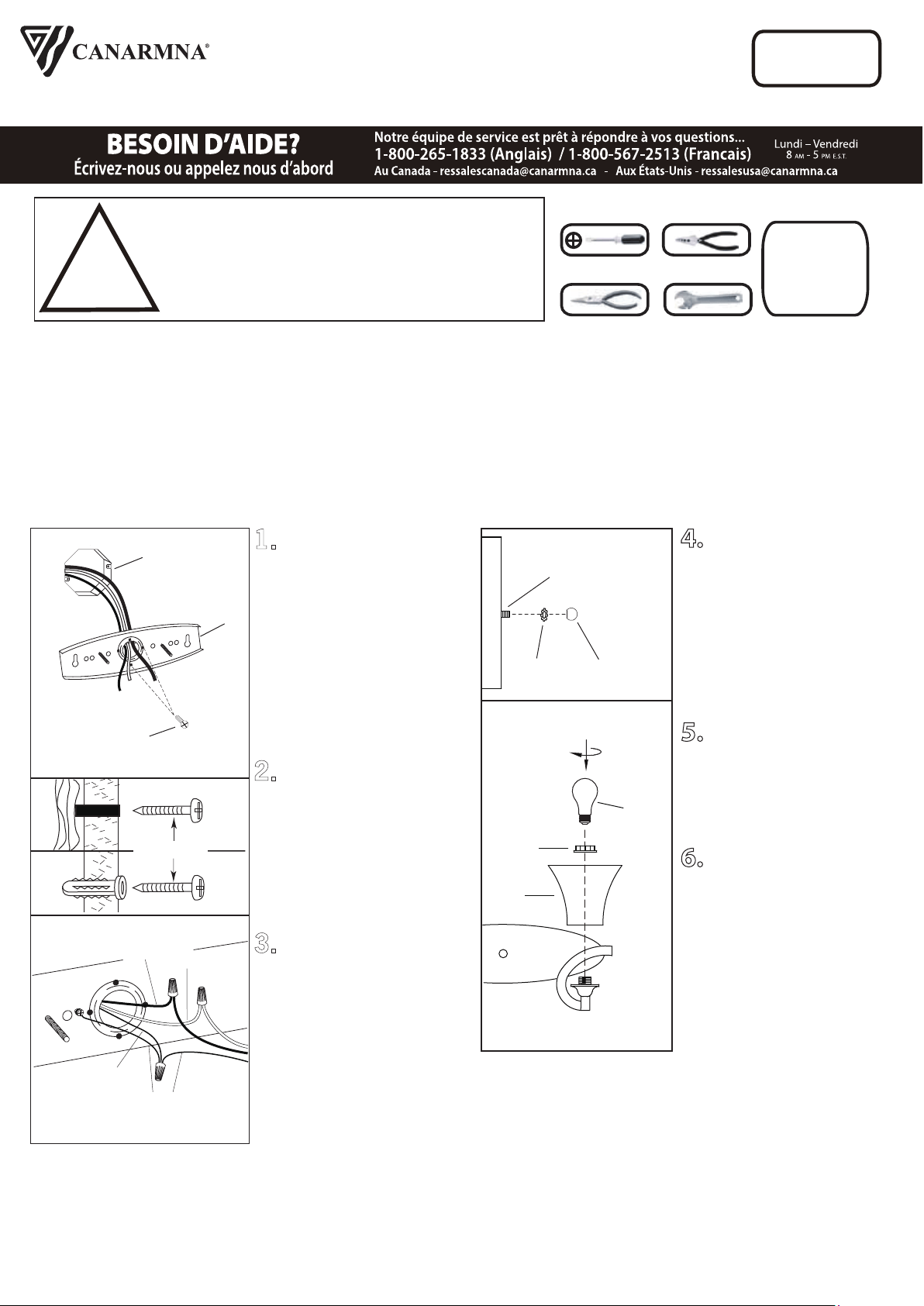

INSTALLATION:
Electrical
Box
Bulb
Spinner
Nut
Glass
White
Black
House supply
Ground wire
Fixture
Ground wire
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
SAFETY PRECAUTIONS:
VANITY
LIGHTING
