INSTALLATION INSTRUCTIONS
INSTRUCCIONES DE INSTALACIÓN/ INSTRUCTIONS D’INSTALLATION
For Models:
Para los Modelos:
Pour les Modèles:
Here are the
tools you’ll
need to
complete your
installation:
Estas son las
herramientas
que usted
necesitará para
completar su
instalación:
Voici les outils
dont vous
aurez besoin
pour réaliser
l’installation:
Ladder
Escalera
Échelle
Pliers
Alicates
Pince
Wire Strippers
Pelacables
Pince à dénuder
READ AND SAVE THESE INSTRUCTIONS
These instructions are provided for your safety. It
is very important that they are read carefully and
completely before beginning installation of the
lighting xture.
LEA Y GUARDE ESTAS INSTRUCCIONES
Estas instrucciones se proporcionan para su
seguridad. Es muy importante leerlas detenid-
amente y completamente antes de comenzar la
instalación de la lámpara.
LISEZ ET CONSERVEZ CES INSTRUCTIONS
Ces instructions sont fournies pour votre sécurité.
Il est très important de les lire attentivement dans
leur intégralité avant d’entreprendre l’installation
du luminaire.
Fixture weight ±2 lbs:
Peso ±2 lb:
Poids xe ±2 lbs:
•
WARNING
• All wiring must be in accordance with national
and local electrical codes ANSI/NFPA 70. If you
are unfamiliar with wiring or in doubt, consult a
qualied electrician.
• To avoid possible electrical shock, before
installing your light xture, disconnect the power
by turning off the circuit breakers to the outlet box
associated with the wall switch location.
• The lighting xture must be grounded. If the
ground wire for the installation site is not present,
immediately STOP installation and consult a
qualied electrician.
•
• Todo el cableado debe realizarse de acuerdo con
los códigos eléctricos locales y nacionales ANSI/
NFPA 70. Si no está familiarizado con el cableado,
o si tiene duda, consulte a un electricista calicado.
• Para evitar una posible descarga eléctrica, antes
de instalar su lámpara, desconecte la energía
apagando los interruptores automáticos (breakers)
que alimentan la caja de salida asociada con la
ubicación del interruptor de pared.
ADVERTENCIA
• L’appareil d’éclairage doit être mis à la terre.
Si le l de terre du lieu d’installation n’est pas
présent, ARRÊTEZ immédiatement l’installation et
consultez un électricien qualié.
•
AVERTISSEMENT
•
Tout le câblage doit être conforme aux codes
électriques nationaux et locaux en vigueur et à la
norme ANSI/NFPA70. Si vous n'avez pas l'habitude
de faire ce câblage ou en cas de doute, adressez-
vous à un électricien qualié.
• Pour éviter tout choc électrique, avant d’installer
le luminaire, coupez le courant en éteignant les
disjoncteurs de la boîte électrique associée à
l’interrupteur mural.
•
Le luminaire doit être mis à la terre. Si le l
de terre du lieu d’installation n’est pas présent,
ARRÊTER immédiatement l’installation et
consulter un électricien qualié.
©2021 Hunter Fan Co.
Light Flush Mount
Luz Empotrado
Lumière Montage Afeurant
Part #/Pieza #/Pièce #
Hardware Service Kit/Kit De Mantenimiento Del Equipo/Trousse De
Maintenance Quincaillerie
Glass/Domo De Vidrio/Verre
Part #/Pieza #/Pièce #
ENGLISH
Finish/Finish/FiniModel/Modelo/Modèle
Type/Tipo/TypeModel/Modelo/ Modèle
Screwdriver
Destornilladore
Tournevis
I
D
F
J
A
B
E
C
G
H
K
19321
19322
19387
Sacha
KD82301214
KD82301872
Brushed Nickel/Níquel Pulido/
Nickel Brossé
Natural Iron/Hierro Natural/
Fer Naturel
KD82301L11
Alturas Gold/Alturas Gold/Or
d’Alturas
19321
19322
19387
KD51401147
Clear Glass/Vidrio
Transparente/Verre
Transparent
19321
19322
19387
ML079
R_052421
4.69 lbs (2.13 kg)
3
3
3
FINISHING THE INSTALLATION
CONNECTING THE WIRES
PREPARING FOR INSTALLATION
CLEANING TIPS
Treat the xture gently! Regular cleaning will reduce the need for deep cleaning. For regular cleaning, turn off the light
and wipe down the xture with a clean lint-free cotton or microber cloth. Never spray cleaner directly onto the xture.
Carefully remove all contents from the carton. Shut off the power at the circuit breaker and completely remove the old
xture from the ceiling, including the old mounting bracket. Remove the new mounting bracket assembly from the
bag. Remove cap nuts (K) from mounting screws (A). Mounting plate (D) contains several pairs of threaded holes. Find
the pair of holes that matches the spacing of the holes on the xture’s canopy. Place the mounting plate (D) over the
junction box so that mounting screws (A) and nuts (C) are visible. Pull the house wires through the center of mounting
plate (D). Secure mounting plate (D) to the junction box by tightening the screws (E). Adjust the position of mounting
screws (A) so that mounting screws (A) can be exposed 5-6 mm after passing through the canopy (F). Once the ideal
position of mounting screws (A) has been conrmed, tighten nuts (C) on mounting screws (A) under the mounting
plate to ensure that mounting screws (A) are in place.

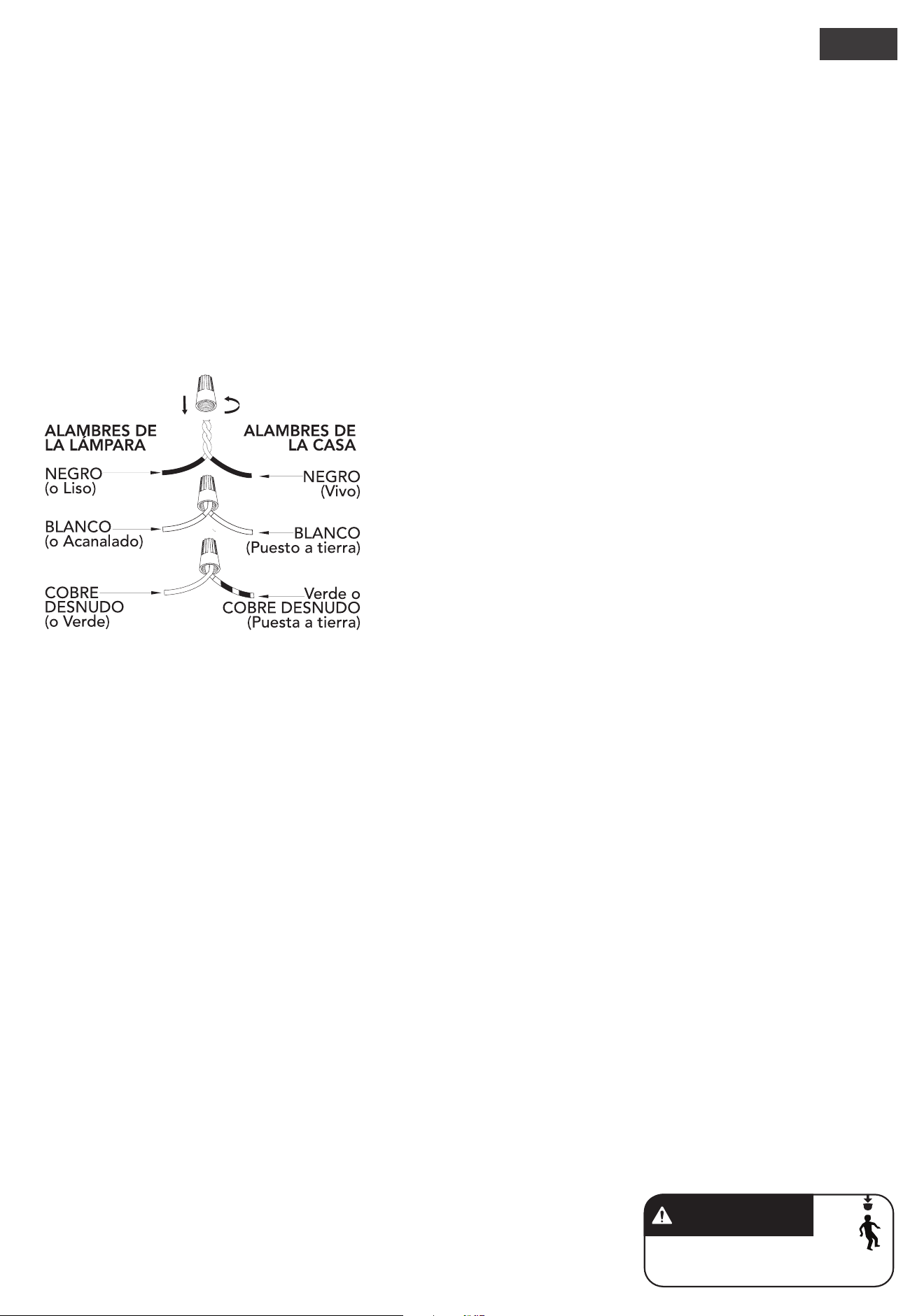

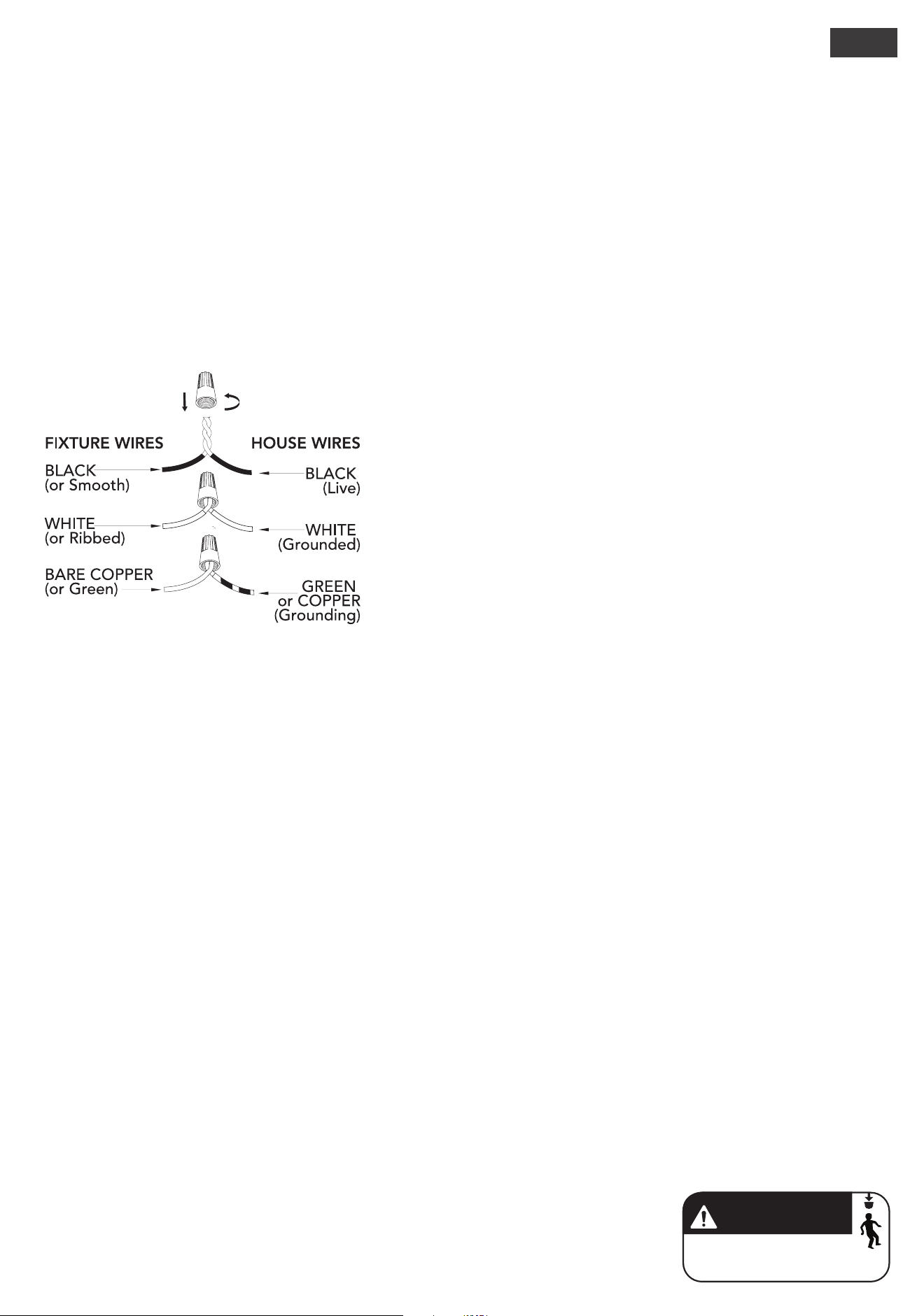

Have a helper support to the xture’s weight while completing the
wiring. Attach the xture’s wires to the power supply wires from the
junction box. Connect black to black (Live); white to white (grounded);
grounding to grounding (green or copper). Twist the ends of the wire
pairs together. Then twist on a wire connector. Make sure all twists are
in the same direction. Loop xture’s ground wire around grounding
screw (B) and tighten. If there is no ground wire (green or copper) from
the junction box, contact a qualied electrician.
Raise canopy (F) to mounting plate (D) and position mounting screws (A) so that they protrude through the openings of
canopy (F). Secure canopy (F) in place with cap nuts (K). Install light bulb (not included) in accordance with the xture’s
specications. Do not exceed the recommended wattage. Slide the glass (J) onto the three cross bars (G) of the xture
by screwing the decorative nuts (H) tight. Your installation is now complete. Turn on the power and test the xture.
WARNING
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH,
make sure that glass is properly secured.
