IPL626A04
10/15
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3.
CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) / 1-800-567-2513 (French) Monday through Friday 8:00 AM to 5:00 PM E.S.T.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Wire Cutters
Pliers
Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
Phillips
Screwdriver
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
NOTE: Product may not look exactly as shown in figures.

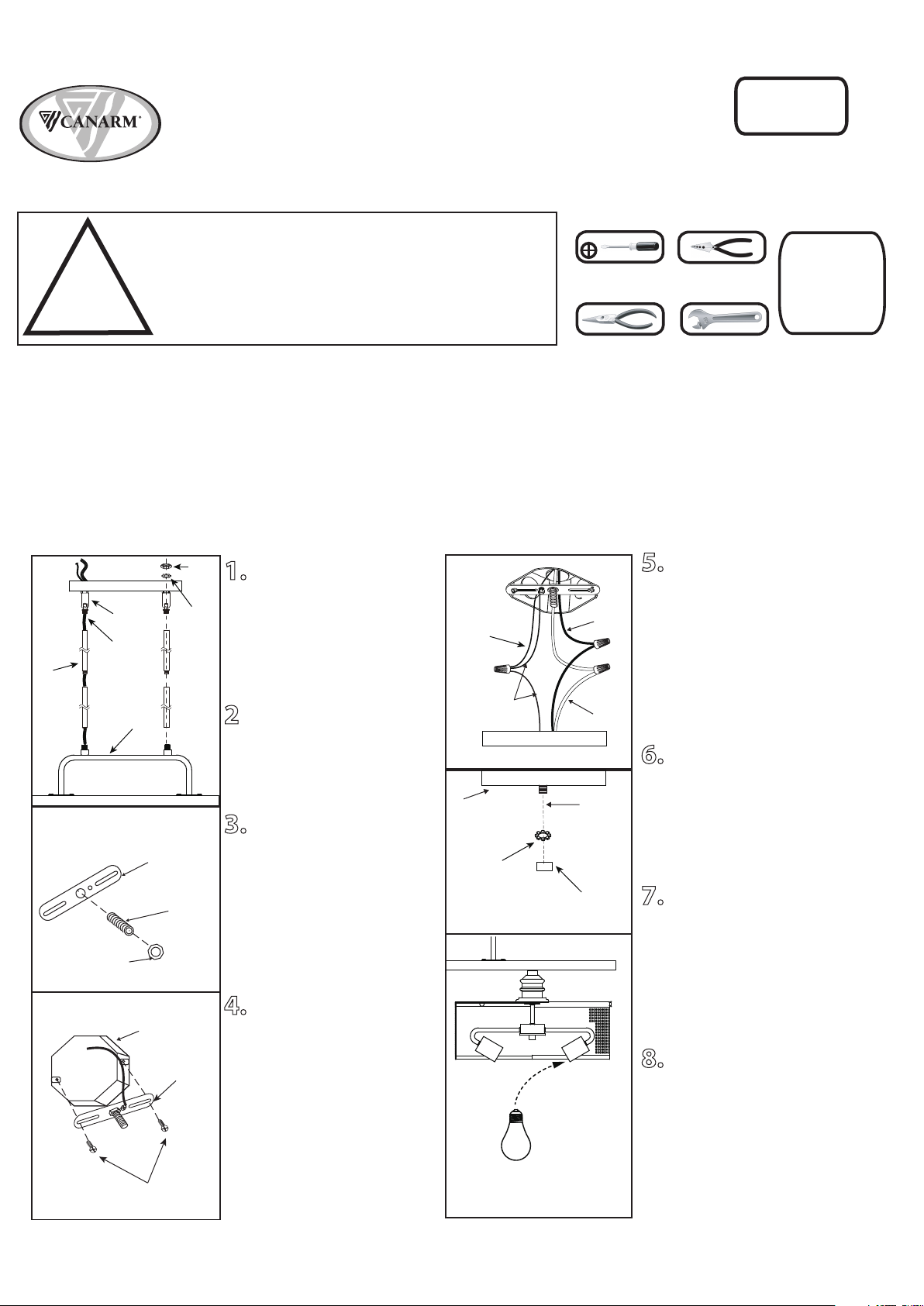

INSTALLATION:
1. Install the length of rod
that is required by threading
wire through the rod and
screwing it to the fixture.
Install swivel to the rod,
ensuring that the sleeve is at
the swivel.
2. Tighten the hex nut and
washer to the stem on the
canopy.
3.
Attach nipple to
mounting bracket. Adjust so
it will clear hole in back of
fixture and then lock nipple
in place with hex nut.
4.
Attach mounting bracket
to electrical outlet box with
electrical box screws (not
included).
Hex
Nut
Star
Washer
Electrical
Outlet Box
Mounting
Bracket
Nipple
Mounting
Bracket
Hex
Nut
Nipple
White
Black
House
supply
Ground
wire
Fixture
Ground
wire
Star
washer
Cap nut
Fixture
5. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground screw
in the electrical outlet box.
Connect black wire from fixture to
black wire in outlet box and
connect the white wire from
fixture to white wire in outlet box.
6. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire (on the black and white) is
visible at the wire nuts.
7. Position hole in fixture over
nipple and secure in place with
star washer and cap nut.
8. Install proper bulb type and
wattage (not included).
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
PENDANT LIGHT
Electrical Box Screws
(not included)
Bulb
Rod
Sleeve
Swivel
Fixture
