Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
• Important operating
and maintenance
instructionsincluded.
• Leavethismanualwith
party responsible for
useandoperation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
Fire Risk
• Forusewithsolidwoodfuelordecorative
gasapplianceonly.
• DO NOTinstallunventedgaslogs.
WARNING
If the information in these instruc-
tions is not followed exactly, a
re may result causing property
damage, personal injury, or death.
• Donotstoreorusegasolineorotheram-
mablevaporsandliquidsinthevicinityof
thisoranyotherappliance.
• Donotoverre.Overringwillvoidyour
warranty.
• Complywithallminimumclearancesto
combustiblesasspecied.Failureto
complymaycausehousere.
WARNING
WARNING
Hot screen/mesh and glass doors will cause burns.
• DO NOT touch screen/mesh or glassdoorsuntil
cooled
• NEVERallowchildrentotouchscreen/meshorglass
doors
• Keepchildrenaway
• CAREFULLYSUPERVISEchildreninsameroomas
replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammablematerialsaway.
HOT SURFACES!
Screen/mesh,glassdoors
andothersurfacesarehot
duringoperationANDcool
down.
Models:
Outdoor Woodburning Fireplace
ODVILLA-36H
ODVILLA-36T
ODVILLA-42H
ODVILLA-42T
Installation and service of this
appliance should be performed by
qualiedpersonnel.Hearth&Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
2
Read this manual before installing or operating this replace.
Please retain this owner’s manual for future reference.
Homeowner Reference Information
ModelName: Datepurchased/installed:
SerialNumber: Locationonreplace:
Dealershippurchasedfrom: Dealerphone:
Notes:
We recommend that you record the following pertinent
information about your replace:
Listing Label Information/Location
Themodelinformationregardingyourspecicreplacecanbefoundontheratingplatelocatedonthesmokeshieldof
thereplace.
Congratulations!
Note: Anarrow( )foundinthetextsignieschangeincontent.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Congratulations on selecting a Outdoor Lifestyles wood
burningreplace.TheOutdoorLifestylesreplaceyouhave
selectedisdesignedtoprovidetheutmostinsafety,reliability
andefciency.
Astheownerofanewreplace,you’llwanttoreadandcarefully
followalloftheinstructionscontainedinthisowner’smanual.
Payspecialattentiontoallcautionsandwarnings.
Thisowner’smanualshouldberetainedforfuturereference.
Wesuggestyoukeepitwithyourotherimportantdocuments
andproductmanuals.
Theinformationcontainedinthisowner’smanualunless
noted otherwise, applies to all models and gas control
systems.
Your new Outdoor Lifestyles wood burning replace will
giveyouyearsofdurableuseandtrouble-freeenjoyment.
Welcome to the Outdoor Lifestyles family of replace
products!
FIREPLACE NO.
MODEL NO.
MODEL NO.
MFG. DATE
WARNING: RISK OF
FIRE DAMAGE. REPLACE
GRATE WITH HEARTH & HOME
TECHNOLOGIES INC.
OUTDOOR FIREPLACE INTENDED FOR USE WITH HEARTH & HOME TECHNOLOGIES INC. LISTED FIREPLACE PARTS. SEE INSTALLATION AND
OPERATING INSTRUCTIONS FOR THIS MODEL. ONLY HEARTH & HOME TECHNOLOGIES INC. GLASS DOOR KITS CAN BE INSTALLED ON THIS UNIT.
FIREPLACE ALSO FOR USE
IN MANUFACTURED HOMES
YES
NO
CLEARANCE TO
COMBUSTIBLES:
CHIMNEY
2 IN. MIN.
FIREBOX
IN.
MIN.
FAN KIT
MODEL NO.
&
RATED AT
115 VOLTS, 50/60 Hz.,
AMP.
DO NOT OVERFIRE. USE ONLY: SOLID WOOD FUEL OR
LISTED DECORATIVE GAS APPLIANCE. DO NOT USE A
FIREPLACE INSERT OR OTHER PRODUCTS NOT
SPECIFIED FOR USE WITH THIS PRODUCT. IF DOORS
ARE USED OPERATE FIREPLACE WITH DOORS FULLY
OPEN OR CLOSED ONLY. WHEN BURNING A
DECORATIVE GAS APPLIANCE IN THE FIREPLACE,
ADJUST DAMPER TO THE FULLY OPEN POSITION.
WARNING! THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED
GAS LOG SET. TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT
INSTALL AN UNVENTED GAS LOG SET INTO FIREPLACE.
WARNING! TO AVOID THE RISK OF DAMAGING FIREPLACE MATERIALS
AND INCREASING THE RISK OF SPREADING A FIRE DO NOT USE THE
FIREPLACE TO COOK OR WARM FOOD.
IF INSTALLATION OR OPERATING INSTRUCTIONS ARE MISSING
CONTACT: HEARTH & HOME TECHNOLOGIES INC.,
1915 W. SAUNDERS ST., MT. PLEASANT, IA 52641.
Serial Number
Grate
Fireplace
Model
3
Safety Alert Key:
• DANGER! Indicatesahazardoussituationwhich,ifnotavoidedwillresultindeathorseriousinjury.
• WARNING!Indicatesahazardoussituationwhich,ifnotavoidedcouldresultindeathorseriousinjury.
• CAUTION! Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.
• NOTICE:Indicatespracticeswhichmaycausedamagetothereplaceortoproperty.
!
Table of Contents
Congratulations! 2
Warranty 4
1 Listing and Code Approvals 6
A. ApplianceCertication 6
B. Non-CombustibleMaterials 6
C. CombustibleMaterials 6
User Guide
2 Operating Instructions 7
A. YourFireplace 7
B. SeasonedWood 8
C. StartingaFire 8
D. Grate 8
E. Firescreen 8
F. Refractory 8
G. GlassDoors 9
H.DualCoolingAirKit(REQUIRED) 9
I. VentedGasLogSets&GasLogLighters 9
K. ClearSpace 9
L. WoodFuel 10
3 Maintenance and Service 11
A. DisposalofAshes 11
B. ChimneyInspection/Cleaning 11
C. CheckFireboxRefractory 12
D. InspectGrate 12
E. GlassCleaning 12
4 Troubleshooting Guide 13
5 Getting Started 14
Installer Guide
A. TypicalFireplaceSystem 14
B. DesignandInstallationConsiderations 15
C.MoistureResistance: 15
D. ToolsandSuppliesNeeded 16
E. FireplaceSystemRequirements 16
F. InspectFireplaceandComponents 16
6 Framing & Clearances 17
A. SelectingFireplaceLocation 17
B. Clearances 18
C. Sidewalls/Surrounds 19
D. FrametheFireplace 19
E. ChimneyRequirements 20
7 Installation of Fireplace 21
A. PositiontheFireplace 21
B. PlaceProtectiveMetalHearthStrips 21
C. LevelFireplace 21
D.InstallCoolingAirHoods(PROVIDED) 22
8 Chimney Assembly 23
A. ChimneyRequirements 24
B. UsingOffsets/Returns 25
C. AssembleChimneySections 26
D. InstallCeilingFirestops 27
E. CutoutHoleinRoof 28
F. CompleteInstallation 28
G. InstallFlashing 28
H. ChimneyTerminationRequirements 29
9 Chase Installations 30
A. ConstructtheChase 30
B. InstallFireplace&Chimney 31
C. InstallChaseTop 31
D. InstallTerminationCap 32
10 Shrouds 34
A. RadiationShield 34
B. FieldConstructedShrouds 34
11 Finishing 36
A. Non-CombustibleMaterials 36
B. CombustibleMaterials 36
C. HearthExtension 36
D. FinishingMaterial 39

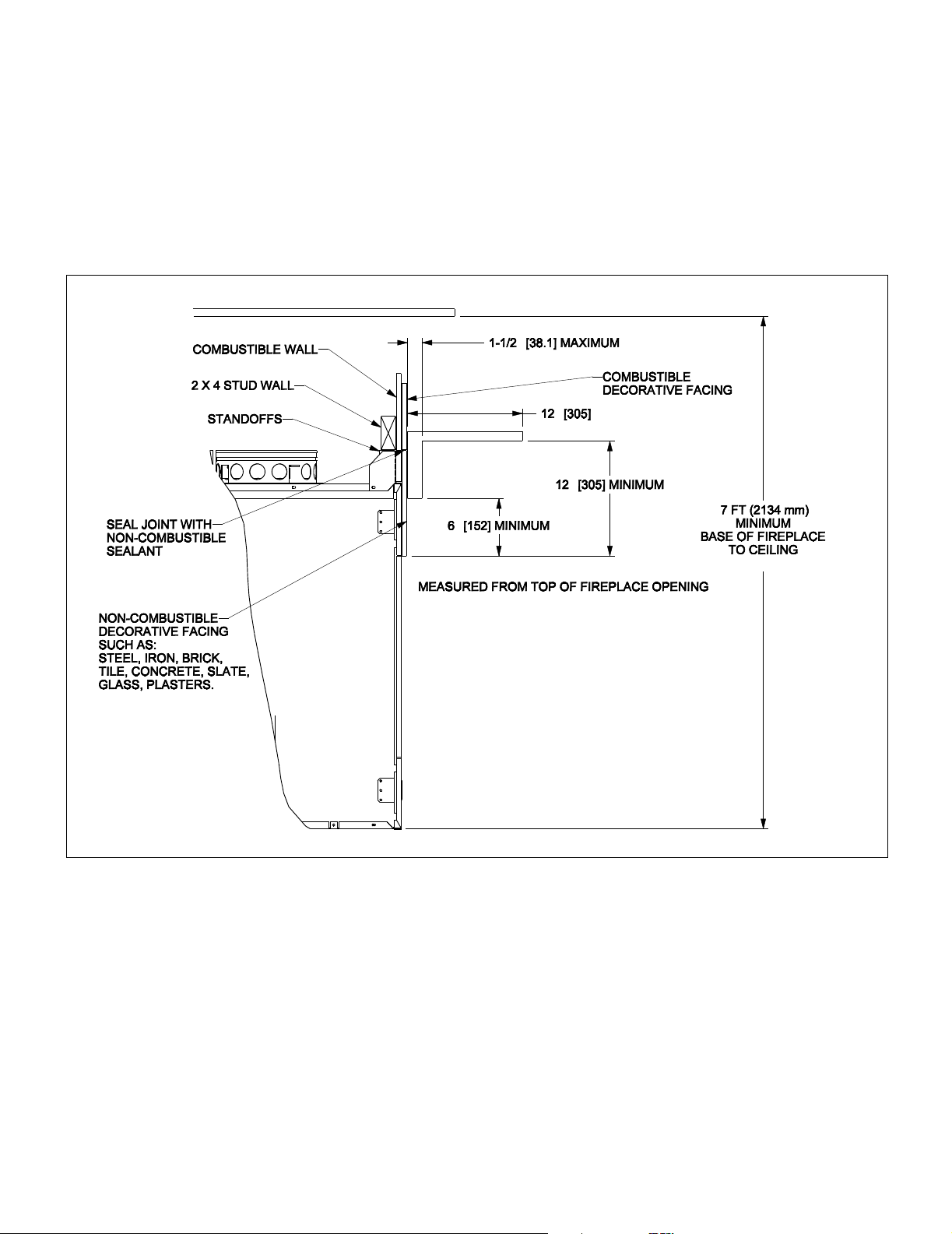

E. CombustibleMantel 40
F. Sidewalls/Surrounds 41
12 Accessories 42
A. GasLog/LighterProvision 42
13 Reference Materials 43
A. FireplaceDimensions 43
B. OptionalComponents 44
C. ChimneyComponents 45
D. ServiceParts 48-51
E. ContactInformation 52
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
►
4
Warranty
Outdoor Lifestyles by Hearth & Home Technologies, Inc.™
Limited Warranty
Hearth & Home Technologies, Inc. (“HHT”) extends the following warranty for all Outdoor Lifestyles by
HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking
ownership of the Product at the site of installation within one year following the date of original purchase,
that the Product will be free from defects in materials and workmanship at the time of manufacture. After
installation, if covered components manufactured by HHT are found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered
components. This warranty is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
The warranty period runs for one year, beginning on the earlier of: (i) the date of invoice for the Product;
(ii) in the case of new home construction, the date of first occupancy of the residence or six months after
the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24
months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.
WARRANTY CONDITIONS:
• This warranty only covers Products that are purchased through an HHT authorized dealer or
distributor. A list of HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the Product remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide
necessary parts, contact the nearest HHT authorized dealer or supplier. Additional service fees
may apply if you are seeking warranty service from a dealer other than the dealer from whom
you originally purchased the Product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel
and shipping charges for parts are not covered by this warranty.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in
color of interior and exterior surface finishes may occur; this is not a flaw and not covered under
warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse,
scratches, melted items, or other external sources and residues left on surfaces from the use of
abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty
period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are
normal and complaints related to this noise are not covered by this warranty.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
5
• Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with
the installation instructions, operating instructions, and listing agent identification label furnished
with the Product; (2) failure to install the Product in accordance with local building codes; (3)
shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with
damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inad-
equate ventilation, negative pressure or environmental conditions, including, without limitation:
hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other
than those specified in the operating instructions; (7) installation or use of components not
supplied with the Product or any other components not expressly authorized and approved by
HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the Product.
• Non-HHT venting components, hearth components or other accessories used in conjunction with
the Product.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is
installed.
• The Product’s capability to heat the desired space. Information is provided to assist the consumer
and the dealer in selecting the proper appliance for the application. Consideration must be given
to the Product’s location and configuration and environmental conditions.
This warranty is void if:
• The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine, or other
damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or tubes, rust colored
cast iron, bubbling, cracking and discoloration of steel or enamel finishes and cracking or spalling of
refractory or cementitious materials.
• The Product is subjected to prolonged periods of dampness, condensation, ice or snow.
• There is any damage to the Product or other components due to water or weather damage which is the
result of, but not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive remedy for and
will constitute HHT’s sole obligation under this warranty, under any other warranty (express or implied), or in contract,
tort or otherwise; provided, however, that if HHT is unable to provide repair or replacement in an expedient and cost
effective manner, HHT may discharge all such obligations by refunding the purchase price of the Product. No
employee, agent, dealer, or other person is authorized to give any warranty on behalf of HHT. TO THE EXTENT
ALLOWED BY LAW, HHT MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WAR-
RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR
ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING OUT OF DEFECTS IN OR USE OF THE PROD-
UCTS. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary from state
to state. The duration of any implied warranty is limited to the duration of the warranty period specified herein.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 2
Limited Warranty (continued)
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
6
1
Listing and Code Approvals
NOTICE: This fireplace is tested and approved as a
decorative replace. It should not be factored as a primary
heat source in residential heating calculations.
WARNING! Risk of Fire! Hearth & Home Technologies
disclaims any responsibility for, and the warranty and
agency listing will be voided by the following actions.
DO NOT:
• install or operate damaged replace
• modify replace
• install other than as instructed by Hearth & Home
Technologies
• operate the replace without fully assembling all
components
• overre
• install an unvented gas log set
• install any component not approved by Hearth & Home
Technologies
• install parts or components not Listed or approved
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
installer, service agency or your dealer.
B. Non-Combustible Materials
• Materialswhichwillnotignite andburn,composed of
anycombinationofthefollowing:
- Steel - Iron
- Brick - Tile
- Concrete - Slate
- Glass - Plasters
• MaterialsreportedaspassingASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace at 750° C
C. Combustible Materials
• Materialsmadeoforsurfacedwithanyofthefollowing
materials:
- Wood - Compressedpaper
- Plantbers - Plastic
• Anymaterialthatcanigniteandburn;ameproofedor
not,plasteredorun-plastered
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
A. Appliance Certication
OutdoorLifestylesisaregisteredtrademarkofHearth&
HomeTechnologiesInc.
Thisreplacesystemhasbeentestedandlistedinaccor-
dancewithUL 127 andCAN/ULC-S610-M87standards
byUnderwritersLaboratoriesInc.forinstallationand
operationintheUnitedStatesandCanada.
Thisreplacehasbeentestedandlistedforusewith
theoptionalcomponentsspeciedinthismanual.These
optionalcomponentsmaybepurchasedseparatelyand
installedatalaterdate.
Fire Risk
WARNING
WARNING!TOAVOIDTHERISKOFDAMAGINGFIRE-
PLACEMATERIALSANDINCREASINGTHERISKOF
SPREADINGAFIRE,DO NOT USE THE FIREPLACE TO
COOK OR WARM FOOD.
7
2
Operating Instructions
WARNING! DO NOT operate replace before reading and understanding operating instructions. Failure to operate replace
according to operating instructions could cause re or injury.
User Guide
WARNING
Hot glass will cause burns.
• DO NOTtouchglassuntilitiscooled
• NEVERallowchildrentotouchglass
• Keepchildrenaway
• CAREFULLYSUPERVISEchildreninsameroomasreplace.
• Alertchildrenandadultstohazardsofhightemperatures.
High temperatures may ignite clothing or other ammable materials.
• Keepclothing,furniture,draperiesandotherammablematerialsaway.
HOT SURFACES!
GlassandothersurfacesarehotduringoperationANDcooldown.
Figure 2.1 General Operating Parts
A. Your Fireplace
Ifyouexpectthatchildrenmaycomeintocontactwiththisreplace,werecommendabarriersuchasadecorative
screen.Seeyourdealerforsuggestions.
Gas Log Set
Gas Log Lighters
(not shown)
Section 2.I.
Firescreen
(not shown)
Section 2.E.
Glass Doors
(not shown)
Section 2.G.
Grate
Section 2.D.
Refractory
Section 2.F..
Hearth
Clear Space
Section 2.L.
Wood Fuel
Section 2.M.
Mantel
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
8
• Therstthreeorfourresshouldbeofmoderatesizeto
allowtheoilsandbinderstobeburnedfromthereplace
and the refractory and paint to cure. You may notice
anindustrialodortherstfewres.Thisisconsidered
normal.
• Usewell-seasonedwood.
• Place crumpled or twisted paper under the replace
grate.
• Looselyarrangekindlingorsmallpiecesofwoodtoform
a‘tent’onthereplacegrate.
• Pre-warm the ue to establish a draft to help reduce
smokespillageduringstart-up.Holdarolleduppieceof
burningnewspaperundertheueforafewmoments.
• Lightthecrumpledpapertoignitethekindling.
• Addsmallpiecesofwooduntilahotbedofembershas
beenestablished.
• Add a minimum of three average size pieces of split
rewood, placed to allow combustion air and ames
betweenthem.
C. Starting a Fire
NOTICE: You must establish a good draft to prevent smoke
spillage into the room.
WARNING! Risk of Fire! Keep combustible materials,
gasoline and other ammable vapors and liquids clear of
the replace.
DO NOT:
• store ammable materials close to the replace
• use gasoline, lantern fuel, kerosene, charcoal lighter
uid or similar liquids to start or “freshen up” a re in this
replace.
Keep all ammable liquids well away from the replace while
it is in use. Combustible materials may ignite.
B. Seasoned Wood
Properlyseasonedwoodisimportantforsuccessful
operationofyourreplace.Mostwoodburningreplace
problemsarecausedbyburningwet,unseasonedwood.
Seasonedrewoodiswoodthatiscuttosize,splitandair
driedtoamoisturecontentofaround20%.
Imagineawoodenbucketthatweighsabouteight
pounds.Fillitwithagallonofwater,putitinthereplace
andtrytoburnit.Thissoundsridiculousbutthatisexactly
whatyouaredoingifyouburnunseasonedwood.
Atreecutdownayearagoandnotsplitislikelytohave
almostashighamoisturecontentnowasitdidwhenit
wascut.
PleaserefertoSection2.Mformoredetail.
CAUTION! Odors and vapors released during initial
operation may be irritating to sensitive individuals.
Open windows for air circulation.
D. Grate
Thisreplaceisdesignedtobeusedwiththegratesup-
pliedwiththisunitoroneapprovedbyHHT.Thegratewill
breakdownovertimeandwillneedoccasionalreplace-
ment.
WARNING! Risk of Fire!
Use only the factory-supplied
integral grate.
• Keeps logs in place.
• Allows proper air circulation around the re.
E. Firescreen
Therescreenisprovidedtocontrolsparks.Keepit
closedwhenthereplaceisinuse.
WARNING! Risk of Fire or Burns!
• Screen will not prevent burning materials from falling
out.
• Screen pulls or handles may be hot.
F. Refractory
• Therefractoryissuppliedtocontainheatandprovide
anattractiveinterior.
• Itwillbreakdownovertimeandwillneedoccasional
replacement.Smallhairlinecracksanddiscolorationare
normalanddonotaffectitssafety.
• (SeerefractorymaintenanceSection3.C.)
WARNING! Risk of Fire! DO NOT burn replace with-
out refractory. Use only refractory supplied by Hearth &
Home Technologies, Inc.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
►
9
FULLY OPEN
CORRECT
PARTLY CLOSED
INCORRECT
PARTLY OPEN
INCORRECT
FULLY CLOSED
CORRECT
Figure 2.2 Operating Positions of Bi-fold Doors
WARNING! Risk of Fire and Smoke! Fireplaces
equipped with doors should be operated only with
doors fully open or doors fully closed. If doors are left
partly open, gas and ame may be drawn out of the
replace opening.
WARNING! Risk of Fire! Install ONLY doors ap-
proved by Hearth & Home Technologies, Inc.
• Glassdoorsareoptional.
• RefertoFigure2.2forhowtoproperlyusethem.
G. Glass Doors
48 in. (1219 mm)
Clear Space
Front of Fireplace
12 in. (305 mm)
Clear Space
Sides of Fireplace
(from the FP
opening)
Figure 2.3 Clear Space
I. Vented Gas Log Sets & Gas Log Lighters
• Optional
• Ventedgaslogsorgasloglighterscanbeinstalledin
thisreplace.Followtheinstructionsprovidedwiththe
accessoryforoperation.
J. Optional Components
• Otheroptionsmaybeavailable
• Consultyourdealer/distributor
K. Clear Space
• Donotplacecombustibleobjectswithinareasindicated
inFigure2.3.
WARNING! DO NOT place combustible objects in front
of the replace. High temperatures may ignite clothing,
furniture or draperies.
• Mantel-avoidplacingcandlesandotherheat-sensitive
objectsonmantelorhearth.Heatmaydamagethese
objects.
WARNING! Risk of Fire or Asphyxiation!
• DO NOT install unvented gas logs.
• Gas ame may generate fumes.
WARNING! Risk of Fire! DO NOT install and or use
any component not approved by Hearth & Home Tech-
nologies Inc.
Thecoolingairkitissuppliedasastandardfeaturewith
thisreplaceandisrequiredforsafeoperation.Installa-
tionmustbedoneatthetimeofinitaialconstruction.The
coolingairinlettubesmustbeaminimumof12in..(305
mm)abovethebaseofthereplacetopreventpotential
blockagebysnoworyarddebris.Seepage14
H. Dual Cooling Air Kit (REQUIRED)
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
10
L. Wood Fuel
Hardwood vs Softwood
Yourreplaceperformancedependsonthequalityofthe
rewoodyouuse.
• Seasonedwoodcontainsabout8,000BTUsperpound
.
• Hardwoodsaremoredensethansoftwoods.
• Hardwoodscontain60%moreBTUsthansoftwoods.
• Hardwoodsrequiremoretimetoseason,burnslower
andarehardertoignite.
• Softwoodsrequirelesstimetodry,burnfasterandare
easiertoignite.
• Starttherewithsoftwoodtobringthereplaceupto
operatingtemperatureandtoestablishdraft.
• Add hard wood for slow, even heat and longer burn
time.
Themajorityoftheproblemsreplaceownersexperience
arecausedbytryingtoburnwet,unseasonedwood.
• Wet,unseasoned wood requires energy to evaporate
thewaterinsteadofheatingyourhome,and
• Evaporatingmoisturecoolsyourchimney,accelerating
formationofcreosote.
WARNING! Risk of Fire!
• DO NOT burn wet or green wood.
• Wet, unseasoned wood can cause accumulation of
creosote.
Moisture
Softwoods Hardwoods
• DouglasFir • Oak
• Pine • Maple
• Spruce • Apple
• Cedar • Birch
• Poplar
• Aspen
• Alder
Storing Wood
Stepstoensureproperlyseasonedwood:
• Stackwoodtoallowairtocirculatefreelyaroundand
throughwoodpile.
• Elevate wood pile off ground to allow air circulation
underneath.
• Smallerpiecesofwooddryfaster.Anypieceover6in.
(152mm)indiametershouldbesplit.
• Wood(wholeorsplit)shouldbestackedsobothends
ofeachpeiceareexposed to air.Moredryingoccurs
throughthecutendsthanthesides.
• Store wood under cover to prevent water absorbtion
fromrainorsnow.Avoidcoveringthesidesandends
completely.
Seasoned Wood
• Cutlogstosize
• Splitto6in.(152mm)orless
• Airdrytoamoisturecontentofaround20%
- Softwood-aboutninemonths
- Hardwood-abouteighteenmonths
NOTICE: Seasoning time may vary depending on drying
conditions.
WARNING! Fire Risk! DO NOT store wood:
• In front of the replace.
• In space required for loading or ash removal.
Processed Solid Fuel Firelogs
Manufacturedrelogsmaybeusedwiththisreplace.
Hearth&HomeTechnologiesInc.recommendstheuseof
ULClassiedprocessedfuelrelogs.Followthemanufac-
turer’slightingandsafetyinstructions.
Usingrelogsmayrequiremorefrequentchimneyinspec-
tionandcleaning.
Donotpokeorstirthelogswhiletheyareburning.Use
onlyrelogsthathavebeenevaluatedfortheapplication
inmanufacturedreplacesandrefertorelogwarnings
andcautionmarkingsonpackagingpriortouse.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
11
3
Maintenance and Service
Figure 3.1 Chimney & Termination Cap Cleaning
A. Disposal of Ashes
Frequency
: Whentheyreachbottomofgrate
By: Homeowner
WARNING! Risk of Fire! Ashes could contain hot em-
bers.
• Placeashesinametalcontainerwithatight-ttinglid.
• The closed container should be placed on a non-
combustibleoororontheground,wellawayfromall
combustiblematerials,pendingnaldisposal.
• Iftheashesaredisposedofbyburialinsoilorotherwise
locallydispersed,theyshouldberetainedintheclosed
containeruntilallcindershavethoroughlycooled.
B. Chimney Inspection/Cleaning
Frequency: Atleasttwiceayearduringheatingseason
orasrecommendedbyacertiedchimneysweep
By: Certiedchimneysweep
WARNING! Risk of Fire! Ignited creosote is extremely
HOT. Prevent creosote buildup.
RefertoFigure3.1toremove/reinstallterminationcaps.
Creosote - Formation and Need for Removal
Whenwoodisburnedslowly,itproducestarandother
organicvapors,whichcombinewithexpelledmoistureto
formcreosote.Thecreosotevaporscondenseintherela-
tivelycoolchimneyueofaslow-burningre.Asaresult,
creosoteresidueaccumulatesontheuelining.When
ignitedthiscreosotemakesanextremelyhotre.
WARNING! Risk of Fire!
A chimney re can permanently
damage your chimney system and nearby structures.
Intheeventofachimneyre,Hearth&HomeTechnolo-
giesInc.recommends
• replacementofthechimney,and
• inspectionoftheadjacentstructuretotheprovisionsof
NFPALevelIIIinspectioncriteria.
Thechimneyshallbeinspectedatleasttwiceayear
duringtheheatingseasontodeterminewhenacreosote
builduphasoccurred.
Whencreosotehasaccumulateditshallberemovedto
reducetheriskofachimneyre.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Chimney
Remove 4 screws
and lift top pan off.
Cap
Slip
Section
ST375
Square
Termination Cap
Cap
Remove screws,
lift top cover.
Top Cover
TR344/TR342
Round
Termination Cap
Chase
Cap
1. Remove the 4 screws.
2. Remove the screen.
3. Remove the baffle.
TS345/TS345P
Square
Termination Caps
TCT375
Terra Cotta
Termination Cap
Remove 2 screws from
the front and back and
lift the top off.
DT SERIES
2. Lift Top off
1.
Remove (8) screws
12
C. Check Firebox Refractory
Frequency:
Aftereachashremoval
By: Homeowner
D. Inspect Grate
Frequency: Aftereachashremoval
By: Homeowner
Inspectgratefor:
• Warpingorsagging1-1/2in.(38mm)ormore
• Brokenwelds
• Burn-throughofgratebars
Forsafeoperation,replaceonlywithanapprovedgrate
fromHearth&HomesTechnologiesInc.
WARNING! Risk of Fire! Inspect replace refractory.
Crumbling, deteriorated refractory can allow overheating
of surrounding materials.
Expansionandcontractionwillcauseminorcrackingof
therefractory.Thisisnormal.Therefractorywillrequire
periodicreplacementdependingonuse.
Thepanelsshouldbereplacedif
• Cracksexceed¼inch(6mm)inwidth,
• Metalisexposedbehindtherefractory,
• Largepiecesofrefractoryfallout.
E. Glass Cleaning
Frequency: Asdesired
By: Homeowner
Cleanglasswithanon-abrasivecommerciallyavailable
cleanerorashes:
• Lightdeposits
- Usehouseholdglasscleaner
• Heavydeposits
- Usewoodashondampclothor,
- Usecommercialreplaceglasscleaner(consultwith
your dealer)
CAUTION! Handle glass assembly with care. Glass is
breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
13
4
Troubleshooting Guide
Start Fire Problems Possible Cause Solution
Can’tgetrestarted
Excessivesmokeorspillage
Burnstooslowly
Smolders,sizzles
Notenoughkindling/paperorno
kindling/paper
Usedrykindling,morepaper.Arrangekindling&
woodforairmovement.
Notenoughairforretoignite Checkforrestrictedcap/shroud.
Checkforueblockage.
Pre-warmuebeforestartingre
Checkforadequateventheight(refertochimney
assemblysection).
Woodconditionistoowet,too
large
Usedry,seasonedwood
Bedofcoalsnotestablished
beforeaddingwood
Startwithpaper&kindlingtoestablishbedof
coals(refertostartingresection).
Flueblockagesuchasbirds’nests
orleavesinterminationcap
Havechimneyinspectedforcreosoteandcleaned
byacertiedchimneysweep.
Fireburnstoofast Extremelydryorsoftwood Mixinhardwood.
Mixinlessseasonedwoodafterreisestablished
(refertowoodfuelsection).
Noglassdoors Addglassdoorstoslowdownairow.
Overdrafting Checkforcorrectventheight;toomuchvertical
heightcreatesoverdrafting.
Checklocationofventtermination(referto
chimneyassemblysection).
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
14
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Non-combustible
roof flashing maintains
minimum clearance
around chimney
Additional lateral
support for chimney
above roof (or enclosed
in chase) if needed
(Section 8.A.)
Ceiling firestop
on floor of attic
(Section 8.E.)
Support straps
on rafter support
chimney (not shown)
Termination cap
(Section 8.J. & 9.D.)
Chimney penetrates roof
preferably without affecting
roof rafters (Section 8.E.)
Offset & Return (with hanger straps)
(Section 8.B.)
Framing headed off
in ceiling joists
(Section 8.E.)
Enclosed space above
and around fireplace
(Section 6.B.)
Mantel and surround
(Section 11.E. & 11.F.)
Decorative facing
and trim
(Section 11.D.)
Hearth extension
(Section 11.C.)
Factory-built fireplace
Protective metal
hearth strip(s)
(Section 7.C.)
Combustible framing/header
on top of V-shaped standoffs
(Section 6.D.)
Chimney system
(Section 8)
Attic insulation shield (not shown)
must be used here to keep
insulation away from chimney
if attic is insulated (Section 8.F.)
Storm Collar
(Section 8.H. & 9.C.)
NOTICE:
• Illustrations and photos reflect typical installations
and are for design purposes only.
• Illustrations/diagrams are not drawn to scale.
• Actual product may vary from pictures in manual.
Cooling air kit- Outlet
must be no less than
12 inches off ground
level
Installer Guide
5
Getting Started
A. Typical Fireplace System
15OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
B. Design and Installation Considerations
NOTICE:
Check building codes prior to installation.
• InstallationMUSTcomplywithlocal,regional,stateand
nationalcodesandregulations.
• Consultinsurancecarrier,localbuilding inspector,re
ofcialsorauthoritieshavingjurisdictionoverrestrictions,
installationinspectionandpermits.
Beforeinstalling,determinethefollowing:
• Wherethereplaceistobeinstalled
• Theventsystemcongurationtobeused
• Gassupplypiping
• Framingandnishingdetails
• Whetheroptionalaccessoriesaredesired
Thisoutdoorreplacewillshedmoderateamountsof
water,butisnotwaterproof.Waterandcondensingwater
vapormayenterthechaseundercertainconditions.
Thereplacewillnotperformasanexteriorwall.Mois-
turepenetrationmustbeconsideredforconstruction
thatplacesthereplaceinstructurewallsoronmoisture
sensitivesurfaces.
When installed on exterior walls:Hearth&HomeTech-
nologiesrecommendsthatthereplacechasebecon-
structedoutsidethestructure’sweatherenvelope.Where
theplatformmeetsthewall,useaashingdetailsimilar
tothatrequiredforattacheddecks.Chaseplatforms,
includinghearthsshouldslopeawayfromthestructureat
1/8in.to1/4in.perfoot.Thereplacecanbeshimmed
level.
When installed on surfaces where water may col-
lect or cause damage:Hearth&HomeTechnologies
recommendsthatadrainagepanbeplacedunderthe
unit.Thiscanbeconstructedofmetal,adhesivepolymer
membrane(suchasiceandwatershield)orothersuit-
ablematerials.Ameansofdrainageoutofthepansuch
astubesorweepholesshouldbeprovided.Aslopeof1/8
in.to1/4in.perfoottowardsthedrainportissuggested.
Thereplacecanbeshimmedlevel.
Hearthsshouldslopeawayfromthefrontofthereplace
andchaseat1/8in.to1/4in.perfoot.Sparkstripsmust
beontopofanycombustiblehearthmaterialsusedfor
moisturemanagement.
C. Moisture Resistance:
16
Beforebeginningtheinstallationbesurethefollowing
toolsandbuildingsuppliesareavailable:
Reciprocatingsaw Framingmaterial
Pliers Non-combustiblesealant
Hammer Gloves
Phillipsscrewdriver Framingsquare
Flatbladescrewdriver Electricdrillandbits
Plumbline Safetyglasses
Level Tapemeasure
1/2-3/4in.length,#6or#8self-drillingscrews
Misc.screwsandnails
D. Tools and Supplies Needed F. Inspect Fireplace and Components
WARNING! Risk of Fire and/or Explosion! Damaged
parts could impair safe operation. DO NOT install dam-
aged, incomplete or substitute components. Keep re-
place dry.
• Removereplaceandcomponentsfrompackagingand
inspectfordamage.
• Vent system components and doors are shipped in
separatepackages.
• Reporttoyourdealeranypartsdamagedinshipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
E. Fireplace System Requirements
Thisreplacesystemrequires:
• Fireplace
• HearthRefractory
• GrateAssembly
• HearthExtension(required,soldseparately)
• ChimneySystem(required,soldseparately)
• TerminationCap(required,soldseparately)
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
17
6
Framing & Clearances
Figure 6.1 Fireplace Locations (Framing dimensions shown)
A. Selecting Fireplace Location
Thisoutdoorreplacewillshedmoderateamountsof
water,butisnotwaterproof.Waterandcondensingwater
vapormayenterthechaseundercertainconditions.
Thereplacewillnotperformasanexteriorwall.Mois-
turepenetrationmustbeconsideredforconstructionthat
placesthereplaceagainststructurewallsoronmoisture
sensitivesurfaces.
• Exterior Walls (see Figure 6.1)
Hearth & Home Technologies recommends that the
replacechase beconstructedoutsidethestructure’s
weatherenvelope.Wheretheplatformmeetsthewall,
useaashingdetailsimilartothatrequiredforattached
decks.Chaseplatforms,includinghearths,shouldslope
away from the structure at 1/8 in. to 1/4 in. per foot.
Thereplacecanbeshimmedlevel.Buildtheoutside
enclosure out of standard building materials, being
carefultomaintaintheminimumairclearancesspecied
intheseinstallationinstructions.
• Freestanding Installations (see Figure 6.2)
Wheninstallingthisreplaceasafreestandingreplace
onyourporch,patioorinyouryard,itmustbeenclosed
topreventimpactdamagetothereplace.
• The cooling air hoods MUST be used if installing in
a combustible enclosure.
• Ifunitisinstalledoncementandtotallyenclosedwithnon
combustilbematerials(i.e.metalstuds,cementboard,
etc.)thecoolingairhoodsdonotneedtobeinstalled.
• When Installed on Surfaces Where Water May Collect
or Cause Damage:
Hearth & Home Technologies recommends that a
drainage pan be placed under the unit. This can be
constructedofmetal,adhesivepolymermembrane(such
asiceandwatershield)orothersuitablematerials.A
meansofdrainageoutofthepansuchastubesorweep
holesshouldbeprovided.Aslopeof1/8in.to1/4in.per
foottowardsthedrainportissuggested.Thereplace
canbeshimmedlevel.Hearthsshouldslopeawayfrom
thefrontofthereplaceandchaseat1/8in.to1/4in.per
foot.Sparkstripsmustbeusedontopofanycombustible
hearthmaterialsusedformoisturemanagement.
G
F
E
A
C
Across a
corner
H
As a
room
divider
D
48 in.
(1219 mm)
minimum
A
Along a wall
A
B
5/8 in. (16 mm) all
configurations
H
1/2 in. (13 mm) min. air
space from fireplace to
combustible materials.
Note:
Note:
In addition to these
framing dimensions,
also reference the
following sections:
• Clearances (Section
6.B.)
• Mantel Projections
(Section 11.E.)
• Fireplace Dimensions
(Section 13.A.)
H
B
Side of house
A
Note: Measurements are FRAMING dimensions only and do
not include drywall either in the cavity or on the walls.
I
I
Note: If this surface is inside the building’s warm air envelope
then this surface must be an exterior wall system.
FREESTANDING
INSTALLATION
(Combustible Structure)
(Enclosed Fireplace)
10 ft
Min.
A B C D E F G H I
inches
42 50 67 7/8 59 1/2 34 14 48 21 1/2
mm
1067 1270 1724 1511 864 356 1219 546
inches
48 56 73 7/8 65 1/2 37 1/4 14 52 1/4 21 1/2
mm
1219 1422 1876 1664 946 356 1327 546
Model
ODVILLA-36
12 in. (305 mm)
Minimum from FP
opening to any
perpendicular
wall.
ODVILLA-42
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
THERE IS NOT A FLUE DAMPER,THEREFORE
UNIT CANNOT BE INSTALLED INDOORS.
18
B. Clearances
WARNING! Risk of Fire!
You must comply with all minimum air space clearances to combustibles as specied in Fig-
ure 6.2. DO NOT pack required air spaces with insulation or other materials.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
(roof)
(insulation)
0 in. to level
of standoffs
Attic
Insulation
Shield
(ceiling)
(attic)
(ceiling)
Offset/Return (secured
with hanger straps)
Storm Collar
Roof Flashing
1/2 in. (13 mm) to back &
sides of appliance
Must have 2 in. (51 mm)
minimum clearance
to header
0 in.
to floor
2 in. (51 mm) min.
Shaded areas
represent
2 in. (51 mm) min.
air space clearance
required around pipe
Combustible Object
48 in.
1219 mm
Ceiling Firestop
Figure 6.2 Clearances to Combustible Materials
19
D. Frame the Fireplace
Figure6.4showstypicalframingusingcombustiblematerials(2x4lumbershown).
• ObserveallrequiredairspaceclearancestocombustiblematerialsasshowninFigure6.1&6.2.
• Framingacrossthetopofreplacemustbeabovetopstandoffs.
Figure 6.4 Framing the Fireplace
C. Sidewalls/Surrounds
• Adjacentcombustiblesidewallsmustbelocatedaminimumof12in.(305mm)fromthereplaceopening.
• Combustibleandnon-combustiblemantellegs,surroundsandstubwallsmaybeconstructedwithinthegriddedarea,
Figure6.3.
Figure 6.3 Mantel Leg or Wall Projections (Acceptable on both sides of opening)
B
C
A
2 in. (51 mm)
min. air space
clearance
from chimney.
Header MUST NOT be notched!
Model A B* C**
in. 42 21 1/2 39 3/4
mm 1067 546 1010
in. 48 21 1/2 39 3/4
mm 1219 546 1010
ODVILLA-36
ODVILLA-42
* If interior of chase will be drywalled, add the thickness to
this measurement.
** Adjust header height for a raised floor under fireplace.
Model
A
Fireplace
opening
B
Outside
Dimensions
36 in. 41 in.
914 mm 1041 mm
42 in. 47 in.
1067 mm 1194 mm
ODVILLA-42
ODVILLA-36
B
A
9 3/4 in.
[248 mm]
12 in.
[305 mm]
12 in.
[305 mm]
11 1/4 in.
[286 mm]
FLUSH
FRONT
4 in.
[102 mm]
BRICK
FRONT
50° angle
39° angle
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
20
ft m
• Minimumheightwithoffset/return 14.5 4.42
•
Maximumheight 90 27.43
• Maximumchimneylengthbetweenanoffset
and return
20 6.1
• Maximumdistancebetweenchimney
stabilizers
35 10.67
• Doubleoffset/returnminimumheight 24 7.32
• Maximumunsupportedchimneylength
betweentheoffsetandreturn
6 1.83
• Maximumunsupportedchimneyheightabove
thereplace
35 10.67
• Minimumoverallstraightheightifreplaceis
freestanding
6.4 1.95
• MinimumStraightHeight 14.5 4.42
E. Chimney Requirements
Whenplanningyourreplacelocation,thechimneycon-
structionandnecessaryclearancesmustbeconsidered.
Thereplacesystemandchimneycomponentshave
beentestedtoprovideexibilityinconstruction.Thefol-
lowingguresaretheminimumdistancesfromthebase
ofthereplace.
• Minimum overall straight height is 6 ft 4 in. If the
replaceisfreestandingandaminimumof10ftfrom
acombustiblestructure. SeeFigure6.1
• Chimney must extend 2 ft (.6 m) above any portion
oftheroofwithin10ft(3m)ofthechimney.Referto
Figure8.7
Note: Amaximumoftwopairsofoffsetsandreturnsmay
beused.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
21
7
Installation of Fireplace
CAUTION! Risk of Cuts/Abrasions.
Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
A. Position the Fireplace
• Thisreplacemaybeplacedoneitheracombustibleor
noncombustiblecontinuousatsurface.
• FollowframinginstructionsinSection6.
WARNING! Risk of Fire! Prevent contact with sag-
ging, loose insulation.
• DO NOT install against vapor barriers or exposed
insulation.
• Secure insulation and vapor barriers.
• Provide minimum air space clearances at the sides
and back of the replace assembly as outlined in
Section 6.
Protective metal strips are placed 2 in. (51 mm) under the
front of the fireplace and must extend beyond the front
and sides of fireplace opening by 2 in. (51 mm)
Figure 7.1 Position the Protective Metal Hearth Strips
B. Place Protective Metal Hearth Strips
WARNING! Risk of Fire!
Protective metal hearth strips
MUST be installed. DO NOT cover metal strips with com-
bustible materials. Sparks or embers may ignite ooring.
• RefertoFigures7.1and7.2.
• Locatethetwoprotectivemetalhearthstripsmeasuring
approximately26in.x4in.(660mmx102mm)included
withthisreplace.
• Slideeachmetalstrip2in.(51mm)underfrontedgeof
replace.
• Overlapstripsinthemiddleofreplaceopeningby1in.
(25mm)minimum..
• Metalstripsmustextendbeyondthefrontandsidesof
thereplaceopeningbyatleast2in.(51mm).
• Protectthefrontofaplatformelevatedabovethehearth
extensionwithmetalstrips(notincludedwithreplace)
per Figure 7.2. See Section 11 for hearth extension
instructions.
C. Level Fireplace
• Levelreplaceside-to-sideandfront-to-back.
• Shimwithnon-combustiblematerialasnecessary.
• Securereplacetoframingwithnailingangeswitha
minimumoftwofastenerspernailingange.
• Checkreplaceopeningforsquaretoensurepropert
ofglassdoors.Measurediagonalsofreplaceopening
tomakesuretheyareequal.
Raised Platform
Floor
2 in.
(51 mm)
1 in. (25 mm) min.
overlap
2 in.
(51 mm)
Top piece must overlap
bottom piece
Figure 7.2 Protect the Front of an Elevated Platform
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
22
WARNING! Coolingairmustbeprovidedwheninstall-
ingincombustibleenclosureoroncombustiblesurface.
• Locatecoolingairhoodstopreventblockagefrom
leaves,snow/ice,orotherdebris.Blockagescould
causetheunittooverheat.
• Thelowestpointofthecoolingairhoodstobelocated
aminimumof12”abovethebottomofunit.
• DoNotplacecoolingairhoodclosetoexhaustvent.
• Theoutsideairhoodcanbepaintedtomatch/accent
thecolorofthestructure.
• Anairgrillecanbeusedinplaceoftheplastichoods
(Provided);GrillMUSThaveaminimumof25sq/
inopeningtoallowforpropercoolingairowtounit.
Lowestedgeofgrilletobelocatedaminimumof12”
abovethebottomoftheunit
Caution!Risk of Fire or Asphyxiation!Donotdraw
outsideairfromwall,oor,orceilingcavity,orenclosed
spacessuchasanatticorgarage.
D. Install Cooling Air Hoods (PROVIDED)
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Figure 7.3 Cooling Air Hood
23
Chimney must extend
beyond combustible
roof structure
Maintain minimum
height of chimney
above roof
Additional
support for
tall chimneys
Install roof flashing
according to minimum
requirements
Maintain minimum
clearances to
combustibles as
specified
Offsets/returns
may not exceed
30° from vertical
Lock chimney
sections together
firmly to resist
movement
Ceiling firestops
are required where
chimney passes
through ceiling or
floor
Support straps for returns
must be secured to
adequate framing
Termination Cap
Storm Collar
Offsets and returns must
be secured with the screws
provided (outer pipe only)
Figure 8.1 Typical Chimney System - Guidelines for Chimney System Installation
8
Chimney Assembly
NOTICE:
Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect
performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
24
20 ft (6.10 m) max.
pipe between an
offset & return
Ceiling Firestop
35 ft (10.67 m)
max. straight
unsupported
chimney height
14.5 ft (4.42 m) min. height/single offset-return
20 ft. (6.1 m) min. height/double offset-return
90 ft (27.43 m) max. height
6 ft (1.83 m) max.
unsupported chimney
above roof
39 1/2 in. (1003 mm)
Effective Height
Figure 8.2 Chimney Requirements
Determinethechimneycomponentsneededtocomplete
yourparticularinstallation:
• Measure the total vertical height of the fireplace
installationfromthebaseofthereplaceassemblyto
theapproximatelocationofthebottomofthetermination
cap.
• Subtracttheeffectiveheightofthereplaceassembly
(seeFigure8.2)fromthetotalverticalheighttodetermine
theoverallheightofthechimneyinstallation.
• CreateaschematicforyourapplicationsimilartoFigure
8.2 showing components required (referring to Table
8.1).Figure8.1identiesthosecomponentsandwhere
used.
• Installaceilingrestopwheneverthechimneypenetrates
aoor/ceiling.
NOTICE: A maximum of two pairs of offsets and returns
may be used.
CAUTION! Risk of Fire and/or Asphyxiation! DO
NOT connect this replace to a chimney ue servicing
another appliance. DO NOT connect to any air distribu-
tion duct or system. These actions could cause over-
heating/re in the chimney ue, or release of exhaust
fumes into the living areas.
ft m
• Minimumheightwithoffset/return 14.5 4.42
•
Maximumheight 90 27.43
• Maximumchimneylengthbetweenanoffset
and return
20 6.1
• Maximumdistancebetweenchimney
stabilizers
35 10.67
• Doubleoffset/returnminimumheight 24 7.32
• Maximumunsupportedchimneylength
betweentheoffsetandreturn
6 1.83
• Maximumunsupportedchimneyheightabove
thereplace
35 10.67
• Minimumoverallstraightheightifreplaceis
freestanding
6.4 1.95
• MinimumStraightHeight 14.5 4.42
A. Chimney Requirements
Whenplanningyourreplacelocation,thechimneycon-
structionandnecessaryclearancesmustbeconsidered.
Thereplacesystemandchimneycomponentshave
beentestedtoprovideexibilityinconstruction.Thefol-
lowingguresaretheminimumdistancesfromthebase
ofthereplace.
• Minimum overall straight height is 6 ft 4 in. if the
replaceisfreestandingandaminimumof10ftfroma
combustiblestructure. SeeFigure3.2.
• Chimneymustextend2ft(.6m)aboveanyportionofthe
roofwithin10ft(3m)ofthechimney.RefertoFigure6.1.
Table 8.1
HEIGHT OF CHIMNEY COMPONENTS in. mm
Chimney Stabilizer
SL3 4-3/4 121
Ceiling Firestops
FS338 0 0
FS339 0 0
FS340 0 0
Offsets/Returns
SL315 13-3/8 340
SL330 15-1/2 394
Roof Flashing
RF370 0 0
RF371 0 0
Chimney Sections*
SL306 4-3/4 121
SL312 10-3/4 273
SL318 16-3/4 425
SL324 22-3/4 578
SL336 34-3/4 883
SL348 46-3/4 1187
* Dimensions reect effective height.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
25
Table 8.2
B. Using Offsets/Returns
• Useanoffset/returntobypassoverheadobstructions.
• Anoffsetandreturncanbeusedasasingleentityorseparatedbychimneysection(s).
WARNING! Risk of Fire! DO NOT use offset/returns greater than 30°. Chimney draft will be restricted and could cause
overheating and re.
• Measuretheshiftneededtoavoidtheoverheadobstruction.RefertodimensionAinFigure8.3.
• FindtheappropriateAdimensionlistedinTable8.2.
• TheBdimensioncoincidingwiththeAdimensionmeasurementinTable8.2representstherequiredverticalclearance
neededtocompletetheoffset/return.
• Readacrossthecharttondthenumberofchimneysections/modelnumbersneededbetweentheoffsetandreturn.
A
B
1-1/4 in. (32 mm)
OVERLAP
Figure 8.3 Chimney Offset/Return
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
15-degree
SL306 SL312 SL318 SL324 SL336 SL348
30-degree
A
Offset
B
Height
A
Offset
B
Height
in. mm in. mm in. mm in. mm
1-5/8 41 13-3/8 340 - - - - - - 3-5/8 92 15-1/2 394
2-7/8 73 17-3/4 451 1 - - - - - 5-1/2 140 18-5/8 473
4-1/8 102 22-3/8 568 2 - - - - - 7-1/4 184 21-3/4 552
4-1/2 114 23-5/8 600 - 1 - - - - 8-1/2 216 23-3/4 603
5-3/4 146 28-1/4 718 1 1 - - - - 10-1/4 260 27 686
6 152 29-3/8 746 - - 1 - - - 11-1/2 292 29 737
7-1/4 184 34 864 - 2 - - - - 13-1/4 337 32-1/8 816
7-3/4 197 36-1/8 918 - - - 1 - - 14-1/2 368 34-1/8 867
8-3/4 222 39-3/4 1010 1 - - 1 - - 16-1/4 413 37-3/8 949
10-3/8 264 45-5/8 1159 - - 2 - - - 19-1/4 489 42-1/2 1080
10-5/8 270 46-3/4 1187 - - - - 1 - 20-1/2 521 44-5/8 1133
11-7/8 302 51-3/8 1305 1 - - - 1 - 22-1/4 565 47-3/4 1213
13-1/2 243 57-1/4 1454 - - - 2 - - 25-1/4 641 52-7/8 1343
13-3/4 349 58-3/8 1483 - - - - - 1 26-1/2 673 55 1397
15 381 63 1600 1 - - - - 1 28-1/4 718 58-1/8 1476
16-1/2 419 68-3/4 1746 - 1 - - - 1 31-1/4 794 63-1/4 1607
18 457 74-5/8 1895 - - 1 - - 1 34-1/4 870 68-1/2 1740
19-5/8 498 80-3/8 2042 - - - 1 - 1 37-1/4 946 73-3/4 1873
20-5/8 524 84-1/8 2137 1 - - 1 - 1 39-1/8 994 76-7/8 1953
22-3/4 578 91-7/8 2334 - - - - 1 1 43-1/4 1099 84-1/8 2137
24 610 96-1/2 2451 1 - - - 1 1 45-1/8 1146 87-1/4 2216
25-7/8 657 103-1/2 2629 - - - - - 2 49-1/4 1251 94-1/2 2400
Properassemblyofair-cooledchimneypartsresultinanoverlapatchimneyjointsof1-1/4in.(32mm).Effectivelengthisbuilt
intothischart.
Example:
Your“A”dimensionfromFigure8.3is141/2in.(368
mm).UsingTable8.2thedimensionclosestto,but
notlessthan141/2in.(368mm)is141/2in.(368
mm)usinga30°offset/return.
Youdeterminefromthetablethatyouneed341/8in.
(867mm)(Dimension“B”)betweentheoffsetand
return.
Thechimneycomponentthatbesttsyourapplica-
tionisoneSL324.
26
Figure 8.4 Assembling Chimney Sections
• Supportthe pipeduringconstruction andchecktobe
sureinadvertentloadinghasnotdislodgedthechimney
sectionfromthereplaceoratanychimneyjoint.
• Attachastraightchimneysectionoranoffsettothetop
ofthereplace.
• Placeinneruetotheinsideofthechimneysectionbelow
it.Placetheoutercasingoutsidetheoutercasingofthe
chimneysectionbelowit.RefertoFigure8.4.
NOTICE: Chimney sections cannot be disassembled
once locked together. Plan ahead!
• Lockchimneysectionsand/oroffsets/returnstogetherby
pushingdownwarduntilthetopsectionmeetsthestop
beadonthelowersection.
• Pullonthetopsectiontomakesureitisfullyengaged
andwillnotseparate.
• Youmayuse#6or#8sheetmetalscrewsnolongerthan
1/2in.(13mm)tofastenchimneysectionstogether.Do
NOTpenetrateinnerue.
WARNING! Risk of Fire! You MUST use screws (pro-
vided) to fasten offset/returns to chimney sections to
keep the chimney parts from twisting. Failure to do so
could cause re.
• Fasten offset/returns to chimney sections. Insert the
screws(provided)throughthepredrilledholes.DoNOT
penetrateinnerue.
• Secure chimney returns with hanger straps provided;
fastentostudsorjoists.
• Verticalstraightrunsofchimneymustbesupportedevery
35ft(10.7m).
C. Assemble Chimney Sections
WARNING! Risk of Fire! DO NOT install substitute or
damaged chimney components.
• Use only those components described in this manual.
Substitute or damaged chimney components could impair
safe operation and cause overheating and re.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
27
ROOM ABOVE (non-insulated ceiling)
ATTIC ABOVE (insulated ceiling)
B
A
Ceilng firestop from
bottom
Ceiling firestop from
top
Note:
Use same dimensional lumber for framing
ceiling firestop and joists.
Figure 8.5 Installing the Ceiling Firestop
• Installaceilingrestopwheneverchimneypenetrates
ceiling/oor.
• Mark and cut an opening in ceiling as shown in
Figure8.5.
• Frametheopeningwiththesamesizelumberusedin
theceilingjoists.
• Nailtheceilingrestoptothebottomoftheceilingjoists
whenthereisaroomabove.
• Useanatticinsulationshieldiftheceilingisinsulated.
Theceilingrestopmaythenbeattachedaboveorbelow
thejoists.
D. Install Ceiling Firestops
CAUTION! Risk of Fire! Ceiling restops must be used
whenever the chimney penetrates a ceiling/oor.
• Chase construction requires ceiling restops at each
oor or every 10 ft (3.05 m) of clear space.
• The ceiling restop slows spread of re and reduces cold
air inltration.
WARNING! Risk of Fire! DO NOT seal area between
restop opening and chimney pipe except where they
enter the attic or leave the warm air envelope of the
home (use 600° F sealant).
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Catalog #
A B
Anglein. mm in. mm
FS338 14-1/2 368 14-1/2 368 0°
FS339 14-1/2 368 18-3/8 467 15°
FS340 14-1/2 368 23 584 30°
28
Figure 8.6 Ceiling/Attic Construction
F. Complete Installation
WARNING! Risk of Fire! You MUST maintain 2 in.
(51 mm) air space to insulation and other combustible
materials around the chimney system. Failure to do so
could cause overheating and re.
• Keepchimneysectionsfromseparatingortwisting.
• Youmaysecurestraightchimneysectionsatthejoints
withscrewsnolongerthan1/2in.(13mm).
The following steps should be skipped if using a
chase.
• Installroofashingappropriatetoroofpitch.
• Installroundterminationcapandstormcollar.
G. Install Flashing
• Assemble chimney so it passes through the framed
opening.
• Sliptheashingoverthechimney.
NOTICE: Roong shingles must be below the ashing
plate on the lower side of a sloped roof and over the
ashing plate on the sides and top.
• Nail the ashing to the roof. Keep gaps between the
ashingplateandtherooftoaminimum.
• Caulktheashingplateandroofjunctionaswellasthe
vertical seam on the ashing.All nail heads must be
caulkedwitharoongsealant.
•Caulktheoverlapseamofanyexposedpipesections
thatarelocatedabovetherooflinetopreventleaks.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
E. Cut out Hole in Roof
• RefertoFigure8.6.
• Plumbfromrooftocenterofchimney.
• Driveanailupthroughrooftomarkcenterofpipe.
• Measuretoeithersideofnailandmarkthe14-1/2in.x
14-1/2in.(368mmx368mm)openingrequired.
• Measureopeningonthehorizontal;actuallengthmay
belargerdependingonroofpitch.
• Cutoutandframeopening.
• RefertoChapter 25oftheUniform Building Code for
roofframingdetails.
29
Slanted Roofs
Flat Roofs
Chimney must
extend 3 ft (.9 m)
above the roof
Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney
Chimney must
extend 3 ft (.9 m)
above the roof
Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney
Multiple Chimney Locations
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
Gas, Wood or Fuel Oil
Termination Cap
Wood
Minimum
(See
illustration
above)
B
Gas
Termination
Cap **
A *
Perpendicular Wall
*
If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
In a staggered installation with both gas and wood terminations, the
wood termination cap must be higher than the gas termination cap.
Figure 8.7 Multiple Chimney Locations
H. Chimney Termination Requirements
• Installacapapprovedandlistedforthisreplacesystem.
• Locatecapwhereitwillnotbecomepluggedbysnoworothermaterials.
• Locatecapawayfromtreesorotherstructures.
• Thebottomoftheterminationcapmustbeatleast3ft(.91m)abovetheroofANDatleast2ft(.61m)aboveanyportion
ofroofwithin10ft(3.05m)asshowninFigure8.7.
• ThedistancerequiredbetweencapsisshowninFigure8.7.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
30
9
Chase Installations
Ceiling
Firestop
Metal Chase Top
Round Termination Cap
False Ceiling
Insulation in the
outside walls
of the chase
Attic
Insulation
Shield
Chimney
Ceiling
Firestop
Tabs
False Ceiling
False Ceiling
Insulation
Insulation
Figure 9.1 Chase Assembly
1 2 3
1. Fireplace and chimney enclosed in an exterior chase.
2. Chimney offset through exterior wall and enclosed in chase.
3. Chase constructed on roof.
Note: In cooler climates, all chase walls should be insulated.
Figure 9.2 Chase Constructions
WARNING! You must install false ceilings and ceiling
restops at each oor of the chase or every 10 ft (3.05 m)
to control spread of re.
WARNING! Risk of Fire!
You must maintain a minimum
2 in. (51 mm) air space clearance to insulation and other
materials surrounding the chimney system.
• Insulation and other materials must be rmly secured to
prevent accidental contact with chimney system.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to prevent contact between insulation or other
materials and chimney system may cause overheating
and re.
WARNING! Risk of Fire! DO NOT seal area between re
stop opening and chimney pipe except where they enter
the attic or leave the warm air envelope of the home (use
600° F sealant).
A. Construct the Chase
Achaseisaverticalboxlikestructurebuilttoenclosethe
replaceand/oritsventsystem.Verticalchimneysthat
runontheoutsideofabuildingmustbeinstalledinsidea
chase.
Constructionofthechasemayvarywiththetypeofbuild-
ing.Theseinstructionsarenotsubstitutesfortherequire-
mentsoflocalbuildingcodes.LocalbuildingcodesMUST
bechecked.
Achaseshouldbeconstructedinthemannerofall
outsidewallsofthehometopreventcoldairdrafting
problems.Thechaseshouldnotbreaktheoutsidebuild-
ingenvelopeinanymanner.Allouterwallsneedtobe
insulated.
Buildingcodesrequirefalseceilingandceilingrestops
ateachoorofthechaseorevery10ft(3.05m)ofclear
spacetocontrolspreadofre.
Walls,ceiling,baseplateandcantileveroorattherst
levelofthechaseshouldbeinsulated.SeeFigure9.1.
Vaporandairinltrationbarriersshouldbeinstalledinthe
chaseasperregionalcodesfortherestofthehome.Ad-
ditionally,Hearth&HomeTechnologiesrecommendsthat
theinsidesurfacesbesheetrockedandtaped(ortheuse
ofanequivalentmethod)formaximumairtightness.
Gaslineholesandotheropeningsshouldbecaulkedwith
hightemperaturecaulkorstuffedwithunfacedberglass
insulation.Ifthereplaceisbeinginstalledonacement
slab,werecommendthatincoldclimates,asheetof
plywoodorotherraisedplatformbeplacedunderneathto
preventconductingcoldupintotheroom.
ThreeexamplesofchaseapplicationsareshowninFig-
ure9.2.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
31
Slope Downward
(1/4 in. per foot
minimum)
Turn-down
Drip Edge
Chase
2 in. (51 mm) Collar
on Chase Top
.018 (26 ga) min.
Galvanized
Chase Top
Figure 9.3 Chase Top Construction
B. Install Fireplace & Chimney
InstallasperSections7and8.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
C. Install Chase Top
• YouMUSTuseachasetopinachaseinstallation.Chase
topsareavailablefromyourHeatilatordealerormaybe
eldconstructed.
• Includeaturndownanddripedgetopreventwaterfrom
seepingintothechase.
• Includea2in.(51mm)soldered,weldedorspuncollar
aroundpipeopeningtokeepwaterout.
• Providea1/8in.(3mm)gaparoundtheuepipe.
• Slope the chase top downward away from the
opening.
WARNING! Risk of Fire! DO NOT caulk the pipe to the
chase top collar.
• Caulkallseamstopreventleaks.
• RefertoFigure9.3.
32
D. Install Termination Cap
Installthechimneysectionsupthroughthechaseenclo-
sure.
• Caulktheoverlapseamofanyexposedpipesections
thatarelocatedabovetherooflinetopreventleaks.
•
Refertoterminationcapinstructions.
WARNING! Risk of Fire! The minimum overlap of cap
to pipe (as shown in the following illustrations) MUST
be met or chimney may separate from cap. Separation
allows sparks, heat and embers to escape.
NOTICE: Paint the termination cap with a rust-resistant
paint to protect against the effects of corrosion on those
parts exposed to the weather.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Storm
Collar
Chimney
Pipe
Chase Top
Termination
Cap
Chase
6 in. (153 mm)
Minimum top of
chase to top of
chimney pipe
Collar
2 in. (51 mm)
Minimum Height
Do NOT
block air holes
Caulk gaps between
storm collar & pipe,
and storm collar
& chase top.
Termination cap pipe and chimney section must be snapped
together to maintain an overlap of 1-1/2 in. (38 mm).
Slip
storm collar
around chimney pipe
before termination
cap pipe is snapped
into the chimney
pipe.
Figure 9.4 Installing a TR344 Round Termination Cap
Storm
Collar
Chimney
Pipe
Chase Top
Termination
Cap
Chase
14 1/2 in. (368 mm)
Maximum
Collar
2 in. (51 mm)
Minimum Height
Caulk gaps between
storm collar & pipe,
and storm collar
& chase top.
Do NOT
block air
holes
3 clip brackets.
Slip over chase collar
and attach with screws
provided.
Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)
Assemble
storm collar
around extended
termination cap
pipe
once cap is
installed.
Figure 9.5 Installing a TR342 Round Telescoping Termination
Cap
Chimney
Pipe
Chase Top
Termination Cap
Chase
Collar
2 in. (51 mm)
Minimum Height
Place waterproof
caulk or sealer under
each flange of the
termination cap and
on top of each screw
to help prevent leaks.
Flange
Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm)
2 in. (51 mm)
maximum
4 3/4 in. (121 mm)
maximum
The last section of pipe
must stop between 2 in. (51
mm) above the top of the
chase and 4 3/4 in. (121
mm) below the top of the
chase.
Figure 9.6 Installing an ST375 Square Termination Cap
• TR344RoundTerminationCap
• ST375SquareTerminationCap
• TR342RoundTelescopingTerminationCap
33OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Chimney
Pipe
Chase Top
Termination Cap
Chase
Collar
2 in. (51 mm)
Minimum Height
Termination cap pipe and chimney section must overlap 1-1/2 in. (38 mm).
Place waterproof sealer under
each flange of the termination
cap and on top of each screw
to help prevent leaks.
2 in. (51 mm)
maximum
4 3/4 in. (121 mm)
maximum
The last section of pipe must
stop between 2 in. (51 mm)
above the top of the chase and
4 3/4 in. (121 mm) below the
top of the chase.
Figure 9.7 Installing a TS345/TS345P Square Termination Cap
• TS345/TS345PSquareTerminationCap
Chimney
Pipe
Chase Top
Termination Cap
Chase
Collar
2 in. (51 mm)
Minimum Height
Remove 2 screws
from front & back
to lift the top off
Termination cap pipe and chimney section must overlap
1-1/2 in. (38 mm)
Place waterproof sealer
under each flange of the
termination cap and on
top of each screw to
help prevent leaks.
The last section of pipe
must stop between 2 in.
(51 mm) above top of
chase and 7 in. (178 mm)
below top of chase
2 in. (51 mm)
7 in. (178 mm)
Figure 9.8 Installing a TCT375 Terra Cotta Cap
• TCT375TerraCottaCap
34
3 in. (76 mm) tall legs
Ø 17 1/2 in. (444.5 mm) Round Hole to fit over cap
Length x Width to fit inside shroud
Figure 10.1 Radiation Shield
10
Shrouds
• Chase top shrouds may be eld constructed where
permittedbyregionalbuildingcodes.
WARNING! Risk of Fire! Shrouds must be constructed
as specied. Improper construction may overheat chase
top.
NOTICE: Some regional codes require an agency-Listed
shroud. Consult your local building ofcials.
• Hearth & Home Technologies Inc. supplies UL listed
shrouds.Seeyourdealerfordetails.
• The following eld constructed shroud designs have
beentestedforHearthTechnologiesreplacesystems
andterminationcaps.
• Theshroudsmustbeconstructedfromaminimum.018
in.(26ga)thickaluminizedsteel.
A. Radiation Shield
• Some shrouds require a radiation shield. Use where
specied.
• Radiationshieldmustbeconstructedofminimum26ga
sheetmetal.
3 in (76 mm)
minimum
Min.
Base Dim.
Min.
Base Dim.
Min.
Top Dim.
Min.
Top Dim.
Min. Opening
Width
Min. Opening
Width
Figure 10.2 Open Top Shroud Dimensions
B. Field Constructed Shrouds
• Thewiremeshisoptionalbutrecommendedandmust
be.018in.thickminimum,1/2in.mesh.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
TS345 TR342 TR342/344TV
Min. Base Dims.
in 23x23 28x28 26x26
mm 584x584 711x711 660x660
RadiationShield
Required
Min. Top Dims.
in 20x20 25x25 23x23
mm 508x508 635x635 584x584
Min. Opening Width
in 17x17 22x22 20x20
mm 432x432 559x559 508x508
Open Top Shroud (TR342 caps require radiation shield)
35
3 in. (76 mm)
Min. Opening Height
Min. Base Dim
Min. Height
above radiation
shield
Min.
Base Dim
3 in. (76 mm) Min.
Radiation Shield Height
from top of Chase
Min. Opening Width
Figure 10.3 Mailbox Style Shroud Dimensions
Minimum
Opening
Height
Minimum
Base Dimension
Min. Opening Width
Min. Base Dimension
Minimum
Height above
Radiation Shield
Chase Top
Radiation Shield
3 in. (76 mm)
Radiation
Shield Height
Termination
Cap
Figure 10.4 Roofed Style Shroud Dimensions
Roofed Style Shroud (radiation shield required)
Mailbox Style Shroud (radiation shield required)
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
TS345 TR342 TR342/344TV
Min. Base Dims.
in N/A 26-1/2x28 28x30
mm N/A 673x711 711x762
Min. Height Above Radiation Shield
in N/A 21-1/4 20-1/2
mm N/A 540 521
Min. Opening Width
in N/A 20-1/2x22 22x24
mm N/A 521x559 559x610
TS345/445
TR342/344
TR442/444 TR342/344TV
Min. Base Dims.
in N/A 27x27 27x27
mm N/A 686x686 686x686
Min. Height Above Radiation Shield
in N/A 16 16
mm N/A 406 406
Min. Opening Width
in N/A 21 21
mm N/A 533 533
Min. Opening Height
in N/A 12 12
mm N/A 305 305
36
11
Finishing
A. Non-Combustible Materials
• Materialswhichwillnotignite andburn,composed of
anycombinationofthefollowing:
- Steel - Iron
- Brick - Tile
- Concrete - Slate
- Glass - Plasters
• MaterialsreportedaspassingASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace at 750° C
B. Combustible Materials
• Materialsmadeoforsurfacedwithanyofthefollowing
materials:
- Wood - Compressedpaper
- Plantbers - Plastic
• Anymaterialthatcanigniteandburn;ameproofedor
not,plasteredorun-plastered
C. Hearth Extension
WARNING! Risk of re! High temperatures, sparks,
embers or other burning material falling from the replace
may ignite ooring or concealed combustible surfaces.
• Protective metal hearth strips MUST be installed.
• Hearth extensions MUST be installed exactly as
specied.
Table 11.1
Hearth Extension Insulation Alternatives-Total minimum R Value must equal 1.03
Material
k per inch
thick
r per inch
thick
Minimum
thickness
required
Hearth&HomeHX3,HX4(Micore300™) 0.49 2.06 1/2in.
USGMicore160™ 0.39 2.54 1/2in.
USGDurock™CementBoard 1.92 0.52 2in.
CementMortor 5.0 0.20 5-1/8in.
CommonBrick 5.0 0.20 5-1/8in.
CeramicTile 12.50 0.08 12-1/4in.
Armstrong™PrivacyGuardPlus 0.46 2.18 1/2in.
Marble 14.3-20.0 0.07-0.05 14-5/8in.-20-3/8in.
R = 1/k x inches of thickness
• YouMUSTuseahearthextensionwiththisreplace.
• RefertoFigure11.1forminimumdimensions.
• Thisreplacehasbeentestedandapprovedforusewith
ahearthextensioninsulatedtoaminimumRvalueof
1.03.
• ThehearthextensionmaterialMUSTbecoveredwith
tile,stoneorothernon-combustiblematerial.
• Manufactured hearth materials will usually have a
published R value (resistance to heat) or k value
(conductivityofheat).RefertotheformulainTable11.1
toconvertakvaluetoanRvalue,
• Refer to Table 11.2 for hearth extension insulation
alternatives.
Table 11.2
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
37
IMPORTANT! Hearth extension design must be
determinedbeforeinstallationofreplace.
Floor
Non-combustible
Framing Material
Non-combustible
Finishing Material
Protective Metal
Hearth Strips
1/2 in. Micore
or equivalent
insulation
Non-combustible
Material
Figure 11.3 Raised Platform Hearth Extension Detail
Raised Hearth Extension Framing
WARNING! Risk of Fire. A raised hearth extension built
ush with the replace opening (Figure 11.3) or less than
4 in. (102 mm) below the replace opening requires the
replace be installed on a non-combustible surface.
Thehearthframingmustbeconstructedofnon-combus-
tiblematerials(Figure11.2)andplacedon1/2in.Micore,
orequivalentmaterial(Figure11.4).Whencreatingthe
platform,allowforthethicknessofthenon-combustible
nishingmaterials(Figure11.5).
Non-combustible
Framing Material
1/2 in. Micore or
equivalent insulation
Figure 11.4 Raised Platform Hearth Extension-Framing Materials
2 in. (51 mm) of the Protective
Metal Hearth Strip is required
under the front of the fireplace
Tile, stone or other
non-combustible material
Floor constructed of wood or
other combustible material
Fireplace
Opening
4 in.
(102 mm) min.
Continuous, non-
combustible sealant
1/2 in. Micore Hearth
Extension (or
equivalent insulation)
See Table 11.2.
Figure 11.2 Hearth Extension Construction
B
A
C
C
D
4 in. (102 mm)
minimum between
bottom of fireplace opening
and finished surface of hearth extension
Figure 11.1 Hearth Extension Dimensions
Model # A B C D
ODVILLA-36 in. 36 52 8 16
mm 914 1321 203 406
ODVILLA-42 in. 42 66 12 20
mm 1067 1676 305 508
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
38
Non-combustible
Finishing Materials
Figure 11.5 Raised Platform Hearth Extension-Finishing Materi-
als
Non-combustible Sealant
Aftercompletingtheframingandapplyingthefacing
materialsovertheframing,abeadofnon-combustible
sealantmustbeusedtocloseoffanygapsatthetopand
sidesbetweenthereplacehearth.
Non-combustible Sealant
Figure 11.6 Place Non-combustible Sealant
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
39
D. Finishing Material
RefertoSections11.A.andSections11.B.forcombus-
tible/non-combustiblematerials.RefertoFigure11.7for
non-combustiblezone.
WARNING! Risk of Fire!
You must maintain clearances.
• Use only non-combustible framing material below
standoffs.
• Sheetrock, wood or other combustibles must NOT be
used as sheathing or facing in the non-combustible
zone.
• DO NOT cover metal replace front with combustible
materials.
• Install combustible materials only to specied clearances
on top front and side edges.
• Complete framing and apply facing material (drywall)
overframing.
• Abeadof300-degFminimumnon-combustiblesealant
mustbeusedtocloseoffanygapsatthetopandsides
between the replace and facing to prevent cold air
leaks.
• Large gaps can be bridged with fiberglass rope
gasket.
• Onlynon-combustiblematerialsmaybeusedtocover
themetalreplacefront.
These surfaces
may be covered
with non-combustible
material.
Non-combustible
sealant.
Figure 11.7 Non-combustible Facing
Metal strips are placed 2 in. (51 mm)
under the front of the fireplace and must
extend beyond the front and sides of
fireplace opening by 2 in. (51 mm)
Continuous,
non-combustible sealant
Floor constructed of wood or
other combustible material
1/2 in. Micore
or equivilent
insulation
Hearth
Refractory
Finished combustible wall
Combustible material
Non-combustible
decorative facing
(up to full brick depth)
2 x 4 header, flush with
front of stand-offs
Tile, stone or other
non-combustible material
Flat 2 x 4 stud wall
Figure 11.8 Decorative Facing
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
40
E. Combustible Mantel
• RefertoshadedareasofFigure11.9forthelocationanddimensionsofacombustiblemantel.
• Acombustiblemantelmaybepositionednolowerthan12in.(305mm)abovethetopofthereplaceopening.
• Acombustiblemantelmayhaveamaximumdepthof12in.(305mm).
• Combustibletrimandmaterialscannotbeplacedwithin6in.(152mm)ofthereplaceopening(toporsides).
• Combustiblematerialsprojectingmorethan11/2in.(38mm)shallnotbeplacedwithin12in.(305mm)fromthetopof
thereplaceopening.
• Combustibletrimmustnotcoverthemetalsurfacesofthereplace.
• MantelclearanceisinaccordancewithSection 7-3.3.3 of ANSI/NFPA211.
Figure 11.9 Clearances to Mantels or other Combustibles above Fireplace
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
41
F. Sidewalls/Surrounds
• Adjacentcombustiblesidewallsmustbelocatedaminimumof12in.(305mm)fromthereplaceopening.
• Combustibleornon-combustiblemantellegs,surroundsandstubwallsmaybeconstructedperFigure11.10.
Figure 11.10 Mantel Leg or Wall Projections (acceptable on both sides of opening)
Model
A
Fireplace
opening
B
Outside
Dimensions
36 in. 41 in.
914 mm 1041 mm
42 in. 47 in.
1067 mm 1194 mm
ODVILLA-42
ODVILLA-36
B
A
9 3/4 in.
[248 mm]
12 in.
[305 mm]
12 in.
[305 mm]
11 1/4 in.
[286 mm]
FLUSH
FRONT
4 in.
[102 mm]
BRICK
FRONT
50° angle
39° angle
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
42
Firebox
Repack
insulation
knockout
Combustible
materials
Maintain air clearance
to combustibles.
Gas line
Combustible materials
may be located at zero
clearance to gas line
beyond 4 in. (102 mm)
from fireplace side.
Gas line
1 1/2 in. (38 mm)
air space around
pipe
Refractory
Seal with
fireplace mortar
or non-combust-
ible sealant
4 in.
(102 mm)
Outer shell
of fireplace
Figure 12.1 Gas Line Installation
12
Accessories
A. Gas Log/Lighter Provision
WARNING! Fire and/or Asphyxiation Risk!
Use with
solid wood fuel or decorative gas appliance only. Gas re
generates fumes.
• DO NOT install unvented gas logs
Acertiedgasloglighterordecorativegaslogsetcanbe
installedinthisreplace.
• Maximuminputis100,000BTU/hr.
• Decorative gas appliance must be certied to ANSI
Z21.60 “Standard for Decorative GasAppliances for
InstallationinVentedFireplaces”.
• MustbeinstalledinaccordancewiththeNational Fuel
Gas Code, ANSI Z223.1.
• Agaslogsetmustincorporateagasshutoff.
• Knockoutsareprovidedonbothsidesofthereplace
andinrefractoriesfor1/2in.(13mm)ironpipe.
• Sealrefractoryaroundpipe with replacemortarora
non-combustiblesealant.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
►
43
13
Reference Materials
A. Fireplace Dimensions
A B C D
in. 36 41 23 3/4 11 7/8
mm 914 1041 603 302
in. 42 47 29 3/4 14 7/8
mm 1067 1194 756 378
Model #
ODVILLA-36
ODVILLA-42
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
44
B. Optional Components
16 in.
(406 mm)
52 in.
(1321 mm)
1/2 in.
(13 mm)
20 in.
(508 mm)
66 in.
(1676 mm)
1/2 in.
(13 mm)
HX3 Hearth Extension
HX4 Hearth Extension
Bifold Glass Doors
ODVGF-36, ODVGF-42
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
45
C. Chimney Components
Thefollowingpicturesshowonlythosechimneycomponentswhichmaybesafelyusedwiththisreplace.
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Catalog # Description
SL306 ChimneySection-6in.(152mm)long
SL312 ChimneySection-12in.(305mm)long
SL318 ChimneySection-18in.(457mm)long
SL324 ChimneySection-24in.(610mm)long
SL336 ChimneySection-36in.(914mm)long
SL348 ChimneySection-48in.(1219mm)long
SL3 ChimneyStabilizer
SL315 ChimneyOffset/Return-15deg
SL330 ChimneyOffset/Return-30deg
FS338 CeilingFirestop-Straight
FS339 CeilingFirestop-15deg
FS340 CeilingFirestop-30deg
AS8 SL300StraightAtticInsulationShield,24in.(610mm)
JB877 ChimneyJointBand
CB876 ChimneyBracket
RF370 RoofFlashing-Flatto6/12Pitch
RF371 RoofFlashing-6/12to12/12Pitch
TR344 RoundTerminationCap
TR342 RoundTelescopingTerminationCap
ST375 SquareTerminationCap
TS345 SquareTerminationCap
TS345P SquareTerminationCap-Painted
TCT375 TerraCottaTerminationCap
CT35 ChaseTop
DTO134 ShortOctagonDecorativeCap
DTO146 TallOctagonDecorativeCap
DTS134 ShortSquareDecorativeCap
DTS146 TallSquareDecorativeCap
LDS33 DecorativeShroud-3ftx3ft(.91mx.91m)
LDS46 DecorativeShroud-4ftx6ft(1.22mx1.83m)
LDS-BV DecorativeShroud-26in.x26in.(660mmx660mm)
FieldConstructedShrouds(See“Woodburning
TerminationCap”)
CT-3A Adapter-Maybeusedwiththefollowingcoppercaps
CT-Series
DT-Series
Catalog #
A B
in mm in mm
SL306 6 152 4-3/4 121
SL312 12 305 10-3/4 273
SL318 18 457 16-3/4 425
SL324 24 610 22-3/4 578
SL336 36 914 34-3/4 883
SL348 48 1219 46-3/4 1187
SL3 Vent Stabilizer
Chimney Sections
A = Actual Length
B = Effective Length (length of
chimney part after it has
been snapped to another)
8 in.
(203 mm)
10-1/2 in.
(267 mm)
A
B
20-3/4 in.
(527 mm)
Inside
Diameter
8 in.
(203 mm)
Outside
Diameter
10-1/2 in.
(267 mm)
4-3/4 in. (121 mm)
Effective Height
46
TR-TVK
TR Top Vent Kit
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
A
B
14-1/2 in.
(368 mm)
Ceiling Firestop
Assembled
Diameter: 14 1/2 in./368 mm
Height: 24 in./610 mm
AS8 Straight Attic Insulation Shield
10-1/2 in.
(267 mm)
CB876 Chimney Joint Band
RF371 Roof Flashing
RF370 Roof Flashing
Catalog # A B
FS338 0-deg. 14-1/2in. 368mm
FS339 15-deg. 18-3/8in. 467mm
FS340 30-deg. 23in. 584mm
JB877 Chimney Joint Band
2 in. (51 mm)
10-1/2 in.
(267 mm)
24-5/8 in.
(625 mm)
27-3/8 in.
(695 mm)
12 in.
(305 mm)
31 in.
(787 mm)
24-5/8 in.
(625 mm)
12 in.
(305 mm)
SL315/SL330 Offset/Return
Inside
Diameter
8 in. (203 mm)
Outside
Diameter
10-1/2 in.
(267 mm)
Effective
Height
4-3/4 in.
(121 mm)
26 in.
7 3/4 in.
CT-3A
TR342 Round Telescoping Termination Cap
34-3/4 in.
(883 mm)
32-1/2 in.
(826 mm)
23 in.
(584 mm)
19 in.
(483 mm)
15-5/8 in.
(397 mm)
15-3/4 in.
(400 mm)
TR344 Round Termination Cap
ST375 Square Termination Cap
47
A
B
C
D
LDS33/LDS46 Decorative Shroud
E
D
A
C
B
LDS-BV Decorative Shroud
B
C
B
A
C
A
DTS134/DTS146 DTO134/DTO146 Decorative Caps
DTO134
A B C
in
34 20 24
mm
864 508 610
DTO146
in
46 22.7 26
mm
1168 576 660
DTS134
A B C
in
34 21.18 24
mm
864 538 610
DTS146
in
46 21.18 26
mm
1168 538 660
Catalog #
A B C D
in. mm in. mm in. mm in. mm
LDS33 36 914 36 914 8.5 216 11 279
LDS46 48 1219 72 1829 8.5 216 11 279
Catalog # A B C D E
LDS-BV
in. 26 12.5 15.5 22 23
mm 660 318 394 533 584
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
TR342 Round Telescoping Termination Cap
TR344 Round Termination Cap
TS345/TS345P Square Termination Cap
72 in.
(1829 mm)
36 in.
(914 mm)
2 in. (51 mm)
10-7/8 in.
(276 mm)
CT35 Chase Top
13 1/4 in.
(337 mm)
18 in.
(457 mm)
16 1/4 in.
(413 mm)
26 1/2 in.
(673 mm)
28 5/8 in.
(727 mm)
TCT375 Terra Cotta Cap
22 1/2 in.
(572 mm)
9 1/2 in.
(241 mm)
16 1/2 in.
(419 mm)
9 1/2 in.
(241 mm)
48
Service Parts
1
2
3
4
5
6
7
8
9
10
11
12
13
14
36” Outdoor Woodburning Fireplace
ODVILLA-36T, ODVILLA-36H
Beginning Manufacturing Date: Jan 2011
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model
number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS
HHT PART NUMBER VCG PART NUMBER
1 Starter Section Assembly 22069B SRV22069 Y
2 Top Standoff Qty 4 req 4044-111 SRV4044-111
3 Upper Front Face 4072-143 SRV4072-143
4 Non Combustible Front 4072-146 SRV4072-146
5 Door Track (used for upper) 4072-117 SRV4072-117
6 Smoke Shield 4072-135 SRV4072-135
7 Upper Trim 4072-121 SRV4072-121
8 Left Side Trim 4072-125 SRV4072-125
9 Right Side Trim 4072-124 SRV4072-124
10 Lower Trim 4072-120 SRV4072-120
11 Firescreen Rod 1 piece 4072-133 SRV4072-133
12 Firescreen Assembly Qty 2 req 4072-019 SRV4072-019 Y
13 Grate GR41 SRVGR41 Y
14 Nailing Flange Qty 4 req 4044-161 SRV4044-161
Door Pivot Clip Qty 2 req 31527 SRV31527
Strip Protector 18320 SRV18320
Outside Air Hood Qty 2 req 33271 SRV33271
Installation Instructions and Owner’s Manual 4072-137 4072-137
Additional service parts following page.
10/15
D. Service Parts
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
►
49
Service Parts
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model
number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS
HHT PART NUMBER VCG PART NUMBER
Traditional Refractory
15.1 Hearth Refractory, 36.38” F x 17.88” D x 21.18 B SRV4072-101 SRV4072-101C
15.2 Back Refractory, 17.25” W x 20.93” H 4072-102 SRV4072-102
15.3 Side Refractory, 17.25” W x 18.21” H Qty 2 req 4072-103 SRV4072-103
15.4 Corner Shield Qty 2 req 4072-145 SRV4072-145
15.5 Retainer Qty 3 req 11847 SRV11847
Herringbone Refractory
16.1 Hearth Refractory, 36.38” F x 17.88” D x 21.18 B SRV4072-101 SRV4072-101C
16.2 Back Refractory, 17.25” W x 20.93” H 4072-106 SRV4072-106
16.3 Side Refractory, Right, 17.25” W x 18.21” H 4072-108 SRV4072-108
16.4 Side Refractory, Left, 17.25” W x 18.21” H 4072-109 SRV4072-109
16.5 Corner Shield Qty 2 req 4072-145 SRV4072-145
16.6 Retainer Qty 3 req 11847 SRV11847
16.2
16.3
16.1
16.4
16.6
16.5
15.1
15.2
15.3
15.4
15.5
ODVILLA-36T, ODVILLA-36H
Beginning Manufacturing Date: Jan 2011
Ending Manufacturing Date: Active
#15 Traditional Refractory
#16 Herringbone Refractory
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
50
Service Parts
ODVILLA-42T, ODVILLA-42H
Beginning Manufacturing Date: Jan 2011
Ending Manufacturing Date: Active
1
2
3
4
5
6
7
8
9
10
11
12
13
14
42” Outdoor Woodburning Fireplace
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model
number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS
HHT PART NUMBER VCG PART NUMBER
1 Starter Section Assembly 22069B SRV22069 Y
2 Top Standoff Qty 4 req 4044-111 SRV4044-111
3 Upper Front Face 4072-144 SRV4072-144
4 Non Combustible Front 4072-147 SRV4072-147
5 Door Track (used for upper) 4072-118 SRV4072-118
6 Smoke Shield 4072-136 SRV4072-136
7 Upper Trim 4072-123 SRV4072-123
8 Left Side Trim 4072-125 SRV4072-125
9 Right Side Trim 4072-124 SRV4072-124
10 Lower Trim 4072-122 SRV4072-122
11 Firescreen Rod 1 piece 4072-134 SRV4072-134
12 Firescreen Assembly Qty 2 req 4072-020 SRV4072-020 Y
13 Grate GR40 SRVGR40 Y
14 Nailing Flange Qty 4 req 4044-161 SRV4044-161
Door Pivot Clip Qty 2 req 31527 SRV31527
Strip Protector 18320 SRV18320
Outside Air Hood Qty 2 req 33271 SRV33271 Y
Installation Instructions and Owner’s Manual 4072-137 4072-137
Additional service parts following page.
10/15
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
51
Service Parts
ODVILLA-42T, ODVILLA-42H
Beginning Manufacturing Date: Jan 2011
Ending Manufacturing Date: Active
16.2
16.3
16.1
16.4
16.6
16.5
15.1
15.2
15.3
15.4
15.5
#15 Traditional Refractory
#16 Herringbone Refractory
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model number
and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS
HHT PART NUMBER VCG PART NUMBER
Traditional Refractory
15.1 Hearth Refractory, 42.38” F x 17.88” D x 21.18 B
SRV4072-104 SRV4072-104C
15.2 Back Refractory, 17.25” W x 26.93” H
4072-105 SRV4072-105
15.3 Side Refractory, Right, 17.25” W x 18.21” H
4072-103 SRV4072-103
15.4
Corner Shield Qty 2 req 4072-145 SRV4072-145
15.5
Retainer Qty 3 req 11847 SRV11847
Herringbone Refractory
16.1 Hearth Refractory, 42.38” F x 17.88” D x 21.18 B
SRV4072-104 SRV4072-104C
16.2 Back Refractory, 17.25” W x 26.93” H
4072-107 SRV4072-107
16.3 Side Refractory, Right, 17.25” W x 18.21” H
4072-108 SRV4072-108
16.4 Side Refractory, Left, 17.25” W x 18.21” H
4072-109 SRV4072-109
16.5
Corner Shield Qty 2 req 4072-145 SRV4072-145
16.6
Retainer Qty 3 req 11847 SRV11847
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
52
– NOTES –
E. Contact Information
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating
and maintenance
instructionsincluded.
• Leavethismanualwith
party responsible for
useandoperation.
• Read, understand
and follow these
instructions for safe
installation and
operation.
DO NOT
DISCARD
OutdoorLifestylesbyHearth&HomeTechnologiesInc.•4072-137RevK•10/15
Please contact your Outdoor Lifestyles dealer with any questions or concerns.
ForthenumberofyournearestOutdoorLifestylesdealer,pleasevisitwww.hearthnhome.com.
