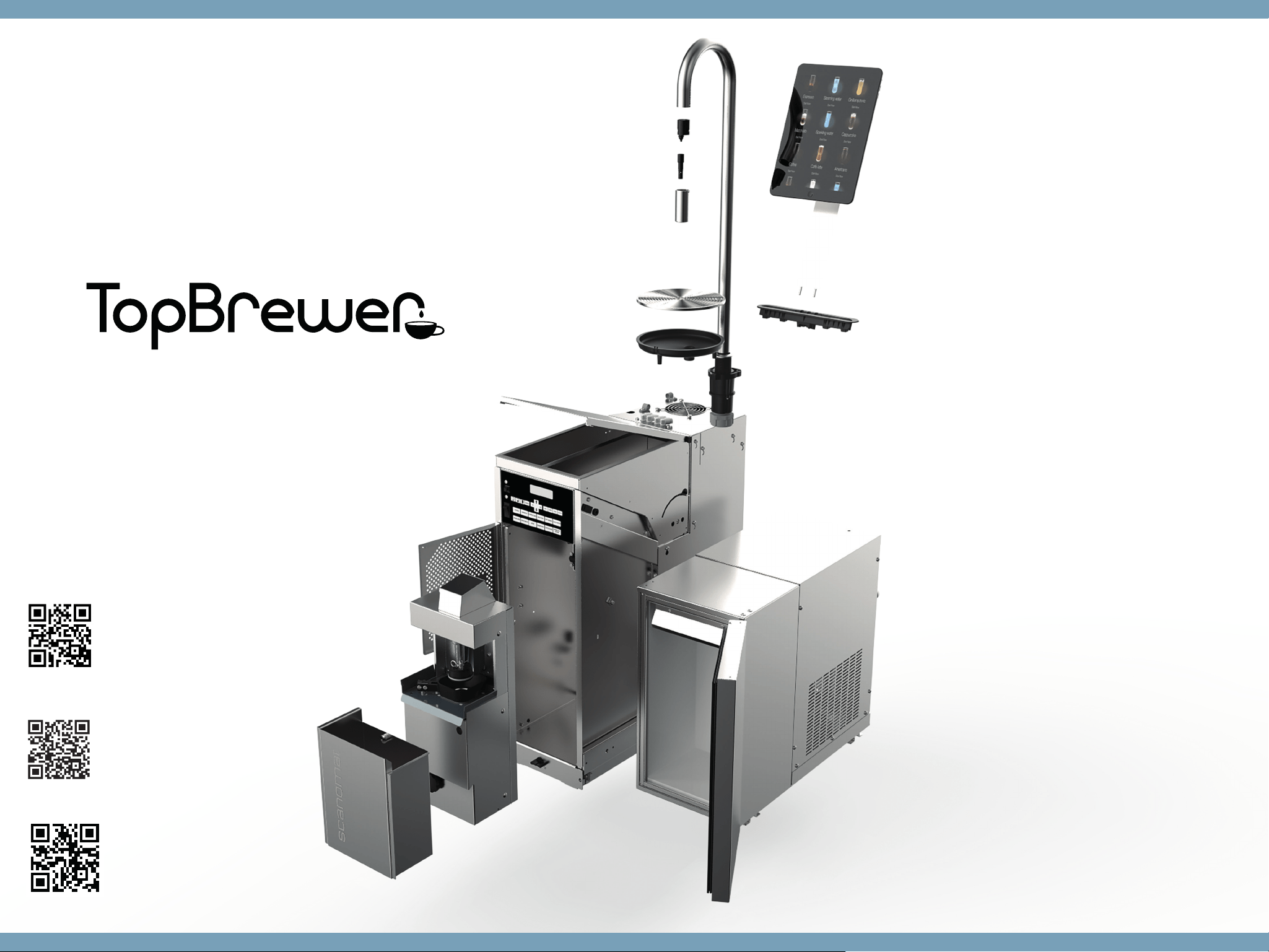

PRO
For TopBrewer Pro
Version: 4.1
22-07-2021
Scanomat
Download Center
Scanomat
Connection Diagram
Scanomat
Architect Pack
(2D/3D Files)
PRE INSTALLATION GUIDE
FÖRINSTALLATIONSGUIDE
ANLEITUNG VOR DER INSTALLATION
預安裝指南
FOR
CONTENTS
» Introduction 3
» Product Matrix: Choose your setup 4
» Products Overview 5
» Space requirements: Basic Installation 6
» Space requirements: Extended Installation 7
CARPENTER & VENTILATION 8
» Basic Installations
» Example 1 - Pro Fridge A2 9
» Example 2 - Pro Fridge A3 10
» Example 3 - Duct rediverted 11
» Extended / Special Installations
» Example 1 - with cold water 12
» Example 2 - with two Pro 13
» Example 3 - behind a wall 14

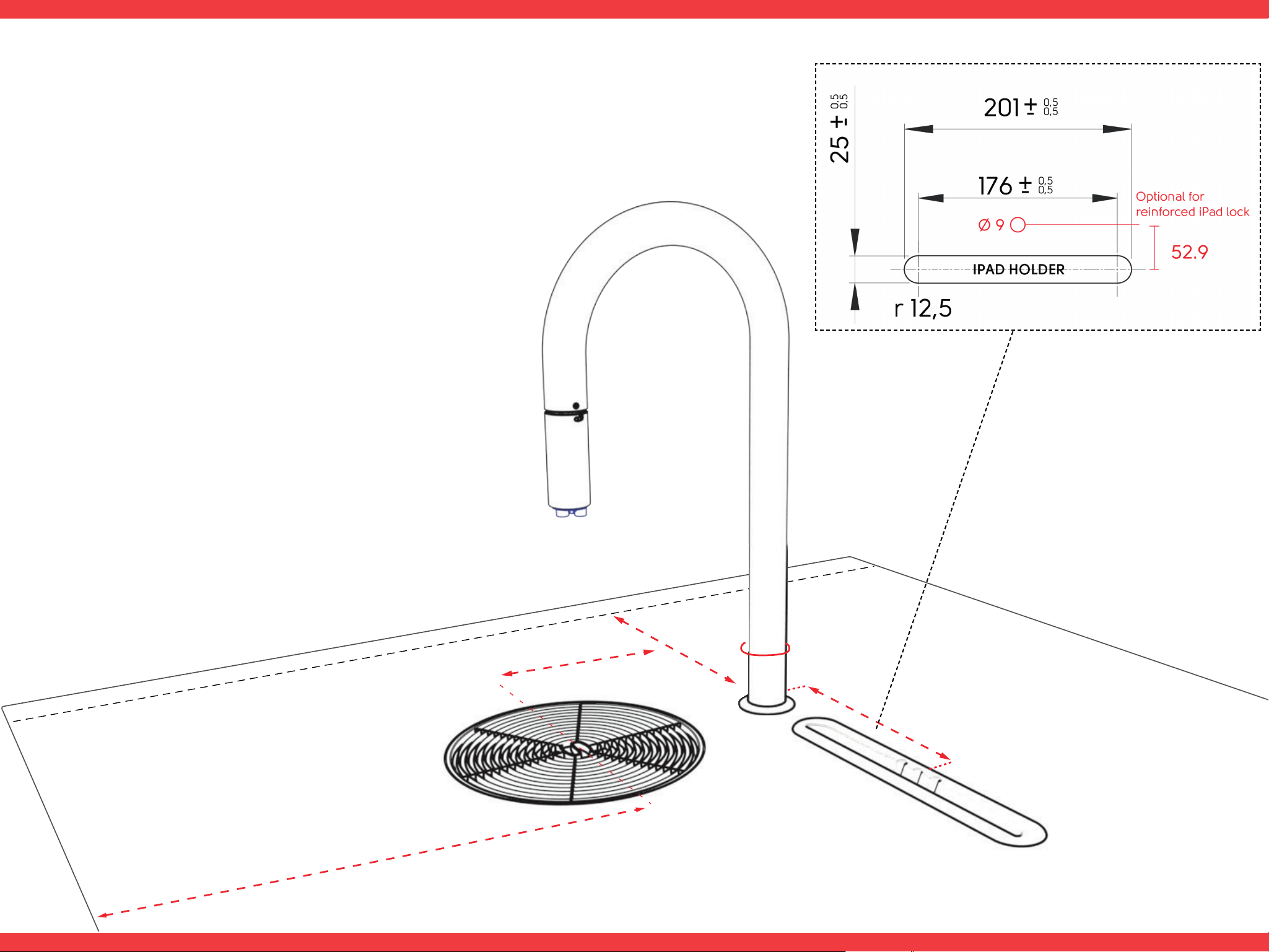

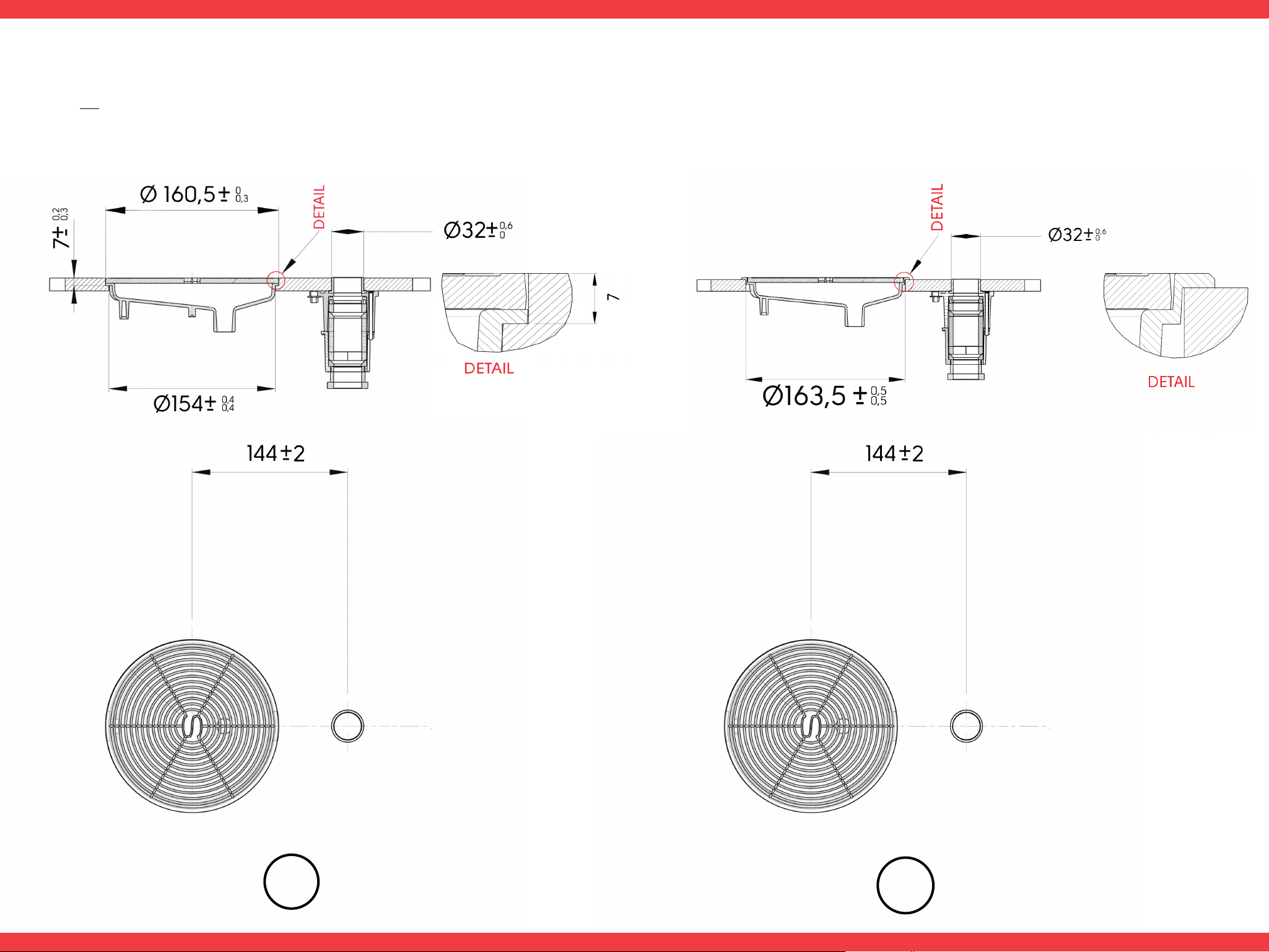

» Faucet and Driptray 15

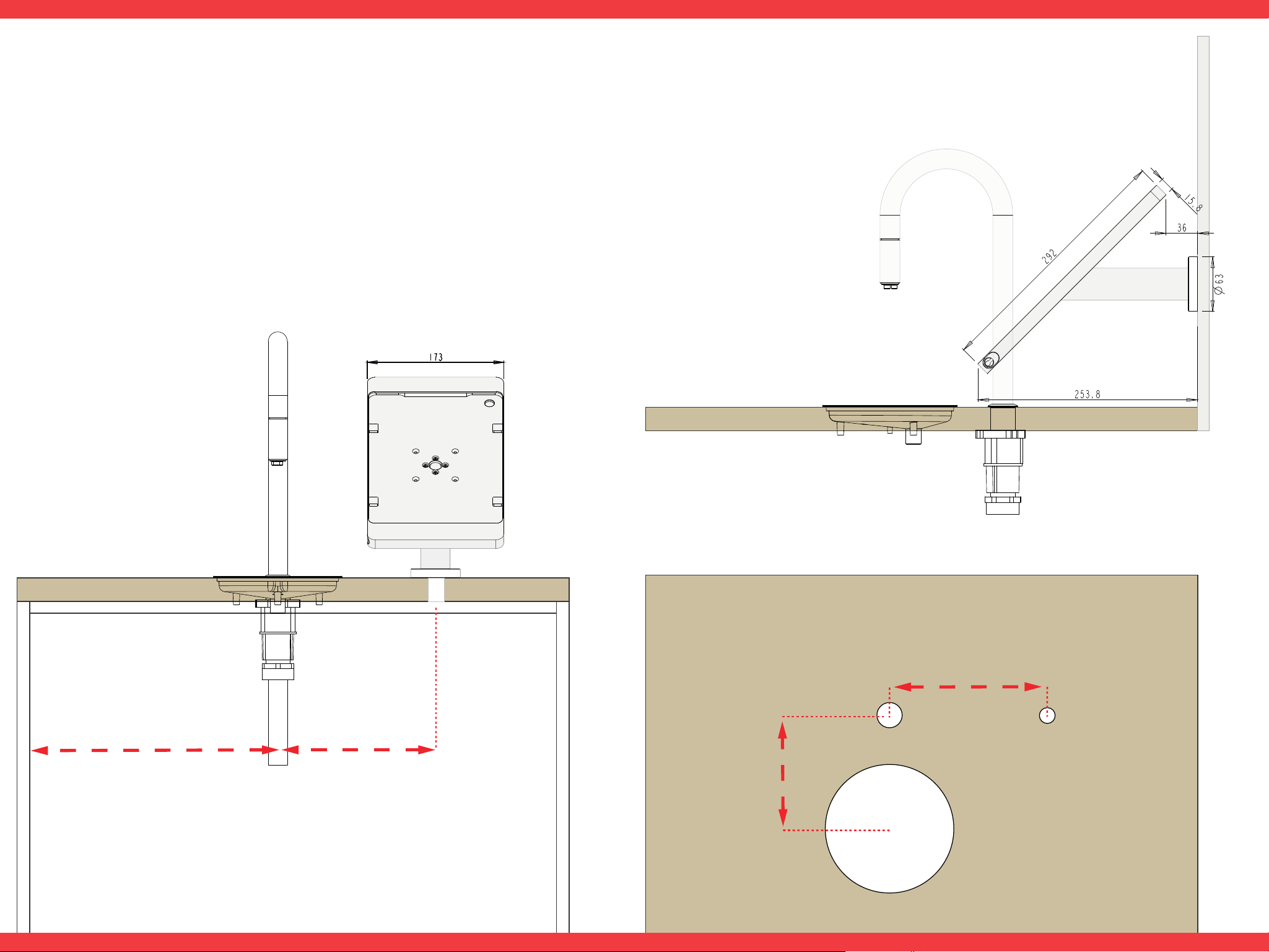

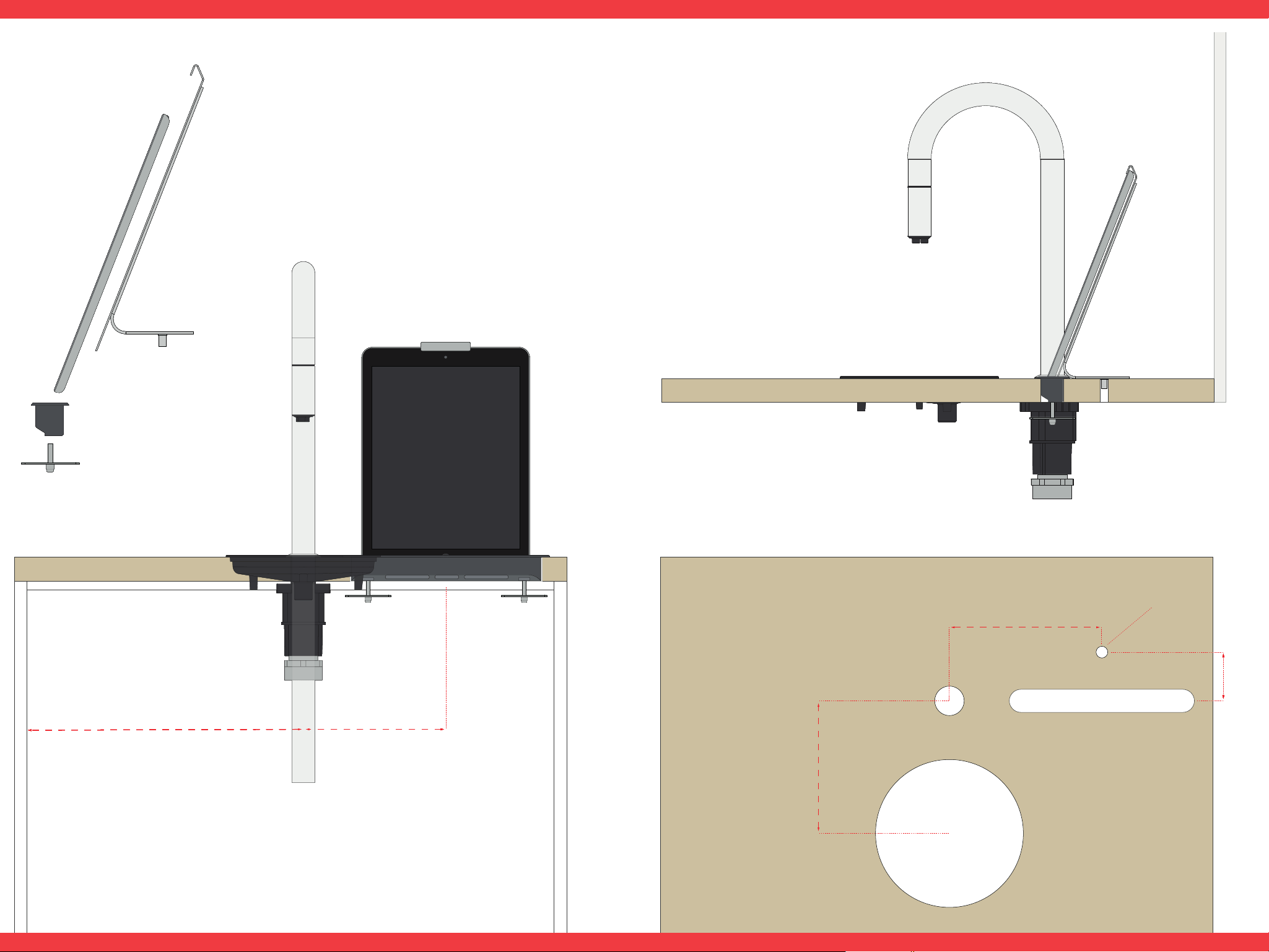

» Topmounted iPad holder 16
» Boxit Alu iPad Holder 17
» Driptrays 18

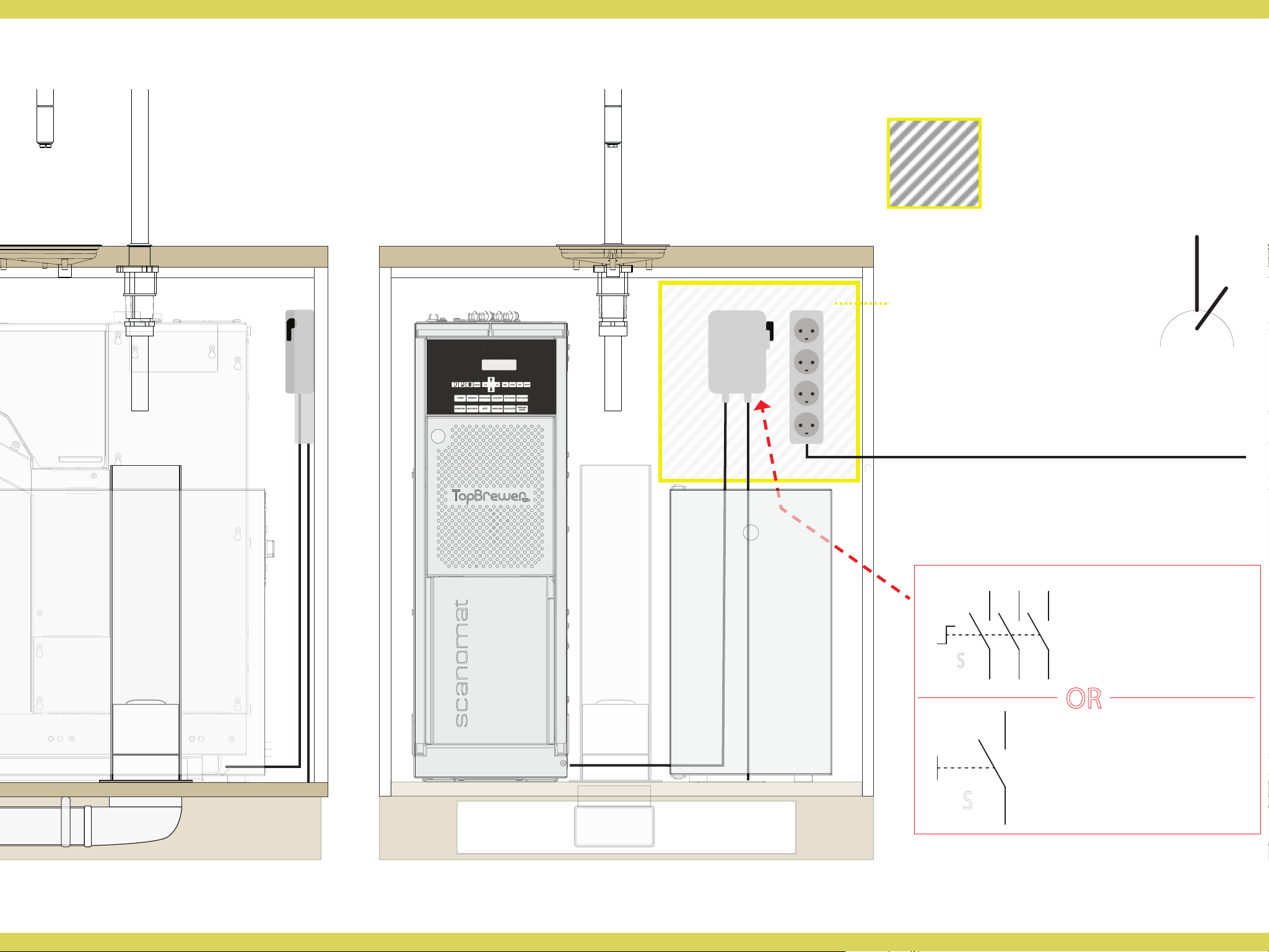

ELECTRICAL 19
» Electrical Requirements 20

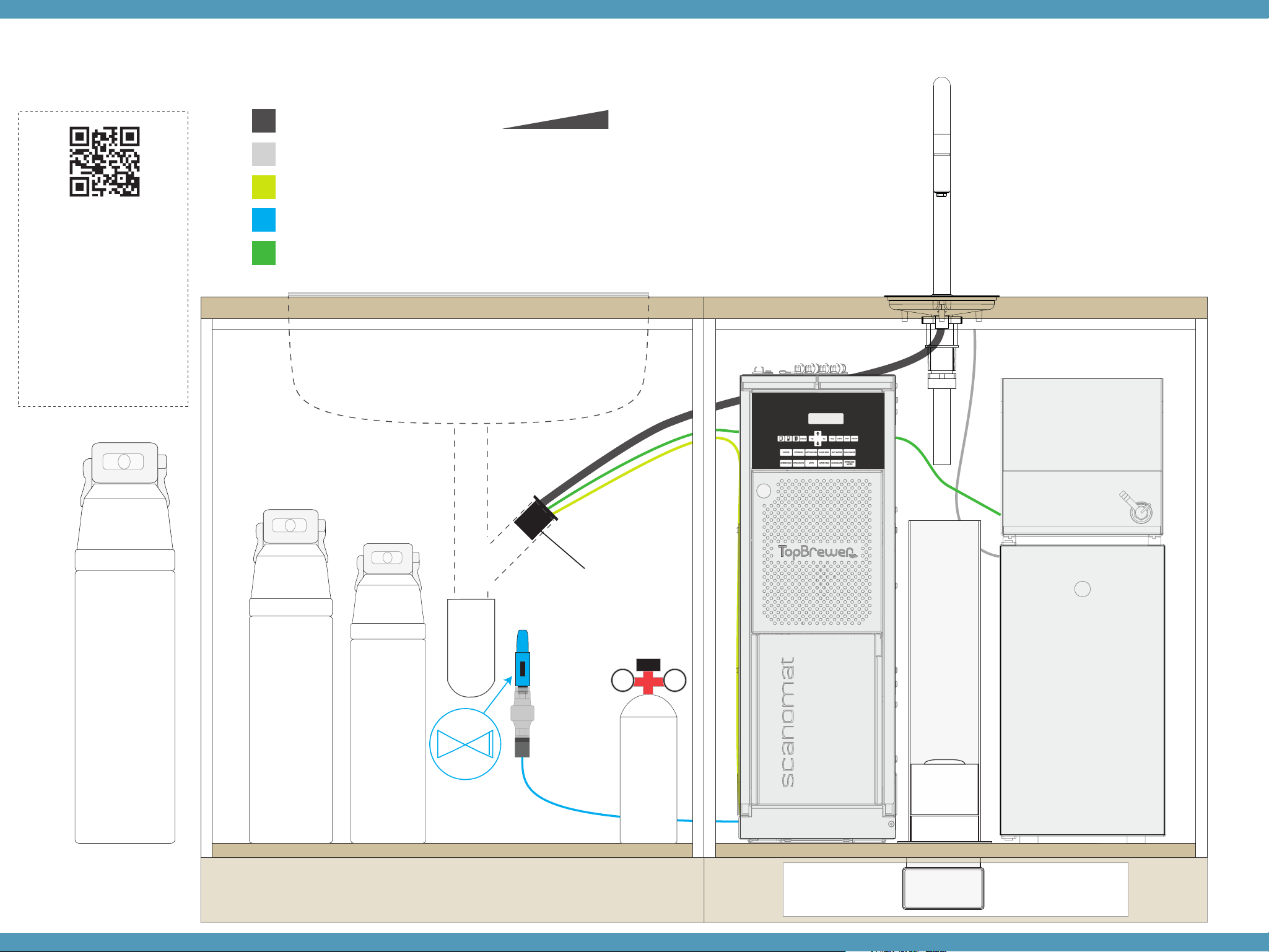

PLUMBING 21

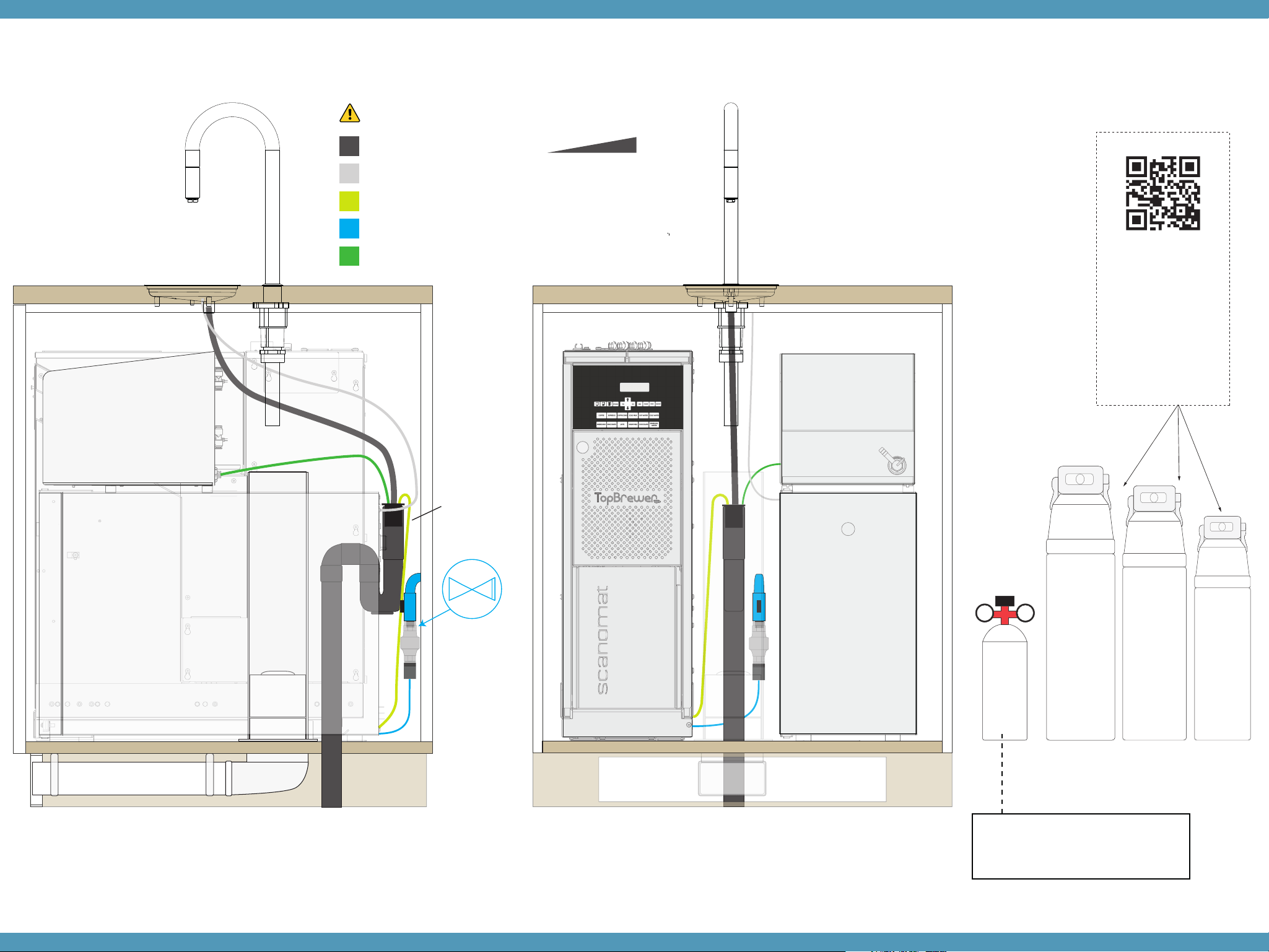

» Plumbing - adjacent cabinet 22
» Plumbing - same cabinet 23
2

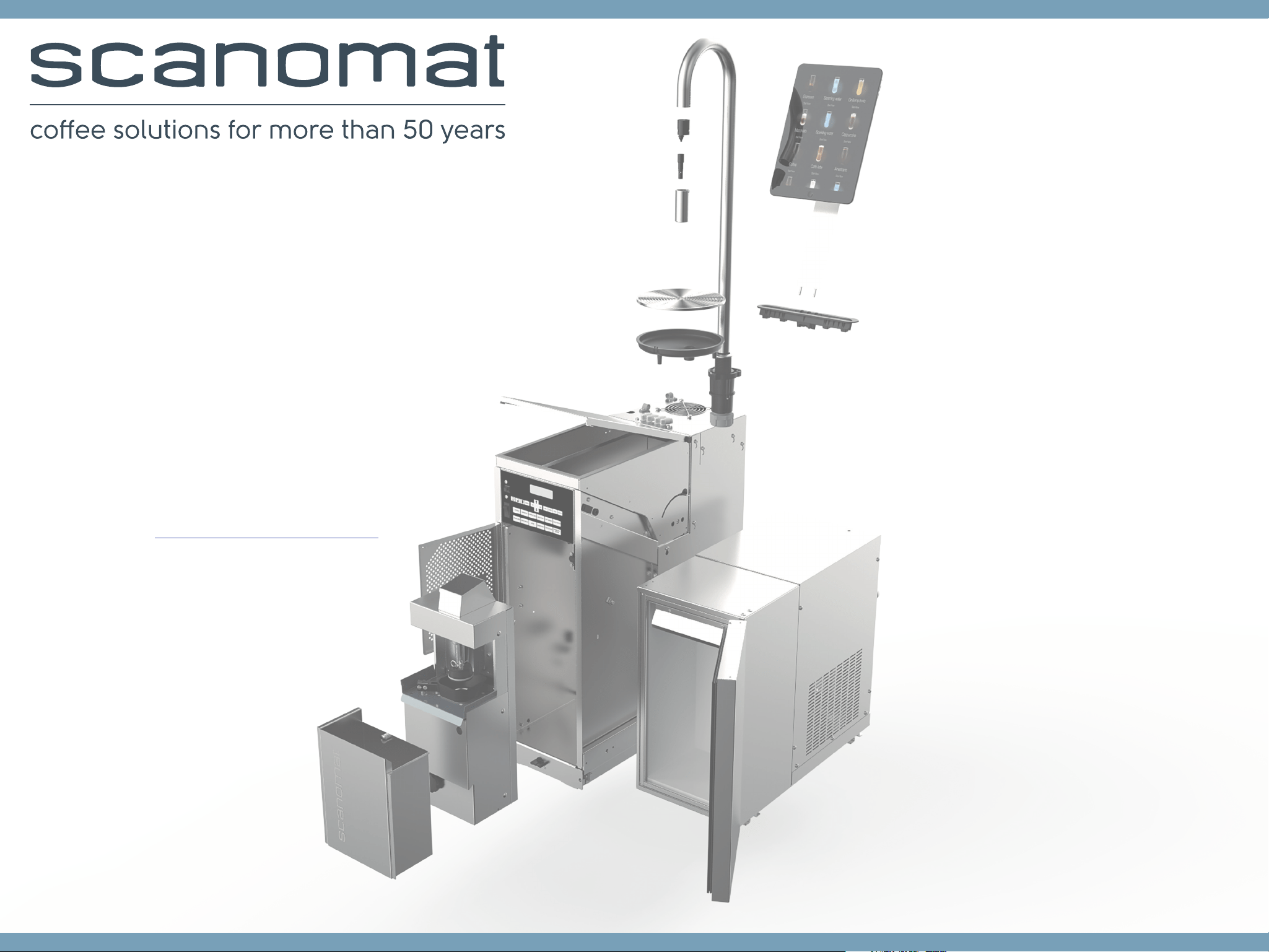

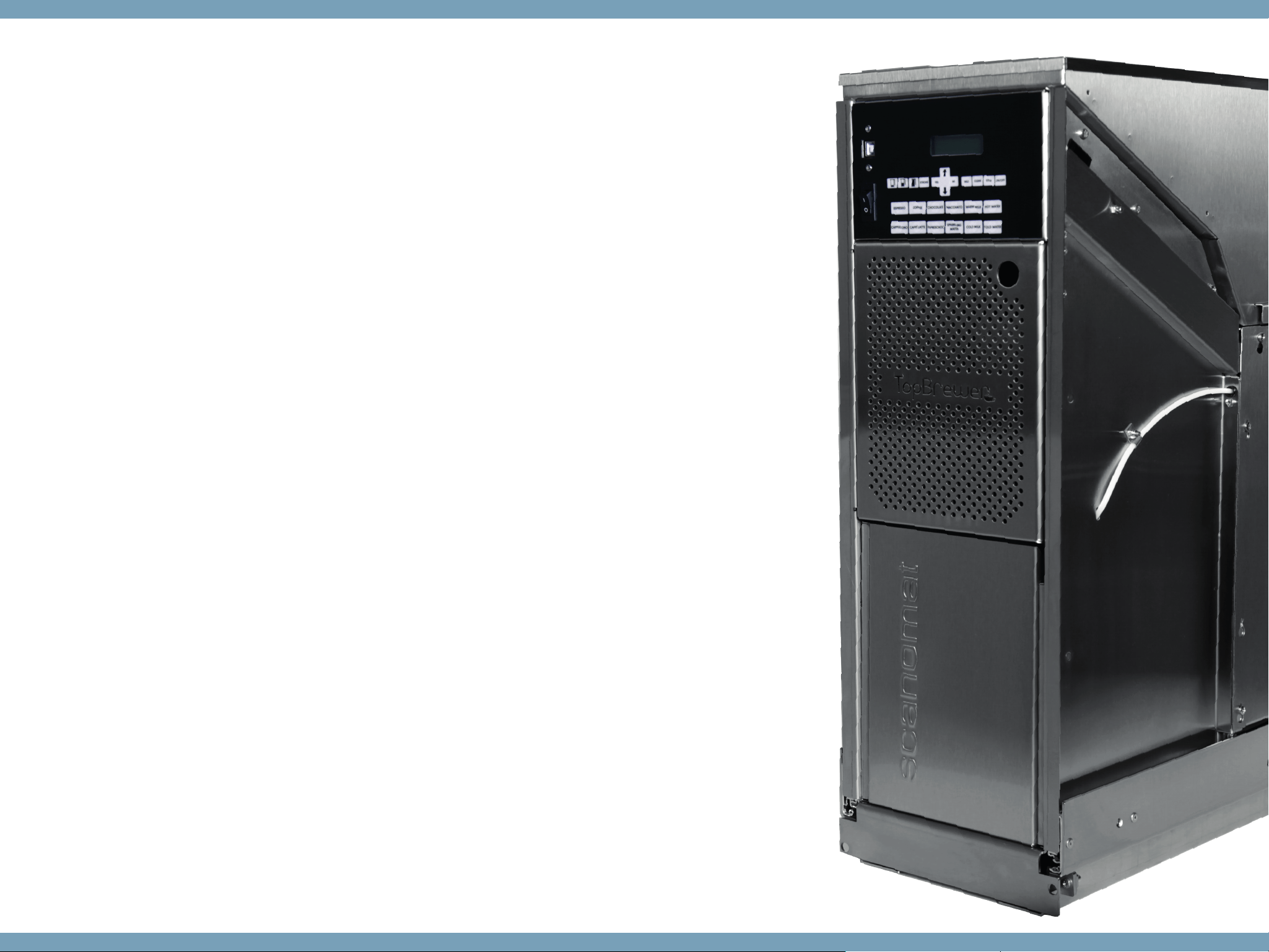

Introduction
The operation of a TopBrewer Pro coee system.
The TopBrewer Pro consists of a main unit, the coee machine, the ”swan neck” or tap that
is installed through the tabletop and is height adjustable through the mounting bracket, a
drained drip tray and a ventilation kit for the toe kick base. Additionally we oer optional
accessories that are installed along side of the TopBrewer. These accessories include our
extensive lineup of fridges, coolers and racks (overview on next page) that expands the
machines capabilities to include milk, chocolate and ice water.
The TopBrewer is connected to the cold water supply and water is heated in professional
flashheaters,meaning on demand. This works by water flowing through two 2,3kW aluminum
coils when a drinks is ordered and a separate steam-coil producing steam
for milk. The total heating capacity of the TopBrewer is thus 6,9 kW and it should
be preferably connected to 400V, 3 phase, 16 amp (3-phase version) or 208-240V, single
phase, 30 amp (single phase version) for the machine to perform to it’s full potential. If only
208-240V, single phase, 10 amps is available, the machine can be re-programmed to run
on a priority heating diverting power to the heating source needing it the most.
When ordering a milk drink, milk is pumped from the fridge (the pump is placed inside the
fridge for sanitary reasons), and once a delivery is done the machine finishes with pushing
the remaining milk out with cold water and thus cleaning the entire tubing. The water does
not enter the cup but is afterwards ejected into the drain via the double-valve inside the
fridge.
All water shall be purified using TopBrewer certified filtration. We require that the main inlet
is filtered through a filter with a bypass so that the water reaches 4 dH
O
. A second filter with
0% bypass is used to completely remove lime/scale from the dedicated steamer inlet.
Installation, maintenance and warranty
The TopBrewer system can be installed in almost any location provided there is sucient
space for the machine as well as power, water supply and waste.
The TopBrewer must be placed with sucient clearance so that it may slide out on its hinges.
The fridge must be fitted so that the length of the tubes does not exceed 1,5 mm . It can be
installed in an adjacent cabinet provided it maintains such maximum length. Accessories
such as the Scanomat Cooler 45 and the Chocolate rack must also stay within the same
maximum distances to ensure proper dispense quality.
All equipment must be fitted so that the they receive proper ventilation, with temperatures
not exceeding 35
o
C, as this would harm components and void warranty.
3
LESS THAN 590 MM
DEPTH
ALLOWS FOR MORE
THAN 590 MM
DEPTH
HIDDEN OR BEHIND
THE WALL
WITH WATER
PAGE 14 PAGE 14 PAGE 16
WITHOUT WATER
PAGE 12 PAGE 11 PAGE 16
WITH HOT CHOCOLATE
N/A PAGE 11 PAGE 16
WITH WATER AND HOT
CHOCOLATE
PAGE 12 PAGE 14 PAGE 16

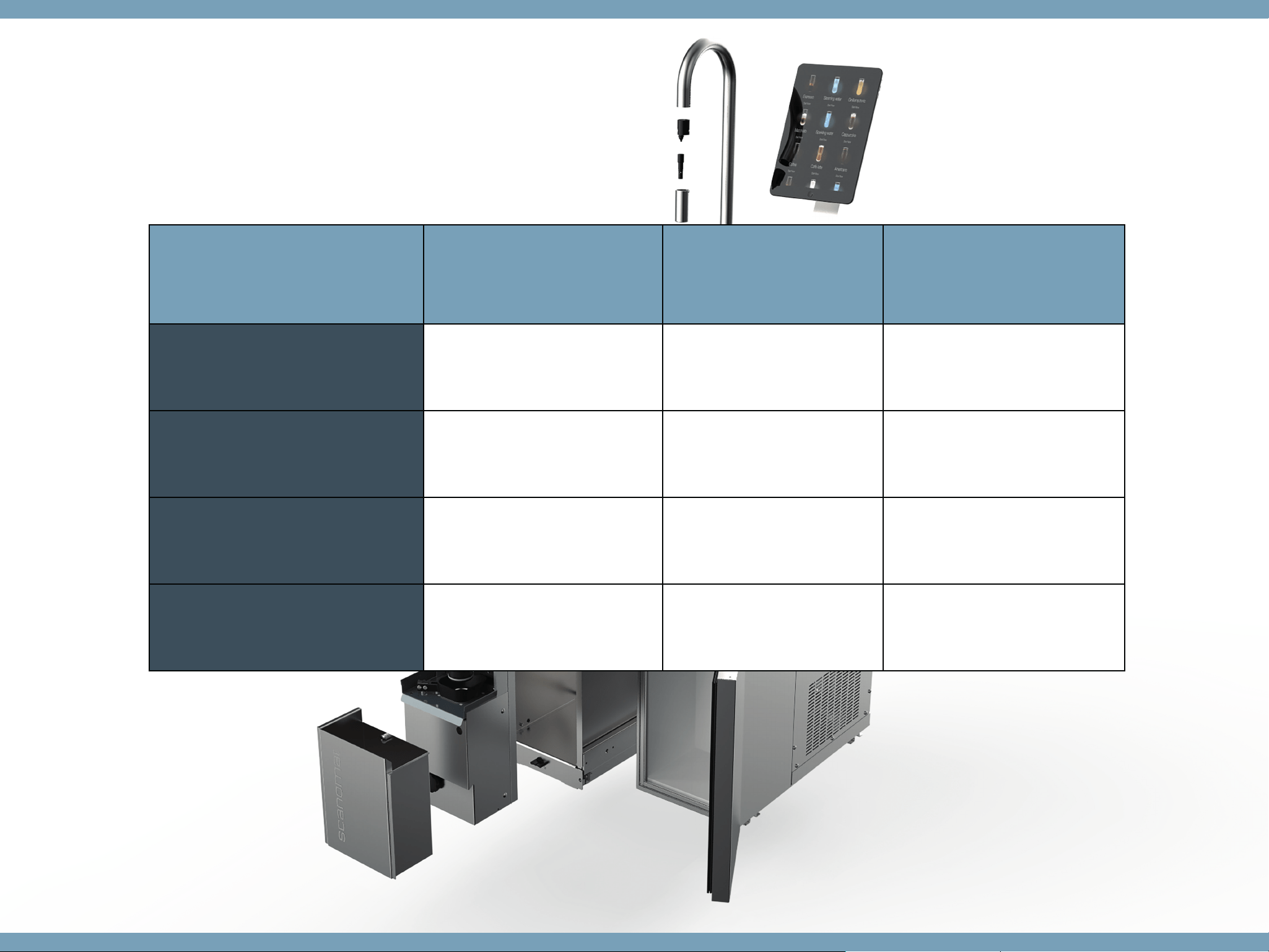

Product Matrix
Choose your setup
Cabinet Layout
Configuration Choices

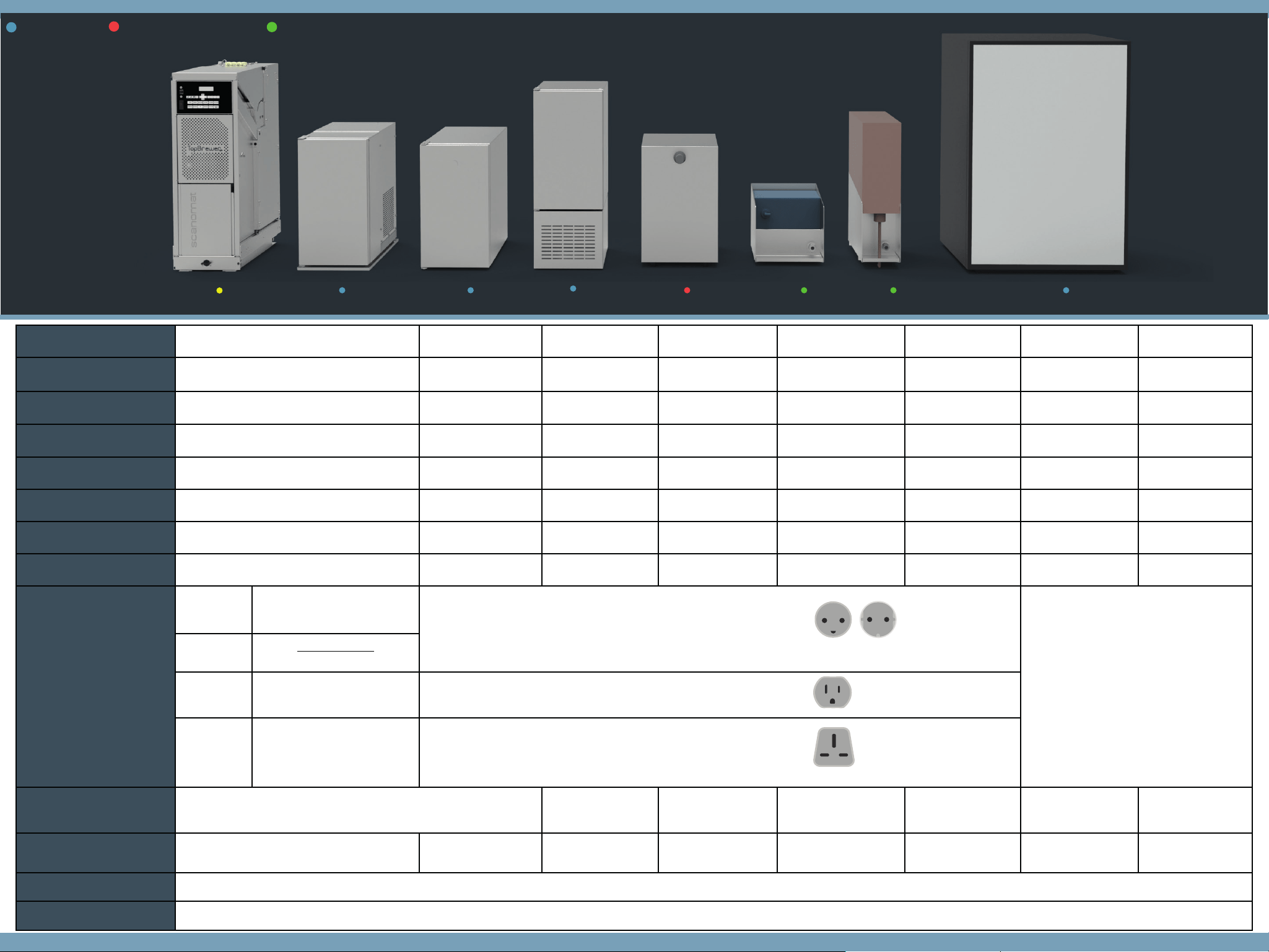

UNIT DETAILS
TopBrewer Pro ICE-Bank (A1)* Pro-fridge (A2) Pro-fridge Tall (A3) Cooler 45 (B1)* Pro-Fridge BiB (A4) Slimrack (C1) Chocolate rack (C2)
Installation Dimensions
(WxDxH)
224 x 560 x 667 mm 236 x 569 x 428.5 mm 231 x 600 x 430 mm 231 x 438 x 600 mm 255 x 464 x 404 mm 520 x 560 x 760 mm 129 x 428 x 476,5 mm 230 x 323 x 237 mm
Packing Dimensions
(WxDxH)
320 x 660 x 790 mm 246 x 579 x 488.5 mm 300 x 615 x 490 mm 241 x 443 x 660 mm 265 x 483 x 464 mm 530 x 575 x 820 mm 139 x 443 x 536,5 mm 240 x 338 x 297 mm
Weight, gross.
60 kg 25 kg 20 kg 20 kg 22 kg 31 kg 9 kg 8 kg
Weight, net.
56 kg 22 kg 17 kg 17 kg 19 kg 28 kg 6 kg 5 kg
Bean/Carton Capacity
2 x 1.4 kg Up to 4 l. Up to 9 l. Up to 9 l. -
3x 10 l. Bag-in-box
(up to)
10 l. Bag-in-box 3 l. Bag-in-box
Throughput/hour
180 cups Up to 4 L - - Up to 45 L - - -
Approvals
CE, ETL/UL, CB, NSF CE CE, ETL/UL CE, ETL/UL CE, ETL/UL, NSF CE, ETL/UL CE CE
Power
EU, 6900 Watt
220-240V, 30 amp, single phase
OR
400V, 16 amp, 3-phase
220-240V, 10 Amp.
3-pin plug point for each unit.v
31V DC from TopBrewer
EU, 2300 Watt
(Priority Heating)
220-240V, 10 amp, single phase
Canada & USA
L6-30 twist lock plug
(supply male/female connections)
115V, 60 Hz, 10 Amp
Plug point for each unit.
United King-
dom
32 Amp - Commando fitting
(supply male/female connections)
1 x 10 Amp single phase
(Priority heating)
115V, 60 Hz, 10 Amp
Plug point for each unit.
Water
Direct Water Connection, 3/4” type shuto valve
Water pressure: 200kPa (2 Bar) - 600 kPa (6 Bar)
- -
Direct Water Connection, 3/4”
type shuto valve
Water pressure: 200kPa (2 Bar) -
600 kPa (6 Bar)
- - -
Filtration
TopBrewer water filters fitted in a location adjacent to the
TopBrewer. See plumbing section. Dedicated steam filter
required (Pure 50, 0% bypass)
TopBrewer ActiveCoal
10.000, optional, purifies the
water with active coal
- -
TopBrewer ActiveCoal 10.000,
optional, purifies the water
with active coal technology.
- - -
Drainage
Waste U-pipe, ø40mm. Manifold/drain plug (included, see Plumbing section) is inserted and components are connected here.
Ventilation
Duct Fan Ventilation required. Cooler produces a lot of heat, which needs to be able to exit as per installation instructions in Carpenter section
Products Overview
TB A1
A2
A3
B1 A4C1C2
Fridges
Water coolers
Racks
* OPTIONALLY WITH CO
2
MIN. TOTAL WIDTH 580 MM
A 600 MM CABINET RECOMMENDED
294 MM
CLEARANCE HEIGHT NEEDED
FOR INSTALLATION OF SWAN NECK
MIN 500 MM
750 MM RECOMMENDED
680 MM MINIMUM
Always allow
min. 40 mm
clearance
Always allow
min. 60 mm
clearance
min.
90 mm
Recommended depth 610 mm
Minimum 600 mm

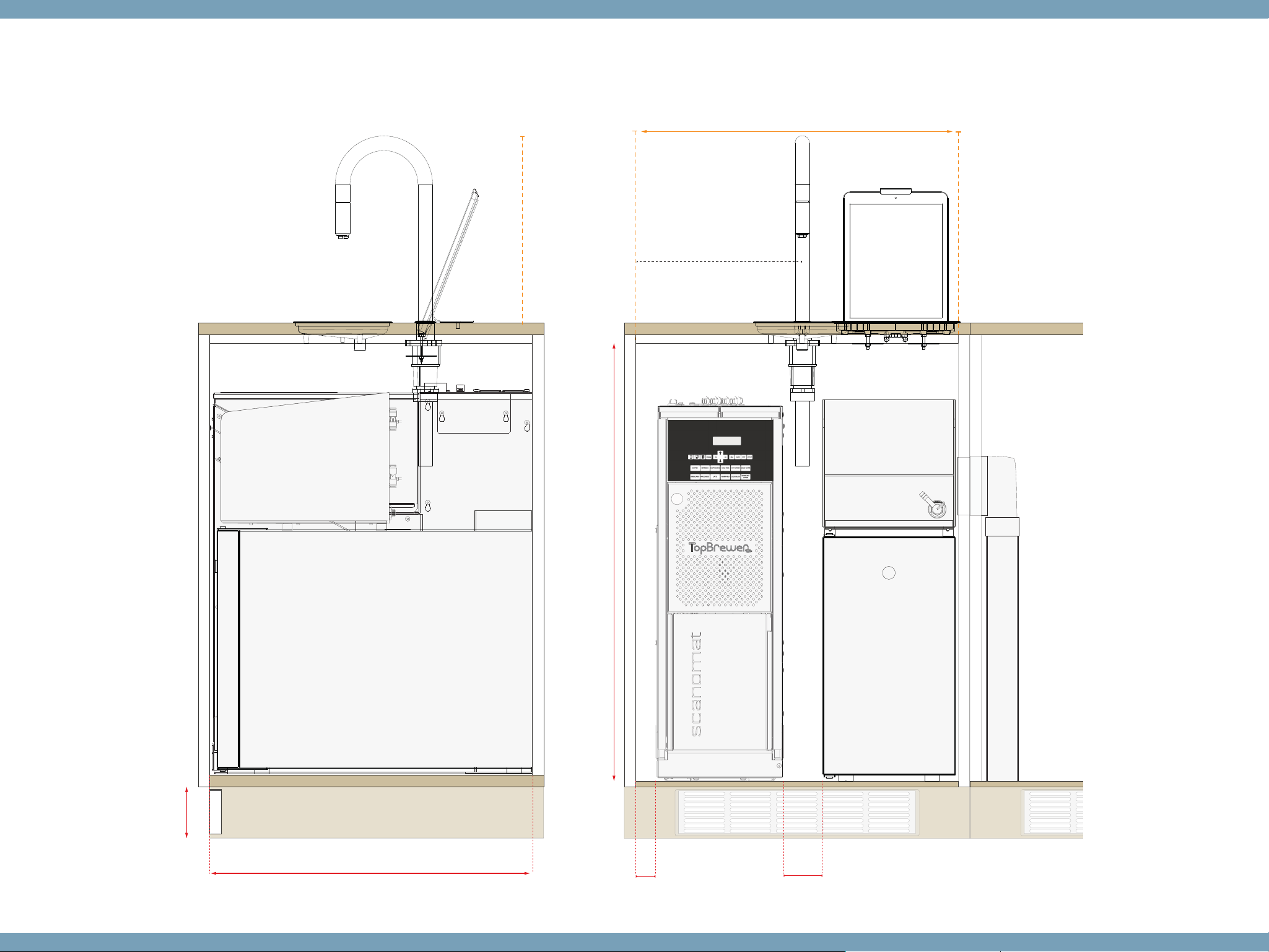

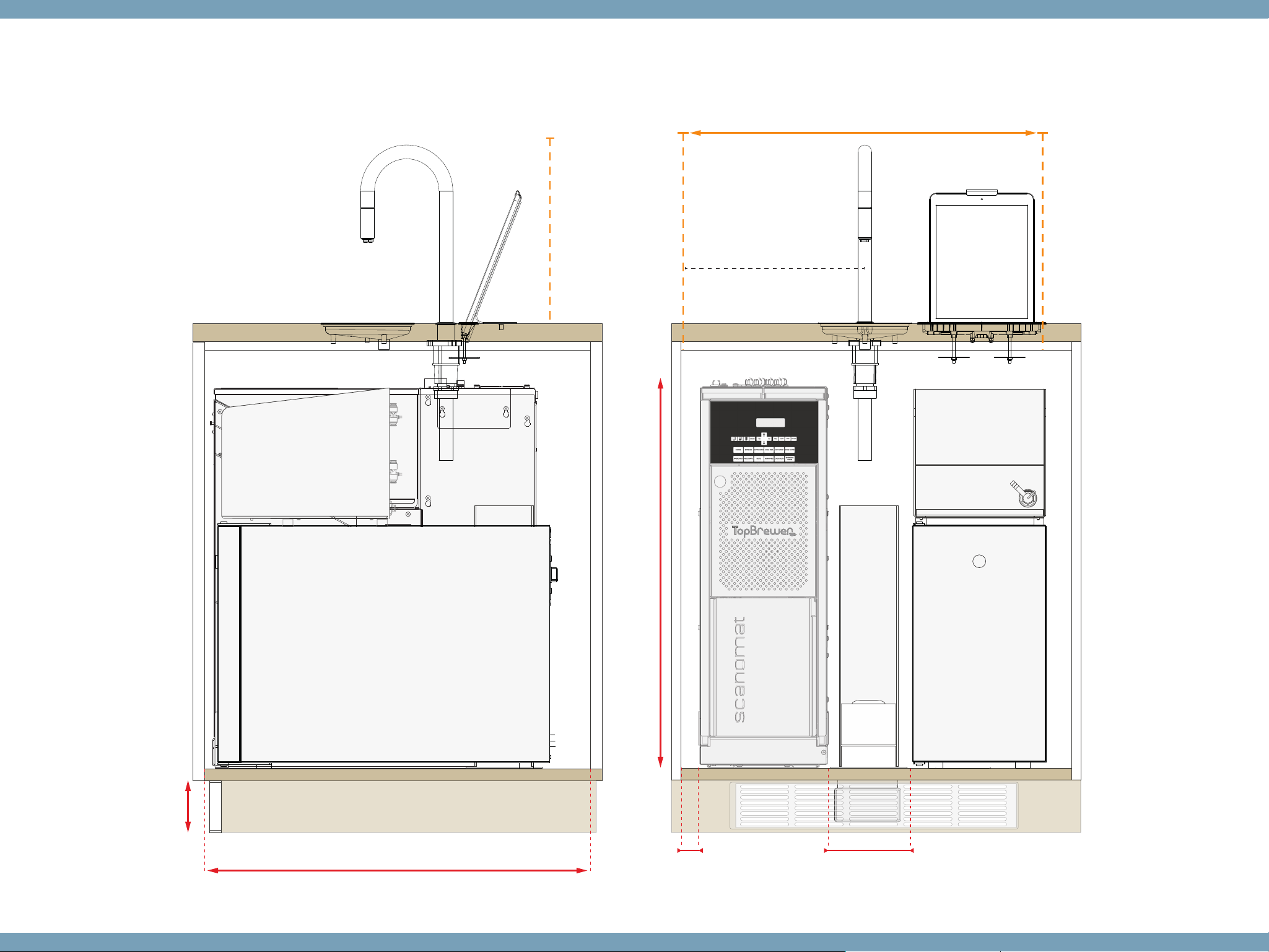

Space requirements
Basic Installation 1
6
A2
C2*
Compact ventilation
MIN. TOTAL WIDTH 595 MM
A 700 MM CABINET RECOMMENDED
294 MM
CLEARANCE HEIGHT NEEDED
FOR INSTALLATION OF SWAN NECK
MIN 500 MM
750 MM RECOMMENDED
680 MM MINIMUM
Always allow
min. 40 mm
clearance
Always allow
min. 60 mm
clearance
min.
90 mm
Recommended depth 650 mm
Minimum 600 mm

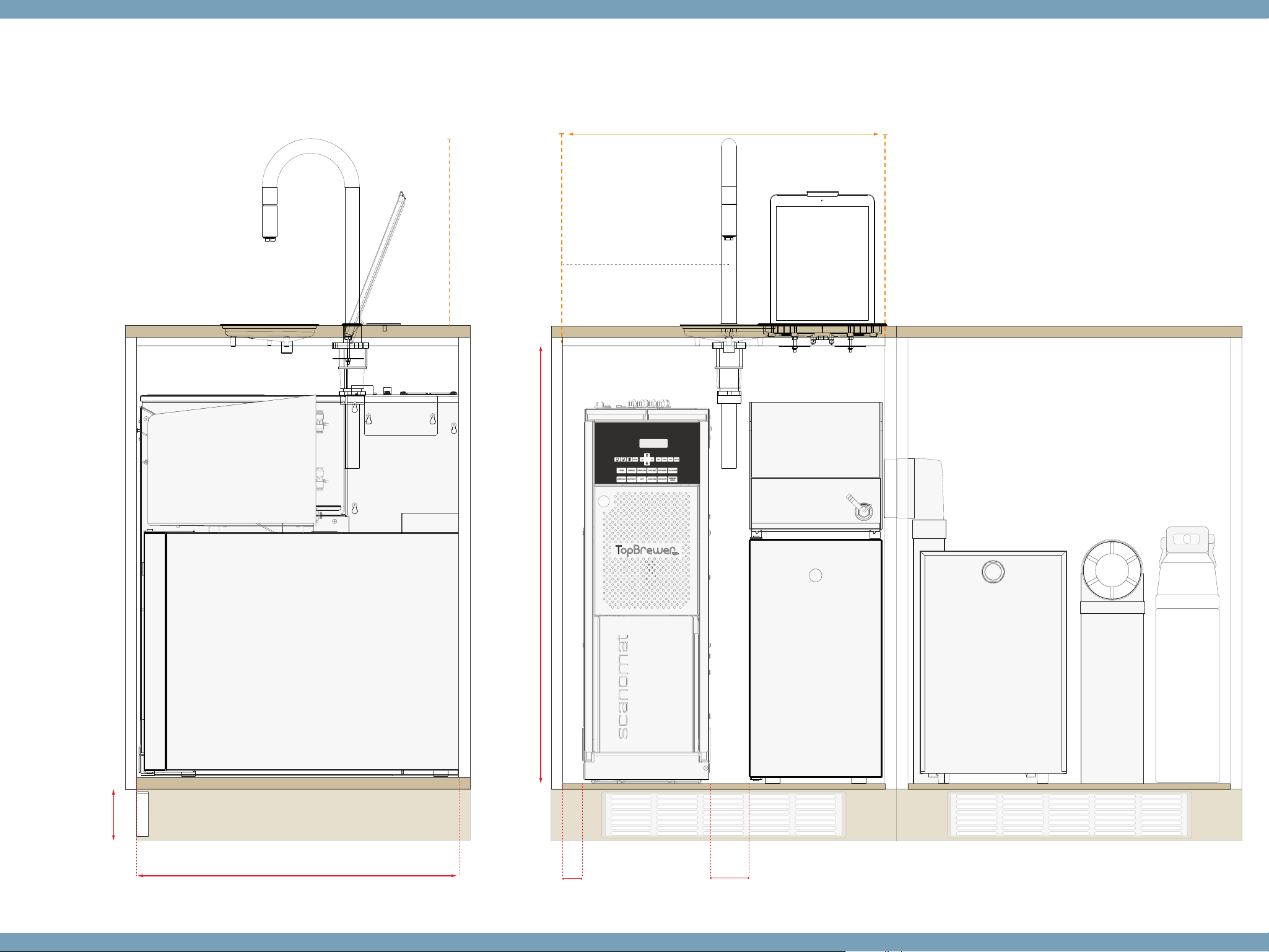

Space requirements
Basic Installation 2
7
A2
C2*
Center ventilation
C300
294 MM
CLEARANCE HEIGHT NEEDED
FOR INSTALLATION OF SWAN NECK
MIN 500 MM
Always allow
min. 40 mm
clearance
Always allow
min. 60 mm
clearance
min.
90 mm
A1 : 569 mm
A2: 600 mm
A3: 534 mm
A4: 560 mm
A 700 MM CABINET RECOMMENDED
MIN. TOTAL WIDTH 580 MM
470 MM RECOMMENDED
MIN. TOTAL WIDTH 400 MM
750 MM RECOMMENDED
680 MM MINIMUM

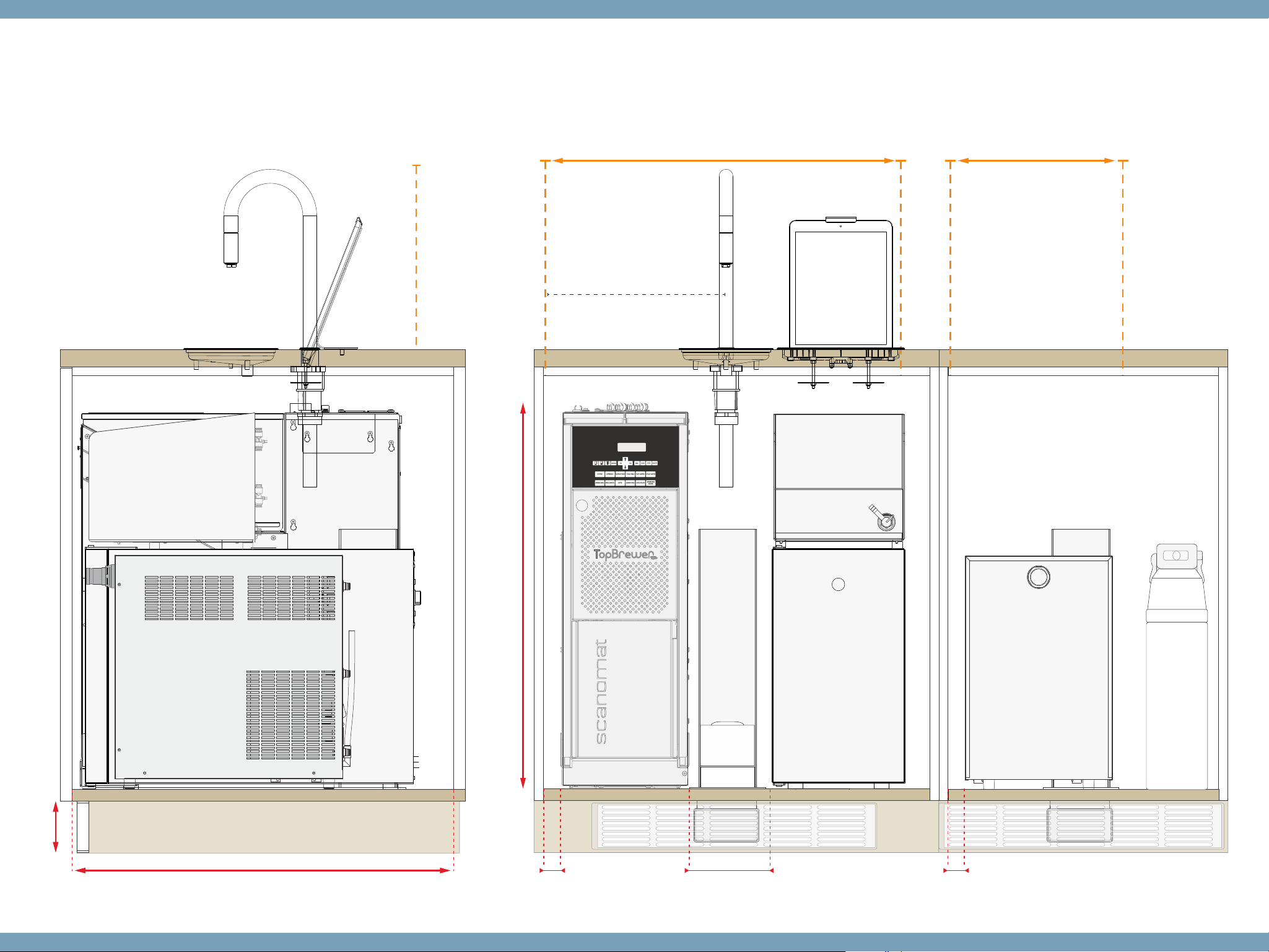

Space requirements
Compact ventilation
Extended Installation 1
8
A2 B1
C2*
C300
294 MM
CLEARANCE HEIGHT NEEDED
FOR INSTALLATION OF SWAN NECK
MIN 500 MM
Always allow
min. 40 mm
clearance
Always allow
min. 60 mm
clearance
Always allow
min. 40 mm
clearance
min.
90 mm
A1 : 569 mm
A2: 600 mm
A3: 534 mm
A4: 560 mm
A 700 MM CABINET RECOMMENDED
MIN. TOTAL WIDTH 580 MM
470 MM RECOMMENDED
MIN. TOTAL WIDTH 400 MM
750 MM RECOMMENDED
680 MM MINIMUM
Space requirements
Extended Installation 2
9
A2 B1
C2*
Center ventilation
CARPENTER
SNICKARE
ZIMMERMANN
木匠
10
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
AC Fan
- Funnels hot air out
OR
7
-0.25
+4.00
Recommended: 690mm
min. 600 mm
472 mm
71 mm
700 mm recommended. Min. 595 mm
Max 444 mm
260 mm
ø100 mm
Air Inlet Dimensions, minimum 78 cm2
130mm 130mm
H: 30mm
490 mm
330 mm
Clearance min: 500mm
Side
Flat Channel Duct + Angle
Sold seperately as SKU
4302789 and 4302790
Cut-out for standard alumini-
um grate.
A custom design can also be
adapted.
Front Top View
TBTB A2
A2
11
C2*
AIR EXHAUST
SHOULD REMAIN
UNOBSTRUCTED

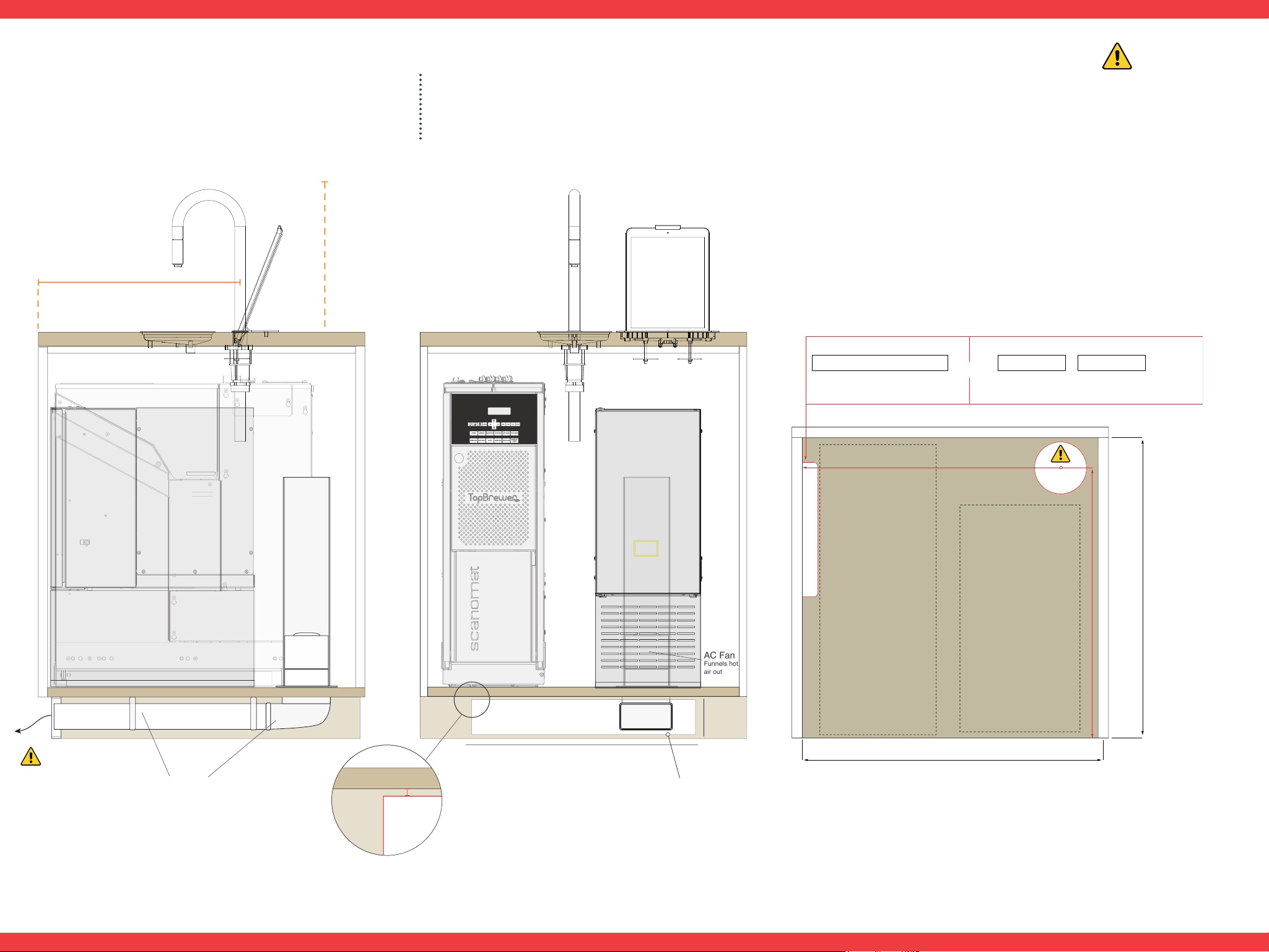

Example 1
Using: TB + A2 or A1 + C2*
Ventilation pipe through toekick using SKU 4302774
Carpentry preperations
Basic Installation
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
OR
AC Fan
Funnels hot
air out
Cut-out for standard alumini-
um grate.
A custom design can also be
adapted.
472 mm
71 mm
7
-0.25
+4.00
Recommended: 600 mm
min. 580 mm
500 mm
500 mm
600 mm recommended. Min. 570 mm
Max 444 mm
260 mm
ø100 mm
Air Inlet Dimensions, minimum 78 cm2
130mm 130mm
H: 30mm
Clearance min: 500mm
TBTB A3
A3
12
AIR EXHAUST
SHOULD REMAIN
UNOBSTRUCTED
Flat Channel Duct + Angle
Sold seperately as SKU
4302789 and 4302790

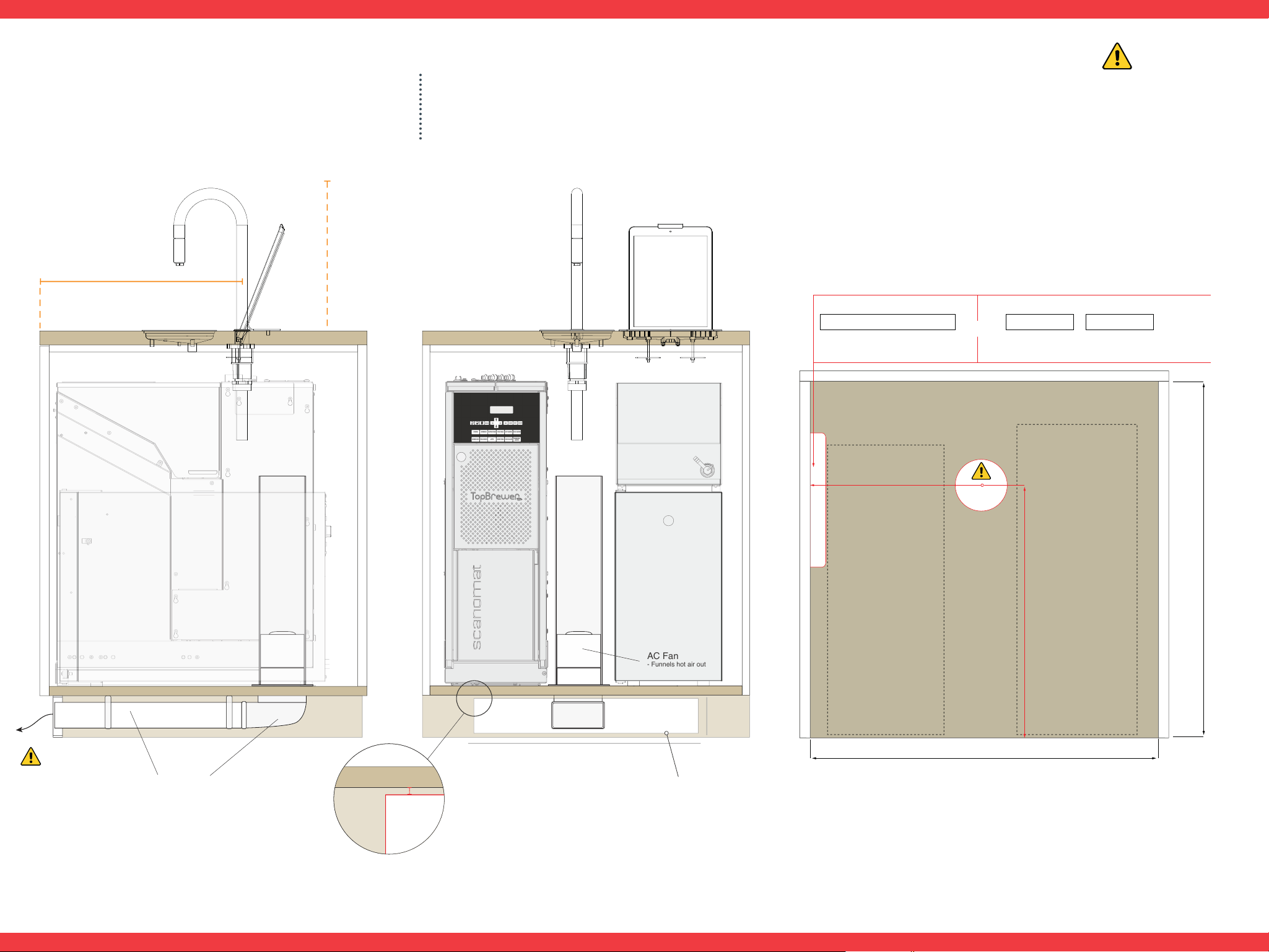

Example 2
Using: TB + A3
Ventilation pipe through toekick using SKU 4302774
Carpentry preperations
Basic Installation
Side Front Top View
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
OR
Recommended: 690mm
min. 600 mm
Min. 570 mm
Clearance min: 500mm
Max 444 mm
260 mm
Air Inlet Dimensions, minimum 78 cm2
130mm 130mm
H: 30mm
13

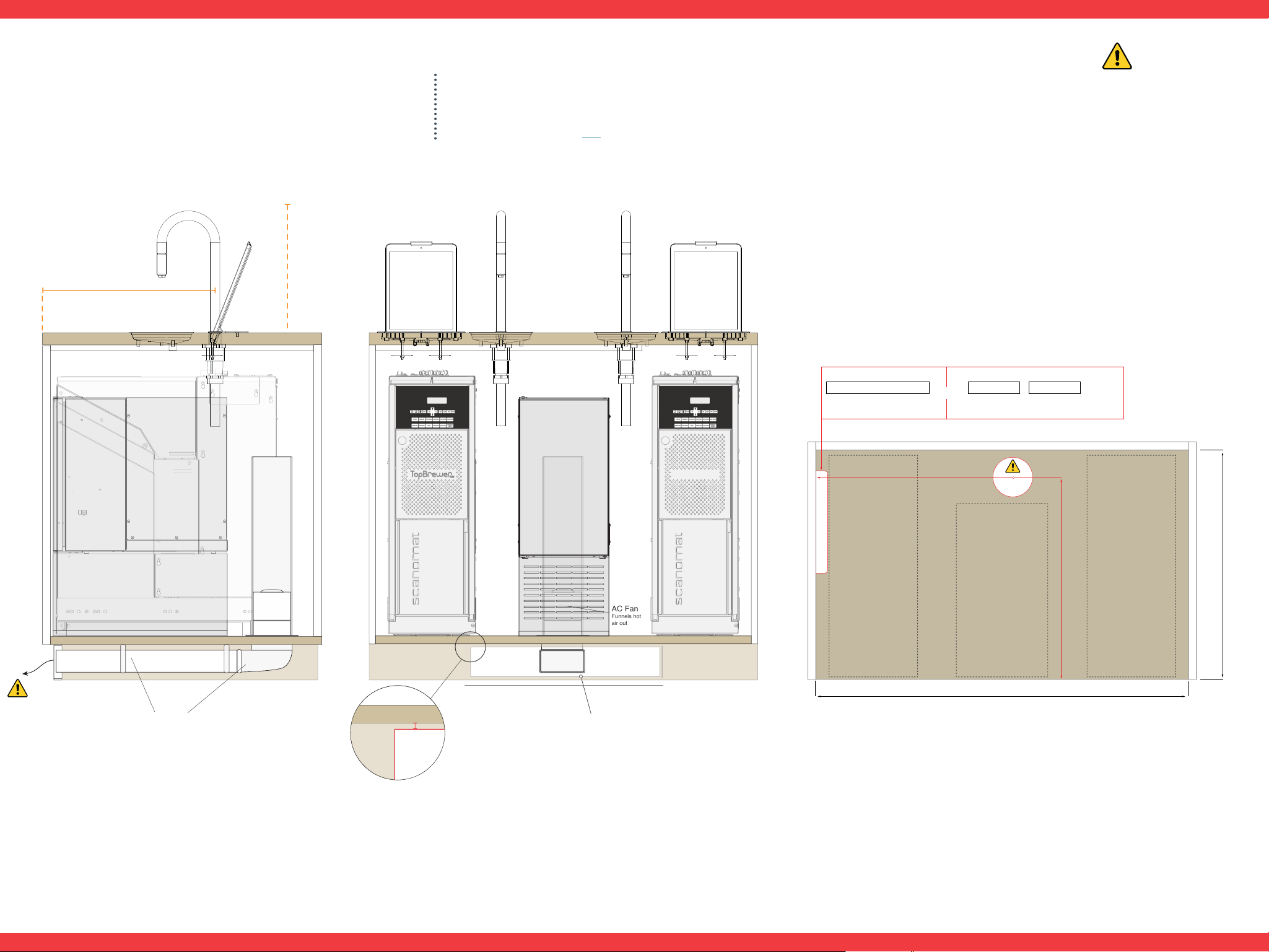

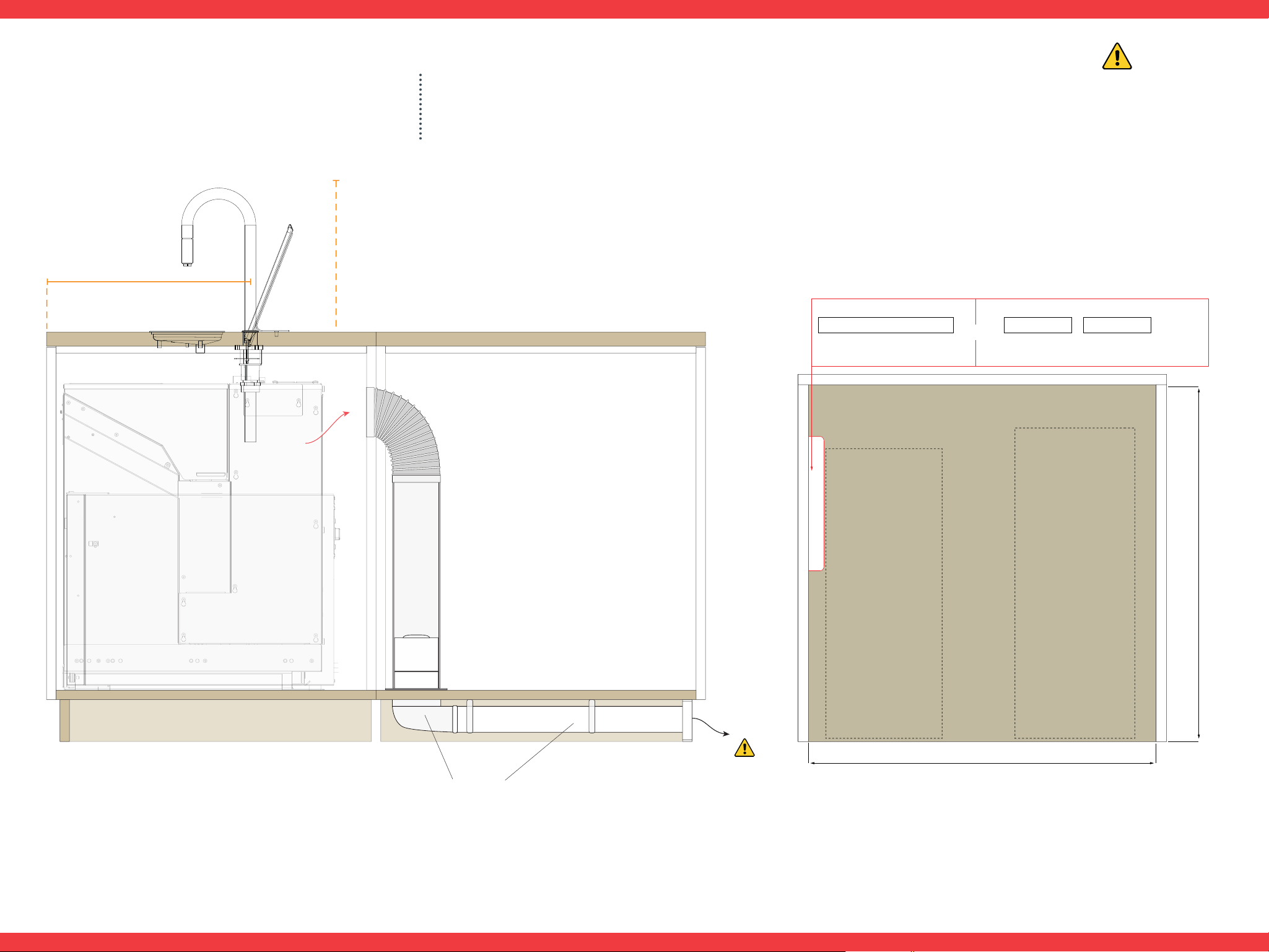

This configuration, using a flextube, allows for ex-
haust diversion to an adjacent cabinet. Shown is
an example. Also used is flat Channel Duct + Angle.
Sold seperately as SKU 4302789 and 4302790
AIR EXHAUST
SHOULD REMAIN
UNOBSTRUCTED
TBTB A2

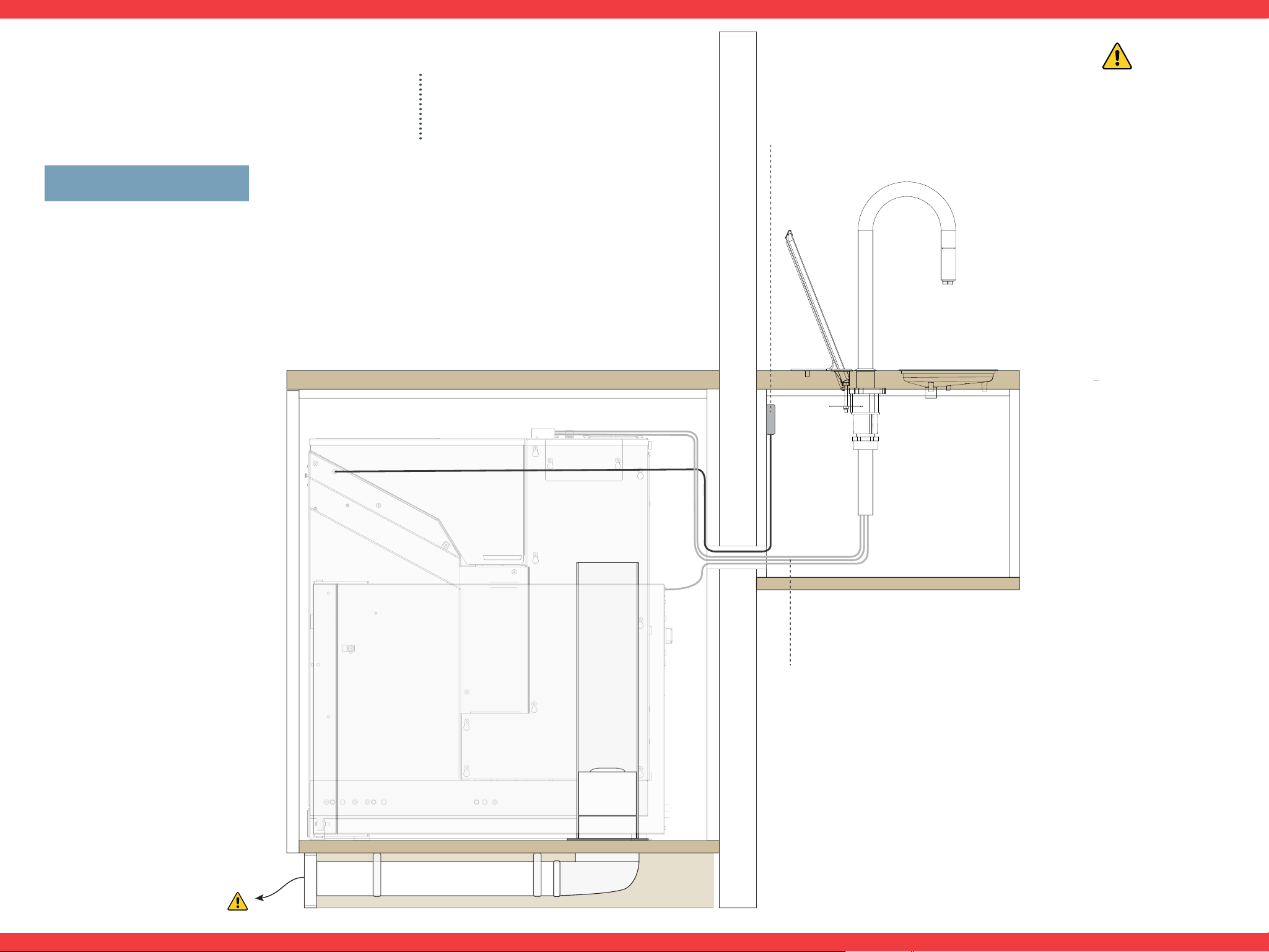

Example 3
Using: TB + A1, A2 or A3 + C2*
Ventilation pipe through toekick using SKU 4302774
+ flex tube
Carpentry preperations
Basic Installation
Side Front Top View
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
OR
AC Fan
- Funnels hot air out
C300
OR
472 mm
71 mm
7
-0.25
+4.00
Recommended: 690mm
min. 600 mm
Recommended: 600mm
min. 580
522 mm
522 mm
500 mm
490 mm
500 mm
Max 444 mm
Clearance min: 500mm
240 mm
180 mm
472 mm
71 mm
Min. 325 mm
Min. 270 mm
Min. 570 mm
700 mm recommended. Min. 595 mm
260 mm
ø100 mm
ø100 mm
Air Inlet Dimensions, minimum 78 cm2
130mm 130mm
H: 30mm
260 mm
ø100 mm
ø100 mm
Air Inlet Dimensions, minimum 78 cm2
130mm 130mm
H: 30mm
Flat Channel Duct + Angle
Sold seperately as SKU
4302789 and 4302790
Example here using included alumi-
num grate.
A custom design can also be
mitigated.
A2
A3
A2
B1
B1
B1
14
C2*

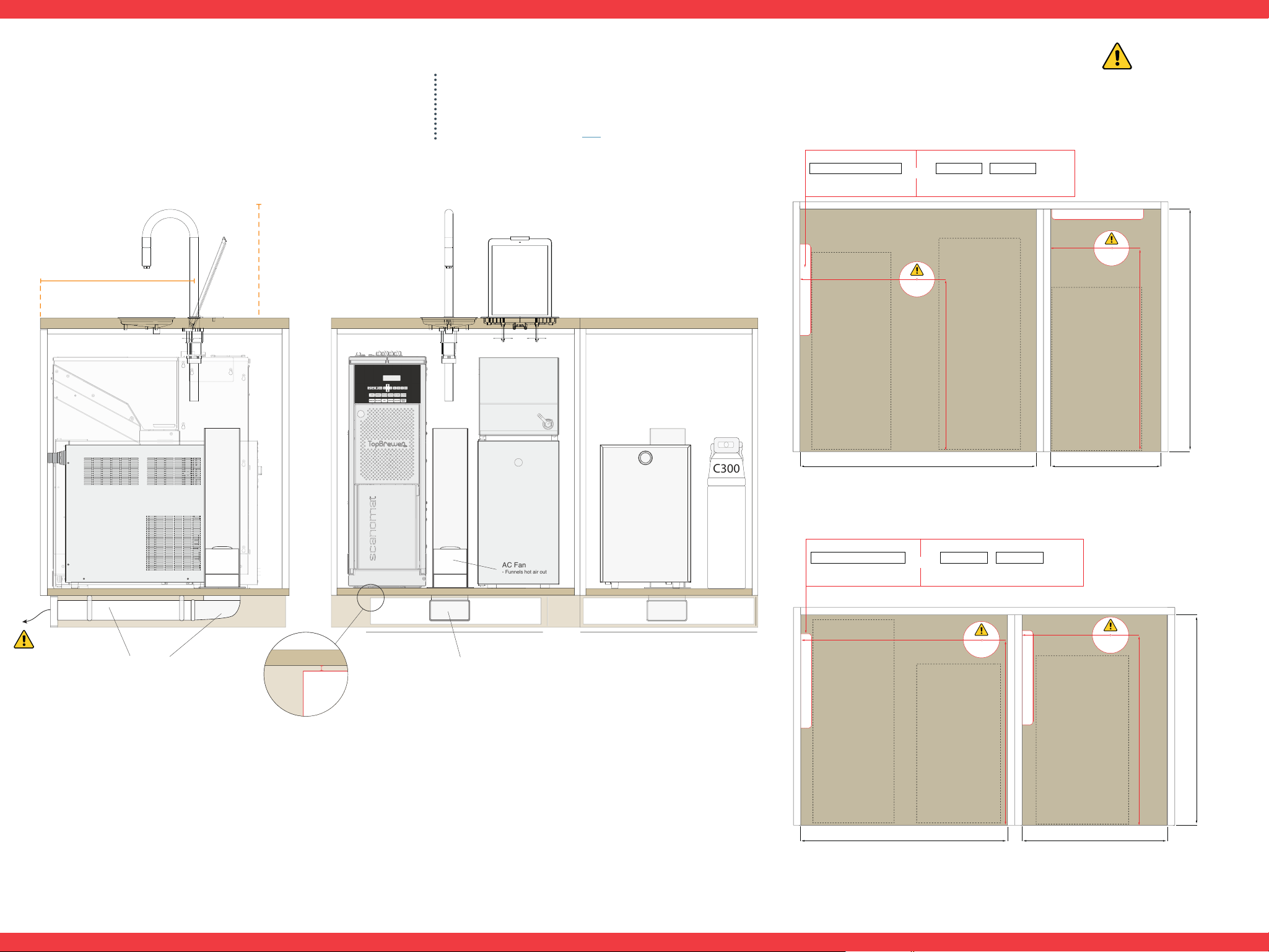

Example 1
Using: TB + A2 or A3 + B1 + C2*
Adding Cooler 45 for ice water option
Carpentry preperations
Extended Installation
TBTB
TBTB
AIR EXHAUST
SHOULD REMAIN
UNOBSTRUCTED
Side Front Top View
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
AC Fan
Funnels hot
air out
OR
472 mm
71 mm
Recommended: 600mm
min. 580
500 mm
500 mm
Max 444 mm
Clearance min: 500mm
Min. 940 mm
260 mm
ø100 mm
Air Inlet Dimensions, minimum 78 cm2
130mm 130mm
H: 30mm
Flat Channel Duct + Angle
Sold seperately as SKU
4302789 and 4302790
Example here using included alumi-
num grate.
A custom design can also be
mitigated.
A3
15
Example 2
Using: TB + A2 or A3 + TB
Two Pro’s sharing a single Pro-fridge
Carpentry preperations
Extended Installation
TBTB TBTB
AIR EXHAUST
SHOULD REMAIN
UNOBSTRUCTED
Side Front Top View
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
Hoses to faucet is led through wall.
Maximum length, 1,5 m.
Using Bluetooth external antenna,
length 1,5 m.
SKU 4302690
16
AIR EXHAUST
SHOULD REMAIN
UNOBSTRUCTED
Example 3
Using: TB + A1, A2 or A1 + C2*
Special example of behind-the-wall utilizations
Carpentry preperations
Special Installation
CLICK HERE TO
SEE EXAMPLE
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
Measurements for top mounted iPad Holder
17
144 mm
294 mm
160-250 mm
250-300 mm
ø32
Swan Neck & Driptrays
Overview of positioning
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
18
144 mm
294 mm
160-250 mm
200-250 mm
ø9
52,9 mm
TopBrewer topmounted iPad Holder + Lock
Optional lock
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
19
160-250 mm
144 mm294 mm 200-250 mm
ø20
BOXIT (Table Mount or Wall-Mount options)
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
· CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER · CARPENTER ·
Cut out sheet
- Swan neck + Driptray
TOP
SIDE
NOTE that this driptray is best used for
water resistent tabletops such as Granite,
Marble or Corian. If wood, make sure
poures are completely sealed.
Top mounted
- With Lip -
Driptray 2006162_A
2
1
Flush mounted
- Countersunk -
Driptray 2006162
20
SIDE
21
ELECTRIC
ELEKTRISK
ELEKTRISCH
電的
· ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL ·
· ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL · ELECTRICAL ·
All electrical must be
kept within boundary
IMPORTANT
Electrical Installations
to be placed here
Safety switch for machine main power
1600 mm cable length
Plug point
Fridge, Optional Cooler,
Ventilation & iPad Charger
3 phase, 400V
10-16 amp
Single phase, 230V
10 or 30 amp
OR
S
S
4
X
Single phase
230V, 10 amp
US & Canada:
Single phase 115V,
60 Hz, 10 Amp
Electrical Requirements
22
PLUMBING
VVS
KLEMPNERARBEITEN
水暖
23
· PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING ·
· PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING ·
CO2
Filters
Filters are chosen based on the
projected usage pattern of the
machine. Distance of installation
relative to the machine are
unlimited. An example of the
capacity is listed below.
Capacity:
Example: 30% bypass,
o
dH. 15
C150: 1390 l.
C300 2310 l.
C500: 2926 l.
*Drainline from Chocolate Rack
Fridge waste water
Drainpump from machine
Drainline from driptray
Main Water w/ shuto valve
1 m
5 cm
C500
C300
C150
MUST
POINT
DOWN
24
Drain plug provided
Pipe size Ø40 or Ø35
144 mm
125 mm
557 mm
464 mm
119 mm
417 mm
Plumbing - adjacent cabinet
Optional Co
2
bottle placement.
(if applicaple). Must be standing
upright, max pressure setting 3 bar.
*Optional units
· PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING ·
· PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING · PLUMBING ·
C150
C300
CO2
C500
Filters
Filters are chosen based on the
projected usage pattern of the
machine. Distance of installation
relative to the machine are unlimited.
An example of the capacity is listed
below.
Capacity:
Example: 30% bypass,
o
dH. 15
C150: 1390 l.
C300 2310 l.
C500: 2926 l.
U-Pipe is required
*Drainline from Chocolate Rack
Fridge waste water
Drainpump from machine
Drainline from driptray
Main Water w/ shuto valve
1 m
5 cm
MUST
POINT
DOWN
25
*Optional units
Drain plug provided
Pipe size Ø40 or Ø35
144 mm 125 mm
557 mm
464 mm
119 mm
417 mm
Plumbing - same cabinet
Optional Co
2
bottle placement.
(if applicaple). Must be standing
upright, max pressure setting 3 bar.
For TopBrewer Pro
Version: 4.1
22-07-2021
For more information & questions to your installation,
contact us on the below channels
Tecnical / Architect Support
E-mail: [email protected]
Chat: www.scanomat.com
International: +454918180
Denmark: +4549181212
Sweden: +46 (0)774 41 0000
Norway: +47 22662210
Locate Dealer: scanomat.com/services/partners
