Altus AFL700W Washing Machine

User Manual

For AFL700W.

PDF File Manual, 29 pages, Read Online | Download pdf file

AFL700W photo
background
AFL700W
Washing Machine
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...

Other documents for Altus AFL700W

The following documents are available:
User Manual Specification
  • AFL700W - Altus - Specifications Sheet - (English) Download
Photos

Specifications

User Manual - Transcript

  • Page 2 - English - : 2 EN Washing Machine Users Manual 1 General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks All kinds of warranties shall be invalid if these instructions are not observed 11 Life and property safety u Never place the product on a carpetcovered floor Electrical parts will get overheated since air cannot circulate from under the device This will cause problems with your product u Unplug the product if it is not in use u Always have the installation and repairing procedures carried out by the Authorized Service Agent Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons u The water supply and draining hoses must be securely fastened and remain undamaged Otherwise water leak may occur u While there is still water inside the product never open the loading door or remove the filter Otherwise risk of flooding and injury from hot water will occur u Do not force open the locked loading door Door can be opened a few minutes after the washing cycle ends In case of forcing the loading door to open the door and the lock mechanism may get damaged u Use detergents softeners and supplements suitable for automatic washing machines only u Follow the instructions on the label of textiles and the detergent package 12 Childrens safety u This product can be used by the children who are at the age of 8 and over and the people whose physical sensory or mental skills are not fully developed or who do not have necessary required experience and knowledge as long as they are supervised or trained about the safe use of the product and its risks Children should not play with the device Cleaning and maintenance works should not be performed by children unless they are supervised by someone Children of less than 3 years should be kept away unless continuously supervised u Packaging materials may be dangerous for the children Keep packaging materials in a safe place away from reach of the children u Electrical products are dangerous for the children Keep the children away from the product when it is in use Do not allow them to play with the product Use child lock to prevent children from intervening with the product
  • Page 3 - English - : 3 EN Washing Machine Users Manual u Do not forget to close the loading door when leaving the room where the product is located u store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package 13 Electrical safety u If the product has a failure it should not be operated unless it is repaired by the Authorized Service Agent Risk of electric shock u This product is designed to resume operating in the event of powering on after a power interruption If you wish to cancel the programme see quotCancelling the programmequot section u Plug the product into a grounded outlet protected by a 16 A fuse Do not neglect to have the grounding installation made by a qualified electrician Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations u Do not wash the product by spraying or pouring water onto it Risk of electric shock u Never touch the power cable plug with wet hands Do not grab the power cord to unplug the machine always unplug it by holding the socket with one hand and pulling the plug with the other hand u Product should be unplugged during installation maintenance cleaning and repair procedures u If the power cable is damaged it must be replaced by the manufacturer after sales service or a similarly qualified person preferably an electrician or someone designated by the importer in order to avoid possible risks 14 Hot surface safety While washing the laundry at high temperatures the loading door glass will get hot Considering this fact during washing operation keep the children away from the loading door of the product to prevent them touching it
  • Page 4 - English - : 4 EN Washing Machine Users Manual Important instructions for environment 21 Compliance with WEEE Directive This product complies with EU WEEE Directive 201219EU This product bears a classification symbol for waste electrical and electronic equipment WEEE This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling Do not dispose of the waste product with normal domestic and other wastes at the end of its service life Take it to the collection center for the recycling of electrical and electronic equipment Please consult your local authorities to learn about these collection centers Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive 201165EU It does not contain harmful and prohibited materials specified in the Directive 22 Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations Do not dispose of the packaging materials together with the domestic or other wastes Take them to the packaging material collection points designated by the local authorities Intended use ThisproducthasbeendesignedfordomesticuseItisnotforcommercialpurposesorit should not be used out of its intended use Theproductmustonlybeusedforwashingandrinsingoflaundrythataremarked accordingly Themanufacturerwaivesanyresponsibilityarisenfromincorrectusageor transportation
  • Page 5 - English - : 5 EN Washing Machine Users Manual 4 Technical specifications Supplier name or trademark Altus Model name AFL700W Rated capacity kg Maximum spin speed rpm 1200 Builtin No Height cm 84 Width cm 60 Depth cm Net weight 4 kg Single Water inlet Double Water inlet Available Electrical input VHz 220240 V 50Hz Total current A 10 Total power W 20002350 Main model code Technical specifications may be changed without prior notice to improve the quality of the product

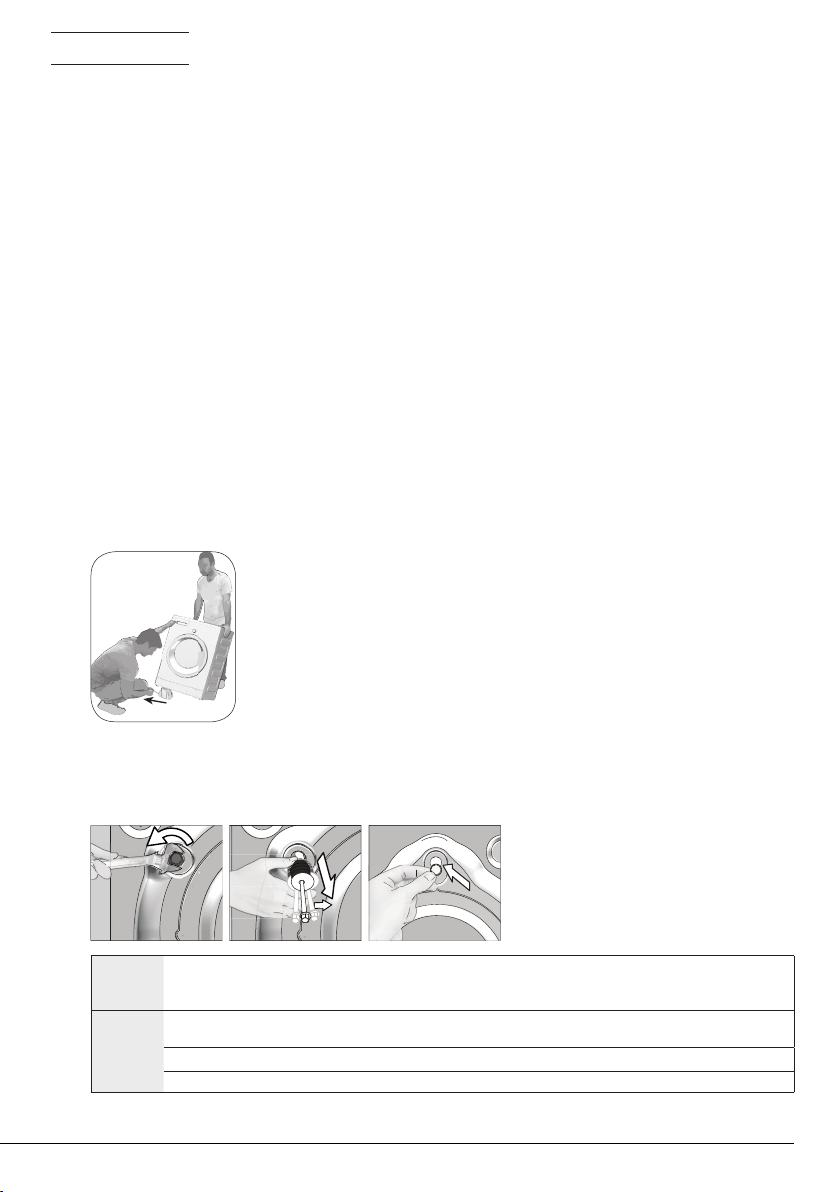

  • Page 6 - English - : 6 EN Washing Machine Users Manual 41 Installation Applytothenearestauthorizedserviceagentfortheinstallationofyourproduct Preparationofthelocationandelectricaltapwaterandwastewaterinstallationsattheplaceofinstallation is under customers responsibility Makesurethatthewaterinletanddischargehosesaswellasthepowercablearenotfoldedpinchedor crushed while pushing the product into its place after installation or cleaning procedures Makesurethattheinstallationandelectricalconnectionsoftheproductareperformedbyauthorized service Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons PriortoinstallationvisuallycheckiftheproducthasanydefectsonitIfsodonothaveitinstalled Damaged products cause risks for your safety 411 Appropriate installation location PlacetheproductonahardandlevelfloorDonotputitontoacarpetwithhighpileorothersimilar surfaces Whenthewashingmachineanddryerareplacedontopofeachothertheirtotalweightwhenloaded amounts to 180 kilograms Place the product on a solid and flat floor that has sufficient load carrying capacity Donotplacetheproductonthepowercable Donotinstalltheproductintheenvironmentswherethetemperaturefallsbelow0ºC Leaveaminimumspaceof1cmbetweenthemachineandthefurniture Onagraduatedfloordonotplacetheproductnexttotheedgeoronaplatform DonotplaceheatsourcessuchasHobsIronsOvensetconthewashingmachineanddonotusethem on the product 412 Removing packaging reinforcement Tilt the machine backwards to remove the packaging reinforcement Remove the packaging reinforcement by pulling the ribbon Do not make this operation alone by yourself 413 Removing the transportation locks 1 Loosen all bolts with an appropriate wrench until they turn freely 2 Remove the transport safety bolts by turning them slightly 3 Insert the plastic covers in the bag containing the user manual to the openings on the rear panel A CAUTION Remove the transportation safety bolts before operating the washing machine Otherwise the product will be damaged C Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future Install the transport safety bolts in reverse order of the disassembly procedure Never move the product without the transportation safety bolts properly fixed in place
  • Page 7 - English - : 7 EN Washing Machine Users Manual 414 Connecting water supply C Thewatersupplypressurerequiredtoruntheproductisbetween1to10bars011MPaItisnecessarytohave 1080litersofwaterflowingfromthefullyopentapinoneminutetohaveyourmachinerunsmoothlyAttachapressure reducing valve if water pressure is higher A CAUTION Models with a single water inlet should not be connected to the hot water tap In such a case the laundry will get damaged or the product will switch to protection mode and will not operate CAUTION Do not use old or used water inlet hoses on the new product It may cause stains on your laundry 1 Tighten the nuts of the hose by hand Never use a tool when tightening the nuts 2 When hose connection is completed check whether there is leak problems at the connection points by opening the taps fully If any leaks occur turn off the tap and remove the nut Retighten the nut carefully after checking the seal In order to prevent the water leaks and resultant damages keep the taps closed when you do not use the product 415 Connecting the drain hose to the drain Attachtheendofthedrainhosedirectlytowastewaterdrainlavatoryorbathtub A CAUTION Your drain house will be flooded if the hose comes out of its housing during water discharge Moreover there is risk of scalding due to high washing temperatures In order to prevent such situations and make sure that the machine performs water intake and discharge processes without any problem fix the drain hose securely Connectthedrainhosetoaminimumheightof40cm and a maximum height of 100 cm Incasethedrainhoseiselevatedafterlayingitonthe floor level or close to the ground less than 40 cm above the ground water discharge becomes more difficult and the laundry may come out excessively wet Therefore follow the heights described in the figure Topreventthewastewatertogobackintothemachineagainandtoensureeasydrainagedonotimmerse the end of the hose into the waste water or do not insert it into the drain for more than 15 cm If it is too long cut it short Theendofthehoseshouldnotbebentitshouldnotbesteppedonandthehosemustnotbepinched between the drain and the machine IfthelengthofthehoseistooshortuseitbyaddinganoriginalextensionhoseLengthofthehosemay not be longer than 32 m To avoid water leak failures the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak
  • Page 8 - English - : 8 EN Washing Machine Users Manual 416 Adjusting the feet A CAUTION In order to ensure that the product operates more silently and vibrationfree it must stand level and balanced on its feet Balance the machine by adjusting the feet Otherwise the product may move from its place and cause crushing and vibration problems CAUTION Do not use any tools to loosen the lock nuts Otherwise they will get damaged 1 Loosen the lock nuts on the feet by hand 2 Adjust the feet until the product stands in a stable and balanced way 3 Tighten all lock nuts by hand again 417 Electrical connection Connect the product to a grounded outlet protected by a 16 A fuse Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations Connectionmustcomplywithnationalregulations ThewiringfortheelectricaloutletcircuitmustbesufficienttomeettheappliancerequirementsUseofa Groud Fault Circuit Interrupter GFCI is recommended Powercableplugmustbewithineasyreachafterinstallation Ifthecurrentvalueofthefuseorbreakerinthehouseislessthan16Ampshaveaqualifiedelectrician install a 16 Amp fuse ThevoltagespecifiedinthequotTechnicalspecificationsquotsectionmustbeequaltoyourmainsvoltage Donotmakeconnectionsviaextensioncablesormultiplugs B CAUTION Damaged power cables must be replaced by the Authorized Service Agents 418 Initial use Before starting to use the product make sure that the preparations are made which are in line with the Important Safety and Environment Instructions and the instructions in the Installation section To prepare the product for washing laundry perform first operation in Drum Cleaning programme If this program is not available in your machine apply the method which is described in the section 442 C Use an antilimescale suitable for the washing machines Some water might have remained in the product due to the quality control processes in the production It is not harmful for the product
  • Page 9 - English - : 9 EN Washing Machine Users Manual 42 Preparation 421 Sorting the laundry Sort laundry according to type of fabric color and degree of soiling and allowable water temperature Always obey the instructions given on the garment tags 422 Preparing laundry for washing Laundryitemswithmetalattachmentssuchasunderwiredbrasbeltbucklesormetalbuttonswilldamage the machine Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case Takeoutallsubstancesinthepocketssuchascoinspensandpaperclipsandturnpocketsinsideoutand brush Such objects may damage the product or cause noise problem Putsmallsizeclothessuchasinfantssocksandnylonstockingsinalaundrybagorpillowcase PlacecurtainsinwithoutcompressingthemRemovecurtainattachmentitems Fastenzipperssewloosebuttonsandmendripsandtears Washmachinewashableorhandwashablelabeledproductsonlywithanappropriateprogramme DonotwashcoloursandwhitestogetherNewdarkcolouredcottonsreleasealotofdyeWashthem separately ToughstainsmustbetreatedproperlybeforewashingIfunsurecheckwithadrycleaner OnlyusethedyescolorchangersanddescalingagentswhichareappropriatetomachinewashAlways follow the instructions on the package Washtrousersanddelicatelaundryturnedinsideout KeeplaundryitemsmadeofAngorawoolinthefreezerforafewhoursbeforewashingThiswillreduce pilling Laundrythataresubjectedtomaterialssuchasflourlimedustmilkpowderetcintenselymustbeshaken off before placing into the machine Such dusts and powders on the laundry may build up on the inner parts of the machine in time and can cause damage 423 Things to be done for energy saving Following information will help you use the product in an ecological and energyefficient manner Operatetheproductinthehighestcapacityallowedbytheprogrammeyouhaveselectedbutdonot overload see quotProgramme and consumption tablequot See Programme and consumption tablequot Alwaysfollowtheinstructionsonthedetergentpackaging Washslightlysoiledlaundryatlowtemperatures Usefasterprogrammesforsmallquantitiesoflightlysoiledlaundry Donotuseprewashandhightemperaturesforlaundrythatisnotheavilysoiledorstained Ifyouplantodryyourlaundryinadryerselectthehighestspinspeedrecommendedduringwashing process Donotusemoredetergentthantherecommendedamountspecifiedonitspackage 424 Loading the laundry 1 Open the laundry cover 2 Put the laundry items into the machine in a loose manner 3 Push and close the loading cover until you hear the locking sound Ensure that no items are caught in the door The loading door is locked while a programme is running The door can only be opened a while after the programme comes to an end 425 Correct load capacity The maximum load capacity depends on the type of laundry the degree of soiling and the washing programme desired Machine automatically adjusts the water amount according to the weight of the laundry put inside it A WARNING Follow the information in the Programme and consumption table When overloaded machines washing performance will drop Moreover noise and vibration problems may occur

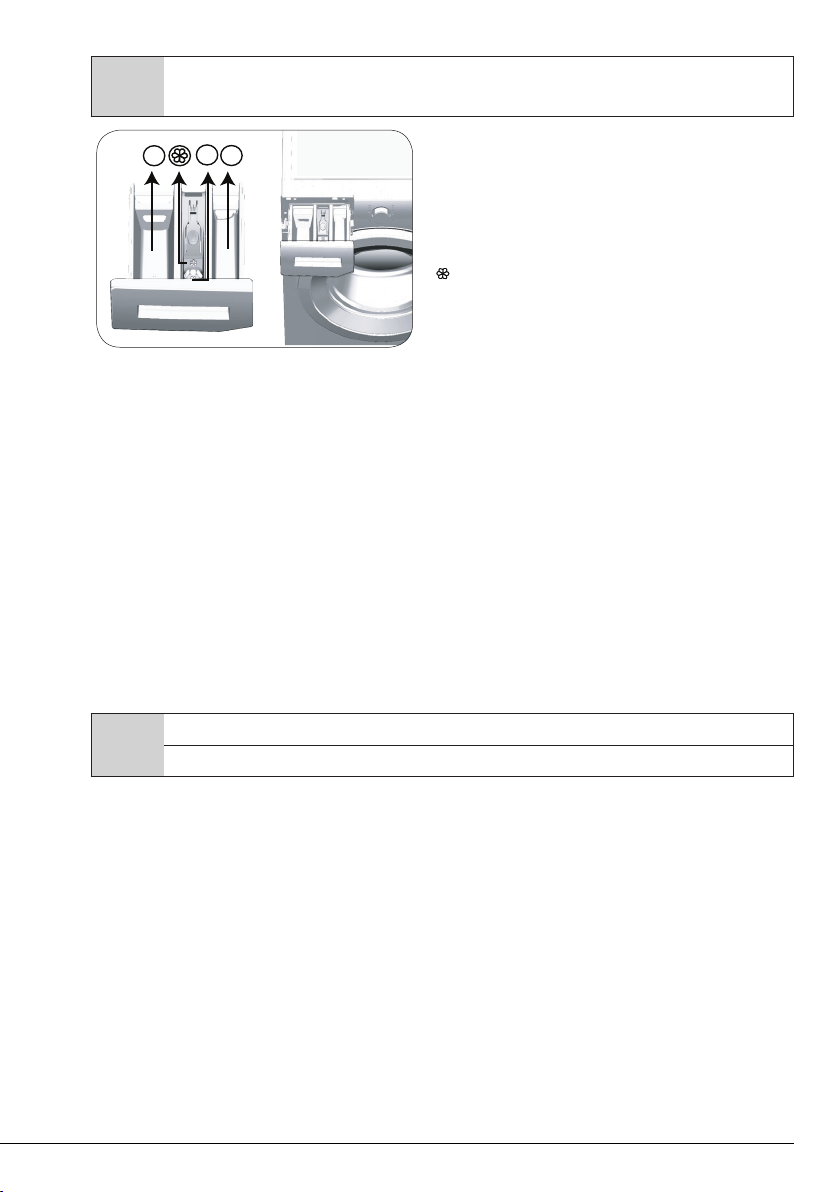

  • Page 10 - English - : 10 EN Washing Machine Users Manual 426 Using detergent and softener C When using detergent softener starch fabric dye bleacher and decolorant descaling agents read the manufacturers instructions written on the package and follow the dosages specified Use measuring cup if available The detergent drawer is composed of three compartments 1forprewash 2formainwash 3forsoftener in addition there is a siphon piece in the softener compartment Detergent softener and other cleaning agents Adddetergentandsoftenerbeforestartingthewashingprogramme Whilethewashingcycleisinprogressdonotleavethedetergentdispenseropen Whenusingaprogrammewithoutprewashdonotputanydetergentintotheprewashcompartment compartment nr quot1quot Inaprogrammewithprewashdonotputliquiddetergentintotheprewashcompartmentcompartmentnr quot1quot DonotselectaprogrammewithprewashifyouareusingadetergentbagordispensingballPlacethe detergent bag or the dispensing ball directly among the laundry in the machine If you are using liquid detergent do not forget to place the liquid detergent container into the main wash compartment compartment number 2 Choosing the detergent type Detergent type to be used depends on the fabric type and color Usedifferentdetergentsforcolouredandwhitelaundry Washyourdelicateclothesonlywithspecialdetergentsliquiddetergentwoolshampooetcusedsolely for delicate clothes Whenwashingdarkcolouredclothesandquiltsitisrecommendedtouseliquiddetergent Washwoolenswithspecialdetergentmadespecificallyforwoolens A CAUTION Use only detergents manufactured specifically for washing machines CAUTION Do not use soap powder Adjusting detergent amount The amount of washing detergent to be used depends on the amount of laundry the degree of soiling and water hardness Donotuseamountsexceedingthedosagequantitiesrecommendedonthedetergentpackagetoavoid problems of excessive foam poor rinsing financial savings and finally environmental protection Uselesserdetergentforsmallamountsorlightlysoiledclothes Using softeners Pour the softener into the softener compartment of the detergent drawer Donotexceedthegtmaxltlevelsignonthesoftenercompartment Ifthesoftenerhaslostitsfluiditydiluteitwithwaterbeforeputtingitinthedetergentdrawer

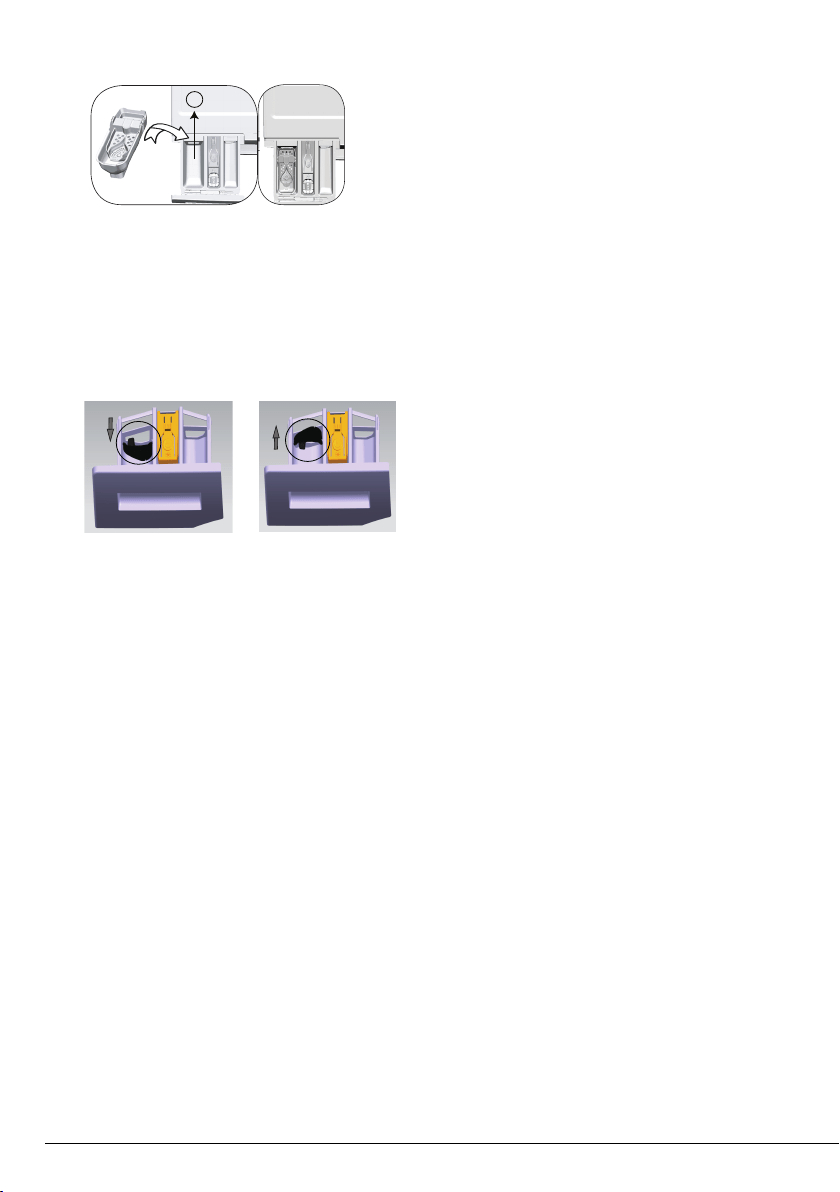

  • Page 11 - English - : 11 EN Washing Machine Users Manual Using liquid detergents If the product contains a liquid detergent cup Puttheliquiddetergentcontainerintothe compartment no 2 Iftheliquiddetergentlostitsfluiditydiluteit with water before putting it into the detergent container If the product does not contain a liquid detergent cup Donotuseliquiddetergentfortheprewashinaprogrammewithprewash LiquiddetergentstainsyourclotheswhenusedwithDelayedStartfunctionIfyouaregoingtousethe Delayed Start function do not use liquid detergent Using gel and tablet detergent Ifthegeldetergentthicknessisfluidalandyourmachinedoesnotcontainaspecialliquiddetergentcup put the gel detergent into the main wash detergent compartment during first water intake If your machine contains a liquid detergent cup fill the detergent into this cup before starting the programme Ifthegeldetergentthicknessisnotfluidalorintheshapeofcapsuleliquidtabletputitdirectlyintothe drum before washing Puttabletdetergentsintothemainwashcompartmentcompartmentnrquot2quotordirectlyintothedrum before washing Using starch Puttheliquidsodapowdersodaorthefabricdyeintothesoftenercompartment Do not use softener and starch together in a washing cycle Wipe the inside of the machine with a damp and clean cloth after using starch Using limescale remover Whenrequireduselimescaleremoversmanufacturedspecificallyforwashingmachinesonly Using bleaches Add the bleach at the beginning of the washing cycle by selecting a prewash program Do not put detergent in the prewash compartment As an alternative application select a programme with extra rinse and add the bleaching agent while the machine is taking water from the detergent compartment during first rinsing step Donotusebleachingagentanddetergentbymixingthem Usejustalittleamountapprox50mlofbleachingagentandrinsetheclothesverywellasitcausesskin irritation Do not pour the bleach onto the laundry and do not use it with the colored items Whenusingoxygenbaseddecolorantselectaprogramwhichwashesthelaundryatalowtemperature Oxygenbaseddecolorantcanbeusedwiththedetergenthoweverifitisnotatthesameconsistencefirst put detergent in the compartment number 2 in the detergent dispenser and wait for the machine to flush the detergent when taking in water While the machine continues taking in water add decolorant in the same compartment If the product is equipped with a liquid detergent part When you want to use liquid detergent pull the apparatus towards yourself The part that falls down will serve as a barrier for the liquid detergent If required clean the apparatus with water when it is in place or by removing it If you will use powder detergent the apparatus must be secured at top position
  • Page 12 - English - : 12 EN Washing Machine Users Manual 427 Tips for efficient washing Clothes Light Colours and Whites Colours BlackDark Colours Delicates WoolensSilks Recommended temperature range based on soiling level 4090 o C Recommended temperature range based on soiling level cold 40 o C Recommended temperature range based on soiling level cold o C Recommended temperature range based on soiling level cold 30 o C Soiling Level Heavily Soiled difficult stains such as grass coffee fruits and blood It may be necessary to pretreat the stains or perform prewash Powder and liquid detergents recommended for whites can be used at dosages recommended for heavily soiled clothes It is recommended to use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches Powder and liquid detergents recommended for colors can be used at dosages recommended for heavily soiled clothes It is recommended to use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches Use detergents without bleach Liquid detergents suitable for colors and dark colors can be used at dosages recommended for heavily soiled clothes Prefer liquid detergents produced for delicate clothes Woolen and silk clothes must be washed with special woolen detergents Normally Soiled For example stains caused by body on collars and cuffs Powder and liquid detergents recommended for whites can be used at dosages recommended for normally soiled clothes Powder and liquid detergents recommended for colors can be used at dosages recommended for normally soiled clothes Detergents which do not contain bleach should be used Liquid detergents suitable for colors and dark colors can be used at dosages recommended for normally soiled clothes Prefer liquid detergents produced for delicate clothes Woolen and silk clothes must be washed with special woolen detergents Lightly Soiled No visible stains exist Powder and liquid detergents recommended for whites can be used at dosages recommended for lightly soiled clothes Powder and liquid detergents recommended for colors can be used at dosages recommended for lightly soiled clothes Detergents which do not contain bleach should be used Liquid detergents suitable for colors and dark colors can be used at dosages recommended for lightly soiled clothes Prefer liquid detergents produced for delicate clothes Woolen and silk clothes must be washed with special woolen detergents
  • Page 13 - English - : Cottons Cottons Eco Synthetics MiniMini14 Mixed Woollens Temperature 90 40 30 20 60 Spin Prewash Fast Extra Rinse Ready AFL700W Wash Rinse Spin End Cancel Start Pause Delicates SpinDrain Rinse Down Wear Outdoor Sports DarkWash Jeans Hygiene OnO Shirts Lingerie Hand Wash 13 EN Washing Machine Users Manual 43 Operating the product 431 Control panel 1 Programme Selection knob Uppermost position On Off 2 Display 3 Delayed Start Indicator 4 Programme Followup indicator 5 Start Pause button 6 Auxiliary function button 3 7 Auxiliary function button 2 8 Auxiliary function button 1 9 Spin Speed Adjustment button 10 Temperature Adjustment button 432 Preparing the machine 1Make sure that the hoses are connected tightly 2Plug in your machine 3Turn the tap on completely 4Place the laundry in the machine 5Add detergent and fabric softener 433 Programme selection and tips for efficient washing 1Select the programme suitable for the type quantity and soiling degree of the laundry in accordance with the quotProgramme and consumption tablequot and the temperature table below 2Select the desired programme with the Programme Selection knob
  • Page 14 - English - : 14 EN Washing Machine Users Manual 434 Programme and consumption table Selectable Automatically selected no canceling Energy Label programme ASNZS 2040 If maximum spin speed of the machine is lower then this value you can only select up to the maximum spin speed See the programme description for maximum load Water and power consumption may vary subject to the changes in water pressure water hardness and temperature ambient temperature type and amount of laundry selection of auxiliary functions and spin speed and changes in electric voltage You can see the washing duration on the display of your machine while selecting a programme Depending on the amount of laundry you have loaded into your machine there may be a difference of 115 hours between the duration shown on the display and the actual duration of the wash cycle Duration will be automatically updated soon after the washing starts The auxiliary functions in the table may vary according to the model of your machine Max Load kg Water Consumption l Energy Consumption kWh Max Speed Prewash Fast Extra Rinse Selectable temperature range C 90 7 88 220 1600 Cold 90 60 7 88 170 1600 Cold 90 40 7 85 120 1600 Cold 90 Cottons Eco 40 7 72 115 1600 Cold 40 60 3 68 150 1200 Cold 60 40 3 65 100 1200 Cold 60 MiniMini14Fast 90 2 45 165 1400 Cold 90 90 7 68 180 1400 Cold 90 60 7 68 125 1400 Cold 90 30 7 65 055 1400 Cold 90 Mixed 40 35 70 100 800 Cold 40 Woollens Hand Wash 40 15 60 055 1200 Cold 40 Delicates 40 35 55 065 1200 Cold 40 Down Wear 60 2 70 075 1000 Cold 60 OutdoorSports 40 35 55 065 1200 Cold 40 DarkWashJeans 40 3 95 110 1200 Cold 40 Lingerie 30 1 75 055 600 Cold 30 Shirts 60 3 60 125 800 Cold 60 Hygiene 90 7 110 225 1600 2090 Drum Cleaning 90 65 180 600 EN Auxiliary functions Program Cottons Synthetics MiniMini14
  • Page 15 - English - : 15 EN Washing Machine Users Manual 435 Main programmes Depending on the type of fabric use the following main programmes Cottons You can wash your durable cotton laundry sheets bedlinen towels bathrobes underwear etc in this programme When the quick wash function button is pressed programme duration becomes notably shorter but effective washing performance is ensured with intense washing movements If the quick wash function is not selected superior washing and rinsing performance is ensured for your heavily soiled laundry Synthetics You can wash your laundry such as shirts blouses syntheticcotton blended fabrics etc in this programme The programme duration gets notable shorter and washing with high performance is ensured If the quick wash function is not selected superior washing and rinsing performance is ensured for your heavily soiled laundry Woollens Hand Wash Use to wash your woolendelicate laundry Select the appropriate temperature complying with the tag of your clothes Your laundry will be washed with a very gentle washing action in order not to damage the clothes 436 Additional programmes For special cases additional programmes are available in the machine C Additional programmes may differ according to the model of the machine Cottons Eco Use to wash your normally soiled durable cotton and linen laundry Although it washes longer than all other programmes it provides high energy and water savings Actual water temperature may be different from the stated wash temperature When you load the machine with less laundry eg ½ capacity or less periods in programme stages may automatically get shorter In this case energy and water consumption will decrease more providing a more economic wash Normally soiled laundry may be washed with reduced amount of detergent to save energy and protect the environment Hygiene This is a longduration programme that you can use for your laundry requiring a hygienic washing at high temperatures with intensive and long washing cycle The high level of hygiene is ensured thanks to long heating duration and additional rinsing step Delicates You can wash your delicate clothes such as cottonsynthetic blended knitwear or hosiery in this programme It washes with more delicate washing action Wash your clothes whose colour you want to preserve either at 20degrees or by selecting the cold wash option MiniMini14 Use this programme to wash your lightly soiled or unspotted cotton clothes in a short time The programme duration can be reduced up to 14 minutes when the quick wash function is selected When the quick wash function is selected maximum 2 two kg of laundry must be washed DarkWashJeans Use this programme to protect the colour of your darkcoloured garments or jeans It performs high performance washing with special drum movement even if the temperature is low It is recommended to use liquid detergent or woolen shampoo for dark coloured laundry Do not wash your delicate clothes containing wool or etc Mixed Use to wash your cotton and synthetic clothes together without sorting them
  • Page 16 - English - : 16 EN Washing Machine Users Manual Shirts This programme is used to wash the shirts made from cotton synthetic and synthetic blended fabrics altogether It reduces wrinkles When the quick wash function is selected the Pretreatment algorithm is executed Apply the pretreatment chemical on your garments directly or add it together with detergent when the machine starts to take water from the main washing compartment Thus you can obtain the same performance as you obtain with normal washing in a much shorter period of time Usage life of your shirts increases 437 Special programmes For specific applications select any of the following programmes Rinse Use when you want to rinse or starch separately SpinDrain You can use this function to remove the water on the garment of drain the water in the machine Before selecting this programme select the desired spin speed and press Start Pause button First the machine will drain the water inside of it Then it will spin the laundry with the set spin speed and drain the water coming out of them If you wish to drain only the water without spinning your laundry select the PumpSpin programme and then select the No Spin function with the help of Spin Speed Adjustment button Press Start Pause button Use a lower spin speed for delicate laundries 438 Temperature selection Whenever a new programme is selected the recommended temperature value for the selected programme appears on the temperature indicator To decrease the temperature press the Temperature Adjustment button Temperature will decrease gradually Temperature level lights will not turn on when the cold level is selected If the programme has not reached the heating step you can change the temperature without switching the machine to Pause mode OutdoorSports You can use this programme to wash sports and outdoors garments that contain cottonsynthetics mix and water repellent covers such as goretex etc It makes sure your garments are washed gently thanks to special rotating movements Lingerie You can use this programme to wash delicate garments that are suitable for hand wash and delicate womens underwear Small amount of garments must be washed in a washing net Hooks buttons etc must be done up and zips must be zipped up Down Wear Use this programme to wash your coats vest jackets etc containing feathers with a quotmachinewashablequot label on them Thanks to special spinning profiles it is ensured that the water reaches the air gaps amongst the feathers
  • Page 17 - English - : 17 EN Washing Machine Users Manual 439 Spin speed selection Whenever a new programme is selected the recommended spin speed of the selected programme is displayed on the spin speed indicator To decrease the spin speed press the Spin Speed Adjustment button Spin speed decreases gradually Then depending on the model of the product quotRinse Holdquot and quotNo Spinquot options appear on the display When quotNo Spinquot is selected the rinse level indicator lights will not turn on Rinse hold If you are not going to unload your clothes immediately after the programme completes you can use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in the machine Press Start Pause button after this process if you want to drain the water without spinning your laundry Programme will resume and complete after draining the water If you want to spin the laundry held in water adjust the Spin Speed and press Start Pause button The programme will resume Water is drained laundry is spun and the programme is completed C If the programme has not reached the spinning step you can change the speed without switching the machine to Pause mode 4310 Auxiliary function selection Select the desired auxiliary functions before starting the programme Furthermore you may also select or cancel auxiliary functions that are suitable to the running programme without pressing the Start Pause button when the machine is operating For this the machine must be in a step before the auxiliary function you are going to select or cancel If the auxiliary function cannot be selected or canceled light of the relevant auxiliary function will blink 3 times to warn the user C If a second auxiliary function conflicting with the first one is selected before starting the machine the function selected first will be canceled and the second auxiliary function selection will remain active An auxiliary function that is not compatible with the programme cannot be selected See quotProgramme and consumption tablequot Auxiliary Function buttons may vary according to the model of the machine 43101 Auxiliary functions Prewash A Prewash is only worthwhile for heavily soiled laundry Not using the Prewash will save energy water detergent and time C Prewash without detergent is recommended for tulle and curtains Fast When this function is selected the durations of the relevant programmes get shorter by 50 Thanks to the optimised washing steps high mechanic activity and optimum water consumption high washing performance is achieved in spite of the reduced duration C When you select this function load your machine with half of the maximum laundry specified in the programme table Extra Rinse This function enables the product to make another rinsing in addition to the one already made after the main wash Thus the risk for sensitive skins babies allergic skins etc to be effected by the minimal detergent remnants on the laundry can be reduced
  • Page 18 - English - : 18 EN Washing Machine Users Manual 43102 FunctionsProgrammes Selected by Pressing the Function Buttons for 3 Seconds Drum Cleaning Press and hold the auxiliary function button 1 for 3 seconds to select the programme Use regularly once in every 12 months to clean the drum and provide the required hygiene Operate the programme while the machine is completely empty To obtain better results put powder limescale remover for washing machines into the detergent compartment no 2 When the programme is over leave the loading door ajar so that the inside of the machine gets dry C This is not a washing programme It is a maintenance programme Do not run the programme when there is something in the machine If you try to do so the machine detects that there is load inside and aborts the programme Child lock Use Child Lock function to prevent children from tampering with the machine Thus you can avoid any changes in a running programme C If the Programme Selection knob is turned when the Child Lock is active quotConquot appears on the display The Child Lock does not allow any change in the programmes and the selected temperature speed and auxiliary functions Even if another programme is selected with the Programme Selection knob while the Child Lock is active previously selected programme will continue running To activate the Child Lock 2 Pres and hold the Auxiliary Function button for 3 seconds C03 C02 C01 will appear on the display respectively while you keep the button pressed for 3 seconds Then while the light of the Auxiliary Function button 2 is flashing quotConquot will appear on the display indicating that the child lock has been activated If you press any button or turn the Programme Selection knob when the Child Lock is active same phrase will appear on the display To deactivate the Child Lock Press and hold the Auxiliary Function button 2 for 3 seconds while a programme is running C03 C02 C01 will appear on the display respectively while you keep the button pressed for 3 seconds Then while the light of the auxiliary function button 2 is flashing quotCOFquot will appear on the display indicating that the child lock has been deactivated C In addition to the method above to deactivate the Child Lock switch the Programme Selection knob to On Off position when no programme is running and select another programme Child Lock is not deactivated after power failures or when the machine is unplugged 4311 Delayed Start With the Delayed Start function the startup of the programme may be delayed up to 19 hours Delayed start time can be increased by increments of 1 hour C Do not use liquid detergents when you set Delayed Start There is the risk of staining of the clothes 1 Open the loading door place the laundry and put detergent etc 2 Select the washing programme temperature spin speed and if required the auxiliary functions 3 Set the desired time by pressing the Delayed Start button 4 Press Start Pause button The delayed start time you have set is displayed Delayed start countdown starts symbol next to the delayed start time moves up and down on the display C Additional laundry may be loaded during the delayed start period 5 At the end of the countdown duration of the selected programme will be displayed will disappear and the selected programme will start
  • Page 19 - English - : 19 EN Washing Machine Users Manual Changing the delayed start period If you want to change the time during countdown 1 Press the Delayed Start button Time will increase by 1 hour each time you press the button 2 If you want to decrease the delayed start time press Delayed Start button repeatedly until the desired delayed start time appears on the display Canceling the Delayed Start function If you want to cancel the delayed start countdown and start the programme immediately 1 Set the Delayed Start period to zero or turn the Programme Selection knob to any programme Thus Delayed Start function will be canceled The EndCancel light flashes continuously 2 Then select the programme you want to run again 3 Press Start Pause button to start the programme 4312 Starting the programme 1 Press Start Pause button to start the programme 2 Programme followup light showing the startup of the programme will turn on C If no programme is started or no button is pressed within 1 minute during programme selection process the machine will switch to Pause mode and the illumination level of the temperature speed and loading door indicator lights will decrease Other indicator lights and indicators will turn off Once the Programme Selection knob is rotated or any button is pressed indicator lights and indicators will turn on again 4313 Progress of programme Progress of a running programme can be followed from the Programme Followup indicator At the beginning of every programme step the relevant indicator light will turn on and light of the completed step will turn off You can change the auxiliary functions speed and temperature settings without stopping the programme flow while the programme is running To do this the change you are going to make must be in a step after the running programme step If the change is not compatible relevant lights will flash for 3 times C If the machine does not pass to the spinning step Rinse Hold function might be active or the automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the machine 4314 Loading door lock There is a locking system on the loading door of the machine that prevents opening of the loading door in cases when the water level is unsuitable Loading door light will start flashing when the machine is switched to Pause mode Machine checks the level of the water inside If the level is suitable Loading Door light illuminates steadily within 12 minutes and the loading door can be opened If the level is unsuitable Loading Door light turns off and the loading door cannot be opened If you are obliged to open the Loading Door while the Loading Door light is off you must cancel the current programme See quotCancelling the programmequot 4315 Changing the selections after programme has started Switching the machine to pause mode Press the Start Pause button to switch the machine to pause mode while a programme is running The light of the step which the machine is in starts flashing in the Programme Followup indicator to show that the machine has been switched to the pause mode Also when the loading door is ready to be opened Loading Door light will also illuminate continuously in addition to the programme step light
  • Page 20 - English - : 20 EN Washing Machine Users Manual Changing the auxiliary function speed and temperature Depending on the step the programme has reached you can cancel or select the auxiliary functions See quotAuxiliary function selectionquot You can also change the speed and temperature settings See quotSpin speed selectionquot and quotTemperature selectionquot C If no change is allowed the relevant light will flash 3 times Adding or taking out laundry 1 Press Start Pause button to switch the machine to pause mode The programme followup light of the relevant step during which the machine was switched into the pause mode will flash 2 Wait until the Loading Door can be opened 3 Open the Loading Door and add or take out the laundry 4 Close the Loading Door 5 Make changes in auxiliary functions temperature and speed settings if necessary 6 Press Start Pause button to start the machine 4316 Cancelling the programme To cancel the programme turn the Programme Selection knob to select another programme Previous programme will be cancelled End Cancel light will flash continuously to notify that the programme has been canceled Your machine will end the programme when you turn the Programme Selection knob however it does not drain the water inside When you select and start a new programme the newly selected programme will start depending on the step the previous programme was canceled in For example it may take in additional water or continue to wash with the water inside C Depending on the step where the programme was canceled in you may have to put detergent and softener again for the programme you have selected anew 4317 End of programme End appears on the display at the end of the programme 1 Wait until the loading door light illuminates steadily 2 Press On Off button to switch off the machine 3 Take out your laundry and close the loading door Your machine is ready for the next washing cycle 4318 Your machine features quotStandby Modequot After you switch on your machine with OnOff button if no programme is started or no other procedure is performed at the selection step or no action is taken within approx 2 minutes after the selected programme ends your machine will switch to energy saving mode automatically The brightness of the indicator lights will decrease Also if your product has a display that shows programme time this display will be completely turned off If you turn the Programme Selection knob or touch any button lights and display will switch back to previous condition The selections which you make when exiting from the energy efficiency may change Please check the correctness of your selections before starting the programme If necessary please make your settings again This is not an error
  • Page 21 - English - : 21 EN Washing Machine Users Manual 44 Maintenance and cleaning Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals 441 Cleaning the detergent drawer Clean the detergent drawer at regular intervals every 45 washing cycles as shown below in order to prevent accumulation of powder detergent in time 1 Press the dotted point on the siphon in the softener compartment and pull towards you until the compartment is removed from the machine C If more than normal amount of water and softener mixture starts to gather in the softener compartment the siphon must be cleaned 2 Wash the detergent drawer and the siphon with plenty of lukewarm water in a washbasin Wear protective gloves or use an appropriate brush to avoid touching of the residues in the drawer with your skin when cleaning 3 Insert the drawer back into its place after cleaning and make sure that it is seated well If your detergent drawer is the one indicated in the following figure C Lift the rear part of the siphon to remove it as illustrated After performing the above mentioned cleaning procedures replace the siphon back to its seating and push its front section downwards to make sure that the locking tab engages 442 Cleaning the loading door and the drum For products with drum cleaning programme please see Operating the product Programmes C Repeat Drum Cleaning process in every 2 months Use an antilimescale suitable for the washing machines
  • Page 22 - English - : 22 EN Washing Machine Users Manual After every washing make sure that no foreign substance is left in the drum If the holes on the bellow shown in the figure is blocked open the holes using a toothpick C Foreign metal substances will cause rust stains in the drum Clean the stains on the drum surface by using cleaning agents for stainless steel Never use steel wool or wire wool A CAUTION Never use sponge or scrub materials These will damage the painted and plastic surfaces 443 Cleaning the body and control panel Wipe the body of the machine with soapy water or noncorrosive mild gel detergents as necessary and dry with a soft cloth Use only a soft and damp cloth to clean the control panel 444 Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to the tap These filters prevent foreign substances and dirt in the water to enter the washing machine Filters should be cleaned as they do get dirty 1 Close the taps 2 Remove the nuts of the water intake hoses to access the filters on the water intake valves Clean them with an appropriate brush If the filters are too dirty take them out by means of pliers and clean them 3 Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water 4 Replace the gaskets and filters carefully in their places and tighten the hose nuts by hand

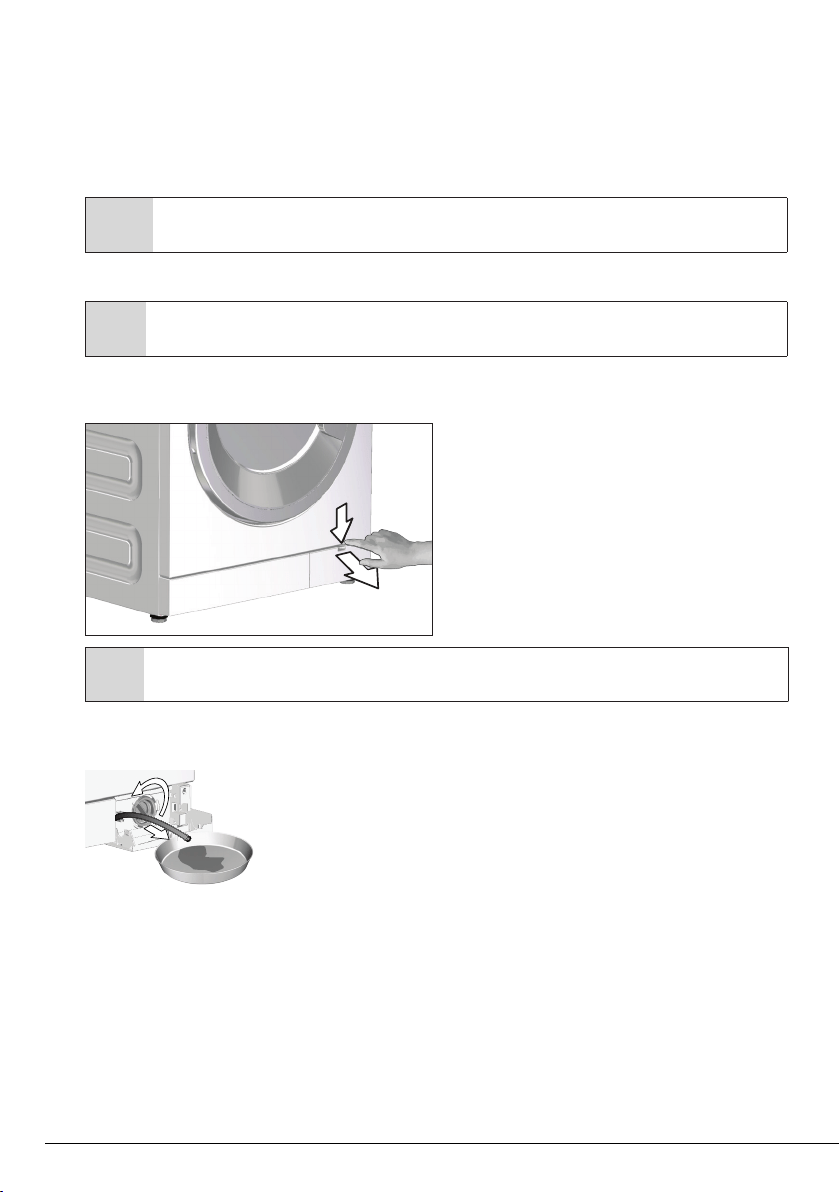

  • Page 23 - English - : 23 EN Washing Machine Users Manual 445 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons coins and fabric fibers clogging the pump impeller during discharge of washing water Thus the water will be discharged without any problem and the service life of the pump will extend If the machine fails to drain water the pump filter is clogged Filter must be cleaned whenever it is clogged or in every 3 months Water must be drained off first to clean the pump filter In addition prior to transporting the machine eg when moving to another house and in case of freezing of the water water may have to be drained completely A CAUTION Foreign substances left in the pump filter may damage your machine or may cause noise problem In order to clean the dirty filter and discharge the water 1 Unplug the machine to cut off the supply power A CAUTION Temperatureofthewaterinsidethemachinemayriseupto90ºCToavoidburningriskfiltermustbecleaned after the water in the machine cools down 2 Open the filter cap If the filter cap is composed of two pieces press the tab on the filter cap downwards and pull the piece out towards yourself C You can remove the filter cover by slightly pushing downwards with a thin plastic tipped tool through the gap above the filter cover Do not use metal tipped tools to remove the cover 3 Some of our products have emergency draining hose and some does not have Follow the steps below to discharge the water Discharging the water when the product has an emergency draining hose a Pull the emergency draining hose out from its seat b Place a large container at the end of the hose Drain the water into the container by pulling out the plug at the end of the hose When the container is full block the inlet of the hose by replacing the plug After the container is emptied repeat the above procedure to drain the water in the machine completely c When draining of water is finished close the end by the plug again and fix the hose in its place d Turn the pump filter to take it out 4 Clean any residues inside the filter as well as fibers if any around the pump impeller region 5 Install the filter 6 If the filter cap is composed of two pieces close the filter cap by pressing on the tab If it is one piece seat the tabs in the lower part into their places first and then press the upper part to close
  • Page 24 - English - : 24 EN Washing Machine Users Manual 5 Troubleshooting Problem Reason Solution Program does not start after closing the door Start Pause Cancel button was not pressed Press the Start Pause Cancel button It may be difficult to close the loading door in case of excessive loading Reduce the amount of laundry and make sure that the loading door is closed properly Programme cannot be started or selected Washing machine has switched to self protection mode due to a supply problem line voltage water pressure etc To cancel the programme turn the Programme Selection knob to select another programme Previous programme will be canceled see Cancellation of program Water in the machine Some water might have remained in the product due to the quality control processes in the production This is not a failure water is not harmful to the machine The machine enters standby mode after the programme starts or it does not take in water Tap is turned off Turn on the taps Water inlet hose is bent Flatten the hose Water inlet filter is clogged Clean the filter Loading door may be open Close the door The water connection may be wrong or water may be cut off When the water is cut off washing or rinsing LEDs flash Check the water connection If the water is cut off press the StartPause key after the water has been supplied again to resume the operation from standby mode Machine does not drain water Water drain hose might be clogged or twisted Clean or flatten the hose Pump filter is clogged Clean the pump filter Machine vibrates or makes noise Machine might be standing unbalanced Adjust the feet to level the machine A hard substance might have entered into the pump filter Clean the pump filter Transportation safety bolts are not removed Remove the transportation safety bolts Laundry quantity in the machine might be too little Add more laundry to the machine Machine might be overloaded with laundry Take out some of the laundry from the machine or distribute the load by hand to balance it homogenously in the machine Machine might be leaning on a rigid item Make sure that the machine is not leaning on anything There is water leaking from the bottom of the washing machine Water drain hose might be clogged or twisted Clean or flatten the hose Pump filter is clogged Clean the pump filter Machine stopped shortly after the programme started Machine might have stopped temporarily due to low voltage It will resume running when the voltage restores to the normal level Machine directly discharges the water it takes in Draining hose might not be at adequate height Connect the water draining hose as described in the operation manual No water can be seen in the machine during washing The water level is not visible from outside of the washing machine This is not a failure Loading door cannot be opened Door lock is activated because of the water level in the machine Drain the water by running the Pump or Spin programme Machine is heating up the water or it is at the spinning cycle Wait until the programme completes Child lock is engaged Door lock will be deactivated a couple of minutes after the programme has come to an end Wait for a couple of minutes for deactivation of the door lock Loading door may be stuck because of the pressure it is subjected to Grab the handle and push and pull the loading door to release and open it Washing takes longer time than specified in the manual Water pressure is low Machine waits until taking in adequate amount of water to prevent poor washing quality due to the decreased amount of water Therefore the washing time extends Voltage might be low Washing time is prolonged to avoid poor washing results when the supply voltage is low Input temperature of water might be low Required time to heat up the water extends in cold seasons Also washing time can be lengthened to avoid poor washing results Number of rinses andor amount of rinse water might have increased Machine increases the amount of rinse water when good rinsing is needed and adds an extra rinsing step if necessary Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage Use recommended amount of detergent
  • Page 25 - English - : 25 EN Washing Machine Users Manual Problem Reason Solution Programme time does not countdown On models with display Timer may stop during water intake Timer indicator will not countdown until the machine takes in adequate amount of water The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water Timer indicator will resume countdown after this Timer may stop during heating step Timer indicator will not countdown until the machine reaches the selected temperature Timer may stop during spinning step Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum Programme time does not countdown There might be unbalanced load in the machine Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum Machine does not switch to spinning step There might be unbalanced load in the machine Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum The machine will not spin if water is not drained completely Check the filter and the draining hose Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage Use recommended amount of detergent Washing performance is poor Laundry turns gray Insufficient amount of detergent has been used over a long period of time Use the recommended amount of detergent appropriate for water hardness and the laundry Washing was made at low temperatures for a long time Select the proper temperature for the laundry to be washed Insufficient amount of detergent is used with hard water Using insufficient amount of detergent with hard water causes the soil to stick on the cloth and this turns the cloth into gray in time It is difficult to eliminate graying once it happens Use the recommended amount of detergent appropriate for water hardness and the laundry Too much detergent is used Use the recommended amount of detergent appropriate for water hardness and the laundry Washing performance is poor Stains persist or the laundry is not whitened Insufficient amount of detergent is used Use the recommended amount of detergent appropriate for water hardness and the laundry Excessive laundry was loaded in Do not load the machine in excess Load with amounts recommended in the quotProgramme and consumption tablequot Wrong programme and temperature were selected Select the proper programme and temperature for the laundry to be washed Wrong type of detergent is used Use original detergent appropriate for the machine Too much detergent is used Put the detergent in the correct compartment Do not mix the bleaching agent and the detergent with each other Washing performance is poor Oily stains appeared on the laundry Regular drum cleaning is not applied Clean the drum regularly For this please see 442 Washing performance is poor Clothes smell unpleasantly Odours and bacteria layers are formed on the drum as a result of continuous washing at lower temperatures andor in short programmes Leave the detergent drawer as well as the loading door of the machine ajar after each washing Thus a humid environment favorable for bacteria cannot occur in the machine Colour of the clothes faded Excessive laundry was loaded in Do not load the machine in excess Detergent in use is damp Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures A higher temperature is selected Select the proper programme and temperature according to the type and soiling degree of the laundry
  • Page 26 - English - : 26 EN Washing Machine Users Manual Problem Reason Solution It does not rinse well The amount brand and storage conditions of the detergent used are inappropriate Use a detergent appropriate for the washing machine and your laundry Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures Detergent is put in the wrong compartment If detergent is put in the prewash compartment although prewash cycle is not selected machine can take this detergent during rinsing or softener step Put the detergent in the correct compartment Pump filter is clogged Check the filter Drain hose is folded Check the drain hose Laundry became stiff after washing Insufficient amount of detergent is used Using insufficient amount of detergent for the water hardness can cause the laundry to become stiff in time Use appropriate amount of detergent according to the water hardness Detergent is put in the wrong compartment If detergent is put in the prewash compartment although prewash cycle is not selected machine can take this detergent during rinsing or softener step Put the detergent in the correct compartment Detergent might be mixed with the softener Do not mix the softener with detergent Wash and clean the dispenser with hot water Laundry does not smell like the softener Detergent is put in the wrong compartment If detergent is put in the prewash compartment although prewash cycle is not selected machine can take this detergent during rinsing or softener step Wash and clean the dispenser with hot water Put the detergent in the correct compartment Detergent might be mixed with the softener Do not mix the softener with detergent Wash and clean the dispenser with hot water Detergent residue in the detergent drawer Detergent is put in wet drawer Dry the detergent drawer before putting in detergent Detergent has gotten damp Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures Water pressure is low Check the water pressure The detergent in the main wash compartment got wet while taking in the prewash water Holes of the detergent compartment are blocked Check the holes and clean if they are clogged There is a problem with the detergent drawer valves Call the Authorized Service Agent Detergent might be mixed with the softener Do not mix the softener with detergent Wash and clean the dispenser with hot water Regular drum cleaning is not applied Clean the drum regularly For this please see 442 Too much foam forms in the machine Improper detergents for the washing machine are being used Use detergents appropriate for the washing machine Excessive amount of detergent is used Use only sufficient amount of detergent Detergent was stored under improper conditions Store detergent in a closed and dry location Do not store in excessively hot places Some meshed laundry such as tulle may foam too much because of their texture Use smaller amounts of detergent for this type of item Detergent is put in the wrong compartment Put the detergent in the correct compartment Softener is being taken early There may be problem in the valves or in the detergent dispenser Call the Authorized Service Agent Foam is overflowing from the detergent drawer Too much detergent is used Mix 1 tablespoonful softener and ½ l water and pour into the main wash compartment of the detergent drawer Put detergent into the machine suitable for the programmes and maximum loads indicated in the Programme and consumption table When you use additional chemicals stain removers bleachs and etc reduce the amount of detergent
  • Page 27 - English - : 27 EN Washing Machine Users Manual Problem Reason Solution Laundry remains wet at the end of the programme Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage Use recommended amount of detergent Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment Laundry should be rearranged and respun Regular drum cleaning is not applied Clean the drum regularly See 442 A CAUTION If you cannot eliminate the problem although you follow the instructions in this section consult your dealer or the Authorized Service Agent Never try to repair a nonfunctional product yourself
