Ashley AP5710 Heater User Manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

Owner’s Instruction and Operation Manual

U.S. Environmental Protection Agency

Certied to comply with 2020 particulate

emissions standards.

SAFETY NOTICE: If this heater is not properly installed, a house re may result.

For your safety, follow the installation instructions. Never use make-shift

compromises during the installation of this heater. Contact local building or

re ofcials about permits, restrictions and installation requirements in your

area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury,

or even death. Improper Installation Will Void Your Warranty!

Save These Instructions In A Safe Place For Future Reference.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon

monoxide, which is known to the State of California to cause

cancer, birth defects, and/or other reproductive harm. For

more information, go to

www.P65warnings.ca.gov

AP5710

Report Number: F19-549

Certied to ASTM E1509-12 (2017)

and Certied to ULC-S627-00-REV1

Mobile Home Approved

Model Number:

852523J-2302K

-2-

INTRODUCTION

Your pellet stove has been approved for installation in the USA and Canada. It may also be installed in a

manufactured or mobile home. Your stove is Certied to ASTM E1509-12 (2017)and Certied to ULC S627-

00. This manual describes the installation and operation of the U.S. Stove, 5710-XH wood heater. This heater

meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after

May 15, 2020. Under specic test conditions this heater has been shown to deliver heat at rates ranging from

13,281 to 27,492 Btu/hr. This heater achieved a particulate emissions rate of 1.0 g/hr when tested to method

ASTM E2779-10 (*and an efciency of 69%).

WARNING:

IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT

WITH THE OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.

Heating Specications

Fuel Burn Rate* (lowest setting) 1.5 lbs./hr. (0.7 kg/hr)

* Pellet size may effect the actual rate of fuel

feed and burn times. Fuel feed rates may vary

by as much as 20%. Use PFI listed fuel for best

results.

Burn Time (lowest setting) 33 hrs. (approximate)

Hopper Capacity 50 lbs. (22.7 kg)

Flue Size 3” or 4”

Electrical Specications

Electrical Rating 110-120 Volts AC, 60 HZ, 3.0 Amps

Watts (operational) 125

Watts (igniter running) 310

Dimensions

Overall: Height x Width X Depth 32-3/16” (819 mm) x 19” (482 mm) x 23” (585 mm)

For Customer Service, please

call:

1-800-750-2723 Ext 5050 or;

Text to 423-301-5624 or;

Email us at:

customerservice@usstove.

com

Note: Register your product online at

www.usstove.com or download the

free app today. This app is available

only on the App Store for iPhone

and iPad. Search US Stove. Save your

receipt with your records for any

claims.

-3-

INSTALLATION CHECKLIST

Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at

www.ncertied.org/public/nd-an-n-pro/

CUSTOMER SERVICE

1-800-750-2723 ext 5050

Text to 423-301-5624

Email to: Customerservice@usstove.com

COMMISSIONING CHECKLIST

This Checklist is to be completed in full by the qualied person who installs this unit. Keep this page for future

reference.

Failure to install and commission according to the manufacturer’s instructions and complete this checklist

will invalidate the warranty.

Please Print

Customer Name: Telephone Number:

Address:

Model:

Serial Number:

Installation Company Name: Phone Number:

Installation Technician’s Name: License Number:

DESCRIPTION OF WORK

Location of installed appliance: _________________________________________________________________________

Venting System: New Venting System

Yes No If yes, Brand __________________________________

If no, Date of inspection of existing venting system: ______________________________________________________

COMMISSIONING

Conrm Hearth Pad Installation as per Installation Instructions ............................................................................................

Conrm proper placement of internal parts ........................................................................................................................................

Check soundness of door gasket and door seals ...............................................................................................................................

Conrm clearances to combustibles as per installation instructions in this manual ................................................

Check the operations of the air controls .................................................................................................................................................

Conrm the venting system is secure and sealed ............................................................................................................................

Conrm the stove starts and operates properly .................................................................................................................................

Check to ensure a CO alarm is installed as per local building codes and is functional ............................................

Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .................

Declaration of Completion: As the qualied person responsible for the work described above, I conrm that

the appliance as associated work has been installed as per manufacturer’s instructions and following any

applicable building and installation codes.

Signed: ___________________________________Print Name: ______________________________ Date: _____________

Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

-4-

ASSEMBLY INSTRUCTIONS

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

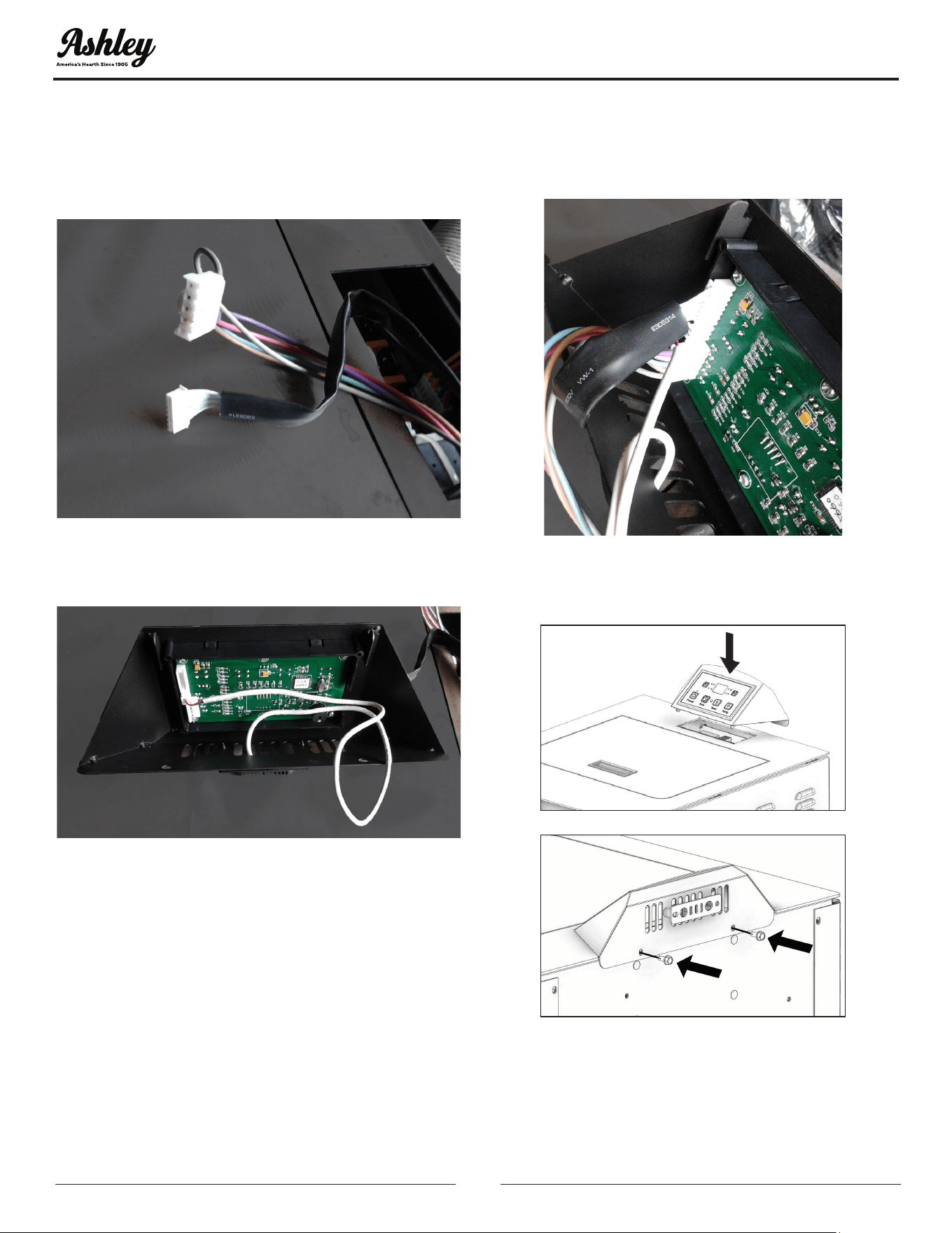

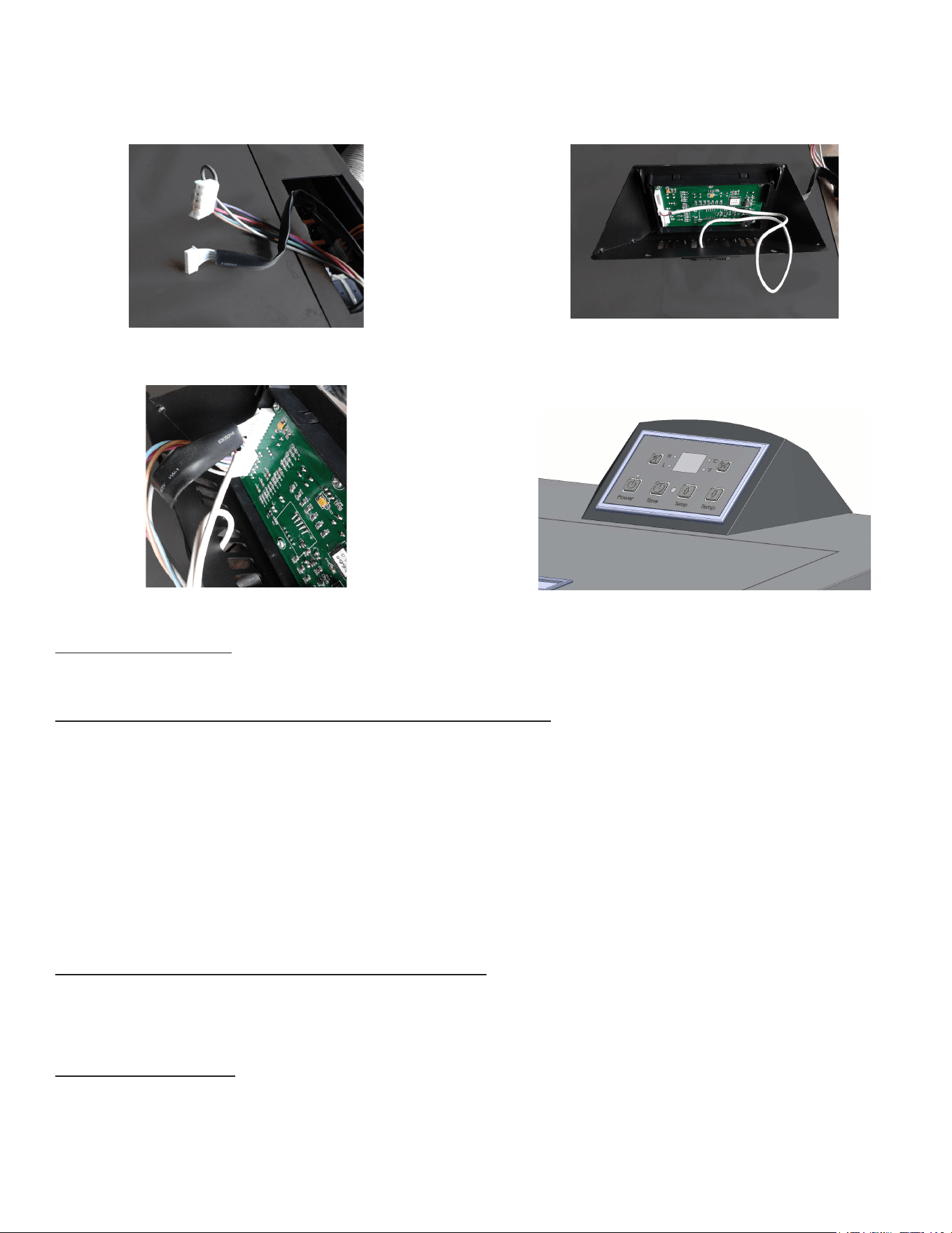

1. Pull the factory installed wires out of the top of

the stove. There will be two wire harnesses, as

shown.

2. Unpack the top mount controls and ensure that

the wiring harness shown is attached securely.

3. Connect the factory installed wiring harnesses to

the control panel as shown.

4. Secure the control panel to the top of the stove

with two sheet metal screws.

-5-

INSTALLATION

SAFETY NOTICE

• IF THIS STOVE IS NOT PROPERLY INSTALLED,

A HOUSE FIRE MAY RESULT. TO REDUCE THE

RISK OF FIRE, FOLLOW THE INSTALLATION

INSTRUCTIONS.

• CONTACT YOUR LOCAL BUILDING OFFICIALS TO

OBTAIN A PERMIT AND INFORMATION ON ANY

ADDITIONAL INSTALLATION RESTRICTIONS OR

INSPECTION REQUIREMENTS IN YOUR AREA.

• DO NOT PLACE CLOTHING OR OTHER

FLAMMABLE ITEMS ON OR NEAR THIS STOVE.

• NEVER USE GASOLINE, GASOLINE-TYPE

LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR LIQUIDS TO START

OR ’FRESHEN UP’ A FIRE IN THIS STOVE. KEEP

ALL SUCH LIQUIDS WELL AWAY FROM THE

STOVE WHILE IT IS IN USE.

• THIS APPLIANCE IS A FREESTANDING HEATER.

IT IS NOT INTENDED TO BE ATTACHED TO ANY

TYPE OF DUCTING. IT IS NOT A FURNACE. DO NOT

CONNECT THIS UNIT TO ANY AIR DISTRIBUTION

DUCT OR SYSTEM. THIS APPLIANCE IS NOT

INTENDED FOR COMMERCIAL USE.

• INSTALL VENT AT CLEARANCES SPECIFIED BY

THE VENT MANUFACTURER.

• DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS UNIT.

• YOUR STOVE REQUIRES PERIODIC

MAINTENANCE AND CLEANING (SEE

”MAINTENANCE”). FAILURE TO MAINTAIN

YOUR STOVE MAY LEAD TO IMPROPER AND/OR

UNSAFE OPERATION.

• A POWER SURGE PROTECTOR IS REQUIRED.

THIS UNIT MUST BE PLUGGED INTO A 110 -

120V, 60 HZ GROUNDED ELECTRICAL OUTLET.

DO NOT USE AN ADAPTER PLUG OR SEVER

THE GROUNDING PLUG. DO NOT ROUTE THE

ELECTRICAL CORD UNDERNEATH, IN FRONT

OF, OR OVER THE HEATER. DO NOT ROUTE THE

CORD IN FOOT TRAFFIC AREAS OR PINCH THE

CORD UNDER FURNITURE.

CAUTION:

BURNING FUEL CREATES CARBON MONOXIDE

AND CAN BE HAZARDOUS TO YOUR HEALTH IF

NOT PROPERLY VENTED.

ATTENTION:

• A WORKING SMOKE DETECTOR MUST BE

INSTALLED IN THE SAME ROOM AS THIS

PRODUCT.

• INSTALL A SMOKE DETECTOR ON EACH FLOOR

OF YOUR HOME; INCASE OF ACCIDENTAL FIRE

FROM ANY CAUSE IT CAN PROVIDE TIME FOR

ESCAPE.

• THE SMOKE DETECTOR MUST BE INSTALLED AT

LEAST 15 FEET (4,57 M) FROM THE APPLIANCE

IN ORDER TO PREVENT UNDUE TRIGGERING OF

THE DETECTOR WHEN RELOADING.

CAUTION:

• USE OF OUTSIDE AIR IS NOT REQUIRED FOR

THIS UNIT.

• DO NOT UNPLUG THE STOVE IF YOU SUSPECT

A MALFUNCTION. TURN THE ON/OFF SWITCH

TO ”OFF’ AND CONTACT CUSTOMER SERVICE.

• THE HEATER WILL NOT OPERATE DURING A

POWER OUTAGE. IF A POWER OUTAGE DOES

OCCUR, CHECK THE HEATER FOR SMOKE

SPILLAGE AND OPEN A WINDOW IF ANY

SMOKE SPILLS INTO THE ROOM.

• NEVER BLOCK FREE AIRFLOW THROUGH THE

OPEN VENTS OF THE UNIT.

US Stove highly recommends your stove be installed by a

qualified NFI (US) or WETT (Canada) technician. To find

the nearest qualified installer, go to:

https://nficertified.org,

https://www.wettinc.ca/

-6-

INSTALLATION

IMPROPER INSTALLATION

The use of other components other than stated

herein could cause bodily harm, heater damage, and

void your warranty. The manufacturer will not be held

responsible for damage caused by the malfunction

of a stove due to improper venting or installation.

FLOOR PROTECTION

This heater must have a non-combustible oor

protector (UL1618 ember protection) installed

beneath it if the oor is of combustible material.

US - Floor protector should be UL listed or equal too,

needs to extend 6” to the front, 6” to each side, 1” to

the rear of the unit. Under and 2” beyond each side

of the cleanout tee if an interior vertical installation.

Canada - Floor protector should comply with CAN/

ULC standards. Needs to extend 18” to the front, 8”

beyond each side of the unit.

A Back to Stove

U.S.A 1” 26 mm

CAN 8” 204 mm

B Side to Stove

U.S.A 6” 153 mm

CAN 8” 204 mm

C Front to Stove

U.S.A 6” 153 mm

CAN 8” 204 mm

D Back to Flue 2” 51 mm

CLEARANCES

Your pellet stove has been tested and listed for

installation in residential, mobile home in accordance

with the clearances given below. For safety reasons,

please adhere to the installation clearances

and restrictions. Any reduction in clearance to

combustibles may only be done by means approved

by a regulatory authority.

E Side Wall to Stove 10” 245 mm

F Side Wall to Vent Pipe 11-1/2” 292 mm

G Back Wall to Stove 11-7/8” 302 mm

H Back Wall to Vent Pipe 3” 76 mm

J Ceiling to Floor 84” 2134 mm

K Ceiling to Stove 53-7/8’ 1434 mm

L Side Wall to Stove 7-1/2” 191 mm

M Side Wall to Vent Pipe 11-1/4” 286 mm

N Back Wall to Vent Pipe 7-1/2” 191 mm

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

-7-

OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS

INSTALLING IN A MOBILE HOME)

Depending on your location and home construction,

outside air may be necessary for optimal

performance. Your stove is approved to be installed

with an outside air intake (69FAK) which is necessary

for a mobile home. You can purchase the 69FAK

through your heater dealer. Installation instructions

are supplied with the air intake kit.

ATTENTION:

DO NOT VENT UNDER ANY PORCH, DECK,

AWNING, OR IN ANY SEMI ENCLOSED OR

ROOFED AREA. DOING SO MAY RESULT IN

UNPREDICTABLE AIRFLOW AT THE VENT CAP

UNDER CERTAIN CONDITIONS AND CAN AFFECT

THE PERFORMANCE OF YOUR STOVE, AS WELL

AS, OTHER UNFORESEEABLE ISSUES.

SECURING APPLIANCE TO THE FLOOR

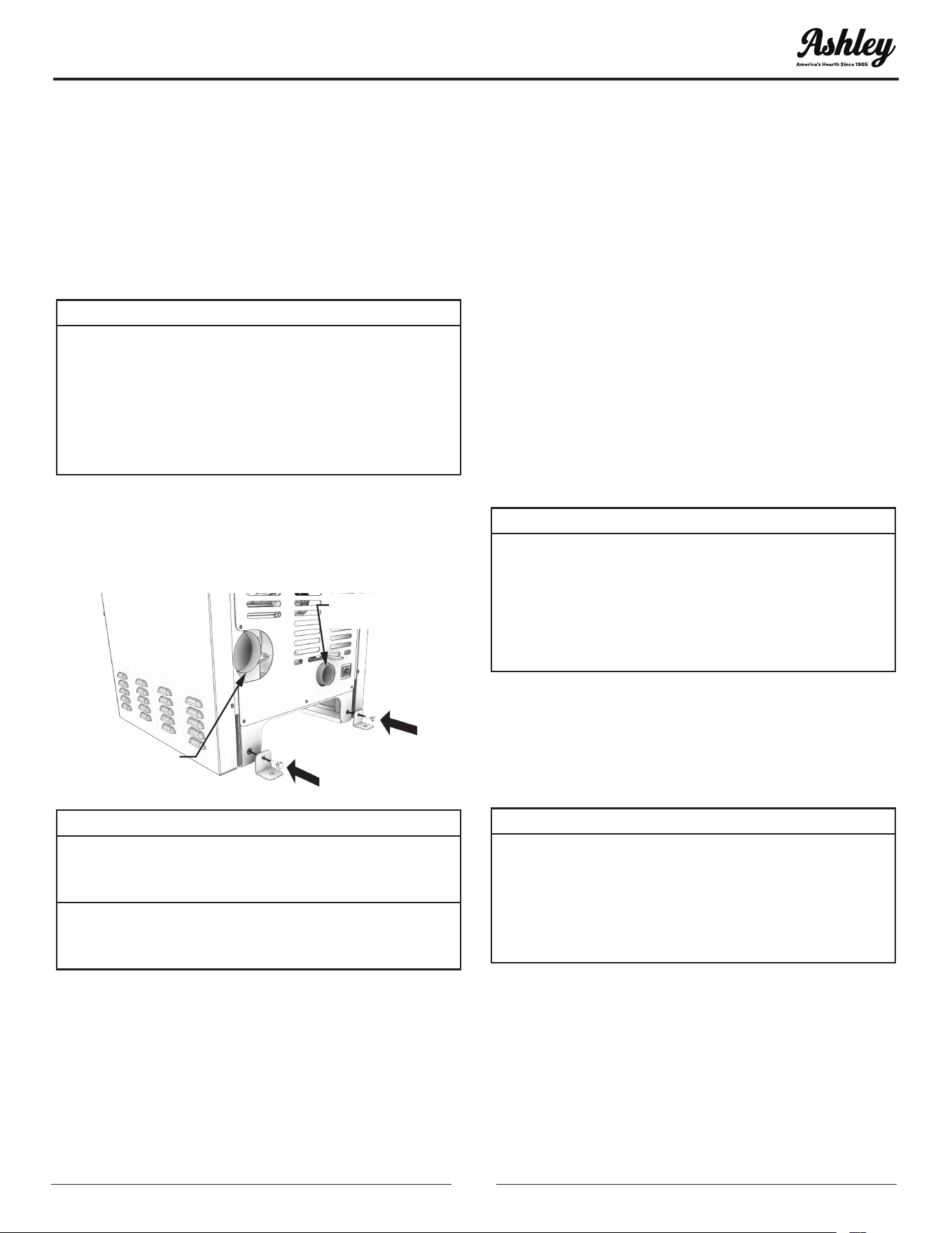

Use the designated holes to secure the unit to the

oor.

Fresh Air

Intake

Exhaust

Pipe

WARNING! DO NOT INSTALL IN SLEEPING ROOM.

CAUTION! THE STRUCTURAL INTEGRITY OF THE

MOBILE HOME FLOOR, WALL, AND CEILING/ROOF

MUST BE MAINTAINED.

WHEN INSTALLED IN A MOBILE HOME, THE STOVE

MUST BE GROUNDED DIRECTLY TO THE STEEL

CHASSIS AND BOLTED TO THE FLOOR.

In addition to the previously detailed installation

requirements, mobile home installations must meet

the following requirements:

• This stove must be securely fastened to the oor

of the mobile home through the two holes in the

rear of the stove using 2, 1/4” lag bolts that are long

enough to go through both a hearth pad, if used,

and the oor of the home.

• The heater must be electrically grounded to the

steel chassis of the mobile home with 8 GA copper

wire using a serrated or star washer to penetrate

paint or protective coating to ensure grounding.

• Vent must be 3 or 4-inch “PL” Vent and must extend

a minimum or 36” (914 mm) above the roof line of

the mobile home and must be installed using a

certied ceiling re stop and rain cap.

• When moving your mobile home, all exterior

venting must be removed while the mobile home

is being relocated. After relocation, all venting

must be reinstalled and securely fastened.

• Outside Air is mandatory for mobile home

installation. See Outside Air Supply section and

your dealer for purchasing.

• Check with your local building ofcials as other

codes may apply.

VENTING REQUIREMENTS

WARNING:

• INSTALL VENT AT CLEARANCES SPECIFIED BY

THE VENT MANUFACTURER.

• DO NOT CONNECT THE PELLET VENT TO A VENT

SERVING ANY OTHER APPLIANCE OR STOVE.

• DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS UNIT.

The following installation guidelines must be

followed to ensure conformity with both the safety

listing of this stove and to local building codes. Do

not use makeshift methods or compromise in the

installation.

IMPORTANT:

THIS UNIT IS EQUIPPED WITH A NEGATIVE DRAFT

SYSTEM THAT PULLS AIR THROUGH THE BURN

POT AND PUSHES THE EXHAUST OUT OF THE

DWELLING. IF THIS UNIT IS CONNECTED TO A FLUE

SYSTEM OTHER THAN THE WAY EXPLAINED IN

THIS MANUAL, IT WILL NOT FUNCTION PROPERLY.

MAXIMUM VENTING DISTANCE

Installation MUST include at least 3-feet of vertical

pipe outside the home. This will create some natural

draft to reduce the possibility of smoke or odor during

appliance shutdown and keep exhaust from causing

a nuisance or hazard by exposing people or shrubs

to high temperatures. The maximum recommend

vertical venting height is 12-feet for 3-inch type “PL”

vent. Total length of horizontal

INSTALLATION

-8-

vent must not exceed 4-feet. This could cause back

pressure. Use no more than 180 degrees of elbows

(two 90-degree elbows, or two 45-degree and one

90-degree elbow, etc.) to maintain adequate draft.

IMPORTANCE OF PROPER DRAFT

Draft is the force which moves air from the appliance

up through the chimney. The amount of draft in your

chimney depends on the length of the chimney, local

geography, nearby obstructions and other factors.

Too much draft may cause excessive temperatures

in the appliance. Inadequate draft may cause

backpufng into the room and ‘plugging’ of the

chimney. Inadequate draft will cause the appliance

to leak smoke into the room through appliance and

chimney connector joints. An uncontrollable burn

or excessive temperature indicates excessive draft.

Take into account the chimney’s location to ensure

it is not too close to neighbours or in a valley which

may cause unhealthy or nuisance conditions.

PELLET VENT TYPE

A certied 3-inch or 4-inch type “PL” pellet vent

exhaust system must be used for installation and

attached to the pipe connector provided on the

back of the stove (use a 3-inch to 4-inch adapter for

4-inch pipe). Connection at back of stove must be

sealed using Hi-Temp RTV. Use 4-inch vent if the

vent height is over 12-feet or if the installation is over

2,500 feet above sea level. We recommend the use of

Simpson Dura-Vent® or Metal-Fab® pipe (if you use

other pipe, consult your local building codes and/

or building inspectors). Do not use Type-B Gas Vent

pipe or galvanized pipe with this unit. The pellet vent

pipe is designed to disassemble for cleaning and

should be checked several times during the burning

season. Pellet vent pipe is not furnished with the unit

and must be purchased separately.

PELLET VENT INSTALLATION

The installation must include a clean-out tee to

enable collection of y ash and to permit periodic

cleaning of the exhaust system. 90-degree elbows

accumulate y ash and soot thereby reducing

exhaust ow and performance of the stove. Each

elbow or tee reduces draft potential by 30% to 50%.

All joints in the vent system must be fastened by

at least 3 screws, and all joints must be sealed with

Hi-Temp RTV silicone sealant to be airtight. The

area where the vent pipe penetrates to the exterior

of the home must be sealed with silicone or other

means to maintain the vapor barrier between the

exterior and the interior of the home. Vent surfaces

can get hot enough to cause burns if touched by

children. Noncombustible shielding or guards may

be required.

PELLET VENT TERMINATION

Do not terminate the vent in an enclosed or semi-

enclosed area, such as; carport, garage, attic, crawl

space, under a sun deck or porch, narrow walkway, or

any other location that can build up a concentration

of fumes. Termination in one of these areas can also

lead to unpredictable pressure situations with the

appliance, and could result in improper performance

and/or malfunction. The termination must exhaust

above the outside air inlet elevation. The termination

must not be located where it will become plugged

by snow or other materials. Do not terminate the

venting into an existing steel or masonry chimney.

VENT TERMINATION CLEARANCES

A. Minimum 4-foot (1.22m) clearance below or

beside any door or window that opens.

B. Minimum 1-foot (0.3m) clearance above any door

or window that opens.

C. Minimum 3-foot (0.91m) clearance from any

adjacent building.

D. Minimum 7-foot (2.13m) clearance from any

grade when adjacent to public walkways.

E. Minimum 2-foot (0.61m) clearance above any

grass, plants, or other combustible materials.

INSTALLATION

-9-

A. Minimum 3-foot (0.91m) clearance from an forced

air intake of any appliance.

B. Minimum 2-foot (0.61m) clearance below eves or

overhang.

C. Minimum 1-foot (0.3m) clearance horizontally

from combustible wall.

D. Must be a minimum of 3 foot (0.91m) above the

roof and 2 foot (0.61m) above the highest point or

the roof within 10 feet (3.05m).

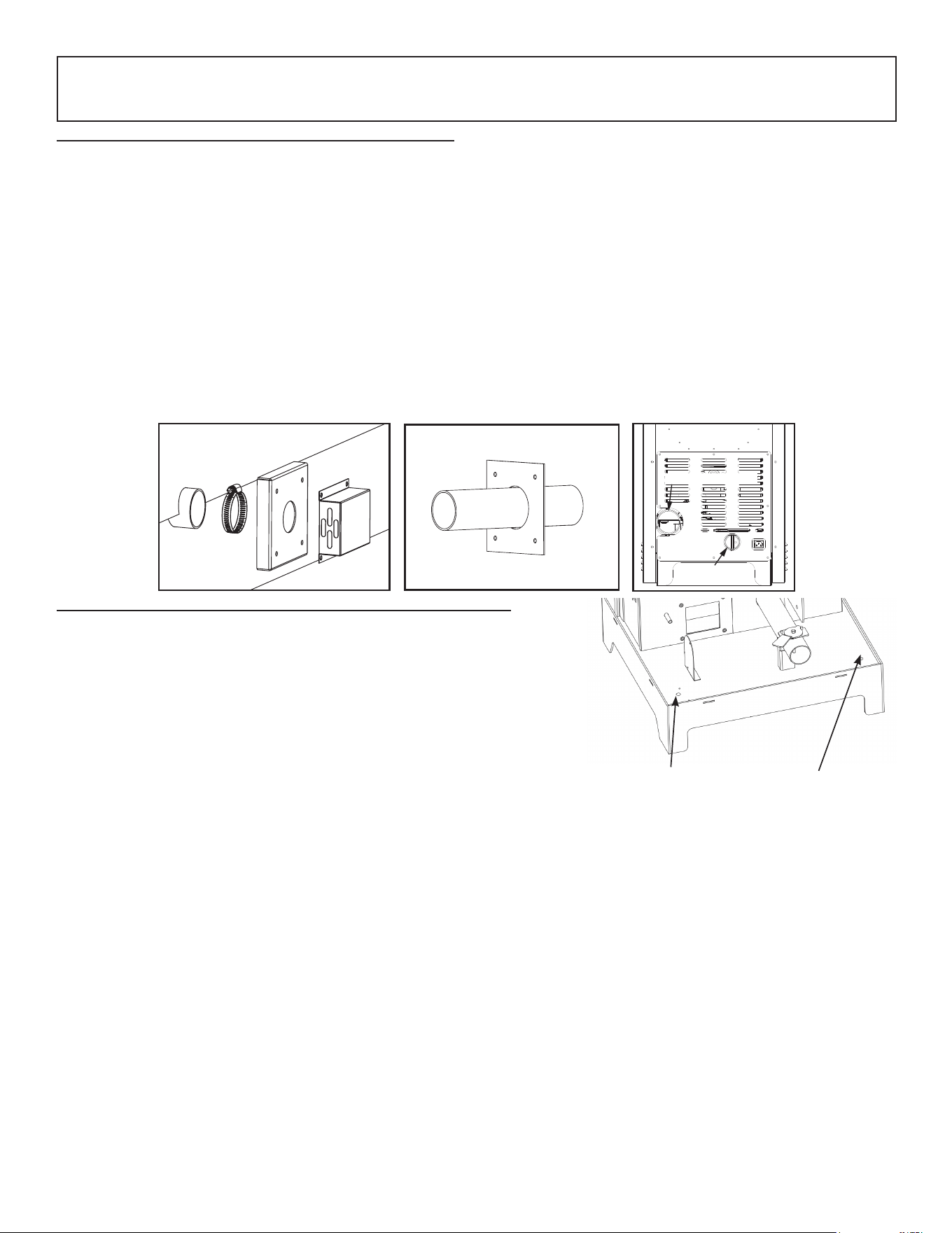

THROUGH THE WALL INSTALLATION

(RECOMMENDED INSTALLATION)

TYPICAL THROUGH THE

WALL INSTALLATION

Canadian installations must conform to CAN/

CSA-B365. To vent the unit through the wall, connect

the pipe adapter to the exhaust motor adapter. If

the exhaust adapter is at least 18” (457 mm) above

ground level, a straight section of pellet vent pipe can

be used through the wall. Your heater dealer should

be able to provide you with a kit that will handle

most of this installation, which will include a wall

thimble that will allow the proper clearance through

a combustible wall. Once outside the structure, a 3”

(76 mm) clearance should be maintained from the

outside wall and a clean out tee should be placed

on the pipe with a 90-degree turn away from the

house. At this point, a 3ft (0.91m) (minimum) section

of pipe should be added with a horizontal cap, which

would complete the installation. A support bracket

should be placed just below the termination cap

or one every 4ft (1.22m) to make the system more

stable. If you live in an area that has heavy snowfall,

it is recommended that the installation be taller

than 3ft (0.91m) to get above the snowdrift line.

This same installation can be used if your heater is

below ground level by simply adding the clean-out

section and vertical pipe inside until ground level is

reached. With this installation you have to be aware

of the snowdrift line, dead grass, and leaves. We

recommend a 3ft (0.91m) minimum vertical rise on

the inside or outside of the house. The “through the

wall” installation is the least expensive and simplest

installation. Never terminate the end vent under a

deck, in an alcove, under a window, or between two

windows. We recommend Simpson Dura-Vent® or

Metal-Fab® kits.

THROUGH THE ROOF/CEILING

INSTALLATION

• When venting the heater through the ceiling, the

pipe is connected the same as through the wall,

except the clean-out tee is always on the inside

of the house, and a 3” (76 mm) adapter is added

before the clean-out tee.

• You must use the proper ceiling support anges and

roof ashing (supplied by the pipe manufacturer;

follow the pipe manufacturer’s directions). It is

important to note that if your vertical run of pipe

is more than 12ft (3.7m), the pellet vent pipe size

should be increased to 4” (102 mm) in diameter.

• Do not exceed more than 4ft (1.22m) of pipe on a

horizontal run and use as few elbows as possible. If

an offset is required, it is better to install 45-degree

elbows rather than 90-degree elbows.

INSTALLATION

-10-

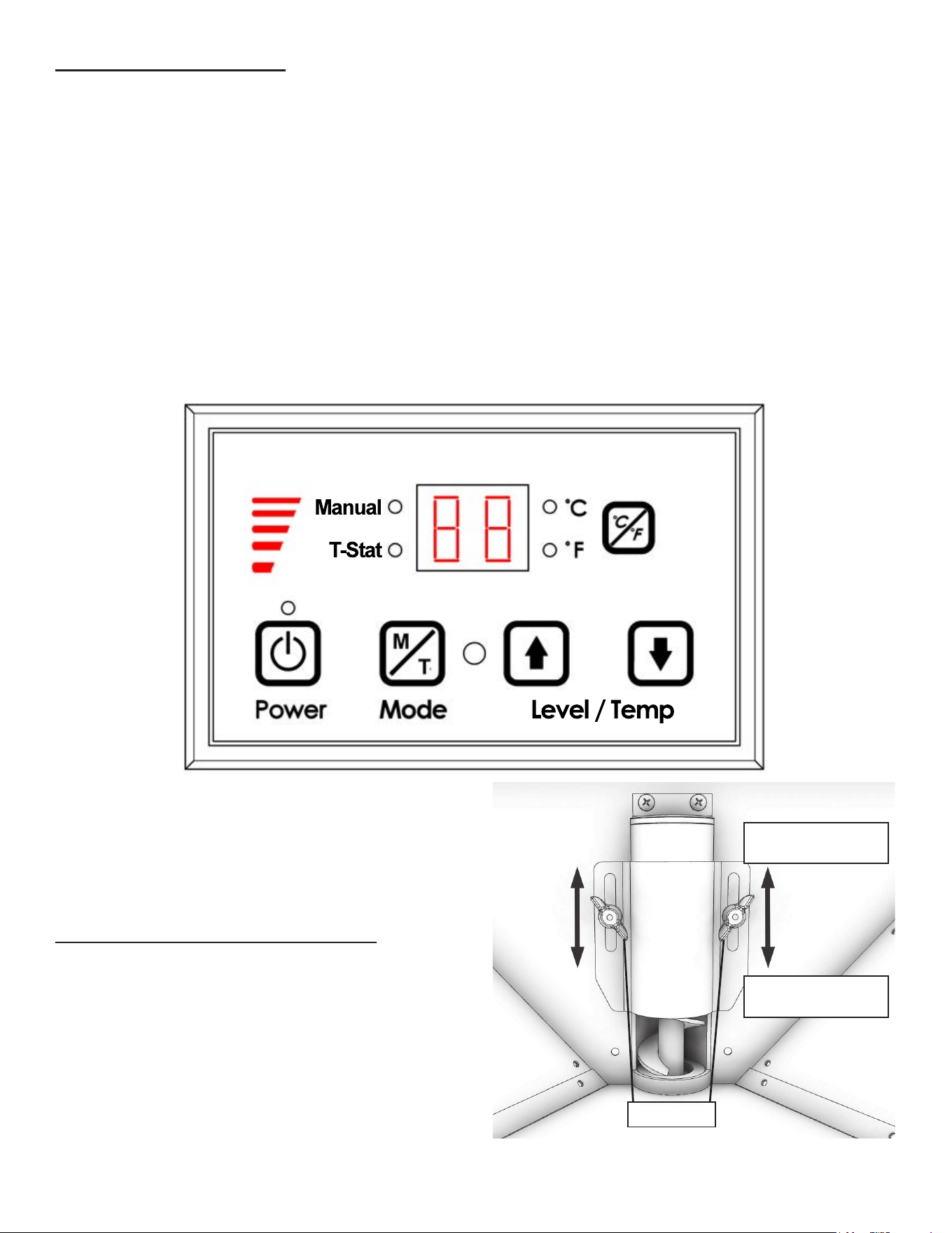

PANEL CONTROLS

The blowers and automatic fuel supply are controlled

from a panel on the top of this unit. The control panel

functions are as follows.

A. ON/OFF SWITCH (“POWER” BUTTON)

• When pushed, the stove will automatically ignite.

No other re starter is necessary. The igniter

will stay on for at least 10 and up to 12 minutes,

depending on when Proof of Fire is reached. The

re should start in approximately 5 minutes.

• The red light located above the “POWER” button

will turn green when pressed and remain green

until the stove is turned off.

• After pushing “POWER”, the auger motor is on for

3.5 minutes, off for 1 minute. During the remainder

of the start-up period, the auger motor operates

on the heat range “1” setting.

• During start up the heat level advance (Up and

Down keys) will change the heat range indicator

level accordingly, but there is no change in the

stoves operating conditions until start-up is

completed.

• During start-up ignition must occur within 12

minutes or the stove will error out and show E4.

• During the start-up phase, the Mode key does not

function.

B. LEVEL / TEMP ARROW BUTTONS

• These buttons when pushed will set the pellet feed

rate, hence the heat output or heat range of your

stove.

• The levels of heat output will incrementally change

on the bar graph starting from heat range “1” to

heat range “5”.

C. °C / °F Button

• The °C / °F button changes the two digit display

from degrees Celsius to degrees Fahrenheit.

D. MODE (M/T) BUTTON

• The Mode of the stove can be switched between

manual and controlled with a Thermostat. Separate

LEDs to the left of the two digit display indicate the

mode of operation – Manual or T-Stat. The stove

has to be in normal operation to be switched from

Manual to T-Stat mode.

• Manual mode operates according to the 5 set

levels of feed on the bar graph from heat range “1”

to heat range “5”.

T-Stat mode works as follows:

• The stove has a built in Thermostat into the controls

of the appliance. The temperature sensor for the

T-Stat is located on the back of the stove behind

the display board.

• Once the stove has gone into run mode the stove

can be switch into T-Stat mode.

• The Up and Down Level / Temp Arrow buttons are

used to change the desired set-point temperature.

Once the desired temperature is reached the two

digit display will ash for four seconds and reset to

the actual room temperature.

• Once the stove reaches within 3°F of the desired

temperature set point, it returns to the heat range

that the stove was set on before it was switched

to T-Stat mode (if the stove was running on heat

range “5” when switched to T-stat mode when it

gets within 3°F of the set point it will return to heat

range “5”).

• Once the stove reaches the desired set-point, the

stove will drop to heat range “1”.

• When room temperature drops below desired set-

point the stove will ramp back up until it reaches

the desired temperature.

HOW TO ADJUST THE FUEL ADJUSTER

It is a common occurrence in the pellet industry for

the average pellet size to vary. Due to the varying

sizes of pellets, this appliance is equipped with a fuel

adjuster to adjust the amount of fuel allowed to pass

into the auger assembly. The fuel adjuster is located

inside the hopper. Note: The factory default setting

for this is full open. To decrease the ow of pellets,

move the fuel adjuster down.

OPERATION INSTRUCTIONS

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

-11-

1. Turn off and unplug the appliance.

2. Loosen the two wing-nuts.

3. Adjust up to increase, or down to reduce the fuel

usage based on the size of the pellets.

4. Tighten the two wing-nuts.

WARNING:

• DO NOT USE CHEMICALS OR FLUIDS TO START

THE FIRE - NEVER USE GASOLINE, GASOLINE-

TYPE LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR LIQUIDS TO START

OR “FRESHEN UP” A FIRE IN THIS STOVE. KEEP

ALL SUCH LIQUIDS WELL AWAY FROM THE

STOVE WHILE IT IS IN USE.

• HOT WHILE IN OPERATION. KEEP CHILDREN,

CLOTHING AND FURNITURE AWAY. CONTACT

MAY CAUSE SKIN BURNS.

This heater is designed to burn only PFI Premium

grade pellets. DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint

thinners, or asphalt products;

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Salt water driftwood or other previously salt

water saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or

particleboard. The prohibition against burning

these materials does not prohibit the use of re

starters made from paper, cardboard, saw dust,

wax and similar substances for the purpose of

starting a re in an affected wood heater.

Burning these materials may result in release of toxic

fumes or render the heater ineffective and cause

smoke.

PROPER FUEL

ATTENTION:

THIS APPLIANCE IS DESIGNED FOR THE USE OF

PELLETIZED FUEL THAT MEET OR EXCEED THE

STANDARD SET BY THE PELLET FUEL INSTITUTE

(PFI).

Your pellet stove is designed to burn premium

hardwood pellets that comply with the Pellet Fuels

Institute (PFI) standard (minimum of 40 lbs density

per cubic ft, 1/4” to 5/16” diameter, length no greater

than 1.5”, not less than 8,200 BTU/lb, moisture under

8% by weight, ash under 1% by weight, and salt under

300 parts per million). Pellets that are soft, contain

excessive amounts of loose sawdust, have been, or

are wet, will result in reduced performance. Store your

pellets in a dry place. DO NOT store the fuel within

the installation clearances of the unit or within the

space required for refuelling and ash removal. Doing

so could result in a house re. Do not over re or use

volatile fuels or combustibles, doing so may cause a

personal and property damage hazards. THIS STOVE

IS APPROVED FOR BURNING PELLETIZED WOOD

FUEL ONLY ! Factory-approved pellets are those 1/4”

or 5/16” in diameter and not over 1” long. Longer or

thicker pellets sometimes bridge the auger ights,

which prevents proper pellet feed. Burning wood

in forms other than pellets is not permitted. It will

violate the building codes for which the stove has

been approved and will void all warranties. The

design incorporates automatic feed of the pellet

fuel into the re at a carefully prescribed rate. Any

additional fuel introduced by hand will not increase

heat output but may seriously impair the stoves

performance by generating considerable smoke.

Do not burn wet pellets. The stove’s performance

depends heavily on the quality of your pellet fuel.

Avoid pellet brands that display these characteristics:

• Excess Fines – “Fines” is a term describing crushed

pellets or loose material that looks like sawdust or

sand. Pellets can be screened before being placed

in hopper to remove most nes.

OPERATION INSTRUCTIONS

-12-

• Binders – Some pellets are produced with materials

to hold the together, or “bind” them.

• High ash content – Poor quality pellets will often

create smoke and dirty glass. They will create a need

for more frequent maintenance. You will have to

empty the burn pot plus vacuum the entire system

more often. Poor quality pellets could damage the

auger. We cannot accept responsibility for damage

due to poor quality pellet.

CAUTION:

• KEEP FOREIGN OBJECTS OUT OF THE HOPPER.

• THE MOVING PARTS OF THIS STOVE ARE

PROPELLED BY HIGH TORQUE ELECTRIC

MOTORS. KEEP ALL BODY PARTS AWAY FROM

THE AUGER WHILE THE STOVE IS PLUGGED

INTO AN ELECTRICAL OUTLET. THESE MOVING

PARTS MAY BEGIN TO MOVE AT ANY TIME

WHILE THE STOVE IS PLUGGED IN.

PRE-START-UP CHECK

Remove burn pot, making sure it is clean and none

of the air holes are plugged. Clean the rebox, and

then reinstall burn pot. Clean door glass if necessary

(a dry cloth or paper towel is usually sufcient). Never

use abrasive cleaners on the glass or door. Check fuel

in the hopper, and rell if necessary.

BUILDING A FIRE

Never use a grate or other means of supporting the

fuel. Use only the burn pot supplied with this heater.

Hopper lid must be closed in order for the unit to

feed pellets. During the start-up period:

1. Make sure the burn pot is free of pellets.

2. DO NOT open the viewing door.

3. DO NOT add pellets to the burn pot by hand.

NOTE: During the rst few res, your stove will emit

an odor as the high-temperature paint cures or

becomes seasoned to the metal. Maintaining smaller

res will minimize this. Avoid placing items on the

stovetop during this period because the paint could

be affected. Attempts to achieve heat output rates

that exceed heater design specications can result

in permanent damage to the heater.

AUTOMATIC IGNITOR

Fill hopper and clean burn pot.

1. Press “On/Off” button. Make sure green light

comes on.

2. Adjust feed rate to desired setting by pressing

“Heat Level Advance” button.

If re doesn’t start in 12 minutes, press “On/Off”,

wait a few minutes, clear the burn pot, and start

procedure again.

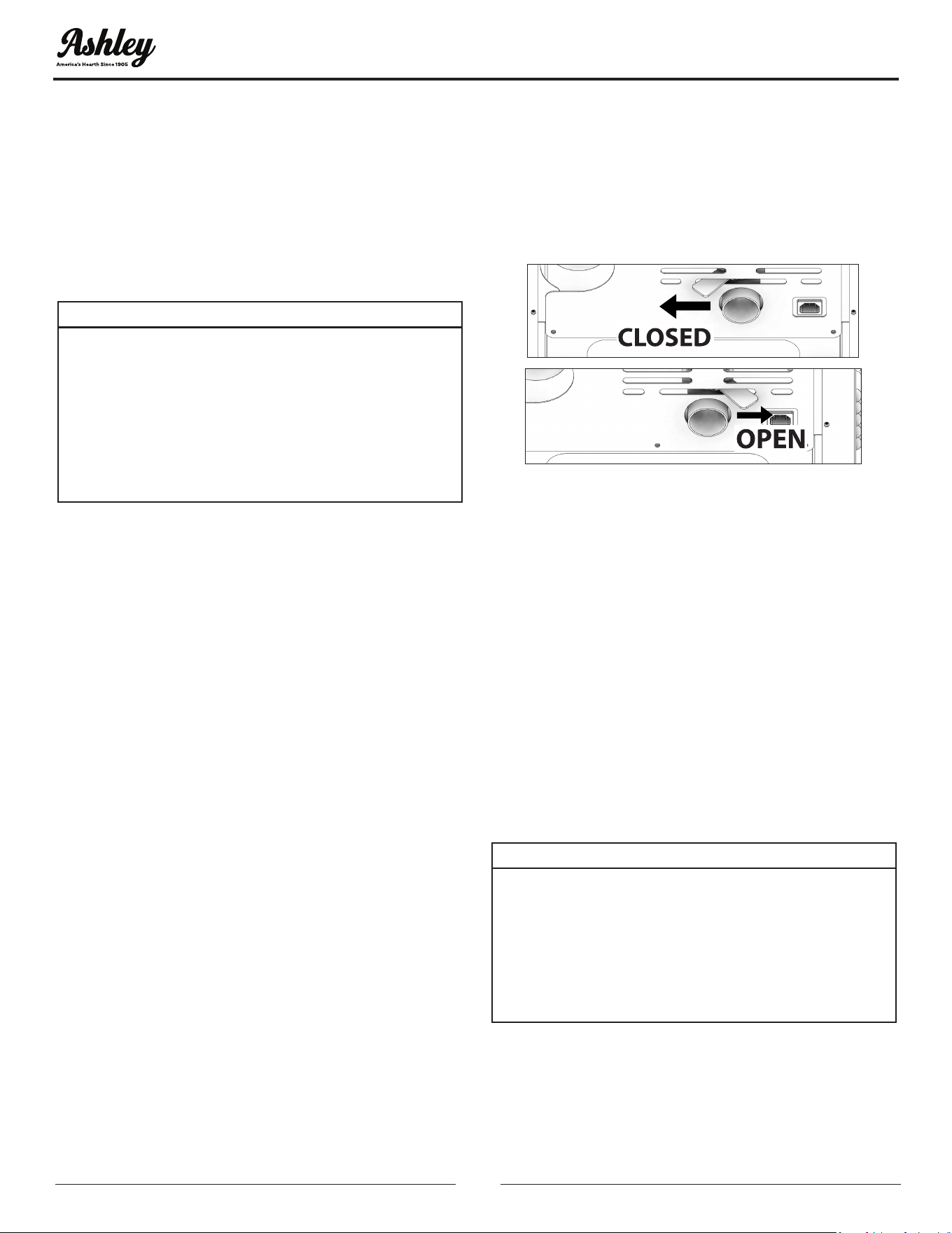

DAMPER CONTROL

The damper control lever is located on the back of

the stove on the lower left side. The default setting for

the damper control should be full open. The damper

adjusts the combustion air. This control is necessary

due to the varied burn characteristics of individual

installations, different pellet brands and pellet feed

rates. It allows you to improve the efciency of your

stove. Providing correct combustion air will reduce

the frequency of cleaning your glass door and

prevent the rapid buildup of creosote inside your

stove and chimney. You should adjust the damper

based on the re’s appearance. A low, reddish, dirty

re can be improved by turning the damper slightly

to the right. A “blow torch” re can be improved by

turning the dampener to the left a little bit.

OPENING DOOR

CAUTION:

• DO NOT OPERATE YOUR STOVE WITH THE

VIEWING DOOR OPEN. THE AUGER WILL NOT

FEED PELLETS UNDER THESE CIRCUMSTANCES

AND A SAFETY CONCERN MAY ARISE FROM

SPARKS OR FUMES ENTERING THE ROOM.

• THE FEED DOOR MUST BE CLOSED AND SEALED

DURING OPERATION.

If the door is opened while the stove is in operation

it must be closed within 30 seconds or the stove will

shut down. If the stove shuts down push the “On/

Off” button to re-start your stove. The stove will have

to fully shut down and turn off before you will be able

to restart the stove.

OPERATION INSTRUCTIONS

-13-

ROOM AIR FAN

When starting your stove the Room Air Fan will not

come on until the stove’s heat exchanger warms up.

This usually takes about 10 minutes from start-up.

IF STOVE RUNS OUT OF PELLETS

The re goes out and the auger motor and blowers

will run until the stove cools. This will take 30 minutes

or longer depending on the heat remaining in the

appliance. After the stove components stop running

all lights on the display will go out and the two digit

display will begin ashing “E3”

REFUELLING

CAUTION:

• THE HOPPER AND STOVE TOP WILL BE HOT

DURING OPERATION; THEREFORE, YOU

SHOULD ALWAYS USE SOME TYPE OF HAND

PROTECTION WHEN REFUELING YOUR STOVE.

• DO NOT TOUCH THE HOT SURFACES OF THE

STOVE. EDUCATE ALL CHILDREN ON THE

DANGERS OF A HIGH-TEMPERATURE STOVE.

YOUNG CHILDREN SHOULD BE SUPERVISED

WHEN THEY ARE IN THE SAME ROOM AS THE

STOVE.

• NEVER PLACE YOUR HAND NEAR THE AUGER

WHILE THE STOVE IS IN OPERATION.

• WE RECOMMEND YOU NOT LET THE HOPPER

DROP BELOW 1/4 FULL.

WARNING:

• KEEP HOPPER LID CLOSED AT ALL TIMES

EXCEPT WHEN REFILLING.

• DO NOT OVERFILL HOPPER.

TAMPER WARNING

This wood heater has a manufacturer-set minimum

low burn rate that must not be altered. It is against

federal regulations to alter this setting or otherwise

operate this wood heater in a manner inconsistent

with operating instructions in this manual.

SHUTDOWN PROCEDURE

WARNING:

NEVER SHUT DOWN THIS UNIT BY UNPLUGGING

IT FROM THE POWER SOURCE.

Turning your stove off is a matter of pressing the

“POWER” button on the display board. The green

light will turn back to red when the “POWER” button

is pushed. The auger motor will stop, and the blowers

will continue to operate until the internal rebox

temperatures have fallen to a preset level.

1. Your stove is equipped with a high temperature

thermodisc. This unit has a manual reset

thermodisc. This safety switch has two functions.

A. To recognize an overheat situation in the stove

and shut down the fuel feed or auger system.

B. In case of a malfunctioning convection blower, the

high-temperature thermodisc will automatically

shut down the auger, preventing the stove from

overheating.

NOTE: On some units, once tripped, like a circuit

breaker, the reset button will have to be pushed

before restarting your stove. On other units the

thermodisc has no reset button and will reset

itself once the stove has cooled. The manufacturer

recommends that you call customer service if this

occurs as this may indicate a more serious problem.

A service call may be required.

2. If the combustion blower fails, an air pressure

switch will automatically shut down the auger.

NOTE: Opening the stove door for more than

30 seconds during operation will cause enough

pressure change to activate the air switch, shutting

the fuel feed off. The stove will shut down and show

“E2” on the two digit display. The stove has to fully

shut down before restarting.

OPTIMAL OPERATION

This pellet stove has been certied by the US EPA

to meet strict 2020 guidelines. To Insure this unit

produces the optimal minimal emissions, it is critical

to follow the following guidelines.To achieve a “high

burn” your stove should be set on setting 5 with the

damper fully open.To achieve a “medium burn” your

stove should be set on setting 1 with the damper fully

closed.To achieve a “low burn” your stove should be

set on setting 1 with the damper open.Settings 2,3 &

4 will give you a higher heat output above medium

and the damper should be open for these settings.

If the door is opened while the stove is in operation

it must be closed within 30 seconds or the stove will

shut down. If the stove shuts down push the “On/

Off” button to re-start your stove. The stove will have

to fully shut down and turn off before you will be able

to restart the stove

OPERATION INSTRUCTIONS

-14-

INTERIOR CHAMBERS

• Burn Pot - Periodically remove and clean the burn

pot and the area inside the burn pot housing. In

particular, it is advisable to clean out the holes

in the burn pot to remove any build up that may

prevent air from moving through the burn pot

freely.

• Heat Exchanger - There is a clean out plate on

both sides of the heat exchanger that need to be

removed to clean y ash out of the heat exchanger.

The cleanouts are located inside the cabinet doors,

on the lower front corners of the heat exchanger.

To access these clean outs, you must remove both

side panels. The clean outs are secured to the

rebox with (2) 5/16” screws. Remove the clean

outs and vacuum out any accumulated ash. This

should be done at least once per month or more

frequently if large amounts of ash are noticed

while cleaning or if the stove does not seem to be

burning properly.

If a vacuum is used to clean your stove, we suggest

using the AV15E AshVac vacuum. The AV15E AshVac

is designed for ash removal. Some regular vacuum

cleaner (i.e. shop vacs) may leak ash into the room.

DO NOT VACUUM HOT ASH.

WARNING:

FAILURE TO PROPERLY MAINTENANCE THE CLEAN

OUTS WILL RESULT IN POOR PERFORMANCE OF

THIS STOVE.

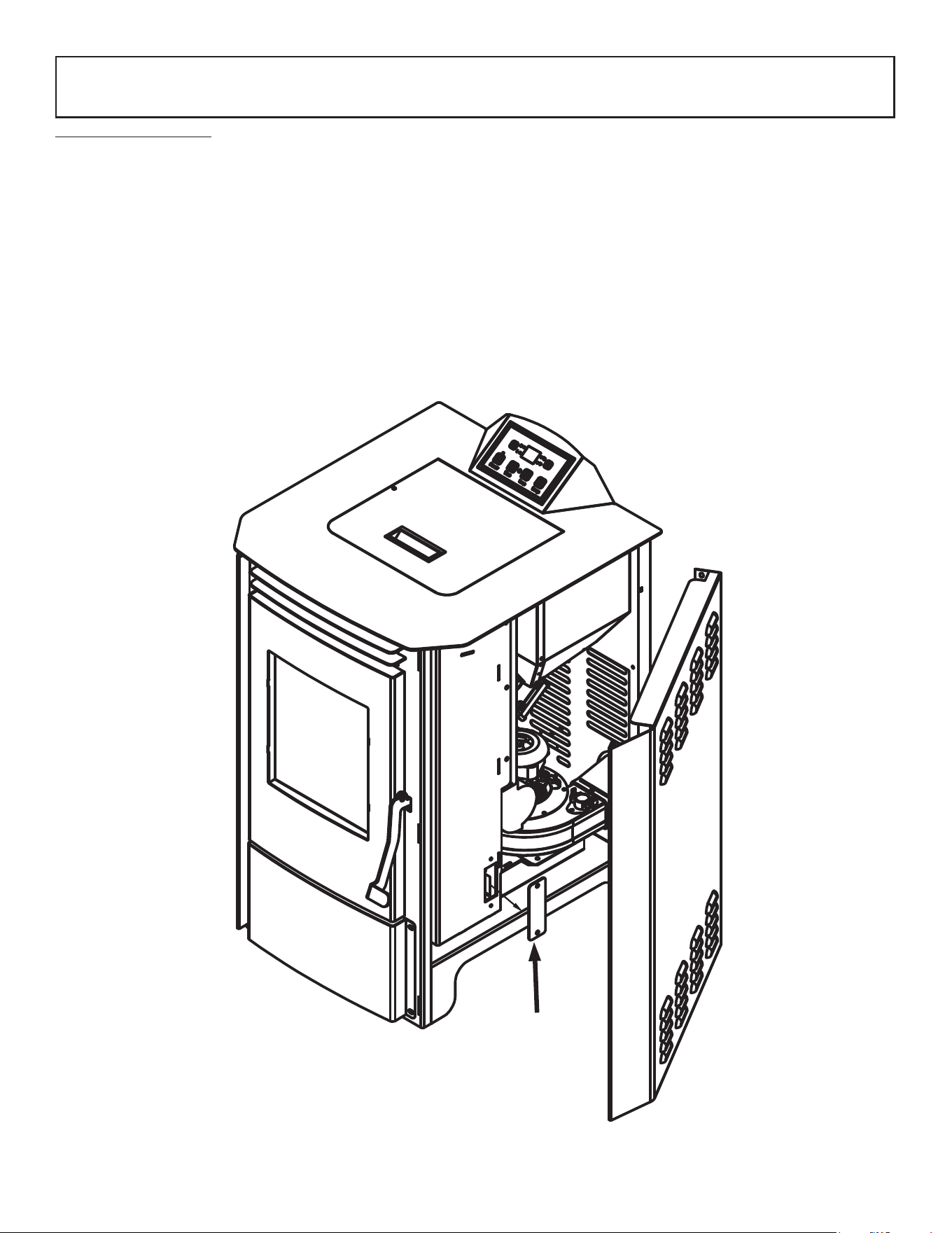

Clean-Out

Plate

Clean-Out

Plate

OPERATION INSTRUCTIONS

-15-

MAINTENANCE

CAUTION:

• FAILURE TO CLEAN AND MAINTAIN THIS

UNIT AS INDICATED CAN RESULT IN POOR

PERFORMANCE, SAFETY HAZARDS, FIRE, AND

EVEN DEATH.

• NEVER PERFORM ANY INSPECTIONS,

CLEANING, OR MAINTENANCE ON A HOT

STOVE.

• DISCONNECT THE POWER CORD BEFORE

PERFORMING ANY MAINTENANCE! NOTE:

TURNING THE ON/OFF SWITCH TO ”OFF”

DOES NOT DISCONNECT ALL POWER TO THE

ELECTRICAL COMPONENTS OF THE STOVE.

• DO NOT OPERATE STOVE WITH BROKEN GLASS,

LEAKAGE OF FLUE GAS MAY RESULT.

CREOSOTE FORMATION, INSPECTION, &

REMOVAL

CAUTION:

THE EXHAUST SYSTEM SHOULD BE CHECKED

MONTHLY DURING THE BURNING SEASON FOR

ANY BUILD-UP OF SOOT OR CREOSOTE.

When any wood is burned slowly, it produces tar

and other organic vapors, which combine with

expelled moisture to form creosote. The creosote

vapors condense in the relatively cool chimney ue

or a newly started re or from a slow-burning re.

As a result, creosote residue accumulates on the

ue lining. When ignited, this creosote makes an

extremely hot re, which may damage the chimney

or even destroy the house. Despite their high

efciency, pellet stoves can accumulate creosote

under certain conditions. The chimney connector

and chimney should be inspected by a qualied

person annually or per ton of pellets to determine if a

creosote or y ash build-up has occurred. If creosote

has accumulated, it should be removed to reduce

the risk of a chimney re. Inspect the system at the

stove connection and at the chimney top. Cooler

surfaces tend to build creosote deposits quicker, so

it is important to check the chimney from the top

as well as from the bottom. The creosote should be

removed with a brush specically designed for the

type of chimney in use. A qualied chimney sweep

can perform this service. It is also recommended

that before each heating season the entire system be

professionally inspected, cleaned and, if necessary,

repaired. To clean the chimney, disconnect the vent

from the stove.

FLY ASH

This accumulates in the horizontal portion of an

exhaust run. Though non-combustible, it may

impede the normal exhaust ow. It should therefore

be periodically removed.

ASH REMOVAL & DISPOSAL

CAUTION:

ALLOW THE STOVE TO COOL BEFORE PERFORMING

ANY MAINTENANCE OR CLEANING. ASHES

MUST BE DISPOSED IN A METAL CONTAINER

WITH A TIGHT FITTING LID. THE CLOSED

CONTAINER OF ASHES SHOULD BE PLACED ON

A NON-COMBUSTIBLE SURFACE OR ON THE

GROUND, WELL AWAY FROM ALL COMBUSTIBLE

MATERIALS, PENDING FINAL DISPOSAL.

Remove the ashes periodically to avoid unnecessary

ash build up. Remove ashes when unit has cooled.

Ashes should be placed in a metal container with a

tight tting lid. The closed container of ashes should

be placed on a noncombustible oor or on the

ground, well away from all combustible materials,

pending nal disposal. If the ashes are disposed of

by burial in soil or otherwise locally dispersed, they

should be retained in the closed container until all

embers have been thoroughly cooled. The container

shall not be used for other trash or waste disposal. If

combined with combustible substances, ashes and

embers may ignite. Ash removal is as follows:

1. Let the re burn out and allow the unit to cool to

room temperature.

2. Make sure the pellet stove is at room temperature

before touching. Open the door, remove the burn

pot and empty it into a metal container.

3. Vacuum ashes from the rebox. BE SURE THAT

ASHES ARE COOL TO THE TOUCH BEFORE

VACUUMING. Some vacuum cleaners may leak

ash into the room. Your vacuum cleaner should

have a special lter or bag to eliminate leakage.

4. Reinstall the burn pot.

SMOKE & CO MONITORS

Burning wood naturally produces smoke and carbon

monoxide(CO) emissions. CO is a poisonous gas when

exposed to elevated concentrations for extended

periods of time. While the modern combustion

systems in heaters drastically reduce the amount of

CO emitted out the chimney, exposure to the gases

in closed or

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

-16-

conned areas can be dangerous. Make sure you

stove gaskets and chimney joints are in good

working order and sealing properly to ensure

unintended exposure. It is recommended that you

use both smoke and CO monitors in areas having

the potential to generate CO.

CHECK & CLEAN THE HOPPER

Check the hopper periodically to determine if there

is any sawdust (nes) that is building up in the feed

system or pellets that are sticking to the hopper

surface. Clean as needed.

DOOR & GLASS GASKETS

Inspect the main door and glass window gaskets

periodically. The main door may need to be removed

to have frayed, broken, or compacted gaskets

replaced by your authorized dealer. This unit’s door

uses a 5/8” diameter rope gasket.

BLOWER MOTORS

Clean the air holes on the motors of both the exhaust

and distribution blowers annually. Remove the

exhaust blower from the exhaust duct and clean out

the internal fan blades as part of your fall start-up.

If you have indoor pets your power motors should

be inspected monthly to make sure they are free of

animal hair build up. Animal hair build up in blowers

can result in poor performance or unforeseen safety

hazards.

PAINTED SURFACES

Painted surfaces may be wiped down with a damp

cloth. If scratches appear, or you wish to renew your

paint, contact your authorized dealer to obtain a can

of suitable high-temperature paint.

GLASS

We recommend using a high quality glass cleaner.

Should a buildup of creosote or carbon accumulate,

you may wish to use 000 steel wool and water to

clean the glass. DO NOT use abrasive cleaners. DO

NOT perform the cleaning while the glass is HOT. Do

not attempt to operate the unit with broken glass.

Replacement glass may be purchased from your U.S.

Stove dealer. If glass is broken, follow these removal

procedures:

1. Remove the four (4) screws and glass retainers.

2. While wearing leather gloves (or any other gloves

suitable for handling broken glass), carefully

remove any loose pieces of glass from the door

frame. Dispose of all broken glass properly. ONLY

high temperature ceramic glass of the correct size

and thickness may be used. DO NOT substitute

alternative materials for the glass. Contact your

authorized dealer to obtain this glass.

3. Re-install the new glass by re-attaching the

retainers and screws, be careful not to over

tighten the screws for this could damage the

glass.

DO NOT abuse the door glass by striking, slamming,

or similar trauma. Do not operate the stove with the

glass removed, cracked, or broken.

FALL START UP

Prior to starting the rst re of the heating season,

check the outside area around the exhaust and air

intake systems for obstructions. Clean and remove

any y ash from the exhaust venting system. Clean

any screens on the exhaust system and on the

outside air intake pipe. Turn all of the controls on and

make sure that they are working properly. This is also

a good time to give the entire stove a good cleaning

throughout.

SPRING SHUTDOWN

After the last burn in the spring, remove any

remaining pellets from the hopper and the auger

feed system. Scoop out the pellets and then run

the auger until the hopper is empty and pellets

stop owing (this can be done by pressing the “ON”

button with the viewing door open). Vacuum out the

hopper. Thoroughly clean the burn pot, and rebox.

It may be desirable to spray the inside of the cleaned

hopper with an aerosol silicone spray if your stove is

in a high humidity area. The exhaust system should

be thoroughly cleaned.

MAINTENANCE

-17-

MAINTENANCE SCHEDULE

Use the following as a guide under average use

conditions. Gaskets around door and door glass

should be inspected and repaired or replaced when

necessary.

Daily Weekly

Monthly or

as needed

Burn Pot Stirred Empty

Combustion

Chamber

Brushed

Ashes Check Empty

Interior

Chambers

Vacuumed

Combustion

Blower Blades

Vacuumed

/ Brushed

Convection

Blower Impeller

Vacuumed

/ Brushed

Vent System Cleaned

Gaskets Inspected

Glass Wiped Cleaned

Hopper (end of

season)

Empty &

Vacuumed

For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: parts@usstove.com

The information in this owner’s manual is specic to your unit. When ordering replacement parts the

information in this manual will help to ensure the correct items are ordered. Before contacting customer

service write down the model number and the serial number of this unit. That information can be found on

the certication label attached to the back of the unit. Other information that may be needed would be the

part number and part description of the item(s) in question. Part numbers and descriptions can be found in

the “Repair Parts” section of this manual. Once this information has been gathered you can contact customer

service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com.

Model Information

Model

Number

Serial

Number

HOW TO ORDER REPAIR PARTS

MAINTENANCE

-18-

When your stove acts out of the ordinary, the rst reaction is to call for help. This guide may save time and

money by enabling you to solve simple problems yourself. Problems encountered are often the result of only

ve factors: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure; 5) factory

defect. You can usually solve those problems related to 1 and 2. Customer service can solve problems relating

to 3, 4 and 5. Refer to diagrams on page 25 to help locate indicated parts. For the sake of troubleshooting and

using this guide to assist you, you should look at your heat level setting to see which light is ashing.

• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to

”OFF” does not disconnect all power to the electrical components of the stove.

• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual.

All other work should be done by a trained technician.

Display is Flashing “E1”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The stove is consuming too much fuel

Adjust the fuel adjuster slide (see the “How To Adjust The

Fuel Adjuster” section of this manual). Close the slide about

1/4” after your stove cools down. Restart your stove. If your

display shows E1 again, close the slide another 1/4” and

restart.

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blade. If oiling

the blower does not help, the blower may be bad.

The stove is being left on the highest setting

for extended periods of time.

If operating the heater on the highest heat setting, the room

temperature could increase enough and lead to potential

overheating situations. If this happens try operating at a

lower heat setting.

Fuel other than wood pellets is being burned

in the stove.

This pellet stove is designed and tested to use wood pellets.

Check for signs of fuel other than wood pellets. No other

types of fuel have been approved for this pellet stove. If

there are signs of other types of fuel being used, stop using

them immediately.

Power surge or brown out situation.

A power surge, spike, or voltage drop could cause the high

limit switch to trip. Check to see if a surge protector is being

used on the stove. If not, recommend one to the customer.

High Limit Switch is malfunctioning.

If the other items check out OK, replace the high limit

switch.

ATTENTION: THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER

OPERATION. IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER

INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL.

TROUBLESHOOTING GUIDE

-19-

Display is Flashing “E2”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Airow switch hose or stove attachment

pipes for hose are blocked.

Unhook air hose from the air switch and blow through it. If

air ows freely, the hose and tube are ne. If air will not ow

throw the hose, use a wire coat hanger to clear the blockage.

The air inlet, burnpot, interior combustion air

chambers, combustion blower, or exhaust

pipe are blocked with ash or foreign material.

Follow all cleaning procedures in the maintenance section

of the owner’s manual.

The rebox is not properly sealed.

Make sure the door is closed and that the gasket is in good

shape.

Vent pipe is incorrectly installed.

Check to make sure vent pipe installation meets criteria in

owner’s manual.

The airow switch wire connections are bad.

Check the connectors that attach the gray wires to the air

switch.

Combustion blower failure.

With the stove on, check to see if the combustion blower is

running. If it is not, you will need to check for power going

to the combustion blower. It should be a full current. If there

is power, the blower is bad. If there is not, make sure the

control board is sending power to the air switch.

Control board not sending power to

combustion blower.

If there is no current going to the combustion blower, check

all wire connections. If all wires are properly connected, you

have a bad control board.

Control board not sending power to air

switch.

There should be a 5-volt current (approximately) going to

the air switch after the stove has been on for 30 seconds.

Air switch has failed.

To test the air switch, you will need to disconnect the air

hose from the body of the stove. With the other end still

attached to the air switch, very gently suck on the loose end

of the hose (you may want to remove the hose entirely off

the stove and the air switch rst and make sure it is clear). If

you hear a click, the air switch is working. BE CAREFUL TOO

MUCH VACUUM CAN DAMAGE THE AIR SWITCH.

TROUBLESHOOTING GUIDE

-20-

Display is Flashing “E3”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The hopper is out of pellets Rell the hopper.

The air dampener is too far open for a low

feed setting

If on the low setting, you may need to close the dampener

all the way.

The burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

The air inlet, the interior chambers, or exhaust

system has a partial blockage.

Follow all cleaning procedures in the maintenance section

of the owner's manual

The hopper safety switch has failed or hopper

is open.

When operating the unit, be sure the hopper lid is closed so

that the hopper safety switch will activate. Check the wires

leading from the hopper safety switch to the control panel

and auger motor for secure connections. Use a continuity

tester to test the hopper safety switch; replace if necessary.

The auger shaft is jammed.

"Start by emptying the hopper. Then remove the auger

motor by removing the auger pin, then remove the two

bolts that hold the auger bracket to the auger tube. The

auger bracket will now be able to be removed form the

auger tube. Remove the two bolts on the side of the auger

tube to remove the lower bearing of the auger. Pull the

auger out of the tube to free the jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to

run the unit. If the motor will turn the shaft is jammed on

something. If the motor will not turn, the motor is bad.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting

the two wires and connecting them with a short piece of

wire. Then plug the stove back up. If the stove comes on and

works, you need to replace the POF thermodisc. This is for

testing only. DO NOT LEAVE THE THERMODISC BYPASSED.

Your blowers will never shut off and if the re went out the

auger will continue to feed pellets until the hopper is empty

if you leave the POF thermodisc bypassed.

The control board is not sending power to

the POF thermodisc or other auger system

components.

There should be a 5-volt (approximately) current going

to the POF thermodisc after the stove has been on for 10

minutes.

TROUBLESHOOTING GUIDE

-21-

Display is Flashing “E4”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The air inlet, burnpot, interior combustion air

chambers, combustion blower, or exhaust

pipe are blocked with ash or foreign material.

Follow all cleaning procedures in the maintenance section

of the owner’s manual.

The Proof of Fire (POF) thermodisc has came

unplugged

Check the (POF) thermodisc to see if the wires are connected

properly.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting

the two wires and connecting them with a short piece of

wire. Then plug the stove back up. If the stove comes on and

works, you need to replace the POF thermodisc. This is for

testing only. DO NOT LEAVE THE THERMODISC BYPASSED.

Your blowers will never shut off and if the re went out the

auger will continue to feed pellets until the hopper is empty

if you leave the POF thermodisc bypassed.

The hopper is out of Pellets. Rell the hopper.

The hopper safety switch has failed or hopper

is open.

When operating the unit, be sure the hopper lid is closed so

that the hopper safety switch will activate. Check the wires

leading from the hopper safety switch to the control panel

and auger motor for secure connections. Use a continuity

tester to test the hopper safety switch; replace if necessary.

The auger shaft is jammed.

Start by emptying the hopper. Then remove the auger

motor by removing the auger pin. Remove the auger shaft

inspection plate in the hopper so that you can see the auger

shaft. Gently lift the auger shaft straight up so that the

end of the auger shaft comes up out of the bottom auger

bushing. Next, remove the two nuts that hold the top auger

biscuit in. Then rotate the bottom end of the auger shaft up

towards you until you can lift the shaft out of the stove. After

you have removed the shaft, inspect it for bent ights, burrs,

or broken welds. Remove any foreign material that might

have caused the jam. Also, check the auger tube for signs of

damage such as burrs, rough spots, or grooves cut into the

metal that could have caused a jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to

run the unit. If the motor will turn the shaft is jammed on

something. If the motor will not turn, the motor is bad.

TROUBLESHOOTING GUIDE

-22-

Stove Feeds Pellets, But Will Not Ignite

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Air damper open too far for ignition.

In some situations it may be necessary to have the damper

completely closed for ignition to take place. After there is

a ame, the damper can then be adjusted for the desired

feed setting.

Blockage in igniter tube or inlet for igniter

tube.

Find the igniter housing on the backside of the rewall. The

air intake hole is a small hole located on bottom side of the

housing. Make sure it is clear. Also, look from the front of the

stove to make sure there is not any debris around the igniter

element inside of the igniter housing.

The burnpot is not pushed completely to the

rear of the rebox.

Make sure that the air intake collar on the burnpot is

touching the rear wall of the rebox.

Bad igniter element.

Put power directly to the igniter element. Watch the tip of

the igniter from the front of the stove. After about 2 minutes

the tip should glow. If it does not, the element is bad.

The control board is not sending power to

the igniter.

Check the voltage going to the igniter during startup.

It should be a full current. If the voltage is lower than full

current, check the wiring. If the wiring checks out good, the

board is bad.

Smoke Smell Coming Back Into The Home

Possible Causes Possible Remedies: (Unplug stove rst when possible)

There is a leak in the vent pipe system.

Inspect all vent pipe connections. Make sure they are sealed

with RTV silicone that has a temperature rating on 500

degree F or higher. Also, seal joints with UL-181-AP foil tape.

Also, make sure the square to round adapter piece on the

combustion blower has been properly sealed with the same

RTV.

The gasket on the combustion blower has

gone bad.

Inspect both gaskets on the combustion blower to make

sure they are in good shape.

Because it is a wood-burning device, your pellet heater may emit a faint wood-burning odor. If this increases

beyond normal, or if you notice an unusual soot build-up on walls or furniture, check your exhaust system

carefully for leaks. All joints should be properly sealed. Also clean your stove, following instructions in

“MAINTENANCE”. If problem persists, contact customer service.

Convection Blower Shuts Off And Comes Back On

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blades. If cleaning

the blower does not help, the blower may be bad.

Circuit board malfunction.

Test the current going to the convection blower. If there is

power being sent to the blower when it is shut off, then the

control board is ne. If there is NOT power being sent to the

blower when it shuts off during operation, then you have a

bad control board.

TROUBLESHOOTING GUIDE

-23-

TROUBLESHOOTING GUIDE

Stove Will Not Feed Pellets, But Fuel Feed Light Comes On As Designed

Possible Causes Possible Remedies: (Unplug stove rst when possible)

High limit switch has tripped or is defective.

Wait for the stove to cool for about 30 - 45 minutes. Locate

the High Limit thermodisc and press the reset button on the

back of it. If the heater will not restart, check the thermodisc

to see if it’s bad. To test if the thermodisc is bad, you can

bypass it as described previously for the POF thermodisc.

Bad Auger Motor.

Remove the auger motor from the auger shaft and try to

run the unit. If the motor will turn the shaft is jammed on

something. If the motor will not turn, the motor is bad.

Auger Jam

Start by emptying the hopper. Then remove the auger

motor by removing the auger pin. Remove the auger shaft

inspection plate in the hopper so that you can see the auger

shaft. Gently lift the auger shaft straight up so that the

end of the auger shaft comes up out of the bottom auger

bushing. Next, remove the two nuts that hold the top auger

biscuit in. Then rotate the bottom end of the auger shaft up

towards you until you can lift the shaft out of the stove. After

you have removed the shaft, inspect it for bent ights, burrs,

or broken welds. Remove any foreign material that might

have caused the jam. Also, check the auger tube for signs of

damage such as burrs, rough spots, or grooves cut into the

metal that could have caused a jam.

Loose wire or connector.

Check all wires and connectors that connector to the auger

motor, high limit switch, and the Molex connector.

Bad control board.

If the fuse is good, the wires and connectors check out good,

and the high limit switch did not trip, test for power going

to the auger motor. If there is not a full current going to the

auger motor when the fuel feed light is on, you have a bad

control board.

-24-

Glass “Soot’s” Up At A Very Fast Rate

Flame Is Lazy, Dark, And Has Black Tips

After Stove Has Been On For A While, The Burnpot Overlls

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Stove or vent pipe is dirty, which restricts

airow through the burnpot.

Follow all cleaning procedure in the maintenance section of

the owner’s manual.

Vent pipe installed improperly.

Check to make sure the vent pipe has been installed

according to the criteria in the owner’s manual.

Burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

Blockage in air intake pipe.

Visually inspect the air intake pipe that leads into the

burnpot for foreign material.

Combustion blower is not spinning fast

enough.

Test the RPM on the blower after the blades have been

cleaned. The RPM should be approximately 3000 RPM.

Bad Pellets. (Applies to GLASS “SOOT’S” UP

AT A VERY FAST RATE Only)

The brand of pellets or the batch of pellets that are being

used may be of poor quality. If possible, try a different brand

of pellets. You might also want to try a brand that is made

from a different type of wood (softwood vs. hardwood).

Different woods have different characteristics when being

burned.

TROUBLESHOOTING GUIDE

High Limit Switch Keeps Tripping

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blades. If oiling

the blower does not help, the blower may be bad.

The stove is being left on the highest setting

for extended periods of time.

If operating the heater on the highest heat setting, the room

temperature could increase enough and lead to potential

overheating situations. If this happens, try operating at a

lower heat setting.

Fuel other than wood pellets is being burned

in the stove.

This pellet stove is designed and tested to use wood pellets.

Check for signs of fuel other than wood pellets. No other

types of fuel have been approved for this pellet stove. If

there are signs of other types of fuel being used, stop using

them immediately.

Power surge or brown out situation.

A power surge, spike, or voltage drop could cause the high

limit switch to trip. Check to see if a surge protector is being

used on the stove. If not, recommend one to the consumer.

High limit switch is malfunctioning.

If the other items check out okay, replace the high limit

switch.

-25-

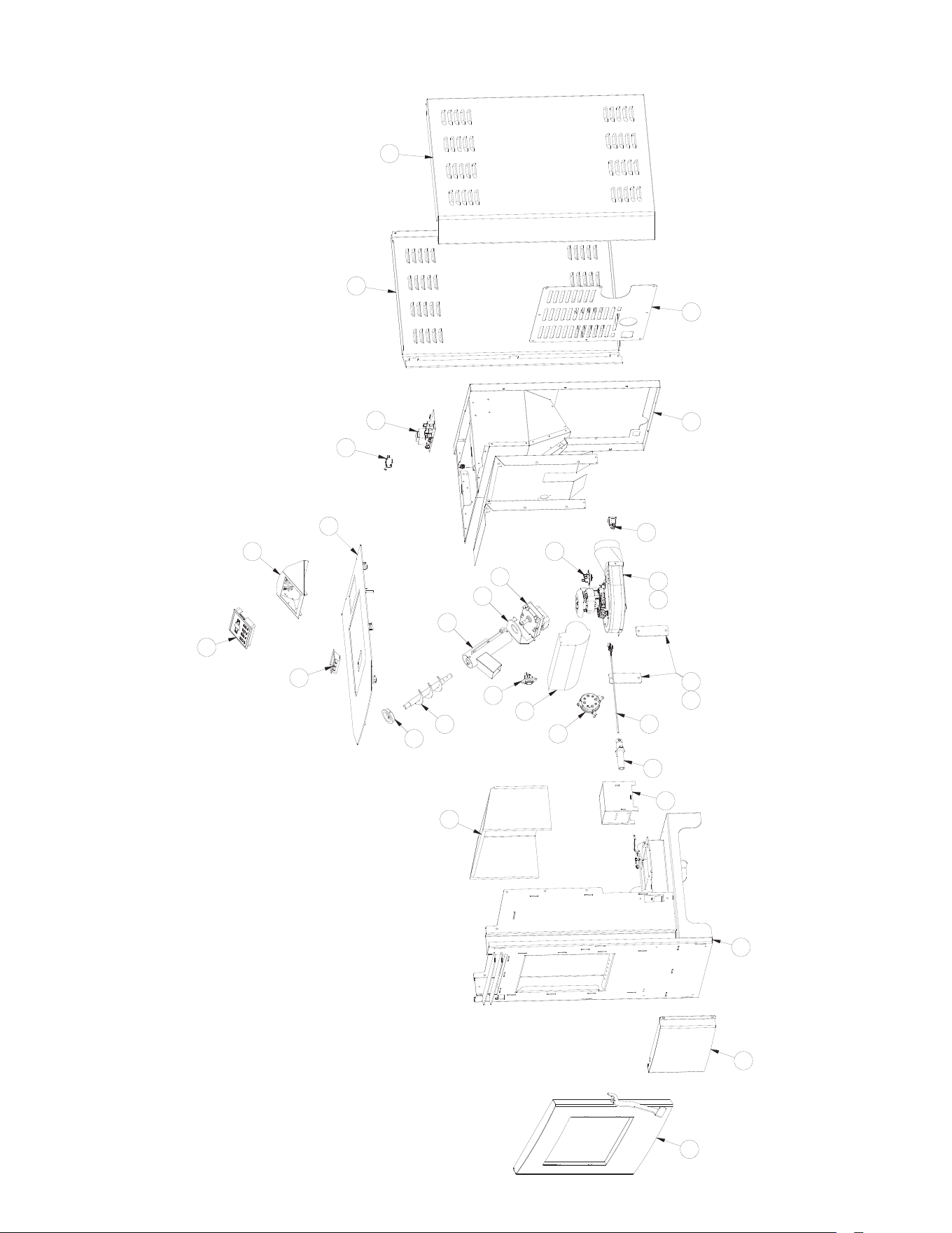

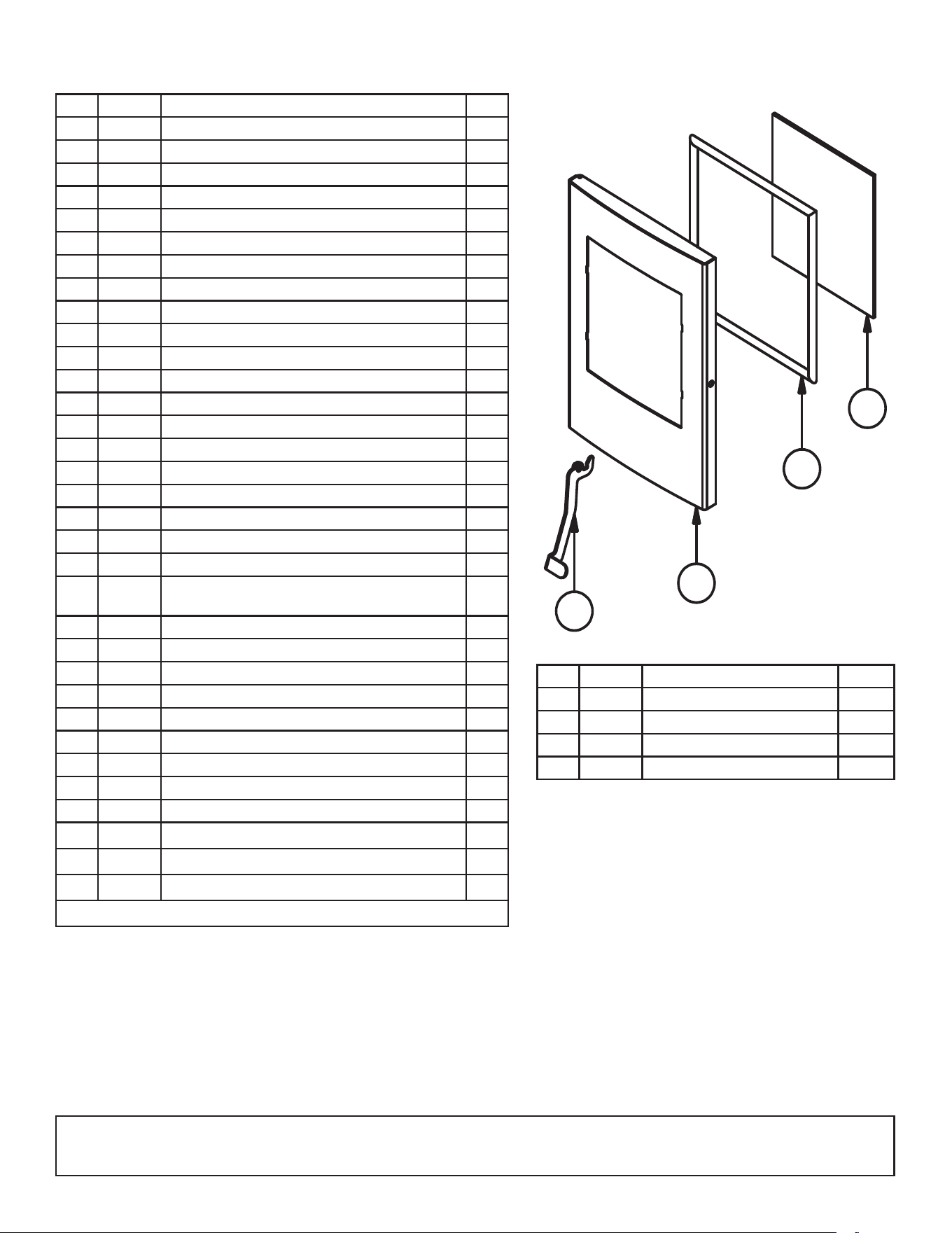

REPAIR PARTS

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

Key Part # Description Qty

1 892667 Door Glass 1

2 88066 3/4” Round Rope Gasket 46”

3 80780 IR Remote 1

4 69762 Burnpot 1

5 892668 Ash Clean-Out Covers 2

6 892199 Housing, PCBA Controller 1

7 80491 Microswitch 1

8 80709 Room Blower 1

9 88347 T-Disc, Room Air Gasket 2

10 80601 T-Disc, Room Air 1

11 80599 T-Disc, Exhaust 1

12 80602 Exhaust Blower 1

13 80488 Drive Motor (1.5 RPM CCW) 1

14 88166 Gasket, Exhaust Blower 1

15 80549 Vacuum Switch 1

16 80869 Ceramic Ignitor 1

17 88118 Ignitor Flange Gasket 1

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ASHLEY PARTS

PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY

COMPONENTS WILL VOID THE WARRANTY.

-26-

1.25A 250V

FUSE

7.5A 250V

FUSE

CORRECT WRONG

Ensure the wires are connected

to the bottom two prongs of the

hopper switch as shown.

WIRING DIAGRAM

-27-

NOTES

-28-

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is

completed.

SERVICE PROVIDER

Before completing the appropriate Service Record below, please ensure you have carried out the service as described in

the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary.

Service 01 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected:

Chimney Swept:

Items Replaced: ____________________________________

Service 03 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 05 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 07 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected:

Chimney Swept:

Items Replaced: ____________________________________

Service 02 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 04 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 06 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected: Chimney Swept:

Items Replaced: ____________________________________

Service 08 Date: ______________________

Engineer Name: ____________________________________

License No.: ________________________________________

Company: __________________________________________

Telephone No.: _____________________________________

Stove Inspected:

Chimney Swept:

Items Replaced: ____________________________________

SERVICE RECORD

This manual will help you obtain efcient, dependable service from your heater, and enable you to order repair

parts correctly.

Keep this manual in a safe place for future reference.

When writing, always give the full model number which is on the nameplate attached to the heater.

When ordering repair parts, always give the following information as shown in this list:

1. The part number ______________________________________________________________________________

2. The part description ___________________________________________________________________________

3. The model number ____________________________________________________________________________

4. The serial number _____________________________________________________________________________

Ce manuel vous aidera à obtenir un service able et efcace de votre appareil de chauffage, et vous

permettre de commander correctement les pièces de rechange.

Conservez ce manuel dans un endroit sûr pour référence future.

Lors de l’écriture, toujours donner le numéro de modèle complet qui se trouve sur la plaque signalétique xée

sur l’appareil de chauffage.

Lors de la commande des pièces de rechange, fournir les informations suivantes comme indiqué dans cette

liste:

1. Le numéro de pièce __________________________________________________________________________

2. La description de la pièce _____________________________________________________________________

3. Le numéro de modèle ________________________________________________________________________

4. Le numéro de série ___________________________________________________________________________

How To Order Repair Parts

Comment Commander Des Pièces De Rechange

United States Stove Company

227

Industrial Park Rd.,

South Pittsburg, TN 37380

PH: (800) 750-2723

www.usstove.com

IMPORTANT: Veuillez lire entièrement ce guide avant

d’installer et d’utiliser le produit. Le non-respect de cette

consigne peut entraîner des dommages matériels, des

blessures et même la mort. L’installation appropriée de ce

poêle est essentielle pour un fonctionnement efcace en

toute sécurité.

Installez l’évacuation des fumées en respectant les

dégagements spéciés par le fabricant de conduits

d’évacuation.

Ne reliez pas l’évacuation pour poêle à granulés à une

évacuation utilisée pour un autre appareil ou un autre

poêle.

N’installez pas de registre de tirage sur le système

d’évacuation de cet appareil.

L’utilisation d’air extérieur n’est pas nécessaire pour cet

appareil.

Adressez-vous aux autorités locales de l’urbanisme pour

obtenir un permis et des renseignements sur toute autre

restriction à l’installation et sur les exigences d’inspection

dans votre région.

Ne jetez pas ce guide. Ce guide contient des directives

d’utilisation et d’entretien importantes dont vous pourriez

avoir besoin. Suivez toujours les directives du guide.

L’appareil est conçu pour être utilisé avec du combustible

en granulés conforme à ou excédant la norme établie

par le Pellet Fuel Institute (PFI). L’utilisation d’autres

combustibles annule la garantie.

N’utilisez jamais d’essence, de combustible à lanterne de

type essence, de kérosène, d’essence d’allume-feu ou

d’autres liquides similaires pour allumer ou raviver le feu

dans ce poêle. Gardez tous ces liquides éloignés du poêle

lorsqu’il est en marche.

Un détecteur de fumée fonctionnel doit être installé dans

la pièce où se trouve le poêle.

Installez un détecteur de fumée à chaque étage de votre

maison; en cas d’incendie accidentel dû à n’importe

quelle cause, ce dispositif peut laisser le temps de

s’échapper.

Le détecteur de fumée doit être installé à au moins 15

pieds (4,57 m) de l’appareil an d’éviter qu’il ne se

déclenche inutilement lors du rechargement du poêle.

Ne débranchez pas le poêle si vous soupçonnez un

dysfonctionnement. Placez le contacteur ON/OFF sur «

OFF » puis prenez contact avec le concessionnaire.

Ce poêle doit être régulièrement entretenu et nettoyé

(voir la section « ENTRETIEN »). Le défaut d’entretien du

poêle peut entraîner un fonctionnement inapproprié et

dangereux.

Débranchez le cordon d’alimentation avant toute

opération d’entretien ! REMARQUE: Le fait de placer

l’interrupteur ON/OFF en position « OFF » ne coupe pas

entièrement l’alimentation des composants électriques

du poêle.

Ne tentez jamais de réparer ou de remplacer une pièce

du poêle sauf indication contraire dans les directives de

ce guide. Tous les autres travaux doivent être effectués

par un technicien qualié.

Ne faites pas fonctionner le poêle lorsque la porte

d’observation est ouverte. Dans ce cas, la tarière ne

distribue pas les granulés et un problème de sécurité peut

se poser en raison des étincelles ou des fumées pénétrant

dans la pièce.

Laissez le poêle refroidir avant d’effectuer tout entretien

ou nettoyage. Les cendres doivent être évacuées dans

un récipient métallique doté d’un couvercle hermétique.

Le récipient à cendres fermé doit être déposé sur une

surface non combustible ou sur le sol, bien à l’écart de

toute matière combustible, avant l’élimination dénitive.

L’accumulation de suie ou de créosote dans le système

d’évacuation des fumées doit être vériée mensuellement

au cours de la saison de chauffage.

Ne touchez pas aux surfaces chaudes du poêle. Enseignez

aux enfants les dangers des poêles à haute température.

Les jeunes enfants doivent être surveillés lorsqu’ils se

trouvent dans la même pièce que le poêle.

La trémie et le couvercle du poêle sont chauds pendant

le fonctionnement ; vous devez toujours protéger vos

mains lors du remplissage du poêle.

Un disjoncteur doit être installé. Cet appareil doit être

branché sur une prise murale avec terre de 110-120 V, 60

z. N’utilisez pas d’adaptateur de prise et ne coupez pas

la che de terre. N’acheminez pas le cordon électrique

sous, devant ou sur le poêle. Ne faites pas courir le cordon

électrique dans les zones de passage et ne le coincez pas

sous les meubles.

Le poêle ne fonctionne pas pendant les coupures

de courant. En cas de panne de courant, veillez aux

émanations de fumée du poêle et ouvrez une fenêtre si la

fumée se répand dans la pièce.

La porte de remplissage doit être fermée et étanche

pendant le fonctionnement.

N’obstruez jamais la circulation de l’air des grilles

d’aération ouvertes de l’appareil.

Éloignez tout objet étranger de la trémie.

Les pièces mobiles de ce poêle sont mues par des moteurs

électriques au couple élevé. Éloignez toutes les parties du

corps de la tarière lorsque le poêle est branché sur la prise

électrique. Ces pièces mobiles peuvent commencer à

bouger à tout moment lorsque le poêle est branché.

Ne placez aucun vêtement ou autre objet inﬂammable

sur ou près du poêle.

En cas d’installation dans une maison mobile, le poêle

doit être mis à la terre directement sur le châssis d’acier

et boulonné au sol. AVERTISSEMENT - CET APPAREIL NE

DOIT PAS ÊTRE INSTALLÉ DANS LA CHAMBRE. ATTENTION -

L’INTEGRITE STRUCTURELLE DU SOL, DES MURS ET DU TOIT/

DU PLAFOND DE LA MAISON MOBILE DOIT ETRE RESPECTEE.

Cet appareil n’est pas destiné à un usage commercial.

ATTENTION: La combustion du combustible génère du

monoxyde de carbone qui peut s’avérer dangereux pour

la santé en l’absence d’une ventilation appropriée.

* Cet appareil est un appareil de chauffage autonome.

Il n’est pas conçu pour être relié à des conduits de

distribution d’air. Ce n’est pas un fourneau.

MODÈLE: AP5710

United States Stove Company

227

Industrial Park Rd.,

South Pittsburg, TN 37380

PH: (800) 750-2723

www.usstove.com

• VEUILLEZ LIRE L’INTÉGRALITÉ DE CE MANUEL AVANT L’INSTALLATION

ET L’UTILISATION DE CET APPAREIL. LE NON-RESPECT DE CES

INSTRUCTIONS PEUT ENTRAÎNER DES DOMMAGES MATÉRIELS, DES

BLESSURES CORPORELLES OU MÊME LA MORT.

• CONTACTEZ VOTRE BÂTIMENT LOCAL OU LES RESPONSABLES DES

INCENDIES POUR OBTENIR DES PERMIS, DES RESTRICTIONS ET DES

EXIGENCES D’INSPECTION D’INSTALLATION DANS VOTRE RÉGION.

• ENREGISTREZ CES INSTRUCTIONS. CE MANUEL VOUS AIDERA

À OBTENIR UN SERVICE EFFICACE ET FIABLE DE L’APPAREIL DE

CHAUFFAGE ET VOUS PERMETTRA DE COMMANDER CORRECTEMENT

LES PIÈCES DE RECHANGE. CONSERVER DANS UN ENDROIT SÛR

POUR RÉFÉRENCE FUTURE.

Certié pour: ASTM E1509-12 (2017) et Certié

pour: ULC-S627-00

Rapport #: F19-549

Cet appareil n’a pas été conçu pour être utilisé

en tant que source principale de chaleur.

US Environmental Protection Agency

Certié conforme aux normes d’émissions de

2020 à particules

AVERTISSEMENT CONCERNANT LA PROPOSITION 65 DE L'ÉTAT DE LA CALIFORNIE :

Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de

carbone, lesquels sont reconnus dans l’État de la Californie comme causant le cancer et

des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de

renseignements, veuillez consulter le site www.P65warnings.ca.gov

Ce manuel peut être modié sans préavis.

TOUTES LES PHOTOS MONTRÉES SONT UNIQUEMENT À DES FINS

ILLUSTRATIVES. LE PRODUIT RÉEL PEUT VARIER EN RAISON DE

L’AMÉLIORATION DU PRODUIT.

• IMPORTANT: Veuillez lire entièrement ce guide avant

d’installer et d’utiliser le produit. Le non-respect de cette

consigne peut entraîner des dommages matériels, des

blessures et même la mort. L’installation appropriée de ce

poêle est essentielle pour un fonctionnement efcace en

toute sécurité.

• Installez l’évacuation des fumées en respectant les

dégagements spéciés par le fabricant de conduits

d’évacuation.

• Ne reliez pas l’évacuation pour poêle à granulés à une

évacuation utilisée pour un autre appareil ou un autre

poêle.

• N’installez pas de registre de tirage sur le système

d’évacuation de cet appareil.

• L’utilisation d’air extérieur n’est pas nécessaire pour cet

appareil.

• Adressez-vous aux autorités locales de l’urbanisme pour

obtenir un permis et des renseignements sur toute autre

restriction à l’installation et sur les exigences d’inspection

dans votre région.

• Ne jetez pas ce guide. Ce guide contient des directives

d’utilisation et d’entretien importantes dont vous pourriez

avoir besoin. Suivez toujours les directives du guide.

• L’appareil est conçu pour être utilisé avec du combustible

en granulés conforme à ou excédant la norme établie

par le Pellet Fuel Institute (PFI). L’utilisation d’autres

combustibles annule la garantie.

• N’utilisez jamais d’essence, de combustible à lanterne de

type essence, de kérosène, d’essence d’allume-feu ou

d’autres liquides similaires pour allumer ou raviver le feu

dans ce poêle. Gardez tous ces liquides éloignés du poêle

lorsqu’il est en marche.

• Un détecteur de fumée fonctionnel doit être installé dans

la pièce où se trouve le poêle.

• Installez un détecteur de fumée à chaque étage de votre

maison; en cas d’incendie accidentel dû à n’importe

quelle cause, ce dispositif peut laisser le temps de

s’échapper.

• Le détecteur de fumée doit être installé à au moins 15

pieds (4,57 m) de l’appareil an d’éviter qu’il ne se

déclenche inutilement lors du rechargement du poêle.

• Ne débranchez pas le poêle si vous soupçonnez un

dysfonctionnement. Placez le contacteur ON/OFF sur «

OFF » puis prenez contact avec le concessionnaire.

• Ce poêle doit être régulièrement entretenu et nettoyé

(voir la section « ENTRETIEN »). Le défaut d’entretien du

poêle peut entraîner un fonctionnement inapproprié et

dangereux.

• Débranchez le cordon d’alimentation avant toute

opération d’entretien ! REMARQUE: Le fait de placer

l’interrupteur ON/OFF en position « OFF » ne coupe pas

entièrement l’alimentation des composants électriques

du poêle.

• Ne tentez jamais de réparer ou de remplacer une pièce

du poêle sauf indication contraire dans les directives de

ce guide. Tous les autres travaux doivent être effectués

par un technicien qualié.

• Ne faites pas fonctionner le poêle lorsque la porte

d’observation est ouverte. Dans ce cas, la tarière ne

distribue pas les granulés et un problème de sécurité peut

se poser en raison des étincelles ou des fumées pénétrant

dans la pièce.

• Laissez le poêle refroidir avant d’effectuer tout entretien

ou nettoyage. Les cendres doivent être évacuées dans

un récipient métallique doté d’un couvercle hermétique.

Le récipient à cendres fermé doit être déposé sur une

surface non combustible ou sur le sol, bien à l’écart de

toute matière combustible, avant l’élimination dénitive.

• L’accumulation de suie ou de créosote dans le système

d’évacuation des fumées doit être vériée mensuellement

au cours de la saison de chauffage.

• Ne touchez pas aux surfaces chaudes du poêle. Enseignez

aux enfants les dangers des poêles à haute température.

Les jeunes enfants doivent être surveillés lorsqu’ils se

trouvent dans la même pièce que le poêle.

• La trémie et le couvercle du poêle sont chauds pendant

le fonctionnement ; vous devez toujours protéger vos

mains lors du remplissage du poêle.

• Un disjoncteur doit être installé. Cet appareil doit être

branché sur une prise murale avec terre de 110-120 V, 60

z. N’utilisez pas d’adaptateur de prise et ne coupez pas

la che de terre. N’acheminez pas le cordon électrique

sous, devant ou sur le poêle. Ne faites pas courir le cordon

électrique dans les zones de passage et ne le coincez pas

sous les meubles.

• Le poêle ne fonctionne pas pendant les coupures

de courant. En cas de panne de courant, veillez aux

émanations de fumée du poêle et ouvrez une fenêtre si la

fumée se répand dans la pièce.

• La porte de remplissage doit être fermée et étanche

pendant le fonctionnement.

• N’obstruez jamais la circulation de l’air des grilles

d’aération ouvertes de l’appareil.

• Éloignez tout objet étranger de la trémie.

• Les pièces mobiles de ce poêle sont mues par des moteurs

électriques au couple élevé. Éloignez toutes les parties du

corps de la tarière lorsque le poêle est branché sur la prise

électrique. Ces pièces mobiles peuvent commencer à

bouger à tout moment lorsque le poêle est branché.

• Ne placez aucun vêtement ou autre objet inﬂammable

sur ou près du poêle.

• En cas d’installation dans une maison mobile, le poêle

doit être mis à la terre directement sur le châssis d’acier

et boulonné au sol. AVERTISSEMENT - CET APPAREIL NE

DOIT PAS ÊTRE INSTALLÉ DANS LA CHAMBRE. ATTENTION -

L’INTEGRITE STRUCTURELLE DU SOL, DES MURS ET DU TOIT/

DU PLAFOND DE LA MAISON MOBILE DOIT ETRE RESPECTEE.

• Cet appareil n’est pas destiné à un usage commercial.

• ATTENTION: La combustion du combustible génère du

monoxyde de carbone qui peut s’avérer dangereux pour

la santé en l’absence d’une ventilation appropriée.

• * Cet appareil est un appareil de chauffage autonome.

Il n’est pas conçu pour être relié à des conduits de

distribution d’air. Ce n’est pas un fourneau.

Consignes de sécurité

Lisez l’intégralité de ce manuel avant d’installer et d’utiliser votre

poêle à granulés. Le non-respect des instructions peut entraîner des

dommages matériels, des blessures corporelles ou même la mort!

Voir les détails d’installation spéciques pour les dégagements et

autres exigences d’installation.

- Soutenue par un piédestal / des pieds et

placée sur une surface de plancher incombustible conformément

aux exigences de dégagement pour une installation de poêle

autoportant.

Votre poêle à granules peut être installé pour coder dans une

maison conventionnelle ou mobile (voir «Exigences spéciales pour

les maisons mobiles»). Il est recommandé que seul un technicien

agréé installe votre poêle à granulés, de préférence un spécialiste

certié NFI. NE CONNECTEZ PAS CET APPAREIL À UN CONDUIT OU

SYSTÈME DE DISTRIBUTION D’AIR. L’utilisation d’autres composants

que ceux indiqués dans le présent document peut provoquer des

lésions corporelles, des dommages au chauffage et annuler votre

garantie.

Le fabricant ne sera pas tenu responsable des dommages causés

par le mauvais fonctionnement d’un poêle en raison d’une

ventilation ou d’une installation incorrecte. Appelez le (800) 750-

2723 et / ou consultez un installateur professionnel si vous avez des

questions.

Votre poêle à granules a été testé et répertorié pour une installation

dans une maison résidentielle et mobile conformément aux

dégagements indiqués ci-dessous. Pour des raisons de sécurité,

veuillez respecter les dégagements et restrictions d’installation.

Toute réduction du jeu aux combustibles ne peut être effectuée

que par des moyens approuvés par une autorité réglementaire.

Mur latéral au poêle

Mur latéral au tuyau de ventilation 11,5

Mur arrière au poêle 11,875

D Mur arrière au tuyau de ventilation

E Du plafond au sol

F Plafond au poêle 53,875

G Mur latéral au poêle 7,5

Mur latéral au tuyau de ventilation 11,25

Mur arrière au poêle 7,5

Mur arrière au tuyau de ventilation

Cet appareil de chauffage doit avoir un protecteur de plancher non-combustible (UL1618 protection de braises) installé au-

dessous si le plancher est en matériau combustible. US: protection de sol doit être UL ou égale aussi, a besoin d’étendre 6 po

à l’avant, 6 po de chaque côté, 1 po à l’arrière de l’appareil. Sous et 2 po au-delà de chaque côté du té de nettoyage si

un instillation vertical intérieur.

Canada: Protecteur de plancher doit se conformer à la norme CAN / ULC. Besoins d’étendre 18 po à l’avant, 8 po au-delà

de chaque côté de l’unité.

Retour à Cuisinière

USA

CAN

Côté poêle

USA

CAN

De l'avant au poêle

USA

CAN

N Retour à Flue

Longueur totale

Largeur hors tout

* La taille des granulés peut inﬂuencer le débit réel d’alimentation en combustible et le temps de combustion. Le taux

d’alimentation en combustible peut varier de près de 20 %. Pour les meilleurs résultats, utilisez un combustible homologué PFI.

Spéciﬁcations

Caractéristiques électriques

Puissance électrique 110-120 volts ac, 60 HZ, 3,0 Amps

Watts (en fonctionnement) 125

Watts (allumeur en fonctionnement) 310

Dimensions

Hauteur 30,125 po (766 mm)

Largeur 18,5 po (47 mm)

Profondeur 20,375 po (52 mm)

Poids 128 lbs

Flue Size 3 po ou 4 po

AVERTISSEMENT: Il est contre les règlements fédéraux pour faire fonctionner ce poêle à bois d'une manière incompatible

avec les instructions d'utilisation dans le manuel du propriétaire.

Remarque: Enregistrez votre produit en ligne à www.usstove.com. Conservez votre reçu avec vos dossiers pour toute

réclamation.

Caractéristiques de chauffage

Taux de combustion du combustible* (à bas régime) 1,5 lbs./hr. (0,7 kg/hr)

Temps de combustion (à bas régime) 13 hrs. (approximate)

Capacité de la trémie 20 lbs. (9,1kg)

Flue Taille 3 po ou 4 po

CONSIDERATIONS CONCERNANT LES COMBUSTIBLES

Votre poêle à granulés est conçu pour brûler des granulés de bois de qualité supérieure conformes au Pellet Fuel Institute

(PFI) (minimum de 40 livres par pied cube densité, 1/4 po à 16/5 po de diamètre, la longueur ne dépasse pas 1,5 po non

inférieure à 8,200 Btu / lb humidité inférieure à 8% en poids, de cendre de moins de 1% en poids, et le sel à moins de 300 parties

par million). Pellets qui sont doux, contenir des quantités excessives de la sciure de bois en vrac, ont été ou sont mouillés, se

traduira par une réduction des performances. Stockez vos pellets dans un endroit sec. NE PAS entreposer le carburant dans les

autorisations d’installation de l’unité ou à l’intérieur de l’espace nécessaire pour le ravitaillement et l’élimination des cendres.

Cela pourrait provoquer un incendie de maison. Ne pas sur le feu ou utiliser des combustibles volatiles ou combustibles, cela

peut causer un danger de dommages personnels et matériels.

SECURITE ET CONFORMITE EPA

Votre poêle à granules a été approuvé pour une installation aux États-Unis et au Canada. Il peut également être installé dans

une maison préfabriquée ou mobile. Votre poêle est conforme à la norme ASTM E1509-12 (2017) et certié à ULC S627-00.

Ce manuel décrit l’installation et le fonctionnement du poêle à bois Ashley, AP5710 Cet appareil de chauffage respecte

les limites d’émission de bois de berceau de l’Environmental Protection Agency des États-Unis de 2020 pour les appareils de

chauffage au bois vendus après le 15 mai 2020. Dans des conditions de test spéciques, il a été démontré que cet appareil

de chauffage fournit de la chaleur à des taux allant de 13 281 à 27 492 Btu / h. Cet appareil de chauffage a atteint un taux

d’émissions de particules de 1,0 g / h lorsqu’il a été testé selon la méthode ASTM E2779-10 (* et une efcacité de 69%).

OPTIONS D’INSTALLATION

Lisez l’intégralité de ce manuel avant d’installer et d’utiliser votre

poêle à granulés. Le non-respect des instructions peut entraîner des

dommages matériels, des blessures corporelles ou même la mort!

Voir les détails d’installation spéciques pour les dégagements et

autres exigences d’installation.

Unité autoportante - Soutenue par un piédestal / des pieds et

placée sur une surface de plancher incombustible conformément

aux exigences de dégagement pour une installation de poêle

autoportant.

Votre poêle à granules peut être installé pour coder dans une

maison conventionnelle ou mobile (voir «Exigences spéciales pour

les maisons mobiles»). Il est recommandé que seul un technicien

agréé installe votre poêle à granulés, de préférence un spécialiste

certié NFI. NE CONNECTEZ PAS CET APPAREIL À UN CONDUIT OU

SYSTÈME DE DISTRIBUTION D’AIR. L’utilisation d’autres composants

que ceux indiqués dans le présent document peut provoquer des

lésions corporelles, des dommages au chauffage et annuler votre

garantie.

INSTALLATION INCORRECTE

Le fabricant ne sera pas tenu responsable des dommages causés

par le mauvais fonctionnement d’un poêle en raison d’une

ventilation ou d’une installation incorrecte. Appelez le (800) 750-

2723 et / ou consultez un installateur professionnel si vous avez des

questions.

DÉGAGEMENTS

Votre poêle à granules a été testé et répertorié pour une installation

dans une maison résidentielle et mobile conformément aux

dégagements indiqués ci-dessous. Pour des raisons de sécurité,

veuillez respecter les dégagements et restrictions d’installation.

Toute réduction du jeu aux combustibles ne peut être effectuée

que par des moyens approuvés par une autorité réglementaire.

po mm

A Mur latéral au poêle 10 254

B Mur latéral au tuyau de ventilation 11,5 292

C Mur arrière au poêle 11,875 302

D Mur arrière au tuyau de ventilation 3 76

E Du plafond au sol 84 2 134

F Plafond au poêle 53,875 1 434

G Mur latéral au poêle 7,5 191

H Mur latéral au tuyau de ventilation 11,25 286

I Mur arrière au poêle 7,5 191

J Mur arrière au tuyau de ventilation 3 76

Installation

PROTECTION DU SOL

Cet appareil de chauffage doit avoir un protecteur de plancher non-combustible (UL1618 protection de braises) installé au-

dessous si le plancher est en matériau combustible. US: protection de sol doit être UL ou égale aussi, a besoin d’étendre 6 po

à l’avant, 6 po de chaque côté, 1 po à l’arrière de l’appareil. Sous et 2 po au-delà de chaque côté du té de nettoyage si

un instillation vertical intérieur.

Canada: Protecteur de plancher doit se conformer à la norme CAN / ULC. Besoins d’étendre 18 po à l’avant, 8 po au-delà

de chaque côté de l’unité.

MUR ARRIÈRE

PAROI LATÉRALE

MUR ADJACENT

po mm

K Retour à Cuisinière

USA 1 26

CAN 8 204

L Côté poêle

USA 6 153

CAN 8 204

M De l'avant au poêle

USA 6 153

CAN 8 204

N Retour à Flue 2 51

O Longueur totale 31 788

P Largeur hors tout 38 966

Protecteur De Plancher

À TRAVERS LE MUR

INSTALLATION

INSTALLATION VERTICALE INTÉRIEURE

Protecteur De Plancher

Au Canada, l’installation doit être conforme à la norme CAN/

CSA-B365. Pour évacuer l’appareil par le mur, raccordez

l’adaptateur de tuyau à l’adaptateur d’échappement du

moteur. Si l’adaptateur d’échappement se trouve à 18 po (762

mm) au moins au-dessus du sol, il est possible de traverser le mur

avec une section droite de conduit d’évacuation pour poêle

à granulés. Le concessionnaire revendeur du poêle devrait

pouvoir vous fournir un kit adapté à la plupart des cas pour cette

installation, dont une bague murale permettant de préserver le

dégagement nécessaire dans un mur en matériau combustible.

Une fois à l’extérieur de la structure, un dégagement de 3 po (76

mm) doit être conservé par rapport au mur extérieur et un T de

nettoyage doit être placé sur le tuyau selon un angle de 90 degrés

en s’éloignant de la maison. Puis une section de tuyau d’au moins

3 pi (0,91 m) doit être ajoutée, avec un chapeau horizontal pour

achever l’installation. Un support doit être placé juste au-dessous

du chapeau de sortie, ou à raison d’un support tous les 4 pi (1,22

m) pour rendre le système plus stable. Si vous vivez dans une

région où la neige est abondante, il est recommandé que la sortie

de l’installation se trouve à plus de 3 pi (0,91 m) pour échapper à

la ligne de congère. Cette même installation peut être utilisée si

le poêle se trouve sous le niveau du sol en ajoutant simplement

la section de nettoyage et un tuyau vertical à l’intérieur jusqu’au

niveau du sol. Avec cette installation, il faut tenir compte de

la ligne de congère, des herbes et des feuilles mortes. Nous

recommandons une élévation verticale minimum de 3 pi (0,91m) à l’intérieur ou à l’extérieur de la maison. L’installation « à

travers le mur » est la moins chère et la plus simple. Ne jamais placer la sortie d’évacuation sous une terrasse, dans une alcôve,

sous une fenêtre ou entre deux fenêtres. Nous recommandons les kits Simpson Dura-Vent® ou Metal-Fab®.

En cas d’évacuation des fumées du poêle par le plafond, le tuyau est raccordé comme pour l’évacuation par le mur, mais

le T de nettoyage est toujours à l’intérieur de la maison et un adaptateur de 3 po (76 mm) est ajouté avant le T de nettoyage.

Vous devez toujours utiliser les brides de support de plafond et le solin de toit adaptés (fournis par le fabricant de conduits;

suivez les instructions du fabricant). Il est important de noter que si la longueur de tuyau vertical est supérieure à 12 pi (3,7 m),

la taille du conduit d’évacuation pour poêle à granulés doit être de 4 po (102 mm) de diamètre. Ne dépassez pas 4 pi (1,22

m) de longueur horizontale de tuyau et utilisez le moins de coudes possible. S’il est nécessaire de décaler l’axe du tuyau, il est

préférable d’installer des coudes à 45 degrés plutôt qu’à 90 degrés.

A. Dégagement minimum 4 pi (1,22 m) sous ou à côté de toute

porte ou fenêtre ouvrante.

B. Dégagement minimum de 1 pi (0,3 m) au-dessus de toute

porte ou fenêtre ouvrante.

C. Dégagement minimum de 3 pi (0,91 m) de tout bâtiment

adjacent.

D. Dégagement minimum de 7 pi (2,13 m) au-dessus de tout

passage public.

E. Dégagement minimum de 2 pi (0,61 m) au-dessus de toute

plante, herbe ou autre matériau combustible.

F. Dégagement minimum de 3 pi (0,91 m) autour de l’entrée

d’air forcée de tout appareil.

G. Dégagement minimum de 2 pi (0,61 m) sous les avancées

de toiture ou surplombs.

H. Dégagement minimum de 1 pi (0,3 m) à l’horizontale de

tout mur en matériau combustible.

I. Doit se trouver au minimum à 3 pi (0,91 m) au-dessus du toit

et à 2 pi (0,61 m) au-dessus de toute faîtière du toit située à

moins de 10 pi (3,05 m).

INSTALLATION DANS LE

MUR TYPIQUE

EXIGENCES POUR L’EVACUATION

• Installez l’évacuation des fumées en respectant les dégagements spéciés par le fabricant d’évacuations.

• Ne reliez pas l’évacuation pour poêle à granulés à une évacuation utilisée pour un autre appareil ou un autre poêle.

• N’installez pas de registre de tirage sur le système d’évacuation de cet appareil.

Les directives d’installation ci-dessous doivent être respectées pour garantir la conformité tant avec la liste de sécurité de

ce poêle qu’avec les codes de construction locaux. Ne pas recourir à des méthodes de fortune ou à des compromis lors de

l’installation.

IMPORTANT ! Cet appareil est équipé d’un système de tirage négatif qui extrait l’air au travers de la chambre de combustion

et repousse la fumée hors du logement. Si cet appareil est branché à un système d’évacuation des fumées autrement que

de la manière expliquée dans ce guide, il ne peut fonctionner correctement.

DISTANCE D’EVACUATION MAXIMALE

L’installation DOIT comporter au moins 3 pi (91 cm) de conduit vertical hors de la maison. Ceci crée un appel d’air naturel qui

limite le risque de fumée ou d’odeur lors de l’arrêt de l’appareil et évite que l’évacuation ne provoque des nuisances et un

danger en exposant les personnes ou les buissons à des températures élevées. La hauteur verticale maximale recommandée

pour l’évacuation des fumées est de 12 pi (3,66 m) pour une évacuation de type « PL » de 3 po (76 mm). La longueur totale

de l’évacuation horizontale NE DOIT PAS dépasser 4 pi (1,22 m). Ceci pourrait provoquer une contre-pression. N’utilisez pas

plus de 180 degrés de coudage (deux coudes à 90 degrés, ou deux coudes à 45 degrés et un coude à 90 degrés, etc.) pour

conserver un tirage adéquat.

MPORTANCE DU PROJET CORRECTE

Le tirage est la force qui déplace l’air de l’appareil à travers la cheminée. Le montant du projet dans votre cheminée

dépend de la longueur de la cheminée, la géographie locale, les obstructions avoisinantes et d’autres facteurs. Trop projet

peut causer des températures excessives dans l’appareil. Un tirage inadéquat peut provoquer un retour de fumée dans

la pièce et «brancher» de la cheminée. Un tirage inadéquat entraînera l’appareil à une fuite de fumée dans la pièce par

appareil et le connecteur de cheminée joints. Une combustion incontrôlable ou une température excessive indique un tirage

excessif. Prendre en compte l’emplacement de la cheminée pour assurer qu’il ne soit pas trop proche de voisins ou dans une

vallée qui peut causer des conditions insalubres ou nuisibles.

TYPE D’EVACUATION POUR POELE A GRANULES

Utilisez pour l’installation un système d’évacuation pour poêle à granulés de type « PL » de 3 ou 4 po (76 à 102 mm) homologué

UL et xez-le au raccord de tube installé à l’arrière du poêle (utilisez un adaptateur de 3 ou 4 po pour un tuyau de 4 po). Le

raccord à l’arrière du poêle doit être étanchéié avec du RTV haute température (composé de caoutchouc de silicone

résistant aux variations de température). Utiliser une évacuation de 4 po si sa hauteur doit dépasser 12 pi (3,66 m) ou si

l’installation se trouve à plus de 2 500 pi (762 m) d’altitude. Nous recommandons l’utilisation de conduits Simpson Dura-Vent®

ou Metal-Fab® (si vous utilisez d’autres tuyaux, consultez les codes de construction locaux et/ou les inspecteurs en bâtiment).

N’utilisez pas de tuyaux d’évacuation de gaz de type B ni de tuyaux galvanisés avec cet appareil. Le conduit d’évacuation

pour poêle à granulés est conçu pour être démonté aux ns de nettoyage et doit être vérié plusieurs fois au cours de la

saison de chauffage. Le conduit d’évacuation pour poêle à granulés n’est pas fourni avec l’appareil et doit être acheté

séparément.

INSTALLATION DE L’EVACUATION POUR POELE A GRANULES

L’installation doit comprendre un T de nettoyage pour permettre la collecte des cendres volantes et le nettoyage périodique

du système d’évacuation des fumées. Les coudes à 90 degrés accumulent les cendres volantes et la suie, réduisant par là

même le débit de l’évacuation et les performances du poêle. Chaque coude ou T réduit le potentiel de tirage de 30 à 50 %.

Tous les raccords du système d’évacuation doivent être xés par au moins 3 vis, et scellés avec une colle de silicone RTV

haute température pour les rendre étanches à l’air. La zone où le conduit d’évacuation sort de la maison doit être scellée

au silicone ou un autre moyen pour préserver le pare-vapeur entre l’extérieur et l’intérieur de la maison. Les surfaces

d’évacuation peuvent devenir assez chaudes pour provoquer des brûlures si des enfants venaient à y toucher. Un blindage

ou des protections non combustibles peuvent s’avérer nécessaires.

SORTIE DE L’EVACUATION POUR POELE A GRANULES

Ne pas faire sortir l’évacuation dans un endroit clos ou semi clos, tel qu’un abri pour voiture, garage, grenier, vide sanitaire, sous

une terrasse ou un porche, dans un passage étroit ou tout autre endroit susceptible de permettre à la fumée de s’accumuler.

La sortie dans un endroit de ce type peut aussi provoquer des conditions de pression impossibles à prévoir pour l’appareil,

et entraîner de mauvaises performances et/ou un dysfonctionnement. La sortie doit s’évacuer plus haut que l’entrée d’air

extérieur. La sortie ne doit pas être placée là où elle pourrait être obstruée par la neige ou d’autres matériaux. Ne faites pas

sortir l’évacuation dans une cheminée en acier ou en maçonnerie existante.

INSTALLATION AU TRAVERS DU MUR (INSTALLATION

RECOMMANDEE)
