USER’S MANUAL
Portable Document
canner S
Regulatory Model Number: FL-1513B
www.avision.com
User’s Manual
ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows, Windows Vista, Windows 7, Windows 8, and Windows 10 are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries.
Energy Star
®
is a registered trademark of the U.S. government.
IBM, IBM PC are registered trademarks of International Business Machines Corp.
Other brands and product names herein are trademarks or registered trademarks of their
respective holders.
Copyright
All rights reserved. No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual, or otherwise, without the prior written permission of Avision Inc.
Material scanned by this product may be protected by governmental laws and other
regulations, such as copyright laws, the customer is solely responsible for complying with
all such laws and regulations.
Information in this document is subject to change without notice. The software described
in this document is furnished under a license agreement or nondisclosure agreement.
The software may be used or copied only in accordance with the terms of those
agreements. No part of this publication can be reproduced in any form or by any means
without prior written permission of Avision Inc.
The optional Optical characters recognition (OCR) capabilities are provided by Nuance
Communications, Inc.
OmniPage Capture SDK
Copyright
©
2017 Nuance Communications, Inc. All rights reserved.
Omnipage is the trademark or registered trademark of Nuance Communications, Inc.
Warranty
The information contained in this document is subject to change without notice.
Avision makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
User’s Manual
iii
Federal Communications Commission (FCC) compliance information statement
Part 15
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
European Union Regulatory Notice
Products bearing the CE marking comply with the following EU
Directives:
Low Voltage Directive 2014/35/EC
EMC Directive 2014/30/EC
Restriction of the use of certain hazardous substances
(RoHS) Directive 2011/65/EU
RED (Radio Equipment Directive) (2014/53/EC)
CE compliance of this product is valid if powered with the correct CE-
marked AC adapter provide by Avision.
This product satisfies the Class B limits of EN55022, EN55024,
safety requirements of EN 60950 and ROHS requirements of
EN50581.
*This machine is certified as Class 1 LED product.
User’s Manual
iv
Disposal of Waste Equipment by Users in Private Union
This symbol on the product or on its packaging indicates that the
product can not be disposed of with your other household waste.
Instead it should be sent to appropriate facilities for recovery and
recycling in an effort to protect human health and the
environment. Fore more information about where you can drop off
your waste equipment for recycling, please contact your local city
office, your household waste disposal service or the shop where
you purchased the product.
As an ENERGY STAR
®
Partner, Avision Inc. has determined that
this product meets the ENERGY STAR guidelines for energy
efficiency.
System Requirements
CPU:
Intel
®
i3 or higher
Memory: 32 bit: 2 GB
64 bit: 4 GB
Optical Drive: DVD-ROM Drive
USB Port: USB 2.0 (compatible with USB 3.0)
Compatible Operating System: Microsoft Windows 10 (32 bits/64 bits),
Windows 8 (32 bits/64 bits), Windows 7,
Windows Vista, Windows XP (SP3)
User’s Manual
v
Product Safety Guide
Please clearly read all these instructions, and follow all instructions and warnings before
installing and using the device.
The following indications are used in this document to obviate any chance of accident or
damage to you and/or the device.
WARNING
CAUTION
Indicates potentially hazardous situations, which if
instructions are not followed, could result in death or
serious injury.
Indicates a potentially hazardous situation which, if
instructions are not followed, may result in minor or
moderate injury or damage to property.
WARNING
Use only the AC power cord and USB cable that came with your device and avoid
abrasions, cuts, fraying, crimping, and kinking. Using any other AC power cord
and USB cable could cause fire, electrical shock, or injury.
Do not place objects on top of the AC power cord, and do not allow the AC
power adapter or the AC power cord to be stepped on or run over.
Place the device and its AC power adapter near an electrical outlet where the AC
power adapter can easily be unplugged.
If you use an extension cord with the device, make sure that the total ampere
rating of the devices plugged into the extension cord does not exceed the cord's
ampere rating.
Place the device close enough to the computer so that the interface cable can
easily reach between the device and the computer.
Do not place or store the device or its AC power adapter:
Outdoors
Near excessive dirt or dust, water, or heat sources
In locations subject to shocks, vibrations, high temperature or humidity,
direct sunlight, strong light sources, or rapid changes in temperature or
humidity
Do not use the device with wet hands.
Never disassemble, modify, or attempt to repair the AC power adapter, device,
or device option by yourself, except as specifically explained in the device's
documentation. This could cause fire, electrical shock, or injury.
Do not insert objects into any opening, as they may touch dangerous voltage
points or short-out components. Beware of electrical shock hazards.
User’s Manual
vi
Unplug the device and the AC power adapter, and refer servicing to qualified
service personnel under the following conditions:
The AC power adapter or plug is damaged.
Liquid has entered the device or the AC power adapter.
Object has entered the device or the AC power adapter.
The device or the AC power adapter has been dropped, or the case has
been damaged.
The device or the AC power adapter does not operate normally (i.e.
appearance of smoke, strange smell, odd noise, etc.), or exhibits a distinct
change in performance
Unplug the device and the AC power adapter before cleaning.
CAUTION:
Do not locate the device on rackety or aslope tables. Do not locate the device
on unstable surface. The device may fall down and this may result in injury.
Do not place heavy objects on the unit. It may cause unbalance and the device
may fall down. This may result in injury.
Store the AC Power cord/USB cable bundled out of the reach of children to
avoid the risk of injury.
Keep plastic bags bundled out of the reach of children or throw them away to
avoid the danger of suffocation.
If you are not going to use the device for a long period, unplug the USB cable
from the electrical outlet.
User’s Manual
1
1
1. INTRODUCTION
1.1 Overview
Thank you for purchasing PaperAir 215L scanner. The PaperAir 215L scanner is compact
and easy to travel with your laptop computer. With the 20-page auto document feeder,
the PaperAir 215L is your ideal portable solution for batches scanning. The main features
of the PaperAir 215L are as follows:
Easy to Scan
Simply press the Scan button, the scan is started with the predefined scan
settings and the scanned image is stored in a predefined file location.
Easy to search
Simply enter your keyword(s), your document(s) can be easily searched from
the file name, tag information, and document contents within seconds as all
your document contents become searchable and editable after the text
recognition process and stored into a database.
Create searchable PDF files
You can create searchable PDF files by performing automatic text recognition
for PDF files after scanning.
Convert paper documents into Microsoft Word/Excel/PowerPoint files
Automatically recognize image text and save image and the text into a
Microsoft Word/Excel/PowerPoint file.
E-mail or print a scanned image directly from scanning
You can attach the scanned image to your default e-mail software application or
print it out with your printer instead of using a copy machine.
User’s Manual
2
1.2 Package Items

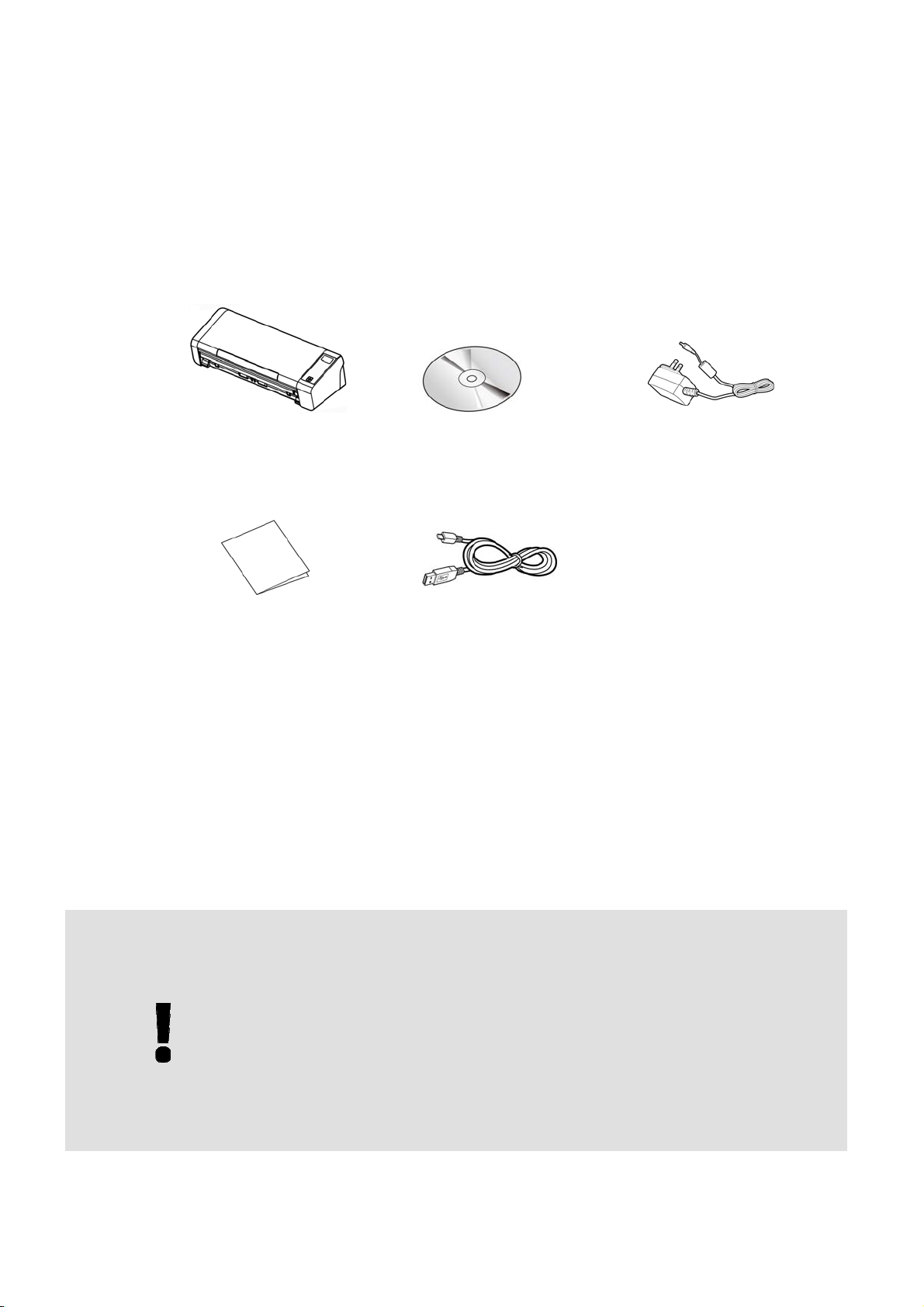

The following figure indicates the package contents. Please check all the items against
your checklist. If you do not receive all the items, please contact your authorized local
dealer immediately.
Scanner
Software CD
Power Adapter
Quick Guide
Micro USB Cable
NOTE
1. Only use the AC adapter WA-36A24R by APD included in the
machine. Using other AC adapters may damage the machine and
void the warranty.
2. Please unpack the packing carefully, and check the contents
against the checklist. If any items are missing or damaged, please
contact your dealer immediately.
3. To access more service supports, visit www.avision.com to register
your Avision’s product.
User’s Manual
3
1

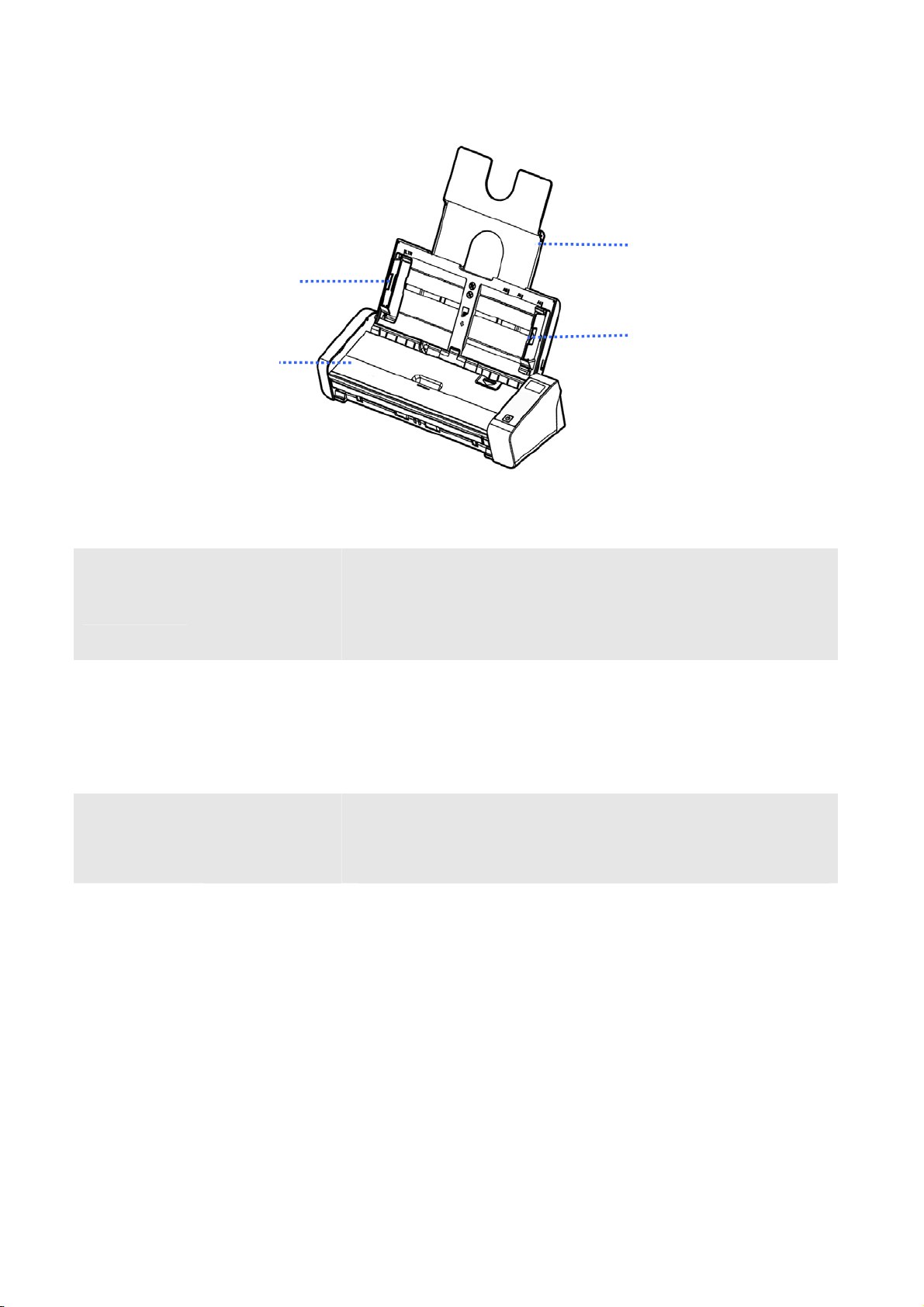

1.3 Front View

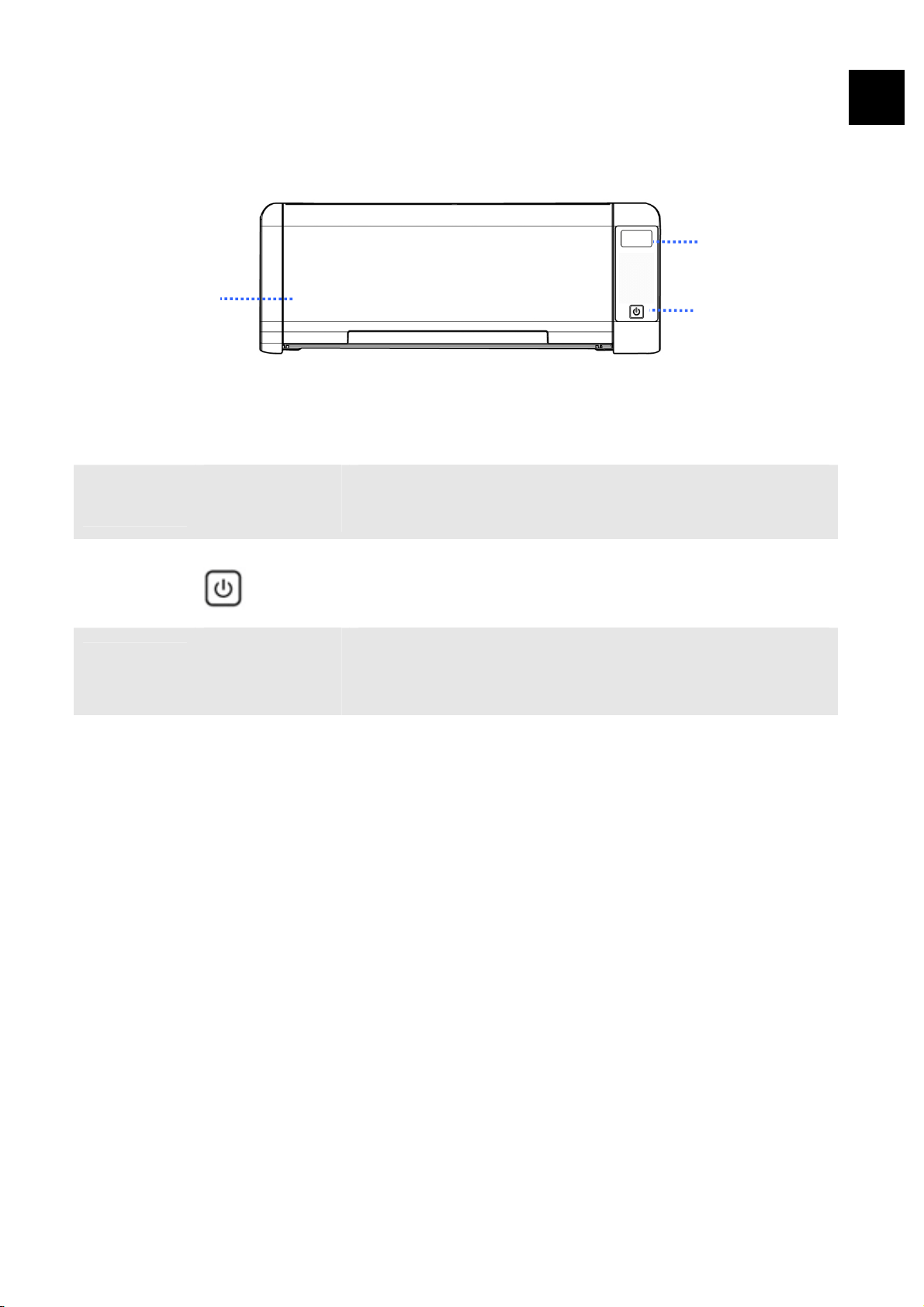

ITEM NAME DESCRIPTION
1
LCD Display Displays the scanner’s status.
2
Press to turn on/off the power.
3
ADF Paper
Tray
This tray is used for feeding documents. Open it when
scanning documents.
User’s Manual
4
ITEM NAME DESCRIPTION
1
Document
Extension
Plate
Open the plate to support the document when loading
a long document.
2
Document
Guides
These guides ensure documents are fed straight.
Raise the guides when loading a document, and then
align them to the edges of the document to be
scanned.
3
Front Feed
Tray
This tray is used for feeding documents. Open it when
scanning documents.
User’s Manual
5
1

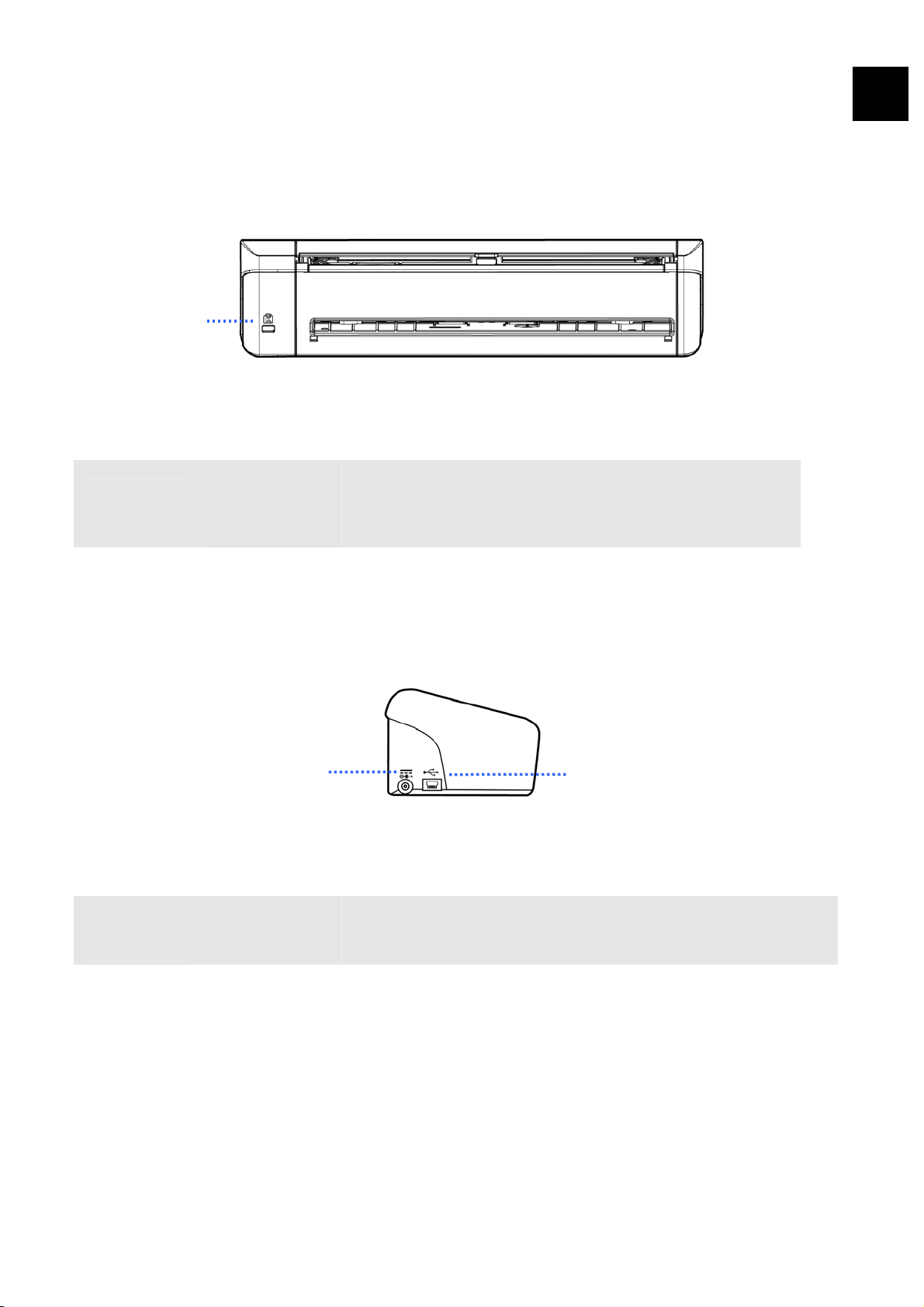

1.4 Rear View
ITEM NAME DESCRIPTION
1
Kensington
Security Slot
Attach to a lock to secure the scanner.
1.5 Side View
ITEM NAME DESCRIPTION
1
Power Jack Connect the AC adapter to the scanner.
2
Micro USB
Port
Used to plug the micro USB end of the USB cable to
connect to PC.
User’s Manual
Installation
6
2
2. SCANNER INSTALLATION
2.1 Precautions
Keep the scanner out of direct sunlight. Direct exposure to the sun or
excessive heat may cause damage to the unit.
Be sure to use the proper AC power source.
Do not install the scanner in a humid or dusty place.
Place the scanner securely on an even, flat surface. Tilted or uneven
surfaces may cause mechanical or paper-feeding problems.
Retain the scanner box and packing materials for shipping purposes.
2.2 Connecting to Power

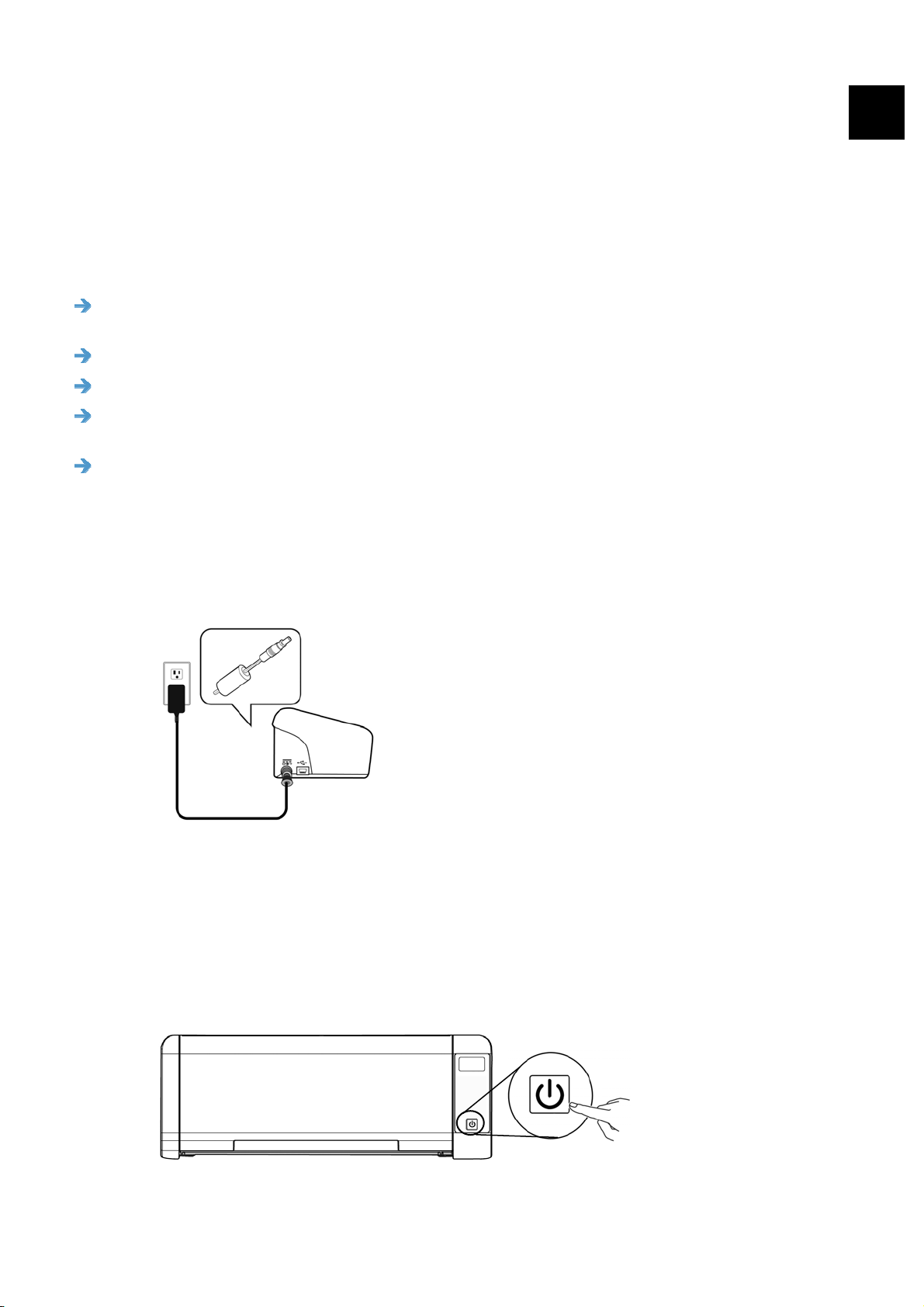

Plug the small end of the power adaptor into the power jack of your scanner. Insert the
other end to an appropriate power outlet.
2.3 Turning on the Power
Press the Power Switch button on the front panel, the Power LED will flash. When it is
finished and ready to scan, the LED indicator will stop flashing and become steadily on.
To turn off the scanner, press the Power Switch button for about 3 seconds, the Power
LED will be off.
User’s Manual
Installation
7
2.4 Connecting to the Computer

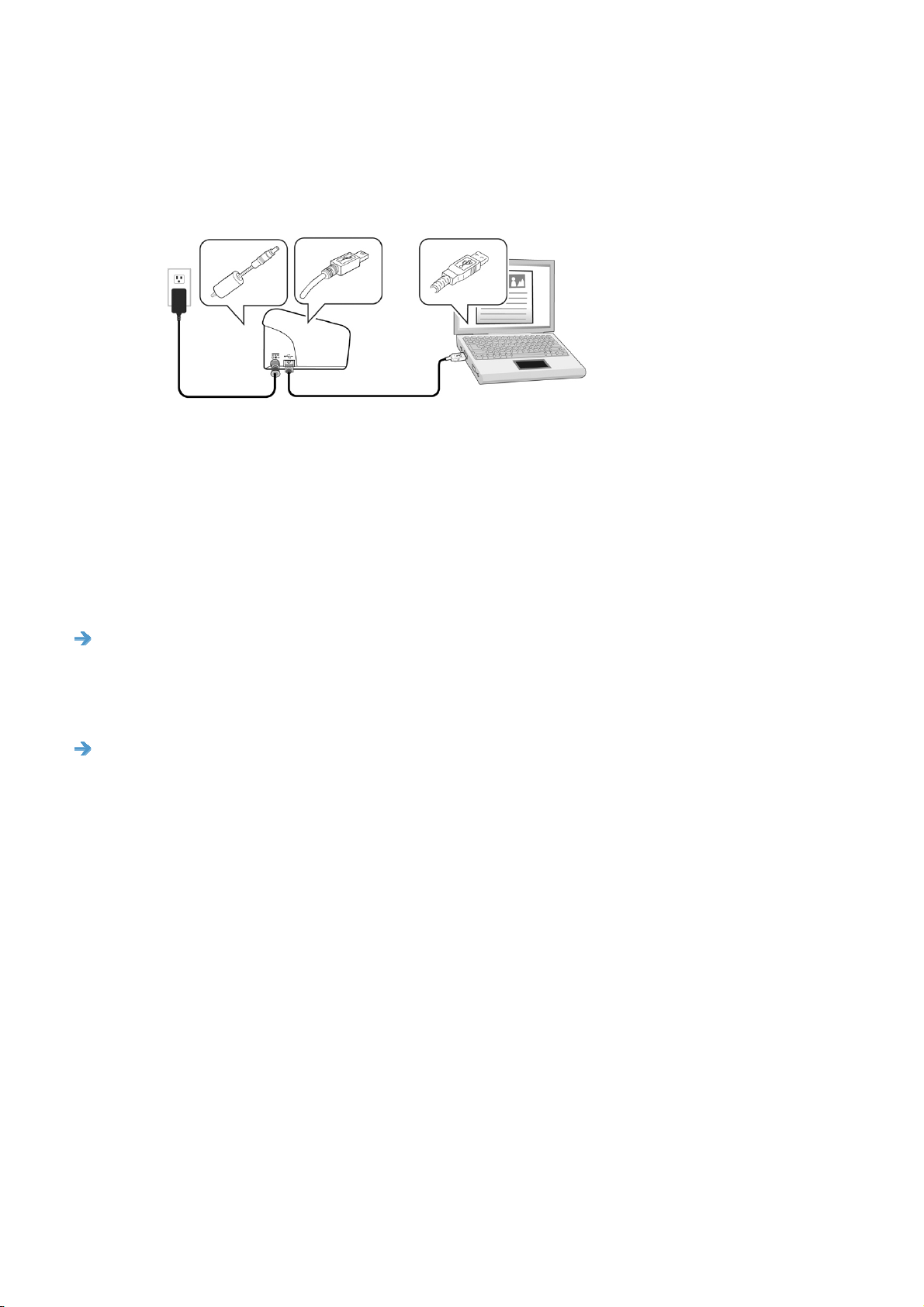

Connect the micro-USB end of the USB cable into the micro-USB port on your scanner. Plug
the rectangle end to the USB port at the rear side of your computer.
2.5 Installing the Software
2.5.1 Bundled Software Application
The PaperAir 215L scanner comes with the following software applications:
PaperAir Manager - An easy-to-use scanning software application
Install the application to scan paper documents to searchable PDF, or JPEG files
and send the scanned image to a specified destination or application such as E-
Mail, and Printer to access your documents more conveniently.
NewSoft Presto! BizCard – A software application used to scan and
manage your business cards
You can use this application to efficiently digitalize a large number of business
cards by performing text recognition on them. By creating your business cards
into a database, your contact information can be managed and searched more
efficiently.
2.5.2 Installation Steps
1. Insert the Setup DVD-ROM into the DVD-ROM drive on your computer.

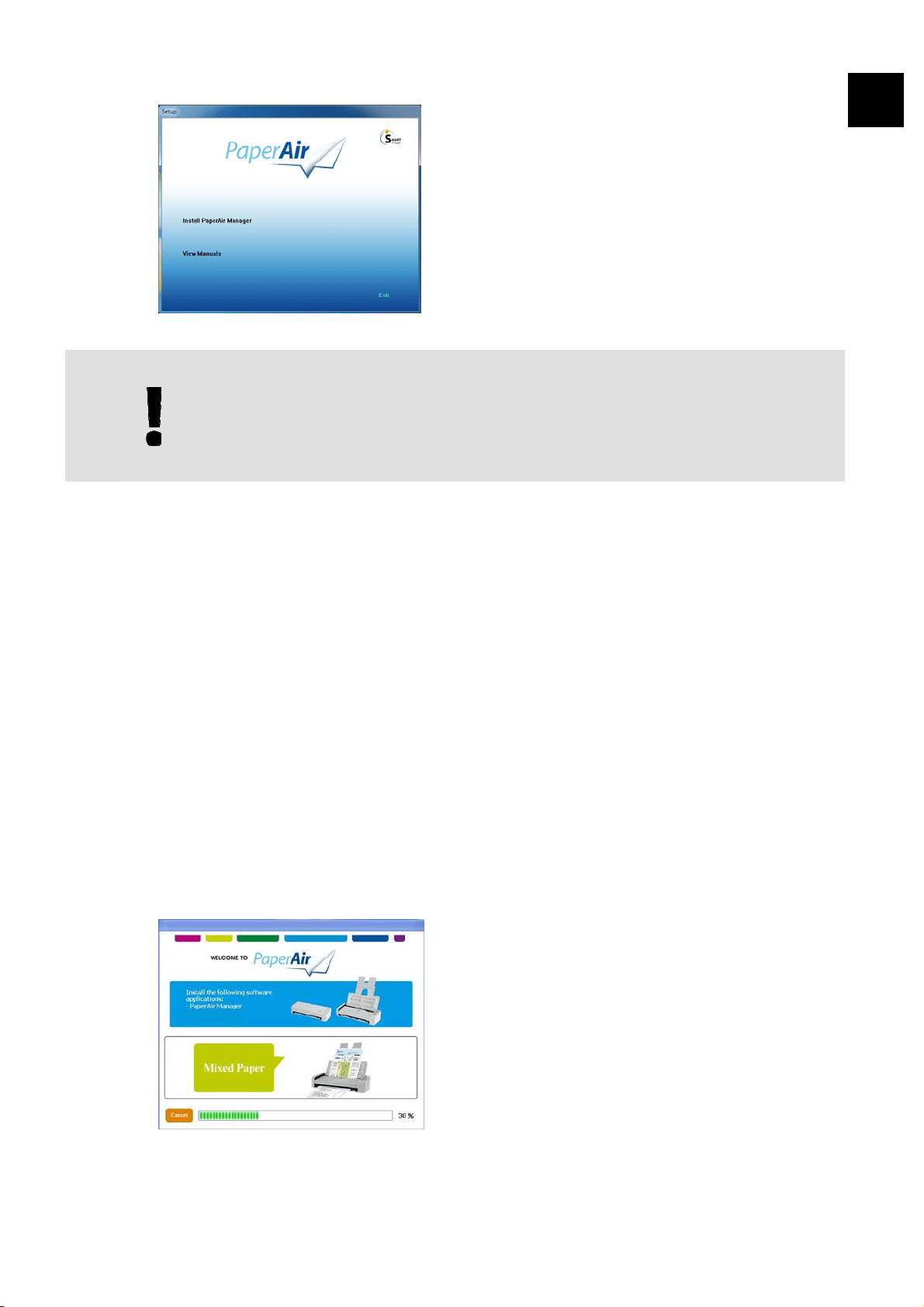

>> The following [Installation] graphic appears. Click [Install PaperAir
Manager].
User’s Manual
Installation
8
2
NOTE
If the [Installation] graphic does not appear, double-click "Setup.exe" in
the Setup DVD-ROM via Windows Explorer.
2. Select the language you will be used during the installation and click the [Next]
button.
>> A confirmation about accepting the license agreement appears.
3. Read the [END-USER LICENSE AGREEMENT], select [I accept the terms of
the license agreement], and then click the [Next] button.
>> A confirmation about accepting our privacy policy appears.
4. Read the [PRIVACY POLICY], select [I accept the terms of the privacy
policy], and then click the [Next] button.
Choose [Accept] to help us improve our product by collecting your operational
information and let us provide better service to you. If you do not accept our
privacy policy, you may continue to install the program.
>> A [Ready to Install the Program] dialog box appears.
5. Click [Install] to begin the installation.
6. Installation starts. When the installation is complete, the [How to connect the
scanner] dialog box appears.
User’s Manual
Installation
9
7. Follow the instructions to turn on your scanner and connect the scanner to your
computer with the USB cable.
8. Click the [Finish] button when the installation complete notification is displayed.
>>If the installation is successful, the PaperAir Manager’s main window will be
displayed and the PaperAir Manager’s icon will be displayed in Windows system
tray. If not, check if the scanner has been turned on and if the USB cable
connection is correct.
PaperAir Manager icon in the System Tray
PaperAir Manager’s Main Window
9. Remove the Setup DVD-ROM from the DVD-ROM drive.
User’s Manual
Completing Your First Scan
10
3
3. COMPLETING YOUR FIRST SCAN
3.1 Loading Your Paper
3.1.1 Notice on Using the ADF
Before using the ADF, please make sure that your paper meets the following
specifications:
Document (s) can range in size from 50 x 50 mm (2 x 2 in.) to 216 x 356
mm (8.5 x 14 in.)
Document (s) can range in weight from 50 ~ 105 g/m
2
(13 ~ 28 lb.) through ADF
Document (s) can range in weight from 27 ~ 413 g/m
2
(7 ~ 110 lb.) through the
Front Tray
ID cards up to 1.25 mm (0.05 in.) thick
Document(s) should be square or rectangular and in good condition (not fragile or
worn).
Document(s) should be free of curl, wrinkle, tears, wet ink, or punch holes.
Document(s) should be free of staples, paper clips, paper sticky notes.
3.1.2 Loading Your Document into the ADF Paper Tray
Fanning Your Document
IMPORTANT
To avoid occasional multi-feeds or paper jams, please fan your documents
and align the top edges before feeding them into the scanner.

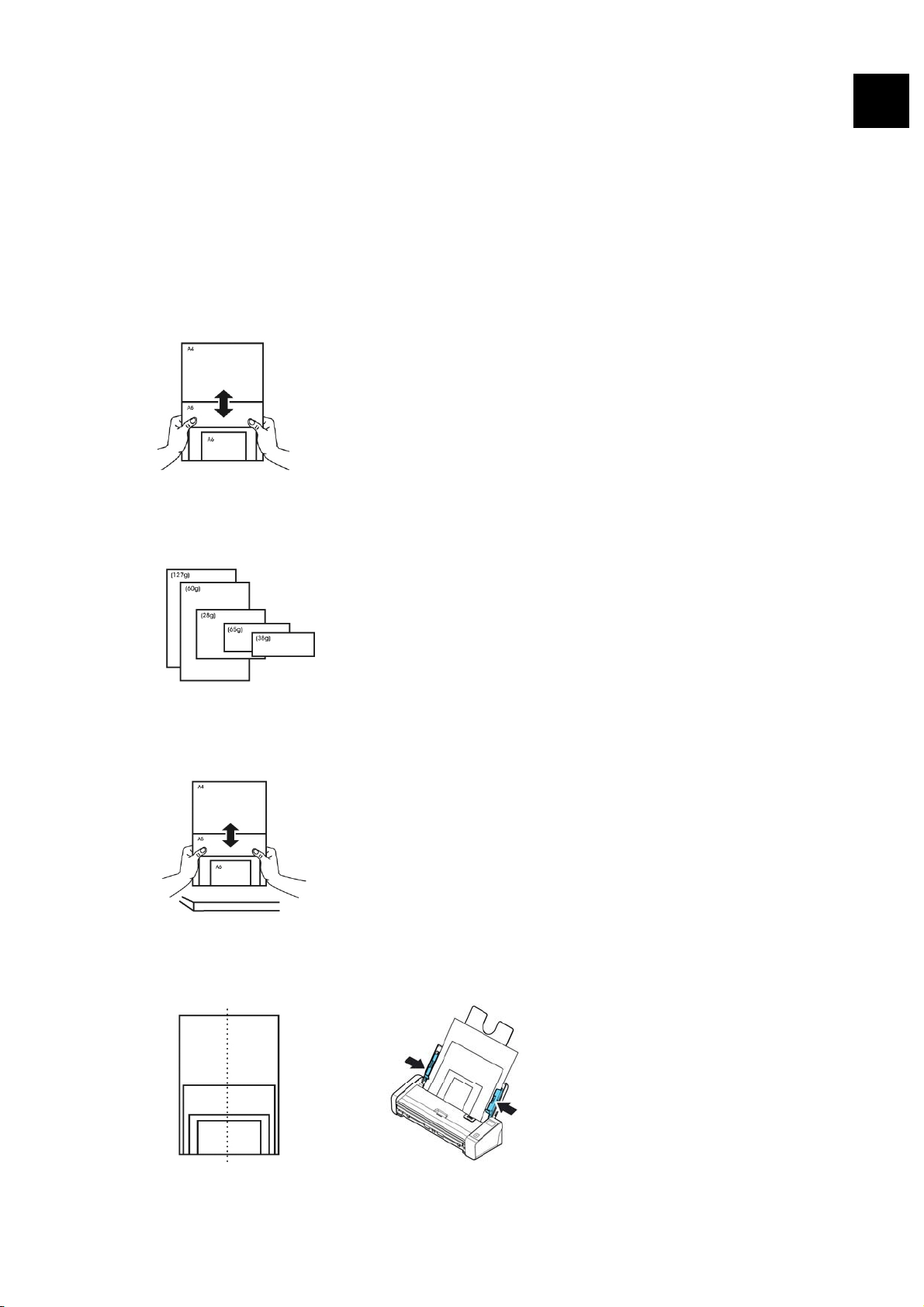

1. Hold both ends of the documents and fan them a few times.
User’s Manual
Completing Your First Scan
11
2. Rotate the documents by 90 degrees and fan them in the same manner.
3. Align the edges of the documents in a step-like pattern (see picture below)
Step-like
Scanning
Direction

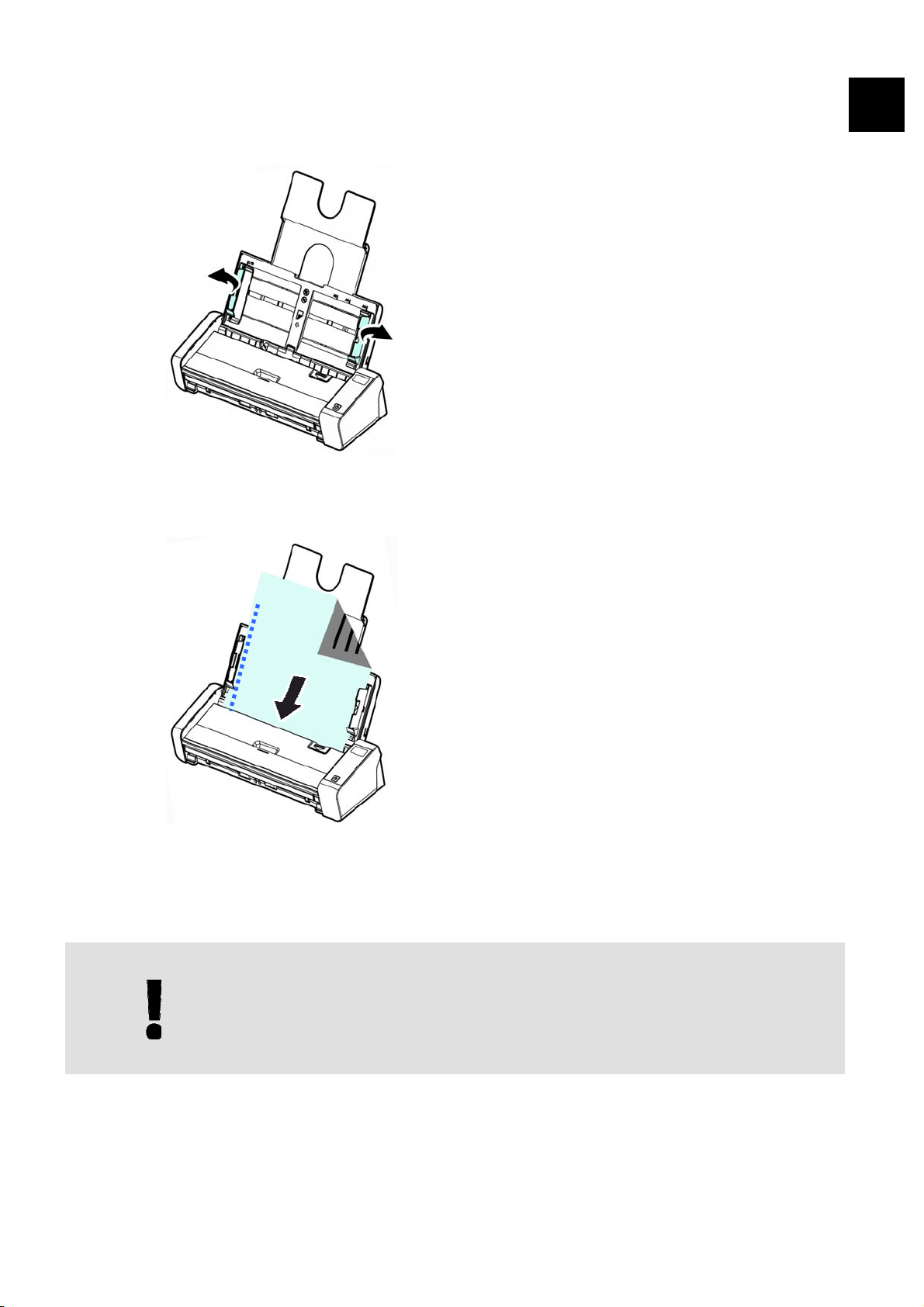

3.1.3 Loading Paper to the Document Feeder

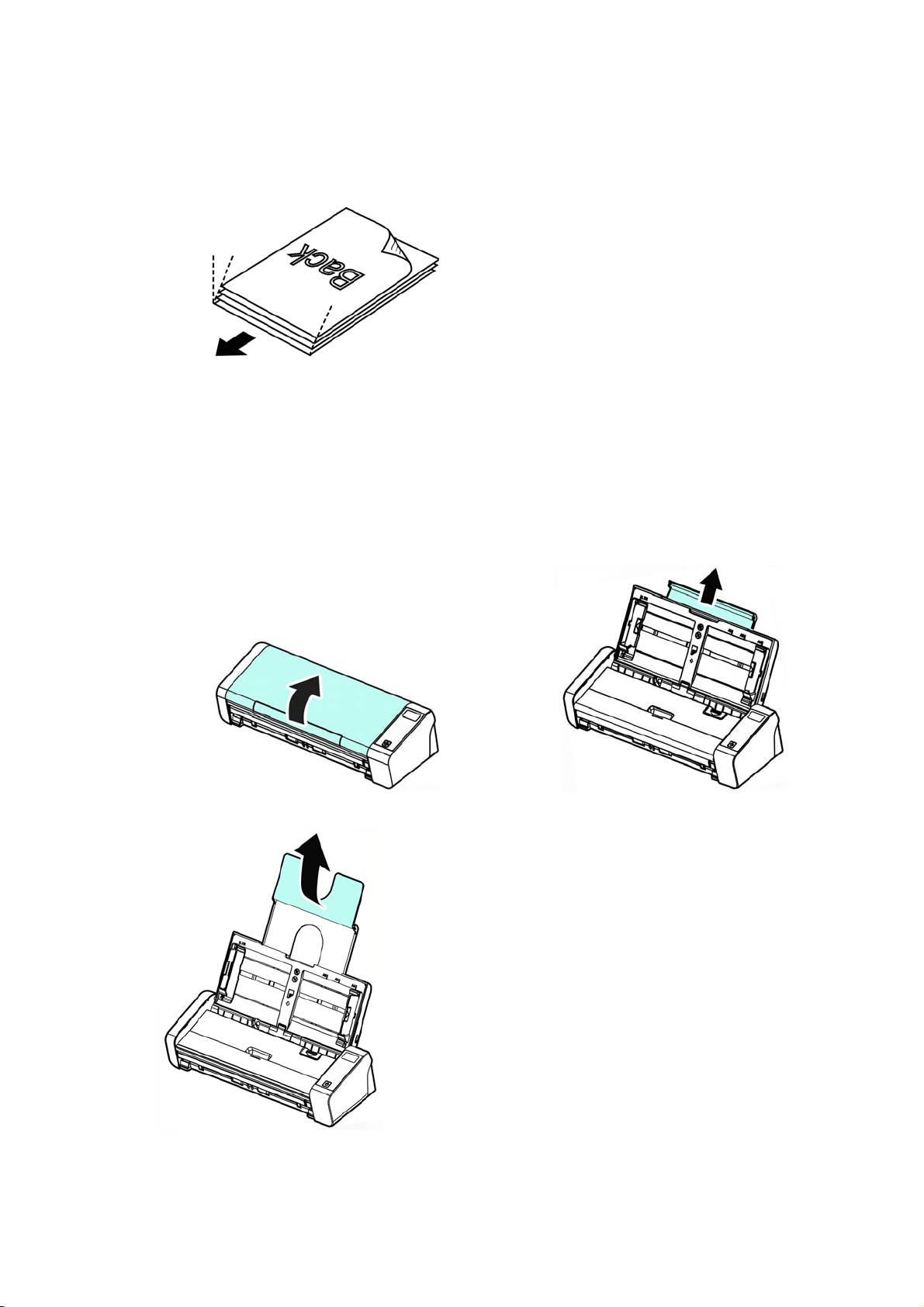

1. Unfold the document feeder and its extension.
User’s Manual
Completing Your First Scan
12
3
2. Raise the paper guide to hold your multi-page document.
3. Load the stack of document Facing Down with the top of the pages pointing into
the feeder.
4. Verify that the paper guides are aligned with the edges of the stack.
IMPORTANT
To load paper through the automatic document feeder, be sure to close the
cover of the front input tray.
User’s Manual
Completing Your First Scan
13
3.1.4 Loading A Single-Page Document into the Front
Input Tray

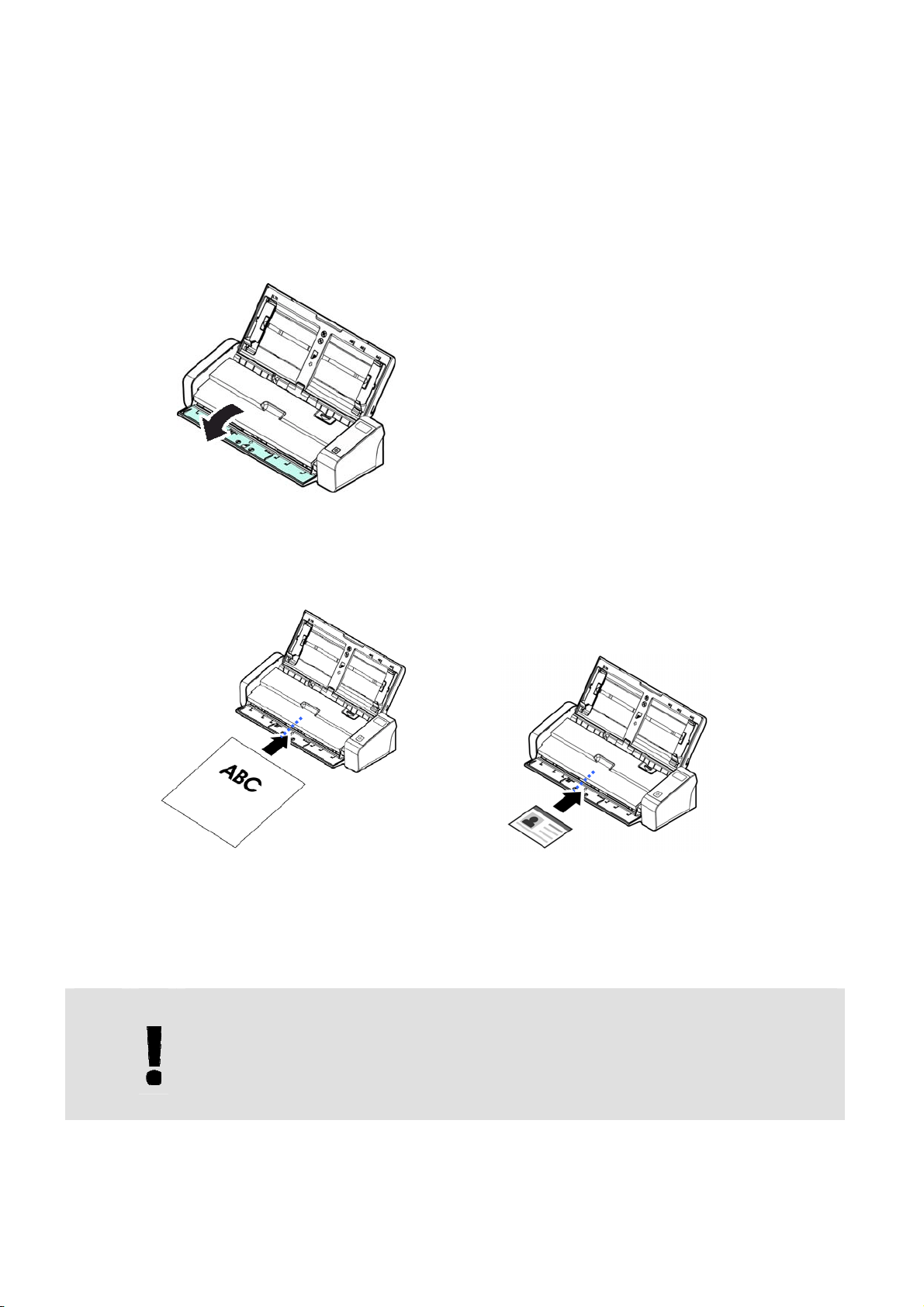

1. Open the cover of the front input tray.
2. Load your singe-page document to the front input tray with the top of the page
pointing to the front input tray. Load one-sided document with the text facing
up.
3. Center your document with the paper size marks.
IMPORTANT
Only one sheet of paper is allowed to load in the front paper tray.
User’s Manual
Completing Your First Scan
14
3
3.1.5 Scanning a Stack of Document with Various Sizes
and Weights
When scanning a batch of documents with different sizes and weights, be sure to follow
these guidelines to avoid a skewed image or a paper jam:
1. Align the documents TOP EDGE first in the sequence of paper size from large
to small.
2. If two pages are of the same size yet with different weight, arrange these pages
in the sequence of paper weight from heavyweight to lightweight.
3. Align the edges of the documents by tapping the bottom of the stack against
the table top.
4. Center these pages in the document feeder and make sure that the edges of
page of the largest size slightly touch the Paper Guide.
User’s Manual
Completing Your First Scan
15
3.2 Starting PaperAir Manager
After the PaperAir Manager software application has been properly installed, the PaperAir
Manager is started. The main window of PaperAir Manager and its icon will be displayed.

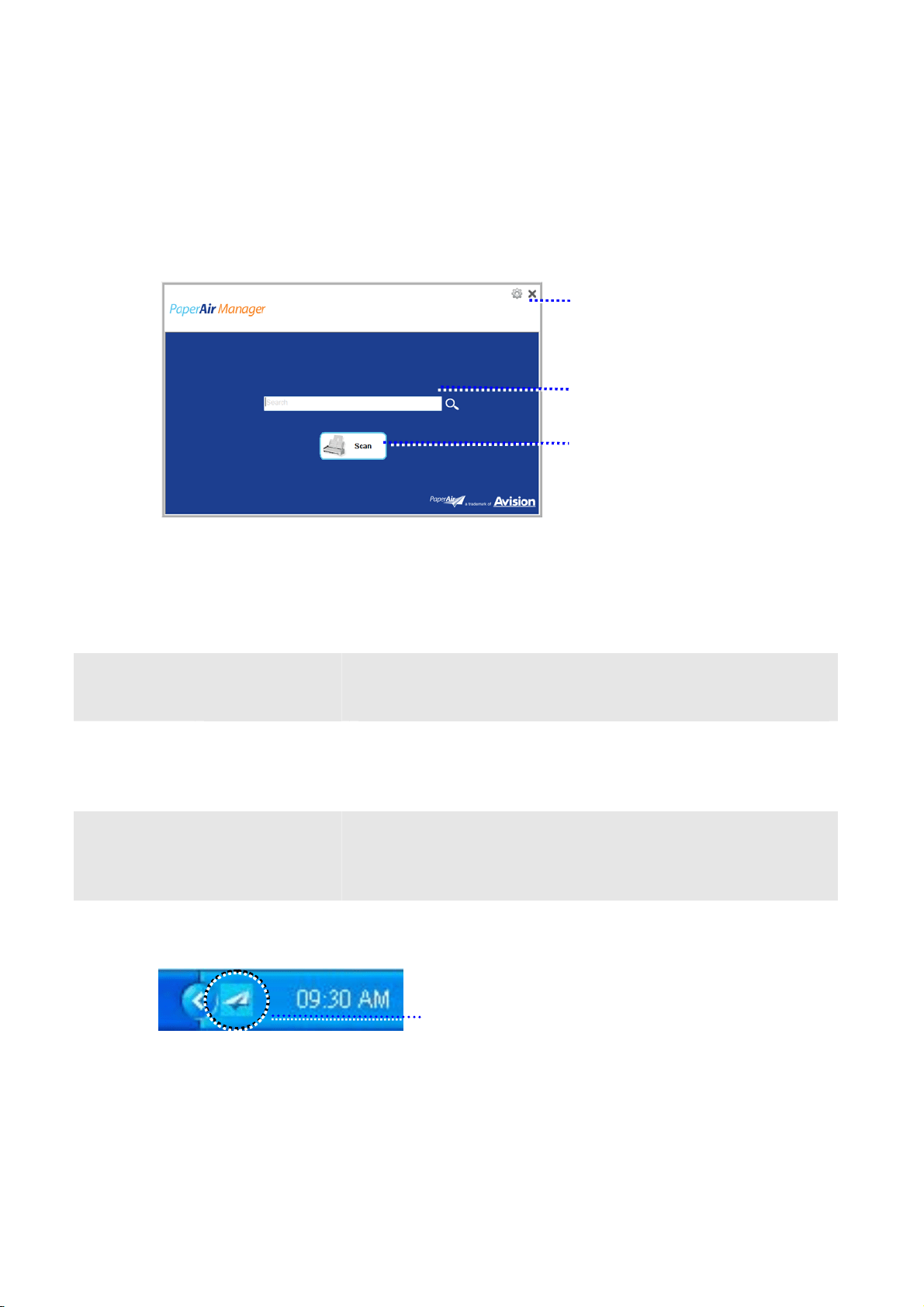

PaperAir Manager’s Main Window
ITEM NAME DESCRIPTION
1
Options More settings of the PaperAir Manager.
2
The Keyword
Field
Enter your keyword(s) to search your scanned
document from the database.
3
The Scan
Button
Click to start a scan with predefined scan settings.

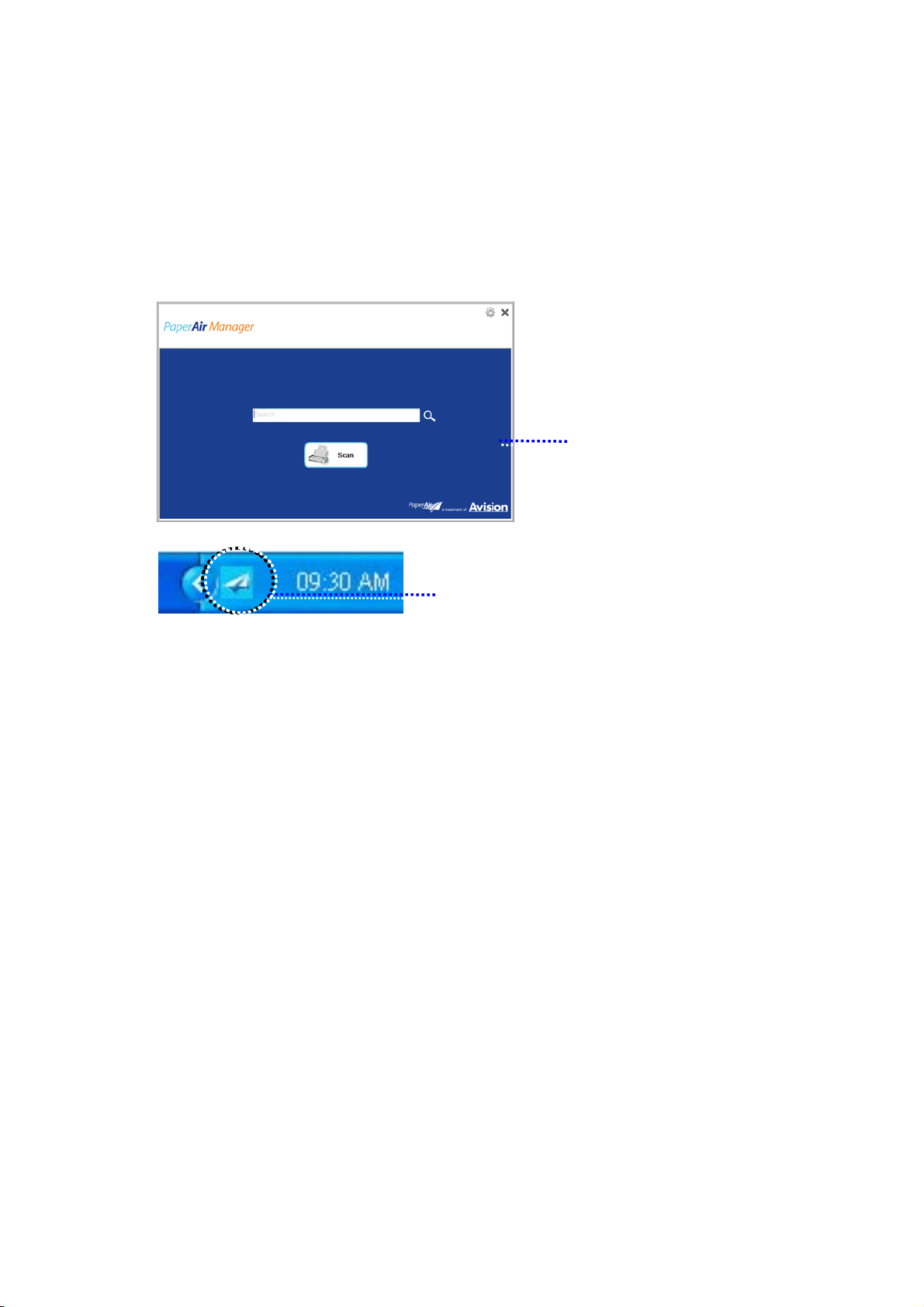

PaperAir Manager’s icon in the System Tray
User’s Manual
Completing Your First Scan
16
3
3.3 Checking Scan Settings Before Scanning

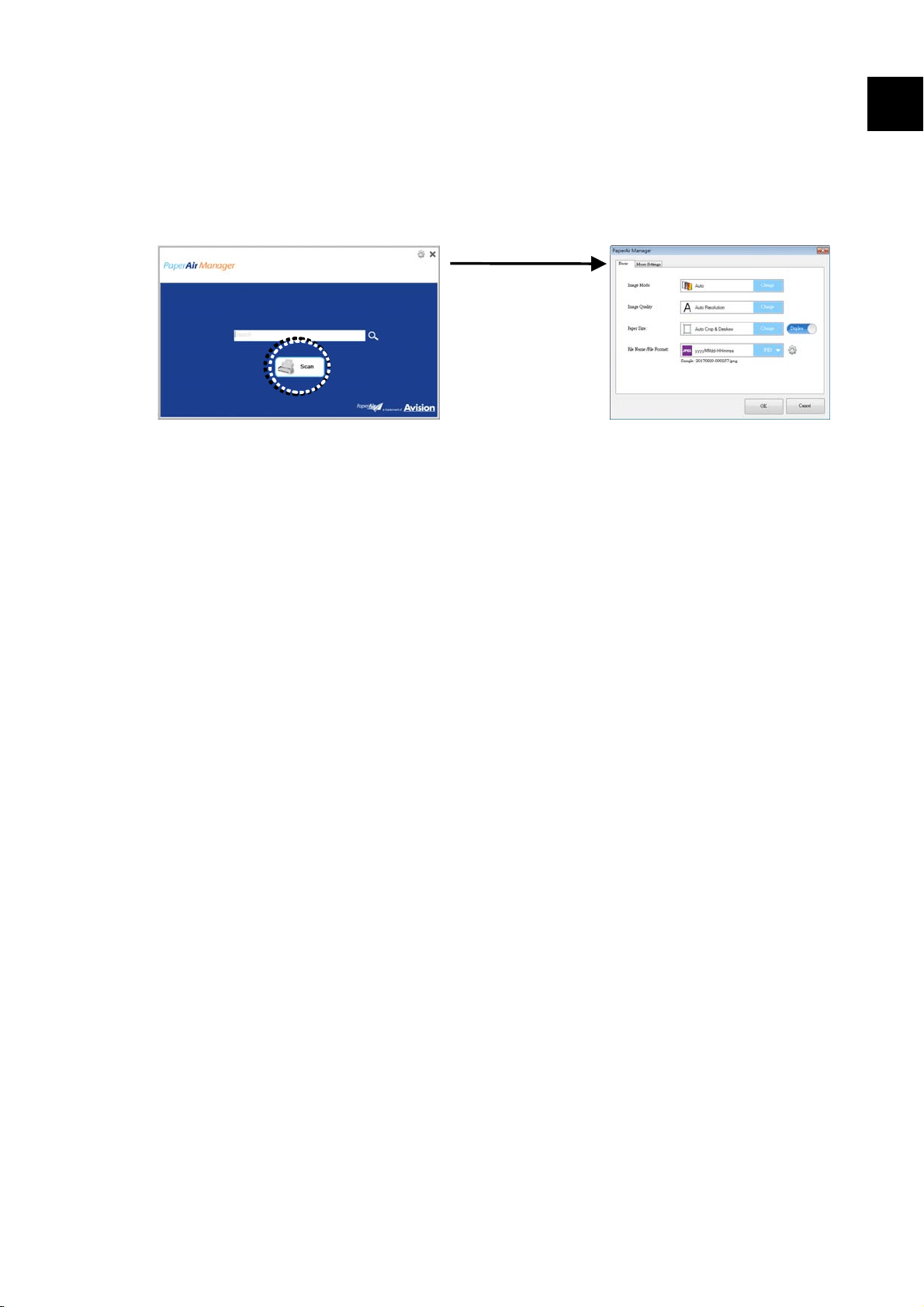

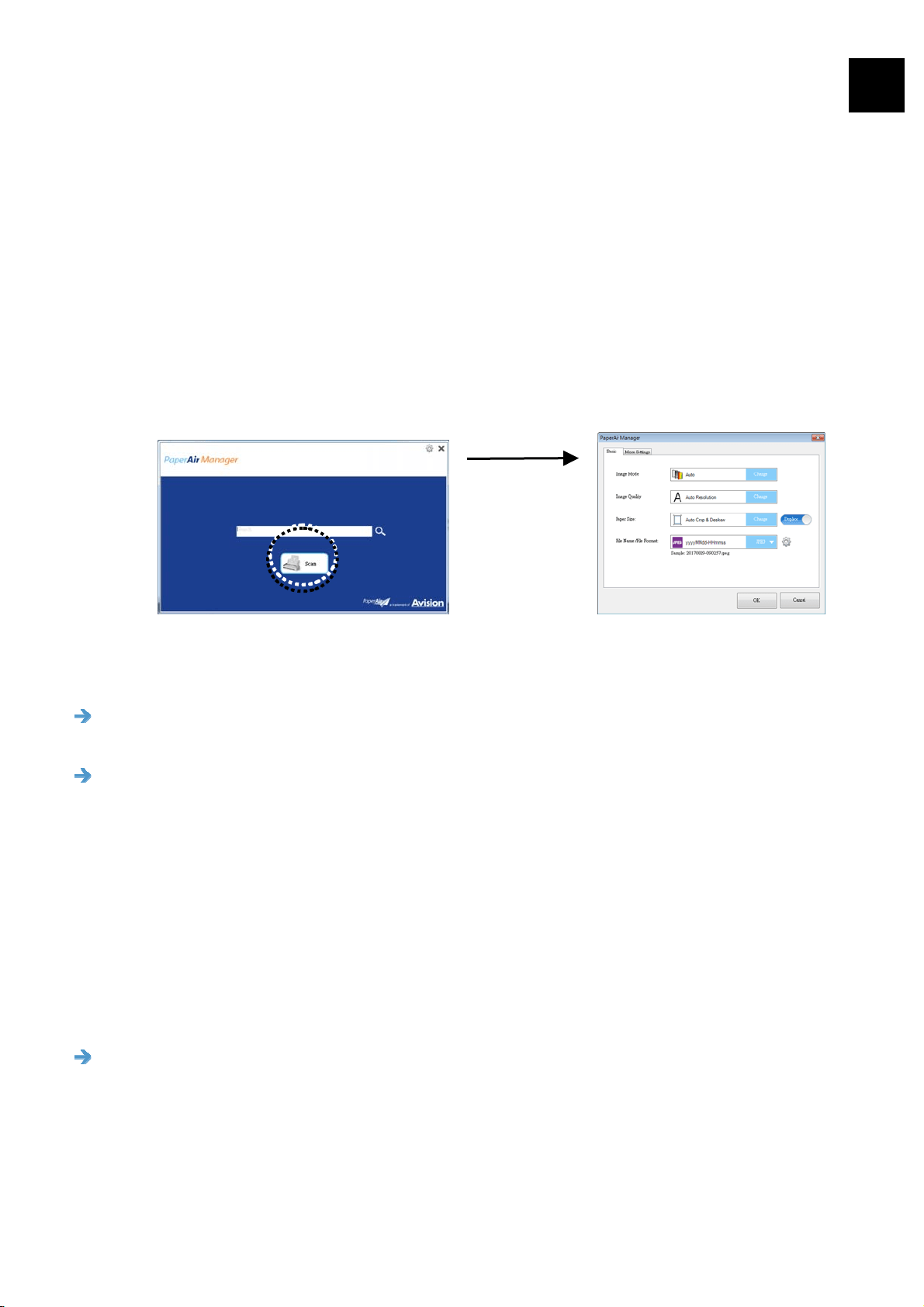

1. Right-click the Scan button to prompt the Scan Settings window.
The Scan Settings window consists of the following options:
User’s Manual
Completing Your First Scan
17
NAME DESCRIPTION
Image Mode
Choose proper image mode for the scanned image.
Choice: *Auto, Color, Gray, and Black and White.
Auto: Automatically convert image mode according to your
original document.
Resolution
Choose your ideal resolution for the scanned image.
Choice: *Auto Resolution, High (600 dpi), Medium (300
dpi), Low (200 dpi)
Auto Resolution: Automatically select proper resolution to
perform scan according to your original document.
Paper Size
Choose your ideal scan size.
Choice:
*Auto Crop & Deskew
A4 – 8.2 x 11.6 in.
A5 – 5.8 x 8.2 in.
A6 – 4.1 x 5.8 in.
B5 – 6.9 x 9.8 in.
B6 – 4.9 x 6.9 in.
Postcard – 5.8 x 3.9 in.
Business Card – 3.5 x 2.1 in.
Letter – 8.5 x 11 in.
Legal – 8.5 x 14 in.
Auto Crop & Deskew: Automatically adjusts the cropping
window according to different document sizes and
automatically straighten a skew image.
Simplex/Duplex
Click this button to switch between Simplex/Duplex.
Simplex: Choose to scan one side of document.
*Duplex: Choose to scan the front and rear side of document.
File Name/File
Format
Select your desired file name and file format.
Choice: * JPEG、 PDF、DOCX、XLSX、PPTX
*: Default Setting
If you wish to change the setting, use this window to reset the settings. For detailed
information on how to change the scan settings, see “Customizing the PaperAir Manager”
in the subsequent section to reset the settings.
2. Click [OK] to leave the window.
User’s Manual
Completing Your First Scan
18
3
3.4 Scanning Your Document
1. Load paper to your scanner.

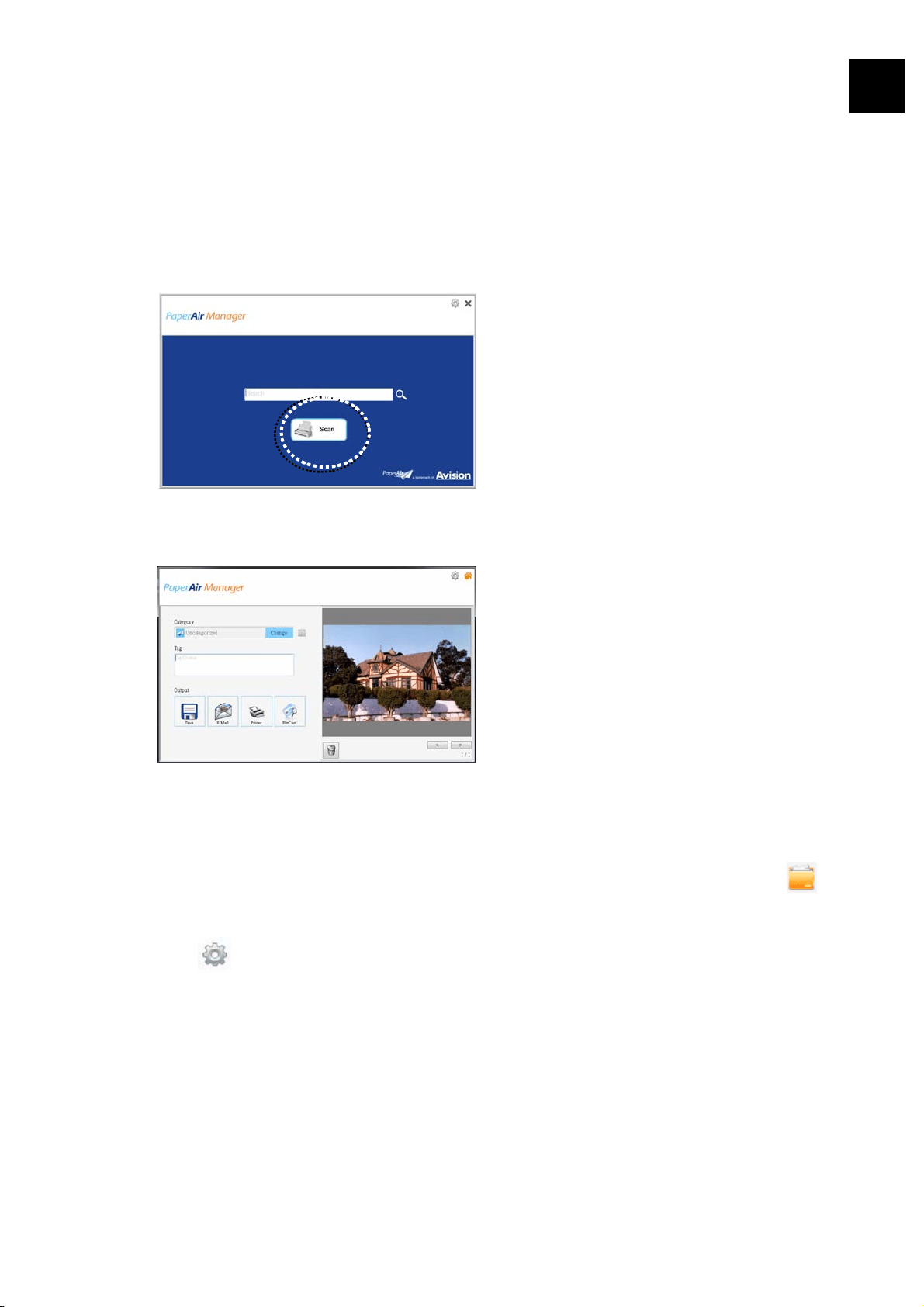

2. Click the [Scan] button to start a scan.
3. After the scan is completed, the following [Preview] dialog box appears.
4. On the [Preview] dialog box, if the previewed image is fine, choose the
following action:
Category: This option is disabled by default. Enable it and then select [
] if
you wish to create a new category in a default file location (default file location:
My Documents\PaperAir Manager). To enable the option, click the [Options]
icon

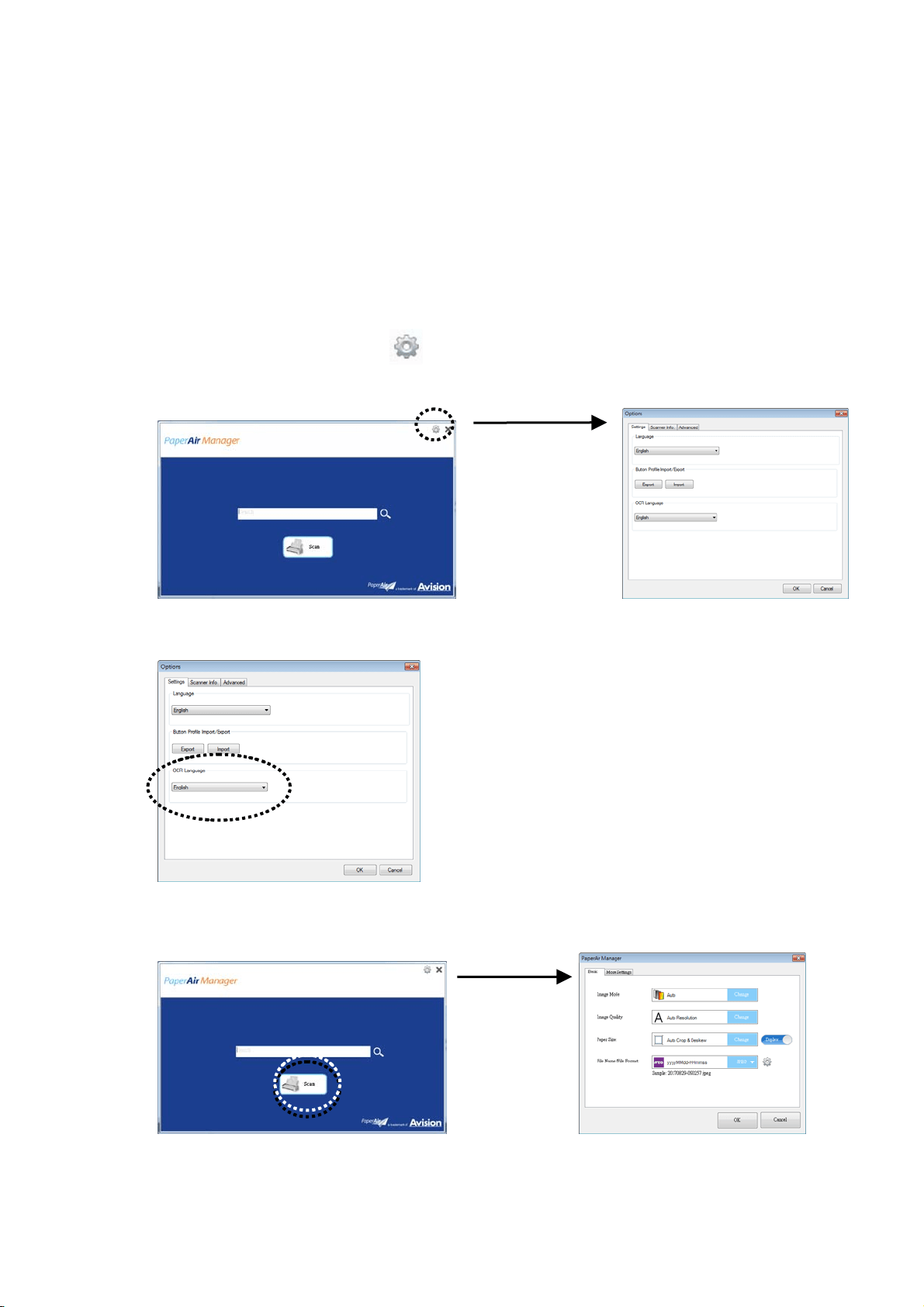

on the upper-right corner to prompt the [Options] dialog box.
Choose [More] tab and then deselect [Disable to create a new category].
Tag: Click the tag icon to enter the tag information in the pop-up dialog box.
Entering tag information helps to create a better search result since our search
database including your file name, tag information, and the recognized image
text after text recognition process.
Output: Send your scanned image to a list of destinations including Save, E-
Mail, Print, and BizCard.
User’s Manual
Completing Your First Scan
19
ITEM DESCRIPTION
Save Click to save the scanned image in a preset path (default path: My
Documents\PaperAir Manager).
E-Mail Click to open your default E-mail software and send the scanned image to
your recipient as an attachment.
Printer Click to send the scanned image to a default printer to print the scanned
image.
BizCard Click to read the text on your name card. Text recognition is performed on
the scanned image data which is then managed into a card database.
5. The scanned image will be sent to your specified destination.
User’s Manual
Completing Your First Scan
20
3.5 Searching Your Document
PaperAir Manager allows you to search your documents from the database of all
previously scanned text, file names, and tag information. The image text has been
recognized after the text recognition process and saved into a database.
To search your document,

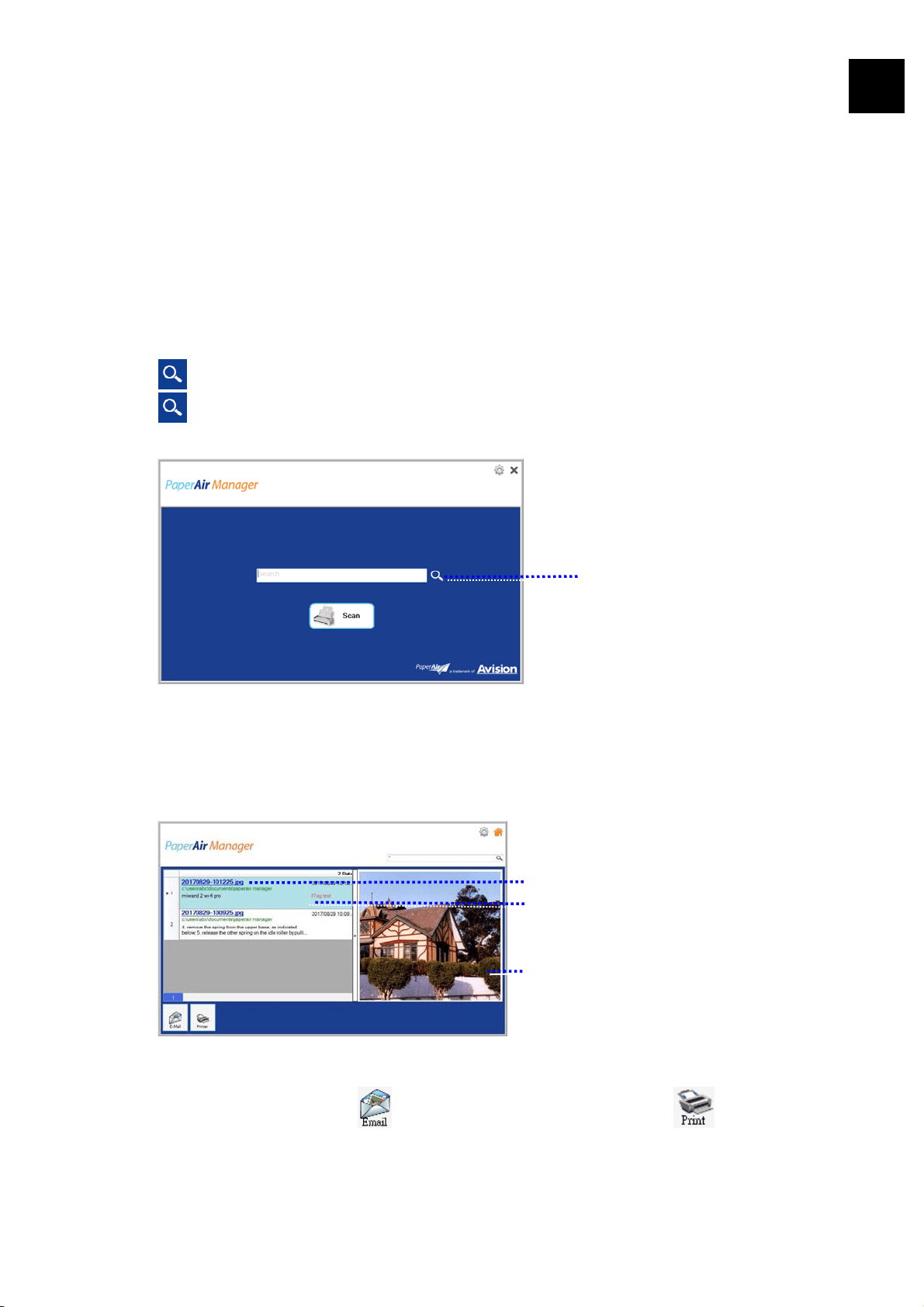

1. On the main window, type your keyword (one or more) in the Keyword field.
For example, Document or Document scan. And then press the Search icon
. Or you may enter * in the Keyword field and then press the Search icon
to find all documents..
2. In a second, the search results will be displayed. Simply select the image file
and the image will be displayed in the Preview frame. (Note: PaperAir Manager
does not support documents in DOCX, PPTX, XLSX file formats to be displayed
in the Preview frame.)
T
ype your keyword(s)
here.
Document
File Name
Tag Information
3
The Preview Image
If desired, you may also send your document to an E-Mail recipient as an
attachment by clicking
, print your document by clicking .
User’s Manual
Completing Your First Scan
21
NOTE
1. If the previous scanned image has been deleted, the deleted image
can not be found and searched.

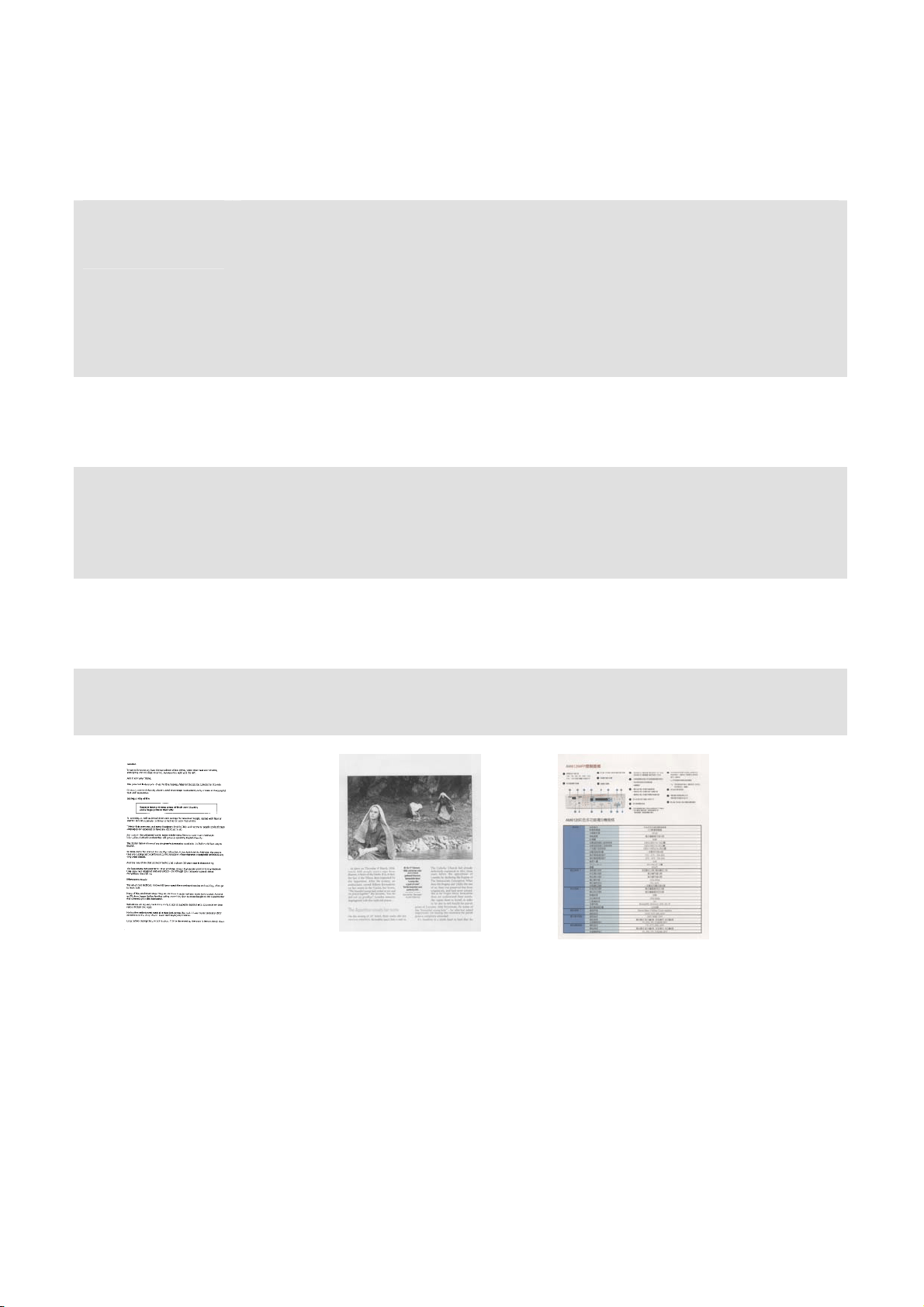

2. Note the following factors which may affect the OCR accuracy and
the Search result:
Document contains stamps or handwritten remarks
Font size too small (If this is the case, try to scan in 600 dpi
(resolution)
TIPS
Note PaperAir Manager’s search engine is designed somehow different with
Googles’. If you can not find your document in the first search, try to enter
keywords in different sequence or combination. For example, if your first
entry of keyword is [confidential invoice], you can try [invoice] or [invoice
confidential] to find your document.
3.6 Exiting PaperAir Manager
To exit the PaperAir Manager application,
Simply click the [Exit] icon
to leave the main window.
User’s Manual
Completing Your First Scan
22
3.7 Restarting PaperAir Manager

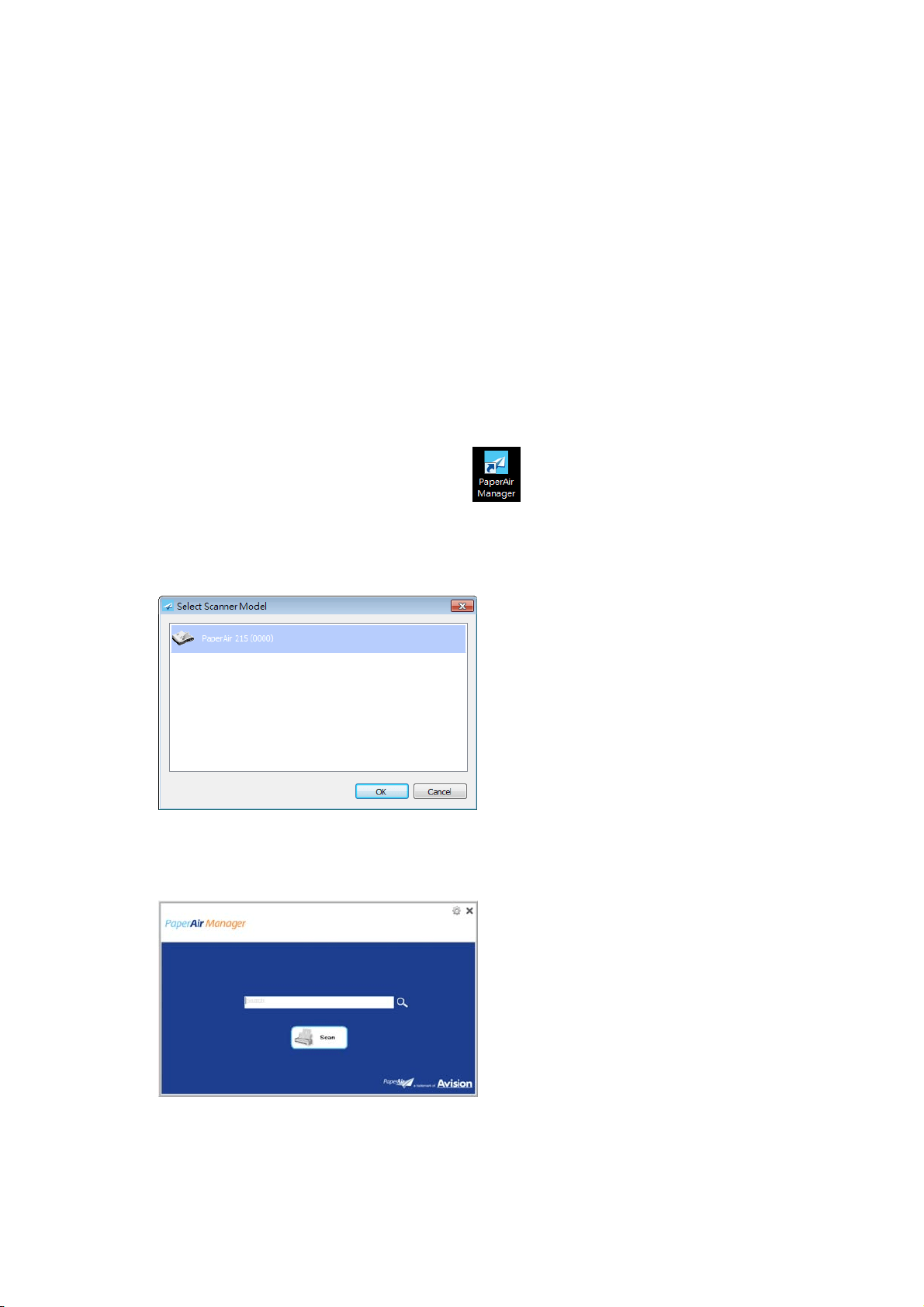

To restart the PaperAir Manager application,

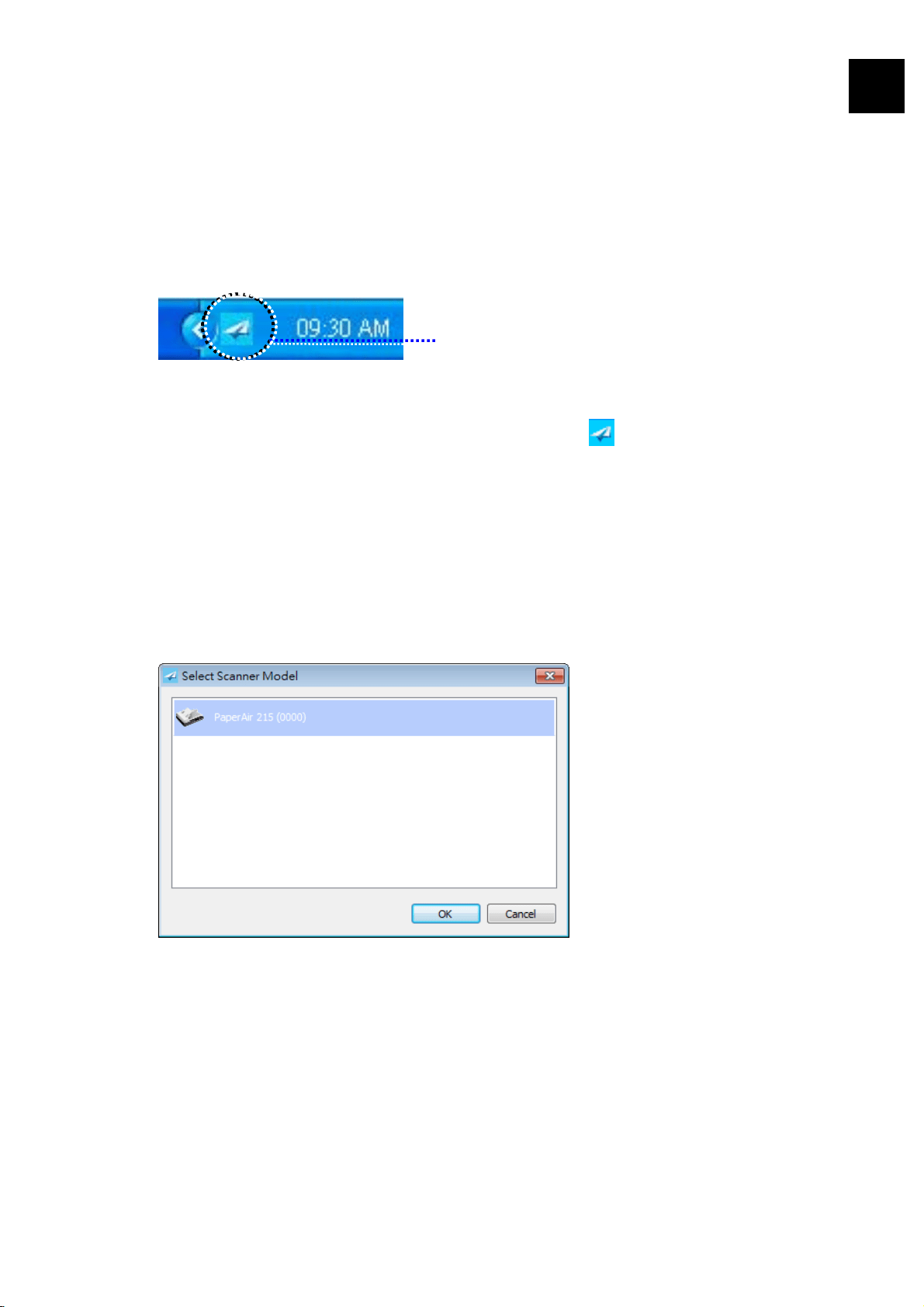

Simply click the PaperAir icon in the System Tray and the main window will be displayed.
PaperAir Manager’s icon in the System Tray
3
Or
If you have accidentally closed the PaperAir Manager’s icon
in the System Tray,
restart PaperAir Manager by following these steps:
1. From the [Start] menu, select [All Programs/Programs]>[Avision
PaperAir 215L scanner]>[PaperAir Mnager].
2. A [Select Scanner Model] dialog box appears.
3. Choose your scanner model and click [OK]. The PaperAir Manager’s main
window will be displayed.
User’s Manual
Completing Your First Scan
23
3.8 Using PaperAir Manager Without Connecting to a
Scanner
PaperAir Manager is a scanning software application. Yet, without connecting to the
scanner, you can still launch it and use the search feature. This is especially useful when
you are away on business without carrying the scanner.
To run PaperAir Manager without connecting to a scanner, please follow these steps :
1. From the [Start] menu, choose [All Programs/Programs]>[Avision
PaperAir 215L scanner]>[PaperAir Mnager].
Or
1. Choose PaperAir Manager’s shorcut
on your desktop.
2. A [Select Scanner Model] dialog box appears.
3. Choose any scanner and then click [OK]. The PaperAir Manager’s main window
will be displayed.
4. Enter your keyword in the [Keyword] field to search your document. A few
seconds, the search results will be displayed.
User’s Manual
Customizing PaperAir Manager
24
4
4. CUSTOMIZING PaperAir Manager
This section explains how to customize scan settings to suit your various scanning tasks.
4.1 Using the Scan Settings Window
To customize the settings for each button, you need to use the [Scan Settings] window.
[Scan Settings] window can be started in the following way.
1. On the main window, right-click the [Scan] button. The [Scan Settings]
window will be displayed.
The [Scan Settings] window consists of the following tabs:
The Basic tab—Provide basic scan settings including the image mode, image
quality, paper size, file name and file format.
The More Settings tab—Provide more scan settings including the options of
removing blank images, rotating the image, and enabling multi-feed detection.
4.2 The Basic Tab
From the Basic tab, most of your configurations can be completed. The Basic tab allows
you to set basic settings including basic scan settings, file name, and file format for the
scanned image.
4.2.1 Selecting Your Image Mode
Image Mode:
Select proper image mode for the scanned image.
Choice: *Auto, Color, Gray, and Black and White.
User’s Manual
Customizing PaperAir Manager
25
ITEM DESCRIPTION
Auto Click to automatically detect and scan your color document in color
image mode. If your document is in colors, the scanner will
automatically scan the document into a color image. If your
document is non-color, the scanner will scan your document in Black
and White mode. This option is useful when you have a mixture of
color and non-color document.
Color Choose Color to scan color photographs or color documents. Color
scan produces the largest file size.
Gray Choose Gray to scan documents containing drawings or black and
white photographs. This scanning produces an image of up to 256
shades of gray.
Black and
White
Choose Black and White to scan document containing purely text,
pencil, or ink sketch. This scan mode produces the smallest file size.
*: Default Setting
B&W Gray Color
User’s Manual
Customizing PaperAir Manager
26
4
4.2.2 Selecting Your Image Quality
Image Quality:
The image quality (resolution) is measured in pixels per inch (ppi) (sometimes
referred to as dots per inch or dpi). Higher resolutions result in more detail in
the scan, slower scanning and in general, greater file sizes.
Choice: *Auto Resolution, Low (200 dpi), Medium (300 dpi), and High
(600 dpi).
Auto Resolution: Automatically select proper resolution to perform scan
according to your original document.
Low Resolution
Medium Resolution
4.2.3 Selecting Your Desired Paper Size
Paper Size:
Select one of the pre-defined paper sizes that matches the size of the original
document.
Choice:
*Auto Crop & Deskew
A4 – 8.2 x 11.6 in.
A5 – 5.8 x 8.2 in.
A6 – 4.1 x 5.8 in.
B5 – 6.9 x 9.8 in.
B6 – 4.9 x 6.9 in.
Postcard – 5.8 x 3.9 in.
Business Card – 3.5 x 2.1 in.
Letter – 8.5 x 11 in.
Legal – 8.5 x 14 in.
Auto Crop & Deskew: Automatically adjusts the cropping window according to
different document sizes and automatically straighten a skew image. Use this
option for batches of mixed-sized documents.
User’s Manual
Customizing PaperAir Manager
27
4.2.4 Selecting Simplex (One-Side) or Duplex (Two-Side)
Simplex/Duplex: Click this button to switch between Simplex/Duplex.
Simplex: Choose to scan one side of document.
*Duplex: Choose to scan the front and rear side of document. Note: The
availability of this feature varies depending on scanner type.
*: Default Setting
4.2.5 Setting File Name, and File Format
File Name:
The available file name consists of date and time which are jointed with a dash.
Choice: * yyyyMMdd-HHmmss, MMddyyyy-HHMMSS, and yyyy-MM-dd-HH-MM-
ss. For example, 20170417-154235 indicates date (year/month/date) and
154235 indicate time (hour/minute/second).
File Format:
The file format that you have selected determined the file format for the
scanned image of your document. Choose your ideal file format for the specific
destination. Choice: * JPEG、 PDF、DOCX、XLSX、PPTX
JPEG:
JPEG (Joint Photographic Experts Group) compression provides the best results
with continuous-tone color and the smallest file size. To compress your file size,
click the “Properties”
button. Move the slider to the right or to the left to
increase or decrease the level of compression. Note the greater the compression
level, the lower image quality.
PDF/Multi-Page PDF:
PDF (Portable Document Format) is a very popular file format used by Adobe.
You can view PDF files using Adobe Acrobat or Adobe Reader.
User’s Manual
Customizing PaperAir Manager
28
4

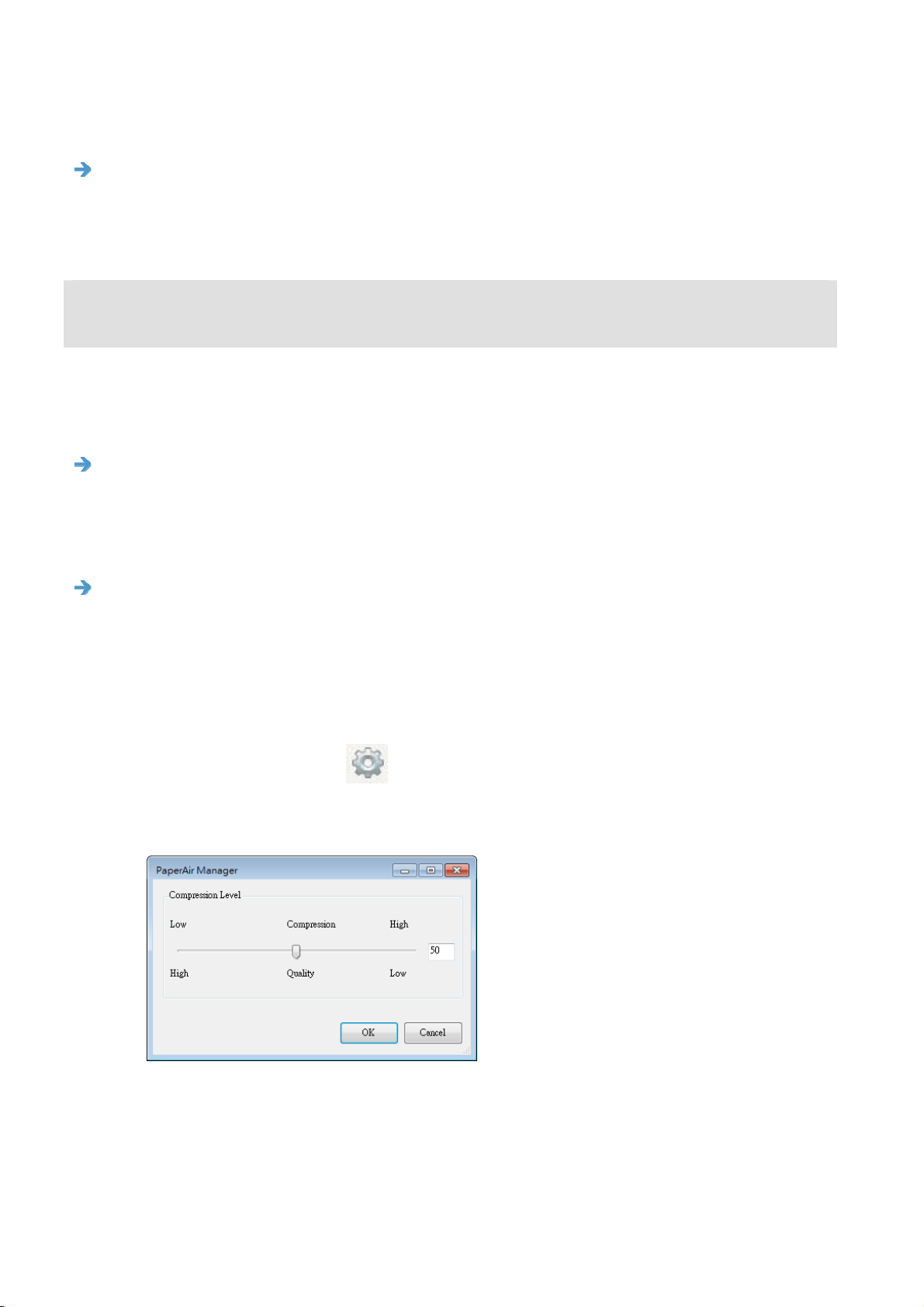

Multi-Page PDF: You may create a multi-page PDF file format by clicking the
Properties button
and then check [Multi-Page PDF]. Multi-PDF combines
all the scanned images into a single PDF file.
Check this button if you wish to
convert into a multi-page PDF
file.
Move the slider to change your
compression level.
More Options
- Compression Level: Increase your compression level by moving the
compression slider to the right or decrease your compression level by
moving the slider to the left. Note: The higher compression level, the lower
image quality.
- Compatibility: Choose your PDF version from the “Compatibility” option
including PDF (Quick Mode), PDF V1.0 ~ V1.7, PDF/A 1a, PDF/A 1b, PDF/A
2a, PDF/A 2b, PDF/A 3a, PDF/A 3b, PDF/A 3u. The specifications for PDF are
backward inclusive. The PDF 1.7 specification includes all of the functionality
previously documented in the Adobe PDF Specifications for versions 1.0
through 1.6.
- Password: If you wish to add security to your file, type your password from
the “Password” option and type your password.
PPTX: a file extension for a presentation file format used by Microsoft
PowerPoint.
DOCX: a document file format used by Microsoft Words.
XLSX: a file extension for a spreadsheet file format used by Microsoft Excel.
User’s Manual
Customizing PaperAir Manager
29
NOTES
Save your document to Microsoft Word/PowerPoint/Excel when
you need to edit the text of your document.
To save your document in Microsoft Word/PowerPoint/Excel, note
the font type may not be the same with your original document.
4.3 The More Settings Tab
The [More Settings] tab provides the following options.
4.3.1 Removing Blank Page
Blank Page Removal:
Automatically remove blank page according to optimized threshold.
Choice: *On, Off
4.3.2 Rotating Your Images
Auto Rotate Image
Automatically rotate image based on the contents of document.
Choice: *On, Off
User’s Manual
Customizing PaperAir Manager
30
4
4.3.3 Enabling Multi-Feed Detection
Multi-Feed Detection
Multi-Feed Detection allows you to detect overlapped document that go through
the auto document feeder. Multi-Feed usually occurs due to stapled documents,
adhesives on documents, or electro-statically charged document. If Multi-Feed
is detected, a warning dialog box will be displayed.
Action:
1. Follow the instruction on the Warning dialog box to remove the rest
pages on the feeder.
2. Click OK to close the Warning dialog box.
3. Scan the rest pages.
User’s Manual
Customizing PaperAir Manager
31
4.4 Creating a Searchable PDF File
PaperAir Manager allows you to save your scanned images in PDF or searchable PDF file
format. With the OCR (Optical Character Recognition) engine which supports over a
hundred of languages, your electronic documents can be searched and managed more
effectively.
To save your images in searchable PDF file format,

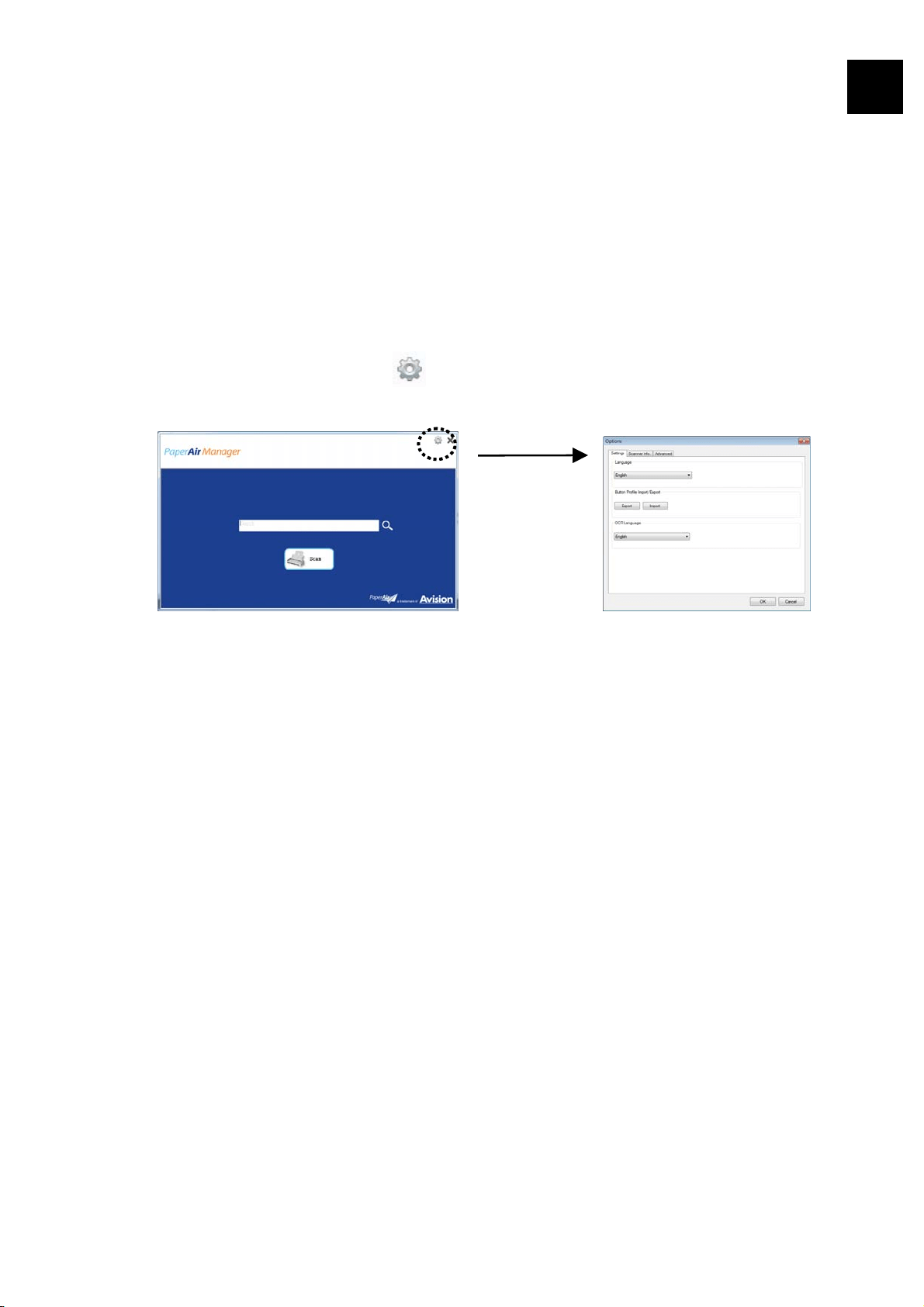

1. On the main window, click
on the upper-right corner. This will prompt the
[Options] dialog box.
2. Choose your desired language from the [OCR Language] option.
3. On the main window, right-click the [Scan] button to prompt the [Scan
Settings] dialog box.
4. Choose [PDF] from the [File Format] option and click [OK] to save the
settings and leave the dialog box.
User’s Manual
Customizing PaperAir Manager
32
4.5 Using the Options Menu
The Options menu allows you to change the application’s default settings and view
detailed information; such as changing the user interface language and viewing the scan
count.
To access the Button Manager Options Menu:
1. On the main window, click
on the upper-right corner. This will prompt the
[Options] dialog box.
4
The [Options] dialog box includes the [Settings] and [Scanner Info] tabs
which will be described in the following section.
User’s Manual
Customizing PaperAir Manager
33
4.5.1 The Settings Tab
The Settings tab contains the following options:
Language
Select your desired language shown from the combo box. After clicking the OK
button, the specified language will be immediately displayed.
Button Profile Import/Export
This feature allows you to copy the button profiles of one PaperAir 215L to
another PaperAir 215L without having to creating the same button profiles
repeatedly.
Export:
Click [Export] to save current button profiles (destinations and scan settings)
to a .bm2 file.
Import:
Click [Import] to import the button profiles (.bm2 file) of one PaperAir 215L to
another PaperAir 215L.
OCR Language
If you wish to convert your file to searchable PDF, choose your OCR language
from the “OCR Language” option.
User’s Manual
Customizing PaperAir Manager
34
4
4.5.2 The Scanner Information Tab

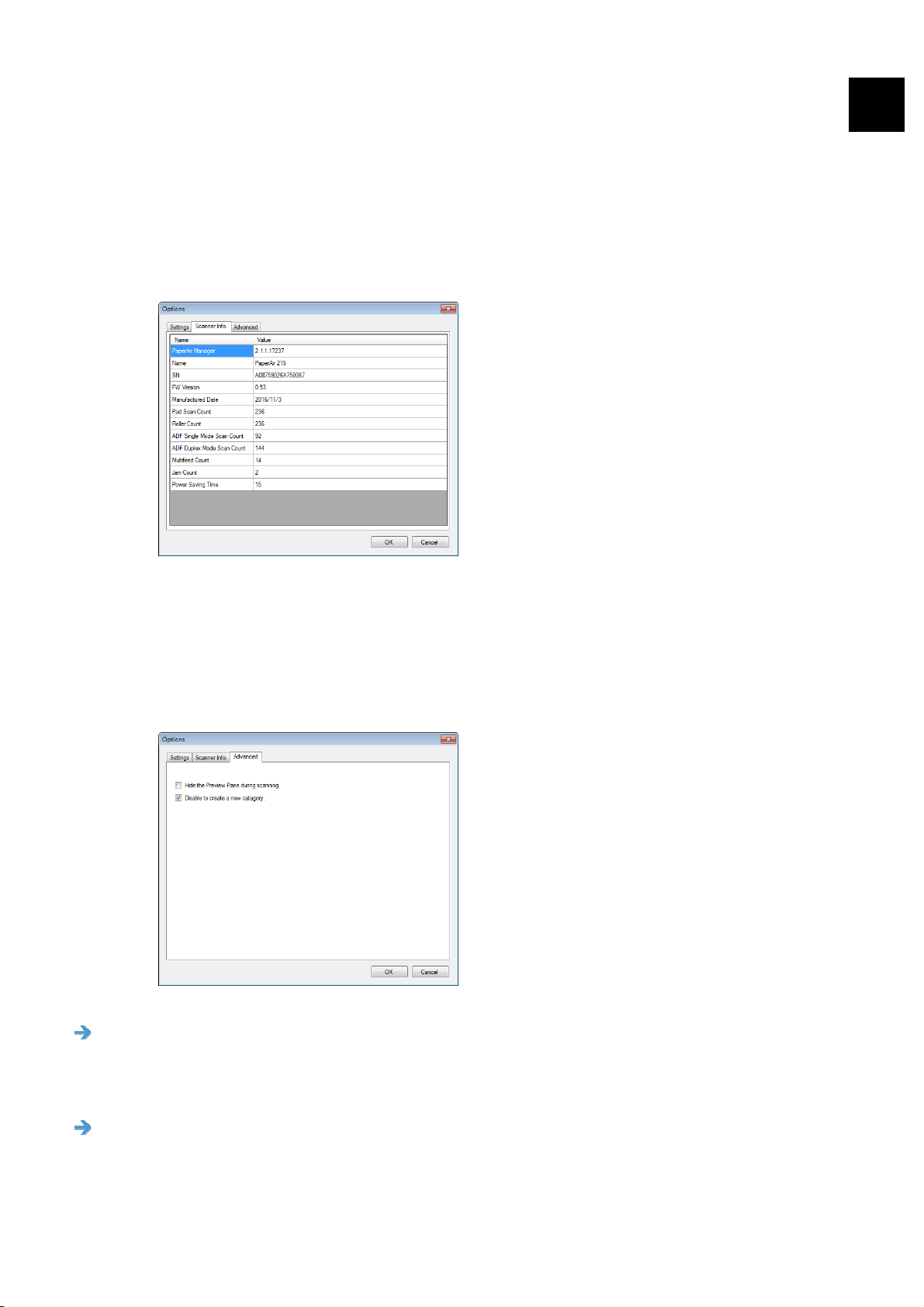

The Scanner Info. Tab allows you to view all the information about the scanner
including serial number, pad count, roller count, and firmware version. These are helpful
information when you report a problem to the service personnel.
4.5.3 The More Tab
The More Tab contains the following options:
Hide the Preview Pane during scanning
Check this item to hide the Preview Pane during scanning to increase your
scanning speed.
Disable to create a new category
Check this item to create a new category in a preset directory for the scanned
images.
User’s Manual
Maintenance
35
5
5. MAINTENANCE
5.1 Clean the Glass, Separation Pad, and Rollers
If the scanned images contain streaks or scanned documents become dirty, the scanning
glass, separation pad and roller inside the scanner are likely to be dirty. Clean them
periodically.
Use only the recommended or supplied tool to clean the scanner and feeder dock.

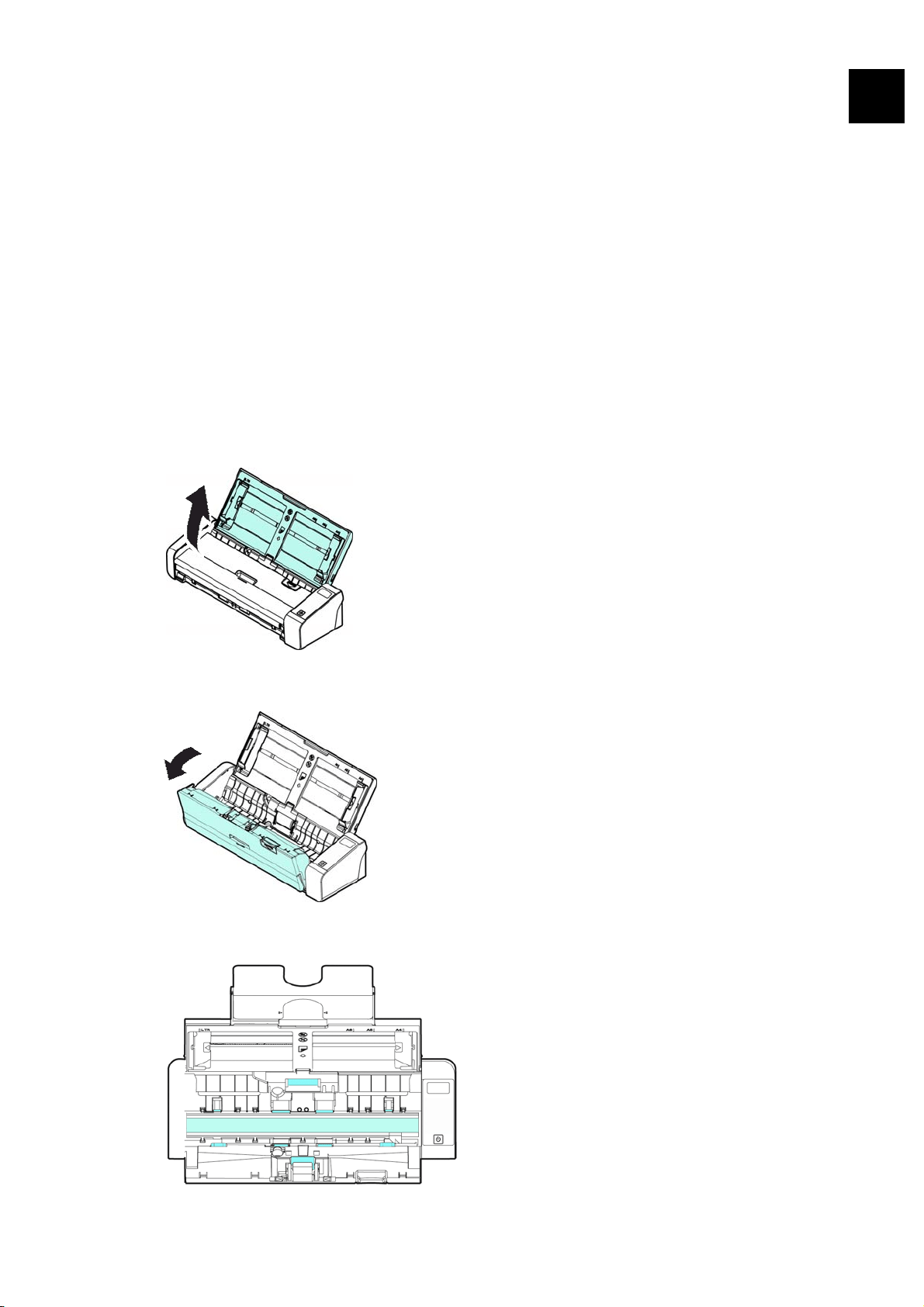

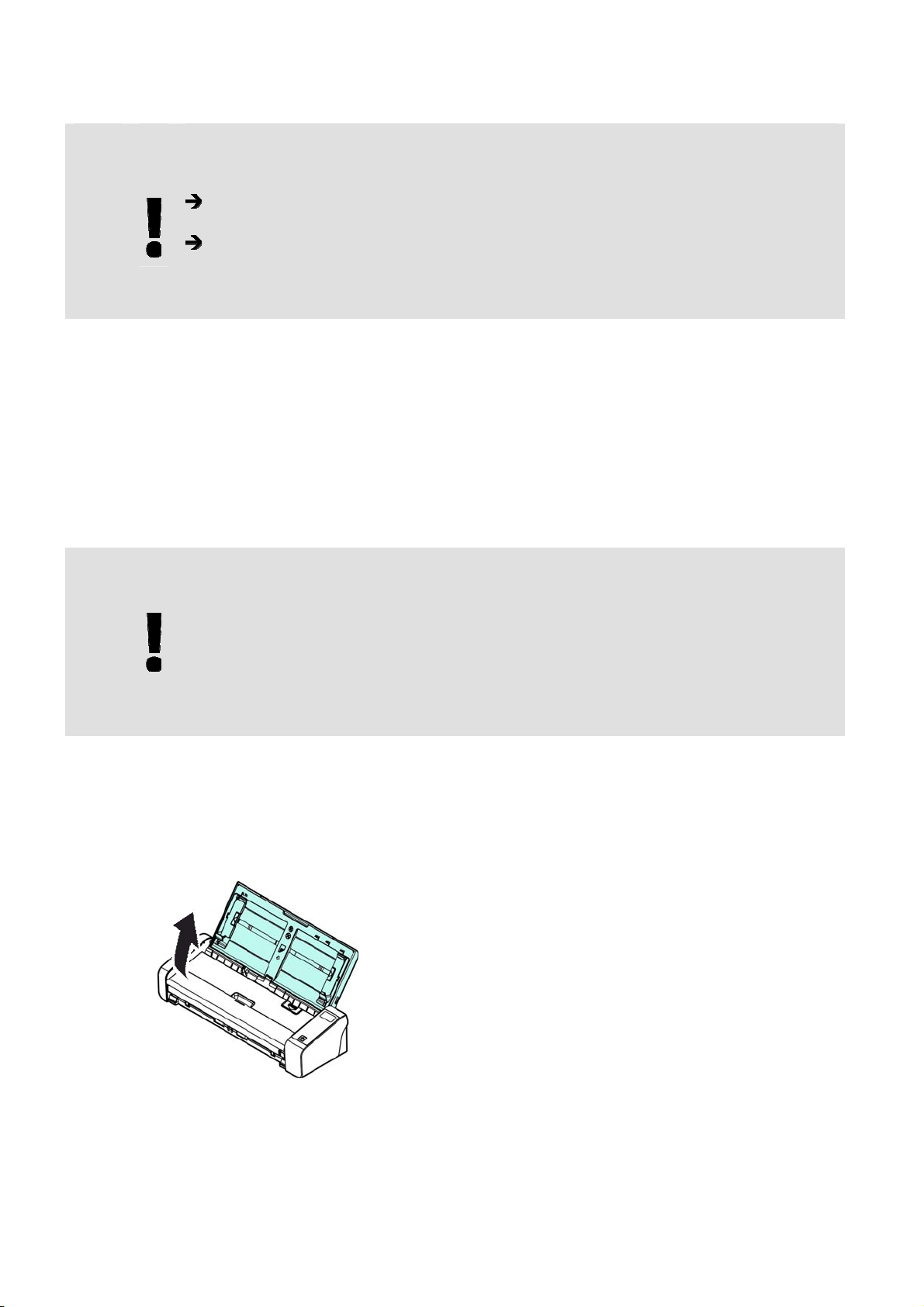

Cleaning steps:
1. Open the feed tray.
2. Press the ADF Release button to open the feeder cover.
3. Wipe the separation pad, rollers and the glass with the cleaning cloth.
User’s Manual
Maintenance
36
NOTE
Adding some isopropyl alcohol (95%) on the cleaning cloth is more
efficient when cleaning the rollers.
Do not use any solvents or corrosive liquid (i.e., alcohol, kerosene,
etc.) to clean any part of the scanner, otherwise the plastic material
will be permanently damaged.
5.2 Replace the Feed Rollers
The feed roller and separation pad inside the scanner wear with scanning. If the feed
roller and separation pad are worn, documents may not feed correctly and paper jams
may occur. When document feed performance deteriorates, replace the feed roller and
separation pad.
NOTE
It is recommended to replace the feed roller or separation pad when the
total number of pages of documents fed in the scanner exceeds one of the
following quantities:
Feed Roller: 100,000 sheets
Separation Pad: 30,000 sheets
Follow these steps to replace the separation pad and feed roller.

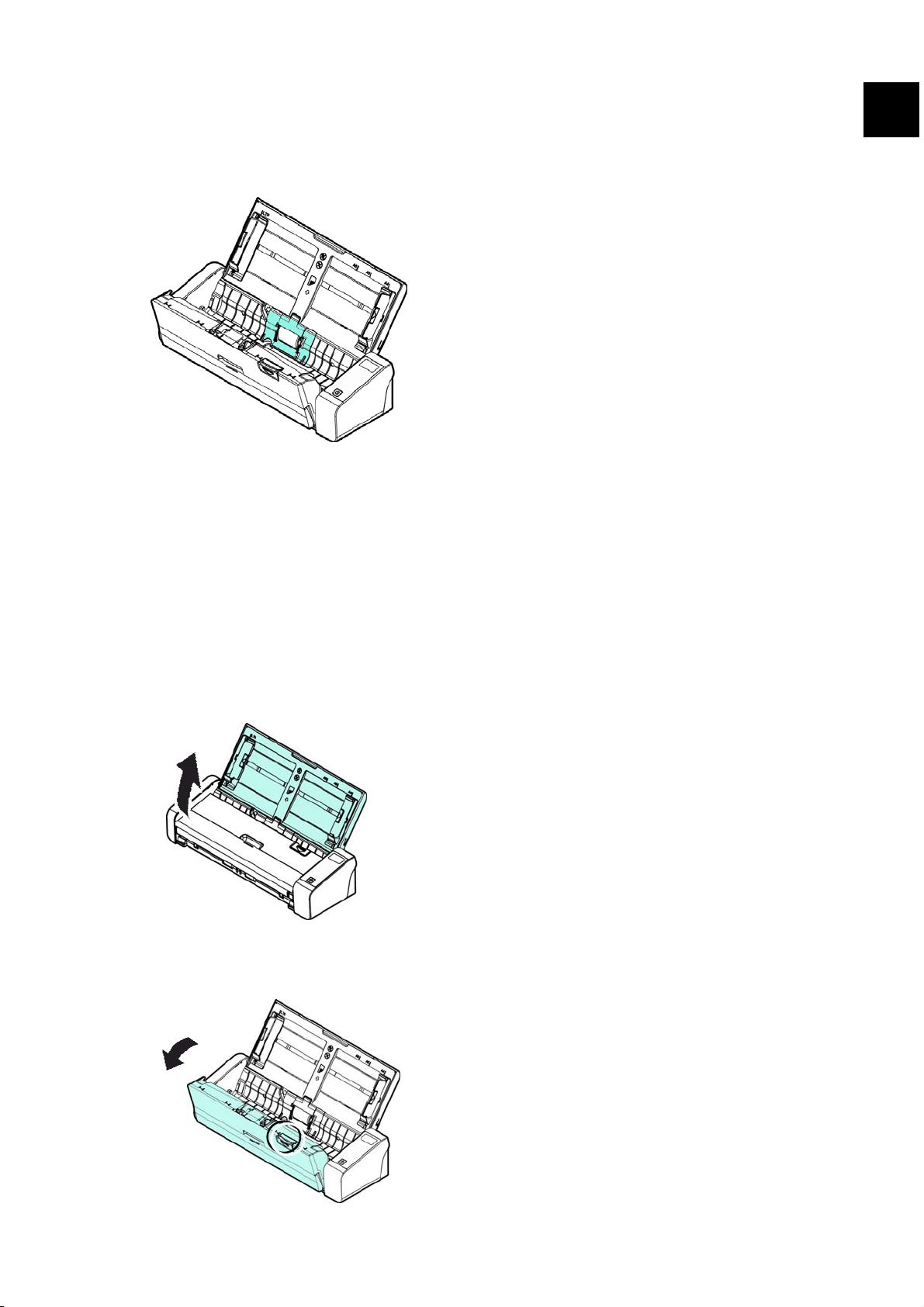

To replace the Feed Roller,
1. Open the feed tray.
2. Press the ADF Release button to open the feeder cover.
User’s Manual
Maintenance
37
5

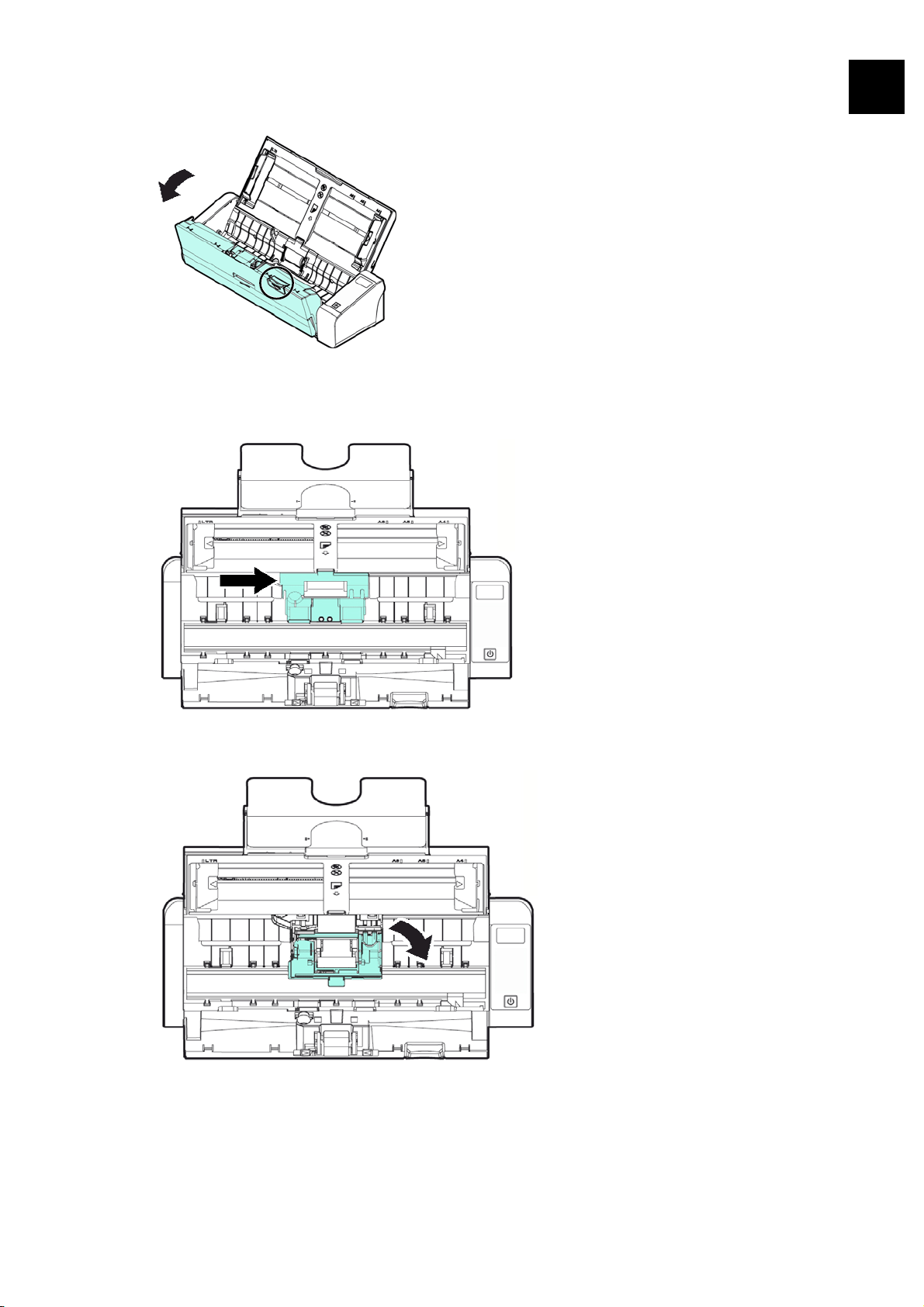

3. Open the roller cover.
User’s Manual
Maintenance
38

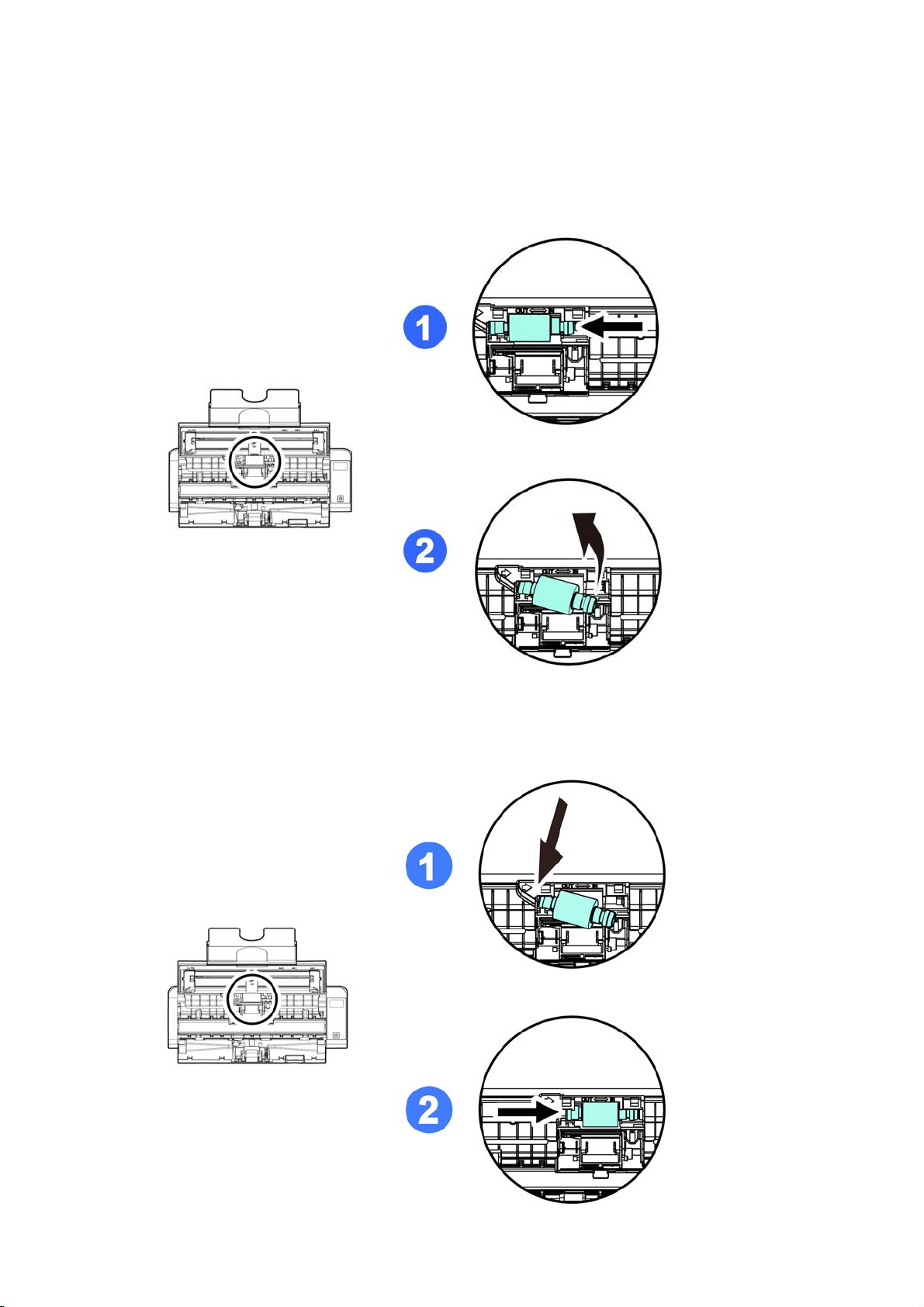

4. Slide the feed rollers to the left.
5. Remove the feed rollers.
6. Attach the new feed rollers. Insert the left end of the shaft to the notch and
slide the feed roller to the right. A snap-in sound could be heard.
User’s Manual
Maintenance
39
5
7. Completely close the roller cover so that it clicks into place.
8. Close the feeder cover.
5.3 Replace the Separation Pad
To replace the Separation Pad,
1. Open the feed tray.
2. Open the feeder cover.
User’s Manual
Maintenance
40

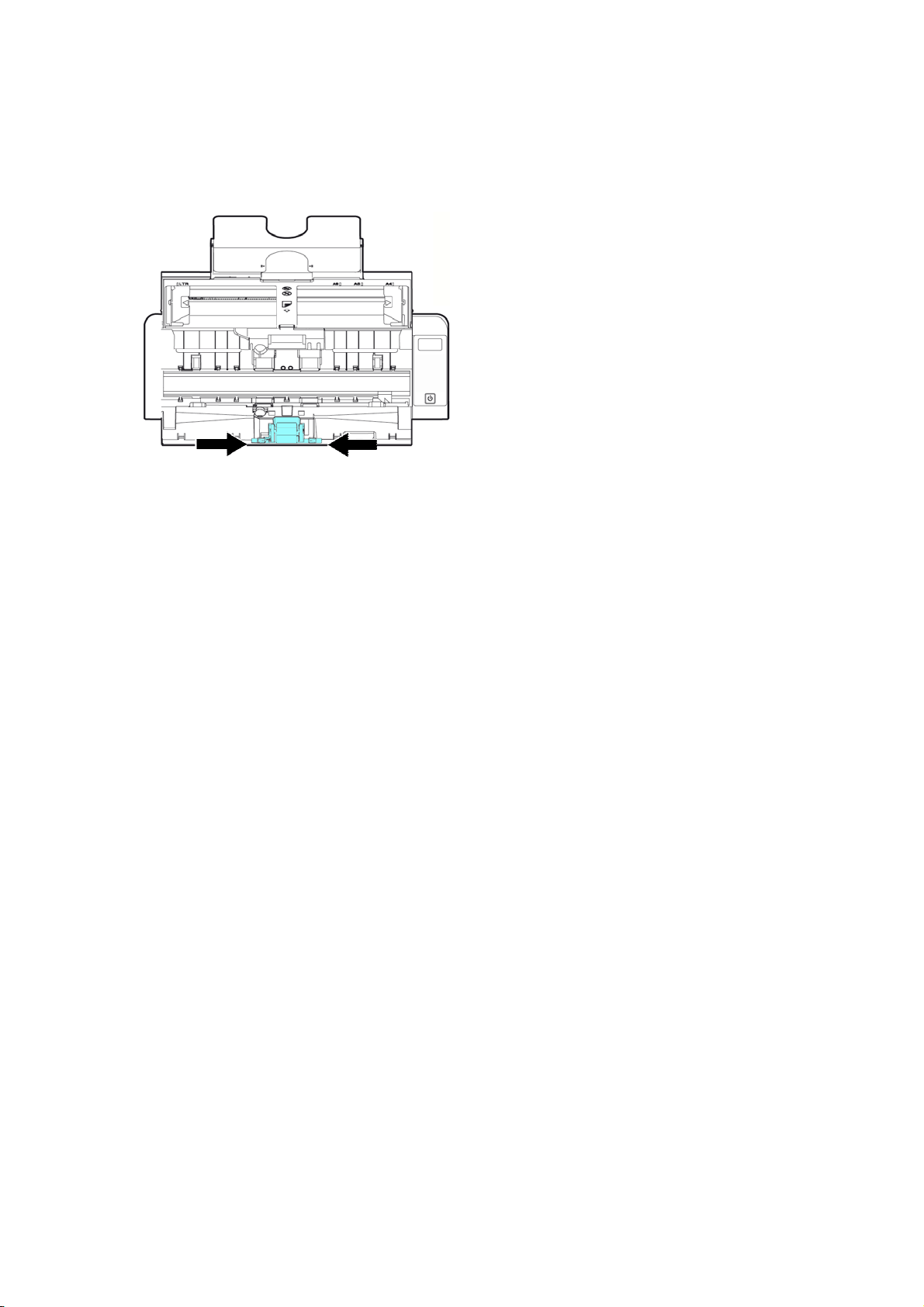

3. Press two arms of the separation pad inwardly with two fingers (
) and lift it
up (
) to remove the separation pad.
4. Hold two arms of the separation pad with two fingers and attach the new
separation pad to the scanner.
5. Close the feeder cover.
User’s Manual
Troubleshooting
41
6
6. TROUBLESHOOTING
6.1 Clear a PaperJam

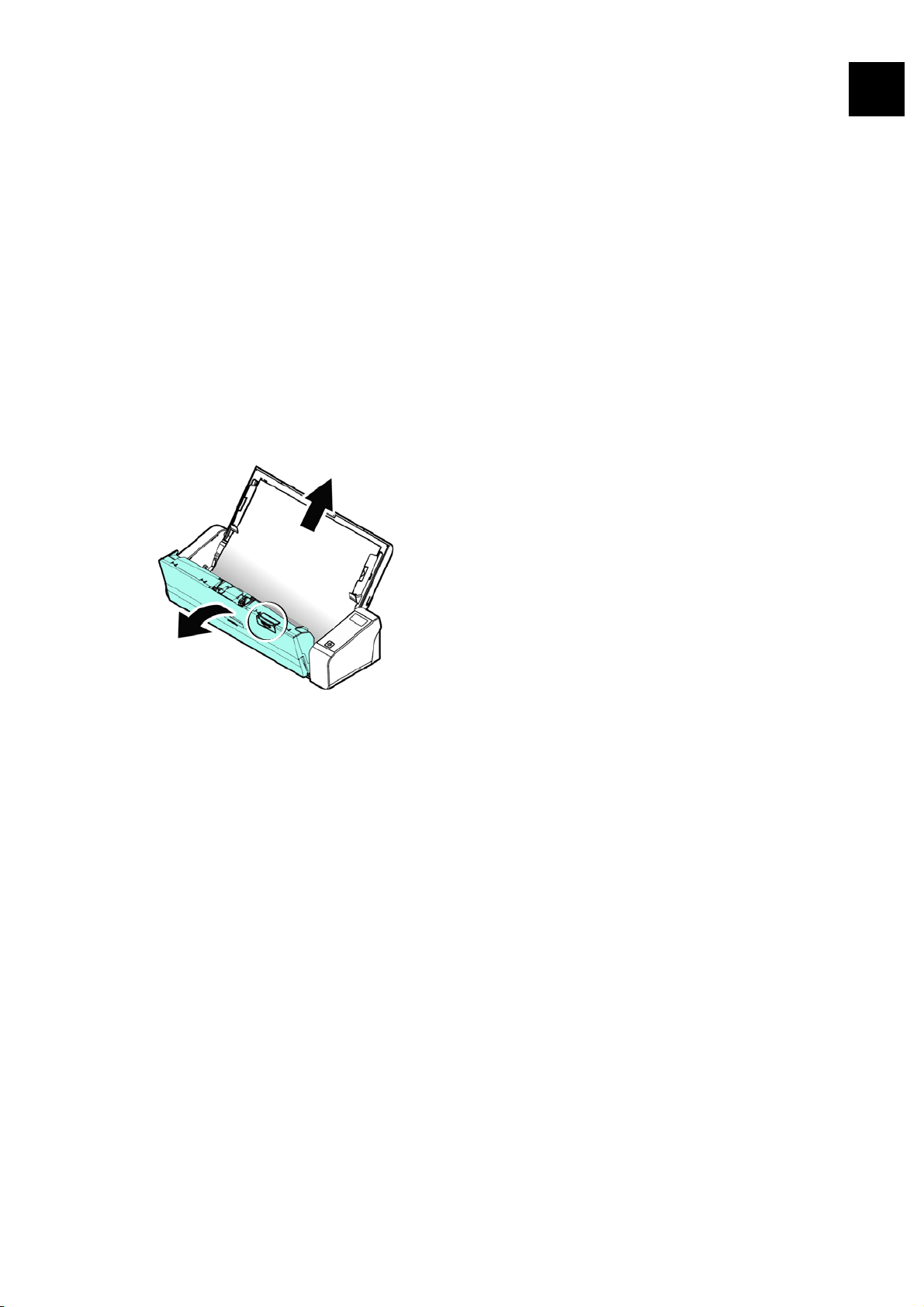

In the event of a paper jam, follow the procedures below to remove the paper:
1. Press the ADF Release button to open the feeder cover.
2. Carefully pull the paper out of the feed tray.
3. Close the feeder cover. Your Scanner is now ready to use.
User’s Manual
Troubleshooting
42
6.2 Error Conditions
If there is error during scanning, the LED light will be flashing in red color and error
drawing will be displayed. Refer to the following table to clear the error conditions.
ERROR
DRAWING/MEANING
CAUSE HOW TO RESTORE
Paper jam
1. Original has become stuck
in the feeder.
2. Original exceeds max.
length [300 dpi: 36 in.
(914mm), 600 dpi: 14 in.
(356mm)]
Open the feeder
cover and pull the
original out of the
feeder.
Cover opens
Feeder cover opens. Close the feeder
cover.
User’s Manual
Troubleshooting
43
6
6.3 Frequently asked questions and answers
Q Paper becomes jammed or multi-fed.
A 1. Flatten the corners and edges of your documents.
2. Thoroughly fan your documents before loading them into the scanner.
3. Reduce the number of pages that you load into the scanner at one time.
Q Paper becomes skewed in the scanner.
A
1. Align the document guides to fit the documents as closely as possibly
and place the documents so that they feed in straight.
2. Check the condition of the feeding roller. If necessary, follow the
cleaning directions in Section 5.1 and perform the cleaning.
Q When I choose optical resolution to be 600 dpi, the "auto crop" and
"deskew" functions will be disabled.
A Since to perform auto crop and deskew consumes great deal of system
memory, it is suggested if you wish to perform "auto crop" and "deskew"
functions, please choose your optical resolution to be smaller than 600 dpi to
prevent an error message.
User’s Manual
Troubleshooting
44
6.4 Technical Service
Before contacting Avision, please prepare the following information:
Scanner serial & revision number (located on the bottom of the scanner);
Hardware configuration (e.g., your host CPU type, RAM size, free disk space,
display card, interface card);
The version of PaperAir Manager;
Please call us at:
Headquarter
Avision Inc.
No. 20, Creation Road I, Science-Based Industrial Park,
Hsinchu 300, Taiwan, ROC
TEL: +886 (3) 578-2388 FAX: +886 (3) 577-7017
E-MAIL: [email protected] Web Site: http://www.avision.com.tw
US and Canada Area
Avision Labs, Inc.
6815 Mowry Ave., Newark CA 94560, USA
TEL: +1 (510) 739-2369 FAX: +1 (510) 739-6060
E-MAIL: [email protected] Web Site: http://www.avision.com
China Area
Hongcai Technology Limited
7A, No.1010, Kaixuan Road, Shanghai 200052 P.R.C.
TEL:+86-21-62816680 FAX:+86-21-62818856
Europe Area
Avision Europe GmbH
Bischofstr. 101 D-47809 Krefeld Germany
TEL: +49-2151-56981-40 FAX: +49-2151-56981-42
E-MAIL: [email protected] Web Site: http://www.avision.de
Espaço Brasil
Avision Brasil Ltda.
Avenida Jabaquara, 2958 - Cj. 75 - Mirandópolis –
CEP: 04046-500 - São Paulo, Brasil TEL: +55-11-2925-5025
E-MAIL: [email protected] Web Site: http://www.avision.com.br
User’s Manual
Troubleshooting
45
7
7. SPECIFICATIONS
All specifications are subject to change without notice. For the most up-to-date
and detailed specifications, please refer to our web site at http://www.avision.com
Model Number： FL-1513B
Optical Resolution: 600 dpi
Scanning Modes: Black & White / Gray / Color
ADF Capacity: Up to 20 pages (75 g/m
2
) (20 lb.)
Max. Document Size: 216 x 356 mm (8.5 x 14 in.)
Min. Document Size: 50 x 50 mm (2 x 2 in.)
Paper Weight: Front Tray: 27 ~ 413 g/m
2
(7~110 lb.)
ADF: 50~105 g/m
2
(13~28 lb.)
ID Card Thickness: < 1.25 mm (0.05 in.)
(Front tray, landscape feeding, embossed side face up)
Interface: Micro USB
Power (Input): 100-240 VAC, 50/60 Hz
Power (Output): 24V, 1.5A (Adapter)
Operating Temperature: 10º C~35º C
Dimensions: (WxDxH)
Min. 299 x 104 x 74 mm
(11.77 x 4.09 x 2.91 in.)
Max. 299 x 254 x 255 mm
(11.77 x 10 x 10 in.)
Weight: 1.5 kg (3.3 lb.)
