Craftsman 917277130 lawn tractor User Manual

Owner's Manual

I(.nFT$MnN°l

LAWN TRACTOR

13.5 HP, 38" Mower

Electric Start

5 Speed Transaxle

Model No.

917.277130

This product has a low emission engine which operates

_ differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

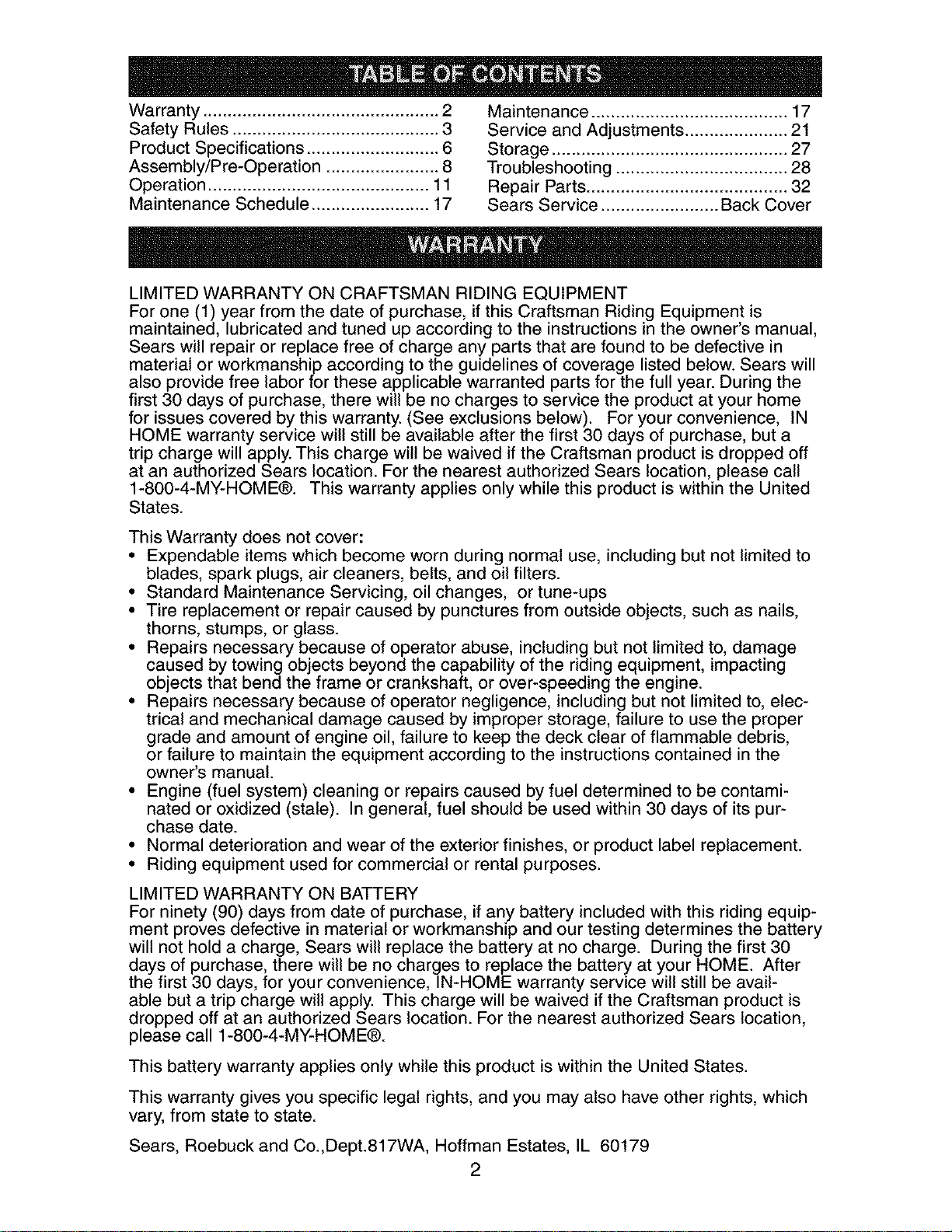

Warranty................................................2

SafetyRules..........................................3

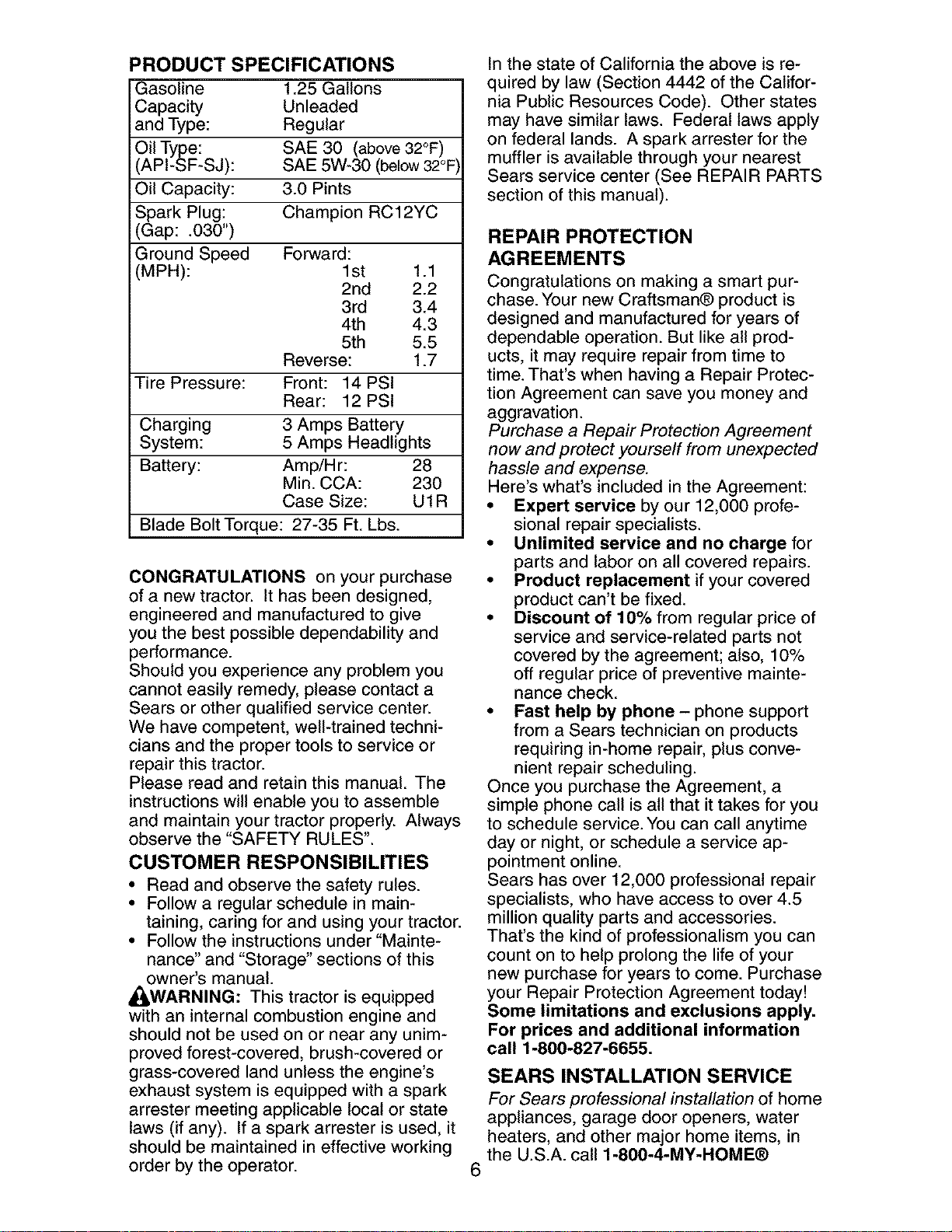

ProductSpecifications...........................6

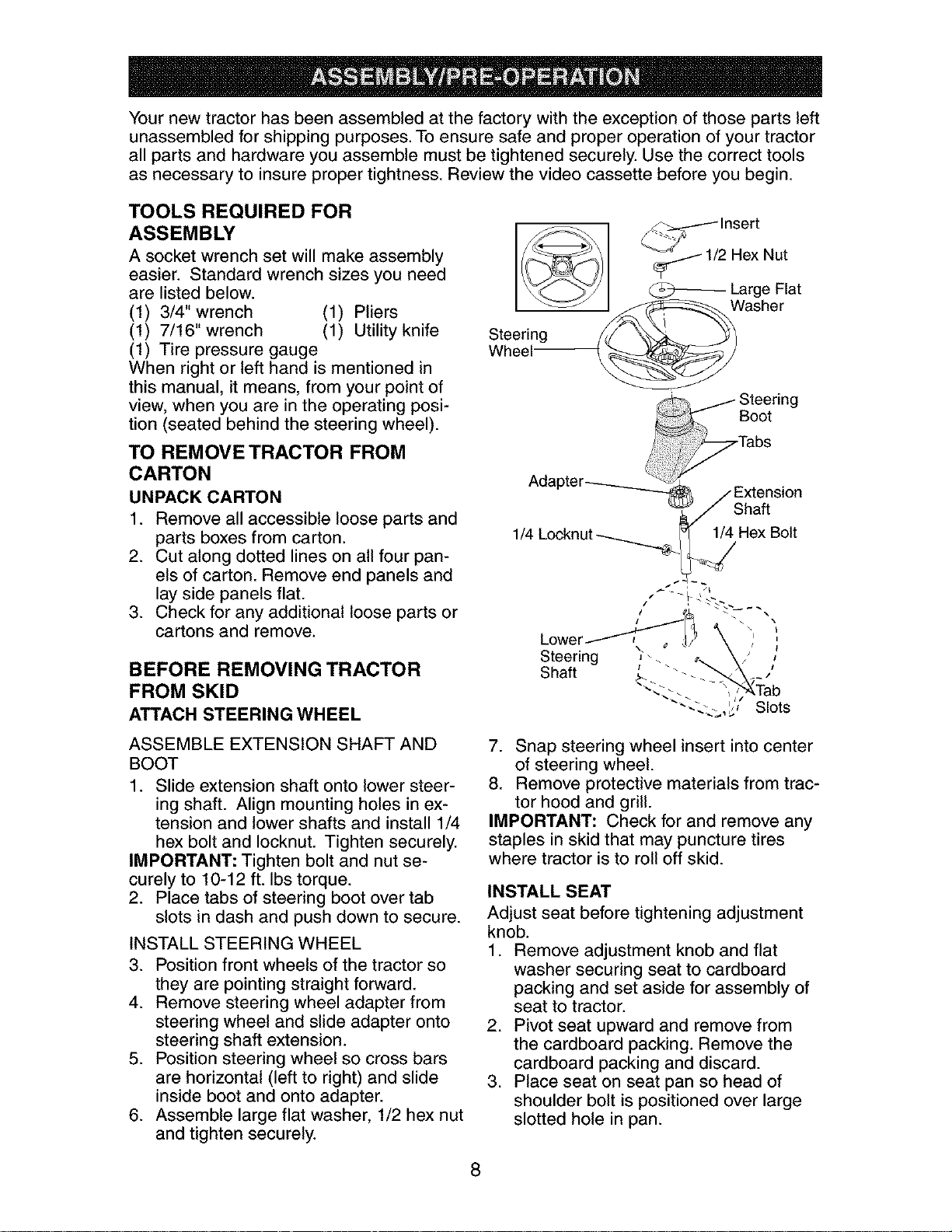

Assembly/Pre-Operation.......................8

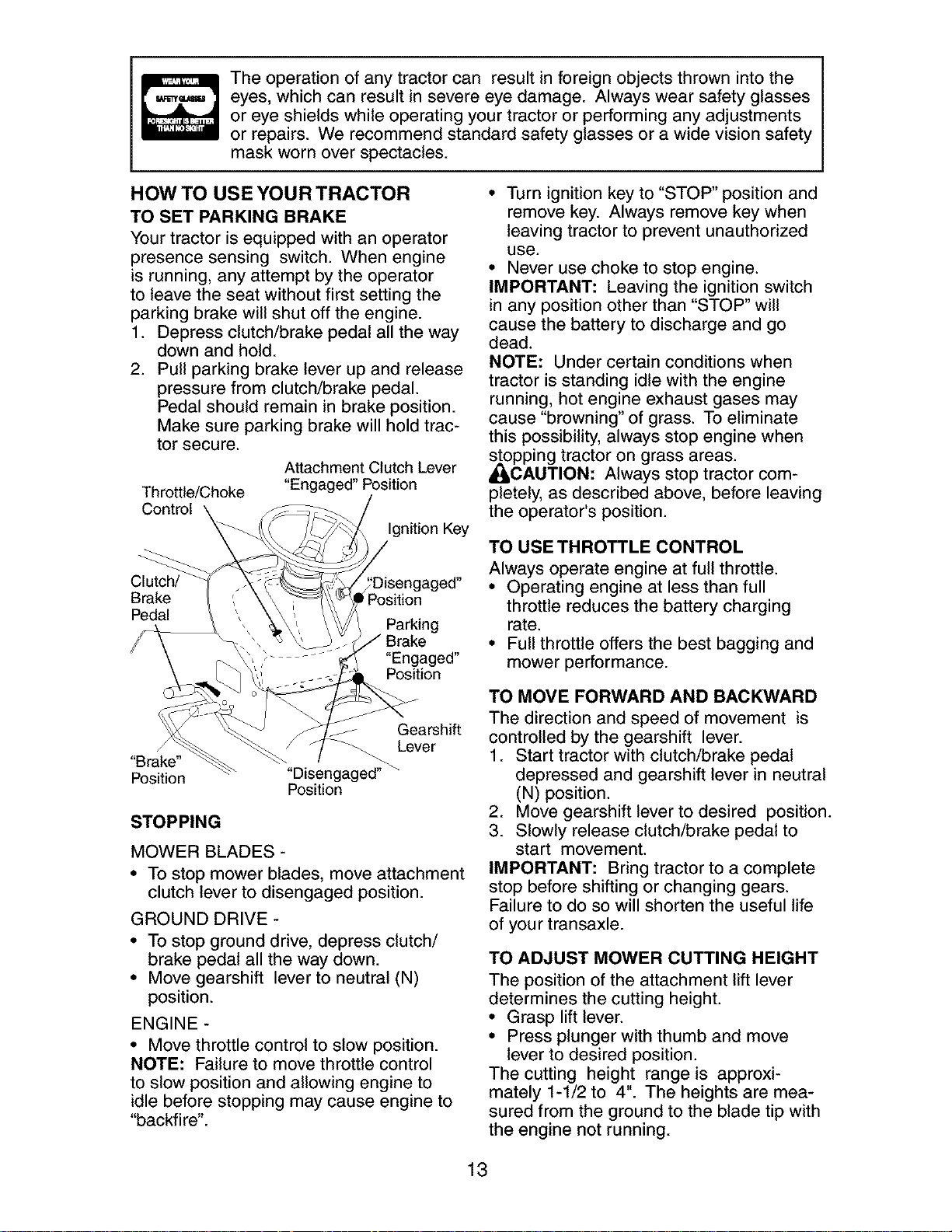

Operation.............................................11

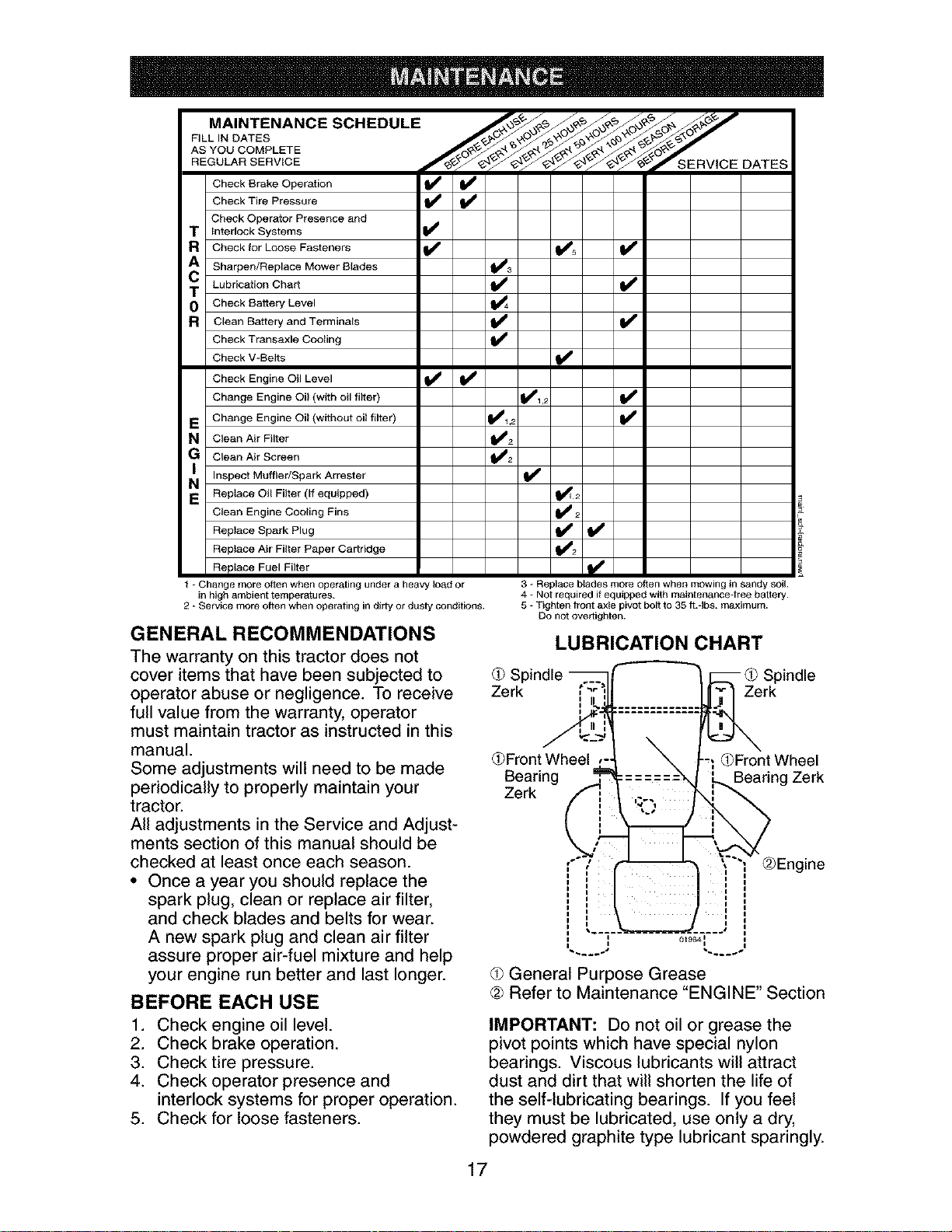

MaintenanceSchedule........................17

Maintenance........................................17

ServiceandAdjustments.....................21

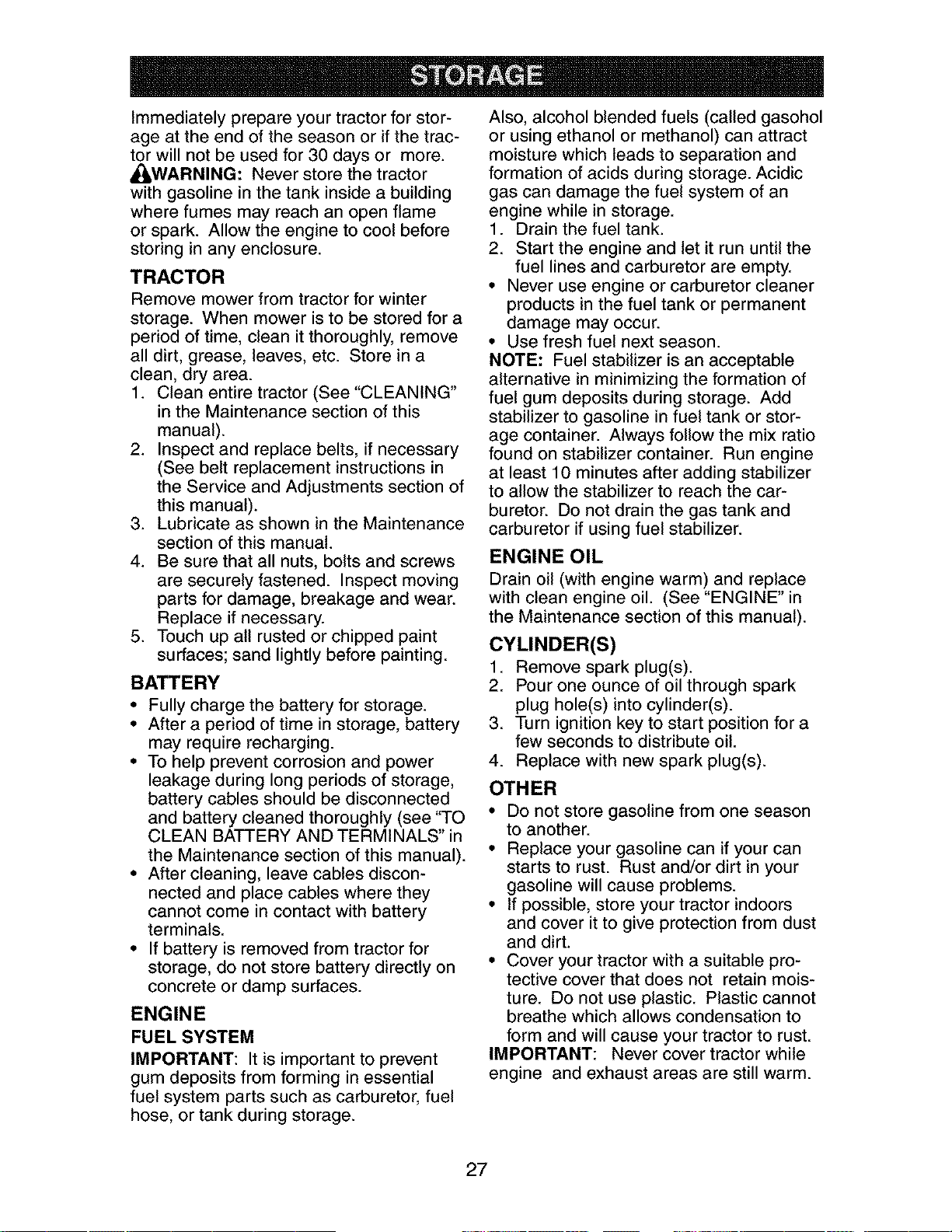

Storage................................................27

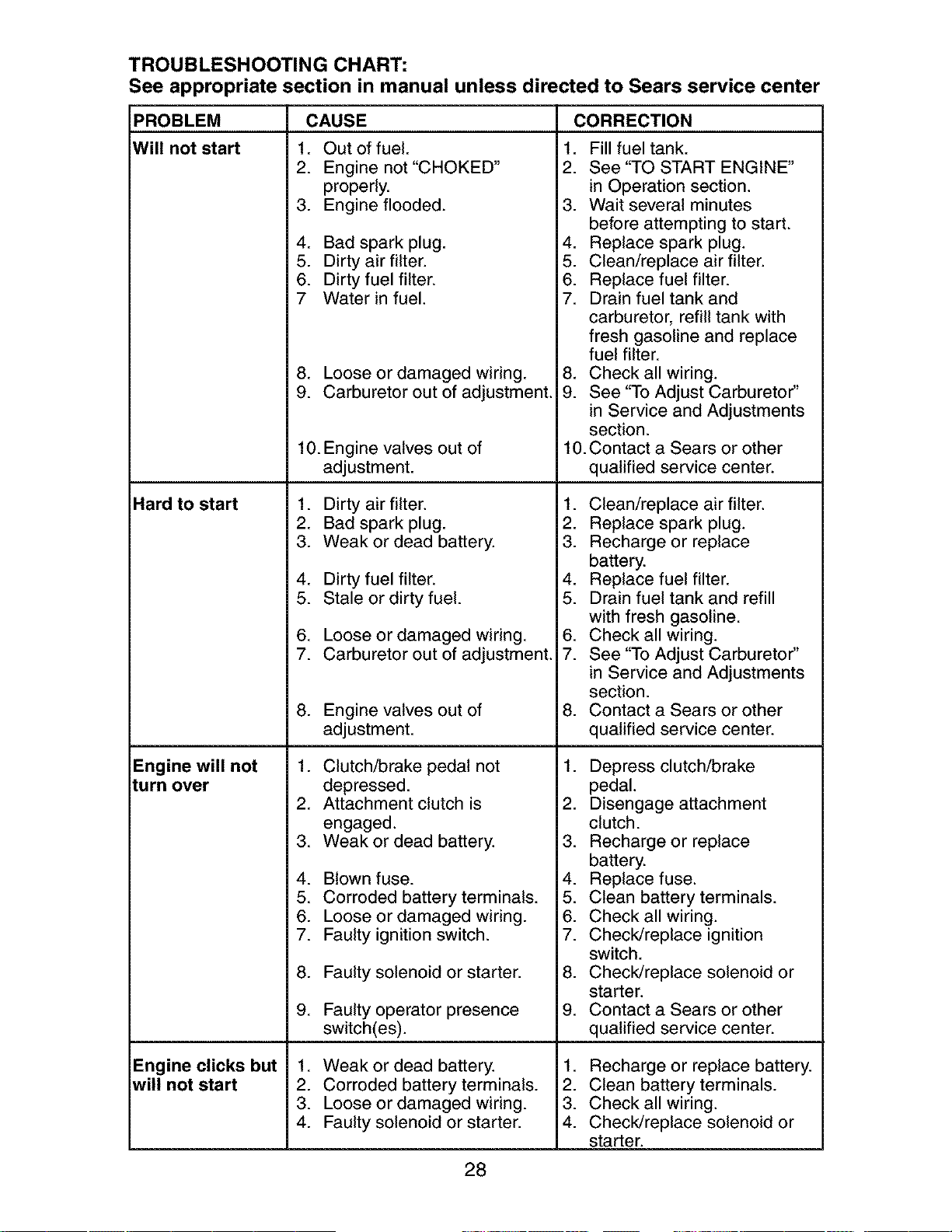

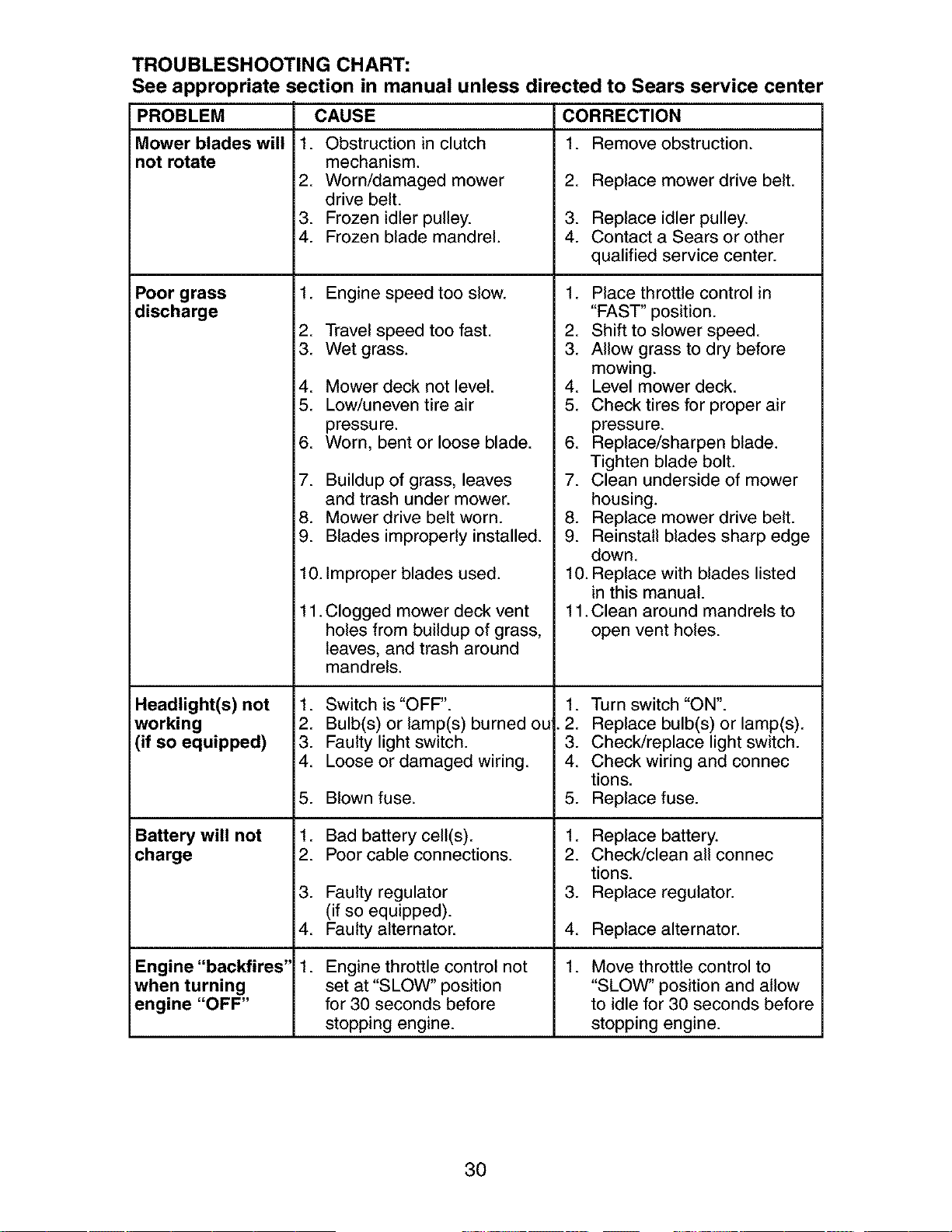

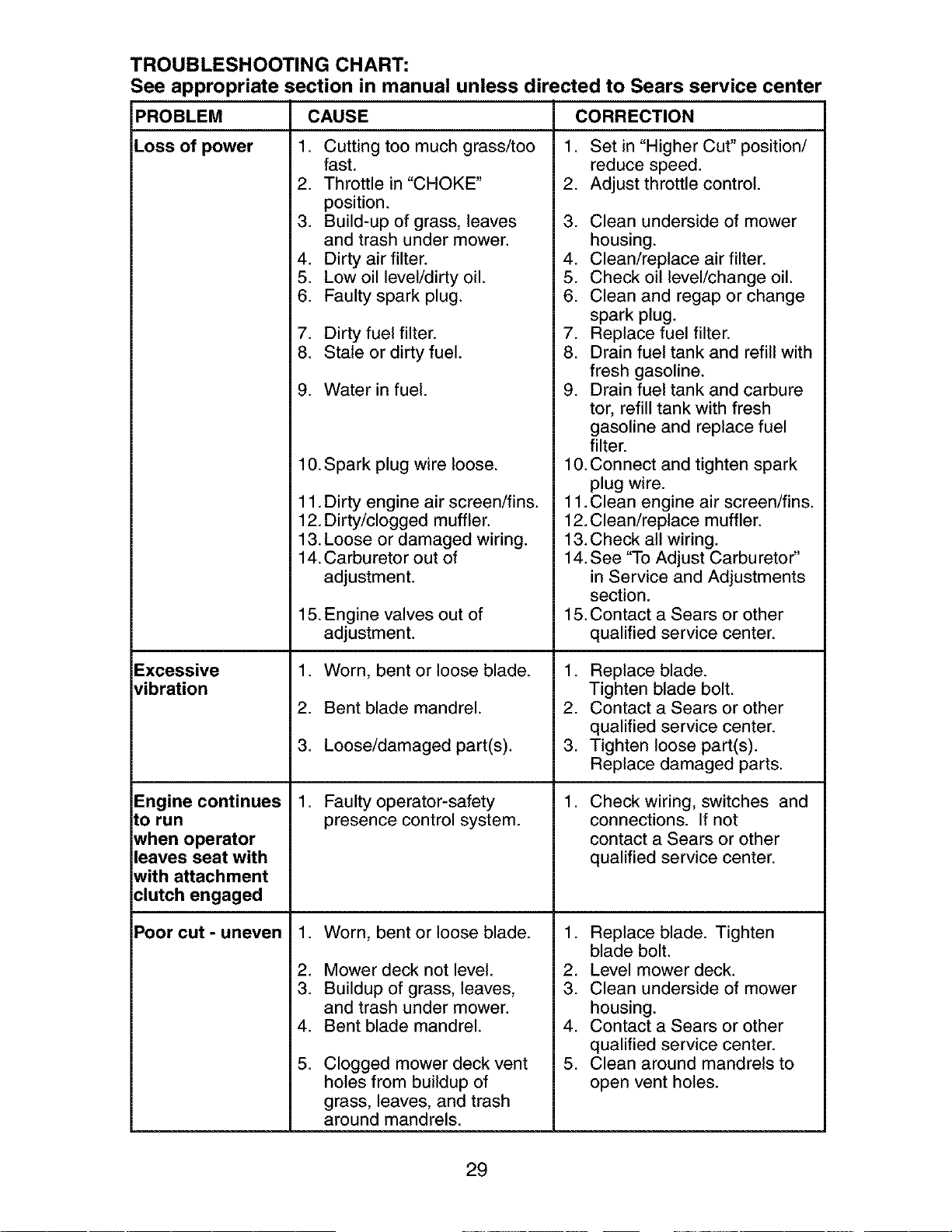

Troubleshooting...................................28

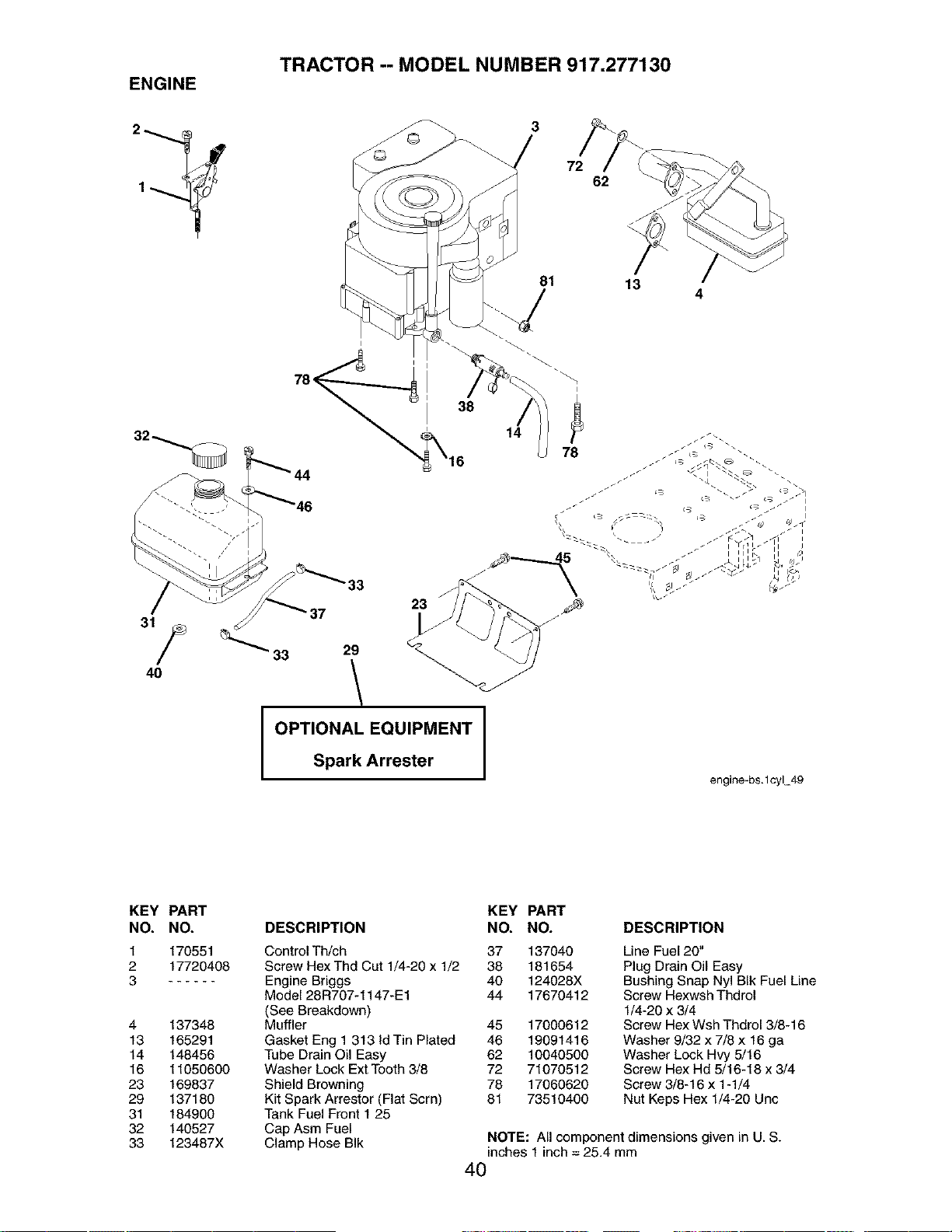

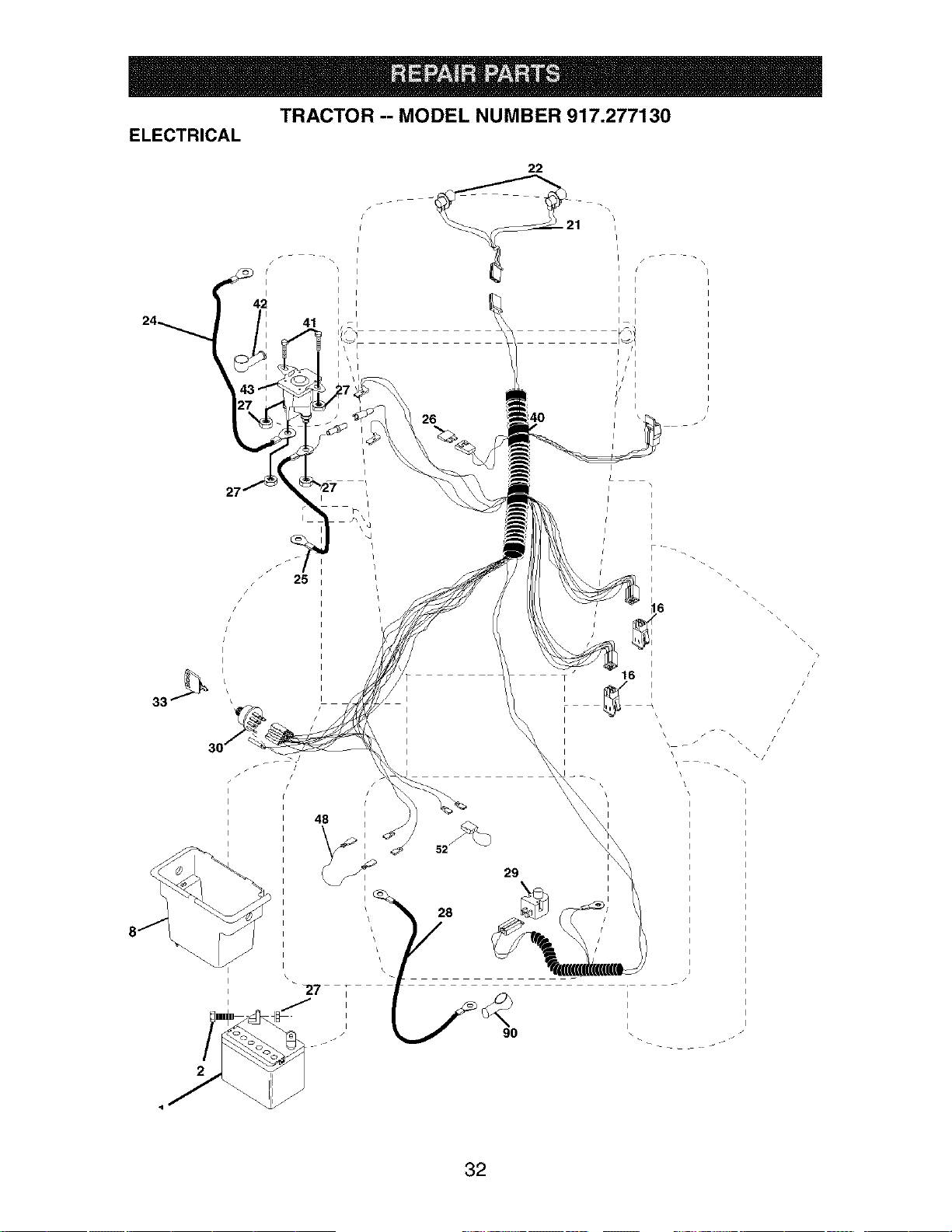

RepairParts.........................................32

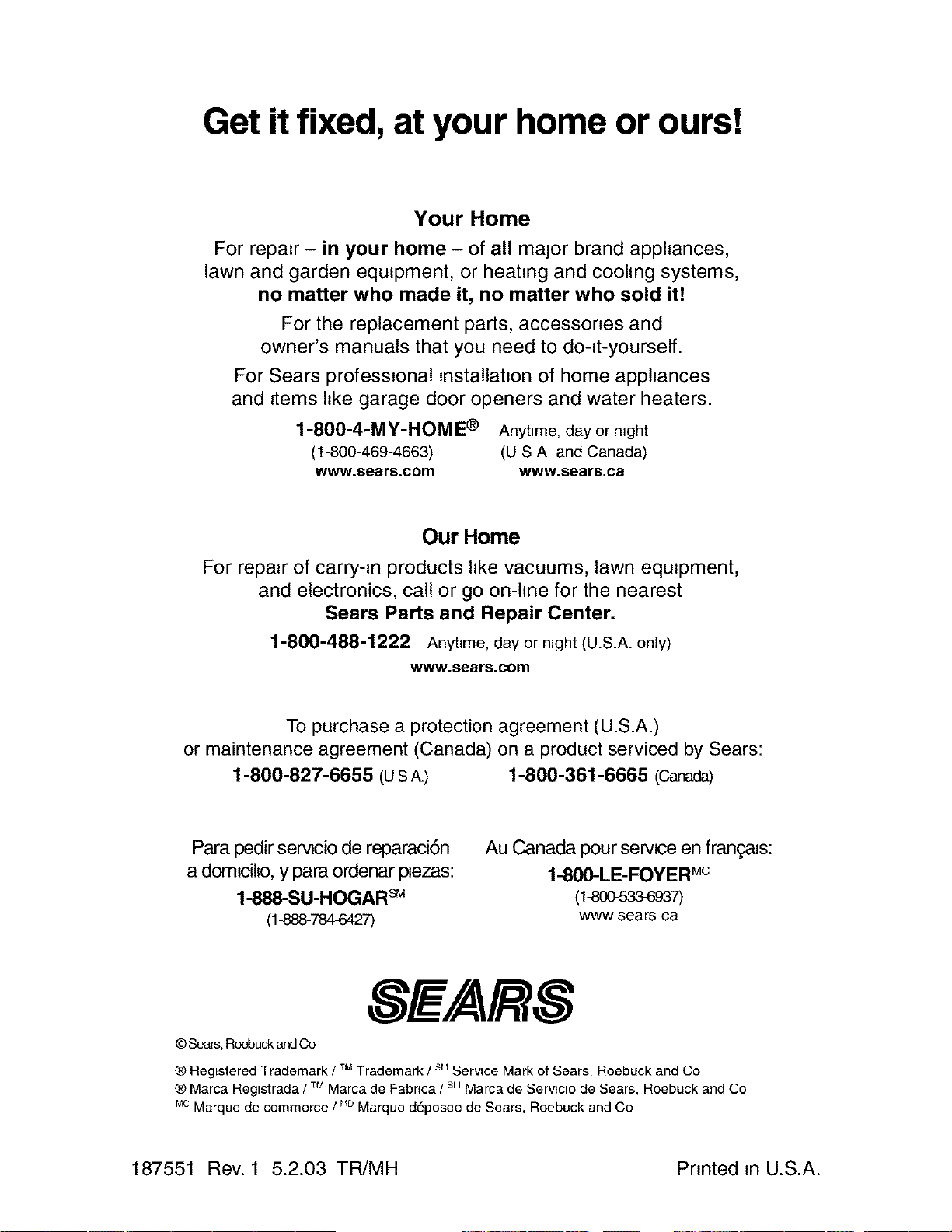

SearsService........................BackCover

LIMITEDWARRANTYONCRAFTSMANRIDINGEQUIPMENT

Forone (1)year fromthe dateof purchase,ifthis CraftsmanRidingEquipmentis

maintained,lubricatedandtuned upaccordingto the instructionsin theowner'smanual,

Searswill repairor replacefreeof chargeany partsthatare foundto be defectivein

materialor workmanshipaccordingto theguidelinesofcoveragelistedbelow.Searswill

alsoprovidefreelaborfortheseapplicablewarrantedparts forthefull year.Duringthe

first 30 daysofpurchase,therewill be nochargesto servicethe productat yourhome

for issuescoveredbythiswarranty.(Seeexclusionsbelow). Foryourconvenience,IN

HOMEwarrantyservicewillstill be availableafterthefirst30 daysof purchase,buta

tripchargewillapply.ThischargewillbewaivediftheCraftsmanproductisdroppedoff

at an authorizedSearslocation.ForthenearestauthorizedSearslocation,pleasecall

1-800-4-MY-HOME®.Thiswarrantyappliesonlywhilethis productiswithinthe United

States.

ThisWarrantydoes notcover:

• Expendableitemswhichbecomewornduring normaluse,includingbutnotlimitedto

blades,spark plugs,air cleaners,belts,andoil filters.

• StandardMaintenanceServicing,oil changes, ortune-ups

• Tire replacementor repaircausedbypuncturesfromoutsideobjects,suchas nails,

thorns,stumps,orglass.

• Repairsnecessarybecauseofoperatorabuse,includingbut notlimitedto,damage

causedbytowingobjectsbeyondthecapabilityofthe ridingequipment,impacting

objectsthatbendthe frameorcrankshaft,orover-speedingtheengine.

• Repairsnecessarybecauseofoperatornegligence,includingbutnotlimitedto, elec-

trical and mechanicaldamagecausedbyimproperstorage,failureto usetheproper

gradeandamountof engineoil, failureto keepthedeckclearofflammabledebris,

orfailureto maintaintheequipmentaccordingtothe instructionscontainedinthe

owner'smanual.

• Engine(fuelsystem)cleaningor repairscausedbyfuel determinedto becontami-

natedoroxidized(stale). Ingeneral,fuel shouldbe usedwithin30 daysof itspur-

chasedate.

• Normaldeteriorationand wearof the exteriorfinishes,orproductlabelreplacement.

• Ridingequipmentusedfor commercialor rentalpurposes.

LIMITEDWARRANTYON BATTERY

Forninety(90)daysfromdateof purchase,ifany batteryincludedwith thisridingequip-

mentprovesdefectivein materialorworkmanshipand ourtestingdeterminesthebattery

will notholda charge,Searswill replacethebatteryat no charge. Duringthefirst 30

daysof purchase,therewillbe no chargesto replacethebatteryat yourHOME. After

thefirst 30 days,for yourconvenience,IN-HOMEwarrantyservicewillstill be avail-

ablebutatripchargewill apply.This chargewill be waivediftheCraftsmanproductis

droppedoff at an authorizedSearslocation.ForthenearestauthorizedSearslocation,

pleasecall 1-800-4-MY-HOME®.

Thisbatterywarrantyappliesonlywhilethis productiswithinthe UnitedStates.

Thiswarrantygivesyouspecificlegalrights,andyou mayalsohaveother rights,which

vary,fromstateto state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

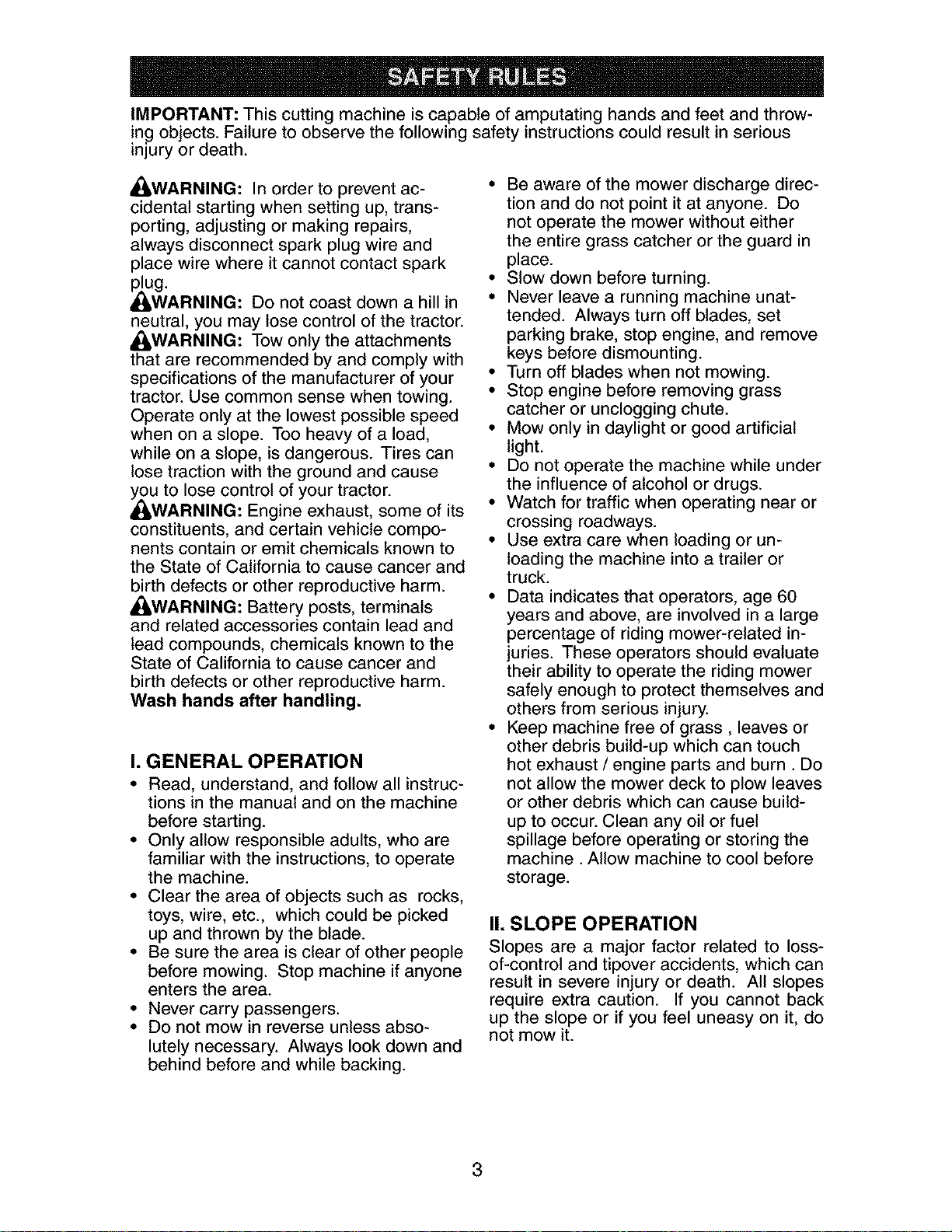

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_ILWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_WARNING: Engine exhaust, some of its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

A(_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I, GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

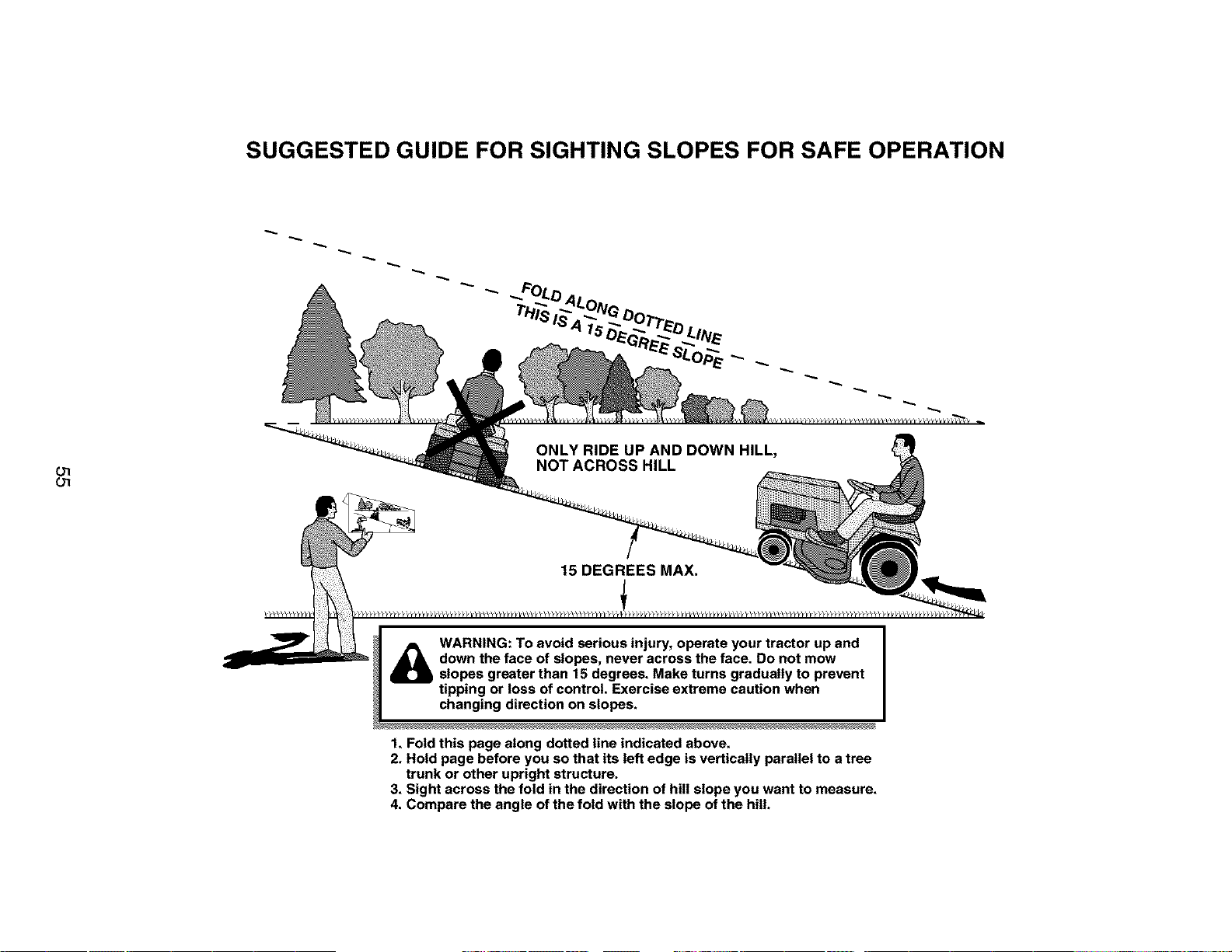

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

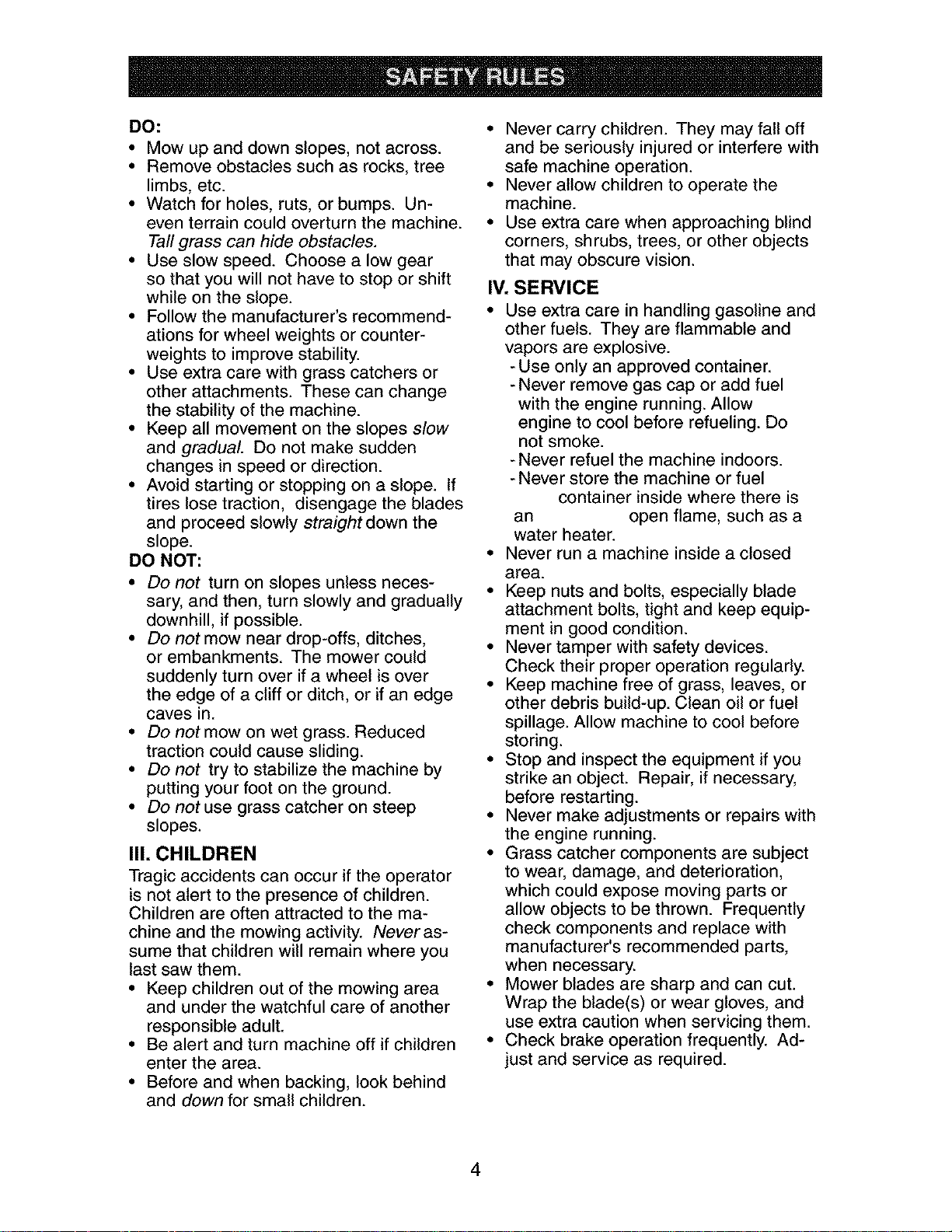

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is

an open flame, such as a

water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

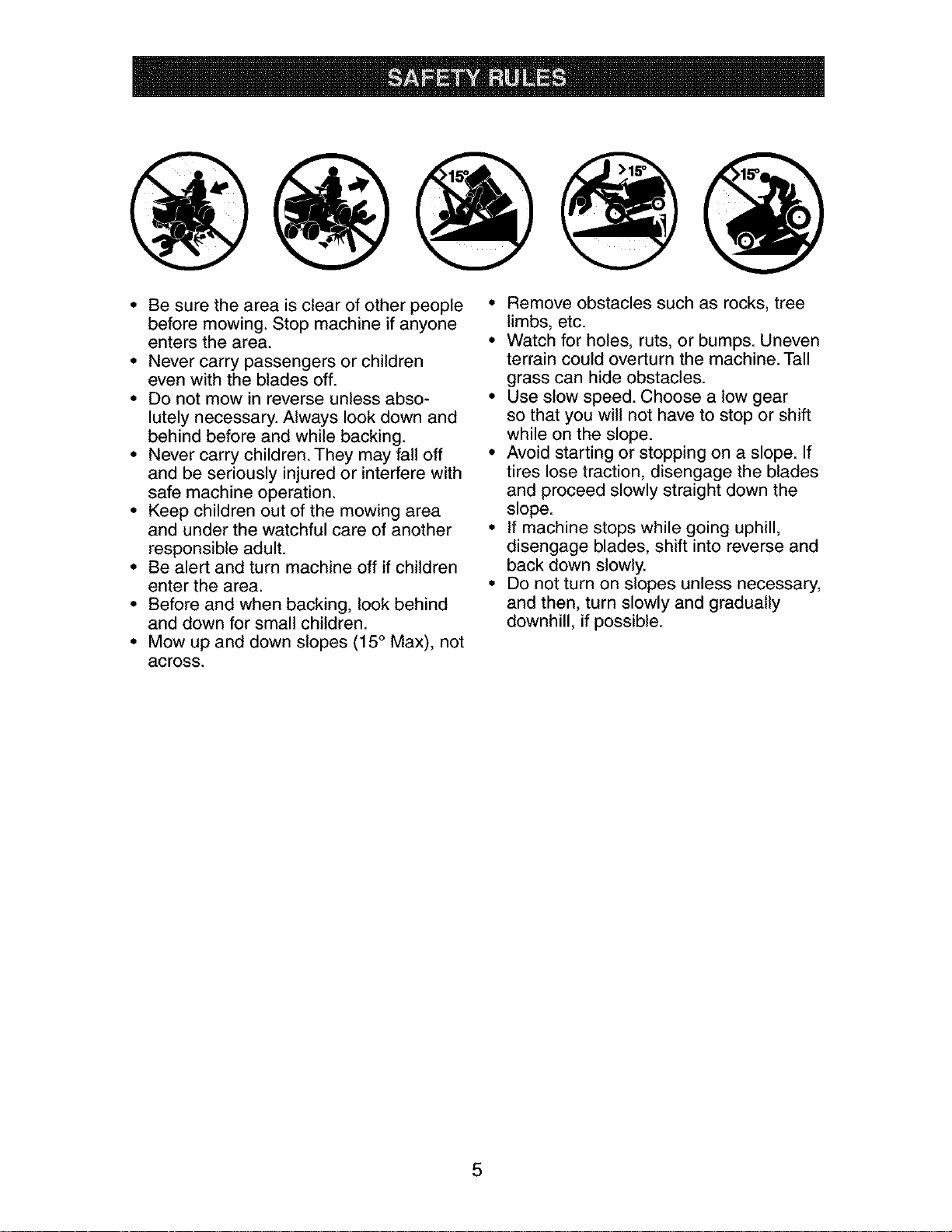

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Be not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline

iCapacity

iand Type:

lOll Type:

i(API-SF-SJ):

Oil Capacity:

Spark Plug:

(Gap: .030")

Ground Speed

(MPH):

1.25 Gallons

Unleaded

Regular

SAE 30 (above 32°F)

SAE 5W-30 (below 32°F'

3.0 Pints

Champion RCl 2YC

Forward:

1st 1.1

2nd 2.2

3rd 3.4

4th 4.3

5th 5.5

Reverse: 1.7

Tire Pressure: Front: 14 PSI

Rear: 12 PSI

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/H r: 28

Min. CCA: 230

Case Size: U1R

i Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME@

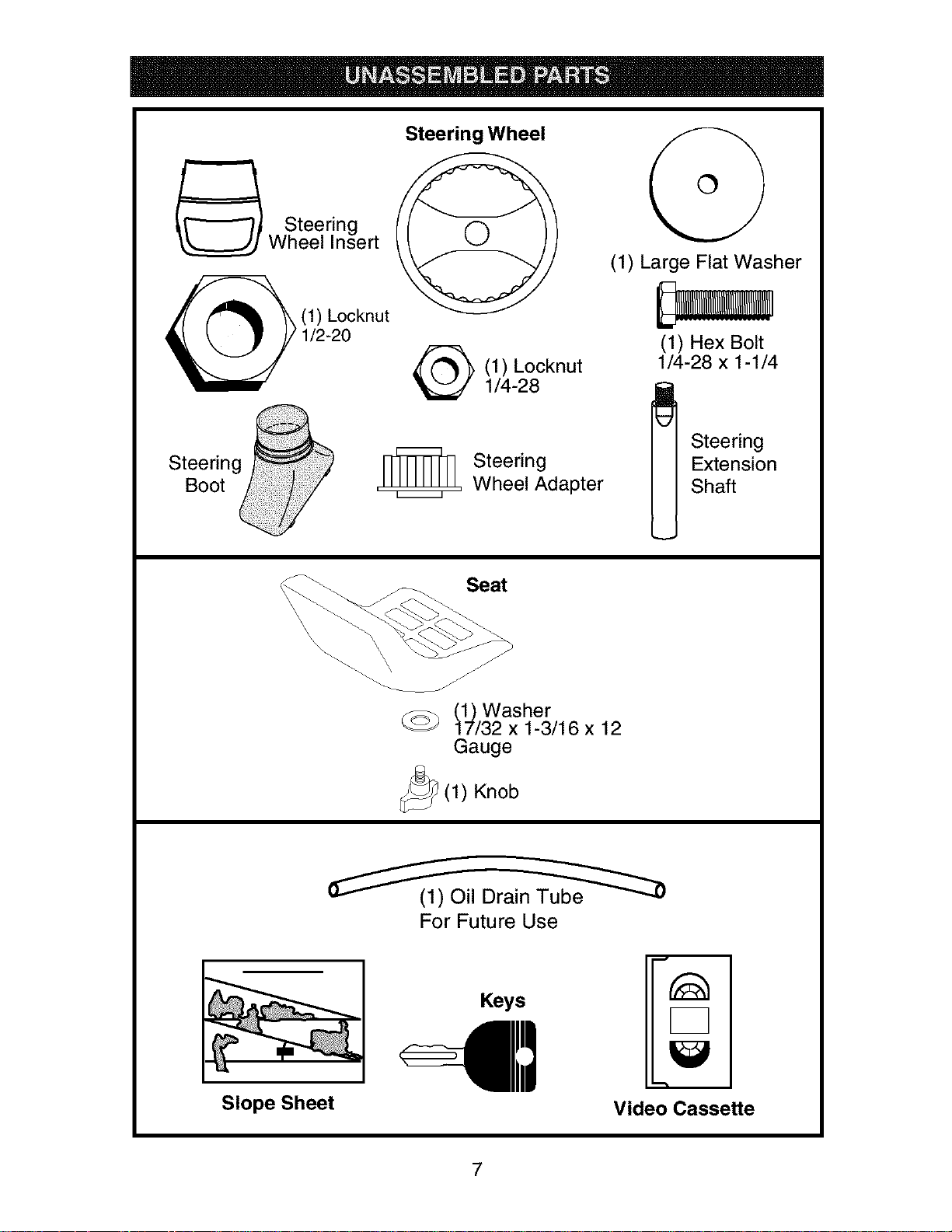

Steering

Wheel Insert

@(1) Locknut

1/2-20

Steering

Boot

Steering Wheel

(1) Locknut

1/4-28

=_ Steering

Wheel Adapter

(1) Large Flat Washer

(1) Hex Bolt

1/4-28 x 1-1/4

I teering

Extension

Shaft

Seat

(1) Washer

(_ 17/32 x 1-3/16 x 12

Gauge

_(1) Knob

For Future Use

Slope Sheet

Keys

"--t

Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(1) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex nut

and tighten securely.

_ Insert

_...-_ 1/2 Hex Nut

Large Flat

WheelSteering @Washer

/ \ \ \l

Lower _ _ ,

Steering _ __ _.. \ / /

..,_ ,_ Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

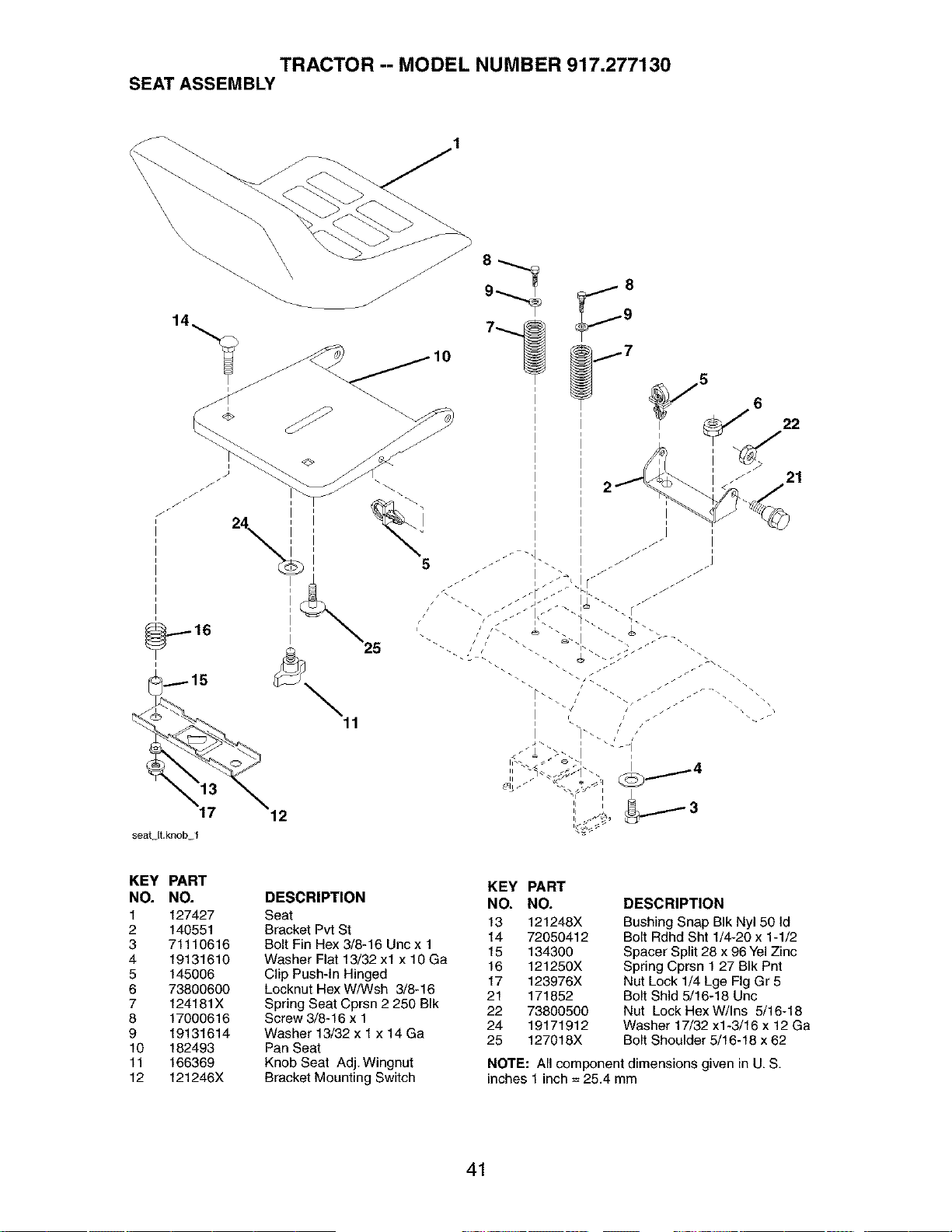

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

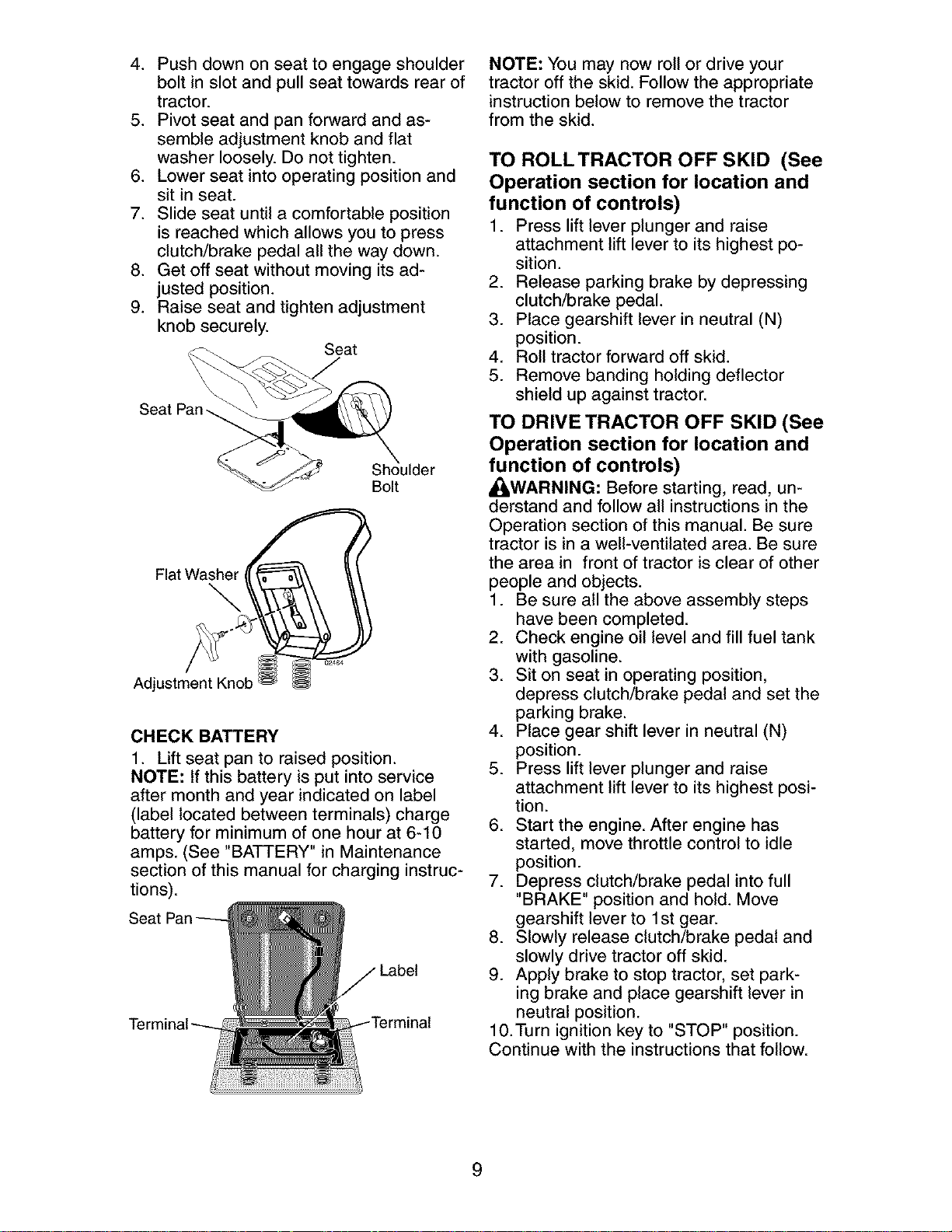

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan -.

Bolt

Flat Washer

Adjustment Knob

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

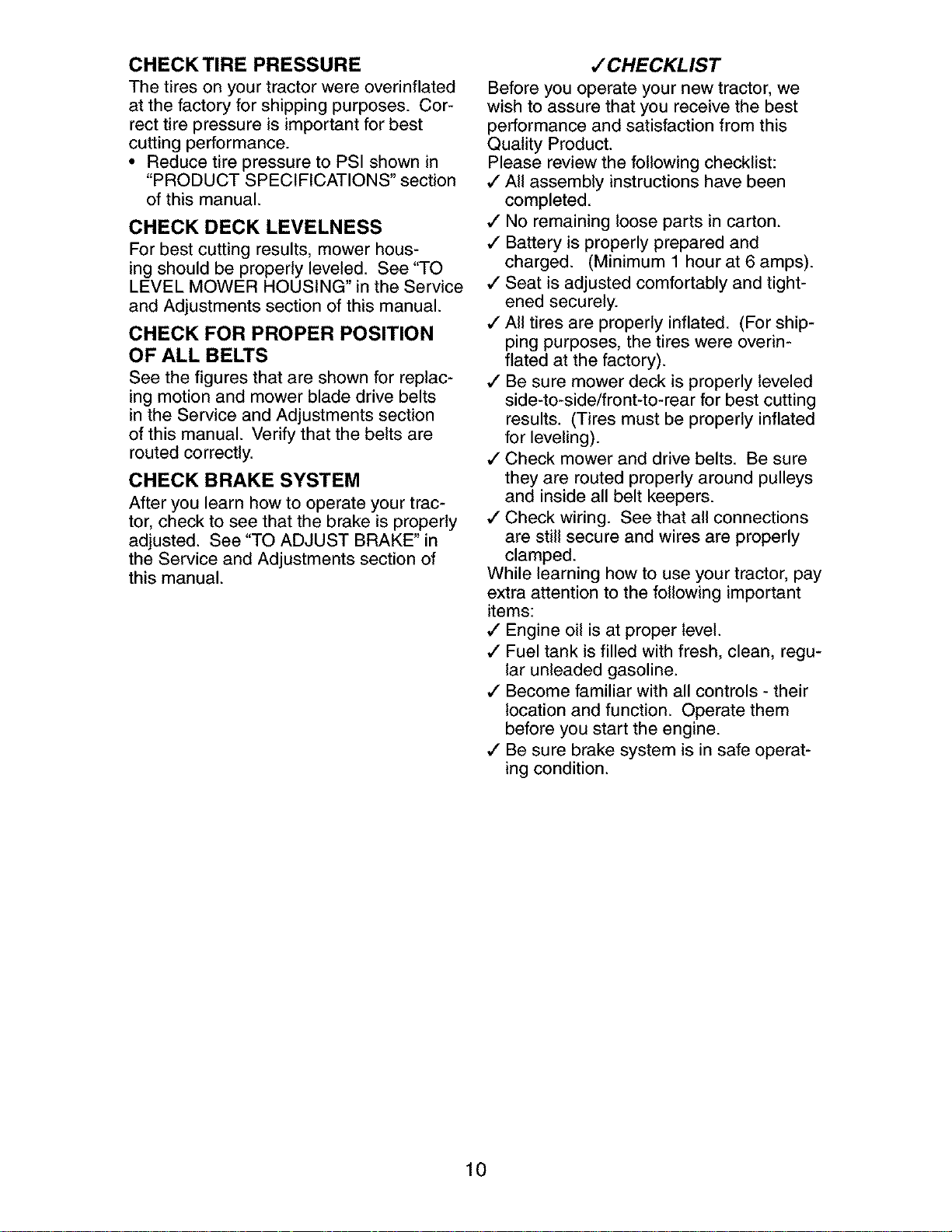

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKESYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

J CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank isfilled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

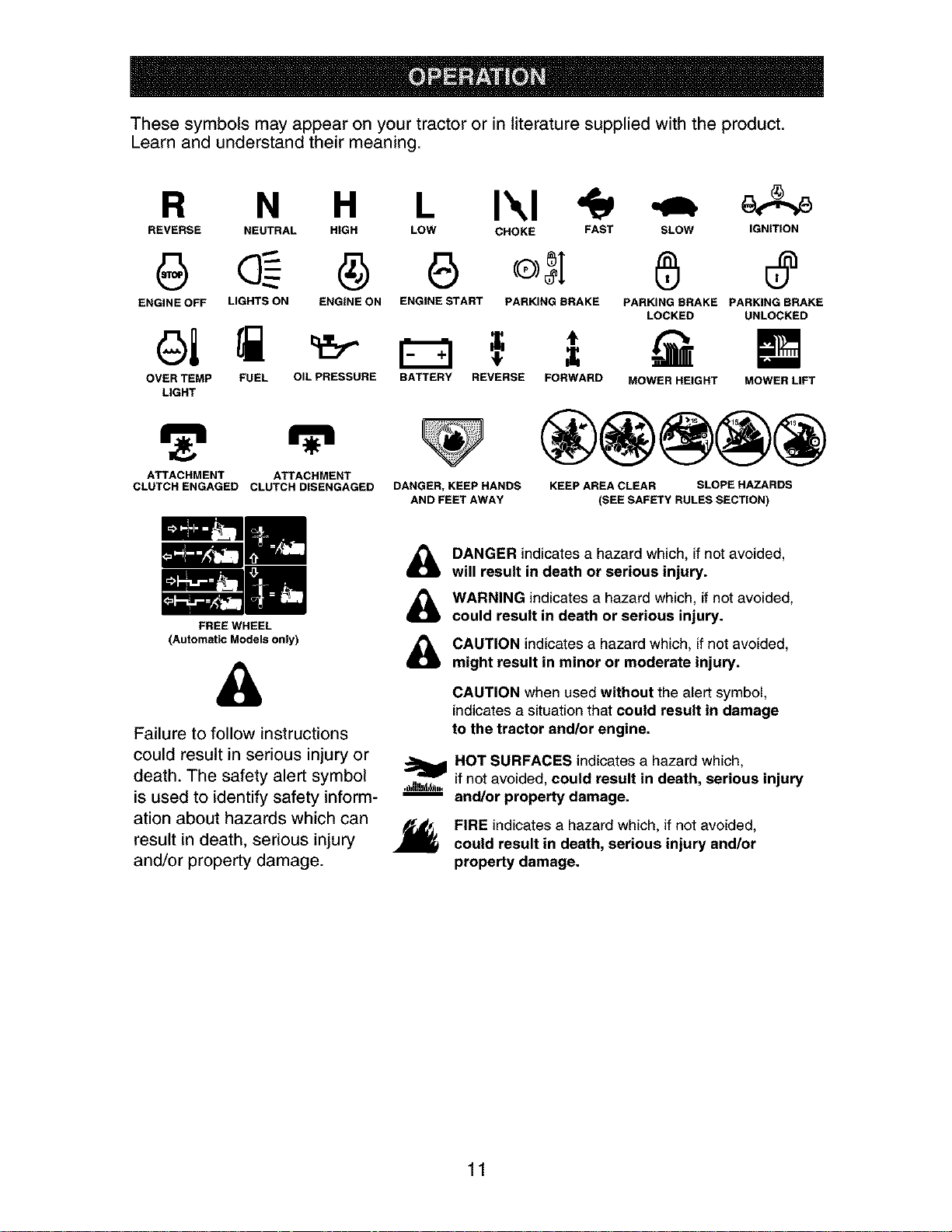

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I',,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

l.rl,

result in death, serious injury .J_

and/or property damage.

DANGER indicates a hazard which, ifnot avoided,

will result in death or serious injury.

WARNING indicates a hazard which, ifnot avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicatesa situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

ifnot avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which,if not avoided,

could result in death, serious injury and/or

property damage.

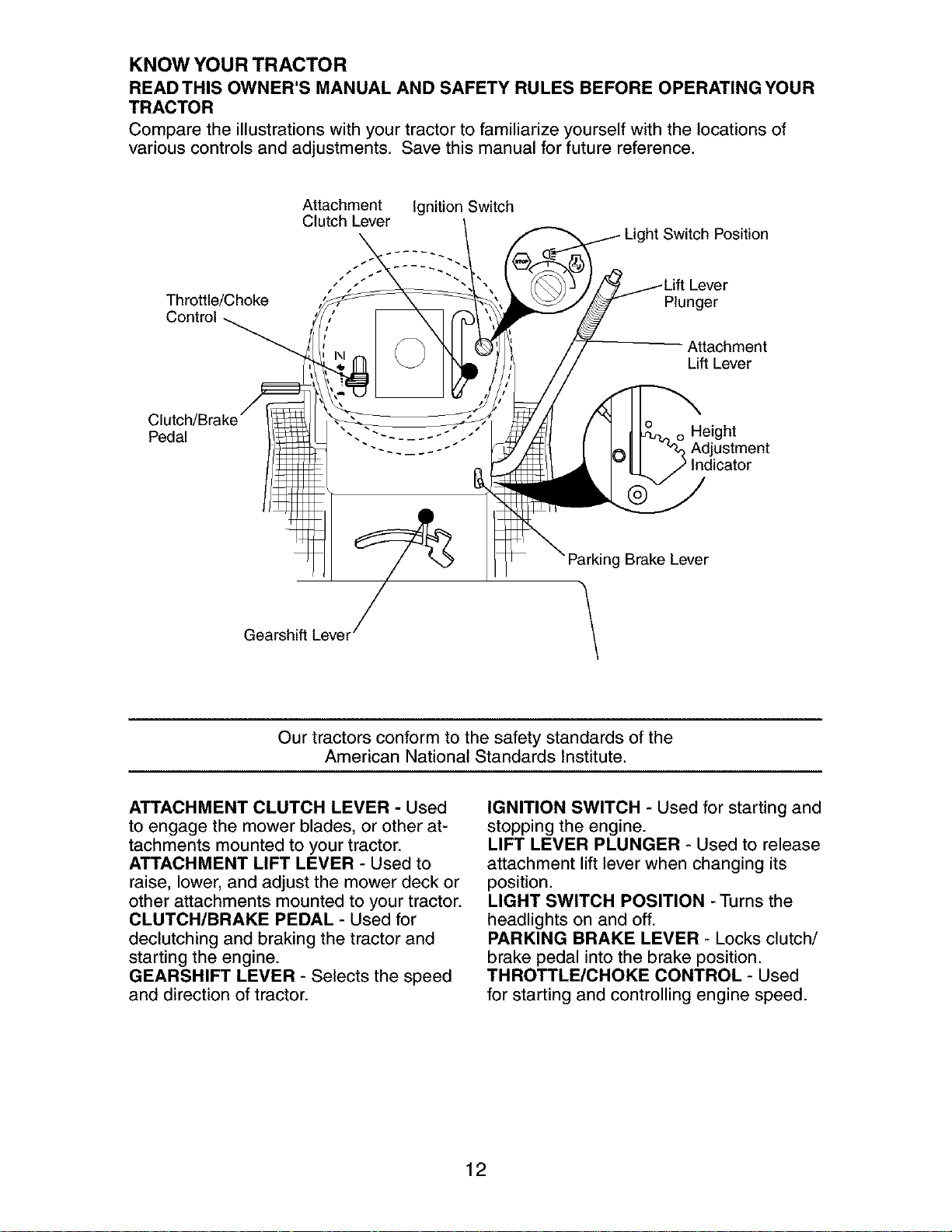

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Throttle/Choke

Attachment Ignition Switch

Clutch Lever

Switch Position

Lever

Plunger

Attachment

Lift Lever

o Height

Adjustment

Indicator

Gearshift Lever _

arking Brake Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION -Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Throttle/Choke

Control

Attachment Clutch Lever

"Engaged" Position

Ignition Key

Clutch/

Brake

Pedal

"Disengaged"

Parking

Brake

"Engaged"

Position

/// Gearshift

Lever

"Brake"

Position "Disengaged"

Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

_Ocpping trac!or on grass areas.

AUTION. Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running.

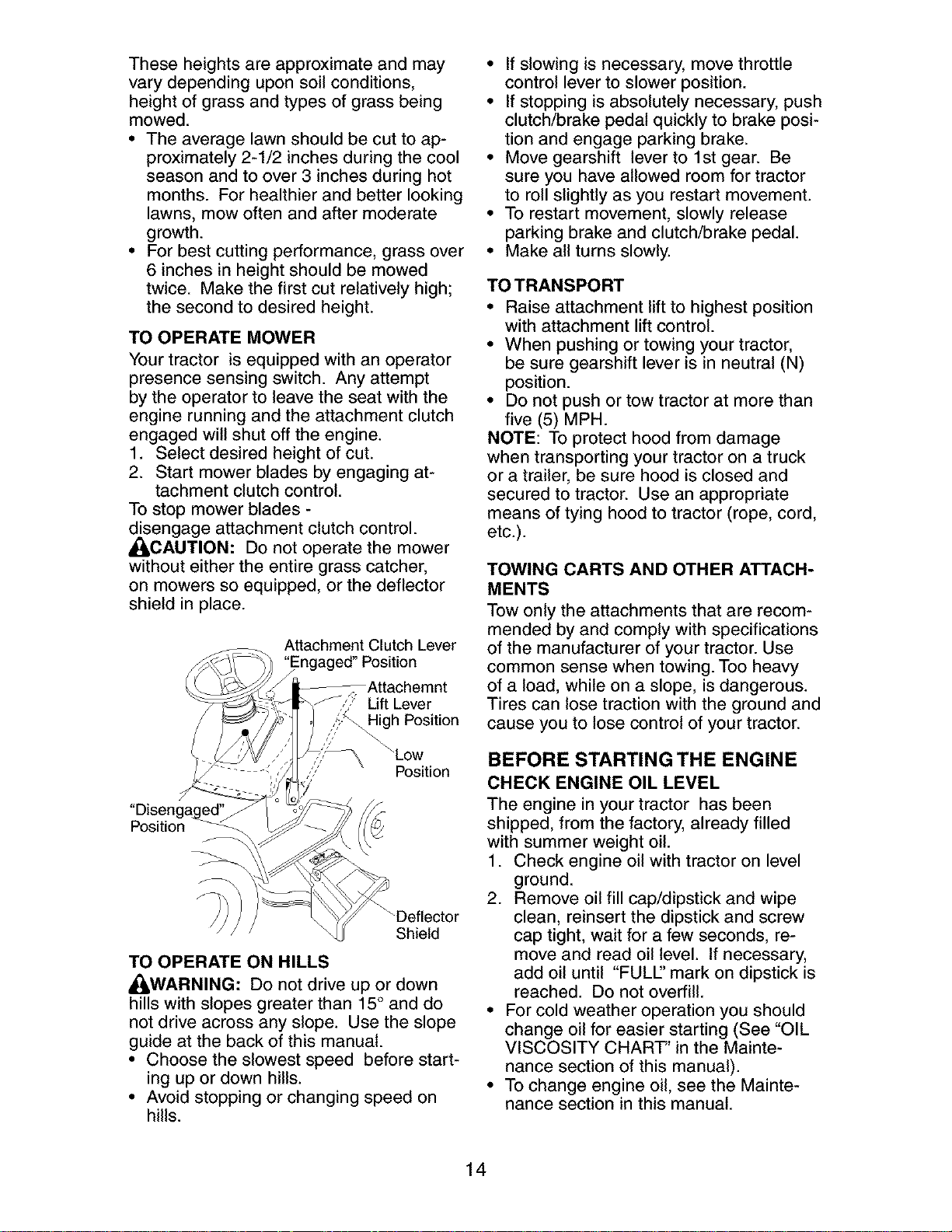

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

To stop mower blades -

disengage attachment clutch control.

A(_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Clutch Lever

:ngaged" Position

Attachemnt

Lift Lever

High Position

Position

/ Shield

TO OPERATE ON HILLS

_WARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

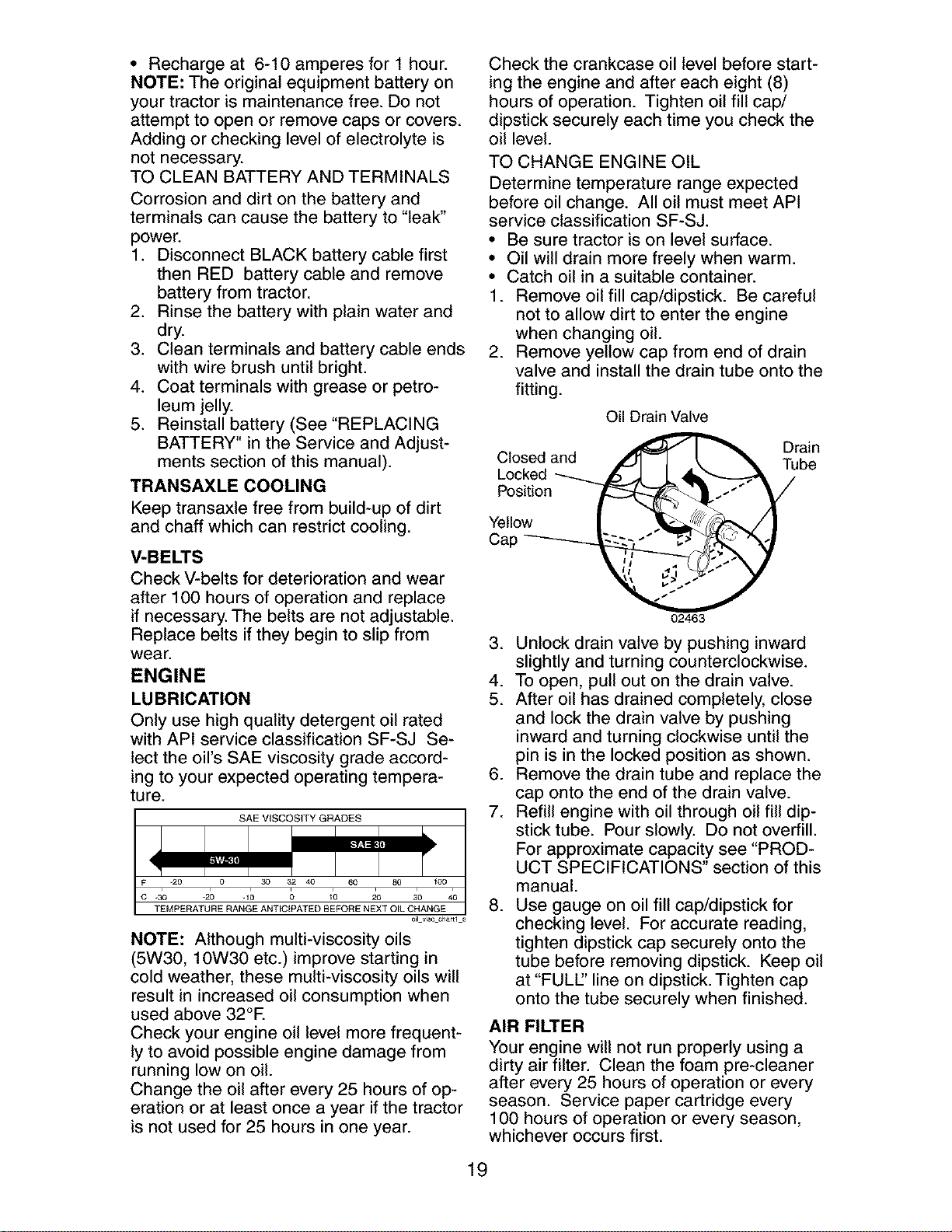

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL' mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART' in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

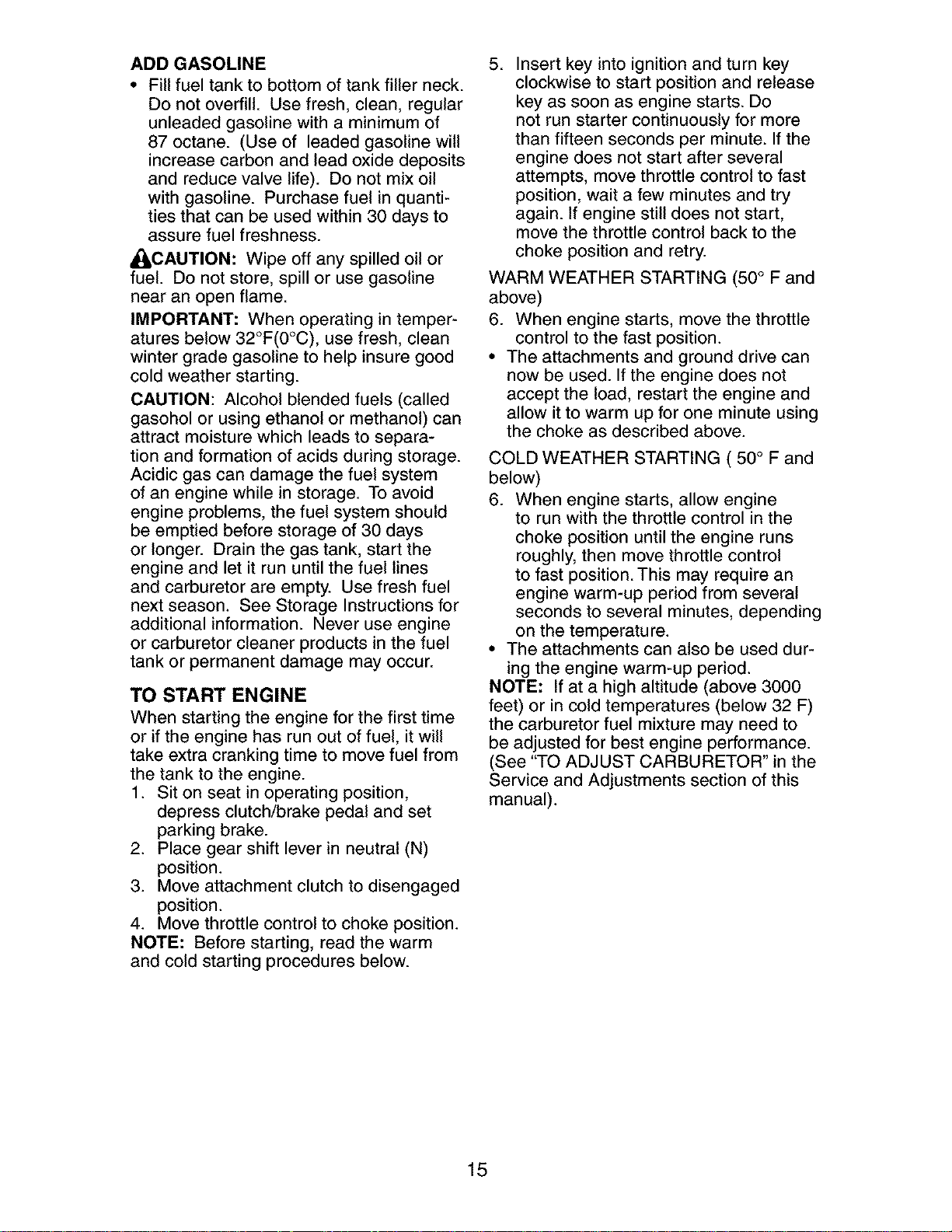

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, itwill

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50° F and

below)

6. When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

• The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

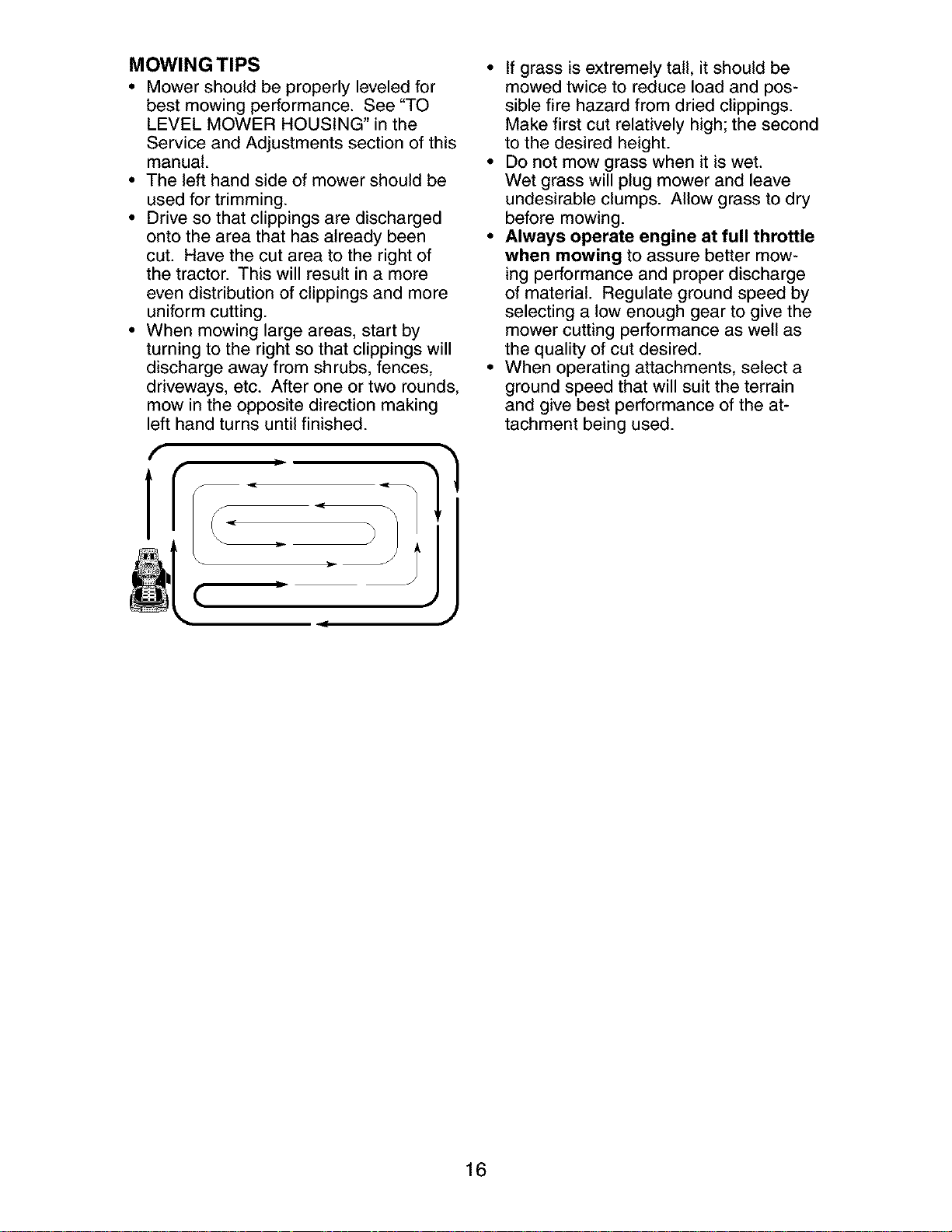

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

f •

[

/" 4/

• J

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MAINTENANCE SCHEDULE .S'_.,_._ _ _ _ °"_ ,/_

Check Operator Presence and

f Interlock Systems

a Check for Loose Fasteners _ 11_5

A Sharpen/Replace Mower Blades _3

T Lubrication Chart

0 Check Battery Level

a C_ean Battery and Terminals

Check Transaxle Cooling

Check V_Beffs

Check Engine Oil Level _

Change Engine Oil (with oil filter) _1,; I_ #

E Change Engine Oil (without oil filter) _1_1,2

N Clean Air Filter

G Clean Air Screen

N_ Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped)

C_ean Engine Coo_ing Fins IV _;,

Replace Spark Plug I1_

Replace Air Filter Paper Cartridge

Replace Fuel Filter _'

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

3 = Replace blades more often when mowing in sandy satL

4 = Not required if equipped with matetenance=free battery.

5 = Tighten front axte pivot bolt to 35 ft.4bs, maximum.

Do not over[ighten.

LUBRICATION CHART

(# - _ Spindle

Zerk Zerk

_Front Wheel

Bearing

Zerk

i I o19641

<_General Purpose Grease

_Front Wheel

Bearing Zerk

'@Engine

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant sparingly.

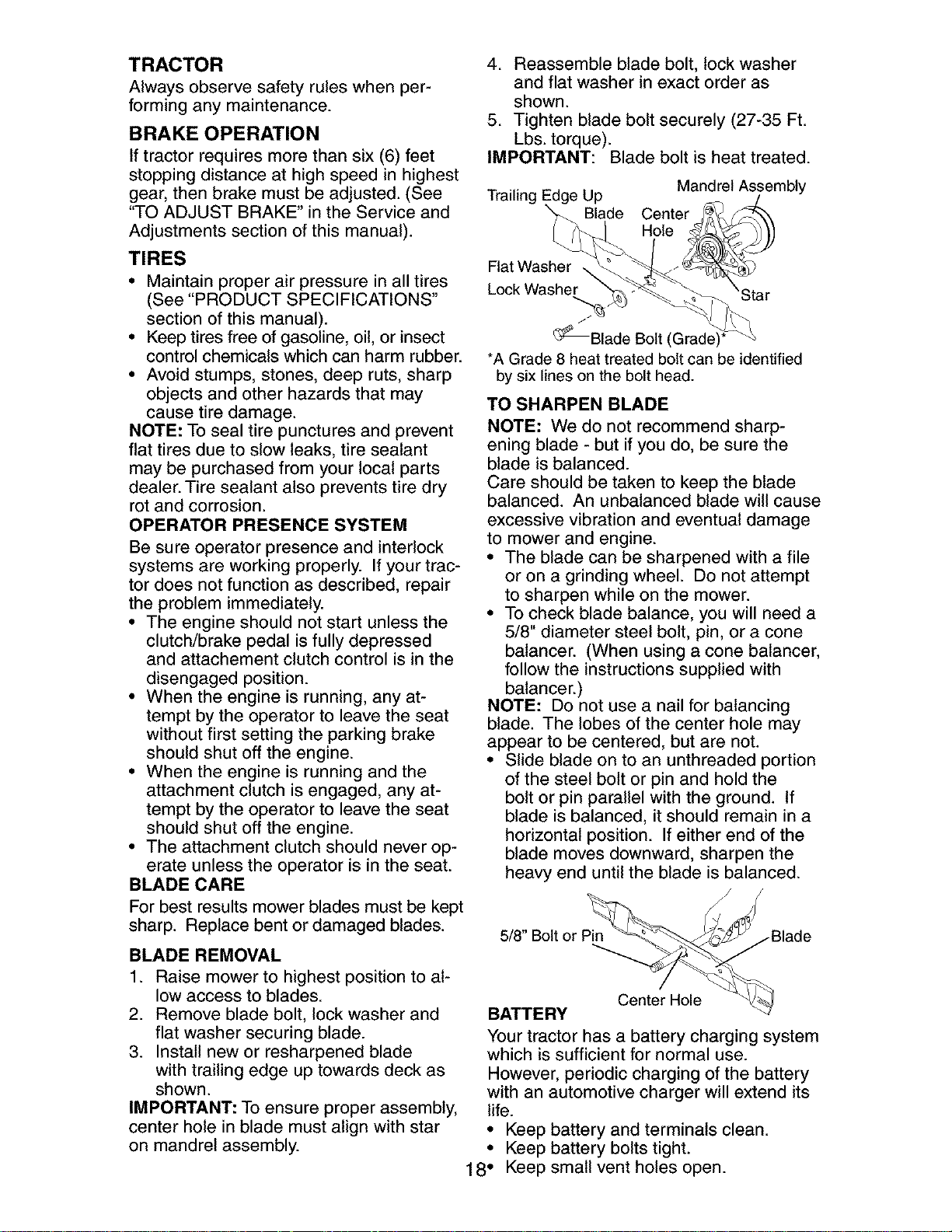

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

Trailing Up Mandrel Assembly

Blade Center

Hole

Flat Washer \

Lock Washer

_Blade Bolt (Grade)*

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or Pin

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger will extend its

life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

18 • Keep small vent holes open.

• Rechargeat 6-10amperesfor 1 hour.

NOTE:Theoriginalequipmentbatteryon

yourtractoris maintenancefree.Do not

attemptto openor removecapsor covers.

Addingorcheckinglevelof electrolyteis

notnecessary.

TOCLEANBATTERYANDTERMINALS

Corrosionanddirt onthe batteryand

terminalscan causethe batteryto "leak"

power.

1. DisconnectBLACKbatterycablefirst

then RED batterycableand remove

batteryfromtractor.

2. Rinsethebatterywith plainwaterand

dry.

3. Cleanterminalsandbatterycableends

withwirebrushuntilbright.

4. Coatterminalswith greaseorpetro-

leumjelly.

5. Reinstallbattery(See"REPLACING

BATTERY"inthe ServiceandAdjust-

mentssectionofthis manual).

TRANSAXLECOOLING

Keeptransaxlefreefrombuild-upof dirt

and chaffwhichcan restrictcooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture.

SAE VISCOSITY GRADES

loo

.30 -20 .10 0 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

o_1v_s_chart1 e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°E

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year if the tractor

is not used for 25 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed and

Locked

Position

Drain

Tube

Yellow

Cap

02463

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl.:' line on dipstick. Tighten cap

onto the tube securely when finished.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

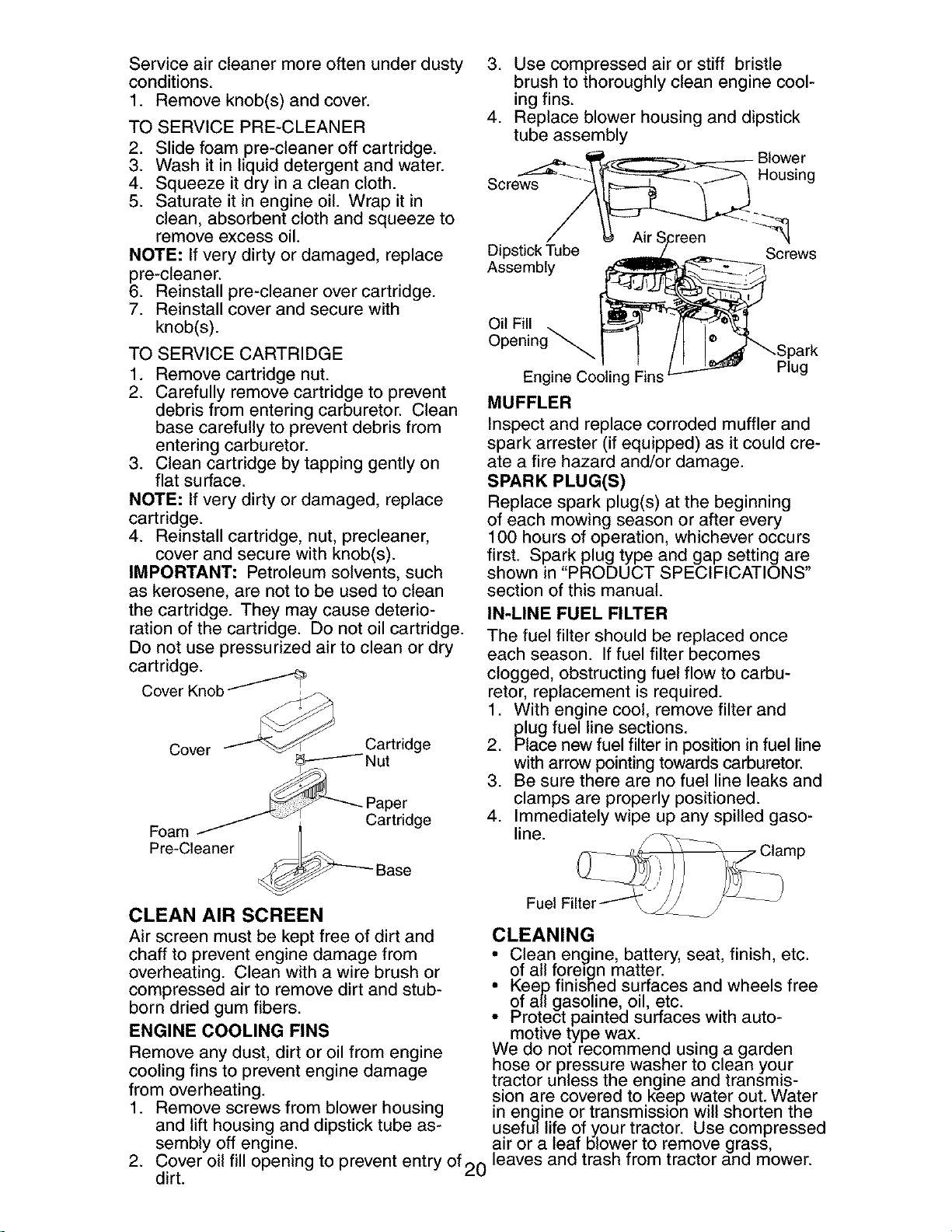

Service air cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove cartridge nut.

2. Carefully remove cartridge to prevent

debris from entering carburetor. Clean

base carefully to prevent debris from

entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge, nut, precleaner,

cover and secure with knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Cover Knob

Cover Cartridge

Nut

Foam

Pre-Cleaner

Cartridge

_Base

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

1. Remove screws from blower housing

and lift housing and dipstick tube as-

sembly off engine.

3. Use compressed air or stiff bristle

brush to thoroughly clean engine cool-

ing fins.

4. Replace blower housing and dipstick

tube assembly

Blower

Screws Housing

Dipstick Tube Screws

Assembly

Oil Fill .

OpeningS.

Engine Cooling Fins

Plug

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel line

with arrow pointing towards carburetor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Fuel Filter -----"__

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finisSed surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass

eaves and trash from tractor and mower.

2. Cover oil fill opening to prevent entry of 20

dirt.

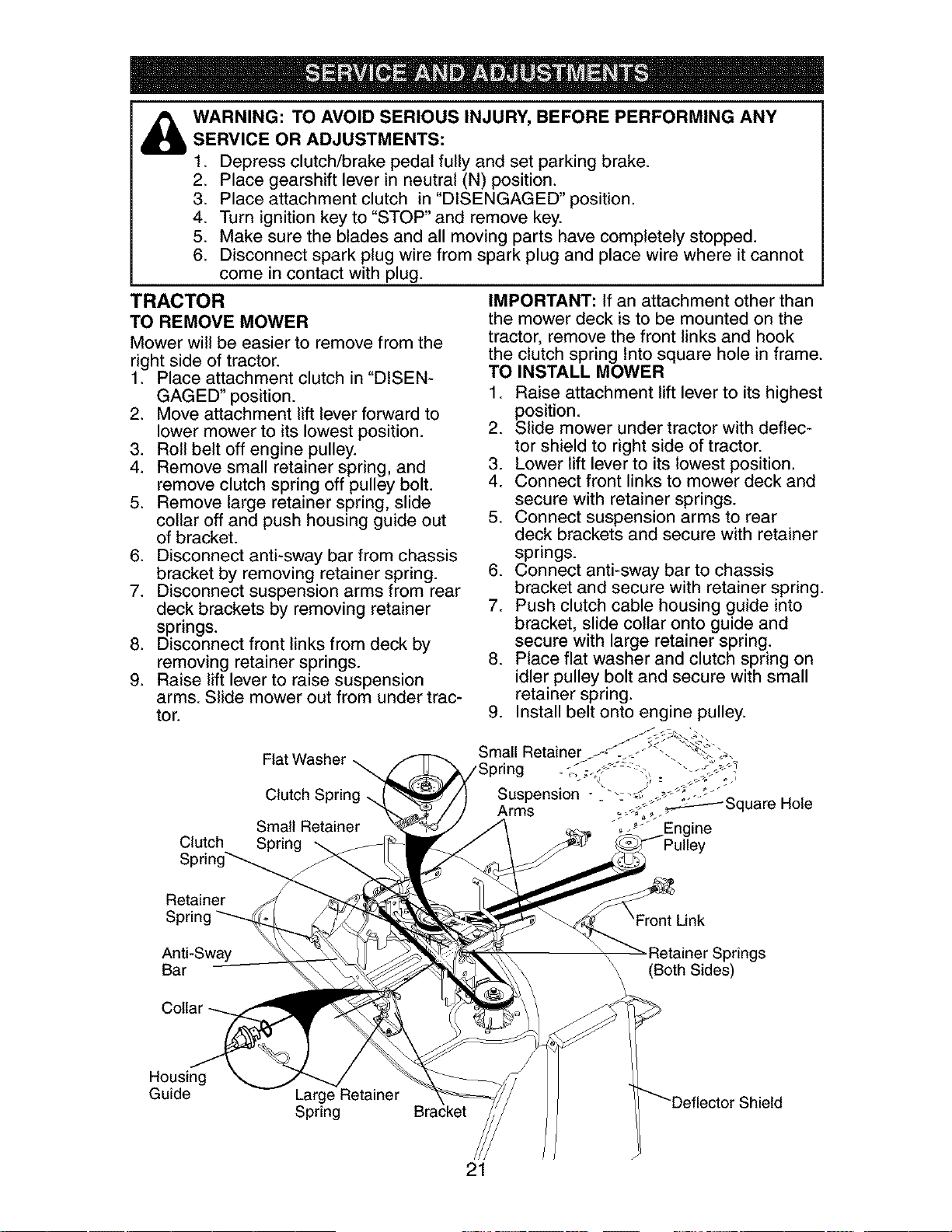

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

Clutch Spring.

Small Retainer

Clutch Spring

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

Small Retainer j __ . ._,.o_.

Suspension - "- _,< _-J_;_-_

- - 4.-_.._-------Square Hole

Arms

Pulley

Retainer

Spring

Anti-Sway

Bar

Link

Springs

(Both Sides)

Housing

Guide

Large Retainer

Spring

Shield

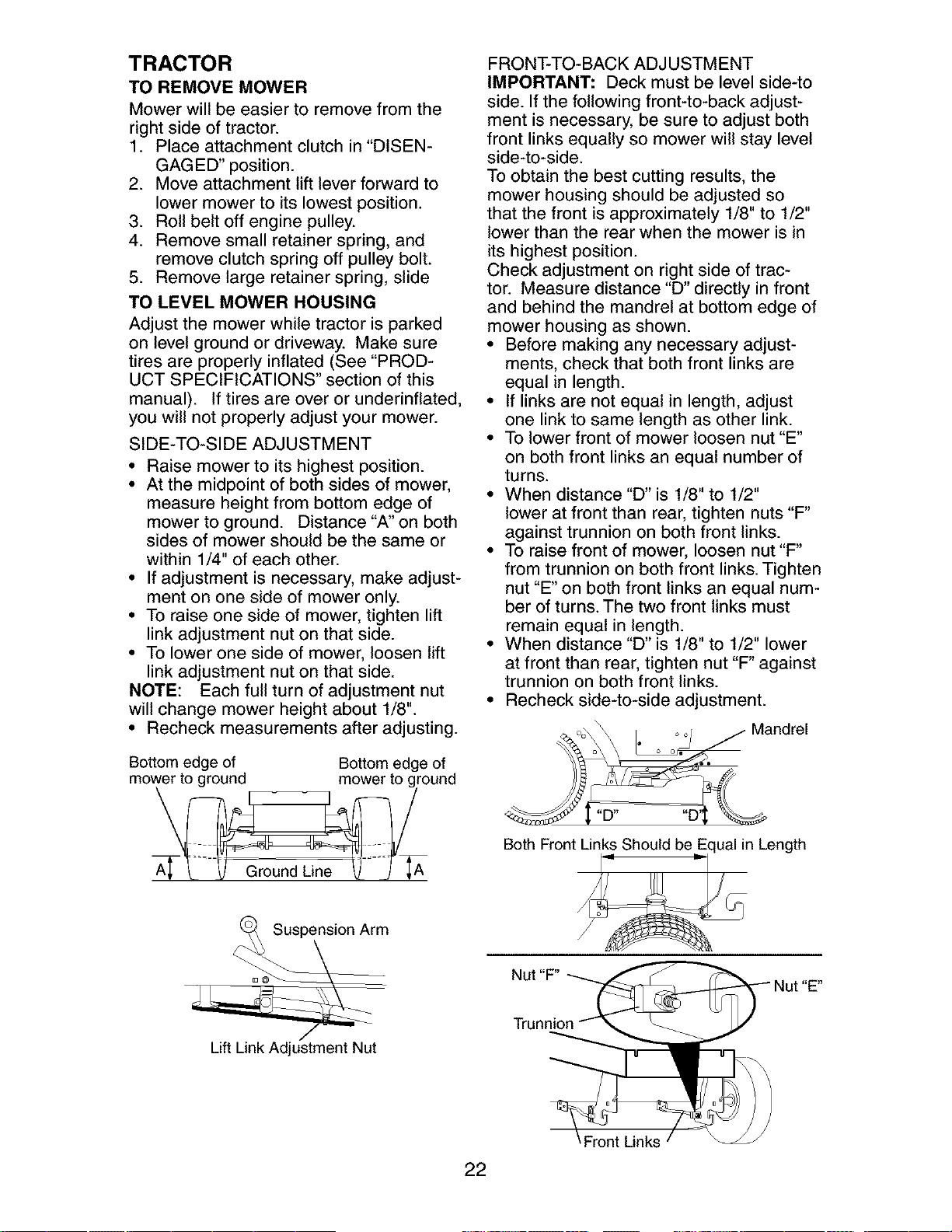

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge of Bottom edge of

mower to ground mower to ground

Lift Link Adjustment Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

-E _

Trunnion

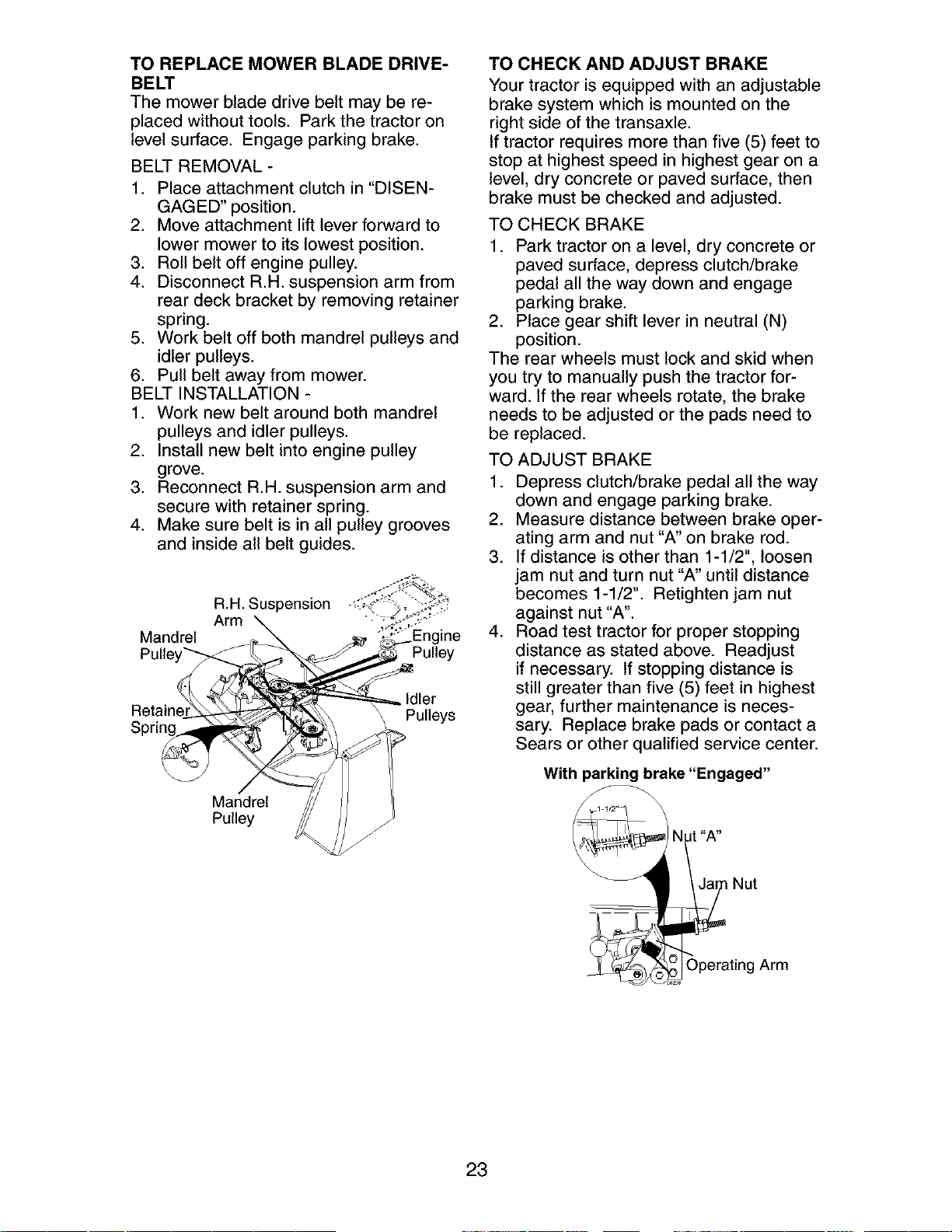

TO REPLACE MOWER BLADE DRIVE-

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

5. Work belt off both mandrel pulleys and

idler pulleys.

6. Pull belt away from mower.

BELT INSTALLATION -

1. Work new belt around both mandrel

pulleys and idler pulleys.

2. Install new belt into engine pulley

grove.

3. Reconnect R.H. suspension arm and

secure with retainer spring.

4. Make sure belt is in all pulley grooves

and inside all belt guides.

Mandrel

R.H. Suspension

Arm

Pulley

Idler

Pulleys

Mandrel

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

_INIt"A" Nut

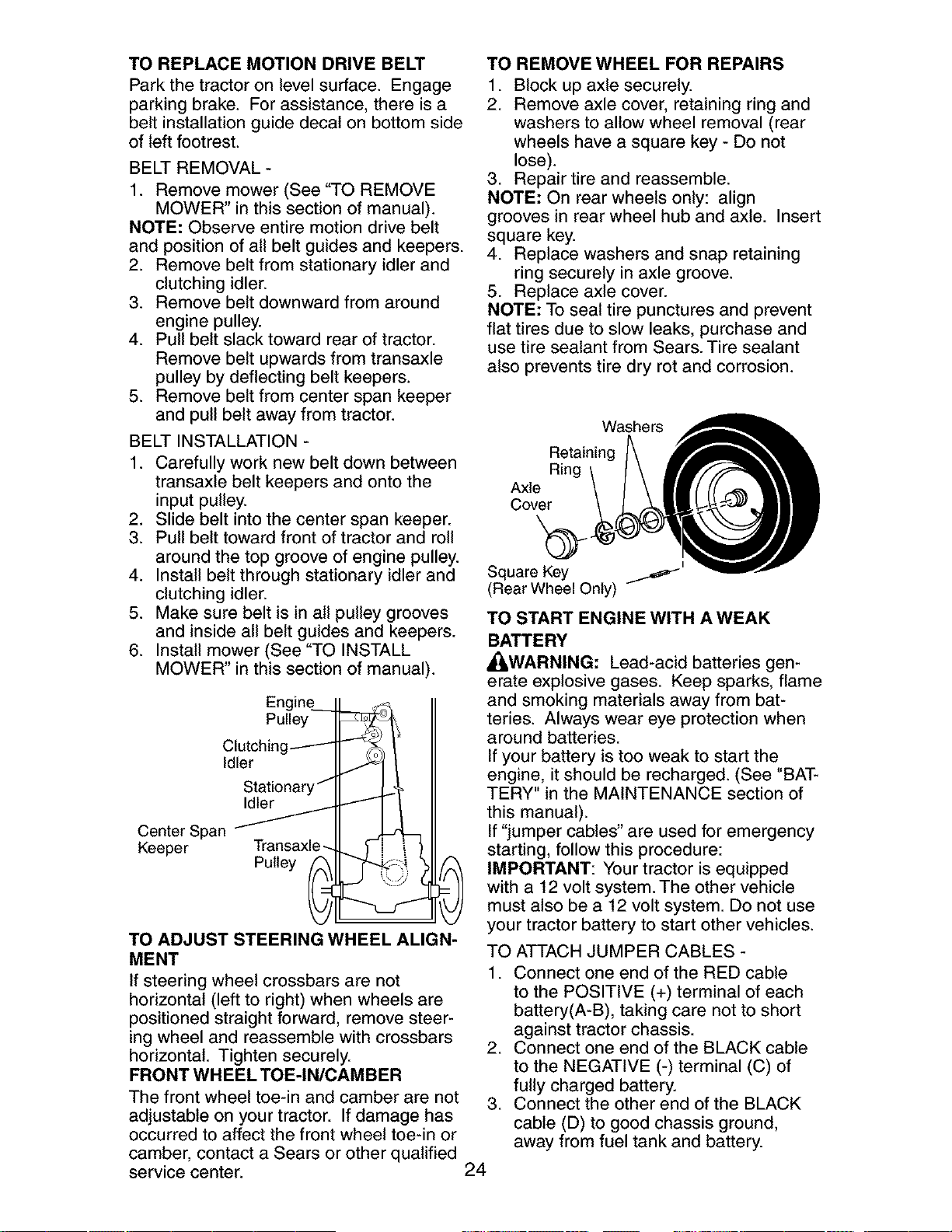

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Pulley

Idler

Stationar_

Idler

Center Span

Keeper

Pulley

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not 3.

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center. 24

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

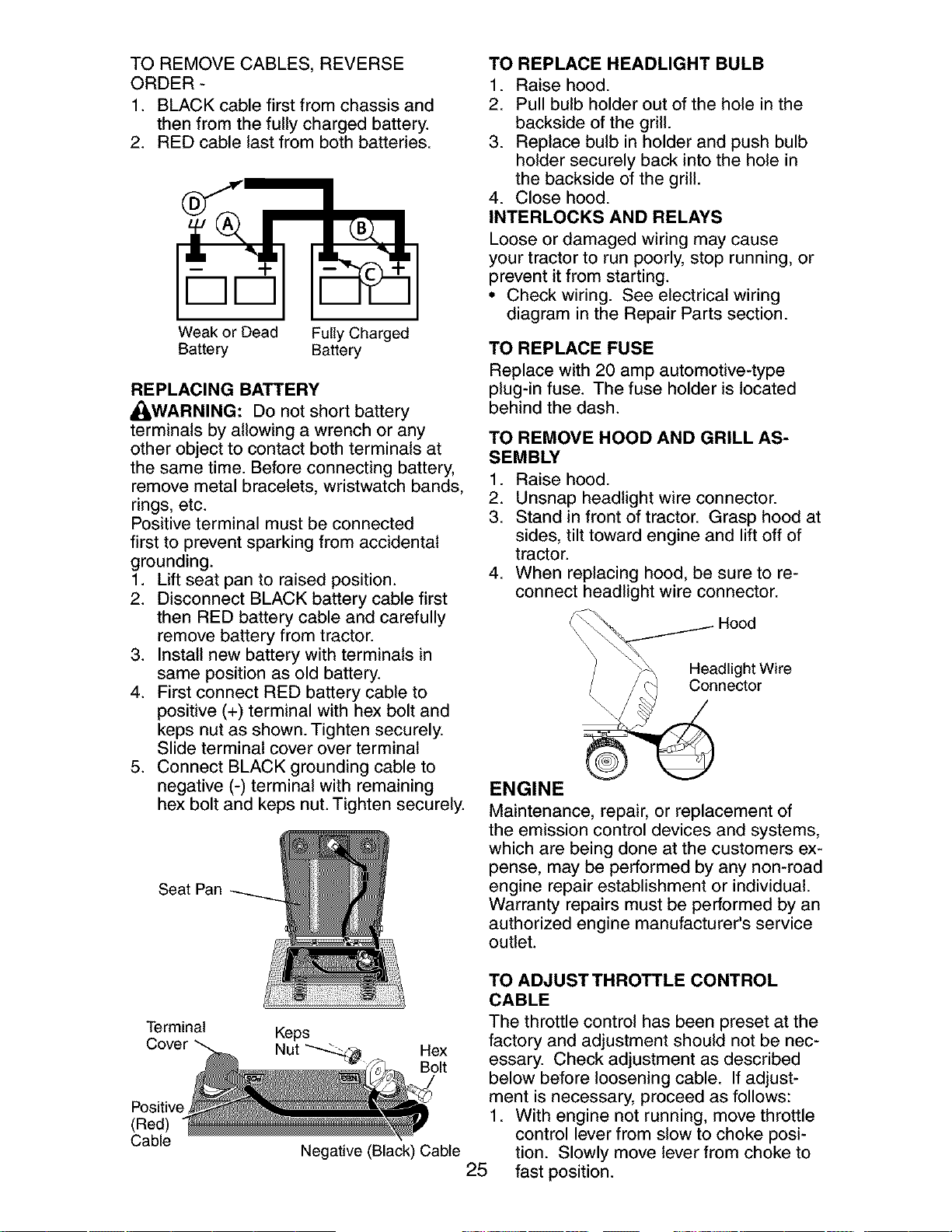

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Seat Pan

Terminal Keps

Cover Nut _ Hex

Bolt

Positive

(Bed)

Cable

Negative (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect headlight wire connector.

_/_Head_i_dt Wire

_nnector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

25 fast position.

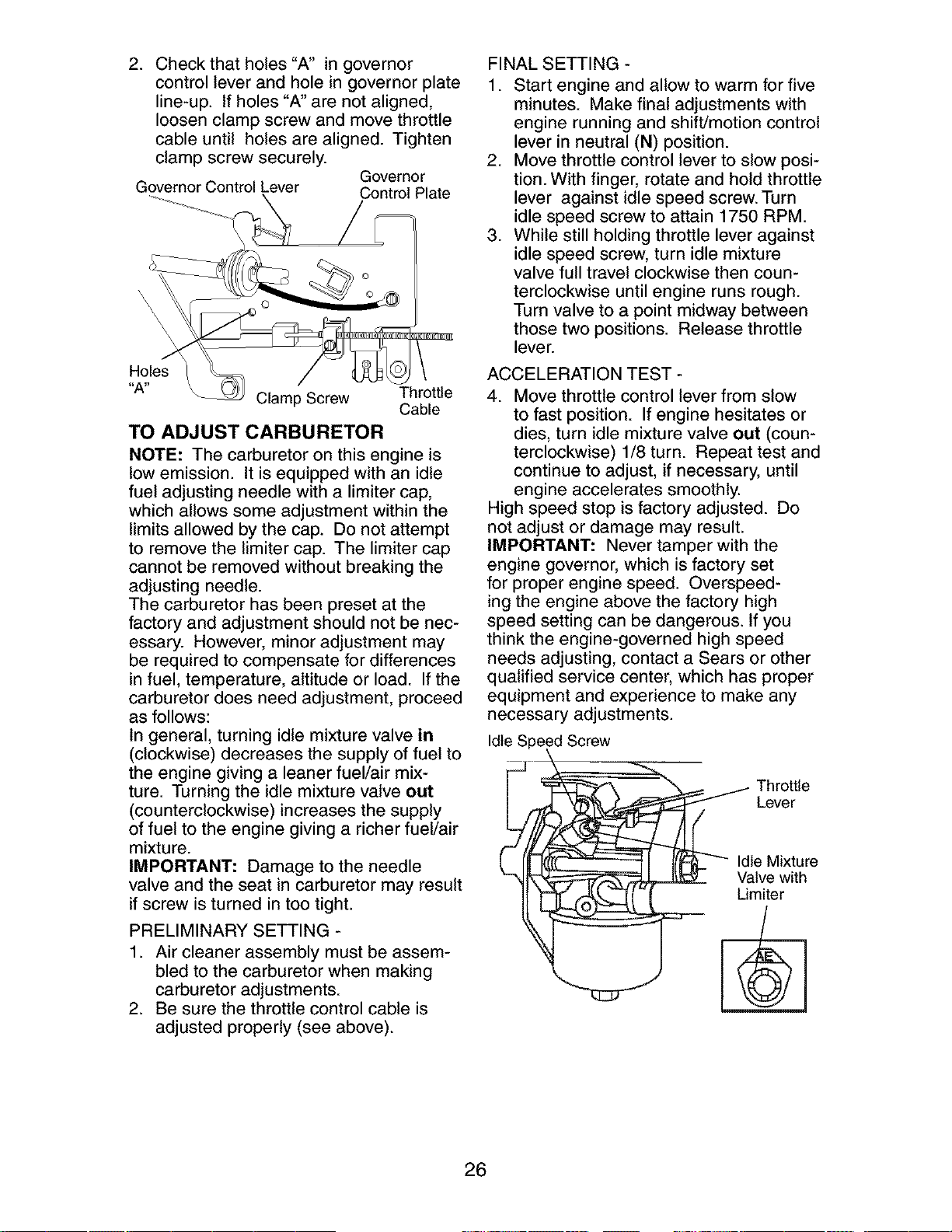

2. Checkthatholes"A" in governor

controlleverand holein governorplate

line-up. Ifholes"A"arenotaligned,

loosenclampscrewandmovethrottle

cableuntil holesare aligned. Tighten

clampscrewsecurely.

Governor

GovernorControlLever ControlPlate

Holes

"A"

Clamp Screw Throttle

Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed Screw

Lever

Idle Mixture

Valve with

Limiter

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

A(_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean itthoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See"CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called gasohol

or using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can ifyour can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

iHard to start

iEngine will not

turn over

Engine clicks but

will not start

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

Engine valves out of 8.

adjustment.

Clutch/brake pedal not 1.

depressed.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery.

Corroded battery terminals.

Loose or damaged wiring.

Faulty solenoid or starter.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

pedal.

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

LOSS of power

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

9. Water in fuel.

Poor cut - uneven

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14.Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Cutting too much grass/too

fast.

Throttle in "CHOKE"

position.

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter. 4.

Low oil level/dirty oil. 5.

Faulty spark plug. 6.

Worn, bent or loose blade. 1.

Mower deck not level. 2.

Buildup of grass, leaves, 3.

and trash under mower.

Bent blade mandrel. 4.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

Replace blade.

Tighten blade bolt.

Contact a Sears or other

qualified service center.

Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

Replace blade. Tighten

blade bolt.

Level mower deck.

Clean underside of mower

housing.

Contact a Sears or other

qualified service center.

Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

iPoor grass

idischarge

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

iHeadlight(s) not 1.

iworking 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Engine "backfires"

when turning

engine "OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned ou

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec

tions.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

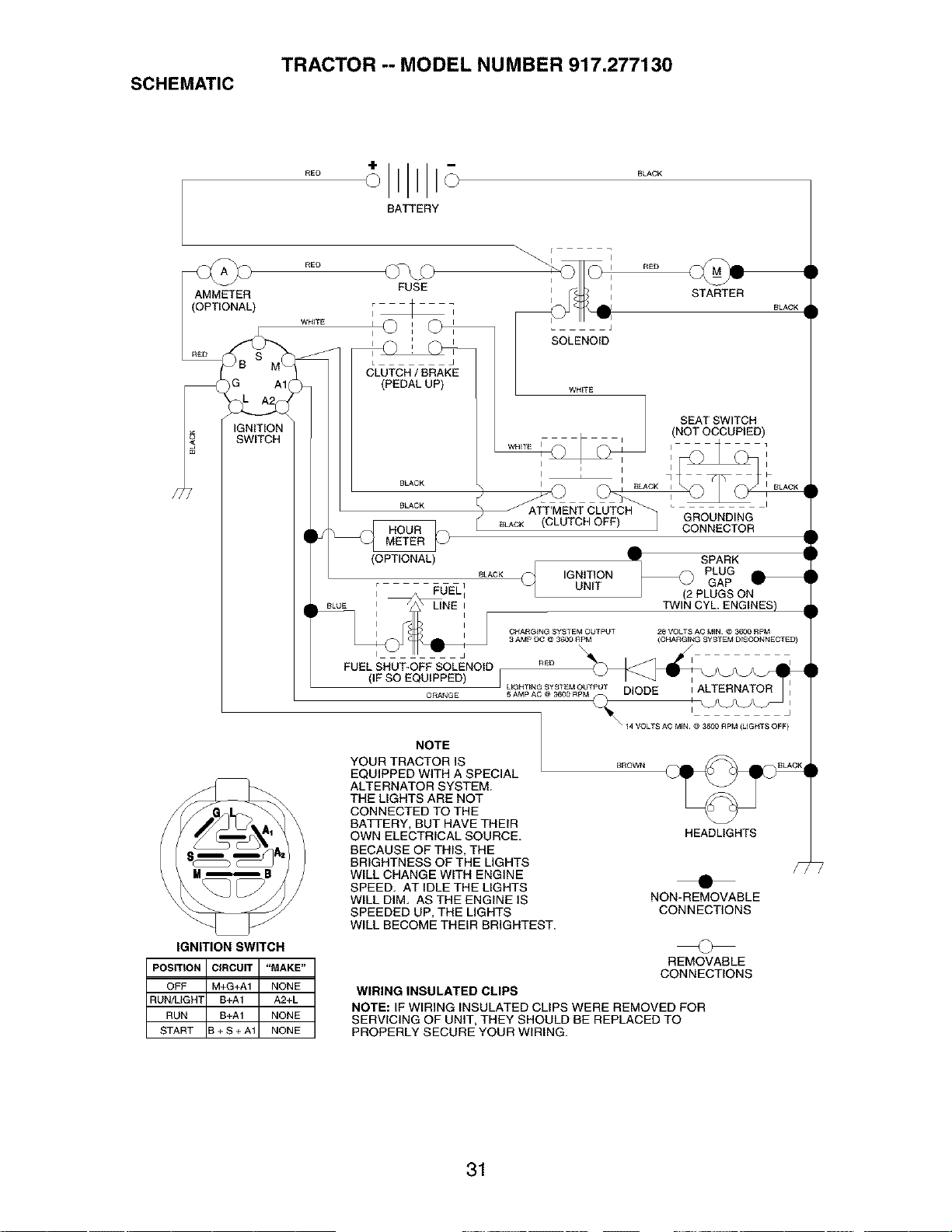

TRACTOR -- MODEL NUMBER 917.277130

SCHEMATIC

.Ik

RED lll& BLACK

BATTERY

RED

AMMETER

(OPTIONAL) WHETE

G A1

IGNITION

SWITCH

FUSE

I I

L J

CLUTCH / BRAKE

(PEDAL UP)

BLACK

RED

STARTER

SOLENOID

WHETE

_)(_ SEAT SWITCH

(NOT OCCUPIED)

i I

i i i I

i I BLACK

o_o_(CLUTCH?_"1 GROUNDING

CONNECTOR

( P'U SON

ORANGE 5 AMP AC @ 3600 RPM _1_'_ --_

28 VOLTS AC MIN @ 3600 RpM

(CHARGING SYgTEM D_SCONNECTED I

\ 14 VOLTS AC MIN @ 3600 RpM (LIGHTS OFF I

NOTE

YOUR TRACTOR IS BROW,'4

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE. HEADLIGHTS

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS NON-REMOVABLE

SPEEDED UP, THE LIGHTS CONNECTIONS

WILL BECOME THEIR BRIGHTEST.

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+AI NONE

RUN/UGH] B+AI A2+L

RUN B+AI NONE

START 3+ S + A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

BLACK •

ELECTRICAL

TRACTOR -- MODEL NUMBER !117.277130

7 16

i / /

\ \ /

90 i

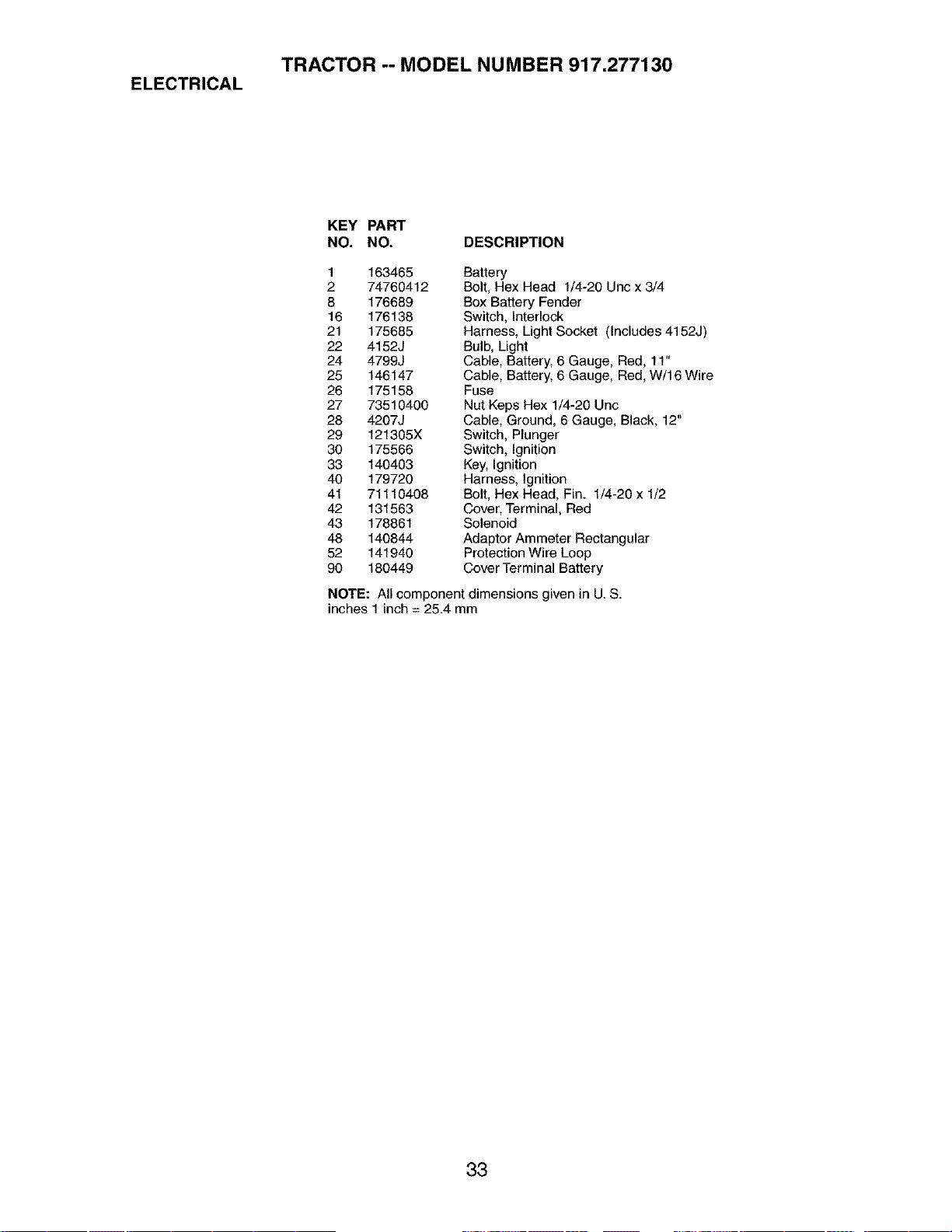

TRACTOR -- MODEL NUMBER 917.277130

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465

2 74760412

8 176689

16 176138

21 175685

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

48 140844

52 141940

90 180449

Battery

Bolt, Hex Head 1/4-20 Uric x 3/4

Box Battery Fender

Switch, Interlock

Harness, Light Socket (Includes 4152J)

Bulb, Light

Cable, Battery, 6 Gauge, Red, 11"

Cable, Battery, 6 Gauge, Red, W/16 Wire

Fuse

Nut Keps Hex 1/4-20 Unc

Cable, Ground, 6 Gauge, Black, 12"

Switch, Plunger

Switch, Ignition

Key, Ignition

Harness, Ignition

Bolt, Hex Head, Fin. 1/4-20 x 1/2

Cover, Terminal, Red

Solenoid

Adaptor Ammeter Rectangular

Protection Wire Loop

Cover Terminal Battery

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

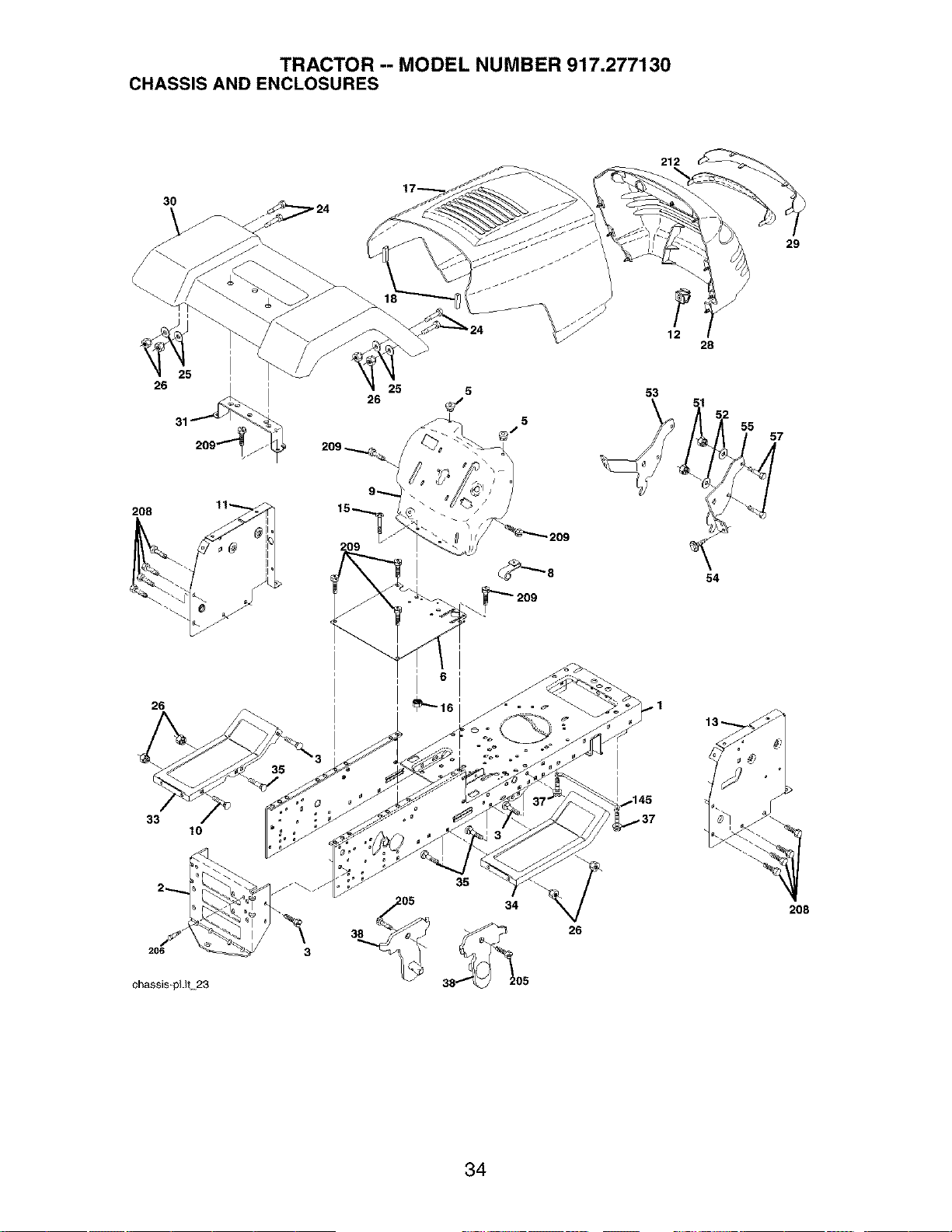

TRACTOR -- MODEL NUMBER 917.277130

CHASSIS AND ENCLOSURES

212

26 31

208

209

206

chassis-pLIt23

208

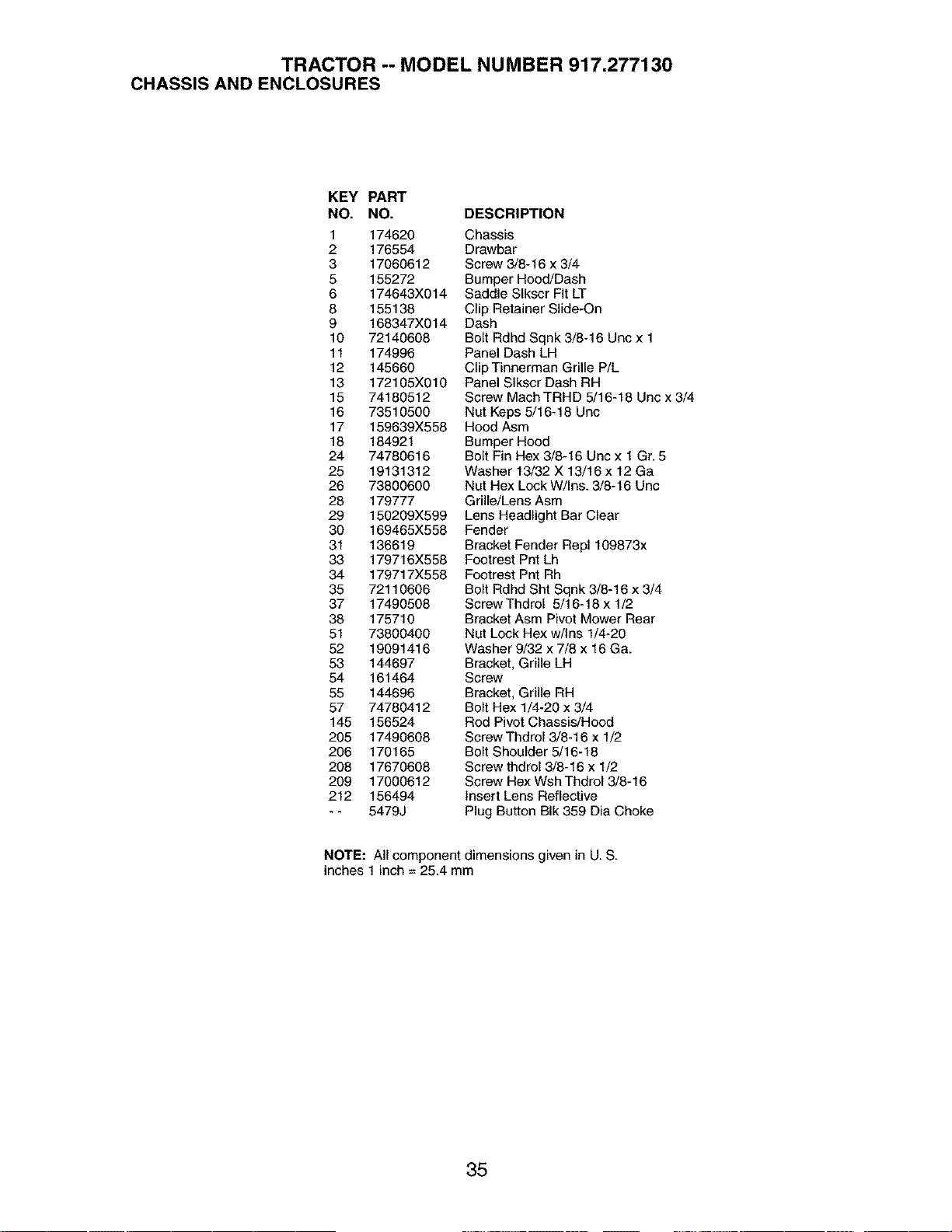

TRACTOR -- MODEL NUMBER 917.277130

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

1 174620

2 176554

3 17060612

5 155272

6 174643X014

8 155138

9 168347X014

10 72140608

11 174996

12 145660

13 172105X010

15 74180512

16 73510500

17 159639X558

18 184921

24 74780616

25 19131312

26 73800600

28 179777

29 150209X599

30 169465X558

31 136619

33 179716X558

34 179717X558

35 72110606

37 17490508

38 175710

51 73800400

52 19091416

53 144697

54 161464

55 144696

57 74780412

145 156524

205 17490608

206 170165

208 17670608

209 17000612

212 156494

-- 5479J

DESCRIPTION

Chassis

Drawbar

Screw 3/8-16 x 3/4

Bumper Hoed/Dash

Saddle Slkscr FitLT

Clip Retainer Slide-On

Dash

Bolt Rdhd Sqnk 3/8-16 Uric x 1

Panel Dash LH

Clip Tinnerman Grille P/L

Panel Slkscr Dash RH

Screw Mach TRHD 5/16-18 Unc x 3/4

Nut Keps 5/16-18 Uric

Hood Asm

Bumper Hood

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

Washer 13/32 X 13/16 x 12 Ga

Nut Hex Lock W/Ins. 3/8-16 Unc

Grille/Lens Asm

Lens Headlight Bar Clear

Fender

Bracket Fender Rep1109873x

Footrest Pnt Lh

Footrest Pnt Rh

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

ScrewThdrol 5/16-18x 1/2

Bracket Asm Pivot Mower Rear

Nut Lock Hex w/Ins 1/4-20

Washer 9/32 x 7/8 x 16 Ga.

Bracket, Grille LH

Screw

Bracket, Grille RH

Bolt Hex 1/4-20 x 3/4

Rod Pivot Chassis/Hood

Screw Thdrol 3/8-16 x 1/2

Bolt Shoulder 5/16-18

Screw thdrol 3/8-16 x 1/2

Screw Hex Wsh Thdrel 3/8-16

Insert Lens Reflective

Plug Button BIk 359 Dia Choke

NOTE: All component dimensions given in U. S.

inches 1 inch= 25.4 mm

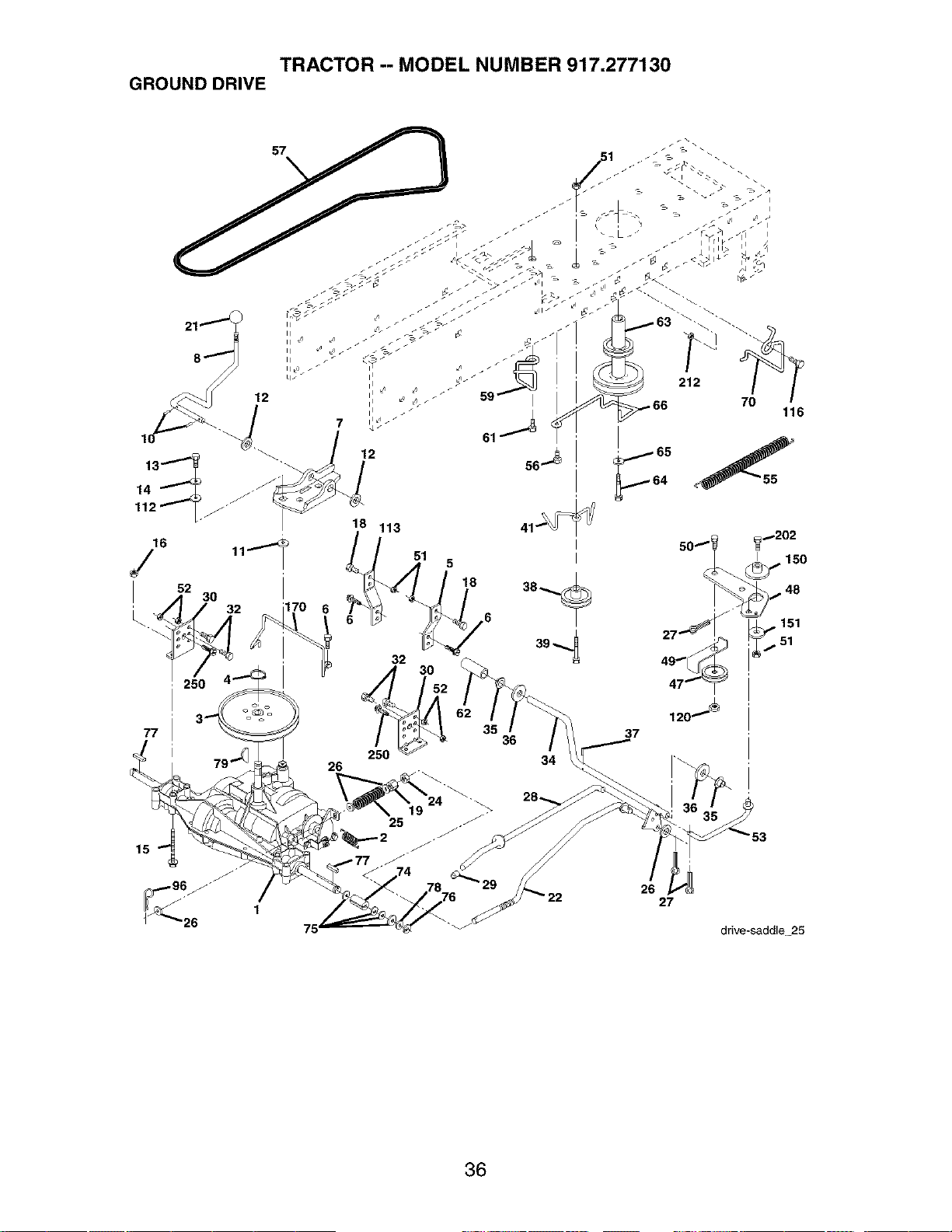

TRACTOR -- MODEL NUMBER 917.277130

GROUND DRIVE

18 113

3__/52 35

25 _

212

116

drive-saddle 25

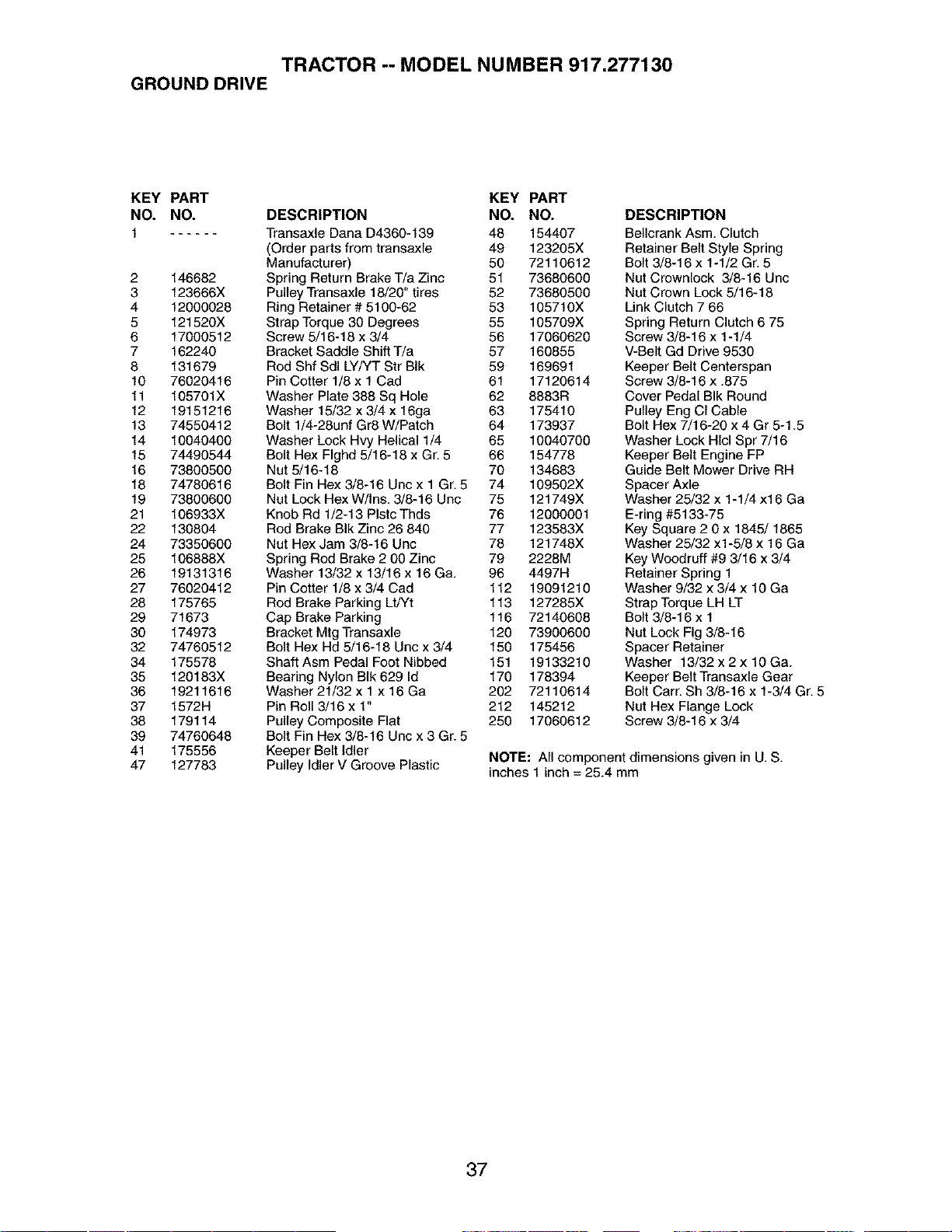

TRACTOR -- MODEL NUMBER 917.277130

GROUND DRIVE

KEY PART

NO. NO.

2 146682

3 123666X

4 12000028

5 121520X

6 17000512

7 162240

8 131679

10 76020416

11 105701X

12 19151216

13 74550412

14 10040400

15 74490544

16 73800500

18 74780616

19 73800600

21 106933X

22 130804

24 73350600

25 106888X

26 19131316

27 76020412

28 175765

29 71673

30 174973

32 74760512

34 175578

35 120183X

36 19211616

37 1572H

38 179114

39 74760648

41 175556

47 127783

KEY PART

DESCRIPTION NO. NO.

Transaxle Dana D4360-139 48 154407

(Order parts from transaxle 49 123205X

Manufacturer) 50 72110612

Spring Return Brake T/a Zinc 51 73680600

Pulley Transaxle 18/20" tires 52 73680500

Ring Retainer # 5100-62 53 105710X

Strap Torque 30 Degrees 55 105709X

Screw 5/16-18 x 3/4 56 17060620

Bracket Saddle Shift T/a 57 160855

Rod Shf Sdl LY/YT Str BIk 59 169691

Pin Cotter 1/8 x 1 Cad 61 17120614

Washer Plate 388 Sq Hole 62 8883R

Washer 15/32 x 3/4 x 16ga 63 175410

Bolt 1/4-28unf Gr8 W/Patch 64 173937

Washer Lock Hvy Helical 1/4 65 10040700

Bolt Hex FIghd 5/16-18 x Gr. 5 66 154778

Nut 5/16-18 70 134683

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 74 109502X

Nut Lock Hex W/Ins. 3/8-16 Unc 75 121749X

Knob Rd 1/2-13 Plstc Thds 76 12000001

Rod Brake BIk Zinc 26 840 77 123583X

Nut Hex Jam 3/8-16 Unc 78 121748X

Spring Rod Brake 2 00 Zinc 79 2228M

Washer 13/32 x 13/16 x 16 Ga. 96 4497H

Pin Cotter 1/8 x 3/4 Cad 112 19091210

Rod Brake Parking Lt/Yt 113 127285X

Cap Brake Parking 116 72140608

Bracket Mtg Transaxle 120 73900600

Bolt Hex Hd 5/16-18 Unc x 3/4 150 175456

Shaft Asm Pedal Foot Nibbed 151 19133210

Bearing Nylon BIk 629 Id 170 178394

Washer 21/32 x 1x 16 Ga 202 72110614

Pin Roll 3/16 x 1" 212 145212

Pulley Composite Flat 250 17060612

Bolt Fin Hex 3/8-16 Unc x 3 Gr. 5

Keeper Belt Idler

Pulley Idler V Groove Plastic

DESCRIPTION

Bellcrank Asm. Clutch

Retainer Belt Style Spring

Bolt 3/8-16 x 1-1/2 Gr. 5

Nut Crownlock 3/8-16 Unc

Nut Crown Lock 5/16-18

Link Clutch 7 66

Spring Return Clutch 6 75

Screw 3/8-16 x 1-1/4

V-Belt Gd Drive 9530

Keeper Belt Centerspan

Screw 3/8-16 x .875

Cover Pedal BIk Round

Pulley Eng CI Cable

Bolt Hex 7/16-20 x 4 Gr 5-1.5

Washer Lock HIcl Spr 7/16

Keeper Belt Engine FP

Guide Belt Mower Drive RH

Spacer Axle

Washer 25/32 x 1-1/4 xl 6 Ga

E-ring #5133-75

Key Square 2 0 x 1845/1865

Washer 25/32 xl-5/8 x 16 Ga

Key Woodruff #9 3/16 x 3/4

Retainer Spring 1

Washer 9/32 x 3/4 x 10 Ga

Strap Torque LH LT

Bolt 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Keeper Belt Transaxle Gear

Bolt Carr. Sh 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

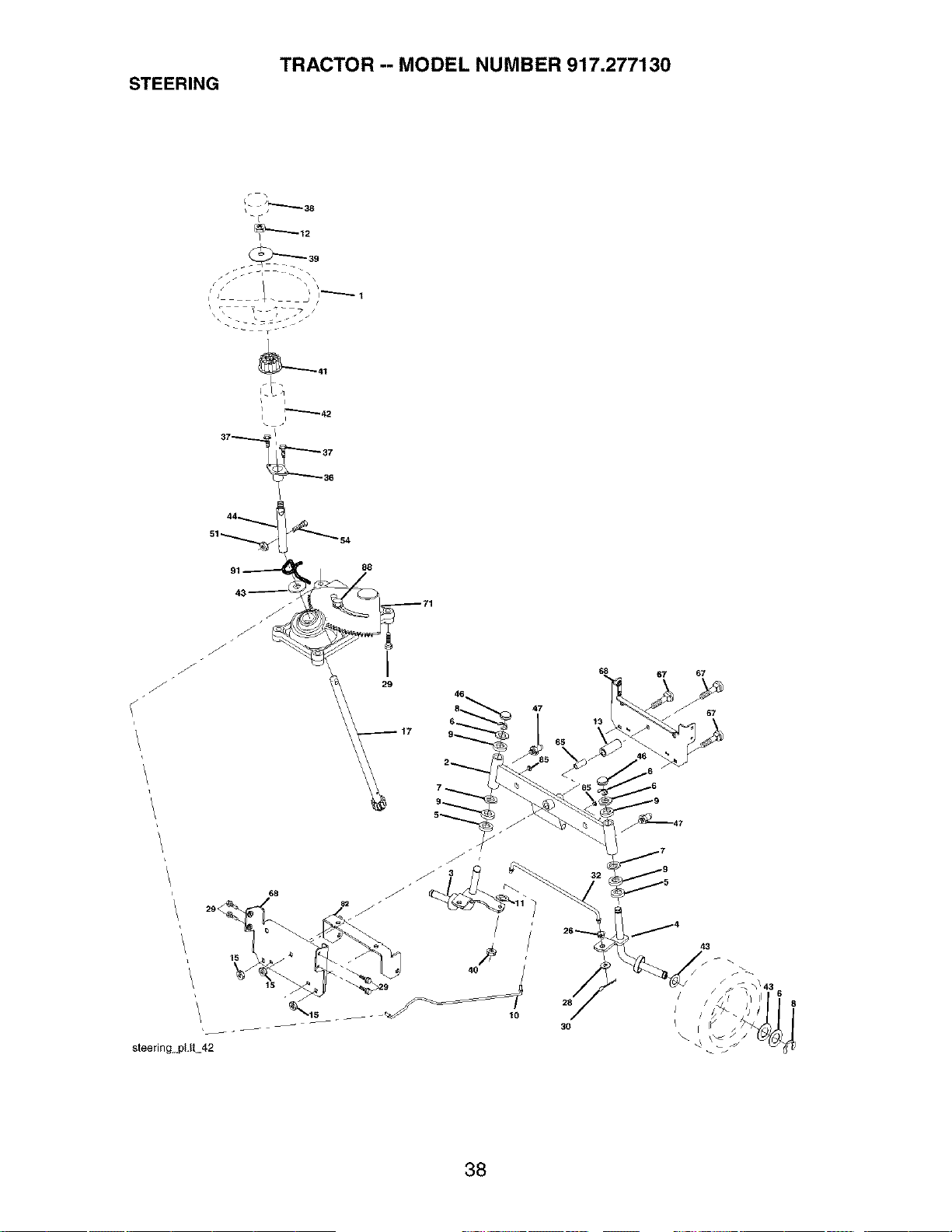

TRACTOR -- MODEL NUMBER 917.277130

STEERING

68 67 67

steering_pLIt42

_43 6

// //

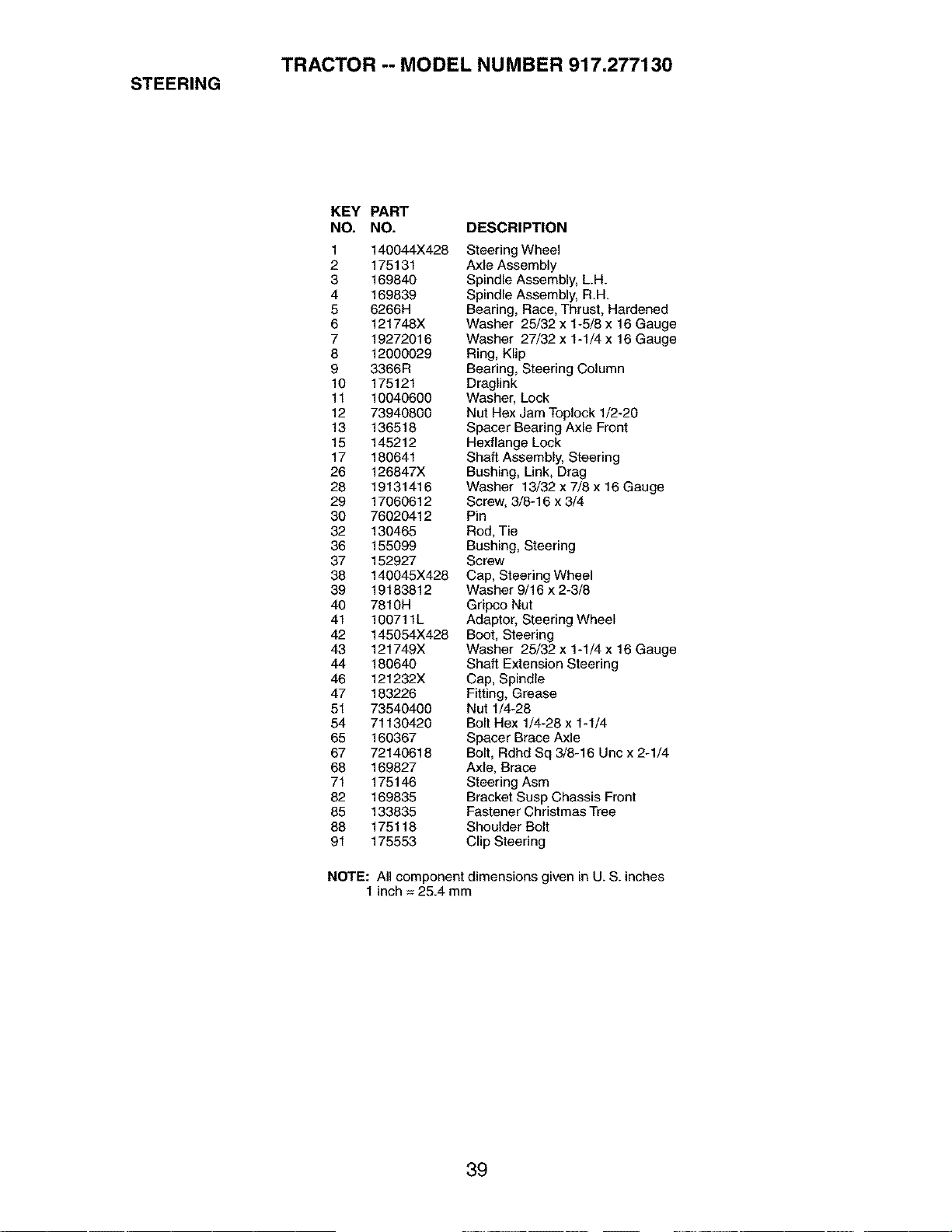

TRACTOR -- MODEL NUMBER 917.277130

STEERING

KEY PART

NO. NO. DESCRIPTION

1 140044X428 Steering Wheel

2 175131 Axle Assembly

3 169840 Spindle Assembly, LH.

4 169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring, Klip

9 3366R Bearing, Steering Column

10 175121 Draglink

11 10040600 Washer, Lock

12 73940800 Nut Hex Jam Topiock 1/2-20

13 136518 Spacer Bearing Axle Front

15 145212 Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Gauge

29 17060612 Screw, 3/8-16 x 3/4

30 76020412 Pin

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 140045X428 Cap, Steering Wheel

39 19183812 Washer 9/16 x 2-3/8

40 7810H Gripco Nut

41 100711L Adaptor, Steering Wheel

42 145054X428 Boot, Steering

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

44 180640 Shaft Extension Steering

46 121232X Cap, Spindle

47 183226 Fitting, Grease

51 73540400 Nut 1/4-28

54 71130420 Bolt Hex 1/4-28 x 1-1/4

65 160367 Spacer Brace Axle

67 72140618 Bolt, Rdhd Sq 3/8-16 Uric x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

85 133835 Fastener Christmas Tree

88 175118 Shoulder Bolt

91 175553 Clip Steering

NOTE: All component dimensions given in U. S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.277130

ENGINE

33 29

OPTIONAL EQUIPMENT

Spark Arrester

engine_bs.1cy149

KEY PART

NO. NO.

1 170551

2 17720408

4 137348

13 165291

14 148456

16 11050600

23 169837

29 137180

31 184900

32 140527

33 123487X

KEY

DESCRIPTION NO.

Control Th/ch 37

Screw Hex Thd Cut 1/4-20 x 1/2 38

Engine Briggs 40

Model 28R707-1147-E1 44

(See Breakdown)

Muffler 45

Gasket Eng 1 313 ld Tin Plated 46

Tube Drain Oil Easy 62

Washer Lock Ext Tooth 3/8 72

Shield Browning 78

Kit Spark Arrestor (Fiat Scrn) 81

Tank Fuel Front 1 25

Cap Asm Fuel

Clamp Hose BIk

PART

NO.

137040

181654

124028X

17670412

17000612

19091416

1OO4O500

71070512

17060620

73510400

DESCRIPTION

Line Fuel 20"

Plug Drain Oil Easy

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh Thdrol

1/4-20 x 3/4

Screw HexWsh Thdrol 3/8-16

Washer 9/32 x 7/8 x 16 ga

Washer Lock Hvy 5/16

Screw Hex Hd 5/16-18 x 3/4

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 Unc

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.277130

SEAT ASSEMBLY

17 12

seatJt.knob 1

KEY PART

NO. NO.

1 127427

2 140551

3 71110616

4 19131610

5 145006

6 73800600

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pvt St

Bolt Fin Hex 3/6-16 Unc x 1

Washer Fiat 13/32 xl x 10 Ga

Clip Push-In Hinged

Lecknut Hex W/Wsh 3/6-16

Spring Seat Cprsn 2 250 BIk

Screw 3/8-16 x 1

Washer 13/32 x 1x 14 Ga

Pan Seat

Knob Seat Adj.Wingnut

Bracket Mounting Switch

KEY PART

NO. NO.

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 73800500

24 19171912

25 127018X

DESCRIPTION

Bushing Snap BIk Ny150 ld

Bolt Rdhd Sht 1/4-20 x 1-1/2

Spacer Split 28 x 96 Yel Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5

Bolt Shld 5/16-18 Unc

Nut Lock HexW/Ins 5/16-18

Washer 17/32 xl-3/16 x 12 Ga

Bolt Shoulder 5/16-18 x 62

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

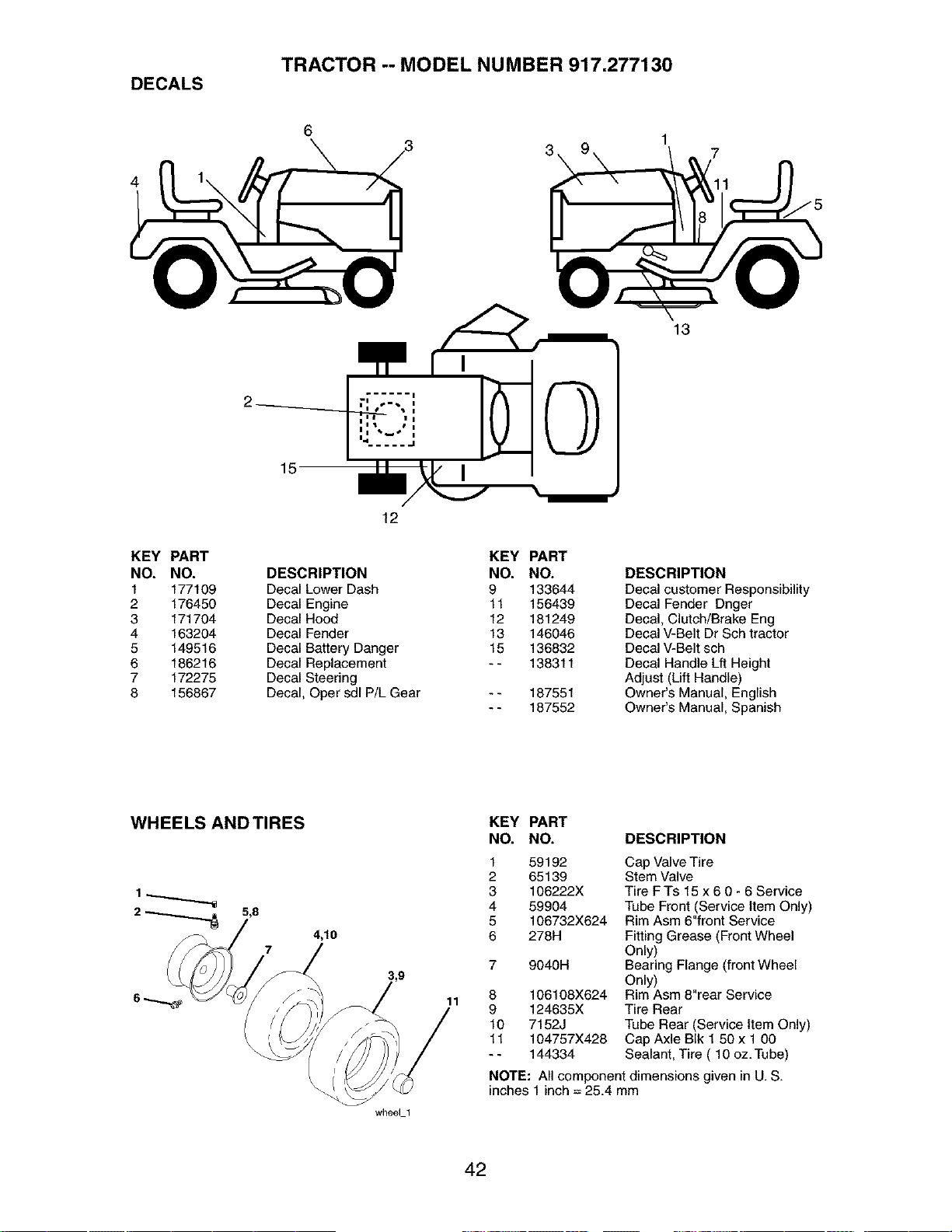

TRACTOR -- MODEL NUMBER 917.277130

DECALS

15 I

KEY PART

NO. NO.

1 177109

2 176450

3 171704

4 163204

5 149516

6 186216

7 172275

8 156867

KEY PART

DESCRIPTION NO. NO.

Decal Lower Dash 9 133644

Decal Engine 11 156439

Decal Hood 12 181249

Decal Fender 13 146046

Decal Battery Danger 15 136832

Decal Replacement - - 138311

Decal Steering

Decal, Oper sdl P/L Gear - - 187551

- - 187552

DESCRIPTION

Decal customer Responsibility

Decal Fender Dnger

Decal, Clutch/Brake Eng

Decal V-Belt Dr Sch tractor

Decal V-Belt sch

Decal Handle Lft Height

Adjust (Lift Handle)

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

4,10

wheel 1

KEY PART

NO. NO. DESCRIPTION

59192

65139

106222X

59904

106732X624

278H

9040H

106108X624

124635X

7152J

104757X428

144334

Cap Valve Tire

Stem Valve

Tire F Ts 15 x 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6"front Service

Fitting Grease (Front Wheel

Only)

Bearing Flange (front Wheel

Only)

Rim Asm 8"rear Service

Tire Rear

Tube Rear (Service Item Only)

Cap Axle BIk 1 50 x 1 00

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

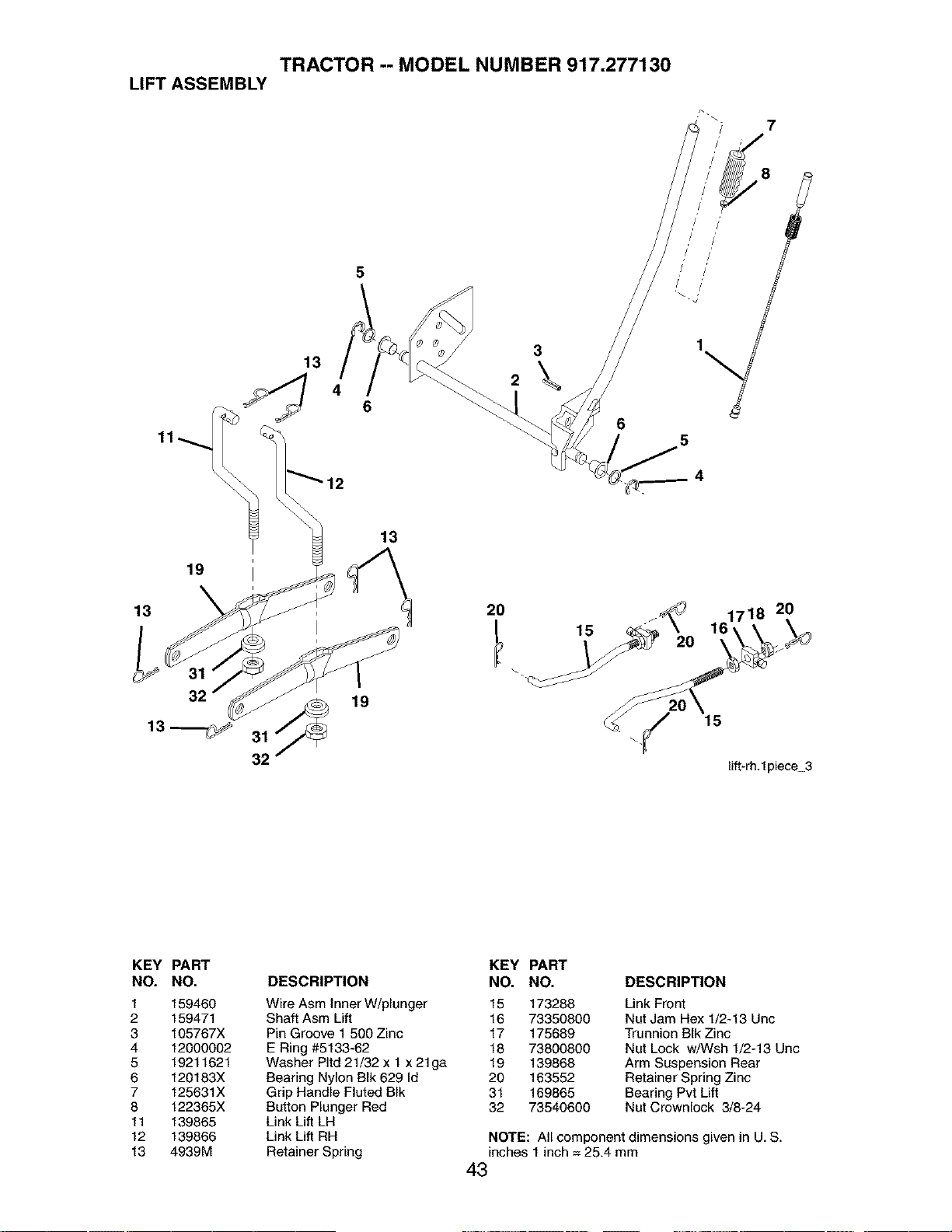

TRACTOR -- MODEL NUMBER 917.277130

LIFT ASSEMBLY

2O 20

lift-rh.1 piece 3

KEY PART

NO. NO.

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

13 4939M

DESCRIPTION

Wire Asm Inner W/plunger

Shaft Asm Lift

Pin Groove 1 500 Zinc

E Ring #5133-62

Washer Pltd 21/32 x 1 x 21ga

Bearing Nylon BIk 629 Id

Grip Handle Fluted BIk

Button Plunger Red

Link Lift LH

Link Lift RH

Retainer Spring

KEY PART

NO. NO. DESCRIPTION

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion BIk Zinc

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 Arm Suspension Rear

20 163552 Retainer Spring Zinc

31 169865 Bearing Pvt Lift

32 73540600 Nut Crownlock 3/8-24

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

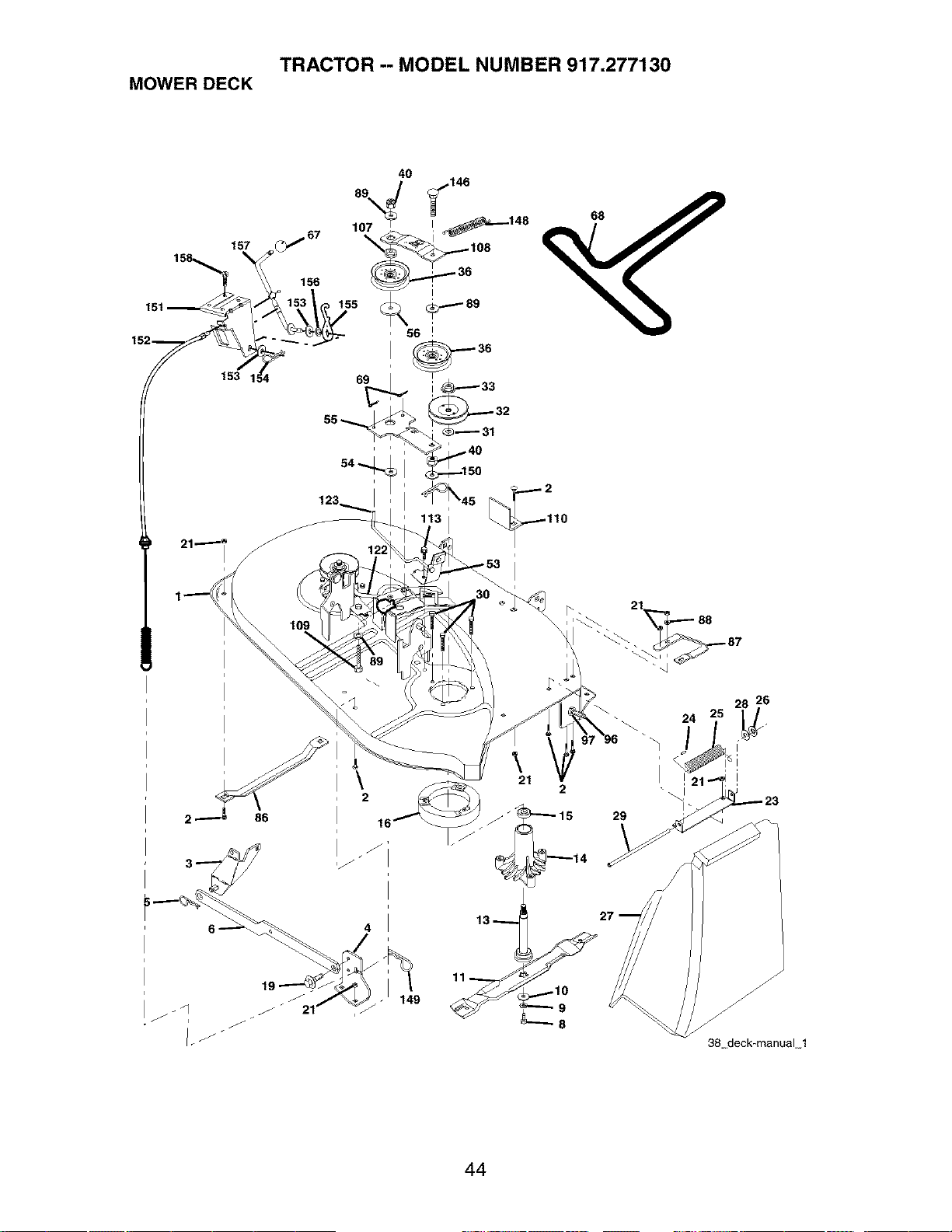

TRACTOR -- MODEL NUMBER 917.277130

MOWER DECK

149

38 deck-manuaL1

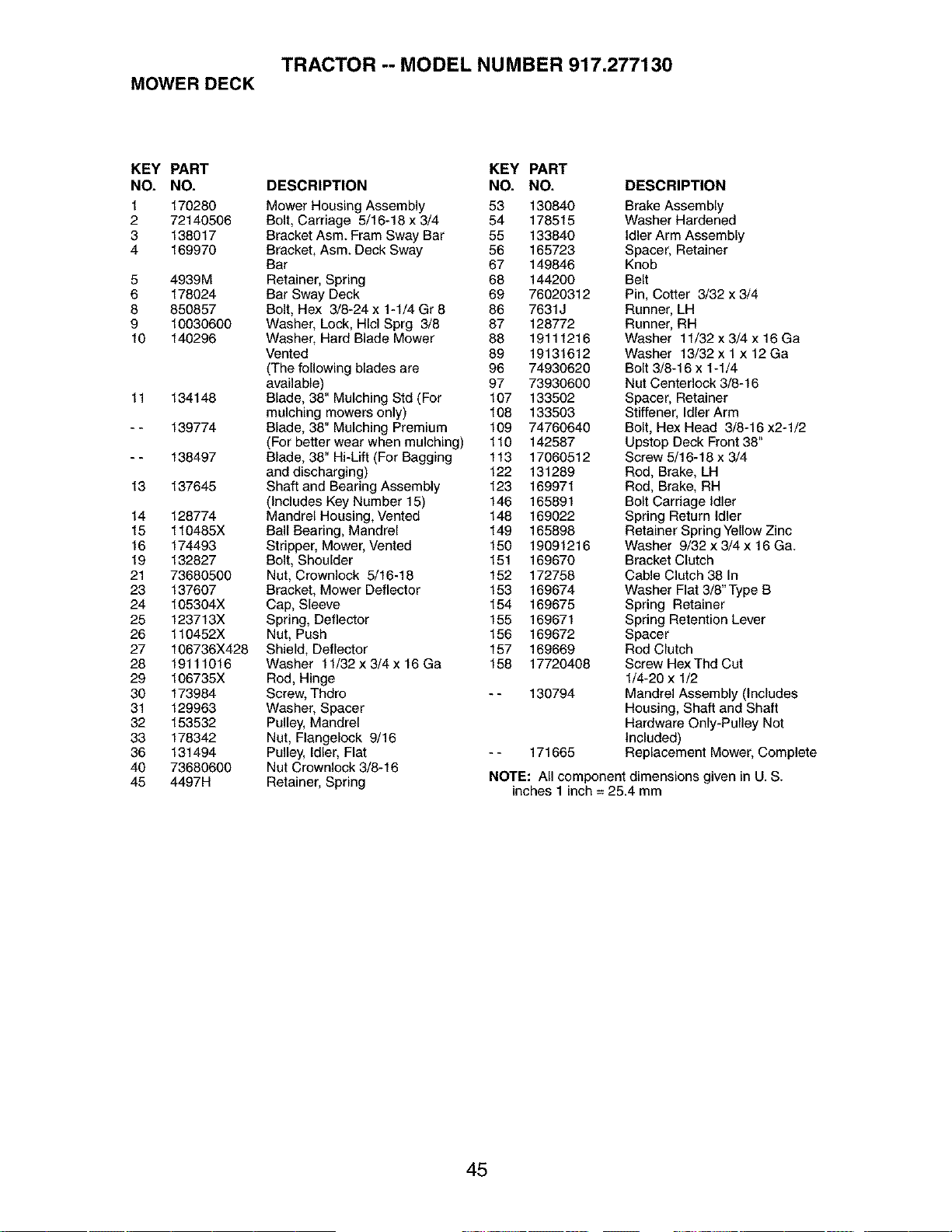

TRACTOR -- MODEL NUMBER 917.277130

MOWER DECK

KEY PART

NO. NO.

1 170280

2 72140506

3 138017

4 169970

5 4939M

6 178024

8 850857

9 10030600

10 140296

11 134148

-- 139774

-- 138497

13 137645

14 128774

15 110485X

16 174493

19 132827

21 73680500

23 137607

24 105304X

25 123713X

26 110452X

27 106736X428

28 19111016

29 106735X

30 173984

31 129963

32 153532

33 178342

36 131494

40 73680600

45 4497H

KEY PART

DESCRIPTION NO. NO.

Mower Housing Assembly 53 130840

Bolt, Carriage 5/16-18 x 3/4 54 178515

Bracket Asm. Fram Sway Bar 55 133840

Bracket, Asm. Deck Sway 56 165723

Bar 67 149846

Retainer, Spring 68 144200

Bar Sway Deck 69 76020312

Bolt, Hex 3/8-24 x 1-1/4 Gr 8 86 7631J

Washer, Lock, HIcl Sprg 3/8 87 128772

Washer, Hard Blade Mower 88 19111216

Vented 89 19131612

(The following blades are 96 74930620

available) 97 73930600

Blade, 38" Mulching Std (For 107 133502

mulching mowers only) 108 133503

Blade, 38" Mulching Premium 109 74760640

(For better wear when mulching) 110 142587

Blade, 38" Hi-Lift (For Bagging 113 17060512

and discharging) 122 131289

Shaft and Bearing Assembly 123 169971

(Includes Key Number 15) 146 165891

Mandrel Housing, Vented 148 169022

Ball Bearing, Mandrel 149 165898

Stripper, Mower, Vented 150 19091216

Bolt, Shoulder 151 169670

Nut, Crownlock 5/16-18 152 172758

Bracket, Mower Deflector 153 169674

Cap, Sleeve 154 169675

Spring, Deflector 155 169671

Nut, Push 156 169672

Shield, Deflector 157 169669

Washer 11/32 x 3/4 x 16 Ga 158 17720408

Rod, Hinge

Screw, Thdro - - 130794

Washer, Spacer

Pulley, Mandrel

Nut, Flangeleck 9/16

Pulley, Idler, Flat - - 171665

Nut Crownlock 3/8-16

Retainer, Spring

DESCRIPTION

Brake Assembly

Washer Hardened

Idler Arm Assembly

Spacer, Retainer

Knob

Belt

Pin, Cotter 3/32 x 3/4

Runner, LH

Runner, RH

Washer 11/32 x 3/4 x 16 Ga

Washer 13/32 x 1 x 12 Ga

Bolt 3/8-16 x 1-1/4

Nut Centerlock 3/8-16

Spacer, Retainer

Stiffener, Idler Arm

Bolt, Hex Head 3/8-16 x2-1/2

Upstop Deck Front 38"

Screw 5/16-18 x 3/4

Rod, Brake, LH

Rod, Brake, RH

Bolt Carriage Idler

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 38 In

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut

1/4-20 x 1/2

Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only-Pulley Not

Included)

Replacement Mower, Complete

NOTE: All component dimensions given in U. S.

inches 1 inch= 25.4 mm

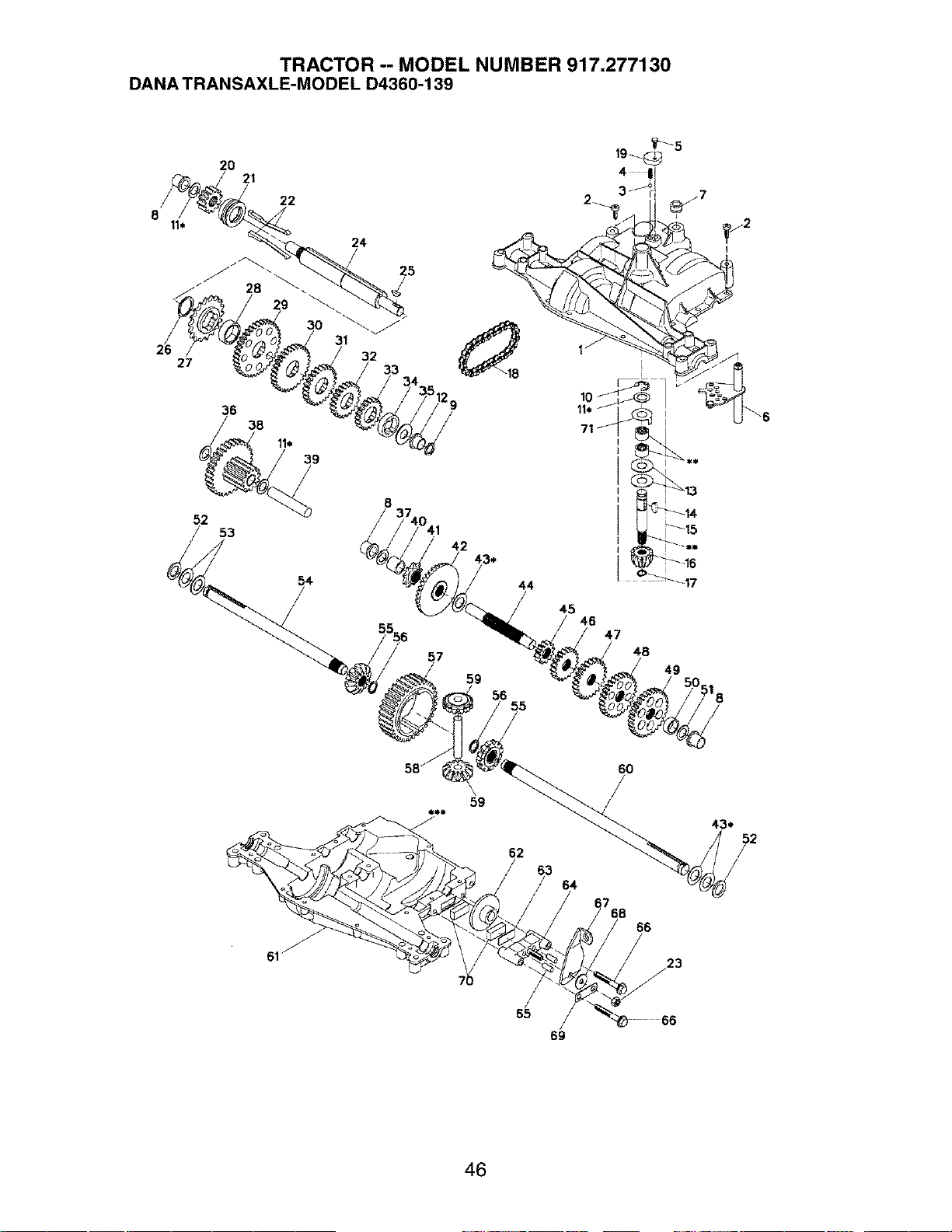

TRACTOR -- MODEL NUMBER 917.277130

DANA TRANSAXLE-MODEL D4360-139

11.

27 32

63 64

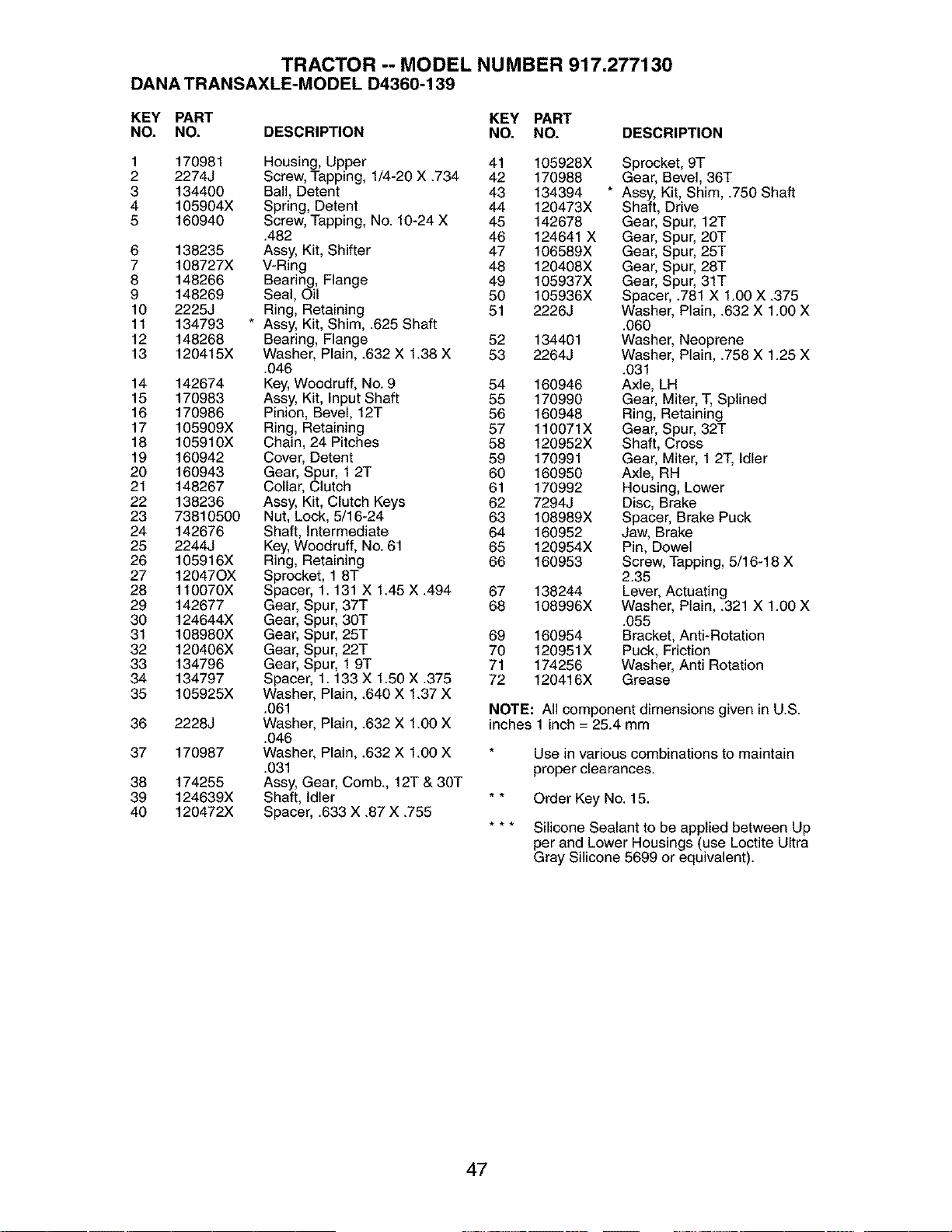

TRACTOR -- MODEL NUMBER 917.277130

DANA TRANSAXLE-MODEL D4360-139

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 170981 Housing, Upper 41 105928X

2 2274J Screw, Tapping, 1/4-20 X .734 42 170988

3 134400 Ball, Detent 43 134394

4 105904X Spring, Detent 44 120473X

5 160940 Screw, Tapping, No. 10-24 X 45 142678

.482 46 124641 X

6 138235 Ass,/, Kit, Shifter 47 106589X

7 108727X V-Ring 48 120408X

8 148266 Bearing, Flange 49 105937X

9 148269 Seal, Oil 50 105936X

10 2225J Ring, Retaining 51 2226J

11 134793 * Ass,/, Kit, Shim, .625 Shaft

12 148268 Bearing, Flange 52 134401

13 120415X Washer, Plain, .632 X 1.38 X 53 2264J

.046

14 142674 Key,Woodruff, No. 9 54 160946

15 170983 Ass,/, Kit, Input Shaft 55 170990

16 170986 Pinion, Bevel, 12T 56 160948

17 105909X Ring, Retaining 57 110071X

18 105910X Chain, 24 Pitches 58 120952X

19 160942 Cover, Detent 59 170991

20 160943 Gear, Spur, 1 2T 60 160950

21 148267 Collar, Clutch 61 170992

22 138236 Ass,/, Kit, Clutch Keys 62 7294J

23 73810500 Nut, Lock, 5/16-24 63 108989X

24 142676 Shaft, Intermediate 64 160952

25 2244J Key,Woodruff, No. 61 65 120954X

26 105916X Ring, Retaining 66 160953

27 12047OX Sprocket, 1 8T

28 110070X Spacer, 1. 131 X 1.45 X .494 67 138244

29 142677 Gear, Spur, 37T 68 108996X

30 124644X Gear, Spur, 30T

31 108980X Gear, Spur, 25T 69 160954

32 120406X Gear, Spur, 22T 70 120951X

33 134796 Gear, Spur, 1 9T 71 174256

34 134797 Spacer, 1.133 X 1.50 X .375 72 120416X

35 105925X Washer, Plain, .640 X 1.37 X

.061

36 2228J Washer, Plain, .632 X 1.00 X

.046

37 170987 Washer, Plain, .632 X 1.00 X

.031

38 174255 Ass,/, Gear, Comb., 12T & 30T

39 124639X Shaft, Idler * *

40 120472X Spacer, .633 X .87 X .755

Sprocket, 9T

Gear, Bevel, 36T

* Ass,/, Kit, Shim, .750 Shaft

Shaft, Drive

Gear, Spur, 12T

Gear, Spur, 20T

Gear, Spur, 25T

Gear, Spur, 28T

Gear, Spur, 31T

Spacer, .781 X 1.00 X .375

Washer, Plain, .632 X 1.00 X

.060

Washer, Neoprene

Washer, Plain, .758 X 1.25 X

.031

Axle, LH

Gear, Miter, T, Splined

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 1 2T, Idler

Axle, RH

Housing, Lower

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 X

2.35

Lever, Actuating

Washer, Plain, .321 X 1.00 X

.055

Bracket, Anti-Rotation

Puck, Friction

Washer, Anti Rotation

Grease

NOTE: All component dimensions given in U.S.

inches 1 inch= 25.4 mm

Use in various combinations to maintain

proper clearances.

Order Key No. 15.

Silicone Sealant to be applied between Up

per and Lower Housings (use Loctite Ultra

Gray Silicone 5699 or equivalent).

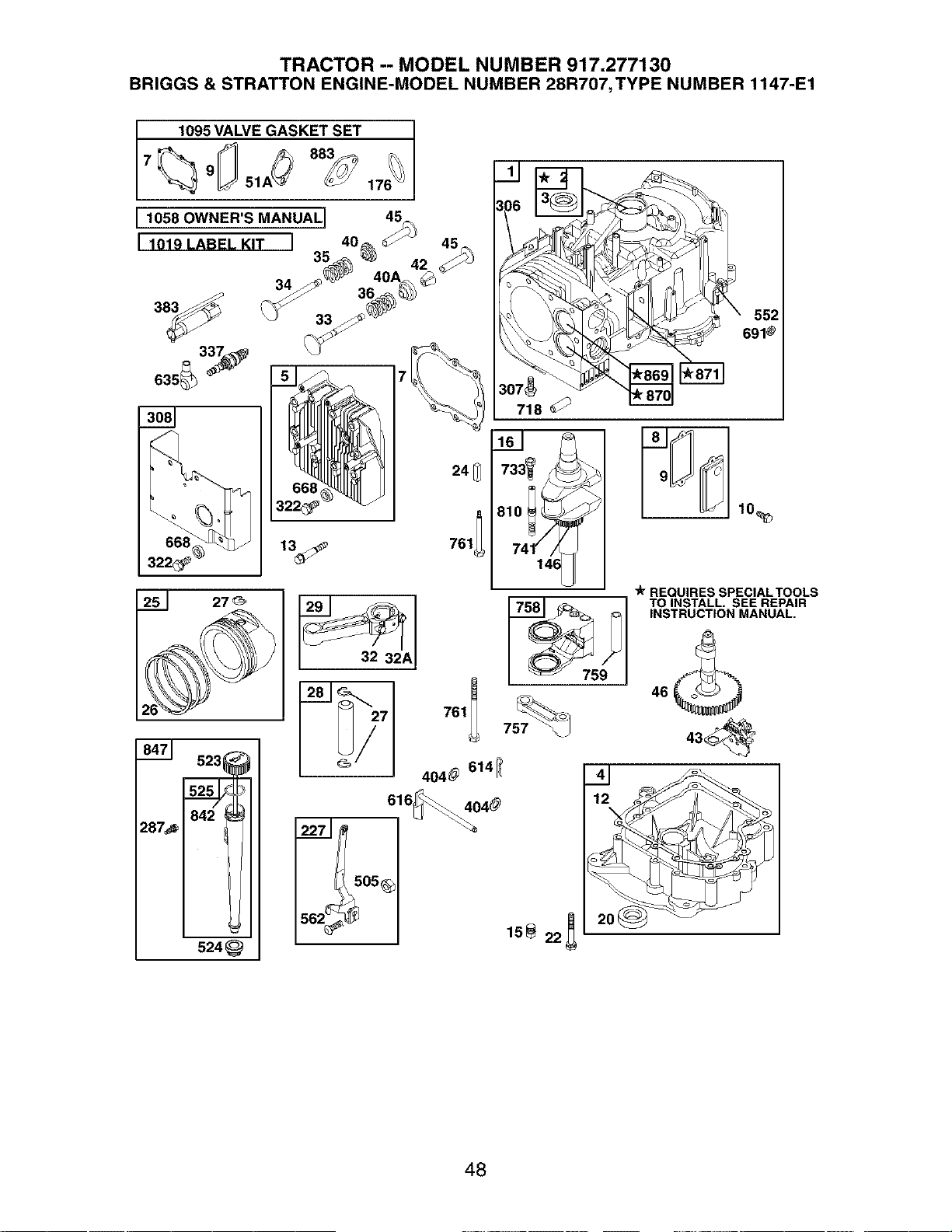

TRACTOR -- MODEL NUMBER 917.277130

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28R707,TYPE NUMBER 1147-E1

13_ 761

251 27_

287_ I_l

524_

REQUIRES SPECIAL TOOLS

_/ 43_

404@ 614_

404@

41 ;

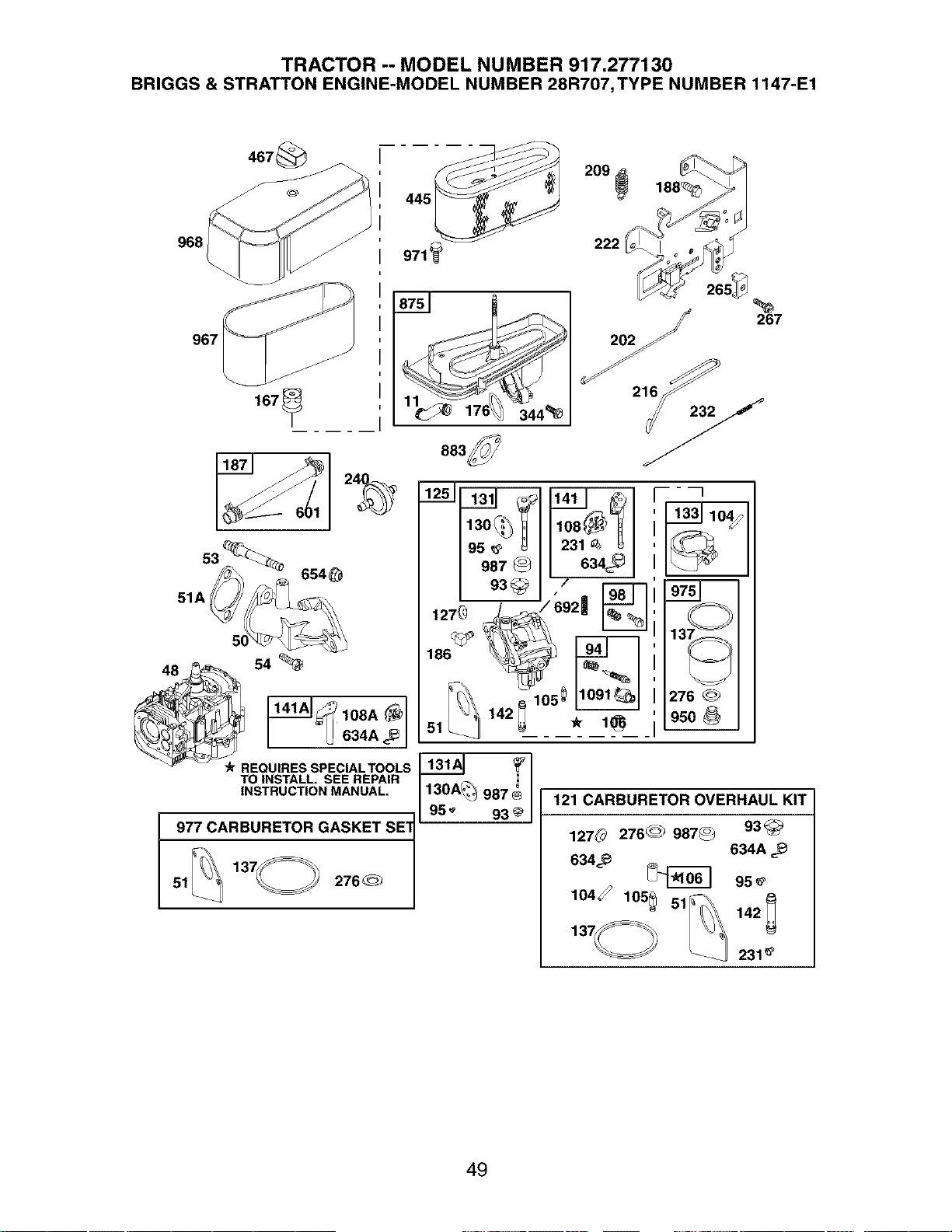

TRACTOR -- MODEL NUMBER 917.277130

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28R707,TYPE NUMBER 1147-E1

968

445

971

967

51A

_R 54 %_

EQ_LS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

977 CARBURETOR GASKET SEt

276_

222

344_

883

130A_ 987® I

95'_ 93_J

121 CARBURETOR OVERHAUL KIT

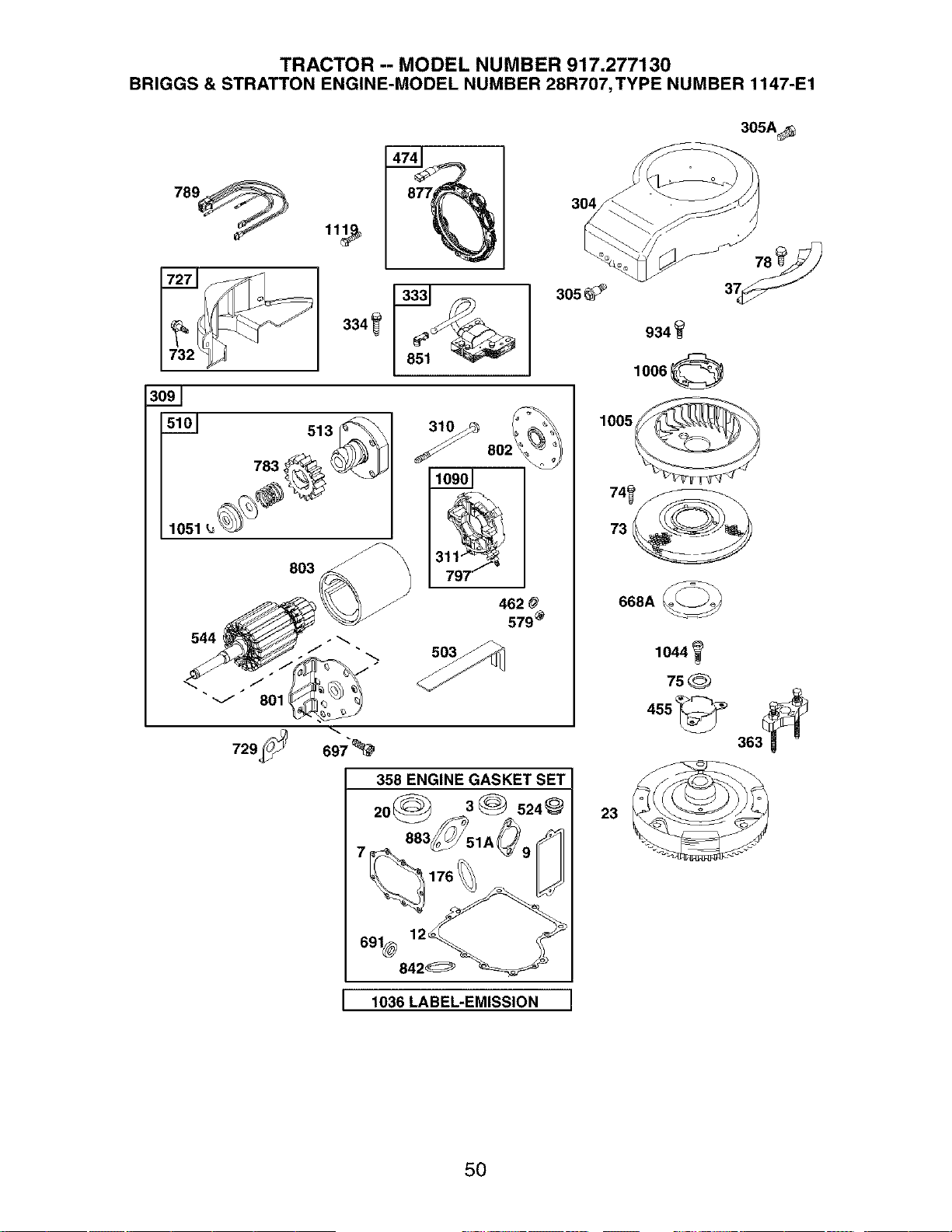

TRACTOR -- MODEL NUMBER 917.277130

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28R707,TYPE NUMBER 1147-E1

305A_

304

334_

5101 513

783

1051 _

729 697%_

503

462 @

579 _

358 ENGINE GASKET SET

20_ 3@ 524@

7_ 883_51A _9 _

842_

305_

1036 LABEL-EMISSION

934_

668A

1044

75 G

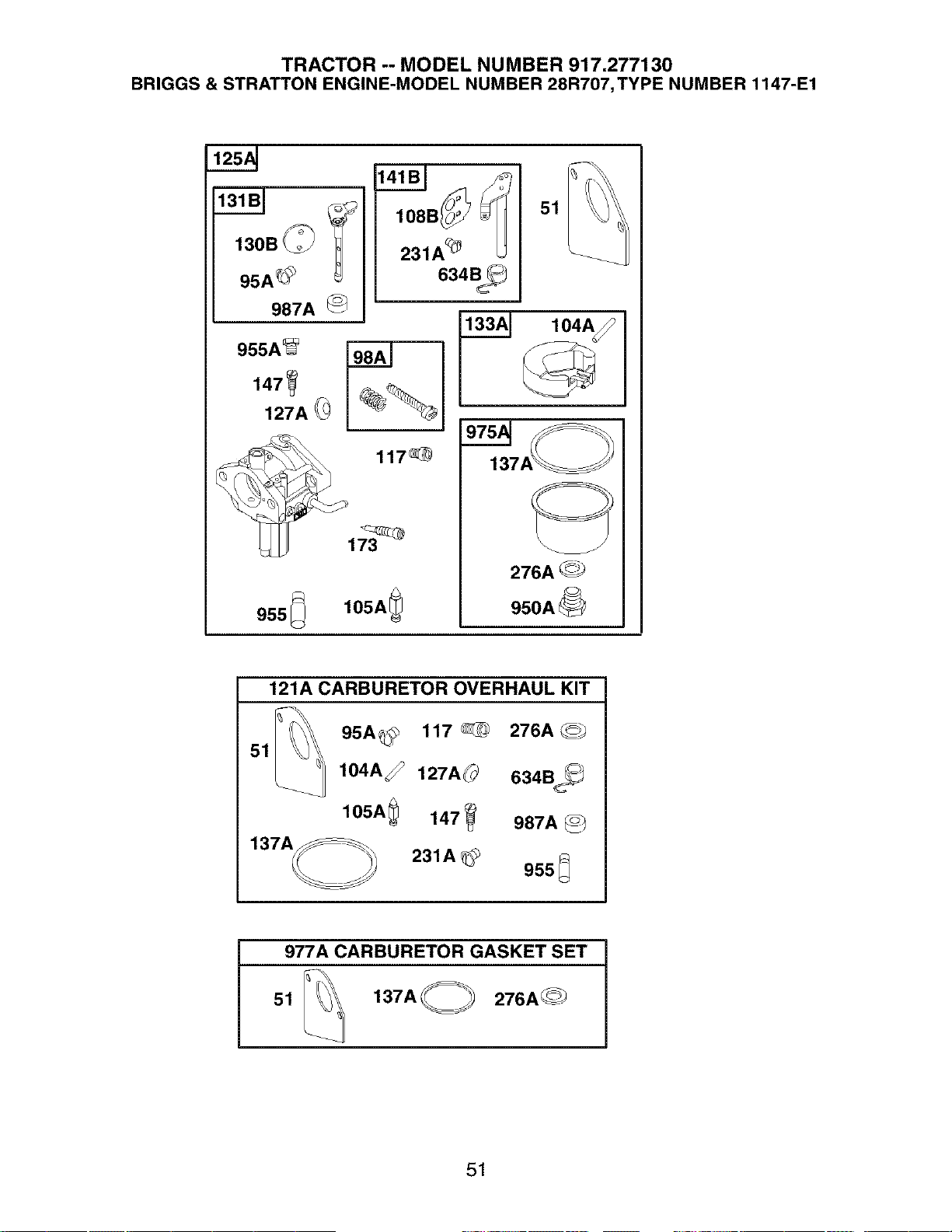

TRACTOR -- MODEL NUMBER 917.277130

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28R707,TYPE NUMBER 1147-E1

130B

95A_

,osB

987A _

955A_

147_

173

955_ 105A_

104A

276A _

121A CARBURETOR OVERHAUL KIT

276A _:_

987A

955

977A CARBURETOR GASKET SET

51 276A_

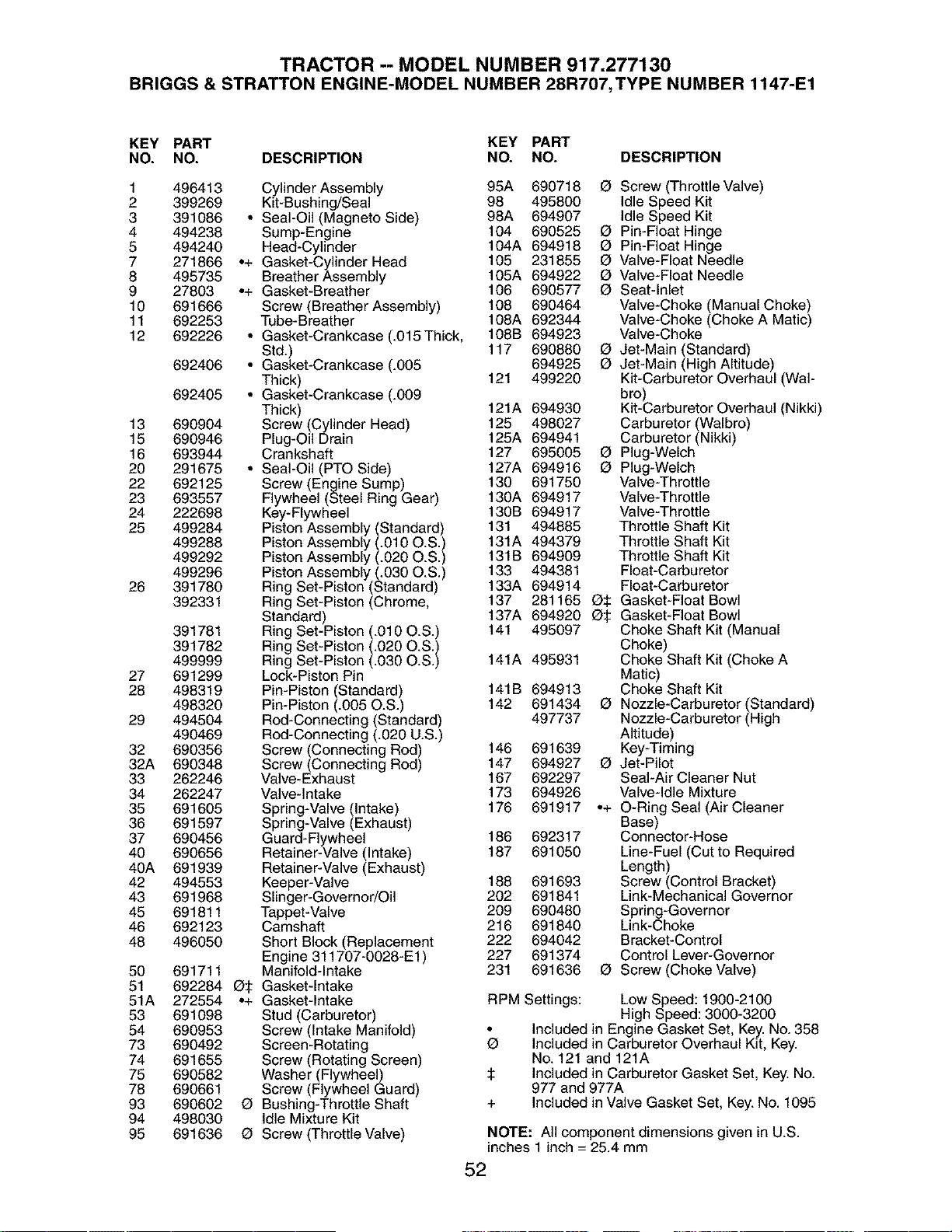

TRACTOR -- MODEL NUMBER 917.277130

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28R707,TYPE NUMBER 1147-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 496413 Cylinder Assembly 95A 690718 {3 Screw (Throttle Valve)

2 399269 Kit-Bushing/Seal 98 495800 Idle Speed Kit

3 391086 • Seal-Oil (Magneto Side) 98A 694907 Idle Speed Kit

4 494238 Sump-Engine 104 690525 {3 Pin-Float Hinge

5 494240 Head-Cylinder 104A 694918 {3 Pin-Float Hinge

7 271866 °+ Gasket-Cylinder Head 105 231855 {3 Valve-Float Needle

8 495735 Breather Assembly 105A 694922 {3 Valve-Float Needle

9 27803 °+ Gasket-Breather 106 690577 {3 Seat-Inlet

10 691666 Screw (Breather Assembly) 108 690464 Valve-Choke (Manual Choke)

11 692253 Tube-Breather 108A 692344 Valve-Choke (Choke A Matic)

12 692226 • Gasket-Crankcase (.015Thick, 108B 694923 Valve-Choke

Std.) 117 690880 {3 Jet-Main (Standard)

692406 • Gasket-Crankcase (.005 694925 {3 Jet-Main (High Altitude)

Thick) 121 499220 Kit-Carburetor Overhaul (Wal-

692405 • Gasket-Crankcase (.009 bro)

Thick) 121A 694930 Kit-Carburetor Overhaul (Nikki)

13 690904 Screw (Cylinder Head) 125 498027 Carburetor (Walbro)

15 690946 Plug-Oil Drain 125A 694941 Carburetor (Nikki)

16 693944 Crankshaft 127 695005 {3 Plug-Welch

20 291675 • Seal-Oil (PTO Side) 127A 694916 {3 Plug-Welch

22 692125 Screw (Engine Sump) 130 691750 Valve-Throttle

23 693557 Flywheel (Steel Ring Gear) 130A 694917 Valve-Throttle

24 222698 Key-Flywheel 130B 694917 Valve-Throttle

25 499284 Piston Assembly (Standard) 131 494885 Throttle Shaft Kit

499288 Piston Assembly (.010 O.S.) 131A 494379 Throttle Shaft Kit

499292 Piston Assembly (.020 O.S.) 131B 694909 Throttle Shaft Kit

499296 Piston Assembly (.030 O.S.) 133 494381 Float-Carburetor

26 391780 Ring Set-Piston (Standard) 133A 694914 Float-Carburetor

392331 Ring Set-Piston (Chrome, 137 281165 {3:1:Gasket-Float Bowl

Standard) 137A 694920 {3:1:Gasket-Float Bowl

391781 Ring Set-Piston (.010 O.S.) 141 495097 Choke Shaft Kit (Manual

391782 Ring Set-Piston (.020 O.S.) Choke)

499999 Ring Set-Piston (.030 O.S.) 141A 495931 Choke Shaft Kit (Choke A

27 691299 Lock-Piston Pin Matic)

28 498319 Pin-Piston (Standard) 141B 694913 Choke Shaft Kit

498320 Pin-Piston (.005 O.S.) 142 691434 {3 Nozzle-Carburetor (Standard)

29 494504 Rod-Connecting (Standard) 497737 Nozzle-Carburetor (High

490469 Rod-Connecting (.020 U.S.) Altitude)

32 690356 Screw (Connecting Rod) 146 691639 Key-Timing

32A 690348 Screw (Connecting Rod) 147 694927 {3 Jet-Pilot

33 262246 Valve-Exhaust 167 692297 Seal-Air Cleaner Nut

34 262247 Valve-Intake 173 694926 Valve-Idle Mixture

35 691605 Spring-Valve (Intake) 176 691917 ,+ O-Ring Seal (Air Cleaner

36 691597 Spring-Valve (Exhaust) Base)

37 690456 Guard-Flywheel 186 692317 Connector-Hose

40 690656 Retainer-Valve (Intake) 187 691050 Line-Fuel (Cut to Required

40A 691939 Retainer-Valve (Exhaust) Length)

42 494553 Keeper-Valve 188 691693 Screw (Control Bracket)

43 691968 Slinger-Governor/Oil 202 691841 Link-Mechanical Governor

45 691811 Tappet-Valve 209 690480 Spring-Governor

46 692123 Camshaft 216 691840 Link-Choke

48 496050 Short Block (Replacement 222 694042 Bracket-Control

Engine 311707-0028-E1) 227 691374 Control Lever-Governor

50 691711 Manifold-Intake 231 691636 {3 Screw (Choke Valve)

51 692284 {3:1:Gasket-Intake

51A 272554 ,+ Gasket-Intake RPM Settings: Low Speed: 1900-2100

53 691098 Stud (Carburetor) High Speed: 3000-3200

54 690953 Screw (Intake Manifold) ° Included in Engine Gasket Set, Key.No. 358

73 690492 Screen-Rotating {3 Included in Carburetor Overhaul Kit, Key.

74 691655 Screw (Rotating Screen) No.121 end 121A

75 690582 Washer (Flywheel) :I: Included in Carburetor Gasket Set, Key. No.

78 690661 Screw (Flywheel Guard) 977 and 977A

93 690602 {3 Bushing-Throttle Shaft + Included in Valve Gasket Set, Key.No. 1095

94 498030 Idle Mixture Kit

95 691636 {3 Screw (Throttle Valve) NOTE: All component dimensions given in U.S.

inches 1 inch= 25.4 mm

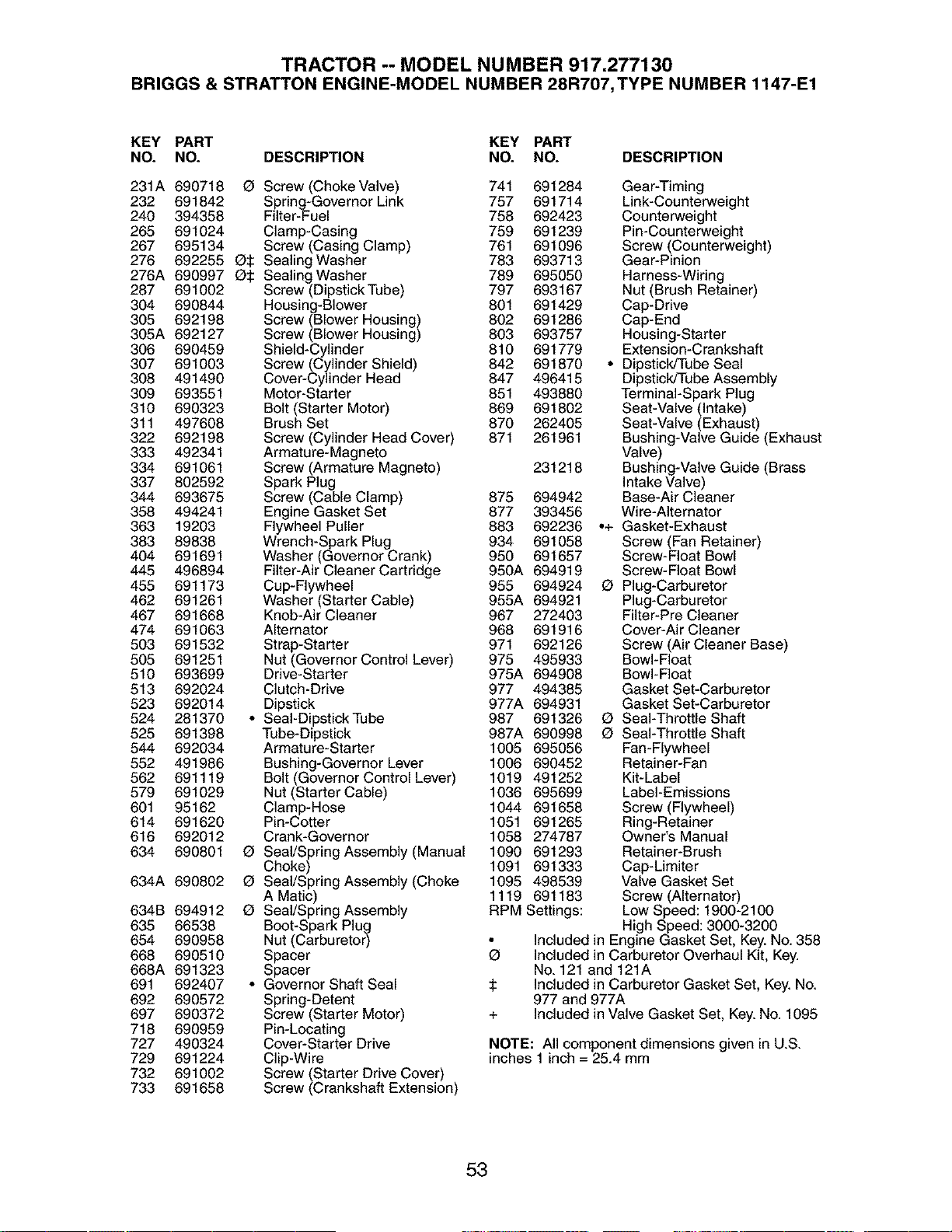

TRACTOR -- MODEL NUMBER 917.277130

BRIGGS & STRATTON ENGINE-MODEL NUMBER 28R707,TYPE NUMBER 1147-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

231A 690718 Q Screw (Choke Valve)

232 691842 Spring-Governor Link

240 394358 Filter-Fuel

265 691024 Clamp-Casing

267 695134 Screw (Casing Clamp)

276 692255 Q:I: Sealing Washer

276A 690997 Q:I: Sealing Washer

287 691002 Screw (DipstickTube)

304 690844 Housing-Blower

305 692198 Screw (Blower Housing)

305A 692127 Screw (Blower Housing)

306 690459 Shield-Cylinder

307 691003 Screw (Cylinder Shield)

308 491490 Cover-Cylinder Head

309 693551 Motor-Starter

310 690323 Bolt (Starter Motor)

311 497608 Brush Set

322 692198 Screw (Cylinder Head Cover)

333 492341 Armature-Magneto

334 691061 Screw (Armature Magneto)

337 802592 Spark Plug

344 693675 Screw (Cable Clamp)

358 494241 Engine Gasket Set

363 19203 Flywheel Puller

383 89838 Wrench-Spark Plug

404 691691 Washer (Governor Crank)

445 496894 Filter-Air Cleaner Cartridge

455 691173 Cup-Flywheel

462 691261 Washer (Starter Cable)

467 691668 Knob-Air Cleaner

474 691063 Alternator

503 691532 Strap-Starter

505 691251 Nut (Governor Control Lever)

510 693699 Drive-Starter

513 692024 Clutch-Drive

523 692014 Dipstick

524 281370 • SeaI-DipstickTube

525 691398 Tube-Dipstick

544 692034 Armature-Starter

552 491986 Bushing-Governor Lever

562 691119 Bolt (Governor Control Lever)

579 691029 Nut (Starter Cable)

601 95162 Clamp-Hose

614 691620 Pin-Cotter

616 692012 Crank-Governor

634 690801 Q Seal/Spring Assembly (Manual

Choke)

634A 690802 Q Seal/Spring Assembly (Choke

A Matic)

634B 694912 Q Seal/Spring Assembly

635 66538 Boot-Spark Plug

654 690958 Nut (Carburetor)

668 690510 Spacer

668A 691323 Spacer

691 692407 • Governor Shaft Seal

692 690572 Spring-Detent

697 690372 Screw (Starter Motor)

718 690959 Pin-Locating

727 490324 Cover-Starter Drive

729 691224 Clip-Wire

732 691002 Screw (Starter Drive Cover)

733 691658 Screw (Crankshaft Extension)

741 691284

757 691714

758 692423

759 691239

761 691096

783 693713

789 695050

797 693167

801 691429

802 691286

803 693757

810 691779

842 691870

847 496415

851 493880

869 691802

870 262405

871 261961

Gear-Timing

Link-Counterweight

Counterweight

Pin-Counterweight

Screw (Counterweight)

Gear-Pinion

Harness-Wiring

Nut (Brush Retainer)

Cap-Drive

Cap-End

Housing-Starter

Extension-Crankshaft

• Dipstick/Tube Seal

Dipstick/Tube Assembly

Terminal-Spark Plug

Seat-Valve (Intake)

Seat-Valve (Exhaust)

Bushing-Valve Guide (Exhaust

Valve)

231218 Bushing-Valve Guide (Brass

Intake Valve)

Base-Air Cleaner

Wire-Alternator

o+ Gasket-Exhaust

Screw (Fan Retainer)

Screw-Float Bowl

Q Plug-Carburetor

Plug-Carburetor

Filter-Pre Cleaner

Cover-Air Cleaner

Screw (Air Cleaner Base)

Bowl-Float

Gasket Set-Carburetor

Q Seal-Throttle Shaft

Fan-Flywheel

Retainer-Fan

Kit-Label

Label-Emissions

Screw (Flywheel)

Ring-Retainer

Owner's Manual

Retainer-Brush

Cap-Limiter

Valve Gasket Set

Screw (Alternator)

Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key.No. 358

Included in Carburetor Overhaul Kit, Key.

No. 121 and 121A

Included in Carburetor Gasket Set, Key. No.

977 and 977A

Included in Valve Gasket Set, Key.No. 1095

875 694942

877 393456

883 692236

934 691058

950 691657

950A 694919

955 694924

955A 694921

967 272403

968 691916

971 692126

975 495933

975A 694908

977 494385

977A 694931

987 691326

987A 690998

1005 695056

1006 690452

1019 491252

1036 695699

1044 691658

1051 691265

1058 274787

1090 691293

1091 691333

1095 498539

1119 691183

RPM Settings:

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_IL ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4, Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ourst

Your Home

For repatr- in your home - of all major brand apphances,

lawn and garden equtpment, or heating and coohng systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessones and

owner's manuals that you need to do-it-yourself.

For Sears professional _nstallat_on of home apphances

and _tems hke garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U S A and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-m products hke vacuums, lawn equtpment,

and electronics, call or go on-hne for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u S _) 1-800-361-6665 (Canada)

Para pedir ser'acio de reparaciSn

a dom_ciho,y para ordenar p=ezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en franq.als:

1-800-LE-FOYER Mc

(1-800-533-6937)

www sears ca

SEARS

®Regtstered Trademark / TMTrademark / st1Service Mark of Sears, Roebuck and Co

® Marca Regtstrada / TMMarca de Fabnca / sMMarca de Servtcte de Sears, Roebuck and Co

MCMarque de commerce / rid Marque d#posee de Sears, Roebuck and Co

187551 Rev. 1 5.2.03 TR/MH Printed in U.S.A.

Craftsman 917277130 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917277130 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
