Hot Water
REFERENCE GUIDE
Experience Our Innovation
Experience our Innovation
For over 35 years Australians have been enjoying the comfort, convenience and
reliability of Rinnai gas appliances. Our innovative products are designed with
the environment in mind, with low emission technology and high eciencies,
as well as a host of other great features.
Rinnai is committed to ongoing innovation - delivering ecient, well designed
and engineered lifestyle solutions oering a host of benets including
versatility, safety, control, water conservation as well as guaranteed reliability.
Backed with extensive warranties and after sales service teams, Rinnai is proud
to be the No.1 choice for Continuous Flow Hot water in Australia. In addition, our
innovative range of Solar Hot Water Systems boast market leading eciencies
that ultimately enjoy higher Government rebates.
Through innovation, we will endeavour to continue oering superior ranges of
home appliances that provide a clear insight into what the future holds for
Australian homes
About this Brochure
This ‘Hot Water Reference Guide’ is to be used in conjunction with the consumer
brochure. The contents of this brochure are more of a technical nature and it has
been produced in relevant technical sections rather than by specic product
pages as in the consumer brochure.
It is designed to be a quick reference guide to questions that may be asked to
ensure selection of the best hot water solution for an application.
Need additional help?
Please contact the Rinnai HelpLine on 1300 555 545
Monday to Friday 8.00am – 6.00pm EST
Associations & Certicates
N10378
CONTENTS
02 Introduction
04 Range Overview - Hot Water
CONTINUOUS FLOW
06 Range at a glance
07 Hot Water Delivery Temperature
08 Water Controllers

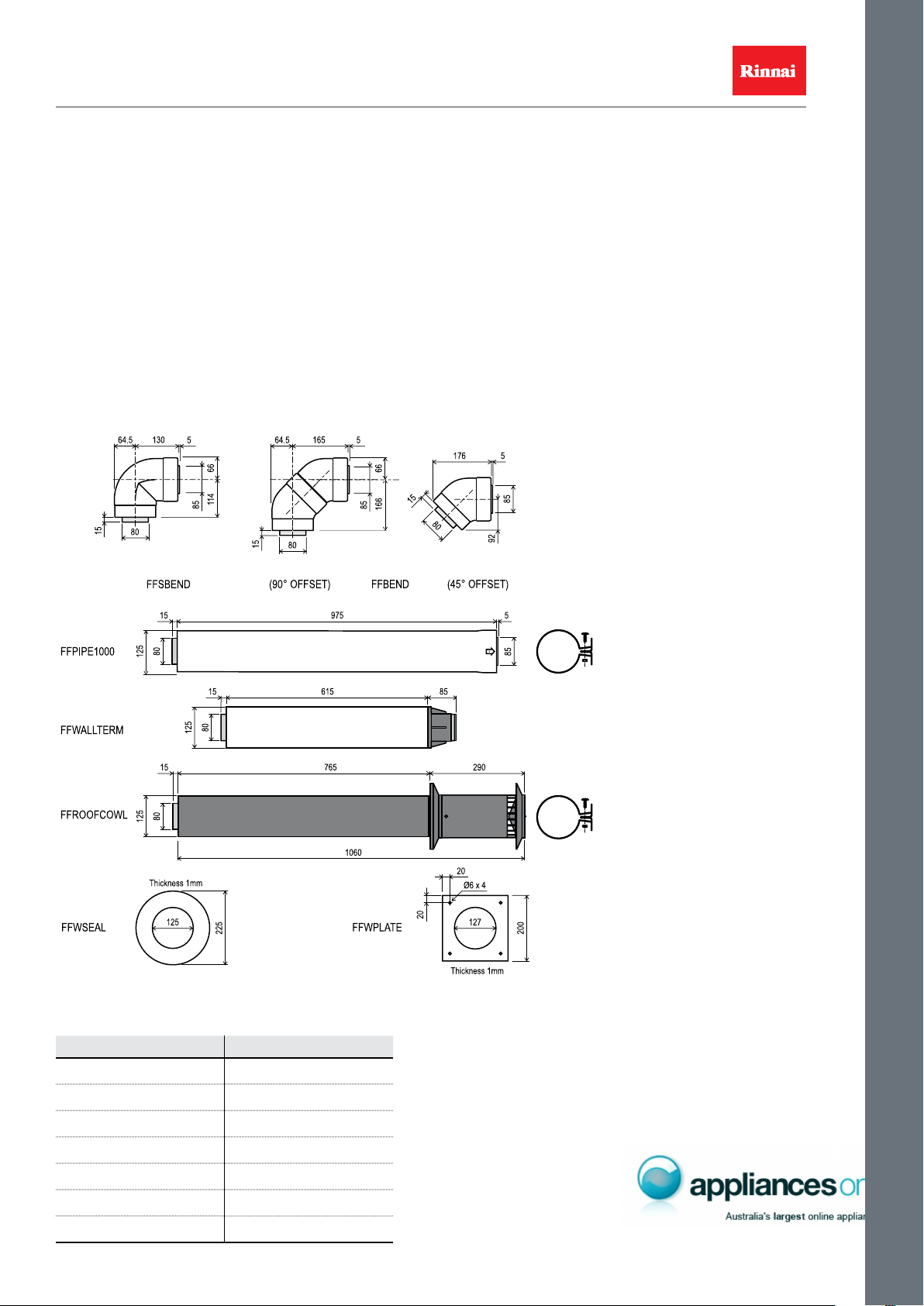

09 Internal Flueing

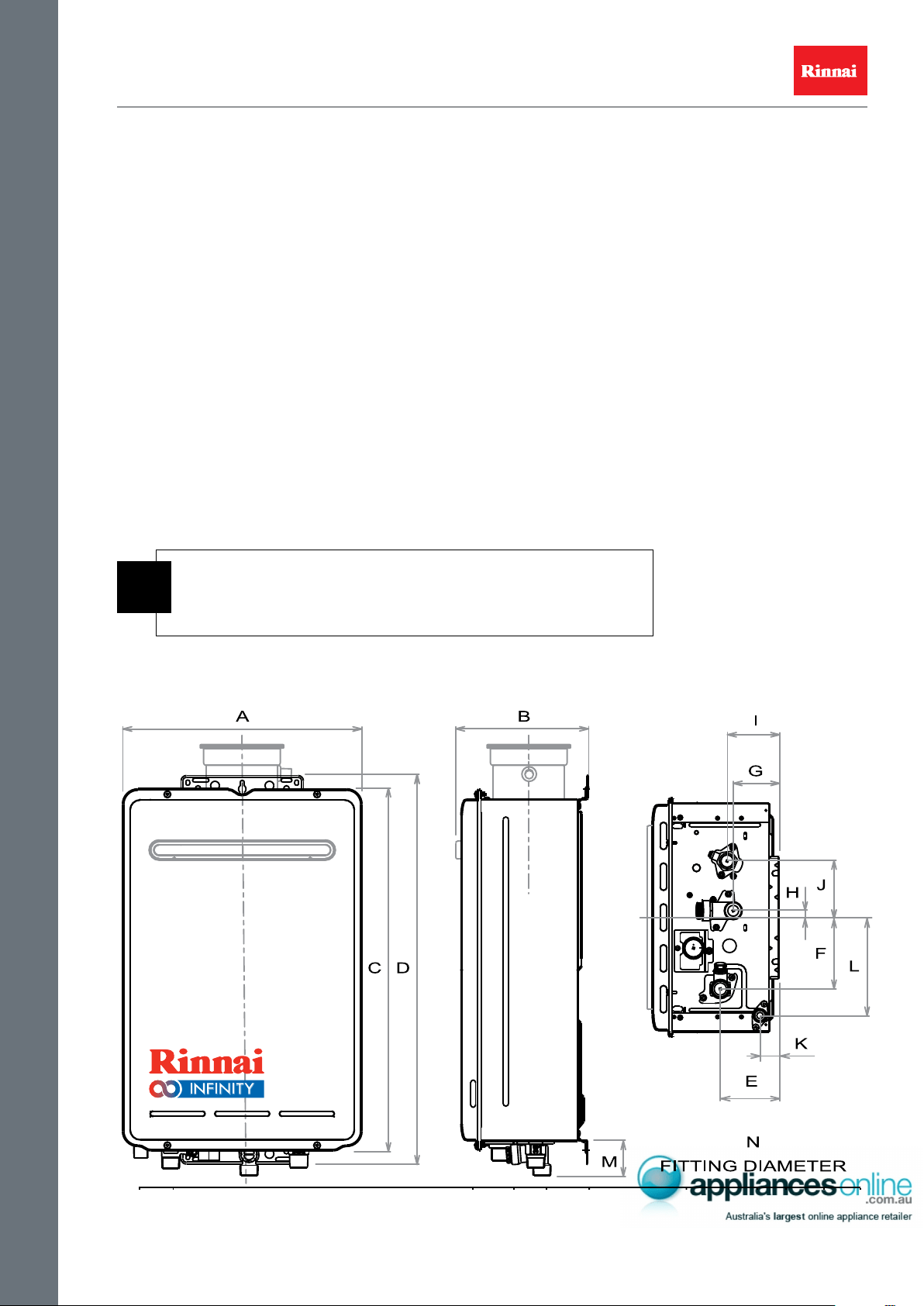

12 Technical Information
13 Specications

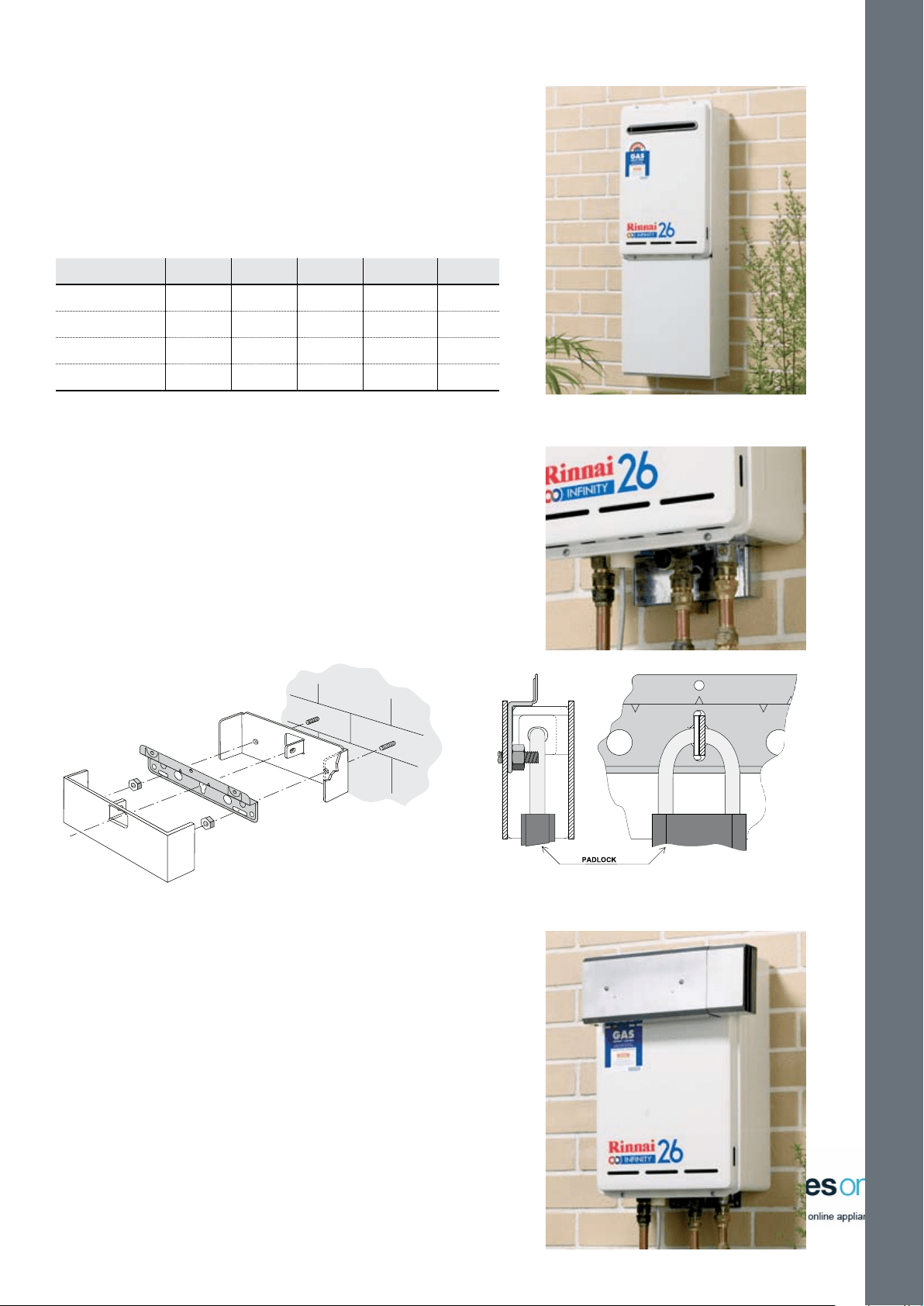

14 Accessories
SOLAR
18 Range at a glance
20 Solar Rebates
21 RECs and Rinnai Solar Systems
22 Sizing
24 Ordering
25 Rough In
27 Solar Collectors
ELECTRIC
28 Range at a glance
29 Range Overview
30 System Selection
31 Specications
OTHER
32 Commercial
34 Service and Warranty
04
Range Overview Hot Water
Range Overview – Hot Water
Rinnai has an extensive range of hot water systems that cater for both domestic & commercial applications. Each range has
specic and unique benets which are explained both below and throughout this brochure.

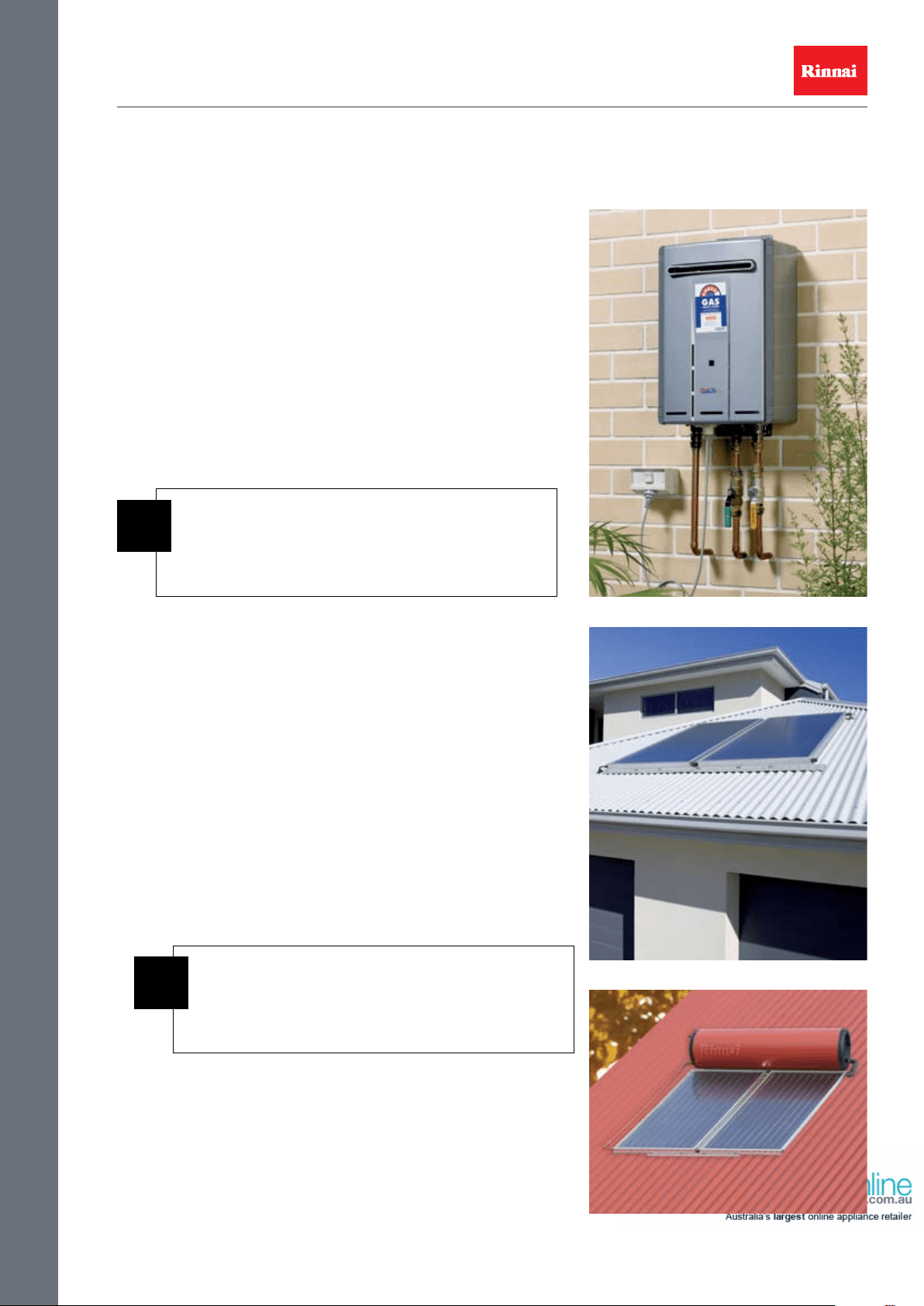

Gas Continuous Flow
• Only heats the water when it is needed
• Highly ecient and compact allowing exibility in installation options
• Additional Water Controllers add precise temperature control for
convenience & safety as well as a host of other benets
• Designed with low burner settings making them the most compatible
with lower ow rated (WELS) showers & basin outlets
• Largest range of models suiting varied domestic, builders & commercial
markets
• The only internal 26 Litre model available with exible installation
option using Rinnai twin-skin ueing
• Extensive accessory options – Recess Boxes, Pipe Covers, Flue Diverters,
Smartstart® and Security Brackets
HANDY
HINT
By adding 2 or more Water Controllers, the
Parts & Labour warranty is automatically
increased from 3 to 5 years
Solar Systems
• Utilises the energy from the sun to pre-heat the water
• Benets of low running costs and low greenhouse emissions
• Close Coupled roof or split ground mounted systems
• Choice of superior quality long-life Stainless Steel with extensive
warranties or durable Vitreous enamelled steel cylinders
• Selection of Solar Collectors in both Standard & Frost Tolerant
(FTC) congurations
• Full range of sizes to suit all domestic application & climates
• Choice of 2 gas booster sizes to suit small to large families
• Choice of electric element sizes enabling easy changeover from old
electric systems
• Substantial Government rebates and incentives apply for most
domestic installations
HANDY
HINT
Gas Boosted Systems are awarded far higher
rebates than Electric Boosted Systems and this
should always be considered when deciding on
the system type and comparing costs.
INFINITY 26 Plus

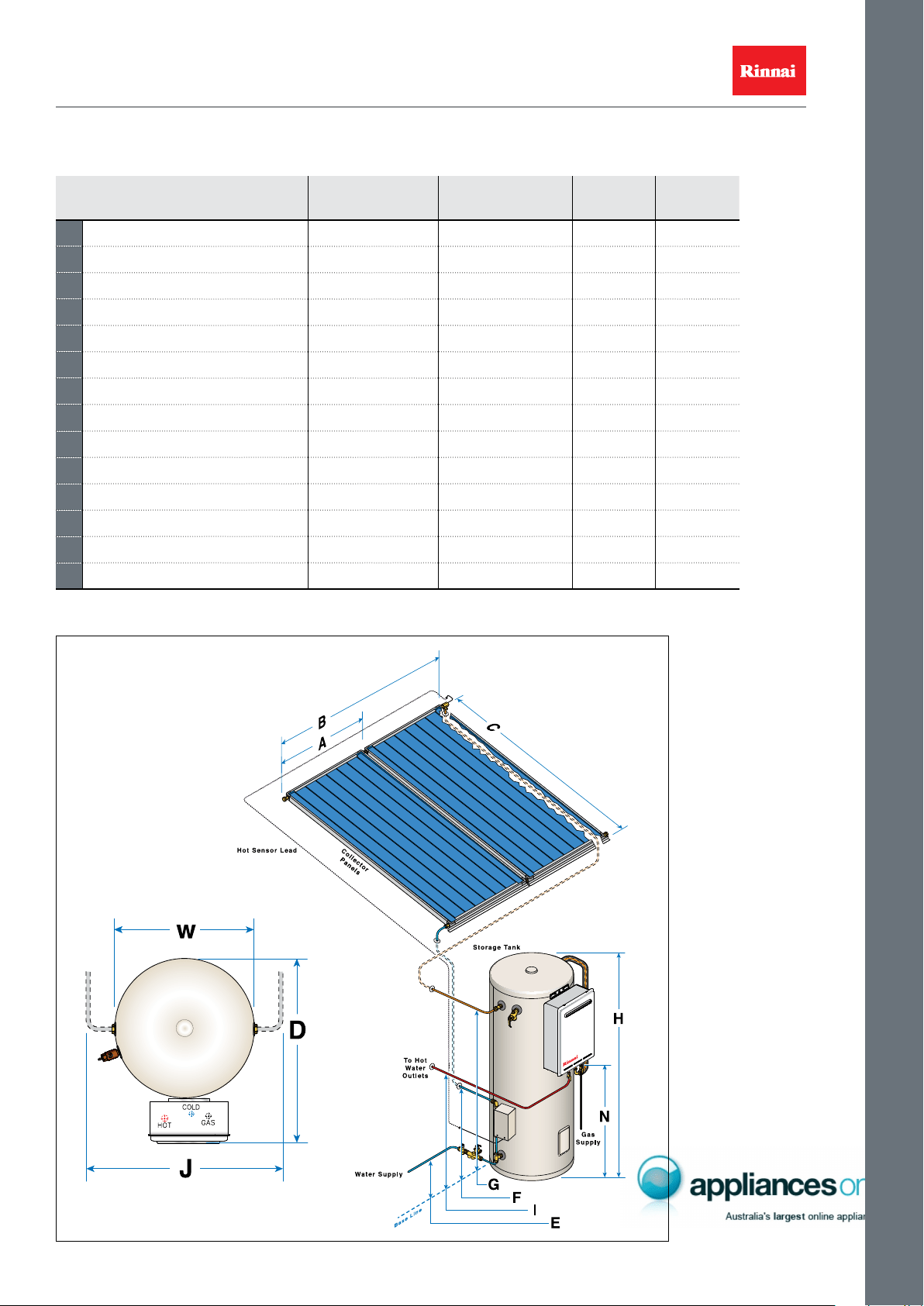

Solar Split System

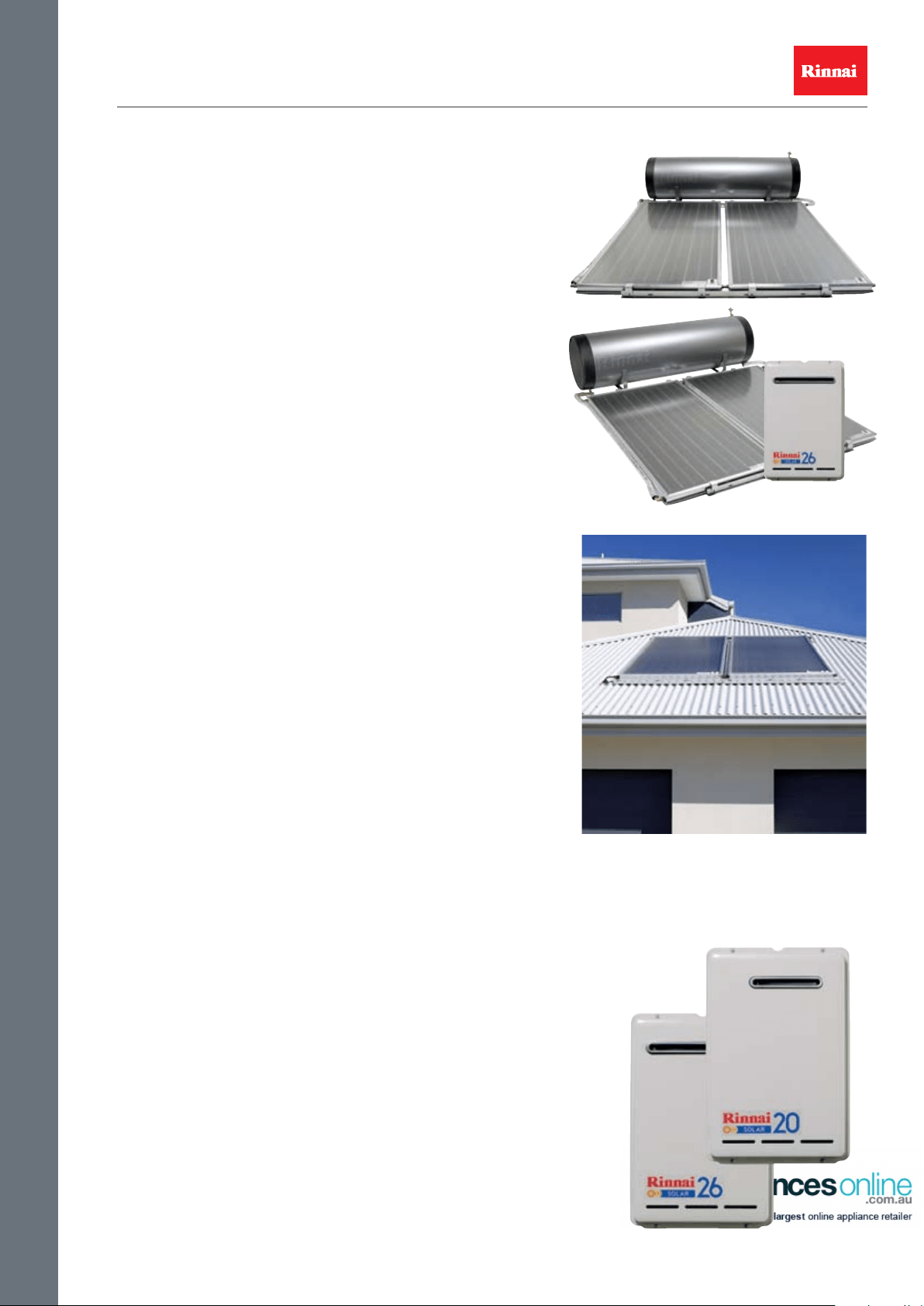

Solar Close Coupled System
05
Range Overview Hot Water

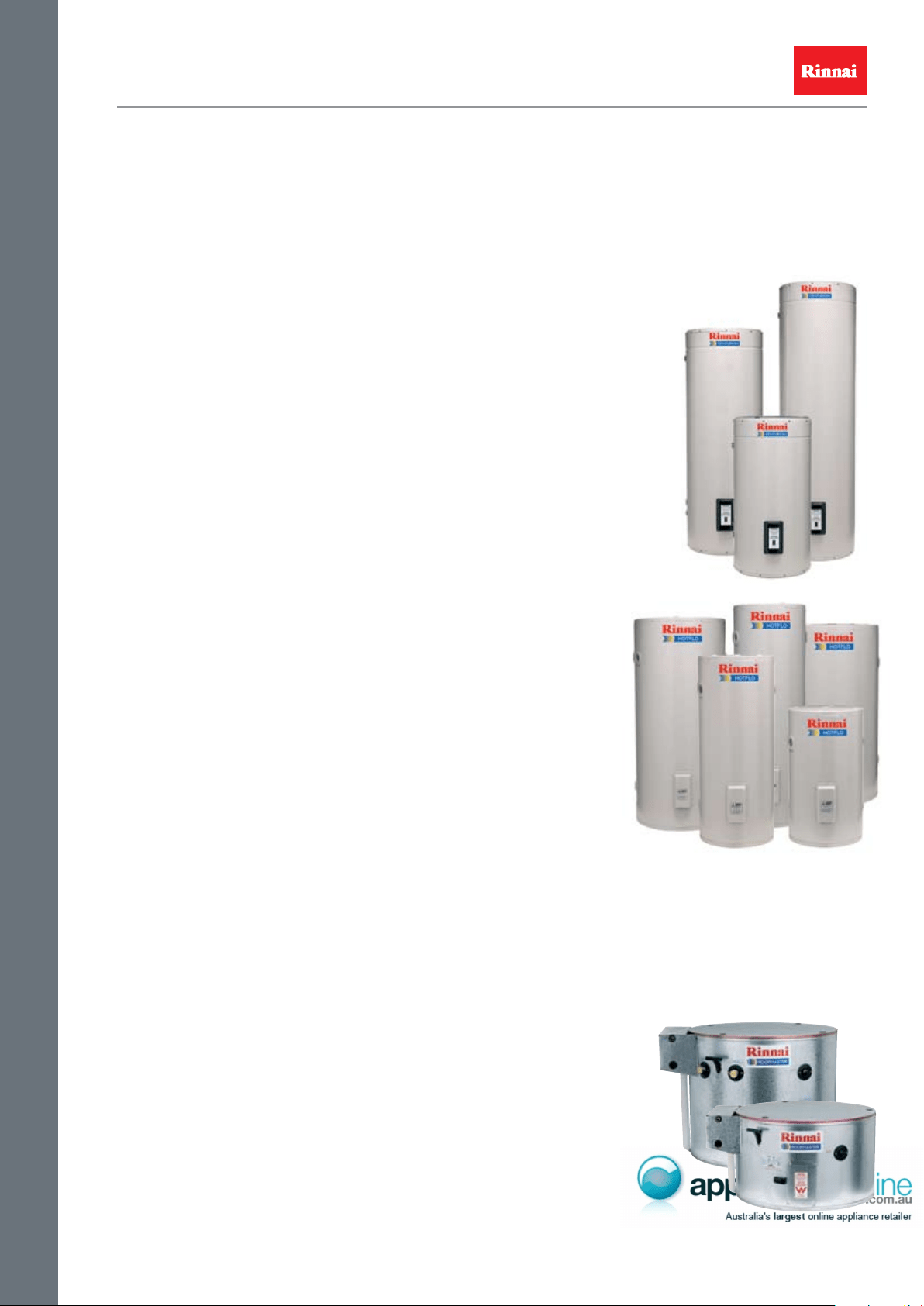

Mains Pressure Electric Storage
• Full range of capacities to suit all requirements
• Flexibility of various element sizes with dual handed connections
making them ideal for replacing older systems
• Choice of high quality long-life Stainless Steel or durable Vitreous
Enamel steel construction
• Stainless Steel cylinders are Solar compatible - added exibility to
upgrade at a later stage
• Flexibility - suitable for internal and external use
• Thermostatically controlled with safety temperature shut o for added
safety and peace of mind
Gravity Feed Electric Storage
• Low pressure gravity feed electric boosted systems
• Designed to be concealed in roof spaces
• Full copper cylinder with long life expectancy as unit not under
mains pressure
• Suitable to be installed in conjunction with Solar Collectors to
economically pre-heat the water
• Suitable for connection to a combustion stove pre-heat circulation
system in addition to solar – best of both!
• Available in a model with a built-in heat exchanger coil for mains
pressure capability.

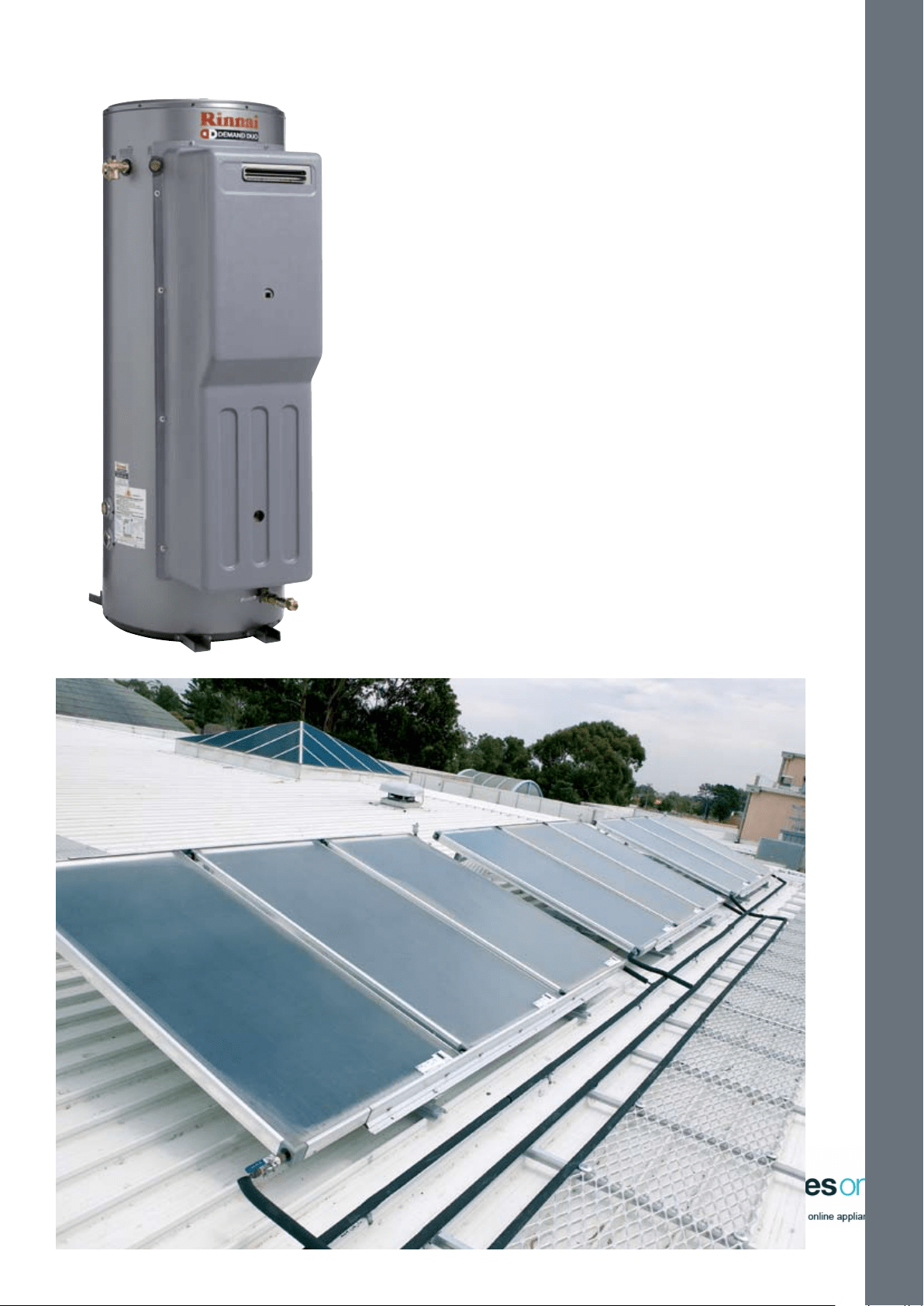

Commercial Hot Water Systems
• Heavy Duty Continuous Flow units
– smaller Commercial applications
• Manifold Packs – multiple units plumbed
together with a maximum ow rate sized
to suit a set number of outlets (ie shower
block with pre-set outlet temperature)
• Demand Duo – single or multiple units
manifolded together in conjunction with
storage cylinders. Stored hot water assists
with ‘peak demand’ periods like mornings
in a hotel.
• Warm Water Systems designed for ow
& return installations
• Commercial Solar pre-heat systems
HANDY
HINT
Always err on the high side when sizing electric
systems. Under sizing can result in a lack of hot
water and very unhappy customers!
HANDY
HINT
Because the hot water is gravity fed, the piping
to the outlets & showers is usually run in ¾”
(20mm) to ensure adequate water ow!
Rinnai Demand Duo System
06
Continuous Flow Range at a glance
Continuous Flow Hot Water
Range at a glance
Rinnai has the largest range of Continuous Flow water heaters in Australia today. As the company that developed the Continuous
Flow market, we now have 5 dedicated ranges designed for specic applications.
The table below highlights the basic dierences between the ranges as a general guide:
Range
Rinnai Envirosmart Rinnai INFINITY Rinnai V-Series
Rinnai Heavy Duty
(HD-Series)
Rinnai S-Series
External Models 1 5 2 2 2
Internal Model - 1 - 1 -
Eciency 6 Star 5+ Star 5+ Star 5+ Star N/A
Primary Use Domestic Domestic Builders & Projects Commercial Solar Boost Only
Water Controller Compatible Compatible Compatible Compatible Not Compatible
Status Monitor No 26Plus Only No Yes No
Colour Euro White Euro White Dune Titanium Dune
Selection Guide & Sizing
To ensure that the best Continuous Flow unit is installed in any application, we recommend breaking it down to 6 basic considerations:
1. How many Showers are there?
A single bathroom home with a single shower outlet will operate using the smaller 16 or 20 litre model, whereas with multiple
bathrooms or showers with 2 roses, then you may need to factor in the likelihood of simultaneous demand. In this case the larger
26 or 32 litre unit would be required.
2. What is the Geographical location?
Ambient water temperatures vary immensely throughout Australia. Please refer to the below map and table as a guideline only:
Climate
Number of Bathrooms
The number of shower oulets the unit can
supply is dependant on water pressure, ambient
water pressure and outlet water ow capacity.
(Based on 3 Star, 9L/min)
1 2 3
Warm 16 to 20 Litre 16 to 26 Litres 26 to 32 Litre
Cool 16 to 20 Litre 20 to 26 Litres 26 to 32 Litre
07
Hot Water Delivery Temperature
3. The type of shower roses installed?
Most States and Territories have legislation where new homes must have a minimum of 3 Star rated (9 litre/min) shower roses
installed. Many older homes however, still have higher ow rated showers.
HANDY
HINT
We recommend to replace shower roses with low ow rated (WELs approved) xtures
to assist with water conservation. Rinnai Continuous Flow models are more suited to
lower ow rates than any other units on the market.
4. Is there a large bath or spa?
If there is a large bath or spa that needs lling, then regardless of the number of bathrooms or showers, we’d recommend the
larger 26 or 32 litre.
5. Design of the house? (The distance to the furthest tap)
Where are the bathrooms and other ‘wet areas’ in relation to the hot water system? The further away the shower, the longer it takes
to get the hot water. Typically if the distance to an outlet is 15m or greater you could be looking at a time delay for the hot water of
approximately 10-15 seconds.
As a general rule, Rinnai recommend:
• Units are best installed closest to the Kitchen – but with consideration to Bathroom locations
• New homes could consider two smaller units if hot water is required at opposite ends of home
• For long hot water runs, install a Rinnai Smartstart pre-heat ow and return system
6. Is it an Internal or External Installation?
Most installations are external. This is by far the least expensive alternative with the unit readily accessible for servicing.
Alternatively Rinnai have internal units which can be placed inside the house, in a cupboard or even in the ceiling cavity.

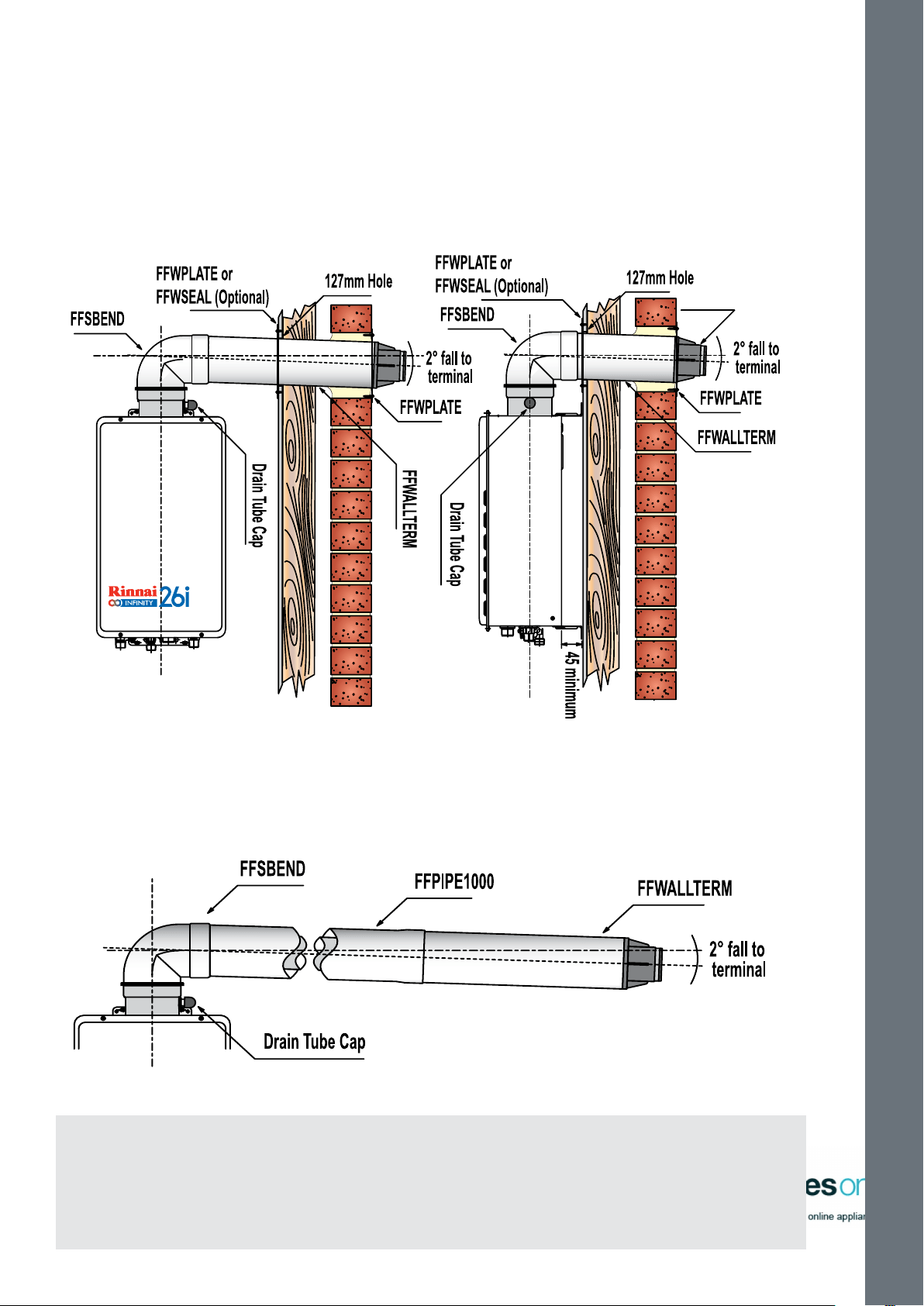

All Rinnai internal units require a ue to be installed to atmosphere. For further details of the ueing requirements, please refer to
pages 9 to 11.
Hot Water Delivery Temperature
AS/NZS3500 regulates that the temperature allowed in areas used primarily for personal hygiene (Bathrooms, Ensuites and Powder
Rooms) must be limited to a maximum of 50°C in domestic installations. There are 2 ways to achieve this with Rinnai Continuous Flow
appliances:
1. Preset 55°C Appliances – The installing plumber supply’s and installs an approved Tempering Valve on the hot water branch
line to the bathrooms etc set at a maximum of 50°C. This then allows for the hotter 55°C water to be supplied to the kitchen &
laundry which is best for cutting greases and rinsing. Whilst this requires the additional expense of a Tempering Valve, it is
Rinnai’s preferred method of installation as it gives the end-user the best hot water solution.
2. Preset 50°C Appliances – This is where the unit is factory set to 50°C and the entire house is supplied at this temperature. This
is adequate in most domestic situations, but any temperature losses in the pipe work due to poor or old insulation can result in
lower temperatures being delivered at the outlet. This is usually noticeable in the kitchen when trying to wash dishes with (say)
46 or 47
o
C. Previously there was no way of overcoming this other than re-insulating supply lines.
Rinnai Preset 50
o
C – Now adjustable to give 50
o
C at the outlet
Recent amendments to AS3498 allows for the introduction of adjustable 50
o
C Preset appliances. Similar to Tempering
Valves, the installing plumber can now measure the temperature at the outlet with a thermometer and if necessary,
adjust the Rinnai Continuous Flow unit. This can be done in increments of 1
o
C to a maximum of 4
o
C. At the time of
printing the majority of Rinnai Preset 50 appliances already have this feature.
If unsure whether a particular appliance is adjustable, please call the Rinnai HelpLine on 1300 555 545 quoting
the serial number of the appliance.
08
Water Controllers

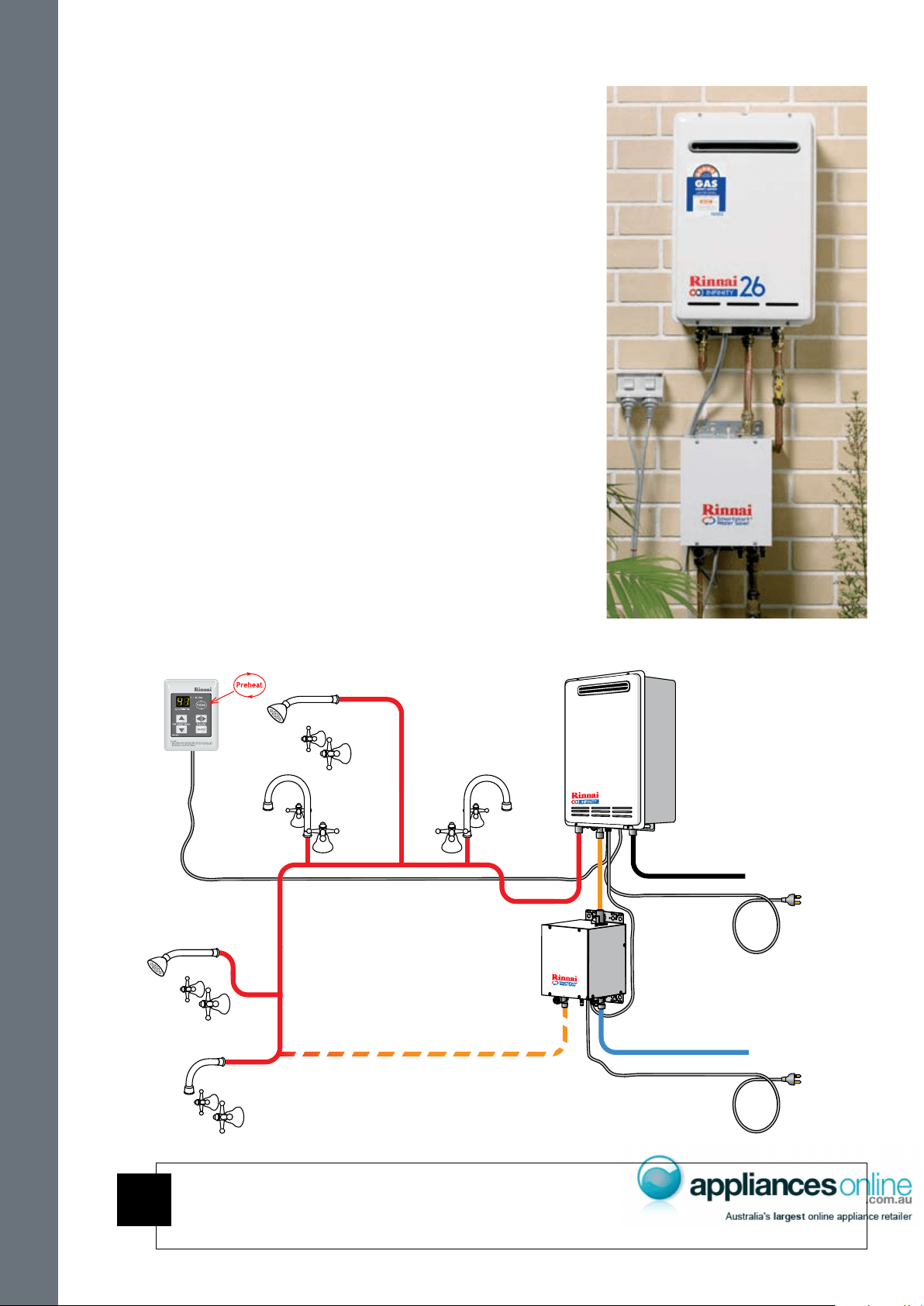

Water Controllers
Why install Water Controllers?
Rinnai strongly recommend installing Controllers to allow you to take full advantage of all the benets available. Water Controllers
depending on the model selected, enable the following additional benets with any Continuous Flow model with the exception
of Solar Boost units:
Maximum number of Water Controllers
A maximum of 4 Water Controllers can be tted to all Rinnai Continuous Flow water heaters. Any combination of Universal Wireless
or Wired or Deluxe Water Controllers can be used with the following provisions:
1. Only ONE Deluxe Master Water controller can be installed
2. Up to TWO Deluxe Bathroom Water Controllers
3. The FOURTH Water Controllers MUST BE a Universal Controller (Wired or Wireless)
HANDY
HINT
Water Controllers are great for unit servicing as they are also a diagnostic tool.
Should there be a problem with getting hot water, the Controllers will usually ash a
predetermined number advising of the fault. i.e. low gas supply.
All Controllers:
• Eliminate temperature uctuations if someone else turns on another tap
• Allow the user to pre-set safe temperatures
• Enable precise temperature control up to 50
o
C in the Bathrooms and
up to 55
O
C in the Kitchen
• Conserve water usually wasted juggling the hot & cold taps
• Installing 2 Controllers extend the Parts & Labour warranty of the Rinnai
INFINITY by 2 years to 5 years
• Activate the Rinnai Smartstart® pre-heat function (see page 16 for details)
• Install up to 4 Controllers (some limitations apply, see below)
Universal (Wired) Controllers
• Ideal for new homes and renovations where easy access to running wires
is appropriate
• Are a cost eective model with basic functionality including temperature
control & room priority transfer
• Available in Grey only
Universal Wireless Controllers:
• Enable Controllers to be easily tted into new homes & extensions
• Ideal for retrotting into existing homes
• Same functions as the ‘wired’ Universal Controllers
• Additional Child Lock function for added safety
• Requires a transceiver to be connected to the hot water unit
• Additional Wireless Controllers can operate on the same transceiver
• Available in Silver only
Deluxe Controllers:
• Enable Controllers to be easily tted into new homes & extensions
• Master Controller usually installed in the Kitchen
• Separate Bathroom Controllers
• All functions as per Universal Controller
Deluxe functions include:
• Automatic bath ll function (Bathroom controller only)
• Shower saver feature - preset desired litres (Bathroom controller only)
• Digital clock
• Speaker & volume controls
• Available in White or Silver
09
Internal Flueing
Internal Flueing
Rinnai oer the only 26 litre internal units available on the market. The Rinnai INFINITY 26i domestic unit and the HD200i commercial
model. Ideal for replacement of existing internal hot water systems or simply used when limited space is available externally in
applications such as apartments and townhouses. It is a room sealed appliance, drawing combustion air from the outside.
There are 4 ueing options that enable the installation of an internal Continuous Flow model virtually anywhere:
1. Vertical Direct Flueing - Straight up through the ceiling and penetrating the rooine
2. Horizontal Direct Flueing - 90º bend o top of unit, backwards through the wall
3.
Horizontal Extended Flueing - Identical to horizontal ueing but with additional components to extend the length of the ue
4.
Combination Flueing - Mixture of both horizontal and vertical ues
Flue Components
All Rinnai Internal Flue systems are made up from individual components. All components must be ordered separately.
Description Code Number
Starter Bend FFSBEND
Universal 45/90 Degree Bend FFBEND
Flue Pipe 1000mm length FFPIPE1000
Horizontal Flue Terminal FFWALLTERM
Vertical Flue Terminal FFROOFCOWL
Ceiling Ring FFWSEAL
Wall Plate FFWPLATE
Dimensions in mm
10
Internal Flueing
Vertical Direct Flueing
This is the most common system sold with ueing
directly above the unit penetrating the roof line in a
single storey home.
The following components will be required in these
combination:
• Vertical Flue Terminal with roof cowl
• Additional Flue lengths (if required)
• Ceiling/Wall Ring (Cover plate)
Note: For vertical installations over 1.5m a condensate
drain trap is also required.
Combination Flueing
(Vertical and Horizontal)
(Multiple bends with a vertical or
horizontal ue termination)
The exibility of the various Rinnai
ueing components enables our
Continuous Flow internal models to
be installed virtually anywhere, using
a roof or wall terminal, extension
pieces (mounted vertically and
horizontally), bends, adaptors and
condensate traps as required.
11
Internal Flueing
Horizontal Direct Flueing
The second most common system where the Continuous Flow model is ued directly out through a back or side wall.
For this installation you will require the following components:
• 90° Bend & Starter
• Horizontal Flue Terminal (in desired lengths)
• External Wall plate
• Ceiling/Wall Ring (Cover plate
Horizontal Extension Flueing
This option is used when the water heater is mounted against an internal wall and ueing needs to extend horizontally to exit an
external wall. Rinnai ueing components must be used together with extension pieces and bends as required.
Important Flueing Rules
1. Installations can consist of both horizontal and vertical runs to a maximum length of 9 metres
2. Installations can have a maximum of three 90° bends.
3. For any installation over 1.5 metres in height, a condensate drain must be installed
13
Technical Information
Continuous Flow Technical Information
Flow Rate Characteristics
In response to market trends and as part of our continuous improvement processes, Rinnai have developed new technologies and
are introducing a number of modications that allow our continuous ow models to operate over a wider range of conditions.
Collectively known as “Enhanced Combustion Technology” (ECT) and in conjunction with new lower minimum gas rate and ow
rates, these improvements deliver tangible benets to our domestic continuous ow customers.
Our core Rinnai INFINITY Continuous Flow products now have the lowest minimum gas rates on the market. This means that at our
new lowest possible burner settings the following two enhanced features are realised:
a) They now operate at lower ow rates which makes them more compatible with 3 star (7.5-9.0 l/min) low ow water saving
xtures
b) They can now operate at far higher ambient incoming water temperatures. This is particularly of benet to the northern
States of Australia and some inland areas where the water temperature from the ground can be as high as 30
o
C
Many Rinnai Continuous Flow models have variable ow rates that can exceed the commonly known ow rate. i.e. a Rinnai INFINITY
20 can actually give a maximum ow rate of 24 litres per minutes with a temperature rise of only 20
o
C. Ambient water temperatures
vary immensely throughout Australia and often higher ow rates can be achieved with our models. This is most common when in
use with Water Controllers set at showering temperatures between 39 and 42
o
C.
HANDY
HINT
Cold Water + Temperature Rise = Outlet Temperature
13
Specications
Model REUV-
1620WGAK
1620WBAK
1620WS(60 AK
2024WGAK
2426WBAK
2426WS(60)AK
2430WK
2626WG-AK
2630WDAK
2632WC(65)AK
2632FFUGA
2632FFUC(65) A
3237WGAK
3237WC(65)AK
Model Name INF16 V1200 S20 INF20 V1500 S26
Enviro-
smart
INF26
INF26
Plus
HD200e INF 26i HD200i INF32 HD250e
Factory Default Temp
o
C 50 or 55 60 50 or 55 60 50 or 55 65
50 or
55
65
50 or
55
65
Colour White Dune White Dune White
Metal-
lic
Tita-
nium
White
Tita-
nium
White Titanium
Water Pressure (kPa)
Min 120 160 140 160 250 200 190 140 190
Max 1000
Gas Rate Min/Max
NG 10.9/125
13.8/
160
13.8/ 188
15.9/
162
13.8/199
15.7/
199
16/195 21/250
LPG 11.3/125
14.7/
160
14.7/188 14.7/ 199
Flow Rate 25
o
C/Max l/min 16/20 20/24 24/26 24/30 26/26 26/30 26/32 26/32 32/37
Star Rating 5.5 N/A 5.6 5.0 N/A 6.0 5.1 5.2 5.2 5.0 5.3
Connection Sizes
Gas/Hot/Cold
mm 20/15/15 20/20/20
Status Monitor No Yes No Yes No Yes
Dimensions (in MM)
Width A 350 355 350 470
Depth
B 194 277 194 202 251 234 ~274 244
Height
C 530 600 530 503 600
Height Inc Brackets
D 571 644 571 636 641 644
Hot Water Outlet
(From Wall)
E 87 164.5 87 96 91~ 131 115
Hot Water outlet
(from centre)
F 105 100 105 110 61
Cold Water inlet
(from wall)
G 68 83 68 75 70 ~ 110 99
Cold Water inlet
(from centre)
H 10 53 10 27 52
Gas Connection
(from wall)
I 77 70.5 77 104 99 ~ 139 61
Gas Connection
(from centre)
J 83 25 83 89 89 110
Condensate outlet
(from wall)
K - 33 -
Condensate oulet
(from centre)
L - 132 -
Gas Connection
length (from base)
M
40 41
Cold Connection
length (from Base)
50 51
Hot Connection
length (from base)
39 42
Condenstae
Connection
(from base)
- 51 -
Condensate Fitting
Diammeter
- 15 -
Continuous Flow Specications
14
Accessories
Rinnai oer a comprehensive range of accessories that assist with the
installation of Continuous Flow models.
Recess Boxes
When installing a Rinnai Continuous Flow unit in a new home or
renovation, you should consider using a recess box. These boxes allow
you to virtually hide the hot water system into the cavity enabling a
smooth and neat nish to the job. Both are available in full and
semi-recessed options.
There are 2 types of recess boxes:
1. Smartbox® – suits all external units except larger INF32,
Envirosmart & Commercial models
2. RBOX02 – suits INF32, HD200e & HD250e
Smartbox®
• Ideal for new homes or major renovations
• Save precious space by utilising the existing wall cavity
• Made from durable ABS plastic
• Suits any application:
• Brick: compatible for use with brick ties
• Rendered: complete with o-set spacers
• Weatherboard: used with semi-recess frame
• Full or semi recess options available
• Supplied standard in neutral DUNE colour – UV stabilised
• Fully paintable to blend with any colour scheme
• Not suitable for the INFINITY 32, Commercial units or
Envirosmart models
Continuous Flow Accessories
15
Accessories
RBOX02 (Galvanised Recess Box)
The RBOX02 recess Box is for use with the larger INFINITY 32, HD200e
& HD250e Continuous Flow water heaters and is suitable for brick
constructions only.
The RBOX02 requires an available cavity depth of 230mm and is usually
installed as follows:
New Homes or Extensions
• As the brickwork is being laid
• Usually installed before the plumbing rough-in
• Secured by fold-out brick ties incorporated in the box
Existing installations
• By cutting an opening in the brickwork
• Strengthening with a lintel as necessary
• Secured by drilling holes in the sides and x in position with
suitable ush headed masonry anchors
* Ordered in addition to the full Recess Box
Note: The Rinnai Envirosmart model is not suitable for use with a Recess box.
Suits Material
Opening Dimensions
(mm)
Wall
Protrusion
(mm)
Recess Code
Width Height Depth
INFINITY
16, 20 & 26, 26Plus
V1200 & V1500
Solar S20 & S26
ABS
Plastic
385-
395
1025-
1050
160 55 Full SBOX
95 125 Semi SBOXF
*
INFINITY 32
Commercial HD200e
Commercia HD250e
Galv.
Steel
496-
530
1020-
1050
230 15 Full RBOX02
140 100 Semi RBOX02F
*
16
Accessories
Smartstart® Water Saver
The Rinnai Smartstart® water saver has been developed to specically reduce
water wastage whenever a hot tap is turned on.
• Allows user to pre-heat the water in the pipes before the tap is turned on
• Simply activated by the ‘preheat’ button on any Rinnai Water Controller
• Takes a minute or two to warm up depending on the size of the
installation
• Saves literally tens of thousands of litres of water over the life of the hot
water system
Plumbing is designed as a ‘ring-main’ or ow and return loop around the
house. In existing homes, a return line can be plumbed in from the furthest
point back to the Rinnai Continuous Flow unit.
Operation overview
The Smartstart® system heats the water in the pipework water connected
between the water heater and the hot water outlets before any outlets are
opened using the ‘ow and return’ pipework principle. This results in water
savings and reduced waiting time for heated water delivery from the outlet
when opened.
Traditional ‘ow and return’ systems usually keep the water in the pipework
heated continuously. The Smartstart® system however, only heats the water
before the outlet is opened. This results in signicant energy savings because
water is not heated unnecessarily whilst retaining the benets of traditional
ow and return systems.
The Smartstart® module is usually located below the Rinnai Continuous Flow
water heater, however, it can be mounted anywhere within the return loop.
Gas Supply
Cold Wate
r
HANDY
HINT
It is always advisable to plumb the loop towards the kitchen tap rst
if at all possible. This reduces waiting time at this high use outlet.
17
Accessories
Pipe Covers
Pipe Covers can be easily attached to most Rinnai Continuous Flow Hot
Water units to:
• Cover the pipes, valves and even the external power point
• Provides a clean and smooth nish to the installation
• Two pipe covers can be joined together to hide longer pipe work
under the unit as required
Suits Width Height Depth Colour Code
INFINITY 26Plus 350mm 450mm 180mm Star Metallic PCD01
INFINITY 16,20 & 26 350mm 400mm 160mm Euro White PC11
INFINITY 32 470mm 400mm 210mm Euro White PCV02
V1200 & V1500 350mm 450mm 210mm Dune PC11D
Security Bracket
Secure your investment with Rinnai’s quick and easy to install security
bracket.
• Assists in the protection of any Rinnai Continuous Flow model from
theft if it is located in an exposed area
• Particularly applicable to new homes during the building process
• The bracket ts over the unit wall mounting bracket covering the holes
where the unit is secured to the wall
• A standard padlock and key is required (purchased separately)
• Padlock shank diameter not to exceed 6mm with an overall length
greater than 50mm
Sideways Flue Diverter
Where conned or narrow spaces might normally exclude a Rinnai
Continuous Flow water heater from being installed, our sideways ue
diverter is available. Manufactured from durable stainless steel, the
sideways ue diverter forces the ue gases sideways. This can help
overcome many of the restrictions when the hot water system is installed
on balconies with only one opening.
Note: Suits V1500, S26, INFINTY26, INFINITY26Plus and HD200 models only.
Conditions & Clearances
Full installation instructions are contained when purchasing the product
however, there are a number of important conditions and clearances
for the location of the Rinnai Continuous Flow unit installed with a Flue
Diverter.
Please contact the Rinnai HelpLine on 1300 555 545 for further
information
18
Solar Range at a glance
Range at a glance
Close Coupled Systems
Where the Storage Cylinder and the Solar Collectors (panels) are coupled
together and the installation is on the roof. A choice of an electric boost
element in the cylinder or a gas booster installed usually on the side of the
house completes the system.
Benets:
• Technically very ecient, economical to install and low maintenance
• No recirculating pumps and pipe runs – reducing heat losses and
improving running eciencies
• No electricity required to operate pumps to recirculate the water
through the panels
• Space saving in that it eliminates the need for a storage tank at ground
level – ideal for courtyard homes or small blocks
• Supplied standard in NEW Titanium colour
• Wide range of Colorbond® colours available. Ask your Rinnai Solar
consultant for selection
What is the Booster?
The booster is simply a backstop to make sure you always have hot water available, such as during cloudy or rainy weather or
during the winter months. It also operates should you exhaust the stored water on those occasions when an extra family stays for
a weekend!
If the majority of your hot water is used in the evening (i.e. for running baths &
spas etc) then re-heating will occur as follows depending on the type of booster:
Electric Boost – the thermostat will turn on the element overnight to bring the
water back to temperature. This means that if no hot water is used in the morning
the suns energy is wasted the next day as the water is already hot.
Gas Boost – the booster will not activate until the hot water is required. If that is
early morning then the gas booster will be required, but if later in the day, some
solar reheating will have occurred.
Regardless of whether your hot water is used in the mornings or evenings, gas
boosting is the most ecient, convenient and cost eective boost option.
Gas boosters operate only on demand and have the additional benet of
never running out of hot water
Rinnai Solar Hot Water Systems
Split Systems
Where the Storage Cylinder and the Solar Collectors are literally split and
installed separately. A choice of an electric boost element in the cylinder or
an in-line gas booster which can be installed on the side of the cylinder, or
remote mounted on a wall.
Benets:
• Easy installation on roofs
• Streamlined appearance - minimal impact on the aesthetics of your
roof line with only the Collectors visible
• Split Systems do not require reinforcement of the roof structure, as the
weight associated with water storage is at ground level
• Split System cylinder can be installed internally or externally
• Collectors and the tank do not need to be installed at the same time
– ideal during construction of new homes and major renovations
19
Solar Range at a glance
The Rinnai Solar Hot water Systems are separated into 2 ranges:
Rinnai Prestige
• Highest quality Stainless Steel cylinders
• Supplied with high eciency Excelsior Solar Collectors
• Available in both Close Coupled and Split Systems
• Available in both Gas or Electric Boost
Storage Cylinders
• Long lasting commercial grade Stainless Steel construction
• Specically designed for solar ensuring maximum heat retention
thus reducing the need for boosting
• Do not require a sacricial anode saving on maintenance costs
Excelsior Solar Collectors
• Highly ecient all copper Collector with a selective surface maximising
energy from the sun
• 10 Riser tubes per panel for eective transfer of the solar energy
to heat the water
• Full aluminium casing for corrosion resistance
• Fully replaceable glass
• Available in both standard and frost tolerant versions (see below)
Rinnai Sunmaster
• High quality Vitreous Enamel lined steel cylinders
• Supplied with high eciency Enduro and Equinox (frost tolerant)
Solar Collectors
• Available as Split Systems only
• Available in both Gas or Electric Boost
Modular System
• Components supplied separately allowing you to design your own system
• Collectors and cylinder can be installed at separate times which is ideal
for working around construction plans
Storage Cylinders
• Cost eective glass lined (Vitreous Enamel) tanks
• Tall slimline design with a smaller footprint for minimal aesthetic impact
Enduro & Equinox Solar Collectors
• Highly ecient aluminium n solar absorber to maximise eciency
• 8 Riser tubes per panel for eective transfer of solar energy to the water
• Full aluminium casing for corrosion resistance
• Equinox Collector has added feature of Frost Protection (see below)
Frost Protection
If you live in a frost prone area, it is important that you specify when ordering Frost Tolerant Collectors (FTCs).
In Victoria for example, it is mandatory to install FTCs in certain areas as determined by listed post codes. For further
information, please talk to your solar specialist or refer to the full warranty conditions on-line at www.rinnai.com.au
Rinnai have two Collectors that are frost tolerant to -6ºC – the Excelsior FTC and the Equinox.
Standard Collectors are not covered by warranty for any damage due to freezing or frost.
20
Solar Rebates
How to claim the RECs rebate?
Ultimately the RECs awarded to any system are traded/sold on the open market at a price which uctuates according to supply and
demand.The simplest way is to ll out the REC rebate declaration form that is supplied with each system which transfers the RECs
to Rinnai. In return we will pay you the market rate which is current at that time less a small admin fee. Alternatively, you can
speculate on the market value and sell them at a later stage either to us or another authorised trader.
Additional Rebates/Incentives
From time to time both the Federal and State Governments as well as some local councils oer rebates (additional to RECs) as an
incentive to install Solar Hot Water systems. These are often conditional and must always be checked before purchase.
Conditions for additional rebates sometimes include:
• Conversions from Electric Systems to Solar Systems
• Gas Boosted systems only
• Regional/Rural areas only
• Means testing on household income
• Concession Card holders
• Minimum RECs contribution (i.e. minimum 20 RECs)
• Residency restrictions
• Domestic applications only
Government Rebates
The Australian Greenhouse Oce awards Renewable Energy Certicates (RECs) according to how much energy each Rinnai Solar
system saves compared with a conventional electric water heater. The Federal Government legislation states that RECs are
applicable when a solar system is installed in a new home or replaces an existing hot water system.
Solar Zones
The number of RECs awarded to a particular Rinnai Solar System varies according to the amount of energy saved relative to an
electric water heater installed in the same location. This is inuenced by the amount of local solar gain and the local operating
conditions. Darwin, for example, has more solar gain than Hobart, hence a particular system installed in Darwin will be assigned a
higher number of RECs than if it were installed in Hobart. For the purposes of REC assessment, Australia is divided into 4 solar zones
as shown in the map.
HANDY
HINT
To assist with
understanding all the
rebates available, Rinnai
has introduced an on-line
Solar Rebate Estimator
which has the latest up to
date rebates and values.
See www.rinnai.com.au
for details
Solar Rebates
HANDY
HINT
It is If you are unsure where the boundaries lie between zones, Please refer to the
Australian Government website www.orer.gov.au and follow the Solar Water Heater
link to nd a post code listing.
21
RECs and Rinnai Solar Systems
Rinnai Prestige
RECs Zones
(Excelsior)
Description Size Booster Collectors 1 2 3 4
Split
System
Gas
System A 160L S20 1 27 27 27 23
System B 250L S20 2 42 44 42 35
System C 250L S26 2 42 44 42 35
System D 315L S26 2 42 44 42 36
System E 315L S26 3 48 48 48 42
Split
System
Electric
System F 250L 3.6kW 2 32 31 32 26
System G 315L 3.6kW 2 32 31 32 26
System H 315L 3.6kW 3 35 33 35 30
Close
Coupled
Electric
System I 180L 3.6kW 1 21 21 21 17
System J 330L 2.4kW 2 35 33 35 30
System K 330L 3.6kW 2 35 33 35 30
Close
Coupled
Gas
System L 180L S20 1 29 29 29 24
System M 330L S26 2 43 45 43 37
Rinnai Sunmaster
RECs Zones
(Enduro & Equinox)
Description Size Booster Collectors 1 2 3 4
Split
System
Gas
System 1 175L S20 1 28 28 28 23
System 2 175L S26 1 28 28 28 23
System 3 215L S20 2 42 44 42 36
System 4 215L S26 2 42 44 42 36
System 5 270L S26 2 43 44 43 36
Split
System
Electric
System 6 200L 3.6kW 2 20 20 20 16
System 7 315L 3.6kW 2 30 30 30 25
System 8 315L 3.6kW 3 33 33 33 28
How much can I get?
As can be seen from the above table, Rinnai Solar Systems are typically awarded between 20 to 42 RECs. Each REC has a $ value
that uctuates according to market demand, which needs to be checked at the time of purchase. If a REC was valued at (say)
$40, your rebate for Rinnai systems would be anywhere between $800 and $1680.
At the time of printing this brochure, the Federal Government is also oering an additional $1600 to switch from an electric
system to Solar. In some States there are additional rebates on top of this again!
RECs and Rinnai Solar Systems
The following tables show the awarded RECs for a selection of the most popular systems that Rinnai sell. If your particular system is
not shown, please ask you Rinnai Solar specialist who can further advise.
Standard Rinnai Systems are calculated with the following Collectors:
• Rinnai Prestige Excelsior & Excelsior (FTC) Collectors
• Rinnai Sunmaster Enduro & Equinox (FTC) Collectors
22
Sizing
Correct Sizing
Correct Sizing is vital for optimum performance
Number of Occupants
The number of users in any installation is extremely important as it directly aects the size of unit that is required. Nobody likes a
cold shower so it is vital that any system is correctly sized for an application. Please talk to your Rinnai Hot Water Specialist about
the best model to suit your needs.
Below we have outlined some of the considerations for various Rinnai Solar Systems:
Tips on selecting the best Rinnai System
To correctly select a Rinnai Solar System for a home, a number of lifestyle factors need to be considered.
1. What Solar Zone is applicable for the installation?
This determines the amount of solar energy that will be available and can inuence the number of collectors
that should be installed.
2. Is Gas available?
Natural Gas boosting is the cheapest to run and the most environmentally friendly form of boosting for a Solar
System. Rinnai recommends that gas boosting should always be the rst choice if available. Alternatively, both
LPG & Electric boosting are also economical to run with correctly sized systems.
3. Is there limited space available?
This can determine whether space is available at ground level for a Split System storage cylinder. If limited,
then a Close Coupled roof mounted system would be the most appropriate.
4. Is the area prone to frost or sub-zero temperatures?
Frost protection should always be used if temperatures fall below zero. This can be achieved by using
Frost Tolerant Collectors (FTCs) which must be requested at the time of ordering. FTC panels are warranted
to -6ºC under certain conditions. Please ask you Rinnai Solar Specialist for further details or see on-line at
www.rinnai.com.au
Gas Boosted Solar
• Sizing parameter – Number of bedrooms in the home
• The storage cylinder capacity determines the available solar
heated hot water
• The Gas Booster is always available as a backup, therefore hot
water will never run out
• Undersized system could mean the system is relying on the gas
booster more often – increasing running costs
• Insucient Solar Collectors would also reduce the solar gain
causing reliance on the gas booster
Electric Boosted Solar
• Sizing Parameter – Number of Bedrooms in the home
• The Storage Cylinder size determines the amount of hot water
available regardless of whether solar generated or electric
boosted
• Hot water can run out if not correctly sized
• Choice of electricity tari aects availability of re-heated water:
- Normal (peak) tari continually re-heats
- O-peak will generally not re-heat until overnight
23
Sizing
Rinnai Solar System Sizing Tables
Vitreous Enamel Split Systems - Gas
Solar
Zone(s)
Number of
Bedrooms
System
Performance
Tank Storage
Capacity
(Litres)
No of Solar
Collectors
Booster
Size
Rinnai
Sunmaster
System
1, 2 & 3
1 to 3
Good
175 1
S20 1
Best S26 2
2 to 3
Good 175 1 S26 2
Best 215 2 S20 3
3 to 4
Good
215 2
S20 3
Best S26 4
3+
Good 215
2 S26
4
Best 270 5
4
1 to 3
Good 175 1 S26 2
Best 215 2 S20 3
2 to 3
Good
215 2
S20 3
Best S26 4
3 to 4
Good 215
2 S26
4
Best 270 5
3+ Best 270 2 S26 5
Vitreous Enamel Split Systems - Electric
Solar
Zone(s)
Number of
Bedrooms
Tank Storage
Capacity
(Litres)
No of Solar
Collectors
Booster
Size
Rinnai
Sunmaster
System
1, 2 & 3
1 to 3 200 2 3.6 6
3 to 4 315 2 3.6 7
3+ 315 3 3.6 8
4
1 to 2 200 2 3.6 6
2 to 3 315 2 3.6 7
3+ 315 3 3.6 8
Stainless Steel Split Systems - Gas
Solar
Zone(s)
Number of
Bedrooms
System
Performance
Tank Storage
Capacity
(Litres)
No of Solar
Collectors
Booster
Size
Rinnai
Prestige
System
1, 2 & 3
1 to 3
Good 160 1
S20
A
Best 250 2 B
2 to 3
Good
250 2
S20 B
Best S26 C
3 to 4
Good 250
2 S26
C
Best 315 D
3+
Good
315
2
S26
D
Best 3 E
4
1 to 3
Good
250 2
S20 B
Best S26 C
2 to 3
Good 250
2 S26
C
Best 315 D
3+
Good
315
2
S26
D
Best 3 E
24
Odrering
Stainless Steel Split Systems - Electric
Solar
Zone(s)
Number of
Bedrooms
Tank Storage
Capacity
(Litres)
No of Solar
Collectors
Booster
Size
Rinnai
Prestige
System
1, 2 & 3
1 to 3 250 2 3.6kW F
3 to 4 315 2 3.6kW G
3+ 315 3 3.6kW H
4
1 to 2 250 2 3.6kW F
2 to 3 315 2 3.6kW G
3+ 315 3 3.6kW H
Stainless Steel Close Coupled - Gas
Solar
Zone(s)
Number of
Bedrooms
Tank Storage
Capacity
(Litres)
No of Solar
Collectors
Booster
Size
Rinnai
Prestige
System
1, 2 & 3
1 to 3 180 1 S20 L
3+ 330 2 S26 M
4
1 to 2 180 1 S20 L
2 to 4 330 2 S26 M
Stainless Steel Close Coupled - Electric
Solar
Zone(s)
Number of
Bedrooms
Tank Storage
Capacity
(Litres)
No of Solar
Collectors
Booster
Size
Rinnai
Prestige
System
1, 2 & 3
1 to 3 180 1 3.6kW I
3 to 4 330 2 2.4kW J
3+ 330 2 3.6kW K
4
1 to 2 180 1 3.6kW I
2 to 3 330 2 2.4kW J
3+ 330 2 3.6kW K
Ordering Sunmaster Solar
Rinnai Sunmaster Solar systems are ordered as separate components as shown in the below table. This is particularly suitable for
installation in new homes and major renovations as it allows for supply of the various components at dierent stages of completion.
Alternatively, all components can be ordered for a single delivery for existing homes & replacements.
Gas
System 1 System 2 System 3 System 4 System 5
Gas 175L, S20
1 Collector
Gas 175L, S26
1 Collectors
Gas 215L, S20
2 Collectors
Gas 215L, S26
2 Collectors
Gas 270L, S26
2 Collectors
Components
Order Code Qty Order Code Qty Order Code Qty Order Code Qty Order Code Qty
Storage Cylinder SG175 1 SG175 1 SG215 1 SG215 1 SG270 1
Solar Collectors (Std) R18801740
*
1 R18801740
*
1 R18801740
*
2 R18801740
*
2 R18801740
*
2
Collector Installation Kit R33202739 1 R33202739 1 R33202740 1 R33202740 1 R33202740 1
Pump Kit SGPKIT 1 SGPKIT 1 SGPKIT 1 SGPKIT 1 SGPKIT270 1
Gas Booster S20
#
1 S26
#
1 S20
#
1 S26
#
1 S26
#
1
Electric
System 6 System 7 System 8
Electric 200L,
2 Collectors, 3.6kW
Electric 315L,
2 Collector, 3.6kW
Electric 315L,
3 Collector, 3.6kW
Components
Order Code Qty Order Code Qty Order Code Qty
Storage Cylinder SE200S36 1 SE315S36 1 SE315S36 1
Solar Collectors (Std) R18801740
*
2 R18801740
*
2 R18801740
*
3
Collector Installation Kit R33202740 1 R33202740 1 R33202741 1
Pump Kit SEPKIT 1 SEPKIT 1 SEPKIT 1
* Collector shown is standard Enduro
(Non Frost Tolerant). For the Frost
Tolerant Equinox Collector, please
substitute with code R18801741
# Nominate N (Natural Gas) or L (LPG)
after the code to specify gas type
25
Rough In
Sunmaster Split Systems- Enamel Tanks
175 Lt Gas Boost
160 Lt Electric Boost
215 Lt Gas Boost
200 Lt Electric Boost
270Lt
Gas Boost
315Lt
Electric Boost
A Collector Width 1015 1015 1015 1015
B Width of two collectors 2100 2100 2100 2100
C Length of Solar collectors 1930 1930 1930 1930
H Height of tank 1530 1825 1265 1510
D Depth of Tank with Booster 709* 709* 879 N/A
W Tank Diameter 515 515 685 685
E Left Hand Side Cold Water Inlet 150 150 210 260
F Cold Water Flow to collector 800 800 840 910
G Hot Water Return from collector 1310 1605 985 1200
I Hot Out (Gas Boost) 850* 1150* 590 1200
K Hot out (Electric Boost) 1310 1605 985 1200
L Height of Gas Boost 530* 530* 530 N/A
M Width of Gas Boost 350* 350* 350 N/A
N Right Hand Side Gas Supply
850* 1150* 590 N/A
* Not applicable for Electric Boost
Solar Rough in Diagram
Sunmaster Split Systems
Sunmaster Split System (Gas)
26
Rough In
Split Systems Stainless Steel
Electric Boost Gas Boost
Close Coupled
Stainless Steel
Gas & Electric
160 Lt 250 Lt 315 Lt 160 Lt 250 Lt 315 Lt 180 Lt 330 Lt
A Collector Width 1015 1015 A Collector Width 1015
B Width of two collectors 2100 2100 B Width of two collectors 2100
C Length of Solar collector 1930 1930 C Length of Solar collector 1930
J
Overall Length
of System
2580
Weight (Empty) 48 66 80 44 56 68 Weight (Empty) 44 68
H Height of tank 1200 1700 2080 1170 1690 2080 H Height of tank (installed) 640
D
Depth of Tank
with Booster
N/A 795 D Diameter 600
W Tank Diameter 600 600 W Tank Length / Width 1200 2080
E Cold Water inlet 85 265 E
Left Hand Side Cold
Water inlet
60
F
Cold Water Flow
to collector
400 600 F
Cold Water Flow
to Collector
N/A
G
Hot Water Return
from Collector
85 352
G
Hot Water Return
from Collector
N/A
I
Hot Water Flow To House
(From Gas Boost)
N/A 780 1170 I
Hot Water Flow to House
(From Gas Boost)
N/A
K Hot out 1110 1610 1990 N/A K
Hot out (to Cold in Gas
Boost)
N/A
L Height of Gas Boost
N/A
530 Height of Gas Boost 530
M Width of Gas Boost 350 Width of Gas Boost 350
N
Right Hand Side
Gas Supply
N/A 780 1170 N
Right Hand Side
Gas Supply
N/A
Prestige Systems
Prestige Split System (Gas)
Prestige Split System (Electric)
Prestige Close Coupled
27

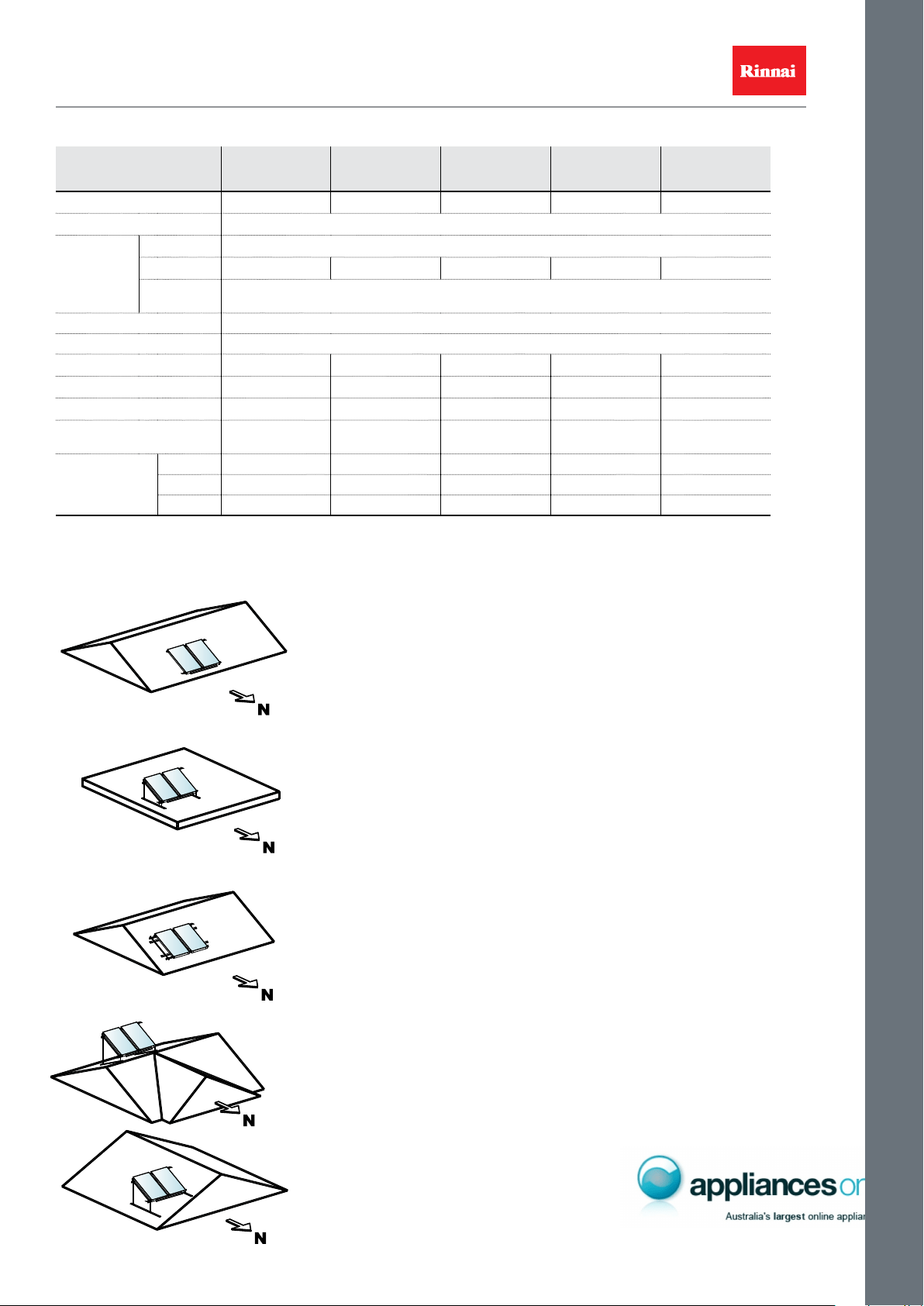

Solar Collectors
Solar Collector Dimensions
Characteristics Enduro
Equinox Frost
Tolerant
Excelsior
Excelsior
Frost Tolerant
Enduro
SP152
Code SP200A SP200A FTC EXT EXT FTC SP152
Type Flat Plate
Construction
Waterways Copper
Absorber Aluminium Aluminium Copper Copper Aluminium
Selective
Surfaces
High Performance
Maximum Operating Pressure 850 kPa
Casing Material Aluminium
Weight empty 33kg 36kg 35kg 38kg 24kg
Weight full 34.3kg 37.3kg 36.5kg 39.5kg 25kg
Volume of Water 1.3 litres 1.3 litres 1.5 litres 1.5 litres 1 litres
Potential Solar Output at
PTR relief conditions
1.25kW 1.25kW 1.25kW 1.25kW 0.75kW
Approx Roof Space
Required L X W
(mm)
1 Collector 1940 x 1025 1940 x 1025 1964 x 1047 1964 x 1047 1310 x 1025
2 Collector 1940 x 2100 1940 x 2100 1964 x 2144 1964 x 2144 1310 x 2100
3 Collector 1940 x 3175 1940 x 3175 1664 x 3241 1664 x 3241 1310 x 3175
Solar Collector Installation
Standard “Pitch Roof” installation – Split System Collectors
The below sketches show the standard frames supplied for a normal angled roof
installation. These components are supplied with the installation kits.
Flat Roof Installations
The below sketch shows the frame required for all at roof installations. It is ordered
in addition to the appropriate installation kit and vary depending on the type of
system installed.
Cyclone Frame Installations
For Cyclone prone areas it is often mandatory but in any event, it is highly
recommended to use a cyclone frame. These have a dierent conguration to the
standard frames and are made in much stronger materials.
Reverse & Side Pitch Installations
In addition to the above frames, you can also order Reverse & Side Pitch adaptor kits
that suit both Close Coupled & Split Systems. These are ordered in addition to the
applicable Flat Roof Frame.
28
Electric Range at a glance
Range at a glance
Mains Pressure Systems
Rinnai has two mains pressure ranges of Electric Hot Water – Centurion & HOTFLO. They are simply a storage cylinder that holds
water at a pre-set temperature with the use of thermostatic control. As hot water is used, it is replaced with cold water and reheats
again. Hot Water delivery is at mains pressure or the maximum allowable pressure should the home have a pressure limiting device
installed.
Rinnai Centurion
Rinnai centurion electric tanks are made from high quality stainless steel, they have positive
domes on both ends of the cylinder, for optimum capacity in a slim line water heater. All
centurion water heaters come standard with a hot water return connection point, which is
ideal for ow and return plumbing or solar conversions at a later date.
• Superior quality long life Stainless Steel tank with a 10 year warranty
• No requirement for a sacricial anode – reduced maintenance
• Taller slimline tank. With positive domes at both ends for optimum capacity
and neater appearance
• Solar compatible - added exibility at a later stage
• Connection for pumped return line
• Colorbond® outer case - durable and weather resistant
• Flexibility - suitable for internal and external use
• Thermostatically controlled with safety temperature shut o for added safety and
peace of mind
• Left handed connections - suits most common installations
Colorbond® is a registered trademark of BlueScope Steel Limited.
Rinnai HOTFLO
Our quality HOTFLO range of electric tanks are available in various storage capacities
ranging from a compact 40 Litre right up to the large 315 Litre model. We also have a
complete range of element sizes minimising changeover costs.
• Economical Vitreous Enamel lined steel tank with a 5 year warranty
• Inbuilt anode protection - extends the life of the tank
• Dual handed - allows increased exibility of installation
• Flexibility - suitable for internal and external use
• Foam Insulation exceeds MEPS* (Minimum Energy Performance Standard)
by an average of 20%, reducing heat loss and running costs
• Thermostatically controlled with safety temperature shut o for added safety
and peace of mind
* Excludes 40 litre
Gravity Feed Systems
Similar to normal storage cylinders the gravity feed systems again hold water at a pre-set temperature but this time not under
mains pressure. Sometimes also referred to as ‘constant pressure’ systems, the Roofmaster is usually located in the roof space.
Whereas mains pressure systems usually operate between 300 – 500kPa, a gravity feed system operates at the ‘head of pressure’
dependant on how high the tank is above the tap/shower. In single storey installations this is generally about 20 to 24kPa.
Rinnai Roofmaster
The Rinnai gravity feed Roofmaster water heaters are concealed in your roof space. The
storage cylinder is made from heavy duty copper which makes it extremely reliable and
corrosion resistant. The lower pressure at which they operate puts much less stress on
the cylinder and ttings, so everything lasts that much longer.
• Copper cylinder construction - reliable and corrosion resistant
with a 7 year warranty
• Specically designed for in-roof Installations
• Gravity feed, less stress on components means longer life
• Thermostatically controlled with silent operation
• Flexibility to integrate with solar and/or combustion stove (wetback) installations
• Operates at the ‘head of pressure’ 20 to 24 kPa
Electric Hot Water Systems
29
Electric Range Overview
Range Overview
The table below outlines the sizes and element option for all Rinnai Electric Hot Water Systems
Range Size Construction
Heating Element Size
Twin Element
Option
1.8kW 2.4kW 3.6kW 4.8kW
Centurion
160 Litres Stainless Steel
250 Litres Stainless Steel
315 Litres Stainless Steel
HOTFLO
40 Litres Vitreous Enamel
80 Litres Vitreous Enamel
125 Litres Vitreous Enamel
160 Litres Vitreous Enamel
200 Litres Vitreous Enamel
250 Litres Vitreous Enamel
315 Litres Vitreous Enamel
400 Litres Vitreous Enamel
Roofmaster Plus
160 Litres Copper
3.0kW Immersion Element250 Litres Copper
315 Litres Copper
Roofmaster Prestige
250 Litres Copper
3.0kW Immersion Element
315 Litres Copper
Roofmaster Coil 315 Litres Copper 3.0kW Immersion Element
Solar Boosted Roofmaster
Roofmaster Prestige
(Solar &/or Combustion Heater)
In this installation the primary heating source utilises
energy from the sun via Solar Collectors and/or
energy generated from a slow combustion stove
with a ‘wet back’ heat exchanger.
The optional Electric element (Submerged ‘Bobbin
type’ ) is then used only to boost water temperature
in low pressure tank and is usually set up on an O
Peak tari.
For Roofmaster specications including dimensions,
please refer to page 31.
30
System Selection
Selecting the correct Electric system
Step 1 - Tari
• Determine which tari that is going to be used
• If using both Peak & O-peak use the sizing guide for O-peak
Step 2 - Climate
• Refer to the Climate Map on page 7 to reference whether the installation is in a warm or cool climate
Step 3 - Number of persons
• Determine the number of persons living in the home
• Also consider additional demand if it is a larger home with spare bedrooms
Tank Size
Peak Electric (Continuous Tari) O-peak Electric
Warm Climate Cool Climate Warm Climate Cool Climate
40 Litres 1 1 Not Recommended Not Recommended
80 Litres 2 to 3 1 to 2 1 to 2 Not Recommended
125 Litres 3 to 4 2 to 3 2 to 3 1 to 2
160 Litres 4 to 5 3 to 4 3 to 4 2 to 3
200 Litres 6 to 7 4 to 5 4 to 5 3 to 4
250 Litres 7 to 8 5 to 6 5 to 6 4 to 5
315 Litres 8 to 9 6 to 7 6 to 7 5 to 6
400 Litres 10+ 8 + 8+ 6+
HANDY
HINT
Always err on the high side when sizing electric systems. Under sizing can result in a
lack of hot water and very unhappy customers!
Electric Storage Recovery Times
The recovery times for all storage tanks is based on 3 factors:
1. The volume of water
2. The size of the electric element
3. The set temperature
The table below shows all available Rinnai sizes and assumes that the unit is wired for immediate reheat i.e. peak tari. For
O-peak wired units, the table can only be used as a guide for how long it will take from the point that re-heating occurs.
Element size Litres per hour heated by 50ºC
1.2kW element heats 20.6 litres
2.4kW element heats 41.2 litres
3.6kW element heats 61.9 litres
4.8kW element heats 82.5 litres
31
Specications
Specications Hoto Centurion
Rated Capacity (Litres) 40 80 125 160 200 250 315 400 160 250 315
Weight Empty (kg) 24 48 62 75 98 107 117 39 49 59
Heating Elements Available (kW)
- - - - - - - 1.8 1.8 1.8
2.4 2.4 2.4 2.4 - - - 2.4 2.4 2.4
3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6
- - - - 4.8 4.8 4.8 4.8 4.8 4.8 4.8
Dimensions (mm)
Overall Height A 665 900 1245 1530 1825 1265 1510 1820 1170 1690 2070
Overall Width inc’ PTR
B 470 590 590 590 590 760 760 760 740 740 740
Tank Diameter
C 395 515 515 515 515 685 685 685 600 600 600
Outlet Height
D 470 683 1020 1310 1605 985 1200 1512 960 1460 1860
Inlet Height
E 75 225 225 225 225 260 260 260 270 270 270
Electrical Connection Height
F 125 155 155 155 155 155 155 155 225 225 225
Hot Return (Centurion Only)
G - n/a n/a n/a 355 355 355
Relief Valve Setting (kPa) 1000 850
Expansion Control Valve Setting 850 700
Max Supply
Pressure
With Expansion Control Valve 680 550
Without Expansion Control Valve 800 680
When these pressures are exceeded, install a Pressure Limiting Valve (PLV) -
Water Connections RP ¾ 20mm
Ingress Protection Rating (AS1939) IPX4
Power Supply AC 240 V 50 Hz
Specications Plus Prestige Coil
Rated Capacity (Litres) 160 250 315 250 315 315
Rated Capacity Connected to Solar (L) - - - 280 370 370
Weight Empty (kg) 26 32 37 34 42 59
Dimensions (mm)
Overall Height A 525 725 900 725 900 900
Tank Diameter
B 865 865 865 865 865 865
Height - Hot Water Outlet
C 335 530 710 530 710 710
Height - Cold Water Inlet
D 485 700 875 700 875 875
Overall Top Width (inc Head Tank)
E 1020 1020 1020 1020 1020 1020
Combustion Heater (Hot Flow)
F
N/A
325 415 415
Combustion Heater (Cold Return)
G 85 85 85
Solar Collector Flow Height
H 535 715 715
Solar Collector Return Height
J 535 715 715
Coil - Cold Inlet Connection K
N/A
140
Coil - Hot Outlet Connection
L 670
Safe Tray (Optional) 1050
HOTFLO and Centurion
Note: All Rinnai HOTFLO water heaters are single element.
Centurion are available with twin element in 250 and 315L
water tanks
Specications
Roofmaster
32
Commercial
Commercial Hot Water Systems
Rinnai Manifold Packs
A Rinnai Manifold Pack consists of 2 to 6 Heavy Duty continuous
ow water heaters plumbed together to allow higher ow rates
than a single unit can provide.
The Rinnai Heavy Duty (HD) water heaters are suitable for single
installation, Manifold Pack or Demand Duo installations. Each
Commercial application require dierent quantities of hot water,
therefore if you are unsure on the sizing guidelines, please contact
our National Commercial Project Division on 1300 555 545 for
assistance.
Heavy Duty Units:
Rinnai Heavy Duty (HD) water heaters are a high eciency gas
continuous ow water heater available in three models: HD200e,
HD250e and HD200i – refer to page 13 for specications.
Applications include:
• Cafés
• Child Care Centres
• Hair Dressing Salons
• Small Amenities Blocks
• Butchers
• Factories
• Laundromats with domestic style top loader machines
33
Commercial
Rinnai Demand Duo Systems
Rinnai Demand Duo is the combination of between 1 to 6 gas
Continuous Flow water heaters with single or multiple storage
cylinders. The storage cylinder allows a short period of high hot
water ow rate, greater than the continuous ow rate of the HD
water heater(s). i.e ‘peak demand’ applications such as:
• Hotels & Motels
• Apartment Blocks
• Student Accommodation
• Shower Blocks
• Commercial Kitchens
• Commercial Laundries
Rinnai Commercial Solar Systems
Rinnai Commercial Solar hot water systems provide solar pre-heated
water to the Rinnai Commercial gas hot water systems such as the
Manifold Pack or Demand Duo system. The system is selected
according to the daily hot water demand for the application, the
required solar contribution, and what solar zone the system is
located in.
For further information or on site assistance please contact our
National Commercial Project Division on 1300 555 545.
34
Service and Warranty
Solar Hot Water
Systems
Hoto Electric
Hot Water
Systems
Solar Electric
Solar Compatible
Continuous Flow Water
Heaters - models S20 and
S26 and other models
converted by Rinnai for
Solar applications
(1) (3)
Storage Cylinders Solar Collectors
Components
(2)
Cylin-
der
Components
(2)
Heat
Exchanger
All other
components
Vitreous
Enamel
(Glass)
Lined
Sunmaster
Range
S/Steel
Prestige &
Centurion
Ranges
Enduro (SP200A)
(SP152)
Equinox (SP200A FTC)
Excelsior
Domestic
Use
Parts 10 Years 3 Years
(4)
5 Years 10 Years 7 Years 1 Year
(4)
5 Years 1 Year
Labour 3 Years 3 Years 3 Years 3 Years 1 Year 1 Year 3 Years 1 Year
Commer-
cial Use
Parts 5 Years 1 Year 1 Year 5 Years 5 years 1 Year 1 Year 1 Year
Labour 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year
(1) The continuous ow models in this column are suitable only for solar hot water applications. Any failure or service issue when installed in a
non solar hot water application is not covered by warranty. (2) Components include pumps, system controllers, sensors, thermostats, valves,
electric heating elements and anodes where applicable. (3) Rinnai Innity 26 Internal, HD200i, HD200e and HD250e models can be converted
for solar applications by Rinnai by order request. (4) For Victorian installations only - 5 year warranty on the solar circulating pump, solar
controller and components within the continuous ow water heater in order to comply with State legislation.
Warranty
Continuous Flow Systems
Solar and Electric Systems
Rinnai Service
Need help with an installation?
In most situations Rinnai retailers can assist with the installation of our appliances. Should this not be the case, Rinnai has an
installation service available direct to the end-user.Any installation of a Rinnai appliance is a specialist process and requires trained
professional installers to ensure safe and ecient operation of the appliance. This is particularly relevant for connection to gas,
electrical changeovers and the installation of Solar Collectors. Our Rinnai installers are not only very familiar with our products, but
are fully insured and OH&S compliant. Be condent in your installation by employing Rinnai Service.
For further information, please call 1300 555 545
Continuous Flow
Water Heaters
(4)
All INFINITY and
ENVIROSMART Models
V1200 and V1500 models Heavy Duty (HD) Models
Smart-
Start®
Water
Saver
Water
Control-
lers
Accesso-
ries
(5)
Heat
Exchanger
All other
components
Heat
Exchanger
All other
components
Heat
Exchanger
All other
components
Domestic
Use
Parts 10 Years
(1)
3 Years
(3)
8 Years 3 Years
(3)
10 Years 3 Years
(3)
3 Years
(3)
3 Years
(3)
1 Year
Labour 3 Years
(3)
3 Years
(3)
3 Years
(3)
3 Years
(3)
3 Years
(3)
3 Years
(3)
3 Years
(3)
3 Years
(3)
1 Year
Commercial
Use
Parts 1 Year 1 Year 1 Year 1 Year 5 Years
(2)
1 Year 1 Year 1 Year 1 Year
Labour 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year
(1) 12 Years on heat exchanger for INFINITY 26Plus and ENVIROSMART models. (2) One (1) year warranty on Heat Exchanger when pre-set to 85
or 95ºC. (3) 5 Years if two or more controllers are installed in domestic applications. (4) The models in this table are unsuitable for solar hot water
applications. Any failure or service issue when installed in a solar hot water application is not covered by warranty. (5) Accessories include pipe
covers, recess boxes, security brackets and ue diverters.
Commercial and Other Hot Water Systems
Commercial
and Other Hot
Water Systems
Rinnai Demand Duo and
Rinnai Manifold Pack systems
Other Hot Water
Continuous Flow Water
Heaters used as gas
boosters in Demand
Duo and Manifold Pack
Systems - Heavy Duty
(HD) Models
(1)
S/Steel
storage
cylinders
Components
(3)
Rinnai Roofmaster Under & Over Sink
Commercial
Common
Flue and
Warm Water
Systems
(2)
Heat
Exchang-
er
All other
components
Cylinder
Components
(3)
Cylinder
Components
(3)
Domestic
Use
Parts 10 Years 3 Years 10 Years 1 Year 7 Years 1 Year 6 Years 1 Year NA
Labour 3 Years 3 Years 3 Years 1 Year 1 Year 1 Year 1 Year 1 Year NA
Commercial
Use
Parts 5 Years 1 Year 5 Years 1 Year 1 Year 1 Year 1 Year 1 Year 3 Years
Labour 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year
(1) One (1) year warranty on Heat Exchanger when pre-set to 85 or 95ºC. (2) Excludes UV system. UV system warranty is covered by the UV
system manufacturer (3) Components include pumps, system controllers, sensors, thermostats, valves, electric heating elements and anodes
where applicable.
Denitions
Domestic Use:
The warranty periods that are allocated under “Domestic Use” are based on hot water usage patterns of a typical family.
Rinnai “Domestic Use warranty periods apply to:
1. Water heaters installed to supply heated water to domestic dwellings.
2. Water heaters installed to supply heated water to commercial installations such as motel units, hotel rooms, caravans, mobile
homes, nursing homes, retirement village complexes and other care institutions and like accommodation provided that
maximum delivery temperatures for gas boosted models do not exceed 65ºC and do not exceed 70ºC for electrically boosted
models and that the hot water systems are not installed as component(s) of centralised bulk hot water systems and the
installation does not incorporate building ow and return systems.
Commercial Use:
The warranty periods that are allocated under “Commercial Use” are for applications other than domestic use and include
premises such as commercial and industrial buildings, cafes, caravan parks and sporting complexes, but not limited to these.
“Commercial Use” warranty applies to:
1. Water heater(s) supplying central shower blocks.
2. Water heater(s) supplying kitchens used for the bulk preparation of food.
3. Water heater(s) delivery temperatures pre-set to exceed 65ºC for gas boosted systems and pre-set to exceed 70ºC for electric
boosted systems.
4. Water heater(s) used in commercial or industrial heating processes.
5. Water heater(s) used in hydronic space heating installations.
6. Any application that uses Rinnai water heater(s) in conjunction with building ow and return systems.
7. Water heater(s) installed as component(s) of centralised bulk hot water system(s).
Full warranty conditions including exclusions, water purity, solar frost tolerant collector (FTC) conditions are available with the
appliances and can be viewed on-line at www.rinnai.com.au.
Dimensions are subject to production tolerances and may vary slightly from those given.
Rinnai Australia Pty. Ltd. Reserves the right to make modications and change specications without notice.
We will however endeavour to communicate any major changes well before implementation.
35
Service and Warranty
RINNAI AUSTRALIA PTY. LTD
ABN 74 005 138 769
10-11 Walker Street Braeside VIC 3195
For further information visit
www.rinnai.com.au
or call 1300 555 545
68.09_MAY
At Rinnai Australia
we are committed to on
going innovation to deliver
ecient, well engineered
and designed products.
We aim to oer a superior
range of home appliances that
provide a clear insight into
what the future holds for
Australian homes.
The simple pleasures of
unlimited hot water, with
precise temperature control,
ecient and stylish heating
solutions and the superb
quality of a Rinnai Outdoor
Kitchen - all designed to
enhance your lifestyle with
the environment in mind.
