Write the model and serial number here:
Model #
Serial #
Find these numbers on a label of the
refrigerator's cabinet on the left hand-side wall.
'S MANUAL
E
RS2544SL
RS2622SW
RS2644SL
RS2666SL
RS2545SH
RS2644SW
RS2666SW
RS2777SL
TALLATION
CONTENTS
SAFETY WARNING SIGNS ...............................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTINGUP THE REFRIGERATOR........................................................4
MAJORFEATURES.....................................................................................4
CONTROLPANEL.......................................................................................5
DIGITAL PANEL..........................................................................................6
TEMPERATURECONTROL ......................................................................7
ICEand COLD WATERDISPENSER.........................................................7
SHELVESand BINS.....................................................................................8

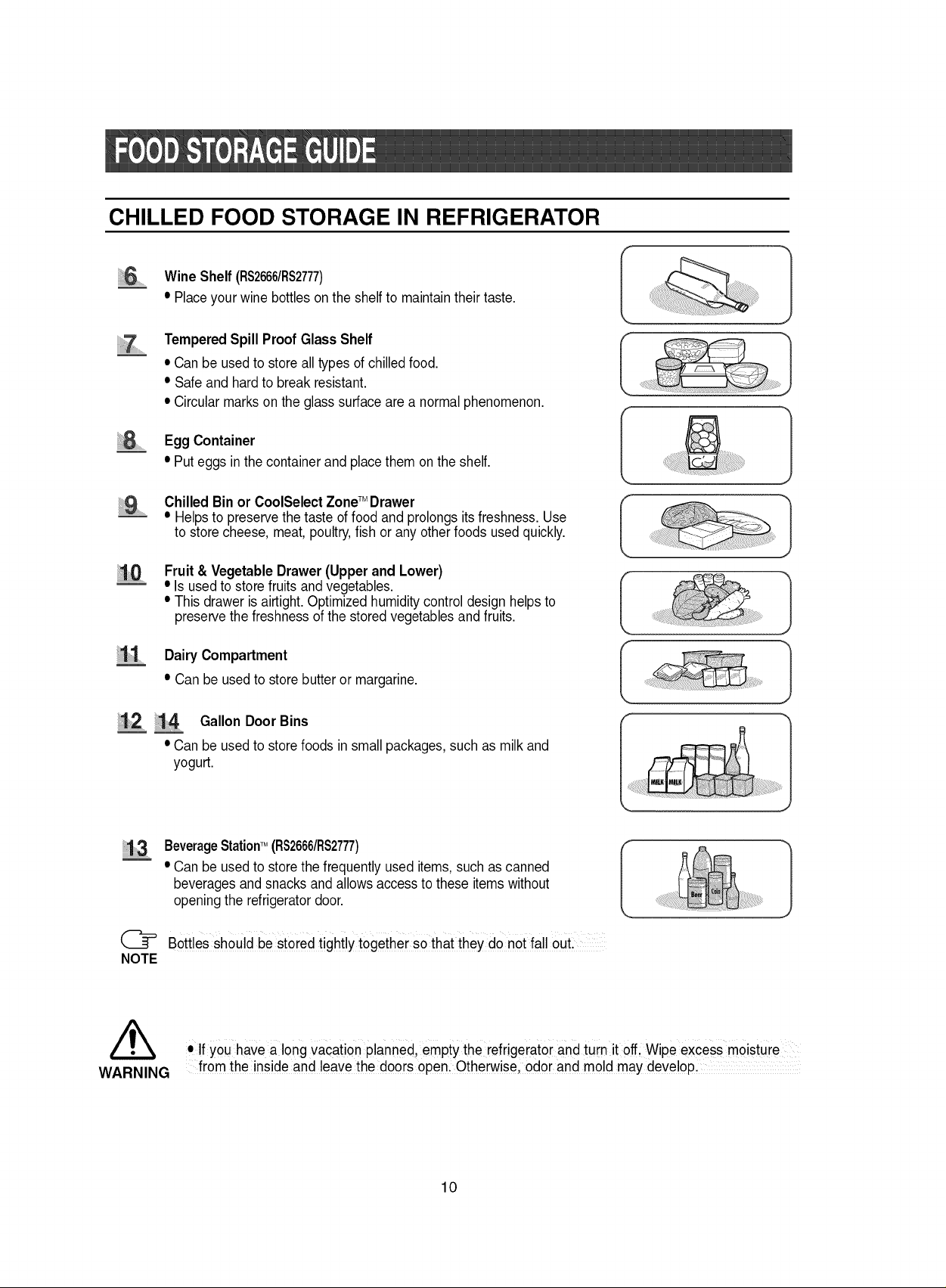

FOODSTORAGEGUIDE...........................................................................9

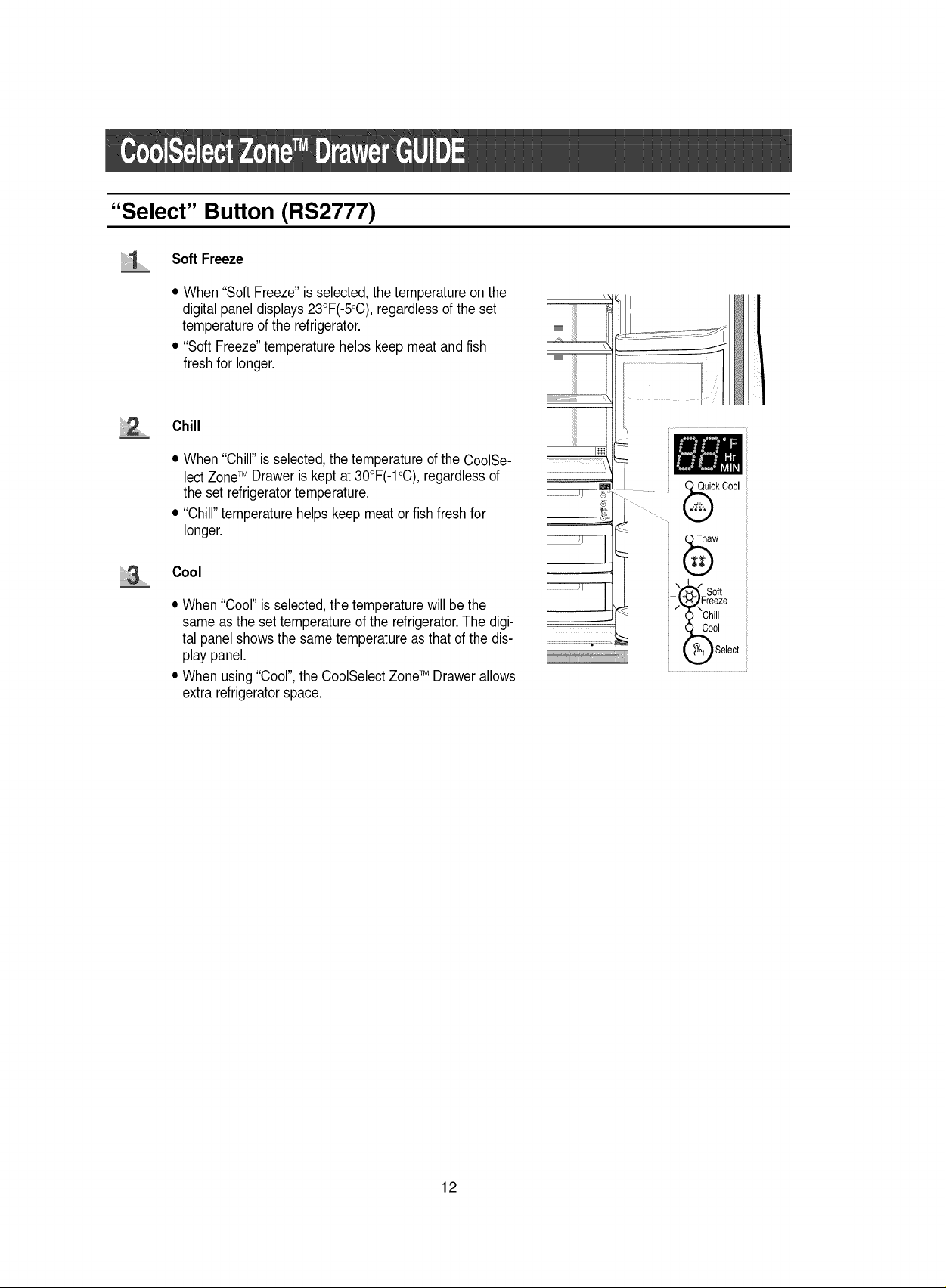

CooISelectZoneTM DrawerGUIDE.............................................................11
REMOVINGTHE FREEZERACCESSORIES.........................................13
REMOVINGTHE REFRIGERATORACCESSORIES..............................13
BEVERAGESTATIONTM (RS666/2777).....................................................14
CLEANINGTHE ACCESSORIES.............................................................14

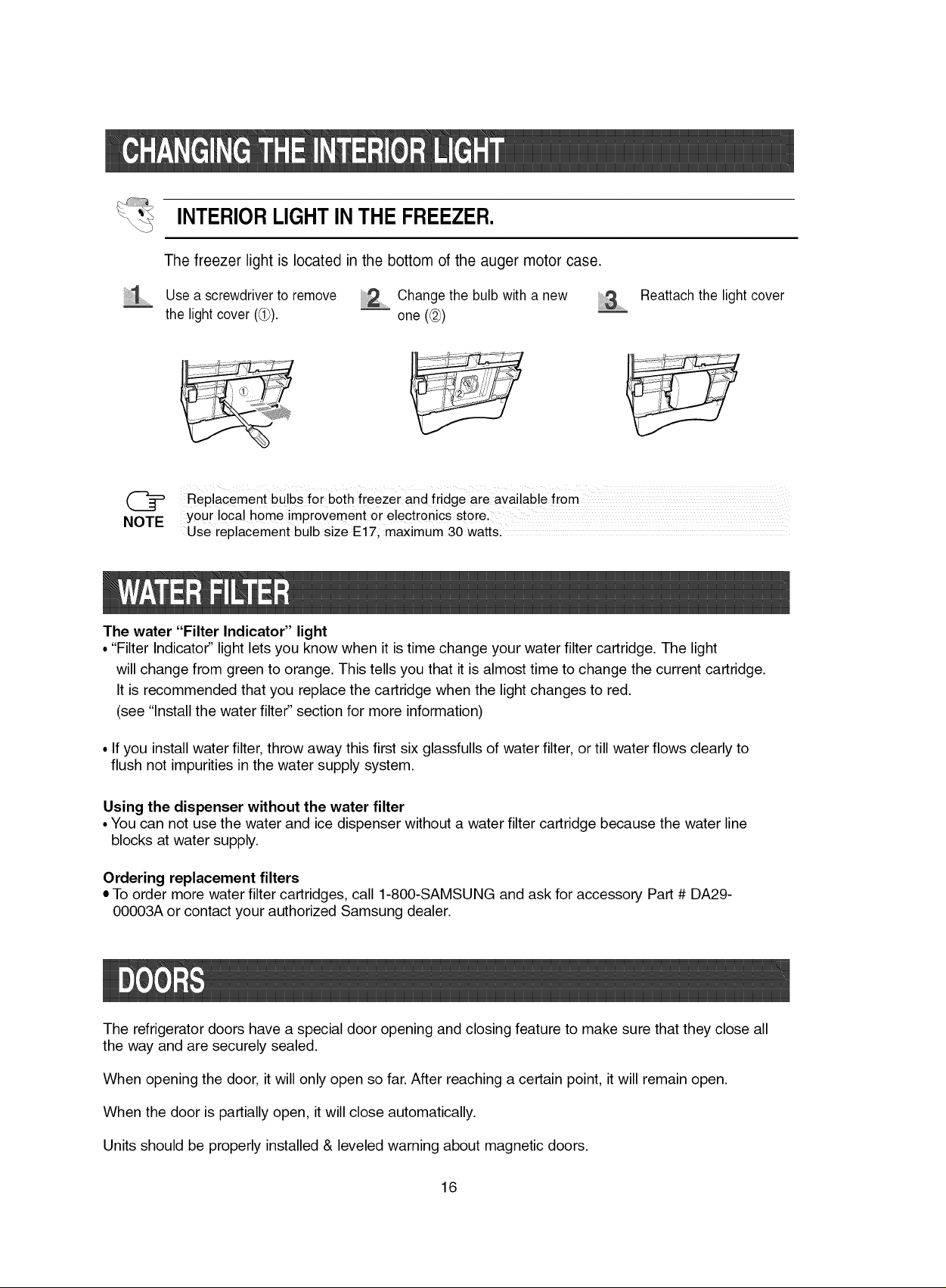

CHANGINGTHE INTERIORLIGHT.........................................................15
WATERFILTER..........................................................................................16
DOORS.......................................................................................................16
INSTALLATION INSTRUCTIONS................................................17
INSTALLATIONOF THE REFRIGERATOR............................................17

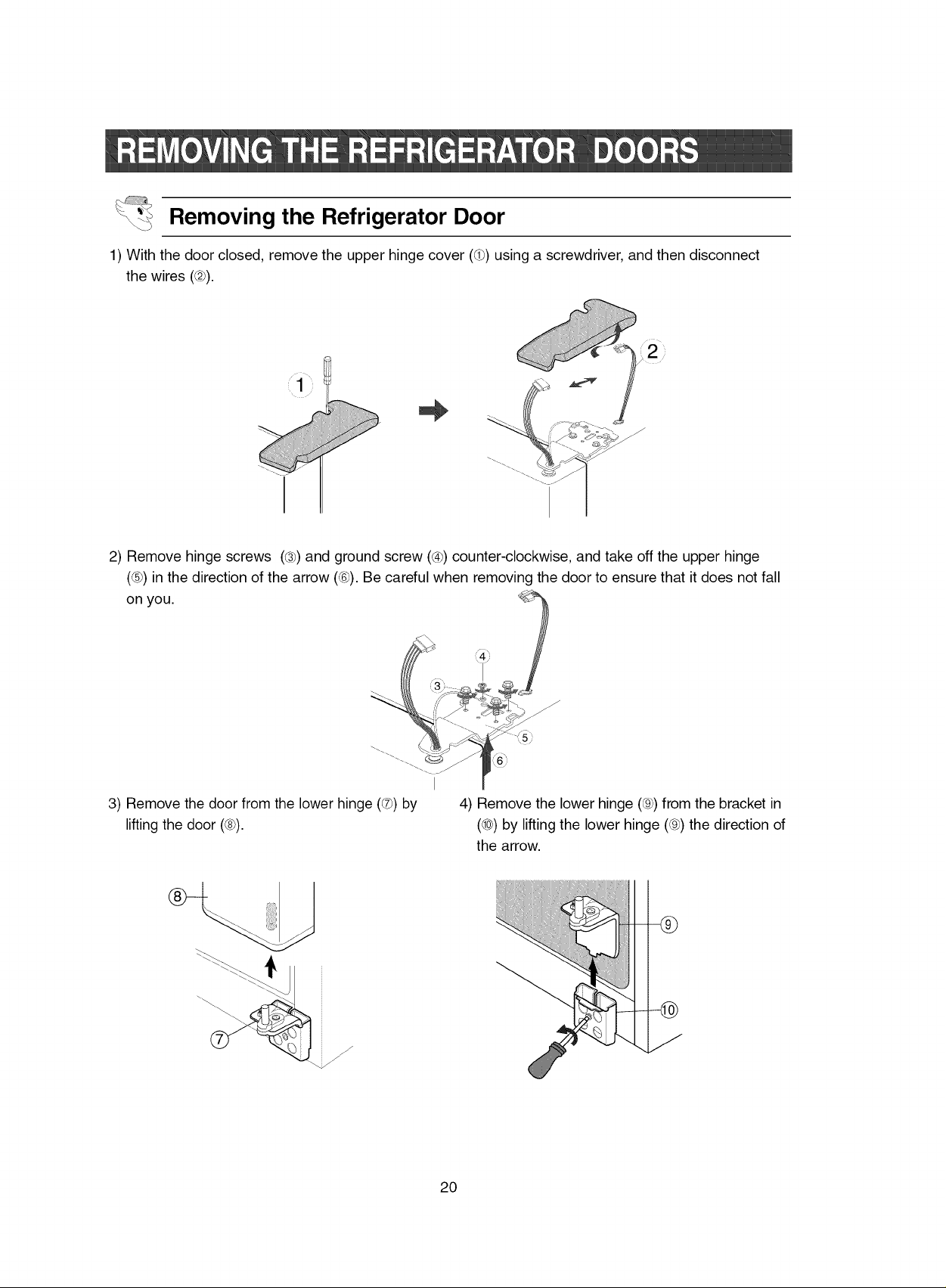

REMOVINGTHE REFRIGERATORDOORS...........................................18
REATTACHINGTHE REFRIGERATORDOORS.....................................21
LEVELINGREFRIGERATOR....................................................................24
ADJUSTINGTHECLEARANCEBETWEENTHE DOORS....................25
CHECKINGTHE WATERDISPENSERLINE..........................................26
INSTALLINGTHE WATER DISPENSERLINE ........................................26
TROUBLESHOOTING...............................................................................29
CONSUMER SUPPORT ....................................................................30

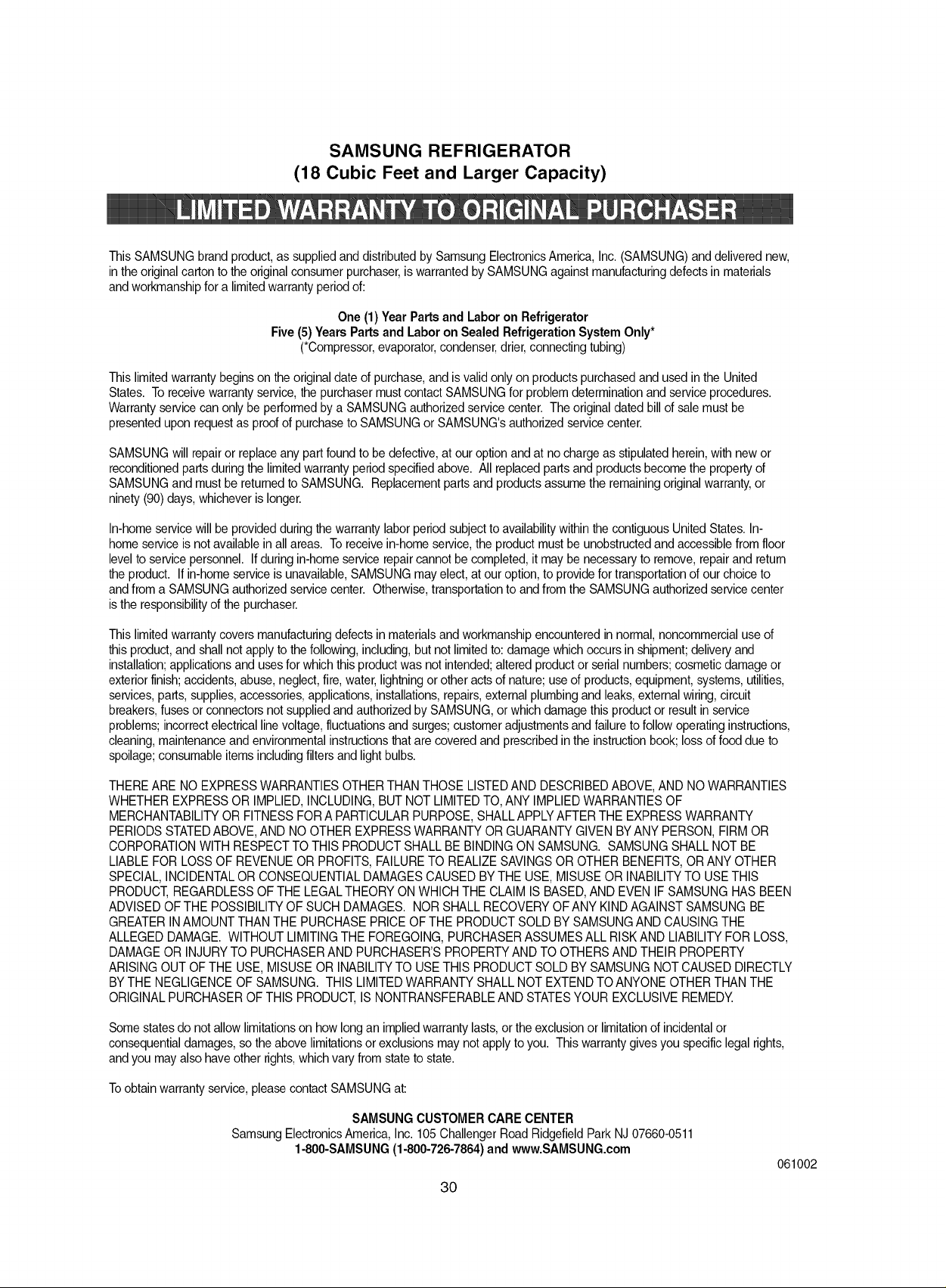

WARRANTY...............................................................................................30
In the U.S. for questions about features,
operation/performance, parts, accesories or service, call:
1-800-726-7864 (1-800-SAMSUNG)
www.samsung.com
DA68-00500W REV(1.3)
WARNING
• Beforeoperatingtheappliance,pleasereadandretainthis manualthoroughlyforyour reference.
• Becausethesefollowingoperatinginstructionscovervariousmodels,thecharacteristicsof your refrigerator
maydifferslightlyfromthosedescribedinthismanual.
• The applianceis notintendedfor use bychildrenor infirmpersonswithoutadultsupervision.
• Childrenshouldbesupervisedto ensurethatthey donot playwiththe appliance.
CAUTION/WARNINGSUSED OTHER SIGNS USED
Q Represents something you must NOT do.
Represents something you must NOT
(_ disassemble.
(_) Represents something you must NOTtouch.
O Represents something you must follow.
_: Indicates that you must disconnect the
power plug from the socket.
Represents that a ground is needed to pre-
O vent electric shock.
WARNING
CAUTION
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
It is recommended that this should be han-
dled by a service center.
Because these warning signs are to prevent injury to from users or other persons, please follow
safety warning signs. After reading the warning signs, keep them in a safe place for future refer-
ence.
/_ WARNING SIGNS
Do notplug severalappliancesinto the same multiple
Q receptacle.
• Thiscouldcauseoverheatingandthe riskof fire.
Makesure that the powerplugis not squashedor dam-
aged by the backof the refrigerator.
• A damagedpowerplugmayoverheatand causefire.
Do not directly spray water inside or outside the refrig-
erator/ freezer.
• There is a riskof electricshock.
Do notuse aerosolsnear the refrigerator.
• There is a riskof explosionorfire.
Do not bend the power cord excessively or place
heavy articles on it.
• Thisconstitutesa fire hazard.If the powercord isdam-
aged,haveit replacedimmediatelyby the manufacturer
or its serviceagent.
Do not insert the power plug with wet hands.
• Youmay receivean electricshock.
Do not put a container filled with water on the refrigera-
tor.
• Ifspilled,there is a risk of fireor electricshock.
Do not install the refrigerator in a damp place or a
placewhere it may come in contact with water.
• Deterioratedinsulationof the electricalparts may cause
electricshockor fire.
Do not storevolatile or flammable substancesin the
refrigerator.
• The storageof benzene,thinner,alcohol,ether,LP gas and
othersuch productsmay causeexplosions.
Donot disassembleor repairthe refrigerator by yourself.
• You run the risk of causing a fire, malfunctions and/or
personal injury.
Pull the power plug out of the socket before chang-
ing the refrigerator's interior light.
• Otherwise,there is a risk of electric shock.
_, If you wish to dispose of the refrigerator, throw it away
by first removing the doors and seals.
• Do so in a way that it is not possible for a child to remain
trapped inside.
O he refrigerator must be grounded.
* You must ground the refrigerator to prevent any power
leakagesor electric shocks caused by current leakage
from the refrigerator.
O Never use gas pipes, telephone lines or other poten-
tial lightening rods as ground.
• Improperuse of the groundplug can resultin a riskof
electricshock. If it is necessaryto use an extensioncord,
useonly a 3-wire extensioncord that has a 3-bladeground
plugand a 3-slot receptaclethat willacceptthe plugon the
appliance.The markedratingof theextensioncord should
be AC 115V~120V,10A,or more.If a groundingadapteris
used,makesurethe receptaclebox is fullygrounded.
//_ CAUTION SIGNS
Q Do not overfillthe refrigeratorwith food.
• When you open thedoor, an item may fall out and cause
personal injuryor material damage.
Do not put bottles or glass containersinthe freezer.
• When thecontents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
®
Do not disconnectthe powercordby pullingon it.
• Damageto the cord maycausea short-circuit,fire
and/orelectricshock.
• Ifthe powercord is damaged,it must be replacedby
the manufacturer,a certifiedserviceagentor qualified
servicepersonnel.
Do not store articles on the top of the appliance.
• Whenyou open orclose thedoor,the articlesmay fall
andcause personalinjuryand/ormaterialdamage.
Do not store pharmaceutical products, scientific
materials and temperature-sensitive products in
the refrigerator.
• Productsthat requirestricttemperaturecontrolsmust
not be storedinthe refrigerator.
Do not let children hang on the door because a
seriousinjurymayoccur.
If yousense pharmaceuticalsmellsor smoke,pull
out thepower plugimmediatelyand contactyour
SAMSUNGElectronicsservicecenter.
®
Do nottouchthe insidewalls ofthe freezeror
productsstoredinthe freezer withwet hands.
• Itmay causefrostbite.
Do not insert your hands into the bottom area
under the appliance.
• Any sharpedges maycausepersonalinjury.
Never put fingers or other objects into the
dispenser hole and ice chute. It may cause per-
sonal injury or material damage
@
Do not use a wetor dampclothwhencleaning
the plug.Removeanyforeign matteror dust from
the powerplug pins.
• Otherwisethere isa risk of causinga fire.
• Ifthe refrigeratoris disconnectedfromthe power
supply,you shouldwaitfor at leastfive minutes
beforepluggingit backin.
@
0
If the refrigeratoris notto be usedfor a long
periodof time, pull out the powerplug.
• Deteriorationinthe insulationmaycausefire.
• The applianceis not intendedfor use byyoung chil-
dren or infirmpersonswithoutsupervision.
Youngchildrenshouldbe supervisedto ensurethat
theydo not playwiththe appliance.
• Donotplacethe equipmentdirectlyunderthe sun-
light,etc.
• The appliancemustbe positionedso thatthe plugis
accessibleafterinstallation.
• Ifthe powercord is damaged,it must be replaced
bythe manufacturer,a certifiedserviceagentor a
qualifiedservicepersonnel.
• Ifyou havea longvacationplanned,emptythe
refrigeratorand turn it off. Wipeexcessmoisture
from the insideand leavethe doorsopen.
Otherwise,odor andmoldmaydevelop.
Service warranty section
• Any changesor modificationsperformedbya 3rd
partyon a finishedproductis notcoveredunder
Samsungwarrantyservice
Safety Caution section
• Samsungdoesnotrecommend3rd partymodifica
tion,thereforeSamsungis not responsiblefor safety
issuesthatresultfrom3rd partymodifications.
DANGER
Risk of child entrapment. Before you throw
away your old refrigerator or freezer
• Take off the doors
• Leave the shelves in places so that children
may not easily climb inside.
Once you have performedthe following steps, your refrigeratorshould be fully operational. If not, check
the power supply and electricitysource. If you have any questions,contact your SAMSUNG
service center.
Placethe refigeratorin an appropriate loca-
tion with reasonableclearance between the
wall and the refrigerator.
(referto installationinstructionsin this man-
nal)
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
.........
Set the temperaturecontrolto the coldest
temperature and wait for an hour.The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigeratortemperatureis suffi-
ciently low, you can storefood in the
refrigerator.After startingthe refrigerator,it
takes a few hours to reach the appropriate
temperature.
Twin Cooling System
• The refrigerator and the freezer have two evaporators. Given this inde-
pendent system, the freezer and the refrigerator are cooled individually
as required and are, therefore, more efficient. Food odor from the refrig-
erator does not affect food in the freezer due to separate air flow circu-
lation.
Multi-Flow System
• Cool air circulates through multiple vents on every shelf level. This pro-
vides even distribution of cooling inside cabinets to keep your food
fresh longer.
Xtra Space TM
• Vertical room next to the ice maker in the freezer provides space for
pizza etc.
Door Alarm
• Beeper reminds you that the door is open.
Xtra Fresh TM
• Optimized humidity control keeps vegetables & fruits fresh.
Deodorizer
• Reusable deodorizer keeps the refrigerator air fresh and odor free.
CoolSelect Zone TM Drawer (RS2777)
• User can select Quick Cool, Thaw and Select buttons to quickly chill,
thaw and cool items. Select Soft Freeze, Cool or Chill to control the
temperature of drawer.
RS2544/I
r_
FreezerTem
Ice'[
Ice Wi
RS2777
FREEZER TEMP.BUTTON
To set the freezer temperature,press
the button repeatedly to change the set
temperature in sequence between
8°F and -14°E
I OWER FREEZE BUTTON
Speeds up the freezing process in the
freezer.
ICE TYPE BUTTON
Use this button to choose Cubed or
Crushed Ice or Ice off.
FRIDGE TEMP.BUTTON
Toset the fridge temperature,press the button
repeatedlyto change the set temperature in
sequence between 34°F and 46°E
POWER COOL BUTTON JSpeeds up the cooling process in the refrigerator
CHILD LOCK BUTTON
When this button is pressed for 3 sec., the Power Freeze,
Power Cool, Freezer Temp.and Fridge Temp. are locked and
can not be modified. The Water and Ice dispensers are not
lockedand can still be used. Tocancel this function, press
Child Lock buttonagain.
or
R$2544, RS2545,RS2622,R$2644, RS2666 RS2777
Freezer Temp. indicates the current freezer temperature.
Fridge Temp. indicates the current refrigerator temperature.
Quick Cool, Thaw, and Select show the status of the CoolSelect Zone TM Drawer
®
• This light goes on when you press the Power Freeze button.
Press this button to quickly return the freeze to its set temperature.
• If you need much ice, you can get ice faster.
• Press the button again to cancel the Power Freeze mode.
O If you use this function, energy consumption will increase.
Please turn off when not using this function.
Power Cool •
This light goes on when you press the Power Cool button.
/ r_ Press this button to quickly return the refrigerator to its set temperature.
• Press this button again to cancel the Power Cool mode.
r • This light indicates that the reusable twin deodorizers are in operation.
I _ • Reactivate the honeycomb cartridge once or twice a year (see "Cleaning the _
Accessories" section)
I CUb_ I e, Crushed Ice and Ice Off
/ IceType • Press the Ice Type button in seqence to choose
_.._i _/ -- ICE -- Cubed Ice, Crushed Ice or Ice Off to stop making ice.
--__ _ _ _ • Bright icon indicates the ice type is currently chosen.
/Cut_e_ Crushed Ice Off
Fi icator
• Change filter every 6 month, orange means 1 month left, have a backup filter
ready.
If indicator is red, quick replacement is strongly recommended.
• When the water filer is replaced, reset the indicator by pressing the Ice Type
button and the Child Lock buttons simultaneously for 3 seconds.
• To turn this indicator off, press the Ice Type and Child Lock buttons simultane-
ously and hold for 5 seconds.

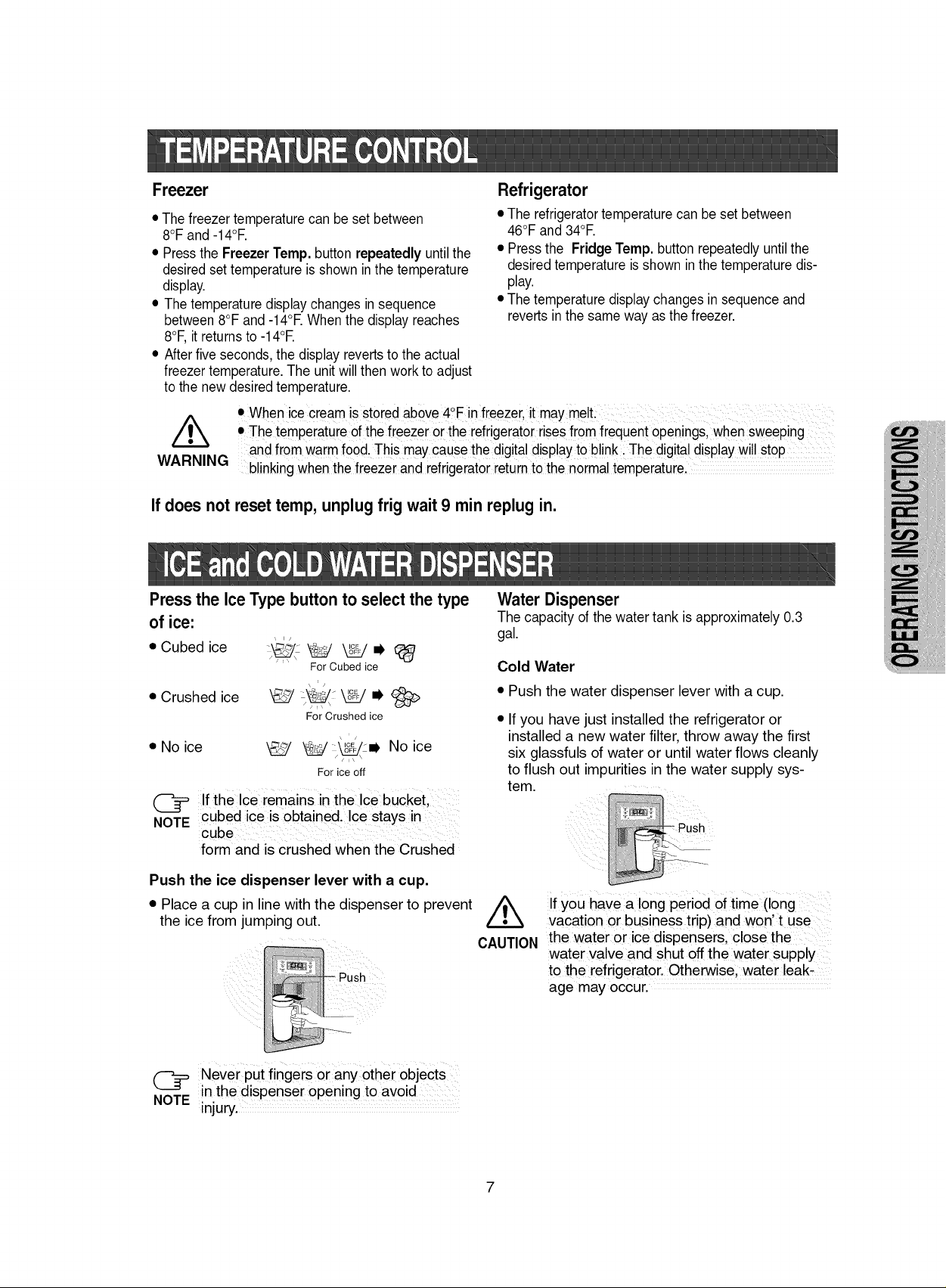

Freezer
• The freezer temperature can be set between
8°F and -14°R
• Pressthe Freezer Temp. button repeatedly until the
desired set temperature is shown inthe temperature
display.
• The temperaturedisplay changes in sequence
between 8°F and -14°R When the display reaches
8°F, it returnsto -14°E
• After five seconds,the display revertsto the actual
freezer temperature.The unitwill then workto adjust
to the new desired temperature.
Refrigerator
• The refrigeratortemperature can be set between
46°F and 34°R
• Pressthe Fridge Temp. button repeatedlyuntil the
desired temperature is shown in the temperature dis-
play.
• The temperature display changes insequence and
reverts in the same way as the freezer.
/k
WARNING
• When ce cream s stored above 4°F n freezer, t maymet
• The temperature of the freezer or the refrigerator risesfrom frequent openings,whensweeping
and from warm food, This maycause the digital displayto blink i The digital display Will stoP
blinking when the freezer and refrigeratorieturn to the normal tempeiaturel
If does not reset temp, unplug frig wait 9 min replug in.
Press the Ice Type button to select the type
of ice:
\ i/
• Cubed ice }_,_, _ _ i,
For Cubed ice
\ =/
• Crushed ice \_ _ ml,
For Crushed ice
• No ice _/ _ No ice
For ice off
NOTE
If the Ice remains in the Ice bucket,
cubed ice is obtained. Ice stays in
cube
form and is crushed when the Crushed
Push the ice dispenser lever with a cup.
• Place a cup in line with the dispenser to prevent
the ice from jumping out.
Never put fingers or any other objeCts
(_= in the dispenser opening to avoid ......
NOTE
Injury.
Water Dispenser
The capacity of the water tank is approximately 0.3
gal.
Cold Water
• Push the water dispenser lever with a cup.
/k
CAUTION
• If you have just installed the refrigerator or
installed a new water filter, throw away the first
six glassfuls of water or until water flows cleanly
to flush out impurities in the water supply sys-
tem.
ush
If you have a long period of time (long
vacation or business trip) and won' t use
the water or ice dispensers, close the
water valve and shut off the water supply
to the refrigerator. Otherwise. water leak-
age may occur.

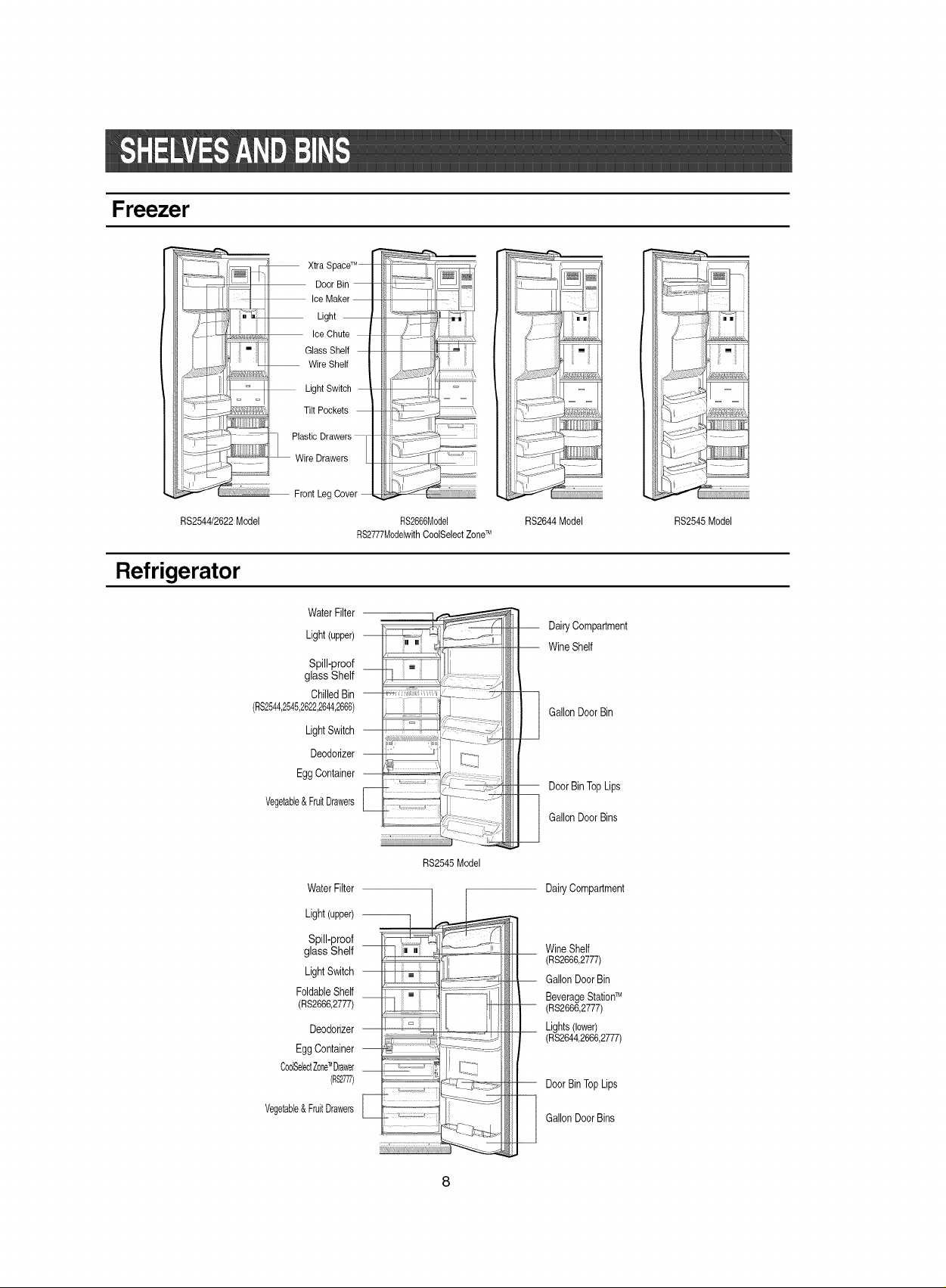

Freezer
RS2544/2622Model RS2666Model
RS2777ModelwithCoolSelectZoneTM
RS2644Model
Refrigerator
WaterFilter
Light(upper)
Spill-proof
glass Shelf
ChilledBin
(RS2544,2545,262226442666)
LightSwitch
Deodorizer
EggContainer
Vegetable&FruitDrawers
WaterFilter
Light(upper)--
Spill-proof
glassShelf
LightSwitch
FoldableShelf
(RS2666,2777)
Deodorizer
EggContainer
CooISelectZoneTMDrawer
(RS2777)
Vegetable& FruitDrawers
_"_'_':_i__''/'__i:
::::
DairyCompartment
WineShelf
GallonDoorBin
DoorBinTopLips
GallonDoorBins
RS2545 Model
DairyCompartment
i_i::
WineShelf
(RS2666,2777)
-- GallonDoorBin
Beverage StationTM
-- (RS2666,2777)
__ Lights (lower)
(RS2644,2666,2777)
-- DoorBinTopLips
GallonDoorBins
RS2545 Model

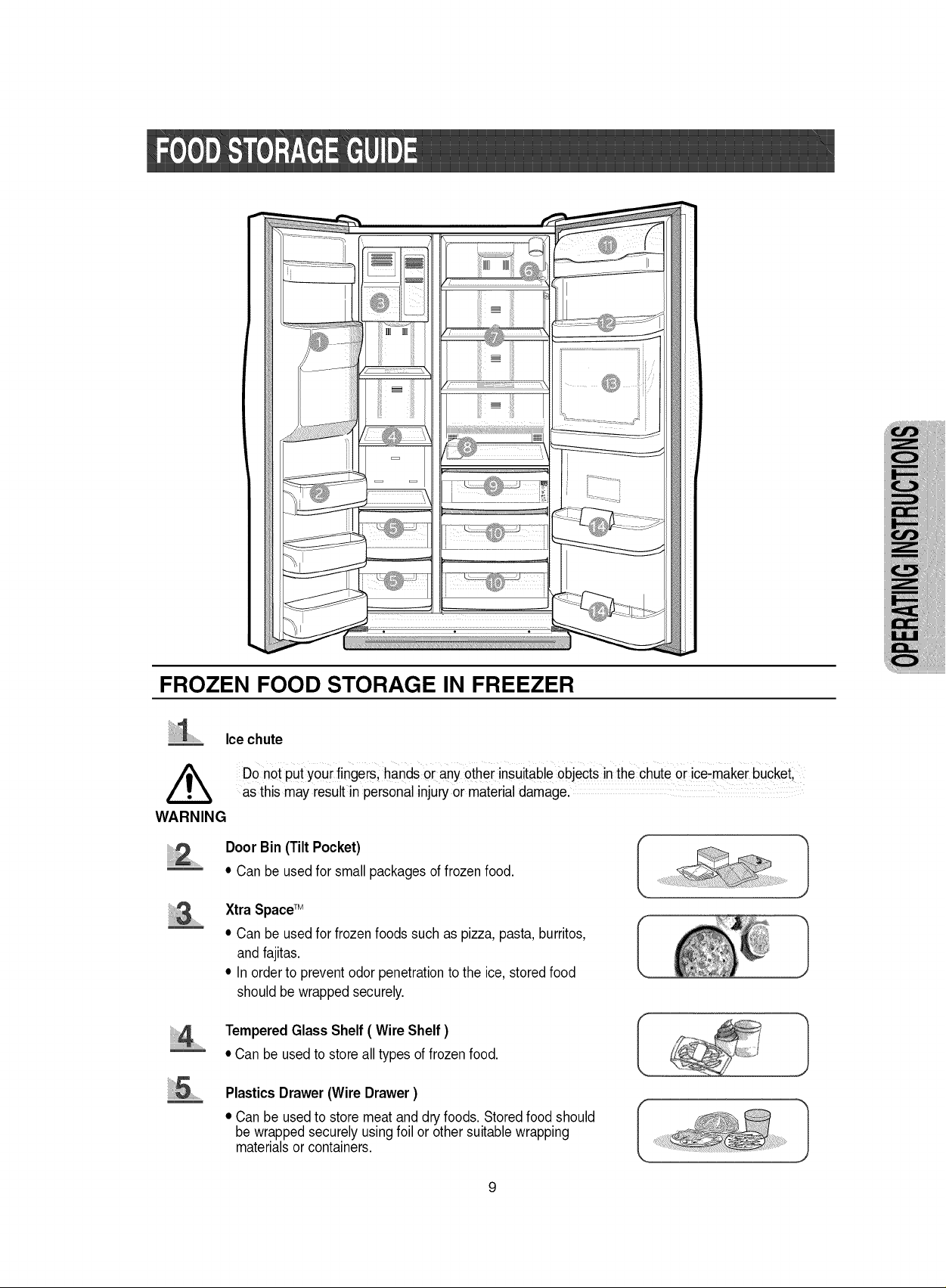

FROZEN FOOD STORAGE IN FREEZER
....,cechute
WARNING
DOnot pUt youi tingers, hands o[ any other insuitableObjectsin the chute Orice,maker bucketl
as this may result in personal injury or material damage.
,,,,,,,,,_....... Door Bin (Tilt Pocket)
• Can be used for small packages of frozen food.
Xtra Space TM
• Can be used for frozen foods such as pizza, pasta, burritos,
and fajitas.
• In orderto prevent odor penetrationto the ice,stored food
should be wrapped securely.
Tempered Glass Shelf ( Wire Shelf )
• Can be used to store all types of frozen food.
PlasticsDrawer (Wire Drawer )
• Can be usedto store meat and dry foods. Storedfood should
be wrapped securely using foil or other suitable wrapping
materialsor containers.
CHILLED FOOD STORAGE IN REFRIGERATOR
Wine Shelf (RS2666/RS2777)
• Place your wine bottles on the shelf to maintaintheir taste.
TemperedSpill Proof Glass Shelf
• Can be used to store all types of chilled food.
• Safe and hard to break resistant.
• Circular marks on the glasssurface are a normal phenomenon.
Egg Container
• Put eggs in the container and place them onthe shelf.
.........Chilled Bin or CoolSelect ZoneTM Drawer
• Helpsto preservethe taste of food and prolongs its freshness. Use
to store cheese, meat, poultry,fish or any other foods used quickly.
Fruit& Vegetable Drawer (Upperand Lower)
• Is used to store fruits and vegetables.
• This drawer is airtight. Optimized humidity controldesign helps to
preservethe freshness of the stored vegetablesand fruits.
..... Dairy Compartment
• Can be usedto store butter or margarine.
12 Gallon Door Bins
• Can be used to storefoods in small packages,such as milk and
yogurt.
@
NOTE
BeverageStationTM (RS2666/RS2777)
• Can be used to storethe frequently used items,such as canned
beveragesand snacks and allows access to these items without
openingthe refrigerator door.
Bottles should be stored tightly together so that they do n0t fall out:
/k
WARNING
• If Youhave along Vacation planned,empty the refrigerator and turn itoff; Wipe excess moistuie
from the inside and leave the doors open, Otherwise,odor and mold may develop,
10

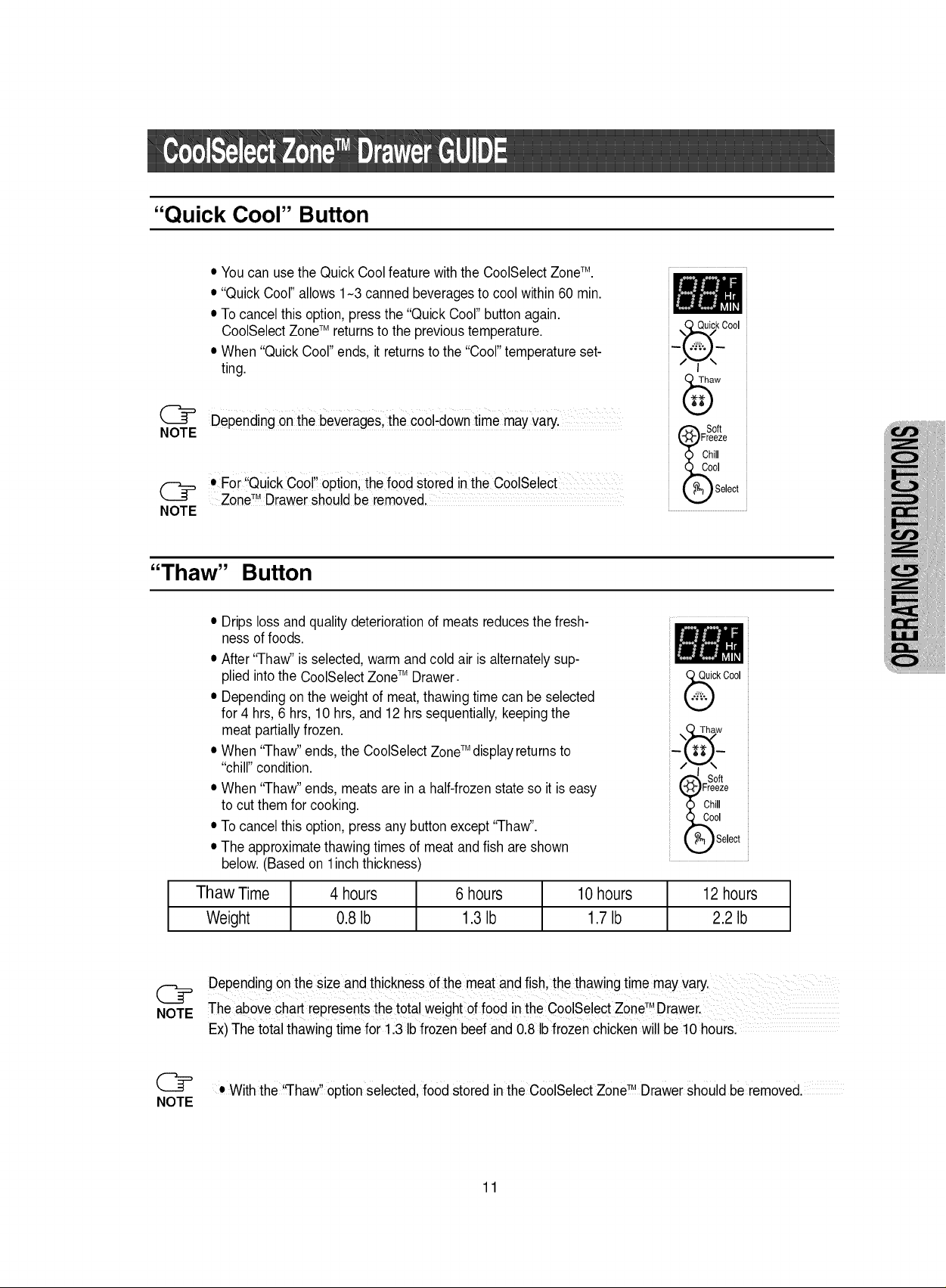

"Quick Cool" Button
@
NOTE
@
NOTE
• Youcan use the Quick Cool feature with the CoolSelect ZoneTM.
• "Quick Cool" allows 1-3 canned beveragesto cool within 60 min.
• To cancelthis option,press the "Quick Cool" button again.
CoolSelect ZoneTM returnsto the previoustemperature.
• When "QuickCool" ends, it returnsto the "Cool" temperature set-
ting.
Depending Onthe beverages, the c0ol-down time mayvary
For Quick Coo!option;the food Storedinthe Co01Select
ZoneTM Drawer should be removed.
_k Cool
_o S°ft
Freeze
Chill
ol
Select
"Thaw" Button
Thaw Time
Weight
Drips loss and quality deteriorationof meats reduces the fresh-
nessof foods.
After 'q-haw"is selected, warm and cold air is alternatelysup-
plied intothe CoolSelect ZoneTM Drawer.
Depending on the weight of meat,thawing time can be selected
for 4 hrs, 6 hrs, 10 hrs,and 12 hrs sequentially,keepingthe
meatpartially frozen.
When 'q-haw"ends, the CoolSelectZoneTM displayreturns to
"chill" condition.
When 'q-haw"ends, meats are in a half-frozenstate so it is easy
to cut them for cooking.
To cancel this option, press any button except'q-haw".
The approximatethawingtimes of meat and fish are shown
below. (Based on linch thickness'
4 hours 6 hours
0.8 Ib 1.3Ib
Cool
10hours 12hours
1.7Ib 2.2 Ib
NOTE
Depending on the size and thickness of the meat and fish,the thawing timemay vary.
The ab0ve chart repreSentsthe total weight of fo0d in the C0olSe!ectZone!MDrawer.
Ex) The total thawing time for 1:3 Ib frozen beef and 0.8 Ib frozen chicken will be 10 hours.
• With the ,Thaw,!option selected,food stored in the Co01SelectZoneTM Drawer Shouldbe removed.
NOTE
11
"Select" Button (RS2777)
iiii!i!ii:t_,,..............SoffFreeze
iiii!i!i ..............
• When "Soft Freeze"is selected,the temperature on the
digital paneldisplays 23°F(-5°C),regardlessof the set
temperature of the refrigerator.
• "Soft Freeze"temperature helps keep meat and fish
fresh for longer.
Chill
• When "Chill" is selected,the temperature of the CoolSe-
lect ZoneTM Drawer is kept at 30°F(-1°C),regardlessof
the set refrigeratortemperature.
• "Chill"temperature helps keep meat or fish fresh for
longer.
Cool
• When "Cool" is selected,the temperature will be the
same as the set temperatureof the refrigerator.The digi-
tal panel shows the same temperatureas that of the dis-
play panel.
• When using "Cool",the CoolSelect ZoneTM Drawer allows
extra refrigeratorspace.
12
iiiiiiiii t,,,.........
iiiiiiii ........

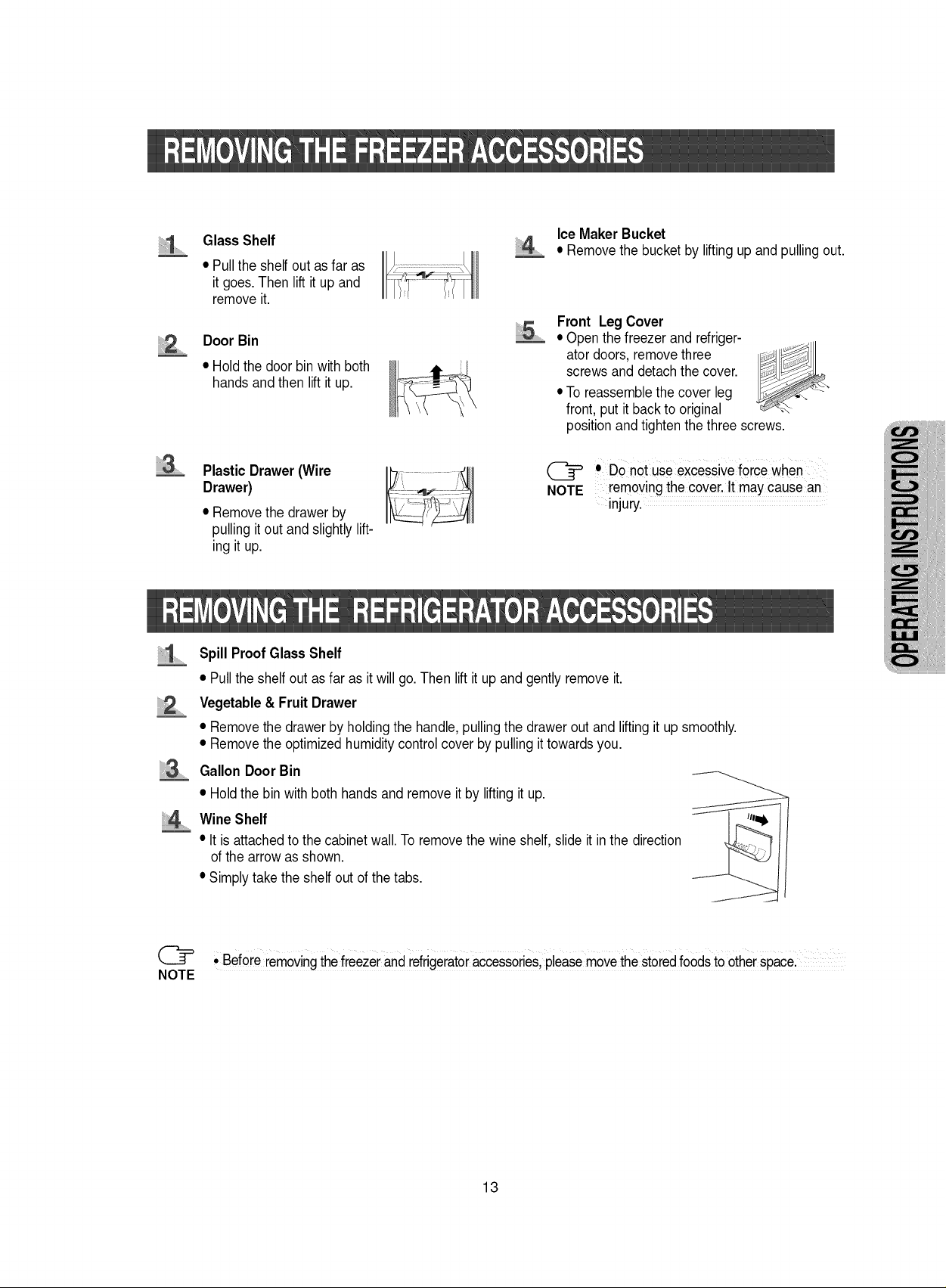

Glass Shelf
• Pull the shelf out as far as
it goes.Then lift it up and
remove it.
Door Bin
• Hold the door bin with both
hands andthen lift it up.
Plastic Drawer (Wire
Drawer)
• Remove the drawer by
pulling it out and slightly lift-
ing it up.
iiiiiiii4.........
iiiiiiii5.............
Ice Maker Bucket
• Remove the bucket by lifting up and pulling out.

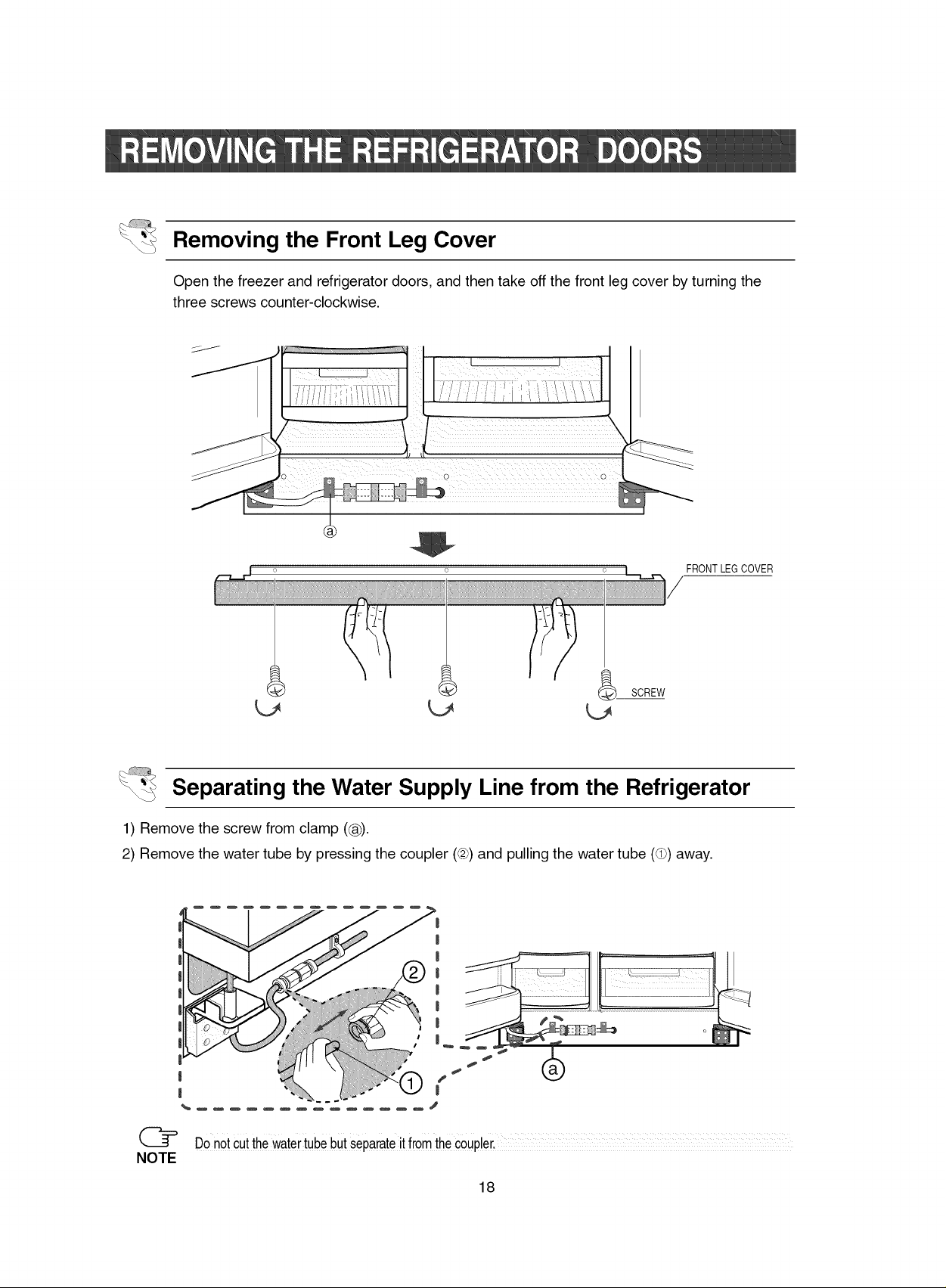

Front Leg Cover
• Open the freezer and refriger-
ator doors, removethree
screws and detach the cover.
• To reassemblethe cover leg
front, put it back to original
position andtighten the three screws.
(_P DOnot useeXcessiveforce when
NOTE removingthe cover. It may cause an
injury. ..................................................................................
Spill Proof Glass Shelf
• Pullthe shelf out as far as it will go. Then lift it up and gently remove it.
......
Vegetable& Fruit Drawer
• Removethe drawer by holdingthe handle, pulling the drawer out and lifting it up smoothly.
• Removethe optimized humidity controlcover by pulling it towards you.
......Gallon Door Bin
• Holdthe binwith both hands and remove it by lifting it up.
......Wine Shelf
• It isattachedtothe cabinet wall.To removethe wineshelf, slide it inthe direction
of the arrowas shown.
• Simply take the shelf out of the tabs.
' Before removingthefreezerand refrigeratoraccessorieslplease movethe storedfoodsto other Spacel
NOTE
13
Toopen the BeverageStationTM, holdthe BeverageStationTM doorhandleand pullit downward.
• TheBeverageStationTM is convenient
andreducesenergyconsumption,
becauseyou do not needto open
the refrigeratordoorto accessstored
beveragesand snacks.
• It is recommendedthatyou usethe
BeverageStationTM for storingmost
frequentlyneededfoods
WARNING
• The door of the Beverage StationTM should never be removed.The Beverage StationTM cannot function if its door
is missing.
• When closingthe Beverage StationTM door. be careful not to putyour hands or fingers around the door frame
where they can be caughtor injured
• When you use the open door as a tray, do not placeheavy objectson it. Do not allowchildren to
hang on the door becausethere is a risk of personal injury or material damage.
• When you open the beveragestationZMdoor,be careful not to hit childrens head.
• Do not overfill the shelf above it may prevent airflow.
Interior
• Cleanthe accessorieswith a mild detergent,then wipe out with a dry cloth.
• After washing the accessories,make sure that they are dry before usingthem again.
Exterior
• Wipe the digital panel and display panelwith a clean cloth.
• The surface of doors, handles and cabinet should be cleaned with a mild detergent andsoft
cloth, then wipe off the surface with a dry cloth.
- Do not use Benzene,Thinner or cloroxfor cleaning
- Do not spraywater directly on the surface of the refrigeratorwhile cleaning.
• The exterior part of the refrigeratorshould be polished once ortwice a year.
Rear
• Use a vacuum cleanerto removedust once or twice ayear.
• Donot removecover, riskof shock.
WARNING
Ice and water dispenser
• Use a damp clothto clean the ice and water dispenser.Then wipe it out with a dry cloth.
• To keep drainage grid dry, do not touch ice and water dispenser.
BeverageStationTM (RS2666/ RS2777)
• Use a damp clothto clean the BeverageStationTM. Then wipe it out with a dry cloth.
Rubber door seals
• If the rubber doorseals are dirty,the door will not close properly,The refrigeratorwill not be
able to function efficiently.Clean the doors with a mild detergentand damp cloth.Then wipe
with a dry cloth.
/5,
WARNING • Donot spray the refrigeratorwith water. It maycause a death by an electric shock.
• Do not clean it withbenzene,thinner or car detergentl It may cause a fire,
14
TwinDeodorizer
• Removethecoverwithaflatbladescrewdriverasshown.
• Takeoutthecartridgefromthecoverandsoakitincleanandwarmwaterforatleast
4hrs.Completelydryoutthecartridgeinsunlightforatleast8hrsinanopenarea.
• Repeatthisprocessonceortwiceayear.
idge
@ ' If caitridgesis driedina confinedaiealthere maybe Someodoi.
NOTE eKeepchi!drenawayfrom containmentedwater,
//_ Bef0re Changing the interior light, unplug the refrigerator from the power supply, if y0u
have difficulty in changing the light, contact your service center.
WARNING
INTERIORLIGHT IN THE REFRIGERATOR.
Upper
...........Pull out the screw cap
and
removethe screw.
.........Push the lamp cover inthe
directionof the arrows.
After changingthe bulb,
reattachthe light cover
and screw it in again.
Lower (RS2644,RS2666,RS2777)
.........Pull out the screw cap and Takethe lamp cover out in
removethe screw. _ the direction of the arrows.
After changingthe bulb,
reattachthe light cover
and screw it again.
15
INTERIORLIGHT IN THE FREEZER.
The freezer light is located in the bottom of the auger motor case.
Use a screwdriver to remove .... Change the bulb with a new ............
the light cover ((_). _ one (@)
Reattach the light cover
@
NOTE
Replacement bulbs for both freezer and fridge are available from
your local h0me improvement or electronics store.
Use replacement bulb size E17, maximum 30 watts.
The water "Filter Indicator" light
• "Filter Indicator'' light lets you know when it is time change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current cartridge.
It is recommended that you replace the cartridge when the light changes to red.
(see "Install the water filter'' section for more information)
• If you install water filter, throw away this first six glassfulls of water filter, or till water flows clearly to
flush not impurities in the water supply system.
Using the dispenser without the water filter
• You can not use the water and ice dispenser without a water filter cartridge because the water line
blocks at water supply.
Ordering replacement filters
• To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
00003A or contact your authorized Samsung dealer.
The refrigerator doors have a special door opening and closing feature to make sure that they close all
the way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
Units should be properly installed & leveled warning about magnetic doors.
16
Checking the Dimensions of your Entrance Door
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
Model RS2622/2644/2666 RS2777
Capacity (Cu. Ft)
Width
Dimension
(inch)
without Hinge
Case Height
with Hinge
with door
Depth without door
RS2544
RS2545
25.2
36"
69"
70"
28"
26.1
36"
69"
70"
30"
27.2
36"
69"
70"
37"
30"
Selecting the Location for the Refrigerator
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Select a location with level floor or close to it.
(If not, the water supply line can be damaged.) ....
• See "Separating the water supply line from the refrigerator'! on the next pagel
Allow sufficientspace to circulatethe air at the internal cooling system.
• When the refrigerator does not have enough space, the internal cooling system may not work correctly.
1 inch i
O.1 inch
_1 inch
• Allow clearanceto the rightlleftl back and top when nstallingthe refrigerator.
This has the advantageof reducing power consumptionl
* Do not installthe refrigeratorwhere thetemperaturewill go below 50°F(!0°C),
17
Removing the Front Leg Cover
Open the freezer and refrigerator doors, and then take off the front leg cover by turning the
three screws counter-clockwise.
FRONT LEG COVER
Separating the Water Supply Line from the Refrigerator
1) Remove the screw from clamp (®).
2) Remove the water tube by pressing the coupler (@)and pulling the water tube (dP)away.
NOTE
DonotCutthe watertubebut separateitfromtheCoupler.
18
(_= ' Liftthedoorstra!ghtup,
NOTE
• Be carefulnot to Pinchthe water tubing and wireharness on the door.
• Place doors on a protected surface.
Removing the Freezer Door
1) With the door closed, remove the upper hinge cover (@_)using a screwdriver, and then disconnect
the wires (@).
1 }
2) Remove hinge screws (@) and ground screw (@) counter-clockwise, and take off the upper hinge (®)
along the arrow (@). Be careful when removing the door to ensure that it does not fall on you.
3) Remove the door from the lower hinge (®) by
carefully lifting the door (®).
4) Remove the lower hinge (@)from the bracket
lower hinge (®) by lifting the lower hinge (@) in
the direction of the arrow.
19
Removing the Refrigerator Door
1) With the door closed, remove the upper hinge cover (@) using a screwdriver, and then disconnect
the wires (@).
I
1
/
2) Remove hinge screws (@)and ground screw (@) counter-clockwise, and take off the upper hinge
(@)in the direction of the arrow (@). Be careful when removing the door to ensure that it does not fall
on you.
3) Remove the door from the lower hinge (®) by
lifting the door (@).
ii!}!i;!il;i)
4) Remove the lower hinge (@)from the bracket in
(®) by lifting the lower hinge (@)the direction of
the arrow.
=®
20
Reattaching the Freezer Door
Insert the lower hinge (®) in the bracket lower
hinge (@).
2) Reattach the freezer door by inserting the hose
(®) in the lower side of the door into the hole in
the lower hinge (%) and pulling the hose down.
i_ii_ii,ii_'i.......,,_iiiiiiili_iii,iiiii!!i!iiii!lii!iiiiii!ijiiiiliiiiiiii!_,,,"""
iiiiiii!_ii'iiiiiiiiii_S'iiiiii!iiiiiiiii_i;_'_"........._" "
\'\4\
Y
./
3) Insert the upper hinge shaft (®) into the hole (_h).After levelling between the upper hinge hole (®) and
the hole of the cabinet (®). Reattach hinge screws (®) and gound screw (®) in a clockwise direction.
4) Connect the wires. 5) Put the front part of the upper hinge cover (@)on
the front part of the upper hinge (@) and reattach
from the front part of the upper hinge cover first.
21

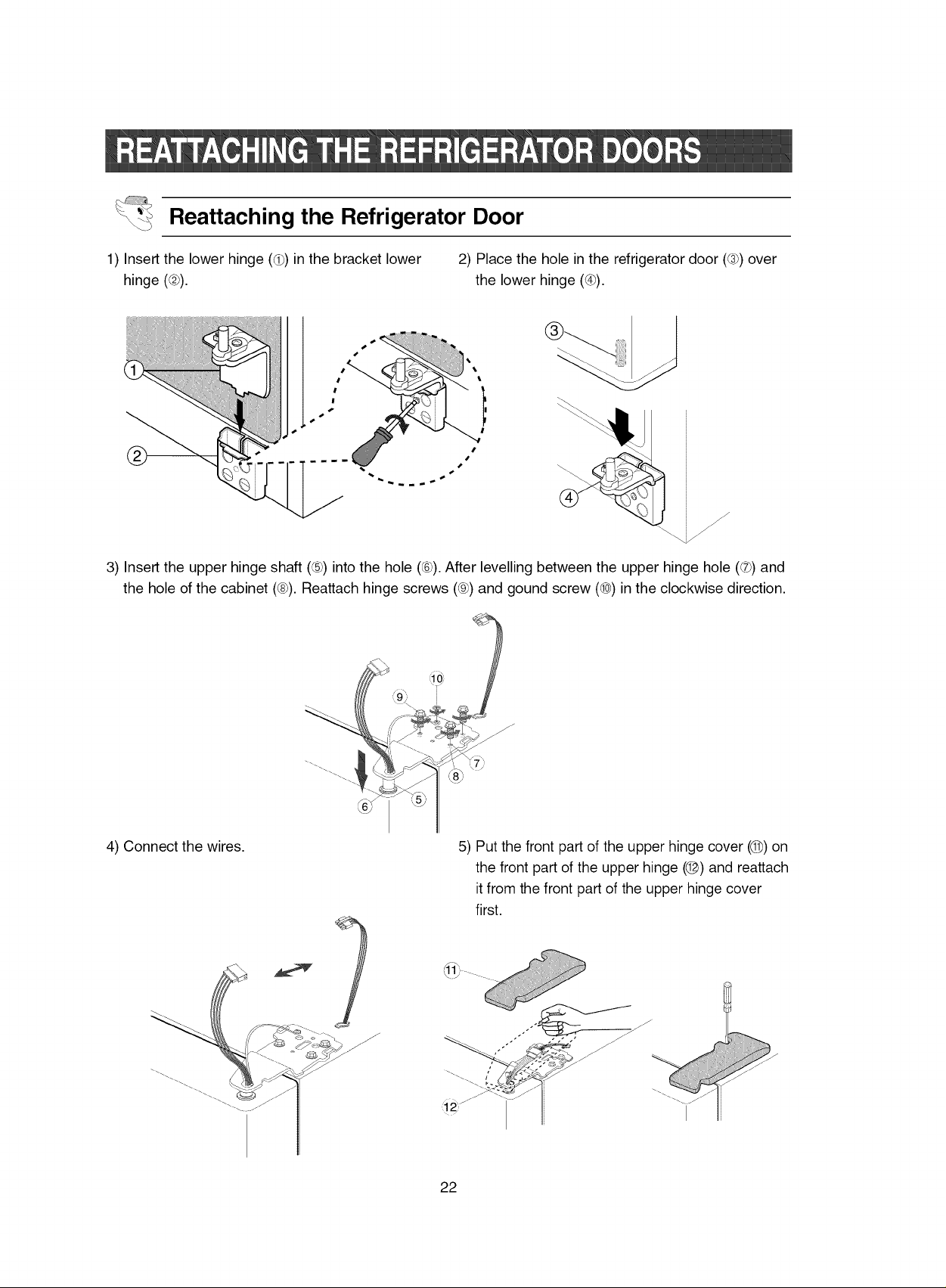

Reattaching the Refrigerator Door
1) Insert the lower hinge (_) in the bracket lower 2) Place the hole in the refrigerator door (®) over
hinge (@). the lower hinge (_4h).
/
J
J
J
3) Insert the upper hinge shaft (®) into the hole (_h).After levelling between the upper hinge hole (®) and
the hole of the cabinet (®). Reattach hinge screws (®) and gound screw (®) in the clockwise direction.
4) Connect the wires. 5) Put the front part of the upper hinge cover (@)on
the front part of the upper hinge (@) and reattach
it from the front part of the upper hinge cover
first.
j
/
22
Reattaching the Water Supply Line
1) While pressing the front face of coupler (@), insert the water line (@) in the coupler.
2) Tighten the screw on the clamp (®).
1
,#
NOTE
Reattaching the Front Leg Cover
Put on the front leg cover by turning the three screws clockwise, as shown in the figure.
Before attaching check water connector and 6 glassesto checkfor leakage;
FRONT LEG COVER
23
SCREW
Make sure the refrigerator is level before adjusting its doors.
The doors will be uneven if the refrigerator is not level.
The front of refrigerator is adjustablel
NOTE
Case 1) Freezer door is lower than
that of the refrigerator
Insert a flat-blade screwdriver (-) (d_)into a slot of
the control lever (@),turn it clockwise and level the
refrigerator.
!i!i!i!i!i!i!_
(_ DRIVER(-), ; iiii :
@ CONTROL LEVER
Case 2) Freezer door is higher than
that of the refrigerator
_iiiiiiiiiiiiiii
iiiiiiiiiiiii!iiii
iiiiiiiiiiiiiii
_iiiiiiiiiiiiiii
iiiiiiiiiiiiiii
iiiiiiiiiiiiiii
iiiiiiiiiiiiiii
Insert a flat-blade screwdriver (-) (d_) into a slot of
the control lever (@), turn it clockwise and level
the refrigerator.
(_ DRIVER(-)
DO not make small adjustments with the control lever, PleaSe refer to the next pagel
24
L...._9- AboutLevelingfirsE
NOTE
Making small adjustments between doors.
Ifthe door of the freezer is lower than that of the
refrigerator.
Adjustment part
Please open the doors and adjust then as follows:
Ifthe door of freezer is higherthan that of the
refrigerator.
!]
1) Releasethe nut (d)) on the lower hinge until it reachesthe upper end of the bolt (@).
\djustment part
@
NOTE
when you release the nut(C), use enclosed heX wrench (@)to turn the bolt(@)in a slightly
counterclockwise direction. This will enable you to turn the nut(@) loose with your fingers.
d, NUT
,'_;,NUT ,'2',BOLT (2,BOLT
2) Please adjustthe height differencebetweenthe doors by turning the bolt (@)clockwise( _ ) or counter
clockwise ( _ ).
@ when you turn cl0ckwise (-,_,,._)i the d0orgoes upl
NOTE
,;, WRENCH
,_ WRENCH
(_2XlBOLT (_2XlBOLT
J
3) After adjusting the doors, the nut ((_)turn clockwise ( "_J ) until it reaches the lower end of the bolt, then
tightenthe bolt again with the wrench (®) to fix the nut(@).
f
,;, WRENCH ,_ WRENCH
..... _ii_ii/iii_i_!i!i_iiiii. ,
::.
,'_:,NUT
\ (2:,BOLT
NOTE
d;, NUT
12:,BOLT
i
If y0Udo not fix the nut (@)firmly, the bolt (@)maybe releaSed.
25
1)Inordertooperatetheicemakerproperly,waterpressureof20N125psi isrequired.
Inthisrangea 170ccpapercupcanbefilledin10secs.
2)Thewaterfilterremovesparticles.Itdoesnotsterilizeordestroyanymicro-organisms.
3)Iftherefrigeratorisinstalledinanareawithlowwaterpressure(below20psi),youshouldinstalla
boosterpumptocompensateforthelowpressure.
4)Ensurethewaterstoragetankinsidetherefrigeratorisproperlyfilledinitially.Pushthewaterdis-
penserleveruntilthewaterrunsfromtheoutlet.
@ Waterlineinstallationkitis availableat extracost fromyourdealer.Therefrigeratormanufactur_
NOTE errecommendsusingawatersupplykitcontainingcoppertubing.

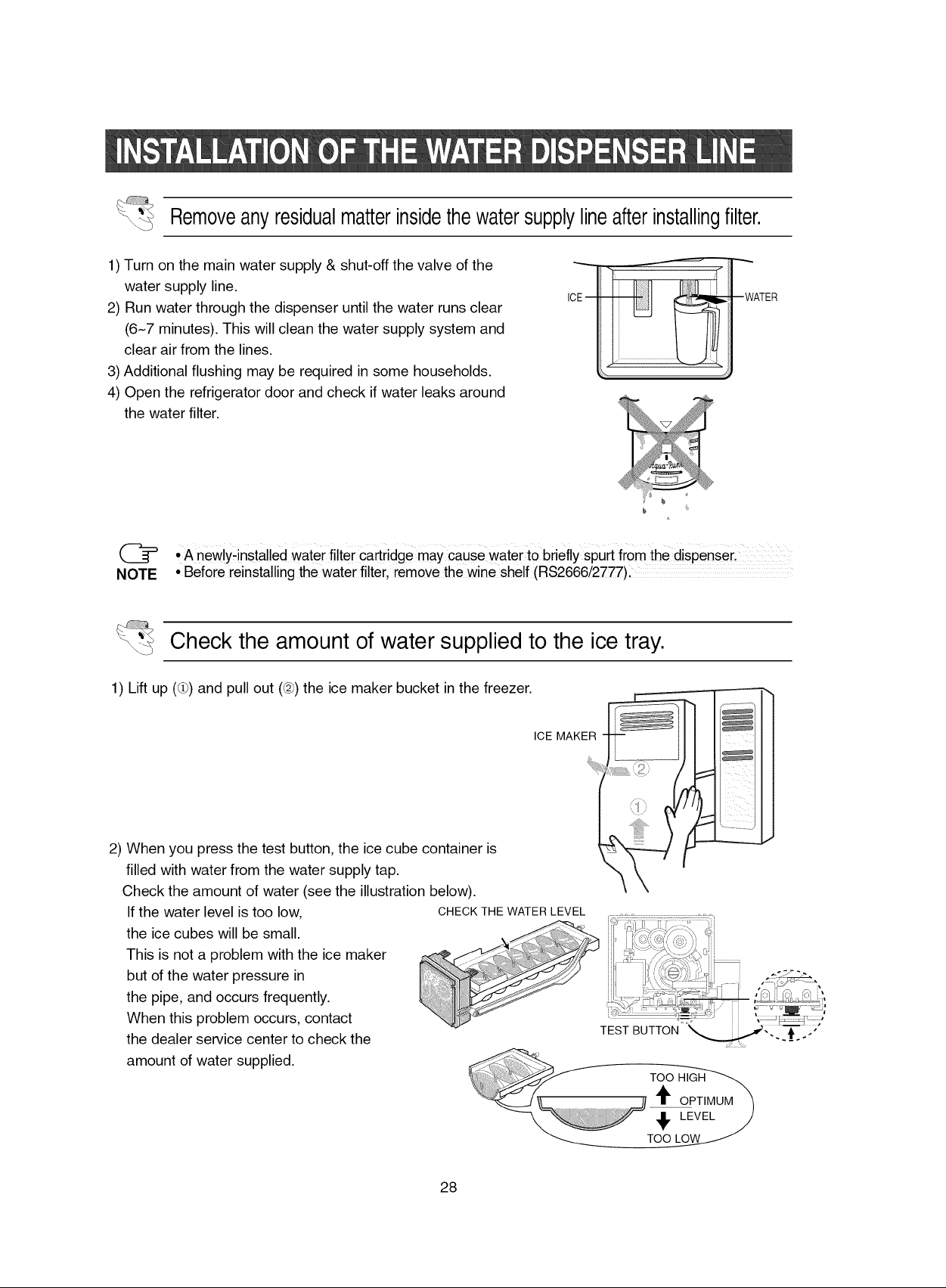

Connecting to water supply line
- Shut off the main water supply line and turn
the Ice maker to the off position.
- Locate the nearest cold drinking water line.
- Follow the instructions in the ice maker
installation kit.
- After connecting the water supply with water
filter, turn on water supply and flush 4 or
more gallons into a bucket to clear the water
filter
1. Cold Water line
2. Pipe Clamp.
3. Water Line Installation Kit
4. Shut Off Valve
26
Connect the water line to the refrigerator.
1) Slip the compression nut through the provided
plastic tubing.
2) Tighten the compression nut onto 1/4"
comprression fitting.
@ Do not overtightenthe compressionnut.
NOTE
• Using Copper Tubing
- Slip the compression nut and ferrule on cop-
per tubing as shown.
• Using Plastic Tubing
- Insert the molded end of the plastic tubing
into the compression fitting.
3) Tighten the compression nut onto the com-
pression fitting.
4) Turn water on and check for any leakage.
@
NOTE
Ferrule ,,
(Purchased),,*
I Refrigerat°r I
_',, CompressionNut(1/4")
*, (Provided)
i
4_ , CompressionFitting
_S , (Provided)
11-
; CompressionNut(I/4")
(Purchased)
PlasticTubing
(Purchased) (Purchased)
I Household Water Line I
Waterline must be connected to drinkable water on yl
Cut off 1/4 inch of the provided plastic tubing squarely to prevent leaks when reconnect.
Install the water filter.
1) As shown, the fixed cap separates from the refrigerator by rotat-
ing it counterclockwise.
Remove the water filter from the box and put a month indicator
sticker on the filter as shown.
(_ Keep the cap(A)in a safe place for recapping' when you will
NOTE notuse the f!lter.
2) If the water filter was installed in March, put on the "SEP" sticker.
3) Remove the protective cap then position and insert the
filter as shown.
4) Slowly turn the water filter clockwise 90° to align
the indication mark on the cover, locking the filter in posi
tion. Do not overtighten.
SEPARATION
OF RED
@
NOTE
STICKER
(MONTH INDICATION)
____ ALIGN THE INDICATION MARK
TH LOCKPOSITION.
please check that the indication line aligns with the lock position.
27
Removeany residualmatterinsidethewatersupplylineafterinstallingfilter.
1) Turn on the main water supply & shut-off the valve of the
water supply line.
2) Run water through the dispenser until the water runs clear
(6-7 minutes). This will clean the water supply system and
clear air from the lines.
3) Additional flushing may be required in some households.
4) Open the refrigerator door and check if water leaks around
the water filter.
ICE- --WATER
• A newly_installedwater filter cartridge may cause water to briefly spUrt from the disPenserl
NOTE ° Before reinstalling the water filter, remove the wine shelf (RS2666/2777). ..........
Check the amount of water supplied to the ice tray.
1) Lift up (L#)and pull out (@)the ice maker bucket in the freezer.
ICE MAKER
2) When you press the test button, the ice cube container is
filled with water from the water supply tap.
Check the amount of water (see the illustration below).
If the water level is too low, CHECKTHEWATERLEVEL
the ice cubes will be small.
This is not a problem with the ice maker
but of the water pressure in
the pipe, and occurs frequently.
When this problem occurs, contact
the dealer service center to check the
amount of water supplied.
TOO HIG_--,_
t O T OM
28
The refrigerator does not work at all or it does not
chill sufficiently
• Check that the power plug is properly connected.
• Is the temperature control on the display panel set to
the correct temperature? Try setting it to a lower
temperature.
• Is the refrigerator in direct sunlight or located near a
heat source?
• Is the back of the refrigerator too close to the wall?
The food in the refrigerator is frozen
• Is the temperature control on the display panel set to
the correct temperature? Try setting it to a warmer
temperature.
• Is the temperature inthe room too low?
• Did you store the food with a high water content in
the coldest part of the refrigerator?
You hear unusual noise or sounds
• Check that the floor is leveled and stable.
• Is the back of the refrigerator too close to the wall?
• Was anything dropped behind or under the refrigera-
tor?
• A"ticking" sound may be heard from inside the
refrigerator, this is normal. This occurs because vari-
ous accessories are contracted or expanded.
The front corners and sides of the cabinet are hot;
condensation occurs.
• Anti-condensators are installed in the front corners of
the refrigeratorto prevent condensation.
• Condensation can occur when you leave the door
open for a long time.
Ice is not dispensed
• Did you stop the ice making function?
• Is there any ice in the ice storage unit?
• Is the water line connected and the shut-off valve
open?
• Is the freezer temperature too warm?
(Set the temperature lower)
• Did you wait for 12 hours after installation of the
water supply line before making ice?
You can hear water bubbling in the refrigerator
• The bubbling comes from the refrigerant circulating in
the refrigerator and is normal.
There is a bad smell in the refrigerator
• Wrap strong smelling food so that it is airtight.
Throw away any rotten food.
Frost forms on the walls of the freezer
• Is the air vent blocked?
• Allow sufficient space between the foods stored for
efficient air circulation.
• Is the door closed properly?
No water is supplied
• Is the water line connected and the shut-off valve
open?
• Is the water supply line crushed?
• Is the water tank frozen because the refrigerator tem-
perature is too low? Select a warmer setting on the
display panel.
29
SAMSUNG REFRIGERATOR
(18 Cubic Feet and Larger Capacity)
This SAMSUNG brand product,as supplied and distributed by Samsung ElectronicsAmerica, Inc. (SAMSUNG) and delivered new,
in the originalcartonto the originalconsumer purchaser,is warranted by SAMSUNG against manufacturingdefects in materials
and workmanshipfor a limited warranty period of:
One (1) Year Parts and Labor on Refrigerator
Five (5) Years Parts and Labor on Sealed RefrigerationSystem Only*
(*Compressor,evaporator,condenser,drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchasedand used in the United
States. To receive warranty service,the purchaser must contact SAMSUNG for problem determinationand service procedures.
Warrantyservice can only be performedby a SAMSUNGauthorized service center. The original dated bill of sale must be
presentedupon request as proofof purchase to SAMSUNG or SAMSUNG's authorized servicecenter.
SAMSUNG will repairor replaceany part found to be defective,at our option and at no charge as stipulatedherein,with new or
reconditionedparts during the limited warranty periodspecified above. All replaced parts and products becomethe propertyof
SAMSUNGand must be returned to SAMSUNG. Replacementparts and products assume the remainingoriginal warranty,or
ninety (90)days, whichever is longer.
In-homeservice will be provided duringthe warranty labor period subjectto availabilitywithin the contiguous United States. In-
home serviceis not available in all areas. To receive in-home service,the product must be unobstructedand accessible from floor
level to service personnel. If during in-home service repair cannot be completed,it may be necessary to remove, repair and return
the product. If in-home serviceis unavailable, SAMSUNG mayelect, at our option, to provide for transportationof our choice to
and froma SAMSUNG authorized servicecenter. Otherwise,transportationto and from the SAMSUNG authorizedservice center
is the responsibilityof the purchaser.
This limited warranty covers manufacturingdefects in materialsand workmanship encountered in normal, noncommercialuse of
this product,and shall not apply to the following, including, but not limitedto: damage which occurs in shipment;delivery and
installation;applicationsand uses for which this product was not intended;altered productor serialnumbers; cosmetic damage or
exteriorfinish;accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment,systems, utilities,
services,parts, supplies,accessories,applications,installations,repairs,external plumbing and leaks, external wiring, circuit
breakers,fuses or connectorsnot supplied and authorized by SAMSUNG, or which damage this product or resultin service
problems;incorrectelectrical line voltage,fluctuationsand surges;customer adjustmentsand failure to follow operating instructions,
cleaning,maintenanceand environmentalinstructionsthat are covered and prescribed inthe instructionbook; loss of food due to
spoilage;consumable items includingfiltersand light bulbs.
THEREARE NO EXPRESSWARRANTIES OTHER THAN THOSE LISTEDAND DESCRIBEDABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITEDTO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITYOR FITNESS FOR A PARTICULARPURPOSE,SHALLAPPLYAFTER THE EXPRESSWARRANTY
PERIODS STATEDABOVE, AND NOOTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR
CORPORATIONWITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALLNOT BE
LIABLE FOR LOSSOF REVENUE OR PROFITS,FAILURETO REALIZESAVINGS OR OTHER BENEFITS,OR ANY OTHER
SPECIAL,INCIDENTALOR CONSEQUENTIALDAMAGESCAUSED BY THE USE, MISUSE OR INABILITYTO USE THIS
PRODUCT,REGARDLESS OF THE LEGALTHEORY ON WHICH THE CLAIM IS BASED,AND EVEN IF SAMSUNG HAS BEEN
ADVISEDOF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KINDAGAINST SAMSUNG BE
GREATER INAMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSINGTHE
ALLEGED DAMAGE. WITHOUT LIMITINGTHE FOREGOING, PURCHASERASSUMESALL RISKAND LIABILITYFOR LOSS,
DAMAGE OR INJURYTO PURCHASERAND PURCHASER'S PROPERTYAND TO OTHERSAND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITYTO USETHIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY
BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINALPURCHASEROF THIS PRODUCT,IS NONTRANSFERABLEAND STATESYOUR EXCLUSIVEREMEDY.
Some states do not allow limitationson how longan impliedwarranty lasts, or the exclusion or limitationof incidental or
consequentialdamages, so the above limitationsor exclusions may not apply to you. This warranty gives you specific legal rights,
andyou may also have other rights, which vary from state to state.
Toobtain warranty service, please contact SAMSUNG at:
SAMSUNG CUSTOMER CARE CENTER
Samsung ElectronicsAmerica, Inc. 105Challenger Road Ridgefield Park NJ 07660-0511
1-800-SAMSUNG(1-800-726-7864)and www.SAMSUNG.com
061002
30
f
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ 07660-0511
1-800- SAM SUNG (1-800-726-7864)
www.samsung.com
