Owner's Manual
Manual del Propietario
®
ROOM AIR CONDITIONER
ACONDICIONADOR DE AIRE DE VENTANA
Model, Modelo 580.71122
Sears, Roebuck and Co., Hoffman Estates, IL 6017§ibla_R. _
www.sears.com
T"

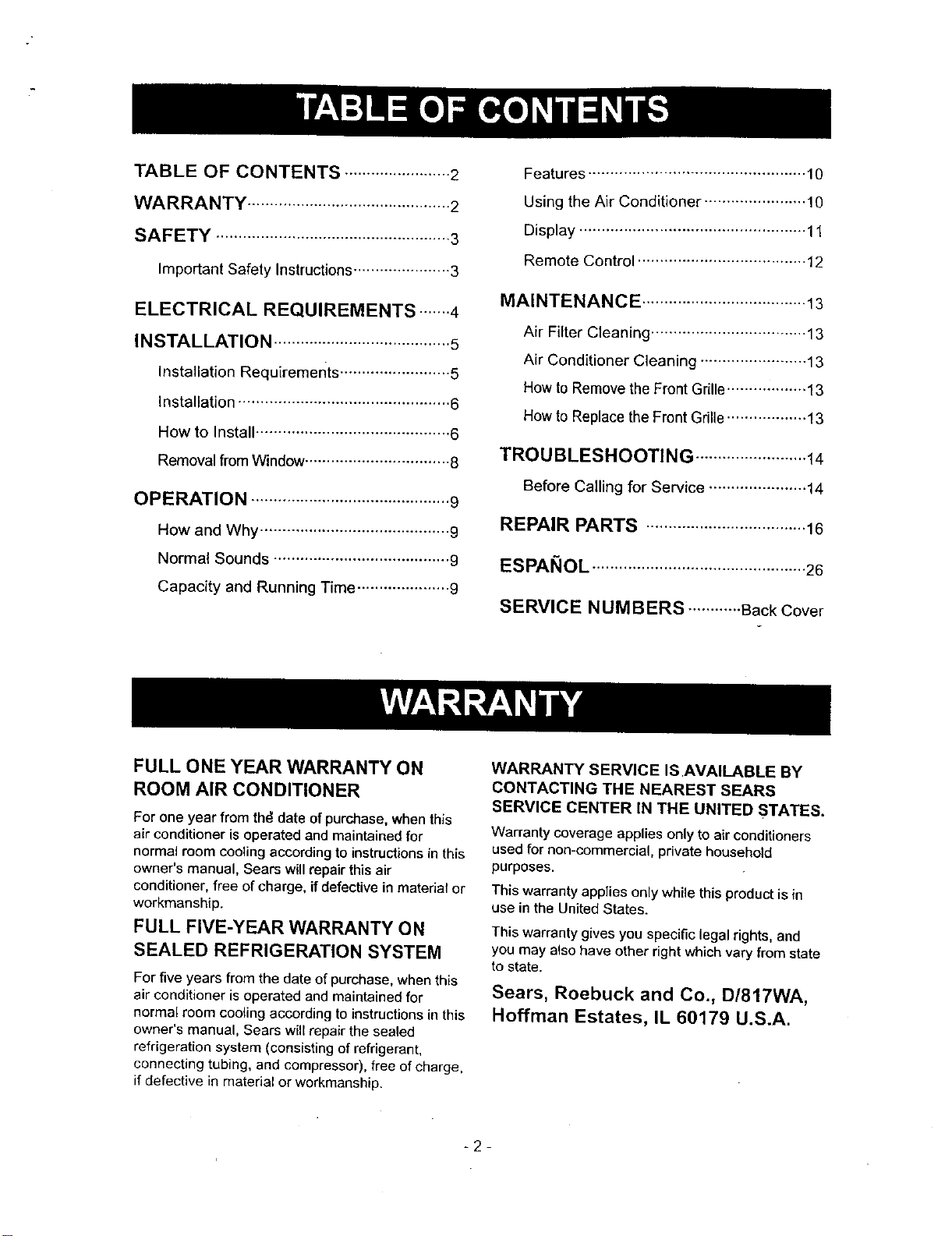

TABLE OF CONTENTS ........................ 2
WARRANTY .............................................. 2
SAFETY ..................................................... 3
Important Safety Instructions ...................... 3
ELECTRICAL REQUIREMENTS .......4
INSTALLATION ........................................ 5
Installation Requirements ......................... 5
Installation ................................................ 6
How to Install ............................................ 6
Removal from Window ................................. 8
OPERATION ............................................. 9
How and Why ........................................... 9
Normal Sounds ........................................ 9
Capacity and Running Time ..................... 9
Features ................................................. 10
Using the Air Conditioner ....................... 10
Display ................................................... 11
Remote Control ...................................... 12
MAINTENANCE ..................................... 13
Air Filter Cleaning ................................... 13
Air Conditioner Cleaning ........................ 13
How to Remove the Front Grille .................. 13
How to Replace the Front Grille .................. 13
TROUBLESHOOTING ......................... 14
Before Calling for Service ...................... 14
REPAIR PARTS .................................... 16
ESPANOL ................................................ 26
SERVICE NUMBERS ............Back Cover
FULL ONE YEAR WARRANTY ON
ROOM AIR CONDITIONER
For one year from th_ date of purchase, when this
air conditioner is operated and maintained for
normal room cooling according to instructions in this
owner's manual, Sears will repair this air
conditioner, free of charge, if defective in material or
workmanship.
FULL FIVE-YEAR WARRANTY ON
SEALED REFRIGERATION SYSTEM
For five years from the date of purchase, when this
air conditioner is operated and mainta{ned for
normal room cooling according to instructions in this
owner's manual, Sears will repair the sealed
refrigeration system (consisting of refrigerant,
connecting tubing, and compressor), free of charge,
if defective in material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY
CONTACTING THE NEAREST SEARS
SERVICE CENTER IN THE UNITED STATES.
Warrantycoverageappliesonlytoair conditioners
used for non-commercial, privatehousehold
purposes.
This warrantyapplies onlywhilethis productis in
use inthe UnitedStates.
This warranty gives you specific legal rights, and
you may also have other right which vary from state
to state.
Sears, Roebuck and Co., D/817WA,
Hoffman Estates, IL 60179 U.S.A.
-2-

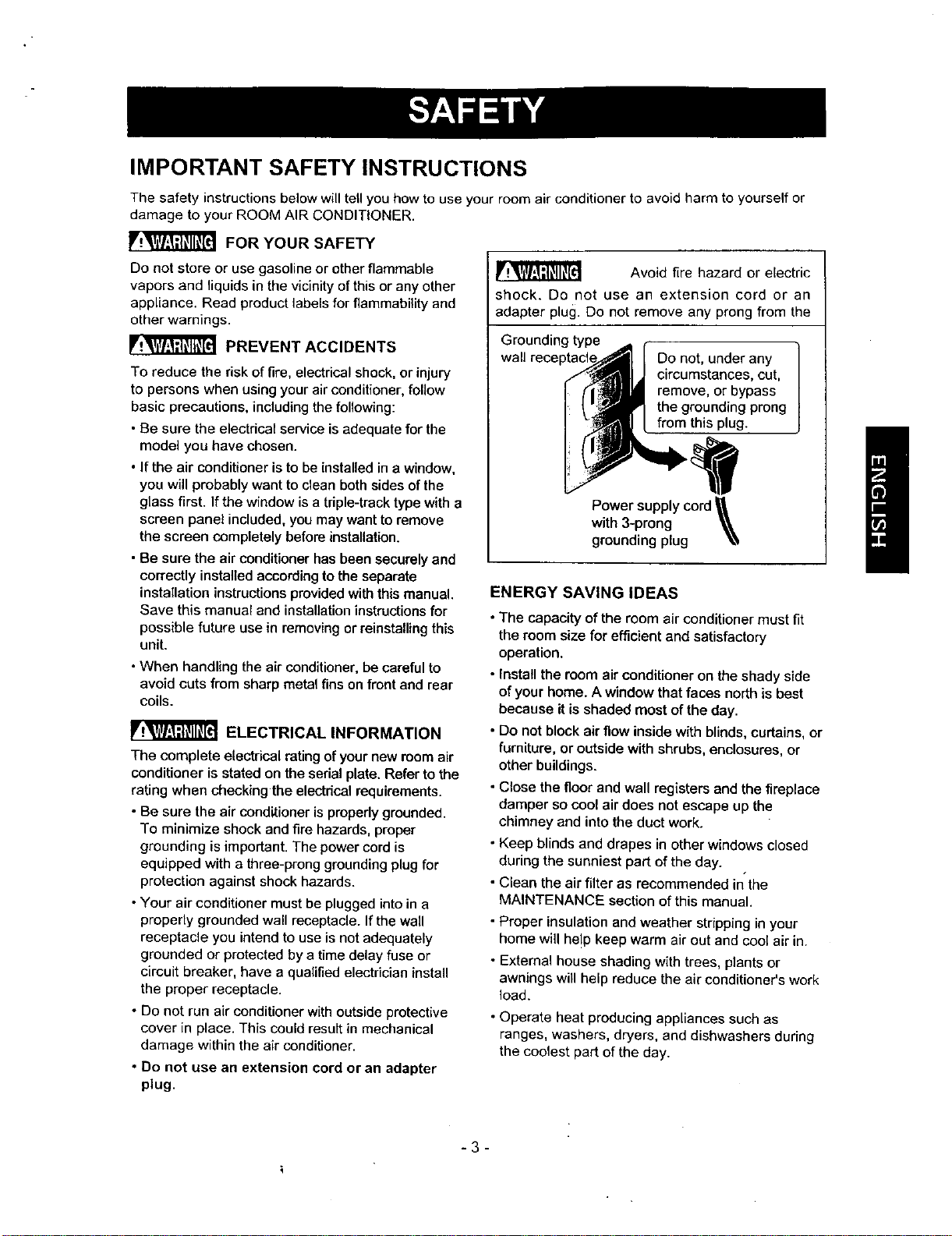

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself or
damage to your ROOM AIR CONDITIONER.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. Read product labels for flammability and
other warnings.
_ PREVENT ACCIDENTS
To reduce the risk of tire, electrical shock, or injury
to persons when using your air conditioner, follow
basic precautions, including the following:
• Be sure the electrical service is adequate for the
model you have chosen.
• If the air conditioner is to be installed in a window,
you will probably want to clean both sides of the
glass first. If the window is a triple-track type with a
screen panel included, you may want to remove
the screen completely before installation.
• Be sure the air conditioner has been securely and
correctly installed according to the separate
installation instructions provided with this manual.
Save this manual and installation instructions for
possible future use in removing or reinstalling this
unit.
• When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and rear
coils.
ELECTRICAL INFORMATION
The complete electrical rating of your new room air
conditioner is stated on the serial plate. Refer to the
rating when checking the electdcal requirements.
• Be sure the air conditioner is properly grounded.
To minimize shock and fire hazards, proper
grounding is important. The power cord is
equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be plugged into in a
properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately
grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install
the proper receptacle.
• Do not run air conditioner with outside protective
cover in place. This could result in mechanical
damage within the air conditioner.
• Do not use an extension cord or an adapter
plug.
Avoid fire hazard or electric
shock. Do not use an extension cord or an
adapter plug. Do not remove any prong from the
Grounding type
wall
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong
from this plug.
Power supply cord
with 3-prong _i_l,
grounding plug \_i
ENERGY SAVING IDEAS
• The capacity of the room air conditioner must tit
the room size for efficient and satisfactory
operation.
• Install the room air conditioner on the shady side
of your home. A window that faces north is best
because it is shaded most of the day.
• Do not block air flow inside with blinds, curtains, or
furniture, or outside with shrubs, enclosures, or
other buildings.
• Close the floor and wall registers and the fireplace
damper so cool air does not escape up the
chimney and into the duct work.
• Keep blinds and drapes in other windows closed
during the sunniest part of the day.
• Clean the air filter as recommended in'the
MAINTENANCE section of this manual.
• Proper insulation and weather stripping in your
home will he!p keep warm air out and cool air in.
• External house shading with trees, plants or
awnings will help reduce the air conditioner's work
load.
• Operate heat producing appliances such as
ranges, washers, dryers, and dishwashers during
the coolest part of the day.
I
-3-

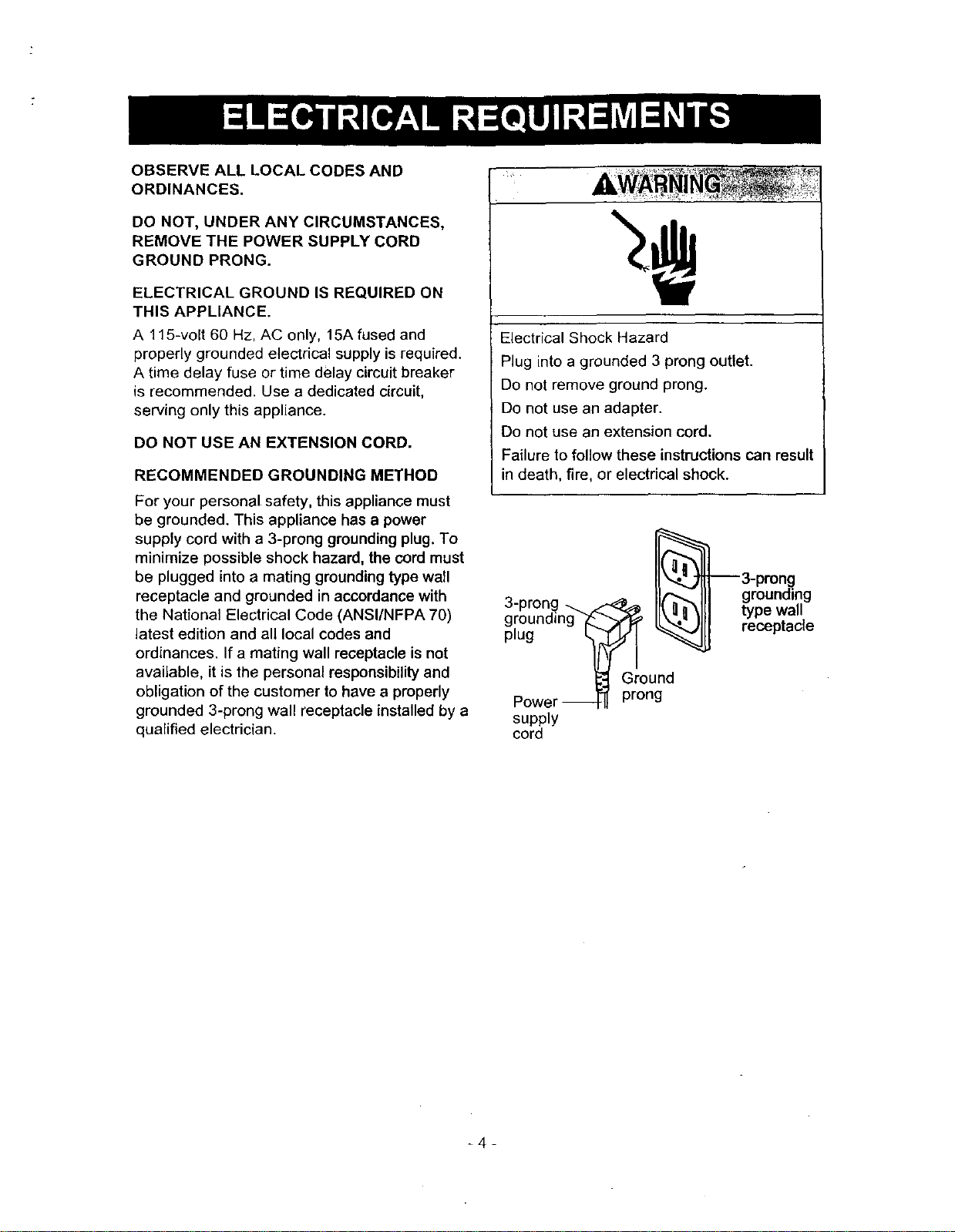

OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVETHEPOWERSUPPLYCORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
A 115-volt 60 Hz, AC only, 15A fused and
properly grounded electrical supply is required.
A time delay fuse or time delay circuit breaker
is recommended. Use a dedicated circuit,
serving only this appliance.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must
be grounded. This appliance has a power
supply cord with a 3-prong grounding plug, To
minimize possible shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance with
the National Electrical Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances. If a mating wall receptacle is not
available, it is the personal responsibility and
obligation of the customer to have a properly
grounded 3-prong wall receptacle installed by a
qualified electrician.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result
in death, fire, or electrical shock.
[_3-prong
^ _ liP...- III grounding
J-pron,g _.<_ II{ I] 1[I type wall
grounalng _plug _1_-_ receptacle
Ground
Power _ prong
supply
cord
-4-

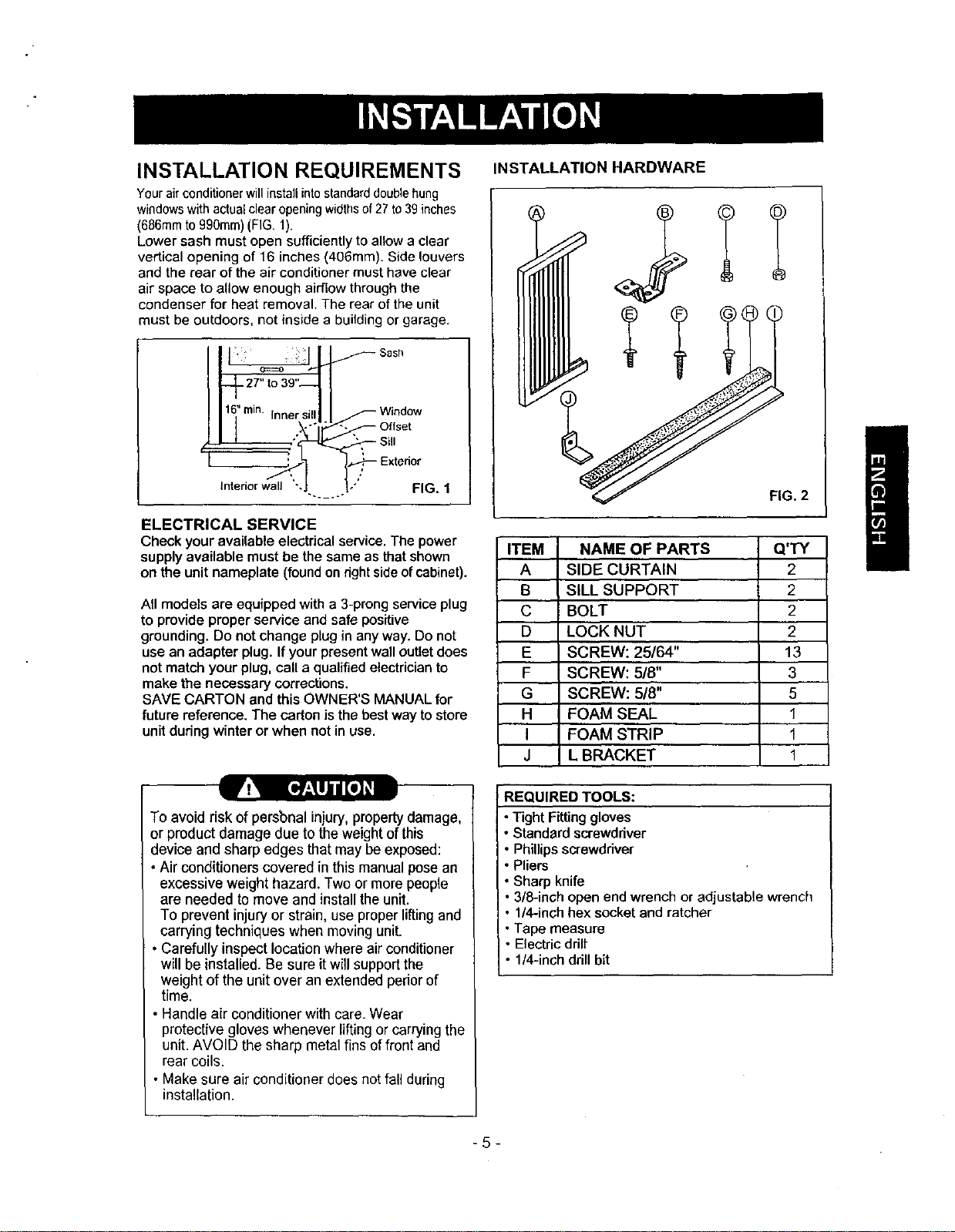

INSTALLATION REQUIREMENTS
Yourair conditionerwill installintostandarddoublehung
windows with actualclear opening widthsof 27 to39 inches
(6B6mm to 990mrn)(FIG, 1).
Lower sash must open sufficiently to allow a clear
vertical opening of 16 inches (406mm). Side louvers
and the rear of the air conditioner must have clear
air space to allow enough airflow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
s0sh
. 27" to 39"
/ N: :: t:; _ei_ oWflf_de_TM
Interior wall "._. 1." FIG. 1
ELECTRICAL SERVICE
Check your available electrical service. The power
supply available must be the same as that shown
on the unit nameplate (found on rightside ofcabinet).
All models are equipped with a 3-prong service plug
to provide proper service and safe positive
grounding. Do not change plug in any way. Do not
use an adapter plug. If your present wall outlet does
not match your plug. call a qualified electrician to
make the necessary corrections.
SAVE CARTON and this OWNER'S MANUAL for
future reference. The carton is the best way to store
unit during winter or when not in use.
To avoid risk of persbnal injury, property damage,
or product damage due to the weightof this
device and sharpedges thatmay beexposed:
Air conditionerscoveredinthismanualposean
excessiveweighthazard. Two ormorepeople
are neededto move and installtheunit.
To preventinjuryor strain, use properliftingand
carryingtechniqueswhen movingunit.
• Carefully inspectlocationwhereair conditioner
willbeinstalled.Be sure itwillsupport the
weightof the unitover an extendedperiorof
time.
• Handleair conditionerwithcare. Wear
protective gloves whenever lifting or carrying the
unit, AVOID the sharp metal fins of front and
rear coils,
• Make sure air conditioner does not fall during
installation,
INSTALLATION HARDWARE
FIG. 2
ITEM NAME OF PARTS Q'TY
A SIDE CURTAIN 2
B SILL SUPPORT 2
C BOLT 2
D LOCK NUT 2
E SCREW: 25/64" 13
F SCREW: 5/6" 3
G SCREW: 5/6" 5
H FOAM SEAL 1
I FOAM STRIP 1
J L BRACKET 1
i REQUIRED TOOLS:
• Tight Fitting gloves
• Standard screwdriver
• Phillips screwddver
• Pliers
• Sharp knife
• 3/8-inch open end wrench or adjustable wrench
• 1/4-inch hex socket and ratcher
• Tape measure
Electric ddlt
1/4-inch drill bit
/
-5-
INSTALLATION
Pick a location which will allow you to blow the cold
air into the area you want. Windows used for
installation must be strong enough to support the
weight of the air conditioner. Good installation with
special attention to the proper position of the unit
will lessen the chance that service will be needed.
When cooling more than one room, installation
location is very important since cold air will not turn
corners. To cool your rooms, cold air must be blown
from the air conditioner in a straight path.
HOW TO INSTALL

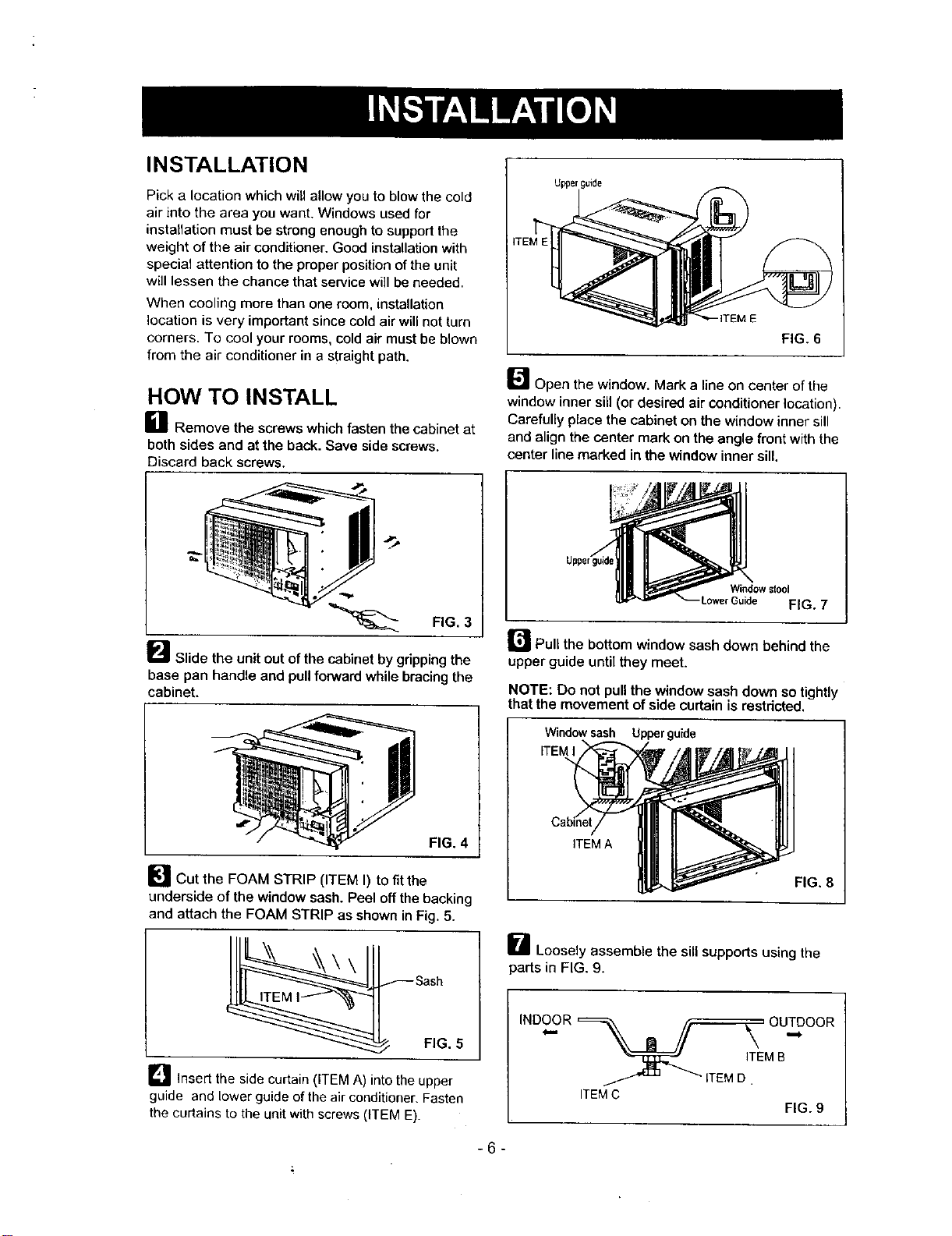

_1 Remove the screws which fasten the cabinet at
both sides and at the back. Save side screws.
Discard back screws.
Upper_uide
E
FIG. 6
_-*'_ Open the window. Mark a line on center of the
window inner sill (or desired air conditioner location).
Carefully place the cabinet on the window inner sill
and align the canter mark on the angle front with the
center line marked in the window inner sill.
FIG. 3
_'_ Slide the unit out of the cabinet by gripping the
base pan handle and pull forward while bracing the
cabinet.
FIG. 4
_-"_ Cut the FOAM STRIP (ITEM I) to fit the
underside of the window sash. Peel off the backing
and attach the FOAM STRIP as shown in Fig. 5.
FIG. 5
L_ Insert the side curtain (ITEM A) into the upper
guide and lower guide of the air conditioner. Fasten
the curtains to the unit with screws (ITEM E).
Windowstool
LowerGuide FIG. 7
r_Pull the bottom window sash down behind the
upper guide until they meet.
NOTE: Do not pull the window sash down so tightly
that the movement of side curtain is restdcted.
Windowsash Upperguide
ITEMI
ITEM A
FIG. 8
_'-_ Loosely assemble the sill supports using the
parts in FIG. 9.
INDOOR _ _ OUTDOOR
-
MB
_ ITEM D.
ITEMC
FIG. 9
-6-

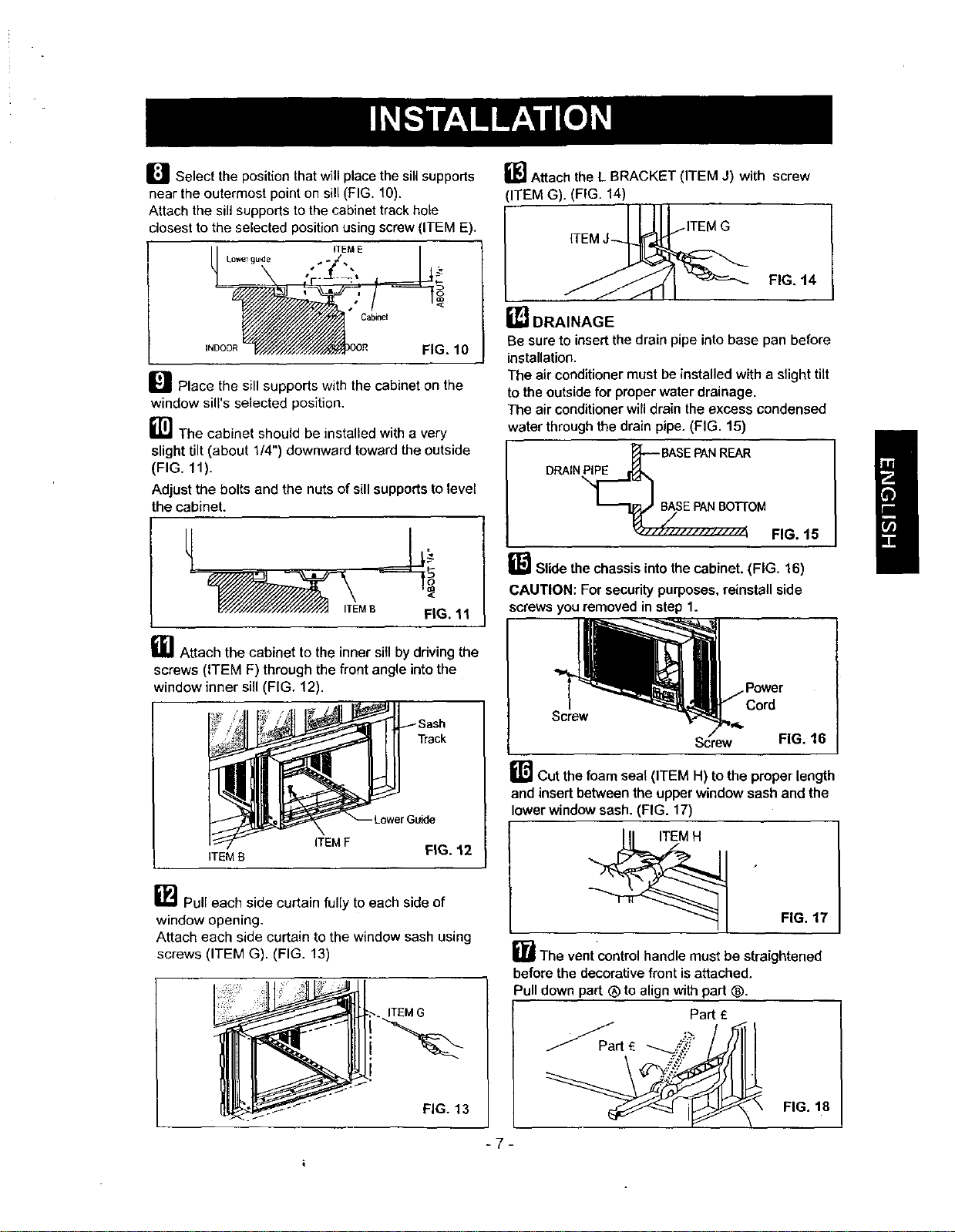

I_l Select the position that will place the sill supports
near the outermost point on sill (FIG. 10).
Attach the sill supports to the cabinet track hole
closest to the selected position using screw (ITEM E).
Cabinet
I_l Place the sill supports with the cabinet on the
window sill's selected position.
t'[i] The cabinet should be installed with a very
slight tilt (about 1/4") downward toward the outside
(FIG. 11).
Adjust the bolts and the nuts of sill supports to level
the cabinet.
M8
FIG. 11
_1 Attach the cabinet to the inner sill by driving the
screws (ITEM F) through the front angle into the
window inner sill (FIG. 12).
Track
ITEM B
ITEM F
FIG. 12
'[_JAttach the L BRACKET (ITEM J) with screw
ITEM G). (FIG. 14)
_ITEM G
FIG. 14
i_l DRAINAGE
Be sure to insert the drain pipe into base pan before
installation.
The air conditioner must be installed with a slight tilt
to the outside for proper water drainage.
The air conditioner will drain the excess condensed
water through the drain pipe. (FIG. 15)
]_J.,---BASEPANREAR
DRAIN_
FIG. 15
B Slide the chassis into the cabinet. (FIG. 16)
CAUTION: For security purposes, reinstall side
screws you removed in step 1.
Sc_ew __Screw _'c°rd FIG 16
B Cut the foam seal (ITEM H) to the proper length
and insert between the upper window sash and the
lower window sash. (FIG. 17)
I_ Pull each side curtain fully to each side of
window opening.
Attach each side curtain to the window sash using
screws (ITEM G). (FIG. 13)
before the decorative front is attached.
FIG. 17
li_ The ventcontrolhandle must be straightened
FIG. 18
/
-7-

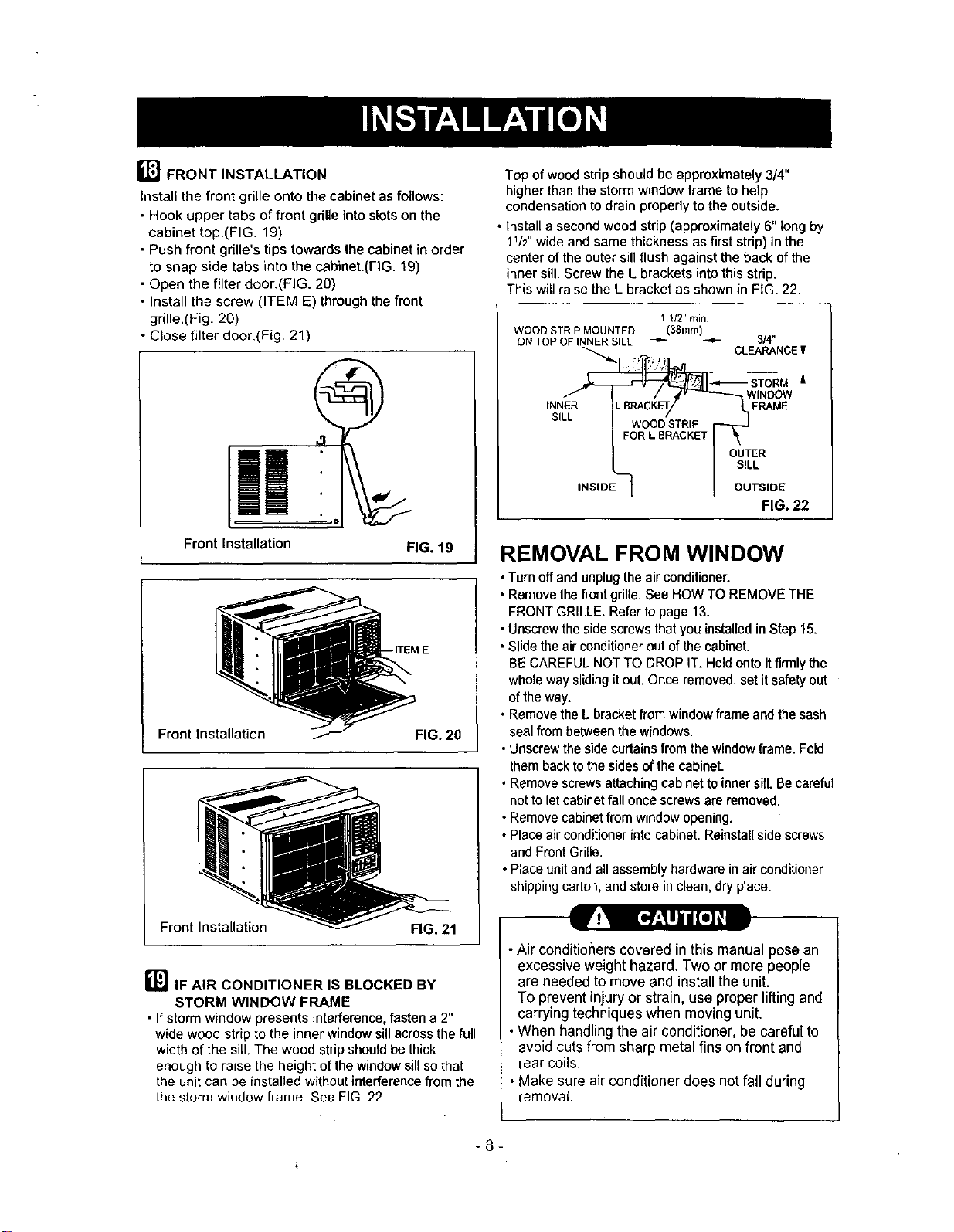

_1_ FRONT INSTALLATION
Install the front grille onto the cabinet as follows:
• Hook upper tabs of front gdUe into slots on the
cabinet top.(FIG. 19)
• Push front grille's tips towards the cabinet in order
to snap side tabs into the cabinet.(FtG. 19)
• Open the filter door.(FIG. 20)
• Install the screw (ITEM E) through the front
grille.(Fig. 20)
• Close filter door.(Fig. 21)
Front Installation
FIG. 19
Front Installation FIG. 20
Front Installation FIG. 21
_]IF AtR CONDITIONER IS BLOCKED BY
STORM WINDOW FRAME
• If storm window presents interference, fasten a 2"
wide wood strip to the inner windowsill acrossthe full
width of the sill. The wood strip shouldbe thick
enough to raise the height ofthe windowsill so that
the unit can be installed withoutinterference from the
the storm window frame. See FIG. 22.
Top of wood strip should be approximately 3/4"
higher than the storm window frame to help
condensation to drain properly to the outside.
• Install a second wood strip (approximately 6" long by
1V2" wide and same thickness as first strip) in the
center of the outer sill flush against the back of the
inner sill. Screw the L brackets into this stdp.
This will raise the L bracket as shown in FIG. 22.
1 1/2" rain.
WOOD STRIP MOUNTED (38ram)
ON TOP OF INNER SILL -1"- -'1- 3/4"
....... CLEAP,AN_CE
FIG. 22
REMOVAL FROM WINDOW
• Turnoff and unplugthe air conditioner.
• Remove the front grille.See HOW TO REMOVE THE
FRONT GRILLE. Refer topage 13.
• Unscrew the side screws that you installedinStep 15.
• Slide the air conditioner out of the cabinet.
BE CAREFUL NOT TO DROP IT. Hold onto itfirmly the
whole way sliding it out. Once removed, set it safety out
of the way.
• Remove the L bracket from window frame and the sash
seal from between the windows.
• Unscrew the side curtains from the window frame. Fold
them back to the sides of the cabinet.
• Remove screws attaching cabinet to inner sill. Be careful
not to let cabinet fall once screws are removed.
• Remove cabinet from window opening.
• Place air conditioner into cabinet. Reinstall side screws
and Front Grille.
• Place unit and all assembly hardware in air conditioner
shipping carton, and store in clean, dry place.
• Air conditioners covered in this manual pose an
excessive weight hazard. Two or more people
are needed to move and install the unit.
To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
• When handling the air conditioner, be careful to
avoid cuts from sharp metal fins on front and
rear coils.
•Make sure air conditioner does not fall during
removal.
-8-
HOW AND WHY
Your room air conditioner provides the following
functions to make hot weather living more
comfortable:
• Cools and circulates room air.
• Lowers humidity by removing excess moisture.
• Filters out summertime dust, dirt, and some
airborne impurities.
The air conditioner performs these functions by
drawing room air through a filter which traps dust
and dirt particles. The air then passes over a
cooling coil which refrigerates the air and removes
excess moisture. The same air is then returned to
the room- cooler, drier, and cleaner. Moisture
removed from the room air is carried to the outside
and evaporated.
Your air conditioner is designed to be easy to
operate end to provide plenty of cooling power.

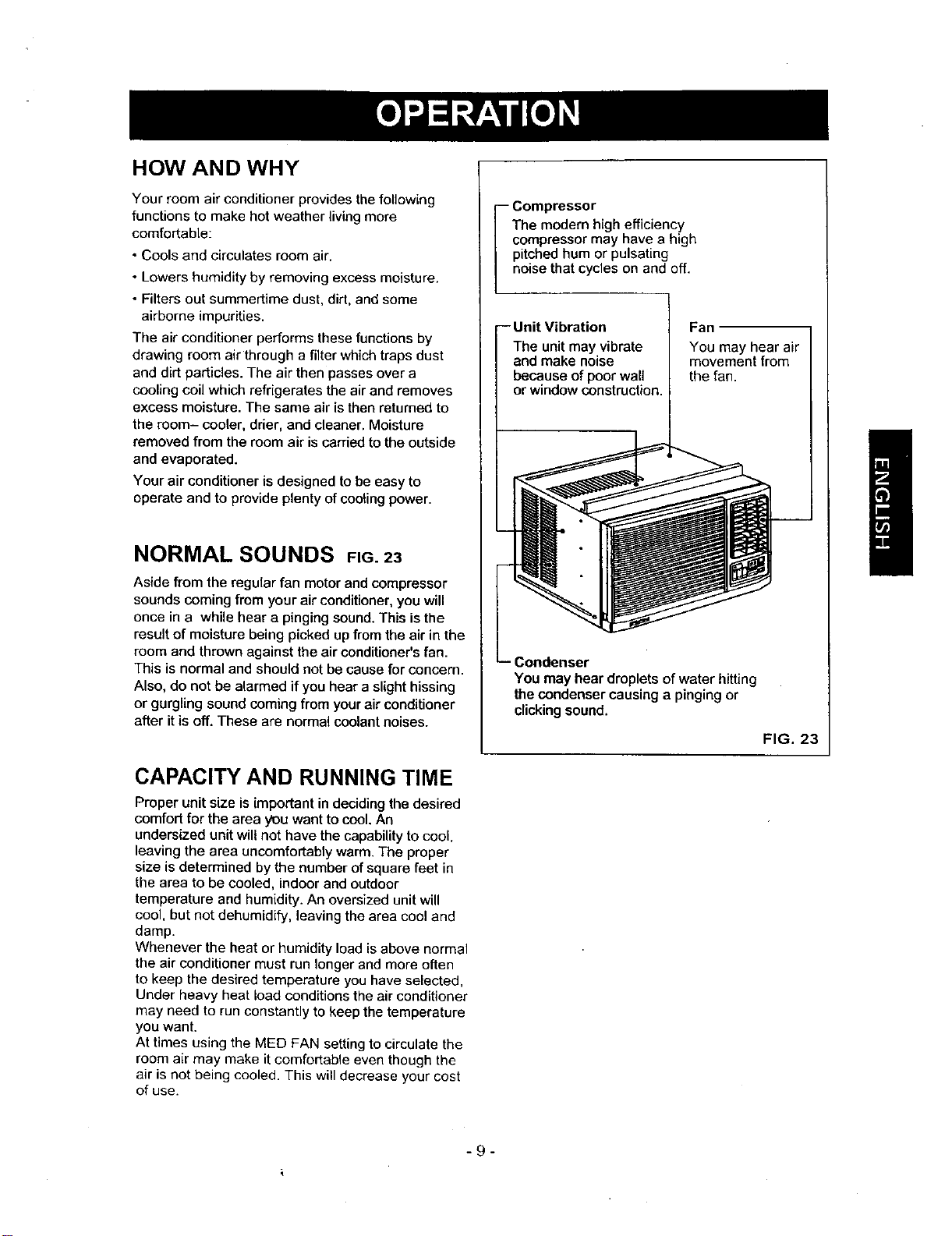

NORMAL SOUNDS FIG.23
Aside from the regular fan motor and compressor
sounds coming from your air conditioner, you will
once in a while hear a pinging sound. This is the
result of moisture being picked up from the air in the
room and thrown against the air conditioner's fan.
This is normal and should not be cause for concern.
Also, do not be alarmed if you hear a slight hissing
or gurgling sound coming from your air conditioner
after it is off. These are normal coolant noises.
CAPACITY AND RUNNING TIME
Proper unit size is important in deciding the desired
comfort for the area you want to cool. An
undersized unit wilt not have the capability to cool,
leaving the area uncomfortably warm. The proper
size is determined by the number of square feet in
the area to be cooled, indoor and outdoor
temperature and humidity. An oversized unit will
cool, but not dehumidify, leaving the area cool and
damp.
Whenever the heat or humidity load is above normal
the air conditioner must run longer and more often
to keep the desired temperature you have selected,
Under heavy heat load conditions the air conditioner
may need to run constantly to keep the temperature
you want.
At times using the MED FAN setting to circulate the
room air may make it comfortable even though the
air is not being cooled. This will decrease your cost
of use.
i ompressor
The modern high efficiency
compressor may have a high
pitched hum or pulsating
noise that cycles on and off.
-- Unit Vibration
The unit may vibrate
and make noise
because of poor wall
or window construction.
Fan
You may hear air
movement from
the fan.
You may hear droplets of water hitting
the condensercausinga pinging or
clickingsound.
FIG. 23
/
-9-

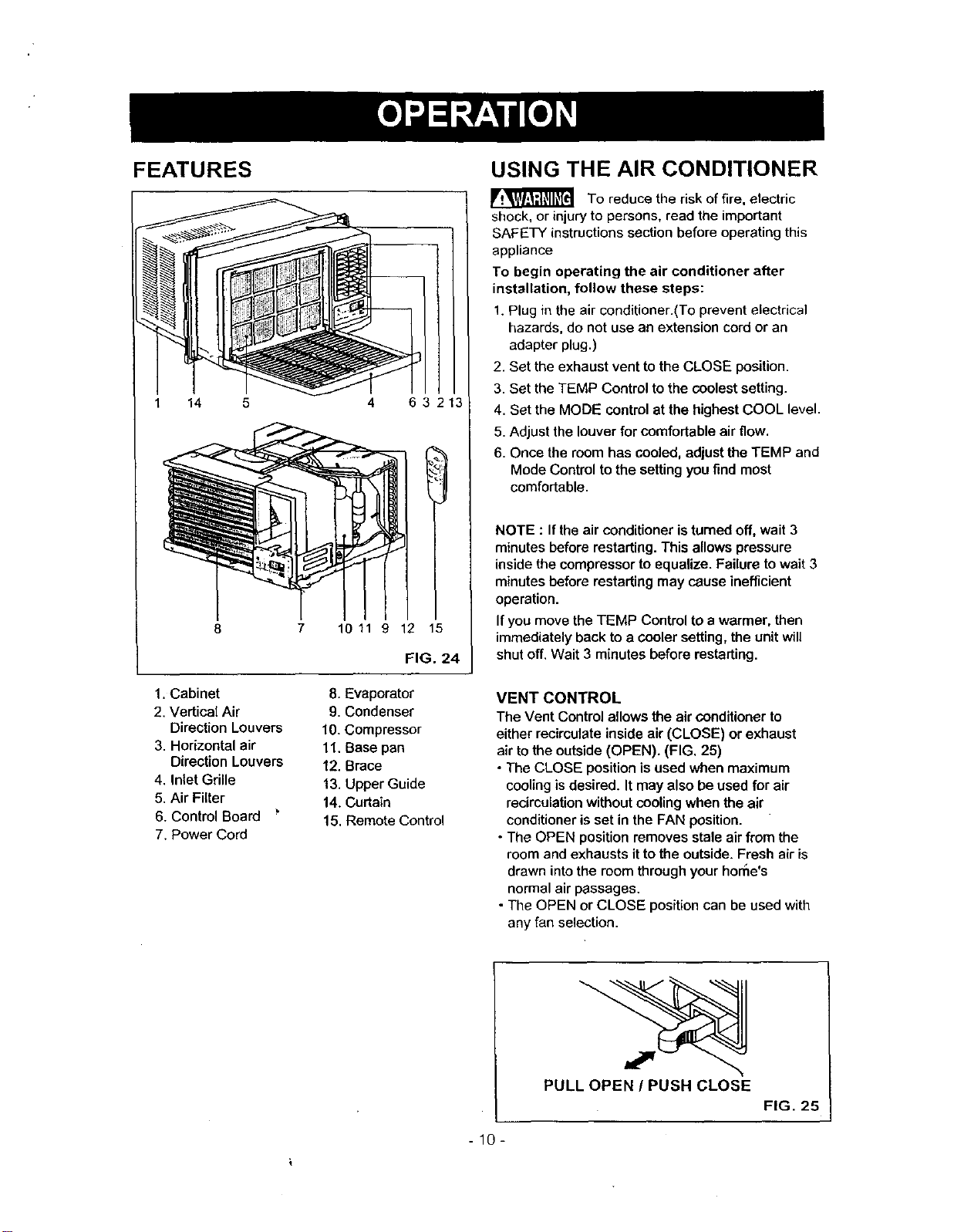

FEATURES
14 5
4 63
i
7 10 11 9 12 15
13
1. Cabinet
2. Vertical Air
Direction Louvers
3. Horizontalair
Direction Louvers
4. Inlet Grille
5. Air Filter
6. Control Board
7. Power Cord
FIG. 24
8. Evaporator
9. Condenser
10. Compressor
11. Base pan
12. Brace
13. Upper Guide
14. Curtain
15. Remote Control
USING THE AIR CONDITIONER
To reduce the risk of fire, electric
shock, or injury to persons, read the important
SAFETY instructions section before operating this
appliance
To begin operating the air conditioner after
installation, follow these steps:
1. Plug in the air conditioner.(To prevent electrical
hazards, do not use an extension cord or an
adapter plug.)
2. Set the exhaust vent to the CLOSE position.
3. Set the TEMP Control to the coolest setting.
4. Set the MODE control at the highest COOL level.
5. Adjust the louver for comfortable air flow.
6. Once the room has cooled, adjust the TEMP and
Mode Control to the setting you find most
comfortable.
NOTE : If the air conditioner isturned off, wait 3
minutes before restarting. This allows pressure
inside the compressor to equalize. Failure to wait 3
minutes before restarting may cause inefficient
operation.
If you move the TEMP Control to a warmer, then
immediately back to a cooler setting, the unit will
shut off. Wait 3 minutes before restarting.
VENT CONTROL
The Vent Control allows the air conditioner to
either recirculate inside air (CLOSE) or exhaust
air to the outside (OPEN). (FIG. 25)
• The CLOSE position is used when maximum
cooling is desired. It may also be used for air
recirculation without cooling when the air
conditioner is set in the FAN position.
- The OPEN position removes stale air from the
room and exhausts it to the outside. Fresh air is
drawn into the room through your home's
normal air passages.
• The OPEN or CLOSE position can be used with
any fan selection.
PULL OPEN / PUSH CLOSE
FIG. 25
-10-

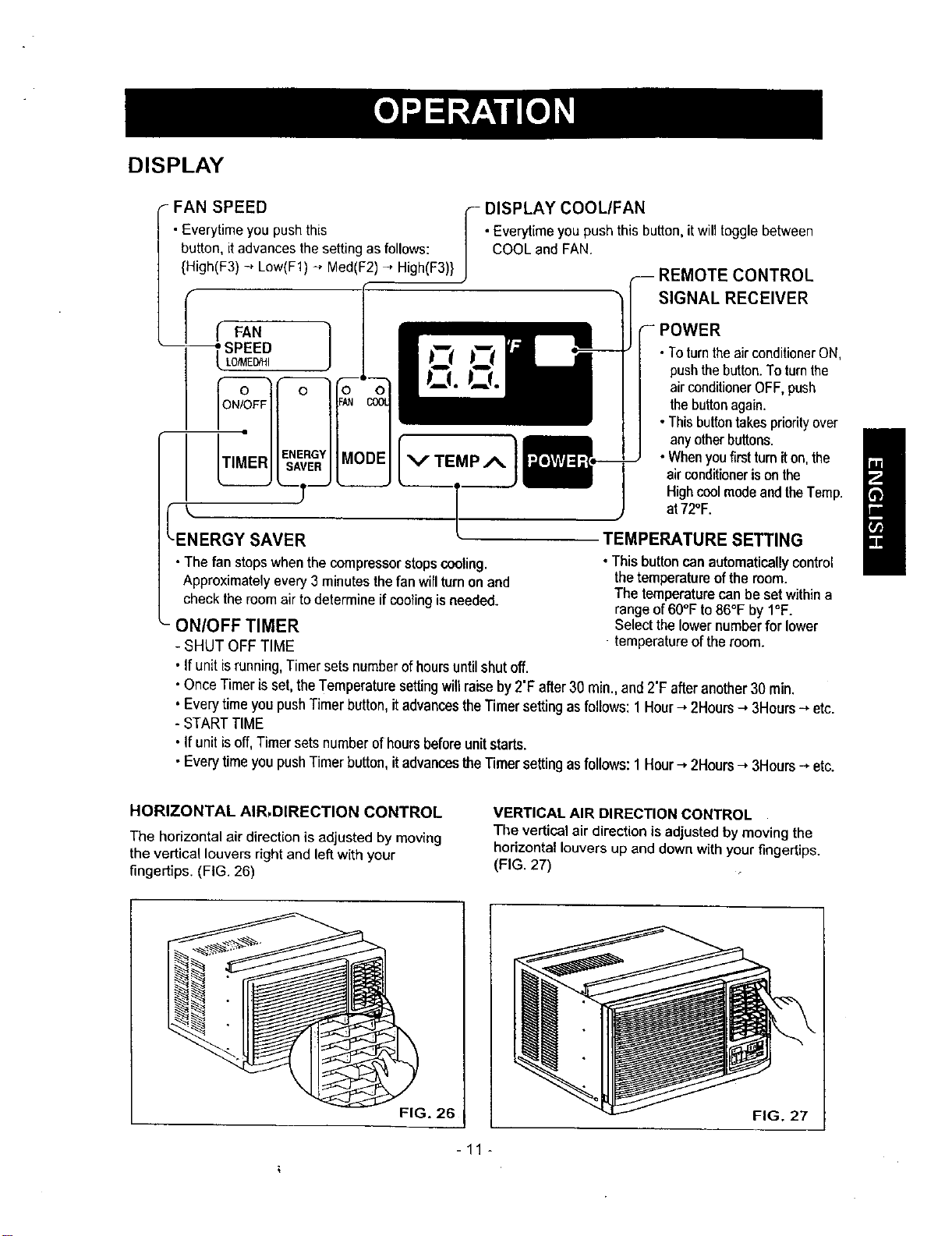

DISPLAY
FAN SPEED
• Everytimeyou pushthis
button, itadvancesthesetting asfollows:
{High(F3) _-,Low(F1) -, Med(F2)-, High(F3)}
I (FAN
"_, SPEED ]
[ LO/MED/HI
:IGY
DISPLAY COOL/FAN
• Everytimeyou push this button,itwifl togglebetween
COOLand FAN.
OTE CONTROL
[E_NERGY SAVER
SIGNAL RECEIVER
POWER
• Toturntheair conditionerON,
pushthebutton.Toturnthe
air conditionerOFF,push
thebuttonagain.
•Thisbuttontakespriorityover
anyotherbuttons.
•Whenyoufirstturniton,the
air conditionerisonthe
HighcoolmodeandtheTemp.
at72°F.
TEMPERATURE SETTING
• The fanstopswhenthe compressorstopscooling.
Approximatelyevery 3 minutesthe fanwillturn onand
check the roomairto determine if coolingis needed.
ON/OFF TIMER
- SHUT OFF TIME
If unit isrunning,Timer setsnumberof hoursuntilshut off.
•Thisbuttoncanautomaticallycontrol
thetemperatureoftheroom.
The temperaturecanbe set withina
range of6O°Fto86°F byI°F.
Selectthelowernumberfor lower
temperatureoftheroom.
OnceTimeris set,theTemperaturesettingwillraiseby2'F after 30 rain.,and 2'F afteranother30 min.
Everytime youpushTimerbutton,it advancestheTimer settingasfollows: 1 Hour_ 2Hours--,3Hours-* etc.
STARTTIME
If unit isoff,Timer setsnumberof hoursbeforeunitstarts.
Everytime youpushTimerbutton,it advancestheTimer settingasfollows: 1 Hour--,2Hours--,3Hours-* etc.
HORIZONTAL AIR, DIRECTION CONTROL
The horizontal air direction is adjusted by moving
the vertical louvers right and left with your
fingertips. (FIG. 26)
VERTICAL AIR DIRECTION CONTROL
The vertical air direction is adjusted by moving the
horizontal louvers up and down with your fingertips.
(FIG. 27)
FIG. 26
-11 -
FIG. 27

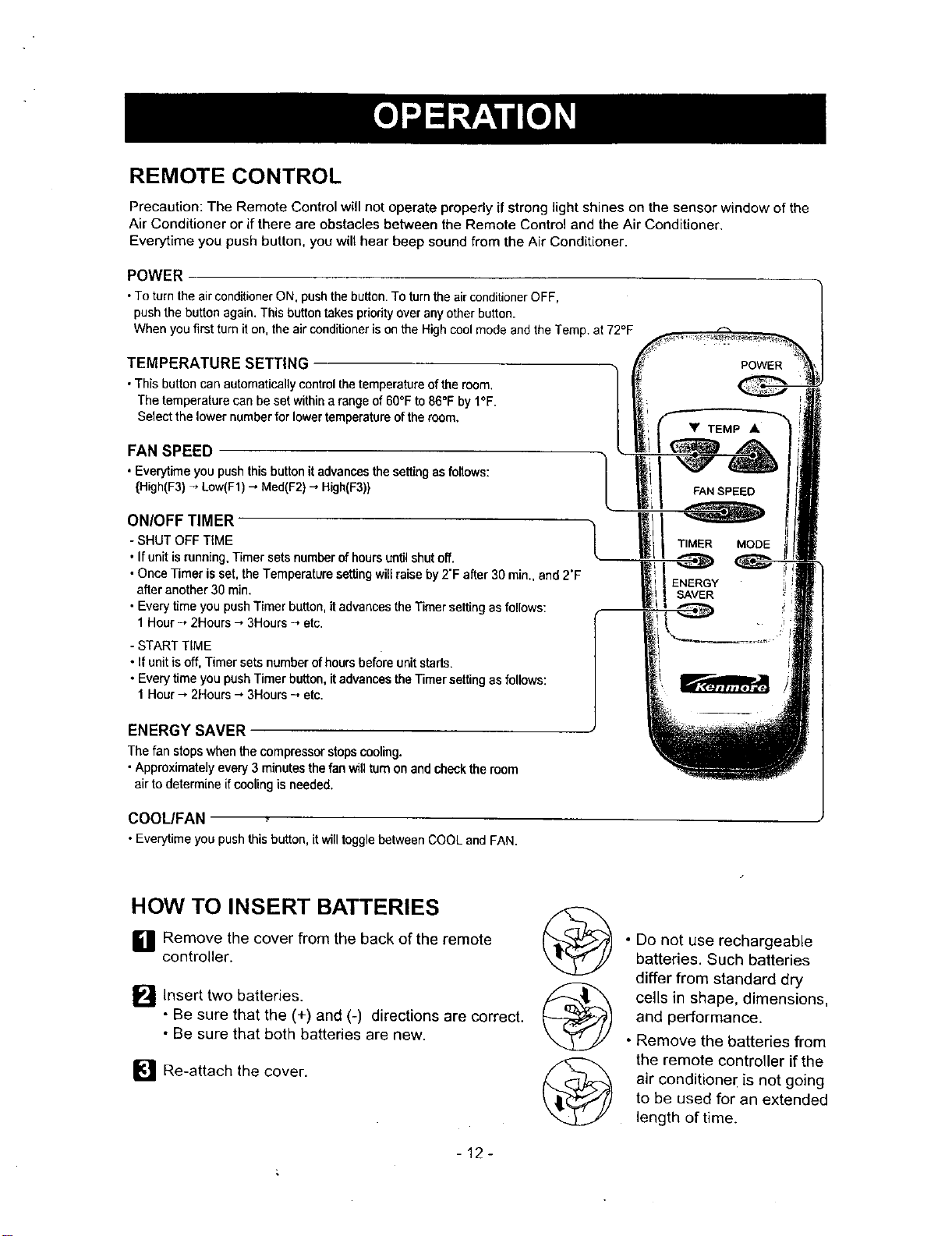

REMOTE CONTROL
Precaution: The Remote Control will not operate properly if strong light shines on the sensor window of the
Air Conditioner or if there are obstacles between the Remote Control and the Air Conditioner.
Everytime you push button, you will hear beep sound from the Air Conditioner.
POWER
• To turn the air conditioner ON, push the button. TO turn the air conditioner OFF,
push the button again. This button takes priority over any other button.
When you first turn it on, the air conditioner is on the High cool mode and the Temp. at 72°F
TEMPERATURE SETTING
• Thisbutton can automaticallycontrol thetemperatureofthe room.
The temperature can be set withinarangeof 60°F to86°F by I°F.
Select the lower number forlower temperatureof the room.
FAN SPEED
• Everytimeyoupushthisbuttonitadvancesthe settingasfollows:
{High(F3)_ Low(F1)_ Med(F2)-, High(F3)}
ON/OFF TIMER
- SHUT OFF TIME
• If unitisrunning,Timersets numberof hoursuntilshut off.
• Once Timer is set, the Temperaturesettingwill raiseby 2"F after 30 rain.,and 2'F
after another 30 min.
• Everytime you pushTimer button,it advancesthe Timersettingas follows:
1Hour-, 2Hours _ 3Hours _ etc.
- START TIME
• If unit is off,Timer sets numberof hours beforeunit starts.
• Everytime you pushTimer button,it advances the Timersettingas follows:
t Hour _-2Hours _-3Hours _ etc.
ENERGY SAVER
The fan stops when thecompressor stopscooling.
•Approximately every 3 minutesthe fan willturn on andcheckthe room
air to determine if coolingis needed.
TIMER MODE
ENERGY
SAVER
COOL/FAN
• Everytimeyou pushthis button, it willtoggle between COOLand FAN.
HOW TO INSERT BATTERIES
[] Remove the cover from the back of the remote
controller.
B Insert two batteries.
• Be sure that the (+) and (-) directions are correct.
• Be sure that both batteries are new.
_1 Re-attach the cover.
-12-
®
@
• Do not use rechargeable
batteries. Such batteries
differ from standard dry
cells in shape, dimensions,
and performance.
• Remove the batteries from
the remote controller if the
air conditione[ is not going
to be used for an extended
length of time.

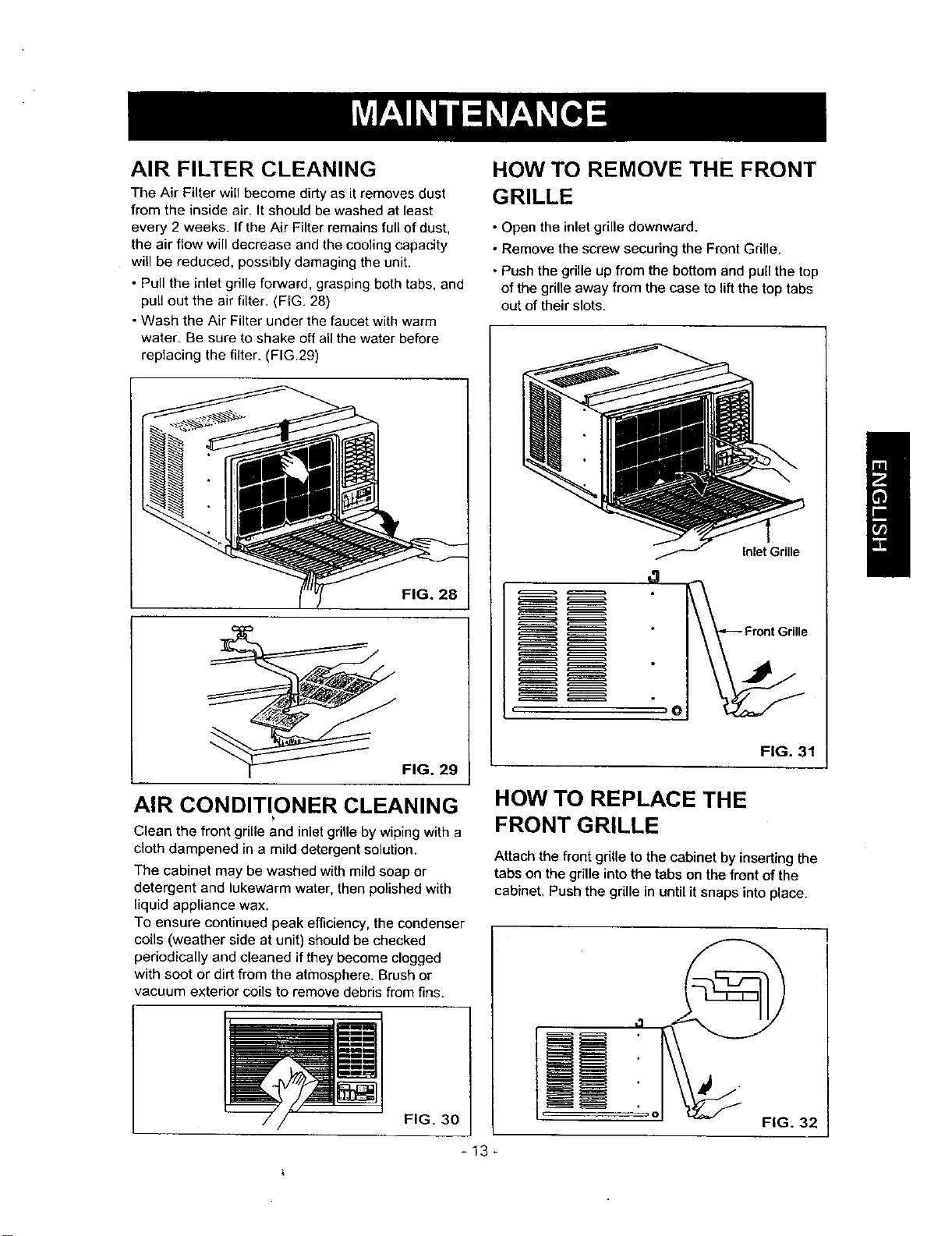

AIR FILTER CLEANING
The Air Filter will become dirty as it removes dust
from the inside air. It should be washed at least
every 2 weeks. If the Air Filter remains full of dust,
the air flow will decrease and the cooling capacity
will be reduced, possibly damaging the unit.
• Pull the inlet grille forward, grasping both tabs, and
pull out the air filter. (FIG. 28)
• Wash the Air Filter under the faucet with warm
water. Be sure to shake off all the water before
replacing the filter. (FIG.29)
FIG. 28
FIG. 29
AIR CONDITIONER CLEANING
Clean the front grille and inletgrille by wiping with a
cloth dampened in a mild detergent solution.
The cabinet may be washed with mild soap or
detergent and lukewarm water, then polished with
liquid appliance wax.
To ensure continued peak efficiency, the condenser
coils (weather side at unit) should be checked
periodically and cleaned if they become clogged
with soot or dirt from the atmosphere. Brush or
vacuum exterior coils to remove debris from fins.
HOW TO REMOVE THE FRONT
GRILLE
• Open the inlet grille downward.
• Remove the screw securing the Front Grille.
• Push the grille up from the bottom and pull the top
of the grille away from the case to lift the top tabs
out of their slots.
, O
Inlet Grille
FrontGrille
FIG. 31
HOW TO REPLACE THE
FRONT GRILLE
Attach the front gdlle to the cabinet by inserting the
tabs on the grille into the tabs on the front of the
cabinet. Push the grille in until it snaps into place.

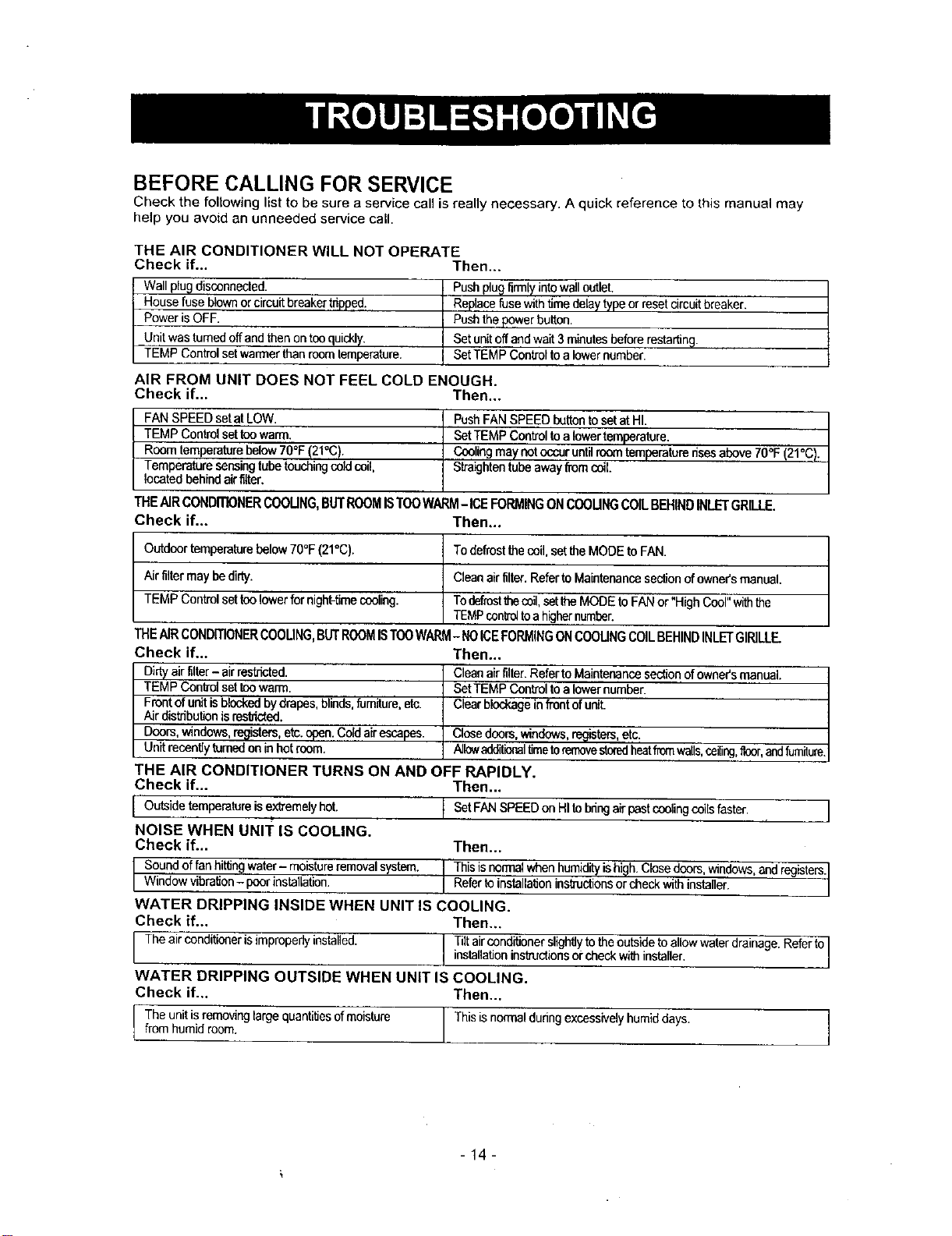

BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call is really necessary. A quick reference to this manual may
help you avoid an unneeded service call.
THE AIR CONDITIONER WILL NOT OPERATE
Check if... Then...
Wallplugdisconnacted.
Housefuse blownorcircuitbreakertripped.
PowerisOFF.
Unit wasturnedoffandthenontooquickly.
TEMP Controlsetwarmerthanroomtemperature.
Pushplugfirmlyintowalloutlet.
Replacefusewithtimedelaytypeor resetcircuitbreaker.
Pushthepowerbutton.
Setunitoffand wait3minutesbeforerestarting.
SetTEMPControlto alowernumber.
AIR FROM UNIT DOES NOT FEEL COLD ENOUGH.
Check if... Then...
FAN SPEEDsetat LOW.
TEMP Controlsettoowarm.
Roomtemperaturebelow70°F(21°C).
Temperaturesensingtubetouchingcoldcoil,
locatedbehindairfilter.
PushFANSPEEDbuttontosetatHI.
SetTEMPControlto a lowertemperature.
Coolingmay notoccuruntilroomtemperaturerisesabove70°F(21°C).
Straightentubeawayfromcoil.
THEAIRCONDmONERCOOUNG,BUTROOMISTOOWARM-ICEFORMINGONCOOUNGCOILBEHINDINLETGRILLE.
Check if... Then...
Outdoortemperaturebelow70°F(21°C). Todefrostthe coil,settheMODEtoFAN.
Airfiltermay bedirty. Cleanairfilter.RefertoMaintenancesectionof owner'smanual.
TEMP Controlsettoolowerfornight-timecooling. Todefrostthecoil,settheMODEto FANor"HighCool"withthe
TEMPcontro_toahighernumber.
THEAIRCoNOmONERCOOUNG,BUTROOMISTOOWARM-NOICEFORMINGONCOOUNOCOILBEHINDINLETGIRILLE
Check if...
Dirtyair filter- airrestricted.
TEMPControlsettoowarm.
Frontof unitisblockedbydrapes,blinds,fumiture,etc.
Airdistributionis resbicted.
Doors,windows,rerJisters,etc.open.Coldaireseapes.
Unit recenfiytumedonin hotroom,
Then...
Cleanairfilter.RefertoMaintenancesectionofowner'smanual.
SetTEMPControltoa lowernumber.
Clearblockageinfrontofunit.
Closedoors,windows,registers,etc.
Allowadditionaltimetoremovestoredheatfromwalls,ceiling,floor,andfumifure.
THE AIR CONDITIONER TURNS ON AND OFF RAPIDLY.
Check if... Then...
I Outsidetemperatureisextremelyhot. F SetFANSPEEDonHItebnngairpastcooilngcoilsfaster.
NOISE WHEN UNIT IS COOLING.
Check if...
I Soundof fanhittingwater- moistureremovalsystem.
Windowvibrafion- poorinstalLafion.
I
Then...
I Thisisnormalwhenhumidityishigh,Closedoors,windows,andregisters.
Refertoinstallafioninstructionsor checkwth nstailer.
WATER DRIPPING INSIDE WHEN UNIT IS COOLING.
Check if... Then.,.
I Theaireonditiooerisimpropedyinstalled. I Tiltaircondifionerslightlytotheoutsidetoalfuwwaterdrainage.Refertol
installafioninstructionsorcheckwithinstaller, i
WATER DRIPPING OUTSIDE WHEN UNIT IS COOLING.
Check if... Then...
Theunitisremovinglargequantitiesofmoisture Thisisnormalduringexcessivelyhumiddays.
fromhumidroom.
-14-
-15-

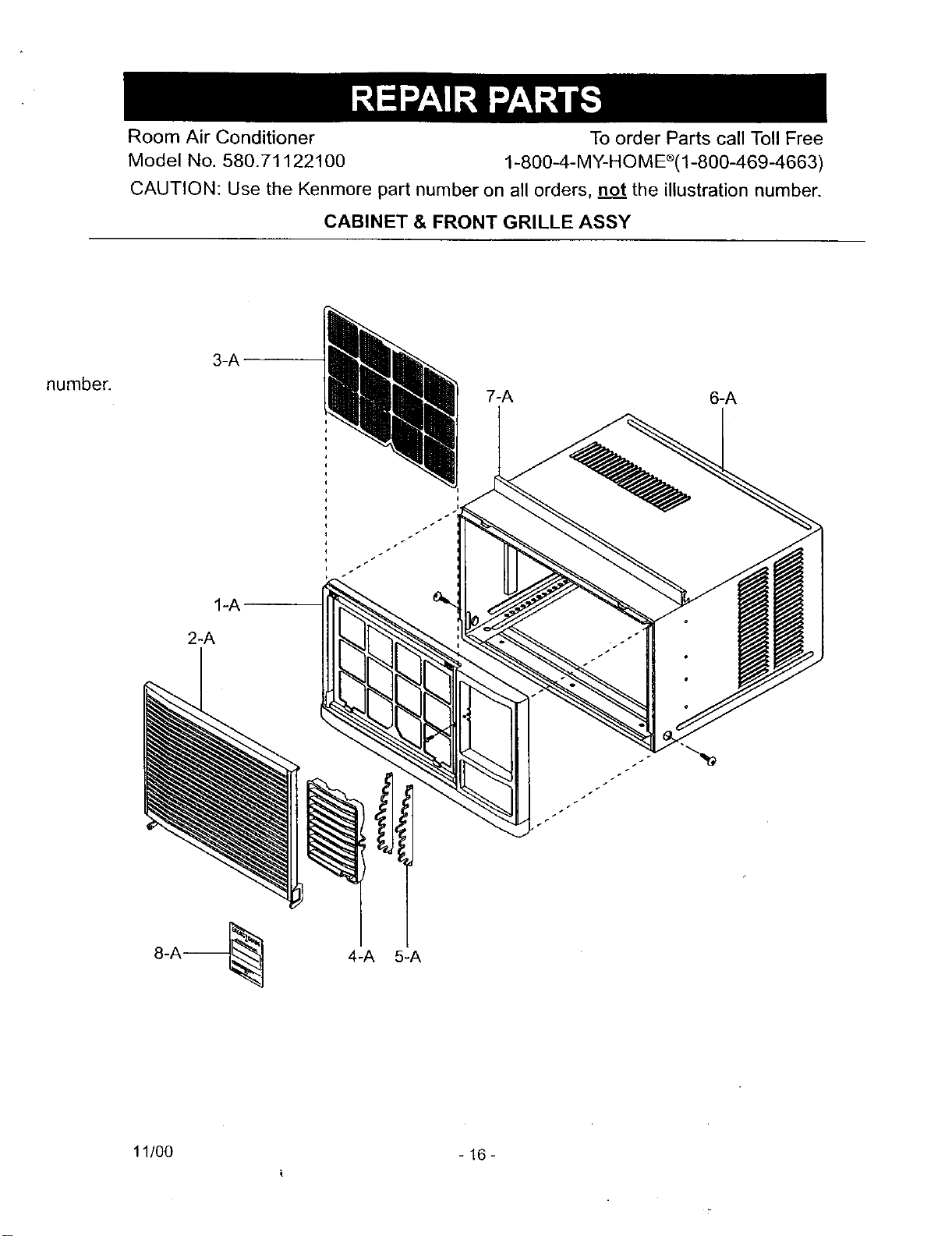

Room Air Conditioner To order Parts call Toll Free
Model No. 580.71122100 1-800-4-MY-HOME'(I-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, no.__!tthe illustration number.
CABINET & FRONT GRILLE ASSY
number.
3-A
1-A
2-A
4-A 5-A
11/00 - 16 -
580.71122100
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CABINET & FRONT GRILLE ASSY

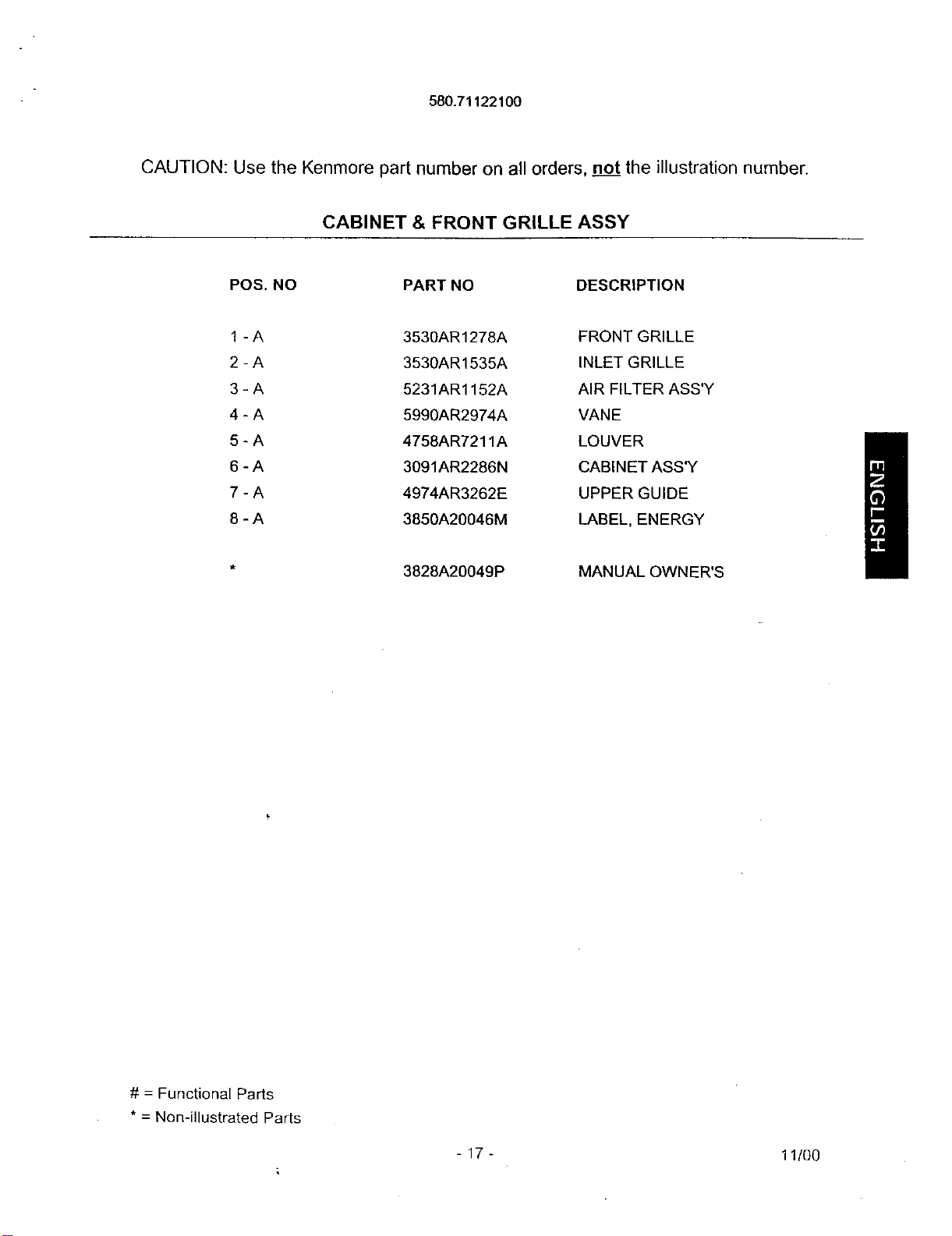

POS. NO PART NO DESCRIPTION
1 - A 3530AR1278A FRONT GRILLE
2 - A 3530AR1535A INLET GRILLE
3 - A 5231AR1152A AIR FILTER ASS'Y
4 - A 5990AR2974A VANE
5 - A 4758AR7211A LOUVER
6 - A 3091AR2286N CABIN ET ASS'Y
7 - A 4974AR3262E UPPER GUIDE
8 - A 3850A20046M LABEL, ENERGY
3828A20049P
MANUAL OWNER'S
# = Functional Parts
* = Non-illustrated Parts
-17- 11/00
580.71122100
CAUTION: Use the Kenmore part number on all orders, no.__.ttthe illustration number.

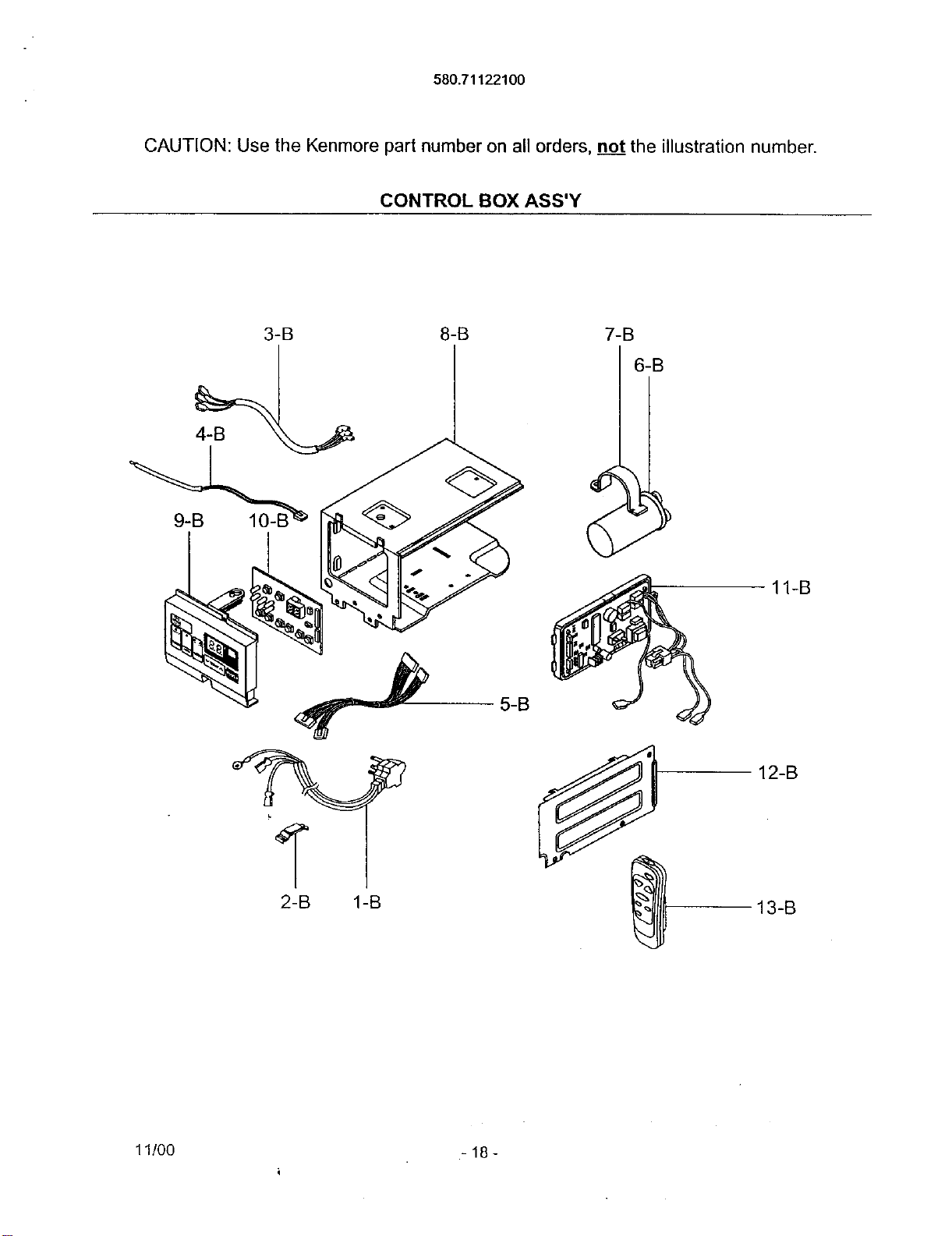

CONTROL BOX ASS'Y
11-B
12-B
13-B
11!00 - 18 -

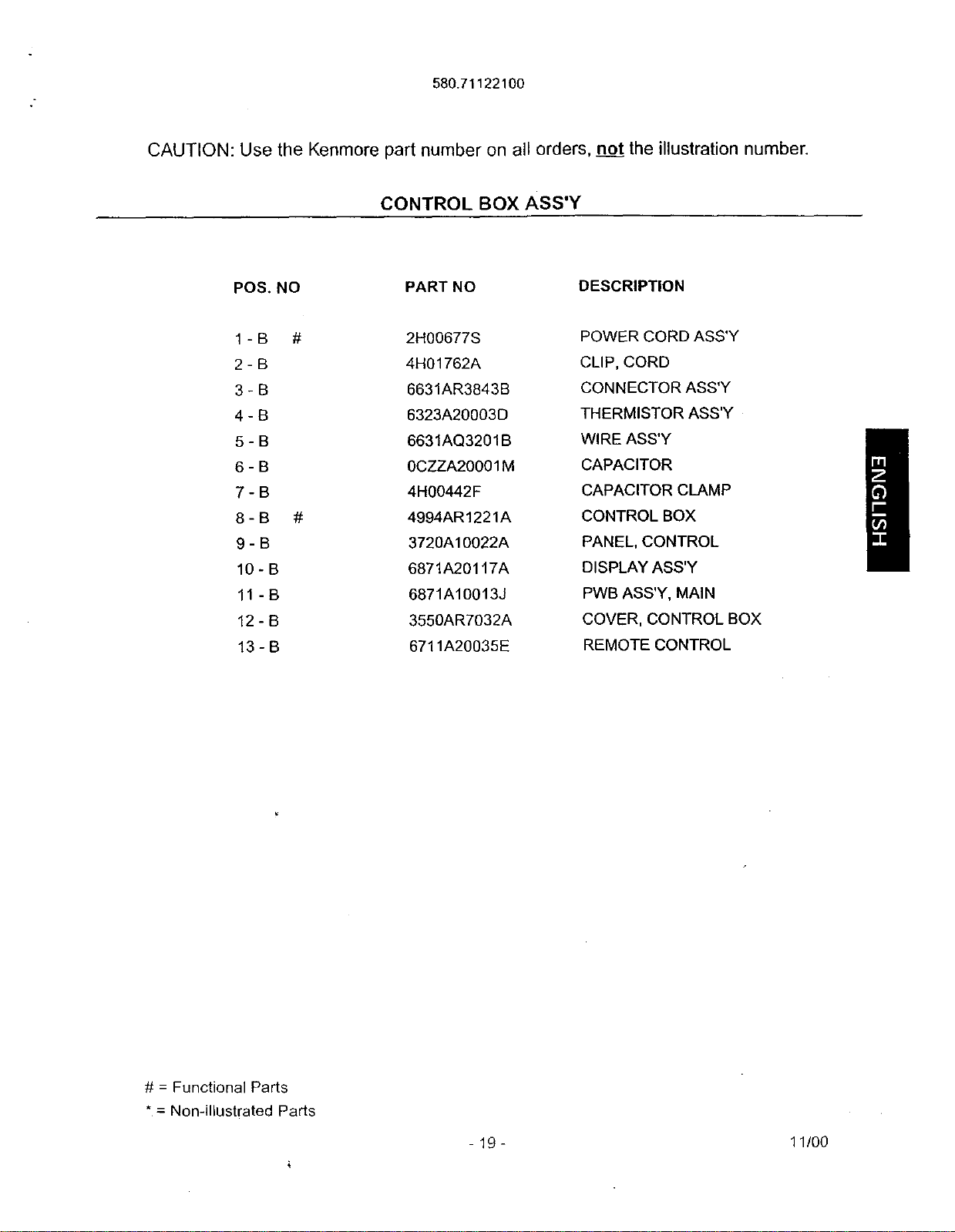

580.7112210O
CAUTION: Use the Kenmore part number on all orders, no__.ttthe illustration number.
CONTROL BOX ASS'Y
POS. NO PART NO DESCRIPTION
1-B # 2H00677S
2-B 4H01762A
3-B 6631AR3843B
4-B 6323A20003D
5-B 6631AQ3201B
6-B 0CZZA20001M
7-B 4H00442F
8-B # 4994AR1221A
9-B 3720A10022A
10-B 6871A20117A
11- B 6871A10013J
12-B 3550AR7032A
13-B 6711A20035E
POWER CORD ASS'Y
CLIP, CORD
CONNECTOR ASS'Y
THERMISTOR ASS'Y
WIRE ASS'Y
CAPACITOR
CAPACITOR CLAMP
CONTROL BOX
PANEL, CONTROL
DISPLAY ASS'Y
PWB ASS'Y, MAIN
COVER, CONTROL BOX
REMOTE CONTROL
# = Functional Parts
* = Non-illustrated Parts
- 19- 11/00
580.71122100
CAUTION: Use the Kenmore part number on all orders, no._ttthe illustration number.

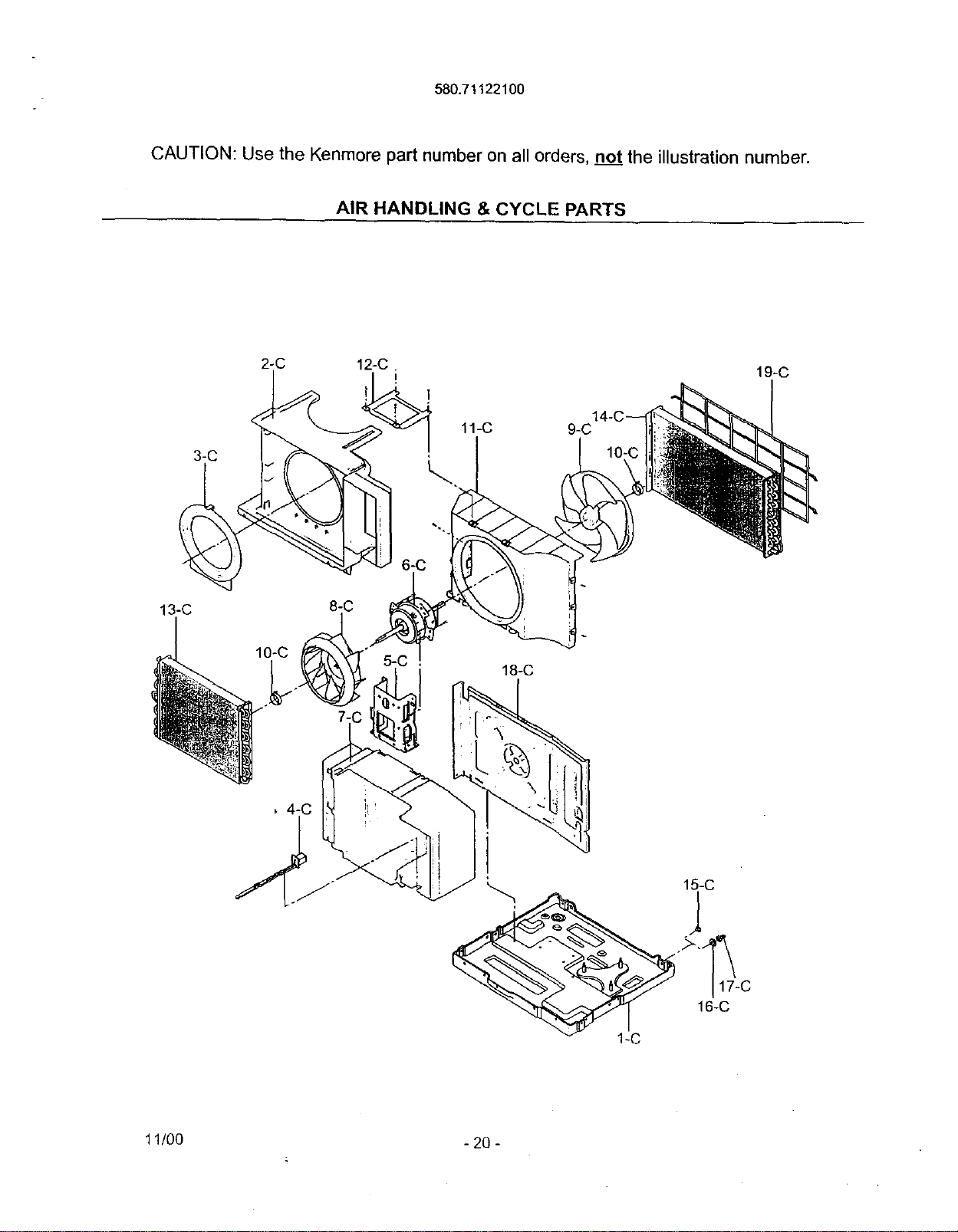

AIR HANDLING & CYCLE PARTS
2_C 12-C,
19-C
13-C 8-C
10-C
18-C
15-C
_'11_77_C
16-C
11/00 - 20 -
580.71122100
CAUTION: Use the Kenmore part number on all orders, no.__ttthe illustration number.
AIR HANDLING & CYCLE PARTS

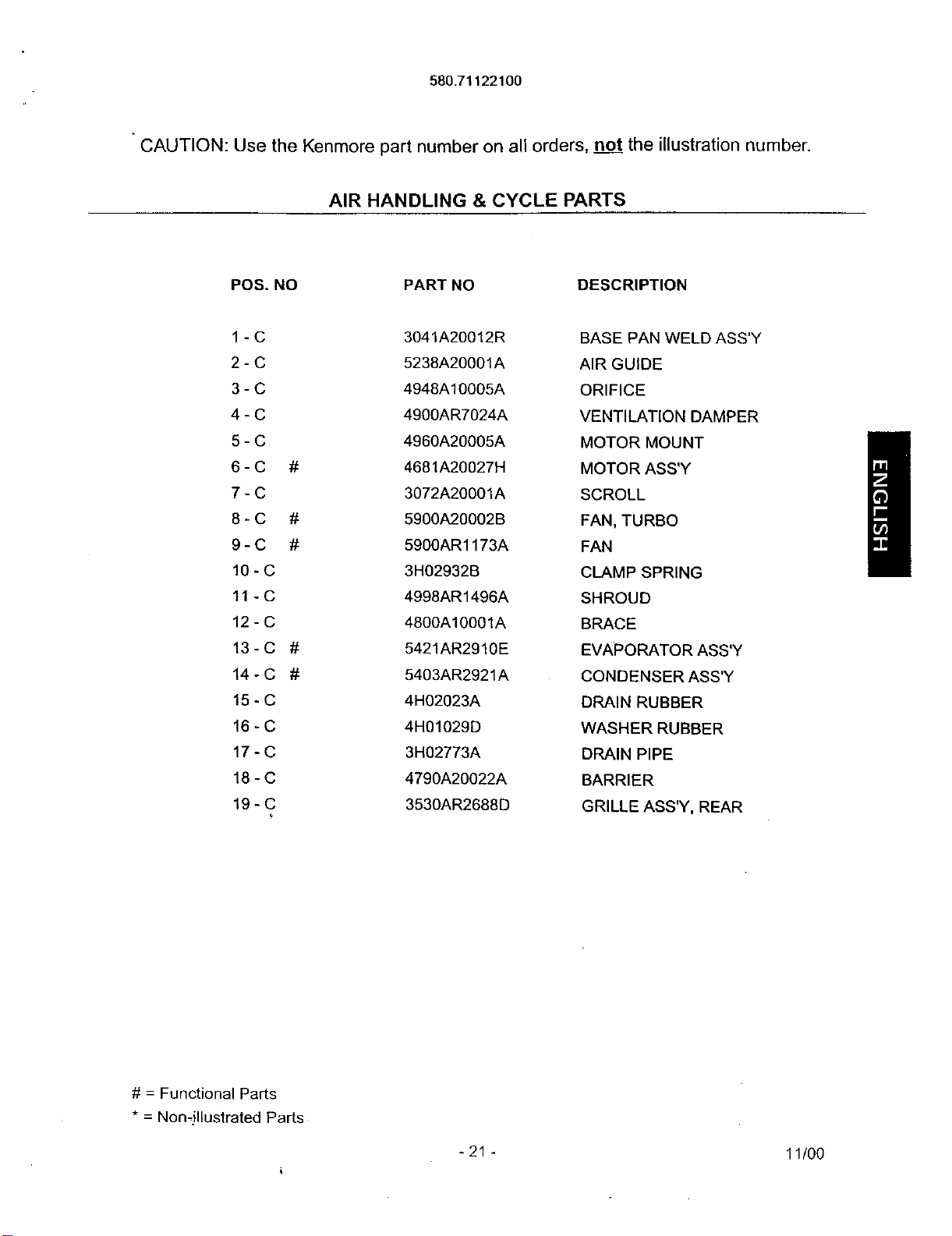

POS. NO PART NO DESCRIPTION
1 - C 3041A20012R BASE PAN WELD ASS'Y
2 - C 5238A20001A AIR GUIDE
3 - C 4948A10005A ORIFICE
4 - C 4900AR7024A VENTILATION DAMPER
5 - C 4960A20005A MOTOR MOUNT
6 - C # 4681A20027H MOTOR ASS'Y
7 - C 3072A20001A SCROLL
8 - C # 5900A20002B FAN, TURBO
9 - C # 5900AR1173A FAN
10 - C 3H02932B CLAMP SPRING
11 - C 4998AR1496A SHROUD
12 - C 4800A10001A BRACE
13- C # 5421AR2910E EVAPORATOR ASS'Y
14 - C # 5403AR2921A CONDENSER ASS'Y
15 - C 4H02023A DRAIN RUBBER
16 - C 4H01029D WASHER RUBBER
17 - C 3HO2773A DRAIN PIPE
18 - C 4790A20022A BARRIER
19 - C 3530AR2688D GRILLE ASS'Y, REAR
# = Functional Parts
* = Non-illustrated Parts
-21- 11/00
580.71122100
CAUTION: Use the Kenmore part number on all orders, no._ttthe illustration number.

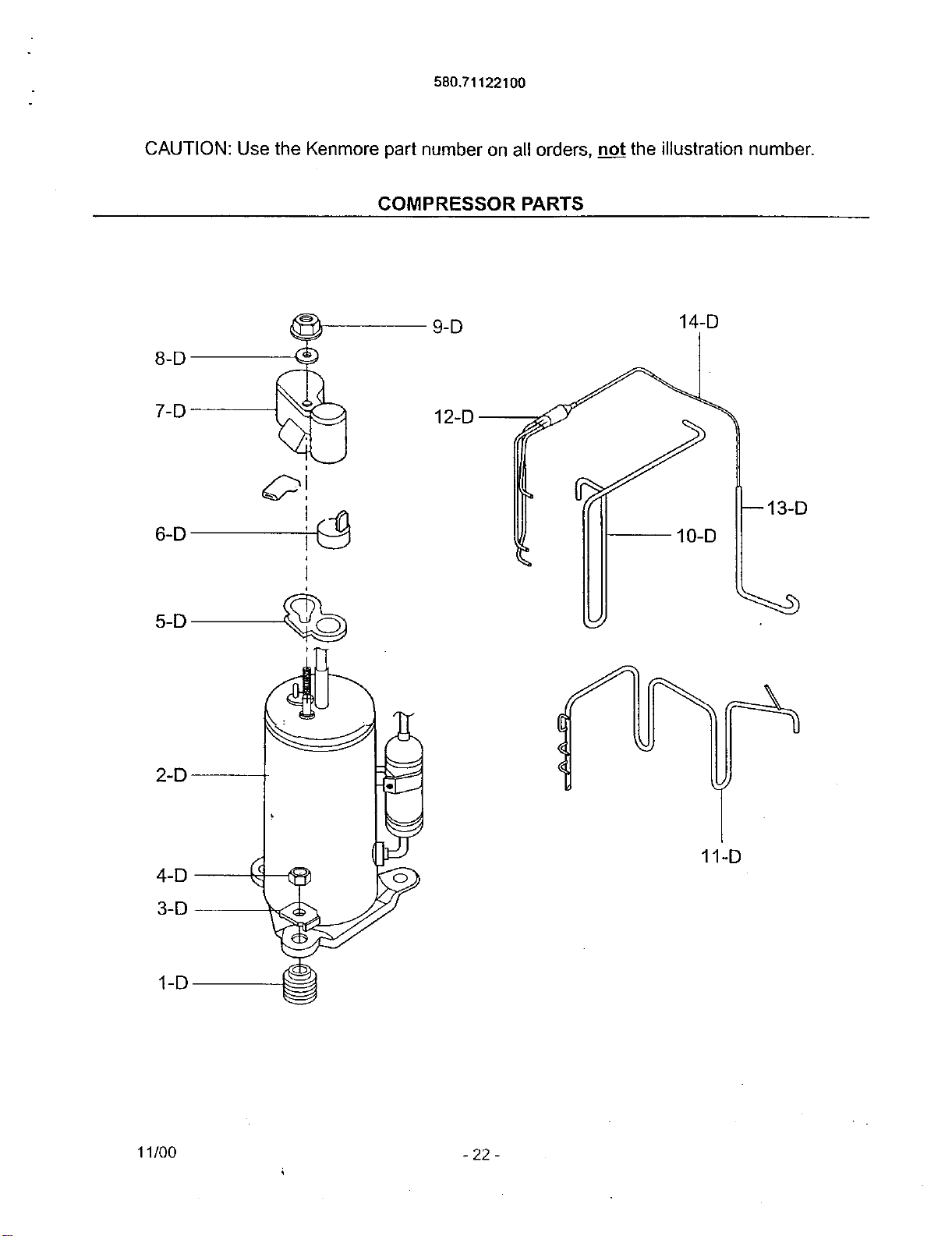

COMPRESSOR PARTS
8-D
7-D
6-D
O
10-D
--13-D
5-D
2-D
4-D
3-D
1-D
<
11-D
11/00 -22-
580.71122100
CAUTION: Use the Kenmore part number on all orders, no__ttthe illustration number.
COMPRESSOR PARTS

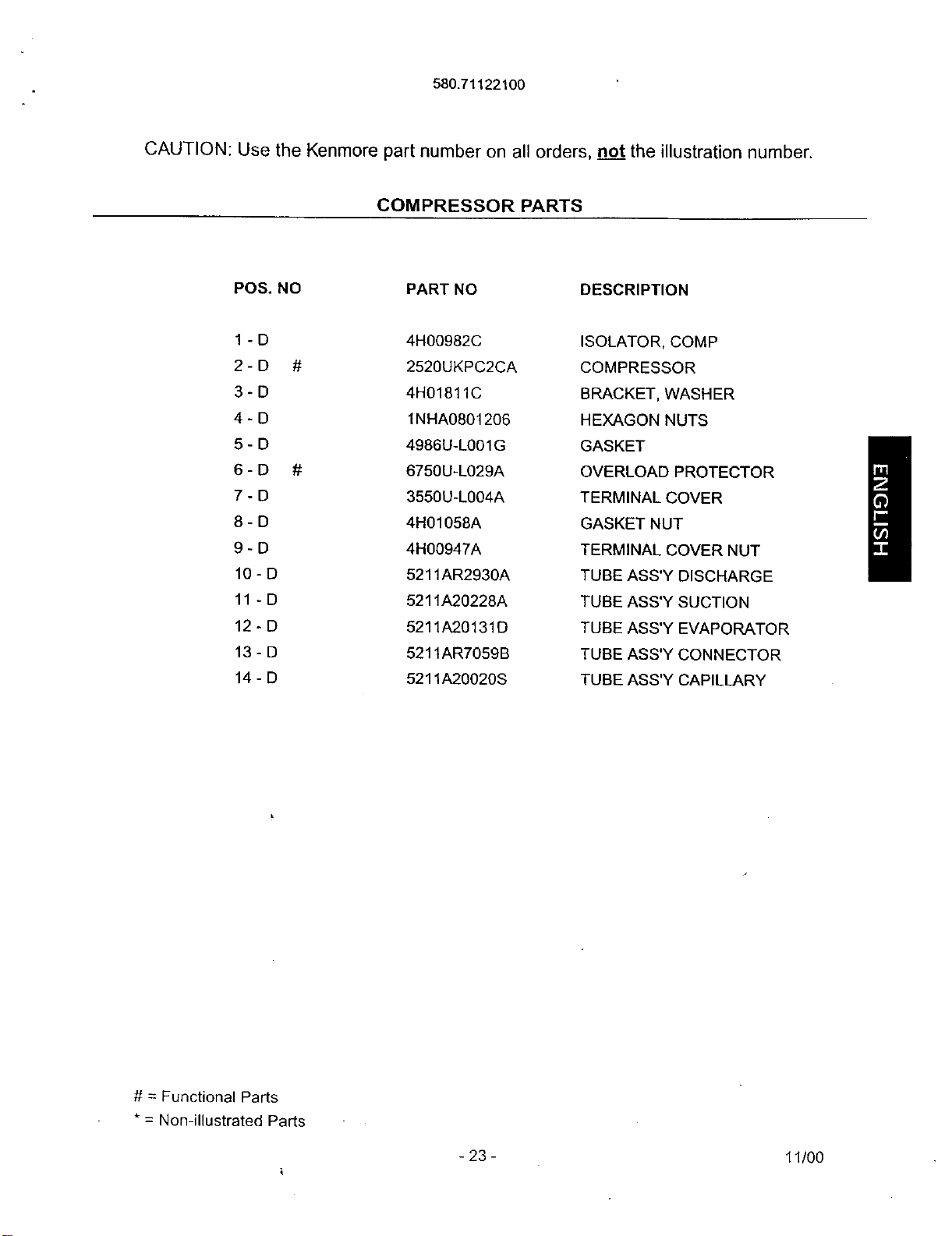

POS. NO PART NO DESCRIPTION
1- D 4H00982C
2- D # 2520UKPC2CA
3-D 4H01811C
4-D 1NHA0801206
5- D 4986U-L001G
6- D # 6750U-L029A
7- D 3550U-L004A
8-D 4H01058A
9-D 4H00947A
10-D 5211AR2930A
11- D 5211A20228A
12- D 5211A20131D
13-D 5211AR7059B
14- D 5211A20020S
ISOLATOR, COMP
COMPRESSOR
BRACKET, WASHER
HEXAGON NUTS
GASKET
OVERLOAD PROTECTOR
TERMINAL COVER
GASKET NUT
TERMINAL COVER NUT
TUBE ASS'Y DISCHARGE
TUBE ASS'Y SUCTION
TUBE ASS'Y EVAPORATOR
TUBE ASS'Y CONNECTOR
TUBE ASS'Y CAPILLARY
# = Functional Parts
* = Non-illustrated Parts
-23- 11/00
580.71122100
CAUTION: Use the Kenmore part number on all orders, no___ttthe illustration number.

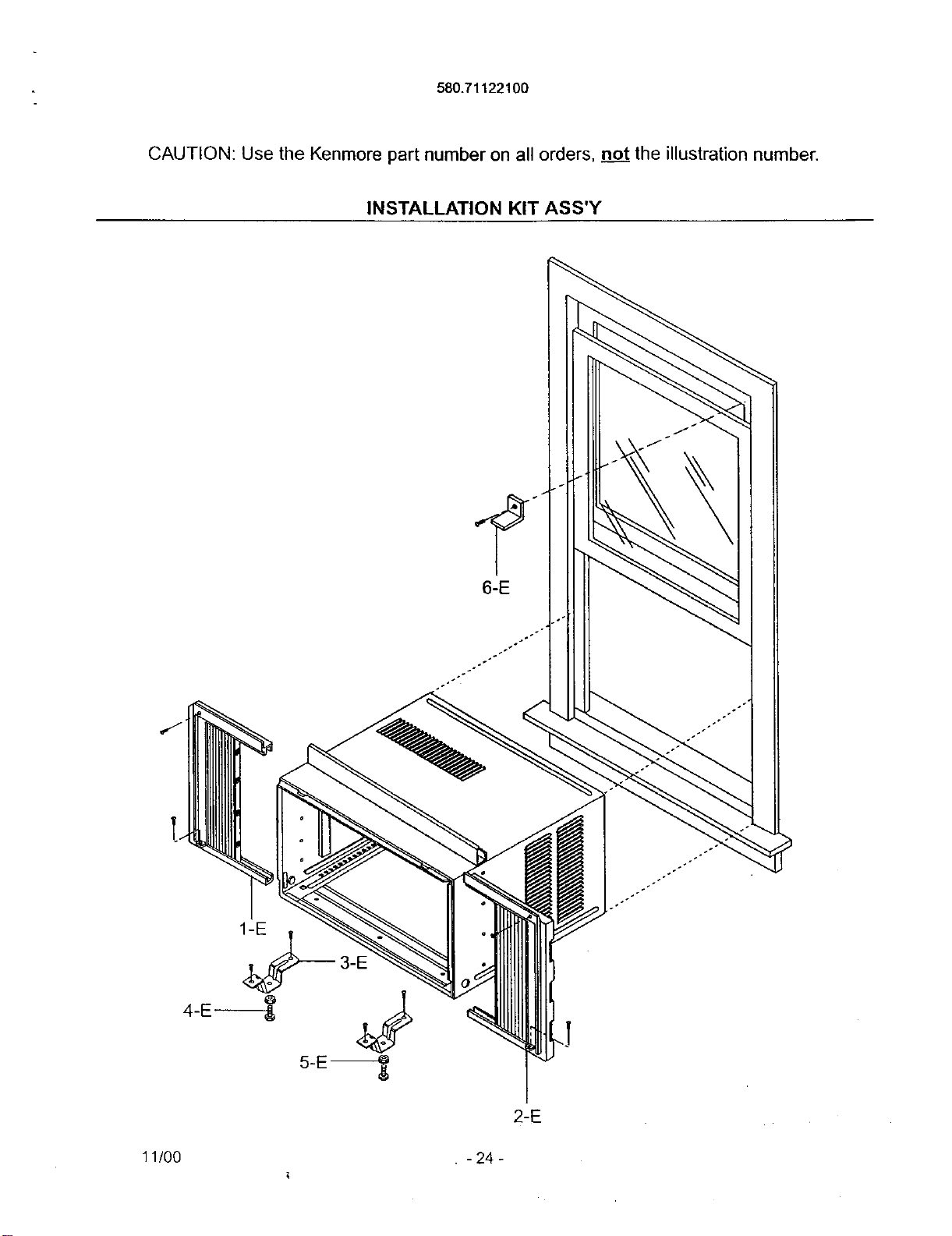

INSTALLATION KIT ASS'Y
2-E
11/00 - 24 -

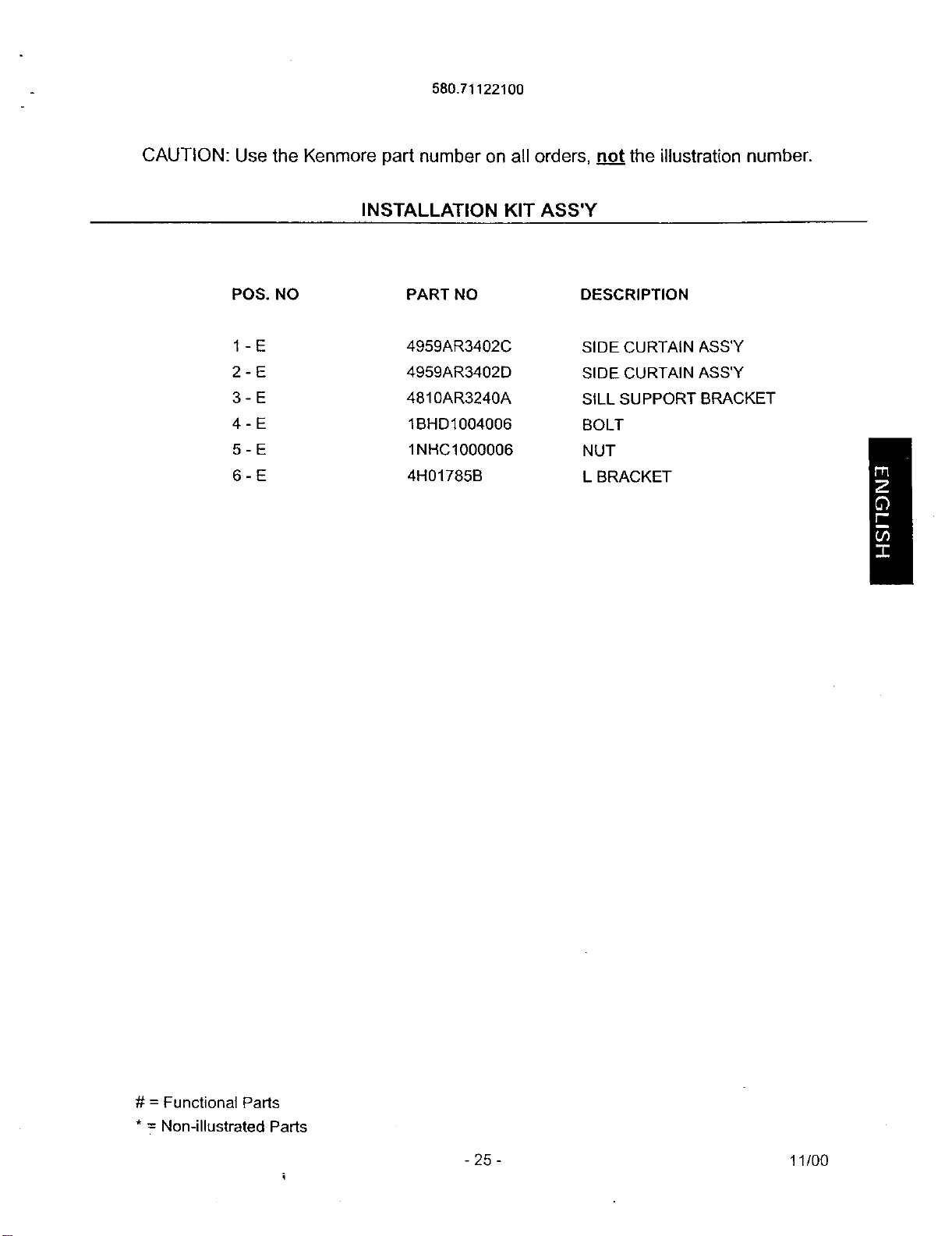

580.71122100
CAUTION: Use the Kenmore part number on all orders, no__ttthe illustration number.
INSTALLATION KIT ASS'Y
POS. NO PART NO DESCRIPTION
1 - E 4959AR3402C SIDE CURTAIN ASS'Y
2 - E 4959AR3402D SIDE CURTAIN ASS'Y
3 - E 4810AR3240A SILL SUPPORT BRACKET
4 - E 1BHD1004006 BOLT
5 - E 1NHC1000006 NUT
6 - E 4H01785B L BRACKET
# = Functional Parts
* = Non-illustrated Parts
- 25 - 11/00
i
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold ird
1-800-4-MY-HOME® Anytime, day or night
(1-800-469-4663)
_J.sears.com
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call for the location of your nearest
Sears Parts and Repair Center.
1-800-488-1222 Anytime, day or night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirectS"!
1-800-366-PART
(1-800-366-7278)
6 a.m.- 11 p.m. CST
7 days a week
www.sears._n/partsdirect
To purchase or inquire about a Sears Service Agreement
or Sears Maintenance Agreement
1-800-827-6655
7 a.m.-5 p.m. CST, Mon.-Sat.
Para pedir servicio de reparaci0n a
domicilio, y para ordenar piezas:
1-888.SU.HOGAR _
(1-888-784-6427)
Au Canada pour service en franois:
1-877-LE-FOYER ®
(1-877-533-6937)
© Sears.Roetuckand CO
Part No.: 3828A30086V
i
® I_gistered Trademark / TM Trademark / _ Service Mark of Sea_, Roebuck and Co,
®Marca Registrada / _ Marca de FSb_ca / _ M_ca de Servido de Sears, Roebuck and CO.
