FH2133
RAPID CRISP
ELECTRIC CHARACTERISTICS
CARACTÉRISTIQUES ÉLECTRIQUES
CARACTERISTICAS ELECTRICAS:
120V~ 60 Hz 1700 Watts
EN
FR
ES
page 5 page 11 pág. 17
For more recipes:
(free download)
De’Longhi Recipes multifry.delonghi.com
3
H
(LxHxD): 290x290x390 mm
5.3 kg
L
D
4
3
4
5
6
7
8
21
Click!
5
IMPORTANT SAFETY
INSTRUCTIONS
The use of all electrical appliances implies the observance of
some fundamental rules.
1. READ AND FOLLOW ALL INSTRUCTIONS
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord,
plugs, or (state specic part or parts in question) in wa-
ter or other liquid.
4. Close supervision is necessary when any appliance is
used by or near children.
5. Unplug from outlet when not in use and before clean-
ing. Allow to cool before putting on or taking o parts.
6. Do not operate any appliance with a damaged cord or
plug or after the appliance malfunctions or has been
damaged in any manner. Return appliance to the near-
est authorized service facility for examination, repair, or
adjustment.
7. The use of accessory attachments not recommended by
the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or
touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in
a heated oven.
11. Always attach plug to appliance rst, then plug cord
into the wall outlet. To disconnect, turn any control to
‘o’, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. The use of accessory attachments not recommended by
the appliance manufacturer may cause injuries.
SAVE THESE
INSTRUCTIONS
THIS PRODUCT IS INTENDED FOR HOUSHOLD USE ONLY
WARNINGS
• Never immerse the appliance in water.
• When in operation, accessible external surfaces and the lid
could become very hot. Always use the handgrip, handles
and buttons.
Use oven gloves if necessary.
• This electrical appliance operates at high temperatures
which could cause burns.
• Do not preheat the appliance when empty.
• Do not use the appliance without food, you might damage
it.
• While in operation, the appliance becomes hot.
DO NOT LEAVE WITHIN REACH OF CHILDREN.
• Move the appliance by the handles only.
Never move the appliance using the bowl handgrip.
• Never leave the power cable hanging from the edge of
the surface the appliance is resting on where it could be
grasped by a child or get in the way of the user.
• Hot steam may come out of the vents. Take great care!
• Never locate the appliance near sources of heat.
• Never insert anything into the ventilation openings.
Make sure they are unobstructed.
• Do not ll the bowl with liquid.
• Do not put more oil in the bowl than 1 1/2 tablespoon.
• Before using the appliance for the rst time, remove any
paper and other material inside the oven such as protective
cardboard, booklets, plastic bags, etc.
• Before using the appliance for the rst time, wash the
bowl, paddle and lid in hot water and washing up liquid.
At the end of the operation, dry all components thoroughly
and remove any water left in the bottom of the bowl.
• It is normal for the appliance to give o a “new” smell
when used for the rst time. Ventilate the room.
• The appliance must be kept at a distance of at least 7.8 in
from the mains power socket to which it is connected.
A short power-supply cord Is provided to reduce the risk result-
ing from becoming entangled in or tripping over a longer cord.
Longer detachable power-supply cords or extension cords are
available and may be used if care is exercised in their use.
If a longer detachable power-supply cord or extension cord is
used:
1) The marked electrical rating of the cord set or extension
cord should be at least as great as the electrical rating of
the appliance;
2) The cord should be arranged so that it will not drape over
the countertop or tabletop where it can be pulled on by
children or tripped over unintentionally; and
3) If the appliance is of the grounded type, the cord set or
extension cord should be a grounding-type 3-wire cord.
6
TECHNICAL DATA
FH2133
size (LxHxD): 11.4x11.4x15.3in
weight: 11.6lbs
Frozen potatoes
maximum capacity 2.2lbs
For further information, see the rating plate on the appliance.

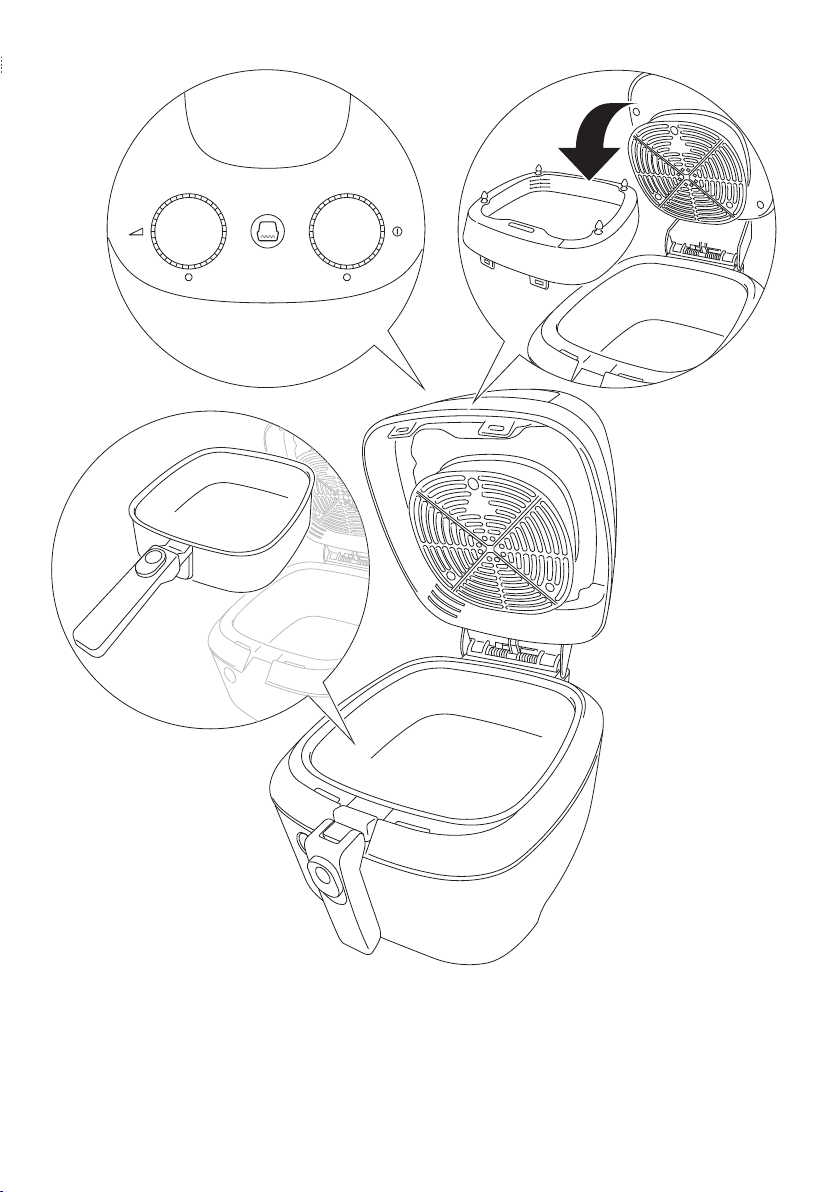

DESCRIPTION OF APPLIANCE
A Bottom heating element button
B Power level knob
C Timer knob
D Removable viewing window
E Heat convection grille
F Lid
G Handle for lifting the appliance
H Main unit
I Lid open button
L Bowl handle
M Handgrip slide
N Bowl
SETTING UP THE APPLIANCE
Please note: Before using the appliance for the rst time,
wash the bowl (N) and removable viewing window (D) in hot
water and neutral washing liquid.

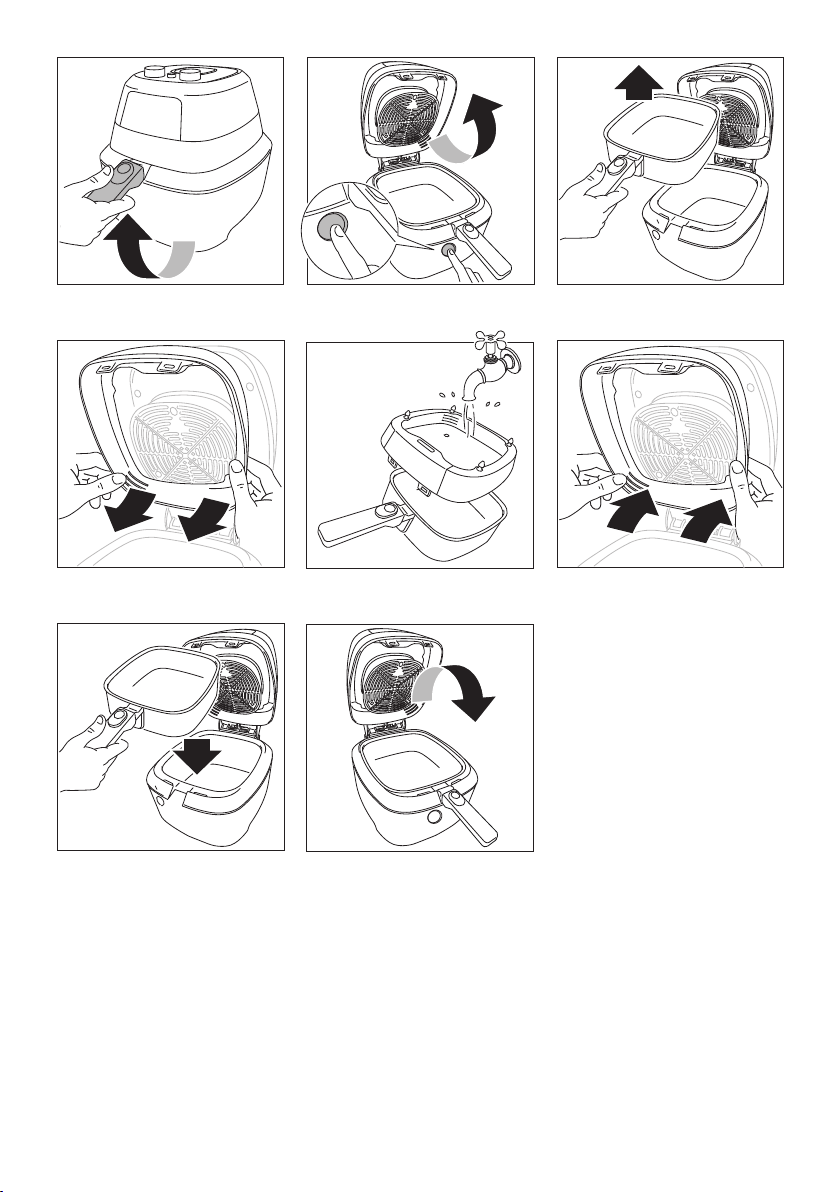

Proceed as follows:
• Lift the bowl handle (L) until you hear a ‘click’ (g. 1).
• Open lid (F) by pressing button (I) (g. 2).
• Extract the bowl (N) by pulling upwards (g. 3).
• Release the removable viewing window (D); pulling it
down (g. 4).
• Wash the bowl and removable viewing window (g. 5)
• At the end of operation, dry all components thoroughly
and remove any water left in the bottom of the bowl.
• Replace the viewing window; align insert and push it up
into the lid (g. 6).
• Insert the bowl (g. 7).
• Close the lid (g. 8).
• The appliance is ready to cook.
COOKING
• Put the bowl (N) back in the appliance, making sure it is
correctly positioned.
• Lower the bowl handle (L) using the handgrip slide (M).
• Place the ingredients to be cooked in the bowl (N), respect-
ing the quantities given in the cooking tables/recipes on
page 8-10.
• Close the lid (F).
• Plug the appliance into the main socket and the appliance
is ready for cooking.
• Adjust the cooking time with timer knob (C).
• Adjust the power level with power level knob (B) (see the
cooking tables/recipes on page 8-10).
• If required by the cooking procedure, press the bottom
heating element button (A).
• If you make a mistake, you can set the new cooking time
and power level.
• During cooking mode the available options will be:
• Change the cooking time by turning the timer knob (C).
• Adjust the power level by turning the power level knob (B).
• Open lid and the appliance will go in pause mode;
• During cooking, you can open the lid to add ingredients
or check cooking progress. Ventilation stops briey, then
starts again when you close the lid.
• At the end of cooking the appliance emits a ‘‘beep’. If an
extra cooking in required, turn the timer knob (C).
FRESH FRENCH FRIES
• Peel and cut the potatoes.
• Rinse potatoes under tap water.
• Dry the potatoes.
• Put the peeled potatoes (2.2 lb MAX) in a mixing bowl and
add one tablespoon of oil ( For optimal results, we suggest
sunower seed oil).
• Mix the potatoes into the mixing bowl.
• Fill the air fryer with the oiled potatoes.
• Close the lid (F) of appliance.
• Plug the appliance into the main socket. The appliance is
ready for potatoes recipe.
• Adjust the power level by turning the the power level knob
(B).
• Adjust the cooking time with timer knob (C).
Please note: During cooking operation the top surface
and the back of the appliance could to be hot.
Don’t touch this surfaces end keep away.
• At the middle cooking time lift the bowl handgrip until you
hear a ‘click’ .
• Extract the bowl by pulling upwards
• Shake the potatoes
• Replace the bowl and close the lid
• At the end of cooking the appliance stop the cooking and
will emit a ‘beep’.
CLEANING AND MAINTENANCE
Danger! Before cleaning the appliance, always unplug
7
from the mains socket and allow to cool.
Never immerse the appliance in water and never place under
running tap water.
If water gets into the appliance, it could cause electric shock.
• Wash the bowl (N) and removable viewing window (D)
thoroughly with hot water and neutral washing liquid.
• Clean the heat convection grille (H) without removing it.
Please note: Do not use sharp, abrasive or metallic uten-
sils to remove food from the bowl as this can damage the
teon coating. Clean with a soft cloth and neutral deter-
gent only.
DE’LONGHI RAPID CRISP TEMPERATURE RECAP CHART - FH2133, COOKING TEMPERATURE (*)
level 1 (min F°) level 2 (min F°) level 3 (min F°) level 4 (min F°)
Cooking temperature 260 300 375 395
(*) average temperature; Indicative values subjected to variation due to production tolerance
Note: Consider that the cooking temperatures of this product will be lower than a conventional oven, due to the Duo Heat techno-
logy that uses two heating elements with a powerful combination of radiant and convection heat to surround and cook your food
with accuracy and speed to provide perfect cooking results.
8
Potatoes
Maximum
Capacity
min.
OIL
Tbsp
Fresh potatoes
0.4 in
2.7 (*) 28-30 4 √ √ √ 1
2.2 (*) 23-25 4 √ √ √ 1
1.6 (*) 20 4 √ √ √ ½
1.1 (*) 15 4 √ √ √ ½
Frozen potatoes
0.4 in
2.2 25-28 4 √ √ - -
1.6 20-22 4 √ √ - -
1.1 17 4 √ √ - -
0.5 12 4 √ √ - -
Frozen potatoes
0.3 in
2.2 23-26 4 √ √ - -
1.6 18-20 4 √ √ - -
1.1 15 4 √ √ - -
0.5 10 4 √ √ - -
Hand-cut fresh potatoes
2.7 (*) 25-30 4 √ √ - 1
Hand-cut frozen potatoes
1.6 22-27 4 √ √ - -
Croquettes frozen potatoes
1.3 20-25 4 √ √ - -
(*) un-peeled potato weight - à éplucher - para pelar
9
Meat
Maximum
Capacity
min.
OIL
Tbsp
Chicken piece
1.7 30-35 3 √ √ -
Meat and vegetable kebabs
0.9 18-20 4 - √ -
Hamburger
0.8 13-15 4 - √ 1
Chicken
2.6 40-45 3 √ - -
Fish
Maximum
Capacity
min.
OIL
Tbsp
Slice of salmon
1.3 15-20 3 √ - -
Shrimp
0.9 13-15 3 √ - 1
10
Pizza and Snack
Maximum
Capacity
min.
OIL
Tbsp
Pizza
0.8 20-25 3 √ - 1
Savory pies and quiches
1.5 30-35 2 √ -
-
Frozen sh sticks
0.6 15 3 √ - -
Chicken nuggets
0.5 12 3 √ - -
Onion rings
0.3 8-10 3 √ - -
Bake
Maximum
Capacity
min.
OIL
Tbsp
Sponge cake
1.6 30-35 2 √ - -
Frozen croissant
(x 4) 0.5 25-30 2 √ - -
Cookies
0.6 16-18 2 √ - -
