User Manual Craftsman 917378931 gas walk-behind lawn mower

Craftsman 917378931 gas walk-behind lawn mower - Use Manual - Use Guide PDF.
Documents: Go to donwload!
  • Owner's manual - (English)

User manual of Craftsman 917378931 (44 pages)
file thumbnail

Owner's Manual

CRAFTSMAN°

6.75 Horsepower

Power-Propelled 21" Multi-Cut

Model No.

917.378931

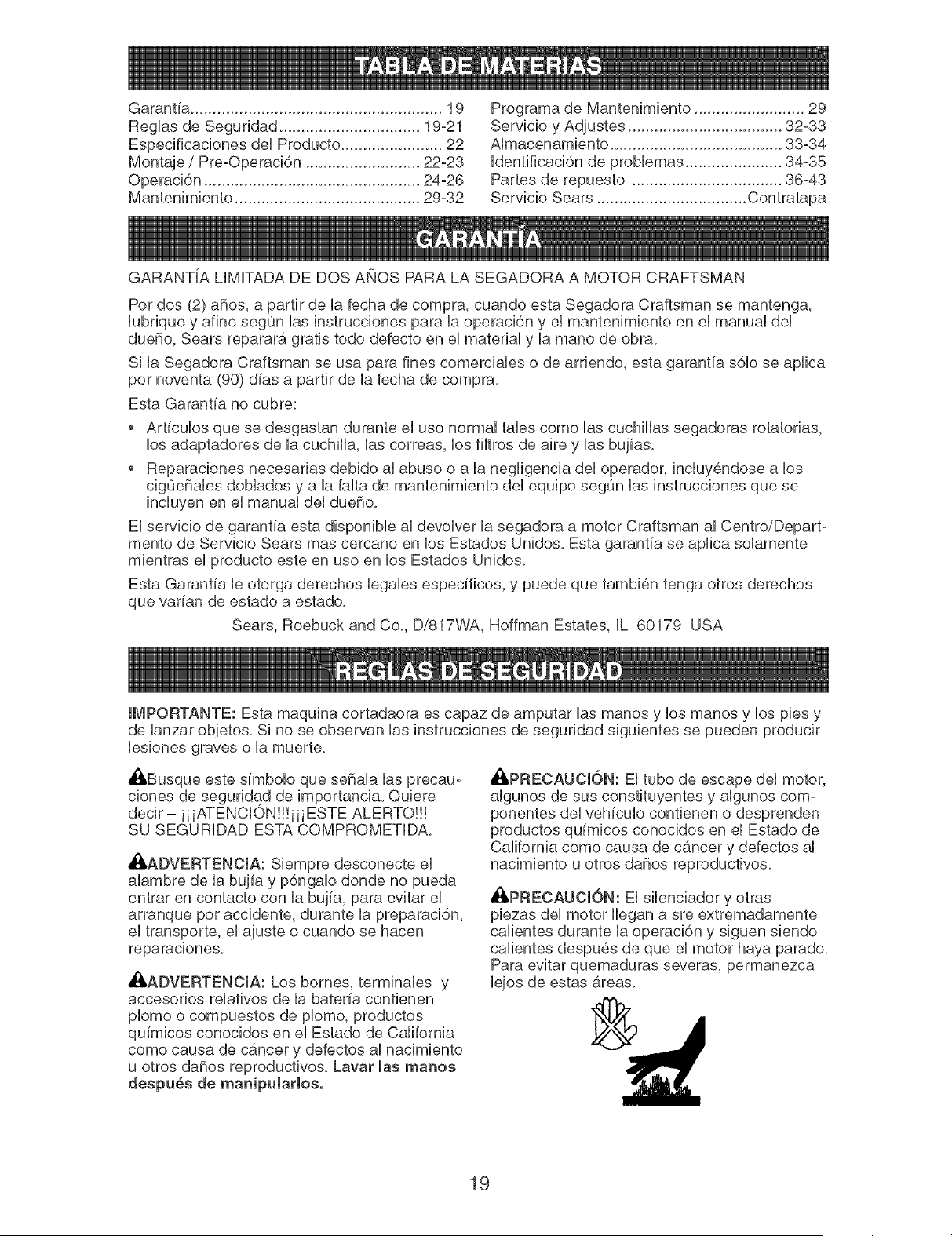

Espahol. p. 19

CAUTION: Read and follow all

Safety Rules and Instructions before operating this equipment

Sears.

Roebuck and Co. Hoffman Estates.

IL 60179 Visit our Craftsman website: www.sears.com/craftsman U.S.A.

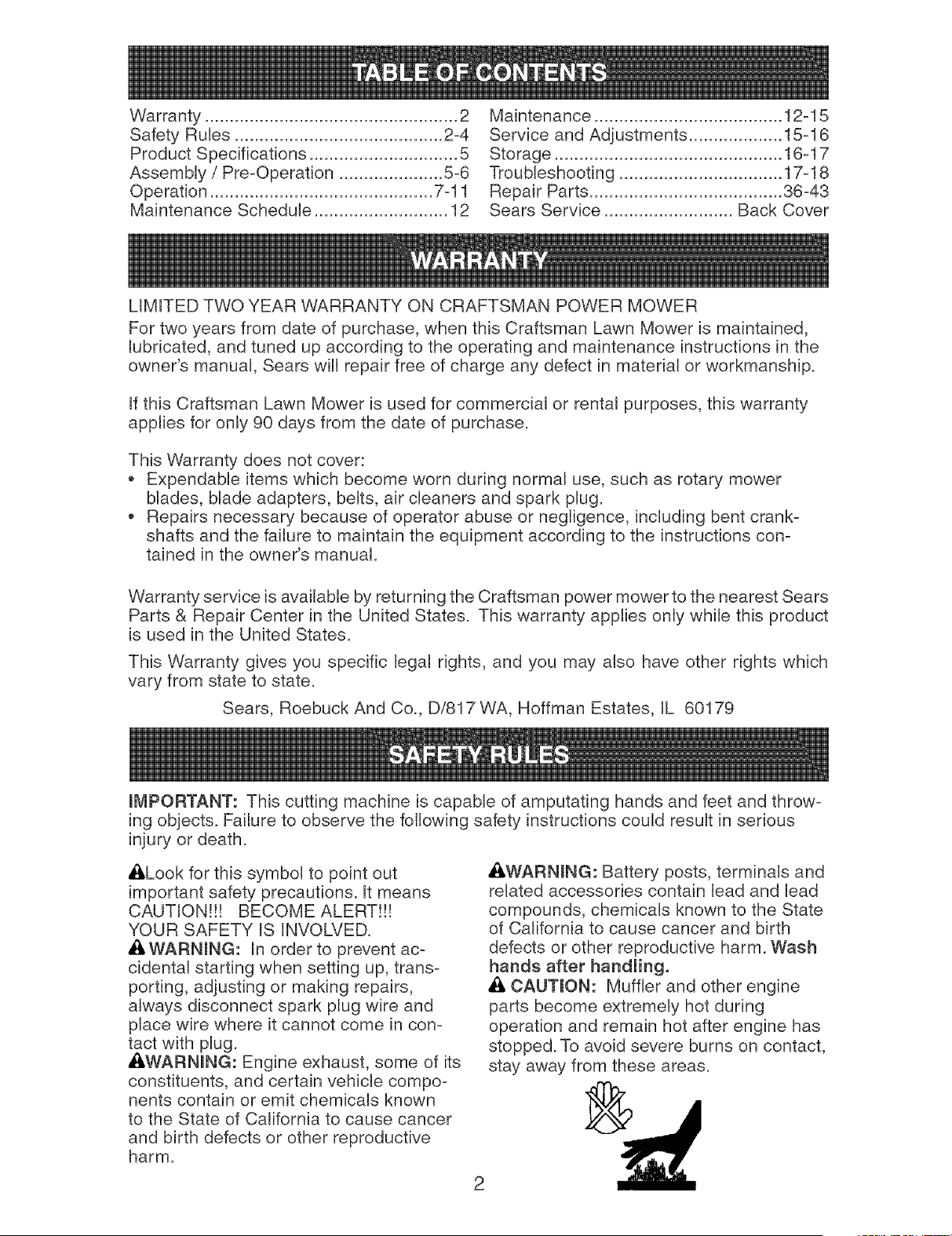

Warranty

Safety Rules

Product Specifications

Assembly / Pre-Operation

Operation

7-11 Maintenance Schedule

Maintenance

12-15

Service and Adjustments

15-16 Storage

16-17 Troubleshooting

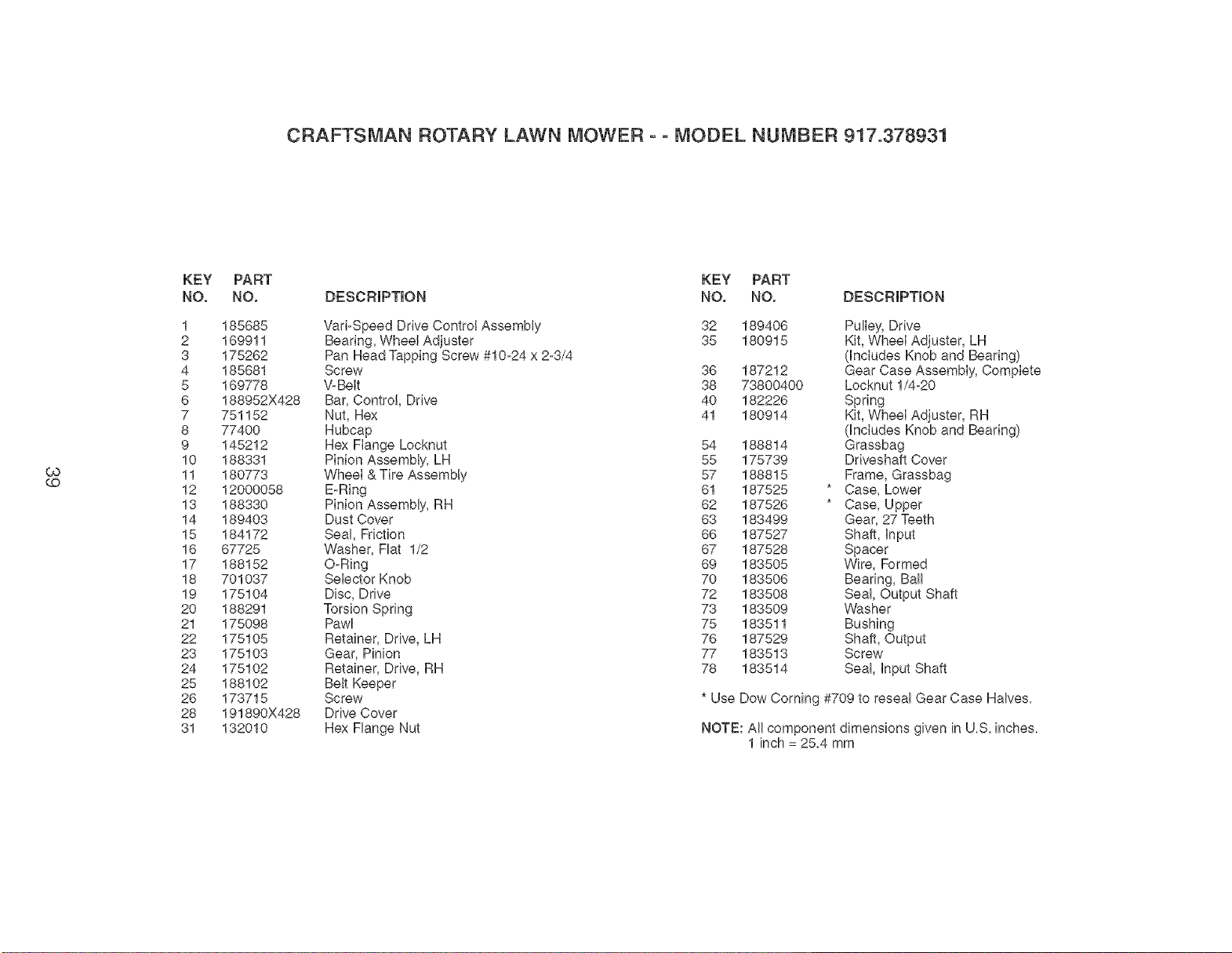

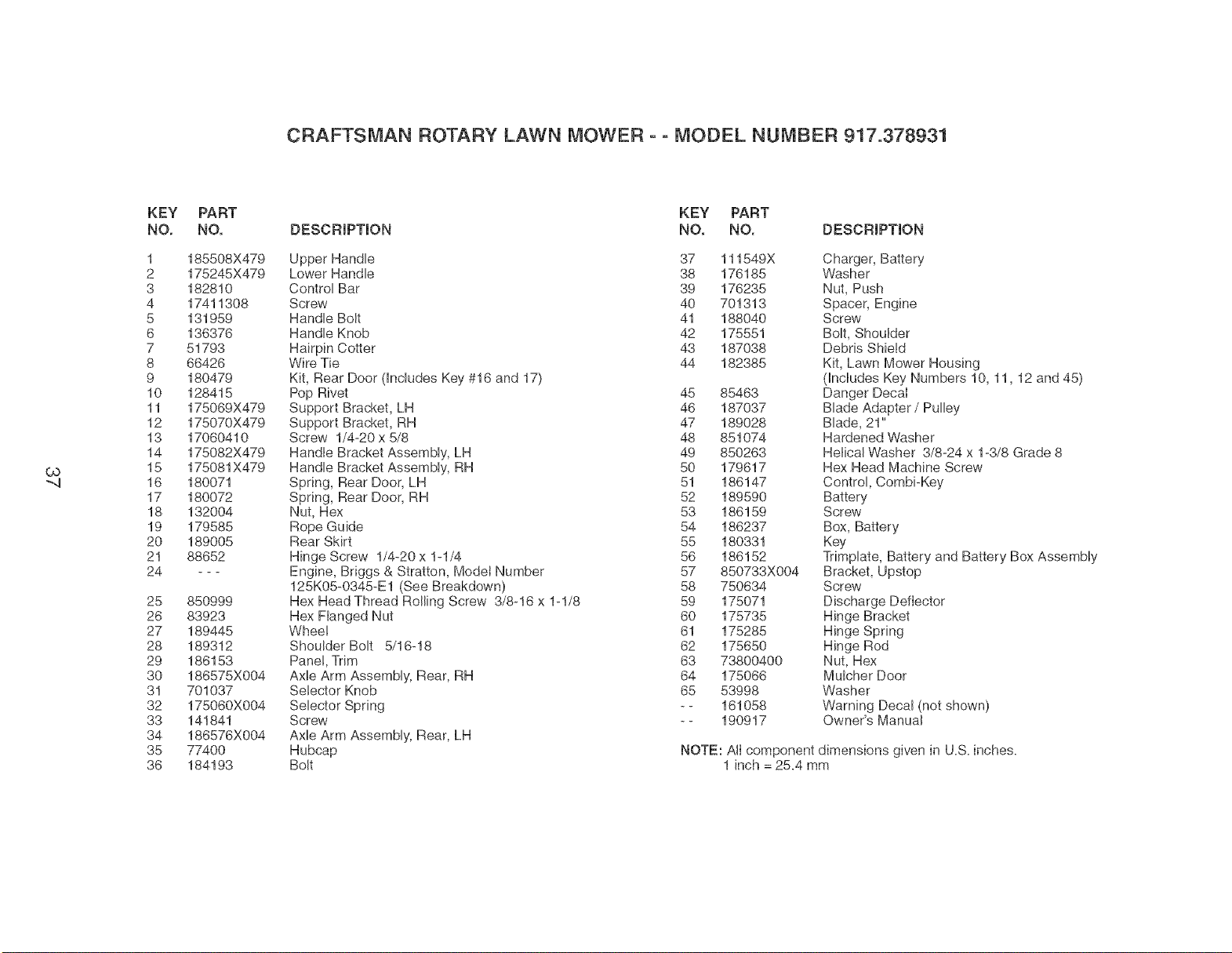

17-18 Repair Parts 36-43 Sears Service

Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase. when this Craftsman Lawn Mower is maintained. lubricated. and tuned up according to the operating and maintenance instructions in the owner's manual.

Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes. this warranty applies for only 90 days from the date of purchase.

This Warranty does not cover: Expendable items which become worn during normal use. such as rotary mower blades. blade adapters. belts. air cleaners and spark plug.

Repairs necessary because of operator abuse or negligence. including bent crank shafts and the failure to maintain the equipment according to the instructions con tained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest Sears Parts & Repair Center in the United States.

This warranty applies only while this product is used in the United States.

This Warranty gives you specific legal rights. and you may also have other rights which vary from state to state.

Sears.

Roebuck And Co..

D/817 WA.

Hoffman Estates.

IL 60179

&Look for this symbol to point out important safety precautions.

It means CAUTION!!!

BECOME ALERT!!!

YOUR SAFETY IS INVOLVED. &WARNING: In order to prevent ac cidental starting when setting up. trans porting. adjusting or making repairs. always disconnect spark plug wire and place wire where it cannot come in con tact with plug. &WARNING: Engine exhaust. some of its constituents. and certain vehicle compo nents contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

&WARNING: Battery posts. terminals and related accessories contain lead and lead

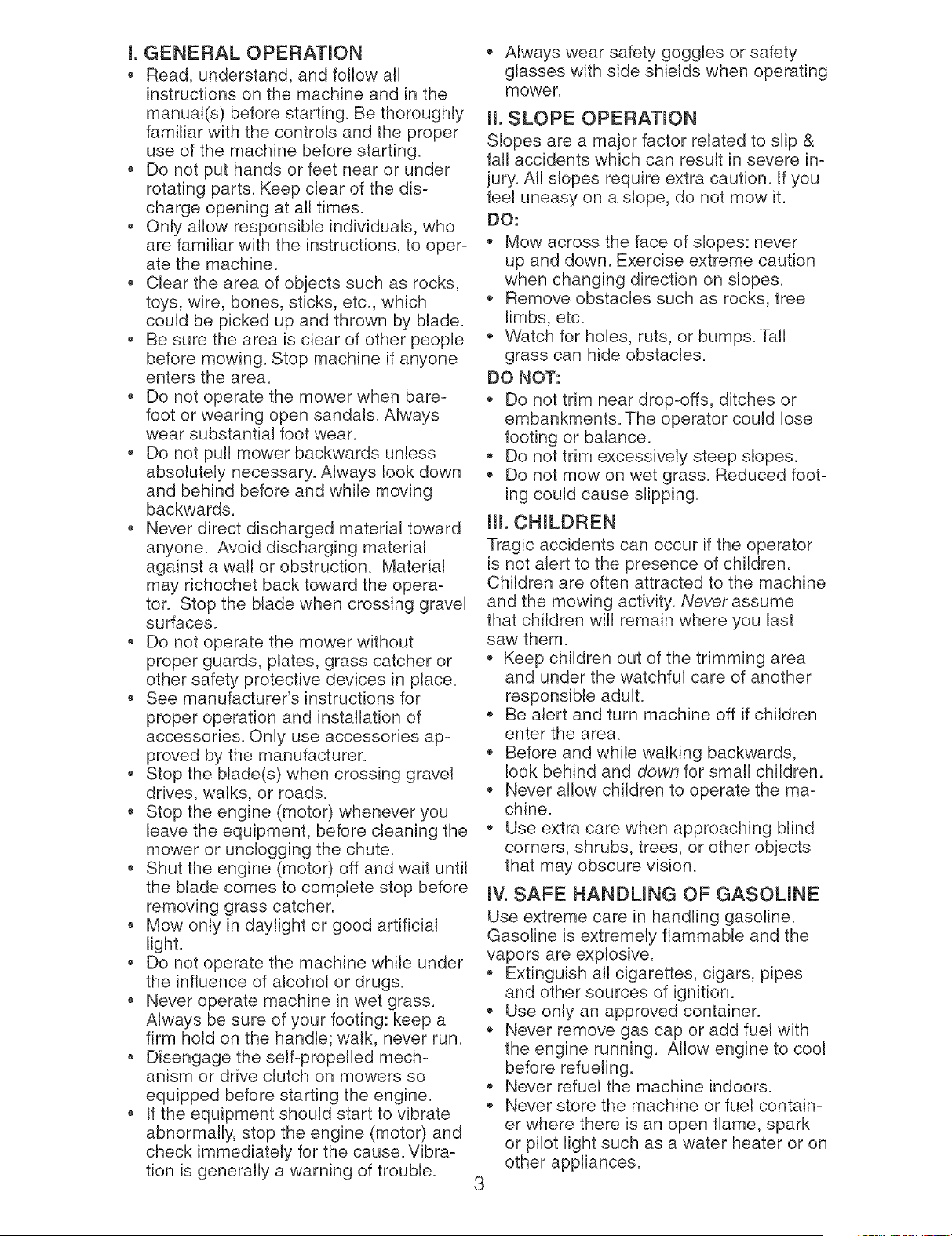

L GENERAL OPERATmON

Read. understand. and follow all instructions on the machine and in the

Clear the area of objects such as rocks. toys. wire. bones. sticks. etc.. which could be picked up and thrown by blade.

Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area.

Do not operate the mower when bare foot or wearing open sandals.

Always wear substantial foot wear.

Do not pull mower backwards unless absolutely necessary.

Always look down and behind before and while moving backwards.

Never direct discharged material toward anyone.

Avoid discharging material against a wall or obstruction.

Material may richochet back toward the opera tor.

Stop the blade when crossing gravel surfaces.

Do not operate the mower without proper guards. plates. grass catcher or other safety protective devices in place.

See manufacturer's instructions for proper operation and installation of accessories.

Only use accessories ap proved by the manufacturer.

Stop the blade(s) when crossing gravel drives. walks. or roads.

Stop the engine (motor) whenever you leave the equipment. before cleaning the mower or unclogging the chute.

Shut the engine (motor) off and wait until the blade comes to complete stop before removing grass catcher.

Mow only in daylight or good artificial light.

Do not operate the machine while under the influence of alcohol or drugs.

Never operate machine in wet grass.

Always be sure of your footing: keep firm hold on the handle; walk. never run.

Disengage the self-propelled mech anism or drive clutch on mowers so

Always wear safety goggles or safety glasses with side shields when operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip & fall accidents which can result in severe in

Mow across the face of slopes: never up and down.

Exercise extreme caution when changing direction on slopes.

Remove obstacles such as rocks. tree limbs. etc.

Watch for holes. ruts. or bumps.

Tall grass can hide obstacles.

DO NOT:

Do not trim near drop-offs. ditches or embankments.

The operator could lose footing or balance.

Do not trim excessively steep slopes.

Do not mow on wet grass.

Reduced foot ing could cause slipping.

HI. CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children.

Children are often attracted to the machine and the mowing activity.

Never assume that children will remain where you last saw them.

Keep children out of the trimming area and under the watchful care of another

Before and while walking backwards. look behind and down for small children.

Never allow children to operate the ma chine.

Use extra care when approaching blind corners. shrubs. trees. or other objects that may obscure vision.

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the vapors are explosive.

Extinguish all cigarettes. cigars. pipes and other sources of ignition.

Use only an approved container.

Never remove gas cap or add fuel with the engine running.

Allow engine to cool before refueling.

Never refuel the machine indoors.

Never store the machine or fuel contain

Neverfill containersinsidea vehicle. n a truck or trailerbed with a plasticliner.

Alwaysplacecontainerson the ground awayfrom yourvehiclebeforefilling.

Removegas-poweredequipmentfrom the truck or trailer and refuel it on the ground. Ifthis is notpossible. hen refuelsuch equipmentwith a portable container. atherthan from a gasoline dispensernozzle.

Keepthe nozzleincontactwith the rim of the fuel tank or containeropeningat all times until fuelingis complete. Do not use a nozzlelock-opendevice.

Iffuel is spilled on clothing. hange clothingimmediately.

Neveroverfillfuel tank. Replacegas cap and tightensecurely.

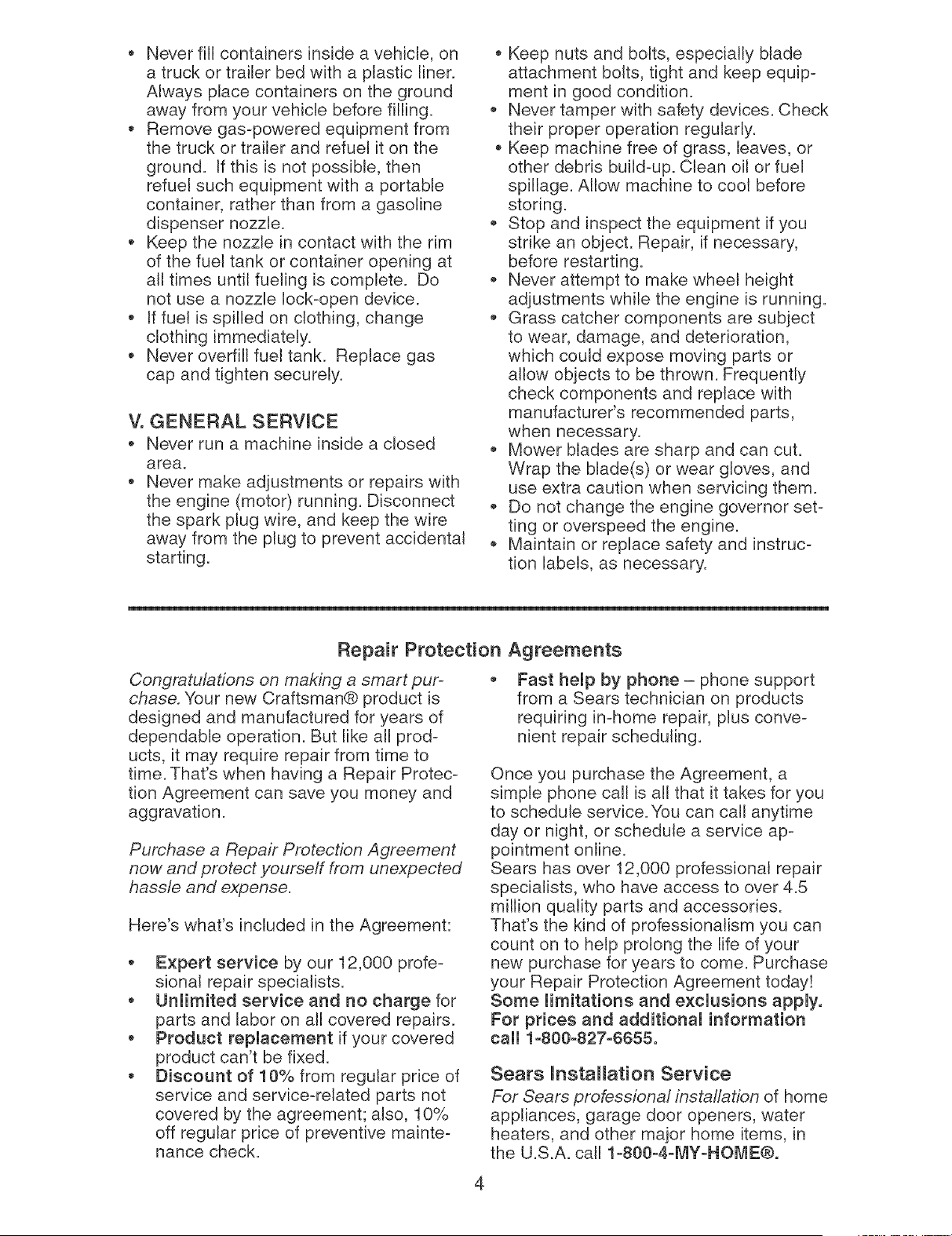

V. GENERAL SERVmCE Neverrun a machineinsidea closed area.

Nevermakeadjustmentsor repairswith the engine (motor)running.Disconnect the sparkplug wire. nd keepthe wire awayfrom the plug to preventaccidental starting.

Keepnuts and bolts. speciallyblade attachmentbolts. ight and keepequip mentin goodcondition.

Nevertamperwithsafety devices.Check their properoperationregularly.

Keepmachinefree of grass. eaves. r otherdebrisbuild-up.Cleanoil or fuel spillage.Allowmachineto cool before storing.

Stopand inspectthe equipmentif you strike an object.Repair. f necessary. beforerestarting.

Neverattemptto makewheelheight adjustmentswhilethe engine is running.

Grasscatchercomponentsaresubject to wear. amage. nd deterioration. which couldexposemovingparts or allowobjectsto bethrown.Frequently checkcomponentsand replacewith manufacturer'srecommendedparts. when necessary.

Mowerbladesare sharp and cancut.

Wrap the blade(s)or wear gloves. nd useextracautionwhenservicingthem.

Do notchangethe enginegovernorset ting or overspeedthe engine.

Maintainor replacesafety and instruc tion labels. s necessary.

Repair Protection Agreements

Congratulations on making a smart pur chase.

Your new Craftsman® product is designed and manufactured for years of dependable operation.

But like all prod ucts. it may require repair from time to time.

That's when having a Repair Protec tion Agreement can save you money and aggravation.

Purchase a Repair Protection Agreement now and protect yourself from unexpected hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12. 00 profe sional repair specialists. Unlimited service and no charge for parts and labor on all covered repairs. Product replacement if your covered product can't be fixed. Discount of 10% from regular price of service and service-related parts not covered by the agreement; also. off regular price of preventive mainte nance check.

Fast help by phone phone support from a Sears technician on products requiring in-home repair. plus conve nient repair scheduling.

Once you purchase the Agreement. simple phone call is all that it takes for you to schedule service.

You can call anytime day or night. or schedule a service ap pointment online.

Sears has over 12.000 professional repair specialists. who have access to over 4.5 million quality parts and accessories.

That's the kind of professionalism you can count on to help prolong the life of your new purchase for years to come.

Purchase your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call 1o800o827=6655.

Sears Installation Service

For Sears professional installation of home appliances. garage door openers. water heaters. and other major home items. in the U.S.A. call l o800-4-MYoHOrvIE®.

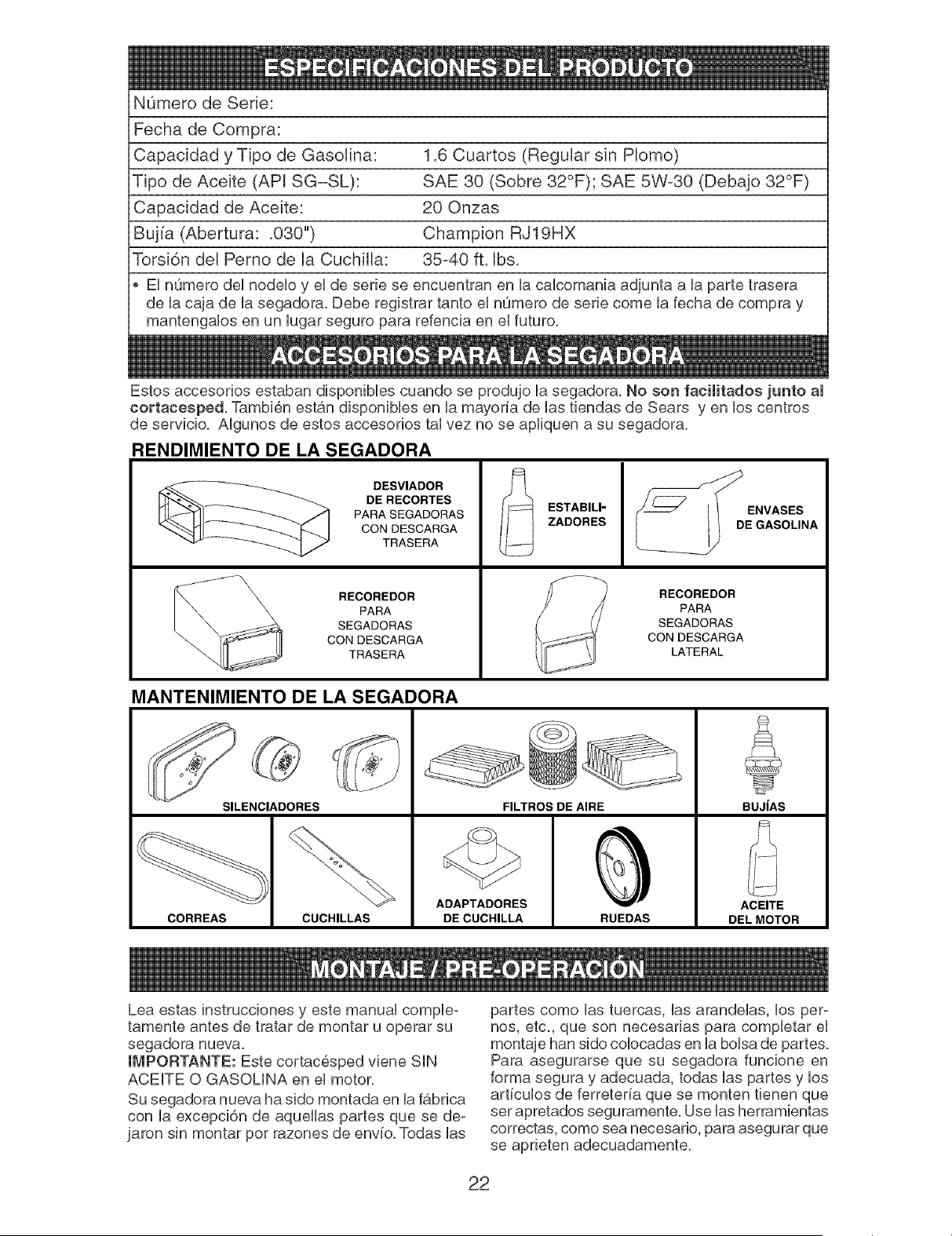

Serial Number:

Date of Purchase:

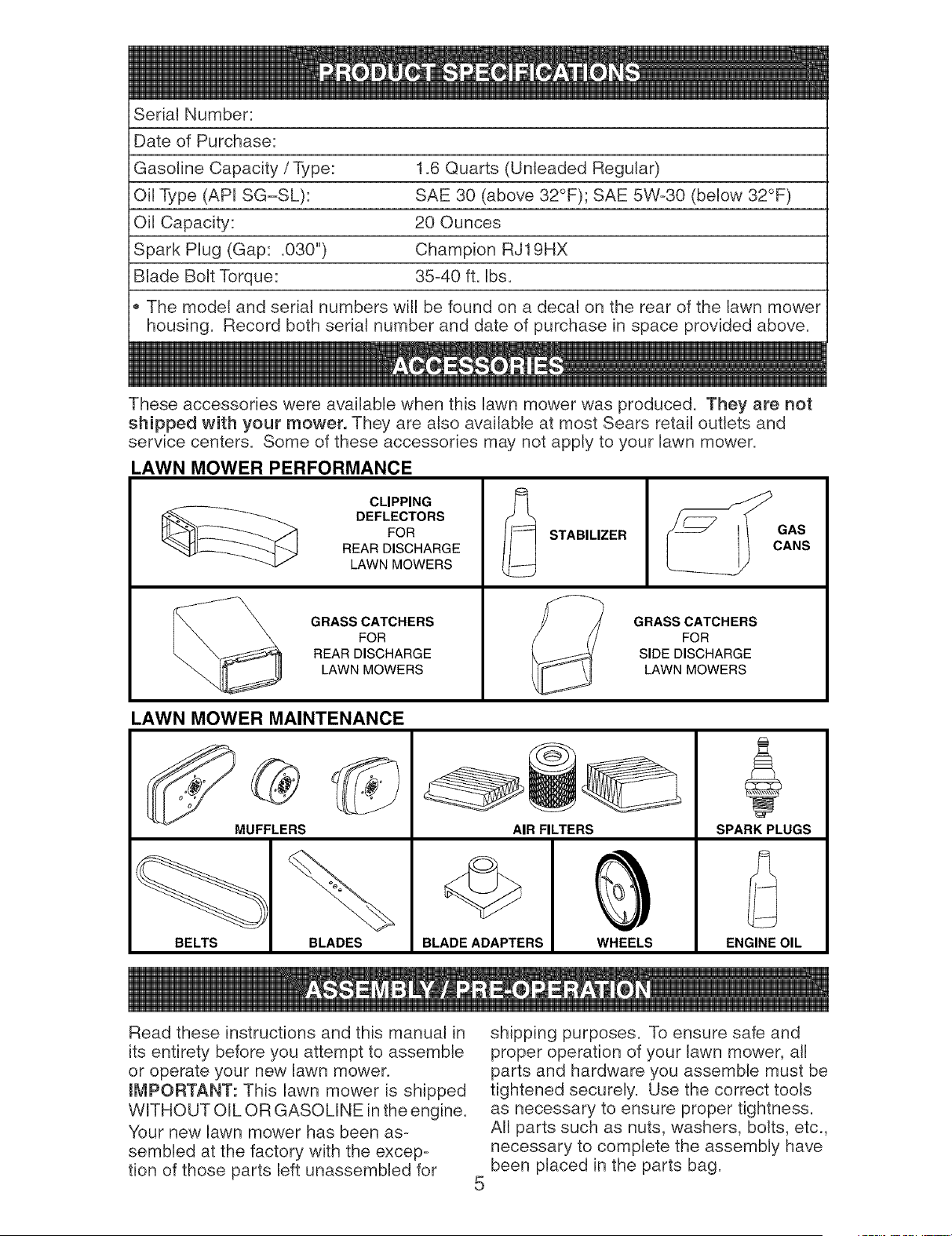

Gasoline Capacity / Type: 1.6 Quarts (Unleaded Regular)

Oil Type (API SG=SL): SAE 30 (above 32°F); SAE W-30 (below 32°F)

Oil Capacity: 20 Ounces

Spark Plug (Gap: 030") Champion RJ19HX

Blade Bolt Torque: 35-40 ft. Ibs.

The model and serial numbers will be found on a decal on the rear of the lawn mower

These accessories were available when this lawn mower was produced.

They are not shipped with your mower.

They are also available at most Sears retail outlets and service centers.

Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTORS

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS FOR REAR DISCHARGE LAWN MOWERS

STABILIZER

GRASS CATCHERS

FOR SIDE DISCHARGE LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new lawn mower. mMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been as=

TO REMOVE LAWN MOWER FROM

CARTON

Remove loose parts included with mower.

Cut down two end corners of carton

HOW TO SET UP YOUR LAWN MOWER

TO UNFOLD HANDLE

Operator presence controU bar

U FT

Mowing position

Lower handb

TO ASSEMBLE GRASS CATCHER

Put grass catcher frame into grass bag with rigid part of bag on the bottom.

Make sure the frame handle is outside

Catcher frame handle

Frame opening

TO mNSTALL ATTACHMENTS

Your lawn mower 'was shipped ready to be used as a mubher.

To convert mower to

TO PREPARE BATTERY

NOTE: Your battery must be charged before you can start your lawn mower.

Connect battery charger connector (male) to harness connector (female).

Plug battery charger into 110 volt A.C. outlet.

Leave battery charger connected for 24 hours before starting your engine for the first time.

After charging. disconnect harness connector (female) from battery char ger connector (male).

Connect your battery charger to charge battery after each use. mMPORTANT: The engine will not re charge your battery.

At the end of the mowing season the battery should be charged for 48 hours to otect the battery during winter storage.

CAUTmON: Always disconnect the engine connector (male) from the battery connector (female) to prevent accidental starting when transporting or storing your lawn mower after the season.

Engine Harness connector (male) ale)

Charger connector (male)

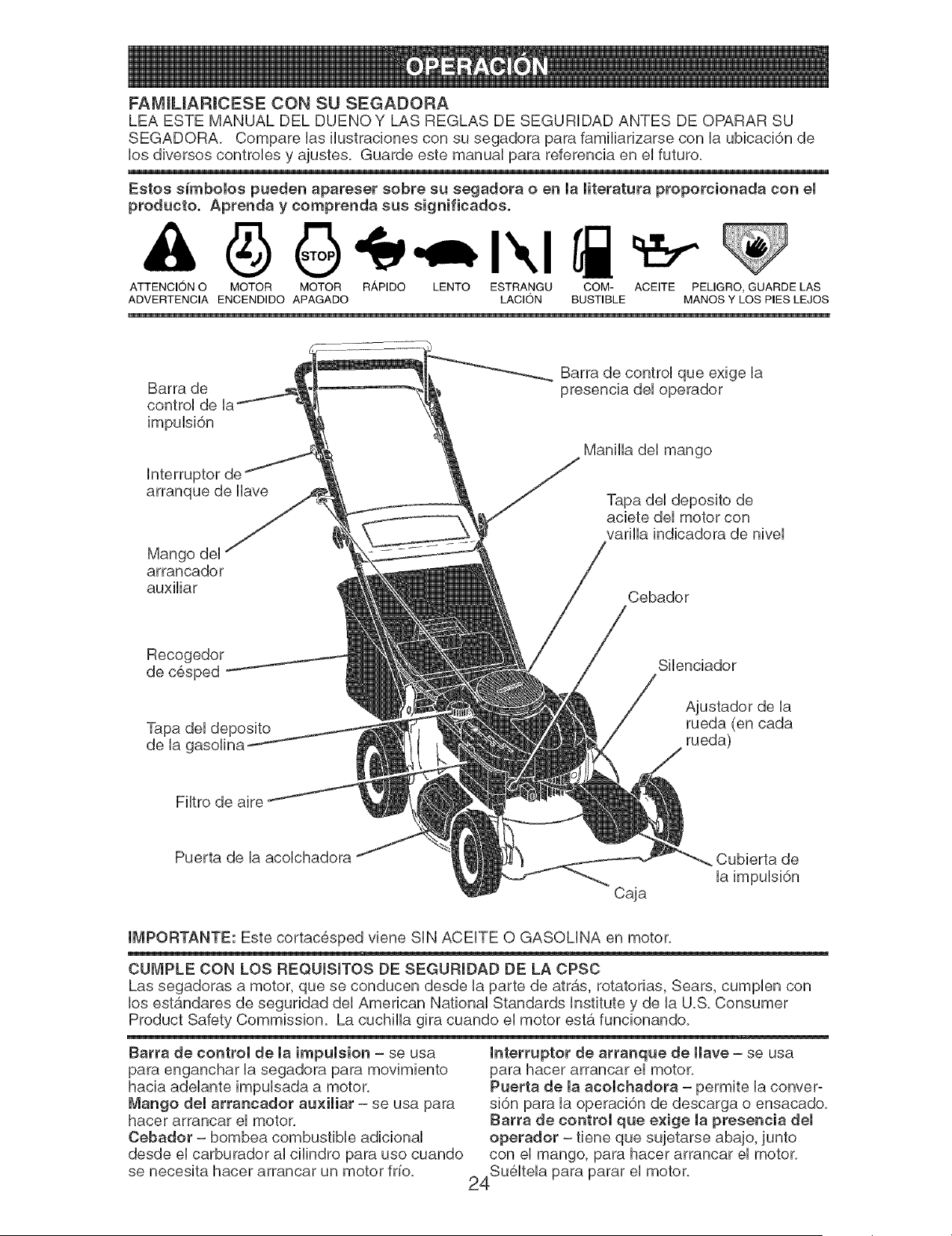

KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER.

Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments.

Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the product.

Learn and understand their meaning.

CAUTION ENGINE FAST SLOW CHOKE FUEL OIL DANGER.

KEEP HANDS OR WARNING ON OFF AND FEET AWAY

Drive controU bar

Key start switch

Auxiliary starter handb

Operator presence contro] bar

Handb knob

Engine oH cap with dipstick

Primer

Grass catcher Muffler

Gasoline filler cal Wheel adjuster on each wheel)

Air filter

Mulcher Drive cover

Housing

MEETS CPSC SAFETY REQUmREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute and the U.S. Consumer Product Safety Com mission.

The blade turns when the engine is running.

Operator presence control bar must be held down to the handle to start the

Primer pumps additional fuel from the carburetor to the cylinder for use when starting a cold engine.

Mulcher door allows conversion to discharging or bagging operation.

Drive control bar used to engage 7 power=propelled forward motion of mower.

The operationof any lawn SAETYGLASSES mowercan resultinforeign objectsthrown intothe eyes. hichcan resultin severeeyedamage.Always wear safety glassesor eyeshieldswhile operatingyour lawnmoweror performing anyadjustmentsor repairs.VVerecom menda standardsafety glassesor wide vision safety maskworn overspectacles.

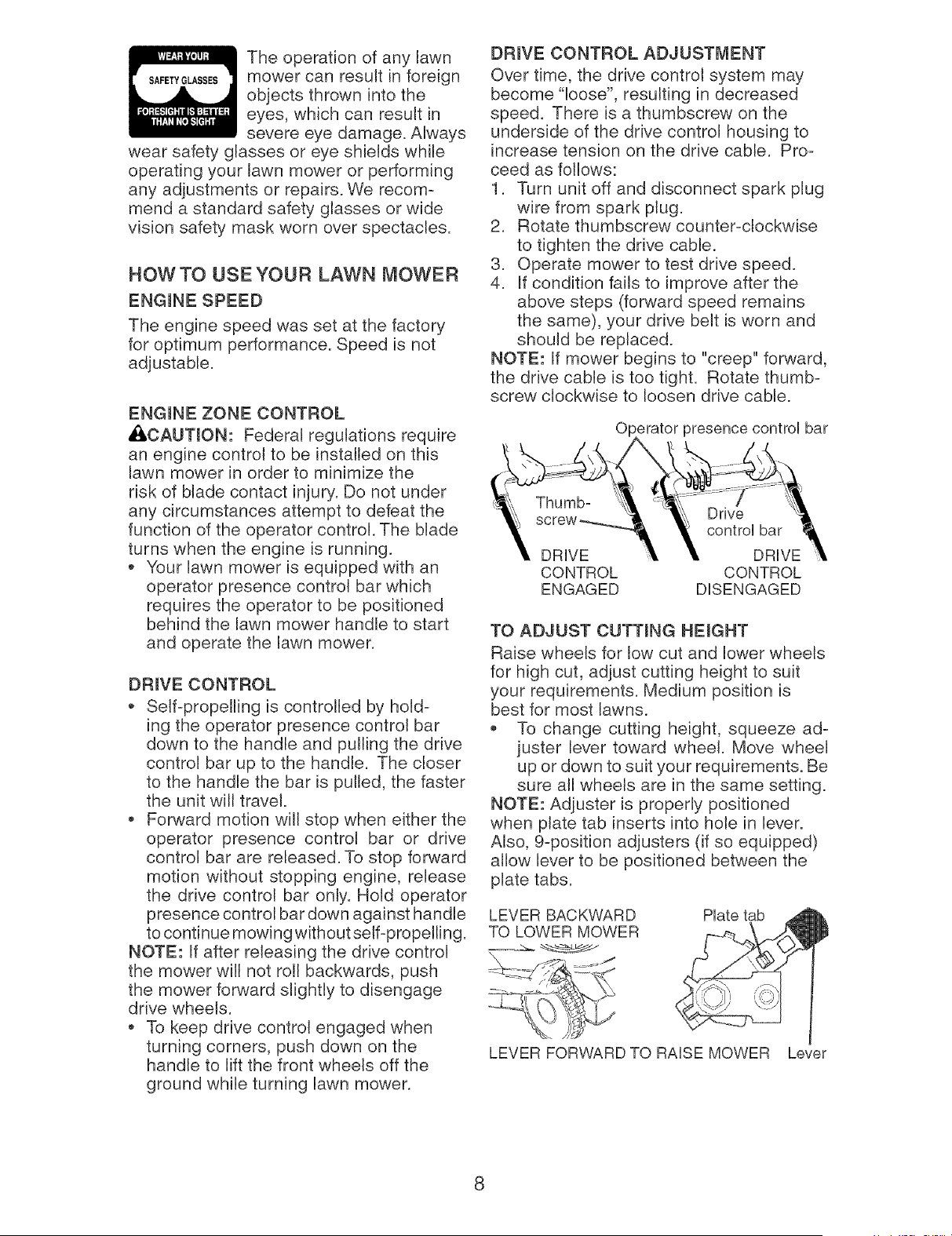

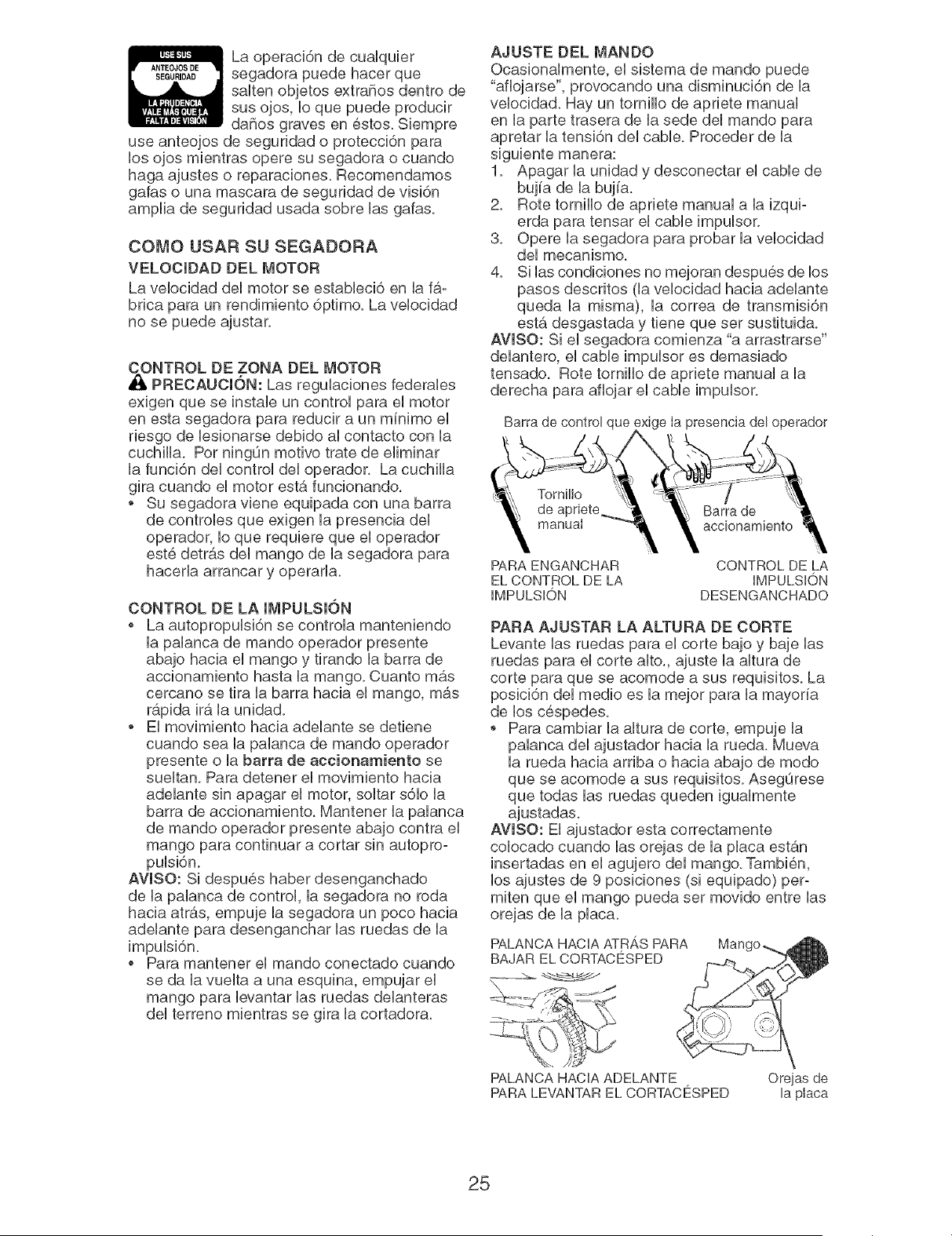

HOW TO USE YOUR LAWN MOWER

ENGmNE SPEED

The engine speed was set at the factory for optimum performance.

Speed is not adjustable.

ENGmNE ZONE CONTROL

II. AUTmON: Federal regulations require an engine control to be installed on this lawn mower in order to minimize the

DRmVE CONTROL

Self-propelling is controlled by hold ing the operator presence control bar down to the handle and pulling the drive control bar up to the handle.

The closer to the handle the bar is pulled. the faster the unit will travel.

Forward motion will stop when either the operator presence control bar or drive control bar are released.

To stop forward motion without stopping engine. release the drive control bar only. Hold operator presence control bar down against handle to continue mowing without self-propelling.

NOTE: If after releasing the drive control the mower will not roll backwards. push the mower forward slightly to disengage drive wheels.

To keep drive control engaged when turning corners. push down on the handle to lift the front wheels off the

DRIVE CONTROL ADJUSTMENT

Over time. the drive control system may become "loose". resulting in decreased speed.

There is a thumbscrew on the underside of the drive control housing to increase tension on the drive cable.

Pro ceed as follows:

Turn unit off and disconnect spark plug wire from spark plug.

Rotate thumbscrew counter-clockwise to tighten the drive cable.

Operate mower to test drive speed.

If condition fails to improve after the above steps (forward speed remains the same). your drive belt is worn and should be replaced.

NOTE: If mower begins to "creep" forward. the drive cable is too tight.

Rotate thumb screw clockwise to loosen drive cable.

)resence control bar

Drive control bar

DRIVE CONTROL ENGAGED DISENGAGED

TO ADJUST CUTTmNG HEmGHT

Raise wheels for low cut and lower wheels for high cut. adjust cutting height to suit your requirements.

Medium position is best for most lawns.

To change cutting height. squeeze ad juster lever toward wheel.

Move wheel up or down to suit your requirements.

Be sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned when plate tab inserts into hole in lever.

Also.

9-position adjusters (if so equipped) allow lever to be positioned between the plate tabs.

LEVER BACKWARD TO LOWER MOWER

Plate tab

LEVER FORWARD TO RAISE MOWER Lever

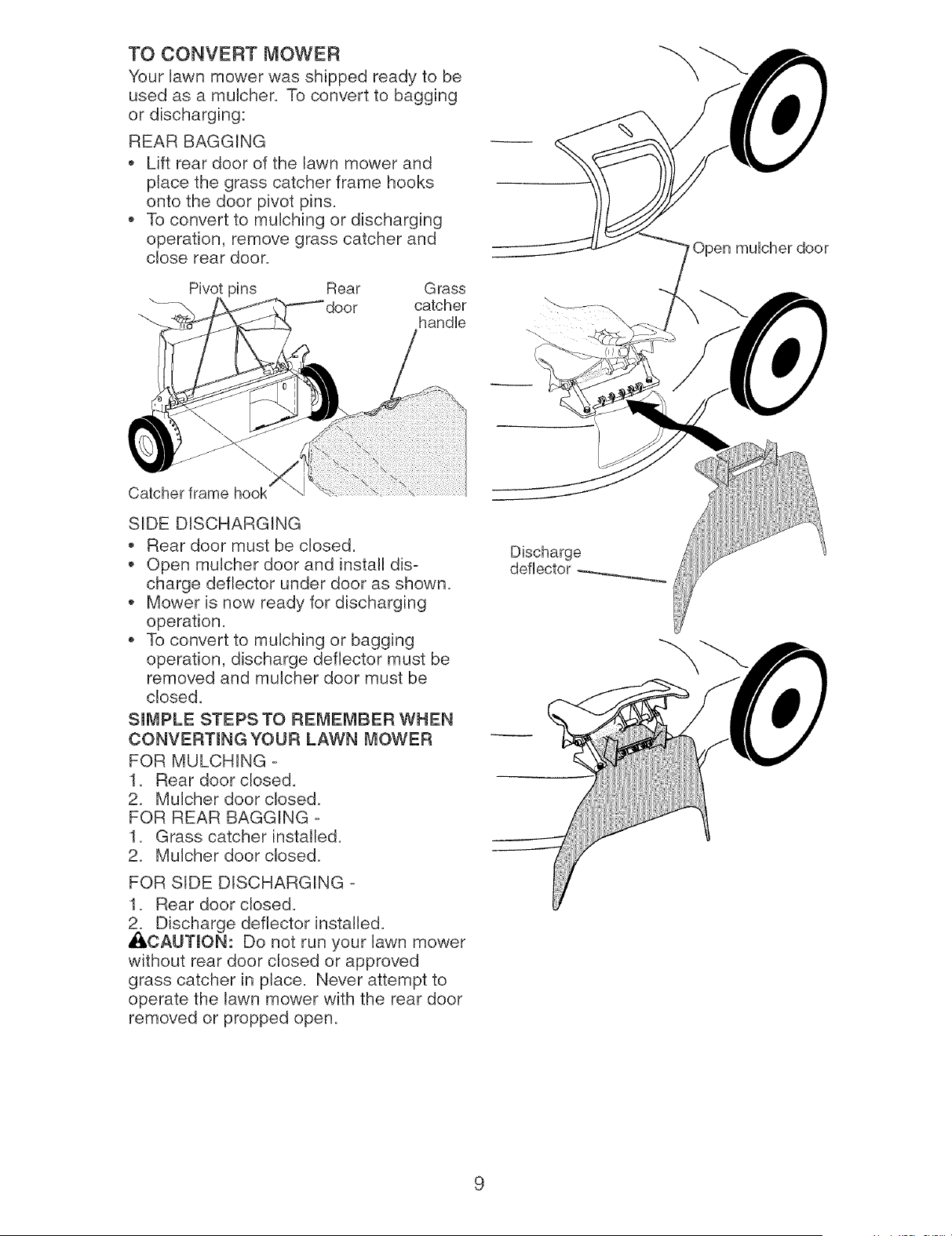

TO CONVERT MOWER

Your lawn mower was shipped ready to be used as a mubher.

To convert to bagging or discharging:

REAR BAGGING

Lift rear door of the lawn mower and place the grass catcher frame hooks onto the door pivot pins. . To convert to mulching or discharging operation. remove grass catcher and close rear door.

Pivot pins Rear Grass catcher >'--- handb

Open mubher door

Catcher frame hook

SIDE DISCHARGING

Rear door must be closed.

. Open mulcher door and install dis charge deflector under door as shown. . Mower is now ready for discharging operation. . To convert to mulching or bagging operation. discharge deflector must be removed and mulcher door must be closed.

SmMPLE STEPS TO REMEMBER WHEN CONVERTmNG YOUR LAWN MOWER

FOR MULCHING

Rear door closed.

Mulcher door closed.

FOR REAR BAGGING

Grass catcher installed.

Mulcher door closed.

FOR SIDE DISCHARGING

Rear door closed.

Discharge deflector installed.

ACAUTmON: Do not run your lawn mower without rear door closed or approved grass catcher in place.

Never attempt to operate the lawn mower with the rear door removed or propped open.

Discharge deflector

TO EMPTY GRASS CATCHER

Lift up on grass catcher using the frame handle.

Remove grass catcher with clippings from under lawn mower handle.

Empty clippings from bag using both frame handle and bag handle.

NOTE: Do not drag the bag when empty ing; it will cause unnecessary wear.

Grass catcher frame handb

Bag handb

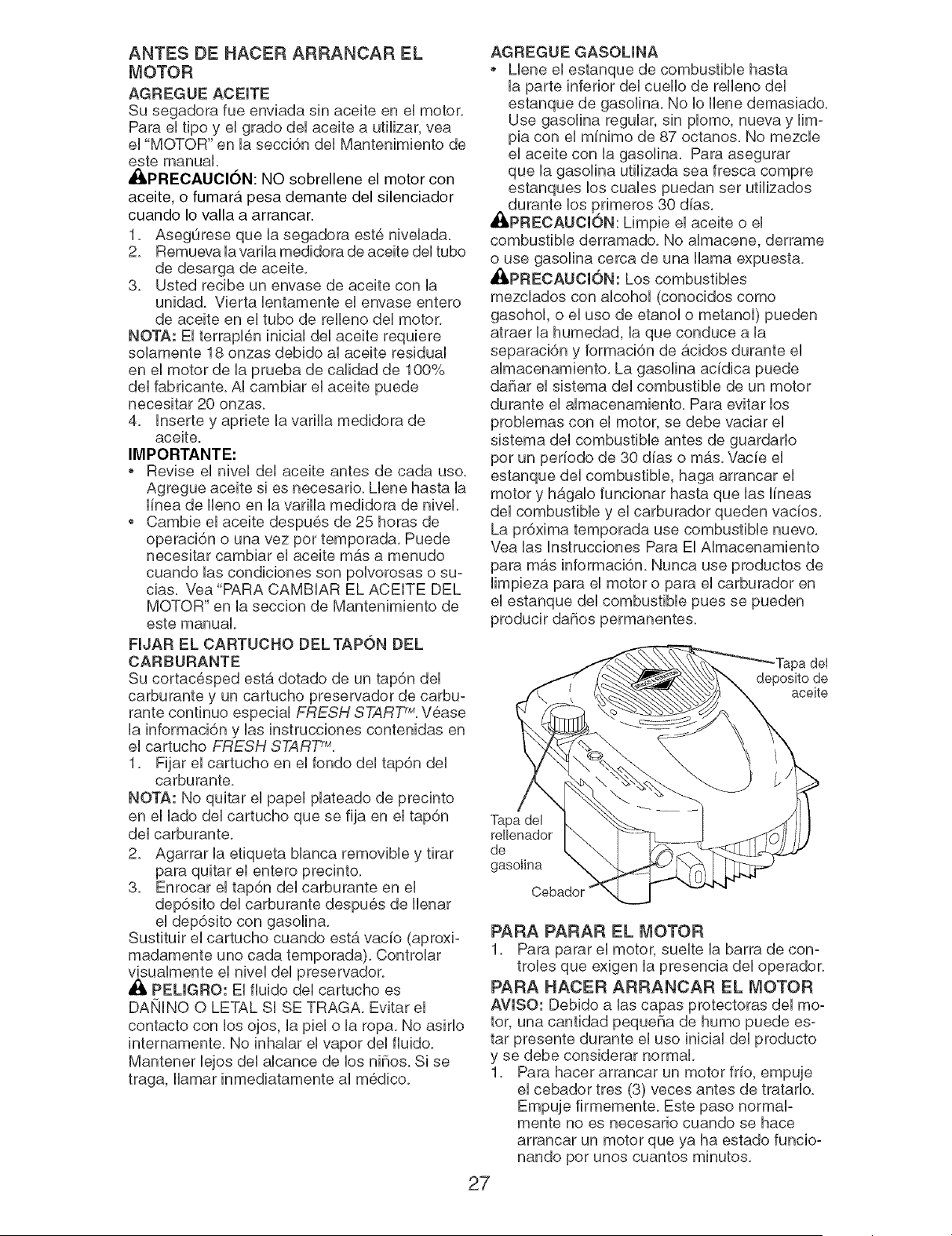

BEFORE STARTmNG ENGINE

ADD OIL

Your lawnmower is shipped without oil in the engine.

For type and grade of oil to use. see "ENGINE" in the Maintenance section of this manual.

CAUTION: DO NOT overfill engine with oil. or it will smoke heavily from the muffler on startup.

Be sure lawnmower is level.

Remove oil dipstick from oil fill spout.

You receive a container of oil with the

ATTACH FUEL CAP CARTRmDGE

Your mower is equipped 'with a special FRESH START TMfuel cap and continuous fuel preserver cartridge.

See the infor mation and instructions packed with the FRESH STARTTM cartridge.

Snap cartridge into bottom of fuel cap.

NOTE: Do not remove the silver foil seal on the side of cartridge that snaps into fuel cap.

Grasp the white peel tab and pull to remove the entire seal.

Screw fuel cap onto fuel tank after fill ing tank with gasoline.

Replace cartridge when empty (about once a season).

Check preserver level visually.

1DANGER: Cartridge fluid is HARMFUL OR FATAL IF SWALLOWED.

Avoid contact

ADD GASOUNE

Fill fuel tank to bottom of tank filler neck.

Do not overfill.

Use fresh. clean. regular unleaded gasoline with a minimum of 87 octane.

Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30 days to assure fuel fresh ness. CAUTmON: Wipe off any spilled oil or fuel.

Do not store. spill or use gasoline near an open flame.

CAUTmON: Alcohol blended fuels

(called gasohol or using ethanol or metha nol) can attract moisture which leads to separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine while in storage.

To avoid engine problems. the fuel system should be emptied before storage of 30 days or longer.

Empty the gas tank. start the engine and let it run until the fuel lines and carburetor are empty.

Use fresh fuel next season.

See Storage Instructions for additional information.

Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

Engine oil cap

Gasoline filler cap

Primer

TO STOP ENGINE

To stop engine. release operator pres ence control bar.

TO START ENGINE

NOTE: Due to protective coatings on the engine. a small amount of smoke may be present during the initial use of the prod uct and should be considered normal.

To start a cold engine. push primer three (3) times before trying to start.

Use a firm push.

This step is not usually necessary when starting an engine which has already run for a few minutes.

Hold operator presence control bar down to the handle and turn the start

MULCHmNG MOWmNG TIPS

The special mulching blade will recut the grass clippings many times and reduce them in size so that as they fall onto the lawn they will disperse into the grass and not be noticed.

Also. the mulched grass will biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed as this will provide the best recut ting action of the blades. Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried. yet the newly cut area will not be exposed to direct sunlight. For best results. adjust the lawn mower cutting height so that the lawn mower cuts off only the top one-third of the grass blades.

If the lawn is overgrown it will be necessary to raise the height of cut to reduce pushing effort and to keep from overloading the engine and leaving clumps of mulched grass.

For extremely heavy grass. reduce your width of cut by overlapping previously cut path and mow slowly.

MOWmNG TIPS

Under certain conditions. such as very tall grass. it may be necessary to raise the height of cut to reduce pushing effort and to keep from overloading the engine and leaving clumps of grass clip pings.

It may also be necessary to re duce ground speed and/or run the lawn mower over the area a second time.

For extremely heavy cutting. reduce the width of cut by overlapping previously cut path and mow slowly.

For better grass bagging and most cut ting conditions. the engine speed should be set in the FAST position. Pores in cloth grass catchers can be come filled with dirt and dust with use

MAX 1/3

Certain types of grass and grass conditions may require that an area be mulched a second time to completely hide the clippings.

When doing a sec ond cut. mow across (perpendicular) to the first cut path. Change your cutting pattern from week to week.

Mow north to south one week

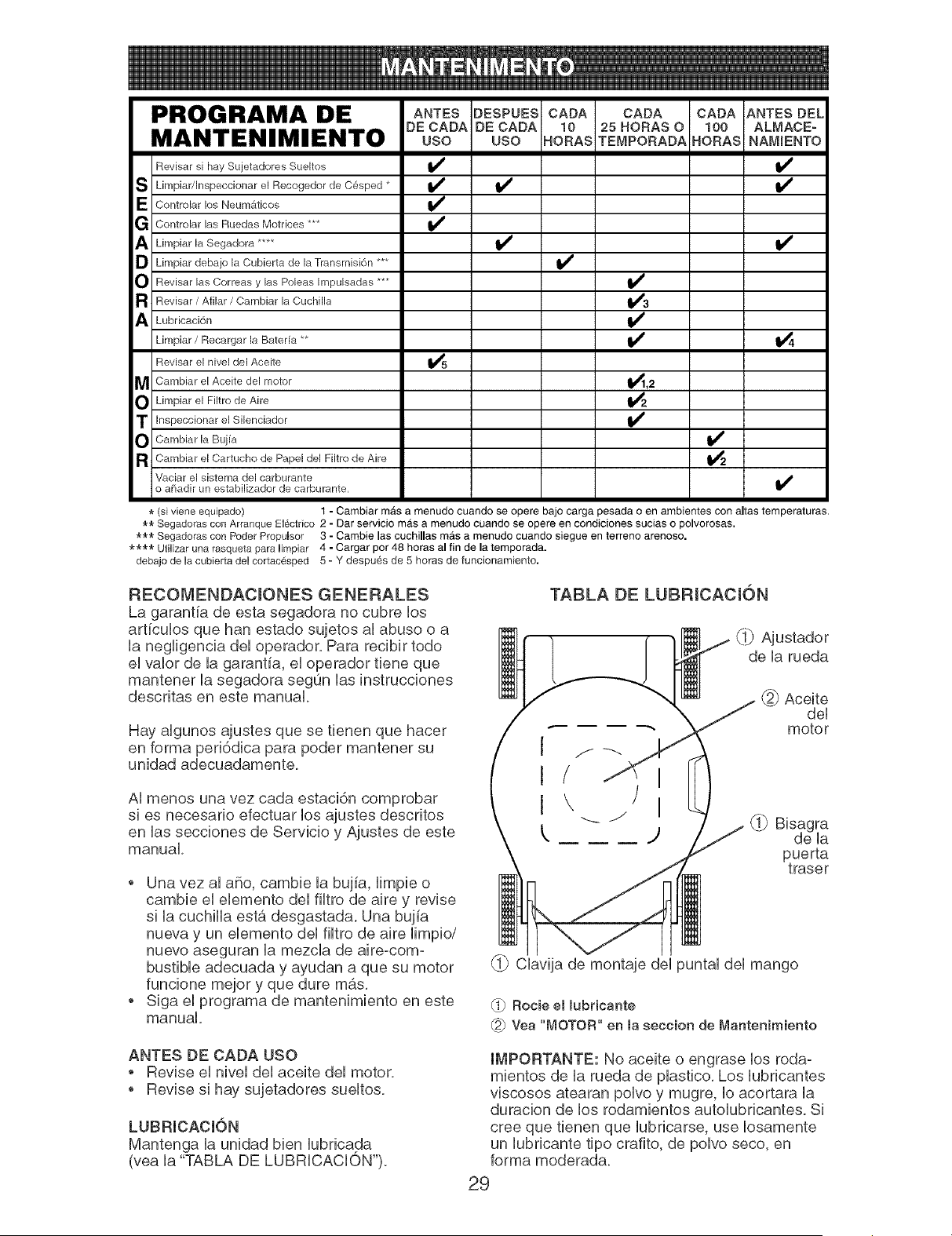

MAINTENANCE SCHEDULE

Check for Loose Fasteners

Clean / Inspect Grass Catcher Check Tires

Check Drive Wheels

Clean Lawn Mower

Clean under Drive Cover

Check Drive Belt / Putleys

Check / Sharpen / Replace Blade

Check Engine Oil level

Change Engine Oil

Clean Air Filter

Inspect Muffler

Replace Spark Plug Replace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

BEFORE AFTER EVERY BEFORE EACH HOURS USE HOURS OR SEASON HOURS STORAGE

+ (if so equipped)

+* Electric-Start mowers

Power-Propelled mowers

+*** Use a scraper to clean under deck

1 - Change more often if operating under a heavy load or in high outdoor temperatures.

2 - Service more often if operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Charge 48 hours at end of season.

5 - And after each 5 hours of use.

GENERAL RECOMMENDATmONS

The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence.

To receive full value from the warranty. operator must maintain unit as instructed in this manual.

LUBRmCATmON CHART

Wheel adjuster (on each wheel)

Some adjustments will need to be made periodically to properly maintain your unit.

At least once a season. check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

At least once a year. replace the spark plug. clean or replace air filter element and check blade for wear.

A new spark plug and clean/new air filter element assure proper air-fuel mixture and help your engine run better and last longer.

Follow the maintenance schedule in this manual.

BEFORE EACH USE

. Check engine oil level. Check for loose fasteners.

LUBRmCATmON

Keep unit well lubricated (See "LUBRICATION CHART").

Rear door hinge

1} Handle bracket mounting pins

Spray lubricant See '"ENGINE'" in l'lairlterlance section.

2graphite type lubricant sparingly.

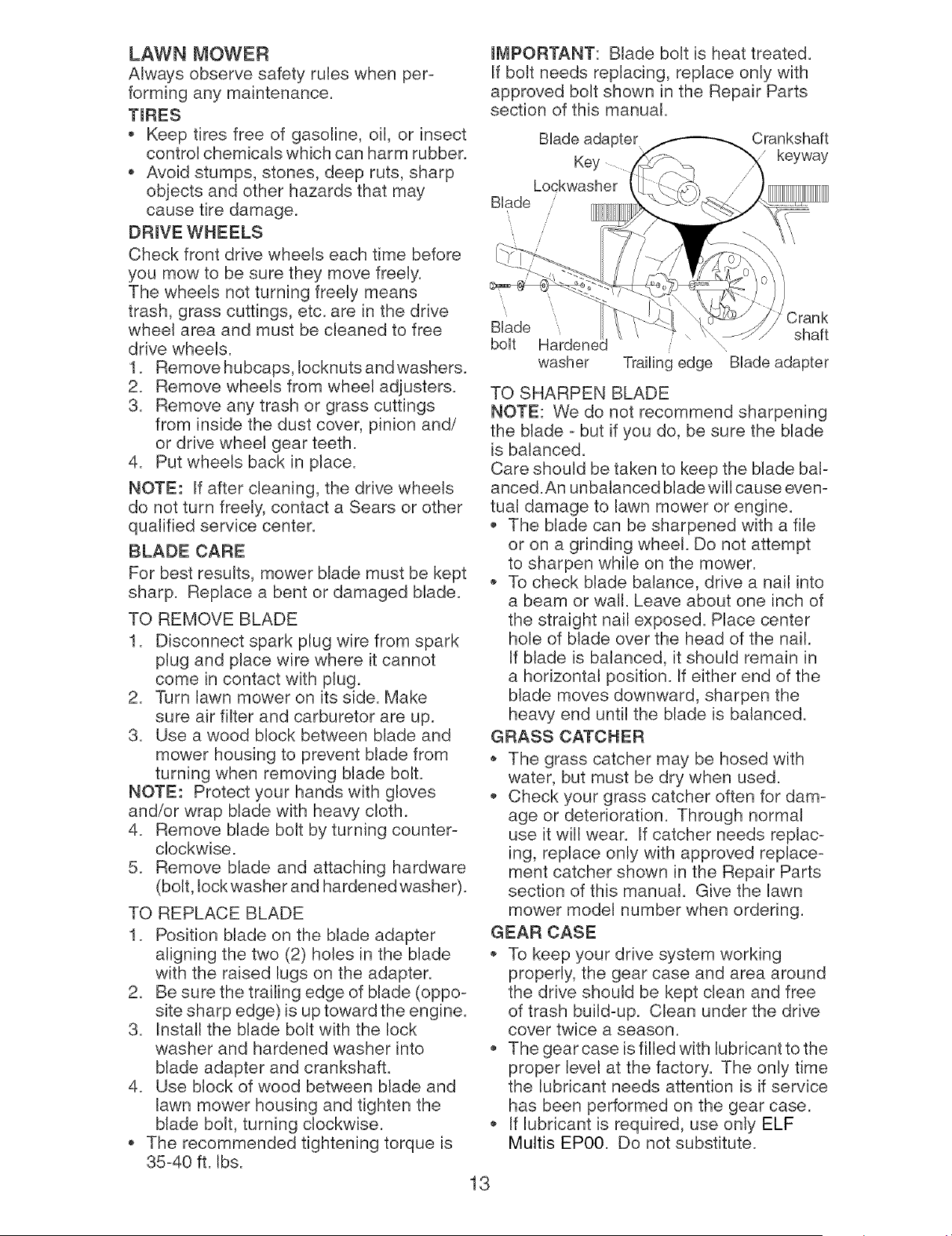

LAWN MOWER

Always observe safety rules when per forming any maintenance.

TmRES

Keep tires free of gasoline. oil. or insect control chemicals which can harm rubber.

Avoid stumps. stones. deep ruts. sharp objects and other hazards that may cause tire damage.

DRmVE WHEELS

Check front drive wheels each time before you mow to be sure they move freely.

The wheels not turning freely means trash. grass cuttings. etc. are in the drive wheel area and must be cleaned to free drive wheels.

Remove hubcaps.

Iocknuts and washers.

Remove wheels from wheel adjusters.

Remove any trash or grass cuttings from inside the dust cover. pinion and/ or drive wheel gear teeth.

Put wheels back in place.

NOTE: If after cleaning. the drive wheels do not turn freely. contact a Sears or other qualified service center.

BLADE CARE

For best results. mower blade must be kept sharp.

Replace a bent or damaged blade.

TO REMOVE BLADE

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

Turn lawn mower on its side.

Make

Remove blade and attaching hardware (bolt. lock washer and hardened washer).

TO REPLACE BLADE

Position blade on the blade adapter aligning the two (2) holes in the blade with the raised lugs on the adapter.

Be sure the trailing edge of blade (oppo site sharp edge) is up toward the engine.

Install the blade bolt with the lock washer and hardened washer into

Blade adapter.

Lockwasher Blade

Crankshaft keyway

Blade Crank shaft bolt Trailing edge Blade adapter

Harden washer

TO SHARPEN BLADE

NOTE: We do not recommend sharpening the blade but if you do. be sure the blade is balanced.

Care should be taken to keep the blade bal anced.An unbalanced blade will cause even

If blade is balanced. it should remain in a horizontal position.

If either end of the blade moves downward. sharpen the heaw end until the blade is balanced.

GRASS CATCHER

'_ The grass catcher may be hosed with water. but must be dry when used. . Check your grass catcher often for dam age or deterioration.

Through normal use it will wear.

If catcher needs replac ing. replace only with approved replace ment catcher shown in the Repair Parts section of this manual.

Give the lawn

To keep your drive system working properly. the gear case and area around the drive should be kept clean and free of trash build-up.

Clean under the drive cover twice a season. The gear case is filled with lubricant to the proper level at the factory.

The only time the lubricant needs attention is if service

LUBRmCATmON

Use only high quality detergent oil rated with API service classification SG-SL.

Select the

SAE VISCOSITY GRADES

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30. W30 etc.) improve starting in cold weather. these multi-viscosity oils will result in increased oil consumption when used above 32°R Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of opera tion orat least once a year if the lawn mower is not used for 25 hours in one year.

Check the crankcase oil level before

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to drain oil. empty fuel tank by running engine until fuel tank is empty.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

Remove engine oil cap; lay aside on a clean surface.

Tip lawn mower on its side as shown and drain oil into a suitable container.

Rock lawn mower back and forth to re

Stop adding oil when you reach the FULL mark on the dipstick.

Wait minute to allow oil to settle.

Continue adding small amounts of oil. rechecking the dipstick until oil level settles at FULL.

DO NOT overfill. or engine will smoke heavily from the muffler on startup.

Always be sure to retighten oil dipstick before starting engine.

Reconnect spark plug wire to spark plug.

AIR FILTER

Your engine will not run properly and may be damaged by using a dirty air filter.

Replace the air filter cartridge every 100 hours of operation or every season. whichever occurs first.

Service air cleaner

TO CLEAN AIR FILTER

Loosen screw and tilt cover to remove.

Carefully remove cartridge.

Clean by gently tapping on a flat sur face.

If very dirty. replace cartridge.

CAUTION Petroleum solvents. such as kerosene. are not to be used to clean cartridge.

They may cause deterioration of the cartridge.

Do not oil cartridge.

Do not use pressurized air to clean or dry cartridge.

Install cartridge. then replace cover making sure the tabs are aligned with the slots in the back plate.

Fasten screw securely.

Back I SUots Lip

Cover Cartridge Cover tabs

Container

Wipe off any spilled oil from lawn mower or side of engine.

Slowly pour oil down the oil fill spout. stopping every few ounces to check the oil level with the dipstick.

MUFFLER

Inspect and replace corroded muffler as it could create a fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of each mowing season or after every hours of operation. whichever occurs first.

Spark plug type and gap setting are shown in the "PRODUCT SPECIFIC ATIONS" section of this manual.

I. AUTmON: Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

Clean the underside of your lawn mower by scraping to remove build-up of grass and trash.

Clean engine often to keep trash from accumulating.

A clogged engine runs hotter and shortens engine life.

Keep finished surfaces and wheels free of all gasoline. oil. etc.

We do not recommend using a garden hose to clean lawn mower unless the electrical system. muffler. air filter and carburetor are covered to keep water out.

Water in engine can result in short ened engine life.

CLEAN UNDER DRmVE COVER

Clean under drive cover at bast twice

Release control bar and stop engine.

Make sure the blade and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

LAWN MOWER

TO ADJUST CUTTmNG HEmGHT

See "TO ADJUST CUTTING HEIGHT" in

The rear deflector. attached between the rear wheels of your mower. is provided to minimize the possibility that objects will be thrown out of the rear of the mower

Remove drive cover and belt keeper.

Remove belt from gearcase pulley by pushing down on pulley and rolling belt off it.

Turn lawn mower on its side with air filter and carburetor down.

Remove blade and debris shield.

Remove belt from engine pulley on crankshaft.

TO REPLACE DRmVE BELT

Install new belt on engine pulley.

Reinstall debris shield and blade.

Return mower to upright position.

Install new belt on gearcase pulley.

Reinstall belt keeper and drive cover.

NOTE: Always use factory approved belt to assure fit and long life.

Drive cover

Belt keeper

PUSH DOWN

TO ADJUST HANDLE

The handle can be mounted in a high or low position.

The mounting holes in the bottom of lower handle are off center for raising or lowering the handle.

Remove upper handle and wire tie(s) securing cable(s) to lower handle.

Remove trimplate from lower handle.

Remove hairpin cotters from lower handle bracket mounting pin.

Squeeze lower handle in to remove it from mounting pins.

Turn lower handle over to raise or lower handle.

Squeeze lower handle in and position holes onto mounting pins on handle bracket.

Reassemble trimplate to lower handle.

Reassemble upper handle and all parts removed from lower handle.

Mowing position :osition

HiGH POSiTiON

Screws

Lowe r

ROTATE

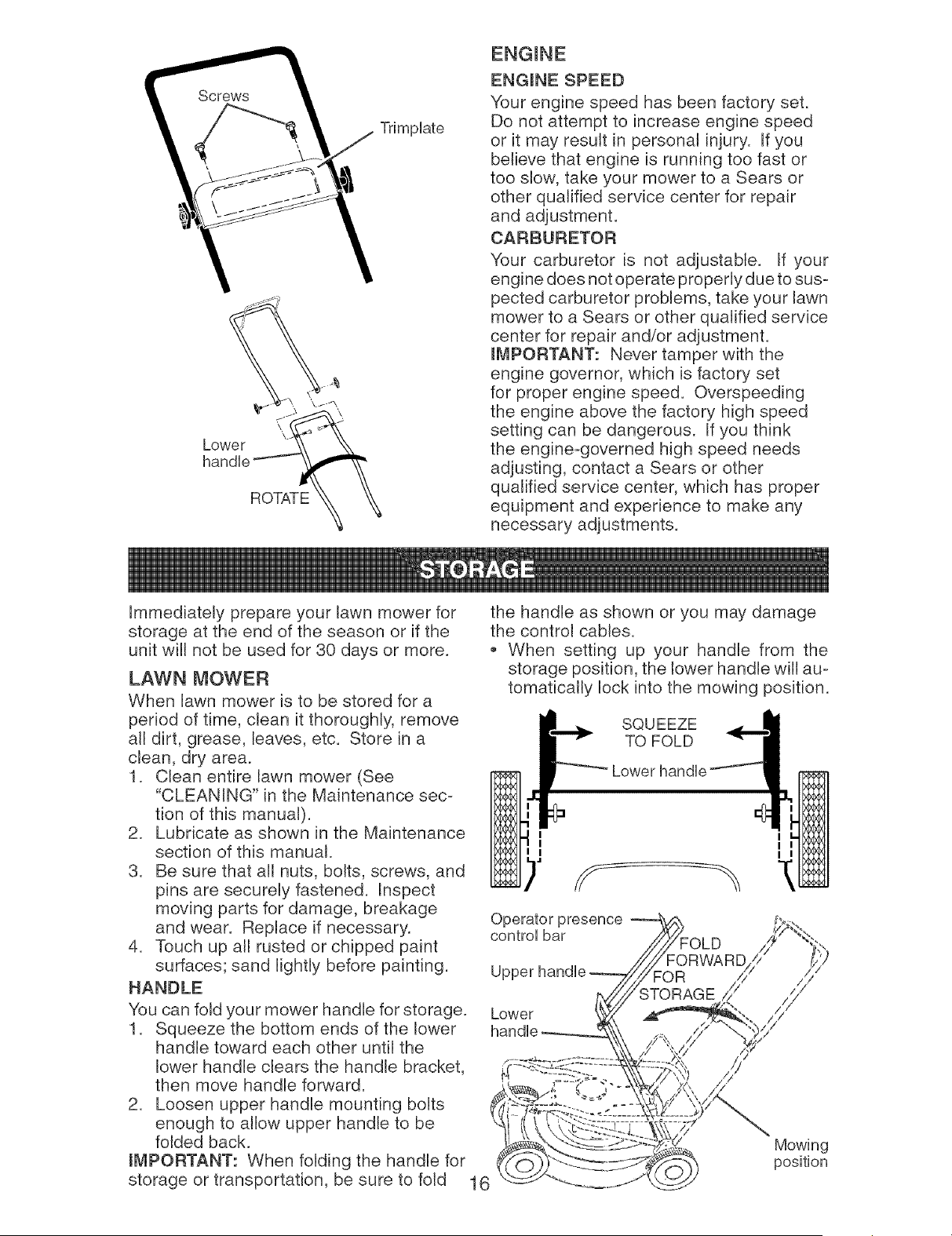

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed or it may result in personal injury.

If you believe that engine is running too fast or too slow. take your mower to a Sears or other qualified service center for repair and adjustment.

CARBURETOR

Your carburetor is not adjustable.

If your engine does not operate properly due to sus pected carburetor problems. take your lawn mower to a Sears or other qualified service center for repair and/or adjustment. iMPORTANT: Never tamper with the engine governor. which is factory set for proper engine speed.

Overspeeding the engine above the factory high speed setting can be dangerous.

If you think the engine-governed high speed needs adjusting. contact a Sears or other qualified service center. which has proper equipment and experience to make any necessary adjustments.

Immediately prepare your lawn mower for storage at the end of the season or if the unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

"CLEANING" in the Maintenance sec i-"

You can fold your mower handle for storage.

Lower

Squeeze the bottom ends of the lower handle toward each other until the lower handle clears the handle bracket. then move handle forward.

Loosen upper handle mounting bolts enough to allow upper handle to be folded back.

JlVJPORTANT: When folding the handle for storage or transportation. be sure to fold

SQU EEZE TO FOLD

Lower handle

Operator presence control bar

Mowing position

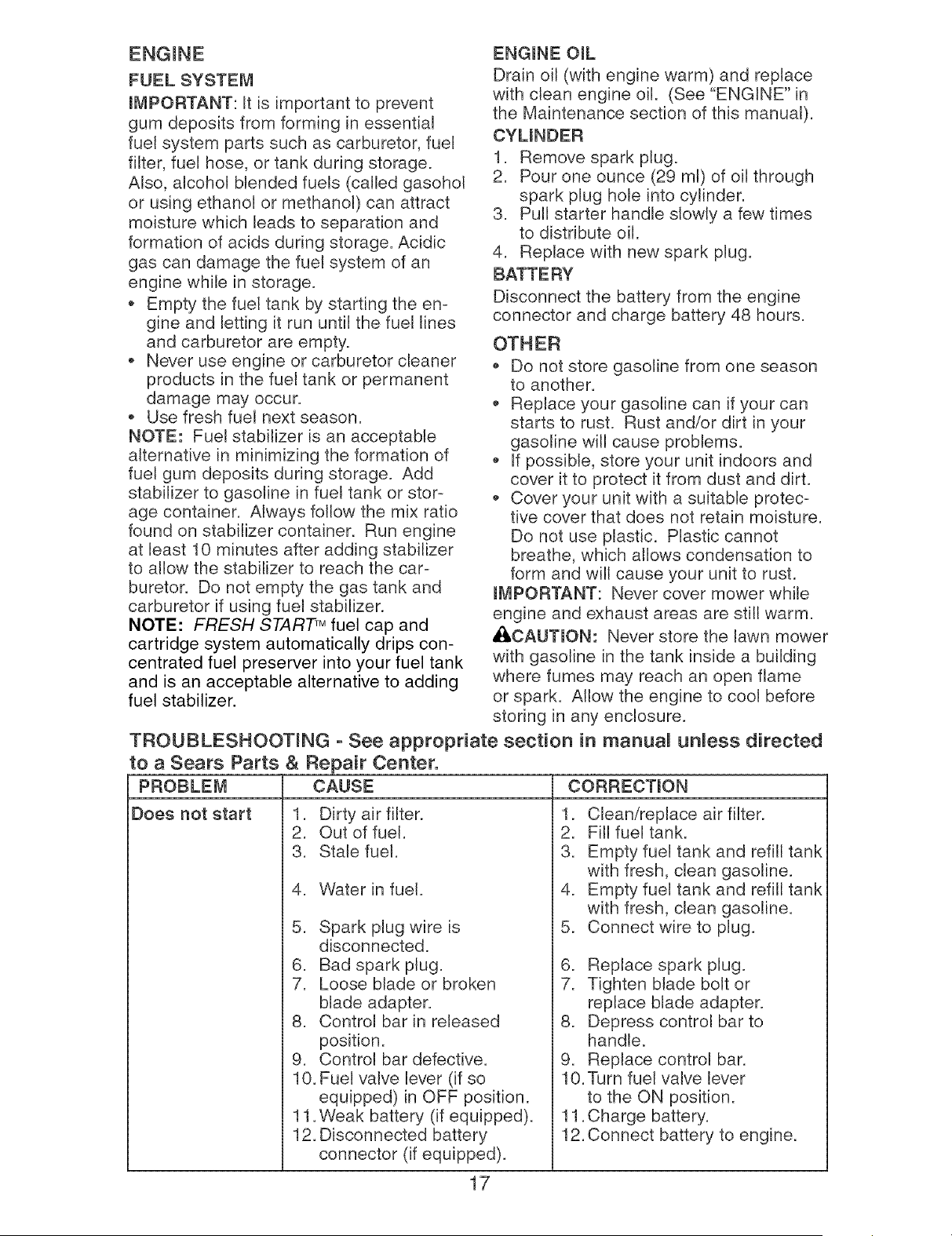

FUEL SYSTE

IMPORTANT: It is important to prevent gum deposits from forming in essential fuel system parts such as carburetor. fuel filter. fuel hose. or tank during storage.

Also. alcohol blended fuels (called gasoho[ or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine while in storage.

Empty the fuel tank by starting the en gine and letting it run until the fuel lines and carburetor are empty.

Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or stor age container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the car buretor.

Do not empty the gas tank and carburetor if using fuel stabilizer.

NOTE: FRESH START TM fuel cap and cartridge system automatically drips con centrated fuel preserver into your fuel tank and is an acceptable alternative to adding fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See "ENGINE" in the Maintenance section of this manual).

CYLINDER

Remove spark plug.

Pour one ounce (29 ml) of oil through spark plug hole into cylinder.

Pull starter handle slowly a few times to distribute oil.

Replace with new spark plug.

BATT E RY

Disconnect the battery from the engine connector and charge battery 48 hours.

OTHER

. Do not store gasoline from one season to another. . Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

If possible. store your unit indoors and cover it to protect it from dust and dirt.

Cover your unit with a suitable protec tive cover that does not retain moisture.

Do not use plastic.

Plastic cannot breathe. which allows condensation to form and will cause your unit to rust.

IMPORTANT: Never cover mower while

TROUBLESHOOTING See appropriate section in manual urfless directed

Does not start

Dirty air filter.

Out of fuel.

Stale fuel.

Water in fuel.

Spark plug wire is disconnected.

Bad spark plug.

Loose blade or broken blade adapter.

Control bar in released

CORRECTION

Clean/replace air filter.

Fill fuel tank.

Empty fuel tank and refill tank with fresh. clean gasoline.

Empty fuel tank and refill tank with fresh. clean gasoline.

Connect wire to plug.

Replace spark plug.

Tighten Made bolt or replace blade adapter.

Depress control bar to handle.

Replace control bar.

10. Turn fuel valve lever to the ON position.

11. Charge battery.

12. Connect battery to engine.

TROUBLESHOOTING + See appropriate section in manuam unmess directed to a Sears Parts & Repair Center.

CAUSE

Loss of power

Excessive vibration

Starter rope hard to pull

Grass catcher

Hard to push

Loss of drive or slowing of drive speed

Rear of mower housing or blade dragging in grass.

Cutting too much grass.

Dirty air filter.

Buildup of grass. leaves. and trash under mower.

Too much oil in engine.

Walking speed too fast.

Worn. bent or loose blade.

Wheel heights uneven.

Buildup of grass. leaves and trash under mower.

Worn. bent or loose blade.

Bent engine crankshaft.

Engine flywheel brake is on when control bar is released.

Bent engine crankshaft.

Blade adapter broken.

Blade dragging in grass.

Cutting height too low.

Lift on blade worn off.

Catcher not venting air.

Grass is too high or wheel height is too low.

Rear of mower housing or blade dragging in grass.

Grass catcher too full.

Handle height position not right for you.

Belt wear.

Belt off of pulley.

Drive cable worn or broken. "Loose" drive control system.

CORRECTmON

Raise cutting height.

Raise cutting height.

Clean/replace air filter.

Clean underside of mower

Cut at slower walking speed.

Replace blade.

Tighten blade bolt.

Set all wheels at same height.

Clean underside of

Replace blade.

Tighten blade bolt.

Contact a Sears or other qualified service center.

Depress control bar to upper handle before pulling the starter rope.

Contact a Sears or other

Raise cutting height.

Replace blade.

Clean grass catcher.

Raise cutting height.

Raise rear of mower housing one (1) setting higher.

Empty grass catcher.

Adjust handle height to suit.

Check/replace drive belt.

Check/reinstall drive belt.

Replace drive cable.

Adjust drive control.

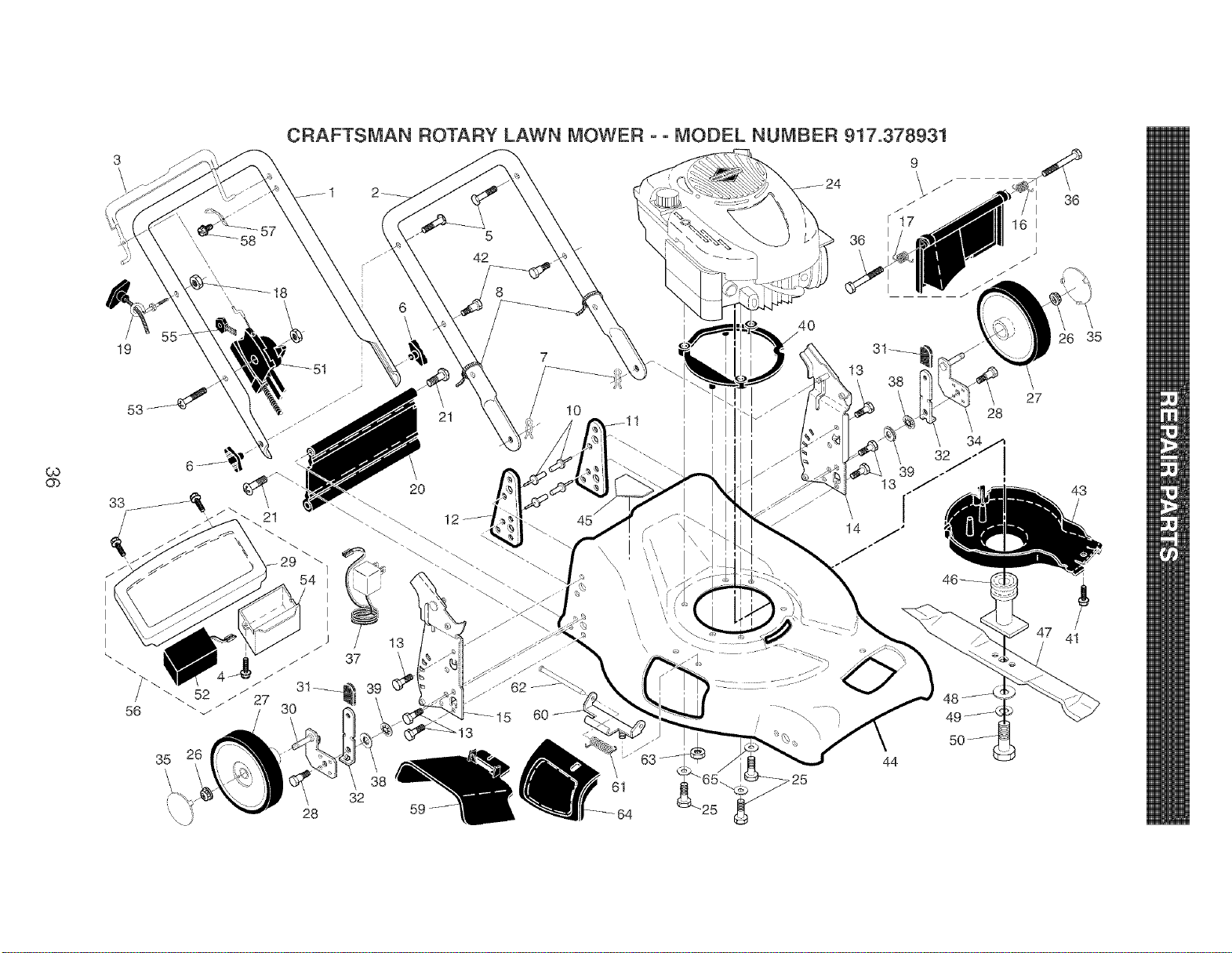

CRAFTSMAN ROTARY LAWN MOWER ° o MODEL NUMBER 917.378931

KEY NO.

PART NO.

X479 182810 17411308 131959 136376 51793 66426 180479 128415 X479 17060410 X479 180071 180072 132004 179585 189005 88652

850999 83923 189445 189312 186153 X004 701037 X004 141841 X004 77400 184193

KEY PART DESCRIPTION NO.

DESCRIPTION

Upper Handle Lower Handle 176185 Control Bar 176235 Screw 701313 Handle Bolt 188040 Handle Knob 175551 Hairpin Cotter 187038 Wire Tie 182385 Kit. Rear Door (Includes Key #16 and 17) Pop Rivet 85463 Support Bracket. LH 187037 Support Bracket. RH 189028 Screw 1/4-20 x 5/8 851074 Handle Bracket Assembly. LH 850263 Handle Bracket Assembly. RH 179617 Spring. Rear Door. LH 186147 Spring. Rear Door. RH 189590 Nut. Hex 186159 Rope Guide 186237 Rear Skirt 180331 Hinge Screw 1/4-20 x 1-1/4 186152 Engine. Briggs & Stratton. Model Number X004 K05-0345-EI (See Breakdown) 750634 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 175071 Hex Flanged Nut 175735 Wheel 175285 Shoulder Bolt 5/16-18 175650 Panel. Trim 73800400 Axle Arm Assembly. Rear. RH 175066 Selector Knob 53998 Selector Spring

161058 Screw

190917 Axle Arm Assembly. Rear. LH Hubcap Bolt

Charger. Battery Washer Nut. Push Spacer. Engine Screw Bolt. Shoulder Debris Shield Kit. Lawn Mower Housing (includes Key Numbers 10. 11. 2 and 45) Danger Decal Blade Adapter / Pulley Blade. 21" Hardened Washer Helical Washer 3/8-24 x 1-3/8 Grade 8 Hex Head Machine Screw Control. Combi-Key Battery Screw Box. Battery Key Trimplate. Battery and Battery Box Assembly Bracket. Upstop Screw Discharge Deflector Hinge Bracket Hinge Spring Hinge Rod Nut. Hex Mulcher Door Washer Warning Decal (not shown) Owner's Manual

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

CRAFTSMAN ROTARY LAWN MOWER ° o MODEL NUMBER 917.378931

KEY NO.

PART NO.

185685 169911 175262 185681 169778 X428 751152 77400 145212 188331 180773 12000058 188330 189403 184172 67725 188152 701037 175104 188291 175098 175105 175103 175102 188102 173715 X428 132010

KEY PART DESCRIPTION NO.

DESCRIPTION

Vari-Speed Drive Centre! Assembly 189406 Pulley. Drive Bearing. Wheel Adjuster 180915 Kit. Wheel Adjuster. LH Pan Head Tapping Screw #10-24 x 23/4 (Includes Knob and Bearing) Screw 187212 Gear Case Assembly. Complete WBelt 73800400 Locknut 1/4-20 Bar. Control. Drive 182226 Spring Nut. Hex 180914 Kit. Wheel Adjuster. RH Hubcap (Includes Knob and Bearing) Hex Flange Locknut 188814 Grassbag Pinion Assembly. LH 175739 Driveshaft Cover Wheel & Tire Assembly 188815 Frame. Grassbag E-Ring 187525 Case. Lower Pinion Assembly. RH 187526 Case. Upper Dust Cover 183499 Gear. 27 Teeth Seal. Friction 187527 Shaft. Input Washer. Flat 187528 Spacer O-Ring 183505 Wire. Formed Selector Knob 183506 Bearing. Ball Disc. Drive 183508 Seal. Output Shaft Torsion Spring 183509 Washer Pawl 183511 Bushing Retainer. Drive. LH 187529 Shaft. Output Gear. Pinion 183513 Screw Retainer. Drive. RH 183514 Seal. Input Shaft Belt Keeper Screw

+ Use Dew Coming #709 to reseal Gear Case Halves.

Drive Cover Hex Flange Nut NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

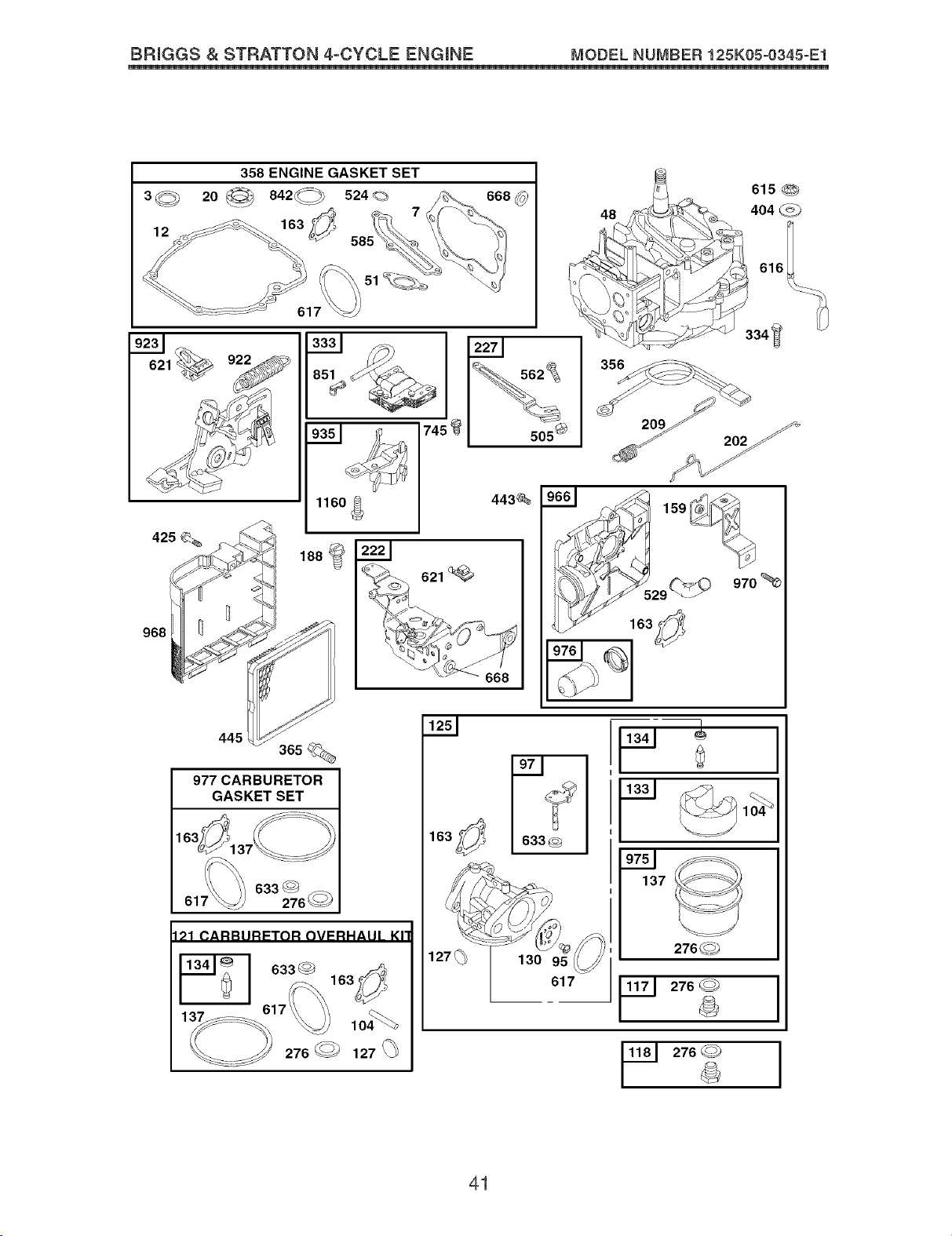

BRJGG$ & $TRATTON 4=CYCLE ENGINE MODEL NUMBER K05-0345-E1

358 ENGINE GASKET SET 842;_ 524

1160

977 CARBURETOR GASKET SET

121 CARBLIRFTOR OVFRHAUL KI'I

633 O

276c

BRmGGS & STRATTON 4-CYCLE ENGmNE MODEL NUMBER K05-0345-E1

11329 REPLACEMENT ENGINE

742 ' 1510

651 _'

LABEL KIT II lO36 EMISSIONS LABELII lO58 OWNER'S MANUAL 111330 REPAIR MANUALI

KEY PART KEY PART NO.

DESCRiPTiON NO.

DESCRmPTmON

697322 Cylinder Assembly 691664 Screw (Connecting Rod) 399269 Kit-Bushing/Seal 695759 Screw (Connecting Rod) 299819

• Seai-Oil (Magneto Side) 262651 Valve-Exhaust 493279 Sump-Engine 262652 Valveqntake 691160 Head-Cyiinder 691270 Spring-Valve dntake) 692249 . Gasket-Cylinder Head 691270 Spring-Valve (Exhaust) 695250 Breather Assembly 692194 Retainer-VaK. e 699472 Gasket-Breather 691997 Slinger-Govemor/OiI 691125 Screw (Breather Assembly) 690548 Tappet-Valve 691781 Tube-Breather 691449 Camshaft 692232

• Gasket-Crankcase 498829 Short Block 690912 Screw (Cylinder Head) 497465 Manifoldqntake 691680 Plug-Oil Drain 272199

• Gasketqntake 691450 Crankshaft 691650 Screw (Intake Manifold) 399781

• SeaI-Oil (PTO Side) 691421 Housing-Rewind Starter 691092 Screw (Engine Sump) 697316 Rope-Starter 691987 Flywheel (Cut to Required Length) 222698 Key-Flywheel 281434 Grip-Starter Rope 697339 Piston Assembly (Standard Size) 690837 Screw (Rewind Starter) 697341 Piston Assembly (=020" Oversize) 691740 Lock-Muffler Screw 499425 Ring Set-Piston (Standard Size) 691636 Screw (Throttle Valve) 499427 Ring Set-Piston (=020" Oversize) 696565 Shaft-Throttle 691866 Lock-Piston Pin 691242 O Pin-Float Hinge 499423 Pin-Piston 498978 Jet-Main (Standard) 499424 Rod-Connecting 494870 Jet-Main (High Altitude)

BRmGGS & STRATTON 4=CYCLE ENGmNE MODEL NUMBER K05-0345-E1

KEY PART KEY PART NO.

DESCRiPTiON NO.

DESCRmPTJON

498260 Kit-Carburetor Overhaul 692310 498170 Carburetor 691321 694468 GPlug-Welch 66538 696564 VaNve-Throttle 690345 398187 Fioat-Carburetor 493823 398188 Valve-NeedNe/Seat 692294 693981 GSGasket-Hoat Bowi 690345 690979 Key-Timing 691855 691753 Bracket-Air Cleaner Primer 691127 272653 oGSGasket-Air CNeaner 690959 691371 Line-Fuel 691830 (Cut to Required Length) 93941 693399 Screw (Control Bracket) 691648 690940 Screw (FueITank) 691269 691829 Link-Mechanical Governor 691918 699056 Spring-Governor 692341 692467 Bracket-Control 692352 690783 Control Lever-Governor 696547 271716 GSealing Washer 690782 690940 Screw (Dipstick Tube) 695267 692038 Muffler 695266 493293 Housing-BNower 691031 691108 Screw (Blower Housing) 692017 690450 Shield-Cylinder 493880 690345 Screw (Cylinder ShieId) 695268 695161 Screen/Cup AssembNy 697338 690662 Nut (Flywheel) 691155 802574 Armature-Magneto 690380 691061 Screw (Armature Magneto) 262001 802592 Spark Plug 63709 692390 Wire-Stop 698587 497316 Engine Gasket Set 692135 19069 Flywheel Puller 691994 692524 Screw (Carburetor) 499421 89838 Wrench-Spark Plug 691325 690272 Washer (Governor Crank) 699985 690670 Screw (Air Cleaner Cover) 496116 692523 Screw (Air Cleaner Primer Base) 692298 491588 FiIter-Air Cleaner Cartridge 690700 692299 Plate-Pawl Friction 691669 281505 PawN-Ratchet 693377 691251 Nut (Governor Control Lever) 493640 494147 Drive-Starter 694395 692358 Clutch-Drive 498261 495264 Dipstick 1019 494256 692296 . SeaI-DipstickTube 1036 697457 495265 Tube-Dipstick 1058 275177 691923 Grommet 1059 692311 690786 Armature-Starter 1160 691627 492919 WasherSet 1210 498144 691119 BeNt(GovemorControl Lever) 1211 498144 698589 Screw (Control Cover) 1329 K07-0263 697734 Cover-Breather Passage 691879 . Gasket-Breather Passage 1330 272147 690800 Nut (Rewind Starter) 691696 Screw (PawI Friction Plate) 95162 Clamp-Hose 698588 Cover-Control 497680 Starter-Rewind 691340 Screw (Muffler) 690340 Retainer-Governor Shaft 698801 Crank-Governor 270344 O$SeaI-O Ring (Intake Manifold)

Switch-Stop G$Sea!-Throttle Shaft Boot-Spark Plug Screw (Starter Gear Cover) Spacer dnctudes 2) Spacer-Fuel Tank Screw (Breather Passage Cover) Spring-Friction Screw (Starter Motor) Pin-Locating Gear-Timing Retainer-E Ring Screw (Brake) Gear-Pinion Cover-Starter Gear Gasket-Starter Harness-Wiring Cap-Drive Cap-End Housing-Starter . SeaI-O Ring (Dipstick Tube) AssembIy-Dipstick/Tube Terminal-Spark Plug Adapter-Wire Seal-Valve Seat-Valve (Nntake) Seat-Valve (Exhaust) Bushing-Guide (Exhaust) Bushing-Guide (Nntake) Cover-Blower Housing Spring-Brake Brake Switch-interlock Spline-Starter Cap-Fuel Tank Base-Air Cleaner Primer Cover-Air Cleaner Screw (Blower Housing Cover) Screw (Air Cleaner Primer Bracket) Tank-Fuel BowI-Float Primer-Carburetor Set-Carburetor Gasket Kit-Labe!

Labe!-Emission Owner's Manua!

Kit-Screw/Washer Screw (interlock Switch) Assembly-Pulley/Spring (Pulley) Assembly-Pulley/Spring (Spring) Replacement Engine (Transfer Exhaust) Repair Manual

+ included in Carburetor Overhaul Kit. Key No. 121

NOTE: ANIcomponent dimensions given in U.S. inches 1 inch = 25.4 mm

Your Home

For repair - in your home - of all major brand appliances. lawn and garden equipment. or heating and cooling systems. no matter who made it. no matter who sold it!

For the replacement parts. accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME Anytime. day or night

(1-800-469-4663) (U.S.A. and Canada) www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums. lawn equipment. and electronics. call or go on-line for the nearest Sears Parts and Repair Center.

1-800-488-1222 Anytime. day or night (U.S.A. only)

To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears: 1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n a domicilio. y para ordenar piezas: 1-888-SU-HOGAR sM

AU Canada pour service en frangais: 1-800-LE-FOYER Mc

(1-800-533-6937)

+ Sears. Roebuckand Co.

® Registered Trademark / TMTrademark / SMService Mark of Sears. Roebuck and Co. ® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears.

Roebuck and Co.

MCMarque de commerce / MDMarque deposee de Sears. Roebuck and Co.

190917 Rev. 2 06.16.04 BY Printed in U.S.A.



Newest Added: 944518321 137218070 137214090 917388280 917388200

Craftsman 917378931 | Pages: 44 | File type: PDF | Filename: 67361391_917378931.pdf | Size: 8.95 MB | Language: English

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
