GE Monogram
®
Assembly Instructions
Before you Begin – Read these instructions completely and carefully.
Note To Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Use and Care Book for future reference.
Assembly of this grill cart requires basic mechanical
skills. Proper assembly is the responsibility of the
installer.
For Monogram local service in your area,
1-800-444-1845.
For Monogram service in Canada, 1-888-880-3030.
For Monogram Parts and Accessories, call
1-800-626-2002.
If you have questions concerning the installation of
this product, call the GE Answer Center
®
Consumer
Information Service at 800.626.2000, 24 hours a day,
7 days a week.
If you received a damaged Grill Cart, you should
contact your dealer.
Step 1:
Remove
Packaging
Open the box and remove the contents.
• Remove packaging and protective film from
shelves.
• Remove the packaging inside the cart used
to protect the slide-out tray during shipping

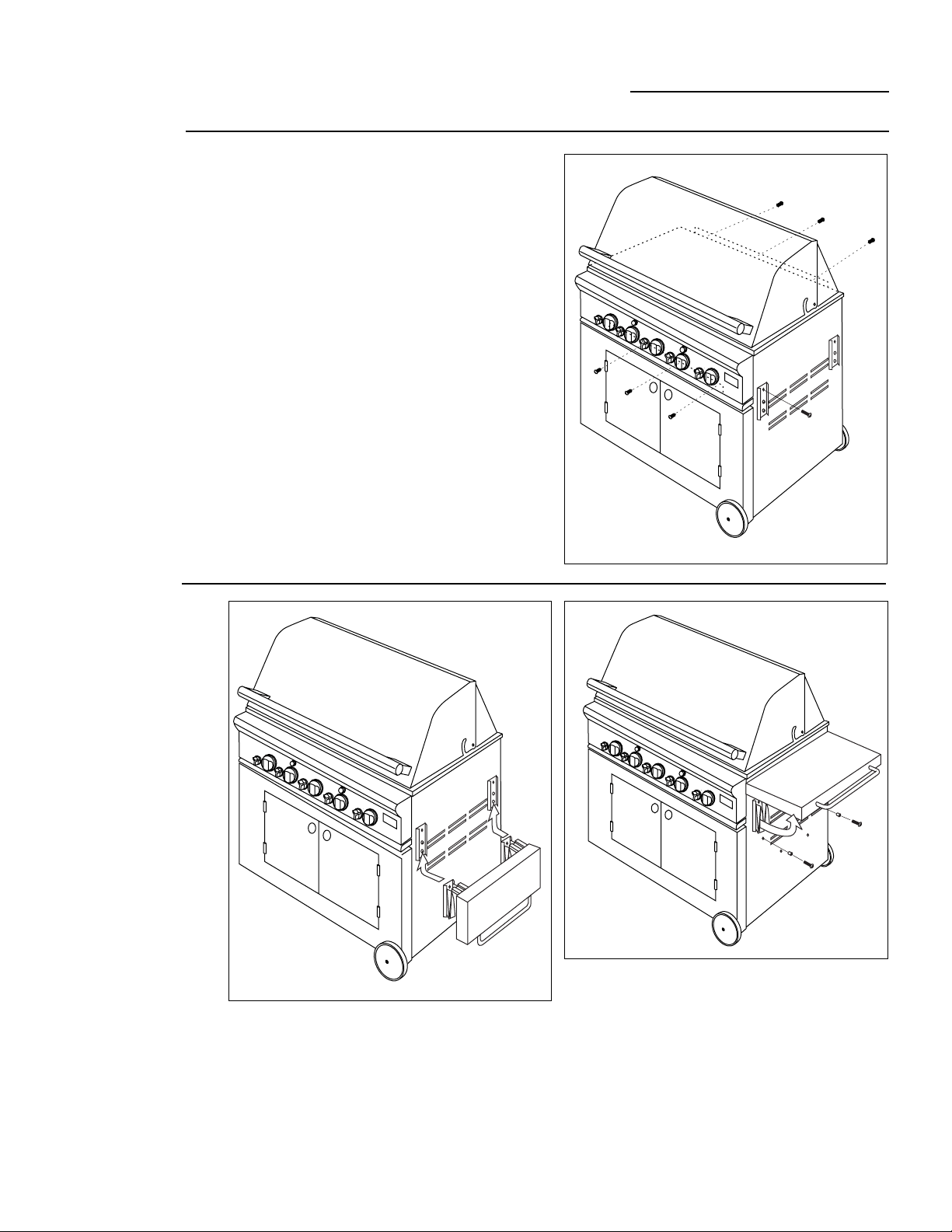

Side Shelves
Locate the hardware accessory package and
check contents.
10-24 x 1-1/2 Screws
Count 4
Aluminum Spacers
Count 4
Phillips Head Screws
Count 6
1/4-20 Nuts
Count 4
36" and 48" Outdoor Cooking Center
Grill Carts
Models ZX36CTACSS/ZX48CTACSS
Grill Cart With
Slide-Out Tank Tray
