GE Monogram
®
Assembly Instructions
Before you Begin – Read these instructions completely and carefully.
Note To Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Use and Care Book for future reference.
Assembly of this grill cart requires basic mechanical
skills. Proper assembly is the responsibility of the
installer.
NOTE:
This cart must be completely assembled before any
gas connections are made.
If you have questions concerning the installation of
this product, call the GE Answer Center
®
Consumer
Information Service at 800.626.2000, 24 hours a day,
7 days a week.
If you received a damaged Grill Cart, you should
contact your dealer.
Step 1:
Remove
Packaging
Open the box and remove the contents.
Remove packaging and protective film from
all parts.
Shelf Handle
Shelf
Back Brace
Bottom/Base Panel

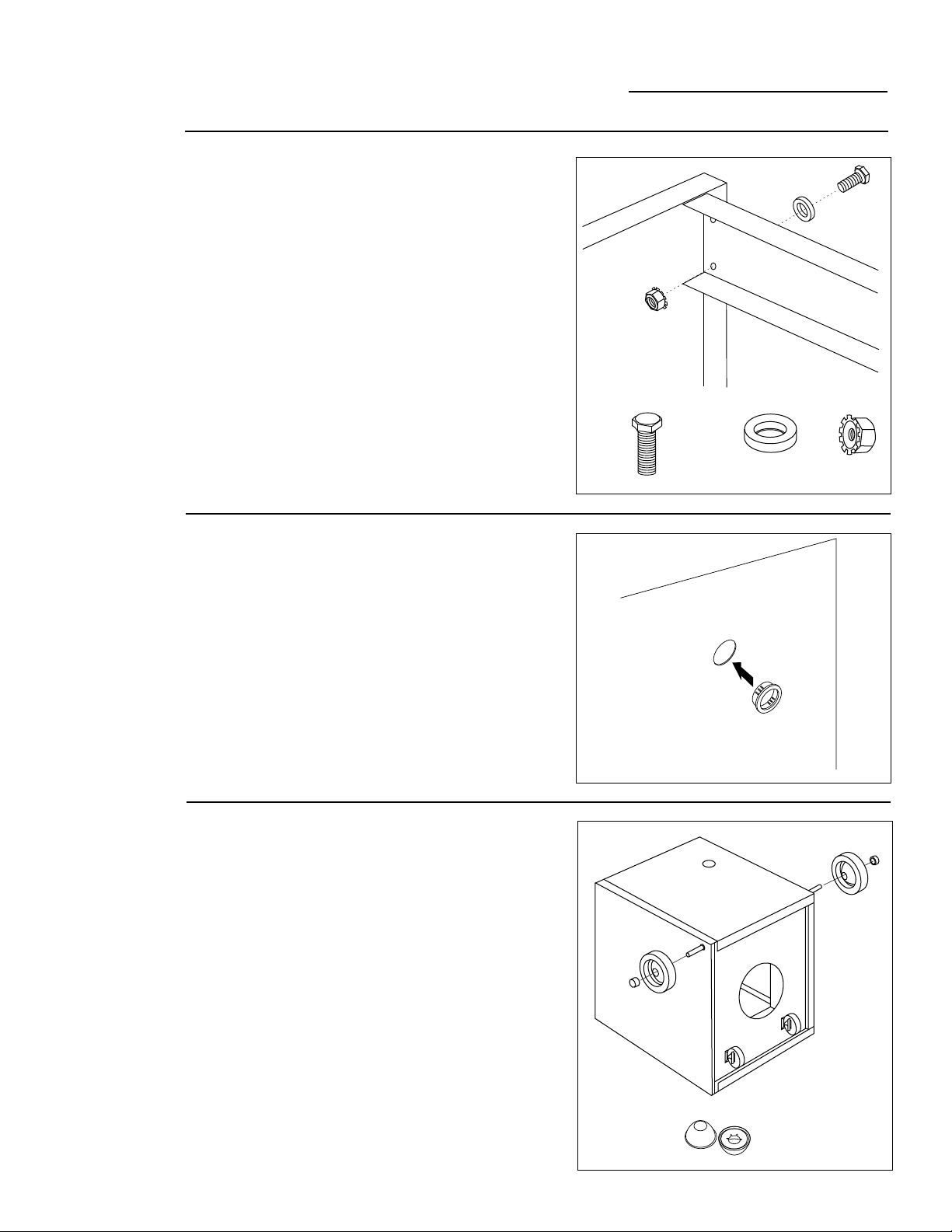

Wheels
Front Panel

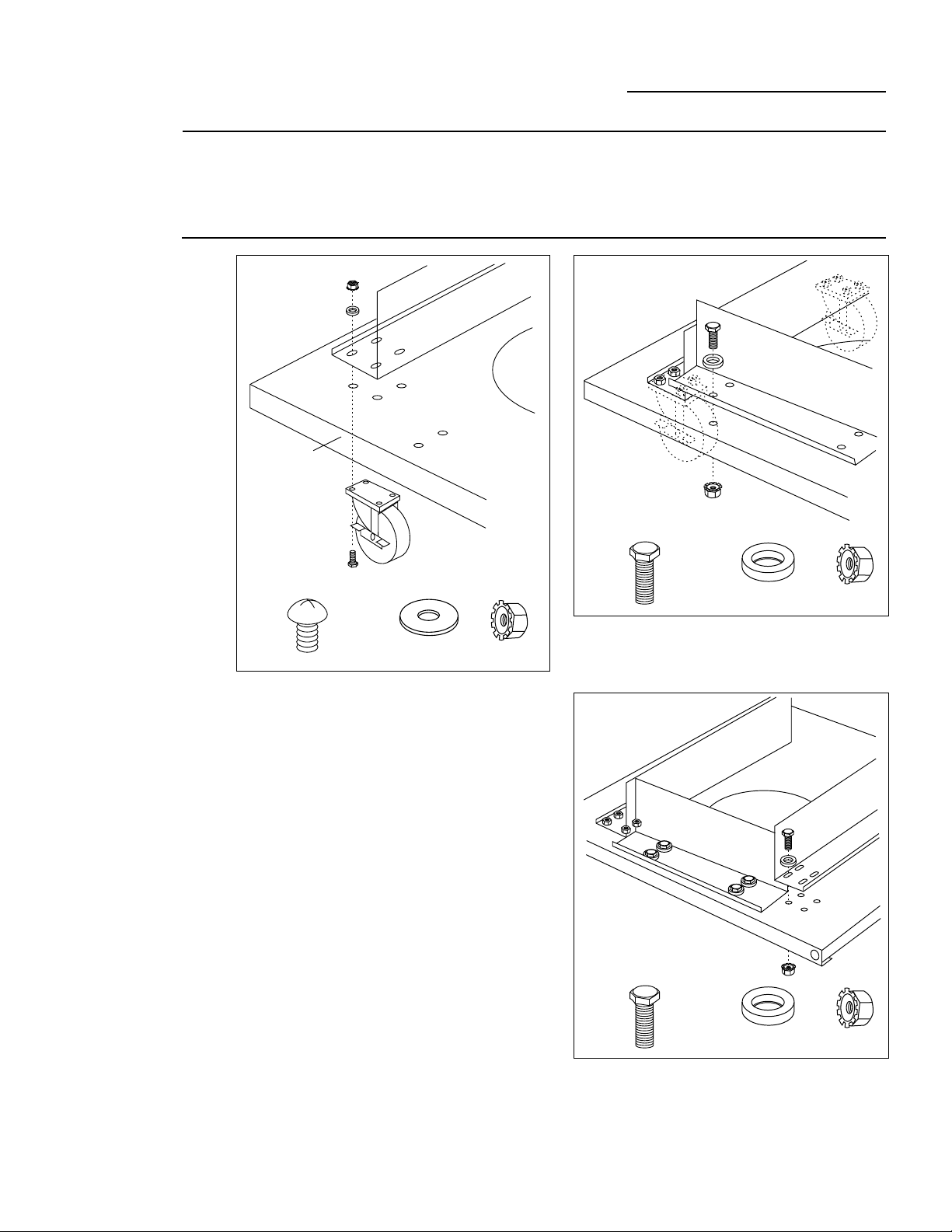

Caster with Lock
Locate the hardware accessory package and check contents.
Side Braces
Front Brace
Left Side Panel
Right Side Panel
Axle
1/4-20 x 1/2 Bolts
Count 36
32 required, 4 extra
1/4-20 x 3/4 Bolts
Count 2
no extra
Wheel Caps
Count 2
Black Plastic
Grommet
Count 1
#10 Washers
Count 12
8 required, 4 extra
1/4 Washers
Count 40
32 required, 8 extra
Self-tapping Screws
Count 2
1/4-20 Nuts
Count 36
32 required, 4 extra
10-24 Nuts
Count 10
8 required, 2 extra
Black Plastic
Bezels
Count 2
Phillips Head Screws
Count 10
8 required, 2 extra
Caster
27" Outdoor Cooking Center
Grill Cart
Model ZX27CTYSS
