OWNER'SGUIDE
Ceramic Glass Cooktop
Radiant Surface Elements
ElectronicOven Control- ESIV
Self Cleaning Oven Feature
READ AND SAVE THESE INSTRUCTIONS
Contents
Product Registration ......................................................... 2
Version en espa6ol ........................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ............................... 3-4

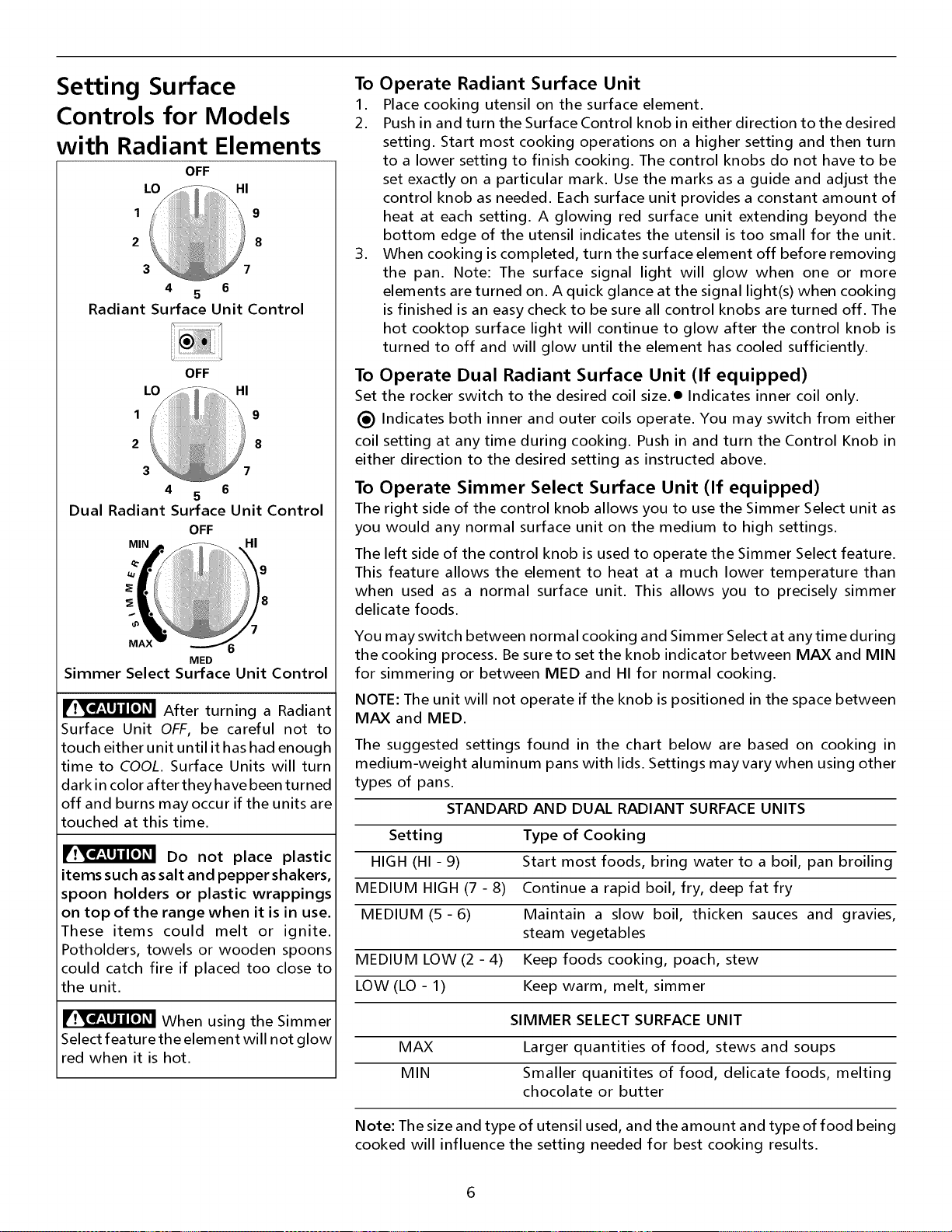

Setting Surface Controls ................................................ 5-6
Setting Warm Zone Controls (if equipped) ....................... 7

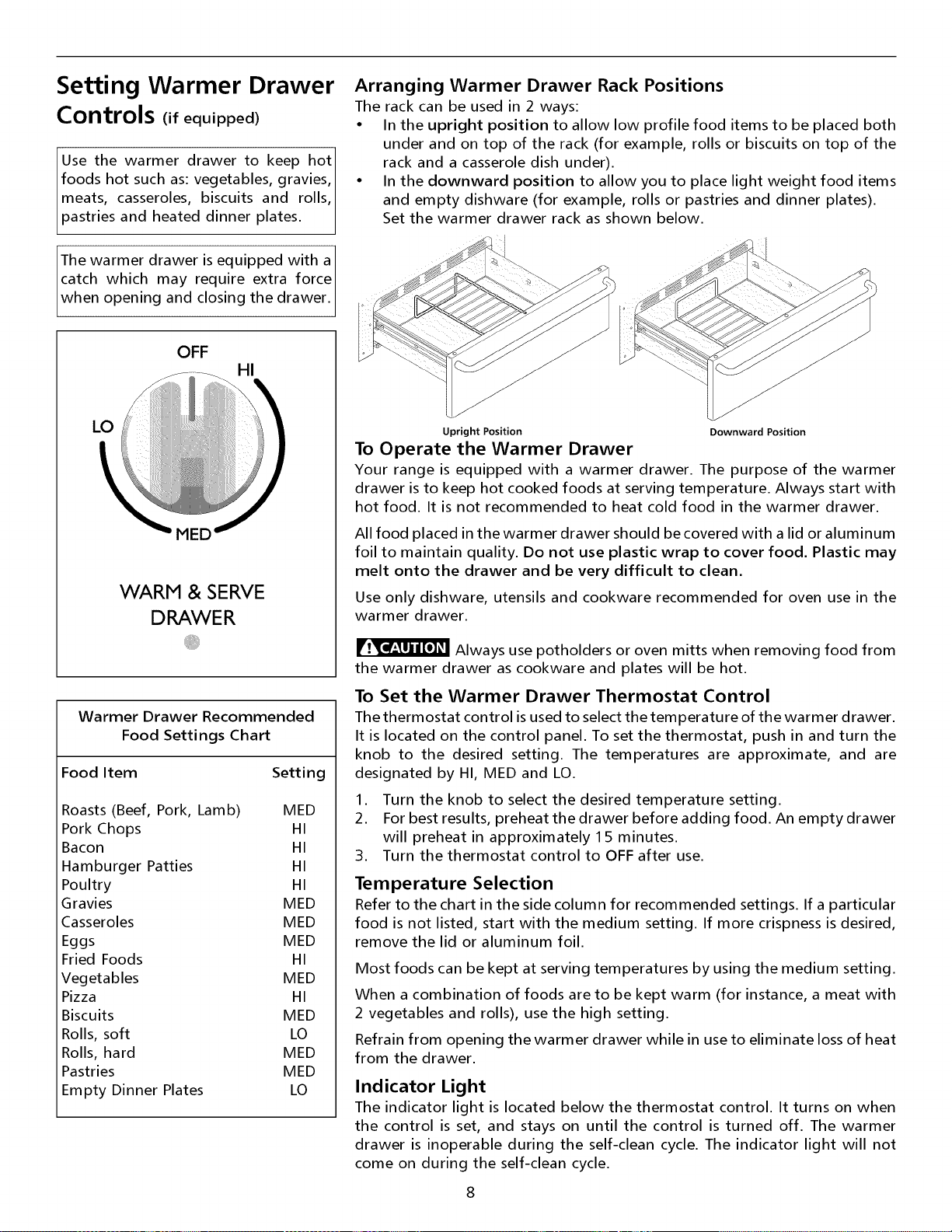

Setting Warmer Drawer Controls (if equipped) ................ 8

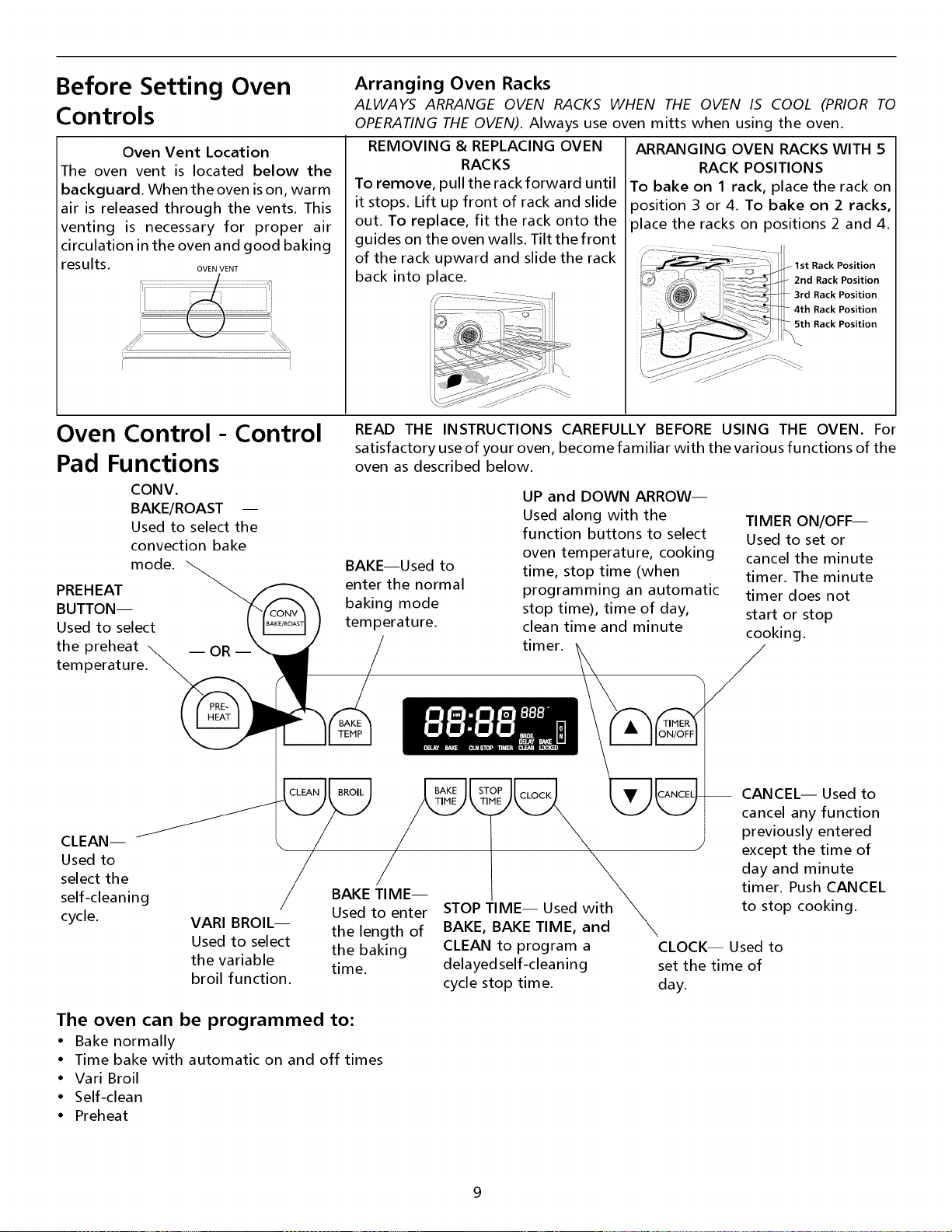

Before Setting Oven Controls ........................................... 9
Oven Control - Control Pad Functions .............................. 9

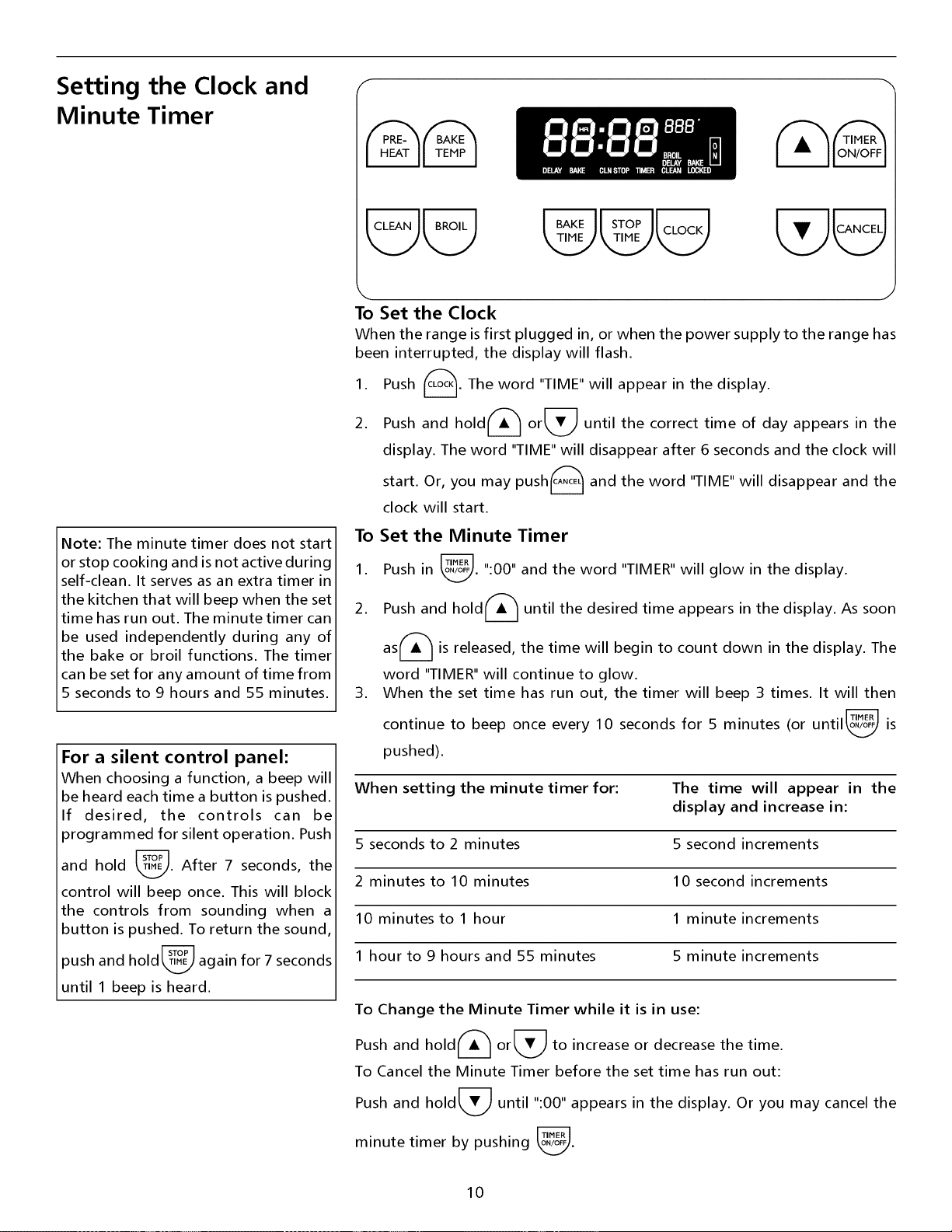

Setting the Clock and Minute Timer ............................ 10

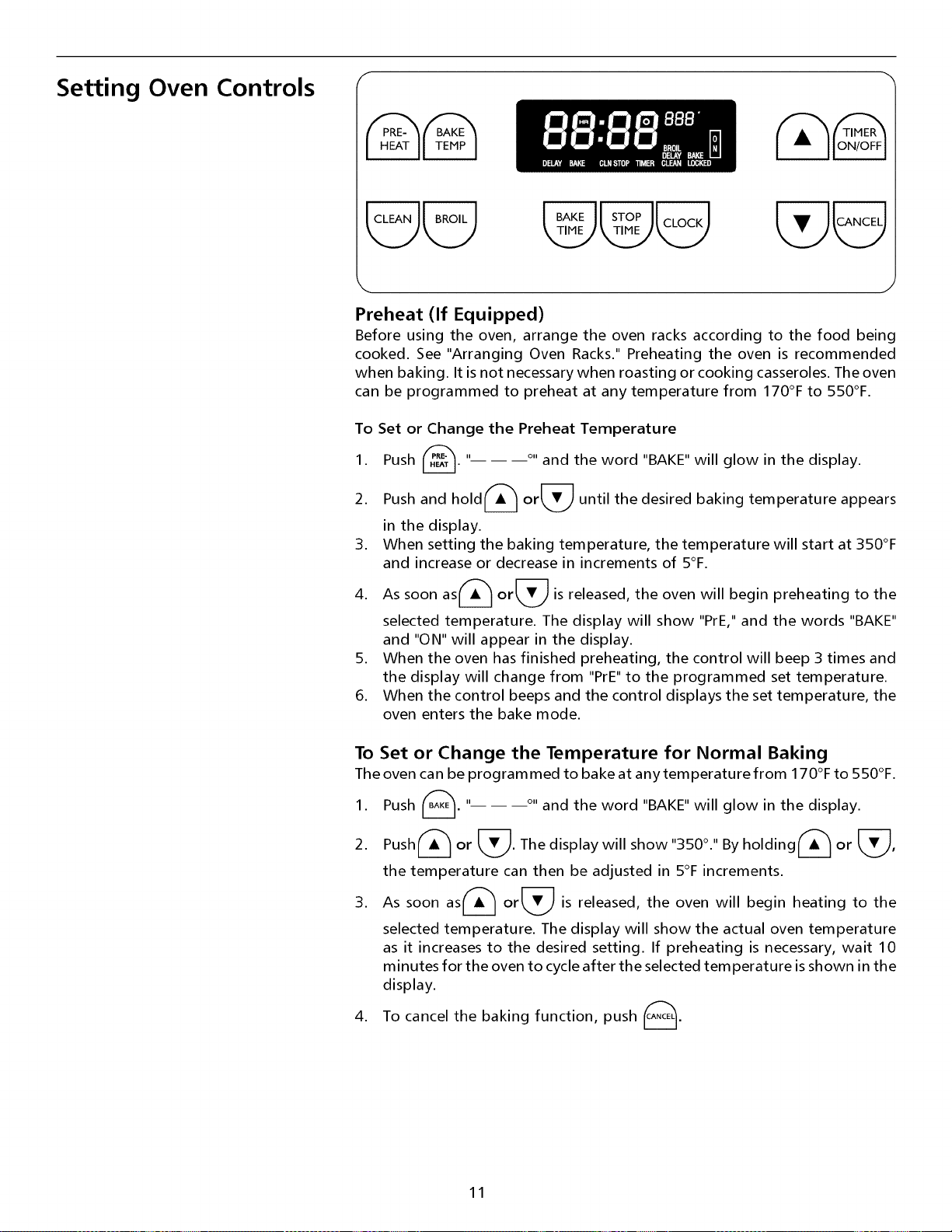

Preheat (if equipped) ................................................... 11
Bake ............................................................................. 11
Convection (if equipped) ............................................. 12
Timed Baking ......................................................... 13 -14
Broil ............................................................................. 15
Self Cleaning Oven .................................................... 16-17
General Cleaning ....................................................... 18-20
Customizing Your Oven Performance ............................. 21
Changing Cooktop and/or Oven Lights .......................... 21

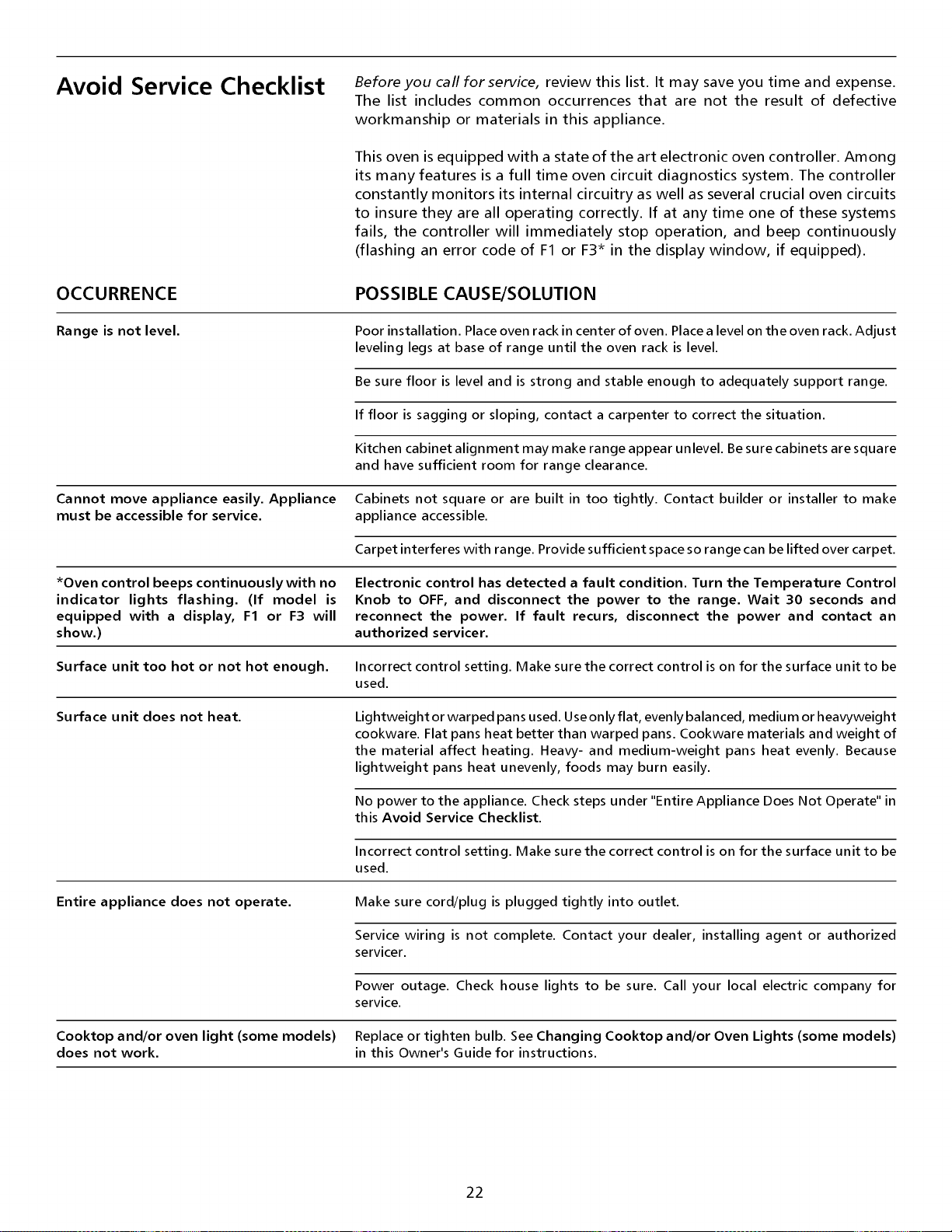

Avoid Service Checklist .............................................. 22-23
Warranty ......................................................................... 24
ELECTRICRANGE
This Owner's Guide contains general operating instructions for your range and feature
information for several models. Your range will not have all the described features.
316135919 (0101)

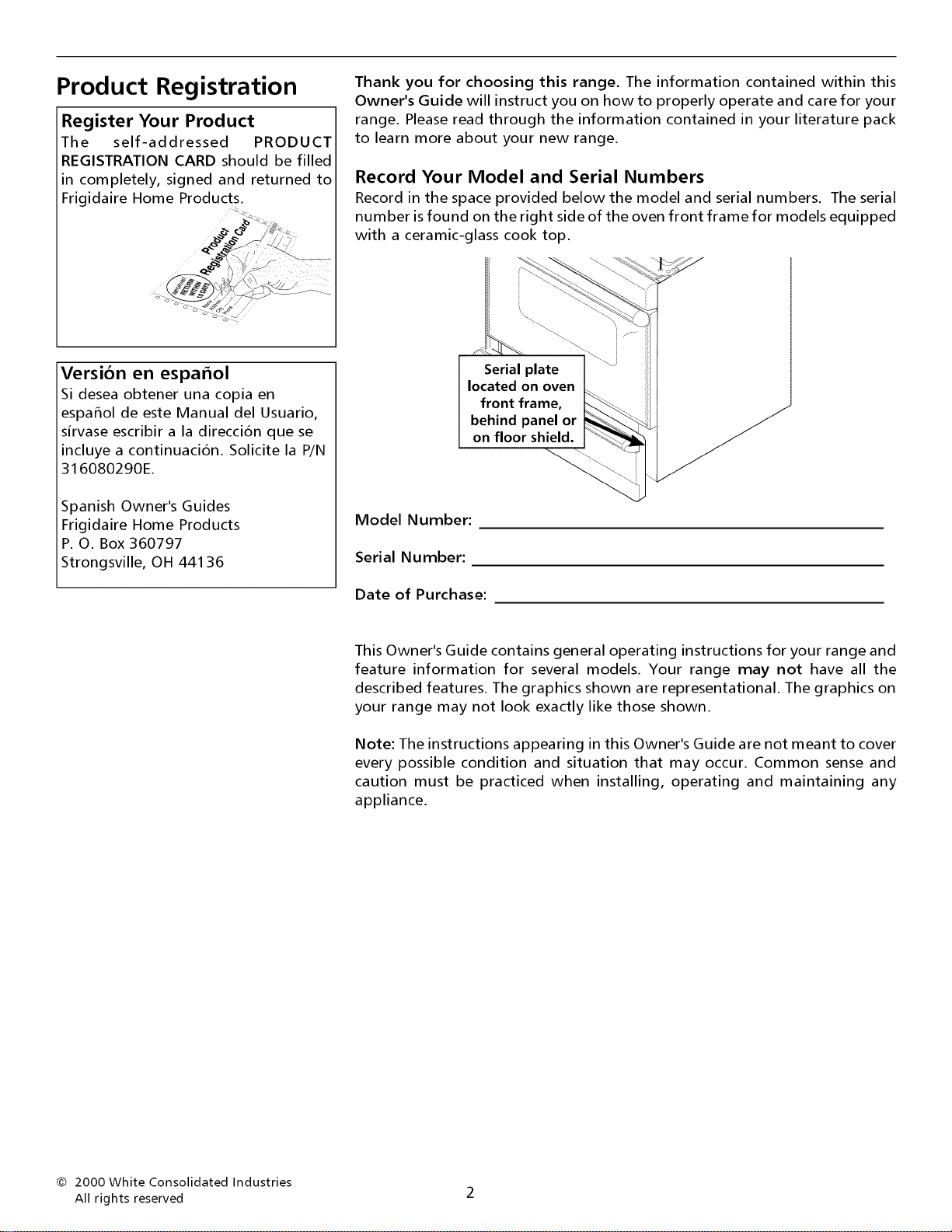

Product Registration
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be filled
in completely, signed and returned to
Frigidaire Home Products.
Version en espaffol
Si desea obtener una copia en
espaffol de este Manual del Usuario,
sirvase escribir a la direccion que se
incluye a continuacion. Solicite la P/N
316080290E.
Spanish Owner's Guides
Frigidaire Home Products
P. O. Box 360797
Strongsville, OH 44136
Thank you for choosing this range. The information contained within this
Owner's Guide will instruct you on how to properly operate and care for your
range. Please read through the information contained in your literature pack
to learn more about your new range.
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. The serial
number is found on the right side of the oven front frame for models equipped
with a ceramic-glass cook top.
L
"_. ii
Serial plate "_
located on oven _× :
front frame, _.
behind panel or
on floor shield.
Model Number:
Serial Number:
Date of Purchase:
This Owner's Guide contains general operating instructions for your range and
feature information for several models. Your range may not have all the
described features. The graphics shown are representational. The graphics on
your range may not look exactly like those shown.
Note: The instructions appearing in this Owner's Guide are not meant to cover
every possible condition and situation that may occur. Common sense and
caution must be practiced when installing, operating and maintaining any
appliance.
© 2000 White Consolidated Industries
All rights reserved 2

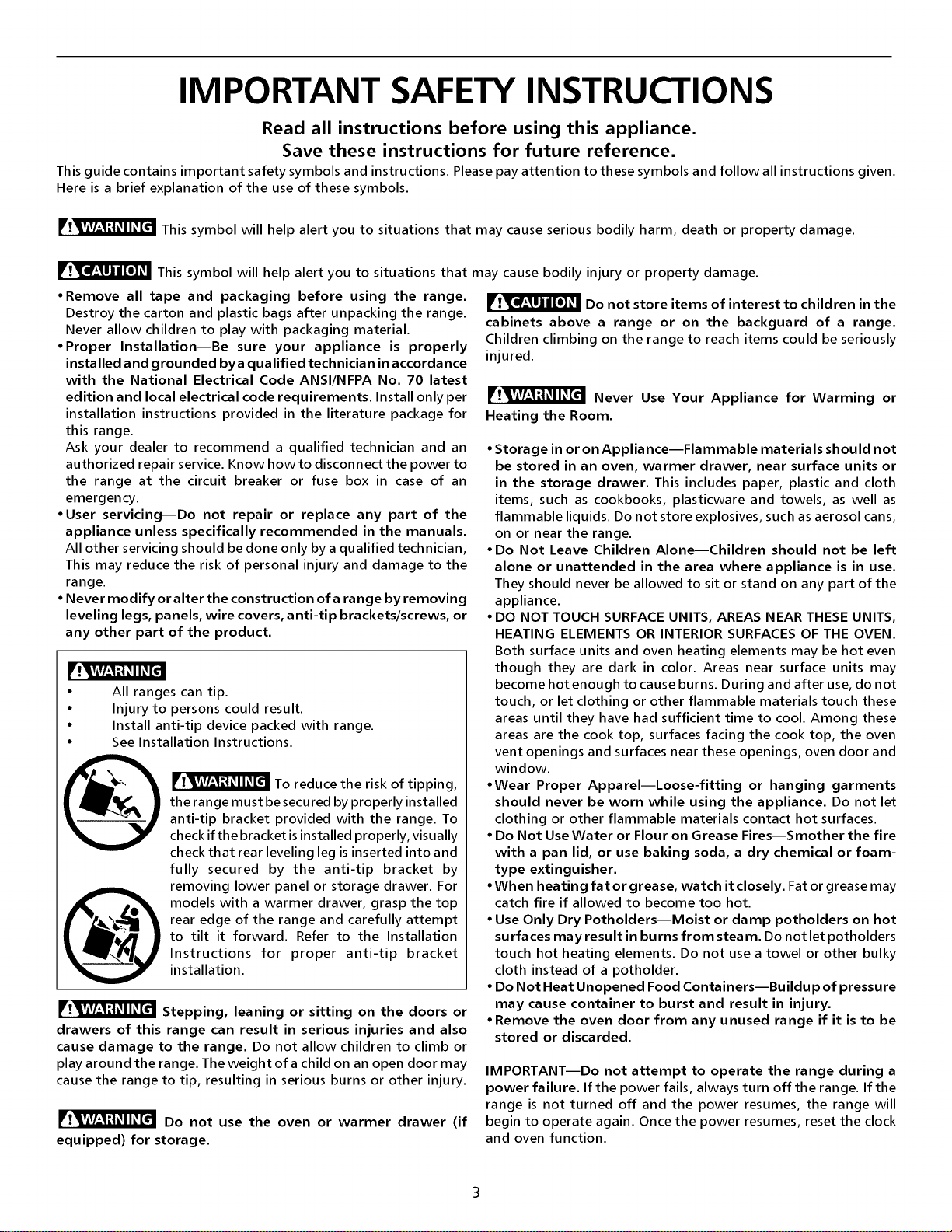

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This guide contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
Here is a brief explanation of the use of these symbols.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly
installed and grounded bya qualified technician in accordance
with the National Electrical Code ANSl/NFPA No. 70 latest
edition and local electrical code requirements. Install only per
installation instructions provided in the literature package for
this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified technician,
This may reduce the risk of personal injury and damage to the
range.
• Never modify or alter the construction of a range by removing
leveling legs, panels, wire covers, anti-tip brackets/screws, or
any other part of the product.
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
See Installation Instructions.
To reduce the risk of tipping,
the range must be secured by properly installed
anti-tip bracket provided with the range. To
check if the bracket is installed properly, visually
check that rear leveling leg is inserted into and
fully secured by the anti-tip bracket by
removing lower panel or storage drawer. For
models with a warmer drawer, grasp the top
rear edge of the range and carefully attempt
to tilt it forward. Refer to the Installation
Instructions for proper anti-tip bracket
installation.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
may cause bodily injury or property damage.
Do not store items of interest to children in the
cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be seriously
injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on Appliance--Flammable materials should not
be stored in an oven, warmer drawer, near surface units or
in the storage drawer. This includes paper, plastic and cloth
items, such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as aerosol cans,
on or near the range.
• Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS,
HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN.
Both surface units and oven heating elements may be hot even
though they are dark in color. Areas near surface units may
become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven
vent openings and surfaces near these openings, oven door and
window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam-
type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating elements. Do not use a towel or other bulky
cloth instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildu p of pressure
may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--Do not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If the
range is not turned off and the power resumes, the range will
begin to operate again. Once the power resumes, reset the clock
and oven function.
IMPORTANT SAFETY INSTRUCTIONS

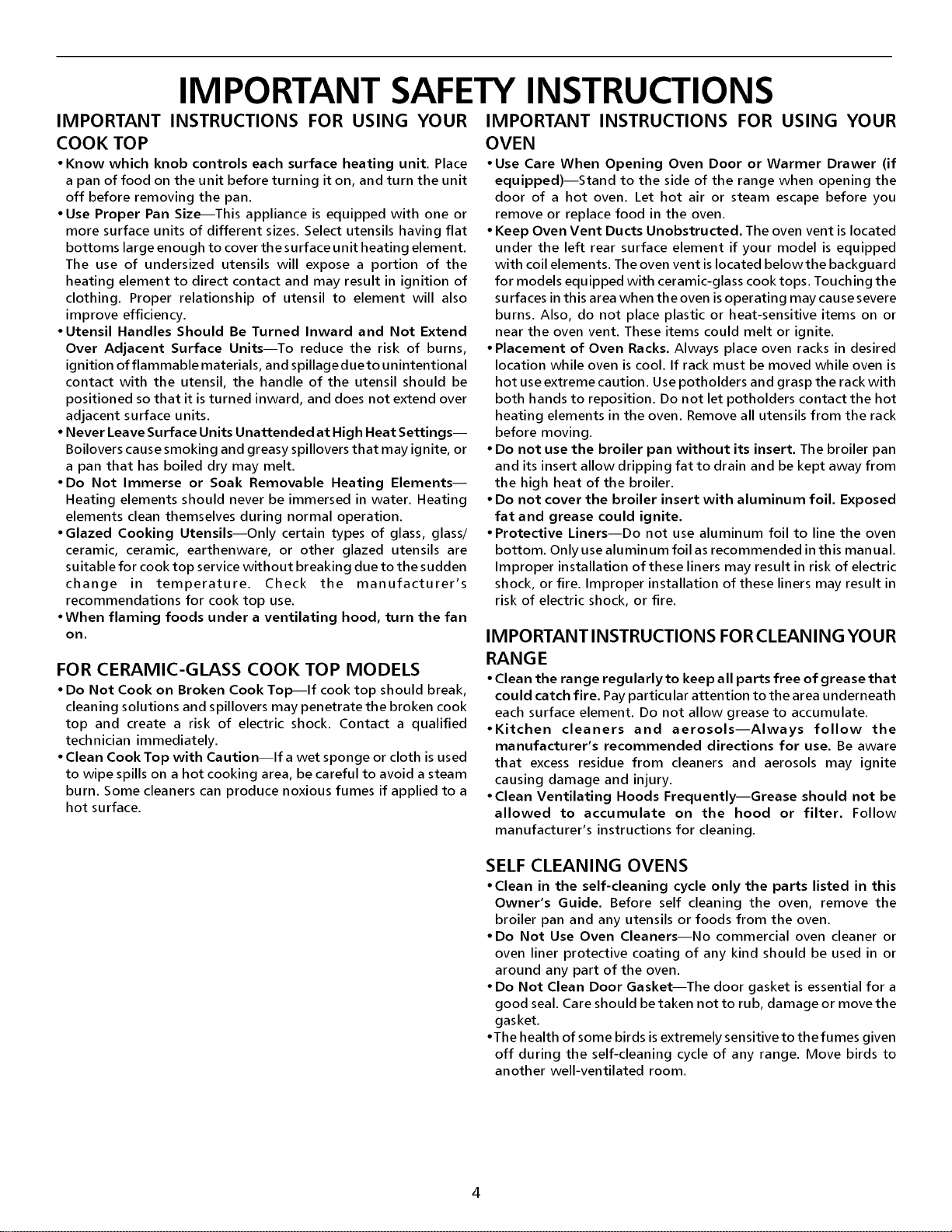

IMPORTANT INSTRUCTIONS FOR USING YOUR
COOK TOP
• Know which knob controls each surface heating unit. Place
a pan of food on the unit before turning it on, and turn the unit
off before removing the pan.
• Use Proper Pan Size--This appliance is equipped with one or
more surface units of different sizes. Select utensils having flat
bottoms large enough to cover the surface unit heating element.
The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of
clothing. Proper relationship of utensil to element will also
improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units--To reduce the risk of burns,
ignition of flammable materials, and spillagedueto unintentional
contact with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not extend over
adjacent surface units.
• Never Leave Surface Units Unattended at High Heat Settings--
Boilovers cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
• Do Not Immerse or Soak Removable Heating Elements--
Heating elements should never be immersed in water. Heating
elements clean themselves during normal operation.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cook top service without breaking due to the sudden
change in temperature. Check the manufacturer's
recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan
on,
FOR CERAMIC-GLASS COOK TOP MODELS
• Do Not Cook on Broken Cook Top--If cook top should break,
cleaning solutions and spillovers may penetrate the broken cook
top and create a risk of electric shock. Contact a qualified
technician immediately.
• Clean Cook Top with Caution--If a wet sponge or cloth is used
to wipe spills on a hot cooking area, be careful to avoid a steam
burn. Some cleaners can produce noxious fumes if applied to a
hot surface.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer (if
equipped)--Stand to the side of the range when opening the
door of a hot oven. Let hot air or steam escape before you
remove or replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
under the left rear surface element if your model is equipped
with coil elements. The oven vent is located belowthe backguard
for models equipped with ceramic-glass cook tops. Touching the
surfaces in this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items on or
near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
• Protective Liners--Do not use aluminum foil to line the oven
bottom. Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire. Improper installation of these liners may result in
risk of electric shock, or fire.
IMPORTANT INSTRUCTIONS FORCLEANING YOUR
RAN G E
• Clean the range regularlyto keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
• Clean Ventilating Hoods Frequently--Grease should not be
allowed to accumulate on the hood or filter. Follow
manufacturer's instructions for cleaning.

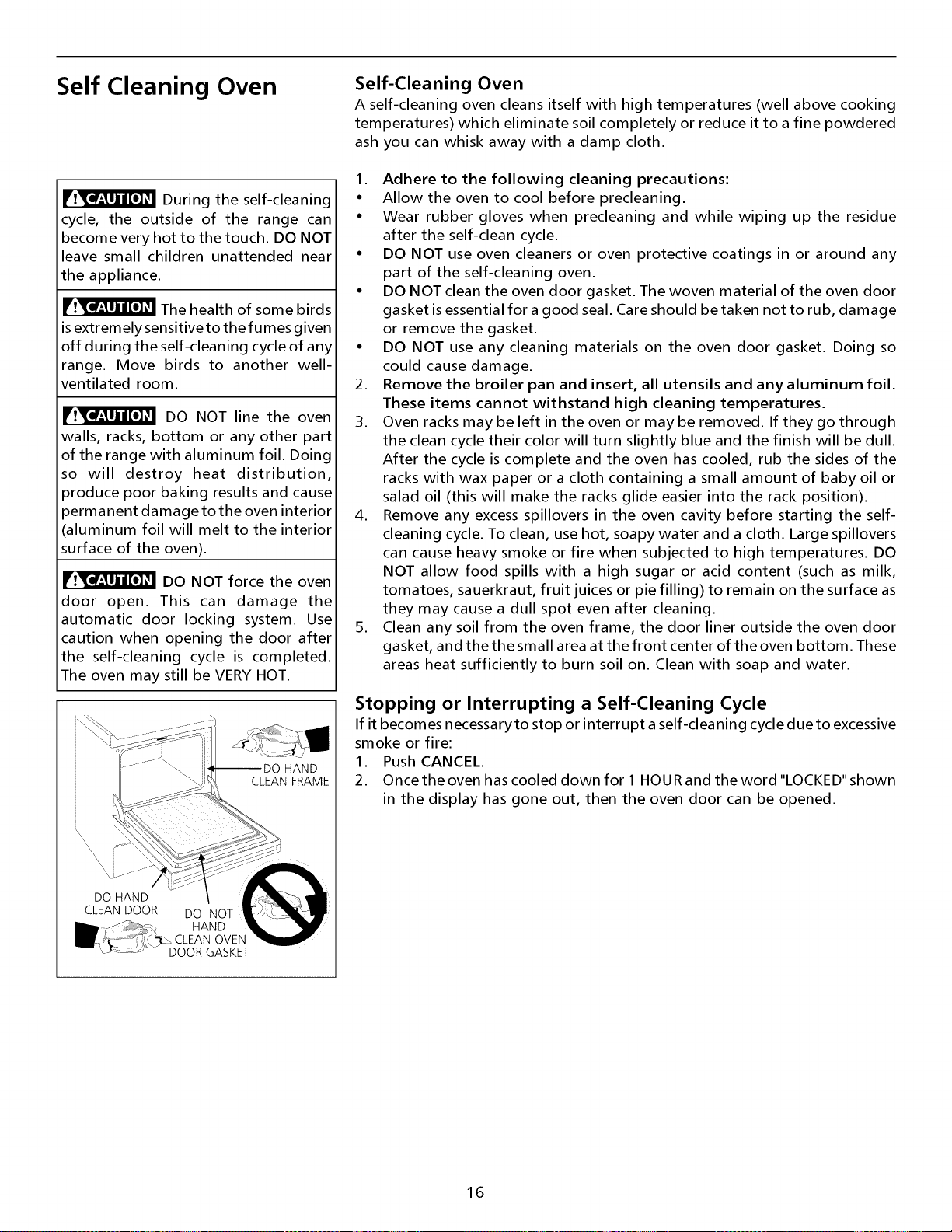

SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Owner's Guide. Before self cleaning the oven, remove the
broiler pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for a
good seal. Care should be taken not to rub, damage or move the
gasket.
• The health of some birds is extremely sensitive to the fumes given
off during the self-cleaning cycle of any range. Move birds to
another well-ventilated room.

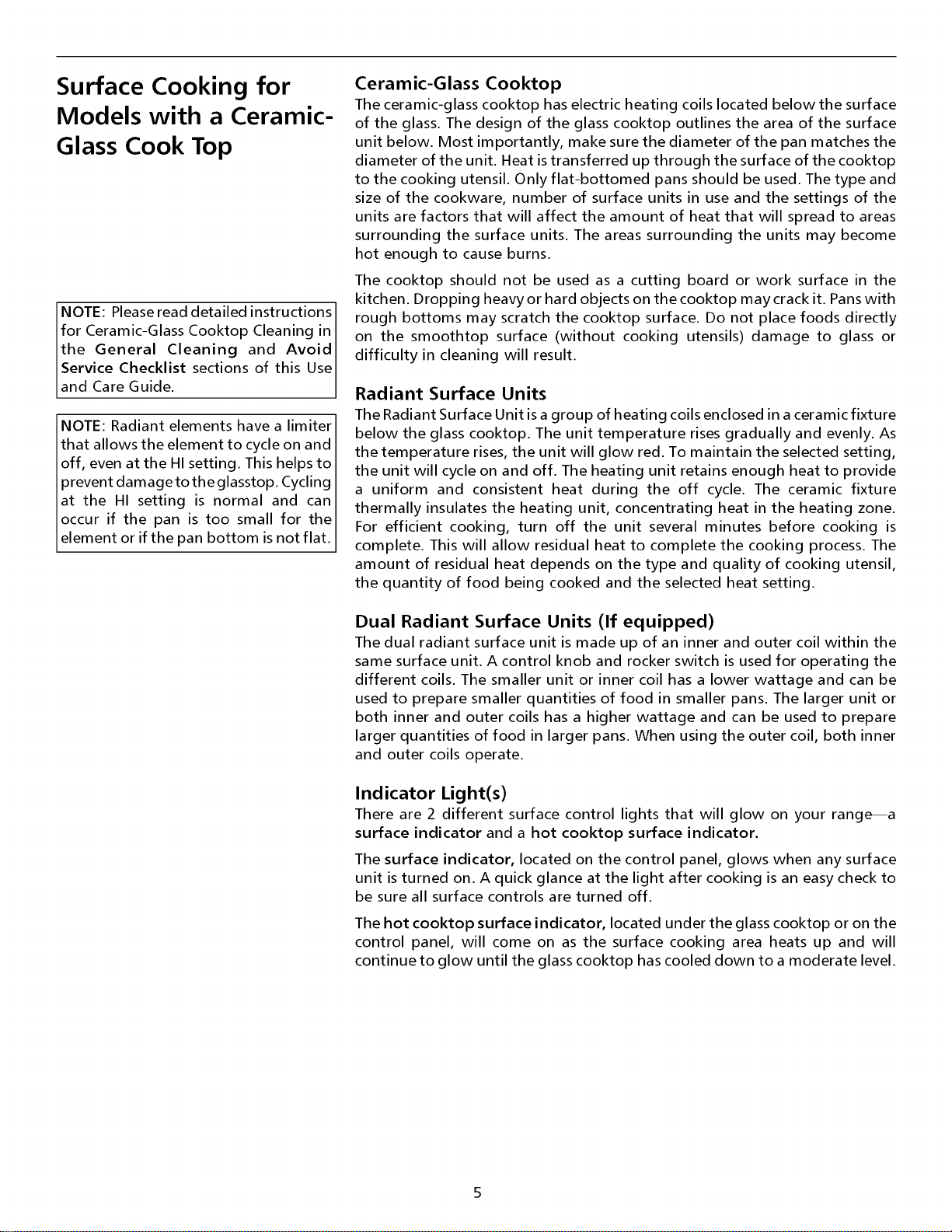

Surface Cooking for
Models with a Ceramic-
Glass Cook Top
NOTE: Please read detailed instructions
for Ceramic-Glass Cooktop Cleaning in
the General Cleaning and Avoid
Service Checklist sections of this Use
and Care Gu de.
NOTE: Radiant elements have a limiter
that allows the element to cycle on and
off, even at the HI setting. This helps to
prevent damage to the glasstop. Cycling
at the HI setting is normal and can
occur if the pan is too small for the
element or if the pan bottom is not flat.
Ceramic-Glass Cooktop
The ceramic-glass cooktop has electric heating coils located below the surface
of the glass. The design of the glass cooktop outlines the area of the surface
unit below. Most importantly, make sure the diameter of the pan matches the
diameter of the unit. Heat is transferred up through the surface of the cooktop
to the cooking utensil. Only flat-bottomed pans should be used. The type and
size of the cookware, number of surface units in use and the settings of the
units are factors that will affect the amount of heat that will spread to areas
surrounding the surface units. The areas surrounding the units may become
hot enough to cause burns.
The cooktop should not be used as a cutting board or work surface in the
kitchen. Dropping heavy or hard objects on the cooktop may crack it. Pans with
rough bottoms may scratch the cooktop surface. Do not place foods directly
on the smoothtop surface (without cooking utensils) damage to glass or
difficulty in cleaning will result.
Radiant Surface Units
The Radiant Surface Unit is a group of heating coils enclosed in a ceramic fixture
below the glass cooktop. The unit temperature rises gradually and evenly. As
the temperature rises, the unit will glow red. To maintain the selected setting,
the unit will cycle on and off. The heating unit retains enough heat to provide
a uniform and consistent heat during the off cycle. The ceramic fixture
thermally insulates the heating unit, concentrating heat in the heating zone.
For efficient cooking, turn off the unit several minutes before cooking is
complete. This will allow residual heat to complete the cooking process. The
amount of residual heat depends on the type and quality of cooking utensil,
the quantity of food being cooked and the selected heat setting.
Dual Radiant Surface Units (If equipped)
The dual radiant surface unit is made up of an inner and outer coil within the
same surface unit. A control knob and rocker switch is used for operating the
different coils. The smaller unit or inner coil has a lower wattage and can be
used to prepare smaller quantities of food in smaller pans. The larger unit or
both inner and outer coils has a higher wattage and can be used to prepare
larger quantities of food in larger pans. When using the outer coil, both inner
and outer coils operate.
Indicator Light(s)
There are 2 different surface control lights that will glow on your range_a
surface indicator and a hot cooktop surface indicator.
The surface indicator, located on the control panel, glows when any surface
unit is turned on. A quick glance at the light after cooking is an easy check to
be sure all surface controls are turned off.
The hot cooktop surface indicator, located under the glass cooktop or on the
control panel, will come on as the surface cooking area heats up and will
continue to glow until the glass cooktop has cooled down to a moderate level.
Setting Surface
Controls for Models
with Radiant Elements
LO
1
2
3
)FF
4
5
9
8
Radiant Surface Unit Control
OFF
LO HI
1 9
2 8
3 7
4 6
5
Dual Radiant Surface Unit Control
OFF
MIN A __-_ HI
tu • iiiiii_i_iii}iiiiiiiii_ i iiilii 9
8
MED
Simmer Select Surface Unit Control
After turning a Radiant
Surface Unit OFF, be careful not to
touch either unit until it has had enough
time to COOL. Surface Units will turn
dark in color after they have been turned
off and burns may occur if the units are
touched at this time.
Do not place plastic
items such as salt and pepper shakers,
spoon holders or plastic wrappings
on top of the range when it is in use.
These items could melt or ignite.
Potholders, towels or wooden spoons
could catch fire if placed too close to
the unit.
When using the Simmer
Select feature the element will not glow
red when it is hot.
To Operate Radiant Surface Unit
1. Place cooking utensil on the surface element.
2. Push in and turn the Surface Control knob in either direction to the desired
setting. Start most cooking operations on a higher setting and then turn
to a lower setting to finish cooking. The control knobs do not have to be
set exactly on a particular mark. Use the marks as a guide and adjust the
control knob as needed. Each surface unit provides a constant amount of
heat at each setting. A glowing red surface unit extending beyond the
bottom edge of the utensil indicates the utensil is too small for the unit.
3. When cooking is completed, turn the surface element off before removing
the pan. Note: The surface signal light will glow when one or more
elements are turned on. A quick glance at the signal light(s) when cooking
is finished is an easy check to be sure all control knobs are turned off. The
hot cooktop surface light will continue to glow after the control knob is
turned to off and will glow until the element has cooled sufficiently.
To Operate Dual Radiant Surface Unit (If equipped)
Set the rocker switch to the desired coil size.e Indicates inner coil only.
(_) Indicates both inner and outer coils operate. You may switch from either
coil setting at any time during cooking. Push in and turn the Control Knob in
either direction to the desired setting as instructed above.
To Operate Simmer Select Surface Unit (If equipped)
The right side of the control knob allows you to use the Simmer Select unit as
you would any normal surface unit on the medium to high settings.
The left side of the control knob is used to operate the Simmer Select feature.
This feature allows the element to heat at a much lower temperature than
when used as a normal surface unit. This allows you to precisely simmer
delicate foods.
You may switch between normal cooking and Simmer Select at anytime during
the cooking process. Be sure to set the knob indicator between MAX and MIN
for simmering or between MED and HI for normal cooking.
NOTE: The unit will not operate if the knob is positioned in the space between
MAX and MED.
The suggested settings found in the chart below are based on cooking in
medium-weight aluminum pans with lids. Settings mayvary when using other
types of pans.
STANDARD AND DUAL RADIANT SURFACE UNITS
Setting Type of Cooking
HIGH (HI - 9) Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH (7 - 8) Continue a rapid boil, fry, deep fat fry
MEDIUM (5- 6) Maintain a slow boil, thicken sauces and gravies,
steam vegetables
MEDIUM LOW (2 - 4) Keep foods cooking, poach, stew
LOW (LO - 1) Keep warm, melt, simmer
SIMMER SELECT SURFACE UNIT
MAX Larger quantities of food, stews and soups
MIN Smaller quanitites of food, delicate foods, melting
chocolate or butter
Note: The size and type of utensil used, and the amount and type of food being
cooked will influence the setting needed for best cooking results.

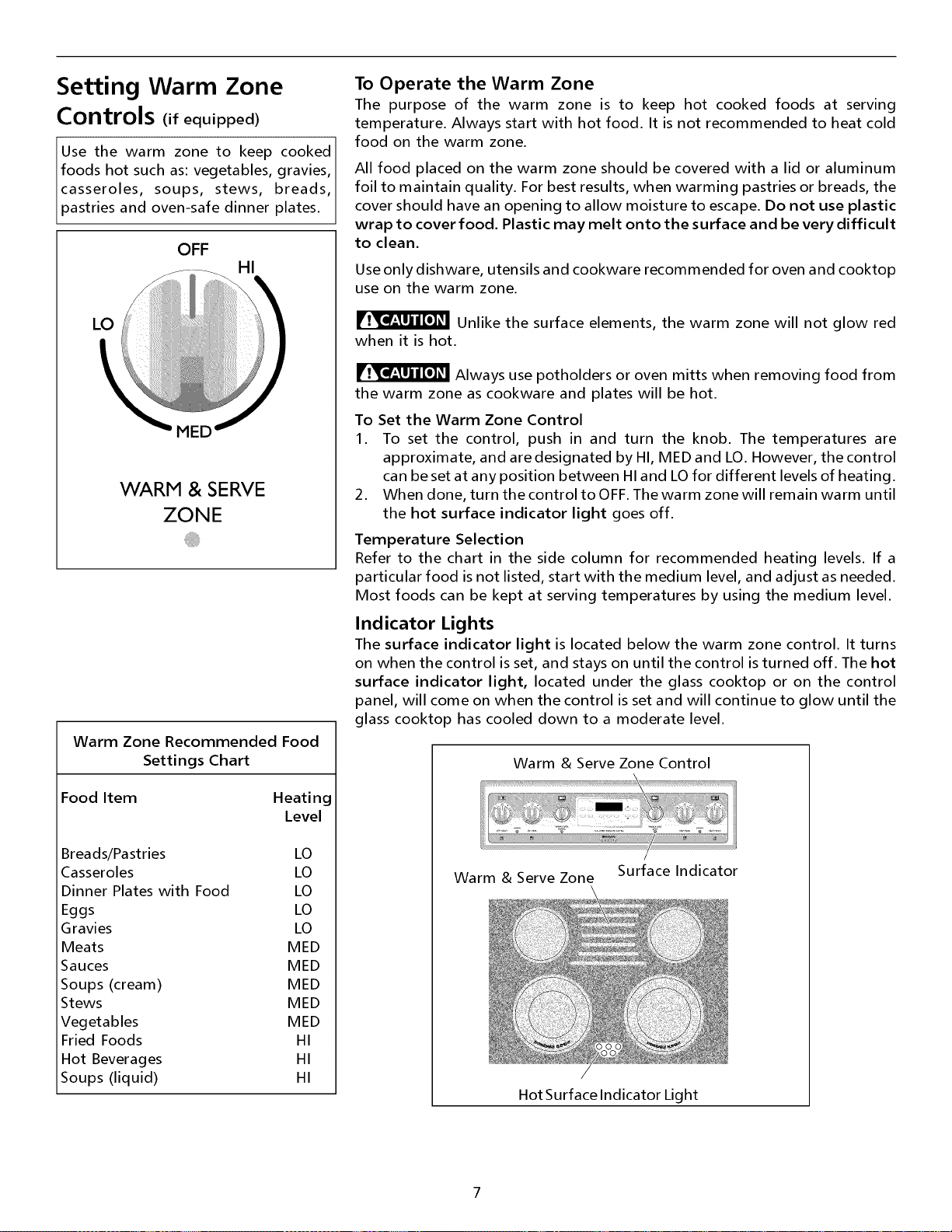

Setting Warm Zone
Controls (if equipped)
Use the warm zone to keep cooked
foods hot such as: vegetables, gravies,
casseroles, soups, stews, breads,
pastries and oven-safe dinner plates.
OFF
HI
MEI3
WARM & SERVE
ZONE
Warm Zone Recommended Food
Settings Chart
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
Dinner Plates with Food LO
Eggs LO
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI
To Operate the Warm Zone
The purpose of the warm zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food on the warm zone.
All food placed on the warm zone should be covered with a lid or aluminum
foil to maintain quality. For best results, when warming pastries or breads, the
cover should have an opening to allow moisture to escape. Do not use plastic
wrap to cover food. Plastic may melt onto the surface and be very difficult
to clean.
Use only dishware, utensils and cookware recommended for oven and cooktop
use on the warm zone.
Unlike the surface elements, the warm zone will not glow red
when it is hot.
Always use potholders or oven mitts when removing food from
the warm zone as cookware and plates will be hot.
To Set the Warm Zone Control
1. To set the control, push in and turn the knob. The temperatures are
approximate, and are designated by HI, MED and LO. However, the control
can be set at any position between HI and LO for different levels of heating.
2. When done, turn the control to OFF. The warm zone will remain warm until
the hot surface indicator light goes off.
Temperature Selection
Refer to the chart in the side column for recommended heating levels. If a
particular food is not listed, start with the medium level, and adjust as needed.
Most foods can be kept at serving temperatures by using the medium level.
Indicator Lights
The surface indicator light is located below the warm zone control. It turns
on when the control is set, and stays on until the control is turned off. The hot
surface indicator light, located under the glass cooktop or on the control
panel, will come on when the control is set and will continue to glow until the
glass cooktop has cooled down to a moderate level.
Warm & Serve Zone Control
Warm & Serve Zone Surface Indicator
Hot Surface Indicator Light
Setting Warmer Drawer
Controls (if equipped)
Use the warmer drawer to keep hot
foods hot such as: vegetables, gravies,
meats, casseroles, biscuits and rolls,
pastries and heated dinner plates.
The warmer drawer is equipped with a
catch which may require extra force
when open ng and cos ng the drawer.
OFF
HI
ME[3
WARM & SERVE
DRAWER
Warmer Drawer Recommended
Food Settings Chart
Food Item Setting
Roasts (Beef, Pork, Lamb) MED
Pork Chops HI
Bacon HI
Hamburger Patties HI
Poultry HI
Gravies MED
Casseroles MED
Eggs MED
Fried Foods HI
Vegetables MED
Pizza HI
Biscuits MED
Rolls, soft LO
Rolls, hard MED
Pastries MED
Empty Dinner Plates LO
Arranging Warmer Drawer Rack Positions
The rack can be used in 2 ways:
• In the upright position to allow low profile food items to be placed both
under and on top of the rack (for example, rolls or biscuits on top of the
rack and a casserole dish under).
• In the downward position to allow you to place light weight food items
and empty dishware (for example, rolls or pastries and dinner plates).
Set the warmer drawer rack as shown below.
Upright Position Downward Position
To Operate the Warmer Drawer
Your range is equipped with a warmer drawer. The purpose of the warmer
drawer is to keep hot cooked foods at serving temperature. Always start with
hot food. It is not recommended to heat cold food in the warmer drawer.
All food placed in the warmer drawer should be covered with a lid or aluminum
foil to maintain quality. Do not use plastic wrap to cover food. Plastic may
melt onto the drawer and be very difficult to clean.
Use only dishware, utensils and cookware recommended for oven use in the
warmer drawer.
Always use potholders or oven mitts when removing food from
the warmer drawer as cookware and plates will be hot.
To Set the Warmer Drawer Thermostat Control
The thermostat control is used to select the temperature of the warmer drawer.
It is located on the control panel. To set the thermostat, push in and turn the
knob to the desired setting. The temperatures are approximate, and are
designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. Turn the thermostat control to OFF after use.
Temperature Selection
Refer to the chart in the side column for recommended settings. If a particular
food is not listed, start with the medium setting. If more crispness is desired,
remove the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium setting.
When a combination of foods are to be kept warm (for instance, a meat with
2 vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of heat
from the drawer.
Indicator Light
The indicator light is located below the thermostat control. It turns on when
the control is set, and stays on until the control is turned off. The warmer
drawer is inoperable during the self-clean cycle. The indicator light will not
come on during the self-clean cycle.
Before Setting Oven
Controls
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Always use oven mitts when using the oven.
Oven Vent Location
The oven vent is located below the
backguard. When the oven is on, warm
air is released through the vents. This
venting is necessary for proper air
circulation in the oven and good baking
results. OVENVENT
REMOVING & REPLACING OVEN
RACK S
To remove, pull the rack forward until
it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front
of the rack upward and slide the rack
back into )lace.
ARRANGING OVEN RACKS WITH 5
RACK POSITIONS
To bake on 1 rack, place the rack on
_osition 3 or 4. To bake on 2 racks,
_lace the racks on positions 2 and 4.
T_
i_ 1St Rack Position
_--_r__ _/_-_-_ 2nd Rack Position
!;:.- 3rd Rack Position
_ 4th Rack Position
- _f_:/_;; _ i 5th Rack Position
Oven Control - Control
Pad Functions
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For
satisfactory use of your oven, become familiar with the various functions of the
oven as described below.
CONV.
BAKE/ROAST --
Used to select the
convection bake
mode.
PREHEAT
BUTTON--
Used to select
BAKE--Used to
enter the normal
baking mode
temperature.
UP and DOWN ARROW--
Used along with the
function buttons to select
oven temperature, cooking
time, stop time (when
programming an automatic
stop time), time of day,
clean time and minute
TIMER ON/OFF--
Used to set or
cancel the minute
timer. The minute
timer does not
start or stop
cooking.
the preheat _ __ OR-- timer. _,
temperature. _ y, -- _-'x
/ /
iii_tNe_ahneng / BAKE TI/_ME-- STO E. Used witch i
cycle, i .......... Used to enter P TIME-- Used with
V/-M_I I_I_UIL-- the length of BAKE, BAKE TIME, and
CANCEL-- Used to
cancel any function
previously entered
except the time of
day and minute
timer. Push CANCEL
to stop cooking.
Used to select
the baking CLEAN to program a CLOCK-- Used to
the variable
time. delayedself-cleaning set the time of
broil function, cycle stop time. day.
The oven can be programmed to:
• Bake normally
• Time bake with automatic on and off times
• Vari Broil
• Self-clean
• Preheat
Setting the Clock and
Minute Timer
Note: The minute timer does not start
or stop cooking and is not active during
self-clean. It serves as an extra timer in
the kitchen that will beep when the set
time has run out. The minute timer can
be used independently during any of
the bake or broil functions. The timer
can be set for any amount of time from
5 seconds to 9 hours and 55 minutes.
For a silent control panel:
When choosing a function, a beep will
be heard each time a button is pushed.
If desired, the controls can be
programmed for silent operation. Push
and hold _. After 7 seconds, the
control will beep once. This will block
the controls from sounding when a
button is pushed. To return the sound,
push and hold_ again for 7 seconds
until 1 beep is heard.
To Set the Clock
When the range is first plugged in, or when the power supply to the range has
been interrupted, the display will flash.
1. Push _. The word "TIME" will appear in the display.
2. Push and hold_'_ or_ until the correct time of day appears in the
display. The word "TIME" will disappear after 6 seconds and the clock will
start. Or, you may push_ and the word "TIME" will disappear and the
clock will start.
To Set the Minute Timer
1. Push in _. ":00" and the word "TIMER" will glow in the display.
2. Push and hold_-_ until the desired time appears in the display. As soon
as_ is released, the time will begin to count down in the display. The
word "TIMER" will continue to glow.
3. When the set time has run out, the timer will beep 3 times. It will then
continue to beep once every 10 seconds for 5 minutes (or until_ is
pushed).
When setting the minute timer for: The time will appear in the
display and increase in:
5 seconds to 2 minutes 5 second increments
2 minutes to 10 minutes 10 second increments
10 minutes to 1 hour 1 minute increments
1 hour to 9 hours and 55 minutes 5 minute increments
To Change the Minute Timer while it is in use:
Push and hold_ or_ to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out:
Push and hold_ until ":00" appears in the display. Or you may cancel the
minute timer by pushing _.
10
Setting Oven Controls
Preheat (If Equipped)
Before using the oven, arrange the oven racks according to the food being
cooked. See "Arranging Oven Racks." Preheating the oven is recommended
when baking. It is not necessary when roasting or cooking casseroles. The oven
can be programmed to preheat at any temperature from 170°F to 550°F.
To Set or Change the Preheat Temperature
1. Push _. '.... and the word "BAKE" will glow in the display.
2. Push and hold_'_ or_ until the desired baking temperature appears
in the display.
3. When setting the baking temperature, the temperature will start at 350°F
and increase or decrease in increments of 5°F.
4. As soon as_-_ or_ is released, the oven will begin preheating to the
selected temperature. The display will show "PrE," and the words "BAKE"
and "ON" will appear in the display.
5. When the oven has finished preheating, the control will beep 3 times and
the display will change from "PrE" to the programmed set temperature.
6. When the control beeps and the control displays the set temperature, the
oven enters the bake mode.
To Set or Change the Temperature for Normal Baking
The oven can be programmed to bake at anytemperature from 170°F to 550°F.
1. Push _. '.... and the word "BAKE" will glow in the display.
the temperature can then be adjusted in 5°F increments.
3. As soon as('_ or_ is released, the oven will begin heating to the
selected temperature. The display will show the actual oven temperature
as it increases to the desired setting. If preheating is necessary, wait 10
minutes for the oven to cycle after the selected temperature is shown in the
display.
4. To cancel the baking function, push _.
11
Setting Oven Controls

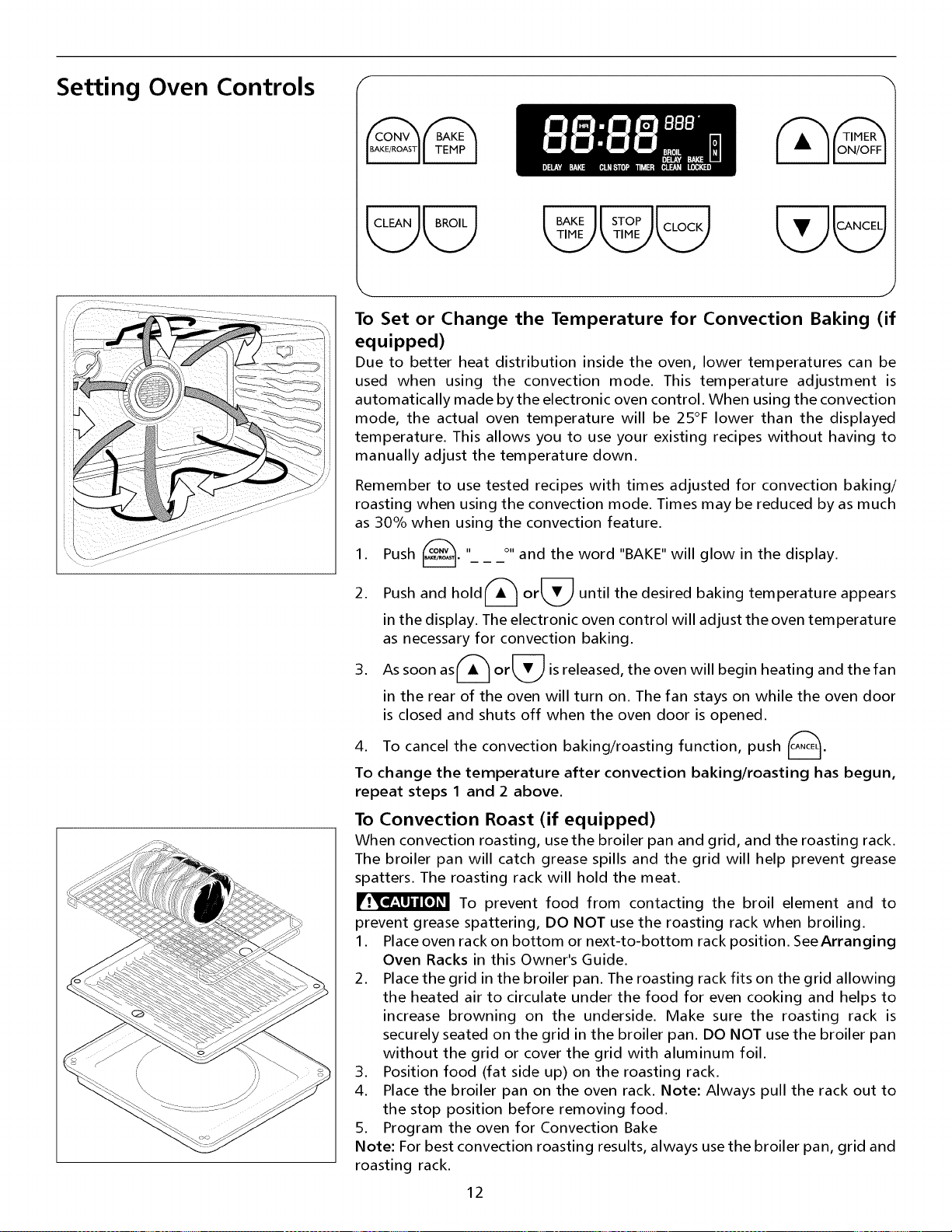

To Set or Change the Temperature for Convection Baking (if
equipped)
Due to better heat distribution inside the oven, lower temperatures can be
used when using the convection mode. This temperature adjustment is
automatically made by the electronic oven control. When using the convection
mode, the actual oven temperature will be 25°F lower than the displayed
temperature. This allows you to use your existing recipes without having to
manually adjust the temperature down.
Remember to use tested recipes with times adjusted for convection baking/
roasting when using the convection mode. Times may be reduced by as much
as 30% when using the convection feature.
1. Push _. '.... and the word "BAKE" will glow in the display.
2. Push and hold_AX_ or_] until the desired baking temperature appears
in the display. The electronic oven control will adjust the oven temperature
as necessary for convection baking.
3. As soon as[A'_ or_ is released, the oven will begin heating and
thefan
in the rear of the oven will turn on. The fan stays on while the oven door
is closed and shuts off when the oven door is opened.
4. To cancel the convection baking/roasting function, push _.
To change the temperature after convection baking/roasting has begun,
repeat steps 1 and 2 above.
To Convection Roast (if equipped)
When convection roasting, usethe broiler pan and grid, and the roasting rack.
The broiler pan will catch grease spills and the grid will help prevent grease
spatters. The roasting rack will hold the meat.
To prevent food from contacting the broil element and to
prevent grease spattering, DO NOT use the roasting rack when broiling.
1. Place oven rack on bottom or next-to-bottom rack position. See Arranging
Oven Racks in this Owner's Guide.
2. Place the grid in the broiler pan. The roasting rack fits on the grid allowing
the heated air to circulate under the food for even cooking and helps to
increase browning on the underside. Make sure the roasting rack is
securely seated on the grid in the broiler pan. DO NOT use the broiler pan
without the grid or cover the grid with aluminum foil.
3. Position food (fat side up) on the roasting rack.
4. Place the broiler pan on the oven rack. Note: Always pull the rack out to
the stop position before removing food.
5. Program the oven for Convection Bake
Note: For best convection roasting results, always use the broiler pan, grid and
roasting rack.
12
Setting Oven Controls
Use caution when using
the automatic timer. Use the automatic
timer when cooking cured or frozen
meats and most fruits and vegetables.
Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be
chilled in the refrigerator first. Even
when chilled, they should not stand in
the oven for more than 1 hour before
cooking begins, and should be removed
promptly when cooking is completed.

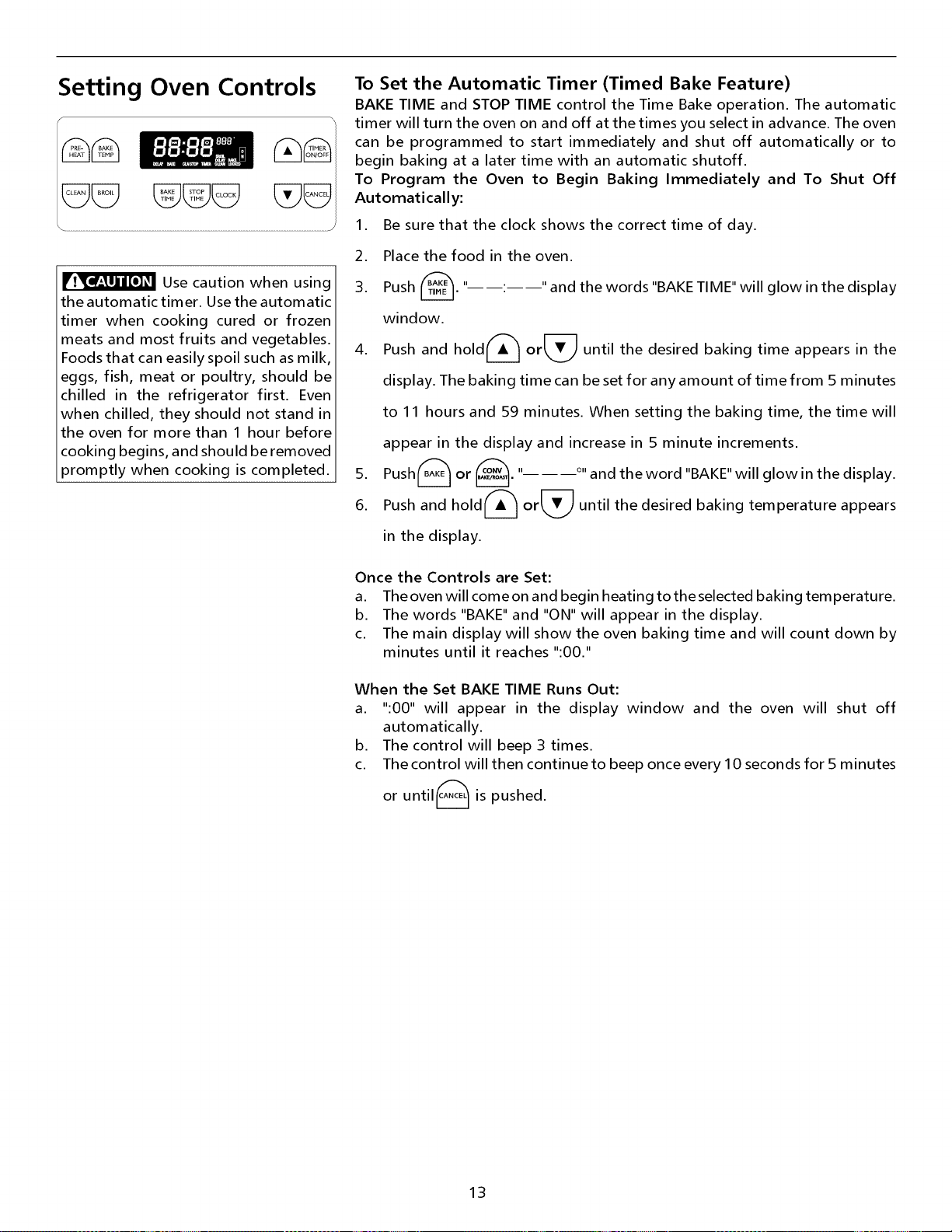

To Set the Automatic Timer (Timed Bake Feature)
BAKE TIME and STOP TIME control the Time Bake operation. The automatic
timer will turn the oven on and off at the times you select in advance. The oven
can be programmed to start immediately and shut off automatically or to
begin baking at a later time with an automatic shutoff.
To Program the Oven to Begin Baking Immediately and To Shut Off
Automatically:
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Push _." : "andthewords"BAKETIME"willglowinthedisplay
window.
4. Push and hold_ or_] until the desired baking time appears in the
display. The baking time can be set for any amount of time from 5 minutes
to 11 hours and 59 minutes. When setting the baking time, the time will
appear in the display and increase in 5 minute increments.
5. Push_ or _. "------°" and theword "BAKE" will glow in the display.
6. Push and hold_ or_ until the desired baking temperature appears
in the display.
Once the Controls are Set:
a. Theoven will comeon and begin heating to the selected baking temperature.
b. The words "BAKE" and "ON" will appear in the display.
c. The main display will show the oven baking time and will count down by
minutes until it reaches ":00."
When the Set BAKE TIME Runs Out:
a. ":00" will appear in the display window and the oven will shut off
automatically.
b. The control will beep 3 times.
c. The control will then continue to beep once every 10 seconds for 5 minutes
or until_ is pushed.
13
Setting Oven Controls Start Time and to Shut-Off
Use caution when using
the automatic timer. Use the automatic
timer when cooking cured or frozen
meats and most fruits and vegetables.
Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be
chilled in the refrigerator first. Even
when chilled, they should not stand in
the oven for more than 1 hour before
cooking begins, and should be removed
promptly when cooking is completed.

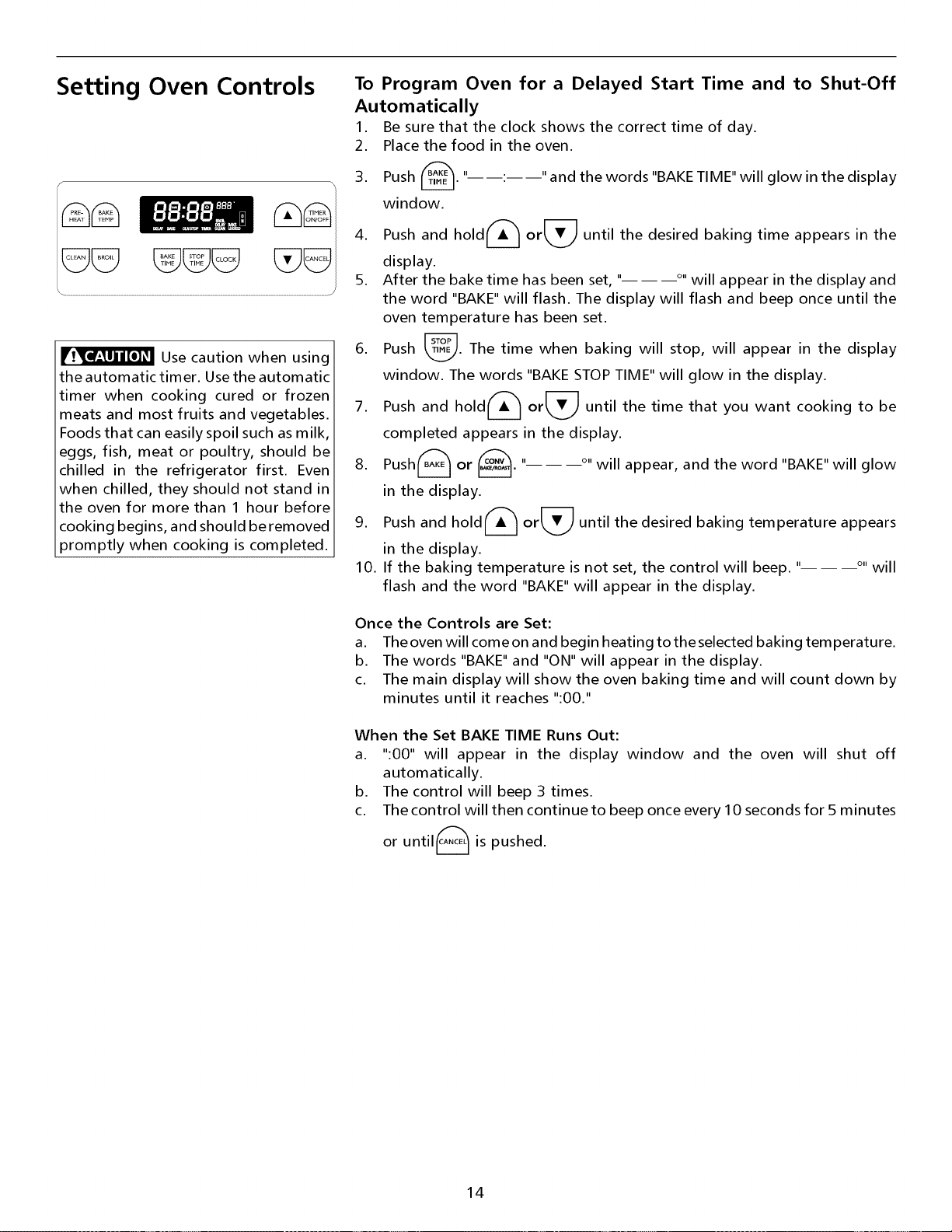

To Program Oven for a Delayed
Automatically
1.
2.
Be sure that the clock shows the correct time of day.
Place the food in the oven.
3. Push _." :- "andthewords"BAKETIME"willglowinthedisplay
window.
4. Push and hold_'_ or_] until the desired baking time appears in the
display.
5. After the bake time has been set, '.... will appear in the display and
the word "BAKE" will flash. The display will flash and beep once until the
oven temperature has been set.
6. Push _. The time when baking will stop, will appear in the display
window. The words "BAKE STOP TIME" will glow in the display.
7. Push and hold| or_ until the time that you want cooking to be
completed appears in the display.
8. Push_ or _.' .... will appear, and the word "BAKE" will glow
in the display.
9. Push and hold_A'x_ or_ until the desired baking temperature appears
in the display.
10. If the baking temperature is not set, the control will beep. "--- --°" will
flash and the word "BAKE" will appear in the display.
Once the Controls are Set:
a. Theoven will comeon and begin heating to the selected baking temperature.
b. The words "BAKE" and "ON" will appear in the display.
c. The main display will show the oven baking time and will count down by
minutes until it reaches ":00."
When the Set BAKE TIME Runs Out:
a. ":00" will appear in the display window and the oven will shut off
automatically.
b. The control will beep 3 times.
c. The control will then continue to beep once every 10 seconds for 5 minutes
or until_ is pushed.
14
Setting Oven Controls

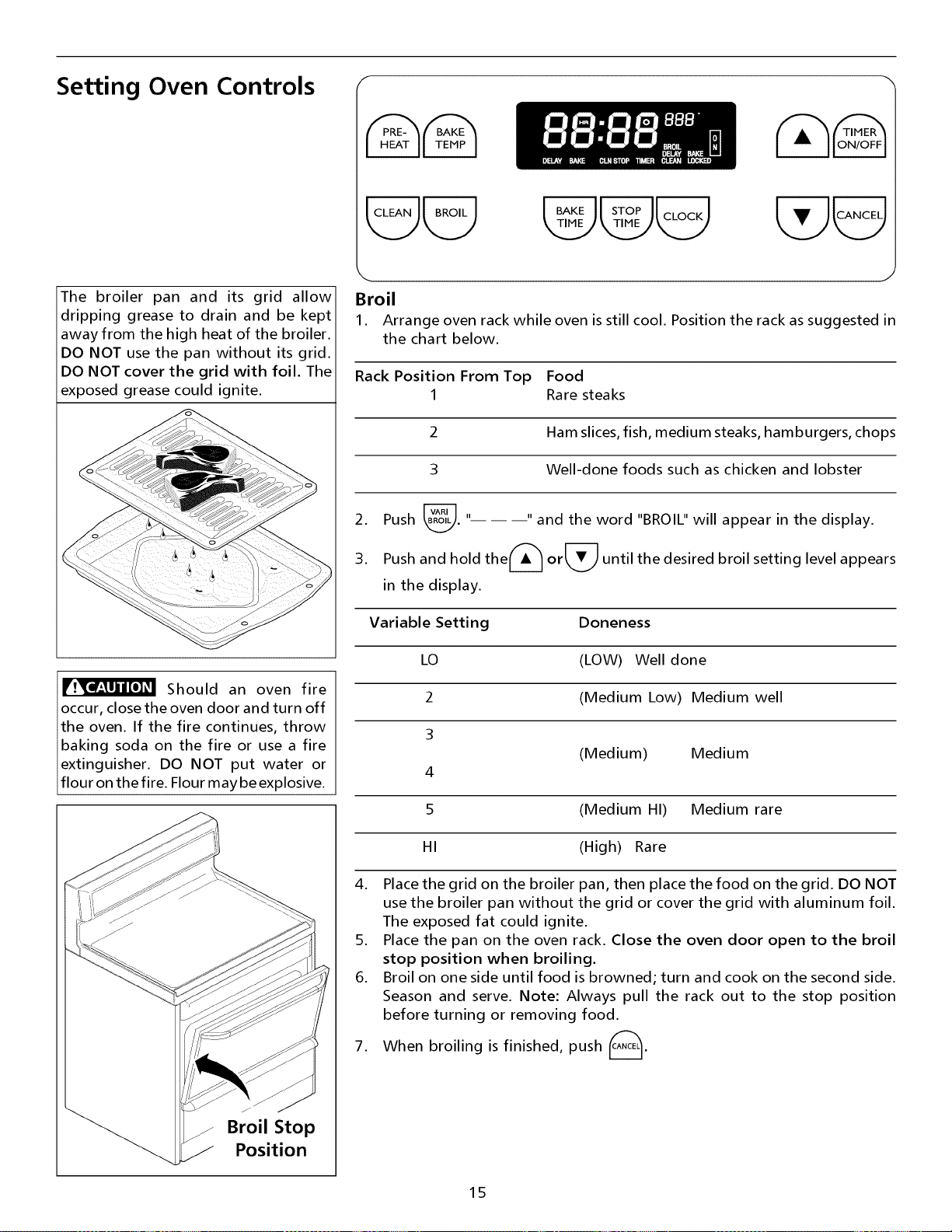

The broiler pan and its grid allow
dripping grease to drain and be kept
away from the high heat of the broiler.
DO NOT use the pan without its grid.
DO NOT cover the grid with foil. The
exposed grease could ignite.
Should an oven fire
occur, close the oven door and turn off
the oven. If the fire continues, throw
baking soda on the fire or use a fire
extinguisher. DO NOT put water or
flour on the fire. Flour may be explosive.
Broil Stop
Position
J
Broil
1. Arrange oven rack while oven isstill cool. Position the rack as suggested in
the chart below.
Rack Position From Top Food
1 Rare steaks
2 Ham slices, fish, medium steaks, hamburgers, chops
3 Well-done foods such as chicken and lobster
,
3.
Variable Setting
LO
2
3
Push _. " " and the word "BROIL" will appear in the display.
Push and hold the_ or_ until the desired broil setting level appears
in the display.
Doneness
(LOW) Well done
(Medium Low) Medium well
(Medium) Medium
4
5 (Medium HI) Medium rare
HI (High) Rare
4.
Place the grid on the broiler pan, then place the food on the grid. DO NOT
use the broiler pan without the grid or cover the grid with aluminum foil.
The exposed fat could ignite.
5. Place the pan on the oven rack. Close the oven door open to the broil
stop position when broiling.
6. Broil on one side until food is browned; turn and cook on the second side.
Season and serve. Note: Always pull the rack out to the stop position
before turning or removing food.
7. When broiling is finished, push _.
15
Self Cleaning Oven
During the self-cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near
the appliance.
The health of some birds
is extremely sensitive to the fumes given
off during the self-cleaning cycle of any
range. Move birds to another well-
ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part
of the range with aluminum foil. Doing
so will destroy heat distribution,
produce poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after
the self-cleaning cycle is completed.
The oven may still be VERY HOT.
HAND
CLEAN FRAME
DO HAND
CLEAN DOOR DO NOT
:_ HAND
_. CLEAN OVEN
'L_ ¢-'> DOOR GASKET
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soil completely or reduce it to a fine powdered
ash you can whisk away with a damp cloth.
,
2.
3.
,
,
Adhere to the following cleaning precautions:
Allow the oven to cool before precleaning.
Wear rubber gloves when precleaning and while wiping up the residue
after the self-clean cycle.
DO NOT use oven cleaners or oven arotective coatings in or around any
part of the self-cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential for a good seal. Care should be taken not to rub, damage
or remove the gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
Remove the broiler pan and insert, all utensils and any aluminum foil.
These items cannot withstand high cleaning temperatures.
Oven racks may be left in the oven or may be removed. If they go through
the clean cycle their color will turn slightly blue and the finish will be dull.
After the cycle is complete and the oven has cooled, rub the sides of the
racks with wax paper or a cloth containing a small amount of baby oil or
salad oil (this will make the racks glide easier into the rack position).
Remove any excess spillovers in the oven cavity before starting the self-
cleaning cycle. To clean, use hot, soapy water and a cloth. Large spillovers
can cause heavy smoke or fire when subjected to high temperatures. DO
NOT allow food spills with a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface as
they may cause a dull spot even after cleaning.
Clean any soil from the oven frame, the door liner outside the oven door
gasket, and the the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessaryto stop or interrupt a self-cleaning cycle due to excessive
smoke or fire:
1. Push CANCEL.
2. Once the oven has cooled down for l HOURandtheword"LOCKED"shown
in the display has gone out, then the oven door can be opened.
16
Self Cleaning Oven
Use care when opening
the oven door after the self-cleaning
cycle. Stand to the side of the oven
when opening the door to allow hot air
or steam to escape.
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after
the self-cleaning cycle is completed.
The oven may still be VERY HOT.

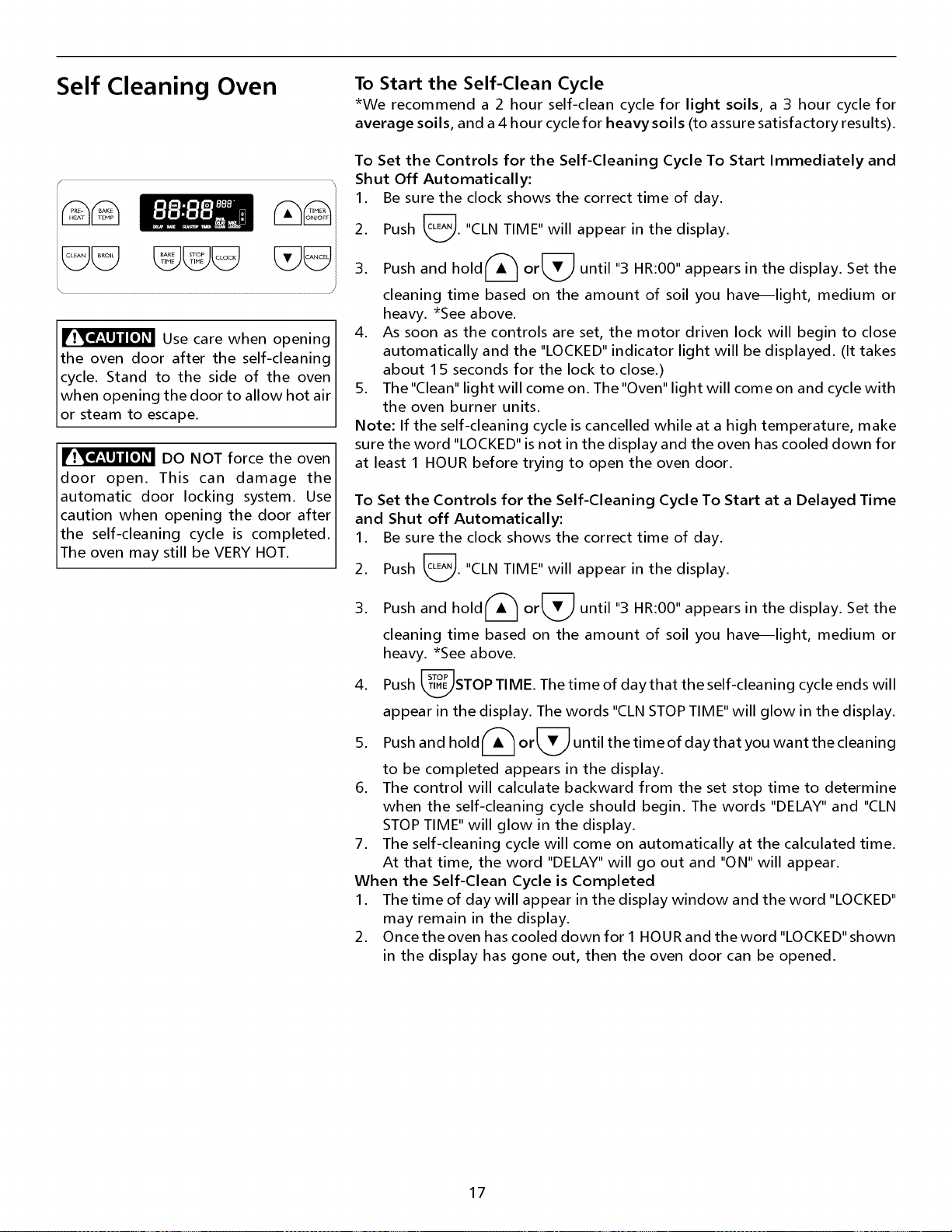

To Start the Self-Clean Cycle
*We recommend a 2 hour self-clean cycle for light soils, a 3 hour cycle for
average soils, and a 4 hour cycle for heavy soils (to assure satisfactory results).
To Set the Controls for the Self-Cleaning Cycle To Start Immediately and
Shut Off Automatically:
1. Be sure the clock shows the correct time of day.
2. Push _. "CLN TIME" will appear in the display.
3. Push and hold_A'x_ or_ until "3 HR:00" appears in the display. Set the
cleaning time based on the amount of soil you have--light, medium or
heavy. *See above.
4. As soon as the controls are set, the motor driven lock will begin to close
automatically and the "LOCKED" indicator light will be displayed. (It takes
about 15 seconds for the lock to close.)
5. The"Clean" light will comeon. The"Oven" light will comeon and cyclewith
the oven burner units.
Note: If the self-cleaning cycle is cancelled while at a high temperature, make
sure the word "LOCKED" is not in the display and the oven has cooled down for
at least 1 HOUR before trying to open the oven door.
To Set the Controls for the Self-Cleaning Cycle To Start at a Delayed Time
and Shut off Automatically:
1. Be sure the clock shows the correct time of day.
2. Push _. "CLN TIME" will appear in the display.
3. Push and hold_AX_ or_ until "3 HR:00" appears in the display. Set the
cleaning time based on the amount of soil you have--light, medium or
heavy. *See above.
4. Push _STOPTIME. Thetimeofdaythattheself-cleaningcycleendswill
appear in the display. The words "CLN STOP TIME" will glow in the display.
5. Push and hold_ or_ until the time of daythat you want the cleaning
to be completed appears in the display.
6. The control will calculate backward from the set stop time to determine
when the self-cleaning cycle should begin. The words "DELAY" and "CLN
STOP TIME" will glow in the display.
7. The self-cleaning cycle will come on automatically at the calculated time.
At that time, the word "DELAY" will go out and "ON" will appear.
When the Self-Clean Cycle is Completed
1. The time of day will appear in the display window and the word "LOCKED"
may remain in the display.
2. Once the oven has cooled down for l HOURandtheword"LOCKED"shown
in the display has gone out, then the oven door can be opened.
17

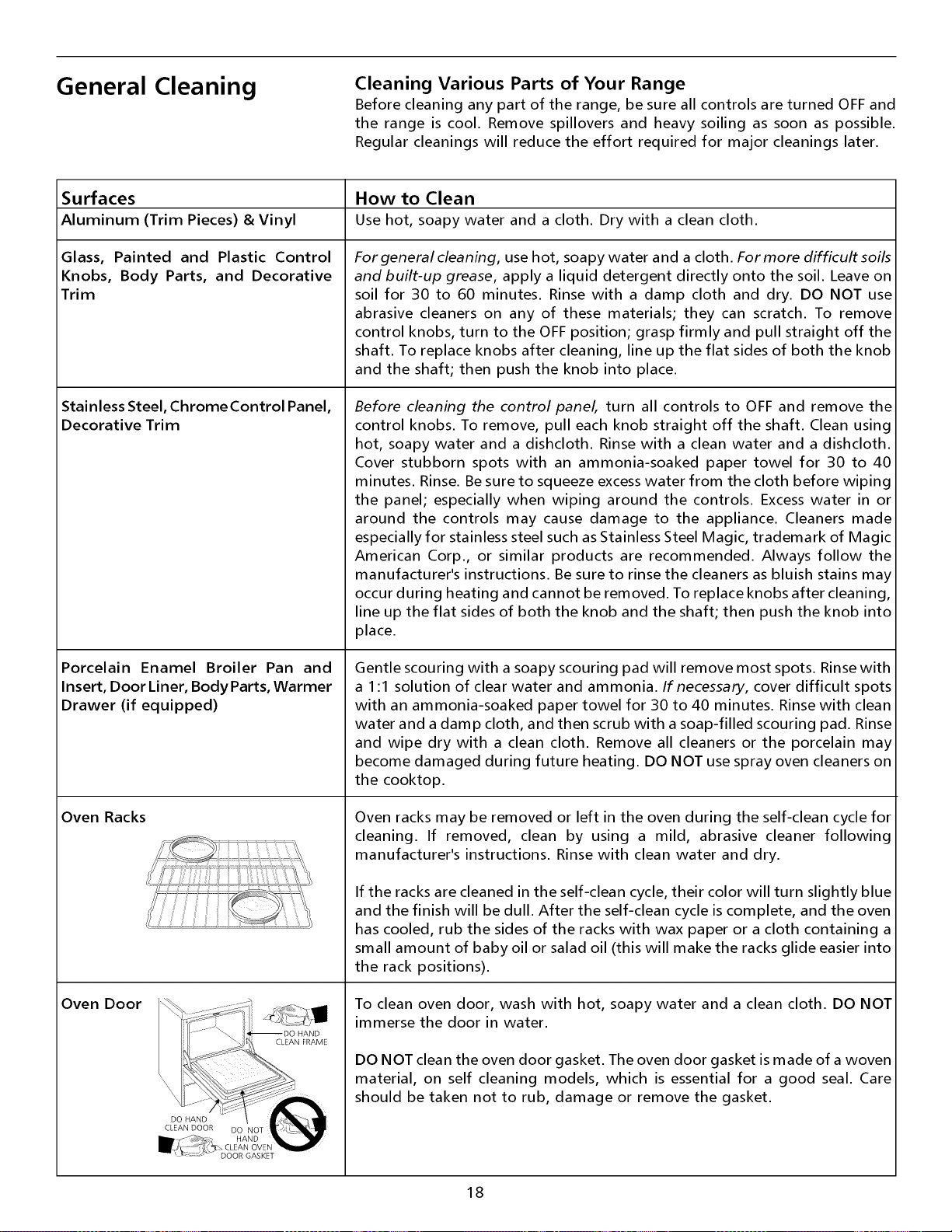

General Cleaning
Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sure all controls are turned OFF and
the range is cool. Remove spillovers and heavy soiling as soon as possible.
Regular cleanings will reduce the effort required for major cleanings later.
Surfaces How to Clean
Aluminum (Trim Pieces) & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Glass, Painted and Plastic Control
Knobs, Body Parts, and Decorative
Trim
Stainless Steel, Chrome Control Panel,
Decorative Trim
Porcelain Enamel Broiler Pan and
Insert, Door Liner, Body Parts, Warmer
Drawer (if equipped)
Oven Racks
Oven Door
CLEAN FRAME
DO HAND
CLEAN DOOR DO NOT
For general cleaning, use hot, soapy water and a cloth. For more difficult soils
and built-up grease, apply a liquid detergent directly onto the soil. Leave on
soil for 30 to 60 minutes. Rinse with a damp cloth and dry. DO NOT use
abrasive cleaners on any of these materials; they can scratch. To remove
control knobs, turn to the OFF position; grasp firmly and pull straight off the
shaft. To replace knobs after cleaning, line up the flat sides of both the knob
and the shaft; then push the knob into place.
Before cleaning the control panel, turn all controls to OFF and remove the
control knobs. To remove, pull each knob straight off the shaft. Clean using
hot, soapy water and a dishcloth. Rinse with a clean water and a dishcloth.
Cover stubborn spots with an ammonia-soaked paper towel for 30 to 40
minutes. Rinse. Be sure to squeeze excess water from the cloth before wiping
the panel; especially when wiping around the controls. Excess water in or
around the controls may cause damage to the appliance. Cleaners made
especially for stainless steel such as Stainless Steel Magic, trademark of Magic
American Corp., or similar products are recommended. Always follow the
manufacturer's instructions. Be sure to rinse the cleaners as bluish stains may
occur during heating and cannot be removed. To replace knobs after cleaning,
line up the flat sides of both the knob and the shaft; then push the knob into
place.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with
a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots
with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean
water and a damp cloth, and then scrub with a soap-filled scouring pad. Rinse
and wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use spray oven cleaners on
the cooktop.
Oven racks may be removed or left in the oven during the self-clean cycle for
cleaning. If removed, clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
If the racks are cleaned in the self-clean cycle, their color will turn slightly blue
and the finish will be dull. After the self-clean cycle is complete, and the oven
has cooled, rub the sides of the racks with wax paper or a cloth containing a
small amount of baby oil or salad oil (this will make the racks glide easier into
the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT
immerse the door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on self cleaning models, which is essential for a good seal. Care
should be taken not to rub, damage or remove the gasket.
18

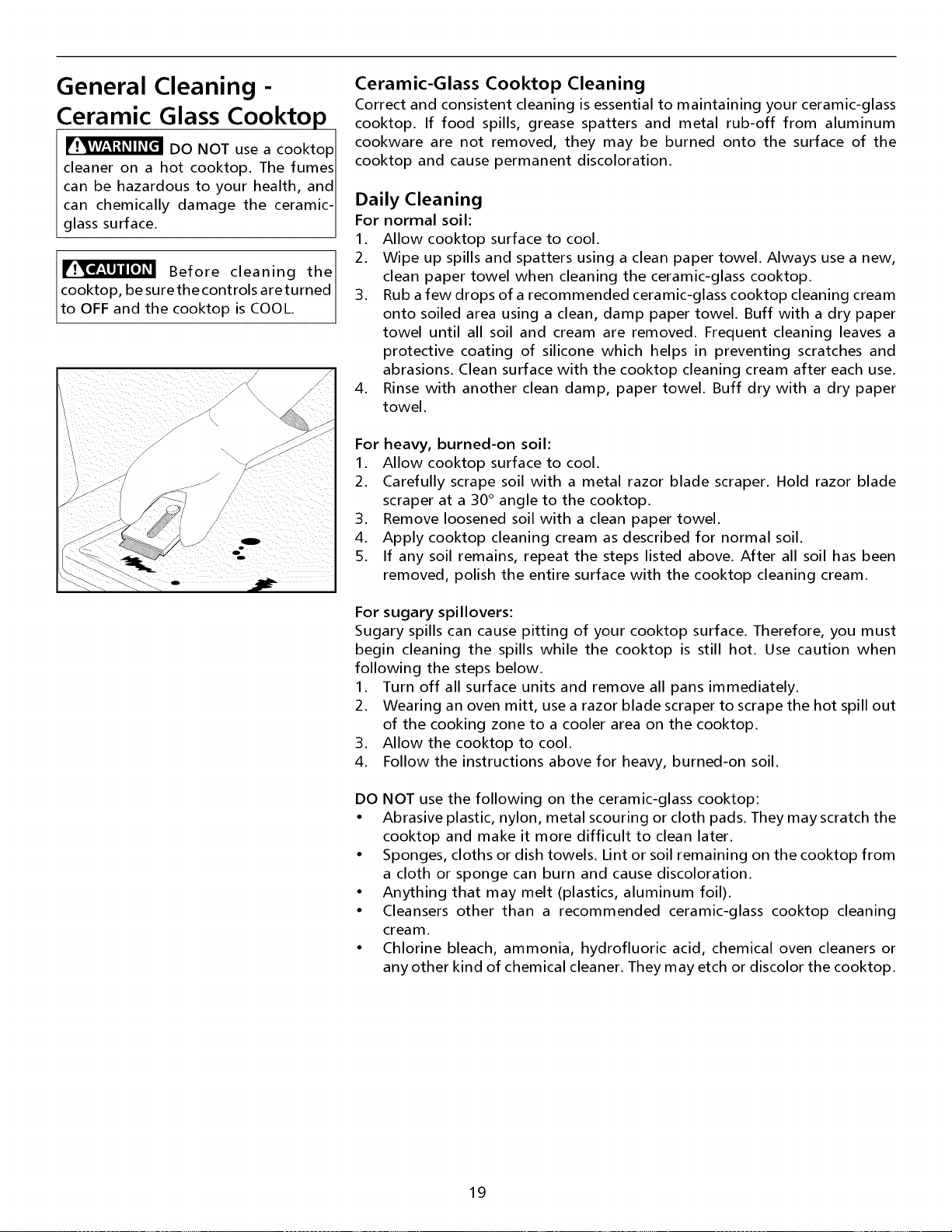

General Cleaning -
Ceramic Glass Cooktop
DO NOT use a cooktop
cleaner on a hot cooktop. The fumes I
can be hazardous to your health, and I
can chemically damage the ceramic-
glass surface.
[1_ Before cleaning the
cooktop, be surethe controls areturned
to OFF and the cooktop is COOL.
Ceramic-Glass Cooktop Cleaning
Correct and consistent cleaning is essential to maintaining your ceramic-glass
cooktop. If food spills, grease spatters and metal rub-off from aluminum
cookware are not removed, they may be burned onto the surface of the
cooktop and cause permanent discoloration.
Daily Cleaning
For normal soil:
1. Allow cooktop surface to cool.
2. Wipe up spills and spatters using a clean paper towel. Always use a new,
clean paper towel when cleaning the ceramic-glass cooktop.
3. Rub a few drops of a recommended ceramic-glass cooktop cleaning cream
onto soiled area using a clean, damp paper towel. Buff with a dry paper
towel until all soil and cream are removed. Frequent cleaning leaves a
protective coating of silicone which helps in preventing scratches and
abrasions. Clean surface with the cooktop cleaning cream after each use.
4. Rinse with another clean damp, paper towel. Buff dry with a dry paper
towel.
For heavy, burned-on soil:
1. Allow cooktop surface to cool.
2. Carefully scrape soil with a metal razor blade scraper. Hold razor blade
scraper at a 30 ° angle to the cooktop.
3. Remove loosened soil with a clean paper towel.
4. Apply cooktop cleaning cream as described for normal soil.
5. If any soil remains, repeat the steps listed above. After all soil has been
removed, polish the entire surface with the cooktop cleaning cream.
For sugary spillovers:
Sugary spills can cause pitting of your cooktop surface. Therefore, you must
begin cleaning the spills while the cooktop is still hot. Use caution when
following the steps below.
1. Turn off all surface units and remove all pans immediately.
2. Wearing an oven mitt, use a razor blade scraper to scrape the hot spill out
of the cooking zone to a cooler area on the cooktop.
3. Allow the cooktop to cool.
4. Follow the instructions above for heavy, burned-on soil.
DO NOT use the following on the ceramic-glass cooktop:
• Abrasive plastic, nylon, metal scouring or cloth pads. They may scratch the
cooktop and make it more difficult to clean later.
• Sponges, cloths or dish towels. Lint or soil remaining on the cooktop from
a cloth or sponge can burn and cause discoloration.
• Anything that may melt (plastics, aluminum foil).
• Cleansers other than a recommended ceramic-glass cooktop cleaning
cream.
• Chlorine bleach, ammonia, hydrofluoric acid, chemical oven cleaners or
any other kind of chemical cleaner. They may etch or discolor the cooktop.
19

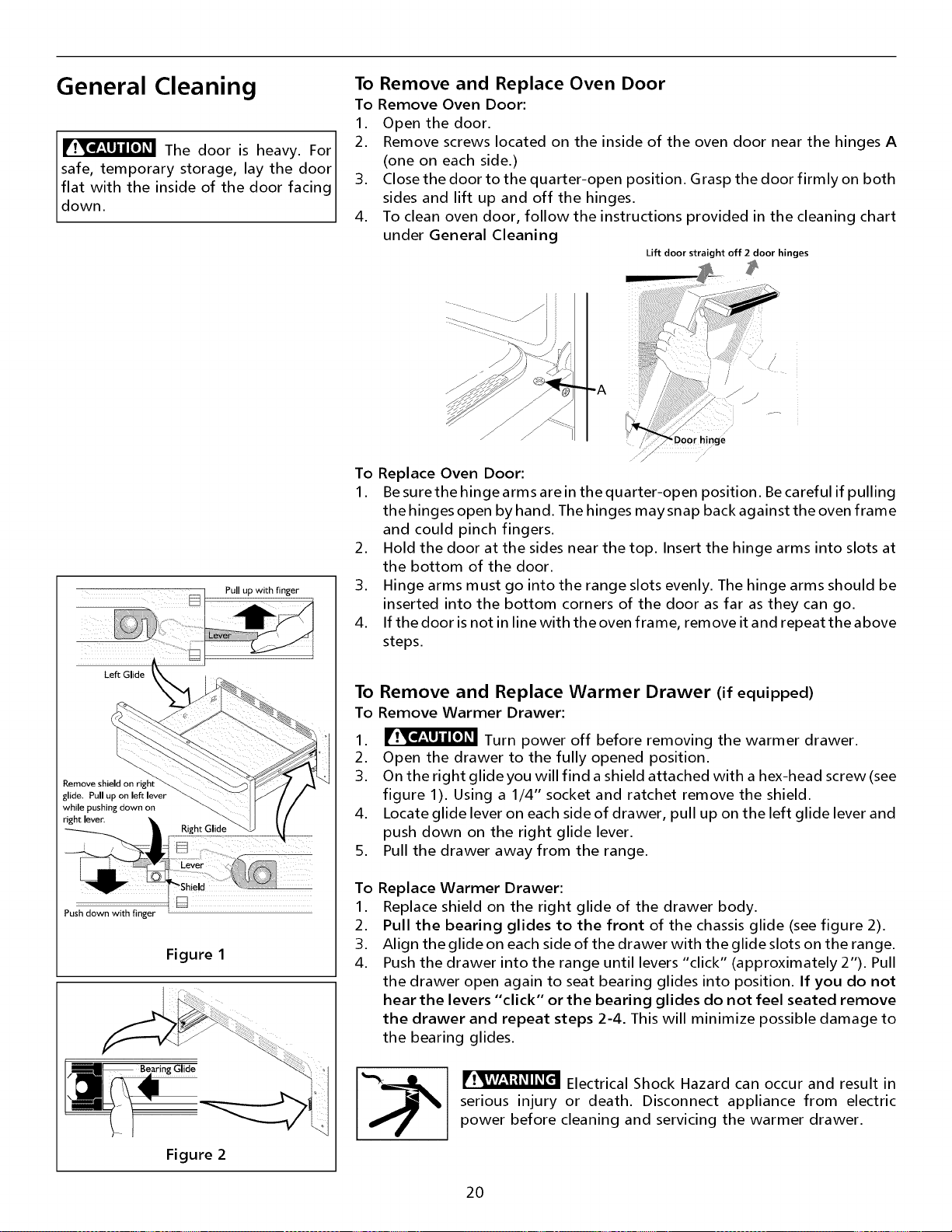

General Cleaning
The door is heavy. For
safe, temporary storage, lay the door
flat with the inside of the door facing
down.
To Remove and Replace Oven Door
To Remove Oven Door:
1. Open the door.
2. Remove screws located on the inside of the oven door near the hinges A
(one on each side.)
3. Close the door to the quarter-open position. Grasp the door firmly on both
sides and lift up and off the hinges.
4. To clean oven door, follow the instructions provided in the cleaning chart
under General Cleaning
Lift door straight off 2 door hinges
Pull up with finger
Left Glide
Remove shield on right
glide. Pull up on left lever
while pushing down on
right lever,
[]
Push down with finger
Figure 1
Figure 2
)o0r hinge
To Replace Oven Door:
1. Besurethehingearmsarein thequarter-open position. Becareful if pulling
the hinges open by hand. The hinges maysnap back against the oven frame
and could pinch fingers.
2. Hold the door at the sides near the top. Insert the hinge arms into slots at
the bottom of the door.
3. Hinge arms must go into the range slots evenly. The hinge arms should be
inserted into the bottom corners of the door as far as they can go.
4. If the door is not in line with the oven frame, remove it and repeat the above
steps.
To Remove and Replace Warmer Drawer (if equipped)
To Remove Warmer Drawer:
1. _ Turn power off before removing the warmer drawer.
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with a hex-head screw (see
figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locate glide lever on each side of drawer, pull up on the left glide lever and
push down on the right glide lever.
5. Pull the drawer away from the range.
To Replace Warmer Drawer:
1. Replace shield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassis glide (see figure 2).
3. Align the glide on each side of the drawer with the glide slots on the range.
4. Push the drawer into the range until levers "click" (approximately 2"). Pull
the drawer open again to seat bearing glides into position. If you do not
hear the levers "click" or the bearing glides do not feel seated remove
the drawer and repeat steps 2-4. This will minimize possible damage to
the bearing glides.
Electrical Shock Hazard can occur and result in
serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
20

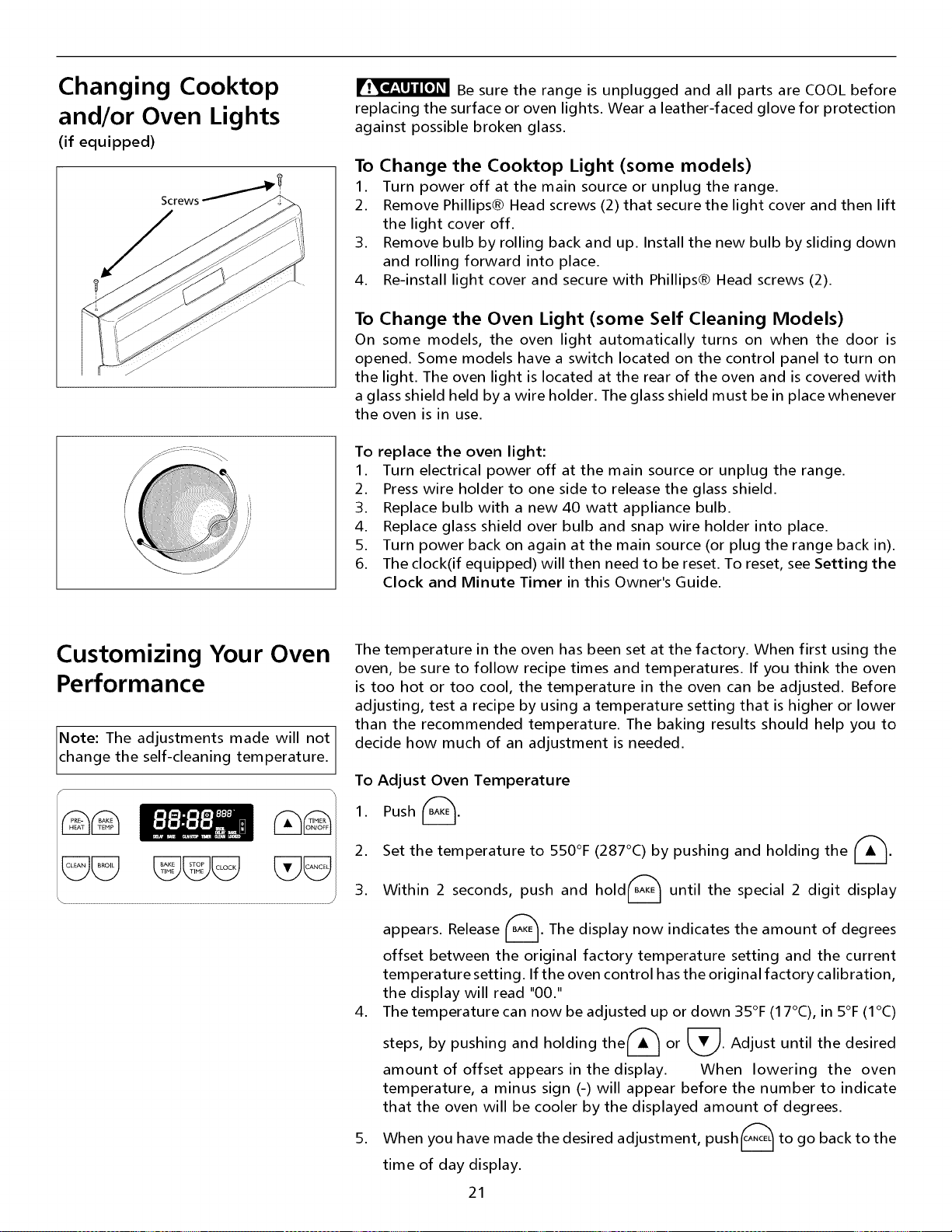

Changing Cooktop
and/or Oven Lights
(if equipped)
Screws __
Be sure the range is unplugged and all parts are COOL before
replacing the surface or oven lights. Wear a leather-faced glove for protection
against possible broken glass.
To Change the Cooktop Light (some models)
1. Turn power off at the main source or unplug the range.
2. Remove Phillips® Head screws (2) that secure the light cover and then lift
the light cover off.
3. Remove bulb by rolling back and up. Install the new bulb by sliding down
and rolling forward into place.
4. Re-install light cover and secure with Phillips® Head screws (2).
To Change the Oven Light (some Self Cleaning Models)
On some models, the oven light automatically turns on when the door is
opened. Some models have a switch located on the control panel to turn on
the light. The oven light is located at the rear of the oven and is covered with
a glass shield held bya wire holder. The glass shield must be in place whenever
the oven is in use.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock(if equipped) will then need to be reset. To reset, see Setting the
Clock and Minute Timer in this Owner's Guide.
Customizing Your Oven
Performance
Note: The adjustments made will not
change the self-cleaning temperature.
The temperature in the oven has been set at the factory. When first using the
oven, be sure to follow recipe times and temperatures. If you think the oven
is too hot or too cool, the temperature in the oven can be adjusted. Before
adjusting, test a recipe by using a temperature setting that is higher or lower
than the recommended temperature. The baking results should help you to
decide how much of an adjustment is needed.
To Adjust Oven Temperature
1. Push _.
2. Set the temperature to 550°F (287°C) by pushing and holding the _-_.
3. Within 2 seconds, push and hold_X_ until the special 2 digit display
appears. Release _. The display now indicates the amount of degrees
offset between the original factory temperature setting and the current
temperature setting. If the oven control has the original factory calibration,
the display will read "00."
4. The temperature can now be adjusted up or down 35°F (17°C), in 5°F (1°C)
steps, by pushing and holding the_'X_ or [_. Adjust until the desired
amount of offset appears in the display. When lowering the oven
temperature, a minus sign (-) will appear before the number to indicate
that the oven will be cooler by the displayed amount of degrees.
5. When you have made the desired adjustment, push_ to go backtothe
time of day display.
21
Avoid Service Checklist
Before you call for service, review this list. It may save you time and expense.
The list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
This oven is equipped with a state of the art electronic oven controller. Among
its many features is a full time oven circuit diagnostics system. The controller
constantly monitors its internal circuitry as well as several crucial oven circuits
to insure they are all operating correctly. If at any time one of these systems
fails, the controller will immediately stop operation, and beep continuously
(flashing an error code of F1 or F3* in the display window, if equipped).
OCCURRENCE
POSSIBLE CAUSE/SOLUTION
Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the oven rack is level.
Be sure floor is level and is strong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are square
and have sufficient room for range clearance.
Cannot move appliance easily. Appliance Cabinets not square or are built in too tightly. Contact builder or installer to make
must be accessible for service, appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over carpet.
*Oven control beeps continuously with no
indicator lights flashing. (If model is
equipped with a display, F1 or F3 will
show.)
Electronic control has detected a fault condition. Turn the Temperature Control
Knob to OFF, and disconnect the power to the range. Wait 30 seconds and
reconnect the power. If fault recurs, disconnect the power and contact an
authorized servicer.
Surface unit too hot or not hot enough. Incorrect control setting. Make sure the correct control is on for the surface unit to be
used.
Surface unit does not heat. Lightweight or warped pans used. Useonly flat, evenly balanced, medium or heavyweight
cookware. Flat pans heat better than warped pans. Cookware materials and weight of
the material affect heating. Heavy- and medium-weight pans heat evenly. Because
lightweight pans heat unevenly, foods may burn easily.
No power to the appliance. Check steps under "Entire Appliance Does Not Operate" in
this Avoid Service Checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to be
used.
Entire appliance does not operate. Make sure cord/plug is plugged tightly into outlet.
Service wiring is not complete. Contact your dealer, installing agent or authorized
servicer.
Power outage. Check house lights to be sure. Call your local electric company for
service.
Cooktop and/or oven light (some models) Replace or tighten bulb. See Changing Cooktop and/or Oven Lights (some models)
does not work. in this Owner's Guide for instructions.
22

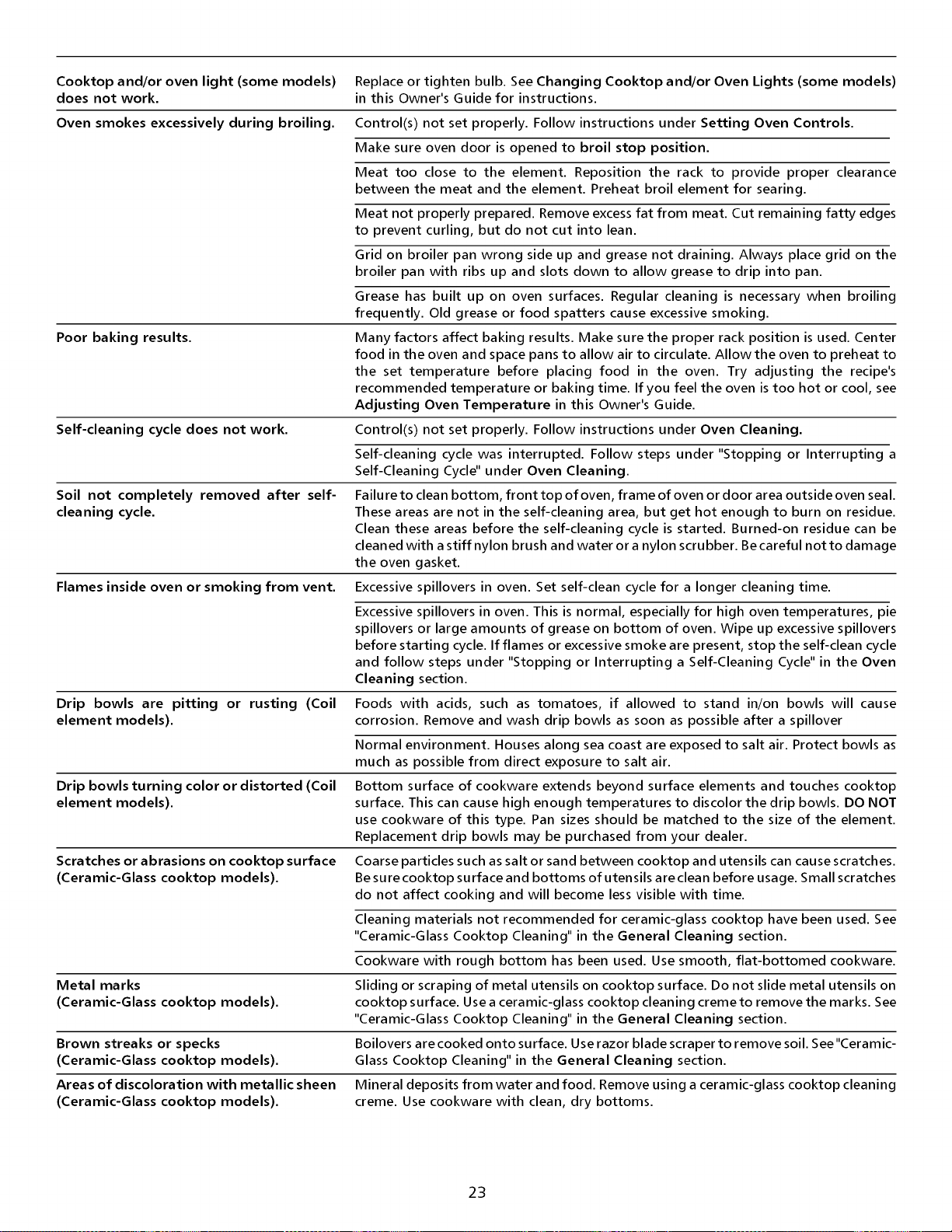

Cooktop and/or oven light (some models) Replace or tighten bulb. See Changing Cooktop and/or Oven Lights (some models)
does not work. in this Owner's Guide for instructions.
Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls.
Poor baking results.
Self-cleaning cycle does not work.
Soil not completely removed after self-
cleaning cycle.
Flames inside oven or smoking from vent.
Drip bowls are pitting or rusting (Coil
element models).
Drip bowls turning color or distorted (Coil
element models).
Scratches or abrasions on cooktop surface
(Ceramic-Glass cooktop models).
Metal marks
(Ceramic-Glass cooktop models).
Brown streaks or specks
(Ceramic-Glass cooktop models).
Areas of discoloration with metallic sheen
(Ceramic-Glass cooktop models).
Make sure oven door is opened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance
between the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges
to prevent curling, but do not cut into lean.
Grid on broiler pan wrong side up and grease not draining. Always place grid on the
broiler pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. If you feel the oven is too hot or cool, see
Adjusting Oven Temperature in this Owner's Guide.
Control(s) not set properly. Follow instructions under Oven Cleaning.
Self-cleaning cycle was interrupted. Follow steps under "Stopping or Interrupting a
Self-Cleaning Cycle" under Oven Cleaning.
Failu re to clean bottom, front top of oven, frame of oven or door area outside oven seal.
These areas are not in the self-cleaning area, but get hot enough to burn on residue.
Clean these areas before the self-cleaning cycle is started. Burned-on residue can be
cleaned with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage
the oven gasket.
Excessive spillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie
spillovers or large amounts of grease on bottom of oven. Wipe up excessive spillovers
before starting cycle. If flames or excessive smoke are present, stop the self-clean cycle
and follow steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Oven
Cleaning section.
Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause
corrosion. Remove and wash drip bowls as soon as possible after a spillover
Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as
much as possible from direct exposure to salt air.
Bottom surface of cookware extends beyond surface elements and touches cooktop
surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT
use cookware of this type. Pan sizes should be matched to the size of the element.
Replacement drip bowls may be purchased from your dealer.
Coarse particles such as salt or sand between cooktop and utensils can cause scratches.
Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches
do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"Ceramic-Glass Cooktop Cleaning" in the General Cleaning section.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the marks. See
"Ceramic-Glass Cooktop Cleaning" in the General Cleaning section.
Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See "Ceramic-
Glass Cooktop Cleaning" in the General Cleaning section.
Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaning
creme. Use cookware with clean, dry bottoms.
23
RANGE WARRANTY
Your range is protected by this warranty
WARRANTY THROUGH OURAUTHORIZED SERVICERS, THE CONSUMERWILL BE RESPONSIBLEFOR:
PERIOD WE WILL:
FULLONE-YEAR One yearfrom original Payall costs for repairingor replacingany parts ofthis Costs of service callsthat are listed underNORMAL
WARRANTY purchasedate. appliancewhich proveto bedefective inmaterialsor RESPONSIBILITIESOFTHE CONSUMER,*
workmanship.
LIMITED 2ND-5TH Second throughfifth Providea replacementfor any defective surface heating Diagnosticcostsand anytransportation and labor costs
YEARWARRANTY years from original element,deteriorated rubberized-siliconeseal (upswept which are requiredbecauseof service.
(Glass Smoothtop, purchasedate. modelsonly), or glass smoothtop that cracks dueto
Seal &Elements) thermal breakage(not customer abuse),
LIMITEDWARRANTY Time periodslisted Allof the provisionsof thefull and limited warranties Costs of the technician's travel to the home andany
(Applicable to the above, above andthe exclusionslisted below apply, costs for pick upand delivery ofthe appliancerequired
State of Alaska) because of service.
In the U,S,A, your appliance is warranted by Electrolux Home Products North America, a division of White Consolidated Industries, Inc, We authorize
no person to change or add to any of our obligations under this warranty, Our obligations for service and parts under this warranty must be performed
by us or an authorized Electrolux Home Products North America servicer, In Canada, your appliance is warranted by WCI Canada, Inc,
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,
which are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1, CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you,
2, Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use, The consumer shall pay for such service calls,
3, Damages caused by services performed by servicers other than Electrolux Home Products North America or its
authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons
other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God,
4, Products with original serial numbers that have been removed or altered and cannot be readily determined,
Keep your bill of sale, delivery slip, or some other appropriate payment record, The date on the bill establishes the
warranty period should service be required, If service is performed, it is in your best interest to obtain and keep all receipts,
This written warranty gives you specific legal rights, You may also have other rights that vary from state to state, Service
under this warranty must be obtained by contacting Electrolux Home Products:
This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as described or illustrated are
subject to change without notice. All warranties are made by Electrolux Home Products North America, a division of White Consolidated Industries
Inc. In Canada, your appliance is warranted by WCI Canada, Inc. 03-U-RA-01 (rev. 01/2001)
USA
800.944.9044
Electrolux Home Products North America
P,O, Box 212378
Augusta, GA 30917
Canada
866°213°9397 (English)
866°294°9911 (French)
Electrolux Home Products North America
6150 McLaughlin Road
Mississauga, Ontario, Canada
L5R 4C2
