Contents

A Note to You ........................................... 3

Range Safety ......................................... 4-6

Parts and Features .................................... 7

Feature locations ................................. 7

The oven vent ...................................... 9

The storage drawer .............................. 9

The anti-tip bracket ............................. 10

Using and Caring for Your Cooktop ....... 11

Using the surface cooking areas .......... 11

Cookware tips .................................... 13

Energy saving tips .............................. 14

Caring for your cooktop ...................... 14

Using and replacing the surface light .... 16

Using and Caring for Your Oven ........... 18

Using the electronic oven control ........ 18

Oven settings ..................................... 26

Setting the clock ................................. 27

Using the timer ................................... 27

Baking or convection baking ............... 29

Roasting ............................................. 30

Cooking tips ....................................... 32

Adjusting the oven temperature .......... 35

Using the temperature probe .............. 37

Using Convect Full Meal ..................... 39

Using EASY CONVECT*

Conversion ......................................... 42

Broiling ............................................... 44

Convection broiling ............................. 46

Timed cooking .................................... 49

Dehydrating ........................................ 52

Raising (proofing) bread ..................... 53

Cleaning your oven and controls ......... 54

Using and replacing the oven light(s) .... 56

Using the Self-Cleaning Cycle ............... 57

Before you start .................................. 57

Before setting the controls .................. 58

Setting the controls ............................. 58

For best cleaning results ..................... 60

How the cycle works ........................... 60

Troubleshooting ...................................... 61

Requesting Assistance or Service ......... 63

index ........................................................ 66

Warranty .................................................. 68

Note toYou

c__O_ for buying a KITCHENAID* appliance!

KitchenAid designs the best tools for the most important room in your house. To ensure

that you enjoy many years of trouble-free operation, we developed this Use and Care

guide. It contains valuable information concerning how to operate and maintain your

new appliance properly and safely. Please read it carefully.

Also, please complete and mail the enclosed Product Registration Card.

In fhe U.S.A.

For assistance or service

Call the Consumer Assistance Center toll free ................................................ 1-800-422-1230

Throughouf Canada forassisfance

CalltheConsumer AssistanceCentretollfree................................................1-800-461-5681

8:30 a,m. - 6 p.m. (EST)

Throughouf Canctdct for service ............................................................. see page 64.

If you need assistance or service, first see the "Troubleshooting" section of this book. After

checking "Troubleshooting," additional help can be found by checking the "Requesting

Assistance or Service" section, or by calling one of the telephone numbers above.

When calling, you will need to know your appliance's complete model number and serial

number. You can find this information on the model and serial number label/plate (see

diagrams in the "Parts and Features" section).

Keep this book and the sales slip together in a safe place for future reference. You must

provide proof of purchase or installation date for in-warranty service.

Model Number BuildeflDealer Name

Serial Number Address

Date Installed Phone

Tip Over Hazard

A child or adult can tip the range and be killed.

Connect anti-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is moved.

See the installation instructions for details.

Failure to follow these instructions can result in death or

serious burns to children and adults.

Anti-Tip Bracket

Range Foot

Making sure the anti-tip bracket is installed:

* Slide range forward.

* Look for the anti-tip bracket securely attached to floor.

* Slide range back so rear range foot is under anti-tip bracket.

Safety

Your safely ond fhe sofefy of ofhers is very imporfant,

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously injured

if you don't follow instructions.

You can be killed or seriously injured

if you don't follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of

fire, electric shock, injury to persons,

or damage when using the range,

follow basic precautions, including

the following:

,WARNING - TO REDUCE THE

RISK OF TIPPING OF THE RANGE,

THE RANGE MUST BE SECURED

BY PROPERLY INSTALLED ANTI-

TIP DEVICES. TO CHECK IF THE

DEVICES ARE INSTALLED PROP-

ERLY, SLIDE RANGE FORWARD,

LOOK FOR ANTI-TIP BRACKET

SECURELY ATTACHED TO

FLOOR, AND SLIDE RANGE BACK

SO REAR RANGE FOOT IS UNDER

ANTI-TIP BRACKET.

CAUTION = Do not store items

of interest to children in cabinets

above a range or on the backguard

of a range - children climbing on the

range to reach items could be

seriously injured.

• Proper Installation - Be sure the range

is properly installed and grounded by a

qualified technician.

e Never Use the Range for Warming or

Heating the Room.

• Do Not Leave Children Alone - Children

should not be left alone or unattended

in area where the range is in use. They

should never be allowed to sit or stand

on any part of the range.

• Wear Proper Apparel - Loose-fitting or

hanging garments should never be worn

while using the range.

e User Servicing - Do not repair or replace

any part of the range unless specifically

recommended in the manual. All other

servicing should be referred to a qualified

technician.

• Storage in or on the Range - Flammable

materials should not be stored in an oven

or near surface units.

• Do Not Use Water on Grease Fires -

Smother fire or flame or use dry chemical

or foam-type extinguisher.

-SAVE THESE INSTRUCTIONS-

_ nge Safety

IMPORTANT SAFETY iNSTRUCTiONS

• Use Only Dry Potholders - Moist or

damp potholders on hot surfaces

may result in burns from steam. Do

not let potholder touch hot heating

elements. Do not use a towel or

other bulky cloth.

e DO NOT TOUCH SURFACE UNITS

OR AREAS NEAR UNITS - Surface

units may be hot even though they

are dark in color. Areas near surface

units may become hot enough to

cause burns. During and after use,

do not touch, or let clothing or other

flammable materials contact surface

units or areas near units until they

have had sufficient time to cool.

Among those areas are the cook-top

and surfaces facing the cook-top.

e Use Proper Pan Size - The range is

equipped with one or more surface

units of different size. Select utensils

having flat bottoms large enough to

cover the surface unit heating

element. The use of undersized

utensils will expose a portion of the

heating element to direct contact and

may result in ignition of clothing.

Proper relationship of utensil to

burner will also improve efficiency.

e Never Leave Surface Units

Unattended at High Heat Settings -

Boilover causes smoking and

greasy spillovers that may ignite.

• Protective Liners - Do not use

aluminum foil to line oven bottoms,

except as suggested in the manual.

Improper installation of these liners

may result in a risk of electric shock,

or fire.

• Glazed Cooking Utensils - Only certain

types of glass, glass/ceramic, ceramic,

earthenware, or other glazed utensils

are suitable for range-top service without

breaking due to the sudden change in

temperature.

e Utensil Handles Should Be Turned

Inward and Not Extend Over Adjacent

Surface Units - To reduce the risk of

burns, ignition of flammable materials,

and spillage due to unintentional contact

with the utensil, the handle of a utensil

should be positioned so that it is turned

inward, and does not extend over

adjacent surface units.

e Do Not Cook on Broken Cook-Top -

If cook-top should break, cleaning

solutions and spillovers may penetrate

the broken cook-top and create a risk

of electric shock. Contact a qualified

technician immediately.

e Clean Cook-Top With Caution - If a wet

sponge or cloth is used to wipe spills on

a hot cooking area, be careful to avoid

steam burn. Some cleaners can produce

noxious fumes if applied to a hot surface.

• Use Care When Opening Door- Let hot

air or steam escape before removing or

replacing food.

e Do Not Heat Unopened Food Containers

- Build-up of pressure may cause

container to burst and result in injury.

e Keep Oven Vent Ducts Unobstructed.

• Placement of Oven Racks - Always

place oven racks in desired location

while oven is cool. If rack must be moved

while oven is hot, do not let potholder

contact hot heating element in oven.

-SAVE THESE INSTRUCTIONS-

continued on next page

nge Safety

IMPORTANT SAFETY NSTRUCT ONS

• DO NOT TOUCH HEATING ELE-

MENTS OR INTERIOR SURFACES

OF OVEN - Heating elements may

be hot even though they are dark in

color. Interior surfaces of an oven

become hot enough to cause burns.

During and after use, do not touch,

or let clothing or other flammable

materials contact heating elements

or interior surfaces of oven until they

have had sufficient time to cool.

Other surfaces of the appliance may

become hot enough to cause burns

- among these surfaces are oven

vent openings and surfaces near

these openings, oven doors, and

windows of oven doors.

For self-cleaning ranges -

• Do Not Clean Door Gasket - The door

gasket is essential for a good seal. Care

should be taken not to rub, damage, or

move the gasket.

e Do Not Use Oven Cleaners - No com-

mercial oven cleaner or oven liner

protective coating of any kind should be

used in or around any part of the oven.

e Clean Only Parts Listed in Manual.

• Before Self-Cleaning the Oven -

Remove broiler pan and other utensils.

For units with ventilating hood -

• Clean Ventilating Hoods Frequently -

Grease should not be allowed to accu-

mulate on hood or filter.

eWhen flaming foods under the hood, turn

the fan off. The fan, if operating, may

spread the flame.

-SAVE THESE INSTRUCTIONS-

_. artsand Features

This section tells you what features your range has and where they are located. It

also discusses some convenience features that you should know about, but which

are not needed to operate the range. Please review this information before using

your range. To help you find information on specific parts or features quickly, page

references are included.

Feature ocafions

(Slide-in models)

Surface cooking area

Oven vent (pp. 11 and 14)

(p. 9) Electronic oven control

Surface cooking (p. 18)

area controls Automatic

(p. 1 1) oven light

Model and switch

serial number (pp. 52, 56)

plate Broil element

(p. 3) (not shown)

Anti-tip (p. 26)

(p. 10) Bake element

Removable storage (p. 26)

(p. 9)

Surface cooking area confroms

Left rear Left front Right front Right rear

control knob control knob control knob control knob

(pp. 11 and 54) (pp. 11 and 54) (pp. 11 and 54) (pp. 11 and 54)

__artsand Features

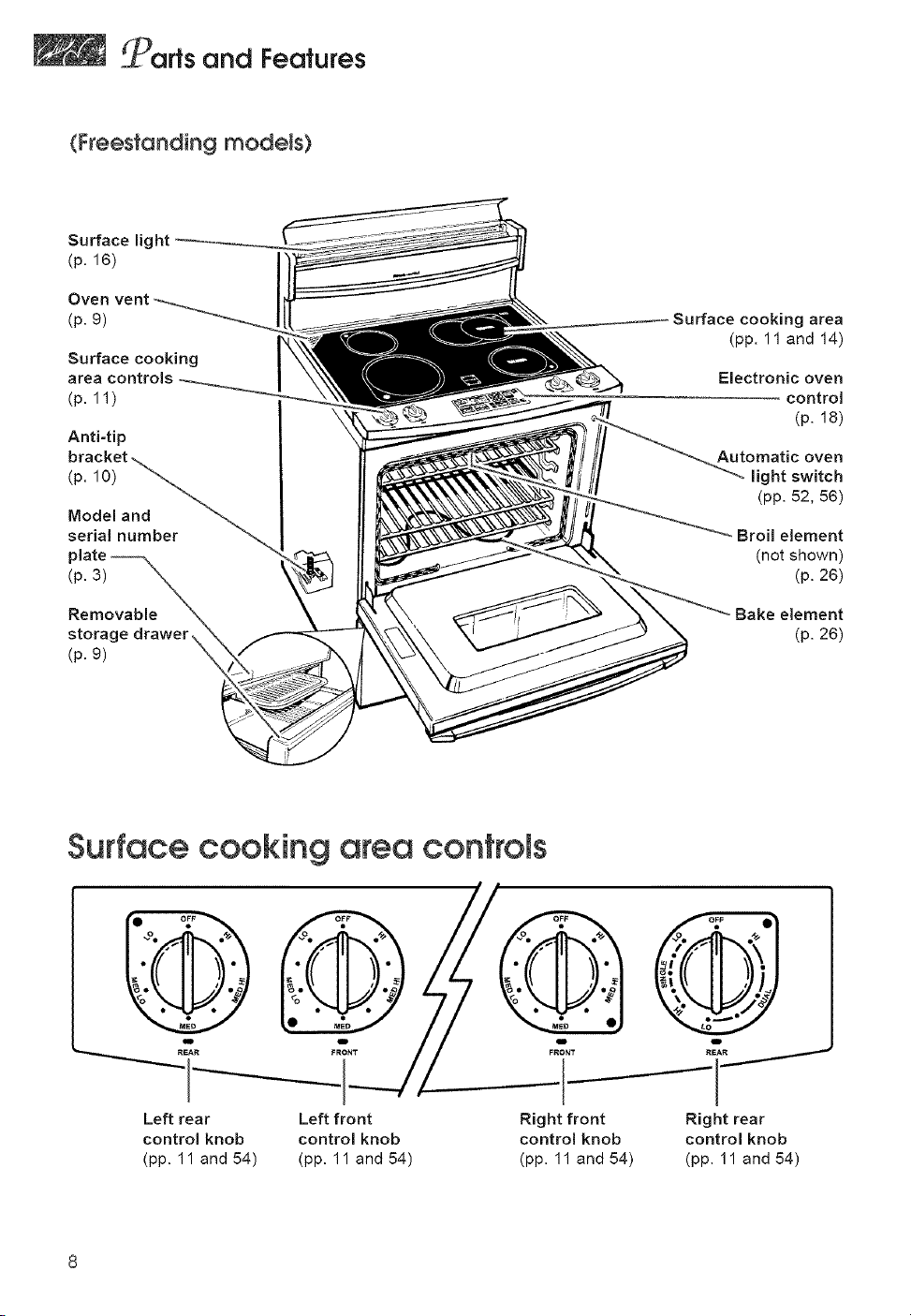

(Freesfanding models)

Surface lig

(p. 16)

(p. 9)

Surface cooking

area controls

(p. 11)

Anti-tip

(p. 10)

Model and

serial number

(p. 3)

Removable

storage drawer,

(p. 9)

Surface cooking area

(pp. 11 and 14)

Electronic oven

control

(p. 18)

Automatic oven

light switch

(pp. 52, 56)

Broil element

(not shown)

(p. 26)

Surface cooking area controls

Left rear

control knob

(pp. 11 and 54)

Left front

control knob

(pp. 11 and 54)

Right front

control knob

(pp. 11 and 54)

Right rear

control knob

(pp. 11 and 54)

__ads and Features

The oven vent

Oven vent

Hot air and moisture escape from the oven

through a vent in the left rear corner of the

cooktop. Do not block the vent by using

large pans or covers. Poor baking/roasting

can result.

NOTE: Plastic utensils left over the vent

can melt.

Burn Hazard

Use pot holders when touching items

left near oven vent.

Failure to do so can result in burns.

The storage drawer

You can remove the storage drawer to make

it easier to clean under the range, Use care

when handling the drawer.

Removing the storage drawer:

1. Empty drawer of any pots and pans

before removing drawer. Use recessed

area on top edge of drawer to pull drawer

straight out to the first stop, Lift front and

pull out to the second stop,

2. Lift back slightly and slide drawer all the

way out.

Replacing the storage drawer:

Drawer slide

rail

1. Fit ends of drawer slide rails into the

drawer guides on both sides of opening.

2. Lift drawer front and press in until metal

stops on drawer slide rails clear white

stops on drawer guides, Lift drawer front

again to clear second stop and slide

drawer closed,

_ ads and Feafures

The anti°tipbrackef

The range willnottipduringnormaluse.However, tippingcan occurifyou applytoomuch

forceorweighttotheopen door withoutthe anti-tipbracketproperlysecured.

_.____ Tip Over Hazard

A child or adult can tip the range and be killed.

Connect anti-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is moved.

See the installation instructions for details.

Failure to follow these instructions can result in death or

serious burns to children and adults.

Anti=TipBracket

Range Foot

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

"rigand

Cooktop

Caring

forYour

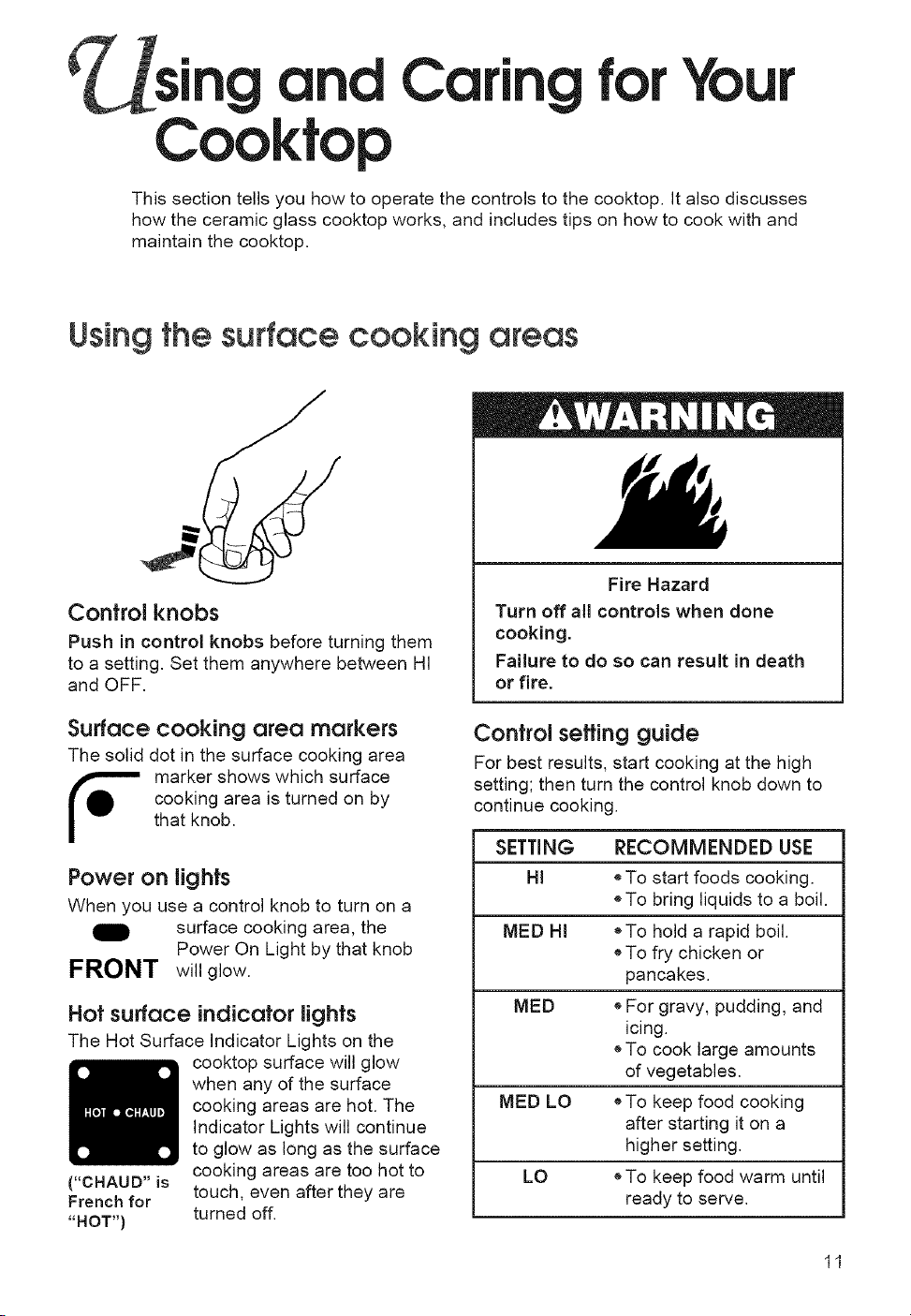

This section tells you how to operate the controls to the cooktop. It also discusses

how the ceramic glass cooktop works, and includes tips on how to cook with and

maintain the cooktop.

Usingthe surface cooking areas

Control knobs

Push in control knobs before turning them

to a setting. Set them anywhere between HI

and OFF.

Surface cooking area markers

The solid dot in the surface cooking area

marker shows which surface

cooking area is turned on by

that knob.

Power on lights

When you use a control knob to turn on a

surface cooking area, the

Power On Light by that knob

FRONT willglow.

("CHAUD" is

French for

"HOT")

Hot surface indicator lights

The Hot Surface Indicator Lights on the

cooktop surface will glow

when any of the surface

cooking areas are hot. The

Indicator Lights will continue

to glow as long as the surface

cooking areas are too hot to

touch, even after they are

turned off.

Fire Hazard

Turn off all controls when done

cooking.

Failure to do so can result in death

or fire.

Control seffing guide

For best results, start cooking at the high

setting; then turn the control knob down to

continue cooking.

SETTING RECOMMENDED USE

HI o To start foods cooking.

oTo bring liquids to a boil.

MED HI eTo hold a rapid boil.

eTo fry chicken or

pancakes.

MED o For gravy, pudding, and

icing.

oTo cook large amounts

of vegetables.

MED LO eTo keep food cooking

after starting it on a

higher setting.

LO oTo keep food warm until

ready to serve.

' sing and Caring for Your Cooktop

Using the dual=size surface

cooking area

(some models)

You can use the right rear surface cooking

area as either a small diameter, lower

wattage element or large diameter, full

wattage element.

Use both elements

for larger pans

Use small element

for smaller pans

To use the small element

(for smaller pans):

o Push in and turn the control knob to the

left (counterclockwise) to the desired

setting in the area marked "SINGLE."

To use both elements

(for larger pans):

o Push in and turn the control knob to the

right (clockwise) to the desired setting in

the area marked "DUAL."

NOTE: You can turn the control knob in

either direction to reach "OFF."

The ceramic glass cookfop

Standard Hot surface Halogen

elements indicator elements

lights (some

models)

Cooking on the ceramic glass cooktop

is almost the same as cooking on coil

elements. There are, however, a few

differences:

o The surface cooking area will glow red

when the element is turned on. You will

see the element cycling on and off - even

on the HI setting - to help the area stay at

the temperature setting you choose.

oWiping off the cooktop before and after

each use will help keep the surface free

from stains and give you the most even

heating. See "Cleaning the cooktop" in

the "Caring for Your Range" section.

e Do not cook foods directly on the cooktop.

o Lift pots and pans onto and off of the

cooktop. Sliding pots and pans on the

cooktop could leave marks that are

difficult to remove or could leave

permanent marks.

o Do not cook popcorn that comes in

prepackaged aluminum containers on

the cooktop. The container could leave

aluminum marks on the cooktop that

cannot be removed completely.

e Do not use the cooktop as a cutting board.

o Do not allow anything that could melt,

such as plastic or aluminum foil, to come in

contact with the cooktop while it is hot.

e Dropping a heavy or hard object on the

cooktop could crack it. Be careful when

using heavy skillets and large pots. Do not

store jars or cans above the cooktop.

e Sugary spills and soils can cause pitting.

See "Cleaning the cooktop" in the "Caring

for Your Range" section.

J sing and Caring for Your Cooktop

Cookware tips

e Use the correct cookware to prevent

damage to the surface cooking area,

cooktop, wiring, and surrounding areas.

o if the cookware is too small for the

surface cooking area or the bottom is not

flat, the surface cooking area could stay

glowing red for an extended length of time

causing damage to the range.

o If you start cooking on high, it is impor-

tant to turn the control down to a lower

setting to complete cooking.

e Flat-bottomed cookware, including woks,

canners, and teakettles, will provide better

contact with the surface cooking area and

provide the best cooking results.

oWarped, dented, and ribbed-bottomed

cookware can result in uneven cooking

clue to incomplete contact with the surface

cooking area.

o Cookware that has been designed with

slightly indented bottoms or small expan-

sion channels can be used.

e Choose medium to heavy gauge

(thickness) cookware.

o The pan material (type of metal or

glass) affects how quickly and evenly

the pan heats.

e Check for rough spots on the bottom of

your metal or glass cookware which could

scratch the ceramic glass surface.

e Make sure the bottoms of pots and pans

are clean and dry before using them. Food

and water particles left on the bottoms can

leave deposits on the cooktop when it is

heated.

Home canning information

o Use flat-bottomed canner/pan.

Canners with rippled or ridged bottoms

do not allow good contact with the

surface cooking area.

center over

I surface cooking I

o Use the largest surface cooking area

and center the canner/pan on it. A large

diameter canner/pan, if not centered

correctly, can trap heat and cause

damage to the cooktop.

e Do not place your canner/pan on

2 surface cooking areas at the same

time. Too much heat will build up and

damage the cooktop.

e Start with hot water. This reduces the

time the control is set on high. Reduce

the heat setting to the lowest position

needed to keep water boiling.

oWhen canning for long periods of

time, alternate use of the surface

cooking areas between batches to allow

the areas to cool down, or prepare food

in small batches.

o Refer to your canner manual for specific

instructions.

NOTE: Do not leave empty cookware, or

cookware which has boiled dry, on a hot

surface cooking area. The cookware could

overheat, causing damage to the cookware

or surface cooking area.

. sing and Caring for Your Cooktop

Energy saving tips

Although the energy used for cooking is

usually a very small percentage of the total

energy used in the home, cooking energy

can be used efficiently. Here are some tips

to help you save energy when using your

cooking product:

Cookfop

e Match the pan to the surface cooking

area size.

e The pan should have a flat bottom,

straight sides, and a well-fitting lid.

o To help shorten your cooking time, use

the least amount of liquid possible.

e Preheat your pots and pans only when

recommended and for the shortest time

possible.

e Start your food on a higher heat setting,

then turn the control to a lower setting to

finish cooking.

o Place a filled pan on the surface cooking

area before turning it on.

Oven

o "Oven peeking" can make cooking

times longer and affect the food quality.

o Rely on a timer to keep track of

cooking time.

* Plan your meals for the most efficient use

of the oven by cooking more than one

food at a time, or baking while the oven

is still hot after cooking a meal.

o it is not necessary to preheat the oven

when broiling or roasting, unless your

recipe recommends doing so.

Caring for your cooktop

Your cooktop is designed for easy care.

However, you need to maintain your

ceramic glass cooktop differently than you

would standard electric open-coil elements.

Foods spilled directly on the cooktop will not

burn off as on open-coil elements. Because

of this, you should keep the surface dust

free and soil free before heating.

Your cooktop has been prepolished at the

factory for improved protection and easier

cleaning. The Cooktop Polishing Creme

included with your range, paper towels or

a sponge, and a single-edge razor blade in

the holder are all you need to clean your

cooktop. For proper cleaning methods, please

review "Cleaning tips" later in this section.

Follow them each time you use your

cooktop. This will ensure you get the best

performance out of your cooktop, as well as

preserve that uniquely elegant look.

NOTE: Let cooktop cool before cleaning.

To avoid damaging the cooktop, follow

these instructions:

e Remove sugar spills and soils from the

cooktop while the surface is still warm to

avoid pitting on the surface.

o Marks from sliding metal pans on the

cooktop are difficult to remove completely.

Use cooktop polishing creme to clean

the area. Several applications may be

necessary.

o Do not use steel wool, plastic cleaning

pads, gritty powdered cleansers, chlorine

bleach, rust remover, ammonia, or glass

cleaning products with ammonia. These

could damage the cooktop surface.

. sing and Caring for Your Cooktop

Cleaning tips

What to use:

, Cooktop Polishing Creme (included

with your range) with paper towel or

clean, damp sponge - This creme has

been developed especially for cleaning

and protecting your cooktop. When using

the creme, follow the instructions on the

container.

, Razor scraper in a holder (not included

with your range) = Use to remove cooked-on

soils from your ceramic glass cooktop. To

avoid scratches, keep the razor blade as flat

against the cooktop as possible. Store

razor blades out of reach of children.

Steps to follow:

1. Most spills can be wiped off easily using

a paper towel or clean, damp sponge as

soon as the Hot Surface Indicator Light

goes off.

2. For stubborn spills, rub Cooktop

Polishing Creme into cooked-on soil

using a paper towel. If some soil remains,

leave some creme on the spot(s) and

follow Step 3.

3. Carefully scrape spots with the razor

scraper.

4. Finish by polishing entire cooktop

with Cooktop Polishing Creme and

a paper towel.

To order Cooktop Polishing Creme

(Part No. 3184477), call 1-800-422-1230.

You will hear a recording. Follow the steps

to place an order.

How fo keep your cookfop

looking like new:

iF THERE ARE WHAT TO DO

Sugary spills

and soils (such

as jellies and

candy syrups)

Dark streaks,

specks, and

discoloration

Metal marks

(from copper and

aluminum pans)

To prevent pitting on

the cooktop, wipe up

with a paper towel or

clean, damp sponge

while the ceramic

glass surface is still

warm. Remove spills

as soon as possible

after they occur.

Use the Cooktop

Polishing Creme or a

nonabrasive cleanser

with a damp paper

towel or sponge.

Use the Cooktop

Polishing Creme with

a damp paper towel

or sponge before

heating the cooktop

again. If heated

before cleaning,

metal marks may not

come off.

Tiny scratches

or abrasions

Scratches and

abrasions do not

affect cooking. After

many cleanings, they

will become less

visible. To prevent

scratches and

abrasions, use the

Cooktop Polishing

Creme regularly.

NOTE: Always wipe your cooktop with clean

water and dry it well after using the cleanser

to prevent streaking or staining.

lsing and Caring for Your Cooktop

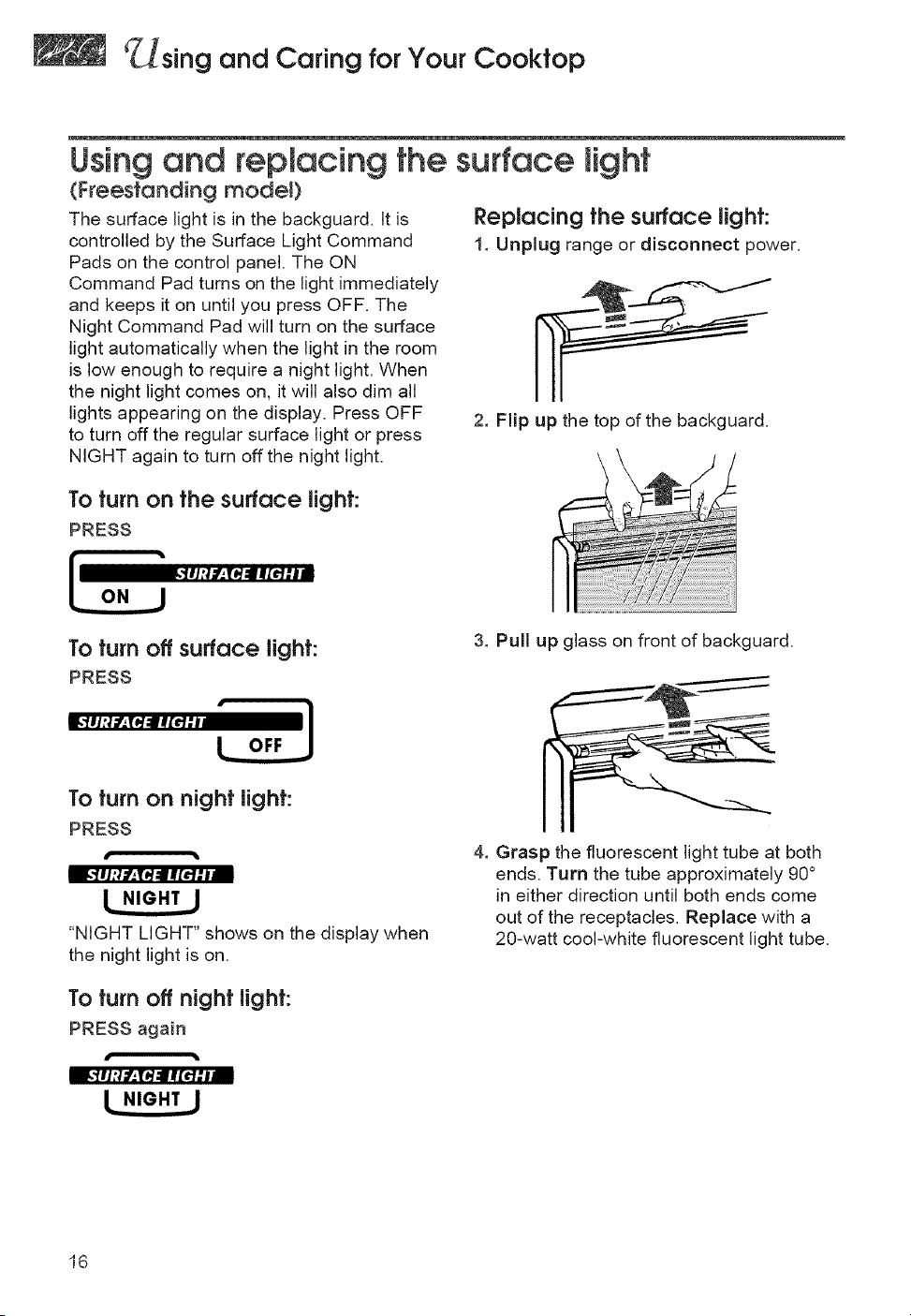

UsWngand reptacing the surface Hghf

(Freestanding modeb

The surface light is in the backguard. It is

controlled by the Surface Light Command

Pads on the control panel. The ON

Command Pad turns on the light immediately

and keeps it on until you press OFF. The

Night Command Pad will turn on the surface

light automatically when the light in the room

is low enough to require a night light. When

the night light comes on, it will also dim all

lights appearing on the display. Press OFF

to turn off the regular surface light or press

NIGHT again to turn off the night light.

Replacing the surface light:

1. Unplug range or disconnect power.

2. Flip up the top of the backguard.

To turn on the surface light:

PRESS

_]lI;]f_.T_ rR[€'l:l

To turn off surface light:

PRESS

3. Pull up glass on front of backguard.

To turn on night light:

PRESS

"NIGHT LIGHT" shows on the display when

the night light is on.

To turn off night light:

PRESS again

4. Grasp the fluorescent light tube at both

ends. Turn the tube approximately 90°

in either direction until both ends come

out of the receptacles, Replace with a

20-watt cool-white fluorescent light tube,

_lsing and Caring for Your Cooktop

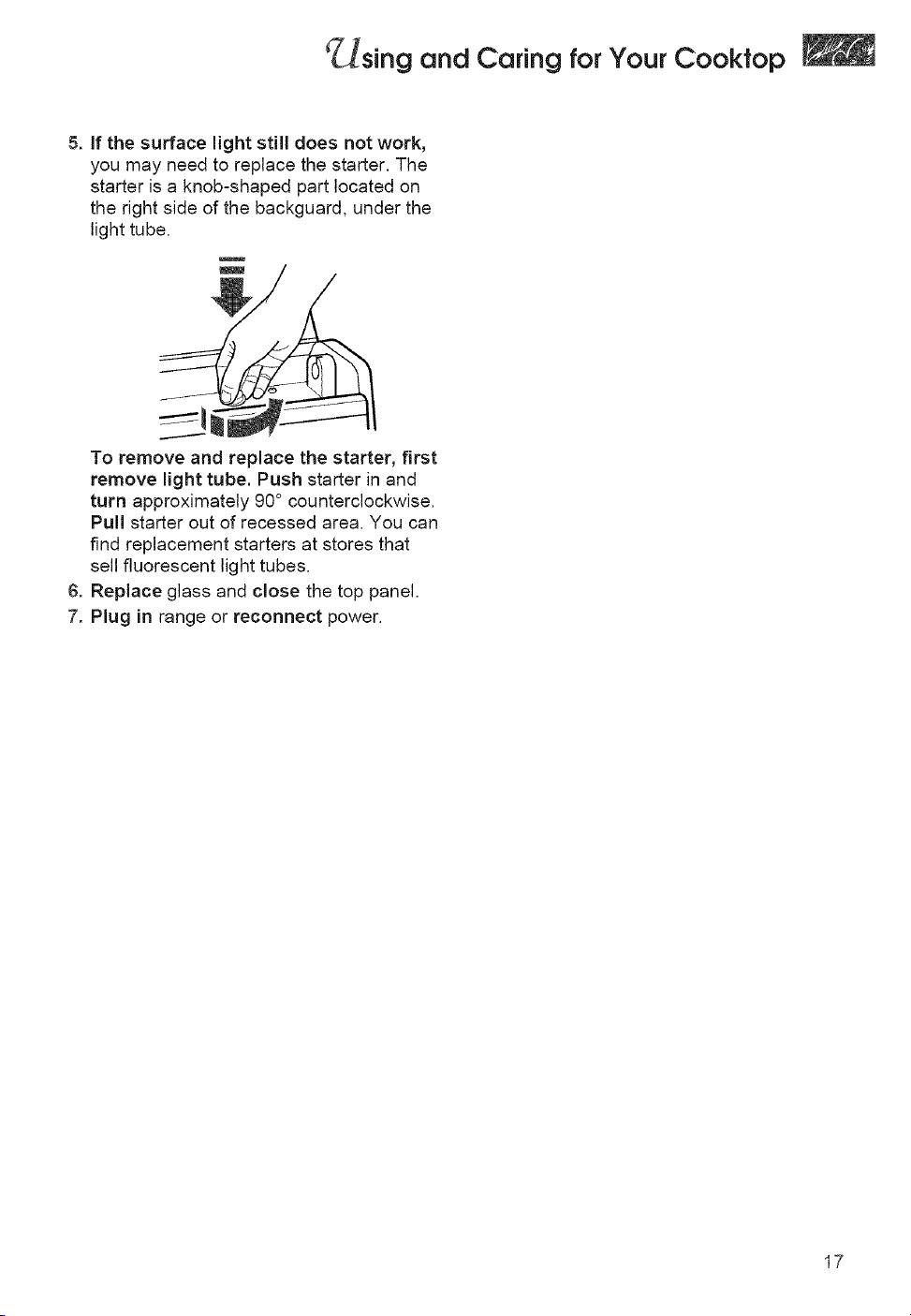

5. if the surface light still does not work,

you may need to replace the starter. The

starter is a knob-shaped part located on

the right side of the backguard, under the

light tube.

To remove and replace the starter, first

remove light tube. Push starter in and

turn approximately 90° counterclockwise.

Pull starter out of recessed area. You can

find replacement starters at stores that

sell fluorescent light tubes.

6. Replace glass and close the top panel.

7. Plug in range or reconnect power.

sing and

Oven

Caring for

Your

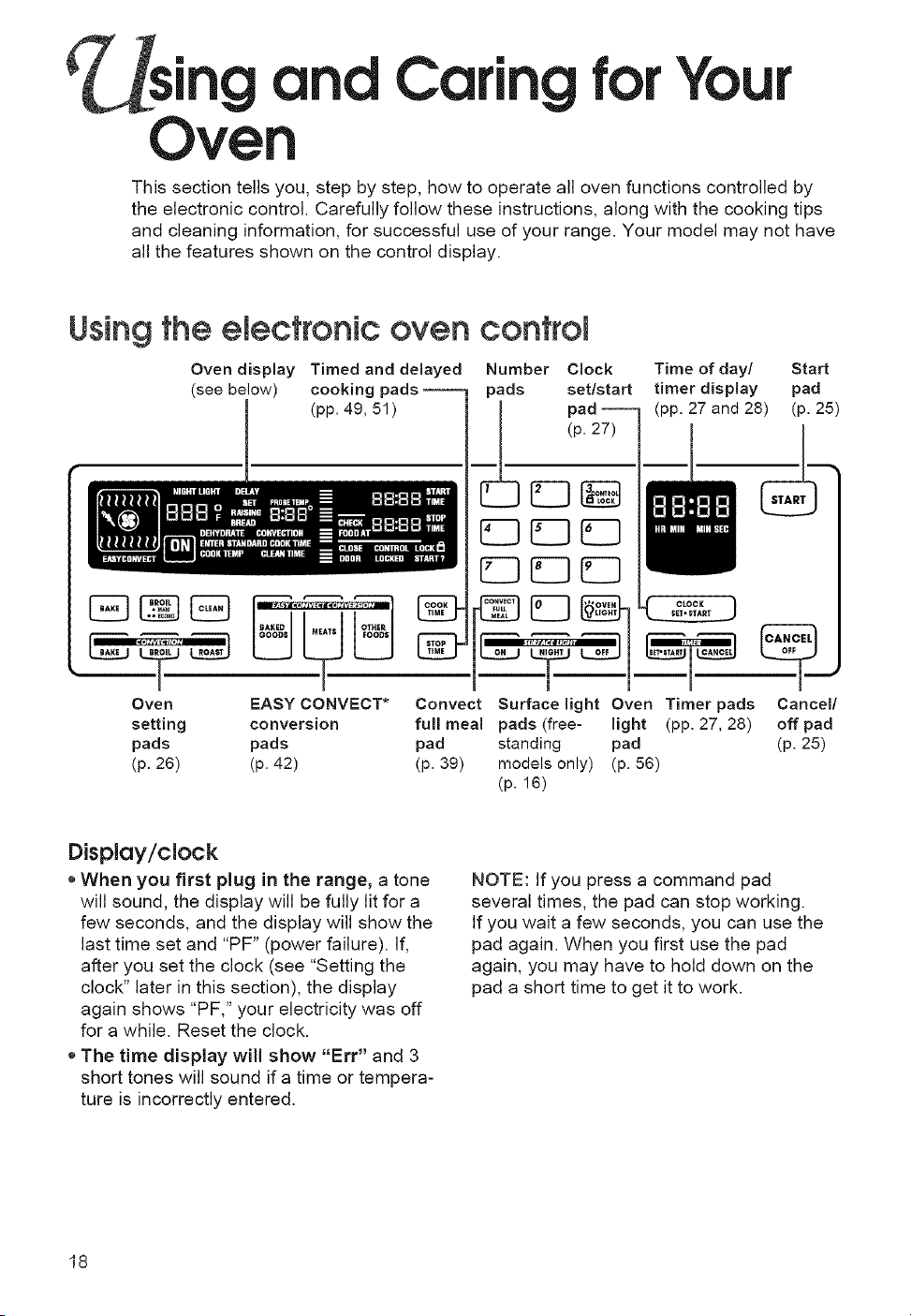

This section tells you, step by step, how to operate all oven functions controlled by

the electronic control. Carefully follow these instructions, along with the cooking tips

and cleaning information, for successful use of your range. Your model may not have

all the features shown on the control display.

Using fhe elecfronic oven control

Oven display Timed and delayed

(see below) cooking pads --

Oven

setting

pads

(p. 26)

(pp.49,51)

BAKED MEATS OTHER

EASY CONVECT* Convect

conversion full meal

pads pad

(p. 42) (p. 39)

Number Clock Time of day/ Start

pads set/start timer display pad

pad (pp. 27 and 28) (p. 25)

(p. 27)

EC]! @"

Surface light Oven Timer pads Cancel/

pads (free- light (pp. 27, 28) off pad

standing pad (p. 25)

models only) (p. 56)

(p. 16)

Display/clock

oWhen you first plug in the range, a tone

will sound, the display will be fully lit for a

few seconds, and the display will show the

last time set and "PF" (power failure). If,

after you set the clock (see "Setting the

clock" later in this section), the display

again shows "PF," your electricity was off

for a while. Reset the clock.

o The time display will show "Err" and 3

short tones will sound if a time or tempera-

ture is incorrectly entered.

NOTE: If you press a command pad

several times, the pad can stop working.

If you wait a few seconds, you can use the

pad again. When you first use the pad

again, you may have to hold clown on the

pad a short time to get it to work.

_._sing and Caring for Your Oven

Fahrenheit/Celsius

To set your oven to cook in Celsius instead

of Fahrenheit:

1. Open the door.

2. Press CANCEL/OFF.

PRESS

3. Press the Number Pads 1, 2,

and 3, in that order.

PRESS

4. Press BROIL.

PRESS

5. Start oven.

NOTES:

e Press BAKE to confirm that you are

using Celsius.

o Only the temperature and a flashing

degree symbol will appear in the

temperature display area when you set

your oven to cook in Celsius.

PRESS

Repeat the steps above to change

from Celsius to Fahrenheit.

¢_sing and Caring for Your Oven

if you need to convert temperatures from

Celsius to Fahrenheit or vice versa, you

can refer to this chart:

Temperature replacement values

38°C=100°F

60°C=140°F

66°C=150°F

77°C=170°F

93°C=200°F

121°C=250°F

135°C=275°F

149°C=300°F

163°C=325°F

177°C=350°F

191°C=375°F

204°C=400°F

218°C=425°F

232°C=450°F

246°C=475°F

260°C=500°F

Disable/enable audible signals

Audible signals tell you if a function is

entered correctly or not. They also tell

you when a cycle is completed. To turn

off key entry tone, end-of-cycle tone, and

reminder tones, follow these steps:

1. Open the door.

2. Press CANCEL/OFF.

PRESS

_J_sing and Caring for Your Oven

3. Press the Number Pads 1, 2,

and 3, in that order.

PRESS

4. Press TIMER SET/START.

PRESS

5. Start oven.

"Snd" and "Off" will appear on the

display.

PRESS

Repeat Steps ] -5 to turn the

signals back on.

"Snd" and "On" will appear on the

display.

. singand Caring forYour Oven

Using the conffol lock

The control lock prevents unwanted use

of the oven by disabling the control panel

command pads.

NOTES:

e Control lock is only available when oven

is not in use or control has not been set.

e Control lock will not disable the Timer.

o Set control lock when cleaning the

control panel to prevent oven from

accidentally turning on.

To lock or deactivate the

control panel:

1. Open the door.

2. Press and hold CONTROL LOCK

(Number Pad 3) for 5 seconds.

A single tone will sound and "START?"

will appear on the display.

PRESS YOU SEE

3. Press START. PRESS YOU SEE

To unlock the control panel:

1. Open the door.

2. Press and hold CONTROL LOCK

(Number Pad 3) for 5 seconds.

A single tone will sound and "CONTROL

LOCK iOi'' will disappear from the display.

PRESS

¢ sing and Caring for Your Oven

Using the Sabbath mode

What your oven will do while in the

Sabbath mode:

e The time display will show "SAb" to tell

you that the oven is in the Sabbath mode.

o The ON Indicator Light will light up when

the burner turns on and ON will go off

when the burner turns off.

o To prevent accidental key presses, the

key pads will only work after you press

them for 1 second.

e No tones will sound.

To enable the Sabbath mode:

1. Open the door.

2. Press CANCEL/OFF.

PRESS

f°,.°,'l

3. Press the Number Pads 7, 8,

and 9, in that order.

PRESS

4. Press Number Pad 6.

PRESS

5. Press START.

"SAb" and "On" will appear on the

display.

PRESS

To disable the Sabbath mode:

Repeat the steps above to disable the

Sabbath mode. "SAb" and "Off" will appear

on the display.

_._sing and Caring for Your Oven

Seffing your range for fhe Sabbath_

If you want to set your range to meet "no

work" requirements for the Sabbath, first

turn on the Sabbath mode (see "To enable

the Sabbath mode" earlier in this section).

Then follow these steps:

1. Turn the oven light and/or

surface light (if available) on

or off.

NOTE: See "Using and replacing the

surface light" in the "Using and Caring for

Your Cooktop" section and "Using and

replacing the oven light(s)" in the "Using

and Caring for Your Oven" section for

more information.

These lights will stay turned on or off

(whichever you set) while in the Sabbath

mode. Opening the door will not turn on

the oven light if it is programmed to be off.

2. Open the door.

3. Press BAKE. PRESS

4. Press Number Pads to set the

temperature you want.

Example for 325°F (163°C):

PRESS

5. Start oven.

t Star K certification pending. Full certifica-

tion by Star K is expected by the end of

1997. Information is accurate as of 8/97.

PRESS

_J_sing and Caring for Your Oven

6. Press and hold Number Pad 6

for 5 seconds.

"START?" appears on the display.

PRESS YOU SEE

7. Press START.

"8Ab" appears on the display.

(or163°C)

PRESS YOU SEE

To end the Sabbath mode and turn

off the oven:

1. Open the door.

2. Press and hold Number Pad 6

for 5 seconds.

PRESS

Sfaffing an operafion

After programming a function, you must

STA__ press START to start the

function. If you do not press

START within 5 seconds of

programming, "START?" will show on the

display as a reminder.

Canceling an operation

CANCEL/OFF will cancel any function,

_ except for the CLOCK SET/

START and Timer functions.

When you press CANCEL/OFF,

the large display will show the time of day

or, if Timer is also being used, the time

remaining.

J sing and Caring for Your Oven

Oven settings

This chart tells you when to use each setting. It also explains what elements heat up for each

setting.

SETTING DIAGRAM SETTING INFORMATION

BAKE

Use this setting for baking

and heating casseroles.

e The bottom element and outer top

element heat up.

o During baking, the elements will

turn on and off to maintain the

oven temperature.

BROIL (MAXI/ECONO)

Use this setting for broiling

regular-sized and smaller

cuts of meat, poultry, and

fish.

o Both top elements heat during

Maxi Broil (maximum browning

coverage).

e Only the inner element heats up

during Econo Broil (browning

coverage in center only).

CONVECTION BAKE

Use this setting for foods

which require gentle

heating and for baking

breads and cakes. Use

also when baking large

quantities of food on more

than one oven rack.

o For faster preheating, the bottom

element and outer top element

heat up until oven reaches desired

temperature. After preheat, only

the rear element heats up.

o For even heating, the fan at the

back of the oven circulates air in

the oven cavity.

CONVECTION BROIL

Use this setting for broiling

thick cuts of meat.

e Both top elements heat up.

o For even heating, the fan at the

back of the oven circulates air in

the oven cavity.

CONVECTION ROAST

Use this setting for roast-

ing and baking on one

rack.

o The bottom element and outer top

element heat up.

e For even heating and faster cook-

ing, the fan at the back of the oven

circulates air in the oven cavity.

CLEAN

Use this setting for self-

cleaning only.

o The bottom element and outer top

element heat up.

_._singand Caring forYour Oven

Seffingfhe cmock

NOTE: Ifan oven functionisactiveor

programmed, you cannotchange the clock.

I, Press CLOCK GETIGTARTo PRESS

f CLOCK I

YOU SEE

2. Set time. YOU SEEPRESS

3. Start clock. PRESS YOU SEE

If time has not been entered correctly, [ _

three short tones will sound and "Err"

LIE

will be displayed. The display will show

the closest valid time. Repeat Steps 2

and 3 to re-enter the time of day.

NOTE: You can clear the time of day

from the display by opening the door

then pressing and holding CLOCK SET/

START for 5 seconds. Repeat to see

time of day on display again.

Using the Hmer

The Timer does not start or stop the oven.

It works like a regular kitchen timer. It can

be set in hours and minutes up to 99 hours,

59 minutes or in minutes and seconds up to

99 minutes, 59 seconds.

1. Press TIMER SET/START.

o Once to set hours and minutes

e Twice to set minutes and seconds

PRESS YOU SEE

(example shows hours

and minutes)

continued on next page 27

_J_sing and Caring for Your Oven

2. Set time. PRESS YOU SEE

(example shows a

7=hour timer setting)

3. Start Timer.

The Timer will begin counting down

immediately after you press TIMER

SET/START or START.

PRESS YOU SEE

4. When time is up, turn off Timer.

When time is up, you will hear four tones

(unless the audible signals have been

disabled). Press TIMER CANCEL to clear

the display.

YOU SEE

To change fhe timer during

ifs operation:

1. Press TIMER SET/START.

2. Enter new desired time.

3. Press TIMER SET/START.

To cancel fhe timer during

ifsoperation:

You can cancel the Timer any time during

its operation, Press TIMER CANCEL,

PRESS

_._singand Caring forYour Oven

Baking or convection baking

1. Position racks.

For correct rack placement, see "Rack

positions" and the "Rack placement"

chart later in this section.

NOTES:

o Before turning oven on, position oven

rack(s) in desired location.

o Be sure the rack(s) is level.

e Use pot holders or oven mitts to

protect hands if rack(s) must be

moved while oven is hot.

o Do not let pot holder or oven mitt touch

hot elements.

e See "Cooking tips" later in this section

for additional baking and convection

baking tips.

2. Choose baking setting.

PRESS

YOU SEE

PRESS

(or177°C)

YOU SEE

3. Set temperature (optional). PRESS

Do this step if you want to set a tempera-

ture other than 350°F (177°C) for Bake or

300°F (149°C) for Convection Bake.

NOTE: See a reliable cookbook

or your convection oven cookbook I51

for temperature recommendations.

(or149°C)

YOU SEE

(example for Bake

at 375°F [191°C])

continued on next page

_._singand Caring forYour Oven

4. Preheat oven.

After the temperature reaches 170°F

(77°C), the temperature display will show

the actual oven temperature at each

5°F (3°C) increase and stop at the set

temperature. One long tone will sound

when oven is preheated.

PRESS YOU SEE

(example for Bake)

("Lo" is displayed

after 5 seconds if

oven temperature

is below 170°F [77°C])

S. Put food in oven.

NOTE: If you want to change the

baking temperature after baking has

begun, repeat Steps 2, 3, and 4.

6. After cooking, turn off oven.

PRESS YOU SEE

(display will go blank)

Roasting

1. Prepare oven.

Position the rack properly. For correct

rack placement, see "Rack positions"

later in this section. Place food in the

oven. For large roasts and turkeys, place

rack in position 1 or 2.

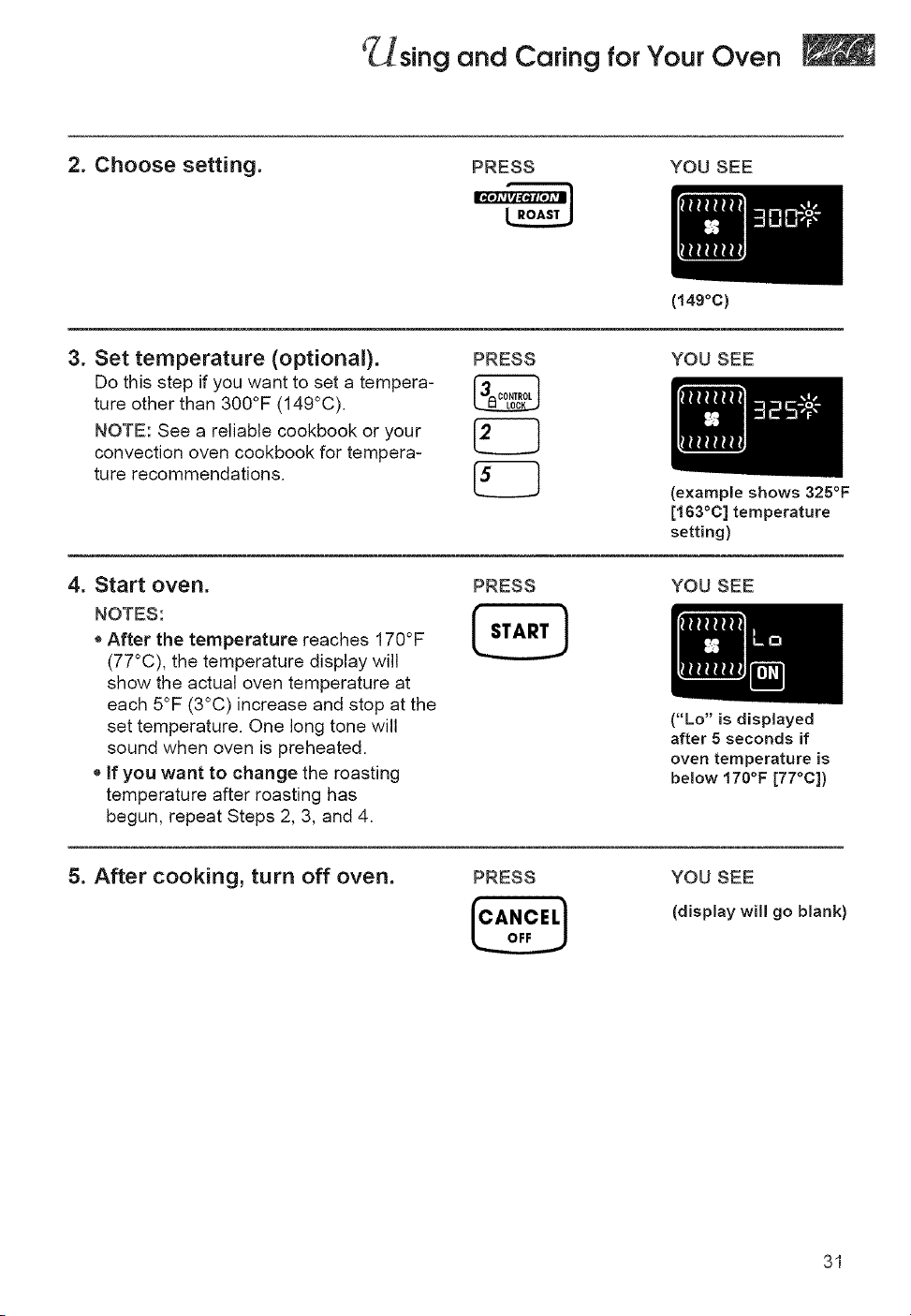

_J_sing and Caring for Your Oven

2. Choose setting.

PRESS YOU SEE

3. Set temperature (optional). PRESS

Do this step if you want to set a tempera-

ture other than 300°F (149°C)

NOTE: See a reliable cookbook or your |

convection oven cookbook for tempera-

L..____.J

ture recommendations.

(149oc)

YOU SEE

(example shows 325°F

[163°C] temperature

setting)

4. Start oven.

NOTES:

e After the temperature reaches 170°F

(77°C), the temperature display will

show the actual oven temperature at

each 5°F (3°C) increase and stop at the

set temperature. One long tone will

sound when oven is preheated.

o If you want to change the roasting

temperature after roasting has

begun, repeat Steps 2, 3, and 4.

PRESS YOU SEE

("Lo" is displayed

after 5 seconds if

oven temperature is

below 170°F [77°C])

5. After cooking, turn off oven.

PRESS

[°,.°,'!

YOU SEE

(display will go blank)

¢_sing and Caring forYour Oven

Cooking tips

BaMng/convection baking tips

The hot air must circulate around the pans

in the oven for even heat to reach all parts

of the oven. This results in better baking.

Forbest aircirculation:

e Place the pans so that one is not directly

over the other.

wall or I 1_/"-2" 1_/"-2" I wall or

other _L=,_vl_'_-_-__ other

pan 1(3.7-5cm) (3.7-5cm)1 pan

e For best results, allow 11½to 2 inches

(3.7 to 5 cm) of space around each pan

and between pans and oven walls.

oWhen baking with 1 pan, place pan in the

center of the oven rack.

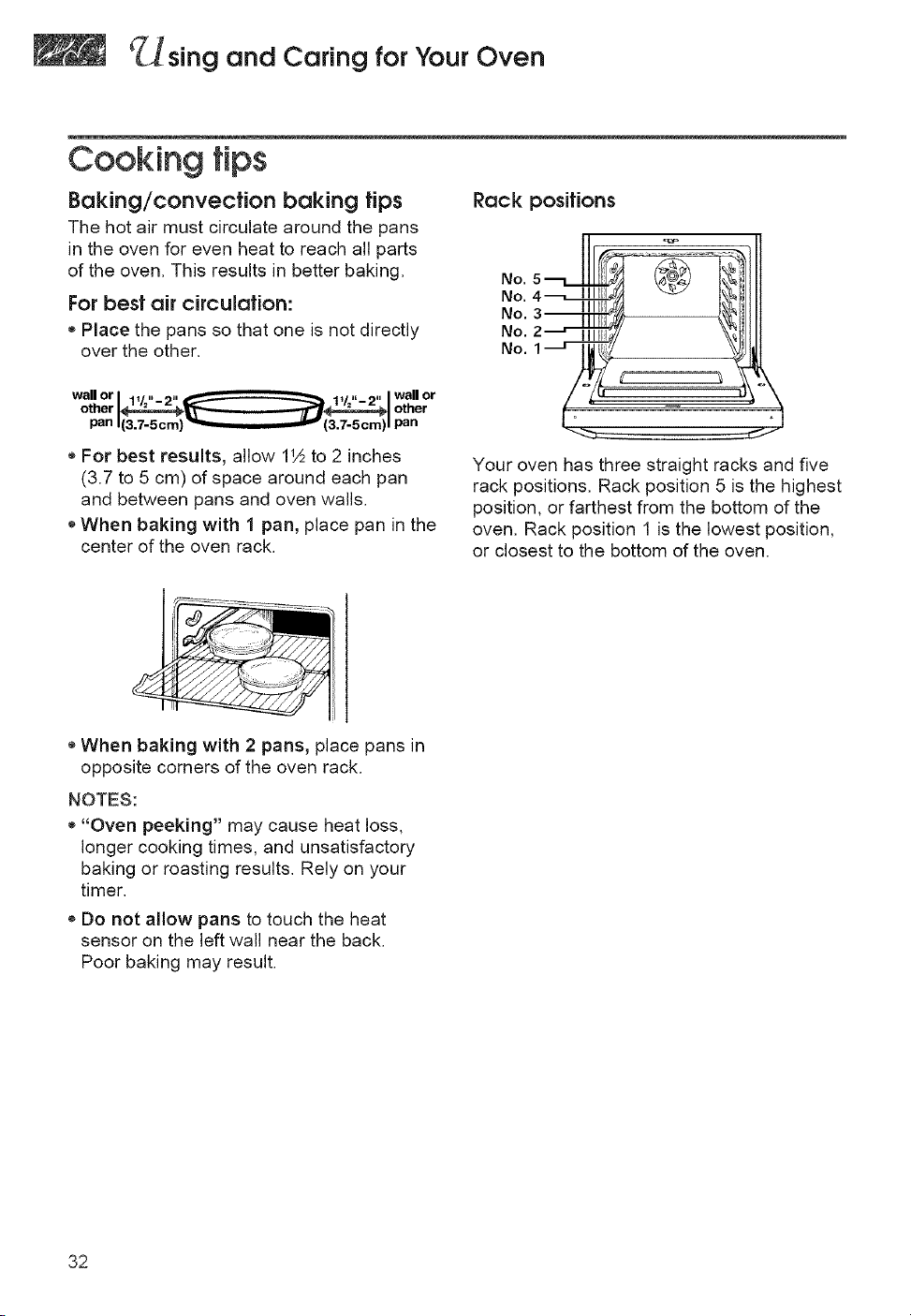

Rack positions

Your oven has three straight racks and five

rack positions. Rack position 5 is the highest

position, or farthest from the bottom of the

oven. Rack position 1 is the lowest position,

or closest to the bottom of the oven.

e When baking with 2 pans, place pans in

opposite corners of the oven rack.

NOTES:

e "Oven peeking" may cause heat loss,

longer cooking times, and unsatisfactory

baking or roasting results. Rely on your

timer.

e Do not allow pans to touch the heat

sensor on the left wall near the back.

Poor baking may result.

Using and Caring for Your Oven

Baking tips

(Bake pad)

For proper cooking, follow these

guidelines:

e When using 1 rack, pJace the rack so

the top of the food will be centered in

the oven.

e When using more than 1 rack, use the

Convection Bake setting.

o Use only 1 cookie sheet in the oven at

a time when using the Bake setting.

Bakeware tips

e When baking with insulated cookie

sheets or baking pans, place them in the

bottom third of the oven. You may need to

increase the recommended baking times,

so test for aloneness before removing

from the oven.

o When using ovenproof glassware or

dark bakeware, reduce the oven tempera-

ture by 25°F (16°C), but use the same

baking time. Because these pans absorb

heat, producing darker bottom browning

and crispier crusts, place the rack in the

center of the oven. When baking pies and

bread, you can use the temperature

suggested in the recipe.

Rack placement for specific foods:

(For rack positions, see *'Rack positions"

earlier in this section.)

RACK

FOOD POSITION

Frozen pies 2

Angel food and bundt cakes,

most quick breads, yeast 1 or 2

breads, casseroles, meats

Cookies, biscuits, muffins, 2 or 3

cakes, nonfrozen pies

NOTE: For additional baking tips see

"Baking or convection baking" earlier in this

section.

Using aluminum foil in fhe oven

(for thermal baking)

Use aluminum foil to catch spillovers from

pies or casseroles.

e Place the foil on the oven rack below the

rack with the food. Turn foil edges up and

make sure foil is about 1 inch (2.5 cm)

larger all around than the dish holding the

food.

o Do not cover the entire rack with alumi-

num foil. It will reduce air circulation and

cause poor cooking results.

o Do not line oven bottom or entire oven

rack with foil or other liners. It could affect

the quality of your baking.

. singand Caring forYour Oven

Convection baking tips

(Convection Bake pad)

o Do not use aluminum foil when convection

baking. Aluminum foil may block airflow.

e Reduce recommended standard cooking

temperatures by approximately 25°F

(16°C). The cooking times can also be

reduced for most recipes. See recipes and

cooking charts in your convection oven

cookbook for recommended temperatures

and times, or use EASY CONVECT*

Conversion (later in this section).

NOTE: Cooking time may be longer when

you use more than I rack.

o When baking on 2 or 3 racks, use the

Convection Bake setting for more even

results. (You can, however, use only 1 rack

when Convection Baking.)

e To use 3 racks during convection

baking, place one rack in position 5 (the

highest position), another rack in position

1 (the closest to the oven bottom), and the

third rack in position 3. This allows all three

racks to be an equal distance apart for

better baking.

o Stagger cake pans or other cookware in

opposite directions on each rack when

three racks are used.

NOTE: For additional convection baking tips

see "Baking or convection baking" later in

this section.

Roasting tips

e Spatter can be reduced by lining the

bottom of the roasting pan with lightly

crushed aluminum foil.

e Use an accurate meat thermometer or

temperature probe (see "Using the

temperature probe" later in this section) to

determine when meat has reached desired

degree of aloneness. Insert the thermom-

eter or probe into the center of the thickest

portion of the meat or inner thigh or breast

of poultry. For an accurate reading, the tip

of the thermometer or probe should not

touch fat, bone, or gristle.

e After reading the thermometer once,

push it further into the meat _½inch

(1.2 cm) or more and read again. If the

temperature drops, return the meat to the

oven for more cooking.

o Check pork and poultry with a ther-

mometer in 2 to 3 places to ensure

adequate aloneness.

o Poultry and roasts will be easier to

carve if loosely covered with foil and

allowed to stand 10-15 minutes after

removal from the oven.

e You can reduce roasting times and

temperatures for most standard recipes

when using the Convection Roast setting.

See recipe adaption chart or convection

roasting chart in your convection oven

cookbook for recommended roasting

times and temperatures, or use

EASY CONVECT Conversion (later in

this section).

o Use the convection roasting rack on the

broiler pan (both included with your range).

(The convection roasting rack rests on the

broiler pan, not inside it.) The long side of

the rack should be parallel with the oven

door for best heat distribution and airflow.

_._singand Caring forYour Oven

Adju#ingfhe oven femperafure

Although your new oven is properly adjusted

to provide accurate temperatures, it may

cook faster or slower than your old oven.

If, after using the oven for a period of time,

you are not satisfied with the baking/roasting

results, you can change the offset tempera-

ture by following the steps below. The

control will "remember" the selected offset

even after the power has been interrupted or

lost. To change the offset temperature:

NOTE: DO NOT measure oven temperature

with a thermometer. Opening the oven door

will lower the oven temperature and give you

an inaccurate reading. Also, the thermom-

eter temperature reading will change as your

oven cycles.

1. Open the door.

2. Press CANCEL/OFF. PRESS

3. Press the Number Pads 1, 2,

and 3, in that order.

PRESS

4. Press BAKE.

PRESS

continued on next page

_._singand Caring forYour Oven

5. Start oven.

The display shows 0°F (-18°C) and

"COOK TEMP."

PRESS YOU SEE

6. Set the new offset temperature.

Press BAKE to increase the setting.

Press BROIL to decrease the setting.

PRESS

(or-18°C)

YOU SEE

(example when making

oven 10°F [or 6°C] hotter)

7. Press START to enter the

adjustment.

NOTE: The offset temperature will

remain the same if you press

CANCEL/OFF.

PRESS

How to determine fhe amount

of adjustment needed

The following chart tells you how much

to adjust the offset temperature to get

the desired cooking results. You can

determine cooking results by amount of

browning, moistness, and rising times

for baked foods.

TO COOK ADJUST BY THIS

FOOD ... NUMBER OF DEGREES

A little more +5°F to +10°F

(+3°C to +6°C)

Moderately more +15°F to +20°F

(+8°C to +12°C)

Much more +25°F to +35°F

(+16°C to +21°C)

A little less -5°F to -10°F

(-3°C to-6°C)

Moderately less -15°F to -20°F

(-8°C to-12°C)

Much less -25°F to -35°F

(-16°C to-21°C)

_J_sing and Caring for Your Oven

Using the temperature probe

The Temperature Probe is the most accu-

rate guide to the degree of doneness of

meat. Use it when baking, roasting any type

of meat or poultry, or cooking casseroles

with liquid.

NOTES:

o Do not use the Temperature Probe when

broiling, convection broiling, dehydrating,

or raising bread,

o Unplug the Temperature Probe before

self-cleaning the oven,

1. Insert probe into food.

Insert the probe into the center of the

thickest portion of meat or into the inner

thigh or breast of poultry, away from fat

or bone.

2, Put food in oven,

Place meat on the convection roasting

rack, place rack on broiler pan, and place

pan in the center of the oven.

3. Connect probe to oven.

Open the Temperature Probe cover

located on the left side of the oven wall.

Insert plug into jack. (Keep the top of

the probe as far as possible from the

heat source.)

YOU SEE

(or 71°C)

4. Close oven door.

YOU SEE

5. Set temperature (optional).

Do this step if you want to set an internal

food temperature (from 130°F [54°C] to

190°F [88°C]) other than 160°F (71°C).

NOTE: See a reliable cookbook or your

convection oven cookbook for internal

food temperature recommendations.

PRESS

(example shows 150°F [66°C]

internal temperature setting)

continued on next page

_._singand Caring forYour Oven

6. Choose cook setting.

e BAKE,

o CONVECTION BAKE, or

e CONVECTION ROAST

PRESS

(example

for Bake)

YOU SEE

7. Set temperature (optional).

Do this step if you want to set an

oven temperature other than the

one displayed.

NOTE: See a reliable cookbook or your

convection oven cookbook for oven

temperature recommendations.

PRESS

(or 177°C oven temperature/66°C

internal temperature)

YOU SEE

(example shows 375°F [191°0]

oven temperature and 150°F

[66°C] internal temperature)

8. Start oven.

NOTES:

e If you do not choose a cook setting

and press START, the display will show

a bake setting at 350°F (177°C). If you

want to bake at 350°F (177°C), press

START to begin. If you want to cook

with another setting or at another

temperature, do Steps 6 and 7 above

and press START.

e The temperature display will show

the set oven temperature throughout

temperature probe cooking.

o After the food temperature reaches

130°F (54°C), the probe display will

show the actual food temperature at

each 5°F (3°C) increase and stop at the

set temperature. Four tones will sound

and "End" will show when food reaches

the set temperature (unless the audible

signals have been disabled). The oven

then shuts off.

o If you want to change the probe

temperature after cooking has begun,

repeat Steps 6, 5, and 8, in that order.

At Step 6, you will be prompted for a

new probe temperature. You may also

change the oven temperature at this

point by pressing BAKE again.

PRESS YOU SEE

(or191°C)

(example for Bake)

_J_sing and Caring for Your Oven

Burn Hazard

Use an oven mitt to remove temperature probe.

Do not touch broil element.

Failure to follow these instructions can result in burns.

9. After cooking, unplug probe.

The probe symbol will remain lit until

you unplug the Temperature Probe.

10. Remove food from oven.

(This prevents overcooking.)

1 1. Clean probe.

Wash with a soapy sponge and dry

thoroughly. Use a plastic scouring pad

to remove cooked-on foods. You can

also clean the probe in a dishwasher.

Using Convect Full Meal

Convect Full Meal lets you choose from

among 10 preset oven convection cooking

cycles, all using the convection fan. These

cycles store commonly used cooking times,

cooking temperatures, and probe tempera-

ture settings.

Convect Full Meal saves you time by limiting

the number of pads you have to press when

cooking at a favorite setting, Convect Full

Meal also lets you set your own favorite

cycle (either convection or nonconvection).

1. Place food in cold oven.

If you need the Temperature Probe for your

cycle (settings 5-8 in the "Convect full meal

chart" later in this section), insert probe into

food. (Follow Steps 1-4 in "Using the

temperature probe" earlier in this section.)

2. Press CONVECT FULL MEAL. PRESS YOU SEE

("C" stands for "cycle,"

"F" stands for "favorite")

continued on next page

_._singand Caring forYour Oven

3. Press desired Number pad.

Use the "Convect full meal chart" later in

this section as your guide for selecting

a cycle.

NOTES:

o You can change the Convect Full Meal

cycle any time before pressing START

by repeating Step 3.

o You can program your own cycle,

which you can then select in the future

by pressing just CONVECT FULL MEAL

and START. (See "To program your

own cycle" later in this section for more

information.)

PRESS YOU SEE

(example for cycle i)

4. Start oven. PRESS

(or 177°0)

YOU SEE

5. When the Convect Full Meal

cycle is done:

Four tones will sound, followed by four

reminder tones every minute until you

open the door (unless the audible signals

have not been disabled), remove the

probe, or press CANCEL/OFF.

YOU SEE

. sing and Caring for Your Oven

Convecf full meal chart

CONVECTION OVEN TIME OR

CYCLE TEMP PROBE TEMP FOOD OR MEAL

CYCLE

NUMBER

1 Cony. Bake 350°F 45 min Meal # 1 : Chicken pieces, Fruit

(177°C) crisp, Vegetable casserole

2 Conv. Bake 350°F 1 hr Meal # 2: Macaroni and cheese,

(177°C) Baked winter squash, Fruit pie

3 Conv. Bake 350°F 1 hr 15 min Meal # 3: Pre-cooked ham,

(177°C) Baked potatoes, Quick bread loaf

Baked potatoes only

4 Conv. Bake 375°F 55 min Meal # 4: Beef stew, Scalloped

(191°C) potatoes, Frozen fruit pie

5 Conv. Roast 300°F 140°F Beef roast rare

(149°c) (60°c)

6 Conv. Roast 300°F 160°F Beef roast medium

(149°c) (71°c)

7 Conv. Roast 300°F 170°F Beef roast well

(149°C) (77°C) Pork roast

Meat loaf

8 Conv. Bake 325°F 160°F Casseroles

(163°C) (71°C)

9 Conv. Bake 325°F 3 hr Pot roast with vegetables -

(163°C) 3 Ibs (1.5 kg)

0 Conv. Roast 400°F 18 min Pizza

(204°C)

To program your own cycle:

1. Press CONVECT FULL MEAL.

2. Press the Command Pad for the cook

setting you want (for example, BAKE).

3. Enter the temperature and cook time you

want. (The default is Bake at 170°F [75°C]

for 2 hours.) Entering a cook time of

0 minutes lets you do untimed cooking.

4. To save only, press CONVECT FULL

MEAL.

To cook with this cycle immediately

and save it, press START.

When programming your own cycle:

1. Start with meat or main dish items (times

are more critical with these items).

2. Choose baked goods with bake tempera-

tures similar to those of meat or main

dish items. Convection baking time of

+/-10 to 15 minutes and temperatures of

+/-25°F to 50°F (+-4°C to +-10°C) are

acceptable.

3. Choose vegetables and fruits last.

_._singand Caring forYour Oven

Using EASY CONVECT* Conversion

EASY CONVECT Conversion lets you con-

vection cook without entering convection

cook temperatures and times. Simply enter

the standard cook temperature and time for

the food to be cooked. The oven will reduce

the temperature, or the temperature and

time, for convection cooking. (Convection

temperatures and times are not as long

because the heated air is circulated in the

oven cavity for quicker cooking.)

Food Poisoning Hazard

Do not let food sit in oven more than

one hour before or after cooking.

Doing so can result in death,

food poisoning, or sickness.

NOTE: The converted temperatures and

times are not precise because the food

categories you choose from are general.

(See *'EASY CONVECT Conversion setting

chart" later in this section for which foods

you can cook in each category.) To ensure

proper cooking, the oven will prompt you to

check food at the end of cook time. If food

needs more cooking, the oven will continue

to cook. If food does not need more cooking,

press CANCEL/OFF.

1. Place food in oven.

2. Press one of three EASY

CONVECT Conversion Pads.

Example for Meats:

PRESS YOU SEE

3. Enter standard cook

temperature.

PRESS YOU SEE

(example showing 325°F

[163°C] - cooking without

temperature probe)

_J_sing and Caring for Your Oven

4. Enter standard cook time. PRESS

NOTES: (_

e This step is not needed when using

the

temperature probe. IO I

o To delay convection cooking, after

Step 4, press STOP TIME and enter

C___._J

the desired stop time, Cooking will start

at the time equal to the stop time less

the cook time, (Example: A cook time of

1 hour and a stop time of 4:00 would

give you a start time of 3:00,)

YOU SEE

(example showing i hour)

5. Start oven.

NOTE: The actual temperature

reduction and time savings are

different for each food category

and oven type,

PRESS YOU SEE

(display shows temperature

reduced by 25°F [i6°C]-

nondelayed cooking)

6. At end of cook time

(nondelayed cooking):

YOU SEE

7. Open door and check food

(nondelayed cooking).

If you want to continue cooking, close

door and the oven will continue cooking.

If you do not want to continue cooking,

press CANCEL/OFF.

YOU SEE

8. When stop time is reached

(delayed cooking only):

Four tones will sound, followed by four

reminder tones every minute (unless the

audible signals have been disabled), until

you open the door, remove the probe, or

press CANCEL/OFF.

YOUSEE

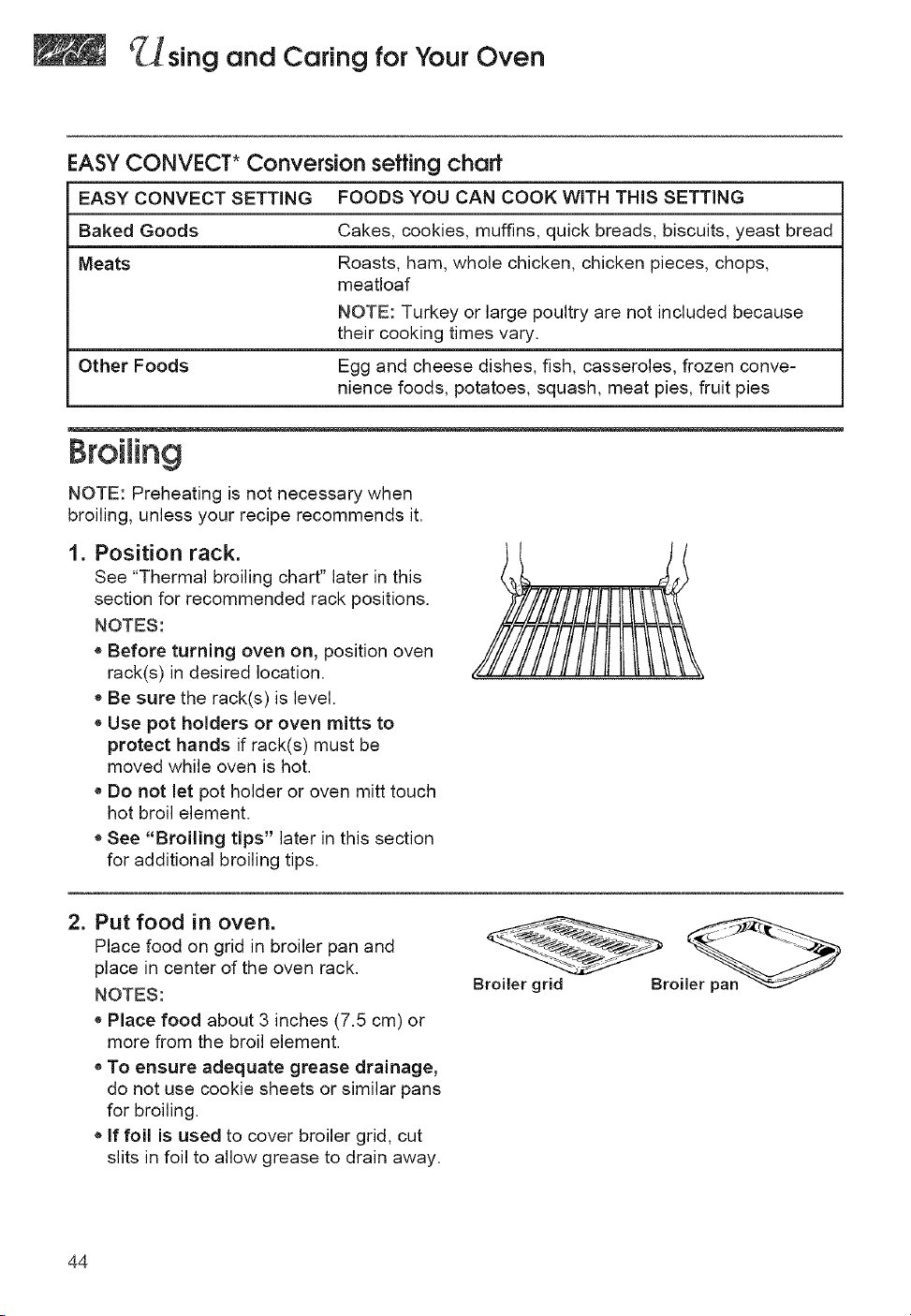

_J_singand Caring forYour Oven

EASY CONVECT* Conversion seffing chaff

EASY CONVECT SETTING FOODS YOU CAN COOK WITH THIS SETTING

Baked Goods Cakes, cookies, muffins, quick breads, biscuits, yeast bread

Meats Roasts, ham, whole chicken, chicken pieces, chops,

meatloaf

NOTE: Turkey or large poultry are not included because

their cooking times vary.

Other Foods Egg and cheese dishes, fish, casseroles, frozen conve-

nience foods, potatoes, squash, meat pies, fruit pies

Broiling

NOTE: Preheating is not necessary when

broiling, unless your recipe recommends it.

1. Position rack.

See "Thermal broiling chart" later in this

section for recommended rack positions.

NOTES:

o Before turning oven on, position oven

rack(s) in desired location.

e Be sure the rack(s) is level.

o Use pot holders or oven mitts to

protect hands if rack(s) must be

moved while oven is hot.

o Do not let pot holder or oven mitt touch

hot broil element.

e See "Broiling tips" later in this section

for additional broiling tips.

2. Put food in oven.

Place food on grid in broiler pan and

place in center of the oven rack.

NOTES:

o Place food about 3 inches (7.5 cm) or

more from the broil element.

e To ensure adequate grease drainage,

do not use cookie sheets or similar pans

for broiling.

o If foil is used to cover broiler grid, cut

slits in foil to allow grease to drain away.

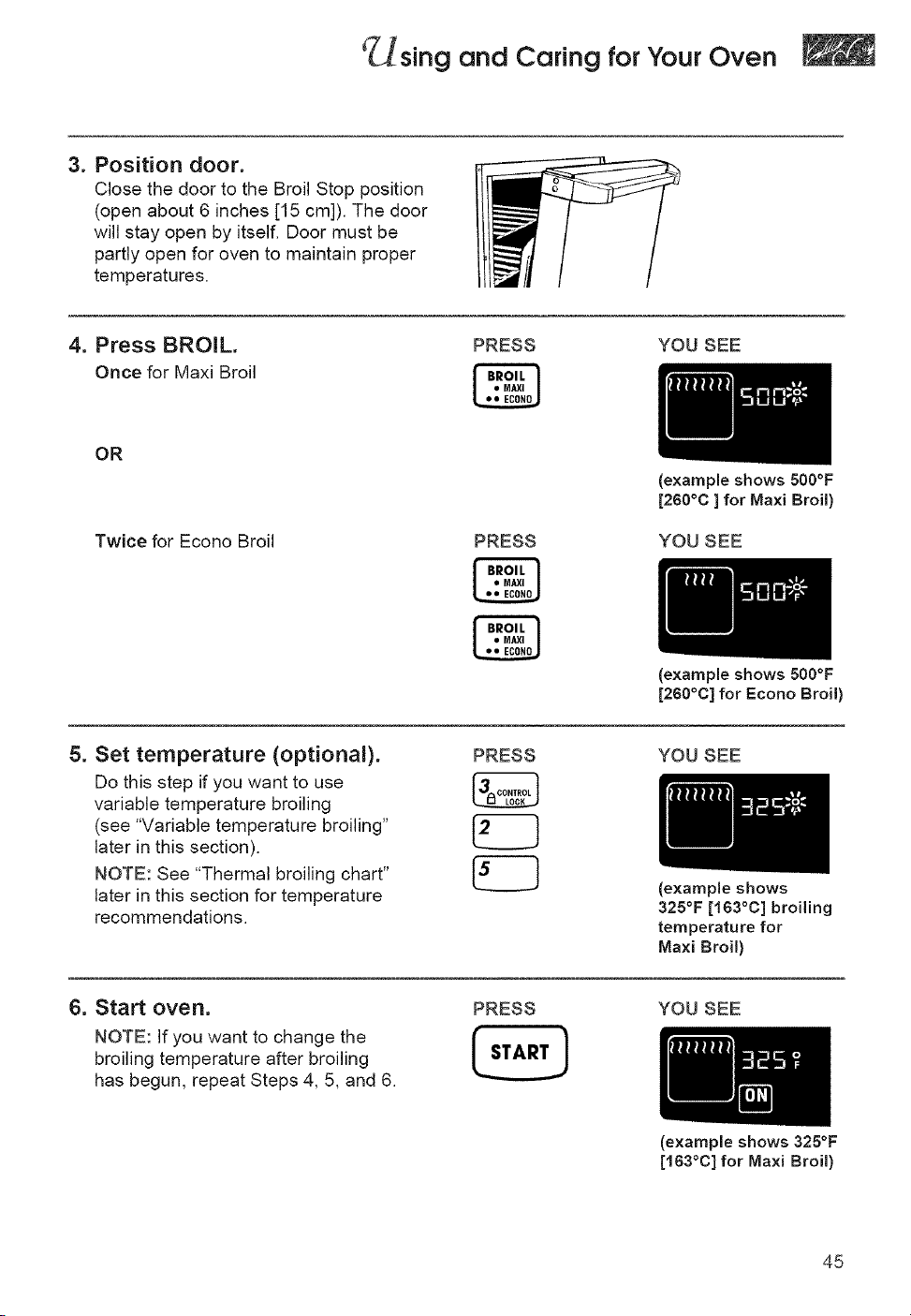

f_J_sing and Caring for Your Oven

3. Position door.

Close the door to the Broil Stop position

(open about 6 inches [15 cm]). The door

will stay open by itself, Door must be

partly open for oven to maintain proper

temperatures,

4. Press BROIL.

Once for Maxi Broil

PRESS YOU SEE

Twice for Econo Broil PRESS

(example shows 500°F

[260°C ] for Maxi Broil)

YOU SEE

(example shows 500°F

[260°C] for Econo Broil)

5. Set temperature (optional).

Do this step if you want to use

variable temperature broiling

(see "Variable temperature broiling"

later in this section).

NOTE: See "Thermal broiling chart"

later in this section for temperature

recommendations.

PRESS YOU SEE

(example shows

325°F [163°C] broiling

temperature for

Maxi Broil)

6. Start oven.

NOTE: If you want to change the

broiling temperature after broiling

has begun, repeat Steps 4, 5, and 6.

PRESS YOU SEE

(example shows 325°F

[163°C] for Maxi Broil)

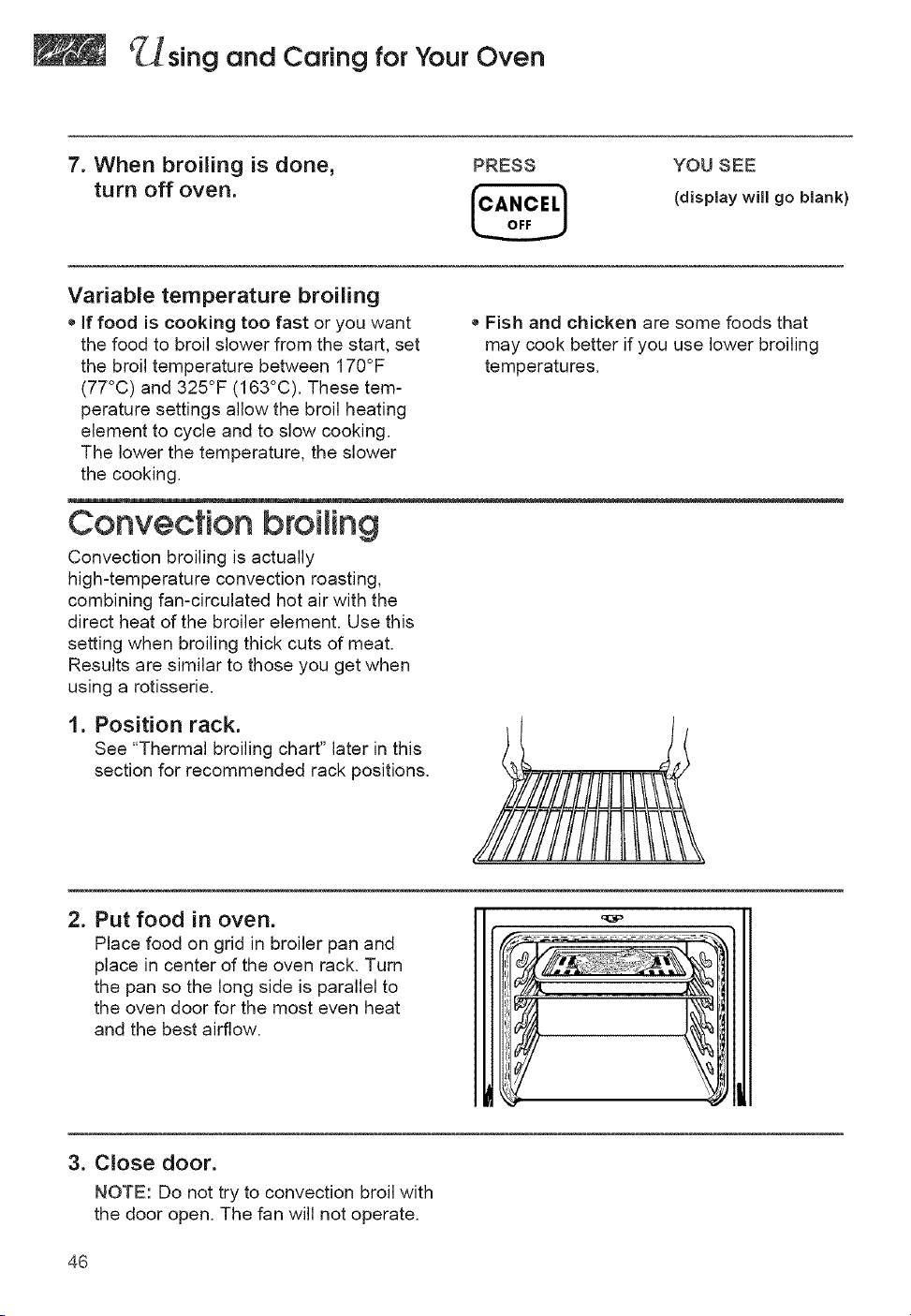

_._singand Caring forYour Oven

7. When broiling is done,

turn off oven.

PRESS YOU SEE

(display willgo blank)

Variable temperature broiling

o If food is cooking too fast or you want o Fish and chicken are some foods that

the food to broil slower from the start, set may cook better if you use lower broiling

the broil temperature between 170°F temperatures.

(77°C) and 325°F (163°C). These tem-

perature settings allow the broil heating

element to cycle and to slow cooking.

The lower the temperature, the slower

the cooking.

Convection broiling

Convection broiling is actually

high-temperature convection roasting,

combining fan-circulated hot air with the

direct heat of the broiler element. Use this

setting when broiling thick cuts of meat.

Results are similar to those you get when

using a rotisserie.

1. Position rack.

See "Thermal broiling chart" later in this

section for recommended rack positions.

2. Put food in oven.

Place food on grid in broiler pan and

place in center of the oven rack. Turn

the pan so the long side is parallel to

the oven door for the most even heat

and the best airflow.

I 1

//j

3. Close door.

NOTE: Do not try to convection broil with

the door open. The fan will not operate.

f_J_sing and Caring for Your Oven

4. Choose CONVECTION BROIL. PRESS YOU SEE

5. Set temperature (optional).

Do this step if you want to set a temper-

ature (up to 500°F [260°C]) other than

450°F (232°C).

NOTE: See a reliable cookbook or your

convection oven cookbook for tempera-

ture recommendations.

PRESS

(or 235°C)

YOU SEE

(example shows 400°F

[204°C] temperature

setting)

6. Start oven.

NOTE: If you want to change the convec-

tion broiling temperature after broiling

has begun, repeat Steps 4, 5, and 6.

PRESS YOU SEE

7. When broiling is over,

turn off oven.

PRESS YOU SEE

(display will go blank)

Broiling tips

e Always start broiling with a cold broiler

pan for even results,

e To retain more natural juice, do not

pierce meat with a fork,

o Trim the outer layer of fat from steaks

and chops,

e Slit fatty edges to prevent meat from

curling during broiling,

o Use a nonstick cooking spray or

vegetable oil on the broiler pan and grid

when broiling fish to prevent sticking,

o See "Broiling" earlier in this section for

additional broiling tips,

Broiling rack positions

O-

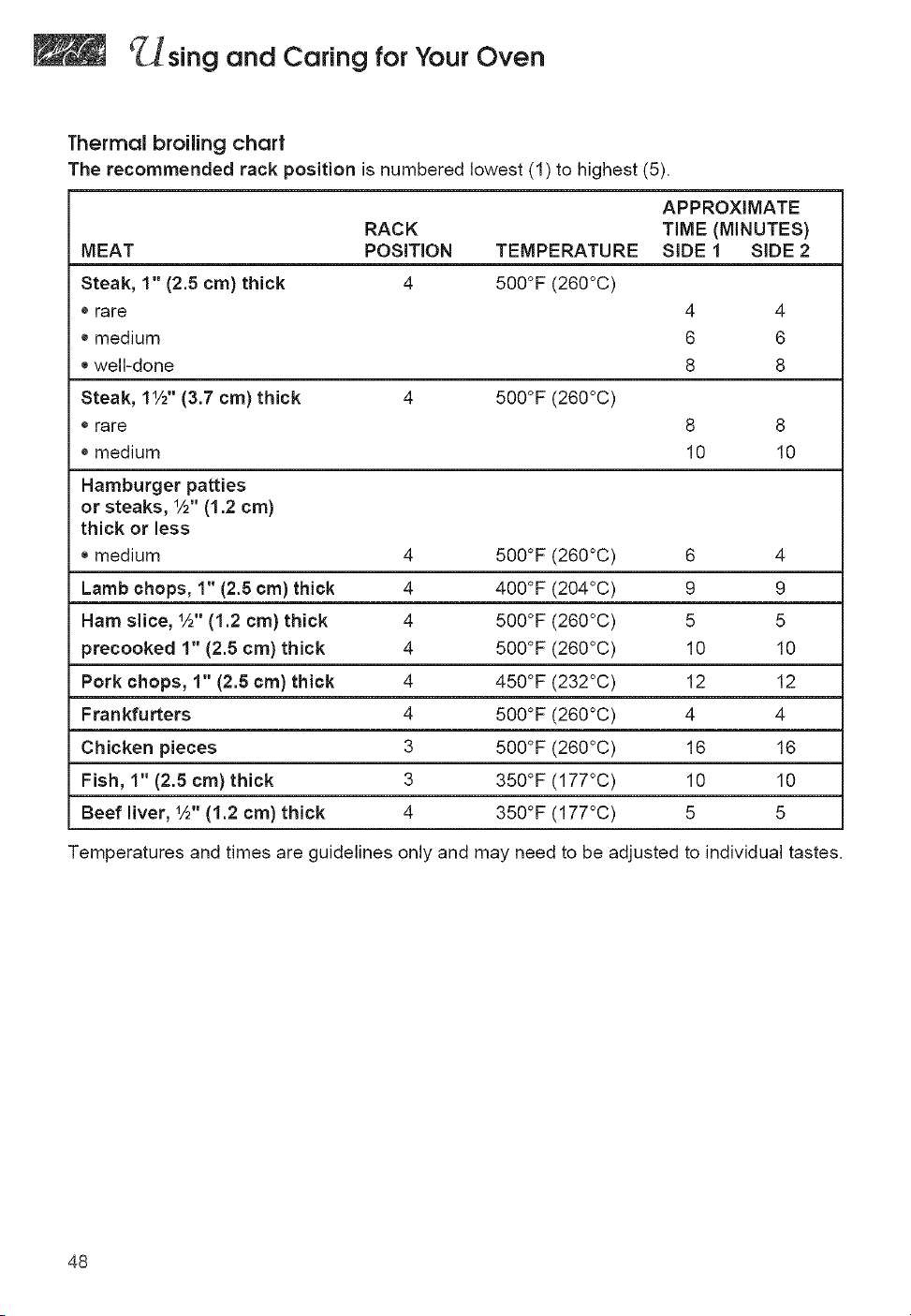

Using and Caring forYour Oven

Thermal broilingchart

The recommended rack position is numbered lowest (1) to highest (5).

MEAT

Steak, 1" (2.5 cm) thick

o rare

o medium

e well-done

Steak, 11/2"(3.7 cm) thick

o rare

o medium

Hamburger patties

or steaks, %" (1.2 cm)

thick or less

e medium

Lamb chops, 1" (2.5 cm) thick

Ham slice, %" (1.2 cm) thick

precooked 1" (2.5 cm) thick

Pork chops, 1" (2.5 ¢m) thick

Frankfurters

Chicken pieces

Fish, 1" (2.5 cm) thick

Beef liver, ½" (1.2 cm) thick

Temperatures and times are guidelines

APPROXIMATE

RACK TIME (MINUTES)

POSITION TEMPERATURE SIDE 1 SIDE 2

4 500°F (260°C)

4 4

6 6

8 8

4 500°F (260°C)

8 8

10 10

4 500°F (260°C) 6 4

4 400°F (204°C) 9 9

4 500°F (260°C) 5 5

4 500°F (260°C) 10 10

4 450°F (232°C) 12 12

4 500°F (260°C) 4 4

3 500°F (260°C) 16 16

3 350°F (177°C) 10 10

4 350°F (177°C) 5 5

only and may need to be adjusted to individual tastes.

¢_sing and Caring for Your Oven

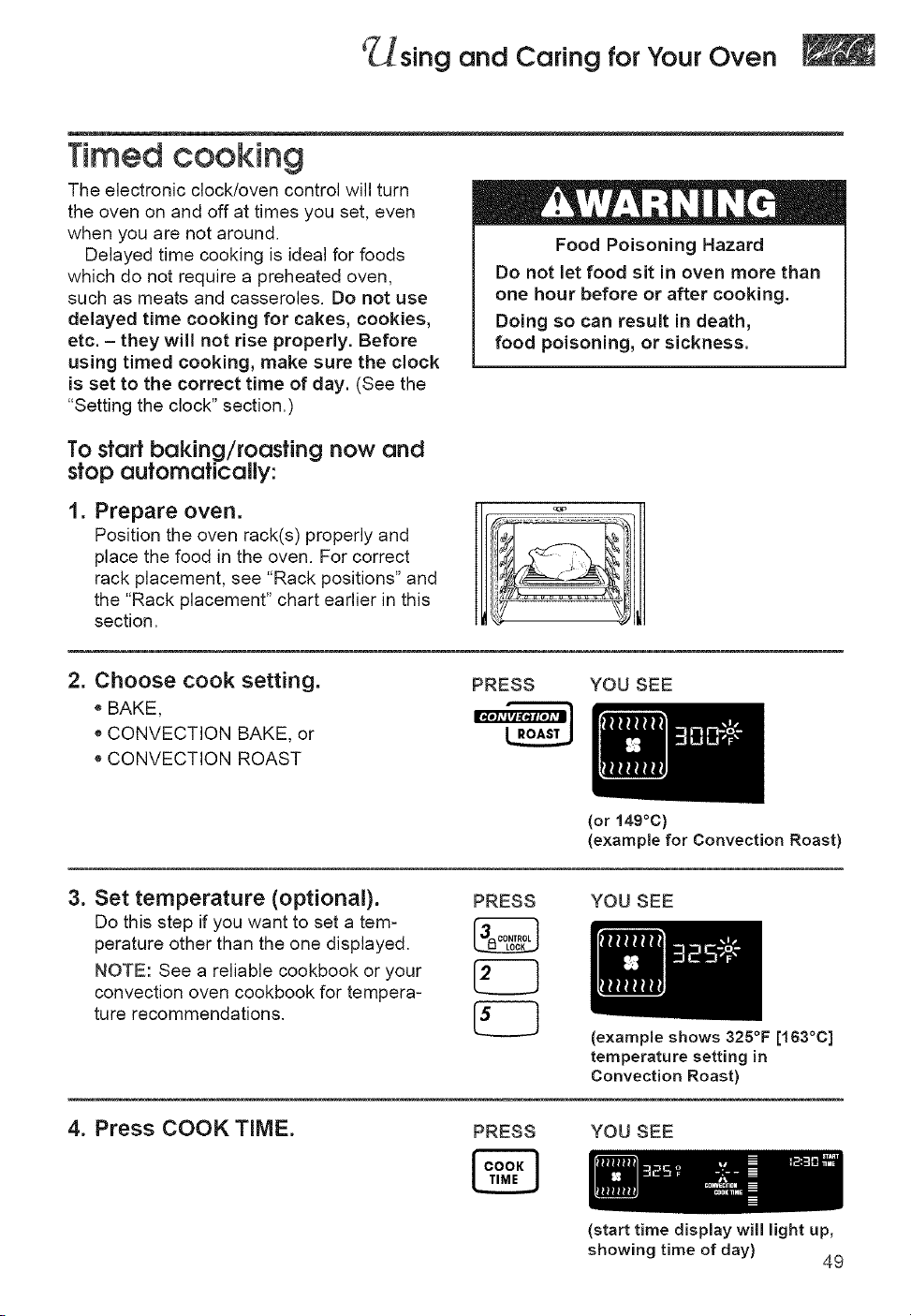

Timed cooking

The electronic clock/oven control will turn

the oven on and off at times you set, even

when you are not around.

Delayed time cooking is ideal for foods

which do not require a preheated oven,

such as meats and casseroles. Do not use

delayed time cooking for cakes, cookies,

etc. - they will not rise properly. Before

using timed cooking, make sure the clock

is set to the correct time of day. (See the

"Setting the clock" section.)

Food Poisoning Hazard

Do not let food sit in oven more than

one hour before or after cooking.

Doing so can result in death,

food poisoning, or sickness.

To start baking/roasting now and

stop automatically:

1. Prepare oven.

Position the oven rack(s) properly and

place the food in the oven. For correct

rack placement, see "Rack positions" and

the "Rack placement" chart earlier in this

section.

2. Choose cook setting.

o BAKE,

e CONVECTION BAKE, or

o CONVECTION ROAST

PRESS YOU SEE

(or 149°C)

(example for Convection Roast)

3. Set temperature (optional).

Do this step if you want to set a tem-

perature other than the one displayed.

NOTE: See a reliable cookbook or your

convection oven cookbook for tempera-

ture recommendations.

PRESS YOU SEE

(example shows 325°F [163°C]

temperature setting in

Convection Roast)

4. Press COOK TIME.

PRESS YOU SEE

(start time display will light up,

showing time of day)

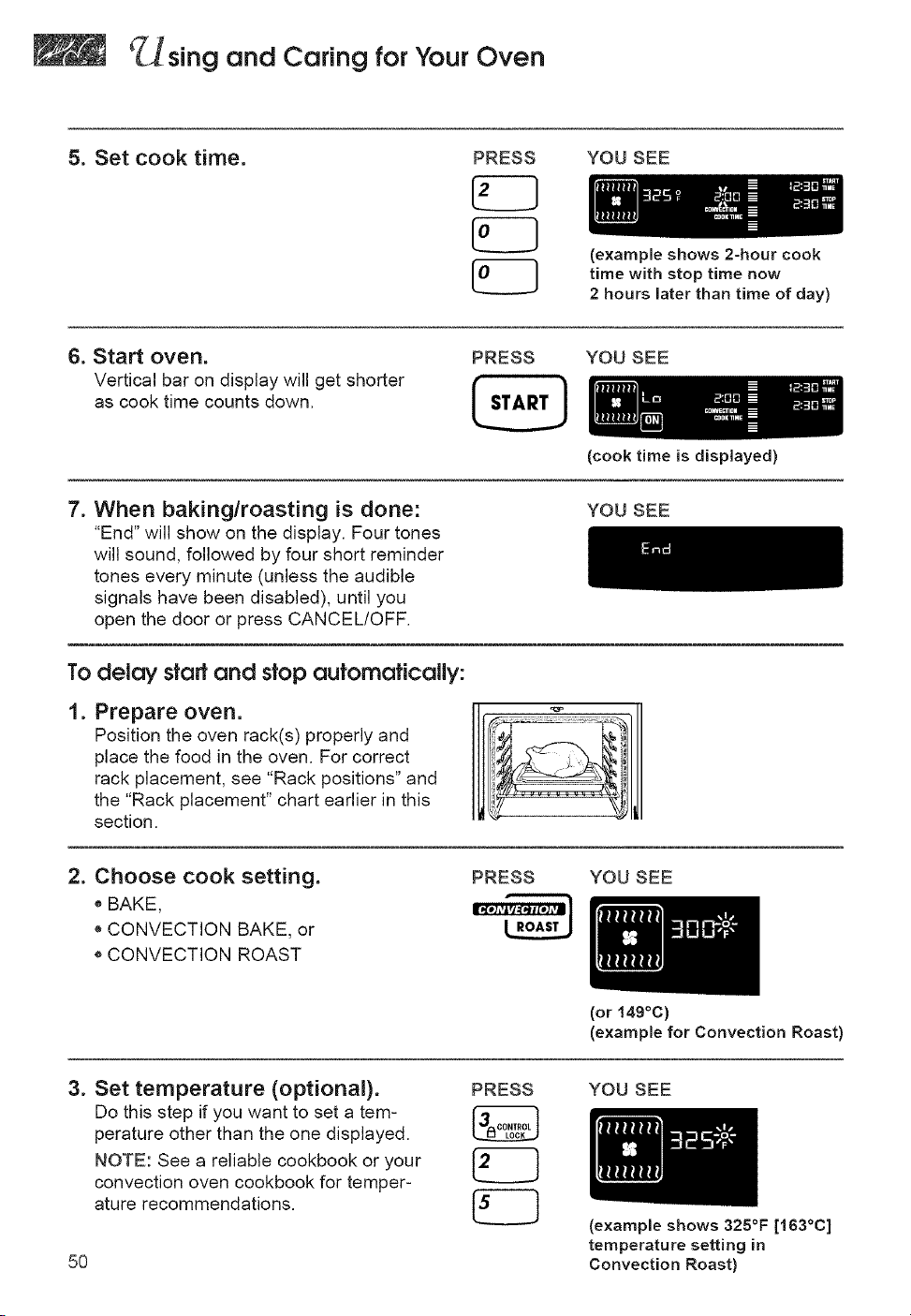

_._singand Caring forYour Oven

5. Set cook time. PRESS YOU SEE

(example shows 2-hour cook

time with stop time now

2 hours later than time of day)

6. Start oven.

Vertical bar on display will get shorter

as cook time counts down.

PRESS YOU SEE

7. When baking/roasting is done:

"End" will show on the display. Four tones

will sound, followed by four short reminder

tones every minute (unless the audible

signals have been disabled), until you

open the door or press CANCEL/OFF.

(cook time is displayed)

YOU SEE

To delay stoff end stop oufomaficolly:

1. Prepare oven.

Position the oven rack(s) properly and

place the food in the oven. For correct

rack placement, see "Rack positions" and

the "Rack placement" chart earlier in this

section.

2. Choose cook setting.

e BAKE,

o CONVECTION BAKE, or

e CONVECTION ROAST

PRESS YOU SEE

(or 149°C)

(example for Convection Roast)

3. Set temperature (optional).

Do this step if you want to set a tem-

perature other than the one displayed.

NOTE: See a reliable cookbook or your

convection oven cookbook for temper-

ature recommendations.

PRESS YOU SEE

(example shows 325°F [163°C]

temperature setting in

Convection Roast)

_J_sing and Caring for Your Oven

4. Press COOK TIME. PRESS YOU SEE

5. Set cook time. PRESS

(start time display will light up,

showing time of day)

YOU SEE

(example shows 2-hour cook

time with stop time now

2 hours later than time of day)

6. Press STOP TIME. PRESS YOU SEE

7. Set stop time.

PRESS YOU SEE

(stop time display shows 3:00

and start time display shows

1:00 - stop time minus 2=hour

cook time)

8. Press START. PRESS YOU SEE

When start time is reached:

Vertical bar on display will get shorter as

cook time counts down,

YOU SEE

9. When baking/roasting is done:

"End" will show on the display. Four tones

will sound, followed by four short reminder

tones every minute (unless the audible

signals have beer] disabled), until you

open the door or press CANCEL/OFF.

YOU SEE

_._singand Caring forYour Oven

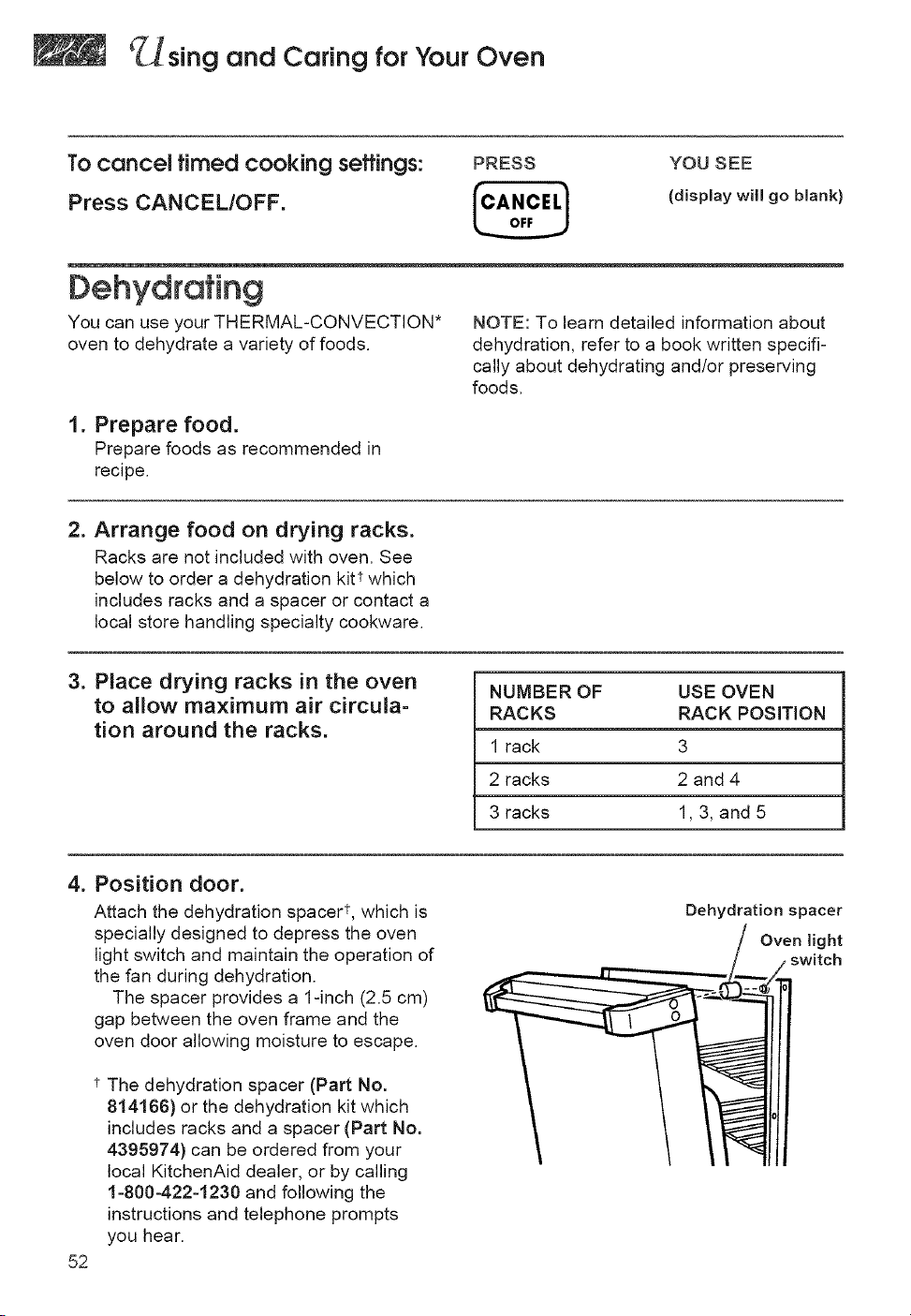

To cancel limed cooking seffings:

Press CANCEL/OFF.

PRESS YOU SEE

(display will go blank)

Dehydrating

You can use your THERMAL-CONVECTION*

oven to dehydrate a variety of foods.

NOTE: To learn detailed information about

dehydration, refer to a book written specifi-

cally about dehydrating and/or preserving

foods.

1. Prepare food.

Prepare foods as recommended in

recipe.

2. Arrange food on drying racks.

Racks are not included with oven. See

below to order a dehydration kitt which

includes racks and a spacer or contact a

local store handling specialty cookware.

3. Place drying racks in the oven

to allow maximum air circula-

tion around the racks.

NUMBER OF USE OVEN

RACKS RACK POSITION

1 rack 3

2 racks 2 and 4

3 racks 1,3, and 5

4. Position door.

Attach the dehydration spacert, which is

specially designed to depress the oven

light switch and maintain the operation of

the fan during dehydration.

The spacer provides a 1-inch (2.5 cm)

gap between the oven frame and the

oven door allowing moisture to escape.

t The dehydration spacer (Part No.

814166) or the dehydration kit which

includes racks and a spacer (Part No.

4395974) can be ordered from your

local KitchenAid dealer, or by calling

1-800-422-1230 and following the

instructions and telephone prompts

you hear.

Dehydration spacer

Oven light

switch

_J_sing and Caring for Your Oven

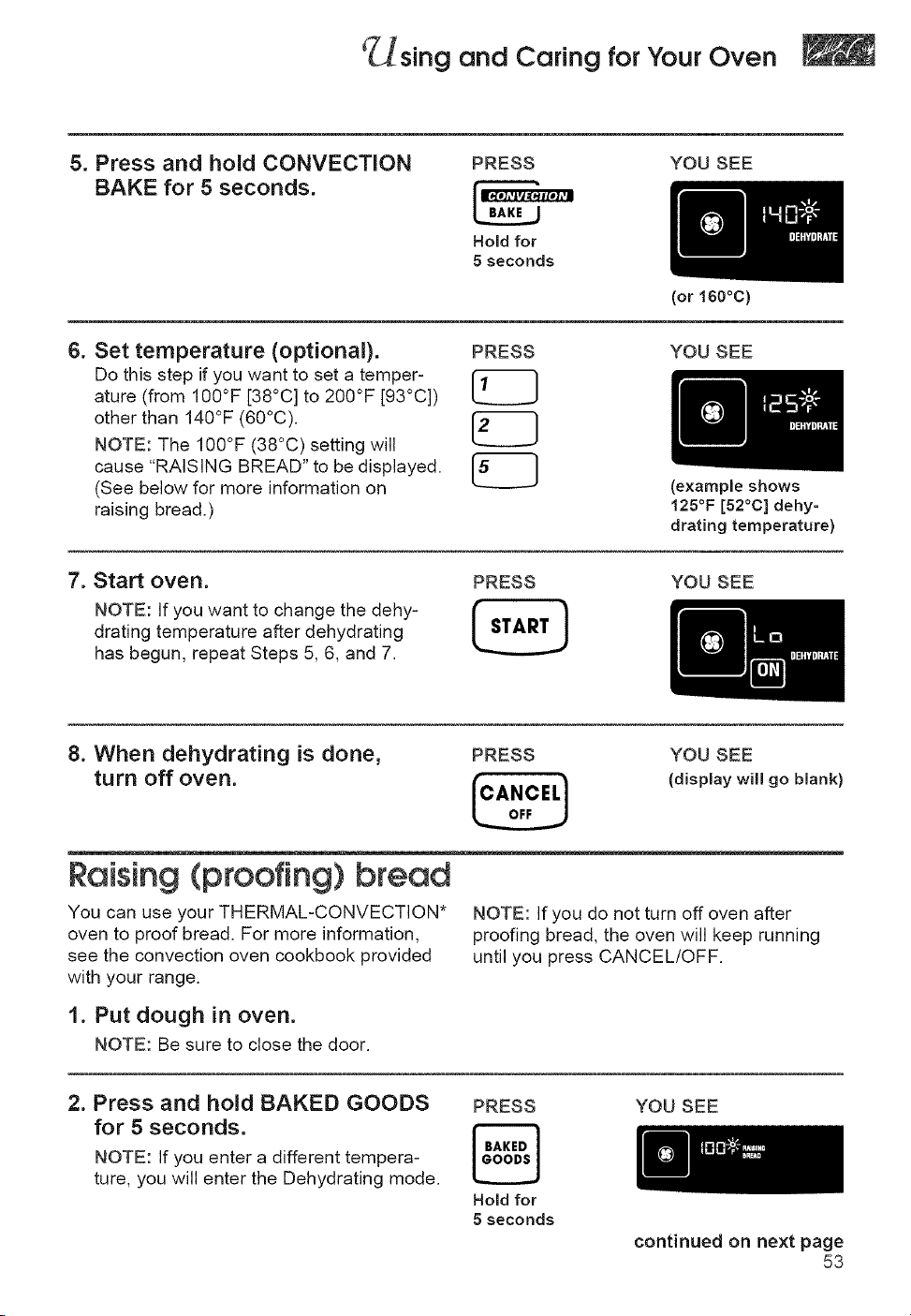

5. Press and hold CONVECTION

BAKE for 5 seconds.

PRESS

Hold for

5 seconds

YOU SEE

6. Set temperature (optional). PRESS

Do this step if you want to set a temper-

ature (from 100°F [38°C] to 200°F [93°C])

LL___J

other than 140°F (60°C).

NOTE: The 100°F (38°C) setting will

cause "RAISING BREAD" to be displayed.

(See below for more information on

raising bread.)

(or160°0)

YOU SEE

(example shows

125°F [52°0] dehy-

drating temperature)

7. Start oven.

NOTE: If you want to change the dehy-

drating temperature after dehydrating

has begun, repeat Steps 5, 6, and 7.

PRESS YOU SEE

8. When dehydrating is done,

turn off oven.

PRESS YOU SEE

(display will go blank)

£aising (proofing) bread

You can use your THERMAL-CONVECTION* NOTE: If you do not turn off oven after

oven to proof bread. For more information, proofing bread, the oven will keep running

see the convection oven cookbook provided until you press CANCEL/OFF.

with your range.

1. Put dough in oven.

NOTE: Be sure to close the door.

2. Press and hold BAKED GOODS

for S seconds.

NOTE: If you enter a different tempera-

ture, you will enter the Dehydrating mode.

PRESS

Hold for

5 seconds

YOU SEE

continued on next page

_._singand Caring forYour Oven

3. Start oven.

One long tone will sound when oven

is preheated.

PRESS YOU SEE

4. When proofing is done,

turn off oven.

PRESS YOU SEE

(displaywillgoblank)

Cleaning your oven and controls

Explosion Hazard

Do not store flammable materials such as gasoline near this

appliance.

Doing so can result in death, explosion, or fire.

PART

Control knobs

Control panel

WHAT TO USE HOW TO CLEAN

Sponge and warm,

soapy water

Sponge and warm,

soapy water

Paper towel and

spray glass cleaner

o Turn knobs to OFF and pull straight away

from control panel.

e Wash, rinse, and dry thoroughly. Do not

soak.

e Do not use steel wool or abrasive

cleansers. They may damage the finish

of the knobs.

o Replace knobs. Make sure all knobs

point to OFF.

e Wash, wipe with clean water, and dry

thoroughly.

e Do not use steel wool or abrasive

cleansers. They may damage the finish.

o Do not spray cleaner directly on panel.

Apply cleaner to paper towel.

NOTE: Set the Control Lock to prevent the

oven from accidentally turning on when you

are cleaning the panel. (See "Using the

control lock" earlier in this section.)

J sing and Caring for Your Oven

PART WHAT TO USE HOW TO CLEAN

Exterior surfaces

(other than control

panel)

Broiler pan and

grid (clean after

each use)

Oven racks

Oven door glass

Sponge and warm,

soapy water

Steel-wool pad and

warm, soapy water

Steel-wool pad and

warm, soapy water

The Self-Cleaning cycle

Paper towel and spray

glass cleaner

Warm, soapy water and

a nonabrasive, plastic

scrubbing pad

o Wash, wipe with clean water, and dry

thoroughly.

e Use nonabrasive, plastic scrubbing pad

on heavily soiled areas.

o Do not use abrasive or harsh cleansers.

They may damage the finish.

e Wash, rinse, and dry thoroughly.

o Do not clean in the Self-Cleaning cycle.

See "Before you start" in the "Using the

Self-Cleaning Cycle" section.

o Wash, rinse, and dry thoroughly.

o Leave in oven during Self-Cleaning cycle.

NOTE: Racks will permanently discolor and

become harder to slide if left in oven during

the Self-Cleaning cycle. Apply a small

amount of vegetable oil to the side rungs

to aid sliding.

e Make sure oven is cool.

o Follow directions provided with the cleaner.

o Wash, wipe with clean water, and dry

thoroughly.

Oven cavity Self-Cleaning cycle

e Wipe up food spills containing sugar as

soon as possible after the oven cools

down. (See "Before you start" in the

"Using the Self-Cleaning Cycle" section.)

o See the "Using the Self-Cleaning Cycle

section."

_._sing and Caring for Your Oven

Using and repHacing fhe oven Hghf(s)

Your oven may have a standard oven light

or two side halogen lights. The oven light(s)

will come on when you open the oven door,

To turn the light(s) on when the oven door

is closed, press the Oven Light pad

on the control panel. Press the pad

again to turn off the light(s).

Replacing the oven light

(models with light on back walb:

1. Unplug range or disconnect power,

2. Make sure the oven is cool before

replacing the light bulb,

Replacing oven lights

(models with side halogen lights):

1. Unplug range or disconnect power,

2. Make sure the oven is cool before replac-

ing the light bulb,

IlL \

3. Remove the glass bulb cover in the back

of the oven by turning it counterclockwise,

4. Remove the light bulb from its socket,

Replace the bulb with a 40-watt appli-

ance bulb.

5. Replace the light bulb cover by turning it

clockwise, The light bulb cover must be in

place when using the oven, The cover

protects the bulb from breaking and from

high oven temperatures,

& Plug inrange or reconnect power.

3. Remove glass light cover by grasping

front edge of cover and pulling it away

from the side wall of the oven,

4. Remove the light bulb from its socket,

Replace the bulb with another halogen

bulb (12 volt, 5 watt maximum, available

at most hardware stores),

5. Replace the light cover by snapping it

back into wall,

6. Plug in range or reconnect power.

NOTE: The oven lights will not work during

the Self-Cleaning cycle,

NOTE: The oven light will not work during

the Self-Cleaning cycle,

¢ sing theSelf-CleaningCycle

The Self-Cleaning cycle saves you from the toil and mess that often come with

hand-cleaning the oven interior. Like the other functions of your oven, you operate

the Self-Cleaning cycle with the easy-to-use electronic control. To use this cycle

properly, follow the step-by-step instructions in this section.

Burn Hazard

Do not touch the oven during the Self-Cleaning cycle.

Keep children away from oven during Self-Cleaning cycle.

Do not use commercial oven cleaners in your oven.

Failure to follow these instructions can result in burns,

or illness from inhaling dangerous fumes.

Before you sfarf

,3g=

DO NOT

hand=clean

gasket

frame

Hand-clean door

around edge

Before you start the Self-Cleaning cycle,

make sure you:

o Hand-clean the areas shown. They

do not get hot enough during the Self-

Cleaning cycle for soil to burn away.

Use hot water and detergent or a soapy,

steel-wool pad for cleaning.

NOTE: DO NOT clean, move, or bend

the gasket. Poor cleaning, baking, and

roasting may result.

e Remove the broiler pan and grid and

anything else being stored in the oven.

o Wipe out any loose soil or grease. This

will help reduce smoke during the

Self-Cleaning cycle.

e Wipe up food spills containing sugar

as soon as possible after the oven cools

down. When sugar is heated to a high

temperature in the Self-Cleaning cycle,

the high temperature can cause the sugar

to burn and react with the porcelain. This

can cause staining and etching or pitting.

o Remove the oven racks from the oven if

you want them to remain shiny. You can

clean racks in the Self-Cleaning cycle, but

they will discolor and become harder to

slide. If you clean racks in the Self-Cleaning

cycle, place them on the rack guides.

o Heat and odors are normal during the

Self-Cleaning cycle. Keep the kitchen

well-ventilated by opening a window or

by turning on a vent hood or other kitchen

vent during the cycle.

NOTES:

o Do not block the oven vent during the

Self-Cleaning cycle. Air must move freely

for best cleaning results.

e Do not leave plastic utensils on the

cooktop. They may melt.

e Do not leave any foil in oven during the

Self-Cleaning cycle. Foil could burn or

melt and damage the oven surface.

o The oven light will not work during the

Self-Cleaning cycle.

e The cooktop will not work during the

Self-Cleaning cycle on Canadian models.

_J_sing the Self-Cleaning Cycle

Before seffing fhe conffots

o Make sure clock is set to correct

time of day.

o Make sure the oven door is

completely closed.

Setting the conffois

To sfaff cleaning immediafely:

1. Press CLEAN. PRESS

A 31½-hour Self-Cleaning cycle will be

set. (The first 3 hours are for cleaning,

ELtt

the last 30 minutes are for cooling.)

YOU SEE

(stop time display shows time

31/2 hours later than time of day -

shown in start time display)

2. Set cleaning time (optional). PRESS

If you want a Self-Cleaning cycle

other than 3Y2hours, press the

desired Number pads for the new

time up to 41½hours.

o Use 21½hours for light soil.

e Use 31½to 41½hours for moderate

to heavy soil.

YOU SEE

(example shows 4-hour cleaning

cycle with stop time now 4 hours

later than time of day)

3. Start oven.

NOTE: The door will lock right after you

press START.

PRESS YOU SEE

4. After the Self-Cleaning cycle

ends:

YOU SEE

_._sing the Self-Cleaning Cycle

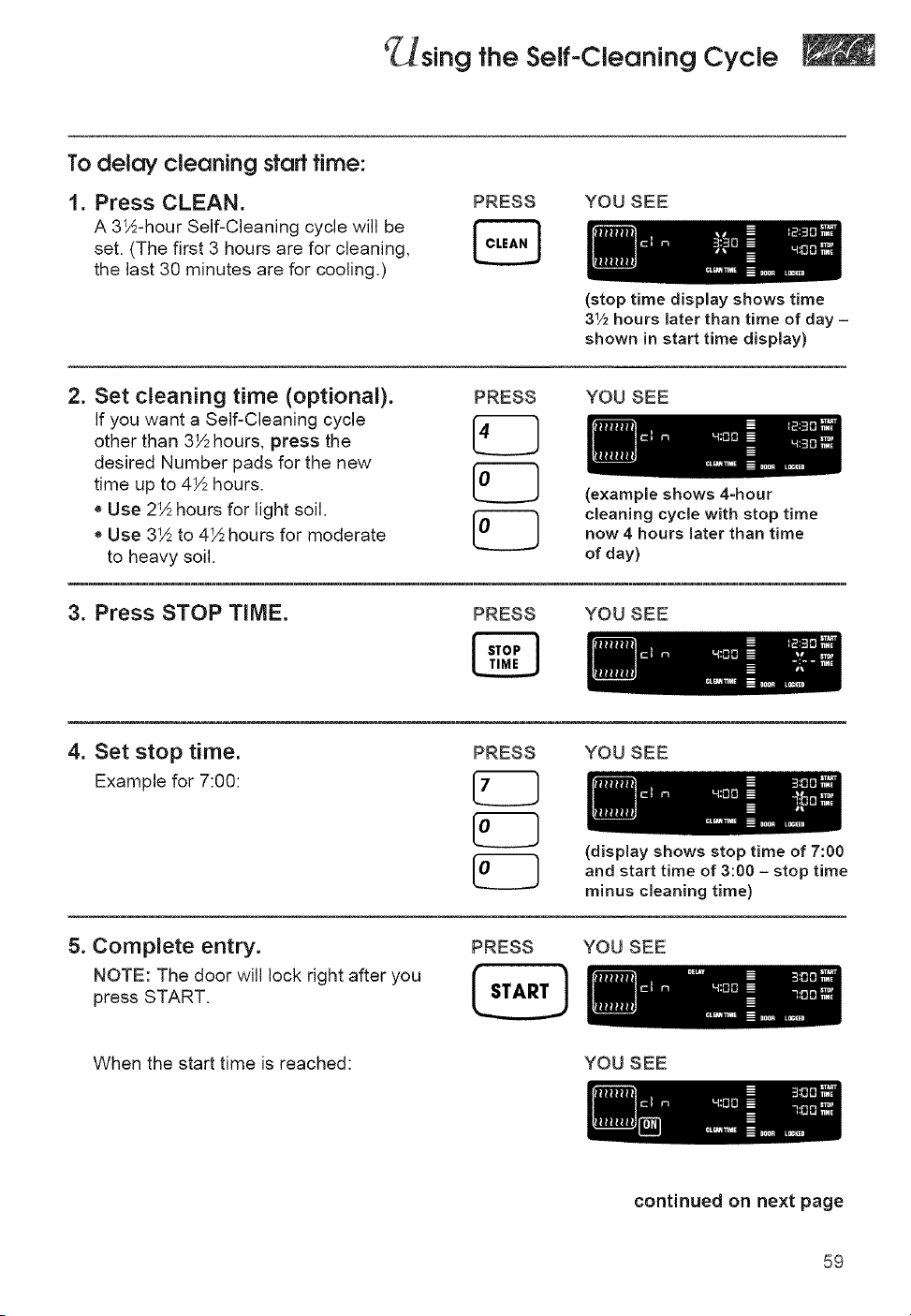

To delay cleaning start time:

1. Press CLEAN.

A 3S½-hour Self-Cleaning cycle will be

set. (The first 3 hours are for cleaning,

the last 30 minutes are for cooling,)

PRESS YOU SEE

(stop time display shows time

3Y2 hours later than time of day -

shown in start time display)

2. Set cleaning time (optional).

If you want a Self-Cleaning cycle

other than 3½ hours, press the

desired Number pads for the new

time up to 4½ hours.

o Use 2_½hours for light soil.

e Use 3_½to 4_½hours for moderate

to heavy soil.

PRESS YOU SEE

(example shows 4-hour

cleaning cycle with stop time

now 4 hours later than time

of day)

3. Press STOP TIME.

PRESS YOU SEE

4. Set stop time.

Example for 7:00:

PRESS YOU SEE

(display shows stop time of 7:00

and start time of 3:00 - stop time

minus cleaning time)

5. Complete entry.

NOTE: The door will lock right after you

press START.

PRESS YOU SEE

When the start time is reached: YOU SEE

continued on next page

_J_sing the Self-Cleaning Cycle

6. After the Self=Cleaning cycle

ends:

YOU SEE

To slop the Self=Cleaning cycle af

any time:

PRESS YOU SEE

("DOOR LOCKED" will appear

if oven has not cooled down)

For besf cleaning resu#s

e After the oven cools to room tempera-

ture, wipe up any residue or ash with a

damp cloth or sponge. If any spots remain,

clean with a mild abrasive cleanser or

cleaning sponge.

o Clean the oven before it gets heavily

soiled. Cleaning a very soiled oven

takes longer and results in more smoke

than usual.

e If the Self-Cleaning cycle does not get

the oven as clean as you expected, the

cycle may not have been set long enough

or you may not have prepared the oven

properly. Set the Self-Cleaning cycle

longer the next time and hand-clean areas

noted in "Before you start" earlier in this

section.

How fhe cycle works

The Self-Cleaning cycle uses very high heat

to burn away soil and grease. During the

cycle, the oven gets much hotter than it does

for normal baking or broiling. This high heat ._

breaks up the soil or grease and burns it away.

Your oven is preset for a 31½-hour Self-

Cleaning cycle. However, you can adjust the

cycle time to the amount of soil in your oven.

You can set the cycle anywhere between

21½and 41½hours. (See "Setting the con-

trols" earlier in this section.)

The graph at the right is representative of

a normal, 3½-hour Self-Cleaning cycle. Note

that the heating stops after 3 hours, but it

takes longer for the oven to cool enough to

unlock.

875°F (468°C)

( normal _ro_in"g tenl_e_atur

/ DOOR UNLOCKS

DOOR LOCKS

START 1 2 3 STOP

Time In Hours

¢- oubleshooting

Most cooking problems often are caused by little things you can find and fix without

tools of any kind. Check the lists below and on the next page before calling for assist-

ance or service. If you still need help, see "Requesting Assistance or Service" on

page 63 or 64.

if nothing operates, check the following:

Is the range wired into a live circuit with the proper voltage?

(See Installation Instructions.)

Have you blown a household fuse or tripped a circuit breaker?

Other possibme probmems and their causes:

PROBLEM CAUSE

The oven will not

operate

o You have not set the electronic control correctly. Refer to

the section in this manual describing the function you are

operating.

e You have programmed a delayed start time. Wait for the start

time to be reached or cancel and reset the control.

The surface

cooking areas will

not operate

The control knob(s)

will not turn

The Self-Cleaning

cycle will not

operate

e You have blown a household fuse or tripped a circuit

breaker.

o You have not set the control knobs correctly. Push control

knobs in before turning to a setting.

o You are not pushing in before turning.

Cooking results

are not what you

expected

e You have programmed a delayed start time. Wait for the start

time to be reached or cancel and reset the control.

e The cooling fan is not running. If fan is running, you can hear

it. Call a service technician for repair.

o The range is not level. (See Installation Instructions.)

o The oven temperature seems too low or too high. See

"Adjusting the oven temperature" on page 35 to adjust oven

temperature.

e You did not preheat the oven before baking (if called for

in recipe).

continued on next page

roubleshooting

PROBLEM CAUSE

Cooking results o

are not what you

expected

(continued) o

The display is e

showing"PF"

A letter followed by a o

number shows on the

display (for example

"E3," "FI")

The key pads do not o

operate

You are using a pan that is not the correct type or size.

Refer to a reliable cookbook or recipe for recommended

pan type and size.

There is not enough air space around pan when baking.

Allow 1 ½ to 2 inches (3.7 to 5 cm) of air space on all sides

of pan.

The cookware is too large or too small for the surface

cooking area being used. Pan should be the same size or

slightly larger than the surface cooking area being used.

There has been a power failure. Reset the clock.

(See page 27.)

Press CANCEL/OFF. If the code does not disappear, call

for service. (See Step 2 on page 63 or 64.)

The Control Lock has been set. (See "Using the control

lock" on page 22.) Turn off the Control Lock by pressing

and holding the Control Lock pad (Number Pad 3) for

5 seconds.

The Sabbath mode has been set ("SAb" appears on

the display). Turn off the Sabbath mode by opening the

oven door and pressing and holding Number Pad 6 for

5 seconds.

The range is not grounded. (See Installation Instructions.)

If none of these items was causing your problem, see "Requesting Assistance or Service" on

page 63 or 64.

Assistance

Before calling for assistance or service, please check the "Troubleshooting" section.

It may save you the cost of a service call. If you still need help, follow the instructions

below.

Nfyou need assMsfance or service in the U.S.A.:

1. If the problem is not due to

one of the items listed in the

"Troubleshooting" secfiont:

* Call the KitchenAid Consumer Assistance

_ Center:

1o800o422ol 230

One of our trained consultants

can instruct you in how to

obtain satisfactory operation from your

appliance or, if service is necessary,

recommend a qualified service company in

your area.

o If you prefer, write to:

KitchenAid Brand Home Appliances

Consumer Assistance Center

c/o Correspondence Dept.

2000 North M-63

Benton Harbor, MI 49022-2692

Please include a daytime phone number in

your correspondence.

2. If you need servicer:

e Call your dealer or the repair service he

recommends.

o All service should be handled

locally by the dealer from whom

you purchased the unit or an

authorized KitchenAid servicer.

o If you are unable to obtain the name of a

local authorized KitchenAid servicer, call

our Consumer Assistance Center tele-

phone number (see Step 1).

t When asking for help or service:

Please provide a detailed description of

the problem (including any information

that appears on the electronic control dis-

play), your appliance's complete model

and serial numbers, and the purchase

date. (See the "A Note to You" section.)

This information will help us respond

properly to your request.

Don't forget, KitchenAid offers a full line of quality home appliances.

Built-In Refrigerators Trash Compactors Ranges & Cooktops

Freestanding Refrigerators Hot Water Dispensers Microwave Ovens

50-Pound Ice Makers Food Waste Disposers Washers & Dryers

Dishwashers Built-In Ovens Mixers & Blenders

For more information on these appliances, or the one you have purchased, call our

toll free Consumer Assistance Center telephone number, 1-800-422-1230.

_questing Assistance or Service

if you need assistance or service in Canada:

1. If the problem is not due to

one of the items listed in

"Troubleshooting"t

Contact the dealer from whom you

purchased your appliance,

or call the KitchenAid Canada

Consumer Assistance Centre

toll free, 8:30 a.m. - 6 p.m.

(EST), at 1-800-461-5681.

2. If you need service t ...

Contact your nearest KitchenAid Canada

Appliance Service branch or authorized

servicing outlet to service your appliance.

(See list below.)

t When asking for help or service:

Please provide a detailed description of

the problem, your appliance's complete

model and serial numbers, and the

purchase date. (See the "A Note to

You" section.) This information will help

us respond properly to your request.

K#chenAid Canada Appliance Service - Consumer Services

Direct service branches:

BRITISH COLUMBIA 1-800-665-6788

ALBERTA 1-800-66I -6291

ONTARIO Ottawa area 1-800-267-3456

(except 807 area code) Outside the Ottawa area 1-800-807-6777

MANITOBA, SASKATCHEWAN 1-800-665-1683

and 807 area code in ONTARIO

QUEBEC Montreal (except South Shore) 1-800-361-3032

South Shore Montreal 1-800-361-0950

Quebec City 1-800-463-1523

Sherbrooke 1-800-567-6966

ATLANTIC PROVINCES 1-800-565-1598

For further assistance

If you need further assistance, you can write Please include a daytime phone number in

to KitchenAid Canada with any questions your correspondence.

or concerns at:

Consumer Relations Department

KitchenAid Canada

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

nde×

This index is alphabetical. It contains all the topics included in this manual, along with

the page(s) on which you can find each topic.

TOPIC PAGE TOPIC PAGE

ANTI-TIP BRACKET ................................ 10

ASSISTANCE .................................... 63, 64

BAKING

Aluminum foil ........................................ 33

Pans ...................................................... 32

Setting cycle ......................................... 29

Tips ................................................. 33, 34

BROILING

Broil stop position .................................. 44

Chart ..................................................... 48

Grid ....................................................... 44

Pan ....................................................... 44

Setting cycle ......................................... 45

Tips ....................................................... 47

CLEANING

Cooktop ................................................ 15

Oven ............................................... 54, 55

Self-cleaning ......................................... 57

CONTROL PANEL

Canceling .............................................. 25

Clock ..................................................... 27

Command pads ..................................... 18

Control lock ........................................... 22

Display .................................................. 18

Fahrenheit/Celsius conversion .............. 19

Number pads ........................................ 18

Sabbath feature .................................... 23

Settings ................................................. 26

Signals .................................................. 20

Starting .................................................. 25

Timer ..................................................... 27

Tones .................................................... 20

CONVECT FULL MEAL ........................... 39

CONVECTION BAKING

Pans ...................................................... 32

Setting cycle ......................................... 29

Tips ................................................. 33, 34

CONVECTION BROILING ....................... 46

COOKTOP

Caring for .............................................. 14

Cleaning ................................................ 15

Using ............................................... 11, 12

COOKWARE

Canning ................................................ 13

Pans ...................................................... 13

DEHYDRATING ....................................... 52

EASY CONVECT* Conversion ............... 42

ENERGY SAVING TIPS .......................... 14

FEATURES ............................................ 7, 8

LIGHT(S)

Oven ..................................................... 56

Surface .................................................. 16

LOCK

Control .................................................. 22

Self-cleaning cycle .......................... 58, 59

MODEL AND SERIAL NUMBER ............... 3

] ndex

TOPIC PAGE TOPIC PAGE

OVEN TEMPERATURE

Adjusting ............................................... 35

Setting ... 29, 31, 37, 38, 42, 45, 47, 49, 50

PARTS ................................................... 7, 8

PROOFING BREAD ................................ 53

RACKS

Convection roasting rack ...................... 34

Placement ............................................. 33

Positions ............................................... 32

ROASTING

Rack ...................................................... 34

Setting cycle ......................................... 31

Tips ....................................................... 34

SAFETY ................................................. 4-6

SELF-CLEANING

Delay cleaning ...................................... 59

How cycle works ................................... 60

Preparing oven ..................................... 57

Setting controls ............................... 58, 59

Starting immediately ............................. 58

Stopping cycle ....................................... 60

Tips ....................................................... 60

SERVICE .......................................... 63, 64

STORAGE DRAWER

Removing ................................................ 9

Replacing ................................................ 9

SURFACE COOKING AREA

Ceramic glass cooktop .............. 12, 14, 15

Control knobs ................................ 7, 8, 54

Control setting guide ............................. 11

Dual-size surface cooking area ............. 12

Hot surface indicator lights .................... 11

Power on lights ..................................... 11

TEMPERATURE PROBE

Cleaning ................................................ 39

Connecting to oven ............................... 37

Inserting in food .................................... 37

Setting cycle ......................................... 38

TIMED COOKING

Canceling .............................................. 52

Cook time ........................................ 49, 51

Stop time ............................................... 51

TROUBLESHOOTING ....................... 61-62

WARRANTY ............................................ 68

Kitch nAid

Becffi¢Range

LENGTH OF

WARRANTY:

ONE-YEAR

FULL

WARRANTY

FROM

DATE OF

PURCHASE

SECOND-

THROUGH

FIFTH-YEAR

MMITED

WARRANTY

FROM

DATE OF

PURCHASE

SECOND-

THROUGH

TENTH-YEAR

MMITED

WARRANTY

FROM

DATE OF

PURCHASE

KITCHENAID KITCHENAID

WILL PAY FOR: WILL NOT PAY FOR:

Replacement parts and

repair labor costs to

correct defects in materials

or workmanship. Service

must be provided by an

authorized KitchenAid

servicing outlet.

Replacement parts for any

electric element to correct

defects in materials or

workmanship. Replacement

ceramic glass if breakage is

due to defects in materials

or workmanship.

Replacement parts for

solid state touch control

system to correct defects in

materials or workmanship.

Replacement parts for the

porcelain oven cavity/inner

door if the part rusts

through due to defects in

materials or workmanship.

A. Service calls to:

1. Correct the installation of the range.

2. Instruct you how to use the range.

3. Replace house fuses or correct

house wiring.

B. Repairs when range is used in other

than normal home use.

C. Damage resulting from accident, alter-

ation, misuse, abuse, fire, flood, acts of

God, improper installation, or installation

not in accordance with local electrical

codes.

D. Any labor costs during the limited

warranties.

E. Replacement parts or repair labor

costs for units operated outside the

United States and Canada.

F. Pickup and delivery. This product is

designed to be repaired in the home.

G. Repairs to ceramic glass cooktop if it

has not been cared for as recommended

in this Use and Care Guide.

H. Repairs to parts or systems resulting

from unauthorized modifications made to

the appliance.

I. In Canada, travel or transportation

expenses for customers who reside in

remote areas.

9/97

KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY

FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states or provinces do not

allow the exclusion or limitation of incidental or consequential damages, so this exclusion or

limitation may not apply to you. This warranty gives specific legal rights and you may also

have other rights which vary from state to state or province to province.

Outside the United States and Canada, a different warranty may apply. For details,

please contact your authorized KitchenAid dealer.

If you need assistance or service, first see the "Troubleshooting" section of this book. After

checking "Troubleshooting," additional help can be found by checking the "Requesting

Assistance or Service" section. In the U.S.A., call our Consumer Assistance Center at

1-800-422-1230. In Canada, call KitchenAid Canada at one of the telephone numbers listed

in the "Requesting Assistance or Service" section.

KitchenAid

Benton Harbor, Michigan 49022-2692 U.S.A.

PART NO. 9752957 * Trademark of KitohenAid, USA., 9/97

KitchenAid KESC307BWH9 30" electric slide-in range

Product's Documents

User Manual

Specifications

KitchenAid KESC307BWH9 Questions and Answers

Related Products

KitchenAid KESS907SSS05 30" Electric Slide-in Range

Kitchenaid KESC300BWH5 30" Electric Slide-in Range

KitchenAid KESC300BBL10 30" Electric Slide-in Range

KitchenAid YKESV908PM01 30" Slide-in Electric Range

KitchenAid KESS908SPS04 30" Electric Slide-in Range

KitchenAid KESC300BBL6 30" electric slide-in range
