2_ features

features of your new samsung

washing machine

Your new washing machine will change the way you feel about doing laundry. From

its specialised Bubble function to its energy efﬁciency, your new Samsung washing

machine has all the beneﬁts to make washing laundry as easy and pleasant as

possible.

•BubbleWash

Samsung’s effective Bubble delivers improved cleanliness with advanced fabric care. Bubble

allows detergent to distribute evenly and penetrate fabrics faster and deeper.

•LessNoise&Vibration

This Samsung washer performs very quietly minimizing noise and vibration with smart control

technology, which enables it to maintain the lowest possible vibration. Thus, the drum keeps

perfect balance.

•Washinganddryingwithonebutton

Enjoy convenient non stop washing and drying managing. 4 different special drying programs

can be selected to perform the whole wash cycle including the drying cycle using one button.

•Cupboard(standardprogram),Lowtempdrying,Iron,TimeDrying(30min~270mins)

Those drying programs also can be operated independently of washing programs.

•AIRWash

TheAIRWashsystemdeodorizesunpleasantsmellsandsanitizesthelaundrythatcannot

be eliminated through a conventional washing system, a beneﬁt of its unique air-washing

mechanism.

•Air-washable:Woolencoats,cotton/downjumpers,sweaters,suits,pillows,cushions,

needlework dolls

•Not applicable : leather, silk, velvet, electric blankets, stained laundry

•QuickWash

Notimetowaste!Our15minuteQuickWashwillallowyoutoWashandRun.OurQuick

Washprogrammecanhelpwithyourbusylife-nowyoucanwashyourfavouriteclothes(up

to2Kg)injust15minutes!

•DrumClean

UsingDrumCleanhelpstokeepwashingmachinecleanevenwithoutanychemicaldetergent

orbleach.Keepyourdrumcleanandodorlesswithspecializedcleaningprogram.

•BabyCare

Your Samsung washing machine includes wash programs that add protection to the clothing

of children with sensitive skin. These programs reduce skin irritation in children by minimizing

detergentresidue.Inaddition,theseprogramsclassifylaundryintovarioustypesandthe

wash is performed according to the laundry characteristics so that children’s clothes feel

refreshingly clean whenever they are put on.

WD856UHSAGD-03223J.indd 22013-6-7 10:35:46

features _3

•DelayEnd

Delayacycleforupto19hoursinone-hourincrementsandincreasetheconvenienceof

using your washing machine especially when you have to go out.

•ChildLock

TheChildLockfunctionensuresthatcuriouslittlehandsarekeptoutofyourwashing

machine. This safety feature stops your children from playing with the operation of the

washing machine, and alerts you when it is activated.

•DigitalGraphicDisplay

TheDigitalGraphicDisplaycontrolpanelisclearandeasytouseforminimumfussand

hassle.Andwhileitiseasytooperate,theDigitalGraphicDisplayenablesyoutomakequick

and accurate adjustments to your wash for excellent washing results.

•Widedoor

Extra wide door aperture for convenient viewing! Easily add and remove laundry, especially for

large sized laundry items such as bedding, towels etc.

This manual contains important information on the installation, use, and care of your new

Samsungwashingmachine.Refertoitfordescriptionsofthecontrolpanel,instructionsonhow

to use the washing machine, and tips for making the most of its state-of-the-art features and

functions. The “Troubleshooting and information codes” section on page 41 tells you what to

do if something goes wrong with your new washing machine.

WD856UHSAGD-03223J.indd 32013-6-7 10:35:46

4_ safety information

safety information

The appliance is designed for home use only.

Congratulations on your new Samsung washer. This manual contains important

information on the installation, use and care of your appliance. Please take time to

read this manual to take full advantage of your washer’s many beneﬁts and features.

WhAtyouNEEDtokNoWABoutsAfEtyINstRuCtIoNs

Please read this manual thoroughly to ensure that you know how to safely and efﬁciently operate the

extensive features and functions of your new appliance and retain it at a safe place near the appliance

for your future reference. Use this appliance only for its intended purpose as described in this instruction

manual.

WarningsandImportantSafetyInstructionsinthismanualdonotcoverallpossibleconditionsand

situationsthatmayoccur.Itisyourresponsibilitytousecommonsense,caution,andcarewheninstalling,

maintaining, and operating your washer.

Because these following operating instructions cover various models, the characteristics of your washer

maydifferslightlyfromthosedescribedinthismanualandnotallwarningsignsmaybeapplicable.Ifyou

have any questions or concerns, contact your nearest service center or ﬁnd help and information online at

www.samsung.com.

ImpoRtANtsAfEtysymBoLsANDpRECAutIoNs

Whattheiconsandsignsinthisusermanualmean:

WARNING

Hazards or unsafe practices that may result in severepersonalinjury,

deathand/orpropertydamage.

CAUTION

Hazards or unsafe practices that may result inpersonalinjuryand/or

propertydamage.

CAUTION

To reduce the risk of ﬁre, explosion, electric shock, or personal injury

when using your washer, follow these basic safety precautions:

CAUTION

To reduce the risk of ﬁre or explosion, follow these basic precautions.

DoNOTattempt.

DoNOTdisassemble.

DoNOTtouch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Calltheservicecentreforhelp.

Note

thesewarningsignsareheretopreventinjurytoyouandothers.

pleasefollowthemexplicitly.

Afterreadingthissection,keepitinasafeplaceforfuturereference.

WD856UHSAGD-03223J.indd 42013-6-7 10:35:47

safety information _5

Readallinstructionsbeforeusingtheappliance.

As with any equipment using electricity and moving parts, potential hazards exist. To safely operate

this appliance, become familiar with its operation and exercise care when using it.

Donotletchildren(orpets)playonorinyourwashing

machine. The washing machine door does not open

easily from the inside, and children may be seriously

injured if trapped inside.

This appliance is not intended for use by persons

(includingchildren)withreducedphysical,sensoryor

mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

fortheirsafety.Childrenshouldbesupervisedtoensure

that they do not play with the appliance.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

andunderstandthehazardsinvolved.Childrenshallnot

playwiththeappliance.Cleaningandusermaintenance

shallnotbemadebychildrenwithoutsupervision.(Europe

only)

Childrenshouldbesupervisedtoensurethattheydonot

play with the appliance.

Iftheplug(powersupplycord)isdamaged,itmustbe

replaced by the manufacturer or its service agent or a

similarly qualiﬁed person in order to avoid a hazard.

This appliance should be positioned to be accessible

to the power plug, the water supply tabs and the drain

pipes.

For washing machines with ventilation openings in the

base, ensure that the opening is not obstructed by carpet

or any other obstacles.

Use the new hose-sets and old hose-sets should not be

reused.

WARNING

WD856UHSAGD-03223J.indd 52013-6-7 10:35:47

6_ safety information

safety information

tominimizetheriskofreinatumbledryer,thefollowingshouldbeobserved:

Itemsthathavebeenspottedorsoakedwithvegetableorcookingoilconstitutearehazardand

should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially

when exposed to heat sources such as in a tumble dryer. The items become warm, causing an

oxidationreactionintheoil.Oxidationcreatesheat.Iftheheatcannotescape,theitemscan

become hot enough to catch ﬁre. Piling, stacking or storing oil-affected items can prevent heat

fromescapingandsocreatearehazard.Ifitisunavoidablethatfabricsthatcontainvegetable

or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they

should ﬁrst be washed in hot water with extra detergent – this will reduce, but not eliminate, the

hazard. The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the

items. They should not be removed from the tumble dryer or piled or stacked while hot.

Itemsthathavebeenpreviouslycleanedin,washedin,soakedinorspottedwithpetrol/gasoline,

dry-cleaning solvents or other ﬂammable or explosive substances should not be placed in a

tumble dryer. Highly ﬂammable substances commonly used in domestic environments include

acetone,denaturedalcohol,petrol/gasoline,kerosene,spotremovers(somebrands),turpentine,

waxes and wax removers.

Itemscontainingfoamrubber(alsoknownaslatexfoam)orsimilarlytexturedrubber.Like

materials should not be dried in a tumble dryer on a heat setting. Foam rubber materials can,

when heated, produce ﬁre by spontaneous combustion.

Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects

of static electricity unless this practice is speciﬁ cally recommended by the manufacturer of the

fabric softener or product.

Undergarments that contain metal reinforcements should not be placed in a tumble dryer.

Damagetothetumbledryercanresultifmetalreinforcementscomelooseduringdrying.When

available a drying rack could be used for such items.

Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed

in a tumble dryer.

Rubber-backedarticles,clothesttedwithfoamrubberpads,pillows,galoshesand

rubbercoated tennis shoes should not be placed in a tumble dryer.

CAutIoN

WD856UHSAGD-03223J.indd 62013-6-7 10:35:47

safety information _7

Donotdryunwasheditemsinthetumbledryer(orwashingmachinedryingmode,etc).

Itemsthathavebeensoiledwithsubstancessuchascookingoil,acetone,alcohol,petrol,

Kerosene,spotremovers,turpentine,waxesandwaxremoversshouldbewashedinhotwater

with an extra amount of detergent before being dried in the tumble dryer.

Itemssuchasfoamrubber(latexfoam),showercaps,waterprooftextiles,rubberbackedarticles

and clothes or pillows ﬁtted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as speciﬁed by the fabric softener

instructions.

Thenalpartofatumbledryercycleoccurswithoutheat(cooldowncycle)toensurethatthe

items are left at a temperature that ensures that the items will not be damaged.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as

in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation

createsheat.Iftheheatcannotescape,theitemscanbecomehotenoughtocatchre.Piling,

stacking or storing oil-affected items can prevent heat from escaping and so create a ﬁre hazard.

Ifitisunavoidablethatfabricsthatcontainvegetableorcookingoilorhavebeencontaminated

by hair care products be placed in a tumble dryer they should ﬁrst be washed in hot water with

extra detergent - this will reduce, but not eliminate, the hazard.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed

and spread out so that the heat is dissipated.

WARNING

CAutIoN

WD856UHSAGD-03223J.indd 72013-6-7 10:35:47

8_ safety information

safety information

sEVEREWARNINGsIGNsfoRINstALLAtIoN

The installation of this appliance must be performed by a qualiﬁed technician or service

company.

- Failure to do so may result in electric shock, ﬁre, an explosion, problems with the

product, or injury.

The appliance is heavy, take care upon lifting it

PlugthepowercordintoanAC220-240V/50Hzwallsocketorhigherandusethesocket

forthisapplianceonly.Inaddition,donotuseanextensioncord.

- Sharing a wall socket with other appliances using a power strip or extending the power

cord may result in electric shock or ﬁre.

- Ensure that the power voltage, frequency and current are the same as those of the

product speciﬁcations. Failure to do so may result in electric shock or ﬁre. Plug the

power plug into the wall socket ﬁrmly.

Removeallforeignsubstancessuchasdustorwaterfromthepowerplugterminalsand

contact points using a dry cloth on a regular basis.

- Unplug the power plug and clean it with a dry cloth.

- Failure to do so may result in electric shock or ﬁre.

Plug the power plug into the wall socket in the right direction so that the cord runs towards

the ﬂoor.

-Ifyouplugthepowerplugintothesocketintheoppositedirection,theelectricwires

within the cable may be damaged and this may result in electric shock or ﬁre.

Keepallpackagingmaterialswelloutofthereachofchildren,aspackagingmaterialscan

be dangerous to children.

-Ifachildplacesabagoveritshead,itmayresultinsuffocation.

Whentheapplianceorpowerplugorpowercordisdamaged,contactyournearestservice

centre.

This appliance must be properly grounded.

Donotgroundtheappliancetoagaspipe,plasticwaterpipe,ortelephoneline.

- This may result in electric shock, ﬁre, an explosion, or problems with the product

- Never plug the power cord into a socket that is not grounded correctly and make sure

that it is in accordance with local and national codes.

Donotinstallthisappliancenearaheater,inammablematerial.

Donotinstallthisapplianceinahumid,oilyordustylocation,inalocationexposedtodirect

sunlightandwater(raindrops).

Donotinstallthisapplianceinalocationoflowtemperature

- Frost may cause tubes to burst

Donotinstallthisapplianceinalocationwheregasmayleak.

- This may result in electric shock or ﬁre.

Donotuseanelectrictransformer.

-Itmayresultinelectricshockorre.

Donotuseadamagedpowerplug,damagedpowercordorloosewallsocket.

- This may result in electric shock or ﬁre.

Donotpullorexcessivelybendthepowercord.

Donottwistortiethepowercord.

WARNING

WD856UHSAGD-03223J.indd 82013-6-7 10:35:47

safety information _9

Donothookthepowercordoverametalobject,placeaheavyobjectonthepowercord,

insert the power cord between objects, or push the power cord into the space behind the

appliance.

- This may result in electric shock or ﬁre.

Donotpullthepowercord,whenunpluggingthepowerplug.

- Unplug the power plug by holding the plug.

- Failure to do so may result in electric shock or ﬁre.

Donotlaythepowercordandtubeswhereyoumayfalloverthem.

CAutIoNsIGNsfoRINstALLAtIoN

This appliance should be positioned in such a way that it is accessible to the power plug.

- Failure to do so may result in electric shock or ﬁre due to electric leakage.

Installyourapplianceonalevelandhardoorthatcansupportitsweight.

- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the

product.

sEVEREWARNINGsIGNsfoRusING

Iftheapplianceisooded,Turnoffthewater&powersupplyimmediatelyandcontactyour

nearest service centre.

-DonotTouchthepowerplugwithwethands

- Failure to do so may cause electric shock

Iftheappliancegeneratesastrangenoise,aburningsmellorsmoke,unplugthepower

plug immediately and contact your nearest service centre.

- Failure to do so may result in electric shock or ﬁre.

Intheeventofagasleak(suchaspropanegas,LPgas,etc.),ventilateimmediatelywithout

touchingthepowerplug.Donottouchtheapplianceorpowercord.

-Donotuseaventilatingfan.

- A spark may result in an explosion or ﬁre.

Donotletchildrenplayinoronthewasher.Inaddition,whendisposingoftheappliance,

remove the washer door lever.

-Iftrappedinside,thechildmaybecometrappedandsuffocatetodeath.

Makesuretoremovethepackaging(sponge,styrofoam)attachedtothebottomofthe

washer before using it.

WARNING

CAutIoN

WD856UHSAGD-03223J.indd 92013-6-7 10:35:47

10_ safety information

safety information

Donotwashitemscontaminatedwithgasoline,kerosene,benzene,paintthinner,alcoholor

other ﬂammable or explosive substances.

- This may result in electric shock, ﬁre or an explosion.

Donotopenthewasherdoorbyforcewhileitisoperating(high-temperaturewashing/

drying/spinning).

-Waterowingoutofthewashermayresultinburnsorcausetheoortobeslippery.

This may result in injury.

- Opening the door by force may result in damage to the product or injury.

Donotinsertyourhandunderthewasher.

- This may result in injury.

Donottouchthepowerplugwithwethands.

- This may result in electric shock.

Donotturntheapplianceoffbyunpluggingthepowerplugwhileanoperationisin

progress.

- Plugging the power plug into the wall socket again may cause a spark and result in

electric shock or ﬁre.

Donotletchildrenorinrmpersonsusethiswasherunsupervised.Donotletchildrenclimb

in the appliance

- Failure to do so may result in electric shock, burns or injury.

Donotinsertyourhandorametalobjectunderthewasherwhileitisoperating.

- This may result in injury.

Donotunplugtheappliancebypullingatthepowercord,alwaysgripplugrmlyandpull

straight out from the outlet.

-Damagetothecordmaycauseshort-circuit,reand/orelectricshock

Donotattempttorepair,disassemble,ormodifytheapplianceyourself.

-Donotuseanyfuse(suchascooper,steelwire,etc.)otherthanthestandardfuse.

-Whenrepairingorreinstallingtheapplianceisrequired,contactyournearestservice

centre.

- Failure to do so may result in electric shock, ﬁre, problems with the product, or injury.

IfthewatersupplyhosecomesloosefromtheWatertapandoodstheappliance,unplug

the power plug.

- Failure to do so may result in electric shock or ﬁre.

Unplug the power plug when the appliance is not being used for long periods of time or

during a thunder/lightning storm.

- Failure to do so may result in electric shock or ﬁre.

WD856UHSAGD-03223J.indd 102013-6-7 10:35:47

safety information _11

CAutIoNsIGNsfoRusING

Whenthewasheriscontaminatedbyaforeignsubstancesuchasdetergent,dirt,food

waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.

- Failure to do so may result in discolouration, deformation, damage or rust.

The front glass may be broken by a strong impact. Take care when using the washer.

-Whentheglassisbroken,itmayresultininjury.

Afterawatersupplyfailureorwhenreconnectingthewatersupplyhose,opentheWater

Tap slowly.

OpentheWaterTapslowlyafteralongperiodofnon-use.

- The air pressure in the water supply hose or the water pipe may result in damage to a

part or in water leakage.

Ifadrainerroroccursduringanoperation,checkifthereisadrainingproblem.

-Ifthewasherisusedwhenitisoodedbecauseofadrainingproblem,itmayresultin

electric shock or ﬁre due to electric leakage.

Insertthelaundryintothewashercompletelysothatlaundrydoesnotgetcaughtinthe

door.

-Iflaundrygetscaughtinthedoor,itmayresultindamagetothelaundryorthewasher,

or result in water leakage.

EnsurethattheWaterTapisturnedoffwhenthewasherisnotbeingused.

- Ensure that the screw on the water supply hose connector is properly tightened.

- Failure to do so may result in property damage or injury.

Checkiftherubbersealisnotcontaminatedbyforeignsubstances(waste,thread,etc).

-Ifthedoorisnotclosedcompletely,itmayresultinwaterleakage.

OpentheWaterTapandcheckifthewatersupplyhoseconnectorisrmlytightenedand

that there is no water leaking before using the product.

-Ifthescrewsorthewatersupplyhoseconnectorareloose,itmayresultinwater

leakage.

To reduce the risk of ﬁre or explosion:

- Under certain conditions, hydrogen gas may be produced in a hot water system such

asyourhotwaterheaterthathasnotbeenusedfortwoweeksormore.HYDROGEN

GASISEXPLOSIVE.Ifyourhotwatersystemhasnotbeenusedfortwoweeksor

more, turn on all hot water taps in your home, and let the water ﬂow for several minutes

before using your washing machine. This will release any hydrogen gas build–up. Since

hydrogen gas is ﬂammable, do not smoke or light an open ﬂame during this time.

Ventilateimmediatelywithouttouchingthepowerplugifthereisagasleak.

The product you have purchased is designed for domestic use only.

The use for business purposes qualiﬁes as product misuse.

Inthiscase,theproductwillnotbecoveredbythestandardwarrantyprovidedby

Samsung and no responsibility can be attributed to Samsung for malfunctions or damages

resulting from such misuse.

CAutIoN

WD856UHSAGD-03223J.indd 112013-6-7 10:35:47

12_ safety information

safety information

Donotstandontopoftheapplianceorplaceobjects(suchaslaundry,lightedcandles,

lightedcigarettes,dishes,chemicals,metalobjects,etc.)ontheappliance.

- This may result in electric shock, ﬁre, problems with the product, or injury.

Donotsprayvolatilematerialsuchasinsecticideontothesurfaceoftheappliance.

- As well as being harmful to humans, it may also result in electric shock, ﬁre or problems

with the product.

Donotplaceanobjectthatgeneratesaelectromagneticeldnearthewasher.

- This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not

touch the water.

- This may result in burns or injury.

Donotwash,spinordrywater-proofseats,matsorclothing(*)unlessyourappliancehasa

special program for washing these items.

-Donotwashthick,hardmatsevenifthewashermarkisonthecarelabel.

- This may result in injury or damage to the washer, walls, ﬂoor or clothing due to

abnormal vibrations.

*Woollenbedding,raincovers,shingvests,skipants,sleepingbags,diapercovers,

sweat suits, and bicycle, motor cycle, car covers, etc.

Donotoperatethewasherwhenthedetergentboxisremoved.

- This may result in electric shock or injury due to water leakage.

Donottouchtheinsideofthetubduringorjustafterdryingasitishot.

- This may result in burns.

Donotinsertyourhandintothedetergentboxafteropeningit.

-Thismayresultininjuryasyourhandmaybecaughtbythedetergentinputdevice.Do

notplaceanyobjects(suchasshoes,foodwaste,animals)otherthanlaundryintothe

washer.

- This may result in damage to the washer, or injury and death in the case of pets due to

the abnormal vibrations.

Donotpressthebuttonsusingsharpobjectssuchaspins,knifes,ngernails,etc.

- This may result in electric shock or injury.

Donotwashlaundrycontaminatedbyoils,creamsorlotionsusuallyfoundinskincare

shops or massage clinics.

- This may result in the rubber seal becoming deformed and water leakage.

Donotleavemetalobjectssuchasasafetypinorhairpin,orbleachinthetubforlong

periods of time.

- This may cause the tub to rust.

-Ifruststartsappearingonthesurfaceofthetub,applyacleansingagent(neutral)tothe

surface and use a sponge to clean it. Never use a metal brush.

Donotusedrycleaningdetergentdirectlyanddonotwash,rinse,orspinlaundry

contaminated by dry cleaning detergent.

- This may result in spontaneous combustion or ignition due to the heat of the oxidation of

the oil.

Donotusehotwaterfromwatercooling/heatingdevices.

- This may result in problems with the washer.

WD856UHSAGD-03223J.indd 122013-6-7 10:35:47

safety information _13

Donotusenaturalhand-washingsoapforthewasher.

-Ifithardensandaccumulatesinsidethewasher,itmayresultinproblemswiththe

product, discolouration, rust or bad odors.

Donotwashlargelaundryitemssuchasbeddinginthewashingnet.

- Place socks and brassieres into the washing net and wash them with the other laundry.

- Failure to do so may result in injury due to abnormal vibrations.

Donotusehardeneddetergent.

-Ifitaccumulatesinsidethewasher,itmayresultinwaterleakage.

For washing machines with ventilation openings in the base, ensure that the opening is not

obstructed by carpet or any other obstacles.

Make sure that the pockets of all clothing to be washed are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause

extensive damage to the appliance.

Donotwashclothingwithlargebuckles,buttons,orotherheavymetal.

sEVEREWARNINGsIGNsfoRCLEANING

Donotcleantheappliancebysprayingwaterdirectlyontoit.

Donotusethestrongacidcleaningagent.

Donotusebenzene,thinneroralcoholtocleantheappliance.

- This may result in discolouration, deformation, damage, electric shock or ﬁre.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or ﬁre.

WARNING

WD856UHSAGD-03223J.indd 132013-6-7 10:35:47

14_ contents

contents

SETTING UP YOUR WASHING

MACHINE

15Checkingtheparts

16 Meeting installation requirements

16 Electrical supply and grounding

16 Water Supply

17 Drain

17 Flooring

17 Surrounding temperature

17 Alcove or closet installation

17Installingyourwashingmachine

WASHING A LOAD OF LAUNDRY

23Washingforthersttime

23 Basic instructions

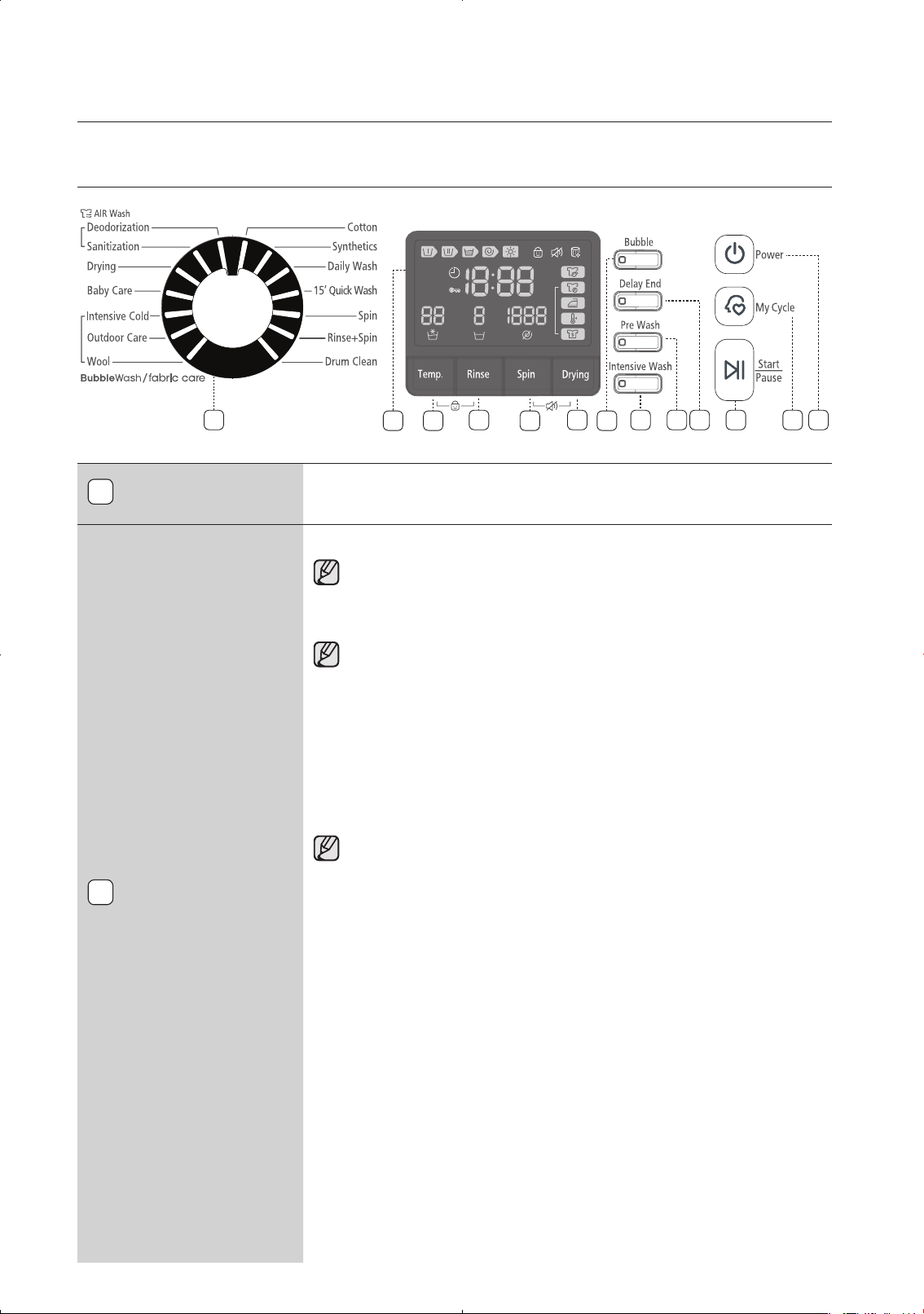

24 Using the control panel

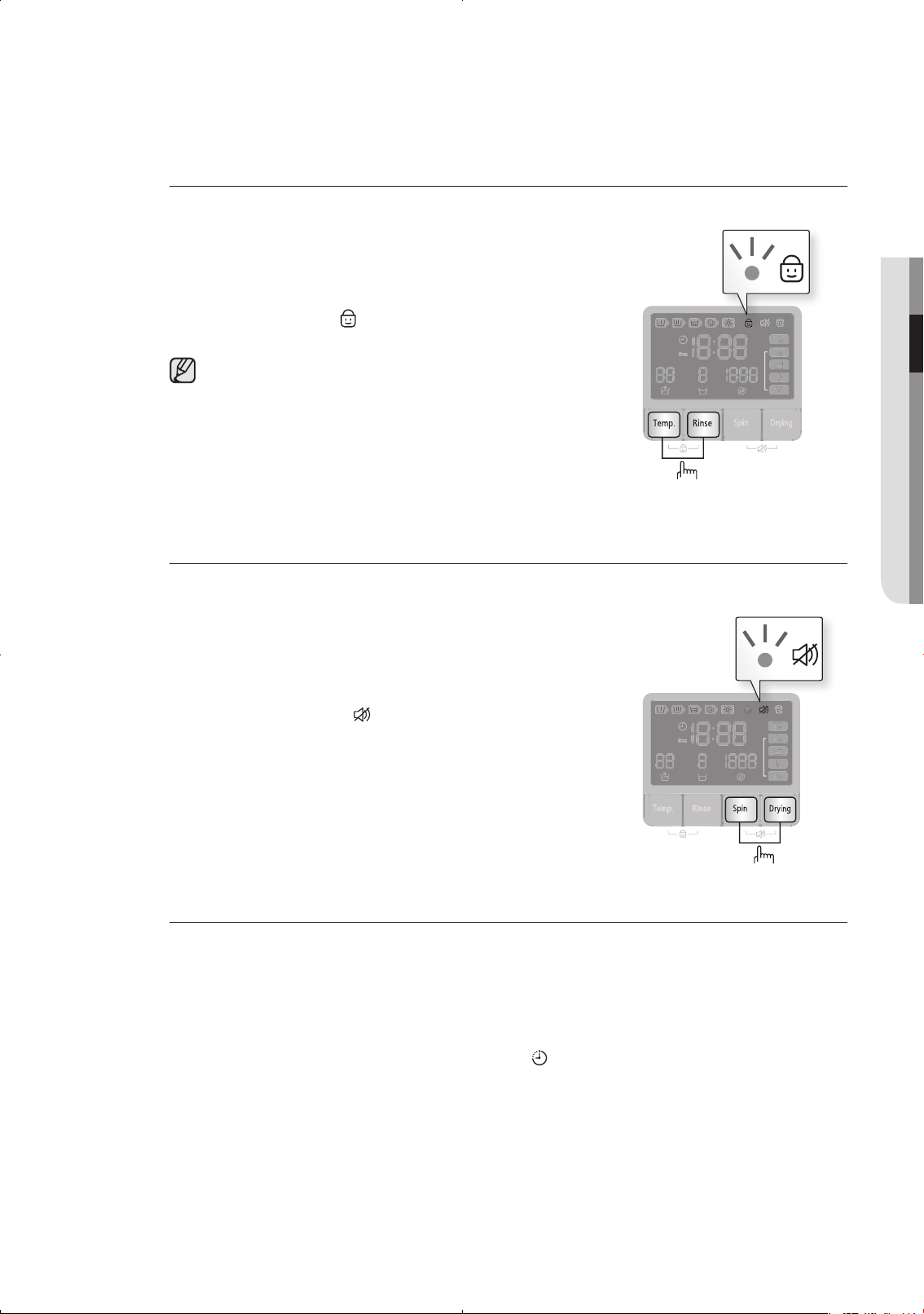

27 Child lock

27 Sound off

27 Delay end

28 Drain Only Function

28 My cycle

29 Bubble

30 AIR Wash

31 Using dry course

32 Washing clothes using the cycle selector

33 Washing clothes manually

33Laundryguidelines

34Detergentandadditivesinformation

34 Which detergent to use

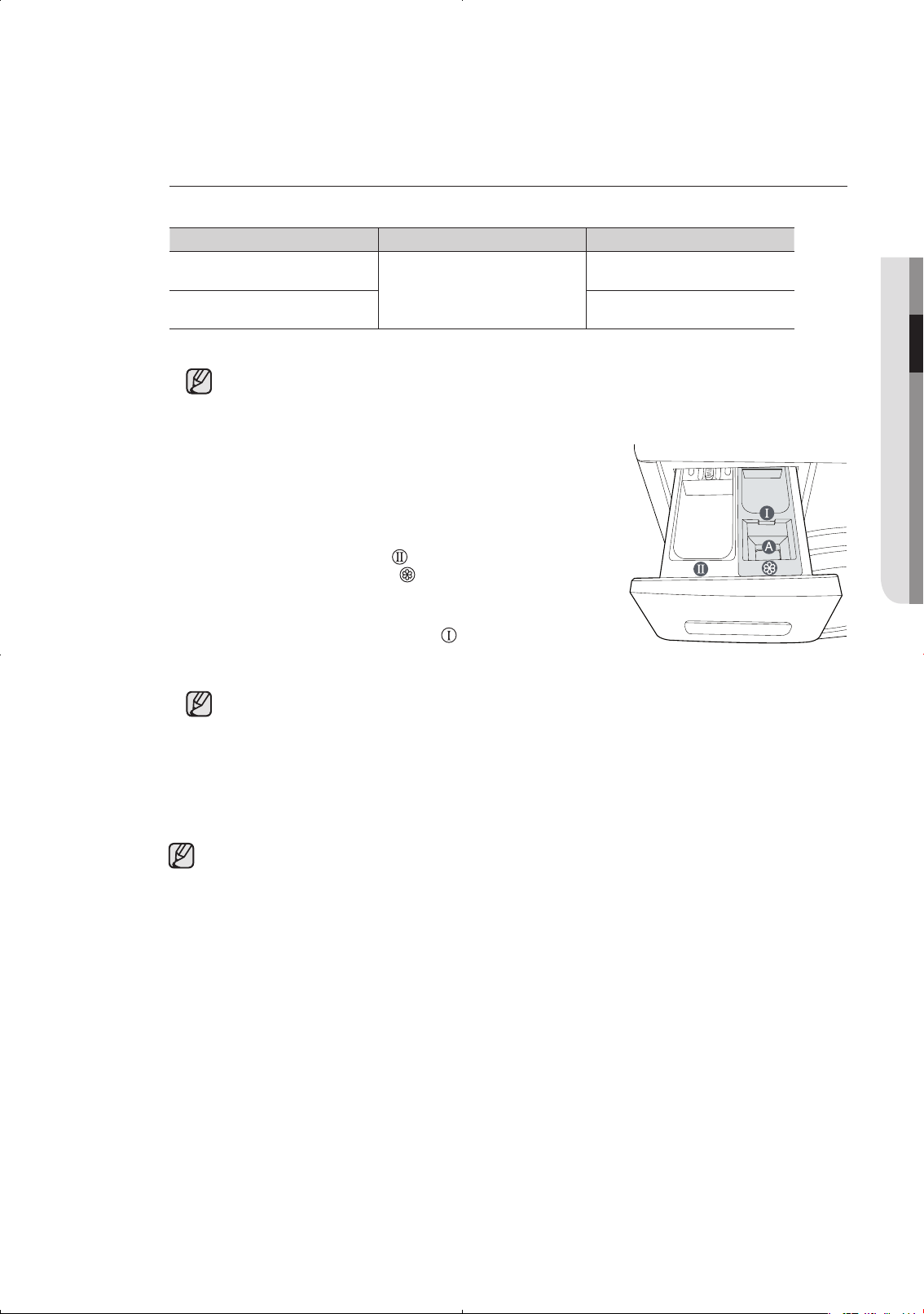

35 Detergent drawer

35 Liquid Detergent (Selected models)

CLEANING AND MAINTAINING YOUR

WASHING MACHINE

36DrumClean

37Drainingthewashingmachineinan

emergency

38Cleaningthedebrislter

38Cleaningtheexterior

39Cleaningthedetergentdraweranddrawer

recess

39Cleaningthewaterhosemeshlter

40Repairingafrozenwashingmachine

40 Storing your washing machine

TROUBLESHOOTING AND

INFORMATION CODES

41Checkthesepointsifyourwashingmachine...

42Informationcodes

CYCLE CHART

43Cyclechart

APPENDIX

44 Fabric care chart

44 Protecting the environment

44Declarationofconformity

45 Speciﬁcation

WD856UHSAGD-03223J.indd 142013-6-7 10:35:48

setting up your washing machine _15

01 SETTING UP

setting up your washing

machine

Be sure to have your installer follow these instructions closely so that your new

washing machine works properly and so that you’re not at risk of injury when doing

laundry.

ChECkINGthEpARts

Carefullyunpackyourwashingmachine,andmakesureyou’vereceivedallofthepartsshownbelow.

Ifyourwashingmachinewasdamagedduringshipping,orifyoudonothavealloftheparts,contact

SamsungCustomerServiceoryourSamsungdealer.

spanner

Bolthole

covers

Cold

hot

(selected

model)

hoseguide

Capxer

(selected

model)

Liquid

detergent

box(selected

model)

Watersupplyhose

*Boltholecovers:Thenumberofboltholecoversdependsonthemodel(3~5covers).

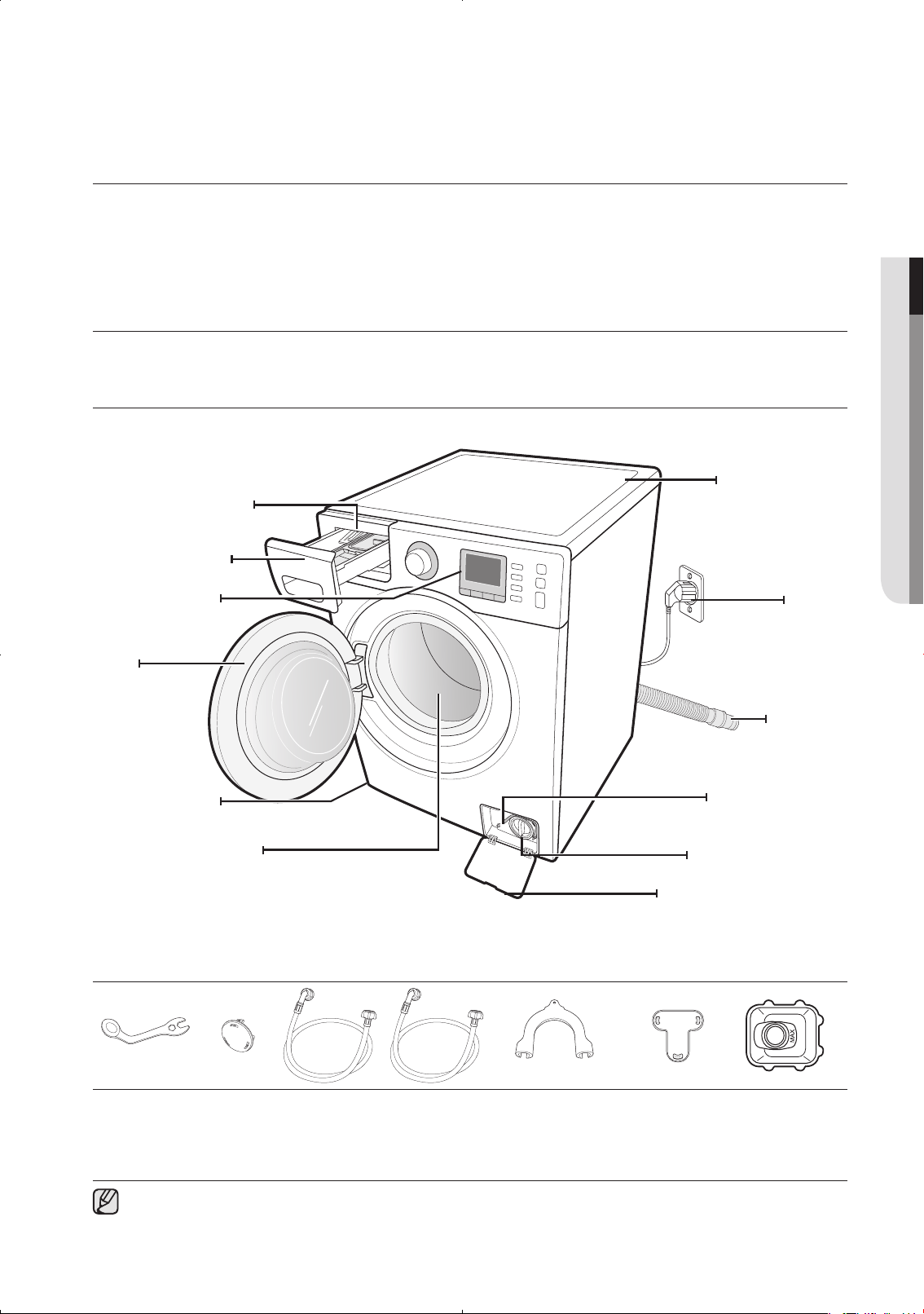

Detergentdrawer

Controlpanel

Door

Levellingfeet

Worktop

plug

Drainhose

Debrislter

Emergencydraintube

filterCover

tub

Releaselever

WD856UHSAGD-03223J.indd 152013-6-7 10:35:48

16_ setting up your washing machine

mEEtINGINstALLAtIoNREQuIREmENts

Electricalsupplyandgrounding

Never use an extension cord.

Use only the power cord that comes with your washing machine.

Whenpreparingforinstallation,ensurethatyourpowersupplyoffers:

•AC220-240V/50Hzfuseorcircuitbreaker

•Individualbranchcircuitservingonlyyourwashingmachine

Yourwashingmachinemustbegrounded.Ifyourwashingmachinemalfunctionsorbreaks

down, grounding will reduce the risk of electric shock by providing a path of least resistance for

the electric current.

Your washing machine comes with a power cord having a three-prong grounding plug for use in

a properly installed and grounded outlet.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Improperlyconnectingtheequipment-groundingconductorcanresultinelectricshock.

Checkwithaqualiedelectricianorservicemanifyouareunsureifthewashingmachineis

properlygrounded.Donotmodifytheplugprovidedwiththewashingmachine.Ifitdoesnott

the outlet, have a proper outlet installed by a qualiﬁed electrician.

Watersupply

Yourwashingmachinewillllproperlywhenyourwaterpressureis50kPa~800kPa.Water

pressurelessthan50kPamaycausewatervalvefailure,notallowingthewatervalvetoshut

off completely. Or, it may take the washing machine longer to ﬁll than what the controls allow,

resultinginyourwashingmachineturningoff.(All-timelimit,designedtopreventoverows/

oodingifaninternalhosebecomesloose,isbuiltintothecontrols.)

Thewatertapsmustbewithin120cmofthebackofyourwashingmachinefortheprovidedinlet

hoses provided to reach your washing machine.

Mostplumbingsupplystoressellinlethosesofvariouslengthsupto305cmlong.

You can reduce the risk of leaks and water damage by:

•Makingwatertapseasilyaccessible.

•Turningofftapswhenthewashingmachineisnotinuse.

•Periodicallycheckingforleaksatwaterinlethosettings.

Before using your washing machine for the ﬁrst time, check all connections at the water

valve and taps for leaks.

setting up your washing

machine

WARNING

WD856UHSAGD-03223J.indd 162013-6-7 10:35:49

setting up your washing machine _17

01 SETTING UP

Drain

Samsung recommends a standpipe height of 65cm. The drain hose must be routed through

the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside

diameter of the drain hose. The drain hose is attached at the factory.

flooring

For best performance, your washing machine must be installed on a solidly constructed ﬂoor.

Woodoorsmayneedtobereinforcedtominimizevibrationand/orunbalancedloads.Carpeting

and soft tile surfaces are contributing factors to vibrations and the tendency for your washing

machine to move slightly during the spin cycle.

Never install your washing machine on a platform or poorly supported structure.

surroundingtemperature

Donotinstallyourwashingmachineinareaswherewatermayfreeze,sinceyourwashing

machine always retains some water in its water valve, pump, and hose areas. Frozen water in

the lines can cause damage to belts, the pump, and other components.

Alcoveorclosetinstallation

To operate safely and properly, your new washing machine requires minimum clearances of:

Sides–25mmRear–50mm

Top–25mmFront – 465 mm

Ifboththewashingmachineandadryerareinstalledtogether,thefrontofthealcoveorcloset

must have at least 465 mm unobstructed air opening. Your washing machine alone does not

require a speciﬁc air opening.

INstALLINGyouRWAshINGmAChINE

STEP 1

selectingalocation

Before you install the washing machine, make sure the location:

•Hasahard,levelsurfacewithoutcarpetingorooringthatmayobstructventilation

•Isawayfromdirectsunlight

•Hasadequateventilation

•Willnotbefreezing(below0˚C)

•Isawayfromheatsourcessuchasoilorgas

•Hasenoughspacesothatthewashingmachinedoesn’tstandonitspowercord

WD856UHSAGD-03223J.indd 172013-6-7 10:35:49

18_ setting up your washing machine

setting up your washing

machine

STEP 2

Removingtheshippingbolts

Before installing the washing machine, you must remove all shipping bolts from the back of the

unit.

1. Loosenalltheboltswiththesuppliedwrench.

2. Hold the bolt with the spanner and pull it through the wide

sectionofthehole.Repeatforeachbolt.

3. Fill the holes with the supplied plastic covers.

4. Store the shipping bolts away safely in case you have to move the washing machine in the

future.

Packagingmaterialscanbedangeroustochildren;keepallpackagingmaterial(plastic

bags,polystyrene,etc.)welloutofthereachofchildren.

Insertthecapxer,(oneoftheaccessories

inthevinylpack),intotheholefromwhich

you removed the power cord at the back

of the product.

WARNING

option

WD856UHSAGD-03223J.indd 182013-6-7 10:35:49

setting up your washing machine _19

01 SETTING UP

STEP 3

AdjustingtheLevellingfeet

Wheninstallingyourwashingmachine,ensurethatthepowerplug,thewatersupplyand

the drain are easily accessible.

1. Slide the washing machine into position.

2. Levelyourwashing

machine by turning the

levelling feet in and out as

necessary by hand.

3. Whenyourwashingmachineislevel,tightenthenutsusing

the wrench supplied with your washing machine.

STEP 4

Connectingthewateranddrain

Connecting the water supply hose

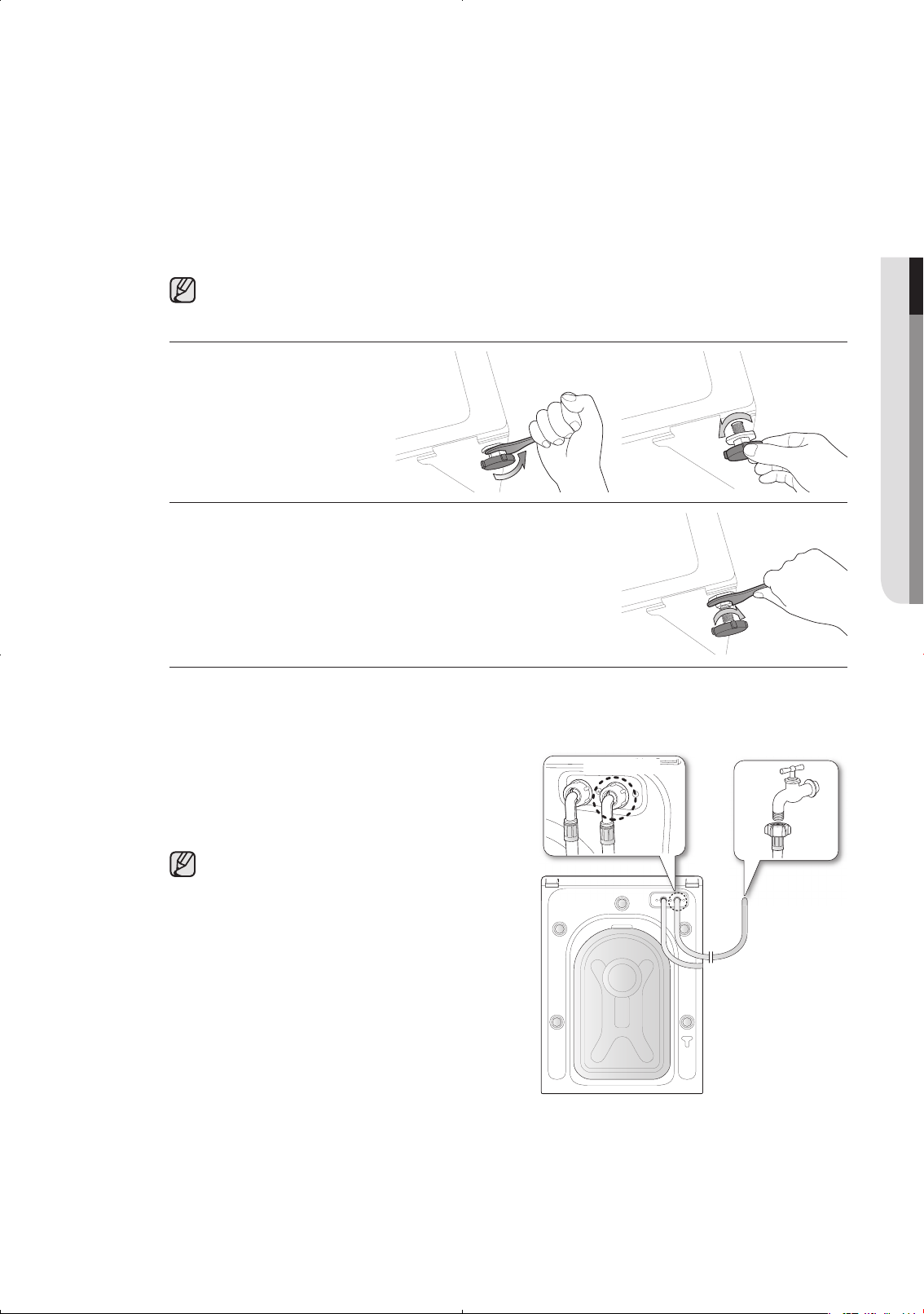

1. TaketheL-shapedarmttingforthecoldwater

supply hose and connect it to the cold water

supply intake on the back of the machine.

Tighten by hand.

The water supply hose must be connected to

the washing machine at one end and to the

watertapattheother.Donotstretchthewater

supplyhose.Ifthehoseistooshort,replace

the hose with a longer, high pressure hose.

2. Connecttheotherendofthecoldwatersupply

hose to your sink’s cold water tap and tighten

itbyhand.Ifnecessary,youcanrepositionthe

water supply hose at the washing machine end

by loosening the ﬁtting, rotating the hose, and

retightening the ﬁtting.

forselectedmodelswithanadditionalhotwaterintake:

1. TaketheredL-shapedarmttingforthehotwatersupplyhoseandconnectittothehot

water supply intake on the back of the machine. Tighten by hand.

2. Connecttheotherendofthehotwatersupplyhosetoyoursink’shotwatertapandtighten

it by hand.

3. Use a Y-piece if you only want to use cold water.

option

WD856UHSAGD-03223J.indd 192013-6-7 10:35:50

20_ setting up your washing machine

setting up your washing

machine

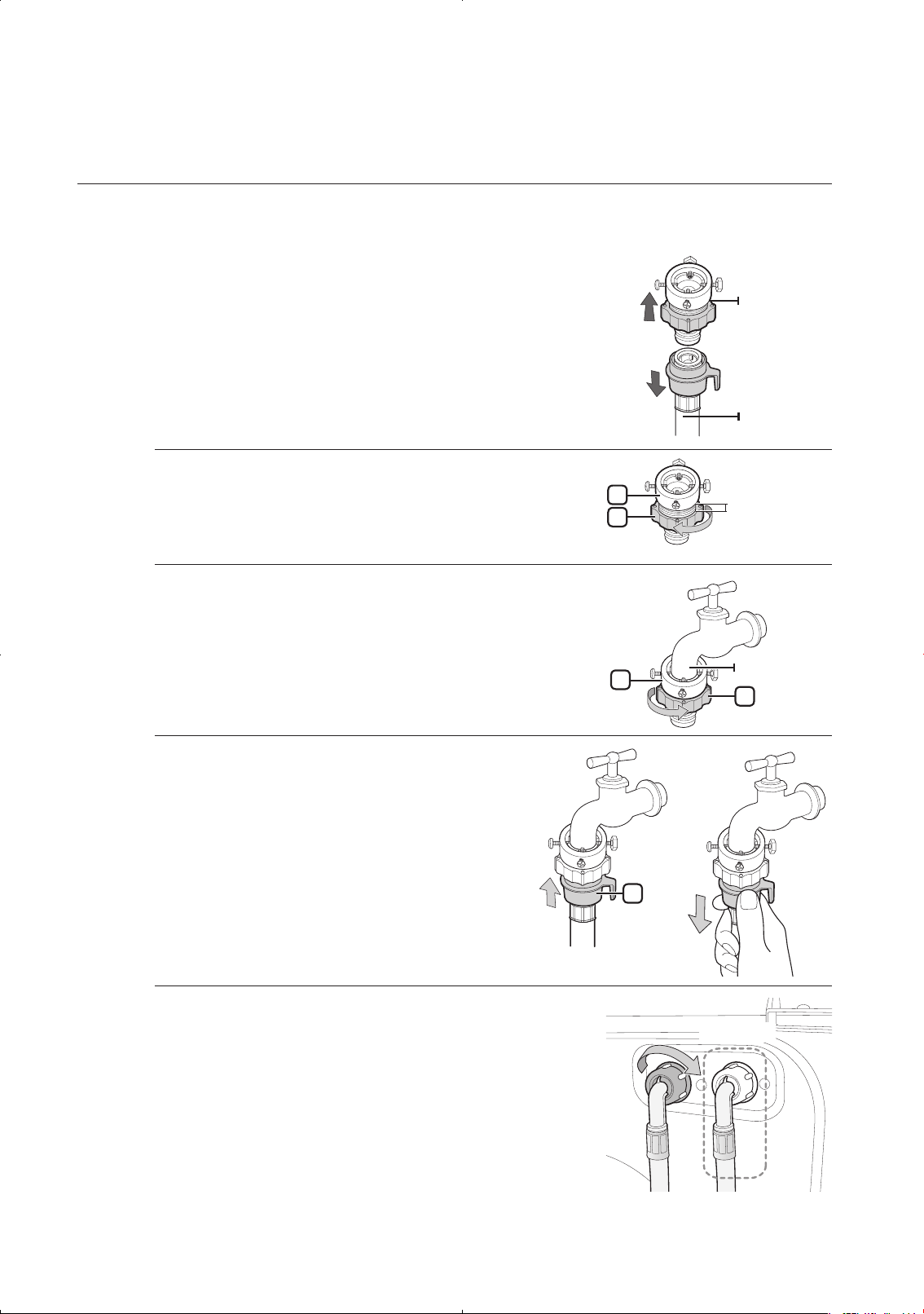

Connecting the water supply hose

1. Removetheadaptorfromthewatersupplyhose.

2. First, using a ‘+’ type screwdriver, loosen the four screws

ontheadaptor.Next,taketheadaptorandturnpart(2)

following the arrow until there is a 5 mm gap.

3. Connecttheadaptortothewatertapbytighteningthe

screws ﬁrmly while lifting the adaptor upwards.

Turnpart(2)followingthearrowandconnect(1)and(2).

4. Connectthewatersupplyhosetotheadaptor.

Whenyoureleasepart(3),thehoseautomatically

connects to the adaptor making a ‘click’ sound.

After you have connected the water supply

hose to the adaptor, ensure that it is connected

correctly by pulling the water supply hose

downwards.

5.Connecttheotherendofthewatersupplyhosetotheinlet

water valve at the rear of the washing machine. Screw the

hose clockwise all the way in.

Adaptor

Watersupply

hose

5mm

Watertap

option

WD856UHSAGD-03223J.indd 202013-6-7 10:35:50

setting up your washing machine _21

01 SETTING UP

6. Turn on the water supply and ensure that no water leaks

fromthewatervalve,taporadaptor.Ifthereisawater

leaks, repeat the previous steps.

Donotuseyourwashingmachineifthereisawaterleak.

This may cause electric shock or injury.

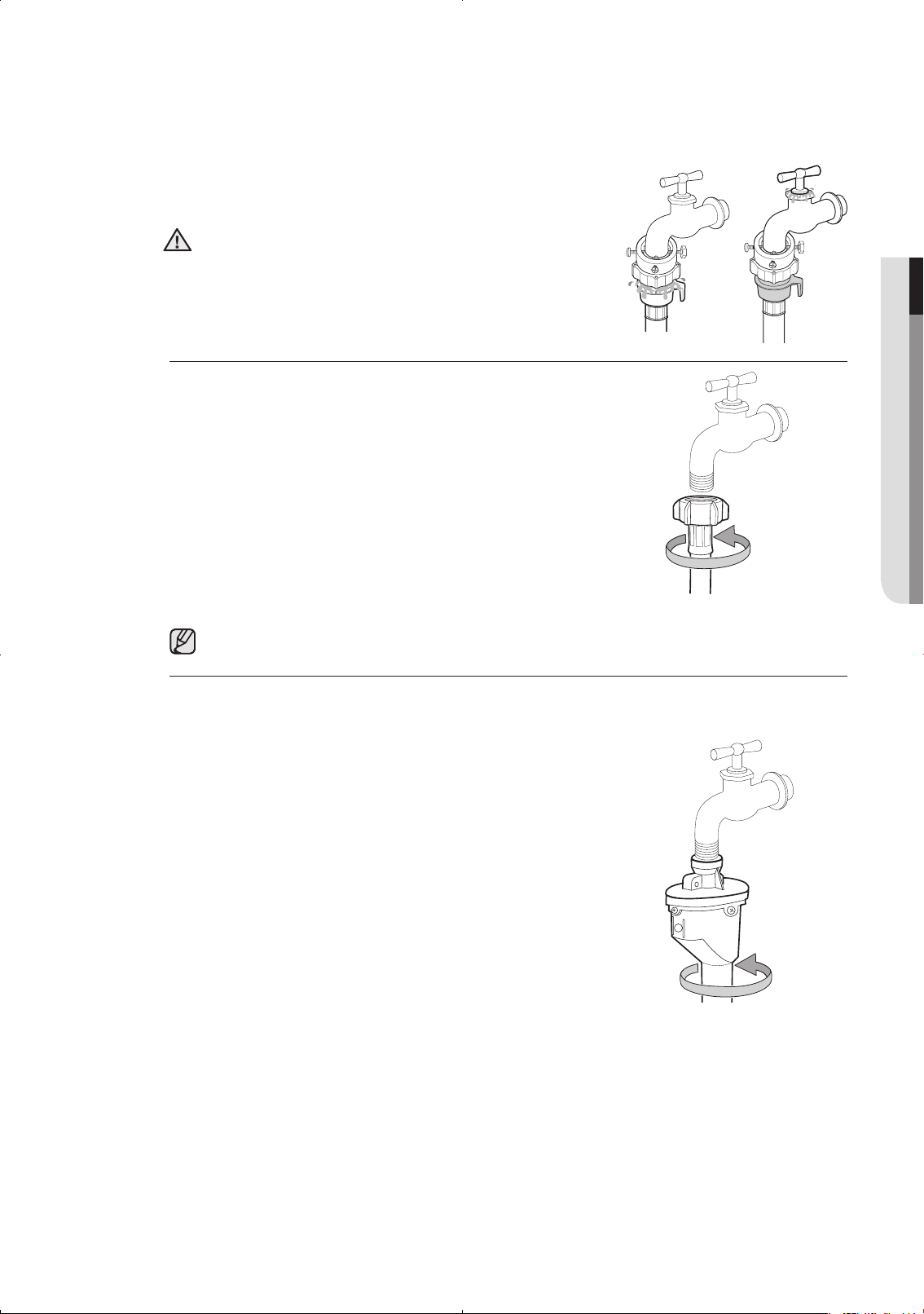

•Ifthewatertaphasascrewtypetap,connectthewater

supply hose to the tap as shown.

Usethemostconventionaltypeoftapforthewatersupply.Incasethetapissquareortoo

big, remove the spacing ring before inserting the tap into the adaptor.

Connecting the Aqua Hose (Selected models)

The Aqua Hose was invented for perfect leakage protection.

Itisattachedtothewatersupplyhoseandautomaticallycuts

offthewaterowifthehoseisdamaged.Italsodisplaysa

warning indicator.

•Connectthewatersupplyhosetothetapasshown.

✗

WARNING

WD856UHSAGD-03223J.indd 212013-6-7 10:35:50

22_ setting up your washing machine

setting up your washing

machine

Connecting the drain hose

The end of the drain hose can not be sinked under water and be positioned in three ways:

1. Over the edge of a wash basin:Thedrainhosemustbeplacedataheightofbetween60

and90cm.Tokeepthedrainhosespoutbent,usethesuppliedplastichoseguide.Secure

the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose

from moving.

2. ln a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that

theendofthehoseisatleast60cmabovetheground.

3. ln a drain pipe:Werecommendusinga65cmhighverticalpipe;itmustbenoshorterthan

60cmandnolongerthan90cm.

The standpipe drain requires;

•minimumdiameter5cm.

•minimumcarry-awaycapacity60literperminute.

STEP 5

poweringyourwashingmachine

Plugthepowercordintoawallsockets,anAC220-240V/50Hzapprovedelectricaloutlet

protectedbyafuseorcircuitbreaker.(Formoreinformationonelectricalandgrounding

requirements,seepage16.)

testrun

Make sure that you install your washing machine correctly by running the Rinse+spin cycle

after the installation is complete.

Drainhose

hoseguide

60~90cm

WD856UHSAGD-03223J.indd 222013-6-7 10:35:51

washing a load of laundry _23

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry

With your new Samsung washing machine, the hardest part of doing laundry will be

deciding which load to wash ﬁrst.

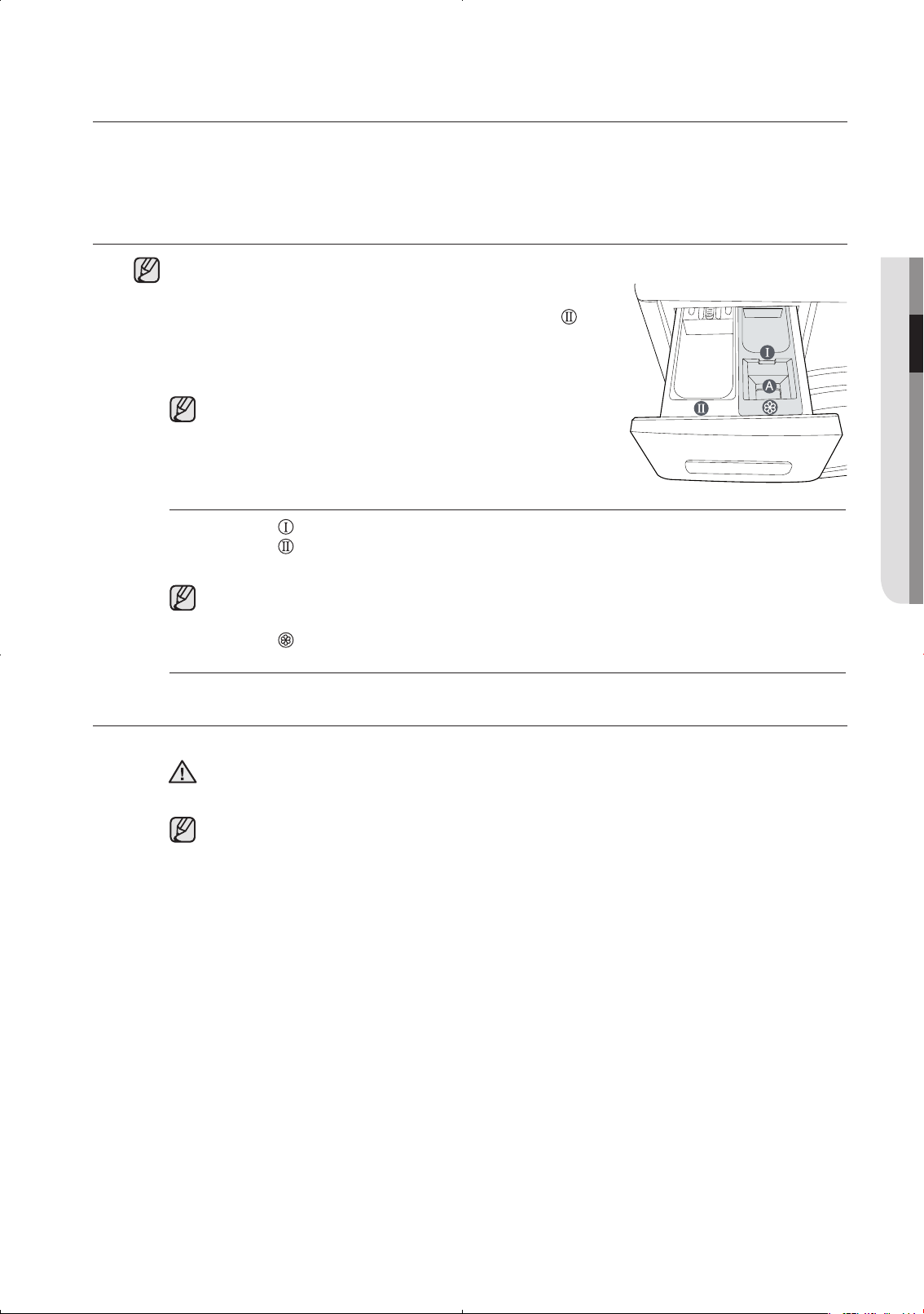

WAshINGfoRthEfIRsttImE

Beforewashinglaundryforthersttime,youmustrunacompleteemptycycle(i.e.nolaundry).

1. Press the Power button.

2. Add a little detergent to the detergent compartment

the detergent drawer.

3. Turn on the water supply to the washing machine.

4. Press the Start/Pause button.

This will remove any water that might be left over in the

machine from the manufacturer’s test run.

Compartment :Detergentforprewash,orstarch.

Compartment :Detergentforthemainwash,watersoftener,pre-soakingagent,bleachand

stain removal product.

Touseliquiddetergent,usetheliquiddetergentbox(refertopage35ofthemanualforthe

correspondingmodel).Donotaddpowdereddetergentintotheliquiddetergentbox.

Compartment

:Additives,e.g.fabricsoftenerorformer(llnohigherthanloweredge(MAX)

of“A”)

BAsICINstRuCtIoNs

1. Loadyourlaundryintothewashingmachine.

Donotoverloadthewashingmachine.Todeterminetheloadcapacityforeachtypeof

laundry,refertothechartonpage33-34.

•Makesurethatlaundryisnotcaughtinthedoor,asthismaycauseawaterleak.

•Washingdetergentmayremaininthefrontrubberpartofthewasherafterawashcycle.

Removeanyremainingdetergent,astheymaycauseawaterleak.

•Donottouchthedoorglasswhileyourwashingmachineisrunningoritmaybehot.

•Donotopenthedetergentdrawerorthedebrislterwhileyourwashingmachineis

running or you might be exposed to hot water or steam.

•Donotwashwater-proofeditemsinnormalcycleexceptoutdoorcareprogram.

2. Closethedooruntilitlatches.

3. Turn the power on.

4. Add detergent and additives to the dispenser drawer.

5. Select the appropriate cycle and options for the load.

TheWashIndicatorlightwillilluminateandtheestimatedcycletimewillappearinthedisplay.

6. Press the Start/Pause button.

WARNING

WD856UHSAGD-03223J.indd 232013-6-7 10:35:52

24_ washing a load of laundry

usINGthECoNtRoLpANEL

DIGITAL GRAPHIC

DISPLAY

Displaystheremainingwashcycletime,allcycleinformation,anderror

messages.

CYCLE SELECTOR

Select the tumble pattern and spin speed for the cycle.

Fordetailedinformation,referto“Washingclothesusingthecycle

selector”.(seepage32)

Cotton - For average or lightly soiled cottons, bed linen, table linen,

underwear, towels, shirts, etc.

Cotton40˚C,2rinses,1400rpmspin,Intensivewash,Bubbleis

recommended for a normally soiled cotton load.

Energy and water labelling test programme in accordance with AS/

NZS2040.

synthetics - For averagely or lightly soiled blouses, shirts, etc., made

ofpolyester(diolen,trevira),polyamide(perlon,nylon)orothersimilar

blends.

DailyWash - Use for everyday items such as underwear and shirts.

15’QuickWash-Forlightlysoiledgarmentsandlessthan2kglaundry

that you require quickly.

•Thevalues(15’minutes)canvaryfromtheindicatedvalues

depending on water pressure, water hardness, water inlet

temperature, room temperature, type and amount of washing

and degree of soiling, utilized detergent, ﬂuctuation in the

electricity supply and extra options selected.

•

Add only a small amount of detergent for a small amount of laundry

(lessthan2kg)forthe15’QuickWashcourse,becauseifyouadd

too much detergent, detergent may remain after the wash.

spin - Performs an additional spin cycle to remove more water.

Rinse+spin - Use for a load that needs rinsing only or to add rinse-

added fabric softener to a load.

DrumClean-Usefordrumcleaning.Itcleansesdirtandbacteria

ofdrum.Regularuse(afterevery40washes)isrecommended.No

detergent or bleach needed.

AIRWash - This course is useful for removing bad odors. Turning the

CycleSelectorcyclesthroughthefollowingoperatingmodes.

(

Deodorization Sanitization

)

•Deodorization-Reducesbadsmellsfromthelaundry

•sanitization-DeodorizeandsanitizethelaundrybystrongerAIR

Washactionwithhighertemp.

Drying - Select to dry laundry automatically by detecting the amount and

weight of the laundry.

washing a load of laundry

8 96

1110 121 13

WD856UHSAGD-03223J.indd 242013-6-7 10:35:52

washing a load of laundry _25

02 WASHING A LOAD OF LAUNDRY

BabyCare - High temperature wash and extra rinses ensure that no

washing powder remains to mark your thin clothes.

IntensiveCold-LowtemperatureBubblewash.

outdoorCare - Use for outdoor wear such as mountain clothes,

skiwear, and sports wear. Fabrics include functional technology ﬁnishes

and ﬁbers such as spandex, stretch, and micro-ﬁber.

Wool -

Onlyformachine-washablewool.Aloadshouldbelessthan2.0kg.

•Thewoolcoursewashesthelaundryusinggentlecradling

actions.Duringthewash,thegentlecradlingandsoaking

actions are continued to protect the wool ﬁbers from shrinkage

/ distortion and for a super gentle clean. This stop operation is

not a problem.

•Neutraldetergentisrecommendedforwoolcourse,for

improved washing results and for improved care of the wool

ﬁbers.

Drainonly

-TurntheCycleSelectortotheSpinposition,presstheSpin

buttonrepeatedlyuntil“Nospin(

)”lightcomeson,andthenpressthe

Start/Pause button to drain the water.

TEMPERATURE

SELECTION BUTTON

Press this button repeatedly to cycle through the available water

temperatureoptions:(

(ColdWater:alllampturnoff),20˚C,30˚C,

40˚C,60˚Cand95˚C).

RINSE SELECTION

BUTTON

Press this button to add additional rinse cycles. The maximum number

of rinse cycles is ﬁve.

SPIN SELECTION

BUTTON

Press the button repeatedly to cycle through the available speeds for the

spin cycle.

WD856UH

AllLampTurnOff

,400,800,1200,1400rpm

“No spin

” - The laundry remains in the drum and no spin cycle is

performed after the ﬁnal drain.

“Rinse hold (All Lamp Turn Off)” -The laundry remains soaking in the

nalrinsewater.Beforethelaundrycanbeunloaded,eitheraDrainor

Spin cycle must be performed.

DRYING BUTTON

Pressing the button cycles through the following options.

Cup Board



Low Temp



Iron



Time Dry

(30min.



1:00h



1:30



2:00h



2:30h



3:00h



3:30h



4:00h



4:30h)



Cup Board

Cup Board - Use this cycle to dry loads such as cotton, underwear,

and linen.

Low Temp - This cycle protects heat-sensitive items at a low drying

temperature.

Iron -FinishesthedrycycleinamoiststateappropriateforIroning.

Time Dry -Drythelaundryforthespeciedperiodoftime.

•Youmustavoidwashinglaundrythatcan’tsafelybedriedasit

may be deformed even at low temperatures.

•TheCupBoard,LowTemp,IronandTimeDryoptionsdetectthe

weight of the laundry in order to display an accurate drying time

and dry them more completely.

•Thedryingconditionsmaydifferdependingonthetypeandthe

amount of laundry.

•DryingisnotavailableforDrumClean,AIRWashandWool

courses.

WD856UHSAGD-03223J.indd 252013-6-7 10:35:53

26_ washing a load of laundry

washing a load of laundry

BUBBLE SELECTION

BUTTON

Bubble selection is turned on as a default. Press the Bubble option

buttononcetodeselectandtheBubbleGeneratorOFF(shownonthe

panel),pressitagaintoturnthefunctionbackON.

•SomewashcyclesmusthaveBubbleoptionON(willshowonthe

panel,andtheGeneratorwillturnonautomatically).

•Other wash cycles do not need this option and automatically turn the

GeneratorOFF.

•On many cycles, you can manually adjust this option, which will

visiblyaffectwashtimeonthepaneltoachieveresults(pleasesee

page29formoreinformation).

DELAY END

SELECTION BUTTON

PressthisbuttonrepeatedlytocyclethroughtheavailableDelayEnd

options(from3hoursto19hoursinonehourincrements).

The hour displayed indicates the time when the wash cycle will be ﬁnished.

PREWASH

SELECTION BUTTON

Press this button to select pre-wash. Pre-wash is only available with:

Cotton,Synthetics,DailyWash,BabyCare,IntensiveCold.

INTENSIVE WASH

SELECTION BUTTON

Press this button when the laundry is heavily soiled and needs to be washed

intensively. The cycle time will be increased if the intensive wash is on.

MY CYCLE

SELECTION BUTTON

Chooseyourfavoritecycleincludingtemperature,spin,soillevel,option,etc.

START/PAUSE

SELECTION BUTTON

Press to pause and restart a cycle.

POWER BUTTON

Press it once to turn your washing machine on, press it again to turn

your washing machine off.

Ifthewashingmachineisleftonformorethan10minuteswithoutany

buttons being touched, the power automatically turns off.

WD856UHSAGD-03223J.indd 262013-6-7 10:35:53

washing a load of laundry _27

02 WASHING A LOAD OF LAUNDRY

Childlock

TheChildLockfunctionallowsyoutolockthebuttonssothatthewashcycleyou’vechosen

can’t be changed.

Activating/Deactivating

IfyouwanttoactivateordeactivatetheChildLockfunction,

press the Temp. and Rinse buttons at the same time for

3seconds.“Child Lock

” will be lit when this feature is

activated.

WhentheChildLockfunctionisactivated,onlythe

Powerbuttonworks.TheChildLockfunctionremains

on even after the power is turned on and off or after the

disconnecting and reconnecting the power cord.

soundoff

TheSoundOfffunctioncanbeselectedduringallcourses.Whenthisfunctionisselected,sound

is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is

retained.

Activating/Deactivating

IfyouwanttoactivateordeactivatetheSoundOfffunction,

press the Spin and Dryingbuttonsatthesametimefor3

seconds. The “Sound Off

” will be lit when this feature is

activated.

Delayend

You can set the washing machine to ﬁnish your wash automatically at a later time, choosing a

delayofbetween3to19hours(in1hourincrements).Thehourdisplayedindicatesthetimeat

which the wash will be ﬁnished.

1. Manually or automatically set your washing machine according to the type of laundry you are

washing.

2. Press the Delay End button repeatedly until the delay time is set.

3. Press the Start/Pause button. The “Delay End

” indicator will be lit, and the clock will

begin counting down until it reaches the set time.

4. TocancelaDelayEndfunction,pressthePower button and then turn the washing machine

on again.

3sEC.

WD856UHSAGD-03223J.indd 272013-6-7 10:35:59

28_ washing a load of laundry

Drainonlyfunction

Whenyouwantjustdrainwaterfromwashingmachine,followdirectionsbelow.

1. Press the power button.

2. TurntheCycleSelectortotheSpinposition.

3. Press the spinbuttonrepeatedlyuntil“Nospin(

)”lightcomeson.

4. Press the start/pause button.

mycycle

Allowsyoutoactivateyourcustomwash(temperature,spin,soillevel,etc.)withonebutton

convenience.

By pushing the My Cyclebutton,presstheMyCyclebuttontoloadandusethesavedMy

Cycleoptions.Thechosencourseandoptionlightswillicker.

YoucansetalloptionsasfollowsintheMyCyclemode.

1. Turn the water supply on.

2. Press the Power button.

3. Select cycle using the Cycle Selector.

4. After cycle selection, set each option.

Seethe“CycleChart”onpage43foravailableoptionsettingswitheachcycle.

5. You can then store the selected cycle and options by pressing and holding the My Cycle

buttonforlongerthan3secondsinMyCyclemode.Thecycleandoptionsyouselectwillbe

displayedthenexttimeyouchoosetheMyCyclefunction.

YoucanchangetheMyCyclesettingsbyrepeatingthesameprocessabove.

ThelastusedsettingwillbedisplayedthenexttimeyouchoosetheMyCyclefunction.

IfyoupressMyCycleandreleaseitwithin3seconds,thepreviouslysavedcourseand

optionsappear.IfyoupressandholdMyCyclefor3secondorlonger,thecurrentlyset

courseandoptionsaresavedandtheLEDblinksfor3seconds.

washing a load of laundry

WD856UHSAGD-03223J.indd 282013-6-7 10:36:00

washing a load of laundry _29

02 WASHING A LOAD OF LAUNDRY

Bubble

Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.

Course Bubble function Canceling the Bubble function

Cotton,Synthetics,DailyWash,

15’QuickWash

Available

IntensiveCold,OutdoorCare,Baby

Care,Wool

Not available

•AdifferentBubblefunctionmaybeapplieddependingthecourse.

Bubble selection is default. Press it once to deselect Bubble option, press it again to

select Bubble option.

1. Open the door, place the laundry inside the wash tub and close the door.

2. Press the Power button.

3. Select a function.

4. Place the appropriate amount of detergent and fabric

softener into the corresponding compartments depending

on the amount of laundry and close the detergent drawer.

•Add the appropriate amount of detergent into the

detergent compartment

, and add the fabric softener

to softener compartment just under the ﬁber softener

baseline(MAX)of“A”)

•WhenthePrewashcourseisselected,adddetergent

into the prewash compartment as well.

•To use liquid detergent, leave the liquid detergent box

inthedrawer(referto“LiquidDetergent”sectiononpage35).

Donotaddpowdereddetergentintotheliquiddetergentbox.

5. Press the Start/Pause button.

•Press the Start/Pause button to start the wash.

•The amount of the laundry is automatically detected and the laundry is washed.

•Once a washing machine operation begins, you cannot add or select the Bubble

function.

•Enoughbubblesaregeneratedwiththespeciedamountofdetergent.

•PleasecleantheDebrislterfrequently.Periodiccleaninghelpsgeneratesufcient

bubbles.

•Dependingonthedetergentandthelaundry,thebubblesmaybeabsorbedandseem

like a small quantity.

•Althoughbubblesaregeneratedoncethewashbegins,itmaytakeseveralminutesfor

users to see them.

WD856UHSAGD-03223J.indd 292013-6-7 10:36:00

30_ washing a load of laundry

washing a load of laundry

AIRWash

AIRWashcanrefreshlaundrywithoutusingwaterowingtoitspowerfulairingsystem.Clothing

that can be refreshed includes woolen coats, cotton jumpers, sweaters and suits. [Two items or

less(lessthan1kg)]

1. Open the door, place the laundry into the washing machine and close the door.

2. Press the Power button.

3. Select AIR Wash by turning the Cycle Selector.

MODE CYCLE TIME

Deodorization29min

Sanitization 59min

•Whenoneoftheseoptionshasbeenselected,nootherbuttoncanbeselectedandyou

canonlyselectthedelayendtimefrombetween3:00–19:00.

4. ClosethedoorandpresstheStart/Pause button.

•Whenthereiswaterinthetub,AIR Washcannotbeworked.Drainthewaterandselect

AIR Wash.

•PresstheStart/Pause or Power button to remove the laundry.

•FragranceordryersheetscanbeusedwithAIRWashprogramstoaddfragranceto

yourrefreshedlaundry(onesheetperoneortwoitems).

AvoidAIRWashthefollowingclothes:

•Sensitiveclothesmadeofleather,mink,fur,silk,etc.

•Underweartrimmedwithlace,‘glued’dollcushions,anddresssuitsmayhavetheir

decorations loosened.

•Clothestrimmedwithbuttonscancausethemtobreak.

•Starchyclothescanbecomedeformed.

•Hardbeddingsuchasawoodenpillows(neck-rest)

- Pillows or blankets ﬁlled with plastic or starch rather than cotton

- Electric blankets

•Furryblankets

•Bulkyblankets

•Latexpillow

WD856UHSAGD-03223J.indd 302013-6-7 10:36:00

washing a load of laundry _31

02 WASHING A LOAD OF LAUNDRY

usINGDRyCouRsE

Refertothelabelofdryingcapacityandbesuretoputintheclothestothelowerlevelthanthemarkedline

forthedriedclothesof5.0kg.

1. Open the door, put in the clothes and close the door again.

2. Press the Power button and then press the Drying button.

: The standard course will be selected automatically.

DryingisnotavailableforDrumClean,AIRWashandWoolcourses.

3. Select Drying button as follows.

Drying Programs

•Everypressofthisbuttonwillselectdryingtyperepeatedlyinthefollowingorder:

Cup Board



Low Temp



Iron



Time Dry (30min.



1:00h



1:30h



2:00h



2:30h



3:00h



3:30h



4:00h



4:30h)



Cup Board

DryingtypeInformationmaxLoad

time

(maxLoad)

Auto

Drying

Cupboard(

)

Standard:Driesthelaundry.3.0kg240min.

Lowtemp.(

)

Driesthelaundryatalow

temperature to protect the texture

of the laundry.

2.0kg200min.

Iron(

)

For leaving items partially damp so

that it can be easily ironed

2.0kg140min.

timeDrying(

)

You can select the appropriate

drying time depending on the

texture, quantity, and moisture.

5.0kg270min.

•ForAutoDryingprograms,thismachineautomaticallydisplaysDryingTimebysensing

the weight of clothes before drying, and adjusting appropriately.

•Forlaundryweighinglessthan3.0kg,usetheAutoDry.Forlaundrythatweighs

more,pleaseusetheTimeDry.

•Ifboththespinanddryingcyclesareselected,thespinspeedisautomaticallyselected

to enhance the drying efﬁciency.

•Whenusingthedryingcycle,checkifthewatersupplyvalveisopened.

4. Put suitable amount of detergent and ﬁber softener in the detergent tray and close it again.

5. Press Start/Pause button.

:Itautomaticallyperformsanoptimalfunctionfromwashingtodrying.

•Theselectedcoursecan’tbealteredafterthestartofdrying.

•Ifcoldwaterisnotsupplied,dryingwillnotbeperformed.

•Incaseyouwishtodryafterhandwashing,selectbothSpinandDryatthesametime.

WD856UHSAGD-03223J.indd 312013-6-7 10:36:00

32_ washing a load of laundry

Washingclothesusingthecycleselector

Yournewwashingmachinemakeswashingclotheseasy,usingSamsung’s“FuzzyControl”

automaticcontrolsystem.Whenyouselectawashprogram,themachinewillsetthecorrect

temperature, washing time, and washing speed.

1. Turn on your sink’s water tap.

2. Press the Power button.

3. Open the door.

4. Loadthearticlesoneatatimelooselyintothedrum,withoutoverllingit.

5. Closethedoor.

6. Adddetergent,softener,andpre-washdetergent(ifnecessary)intotheappropriate

compartments.

Pre-washisonlyavailablewhenselectingtheCotton,Synthetics,DailyWash,Babycare,

IntensiveCold

cycles.Itisonlynecessaryifyourclothingisheavilysoiled.

Use the Cycle Selector to select the appropriate cycle according to the type of material:

Cotton,Synthetics,DailyWash,15’QuickWash, BabyCare,IntensiveCold,OutdoorCare,

Wool.Therelevantindicatorswillilluminateonthecontrolpanel.

8. At this time, you can control the wash temperature, the amount of rinses, the spinning

speed, and the delay time by pressing the appropriate option button.

9. Press the Start/Pause button and the wash will begin. The process indicator will light up

and the remaining time for the cycle will appear in the display.

pauseoption

Within5minutesofstartingawash,itispossibletoadd/removelaundryitems.

1. Press the Start/Pause button to unlock the door.

ThedoorcannotbeopenedwhenthewateristooHOTorthewaterlevelistooHIGH.

2. After closing the door, press the Start/Pause button to restart the wash.

Whenthecycleisnished:

After the total cycle has ﬁnished, the power will turn off automatically.

1. Open the door.

2. Removelaundry.

washing a load of laundry

WD856UHSAGD-03223J.indd 322013-6-7 10:36:01

washing a load of laundry _33

02 WASHING A LOAD OF LAUNDRY

Washingclothesmanually

YoucanwashclothesmanuallywithoutusingtheCycleSelector.

1. Turn the water supply on.

2. Press the Power button on the washing machine.

3. Open the door.

4. Loadthearticleslooselyintothedrumoneatatime,withoutoverllingit.

5. Closethedoor.

6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate

compartments.

7. Press the Temp. button to select the temperature.

(ColdWater:alllampturnoff,20˚C,30˚C,40˚C,60˚C,95˚C)

8. Press the Rinse button to select the required number of rinse cycles.

The maximum number of rinse cycles is ﬁve.

The wash duration is increased accordingly.

9. Press the Spin button to select the spin speed.

(

: No Spin, Rinse hold: All Lamp Turn Off )

10. Press the Delay EndbuttonrepeatedlytocyclethroughtheavailableDelayEndoptions

(from3hourto19hoursinonehourincrements).Thehourdisplayedindicatesthetimeat

which the wash will be ﬁnished.

11. Press the Start/Pause button and the machine will begin the cycle.

LAuNDRyGuIDELINEs

Follow these simple guidelines for the cleanest laundry and the most efﬁcient wash.

AlwayschecktheCarelabelonclothingbeforewashing.

sortandwashyourlaundryaccordingtothefollowingcriteria:

•CareLabel:Sortlaundryintocottons,mixedbres,synthetics,silks,woolsandrayons.

•Colour:Dividewhitesandcolours.Washnewcolouritemsseparately.

•Size: Placing items of different sizes in the same load will improve the wash action.

•Sensitivity:Washdelicateitemsseparately,usingtheDelicatewashcycleforpure,new

woollenitems,curtainsandsilkarticles.Checkthelabelsontheitemsyouarewashingor

refer to the fabric care chart in the appendix.

Emptyingpockets

Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects,

suchascoins,knives,pins,andpaperclipscoulddamageyourwashingmachine.Donotwash

clothing with large buckles, buttons, or other heavy metal objects.

metalonclothingmaydamageyourclothingaswellasthetub.turnclothingwithbuttons

andembroideredclothesinsideoutbeforewashingthem.Ifzipsofpantsandjacketsare

openwhilewashing,thespinbasketmaybedamaged.Zipsshouldbeclosedandxed

withastringbeforewashing.

Clothingwithlongstringsmaybecomeentangledwithotherclothesdamagingthem.Besureto

ﬁx the strings before starting the wash.

prewashingcotton

Your new washing machine, combined with modern detergents, will give perfect washing results,

thus saving energy, time, water and detergent. However, if your cotton is particularly dirty,

prewash with a protein-based detergent.

WD856UHSAGD-03223J.indd 332013-6-7 10:36:01

34_ washing a load of laundry

Determiningtheloadcapacity

Donotoverloadthewashingmachineoryourlaundrymaynotwashproperly.Usethechart

below to determine the load capacity for the type of laundry you are washing.

Fabric Type Load Capacity

modelWD856

Cotton

-average/lightlysoiled

-heavilysoiled

8.5 kg

synthetics3.5kg

outdoorCare2.0kg

Wool2.0kg

•Whenthelaundryisunbalanced(“UE”lightsuponthedisplay),redistributetheload.

Ifthelaundryisunbalanced,thespinefciencymaybedegraded.

•WhenwashingBeddingorDuvetcover,thewashtimemaybelengthenedorthespin

efﬁciency may be degraded.

Makesuretoinsertbrassieres(waterwashable)intoalaundrynet(tobe

purchasedadditionally).

•Themetalpartsofthebrassieresmaybreakthroughthematerial

and damage the laundry. Therefore make sure to place them inside

a ﬁne laundry net.

•Small,lightclothingsuchassocks,gloves,stockingsand

handkerchiefs may become caught around the door. Place them

inside a ﬁne laundry net.

Donotwashthelaundrynetbyitselfwithoutotherlaundry.Thismaycauseabnormal

vibrations that could move the washing machine and cause an accident resulting in

injury.

DEtERGENtANDADDItIVEsINfoRmAtIoN

Whichdetergenttouse

Thetypeofdetergentyoushoulduseisbasedonthetypeoffabric(cotton,synthetic,delicate

items,wool),colour,washtemperature,anddegreeofsoiling.Alwaysuse“lowsuds”laundry

detergent, which is designed for automatic washing machines.

Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the

degreeofsoiling,andthehardnessofthewaterinyourarea.Ifyoudonotknowhowhardyour

water is, enquire at your local water authority.

Donotusedetergentthathashardendedorsolidiedasthedetergentmayremainin

therinsecycle.Itmaycauseyourwashingmachinetonotrinseproperlyorresultinthe

overﬂow becoming blocked.

pleasenotethefollowingwhenusingtheWoolcourse.

•Useaneutralliquiddetergentforwoolonly.

•Whenusingapowderdetergent,itmayremainonthelaundryandcausedamagetothe

material(wool).

Powdered detergent should be thoroughly dissolved in a small amount of warm water

before adding to the machine.

washing a load of laundry

CAutIoN

WD856UHSAGD-03223J.indd 342013-6-7 10:36:01

washing a load of laundry _35

02 WASHING A LOAD OF LAUNDRY

Detergentdrawer

Your washing machine has separate compartments for dispensing detergent and fabric softener.

Add all laundry additives to the correct compartment before starting your washing machine.

Donotopenthedetergentdrawerwhileyourwashingmachineisrunningoryoumightbe

exposed to hot water or steam.

1. Pull out the detergent drawer on the left side of the control panel.

2. Add the recommended amount of laundry detergent

directly into the detergent compartment

before starting

your washing machine.

Touseliquiddetergent,usetheliquiddetergentbox(refer

to“LiquidDetergent”forthecorrespondingmodel).

•

Donotaddpowdereddetergentintotheliquiddetergentbox.

3. Add the recommended amount of fabric softener into the

softener compartment if required. DONOT exceed the

MAXFILL()line.

DoNOTaddanypowder/liquiddetergent to the softener

compartment(

4. WhenusingthePrewashoption,addtherecommendedamountoflaundrydetergentinto

the prewash compartment .

WhenwashinglargeitemsdoNOTusethefollowing

detergetnt types.

•Tabletandcapsuletypedetergents

•Detergentsusingaballandnet

Concentratedorthickfabricsoftenerandconditioner

must be diluted with a little water before being poured

intothedispenser(preventstheoverowfrombecoming

blocked).

Be careful that the fabric softener does not overﬂow,

when you close the detergent drawer after adding fabric softener into the rinse detergent

compartment.

LiquidDetergent(selectedmodels)

To use liquid detergent, place the liquid detergent box into the main wash section of the

detergent drawer and pour liquid detergent into the liquid detergent box.

•DONOTllabovetheMAXline.

•Whenusingpowdereddetergent,removetheliquid

detergent box from the detergent drawer. Powdered

detergent will not dispense with liquid detergent box.

•Afterawash,someliquidmayremaininthedetergent

drawer.

MAX

mAX

Liquid

detergentbox

CAutIoN

WD856UHSAGD-03223J.indd 352013-6-7 10:36:01

36_ cleaning and maintaining your washing machine

cleaning and maintaining your

washing machine

Keeping your washing machine clean improves its performance, wards off

unnecessary repairs, and lengthens its life.

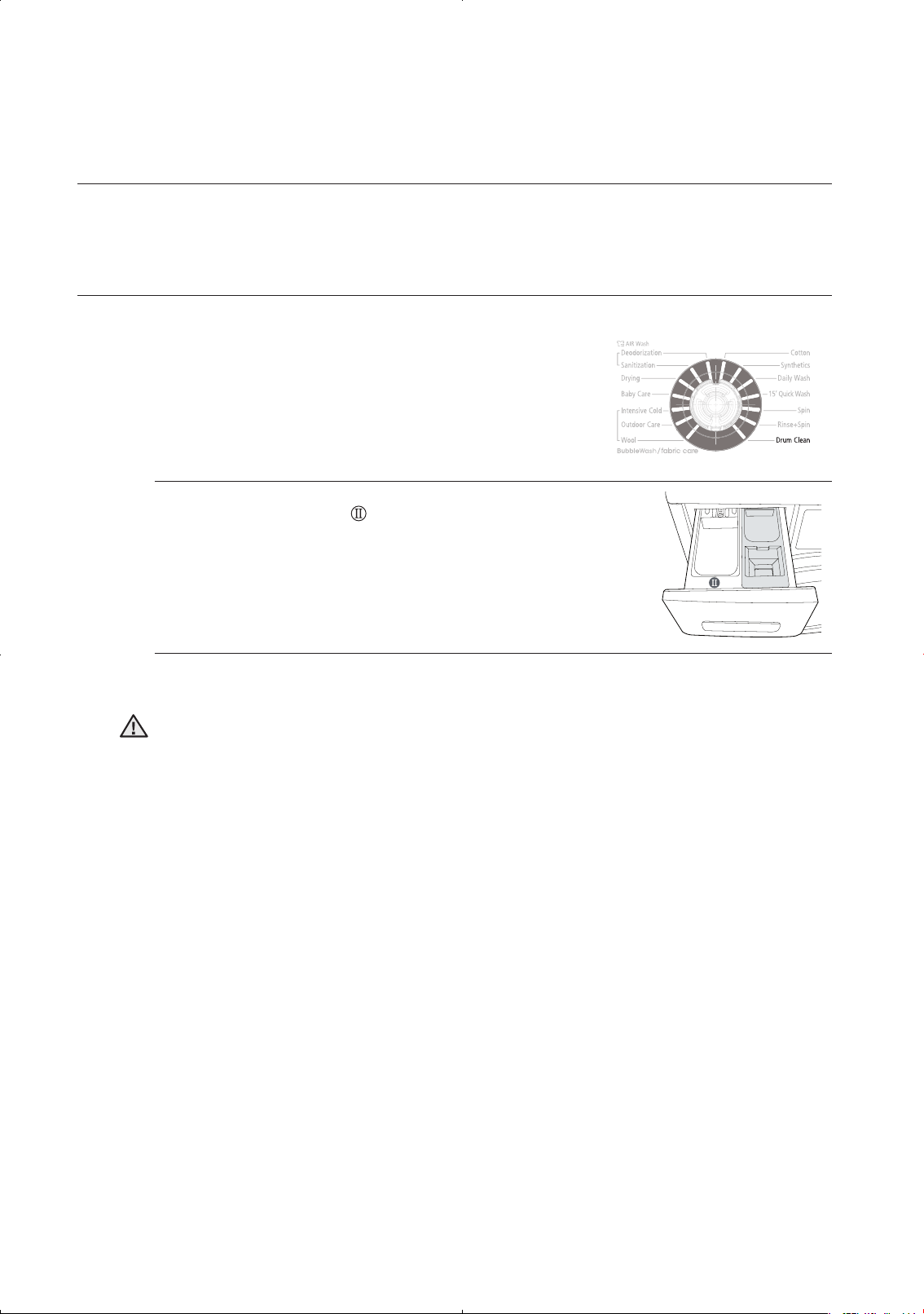

DRumCLEAN

This course is a self-cleaning course that removes mold that may occur inside the washing machine.

1. Press the Power button.

2. Turn the Cycle SelectortotheDrumCleancourse.

•YoucanonlyusetheDelayEndfunction.

•ThewatertemperatureduringtheDrumCleanissetto

70˚C.

•Itwillautosetcotton30˚Cmiddlewaterlevelprogram

when cloth is put in.

3. Place the appropriate amount of cleansing agent into the

detergent compartment

and close the detergent drawer

(whencleaningthedrumusingacleansingagent).

•Be sure to use the recommended cleansing agent for

cleaning the drum.

•There are powder-type and liquid-type drum cleansing

agents. The liquid-type cleaning agent is only available

withliquiddetergentbox(option).

4. Press the Start/Pause button.

•IfyoupresstheStart/Pausebutton,theDrumCleancoursebegins.

•UsingtheDrumCleancourse,youcancleanthedrumwithoutusingacleansingagent.

•NeverusetheDrumCleancoursewhenlaundryisinthewashingmachine.Thismayresultin

damage to the texture or a problem with the washing machine.

•IntheDrumCleancourse,neverusenormaldetergent.

•Useonly1/10oftheamountofthedrumcleansingagentrecommendedbythe

cleansing agent manufacturer.

•Since using a chlorine bleaching agent may discolour the product, be sure to use only

oxygen bleaching agents.

•Powder-typecleansingagent:Usea[powder-typebleachingagent]ora[cleansingagentfor

drumcleaningonly].

•Liquid-typecleansingagent:Usea[liquid-typeoxygenbleachingagent]ora[cleansingagent

fordrumcleaningonly].

CAutIoN

WD856UHSAGD-03223J.indd 362013-6-7 10:36:05

cleaning and maintaining your washing machine _37

03 CLEANING AND MAINTAINING

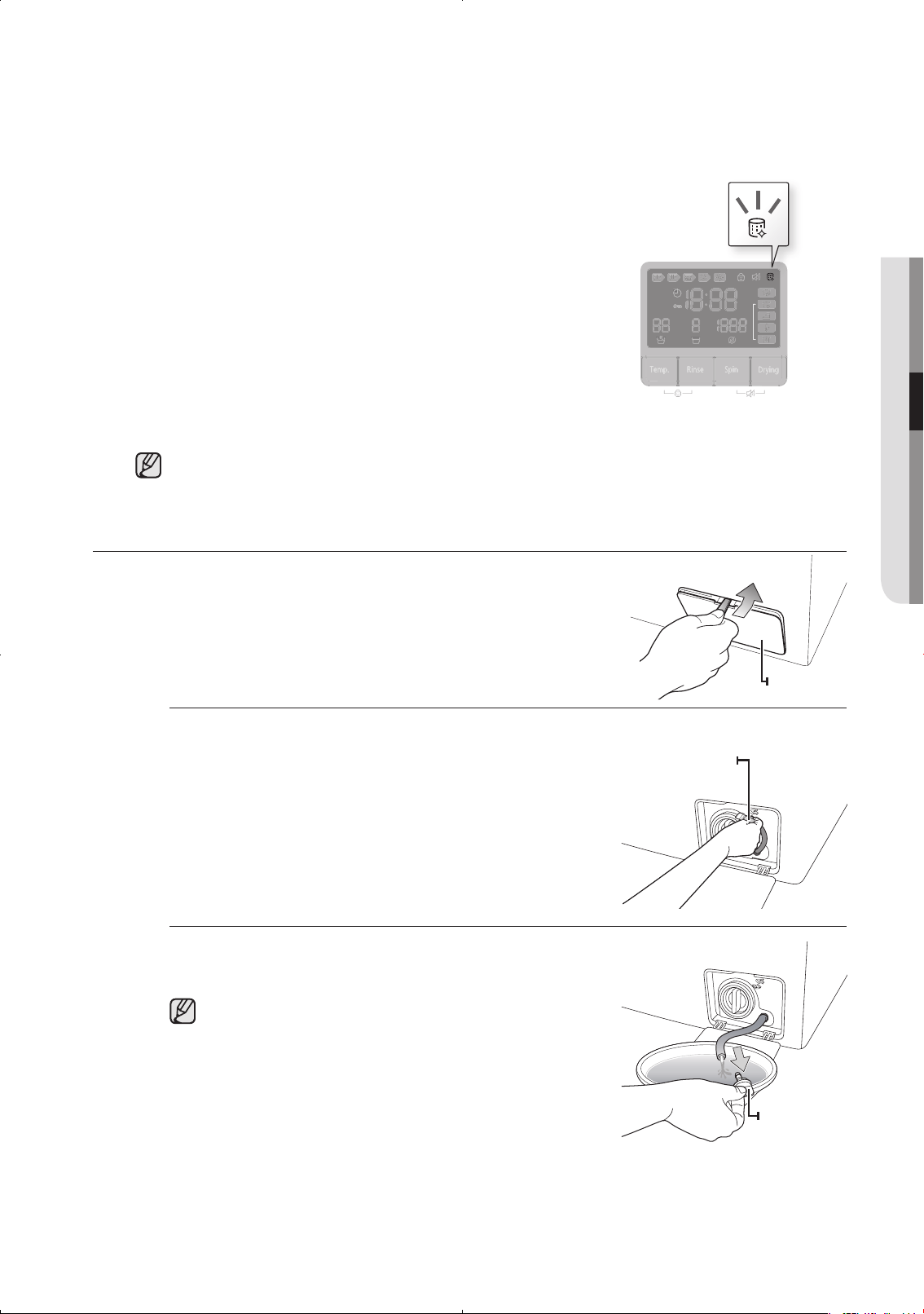

theDrumCleanAutoAlarmfunction

•Ifthe“DrumClean”indicatoronthedisplayandthelampon

theCycleSelectorarelitafterawash,itindicatesthattub

(drum)cleaningisrequired.Inthiscase,removethelaundry

from the washing machine, turn the power on, and clean the

drumbyperformingtheDrumCleancourse.

•IfyoudonotperformtheDrumCleancourse,the“Drum

Clean”indicatoronthedisplayandthelampontheCycle

Selectorareturnedoff.However,the“DrumClean”indicator

onthedisplayandthelampontheCycleSelectorareturned

on again after two washes are performed. However, this will

not result in a problem with the washing machine.

•Althoughgenerally,theDrumCleanAutoAlarmappears

once a month or so, the frequency may differ depending on the number of times the washing

machine is used.

•Incaseofthealarm,pleasealsocleanthedebrislter(referto“Cleaningthedebris

lter”sectiononpage38).OtherwisetheperformanceoftheBubblefunctionmay

lower down.

DRAININGthEWAshINGmAChINEINANEmERGENCy

1. Unplug the washing machine from the power supply.

2. Open the ﬁlter cover using a coin or a key.

3. Pull forward the emergency drain tube to separate it from

the guide hook.

4. Hold the cap on the end of the emergency drain tube and

slowly pull it out about 15 cm.

5. Allow all the water to ﬂow into a bowl.

Remainwatermaybemorethanyouexpected.Prepare

larger bowl.

6. Reinserttheemergencydraincapandthedraintube.

7. Replacethelter-cover.

filtercover

Emergency

draintube

Emergency

draincap

WD856UHSAGD-03223J.indd 372013-6-7 10:36:07

38_ cleaning and maintaining your washing machine

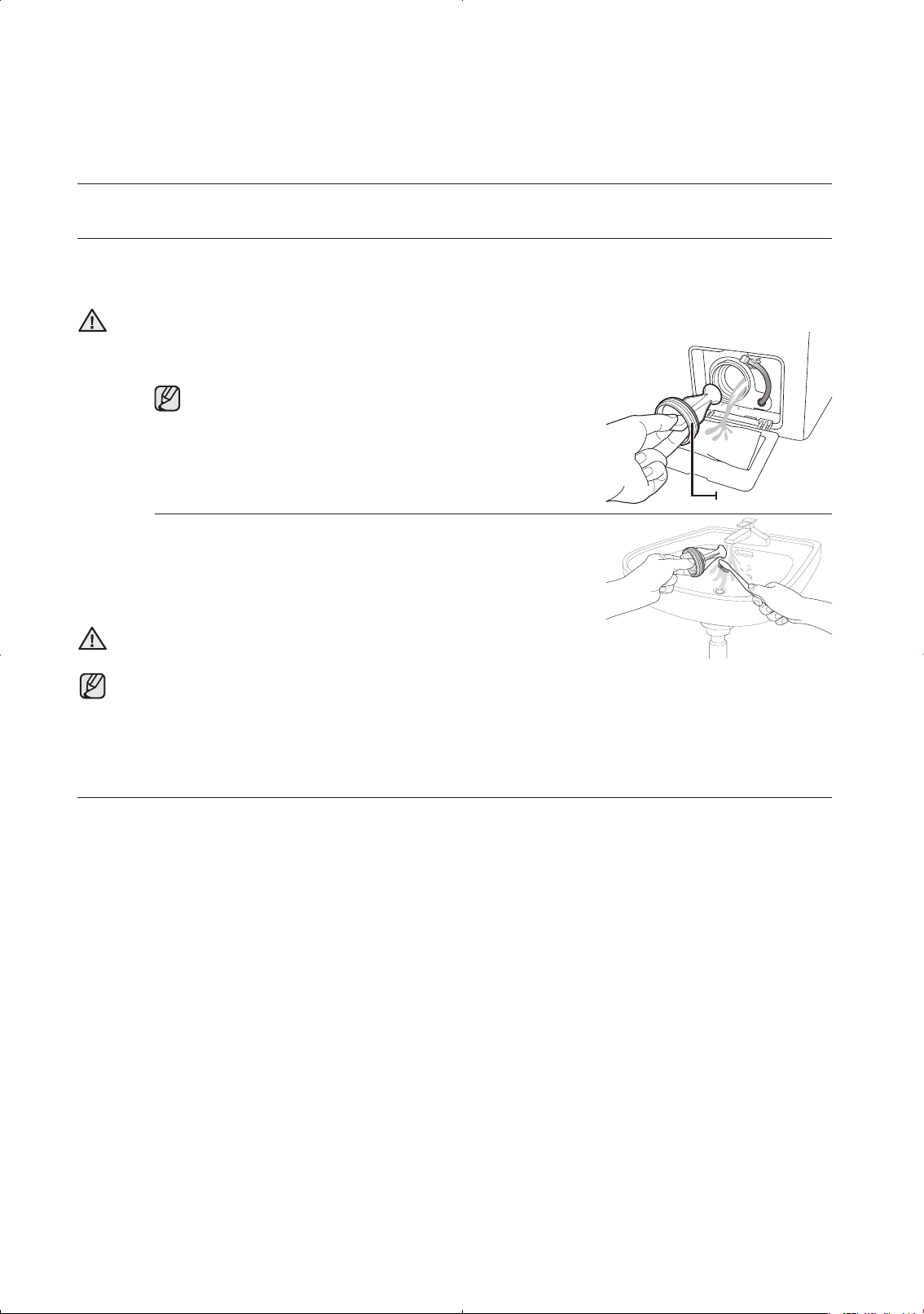

CLEANINGthEDEBRIsfILtER

Werecommendcleaningthedebrislter5or6timesayear,orwhentheerrormessageof“5E” is

displayed.(Referto“Drainingthewashingmachineinanemergency”intheprevioussection.)

Ifforeignsubstancesaccumulatedebrislter,theperformanceoftheBubblefunctionwillbedegraded.

Before cleaning the debris ﬁlter, make sure to unplug the power cord.

1. Removetheremainingwaterrst(referto“Drainingthe

washingmachineinanemergency”onpage37.)

Ifyouseparatethelterwithoutdrainingtheremaining

water, the remaining water may trickle out.

2. Open the ﬁlter cover by using a key or coin.

3. Unscrew the emergency drain cap by turning it to the left

and drain off all the water.

4. Unscrew the debris ﬁlter cap.

5. Washanydirtorothermaterialfromthedebrislter.Make

sure the drain pump propeller behind the debris ﬁlter is not

blocked.

6. Replacethedebrisltercap.

7. Replacetheltercover.

Donotopenthedebrisltercapwhilethemachineisrunningorhot

water may ﬂow out.

•Makesuretoreplacetheltercapaftertheltercleaning.Ifthelterisoutofthemachine,your

washing machine may malfunction or leak water.

•Theltershouldbefullyassembledaftertheltercleaning.

CLEANINGthEEXtERIoR

1.Wipethewashingmachinesurfaces,includingthecontrolpanel,withasoftclothusinga

nonabrasive household detergent.

2.Useasoftclothtodrythesurfaces.

3.Donotpourwaterontothewashingmachine.

cleaning and maintaining your

washing machine

CAutIoN

Debrisltercap

WD856UHSAGD-03223J.indd 382013-6-7 10:36:08

cleaning and maintaining your washing machine _39

03 CLEANING AND MAINTAINING

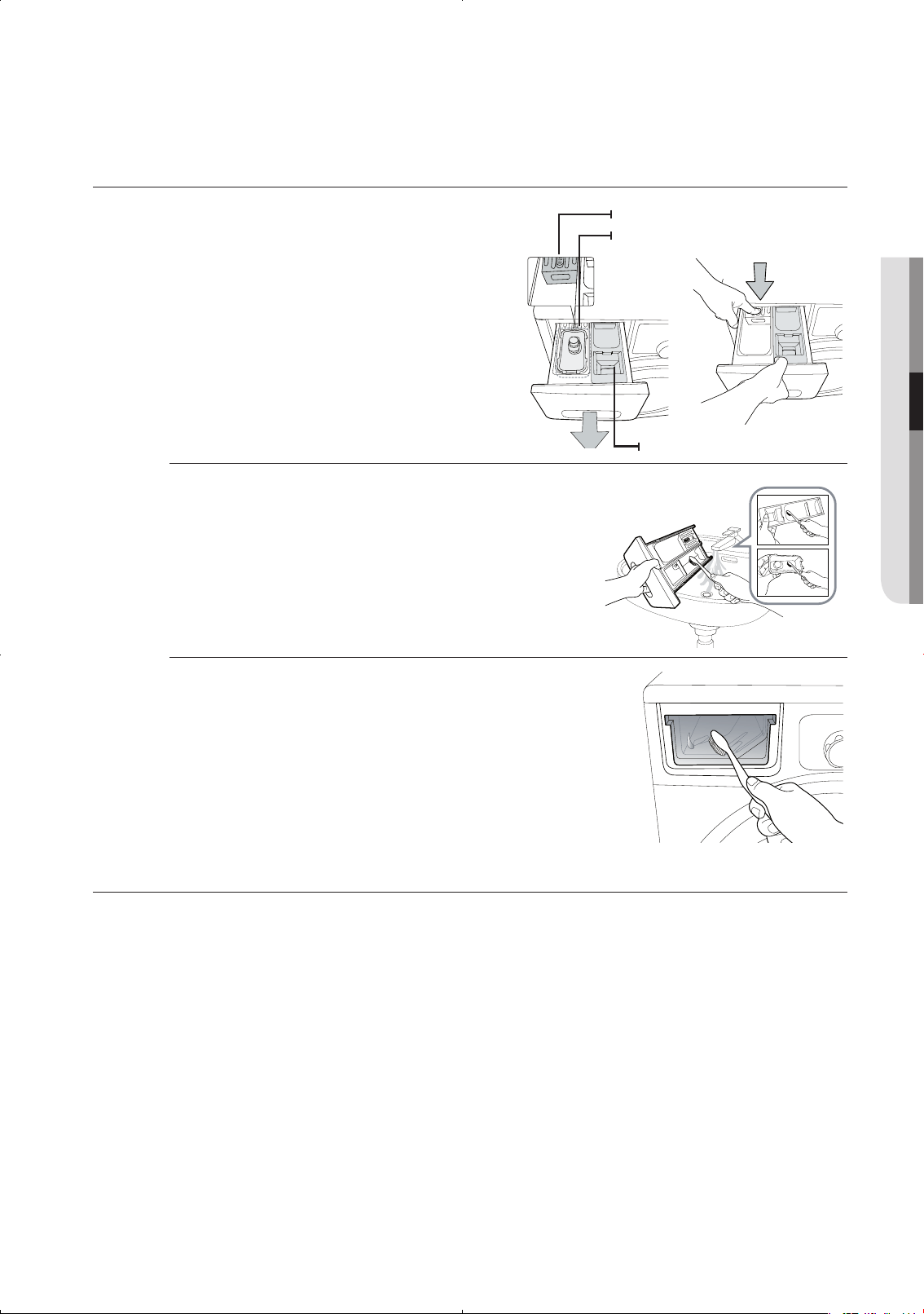

CLEANINGthEDEtERGENtDRAWERANDDRAWERRECEss

1. Press the release lever on the inside of the

detergent drawer and pull the drawer out.

2. Removethesoftenerdividerandtheliquid

detergentbox(option)fromthedetergent

drawer.

3. Washallpartsunderrunningwater.

4. Cleanthedrawerrecesswithanoldtoothbrush.

5. Replacethesoftenerdividerandtheliquiddetergentbox

(option)bypushingitrmlyintothedrawer.

6. Push the drawer back into place.

7. To remove any remaining detergent, perform a rinse cycle

without any laundry in the drum.

CLEANINGthEWAtERhosEmEshfILtER

You should clean the water hose mesh ﬁlter at least once a year, or when the error message of “4E” is

displayed:

1. Turn off the water supply to the washing machine.

2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out

due to the air pressure in the hose, cover the hose with a cloth.

3. Gentlypulloutthemeshlterfromtheendofthehoseusingapairofpliersandrinseitunder

water until clean. Also clean inside and outside the threaded connector.

4. Push the ﬁlter back into place.

5. Screw the hose back onto the washing machine.

6. Make sure the connections are watertight and turn on the tap.

Releaselever

softenerdivider

liquiddetergentbox(option)

WD856UHSAGD-03223J.indd 392013-6-7 10:36:08

40_ cleaning and maintaining your washing machine

cleaning and maintaining your

washing machine

REpAIRINGAfRoZENWAshINGmAChINE

Ifthetemperaturedropsbelowfreezingandyourwashingmachineisfrozen:

1. Unplug the washing machine.

2. Pour warm water over the tap to loosen the water supply hose.

3. Removethewatersupplyhoseandsoakitinwarmwater.

4. Pourwarmwaterintothewashingmachinedrumandletitsitfor10minutes.

5. Reconnectthewatersupplyhosetothewatertapandcheckifthewatersupplyanddrain

are operating normal.

stoRINGyouRWAshINGmAChINE

Ifyouneedtostoreyourwashingmachineforanextendedtime,it’sbettertodrainanddisconnectit.

Washingmachinescanbedamagedifwaterisleftinthehosesandinternalcomponentsbeforestorage.

1. Select the Cotton cycle and add bleach to the bleach compartment. Then, push the Quick

Wash button and run your washing machine through the cycle without a load.

2. Turn the water taps off and disconnect the inlet hoses.

3. Unplug your washing machine from the electrical outlet, and leave your washing machine

door open to allow air to circulate inside the tumbler.

Ifyourwashingmachinehasbeenstoredinbelow-freezingtemperatures,allowtimeforany

leftover water in your washing machine to thaw out before using it.

WD856UHSAGD-03223J.indd 402013-6-7 10:36:08

troubleshooting and information codes _41

04 TROUBLESHOOTING

troubleshooting and

information codes

ChECkthEsEpoINtsIfyouRWAshINGmAChINE...

PROBLEM SOLUTION

Willnotstart•Make sure your washing machine is plugged in.

•Make sure the door is ﬁrmly closed.

•Makesurethewatersourcetap(s)areturnedon.

•Make sure to press the Start/Pause button.

hasnowaterornotenough

water

•Turn the water tap on fully.

•Make sure the water source hose is not frozen.

•Straighten the water intake hoses.

•Cleanthelteronthewaterintakehose.

hasdetergentremainingin

thedetergentdrawerafter

thewashcycleiscomplete

•Make sure your washing machine is running with sufﬁcient water

pressure.

•Make sure the detergent is added to the center of the detergent

drawer.

Vibratesoristoonoisy•Makesureyourwashingmachineisonalevelsurface.Ifthesurface

is not level, adjust the washing machine feet to level the appliance.

•Make sure that the shipping bolts are removed.

•Make sure your washing machine is not touching any other object.

•Make sure the laundry load is balanced.

thewashingmachinedoes

notdrainand/orspin

•Straighten the drain hose. Eliminate kinked hoses.

•Make sure the debris ﬁlter is not clogged.

Doorislockedshutorwill

notopen.

•Thedoorwillnotopenuntil3minutesafterthemachinestopsorthe

power turns off.

Iftheproblempersists,contactyourlocalSamsungCustomerService.

WD856UHSAGD-03223J.indd 412013-6-7 10:36:08

42_ troubleshooting and information codes

INfoRmAtIoNCoDEs

Ifyourwashingmachinemalfunctions,youmayseeaninformationcodeonthedisplay.Ifthishappens,

pleasecheckthetablebelowandtrythesuggestedsolutionbeforecallingCustomerService.

CODE SYMBOL SOLUTION

•Make sure the door is ﬁrmly closed.

•Make sure that laundry is not caught in the door.

•Make sure the source water tap is turned on.

•Checkthewaterpressure.

•Cleanthemeshltersofwaterhose.

•Cleanthedebrislter.

•Make sure the drainage hose is installed correctly.

•Cleanthewaterhosemeshlter.

•Thelaundryloadisunbalanced.Redistributetheload.Ifonlyoneitem

of clothing needs washing, such as a bathrobe or pair of jeans, the

ﬁnal spin result might be unsatisfactory and an “UE” error message

will be shown in the display window.

cE/3E

•Calltheafter-salesservice.

Sud/Sd

•Thisoccurswhentoomuchfoamingisdetected.Itisalsodisplayed

whilefoamingisremoved.Whentheremovalisnished,thenormal

cycleproceeds.(Thisisoneofthenormaloperations.Itisanerrorfor

preventingnon-sensingfaults.)

•Ifthevoltageofthesuppliedpowerisinstable,thewashingmachine

will be paused to protect its electric devices.

•Ifthecorrectvoltageissupplied,thecyclewillresumeautomatically.

For any codes not listed above, or if the suggested solution doesn’t ﬁx the problem, call your Samsung

ServiceCentreorlocalSamsungdealer.

troubleshooting and

information codes

WD856UHSAGD-03223J.indd 422013-6-7 10:36:08

cycle chart _43

05 CYCLE CHART

cycle chart

CyCLEChARt

(

useroption)

PROGRAM

Maxload(kg)DETERGENT

Max Temp

(

˚C

)

SpinSpeed(MAX)rpm

WD856 Pre-wash wash Softener WD856UH

Cotton8.5



yes



951400

synthetics3.5



yes



601200

DailyWash4.0



yes



601400

15’QuickWash

2.0- yes



40800

DrumClean- - - - 70400

BabyCare4.0



yes



951400

IntensiveCold4.0



yes



401200

outdoorCare2.0- yes



401200

Wool2.0- yes



40800

PROGRAM Bubble IntensiveDelay end Drying

Cotton

   

synthetics

   

DailyWash

   

15’QuickWash



 

DrumClean- -



BabyCare

   

IntensiveCold

   

outdoorCare



 

Wool



1. A cycle with a prewash takes approx. 18 minutes longer.

2. ThecycledurationdatahasbeenmeasuredundertheconditionsspeciedinStandardIEC60456/EN60456.

3. EUenergylabelwashingperformancetestsaccordingtoEN50229shouldbecarriedoutusinga8.5kgload

andthefollowingprogram:Cotton40˚C/cold+2rinses+Intensivewash+Bubble+1400rpm.

4. ForEUenergylabeldryingperformancetestsaccordingtoEN50229,the8.5kgwashingbaseloadshould

bedividedintothreepartsofapproximately2.35kg,2.35kg,and2.3kgandeachpartshouldbedried

separatelyusingtheCupboardDryprogram.

5. DailyWash:Shortprogramfortestinstitutes.

6. Coursetimeinindividualhomesmaydifferfromthevaluesgiveninthetableduetovariationsinthe

pressure and temperature of the water supply, the load and the type of laundry.

7. WhentheIntensiveWashfunctionisselected,thecycletimeisincreasedforeachcycle.

WD856UHSAGD-03223J.indd 432013-6-7 10:36:08

44_ appendix

appendix

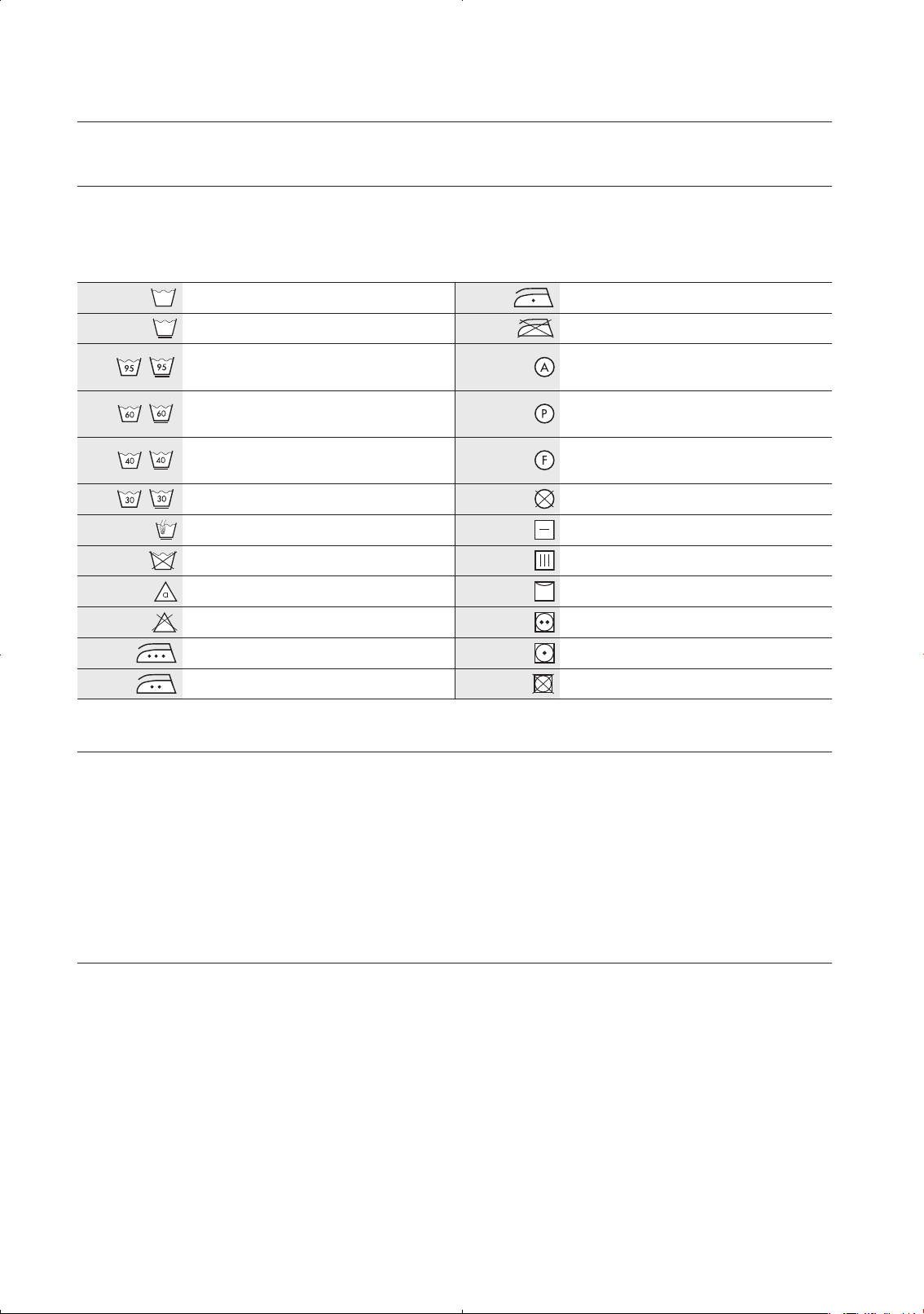

fABRICCAREChARt

The following symbols provide garment care directions. The care labels include four symbols in this order:

washing,bleaching,dryingandironing(anddrycleaningwhennecessary).Theuseofsymbolsensures

consistency among garment manufacturers of domestic and imported items. Follow the care label

directions to maximize garment life and reduce laundery problems.

ResistantmaterialCanbeironedat100˚Cmax

DelicatefabricDonotiron

Itemmaybewashedat95˚C

Canbedrycleanedusingany

solvent

Itemmaybewashedat60˚C

Drycleanwithperchloride,lighter

fuel,purealcoholorR113only

Itemmaybewashedat40˚C

Drycleanwithaviationfuel,pure

alcoholorR113only

Itemmaybewashedat30˚CDonotdryclean

ItemmaybehandwashedDryat

DrycleanonlyCanbehungtodry

CanbebleachedincoldwaterDryonclotheshanger

DonotbleachTumble dry, normal heat

Canbeironedat200˚CmaxTumble dry, reduced heat

Canbeironedat150˚CmaxDonottumbledry

pRotECtINGthEENVIRoNmENt

•Thisapplianceismanufacturedfromrecyclablematerials.Ifyoudecidetodisposeofthisappliance,

pleaseobservelocalwastedisposalregulations.Cutoffthepowercordsothattheappliancecannotbe

connectedtoapowersource.Removethedoorsothatanimalsandsmallchildrencannotgettrapped

inside the appliance.

•Donotexceedthedetergentquantitiesrecommendedinthedetergentmanufactures’instructions.

•Use stain removal products and bleaches before the wash cycle only when strictly necessary.

•Savewaterandelectricitybyonlywashingfullloads(theexactamountdependsupontheprogram

used).

DECLARAtIoNofCoNfoRmIty

ThisappliancecomplieswithEuropeansafetystandards,ECdirective93/68andENStandard60335.

WD856UHSAGD-03223J.indd 442013-6-7 10:36:11

appendix _45

06 APPENDIX

spECIfICAtIoNs

TYPE FRONT LOADING WASHING MACHINE

DImENsIoNs

WD856UHSA**

W600mmXD650mmXH850mm

WAtERpREssuRE

50kPa~800kPa

WAtERVoLumE

75ℓ

NEtWEIGht

WD856UHSA**

69kg

WAshANDspINCApACIty

8.5kg[DRYLAUNDRY]

DRyCApACIty

6.0kg

poWER

CoNsumptIoN

MODEL

WD856UHSA**

WASHING

220V150W

240V150W

WASHAND

HEATING

220V2200W

240V2400W

DRYING

230V1600W

SPIN

MODEL

WD856UHSA**

230V

350W

PUMPING

34W

spIN

REVoLutIoNs

MODEL

WD856UHSA**

rpm

1400

The appearance and speciﬁcations of the product are subject to change without prior notice for purposes

of product enhancement.

WD856UHSAGD-03223J.indd 452013-6-7 10:36:11

memo

WD856UHSAGD-03223J.indd 462013-6-7 10:36:11

WD856UHSAGD-03223J.indd 472013-6-7 10:36:11

QUESTIONS OR COMMENTS?

Country CALL OR VISIT US ONLINE AT

AUSTRALIA1300362603www.samsung.com

CodeNo.DC68-03223J_EN

WD856UHSAGD-03223J.indd 482013-6-7 10:36:11

Samsung WD856UHSAWQ 8.5kg Washer 6kg Dryer Combo

Product's Documents

User Manual

Specifications

Samsung WD856UHSAWQ Questions and Answers

Related Products

Samsung WD80J6A00AW/EG 8kg/5kg Ecobubble Washer Dryer

Samsung WD80TA046BX Series 5 ecobubble™ Washer Dryer, 8/5kg 1400rpm

Samsung WD80TA046BE/EU Series 5 Ecobubble™ Washer Dryer, 8/5kg 1400rpm

Samsung WD90N645OOX Quickdrive 9kg Wash 5kg Dry 1400rpm Freestanding Washer Dryer With Addwash

Samsung WD80J5A10AW/EU Series 5 Ecobubble, 8/5kg 1400rpm, Washer Dryer

Samsung WD10J8420GW Washer Dryer Combo
