Samsung WF42H5200AW/A2-01 washer User Manual

the possibilities

Thank you for purchasing this Samsung product.

INSTALLING YOUR WASHER

OPERATING iNSTRUCTiONS

WASHING A LOAD OF LAUNDRY

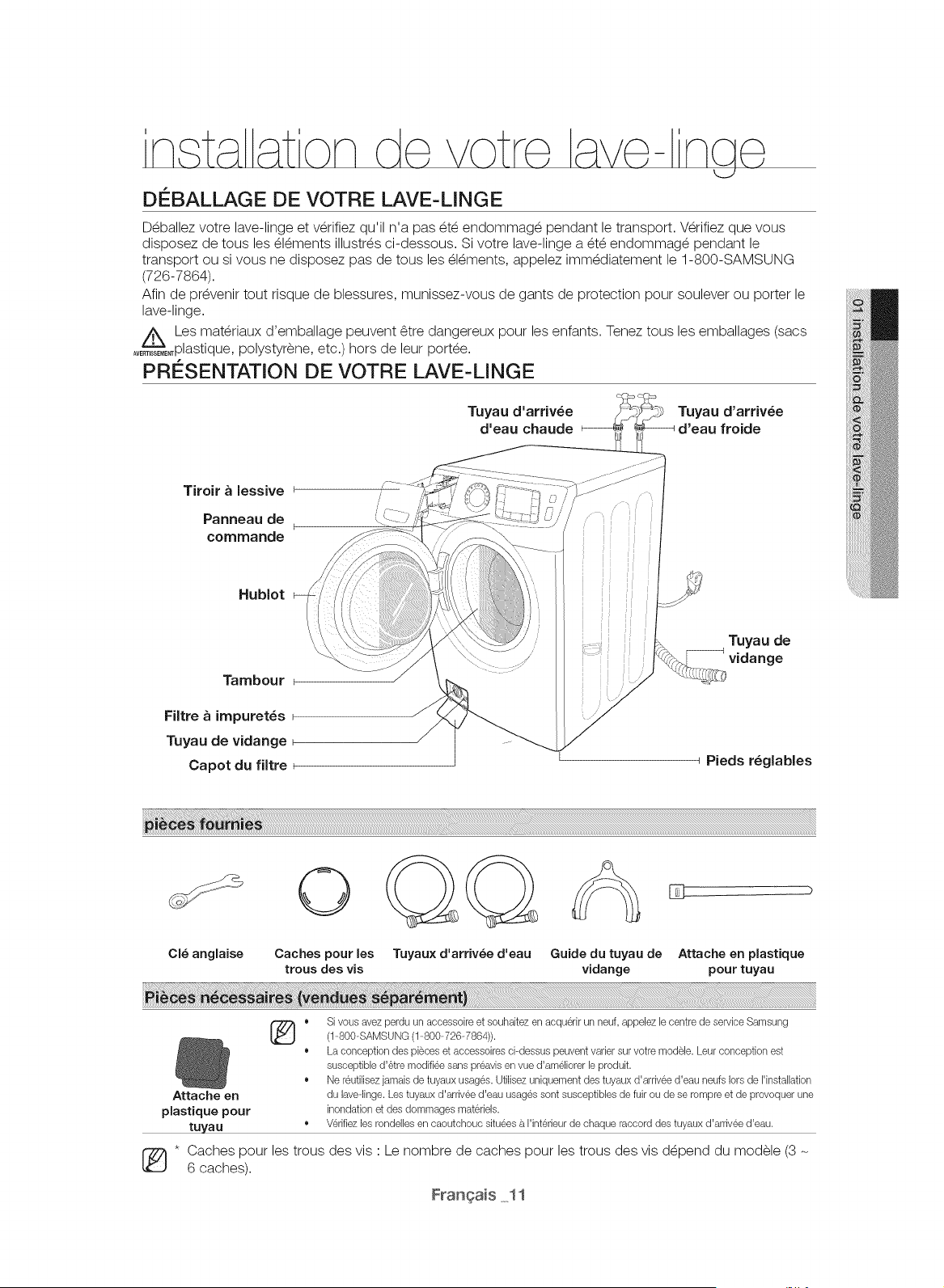

11 Unpacking your washer

11 Overview of your washer

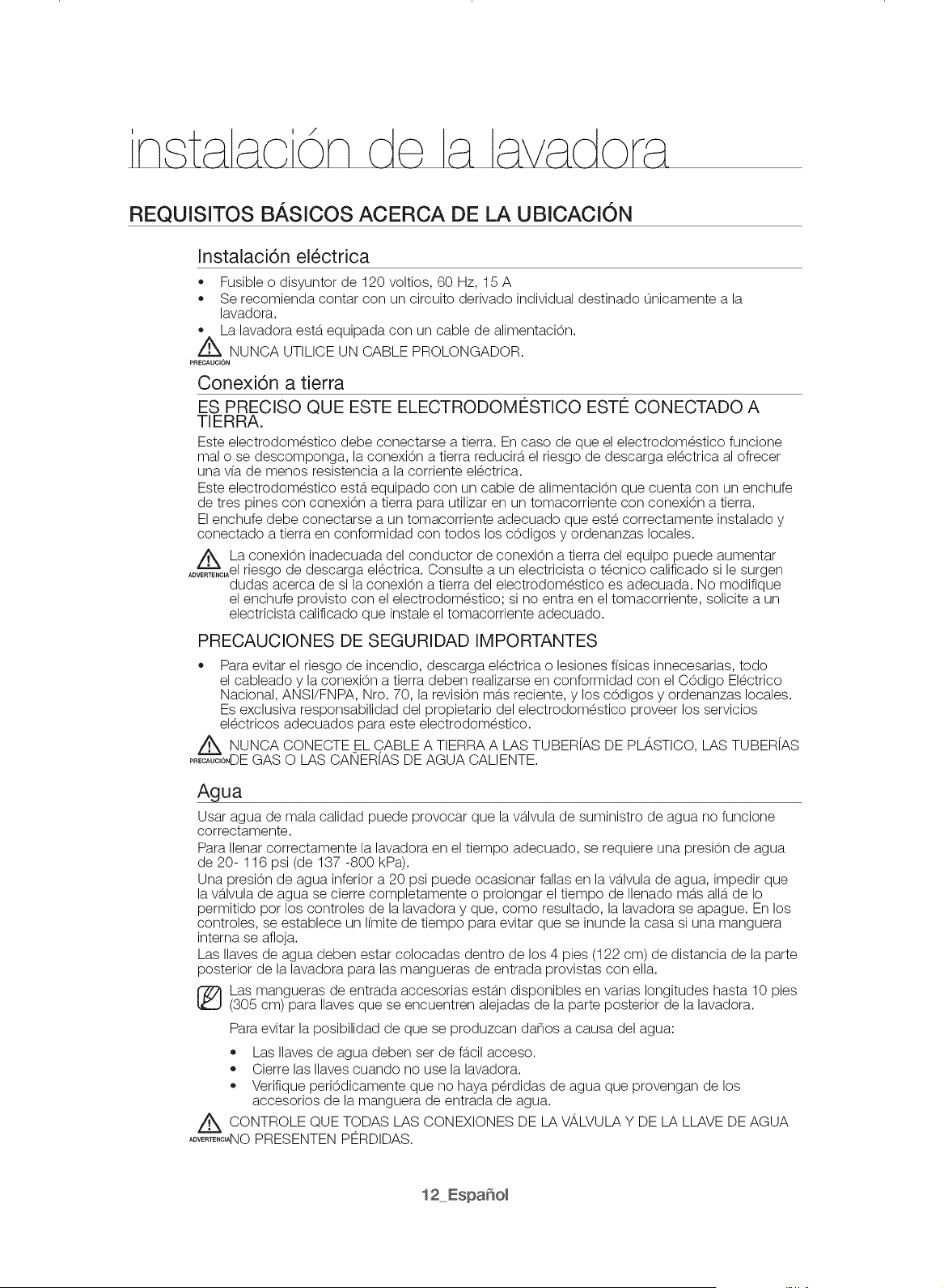

12 Electrical

12 Grounding

12 Water

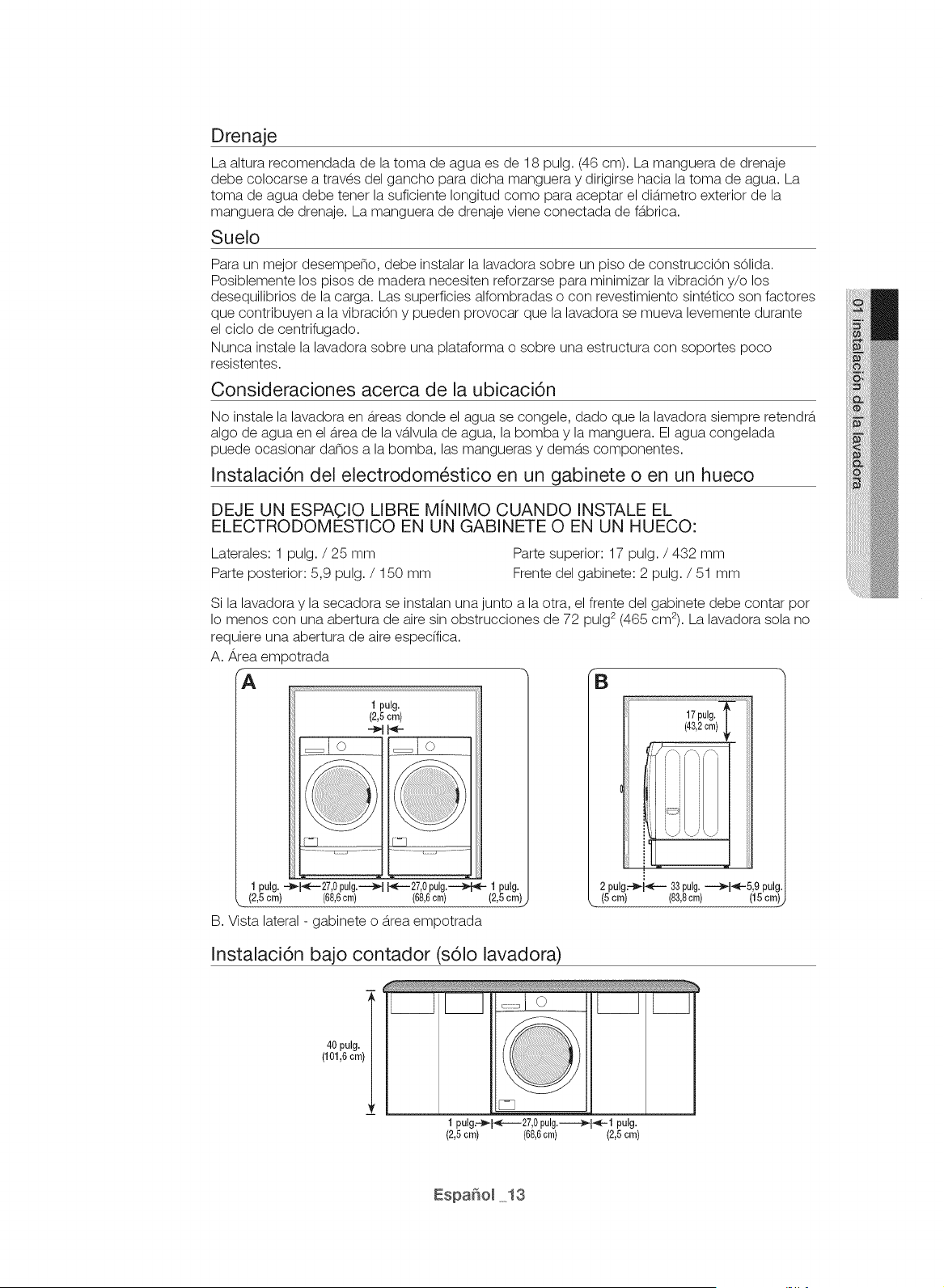

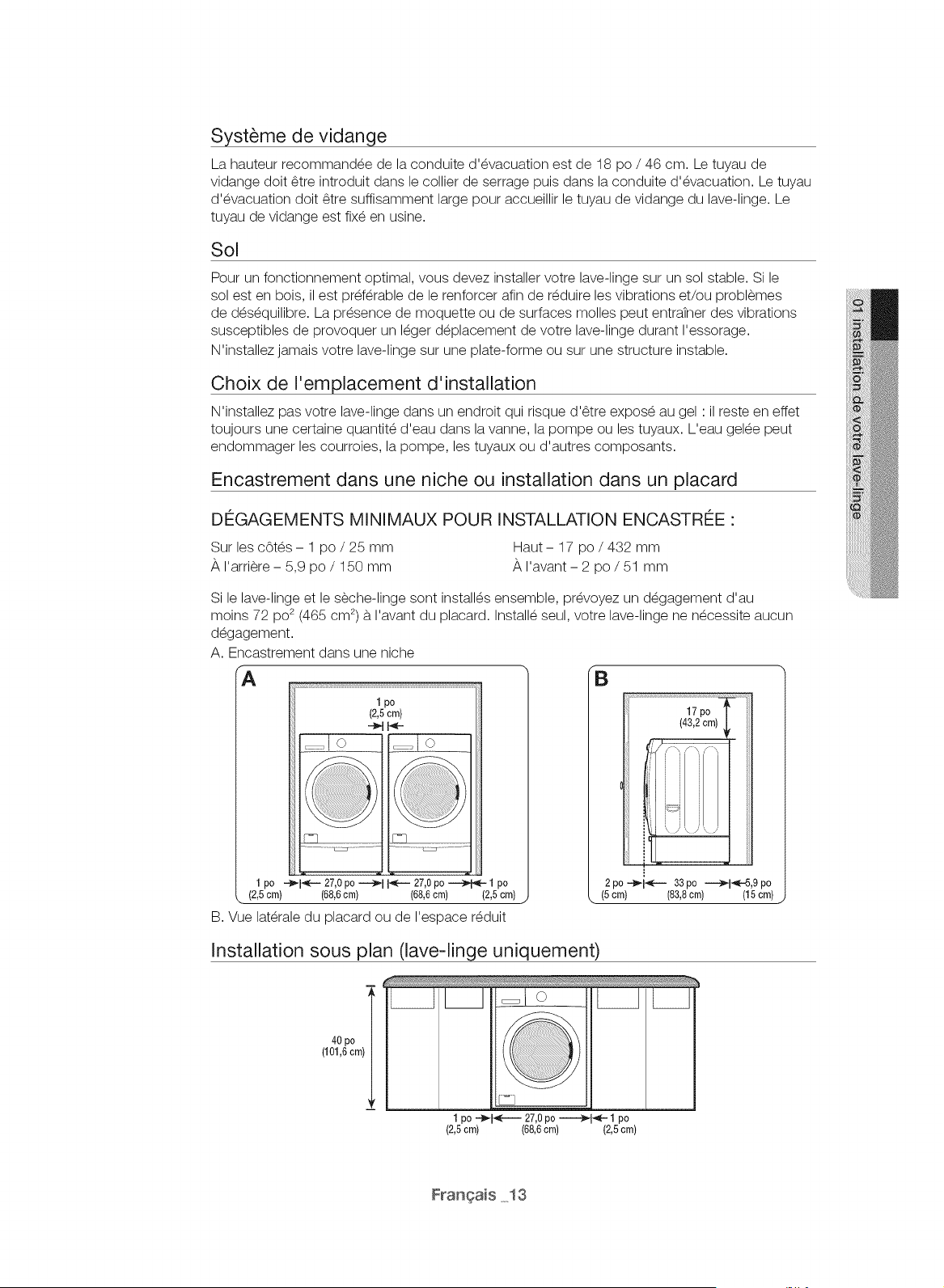

13 Drain facility

13 Flooring

13 Location considerations

13 Alcove or closet installation

13 Undercounter installation (washer only)

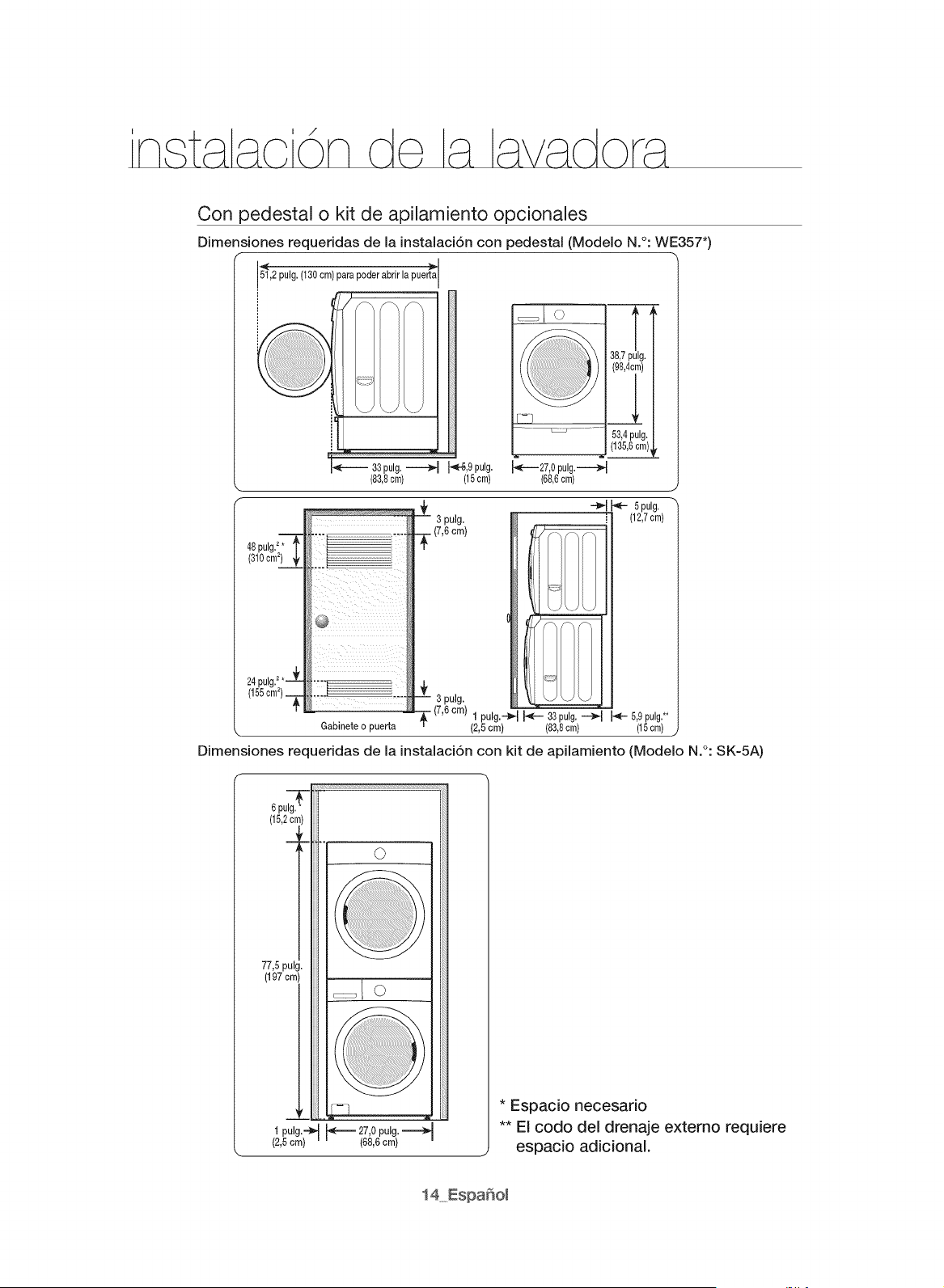

14 With optional pedestal base or stacking kit

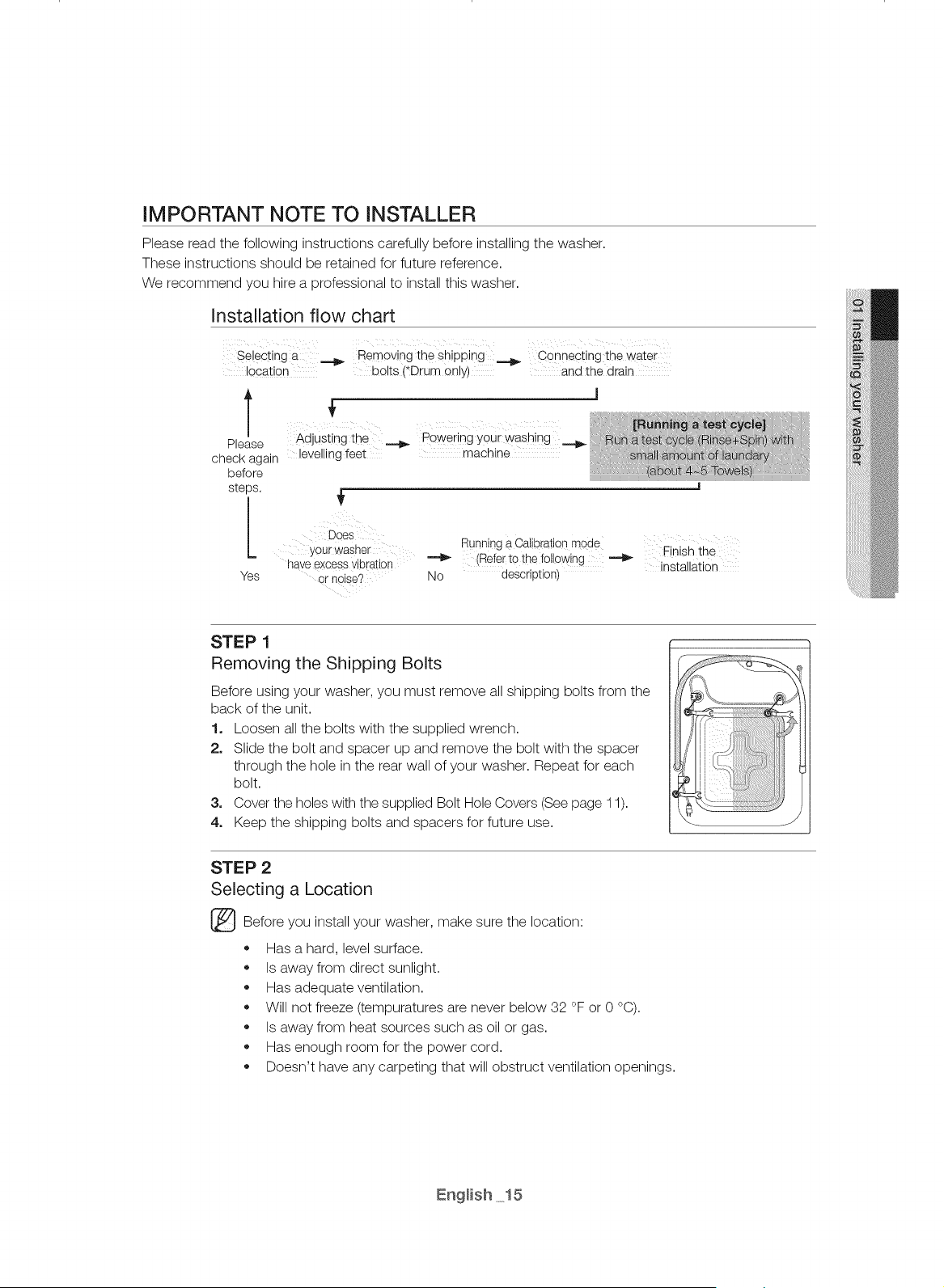

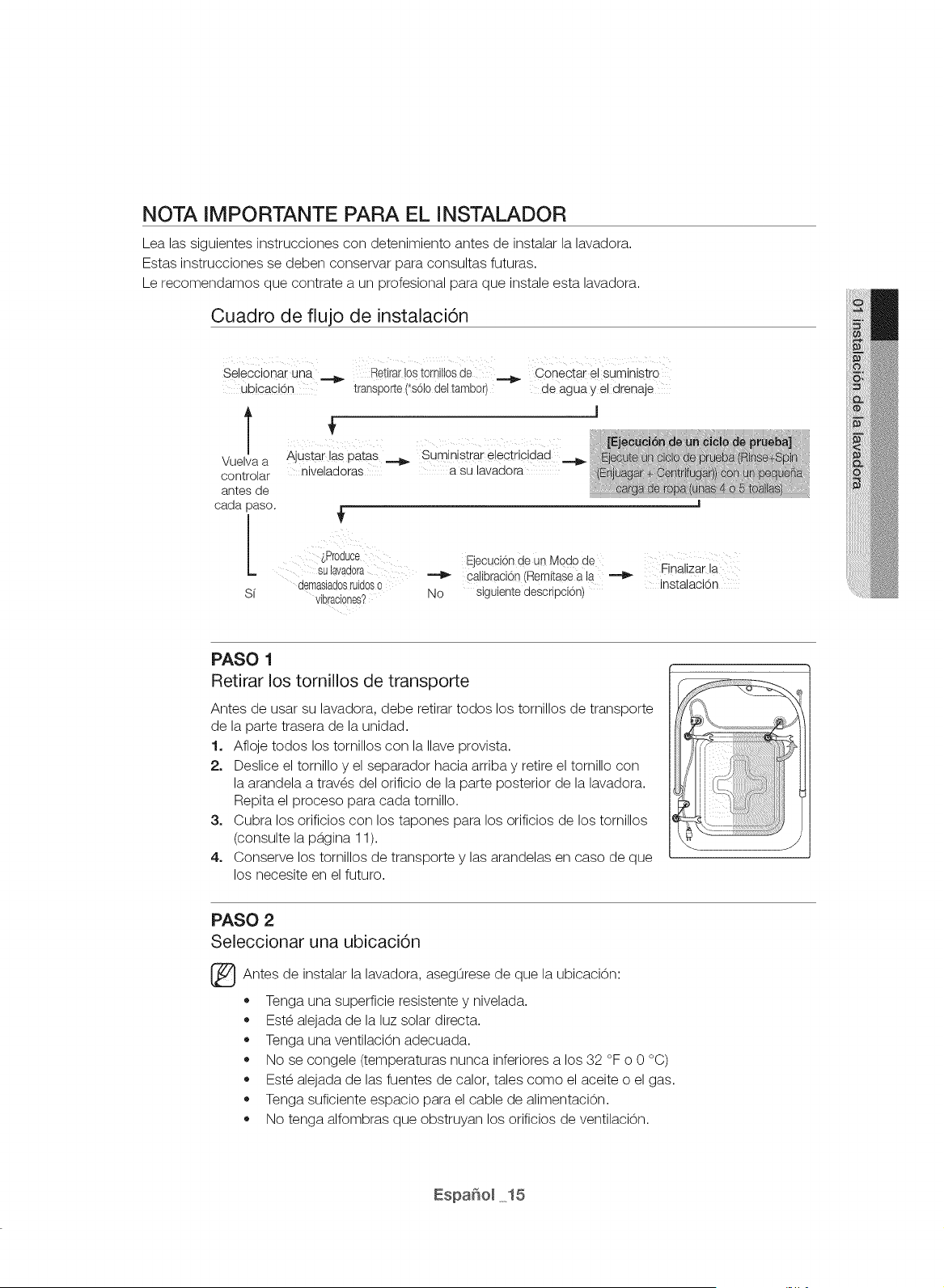

15 Important note to installer

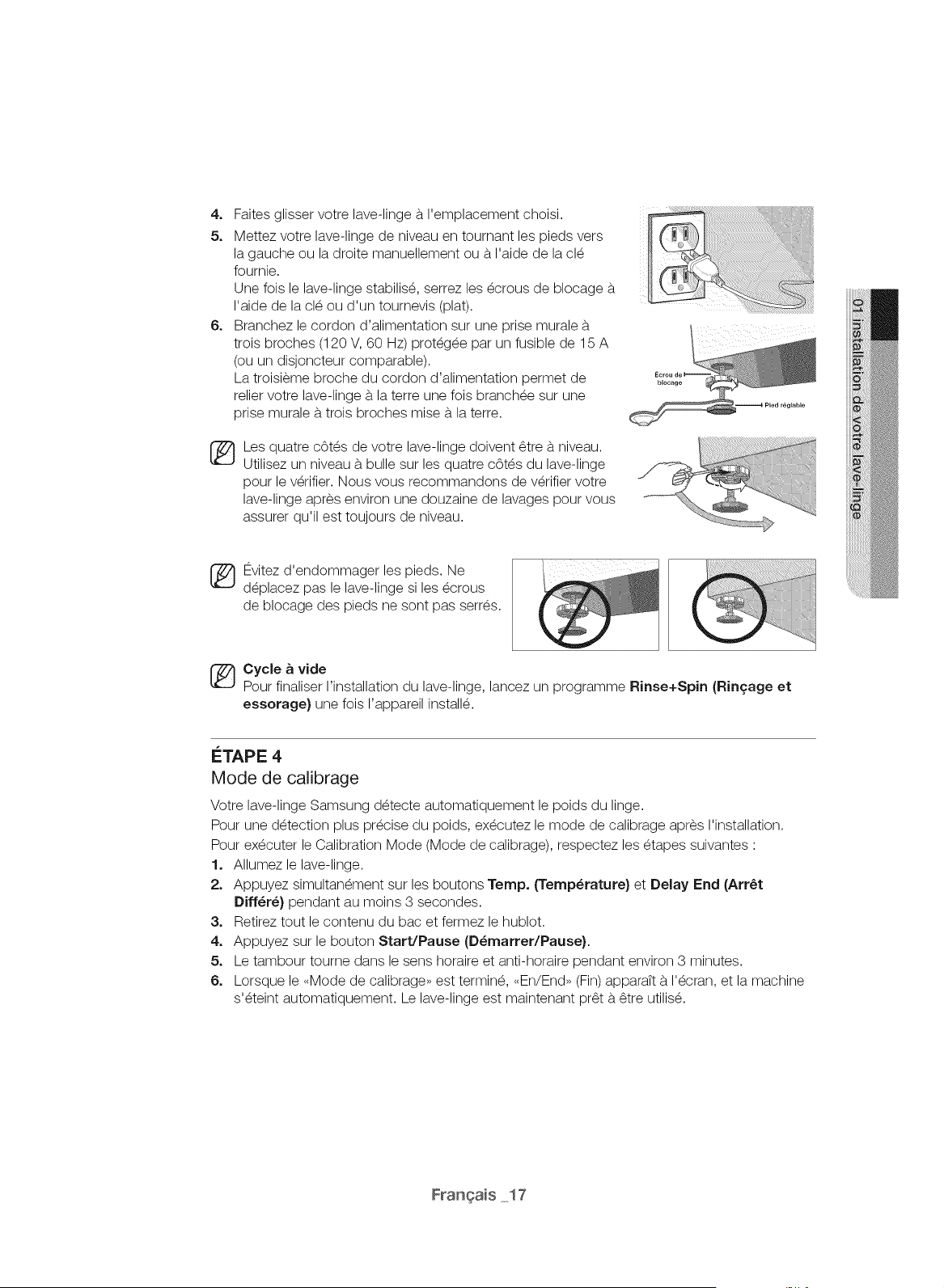

15 Installation flow chart

18 Loading your washer

18 Washing clothes: Basic Instructions

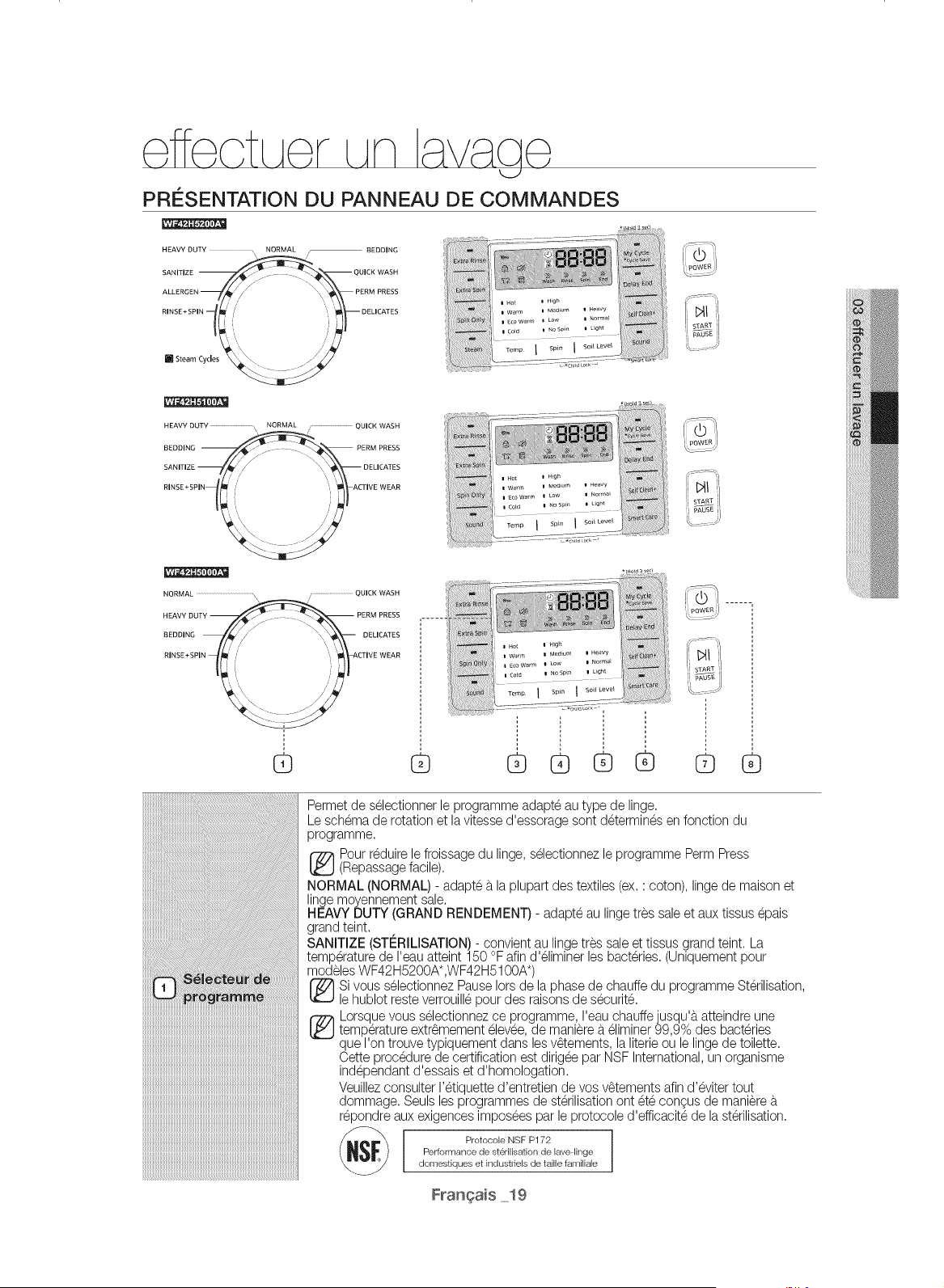

19 Overview of the control panel

21 Child Lock I_)

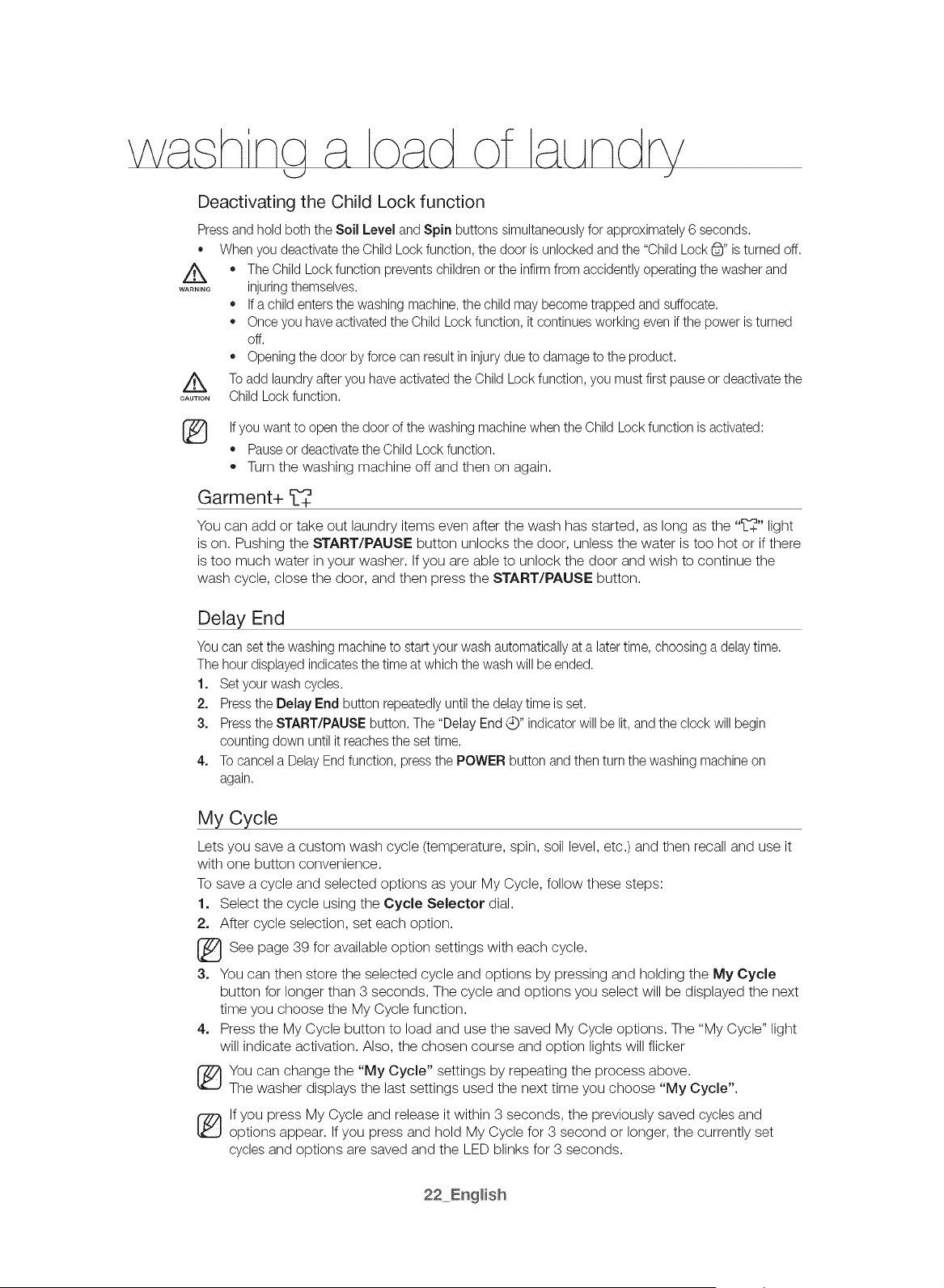

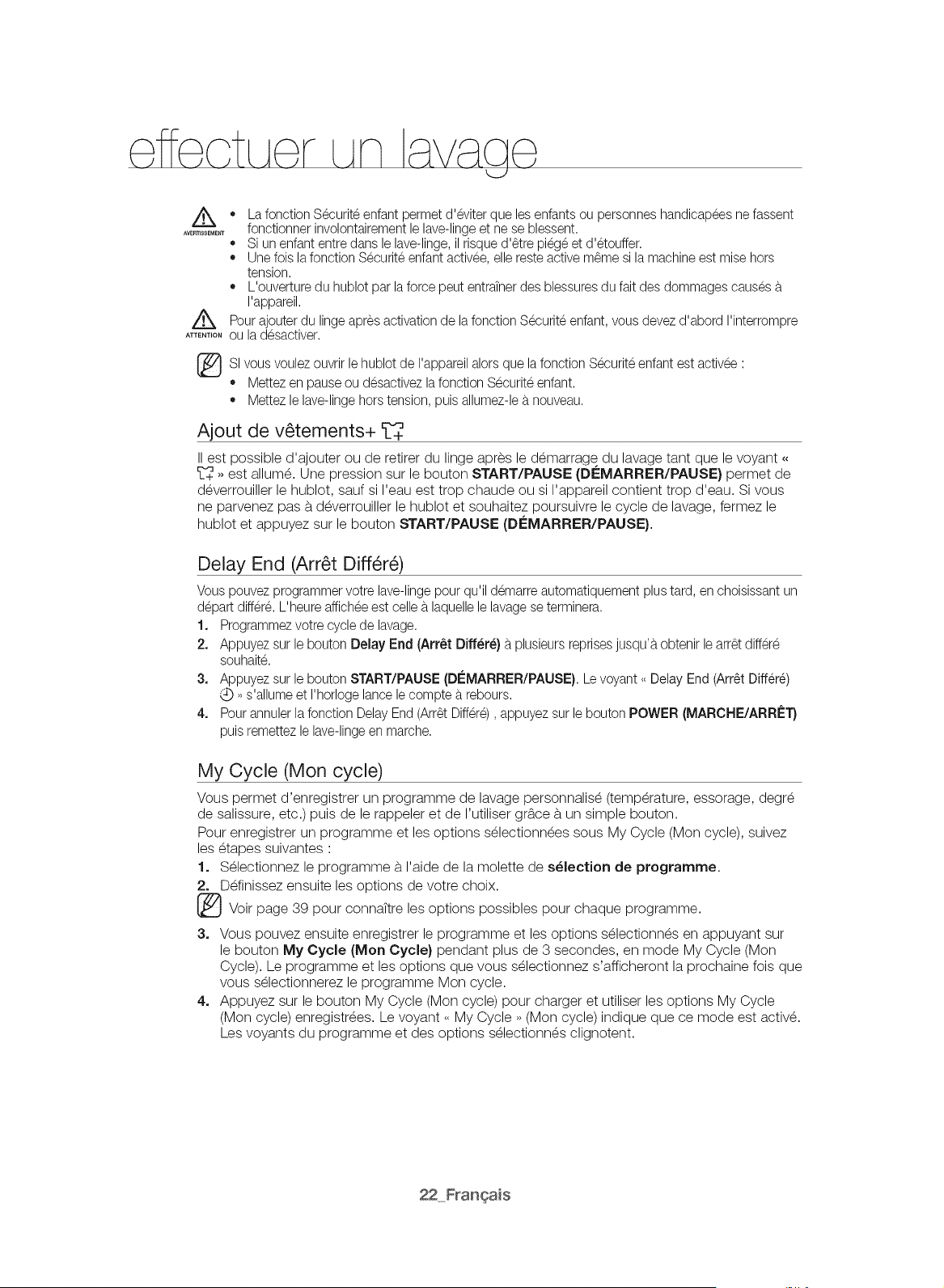

22 Garment+ _++

22 Delay End

22 My Cycle

23 Sound

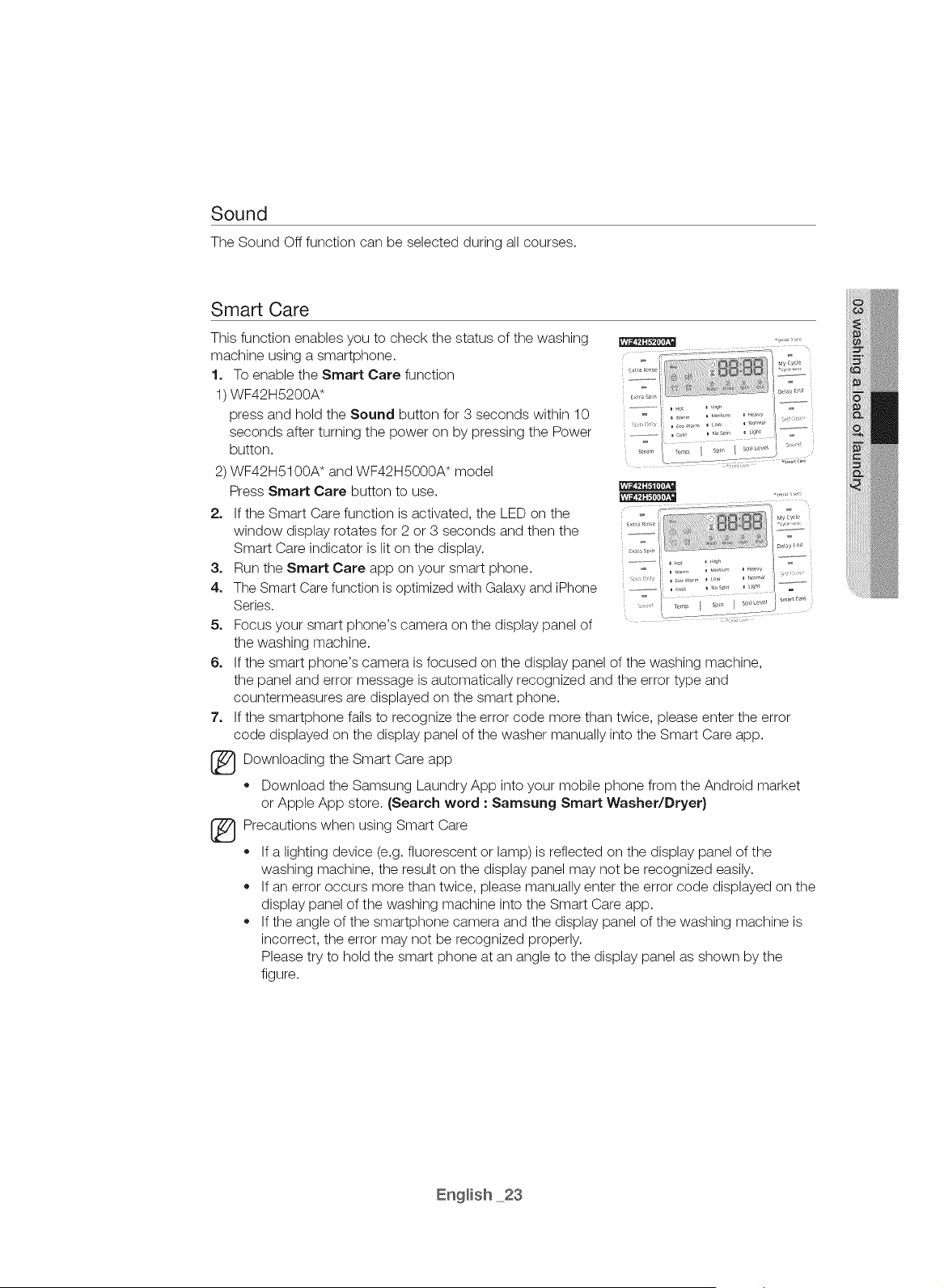

23 Smart Care

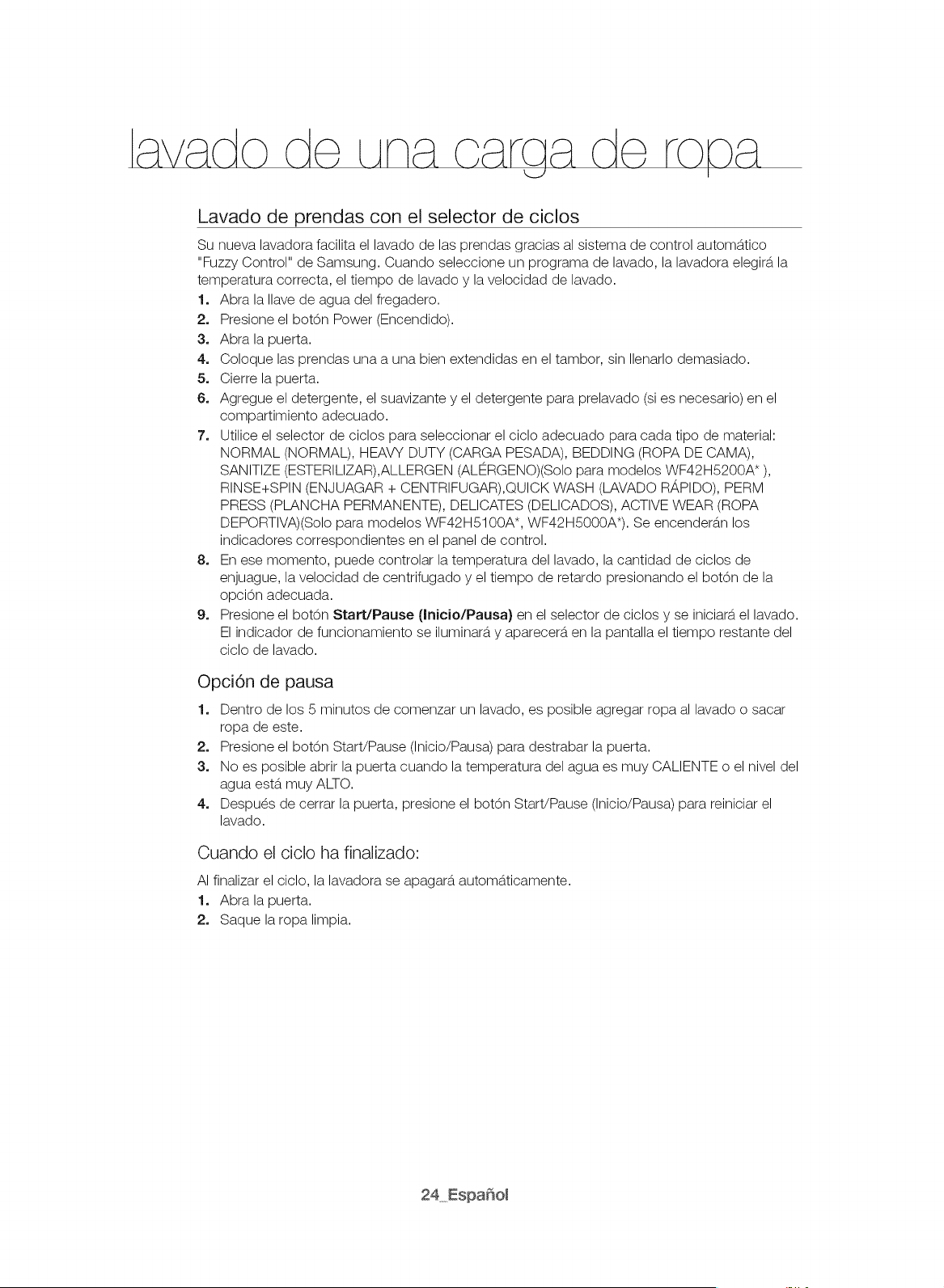

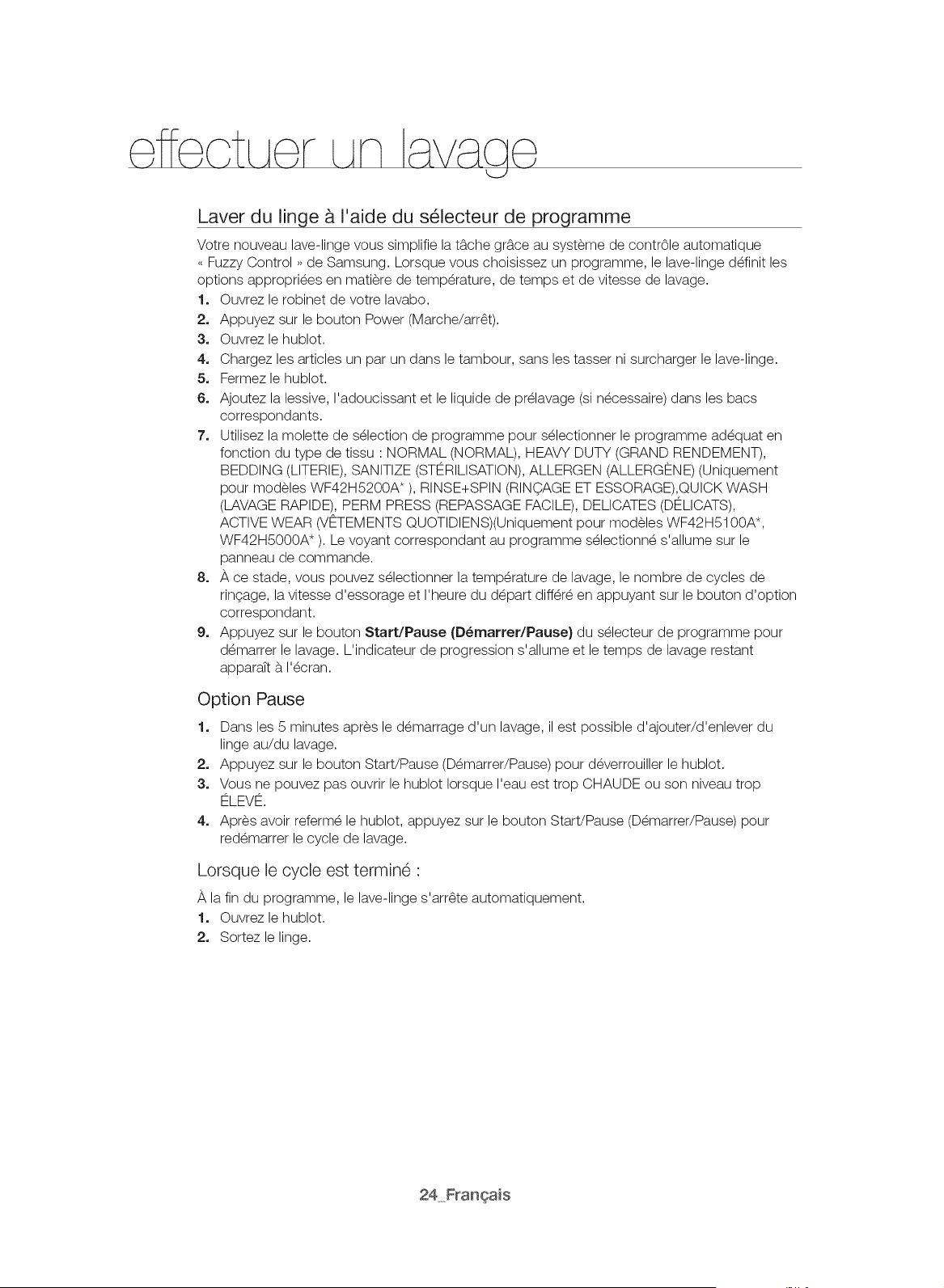

24 Washing clothes using the cycle selector

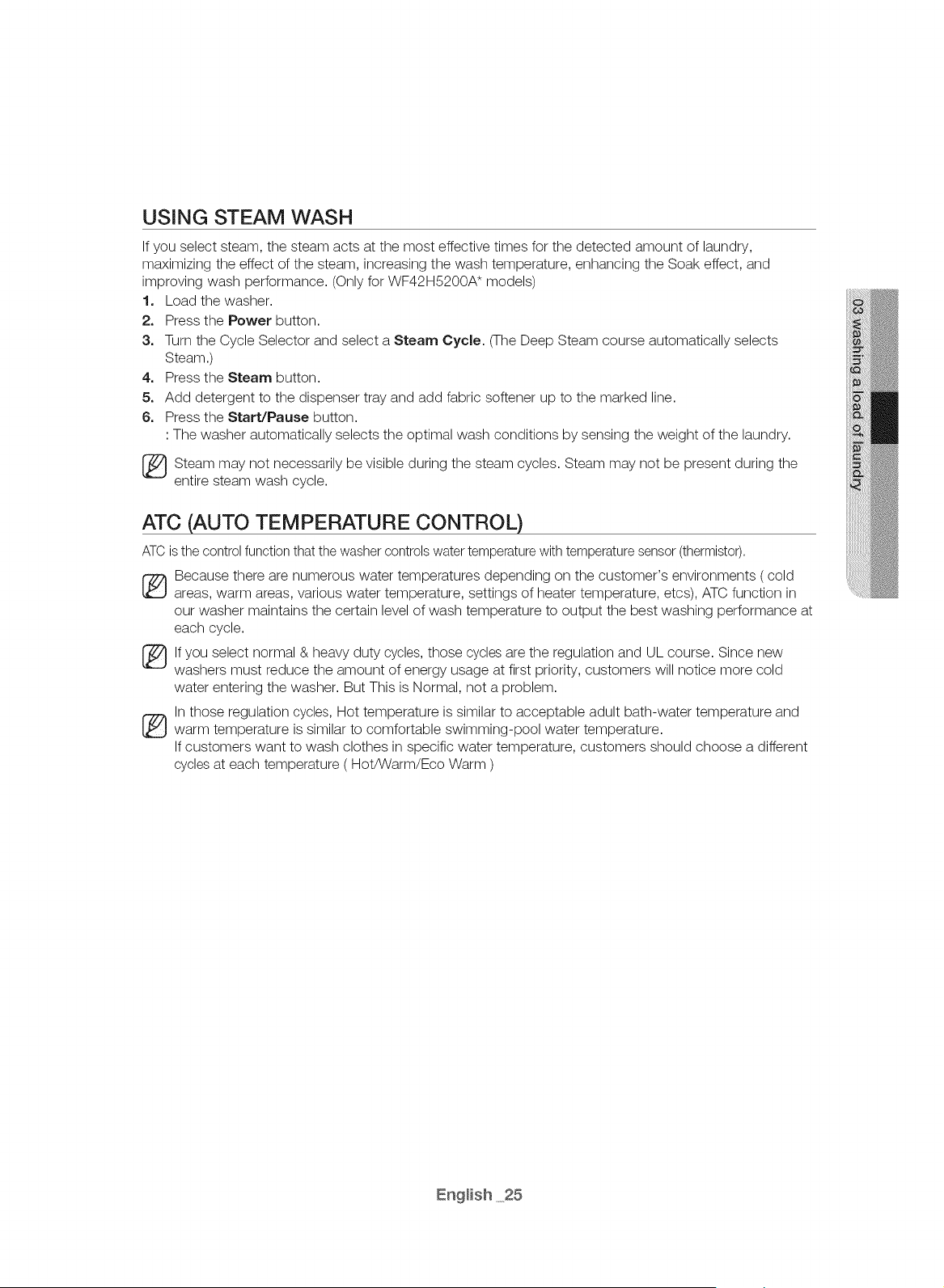

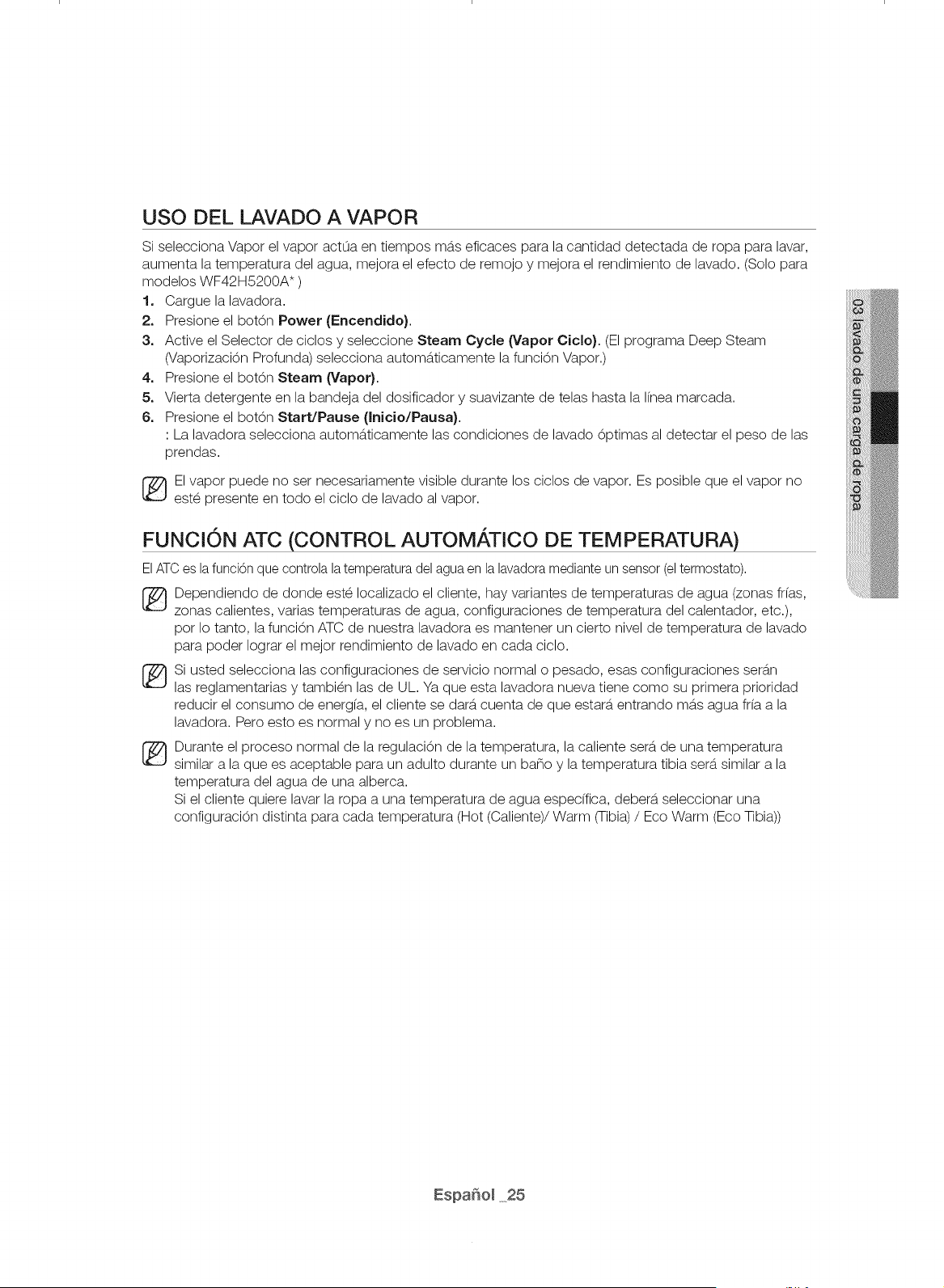

25 Using steam wash

25 ATC (Auto Temperature Control)

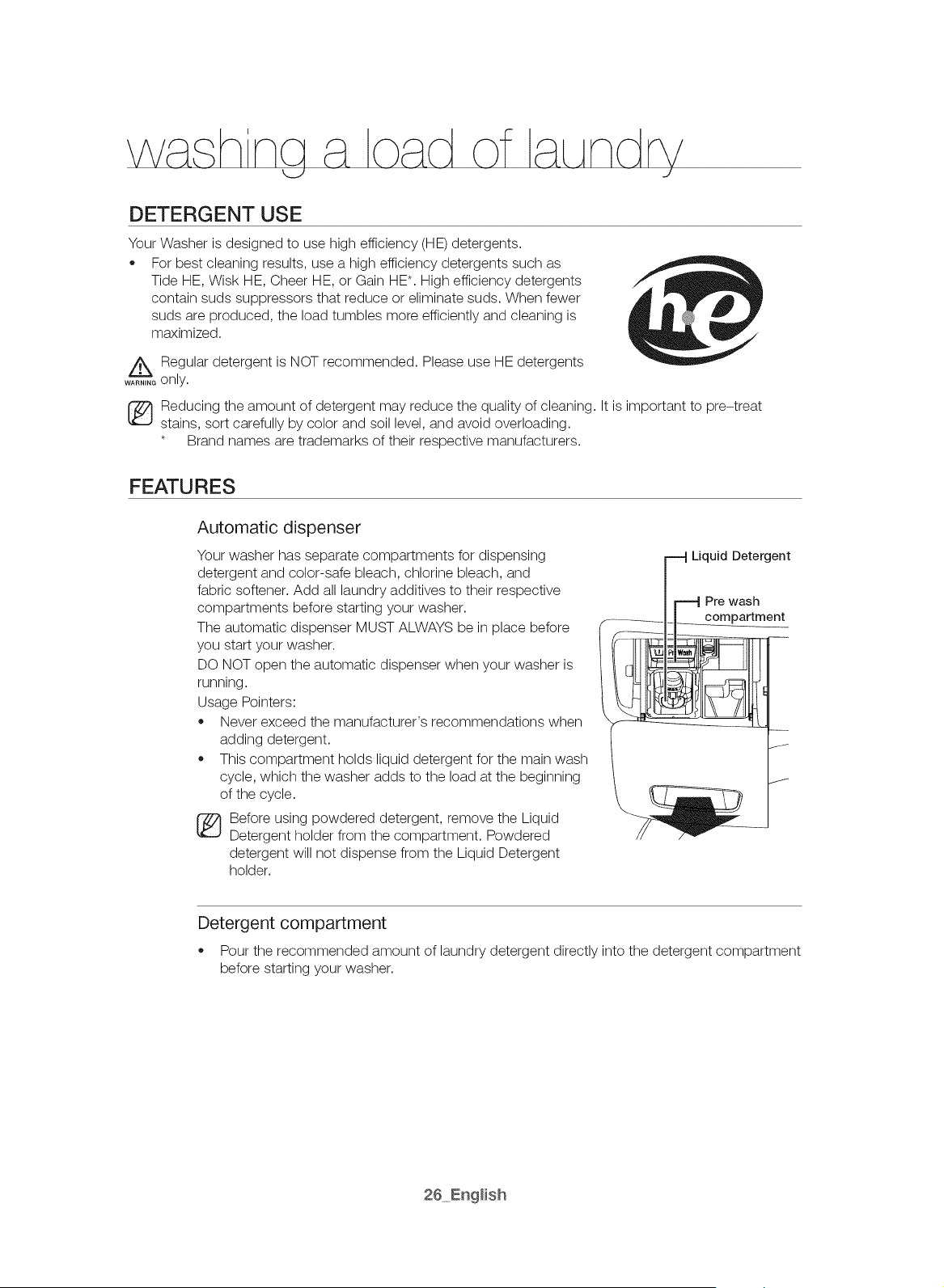

26 Detergent use

26 Features

MAINTAINING YOUR WASHER

TROUBLESHOOTING

APPENDIX

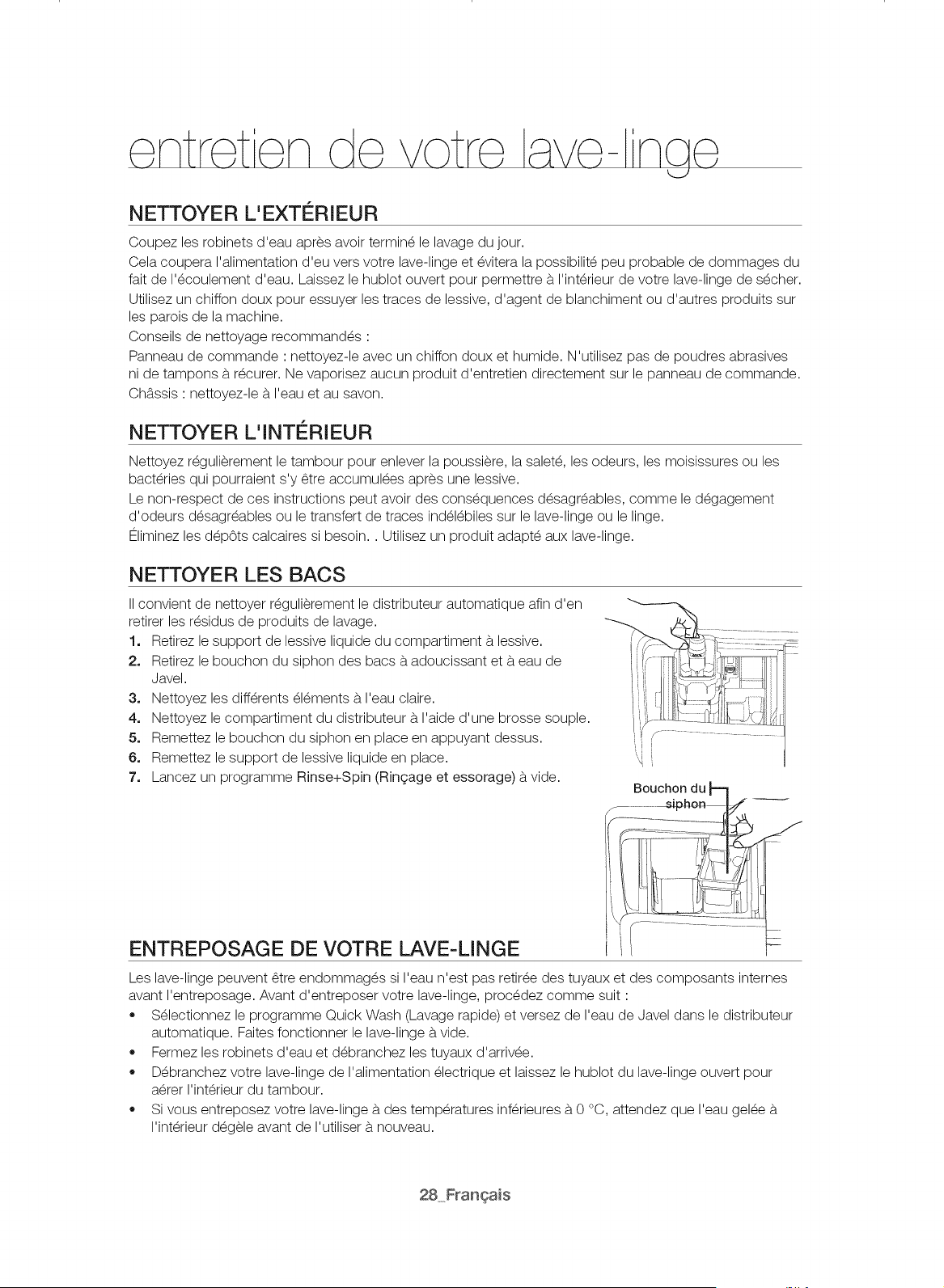

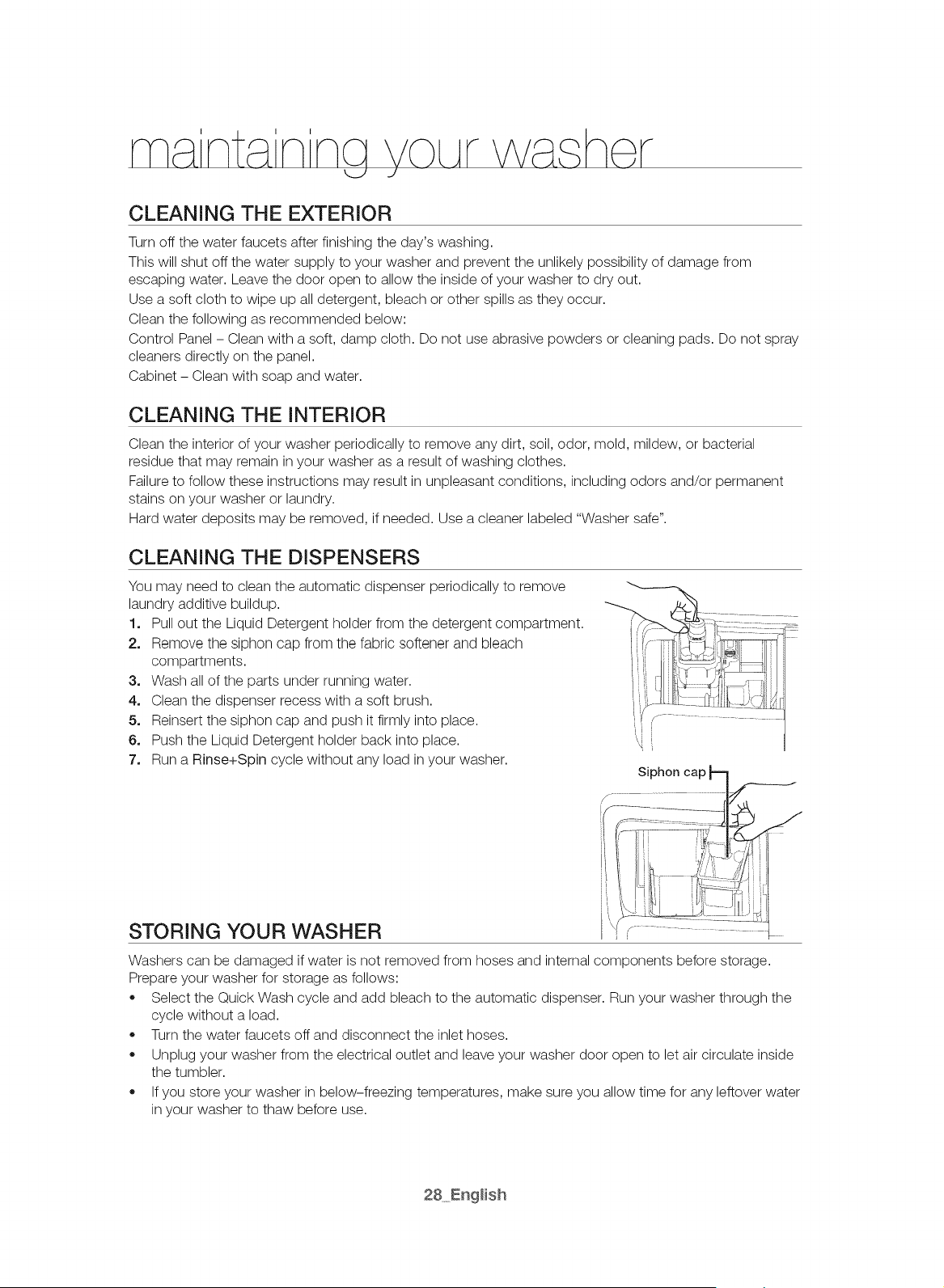

28 Cleaning the exterior

28 Cleaning the interior

28 Cleaning the dispensers

28 Storing your washer

29 Cleaning the debris filter

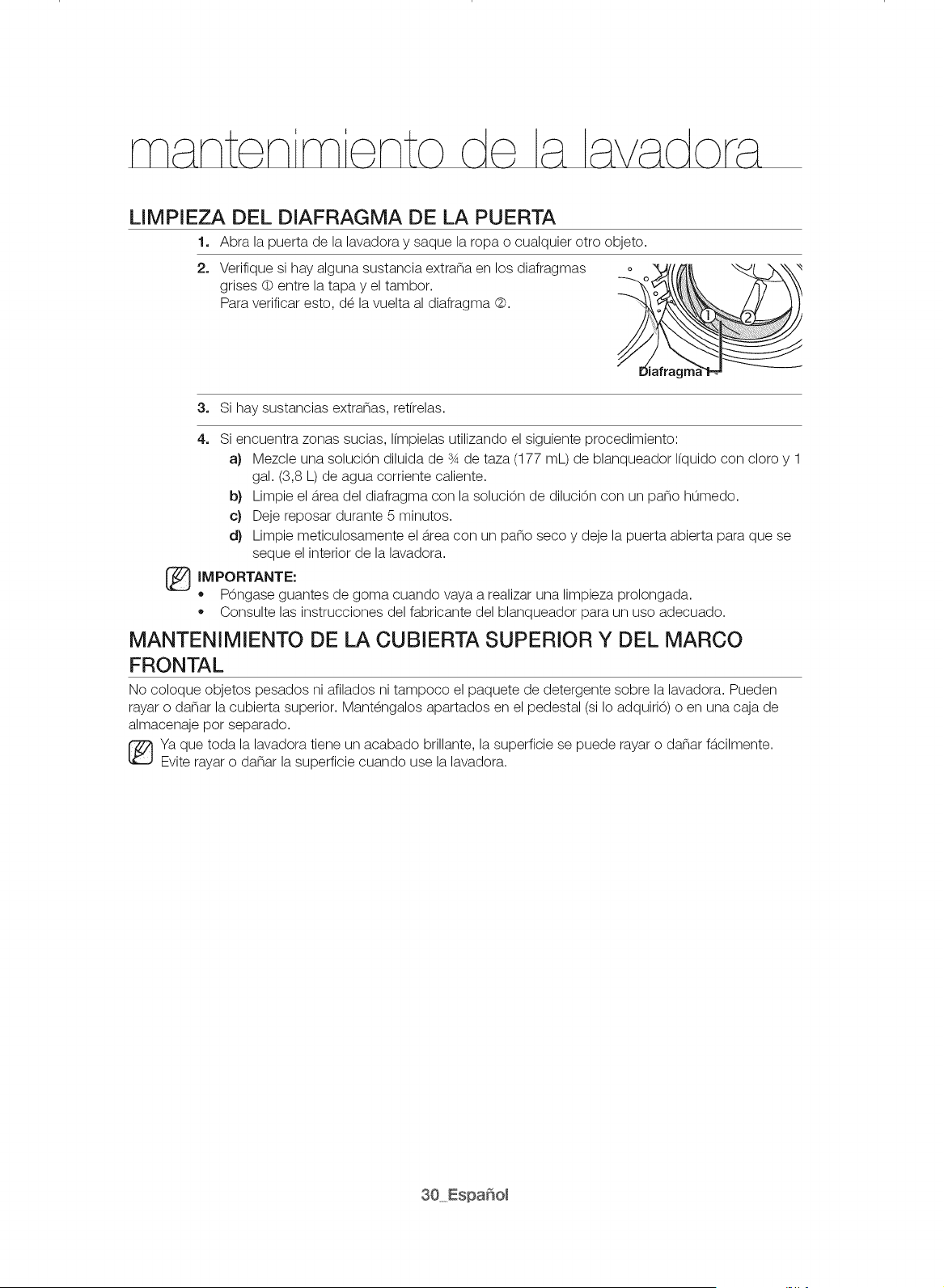

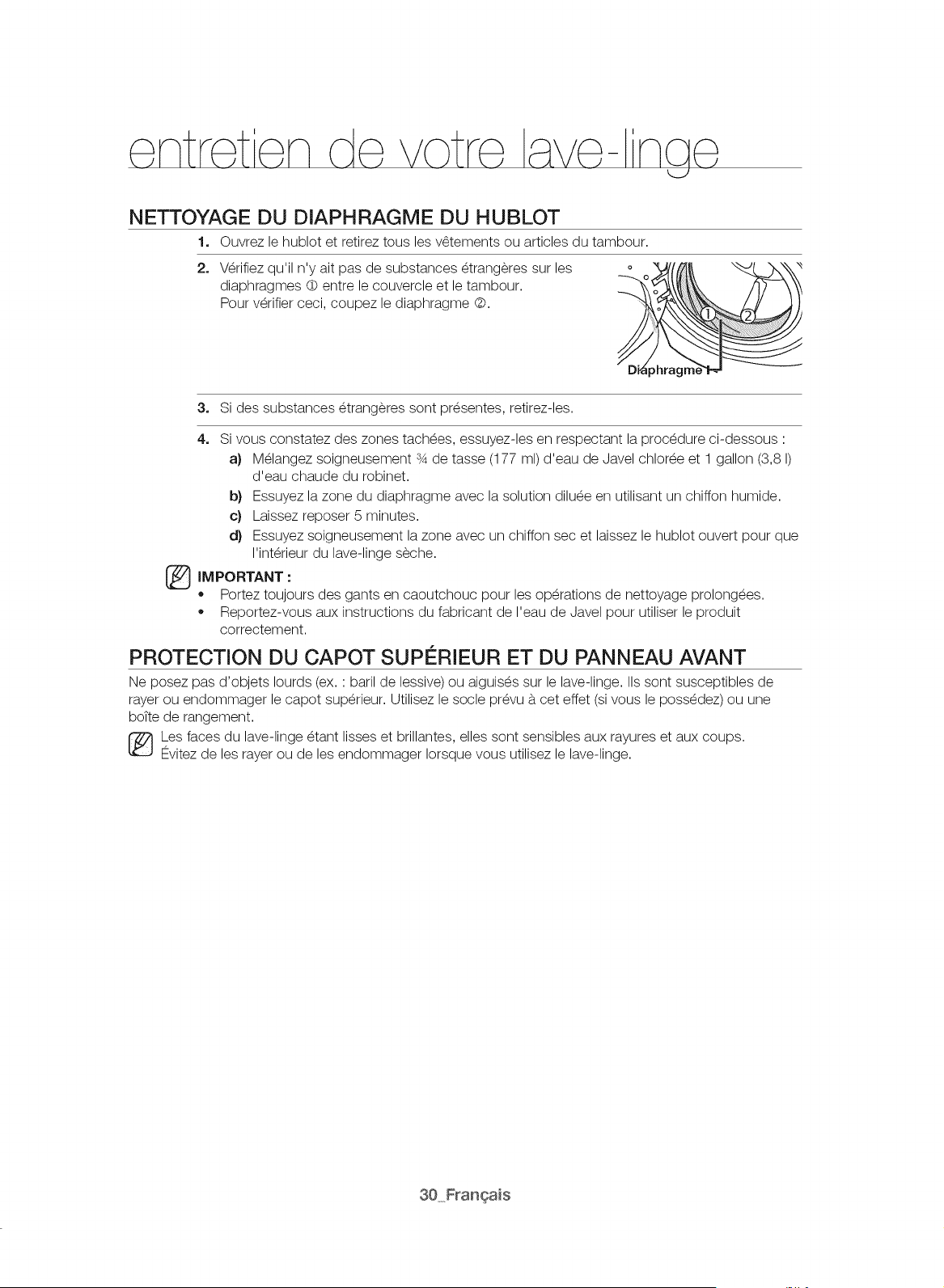

30 Cleaning the door Diaphragm

30 Preserving the top cover and the front frame

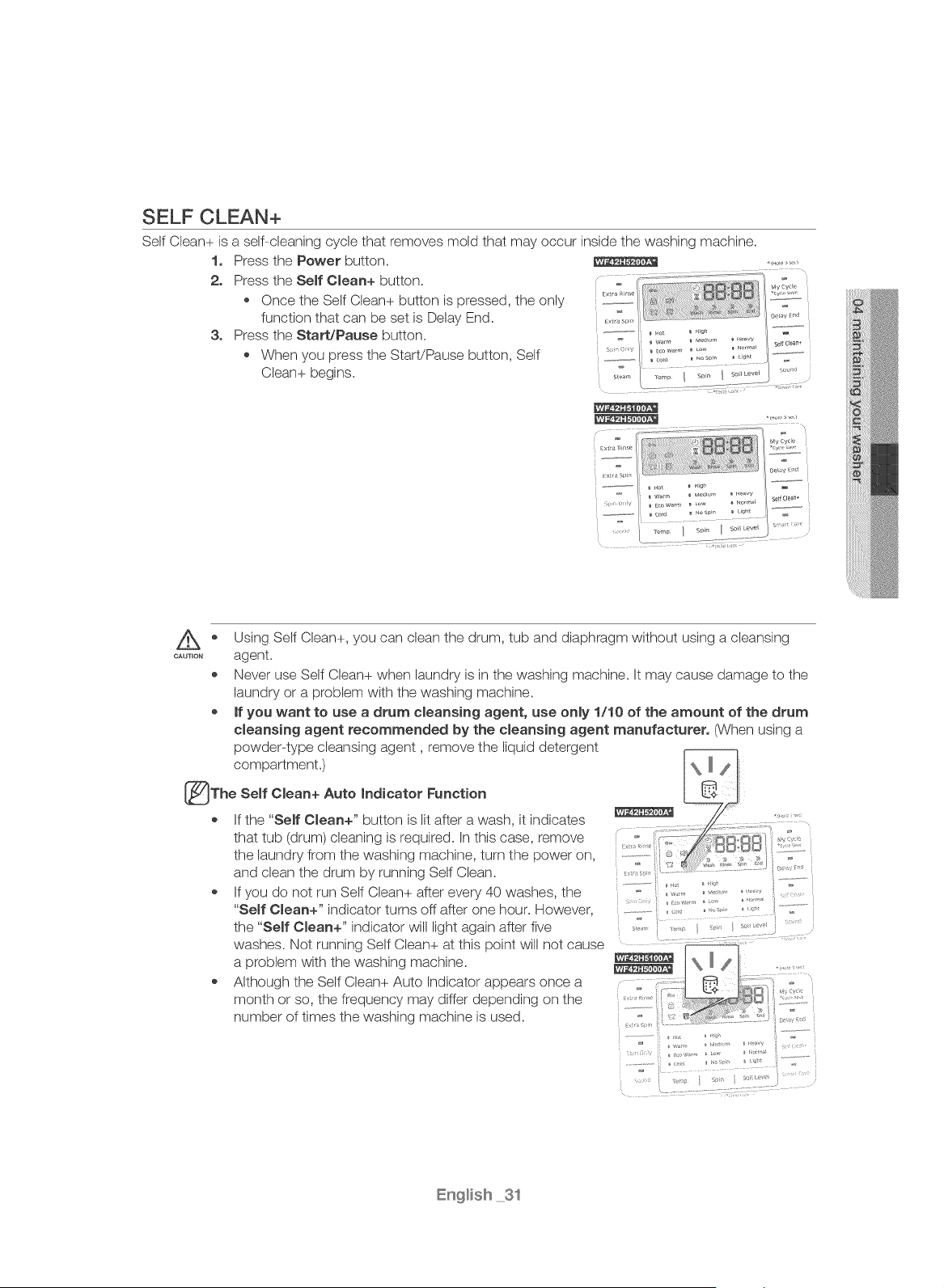

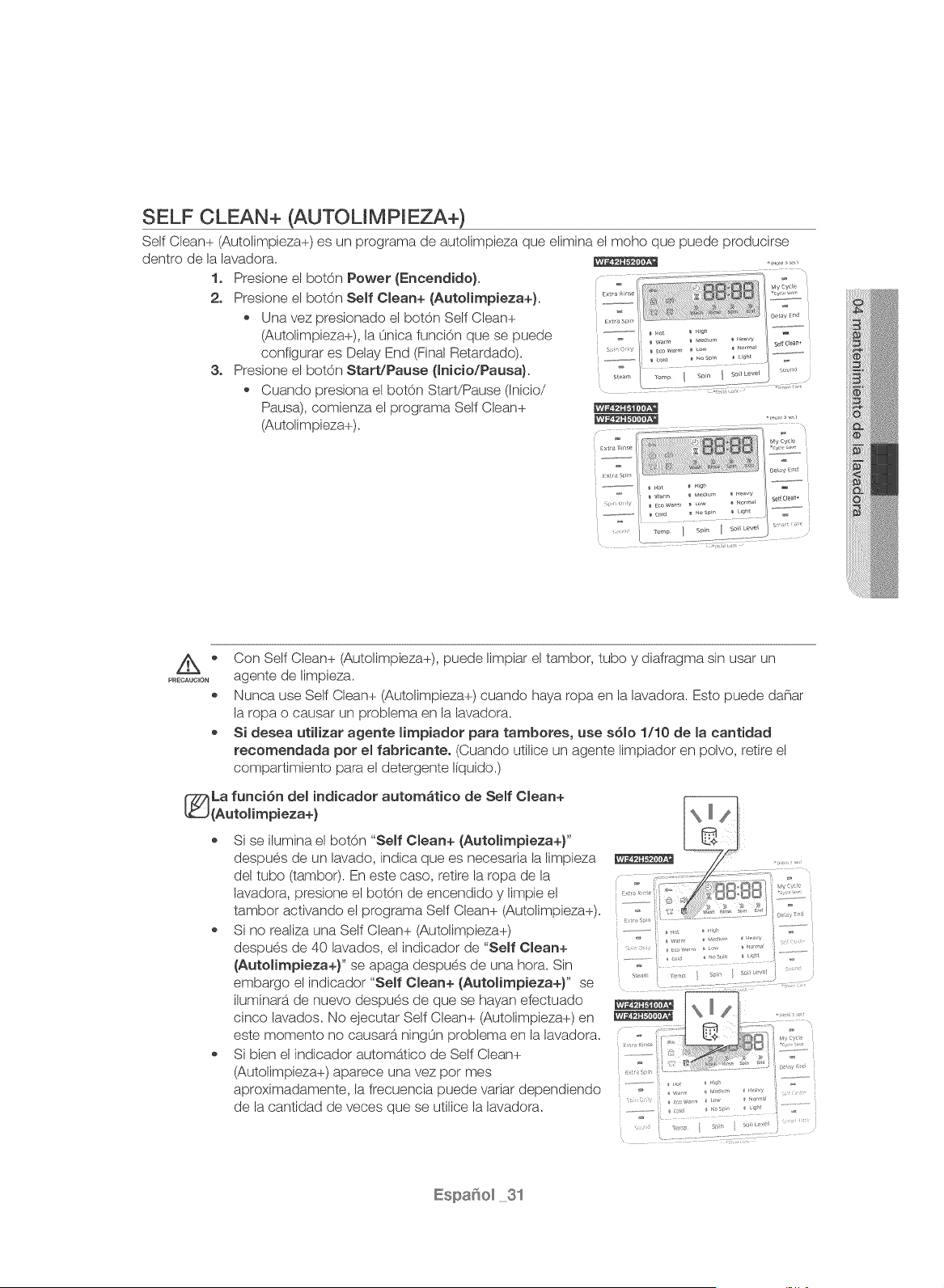

31 Self Clean+

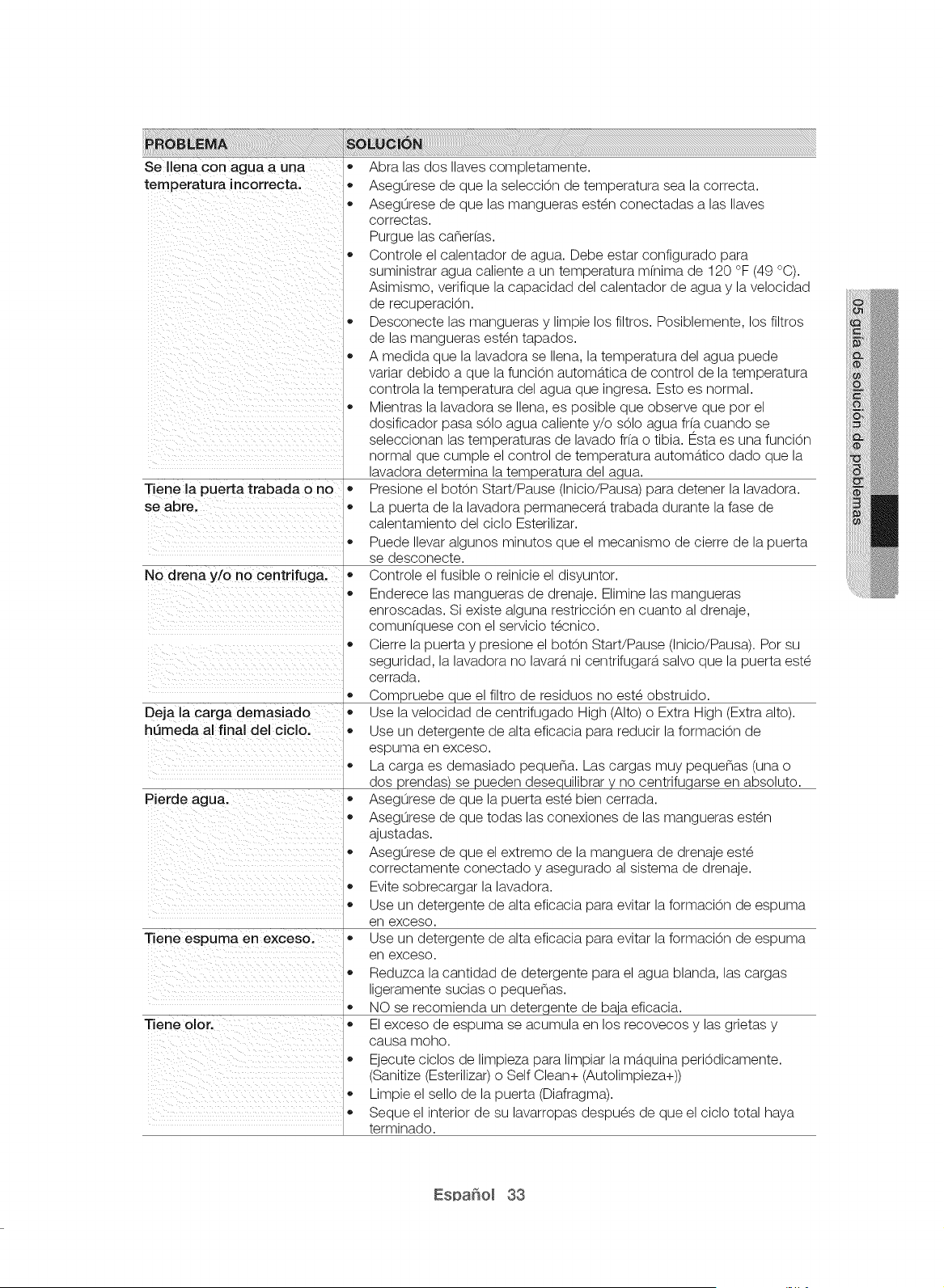

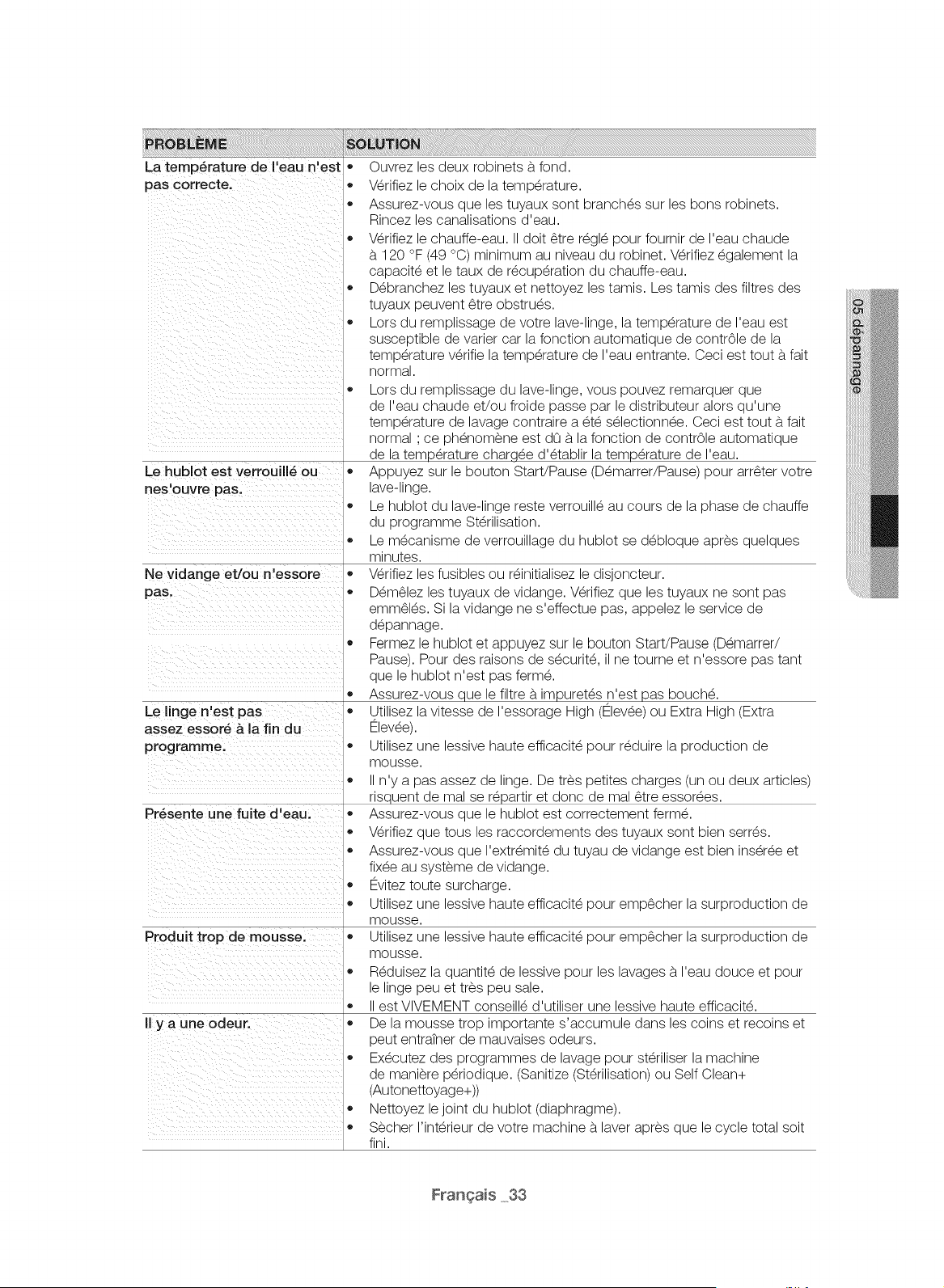

32 Check these solutions if your washer.,.

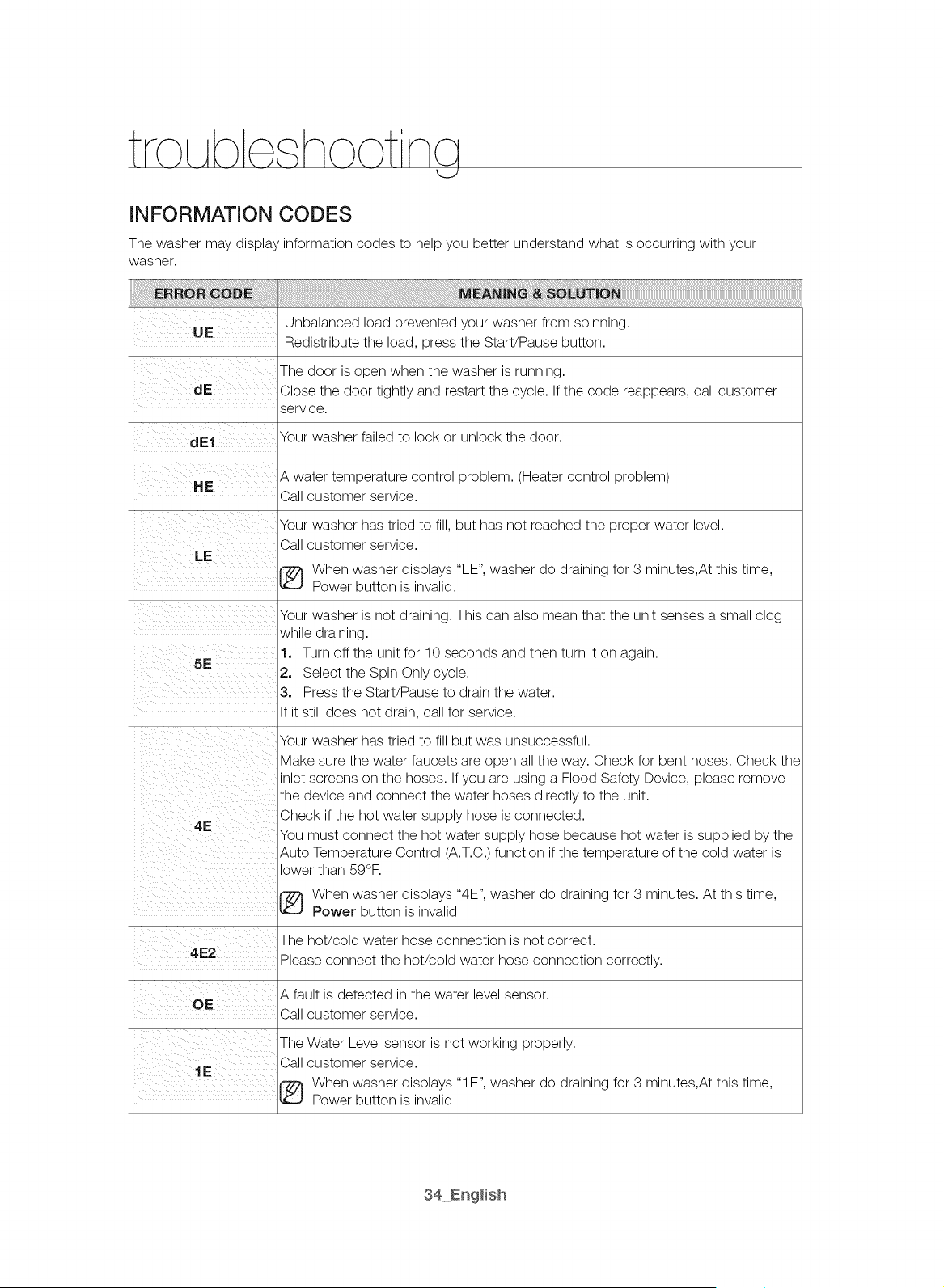

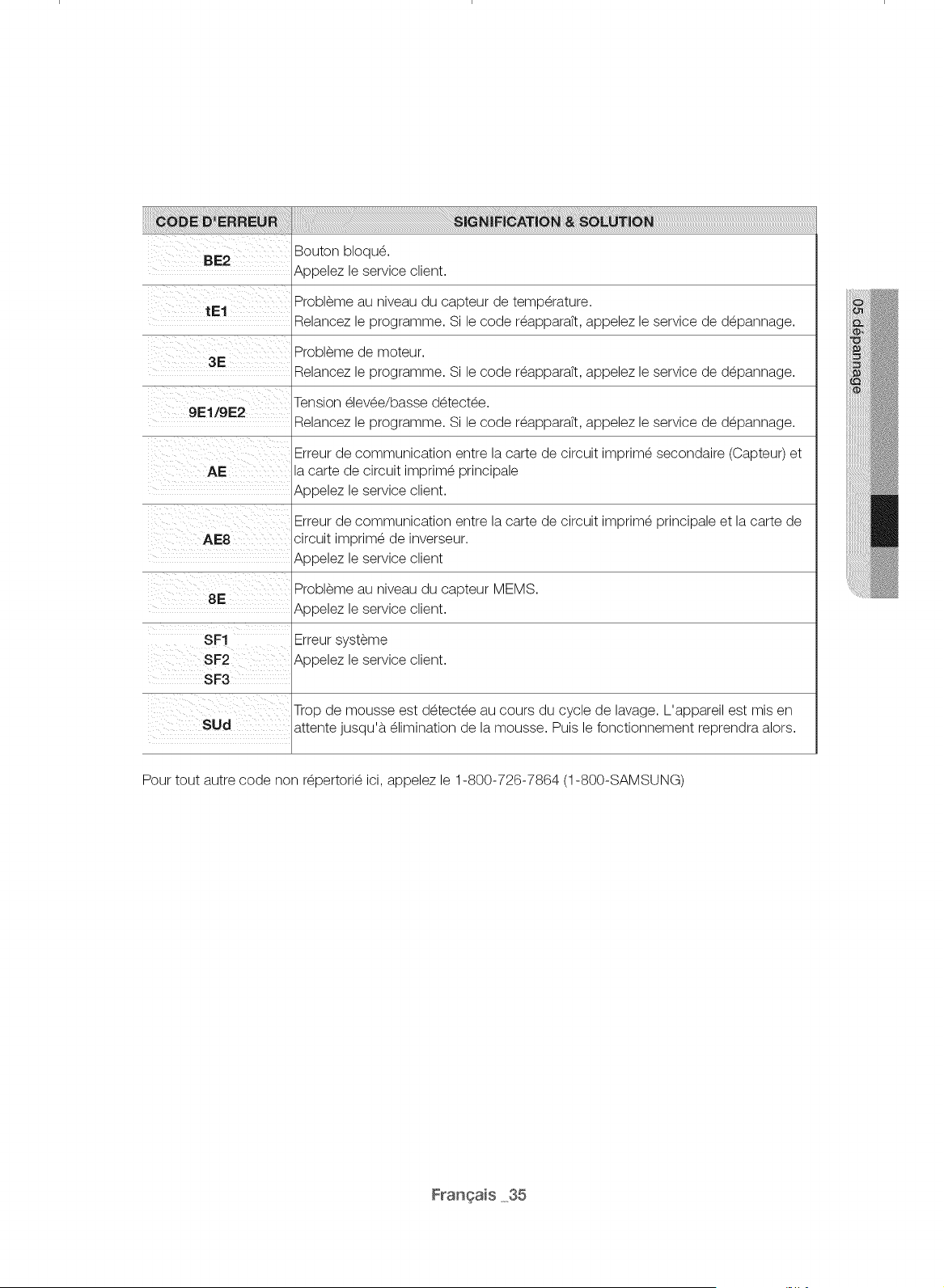

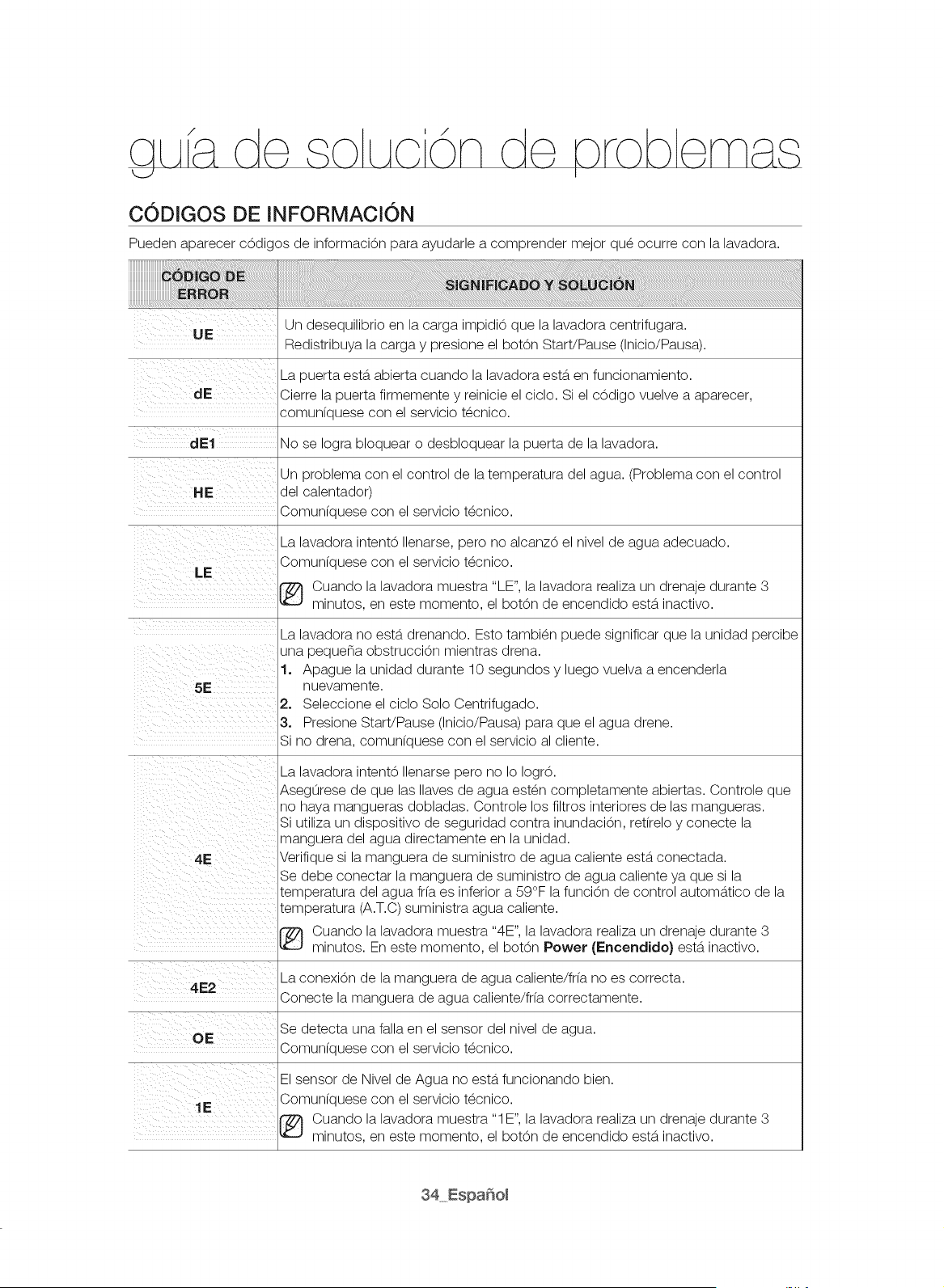

34 Information codes

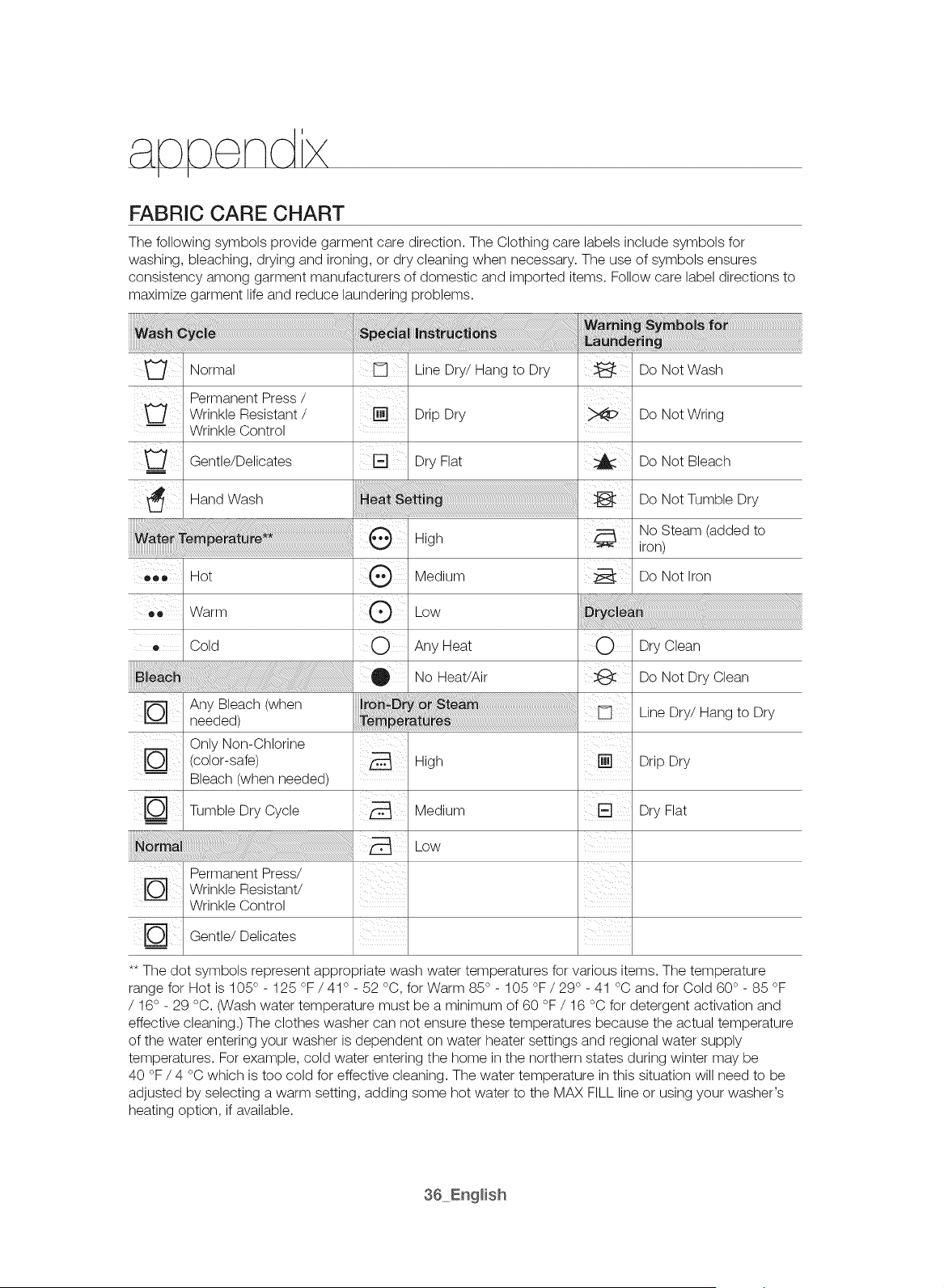

36 Fabric care chart

37 Cycle chart

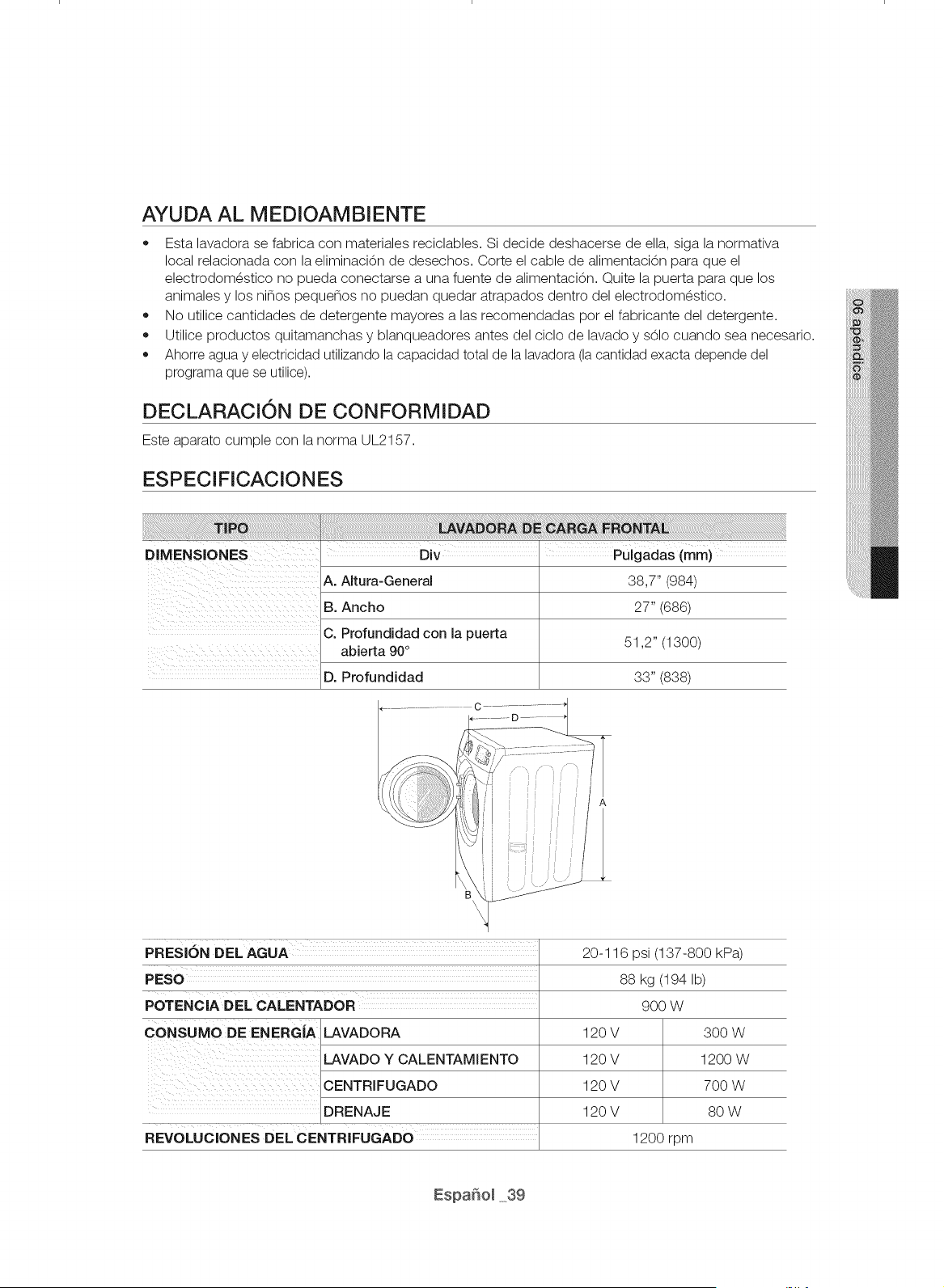

39 Helping the environment

39 Declaration of conformity

39 Specification

_f tv nforrn _ton

Congratulations on your new Samsung washer. This manual contains important

information on the installation, use, and care of your appliance. Please take time

to read this manual to take full advantage of your washer's many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, and operating your washer.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

Hazards or unsafe practices that may result in severe personal injury

or death.

WARNING To reduce the risk of fire, explosion, electric shock, or personal injury

when using your washer, follow these basic safety precautions:

Z_ Hazards or unsafe practices that may result in minor personal injury or

CAUTION property damage.

Do NOT attempt.

Do NOT disassemble.

[_ Do NOT touch.

(_) Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

_Read all instructions before the

using appliance.

SAVE THESE INSTRUCTIONS

English 3

/_ WARNING: To reduce the risk of fire, electric shock, or injury to when using

persons your

WARNINGappliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.

2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances

as they give off vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to the

washing or drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances

to the wash water. These substances give off vapors that could ignite or explode.

10. Under certain conditions, hydrogen gas may be produced in a hot water system that

has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot

water system has not been used for such a period, before using a washer or combination

washer-dryer, turn on all hot water faucets and let the water flow from each for several

minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do

not smoke or use an open flame during this time.

_ State of California Proposition 65 Warnings:

WARNING

WARNING: This product contains chemicals known to the State of California to cause

cancer and reproductive toxicity.

SAVE THESE INSTRUCTIONS

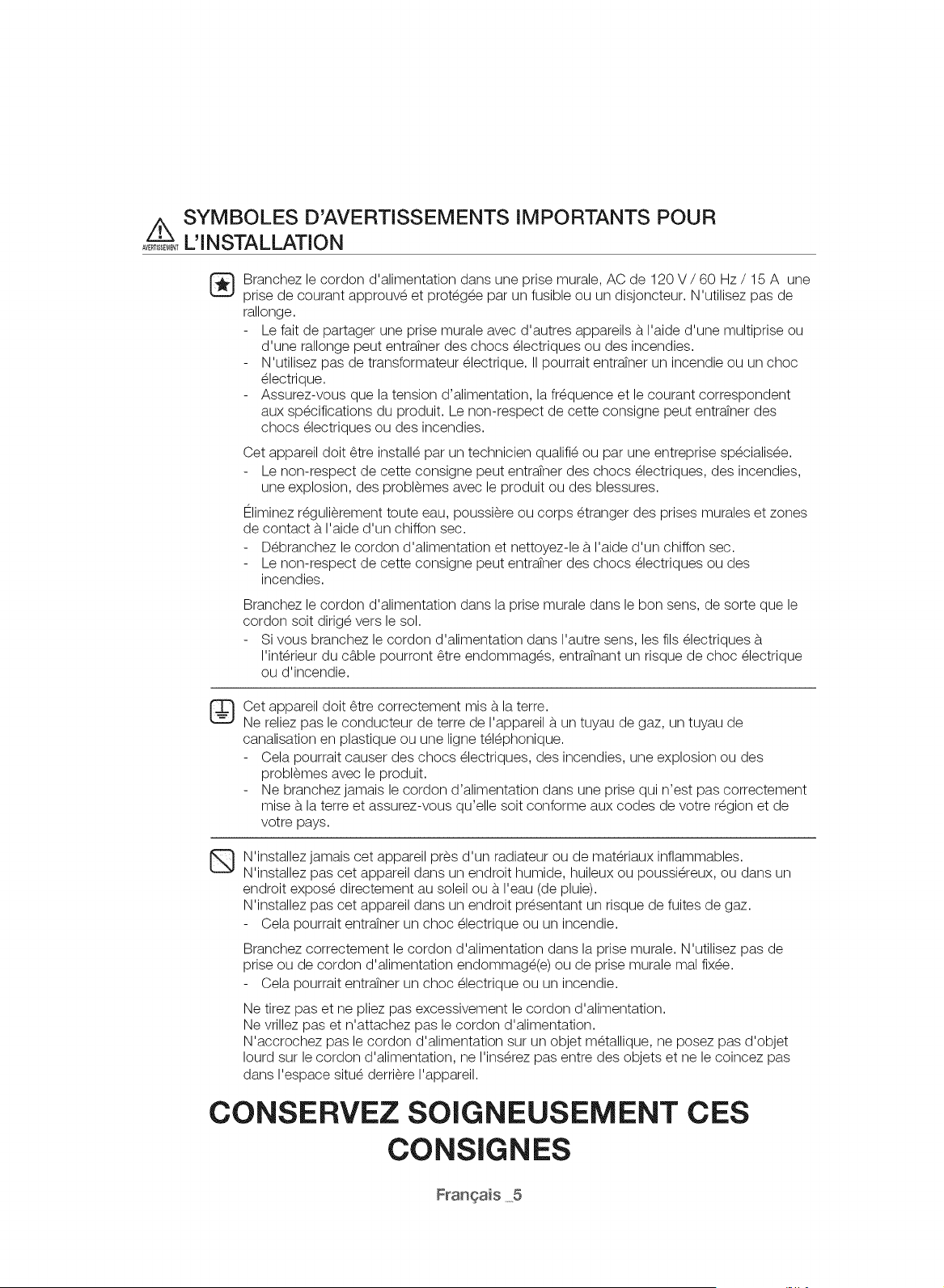

SEVERE WARNING SIGNS FOR iNSTALLATiON

WARNING

Plug the power cord into an AC 120 V / 60 Hz / 15 A wall socket or higher and use the

socket for this appliance only. In addition, do not use an extension cord.

Sharing a wall socket with other appliances using a power strip or extending the power

cord may result in electric shock or fire.

Do not use an electric transformer. It may result in electric shock or fire.

Ensure that the power voltage, frequency and current are the same as those of the

product specifications. Failing to do so may result in electric shock or fire.

The installation of this appliance must be performed by a qualified technician or service

company.

Failing to do so may result in electric shock, fire, an explosion, problems with the

product, or injury.

Remove all foreign substances such as dust or water from the power plug terminals and

contact points using a dry cloth on a regular basis.

Unplug the power plug and clean it with a dry cloth.

Failing to do so may result in electric shock or fire.

Plug the power plug into the wall socket in the right direction so that the cord runs towards

the floor.

If you plug the power plug into the socket in the opposite direction, the electric wires

within the cable may be damaged and this may result in electric shock or fire.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

This may result in electric shock, fire, an explosion, or problems with the product.

Never plug the power cord into a socket that is not grounded correctly and make sure

that it is in accordance with local and national codes.

Do not install this appliance near a heater or inflammable material.

Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct

sunlight and water (rain drops).

Do not install this appliance in a location where gas may leak.

This may result in electric shock or fire.

Plug the power plug into the wall socket firmly. Do not use a damaged power plug,

damaged power cord or loose wall socket.

This may result in electric shock or fire.

Do not pull or excessively bend the power cord.

Do not twist or tie the power cord.

Do not hook the power cord over a metal object, place a heavy object on the power cord,

insert the power cord between objects, or push the power cord into the space behind the

appliance.

This may result in electric shock or fire.

Do not pull the power cord when unplugging the power plug.

Unplug the power plug by holding the plug.

Failing to do so may result in electric shock or fire.

SAVE THESE INSTRUCTIONS

English 5

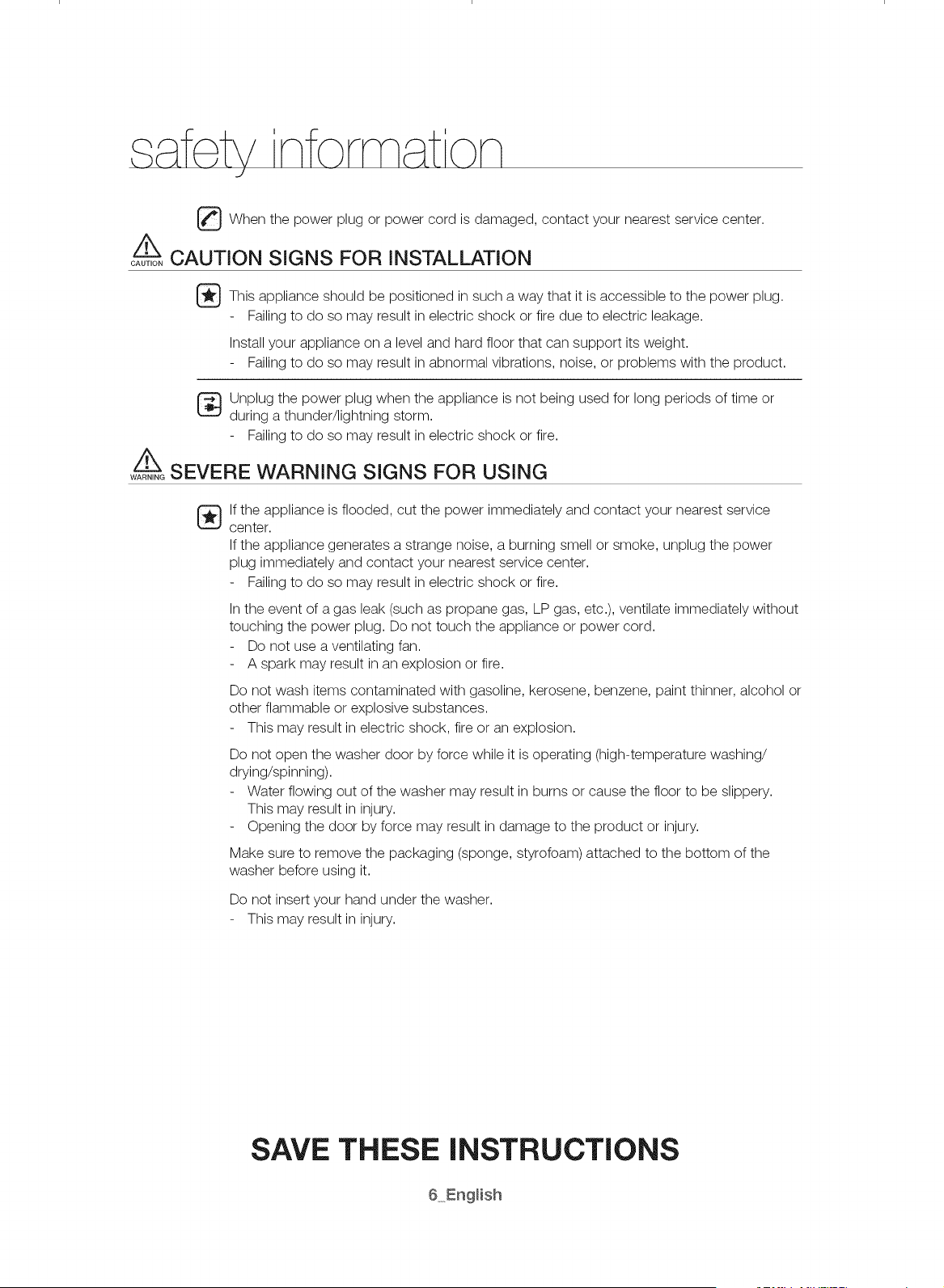

When the power plug or power cord is damaged, contact your nearest service center.

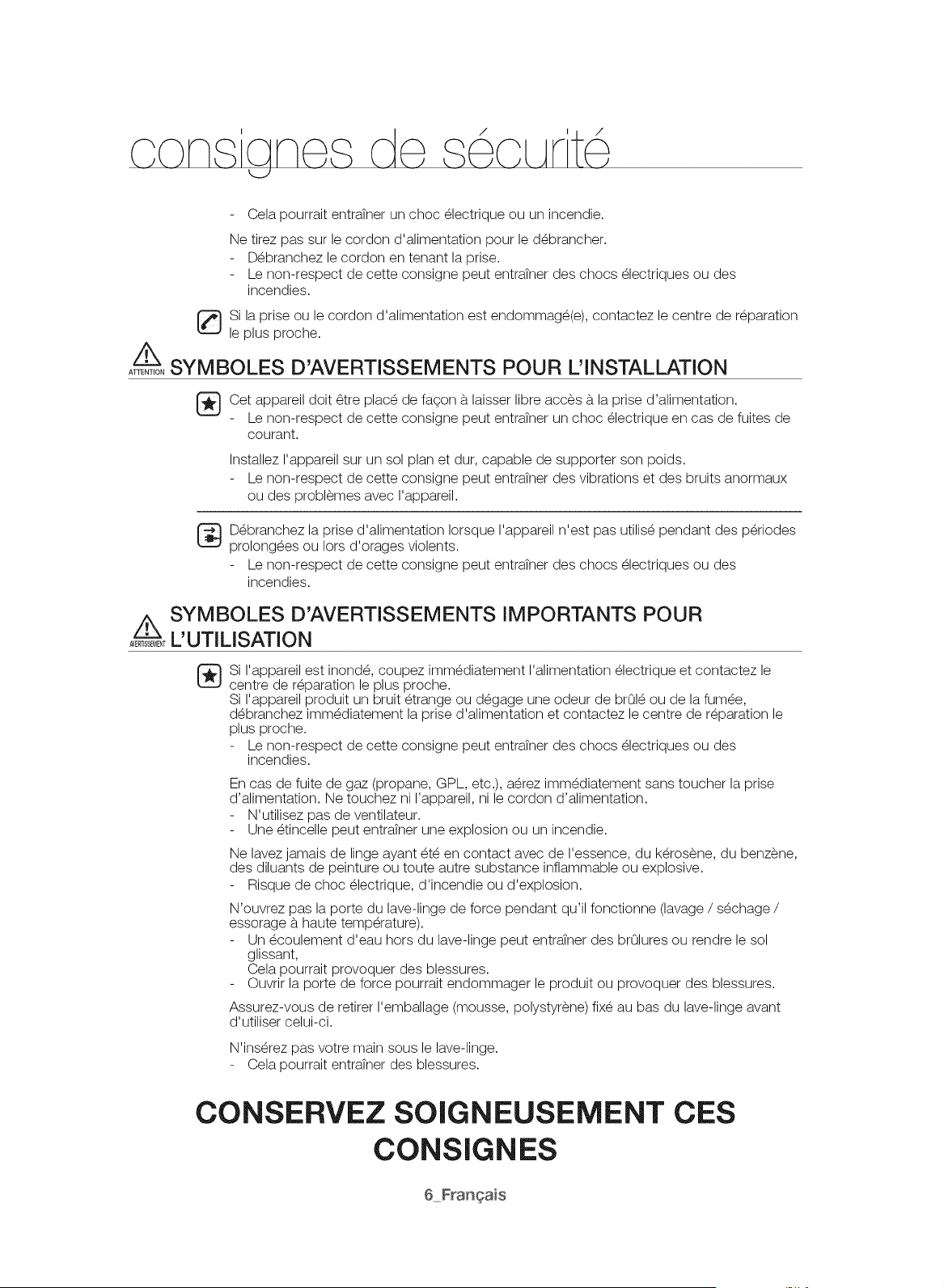

CAUTION SIGNS FOR INSTALLATION

CAUTION

_This appliance should be positioned in such a way that it is accessible to the power plug.

Failing to do so may result in electric shock or fire due to electric leakage.

Install your appliance on a level and hard floor that can support its weight.

Failing to do so may result in abnormal vibrations, noise, or problems with the product.

_ nplug the power plug when the appliance is not being used for long periods of time or

during a thunder/lightning storm.

Failing to do so may result in electric shock or fire.

SEVERE WARNING SIGNS FOR USING

WARNING

lf the appliance is flooded, cut the power immediately and contact your nearest service

center.

If the appliance generates a strange noise, a burning smell or smoke, unplug the power

plug immediately and contact your nearest service center.

Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without

touching the power plug. Do not touch the appliance or power cord.

Do not use a ventilating fan.

A spark may result in an explosion or fire.

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or

other flammable or explosive substances.

This may result in electric shock, fire or an explosion.

Do not open the washer door by force while it is operating (high-temperature washing/

drying/spinning).

Water flowing out of the washer may result in burns or cause the floor to be slippery.

This may result in injury.

Opening the door by force may result in damage to the product or injury.

Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the

washer before using it.

Do not insert your hand under the washer.

This may result in injury.

SAVE THESE INSTRUCTIONS

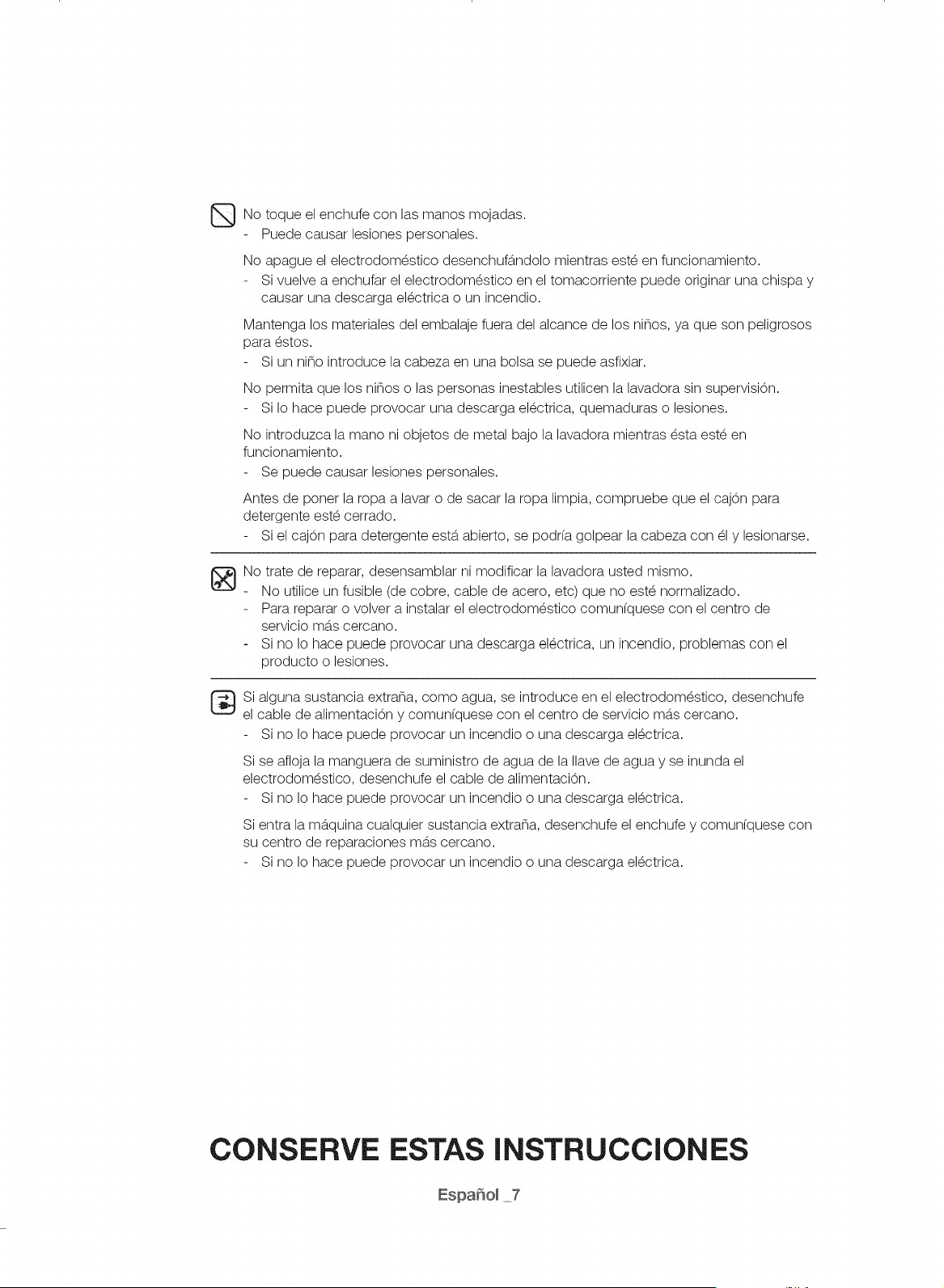

Do not touch the power plug with wet hands.

This may result in electric shock.

Do not turn the appliance off by unplugging the power plug while an operation is in

progress.

Plugging the power plug into the wall socket again may cause a spark and result in

electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can

be dangerous to children.

If a child places a bag over their head, they may result in suffocation.

Do not let children or infirm persons use this washer unsupervised.

Failing to do so may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the washer while it is operating.

This may result in injury.

Make sure the detergent drawer is closed before you put laundry into the washer or remove

laundry from the washer.

If the detergent drawer is open, you could strike the drawer with your head and injure

yourself.

_,} Do not attempt to repair, disassemble, or modify the appliance yourself.

Do not use any fuse ( such as cooper, steel wire, etc.) other than the standard fuse.

When repairing or reinstalling the appliance is required, contact your nearest service

center.

Failing to do so may result in electric shock, fire, problems with the product, or injury.

If any foreign substance such as water has entered the appliance, unplug the power plug

and contact your nearest service center.

Failing to do so may result in electric shock or fire.

When the water supply hose comes loose from the faucet and floods the appliance, unplug

the power plug.

Failing to do so may result in electric shock or fire.

If any foreign substance enters the appliance, unplug the power plug and contact you

nearest service center.

Failing to do so my result in electric shock or fire.

SAVE THESE INSTRUCTIONS

English 7

BETTER \\:F42H5200 03397A 03 ENindd ? 2014/10/13 9:22:28

CAUTION SIGNS FOR USING

CAUTION

When the washer is contaminated by a foreign substance such as detergent, dirt, food

waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.

Failing to do so may result in discoloration, deformation, damage or rust.

The front glass may be broken by a strong impact. Take care when using the washer.

When the glass is broken, it may result in injury.

After a water supply failure or when reconnecting the water supply hose, open the faucet

slowly.

Open the faucet slowly after a long period of non-use.

The air pressure in the water supply hose or the water pipe may result in damage to a

part or in water leakage.

If a drain error occurs during an operation, check if there is a draining problem.

If the washer is used when it is flooded because of a draining problem, it may result in

electric shock or fire due to electric leakage.

Insert the laundry into the washer completely so that laundry does not get caught in the

door.

If laundry gets caught in the door, it may result in damage to the laundry or the washer,

or result in water leakage.

Ensure that the faucet is turned off when the washer is not being used.

Ensure that the screw on the water supply hose connector is properly tightened.

Failing to do so may result in property damage or injury.

Take care that the Rubber Seal and the Front Door Glass are not contaminated by a foreign

substance (e.g. waste, thread, hair, etc.).

If a foreign substance is caught in the door or the door is not completely closed, it may

cause a water leakage.

Open the faucet and check if the water supply hose connector is firmly tightened and that

there is no water leaking before using the product.

If the screws or the water supply hose connector are loose, it may result in water leak.

The product you have purchased is designed for domestic use only.

The use for business purposes qualifies as product misuse. In this case, the product will not

be covered by the standard warranty provided by Samsung and no responsibility can be

attributed to Samsung for malfunctions or damages resulting from such misuse.

If the wash is not started and the laundry is left for a period of time after you have added

detergent or applied stain remover or pre-treatment onto the laundry, the laundry may be

discolored.

Select the recommended cycle and temperature on the basis of the laundry items, sort the

laundry by color on the basis of its colorfastness and select the appropriate cycle.

Make sure that foreign objects such as pins, buttons and coins are removed from clothing

items when adding laundry to the washer. Wash dirty laundry separately from relatively

clean items and wash fragile items separately from tougher textiles.

If an item is stained, wash it as soon as possible. Use stain remover or detergent only after

testing the colorfastness of the item by applying a small quantity to an inside seam.

SAVE THESE INSTRUCTIONS

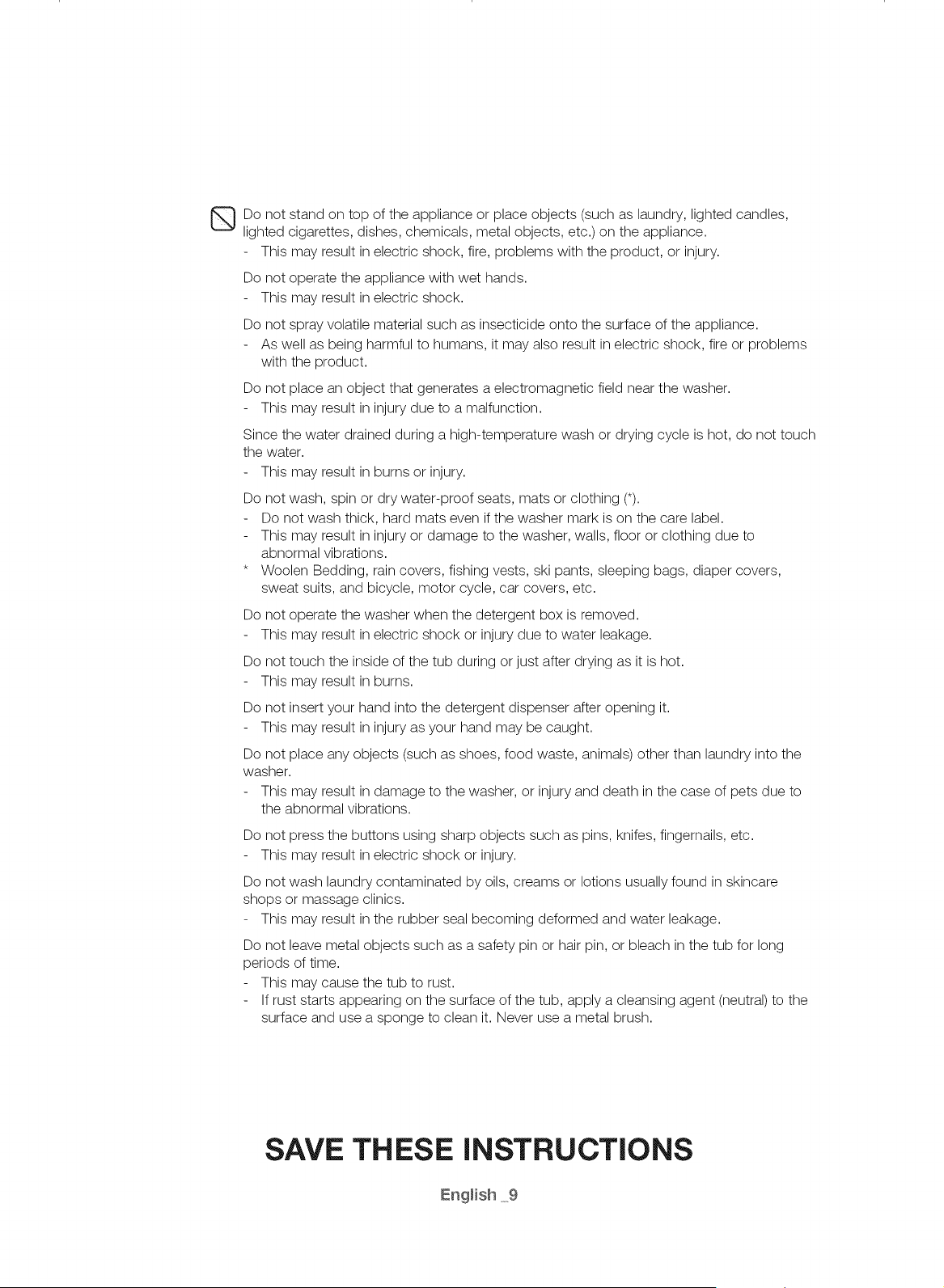

Do not stand on top of the appliance or place objects (such as laundry, lighted candles,

lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the appliance.

As well as being harmful to humans, it may also result in electric shock, fire or problems

with the product.

Do not place an object that generates a electromagnetic field near the washer.

This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not touch

the water.

This may result in burns or injury.

Do not wash, spin or dry water-proof seats, mats or clothing (*).

Do not wash thick, hard mats even if the washer mark is on the care label.

This may result in injury or damage to the washer, walls, floor or clothing due to

abnormal vibrations.

* Woolen Bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,

sweat suits, and bicycle, motor cycle, car covers, etc.

Do not operate the washer when the detergent box is removed.

This may result in electric shock or injury due to water leakage.

Do not touch the inside of the tub during or just after drying as it is hot.

This may result in burns.

Do not insert your hand into the detergent dispenser after opening it.

This may result in injury as your hand may be caught.

Do not place any objects (such as shoes, food waste, animals) other than laundry into the

washer.

This may result in damage to the washer, or injury and death in the case of pets due to

the abnormal vibrations.

Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.

This may result in electric shock or injury.

Do not wash laundry contaminated by oils, creams or lotions usually found in skincare

shops or massage clinics.

This may result in the rubber seal becoming deformed and water leakage.

Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long

periods of time.

This may cause the tub to rust.

If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the

surface and use a sponge to clean it. Never use a metal brush.

SAVE THESE INSTRUCTIONS

English 9

Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry

contaminated by dry cleaning detergent.

This may result in spontaneous combustion or ignition due to the heat of the oxidation of

the oil.

Do not use hot water from water cooling/heating devices.

This may result in problems with the washer.

Do not use natural hand-washing soap for the washer.

If it hardens and accumulates inside the washer, it may result in problems with the

product, discoloration, rust or bad odors.

Do not wash large laundry items such as Bedding in the washing net.

Failing to do so may result in injury due to abnormal vibrations.

Place smaller items, such as lace socks and lingerie in the washing net.

Do not use hardened detergent.

If it accumulates inside the washer, it may result in water leakage.

Do not wash throw rugs or doormats.

If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may

result in error such as no draining.

Take care that children's fingers are not caught in the door when closing it. This may result

in injury.

! SEVERE WARNING SIGNS FOR CLEANING

WARNING

Do not clean the appliance by spraying water directly onto it.

Do not use the strong acid cleaning agent.

Do not use benzene, thinner or alcohol to clean the appliance.

This may result in discoloration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

Failing to do so may result in electric shock or fire.

SAVE THESE INSTRUCTIONS

UNPACKING YOUR WASHER

Unpack your washer and inspect it for shipping damage. Make sure you have received all the items

shown below. If your washer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

Z_ Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

....... etc.) well out of the reach of children.

OVERVIEW OF YOUR WASHER

Hot water supply

hose

Cold water supply

Detergent drawer

Control panel

Door

Tub

Debris filter

Drain tube

Filter cover

Drain Hose

Adjustable legs

Wrench Bolt Hole Covers Hose Guide

Water Supply Hoses Plastic Zip Hose Tie

anti-slip pads

If you lose an accessory and want to purchase a replacement, con

tact the Samsung service center (1-800-SAMSUNG(1-800-726-7864)).

The design of the parts and accessories may differ from the pictures

above.

Their design is subject to change without noiice for product improvement.

Do not reuse old hoses. Only use new water supply hoses when you

install the washing machine. Old water supply hoses carl leak or burst causing flooding and property

damage.

Confirm that there are rubber washers inside each coupling of the

water supply hoses.

* Bolt hole covers ' The number of bolt hole covers depends on the model (3-6 covers).

BETTE]_ \VF42H5200 03397A 03 ENindd 11 2014/10/13 9:22:29

BASIC LOCATION REQUIREMENTS

Electrical

120 Volt 60 Hz 15 AMP fuse or circuit breaker

Individual branch circuit serving only your washer is recommended.

Your washer is equipped with a power cord.

Z_ NEVER USE AN EXTENSION CORD.

CAUTION

Grounding

ELECTRICAL GROUNDING IS REQUIRED FOR THIS APPLIANCE,

This appliance must be grounded. In the event of malfunction or breakdown, grounding will

reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a power cord having a three-prong grounding plug for use in a

properly installed and grounded three-prong outlet.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

_An improperly connected equipment-grounding conductor can increase the risk of electrical

....... shock. Check with a qualified electrician or serviceman if you are not sure whether the

appliance is properly grounded. Do not modify the plug provided with the appliance - if it

does not fit the outlet, have a proper outlet installed by a qualified electrician.

IMPORTANT SAFETY PRECAUTIONS

To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and

grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.

70 Latest Revision and local codes and ordinances. It is the personal responsibility of the

appliance owner to provide adequate electrical service for this appliance.

/_ NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR

....... HOT WATER PIPES.

Water

Using bad quality water may cause the water supply valve to operate abnormally.

To correctly fill your washer in the proper amount of time, water pressure of 20-116 psi (137-

800 kPa)is required.

Water pressure less than 20 psi may cause water valve failure, may not allow the water valve to

shut off completely, or may extend the fill time beyond what your washer controls allow, causing

your washer to turn off. A time limit is built into the controls to prevent extensive flooding in your

home if an internal hose becomes loose.

The water faucets must be within 4 feet / 122 cm of the back of your washer to match the inlet

hoses provided with your washer.

[_ ccessory inlet hoses are available in various lengths up to 10 feet/305 cm for faucets that

are further away from the back of your washer.

To avoid the possibility of water damage:

,, Have water faucets easily accessible.

,, Turn off faucets when the washer is not in use.

,, Periodically check that there is no leakage from the water inlet hose fittings.

CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.

WARNING

Drain facility

The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed

through the drain hose clip to the standpipe. The standpipe must be large enough to accept the

outside diameter of the drain hose. The drain hose is attached at the factory.

Flooring

For best performance, you must install your washer on a solidly constructed floor. Wood floors

may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting

and soft tile surfaces are contributing factors to vibration which can cause your washer to move

slightly during the spin cycle.

Never install your washer on a platform or weakly supported structure.

Location considerations

Do not install your washer in areas where water may freeze, since your washer will always retain

some water in its water valve, pump, and hose areas. Freezing water can damage the belts,the

pump, hoses and other components.

Alcove or closet installation

MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:

Sides - 1 in / 25 mm Top - 17 in / 432 mm

Rear - 5.9 in / 150 mm Closet Front - 2 in / 51 mm

If the washer and dryer are installed together, the closet front must have at least a 72 in2(465

cm 2)unobstructed air opening. Your washer alone does not require a specific air opening.

A. Recessed area

1 in,

(2.5cm)

1in. ---_-14_- 27 in. ----_1 I_" 27in. _ 1in.

(2.5cm) (68.8cm) (68.6cm) (2.5cm)

B. Side view - closet or confined area

Undercounter installation (washer only)

40 in. _ 1| _ [

(101.6ore)

I in. -..._I_.------ 27 in. ----_I_ ..-I in.

(2.5ore) (68.6cm) (2.5ore)

With optional pedestal base or stacking kit

Required Dimensions for Installation With Pedestal (Model No : WE357"

51.2in.(130cm)to clearopendoor

(83.8cm) (15cm)

(98.4)

........_ .... 53.4in. |

(135.6cm)_

27in.

(68.6cm)

Closetor Door

3 in,

(7.6cm)

3 in,

(7.60m)

-_11_- 5in.

(12.7cm)

1in. -'_1 _'- 33in. -'-_1 _- 5.9 in.**

(2.5cm) (83.8cm) (15cm) ,,

Required Dimensions for Installation With Stacking Kit (Model No : SK-5A)

77.5in.

(197cm)

* Required spacing

** External exhaust elbow requires

additional space.

IMPORTANT NOTE TO INSTALLER

Please read the following instructions carefully before installing the washer.

These instructions should be retained for future reference.

We recommend you hire a professional to install this washer.

Installation flow chart

Selectinga _ Removingthe shipping _ Connecting thewater

location bolts (*Drumonly) andthe drain

i i i ii i ii i

Please Adjusting the _ poweringyour washing

check again levellingfeet machine

before

steps.

[

Yes

DOes

yourwasher

haveexcessvibration

ornoise?

Running a Calibration mode

(RefertOthe following _ Finish the

installation

No description)

STEP 1

Removing the Shipping Bolts

Before using your washer, you must remove all shipping bolts from the

back of the unit.

1, Loosen all the bolts with the supplied wrench.

2, Slide the bolt and spacer up and remove the bolt with the spacer

through the hole in the rear wall of your washer. Repeat for each

bolt.

3, Cover the holes with the supplied Bolt Hole Covers (See page 11).

4, Keep the shipping bolts and spacers for future use.

STEP 2

Selecting a Location

_ Before you install your washer, make sure the location:

Has a hard, level surface.

Is away from direct sunlight.

Has adequate ventilation.

Will not freeze (tempuratures are never below 32 °F or 0 °C).

Is away from heat sources such as oil or gas.

Has enough room for the power cord.

Doesn't have any carpeting that will obstruct ventilation openings.

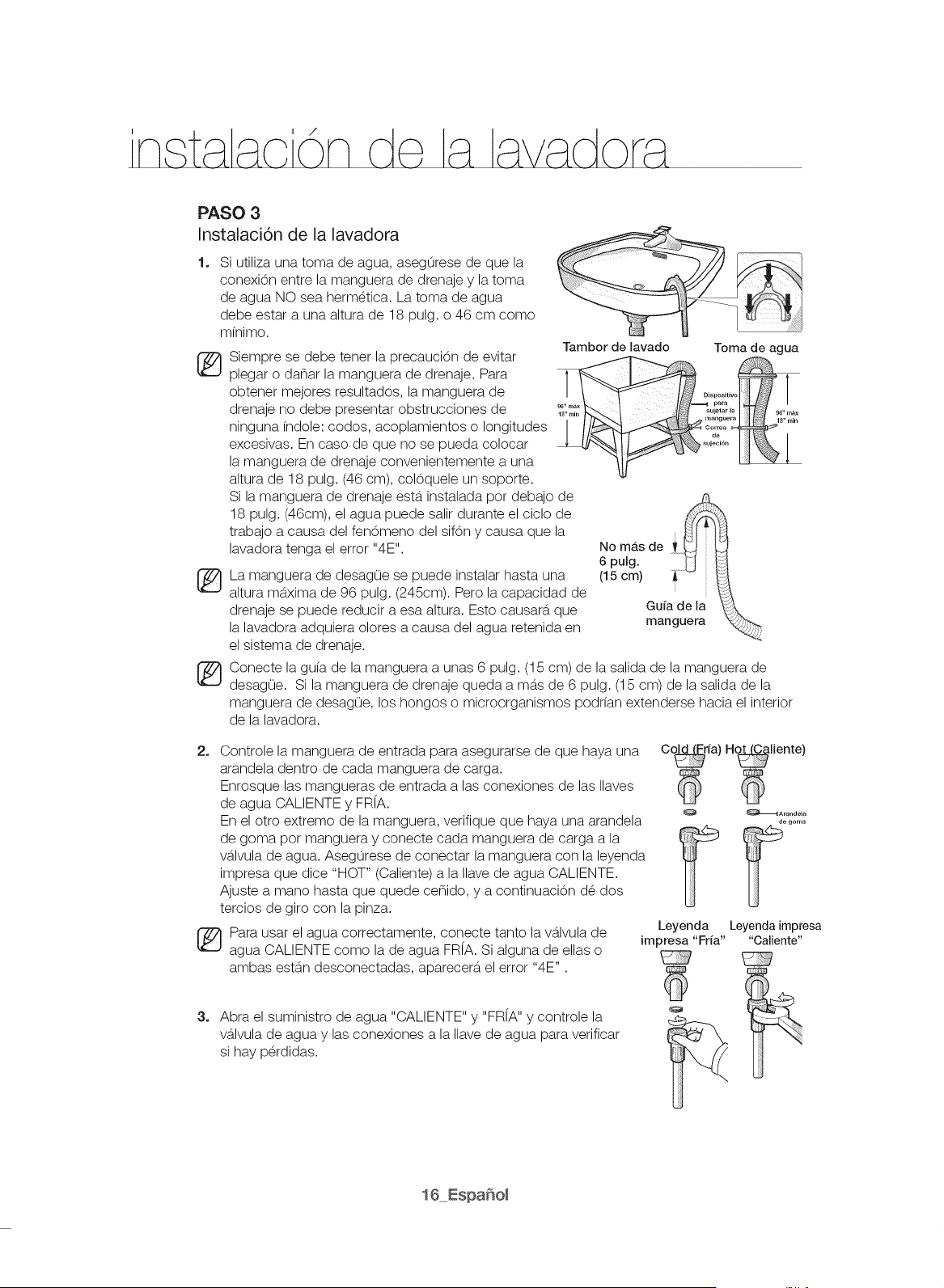

STEP 3

Installing your Washer

1. If you use a standpipe, make sure the connection

between the drain hose and the standpipe is NOT

airtight. The standpipe must be at least 18 in or 46

cm high.

You must always exercise caution to avoid

collapsing or damaging the drain hose. For best

results, the drain hose should not be restricted

in any way - by elbows, couplings, or excessive

length. For situations where the drain hose cannot

be conveniently elevated to at least 18 in or 46 cm,

the drain hose must be supported.

If drain hose is installed below 18"(46cm), water

can be drained in cycle working cause of siphon

phenomenon. It causes the washer to "4E" error.

_ Drain Hose can be installed until 96"(245cm) maximum.

But drain capability can be reduced at this height.

It causes the washer to have an odor because of

remaining water in the drain system.

_ onnect the hose guide within 6"(15cm) from the end of

the drain hose. If the drain hose is extended more than

6"(15cm) beyond the end of the hose guide, mold or

microorganisms could spread to the inside of the washer.

Laundry tub

Nomorethan!_i I_

6"(15cm)_...._

Hose Guide

Cold

2. Check the inlet hose to ensure a washer is inside each fill hose.

Thread the inlet hoses to the HOT and COLD faucet connections.

On the other end of the hose, check for one rubber washer per hose

and attach each fill hose to the water valve. Make sure the hose with

Hot printed on it is attached to the HOT faucet. Tighten by hand until

snug, then two-thirds of a turn with pliers.

For correct water use, connect both HOT and COLD water valves. If

either or both are not connected, an "4E" (no fill) error can occur.

Standpipe

Hot

Rubber

Washer

3. Turn on the "HOT" and "COLD "water supply and check the water

valve and the water supply connections for leaks.

Cold printed Hot printed

4, Slideyourwasherintoposition.

5, Levelyourwasherbyturningthelevelinglegsinoroutas

necessarybyhandorbyusingthewrenchincludedwithyour

washer.

Whenyourwasherislevel,tightenthelockingnutsusingthe

wrenchor(-)flatheadscrewdriver.

6, Plugthepowercordintoa3-Prong,wellgrounded120volt

60Hzapprovedelectricaloutletprotectedbya15-ampfuse

orcomparablecircuitbreaker.

Yourwasherisgroundedthroughthethirdprongofthe

powercordwhenpluggedintoathree-pronggrounded

receptacle.

Yourwashermustbeleveledonallfoursides.Acarpenter's

levelshouldbeusedonallfourcornersofyourwasher.We

recommendyourecheckyourwasheraftera dozenorso

washestomakesureit'sstilllevel.

_ voiddamagetothelegs.Donotmove

thewasherunlesstheLocking-nutsare

fastenedtothebottomofthewasher.

Test run

Make sure that you install your washing machine correctly by running the Rinse+Spin cycle

after the installation is complete.

STEP 4

Calibration mode

Your Samsung washing machine automatically detects the weight of the laundry.

For more accurate weight detection, please run Calibration Mode after the installation.

To run Calibration Mode, follow these steps:

1. Turn on the washer.

2o Press the Tempo button and Belay End button simultaneously for at least 3 seconds.

3, Remove any contents in the tub and close the door.

4, Press the Start/Pause button.

5, The drum rotates clockwise and counterclockwise for approximately 3 minutes.

6, When Calibration Mode is finished, the "En/End" appears on the display and the washing

machine turns off automatically. The washing machine is now ready for use.

na n tnActon

/_To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY

....... INSTRUCTIONS before operating this appliance.

LOADING YOUR WASHER

,, You can fill the tub with dry, unfolded clothes, but DO NOT OVERLOAD the tub. No more than 3/4 full.

,, Overloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or

wrinkling of the load.

,, Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with similar

lightweight items.

,, When washing big bulky items or a few smaller items that don't fill the tub completely - a rug, a pillow,

stuffed toys, or one or two sweaters, for example - add a few towels to improve tumbling and spin

performance.

_ uring the spin cycle, the washer may add additional water to redistribute the clothes and correct an

inbalance inside the drum.

,, To ensure good cleaning result when washing heavily soiled loads, do not overload your washer.

,, When the ,,_v_+,,light is ON (see page 22), you can add or remove laundry items during a wash.

1. Press the Start/Pause Button.

2, Wait for the Door Lock light to go out (5 seconds).

3, Add the item, close the door, and press the Start/Pause Button.

After a 10-second pause, the cycle will resume.

_To add items within five minutes of the wash

ensure

thorough cleaning, starting cycle.

WASHING CLOTHES: BASIC INSTRUCTIONS

1. Press the Power button, open the door, and then load the washer.

2, Close the door.

_Push the laundry into the drum completely to prevent the laundry from being caught in the door or

....... from falling out of the drum.

3, Add detergent and additives to the dispenser (see pages 26-27).

4, Select the appropriate cycle and options for the load (see pages 19-21).

5, Press the Start/Pause Button.

The drum automatically rotates and measures the weight of the laundry without supplying water in

order to adjust the wash time. (The rotating display on the display panel indicates that the weight of the

laundry is being measured.)

6, The Wash Indicator light will illuminate.

7° The estimated cycle time will appear in the display.

The time may fluctuate to indicate the time remaining in the cycle better.

The actual time required for a cycle may differ from the estimated time in the display depending on the

water pressure, water temperature, detergent, and laundry.

8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a

quick drain.

_ hen the cycle is complete, the Door Lock light will go out and "End" will appear in the display.

,, DO NOT attempt to open the door until the Door Lock light is off. To add a forgotten item, see the

"Loading your Washer" section above.

When your washer is restarted after a pause, expect a delay of up to 15 seconds before the cycle

continues.

,, Pressing the Power button cancels the cycle and stops your washer.

,, The Wash, Rinse, and Spin indicator lights will illuminate during those portions of the cycle.

ADo not place anything on top of your washer while it is running.

WARNING

HEAVYDUTY...................................._ NORMAL........................................BEDDING

SANITIZE O_JICK WASH

ALLERGEN PERM PRESS

RINSE+SPl DELICATES

m Steam Cydes

HEAVY DUTY --, NORMAL ,-- QUICK WASH

BEDDING P_ERM PRESS

SANITIZE DELICATES

RINSE+SP TIVE WEAR

NORMAL / QUICK WASH

HEAVY DUTYPy_Tf./__,_'_ERM PRESS

BEDDING __ DELICATES

RINSE+SPI ETIVE WEAR

@ @ @ @ @ @ © @

Select the appropriate cycle for the type of load.

This will determine the tumble pattern and spin speed for the cycle.

To minimize wrinkling of laundry, select the Perm Press cycle.

NORMAL - For most fabrics including cottons, linens, and normally soiled

garments.

HEAVY DUTY - For sturdy, colorfast fabrics and heavily soiled garments.

SANITIZE - For heavily soiled, colorfast garments. This cycle heats the water

to 150 °F to eliminate bacteria. (Only for WF42H5200A*,WF42H5100A*

models)

If you select pause during the heating portion of the Sanitize Cycle, your

Washer door will remain locked for your safety.

When selecting this cycle, the water heats to an extra high temperature

to remove 99.9% of certain bacteria typically found on clothing, bedding,

or towels. This certification is conducted by NSF International, an

independent third-party testing and certification organization.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Please check the garment care label to avoid garment damage. Only

sanitizing cycles have been designed to meet the requirements of this

protocol for sanitization efficacy.

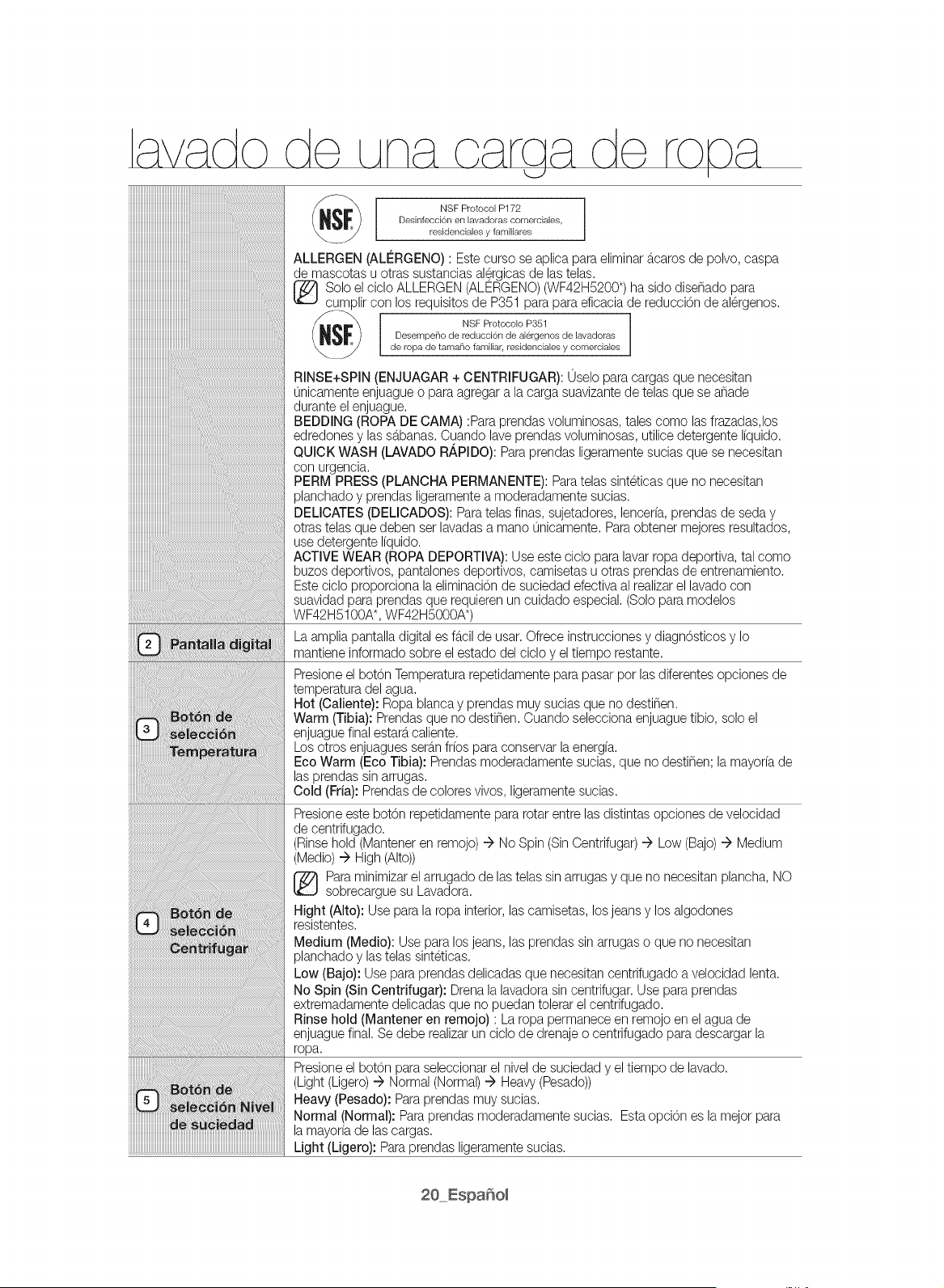

_ NSF Protocol P172

Sanitization Performance of Residential and

Commercial, Family-Sized Clothes Washers

ALLERGEN - This course is applied to remove dust mites, pet dander or

other allergic substances of the fabric.

Only ALLERGEN cycle of WF42H5200* has been designed to meet the

requirement of P351 for allergen reduction efficacy.

_S _,,_ NSF Protocol P351

Allergen Reduction Performance of Residential and

Commercial,Family-Sized Clothes Washers

RINSE + SPIN - Use for loads that need rinsing only or to add rinse-added

fabric softener to a load.

BEDDING - For bulky items such as blankets, comforters and sheets. When

you are washing bulky items, use liquid detergent.

QUICK WASH - For lightly soiled garments needed quickly.

PERM PRESS - For wash-and-wear, synthetic fabrics, and lightly to normally

soiled garments.

DELICATES - For sheer fabrics, bras, lingerie silk, and other handwash only

fabrics. For best results, use liquid detergent.

ACTIVE WEAR - Use this cycle to wash exercise wear such as sports

jerseys, training pants, shirts/tops and other performance clothing. This cycle

provides effective soil removal with gentle action for special fabric care. (Only

for WF42H5100A*, WF42H5000A* models)

The large Digital Display is easy to use. It provides instructions and

diagnostics while keeping you updated on the cycle status and time

remaining.

Press the button repeatedly to cycle through the different water temperature

options.

Hot - Whites and heavily soiled, colorfast items.

Warm - Colorfast items. When warm rinse is selected, only the final rinse will

be warm.

The other rinses will be cold to conserve energy.

Eco Warm - Moderately soiled, colorfast items; most wrinkle-free items.

Cold - Brightly colored, very lightly soiled items.

Press the button repeatedly to cycle through the different spin speed options.

(Rins hold (AllLamp Turn Off) --->No Spin _ Low -> Medium _ High )

To minimize wrinkling of wrinkle free and no iron fabrics, DO NOT use

overload your Washer.

High - Use for underwear, t-shirts, jeans and sturdy cottons.

Medium - Use for jeans, wrinkle-free or wash-and-wear items and synthetics.

Low - Use for delicate items needing a slow spin speed.

No Spin - Drains your Washer without spinning. Use for extremely delicate

items that cannot tolerate any spin.

Rinse Hold (AllLamp Turn Off) - The laundry remains soaking in the final rinse

water. Either a drain or spin cycle must be performed to unload the laundry.

Press the button to select the soil level/washing time.

(Light -_ Normal -_ Heavy)

Heavy - For heavily soiled loads.

Normal - For moderately soiled loads. This setting is best for most loads.

Light - For lightly soiled loads.

Pressthesebuttonstoselectdifferentcycleoptions.

ExtraRinse- Addanadditionalrinseattheendofthecycletoremove

laundryadditivesandperfumesmorethoroughly.

ExtraSpin-Addadditionaltimetoremovemorewaterfromloads.

SpinOnly-TheoptiontostartonlySpinofeachcourse.

Steam- PressthisbuttontousetheSteamWashfunction.SteamWashis

availablewiththeNormal,HeavyDuty,Bedding,SanitizeandAllergencycles.

Forheavilysoiled,colorfastgarments,SteamWashimprovesstaintreatment

anduseslesswater(Seepage25).(OnlyforWF42H5200A*models.)

Sound-WhenyouactivatetheSoundofffunction,the"Sound[_]" lamp

illuminates.

MyCycle-Chooseyourfavoritecycleincludingtemperature,spin,soillevel,

options,etc.(seepage22)

DelayEnd-Anycyclecanbedelayedforupto24hoursinone-hour

increments.Displayedhourindicatesthetimeatwhichthewashwillbe

started.(Seepage22).

SelfClean+- Usetocleandirtandpossiblemoldfromthedrum.Regular

use(afterevery40washes)isrecommended.Nodetergentorbleachis

needed(seepage31).

SmartCare-Thisfunctionenablesyoutocheckthestatusofthewashing

machineusingasmartphone.

Presstopauseandrestartprograms.

Pressoncetoturnyourwasheron,pressagaintoturnyourwasheroff.If

thewasherisleftonformorethan10minuteswithoutanybuttonsbeing

touched,thepowerautomaticallyturnsoff.

Child Lock 6

Child Lock prevents children from playing with your washer.

Once you have activated the Child Lock function, the control panel cannot be activated,

preventing children from playing with the washer.

Activating the Child Lock function

Press and hold both the Soil Level and Spin buttons simultaneously for 3 seconds.

• When you activate the Child Lock function, the door locks and the "Child Lock I_" lamp

illuminates.

If you press the START/PAUSE button after you have activated the Child Lock function, none of

the buttons will work except for the POWER button.

If you press a button when the buttons are locked, the "Child Lock _" lamp blinks.

Pausing the Child Lock function

When the door is locked or the buttons are locked by the Child Lock function, you can pause the

Child Lock operation for 1 minute by pressing and holding both the Soil Level and Spin buttons

simultaneously for approximately 3 seconds.

If you pause the Child Lock mode temporarily, the door lock is released for 1 minute for user

convenience. During this period, the "Child Lock 6" lamp blinks.

If you open the door after the minute is over, an alarm sounds for up to 2 minutes.

If you close the door within the 2 minutes, the door is locked and the Child Lock function is

reactivated. If you close the door after the 2 minutes, the door is not locked automatically and

no alarm sounds.

WARNING

Deactivating the Child Lock function

Pressand hold both the Soil Level and Spin buttons simultaneouslyfor approximately 6 seconds.

When you deactivate the Child Lock function, the door is unlocked and the "Child Lock@" is turned off.

• The Child Lock function prevents children or the infirmfrom accidently operatingthe washer and

injuring themselves.

If a child entersthe washing machine, the child may become trapped and suffocate.

Once you haveactivated the Child Lock function, it continues working even if the power is turned

off.

Openingthe door by force can result in injury due to damage to the product.

//_ To add laundryafter you have activated the Child Lock function, you must first pause or deactivate the

....... Child Lock function.

Ifyou want to open the door of the washing machinewhen the Child Lock function is activated:

Pause or deactivatethe Child Lock function.

,, Turn the washing machine off and then on again.

Garment+ _+

You can add or take out laundry items even after the wash has started, as long as the "_-_+"light

is on. Pushing the START/PAUSE button unlocks the door, unless the water is too hot or if there

is too much water in your washer. If you are able to unlock the door and wish to continue the

wash cycle, close the door, and then press the START/PAUSE button.

Delay End

You can set the washing machineto start your wash automaticallyat a latertime, choosing a delay time.

The hour displayed indicatesthe time at which the wash will be ended.

1. Set your wash cycles.

2. Pressthe Delay End button repeatedlyuntil the delay time is set.

3. Pressthe START/PAUSE button. The "Delay EndQ" indicator will be lit, and the clock will begin

counting down until it reachesthe set time.

4. Tocancel a Delay Endfunction, press the POWER button and then turn the washing machine on

again.

My Cycle

Lets you save a custom wash cycle (temperature, spin, soil level, etc.) and then recall and use it

with one button convenience.

To save a cycle and selected options as your My Cycle, follow these steps:

1. Select the cycle using the Cycle Selector dial.

2. After cycle selection, set each option.

See page 39 for available option settings with each cycle.

3. You can then store the selected cycle and options by pressing and holding the My Cycle

button for longer than 3 seconds. The cycle and options you select will be displayed the next

time you choose the My Cycle function.

4. Press the My Cycle button to load and use the saved My Cycle options. The "My Cycle" light

will indicate activation. Also, the chosen course and option lights will flicker

You can change the "My Cycle" settings by repeating the process above.

The washer displays the last settings used the next time you choose "My Cycle".

If you press My Cycle and release it within 3 seconds, the previously saved cycles and

options appear. If you press and hold My Cycle for 3 second or longer, the currently set

cycles and options are saved and the LED blinks for 3 seconds.

Sound

The Sound Off function can be selected during all courses.

Smart Care

This function enables you to check the status of the washing

machine using a smartphone.

1. To enable the Smart Care function

1) WF42 H5200A*

press and hold the Sound button for 3 seconds within 10

seconds after turning the power on by pressing the Power

button.

2) WF42H5100A* and WF42H5000A* model

Press Smart Care button to use.

2. If the Smart Care function is activated, the LED on the

window display rotates for 2 or 3 seconds and then the

Smart Care indicator is lit on the display.

3. Run the Smart Care app on your smart phone.

4. The Smart Care function is optimized with Galaxy and iPhone

Series.

5. Focus your smart phone's camera on the display panel of

the washing machine.

If the smart phone's camera is focused on the display panel of the washing machine,

the panel and error message is automatically recognized and the error type and

countermeasures are displayed on the smart phone.

7. If the smartphone fails to recognize the error code more than twice, please enter the error

code displayed on the display panel of the washer manually into the Smart Care app.

_ Downloading the Smart Care app

Download the Samsung Laundry App into your mobile phone from the Android market

or Apple App store. (Search word : Samsung Smart Washer/Dryer}

_ Precautions when using Smart Care

If a lighting device (e.g. fluorescent or lamp) is reflected on the display panel of the

washing machine, the result on the display panel may not be recognized easily.

If an error occurs more than twice, please manually enter the error code displayed on the

display panel of the washing machine into the Smart Care app.

If the angle of the smartphone camera and the display panel of the washing machine is

incorrect, the error may not be recognized properly.

Please try to hold the smart phone at an angle to the display panel as shown by the

figure.

Washing clothes using the cycle selector

Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Control"

automatic control system. When you select a wash program, the machine will set the correct

temperature, washing time, and washing speed.

1. Turn on your sink's water tap.

2. Press the Power button.

3. Open the door.

4. Load the articles of clothing one at a time loosely into the drum, without overfilling it.

5. Close the door.

6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate

compartments.

7. Use the Cycle Selector to select the appropriate cycle according to the type of material:

NORMAL, HEAVY DUTY, BEDDING, SANITIZE,ALLERGEN(Only for WF42H5200A*

model), RINSE+SPIN,QUICK WASH, PERM PRESS, DELICATES, ACTIVE WEAR(Only for

WF42H5100A*, WF42HS000A* models). The relevant indicators will illuminate on the control

panel.

8. At this time, you can control the wash temperature, the number of rinse cycles, the spinning

speed, and the delay time by pressing the appropriate option button.

9. Press the Start/Pause button on the Cycle Selector and the wash will begin. The process

indicator will light up and the remaining time for the cycle will appear in the display.

Pause Option

1. Within 5 minutes of starting a wash, it is possible to add/remove laundry items to/from the

wash.

2. Press the Start/Pause button to unlock the door.

3. The door cannot be opened when the water is too HOT or the water level is too HIGH.

4. After closing the door, press the Start/Pause button to restart the wash.

When the cycle is finished:

After the total cycle has finished, the power will turn off automatically.

1. Open the door.

2. Remove laundry.

USING STEAM WASH

If you select steam, the steam acts at the most effective times for the detected amount of laundry,

maximizing the effect of the steam, increasing the wash temperature, enhancing the Soak effect, and

improving wash performance. (Only for WF42H5200A* models)

1. Load the washer.

2. Press the Power button.

3. Turn the Cycle Selector and select a Steam Cycle. (The Deep Steam course automatically selects

Steam.)

4. Press the Steam button.

5. Add detergent to the dispenser tray and add fabric softener up to the marked line.

6. Press the Start/Pause button.

: The washer automatically selects the optimal wash conditions by sensing the weight of the laundry.

_ team may not necessarily be visible during the steam cycles. Steam may not be present during the

entire steam wash cycle.

ATC (AUTO TEMPERATURE CONTROL)

ATC is the control function that the washer controls water temperature with temperaturesensor (thermistor).

_ ecause there are numerous water temperatures depending on the customer's environments ( cold

areas, warm areas, various water temperature, settings of heater temperature, etes), ATC function in

our washer maintains the certain level of wash temperature to output the best washing performance at

each cycle.

lf you select normal & heavy duty cycles, those cycles are the regulation and UL course. Since new

washers must reduce the amount of energy usage at first priority, customers will notice more cold

water entering the washer. But This is Normal, not a problem.

In those regulation cycles, Hot temperature is similar to acceptable adult bath-water temperature and

_warm temperature is similar to comfortable swimming-pool water temperature.

If customers want to wash clothes in specific water temperature, customers should choose a different

cycles at each temperature ( Hot/Warm/Eco Warm )

DETERGENT USE

Your Washer is designed to use high efficiency (HE) detergents.

,, For best cleaning results, use a high efficiency detergents such as

Tide HE, Wisk HE, Cheer HE, or Gain HE*. High efficiency detergents

contain suds suppressors that reduce or eliminate suds. When fewer

suds are produced, the load tumbles more efficiently and cleaning is

maximized.

/_ Regular detergent is NOT recommended. Please use HE detergents

wAR'"_,,,only.

_ educing the amount of detergent may reduce the quality of cleaning. It is important to pre-treat

stains, sort carefully by color and soil level, and avoid overloading.

* Brand names are trademarks of their respective manufacturers.

FEATURES

Automatic dispenser

Your washer has separate compartments for dispensing

detergent and color-safe bleach, chlorine bleach, and

fabric softener. Add all laundry additives to their respective

compartments before starting your washer.

The automatic dispenser MUST ALWAYS be in place before

you start your washer.

DO NOT open the automatic dispenser when your washer is

running.

Usage Pointers:

,, Never exceed the manufacturer's recommendations when

adding detergent.

,, This compartment holds liquid detergent for the main wash

cycle, which the washer adds to the load at the beginning

of the cycle.

_ efore using powdered detergent, remove the Liquid

Detergent holder from the compartment. Powdered

detergent will not dispense from the Liquid Detergent

holder.

----I Liquid Detergent

Pre wash

compartment

-_--:%,_G-.......

Detergent compartment

,, Pour the recommended amount of laundry detergent directly into the detergent compartment

before starting your washer.

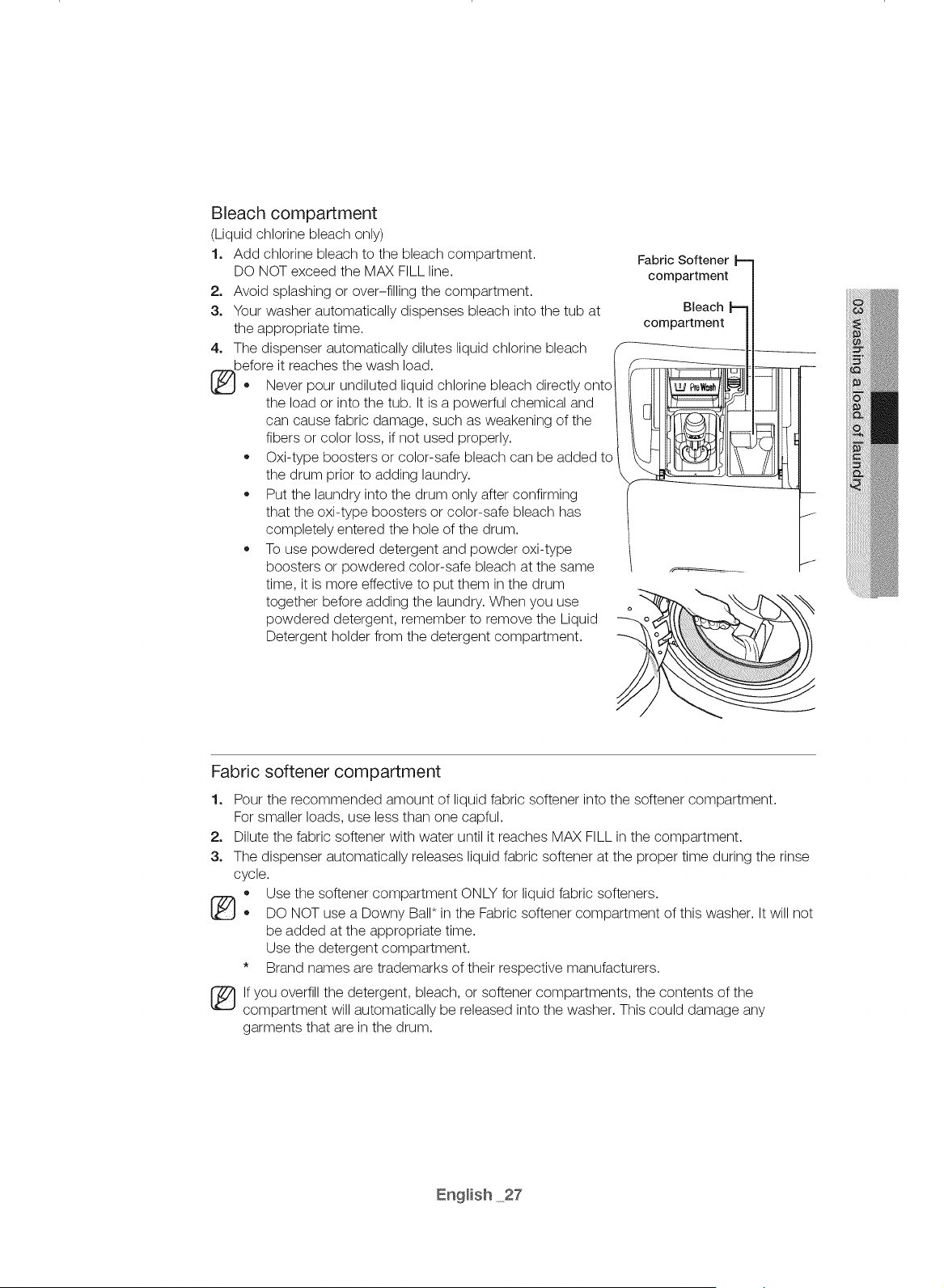

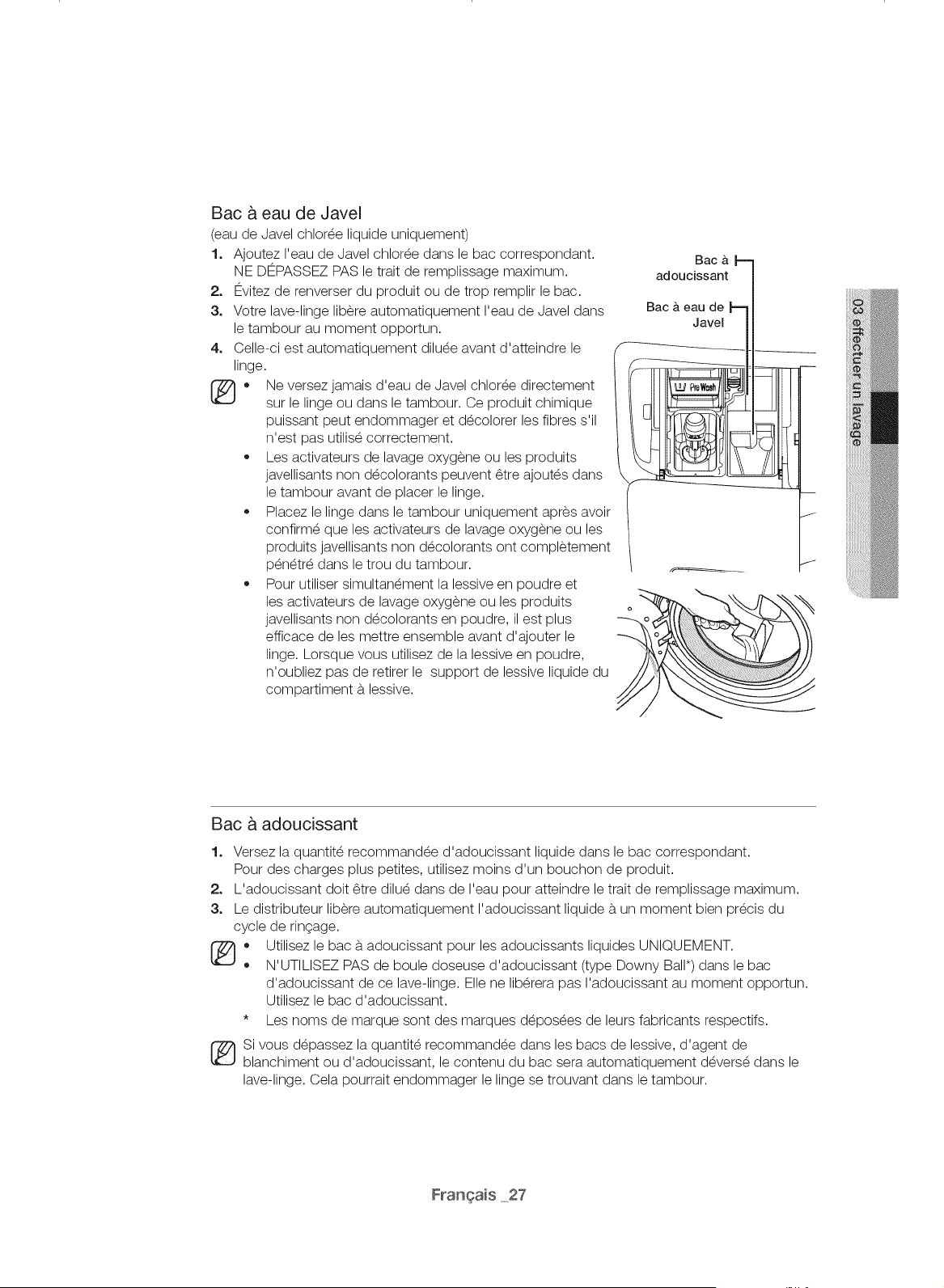

Bleach compartment

(Liquid chlorine bleach only)

1. Add chlorine bleach to the bleach compartment.

DO NOT exceed the MAX FILL line.

2. Avoid splashing or over-filling the compartment.

3. Your washer automatically dispenses bleach into the tub at

the appropriate time.

4. The dispenser automatically dilutes liquid chlorine bleach

before it reaches the wash load.

(_* Never pour undiluted liquid chlorine bleach directly onto

the load or into the tub. It is a powerful chemical and

can cause fabric damage, such as weakening of the

fibers or color loss, if not used properly.

Oxi-type boosters or color-safe bleach can be added to

the drum prior to adding laundry.

,, Put the laundry into the drum only after confirming

that the oxi-type boosters or color-safe bleach has

completely entered the hole of the drum.

To use powdered detergent and powder oxi-type

boosters or powdered color-safe bleach at the same

time, it is more effective to put them in the drum

together before adding the laundry. When you use

powdered detergent, remember to remove the Liquid

Detergent holder from the detergent compartment.

Fabric Softener }...-

compartment

Bleach P..-

compartment

Fabric softener compartment

®.

Pour the recommended amount of liquid fabric softener into the softener compartment.

For smaller loads, use less than one capful.

Dilute the fabric softener with water until it reaches MAX FILL in the compartment.

The dispenser automatically releases liquid fabric softener at the proper time during the rinse

cycle.

Use the softener compartment ONLY for liquid fabric softeners.

DO NOT use a Downy Ball* in the Fabric softener compartment of this washer. It will not

be added at the appropriate time.

Use the detergent compartment.

* Brand names are trademarks of their respective manufacturers.

If you overfill the detergent, bleach, or softener compartments, the contents of the

compartment will automatically be released into the washer. This could damage any

garments that are in the drum.

CLEANING THE EXTERIOR

Turn off the water faucets after finishing the day's washing.

This will shut off the water supply to your washer and prevent the unlikely possibility of damage from

escaping water. Leave the door open to allow the inside of your washer to dry out.

Use a soft cloth to wipe up all detergent, bleach or other spills as they occur.

Clean the following as recommended below:

Control Panel - Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray

cleaners directly on the panel.

Cabinet - Clean with soap and water.

CLEANING THE INTERIOR

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial

residue that may remain in your washer as a result of washing clothes.

Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent

stains on your washer or laundry.

Hard water deposits may be removed, if needed. Use a cleaner labeled "Washer safe".

CLEANING THE DISPENSERS

You may need to clean the automatic dispenser periodically to remove

laundry additive buildup.

1. Pull out the Liquid Detergent holder from the detergent compartment.

2. Remove the siphon cap from the fabric softener and bleach

compartments.

3. Wash all of the parts under running water.

4. Clean the dispenser recess with a soft brush.

5. Reinsert the siphon cap and push it firmly into place.

6. Push the Liquid Detergent holder back into place.

7. Run a Rinse+Spin cycle without any load in your washer.

STORING YOUR WASHER

Washers can be damaged if water is not removed from hoses and internal components before storage.

Prepare your washer for storage as follows:

,, Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your washer through the

cycle without a load.

,, Turn the water faucets off and disconnect the inlet hoses.

* Unplug your washer from the electrical outlet and leave your washer door open to let air circulate inside

the tumbler.

* If you store your washer in below-freezing temperatures, make sure you allow time for any leftover water

in your washer to thaw before use.

CLEANING THE DEBRIS FILTER

We recommend cleaning the debris filter when water does not drain well or the "5E" error message is displayed.

1. Unplug the washing machine from the power supply.

2. Open the filter cover using a coin or a key.

3. Holding the drain cap, pull the drain tube that Step!

is hooked on the guide hook to the front. Do

not pull the drain tube with excessive force.

4. Place a bowl under the washing machine to

catch any remaining water. Then, hold the

drain tube with one hand, and turn the drain

cap counter clockwise with the other hand to

separate it from the drain tube.

5. Drain the remaining water completely.

Turn the debris cap counterclockwise, and then pull

the debris cap and debris filter assembly out of the Debris filter capl

washer.

Wash any dirt or other material from the

debris filter. Make sure the drain pump

propeller behind the debris filter is not

blocked.

Debris filter c_p _ Debrisfilter

8. When you have finished cleaning the filter, insert the debris

cap and filter assembly back into the washer. Turn the

debris filter cap clockwise until the indicator on the debris

filter cap is in the 12 o'clock position, pointing to the

indicator on the washer.

9. Re-attach the emergency drain cap to the drain tube, and

then hook the tube to the hook guide.

10. Re-install the filter cover.

For models with the safety filter cap

,, To open, push in, and then turn the safety filter cad

counterclockwise. The spring in the cap w maKe

opening the cap easy.

,, To close, turn the safety filter cap ClOCKWISe.AS jou

turn the cap, the spring will make a rattling sound The

rattling sound is normal.

CLEANING THE DOOR DIAPHRAGM

1. Open the washer door and remove any clothing or items from the washer.

2. Check if there are any foreign substances on the grey

Diaphragm @ between the lid and the drum.

To check this, turn the Diaphragm @out.

3. If there are any foreign substances, remove them.

4, If you find stained areas, wipe them down using the procedure below:

a} Carefully combine s4cup (177 mL) of liquid chlorine bleach with 1 gal. (3.8 L) of warm

tap water.

b} Wipe the Diaphragm area with the dilute solution using a damp cloth.

c) Let stand 5 minutes.

d} Wipe down the area thoroughly with a dry cloth and let the washer interior air dry with

the door open.

IMPORTANT:

Wear rubber gloves when cleaning for prolonged periods.

Refer to the bleach manufacturer's instructions for proper use.

PRESERVING THE TOP COVER AND THE FRONT FRAME

Do not place any heavy or sharp objects or a detergent box on the washing machine. They can scratch or

damage its top cover. Keep them in the pedestal (if purchased) or in a separate storage box.

_ ince the entire washing machine has a high-gloss finish, the surface can be scratched or damaged.

Avoid scratching or damaging the surface when using the washing machine.

SELF CLEAN+

3. Press the Start!Pause button.

When you press the Start/Pause button, Self

Clean+ begins.

Self Clean+ is a self-cleaning cycle that removes mold that may occur inside the washing machine.

1. Press the Power button. _ ..........

2. Press the Self Clean+ button. _ ,,_;:_,"--_

, Once the Self Clean+ button is pressed, the only _ 'i _'JI

function that can be set is Delay End .......... .............. ................"'_

Using Self Clean+, you can clean the drum, tub and diaphragm without using a cleansing

agent.

Never use Self Clean+ when laundry is in the washing machine. It may cause damage to the

laundry or a problem with the washing machine.

if you want to use a drum cleansing agent, use only 1110 of the amount of the drum

cleansing agent recommended by the cleansing agent manufacturer. (When using a

powder-type cleansing agent, remove the liquid detergent

compartment.)

_The Self Clean+ Auto indicator Function

If the "Self Clean+" button is lit after a wash, it indicates

that tub (drum) cleaning is required. In this case, remove

the laundry from the washing machine, turn the power on,

and dean the drum by running Self Clean.

If you do not run Self Clean+ after every 40 washes, the

"Self Clean+" indicator turns off after one hour. However,

the "Self Clean+" indicator will light again after five

washes. Not running Self Clean+ at this point will not cause

a problem with the washing machine.

Although the Self Clean+ Auto Indicator appears once a

month or so, the frequency may differ depending on the

number of times the washing machine is used.

CHECK THESE SOLUTIONS IF YOUR WASHER...

Will not start.

,, Make sure the door is firmly closed.

Make sure your washer is plugged in.

Make sure the water source faucets are open.

Make sure to press the Start/Pause Button to start your washer.

,, Make sure the Child Lock is not activated. See page 21.

Before your washer starts to fill, it will make a series of clicking noises

to check the door lock and do a quick drain.

,, Check the fuse or reset the circuit breaker

Turn both faucets on fully.

Make sure the door is tightly closed.

,, Straighten the water inlet hoses.

,, Disconnect hoses and clean the screens. Hose filter screens may be

clogged.

Open and close the door, then press the Start/Pause Button.

Make sure your washer is running with sufficient water pressure.

Make sure the Detergent Selector dial is in the upper position when

using granular detergent.

Has no water or not enough

water.

Has detergent remains in

the automatic dispenser

after the wash cycle is

complete.

Vibrates or is too noisy. ,,

Stops

Make sure your washer is set on a level surface. If the surface is not

level, adjust your washer feet to level the appliance.

Make sure that the shipping bolts are removed.

Make sure your washer is not touching any other object.

Make sure the laundry load is balanced.

,, Plug the power cord into a live electrical outlet.

,, Check the fuse or reset the circuit breaker.

Close the door and press the Start/Pause Button to start your

washer.

For your safety, your washer will not tumble or spin unless the door is

closed.

Before your washer starts to fill, it will make a series of clicking noises

to check the door lock and do a quick drain.

,, There may be a pause or soak period in the cycle. Wait and it may

start.

,, Check the screens on the inlet hoses at the faucets for obstructions.

Clean the screens periodically.

Fillswiththewrong

temperaturewater.

Doorlocked or will not

open.

Does not drain and/or spin.

Load is too wet at the end •

of the cycle.

Leaks water.

Has excessive suds.

Has an odor.

,, Turn both faucets on fully.

,, Make sure the temperature selection is correct.

,, Make sure the hoses are connected to the correct faucets.

Flush water lines.

,, Check the water heater. It should be set to deliver a minimum 120 °F

(49 °C) hot water at the tap. Also check the water heater capacity

and recovery rate.

,, Disconnect the hoses and clean the screens. The hose filter screens

may be plugged.

As your washer is filling, the water temperature may change as

the automatic temperature control feature checks incoming water

temperature. This is normal.

While your washer is filling, you may notice just hot and/or just

cold water going through the dispenser when you have selected

cold or warm wash temperatures. This is a normal function of the

automatic temperature control feature as your washer determines the

temperature of the water.

Press the Start/Pause Button to stop your washer.

Your washer door will remain locked during the heating portion of the

Sanitize Cycle

It may take a few moments for the door lock mechanism to

disengage.

,, Check the fuse or reset the circuit breaker.

,, Straighten the drain hoses. Eliminate kinked hoses. If there is a drain

restriction, call for service.

Close the door and press the Start/Pause Button. For your safety,

your washer will not tumble or spin unless the door is closed.

Make sure the debris filter is not clogged.

Use the High or Extra High spin speed.

Use high efficiency detergent to reduce over-sudsing.

The load is too small. Very small loads (one or two items) may

become unbalanced and not spin out completely.

Make sure the door is firmly closed.

,, Make sure all hose connections are tight.

Make sure the end of the drain hose is correctly inserted and secured

to the drainage system.

Avoid overloading.

,, Use high efficiency detergent to prevent over-sudsing.

,, Reduce the detergent amount for soft water, small or lightly soiled

loads.

,, Non-HE detergent is NOT recommended.

,, Excessive suds collect in nooks and crannies and can cause foul

odors.

,, Run cleansing cycles to sanitize the machine periodically. (Sanitize

Cycle or Self Clean+)

Clean the door seal (Diaphragm).

,, Dry the interior of your washer after the total cycle has finished.

INFORMATION CODES

The washer may display information codes to help you better understand what is occurring with your

washer.

Unbalanced load prevented your washer from spinning.

Redistribute the load, press the StaWPause button.

The door is open when the washer is running.

dE Close the door tightly and restart the cycle. If the code reappears, call customer

service.

dE1 Your washer failed to lock or unlock the door.

A water temperature control problem. (Heater control problem)

lie

Call customer service.

Your washer has tried to fill, but has not reached the proper water level.

Call customer service.

_[} hen washer displays "LE", washer do draining for 3 minutes,At this time,

Power button is invalid.

Your washer is not draining. This can also mean that the unit senses a small clog

while draining.

1, Turn off the unit for 10 seconds and then turn it on again.

5E 2. Select the Spin Only cycle.

3, Press the StaWPause to drain the water.

If it still does not drain, call for service.

Your washer has tried to fill but was unsuccessful.

Make sure the water faucets are open all the way. Check for bent hoses. Check the

inlet screens on the hoses. If you are using a Flood Safety Device, please remove

the device and connect the water hoses directly to the unit.

Check if the hot water supply hose is connected.

You must connect the hot water supply hose because hot water is supplied by the

Auto Temperature Control (A.T.C.) function if the temperature of the cold water is

lower than 59°F.

_} hen washer displays "4E", washer do draining for 3 minutes. At this time,

Power button is invalid

The hot/cold water hose connection is not correct.

4E2. Please connect the hot/cold water hose connection correctly.

A fault is detected in the water level sensor.

Call customer service.

The Water Level sensor is not working properly.

Call customer service.

[_ When washer displays "1E", washer do draining for 3 minutes,At this time,

Power button is invalid

BE2

tel

Ajammedkey.

Callcustomerservice.

Atemperaturesensorproblem.

Restartthecycle.Ifthecodereappears,callcustomerservice..

Amotorproblem.

Restart the cycle. If the code reappears, call customer service.

9E1/gE2 High/Low voltage detected.

Restart the cycle. If the code reappears, call customer service.

A Communication error between the SUB(Senso0 PBA and the MAIN PBA

Call customer service.

AE8

SF1

SF2

SF3

SUd

A Communication error between the MAIN PBA and the INVERTER PBA.

Call customer service.

A MEMS sensor problem.

Call customer service.

A system error.

Call customer service.

Too many suds are detected during the wash session. The unit is put on hold until

the amount of suds have been reduced. The unit will then go back to operating.

For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG)

appendx

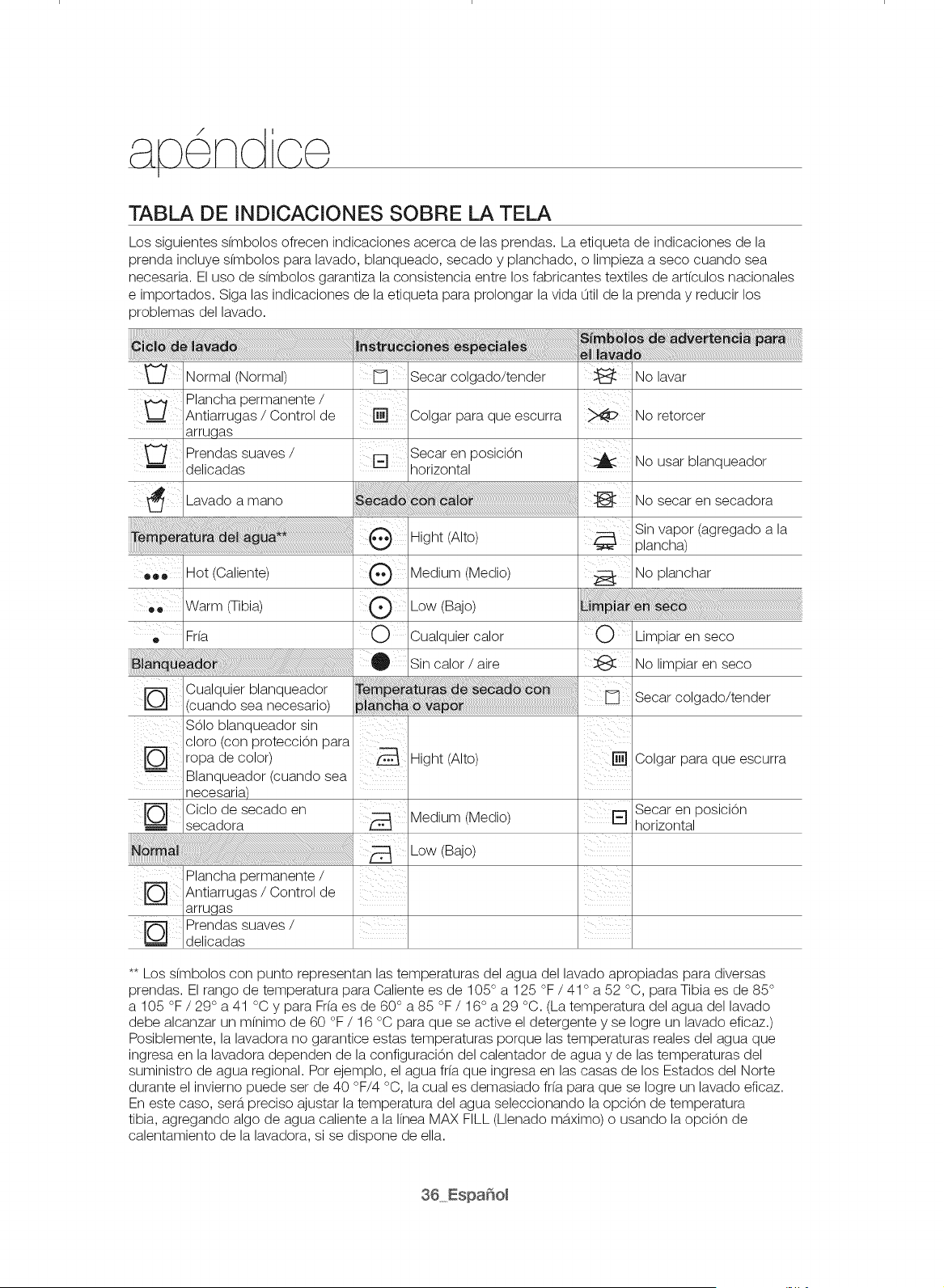

FABRIC CARE CHART

The bllowing symbols provide garment care direction. The Clothing care labels include symbols for

washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures

consistency among garment manufacturers of domestic and imported items. Follow care label directions to

maximize garment life and reduce laundering problems.

iiii!!!!iA:iii@i{{{{{i{{{{{{{{{{{{{{{{ii{{{{{i@#ss S(SSii¸

Permanent Press /

Wrinkle Resistant /

Wrinkle Control

Gentle/Uelicates

BandWash

Hot

co Warm

. Cold O

Line Dry/Hang to Dry Do Not Wash

[] Drip Dry

Dry Flat

High

Medium

Low

Any Heat

Do Not Wring

Do Not Bleach

Do Not Tumble Dry

No Steam (added to

iron)

Do Not Iron

O Dry Clean

No Heat/Air

Any Bleach (when

needed)

Only Non-Chlorine

(color-safe) High [] Drip Dry

Bleach (when needed)

Tumble Dry Cycle _ Medium Dry Flat

Low

PermanentPress/

Wrinkle Resistant/

Wrinkle Control

Gentle/Delioates

Do Not Dry Clean

Line Dry/Hang to Dry

** The dot symbols represent appropriate wash water temperatures for various items. The temperature

range for Hot is 105° - 125 °F / 41° _ 52 °C, for Warm 85° - 105 °F / 29 ° - 41 °C and for Cold 60 ° - 85 °F

/ 16 ° - 29 °C. (Wash water temperature must be a minimum of 60 °F / 16 °C for detergent activation and

effective cleaning.) The clothes washer can not ensure these temperatures because the actual temperature

of the water entering your washer is dependent on water heater settings and regional water supply

temperatures. For example, cold water entering the home in the northern states during winter may be

40 °F / 4 °C which is too cold for effective cleaning. The water temperature in this situation will need to be

adjusted by selecting a warm setting, adding some hot water to the MAX FILL line or using your washer's

heating option, if available.

CYCLE CHART

Use this chart to set the best cycle and option for you laundry.

Model: WF42H5200A*

( ® ' factory setting, _ ' selectable )

i@j@i!!i!!i!!i!!!_ilii!!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!_ii_i!i!_iii_iiiiii_iiiiiiiiiiiiiiiii_iiiii_ii_ii_ii_ii_ii_ii{i_ii_iiiii!!_!i_ii_ii_ii_ii_ii_ii_ii_ii:ii:ii_!i_ii_@i_i_i_i_i_i_i_i_i_i_i_i_iiiii!

NORMAL ...................

HEAVY DUTY ® _ _ _ ® _ _ _ ® _ _

SANITIZE ...............

ALLERGEN ® ® _ _ _ _ ® _

RINSE + SPIN ® _ _ _

DELICATES _ _ ® ® _ _ ® _

PERM PRESS ® _ _ _ _ ® _ _ ® _

QUICK WASH _ ® _ _ ® _ _ _ _ _ ®

BEDDING ® _ _ _ ® _ _ ® _

SELF CLEAN+ ® ®

NORMAL

HEAVY DUTY

SANiTiZE

ALLERGEN

RINSE + SPIN

DELICATES

PERM PRESS

QUICK WASH

BEDDING

SELF CLEAN+

H: Hot

W: Warm

EW: Eco Warm

C: Cold

® ®

!!ii!ii!ii_i!i_!!i_!iiliiiiiiii!!i!i!ili_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_}ii_i_i_i!iiiii_i_iii!_i_i_iii¸iii¸iiiii¸iii¸iiiii¸iii¸iiiii¸iii¸iiiii¸iii¸iiiii¸iii¸iiiii_iii

H: High H: Heavy

M: Medium N: Normal

L: Low L: Light

NS: No Spin

® ®

Enq_ish 37

a_ppondx

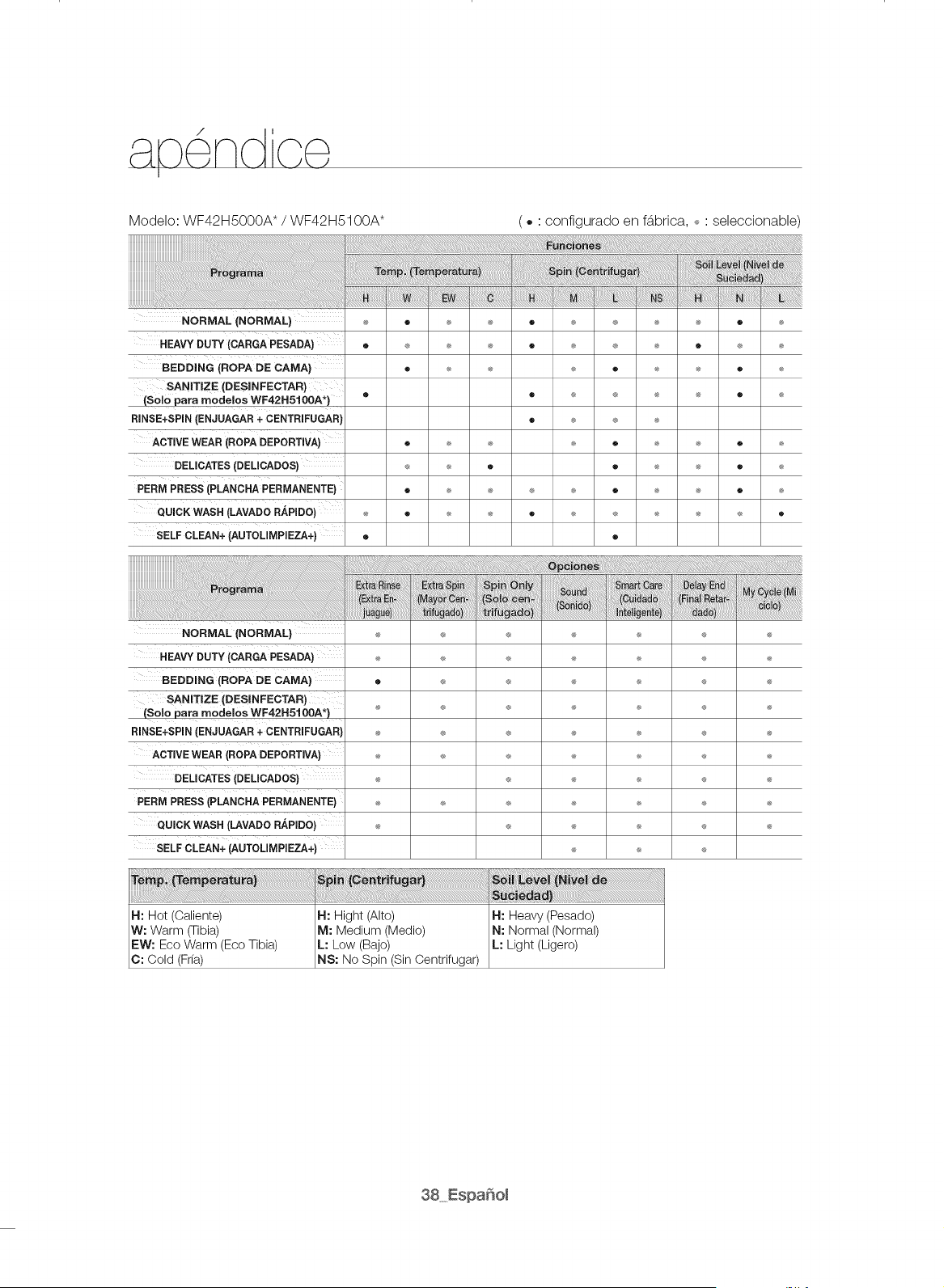

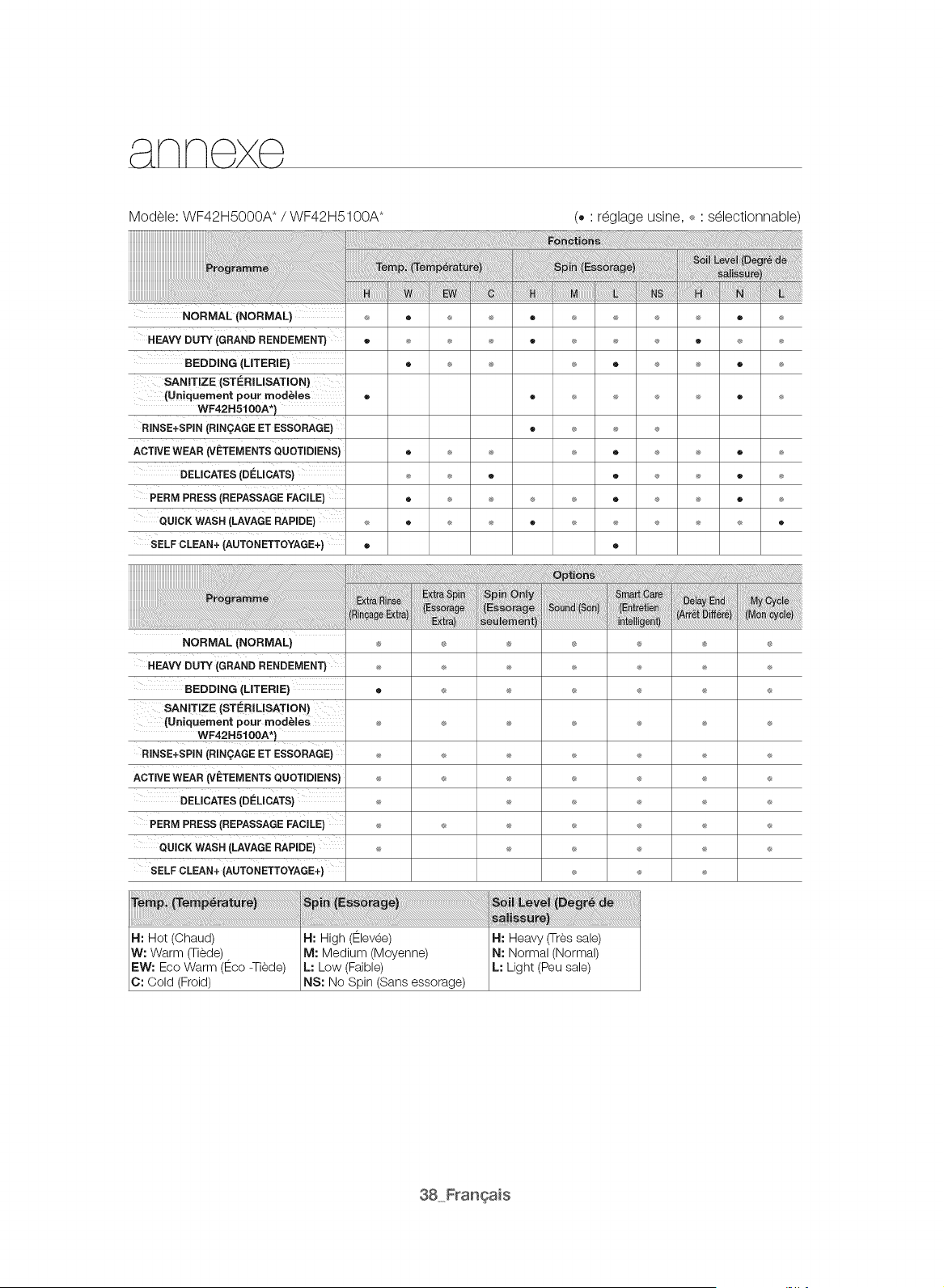

Model: WF42HB000A* / WF42HB100A*

( • ' factory setting, _ ' selectable )

NORMAL _,

HEAVY DUTY ®

BEDDING

SANITIZE

(Only for WF42H5100A*}

RINSE + SPIN

ACTIVE WEAR

DELICATES

PERM PRESS

QUICK WASH _,

SELF CLEAN+ ®

iiiiiiiiiiiiiiiiiiiiiiiiillllll_i!l_l_l_l_l_l_l_l_!_i_l_!_!_!i_!_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_!i_i_i_i_i_i_i!_liliiiiiii

NORMAL _

HEAVY DUTY _

BEDDING _

_ANJTIZE

(Only for WF42H5100A*' _

RINSE + SPIN _

ACTIVE WEAR

DELICATES

PERM PRESS

QUICK WASH

ii ii ii!ii!;i!iiii! iii! i!i!!i i !ii ii!ii!ii!ii!ii!ii!ii!ii!ii!i! i i i i i @ ,! iiiiiiiiiiiiiiiiii iiiiiiiiiiii'i! i11 i i i i i i i i !I

SELF CLEAN+

H: High

M: Medium

L: Low

NS: No Spin

H: Heavy

N: Normal

L: Light

........

H" Hot

W: Warm

EW: Eco Warm

C: Cold

3014/10/13 9:32:43

HELPING THE ENVIRONMENT

Your washer is manufactured from recyclable materials. If you decide to dispose of it, please observe

local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected

to a power source. Remove the door so that animals and small children cannot get trapped inside the

appliance.

Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.

Use stain removal products and bleaches before the wash cycle only when necessary.

Save water and electricity by only washing full loads (the exact amount depends upon the program used).

DECLARATION OF CONFORMITY

This appliance complies with UL2157.

SPECIFICATION

DIMENSIONS I DiV ' Inches (ram)

A. Height-Overall 38.7" (984)

B. Width 27" (686)

C. Depth with door open 90 ° 51.2" (1300)

D. Depth 33" (838)

WATER PRESSURE

WEIGHT

HEATER RATING

POWER WASHING

CONSUMPTION / WASHING AND HEATING

[ SPIN

DRAIN

SPIN REVOLUTION

20-116 psi(137-800 kPa)

88 kg (194 Ib)

900 W

120V

3OOW

1200 W

700 W

8O W

1200 rpm

SAMSUNGWASHER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor, Two (2) years Control Board Parts (Part Only), Three (3) years stainless tub part

(Part Only), Five (5) years washing motor part (Part Only), Ten (10) years washing DD motor part (Part Only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem

determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized

service center. The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the

warranty period at no charge, subject to availability within the contiguous United States. In-home service is

not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service

is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized

service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specified above. All replaced parts and products become the property of SAMSUNG and must be returned

to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90)

days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship

encountered in normal, noncommercial use of this product and shall not apply to the following: damage

that occurs in shipment; delivery and installation; applications and uses for which this product was not

intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect,

fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services,

parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied

or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical

line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,

maintenance and environmental instructions that are covered and prescribed in the instruction book;

product removal and reinstallation; problems caused by pest infestations. This limited warranty does not

cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house

wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant

uninterrupted or error-free operation of the product.

EXCEPTASSETFORTHHEREIN,THEREARENOWARRANTIESONTHISPRODUCTEITHEREXPRESS

ORIMPLIED,ANDSAMSUNGDISCLAIMSALLWARRANTIESINCLUDING,BUTNOTLIMITEDTO,ANY

IMPLIEDWARRANTIESOFMERCHANTABILITY,INFRINGEMENTORFITNESSFORAPARTICULAR

PURPOSE.

NOWARRANTYORGUARANTEEGIVENBYANYPERSON,FIRM,ORCORPORATIONWITHRESPECT

TOTHISPRODUCTSHALLBEBINDINGONSAMSUNG.SAMSUNGSHALLNOTBELIABLEFORLOSS

OFREVENUEORPROFITS,FAILURETOREALIZESAVINGSOROTHERBENEFITS,ORANYOTHER

SPECIAL,INCIDENTALORCONSEQUENTIALDAMAGESCAUSEDBYTHEUSE,MISUSE,ORINABILITY

TOUSETHISPRODUCT,REGARDLESSOFTHELEGALTHEORYONWHICHTHECLAIMISBASED,

ANDEVENIFSAMSUNGHASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.

NORSHALLRECOVERYOFANYKINDAGAINSTSAMSUNGBEGREATERINAMOUNTTHANTHE

PURCHASEPRICEOFTHEPRODUCTSOLDBYSAMSUNGANDCAUSINGTHEALLEGEDDAMAGE.

WITHOUTLIMITINGTHEFOREGOING,PURCHASERASSUMESALLRISKANDLIABILITYFORLOSS,

DAMAGE,ORINJURYTOPURCHASERANDPURCHASER'SPROPERTYANDTOOTHERSANDTHEIR

PROPERTYARISINGOUTOFTHEUSE,MISUSE,ORINABILITYTOUSETHISPRODUCT.THISLIMITED

WARRANTYSHALLNOTEXTENDTOANYONEOTHERTHANTHEORIGINALPURCHASEROFTHIS

PRODUCT,ISNONTRANSFERABLEANDSTATESYOUREXCLUSIVEREMEDY.

Somestatesdonotallowlimitationsonhowlonganimpliedwarrantylasts,ortheexclusionorlimitation

ofincidentalorconsequentialdamages,sotheabovelimitationsorexclusionsmaynotapplytoyou.This

warrantygivesyouspecificrights,andyoumayalsohaveotherrights,whichvaryfromstatetostate.

Toobtainwarranty service, please contact SAMSUNG at:

Samsung Electronics America, inc.

85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864)

www.samsung.com/us/support

Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

2014/10/13 9:22:4

SAMSUNG WASHER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor, Ten (10) years washing DD motor (Part only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased

and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem

determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized

service center. The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the

warranty period at no charge, subject to availability within the Canada. In-home service is not available in all

areas.
