• Page 1: AV SURROUND RECEIVER AVR1506 OPERATING INSTRUCTIONS MODE DEMPLOI

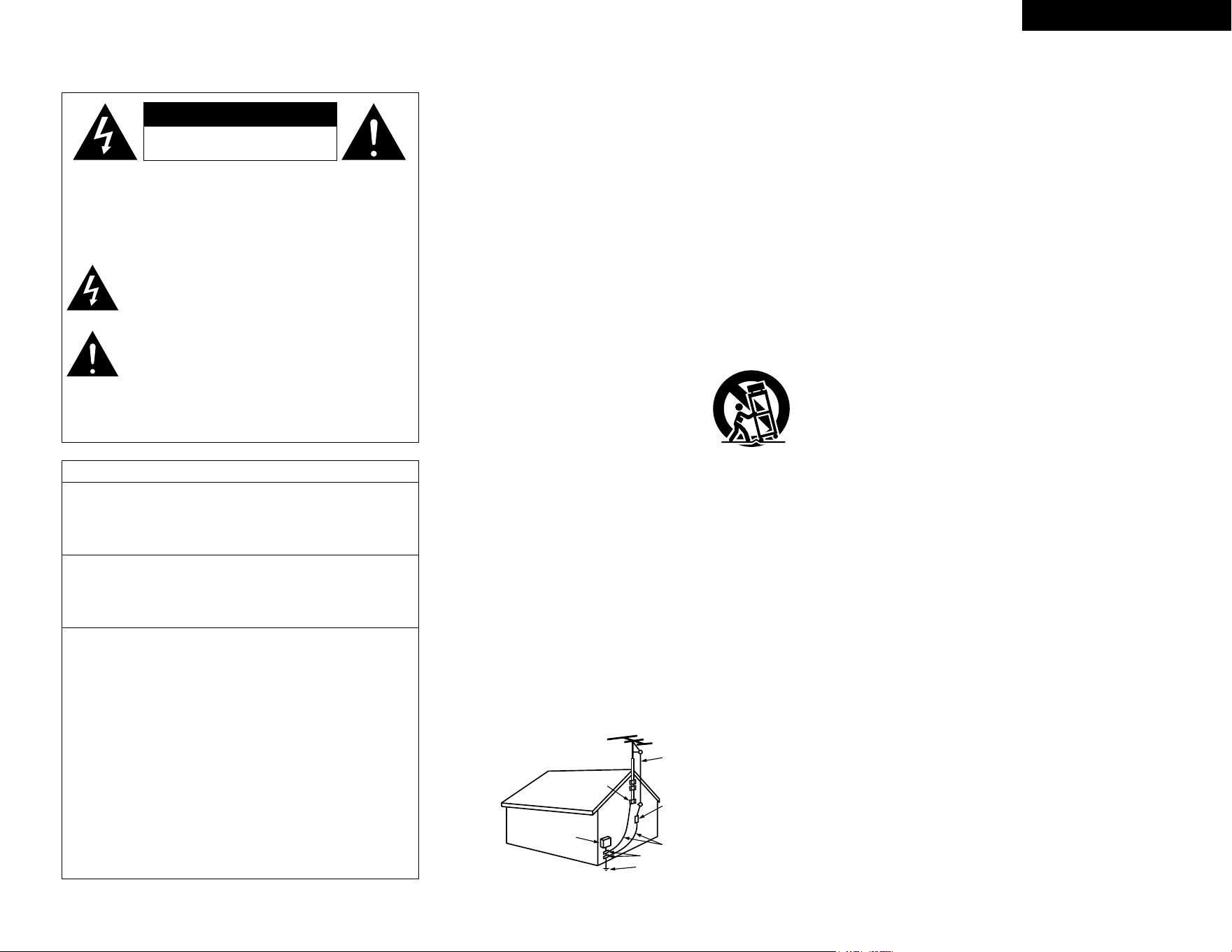

• Page 2 - English - : FCC INFORMATION For US customers ENGLISHFRANCAIS 2 SAFETY PRECAUTIONS 1 PRODUCT This product complies with Part 15 of the FCC Rules Operation is subject to the following two conditions 1 this product may not cause harmful interference and 2 this product must accept any interference received including interference that may cause undesired operation 2 IMPORTANT NOTICE DO NOT MODIFY THIS PRODUCT This product when installed as indicated in the instructions contained in this manual meets FCC requirements Modification not expressly approved by DENON may void your authority granted by the FCC to use the product 3 NOTE This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This product generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this product does cause harmful interference to radio or television reception which can be determined by turning the product OFF and ON the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the product into an outlet on a circuit different from that to which the receiver is connected Consult the local retailer authorized to distribute this type of product or an experienced radioTV technician for help CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK NO USERSERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance servicing instructions in the literature accompanying the appliance WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE 1 Read Instructions All the safety and operating instructions should be read before the product is operated 2 Retain Instructions The safety and operating instructions should be retained for future reference 3 Heed Warnings All warnings on the product and in the operating instructions should be adhered to 4 Follow Instructions All operating and use instructions should be followed 5 Cleaning Unplug this product from the wall outlet before cleaning Do not use liquid cleaners or aerosol cleaners 6 Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards 7 Water and Moisture Do not use this product near water for example near a bath tub wash bowl kitchen sink or laundry tub in a wet basement or near a swimming pool and the like 8 Accessories Do not place this product on an unstable cart stand tripod bracket or table The product may fall causing serious injury to a child or adult and serious damage to the product Use only with a cart stand tripod bracket or table recommended by the manufacturer or sold with the product Any mounting of the product should follow the manufacturers instructions and should use a mounting accessory recommended by the manufacturer 9 A product and cart combination should be moved with care Quick stops excessive force and uneven surfaces may cause the product and cart combination to overturn 10 Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating and these openings must not be blocked or covered The openings should never be blocked by placing the product on a bed sofa rug or other similar surface This product should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to 11 Power Sources This product should be operated only from the type of power source indicated on the marking label If you are not sure of the type of power supply to your home consult your product dealer or local power company For products intended to operate from battery power or other sources refer to the operating instructions 12 Grounding or Polarization This product may be equipped with a polarized alternatingcurrent line plug a plug having one blade wider than the other This plug will fit into the power outlet only one way This is a safety feature If you are unable to insert the plug fully into the outlet try reversing the plug If the plug should still fail to fit contact your electrician to replace your obsolete outlet Do not defeat the safety purpose of the polarized plug 13 PowerCord Protection Powersupply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them paying particular attention to cords at plugs convenience receptacles and the point where they exit from the product 15 Outdoor Antenna Grounding If an outside antenna or cable system is connected to the product be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and builtup static charges Article 810 of the National Electrical Code ANSINFPA 70 provides information with regard to proper grounding of the mast and supporting structure grounding of the leadin wire to an antenna discharge unit size of grounding conductors location of antennadischarge unit connection to grounding electrodes and requirements for the grounding electrode See Figure A 16 Lightning For added protection for this product during a lightning storm or when it is left unattended and unused for long periods of time unplug it from the wall outlet and disconnect the antenna or cable system This will prevent damage to the product due to lightning and powerline surges 17 Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal 18 Overloading Do not overload wall outlets extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock 19 Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shortout parts that could result in a fire or electric shock Never spill liquid of any kind on the product 20 Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards Refer all servicing to qualified service personnel 21 Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions a When the powersupply cord or plug is damaged b If liquid has been spilled or objects have fallen into the product c If the product has been exposed to rain or water d If the product does not operate normally by following the operating instructions Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation e If the product has been dropped or damaged in any way and f When the product exhibits a distinct change in performance this indicates a need for service 22 Replacement Parts When replacement parts are required be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part Unauthorized substitutions may result in fire electric shock or other hazards 23 Safety Check Upon completion of any service or repairs to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition 24 Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as recommended by the manufacturer 25 Heat The product should be situated away from heat sources such as radiators heat registers stoves or other products including amplifiers that produce heat SAFETY INSTRUCTIONS FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT NEC SECTION 81020 GROUNDING CONDUCTORS NEC SECTION 81021 GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM NEC ART 250 PART H NEC NATIONAL ELECTRICAL CODE
• Page 3 - English - : ENGLISH FRANCAIS 2 System setup Configuration système Front Large Center Small Surr Small SBack Small SBack 2spgt Subwoofer Yes Speaker Configuration Subwoofer Mode Crossover Frequency Subwoofer Yes Delay Time Front L 12ft Front R 12ft Center 12ft SurrL 10ft SurrR 10ft SBack L 10ft SBack R 10ft SW 12ft Digital In Assignment SW Mode Norm CrOver 80Hz Test Tone TEST TONE Yeslt COAX1 CD COAX2 AUX OPT DVD Auto Surround Mode Auto Surr ON Ext In Subwoofer Level Power Amp Assignment ExtIn SW15dB PAmp SBack page 12 13 page 13 14 page 14 page 15 page 16 page 16 page 16 page 16
• Page 4 - English - : ENGLISH Getting Started ENGLISH Contents Getting Started Accessories 2 Before using2 Cautions on installation 2 Cautions on handling2 Preparing the remote control unit 2 Inserting the batteries 3 Operating range of the remote control unit 3 Part names and functions Front panel3 Remote control unit4 Speaker system layout4 Speaker connections 5 Connecting a DVD player and monitor TV6 Connecting the power supply cord6 Turning on the power 7 Playing a DVD with surround sound 7 Cable indications8 Connecting a TVDBS tuner 9 Connecting a video camera or video game9 Connecting the external inputs EXT IN terminals9 Connecting a CD player9 Connecting a VCR 10 Connecting a tape deck CD recorder or MD recorder10 Connecting the antenna terminals 10 11 Connecting the MULTI ZONE terminals Connecting a roomtoroom remote control unit11 ZONE2 speaker out connections11 System Setup Front display12 Setting the Speaker Configuration 12 13 Setting the Delay Time13 14 Setting the Subwoofer Mode and Crossover Frequency 14 Setting the Test Tone 15 Setting the Digital In Assignment16 Setting the Auto Surround Mode 16 Setting the Ext In Subwoofer Level16 Setting the Power Amp Assignment16 System setup items and default values 17 Troubleshooting 37 Additional information3843 Specifications 44 Thank you for choosing the DENON AVR1506 AV Surround Receiver This remarkable component has been engineered to provide superb surround sound listening with home theater sources such as DVD as well as providing outstanding high fidelity reproduction of your favorite music sources As this product is provided we recommend with an immense array of features before you begin hookup and operation that you review the contents of this manual before proceeding List of preset codes End of this manual Getting Started Easy Operation Connecting Other Sources Advanced Operation Remote control unit Operating DENON audio components 31 Preset memory32 Operating a component stored in the preset memory3234 Punch through 34 Multi zone music entertainment system 35 Remote control unit operations during multisource playback35 36 Other functions Recording the program source recording the source currently being monitored 36 Last function memory 36 Initialization of the microprocessor36 Playback Playing the input source 18 Playback using the external input EXT IN terminals 18 Turning the sound off temporarily MUTING 18 Listening over headphones 19 Combining the currently playing sound with the desired image VIDEO SELECT 19 Selecting the front speakers 19 Checking the currently playing program source19 Input mode 19 20 Surround Playing audio sources CDs and DVDs 2channel playback modes 20 Dolby Pro Logic IIx Pro Logic II mode 21 22 DTS NEO6 mode23 24 Dolby Digital mode and DTS surround 24 Night mode25 Basic Operation DENON original surround modes Surround modes and their features26 DSP surround simulation27 28 Tone control setting Adjusting the sound quality28 Tone defeat mode 28 Channel Level 29 Listening to the radio Auto preset memory 29 Auto tuning 30 Manual tuning30 Preset stations30 Recalling preset stations 30
• Page 5 - English - : ENGLISH ENGLISH Getting Started Getting Started Accessories Check that the following parts are included in addition to the main unit q Operating instructions 1 w Warranty 1 e Service station list 1 r Remote control unit RC1000 1 r ty u t R6PAA batteries 2 y AM loop antenna 1 u FM indoor antenna 1 Before using Pay attention to the following before using this unit Moving the unit To prevent shortcircuits or damaged wires in the connection cables always unplug the power supply cord and disconnect the connection cables between all other audio components when moving the unit Before turning the power switch on Check once again that all connections are correct and that there are not problems with the connection cables Always set the power switch to the standby position before connecting and disconnecting connection cables Store these instructions in a safe place After reading store this instructions along with the warranty card in a safe place Note that the illustrations in these instructions may differ from the actual unit for explanation purposes V AUX terminals The AVR1506s front panel is equipped with V AUX terminals Remove the cap covering the terminals when you want to use them Cautions on installation Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV If this happens take the following steps Install this unit as far away as possible from the tuner or TV Run the antenna wires from the tuner or TV away from this units power supply cord and inputoutput connection cables Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ωohm feeder wires We recommend using outdoor antennas and 75 Ωohm coaxial cables Wall Note Cautions on handling Switching the input source when input terminals are not connected A clicking noise may be produced if the input source is switched when nothing is connected to the input terminals If this happens either turn down the MASTER VOLUME control knob or connect components to the input terminals Muting of PRE OUT terminals PHONES jack and SPEAKER terminals The PRE OUT terminals PHONES jack and SPEAKER terminals include a muting circuit Because of this the output signals are greatly attenuated for several seconds after the power switch is turned on or the input source surround mode or any other setup is changed If the volume is turned up during this time the output will be very high after the muting circuit stops functioning Always wait until the muting circuit turns off before adjusting the volume Whenever the power switch is in the STANDBY state the unit is still connected to AC line voltage Please be sure to turn off the power switch or unplug the cord when you leave home for say a vacation Preparing the remote control unit The included remote control unit RC1000 can be used to operate not only the AVR1506 but other remote control compatible DENON components as well In addition the memory contains control signals for other remote control units so it can be used to operate nonDENON remote control compatible products Note For heat dispersal do not install this unit in a confined space such as a bookcase or similar enclosure

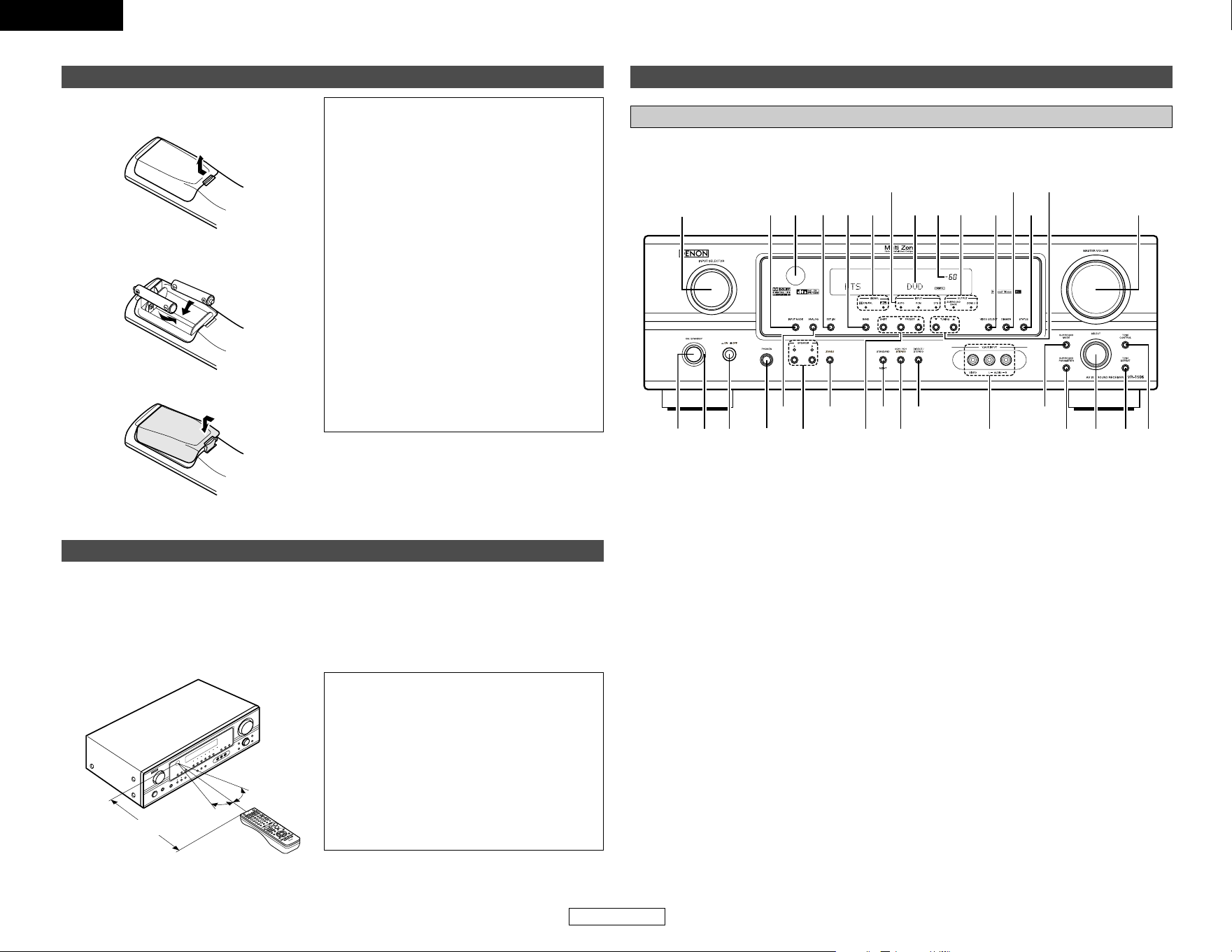

• Page 6 - English - : ENGLISH ENGLISH Getting Started Getting Started Operating range of the remote control unit 30 30 Approx 23 feet Point the remote control unit at the remote sensor on the main unit as shown in the diagram The remote control unit can be used from a straight distance of approximately 23 feet from the main unit but this distance will be shorter if there are obstacles in the way or if the remote control unit is not pointed directly at the remote sensor The remote control unit can be operated at a horizontal angle of up to 30 degrees with respect to the remote sensor NOTE It may be difficult to operate the remote control unit if the remote sensor is exposed to direct sunlight or strong artificial light Do not press buttons on the main unit and remote control unit simultaneously Doing so may result in malfunction Neon signs or other devices emitting pulse type noise nearby may result in malfunction so keep the set as far away from such devices as possible Part names and functions Front panel For details on the functions of these parts refer to the pages given in parentheses 2 0 81 9 57 4 3 0 82 1 96 r y i 0 2 4 5 6 7 q w t e u o 1 3 q Power ONSTANDBY switch 7 w Power indicator7 e Power switch 7 36 r Headphones jack PHONES 19 t ANALOG button20 y SPEAKER AB buttons 19 36 u ZONE2 button 35 i Preset station select buttons 29 30 o STANDARDNIGHT button 2125 0 5CH7CH STEREO button 26 1 DIRECTSTEREO button20 2 V AUX INPUT terminals 9 3 SURROUND MODE button 18 4 SURROUND PARAMETER button 21 5 SELECT knob18 21 28 6 TONE DEFEAT button28 7 TONE CONTROL button28 8 MASTER VOLUME control knob 18 9 TUNING upª down buttons 29 0 STATUS button 19 25 1 DIMMER button 19 2 VIDEO SELECT button19 3 OUTPUT indicator24 4 Master volume indicator18 5 Display 6 INPUT mode indicator20 7 SIGNAL indicator 20 8 BAND button 29 9 EXT IN button18 0 Remote control sensor3 1 INPUT MODE button 19 2 INPUT SELECTOR knob18 Inserting the batteries q Remove the remote control units rear cover w Set two R6PAA batteries in the battery compartment in the indicated direction e Put the rear cover back on Notes on batteries Replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the unit The included batteries are only for verifying operation When inserting the batteries be sure to do so in the proper direction following the lt and gt marks in the battery compartment To prevent damage or leakage of battery fluid Do not use a new battery together with an old one Do not use two different types of batteries Do not shortcircuit disassemble heat or dispose of batteries in flames If the battery fluid should leak carefully wipe the fluid off the inside of the battery compartment and insert new batteries When replacing the batteries have the new batteries ready and insert them as quickly as possible

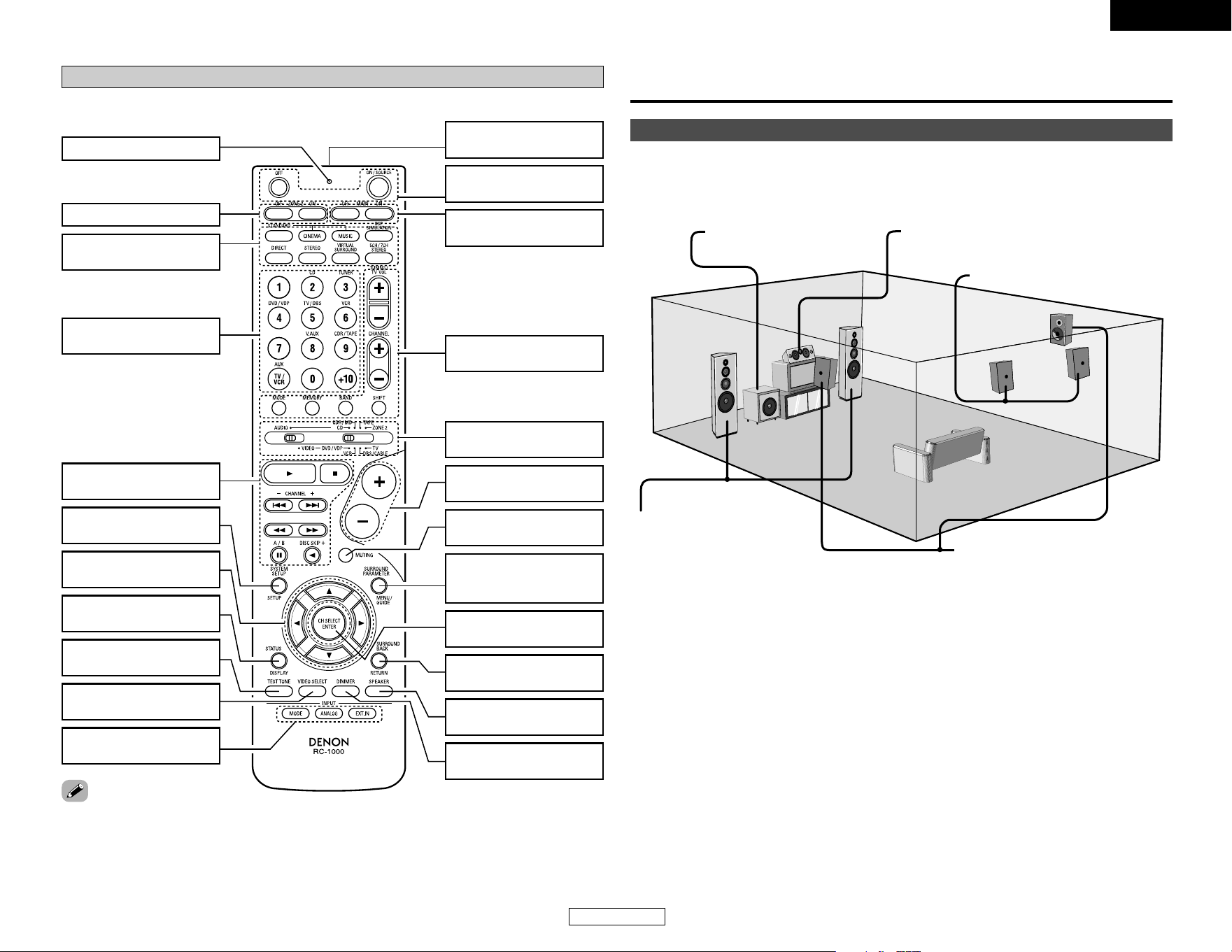

• Page 7 - English - : ENGLISH ENGLISH Getting Started Remote control unit For details on the functions of these parts refer to the pages given in parentheses SURROUND MODE buttons18 27 Indicator 32 34 Input source selector buttons18 32 System buttons 3134 SYSTEM SETUPSETUP button12 33 Cursor buttons 21 33 STATUSDISPLAY button 19 25 33 TEST TONE button 15 VIDEO SELECT button 19 Remote control signal transmitter3 Power buttons 7 33 Tuner systemSystem buttons29 34 MUTING button 18 Master volume control buttons18 35 Mode selector switches 7 31 CH SELECTENTER button 22 29 SURROUND PARAMETERSystem button21 33 SPEAKER button 7 19 SURROUND BACK RETURN button24 33 Input mode selector buttons 1820 DIMMER button 19 ZONE2 buttons34 35 MAIN buttons 4 34 The Dolby Surround Pro Logic IIx Cinema or Music mode can be chosen directly by pressing the CINEMA or MUSIC button on the remote control unit during playback in the Dolby Surround Pro Logic II x mode The DTS NEO6 Cinema or Music mode can be chosen directly by pressing the CINEMA or MUSIC button on the remote control unit during playback in the DTS NEO6 mode The main zone output can be turned on and off with the MAIN button MEMO Easy Operation Speaker system layout 2 Basic system layout The following is an example of the basic layout for a system consisting of eight speaker systems and a television monitor Subwoofer Center speaker system Surround speaker systems Surround back speaker systems Front speaker systems Set these at the sides of the TV or screen with their front surfaces as flush with the front of the screen as possible

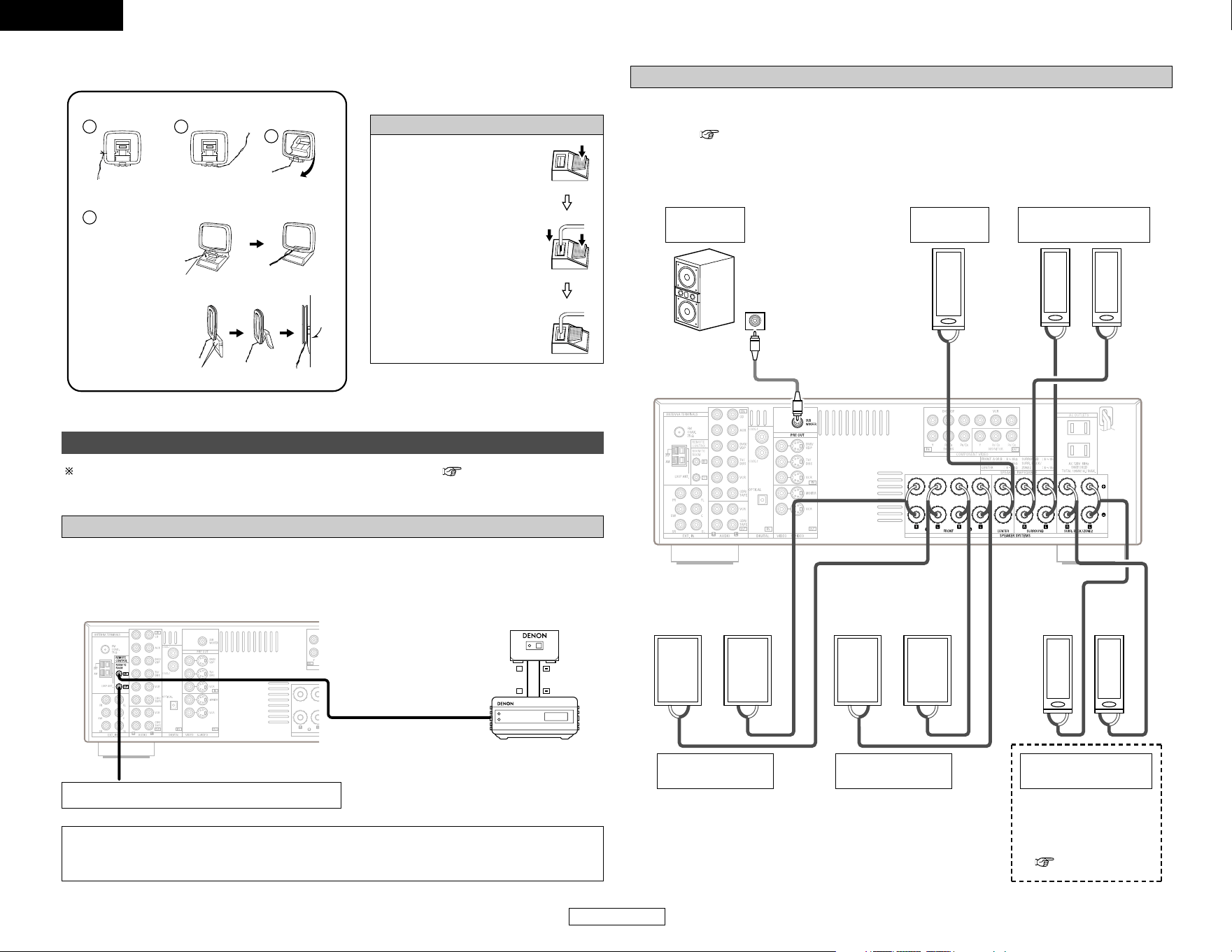

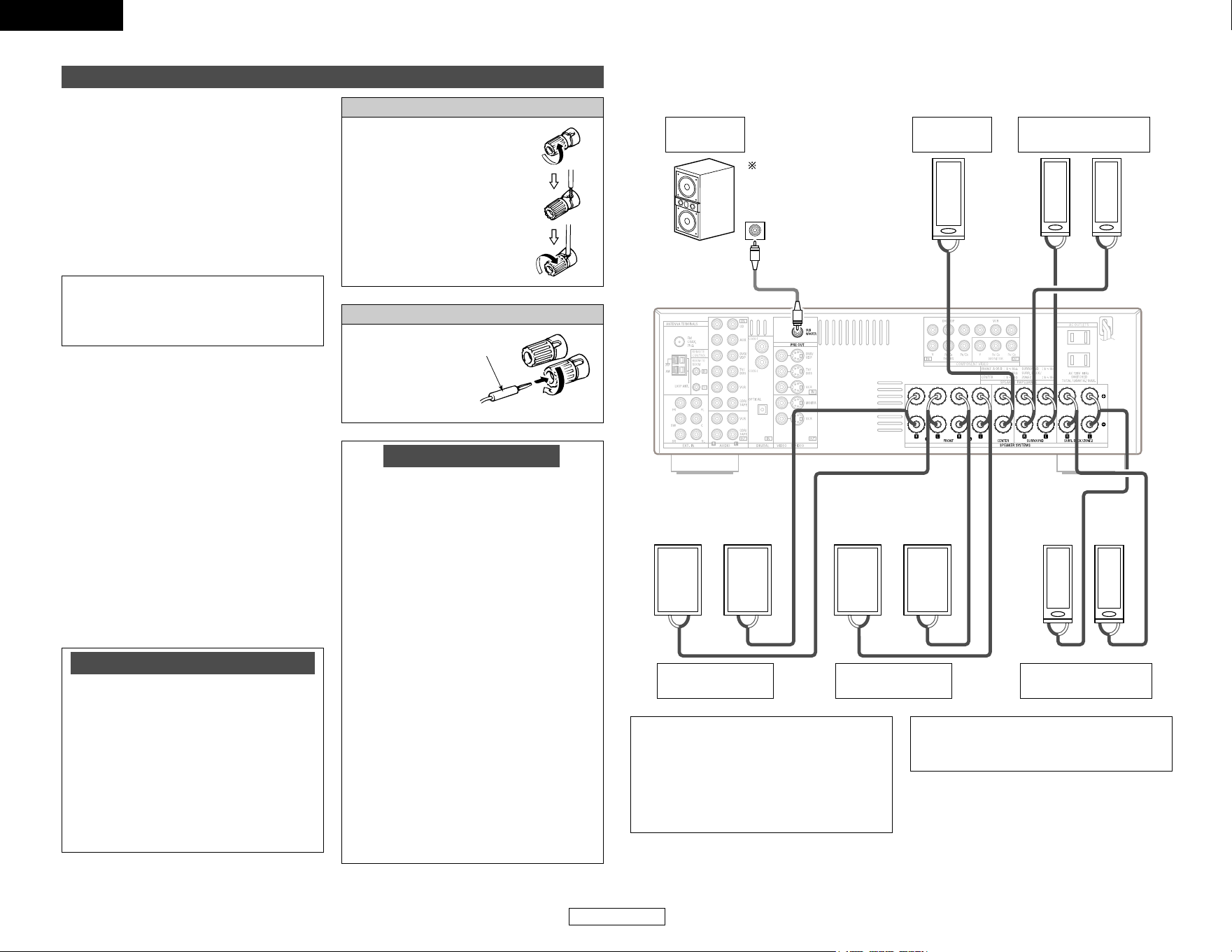

• Page 8 - English - : ENGLISH ENGLISH Easy Operation Easy Operation Speaker connections Connect the speaker terminals with the speakers making sure that like polarities are matched lt with lt gt with gt Mismatching of polarities will result in weak central sound unclear orientation of the various instruments and the stereo image being impaired When making connections take care that none of the individual conductors of the speaker cable come in contact with adjacent terminals with other speaker cable conductors or with the rear panel 2 Speaker impedance When speaker systems A and B are used separately speakers with an impedance of 6 to 16 Ωohms can be connected for use as front speakers Be careful when using two pairs of front speakers A B at the same time since speakers with an impedance of 12 to 16 Ωohms in this case must be used Speakers with an impedance of 6 to 16 Ωohms can be connected for use as center and surround and surround back speakers The protector circuit may be activated if the unit is operated for long periods of time at high volumes when speakers with an impedance lower than the specified impedance are connected Protector circuit This unit is equipped with a highspeed protection circuit The purpose of this circuit is to protect the speakers under circumstances such as when the output of the power amplifier is inadvertently shortcircuited and a large current flows when the temperature surrounding the unit becomes unusually high or when the unit is used at high output over a long period which results in an extreme temperature rise When the protection circuit is activated the speaker output is cut off and the power supply indicator flashes Should this occur please follow these steps be sure to switch off the power of this unit check whether there are any faults with the wiring of the speaker cables or input cables and wait for the unit to cool down if it is very hot Improve the ventilation condition around the unit and switch the power back on If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit switch off the power and contact a DENON service center Note on speaker impedance The protector circuit may be activated if the unit is operated for long periods of time at high volumes when speakers with an impedance lower than the specified impedance for example speakers with an impedance of less than 4 Ωohms are connected If the protector circuit is activated the speaker output is cut off Turn off the units power wait for the unit to cool down improve the ventilation around the unit then turn the power back on NOTE NEVER touch the speaker terminals when the power is on Doing so could result in electric shocks Connecting the speaker cables 1 Loosen by turning counterclockwise 2 Insert the cable 3 Tighten by turning clockwise Connecting banana plugs Turn clockwise to tighten then insert the banana plug Banana plug gtltltgtgtltltgt gtlt gtltgtlt gtltgtlt IN L R L R L R L R 2 Connections When making connections also refer to the operating instructions of the other components Connection terminal for a subwoofer with builtin amplifier Surround speaker systems Subwoofer Front speaker systems B Precautions when connecting speakers If a speaker is placed near a TV or video monitor the colors on the screen may be disturbed by the speakers magnetism If this should happen move the speaker away to a position where it does not cause this effect NOTE When using only one surround back speaker connect it to the left channel Front speaker systems A Center speaker Surround back speaker systems To achieve Dolby Digital playback effect use a unit that can sufficiently reproduce frequencies of under 80 Hz

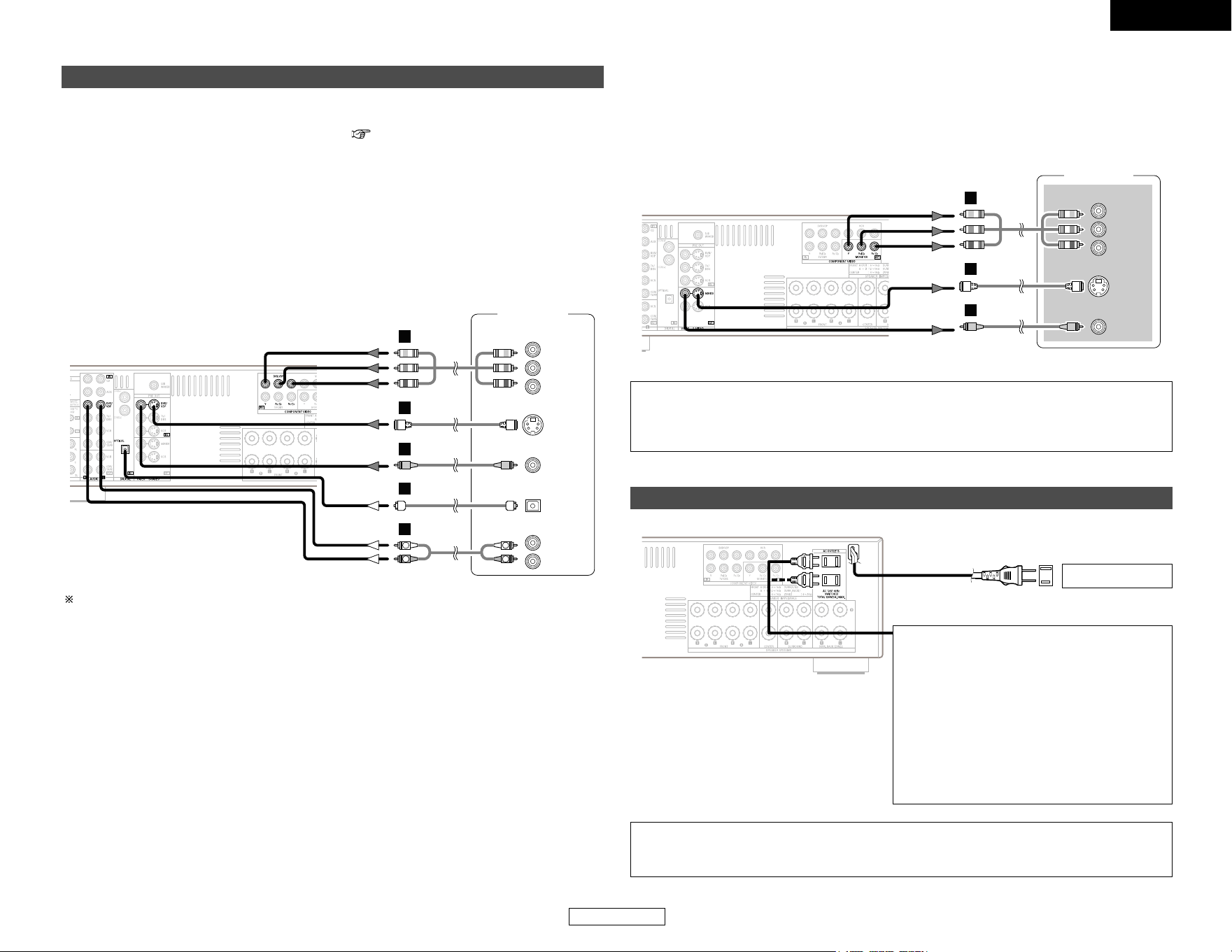

• Page 9 - English - : ENGLISH ENGLISH Easy Operation Easy Operation Connecting a DVD player and monitor TV To connect the digital audio output from the DVD player you can choose from either the coaxial or optical connections If you choose to use the coaxial connection it needs to be assigned For more information about Digital Input Assignment page 16 Connect a nonDVD video disc player such as a laser disc VCDSVCD or future high definition disc player to the DVDVDP terminals in the same way Precaution when using Sterminals This units Sterminals input and output and video pin terminals input and output have independent circuit structures so that video signals input from the Sterminals are only output from the Sterminal outputs and video signals input from the pin terminals are only output from the pin terminal outputs When connecting this unit with equipment that is equipped with Sterminals keep the above point in mind and make connections according to the equipments instruction manuals Audio signal flow is shown with white arrows video signal flow is shown with gray arrows DVD player S VIDEO OUT R L AUDIO OUT VIDEO OUT COMPONENT VIDEO OUT Y P B PR OPTICAL OUT F H G D R L R L A S VIDEO IN VIDEO IN Monitor TV COMPONENT VIDEO IN Y P B PR F H G For best picture quality especially with progressive DVD and other high definition sources choose the component video connection to your monitor TV SVideo and composite video outputs are also provided if your TV does not have component video inputs The signals input to the color difference component video terminals are not output from the VIDEO output terminal yellow or the SVideo output terminal NOTE The component video input andor output terminals may be labeled differently on some TVs monitors or video components Y P B PR Y CB CR Y BY RY Check the owners manuals for the other components for further information Connecting the power supply cord AC 120 V 60 Hz AC outlet Wall NOTE Only use the AC OUTLETS for connecting audio equipment Never use it for hair driers TVs or other electrical appliances AC OUTLETS SWITCHED total capacity 120 W 1 A The power to this outlet is turned on and off in conjunction with the POWER switch on the main unit and when the power is switched between on and standby from the remote control unit No power is supplied from this outlet when this units power is at standby Never connect equipment whose total power consumption exceeds 120 W 1 A

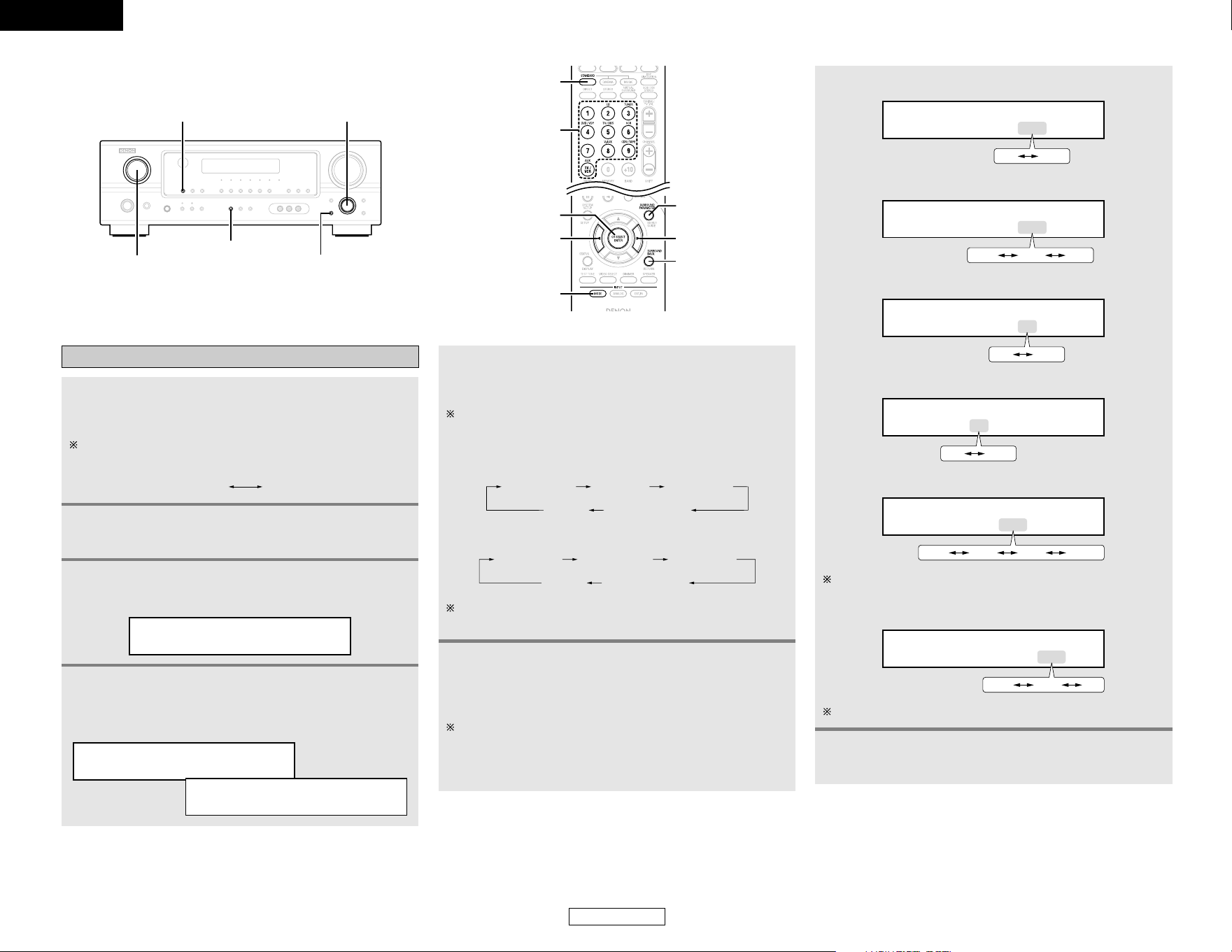

• Page 10 - English - : Easy Operation Easy Operation ENGLISH ENGLISH Press the ONSTANDBY switch on the main unit or ONSOURCE button on the remote control unit Turn on the power Press the SPEAKER A button to turn the speakers on Press the POWER switch OFF The power turns off and the indicator is off In this position the power cannot be turned on and off from the remote control unit ON The power turns on and the indicator lights Set the POWER switch to this position to turn the power on and off from the included remote control unit Turn on your subwoofer Turn on your monitor TV Turning on the power Set the MODE 1 switch to AUDIO only when operating with the remote control unit MODE 1 INPUT SELECTOR ONSOURCE SURROUND MODE SPEAKER VOLUME ONSTANDBY SURROUND MODE POWER SELECT INPUT SELECTOR MASTER VOLUME SPEAKER A Playing the input source Select the input source to be played Example DVD Main unit Remote control unit Adjust the volume Main unit Remote control unit The volume level is displayed on the master volume level display Start playback on the selected component Select the play surround mode Example STANDARD Main unit Remote control unit SELECT To select the surround mode while adjusting the surround parameters tone defeat or tone control press the SURROUND MODE button and then operate the selector
• Page 11 - English - : ENGLISH Connecting Other Sources ENGLISH Cable indications Signal direction The hookup diagrams on the subsequent pages assume the use of the following optional connection cables not supplied Video cableAudio cable NOTE Do not plug in the power supply cord until all connections have been completed When making connections also refer to the operating instructions of the other components Be sure to connect the left and right channels properly left with left right with right Note that binding pinplug cables together with power supply cords or placing them near a power transformer will result in hum or other noise Analog terminal Stereo A R L R L Orange Pinplug cable Analog terminal Monaural for subwoofer B Pinplug cable Digital terminal Coaxial C Coaxial cable 75 Ωohm pinplug cable Digital terminal Optical D Optical cable Optical fiber cable Speaker terminal E Speaker cable Video terminal F Video cable 75 Ωohm video pinplug cable SVideo terminal G SVideo cable Yellow Audio signal Video signal White Red Component video terminal H Component video cable Y P BCB P RCR Green Blue Red IN OUT OUT IN IN OUT OUT IN Connecting Other Sources

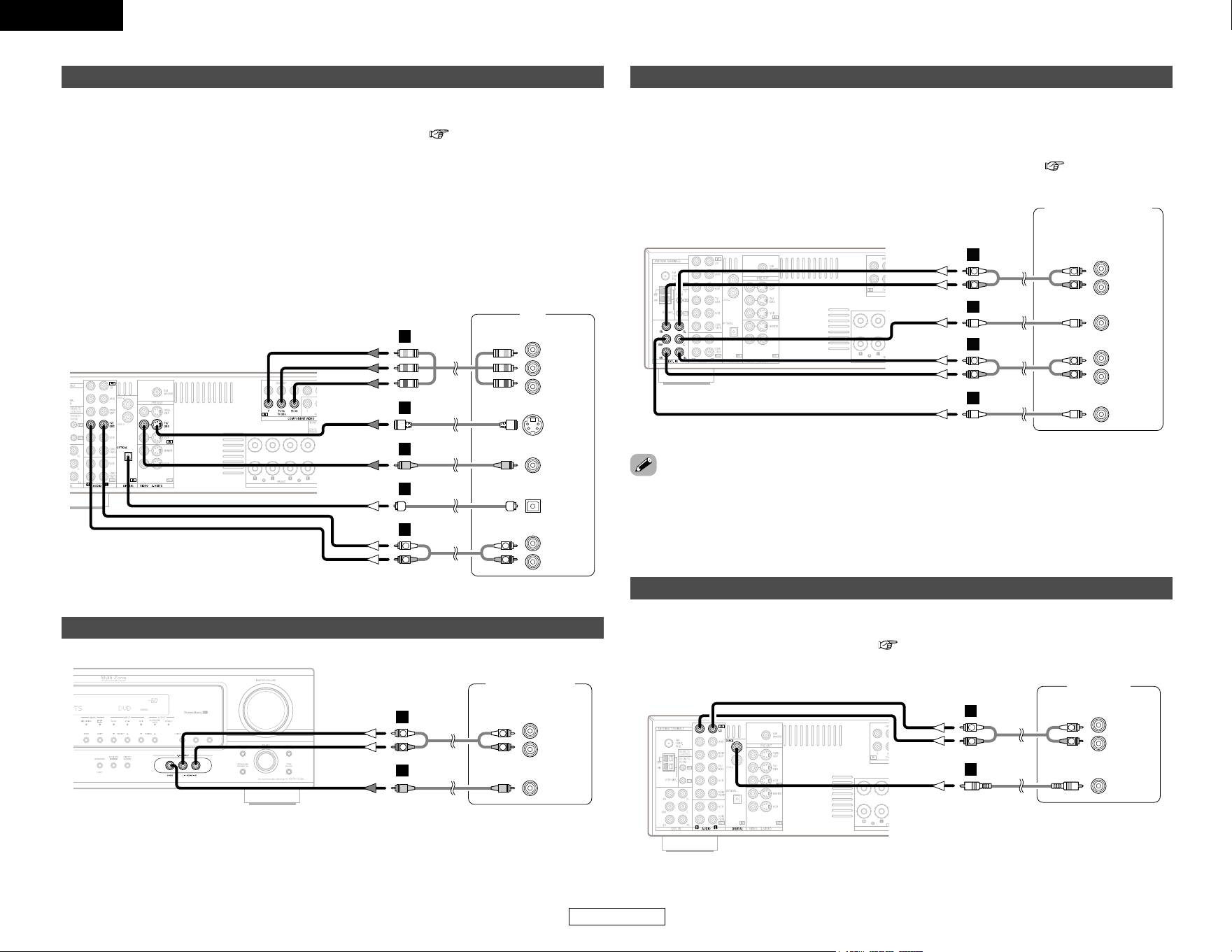

• Page 12 - English - : ENGLISH Connecting Other Sources Connecting Other Sources ENGLISH Connecting a TVDBS tuner F G A TV S VIDEO OUT R L AUDIO OUT VIDEO OUT COMPONENT VIDEO OUT Y P B PR OPTICAL OUT R L R L H D To connect the digital audio output from the TV or DBS tuner you can choose from either the coaxial or optical connections If you choose to use the coaxial connection it needs to be assigned For more information about Digital Input Assignment page 16 Precaution when using Sterminals This units Sterminals input and output and video pin terminals input and output have independent circuit structures so that video signals input from the Sterminals are only output from the Sterminal outputs and video signals input from the pin terminals are only output from the pin terminal outputs When connecting this unit with equipment that is equipped with Sterminals keep the above point in mind and make connections according to the equipments instruction manuals The signals input to the color difference component video terminals are not output from the VIDEO output terminal yellow or the SVideo output terminal Connecting a video camera or video game Video camera Video game R L AUDIO OUT VIDEO OUT R L R L A F Connecting the external inputs EXT IN terminals DVD AudioVideo Super Audio CD player External decoder R FRONT L 51ch AUDIO OUT CENTER R SURROUND L SUB WOOFER L R L R B A B R L R L A These terminals are for inputting multichannel audio signals from an external decoder or a component with a different type of multichannel decoder such as a DVD Audio player a multi channel Super Audio CD player or another future multichannel sound format decoder The video signal connection is the same as that for a DVD player For instructions on playback using the external input EXT IN terminals page 18 With discs on which special copyright protection measures have been taken the digital signals may not be output from the DVD player In this case connect the DVD players analog multi channel output to the AVR1506s EXT IN terminals for playback Also refer to your DVD players operating instructions Connecting a CD player R L AUDIO OUT CD player COAXIAL OUT R L R L A C To connect the digital audio output from the CD player you can choose either coaxial or optical connection If you choose to use the optical connection it needs to be assigned For more information about Digital Input Assignment page 16
• Page 13 - English - : ENGLISH ENGLISH Connecting Other Sources Connecting Other Sources Connecting a tape deck CD recorder or MD recorder R L AUDIO OUT R L AUDIO IN Tape deck CD recorder MD recorder R L R L A R L R L A If humming noise is generated move the tape deck further away from the source of such noise Connecting a VCR Video deck S VIDEO OUT S VIDEO IN R L AUDIO IN R L AUDIO OUT VIDEO OUT VIDEO IN R L R L F F G G A R L R L A COMPONENT VIDEO OUT Y P B PR H If you wish to perform analog dubbing from a digital source such as a DVD recorder to an analog recorder such as a cassette deck you will need to connect the analog inputs and outputs as shown below in addition to the digital audio connections Precaution when using Sterminals This units Sterminals input and output and video pin terminals input and output have independent circuit structures so that video signals input from the Sterminals are only output from the Sterminal outputs and video signals input from the pin terminals are only output from the pin terminal outputs When connecting this unit with equipment that is equipped with Sterminals keep the above point in mind and make connections according to the equipments instruction manuals The signals input to the color difference component video terminals are not output from the VIDEO output terminal yellow or the SVideo output terminal NOTE When recording to a VCR recorder it is necessary that the type of cable used with the playback source equipment be the same type that is connected to the AVR1506 VCR OUTPUT terminal Example VCR IN SVideo cable VCR OUT SVideo cable VCR IN Video cable VCR OUT Video cable NOTE Do not connect two FM antennas simultaneously Even if an external AM antenna is used do not disconnect the AM loop antenna Make sure the AM loop antenna lead terminals do not touch metal parts of the panel Note to CATV system installer This reminder is provided to call the CATV system installers attention to Article 82040 of the NEC which provides guidelines for proper grounding and in particular specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical Direction of broadcasting station 75 Ωohm COAXIAL cable FM antenna FM indoor antenna Supplied AM loop antenna Supplied AM outdoor antenna Ground An FM antenna cable plug can be connected directly to the unit Connecting the antenna terminals
• Page 14 - English - : ENGLISH ENGLISH Connecting Other Sources Connecting Other Sources 2 AM loop antenna assembly Connect to the AM antenna terminals Remove the vinyl tie and take out the connection line Bend in the reverse direction a Antenna placed on a stable surface b Hanging the antenna on a wall Mount Use the installation hole to secure the antenna to a wall etc Connection of AM antennas 1 Push the lever 2 Insert the conductor 3 Return the lever For instructions on operations using the MULTI ZONE functions page 35 36 Connecting the MULTI ZONE terminals When a sold separately roomtoroom remote control unit DENON RC616 617 or 618 is wired and connected between the MAIN ZONE and ZONE2 the remotecontrollable devices in the MAIN ZONE can be controlled from ZONE2 using the remote control unit Connecting a roomtoroom remote control unit NOTE For instructions on installation and operation of separately sold devices refer to the devices operating instructions OUTPUT INPUT AUX OUT RC616 INFRARED RETRANSMITTER RC617 INFRARED SENSOR Extension terminals for future use When the power amplifier is assigned to the ZONE2 output channel at Power Amp Assignment the surround back speaker terminals can be used as the ZONE2 speaker out terminals page 35 The connections diagram below is an example for when the surround back speaker is assigned to the ZONE2 stereo 2 channel In this case surround back speaker out can not be used for MAIN ZONE ZONE2 speaker out connections gtltltgtgtltltgt gtlt gtltgtlt gtltgtlt IN L R L R L R L R Connection terminal for subwoofer with builtin amplifier subwoofer etc Surround speaker systems Subwoofer Front speaker systems B Front speaker systems A Center speaker ZONE2 speaker systems NOTE The settings must be changed to use this speaker for ZONE2 page 16

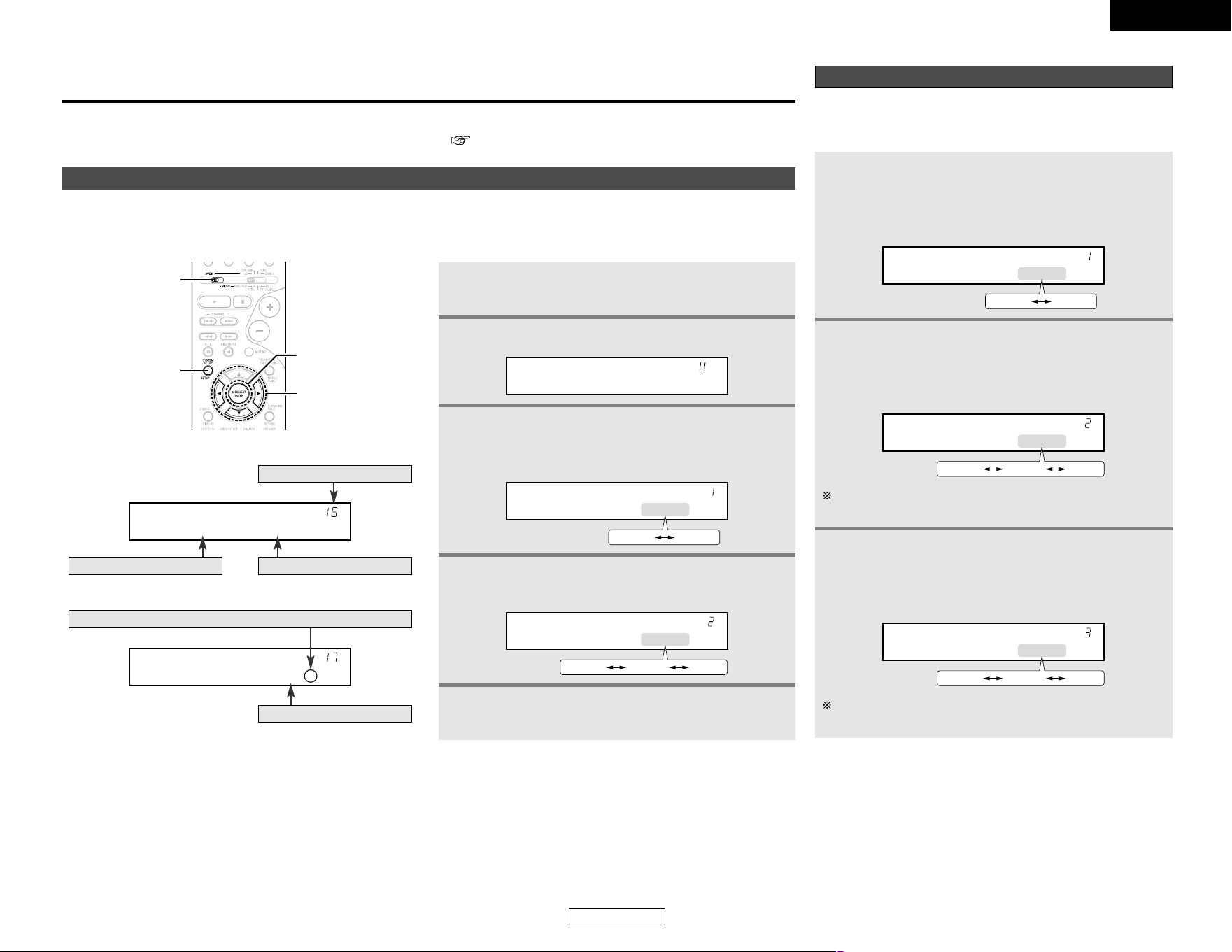

• Page 15 - English - : System Setup ENGLISH ENGLISH Use System Setup to customize a variety of settings to suit your listening environment For the contents of a system menu and the initial setting of this unit page 17 You can change the settings using the buttons on the remote control unit The AVR1506 is equipped with an alpha numeric front panel display that can also be used to check and adjust settings Some representative front display examples are shown below CURSOR MODE 1 SETUP ENTER Front display System Setup No TEST TONE Yeslt Press the CURSOR FF button to execute Currently selected line COAX1 CD Current settingCurrently selected line Set the MODE 1 switch to AUDIO Press the SETUP button to enter the setting Press the ENTER or CURSOR HH button to confirm the new settings System Setup Press the ENTER or CURSOR HH button to select the setting then press the CURSOR FF or GG button to select the parameter Front Large Large Small Center Small Large Small None Press the SETUP button to finish system set up Display Setting the Speaker Configuration Press the CURSOR FF or GG button to select your front speaker type then press the ENTER or CURSOR HH button to switch to the center speaker setting Front Large Large Small Press the CURSOR FF or GG button to select your center speaker type then press the ENTER or CURSOR HH button to switch to the surround speaker setting Center Small Large Small None When Small has been selected for the front speakers Large cannot be selected for the center speaker Press the CURSOR FF or GG button to select your surround speaker type then press the ENTER or CURSOR HH button to switch to the surround back speaker setting Surr Small Large Small None When Small has been selected for the front speakers Large cannot be selected for the surround speakers The composition of the signals output to each channel and the frequency response are adjusted automatically according to the combination of speakers actually being used
• Page 16 - English - : ENGLISH System Setup System Setup ENGLISH Press the CURSOR FF or GG button to select your surround back speaker type then press the ENTER or CURSOR HH button to switch to the number of surround back speaker setting SBack Small Large Small None Press the CURSOR FF or GG button to set the number of speakers to be used for the surround back channel then press the ENTER or CURSOR HH button to switch to the subwoofer setting SBack 2spgt 2spgt lt1sp Press the CURSOR FF or GG button to select your subwoofer setting then press the ENTER or CURSOR HH button to enter the settings and switch to the Delay Time setting Subwoofer Yes Yes No When Small has been selected for the surround speakers Large cannot be selected for the surround back speakers 2 Parameters Large Select this when using speakers that have sufficient ability to reproduce bass sound below the frequency set for the crossover frequency mode Yes No Select Ye s when a subwoofer is installed No when a subwoofer is not installed Small Select this when using speakers that do not have sufficient ability to reproduce bass sound below the frequency set for the crossover frequency mode When this is set bass sound with a frequency below the frequency set for the crossover frequency mode is sent to the subwoofer None Select this when no speakers are installed 2sp 1sp Set the number of speakers to be used for the surround back channel If the subwoofer has sufficient low frequency playback capacity good sound can be achieved even when Small is set for the front center and surround speakers Select Large or Small not according to the actual size of the speaker but according to the speakers capacity for playing low frequency bass sound below the frequency set for the Crossover Frequency signals If you are unsure try comparing the sound at both settings setting the volume to a level low enough so as not to damage the speakers to determine the proper setting Setting the Delay Time Input the distance between the listening position and each speaker to set the delay time for the surround playback Preparations Measure the distances between the listening position and the speakers Center FRFL Subwoofer Listening position SL SR SBL SBR Press the CURSOR FF or GG button to set the distance from the front Lspeaker to the listening position then press the ENTER or CURSOR HH button to switch to the front R speaker setting Front L 12ft Press the CURSOR FF or GG button to set the distance from the front R speaker to the listening position then press the ENTER or CURSOR HH button to switch to the center speaker setting Press the CURSOR FF or GG button to set the distance from the center speaker to the listening position then press the ENTER or CURSOR HH button to switch to the surround L speakers setting Press the CURSOR FF or GG button to set the distance from the surround L speakers to the listening position then press the ENTER or CURSOR HH button to switch to the surround R speaker setting
• Page 17 - English - : ENGLISH System Setup System Setup ENGLISH Press the CURSOR FF or GG button to set the distance from the surround R speakers to the listening position then press the ENTER or CURSOR HH button to switch to the surround back L speaker setting Press the CURSOR FF or GG button to set the distance from the surround back L speakers to the listening position then press the ENTER or CURSOR HH button to switch to the surround back R speaker setting Press the CURSOR FF or GG button to set the distance from the surround back R speakers to the listening position then press the ENTER or CURSOR HH button to switch to the subwoofer setting Press the CURSOR FF or GG button to set the distance from the subwoofer to the listening position then press the ENTER or CURSOR HH button to enter the setting and switch to the Subwoofer Mode setting The number changes in units of 1 foot each time one of the buttons is pressed Select the value closest to the measured distance The difference in distance for the various speaker settings must not be greater than 20 ft Setting the Subwoofer Mode and Crossover Frequency Press the CURSOR FF or GG button to select the subwoofer mode then press the ENTER or CURSOR HH button to enter the setting and switch to the crossover frequency setting SW Mode Norm Norm Main Press the CURSOR FF or GG button to select the crossover frequency then press the ENTER or CURSOR HH button to enter the setting and switch to the Test Tone setting CrOver 80Hz 60Hz 80Hz 200Hz 180Hz 150Hz 100Hz 120Hz 135Hz Set the subwoofer mode and crossover frequency mode according to the speaker system being used 2 Assignment of low frequency signal range The signals produced from the subwoofer channel are LFE signals during playback of Dolby Digital or DTS signals and the low frequency signal range of channels set to SMALL in the setup The low frequency signal range of channels set to LARGE are produced from those channels 2 Crossover Frequency When Subwoofer is set to Ye s at the Speaker Configuration setting set the frequency Hz below which the bass sound of the various speakers is to be output from the subwoofer the crossover frequency For speakers set to Small sound with a frequency below the crossover frequency is cut and the cut bass sound is output from the subwoofer instead When Subwoofer is set to No the bass sound is output from the speakers set as Large NOTE For ordinary speaker systems we recommend setting the crossover frequency to 80 Hz When using small speakers however setting the crossover frequency to a higher frequency may improve frequency response for frequencies near the crossover frequency 2 Subwoofer Mode The subwoofer mode setting is only valid when Large is set for the front speakers and Yes is set for the subwoofer in Setting the Speaker Configuration page 12 13 When the LFEMAIN playback mode is selected the low frequency signal range of channels set to Large is produced simultaneously from those channels and the subwoofer channel In this playback mode the low frequency range expands more uniformly through the room but depending on the size and shape of the room interference may result in a decrease of the actual volume of the low frequency range Selection of the LFE play mode will play the low frequency signal range of the channel selected with Large from that channel only Therefore the low frequency signal range that is played from the subwoofer channel is only the low frequency signal range of LFE only during Dolby Digital or DTS signal playback and the channels specified as Small in the setup menu Select the play mode that offers the fullest bass When the subwoofer is set to Ye s bass sound is output from the subwoofer regardless of the subwoofer mode setting in surround modes other than DolbyDTS In surround modes other than Dolby Digital and DTS if the subwoofer is set to Yes the low frequency portion is always output to the subwoofer channel For details refer to Surround modes and parameters page 43

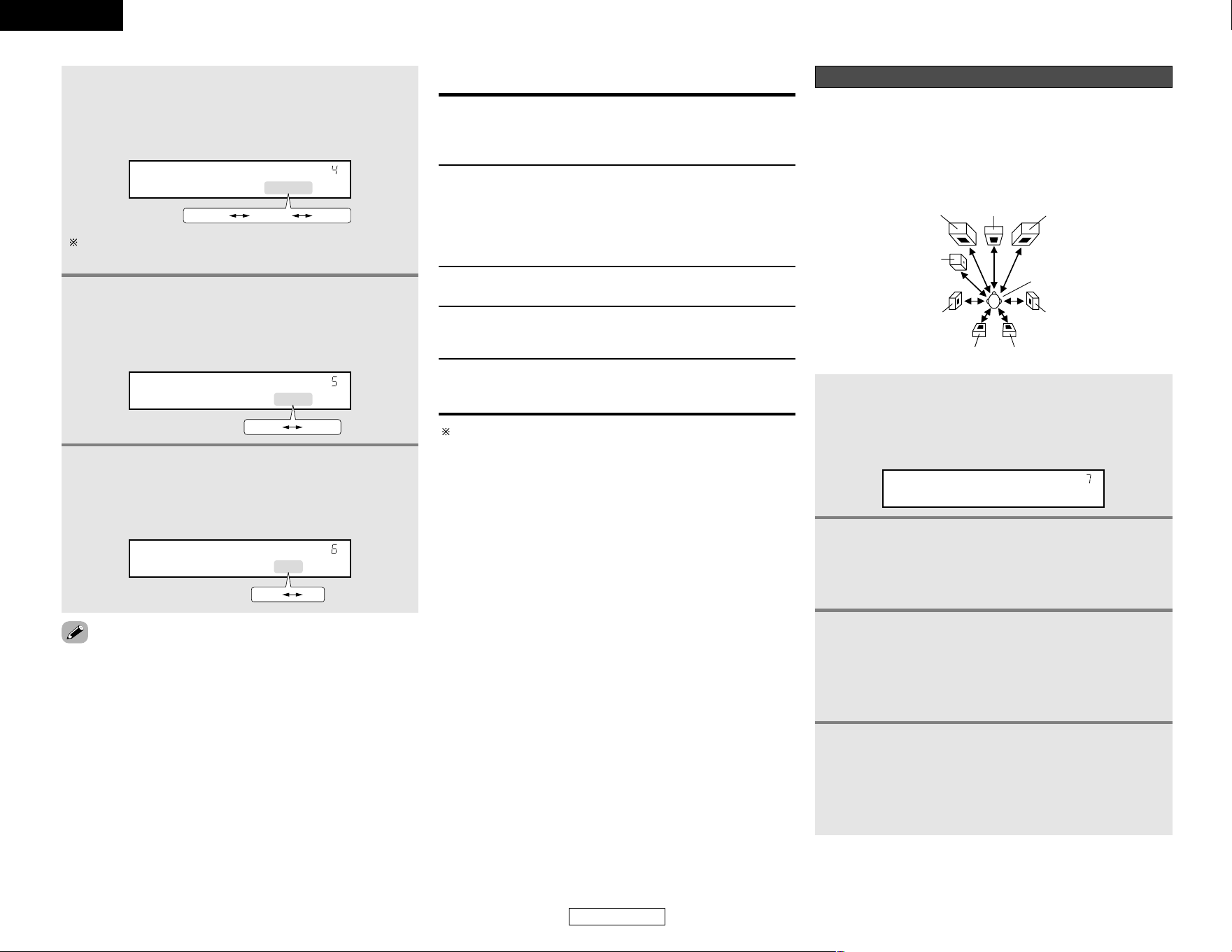

• Page 18 - English - : ENGLISH System Setup System Setup ENGLISH Press the CURSOR FF or GG button to set the center channel level then press the CURSOR HH button to switch to the front R channel level manual mode Press the CURSOR FF or GG button to set the front R channel level then press the CURSOR HH button to switch to the surround R channel level manual mode Press the CURSOR FF or GG button to set the surround R channel level then press the CURSOR HH button to switch to the surround back R channel level manual mode Press the CURSOR FF or GG button to set the surround back R channel level then press the CURSOR HH button to switch to the surround back L channel level manual mode Setting the Test Tone Press the CURSOR FF button to switch the test tone mode Press the ENTER or CURSOR HH button to switch to the digital input COAXIAL setting Press the CURSOR FF or GG button to select the test tone mode then press the CURSOR HH button to start test tone TTONE Auto gt Auto Manual Use this setting to adjust to that the playback level between the different channel is equal From the listening position listen to the test tones produced from the speakers to adjust the level The level can also be adjusted directly from the remote control unit Auto Adjust the level while listening to the test tones produced automatically from the different speakers Manual Select the speaker from which you want to produce the test tone to adjust the level Press the CURSOR FF or GG button to set the front Lchannel level then press the CURSOR HH button to switch to the center channel level manual mode AUTOFL FL VOL 0dB 12dB 0dB 12dB TEST TONE Yeslt Press the CURSOR FF or GG button to set the surround back L channel level then press the CURSOR HH button to switch to the surround L channel level manual mode Press the CURSOR FF or GG button to set the surround L channel level then press the CURSOR HH button to switch to the subwoofer channel level manual mode Press the CURSOR FF or GG button to set the subwoofer channel level then press the ENTER button to finish the test tone Press the ENTER or CURSOR HH button to switch the Digital In Assignment COAXIAL setting When adjusting the level of an active subwoofer system you may also need to adjust the subwoofers own volume control When you adjust the channel levels while in the system setup channel level mode the channel level adjustments made will affect all surround modes Consider this mode a master channel level adjustment mode After you have completed the system setup channel level adjustments you can then activate the individual surround modes and adjust channel levels that will be remembered for each of those modes Then whenever you activate a particular surround sound mode your preferred channel level adjustments for just that mode will be recalled Check the instructions for adjusting channel levels within each surround mode page 29 2 Adjusting the test tone Before playing with the surround function be sure to use the test tones to adjust the playback level from the different speakers This adjustment can be performed with the system setup or from the remote control unit as described below Adjusting with the remote control unit using the test tones is only possible in the Auto mode and only effective in the STANDARD DOLBYDTS SURROUND modes The adjusted levels for the different modes are automatically stored in the memory Press the TEST TONE button Test tones are output from the different speakers Press the CURSOR FF or GG button to adjust so that the volume of the test tones is the same for all the speakers After completing the adjustment press the TEST TONE button again Press the STANDARD button to select the STANDARD DOLBYDTS SURROUND modes
• Page 19 - English - : ENGLISH System Setup System Setup ENGLISH This setting assigns the digital input terminals of the AVR1506 for the different input sources Setting the Digital In Assignment Press the CURSOR FF or GG button to assign the input function connected to the COAXIAL 1 input terminal then press the ENTER or CURSOR HH button to switch the COAXIAL2 input setting COAX1 CD CD AUX DVD TV VCR CDR OFF Press the CURSOR FF or GG button to assign the input function connected to the COAXIAL 2 input terminal then press the ENTER or CURSOR HH button to switch the OPTICAL input setting COAX2 AUX CD AUX DVD TV VCR CDR OFF Press the CURSOR FF or GG button to assign the input function connected to the OPTICALinput terminal then press the ENTER or CURSOR HH button to switch the Auto Surround Mode setting OPT DVD CD AUX DVD TV VCR CDR OFF Select OFF if nothing is connected TUNER and V AUX cannot be selected The surround mode used last for the three types of input signals shown below is stored in the memory and the signal is automatically played with that surround mode the next time it is input Note that the surround mode setting is also stored separately for the different input sources q Analog and PCM 2channel signals STEREO w 2channel signals in the Dolby Digital DTS or another multi channel format DOLBY PLIIx Cinema e Multichannel signals in the Dolby Digital DTS or another multi channel format DOLBYDTS SURROUND Default settings are indicated in Setting the Auto Surround Mode Press the CURSOR FF or GG button to select the Auto Surround mode then press the ENTER or CURSOR HH button to switch the Ext In Subwoofer Level setting Auto Surr ON ON OFF Set the method of playback of the analog input signal connected to the EXT IN terminal Setting the Ext In Subwoofer Level Press the CURSOR FF or GG button to select the ext in subwoofer channel level playback then press the ENTER or CURSOR HH button to switch the Power Amp Assignment setting ExtIn SW15dB 0dB 5dB 10dB 15dB Make this setting to switch the power amplifier for the surround back channel to ZONE2 Setting the Power Amp Assignment Press the CURSOR FF or GG button to select S Back or ZONE2 then press the ENTER or CURSOR HH button if you want to start the settings over from the beginning PAmp SBack SBack ZONE2 MAIN ZONE Surround back 71ch system ZONE2 51ch system Power Amp Assign ZONE2 2ch system SPEAKER OUT
• Page 20 - English - : ENGLISH System Setup System Setup ENGLISH PageDefault settingsSystem Setup System setup items and default values set upon shipment from the factory Speaker Configuration Input the combination of speakers in your system and their corresponding sizes SMALL for regular speakers LARGE for fullsize fullrange to automatically set the composition of the signals output from the speakers and the frequency response Front Sp Large Center Sp Surround Sp Subwoofer Small SmallYes Surround Back Sp Small 2sp Subwoofer Mode This selects the subwoofer speaker for playing deep bass signals Subwoofer mode Normal 12 13 Delay Time This parameter is for optimizing the timing with which the audio signals are produced from the speakers and subwoofer according to the listening position Front L amp R Center Surround L amp R Subwoofer 12 ft 12 ft 10 ft12 ft Surround Back L amp R 10 ft 13 14 Digital In Assignment This assigns the digital input terminals for the different input sources Input source Digital Inputs CD AUX DVD VDP COAXIAL1 COAXIAL2 OPTICAL Crossover Frequency Sets the frequency Hz below which the bass sound of the various speakers is to be output from the subwoofer 80 Hz 5 Test Tone This adjusts the volume of the signals output from the speakers and subwoofer for the different channels in order to obtain optimum effects Front L amp R Center Surround L amp R Subwoofer 0 dB 0 dB 0 dB0 dB Surround Back L amp R 0 dB Power Amp Assignment Sets this to switch the surround back channels power amplifier for ZONE2 use Surround Back Auto Surround Mode Auto surround mode function setting Auto Surround Mode ON Ext In SW Level Sets the Ext In Subwoofer channel playback level Ext In SW Level 15 dB

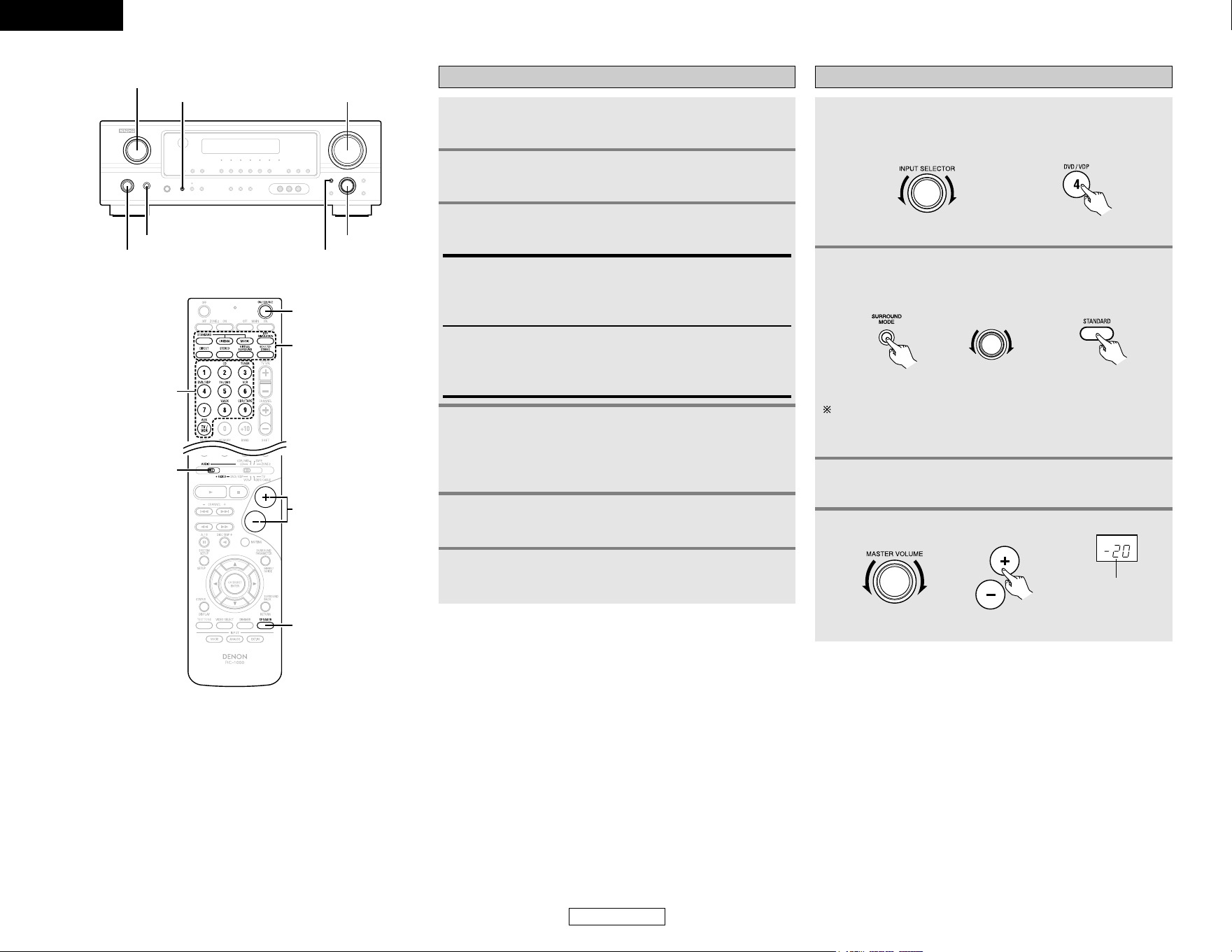

• Page 21 - English - : ENGLISH Basic Operation ENGLISH Playing the input source Select the input source to be played Example CD Main unit Remote control unit Select the play surround mode Example STEREO Adjust the volume The volume can be adjusted within the range of 70 to 0 to 18 dB in steps of 1 dB However when the channel level is set as described page 29 if the volume for any channel is set at 1 dB or greater the volume cannot be adjusted up to 18 dB In this case the maximum volume is adjusted to 18 dB Maximum value of channel level Main unit Remote control unit The volume level is displayed on the master volume level display Basic Operation Playback Main unit Remote control unit SELECT To select the surround mode while adjusting the surround parameters tone defeat or tone control press the SURROUND MODE button and then operate the selector Playback using the external input EXT IN terminals Press the EXT IN button to select the external input NOTE When the input mode is set to the external input EXT IN the play mode DIRECT VIRTUAL SURROUND STEREO STANDARD DOLBYDTS SURROUND 5CH7CH STEREO or DSP SIMULATION cannot be selected In play modes other than the external input mode the signals connected to the EXT IN terminals cannot be reproduced In addition signals cannot be output from channels not connected to the input terminals Cancelling the external input mode Press the INPUT MODE or ANALOG button to switch to the desired input mode page 19 20 The external input mode can be set for any input source To watch video while listening to sound select the input source to which the video signal is connected then set this mode If the subwoofer output level is too high set the SW ATT surround parameter to ON The signals being input to the external decoder input terminals are played without passing through the surround circuitry SELECT SURROUND MODE EXT IN INPUT SELECTOR MASTER VOLUME ANALOG INPUT MODE VOLUME EXT IN MUTING SURROUND MODE ANALOG INPUT SELECTOR INPUT MODE Start playback on the selected component For operating instructions refer to the components manual Press the MUTING button Turning the sound off temporarily MUTING Use this to turn off the audio output temporarily Canceling the MUTING mode q Press the MUTING button again w Press the VOLUME button on the remote control unit or adjust the volume up or down via the front panel MASTER VOLUME knob
• Page 22 - English - : ENGLISH Basic Operation Basic Operation ENGLISH Press the VIDEO SELECT button repeatedly until the desired source appears on the display Combining the currently playing sound with the desired image VIDEO SELECT Use this switch to monitor a video source other than the audio source INV SOURCE Canceling simulcast playback q Select SOURCE by pressing the VIDEO SELECT button w Switch the program source to the component connected to the video input terminals Press the SPEAKER A or B button to turn the corresponding speaker pair on The front speaker A B setting can be also be changed with the SPEAKER button on the remote control unit Selecting the front speakers Connect the headphones to the PHONES jack The speaker output is automatically turned off when headphones are connected NOTE To prevent hearing loss do not raise the volume level excessively when using headphones Listening over headphones Checking the currently playing program source 2 Front panel display Press the STATUS button Descriptions of the units operations are also displayed on the front panel display In addition the display can be switched to check the units operating status while playing a source 2 Using the dimmer function Press the DIMMER button The display brightness changes in four steps bright medium dim and off AUTO auto mode In this mode the types of signals being input to the digital and analog input terminals for the selected input source are detected and the program in the AVR1506s surround decoder is selected automatically upon playback This mode can be selected for all input sources other than TUNER The presence or absence of digital signals is detected the signals input to the digital input terminals are identified and decoding and playback are performed automatically with the DTS Dolby Digital or PCM 2 channel stereo format If no digital signal is being input the analog input terminals are selected Use this mode to play Dolby Digital signals DTS exclusive DTS signal playback mode Decoding and playback are only performed when DTS signals are being input PCM exclusive PCM signal playback mode Decoding and playback are only performed when PCM signals are being input Note that noise may be generated when using this mode to play signals other than PCM signals AUTO PCM DTS Press the INPUT MODE button The mode switches as shown below each time the INPUT MODE button is pressed Input mode The AVR1506 has an AUTO signal detection mode that automatically identifies the type of incoming audio signals but is also equipped with a manual mode that can be switched according to the type of input audio signals 2 Selecting the AUTO PCM and DTS modes PHONES VIDEO SELECT DIRECTSTEREO MASTER VOLUME STATUSDIMMER SPEAKER ANALOG INPUT MODE SPEAKER DIMMER ANALOG INPUT MODE VIDEO SELECT STATUS DIRECT STEREO

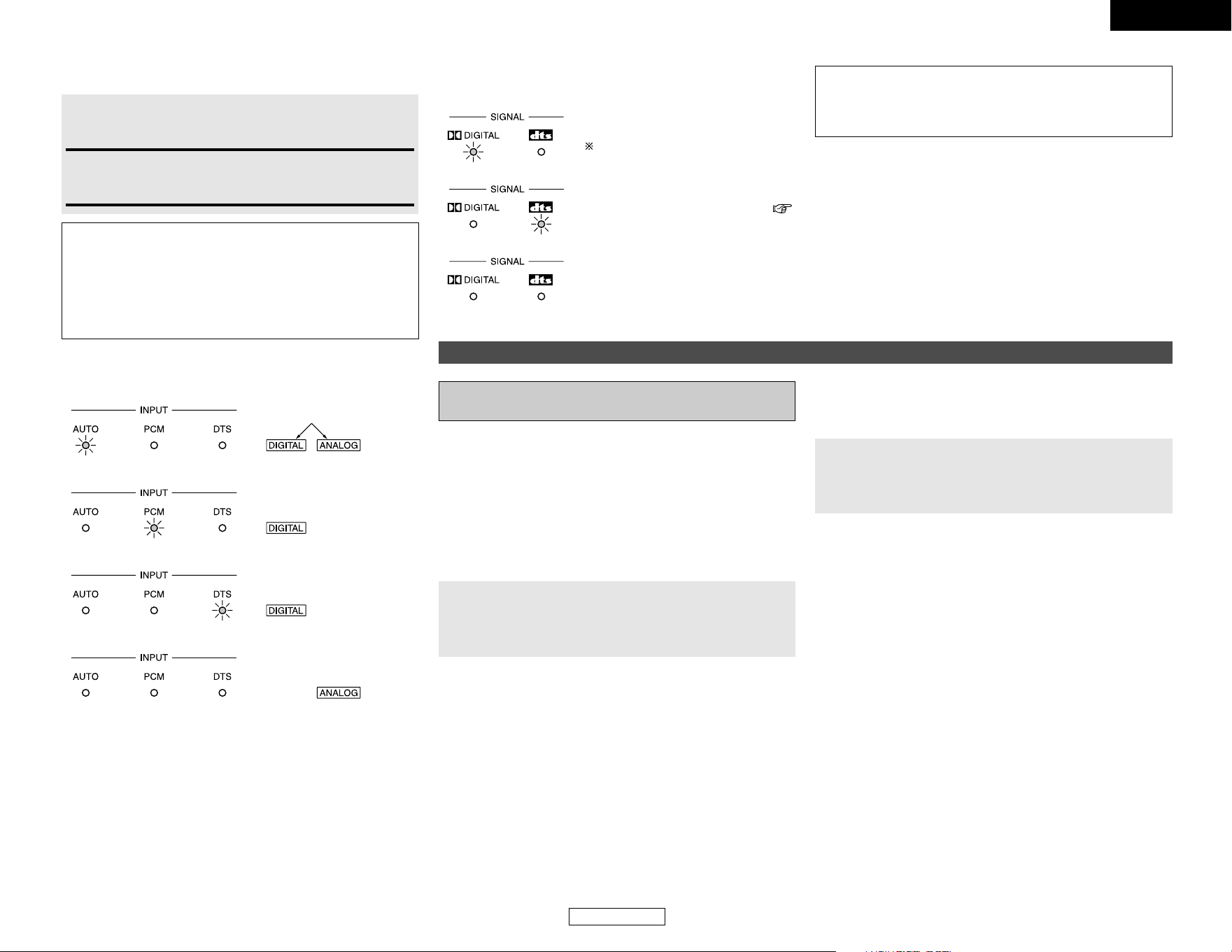

• Page 23 - English - : ENGLISH ENGLISH Basic Operation Basic Operation 2 Input mode display In the AUTO mode In the DIGITAL PCM mode In the DIGITAL DTS mode In the ANALOG mode Depending on the input signal 2 Input signal display DOLBY DIGITAL DTS PCM The DIGITAL indicator lights when digital signals are being input properly If the DIGITAL indicator does not light check whether the Digital In Assignment setup page 16 and connections are correct and whether the components power is turned on NOTE The DIGITAL indicator will light when playing CDROMs containing data other than audio signals but no sound will be heard Press the ANALOG button to switch to the analog input 2 Selecting the analog mode ANALOG exclusive analog audio signal playback mode The signals input to the analog input terminals are decoded and played NOTE Input mode when playing DTS sources Noise will be output if DTScompatible CDs or LDs are played in the ANALOG or PCM mode When playing DTScompatible sources be sure to connect the source component to the digital input terminals OPTICALCOAXIAL and set the input mode to DTS Playing audio sources CDs and DVDs 2channel playback modes The AVR1506 is equipped with 2channel playback modes exclusively for music Select the mode to suit your tastes Press the DIRECTSTEREO button on the main unit or the DIRECT button on the remote control unit to select the DIRECT mode 2 DIRECT mode Use this mode to achieve good quality 2channel sound while watching images In this mode the audio signals bypass such circuits as the tone circuit and are transmitted directly resulting in good quality sound Press the DIRECTSTEREO button on the main unit or the STEREO button on the remote control unit to select the STEREO mode 2 STEREO mode Use this mode to adjust the tone and achieve the desired sound while watching images Surround

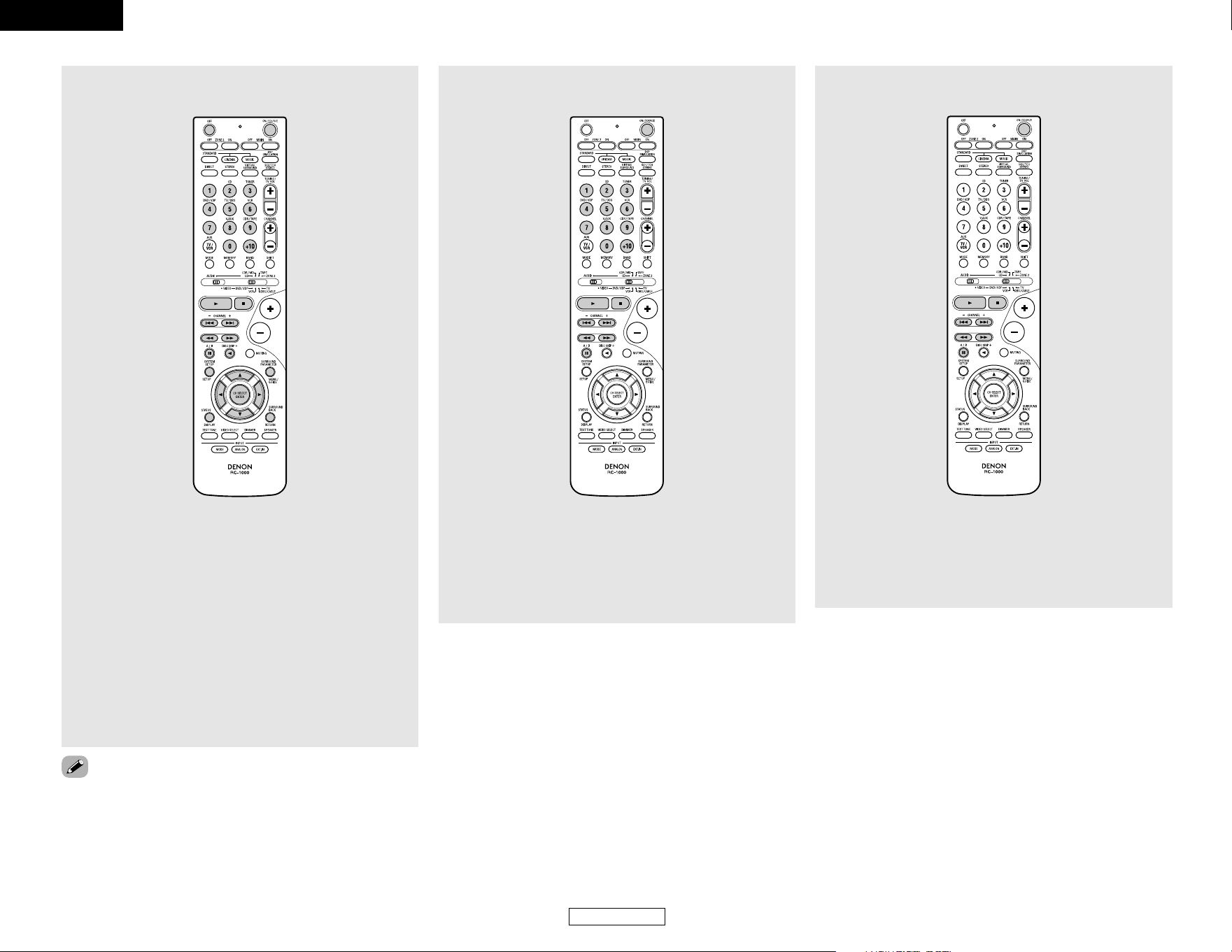

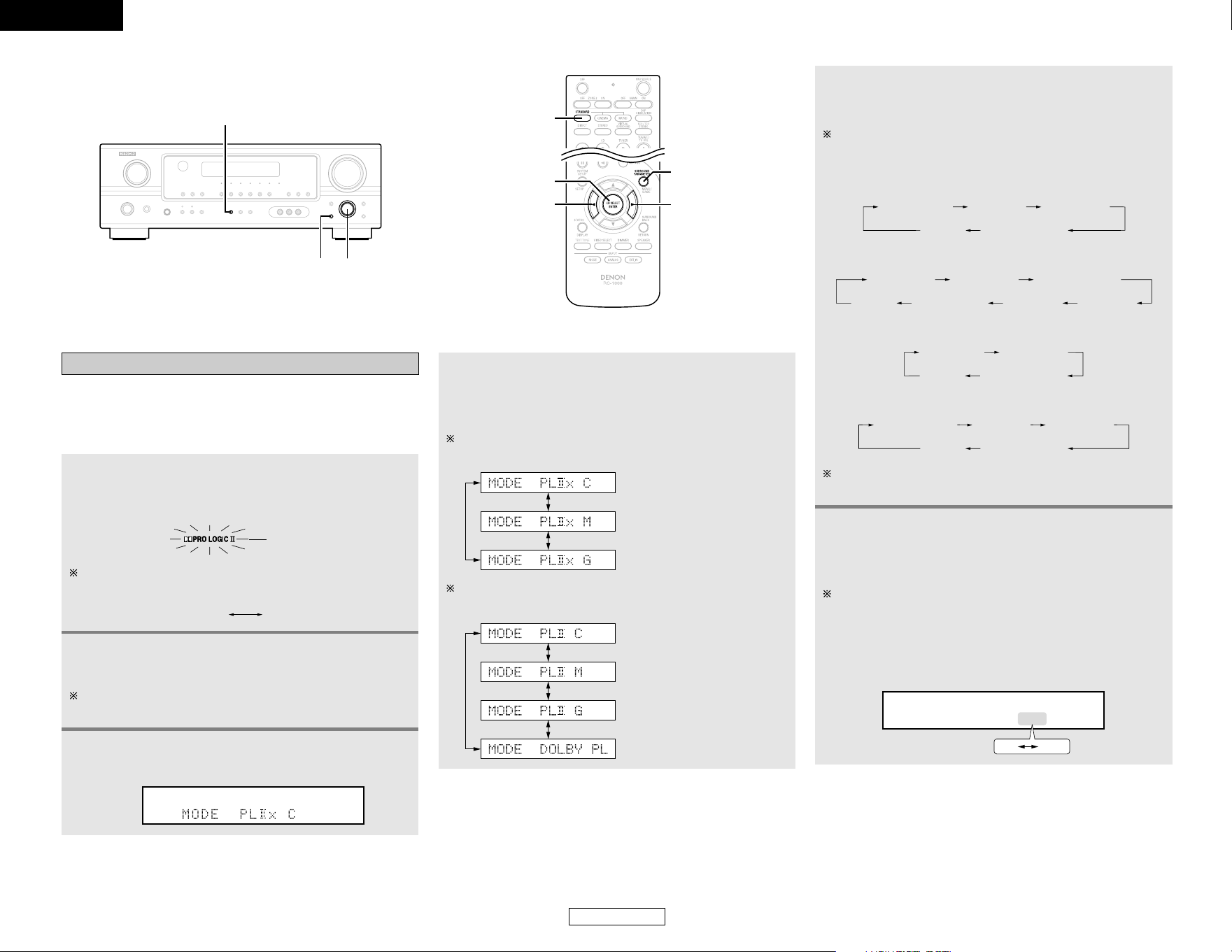

• Page 24 - English - : ENGLISH Basic Operation Basic Operation ENGLISH Dolby Pro Logic II x Pro Logic II mode To play in the PLIIx mode set S BackSp at the Speaker Configuration setting to 1sp or 2sp To play in the PLII x mode set Surround Back at the Power Amp Assign setting Press the STANDARD button to select the Dolby Pro Logic IIx mode The Dolby Pro Logic II indicator lights Lights Play a program source For operating instructions refer to the manuals of the respective components SELECT SURROUND PARAMETER STANDARD ENTER STANDARD SURROUND PARAMETER CURSOR F CURSOR G The mode switches as shown below each time the button is pressed DTS NEO6DOLBY PLIIx Press the SURROUND PARAMETER button to select the various parameters The mode switches as shown below each time the button is pressed When the Cinema mode MODE CINEMA CINEMA EQ DEFAULT SURROUND BACK TONE DEFEAT Press the SURROUND PARAMETER button to select the surround parameter mode MODE MUSIC TONE DEFEAT DIMENSION PANORAMA SURROUND BACK DEFAULT CENTER WIDTH When the Music mode MODE GAME TONE DEFEAT DEFAULT SURROUND BACK When the Game mode Turn the SELECT knob and press the CURSOR FF or GG button to select the optimum mode for the source When the SURROUND BACK parameter is set to ON Set S Back at system setup to Small or Large Pro Logic IIx Cinema mode Pro Logic IIx Music mode Pro Logic IIx Game mode When the SURROUND BACK parameter is set to OFF Set S Back at system setup to None Pro Logic II Cinema mode Pro Logic II Music mode Pro Logic II Game mode Dolby Pro Logic mode MODE DOLBY PL DEFAULT SURROUND BACK CINEMA EQ TONE DEFEAT If you do want the bass and treble to be adjusted turn off the tone defeat mode When the Dolby Pro Logic mode Turn the SELECT knob and press the CURSOR FF or GG button to set the various surround parameters When the surround parameters are set using the buttons on the main unit stop operating the buttons after completing the settings The settings are automatically finalized and the normal display reappears after several seconds Cinema EQ setting CINEMA EQ OFF ON OFF
• Page 25 - English - : ENGLISH Basic Operation Basic Operation ENGLISH When making parameter settings the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed DIMENSION setting DIMENSION 3 CENTER WIDTH setting CENTER WIDTH 3 D COMP setting DCOMP OFF OFF LOW MID HIGH DEFAULT YN YES YN NO This parameter is displayed during DOLBY DIGITAL playback DEFAULT setting Select YES to reset to the factory defaults Press the ENTER button to finish the surround parameter mode 2 Surround parameters q Pro Logic IIx and Pro Logic II Mode The Cinema mode is for use with stereo television shows and all programs encoded in Dolby Surround The Music mode is recommended for stereo music and surroundencoded stereo music sources The Pro Logic mode offers the same robust surround processing as original Pro Logic in case the source content is not of optimum quality The Game mode is for playing games The game mode can only be used with 2channel audio sources Select one of the modes Cinema Music Pro Logic or Game Panorama Control This mode extends the front stereo image to include the surround speakers for an exciting wraparound effect with side wall imaging Select OFF or ON Dimension Control This control gradually adjusts the soundfield either towards the front or towards the rear The control can be set in 7 steps from 0 to 6 Center Width Control This control adjusts the center image so it may be heard only from the center speaker only from the leftright speakers as a phantom image or from all three front speakers to varying degrees The control can be set in 8 steps from 0 to 7 SURROUND BACK SPEAKER setting SB ON ON OFF TONE DEFEAT setting TONE DEF ON ON OFF PANORAMA setting PANORAMA OFF ON OFF
• Page 26 - English - : ENGLISH ENGLISH Basic Operation Basic Operation STANDARD INPUT SELECTOR SURROUND PARAMETER INPUT MODE SELECT ENTER STANDARD INPUT MODE SURROUND BACK SURROUND PARAMETER INPUT SELECTOR CURSOR F CURSOR G DTS NEO6 mode Press the STANDARD button to select the DTS NEO6 mode The mode switches as shown below each time the button is pressed DTS NEO6DOLBY PLIIx Play a program source Press the SURROUND PARAMETER button to select the various parameters The mode switches as shown below each time the button is pressed When the Cinema mode If you do want the bass and treble to be adjusted turn off the tone defeat mode MODE CINEMA CINEMA EQ DEFAULT SURROUND BACK TONE DEFEAT MODE MUSIC CENTER IMAGE SURROUND BACK TONE DEFEAT DEFAULT When the Music mode Turn the SELECT knob and press the CURSOR FF or GG button to set the various surround parameters When the surround parameters are set using the buttons on the main unit stop operating the buttons after completing the settings The settings are automatically finalized and the normal display reappears after several seconds TONE DEFEAT setting TONE DEF ON ON OFF SURROUND BACK SPEAKER setting SB ON ON OFF D COMP setting DCOMP OFF OFF LOW MID HIGH DEFAULT YN YES YN NO This parameter is displayed during DOLBY DIGITAL playback DEFAULT setting Select YES to reset to the factory defaults Press the ENTER button to finish the surround parameter mode CENTER IMAGE setting CIMAGE 03 00 03 10 Turn the SELECT knob and press the CURSOR FF or GG button to select the optimum mode for the source MODE cinema MODE music Press the SURROUND PARAMETER button to select the surround parameter mode MODE cinema CINEMA EQ setting CINEMA EQ OFF ON OFF

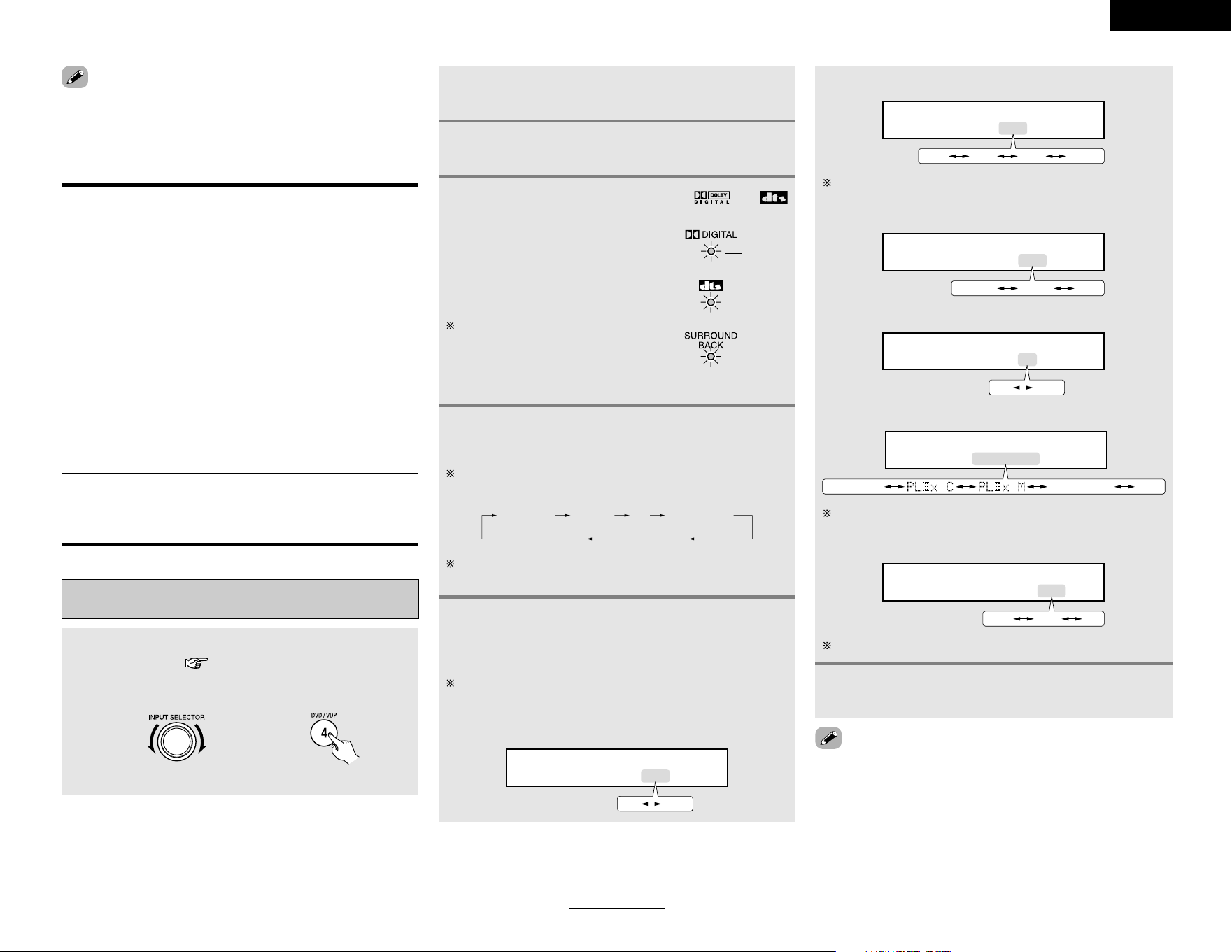

• Page 27 - English - : ENGLISH ENGLISH Basic Operation Basic Operation Play a program source with the or symbol The Dolby Digital indicator lights when playing Dolby Digital sources The DTS indicator lights when playing DTS sources Operate the SURROUND BACK button to switch Surround Back CH ONOFF The SURROUND BACK indicator lights when the SURROUND BACK button is on Lights Lights Lights 2 Surround parameters w DTS NEO6 Mode Cinema This mode is optimum for playing movies Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2channel sources as with 61channel sources This mode is effective for playing sources recorded in conventional surround formats as well because the inphase component is assigned mainly to the center channel C and the reversed phase component to the surround SL SR and SB channels Music This mode is suited mainly for playing music The front channel FL and FR signals bypass the decoder and are played directly so there is no loss of sound quality and the effect of the surround signals output from the center C and surround SL SR and SB channels add a natural sense of expansion to the sound field CENTER IMAGE 00 to 10 default 03 The center image parameter for adjusting the expansion of the center channel in the DTS NEO6 MUSIC mode has been added TONE DEFEAT setting Press the SURROUND PARAMETER button to select the various parameters The parameter switches as shown below each time the button is pressed CINEMA EQ DCOMP SURROUND BACK LFE TONE DEFEAT DEFAULT If you do want the bass and treble to be adjusted turn off the tone defeat mode TONE DEF ON ON OFF SURROUND BACK SPEAKER setting SB MTRX ON MTRX ON NON MTRX OFF This parameter is displayed during DOLBY DIGITAL playback DEFAULT setting Dolby Digital mode and DTS surround only with digital input Select an input source set to digital COAXIAL OPTICAL page 16 Example DVD Main unit Remote control unit Turn the SELECT knob and press the CURSOR FF or GG button to set the various surround parameters The mode switches as shown below each time the button is pressed CINEMA EQ setting CINEMA EQ OFF ON OFF Press the ENTER button to finish the surround parameter mode When making parameter settings the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed DEFAULT YN YES YN NO Select YES to reset to the factory defaults LFE 0dB 10dB 5dB 0dB D COMP setting DCOMP OFF OFF LOW MID HIGH This parameter is displayed during DOLBY DIGITAL playback LFE setting Press the STANDARD button to select the STANDARD DolbyDTS Surround mode Press the INPUT MODE button to set the input mode to AUTO or DTS When making parameter settings the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed
• Page 28 - English - : ENGLISH Basic Operation Basic Operation ENGLISH 2 Surround parameters e CINEMA EQ Cinema Equalizer The Cinema EQ function gently decreases the level of the extreme high frequencies compensating for overlybright sounding motion picture soundtracks Select this function if the sound from the front speakers is too bright This function only works in the Dolby Pro Logic IIx Dolby Digital DTS Surround and DTS NEO6 modes The same contents are set for all operating modes DCOMP Dynamic Range Compression Motion picture soundtracks have tremendous dynamic range the contrast between very soft and very loud sounds For listening late at night or whenever the maximum sound level is lower than usual the Dynamic Range Compression allows you to hear all of the sounds in the soundtrack but with reduced dynamic range This only works when playing program sources recorded in Dolby Digital or DTS Select one of the four parameters OFF LOW MID middle or HIGH Set to OFF for normal listening SB CH OUT Surround Back 1 Multichannel source OFF Playback is conducted without using the surround back speaker NON MTRX The same signals as those of the surround channels are output from the surround back channels MTRX ON The surround back channel is reproduced using digital matrix processing ES MTRX When playing DTS signals the surround back signals undergo digital matrix processing for playback ES DSCRT When a signal identifying the source as a discrete 61channel source is included in the DTS signals the surround back signals included in the source are played PLIIx Cinema Processing is performed with the Cinema mode of the PLIIx decoder and the surround back channel is reproduced PLIIx Music Processing is performed with the Music mode of the PLIIx decoder and the surround back channel is reproduced 2 2ch source OFF Playback is conducted without using the surround back speaker ON Playback is conducted using the surround back speaker TONE This enables tone control This can be set individually for the separate surround modes other than DIRECT mode LFE Low Frequency Effect This sets the level of the LFE Low Frequency Effect sounds included in the source when playing program sources recorded in Dolby Digital or DTS If the sound produced from the subwoofer sounds distorted due to the LFE signals when playing Dolby Digital or DTS sources when the peak limiter is turned off with the subwoofer peak limit level setting adjust the level as necessary Program source and adjustment range 1 Dolby Digital 10 dB to 0 dB 2 DTS Surround 10 dB to 0 dB When DTS encoded movie software is played it is recommended that the LFE LEVEL be set to 0 dB for correct DTS playback When DTS encoded music software is played it is recommended that the LFE LEVEL be set to 10 dB for correct DTS playback Night mode When listening at night or at lower volumes the night mode improves listenability Press and hold the NIGHT button for several seconds to enter the night mode Canceling night mode Press and hold the NIGHT button again The night mode only works when playing program sources recorded in Dolby Digital or DTS 2 Dialogue normalization The dialog normalization function is activated automatically when playing Dolby Digital program sources Dialog normalization is a basic function of Dolby Digital which automatically normalizes the dialog level standard level of the signals which are recorded at different levels for different program sources such as DVD DTV and other future formats that will use Dolby Digital These contents can be verified with the STATUS button OFFSET 4dB The number indicates the normalization level when the currently playing program is normalized to the standard level STANDARDNIGHT STATUS
• Page 29 - English - : ENGLISH ENGLISH Basic Operation Basic Operation VIRTUAL 5CH7CH STEREO DENON original surround modes This unit is equipped with a high performance DSP Digital Signal Processor which uses digital signal processing to synthetically recreate the sound field One of 7 preset surround modes can be selected according to the program source and the parameters can be adjusted according to the conditions in the listening room to achieve a more realistic powerful sound Surround modes and their features 2 Personal memory plus This set is equipped with a personal memorize function that automatically memorizes the surround modes and input modes selected for the different sources When the input source is switched the modes set for that source last time it was used are automatically recalled The surround parameters tone control settings and playback level balance for the different output channels are memorized for each surround mode MONO MOVIE NOTE ROCK ARENA JAZZ CLUB VIDEO GAME MATRIX Depending on the program source being played the effect may not be very noticeable In this case try other surround modes without worrying about their names to create a sound field suited to your tastes NOTE When playing sources recorded in monaural the sound will be onesided if signals are only input to one channel left or right so input signals to both channels If you have a source component with only one audio output monophonic camcorder etc obtain a Y adapter cable to split the mono output to two outputs and connect to the L and R inputs The front left channel signals are output to the surround and surround back left channels the front right channel signals are output to the surround and surround back right channels and the inphase component of the left and right channels is output to the center channel Use this mode to enjoy stereo sound Select this when watching monaural movies for a greater sense of expansion Use this mode to achieve the feeling of a live concert in an arena with reflected sounds coming from all directions This mode creates the sound field of a live house with a low ceiling and hard walls This mode gives jazz a very vivid realism Use this to enjoy video game sources Select this to emphasize the sense of expansion for music sources recorded in stereo Signals consisting of the component difference of the input signals the component that provides the sense of expansion processed for delay are output from the surround channel Select this mode to enjoy a virtual sound field produced from the front 2channel speakers or headphones7
• Page 30 - English - : ENGLISH Basic Operation Basic Operation ENGLISH LFE 0dB 10dB 5dB 0dB This parameter is displayed during DOLBY DIGITAL and DTS playback TONE DEFEAT setting TONE DEF ON ON OFF When the MONO MOVIE ROCK ARENA JAZZ CLUB and VIDEO GAME mode ROOM SIZE EFFECT LEVEL DEFAULT SURROUND BACK TONE DEFEAT TONE DEFEAT DEFAULT When the VIRTUAL mode If you do want the bass and treble to be adjusted turn off the tone defeat mode DELAY DEFAULT SURROUND BACK TONE DEFEAT When the MATRIX mode Press the CURSOR FF or GG button to set the various parameters ROOM SIZE setting ROOM SIZE MED SMALL MEDS MED MEDL LARGE EFFECT LEVEL setting EFFECT LEVEL 10 DELAY TIME setting DELAY 30ms 30ms0ms 110ms D COMP setting DCOMP OFF OFF LOW MID HIGH This parameter is displayed during DOLBY DIGITAL playback LFE setting When making parameter settings the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed Press the ENTER button to finish the surround parameter mode SURROUND BACK SPEAKER setting SB ON ON OFF This parameter is displayed during DOLBY DIGITAL playback DEFAULT setting DEFAULT YN YES YN NO Select YES to reset to the factory defaults SURROUND MODE ENTER CURSOR F CURSOR G SURROUND PARAMETER DSP surround simulation 2 To operate the surround mode and the surround parameters from the remote control unit Select the surround mode for the input channel Remote control unit The surround mode switches in the following order each time the DSP SIMULATION button is pressed MONO MOVIE ROCK ARENA JAZZ CLUB MATRIX VIDEO GAME Press the SURROUND PARAMETER button to enter the surround parameter setting mode The surround parameter switches in the following order each time the SURROUND PARAMETER button is pressed for the different surround modes Press the SURROUND PARAMETER button to select the various parameters

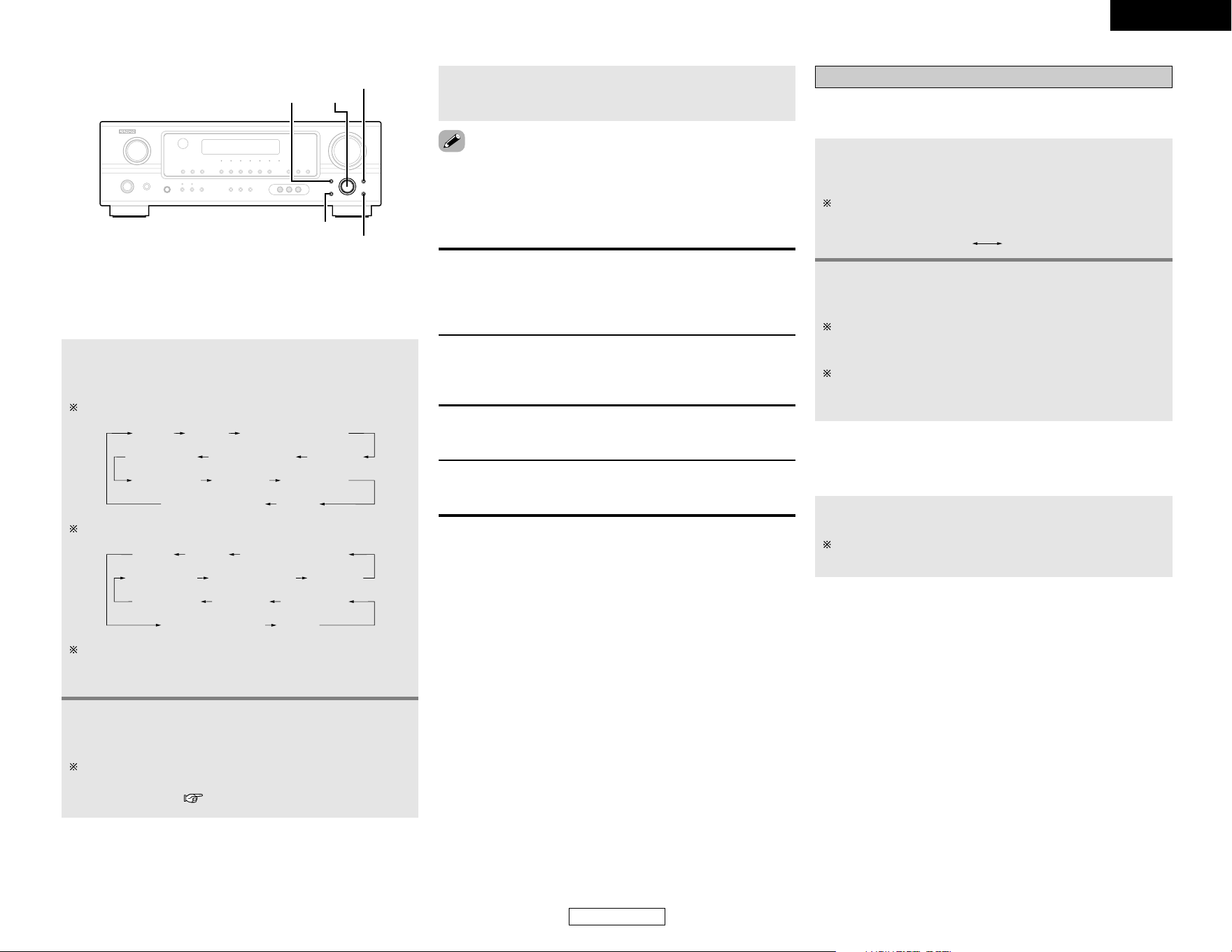

• Page 31 - English - : ENGLISH ENGLISH Basic Operation Basic Operation 2 Operating the surround mode and the surround parameters from the main units panel Turn the SELECT knob to select the surround mode When turned clockwise DIRECT STEREO MONO MOVIE DTS NEO6 5CH7CH STEREO MATRIXVIRTUAL SURROUND DOLBY PRO LOGIC II x ROCK ARENA JAZZ CLUB VIDEO GAME Press and hold in the SURROUND PARAMETER button to select the parameter you want to set The parameters which can be set differ for the different surround modes are displayed Refer to Surround modes and parameters page 43 When turned counterclockwise DIRECT STEREO MONO MOVIE DTS NEO6 5CH7CH STEREO MATRIXVIRTUAL SURROUND DOLBY PRO LOGIC II x ROCK ARENA JAZZ CLUB VIDEO GAME To select the surround mode while adjusting the surround parameters tone defeat or tone control press the SURROUND MODE button then operate the selector 2 Surround parameters r ROOM SIZE This sets the size of the sound field There are five settings small meds mediumsmall medium medl mediumlarge and large small recreates a small sound field large a large sound field EFFECT LEVEL This sets the strength of the surround effect The level can be set in 15 steps from 1 to 15 Lower the level if the sound seems distorted DELAY TIME The delay time can be set within the range of 0 to 110 ms only in the matrix mode TONE CONTROL This can be set individually for each surround mode except DIRECT Display the parameter you want to adjust then turn the SELECT knob to set it When making parameter settings the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed SURROUND PARAMETER TONE DEFEAT TONE CONTROL SURROUND MODE SELECT Tone control setting 2 Adjusting the sound quality tone The tone control function will not work in the DIRECT mode Press the TONE CONTROL button The tone switches as follows each time the TONE CONTROL button is pressed TREBLEBASS Turn the SELECT knob to adjust the level of the bass or treble To increase the bass or treble Turn the control clockwise The bass or treble sound can be increased up to 12 dB in steps of 2 dB To decrease the bass or treble Turn the control counterclockwise The bass or treble sound can be decreased down to 12 dB in steps of 2 dB 2 Tone defeat mode If you do not want the bass and treble to be adjusted turn on the tone defeat mode Press the TONE DEFEAT button The signals do not pass through the bass and treble adjustment circuits thus resulting in higher quality sound

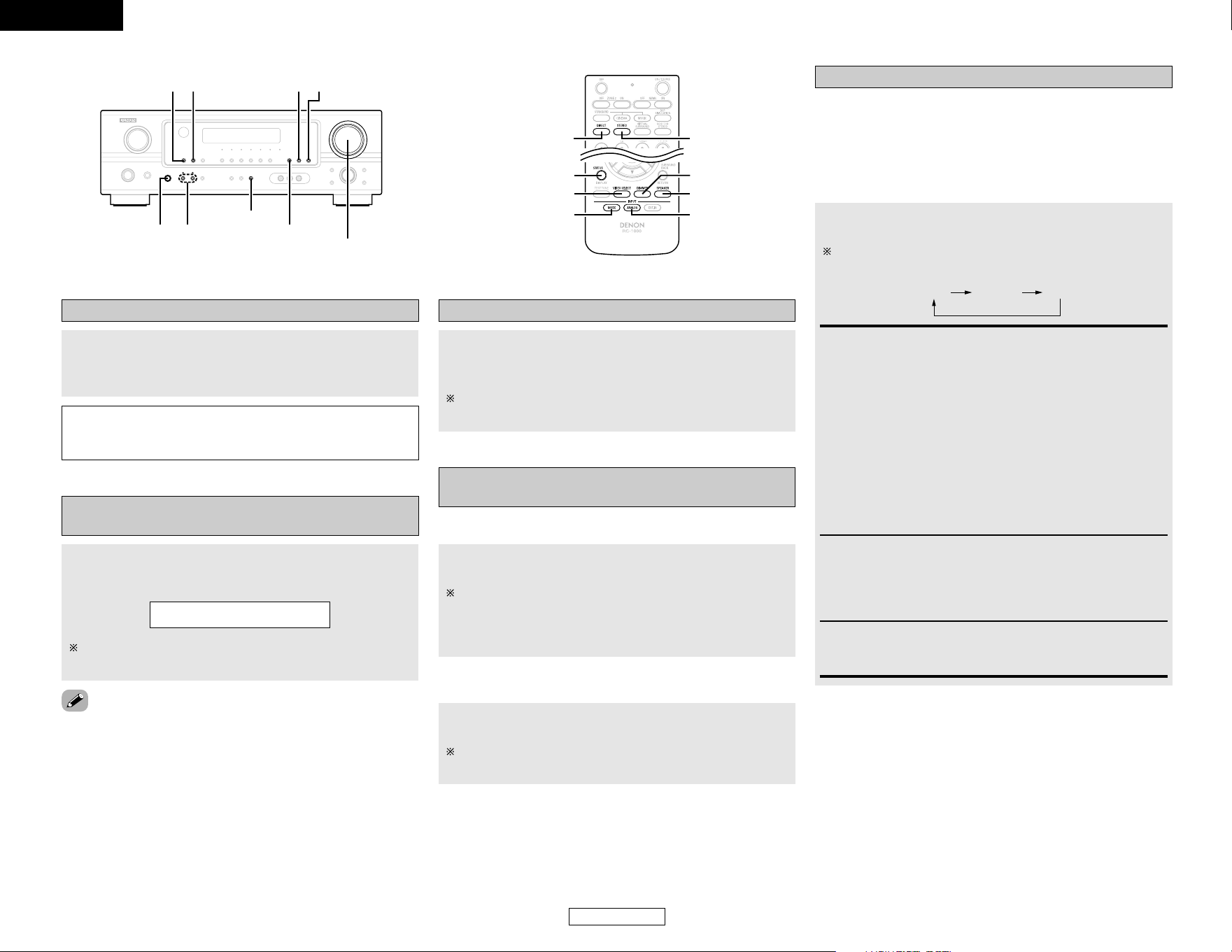

• Page 32 - English - : ENGLISH Basic Operation Basic Operation ENGLISH Channel Level You can adjust the channel level either according to the playback sources or to suit your taste as described below Press the CH SELECT button to select the speaker whose level you want to adjust The channel switches as shown below each time the button is pressed FL C FR SR SW SL SBL SBR Press the CURSOR FF or GG button to adjust the level of the selected speaker The default setting of the channel level is 0 dB The level of the selected speaker can be adjusted within the range of 12 to 12 dB by pressing the CURSOR buttons The SW channel level can be turned off by decreasing it one step from 12 dB OFF 12 dB 12 dB When the surround back speaker setting is set to 1sp for Speaker Configuration this is set to SB SB appears only when the Power Amp Assign setting is the surround back mode Auto tuner presets Listening to the radio Auto preset memory Hold the PRESET button and press the POWER switch on the main unit The unit automatically begins searching for FM broadcast stations When the first FM broadcast station is found that station is stored in the preset memory at channel A1 Subsequent stations are automatically stored in order at preset channels A1 to A8 B1 to B8 C1 to C8 D1 to D8 E1 to E8 F1 to F8 and G1 to G8 for a maximum of 56 stations Channel A1 is tuned in after the auto preset memory operation is completed This unit is equipped with a function for automatically searching for FM broadcast stations and storing them in the preset memory If an FM station cannot be preset automatically due to poor reception use the Manual tuning operation to tune in the station then preset it using the manual Preset memory operation To interrupt this function press the ONSTANDBY switch 2 DEFAULT SETTINGS A1 A8 875 891 981 1079 901 901 901 901 MHz B1 B8 520 600 1000 1400 1500 1710 kHz 901 901 MHz C1 C8 901 MHz D1 D8 901 MHz E1 E8 901 MHz F1 F8 901 MHz G1 G8 901 MHz ONSTANDBY TUNING BAND POWER SHIFT INPUT SELECTOR PRESET TUNING BAND SHIFT TUNER MODE MEMORY PRESET CH SELECT CURSOR F CURSOR G
• Page 33 - English - : ENGLISH Basic Operation Basic Operation ENGLISH Set the input source to TUNER Main unit Remote control unit Watching the display press the BAND button to select the desired band AM or FM Auto tuning When in the auto tuning mode on the FM band the STEREO indicator lights on the display when a stereo broadcast is tuned in At open frequencies the noise is muted and the TUNED and STEREO indicators turn off Press the TUNING or button Automatic searching begins then stops when a station is tuned in Press the MODE button to set the auto tuning mode A1 FM 8750MHz Lights Manual tuning Set the input source to TUNER Press the MODE button to set the manual tuning mode Check that the displays AUTO indicator turns off Watching the display press the BAND button to select the desired band AM or FM Press the TUNING or button to tune in the desired station The frequency changes continuously when the button is held in When the manual tuning mode is set FM stereo broadcasts are received in monaural and the STEREO indicator turns off Recalling preset stations Watching the display press the SHIFT button to select the preset memory block Watching the display press the PRESET or ªª button to select the desired preset channel Preset stations Use the Auto tuning or Manual tuning operation to tune in the station to be preset in the memory Press the SHIFT button and select the desired memory block A to G Press the MEMORY button Press the PRESET or button to select the desired preset channel 1 to 8 To preset other channels repeat steps 1 to 4 A total of 56 broadcast stations can be preset 8 stations channels 1 to 8 in each of blocks A to G Press the MEMORY button again Store the station in the preset memory
• Page 34 - English - : ENGLISH ENGLISH Advanced Operation Remote control unit Operating DENON audio components Advanced Operation Set the MODE 1 switch to AUDIO Set the MODE 2 switch to the position for the component to be operated CD CDRMD or TAPE Operate the audio component For details refer to the components operating instructions While this remote control is compatible with a wide range of infrared controlled components it may be the case that some component models cannot be operated with this remote control MODE 2 ONSOURCE MODE 1 NUMBER OFF 1 CD player CD CD recorder and MD recorder CDRMD system buttons 6 7 Manual search forward and reverse 2 Stop 1 Play 8 9 Auto search cue 3 Pause DISC SKIP Switch discs for CD changers only 2 Tape deck TAPE system buttons 6 Rewind 7 Fastforward 2 Stop 1 Forward play 0 Reverse play AB Switch between decks A and B 3 Tuner system buttons SHIFT Switch preset channel range CHANNEL Preset channel updown TUNING Frequency updown BAND Switch between the AM and FM bands MODE Switch between auto and mono MEMORY Preset memory TUNER can be operated when the switch is at AUDIO position

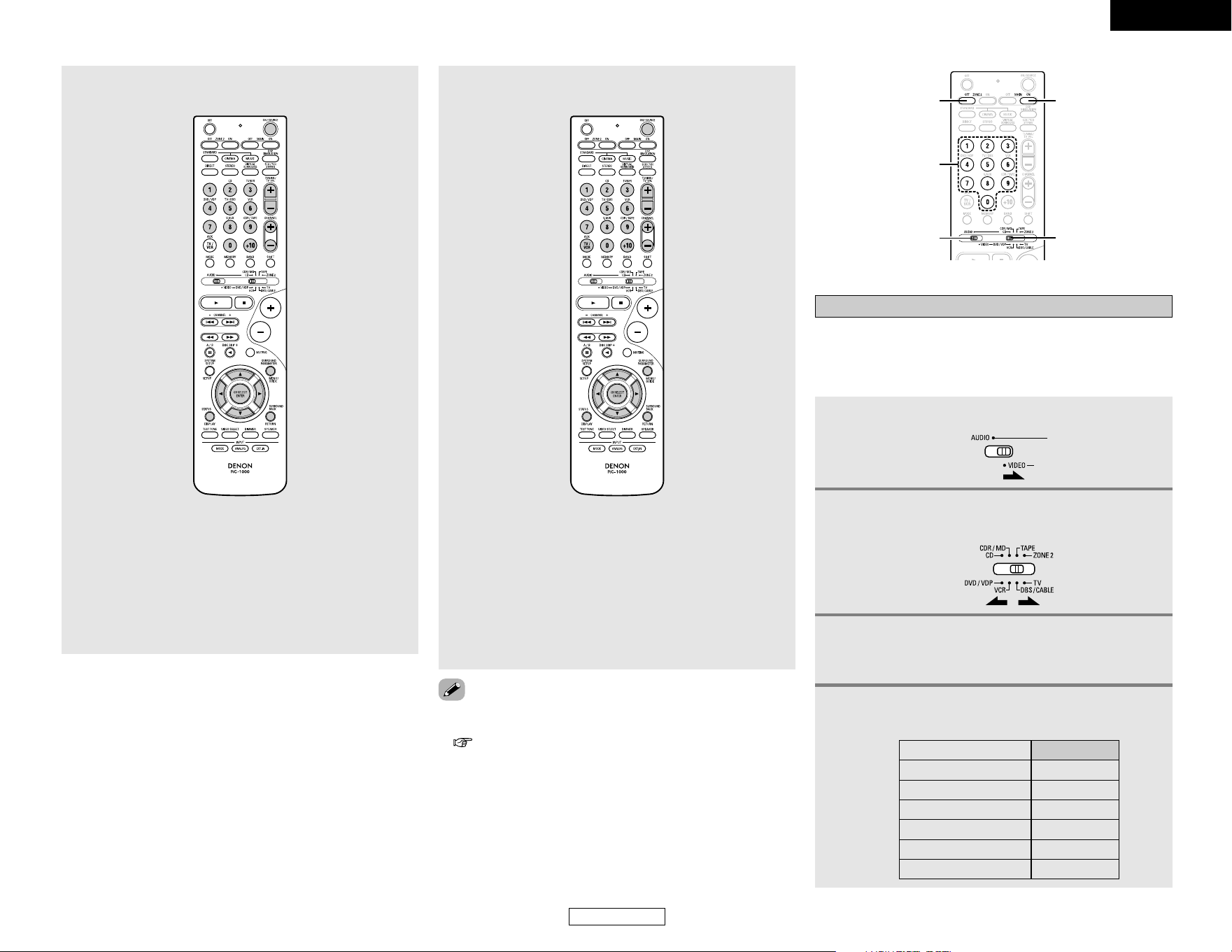

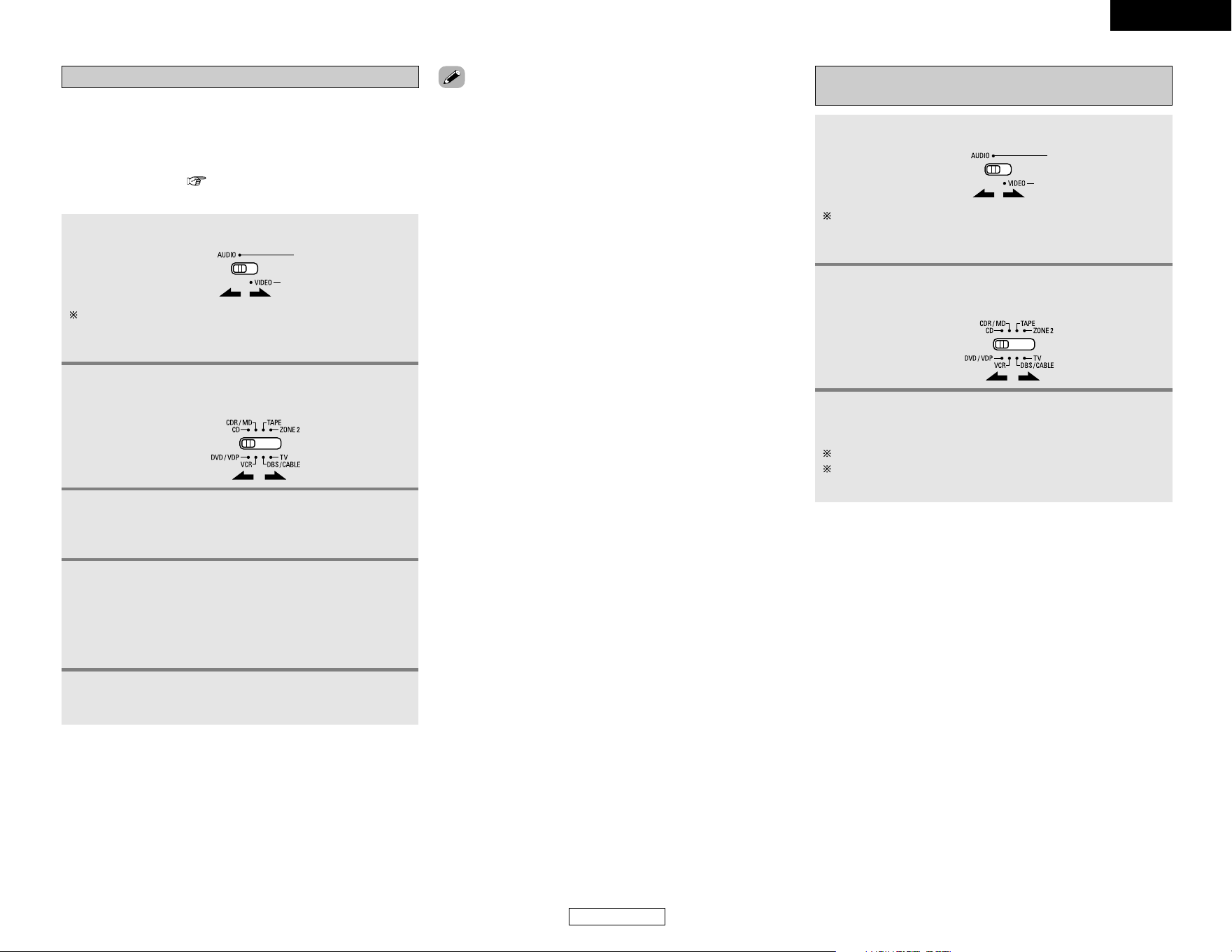

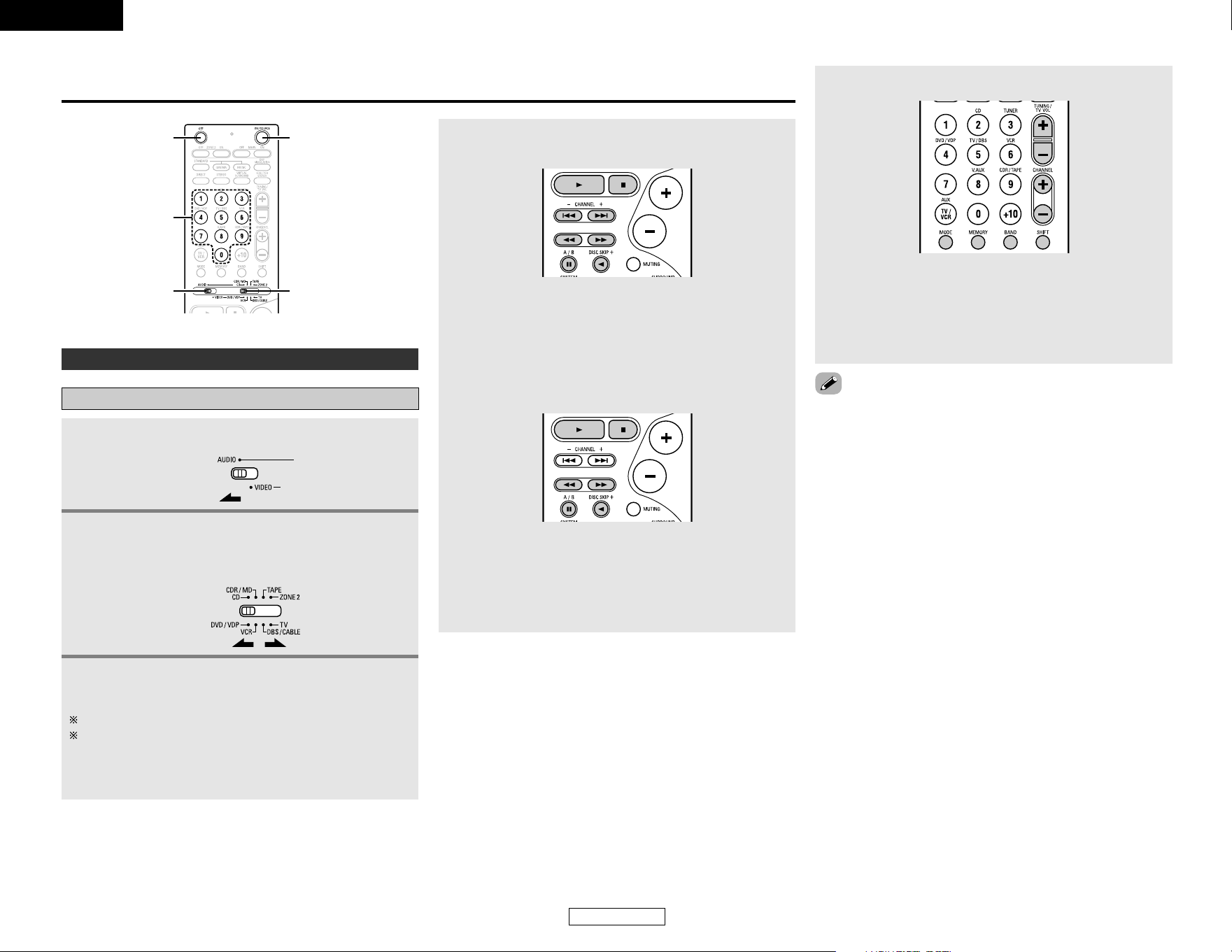

• Page 35 - English - : ENGLISH Advanced Operation Advanced Operation ENGLISH Preset memory Set the MODE 1 switch to AUDIO or VIDEO Set the MODE 2 switch to the component to be registered Press the ONSOURCE and OFF button at the same time The indicator starts flashing DENON and other makes of components can be operated by setting the preset memory This remote control unit can be used to operate components of other manufacturers without using the learning function by registering the manufacturer of the component as shown in the list of preset codes End of this manual Operation is not possible for some models Set to the AUDIO side for the CD TAPE or CDRMD position and to the VIDEO side for the DVDVDP DBSCABLE VCR or TV position The signals for the pressed buttons are emitted while setting the preset memory To avoid accidental operation cover the remote control units transmitting window while setting the preset memory Depending on the model and year of manufacture this function cannot be used for some models even if they are of makes listed in the list of preset codes Some manufacturers use more than one type of remote control code Refer to the included list of preset codes to change the number and verify correct operation The preset memory can be set for one component only among the following CDRMD DVDVDP and DBSCABLE The preset codes are as follows upon shipment from the factory and after resetting TV VCR HITACHI CD TAPEDENON CDRMD DENON CDR DVDVDP DENON DVD DBSCABLEABC CABLE Referring to the included list of preset codes press the NUMBER buttons to input the preset code a 3digit number for the manufacturer of the component whose signals you want to store in the memory To store the codes of another component in the memory repeat steps 1 to 4 Operating a component stored in the preset memory Set the MODE 1 switch to AUDIO or VIDEO Set the MODE 2 switch to the component you want to operate Set to the AUDIO side for the CD TAPE or CDRMD position and to the VIDEO side for the DVDVDP DBSCABLE VCR or TV position Operate the component For details refer to the components operating instructions Some models cannot be operated with this remote control unit
• Page 36 - English - : ENGLISH Advanced Operation Advanced Operation ENGLISH 1 Digital video disc player DVD system buttons ONSOURCE Power onstandby OFF DENON DVD power off 6 7 Manual search forward and reverse 2 Stop 1 Play 8 9 Auto search to beginning of track 3 Pause 0 9 10 Number DISC SKIP Disc skip for DVD changer only DISPLAY Switch display MENU Menu RETURN Return SETUP Setup ª 0 1 Cursor up down left and right ENTER Enter setting Some manufacturers use different names for the DVD remote control buttons so also refer to the instructions on remote control for that component 2 Video disc player VDP system buttons ONSOURCE Power onstandby 6 7 Manual search forward and reverse 2 Stop 1 Play 8 9 Auto search cue 3 Pause 0 9 10 Number 3 Video deck VCR system buttons ONSOURCE Power onstandby 6 7 Manual search forward and reverse 2 Stop 1 Play 3 Pause Channel Channel updown
• Page 37 - English - : ENGLISH Advanced Operation Advanced Operation ENGLISH 4 Digital broadcast satellite DBS tuner and cable CABLE system buttons ONSOURCE Power onstandby MENU Menu RETURN Return ª 0 1 Cursor up down left and right ENTER Enter CHANNEL Channel updown 0 9 10 Channels DISPLAY Switch display VOL Volume updown 5 Monitor TV TV system buttons ONSOURCE Power onstandby MENU Menu RETURN Return ª 0 1 Cursor up down left and right ENTER Enter CHANNEL Channel updown 0 9 10 Channels DISPLAY Switch display TVVCR Switch between TV and video player VOL Volume updown For CD CDR MD and TAPE components the buttons can be operated in the same way as for DENON audio components page 31 A TV can be operated when the switch is at the DVDVDP VCR TV position Punch through Punch Through is a function allowing you to operate the PLAY STOP MANUAL SEARCH and AUTO SEARCH buttons on CD TAPE CDRMD DVDVDP or VCR components when in the DBSCABLE or TV mode By default nothing is set MODE 2 MODE 1 MAIN ON ZONE2 OFF NUMBER Set the MODE 1 switch to VIDEO Set the MODE 2 switch to the component to be registered DBSCABLE or TV Press the ZONE2 OFF and MAIN ON buttons at the same time The indicator starts flashing No Input the number of the component you want to set CD 1 TAPE 2 CDRMD 3 DVDVDP 4 VCR 5 No setting 0

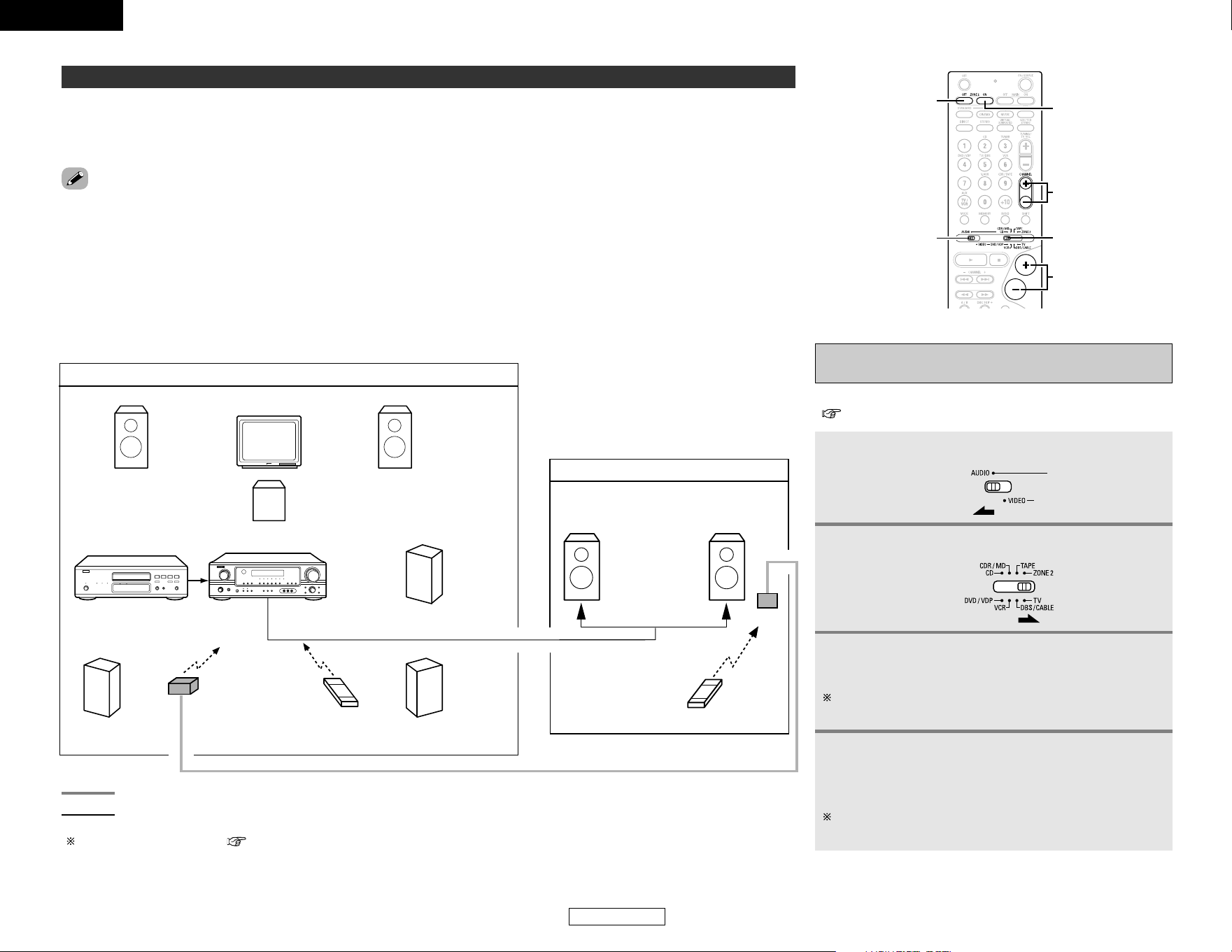

• Page 38 - English - : ENGLISH Advanced Operation ENGLISH Advanced Operation Multi zone music entertainment system ZONE2 speaker out can be used when ZONE2 is selected at Power Amp Assignment In this case surround back speaker out cannot be used for MAIN ZONE When a sold separately roomtoroom remote control unit DENON RC616 617 or 618 is wired and connected between the MAIN ZONE and ZONE2 the remotecontrollable devices in the MAIN ZONE can be controlled from ZONE2 using the remote control unit For instructions on installation and operation of separately sold devices refer to the devices operating instructions 2 When using the SURRBACKZONE2 amplifier as the ZONE2 To use the ZONE2 turn on the ZONE2 button The output of the ZONE2 SPEAKER OUT terminals can be adjusted with the remote control units ZONE2 VOLUME button The input source selected with the INPUT SELECTOR knob is output for the ZONE2 speaker output System configuration and connections example Using this units internal amplifier as the ZONE2 This unit DVD player Input RC616 Monitor MAIN ZONE 51channel systems ZONE2 SPEAKER OUT SYSTEM REMOTE CONTROL UNIT RC1000 C FL FR SL SW SR B RC617 PROGRAMMABLE REMOTE CONTROL UNIT ZONE2 SPEAKER cable ROOMTOROOM REMOTE CONTROL SYSTEM separately sold control line Refer to Connections page 11 Remote control unit operations during multisource playback selecting the source Set the MODE 1 switch to the AUDIO Set the MODE 2 switch to the ZONE2 Press the ZONE2 ON button To cancel the ZONE2 mode Press the ZONE2 OFF button MODE 2 MODE 1 ZONE2 ON ZONE2 OFF VOLUME CHANNEL The output level of the ZONE2 SPEAKER OUT terminals can be controlled pressing the VOLUME button on the remote control unit Default setting ZONE2 VOLUME LEVEL dB MINIMUM This is only possible when the main unit in the ZONE2 mode page 16

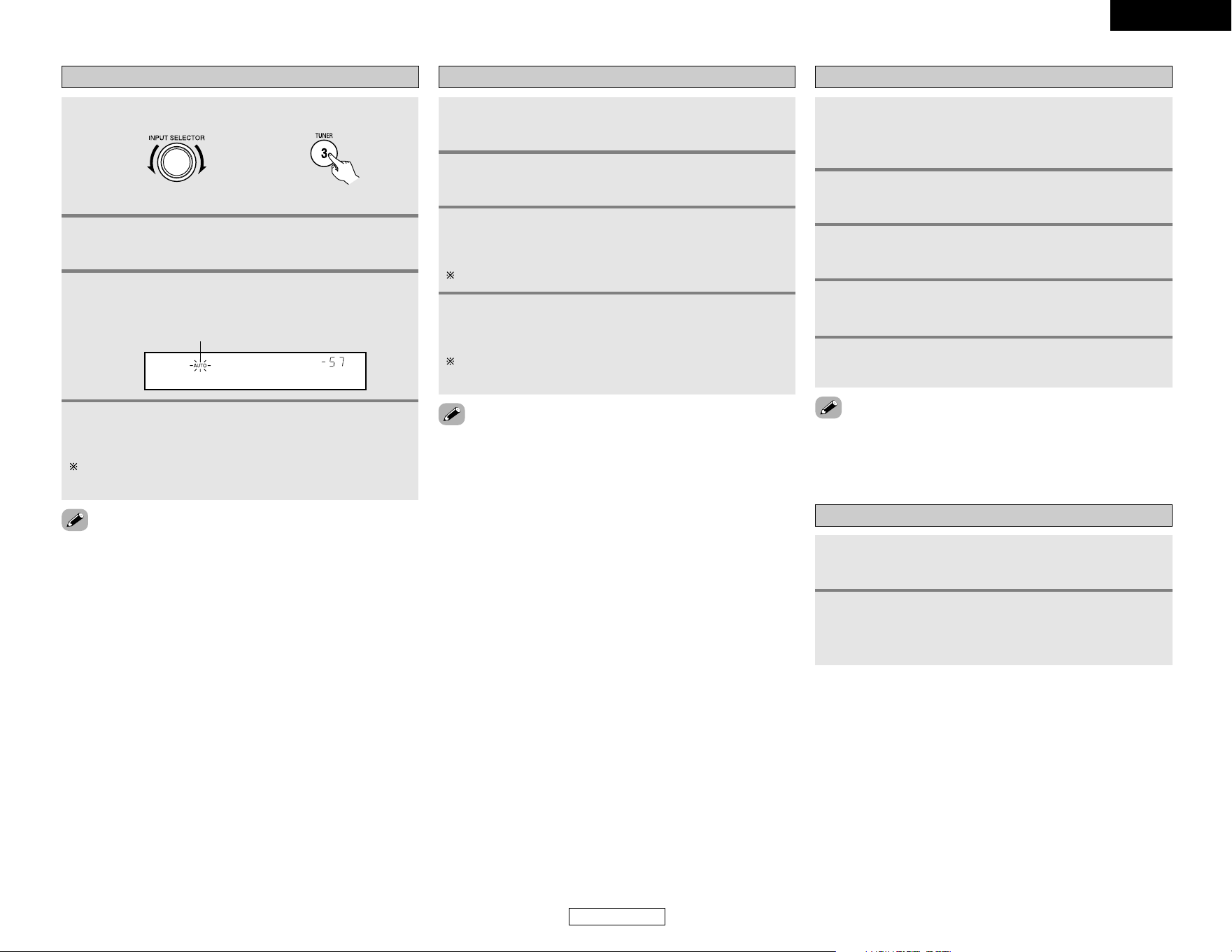

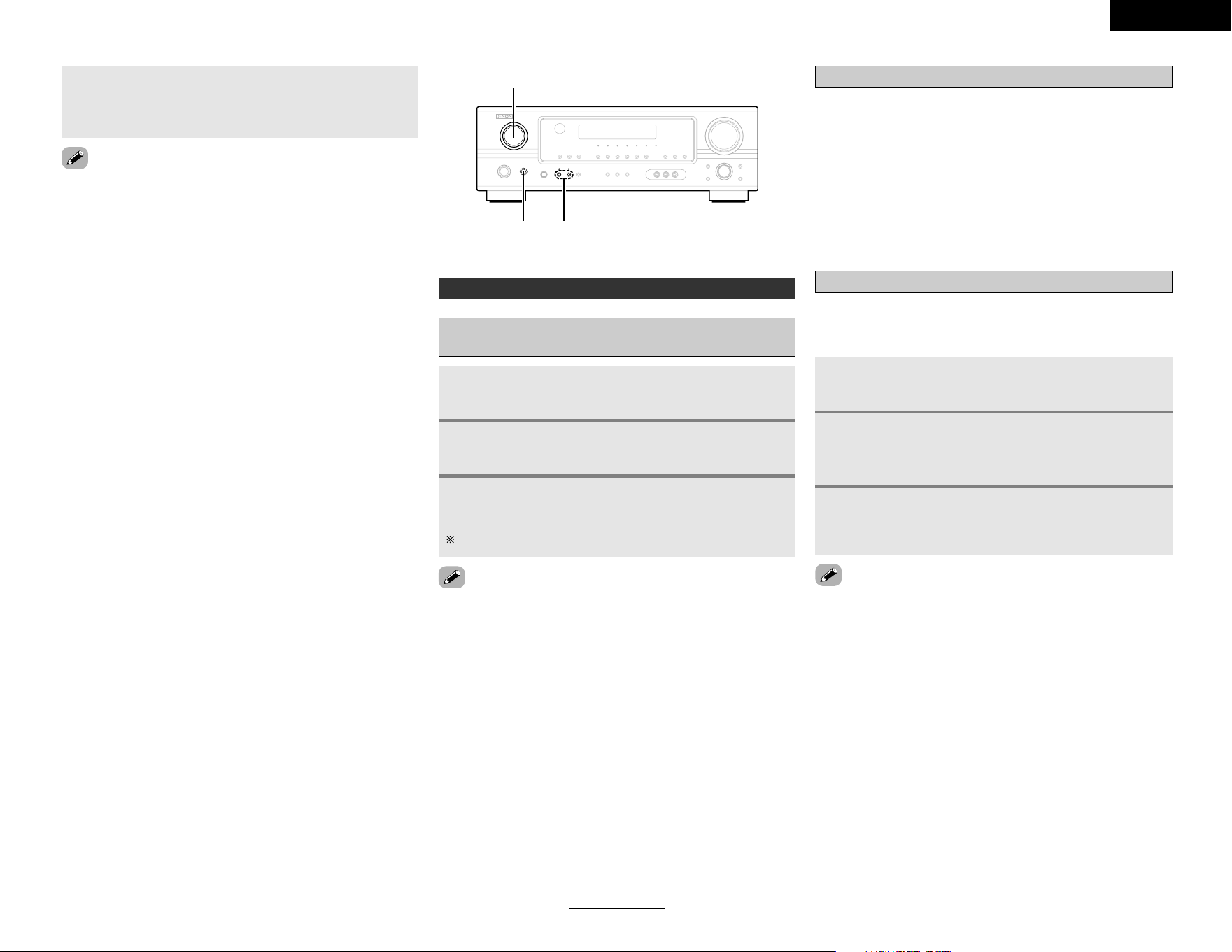

• Page 39 - English - : ENGLISH Advanced Operation Advanced Operation ENGLISH When the input source is set to TUNER the preset channel can be selected pressing the CHANNEL button on the remote control unit The input source selected with the INPUT SELECTOR knob is output for the ZONE2 speaker output Initialization of the microprocessor If the indication on the display is not normal or if the operation of the unit is not correct then the microprocessor should be reset by the following procedure Switch off the unit using the main units POWER switch Keep both SPEAKER A and B buttons depressed and turn on the unit by pressing the main units POWER switch Check that the entire display is flashing at 1 second intervals and release the buttons The microprocessor will be initialized If step 3 does not work start over from step 1 If the microprocessor has been reset all the button settings are reset to the default values the values set upon shipment from the factory Other functions Last function memory This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the power is switched off This function eliminates the need to perform complicated resettings when the power is switched on The unit is also equipped with a backup memory This function provides approximately one week of memory storage when the main units POWER switch is off and the power supply cord disconnected POWER SPEAKER INPUT SELECTOR Recording the program source recording the source currently being monitored Select the input source to be played Start recording on the tape or video deck For instructions refer to the components operating instructions Select the input mode and play surround mode The AUDIO INs signal selected with the INPUT SELECTOR knob are output to the CDRTAPE and VCR AUDIO OUT terminals 2 Simultaneous recording The signals of the source selected with the INPUT SELECTOR knob are output simultaneously to the CDRTAPE and VCR REC OUT terminals If a total of two tape andor video decks are connected and set to the recording mode the same source can be recorded simultaneously on every decks

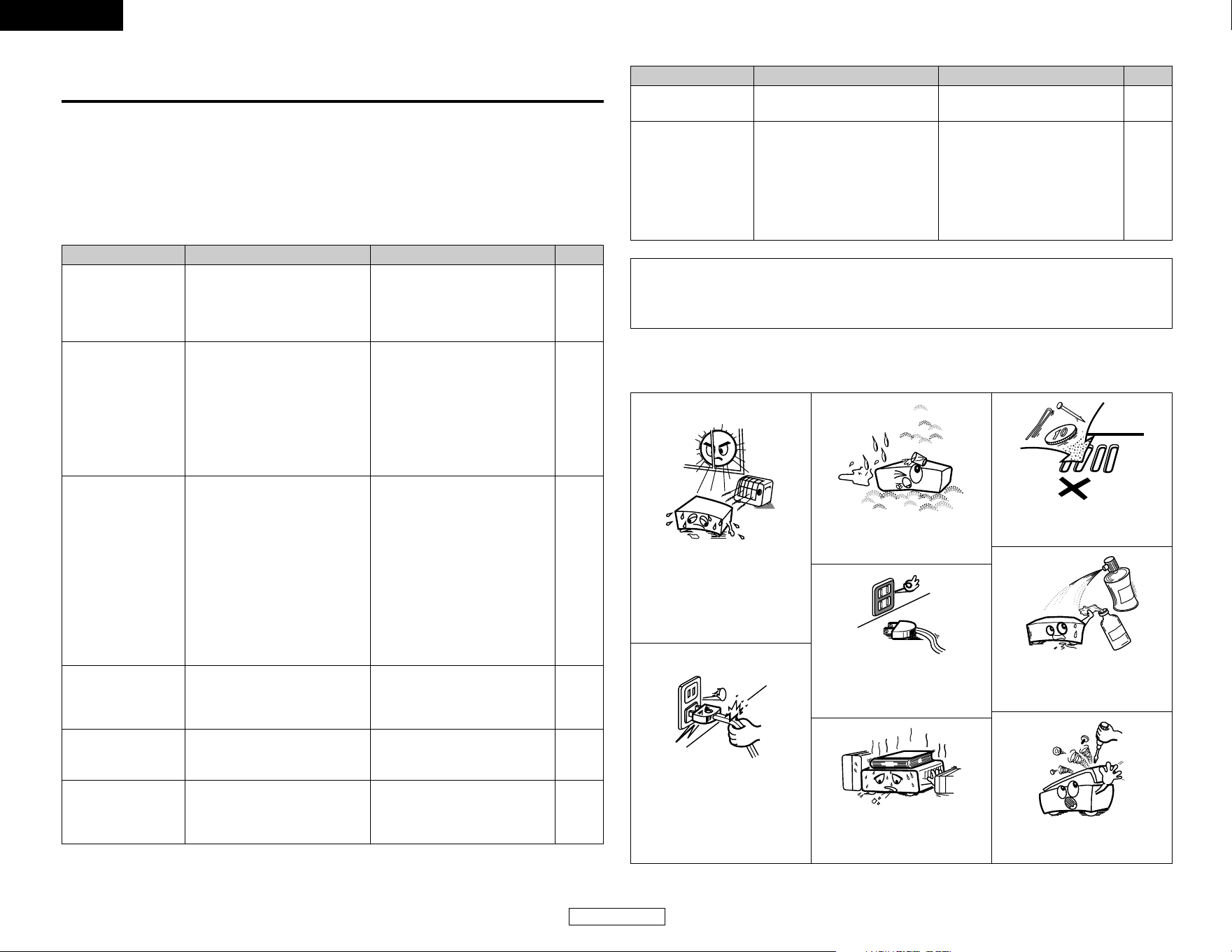

• Page 40 - English - : ENGLISH Troubleshooting ENGLISH PageMeasuresCauseSymptom Troubleshooting If a problem should arisefirst check the following 1 Are the connections correct 2 Have you operated the receiver according to the operating instructions 3 Are the speakers turntable and other components operating property If this unit is not operating properly check the items listed in the table below Should the problem persist there may be a malfunction Disconnect the power immediately and contact your store of purchase Display not lit and sound not produced when POWER switch set to on Power supply cord not plugged in securely Check the insertion of the power supply cord plug Turn the power on with the remote control unit after turning the POWER switch on Display lit but sound not produced Speaker cables not securely connected Improper setting of the INPUT SELECTOR knob Volume control set to minimum MUTING is on Digital signals not input Digital input selected Connect securely Set to a suitable position Turn volume up to suitable level Switch off MUTING Input digital signals or select input terminals to which digital signals are being input Display not lit and power indicator is flashing rapidly Speaker terminals are short circuited The ventilation holes of the set are blocked The unit is operating at continuous high power conditions andor with inadequate ventilation Switch power off connect speakers properly then switch power back on Turn off the sets power then ventilate it well and allow it to cool down Once the set has cooled down turn the power back on Turn off the sets power then ventilate it well and allow it to cool down Once the set has cooled down turn the power back on 2 5 2 5 Sound produced only from one channel Incomplete connection of speaker cables Incomplete connection of input output cables Connect securely Connect securely 5 6 911 Positions of instruments reversed during stereo playback Reverse connections of left and right speakers or left and right inputoutput cables Check left and right connections 5 PageMeasuresCauseSymptom Sound is distorted Stylus pressure too weak Dust or dirt on stylus Apply proper stylus pressure Check stylus This unit does not operate properly when remote control unit is used Batteries dead Remote control unit too far from this unit Obstacle between this unit and remote control unit Different button is being pressed lt and gt ends of batteries inserted in reverse Replace with new batteries Move closer Remove obstacle Press the proper button Insert batteries properly 2 NOTE ON USE Howling noise produced when volume is high Speaker systems too close together Floor is unstable and vibrates easily Separate as much as possible Use cushions to absorb speaker vibrations transmitted by floor NOTE For ordinary speaker systems we recommend setting the crossover frequency to 80 Hz When using small speakers however setting the crossover frequency to a high frequency may improve frequency response for frequencies near the crossover frequency Avoid high temperatures Allow for sufficient heat dispersion when installed in a rack Handle the power cord carefully Hold the plug when unplugging the cord Keep the apparatus free from moisture water and dust Unplug the power cord when not using the apparatus for long periods of time For apparatuses with ventilation holes Do not obstruct the ventilation holes Do not let foreign objects into the apparatus Do not let insecticides benzene and thinner come in contact with the apparatus Never disassemble or modify the apparatus in any way

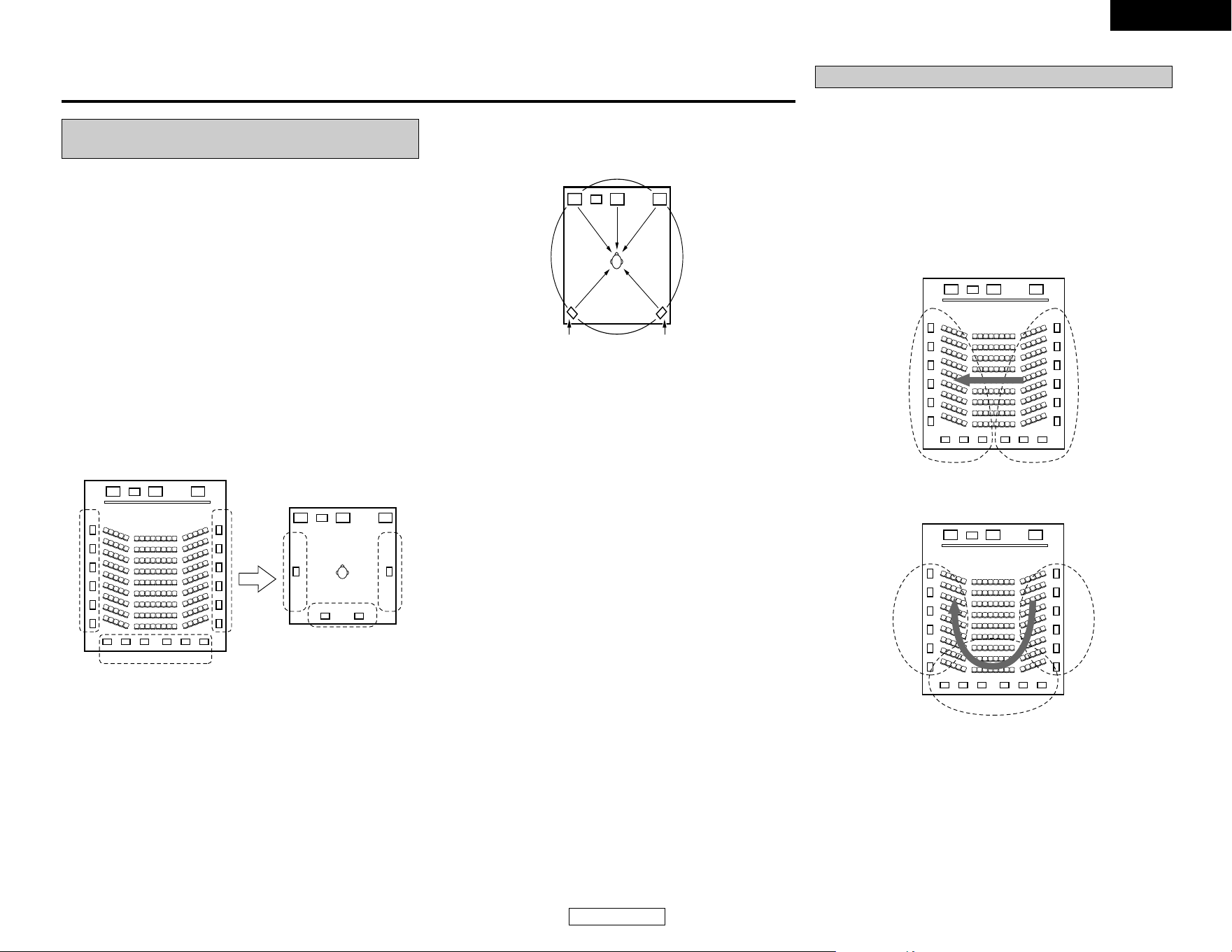

• Page 41 - English - : Additional Information ENGLISH ENGLISH Other types of audio These signals are designed to recreate a 360 sound field using three to five speakers In this case the speakers should surround the listener from all sides to create a uniform sound field from 360 Ideally the surround speakers should function as point sound sources in the same way as the front speakers These two types of sources thus have different properties and different speaker settings particularly for the surround speakers are required in order to achieve the ideal sound FL C SW FR SL SR Optimum surround sound for different sources There are currently various types of multichannel signals signals or formats with more than two channels 2 Types of multichannel signals Dolby Digital Dolby Pro Logic DTS high definition 31 signals Japan MUSE HiVision audio DVDAudio Super Audio CD MPEG multichannel audio etc Source here does not refer to the type of signal format but the recorded content Sources can be divided into two major categories Types of sources Movie audio Signals created to be played in movie theaters In general sound is recorded to be played in movie theaters equipped with multiple surround speakers regardless of the format Dolby Digital DTS etc FL C SW FR FL C SW FR SL SR SB SL SR SB Multiple surround speakers For 61channel system Movie theater sound field Listening room sound field In this case it is important to achieve the same sense of expansion as in a movie theater with the surround channels To do so in some cases the number of surround speakers is increased to four or eight or speakers with bipolar or dipolar properties are used SL Surround L channel SR Surround R channel SB Surround back channel 1 speaker or 2 speakers Additional Information Surround back speakers A 61channel system is a conventional 51channel system to which the surround back SB channel has been added This makes it easy to achieve sound positioned directly behind the listener something that was previously difficult with sources designed for conventional multi surround speakers In addition the acoustic image extending between the sides and the rear is narrowed thus greatly improving the expression of the surround signals for sounds moving from the sides to the back and from the front to the point directly behind the listening position FL C SW FR SR chSL ch Change of positioning and acoustic image with 51channel systems Movement of acoustic image from SR to SL FL C SW FR SL ch SR ch SB ch Change of positioning and acoustic image with 61channel systems Movement of acoustic image from SR to SB to SL

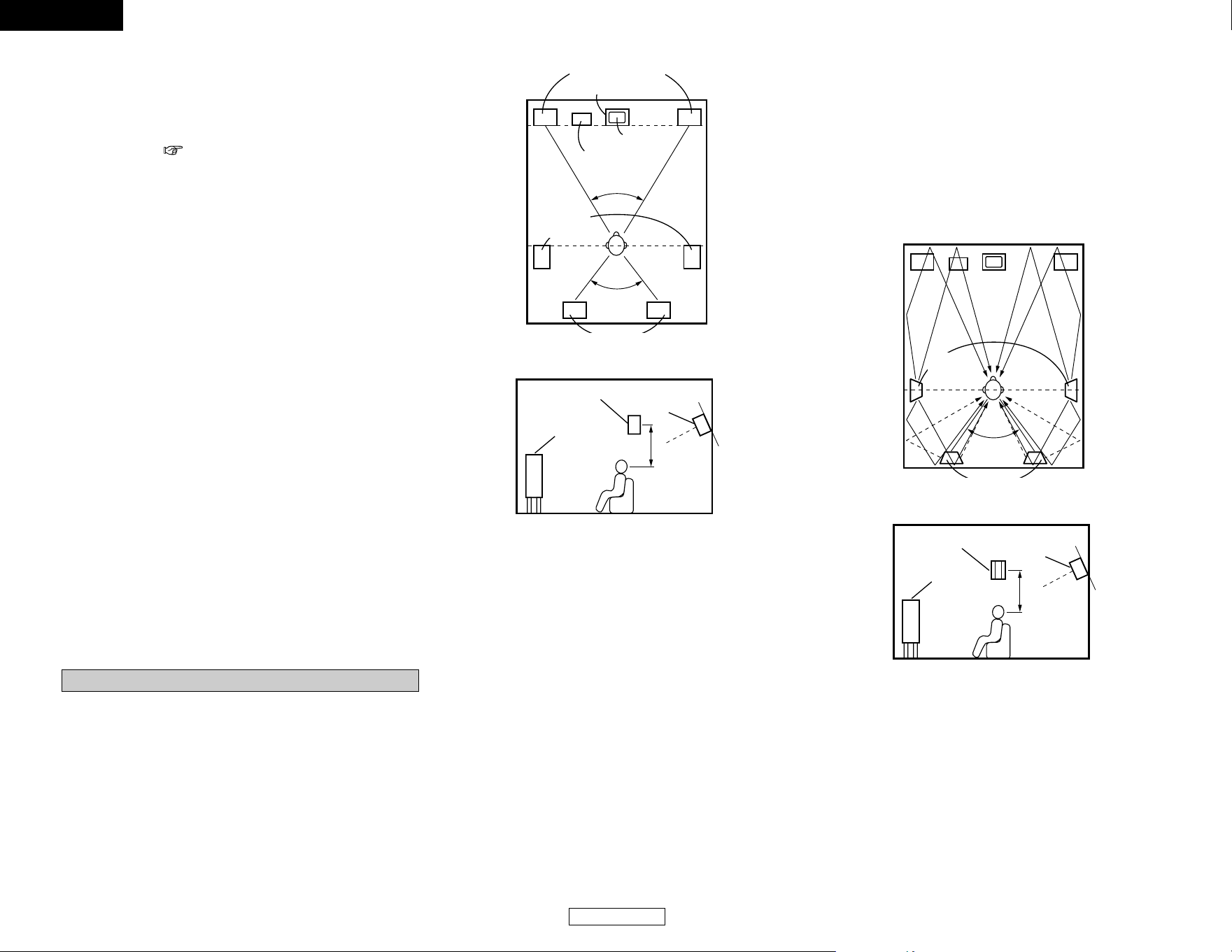

• Page 42 - English - : ENGLISH Additional Information Additional Information ENGLISH Speaker setting examples Here we describe a number of speaker settings for different purposes Use these examples as guides to set up your system according to the type of speakers used and the main usage purpose 1 DTSES compatible system using surround back speakers q Basic setting for primarily watching movies This is recommended when mainly playing movies and using regular single way or 2way speakers for the surround speakers Set the front speakers with their front surfaces as flush with the TV or monitor screen as possible Set the center speaker between the front left and right speakers and no further from the listening position than the front speakers Consult the owners manual for your subwoofer for advice on placing the subwoofer within the listening room If the surround speakers are directradiating monopolar then place them slightly behind and at an angle to the listening position and parallel to the walls at a position 2 to 3 feet above ear level at the prime listening position When using two surround back speakers place them at the back facing the front at a narrower distance than the front left and right speakers When using one surround back speaker place it at the rear center facing the front at a slightly higher position 0 to 07 feet than the surround speakers We recommend installing the surround back speakers at a slightly downward facing angle This effectively prevents the surround back channel signals from reflecting off the monitor or screen at the front center resulting in interference and making the sense of movement from the front to the back less sharp w Setting for primarily watching movies using diffusion type speakers for the surround speakers For the greatest sense of surround sound envelopment diffuse radiation speakers such as bipolar types or dipolar types provide a wider dispersion than is possible to obtain from a direct radiating speaker monopolar Place these speakers at either side of the prime listening position mounted above ear level Subwoofer Surround back speakers Front speakers 60 Monitor Center speaker As seen from above Surround speakers Surround speaker Front speaker 2 to 3 feet As seen from the side Surround back speaker Point slightly downwards 60 Surround back speakers As seen from above Surround speakers Surround speaker Front speaker 2 to 3 feet As seen from the side Surround back speaker Point slightly downwards Path of the surround sound from the speakers to the listening position 60 With this set speakers for 1 or 2 channels are required to achieve a 61channel system DTSES etc Adding these speakers however increases the surround effect not only with sources recorded in 61 channels but also with conventional 2 to 51channel sources Furthermore all the DENON original surround modes page 26 are compatible with 71channel playback so you can enjoy 71channel sound with any signal source 2 Number of surround back speakers Though the surround back channel only consists of 1 channel of playback signals for 61channel sources DTSES etc we recommend using two speakers When using speakers with dipolar characteristics in particular it is essential to use two speakers Using two speakers results in a smoother blend with the sound of the surround channels and better sound positioning of the surround back channel when listening from a position other than the center 2 Placement of the surround left and right channels when using surround back speakers Using surround back speakers greatly improves the positioning of the sound at the rear Because of this the surround left and right channels play an important role in achieving a smooth transition of the acoustic image from the front to the back As shown in the diagram above in a movie theater the surround signals are also produced from diagonally in front of the listeners creating an acoustic image as if the sound were floating in space To achieve these effects we recommend placing the speakers for the surround left and right channels slightly more towards the front than with conventional surround systems Doing so sometimes increases the surround effect when playing conventional 51channel sources in the 61 surround or DTSES Matrix 61 mode Check the surround effects of the various modes before selecting the surround mode Set the front speakers center speaker and subwoofer in the same positions as in example 1 It is best to place the surround speakers directly at the side or slightly to the front of the viewing position and 2 to 3 feet above the ears Same as surround back speaker installation method 1 Using dipolar speakers for the surround back speakers as well is more effective The signals from the surround channels reflect off the walls as shown in the diagram above creating an enveloping and realistic surround sound presentation

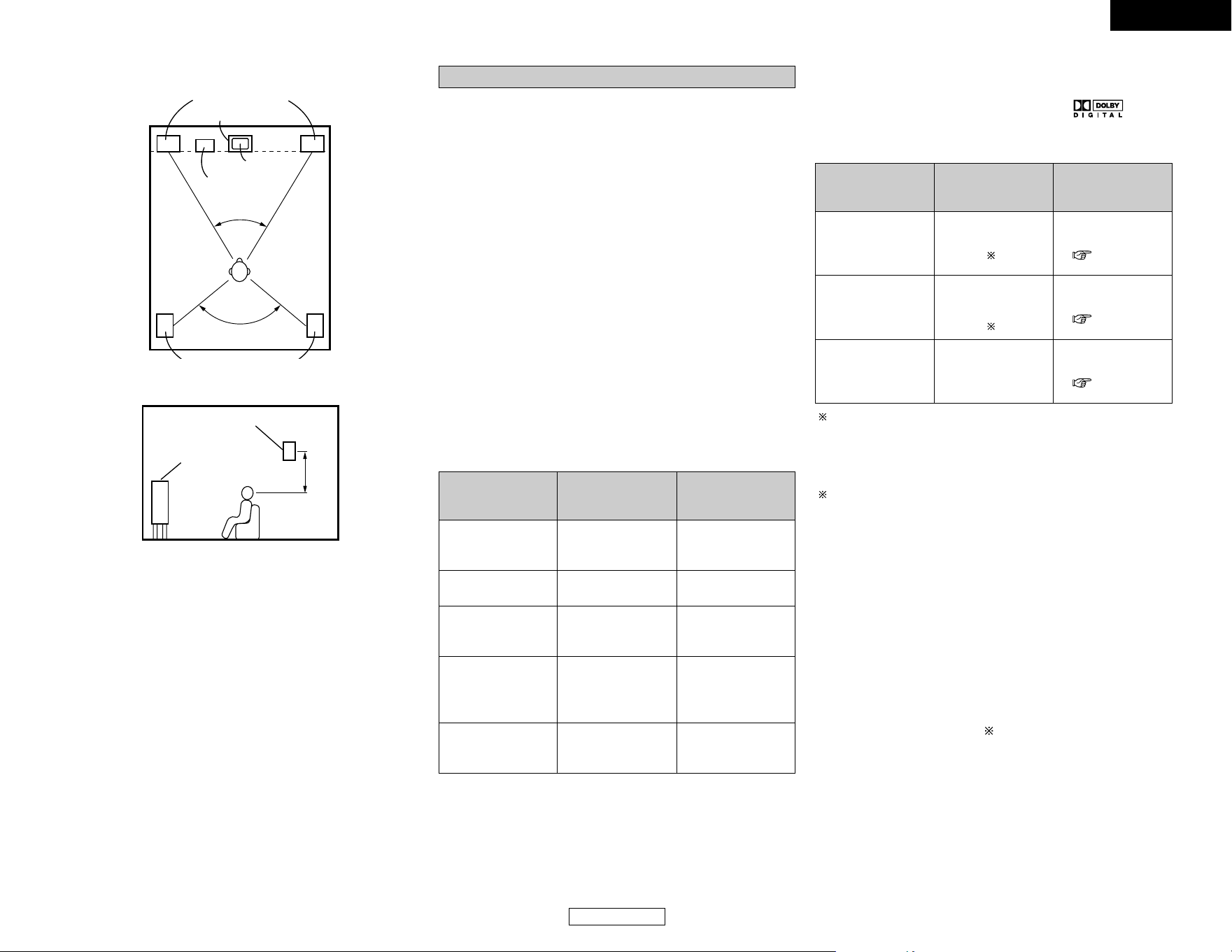

• Page 43 - English - : Additional Information Additional Information ENGLISH ENGLISH Playback method reference page Dolby Digital output terminals Media Dolby Pro LogicDolby Digital Comparison of home surround systems 2 When not using surround back speakers Set the front speakers with their front surfaces as flush with the TV or monitor screen as possible Set the center speaker between the front left and right speakers and no further from the listening position than the front speakers Consult the owners manual for your subwoofer for advice on placing the subwoofer within the listening room If the surround speakers are directradiating monopolar then place them slightly behind and at an angle to the listening position and parallel to the walls at a position 2 to 3 feet above ear level at the prime listening position Surround The AVR1506 is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater 1 Dolby Surround q Dolby Digital Dolby Digital is the multichannel digital signal format developed by Dolby Laboratories Dolby Digital consists of up to 51 channels front left front right center surround left surround right and an additional channel exclusively reserved for additional deep bass sound effects the Low Frequency Effects LFE channel also called the 1 channel containing bass frequencies of up to 120 Hz Unlike the analog Dolby Pro Logic format Dolby Digitals main channels can all contain full range sound information from the lowest bass up to the highest frequencies 22 kHz The signals within each channel are distinct from the others allowing pinpoint sound imaging and Dolby Digital offers tremendous dynamic range from the most powerful sound effects to the quietest softest sounds free from noise and distortion 2 Dolby Digital and Dolby Pro Logic No of recorded channels elements No of playback channels Playback channels max Audio processing High frequency playback limit of surround channel 51 ch 51 ch L R C SL SR SW Digital discrete processing Dolby Digital encoding decoding 20 kHz 2 ch 4 ch L R C S SW recommended Analog matrix processing Dolby Surround 7 kHz 2 Dolby Digital compatible media and playback methods Symbol indicating Dolby Digital compatibility The following are general examples Also refer to the players operating instructions 1 Please use a commercially available adapter when connecting the Dolby Digital RF output terminal of the LD player to the digital input terminal Please refer to the instruction manual of the adapter when making connection 2 Some DVD digital outputs have the function of switching the Dolby Digital signal output method between bit stream and convert to PCM When playing in Dolby Digital surround on the AVR1506 switch the DVD players output mode to bit stream In some cases players are equipped with both bit stream PCM and PCM only digital outputs In this case connect the bit stream PCM terminals to the AVR1506 w Dolby Pro Logic II Dolby Pro Logic II is a new multichannel playback format developed by Dolby Laboratories using feedback logic steering technology and offering improvements over conventional Dolby Pro Logic circuits Dolby Pro Logic II can be used to decode not only sources recorded in Dolby Surround but also regular stereo sources into five channels front left front right center surround left and surround right to achieve surround sound Subwoofer Surround speakers Front speakers 60 Monitor Center speaker As seen from above Front speaker 2 to 3 feet As seen from the side Surround speaker 120 LD VDP DVD Others satellite broadcasts CATV etc Coaxial Dolby Digital RF output terminal Optical or coaxial digital output same as for PCM Optical or coaxial digital output same as for PCM Set the input mode to AUTO page 19 20 Set the input mode to AUTO page 19 20 Set the input mode to AUTO page 19 20
• Page 44 - English - : ENGLISH Additional Information ENGLISH Additional Information 2 DTS Digital Surround Digital Theater Surround also called simply DTS is a multi channel digital signal format developed by Digital Theater Systems DTS offers the same 51 playback channels as Dolby Digital front left front right center surround left and surround right as well as the stereo 2channel mode The signals for the different channels are fully independent eliminating the risk of deterioration of sound quality due to interference between signals crosstalk etc DTS features a relatively higher bit rate as compared to Dolby Digital 1234 kbps for CDs and LDs 1536 kbps for DVDs so it operates with a relatively low compression rate Because of this the amount of data is great and when DTS playback is used in movie theaters a separate CDROM synchronized with the film is played With LDs and DVDs there is of course no need for an extra disc the pictures and sound can be recorded simultaneously on the same disc so the discs can be handled in the same way as discs with other formats There are also music CDs recorded in DTS These CDs include 51channel surround signals compared to two channels on current CDs They do not include picture data but they offer surround playback on CD players that are equipped with digital outputs PCM type digital output required DTS surround track playback offers the same intricate grand sound as in a movie theater right in your own listening room 2 DTS compatible media and playback methods Symbols indicating DTS compatibility and The following are general examples Also refer to the players operating instructions 1 DTS signals are recorded in the same way on CDs and LDs as PCM signals Because of this the undecoded DTS signals are output as random hissing noise from the CD or LD players analog outputs If this noise is played with the amplifier set at a very high volume it may possibly cause damage to the speakers To avoid this be sure to switch the input mode to AUTO or DTS before playing CDs or LDs recorded in DTS Also never switch the input mode to ANALOG or PCM during playback The same holds true when playing CDs or LDs on a DVD player or LDDVD compatible player For DVDs the DTS signals are recorded in a special way so this problem does not occur 2 The signals provided at the digital outputs of a CD or LD player may undergo some sort of internal signal processing output level adjustment sampling frequency conversion etc In this case the DTSencoded signals may be processed erroneously in which case they cannot be decoded by the AVR1506 or may only produce noise Before playing DTS signals for the first time turn down the master volume to a low level start playing the DTS disc then check whether the DTS indicator on the AVR1506 page 25 lights before turning up the master volume 3 A DVD player with DTScompatible digital output is required to play DTS DVDs A DTS Digital Output logo is featured on the front panel of compatible DVD players Recent DENON DVD player models feature DTScompatible digital output consult the players owners manual for information on configuring the digital output for DTS playback of DTS encoded DVDs Manufactured under license from Dolby Laboratories Dolby Pro Logic and the doubleD symbol are trademarks of Dolby Laboratories Whereas with conventional Dolby Pro Logic the surround channel playback frequency band was limited Dolby Pro Logic II offers a wider band range 20 Hz to 20 kHz or greater In addition the surround channels were monaural the surround left and right channels were the same with previous Dolby Pro Logic but with Dolby Pro Logic II they are played as stereo signals Various parameters can be set according to the type of source and the contents so it is possible to achieve optimum decoding page 43 e Dolby Pro Logic IIx Dolby Pro Logic IIx furthers the matrix decoding technology of Dolby Pro Logic II to decode audio signals recorded on two channels into up to 71 playback channels including the surround back channel Dolby Pro Logic IIx also allows 51channel sources to be played in up to 71 channels The mode can be selected according to the source The Music mode is best suited for playing music the Cinema mode for playing movies and the Game mode for playing games The Game mode can only be used with 2channel audio sources Sources recorded in Dolby Surround These are sources in which three or more channels of surround have been recorded as two channels of signals using Dolby Surround encoding technology Dolby Surround is used for the sound tracks of movies recorded on DVDs LDs and video cassette tapes as well as for stereo broadcast signals from FM radio TV satellite broadcasts and cable TV Decoding these signals with Dolby Pro Logic II makes it possible to achieve multichannel surround playback The signals can also be played on ordinary stereo equipment in which case they provide normal stereo sound There are two types of DVD Dolby surround recording signals q 2channel PCM stereo signals w 2channel Dolby Digital signals When either of these signals is input to the AVR1506 the surround mode is automatically set to Dolby Pro Logic II when the DOLBYDTS SURROUND mode is selected 2 Sources recorded in Dolby Surround are indicated with the logo symbol shown below Dolby Surround logo symbol MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS INC US PAT NOS 5451942 5956674 5974380 5978762 6226616 6487535 AND OTHER US AND WORLDWIDE PATENTS ISSUED AND PENDING DTS DTSES Neo6 AND DTS 9624 ARE TRADEMARKS OF DIGITAL THEATER SYSTEMS INC 1996 2003 DIGITAL THEATER SYSTEMS INC ALL RIGHTS RESERVED Playback method reference page Dolby Digital output terminals Media CD LD VDP DVD Optical or coaxial digital output same as for PCM Optical or coaxial digital output same as for PCM Optical or coaxial digital output same as for PCM Set the input mode to AUTO or DTS page 19 20 Never set the mode to ANALOG or PCM Set the input mode to AUTO or DTS page 19 20 Never set the mode to ANALOG or PCM Set the input mode to AUTO or DTS page 19 20
• Page 45 - English - : ENGLISH Additional Information Additional Information ENGLISH When DTSES Discrete 61 or Matrix 61 encoded sources are decoded with a DTSES decoder the format is automatically detected upon decoding and the optimum playing mode is selected However some Matrix 61 sources may be detected as having a 51channel format so the DTSES Matrix 61 mode must be set manually to play these sources For instructions on selecting the surround mode page 25 The DTSES decoder includes another function the DTS Neo6 surround mode for 61channel playback of digital PCM and analog signal sources 2 DTS Neo6 surround This mode applies conventional 2channel signals to the high precision digital matrix decoder used for DTSES Matrix 61 to achieve 61channel surround playback High precision input signal detection and matrix processing enable full band reproduction frequency response of 20 Hz to 20 kHz or greater for all 61 channels and separation between the different channels is improved to the same level as that of a digital discrete system DTS Neo6 surround includes two modes for selecting the optimum decoding for the signal source DTS Neo6 Cinema This mode is optimum for playing movies Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2channel sources as with 61channel sources This mode is effective for playing sources recorded in conventional surround formats as well because the inphase component is assigned mainly to the center channel C and the reversed phase component to the surround SL SR and SB channels DTS Neo6 Music This mode is suited mainly for playing music Changes in the sound quality are reduced by decoding with emphasis on the front channel signals FL and FR and a natural sense of expansion is given to the sound field by the effect of the surround signals output from the center C and surround SL SR and SB channels 4 DTS 9624 The sampling frequency number of bits and number of channels used for recording of music etc in studios have been increasing in recent years and there are a growing number of high quality signal sources including 96 kHz24bit 51channel sources For example there are high picturesound quality DVD video sources with 96 kHz24bit stereo PCM audio tracks However because the data rate for these audio tracks is extremely high there are limits to recording them on two channels only and since the quality of the pictures must be restricted it is common to only include still pictures In addition 96 kHz24bit 51channel surround is possible with DVD audio sources but DVD audio players are required to play them with this high quality DTS 9624 is a multichannel digital signal format developed by Digital Theater Systems Inc in order to deal with this situation Conventional surround formats used sampling frequencies of 48 or 441 kHz so 20 kHz was about the maximum playback signal frequency With DTS 9624 the sampling frequency is increased to 96 or 882 kHz to achieve a wide frequency range of over 40 kHz In addition DTS 9624 has a resolution of 24bits resulting in the same frequency band and dynamic range as 96 kHz24bit PCM As with conventional DTS Surround DTS 9624 is compatible with a maximum of 51 channels so sources recorded using DTS 9624 can be played in high sampling frequency multiple channel audio with such normal media as DVD videos and CDs Thus with DTS 9624 the same 96 kHz24bit multichannel surround sound as with DVDAudio can be achieved while viewing DVDVideo images on a conventional DVDVideo player 1 Furthermore with DTS 9624 compatible CDs 882 kHz24bit multichannel surround can be achieved using normal CDLD players 1 Even with the high quality multichannel signals the recording time is the same as with conventional DTS surround sources Whats more DTS 9624 is fully compatible with the conventional DTS surround format so DTS 9624 signal sources can be played with a sampling frequency of 48 kHz or 441 kHz on conventional DTS or DTSES surround decoders 2 1 A DVD player with DTS digital output capabilities for CDLD players a player with digital outputs for conventional DTS CDsLDs and a disc recorded in DTS 9624 are required 2 The resolution is 24 or 20 bits depending on the decoder 3 DTSES Extended Surround DTSES Extended Surround is a new multichannel digital signal format developed by Digital Theater Systems Inc While offering high compatibility with the conventional DTS Digital Surround format DTSES Extended Surround greatly improves the 360 degree surround impression and space expression thanks to further expanded surround signals This format has been used professionally in movie theaters since 1999 In addition to the 51 surround channels FL FR C SL SR and LFE DTSES Extended Surround also offers the SB Surround Back sometimes also referred to as surround center channel for surround playback with a total of 61 channels DTSES Extended Surround includes two signal formats with different surround signal recording methods as described below 2 DTSES Discrete 61 DTSES Discrete 61 is the newest recording format With it all 61 channels including the SB channel are recorded independently using a digital discrete system The main feature of this format is that because the SL SR and SB channels are fully independent the sound can be designed with total freedom and it is possible to achieve a sense that the acoustic images are moving about freely among the background sounds surrounding the listener from 360 degrees Though maximum performance is achieved when sound tracks recorded with this system are played using a DTSES decoder when played with a conventional DTS decoder the SB channel signals are automatically downmixed to the SL and SR channels so none of the signal components are lost 2 DTSES Matrix 61 With this format the additional SB channel signals undergo matrix encoding and are input to the SL and SR channels beforehand Upon playback they are decoded to the SL SR and SB channels The performance of the encoder used at the time of recording can be fully matched using a high precision digital matrix decoder developed by DTS thereby achieving surround sound more faithful to the producers sound design aims than with conventional 51 or 61channel systems In addition the bit stream format is 100 compatible with conventional DTS signals so the effect of the Matrix 61 format can be achieved even with 51channel signal sources Of course it is also possible to play DTSES Matrix 61 encoded sources with a DTS 51channel decoder
• Page 46 - English - : ENGLISH Additional Information Additional Information ENGLISH Surround modes and parameters C 0 dB C 0 dB E C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C OFF C OFF E C OFF C OFF C OFF C OFF C OFF C OFF C OFF C OFF C OFF C OFF C OFF C OFF C C C C C C E E C C C C C C C C C E C C C E E C C C C C C C C C E C C C E C C C C C C C C C C E C C C C E C C C C C C C B B B B B B B B B B B B B B B E E E B B B B B B B B B B B E E E B B B B B B B B B B B B E C C C C C C C C C C C C C C C Mode SURROUND LR Signals and adjustability in the different modes Channel output When playing Dolby Digital and DTS signals SUBWOOFER When playing Dolby Digital signals When playing DTS signals When playing PCM signals When playing ANALOG signals D COMP LFE E E B B B B B B B B B B B B E DIRECT STEREO EXTERNAL INPUT DOLBY PRO LOGIC II DOLBY PRO LOGIC II x DTS NEO6 DOLBY DIGITAL DTS SURROUND 5CH7CH STEREO ROCK ARENA JAZZ CLUB VIDEO GAME MONO MOVIE MATRIX VIRTUAL FRONT LR CENTER SURROUND BACK LR C Signal Adjustable E No signal B Turned on or off by speaker configuration setting C Able E Unable Only for 2 ch contents C Able E Unable Surround parameter E E C E E E E E E E E E E E E E E E E E C 03 E E E E E E E E E E E E C 3 C 3 E E E E E E E E E E E E E C 3 C 3 E E E E E E E E E E E E E C OFF C OFF E E E E E E E E E E C OFF E E E E E E E E E E E E E E E E E E E E E E E E E E E C 30 msec E E E E E E E E E E C Medium C Medium C Medium C Medium E E E E E C C C E E E E E E E E E Mode EFFECT LEVEL Signals and adjustability in the different modes NEO6 MUSIC SUBWOOFER ONOFF PANORAMA DIMENSION CENTER WIDTH CENTER IMAGE SW ATT E E E E E E E E E C 10 C 10 C 10 C 10 E E DIRECT STEREO EXTERNAL INPUT DOLBY PRO LOGIC II DOLBY PRO LOGIC II x DTS NEO6 DOLBY DIGITAL DTS SURROUND 5CH7CH STEREO ROCK ARENA JAZZ CLUB VIDEO GAME MONO MOVIE MATRIX VIRTUAL MODE ROOM SIZE DELAY TIME PRO LOGIC II II x only EXT IN TONE CONTROL E C 0 dB E C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB C 0 dB E CINEMA EQ E E E C OFF C OFF C OFF C OFF C OFF E E E E E E E C Adjustable E Not adjustable E E E C C C C C C C C C C C E SB CH OUT MODE
• Page 47 - English - : ENGLISH Specifications ENGLISH 2 Audio section Power amplifier Rated output Front 75 W 75 W 8 Ωohms 20 Hz 20 kHz with 008 THD 110 W 110 W 6 Ωohms 1 kHz with 07 THD Center 75 W 8 Ωohms 20 Hz 20 kHz with 008 THD 110W 6 Ωohms 1 kHz with 07 THD Surround 75 W 75 W 8 Ωohms 20 Hz 20 kHz with 008 THD 110 W 110 W 6 Ωohms 1 kHz with 07 THD Surround Back 75 W 75 W 8 Ωohms 20 Hz 20 kHz with 008 THD 110 W 110 W 6 Ωohms 1 kHz with 07 THD Output terminals Front A or B 16 16 Ωohms A B 12 16 Ωohms Center Surround SurrBack 16 16 Ωohms Analog Input sensitivity input impedance 200 mV 47 kΩkohms Frequency response 10 Hz 100 kHz 1 3 dB TONE DEFEAT ON SN 98 dB IHFA weighted TONE DEFEAT ON 2 Video section Standard video terminals Input output level and impedance 1 Vpp 75 Ωohms Frequency response 5 Hz 10 MHz 1 3 dB SVideo terminals Input output level and impedance Y brightness signal 1 Vpp 75 Ωohms C color signal 0286 Vpp 75 Ωohms Frequency response 5 Hz 10 MHz 1 3 dB Color component video terminal Input output level and impedance Y brightness signal 1 Vpp 75 Ωohms PBCB blue signal 07 Vpp 75 Ωohms PRCR red signal 07 Vpp 75 Ωohms Frequency response 5 Hz 30 MHz 0 3 dB 2 Tuner section FM note µV at 75 Ωohms AM 0 dBf1 x 10 15 W Receiving Range 8750 MHz 10790 MHz 520 kHz 1710 kHz Usable Sensitivity 10 µV 112 dBf 18 µV 50 dB Quieting Sensitivity MONO 16 µV 153 dBf STEREO 23 µV 385 dBf SN IHFA MONO 77 dB IHFA weighted STEREO 72 dB IHFA weighted Total Harmonic Distortion at 1 kHz MONO 015 1 kHz STEREO 03 1 kHz 2 General Power supply AC 120 V 60 Hz Power consumption 43 A 1 W Max Standby Maximum external dimensions 434 W x 147 H x 417 D mm 17332 x 52532 x 162764 Mass 111 kg 24 lbs 8 oz 2 Remote control unit RC1000 Batteries R6PAA Type two batteries External dimensions 55 W x 225 H x 345 D mm 21164 x 85564 x 1964 Mass 165 g Approx 58 oz including batteries For purposes of improvement specifications and design are subject to change without notice Specifications
• Page 48 - English - : 2 List of preset codes Liste de codes préréglés JC Penny 004 005 007 023 028 049 062 085 087 088 Jensen 013 026 JVC 004 005 006 026 029 043 044 045 046 085 Kenwood 004 005 006 026 029 033 045 085 Kodak 088 Lloyd 009 094 LXI 088 Magnavox 015 016 042 049 063 106 Magnin 087 Marantz 004 005 006 015 042 049 085 090 Marta 088 MEI 049 Memorex 009 033 049 053 060 081 087 088 091 094 115 Metz 123 124 125 126 127 128 MGA 001 017 027 041 097 MGN Technology 087 Midland 011 Minolta 013 023 Mitsubishi 001 003 008 013 014 017 027 029 039 040 041 045 097 Motorola 081 Montgomery Ward 001 002 007 009 049 063 081 115 MTC 009 087 094 Multitech 007 009 011 087 090 094 NAD 038 NEC 004 005 006 018 026 029 045 061 062 085 Nikko 088 Noblex 087 Optimus 081 088 DVD Denon 014 111 Aiwa 009 Hitachi 010 JVC 006 011 Konka 012 013 Magnavox 005 Mitsubishi 004 Panasonic 014 Philips 005 015 016 017 Pioneer 003 008 Sanyo 018 Sony 002 019 020 Toshiba 001 021 022 Zenith 023 VDP Denon 028 029 112 Magnavox 026 Mitsubishi 028 Panasonic 029 030 Philips 026 Pioneer 028 031 RCA 032 Sony 033 034 035 036 VCR Admiral 081 Aiko 095 Aiwa 009 Akai 026 027 070 072 082 083 084 Alba 055 Amstrad 009 ASA 042 Asha 087 Audio Dynamic 005 085 Audiovox 088 Beaumark 087 Broksonic 086 093 Calix 088 Candle 006 087 088 089 090 Canon 049 057 Capehart 025 055 056 071 Carver 015 CCE 095 Citizen 006 007 087 088 089 090 095 Craig 007 087 088 091 115 Curtis Mathes 006 049 073 080 087 090 092 Cybernex 087 Daewoo 025 055 059 074 089 093 095 096 Daytron 025 055 DBX 005 085 Dumont 053 Dynatech 009 Electrohome 001 088 097 Electrophonic 088 Emerson 001 009 017 027 086 088 089 092 093 097 100 101 102 103 104 117 Fisher 009 028 031 053 054 091 099 115 GE 007 011 049 050 051 052 073 080 Go Video 047 048 Goldstar 000 006 012 062 088 Gradiente 094 Grundig 042 Harley Davidson 094 Harman Kardon 040 062 HiQ 091 Hitachi 009 013 023 026 058 108 109 110 111 ENGLISH FRANCAIS
• Page 49 - English - : Optonica 021 Panasonic 024 049 064 066 067 068 069 107 Perdio 009 Pentax 009 013 023 058 090 Philco 015 016 049 Philips 015 021 042 049 105 Pilot 088 Pioneer 005 013 029 036 037 038 045 085 Portland 025 055 090 Proscan 063 080 Pulsar 060 Quartz 033 Quasar 034 035 049 Radio Shack 001 002 021 081 087 088 091 094 097 098 115 Radix 088 Randex 088 RCA 007 013 019 023 058 063 064 065 073 080 082 087 Realistic 009 021 031 033 049 053 081 087 088 091 094 097 098 Ricoh 055 Salora 033 041 Samsung 007 011 051 059 070 083 087 089 Sanky 081 Sansui 005 026 029 045 061 085 114 Sanyo 032 033 053 087 091 115 116 SBR 042 Scott 017 020 086 089 093 117 Sears 013 023 028 031 033 053 054 088 091 098 099 115 Sentra 055 Sharp 001 002 021 097 Shogun 087 Sony 075 076 077 078 079 121 122 STS 023 Sylvania 009 015 016 017 041 049 094 Symphonic 009 094 Tandy 009 Tashiko 009 088 Tatung 004 026 030 Teac 004 009 026 094 Technics 024 049 Teknika 009 010 022 049 088 094 TMK 087 092 Toshiba 013 017 020 041 059 089 098 099 Totevision 007 087 088 Unirech 087 Vecrtor Research 005 062 085 089 090 Victor 005 045 046 085 Video Concepts 005 027 085 089 090 Videosonic 007 087 Wards 013 021 023 087 088 089 091 094 097 118 119 120 XR1000 094 Yamaha 004 005 006 026 062 085 Zenith 060 078 079 TV Admiral 045 121 Adventura 122 Aiko 054 Akai 016 027 046 Alleron 062 AMark 007 Amtron 061 Anam 006 007 036 Anam National 061 147 AOC 003 007 033 038 039 047 048 049 Archer 007 Audiovox 007 061 Bauer 155 Belcor 047 Bell amp Howell 045 118 Bradford 061 Brockwood 003 047 Candle 003 030 031 032 038 047 049 050 Capehart 003 Celebrity 046 Circuit City 003 Citizen 029 030 031 032 034 038 047 049 050 054 061 095 122 123 Concerto 031 047 049 Colortyme 003 047 049 135 Contec 013 051 052 061 Cony 051 052 061 Craig 004 061 Crown 029 Curtis Mathes 029 034 038 044 047 049 053 095 Daewoo 027 029 039 048 049 054 055 106 107 137 Daytron 003 049 Dimensia 044 Dixi 007 015 027 Electroband 046 Electrohome 029 056 057 058 147 Elta 027 Emerson 029 051 059 060 061 062 118 123 124 139 148 Envision 038 Etron 027 Fisher 014 021 063 064 065 118 Formenti 155 Fortress 012 Fujitsu 004 062 Funai 004 062 ENGLISHFRANCAIS
• Page 50 - English - : Futuretech 004 GE 020 036 037 040 044 058 066 088 119 120 125 147 Goldstar 000 015 029 031 039 048 051 056 057 067 068 069 116 Grundy 062 Hitachi 029 031 051 052 070 111 112 113 124 134 Hitachi Pay TV 151 Infinity 017 071 Janeil 122 JBL 017 071 JC Penny 020 034 039 040 041 044 048 050 058 066 069 076 088 090 095 125 136 159 JCB 046 JVC 019 051 052 072 073 091 117 126 Kawasho 018 046 Kenwood 038 056 057 Kloss 010 032 Kloss Novabeam 005 122 127 131 KTV 074 123 Loewe 071 Logik 144 Luxman 031 LXI 008 014 017 024 040 044 063 071 075 076 077 118 125 Magnavox 005 010 017 030 033 038 050 056 071 078 079 085 089 108 109 110 127 131 132 145 Marantz 015 017 071 080 Matsui 027 Memorex 014 027 045 083 118 144 Metz 160 161 162 163 MGA 001 039 048 056 057 058 065 081 Midland 125 Minutz 066 Mitsubishi 001 016 039 048 056 057 058 065 081 082 083 105 Montgomery Ward 011 020 144 145 146 Motorola 121 147 MTC 031 034 039 048 095 NAD 008 075 076 128 National 002 036 061 147 National Quenties NEC 031 038 039 048 057 084 086 135 Nikko 054 NTC 054 Optimus 128 Optonica 011 012 093 121 Orion 004 139 Panasonic 002 009 017 036 037 071 141 143 Philco 005 010 030 050 051 056 079 085 127 131 132 145 147 Philips 005 015 017 050 051 056 078 087 088 089 131 132 147 Pioneer 124 128 142 Portland 054 Price Club 095 Proscan 040 044 125 Proton 035 051 092 129 Pulsar 042 Quasar 036 037 074 141 Radio Shack 011 044 063 093 118 RCA 040 044 125 130 137 151 152 Realistic 014 063 093 118 Saisho 027 Samsung 003 015 034 053 055 057 094 095 136 153 Sansui 139 Sanyo 013 014 021 022 063 064 081 096 SBR 015 Schneider 015 Scott 062 Sears 008 014 021 022 023 024 025 040 052 057 062 063 064 065 073 075 076 097 098 125 159 Sharp 011 012 013 026 093 099 100 104 Siemens 013 Signature 045 144 Simpson 050 Sony 043 046 138 146 150 Soundesign 030 050 062 Spectricon 007 033 Squareview 004 SupreMacy 032 122 Supreme 046 Sylvania 005 010 017 030 078 079 085 089 101 127 131 132 145 155 Symphonic 004 148 Tandy 012 121 Tatung 036 124 Technics 037 Teknika 001 030 032 034 052 054 078 083 095 144 156 157 Tera 035 129 Toshiba 008 014 034 063 075 076 095 097 136 158 159 Universal 020 066 088 Victor 019 073 126 Video Concepts 016 Viking 032 122 Wards 005 045 066 078 085 088 089 093 102 103 131 132 148 Zenith 042 114 115 140 144 149 Zonda 007 ENGLISH FRANCAIS
