CHANDELIER
Lower
Connector
INSTALLATION:
Tel: (613) 342-5424, Fax: (800) 263-4598
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH A
CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
ICH765A03
ICH765A05
09/18
Nipple
Upper
connector
Mounting
bracket
Mounting
bracket
Electrical
Box
Nipple
Hex nut
Electrical
box screws
(not included)
Power
cord
Chain
Chain
Nipple
Upper
connector
Nut
Black
House supply
Ground wire
Fixture
Ground
wire
White
Nut
Canopy
Canopy

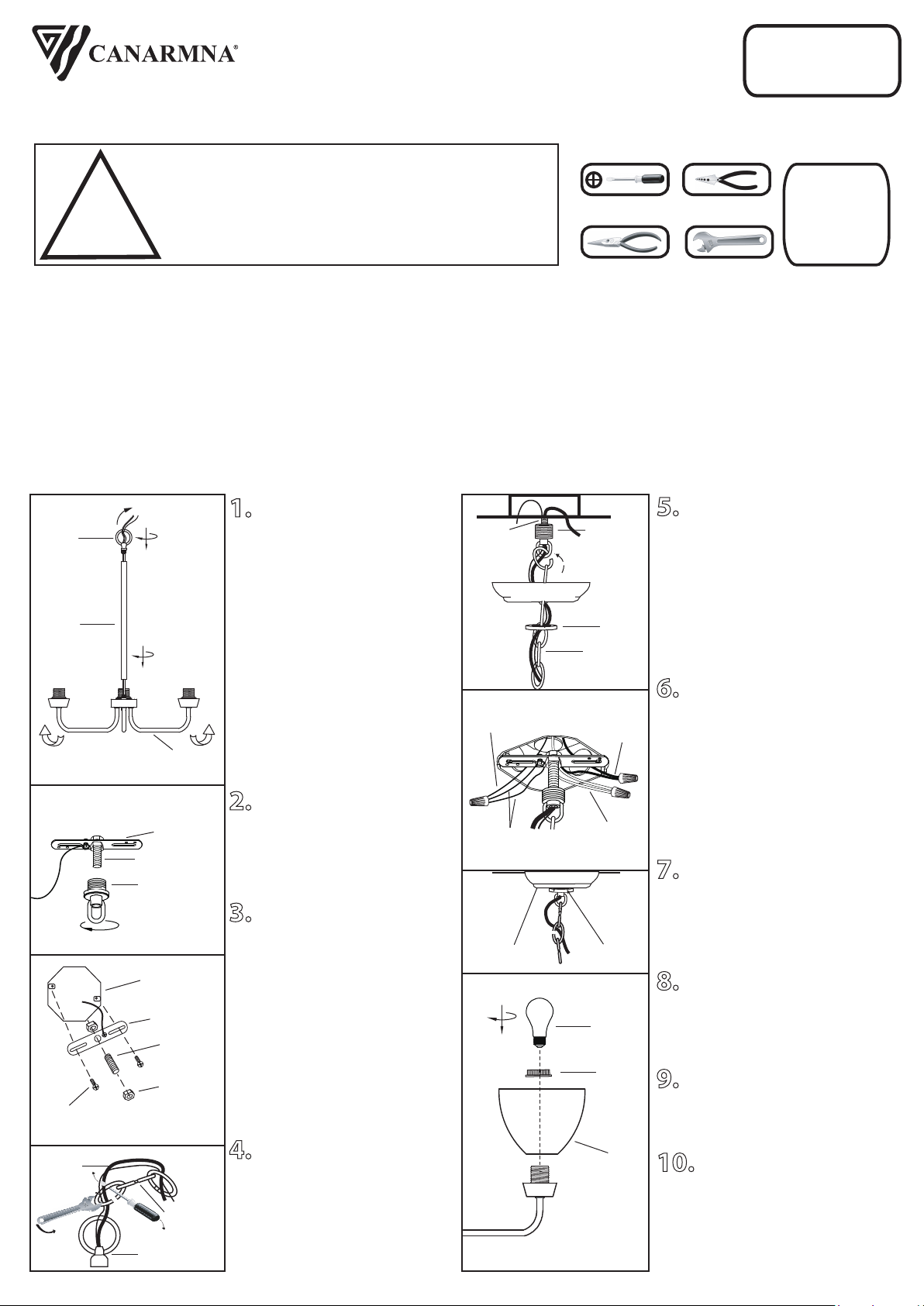

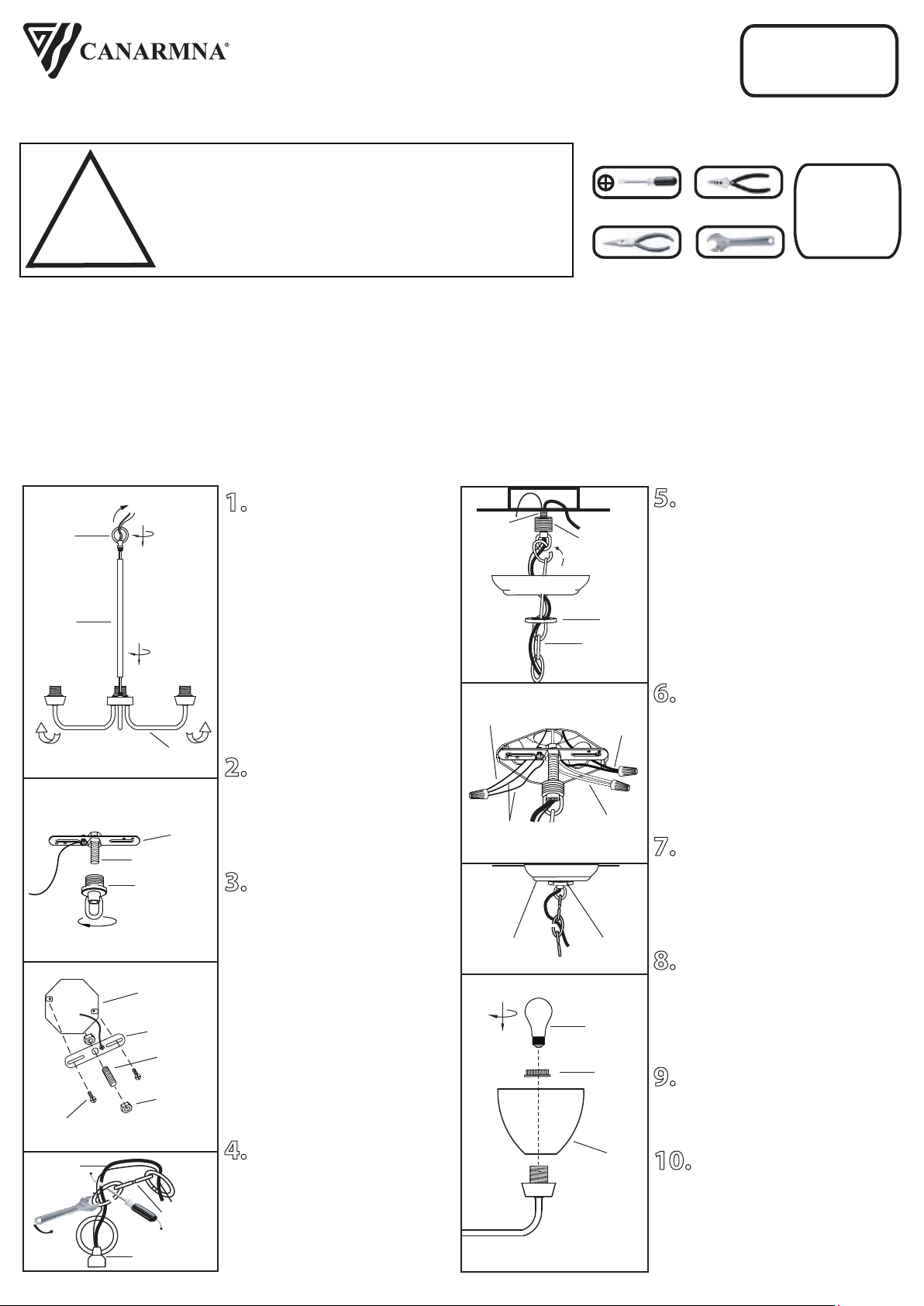

1. Spread the arms evenly.
Screw the center rod to the
fixture. Tighten the loop to the
center rod.
2. Determine the height that
you would like to hang your
fixture. Trim the cord and chain.
Allow 10” of extra wiring for the
electrical box connections.
3. Loosen the upper connector
from nipple. Attach the mounting
bracket to the electrical box using
electrical box screws (not
included). Attach the nipple to the
mounting bracket and adjust until
it will clear the canopy when
assembled (Place the canopy over
the nipple and tighten the upper
connector onto the nipple until
snug. The upper connector should
hold the canopy snug to the
ceiling). Lock the nipple in the
correct position using the hex nut.
4. To attach chain loop to light
fixture, use a screwdriver and
wrench to open and close chain
loop. Ensure to close the opening.
Weave the power cord and
ground wire through the links in
the chain.
5. Loosen the nut on the upper
connector and slide it down the chain
towards the lower connector. Slide
the canopy down the chain towards
the lower connector. Feed the wire
through nut, canopy, the upper
connector and onto the nipple.
Tighten the upper connector onto
the nipple. Spread the other end of
the chain open and fasten to the
upper connector. Ensure the opening
is closed.
6. Connect the ground wires (bare
copper or green) from your fixture to
the ground wire (bare copper or
green) or ground screw in the
electrical box. Connect the black wire
(or wire marked “SPT-1”) from the
fixture to the black wire in the
electrical box and connect the white
wire (or the wire with ribbed side)
from the fixture to the white wire in
the electrical box.
7. Once connections of wires are
completed, carefully tuck wires and
wire nuts into the electrical box
making sure no bare wire (on the
black and white) is visible at the wire
nuts.
8. Slide the canopy up the chain
and over the upper connector. Slide
the nut up the chain and thread onto
the upper connector.
9. Remove spinner nut from socket.
Position shade on lamp and secure
with
spinner nut.
10. Install specified bulb type and
wattage (not included).
Loop
Arm
Bulb
Center
Rod
Shade
Spinner
Nut
