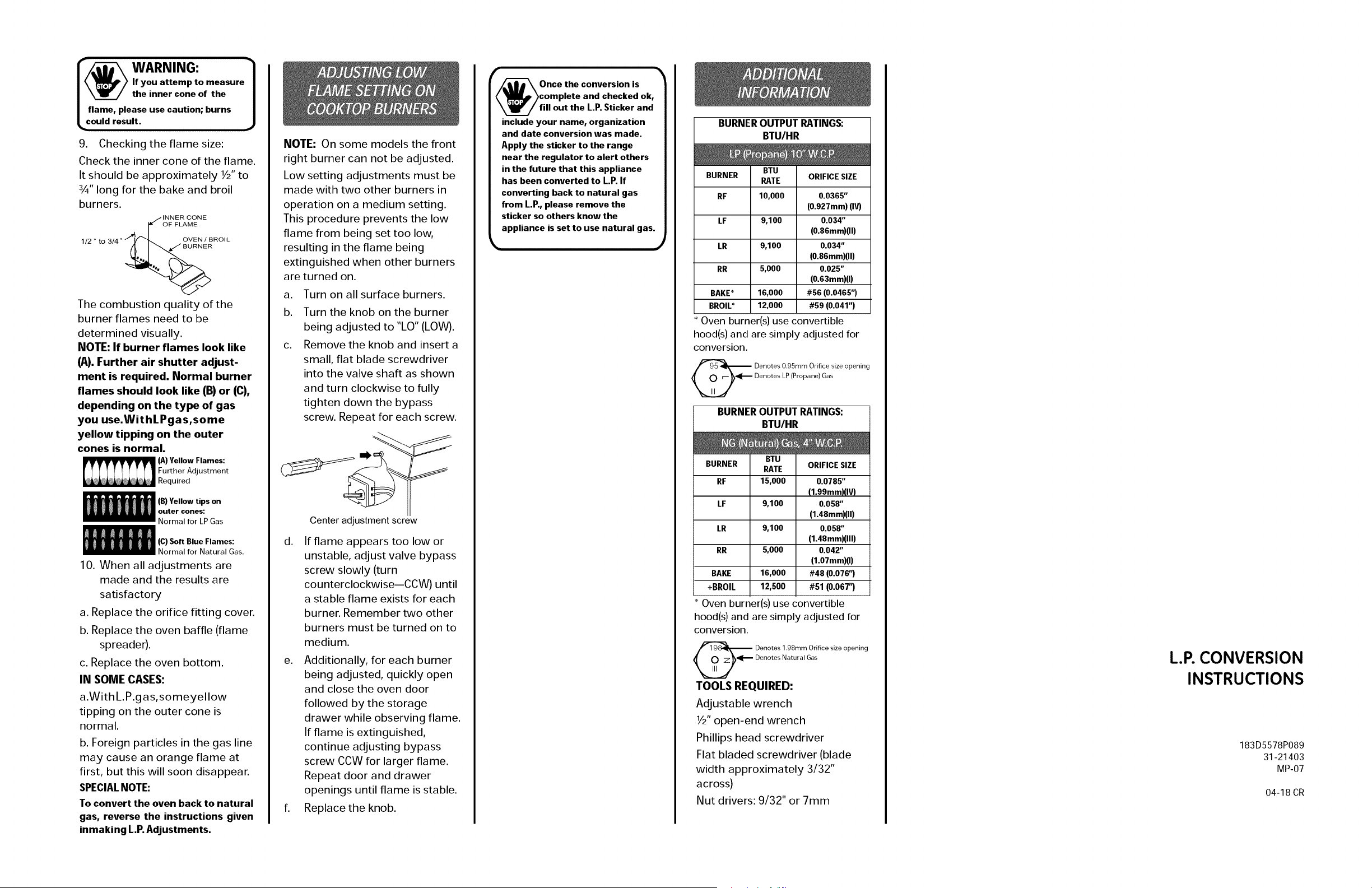

L.P. CONVERSION
INSTRUCTIONS
WARNING: This conversion
must be performed bg a qualified
installer or gas supplier in
accordance with the
manufacturer's instructions and
all codes and requirements of the
authoritg having jurisdiction.
Failure to follow ALL instructions
could result in serious injurg or
propertg damage.
The qualified agencg performing
this work assumes responsibilitg
for the conversion.
The pressure regulator and the
burner orifices are set for natural
gas. To use Liquid Propane Gas, the
regulator and burner orifices must
be converted. The L.P.orifices for
the cooktop burners are shipped on
the regulator bracket behind the
storage drawer. Also, in the same
area, is a second bracket holding
the L.P.15K orifice extended spud,
choke and set screw for the front
right Extra Large cooktop burner
(on models so equipped). Remove
the storage drawer to locate.
Do not operate the
_cooktop or oven burners
of this range when using
L.P. (bottled) gas before
converting the pressure regulator
and burner orifices for L.P. gas use.
Failure to do so could cause high
flames and toxic fumes which can
result in serious injury.
To adjust your range for use with
L.P.gas, follow these instructions:
1. Disconnect all electrical power,
at the main circuit breaker or fuse
box.
2. Shut off the gas supply to the
range by closing the manual
shut-off valve.
a,
Remove the storage drawer,
kick panel and if applicable
the access panel to access
the regulator. (Some models
will have a metal shield
protecting the regulator that
must be removed for
conversion and reinstalled
when conversion is
complete.) The pressure
regulator is located in the
lower, left hand rear corner of
the range as viewed from the
front.
Bracket-LP Orifice Spud
Pressure Regulator
/
Gas valve
/
r
_ CAUTION: If you are
>using L.P. (bottled) gas, all
adjustments described in
the following steps must be made
before you make any burner
adjustments.
b. Unscrewthe plastic-
protected hex-nut cap.
c. Completely remove the
protective plastic cap off the
threaded metal cap.
d. Turn the metal cap so the
type of gas being converted
to is displayed and replace
the protective plastic cover.
e. Screw the hex-nut cap back
into the regulator. (Do not
over tighten)
Rotate Cap counter
clockwise to l....._@__kp_
Cap Assembly
Lever shown closed (Oven ShutO ffonly).
PUSH LEVER TOWARD REGUL ATOR TO OPEN.
a,
Remove the top grates,
burner caps and burner
heads.
Front right burner (on some
models), front left, back right,
back left and center burners.
Burner Cap
ORIFICE
SPUD
LOCATED
THRU THIS
OPENING
b. Using a 7 mm or 9/32" nut
driver, remove the top burner
orifices. These may be
accessed through the burner
opening in the base.
I_ IMPORTANT: ol
Save these orifices for
future conversion back t
natural gas.
c. Locate the L.P.orifices. The
L.P.orifices for the cooktop
burners are shipped on the
regulator bracket behind the
storage drawer. Also, in the
same area, is a second
bracket holding the L.P.15K
orifice extended spud, choke
and set screw for the front
right Extra Large cooktop
burner (on models so
equipped). Remove the
storage drawer to locate.
d. Remove the LP orifice spuds,
from the metal bracket. LP
orifice spuds have the letter
"L" on the top.
To aid in identifying the proper
location for the LP orifices during
a conversion from Natural Gas to
LP Gas, paint color codes have
been added to the side or top of
the orifice. See the chart in the
next column. Each orifice may
also show a series of engraved
marks (I, II, III ..)located on the
_ enotes 0.95mm Orifice size opening
Denotes LP (Propane) Gas
e.
BTU
BURNER RATE COLOR
RF 10,000 Orange/Light Blue
LF 9,100 Orange/Green
LR 9,100 Orange/Green
RR 5,000 Blue/Blue
Install the LP.orifices in their
precise locations.
I
RF
To prevent leakage, make sure the
orifice spuds are securely screwed
into the gas supply tubes.
f. For the Extra Large burner
(Right front), the choke and set
screw will be needed. Insert the
choke into the burner head,
then insert the set screw into
the burner head and tighten
securely. Make sure the screw
head is against the shoulder
(within the choke notch) so it
does not have any rotational
movement.
_etScrew
_1_ Choke
Orifices
located BurnerHead
thru this
opening 0 ExtendedSpud
Base
g. Install the old orifice spuds
into the metal bracket and
replace both metal brackets
back on the range for possible
future conversion.
h,
Return the natural orifices to
the bracket and reattach the
bracket and these instructions
to the range using the screw
previously removed.
,
,
BAKE BURNER ORIFICE
Remove oven door, drawer
and oven bottom. The lower
burner orifice hood is located
behind the drawer (on some
models a metal shield must
be removed).
To convert to LP,use a 1/2"
wrench to turn the lower
burner orifice hood clockwise
(When viewed from above)
until it is snug with the base,
approximately 2 1/2 turns.
(To prevent damage when
converting back to Natural
Gas, do not over tighten the
hood.)
The oven bake burner assembly
is located at the lower rear
compartment.
BROIL BURNERORIFICE
(on some models)
To convert to LP gas, use a 1/2"
wrench to turn the upper burner
orifice hood clockwise. Tighten
the orifice hood until it is snug
with the base.
(Toprevent damage when
conver-ting back to Natural Gas,
do not over tighten the hood.)
AIR SHUTTER SETTINGS FOR
BAKE AND BROIL BURNERS
1. Use a screwdriver to loosen
the air
shutter screw.
2. Adjust the air
shutters Screw
for LP gas, AirS
by rotating
the shutter to the fully open
position. Your final settings
may vary.
3. Retighten the air shutter screw.
Bake and broil flame must be
checked with the door closed to
properly check flame
characteristics,
4. Turn on the gas.
5. Turn on the electricity.
6. Reinstall the oven door.
7. Turn on the bake or broil
burner.
8. As you watch the flame with
the oven door closed, check
the following through the
oven door window:
a. If the flames are yellow,
open the air shutter more.
b. If the flames blow away
or flutter from the burner,
close the air shutter more.
31-21403
MP-07
