Instruction Manual and Installation Instructions
Washing machine
WAK..
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WAK24161AU:
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
5 Positioning and connecting 8
3
* Getting to know the appliance 15
3
Z Laundry 17
3
C Detergent 19
3
0 Programme default settings 20
3
\ Additional programme settings 21
3
1 Operating the appliance 22
3
H Sensors 26
4
M Setting the signal 27
4
2 Cleaning and maintenance 28
4
3 Faults and what to do about them 30
4
4 After-sales service 34
4
J Technical data 34
4
8 Intended use
4
Intended use
4
■ This appliance is intended for private domestic use only.
4
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...
4
■ This appliance is suitable for operation with cold mains water and commercially available detergents and care products (must be suitable for use in washing machines).
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Risk of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
6
Danger of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
■ Hand over the old/discarded electronic equipment only to authorized collection centers for disposal
7
■ Consult the authorized service center as to whether the Electronic Equipment can be repaired or not, before discarding
7
■ Consult the retailer about appliance take back schemes
7
■ Don’t dump the discarded Electronic Equipment in the open or in any land fill site, as this will result in contamination of the soil and the ground water
7
■ Don’t dispose of the discarded Electronic Equipment in household bins or Municipal bins
7
■ The product is not meant for re-sale to any unauthorized agencies/scrap dealers
7
■ Don't keep any replaced spare part(s) from the product in an exposed area
7
Tips on economical use
7
■ Always utilise the maximum amount of washing for the particular programme.
7
■ Wash normally soiled laundry without a prewash.
7
■ Save energy and detergent when washing lightly and normally soiled laundry. ~ "Detergent" on page 19
7
■ Energy-saving mode: The display panel lighting goes out after a few minutes and Start/ Reload A flashes. To activate the lighting, press any button.
7
■ If the laundry is subsequently dried in a tumble dryer, select the spin speed according to the tumble dryer manufacturer's instructions.
7
5 Positioning and connecting
8
Positioning and connecting
8

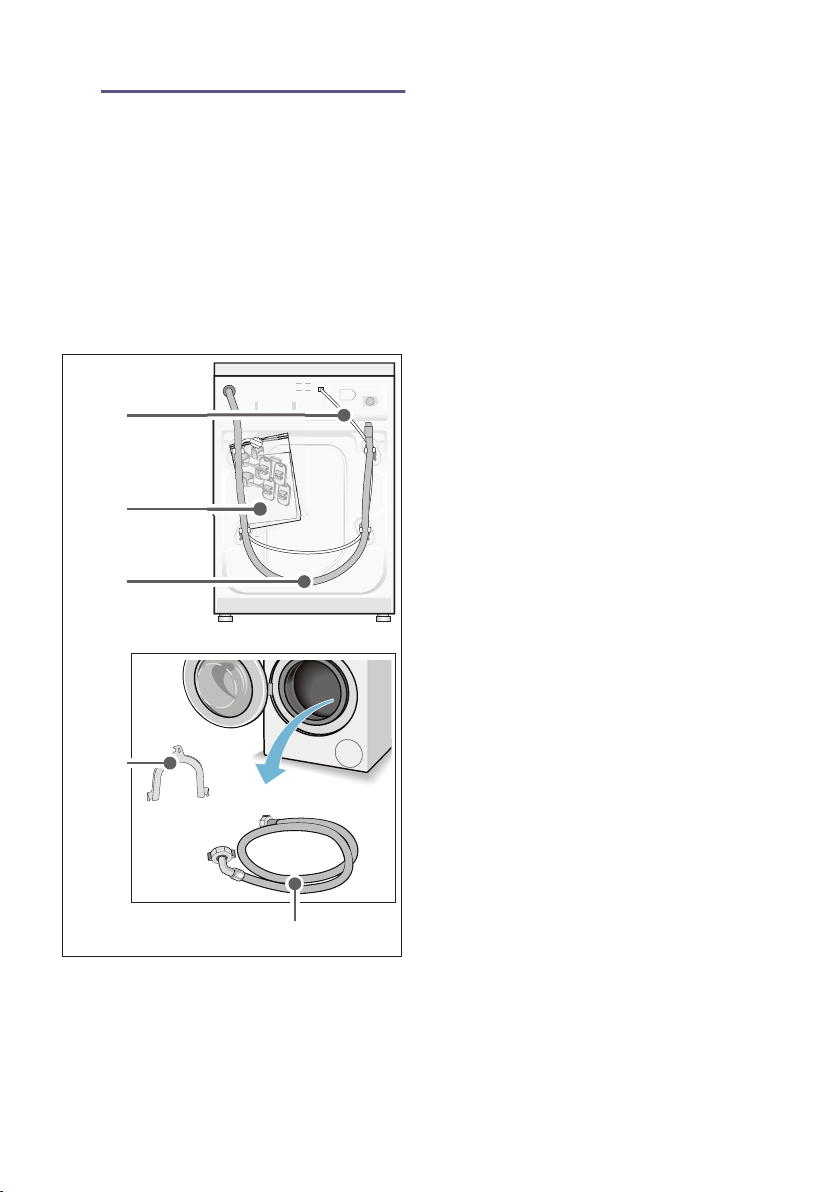

Included with the appliance
8
Note:
8
■ Installation and operating instructions
8
■ After-sales service location directory*
8
■ Warranty*
8
■ Cover caps for openings left after removing the transport locks
8
■ Wrench*
8
■ liquid detergent insert*
8
■ external water filter*
8
■ Spirit level for levelling
8
■ Wrench with:
8
Safety instructions
9
: Warning
9
Risk of injury!
9
Caution!
9
Damage to the appliance
9
Caution!
9
Water damage
9
Notes
9
Installation surface
9
Note:
9
Installation on a base or a wooden joist floor
9
Caution!
9
Damage to the appliance
9
Note:
9
Installing the appliance in a kitchenette
9
: Warning
9
Danger of death!
9
Notes
9

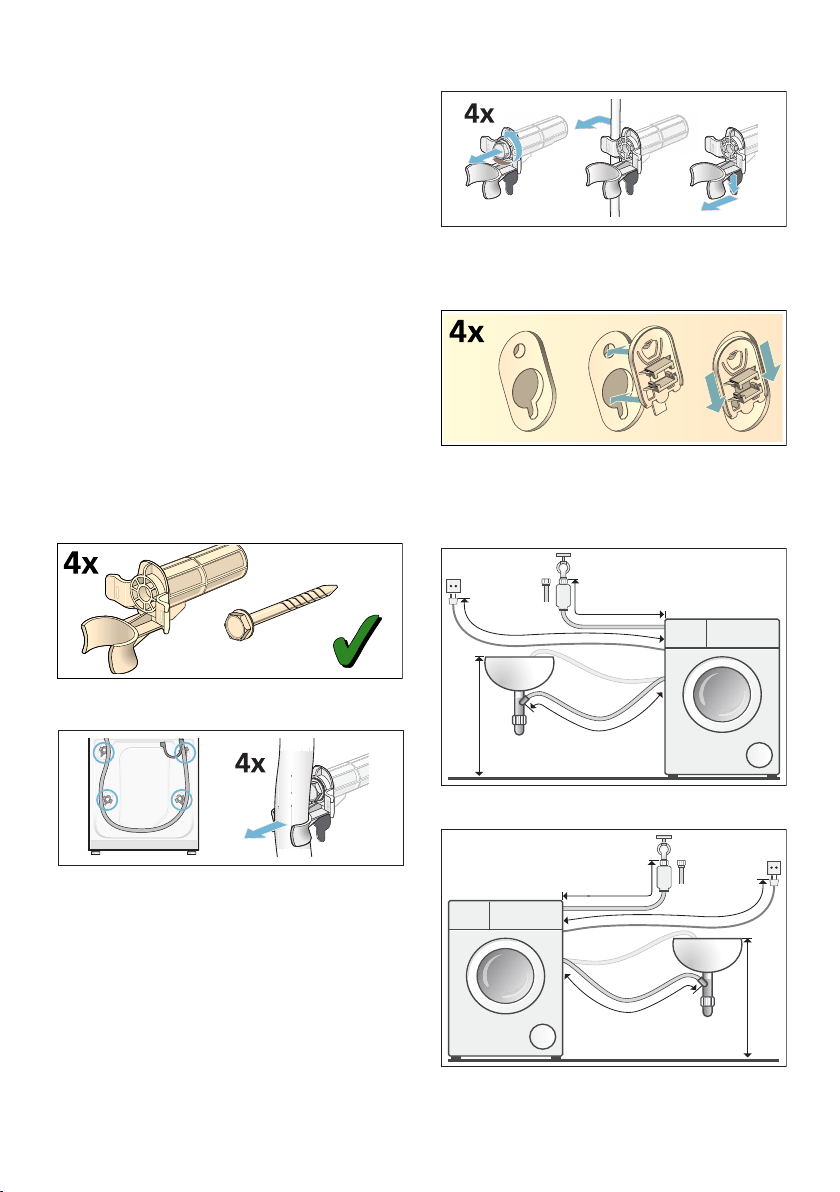

Removing the transport locks
10
Caution!
10
Damage to the appliance
10
Note:
10
1. Take the hoses out of the holders.
10
2. Unscrew and remove all four transport brace screws.
10
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
10
Hose and cable lengths
10
■ Left-hand connection
10
■ Right-hand connection
10
Tip:
11

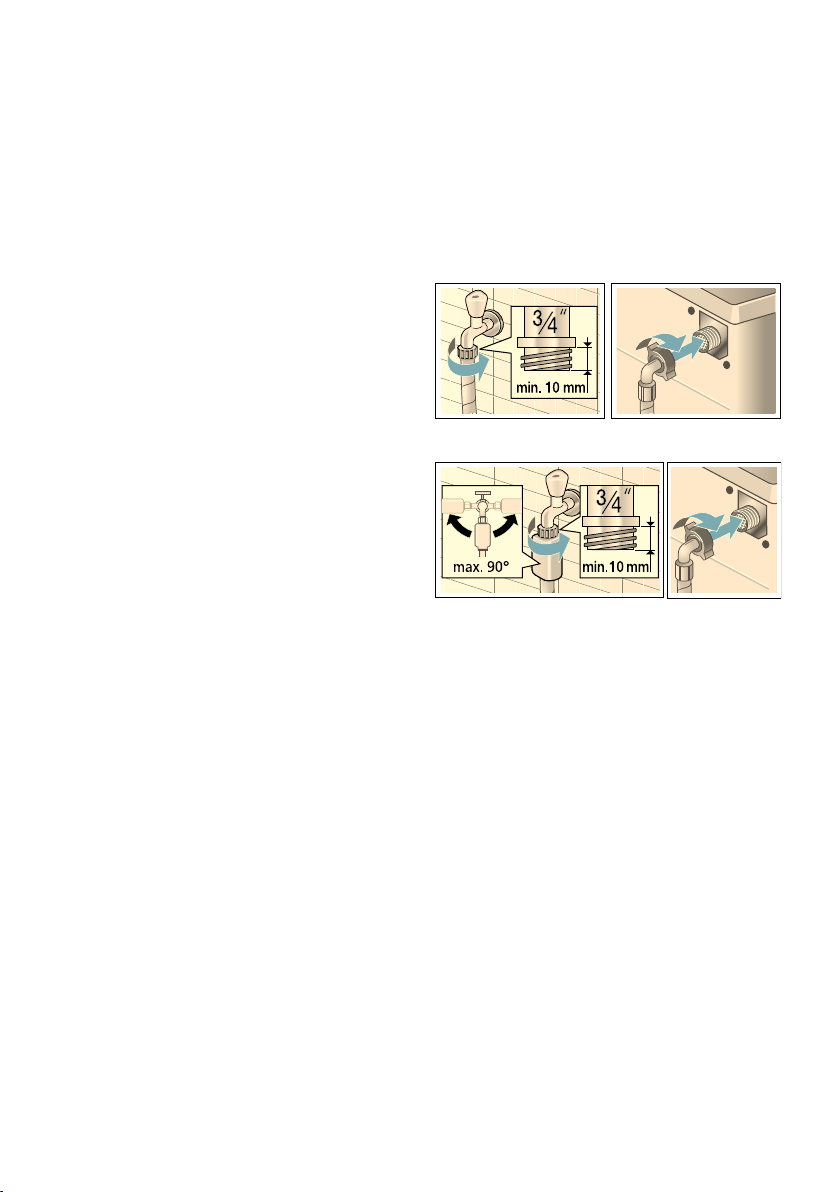

Water inlet
11
: Warning
11
Risk of death!
11
Notes
11
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
11
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
11
Water outlet
11
Caution!
11
Water damage
11
Note:
11

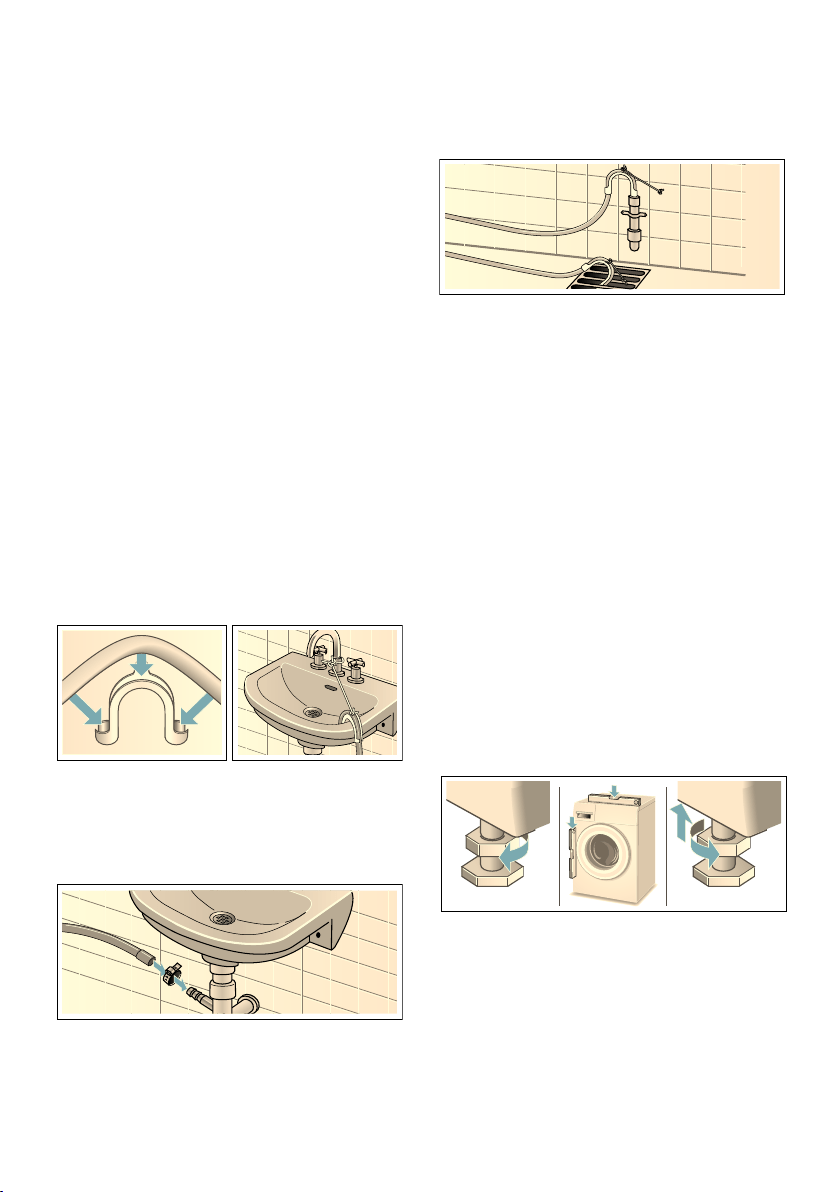

■ Outlet in a sink
12
: Warning
12
Risk of scalding!
12
Caution!
12
Damage to the appliance/fabrics
12
■ Drainage into a siphon
12
■ Outlet into a plastic pipe with rubber bushing or into a drainage pit
12
Levelling
12
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
12
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
12
3. Tighten the lock nut against the housing.
12
Electrical connection
13
: Warning
13
Danger of death!
13
Notes
13
: Warning
13
Danger of death!
13
Notes
13
Before washing for the first time
14
Notes
14
1. Check the machine.
14
2. Remove the protective film from the control panel.
14
3. Connect the mains plug.
14
4. Turn on the water tap.
14
5. Close the washing machine door (do not load any laundry).
14
6. Select the l Drum clean programme.
14
7. Open the detergent drawer.
14
8. Pour approx. 1 litre of water into compartment II.
14
9. Pour standard detergent into compartment II.
14
Note:
14
10. Close the detergent drawer.
14
11. Press Start/Reload A .
14
12. Switch off the appliance at the end of the programme.
14
Transportation
14
Preparatory work:
14
1. Turn off the water tap.
14
2. Reduce the water pressure in the supply hose.
14
3. Disconnect the washing machine from the main plug.
14
4. Drain the remaining detergent solution.
14
5. Remove the hoses.
14
Notes
14
Installing the transport locks:
14
1. Remove the covers and keep them in a safe place.
14
2. Insert all four sleeves.
14

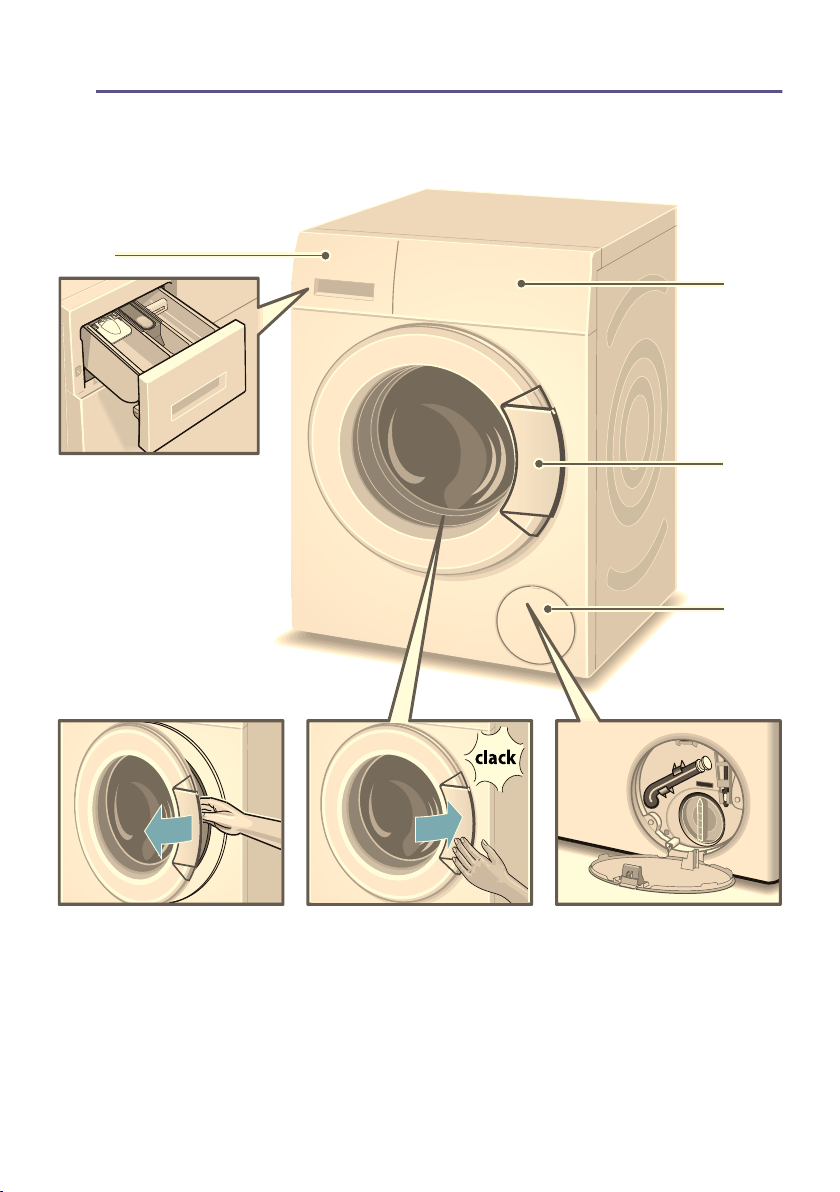

* Getting to know the appliance
15
Getting to know the appliance
15
Washing machine
15
Control panel
16
Display panel
17
Settings for the selected programme
17
Status indicators for the programme progress (programme sequence):
17
Z Laundry
17
Laundry
17
Prepare the laundry
17
Caution!
17
Damage to the appliance/fabrics
17
■ Empty pockets.
17
■ Look out for metal items (paperclips, etc.) and remove them.
17
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
17
■ Close any zips, button up any cover buttons.
17
■ Brush sand out of pockets and collars.
17
■ Remove curtain fittings or place curtains in a laundry bag.
17
Sorting laundry
18
■ Type of fabric/fibre
18
■ Colour
18
Note:
18
■ Soiling
18
■ Symbols on the care labels
18
Starching
18
Note:
18
Dyeing/bleaching
18
Soaking
18
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
18
2. Select the desired programme.
18
3. Press the A button to start the programme.
18
4. After approx. ten minutes, press the A button to pause the programme.
18
5. After the desired soaking time, press the A button again to continue or change the programme.
18
Notes
18
C Detergent
19
Detergent
19
Correct selection of detergent
19
Note:
19
■ Standard detergent with optical brighteners
19
■ Detergent for colours without bleach or optical brighteners
19
■ Detergent for colours/delicates without optical brighteners
19
■ Detergent for delicates
19
■ Detergent for woollens
19
Saving energy and detergent
19
Saving
19
Soiling/note
19
Note:
19
0 Programme default settings
20
Programme default settings
20
Temp. ° C
20
rpm 0
20
Ready in ð
20
Note:
20
Changing the preselected time:
20
You can change the preselected time after the start of the programme as follows:
20
1. Press Start/Reload A .
20
2. Press the Ready in ð button repeatedly until the required number of hours is displayed.
20
3. Press the Start/Reload A button.
20
Adding laundry while the preselected time continues running:
21
1. Press Start/Reload A .
21
2. The symbols YES and ¼ light up on the display panel. The washing machine door can be opened and laundry can be added.
21
3. Close the washing machine door.
21
4. Press the Start/Reload A button. The preselected time continues to run.
21
\ Additional programme settings
21
Additional programme settings
21
SpeedPerfect
21
Note:
21
EcoPerfect
21
Easy-Iron
21
Note:
21
Prewash
21
Note:
21
Water Plus
21
Rinse Plus
21
1 Operating the appliance
22
Operating the appliance
22
Note:
22
Preparing the washing machine
22
Notes
22
1. Connect the mains plug.
22
2. Turn on the tap.
22

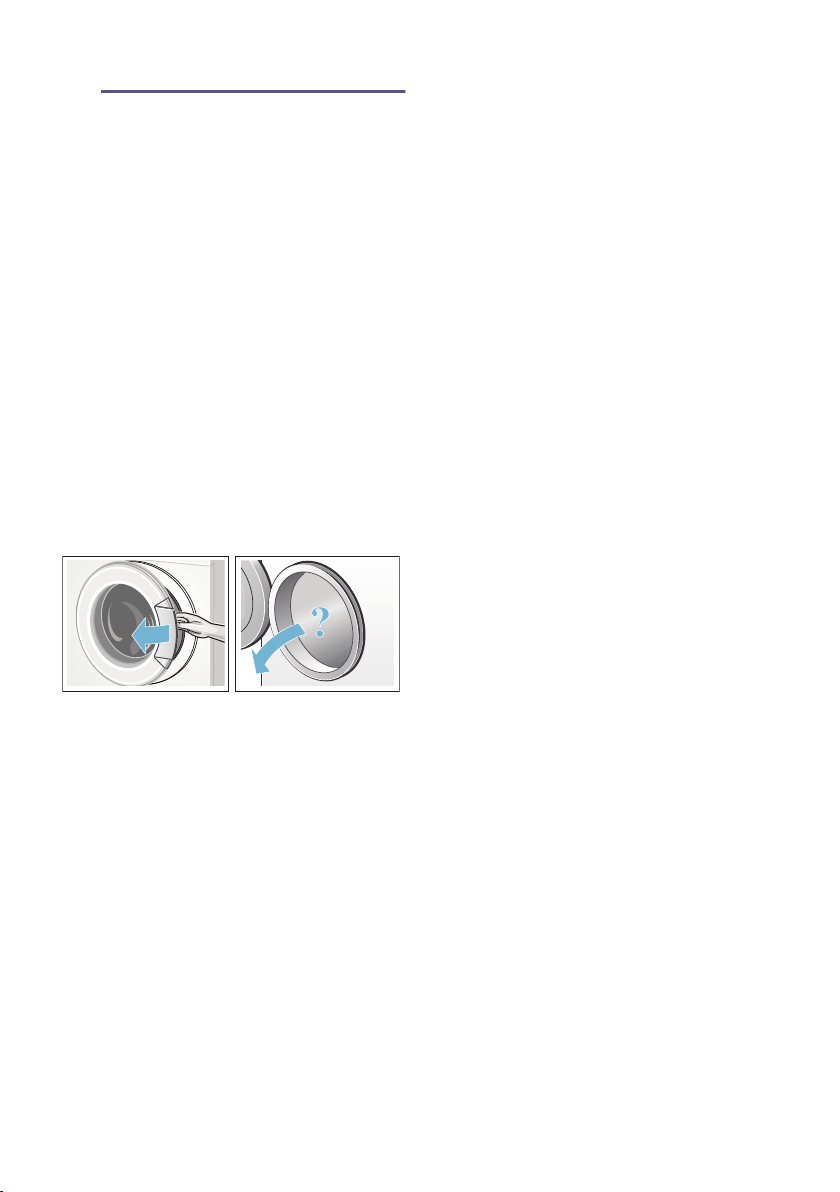

3. Open the door.
22
4. Check that the drum is completely emptied. Empty if necessary.
22
Select programme/switch on the appliance
22
Note:
22
■ the programme length,
22
■ the preset temperature* (*depending on the model),
22
■ the preset spin speed and
22
■ the maximum load.
22
Change the programme default settings
22
Select additional programme settings
22

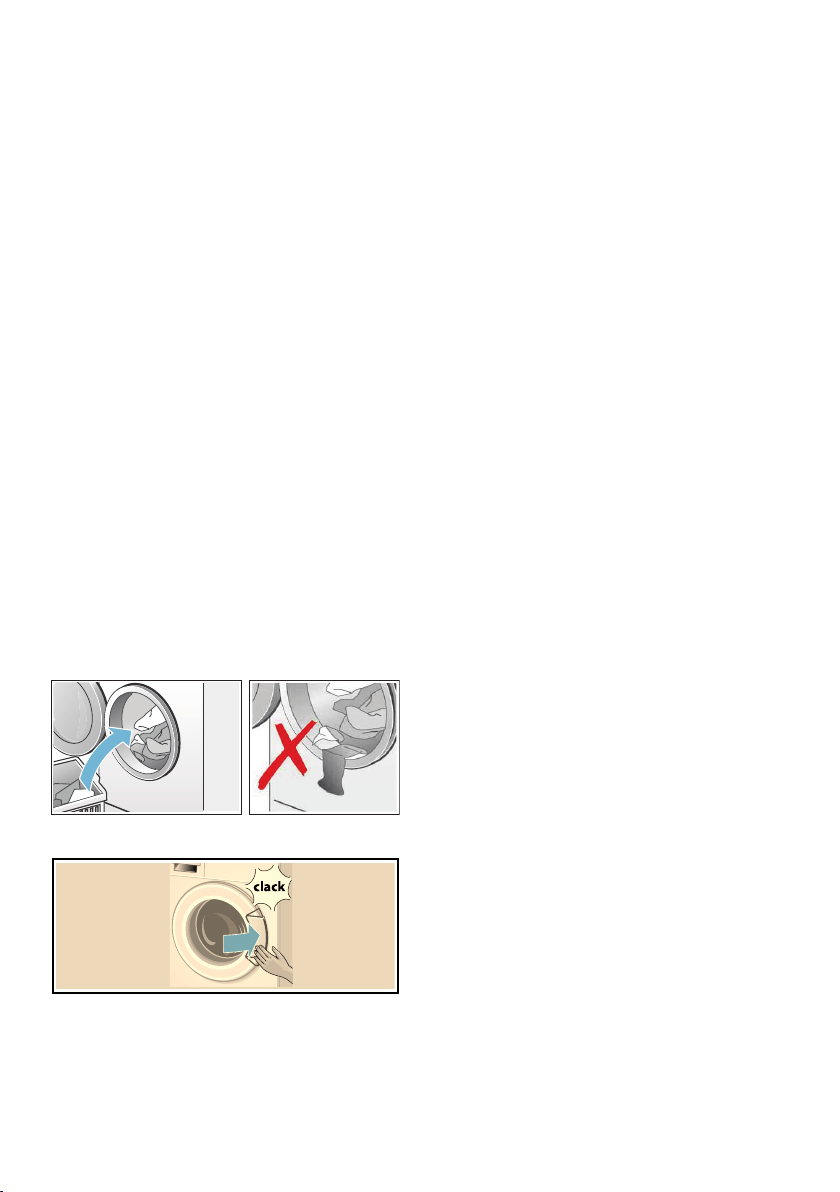

Placing laundry into the drum
23
: Warning
23
Risk to life!
23
Notes
23
1. Unfold presorted laundry items and place them in the washing drum.
23
2. Ensure that no items of laundry are trapped between the door and rubber seal.
23
3. Close the door.
23
Measure and add detergent and care products
23
Caution!
23
Damage to the appliance
23
Dosing
23
■ The water hardness (ask your water supply company)
23
■ The manufacturer's instructions on the packaging
23
■ The amount of laundry
23
■ Soiling
23

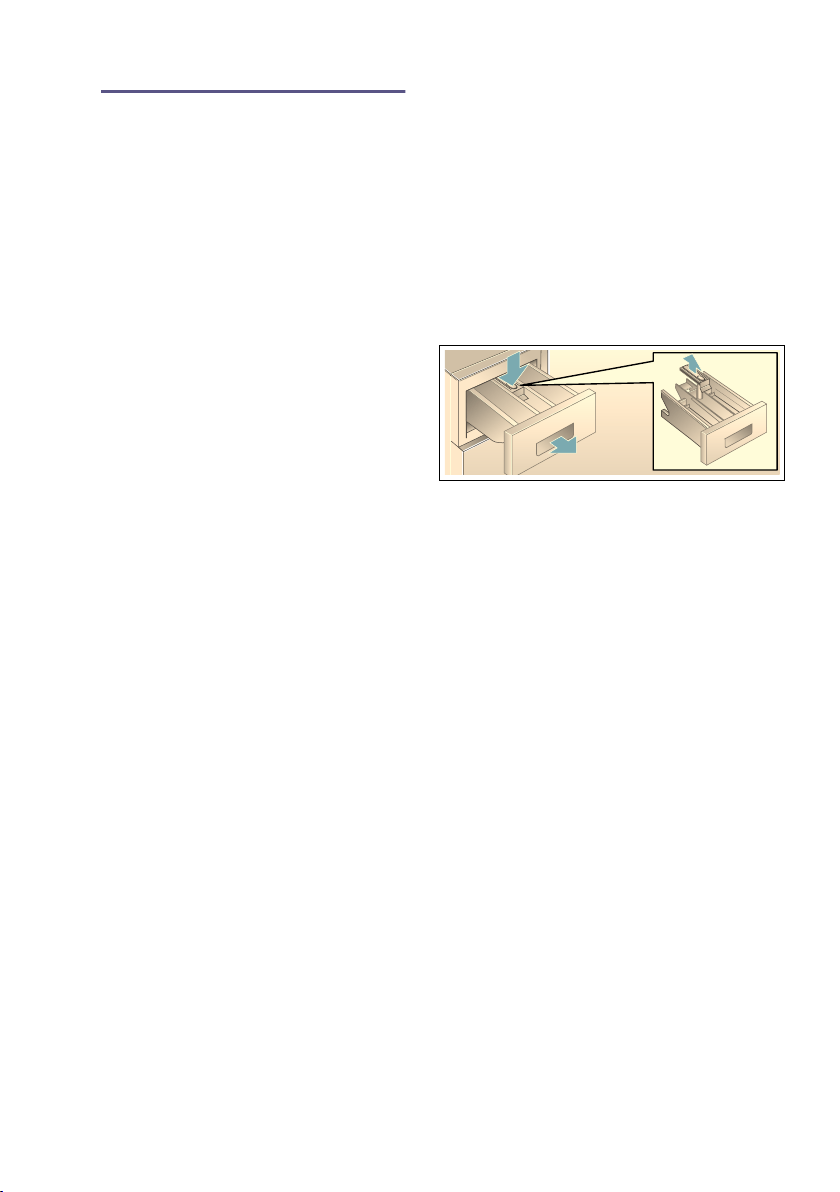

Filling
23
1. Pull out the detergent drawer.
23
: Warning
23
Eye/skin irritation!
23
2. Add detergent and/or care products.
24
Notes
24
Start the programme
24
Note:
24
Note:
24
Childproof lock
24
■ D lights up: The childproof lock is active.
24
■ D flashes: The childproof lock is active, and the programme selector has been adjusted. To prevent the programme from stopping, turn the programme selector back to the original programme. The symbol lights up again.
24
Note:
24
Adding laundry
24
■ Both the YES and v symbols light up, it is possible to add laundry.
25
■ NO and v flash, wait until YES and v light up. Do not open the door until both the YES and v symbols light up.
25
■ NO lights up, it is not possible to add laundry.
25
Notes
25
Changing the programme
25
If you have started a wrong programme by mistake, you can change the programme as follows:
25
1. Select the Start button to pause the programme.
25
2. Select another programme.
25
3. Select Start button for starting the programme. The new programme starts from the beginning.
25
Cancel the programme
25
For programmes at high temperatures:
25
1. Select the Start button to pause the programme.
25
2. To cool down washing: Select q Rinse programme.
25
3. Select the Start button.
25
For programmes at low temperatures:
25
1. Select the Start button to pause the programme.
25
2. Select 0 Spin/Drain p (if only a drain cycle is required: set rpm (spin speed) to - - -).
25
3. Press the Start button again.
25
Programme end during rinse hold
25
To end the programme:
25
1. Select 0 Spin/Drain p (if only a drain cycle is required: set rpm (spin speed) to - - -).
25
2. Select the Start button.
25
Programme end
25
Note:
25
Removing laundry/switching off the appliance
25
1. Open the door and remove the washing.
25
2. Set the programme selector to the “Off” position. The appliance is switched off.
25
3. Turn off the tap.
25

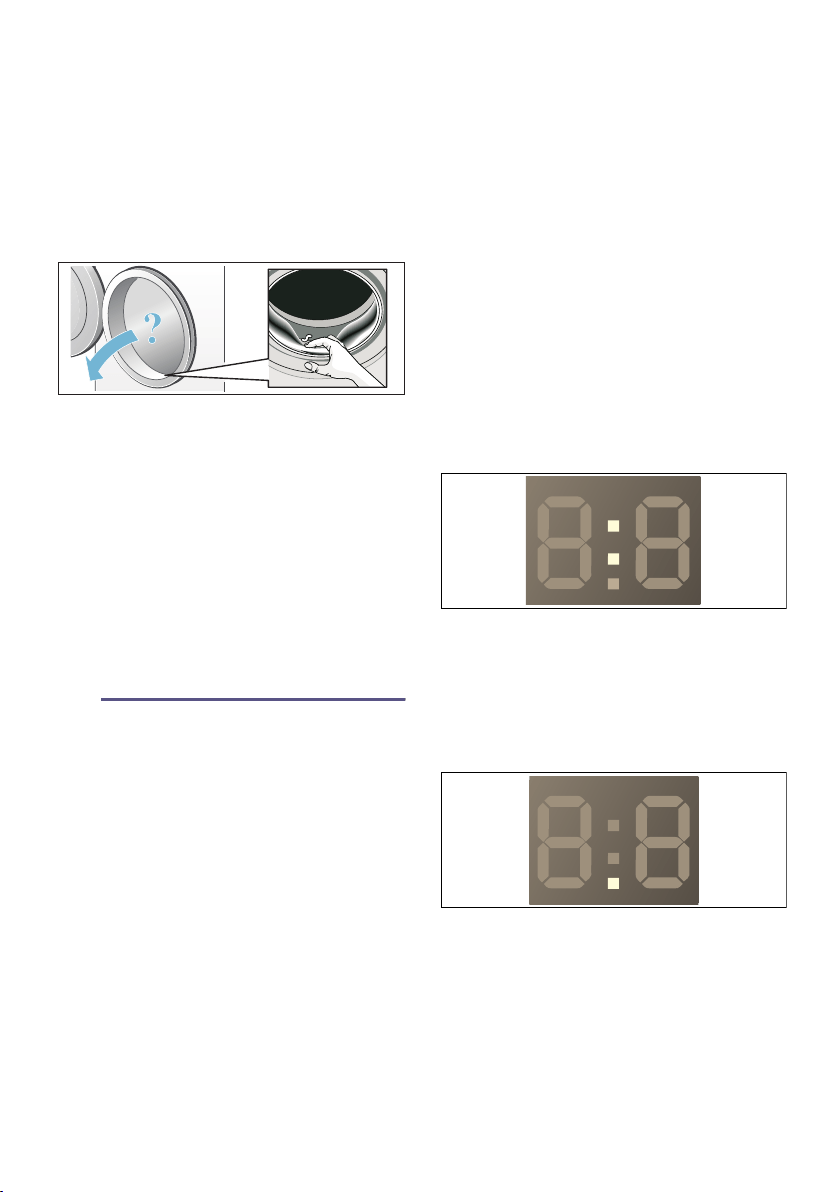

Notes
26
H Sensors
26
Sensors
26
Automatic load sensing
26
Unbalanced load detection system
26
Note:
26
VoltCheck
26
Note:
26
M Setting the signal
27
Setting the signal
27
1. Activate the setting mode for the signal volume
27
2. Set the volume for the button signals (depending on the model)
27
3. Set the volume for the information signals
27
2 Cleaning and maintenance
28
Cleaning and maintenance
28
: Warning
28
Danger of death!
28
: Warning
28
Risk of poisoning!
28
Caution!
28
Damage to the appliance
28
Machine housing/control panel
28
■ Wipe the housing and the control panel with a soft, damp cloth.
28
■ Remove the detergent residue immediately.
28
■ Do not clean with a water jet.
28
Drum
28
Descaling
28
Detergent drawer and housing
28
If the washing machine contains detergent or fabric softener residues:
28
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
28
2. To remove the insert: Push the insert upwards from below with your finger.
28
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
28
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
28
5. Push in the detergent drawer.
28
Note:
28
Detergent solution pump blocked
28
: Warning
28
Risk of scalding!
28
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
28
2. Switch off the appliance. Disconnect the mains plug.
28
3. Open and remove the service flap.
29
4. Take the drain hose out of the retainer.
29
5. Carefully unscrew the pump cover, residual water may leak out.
29
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
The drain hose at the siphon is blocked
29
1. Switch off the appliance. Disconnect the mains plug.
29
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
29
3. Clean the drain hose and siphon connecting piece.
29
4. Reattach the drain hose and secure the connection using the hose clamp.
29
Filter in the water supply is blocked
29
For this, first reduce the water pressure in the supply hose:
29
1. Turn off the water tap.
29
2. Select any programme (except Rinse/Freshen up O // 0 Spin/ Drain [ ).
29
3. Press Start/Reload A . Allow the programme to run for approximately 40 seconds.
29
4. Set the programme selector to off position. Disconnect the mains plug.
29
5. Clean the filter on the water tap:
29

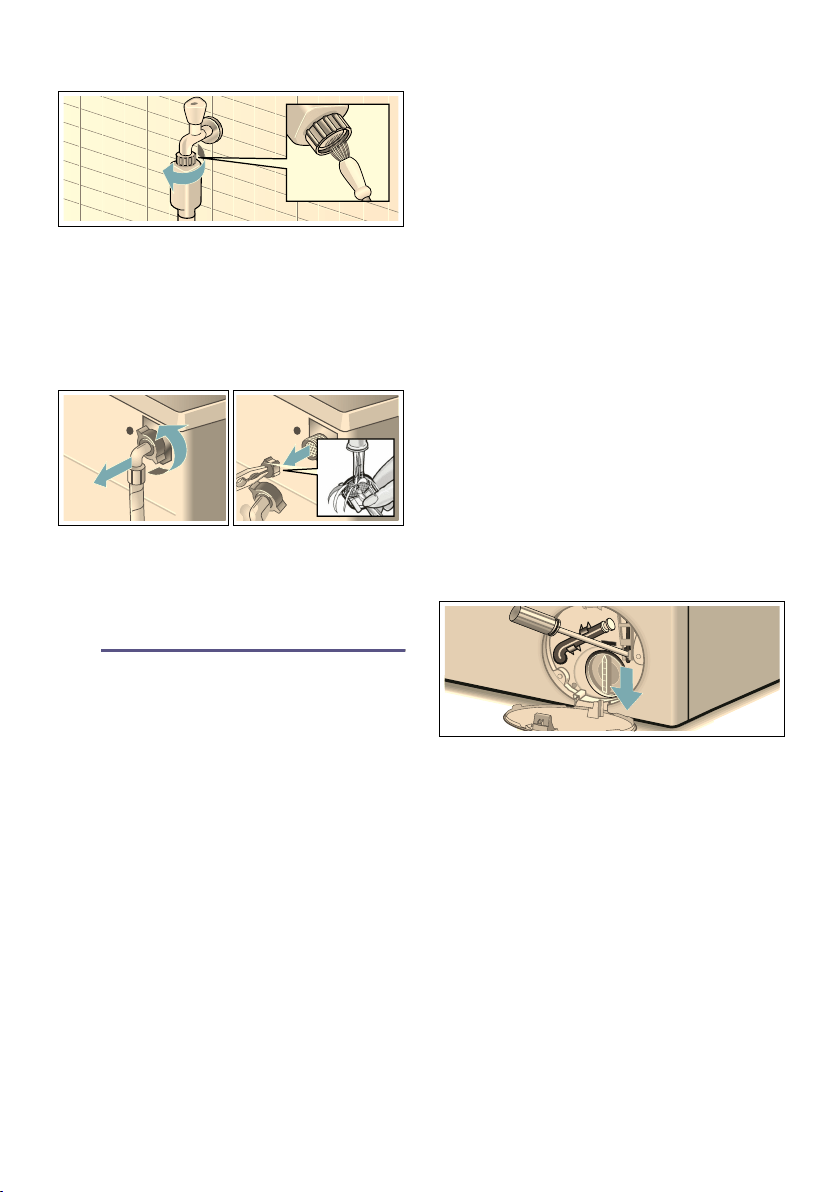

6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
30
7. Connect the hose and check for leaks.
30
3 Faults and what to do about them
30
Faults and what to do about them
30
Emergency release
30
Note:
30
: Warning
30
Risk of scalding!
30
: Warning
30
Risk of injury!
30
Caution!
30
Water damage
30
If the laundry has to be removed, the washing machine door can be opened as follows:
30
1. Switch off the appliance.
30
2. Disconnect the mains plug.
30
3. Drain the water. ~ Page 28
30
4. Pull the emergency release downwards with a tool and release.
30
Information on the display panel
31
Display
31
Cause/remedial action
31
Faults and what to do about them
32
Faults
32
Cause/remedial action
32
Note:
32
Note:
32
4 After-sales service
34
After-sales service
34
You can find this information:
34
■ on the inside of the washing machine door*
34
■ in the opened service flap*
34
■ on the rear of the appliance*
34
J Technical data
34
Technical data
34
File type: PDF
File name: 68436294_wak24161au.pdf
File size: 4.49 MB
File Language: English
Pages: 36
Author: Bosch
File created: 2016-07-23
Published: 2022-05-20
Updated: 2023-05-07
Download File
Specifications
Brand:
Bosch
Model: WAK24161AU
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
MBA534BB0A
SMI4HTS01A
SPU6IMS01A
SMU50E05AU
MCM4100AU
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WAK24162AU
Bosch WAK24160AU
Bosch WAW28441AU
Bosch WAT24261AU
Bosch WAB24161GB
Bosch WAX32M41AU
Bosch WAN24120AU
Bosch WAS32741AU
Bosch WAX32K41AU
Bosch WAP24160AU
Bosch WAN24121AU
Bosch WAS28461AU
Bosch WAN24124AU
Bosch WAK24162AUWTA74201AU
Bosch WAS28461AU/01
Table of Contents
×
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
5 Positioning and connecting 8
3
* Getting to know the appliance 15
3
Z Laundry 17
3
C Detergent 19
3
0 Programme default settings 20
3
\ Additional programme settings 21
3
1 Operating the appliance 22
3
H Sensors 26
4
M Setting the signal 27
4
2 Cleaning and maintenance 28
4
3 Faults and what to do about them 30
4
4 After-sales service 34
4
J Technical data 34
4
8 Intended use
4
Intended use
4
■ This appliance is intended for private domestic use only.
4
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...
4
■ This appliance is suitable for operation with cold mains water and commercially available detergents and care products (must be suitable for use in washing machines).
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Risk of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
6
Danger of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
■ Hand over the old/discarded electronic equipment only to authorized collection centers for disposal
7
■ Consult the authorized service center as to whether the Electronic Equipment can be repaired or not, before discarding
7
■ Consult the retailer about appliance take back schemes
7
■ Don’t dump the discarded Electronic Equipment in the open or in any land fill site, as this will result in contamination of the soil and the ground water
7
■ Don’t dispose of the discarded Electronic Equipment in household bins or Municipal bins
7
■ The product is not meant for re-sale to any unauthorized agencies/scrap dealers
7
■ Don't keep any replaced spare part(s) from the product in an exposed area
7
Tips on economical use
7
■ Always utilise the maximum amount of washing for the particular programme.
7
■ Wash normally soiled laundry without a prewash.
7
■ Save energy and detergent when washing lightly and normally soiled laundry. ~ "Detergent" on page 19
7
■ Energy-saving mode: The display panel lighting goes out after a few minutes and Start/ Reload A flashes. To activate the lighting, press any button.
7
■ If the laundry is subsequently dried in a tumble dryer, select the spin speed according to the tumble dryer manufacturer's instructions.
7
5 Positioning and connecting
8
Positioning and connecting
8
Included with the appliance
8
Note:
8
■ Installation and operating instructions
8
■ After-sales service location directory*
8
■ Warranty*
8
■ Cover caps for openings left after removing the transport locks
8
■ Wrench*
8
■ liquid detergent insert*
8
■ external water filter*
8
■ Spirit level for levelling
8
■ Wrench with:
8
Safety instructions
9
: Warning
9
Risk of injury!
9
Caution!
9
Damage to the appliance
9
Caution!
9
Water damage
9
Notes
9
Installation surface
9
Note:
9
Installation on a base or a wooden joist floor
9
Caution!
9
Damage to the appliance
9
Note:
9
Installing the appliance in a kitchenette
9
: Warning
9
Danger of death!
9
Notes
9
Removing the transport locks
10
Caution!
10
Damage to the appliance
10
Note:
10
1. Take the hoses out of the holders.
10
2. Unscrew and remove all four transport brace screws.
10
3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
10
Hose and cable lengths
10
■ Left-hand connection
10
■ Right-hand connection
10
Tip:
11
Water inlet
11
: Warning
11
Risk of death!
11
Notes
11
1. Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
11
2. Open the water tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
11
Water outlet
11
Caution!
11
Water damage
11
Note:
11
■ Outlet in a sink
12
: Warning
12
Risk of scalding!
12
Caution!
12
Damage to the appliance/fabrics
12
■ Drainage into a siphon
12
■ Outlet into a plastic pipe with rubber bushing or into a drainage pit
12
Levelling
12
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
12
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
12
3. Tighten the lock nut against the housing.
12
Electrical connection
13
: Warning
13
Danger of death!
13
Notes
13
: Warning
13
Danger of death!
13
Notes
13
Before washing for the first time
14
Notes
14
1. Check the machine.
14
2. Remove the protective film from the control panel.
14
3. Connect the mains plug.
14
4. Turn on the water tap.
14
5. Close the washing machine door (do not load any laundry).
14
6. Select the l Drum clean programme.
14
7. Open the detergent drawer.
14
8. Pour approx. 1 litre of water into compartment II.
14
9. Pour standard detergent into compartment II.
14
Note:
14
10. Close the detergent drawer.
14
11. Press Start/Reload A .
14
12. Switch off the appliance at the end of the programme.
14
Transportation
14
Preparatory work:
14
1. Turn off the water tap.
14
2. Reduce the water pressure in the supply hose.
14
3. Disconnect the washing machine from the main plug.
14
4. Drain the remaining detergent solution.
14
5. Remove the hoses.
14
Notes
14
Installing the transport locks:
14
1. Remove the covers and keep them in a safe place.
14
2. Insert all four sleeves.
14
* Getting to know the appliance
15
Getting to know the appliance
15
Washing machine
15
Control panel
16
Display panel
17
Settings for the selected programme
17
Status indicators for the programme progress (programme sequence):
17
Z Laundry
17
Laundry
17
Prepare the laundry
17
Caution!
17
Damage to the appliance/fabrics
17
■ Empty pockets.
17
■ Look out for metal items (paperclips, etc.) and remove them.
17
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
17
■ Close any zips, button up any cover buttons.
17
■ Brush sand out of pockets and collars.
17
■ Remove curtain fittings or place curtains in a laundry bag.
17
Sorting laundry
18
■ Type of fabric/fibre
18
■ Colour
18
Note:
18
■ Soiling
18
■ Symbols on the care labels
18
Starching
18
Note:
18
Dyeing/bleaching
18
Soaking
18
1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.
18
2. Select the desired programme.
18
3. Press the A button to start the programme.
18
4. After approx. ten minutes, press the A button to pause the programme.
18
5. After the desired soaking time, press the A button again to continue or change the programme.
18
Notes
18
C Detergent
19
Detergent
19
Correct selection of detergent
19
Note:
19
■ Standard detergent with optical brighteners
19
■ Detergent for colours without bleach or optical brighteners
19
■ Detergent for colours/delicates without optical brighteners
19
■ Detergent for delicates
19
■ Detergent for woollens
19
Saving energy and detergent
19
Saving
19
Soiling/note
19
Note:
19
0 Programme default settings
20
Programme default settings
20
Temp. ° C
20
rpm 0
20
Ready in ð
20
Note:
20
Changing the preselected time:
20
You can change the preselected time after the start of the programme as follows:
20
1. Press Start/Reload A .
20
2. Press the Ready in ð button repeatedly until the required number of hours is displayed.
20
3. Press the Start/Reload A button.
20
Adding laundry while the preselected time continues running:
21
1. Press Start/Reload A .
21
2. The symbols YES and ¼ light up on the display panel. The washing machine door can be opened and laundry can be added.
21
3. Close the washing machine door.
21
4. Press the Start/Reload A button. The preselected time continues to run.
21
\ Additional programme settings
21
Additional programme settings
21
SpeedPerfect
21
Note:
21
EcoPerfect
21
Easy-Iron
21
Note:
21
Prewash
21
Note:
21
Water Plus
21
Rinse Plus
21
1 Operating the appliance
22
Operating the appliance
22
Note:
22
Preparing the washing machine
22
Notes
22
1. Connect the mains plug.
22
2. Turn on the tap.
22
3. Open the door.
22
4. Check that the drum is completely emptied. Empty if necessary.
22
Select programme/switch on the appliance
22
Note:
22
■ the programme length,
22
■ the preset temperature* (*depending on the model),
22
■ the preset spin speed and
22
■ the maximum load.
22
Change the programme default settings
22
Select additional programme settings
22
Placing laundry into the drum
23
: Warning
23
Risk to life!
23
Notes
23
1. Unfold presorted laundry items and place them in the washing drum.
23
2. Ensure that no items of laundry are trapped between the door and rubber seal.
23
3. Close the door.
23
Measure and add detergent and care products
23
Caution!
23
Damage to the appliance
23
Dosing
23
■ The water hardness (ask your water supply company)
23
■ The manufacturer's instructions on the packaging
23
■ The amount of laundry
23
■ Soiling
23
Filling
23
1. Pull out the detergent drawer.
23
: Warning
23
Eye/skin irritation!
23
2. Add detergent and/or care products.
24
Notes
24
Start the programme
24
Note:
24
Note:
24
Childproof lock
24
■ D lights up: The childproof lock is active.
24
■ D flashes: The childproof lock is active, and the programme selector has been adjusted. To prevent the programme from stopping, turn the programme selector back to the original programme. The symbol lights up again.
24
Note:
24
Adding laundry
24
■ Both the YES and v symbols light up, it is possible to add laundry.
25
■ NO and v flash, wait until YES and v light up. Do not open the door until both the YES and v symbols light up.
25
■ NO lights up, it is not possible to add laundry.
25
Notes
25
Changing the programme
25
If you have started a wrong programme by mistake, you can change the programme as follows:
25
1. Select the Start button to pause the programme.
25
2. Select another programme.
25
3. Select Start button for starting the programme. The new programme starts from the beginning.
25
Cancel the programme
25
For programmes at high temperatures:
25
1. Select the Start button to pause the programme.
25
2. To cool down washing: Select q Rinse programme.
25
3. Select the Start button.
25
For programmes at low temperatures:
25
1. Select the Start button to pause the programme.
25
2. Select 0 Spin/Drain p (if only a drain cycle is required: set rpm (spin speed) to - - -).
25
3. Press the Start button again.
25
Programme end during rinse hold
25
To end the programme:
25
1. Select 0 Spin/Drain p (if only a drain cycle is required: set rpm (spin speed) to - - -).
25
2. Select the Start button.
25
Programme end
25
Note:
25
Removing laundry/switching off the appliance
25
1. Open the door and remove the washing.
25
2. Set the programme selector to the “Off” position. The appliance is switched off.
25
3. Turn off the tap.
25
Notes
26
H Sensors
26
Sensors
26
Automatic load sensing
26
Unbalanced load detection system
26
Note:
26
VoltCheck
26
Note:
26
M Setting the signal
27
Setting the signal
27
1. Activate the setting mode for the signal volume
27
2. Set the volume for the button signals (depending on the model)
27
3. Set the volume for the information signals
27
2 Cleaning and maintenance
28
Cleaning and maintenance
28
: Warning
28
Danger of death!
28
: Warning
28
Risk of poisoning!
28
Caution!
28
Damage to the appliance
28
Machine housing/control panel
28
■ Wipe the housing and the control panel with a soft, damp cloth.
28
■ Remove the detergent residue immediately.
28
■ Do not clean with a water jet.
28
Drum
28
Descaling
28
Detergent drawer and housing
28
If the washing machine contains detergent or fabric softener residues:
28
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
28
2. To remove the insert: Push the insert upwards from below with your finger.
28
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
28
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
28
5. Push in the detergent drawer.
28
Note:
28
Detergent solution pump blocked
28
: Warning
28
Risk of scalding!
28
1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.
28
2. Switch off the appliance. Disconnect the mains plug.
28
3. Open and remove the service flap.
29
4. Take the drain hose out of the retainer.
29
5. Carefully unscrew the pump cover, residual water may leak out.
29
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
The drain hose at the siphon is blocked
29
1. Switch off the appliance. Disconnect the mains plug.
29
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
29
3. Clean the drain hose and siphon connecting piece.
29
4. Reattach the drain hose and secure the connection using the hose clamp.
29
Filter in the water supply is blocked
29
For this, first reduce the water pressure in the supply hose:
29
1. Turn off the water tap.
29
2. Select any programme (except Rinse/Freshen up O // 0 Spin/ Drain [ ).
29
3. Press Start/Reload A . Allow the programme to run for approximately 40 seconds.
29
4. Set the programme selector to off position. Disconnect the mains plug.
29
5. Clean the filter on the water tap:
29
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
30
7. Connect the hose and check for leaks.
30
3 Faults and what to do about them
30
Faults and what to do about them
30
Emergency release
30
Note:
30
: Warning
30
Risk of scalding!
30
: Warning
30
Risk of injury!
30
Caution!
30
Water damage
30
If the laundry has to be removed, the washing machine door can be opened as follows:
30
1. Switch off the appliance.
30
2. Disconnect the mains plug.
30
3. Drain the water. ~ Page 28
30
4. Pull the emergency release downwards with a tool and release.
30
Information on the display panel
31
Display
31
Cause/remedial action
31
Faults and what to do about them
32
Faults
32
Cause/remedial action
32
Note:
32
Note:
32
4 After-sales service
34
After-sales service
34
You can find this information:
34
■ on the inside of the washing machine door*
34
■ in the opened service flap*
34
■ on the rear of the appliance*
34
J Technical data
34
Technical data
34
Search:
×
Search
