INSTALLATIONINSTRUCTIONS
30" (76 CM) AND 36" (91.4 CM)
GAS BUILT-INCOOKTOP
INSTRUCTIONS D.'INSTALLATION
TABLEDECUISSON A GAZ EN CASTREE
DE30" (76 CM) OU DE 36" (91,4 CM)
Table of Contents / Table des mati@res
COOKTOP SAFETY ......................................... 1

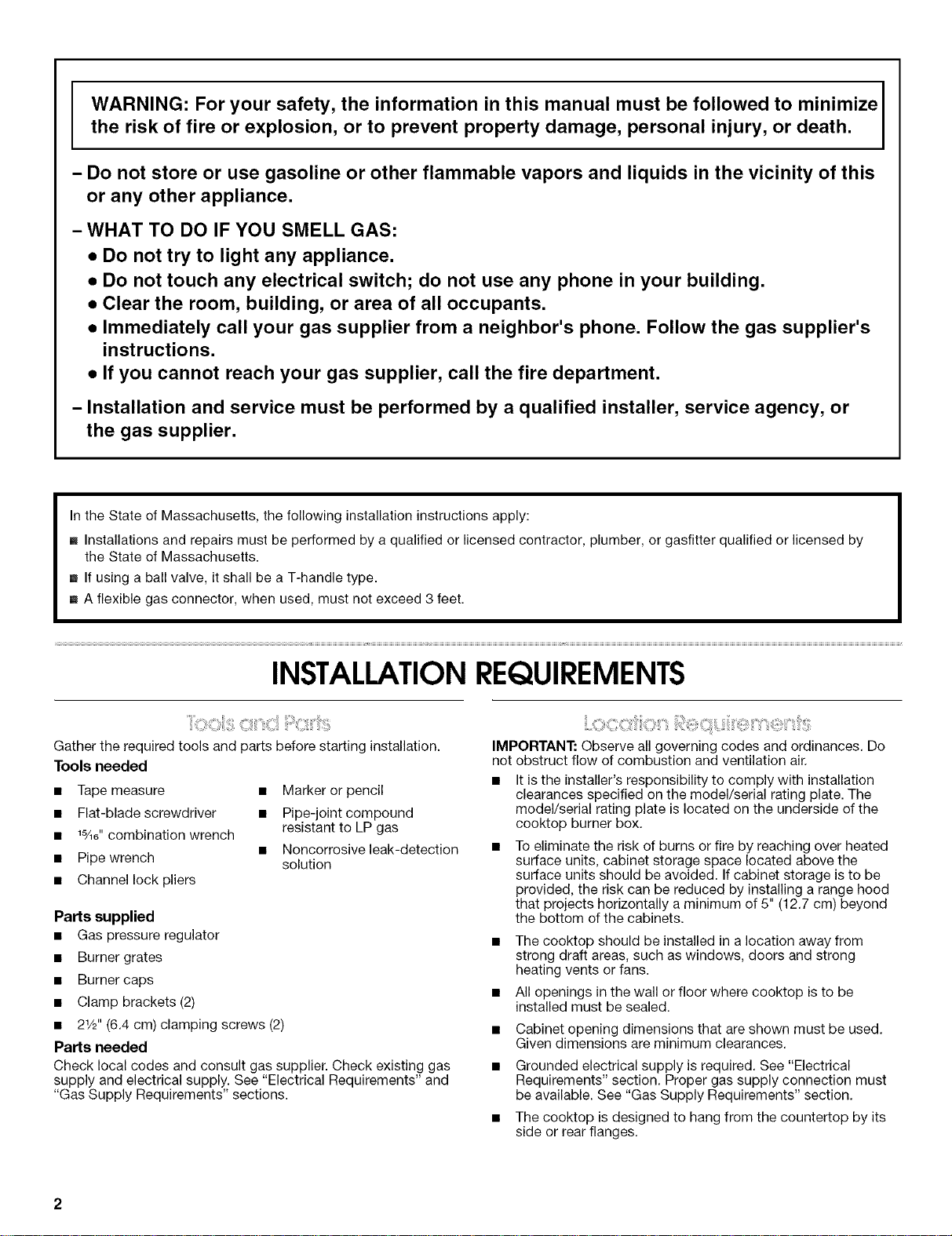

INSTALLATION REQUIREMENTS .................. 2
Tools and Parts ............................................. 2

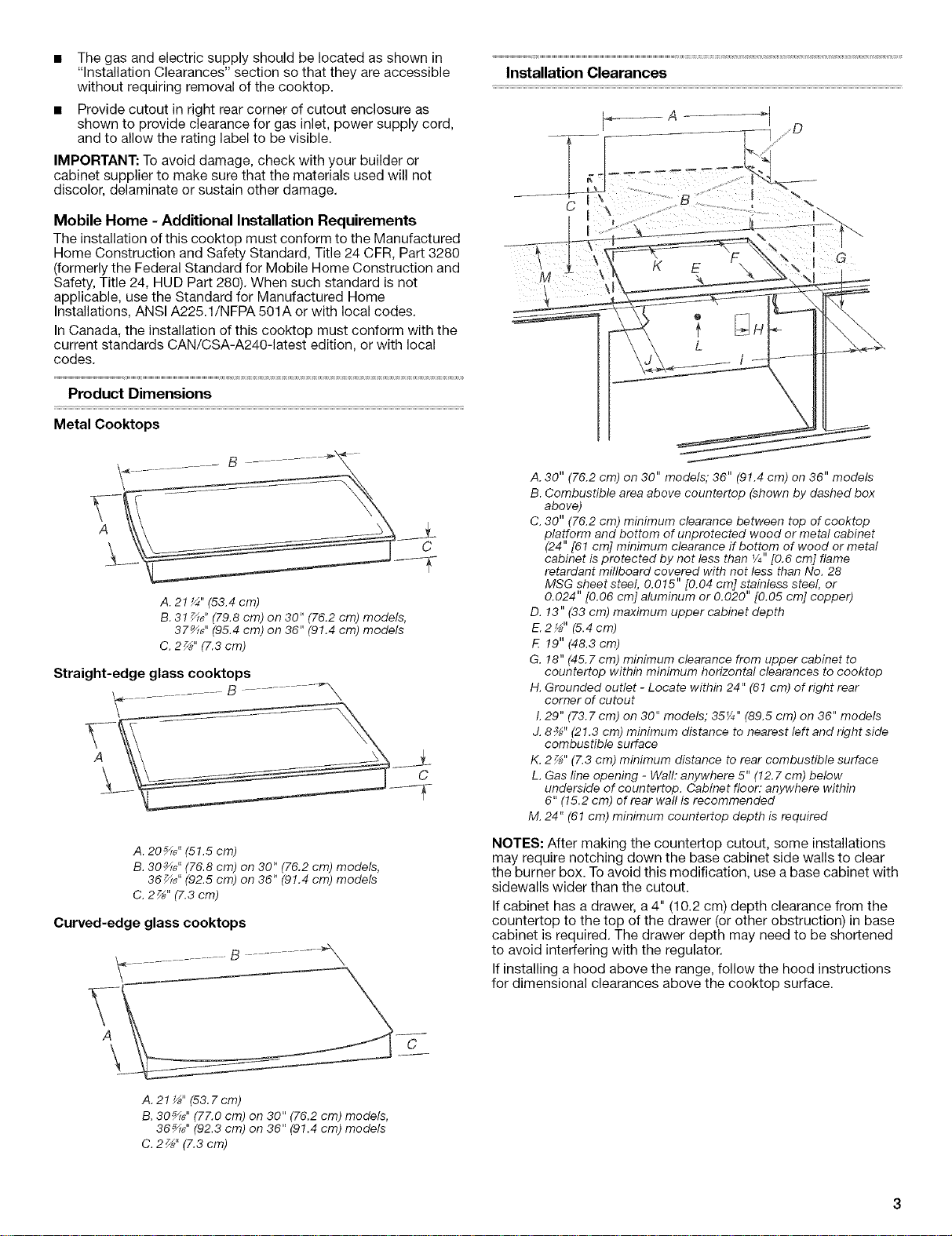

Location Requirements ................................. 2

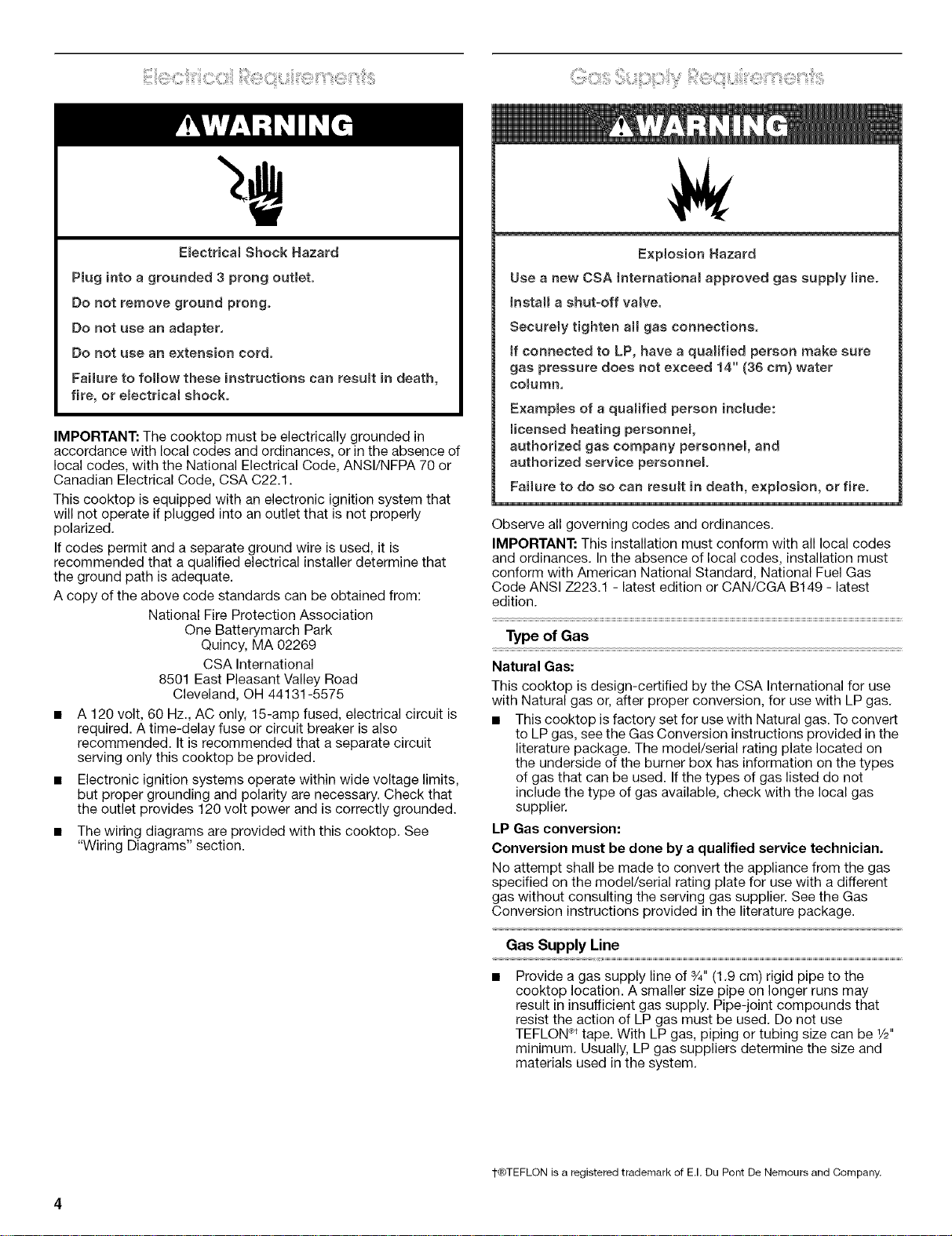

Electrical Requirements ................................ 4
Gas Supply Requirements ............................ 4
INSTALLATION INSTRUCTIONS .................... 5

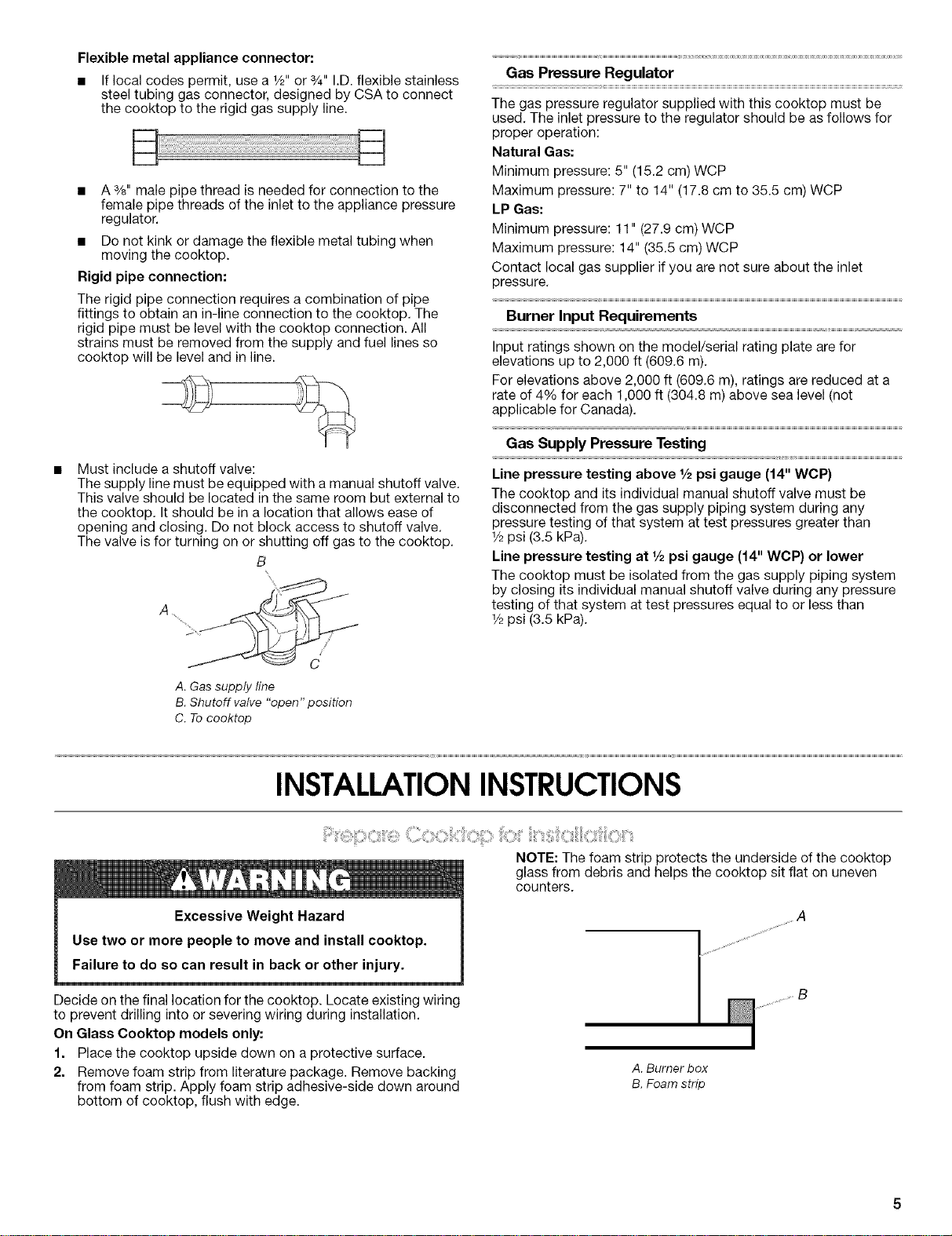

Prepare Cooktop for Installation ................... 5

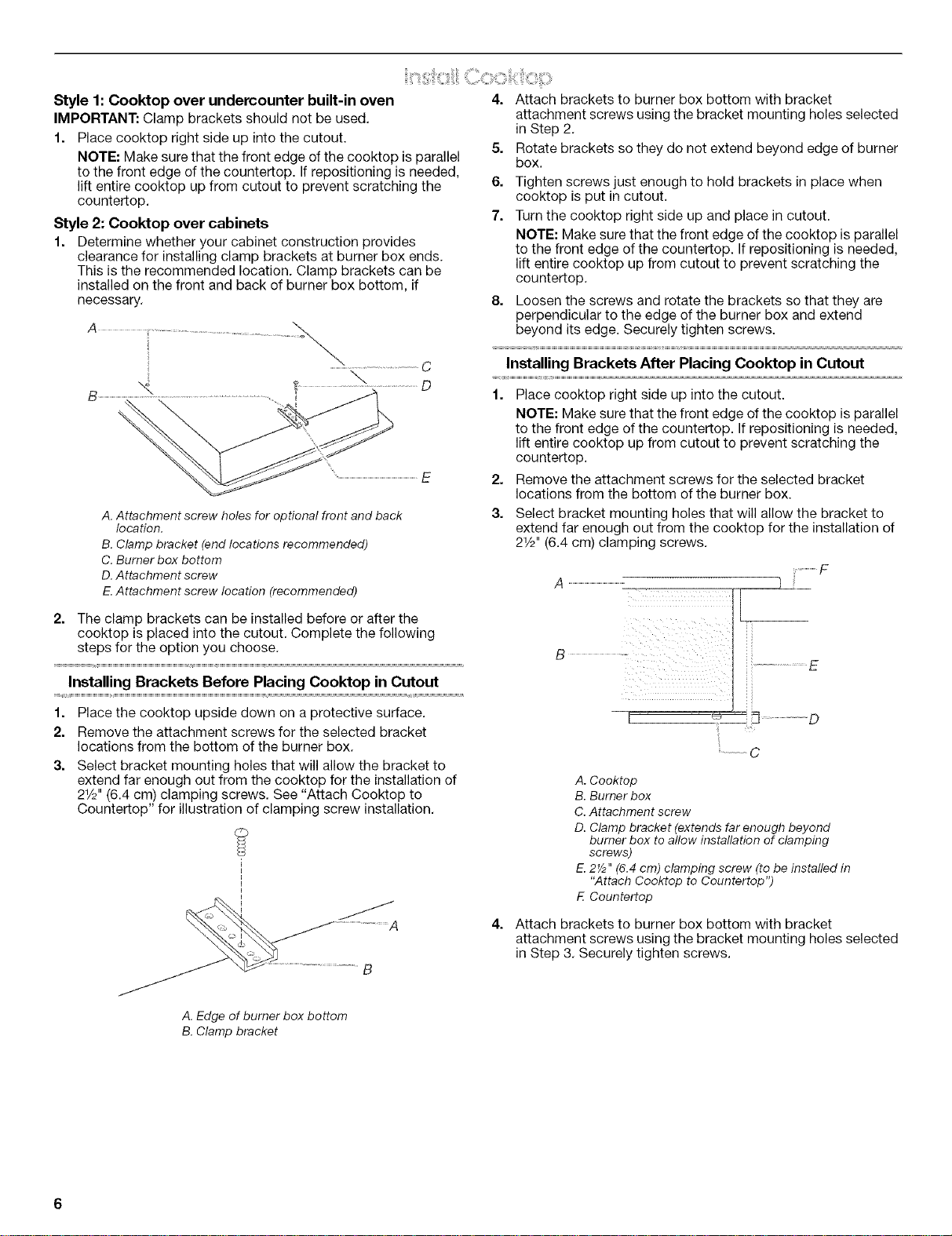

Install Cooktop .............................................. 6

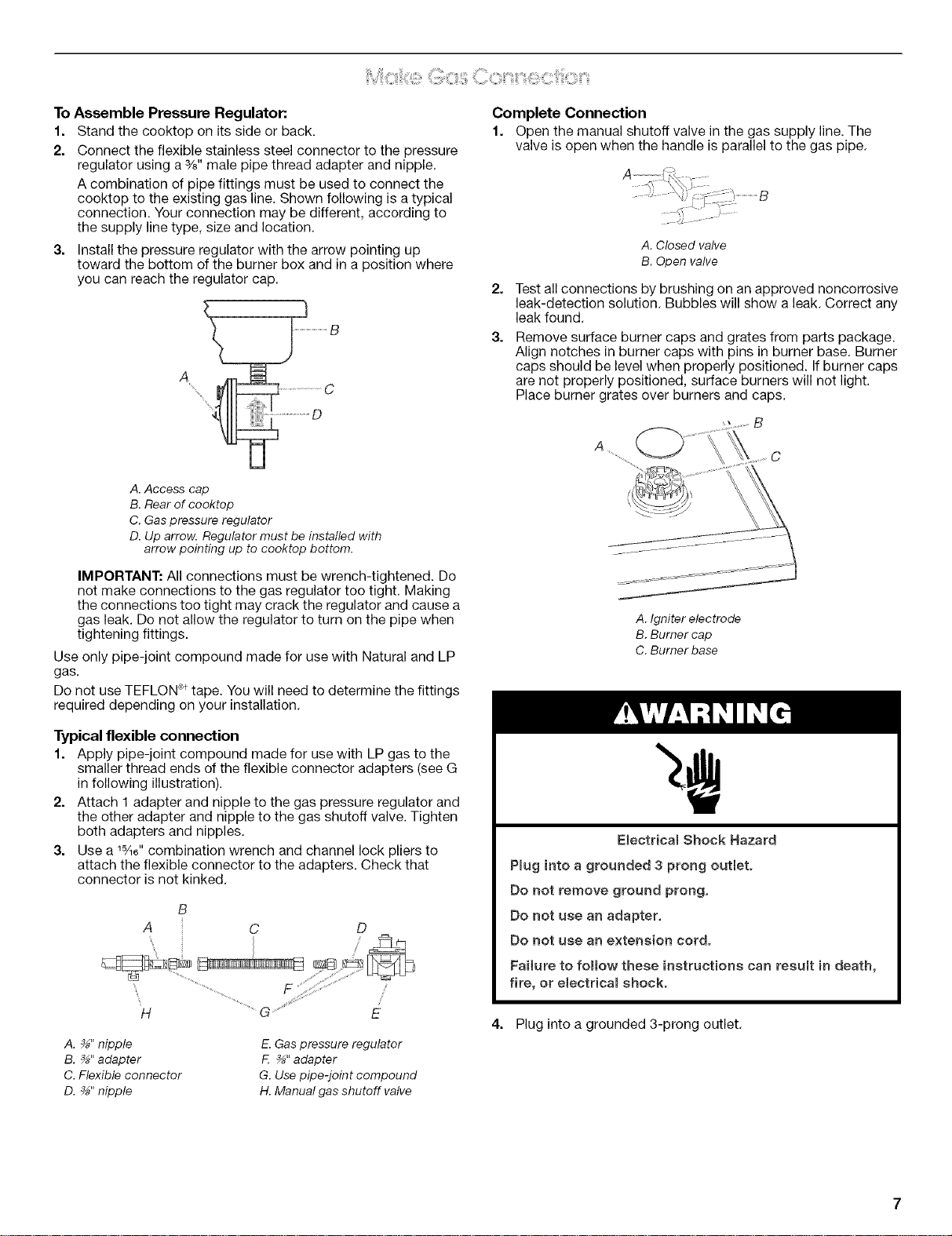

Make Gas Connection .................................. 7
Attach Cooktop to Countertop ..................... 8
Complete Installation .................................... 8

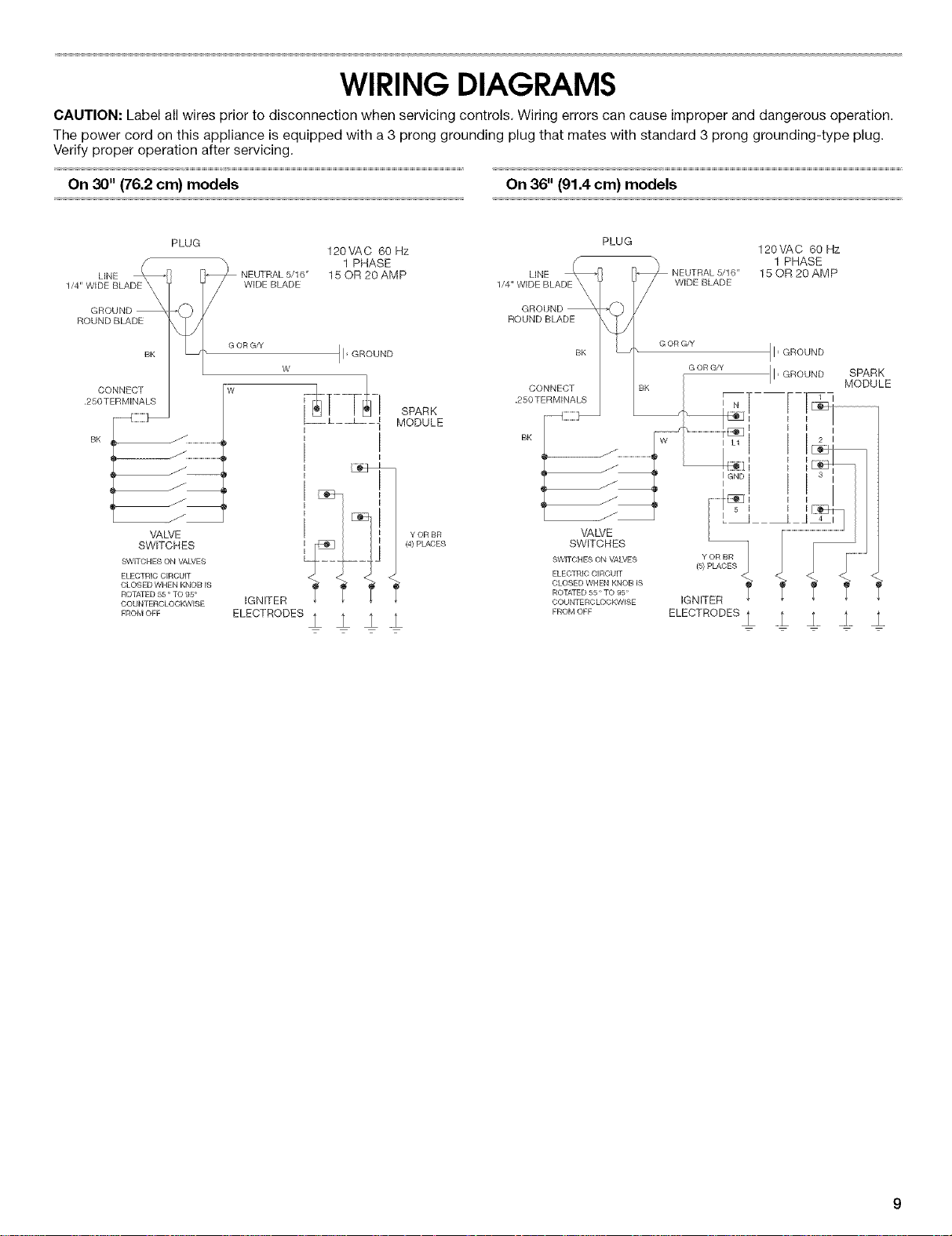

WIRING DIAGRAMS ........................................ 9

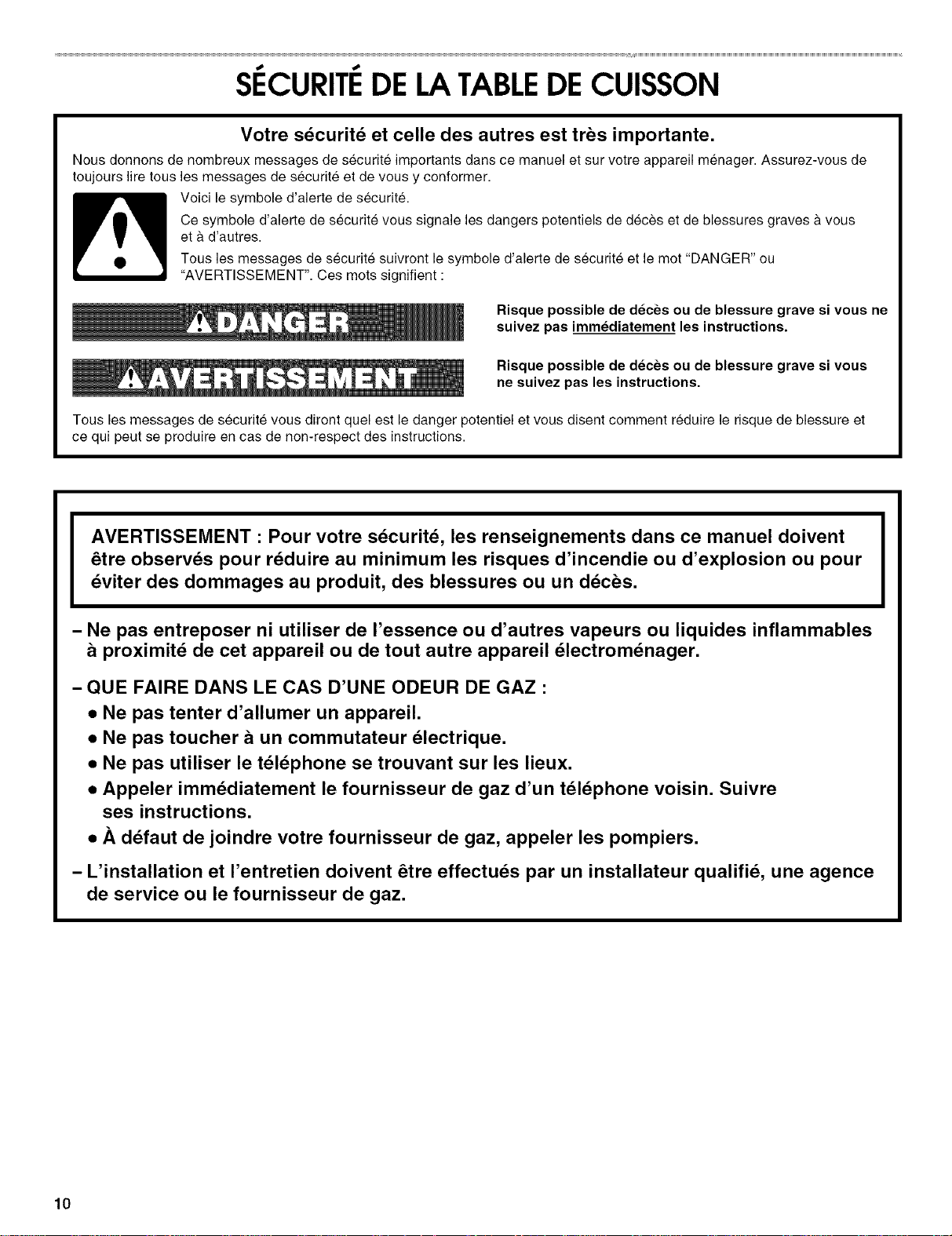

S¢CURIT¢ DE LA TABLE DE CUISSON .......10

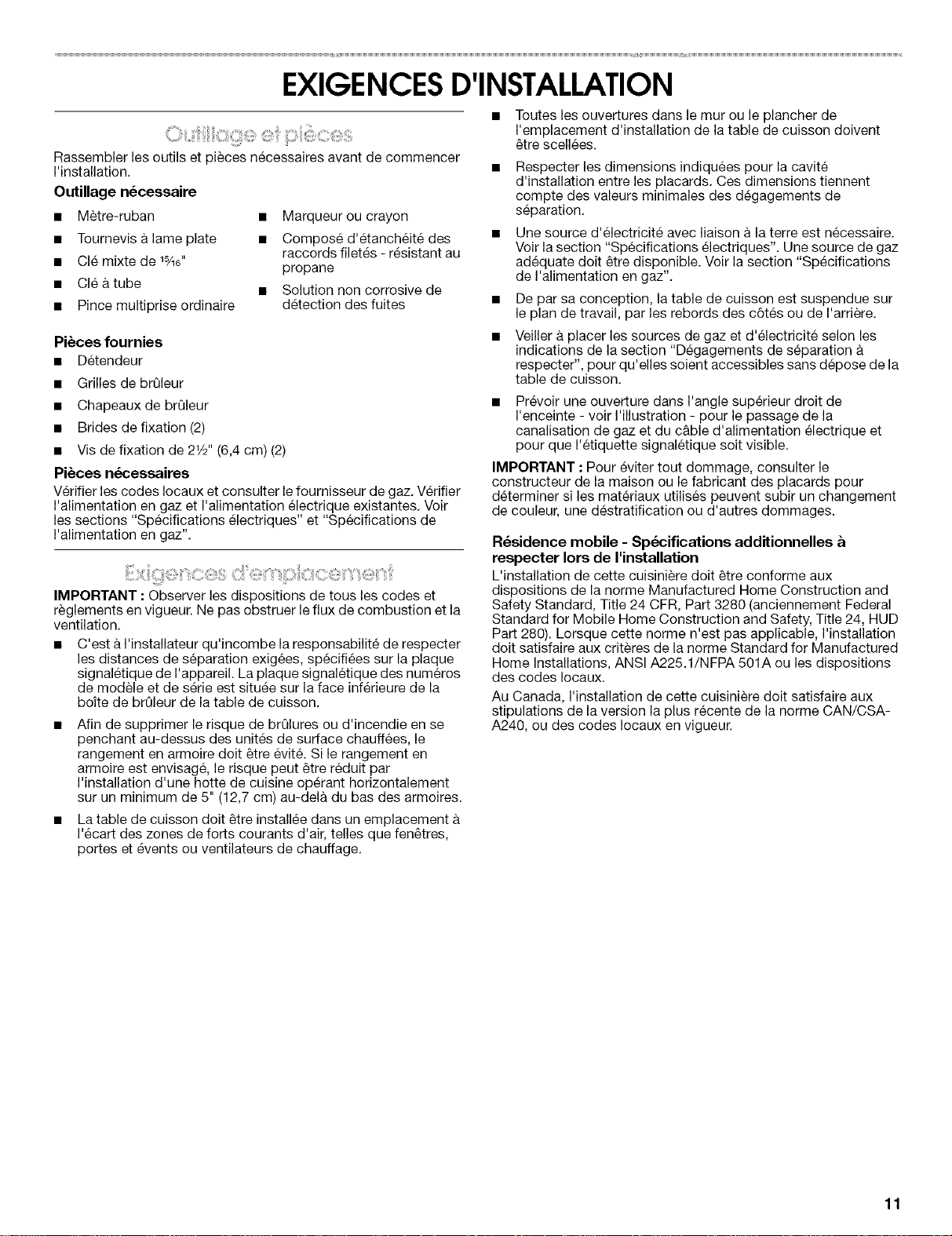

EXIGENCES D'INSTALLATION ..................... 11
Outillage et pieces ....................................... 11

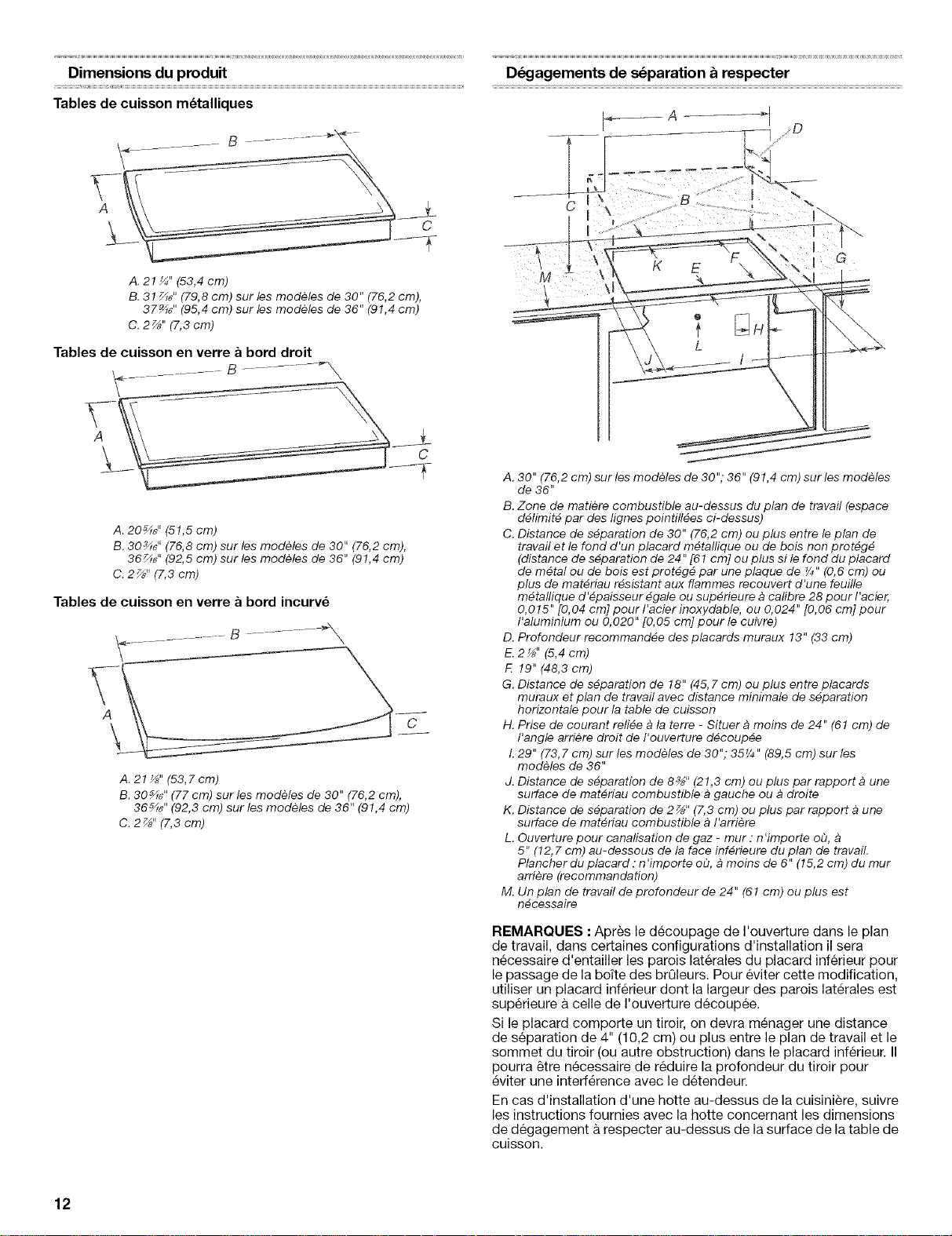

Exigences d'emplacement .......................... 11
Specifications _lectriques ............................ t 3

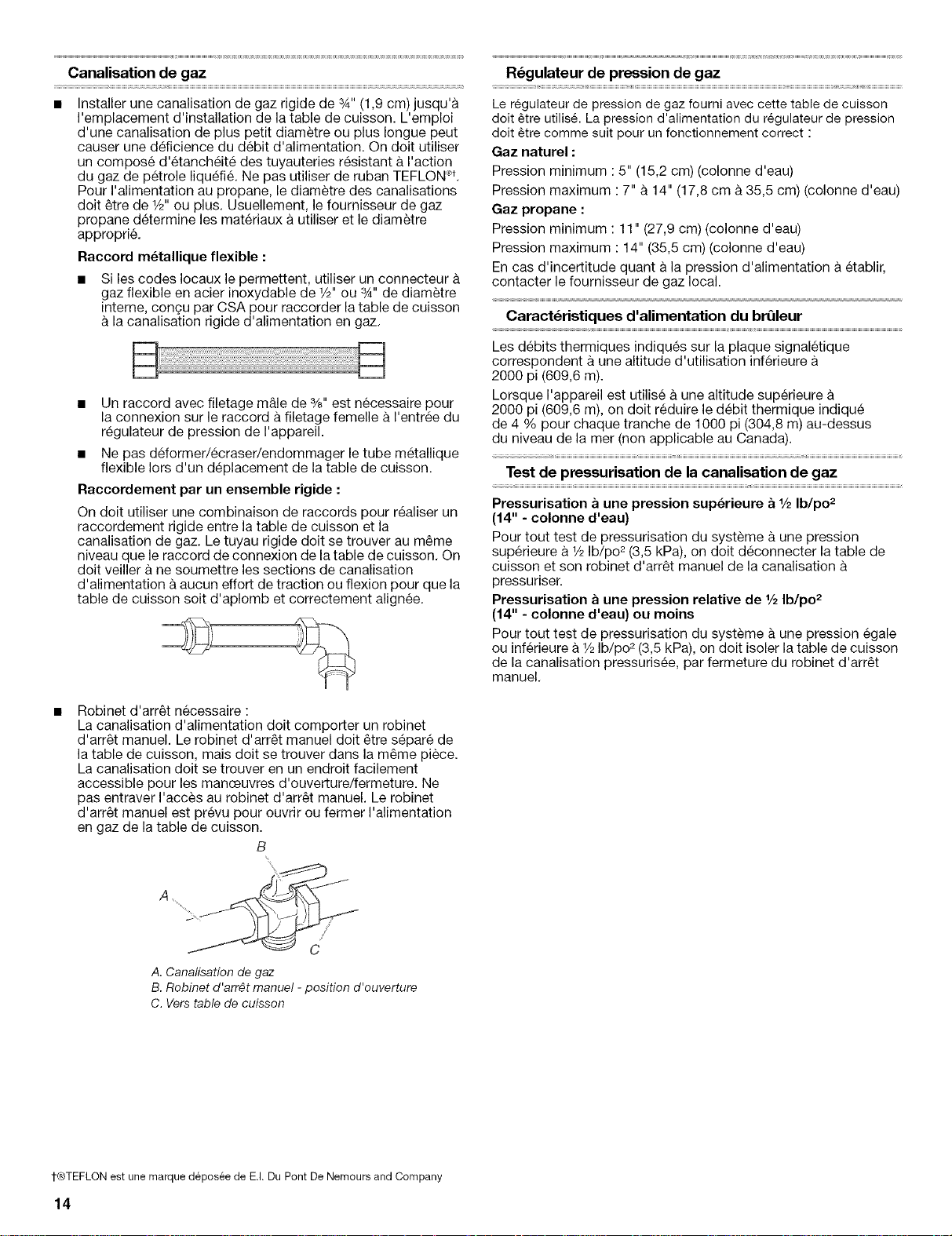

Specifications de I'alimentation en gaz .......13

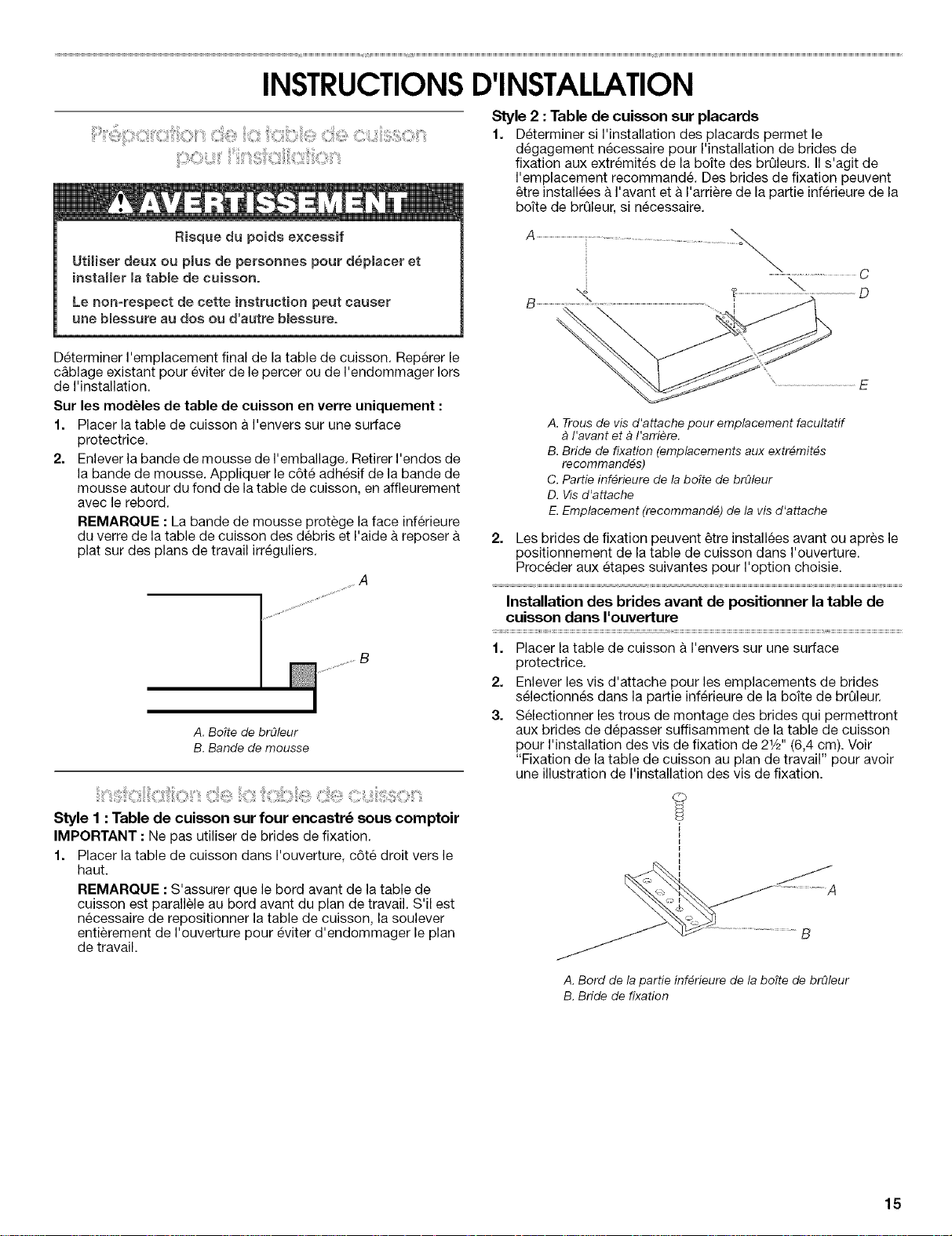

INSTRUCTIONS D'INSTALLATION ............... 15
Pr6paration de la table de cuisson
pour I'installation .......................................... 15
Installation de la table de cuisson ............... 15

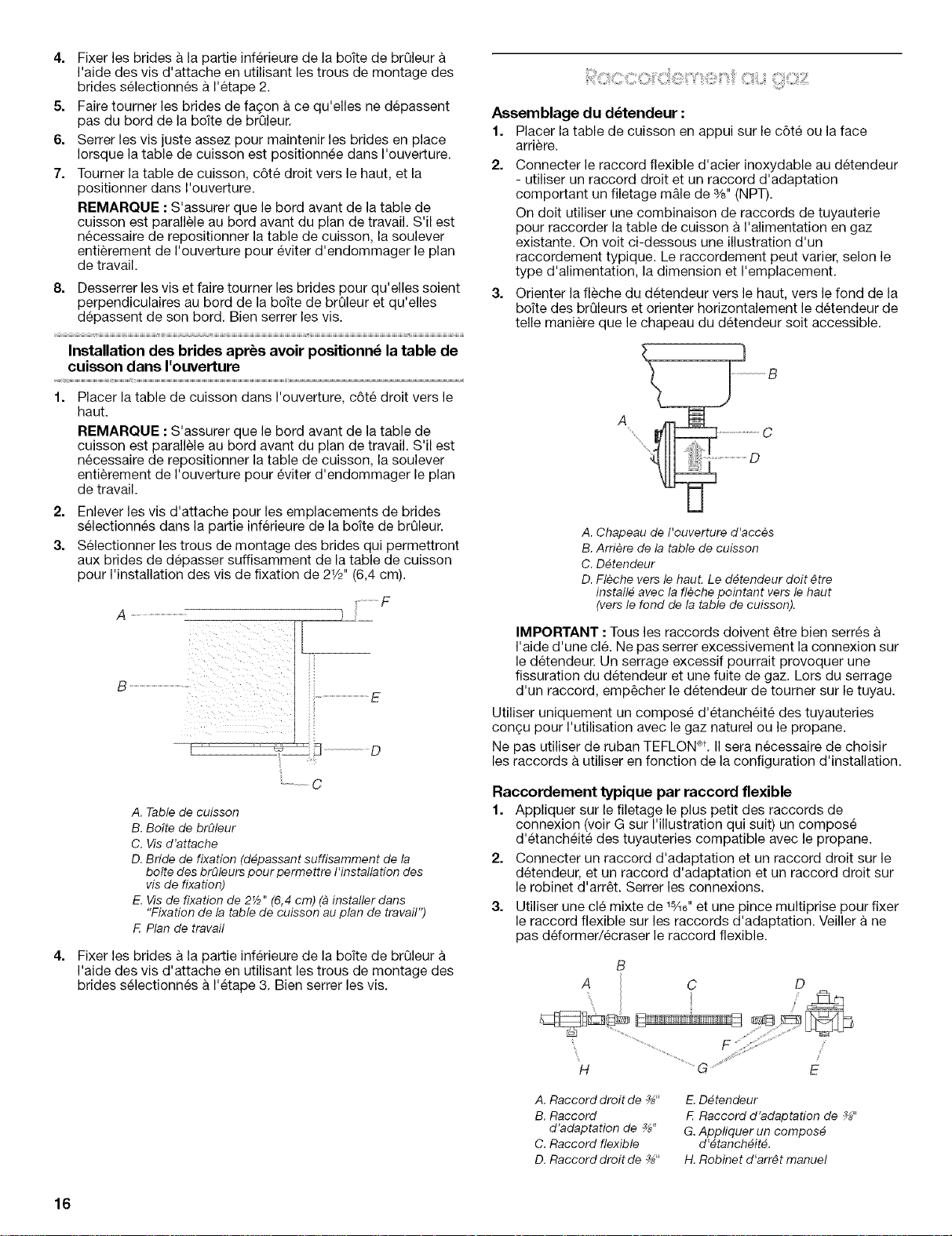

Raccordement au gaz .................................. 16
Fixation de la table de cuisson au plan
de travail ....................................................... 17

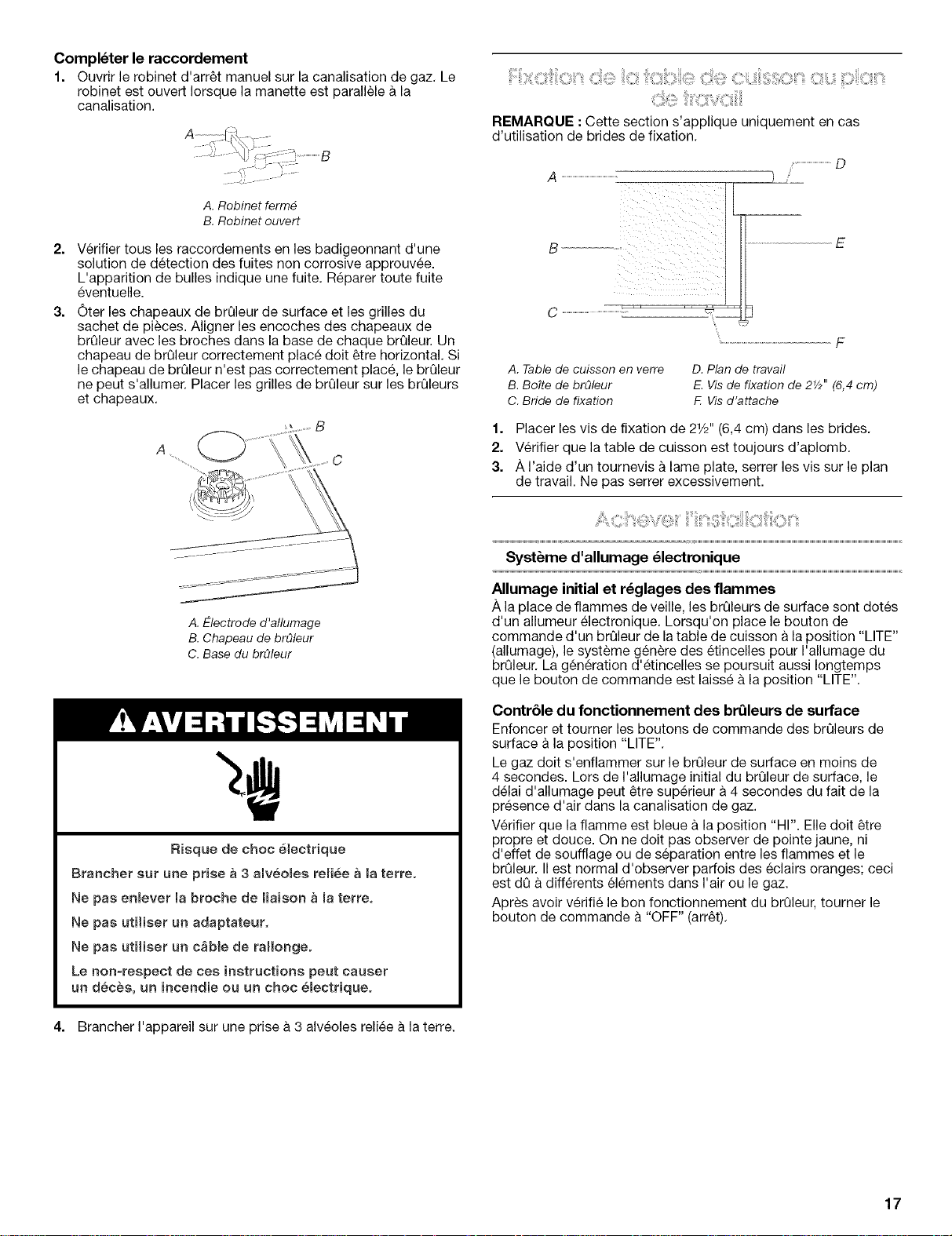

Achever I'installation .................................... 17
SCHEMAS DE CABLAGE .............................. 19
COOKTOP SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
_MPORTANT:
_nstaHer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
Save installation instructions for local electrical inspector's use.
_MPORTANT :
_nstaHateur : Remettre les instructions d'installation au propri6taire.
Propri6taire : Conserver les instructions d'installation pour r6ference ult6rieure.
Conserver les instructions d'instailation pour consultation par I'inspecteur local des installations electriques.
8286304
