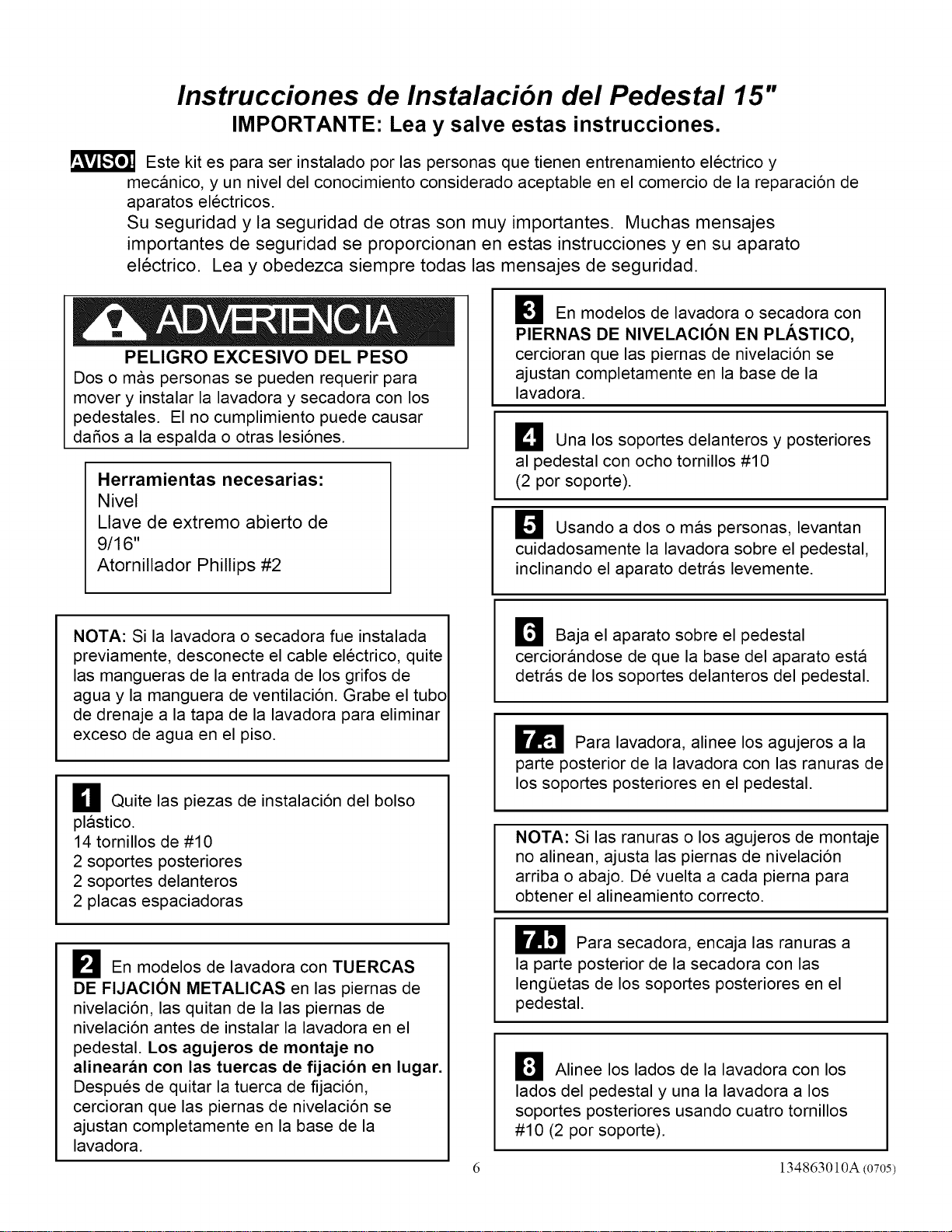

Installation Instructions for 15" Pedestal
IMPORTANT: Read and save these instructions
This kit is intended to be installed by persons having electrical and mechanical training
and a level of knowledge considered acceptable in the appliance repair trade.
Your safety and the safety of others are very important. Many important safety messages are
provided in these instructions and on your appliance. Always read and obey all safety messages.
EXCESSIVE WEIGHT HAZARD
Two or more people may be required to move and
install the washer & dryer onto pedestals.
Failure to comply may cause back or other injury.
Tools Needed:
Level
9/16" Open end wrench
#2 Phillips screwdriver
NOTE: If the washer or dryer were previously
installed, disconnect power cord from outlet, inlet
hoses from water faucets and exhaust duct from
dryer. Tape the drain hose to the top of the
washer to prevent water running out on the floor.
B On Washer models with METAL LOCK
NUTS on the leveling legs, remove lock nuts
from the leveling legs before installing the
washer on the pedestal. Bracket mounting
holes will not align with lock nuts in place.
After removing the lock nuts, reinstall the
leveling legs and make sure they are threaded
fully into the washer base.
A. Remove _, B. Turneach I_
lock nuts leg tight to
from each the base
washer leg
Ill Remove the installation hardware from the
plastic bag.
14 #10 Screws
2 Rear Brackets
2 Front Brackets
2 Front Spacer Plates
(for some models)
D On washer or dryer models with PLASTIC
LEVELING LEGS, make sure the leveling
legs are threaded fully into the base.
Turn plastic leveling legs
tight to the base
1}

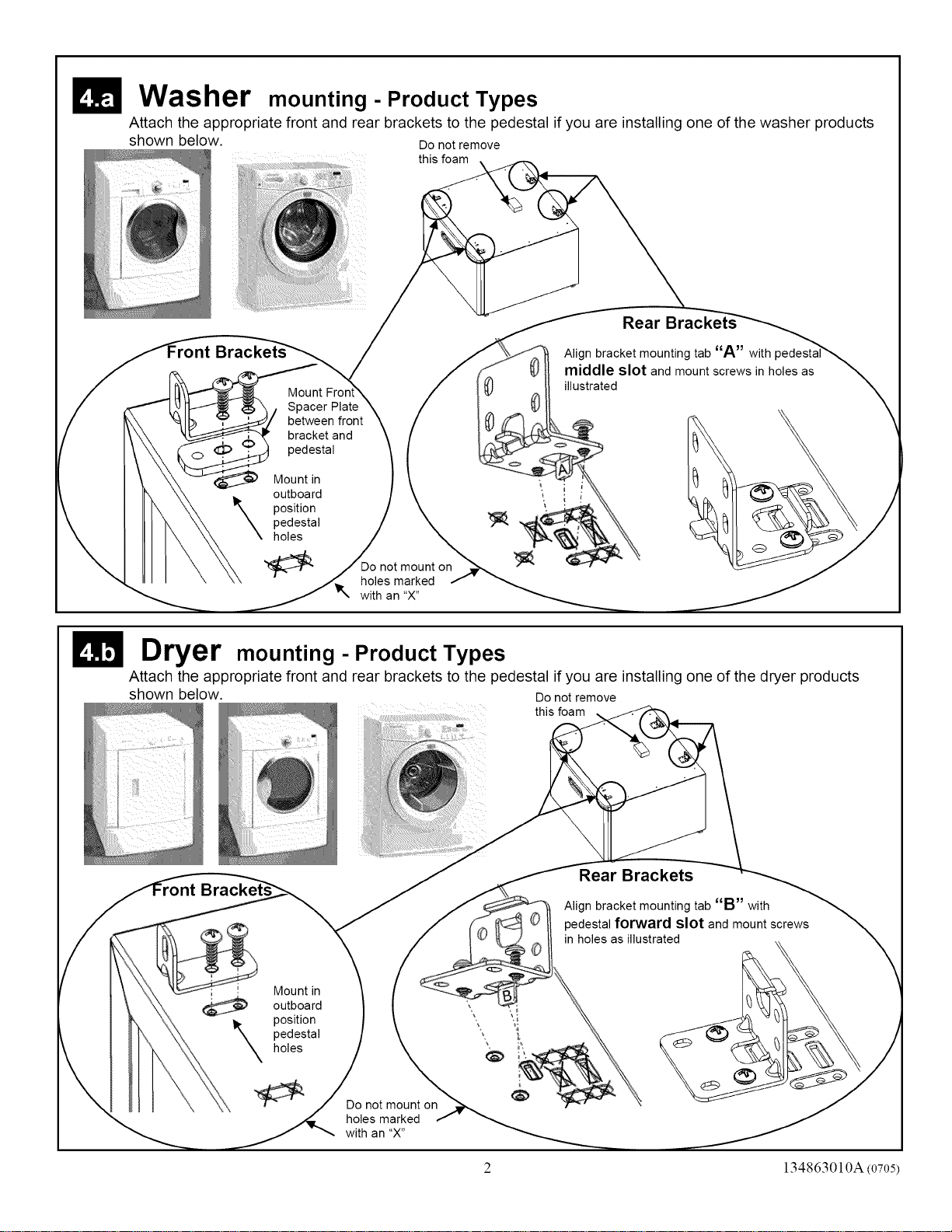

D Identify your product type from items 4.a
and 4.b and attach the appropriate front and
rear brackets to the pedestal with eight
#10 screws (2 per bracket) as illustrated.

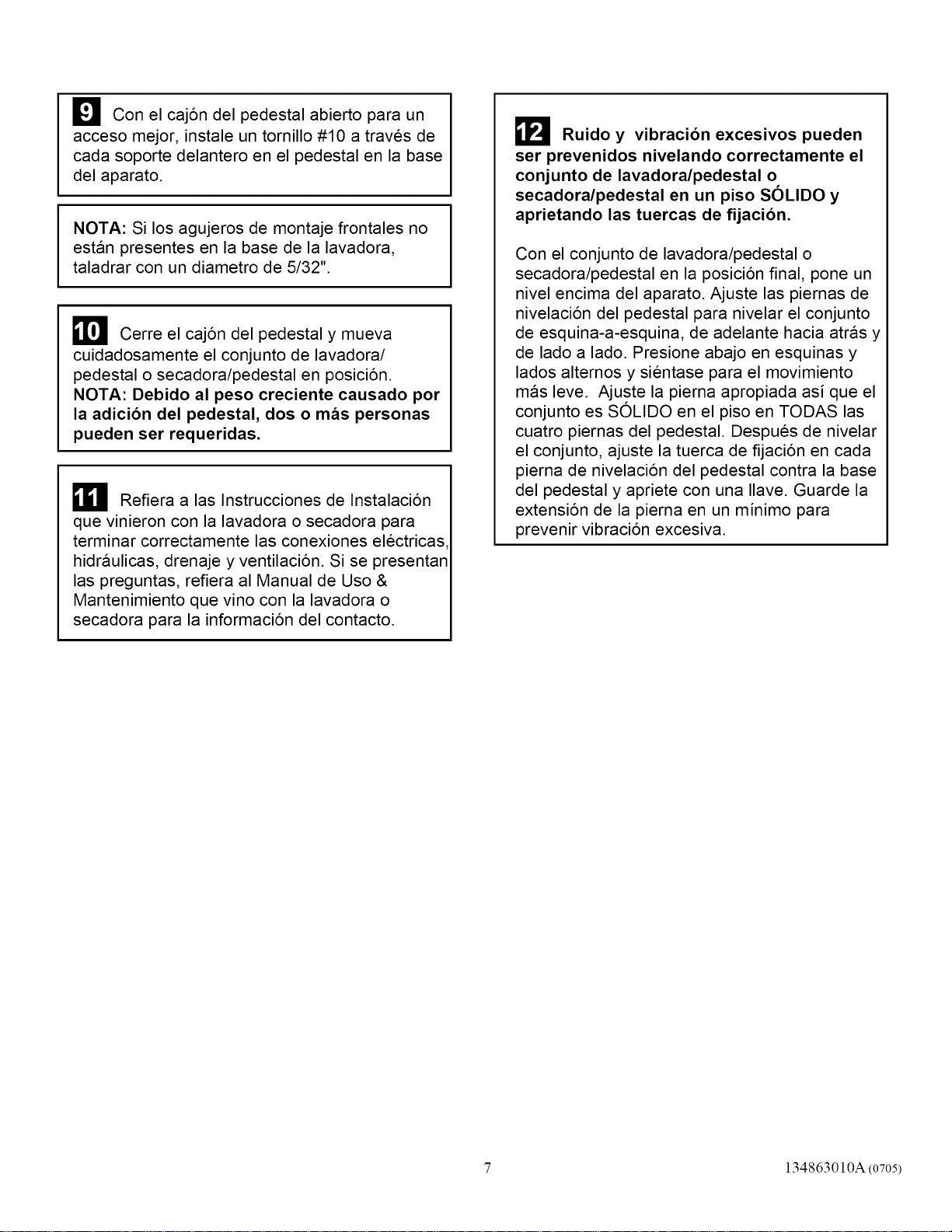

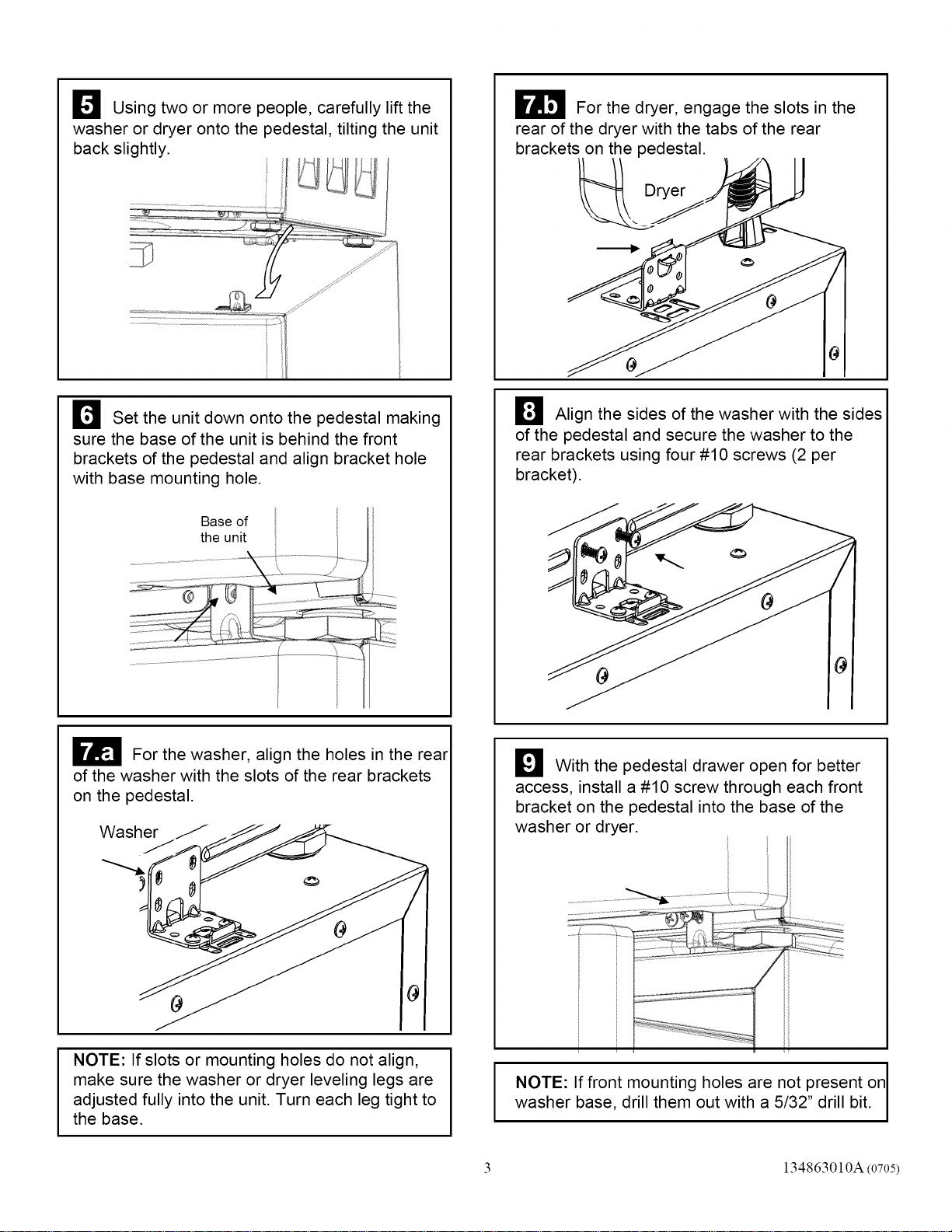

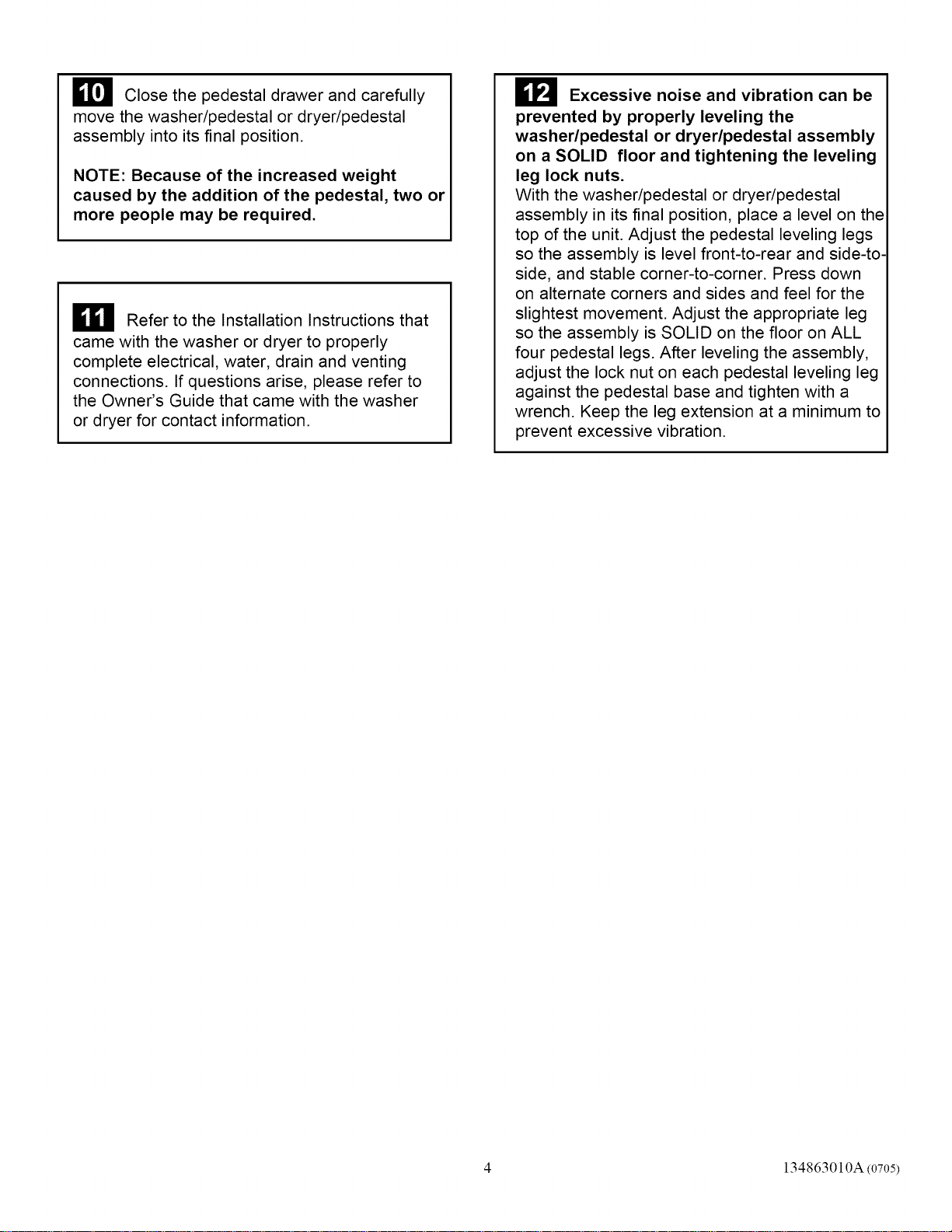

l 134863010A (0705)
