Projector
CPX2/CPX6
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING ►Before using this product, please read all manuals for this
product. Be sure to read “Safety Guide” rst. After reading them, store them in
a safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transfer or copy of all or any part of this document is not permitted
without express written consent.
Trademark acknowledgment
• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the properties of their respective owners.
S
D
C
A
R
D
2
About this manual . . . . . . . . . . 1
Content . . . . . . . . . . . . . . . . . . 2
Projector features . . . . . . . . . . 3
Preparations . . . . . . . . . . . . . . 3
Contents of package . . . . . . . . . . . . .3
Fastening the lens cover . . . . . . . . . .3
Replacing the lter cover for
bottom-up use . . . . . . . . . . . . . . . .3
Part names . . . . . . . . . . . . . . . 4
Projector . . . . . . . . . . . . . . . . . . . . . .4
Control panel . . . . . . . . . . . . . . . . . . .5
Remote control . . . . . . . . . . . . . . . . .5
Setting up . . . . . . . . . . . . . . . . 6
Arrangement . . . . . . . . . . . . . . . . . . .6
Connecting your devices . . . . . . . . . .8
Using a USB storage . . . . . . . . . . . .10

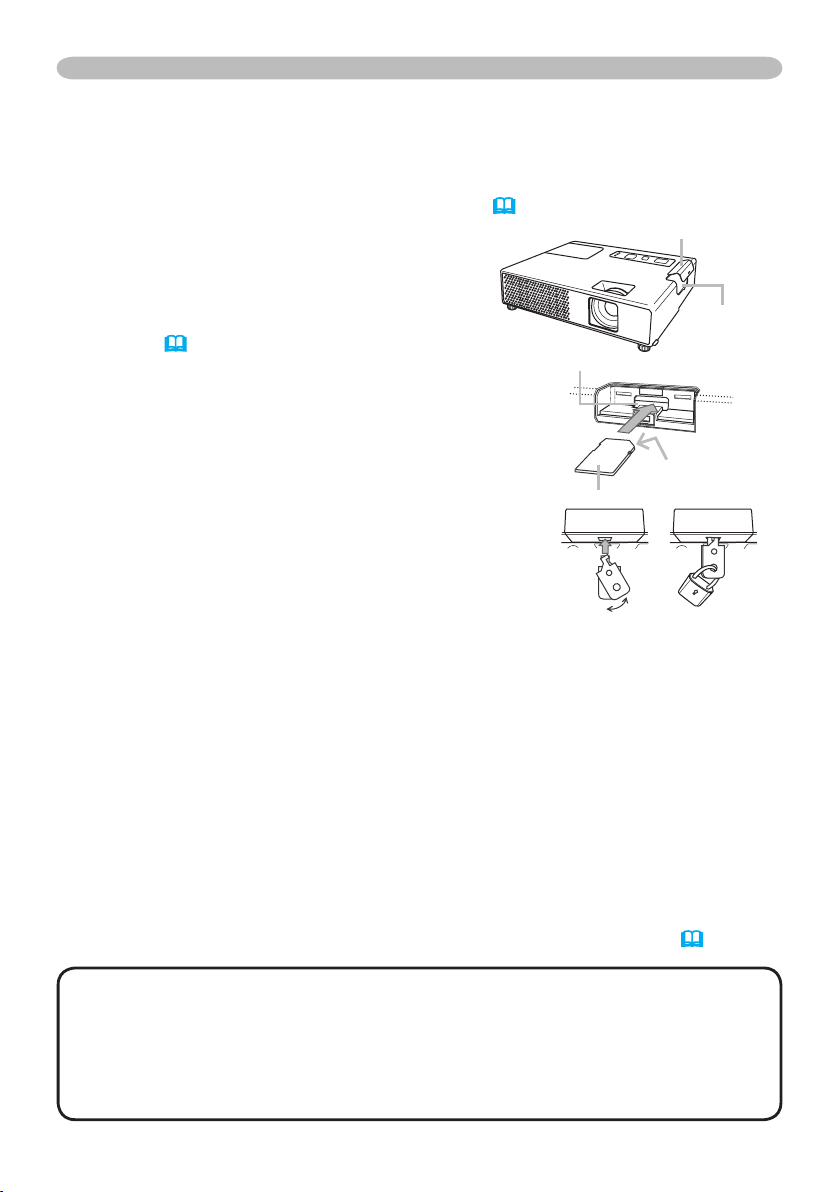

Using an SD card . . . . . . . . . . . . . .10
Connecting power supply . . . . . . . .11
Using the security slot . . . . . . . . . . .11
Remote control . . . . . . . . . . . 12
Putting batteries . . . . . . . . . . . . . . .12
About the remote control signal . . . .12
Changing the frequency of remote
control signal
. . . . . . . . . . . . . . . . .13
Using as a
simple PC mouse & keyboard . . .13
Power on/off . . . . . . . . . . . . . 14
Turning on the power . . . . . . . . . . . .14
Turning off the power . . . . . . . . . . . .14
Operating . . . . . . . . . . . . . . . 15
Adjusting the volume . . . . . . . . . . . .15
Temporarily muting the sound . . . . .15
Selecting an input signal . . . . . . . . .15
Searching an input signal . . . . . . . .16
Selecting an aspect ratio . . . . . . . . .16

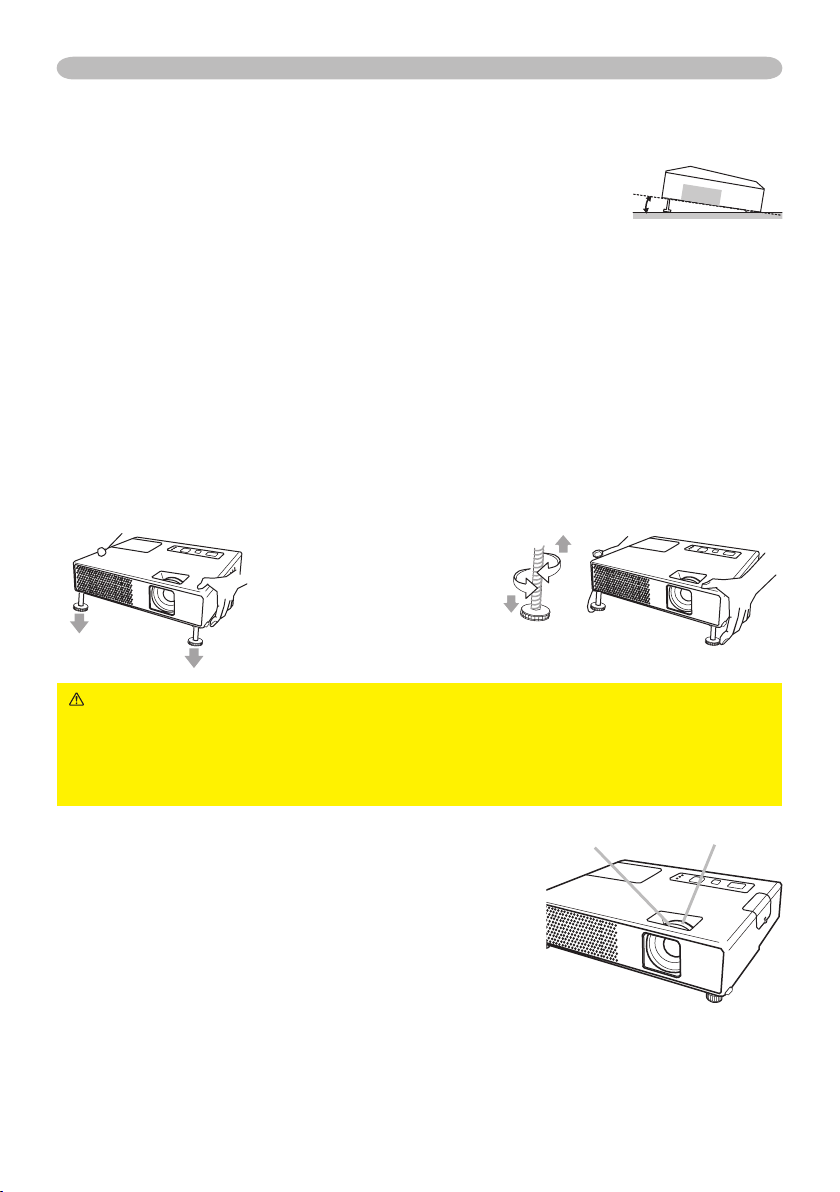

Adjusting the projector's elevator . .17
Adjusting the zoom and focus . . . . .17
Using the automatic adjustment feature
. .18
Adjusting the position . . . . . . . . . . .18
Correcting the keystone distortions
. .19
Using the magnify feature . . . . . . . .19
Freezing the screen . . . . . . . . . . . . .20
Temporarily blanking the screen . . .20

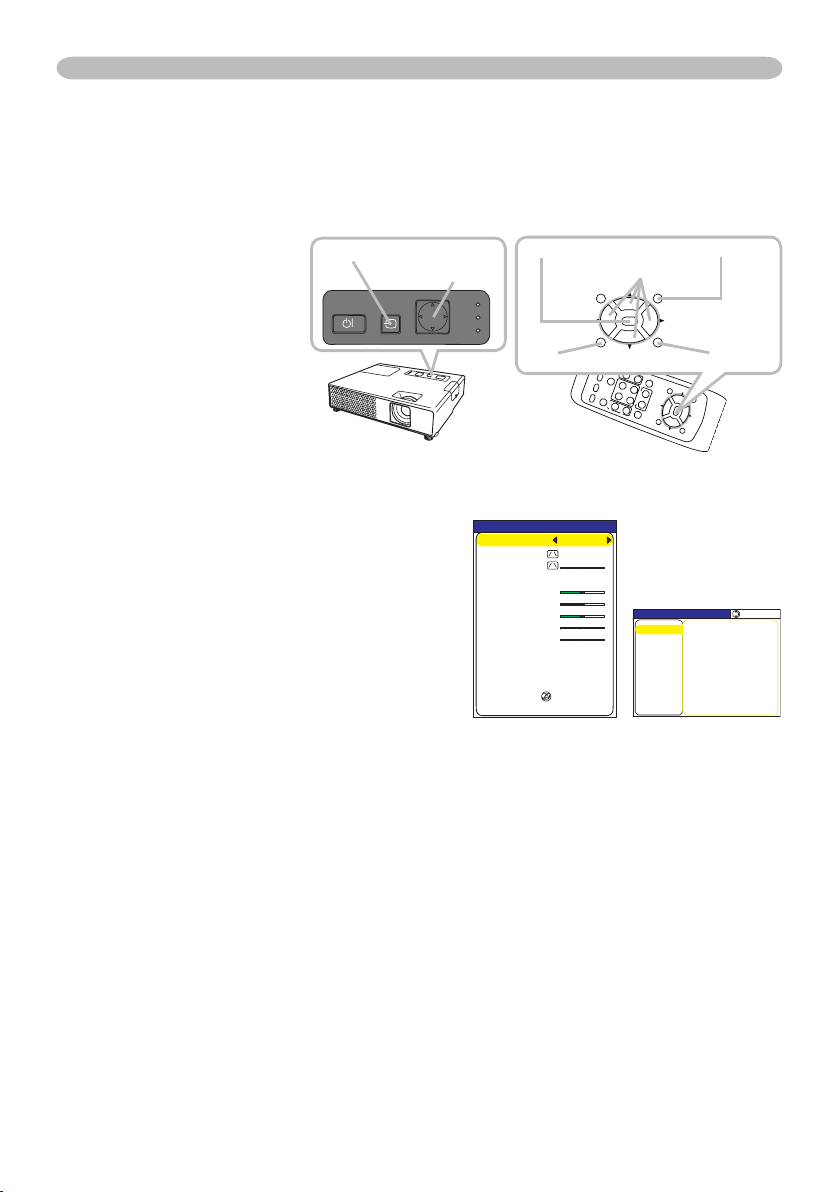

Using the menu function . . . . . . . . .21
Content
Content
EASY MENU. . . . . . . . . . . . . . 22
Aspect, Auto keystone execute,
Keystone , Picture mode, Brightness,
Contrast, Color, Tint, Sharpness,
Whisper, Mirror, Reset, Filter time,
Language, Go to Advanced Menu...
PICTURE menu . . . . . . . . . . . 24
Brightness, Contrast, Gamma, Color temp,
Color, Tint, Sharpness, My memory
IMAGE menu . . . . . . . . . . . . . 27
Aspect, Over scan, V position, H position,
H phase, H size, Auto adjust execute
INPUT menu . . . . . . . . . . . . . 29
Progressive, Video nr, Color space,
Video format, Frame lock, Computer in,
Resolution
SETUP menu . . . . . . . . . . . . . 32
Auto keystone execute, Keystone,
Whisper, Mirror, Volume, Audio
SCREEN menu . . . . . . . . . . . . 34
Language, Menu position, Blank,
Start up, MyScreen, MyScreen Lock,
Message, Source name
OPTION menu . . . . . . . . . . . . 38
Auto search, Auto keystone
,
Auto on, Auto off, Lamp time,
Filter time, My button, Service,
Security
MIU menu . . . . . . . . . . . . . . . 49
Live mode, Pc-less presentation, Setup,
e-shot, Information, Service
Maintenance . . . . . . . . . . . . . 55
Lamp . . . . . . . . . . . . . . . . . . . . . . . .55

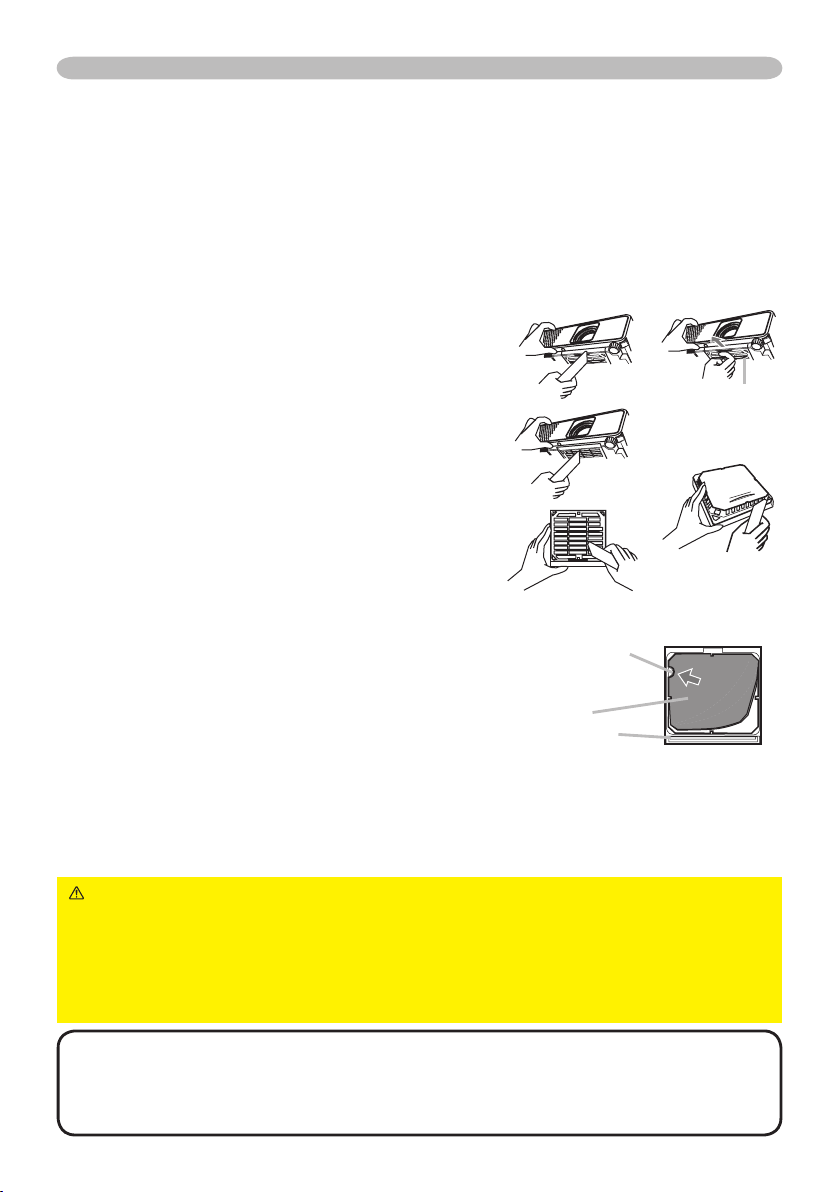

Air lter . . . . . . . . . . . . . . . . . . . . . .57

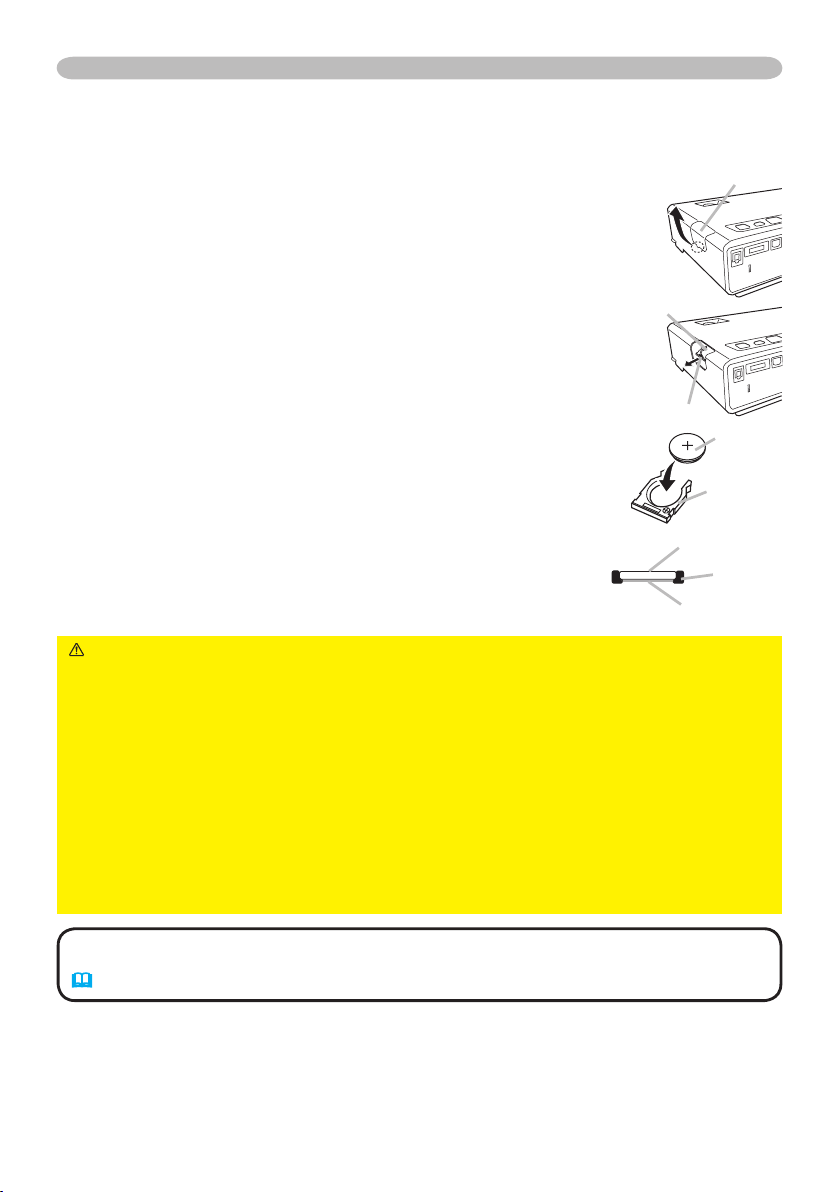

Internal clock battery . . . . . . . . . . . .58
Other care . . . . . . . . . . . . . . . . . . . .59
Troubleshooting . . . . . . . . . . 60
Related messages . . . . . . . . . . . . . .60
Regarding the indicator lamps . . . . .61
Shutting the projector down . . . . . . .62
Resetting all settings . . . . . . . . . . . .62
Phenomena that may be easy
to be mistaken for machine defects
. .63

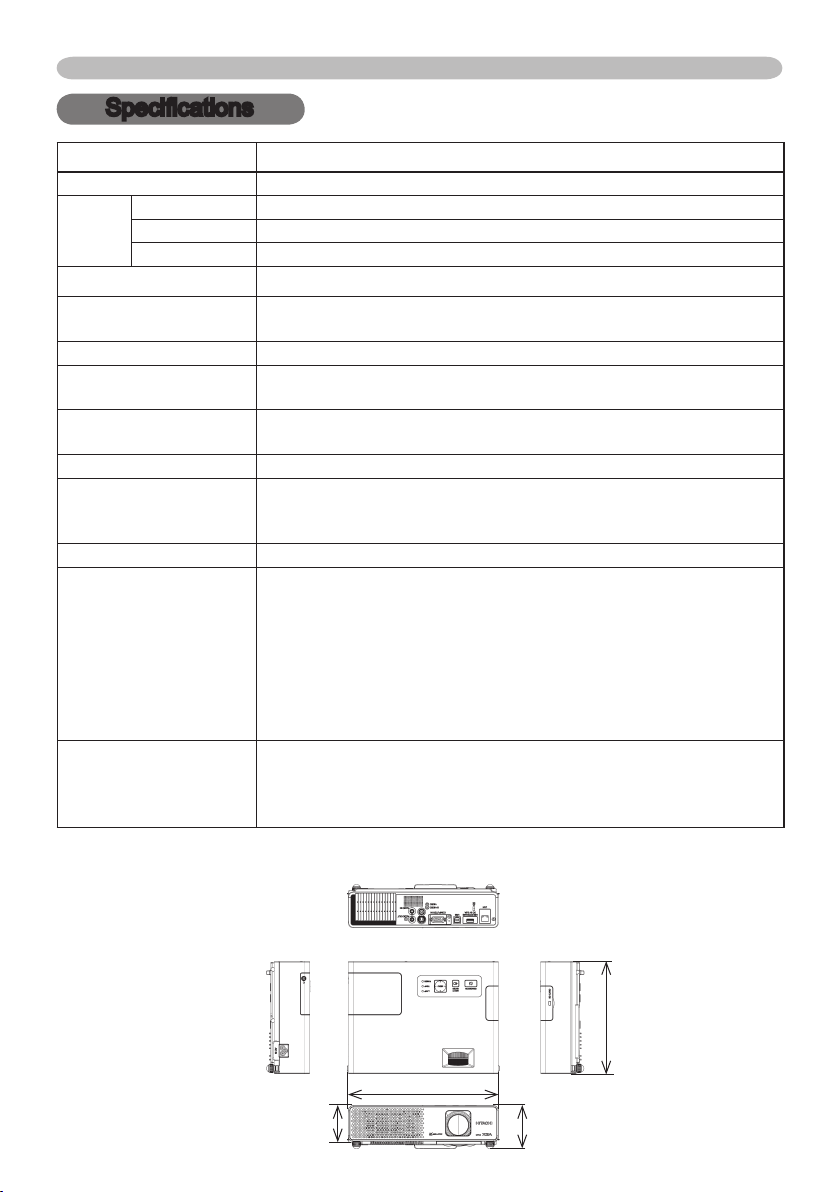

Specications . . . . . . . . . . . . 65
3
Fastening the lens cover
To avoid losing the lens cover, please fasten the
lens cover to the projector using the enclosed strap.
1.
Fix the strap to the strap hole of the lens cover.
Thread one end of the strap through the strap
hole of the lens cover and make the loop at the end,
and let the other end of the strap through the loop.
Not have a knot in the strap at either end.
2.
Fix the strap to the strap hole of the projector.
Thread the other end of the strap through the strap hole of the projector and make
the loop there. Let the lens cover with the one end of strap though the loop.

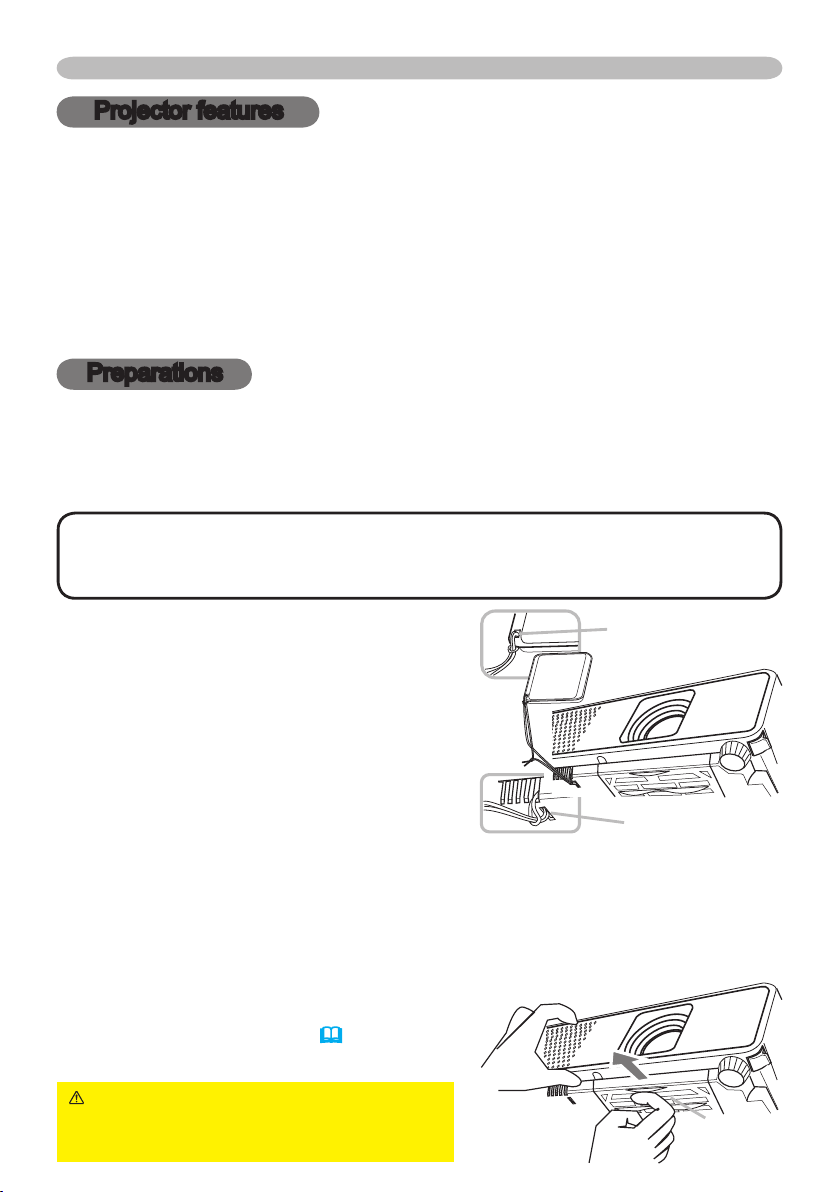

Projector features / Preparations
Projector features
This projector has a capability to project various picture signals onto a screen.
This projector requires only a minimal amount of space for installation and can
produce a large projected image from even a short distance.
This projector also can give a benet to mobile users and others by offering
IEEE802.11g and IEEE802.11b wireless network and 10BASE-T/100BASE-
TX wired network communication and a special function named "PC-LESS
Presentation". Even without PC, this projector realizes the display on screen,
getting JPEG, Bitmap, PNG and MPEG4 from SD Memory Card or USB memory.
Preparations
Contents of package
Please see the “Contents of package” in the “User’s Manual (concise)” which
is a book. Your projector should come with the items shown there. Contact
immediately your dealer if anything is missing.
NOTE • Keep the original packing materials, for future reshipment. Be sure
to use the original packing materials when moving the projector. Use special
caution for the lens.
Replacing the lter cover for bottom-up use
For the projector installed bottom-up, please replace the lter cover with the
enclosed lter cover for bottom-up use, to keep
necessary ventilation space.
Please refer to the “Air lter” (
57) for how to
detach and attach a lter cover.
WARNING ►Consult with your dealer
before a special installation such as
suspending from a ceiling.
Strap hole
Strap hole
Filter cover
4
Part names
Part names
Projector
(1) Lamp cover (
55)
The lamp unit is inside.
(2) Focus ring (
17)
(3) Zoom ring (
17)
(4) Control panel (
5)
(5) SD card slot cover (
10)
(6) Elevator knobs (x 2) (
17)
(7) Elevator feet (x 2) (
17)
(8) Lens (
14, 59)
(9) Lens cover (
3)
(10) Intake vents
(11) Filter cover (
57)
The air lter and intake vent are
inside.
(12) Speaker (
33)
(13) Exhaust vents
(14) AC inlet (
11)
(15) LAN port (
8)
(16) USB STORAGE port (
8)
(17) USB port (
8)
(18) COMPUTER IN port (
8)
(19) VIDEO port (
8)
(20) S-VIDEO port (
8)
(21) Security slot (
11)
(22) Shutdown switch (
62)
(23) AUDIO OUT port (
8)
(24) AUDIO IN port (
8)
WARNING ►HOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Do not look into the lens or vents while the lamp is on, since the strong light
is not good for your eyes.
►Do not handle the elevator knobs without holding the projector, since the
projector may drop down.
CAUTION ►
Maintain normal ventilation to prevent the projector from heating
up. Do not cover, block or plug up the vents. Do not place anything that can stick or
be sucked to the vents, around the intake vents. Clean the air lter periodically.
►Do not use the security slot to prevent the projector from falling down, since it
is not designed for it.
►Use the shutdown switch only when the projector is not turned off by normal
procedure, since pushing this switch stops operation of the projector without
cooling it down.
HOT!
S
D
CA
R
D
K
COMPUTER IN1
COMPUTER IN2
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
K
COMPUTER IN
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
LAN
HOT!
(1) (2) (3) (4)
(7)
(10)
(9) (8)
(11)
(6)
(7)
(5)
(13)
(14)
(21) (16) (17) (22) (18) (19) (20) (23) (24)(15)
(Bottom)
(12)
5
Part names
Control panel
(1) STANDBY/ON button (
14)
(2) INPUT/ENTER button (
15, 21)
(3) MENU button (
21)
It consists of four cursor buttons.
(4) POWER indicator (
14, 61)
(5) TEMP indicator (
61)
(6) LAMP indicator (
61)
Remote control
(1) VIDEO button (
16)
(2) COMPUTER/STORAGE button (
15)
(3) SEARCH button (
16)
(4) STANDBY/ON button (
14)
(5) ASPECT button (
16)
(6) AUTO button (
18)
(7) BLANK button (
20)
(8) MAGNIFY - ON button (
19)
(9) MAGNIFY - OFF button (
13, 19)
(10) HOME button (
13)
(11) END button (
13)
(12) PAGE UP button (
13)
(13) PAGE DOWN button (
13)
(14) VOLUME button (
15)
(15) MUTE button (
13, 15)
(16) FREEZE button (
20)
(17) MY BUTTON - 1 button (
40)
(18) MY BUTTON - 2 button (
40)
(19) KEYSTONE button (
19)
(20) POSITION button (
18)
(21) MENU button (
21)
(22) ▲/▼/◄/► cursor buttons (
13, 21)
(23) ENTER button (
13, 21)
(24) ESC button (
13, 21)
(25) RESET button (
13, 21)
(26) Battery cover (
12)
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
(2)
(1)
(5)
(10)
(8)
(9)
(11)
(16)
(17)
(20)
(22)
(24)
(3)
(4)
(6)
(7)
(12)
(14)
(15)
(13)
(19)
(18)
(21)
(23)
(25)
(26)
Back of
the remote control
MENU
LAMP
TEMP
POWER
STANDBY/ON
INPUT/
ENTER
(1) (2) (3) (4) (5) (6)
6
(a)
(b)
(a)
(c) up
(c) down
(b)
(c) up
(c) down
Setting up
Setting up
Install the projector according to the environment and manner the projector will be
used in.
Arrangement
Refer to the illustrations and tables below to determine screen size and projection distance.
The values shown in the table are calculated for a full size screen: 1024×768.
(a) Screen size (diagonal)
(b) Projection distance (±10%)
(c) Screen height (±10%)
On a horizontal surface
Suspended from the ceiling
• Keep a space of 30 cm or more
between the sides of the projector
and other objects such as walls.
• Consult with your dealer before
a special installation such as
suspending from a ceiling.
(a)
(b)
(a)
(c) up
(c) down
(b)
(c) up
(c) down
(a) Screen
size
(diagonal)
4 : 3 screen 16 : 9 screen
(b) Projection distance (c) Screen height
(b) Projection distance (c) Screen height
min. max. down up
min. max. down up
inch m m inch
m inch cm inch
cm inch m inch
m inch cm inch cm inch
30 0.8 0.8 30
0.9 36
7 3
39 15
0.8 33 1.0 39
1 0 37 14
40 1.0 1.0 40 1.2 48 9 3 52 21 1.1 44 1.3 53 1 0 49 19
50 1.3 1.3 50 1.5 61 11 4 65 26 1.4 55 1.7 66 1 1 61 24
60 1.5 1.5 61 1.9 73 13
5 78 31 1.7 66 2.0 79 2 1 73 29
70 1.8 1.8 71 2.2 85 15 6 91 36 2.0 77 2.4 93 2 1 85 34
80 2.0 2.1 81 2.5 97 17 7 105 41 2.2 88 2.7 106 2 1 97 38
90 2.3 2.3 91 2.8 110 20 8 118 46 2.5 100 3.0 120 2 1 110 43
100
2.5 2.6 102 3.1 122 22 9 131 51 2.8 111 3.4 133 3 1 122 48
120
3.0 3.1 122 3.7 147 26 10 157 62 3.4 133 4.1 160 3 1 146 58
150
3.8 3.9 153 4.7 183 33 13 196 77 4.2 166 5.1 200 4 2 183 72
200
5.1 5.2 204 6.2 245 44 17 261 103 5.6 222 6.8 267 5 2 243 96
250
6.4 6.5 255 7.8 306
54 21
327 129
7.1 278 8.5 334
7 3 304 120
300 7.6 7.8 306 9.3 368 65 26 392 154 8.5 334 10.2 400 8 3 365 144
7
Setting up
WARNING ►Place the projector in a stable horizontal position. If the
projector falls or is knocked over it could cause injury and/or damage to the
projector. Using a damaged projector could then result in re and/or electric
shock.
• Do not place the projector on an unstable, slanted or vibrational surface such
as a wobbly or inclined stand.
• Do not place the projector on its side, front or rear position.
• Consult with your dealer before a special installation such as suspending
from a ceiling.
►Place the projector in a cool place, and ensure that there is sufcient
ventilation. The high temperature of the projector could cause re, burns and/
or malfunction of the projector.
• Do not stop-up, block or otherwise cover the projector's vents.
• Keep a space of 30 cm or more between the sides of the projector and other
objects such as walls.
• Do not place the projector on metallic thing or anything weak in heat.
• Do not place the projector on carpet, cushions or bedding.
• Do not place the projector in direct sunlight or near hot objects such as
heaters.
• Do not anything near the projector lens or vents, or on top of the projector.
• Do not place anything that may be sucked into or stick to the vents on the
bottom of the projector. This projector has some intake vents also on the
bottom.
►Do not place the projector anyplace where it may get wet. Getting the
projector wet or inserting liquid into the projector could cause re, electric
shock and/or malfunction of the projector.
• Do not place the projector in a bathroom or the outdoors.
• Do not place anything containing liquid near the projector.
CAUTION ►Avoid placing the projector in smoky, humid or dusty place.
Placing the projector in such places could cause re, electric shock and/or
malfunction of the projector.
• Do not place the projector near humidiers, smoking spaces or a kitchen.
►Position the projector to prevent light from directly hitting the projector's
remote sensor.
8
Setting up
Connecting your devices
Be sure to read the manuals for devices before connecting them to the projector.
Make sure that all the devices are suitable to be connected with this product, and
prepare the cables required to connect.
Please refer to the following illustrations to connect them.
WARNING ►Do not disassemble or modify the projector and accessories.
►Be careful not to damage the cables, and do not use damaged cables.
CAUTION ►Turn off all devices and unplug their power cords prior to
connecting them to projector. Connecting a live device to the projector may
generate extremely loud noises or other abnormalities that may result in
malfunction or damage to the device and the projector.
►Use appropriate accessory or otherwise designed cables. Ask your dealer
about non-accessory cables which may have to be of a specic length or
equipped with a core. For cables with a core only at one end, connect the end
with the core to the projector.
►Make sure that devices are connected to the correct ports. An incorrect
connection may result in malfunction or damage to the device and the projector.
NOTE • The SD card slot is in the side opposite to the lamp cover of the
projector. Please see the “Using an SD card” (
10).
• To display a signal from LAN, USB STORAGE or SD CARD, select the input
signal to “MIU”. (
15)
• The COMPUTER IN port can support a component signal also. For more
information, please see the description of the COMPUTER IN item of the
INPUT menu (
30).
K
COMPUTER IN1
COMPUTER IN2
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
AUDIO
OUT
RGB OUT
AUDIO
IN
USB-A
AUDIO
OUT
RGB OUT
VIDEO OUT
AUDIO OUT
L R
K
COMPUTER IN
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
LAN
AUDIO
OUT
RGB OUT
AUDIO
IN
USB-A
VIDEO OUT
S-VIDEO OUT
AUDIO OUT
L R
AUDIO OUT
L R
LAN
S-VIDEO OUT
AUDIO OUT
L R
AUDIO OUT
L R
COMPONENT
C
R
/P
R
C
B
/P
B
Y
AUDIO OUT
L R
COMPONENT
C
R
/P
R
C
B
/P
B
Y
PC
VCR/DVD
player
Speakers
USB
storage
9
Setting up
NOTE • Be sure to read the manuals for devices before connecting them to the
projector, and make sure that all the devices are suitable to be connected with this
product. Before connecting to a PC, check the signal level, the signal timing, and the
resolution.
- Some signal may need an adapter to input this projector.
- Some PCs have multiple screen display modes that may include some signals which
are not supported by this projector.
- Although the projector can display signals with resolution up to UXGA (1600X1200),
the signal will be converted to the projector’s panel resolution before being displayed.
The best display performance will be achieved if the resolutions of the input signal and
the projector panel are identical.
• While connecting, make sure that the shape of the cable's connector ts the port to
connect with. And be sure to tighten the screws on connectors with screws.
• When connecting a laptop PC to the projector, be sure to activate the PC’s external
RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT
display.) For details on how this is done, please refer to the instruction manual of the
corresponding laptop PC.
• When the picture resolution is changed on a pc depending on an input, automatic
adjustment function may take some time and may not be completed. In this case,
you may not be able to see a check box to select “Yes/No” for the new resolution on
Windows. Then the resolution will go back to the original. It might be recommended to
use other CRT or LCD monitors to change the resolution.
• In some cases, this projector may not display a proper picture or display any picture on
screen. For example, automatic adjustment may not function correctly with some input
signals. An input signal of composite sync or sync on G may confuse this projector, so
the projector may not display a proper picture.
About Plug-and-Play capability
Plug-and-Play is a system composed of a PC, its operating system and peripheral
equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-
Play can be used by connecting this projector to a pc that is VESA DDC (display data
channel) compatible.
• Take advantage of this feature by connecting an RGB cable to the COMPUTER IN
port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of
connection is attempted.
• Please use the standard drivers in your pc as this projector is a Plug-and-Play monitor.
Connecting your devices (continued)
10
Setting up
Using a USB storage
In order to view images stored in a USB storage, such as a USB memory, insert
the device into the USB STORAGE port.
Before removing the USB storage, be sure to perform the REMOVE procedure
using the SERVICE menu under the MIU menu. (
54)
NOTE •
When using the projector with a wired LAN, please remove the wireless network card.
IMPORTANT NOTE •
To comply with FCC RF exposure compliance requirements, the antenna
used for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
• When using wireless network card, please make sure to put the SD card slot cover
onto projector top case to protect the card from electrostatic discharge inuence.
Using an SD card
In order to view images in an SD Memory Card (SD
card), insert the card into the SD card slot. If the
wireless network function is required, load the internal
clock battery
(
58)
and insert the enclosed Wireless
network card (SD card) in to the SD card slot.
Inserting an SD card
1.
Make sure that the power code is not
plugged into the projector.
2.
Remove the SD card slot cover. It might be recommended
to hook the edge of its side face up to remove it.
3.
Slowly insert the SD card completely into
the SD card slot. Make sure that the angled
corner of the SD card is placed into the right
side of the SD card slot, while inserting.
4.
Replace the SD card slot cover. It is recommended that the cover is slid
sideways to the projector.
Using the slot cover lock for security
Using the enclosed slot cover lock can prevent the SD card slot cover from being opened.
1.
Open the two plates of the slot cover lock to put the tips of two plates
together, and then insert the tips to the lock hole of the SD card slot cover.
2.
Put the body of the two plates together. Then, hook a padlock or combination
lock to the hole of the slot cover lock.
Removing the SD card
When removing “wireless network card“, turn the projector off and unplug the
power cord.
On the other hand, when removing the “SD Memory Card”, be sure to perform the
REMOVE procedure using the SERVICE menu under the MIU menu. (
54)
S
D
C
A
R
D
SD card slot
SD card slot cover
SD card slot
SD card
Angled corner
SD CARD SD CARD
11
Setting up
Connecting power supply
1.
Put the connector of the power cord into
the AC inlet of the projector.
2.
Firmly plug the power cord’s plug into
the outlet. In a couple of seconds after
the power supply connection, the POWER
indicator will light up in steady orange.
Please remember that when the AUTO ON function (
38) activated, the
connection of the power supply make the projector turn on.
WARNING ►Please use extra caution when connecting the power cord, as
incorrect or faulty connections may result in re and/or electrical shock.
• Only use the power cord that came with the projector. If it is damaged, contact
your dealer to newly get correct one.
• Only plug the power cord into an outlet rated for use with the power cord's
specied voltage range. The power outlet should be close to the projector and
easily accessible. Remove the power cord for complete separation.
• Never modify the power cord.
A
C
IN
AC inlet
to the outlet
Connector of the
power cord
POWER
indicator
Using the security slot
This product has the security slot for the Kensington
lock. For details, see the manual of the security tool.
WARNING ►Do not use the security slot to
prevent the projector from falling down, since it is not
designed for it.
NOTE • The security slot is not comprehensive theft prevention measures. It
is intended to be used as supplemental theft prevention measure.
Security slot
K
COMPUTER IN1
COMPUTER IN2
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
K
COMPUTER IN
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
LAN
POWER
12
Remote control
Putting batteries
Please set the batteries to the remote control before using it. If the remote control starts
to malfunction, try to replace the batteries. If you will not use the remote control for long
period, remove the batteries from the remote control and store them in a safe place.
1.
Holding the hook part of the battery
cover, remove it.
2.
Align and insert the two AA batteries
according to their plus and minus terminals
as indicated in the remote control.
3.
Replace the battery cover in the direction of the arrow and snap it back into place.
Remote control
WARNING ►Always handle the batteries with care and use them only as
directed. Improper use may result in battery explosion, cracking or leakage,
which could result in re, injury and/or pollution of the surrounding environment.
• Be sure to use only the batteries specied. Do not use batteries of different
types at the same time. Do not mix a new battery with used one.
•
Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets.
• Do not recharge, short circuit, solder or disassemble a battery.
•
Do not allow a battery in a re or water. Keep batteries in a dark, cool and dry place.
•
If you observe a leakage of a battery, wipe out the ower and then replace a battery.
If the ower adheres your body or clothes, rinse well with water immediately.
• Obey the local laws on disposing the battery.
About the remote control signal
The remote control works with the projector’s
remote sensor. This projector has a remote sensor
on the front.
The sensor senses the signal within the following
range when the sensor is active:
60 degrees (30 degrees to the left and right of the
sensor) within 3 meters about.
NOTE •
The remote control signal reected in the screen or the like may be
available. If it is difcult to send the signal to the sensor directly, attempt to make the
signal reect.
• The remote control uses infrared light to send signals to the projector (Class 1 LED),
so be sure to use the remote control in an area free from obstacles that could block the
remote control’s signal to the projector.
•
The remote control may not work correctly if strong light (such as direct sun light) or light
from an extremely close range (such as from an inverter uorescent lamp) shines on the
remote sensor of the projector. Adjust the position of projector avoiding those lights.
S
D
C
A
R
D
30º
30º
Approx.
3 m
13
Changing the frequency of remote control signal
The accessory remote control has the two choices on signal
frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote
control does not function properly, attempt to change the signal
frequency.
In order to set the Mode, please keep pressing the
combination of two buttons listed below simultaneously for
about 3 seconds.
(1) Set to Mode 1:NORMAL... MUTE and RESET buttons
(2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons
Please remember that the REMOTE FREQ. in the SERVICE
item of the OPTION menu (
42) of the projector to be
controlled should be set to the same mode as the remote
control.
Remote control
Using as a simple PC mouse & keyboard
The enclosed remote control works as a simple mouse and
keyboard of the PC, when the projector's USB port (B type)
connects with the PC's USB port (A type) port via a mouse cable.
(1) HOME key: Press the HOME button.
(2) END key: Press the END button.
(3) PAGE UP key: Press the PAGE UP button.
(4) PAGE DOWN key: Press the PAGE DOWN button.
(5) Mouse left button: Press the ENTER button.
(6) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►.
(7) ESC key: Press the ESC button.
(8) Mouse right button: Press the RESET button.
NOTE •
When the simple mouse & keyboard function of this product does not work
correctly, please check the following.
- When the mouse cable connects this projector with a PC having a built-in pointing
device (e.g. track ball) like a notebook PC, open BIOS setup menu, then select the
external mouse and disable the built-in pointing device, because the built-in pointing
device may have priority to this function.
- Windows 95 OSR 2.1 or higher is required for this function. And also this function may
not work depending on the PC’s congurations and mouse drivers.
- You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).
- This function is activated only when the projector is working properly. This function
is not available while the lamp is warming up (the POWER indicator ashes green),
and while adjusting the volume and display, correcting for keystone, zooming in on the
screen, using the BLANK function, or displaying the menu screen.
CAUTION ►Improper use of the simple mouse
& keyboard function could damage your equipment.
While using this function, please connect this product
only to a PC. Be sure to check your PC’s manuals
before connecting this product to the PC.
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
(1)(2)
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
(3)(1)
(2)
(5)
(7)
(4)
(6)
(8)
USB port
K
COMPUTER IN1
COMPUTER IN2
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
K
COMPUTER IN
USB
USB STORAGE
DC 5V 0.5A
AUDIO OUT
AUDIO IN
S-VIDEO
VIDEO
LAN
14
Turning on the power
1.
Make sure that the POWER indicator turns in
steady orange and the lens cover is removed.
2.
Press the STANDBY/ON button on the projector or
the remote control.
The projection lamp will light up and the POWER
indicator will begin blinking in green. When the power
is completely on, the indicator will stop blinking and
light in steady green.
To display the picture, select an input signal according to the
section “Selecting an input signal” (
15).
S
D
C
AR
D
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
Power on/off
WARNING
►A strong light is emitted when the projector’s power is on. Do
not look into the lens of the projector or look inside of the projector through any
of the projector’s openings.
►Do not touch around the lamp cover and the exhaust vents during use or just
after use, since it is too hot.
►Remove the power cord for complete separation.
NOTE • Please power on the projector prior to the connected devices. Power
off the projector, after all of connected devices are powered off.
• This projector has the function that can make the projector automatically turn
on/off. Please refer to the AUTO ON (
38) and AUTO OFF (
39) items of the
OPTION menu.
• Use the shutdown switch (
62) only when the projector is not turned off by
normal procedure.
Power on/off
STANDBY/ON button
POWER indicator
Lens cover
Turning off the power
1.
Press the STANDBY/ON button on the projector or the remote control. The message
“Power off?” will appear on the screen for about 5 seconds.
2.
Press the STANDBY/ON button again while the message appears.
The projector lamp will go off, and the POWER indicator will begin blinking in orange.
Then the POWER indicator will stop blinking and light in steady orange when the lamp
cooling is complete.
3.
Attach the lens cover, after the POWER indicator turns in steady orange.
Do not turn the projector on for about 10 minutes after turning it off. Turning the
projector on again too soon could shorten the lifetime of some consumable parts of the
projector.
MENU
LAMP
TEMP
POWER
STANDBY/ON
INPUT/
ENTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
15
Selecting an input signal
1.
Press the INPUT/ENTER button on the projector.
Each time you press the button, the projector switches
its input port as below.
COMPUTER IN
MIU
VIDEO
S-VIDEO
Operating
Operating
Adjusting the volume
1.
Press the VOLUME button on the remote control.
A dialog will appear on the screen to aid you in adjusting the
volume.
2.
Use the ▲/▼ cursor buttons to adjust the volume.
To close the dialog and complete the operation, press the
VOLUME button again. Even if you do not do anything, the dialog
will automatically disappear after a few seconds.
● When
is selected for the AUDIO item of the SETUP menu
(
33)
, the volume adjustment is disable for MIU signal.
Temporarily muting the sound
1.
Press the MUTE button on the remote control.
A dialog will appear on the screen indicating that you have muted the sound.
To restore the sound, press the MUTE or VOLUME button. Even
if you do not do anything, the dialog will automatically disappear
after a few seconds.
● When
is selected for the AUDIO item of the SETUP menu
(
33), the volume adjustment is disable
.
1.
Press the COMPUTER/STORAGE button on the
remote control.
Each time you press the button, the projector switches
its input port as below.
COMPUTER IN
MIU
● If the COMPUTER/STORAGE button is pushed to switch from
a signal from the VIDEO or S-VIDEO port, when TURN ON is
selected for the AUTO SEARCH item in the OPTION menu
(
38)
,
the projector will check the COMPUTER IN port rst. If no input is
detected at the port, the projector will check other port in above order.
(continued on next page)
INPUT/ENTER
MENU
LAMP
TEMP
POWER
STANDBY/ON
INPUT/
ENTER
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
VOLUME
▲/▼
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
MUTE
COMPUTER
/STORAGE
16
Operating
Searching an input signal
1.
Press the SEARCH button on the remote control.
The projector will start to check its input ports in order to
nd any input signals.
When an input is found, the projector will stop searching and
display the image. If no signal is found, the projector will return to
the state selected before the operation.
COMPUTER IN
MIU
VIDEO
S-VIDEO
Selecting an input signal (continued)
1.
Press the VIDEO button on the remote control.
Each time you press the button, the projector switches its
input port as below.
S-VIDEO VIDEO
● If the VIDEO button is pushed to switch from a signal from
the COMPUTER IN port or an MIU signal, when TURN ON is
selected for the AUTO SEARCH item in the OPTION menu
(
38)
, the projector will check the S-VIDEO port rst. If no input
is detected at the port, the projector will check the VIDEO port.
Selecting an aspect ratio
1.
Press the ASPECT button on the remote control.
Each time you press the button, the projector switches the
mode for aspect ratio in turn.
For a PC or MIU signal
NORMAL
4:3
16:9
SMALL
For a video signal, s-video signal or component video signal
4:3
16:9
14:9
SMALL
For no signal
4:3 (xed)
● The ASPECT button does not work when no proper signal is inputted.
● The NORMAL mode keeps the original aspect ratio setting.
● Performing the automatic adjustment initializes the aspect ratio setting.
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
VIDEO
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
SEARCH
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
ASPECT
17
Adjusting the zoom and focus
1.
Use the zoom ring to adjust the screen size.
2.
Use the focus ring to focus the picture.
S
D
C
A
R
D
Operating
Focus ring
Zoom ring
Adjusting the projector's elevator
When the place to put the projector is slightly uneven to the left or right, use the
elevator feet to place the projector horizontally.
Using the feet can also tilt the projector in order to project at
a suitable angle to the screen, elevating the front side of the
projector within 11 degrees.
This projector has 2 elevator feet and 2 elevator knobs. An elevator foot is
adjustable while pulling up the elevator knob on the same side as it.
1.
Holding the projector, pull the elevator knobs up to loose the elevator feet.
2.
Position the front side of the projector to the desired height.
3.
Release the elevator knobs in order to lock the elevator feet.
4.
After making sure that the elevator feet are locked, put the projector gently.
5.
If necessary, the elevator feet can be manually twisted to make more precise
adjustments. Hold the projector when twisting the feet.
CAUTION ►Do not handle the elevator knobs without holding the projector,
since the projector may drop down.
►Do not tilt the projector other than it elevating its front within 11 degrees using
the adjuster feet. A tilt of the projector exceeding the restriction could cause
malfunction or shortening the lifetime of consumables, or the projector itself.
q
To loose an elevator foot, pull up the
elevator knob on the same side as it.
To nely adjust, twist the foot.
18
Adjusting the position
1.
Press the POSITION button on the remote control.
The “POSITION” indication will appear on the screen.
2.
Use the ▲/▼/◄/► cursor buttons to adjust the picture
position.
When you want to reset the operation, press the RESET button
on the remote control during the operation.
To complete this operation, press the POSITION button again.
Even if you do not do anything, the dialog will automatically
disappear after a few seconds.
● The POSITION button does not work for an MIU signal.
● When this function is performed on a video signal, s-video signal or component
video signal, some image such as an extra-line may appear at outside of the
picture.
● When this function is performed on a video signal, s-video signal, or component
video signal, the range of this adjustment depends on the OVER SCAN in the
IMAGE menu
(
27)
setting. It is not possible to adjust when the OVER SCAN
is set to 10.
Operating
Using the automatic adjustment feature
1.
Press the AUTO button on the remote control.
Pressing this button performs the following.
For a PC signal
The vertical position, the horizontal position, the horizontal
phase and the horizontal size will be automatically adjusted.
And the aspect ratio will be automatically set to default. Make
sure that the application window is set to its maximum size
prior to attempting to use this feature. A dark picture may still
be incorrectly adjusted. Use a bright picture when adjusting.
For an MIU signal
The aspect ratio will be automatically set to the default.
For a video signal, s-video signal or component video signal
The video format best suited for the respective input signal will be selected
automatically. This function is available only when the AUTO is selected for
the VIDEO FORMAT item in the INPUT menu
(
30)
.
The vertical position, horizontal position and aspect ratio will be automatically
set to the default. For a component video signal, also the horizontal phase
will be automatically set to the default.
● The automatic adjustment operation requires about 10 seconds. Also please
note that it may not function correctly with some input. When this function
is performed for a video signal, a certain extra such as a line may appear
outside a picture.
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
AUTO
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
POSITION
19
Operating
Using the magnify feature
1.
Press the ON button of MAGNIFY on the remote control.
The “MAGNIFY” indication will appear on the screen (although
the indication will disappear in several seconds with no
operation), and the projector will go into the MAGNIFY mode.
2.
Use the ▲/▼ cursor buttons to adjust the zoom level.
To move the zoom area, press the POSITION button in the
MAGNIFY mode, then use the ▲/▼/◄/► cursor buttons to move the
area. And to nalize the zoom area, press the POSITION button again.
To exit from the MAGNIFY mode and restore the screen to normal,
press the OFF button of MAGNIFY on the remote control.
● The projector automatically exits from the MAGNIFY mode when the input
signal is changed, or when the display condition is changed.
● Although in the MAGNIFY mode, the keystone distortion condition may vary, it
will be restored when the projector exits from the MAGNIFY mode.
NOTE • The zoom level can be nely adjusted. Closely watch the screen to
nd the level you want.
Correcting the keystone distortions
1.
Press the KEYSTONE button on the remote control. A dialog
will appear on the screen to aid you in correcting the distortion.
2.
Use the ▲/▼ cursor buttons to select the AUTO or MANUAL
operation, and press the ► button to perform the following.
(1) The AUTO executes automatic vertical keystone correction.
(2) The MANUAL displays a dialog for keystone correction.
Use the ▲/▼ buttons for adjustment.
To close the dialog and complete this operation, press the
KEYSTONE button again. Even if you do not do anything, the
dialog will automatically disappear after a few seconds.
● The adjustable range of this correction will vary among inputs. For some input,
this function may not work well.
● When V:INVERT or H&V:INVERT is selected to the MIRROR item in the
SETUP menu, if the projector screen is inclined or angled downward, this
function may not work correctly.
● When the zoom adjustment is set to the TELE (telephoto focus), the automatic
keystone distortion correction may be excessive. This function should be used when
the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.
● When the projector is placed on the level (about ±0°), the automatic keystone
distortion correction may not work.
● When the projector is inclined to near ±30 degree or over, this function may not work well.
● This function will be unavailable when Transition Detector is on (
47).
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
KEYSTONE
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
MAGNIFY
ON/OFF
20
Operating
Temporarily blanking the screen
1.
Press the BLANK button on the remote control.
The blank screen will be displayed instead of the screen of
input signal. Please refer to the BLANK item in the SCREEN
menu
(
34).
To exit from the blank screen and return to the input signal
screen, press the BLANK button again.
● The projector automatically returns to the input signal screen
when one of the projector’s buttons or the remote control buttons
(except ASPECT, POSITION, MAGNIFY or FREEZE button,
also except MY BUTTON1/2 if AUTO KEYSTONE or MyMemory or PICTURE
MODE is assigned on these buttons
(
40)
) is pressed.
NOTE • The sound is not connected with the blank screen function. If
necessary, set the volume or mute rst.
Freezing the screen
1.
Press the FREEZE button on the remote control.
The “FREEZE” indication will appear on the screen (although
the indication will not appear when the TURN ON is selected
to the MESSAGE item of the SCREEN menu
(
37)
), and the
projector will go into the FREEZE mode.
To exit the FREEZE mode and restore the screen to normal,
press the FREEZE button again.
● The projector automatically exits from the FREEZE mode when
one of the projector’s buttons or remote control buttons of
STANDBY/ON, SEARCH, COMPUTER/STORAGE, VIDEO, BLANK, AUTO,
VOLUME, MUTE, KEYSTONE, MENU, MAGNIFY and MY BUTTON1/2(except
MyMemory or PICTURE MODE is assigned to)
(
40)
is pressed.
● If the projector continues projecting a still image for a long time, the LCD panel
might possibly be burned in. Do not leave the projector in the FREEZE mode
for too long.
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
FREEZE
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
BLANK
21
Operating
Using the menu function
This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, SCREEN,
OPTION, MIU and EASY MENU. EASY MENU consists of functions often used, and the
other menus are classied into each purpose. Each of these menus is operated using the
same methods. The basic operations of these menus are as follows.
1.
Press the MENU
button on the remote
control or the projector.
The Advanced MENU,
or EASY MENU that
has priority just after
powered on, will appear.
While the projector is
displaying any menu, the
INPUT/ENTER button
on the projector works as the ENTER button and
the MENU button on the projector works as the cursor buttons.
In the EASY MENU
2.
If you want to change it to the Advanced
Menu, select the “Go to Advanced
Menu...”
3.
Use the ▲/▼ cursor buttons to select an
item to operate.
4.
Use the ◄/► cursor buttons to operate
the item.
In the Advanced Menu
2.
Use the ▲/▼ cursor buttons to select a menu.
If you want to change it to the EASY MENU, select the EASY MENU.
Then press the ► cursor button, or the ENTER button to select an item. The
lower layer menu of the selected item will appear.
3.
Use the ▲/▼ cursor buttons to select an item to operate.
Then press the
►
cursor button, or the ENTER button to progress. The operation menu
of the selected item will appear.
4.
Use the ▲/▼ cursor buttons to operate the item.
Some functions cannot be performed when a certain input port is selected, or
when a certain input signal is displayed.
When you want to reset the operation, press the RESET button on the remote control
during the operation. Note that some items (ex. LANGUAGE, H PHASE, VOLUME)
cannot be reset.
In the Advanced Menu, when you want to return to the previous display, press the ◄
cursor button, or the ESC button on the remote control.
5.
Press the MENU button on the remote control again to close the menu
and complete this operation. Even if you do not do anything, the dialog will
automatically disappear after about 10 seconds.
/'07=%1/276'4?
+/#)'
5'672
2+%674'
+0276
126+10
/+7
5%4''0
5*#420'55
$4+)*60'55㧗
%1064#56㧗
%1.14㧗
6+06㧗
%1.146'/2
*+)*
)#//#
&'(#7.6
5'.'%6
'#5;/'07
/;/'/14;5#8'
'#5;/'07=%1/276'4?
#52'%6
':'%76'
)QVQ#FXCPEGF/GPW
%7561/
014/#.
014/#.
J
'0).+5*
#761-';5610'
-';5610'
2+%674'/1&'
$4+)*60'55
%1064#56
%1.14
6+06
5*#420'55
9*+52'4
/+4414
4'5'6
(+.6'46+/'
.#0)7#)'
SD CARD
MENU
LAMP
TEMP
POWER
STANDBY/ON
INPUT/
ENTER
INPUT/ENTER button
MENU button
HOME
PAGE UP
PAGE DOWN
EN
D
VIDEO
SEARCH
FREEZ
E
OF
F
ON
MAGNIFY
ASPEC
T A
UT
O
BLAN
K
MUTE
VOLUME
KEYS
TO
NE
MY BUTTON
POSITION
1 2
ES
C
ENTER
MENU
RESE
T
COMPUTER/
STORAG
E
RESET button
ENTER button MENU button
Cursor buttons
HOME
PAGE UP
PAGE DOWN
END
VIDEO
SEARCH
FREEZE
OFF
ON
MAGNIFY
ASPECT AUTO
BLANK
MUTE
VOLUME
KEYSTONE
MY BUTTON
POSITION
1 2
ESC
ENTER
MENU
RESET
COMPUTER/
STORAGE
ESC button
Advanced MENU
EASY MENU
22
EASY MENU
EASY MENU
Item Description
ASPECT
Using the ◄/► buttons switches the mode for aspect ratio.
See the ASPECT item in IMAGE menu
(
27).
AUTO
KEYSTONE
EXECUTE
Using the ► button executes the auto keystone function.
See the AUTO KEYSTONE EXECUTE item in SETUP menu
(
32).
KEYSTONE
Using the ◄/► buttons corrects the vertical keystone distortion.
See the KEYSTONE item in SETUP menu
(
32).
PICTURE MODE
Using the ◄/► buttons switches the picture mode.
The picture modes are combinations of GAMMA and COLOR
TEMP settings. Choose a suitable mode according to the projected
source.
NORMAL
ó
CINEMA
ó
DYNAMIC
WHITEBOARD
ó
BOARD(GREEN)
ó
BOARD(BLACK)
COLOR TEMP GAMMA
NORMAL MID DEFAULT #1 DEFAULT
CINEMA LOW DEFAULT #2 DEFAULT
DYNAMIC HIGH DEFAULT #3 DEFAULT
BOARD(BLACK) Hi-BRIGHT-1 DEFAULT #4 DEFAULT
BOARD(GREEN) Hi-BRIGHT-2 DEFAULT #4 DEFAULT
WHITEBOARD MID DEFAULT #5 DEFAULT
• When the combination of GAMMA and COLOR TEMP differs
from pre-assigned modes above, the display on the menu for the
PICTURE MODE is “CUSTOM”. Please refer to the GAMMA (
24)
and COLOR TEMP (
25) items in PICTURE menu.
• When this function is performed, a certain extra such as a line
may appear.
From the EASY MENU, items shown in the table below can
be performed.
Select an item using the ▲/▼ cursor buttons. Then perform
it according to the following table.
'#5;/'07=%1/276'4?
#52'%6
':'%76'
)QVQ#FXCPEGF/GPW
%7561/
014/#.
014/#.
J
'0).+5*
#761-';5610'
-';5610'
2+%674'/1&'
$4+)*60'55
%1064#56
%1.14
6+06
5*#420'55
9*+52'4
/+4414
4'5'6
(+.6'46+/'
.#0)7#)'
(continued on next page)
23
EASY MENU
Item Description
BRIGHTNESS
Using the ◄/► buttons adjusts the brightness.
See the BRIGHTNESS item in PICTURE menu
(
24).
CONTRAST
Using the ◄/► buttons adjusts the contrast.
See the CONTRAST item in PICTURE menu
(
24).
COLOR
Using the ◄/► buttons adjusts the strength of whole color.
See the COLOR item in PICTURE menu
(
25).
TINT
Using the ◄/► buttons adjusts the tint.
See the TINT item in PICTURE menu
(
25).
SHARPNESS
Using the ◄/► buttons adjusts the sharpness.
See the SHARPNESS item in PICTURE menu
(
25).
WHISPER
Using the ◄/► buttons turns off/on the whisper mode.
See the WHISPER item in SETUP menu
(
33).
MIRROR
Using the ◄/► buttons switches the mode for mirror status.
See the MIRROR item in SETUP menu
(
33).
RESET
Performing this item resets all of the EASY MENU items except the
FILTER TIME and LANGUAGE.
A dialog is displayed for conrmation. Selecting the RESET using
the ▲ button performs resetting.
FILTER TIME
Performing this item resets the lter time which counts usage time
of the air lter.
A dialog is displayed for conrmation. Selecting the RESET using
the ▲ button performs resetting.
See the FILTER TIME item in OPTION menu
(
39).
LANGUAGE
Using the ◄/► buttons changes the display language.
See the LANGUAGE item in SCREEN menu
(
34).
Go to
Advanced Menu...
Select “Go to Advanced Menu…” on the menu, and press the
►
or ENTER button to use the menu of PICTURE, IMAGE, INPUT,
SETUP, SCREEN, OPTION or MIU.
EASY MENU (continued)
24
PICTURE Menu
PICTURE Menu
Item Description
BRIGHTNESS
Using the ▲/▼ buttons adjusts the brightness.
Light
ó
Dark
CONTRAST
Using the ▲/▼ buttons adjusts the contrast.
Strong
ó
Weak
GAMMA
Using the ▲/▼ buttons switches the gamma mode.
#1 DEFAULT
ó
#1 CUSTOM
ó
#2 DEFAULT
ó
#2 CUSTOM
ó
#3 DEFAULT
#5 CUSTOM
ó
#5 DEFAULT
ó
#4 CUSTOM
ó
#4 DEFAULT
ó
#3 CUSTOM
To adjust CUSTOM
Selecting a mode whose name includes
CUSTOM and then pressing the ► button
or the ENTER button displays a dialog to aid
you in adjusting the mode.
This function is useful when you want to
change the brightness of particular tones.
Choose an item using the ◄/► buttons, and
adjust the level using the ▲/▼ buttons.
You can display a test pattern for checking the effect of your
adjustment by pressing the ENTER button. Each time you press the
ENTER button, the pattern changes as below.
No pattern
ð
Gray scale of 9 steps
Ramp
Gray scale of 15 steps
The eight equalizing bars correspond to eight tone levels of the test
pattern except the darkest in the left end. If you want to adjust the
2nd tone from left end on the test pattern (Gray scale of 9 steps),
use the equalizing adjustment bar “1”. The darkest tone at the left
end of the test pattern cannot be controlled with any of equalizing
adjustment bar.
• When this function is performed, lines or other distortion may
appear.
From the PICTURE menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons, and press the
► cursor button or ENTER button to execute the item. Then
perform it according to the following table.
1
+0
2
+0
3
+0
4
+0
5
+0
6
+0
7
+0
8
+0
GAMMA
[
CUSTOM-1
]
ENTER, :
/'07=%1/276'4?
+/#)'
5'672
2+%674'
+0276
126+10
/+7
5%4''0
5*#420'55
$4+)*60'55㧗
%1064#56㧗
%1.14㧗
6+06㧗
%1.146'/2
*+)*
)#//#
&'(#7.6
5'.'%6
'#5;/'07
/;/'/14;5#8'
(continued on next page)
25
Item Description
COLOR TEMP
Using the ▲/▼ buttons switches the color temperature mode.
To adjust CUSTOM
Selecting a mode whose name includes
CUSTOM and then pressing the ► button or the
ENTER button displays a dialog to aid you in
adjusting the OFFSET and GAIN of the selected
mode.
OFFSET adjustments change the color intensity
on the whole tones of the test pattern.
GAIN adjustments mainly affect color intensity
on the brighter tones of the test pattern.
Choose an item using the ◄/► buttons, and adjust the level using
the ▲/▼ buttons.
You can display a test pattern for checking the effect of your
adjustment by pressing the ENTER button. Each time you press the
ENTER button, the pattern changes as below.
No pattern
ð
Gray scale of 9 steps
Ramp
Gray scale of 15 steps
• When this function is performed, lines or other distortion may
appear.
COLOR
Using the ▲/▼ buttons adjusts the strength of whole color.
Strong
ó
Weak
• This item can be selected only for a video signal, s-video or
component video signal.
TINT
Using the ▲/▼ buttons adjusts the tint.
Greenish
ó
Reddish
• This item can be selected only for a video signal, s-video or
component video signal.
SHARPNESS
Using the ▲/▼ buttons adjusts the sharpness.
Strong
ó
Weak
• There may be some noise and/or the screen may icker for a
moment when an adjustment is made. This is not a malfunction.
PICTURE Menu
PICTURE Menu (continued)
+0 +0
R G B
+0
COLOR TEMP [CUSTOM-1]
OFFSET
+0 +0
R G B
+0
GAIN
ENTER, :
HIGH DEFAULT
�
HIGH CUSTOM
�
MID DEFAULT
�
MID CUSTOM
LOW DEFAULT
�
LOW CUSTOM
�
Hi-BRIGHT-1 DEFAULT
�
Hi-BRIGHT-1 CUSTOM
Hi-BRIGHT-2 DEFAULT
�
Hi-BRIGHT-2 CUSTOM
(continued on next page)
26
PICTURE Menu
Item Description
MY MEMORY
This projector has 4 memories for adjustment data (for all the items
of the PICTURE menu).
Selecting a function using the ▲/▼ buttons and pressing the ► or
ENTER button performs each function.
LOAD1
ó
LOAD2
ó
LOAD3
ó
LOAD4
SAVE4
ó
SAVE3
ó
SAVE2
ó
SAVE1
LOAD1, LOAD2, LOAD3, LOAD4
Performing a LOAD function loads the data from the memory linked
in the number included in the function’s name, and adjusts the
picture automatically depending on the data.
• The LOAD functions whose linked memory has no data are
skipped.
• Remember that the current adjusted condition will be lost by
loading data. If you want to keep the current adjustment, please
save it before performing a LOAD function.
• There may be some noise and the screen may icker for a
moment when loading data. This is not malfunction.
• The LOAD functions can be also performed by the MY MEMORY
button which can be set by the MY BUTTON item in OPTION menu
(
40).
SAVE1, SAVE2, SAVE3, SAVE4
Performing a SAVE function saves the current adjustment data into
the memory linked in the number included in the function’s name.
• Remember that the current data being stored of a memory will be
lost by saving a new data into the memory.
PICTURE Menu (continued)
27
IMAGE Menu
IMAGE Menu
Item Description
ASPECT
Using the ▲/▼ buttons switches the mode for aspect ratio.
For a PC and MIU signal
NORMAL
ó
4:3
ó
16:9
ó
SMALL
For a Video signal, s-video signal or component video signal
4:3
ó
16:9
ó
14:9
ó
SMALL
For no signal
4:3 (xed)
• This item can be selected only for a proper signal.
• The NORMAL mode keeps the original aspect ratio setting.
•
Performing the automatic adjustment initializes the aspect ratio setting.
OVER SCAN
Using the ▲/▼ buttons adjusts the over-scan ratio.
Large (It reduces picture)
ó
Small (It magnies picture)
•
This item can be selected only for a video, s-video and component video signal.
• When this adjustment is too large, certain degradation may appear
at the frame area of the picture. In such a case, please adjust small.
V POSITION
Using the ▲/▼ buttons adjusts the vertical position.
Up
ó
Down
• This item cannot be selected for an MIU signal.
•
Over-adjusting the vertical position may cause noise to appear on the screen. If this
occurs please reset the vertical position to the default setting. Pressing the RESET button
when the V POSITION is selected will reset the V POSITION to the default setting.
•
When this function is performed on a video signal, s-video signal, or
component video signal, the range of this adjustment depends on the
OVER SCAN
(
above)
setting. It is not possible to adjust when the OVER
SCAN is set to 10.
H POSITION
Using the ▲/▼ buttons adjusts the horizontal position.
Left
ó
Right
• This item cannot be selected for an MIU signal.
•
Over-adjusting the horizontal position may cause noise to appear on the screen. If this
occurs please reset the horizontal position to the default setting. Pressing the RESET
button when the H POSITION is selected will reset the H POSITION to the default setting.
•
When this function is performed on a video signal, s-video signal, or
component video signal, the range of this adjustment depends on the
OVER SCAN
(
above)
setting. It is not possible to adjust when the OVER
SCAN is set to 10.
From the IMAGE menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor button or ENTER button to execute the item.
Then perform it according to the following table.
/'07=%1/276'4?
+/#)'
2+%674'
5'.'%6
#761#&,756':'%76'
#52'%6
18'45%#0
*2*#5'
*5+<'
*215+6+10
8215+6+10
5'672
+0276
5%4''0
/+7
126+10
'#5;/'07
(continued on next page)
28
IMAGE Menu
Item Description
H PHASE
Using the ▲/▼ buttons adjusts the horizontal phase to eliminate icker.
Right
ó
Left
• This item can be selected only for a computer signal or component
video signal.
H SIZE
Using the ▲/▼ buttons adjusts the horizontal size.
Large
ó
Small
• This item can be selected only for a computer signal.
• When this adjustment is excessive, the picture may not be
displayed correctly. In such a case, please reset the adjustment by
pressing the RESET button during this operation.
AUTO ADJUST
EXECUTE
Selecting this item performs the automatic adjustment feature.
For a PC signal
The vertical position, the horizontal position, the horizontal phase
and the horizontal size (
41) will be automatically adjusted. And
the aspect ratio will be automatically set to the default.
Make sure that the application window is set to its maximum size
prior to attempting to use this feature. A dark picture may still be
incorrectly adjusted. Use a bright picture when adjusting.
For an MIU signal
The aspect ratio will be automatically set to the default.
For a video signal, s-video signal or component video signal
The video format best suited for the respective input signal will be
selected automatically.
This function is available only when the AUTO mode is selected to
the VIDEO FORMAT item in INPUT menu (
30).
The vertical position, horizontal position and aspect ratio will be
automatically set to the the default.
For a component video signal, also the horizontal phase will be
automatically set to the default.
• The automatic adjustment operation requires about 10 seconds.
Also please note that it may not function correctly with some input.
IMAGE Menu (continued)
29
INPUT Menu
INPUT Menu
Item Description
PROGRESSIVE
Using the ▲/▼ buttons switches the progress mode.
TV
ó
FILM
ó
TURN OFF
• This function is performed only for an interlaced signal of a video,
s-video or component video of 525i (480i) or 625i (576i) signal.
• When TV or FILM is selected, the screen image will be sharp.
FILM adapts to the 2-3 Pull-Down conversion system. But these
may cause a certain defect (for example, jagged line) of the picture
for a quick moving object. In such a case, please select TURN OFF,
even though the screen image may lose the sharpness.
VIDEO NR
Using the ▲/▼ buttons switches the noise reduction mode.
HIGH
ó
MID
ó
LOW
• This function performs only for a video, s-video or component
video of 525i(480i) or 625i(576i) signal.
• When this function is excessive, it may cause a certain
degradation of the picture.
COLOR SPACE
Using the ▲/▼ buttons switches the mode for color space.
AUTO
ó
RGB
ó
SMPTE240
ó
REC709
ó
REC601
• This item can be selected only for a computer signal, component
video signal or MIU signal.
• The AUTO mode automatically selects the optimum mode.
• The AUTO operation may not work well at some signals. In such a
case, it might be good to select a suitable mode except AUTO.
From the INPUT menu, items shown in the table below can
be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor button or ENTER button to execute the item.
Then perform it according to the following table.
/'07=%1/276'4?
5'.'%6
8+&'1(14/#6
%1.1452#%'#761
(4#/'.1%-67401((
4'51.76+10
%1/276'4+0
241)4'55+8'(+./
8+&'104/+&
+/#)'
2+%674'
5'672
+0276
5%4''0
/+7
126+10
'#5;/'07
(continued on next page)
30
Item Description
VIDEO FORMAT
Set the video format for the s-video port and video port.
(1) Use the ◄/► buttons to select the input port.
(2) Using the ▲/▼ buttons switches the mode
for video format.
AUTO
ó
NTSC
ó
PAL
ó
SECAM
N-PAL
ó
M-PAL
ó
NTSC4.43
• This item is performed only for a video signal
from the VIDEO port or the S-VIDEO port.
• The AUTO mode automatically selects the optimum mode.
• The AUTO operation may not work well for some signals. If the
picture becomes unstable (e.g. an irregular picture, lack of color),
please select the mode according to the input signal.
FRAME LOCK
Using the ▲/▼ buttons turns the frame lock function on/off.
TURN ON
ó
TURN OFF
• This item can be performed only on a computer signal with a
vertical frequency of 50 to 60 Hz.
• When the TURN ON is selected, a moving pictures are displayed
more smoothly.
• This function may cause a certain degradation of the picture. In
such a case, please select the TURN OFF.
COMPUTER IN
Set the computer input signal type for the ports of COMPUTER.
Use the ▲/▼ buttons to select the computer input signal type.
AUTO
ó
SYNC ON G OFF
Sync on Green signal can be supported, if AUTO is selected.
• When the AUTO is selected, the picture may be distorted with
certain input signals. In such a case, remove the signal connector
first and select SYNC ON G OFF on the menu, and then reconnect
the signal.
• Component signal can be supported through COMPUTER IN port,
if AUTO is selected for the COMPUTER IN port.
INPUT Menu
INPUT Menu (continued)
8+&'1(14/#6
58+&'1
#761
065%
2#.
5'%#/
065%
/2#.
02#.
8+&'1
(continued on next page)
31
INPUT Menu
Item Description
RESOLUTION
The resolution for the COMPUTER IN input signals can be set on
this projector.
(1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and
press the ► button.
The RESOLUTION menu will be displayed.
(2) In the RESOLUTION menu, select the
resolution you wish to display using the ▲/▼
buttons.
Selecting AUTO will set a resolution
appropriate to the input signal.
(3) Pressing the ► or ENTER button when
selecting a STANDARD resolution will
automatically adjust the horizontal and
vertical positions, clock phase and horizontal
size and automatically select an aspect ratio.
The INFORMATION dialog (
42) will be
displayed.
(4) To set a custom resolution use the
▲/▼ buttons to select the CUSTOM and
the CUSTOM RESOLUTION box will be
displayed. Set the horizontal (HORZ) and
vertical (VERT) resolutions using the
▲/▼/◄/► buttons.
Although not all resolutions are guaranteed.
(5) To save the setting place the cursor on the
right-most digit and press the ► button.
The horizontal and vertical positions,
clock phase and horizontal size will be
automatically adjusted and an aspect ratio will
be automatically selected.
(6) To revert back to the previous resolution
without saving changes place the cursor on
the left-most digit and press the ◄ button.
The screen will then return to the RESOLUTION
menu displaying the previous resolution.
• For some pictures, this function may not work well.
INPUT Menu (continued)
4'51.76+10
56#0&
%7561/
#761
Z
Z
Z
Z
COMPUTER
1280x 768@ 60
COMPUTER
992x 744@ 60
4'51.76+10
56#0&
%7561/
#761
Z
Z
Z
Z
%7561/4'51.76+10
5'6
*14<Z8'46
Z
37+6
32
SETUP Menu
SETUP Menu
Item Description
AUTO
KEYSTONE
EXECUTE
Selecting this item performs the automatic keystone distortion
correction. Projector automatically corrects vertical keystone
distortion due to the (forward/backward) setup angle by itself.
This function will be executed only once when selected in the menu.
When the slant of the projector is changed, execute this function
again.
• The adjustable range for correction will vary among inputs. For
some input, this function may not work well.
• When V:INVERT or H&V:INVERT is selected to the MIRROR item
in the SETUP menu, if the projector screen is inclined or angled
downward, this function may not work correctly.
• When the zoom adjustment is set to the TELE (telephoto focus),
this function may be excessive. This function should be used when
the zoom adjustment is set to the full WIDE (wide-angle focus)
whenever possible.
• When the projector is placed on the level (about ±0°), this function
may not work.
• When the projector is inclined to near ±30 degree or over, this
function may not work well.
• This function will be unavailable when the Transition Detector is
on (
47).
KEYSTONE
Using the ▲/▼ buttons corrects the vertical keystone distortion.
Shrink the top of the image
ó
Shrink the bottom of the image
• The adjustable range of this function will vary with the type of input
signal. For some input, this function may not work well.
• This function will be unavailable when the Transition Detector is
on (
47).
From the SETUP menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor button or the ENTER button to execute the
item. Then perform it according to the following table.
/'07=%1/276'4?
5'.'%6
-';5610'
#761-';5610'':'%76'
9*+52'4014/#.
81.7/'
#7&+1
/+4414014/#.
+/#)'
2+%674'
5'672
+0276
5%4''0
/+7
126+10
'#5;/'07
(continued on next page)
33
SETUP Menu
SETUP Menu (continued)
Item Description
WHISPER
Using the ▲/▼ buttons turns off/on the whisper mode.
NORMAL
ó
WHISPER
• When the WHISPER is selected, acoustic noise and screen
brightness are reduced.
MIRROR
Using the ▲/▼ buttons switches the mode for mirror status.
NORMAL
ó
H:INVERT
ó
V:INVERT
ó
H&V:INVERT
If the Transition Detector is TURN ON and MIRROR status is
changed, Transition Detector Alarm (
47) will be displayed when
projector is restarted after the power switch is turned off.
VOLUME
Using the ▲/▼ buttons adjusts the volume.
High
ó
Low
AUDIO
Allocates an audio port for an MIU signal.
(1) Press the ▼ button to begin to select.
(2) Use the ◄/► buttons to select an
Audio port for an MIU signal.
AUDIO IN
ó
ó
MIU
• This setting is effective only when an MIU signal is selected.
/+7
37+6
#7&+1
#7&+1
+0
/+7
34
SCREEN Menu
SCREEN Menu
Item Description
LANGUAGE
Using the ▲/▼ buttons switches the OSD (On Screen Display) language.
SUOMI ó POLSKI ó TÜRKÇE
ENGLISH ó FRANÇAIS ó DEUTSCH ó ESPAÑOL ó ITALIANO
NORSK ó NEDERLANDS ó PORTUGUÊS ó 日本語
ó ó ó SVENSKA ó
MENU POSITION
Using the ▲/▼/◄/► buttons adjusts the menu position.
To quit the operation, press the MENU button on the remote control
or keep no operation for about 10 seconds.
BLANK
Using the ▲/▼ buttons switches the mode for the blank screen.
The blank screen is a screen for the temporarily blanking feature
(
20). It is displayed by pressing the BLANK button.
MyScreen
ó
ORIGINAL
ó
BLUE
ó
WHITE
ó
BLACK
Feature
MyScreen
Screen can be registered by the MyScreen item
(
36)
.
ORIGINAL Screen preset as the standard screen.
BLUE, WHITE,
BLACK
Plain screens in each color.
• To avoid remaining as an afterimage, the MyScreen or ORIGINAL
screen will change to the plain black screen after several minutes.
From the SCREEN menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor button or ENTER button to execute the item.
Then perform it according to the following table.
/'07=%1/276'4? 5'.'%6
.#0)7#)''0).+5*
/'07215+6+10
56#467214+)+0#.
/[5ETGGP
/[5ETGGP.QEM67401((
5174%'0#/'
/'55#)'674010
$.#0-$.#%-
+/#)'
2+%674'
5'672
+0276
5%4''0
/+7
126+10
'#5;/'07
(continued on next page)
35
SCREEN Menu
Item Description
START UP
Using the ▲/▼ buttons switches the mode for the start-up screen.
The start-up screen is a screen displayed when no signal or an
unsuitable signal is detected.
MyScreen
ó
ORIGINAL
ó
TURN OFF
Feature
MyScreen
Screen can be registered by the MyScreen item
(
36)
.
ORIGINAL Screen preset as the standard screen.
TURN OFF Plain black screen.
• To avoid remaining as an afterimage, the MyScreen or ORIGINAL
screen will change to the BLANK screen (
34) after several
minutes. If also the BLANK screen is the MyScreen or ORIGINAL,
the plain black screen is instead used.
• When the TURN ON is selected to the MyScreen PASSWORD of
SECURITY item in OPTION menu (
44), the START UP is fixed to
MyScreen.
SCREEN Menu (continued)
(continued on next page)
36
SCREEN Menu
Item Description
MyScreen
This item allows you to capture an image for use as a MyScreen
image which can be used as the BLANK screen and START UP
screen. Display the image you want to capture before executing the
following procedure.
1. Selecting this item displays a dialog
titled “MyScreen”. It will ask you if
you start capturing an image from the
current screen.
Please wait for the target image to be displayed, and press the
ENTER button when the image is displayed. The image will
freeze and the frame for capturing will appear.
To stop performing, press the RESET or ESC button.
2. Using the ▲/▼/◄/► buttons adjusts
the frame position.
Please move the frame to the position
of the image which you want to use. The
frame may not be able to be moved for
some input signals.
To start registration, press the ENTER
button.
To restore the screen and return to the
previous dialog, press the RESET or
ESC button.
Registration takes several minutes.
When the registration is completed, the registered screen and
the following message are displayed for several seconds:
“MyScreen registration is nished.”
If the registration failed, the following message is displayed:
“A capturing error has occurred. Please try again.”
• This function cannot be selected when the TURN ON is selected
to the MyScreen Lock item (
below).
• This function cannot be selected when the TURN ON is selected
to the MyScreen PASSWORD of SECURITY item in OPTION menu
(
44).
MyScreen Lock
Using the ▲/▼ buttons turns on/off the MyScreen lock function.
TURN ON
ó
TURN OFF
When the TURN ON is selected, the MyScreen item is locked. Use
this function for protecting the current MyScreen.
• This function cannot be selected when the TURN ON is selected
to the MyScreen PASSWORD of SECURITY item in OPTION menu
(
44).
SCREEN Menu (continued)
/[5ETGGP
&Q[QWUVCTVECRVWTKPIVJKURKEVWTG!
01;'5
'06'4
4'5'6
/[5ETGGP
/QXGVJGECRVWTGCTGC
CU[QWYCPV
4'67400':6
4'5'6 '06'4
/[5ETGGP
ٌ
ٕ
(continued on next page)
37
SCREEN Menu
Item Description
MESSAGE
Using the ▲/▼ buttons turns on/off the message function.
TURN ON
ó
TURN OFF
When the TURN ON is selected, the following message function works.
“AUTO IN PROGRESS” while automatically adjusting
“NO INPUT IS DETECTED”
“SYNC IS OUT OF RANGE”
“Searching…” while searching for the input
“Detecting…” while an input signal is detected
The indication of the input signal displayed by changing
The indication of the aspect ratio displayed by changing
The indication of the PICTURE MODE displayed by changing
The indication of the MY MEMORY displayed by changing
The indication of “FREEZE” and “II” while freezing the screen by
pressing the FREEZE button.
• When the TURN OFF is selected, please remember if the picture
is freezing. Do not mistake freezing for a malfunction (
20).
SOURCE NAME
Each input port for this projector can have a name applied to it.
(1) Use the
▲/▼
buttons on the SCREEN menu to
select SOURCE NAME and press the
►
button.
The SOURCE NAME menu will be displayed.
(2) Use the ▲/▼ buttons on the SOURCE
NAME menu to select the port to be named
and press the ► button. Right side of the
menu is blank until a name is specied.
The SOURCE NAME dialog will be displayed.
(3) The current name will be displayed on the
rst line. Use the
▲/▼/◄/►
buttons and the
ENTER or INPUT button to select and enter
characters. The RESET button can be used to
erase 1 character at a time. The name can be a
maximum of 16 characters.
(4) To change an already inserted character, press
the
▲
button while the cursor is on the [A-N]
row to move the cursor to the name displayed on
the rst line and use the
◄/►
buttons to select
character to be changed. Once a character in the
name is selected use the
▼
button to move the
cursor back down to the character entry area to
select and enter characters as described above.
(5) Select
and press the ENTER or
INPUT buttons when nished entering text.
To revert to the previous name without
saving changes press the ESC or ◄ button
and the INPUT button simultaneously.
SCREEN Menu (continued)
0#/'016'2%
016'2%
#$%&'()*+,-./0
123456789:;<
CDEFGHIJKLMNOP
QRSTUVWXYZ[\
A!
5'.'%6
'06'40':6
4'5'6
$#%-
5174%'0#/'
%1/276'4016'2%
/+79KTGNGUU
58+&'1%#/'4#
8+&'1864
0#/'016'2%
0162%
#$%&'()*+,-./0
123456789:;<
CDEFGHIJKLMNOP
QRSTUVWXYZ[\
A!
5'.'%6
'06'40':6
4'5'6
$#%-
'06'40':6
4'5'6
$#%-
0#/'016'2%
016'2%
#$%&'()*+,-./0
123456789:;<
CDEFGHIJKLMNOP
QRSTUVWXYZ[\
A!
5'.'%6
38
OPTION Menu
OPTION Menu
Item Description
AUTO SEARCH
Using the ▲/▼ buttons turns on/off the automatic signal search function.
TURN ON
ó
TURN OFF
When the TURN ON is selected, detecting no signal automatically cycles
through input ports in the following order. The search is started from the
current port. Then when an input is found, the projector will stop searching
and display the image.
COMPUTER IN
ð
MIU
VIDEO
S-VIDEO
AUTO
KEYSTONE
Using the ▲/▼ buttons turns on/off the automatic keystone function.
TURN ON
ó
TURN OFF
TURN ON : Automatic keystone distortion correction will be
executed whenever changing the slant of the projector.
TURN OFF : This function is disabled. Please execute the AUTO
KEYSTONE EXECUTE in the SETUP Menu for automatic
keystone distortion correction.
• When the projector is suspended from the ceiling this feature will
not function properly so select the TURN OFF.
• This function will be unavailable when the Transition Detector is
on
(
47)
.
AUTO ON
Using the ▲/▼ buttons turns on/off the AUTO ON function.
TURN ON
ó
TURN OFF
When set to the TURN ON, the lamp in projector will be automatically
turned on without the usual procedure
(
14)
, only when the projector is
supplied with the power after the power was cut while the lamp was on.
• This function does not work as long as the power has been supplied to
the projector while the lamp is off.
• After turning the lamp on by the AUTO ON function, if neither input nor
operation is detected for about 30 minutes, the projector is turned off, even
though the AUTO OFF function
(
39)
is disabled.
From the OPTION menu, items shown in the table below can be
performed.
Select an item using the ▲/▼ cursor buttons, and press the ►
cursor button or ENTER button to execute the item, except for the
items LAMP TIME and FILTER TIME. Then perform it according
to the following table.
/'07=%1/276'4?
5'.'%6
#7611((OKP
.#/26+/'J
(+.6'46+/'J
#7615'#4%*674010
#761-';5610'
674010
#76110674010
/;$76610
5'48+%'
5'%74+6;
+/#)'
2+%674'
5'672
+0276
5%4''0
/+7
126+10
'#5;/'07
(continued on next page)
39
Item Description
AUTO OFF
Using the ▲/▼ buttons adjusts the time to count down to
automatically turn the projector off.
Long (max. 99 minutes)
ó
Short (min. 0 minute = DISABLE)
AUTO OFF
ENABLE
1min
AUTO OFF
DISABLE
0min
When the time is set to 0, the projector is not turned off automatically.
When the time is set to 1 to 99, and when the passed time with no-
signal or an unsuitable signal reaches at the set time, the projector
lamp will be turned off.
If one of the projector's buttons or the remote control buttons
is pressed or one of the commands (except get commands) is
transmitted to the LAN port during the corresponding time, projector
will not be turned off.
Please refer to the section “Turning off the power”
(
14).
LAMP TIME
The lamp time is the time counted after the last resetting. It is
shown in the OPTION menu as the usage time of the lamp.
Pressing the RESET button or the ► button displays a dialog.
To reset the lamp time, select the RESET using the ▲ button.
RESET
CANCEL
• Please reset the lamp time only when you have replaced the lamp,
for a suitable indication about the lamp.
• For the lamp replacement, see the section "Lamp" (
55).
FILTER TIME
The lter time is the time counted after the last resetting. It is shown
in the OPTION menu as the usage time of the air lter.
Pressing the RESET button or the ► button displays a dialog.
To reset the lter time, select the RESET using the ▲ button.
RESET
CANCEL
•
Please reset the lter time only when you have cleaned or replaced
the air lter, for a suitable indication about the air lter.
• For the air lter cleaning, see the section "Air lter" (
57).
OPTION Menu
OPTION Menu (continued)
(continued on next page)
40
Item Description
MY BUTTON
This item is to assign one of the following functions to MY BUTTON
1 and 2 on the remote control (
5).
Choose 1 or 2 on the MY BUTTON menu using the ◄/► button
rst. Then using the ▲/▼ buttons sets one of the following functions
to the chosen button.
• COMPUTER: Sets port to COMPUTER IN.
• MIU: Sets port to MIU.
• S-VIDEO: Sets port to S-VIDEO.
• VIDEO: Sets port to VIDEO.
• e-SHOT: Displays the e-SHOT menu (
52).
• INFORMATION: Displays a dialog of INPUT/MIU INFORMATION
(
42, 53).
If a signal is found, the dialog is switched as below.
INPUT INFORMATION
ð
MIU INFORMATION
ð
OFF
If no signal is found, the dialog is switched as below.
MIU INFORMATION
ó
OFF
• AUTO KEYSTONE EXECUTE:
Performs automatic keystone distortion correction (
32).
• MY MEMORY:
Loads one of adjustment data stored (
26).
If you want to keep the current adjustment, please press the
◄
button to
quit. Otherwise the current adjusted condition will be lost by loading a data.
• PICTURE MODE: Changes the PICTURE MODE (
22).
• FILTER RESET:
Displays the lter time reset conrmation dialogue (
39).
• VOLUME+: Set the volume up.
• VOLUME-: Set the volume down.
SERVICE
Selecting this item displays the SERVICE menu.
Select an item using the ▲/▼ buttons, and press the ► button or
the ENTER button to execute the item.
FAN SPEED
ó
AUTO ADJUST
ó
GHOST
ó
FILTER MESSAGE
ó
KEY LOCK
FACTORY RESET
ó
I NFORMATION
ó
REMOTE FREQ.
FAN SPEED
Using the
▲/▼
buttons switches the rotation speed of the
cooling fans. The HIGH is the mode for use at highlands etc.
Note that the projector is noisier when the HIGH is selected.
HIGH
ó
NORMAL
OPTION Menu (continued)
OPTION Menu
6GORQTCT[EQPFKVKQP
/'/14;4GECNNUCXGFRCTCOGVGTU
3WKV
0QUCXGFFCVC
(#052''&
*+)*
014/#.
(continued on next page)
When the current adjustment
is not saved to memory a
dialog is displayed.
When no data is saved
in memory, a dialog is
displayed.
41
Item Description
SERVICE
(continued)
AUTO ADJUST
Using the ▲/▼ buttons enables/disables the
automatic adjustment. When DISABLE is selected,
the automatic adjustment feature is disabled,
although rough adjustment is automatically performed
depending on the basic setting.
FINE
ó
FAST
ó
DISABLE
FINE: Finer tuning including H.SIZE adjustment.
FAST: Faster tuning, setting H.SIZE to prearranged data for the
input signal.
• Depending on conditions, such as input image, signal cable to
the projector, environment around the projector, etc., the automatic
adjustment may not work correctly. In such a case, please
choose DISABLE to disable the automatic adjustment, and make
adjustment manually.
GHOST
1. Select a color element of ghost using the ◄/►
buttons.
2.
Adjust the selected element using the ▲/▼ buttons to
disappear ghost.
FILTER MESSAGE
Use the ▲/▼ button to set the timer for the interval to
show the message for cleaning up the air lter.
50h
ó
100h
ó
200h
ó
300h
ó
TURN OFF
After selecting “50h”, “100h”, “200h”, or “300h”, the
message “REMINDER
***
HRS PASSED AFTER THE
LAST FILTER CHECK” will appear after the timer
reaches the interval time set by the menu (
60).
When the “TURN OFF” is chosen, the air lter
cleaning message will not appear.
• Please check and clean the air lter periodically, even if there is no
message. If the air lter becomes to be blocked by dust or others,
the internal temperature will rise, which could cause malfunction, or
reduce the lifetime of the projector.
• It is recommended to choose “100h” in general. Please be careful
with the operating environment of the projector and the condition of
the air lter, especially when the “200h”, “300h” or “TURN OFF” is
chosen.
OPTION Menu (continued)
OPTION Menu
#761#&,756
(+0'
&+5#$.'
(#56
)*156
4 ) $
(+.6'4/'55#)'
J
J
J
J
67401((
(continued on next page)
42
Item Description
SERVICE
(continued)
KEY LOCK
Using the ▲/▼ buttons turns on/off the key lock feature. When
TURN ON is selected, the buttons on the projector except the
STANDBY/ON button are locked.
TURN ON
ó
TURN OFF
• Please use to avoid a mischief and touching accidentally. This
function does not have any effect on the remote control.
REMOTE FREQ.
Use the ▲/▼ button to change the Projector's remote sensor
setting.
1:NORMAL
ó
2:HIGH
Items with a checkmark are on. The factory
default setting is for both 1:NORMAL and 2:
HIGH to be on. If the remote control does not
function correctly set this to either only 1 or
only 2 (
13).
Neither can be turned off at the same time.
INFORMATION
Selecting this item displays a dialog titled “INPUT INFORMATION”.
It shows the information about the current input.
INPUT-INFORMATION
COMPUTER
1024x768 @60
FRAME LOCK
INPUT-INFORMATION
S-VIDEO
PAL
AUTO
INPUT-INFORMATION
COMPUTER
576i @50
• The “FRAME LOCK” message on the dialog means the frame lock
function is working.
• This item can't be selected for no signal and sync out.
FACTORY RESET
Selecting RESET using the button ▲ performs this function. By
this function, all the items in all of menus will collectively return to
the initial setting. Note that the items LAMP TIME, FILTER TIME,
LANGUAGE, MIU and SECURITY are not reset.
RESET
CANCEL
OPTION Menu (continued)
OPTION Menu
(continued on next page)
4'/16'(4'3
014/#.
*+)*
'06'4
㪜㪥㪫㪜㪩
43
Item Description
SECURITY
This projector is equipped with security functions.
1. Using Security Features
1.1 Inputting the PASSWORD
1.1-1 Use the ▲/▼ buttons on the OPTION
menu to select SECURITY and press the ►
button. The ENTER PASSWORD box will be
displayed.
The factory default PASSWORD is 2805. This
PASSWORD can be changed (1.2 Changing the
PASSWORD).
• It is strongly recommended the factory default
PASSWORD to be changed as soon as possible.
1.1-2 Use the ▲/▼/◄/► buttons to enter the
registered PASSWORD. Move the cursor to
the right side of the ENTER PASSWORD
BOX and press the ► button to display the
SECURITY menu.
If an incorrect PASSWORD is input the
ENTER PASSWORD BOX will be displayed
again. If incorrect PASSWORD is input 3
times the projector will turn off. Afterwards the
projector will turn off every time an incorrect
PASSWORD is input.
1.2 Changing the PASSWORD
1.2-1 Use the ▲/▼ buttons on the SECURITY menu
to select SECURITY PASSWORD CHANGE
and press the ► button to display the ENTER
NEW PASSWORD BOX.
1.2-2 Use the ▲/▼/◄/► buttons to enter the new
PASSWORD.
1.2-3 Move the cursor to the right side of the
ENTER NEW PASSWORD BOX and press
the ► button to display the NEW PASSWORD
AGAIN BOX, enter the same PASSWORD
again.
1.2-4 Move the cursor to the right side of the NEW
PASSWORD AGAIN BOX and press the ►
button and the NOTE NEW PASSWORD BOX
will be displayed for about 20 seconds, please
make note of the PASSWORD during this
time.
Pressing the ENTER button will close the
NOTE NEW PASSWORD BOX.
• Please do not forget your PASSWORD.
OPTION Menu (continued)
OPTION Menu
5'%74+6;
'06'42#55914&
0':6
37+6
5'%74+6;
5'%74+6;2#55914&%*#0)'
/[5ETGGP2#55914&67401((
2+0.1%-67401((
64#05+6+10&'6'%614
67401((
5'%74+6;
'06'40'92#55914&
0':6
37+6
5'%74+6;
0'92#55914&#)#+0
1-
%#0%'.
5'%74+6;
016'0'92#55914&
':+6
'06'4
(continued on next page)
44
Item Description
SECURITY
(continued)
1.3 If you have forgotten your PASSWORD
1.3-1 Follow the procedure in 1.1-1 to display the
ENTER PASSWORD BOX.
1.3-2 While the ENTER PASSWORD BOX is
displayed, press and hold the RESET button
for about 3 seconds or press and hold the
INPUT and ► buttons on the projector for
about 3 seconds
The 10-digit Inquiring Code will be displayed.
• If there is no key input for about 55 seconds while
the Inquiring Code is displayed the menu will close.
If necessary repeat the process from 1.3-1.
1.3-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD
will be sent after your user registration information is conrmed.
2. Using the MyScreen PASSWORD Function
The MyScreen PASSWORD function can be used to prohibit access to the
MyScreen function and prevent the currently registered MyScreen image
from being overwritten.
2.1 Turning on the MyScreen
PASSWORD
Function
2.1-1 Use the ▲/▼ buttons on the SECURITY
menu to select MyScreen PASSWORD and
press the ► button to display the MyScreen
PASSWORD on/off menu.
2.2 Setting the PASSWORD
2.2-1 Display the MyScreen on/off menu using the
procedure in 2.1-1.
2.2-2 Use the ▲/▼ buttons on the MyScreen
PASSWORD on/off menu to select TURN ON.
The ENTER PASSWORD BOX (small) will be
displayed.
2.2-3 Use the ▲/▼/◄/► buttons to enter the
PASSWORD.
Move the cursor to the right side of the ENTER
PASSWORD BOX (small) and press the ►
button to display the CHECK PASSWORD
BOX, enter the same PASSWORD again.
5'%74+6;2#55914&
+PSWKTKPI%QFG
OPTION Menu (continued)
OPTION Menu
/[5ETGGP
'06'42#55914&
0':6
37+6
/[5ETGGP
%*'%-2#55914&
0':6
37+6
/[5ETGGP2#55914&
674010
67401((
(continued on next page)
45
Item Description
SECURITY
(continued)
2.2-4 Move the cursor to the right side of the
CHECK PASSWORD BOX and press the
► button to display the PASSWORD for
about 20 seconds, please make note of the
PASSWORD during this time.
Pressing the ENTER button will return to MyScreen
PASS WORD on/off menu.
When a PASSWORD is set for MyScreen:
•
The MyScreen registration function (and menu) will be unavailable.
•
The MyScreen Lock function (and menu) will be unavailable.
•
The START UP setting will be locked on MyScreen (and the menu will be
unavailable).
Turning the MyScreen PASSWORD off will allow normal operation of both
functions.
•
Please do not forget your MyScreen PASSWORD.
2.3 Turning the PASSWORD off
2.3-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD
on/off menu.
2.3-2 Select TURN OFF to display the ENTER PASSWORD BOX (large).
Enter the registered PASSWORD and the screen will return to the
MyScreen on/off menu.
If an incorrect PASSWORD is input the menu will close. If necessary repeat
the process from 2.3-1.
2.4 If you have forgotten your PASSWORD
2.4-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD
on/off menu.
2.4-2 Select TURN OFF to display the ENTER
PASSWORD BOX (large). The 10-digit
Inquiring Code will be displayed inside the
BOX.
2.4-3 Contact your dealer with the 10-digit Inquiring
Code. Your PASSWORD will be sent after
your user registration information is conrmed.
3. Using the PIN LOCK Function
PIN LOCK is a function which prevents the projector from being used unless
a registered Code is input.
3.1 Registering the PIN Code
3.1-1 Use the ▲/▼ buttons on the SECURITY menu
to select PIN LOCK and press the ► button
or the ENTER button to display the PIN LOCK
on/off menu.
0':637+6
+PSWKTKPI%QFG
/[5ETGGP
'06'42#55914&
OPTION Menu (continued)
OPTION Menu
/[5ETGGP
%1/2.'6'
'06'4 ':+6
2+0.1%-
674010
67401((
(continued on next page)
46
Item Description
SECURITY
(continued)
3.1-2 Use the ▲/▼ buttons on the PIN LOCK on/off
menu to select TURN ON and the PIN BOX
will be displayed.
3.1-3 Input a 4 part PIN Code using the ▲, ▼,
◄, ►, COMPUTER/STORAGE and INPUT
buttons.
A CONFIRMATION BOX will appear. Reenter the
same PIN Code. This will complete the PIN Code
registration.
•
If there is no key input for about 55 seconds while the PIN BOX or the
CONFIRMATION BOX are displayed the menu will close. If necessary
repeat the process from 3.1-1.
Afterwards, anytime the projector is restarted after AC power is turned off
the PIN BOX will be displayed. Enter the registered PIN Code.
The projector can be used after entering the registered PIN Code. If an
incorrect PIN Code is input the PIN BOX will be displayed again.
If an incorrect PIN Code is input 3 times the projector will turn off. Afterwards
the projector will turn off every time an incorrect PIN Code is input. The
projector will also turn off if there is no key input for about 5 minutes while
the PIN BOX is displayed.
This function will activate only when the projector is started after AC power
is turned off.
•
Please do not forget your PIN Code.
3.2 Turning Off the PIN LOCK Function
3.2-1 Follow the procedure in 3.1-1 to display the PIN LOCK on/off menu.
Use the ▲/▼ buttons to select TURN OFF and the PIN BOX will be
displayed.
Enter the registered PIN Code to turn the PIN LOCK function off.
If an incorrect PASSWORD is entered the menu will close.
3.3 If you have forgotten your PIN Code
3.3-1 While the PIN BOX is displayed, press and
hold the RESET button for 3 seconds or press
and hold the INPUT and ► buttons for 3
seconds. The 10-digit Inquiring Code will be
displayed.
•
If it passes for about 5 minutes after the PIN BOX is displayed the
projector will turn off.
3.3-2 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD
will be sent after your user registration information is conrmed.
OPTION Menu (continued)
OPTION Menu
2+0$1:
%1/276'4
+PRWV2+0%QFG
2+0$1:
%QPHKTOCVKQP
%1/276'4
2+0$1:
+PSWKTKPI%QFG
(continued on next page)
47
Item Description
SECURITY
(continued)
4. Using the Transition Detector Function
While the Transition Detector function is ON, when power switch is started to
supply to the projector, it might react as below.
• Transition Detector alarm shown below might appear on screen, if the
projector has been moved or re-installed.
• Transition Detector alarm might appear on screen, if the MIRROR setting
has been changed.
• Keystone adjustment feature has been prohibited as long as the Transition
Detector function is ON.
4.1 Turning On the
Transition Detector
Function
4.1-1
Use the ▲/▼ buttons on the SECURITY menu to
select TRANSITION DETECTOR and press the ►
or the ENTER button to display the TRANSITION
DETECTOR on/off menu.
Select TURN ON and the current angle and
mirror setting will be recorded.
•
This feature may not function properly if the projector
is
not in a stable position when TURN ON is selected.
4.1-2
If this function is set to TURN ON when the
vertical angle of the projector or mirror setting
at which the projector is turned on is different
than the previously recorded the Transition
Detector Alarm will be displayed and the
projector will not display the input signal.
Set the Transition Detector off in the SECURITY menu to display the input signal.
If the Transition Detector ALARM is displayed for about 5 minutes the lamp
will turn off. This function will activate only when the projector is started after
turning off the AC power.
4.2 Setting the
Transition Detector
PASSWORD
4.2-1 Use the ▲/▼ buttons on the SECURITY menu to select TRANSITION
DETECTOR and press the ► or the ENTER button to display the
TRANSITION DETECTOR on/off menu.
4.2-2 Use the ▲/▼ buttons on the TRANSITION
DETECTOR on/off menu to select TURN ON.
The ENTER PASSWORD BOX (small) will be
displayed.
4.2-3
Use the ▲/▼/◄/► buttons to enter a
PASSWORD. Move the cursor to the right side of
the ENTER PASSWORD BOX (small) and press
the ► button to display the CHECK PASSWORD
BOX, enter the same PASSWORD again.
4.2-4 Move the cursor to the right side of the
CHECK PASSWORD BOX and press the
► button to display the PASSWORD for
about 20 seconds, please make note of the
PASSWORD during this time.
Pressing the ENTER button will return to the
TRANSITION DETECTOR on/off menu.
• Please do not forget your Transition Detector PASSWORD.
OPTION Menu (continued)
OPTION Menu
64#05+6+10&'6'%614
674010
67401((
2+0$1:
64#05+6+10&'6'%61410
6JGRTQLGEVQTJCUDGGPVTCPUHGTTGF
HTQORTGXKQWUN[KPUVCNNGFRQUKVKQP
+H[QWYKUJVQJCXGCUSWCTGKOCIG
QPUETGGPCICKP
FKUCDNG6TCPUKVKQP&GVGEVQTQP/GPW
64#05+6+10&'6'%614
'06'42#55914&
0':6
37+6
64#05+6+10&'6'%614
%*'%-2#55914&
0':6
37+6
64#05+6+10&'6'%614
%1/2.'6'
':+6
'06'4
(continued on next page)
48
Item Description
SECURITY
(continued)
4.3 Setting the Transition Detector off
4.3-1 Follow the procedure in 4.1-1 to display the TRANSITION DETECTOR
on/off menu.
4.3-2 Select TURN OFF to display the ENTER PASSWORD BOX (large).
Enter the registered PASSWORD and the screen will return to the
TRANSITION DETECTOR on/off menu. If an incorrect PASSWORD is
input the menu will close. If necessary repeat the process from 4.3-1.
4.4 If you have forgotten your PASSWORD
4.4-1 Follow the procedure in 4.1-1 to display the TRANSITION DETECTOR
on/off menu.
4.4-2 Select TURN OFF to display the ENTER
PASSWORD BOX (large). The 10-digit
Inquiring Code will be displayed inside the
BOX.
4.4-3 Contact your dealer with the 10-digit Inquiring
Code. Your PASSWORD will be sent after your
user registration information is conrmed.
OPTION Menu (continued)
OPTION Menu
0':637+6
+PSWKTKPI%QFG
64#05+6+10&'6'%614
'06'42#55914&
49
(continued on next page)
Item Description
LIVE MODE
Selecting this item sets the projector onto the “Live Mode”.
On the “Live Mode”, the projector displays the images from the PC
via Network, supported by “MIU Live Viewer”. (
1.1 Live Mode of
the User’s Manual - Network Functions)
In the Live Mode, the message “Waiting for connection” will be
displayed until the “MIU Live Viewer” start to send computer screen
image.
PC-LESS
PRESENTATION
Selecting this item displays the PC-LESS PRESENTATION menu.
Using the menu is able to make the projector
display the images stored in SD Memory Card or
USB memory, and realizes a presentation without
PC. (
1.2 PC-LESS Presentation of the User’
s Manual - Network Functions)
MIU Menu
/'07=%1/276'4?
2+%674'
5'.'%6
+/#)'
5'672
+0276
126+10
/+7
'#5;/'07
5%4''0
.+8'/1&'
2%.'5524'5'06#6+10
5'672
G5*16
+0(14/#6+10
5'48+%'
MIU Menu
Remember that incorrect network settings on this projector
may cause trouble on the network. Be sure to consult with
your network administrator before connecting to an existing
access point on your network.
Select “MIU” from the main menu to access the following
functions.
Select an item using the ▲/▼ cursor buttons on the
projector or remote control, and press the ► cursor button
on the projector or remote control, or ENTER button on
the remote control to execute the item. Then perform it
according to the following table.
See the User’s Manual - Network Functions for details of
MIU operation.
NOTE • The factory default setting for DHCP is OFF. If your network has
DHCP enabled, and needs to set IP ADDRESS, SUBNET MASK and DEFAULT
GATEWAY automatically, please set DHCP to ON. (
2.5.2 Network Settings
of the User’s Manual - Network Functions)
• If you are not utilizing SNTP (
2.5.7 Date/Time Settings of the User’s
Manual - Network Functions), then you must set the DATE AND TIME (
51)
during the initial installation.
2%.'5524'5'06#6+10
6*7/$0#+.
5.+&'5*19
&+4'%64;
&+52.#;5+<'
-';%10(+)
50
(continued on next page)
Item Description
SETUP
Selecting this item displays the MIU SETUP menu.
Use the ▲/▼ buttons to select an item, and the ►
or ENTER button on the remote control to perform
the item.
DHCP
(Dynamic Host
Conguration
Protocol)
Use the ▲/▼ buttons to turn DHCP on/off.
ON
ó
OFF
Select OFF when the network does
not have DHCP enabled.
• When the “DHCP” setting changes to “ON”,
it takes a little time to obtain IP address from
DHCP server.
• Auto IP function will be assigned an IP
address if the projector could not obtain an IP
address from server even if DHCP is “ON”.
IP ADDRESS
Use the ▲/▼/◄/►
buttons to enter the IP
ADDRESS. This function
can only be used when
DHCP is set to OFF.
•
The IP ADDRESS is the number that identies this
projector on the network. You cannot have two devices
with the same IP ADDRESS on the same network.
• The IP ADDRESS “0.0.0.0” is prohibited.
SUBNET MASK
Use the ▲/▼/◄/►
buttons to enter the same
SUBNET MASK used by
your PC. This function
can only be used when
DHCP is set to OFF.
• The SUBNET MASK ”0.0.0.0” is prohibited.
DEFAULT
GATEWAY
Use the ▲/▼/◄
/► buttons to enter the
DEFAULT GATEWAY
(a node on a computer
network that serves as an
access point to another
network) address.
This function can only be used when DHCP is
set to OFF.
&*%2
10
1((
/+75'672
&*%210
+2#&&4'55
57$0'6/#5-
&'(#7.6)#6'9#;
'#0&6+/'
6+/'&+(('4'0%'
/1&'
%*
0'6914-/1&'
52''&
'0%4;26+10
MIU Menu
MIU Menu (continued)
+2#&&4'55
255. 255. 0
SUBNET MASK
255.
0. 0. 0
DEFAULT GATEWAY
0.
51
MIU Menu (continued)
MIU Menu
Item Description
SETUP
(continued)
TIME
DIFFERENCE
Use the ▲/▼ buttons
to enter the TIME
DIFFERENCE.
Set the same TIME
DIFFERENCE as the
one set on your PC.
If unsure, consult
your IT manager.
Use the ◄ button to return to the menu after
setting the TIME DIFFERENCE.
DATE AND TIME
Use the ▲/▼/◄/►
buttons to enter the Year
(last two digits), Month,
Date, Hour and Minute.
• The projector will override this setting and
retrieve DATE AND TIME information from the
Time server when SNTP is enabled. (
2.5.7
Date/Time Settings of the User’s Manual -
Network Functions)
MODE
Use the ▲/▼ buttons to
select the mode of the
network communication
system. Select it according
to the setting of your PC.
ADHOC
ó
INFRASTRUCTURE
CH
Use the ▲/▼ buttons to
select the channel of the
wireless LAN while using
it. Select it according to the
setting of your PC.
The channels 1 to 11 are available.
•
The available channels would be various
depending on a country. In addition, wireless network
card might be required due to the standard.
ENCRYPTION
Use the ▲/▼ buttons
to select the encryption
method to be used.
WPA2-PSK(AES)
ô
WPA-PSK(AES)
ó
WPA-PSK(TKIP)
ó
WEP 128bit
ó
WEP 64bit
ó
OFF
6+/'&+(('4'0%'
㪞㪤㪫㩷㪇㪇㪑㪇㪇
'#0&6+/'
(continued on next page)
'0%4;26+10
92#25-#'5
9'2DKV
92#25-6-+2
92#25-#'5
1((
9'2DKV
/1&'
#&*1%
+0(4#5647%674'
%*
52
MIU Menu (continued)
MIU Menu
0'6914-/1&'
9+4'.'55
9+4'&
52''&
/
#761
/
/
/
/
/
/
/
/
/
/
/
Item Description
SETUP
(continued)
SPEED
Use the ▲/▼ buttons to select
the transfer rate.
(M : Mbps : Megabits per second)
AUTO
ó
54M
ó
48M
ó
36M
ó
24M
ó
18M
ô ô
1M
ó
2M
ó
5.5M
ó
6M
ó
9M
ó
11M
ó
12M
• The AUTO mode automatically
selects the optimum rate.
• Transfer rates may change due
to the network situation.
NETWORK
MODE
Use the ▲/▼ buttons to select
the network mode.
WIRELESS
ó
WIRED
• The network mode will be initialized whenever
the power is turned on with the power switch.
• The WIRELESS will be enabled when the
wireless network card is inserted.
• The WIRED will be enabled when the wireless
network card is not inserted.
e-SHOT
Selecting this item displays the e-SHOT menu.
Insert the SD Memory Card or USB memory into
the projector before you use the e-SHOT function.
(
10)
The application software “PJTransfer” is
required to store image(s) into the projector.
Use the
▲/▼
buttons to select an item which is a still image by the e-SHOT
(
4.7 e-SHOT (Still Image Transfer) Display of the User’s Manual -
Network Functions) and the ► or ENTER button to display the image.
• The item without image stored cannot be selected.
• The image names are each displayed in 16 characters or less.
To switch the image displayed
Use the ▲/▼ buttons.
To return to the menu
Press the ◄ or ESC button on the remote control.
To erase the image displayed and its source le in the SD
Memory Card or USB memory
(1)
Press the RESET button on the remote
control while displaying an image to
display the e-SHOT - RESET menu.
(2)
Press the ENTER button on the remote control or the INPUT button on
the projector to perform to erase.
To stop erasing, press the ESC button on the remote control or the
◄
button on the projector.
(continued on next page)
G5*16
+/#)'
+/#)' &'/10564#6+10
&'/10564#6+10
6#$.'LRI
24'5'06#6+10(+.'
+/#)'
+/#)'
G5*16
4'5'6+/#)'
01 ;'5
'5% '06'4
53
MIU Menu
Item Description
INFORMATION
Selecting this item displays the MIU-INFORMATION dialog for conrming
the network settings.
• Only the first 16 characters of the projector name are displayed.
• Nothing (blank) is shown in the “NAME” and “SSID” field until you setup
those items. For setup, please refer to 2.5.2 Network Settings of User’s
Manual - Network Functions.
• When the voltage level of the battery for the built in clock decreases, the
set time may become incorrect even though accurate date and time are
input. Replace the battery suitably. (
58)
• MAC wireless will not be displayed when the NETWORK MODE is set to
the WIRED even if the wireless network card is mounted.
• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0”
in the following condition.
(1) The NETWORK MODE is set to the WIRELESS and the wireless
network card is not mounted.
(2) DHCP is ON and the projector does not get address from DHCP server.
• Nothing (blank) is shown in the “CH”, “SPEED” and “MAC WIRELESS”
field in case of either no wireless network card is inserted or “WIRED” mode
is selected at NETWORK MODE, or both.
• The actual performance and setting will be shown in the “CH ” and “SPEED”
field, instead of the setting value in the MIU SETUP menu.
MIU Menu (continued)
'0%4;26+109'2DKV
+2#&&4'55
57$0'6/#5-
/+7+0(14/#6+10
&'(#7.6)#6'9#;
0#/'RTQLGEVQT
'#0&6+/'
6+/'&+(('4'0%')/6
/1&'#&*1%
%*
12'4#6+10.+8'
75$/'/14;
5&%#4&9+4'.'55
52''&/
/#%'6*'40'6#%&#
/#%9+4'.'55
55+&YKTGNGUU
0'6914-/1&'9+4'.'55
54
MIU Menu
Item Description
SERVICE
Selecting this item displays the SERVICE menu.
Use the ▲/▼ buttons to select an item, and the ► or
ENTER button on the remote control to perform the
item.
REMOVE ALL, REMOVE SD CARD, REMOVE USB
Choose one of the following items either “REMOVE ALL”, “REMOVE SD
CARD” or “REMOVE USB” that matches a media to be taken out, from
projector, when you remove the SD Memory Card or USB memory.
Use the ▲ button to perform the procedure to remove the media.
EXECUTE
CANCEL
The “SUCCEED” message will be displayed when the media is ready to
remove.
If “FAILED” message is displayed, please retry remove process again a few
minutes later.
• When removing wireless network card, turn the projector off and unplug
the power cord.
• AS long as the media is ready to remove or no media is inserted, the
”SUCCEED” message will be displayed whenever the removal procedure is
performed.
MIU RESTART
Use the ▲ button to restart the network communication. The network
communication will be cut off once and restarted.
EXECUTE
CANCEL
• After selecting the EXECUTE, the MIU menu may not be controlled
approximately 20 seconds.
• If DHCP is ON, IP address may be changed.
MIU Menu (continued)
4'/18'#..
':'%76'
%#0%'.
SERVICE
REMOVE ALL
REMOVE SD CARD
REMOVE USB
MIU RESTART
MIU RESTART
EXECUTE
CANCEL
4'/18'5&%#4&
':'%76'
%#0%'.
4'/18'75$
':'%76'
%#0%'.
55
Maintenance
Lamp
A lamp has nite product life. Using the lamp for long periods of time could cause
the pictures darker or the color tone poor. Note that each lamp has a different
lifetime, and some may burst or burn out soon after you start using them.
Preparation of a new lamp and early replacement are recommended. To prepare
a new lamp, contact your dealer and tell the lamp type number.
Type number : <CPX2> DT00781 / <CPX6> DT00821
Replacing the lamp
1.
Turn the projector off, and unplug the power cord.
Allow the projector to cool for at least 45 minutes.
2.
Prepare a new lamp.
If the projector is mounted on a ceiling, or if the lamp
has broken, also ask the dealer to replace the lamp.
In case of replacement by yourself,
3.
Loosen the screw (marked by arrow) of the lamp cover
and then slide the lamp cover to the side to remove it.
4.
Loosen the 2 screws (marked by arrow) of the
lamp, and slowly pick up the lamp by the handle.
It may make it easy to take the lamp out slightly
toward the control panel of the projector.
5.
Insert the new lamp, and retighten rmly the
2 screws of the lamp that are loosened in the
previous process to lock it in place. Tighten the
screw
rst, then screw
.
6.
Slide the lamp cover back in place and rmly
fasten the screw of the lamp cover.
7.
Turn the projector on and reset the lamp time
using the LAMP TIME item in the OPTION menu.
(1) Press the MENU button to display a menu.
(2) Point at the “Go to Advanced Menu …” in the menu
using the ▼/▲ button, then press the ► button.
(3)
Point at the “OPTION” in the left column of the menu
using the ▼/▲button, then press the ► button.
(4) Point at the “LAMP TIME” using the ▼/▲ button, then press the ► button. A
dialog will appear.
(5)
Press the
▲
button to select “RESET” on the dialog. It performs resetting the lamp time.
Maintenance
NOTE • Please reset the lamp time only when you have replaced the lamp,
for a suitable indication about the lamp.
The lamp cover
The handle
1
2
CAUTION ►Do not touch any inner space of the projector, while the lamp
is taken out.
56
Maintenance
Lamp (continued)
Lamp warning
HIGH VOLTAGE
HIGH TEMPERATURE HIGH PRESSURE
WARNING
►The projector uses a high-pressure mercury glass lamp. The
lamp can break with a loud bang, or burn out, if jolted or scratched, handled
while hot, or worn over time. Note that each lamp has a different lifetime, and
some may burst or burn out soon after you start using them. In addition, when
the bulb bursts, it is possible for shards of glass to y into the lamp housing, and
for gas containing mercury to escape from the projector’s vent holes.
►About disposal of a lamp: This product contains a mercury lamp; do not put
it in a trash. Dispose of it in accordance with environmental laws.
• For lamp recycling, go to
www.lamprecycle.org. (in the US).
• For product disposal, contact your local government agency
or www.eiae.org (in the US) or www.epsc.ca (in Canada).
For more information, call your dealer.
• If the lamp should break (it will make a loud bang when it does),
unplug the power cord from the outlet, and make sure to request a
replacement lamp from your local dealer. Note that shards of glass
could damage the projector’s internals, or cause injury during handling,
so please do not try to clean the projector or replace the lamp yourself.
• If the lamp should break (it will make a loud bang when it does),
ventilate the room well, and make sure not to breathe the gas that
comes out of the projector vents, or get it in your eyes or mouth.
• Before replacing the lamp, turn the projector off and unplug the power
cord, then wait at least 45 minutes for the lamp to cool sufficiently.
Handling the lamp while hot can cause burns, as well as damaging the
lamp.
• Never unscrew except the appointed (marked by an arrow) screws.
• Do not open the lamp cover while the projector is suspended from
above. This is dangerous, since if the lamp’s bulb has broken, the
shards will fall out when the cover is opened. In addition, working in
high places is dangerous, so ask your local dealer to have the lamp
replaced even if the bulb is not broken.
• Do not use the projector with the lamp cover removed. At the lamp
replacing, make sure that the screws are screwed in firmly. Loose
screws could result in damage or injury.
• Use only the lamp of the specied type.
• If the lamp breaks soon after the first time it is used, it is possible
that there are electrical problems elsewhere besides the lamp. If this
happens, contact your local dealer or a service representative.
•
Handle with care: jolting or scratching could cause the lamp bulb to burst during use.
• Using the lamp for long periods of time could cause it dark, not to light
up or to burst. When the pictures appear dark, or when the color tone
is poor, please replace the lamp as soon as possible. Do not use old
(used) lamps; this is a cause of breakage.
Disconnect
the plug
from the
power
outlet
57
Please check and clean the air lter periodically. When the indicators or a
message prompts you to clean the air lter, comply with it as soon as possible.
Replace the air lter when it is damaged or too soiled. To prepare a new air lter,
contact your dealer and tell the air lter type number.
Type number : MU03602
When you replace the lamp, please replace the air lter. An air lter of specied
type will come together with a replacement lamp for this projector.
Cleaning the air lter
1.
Turn the projector off, and unplug the power
cord. Allow the projector to sufciently cool down.
2.
Use a vacuum cleaner on and around the
lter cover.
3.
While supporting the projector with one hand,
use your other hand to pull the lter cover
forward in the direction of the arrow.
4.
Use a vacuum cleaner for the lter ventilation of
the projector. And clean the air lter that is set
at one side of the lter cover by using a vacuum
cleaner over the other side of the lter cover.
Please replace the air lter when it is damaged or
too soiled. When the air lter is set, take its half
moon shape cut part to the swelled part of the
lter cover.
5.
Put the lter unit back into the projector.
6.
Turn the projector on and reset the lter time
using the FILTER TIME item in the EASY MENU.
(1) Press the MENU button to display a menu.
(2) Point at the “FILTER TIME” using the ▼/▲ button, then press the ► button. A
dialog will appear.
(3) Press the ▲ button to select “RESET” on the dialog. It performs resetting the
lter time.
Maintenance
Air lter
NOTE • Please reset the lter time only when you have cleaned or replaced
the air lter, for a suitable indication about the air lter.
• The projector may display the message such as “CHECK THE AIR FLOW” or
turn off the projector, to prevent the internal heat level rising.
The lter cover
The air lter is set in the reverse
side
Swelled part
Air lter
Filter cover
WARNING
►Before taking care of the air lter, make sure the power cable
is not plugged in, then allow the projector to cool sufciently.
►
Use only the air lter of the specied type. Do not use the projector without the
air lter or the lter cover. It could result in a re or malfunction to the projector.
►
Clean the air lter periodically. If the air lter becomes clogged by dust or the like,
internal temperatures rise and could cause a re, a burn or malfunction to the projector.
58
1.
Turn the projector off, and unplug the power cord. Allow the
projector to cool sufciently.
2.
After making sure that the projector has cooled adequately,
pull the slot cover forward, pushing slightly its edge up, and
remove it from the projector.
3.
Remove the battery case.
Hold the battery case gutter by nger nail or other thing and pull
out the battery case slowly from the battery slot.
4.
Take the old battery out from the battery case.
5.
Replace a new battery.
Replace battery with HITACHI MAXELL, Part No.CR2032
only. Use of another battery may present a risk of re or
explosion.
Put a new battery into battery case. Please make sure that
the + is facing upward. Insert the battery case slowly into the
battery slot until you hear the snap.
6.
Close the slot cover.
Replace the slot cover by reversing the procedure used
when removing the cover.
Maintenance
WARNING ►
Always handle the batteries with care and use them only as directed. Battery
may explode if mistreated. Do not recharge, disassemble or dispose of in re.
And also improper use may result in cracking or leakage, which could result in re, injury and/or
pollution of the surrounding environment.
•
Be sure to use only the batteries specied. Do not use batteries of different types at the same
time. Do not mix a new battery with used one.
•
Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets. If swallowed consult a physician
immediately for emergency treatment.
•
Do not short circuit or solder a battery.
•
Do not allow a battery in a re or water. Keep batteries in a dark, cool and dry place.
•
If you observe a leakage of a battery, wipe out the ower and then replace a battery. If the liquid
adheres to your body or clothes, rinse well with water immediately.
•
Obey the local laws on disposing the battery.
Internal clock battery
Consumption of the battery makes the clock not to work correctly. When the clock is wrong or it has
stopped, please replace the battery according to the following procedures.
NOTE •
The internal clock’s time will be reset when the battery is removed.
Please recongure the time via the menu or a web browser after replacing the battery.
(
2.5.7 Date/Time Settings of the User’s Manual - Network Functions)
S
D
C
AR
D
Slot Cover
Battery Slot
Battery Case
Battery
Battery
Case
Battery
Case
Battery (+)
Battery (-)
59
Maintenance
Inside of the projector
In order to ensure the safe use of your projector, please have it cleaned and
inspected by your dealer about once every year.
Caring for the lens
If the lens is awed, soiled or fogged, it could cause deterioration of display
quality. Please take care of the lens, being cautious of handling.
1.
Turn the projector off, and unplug the power cord. Allow the projector to cool
sufciently.
2.
After making sure that the projector is cool adequately, lightly wipe the lens
with a commercially available lens-cleaning wipe. Do not touch the lens
directly with your hand.
Caring for the cabinet and remote control
Incorrect care could have adverse inuence such as discoloration, peeling paint,
etc.
1.
Turn the projector off, and unplug the power cord. Allow the projector to cool
sufciently.
2.
After making sure that the projector is cool adequately, lightly wipe with gauze
or a soft cloth.
If the projector is extremely dirty, dip soft cloth in water or a neutral cleaner
diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a
soft, dry cloth.
Other care
WARNING ►Before caring, make sure the power cable is not plugged in,
and then allow the projector to cool sufciently. The care in a high temperature
state of the projector could cause a burn and/or malfunction to the projector.
►Never try to care for the inside of the projector personally. Doing is so
dangerous.
►Avoid wetting the projector or inserting liquids in the projector. It could result
in a re, an electric shock, and/or malfunction to the projector.
• Do not put anything containing water, cleaners or chemicals near the
projector.
• Do not use aerosols or sprays.
CAUTION ►Please take right care of the projector according to the
following. Incorrect care could cause not only an injury but adverse inuence
such as discoloration, peeling paint, etc.
►Do not use cleaners or chemicals other than those specied in this manual.
►Do not polish or wipe with hard objects.
60
Troubleshooting
If an abnormal operation should occur, stop using the projector immediately.
Troubleshooting
Otherwise if a problem occurs with the projector, the following checks and
measures are recommended before requesting repair.
If this does not resolve the problem, please contact your dealer or service
company. They will tell you what warranty condition is applied.
Related messages
When some message appears, check and cope with it according to the following
table. Although these messages will be automatically disappeared around several
minutes, it will be reappeared every time the power is turned on.
Message Description
NO INPUT IS DETECTED
There is no input signal.
Please conrm the signal input connection, and the status
of the signal source.
SYNC IS OUT OF RANGE
fH kHz fV Hz
The horizontal or vertical frequency of the input signal
is not within the specied range.
Please conrm the specs for your projector or the signal
source specs.
CHECK THE AIR FLOW
The internal temperature is rising.
Please turn the power off, and allow the projector to cool
down at least 20 minutes. After having conrmed the
following items, please turn the power ON again.
• Is there blockage of the air passage aperture?
• Is the air lter dirty?
• Does the peripheral temperature exceed 35°C?
If the same indication is displayed after the remedy, please set
FAN SPEED of the SERVICE item in the OPTION menu to HIGH.
REMINDER
*** HRS PASSED AFTER THE
LAST FILTER CHECK.
FILTER MAINTENANCE IS ESSENTIAL
TO REMOVE WARNING MESSAGE,
RESET FILTER TIMER.
SEE MANUAL FURTHER INFO.
A note of precaution when cleaning the air lter.
Please immediately turn the power off, and clean or change
the air lter referring to the “Air Filter” section of this manual.
After you have cleaned or changed the air lter, please be
sure to reset the lter timer (
57).
WARNING ►Never use the projector if abnormal operations such as
smoke, strange odor, excessive sound, damaged casing or elements or cables,
penetration of liquids or foreign matter, etc. should occur. In such cases,
immediately disconnect the power plug from the power outlet. After making sure
that the smoke or odor has stopped, contact your dealer or service company.
61
Troubleshooting
Regarding the indicator lamps
When operation of the LAMP, TEMP and POWER indicators differs from usual,
check and cope with it according to the following table.
POWER
indicator
LAMP
indicator
TEMP
indicator
Description
Lighting
In Orange
Turned
off
Turned
off
The projector is in a standby state.
Please refer to the section “Power on/off”.
Blinking
In Green
Turned
off
Turned
off
The projector is warming up.
Please wait.
Lighting
In Green
Turned
off
Turned
off
The projector is in an on state.
Ordinary operations may be performed.
Blinking
In Orange
Turned
off
Turned
off
The projector is cooling down.
Please wait.
Blinking
In Red
(discre-
tionary)
(discre-
tionary)
The projector is cooling down. A certain error
has been detected.
Please wait until the POWER indicator nishes
blinking, and then perform the proper measure using
the item descriptions below.
Blinking
In Red
or
Lighting
In Red
Lighting
In Red
Turned
off
The lamp does not light, and there is a possibility
that interior portion has become heated.
Please turn the power off, and allow the projector to
cool down at least 20 minutes. After the projector has
sufciently cooled down, please make conrmation of
the following items, and then turn the power on again.
• Is there blockage of the air passage aperture?
• Is the air lter dirty?
• Does the peripheral temperature exceed 35°C?
If the same indication is displayed after the remedy,
please change the lamp referring to the section “Lamp”.
Blinking
In Red
or
Lighting
In Red
Blinking
In Red
Turned
off
The lamp cover has not been properly xed.
Please turn the power off, and allow the projector to
cool down at least 45 minutes. After the projector has
sufciently cooled down, please make conrmation of
the attachment state of the lamp cover. After performing
any needed maintenance, turn the power on again.
If the same indication is displayed after the remedy,
please contact your dealer or service company.
Blinking
In Red
or
Lighting
In Red
Turned
off
Blinking
In Red
The cooling fan is not operating.
Please turn the power off, and allow the projector to
cool down at least 20 minutes. After the projector has
sufciently cooled down, please make conrmation
that no foreign matter has become caught in the fan,
etc., and then turn the power on again.
If the same indication is displayed after the remedy,
please contact your dealer or service company.
(continued on next page)
62
Troubleshooting
Regarding the indicator lamps (continued)
POWER
indicator
LAMP
indicator
TEMP
indicator
Description
Blinking
In Red
or
Lighting
In Red
Turned
off
Lighting
In Red
There is a possibility that the interior portion
has become heated.
Please turn the power off, and allow the projector to cool down at least
20 minutes. After the projector has sufciently cooled down, please make
conrmation of the following items, and then turn the power on again.
• Is there blockage of the air passage aperture?
• Is the air lter dirty?
• Does the peripheral temperature exceed 35°C?
If the same indication is displayed after the remedy, please set
FAN SPEED of the SERVICE item in the OPTION menu to HIGH.
Lighting
In Green
Simultaneous
blinking in Red
It is time to clean the air lter.
Please immediately turn the power off, and clean or change
the air lter referring to the section “Air Filter”. After cleaning or
changing the air lter, please be sure to reset the lter timer.
After the remedy, reset the power to ON.
Lighting
In Green
Alternative
blinking in Red
There is a possibility that the interior portion
has become overcooled.
Please use the unit within the usage temperature
parameters (5°C to 35°C).
After the treatment, reset the power to ON.
Blinking in
Green for
approx. 3
seconds
Turned
off
Turned
off
At least 1 “Power ON” schedule is saved to the
projector.
(Please refer to the User’s Manual-Network Functions:
Schedule Settings for more information.)
NOTE •
When the interior portion has become overheated, for safety purposes,
the projector is automatically shut down, and the indicator lamps may also be
turned off. In such a case, disconnect the power cord, and wait at least 45 minutes.
After the projector has sufciently cooled down, please make conrmation of the
attachment state of the lamp and lamp cover, and then turn the power on again.
Shutting the projector down
Only when the projector can not be turned off by usual
procedure
(
14)
, please push the shutdown switch
using a pin or similar, and disconnect the power plug
from the power outlet. Before turning it on again, wait
at least 10 minutes to make the projector cool down
enough.
Resetting all settings
When it is hard to correct some wrong settings, the FACTORY RESET function of the
SERVICE item in the OPTION menu
(
42)
can reset all settings(except LANGUAGE,
FILTER TIME, LAMP TIME, FILTER MESSAGE, MIU and etc.) to the factory default.
COMPUTER IN
USB
Shutdown switch
63
Troubleshooting
Phenomena that may be easy to be mistaken for machine defects
About the phenomenon confused with a machine defect, check and cope with it
according to the following table.
Phenomenon Cases not involving a machine defect
Reference
page
Power does not
come on.
The electrical power cord is not plugged in.
Correctly connect the power cord.
11
The main power source has been interrupted during
operation such as by a power outage (blackout), etc.
Please disconnect the power plug from the power outlet,
and allow the projector to cool down at least 10 minutes,
then turn the power on again.
11, 14
Either there is no lamp and/or lamp cover, or either
of these has not been properly xed.
Please turn the power off and disconnect the power plug from
the power outlet, and allow the projector to cool down at least
45 minutes. After the projector has sufciently cooled down,
please make conrmation of the attachment state of the lamp
and lamp cover, and then turn the power on again.
55
Neither sounds
nor pictures are
outputted.
The signal cables are not correctly connected.
Correctly connect the connection cables.
8
Signal source does not correctly work.
Correctly set up the signal source device by referring to the
manual of the source device.
–
The input changeover settings are mismatched.
Select the input signal, and correct the settings.
15, 16
Sound does not
come out.
The signal cables are not correctly connected.
Correctly connect the audio cables.
8
The MUTE function is working.
Restore the sound pressing the MUTE or VOLUME button
on the remote control.
15
The volume is adjusted to an extremely low level.
Adjust the volume to a higher level using the menu function
or the remote control.
15
The AUDIO setting is not correct.
Correctly set the AUDIO in the SETUP menu.
33
No pictures are
displayed.
The lens cover is attached.
Remove the lens cover.
14
The signal cables are not correctly connected.
Correctly connect the connection cables.
8
(continued on next page)
64
Phenomena that may be easy to be mistaken for machine defects (continued)
Phenomenon Cases not involving a machine defect
Reference
page
No pictures are
displayed.
(continued)
The brightness is adjusted to an extremely low level.
Adjust BRIGHTNESS to a higher level using the menu
function or the remote control.
23, 24
The computer cannot detect the projector as a plug
and play monitor.
Make sure that the computer can detect a plug and play
monitor using another plug and play monitor.
9
The BLANK screen is displayed.
Press the BLANK button on the remote control.
20
Video screen
display freezes.
The FREEZE function is working.
Press the FREEZE button to restore the screen to normal.
20
Colors have a
faded- out
appearance, or
Color tone is
poor.
Color settings are not correctly adjusted.
Perform picture adjustments by changing the COLOR
TEMP, COLOR, TINT and/or COLOR SPACE settings,
using the menu functions.
23, 25,
29
COLOR SPACE setting is not suitable.
Change the COLOR SPACE setting to AUTO, RGB,
SMPTE240, REC709 or REC601.
29
Pictures appear
dark.
The brightness and/or contrast are adjusted to an
extremely low level.
Adjust BRIGHTNESS and/or CONTRAST settings to a
higher level using the menu function.
23, 24
The WHISPER function is working.
Select NORMAL for the WHISPER item in the SETUP
menu.
23, 33
The lamp is approaching the end of its product
lifetime.
Replace the lamp.
55
Pictures appear
blurry.
Either the focus and/or horizontal phase settings are
not properly adjusted.
Adjust the focus using the focus ring, and/or H PHASE
using the menu function.
17, 28
The lens is dirty or misty.
Clean the lens referring to the section “Caring for the lens”.
59
Troubleshooting
NOTE • Although bright spots or dark spots may appear on the screen, this
is a unique characteristic of liquid crystal displays, and it does not constitute or
imply a machine defect.
65
Specications
Specications
Item Specication
Product name
Liquid crystal projector
Liquid
Crystal
Panel
Panel size
1.6 cm (0.63 type)
Drive system TFT active matrix
Pixels 786,432 pixels (1024 horizontal x 768 vertical)
Lens Zoom lens F=1.8 ~ 1.9 f = 16.4~ 19.7 mm
Lamp
<CPX2> 160W UHB
<CPX6> 190W UHP
Speaker 1 W x1
Power supply
<CPX2> AC100-120V/2.8A, AC220-240V/1.4A
<CPX6> AC100-120V/3.4A, AC220-240V/1.7A
Power consumption
<CPX2> 250 W
<CPX6> 310 W
Temperature range 5 ~ 35°C (Operating)
Size
274 (W) x 65 (H) x 205 (D) mm
* Not including protruding parts. Please refer to the following
gure.
Weight (mass) 1.8 kg
Ports
Optional parts
Lamp: <CPX2> DT00781
<CPX6> DT00821
Air lter: MU03602
* Please consult your dealer.
Computer input port
COMPUTER IN
...............
D-sub 15 pin mini x1
Video input port
S-VIDEO .................S-video x1
VIDEO ....................... video x1
Audio input/output port
AUDIO IN .........Stereo mini x1
AUDIO OUT .....Stereo mini x1
Others
USB STORAGE ......USB-A x1
SD card .......... SD card slot x1
USB .........................USB-B x1
LAN ........................... RJ45 x1
[unit: mm]
274
205
65
79
