Samsung WF435ATGJWR/A1-02 washer User Manual

user manual

the possibilities

Thank you for purchasing this SamsLiF, g t_brodLICt

• F4 = ' l_i ' - h'['JlhLILl 1 i' 14 1 ' &l

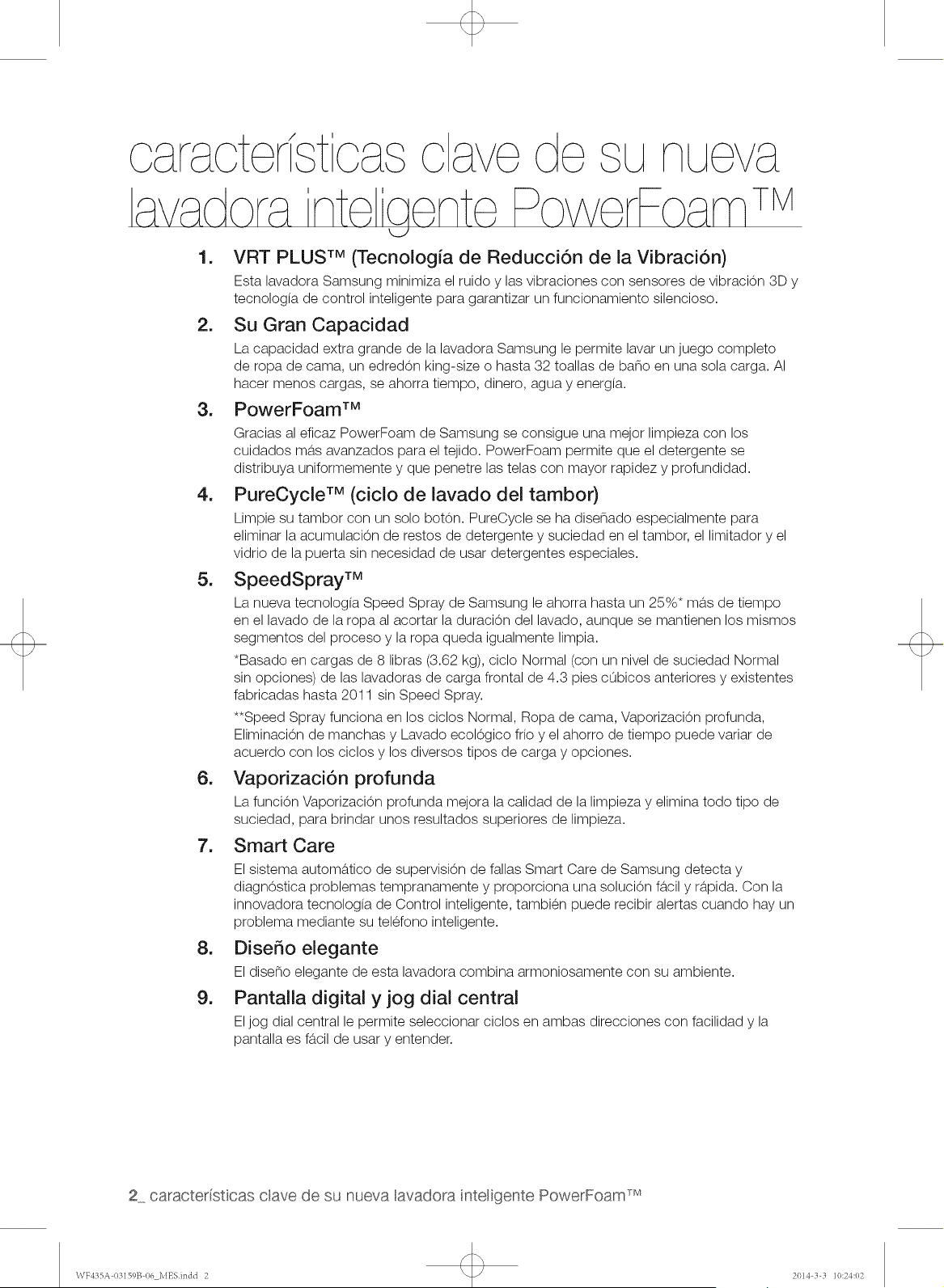

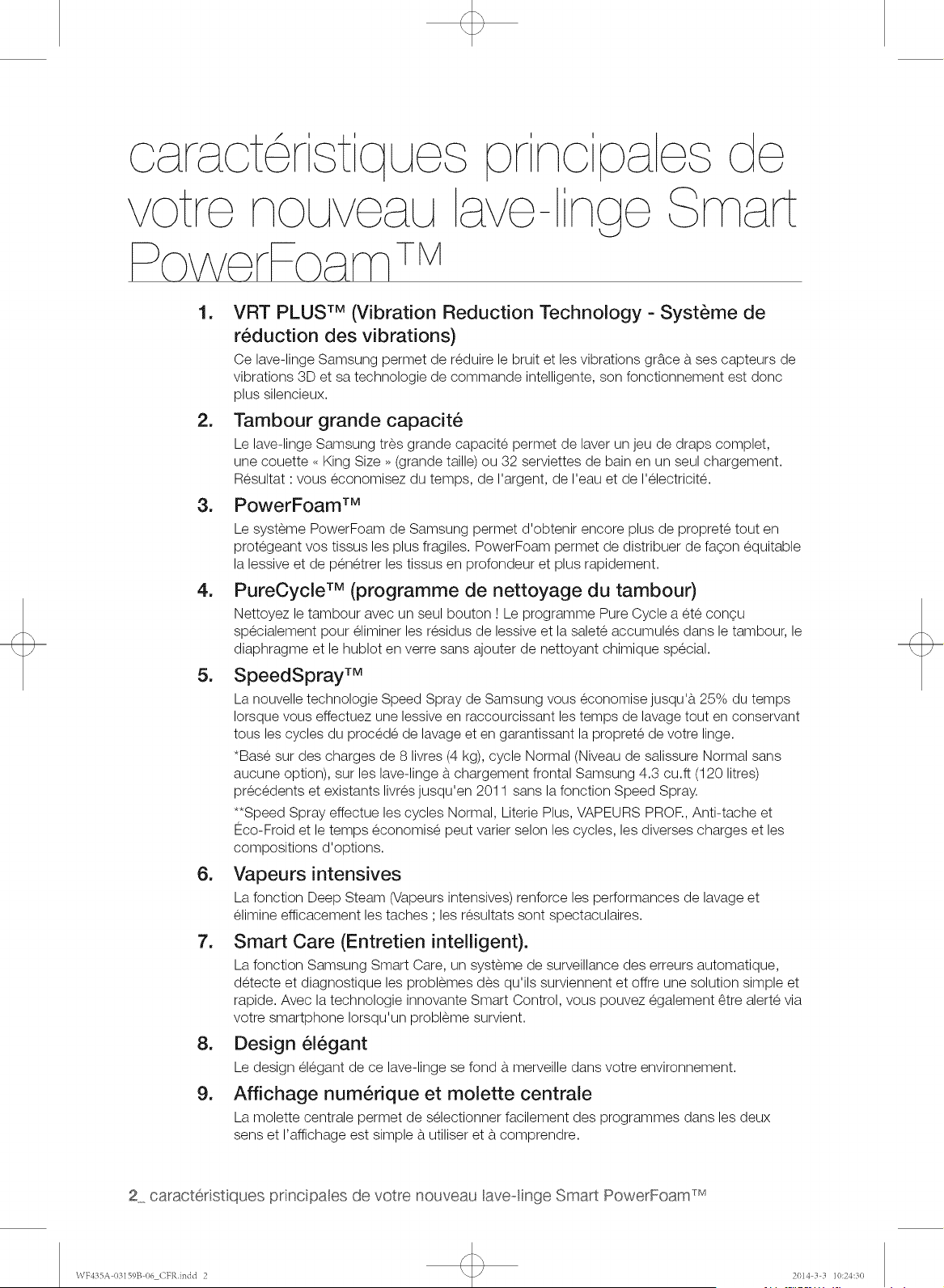

key featudo¢ of youd new

Smart PowerFoam TMwa, her

1. VRT PLUS TM(Vibration Reduction Technology)

This Samsung washer minimizies noise and vibration with dual 3D vibration sensors and

smart control technology, ensuring quiet operation.

2. The Largest Capacity

Samsung's extra-large capacity laundry machine can wash a full set of your bedding, a

kingsize comforter, or up to 32 bath towels in a single load. Since you don't have to do as

many loads, you save time, money, water, and energy.

3. PowerFoam TM

Samsung's effective PowerForm delivers improved cleanliness with advanced fabric care.

PowerFoam allows detergent to distribute evenly and penetrate fabrics faster and deeper.

4. PureCycleTM(Tub Cleaning cycle)

Clean your drum with one button! This Pure Cycle is specially designed to remove

detergent residue & dirt bulidup in the tub, diaphragm and door glass without the need for

special chemical detergents.

5. SpeedSpray TM

Samsung's new Speed Spray technology saves you up to 25%* more time when doing

laundry by shortening wash times while still keeping all segments of the washing process

and getting your clothes clean.

*Based on 8 pounds loads, Normal cycle (under Normal Soil level without any options),

on previous and existing 4.3 cu.ft. Samsung front loading washers released until 2011

without Speed Spray.

**Speed Spray performs in Normal, Bedding PLUS, Deep Steam, Stain Away and

Eco Cold cycle and the saving time may vary by cycles and various load and option

compositions.

6. Deep steam

The Deep Steam feature boosts cleaning performance and loosens grime and dirt, thus

providing superior cleaning results.

7. Smart Care

Samsung's Smart Care, an automatic error-monitoring system, detects and diagnoses

problems at an early stage and provides a quick and easy solution. With the innovative

Smart Control technology, you can also be alerted when the problem occurs via your smart

phones.

8. Stylish design

The stylish design of this washer blends well with your environment.

9. Digital Display & Center jog dial

The Jog dial enables you to select cycles in both directions with ease, and the display is

easy to use and understand.

2 key' features of your new Smart PowerFoam rM washer

WIz4:SSA 0:q59B 06 ENindd 2 2014 3 3 10:24:]2

10. DD Motor

The power to handle anything! Our direct-drive inverter motor delivers power right to the

washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates

a higher spin speed of 1,300rpm for more effective, quiter operation. The washer also has

fewer moving parts, meaning fewer repairs.

11. Sanitize

When selecting this cycle, the water heats to an extra high temperature to remove 99.9%

of certain bacteria typically found on clothing, bedding, or towels. This certification is

conducted by NSF International, an independent third-party testing and certification

organization.

Please check the garment care label to avoid garment damage. Only sanitizing cycles have

been designed to meet the requirements of this protocol for sanitization efficacy.

_S_ I NSF Protocol P172

Sanitization Performance of Residential and

Commercial, Family-Sized Clothes Washers

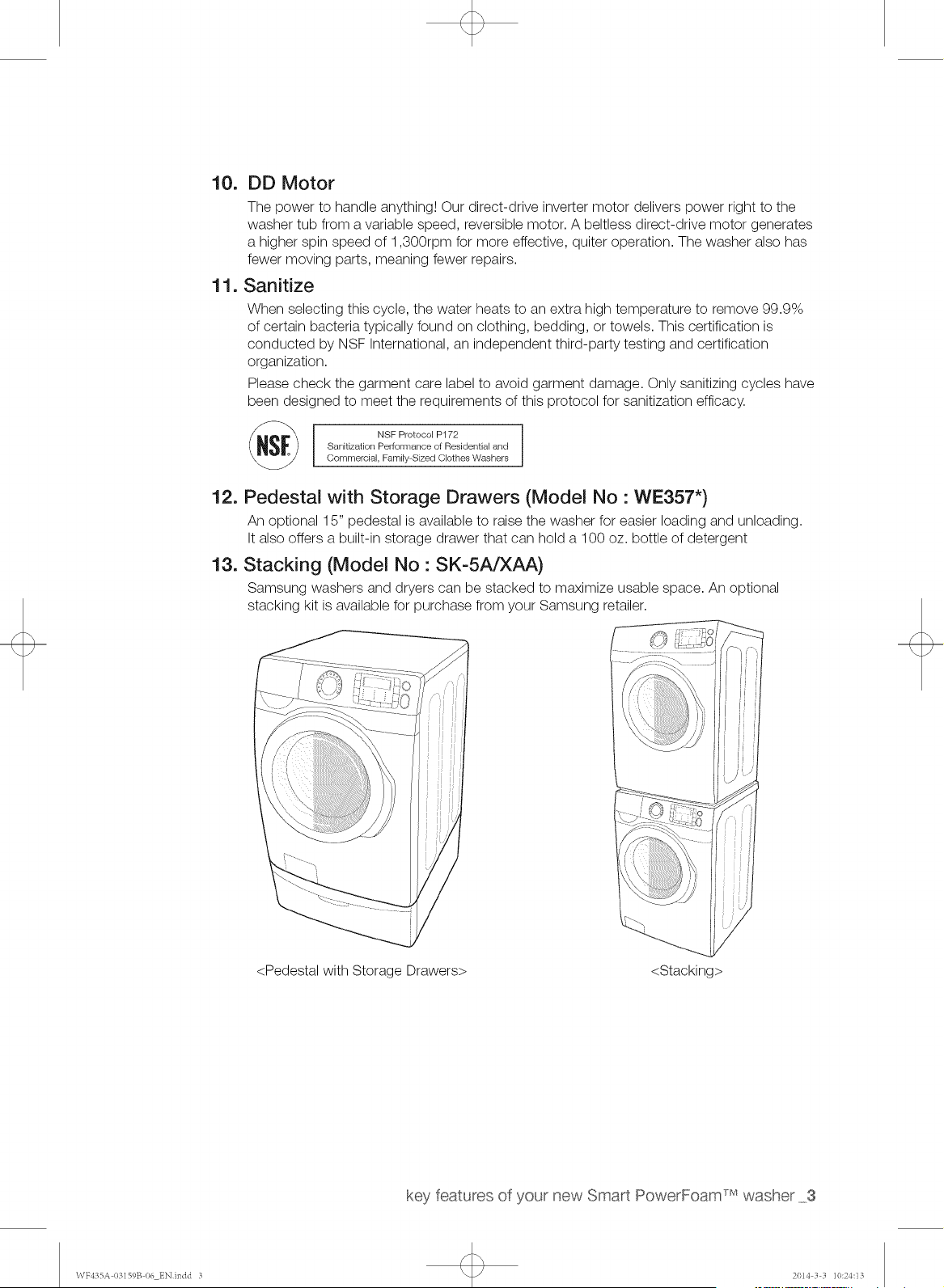

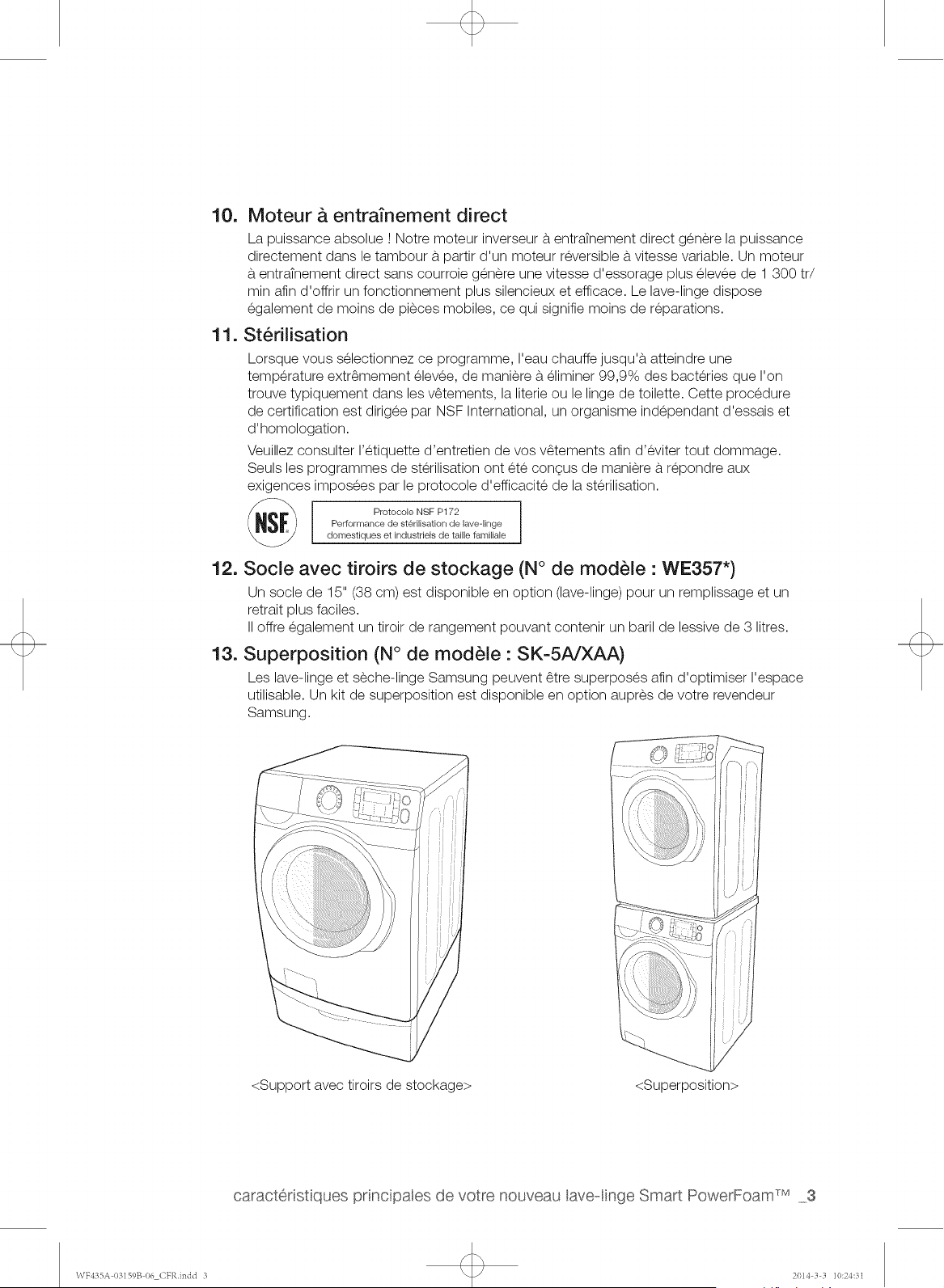

12. Pedestal with Storage Drawers (Model No • WE357")

An optional 15" pedestal is available to raise the washer for easier loading and unloading.

It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent

13. Stacking (Model No" SK-5A/XAA)

Samsung washers and dryers can be stacked to maximize usable space. An optional

stacking kit is available for purchase from your Samsung retailer.

key features of your new Smart PowerFoam rv washer 3

WF435A 03159B 06 ENindd 3 2014 3 3 1(}:24:13

Congratulations on your new Samsung washer. This manual contains important

information on the installation, use and care of your appliance. Please take time to

read this manual to take full advantage of your washer's many benefits and features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining and operating your washer.

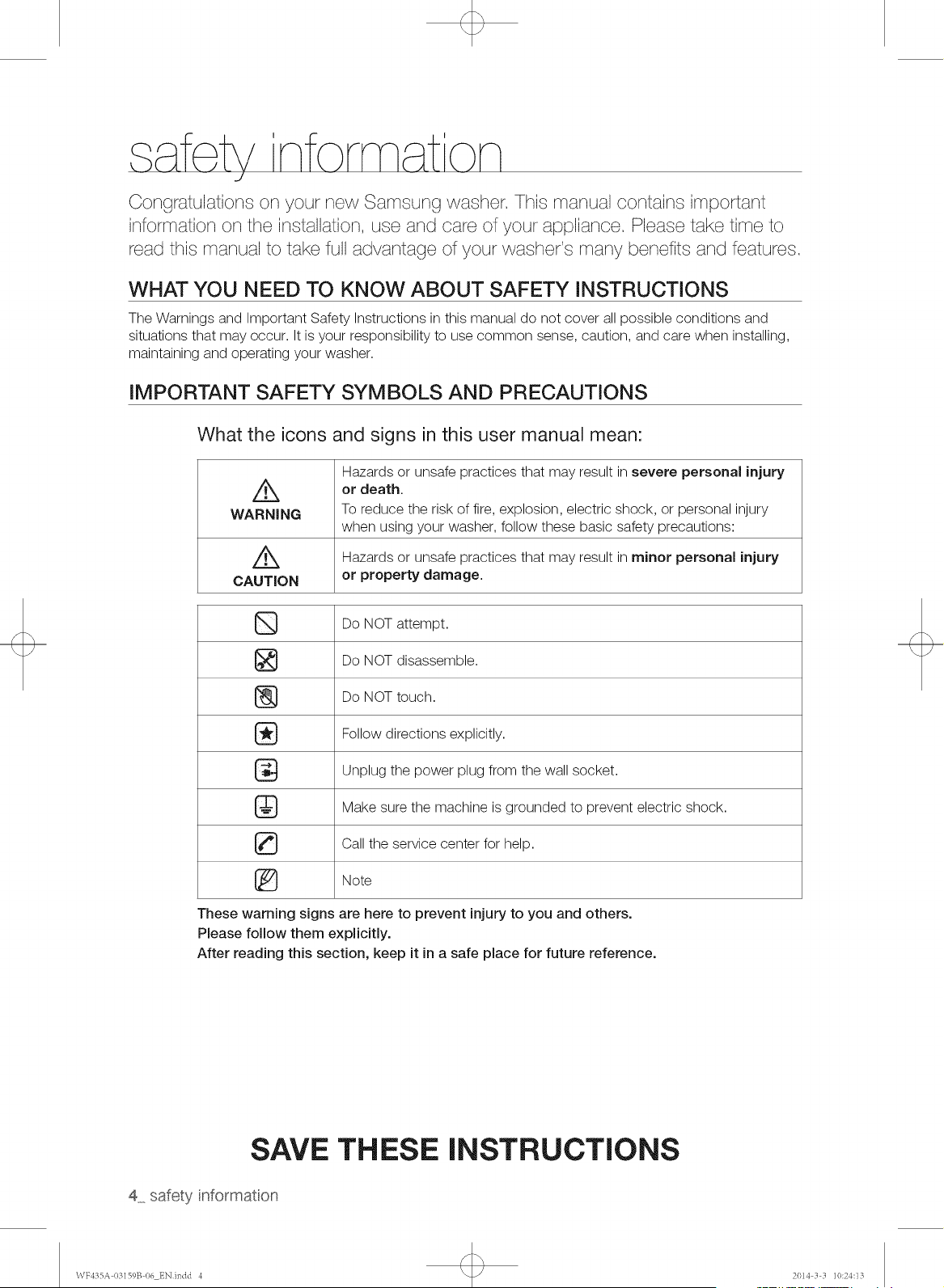

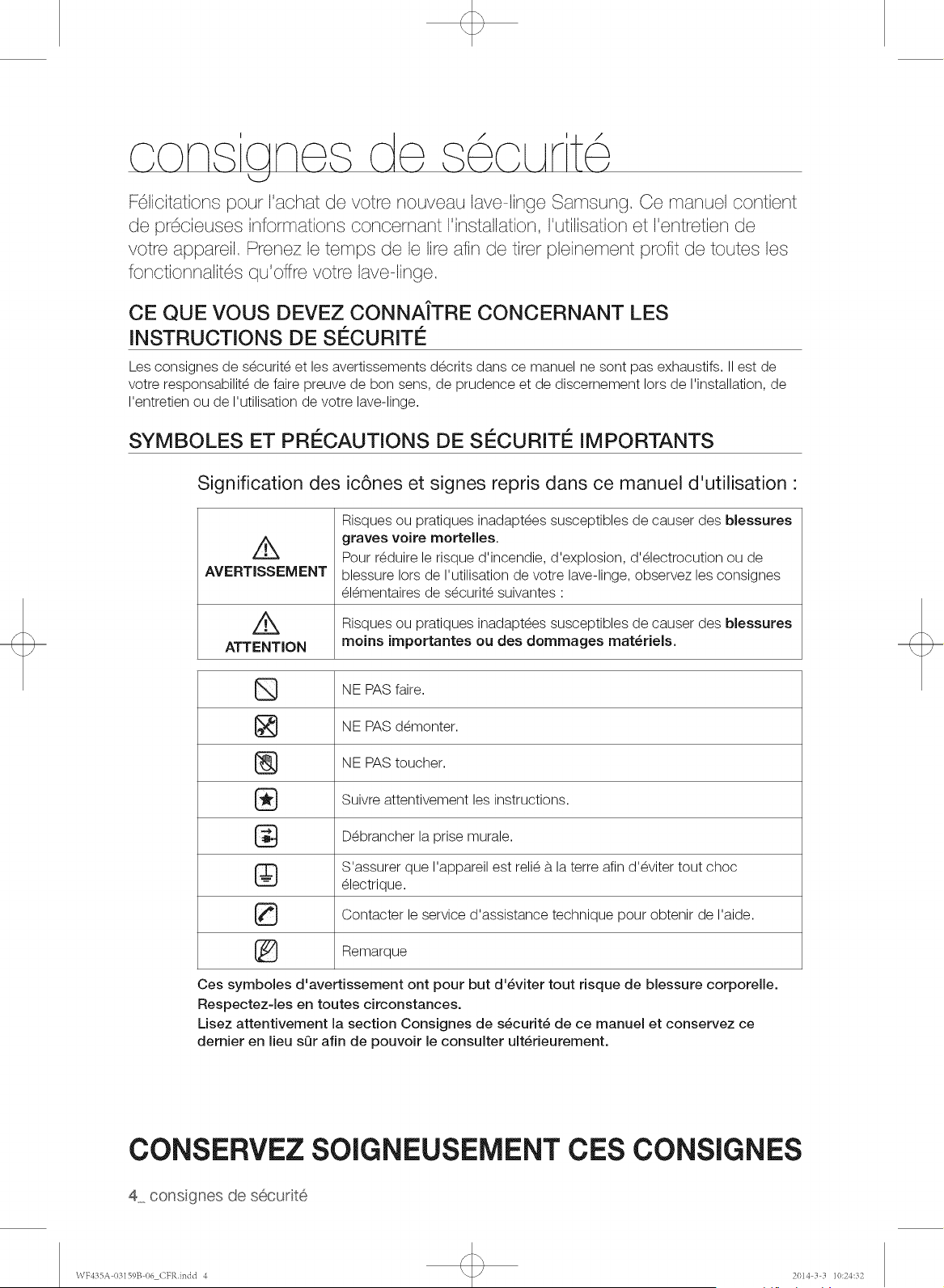

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

Hazards or unsafe practices that may result in severe personal injury

//_ or death.

WARNING To reduce the risk of fire, explosion, electric shock, or personal injury

when using your washer, follow these basic safety precautions:

Z_ Hazards or unsafe practices that may result in minor personal injury

CAUTION or property damage.

Do NOT attempt.

[_ Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

[_ Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

SAVE THESE

4 safety' informaton

INSTRUCTIONS

\VF435A 1)3159B 1)6 ENJndd 4 2014 3 3 10:24:13

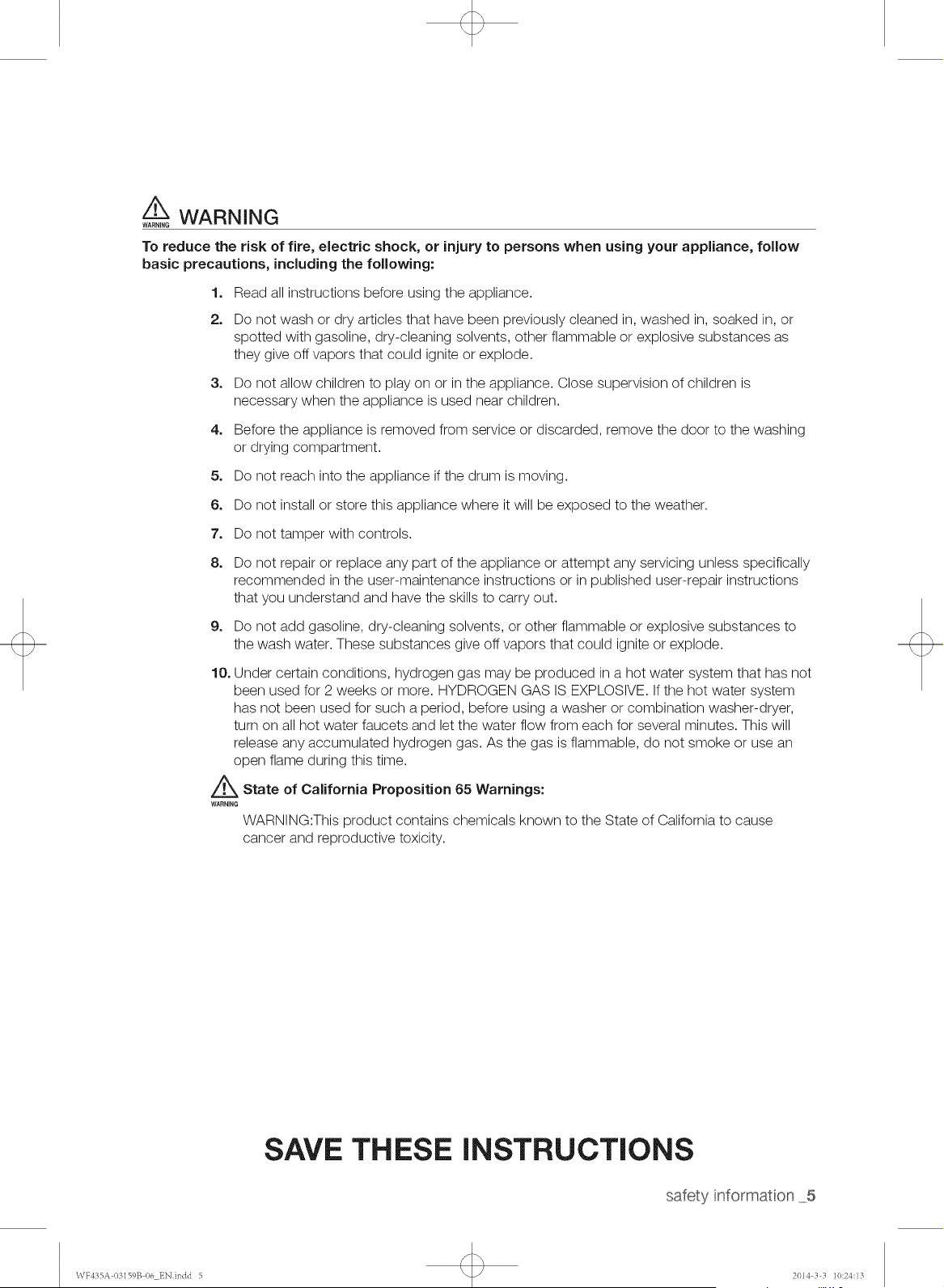

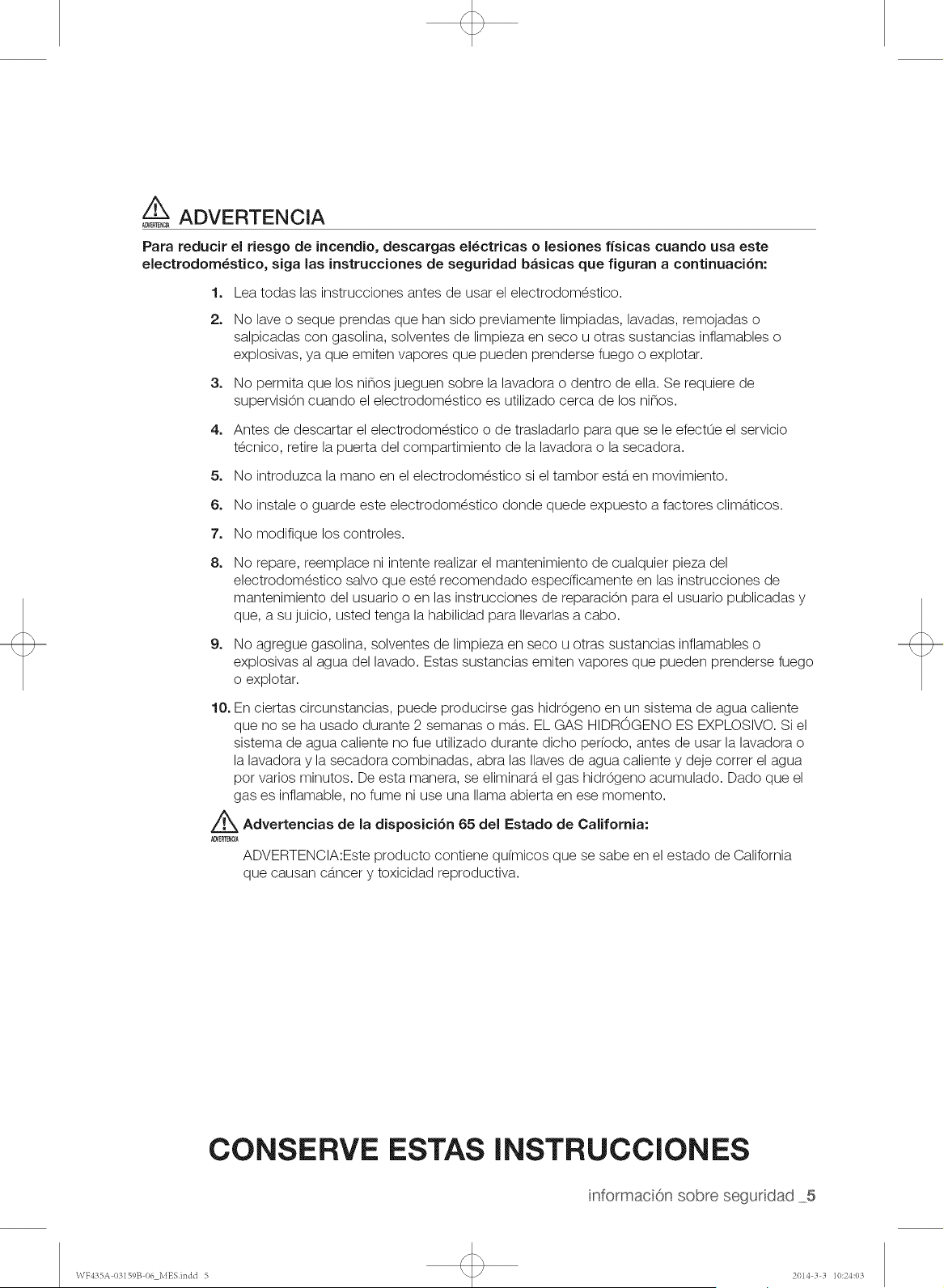

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow

basic precautions, including the following:

Read all instructions before using the appliance.

Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or

spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as

they give off vapors that could ignite or explode.

3o Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4o Before the appliance is removed from service or discarded, remove the door to the washing

or drying compartment.

5. Do not reach into the appliance if the drum is moving.

6o Do not install or store this appliance where it will be exposed to the weather.

7o Do not tamper with controls.

8o Do not repair or replace any part of the appliance or attempt any servicing unless specifically

recommended in the user-maintenance instructions or in published user-repair instructions

that you understand and have the skills to carry out.

9° Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to

the wash water. These substances give off vapors that could ignite or explode.

10oUnder certain conditions, hydrogen gas may be produced in a hot water system that has not

been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system

has not been used for such a period, before using a washer or combination washer-dryer,

turn on all hot water faucets and let the water flow from each for several minutes. This will

release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an

open flame during this time.

Z_ State of California Proposition 65 Warnings:

WARNING

WARNING:This product contains chemicals known to the State of California to cause

cancer and reproductive toxicity.

SAVE THESE INSTRUCTIONS

safety information 5

WF435A 03159B 06 ENindd 5 2014 3 3 1(}:24:13

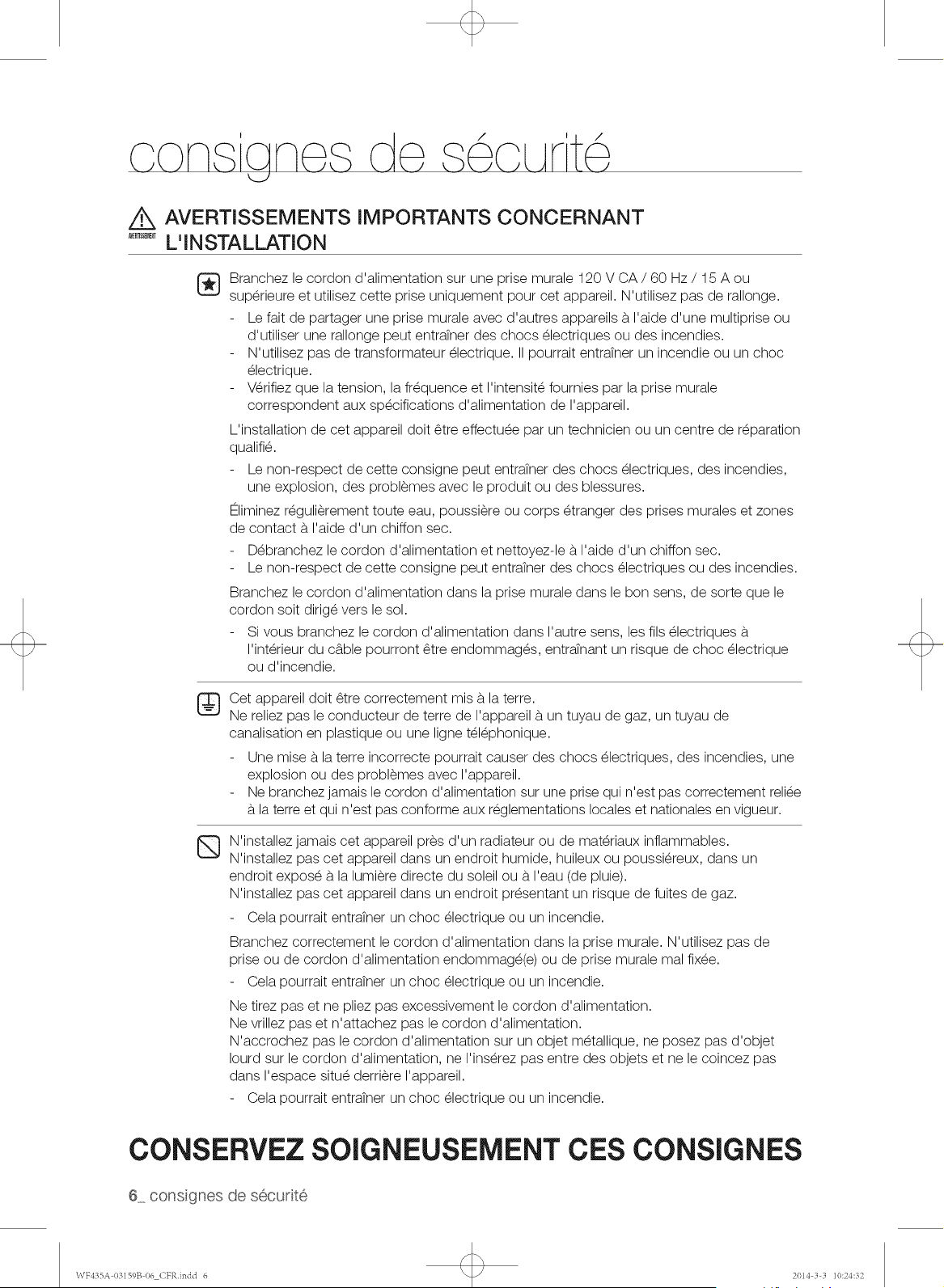

CRITICAL INSTALLATION WARNINGS

WARNING

Plug the power cord into an AC 120 V / 60 Hz / 15 A wall socket or higher and use the

socket for this appliance only. In addition, do not use an extension cord.

Sharing a wall socket with other appliances, using a power strip, or using an extension

cord may result in electric shock or fire.

Do not use an electric transformer. It may result in electric shock or fire.

Ensure that the voltage, frequency, and amperage provided at the wall socket match the

power specifications of the product.

The installation of this appliance must be performed by a qualified technician or service

company.

Failing to do so may result in electric shock, fire, an explosion, problems with the

product, or injury.

Remove all foreign substances such as dust or water from the power plug terminals and

contact points using a dry cloth on a regular basis.

Unplug the power plug and clean it with a dry cloth.

Failing to do so may result in electric shock or fire.

Plug the power plug into the wall socket in the right direction so that the cord runs towards

the floor.

If you plug the power plug into the socket in the opposite direction, the electric wires

within the cable may be damaged and this may result in electric shock or fire.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

Improper grounding may result in electric shock, fi re, an explosion, or problems with the

product.

Never plug the power cord into a socket that is not grounded correctly and make sure

that it is in accordance with local and national codes.

Do not install this appliance near a heater or inflammable material.

Do not install this appliance in a humid, oily or dusty location, or in a location exposed to

direct sunlight and water (rain drops).

Do not install this appliance in a location where gas may leak.

This may result in electric shock or fire.

Plug the power plug into the wall socket firmly. Do not use a damaged power plug,

damaged power cord, or loose wall socket.

This may result in electric shock or fire.

Do not pull or excessively bend the power cord.

Do not twist or tie the power cord.

Do not hook the power cord over a metal object, place a heavy object on the power cord,

insert the power cord between objects, or push the power cord into the space behind the

appliance.

This may result in electric shock or fire.

SAVE THESE

6 safety informaton

INSTRUCTIONS

\VF435A 03159B 06 ENindd 6 2014 3 3 1(}:24:13

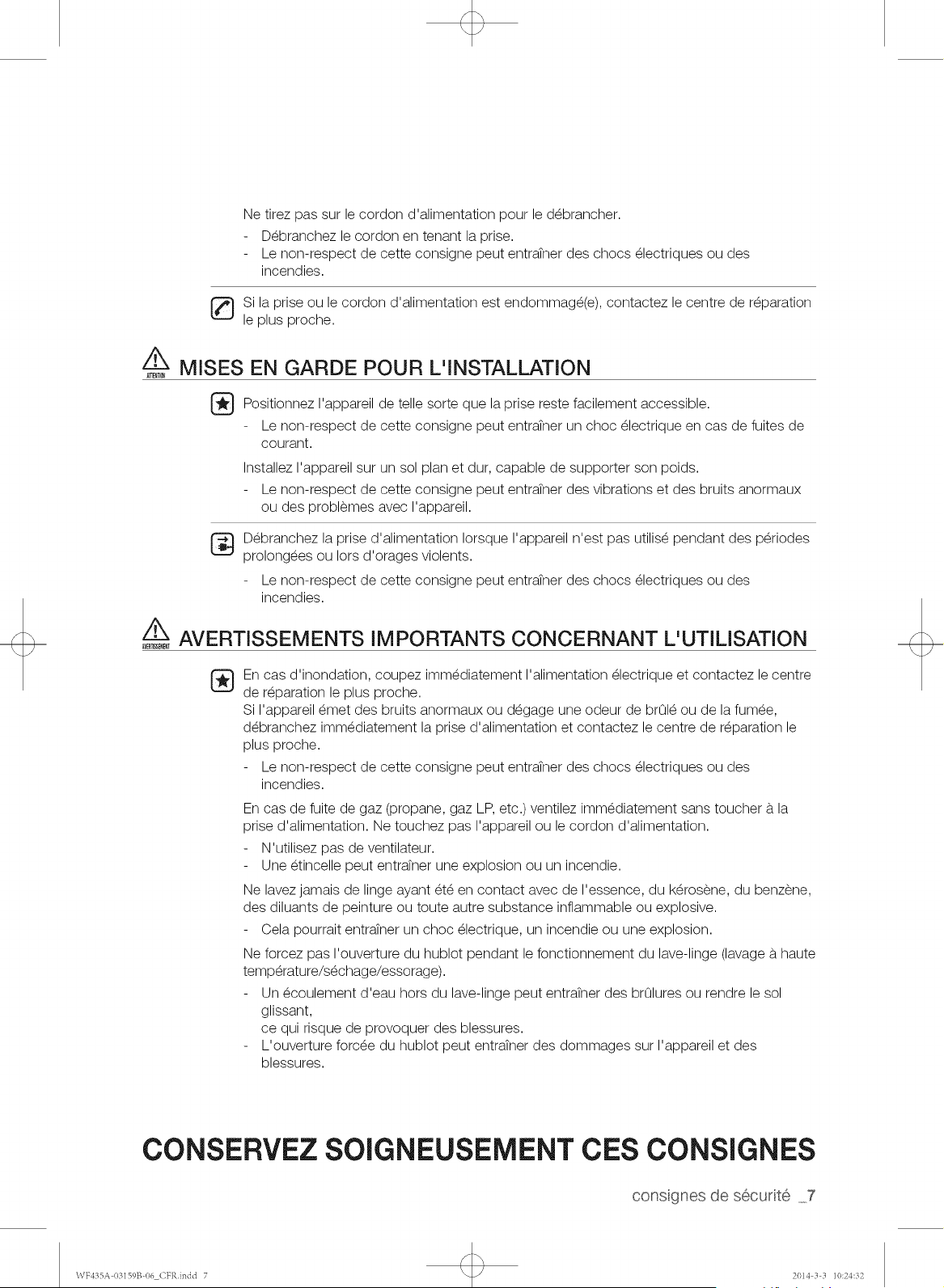

CAUTION

Do not pull the power cord when unplugging the power plug.

Unplug the power plug by holding the plug.

Failing to do so may result in electric shock or fire.

power plug or power damaged, contact your nearest center.

If the cord is service

INSTALLATION CAUTIONS

Position the that the is accessible.

appliance

power plug easily

Failing to do so may result in electric shock or fire due to electric leakage.

Install your appliance on a level and hard floor that can support its weight.

Failing to do so may result in abnormal vibrations, noise, or problems with the product.

Unplug the power plug when the appliance is not being used for long periods of time or

during a thunder/lightning storm.

Failing to do so may result in electric shock or fire.

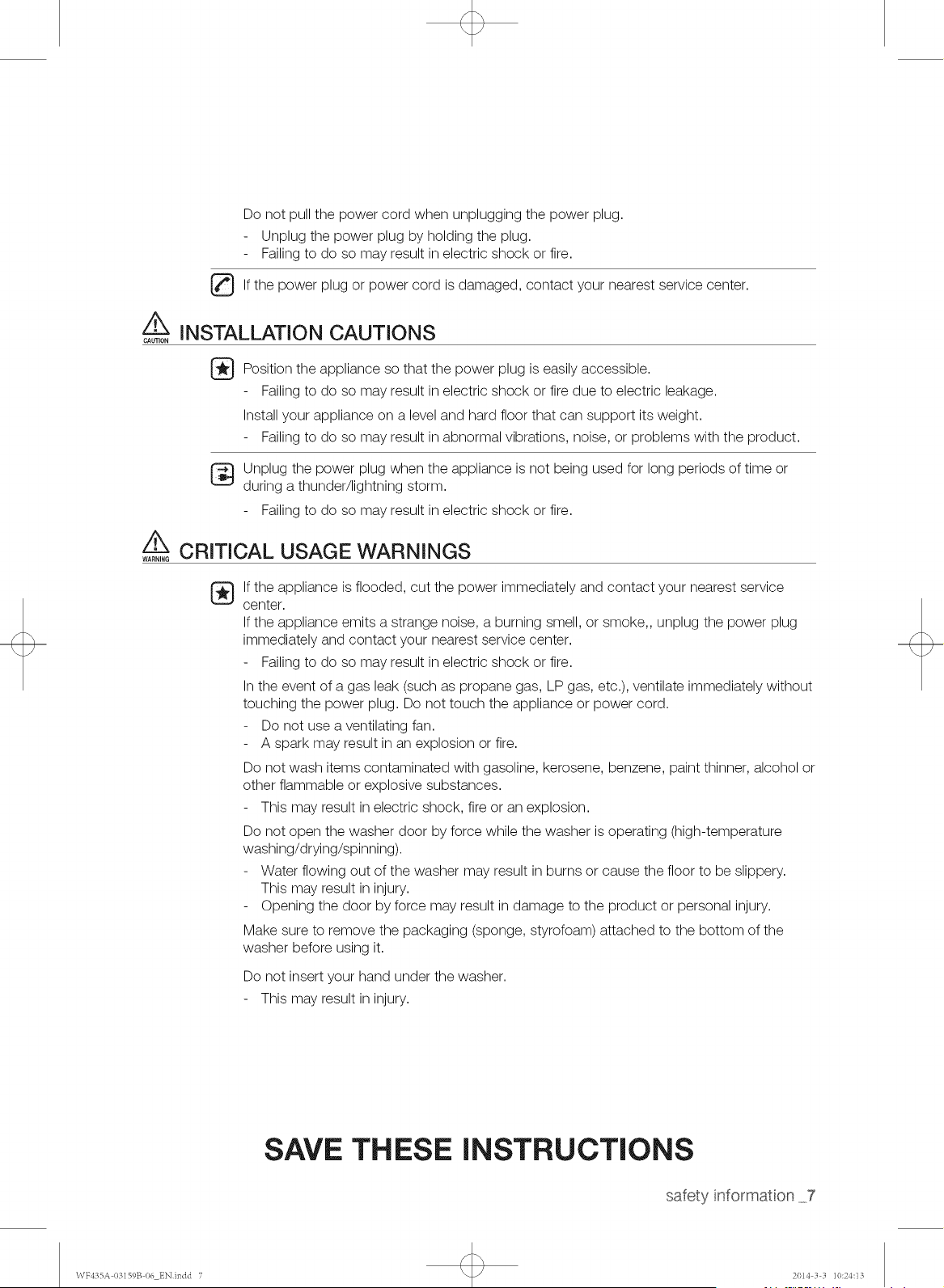

A CRITICAL USAGE WARNINGS

WARNING

If the appliance is flooded, cut the power immediately and contact your nearest service

center.

If the appliance emits a strange noise, a burning smell, or smoke,, unplug the power plug

immediately and contact your nearest service center.

Failing to do so may result in electric shock or fire.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without

touching the power plug. Do not touch the appliance or power cord.

Do not use a ventilating fan.

A spark may result in an explosion or fire.

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or

other flammable or explosive substances.

This may result in electric shock, fire or an explosion.

Do not open the washer door by force while the washer is operating (high-temperature

washing/drying/spinning).

Water flowing out of the washer may result in burns or cause the floor to be slippery.

This may result in injury.

Opening the door by force may result in damage to the product or personal injury.

Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the

washer before using it.

Do not insert your hand under the washer.

This may result in injury.

SAVE THESE INSTRUCTIONS

safety information 7

\VF435A 03159B 06 ENJndd 7 2014 3 3 10:24:13

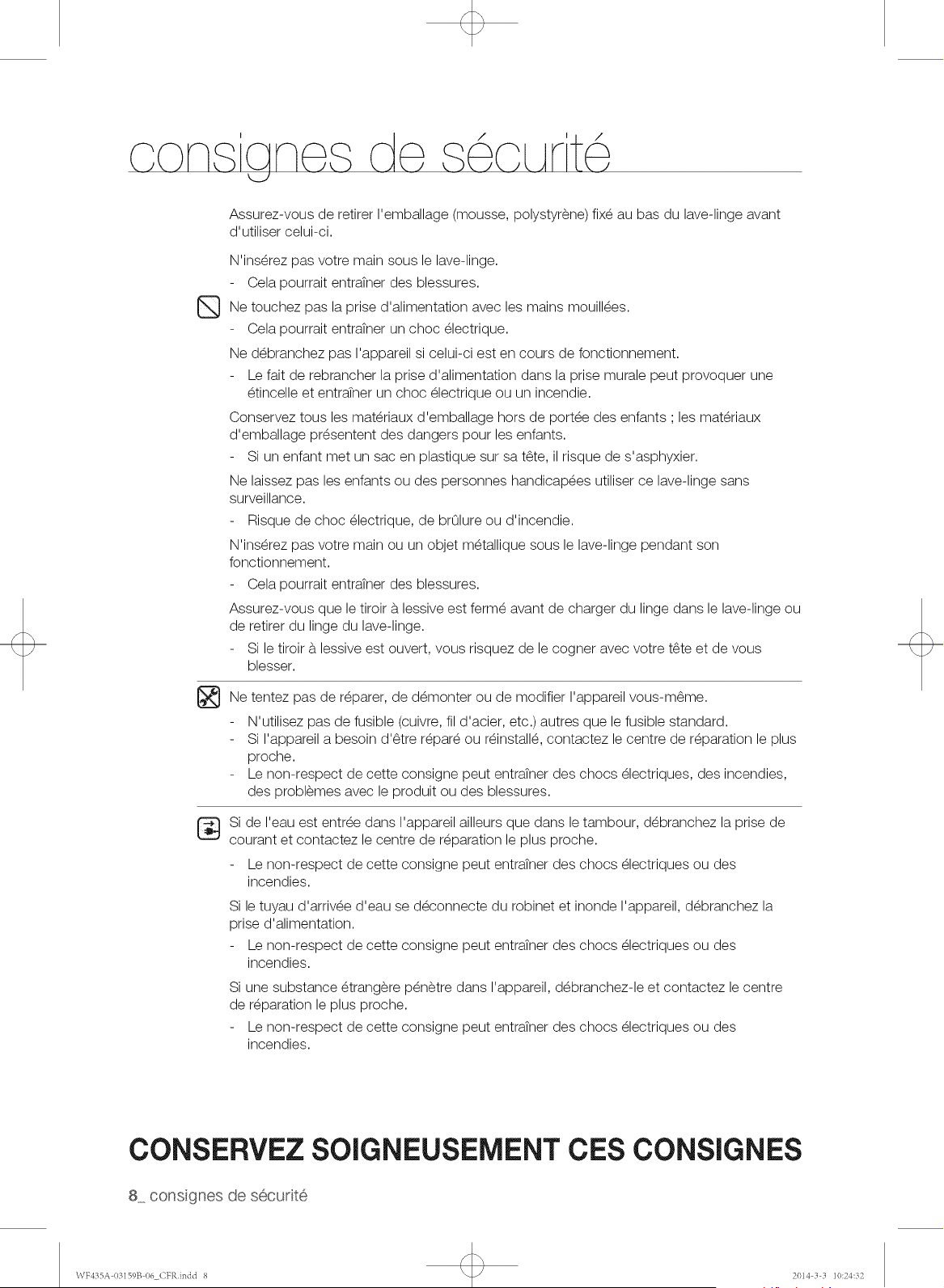

Do touch the with hands.

not

power

plug

wet

This may result in electric shock.

Do not turn the appliance off by unplugging the power plug while an operation is in

progress.

Plugging the power plug into the wall socket again may cause a spark and result in

electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can

be dangerous to children.

If a child places a bag over its head, it may result in suffocation.

Do not let children or infirm persons use this washer unsupervised.

Failing to do so may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the washer while it is operating.

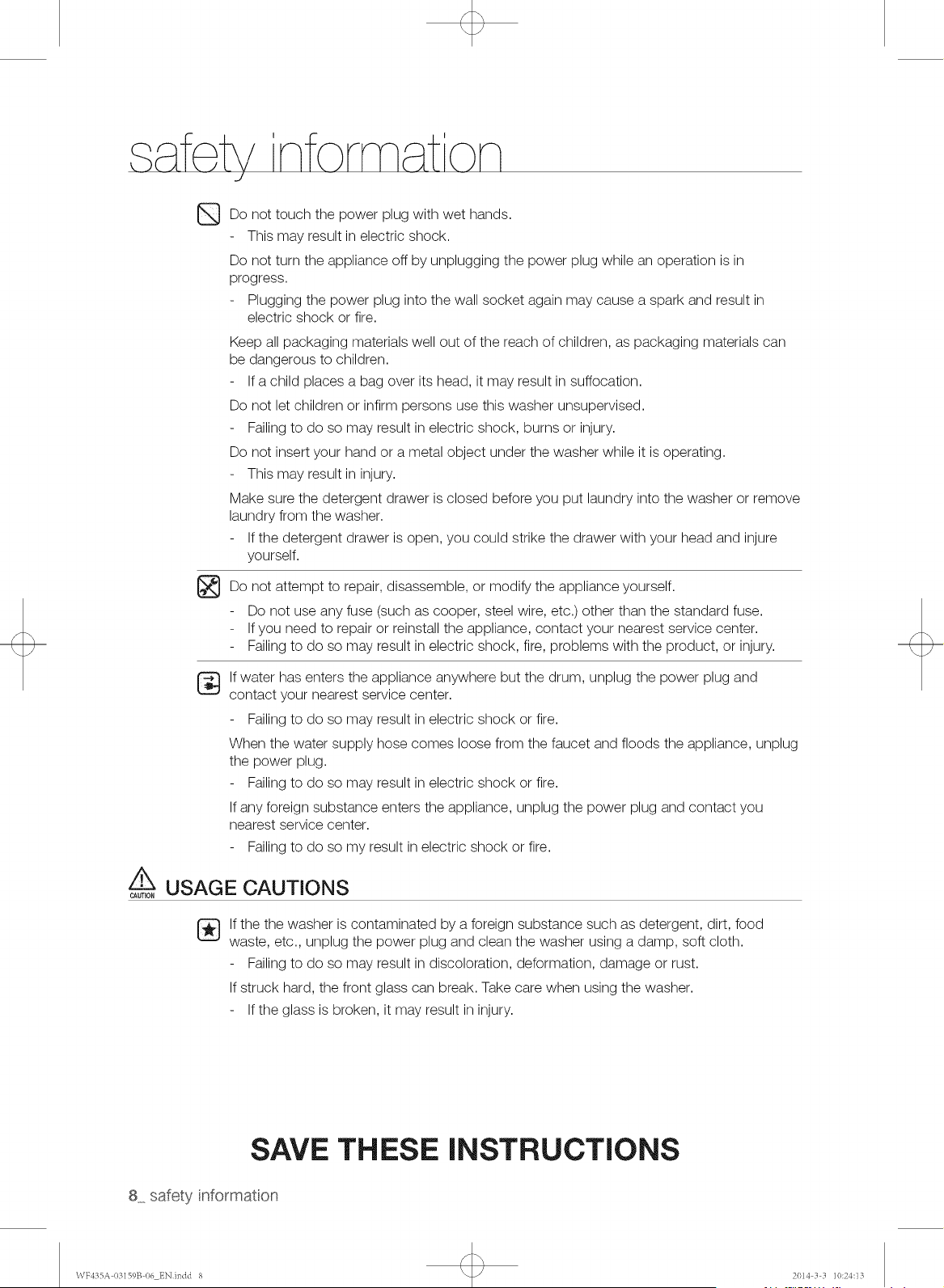

This may result in injury.

Make sure the detergent drawer is closed before you put laundry into the washer or remove

laundry from the washer.

If the detergent drawer is open, you could strike the drawer with your head and injure

yourself.

attempt repair, disassemble, or modify appliance yourself.

Do not to the

Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.

If you need to repair or reinstall the appliance, contact your nearest service center.

Failing to do so may result in electric shock, fire, problems with the product, or injury.

If water has enters the appliance anywhere but the drum, unplug the power plug and

contact your nearest service center.

Failing to do so may result in electric shock or fire.

When the water supply hose comes loose from the faucet and floods the appliance, unplug

the power plug.

Failing to do so may result in electric shock or fire.

If any foreign substance enters the appliance, unplug the power plug and contact you

nearest service center.

Failing to do so my result in electric shock or fire.

USAGE CAUTIONS

CAUTION

If the the washer is contaminated by a foreign substance such as detergent, dirt, food

waste, etc., unplug the power plug and clean the washer using a damp, soft cloth.

Failing to do so may result in discoloration, deformation, damage or rust.

If struck hard, the front glass can break. Take care when using the washer.

If the glass is broken, it may result in injury.

SAVE THESE

8 safety informaton

INSTRUCTIONS

\VF435A 03159B 06 ENindd 8 2014 3 3 1(}:24:13

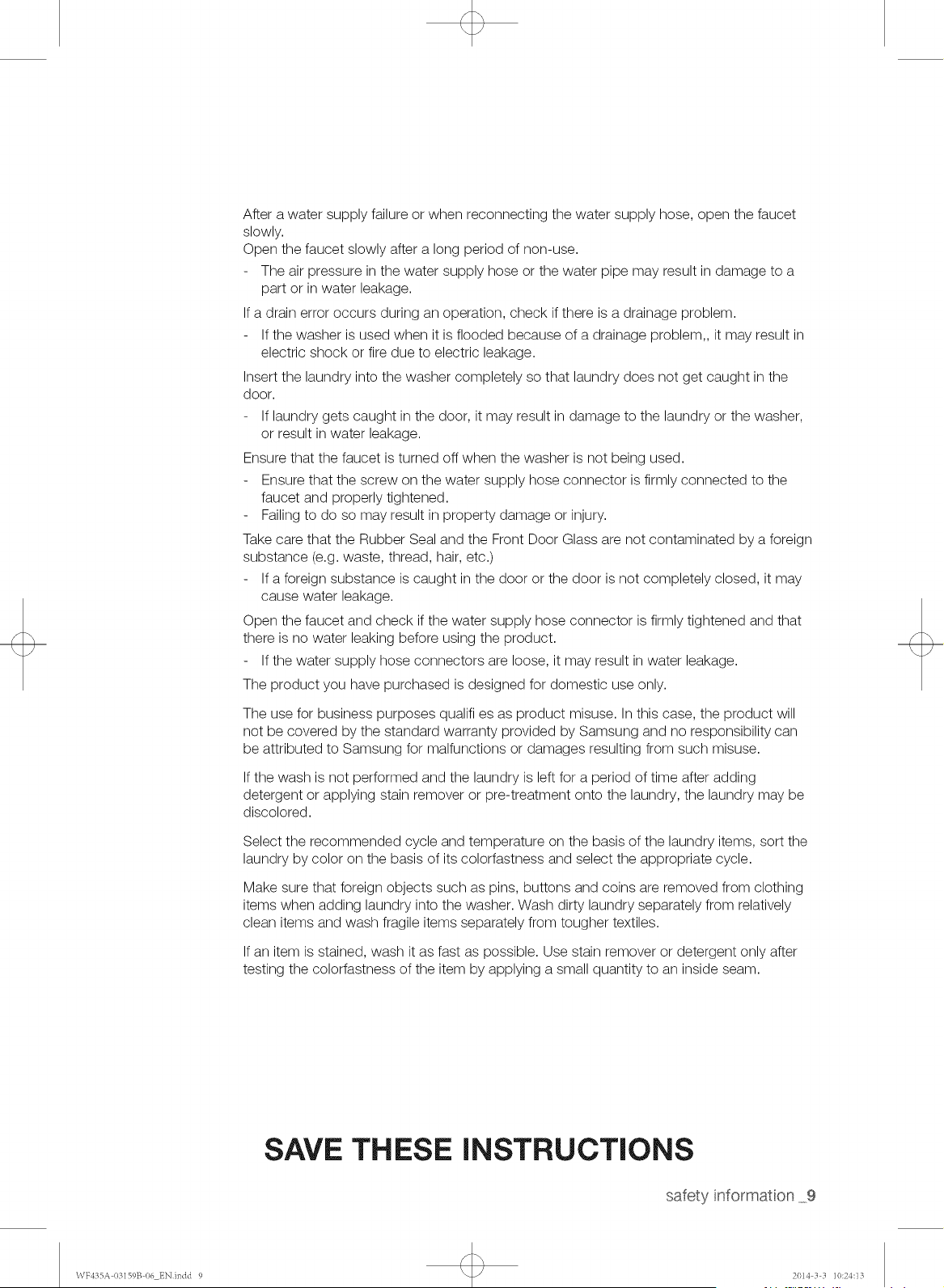

After a water supply failure or when reconnecting the water supply hose, open the faucet

slowly.

Open the faucet slowly after a long period of non-use.

The air pressure in the water supply hose or the water pipe may result in damage to a

part or in water leakage.

If a drain error occurs during an operation, check if there is a drainage problem.

If the washer is used when it is flooded because of a drainage problem,, it may result in

electric shock or fire due to electric leakage.

Insert the laundry into the washer completely so that laundry does not get caught in the

door.

If laundry gets caught in the door, it may result in damage to the laundry or the washer,

or result in water leakage.

Ensure that the faucet is turned off when the washer is not being used.

Ensure that the screw on the water supply hose connector is firmly connected to the

faucet and properly tightened.

Failing to do so may result in property damage or injury.

Take care that the Rubber Seal and the Front Door Glass are not contaminated by a foreign

substance (e.g. waste, thread, hair, etc.)

If a foreign substance is caught in the door or the door is not completely closed, it may

cause water leakage.

Open the faucet and check if the water supply hose connector is firmly tightened and that

there is no water leaking before using the product.

If the water supply hose connectors are loose, it may result in water leakage.

The product you have purchased is designed for domestic use only.

The use for business purposes qualifies as product misuse. In this case, the product will

not be covered by the standard warranty provided by Samsung and no responsibility can

be attributed to Samsung for malfunctions or damages resulting from such misuse.

If the wash is not performed and the laundry is left for a period of time after adding

detergent or applying stain remover or pre-treatment onto the laundry, the laundry may be

discolored.

Select the recommended cycle and temperature on the basis of the laundry items, sort the

laundry by color on the basis of its colorfastness and select the appropriate cycle.

Make sure that foreign objects such as pins, buttons and coins are removed from clothing

items when adding laundry into the washer. Wash dirty laundry separately from relatively

clean items and wash fragile items separately from tougher textiles.

If an item is stained, wash it as fast as possible. Use stain remover or detergent only after

testing the colorfastness of the item by applying a small quantity to an inside seam.

SAVE THESE iNSTRUCTiONS

safety information 9

WF435A 03159B 06 ENindd 9 2014 3 3 10:24:Kt

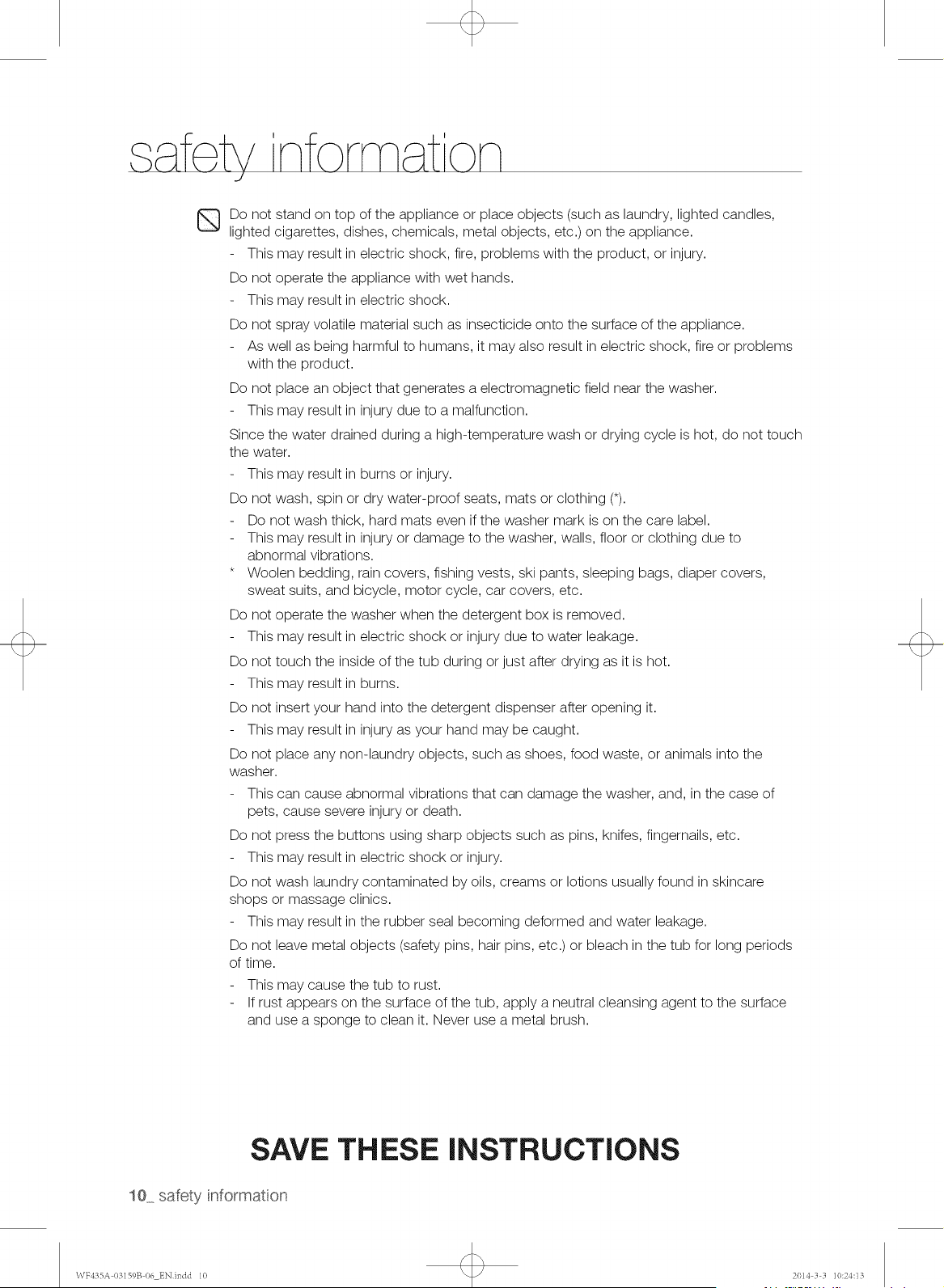

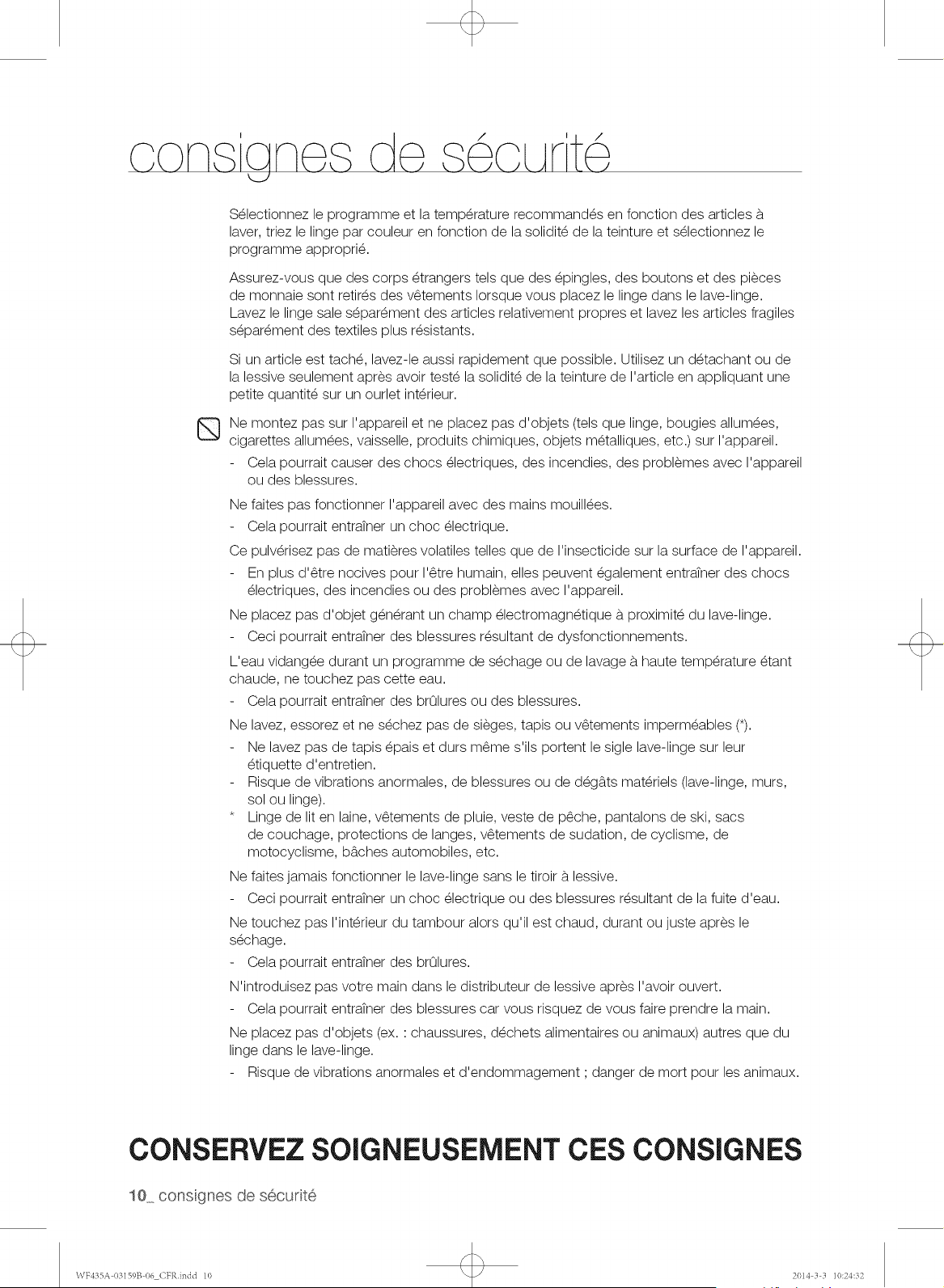

Do not stand on top of the appliance or place objects (such as laundry, lighted candles,

lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

This may result in electric shock, fire, problems with the product, or injury.

Do not operate the appliance with wet hands.

This may result in electric shock.

Do not spray volatile material such as insecticide onto the surface of the appliance.

As well as being harmful to humans, it may also result in electric shock, fire or problems

with the product.

Do not place an object that generates a electromagnetic field near the washer.

This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not touch

the water.

This may result in burns or injury.

Do not wash, spin or dry water-proof seats, mats or clothing (*).

Do not wash thick, hard mats even if the washer mark is on the care label.

This may result in injury or damage to the washer, walls, floor or clothing due to

abnormal vibrations.

* Woolen bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,

sweat suits, and bicycle, motor cycle, car covers, etc.

Do not operate the washer when the detergent box is removed.

This may result in electric shock or injury due to water leakage.

Do not touch the inside of the tub during or just after drying as it is hot.

This may result in burns.

Do not insert your hand into the detergent dispenser after opening it.

This may result in injury as your hand may be caught.

Do not place any non-laundry objects, such as shoes, food waste, or animals into the

washer.

This can cause abnormal vibrations that can damage the washer, and, in the case of

pets, cause severe injury or death.

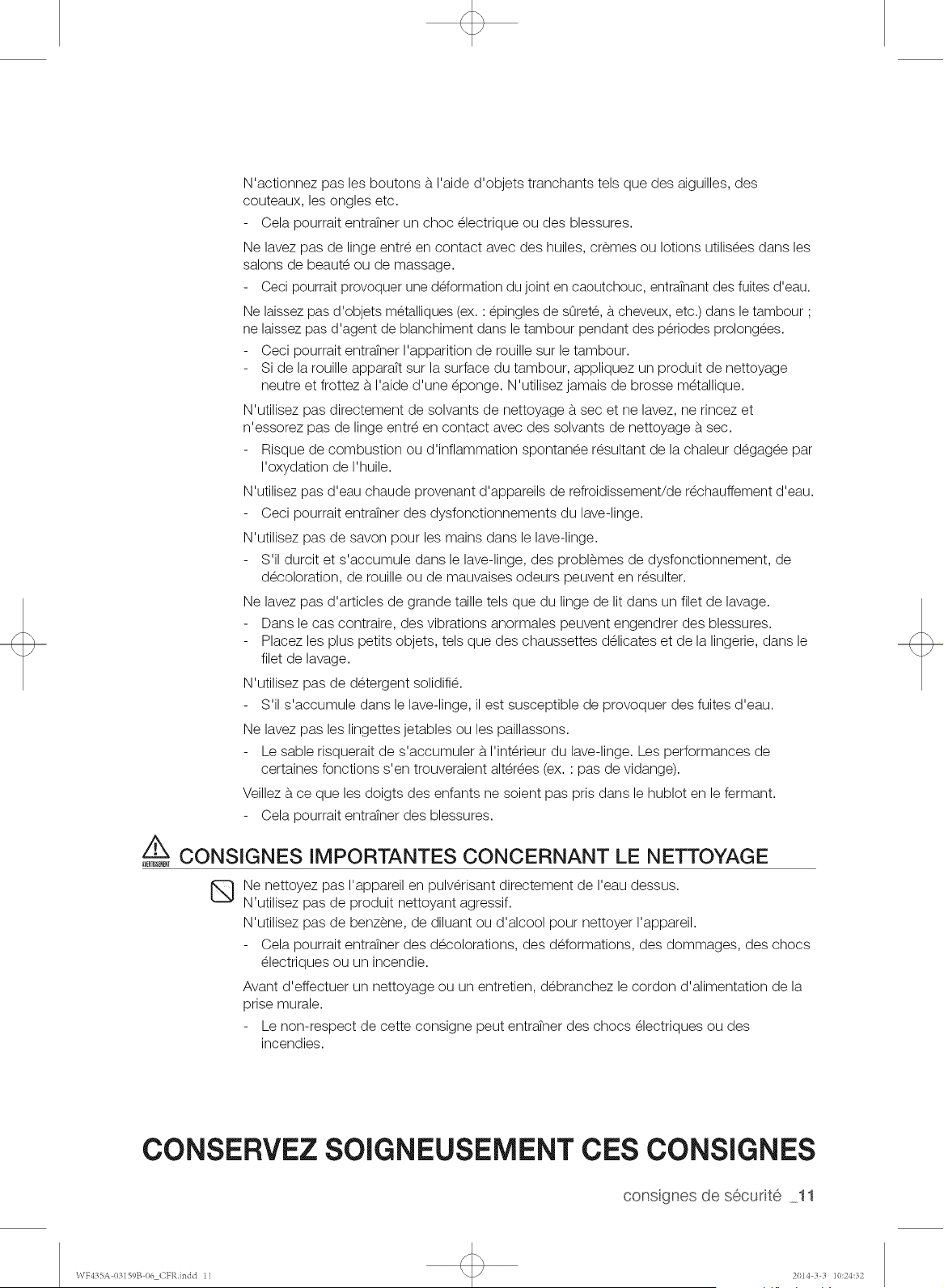

Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.

This may result in electric shock or injury.

Do not wash laundry contaminated by oils, creams or lotions usually found in skincare

shops or massage clinics.

This may result in the rubber seal becoming deformed and water leakage.

Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods

of time.

This may cause the tub to rust.

If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface

and use a sponge to clean it. Never use a metal brush.

SAVE THESE

rl0 safety informaton

iNSTRUCTiONS

WF435A 03159B 06 ENindd 10 2014 3 3 1(}:24:13

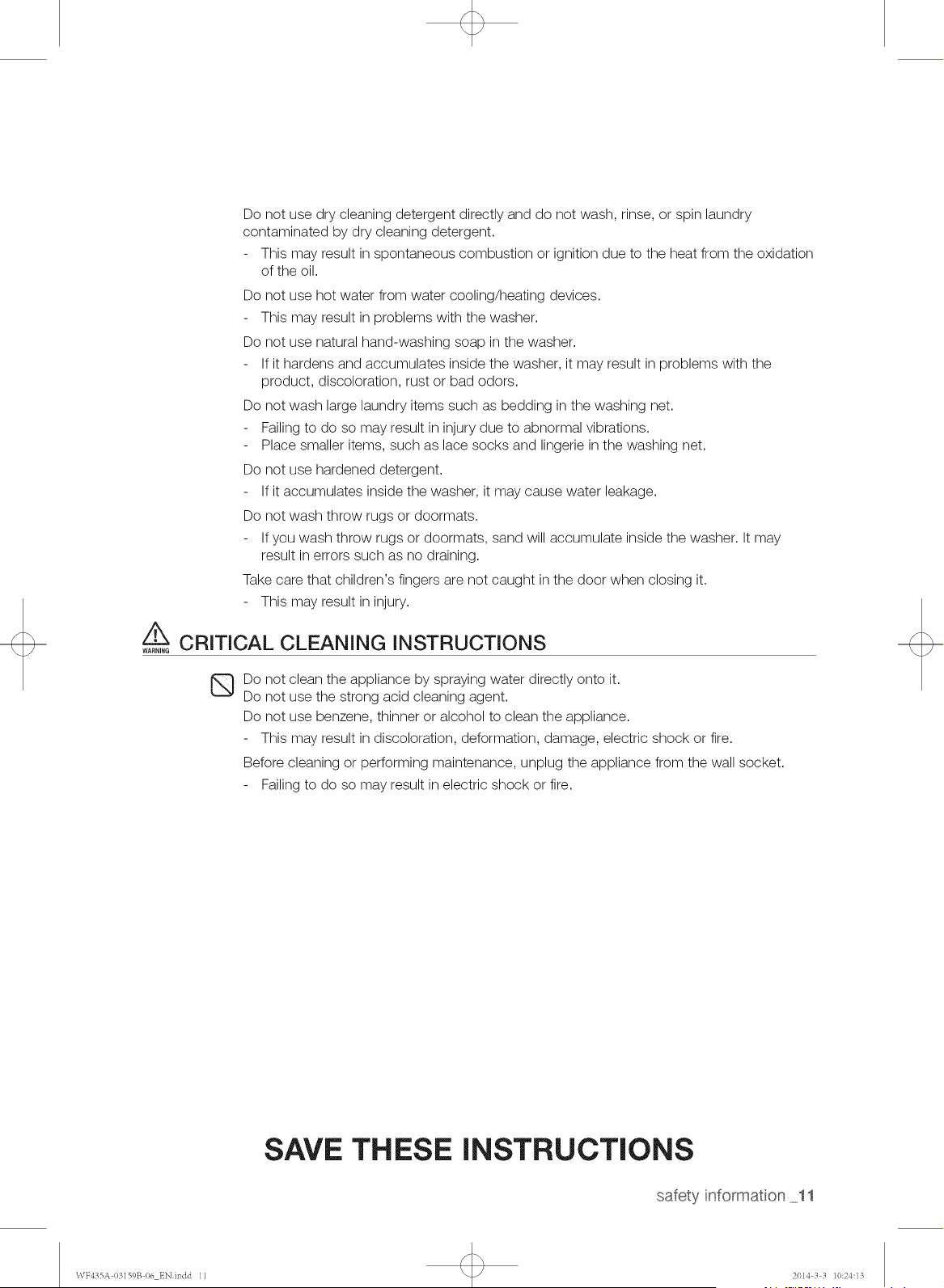

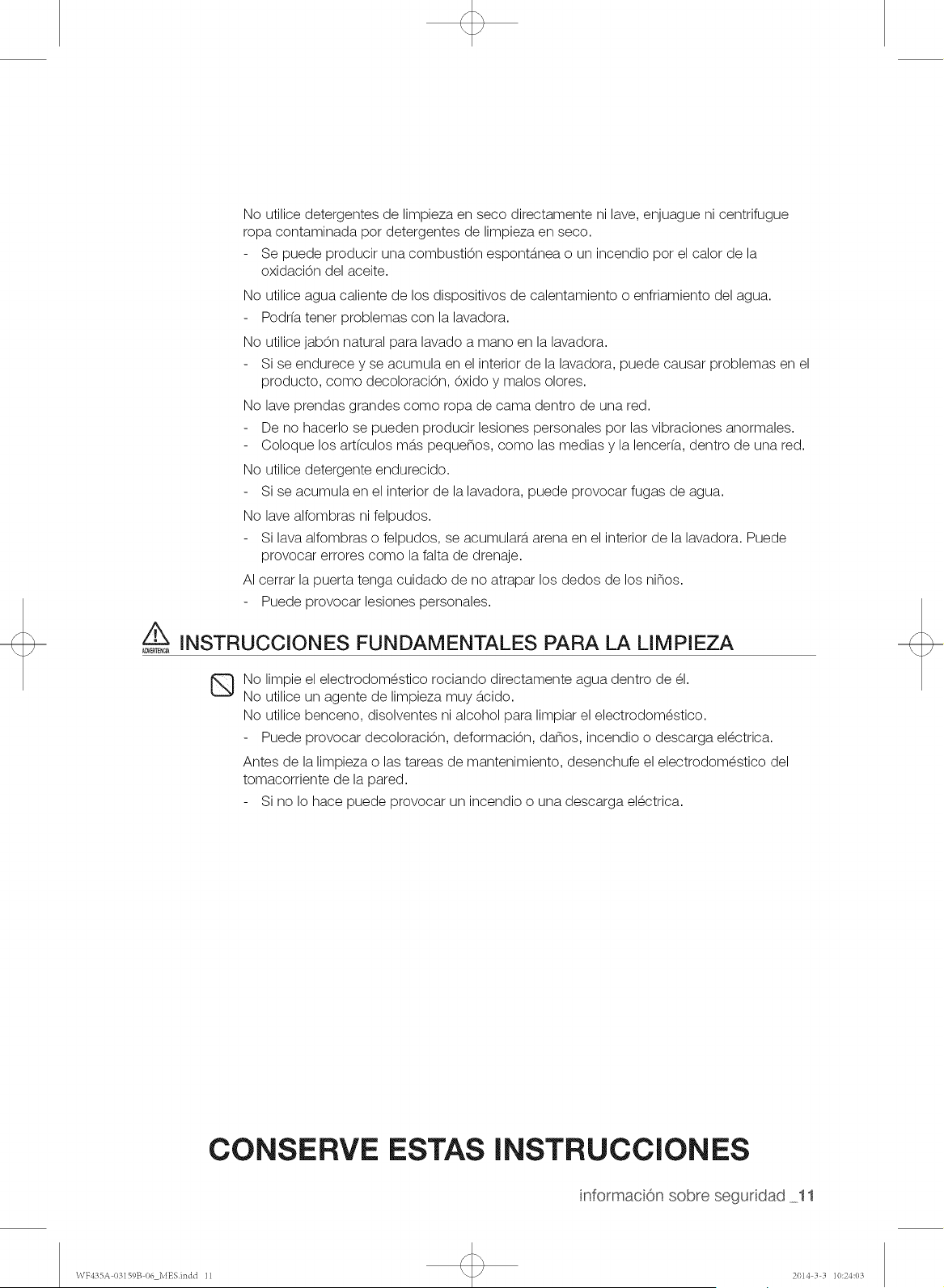

Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry

contaminated by dry cleaning detergent.

This may result in spontaneous combustion or ignition due to the heat from the oxidation

of the oil.

Do not use hot water from water cooling/heating devices.

This may result in problems with the washer.

Do not use natural hand-washing soap in the washer.

If it hardens and accumulates inside the washer, it may result in problems with the

product, discoloration, rust or bad odors.

Do not wash large laundry items such as bedding in the washing net.

Failing to do so may result in injury due to abnormal vibrations.

Place smaller items, such as lace socks and lingerie in the washing net.

Do not use hardened detergent.

If it accumulates inside the washer, it may cause water leakage.

Do not wash throw rugs or doormats.

If you wash throw rugs or doormats, sand will accumulate inside the washer. It may

result in errors such as no draining.

Take care that children's fingers are not caught in the door when closing it.

This may result in injury.

CRITICAL CLEANING INSTRUCTIONS

WARNING

Do not clean the appliance by spraying water directly onto it.

Do not use the strong acid cleaning agent.

Do not use benzene, thinner or alcohol to clean the appliance.

This may result in discoloration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

Failing to do so may result in electric shock or fire.

SAVE THESE iNSTRUCTiONS

safety informaton 11

\VF435A 03159B 06 ENindd 11 2014 3 3 1(}:24:13

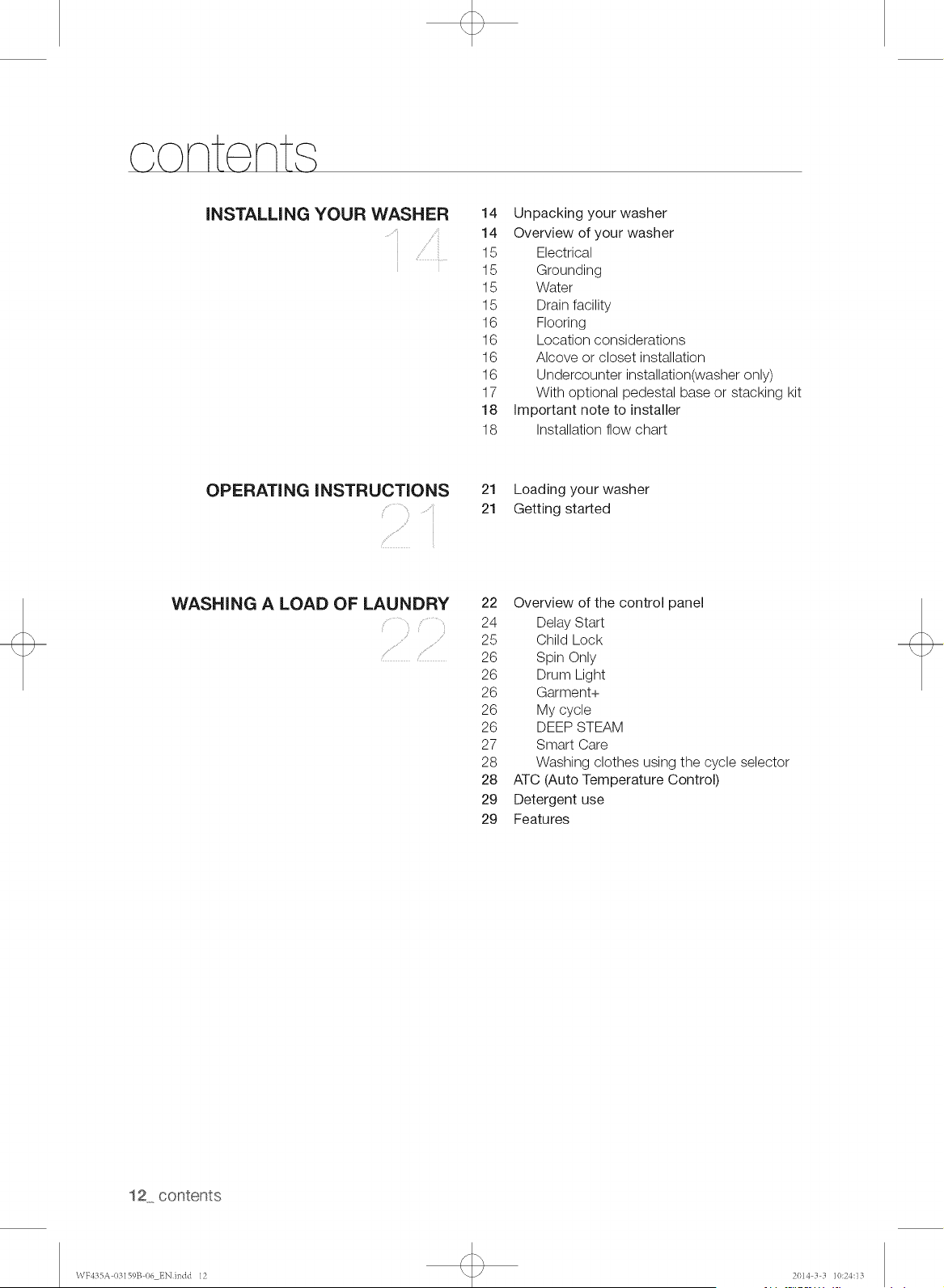

content

INSTALLING YOUR WASHER 14 Unpacking your washer

14 Overview of your washer

15 Electrical

15 Grounding

15 Water

15 Drain facility

16 Flooring

16 Location considerations

16 Alcove or closet installation

16 Undercounter installation(washer only)

17 With optional pedestal base or stacking kit

18 Important note to installer

18 Installation flow chart

OPERATING INSTRUCTIONS 21 Loading your washer

21 Getting started

WASHING A LOAD OF LAUNDRY 22 Overview of the control panel

24 Delay Start

25 Child Lock

26 Spin Only

26 Drum Light

26 Garment+

26 My cycle

26 DEEP STEAM

27 Smart Care

28 Washing clothes using the cycle selector

28 ATC (Auto Temperature Control)

29 Detergent use

29 Features

12 contents

WF435A I)3159B I)6 ENindd 12 2014 3 3 1(}:24:13

MAiNTAINiNG YOUR WASHER

31 Cleaning the exterior

31 Cleaning the interior

32 Cleaning the dispensers

32 Storing your washer

33 Cleaning the debris filter

34 Cleaning the door seal/bellow

34 Preserving the top cover and the front frame

35 Pure Cycle T#

TROUBLESHOOTING

36 Check these points if your washer.,.

38 Information codes

APPENDIX 40 Fabric care chart

41 Cycle chart

43 Helping the environment

43 Declaration of conformity

43 Specification

contents 13

\VF435A 03159B 06 ENJndd 13 2014 3 3 1(}:24:14

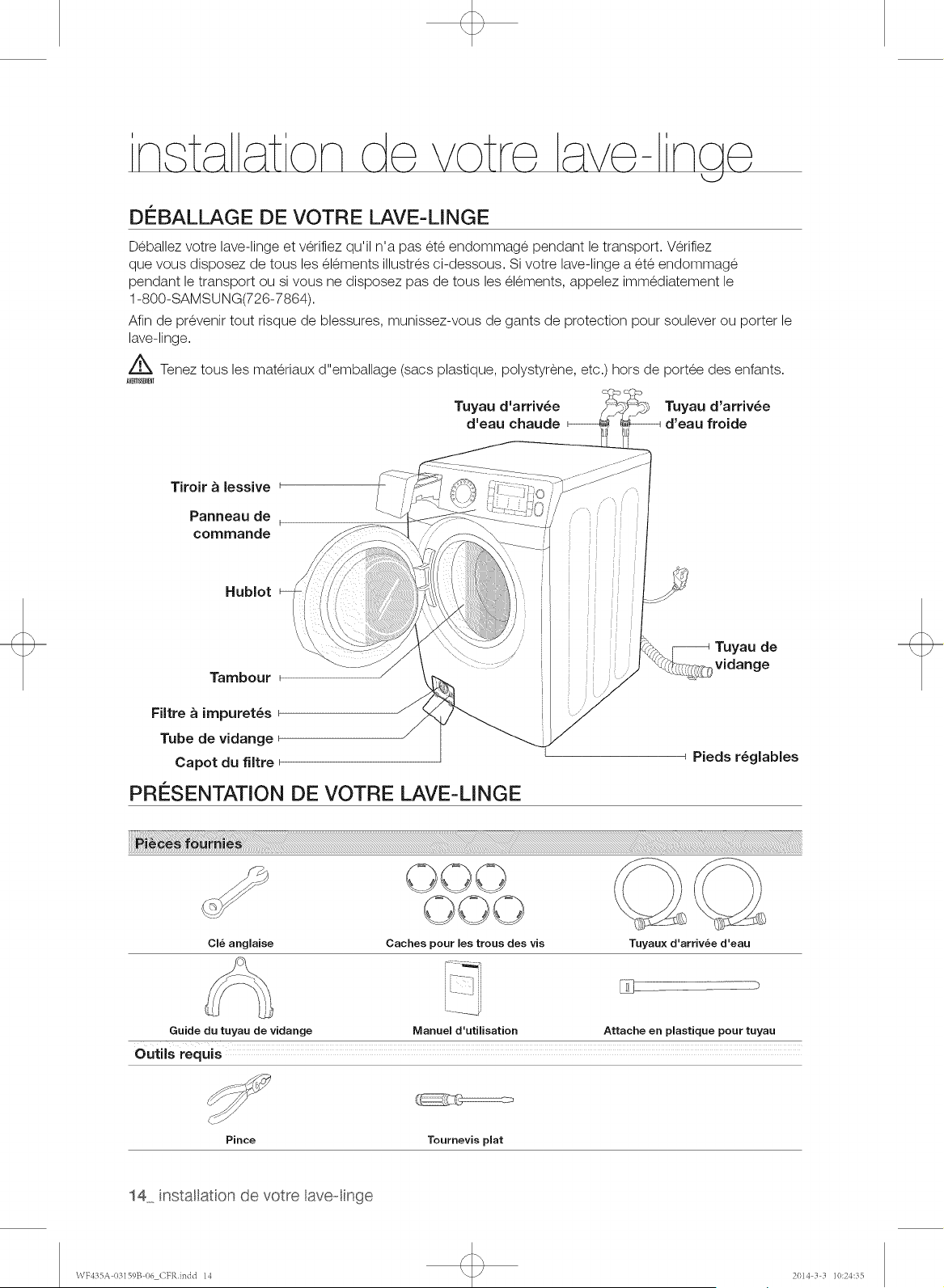

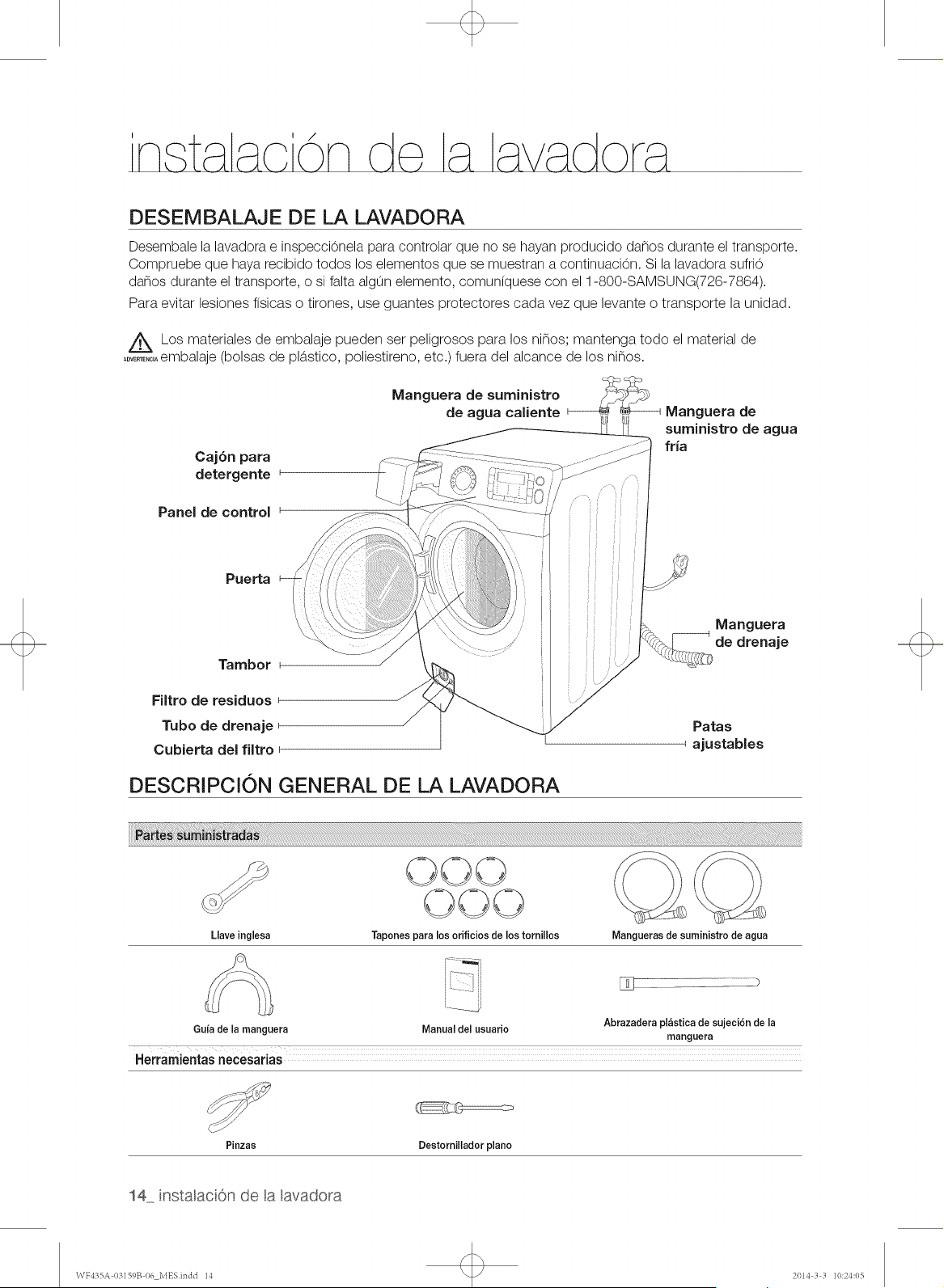

UNPACKING YOUR WASHER

Unpack your Washer and inspect it for shipping damage. Make sure you have received all of the items

shown below. If your Washer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSU NG(726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

w_,,G Packing materials can be dangerous to children; keep all packing material (plastic bags, polystyrene,

etc.) well out of the reach of children.

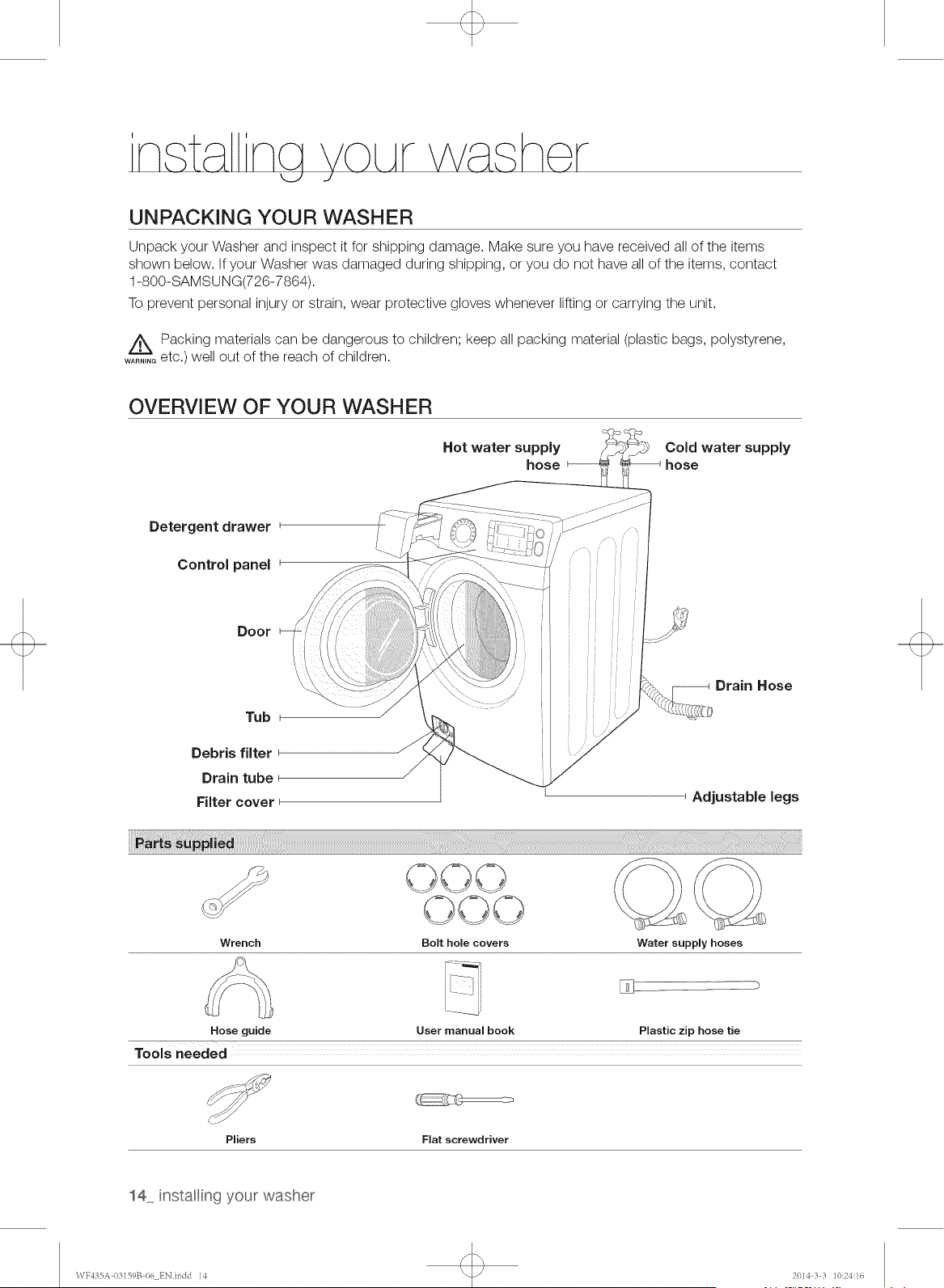

OVERVIEW OF YOUR WASHER

Hot water supply Cold water supply

hose hose

Detergent drawer

Control panel

Door

Tub

Debris filter

Drain tube

Filter cover _

Drain Hose

Adjustable legs

©©©

Wrench Bolt hole covers

Water supply hoses

U!71

Hose guide User manual book Plastic zip hose tie

Tools needed

PNiers Flat screwdriver

14 instaling your washer

\VF435A 03159B 06 ENindd 14 2014 3 3 1(}:24:16

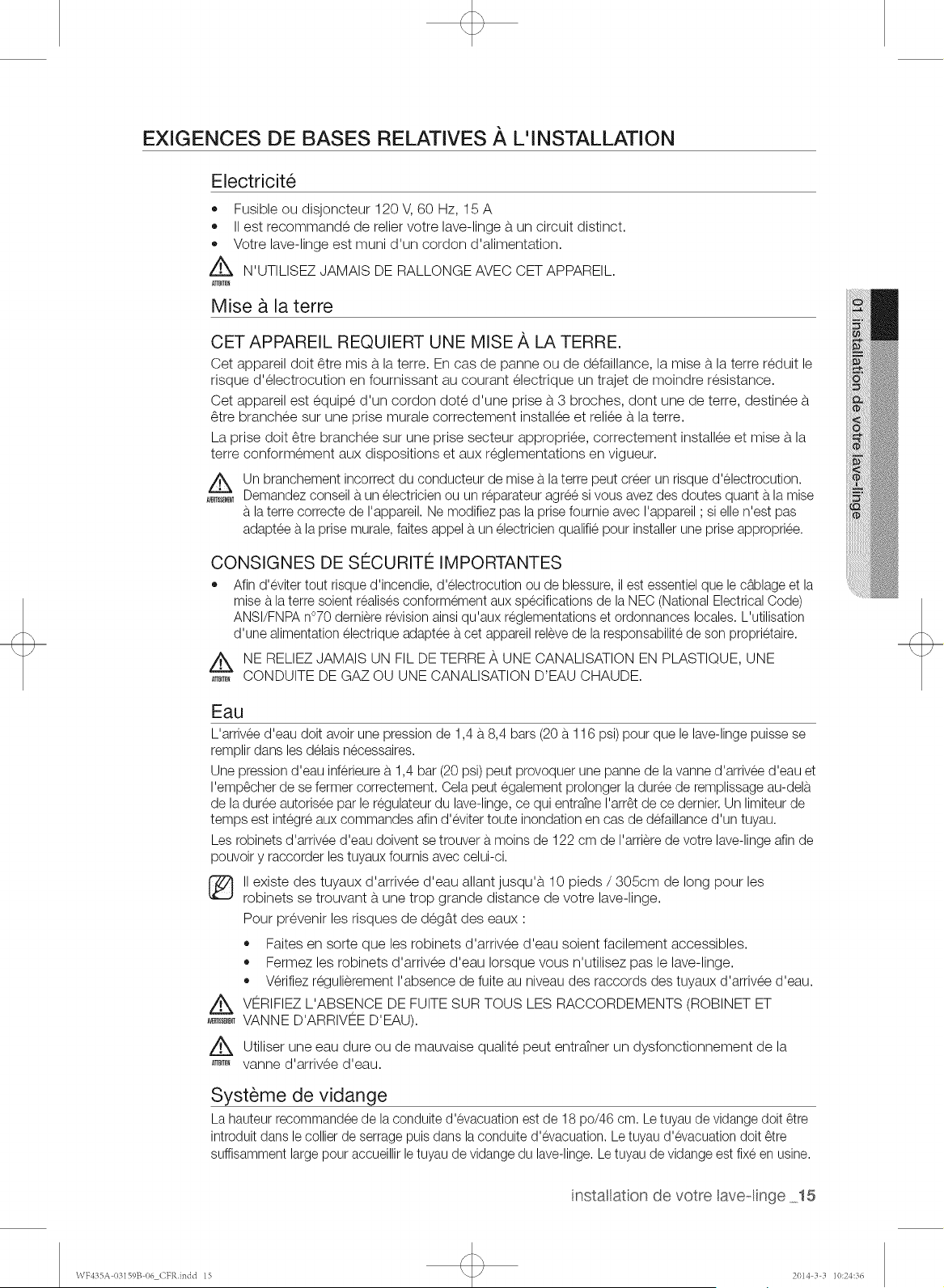

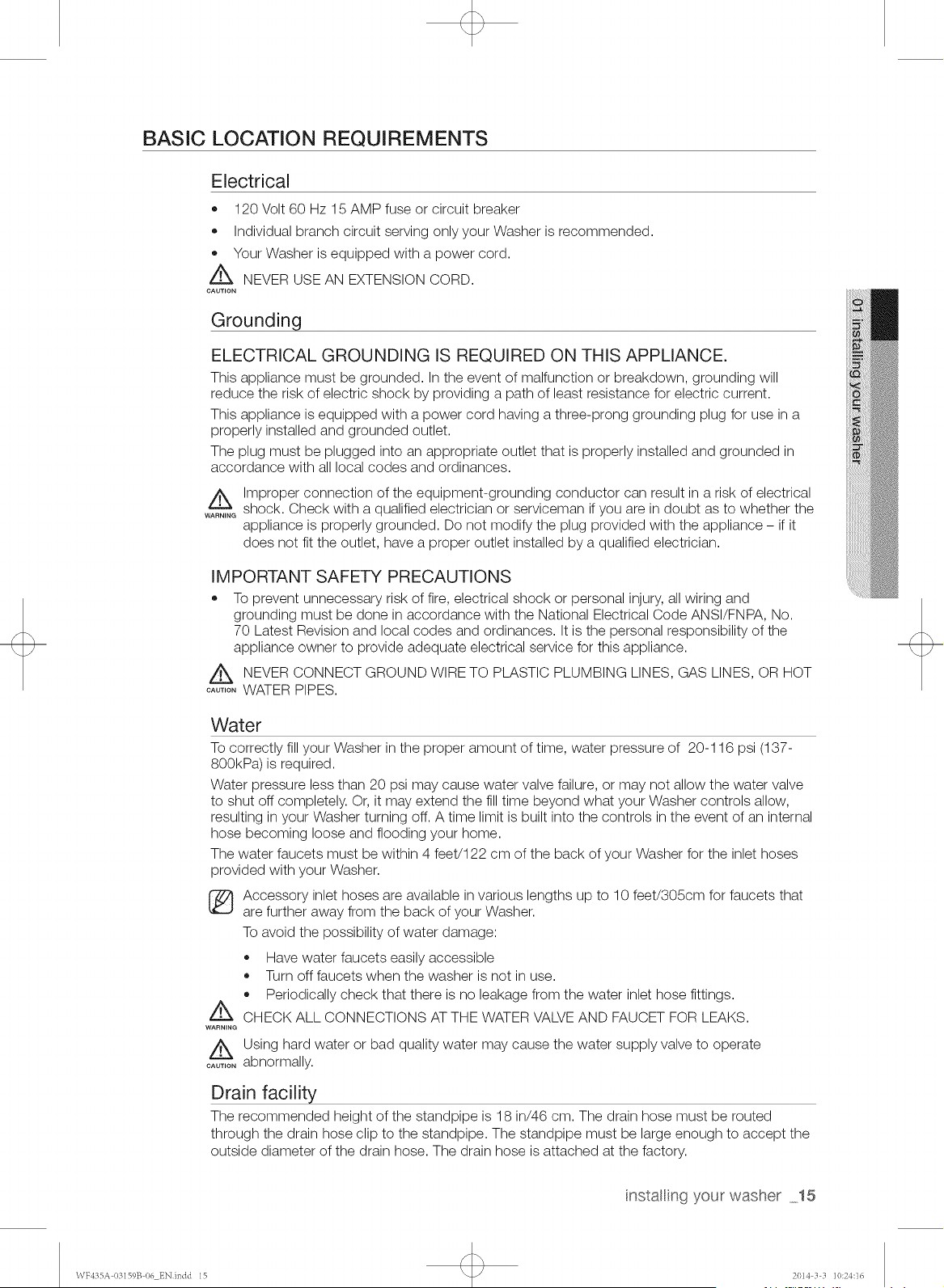

BASIC LOCATION REQUIREMENTS

Electrical

• 120 Volt 60 Hz 15 AMP fuse or circuit breaker

Individual branch circuit serving only your Washer is recommended.

Your Washer is equipped with a power cord.

NEVER USE AN EXTENSION CORD.

CAUTION

Grounding

ELECTRICAL GROUNDING IS REQUIRED ON THIS APPLIANCE.

This appliance must be grounded. In the event of malfunction or breakdown, grounding will

reduce the risk of electric shock by providing a path of least resistance for electric current.

This appliance is equipped with a power cord having a three-prong grounding plug for use in a

properly installed and grounded outlet.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electrical

shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the

appliance is properly grounded. Do not modify the plug provided with the appliance - if it

does not fit the outlet, have a proper outlet installed by a qualified electrician.

IMPORTANT SAFETY PRECAUTIONS

To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and

grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.

70 Latest Revision and local codes and ordinances. It is the personal responsibility of the

appliance owner to provide adequate electrical service for this appliance.

NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT

....... WATER PIPES.

Water

To correctly fill your Washer in the proper amount of time, water pressure of 20-116 psi (137-

800kPa) is required.

Water pressure less than 20 psi may cause water valve failure, or may not allow the water valve

to shut off completely. Or, it may extend the fill time beyond what your Washer controls allow,

resulting in your Washer turning off. A time limit is built into the controls in the event of an internal

hose becoming loose and flooding your home.

The water faucets must be within 4 feet/122 cm of the back of your Washer for the inlet hoses

provided with your Washer.

WARNING

CAUTION

Accessory inlet hoses are available in various lengths up to 10 feet/305cm for faucets that

are further away from the back of your Washer.

To avoid the possibility of water damage:

,, Have water faucets easily accessible

Turn off faucets when the washer is not in use.

• Periodically check that there is no leakage from the water inlet hose fittings.

CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.

Using hard water or bad quality water may cause the water supply valve to operate

abnormally.

Drain facility

The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed

through the drain hose clip to the standpipe. The standpipe must be large enough to accept the

outside diameter of the drain hose. The drain hose is attached at the factory.

instaling your washer 15

\VF435A 03159B 06 ENJndd 15 2014 3 3 1(}:24:16

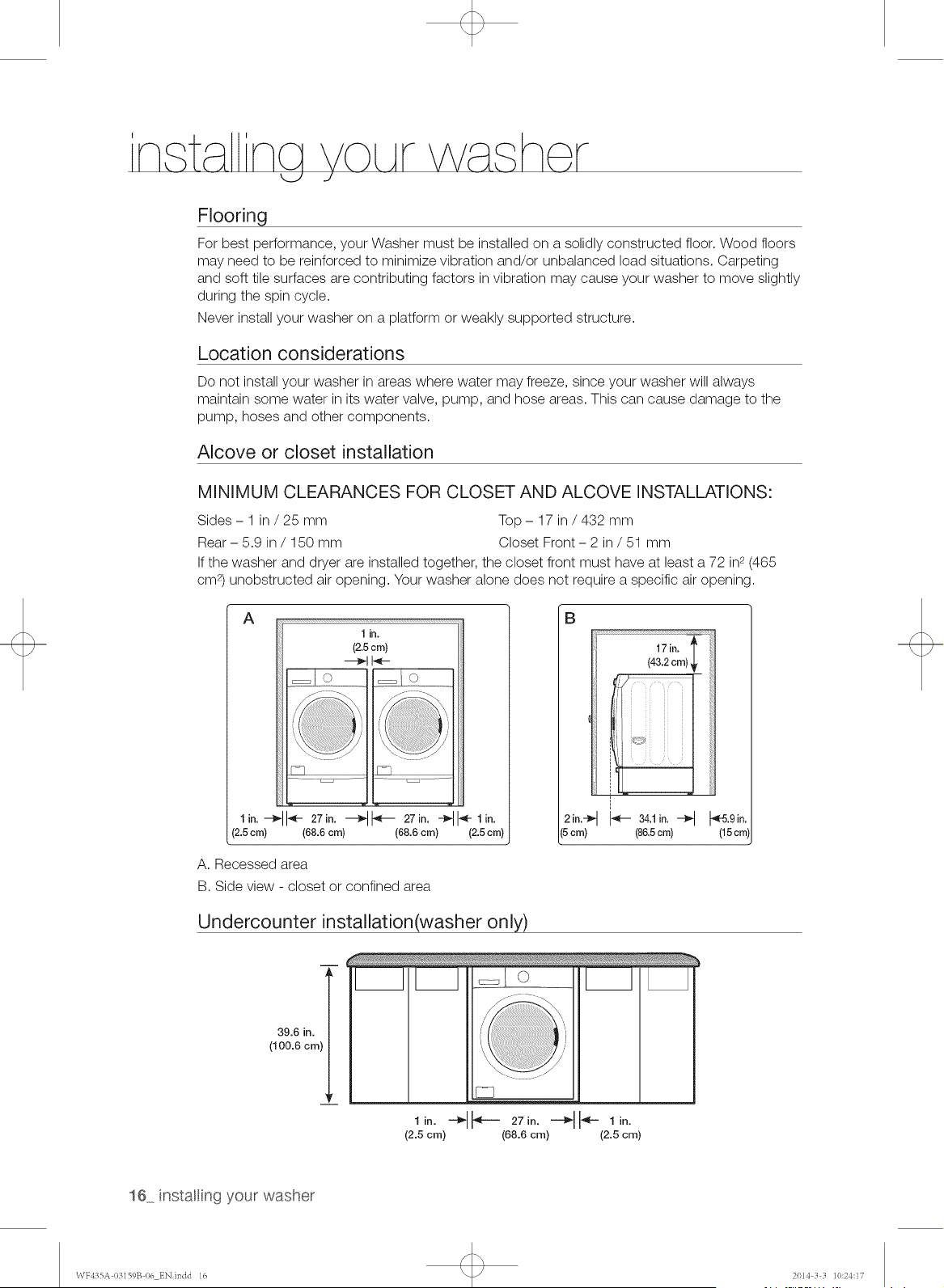

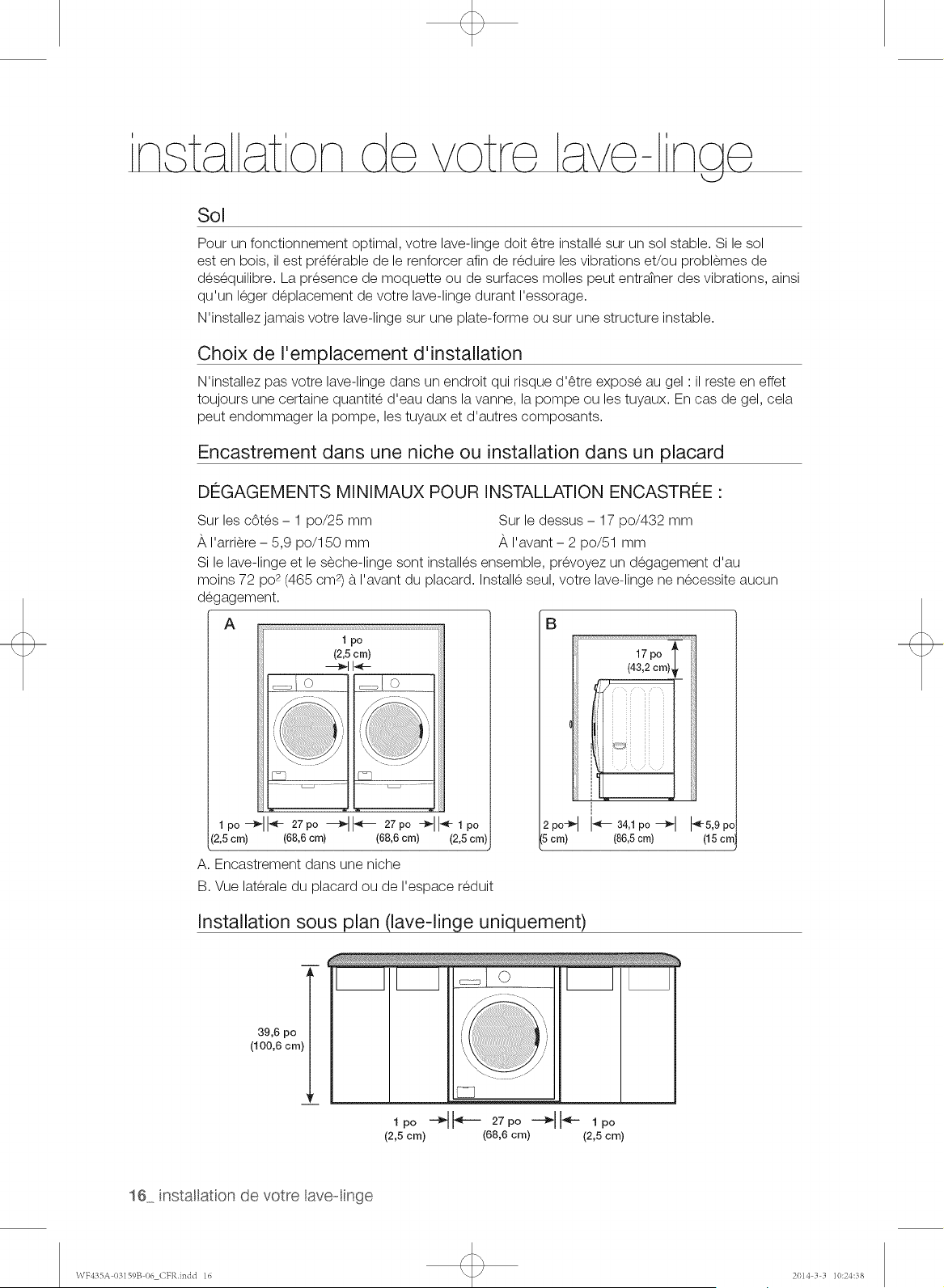

Flooring

For best performance, your Washer must be installed on a solidly constructed floor. Wood floors

may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting

and soft tile surfaces are contributing factors in vibration may cause your washer to move slightly

during the spin cycle.

Never install your washer on a platform or weakly supported structure.

Location considerations

Do not install your washer in areas where water may freeze, since your washer will always

maintain some water in its water valve, pump, and hose areas. This can cause damage to the

pump, hoses and other components.

Alcove or closet installation

MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:

Sides - 1 in / 25 mm Top - 17 in / 432 mm

Rear - 5.9 in / 150 mm Closet Front - 2 in / 51 mm

If the washer and dryer are installed together, the closet front must have at least a 72 in2 (465

cm *) unobstructed air opening. Your washer alone does not require a specific air opening.

1 in.

(2.5cm)

I_-

l in.-:'_*11_- 27in. _-_ 27in. 41_'_ - 1in.

(2.5cm) (68.6 cm) (68.6 cm) (2.5cm)

A. Recessed area

B. Side view - closet or confined area

2io.4 1_9io

(5cm) (15crnl

17in. f

(43.2 ore)

]

I_-- 34.1in.-_

(86.5cm)

Undercounter installation(washer only)

39.6 in.

(100.6 cm)

,1o.-41.-

(2.5 cm)

Iml

27in.-_11_--l in.

(68.6 cm) (2.5 cm)

16 instaling your washer

\VF435A 03159B 06 ENJndd 16 2014 3 3 1(}:24:17

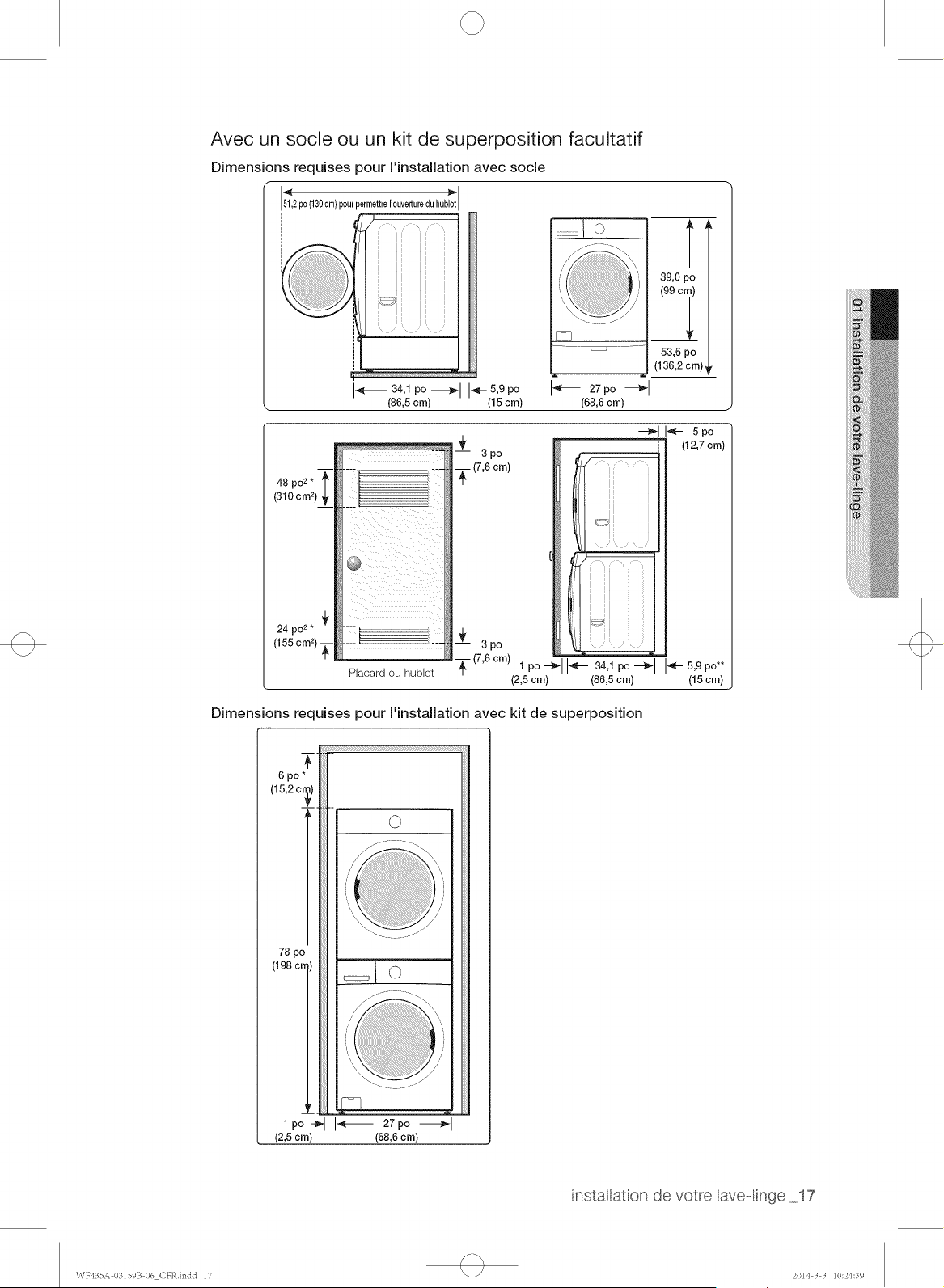

With optional pedestal base or stacking kit

Required Dimensions for installation With Pedestal

51.2 in.(130 cm) to clear open door_

i i i i i

I_-- 34.1io.---_1_-5.9io.

(86.5 cm) (15 cm)

39.0 ir

(99 cn"

..........._ ............ 53.6 ir

(136.2 c 1)

27in.

(68.6cm)

Closet or Door

Required Dimensions for Installation With Stacking Kit

78 in.

(198 cm

instaling your washer 17

\VF435A I)3159B I)6 ENindd 17 2014 3 3 10:24:18

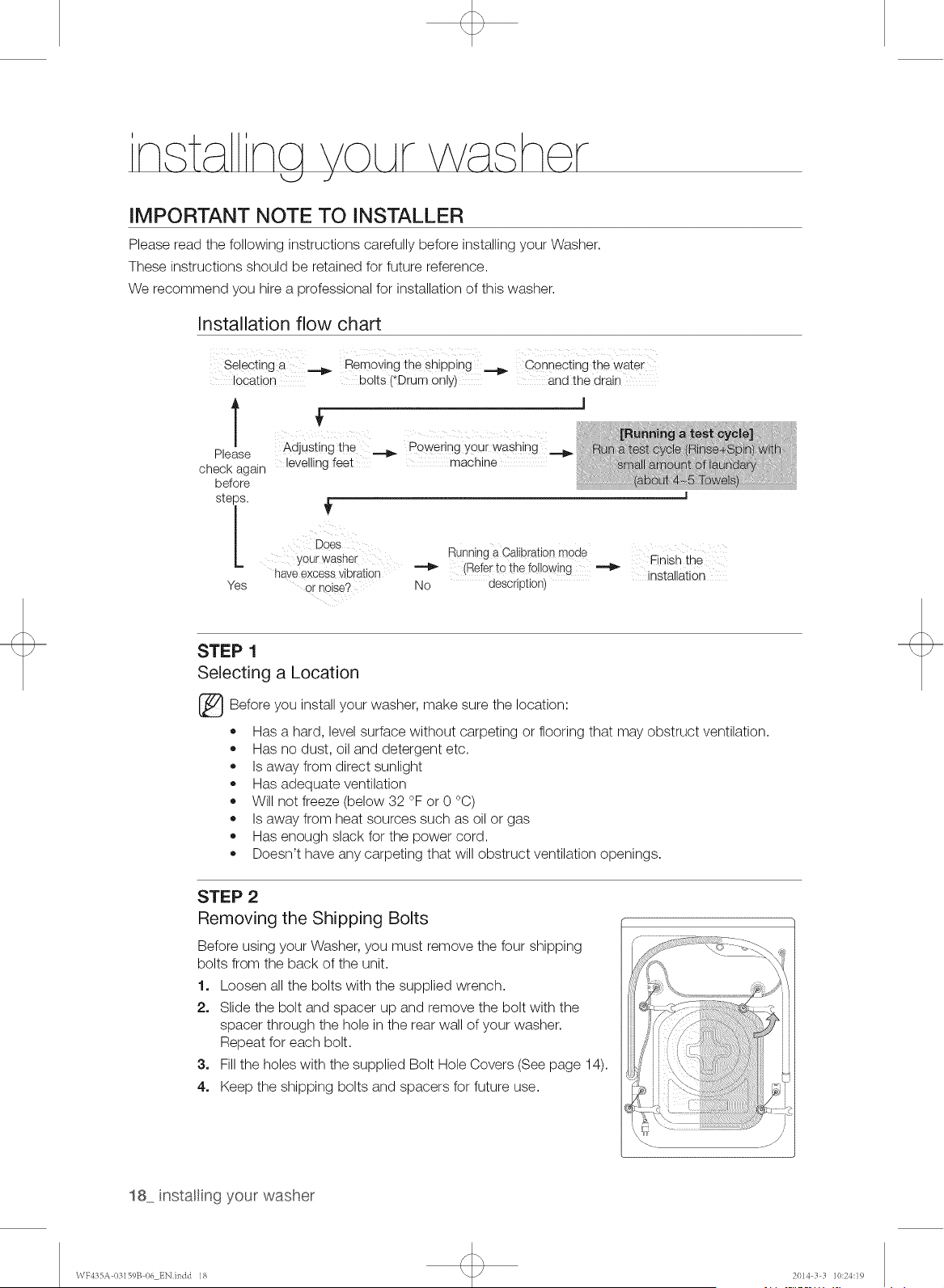

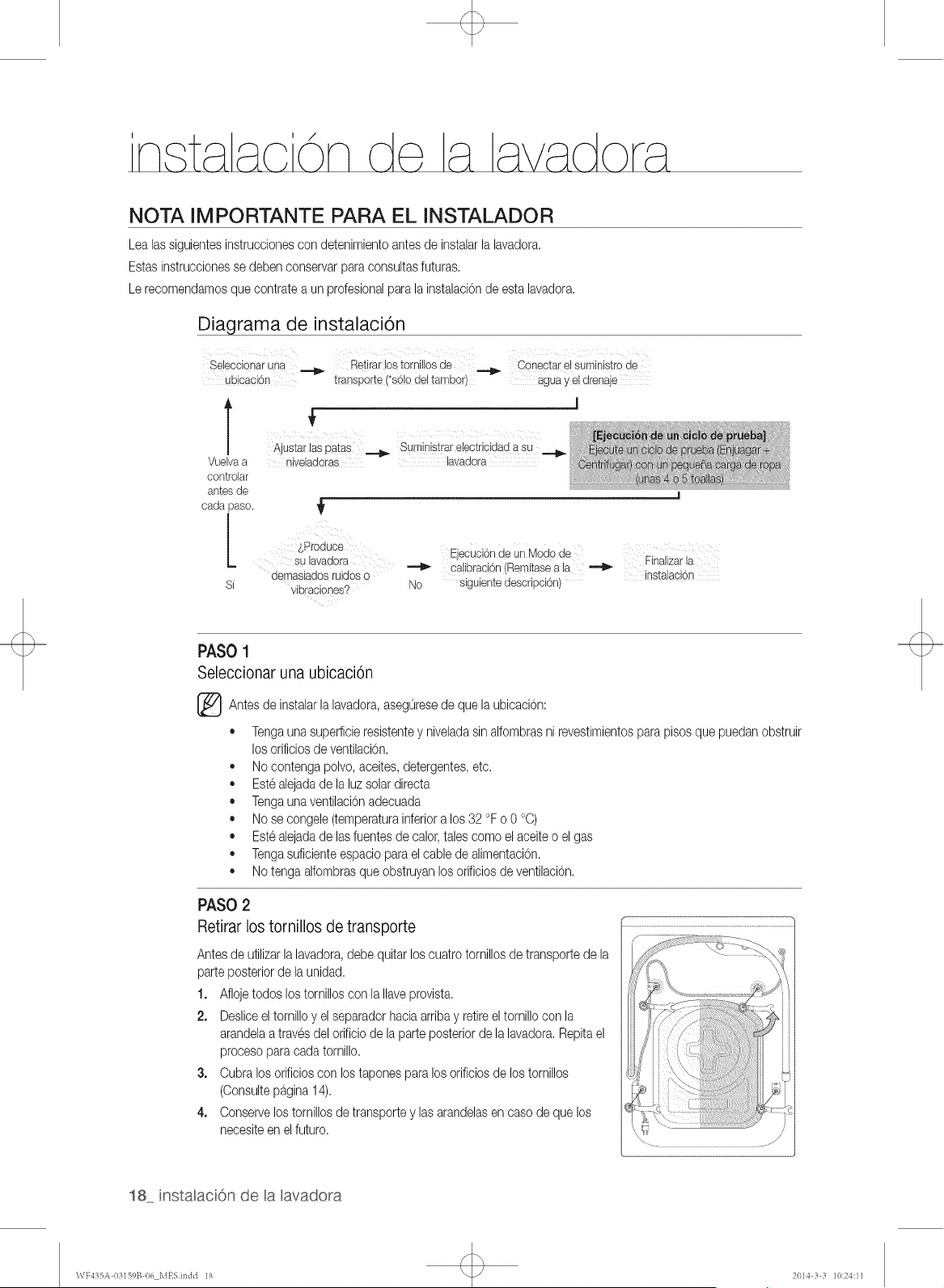

IMPORTANT NOTE TO INSTALLER

Please read the following instructions carefully before installinc your Washer.

These instructions should be retained for future reference.

We recommend you hire a professional for installation of this washer.

Installation flow chart

Selecting a _ Removingthe shipping _ Connecting the water

location bolts (*Drumonly)and thedrain

Please

check again

before

steps.

Yes

AdjuStingthe

levellingfeet

powering YOUrwashing

machine

Does

YourWashei

haveexcessvibration

Ornoise?

Running a Calibratien mode Finish the

(Baler t° the following _ installation

No description)

STEP 1

Selecting a Location

_ Before install washer, make the location:

you your

sure

• Has a hard, level surface without carpeting or flooring that may obstruct ventilation.

Has no dust, oil and detergent etc.

Is away from direct sunlight

Has adequate ventilation

Will not freeze (below 32 °F or 0 °C)

Is away from heat sources such as oil or gas

Has enough slack for the power cord.

Doesn't have any carpeting that will obstruct ventilation openings.

STEP 2

Removing the Shipping Bolts

Before using your Washer, you must remove the four shipping

bolts from the back of the unit.

1. Loosen all the bolts with the supplied wrench.

2. Slide the bolt and spacer up and remove the bolt with the

spacer through the hole in the rear wall of your washer.

Repeat for each bolt.

3. Fill the holes with the supplied Bolt Hole Covers (See page 14).

4. Keep the shipping bolts and spacers for future use.

18 instaling your washer

\VF435A I)3159B I)6 ENindd 18 2014 3 3 1(}:24:19

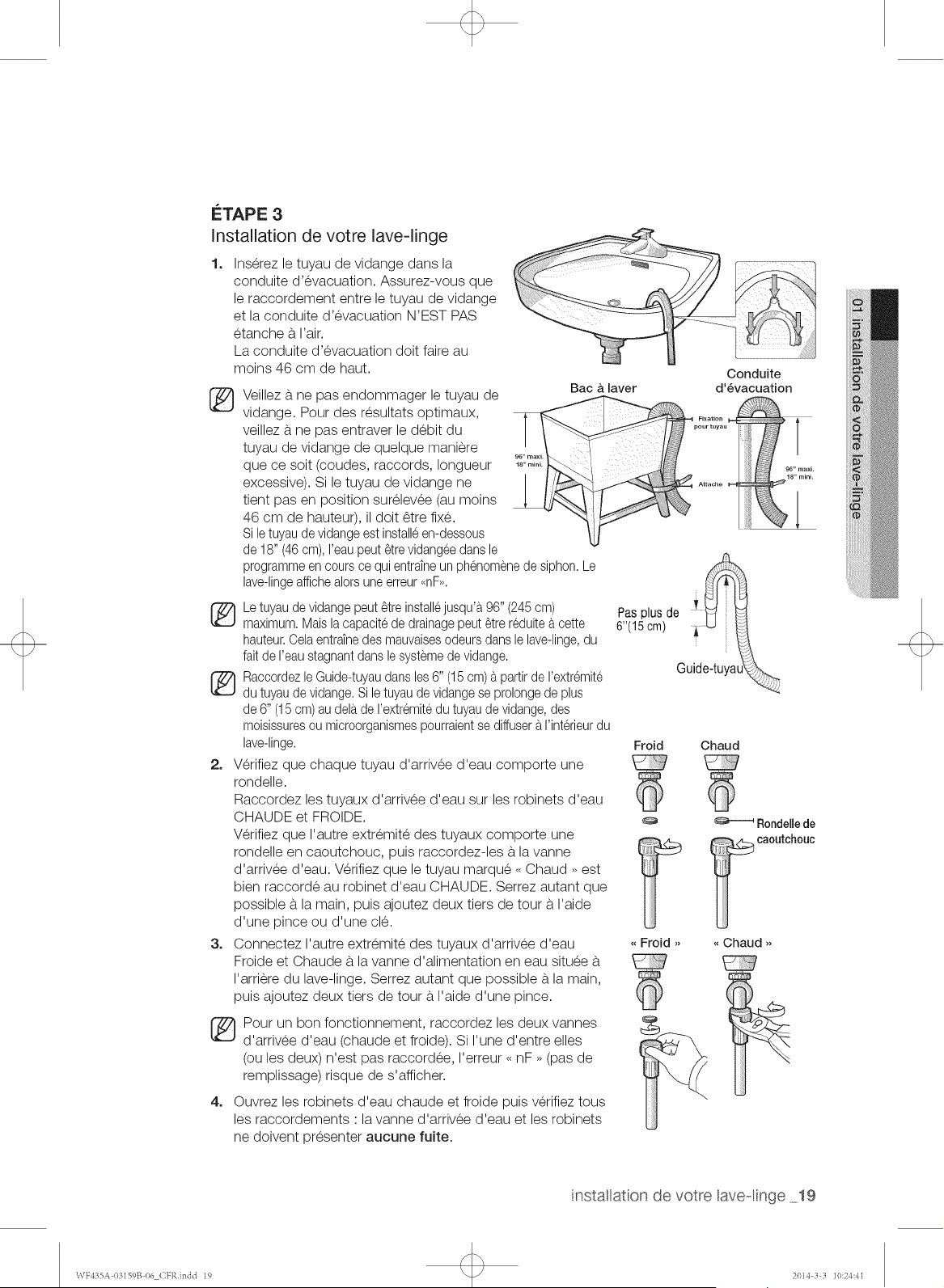

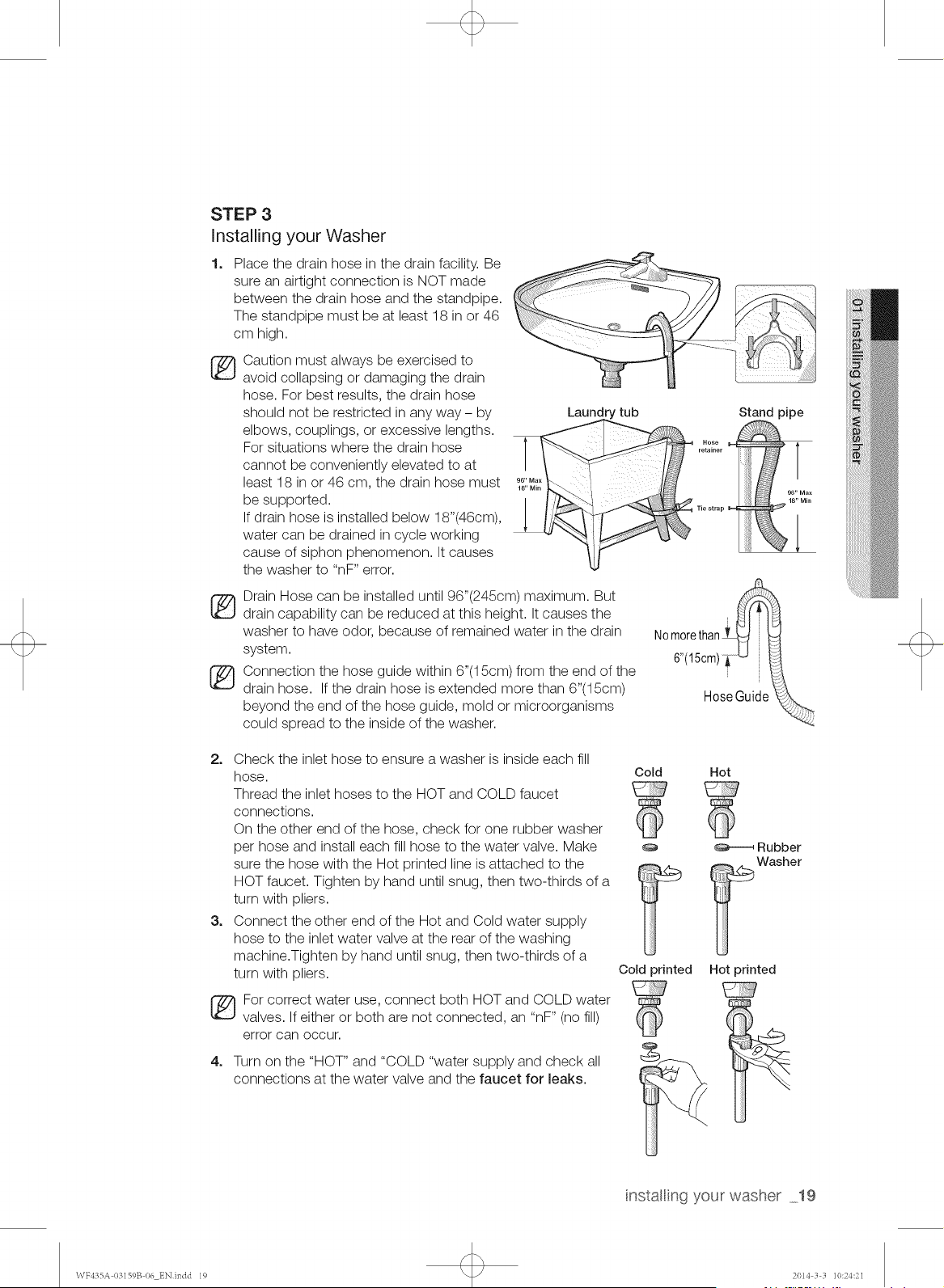

STEP 3

Installing your Washer

Place the drain hose in the drain facility. Be

sure an airtight connection is NOT made

between the drain hose and the standpipe.

The standpipe must be at least 18 in or 46

cm high.

Caution must always be exercised to

avoid collapsing or damaging the drain

hose. For best results, the drain hose

should not be restricted in any way - by

elbows, couplings, or excessive lengths.

For situations where the drain hose

cannot be conveniently elevated to at

least 18 in or 46 cm, the drain hose must

be supported.

If drain hose is installed below 18"(460m),

water can be drained in cycle working

cause of siphon phenomenon. It causes

the washer to "nF" error.

Laundry tub

_ rain Hose can be installed until 96"(245cm) maximum. But

drain capability can be reduced at this height. It causes the

washer to have odor, because of remained water in the drain

system.

_ onnection the hose guide within 6"(15cm) from the end of the

drain hose. If the drain hose is extended more than 6"(15cm)

beyond the end of the hose guide, mold or microorganisms

could spread to the inside of the washer.

2. Check the inlet hose to ensure a washer is inside each fill

hose.

Thread the inlet hoses to the HOT and COLD faucet

connections.

On the other end of the hose, check for one rubber washer

per hose and install each fill hose to the water valve. Make

sure the hose with the Hot printed line is attached to the

HOT faucet. Tighten by hand until snug, then two-thirds of a

turn with pliers.

3. Connect the other end of the Hot and Cold water supply

hose to the inlet water valve at the rear of the washing

machine.Tighten by hand until snug, then two-thirds of a

turn with pliers.

For correct water use, connect both HOT and COLD water

valves. If either or both are not connected, an "nF" (no fill)

error can occur.

4. Turn on the "HOT" and "COLD "water supply and check all

connections at the water valve and the faucet for leaks.

Stand pipe

NomorethanV_.4

6"(150m)}I

HoseGuide

Cold Hot

Cold printed

Rubber

Washer

Hot printed

instaling your washer 19

\VF435A 03159B 06 ENindd 19 2014 3 3 1(}:24:21

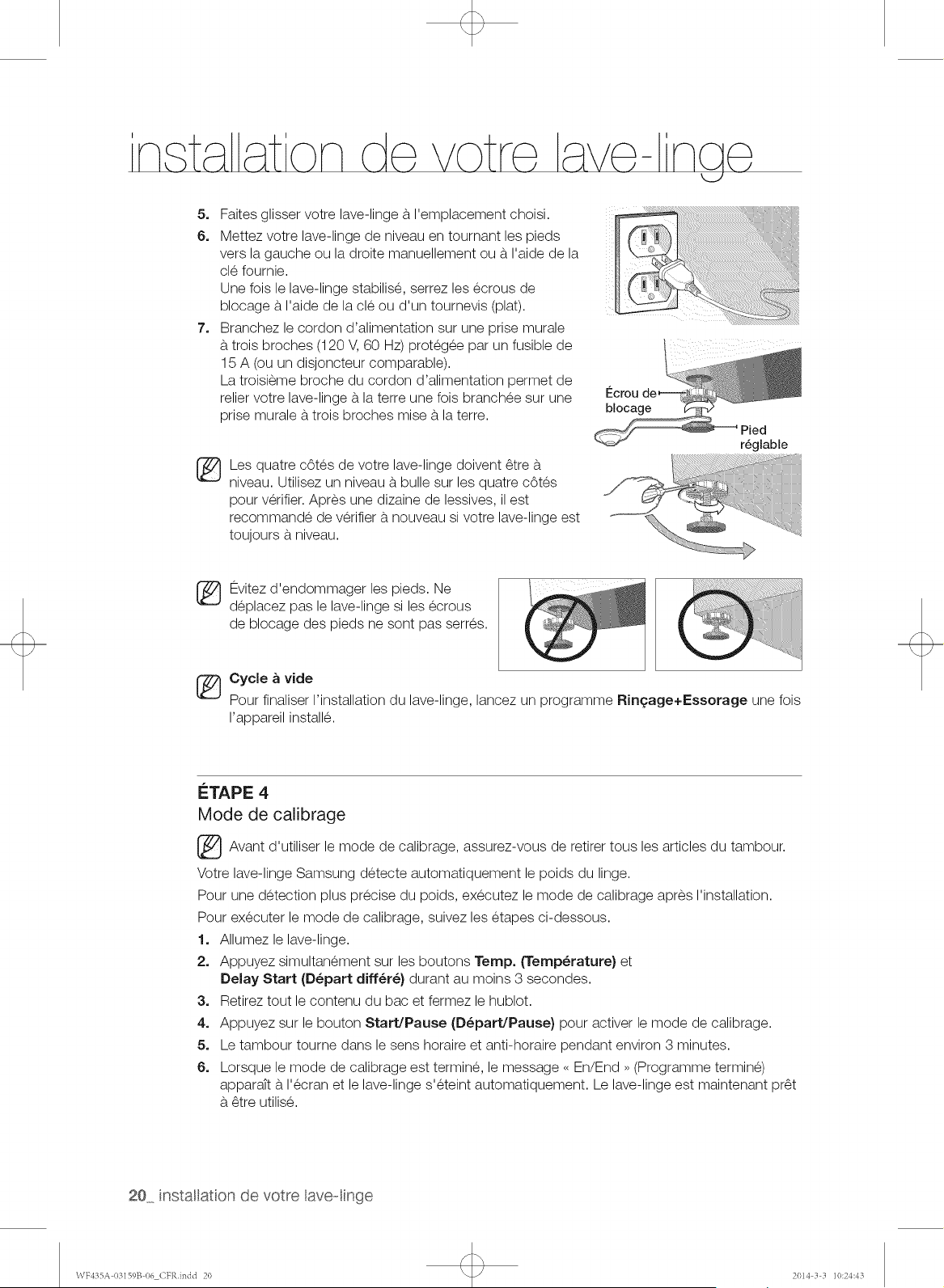

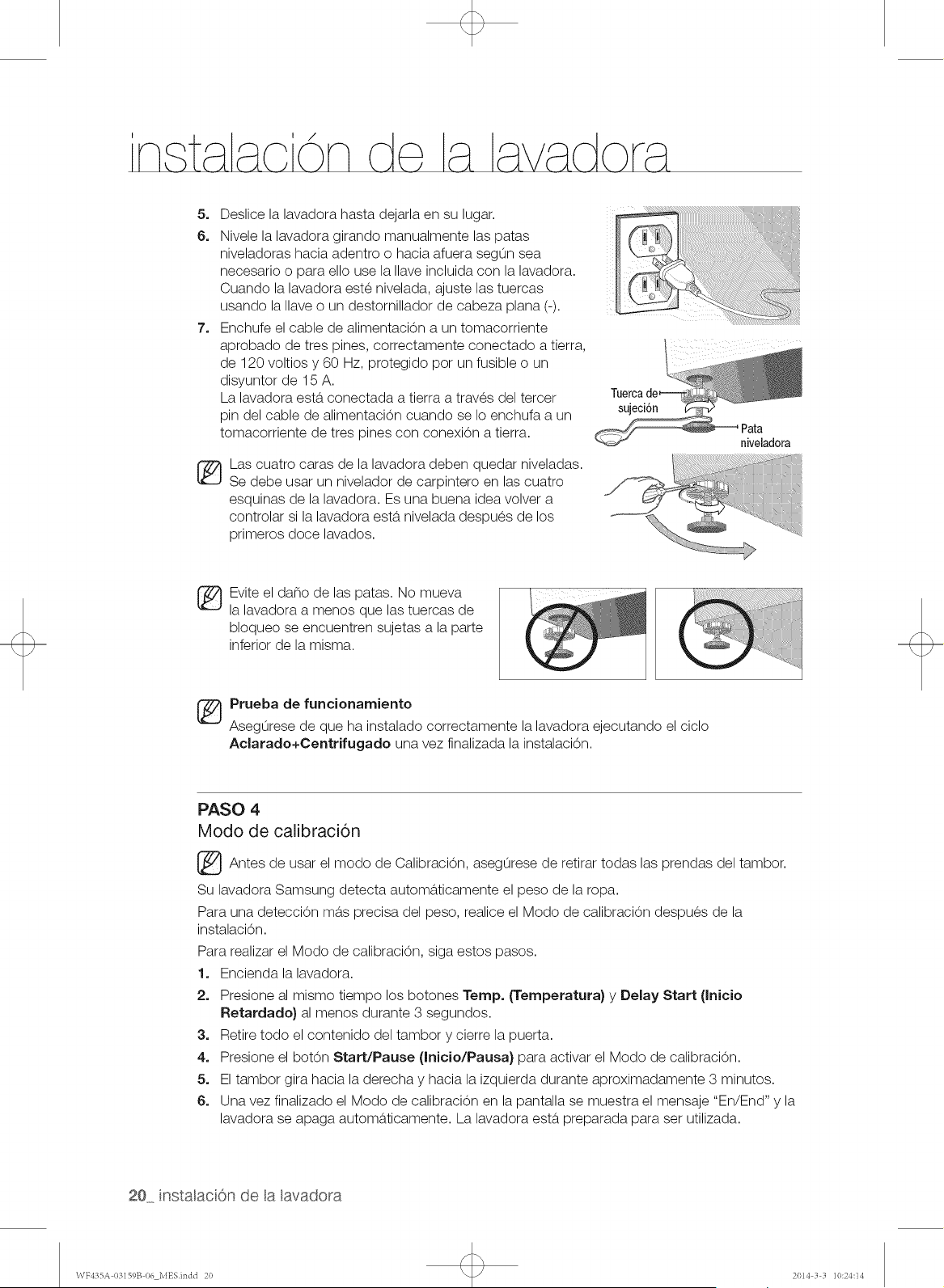

5. Slide your washer into position.

6. Level your washer by turning the leveling legs in or out as

necessary by hand or by using the wrench included with

your washer.

When your washer is level, tighten the locking nuts using

the wrench or (-) flathead screwdriver.

7. Plug the power cord into a 3-Prong, well grounded 120

volt 60 Hz approved electrical outlet protected by a 15-

amp fuse or comparable circuit breaker.

Your washer is grounded through the third prong of the

power cord when plugged into a three-prong grounded

receptacle.

Your Washer must be leveled on all four sides. A

carpenter's level should be used on all four corners of

your Washer. It's a good idea after the first dozen washes

to recheck your washer's levelness.

Lockinc

Nut

Leg

_ Avoid damage to the legs. Do not move

the Washer unless the Locking-nuts are

fastened to the bottom of the Washer.

_ l'est run

Make sure that you install your washing machine correctly by running the Rinse+Spin cycle

after the installation is complete.

STEP 4

Calibration mode

_ Before Calibration mode, be to take out all items from the drum.

using

sure

Your Samsung washer automatically detects the weight of the laundry.

For more accurate weight detection, please run Calibration Mode after the installation.

Calibration mode is performed by following the steps below.

1. Turn on the washer.

2. Press the Ternp. button and Delay Start button simultaneously at least 3 seconds.

3. Remove any contents in the tub and close the door.

4. Press the Start/Pause button to run Calibration Mode.

5. The drum rotates clockwise and counterclockwise approximately for for approximately 3

minutes.

6. When Calibration Mode is finished, the "En/End" appears on the display and the washing

machine turns off automatically. The washing machine is now ready for use.

20 instaling your washer

WF435A I)3159B I)6 ENindd 20 2014 3 3 10:24:21

no nstrL]ot©ns

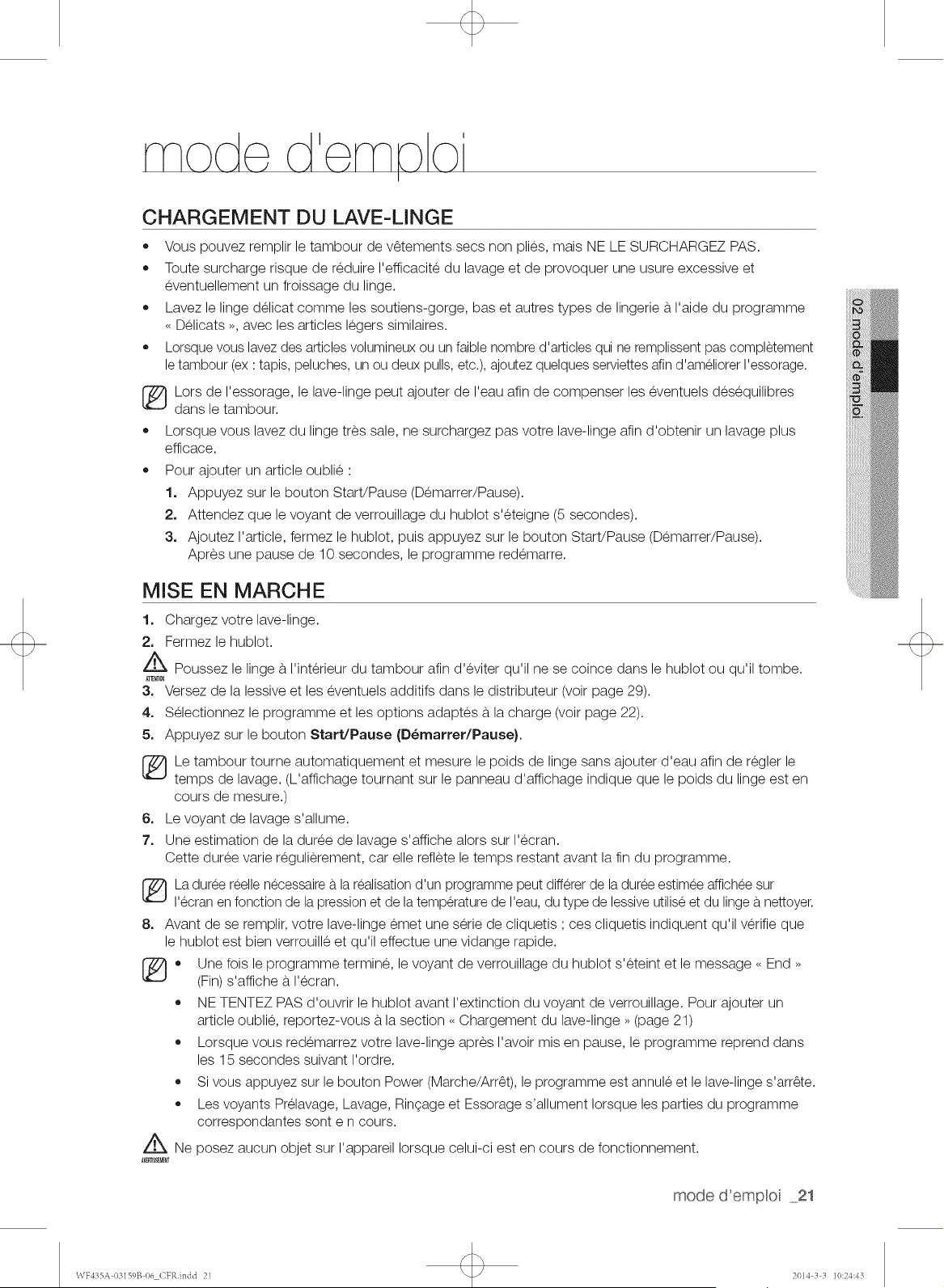

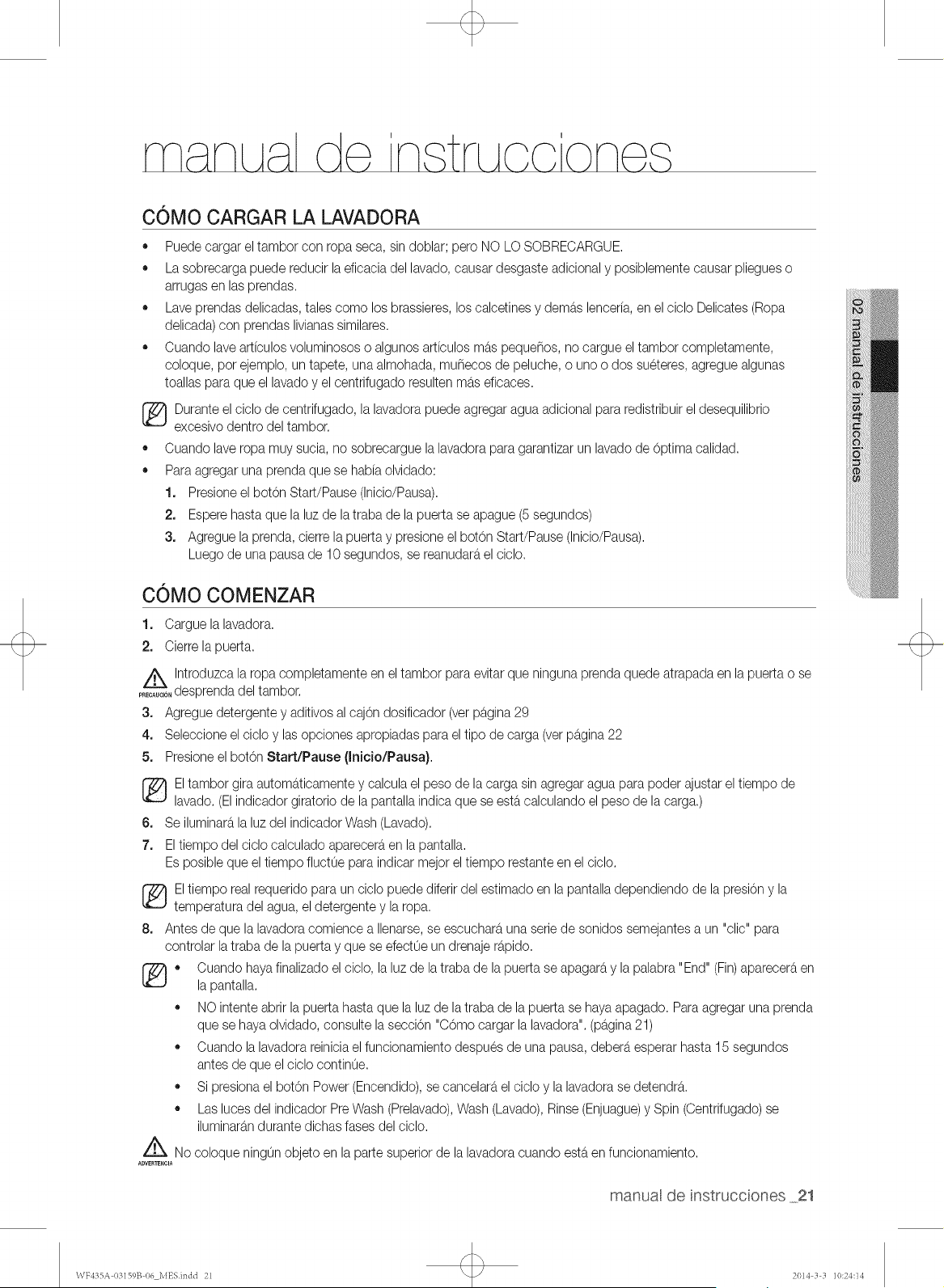

LOADING YOUR WASHER

,, You can fill the tub with dry, unfolded clothes; but DO NOT OVERLOAD the tub.

,, Overloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or

wrinkling of the load.

• Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with similar

lightweight items.

When washing big bulky items or a few smaller items that don't fill the tub completely - a rug, a pillow,

stuffed toys, or one or two sweaters, for example - add a few towels to improve tumbling and spin

performance.

During the spin cycle, the washer may add additional water to redistribute the excessive imbalance

inside the drum.

When washing heavily soiled loads, do not overload your Washer in order to assure good cleaning

results.

To add a forgotten item:

1. Press the Start/Pause Button.

2. Wait for the Door Lock light to go out (5 seconds)

3. Add the item, close the door, and press the Start/Pause Button.

After a 10-second pause, the cycle will resume.

WARNING

GETTING STARTED

1, Load your Washer.

2. Close the door.

Z_ Push the laundry into the drum completely to prevent the laundry from being caught in the door or

....... from falling out of the drum.

3. Add detergent and additives to the dispenser (see page 29).

4. Select the appropriate cycle and options for the load (see page 22).

5. Press the Start/Pause Button.

The drum automatically rotates and measures the weight of the laundry without supplying water in

order to adjust the wash time. (The rotating display on the display panel indicates that the weight of the

laundry is being measured.)

6. The Wash Indicator light will illuminate.

7. The estimated cycle time will appear in the display.

The time may fluctuate to better indicate the time remaining in the cycle.

The actual time required for a cycle may differ from the estimated time in the display depending on the

water pressure, water temperature, detergent, and laundry.

8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a

quick drain.

, hen the cycle is complete, the Door Lock light will go out and "End" will appear in the display.

DO NOT attempt to open the door until the Door Lock light is off. To add a forgotten item, see

"Loading your Washer" section. (page 21)

When your Washer is restarted after a pause, expect a delay of up to 15 seconds before the cycle

continues.

Pressing the Power button cancels the cycle and stops your washer.

The Pre Wash, Wash, Rinse and Spin indicator lights will illuminate during those portions of the cycle.

Do not place anything on top of your washer while it is running.

operatng instructions 21

\VF435A 03159B 06 ENindd 21 2014 3 3 1(}:24:22

/_ WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT

......._ SAFETY INSTRUCTIONS before operating this appliance.

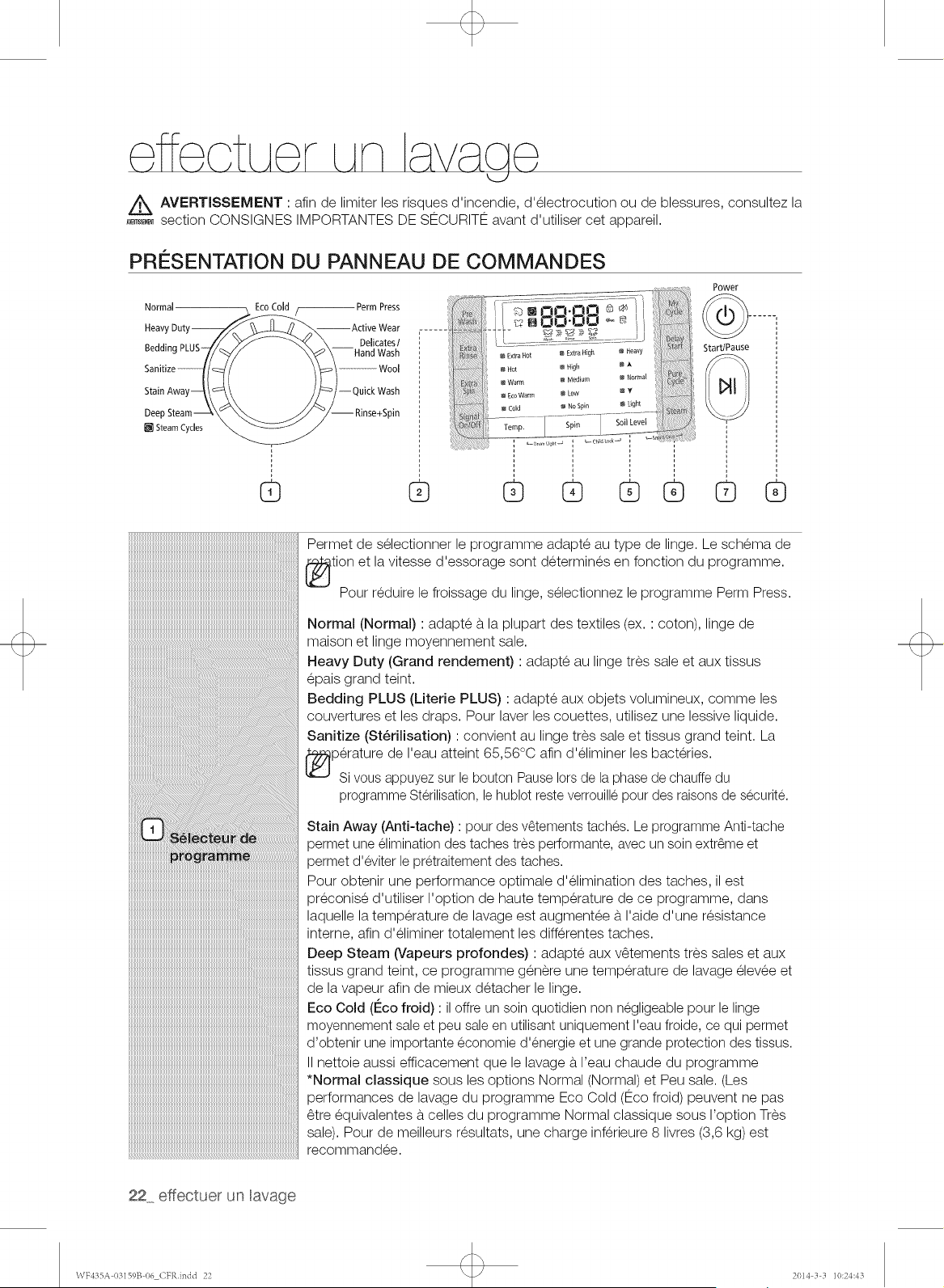

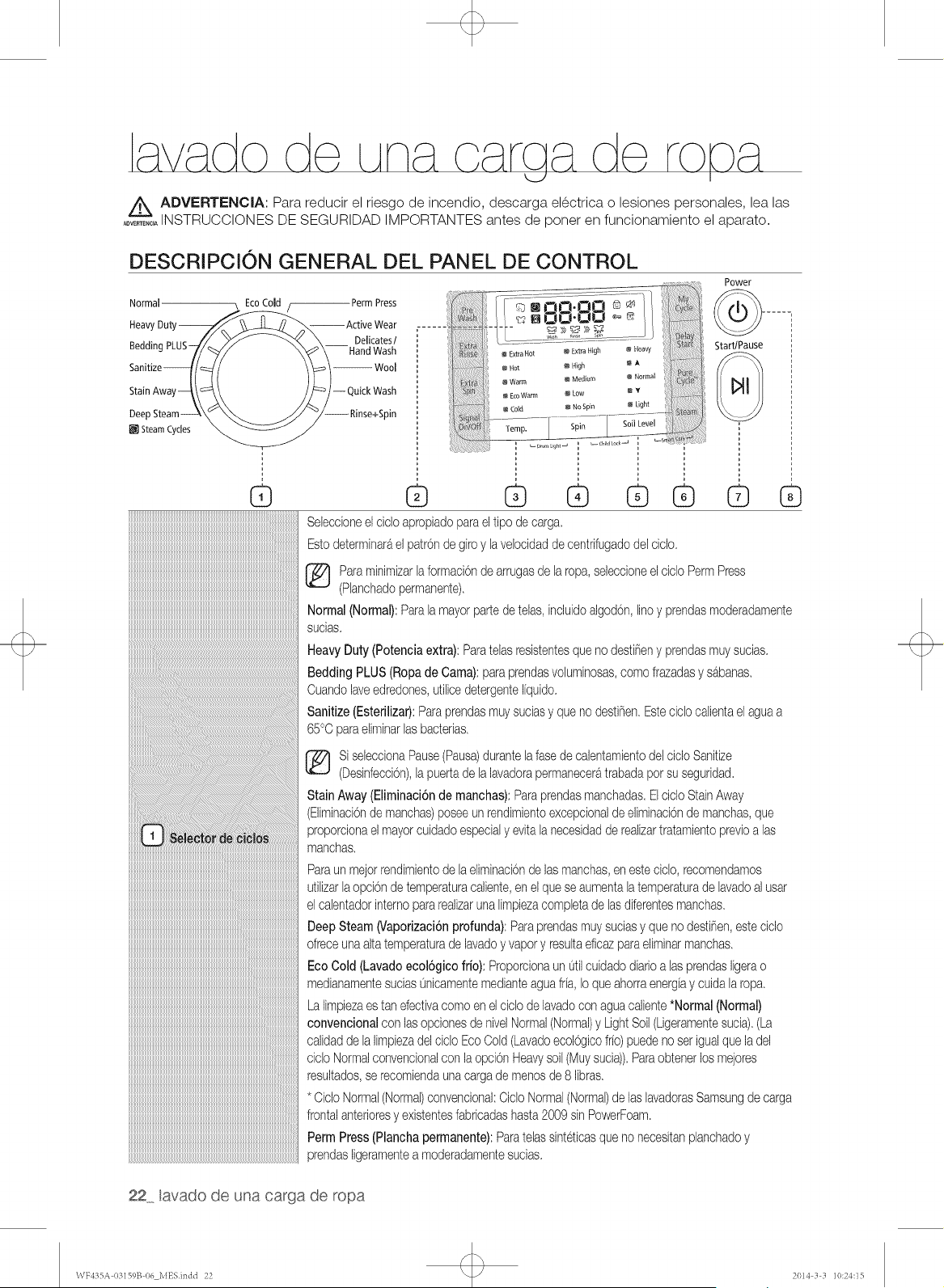

OVERVIEW OF THE CONTROL PANEL

ii!+i_i_i!_!;iilililiiii

Normal _ Eco Cold /_Perm Press

Heavy Duty _- ]_ .....

Bedding PLUS7/b

Stain Away

Deep St_:_Zk_ Rmse+Spm

I_ Steam Cycles _,

@ @ @ @ @ @ @ @

Select the appropriate cycle for the type of load.

This will determine the tumble pattern and spin speed for the cycle.

To minimize of select the Perm Press

wrinkling laundry, cycle.

Normal - For most fabrics including cottons, linens,and normally soiled garments.

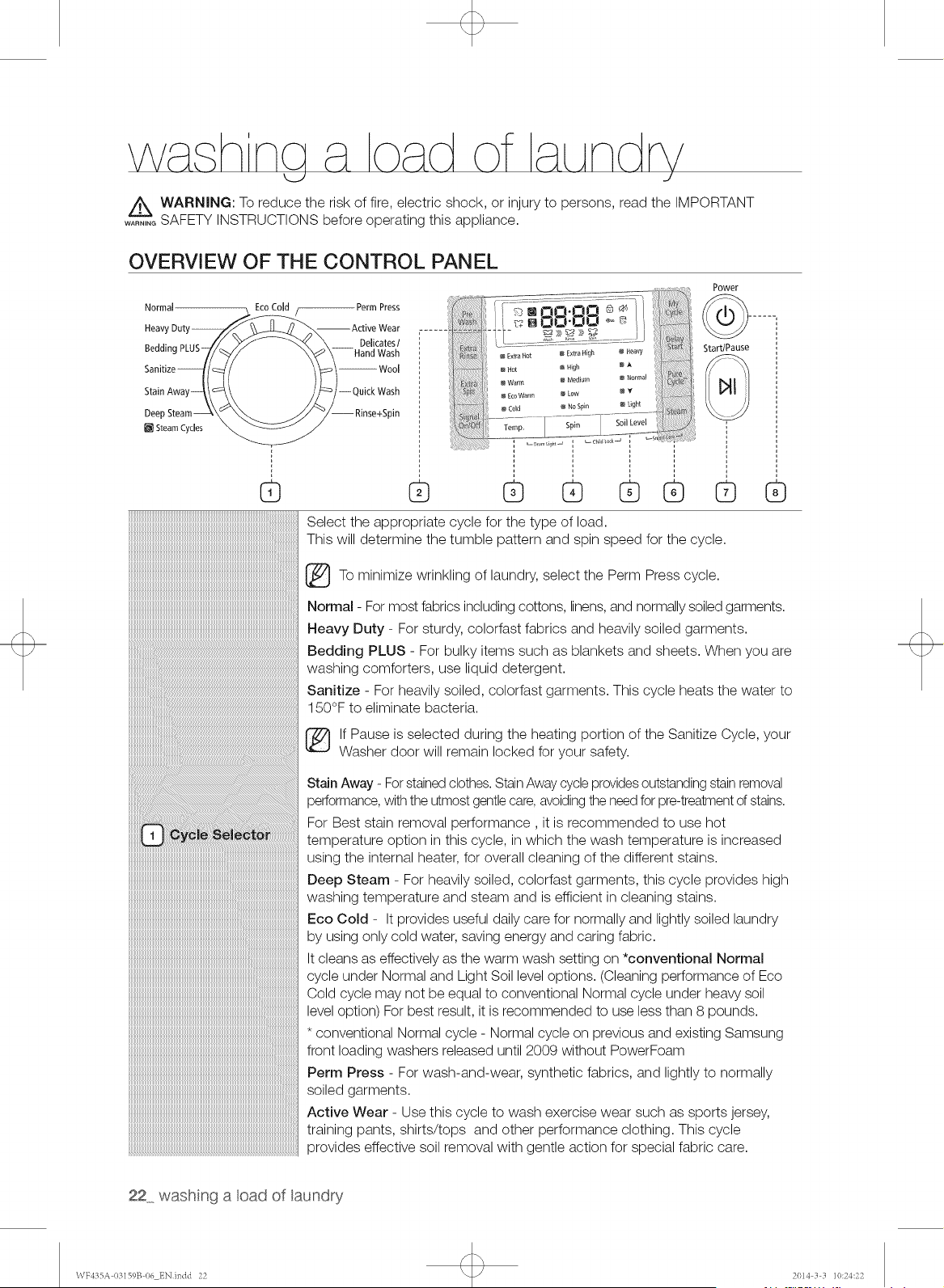

Heavy Duty - For sturdy, colorfast fabrics and heavily soiled garments.

Bedding PLUS - For bulky items such as blankets and sheets. When you are

washing comforters, use liquid detergent.

Sanitize - For heavily soiled, colorfast garments. This cycle heats the water to

150°F to eliminate bacteria.

If Pause is selected during the heating portion of the Sanitize Cycle, your

Washer door will remain locked for your safety.

Stain Away - For stainedclothes. StainAway cycle providesoutstanding stain removal

performance,with the utmost gentle care, avoidingthe need for pre-treatmentof stains.

For Best stain removal performance, it is recommended to use hot

temperature option in this cycle, in which the wash temperature is increased

using the internal heater, for overall cleaning of the different stains.

Deep Steam - For heavily soiled, colorfast garments, this cycle provides high

washing temperature and steam and is efficient in cleaning stains.

Eco Cold - It provides useful daily care for normally and lightly soiled laundry

by using only cold water, saving energy and caring fabric.

It cleans as effectively as the warm wash setting on *conventional Normal

cycle under Normal and Light Soil level options. (Cleaning performance of Eco

Cold cycle may not be equal to conventional Normal cycle under heavy soil

level option) For best result, it is recommended to use less than 8 pounds.

* conventional Normal cycle - Normal cycle on previous and existing Samsung

front loading washers released until 2009 without PowerFoam

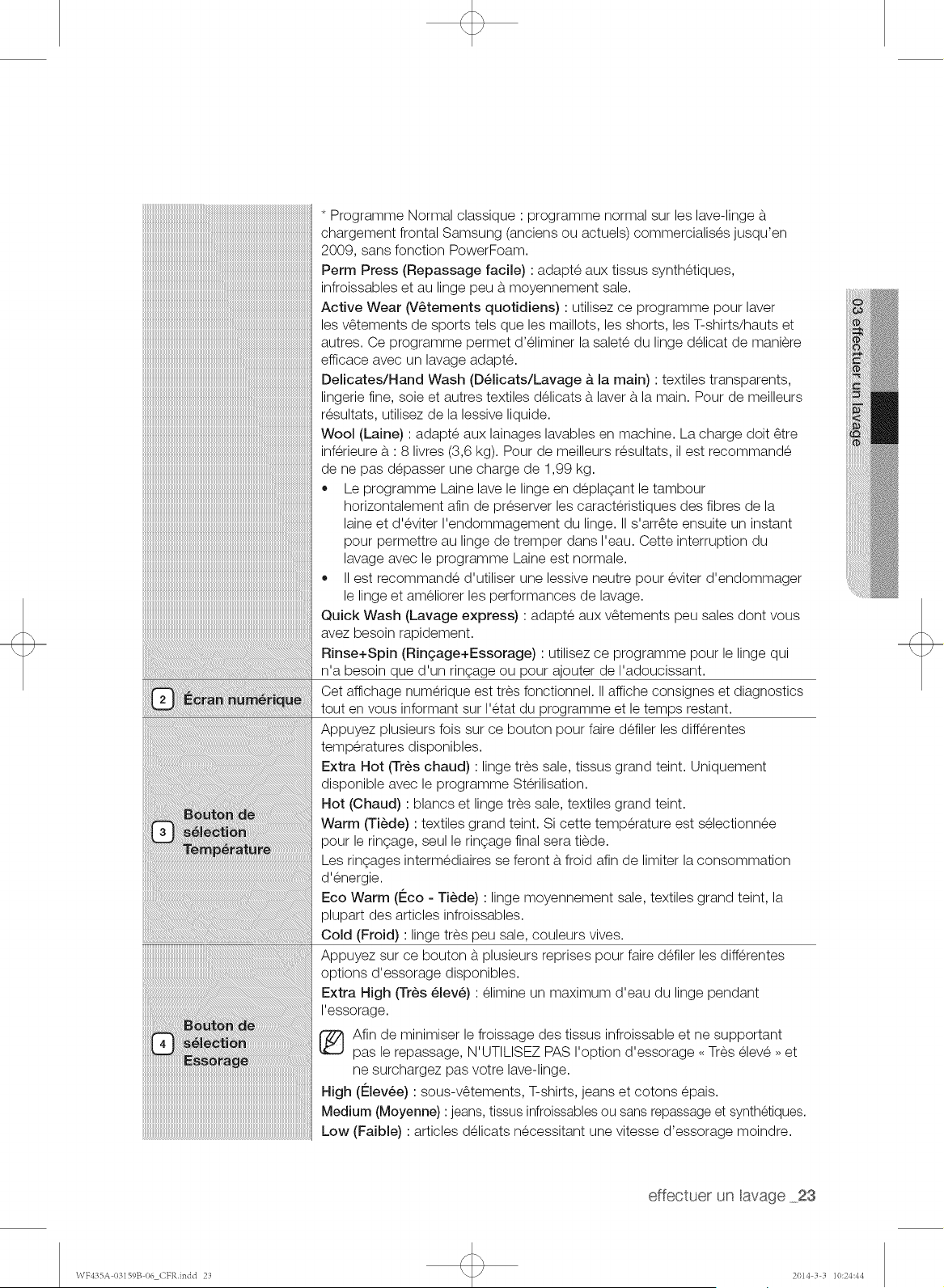

Perm Press - For wash-and-wear, synthetic fabrics, and lightly to normally

soiled garments.

Active Wear - Use this cycle to wash exercise wear such as sports jersey,

training pants, shirts/tops and other performance clothing. This cycle

provides effective soil removal with gentle action for special fabric care.

22 washng a cad of aundry

\VF435A 03159B 06 ENindd 22 2014 3 3 10:24:22

Delicates/Hand Wash - For sheer fabrics, bras, lingerie silk, and other

handwash-only fabrics. For best results, use liquid detergent.

Wool - For machine-washable wool. Loads should be under 8 pounds. For

best results, we recommend a load of 4.4 pounds or less.

• The Wool cycle washes laundry by moving the wash drum horizontally

to maintain the characteristics of the wool fibers and to prevent damage

to the cloth. It then stops for a while to allow the laundry to soak in the

water. This pause in the operation of the Wool cycle is normal.

• We recommend you use a neutral detergent to prevent damage to the

cloth and to improve the washing results.

Quick Wash - For lightly soiled garments needed quickly.

Rinse + Spin - Use for loads that need rinsing only or to add rinse-added

fabric softener to a load.

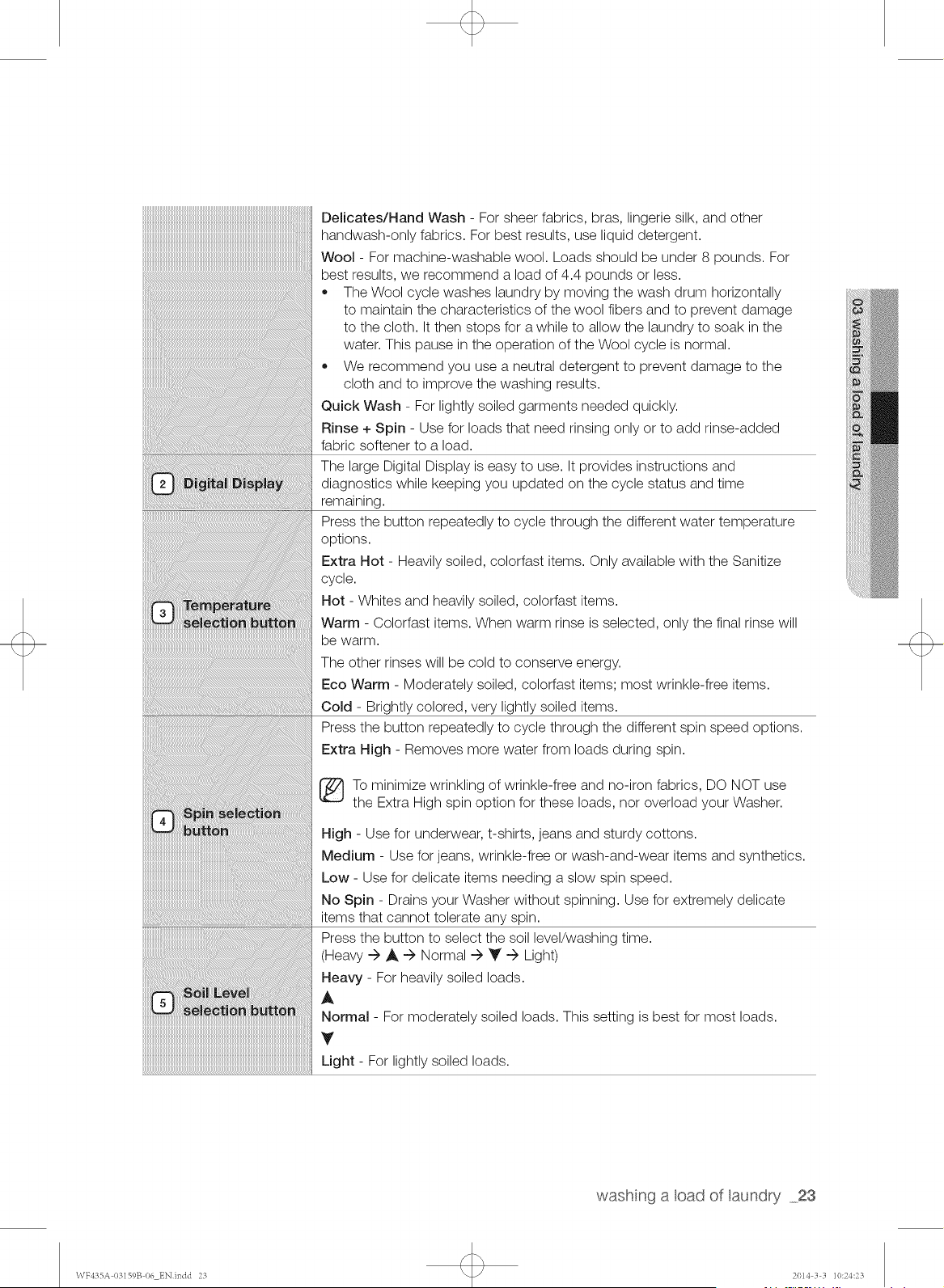

The large Digital Display is easy to use. It provides instructions and

diagnostics while keeping you updated on the cycle status and time

remaining.

Press the button repeatedly to cycle through the different water temperature

options.

Extra Hot - Heavily soiled, colorfast items. Only available with the Sanitize

cycle.

Hot - Whites and heavily soiled, colorfast items.

Warm - Colorfast items. When warm rinse is selected, only the final rinse will

be warm.

The other rinses will be cold to conserve energy.

Eco Warm - Moderately soiled, colorfast items; most wrinkle-free items.

Cold - Brightly colored, very lightly soiled items.

Press the button repeatedly to cycle through the different spin speed options.

Extra High - Removes more water from loads during spin.

To minimize wrinkling of wrinkle-free and no-iron fabrics, DO NOT use

the Extra High spin option for these loads, nor overload your Washer.

High - Use for underwear, t-shirts, jeans and sturdy cottons.

Medium - Use for jeans, wrinkle-free or wash-and-wear items and synthetics.

Low - Use for delicate items needing a slow spin speed.

No Spin - Drains your Washer without spinning. Use for extremely delicate

items that cannot tolerate any spin.

Press the button to select the soil level/washing time.

(Heavy --->,A "->Normal --->Y --->Light)

Heavy - For heavily soiled loads.

Normal - For moderately soiled loads. This setting is best for most loads.

Light - For lightly soiled loads.

washng a cad of aundry 23

WF4fSSA 0fq59B 0C, ENindd 2Js 2014 ft ft 10:24:2Jt

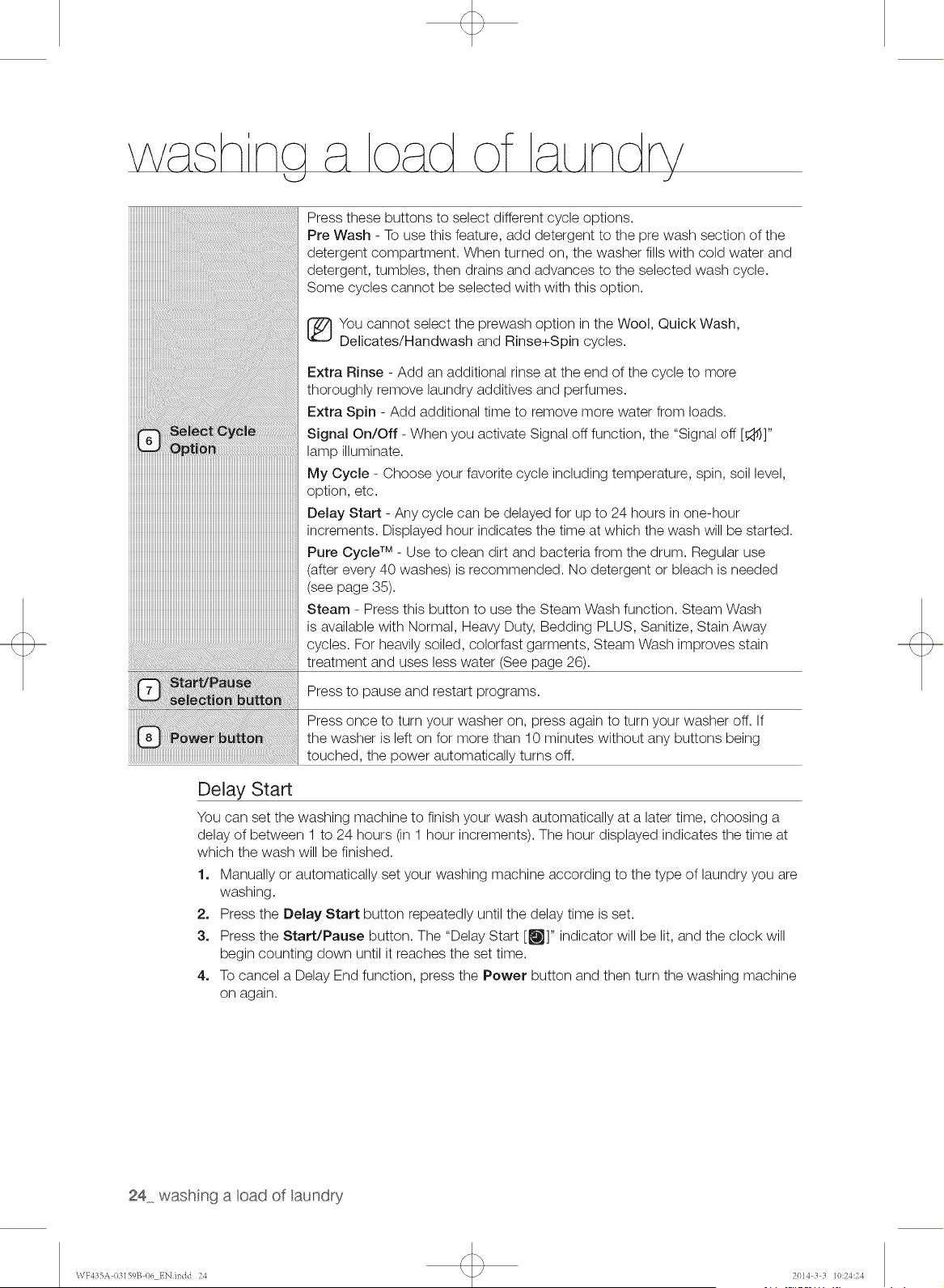

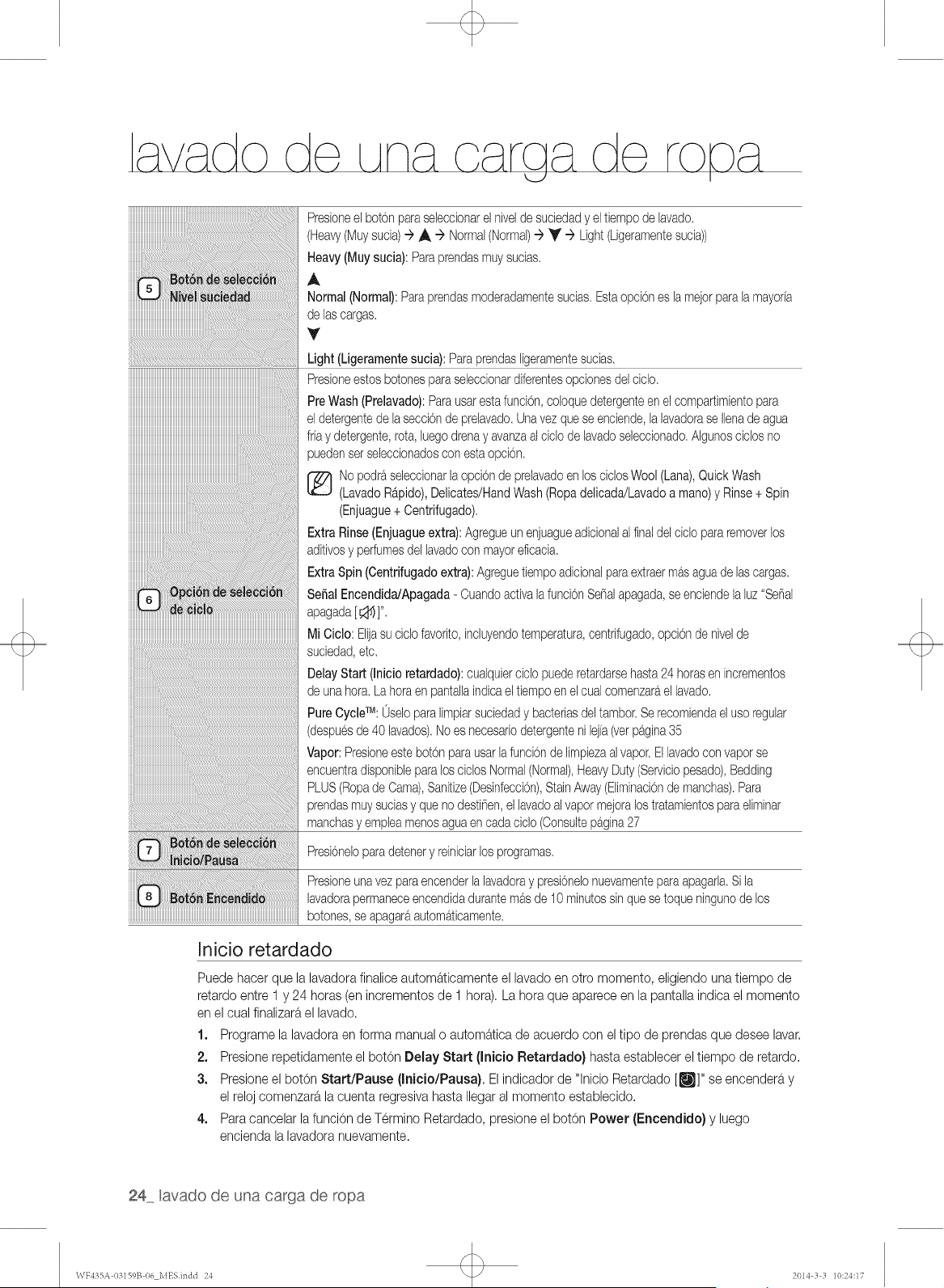

Press these buttons to select different cycle options.

Pre Wash - To use this feature, add detergent to the pre wash section of the

detergent compartment. When turned on, the washer fills with cold water and

detergent, tumbles, then drains and advances to the selected wash cycle.

Some cycles cannot be selected with with this option.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

i!iiiiiiiiii!__!!!!!!____!!!!_!___i!!_!!!____!___!!!!_!_!__!!!___!_!_!!_!!!_iiiii!iii_i_!_!_!!_iii___!__!i!ii!ii!!iiiiiiii!iii!ii!_!!_!!iii_iii!ii!!!!!_!!!_!__!!!!!!!!!ii___

You cannot select the prewash option in the Wool, Quick Wash,

Delicates/Handwash and Rinse+Spin cycles.

Extra Rinse - Add an additional rinse at the end of the cycle to more

thoroughly remove laundry additives and perfumes.

Extra Spin - Add additional time to remove more water from loads.

Signal On/Off - When you activate Signal off function, the "Signal off [_]"

lamp illuminate.

My Cycle- Choose your favorite cycle including temperature, spin, soil level,

option, etc.

Delay Start- Any cycle can be delayed for up to 24 hours in one-hour

increments. Displayed hour indicates the time at which the wash will be started.

Pure Cycle TM - Use to clean dirt and bacteria from the drum. Regular use

(after every 40 washes) is recommended. No detergent or bleach is needed

(see page 35).

Steam - Press this button to use the Steam Wash function. Steam Wash

is available with Normal, Heavy Duty, Bedding PLUS, Sanitize, Stain Away

cycles. For heavily soiled, colorfast garments, Steam Wash improves stain

treatment and uses less water (See page 26).

Delay Start

Press to pause and restart programs.

Press once to turn your washer on, press again to turn your washer off. If

the washer is left on for more than 10 minutes without any buttons being

touched, the power automatically turns off.

You can set the washing machine to finish your wash automatically at a later time, choosing a

delay of between 1 to 24 hours (in 1 hour increments). The hour displayed indicates the time at

which the wash will be finished.

1. Manually or automatically set your washing machine according to the type of laundry you are

washing.

2. Press the De_ay Start button repeatedly until the delay time is set.

3. Press the Start/Pause button. The "Delay Start [_]" indicator will be lit, and the clock will

begin counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power button and then turn the washing machine

on again.

24 washng a cad of aundry

WF435A I)3159B I)6 ENindd 24 2014 3 3 1(}:24:24

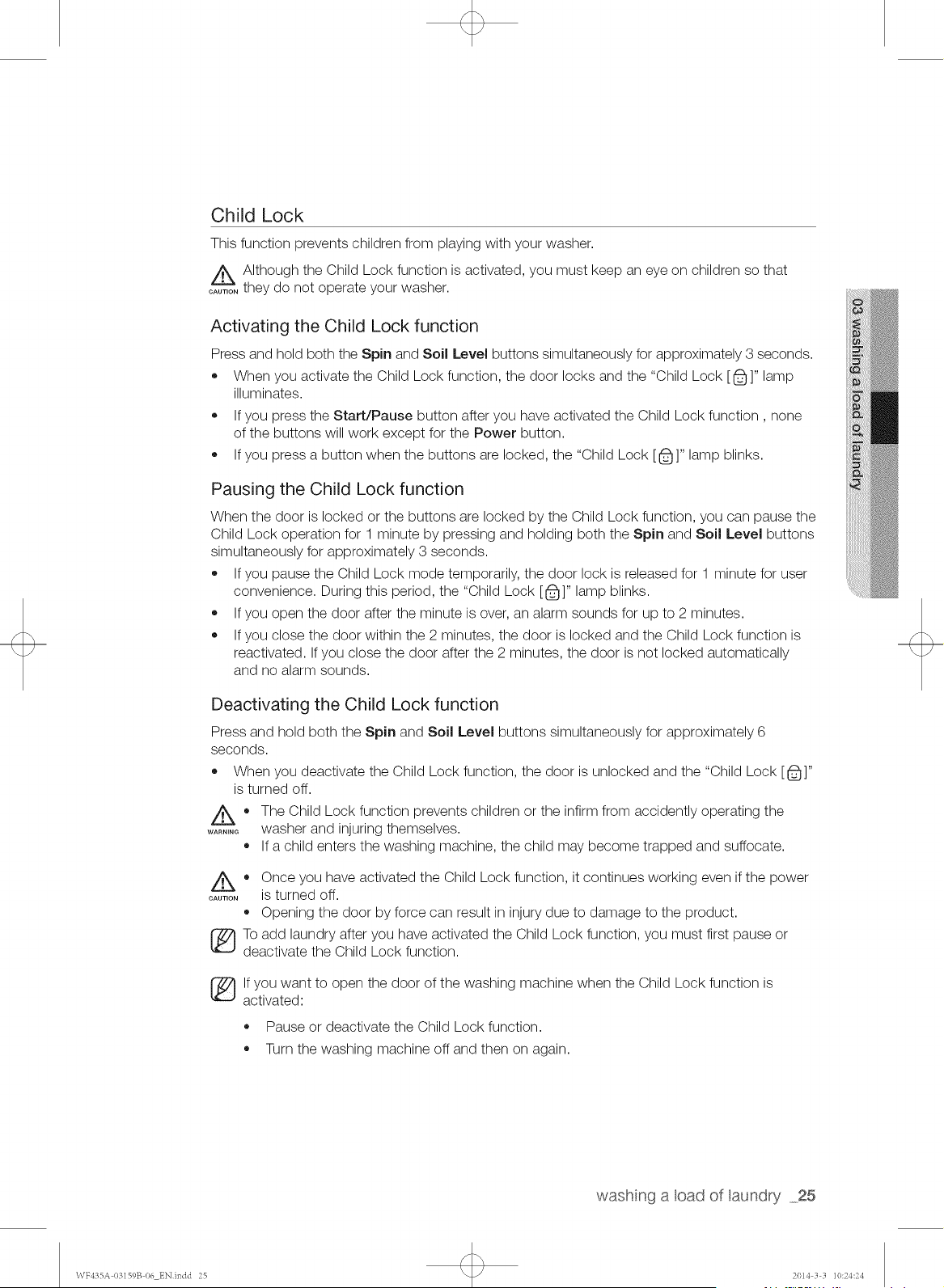

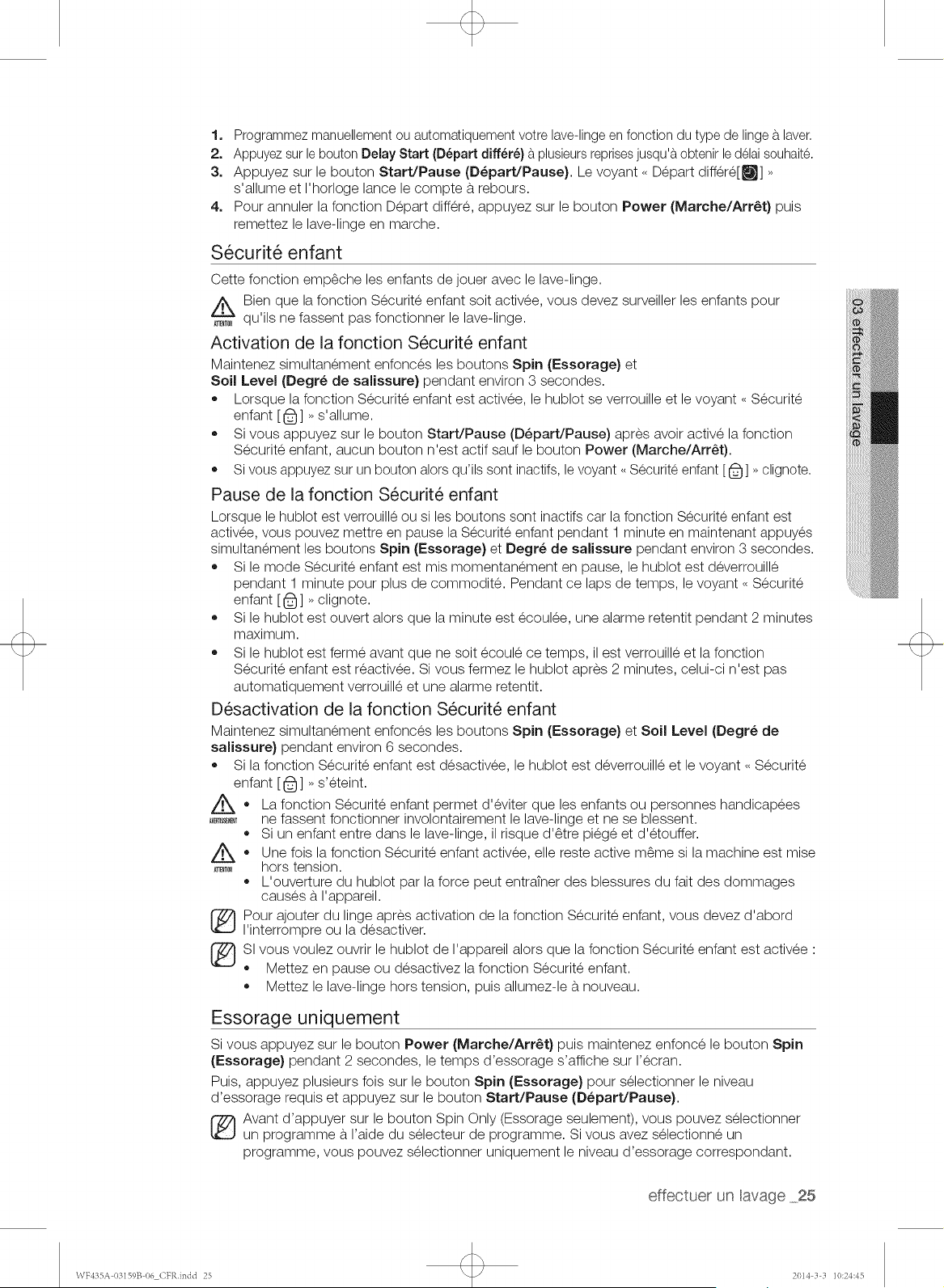

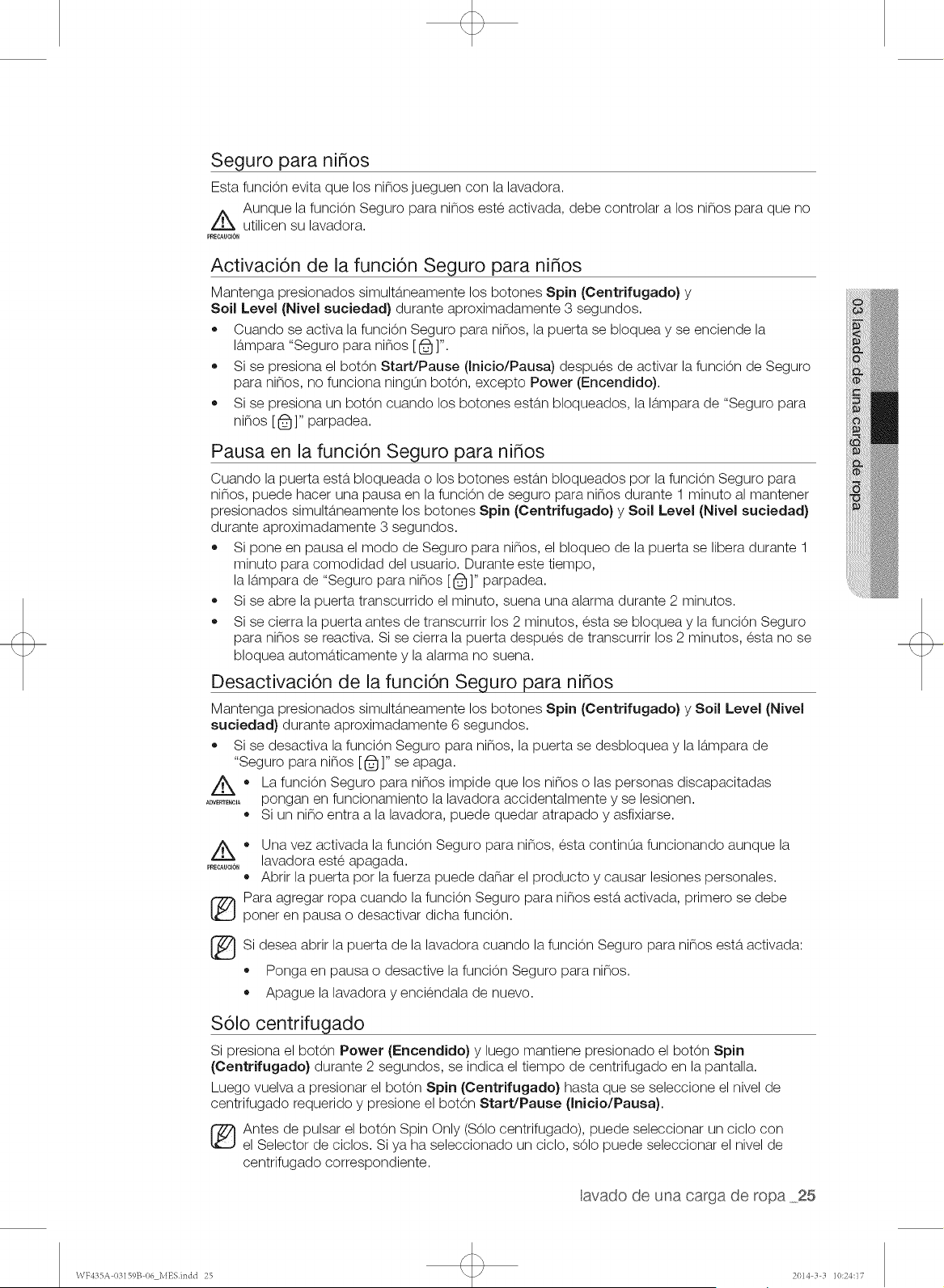

Child Lock

This function prevents children from playing with your washer.

_ Although the Child Lock function is activated, you must keep an eye on children so that

....... they do not operate your washer.

Activating the Child Lock function

Press and hold both the Spin and Soil Level buttons simultaneously for approximately 3 seconds.

• When you activate the Child Lock function, the door locks and the "Child Lock [@]" lamp

illuminates.

If you press the Start/Pause button after you have activated the Child Lock function, none

of the buttons will work except for the Power button.

If you press a button when the buttons are locked, the "Child Lock [{2}]" lamp blinks.

Pausing the Child Lock function

When the door is locked or the buttons are locked by the Child Lock function, you can pause the

Child Lock operation for 1 minute by pressing and holding both the Spin and Soil Level buttons

simultaneously for approximately 3 seconds.

If you pause the Child Lock mode temporarily, the door lock is released for 1 minute for user

convenience. During this period, the "Child Lock [1_]" lamp blinks.

If you open the door after the minute is over, an alarm sounds for up to 2 minutes.

If you close the door within the 2 minutes, the door is locked and the Child Lock function is

reactivated. If you close the door after the 2 minutes, the door is not locked automatically

and no alarm sounds.

Deactivating the Child Lock function

Press and hold both the Spin and Soil Level buttons simultaneously for approximately 6

seconds.

When you deactivate the Child Lock function, the door is unlocked and the "Child Lock [l_]"

is turned off.

Z_, The Child Lock function prevents children or the infirm from accidently operating the

....... washer and injuring themselves.

If a child enters the washing machine, the child may become trapped and suffocate.

Z_ Once you have activated the Child Lock function, it continues working even if the power

....... is turned off.

Opening the door by force can result in injury due to damage to the product.

To add laundry after you have activated the Child Lock function, you must first pause or

deactivate the Child Lock function.

lf you want to open the door of the washing machine when the Child Lock function is

activated:

Pause or deactivate the Child Lock function.

Turn the washing machine off and then on again.

washng a oad of aundry 25

WF435A I)3159B I)6 ENindd 25 2014 3 3 1(}:24:24

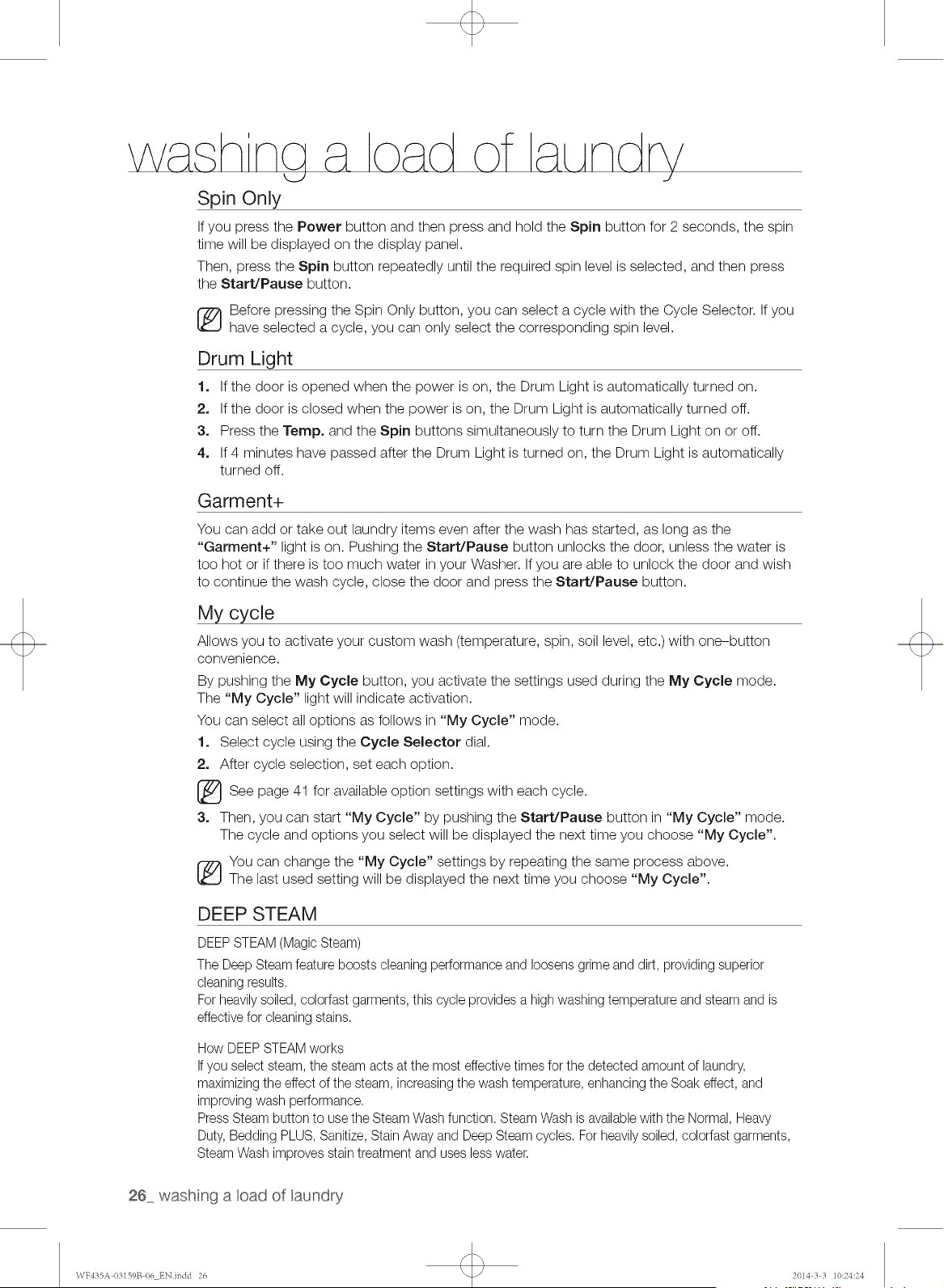

Spin Only

If you press the Power button and then press and hold the Spin button for 2 seconds, the spin

time will be displayed on the display panel.

Then, press the Spin button repeatedly until the required spin level is selected, and then press

the Start/Pause button.

_ efore pressing the Spin Only button, you can select a cycle with the Cycle Selector. If you

have selected a cycle, you can only select the corresponding spin level.

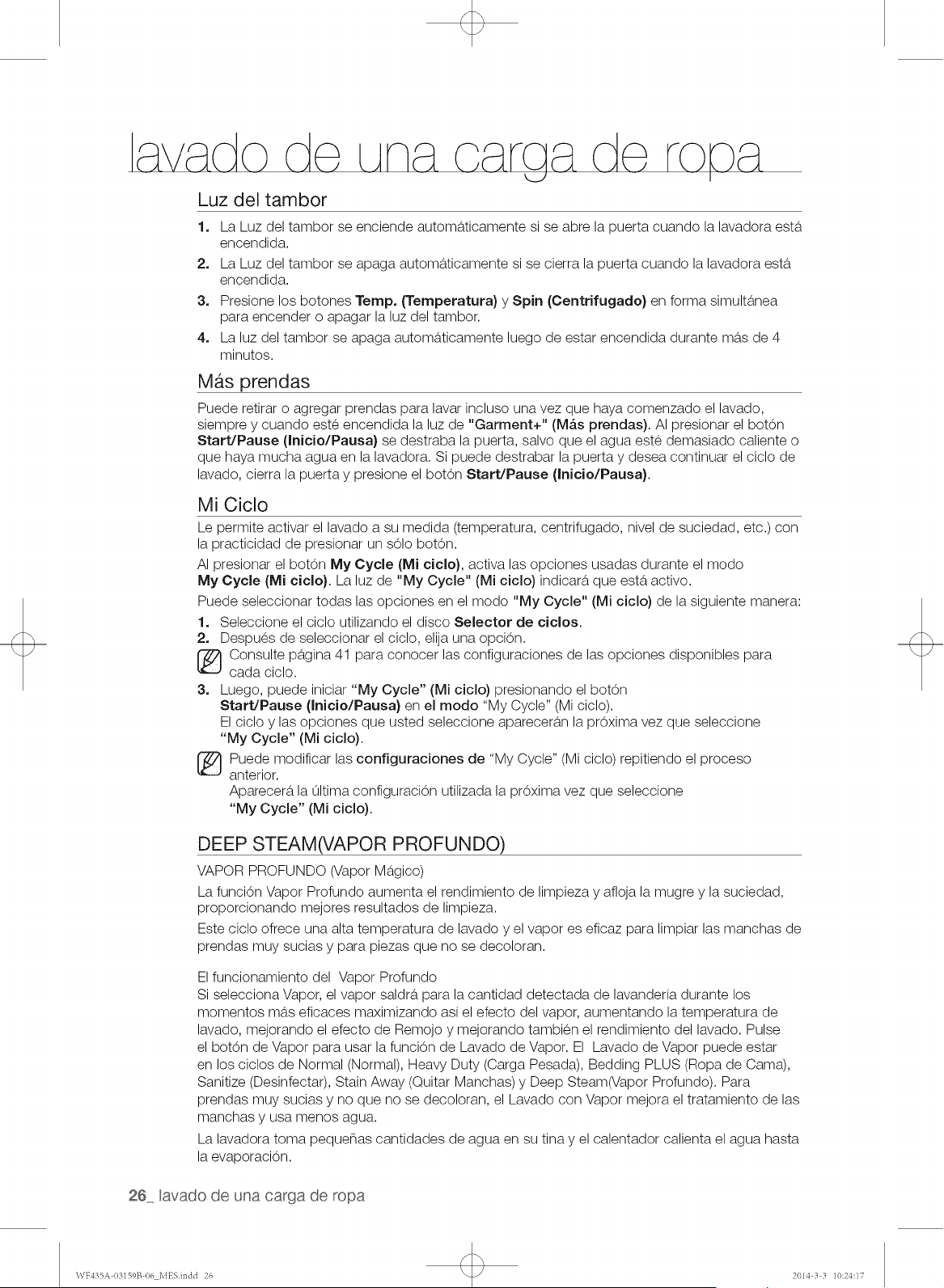

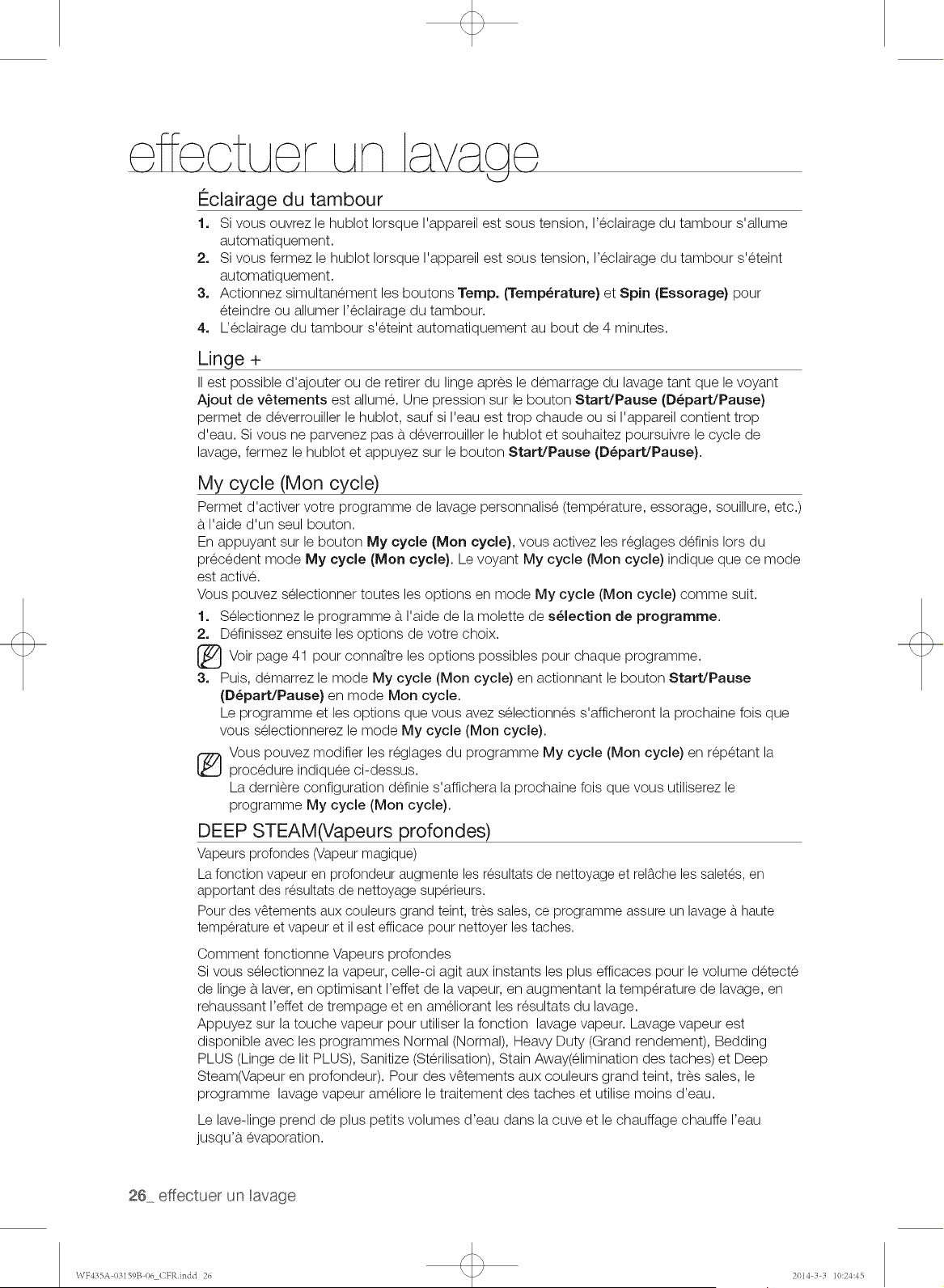

Drum Light

1. If the door is opened when the power is on, the Drum Light is automatically turned on.

2. If the door is closed when the power is on, the Drum Light is automatically turned off.

3. Press the Temp. and the Spin buttons simultaneously to turn the Drum Light on or off.

4. If 4 minutes have passed after the Drum Light is turned on, the Drum Light is automatically

turned off.

Garment+

You can add or take out laundry items even after the wash has started, as long as the

"Garment+" light is on. Pushing the Start/Pause button unlocks the door, unless the water is

too hot or if there is too much water in your Washer. If you are able to unlock the door and wish

to continue the wash cycle, close the door and press the Start/Pause button.

My cycle

Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one-button

convenience.

By pushing the My Cycle button, you activate the settings used during the My Cycle mode.

The "My Cycle" light will indicate activation.

You can select all options as follows in "My Cycle" mode.

1. Select cycle using the Cycle Selector dial.

2. After cycle selection, set each option.

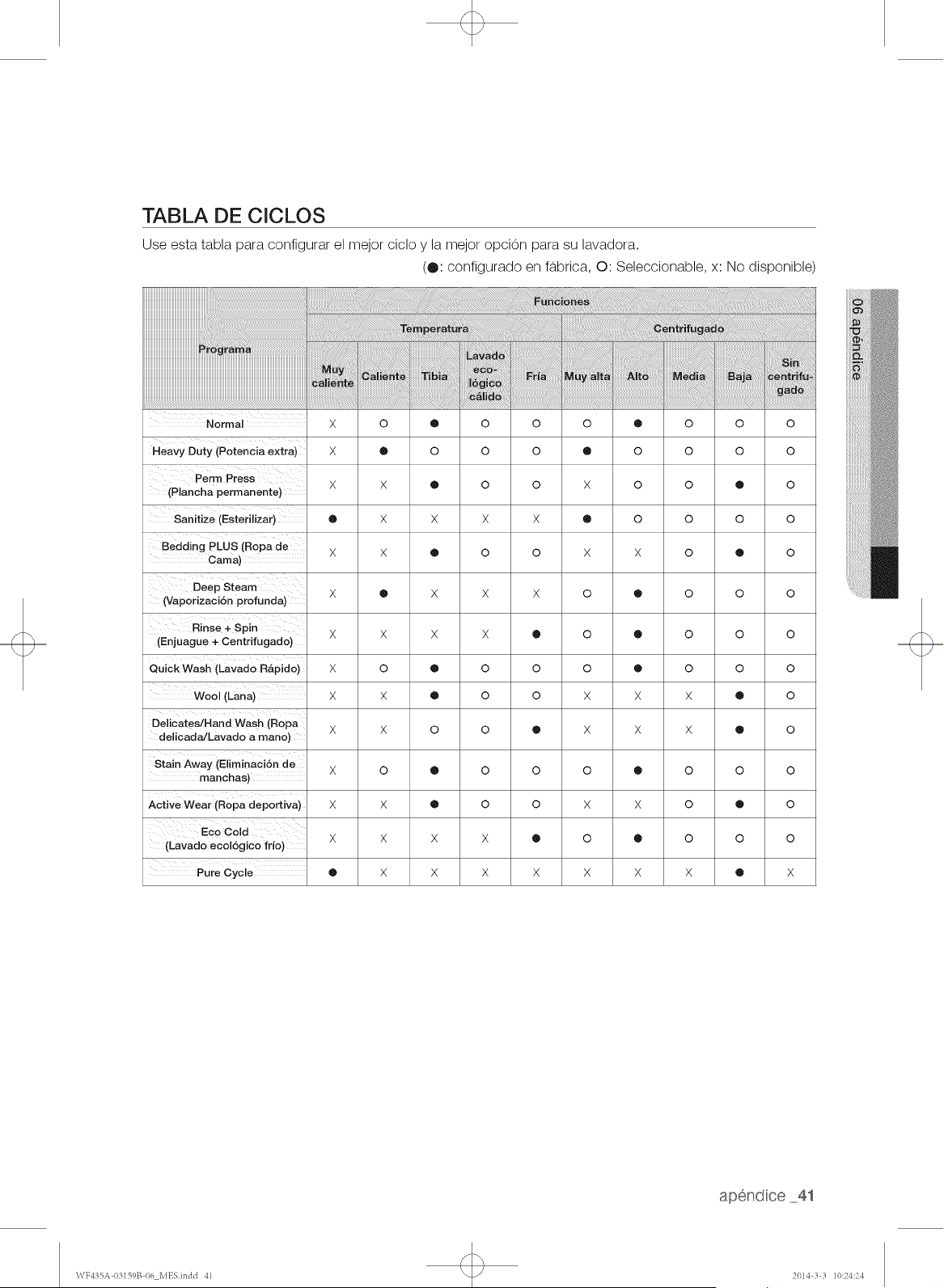

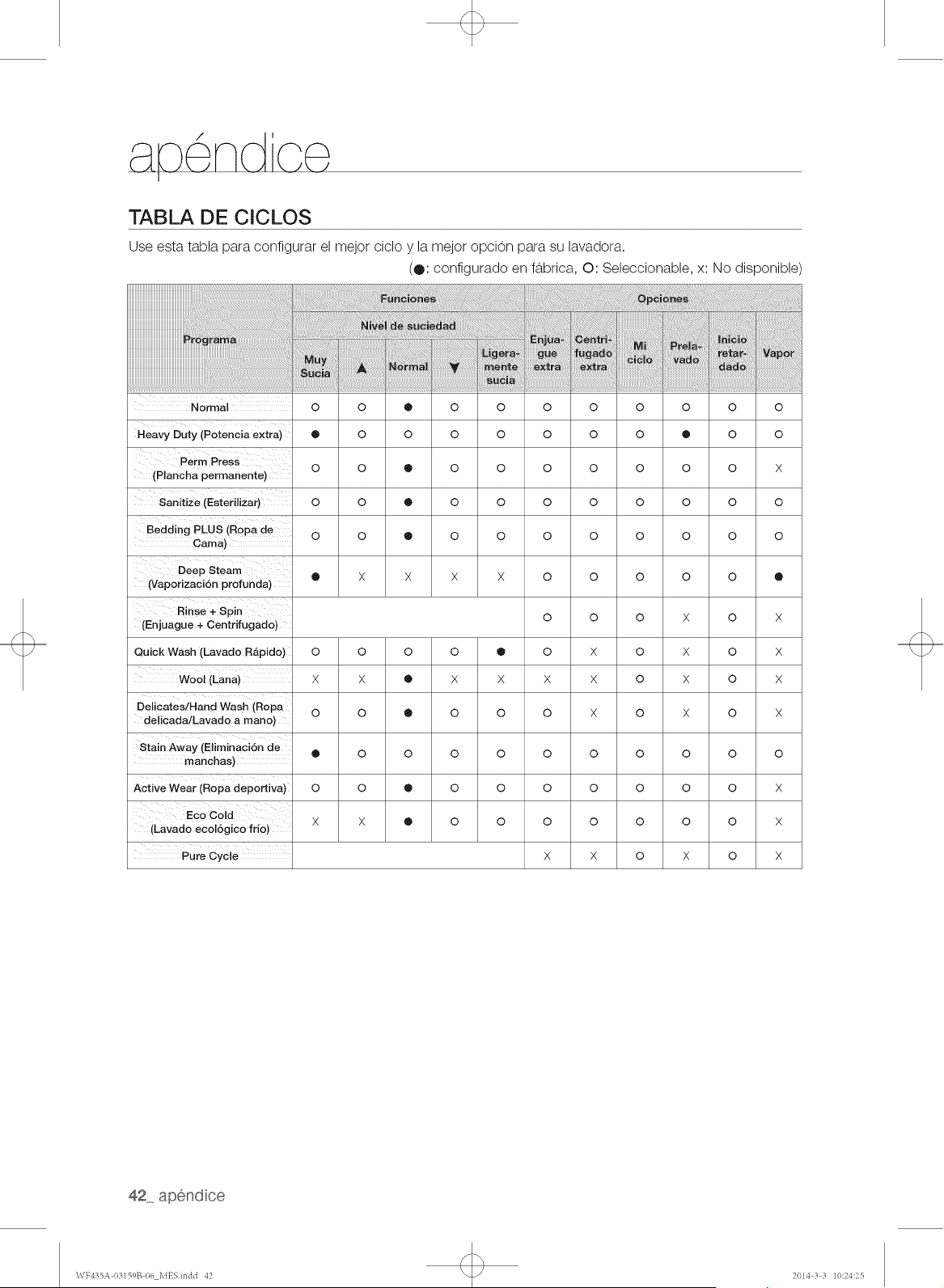

_See 41 for available with each

page option settings cycle.

3. Then, you can start "My Cycle" by pushing the Start/Pause button in "My Cycle" mode.

The cycle and options you select will be displayed the next time you choose "My Cycle".

You can change the "My Cycle" settings by repeating the same process above.

The last used setting will be displayed the next time you choose "My Cycle".

DEEP STEAM

DEEPSTEAM (Magic Steam)

The Deep Steamfeature boosts cleaning performance and loosens grime and dirt, providing superior

cleaning results.

For heavilysoiled, colorfast garments, this cycle providesa high washing temperatureand steam and is

effectivefor cleaning stains.

How DEEPSTEAMworks

Ifyou select steam, the steam acts at the most effective times for the detected amount of laundry,

maximizingthe effect of the steam, increasingthe wash temperature, enhancing the Soak effect, and

improving wash performance.

Press Steam button to use the Steam Wash function. Steam Wash is availablewith the Normal, Heavy

Duty, Bedding PLUS, Sanitize,Stain Away and Deep Steam cycles. For heavilysoiled, colorfast garments,

SteamWash improves stain treatmentand uses lesswater.

26 washng a cad of aundry

WF435A I)3159B I)6 ENindd 26 2014 3 3 1(}:24:24

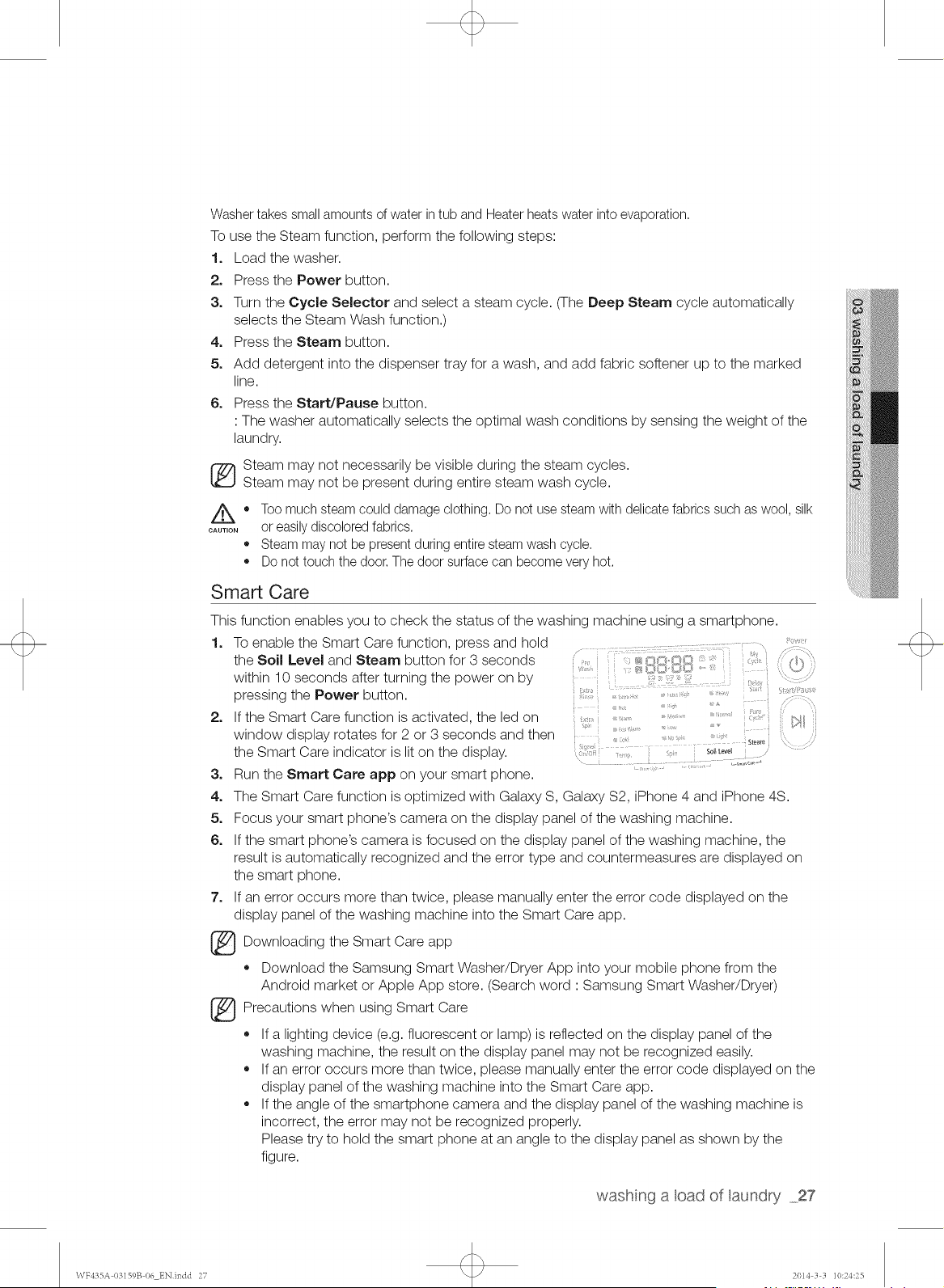

Washertakes small amounts of water in tub and Heater heats water into evaporation.

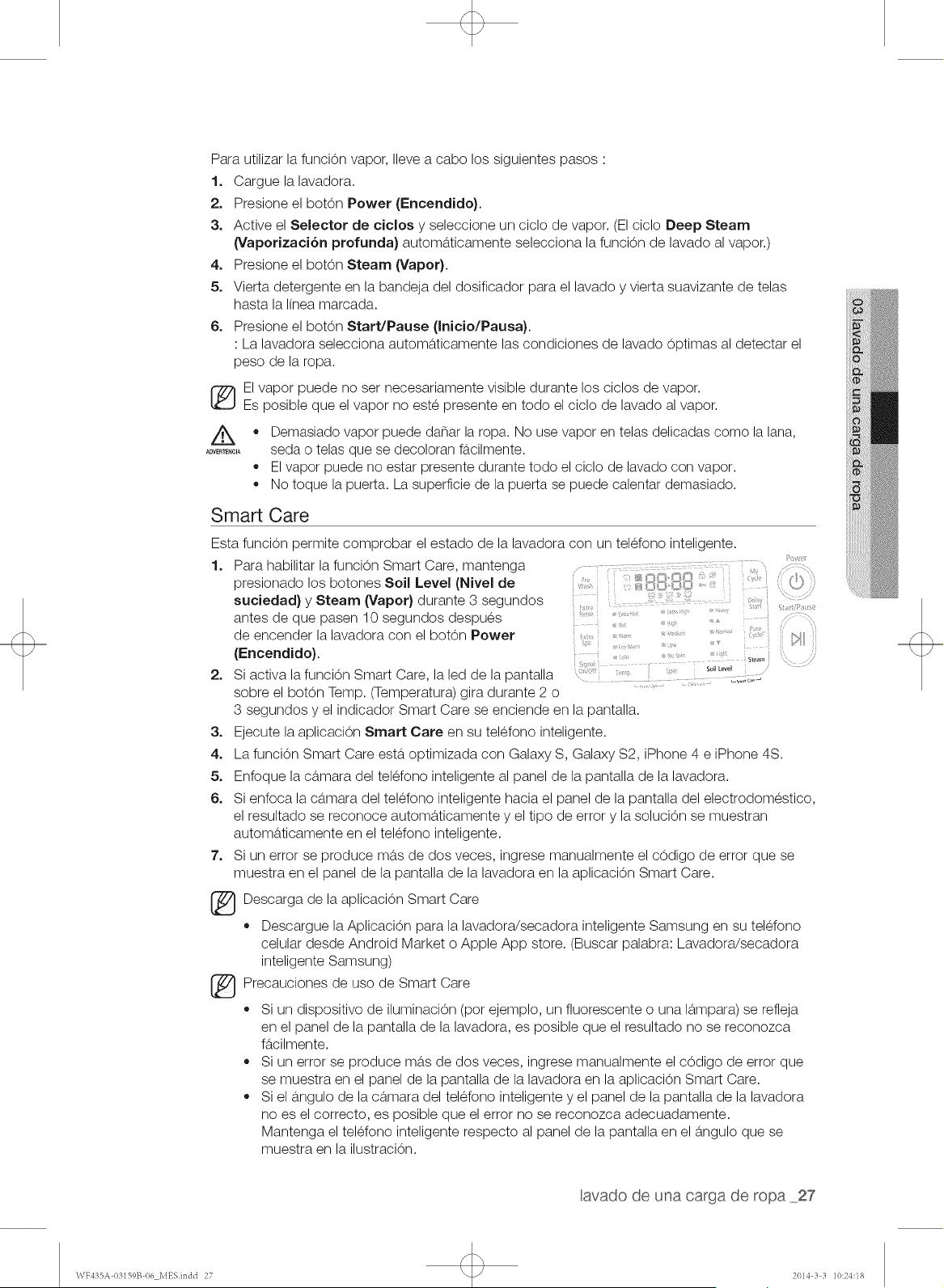

To use the Steam function, perform the following steps:

1. Load the washer.

2. Press the Power button.

3. Turn the Cycle Selector and select a steam cycle. (The Deep Steam cycle automatically

selects the Steam Wash function.)

4. Press the Steam button.

5. Add detergent into the dispenser tray for a wash, and add fabric softener up to the marked

line.

6. Press the Start/Pause button.

: The washer automatically selects the optimal wash conditions by sensing the weight of the

laundry.

(_ team may not necessarily be visible during the steam cycles.

Steam may not be present during entire steam wash cycle.

Z_,, Too much steam could damage clothing. Do not use steam with delicatefabrics such as wool, silk

....... or easilydiscolored fabrics.

,, Steam may not be present during entire steam wash cycle.

,, Do not touch the door. The door surface can become very hot.

Smart Care

This

function enables you to check the status of the washing machine using a smartphone.

To enable the Smart Care function, press and hold J :.

the Soil Level and Steam button for 3 seconds _J;;r%_:!O_i)

(,:()

within 10 seconds after turning the power on by >

pressing the Power button. _t

If the Smart Care function is activated, the led on , , /_4

window display rotates for 2 or 3 seconds and then . . : s,_o,_,

the Smart Care indicator is lit on the display. ......... _o_o_o_ .

Run the Smart Care app on your smart phone.

The Smart Care function is optimized with Galaxy S, Galaxy $2, iPhone 4 and iPhone 4S.

Focus your smart phone's camera on the display panel of the washing machine.

If the smart phone's camera is focused on the display panel of the washing machine, the

result is automatically recognized and the error type and countermeasures are displayed on

the smart phone.

If an error occurs more than twice, please manually enter the error code displayed on the

display panel of the washing machine into the Smart Care app.

Downloading the Smart Care app

,, Download the Samsung Smart Washer/Dryer App into your mobile phone from the

Android market or Apple App store. (Search word ' Samsung Smart Washer/Dryer)

Precautions when using Smart Care

If a lighting device (e.g. fluorescent or lamp) is reflected on the display panel of the

washing machine, the result on the display panel may not be recognized easily.

If an error occurs more than twice, please manually enter the error code displayed on the

display panel of the washing machine into the Smart Care app.

If the angle of the smartphone camera and the display panel of the washing machine is

incorrect, the error may not be recognized properly.

Please try to hold the smart phone at an angle to the display panel as shown by the

figure.

washng a cad of aundry 27

WF435A 03159B 06 ENindd 27 2014 3 3 1(}:24:25

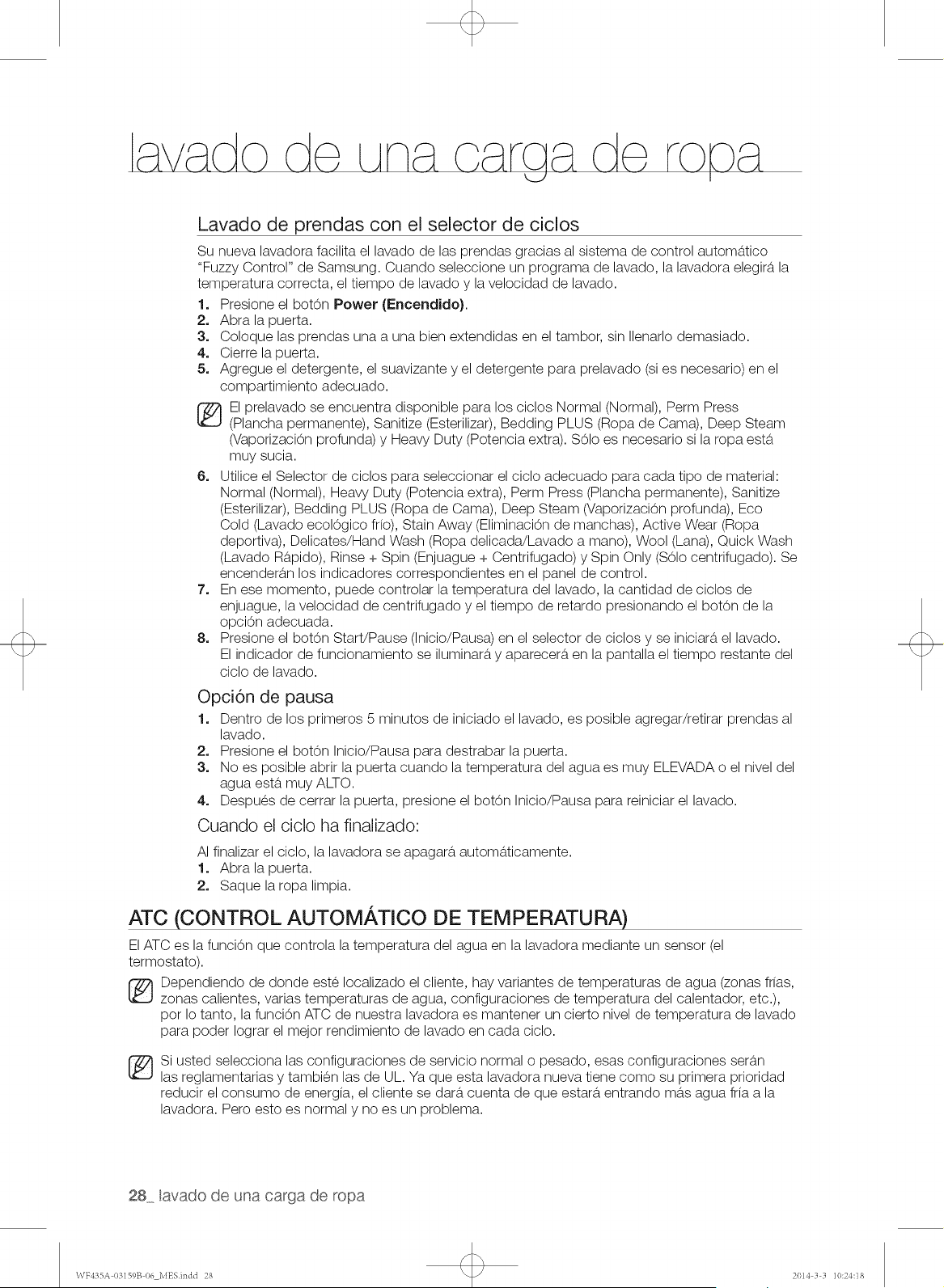

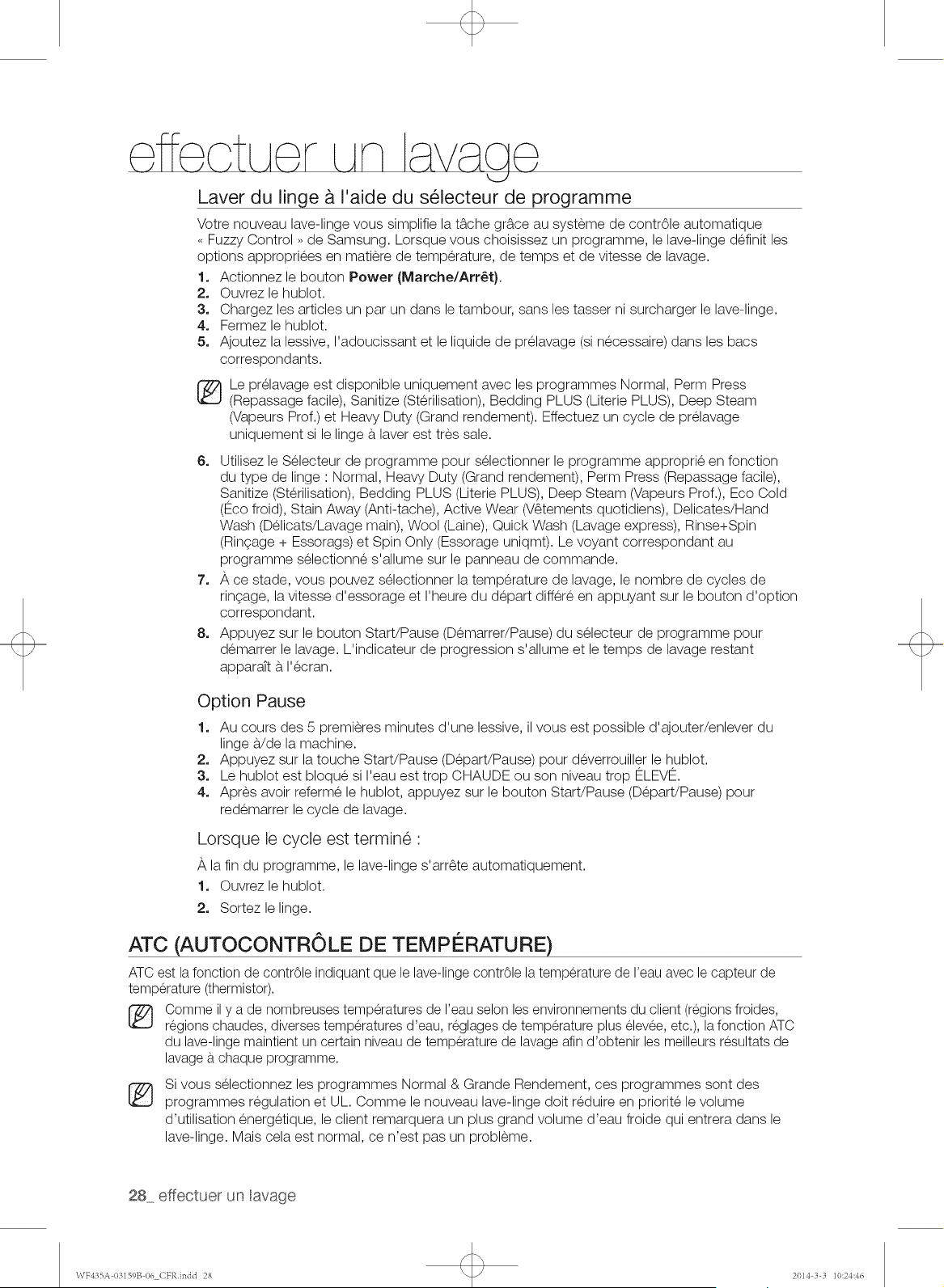

Washing clothes using the cycle selector

Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Control"

automatic control system. When you select a wash program, the machine will set the correct

temperature, washing time, and washing speed.

1. Press the Power button.

2. Open the door.

3. Load the articles of clothing one at a time loosely into the drum, without overfilling it.

4. Close the door.

5. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate

compartments.

_ re-wash is only available when selecting the Normal, Perm Press, Sanitize, Bedding Plus,

Deep Steam and Heavy Duty cycles. It is only necessary if your clothing is heavily soiled.

6. Use the Cycle Selector to select the appropriate cycle according to the type of material:

Normal, Heavy Duty, Perm Press, Sanitize, Bedding Plus, Deep Steam, Eco Cold, Stain

Away, Active Wear, Delicates/Hand Wash, Wool, Quick Wash, Rinse + Spin and Spin Only.

The relevant indicators will illuminate on the control panel.

7. At this time, you can control the wash temperature, the number of rinse cycles, the spinning

speed, and the delay time by pressing the appropriate option button.

8. Press the Start/Pause button on the Cycle Selector and the wash will begin. The process

indicator will light up and the remaining time for the cycle will appear in the display.

Pause Option

1. Within 5 minutes of starting a wash, it is possible to add/remove laundry items to/from the

wash.

2. Press the Start/Pause button to unlock the door.

3. The door cannot be opened when the water is too HOT or the water level is too HIGH.

4. After closing the door, press the Start/Pause button to restart the wash.

When the cycle is finished:

After the total cycle has finished, the power will turn off automatically.

1. Open the door.

2. Remove laundry.

ATC (AUTO TEMPERATURE CONTROL)

ATC is the control function that the washer controls water temperature with temperature sensor (thermistor).

Because there are numerous water temperatures depending on the customer's environments(cold

areas, warm areas, various water temperature, settings of heater temperature, etcs), ATC function in

our washer maintains the certain level of wash temperature to output the best washing performance at

each cycle.

lf you select normal & heavy duty course, those courses are the regulation and UL course. Since new

washer must reduce the amount of energy usage at first priority, customer will notice more cold water

entering the washer. But This is Normal, not a problem.

In those regulation course, Hot temperature is similar to acceptable adult bath-water temperature and

warm temperature is similar to comfortable swimming-pool water temperature.

If customer want to wash clothes in specific water temperature, customer should choose a different

course at each temperature(Hot/Warm/Eco Warm)

28 washng a cad of aundry

WF435A I)3159B I)6 ENindd 28 2014 3 3 1(}:24:25

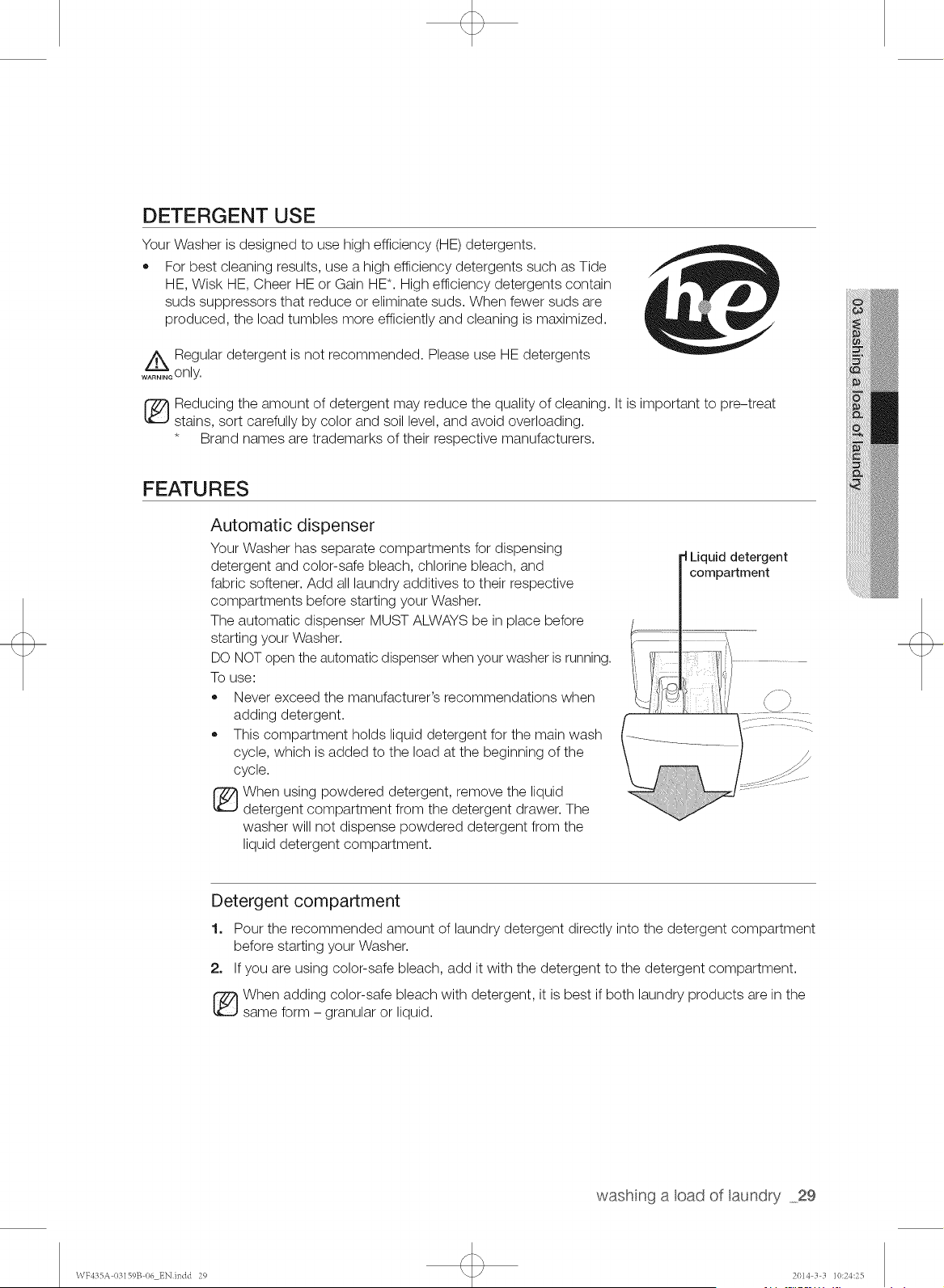

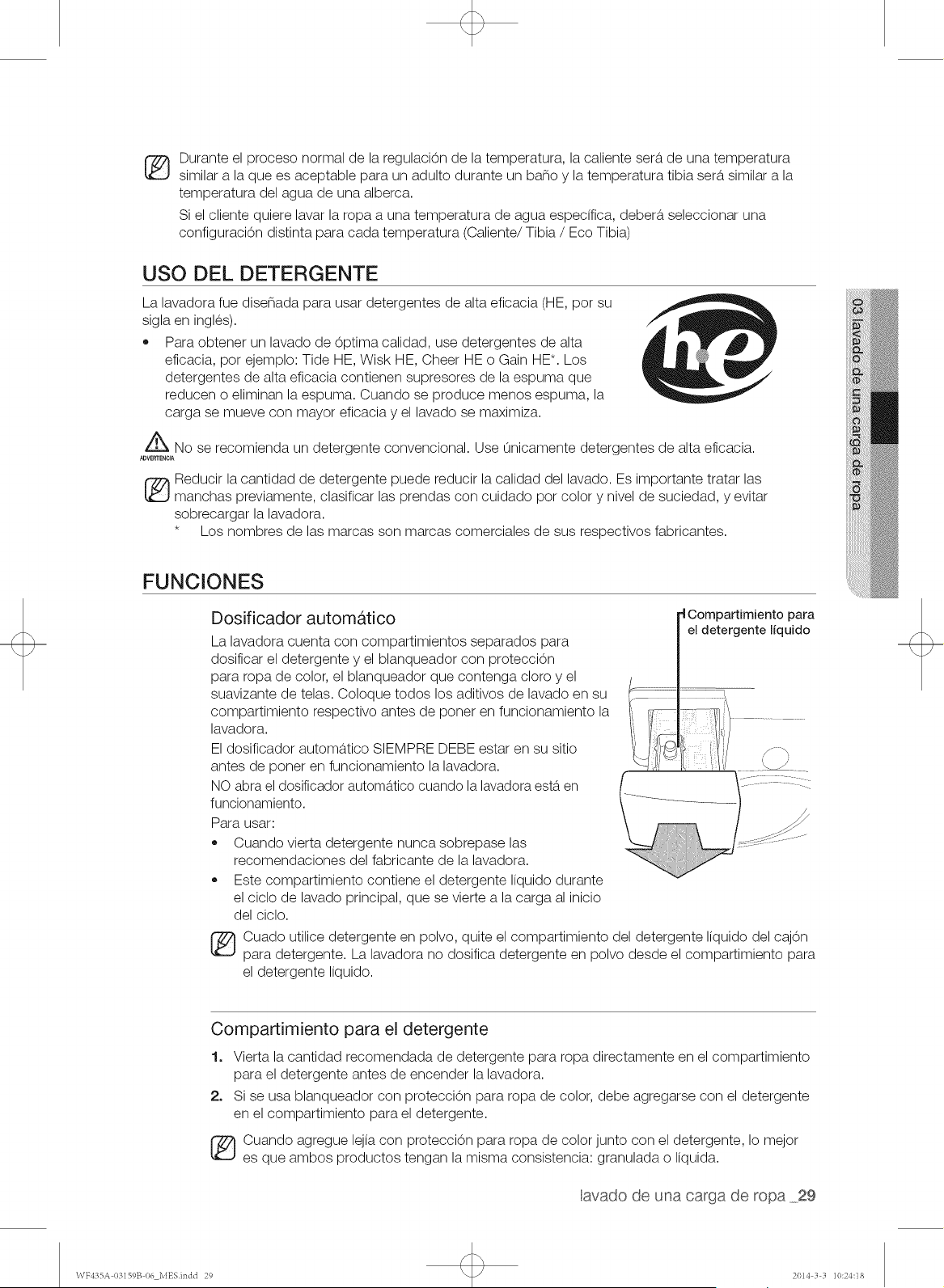

DETERGENT USE

Your Washer is designed to use high efficiency (HE) detergents.

• For best cleaning results, use a high efficiency detergents such as Tide

HE, Wisk HE, Cheer HE or Gain HE*. High efficiency detergents contain

suds suppressors that reduce or eliminate suds. When fewer suds are

produced, the load tumbles more efficiently and cleaning is maximized.

w_,_GRegular detergent is not recommended. Please use HE detergents

only.

_ educing the amount of detergent may reduce the quality of cleaning. It is important to pre-treat

stains, sort carefully by color and soil level, and avoid overloading.

* Brand names are trademarks of their respective manufacturers.

FEATURES

Automatic dispenser

Your Washer has separate compartments for dispensing

detergent and color-safe bleach, chlorine bleach, and

fabric softener. Add all laundry additives to their respective

compartments before starting your Washer.

The automatic dispenser MUST ALWAYS be in place before

starting your Washer.

DO NOT open the automatic dispenser when your washer is running.

To use:

Never exceed the manufacturer's recommendations when

adding detergent.

This compartment holds liquid detergent for the main wash

cycle, which is added to the load at the beginning of the

cycle.

When using powdered detergent, remove the liquid

detergent compartment from the detergent drawer. The

washer will not dispense powdered detergent from the

liquid detergent compartment.

detergent

compartment

Detergent compartment

1. Pour the recommended amount of laundry detergent directly into the detergent compartment

before starting your Washer.

2. If you are using color-safe bleach, add it with the detergent to the detergent compartment.

When adding color-safe bleach with detergent, it is best if both laundry products are in the

same form - granular or liquid.

washng a oad of aundry 29

WF435A 03159B 06 ENindd 29 2014 3 3 1(}:24:25

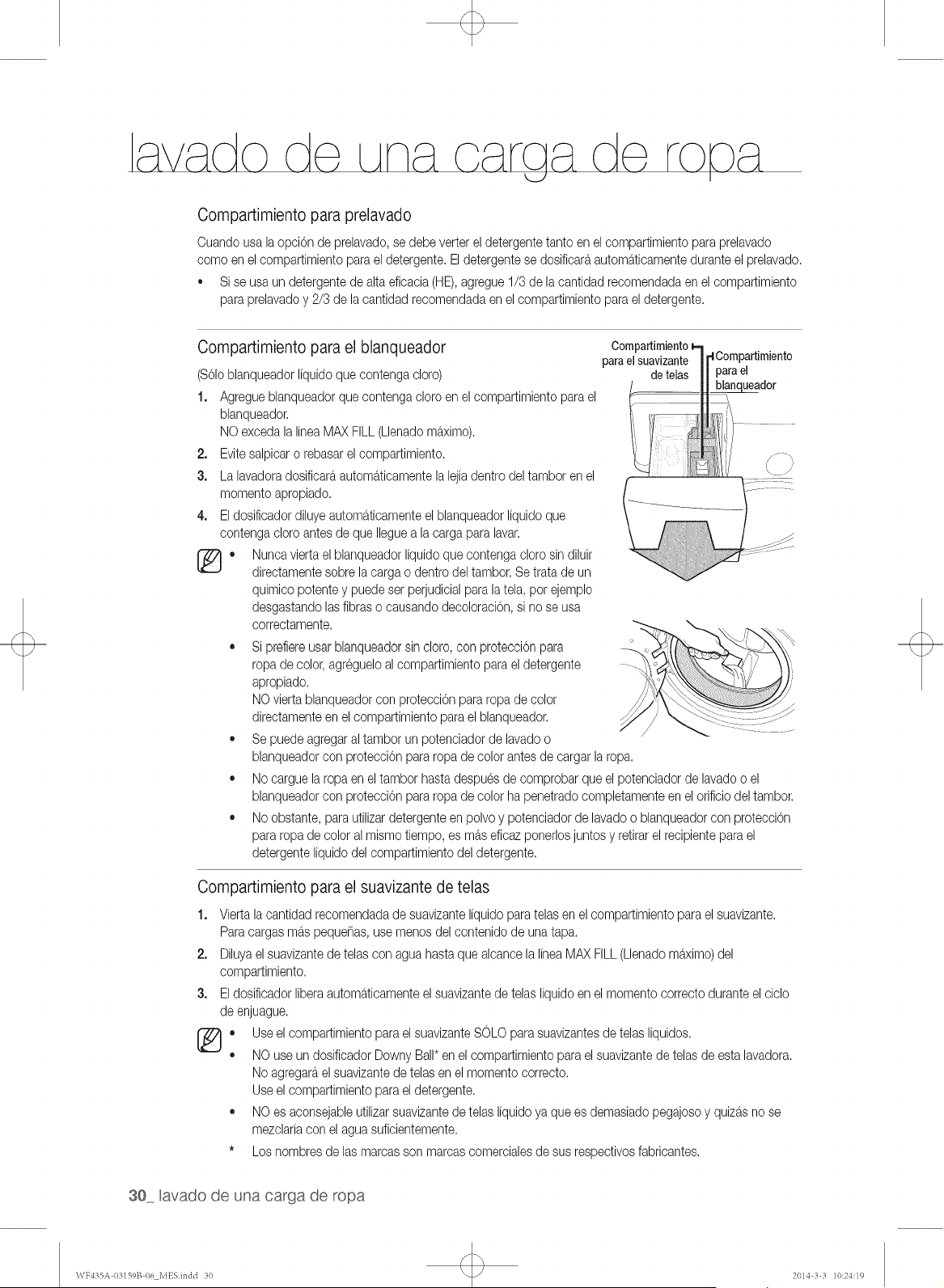

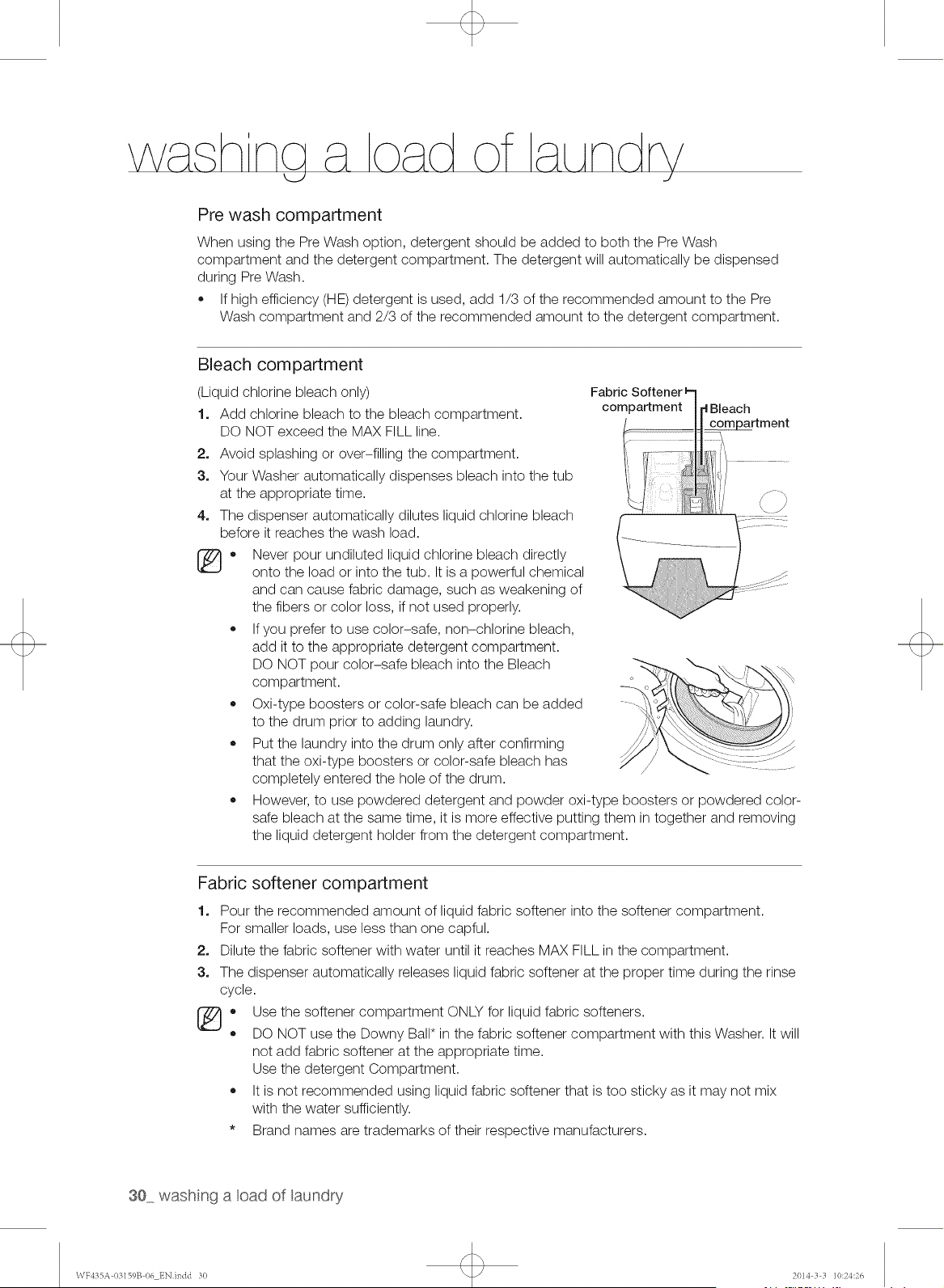

Pre wash compartment

When using the Pre Wash option, detergent should be added to both the Pre Wash

compartment and the detergent compartment. The detergent will automatically be dispensed

during Pre Wash.

• If high efficiency (HE) detergent is used, add 1/3 of the recommended amount to the Pre

Wash compartment and 2/3 of the recommended amount to the detergent compartment.

Bleach compartment

(Liquid chlorine bleach only)

1. Add chlorine bleach to the bleach compartment.

DO NOT exceed the MAX FILL line.

2. Avoid splashing or over-filling the compartment.

3. Your Washer automatically dispenses bleach into the tub

at the appropriate time.

4. The dispenser automatically dilutes liquid chlorine bleach

before it reaches the wash load.

®.

Fabric

compartment i Bleach

_rtment

/-- \

Never pour undiluted liquid chlorine bleach directly

onto the load or into the tub. It is a powerful chemical

and can cause fabric damage, such as weakening of

the fibers or color loss, if not used properly.

If you prefer to use color-safe, non-chlorine bleach,

add it to the appropriate detergent compartment.

DO NOT pour color-safe bleach into the Bleach

compartment.

Oxi-type boosters or color-safe bleach can be added

to the drum prior to adding laundry.

Put the laundry into the drum only after confirming

that the oxi-type boosters or color-safe bleach has ................

completely entered the hole of the drum.

However, to use powdered detergent and powder oxi-type boosters or powdered color-

safe bleach at the same time, it is more effective putting them in together and removing

the liquid detergent holder from the detergent compartment.

Fabric softener compartment

1. Pour the recommended amount of liquid fabric softener into the softener compartment.

For smaller loads, use less than one capful.

2. Dilute the fabric softener with water until it reaches MAX FILL in the compartment.

3. The dispenser automatically releases liquid fabric softener at the proper time during the rinse

cycle.

o se the softener compartment ONLY for liquid fabric softeners.

DO NOT use the Downy Ball* in the fabric softener compartment with this Washer. It will

not add fabric softener at the appropriate time.

Use the detergent Compartment.

It is not recommended using liquid fabric softener that is too sticky as it may not mix

with the water sufficiently.

* Brand names are trademarks of their respective manufacturers.

30 washng a cad of aundry

\VF435A I)3159B I)6 ENindd 3(} 2014 3 3 1(}:24:26

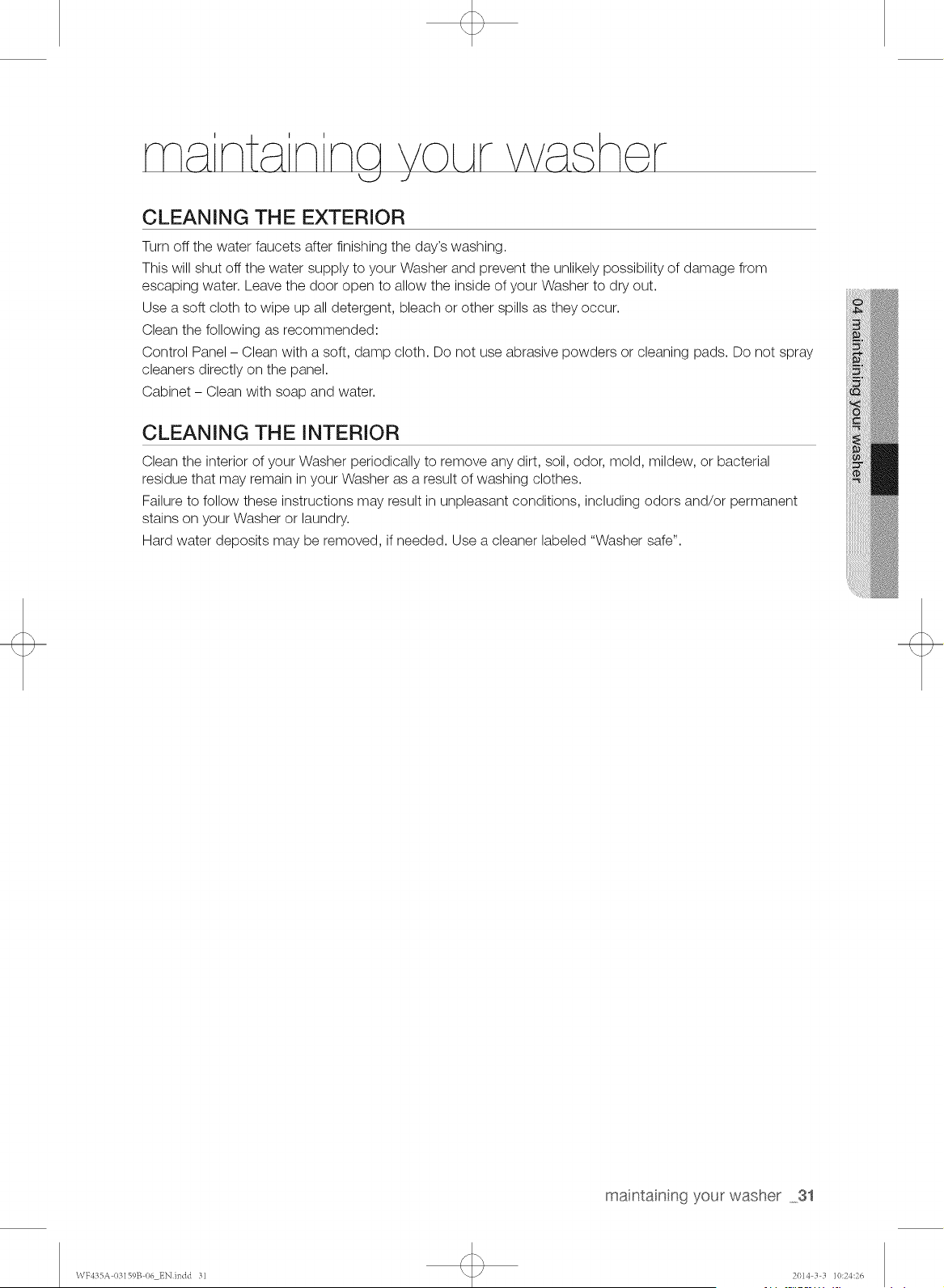

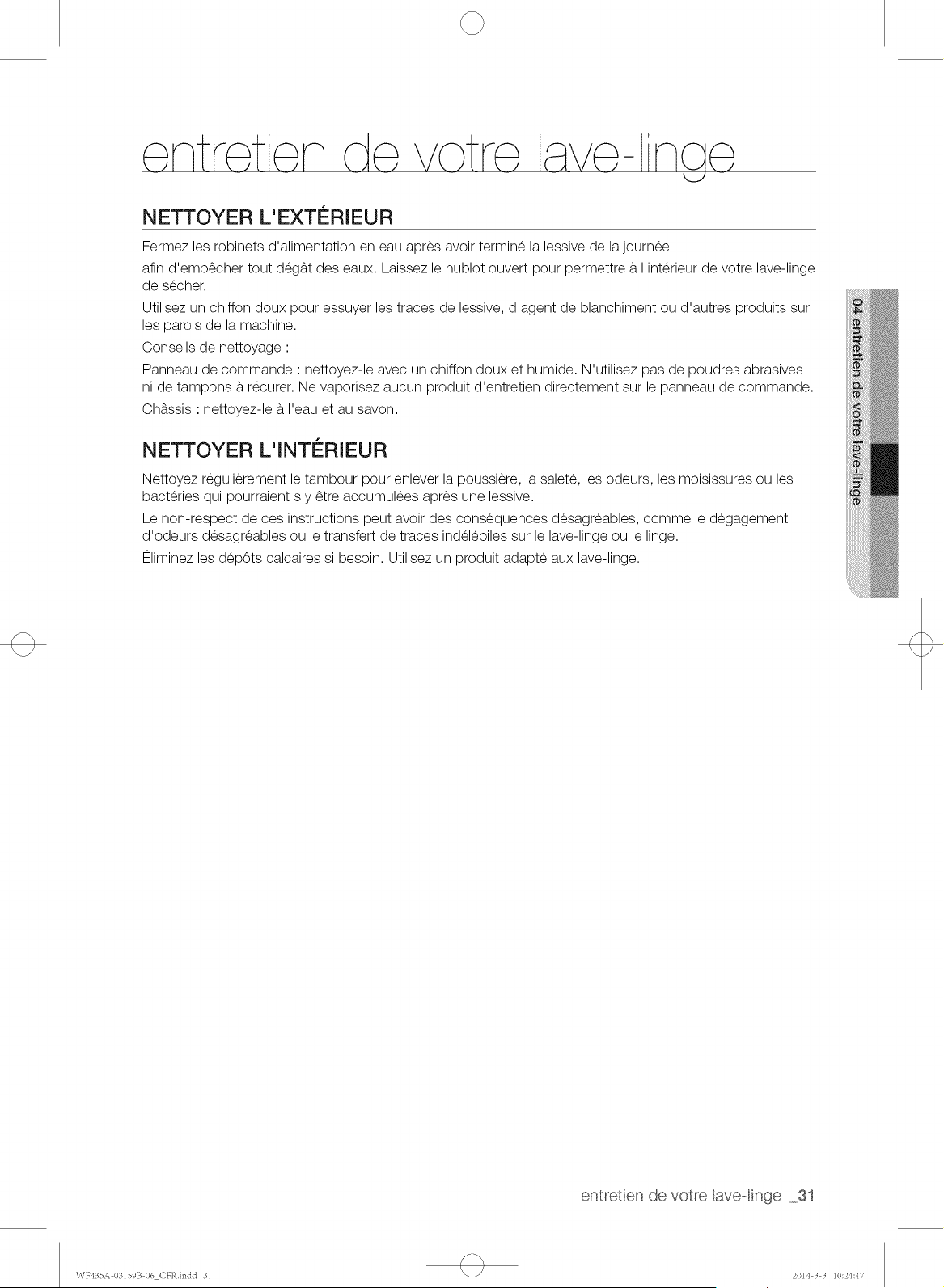

CLEANING THE EXTERIOR

Turn off the water faucets after finishing the day's washing.

This will shut off the water supply to your Washer and prevent the unlikely possibility of damage from

escaping water. Leave the door open to allow the inside of your Washer to dry out.

Use a soft cloth to wipe up all detergent, bleach or other spills as they occur.

Clean the following as recommended:

Control Panel - Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray

cleaners directly on the panel.

Cabinet - Clean with soap and water.

CLEANING THE INTERIOR

Clean the interior of your Washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial

residue that may remain in your Washer as a result of washing clothes.

Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent

stains on your Washer or laundry.

Hard water deposits may be removed, if needed. Use a cleaner labeled "Washer safe".

maintainng your washer 31

WF435A 03159B 06 ENindd 31 2014 3 3 1(/:24:26

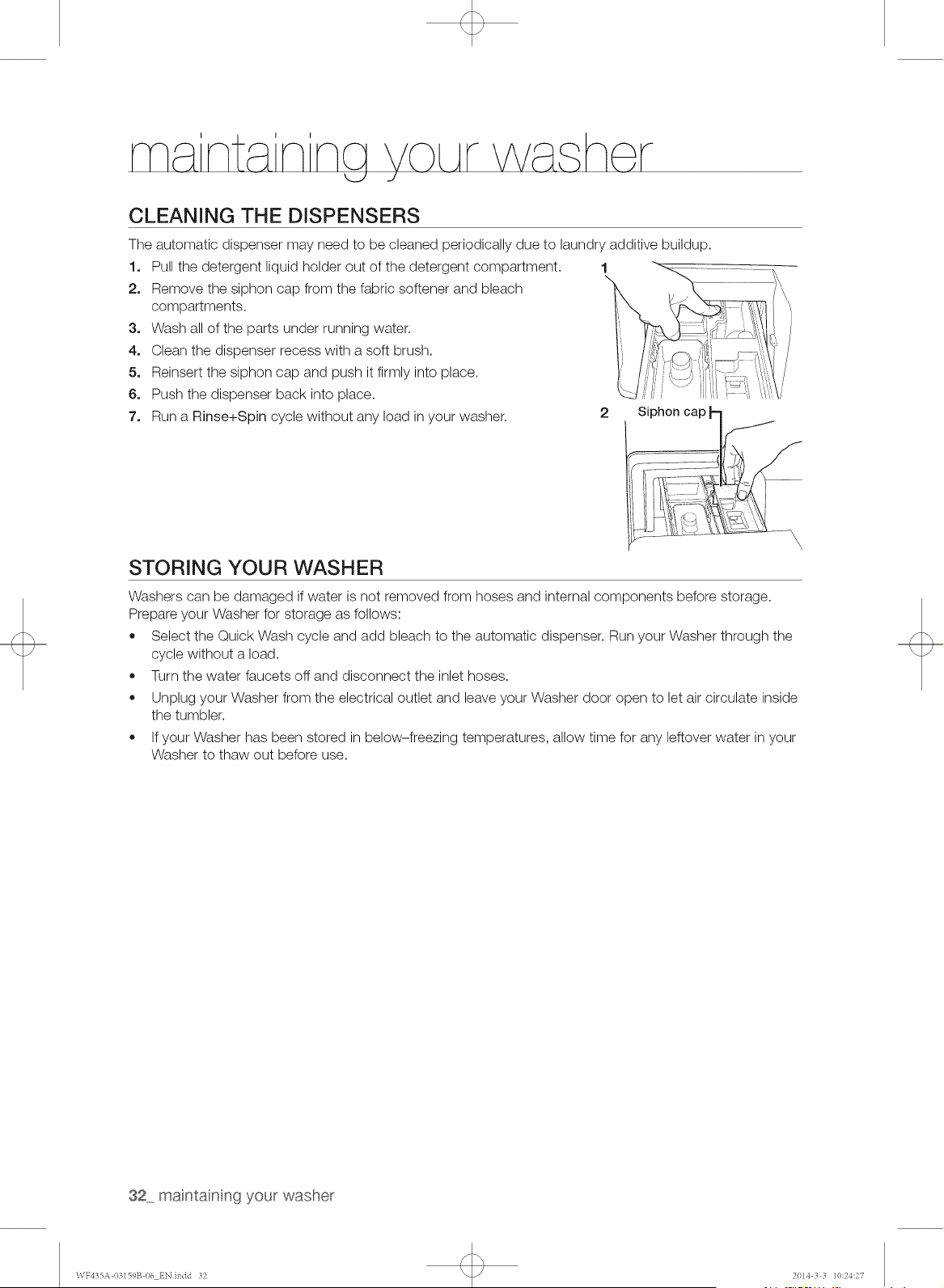

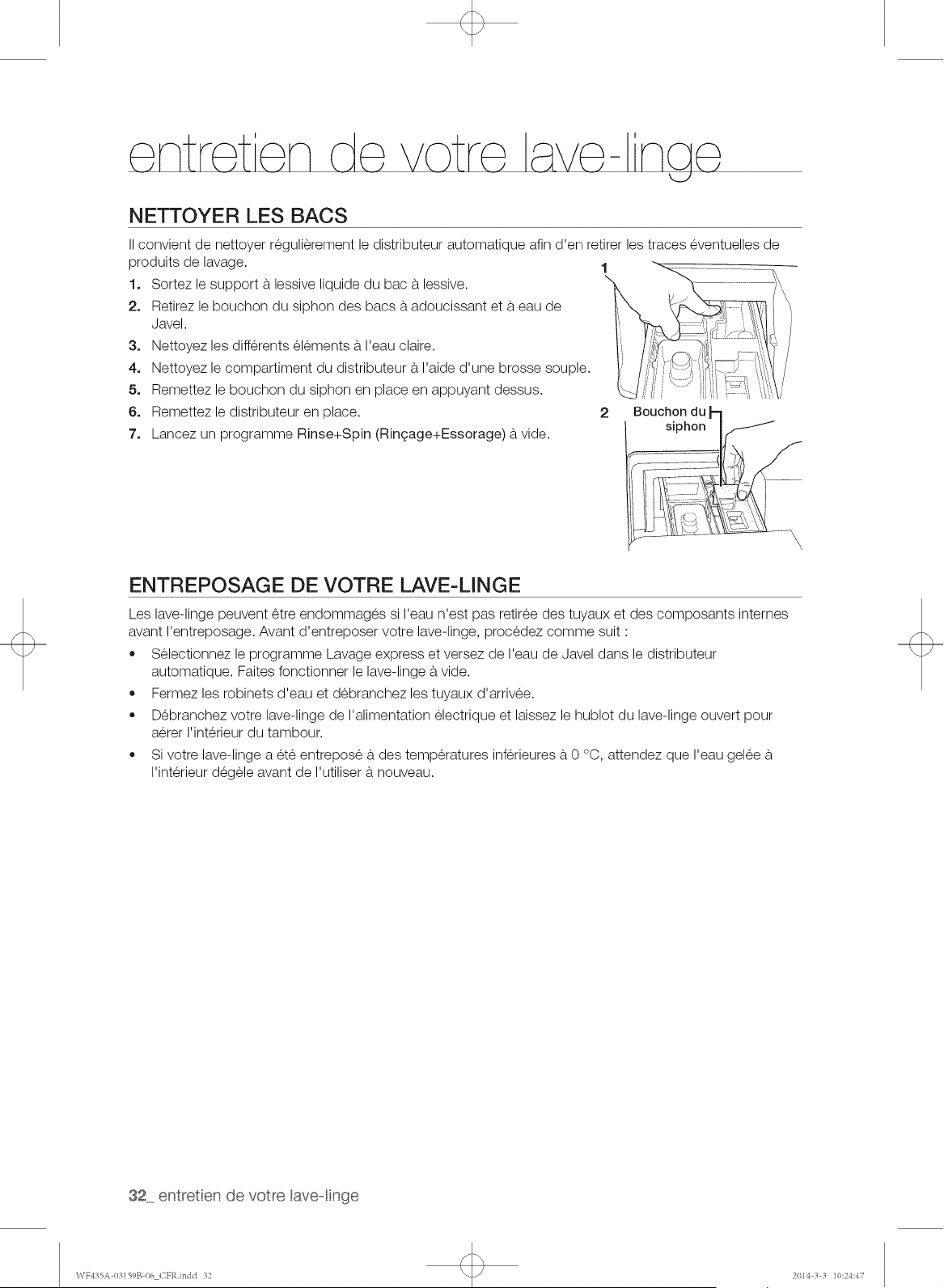

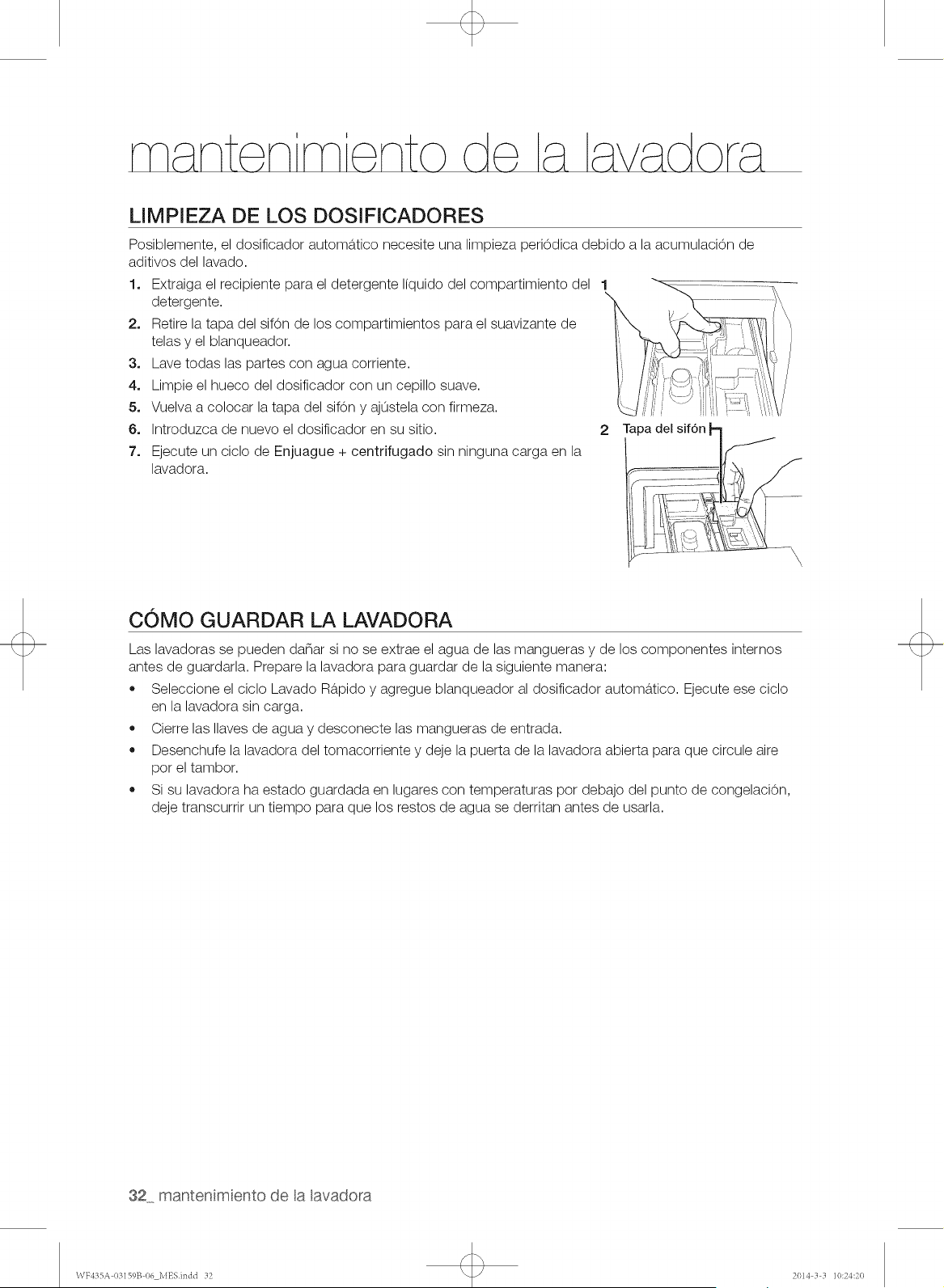

CLEANING THE DISPENSERS

The automatic dispenser may need to be cleaned periodically due to laundry additive buildup.

1o 1

Pull the detergent liquid holder out of the detergent compartment.

Remove the siphon cap from the fabric softener and bleach

compartments.

3. Wash all of the parts under running water.

4. Clean the dispenser recess with a soft brush.

5. Reinsert the siphon cap and push it firmly into place.

6. Push the dispenser back into place.

7. Run a Rinse+Spin cycle without any load in your washer.

Siphon cap [-

STORING YOUR WASHER

Washers can be damaged if water is not removed from hoses and internal components before storage.

Prepare your Washer for storage as follows:

• Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your Washer through the

cycle without a load.

Turn the water faucets off and disconnect the inlet hoses.

Unplug your Washer from the electrical outlet and leave your Washer door open to let air circulate inside

the tumbler.

If your Washer has been stored in below-freezing temperatures, allow time for any leftover water in your

Washer to thaw out before use.

32 maintainng your washer

WIz4fSSA 0fq59B 06 ENindd f_2 2014 } } 1(/:24:27

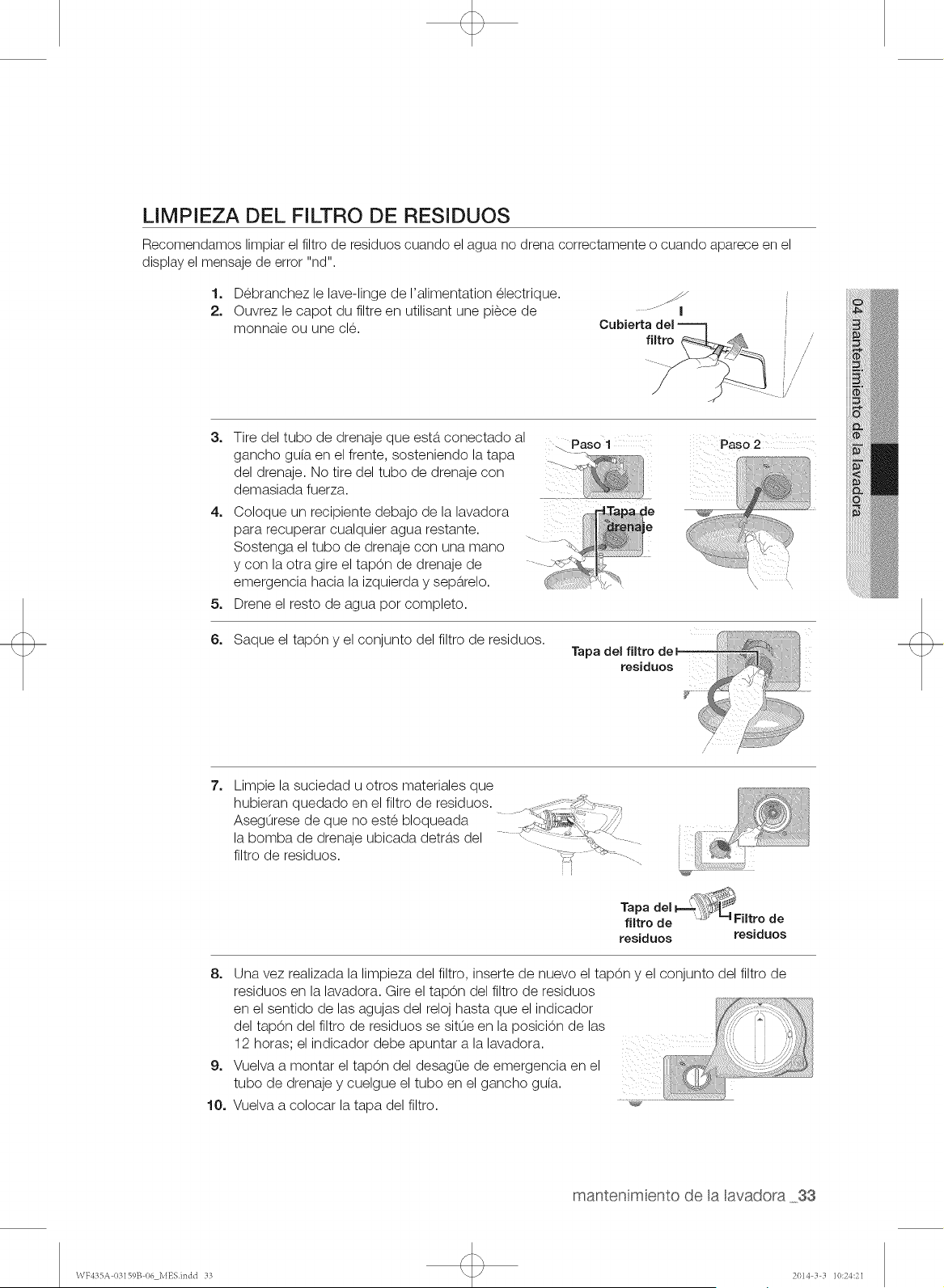

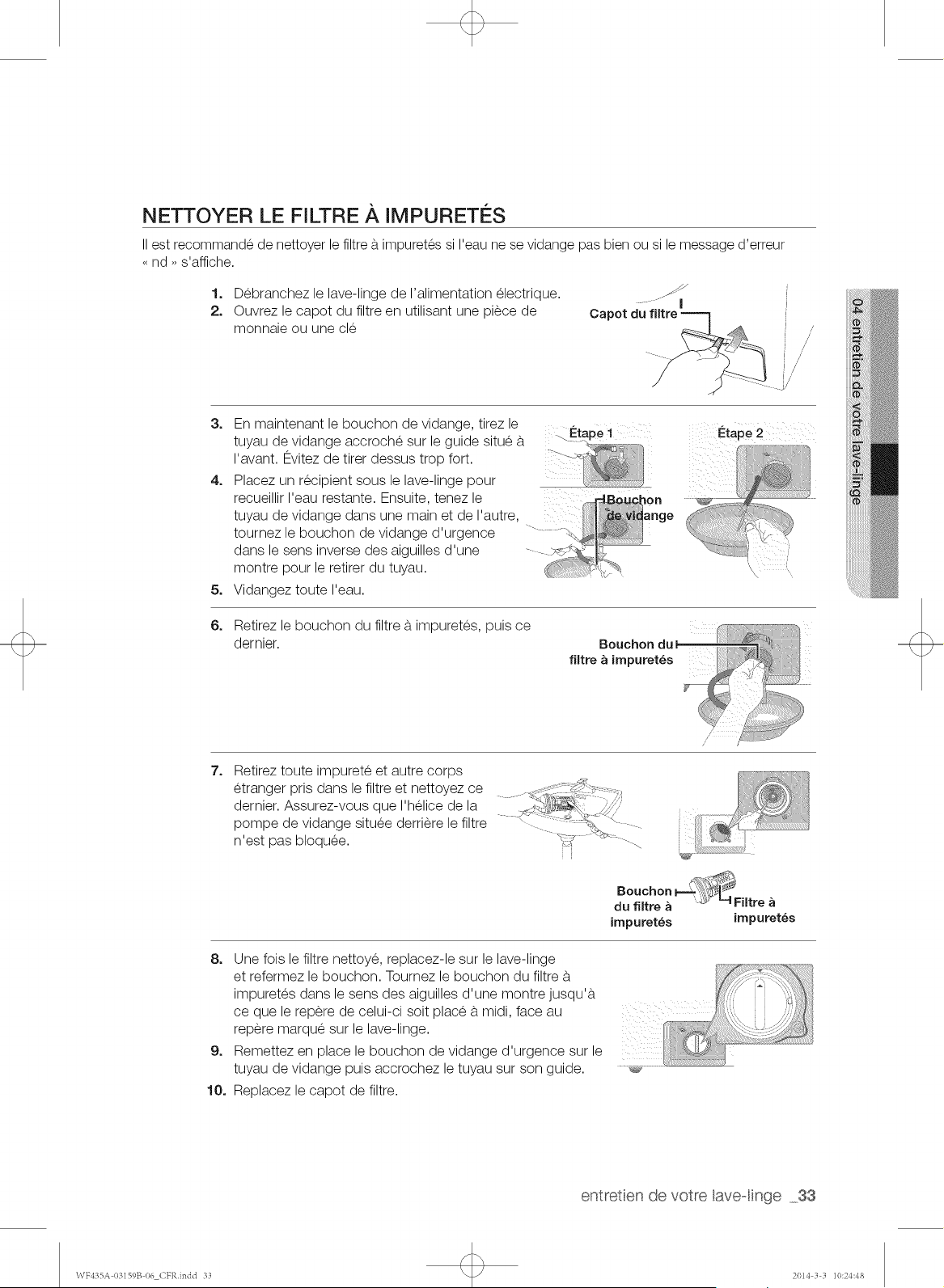

CLEANING THE DEBRIS FILTER

We recommend cleaning the debris filter when water does not drain well or the "nd" error message is displayed•

1. Unplug the washing machine from the power supply• ..........I

2. Open the filter cover using a coin or a key. Filter

i //,

i /

Holding the drain cap, pull the drain tube that

is hooked on the guide hook to the front.Do

not pull the drain tube with excessive force•

Place a bowl under the washing machine

to catch any remaining water• Then, hold

the drain tube with one hand, and turn the

emergency drain cap counter clockwise with

the other hand to separate it from the drain

tube.

Drain the remaining water completely•

Step 1 Step 2

Pull out the debris cap and debris filter assembly•

Debris filter capl

Wash any dirt or other material from the

debris filter• Make sure the drain pump

propeller behind the debris filter is not

blocked•

...... /.

Debts f ter F...=',

',U,''---tDebris filter

cap

8. When you have finished cleaning the filter, insert the debris

cap and filter assembly back into the washer• Turn the

debris filter cap clockwise until the indicator on the debris

filter cap is in the 12 o'clock position, pointing to the

indicator on the washer•

9. Re-attach the emergency drain cap to the drain tube, and

then hook the tube to the hook guide•

10. Re-install the filter cover the filter cover•

r-:_ :'=' (/

maintainng your washer 33

WF435A 03159B 06 ENindd 33 2014 3 3 10:24:30

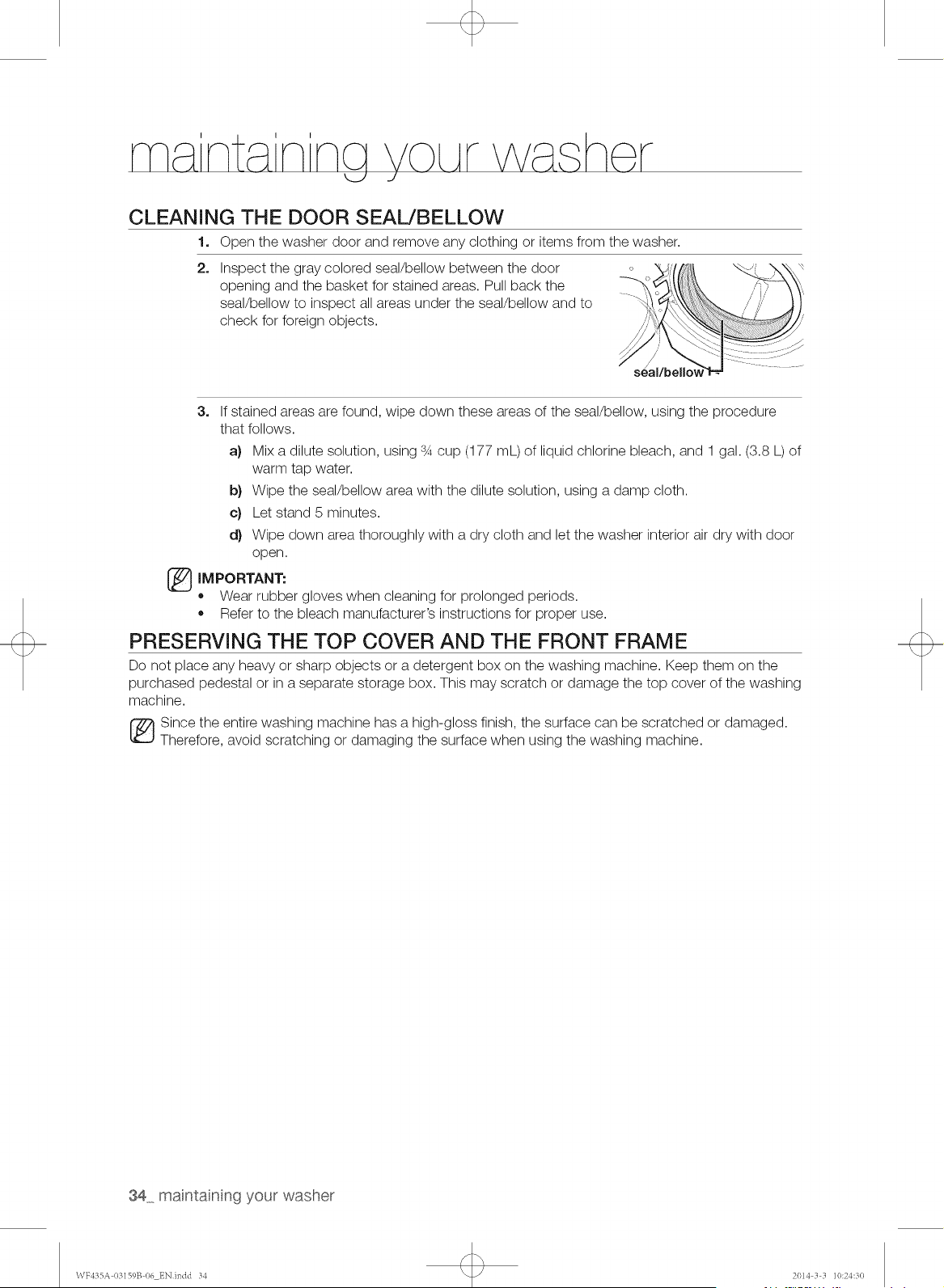

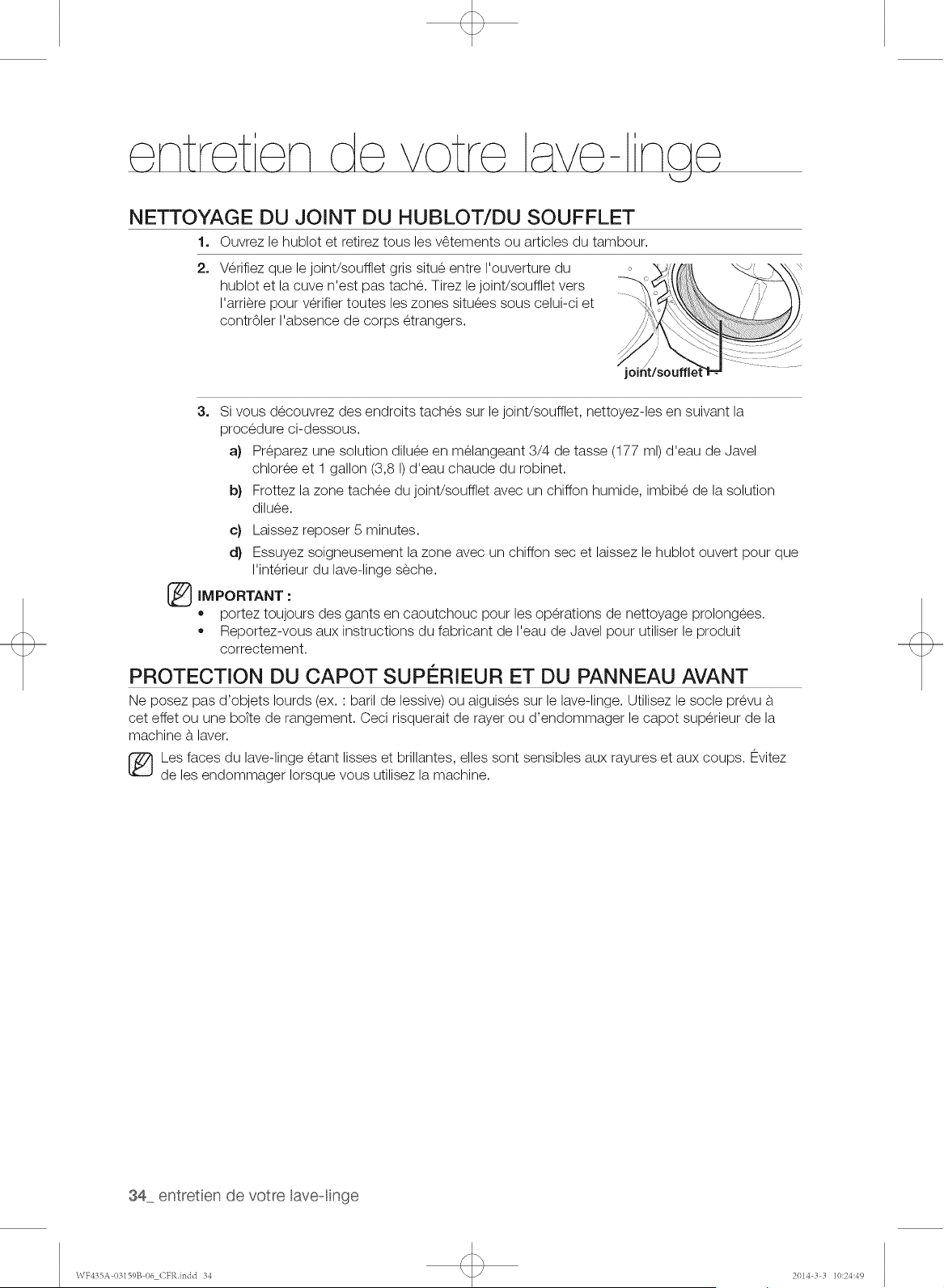

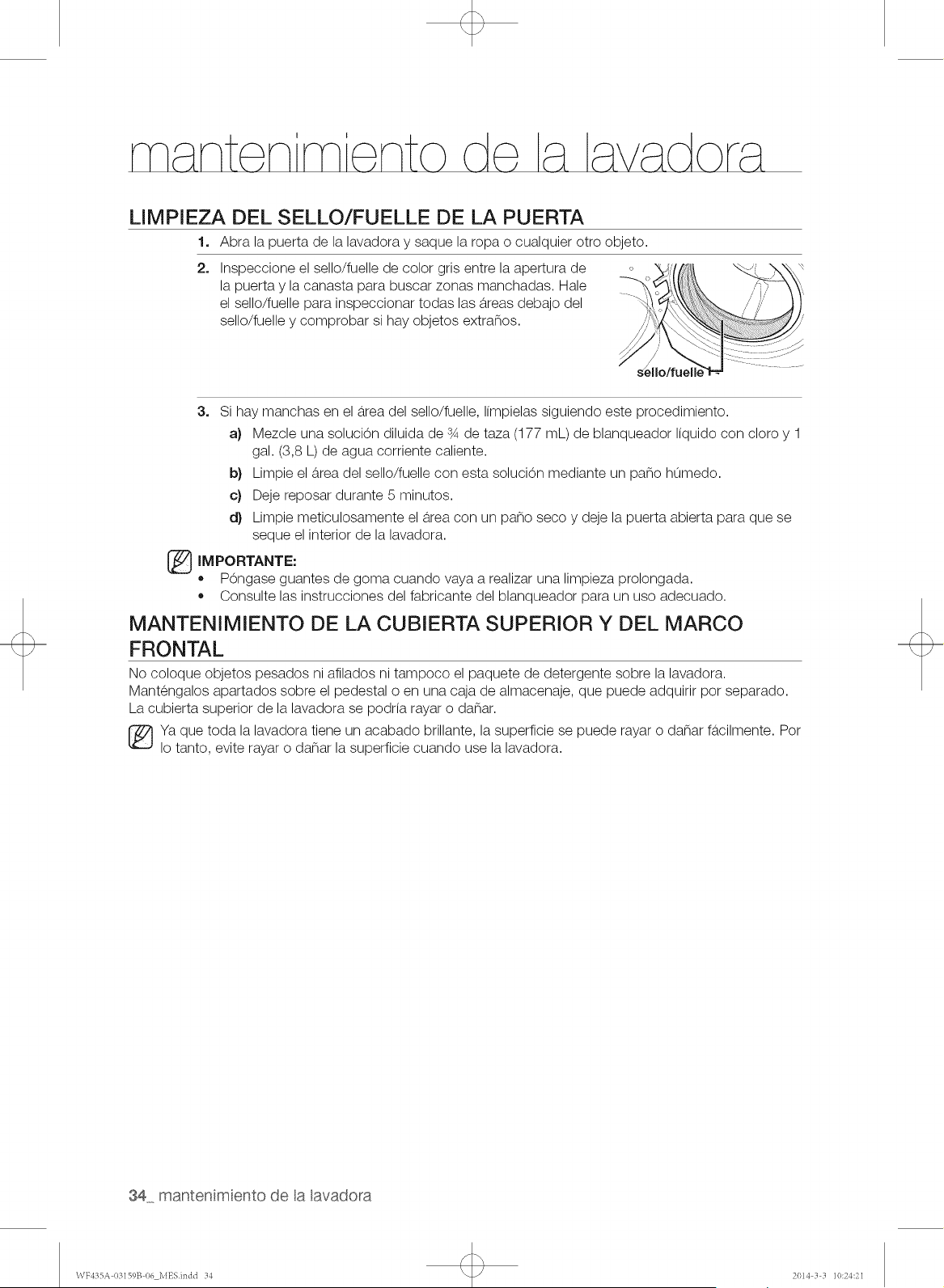

CLEANING THE DOOR SEAL/BELLOW

1. Open the washer door and remove any clothing or items from the washer.

2. "_

Inspect the gray colored seal/bellow between the door

opening and the basket for stained areas. Pull back the

seal/bellow to inspect all areas under the seal/bellow and to

check for foreign objects.

3. If stained areas are found, wipe down these areas of the seal/bellow, using the procedure

that follows.

a) Mix a dilute solution, using % cup (177 mL) of liquid chlorine bleach, and 1 gal. (3.8 L) of

warm tap water.

b} Wipe the seal/bellow area with the dilute solution, using a damp cloth.

c} Let stand 5 minutes.

d} Wipe down area thoroughly with a dry cloth and let the washer interior air dry with door

open.

_ MPORTANT:

= Wear rubber gloves when cleaning for prolonged periods.

• Refer to the bleach manufacturer's instructions for proper use.

PRESERVING THE TOP COVER AND THE FRONT FRAME

Do not place any heavy or sharp objects or a detergent box on the washing machine. Keep them on the

purchased pedestal or in a separate storage box. This may scratch or damage the top cover of the washing

machine.

[_ ince the entire washing machine has a high-gloss finish, the surface can be scratched or damaged.

Therefore, avoid scratching or damaging the surface when using the washing machine.

34 maintainng your washer

WF435A I)3159B I)6 ENindd 34 2014 3 3 10:24:31)

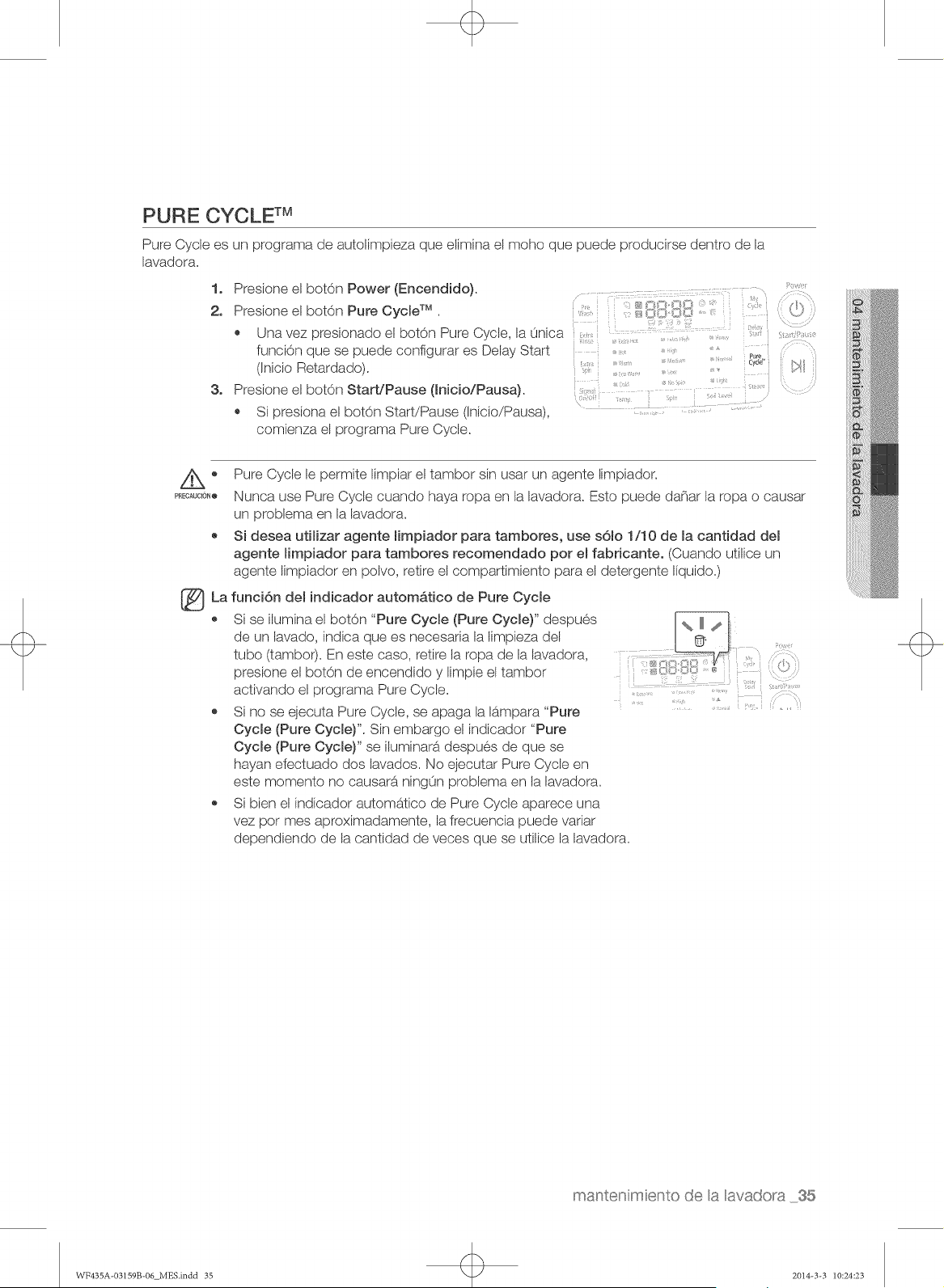

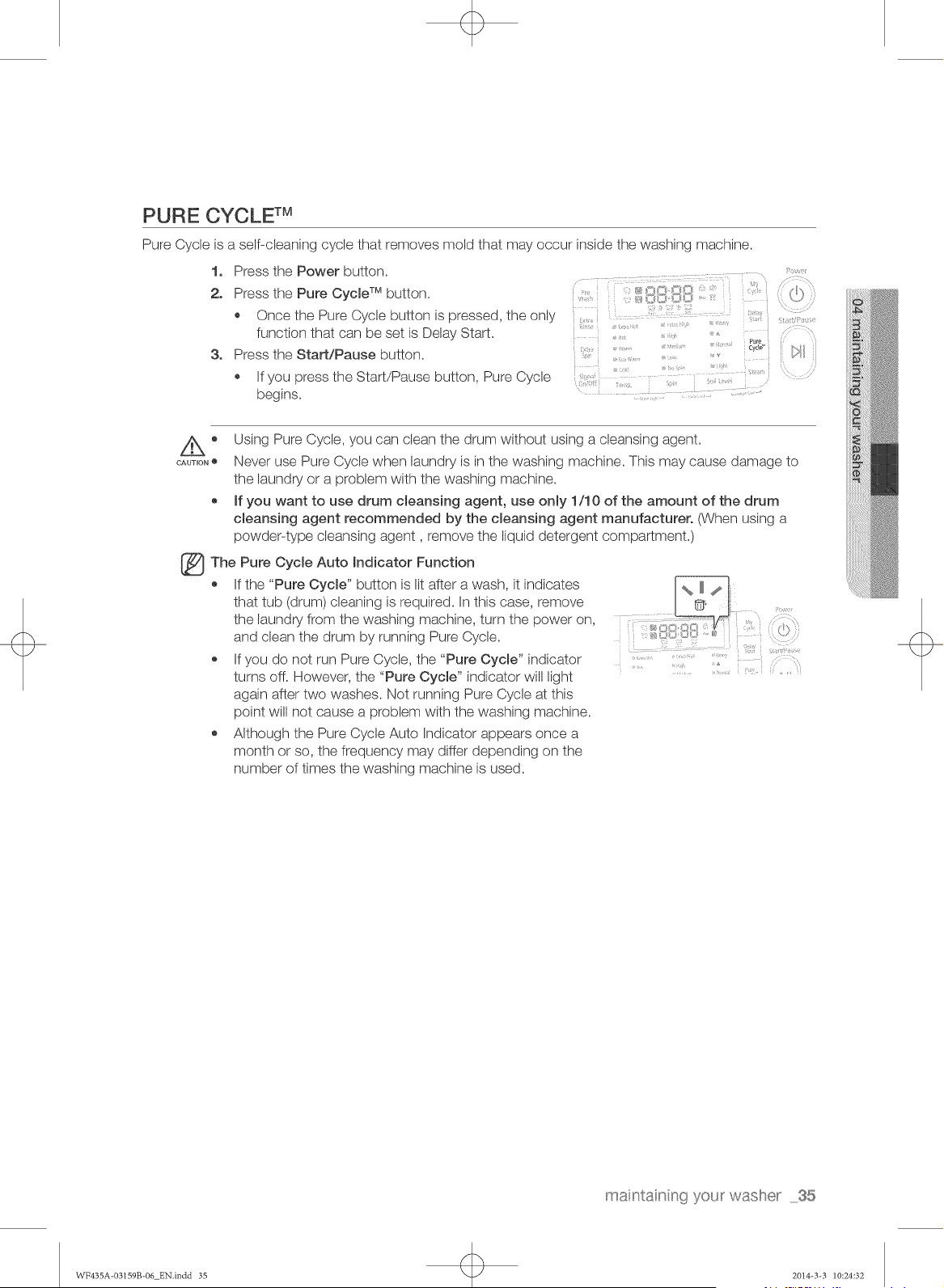

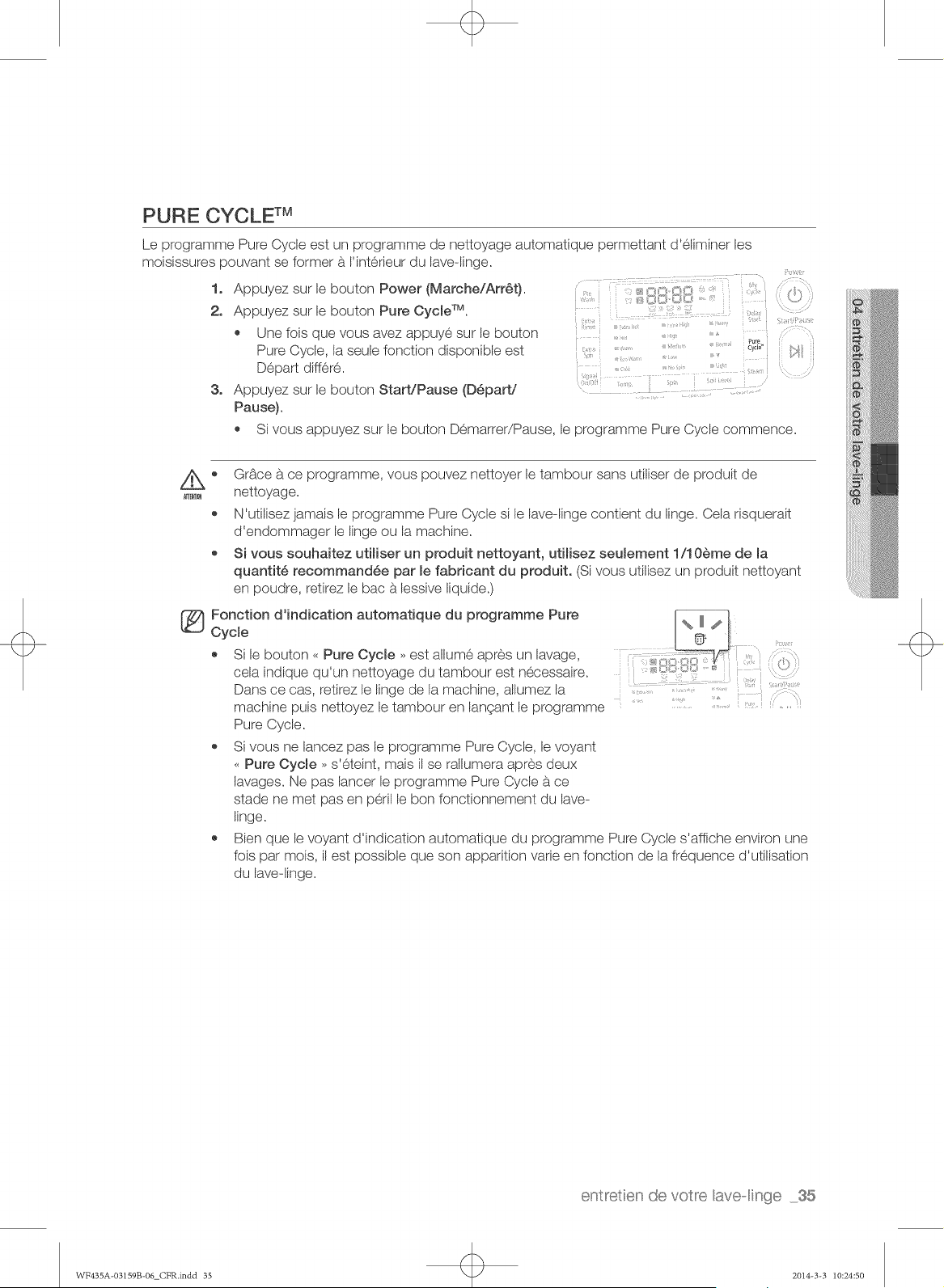

PURE CYCLE TM

Pure Cycle is a self-cleaning cycle that removes mold that may occur inside the washing machine.

1. Press the Power button.

2. Press the Pure CycmeT_ button.

. Once the Pure Cycb button is pressed, the only

function that can be set is Delay Start.

3. Press the Start/Pause button.

. If you press the Start/Pause button, Pure Cycle

begins.

Pure

C_de'

Z_. Using Pure Cycle, you can clean the drum without using a cleansing agent.

CAUT,ON* Never use Pure Cycle when laundry is in the washing machine. This may cause damage to

the laundry or a problem with the washing machine.

, If you want to use drum cmeansing agent, use onmy1/10 of the amount of the drum

cleansing agent recommended by the cmeansing agent manufacturer. (When using a

powder-type cleansing agent, remove the liquid detergent compartment.)

The Pure Cycb Auto Indicator Function

* If the "Pure CycW' button is lit after a wash, it indicates

that tub (drum) cleaning is required. In this case, remove

the laundry from the washing machine, turn the power on,

and clean the drum by running Pure Cycle.

. If you do not run Pure Cycle, the "Pure Cycme" indicator

turns off. However, the "Pure Cycb" indicator will light

again after two washes. Not running Pure Cycb at this

point will not cause a problem with the washing machine.

. Although the Pure Cycle Auto Indicator appears once a

month or so, the frequency may differ depending on the

number of times the washing machine is used.

maintainng your wasl!"_er 35

WE435A-03159B-06 EN.indd 35 2014-3-3 10:24:32

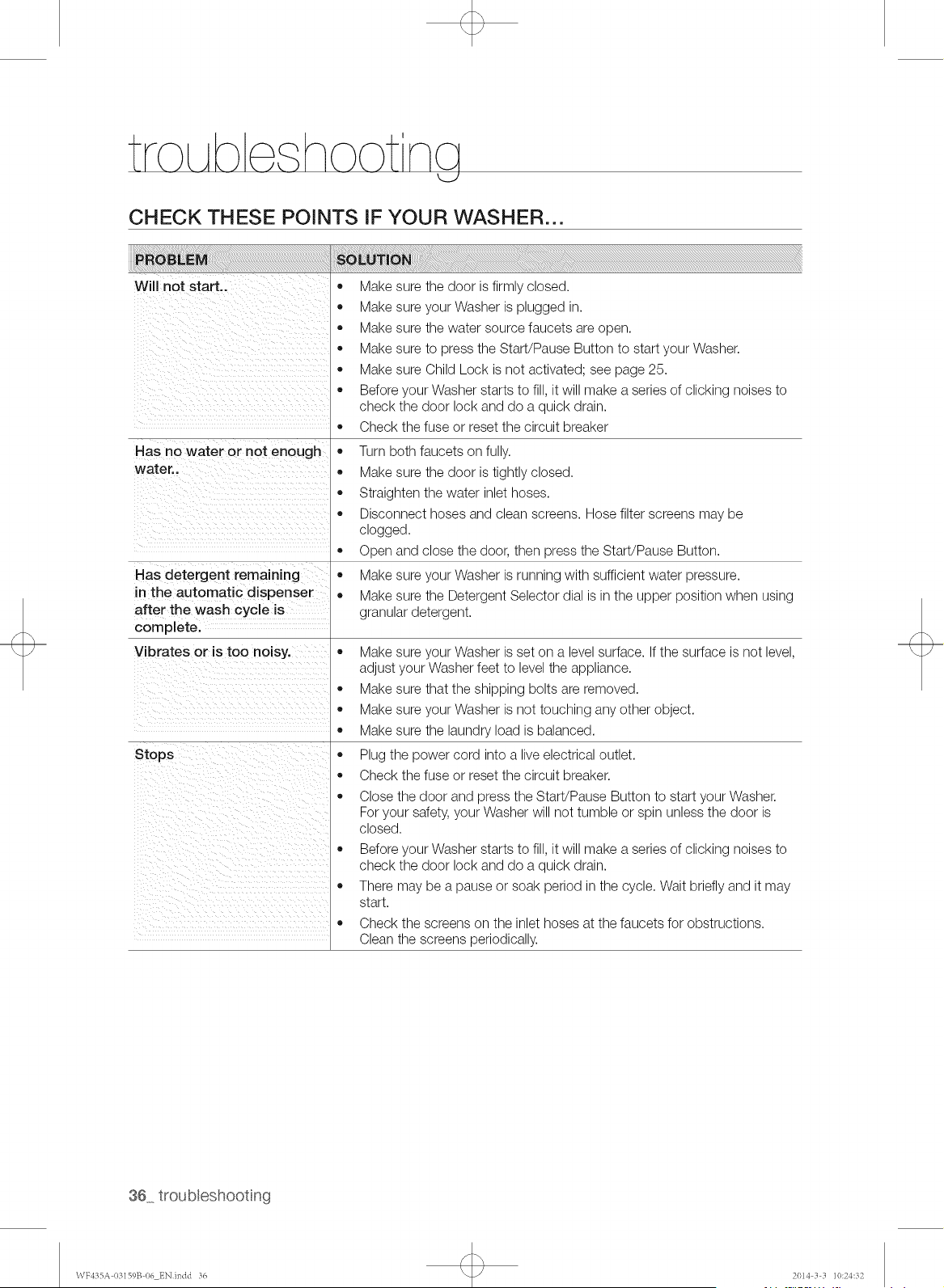

troLAbe hootncj

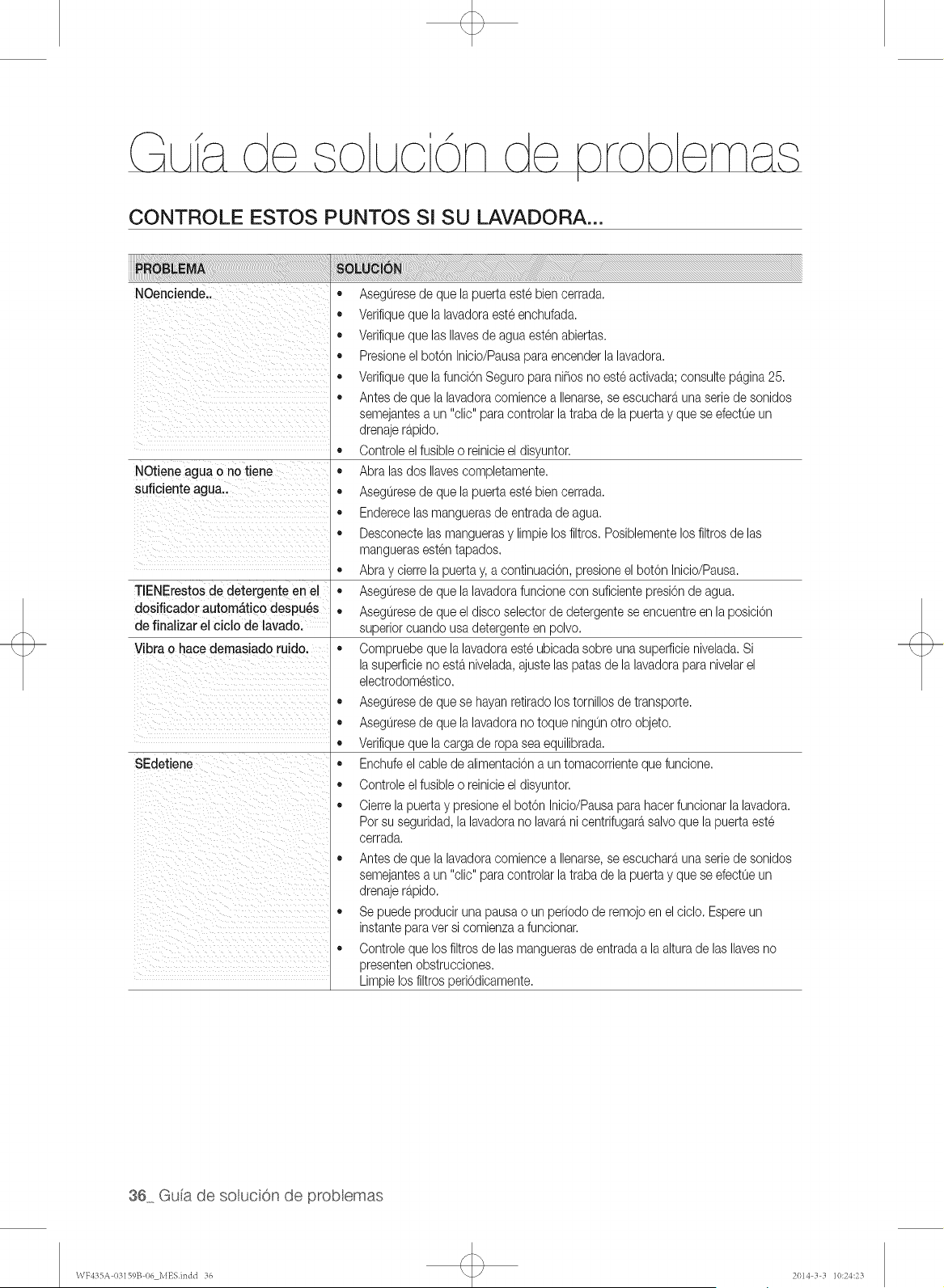

CHECK THESE POINTS IF YOUR WASHER...

Will not start..

Has no water or not enough

water..

Has detergent remaining

in the automatic dispenser

after the wash cycle is

complete.

Vibrates or is too noisy.

Stops

,, Make sure the door is firmly closed.

Make sure your Washer is plugged in.

,, Make sure the water source faucets are open.

Make sure to press the Start/Pause Button to start your Washer.

,, Make sure Child Lock is not activated; see page 25.

,, Before your Washer starts to fill, it will make a series of clicking noises to

check the door lock and do a quick drain.

,, Check the fuse or reset the circuit breaker

Turn both faucets on fully.

Make sure the door is tightly closed.

,, Straighten the water inlet hoses.

,, Disconnect hoses and clean screens. Hose filter screens may be

clogged.

Open and close the door, then press the Start/Pause Button.

Make sure your Washer is running with sufficient water pressure.

Make sure the Detergent Selector dial is in the upper position when using

granular detergent.

,, Make sure your Washer is set on a level surface. If the surface is not level,

adjust your Washer feet to level the appliance.

Make sure that the shipping bolts are removed.

Make sure your Washer is not touching any other object.

,, Make sure the laundry load is balanced.

,, Plug the power cord into a live electrical outlet.

,, Check the fuse or reset the circuit breaker.

Close the door and press the Start/Pause Button to start your Washer.

For your safety, your Washer will not tumble or spin unless the door is

closed.

,, Before your Washer starts to fill, it will make a series of clicking noises to

check the door lock and do a quick drain.

,, There may be a pause or soak period in the cycle. Wait briefly and it may

start.

Check the screens on the inlet hoses at the faucets for obstructions.

Clean the screens periodically.

36 troubleshooting

WF4ZSSA 0Zq59B 0C, ENindd )6 2014 ft ft 10:24:F2

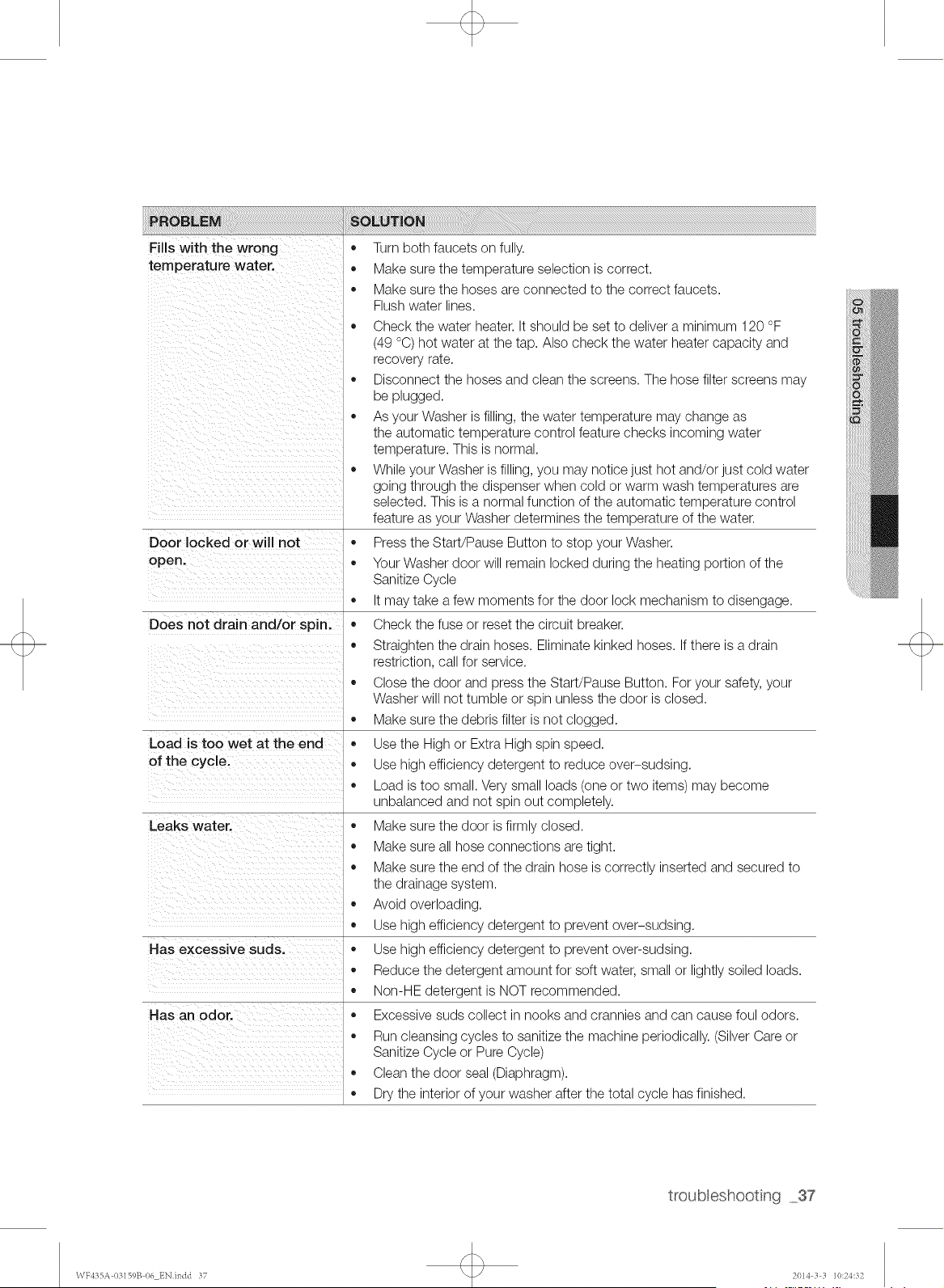

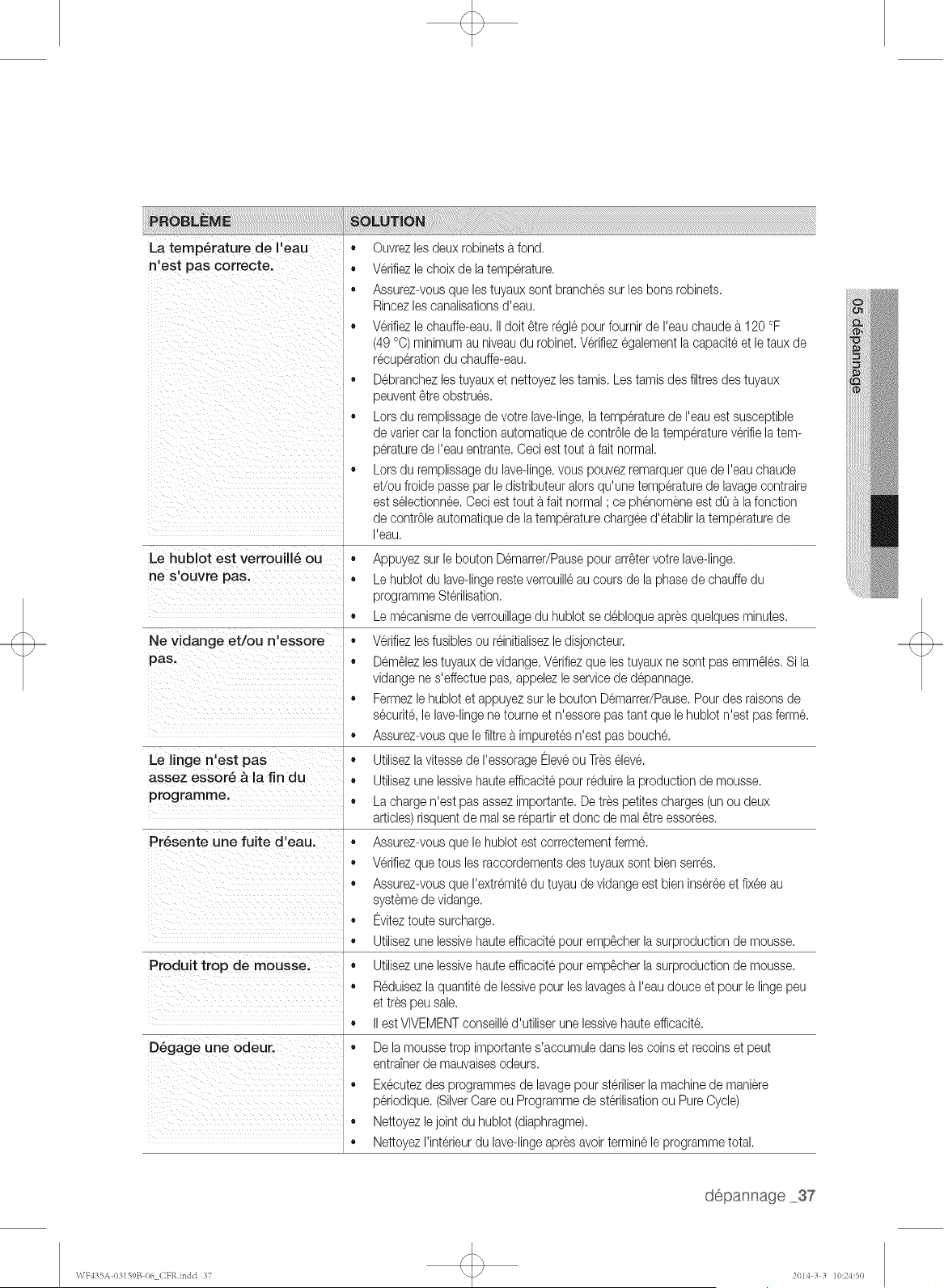

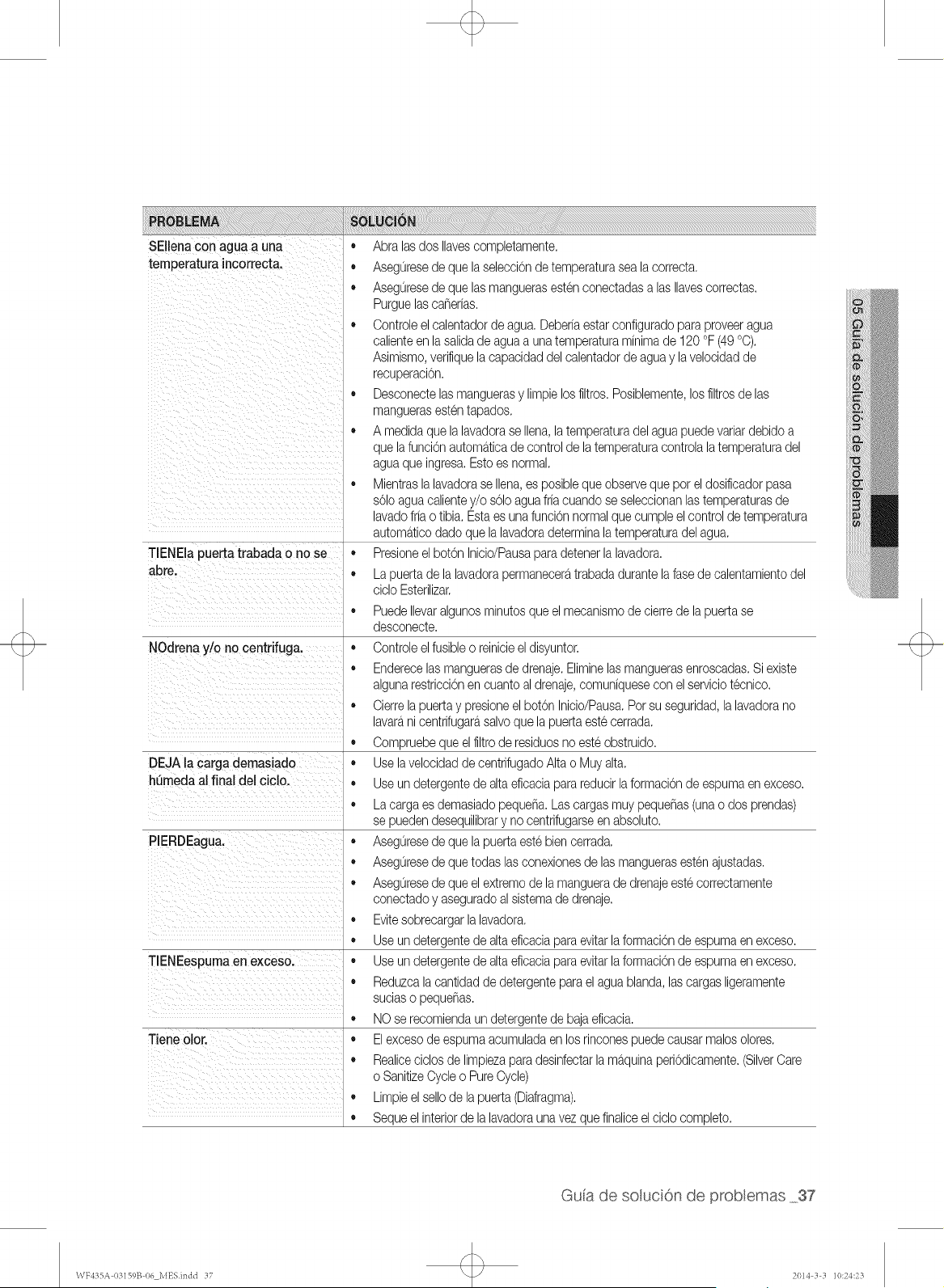

PROBLEM

Fills with the wrong

temperature water.

Door locked or will not

open.

Does not drain and/or spin.

Load is too wet at the end

of the cycle.

Leaks water.

Has excessive suds.

Has an odor.

,, Turn both faucets on fully.

,, Make sure the temperature selection is correct.

,, Make sure the hoses are connected to the correct faucets.

Flush water lines.

Check the water heater. It should be set to deliver a minimum 120 °F

(49 °C) hot water at the tap. Also check the water heater capacity and

recovery rate.

,, Disconnect the hoses and clean the screens. The hose filter screens may

be plugged.

As your Washer is filling, the water temperature may change as

the automatic temperature control feature checks incoming water

temperature. This is normal.

While your Washer is filling, you may notice just hot and/or just cold water

going through the dispenser when cold or warm wash temperatures are

selected. This is a normal function of the automatic temperature control

feature as your Washer determines the temperature of the water.

Press the Start/Pause Button to stop your Washer.

Your Washer door will remain locked during the heating portion of the

Sanitize Cycle

It may take a few moments for the door lock mechanism to disengage.

,, Check the fuse or reset the circuit breaker.

Straighten the drain hoses. Eliminate kinked hoses. If there is a drain

restriction, call for service.

Close the door and press the Start/Pause Button. Foryour safety, your

Washer will not tumble or spin unless the door is closed.

Make sure the debris filter is not clogged.

Use the High or Extra High spin speed.

Use high efficiency detergent to reduce over-sudsing.

Load is too small. Very small loads (one or two items) may become

unbalanced and not spin out completely.

Make sure the door is firmly closed.

,, Make sure all hose connections are tight.

Make sure the end of the drain hose is correctly inserted and secured to

the drainage system.

Avoid overloading.

,, Use high efficiency detergent to prevent over-sudsing.

,, Reduce the detergent amount for soft water, small or lightly soiled loads.

Non-HE detergent is NOT recommended.

,, Excessive suds collect in nooks and crannies and can cause foul odors.

,, Run cleansing cycles to sanitize the machine periodically. (Silver Care or

Sanitize Cycle or Pure Cycle)

_, Clean the door seal (Diaphragm).

Dry the interior of your washer after the total cycle has finished.

troub eshooting _37

WIz4:SSA 0:q59B 0C, ENindd f_7 2014 ft ft 10:24:F2

troLAbe hootncj

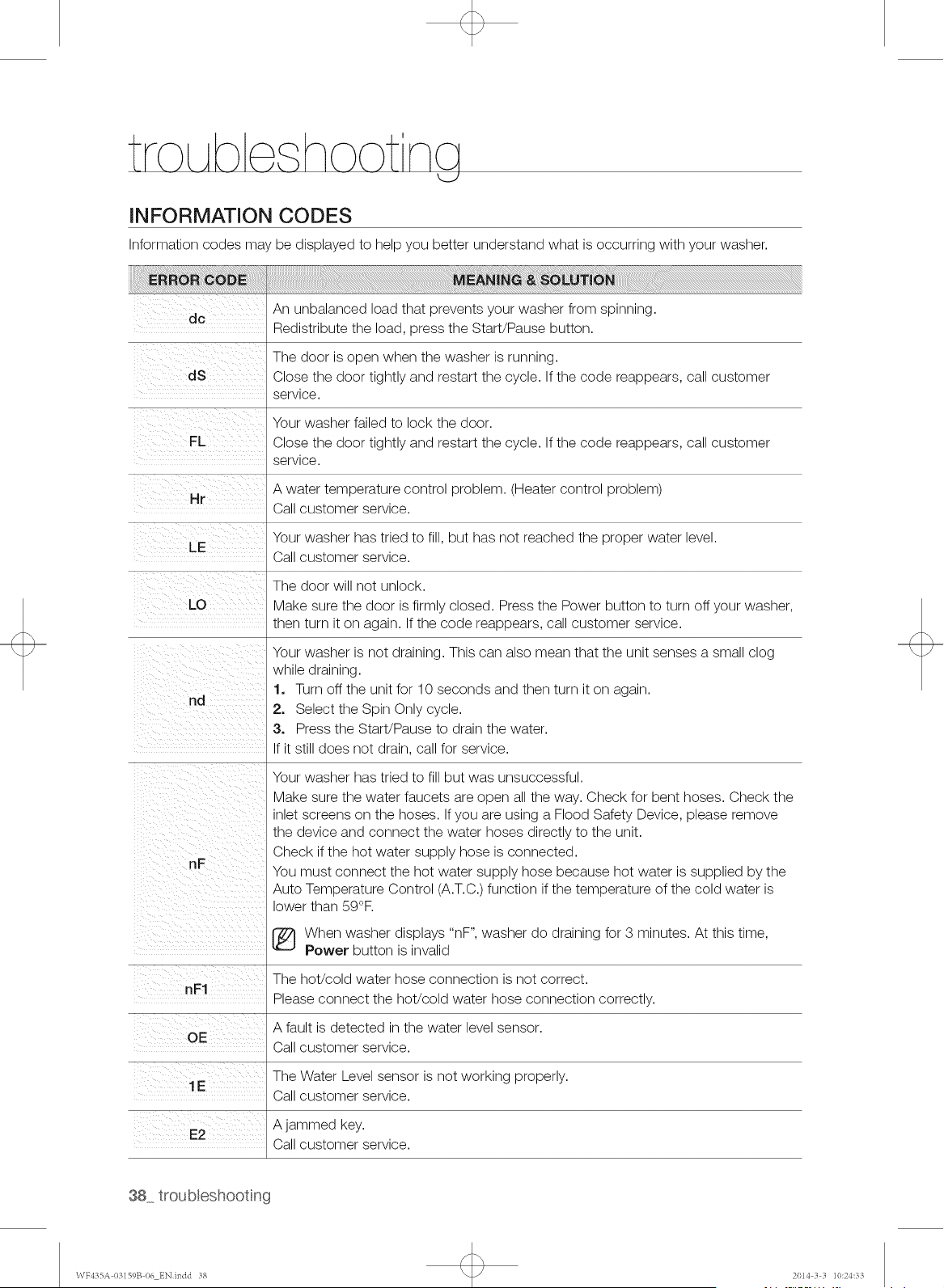

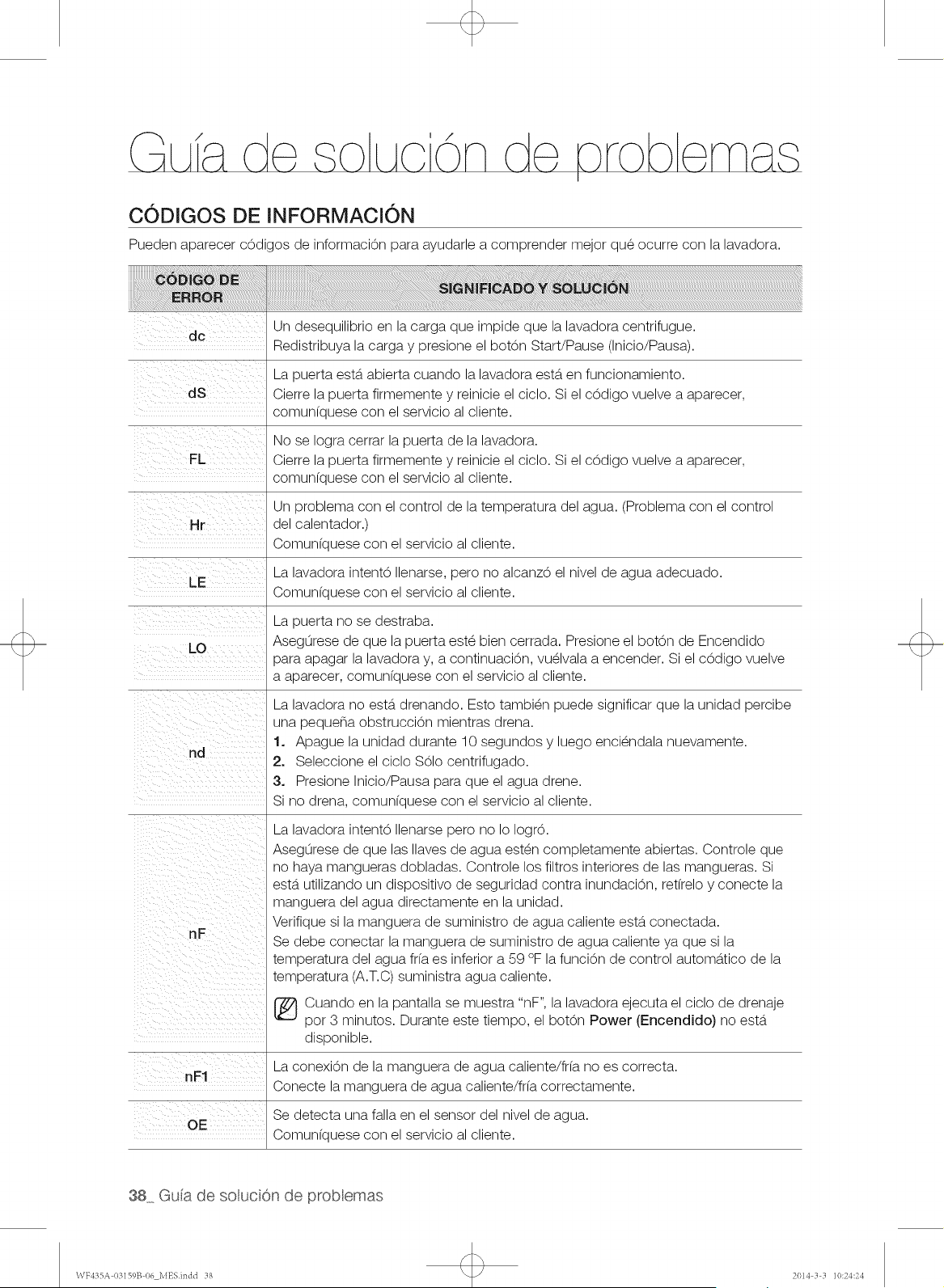

INFORMATION CODES

Information codes may be displayed to help you better understand what is occurring with your washer.

An unbalanced load that prevents your washer from spinning.

Redistribute the load, press the Start/Pause button.

The door is open when the washer is running.

dS Close the door tightly and restart the cycle. If the code reappears, call customer

service.

Your washer failed to lock the door.

FL Close the door tightly and restart the cycle. If the code reappears, call customer

service.

A water temperature control problem. (Heater control problem)

Call customer service.

Your washer has tried to fill, but has not reached the proper water level.

Call customer service.

The door will not unlock.

LO Make sure the door is firmly closed. Press the Power button to turn off your washer,

then turn it on again. If the code reappears, call customer service.

Your washer is not draining. This can also mean that the unit senses a small clog

while draining.

1, Turn off the unit for 10 seconds and then turn it on again.

2, Select the Spin Only cycle.

3, Press the Start/Pause to drain the water.

If it still does not drain, call for service.

Your washer has tried to fill but was unsuccessful.

Make sure the water faucets are open all the way. Check for bent hoses. Check the

inlet screens on the hoses. If you are using a Flood Safety Device, please remove

the device and connect the water hoses directly to the unit.

Check if the hot water supply hose is connected.

You must connect the hot water supply hose because hot water is supplied by the

Auto Temperature Control (A.T.C.) function if the temperature of the cold water is

lower than 59°F.

When washer displays "nF", washer do draining for 3 minutes. At this time,

Power button is invalid

The hot/cold water hose connection is not correct.

nF1

Please connect the hot/cold water hose connection correctly.

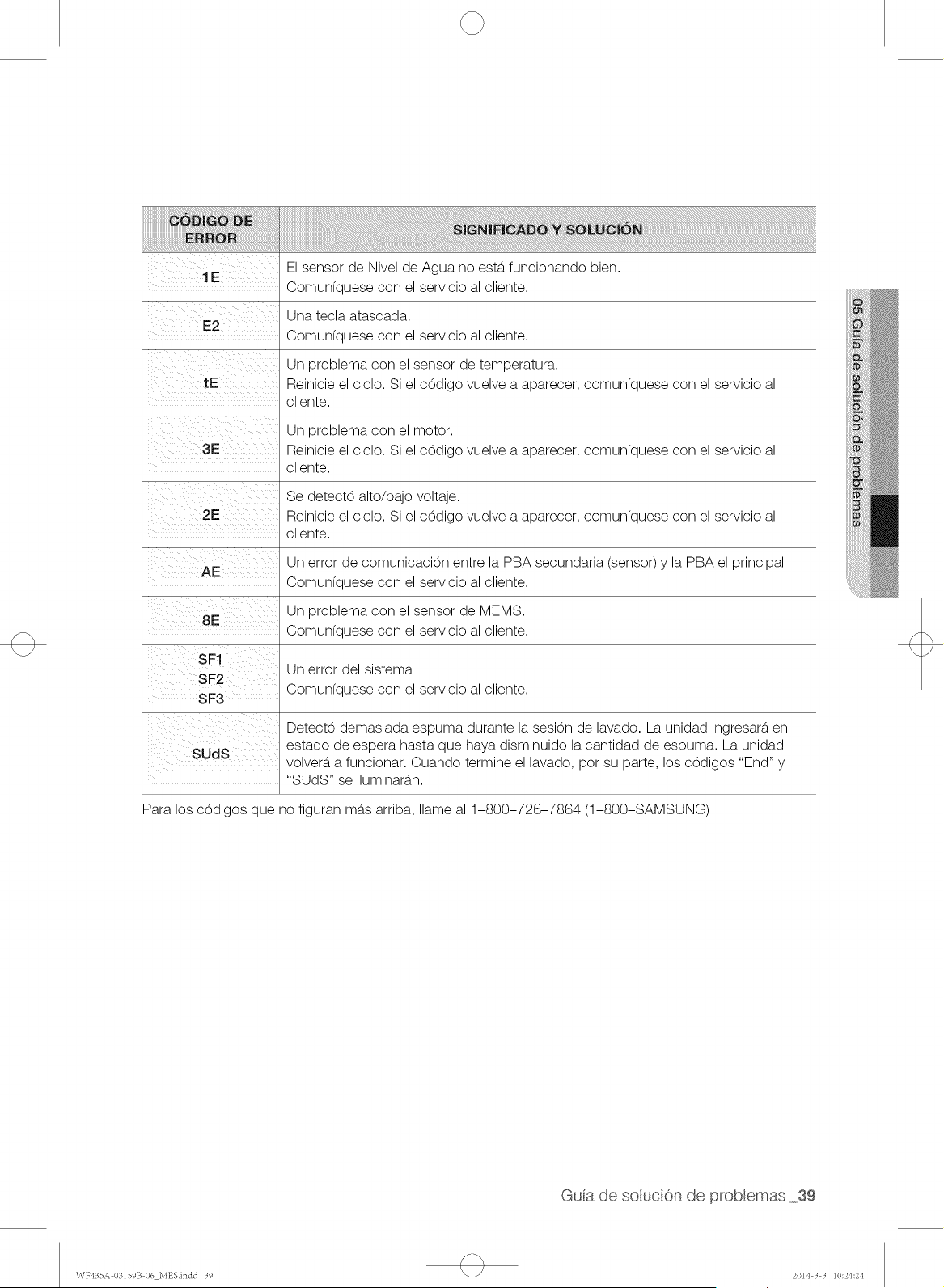

A fault is detected in the water level sensor.

Call customer service.

The Water Level sensor is not working properly.

Call customer service.

A jammed key.

Call customer service.

38 troubleshooting

WF4:SSA 0:q59B 06 ENindd :_8 2014 :t :t 1(/:24:33

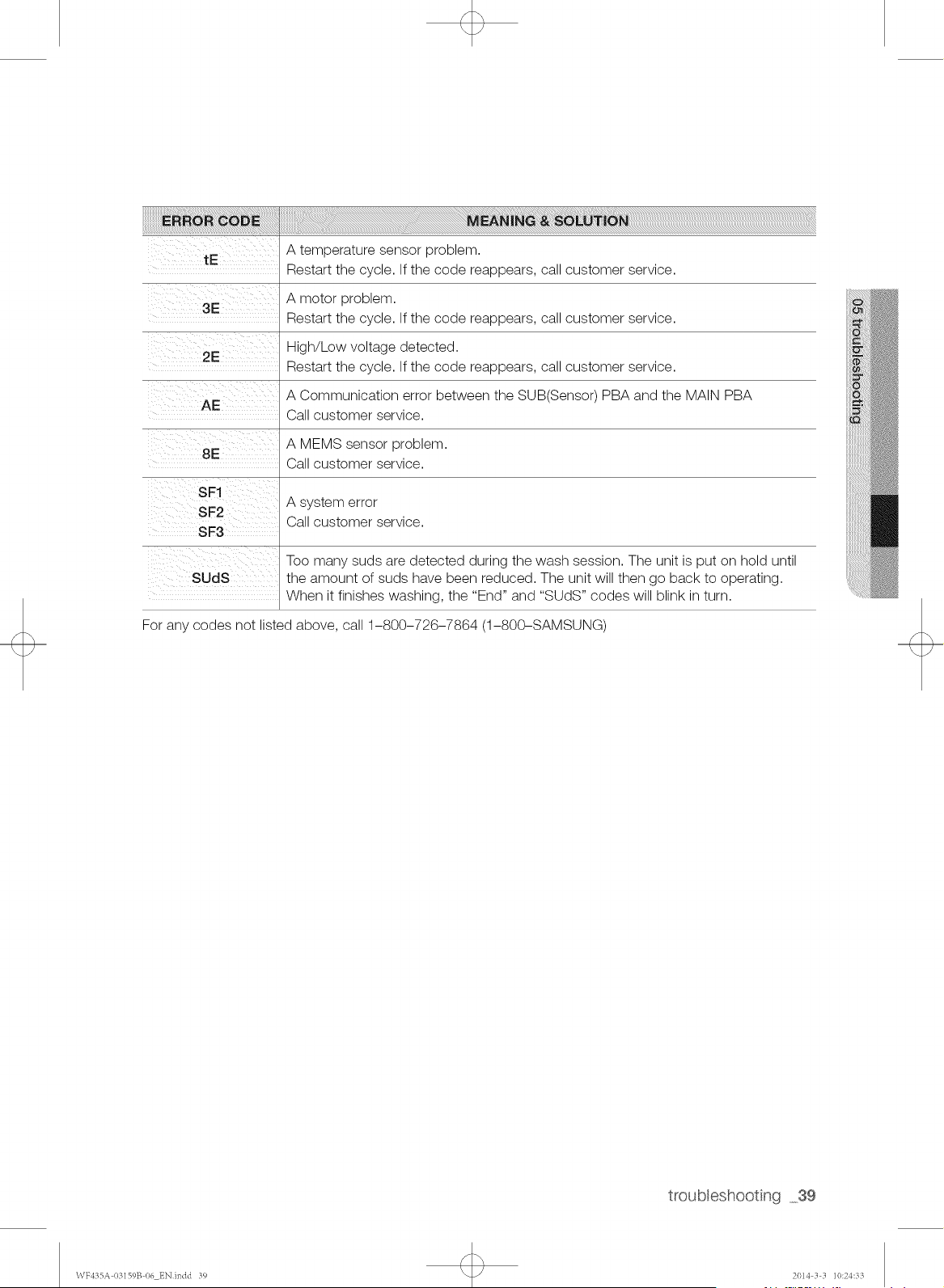

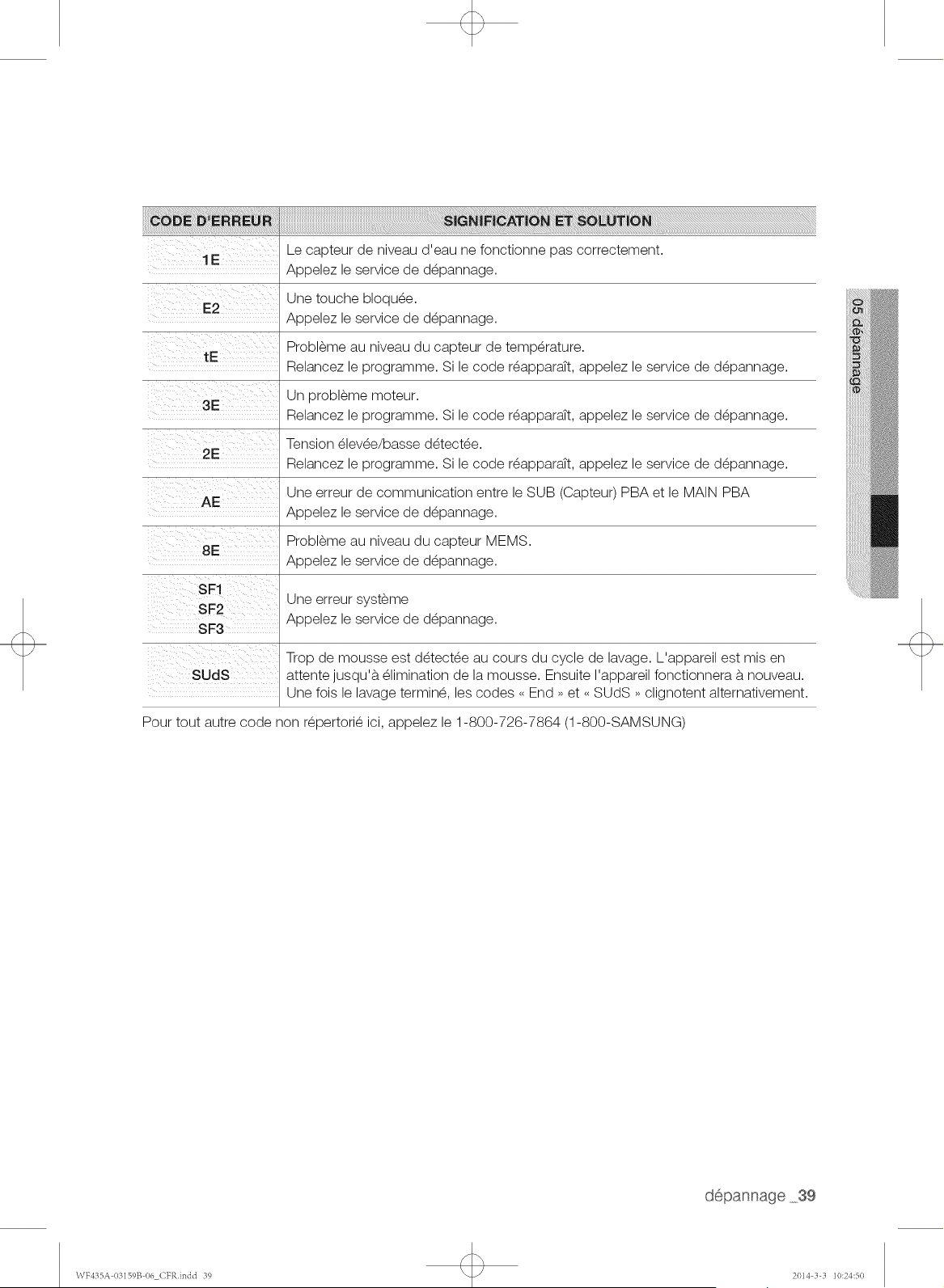

A temperature sensor problem.

Restart the cycle. If the code reappears, call customer service.

A motor problem.

Restart the cycle. If the code reappears, call customer service.

High/Low voltage detected.

Restart the cycle. If the code reappears, call customer service.

A Communication error between the SUB(Senso0 PBA and the MAIN PBA

Call customer service.

A MEMS sensor problem.

Call customer service.

SF1

A system error

SF2

Call customer service.

SF3

Too many suds are detected during the wash session. The unit is put on hold until

SUdS the amount of suds have been reduced. The unit will then go back to operating.

When it finishes washing, the "End" and "SUDS" codes will blink in turn.

For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG)

troubleshooting 39

WF435A 03159B 06 ENindd 39 2014 3 3 1(/:24:33

a,ppendx

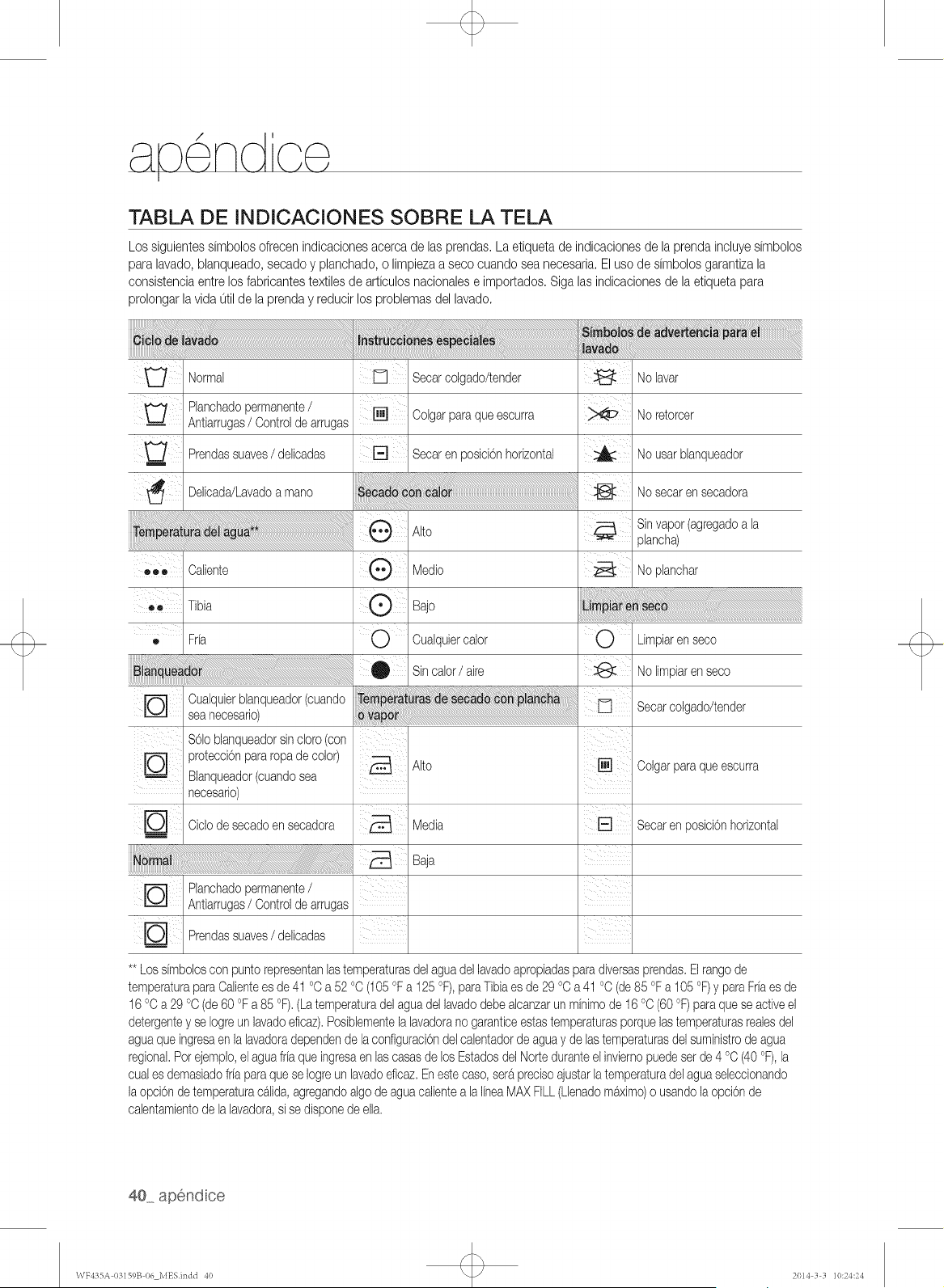

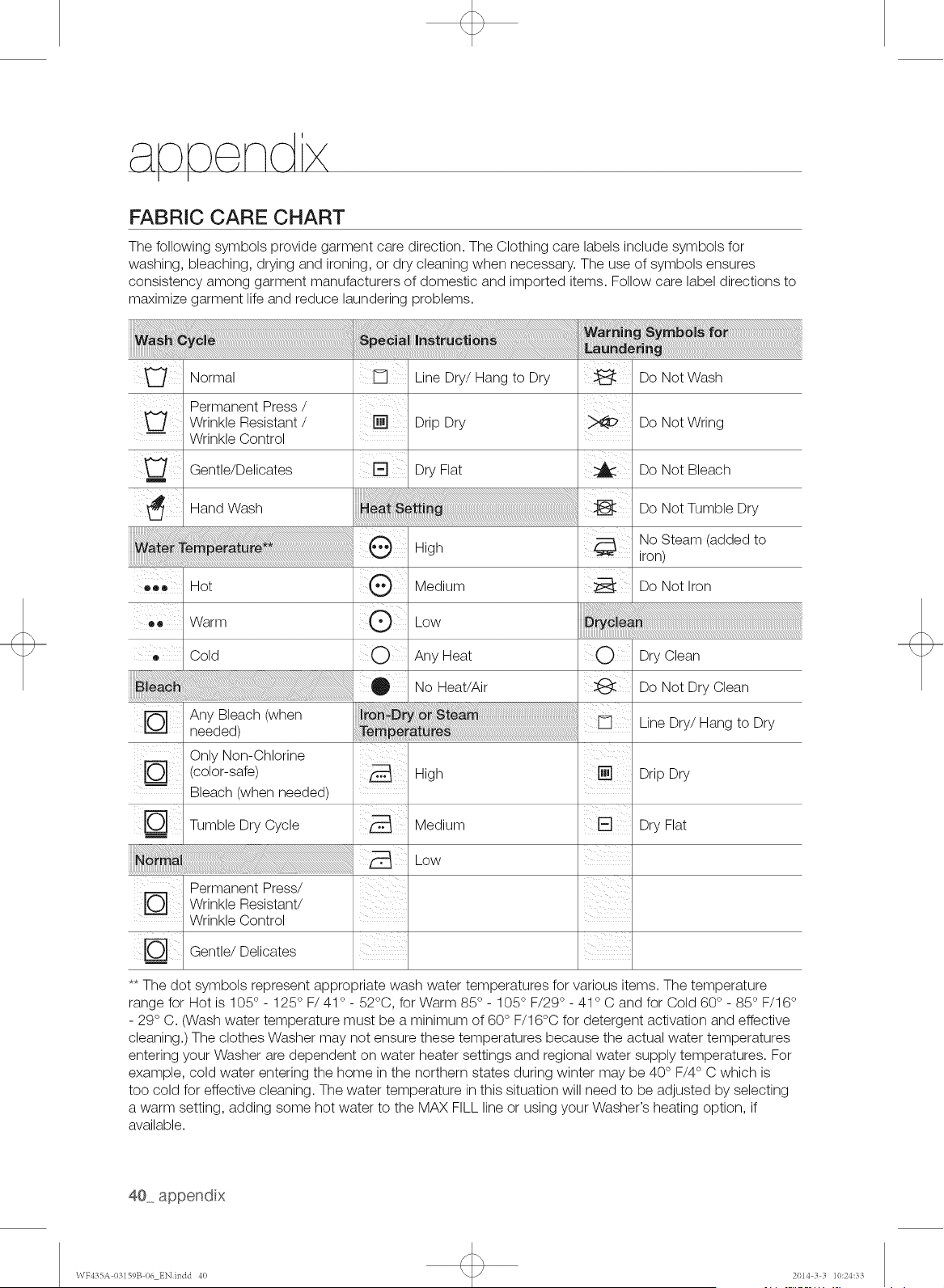

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for

washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures

consistency among garment manufacturers of domestic and imported items. Follow care label directions to

maximize garment life and reduce laundering problems.

fluid!PermanentPress/Wrinkle Resistant /

Wrinkle Control

Gentle/Delicates

Line Dry/Hang to Dry _ Do Not Wash

[] Drip Dry

Dry Flat

Hand Wash

iii!

•,. Hot @

** Warm

o Cold O

(/O-1!}

Any Bleach (when

needed)

Only Non-Chlorine

(color-safe)

Bleach (when needed)

Medium

iii i i

Do Not Wring

Do Not Bleach

Tumble Dry Cycle

Do Not Tumble Dry

No Steam (added to

High iron)

Medium Do Not Iron

Low

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Permanent Press/

Wrinkle Resistant/

Wrinkle Control

Gentle/Delicates

Low

Any Heat O Dry Clean

No Heat/Air Do Not Dry Clean

_ _ at Line Dry/Hang to Dry

High Drip Dry

Dry Flat

** The dot symbols represent appropriate wash water temperatures for various items. The temperature

range for Hot is 105° - 125 ° F/41 ° - 52°C, for Warm 85 ° - 105 ° F/29 ° - 41 ° C and for Cold 60 ° - 85 ° F/16 °

- 29 ° C. (Wash water temperature must be a minimum of 60 ° F/16°C for detergent activation and effective

cleaning.) The clothes Washer may not ensure these temperatures because the actual water temperatures

entering your Washer are dependent on water heater settings and regional water supply temperatures. For

example, cold water entering the home in the northern states during winter may be 40 ° F/4° C which is

too cold for effective cleaning. The water temperature in this situation will need to be adjusted by selecting

a warm setting, adding some hot water to the MAX FILL line or using your Washer's heating option, if

available.

40 append x

\\TF435A 03159B 06 ENJndd 4(} 2014 3 3 10:24:33

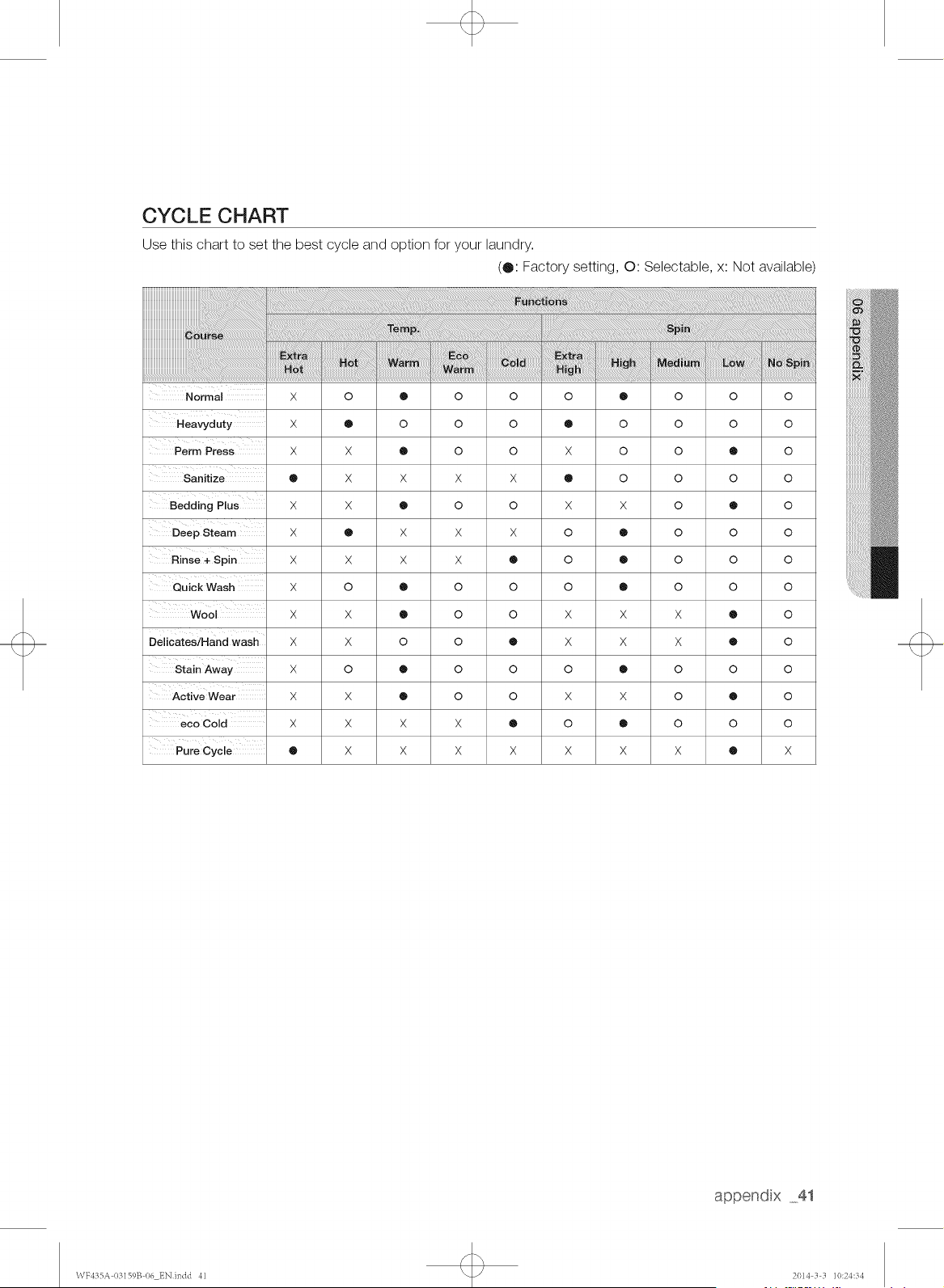

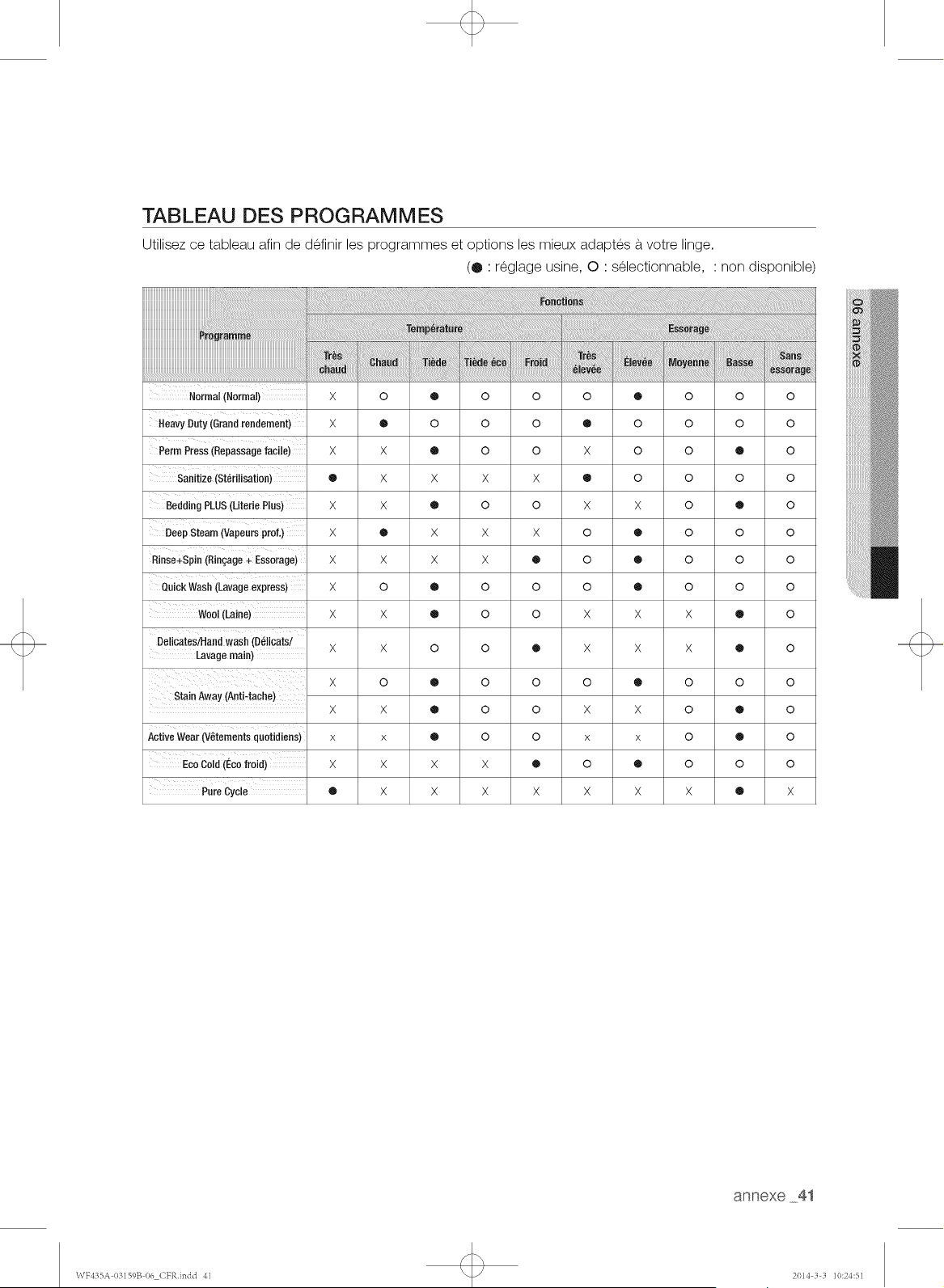

CYCLE CHART

Use this chart to set the best cycle and option for your laundry.

(0: Factory setting, O: Selectable, x: Not available)

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!!_!!i_i!i_!_i!ii!iii__ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i_i_iiiiiii_i_i_i_ii_ii_i_i_i_i_ii'ii:i_!ili_iii_ii_ii_ii_ii_iiiiiiii!i_ii_iii__ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i_iii_i_i_i_i_i_ii_ii_ii_ii_iiiiiiiiiii!!ii!!iiiiiiiiiiiiiiiiiiiiliiiliiiiiii!i!i!!_i_i_i_i_i_i_!i_!_!!!!!!!!!!!!!!!iiiii!ii_i_i_i_i_ii_ii_iiiiii!iii_ii_iiiiiiiiiiiiii_iiii!i!_i_¸i_i_ii_i!_!i!iii_ii_ii_ii_i_i_i_i_i__ii_iii_iiiiiiiliii!!iiiiiiiiiiiiiiiiiilili!i!i_ii_i_iliii!!ii!!iiiii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i_i_i_i_!_i_!_i_iiiiiiiiiiiiiiiiiiiliiliiiiiii_iiii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iiiiiiiiiiiiiiili_i!_!i_i_i__ii__i_i_i_i_i_i!!_!_iiii_i_i_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_iiiiiiiiiiii_iiiiiiliii!iii!!iii_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i!i_!_!ii!_i_!!!i!ii!ii!ii!i!!i!!i!iii!_i!ii!i!_i_i_i_i_i!i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i__i¸_!i_!i!i!i!ii¸_!_i_iiili!_ii_i!_ii_iliiiiiiiiililiili_iiii_ili_i_ill_i_ii!iiiiiiii_ii_ii_iiiiiiii_i_i_iiiiiiii_ii_ii_ii_ii_iiiiiiiiil!ii!!iiliiii!i!i!i!i_i_i_i_i_i_i_i_i_iiiiiiiiiiiiiiiiiiiii_i!!ii!i!_i_!_!_!_!_!_!_!_!_!_!_!_!_!_!!_!!_!ii!!!_i_

ii'iil¸iiii!i!!!!!!iiiiliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!i!!iiiiiiiiiiii_!!iiiiiii!iiiiiiiiiiillJi_i_ii¸;_il!i!iiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiii_ii_iiiiiiiiiili_ii!!!iiii_?i:i:i:iiiiiiiiiliiiiiiiiiiiii_i_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiE_i_iiiiiiiiiiiiiiii!!iiiiiiiiiiiiiiiiiiiiiiiiiillliiiiJi{_!!iiii!!!!!!!!!!!i!!iiiiiiiiii!iE__ili_ii_!!!!!!!!!!¢i!!ii_i_i!_iiiii!ii!_;_iiii!!i!!!!!!iiiiii!iiiii_ii_i_i_!!i_;_;_iiiiiiiiiiiiiili_i_i¸!i_iiiii!ii_iiii_iiiiiiii!iilliiii!_iiii_ii_!i¸iiiiiiiiii_i!iii_ii_ii!ii!ii!iiiiii!:iii!!!ili_!iiiii_i!_i_i!iiiiiii_i_i_;iiii_i_iiiiiiiiiiiiiiii!i!i

Normal X O @ O O O @ O O O

Neavyduty X @ O O O @ O O O O

Perm Press X X @ O O X O O @ O

Sanitize @ X X X X @ O O O O

Bedding Plus X X @ O O X X O @ O

Deep Steam X • X X X O _ O O O

Rinse + Spin X X X X ® O _ O O O

Quick Wash X O @ O O O @ O O O

Wool X X _ O O X X X _ O

Delicates/Hand wash X X O O ® X X X ® O

Stain Away X O @ O O O @ O O O

Active Wear X X @ 0 0 X X 0 @ 0

eco Cold X X X X @ 0 @ 0 0 0

Pure Cycle @ X X X X X X X @ X

append x 41

\VF435A I)3159B 06 ENindd 41 2014 3 3 1(}:24:34

a,,ppondx

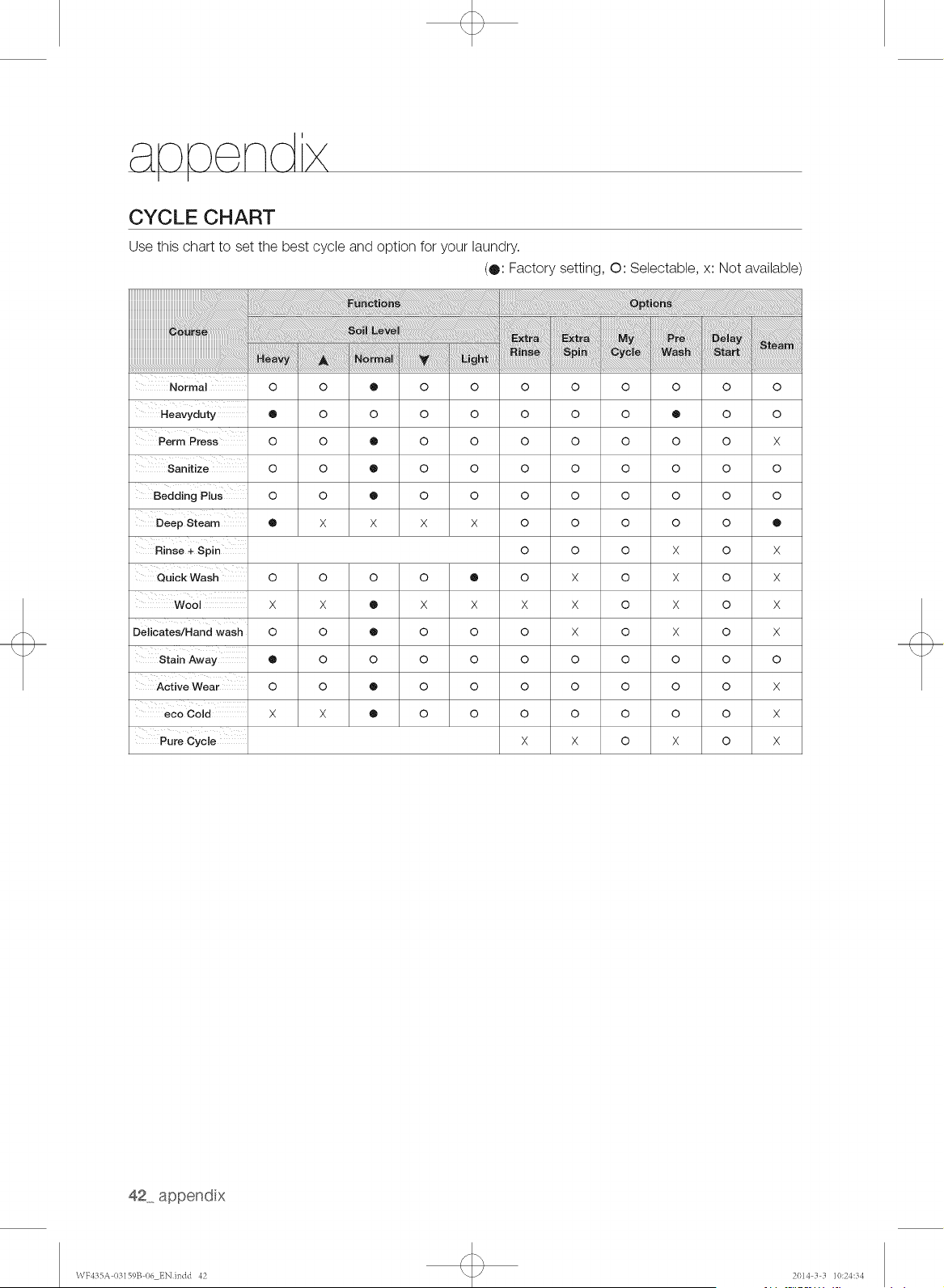

CYCLE CHART

Use this chart to set the best cycle and option for your laundry.

(®: Factory setting, O: Selectable, x: Not available)

Normal O O ® O O O O O O O O

Heavyduty @ O O O O O O O @ O O

Perm Press O O @ O O O O O O O X

Sanitize O O @ O O O O O O O O

Bedding Plus O O @ O O O O O O O O

Deep Steam O X X X X O O O O O •

Rinse + Spin O O O X O X

Quick Wash O O O O @ O X O X O X

Wool X X O X X X X O X O X

Delicates/Hand wash O O @ O O O X O X O X

Stain Away @ O O O O O O O O O O

Active Wear O O @ O O O O O O O X

eco Cold X X @ O O O O O O O X

Pure Cycle X X O X O X

42 append x

WF435A I)3159B 06 ENindd 42 2014 3 3 1(}:24:34

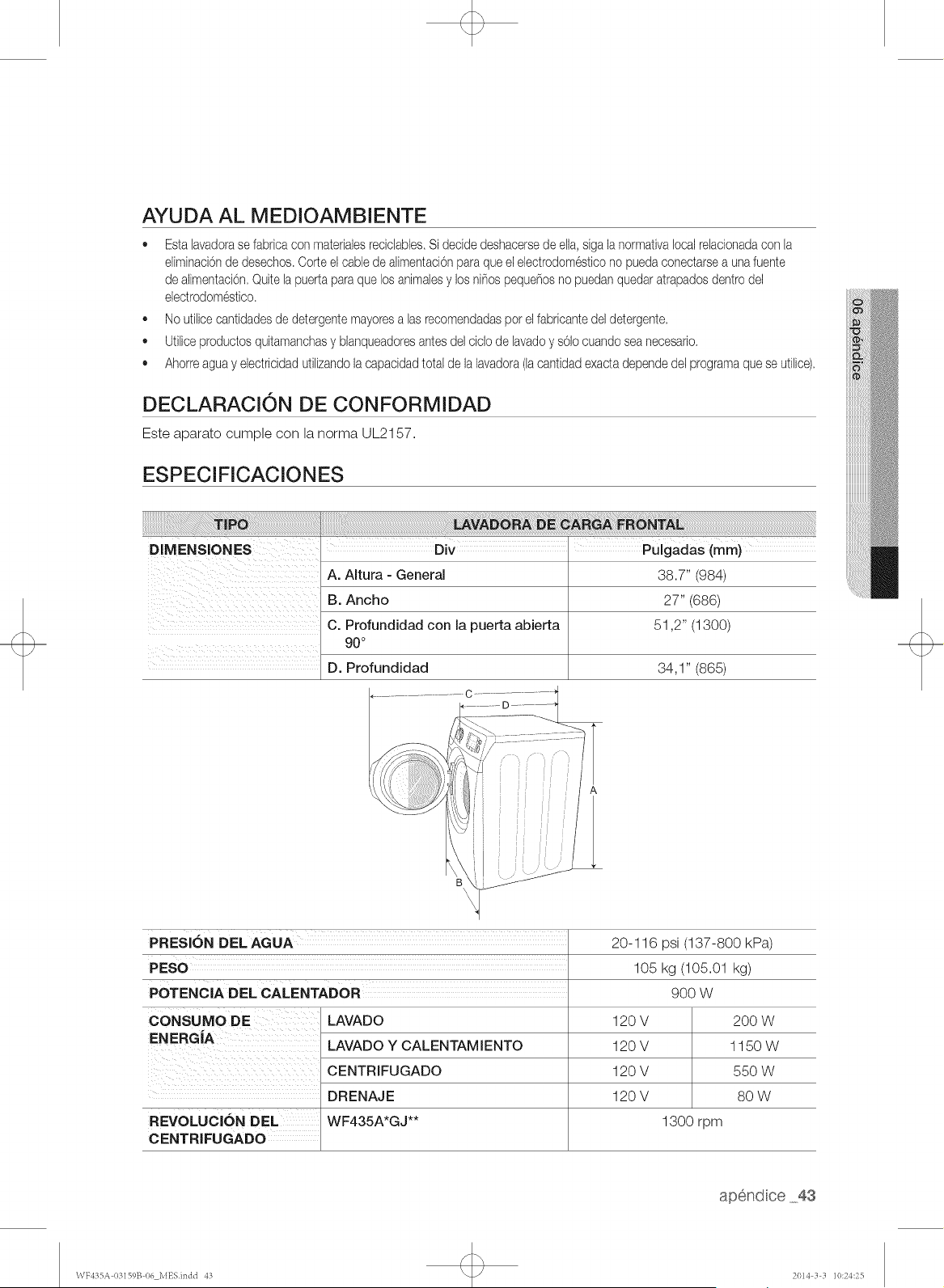

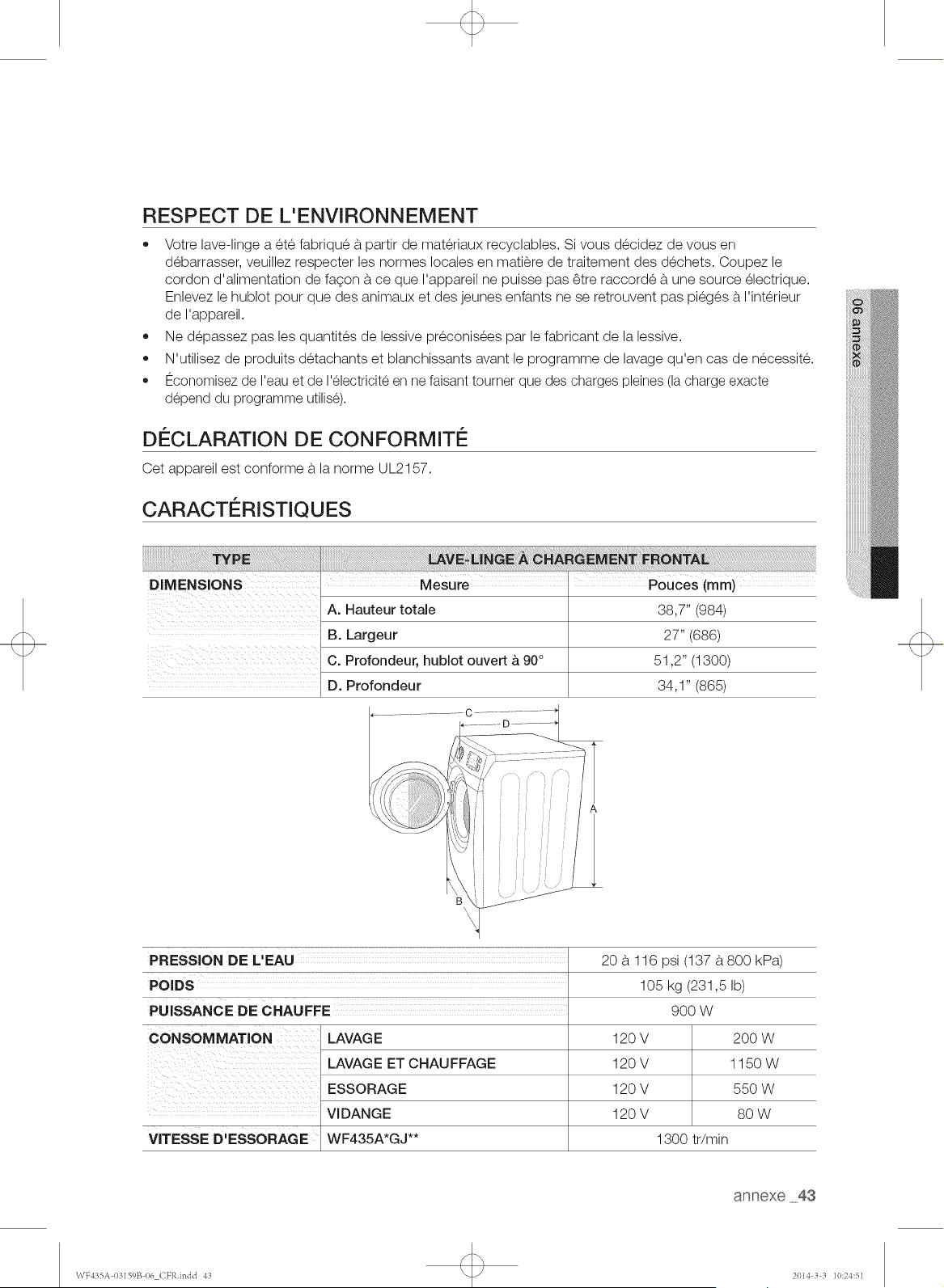

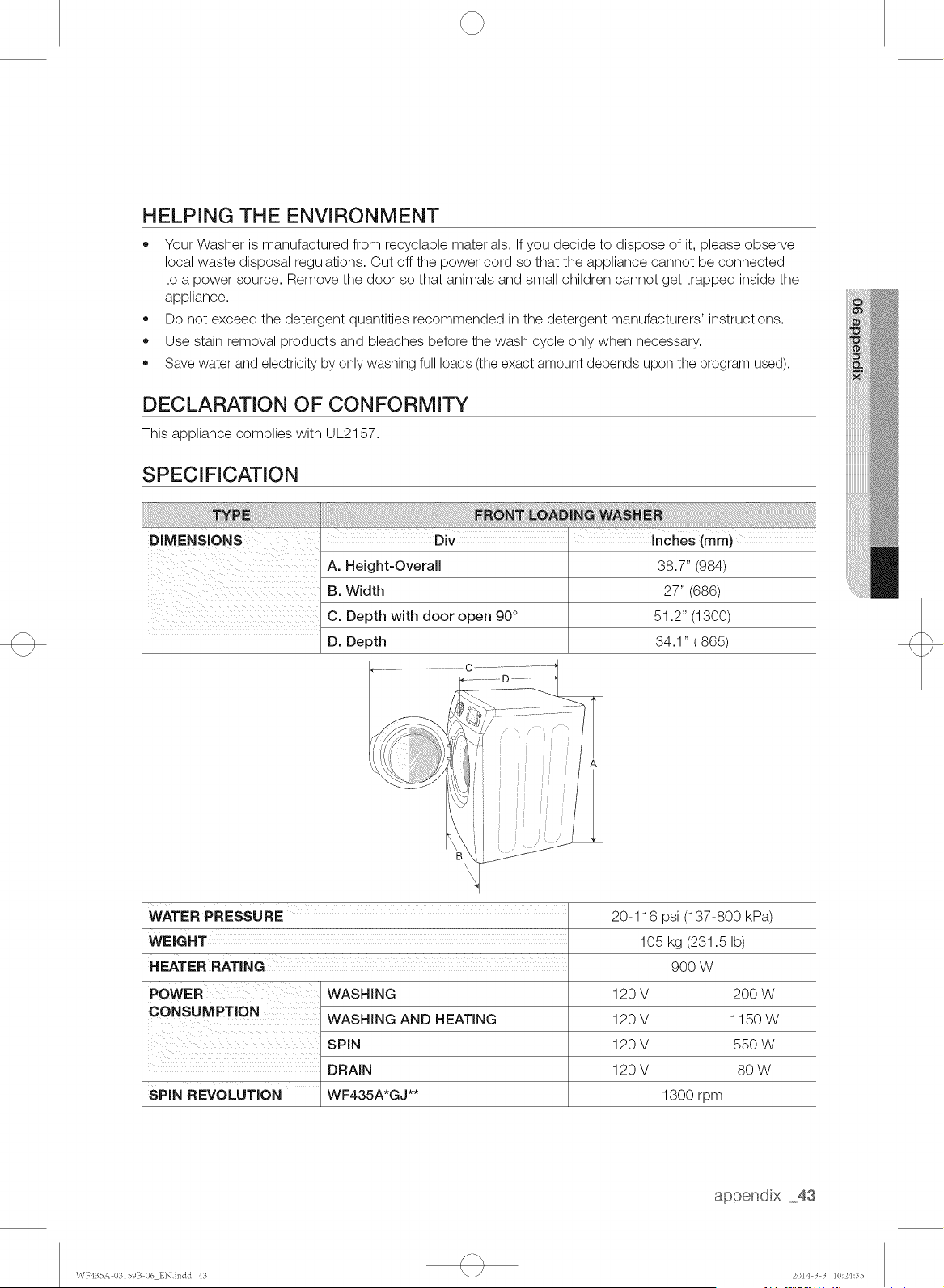

HELPING THE ENVIRONMENT

• Your Washer is manufactured from recyclable materials. If you decide to dispose of it, please observe

local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected

to a power source. Remove the door so that animals and small children cannot get trapped inside the

appliance.

Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.

Use stain removal products and bleaches before the wash cycle only when necessary.

Save water and electricity by only washing full loads (the exact amount depends upon the program used).

DECLARATION OF CONFORMITY

This appliance complies with UL2157.

SPECIFICATION

DIMENSIONS

17_i!iiilii!i!ii:::::::::::::i

iiiiiiiiiiiiiiii

A. Height-Overall

B. Width

C. Depth with door open 90 °

D. Depth

38.7" (984)

27" (686)

51.2" (1300)

34.1" (865)

WATER PRESSURE 20-116 psi (137-800 kPa)

WEIGHT 105 kg (231.5 Ib)

HEATER RATING

POWER WASHING

CONSUMPTION WASHING AND HEATING

SPIN

DRAIN

SPIN REVOLUTION WF435A*GJ**

9OOW

120V

1300 rpm

2OOW

1150W

550 W

8O W

appendix 43

\VF435A 03159B 06 ENindd 43 2014 3 3 10:24:35

WARRANTY

SAMSUNG WASHER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor, Two (2) years Control Board Parts (Part Only), Three (3) years stainless tub part

(Part Only), Five (5) years washing motor part (Part Only), Ten (10) years washing DD motor part (Part Only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem

determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized

service center. The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the

warranty period at no charge, subject to availability within the contiguous United States. In-home service is

not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service

is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized

service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specified above. All replaced parts and products become the property of SAMSUNG and must be returned

to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90)

days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship

encountered in normal, noncommercial use of this product and shall not apply to the following: damage

that occurs in shipment; delivery and installation; applications and uses for which this product was not

intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect,

fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services,

parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied

or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical

line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,

maintenance and environmental instructions that are covered and prescribed in the instruction book;

product removal and reinstallation; problems caused by pest infestations. This limited warranty does not

cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house

wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant

uninterrupted or error-free operation of the product.

44 warranty

WF435A 03159B 06 ENindd 44 2014 3 3 1(/:24:35

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS

OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR

PURPOSE.

NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT

TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS

OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY

TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,

AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,

DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED

WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS

PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This

warranty gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, inc.

85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864)

www.samsung.com/us/support

Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

warranty 45

WF4fSSA 0fq59B 0C, ENindd 45 2014 ft ft 10:24:F5

SAMSUNG WASHER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor, Ten (10) years washing DD motor (Part only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased

and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem

determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized

service center. The original dated bill of sale must be presented upon request as proof of purchase to

SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the

warranty period at no charge, subject to availability within the Canada. In-home service is not available in all

areas.
