TEMPLATE PLANTILLA
Install interior cylinder assembly.
INTERIOR
MEASURE
BACKSET

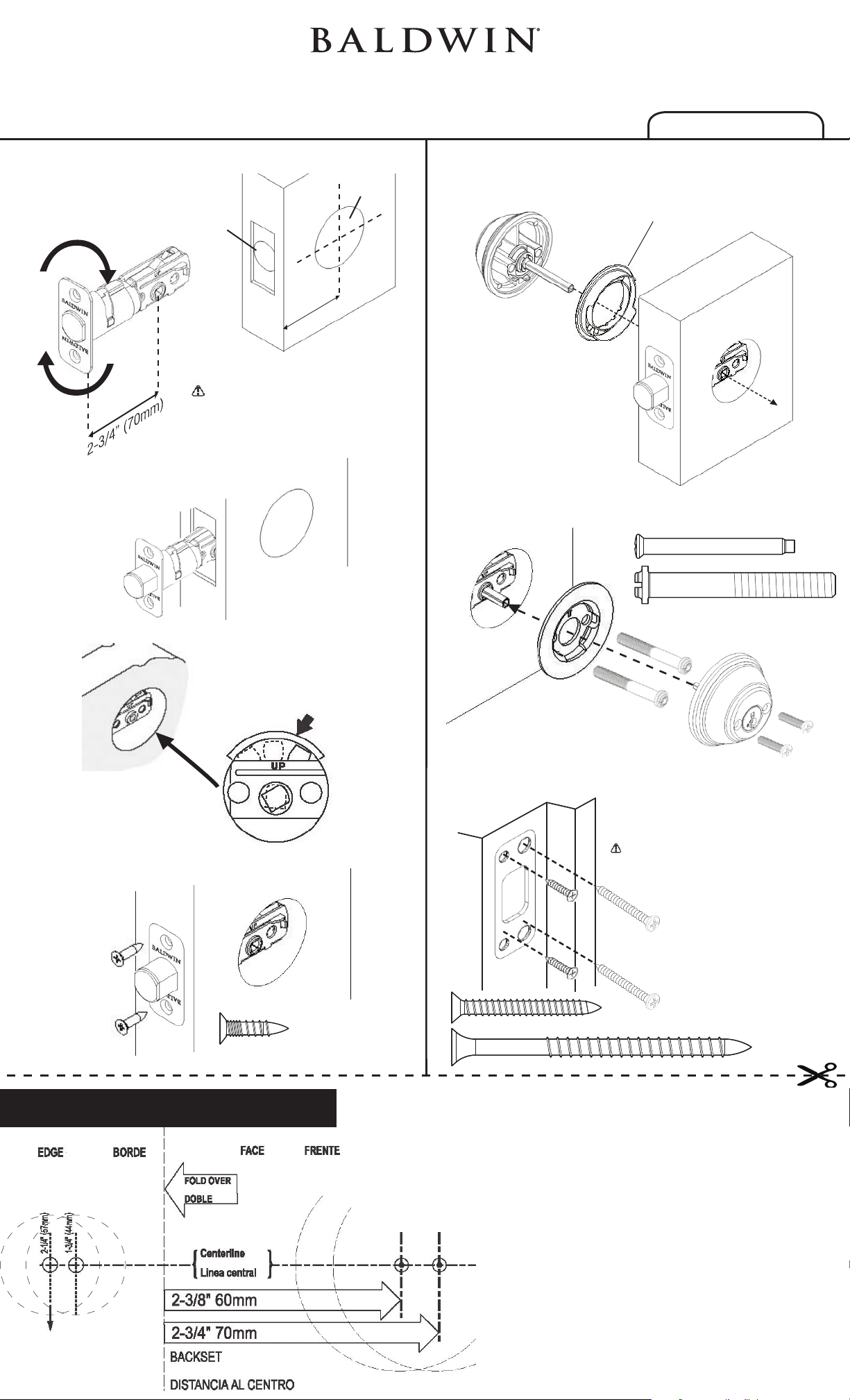

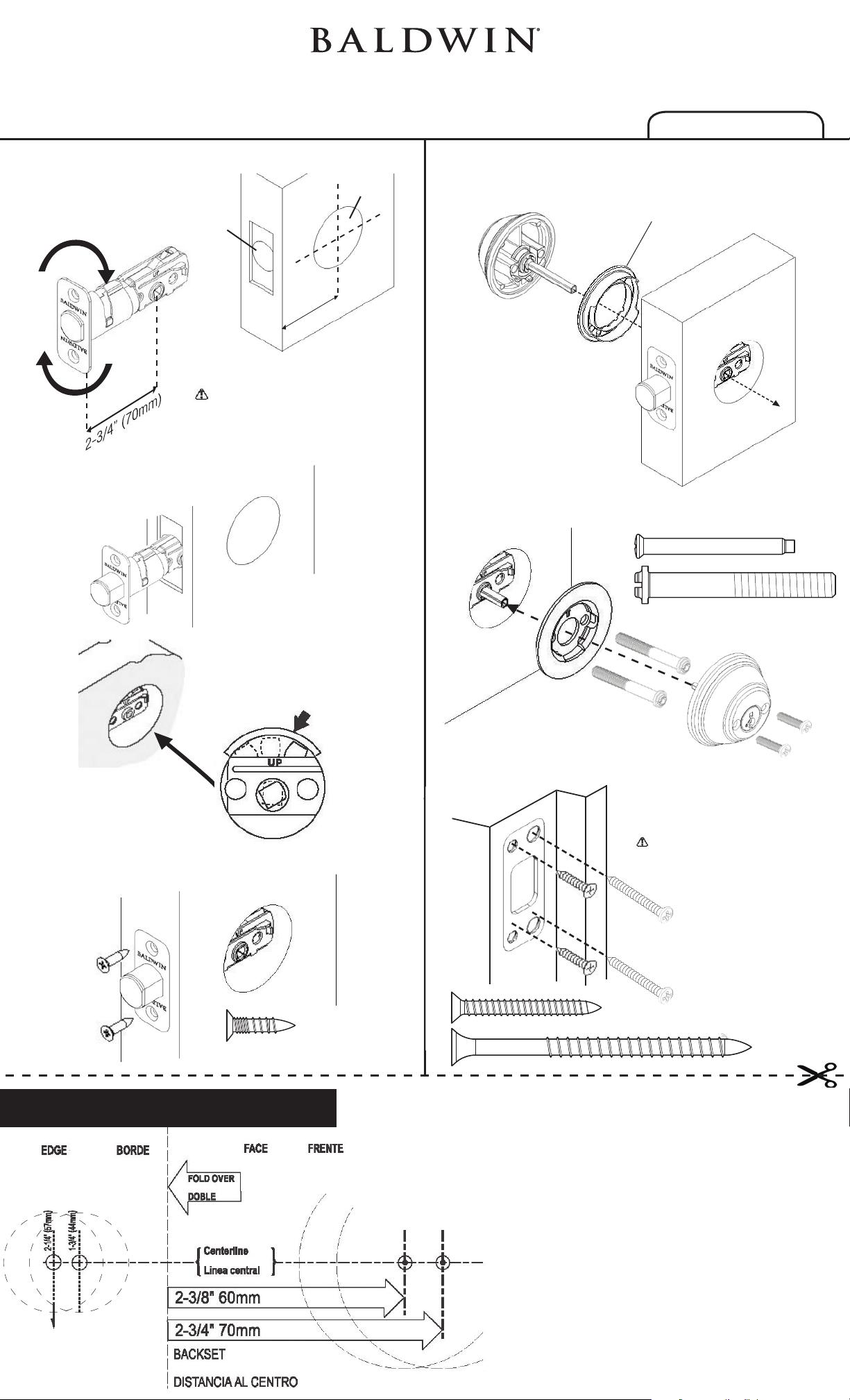

1. Adjust and install latch
Measure your door backset as shown.
Note, for a 1-1/2” (38mm) diameter
hole, test if latch extends and retracts.
Chisel out area if required.
Ensure the latch is inserted
with the word “up” on top.
If backset of door measures 2 3/4” (70mm),
adjust latch by rotating face as shown.
Install exterior cylinder assembly.
Not to be used on 1 1/2” holes.
2. Install trim
EXTERIOR
3. Install strike
1/8” pilot holes may be required.
Install latch with 11/16” screws.
Double Cylinder Deadbolt Installation Instructions
Lifetime Warranty
This product comes with a lifetime mechanical and finish warranty to the
original residential user against defects in material and workmanship as
long as the original user occupies the residential premises upon which the
product was originally installed. This warranty DOES NOT COVER scratches;
abrasions; deterioration due to the use of paints, solvents, or other chemicals;
abuse; misuse; or product(s) used in commercial applications. Upon return
of a defective product to Baldwin Hardware Corporation, Baldwin may repair
or replace the product or refund the purchase price. Baldwin is not liable for
incidental or consequential damages. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion
may not apply to you. This warranty gives you specific legal rights and you
may also have other rights that vary from state to state. If a mechanical or
finish defect occurs, please call 1-877-315-7853 in the U.S. and Canada or
return it to Baldwin Corporation, Consumer Services, 19701 Da Vinci, Lake
Forest, California 92610. For customers outside of the U.S. and Canada,
claims under this warranty must be made only to either the place of purchase
or to the listed importer.
Presge Series
www.baldwinprestige.com
www.baldwinhardware.com
24707 / 02
2-1/8"
(54 mm)
1"
(25.4 mm)
TEMPLATE PLANTILLA
MEASURE
BACKSET
1. Adjust and install latch
Measure your door backset as shown.
Note, for a 1-1/2” (38mm) diameter
hole, test if latch extends and retracts.
Chisel out area if required.
Install turnpiece.
INTERIOR
Install latch with 11/16” screws.
Install exterior cylinder assembly.
Not to be used on 1 1/2” holes.
2. Install trim
EXTERIOR
Ensure the latch is inserted
with the word “UP” on top.
3. Install strike
1/8” pilot holes may be required.
If backset of door measures 2 3/4” (70mm),
adjust latch by rotating face as shown.
Single Cylinder Deadbolt Installation Instructions
Lifetime Warranty
This product comes with a lifetime mechanical and finish warranty to the
original residential user against defects in material and workmanship as
long as the original user occupies the residential premises upon which the
product was originally installed. This warranty DOES NOT COVER scratches;
abrasions; deterioration due to the use of paints, solvents, or other chemicals;
abuse; misuse; or product(s) used in commercial applications. Upon return
of a defective product to Baldwin Hardware Corporation, Baldwin may repair
or replace the product or refund the purchase price. Baldwin is not liable for
incidental or consequential damages. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion
may not apply to you. This warranty gives you specific legal rights and you
may also have other rights that vary from state to state. If a mechanical or finish
defect occurs, please call 1-877-315-7853 in the U.S. and Canada or return it
to Baldwin Hardware Corporation, Consumer Services, 19701 Da Vinci, Lake
Forest, California 92610.For customers outside of the U.S. and Canada, claims
under this warranty must be made only to either the place of purchase or to the
listed importer.
Presge Series
www.baldwinprestige.com
actual size
actual size
actual size
2-1/8" (54 mm)
Diameter
•
Diámetro
1" (25.4 mm)
Diameter
•
Diámetro
