HD LED TV
Instruction Manual
Model: FDHS32M4A
1
Welcome
English
Thank you for purchasing this Furrion
®
HD LED TV. Before operating your new product, please
read these instructions carefully. This instruction manual contains information for safe use,
installation and maintenance of the product.
Please keep this instruction manual in a safe place for future reference. This will ensure safe
use and reduce the risk of injury. Be sure to pass on this manual to new owners of this product.
The manufacturer does not accept responsibility for any damages due to not observing these
instructions.
If you have any further questions regarding our products, please contact us at
supportfurrion.com
2
Contents
English
Welcome ............................................................................................ 1
Contents ............................................................................................2
Safety Warnings ................................................................................3
Important Safety Instructions .................................................................................3
Safety Precautions ..................................................................................................6
Function Overview .............................................................................8
Control Panel .........................................................................................................8
Rear Panel ............................................................................................................... 9
Unimote ...................................................................................................................10
About Your HD LED TV .......................................................................12
Features ..................................................................................................................12
Power Source ..........................................................................................................12
Before Operation ...............................................................................13
What’s in the Box ....................................................................................................13
Preparation of your Remote Control .......................................................................13
Getting Started ..................................................................................14
Change Settings .................................................................................15
Change the Setup Settings .....................................................................................15
Change the Picture Settings ...................................................................................18
Change the Sound Settings .....................................................................................19
Change the Time Setting .........................................................................................20
Change the Lock Settings .......................................................................................21
Change the Channel Settings .................................................................................24
PC Settings .............................................................................................................. 25
USB Mode ................................................................................................................ 26
Troubleshooting ................................................................................27
Specifications ....................................................................................28
Warranty ............................................................................................29
3
Safety Warnings
English
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This ‘bolt of lightning’ indicates
uninsulated material within your
unit may cause an electrical shock.
For the safety of everyone in your household,
please do not remove product covering.
The ‘exclamation mark’ calls
attention to features for which you
should read the enclosed literature
closely to prevent operating and maintenance
problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs: To prevent electric shock, match wide
blade to wide slot.)
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation
openings. Install in accordance with the
manufacturers instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. When the
provided plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with a cart, stand, tripod,
bracket, or table specified by
the manufacturer or sold with
the apparatus. When a cart is
used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as if the power-supply cord or
plug is damaged, liquid has been spilled
or objects have fallen into the apparatus,
or when the apparatus has been exposed
to rain or moisture, does not operate
normally, or has been dropped.
15. Apparatus should not be exposed to
dripping or splashing, and objects filled
with liquids, such as vases, should not be
placed on the apparatus.
4
Safety Warnings
English
16. An outside antenna system should not be
located in the vicinity of overhead power
lines or other electric light or power
circuits, or where it can fall into such
power lines or circuits. When installing
an outside antenna system, extreme care
should be taken to keep from touching
such power lines or circuits as contact
with them might be fatal.
17. Do not overload wall outlets, extension
cords, or integral convenience
receptacles as this can result in a risk of
fire or electric shock.
18. Never push objects of any kind into this
product through openings as they may
touch dangerous voltage points or short-
out parts that could result in a fire or
electric shock. Never spill liquid of any
kind on the product.
19. If an outside antenna or cable system is
connected to the unit, be sure the antenna
or cable system is grounded to provide
some protection against voltage surges
and built-up static charges, Section 810 of
the National Electrical Code, ANSI/NFPA
70, provides information with respect
to proper grounding of the mast and
supporting structure, grounding of the
lead-in wire to an antenna discharge unit,
size of grounding conductors, location
of antenna discharge unit, connection to
grounding electrodes, and requirements
for the grounding electrode.
NEC-NATIONAL
ELECTRICAL
CODE S2898A
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H))
GROUND CLAMPS
GROUND CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT
20. When replacement parts are required,
be sure the service technician uses
replacement parts specified by the
manufacturer or those that have the
same characteristics as the original part.
Unauthorized substitutions may result in
fire, electric shock or other hazards.
21. Upon completion of any service or repairs
to this unit, ask the service technician to
perform safety checks to determine that
the unit is in proper operating condition.
22. When you connect the product to other
equipment, turn off the power and
unplug all of the equipment from the
wall outlet. Failure to do so may cause
an electric shock and serious personal
injury. Read the owner’s manual of the
other equipment carefully and follow
the instructions when making any
connections.
23. Sudden high volume sound may cause
hearing or speaker damage. When
you use headphones, (if the unit is
equipped with a headphone jack) keep
the volume at a moderate level. If you
use headphones continuously with high
volume sound, it may cause hearing
damage.
5
Safety Warnings
English
24. Do not allow the product to output
distorted sound for an extended period of
time. It may cause speaker overheating
and fire.
25. This reminder is provided to call the
cable TV system installer’s attention to
Article 820-40 of the NEC that provides
guidelines for proper grounding and, in
particular, specifies that the cable ground
shall be connected to the grounding
system of the building, as close to the
point of cable entry as practical.
26. The socket-outlet must be installed near
the unit and easily accessible.
27. The mains plug is used as the disconnect
and shall remain readily operable.
CONDENSATION
Moisture will form in the operating section
of the unit if the unit is brought from cool
surroundings into a warm room or if the
temperature of the room rises suddenly.
When this happens, unit’s performance will
be impaired. To prevent this, let the unit
stand in its new surroundings for about an
hour before switching it on, or make sure that
the room temperature rises gradually.
Condensation may also form during the
summer if the unit is exposed to the breeze
from an air conditioner. In such cases,
change the location of the unit.
HOW TO HANDLE THE LCD PANEL
● Do not press hard or jolt the LCD panel. It
may cause the LCD panel glass to break
and injury may occur.
● If the LCD panel is broken, make
absolutely sure that you do not touch the
liquid in the panel. This may cause skin
inflammation.
If the liquid gets in your mouth,
immediately gargle and consult with your
doctor. Also, if the liquid gets in your
eyes or touches your skin, consult with
your doctor after rinsing for at least 15
minutes or longer in clean water.
Possible Adverse Effects on LCD Panel: If a
fixed (non-moving) pattern remains on the
LCD Panel for long periods of time, the image
can become permanently engrained in the
LCD Panel and cause subtle but permanent
ghost images. This type of damage is NOT
COVERED BY YOUR WARRANTY. Never leave
your LCD Panel on for long periods of time
while it is displaying the following formats or
images:
● Fixed Images, such as stock tickers, video
game patterns, TV station logos, and
websites.
● Special Formats that do not use the entire
screen. For example, viewing letterbox
style (16:9) media on a normal (4:3)
display (black bars at top and bottom of
screen); or viewing normal style (4:3)
media on a wide screen (16:9) display
(black bars on left and right sides of
screen).
The following symptoms are not signs
of malfunction but technical limitation.
Therefore we disclaim any responsibility for
these symptoms.
● LCD Panels are manufactured using
an extremely high level of precision
technology, however sometimes parts
of the screen may be missing picture
elements or have luminous spots. This is
not a sign of a malfunction.
● Do not install the LCD Panel near
electronic equipment that produces
electromagnetic waves. Some equipment
placed too near this unit may cause
interference.
● Effect on infrared devices – There may be
interference while using infrared devices
such as infrared cordless headphones.
6
Safety Warnings
English
Power source: This LED television is
designed to operate on 100~240 volts 50/60
Hz, AC current. Insert the power cord into a
100~240 volts 50/60 Hz outlet.
To prevent electric shock, do not use the LED
television’s (polarized) plug with an extension
cord, receptacle, or other outlet unless the
blades and ground terminal can be fully
inserted to prevent blade exposure.
Warning: To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or
moisture.
Caution: Never remove the back cover of
the LED television as this can expose you to
very high voltages and other hazards. If the
television does not operate properly, unplug
the LED television and call your authorized
dealer or service center.
Adjust only those controls that are covered
in the instructions, as improper changes
or modifications not expressly approved by
Furrion could void the user’s warranty.
Declaration of Conformity
WARNING: This equipment has been
tested and found to comply with the limits
for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment to an outlet on
a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
CAUTION: Changes or modifications not
expressly approved by the party responsible
for compliance with the FCC Rules could
void the user’s authority to operate this
equipment.
Safety Precautions
WARNING: Never place a television set in an
unstable location. A television set may fall,
causing serious personal injury or death.
Many injuries, particularly to children, can be
avoided by taking simple precautions such
as:
– Using cabinets or stands recommended
by the manufacturer of the television set.
– Only using furniture that can safely
support the television set.
– Ensuring the television set is not
overhanging the edge of the supporting
furniture.
– Not placing the television set on tall
furniture (for example, cupboards or
bookcases) without anchoring both the
furniture and the television set to a
suitable support.
– Not placing the television set on
cloth or other materials that may be
located between the television set and
supporting furniture.
– Educating children about the dangers
of climbing on furniture to reach the
television set or its controls.
If your existing television set is being retained
and relocated, the same considerations as
above should be applied.
7
Safety Warnings
English
The unit emits heat when in operation. Do
not place any covers or blankets on the unit,
this may cause overheating. Do not block
ventilation holes, or set up near radiators.
Do not place in direct sunlight. When placing
on a shelf leave 4 inches (10 cm) free space
around the entire unit.
4 inches
1.5 inches
Notes when mounting the LED TV
on the wall
If the unit is to be mounted on the wall,
contact the retailer where you purchased the
LED TV for advice, and have the equipment
professionally installed. Incomplete or
improper installation may cause injury to you,
and/or damage to the LED TV.
Please refer to the table below to ensure the
correct size VESA mount is used with the TV
VESA MOUNTING PATTERN
Model
Width
mm
Height
mm
Screw Size Quantity
FDHS32M4A 200 100 PWM 5x8 mm
Notice for TV Cabinet
If the unit is to be mounted on a cabinet
smaller than length of the unit, it could
result in an unstable location and the unit
may tumble over, making a risk of personal,
possibly fatal injury. Also, this would damage
the product seriously. Accordingly, Furrion
accepts no responsibility or liability for any
injuries or property damage resulting from
the improper installation.
YES !!
NO !!
WARNING:
● Do not use this TV with wall mounts that
allow the TV to tilt vertically. Vertical
tilting wall mounts may cause structural
damage to the TV.
● Use ONLY fixed or horizontal swiveling
wall mounts with this TV.
8
Function Overview
English
Control Panel
Item Button Function
1
VOL+ Press to increase the volume
2
VOL- Press to decrease the volume
3
CH+ Press to skip to the next channel
4
CH-
Press to skip to the previous
channel
5
MENU Press to enter the main menu
6
SOURCE Press to select the input source
7
POWER Press to switch the TV on/off
* Please note that the button layout of the
controls may vary from model to model.
VOL+
VOL-
CH+
CH-
MENU
SOURCE
POWER
1
4
2
5
3
6
7
9
Function Overview
English
* The configuration of the connection ports
may vary from model to model.
EARPHONE
OUT
USB
AUDIO
IN
L- -R
AUDIO
OUT
R- -L
R
L
OPTICAL
OUT
HDMI 1 IN
2
3
5
7
8
9
10
11
4
HDMI 2 IN
ARC
HDMI 3 IN
VGA IN
PC AUDIO
IN
R
L
1
6
Pb
Pr
RF IN
Y
VIDEO

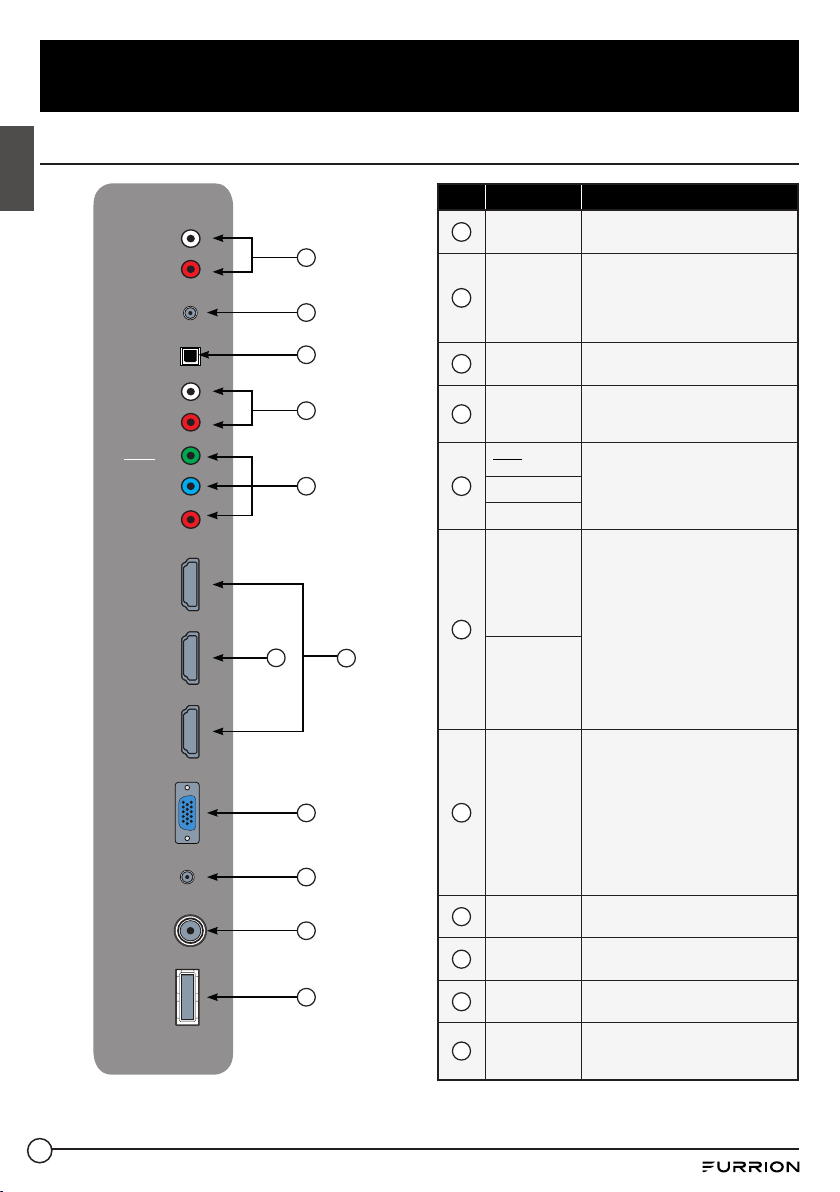

Rear Panel
Item Connection Function
1
RAUDIO
OUTL
Connects to the AUDIO IN ports of
an audio device
2
EARPHONE
OUT
Connects to 3-conductor(TRS)
phone connector of earphone,
compatibility of earphone
with 4-conductor(TRRS)phone
connector is not guaranteed.
3
OPTICAL
OUT
Connects to the OPTICAL AUDIO
IN port of an audio device.
4
L-AUDIO
IN-R
Connects to the AUDIO OUT ports
of an audio device.
5
Y
VIDEO
Connect to the COMPONENT
VIDEO OUT ports of a DVD Player,
Cable Box or other compatible
device.
P
B
P
R
6
HDMI 1 IN
Connects to the HDMI OUT port
of a DVD Player, Games Console,
Cable, Box or other HDMI device.
CEC Consumer Electronics
Control
When connected to the CEC
compatible Furrion Entertainment
Systems or other CEC Compatible
devices, the TV links with the
system to give extra functionality.
Please see page 17
HDMI 3 IN
7
HDMI 2 IN
ARC
Connects to the HDMI OUT port
of a DVD Player, Games Console,
Cable Box or other HDMI device.
ARC Audio Return Channel
When connected with a HDMI
1.4 cable to an ARC compatible
audio system, the TV links with
the device to give extra audio
functionality.
Please see page 17
8
VGA IN
Connects to the VGA OUT port of a
PC to use the TV as a monitor.
9
PC AUDIO
IN
Connects to the AUDIO OUT port
of a PC.
10
RF IN
Connects to the ANTENNA,
CABLE, or CABLE BOX
11
USB
USB Port, view pictures and listen
to MP3s via a compatible USB
stick
10
Function Overview
English

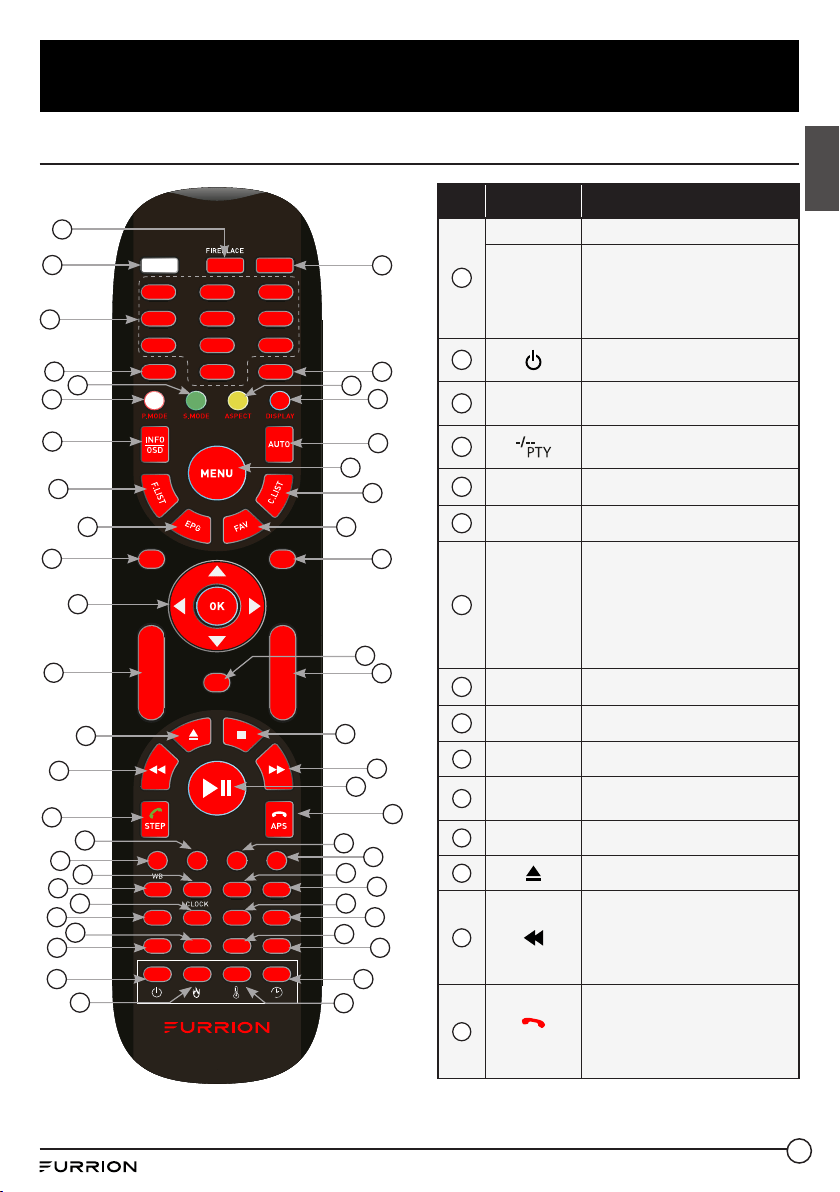

Unimote
1
2
3
4
5
6
7
8
9
11
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
27
26
28
29
30
31
32
33
34
35
37
49
38
39
40
41
42
43
44
50
45
46
47
48
36
Item Button Function
1
TV Switches to TV mode
TV/
FIREPLACE
Selects Furrion Fireplace
remote control functions.
* Please refer to your Furrion
Fireplace manual for more
information.
2
Press to turn the TV/
Entertainment System on/off
3
NUMBER
BUTTONS
Enters numbers or select
channels
4
Toggles between single &
double digit input
5
S.MODE Cycles through sound modes
6
P.MODE Cycles through picture modes
7
INFO/OSD
Under TV mode, press to display
information on the selected TV
channel
Under Stereo mode, press to
display DVD playback status
8
F.LIST Displays the favorites list
9
EPG Displays the program guide
10
SOURCE Cycles through input sources
11
NAVIGATION
BUTTONS
Confirms selections
12
VOL+/- Increases/decreases volume
13
Ejects DVD/ CD
14
During playback, press to select
the previous track/chapter.
Press and hold to rewind.
Automatic or Manual tuning in
radio mode
15
STEP
Press to forward frame by frame
during DVD/ VCD playback.
Dial or accept a call (when the
system is connected to a cell
phone)
11
Function Overview
English
Item Button Function
16
DVD/USB Selects DVD/USB
17
AM/FM Selects AM/FM/WB Radio
18
SLEEP/
CLOCK
Sets the sleep timer
19
MTS/AUDIO
Cycles through MTS sound
modes
20
RDM
Toggles random playback mode
on & off
21
RPT
Press to select repeat playback
modes.
22
SEARCH/
GOTO
Jumps to a specific time on a
DVD/VCD/MP3/WMA or CD
23
ZOOM Press to enlarge screen images
24
SEL
Toggles between Volume, Bass,
Treble & Balance; Hours &
Minutes for adjusting
25
LOC*/SLOW
Toggles radio reception
strength.
Presses to start slow motion
playback.
26
ST#/ANGLE
Toggles Stereo & Mono sound/
switches viewing angles on
compatible media.
27
EQ
Toggles the sound mode
Cinema, Rock, Classic & Flat
28
SUBT
Press to display subtitles on
compatible media.
Repeatedly press to cycle
through subtitle options.
29
PBC/TITLE
Displays DVD/VCD Title lists/
Toggles PBC (Play Back Control)
on & off
30
PROG
Uses to start the programmed
playback function
31
A-B
Press to start the A-B repeat
function (playback loop of a
segment of track)
32
SETUP
Enters the Setup menu for the
entertainment system
Item Button Function
33
CC
Toggles Closed Captions On
& Off
34
AV Selects AV Mode
35
AUX/ARC Selects AUX/ ARC Mode
36
APS
Press to scan radio stations: A
brief press searches through
each stored station. Press &
hold to scan and store the 6
strongest stations.
End or reject a call (when the
system is connected to a cell
phone)
37
During playback, press to
select the next track/ chapter.
Press and hold to fast forward.
Automatic or Manual tuning in
radio mode
38
Stops playback
39
CH+/- Channel Up/Down
40
Toggles audio On or Off
41
EXIT Exits the current menu
42
FAV Displays the channel list
43
C.LIST Displays the channel list
44
AUTO
Automatically adjusts the
picture in PC mode
45
DISPLAY
Toggles on screen on the
selected source On & Off
46
ASPECT
Cycles through available display
aspect ratios
47
Toggles between the current
and previous channel
48
STEREO Switches to Stereo mode
49
Starts, Pauses or restarts
playback
50
MENU Enters the main menu
12
About Your HD LED TV
English
Features
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the
screen for hearing impaired viewers.
Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote
control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed
for up to 240 minutes to turn off automatically.
On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French
for on-screen programming.
HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video
component can be connected to this unit.
Power Source
NOTE:
● Please make sure to insert the cord securely at both the LED TV and the wall outlet.
● The AC Cord has a polarized type AC line plug. If the supplied AC cord does not match your
AC outlet, contact a qualified electrician.
WARNING:
● DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE
SUPPLIED AC CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
● DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS
COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
● WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE
INTEREST OF SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
● DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE
ELECTRICAL SHOCK.
● IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE
IS RECOMMENDED. CONTACT THE DEALER THAT YOU PURCHASED THE UNIT FROM.
13
Before Operation
English
What’s in the Box
Thanks for purchasing this Furrion HD LED
TV. This manual will help you set up and
begin using your TV. Please read this manual
thoroughly and keep this manual in a safe
place for future reference.
First, check the contents of your box with the
parts checklist below:
● HD LED TV
● Unimote
● AAA battery × 2
● Quick Start Guide
● Warning Card
● Warranty Card
● Wall-mount screws x 4 (PWM 5x8 mm)
● TV Stand
● Screws for TV stand x 4 (BBH 4x15 mm)
Preparation of your Remote
Control

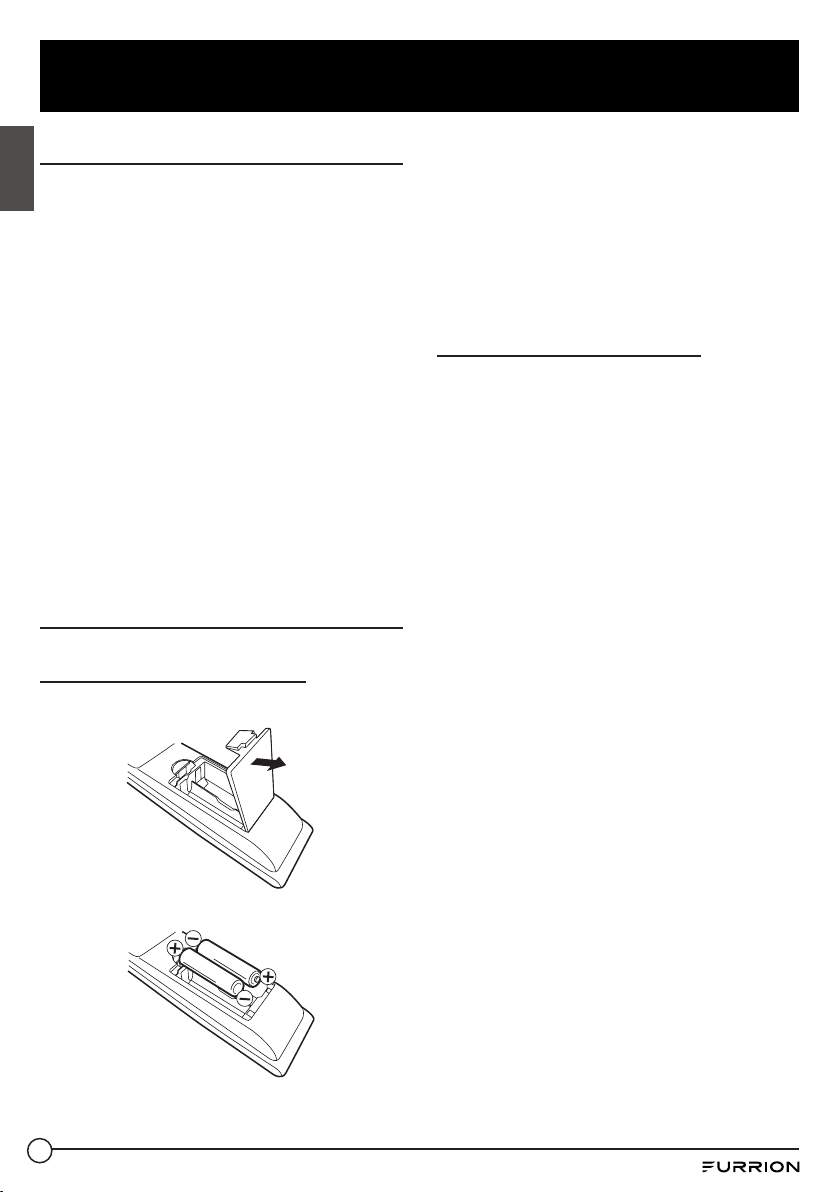

BATTERY INSTALLATION
1. Open battery compartment cover.
2. Install two AAA batteries.
3. Close the cover of the battery compartment.
NOTE: Use two “AAA” size batteries. The
batteries may last approximately one
year depending on how much the remote
control is used. For best performance, it
is recommended that batteries should be
replaced on a yearly basis, or when the
remote operation becomes erratic. Do not
mix old and new batteries or different types.
BATTERY PRECAUTIONS
These precautions should be followed when
using batteries in this device:
● Use only the size and type of batteries
specified.
● Be sure to follow the correct polarity when
installing the batteries as indicated in the
battery compartment. Reversed batteries
may cause damage to the device.
● Do not mix different types of batteries
together (e.g. Alkaline and Carbon-zinc)
or old batteries with fresh ones.
● If the device is not to be used for a long
period of time, remove the batteries to
prevent damage or injury from possible
battery leakage.
● Do not try to recharge batteries not
intended to be recharged; they can
overheat and rupture. (Follow battery
manufacturer’s directions.)
● Please use caution when inserting
batteries to avoid battery damage. If the
spring terminal in the remote control
remains in contact with a side of a
damaged battery it can cause a short
circuit. Never use damaged batteries
as they can become very hot and are
dangerous.
14
Getting Started
English
The Setup Wizard window appears the first
time you turned on the TV. It will assist you
to configure the TV and scan for available
channels.
IMPORTANT: Make sure the antenna or cable
TV system connection is made.
1. Press POWER button on the TV control
panel or
button on the remote control
to switch on the TV. The power indicator
will change to green. The Setup Wizard
window appears on the screen.
NOTE: It may take a few seconds before
the Setup Wizard window appears on the
screen.
2. Use or key to highlight TV Location,
then press or to select Home Mode or
Store Mode.
NOTE: When you select Store Mode it will
remind you Store Mode consumes more
energy. Select Yes to enter or No to cancel.
Press or to highlight Go to next step,
press OK or to go to the next step.
3. Use or key to highlight Menu
Language, then press or to select the
desired language.
Press or to highlight Go to next step,
press OK or to go to the next step.
4. Use or key to highlight Time Zone, then
press or to select desired time zone.
Use or key to highlight Daylight
Saving Time, then press or to select
On or Off.
Use or key to highlight Time Format, then
press or to select 12-hour or 24-hour.
Press or to highlight Go to next step,
press OK or to go to the next step.
5. Use or key to highlight Air/Cable,
then press or to select Air or Cable
base on your connection.
Press or to highlight Go to next step,
press OK or to start the auto scan.
The Setup Wizard will scan for available
channels automatically. The scanning may
take some time.
15
Change Settings
English

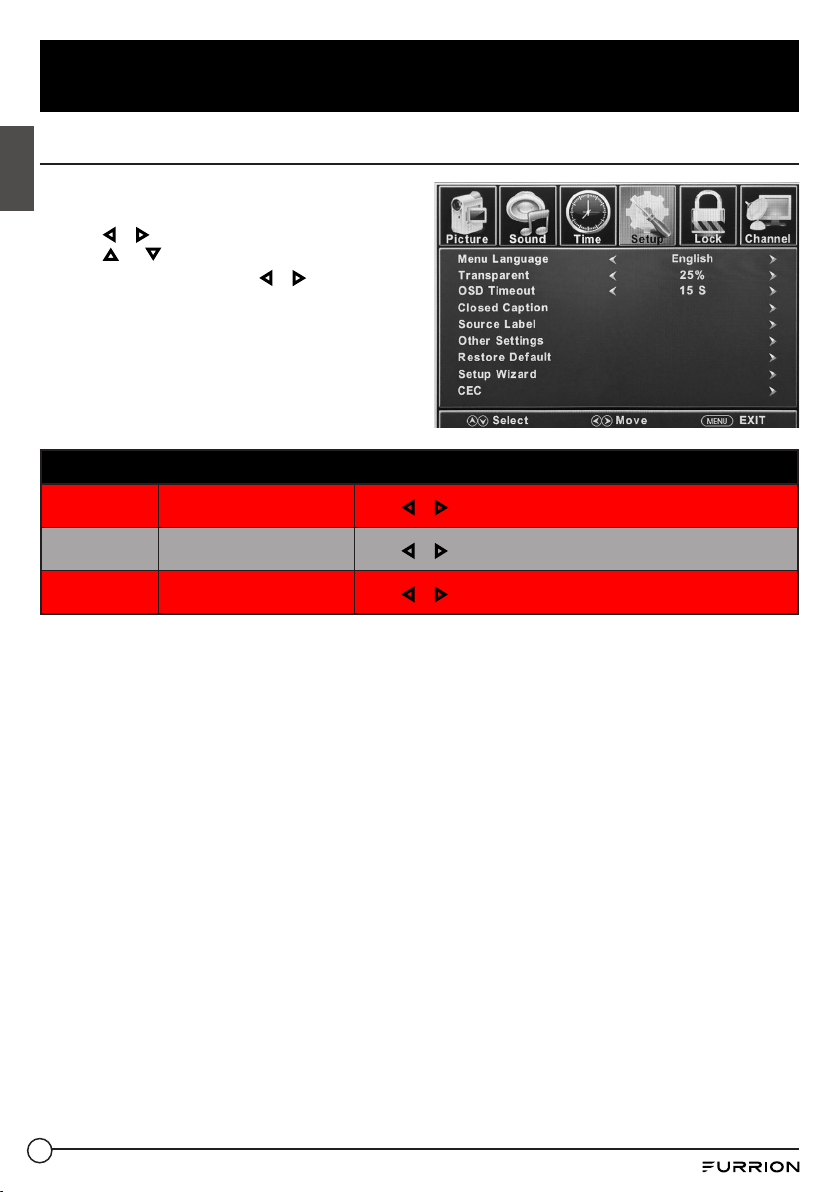

Change the Setup Settings
1. Press MENU button, the setup window will
appear on the screen.
2. Use or key to highlight Setup mode.
3. Use
or to highlight the item you would
like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu
or press EXIT at any time to exit the setting.
Setup Menu
Menu Language Selects the menu language
Press
or to select English, Franais or Español
Transparent
Controls the transparency
level of the menu
Press
or to select 0% / 25% / 50% / 75% / 100%
OSD Timeout
The amount time the OSD
stays on the screen
Press or to select 5 S / 15 S / 30 S / 45 S / 60 S
16
Change Settings
English
Setup Menu
Closed Caption
Configure
Closed Caption
functions
CC Mode
Press
or to select CC On, CC Off or CC On Mute.
Analog CC
Press
or to select CC1, CC2, CC3, CC4, Text 1, Text 2,
Text 3 or Text 4.
Digital CC
Press
or to select Off, Service1, Service 2, Service 3,
Service 4, Service 5 or Service 6
Option
* Press OK or
to enter the sub
menu
Mode
Press
or to select Default or Custom
Font Style
Press
or to select Default, Font 0,
Font 1, Font 2, Font 3, Font 4, Font 5, Font
6 or Font 7
Font Size
Press
or to select Default, Normal,
Large or Small
Font Edge Style
Press
or to select Default, None,
Raised, Depressed, Uniform, Left Shadow
or Right Shadow
Font Edge
Color
Press
or to select Default, Black,
White, Red, Green, Blue, Yellow, Magenta
or Cyan
FG Color
Press
or to select Default, White,
Red, Green, Blue, Yellow, Magenta or
Cyan
BG Color
Press
or to select Default, Black,
Red, Green, Blue, Yellow, Magenta or
Cyan
FG Opacity
Press
or to select Default, Solid,
Flashing, Translucent or Transparent
BG Opacity
Press
or to select Default, Solid,
Flashing, Translucent or Transparent
Source Label
Allows labeling
of input sources
TV
Press
or to select Custom, Default, Antenna, Cable,
Satellite, DTV, DVD, Blu-ray, HD-DVD, XBOX, Wii, PS3, Game,
Computer, VCR or DV
*The configuration of the connection ports may vary from
model to model.
AV
Component
HDMI1
HDMI2
HDMI3
PC
Media
17
Change Settings
English
Setup Menu
Other Settings
Blue Screen
Press
or to select On or Off
Audio Only
Press
or to select On or Off
Restore Default
Resets settings
to factory
defaults
Press
or to select Yes or No
Setup Wizard
Starts the Setup
Wizard
See Page 14
CEC
Configure CEC
functions
CEC Control
Press
or to select Off or On
Device Auto Power
Off
Press
or to select Off or On
* If On, when the TV is turned off, all HDMI CEC
connected devices will go into standby.
TV Auto Power On
Press
or to select Off or On
* If On, when a HDMI CEC connected device is turned,
the TV will turn on and switch to the source the device is
connected to
Audio Receiver
(ARC)
Press
or to select Off or On
* If On, the TV will output audio to an ARC compatible
connected device.
Device Lists Lists all connected CEC devices
Connect Connects to devices on the CEC devices
Root Menu Shows the root menu of connected devices
18
Change Settings
English

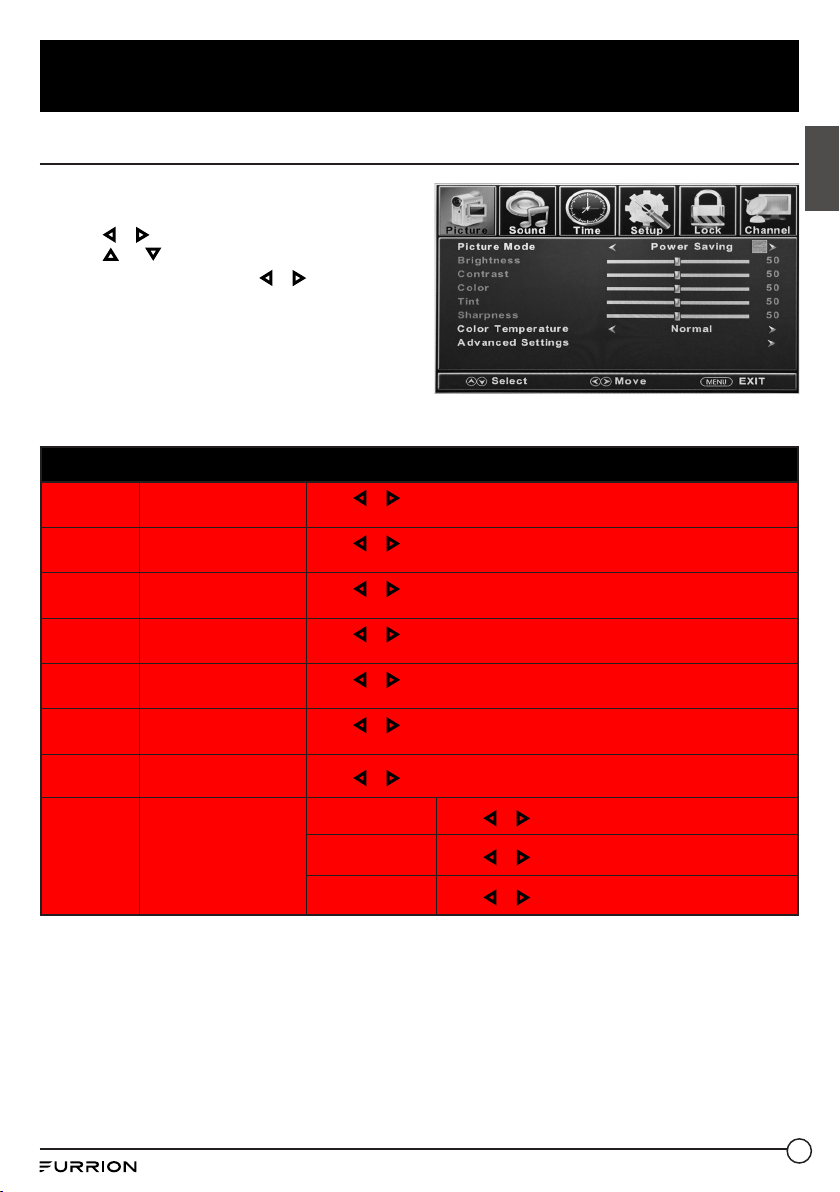

Change the Picture Settings
1. Press MENU button, the setup window will
appear on the screen.
2. Use or key to highlight Picture mode.
3. Use
or to highlight the item you would
like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu
or press EXIT at any time to exit the setting.
Picture Menu
Mode
Selects the display
mode
Press
or to select Power Saving / Standard / Dynamic, Soft or User
display modes.
Brightness
Controls the brightness
level of the picture
Press
or to change the brightness to desired level.
* Only adjustable after set “Picture Mode” as “User“ mode.
Contrast
Controls the contrast
level of the picture
Press
or to change the contrast to desired level.
* Only adjustable after set “Picture Mode” as “User“ mode.
Color
Controls the color level
of the picture
Press
or to change the color to desired level.
* Only adjustable after set “Picture Mode” as “User“ mode.
Tint Controls picture tint
Press
or to change the tint to desired level.
* Only available under NTSC mode.
Sharpness
Controls the sharpness
of the picture
Press
or to change the sharpness to desired level.
* Only adjustable after set “Picture Mode” as “User“ mode.
Color
Temperature
Selects the color mode
Press
or to select Normal, Warm or Cool.
Advanced
Settings
Advanced picture
settings
Aspect
Press
or to select Wide, Zoom, Cinema or Normal.
Noise Reduction
Press
or to select Middle, High, Off or Low.
Dynamic Contrast
Press
or to select On or Off.
19
Change Settings
English

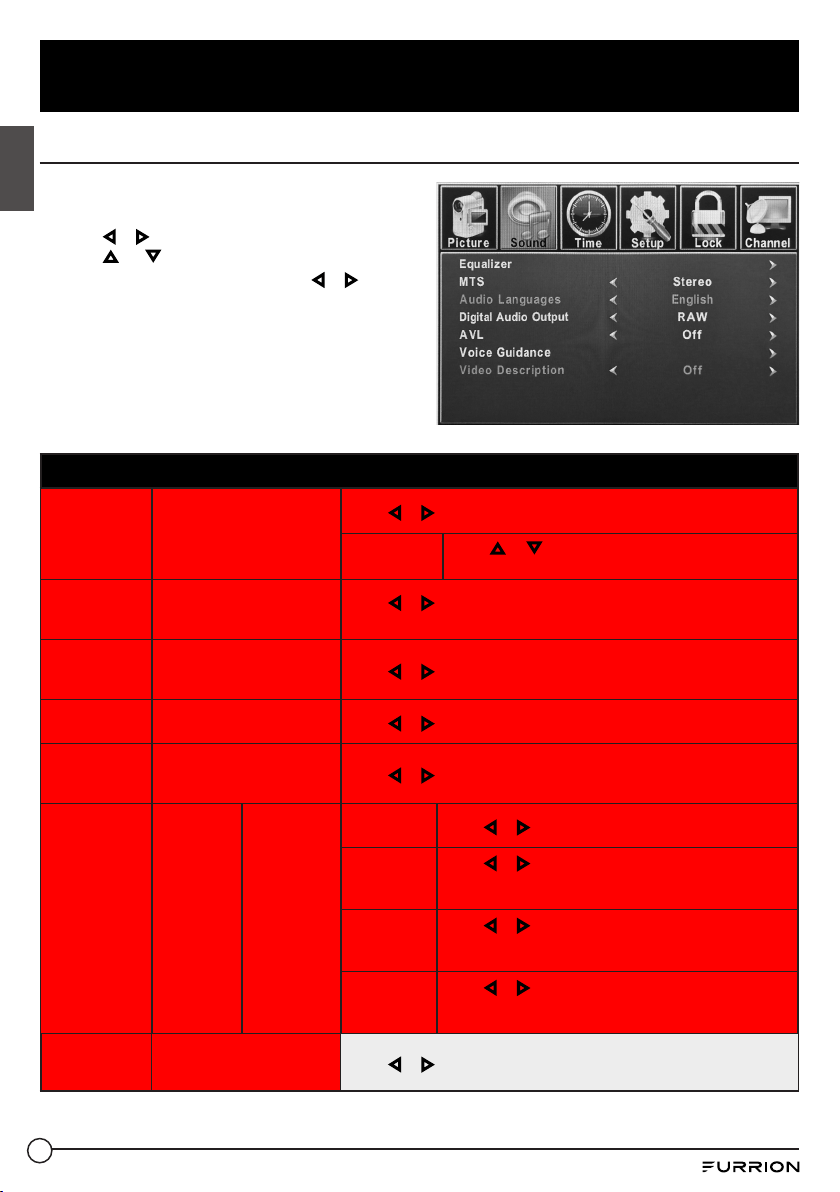

Change the Sound Settings
1. Press MENU button, the setup window
will appear on the screen.
2. Use
or key to highlight Sound mode.
3. Use or to highlight the item you
would like to reset, then press or to
select the settings.
4. Press MENU to return to the previous
menu or press EXIT at any time to exit the
setting.
NOTE: The display menu may be vary while
different input source was selected.
Sound Menu
Equalizer
Controls the levels of
various sound frequencies
Press or to select Standard, Music, Movie, Sports or User mode
User
Press
or to select 200 Hz, 500 Hz, 1.5K Hz,
5K Hz, 10K Hz or Balance.
MTS
Controls the Multi
Channel TV Sound (Analog
broadcasts only)
Press
or to select Stereo, SAP (Secondary Audio when available)
or Mono MTS settings
Audio
Languages
If available on digital
broadcast , this selects the
audio language
Press or to select English, French or Spanish language
Digital Audio
Output
Selects the Digital Audio
Output mode
Press or to select RAW, PCM or Off digital audio output mode
AVL
Automatic Volume Level -
increases or decreases the
TV volume to a set level
Press
or to select On or Off
Voice Guidance
Control the
Voice Guide
functions
Voice Guide
Voice
Guidance
Press
or to set as On or Off
Volume
Press
or to select Low, Middle or High
* Only available after Voice Guidance was set as On
mode
Speed
Press
or to select Slow, Normal or Fast
* Only available after Voice Guidance was set as On
mode
Pitch
Press
or to select Low, Middle or High
* Only available after Voice Guidance was set as On
mode
Video
Description
Controls the video
description function
Press
or to set as On or Off
20
Change Settings
English

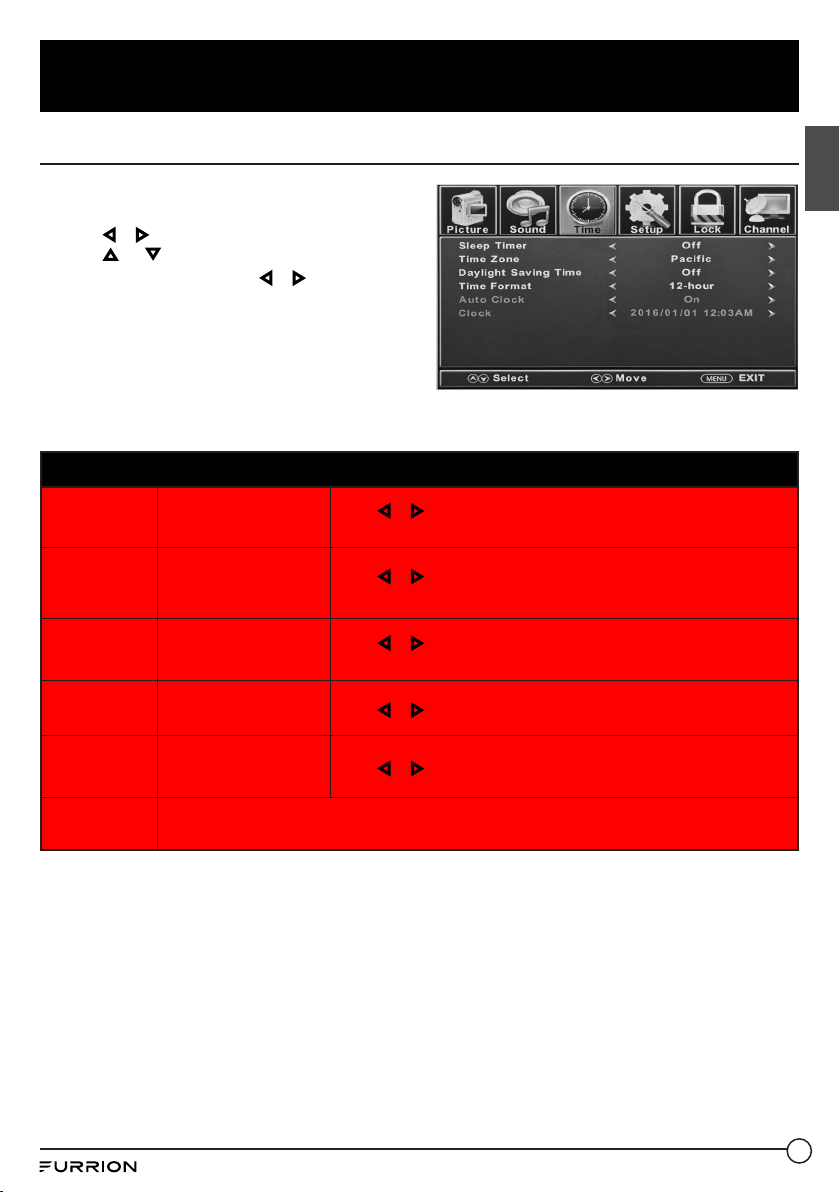

Change the Time Setting
1. Press MENU button, the setup window will
appear on the screen.
2. Use or key to highlight Time mode.
3. Use
or to highlight the item you would
like to reset, then press or to select the
settings.
4. Press MENU to return to the previous menu
or press EXIT at any time to exit the setting.
Time Menu
Sleep Timer
Set a period of time of
auto switch off the TV
Press
or to select Off, 5min, 10min, 15min, 30min, 60min, 90min,
120min, 180min or 240min
Time Zone Set the time zone
Press
or to select Pacific, Alaska,Hawaii, Samoa, Newfoundland,
Atlantic, Eastern, Central or Mountain
Daylight Saving
Time
Toggle daylight saving
Press or to set as On or Off
* Only available under TV channel
Time Format
Select the time display
format
Press
or to set as 12-hour or 24-hour
Auto Clock
Sets automatic time
adjustment
Press
or to set as On or Off
Clock Displays the current date and time
21
Change Settings
English

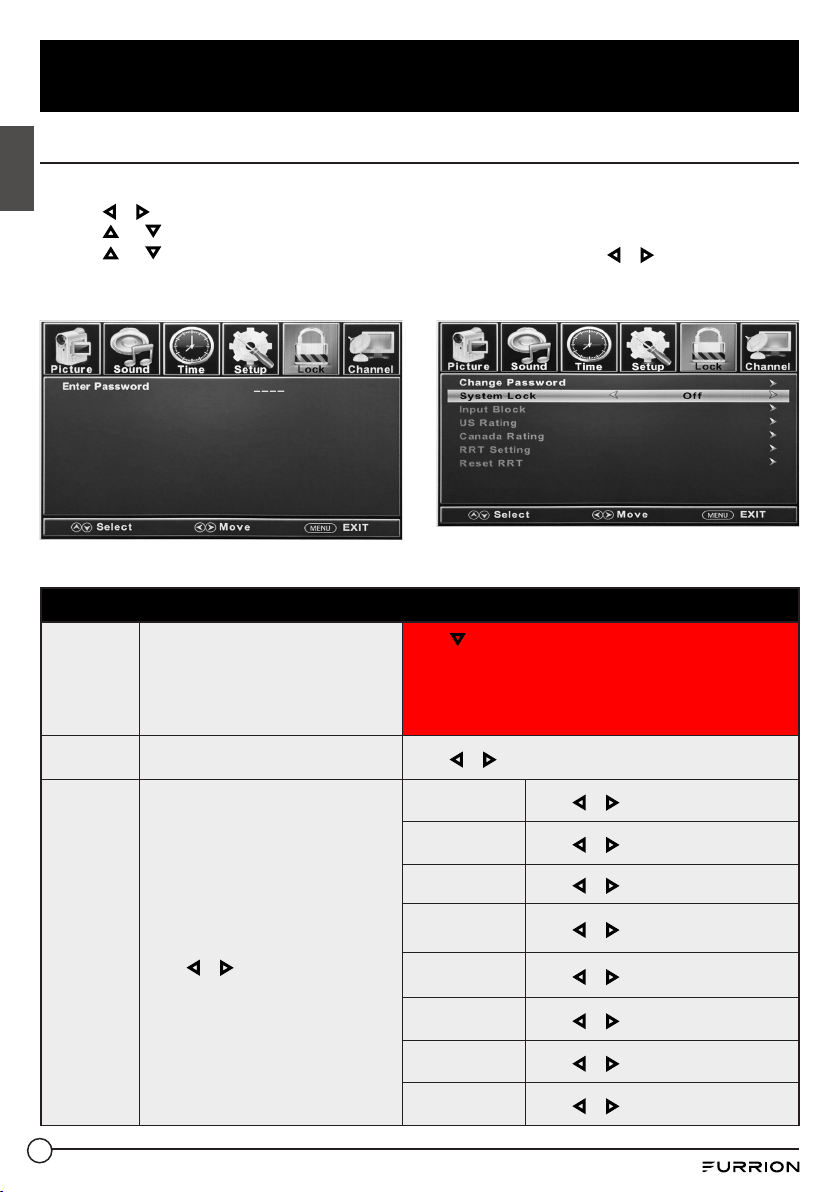

Change the Lock Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use
or key to highlight Lock mode.
3. Use or key to highlight “Enter Password” and input “0000” to enter the setup window.
4. Use or to highlight the item you would like to reset, then press or to select the
settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Lock Menu
Change
Password
Changes the User Password
Press
to highlight Enter Password, Use the Number
Buttons (0~9) to enter the password, the Lock setup window
will appear
* Default password is 0000
* If you forgot the password, use 8888 to enter any locked
menu
System Lock Password locks the system
Press
or to set as On or Off
Input Block
Password locks inputs
Press
or to Block or Unblock
TV
Press
or to set as Block or Unblock
AV
Press
or to set as Block or Unblock
Component
Press
or to set as Block or Unblock
HDMI 1
Press
or to set as Block or Unblock
HDMI 2
Press
or to set as Block or Unblock
HDMI 3
Press
or to set as Block or Unblock
PC
Press
or to set as Block or Unblock
Media
Press
or to set as Block or Unblock
22
Change Settings
English

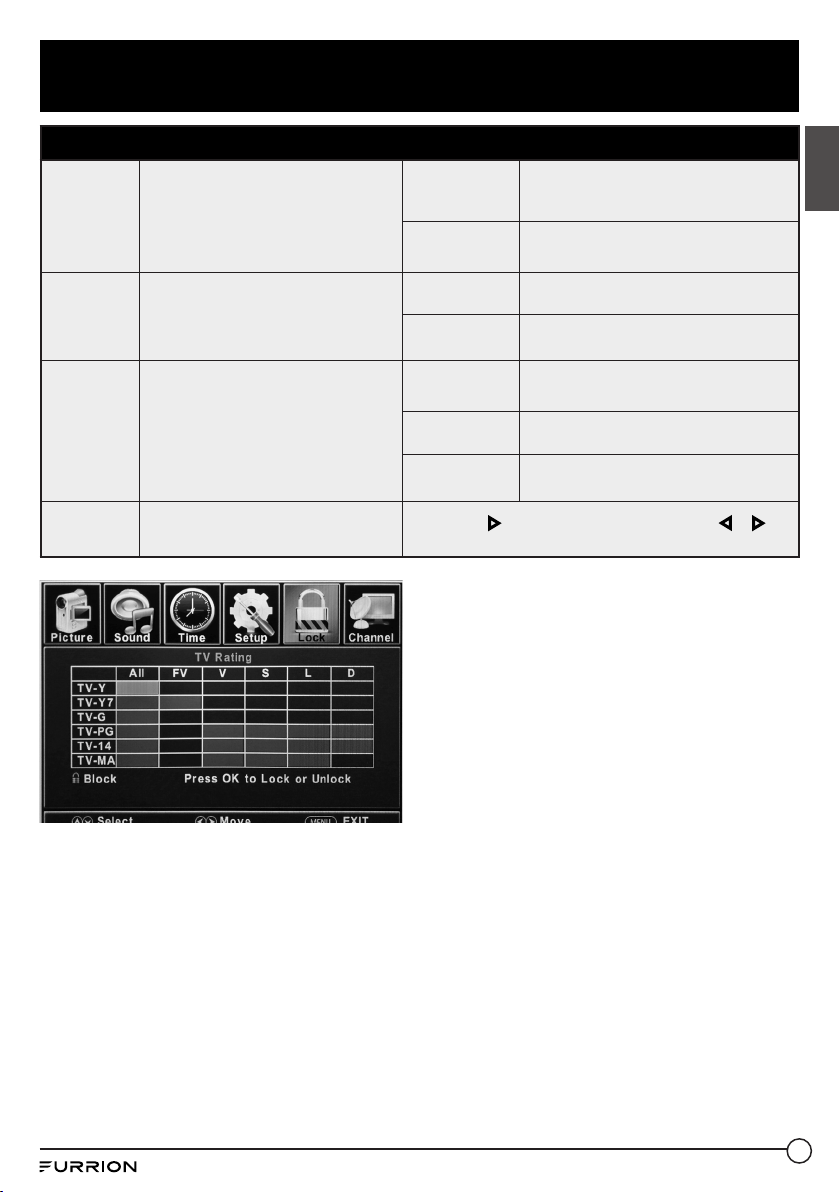

Lock Menu
US Rating
Set parental locks based on US rating
system
* Only available after System Lock was
set as On mode
TV
Set the rating using age level and genre.
Refer to Age & Genre table for definition
MPAA See US Rating System table
Canada
Rating
Set parental locks based on Canadian
rating system
* Only available after System Lock was
set as On mode
Canada English See Canadian Rating System table
Canada French See Canadian Rating System table
RRT Setting
Set parental locks based on Canadian
rating system
* Only available when the DTV code RRT
traffic detected by the system
Humor Level See Canadian Rating System table
Intelligence
level
See Canadian Rating System table
Erotic level
20CHARS
See Canadian Rating System table
Reset RRT Restore to default RRT settings
Press OK or
to enter the sub menu, then press or to
select Yes or No
23
English
Change Settings
Genre
ALL All
FV Fantasy Violence
V Violence
S Sex
L Language
D Dialogue
Age
TV-Y All Children
TV-Y7 7 Years old or above
TV-G General Advice
TV-PG Parental Guidance
TV-14 14 Years old or above
TV-MA 17 Years old or above
US Rating System
Off All Children
G All Ages
PG Parental Guidance
PG-13 Parental Guidance below 13
R Parental Guidance below 17
NC-17 17 Years old or above
X Adults Only
Canadian Rating System
Off All Children
C All Ages
C8+ Children below 8
G General Audience
PG Parental Guidance
14+
Programming contains themes or content which
may not be suitable for viewers under the age
of 14
18+ Adult
24
Change Settings
English

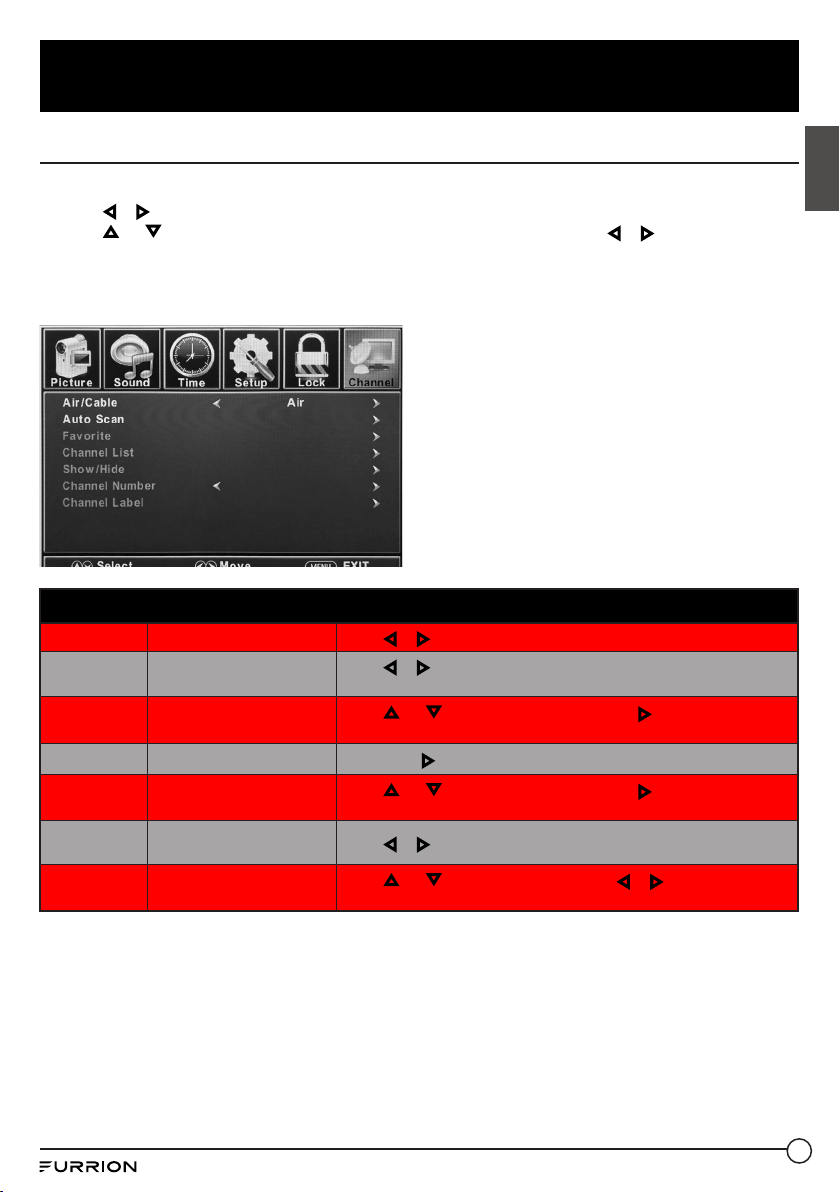

Change the Channel Settings
1. Press MENU button, the setup window will appear on the screen.
2. Use
or key to highlight Channel mode.
3. Use or to highlight the item you would like to reset, then press or to select the
settings.
4. Press OK to confirm your selections or settings and enter the sub menus.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
Channel Menu
Air/Cable Set the reception type
Press
or to select Air or Cable
Auto Scan
Automatically scans for
available channels
Press
or to select Yes to start Automatically scanning channels or
No to cancel.
Favorite
Adds Channels to the
Favorite list
Press
or to select a channel, then press or OK to select or
deselect as a favorite
Channel List List available channels
Press OK or
to list available channels
Show/Hide
Selects the channel
number for labeling
Press
or to select a channel, then press or OK to show or hide
the channel
Channel
Number
Selects the channel
number for labeling
Press
or to select a channel
Channel Label
Allows to define the name
of channels
Press
or to select a character, press or to navigate the
characters. (Maximum of 7 characters)
25
Change Settings
English

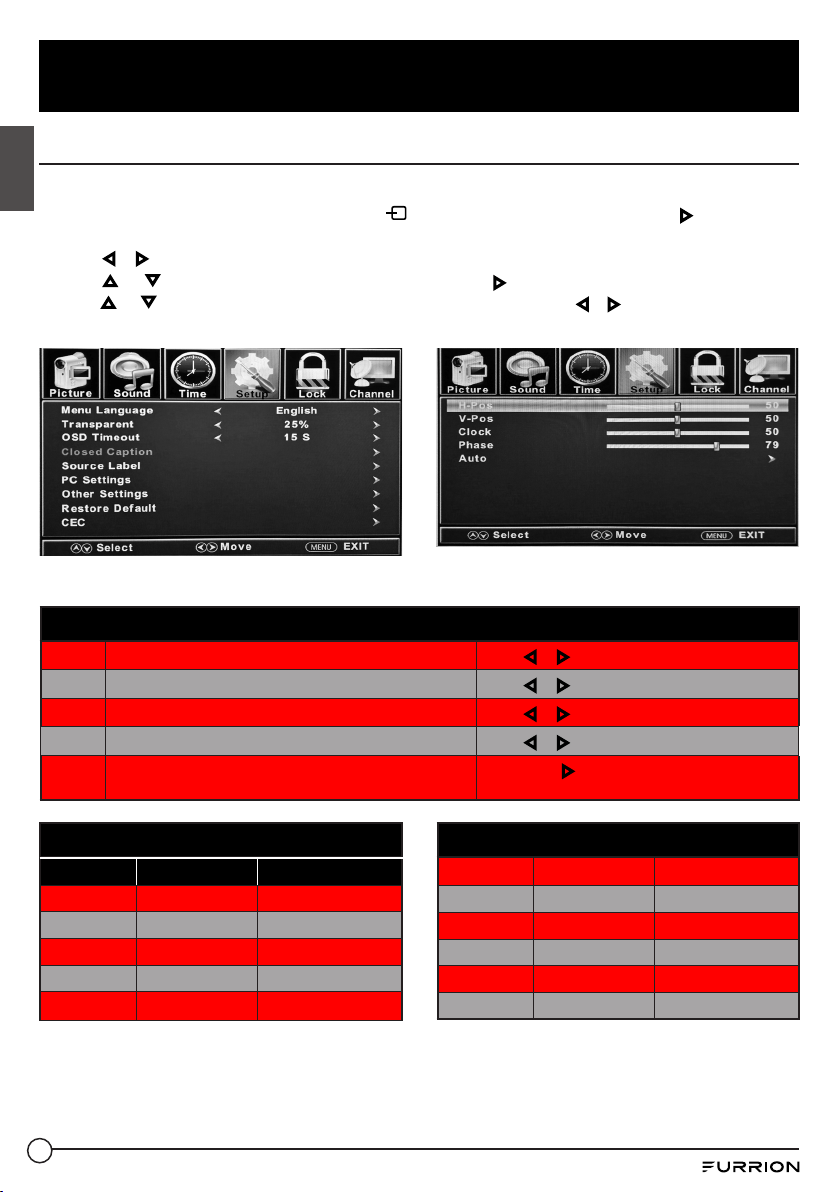

PC Settings
The PC menu is only accessible when a PC is connected to the TV via the VGA connection.
Note: After connecting a PC, press
SOURCE
button and select PC. Press OK or to enter.
1. Press MENU button, the setup window will appear on the screen.
2. Use
or key to highlight Setup mode.
3. Use or to highlight PC Settings item , then OK or to enter,PC Menu table.
4. Use
or to highlight the item you would like to reset, then press or to select the settings.
5. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
* Please note that on non FHD TV’s some functionality may be limited
PC MONITOR DISPLAY MODES
Mode Resolution Refresh Rate
VGA 640 X 480 60 / 75 Hz
VGA 720 X 400 70 Hz
VGA 1366 X 768 60 Hz
SVGA 800 X 600 60 / 75 Hz
XGA 1024 X 768 60 / 70 Hz / 75 Hz
PC Menu
H-Pos Configures the horizontal position of the TV image.
Press
or to move the screen horizontally
V-Pos Configures the vertical position of the TV image.
Press
or to move the screen vertically
Clock Adjusts the pixel Clock (vertical) for a clearer image.
Press
or to adjust
Phase Adjusts the phase Clock (horizontal) for a clearer image.
Press
or to adjust
Auto Automatically adjusts the PC settings.
Press OK or
to adjust all PC settings
automatically
PC MONITOR DISPLAY MODES
WXGA 1280 X 720 60 Hz
WXGA 1360 X 768 60 Hz
SXGA 1280 X 1024 60 Hz
WXGA+ 1440 X 900 60 Hz
WSXGA+ 1680 X 1050 60 Hz
FHD 1920 X 1080 60 Hz
26
Change Settings
English

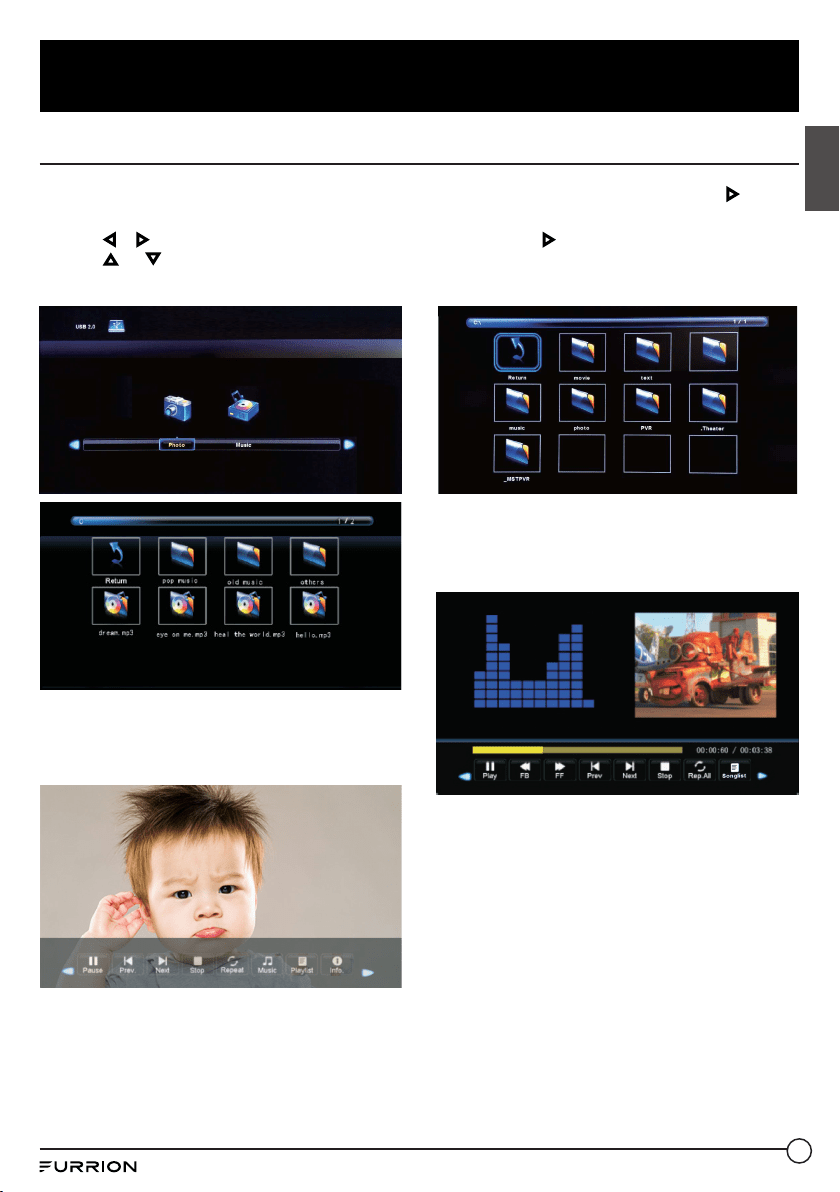

USB Mode
1. After connecting a flash drive, press SOURCE button and select Media. Press OK or
to
enter.
2. Use or key to select to view Photo or Music. Press OK or to enter.
3. Use or to navigate the files or folders on the USB drive.
4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.
When viewing photos, this photo viewer tool
will allow control of the slide show, play
music and information on the file.
Playback of music is via this music
player, which gives playback controls and
information on the file.
The photo viewer displays .jpg photo format
fi les
The music player plays MP3 audio format
files.
27
Troubleshooting
English
Problem Solution/Issue
TV does not
operate
● Make sure the power cord is plugged in.
● Try another AC outlet.
● Power is off, check fuse or circuit breaker.
● Unplug unit for an hour, then plug it back in.
Normal picture,
but no sound
● Check the volume settings.
● Sound muted? Press MUTE button.
● Try another channel.
● Check audio cable connections.
The remote control
does not work
● Make the remote control is in range with no obstructions.
● Check the batteries.
● Correct operating mode set: TV, VCR etc.
Poor sound or no
sound
● Station or Cable TV experiencing problems, tune to another station.
● Check sound adjustments (Volume or Mute).
● Check for sources of possible interference.
Poor picture or no
● Station or Cable TV experiencing problems, tune to another station.
● Make sure channels are set into memory.
● Check antenna or Cable TV connections, adjust antenna.
● Check for sources of possible interference.
● Check picture control adjustments.
Poor TV reception
● Ensure the antenna amplifier is turned on for Antenna TV.
● Adjust the antenna position to a stronger signal receiving angle.
● Check the Antenna connection is tight to the TV.
● Check there is power supplied to the Antenna distribution box.
● Confirm your incoming cable is connected to the correct cable / antenna wall connection
inside the RV.
● Ensure the internal RV coax jump cable is connected to the correct port.
Poor Cable /
Satellite TV
Reception
● Ensure antenna amp is turned off for able signal.
● Check incoming Cable is connected correctly to RV.
● Ensure cable splitter box has power.
● Confirm the incoming cable is connected to the correct cable / Satellite wall connection
inside your RV.
● Ensure the internal RV coax jump cable is connected to the correct port.
● Check Dish has not obstruction.
TV shuts off
● Sleep Timer is set.
● Power interrupted.
Black and white
image from the
connected AV
device
● Check video connections on both the TV and connected AV device. Ensure the colors match
between the connectors and sockets: green (Y), blue (Pb/Cb) and red (Pr/Cr) for component
connection, and yellow (VIDEO) for composite connection.
● Ensure all video cables are connected firmly.
28
Specifications
English
D
H
W
MODEL, DIMENSION & RESOLUTION
Model
Dimension without Stand
(W*H*D)
Dimension with Stand
(W*H*D)
Max Resolution
FDHS32M4A
28 /” x 17/” x 2/”
(735 x 447 x 74mm)
28 /” x 18 /” x 8 /”
(735 x 478 x 208mm)
1366 x 768 @ 60Hz HD
INPUT & OUTPUT CONNECTIONS
Model
R-AUDIO
OUT-L
Earphones
Optical
Out
L-AUDIO
IN-R
Component
Video in
Component
YP
B
P
R
Video in
HDMI
in
VGA
(PC)
in
Audio
(PC)
in
RF in USB
FDHS32M4A 1 1 1
x Left
White)
x Right
(Red)
x Yellow/Green*
x Blue
x Red
29
Warranty
English
Furrion warrants for a period of 1 year from date of retail purchase by the original end-use
purchaser, that this product, when delivered to you in new condition, in original packaging,
from a Furrion authorized reseller and used in normal conditions, is free from any defects
in manufacturing, materials, and workmanship. In case of such defect, Furrion shall replace
or repair the product at no charge to you. This warranty does not cover: products where the
original serial numbers have been removed, altered or cannot readily be determined; damage
or loss caused by accident, misuse, abuse, neglect, product modification, failure to follow
instructions in instruction manual, commercial or industrial use; damage or loss caused to the
decorative surface of product; to any data, software or information; and normal wear and tear.
This warranty only protects the original end-user (“you”) and is not transferable; any attempt to
transfer this warranty shall make it immediately void. This warranty is only valid in the country
of purchase.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS
OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. IF FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES
UNDER THIS LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION
TO THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification, extension, or
addition to this warranty.
30
Warranty
English
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION,
OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS,
DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF ANY EQUIPMENT OR PROPERTY,
ANY COSTS OF RECOVERING, REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA
STORED IN OR USED WITH FURRION PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED
TO THE REPAIR OR REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS
WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY BY STATE OR (WHERE APPLICABLE IN THE COUNTRIES WHERE
FURRION HAS NON-US/CANADIAN AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM
TO ENFORCE THIS WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE
WARRANTY PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the warranty
period. Service under this warranty must be obtained by contacting Furrion at
Product features or specifications as described or illustrated are subject to change without
notice.
IM-FAV00054 V1.0
Furrion Innovation Center & Institute of Technology
52567 Independence Ct., Elkhart, IN 46514, USA Toll free:1-888-354-5792
Email: [email protected]
©2007-2019 Furrion Ltd. Furrion
®
and the Furrion logo are trademarks licensed for use by
Furrion Ltd. and registered in the U.S. and other countries.
FURRION.COM
