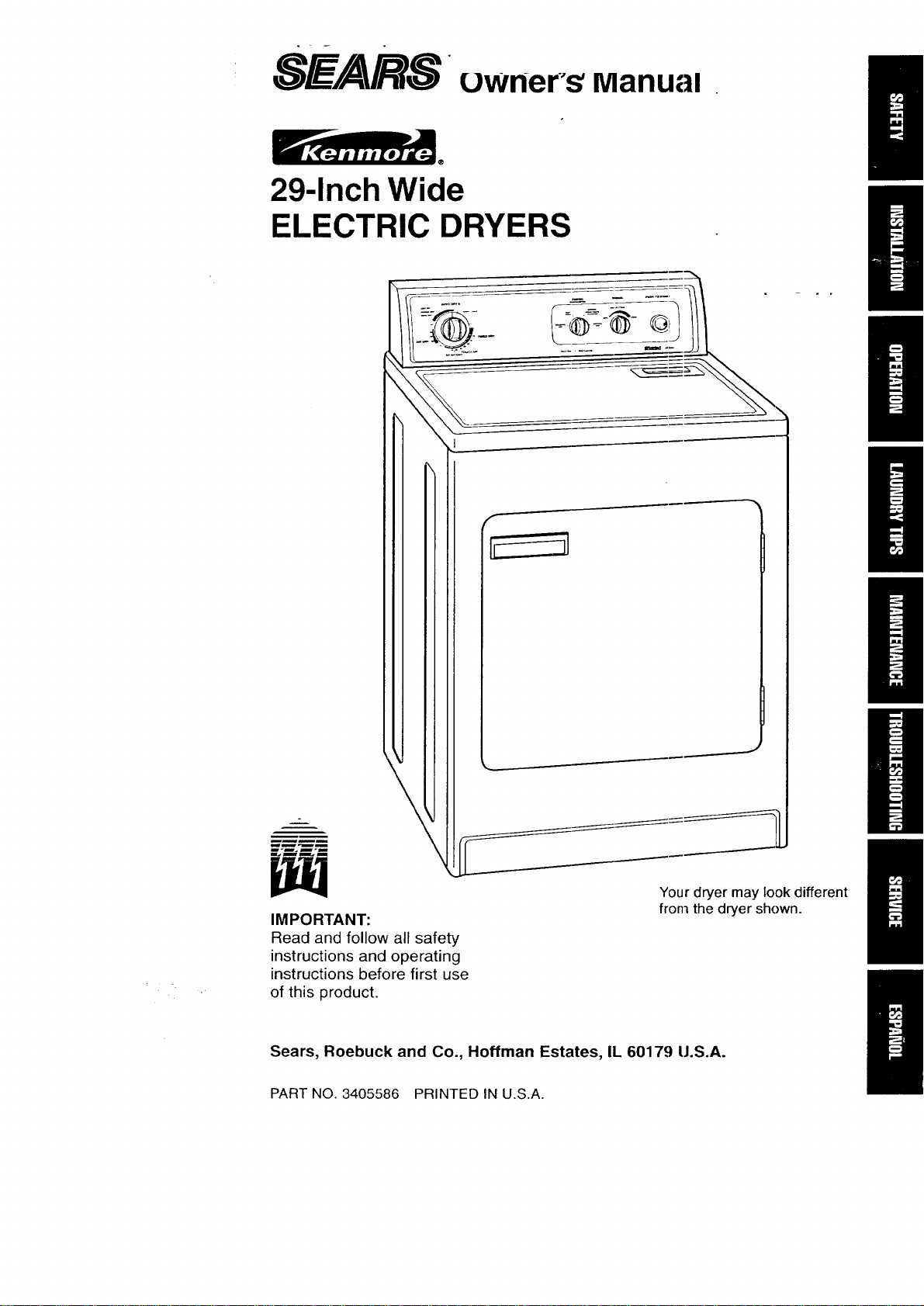

29-Inch Wide
ELECTRIC DRYERS
IMPORTANT:
Read and follow all safety
instructions and operating
instructions before first use
of this product.
r
f
Your dryer may look different
from the dryer shown.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PART NO. 3405586 PRINTED IN U.S.A.

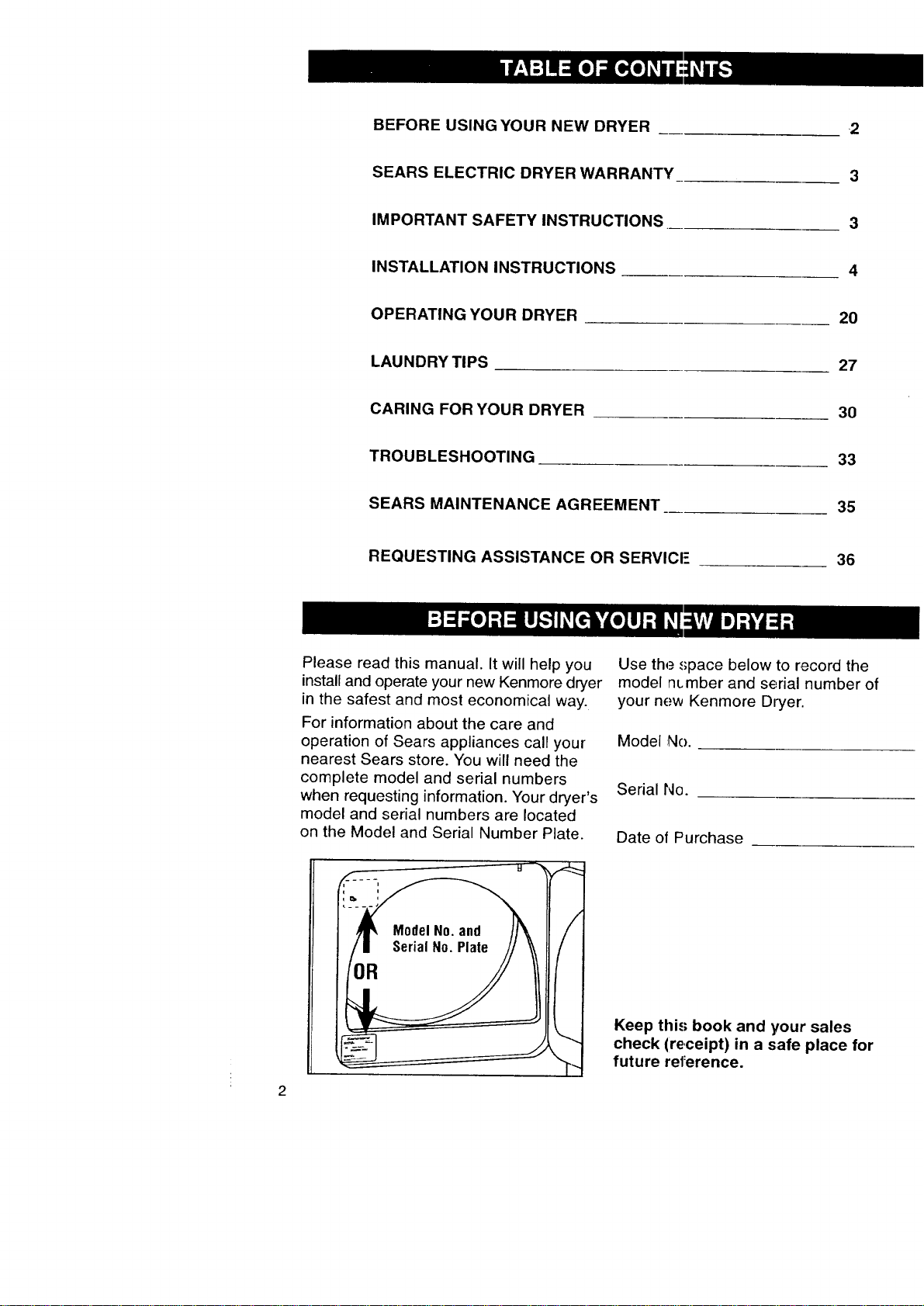

BEFORE USING YOUR NEW DRYER 2
SEARS ELECTRIC DRYER WARRANTY
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
OPERATING YOUR DRYER
LAUNDRY TIPS
CARING FOR YOUR DRYER
TROU BLESHOOTING
SEARS MAINTENANCE AGREEMENT
REQUESTING ASSISTANCE OR SERVICE
4
20
27
30
33
35
36
Please read this manual. It will help you
install and operate your new Kenmore dryer
in the safest and most economical way.
For information about the care and
operation of Sears appliances call your
nearest Sears store. You will need the
complete model and serial numbers
when requesting information. Your dryer's
model and serial numbers are located
on the Model and Serial Number Plate.
Use the ,';pace below to record the
model nt,mber and serial number of
your new Kenmore Dryer.
Model No.
Serial No.
Date of Purchase
Keep this book and your sales
check (re,ceipt) in a safe place for
future reference.
FULL 1-YEAR WARRANTY
ON MECHANICAL AND
ELECTRICAL PARTS
For one year from the date of purchase,
when the dryer is installed and operated
according to the instructions in the Owner's
Manual, Sears will repair or replace any
mechanical or electrical parts in this dryer,
if defective in material or workmanship.
If the dryer is subjected to other than
private family use, the above warranty
coverage is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE
BY CONTACTING THE NEAREST
SEARS SERVICE CENTER IN THE
UNITED ST_,TES.
This warranty applies only while this
product is ir use in the Llnited States.
This warranty gives you specific legal
rights, and you may also have other
rights which vary from state to state.
Sears Roebuck and Co., Dept. 817WA,
Hoffman Fstates, IL 60179.
NOTE: Exhausting your dryer with
plastic duct may not be covered by your
manufacturer's warranty. Pages 16-18
of this Owner's Manual describe the
complete exhaust requirements for
this dryer.

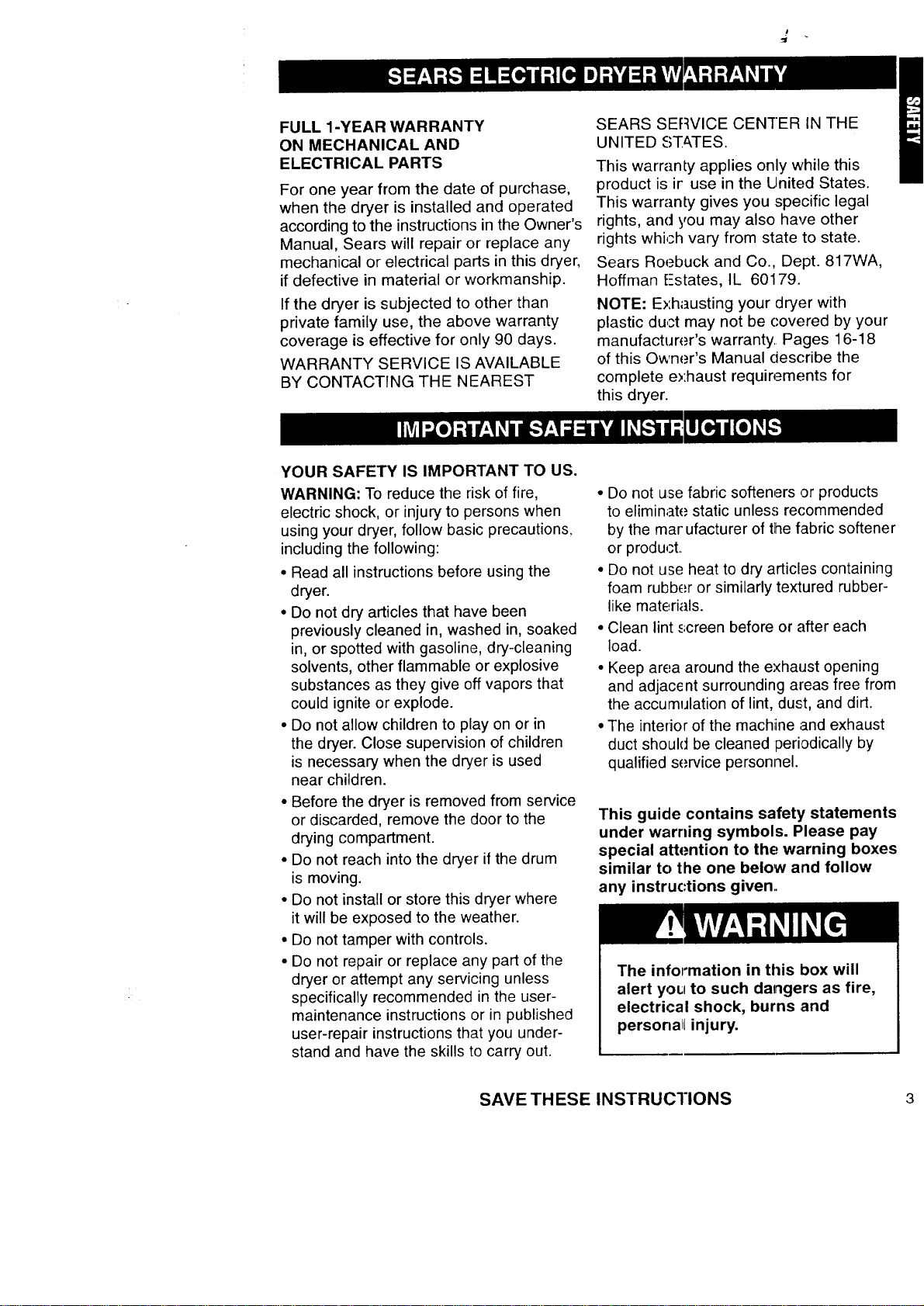

YOUR SAFETY IS IMPORTANT TO US.
WARNING: To reduce the risk of fire,
electric shock, or injury to persons when
using your dryer, follow basic precautions,
including the following:
• Read all instructions before using the
dryer.
• Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable or explosive
substances as they give off vapors that
could ignite or explode.
• Do not allow children to play on or in
the dryer. Close supervision of children
is necessary when the dryer is used
near children.
• Before the dryer is removed from service
or discarded, remove the door to the
drying compartment.
• Do not reach into the dryer if the drum
is moving.
• Do not install or store this dryer where
it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the
dryer or attempt any servicing unless
specifically recommended in the user-
maintenance instructions or in published
user-repair instructions that you under-
stand and have the skills to carry out.
• Do not use fabric softeners or products
to eliminate static unless recommended
by the mar ufacturer of tlhe fabric softener
or product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each
load.
• Keep area around the e;<haust opening
and adjacent surrounding areas free from
the accumulation of lint, dust, and dirt.
• The interior of the machiine and exhaust
duct should be cleaned :periodically by
qualified service personnel.
This guide contains safety statements
under warning symbols. Please pay
special attention to the warning boxes
similar to the one below and follow
any instructions given,,
The information in this box will
alert you to such dangers as fire,
electrical shock, burns and
personalt injury.
SAVE THESE INSTRUCTIONS 3
IMPORTANT:
Observe all governing codes
and ordinances.

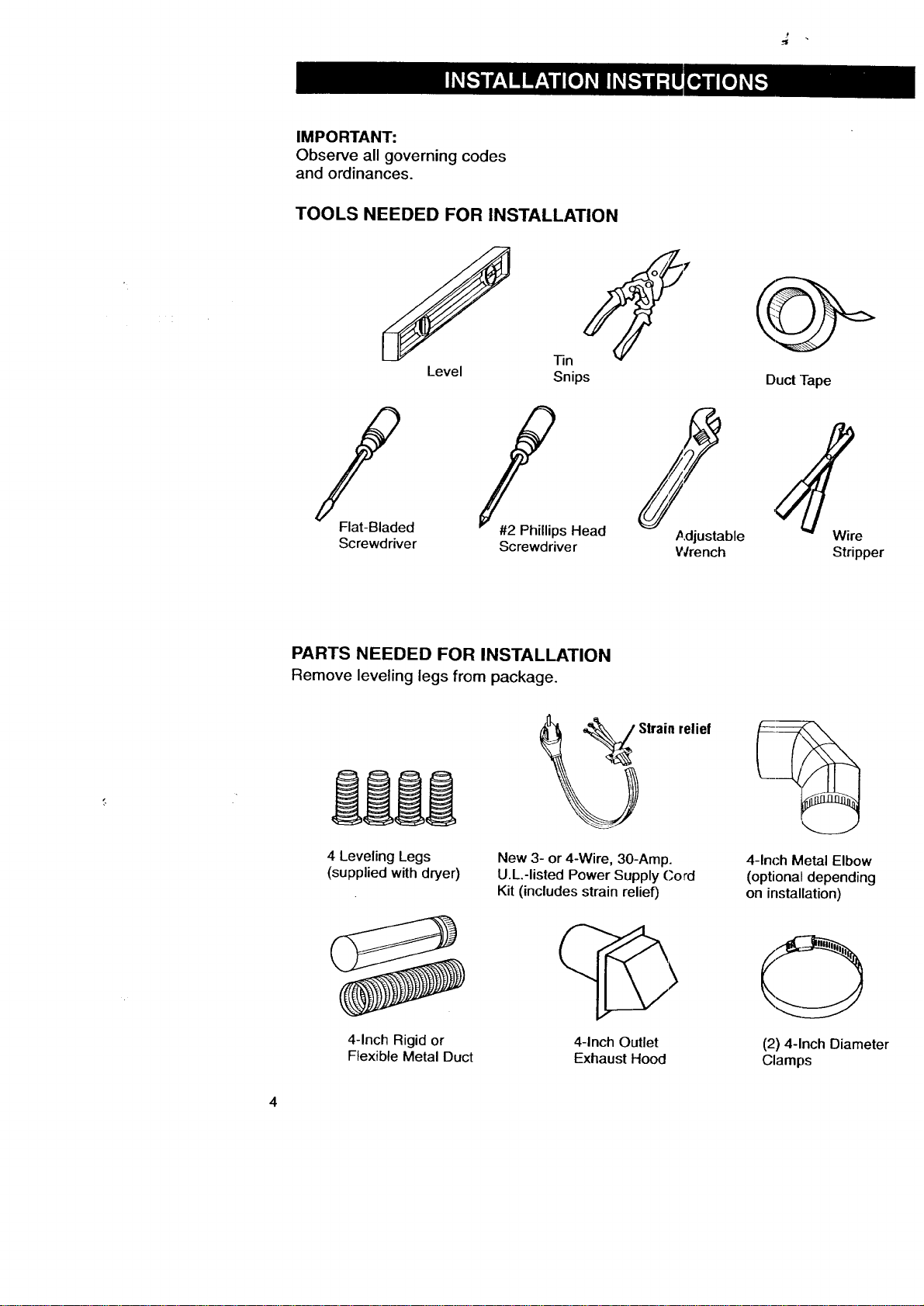

TOOLS NEEDED FOR INSTALLATION
j
Level
f
Tin
Snips
Flat-Bladed
Screwdriver
j#
,A,djustable
Screwdriver Wrench
Duct ]-ape
_Fe
Stripper
PARTS NEEDED FOR INSTALLATION
Remove leveling legs from package.
4 Leveling Legs
(supplied with dryer)
Strain relief
New 3- or 4-Wire, 30-Amp.
U.L.-listed Power Supply Cord
Kit (includes strain relief)
4-Inch Metal Elbow
(optional depending
on installation)
4-Inch Rigid or
Flexible Metal Duct
4-Inch Outlet
Exhaust Hood
(2) 4-Inch Diameter
Clamps
4

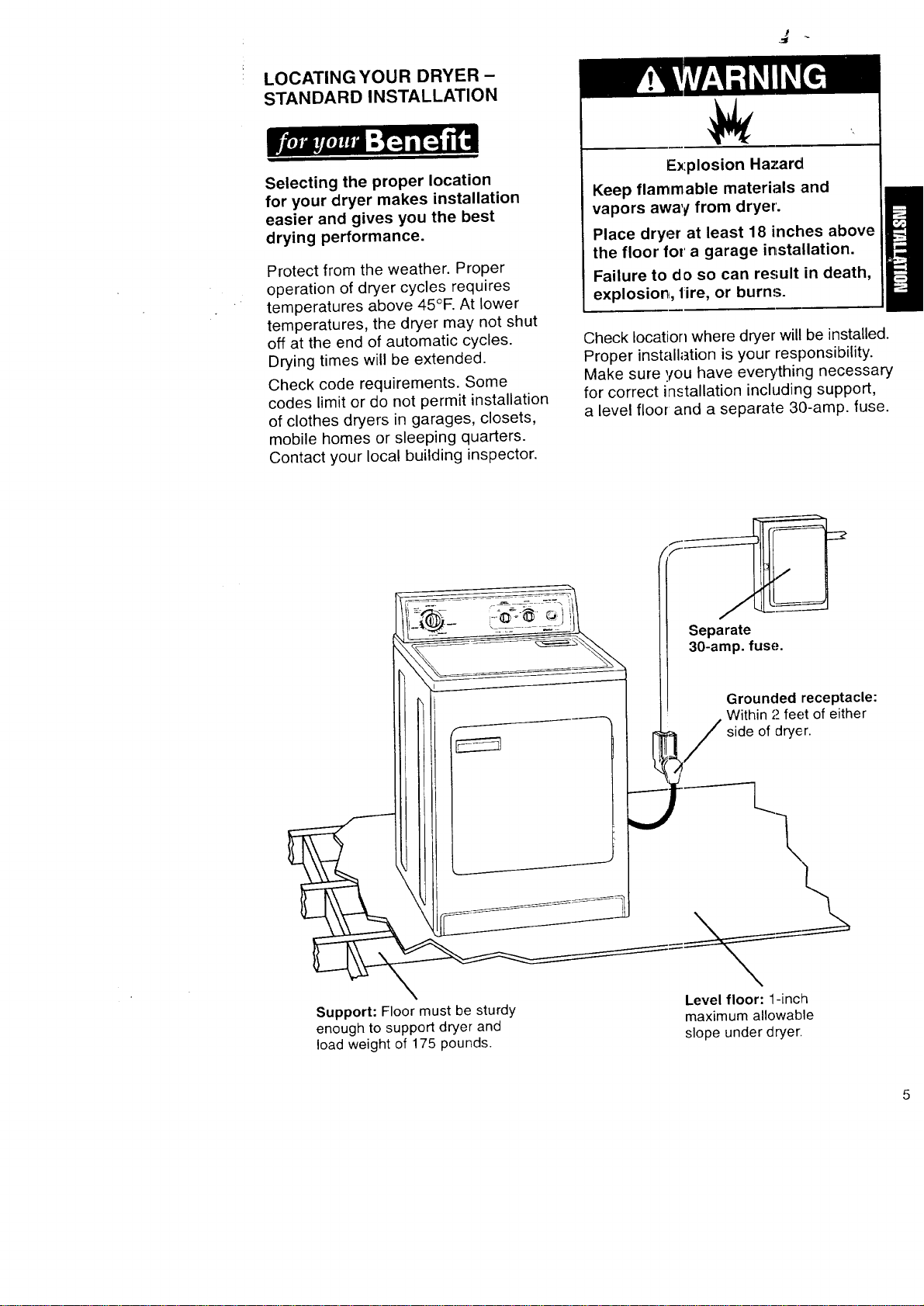

LOCATING YOUR DRYER -
STANDARD INSTALLATION
Selecting the proper location
for your dryer makes installation
easier and gives you the best
drying performance.
Protect from the weather. Proper
operation of dryer cycles requires
temperatures above 45°F. At lower
temperatures, the dryer may not shut
off at the end of automatic cycles.
Drying times will be extended.
Check code requirements. Some
codes limit or do not permit installation
of clothes dryers in garages, closets,
mobile homes or sleeping quarters.
Contact your local building inspector.
!
E_:plosion Hazard
Keep flammable materials and
vapors awa!_,from dryer.
Place dryer at least 18 inches above
the floor for a garage installation.
Failure to do so can result in death,
explosionk, fire, or burns.
Check location where dryer will be installed.
Proper installation is your responsibility.
Make sure you have everything necessary
for correct installation including support,
a level floor and a separate 30-amp. fuse.
I'
Separate
______ 30 amp fuse
['1I! Grounded receptacle:
IJI] --------, Within 2 feet of either
/ side of dryer.
Level floor: 1-inch
Support: Floor must be sturdy maximum allowable
enough to support dryer and
load weight of 175 pounds, slope under dryer.

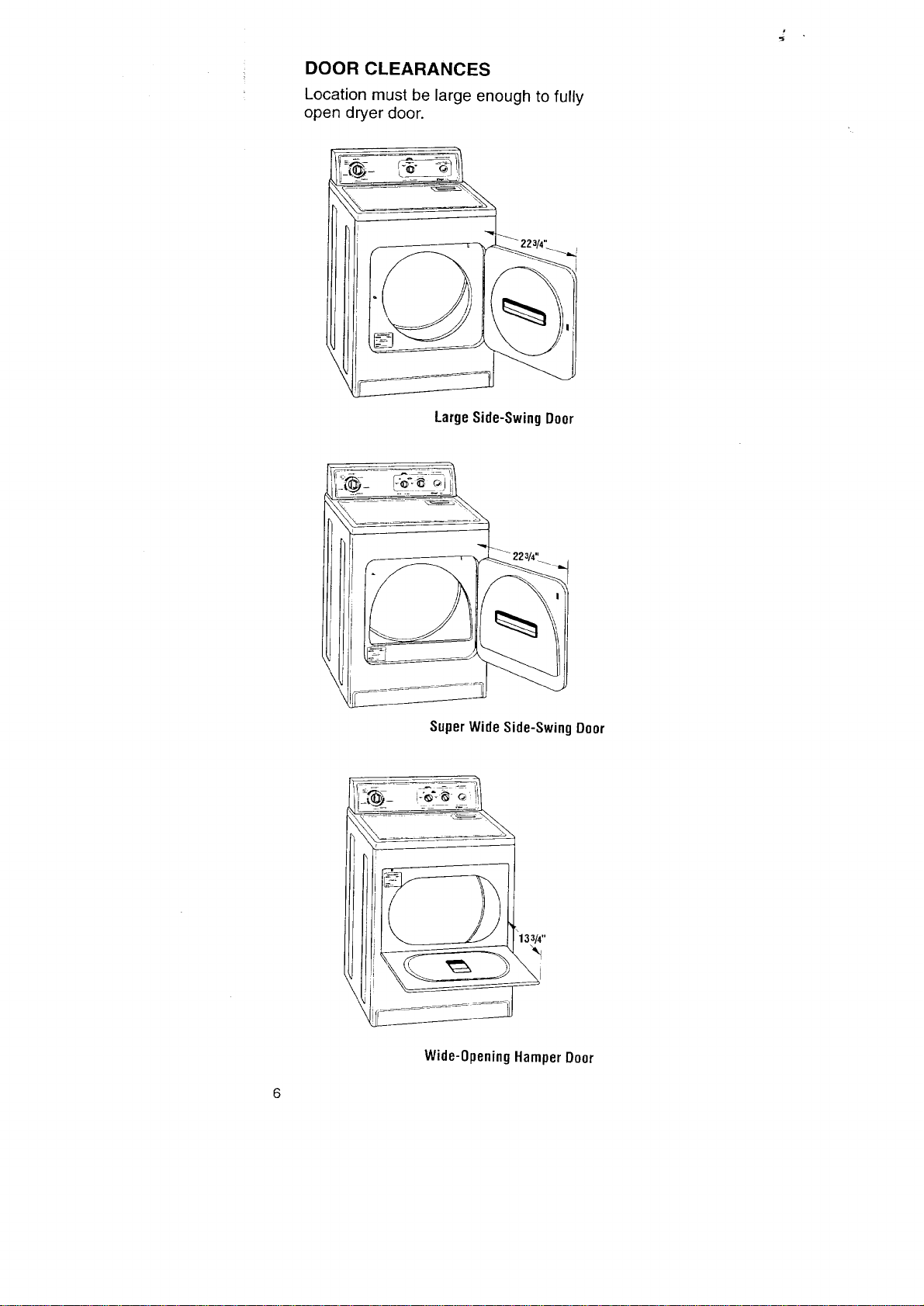

DOOR CLEARANCES
Location must be large enough to fully
open dryer door.
Large Side-SwingDoor
SuperWideSide-SwingDoor
'133/4"
Wide-OpeningHamperDoor

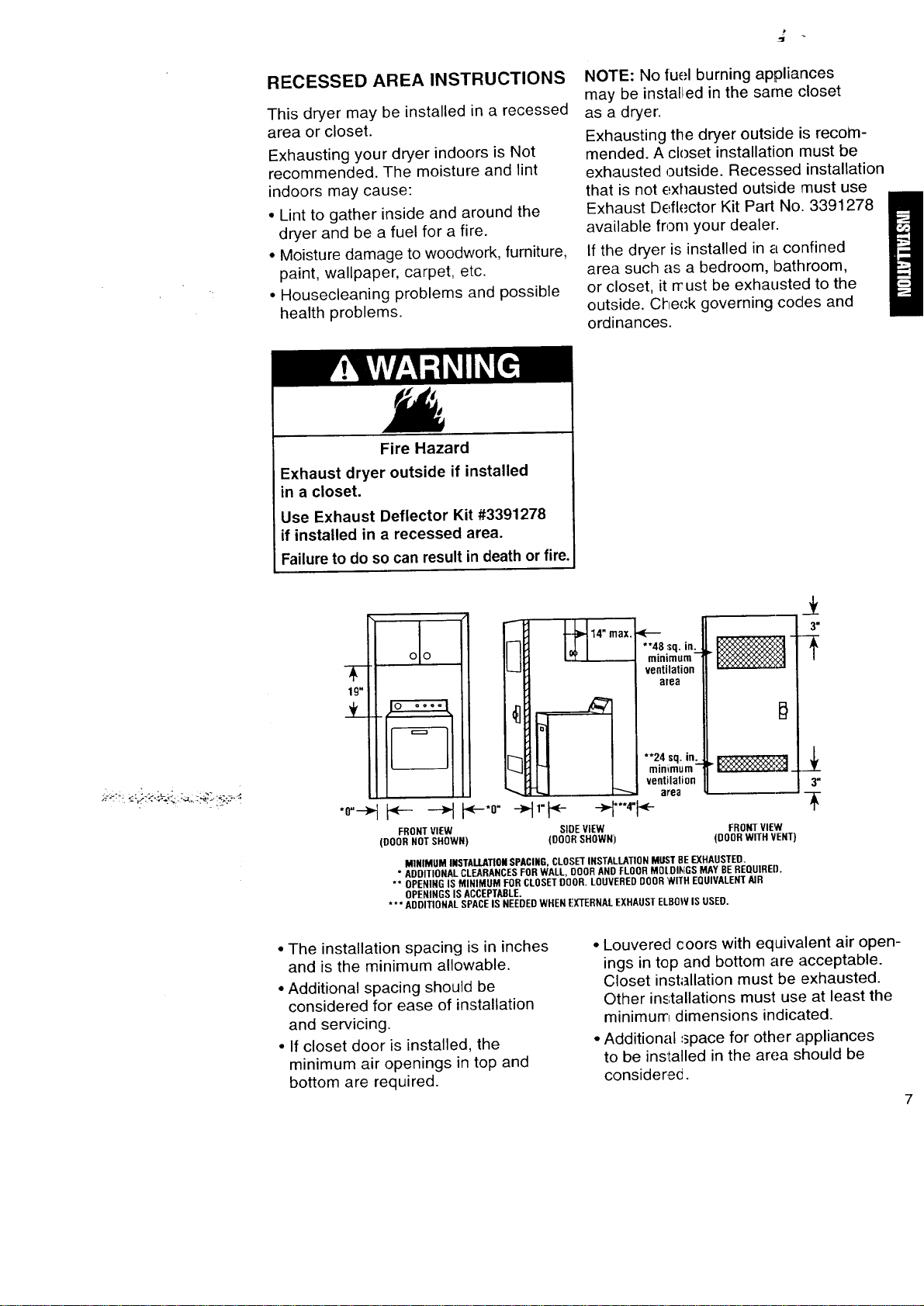

RECESSED AREAINSTRUCTIONS
This dryer may be installed in a recessed
area or closet.
Exhausting your dryer indoors is Not
recommended. The moisture and lint
indoors may cause:
• Lint to gather inside and around the
dryer and be a fuel for a fire.
• Moisture damage to woodwork, furniture,
paint, wallpaper, carpet, etc.
• Housecleaning problems and possible
health problems.
?
NOTE: No fuel burning appliances
may be installed in the same closet
as a dryer.
Exhausting the dryer outside is recom-
mended. A closet installation must be
exhausted outside. Recessed installation
that is not exhausted outside must use
Exhaust Deflector Kit Part No. 3391278
available from your dealer.
If the dryer is installed in a confined
area such as a bedroom, bathroom,
or closet, it rrust be exhausted to the
outside. Che{'k governing codes and
ordinances.
Fire Hazard
Exhaust dryer outside if installed
in a closet.
Use Exhaust Deflector Kit #3391278
if installed in a recessed area.
Failure to do so can result in death or fire.
OlO
19"
I I
**48 sq. in
minimum 11
ventilation " "_'_'_"_"
alea
D
**24 sq" in:_
mlmmum
ventilation
area
*0"---_ _ _ J_---'O" -_ 1"_ -'_**4"_--
RONTV,EW V,EW V,EW
iOOORN0TS.0W. 10OORS.0WNi 0O0RW,TH
MINIMUMINSTALLATIONSPACING,CLOSETINSTALLATIONMUSTBEEXHAUSTEO.
* ADDITIONALCLEARANCESFORWALL,DOORANDFLOORMOLDI_IGSMAYBEHEOU]RED.
** OPENINGIS MINIMUM FORCLOSETO00R. LOUVEREDDOORWITH EQUIVALENTAIR
OPENINGSIS ACCEPTABLE.
*** ADDITIONALSPACEIS NEEDEDWHENEXTERNALEXHAUSTELBOWISUSED.
3"
• The installation spacing is in inches
and is the minimum allowable.
• Additional spacing should be
considered for ease of installation
and servicing.
• If closet door is installed, the
minimum air openings in top and
bottom are required.
* Louvered coors with equivalent air open-
ings in top and bottom are acceptable.
Closet installation must be exhausted.
Other installations must use at least the
minimum dimensions indicated.
• Additional space for other appliances
to be installed in the area should be
considerecL

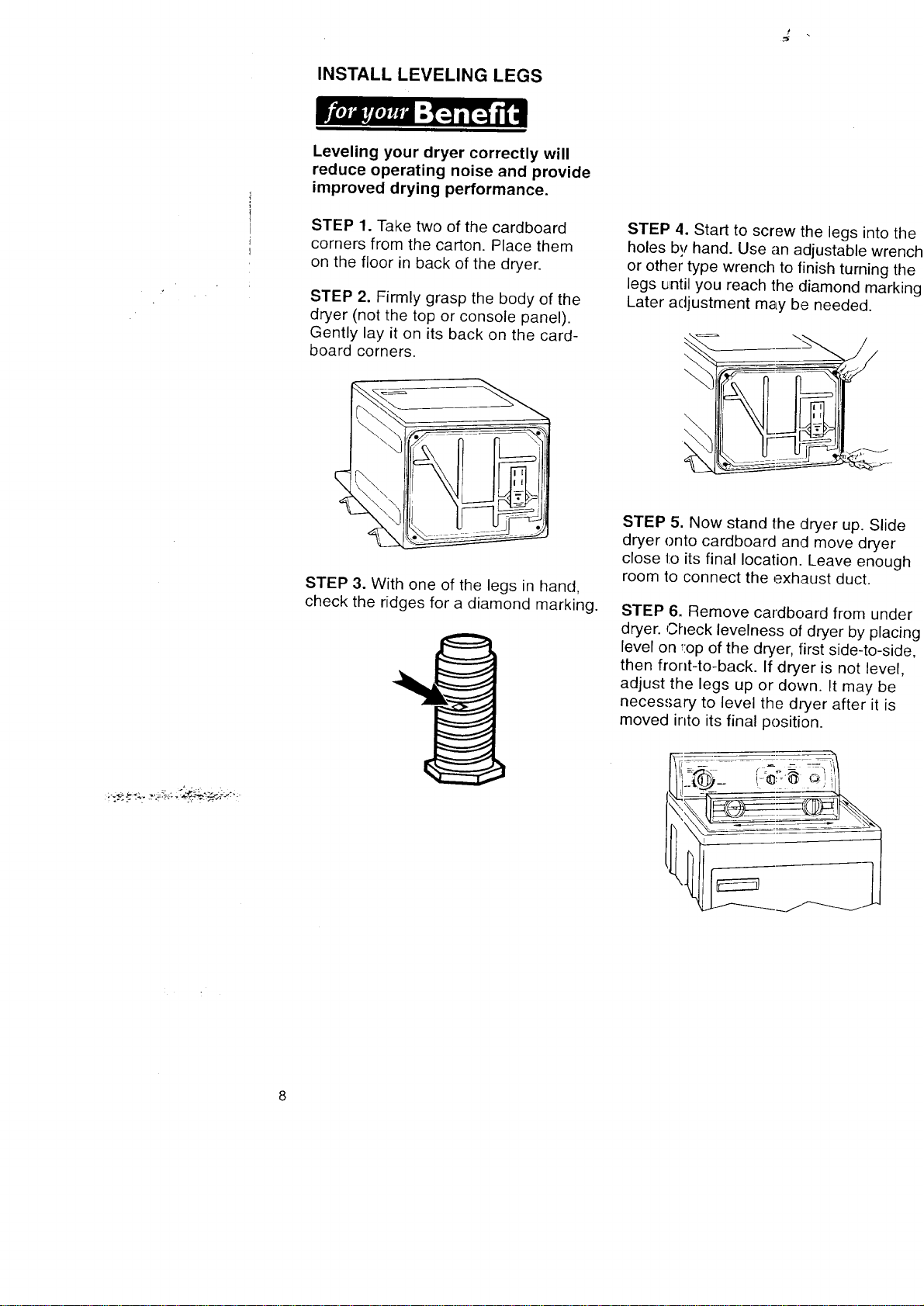

INSTALL LEVELING LEGS
Leveling your dryer correctly will
reduce operating noise and provide
improved drying performance.
STEP 1. Take two of the cardboard
corners from the carton. Place them
on the floor in back of the dryer.
STEP 2. Firmly grasp the body of the
dryer (not the top or console panel).
Gently lay it on its back on the card-
board corners.
STEP 3. With one of the legs in hand,
check the ridges for a diamond marking.
STEP 4. Start to screw the legs into the
holes by hand. Use an adjustable wrenct
or other type wrench to finish turning the
legs until you reach the diamond markin(
Later adjustment may be needed.
STEP 5. Now stand the ,dryer up. Slide
dryer onto cardboard and move dryer
close to its final location. Leave enough
room to connect the exhaust duct.
STEP 6. Remove cardboard from under
dryer. Check levelness of:dryer by placinL
level on _:opof the dryer, first side-to-side,
then front-to-back. If dryer is not level,
adjust the legs up or down. It may be
necessary to level the dryer after it is
moved into its final position.
8

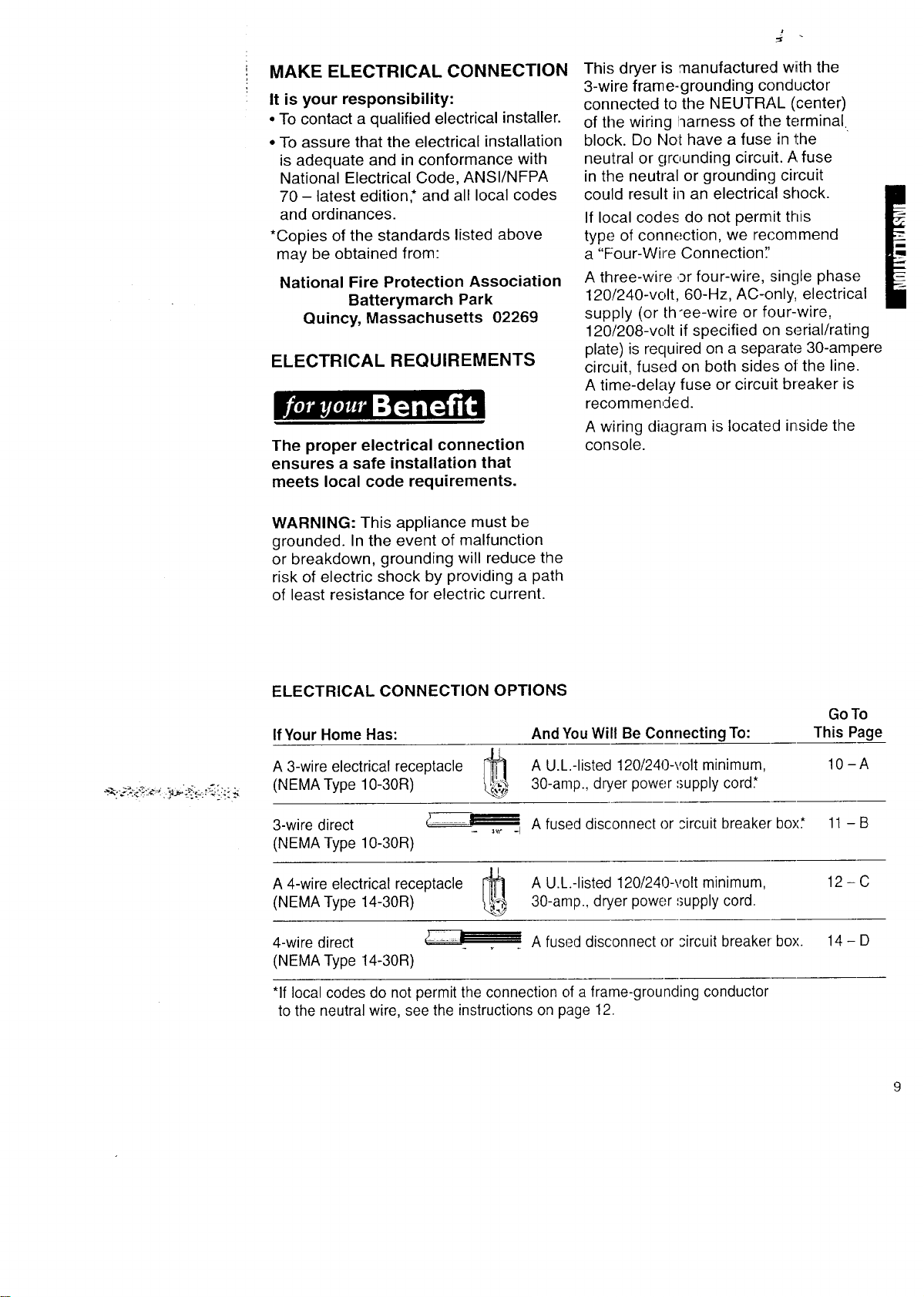

MAKE ELECTRICAL CONNECTION
It is your responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation
is adequate and in conformance with
National Electrical Code, ANSI/NFPA
70 - latest edition* and all local codes
and ordinances.
*Copies of the standards listed above
may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
ELECTRICAL REQUIREMENTS
The proper electrical connection
ensures a safe installation that
meets local code requirements.
WARNING: This appliance must be
grounded. In the event of malfunction
or breakdown, grounding will reduce the
risk of electric shock by providing a path
of least resistance for electric current.
?
This dryer is manufactured with the
3-wire frame-grounding conductor
connected to the NEUTRAL (center)
of the wiring I_arness of the terminal.
block. Do Not have a fuse in the
neutral or grounding circuit. A fuse
in the neutral or grounding circuit
could result in an electrical shock.
If local codes do not permit this
type of connection, we recommend
a "Four-Wire Connection'.'
A three-wire or four-wire, single phase
120/240-volt, 60-Hz, AC-only, electrical
supply (or th'ee-wire or four-wire,
120/208-volt if specified on serial/rating
plate) is required on a separate 30-ampere
circuit, fused on both sides o1:the line.
A time-delay fuse or circuit breaker is
recommended.
A wiring diagram is located inside the
console.
ELECTRICAL CONNECTION OPTIONS
If Your Home Has:
A 3-wire electrical receptacle
(NEMA Type 10-30R)
And You Will Be Connecting To:
A U.L.-listed 120/240-volt minimum,
30-amp., dryer power supply cord*
3-wire direct
(NEMA Type 10-30R)
GoTo
This Page
A 4-wire electrical receptacle
(NEMA Type 14-30R)
4-wire direct _1
(NEMA Type 14-30R)
10 -A
A fused disconnect or circuit breaker boy* 11- B
A U.L.-listed 120/240-volt minimum,
30-amp., dryer power supply cord.
12-C
*If local codes do not permit the connection of a frame-grounding conductor
to the neutral wire, see the instructions on page 12.
A fused disconnect or circuit breaker boy. 14 - D

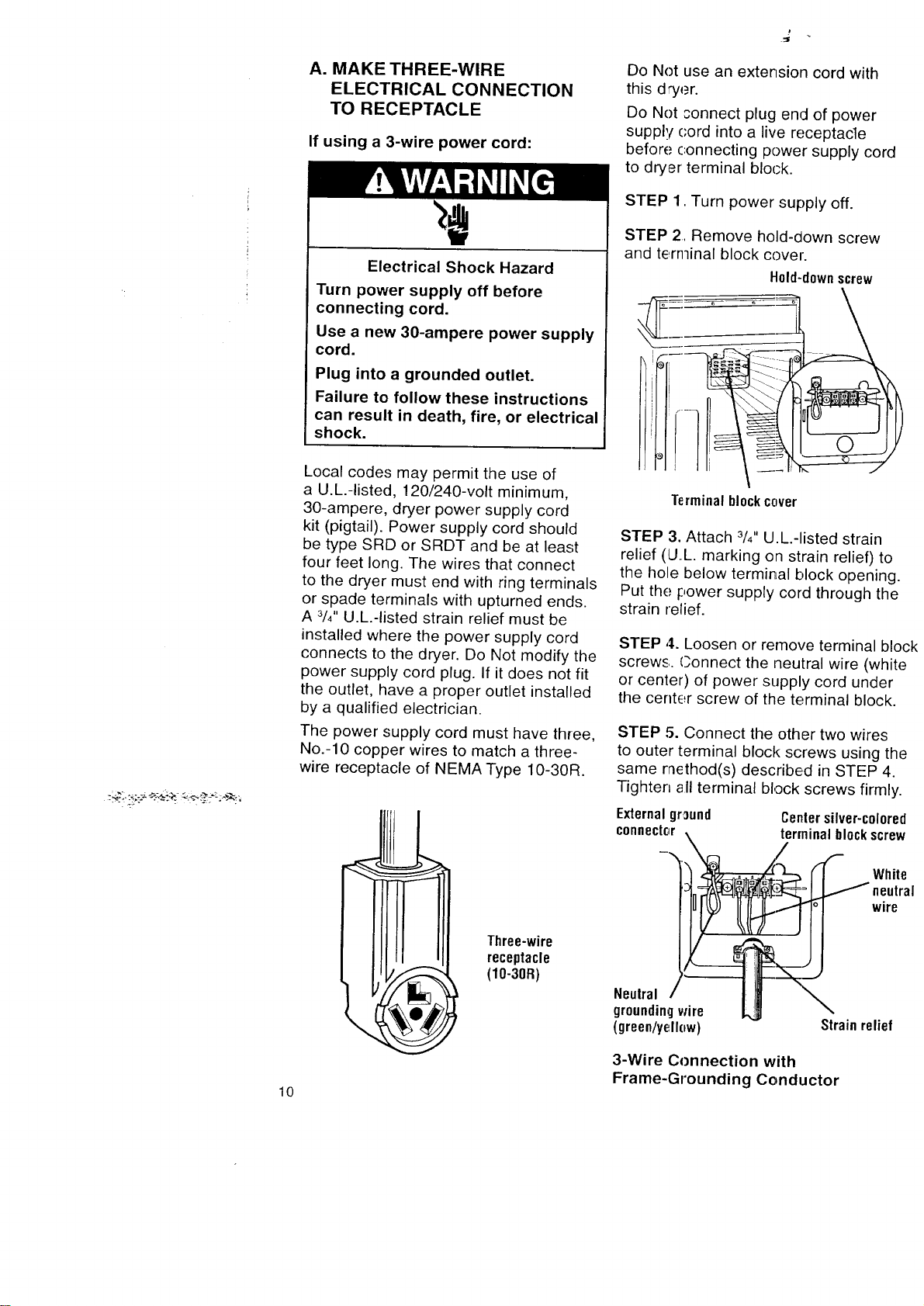

A. MAKE THREE-WIRE
ELECTRICAL CONNECTION
TO RECEPTACLE
If using a 3-wire power cord:
Electrical Shock Hazard
Turn power supply off before
connecting cord.
Use a new 30-ampere power supply
cord.
Plug into a grounded outlet.
Failure to follow these instructions
can result in death, fire, or electrical
shock.
=;
Do Not use an extension cord with
this dryer.
Do Not sonnect plug end of power
supply cord into a live receptacle
before connecting power supply cord
to dryer terminal block.
STEP 1. Turn power supply off.
STEP 2, Remove hold-down screw
and terminal block cover.
H01d-d0wnscrew
Local codes may permit the use of
a U.L.-listed, 120/240-volt minimum,
30-ampere, dryer power supply cord
kit (pigtail). Power supply cord should
be type SRD or SRDT and be at least
four feet long. The wires that connect
to the dryer must end with ring terminals
or spade terminals with upturned ends.
A 3/4"U.L.-listed strain relief must be
installed where the power supply cord
connects to the dryer. Do Not modify the
power supply cord plug. If it does not fit
the outlet, have a proper outlet installed
by a qualified electrician.
The power supply cord must have three,
No.-10 copper wires to match a three-
wire receptacle of NEMA Type 10-30R.
Three-wire
receptacle
(10-30R)
10
Terminalblockcover
STEP 3. Attach 3/4"U.L.-listed strain
relief (U..L. marking on strain relief) to
the hole below terminal block opening.
Put the power supply cord through the
strain relief.
STEP 4. Loosen or remove terminal block
screws. Connect the neutral wire (white
or center) of power supply cord under
the center screw of the terminal block.
STEP 5. Connect the other two wires
to outer terminal block screws using the
same method(s) described in STEP 4.
Tighten all terminal block screws firmly.
External ground
connector
Centersilver-c010red
terminalblockscrew
White
neutral
wire
Neutral
groundingwire
(green/yelluw)
Strain relief
3-Wire Connection with
Frame-Grounding Conductor
STEP6.Tightenthestrainreliefscrews.
STEP7. Inserttabofterminalblockinto
slotofthedryerrearpanel.Securecover
withhold-downscrew.
ContinueInstallation on Page 16.

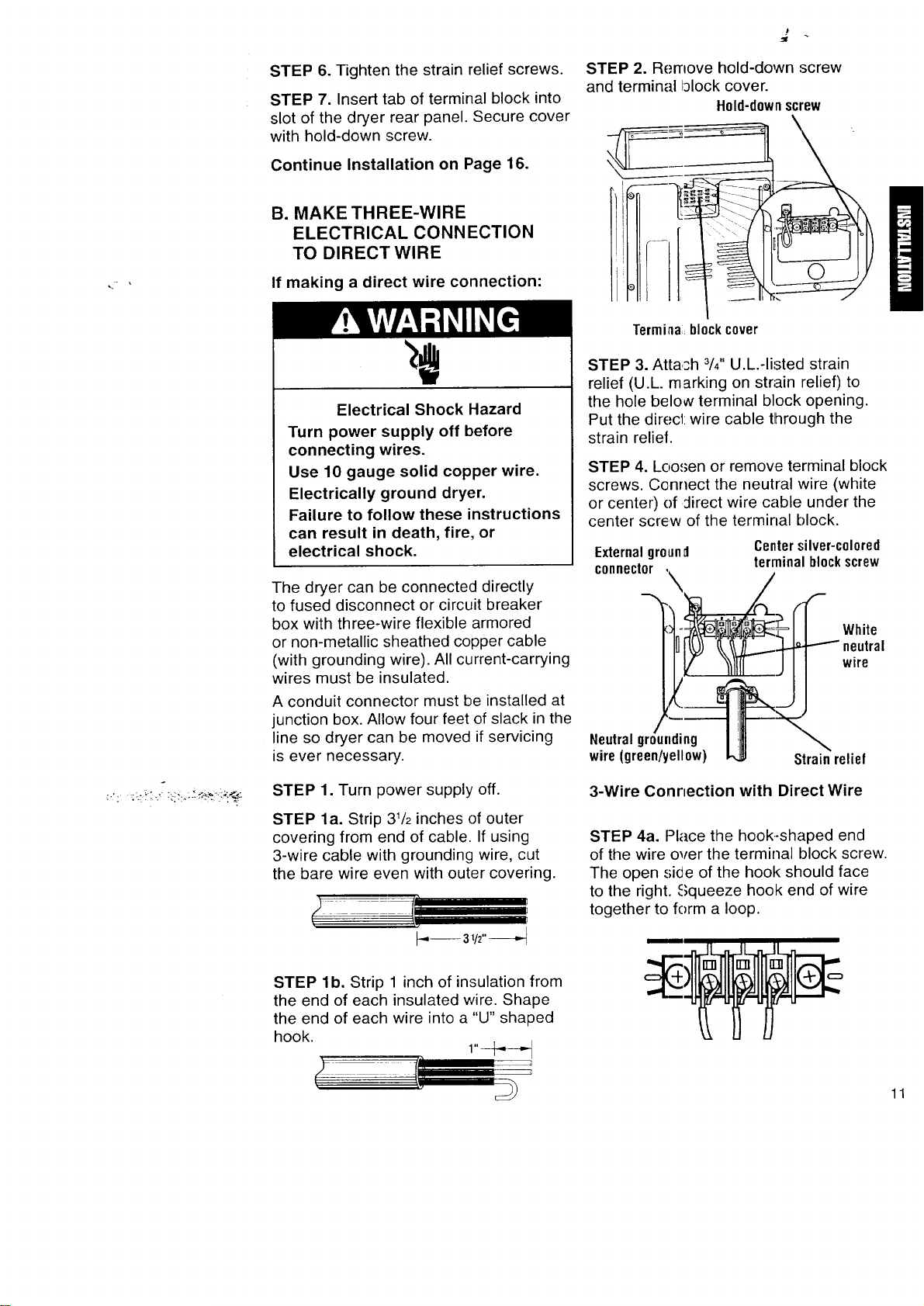

B. MAKE THREE-WIRE
ELECTRICAL CONN ECTION
TO DIRECT WIRE
If making a direct wire connection:
Electrical Shock Hazard
Turn power supply off before
connecting wires.
Use 10 gauge solid copper wire.
Electrically ground dryer.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
The dryer can be connected directly
to fused disconnect or circuit breaker
box with three-wire flexible armored
or non-metallic sheathed copper cable
(with grounding wire). All current-carrying
wires must be insulated.
A conduit connector must be installed at
junction box. Allow four feet of slack in the
line so dryer can be moved if servicing
is ever necessary.
STEP 1. Turn power supply off.
STEP la. Strip 31/2inches of outer
covering from end of cable. If using
3-wire cable with grounding wire, cut
the bare wire even with outer covering.
_-,-- 31/2"_
STEP 2. Remove hold-down screw
and terminal 13lock cover.
H01d-d0wnscrew
Termina;blockcover
STEP 3. Attach 3/4"U.L.-listed strain
relief (U.L. marking on strain relief) to
the hole below terminal block opening.
Put the direcl: wire cable tl_rough the
strain relief.
STEP 4. Loosen or remove terminal block
screws. Connect the neutral wire (white
or center) of direct wire cable under the
center screw of the terminal block.
Externalgroun[I
connector,_
Centersilver-c010red
terminalblockscrew
White
neutral
wire
Neutral! inding
wire (green/yell0w) Strainrelief
3-Wire Connection with Direct Wire
STEP 4a. Place the hook-shaped end
of the wire over the terminal block screw.
The open sicle of the hook should face
to the right. Squeeze hook end of wire
together to form a loop.
STEP lb. Strip 1 inch of insulation from
the end of each insulated wire. Shape
the end of each wire into a "U" shaped
hook.
11
i
\-
STEP 5. Connect the other two wires
to outer terminal block screws using the
same method(s) described in STEP 4a.
Tighten all terminal block screws firmly.
STEP 6. Tighten the strain relief screws.
STEP 7. Insert tab of terminal block
cover into slot of the dryer rear panel.
Secure cover with hold-down screw.
Continue Installation on Page 16.

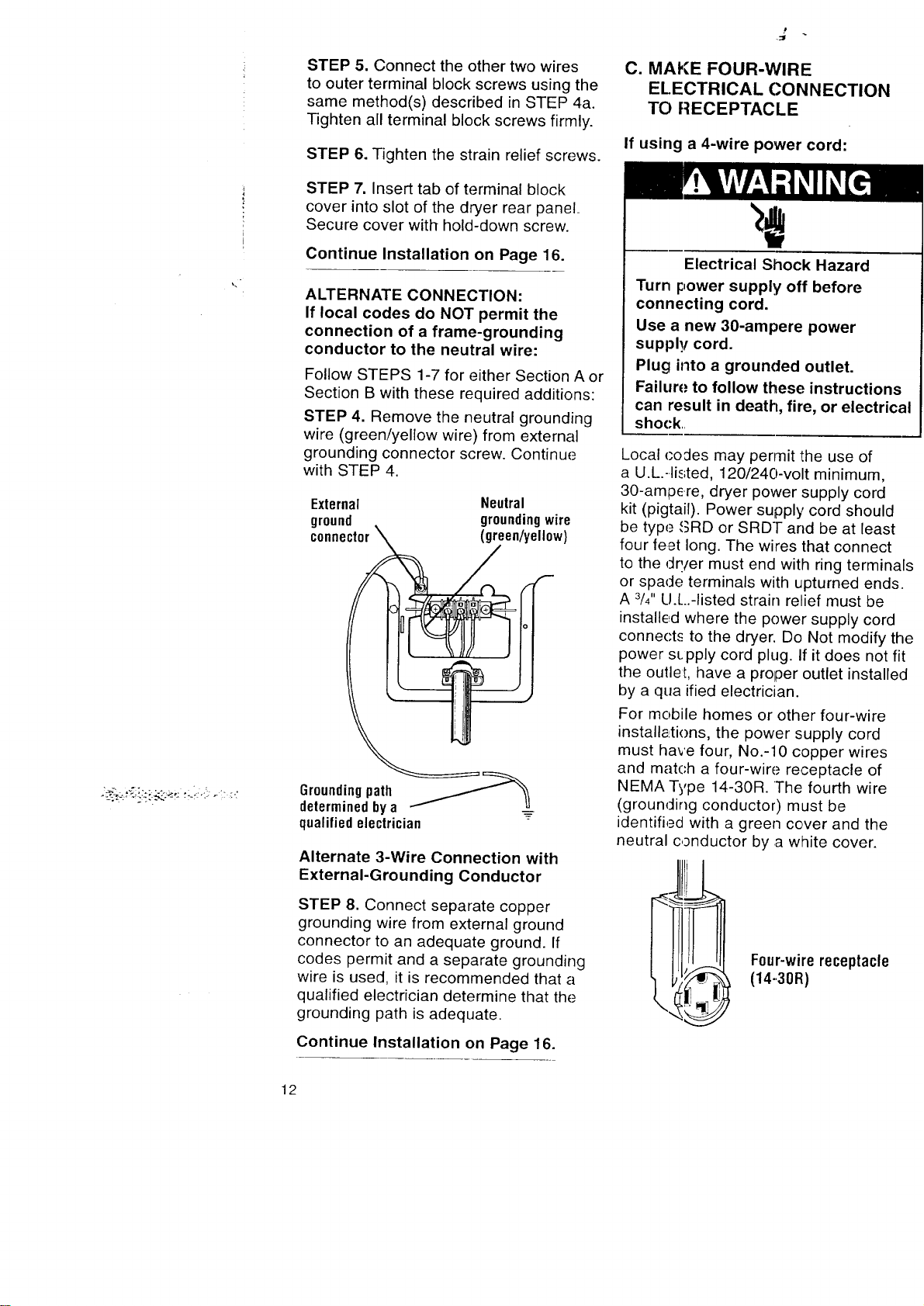

ALTERNATE CONNECTION:
if local codes do NOT permit the
connection of a frame-grounding
conductor to the neutral wire:
Follow STEPS 1-7 for either Section A or
Section B with these required additions:
STEP 4. Remove the neutral grounding
wire (green/yellow wire) from external
grounding connector screw. Continue
with STEP 4.
External Neutral
ground groundingwire
connector (green/yellow)
Groundingpath
determinedbya
qualified electrician
Alternate 3-Wire Connection with
External-Grounding Conductor
STEP 8. Connect separate copper
grounding wire from external ground
connector to an adequate ground. If
codes permit and a separate grounding
wire is used, it is recommended that a
qualified electrician determine that the
grounding path is adequate.
Continue Installation on Page 16.
t
C. MAKE FOUR-WIRE
ELECTRICAL CONNECTION
TO RECEPTACLE
If using a 4-wire power cord:
Electrical Shock Hazard
Turn power supply off before
connecting cord.
Use a new 30-ampere power
supply cord.
Plug into a grounded outlet.
Failure to follow these instructions
can result in death, fire, or electrical
shock.
Local codes may perrnit the use of
a U.L.-.li_,ted, 120/240-volt minimum,
30-ampe.re, dryer power supply cord
kit (pigtail). Power supply cord should
be type SRD or SRD]- arid be at least
four feet long. The wires that connect
to the dr,!er must end with ring terminals
or spade terminals with upturned ends.
A 3/4"U.L.-listed strain relief must be
installed where the power supply cord
connects to the dryer. Do Not modify the
power sLpply cord plug. If it does not fit
the ouilel, have a proper outlet installed
by a qua ified electrician.
For mobile homes or other four-wire
install_.tions, the power supply cord
must have four, No.-10 copper wires
and match a four-wire receptacle of
NEMA Type 14-30R. The fourth wire
(groundirlg conductor) must be
identified with a green cover and the
neutral conductor by .awhite cover.
Four-wire receptacle
(14-,30R)
12
Do Not use an extension cord with
this dryer.
Do Not connect plug end of power
supply cord into a live receptacle before
connecting power supply cord to dryer
terminal block.

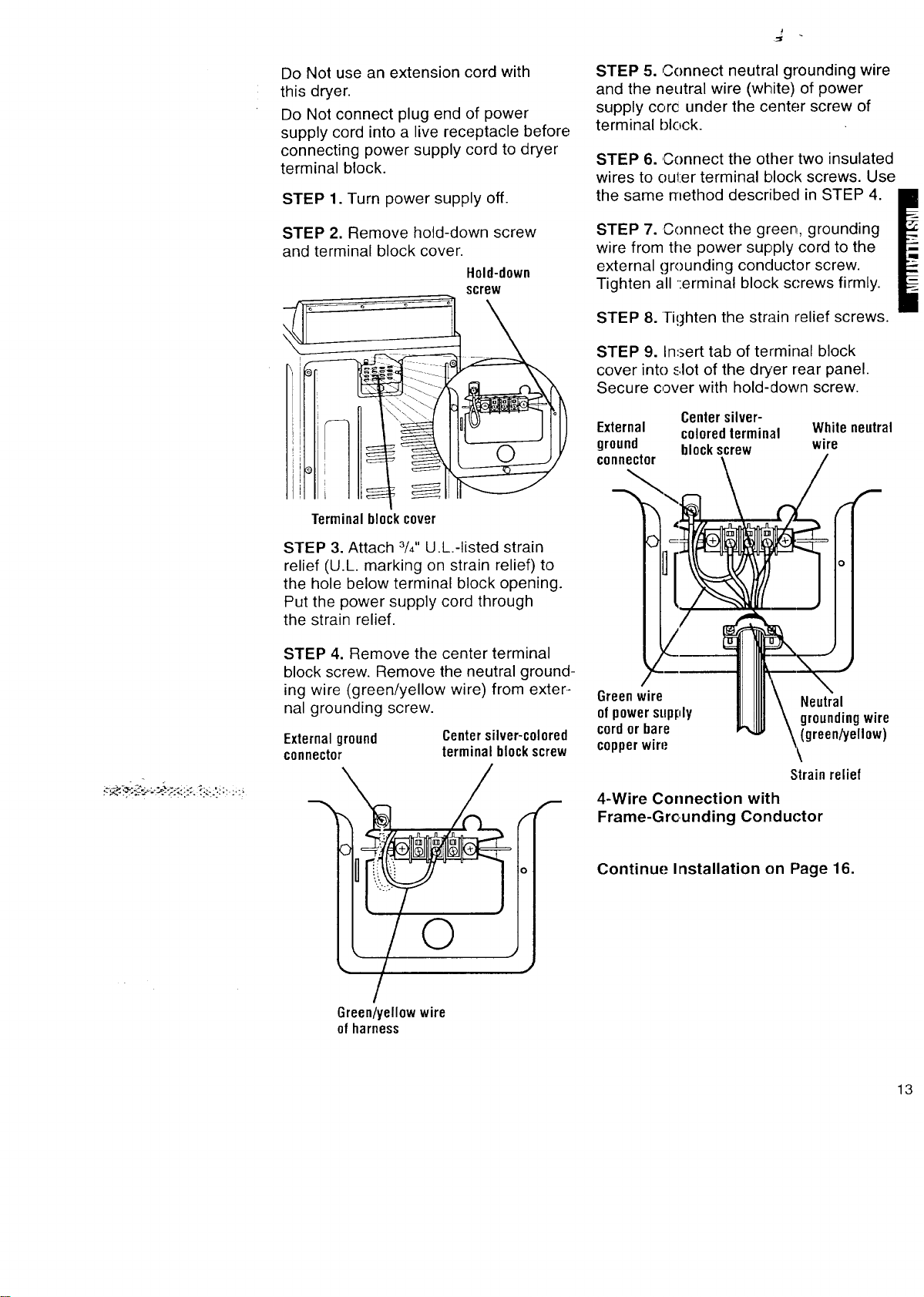

STEP 1. Turn power supply off.
STEP 2. Remove hold-down screw
and terminal block cover.
Hold-down
screw
Terminal block cover
STEP 3. Attach 3/4" U.L.-listed strain
relief (U.L. marking on strain relief) to
the hole below terminal block opening.
Put the power supply cord through
the strain relief.
STEP 4. Remove the center terminal
block screw. Remove the neutral ground-
ing wire (green/yellow wire) from exter-
nal grounding screw.
External ground
connector
Centersilver-colored
terminalblockscrew
STEP 5. Connect neutral grounding wire
and the neutral wire (white) of power
supply corc under the center screw of
terminal block.
STEP 6. Connect the other two insulated
wires to outer terminal block screws. Use
the same method descriibed in STEP 4.
STEP 7. Connect the green, grounding
wire from the power supply cord to the
external grounding conductor screw.
Tighten all :erminal block screws firmly.
STEP 8. Tighten the strain relief screws.
STEP 9. Insert tab of terminal block
cover into slot of the dryer rear panel.
Secure cover with hold-down screw.
Centersilver-
External coloredlerminal Whiteneutral
ground blockscrew wire
connector
Greenwire Neutral
of powersupply groundingwire
cordor bare (green/yellow)
copperwire
Strainrelief
4-Wire Connection with
Frame-Grounding Conductor
Continue Installation on Page 16.
Green/yellow wire
of harness

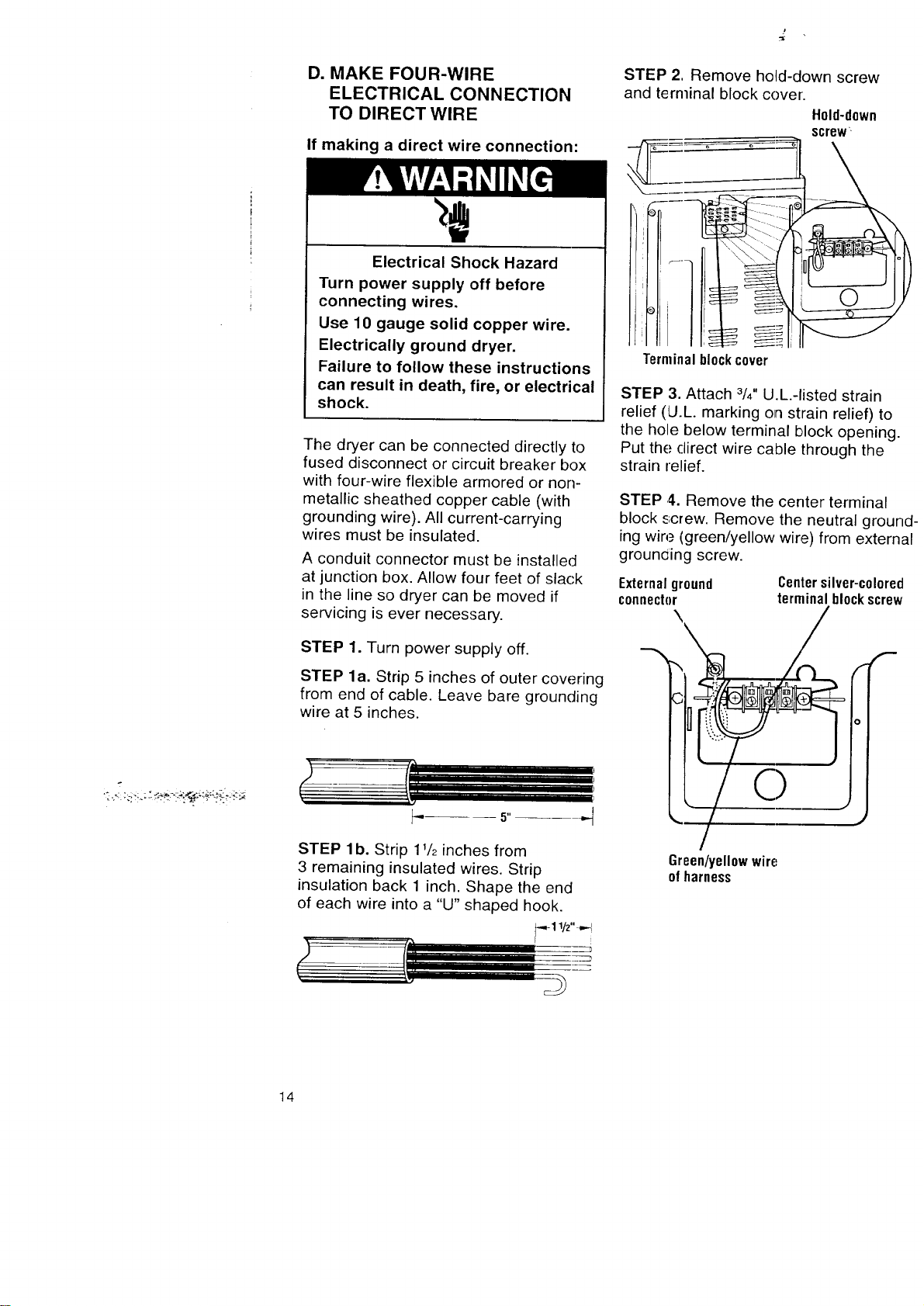

D. MAKE FOUR-WIRE
ELECTRICAL CONNECTION
TO DIRECT WIRE
If making a direct wire connection:
Electrical Shock Hazard
Turn power supply off before
connecting wires.
Use 10 gauge solid copper wire.
Electrically ground dryer.
Failure to follow these instructions
can result in death, fire, or electrical
shock.
The dryer can be connected directly to
fused disconnect or circuit breaker box
with four-wire flexible armored or non-
metallic sheathed copper cable (with
grounding wire). All current-carrying
wires must be insulated.
A conduit connector must be installed
at junction box. Allow four feet of slack
in the line so dryer can be moved if
servicing is ever necessary.
STEP 1. Turn power supply off.
STEP la. Strip 5 inches of outer covering
from end of cable. Leave bare grounding
wire at 5 inches.
STEP 2, Remove hold-down screw
and terminal block cover.
Hold-down
screw
Terminalblockcover
STEP 3. Attach 3/4"U.L.-listed strain
relief (U.L. marking on strain relief) to
the hole below terminal block opening.
Put the clirect wire cable through the
strain relief.
STEP ,4. Remove the center terminal
block _;crew. Remove the neutral ground-
ing wire (green/yellow wire) from external
grouncing screw.
Externalground
connector
Centersilver-colored
terminal blockscrew
5"
STEP 1b. Strip 1_/2inches from
3 remaining insulated wires. Strip
insulation back 1 inch. Shape the end
of each wire into a "U" shaped hook.
---11/2"
Green/yellowwire
ofharness
14

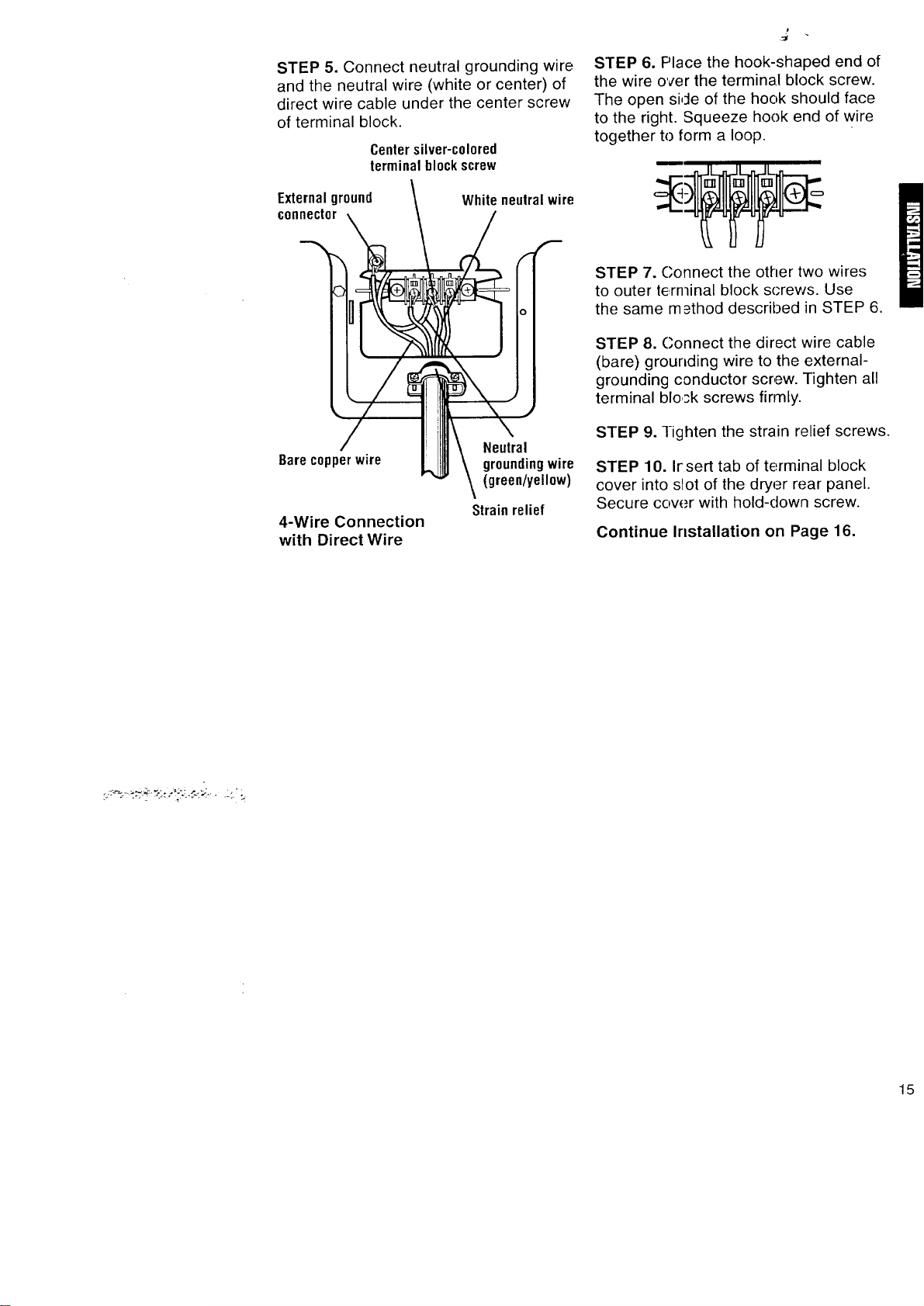

STEP 5. Connect neutral grounding wire
and the neutral wire (white or center) of
direct wire cable under the center screw
of terminal block.
Center silver-colored
terminal block screw
Externalground
connector
White neutral wire
Barecopperwire
4-Wire Connection
with Direct Wire
Neutral
groundingwire
(green/yellow)
Strain relief
STEP 6. Place the hook-shaped end of
the wire over the terminal block screw.
The open side of the hook should face
to the right. Squeeze hook end of wire
together to form a loop.
STEP 7. Connect the other two wires
to outer terminal block screws. Use
the same method described in STEP 6.
STEP 8. Connect the direct wire cable
(bare) grounding wire to the external-
grounding conductor screw. Tighten all
terminal blo,_k screws firmly.
STEP 9. Tighten the strain relief screws.
STEP 10. Irsert tab of terminal block
cover into stot of the dryer rear panel.
Secure cow._r with hold-down screw.
Continue Installation on Page 16.
15

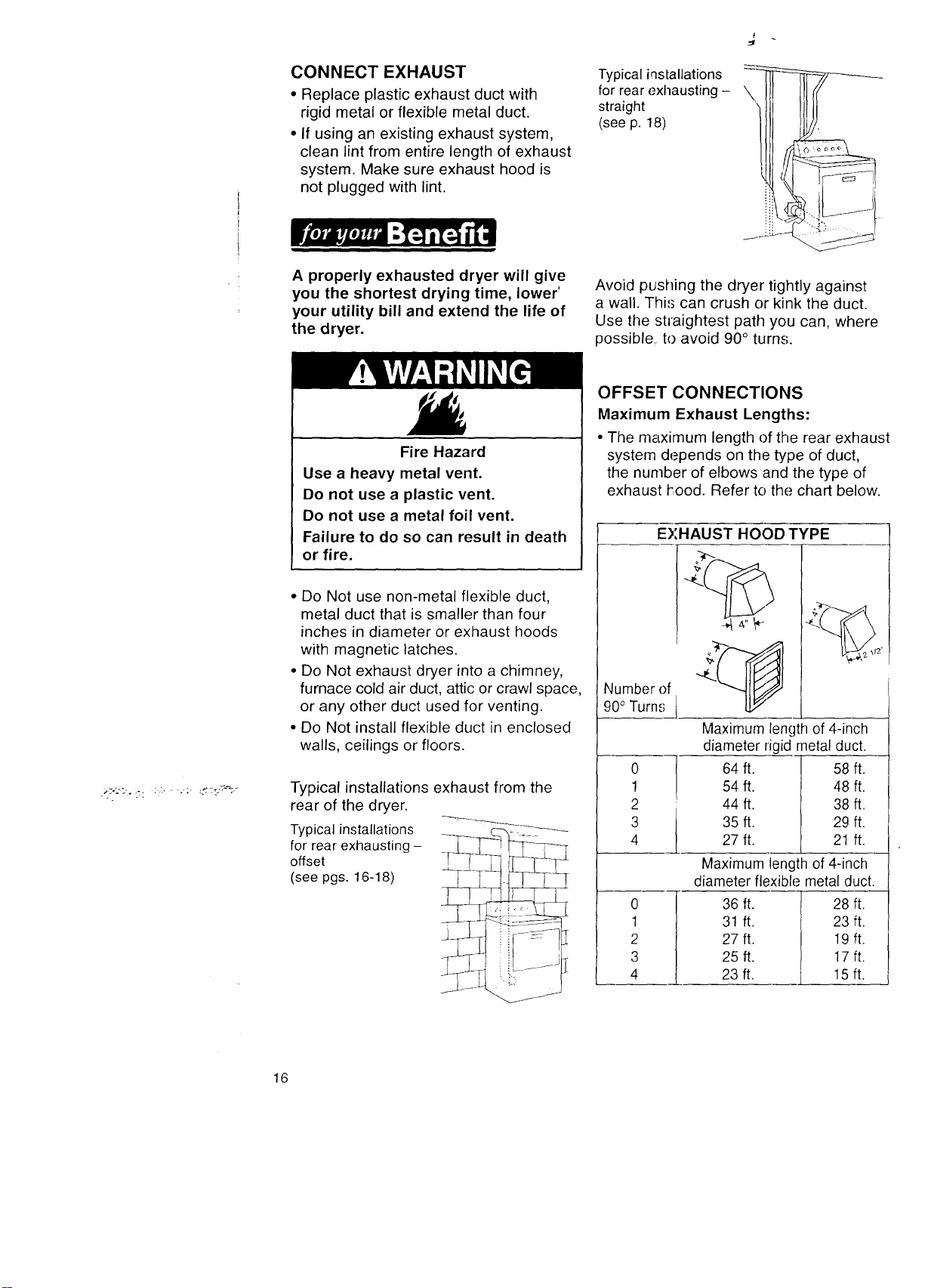

CONNECT EXHAUST
• Replace plastic exhaust duct with
rigid metal or flexible metal duct.
• If using an existing exhaust system,
clean lint from entire length of exhaust
system. Make sure exhaust hood is
not plugged with lint.
A properly exhausted dryer will give
you the shortest drying time, lower'
your utility bill and extend the life of
the dryer.
Typical installations
for rear exhausting -
straight
(see p. 18)
\ 4
Avoid pushing the dryer tightly against
a wall. This can crush or kink the duct.
Use the straightest path you can, where
possible, to avoid 90 ° turns.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to do so can result in death
or fire.
° Do Not use non-metal flexible duct,
metal duct that is smaller than four
inches in diameter or exhaust hoods
with magnetic latches.
• Do Not exhaust dryer into a chimney,
furnace cold air duct, attic or crawl space,
or any other duct used for venting.
• Do Not install flexible duct in enclosed
walls, ceilings or floors.
Typical installations exhaust from the
rear of the dryer.
Typical installations
for rear exhausting -
offset
(see pgs. 16-18)
OFFSET CONNECTIONS
Maximum Exhaust Lengths:
• The maximum length of the rear exhaust
system depends on the type of duct,
the number of elbows and the type of
exhaust hood. Refer to the chart below.
EXHAUST HOOD TYPE
Number of
90° Turn.,;
0
1
2
3
4
0
1
2
3
4
__ 9_"
Maximum length of 4-inch
diameter rigid metal duct.
64 ft. 58 ft.
54 ft. 48 ft.
44 ft. 38 ft.
35 ft. 29 ft.
27 ft. 21 ft.
Maximum length of 4-inch
diameter flexible metal duct.
36 ft. 28 ft.
31 ft. 23 ft.
27 ft. 19 ft.
25 ft. 17 ft.
23 ft. 15 ft.
16

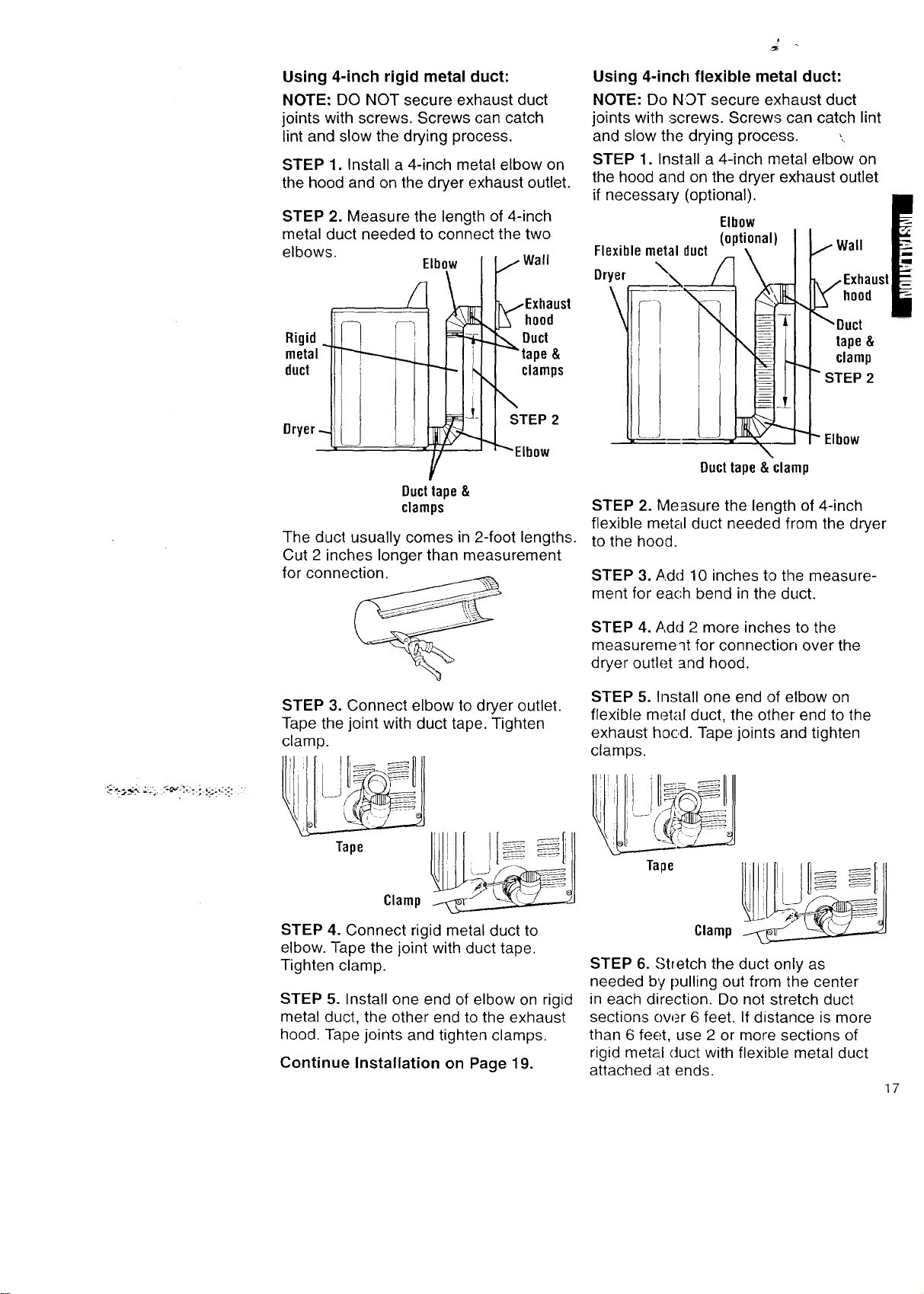

Using 4-inch rigid metal duct:
NOTE: DO NOT secure exhaust duct
joints with screws. Screws can catch
lint and slow the drying process.
STEP 1. Install a 4-inch metal elbow on
the hood and on the dryer exhaust outlet.
STEP 2. Measure the length of 4-inch
metal duct needed to connect the two
elbows.
Rigid ...
metal
duct
Dryer
Elbow
i •
Ducttate &
clamls
j Wall
_IExhaust
hood
\ _ Duct
_ tape &
clamps
\
STEP 2
_Elbow
The duct usually comes in 2-foot lengths.
Cut 2 inches longer than measurement
for connection.
STEP 3. Connect elbow to dryer outlet.
Tape the joint with duct tape. Tighten
clamp.
Tape
Clamp
STEP 4. Connect rigid metal duct to
elbow. Tape the joint with duct tape.
Tighten clamp.
STEP 5. Install one end of elbow on rigid
metal duct, the other end to the exhaust
hood. Tape joints and tighten clamps,
Continue Installation on Page 19.
Using 4-inch flexible metal duct:
NOTE: Do NOT secure exhaust duct
joints with screws. Screws can catch lint
and slow the drying process. ,,
STEP 1. Install a 4-inch metal elbow on
the hood and on the dryer exhaust outlet
if necessary (optional).
metalduct
Elbow
(optional)
Flexible \
Dryer
\
Ducttape &clamp
Wall
tape&
clamp
""STEP 2
Elbow
STEP 2. Me_sure the length of 4-inch
flexible metal duct needed from the dryer
to the hood.
STEP 3. Add 10 inches to the measure-
ment for each bend in the duct.
STEP 4. Add 2 more inches to the
measureme qt for connection over the
dryer outlet and hood.
STEP 5. Install one end of elbow on
flexible metal duct, the other end to the
exhaust hood. Tape joints and tighten
clamps.
Tape
Clamp
STEP 6. Stretch the duct only as
needed by pulling out from the center
in each direction. Do not stretch duct
sections ow_r 6 feet. If distance is more
than 6 feet, use 2 or more sections of
rigid metal duct with flexible metal duct
attached at ends.
17
STEP 7. Connect the duct to the dryer
outlet and to the hood or to the elbows.
Tape the joint with duct tape. Secure
with clamps.
STEP 8. To fit the flexible metal duct
over the duct on the hood it may be
necessary to make two I/2-inch cuts in
the end of the flexible duct to allow it
to expand.
Continue Installation on Page 19.
Cut 2 inches longer than measurement
to fit over dryer and hood connections.
STEP 2. Side large end of the duct on
the dryer connection and the small end
on the hood connection. To prevent air
leakage, tape the joint with duct tape.
Clamp all joints.

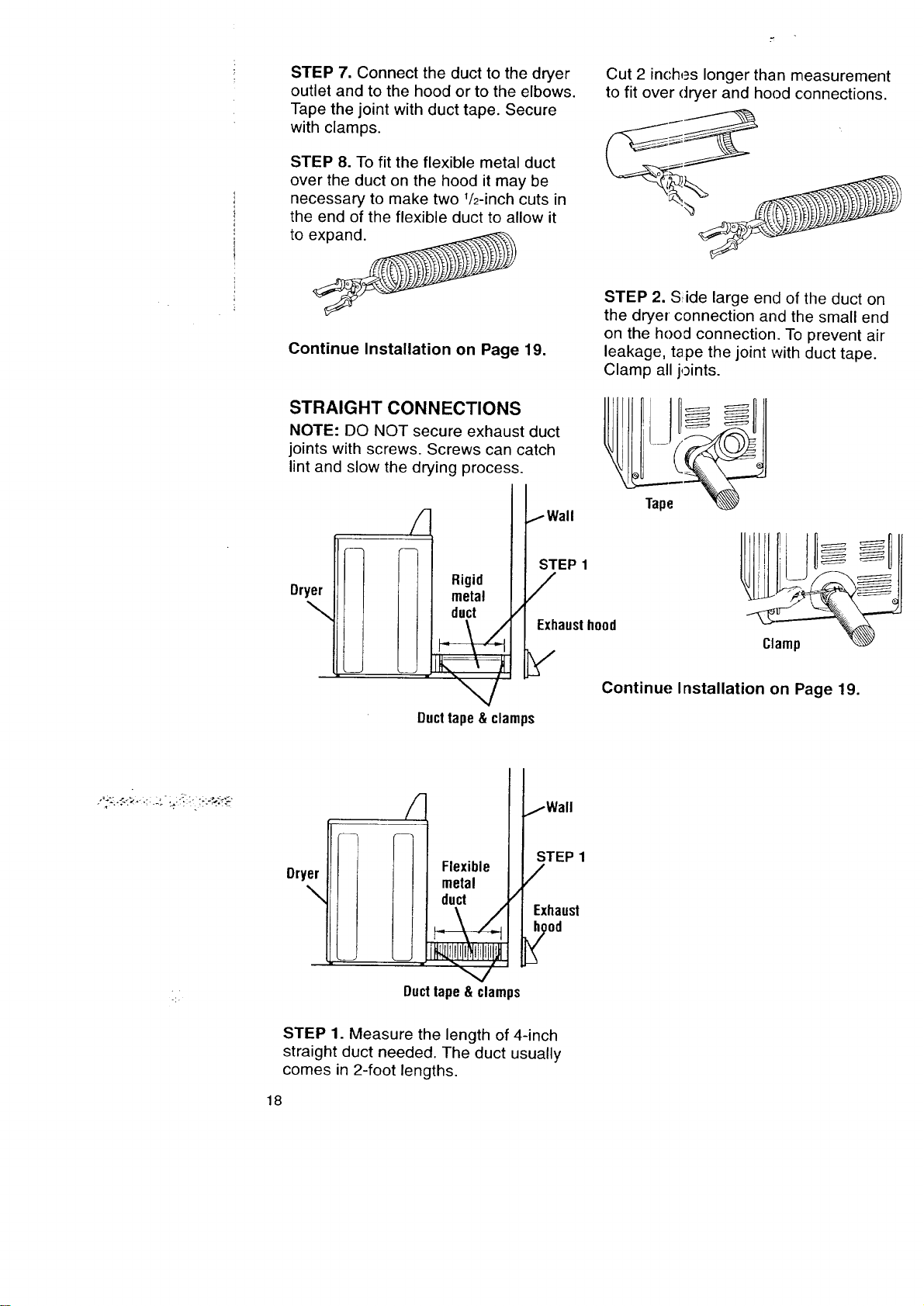

STRAIGHT CONNECTIONS
NOTE: DO NOT secure exhaust duct
joints with screws. Screws can catch
lint and slow the drying process.
Dryer
\
/-
Rigid
metal
duct /
.-Wall
STEP 1
/
_ Exhausthood
J
Ducttape&clamps
Continue Installation on Page 19.
Dryer
\
/1
-! F-
Flexible
metal
duct
,_\%
• "-.,,,,/
Ducttape&clamps
iWall
STEP 1
/
f _
Exhaust
STEP 1. Measure the length of 4-inch
straight duct needed. The duct usually
comes in 2-foot lengths.
18

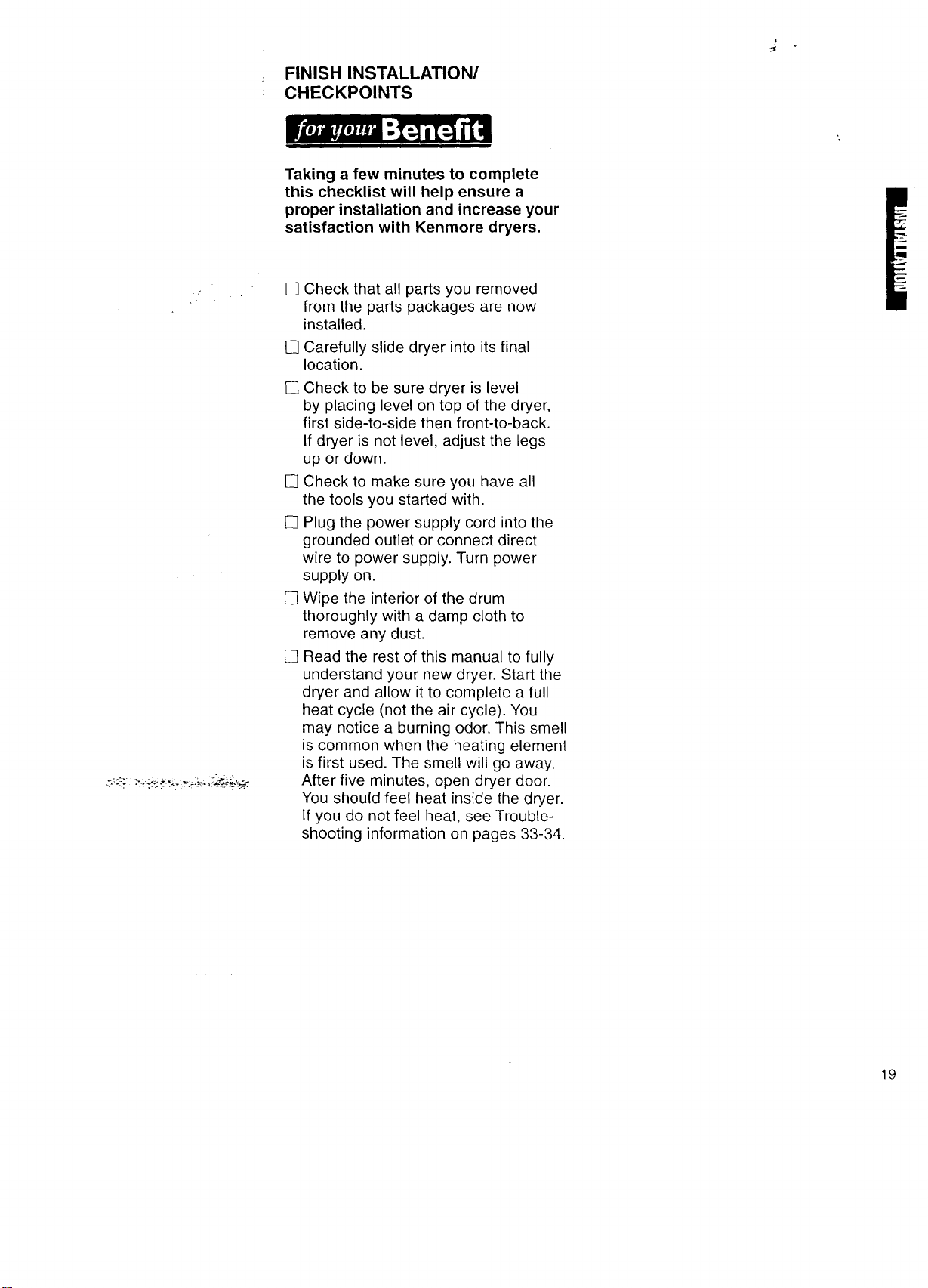

FINISH INSTALLATION/
CHECKPOINTS
Taking a few minutes to complete
this checklist will help ensure a
proper installation and increase your
satisfaction with Kenmore dryers.
/
[]
[]
[]
[]
[]
[]
D
Check that all parts you removed
from the parts packages are now
installed.
Carefully slide dryer into its final
location.
Check to be sure dryer is level
by placing level on top of the dryer,
first side-to-side then front-to-back.
If dryer is not level, adjust the legs
up or down.
Check to make sure you have all
the tools you started with.
Plug the power supply cord into the
grounded outlet or connect direct
wire to power supply. Turn power
supply on.
Wipe the interior of the drum
thoroughly with a damp cloth to
remove any dust.
Read the rest of this manual to fully
understand your new dryer. Start the
dryer and allow it to complete a full
heat cycle (not the air cycle). You
may notice a burning odor, This smell
is common when the heating element
is first used. The smell will go away.
After five minutes, open dryer door.
You should feel heat inside the dryer.
If you do not feel heat, see Trouble-
shooting information on pages 33-34•
19

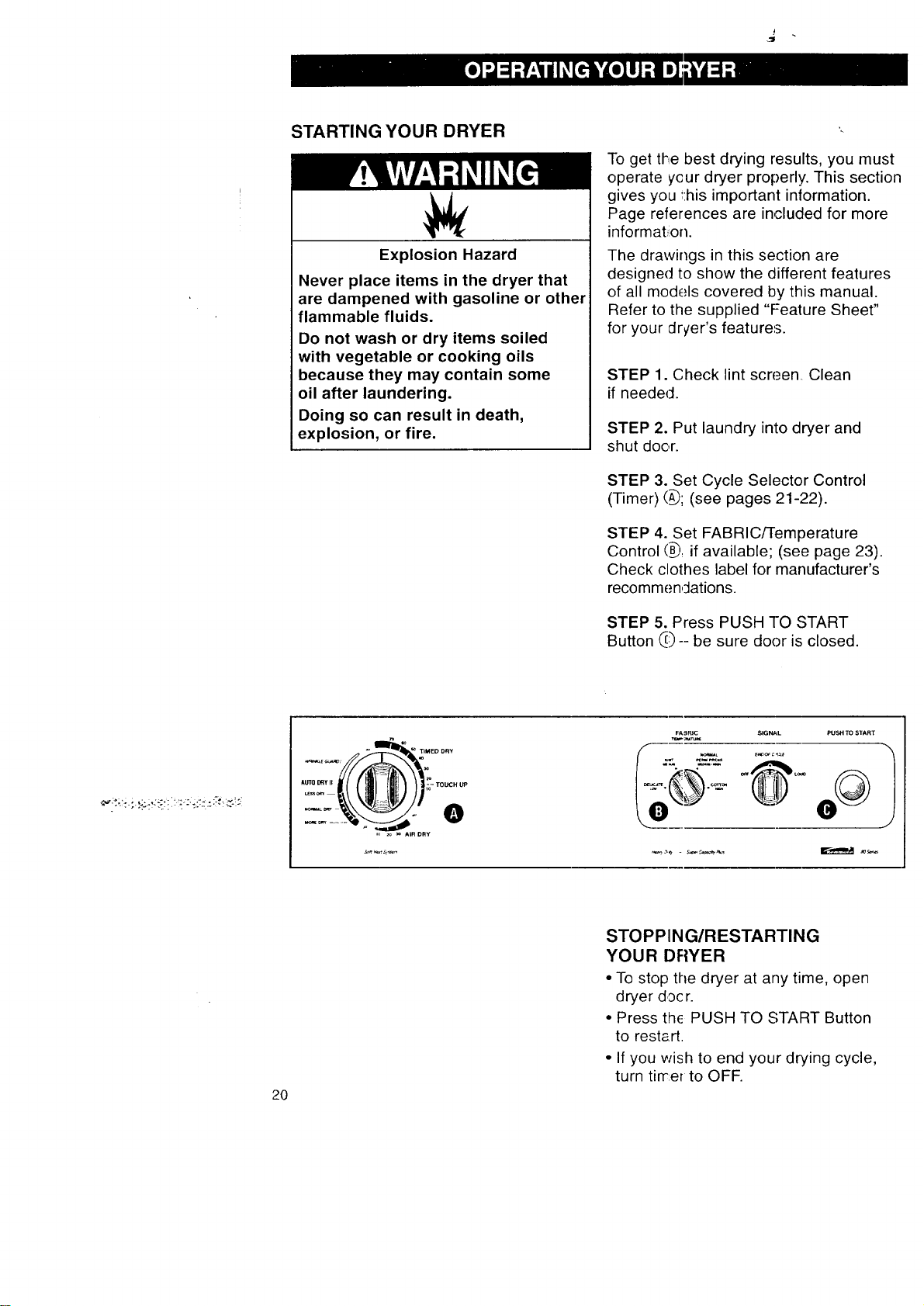

STARTING YOUR DRYER
Explosion Hazard
Never place items in the dryer that
are dampened with gasoline or other
flammable fluids.
Do not wash or dry items soiled
with vegetable or cooking oils
because they may contain some
oil after laundering.
Doing so can result in death,
explosion, or fire.
To get the best drying results, you must
operate ycur dryer properly. This section
gives you _:hisimportant information.
Page references are included for more
informaLion.
The drawings in this section are
designed to show the different features
of all models covered by this manual.
Refer to the supplied "Feature Sheet"
for your dryer's features.
STEP 1. Check lint screen Clean
if needed.
STEP 2. Put laundry into dryer and
shut door.
STEP 3. Set Cycle Selector Control
(Timer) (9; (see pages 21-22).
STEP 4. Set FABRIC/Temperature
Control (_ if available; (see page 23).
Check clothes label for manufacturer's
recommendations.
STEP 5. Press PUSH TO START
Button (_)-- be sure door is closed.
FABRIC SIGNAL PUSH TO START
2O
STOPPING/RESTARTING
YOUR DFiYER
• To stop the dryer at any time, open
dryer doc r.
• Press the PUSH TO START Button
to restart.
• If you wish to end your drying cycle,
turn timer to OFF.

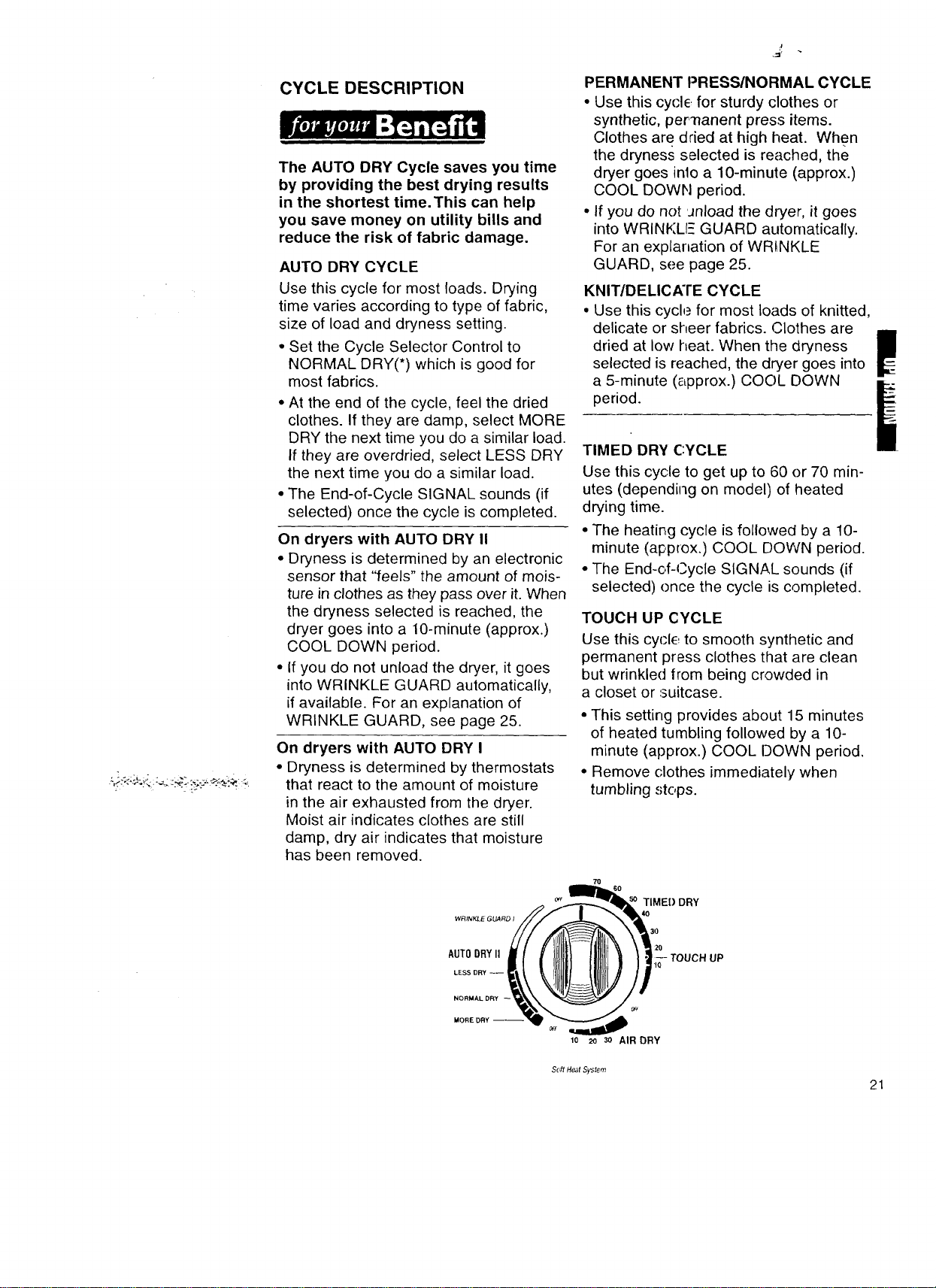

CYCLE DESCRIPTION
The AUTO DRY Cycle saves you time
by providing the best drying results
in the shortest time.This can help
you save money on utility bills and
reduce the risk of fabric damage.
AUTO DRY CYCLE
Use this cycle for most loads. Drying
time varies according to type of fabric,
size of load and dryness setting.
• Set the Cycle Selector Control to
NORMAL DRY(*) which is good for
most fabrics.
• At the end of the cycle, feel the dried
clothes. If they are damp, select MORE
DRY the next time you do a similar load.
If they are overdried, select LESS DRY
the next time you do a similar load.
• The End-of-Cycle SIGNAL sounds (if
selected) once the cycle is completed.
On dryers with AUTO DRY II
• Dryness is determined by an electronic
sensor that "feels" the amount of mois-
ture in clothes as they pass over it. When
the dryness selected is reached, the
dryer goes into a 10-minute (approx.)
COOL DOWN period.
• If you do not unload the dryer, it goes
into WRINKLE GUARD automatically,
if available. For an explanation of
WRINKLE GUARD, see page 25.
On dryers with AUTO DRY I
• Dryness is determined by thermostats
that react to the amount of moisture
in the air exhausted from the dryer.
Moist air indicates clothes are still
damp, dry air indicates that moisture
has been removed.
WRtNKLE GUARD I
AUTODRYII
_1_
PERMANENT PRESSINORMAL CYCLE
• Use this cyc% for sturdy clothes or
synthetic, permanent press items.
Clothes are dried at high heat. When
the dryness selected is reached, the
dryer goes inlo a 10-minute (approx.)
COOL DOWN period.
• If you do not ._nload the dryer, it goes
into WRINKL!- GUARD automatically.
For an explanation of WRINKLE
GUARD, see page 25.
KNIT/DELICA'rE CYCLE
• Use this cycle for most loads of knitted,
delicate or sheer fabrics. Clothes are
dried at low heat. When the dryness
selected is reached, the dryer goes into
a 5-minute (approx.) COOL DOWN
period.
TIMED DRY CYCLE
Use this cycle to get up to 60 or 70 min-
utes (depending on model) of heated
drying time.
• The heatirT,g cycle is followed by a 10-
minute (approx.) COOL DOWN period.
• The End-of-Cycle SIGNAL sounds (if
selected) once the cycle is completed.
TOUCH UP CYCLE
Use this cycle to smooth synthetic and
permanent press clothes that are clean
but wrinkled from being crowded in
a closet or suitcase.
• This setting provides about 15 minutes
of heated tumbling followed by a 10-
minute (approx.) COOL DOWN period.
• Remove clothes immediately when
tumbling stops.
70
TIME[) DRY
4O
30
20
-- TOUCH UP
10
10 2o 3o AIR DRY
Sc_ftHeatSystem
21

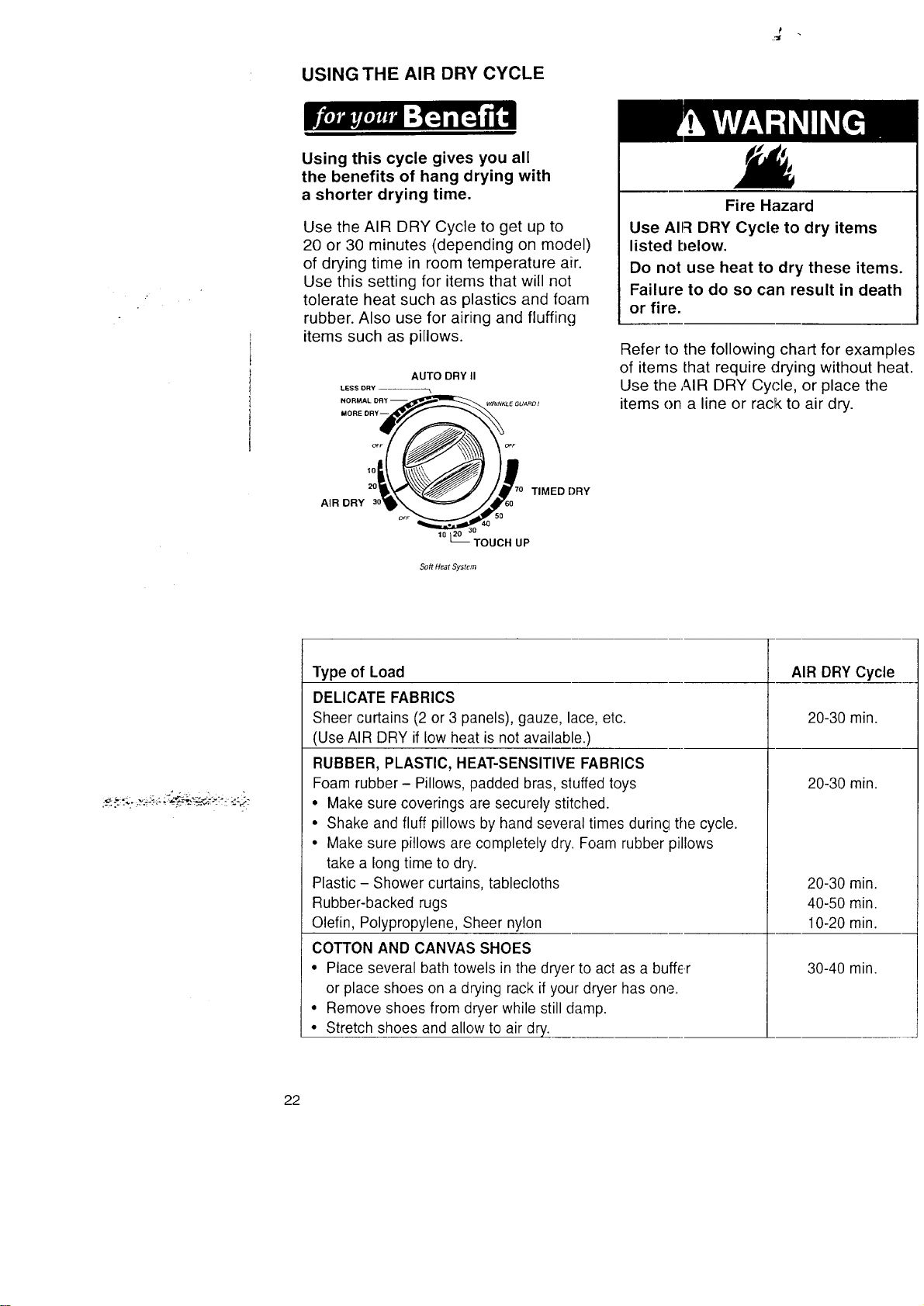

USING THE AIR DRY CYCLE
E
Using this cycle gives you all
the benefits of hang drying with
a shorter drying time.
Use the AIR DRY Cycle to get up to
20 or 30 minutes (depending on model)
of drying time in room temperature air.
Use this setting for items that will not
tolerate heat such as plastics and foam
rubber. Also use for airing and fluffing
items such as pillows.
AUTO DRY II
LESS DRY --_
Fire Hazard
Use AIF_DRY Cycle to dry items
listed below.
Do not use heat to dry these items.
Failure to do so can result in death
or fire.
Refer to the following chart for examples
of items that require drying without heat.
Use the AIR DRY Cycle, or place the
items on a line or rack to air dry.
AIR DRY
TIMED DRY
10120 TOUCH UP
Soft Heat System
Type of Load
DELICATE FABRICS
Sheer curtains (2 or 3 panels), gauze, lace, etc.
(Use AIR DRY if low heat is not available.)
RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS
Foam rubber - Pillows, padded bras, stuffed toys
• Make sure coverings are securely stitched.
• Shake and fluff pillows by hand several times during the cycle.
• Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.
Plastic - Shower curtains, tablecloths
Rubber-backed rugs
Olefin, Polypropylene, Sheer nylon
COTTON AND CANVAS SHOES
• Place several bath towels in the dryer to act as a buffc.r
or place shoes on a drying rack if your dryer has one.
• Remove shoes from dryer while still damp.
• Stretch shoes and allow to air dry. _ ____
AIR DRY Cycle
20-30 min.
20-30 min.
20-30 min.
40-50 min.
10-20 min.
30-40 min.
22

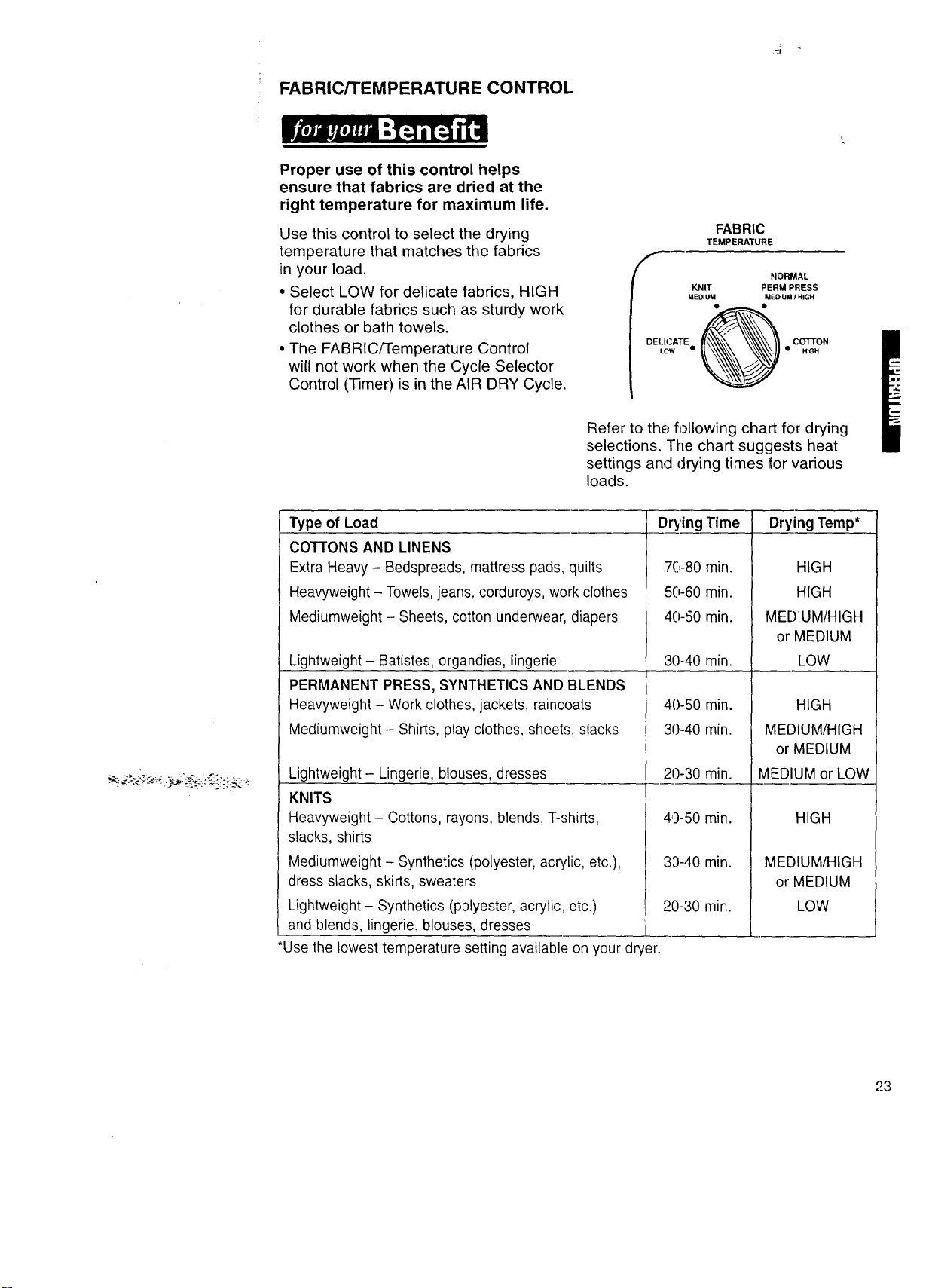

FABRIC/TEMPERATURE CONTROL
Proper use of this control helps
ensure that fabrics are dried at the
right temperature for maximum life.
Use this control to select the drying
temperature that matches the fabrics
in your load.
• Select LOW for delicate fabrics, HIGH
for durable fabrics such as sturdy work
clothes or bath towels.
• The FABRIC/Temperature Control
will not work when the Cycle Selector
Control (Timer) is in the AIR DRY Cycle.
FABRIC
TEMPERATURE
f
KNIT PERM PRESS
MEDIUM O MEDIUM I HIGH
oEi,,-3 . •O ON
Refer to the; following chart for drying
selections. The chart suggests heat
settings and drying times for various
loads.
Type of Load
COTTONS AND LINENS
Extra Heavy - Bedspreads, mattress pads, quilts
Heavyweight - Towels, jeans, corduroys, work clothes
Mediumweight - Sheets, cotton underwear, diapers
Lightweight- Batistes, organdies, lingerie
PERMANENT PRESS, SYNTHETICS AND BLENDS
Heavyweight - Work clothes, jackets, raincoats
Mediumweight - Shirts, play clothes, sheets, slacks
Lightweight- Lingerie, blouses, dresses
KNITS
Heavyweight - Cottons, rayons, blends, T-shirts,
slacks, shirts
Mediumweight - Synthetics (polyester, acrylic, etc.),
dress slacks, skirts, sweaters
Lightweight - Synthetics (polyester, acrylic, etc.)
and blends, lingerie, blouses, dresses
*Use the lowest temperature setting available on your dryer.
Drying Time
70-80 min.
50-60 min.
40-50 min.
30-40 rain.
40-50 min.
30-40 rain.
20-30 min.
4,3-50 rain.
33-40 min.
20-30 rain.
Drying Temp*
HIGH
HIGH
MEDIUM/HIGH
or MEDIUM
LOW
HIGH
MEDIUM/HIGH
or MEDIUM
MEDIUM or LOW
HIGH
MEDIUM/HIGH
or MEDIUM
LOW
23

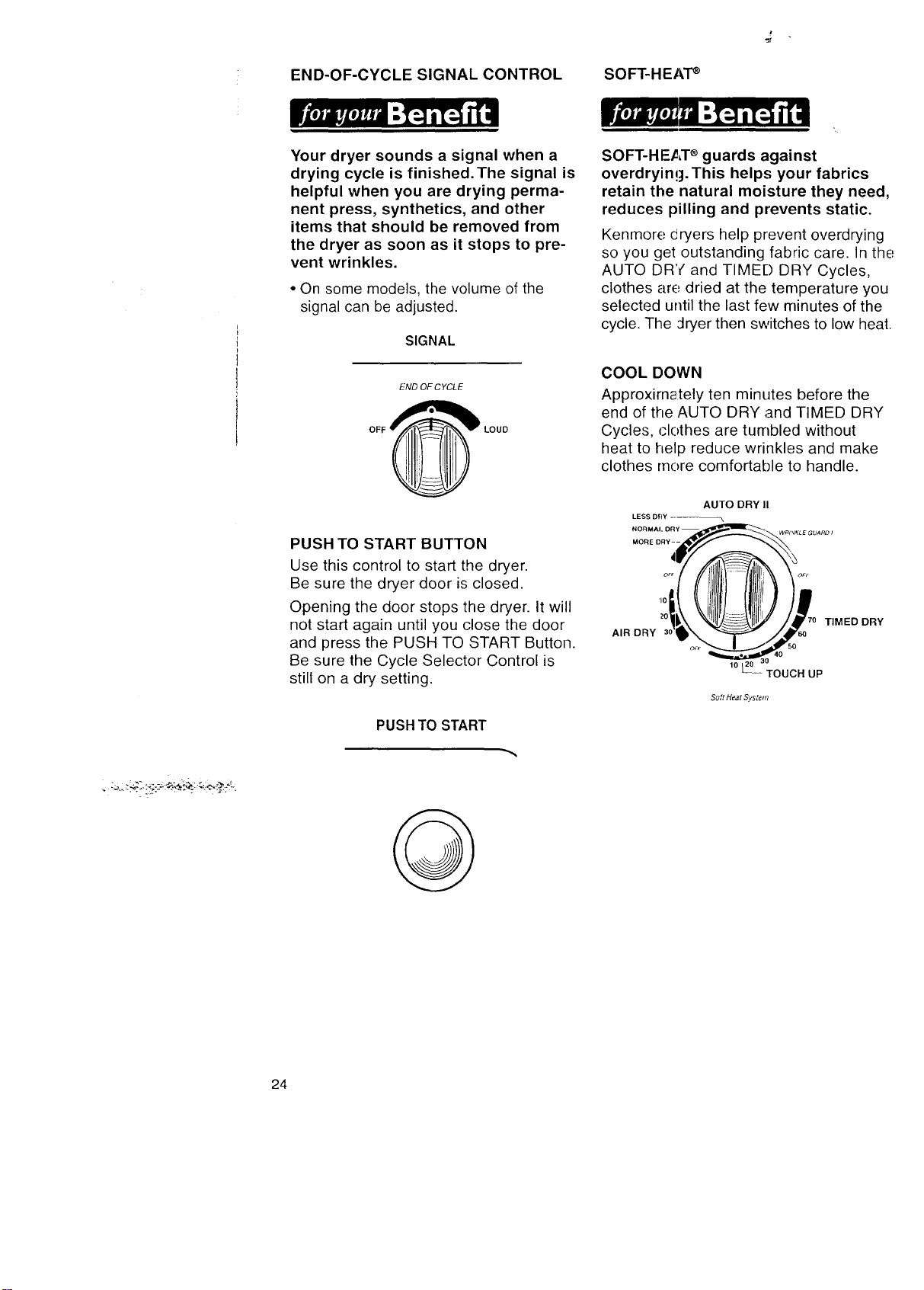

END-OF-CYCLE SIGNAL CONTROL SOFT-HEAT _
i
i
P
t
Your dryer sounds a signal when a
drying cycle is finished.The signal is
helpful when you are drying perma-
nent press, synthetics, and other
items that should be removed from
the dryer as soon as it stops to pre-
vent wrinkles.
• On some models, the volume of the
signal can be adjusted.
SIGNAL
END OF CYCLE
OFF
SOFT-HEAT ®guards against
overdrying. This helps your fabrics
retain the natural moisture they need,
reduces pilling and prevents static.
Kenmore cryers help prevent overdrying
so you get outstanding fabric care. In the
AUTO DR'{ and TIMEr) DRY Cycles,
clothes are dried at the temperature you
selected until the last few minutes of the
cycle. The dryer then switches to low heat.
COOL DOWN
Approximately ten minutes before the
end of the AUTO DRY and TIMED DRY
Cycles, clothes are tumbled without
heat to help reduce wrinkles and make
clothes more comfortable to handle.
PUSH TO START BUTTON
Use this control to start the dryer.
Be sure the dryer door is closed.
Opening the door stops the dryer. It will
not start again until you close the door
and press the PUSH TO START Button.
Be sure the Cycle Selector Control is
still on a dry setting.
PUSH TO START
LESS DRY ----
AIR DRY
AUTO DRYII
TIMED DRY
I°_TOUCH UP
Soft Heat _stem
24

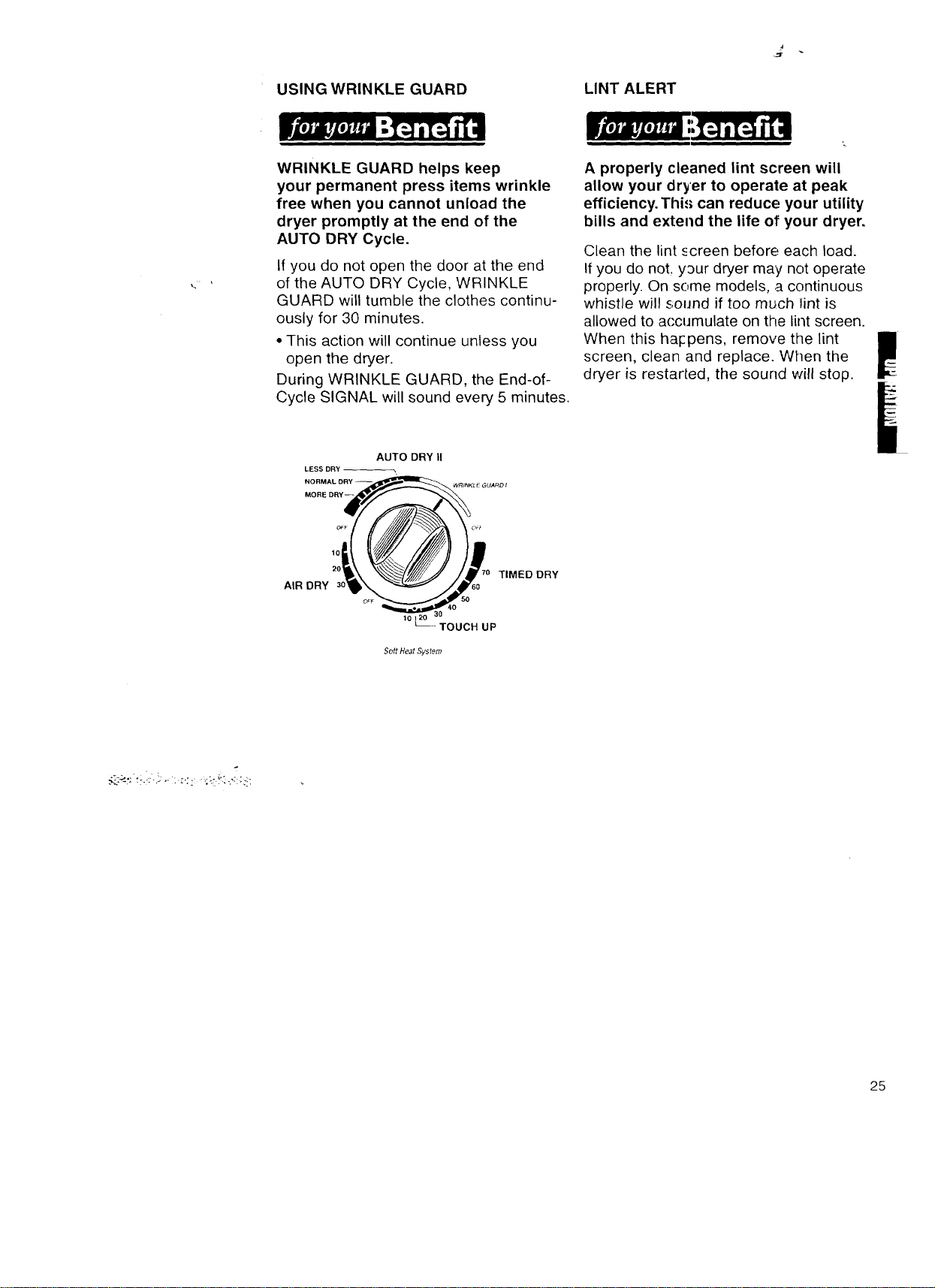

USING WRINKLE GUARD LINT ALERT
_1 _
WRINKLE GUARD helps keep
your permanent press items wrinkle
free when you cannot unload the
dryer promptly at the end of the
AUTO DRY Cycle.
If you do not open the door at the end
of the AUTO DRY Cycle, WRINKLE
GUARD will tumble the clothes continu-
ously for 30 minutes.
* This action will continue unless you
open the dryer.
During WRINKLE GUARD, the End-of-
Cycle SIGNAL will sound every 5 minutes.
AUTO DRY II
LESS DRY _
MORE
A properly cleaned lint screen will
allow your dryer to operate at peak
efficiency, This can reduce your utility
bills and extend the life of your dryer,
Clean the lint screen before each load.
If you do not. your dryer may not operate
properly. On some models, a continuous
whistle will sound if too much lint is
allowed to a('cumulate on the lint screen.
When this hal:pens, remove the lint
screen, clean and replace. When the
dryer is restarted, the sound will stop.
AIR DRY
TIMED DRY
5O
10 20 30
L_ TOUCH UP
Soft Heat System
25
7'

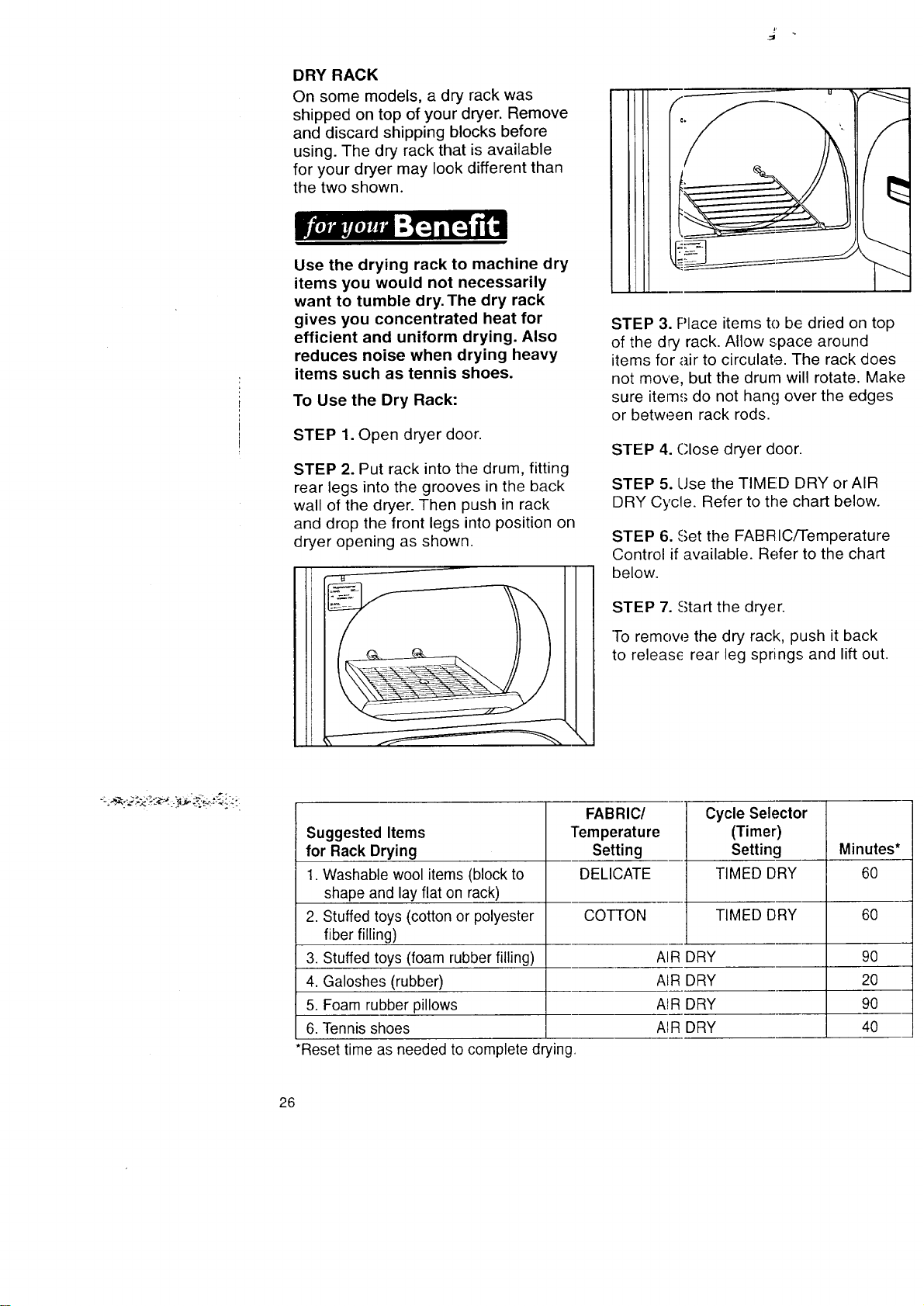

DRY RACK
On some models, a dry rack was
shipped on top of your dryer. Remove
and discard shipping blocks before
using. The dry rack that is available
for your dryer may look different than
the two shown.
Use the drying rack to machine dry
items you would not necessarily
want to tumble dry.The dry rack
gives you concentrated heat for
efficient and uniform drying. Also
reduces noise when drying heavy
items such as tennis shoes.
To Use the Dry Rack:
STEP 1. Open dryer door.
STEP 2. Put rack into the drum, fitting
rear legs into the grooves in the back
wall of the dryer. Then push in rack
and drop the front legs into position on
dryer opening as shown.
STEP 3. Place items to be dried on top
of the dry rack. Allow space around
items for air to circulate. The rack does
not move, but the drum will rotate. Make
sure item',; do not hang over the edges
or between rack rods.
STEP 4. (;lose dryer door.
STEP 5. Use the TIMED DRY or AIR
DRY Cycle. Refer to the chart below.
STEP 6. Get the FABRIC/Temperature
Control if available. Refer to the chart
below.
STEP 7. Start the dryer.
To remow_ the dry rack, push it back
to release rear leg springs and lift out.
FABRIC/ Cycle Selector
Suggested Items Temperature (Timer)
for Rack Drying Setting Setting Minutes*
1. Washable wool items (block to DELICATE TIMED DRY 60
shape and lay flat on rack)
2. Stuffed toys (cotton or polyester COTTON TIMED DRY 60
fiber filling)
3. Stuffed toys (foam rubber filling) AIR DRY 90
4. Galoshes (rubber) AtR DRY 20
5. Foam rubber pillows AtR DRY 90
6. Tennis shoes AIR DRY 40
*Reset time as needed to complete drying.
26

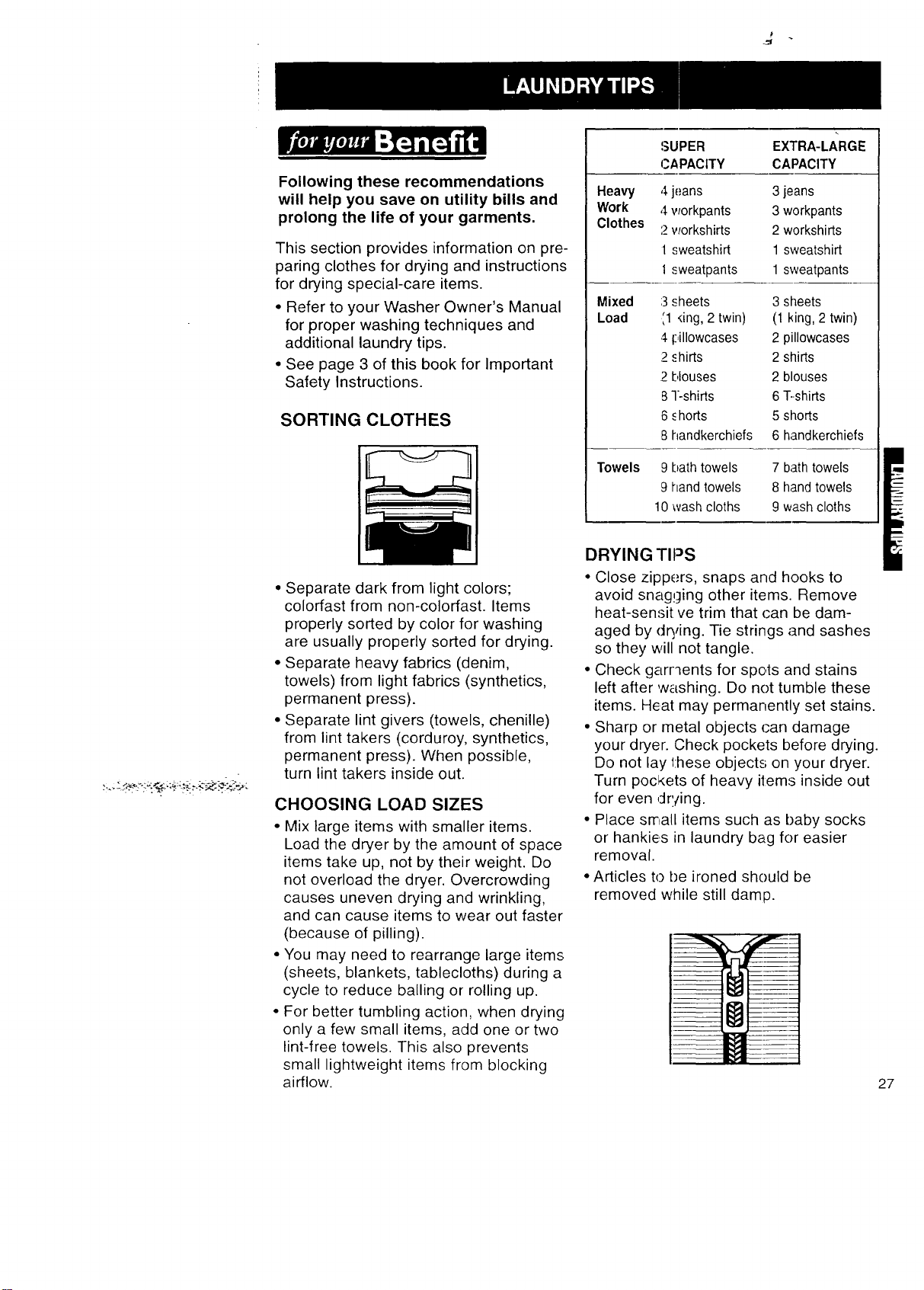

Following these recommendations
will help you save on utility bills and
prolong the life of your garments.
This section provides information on pre-
paring clothes for drying and instructions
for drying special-care items.
• Refer to your Washer Owner's Manual
for proper washing techniques and
additional laundry tips.
• See page 3 of this book for Important
Safety Instructions.
SORTING CLOTHES
Heavy
Work
Clothes
Mixed
Load
SUPER EXTRA-LARGE
CA PACITY CAPACITY
4 jeans 3 jeans
4 workpants 3 workpants
2 workshirts 2 workshirts
1sweatshirt 1 sweatshirt
1sweatpants 1 sweatpants
3 sheets 3 sheets
11<ing,2 twin) (1 king, 2 twin)
4 pillowcases 2 pillowcases
:2shirts 2 shirts
,2blouses 2 blouses
3T-shirts 6 T--shirts
6 ._horts 5 shorts
8 handkerchiefs 6 handkerchiefs
Towels 9 bath towels 7 bath towels
9 hand towels 8 hand towels
10 wash cloths 9 wash cloths
• Separate dark from light colors;
colorfast from non-colorfast. Items
properly sorted by color for washing
are usually properly sorted for drying.
• Separate heavy fabrics (denim,
towels) from light fabrics (synthetics,
permanent press).
• Separate lint givers (towels, chenille)
from lint takers (corduroy, synthetics,
permanent press). When possible,
turn lint takers inside out.
CHOOSING LOAD SIZES
• Mix large items with smaller items.
Load the dryer by the amount of space
items take up, not by their weight. Do
not overload the dryer. Overcrowding
causes uneven drying and wrinkling,
and can cause items to wear out faster
(because of pilling).
• You may need to rearrange large items
(sheets, blankets, tablecloths) during a
cycle to reduce bailing or rolling up.
• For better tumbling action, when drying
only a few small items, add one or two
lint-free towels. This also prevents
small lightweight items from blocking
airflow.
DRYING TIPS
• Close zippers, snaps and hooks to
avoid snagging other items. Remove
heat-sensit ve trim that can be dam-
aged by dq4ng. Tie strings and sashes
so they will not tangle.
• Check garments for spots and stains
left after washing. Do not tumble these
items. Heat may permanently set stains.
• Sharp or metal objects can damage
your dryer. Check pockets before drying.
Do not lay these objects on your dryer.
Turn pocl4ets of heavy items inside out
for even drying.
• Place small items such as baby socks
or hankies in laundry bag for easier
removal.
• Articles to be ironed should be
removed while still damp.
27
USING DRYER

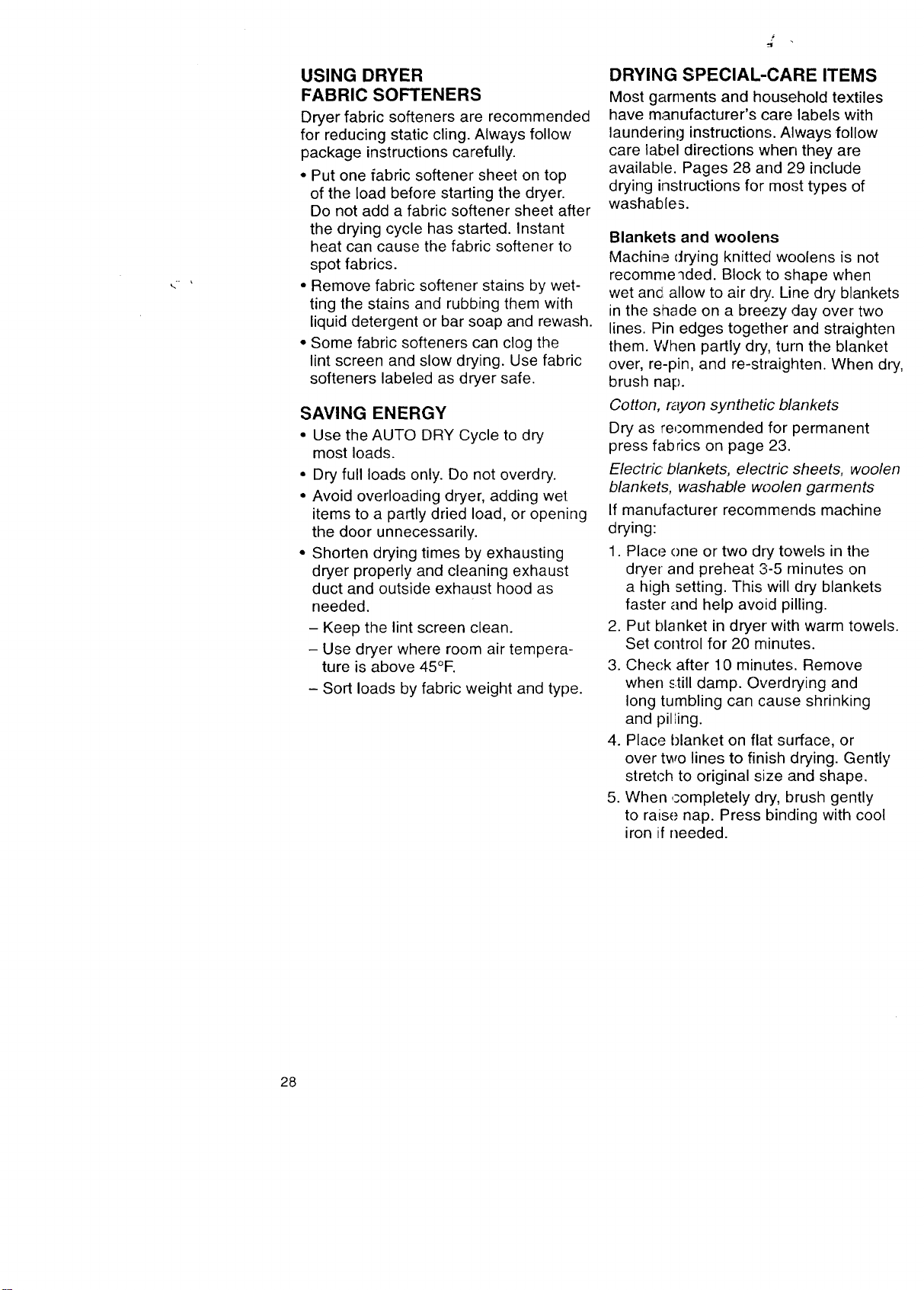

FABRIC SOFTENERS
Dryer fabric softeners are recommended
for reducing static cling. Always follow
package instructions carefully.
• Put one fabric softener sheet on top
of the load before starting the dryer.
Do not add a fabric softener sheet after
the drying cycle has started. Instant
heat can cause the fabric softener to
spot fabrics.
• Remove fabric softener stains by wet-
ting the stains and rubbing them with
liquid detergent or bar soap and rewash.
• Some fabric softeners can clog the
lint screen and slow drying. Use fabric
softeners labeled as dryer safe.
SAVING ENERGY
• Use the AUTO DRY Cycle to dry
most loads.
• Dry full loads only. Do not overdry.
• Avoid overloading dryer, adding wet
items to a partly dried load, or opening
the door unnecessarily.
• Shorten drying times by exhausting
dryer properly and cleaning exhaust
duct and outside exhaust hood as
needed.
- Keep the lint screen clean.
- Use dryer where room air tempera-
ture is above 45°F.
- Sort loads by fabric weight and type.
DRYING SPECIAL-CARE ITEMS
Most garments and household textiles
have manufacturer's care labels with
laundering instructions. Always follow
care label directions when they are
available. Pages 28 and 29 include
drying instructions for most types of
washables.
Blankets and woolens
Machine drying knitted woolens is not
recomrne qded. Block to shape when
wet and allow to air dry. Line dry blankets
in the shade on a breezy day over two
lines. Pin edges together and straighten
them. When partly dry, turn the blanket
over, re-pin, and re-straighten. When dry,
brush nap.
Cotton, rayon synthetic blankets
Dry as :recommended for permanent
press fabrics on page 23.
Electric' blankets, electric sheets, woolen
blankets, washable woolen garments
If manufacturer recommends machine
drying:
1. Place one or two dry towels in the
dryer and preheat 3-5 minutes on
a high setting. This will dry blankets
faster and help avoid pilling.
2. Put blanket in dryer with warm towels.
Set control for 20 minutes.
3. Check after 10 minutes. Remove
when s.till damp. Overdrying and
long tumbling can cause shrinking
and pilling.
4. Place blanket on flat surface, or
over two lines to finish drying. Gently
stretch to original size and shape.
5. When ,_ompletely dry, brush gently
to raise nap. Press binding with cool
iron if needed.
28

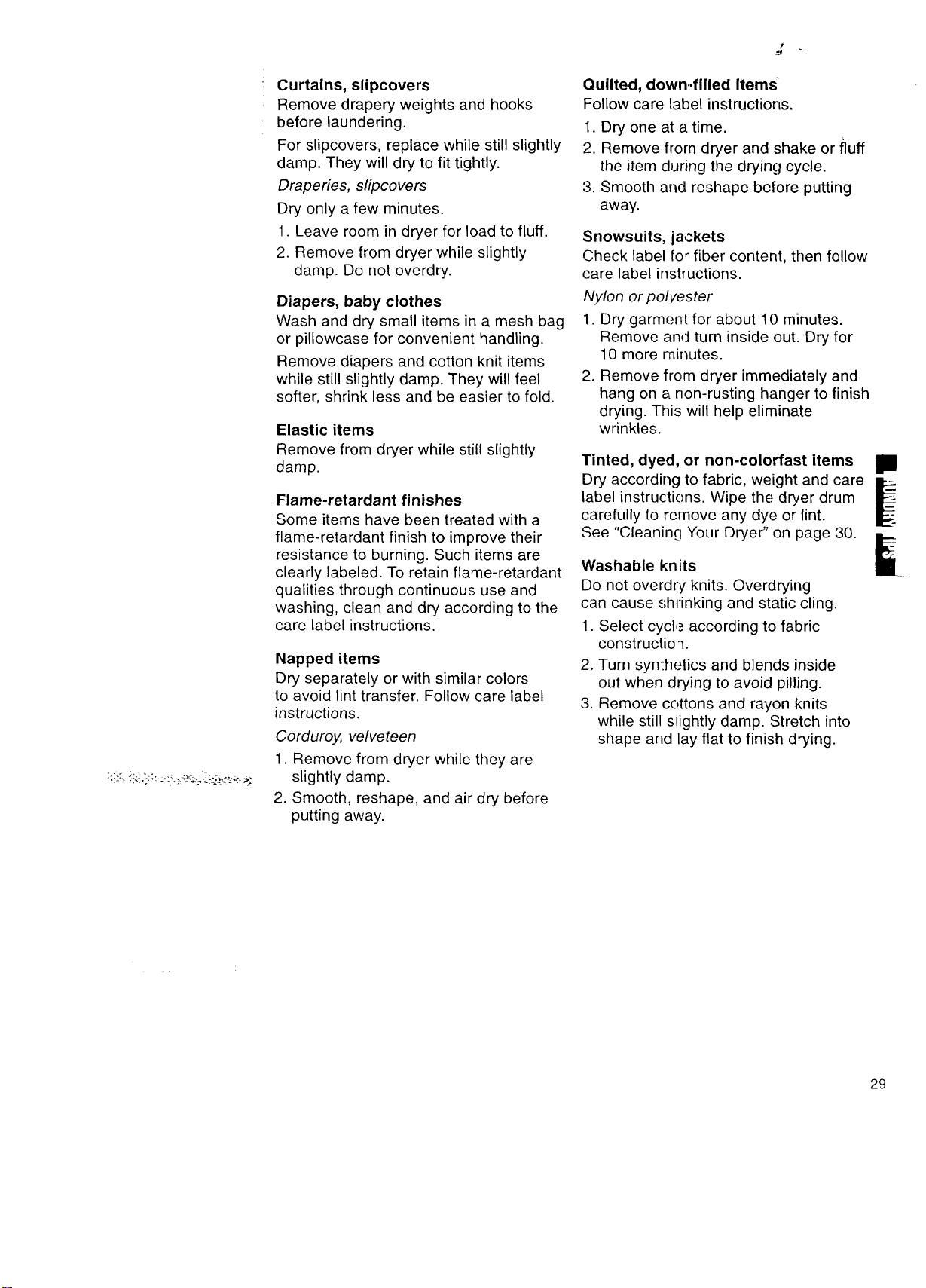

Curtains, slipcovers
Remove drapery weights and hooks
before laundering.
For slipcovers, replace while still slightly
damp. They will dry to fit tightly.
Draperies, slipcovers
Dry only a few minutes.
1. Leave room in dryer for load to fluff.
2. Remove from dryer while slightly
damp. Do not overdry.
Diapers, baby clothes
Wash and dry small items in a mesh bag
or pillowcase for convenient handling.
Remove diapers and cotton knit items
while still slightly damp. They will feel
softer, shrink less and be easier to fold.
Elastic items
Remove from dryer while still slightly
damp.
Flame-retardant finishes
Some items have been treated with a
flame-retardant finish to improve their
resistance to burning. Such items are
clearly labeled. To retain flame-retardant
qualities through continuous use and
washing, clean and dry according to the
care label instructions.
Napped items
Dry separately or with similar colors
to avoid lint transfer. Follow care label
instructions.
Corduroy, velveteen
1. Remove from dryer while they are
slightly damp.
2. Smooth, reshape, and air dry before
putting away.
?
Quilted, down.filled items
Follow care label instructions,
1. Dry one at a time.
2. Remove from dryer and shake or fluff
the item during the drying cycle.
3. Smooth and reshape before putting
away.
Snowsuits, jackets
Check label fo" fiber content, then follow
care label instructions.
Nylon or polyester
1. Dry garment for about 10 minutes.
Remove and turn inside out. Dry for
10 more minutes.
2. Remove from dryer immediately and
hang on a non-rusting hanger to finish
drying. This will help eliminate
wrinkles.
Tinted, dyed, or non-colorfast items
Dry according to fabric, weight and care
label instructions. Wipe the dryer drum
carefully to remove any dye or lint.
See "Cleaning Your Dryer" on page 30.
Washable knits
Do not overdry knits. Overdrying
can cause shrinking and static cling.
1. Select cycle according to fabric
constructio 3.
2. Turn synthetics and blends inside
out when drying to avoid pilling.
3. Remove cottons and rayon knits
while still slightly damp. Stretch into
shape and lay flat to finish drying.
29

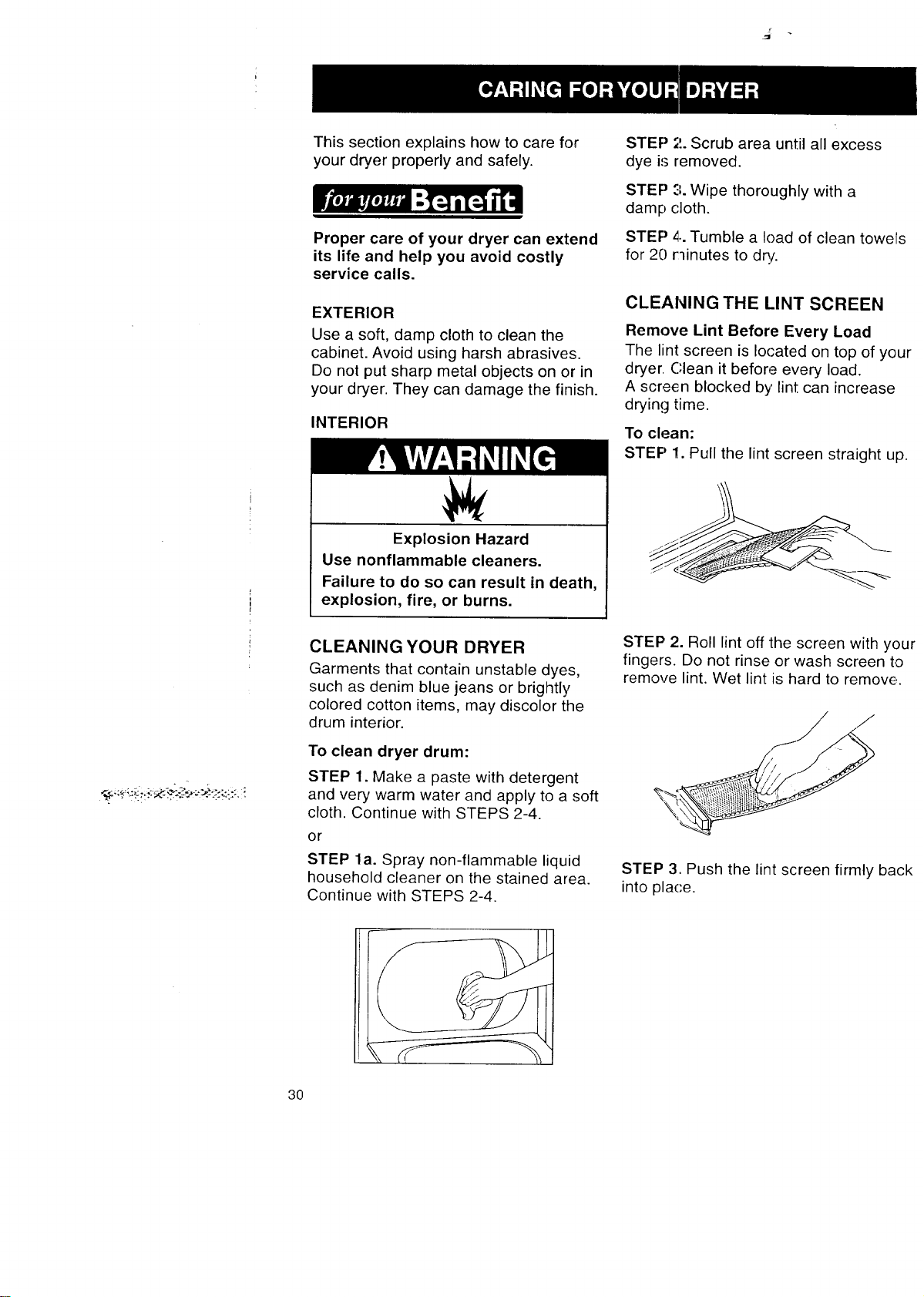

This section explains how to care for
your dryer properly and safely.
Proper care of your dryer can extend
its life and help you avoid costly
service calls.
EXTERIOR
Use a soft, damp cloth to clean the
cabinet. Avoid using harsh abrasives.
Do not put sharp metal objects on or in
your dryer. They can damage the finish.
INTERIOR
Explosion Hazard
Use nonflammable cleaners.
Failure to do so can result in death,
explosion, fire, or burns.
CLEANING YOUR DRYER
Garments that contain unstable dyes,
such as denim blue jeans or brightly
colored cotton items, may discolor the
drum interior.
To clean dryer drum:
STEP 1. Make a paste with detergent
and very warm water and apply to a soft
cloth. Continue with STEPS 2-4.
or
STEP la. Spray non-flammable liquid
household cleaner on the stained area.
Continue with STEPS 2-4.
STEP ;!. Scrub area until all excess
dye is removed.
STEP 3. Wipe thoroughly with a
damp cloth.
STEP 4..Tumble a load of clean towels
for 20 rlinutes to d_.
CLEANING THE LINT SCREEN
Remove Lint Before Every Load
The lint screen is located on top of your
dryer. Olean it before every load.
A screen blocked by lint can increase
drying time.
To clean:
STEP 1. Pull the lint screen straight up.
STEP 2. Roll lint off the screen with youl
fingers. Do not rinse or wash screen to
remove lint. Wet lint is hard to remove.
j
STEP 3. Push the lint screen firmly bacl_
into place.
3O
'!

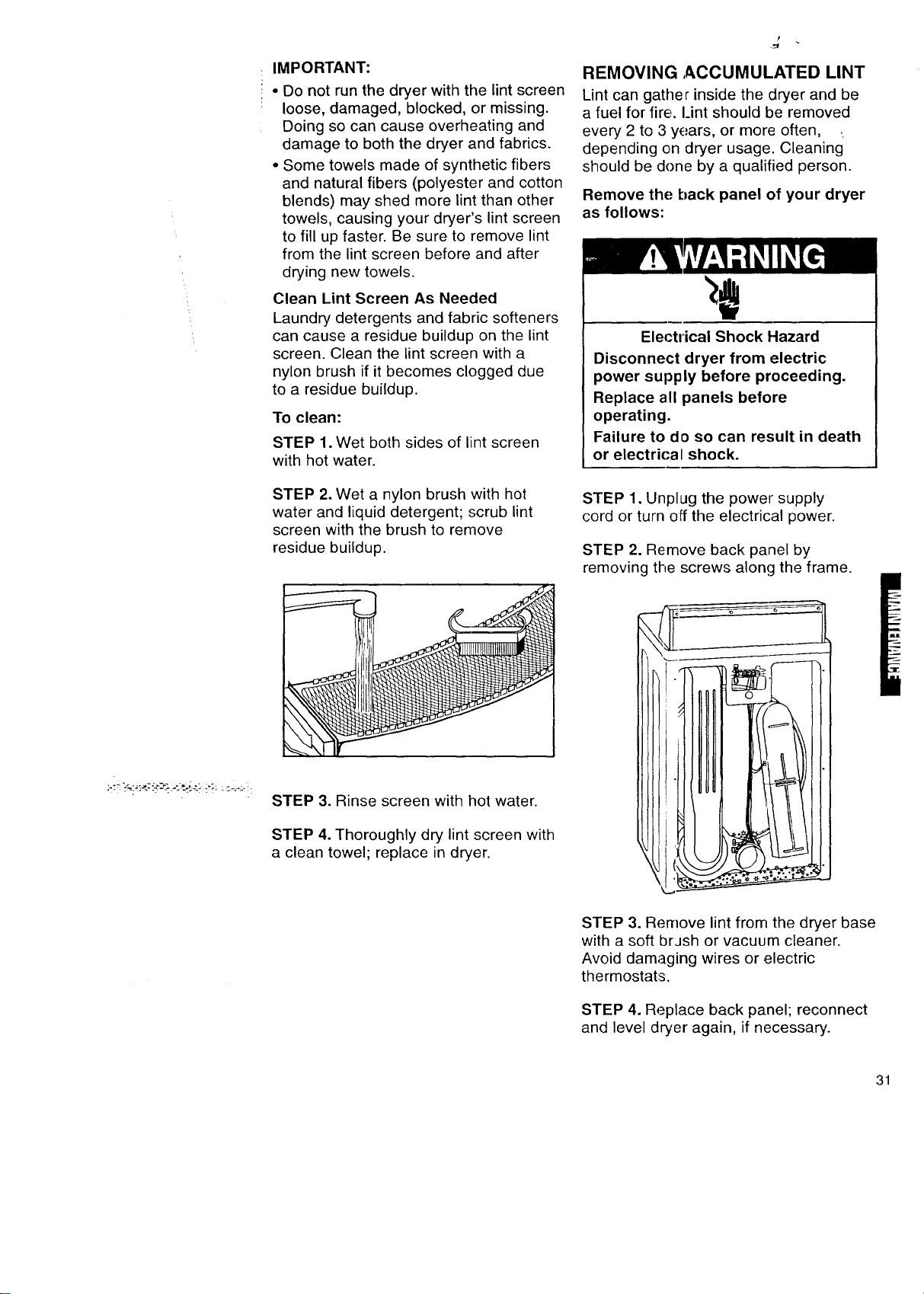

IMPORTANT:
Do not run the dryer with the lint screen
loose, damaged, blocked, or missing.
Doing so can cause overheating and
damage to both the dryer and fabrics.
Some towels made of synthetic fibers
and natural fibers (polyester and cotton
blends) may shed more lint than other
towels, causing your dryer's lint screen
to fill up faster. Be sure to remove lint
from the lint screen before and after
drying new towels.
Clean Lint Screen As Needed
Laundry detergents and fabric softeners
can cause a residue buildup on the lint
screen. Clean the lint screen with a
nylon brush if it becomes clogged due
to a residue buildup.
To clean:
STEP 1. Wet both sides of lint screen
with hot water.
STEP 2. Wet a nylon brush with hot
water and liquid detergent; scrub lint
screen with the brush to remove
residue buildup.
REMOVING ,ACCUMULATED LINT
Lint can gather inside the dryer and be
a fuel for fire, Lint should be removed
every 2 to 3 years, or more often, ,
depending on dryer usage. Cleaning
should be done by a qualified person.
Remove the back panel of your dryer
as follows:
Electrical Shock Hazard
Disconnect dryer from electric
power supply before proceeding.
Replace all panels before
operating.
Failure to do so can result in death
or electrical shock.
STEP 1, Unplug the power supply
cord or turn eft the electrical power.
STEP 2. Remove back panel by
removing the screws along the frame.
STEP 3. Rinse screen with hot water.
STEP 4. Thoroughly dry lint screen with
a clean towel; replace in dryer.
STEP 3. Remove lint from the dryer base
with a soft brJsh or vacuum cleaner.
Avoid damaging wires or electric
thermostats.
STEP 4. Replace back panel; reconnect
and level dryer again, if necessary.
31

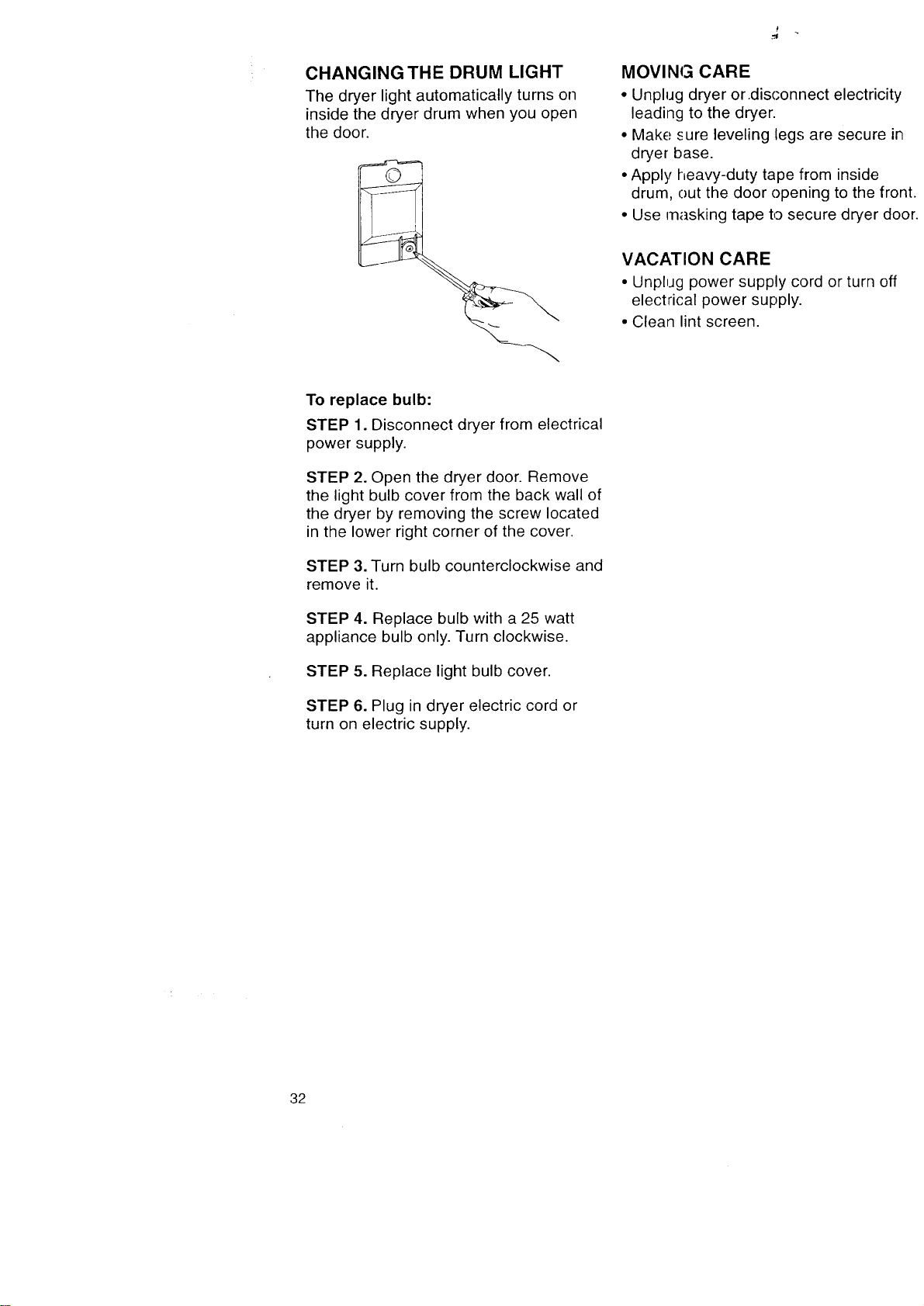

CHANGING THE DRUM LIGHT
The dryer light automatically turns on
inside the dryer drum when you open
the door.
MOVING CARE
• Unplug dryer or.disconnect electricity
leading to the dryer.
• MakE; sure leveling legs are secure in
dryer base.
• Apply heavy-duty tape from inside
drum, out the door opening to the front.
• Use masking tape to secure dryer door.
VACATION CARE
• Unplug power supply cord or turn off
electrical power supply.
• Clean lint screen.
To replace bulb:
STEP 1. Disconnect dryer from electrical
power supply.
STEP 2. Open the dryer door. Remove
the light bulb cover from the back wall of
the dryer by removing the screw located
in the lower right corner of the cover.
STEP 3. Turn bulb counterclockwise and
remove it.
STEP 4. Replace bulb with a 25 watt
appliance bulb only. Turn clockwise.
STEP 5. Replace light bulb cover.
STEP 6. Plug in dryer electric cord or
turn on electric supply.
32

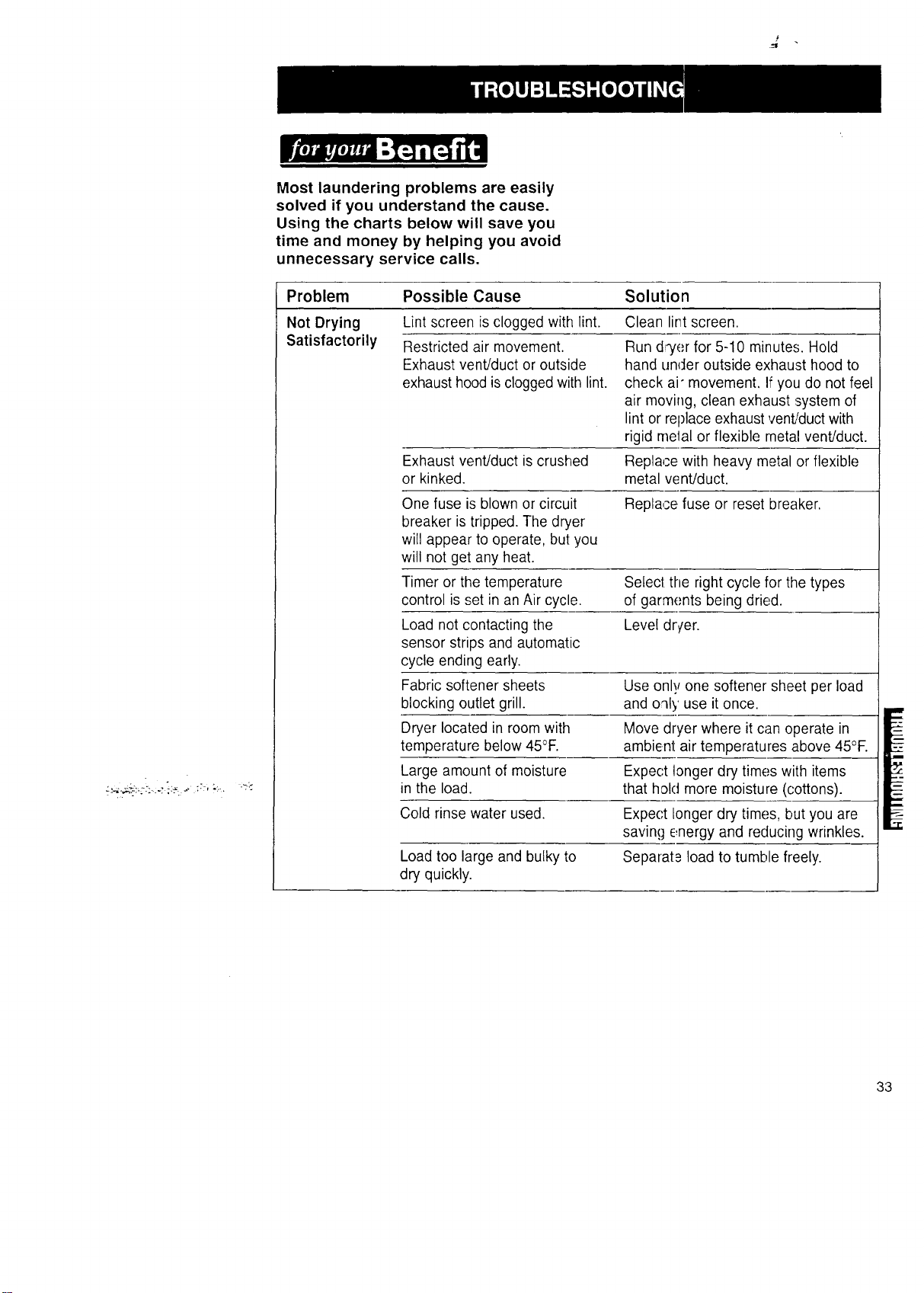

Most laundering problems are easily
solved if you understand the cause.
Using the charts below will save you
time and money by helping you avoid
unnecessary service calls.
Problem Possible Cause Solution
Not Drying Lint screen is clogged with lint. Clean lint screen.
Satisfactorily Restricted air movement.
Exhaust vent/duct or outside
exhaust hood is clogged with lint.
Run d_'yerfor 5-10 minutes. Hold
hand under outside exhaust hood to
check ai" movement. If you do not feel
air moving, clean exhaust system of
lint or replace exhaust vent/duct with
rigid melal or flexible metal vent/duct.
Exhaust vent/duct is crushed Replace with heavy metal or flexible
or kinked, metal vent/duct.
One fuse is blown or circuit Replace fuse or reset breaker.
breaker is tripped. The dryer
will appear to operate, but you
will not get any heat.
Timer or the temperature Select the right cycle for the types
control is set in an Air cycle, of garments being dried.
Load not contacting the Level dr/er.
sensor strips and automatic
cycle ending early.
Fabric softener sheets Use only one softener sheet per load
blocking outlet grill, and only use it once.
Dryer located in room with Move dryer where it can operate in
temperature below 45°F. ambient air temperatures above 45°R
Large amount of moisture Expect longer dry times with items
in the load. that hold more moisture (cottons).
Cold rinse water used. Expect longer dry times, but you are
saving energy and reducing wrinkles.
Load too large and bulky to Separata load to tumble freely.
dry quickly.
33
,=

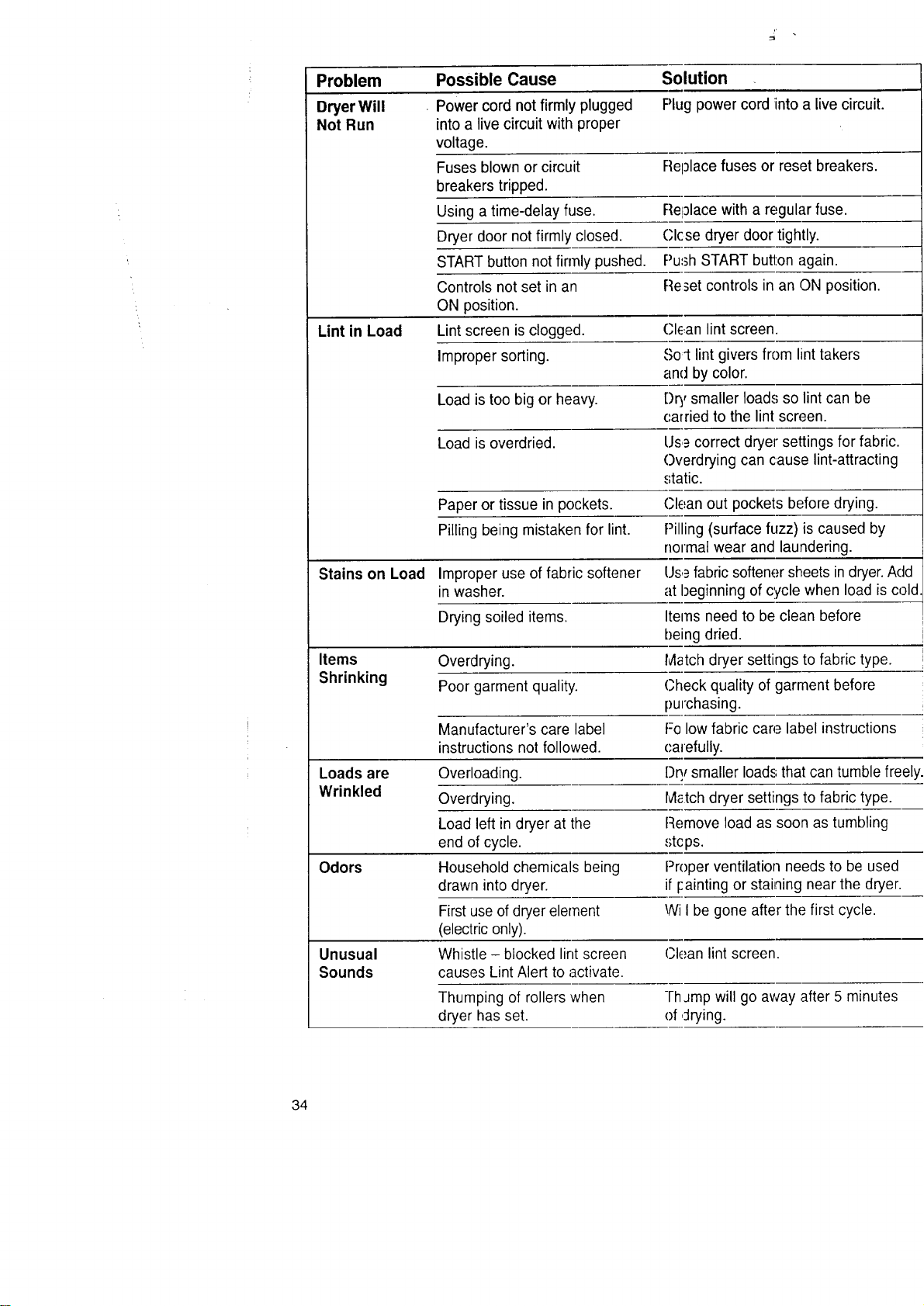

Problem Possible Cause Solution
Dryer Will Power cord not firmly plugged Plug power cordinto a live circuit.
Not Run into a live circuit with proper
voltage.
Fuses blown or circuit Replace fuses or reset breakers.
breakers tripped.
Using a time-delay fuse. Rei_lace with a regular fuse.
Dryer door not firmly closed. Close dryer door tightly.
START button not firmly pushed. Pu,,_hSTART button again.
Controls not set in an Reset controls in an ON position.
ON position.
Lint in Load Lint screen is clogged. Cle,an lint screen.
Improper sorting. Sot lint givers from lint takers
and by color.
Load is too big or heavy. Dry smaller load,,;so lint can be
carried to the lint screen.
Load is overdried, tJs,acorrect dryer settings for fabric.
Overdrying can cause lint-attracting
static.
Paper or tissue in pockets. Clean out pockets before drying.
Pilling being mistaken for lint. Pilling (surface fuzz) is caused by
normal wear and laundering.
Stains on Load Improper use of fabric softener Us,_fabric softener sheets indryer.Add
in washer, at beginning of cycle when load is cold
Drying soiled items. Items need to be clean before
being dried.
Items Overdrying. [#latchdryer settings to fabric type.
Shrinking Poor garment quality. Check quality of garment before
purchasing.
Manufacturer's care label Fo low fabric care label instructions
instructions not followed, carefully.
Loads are Overloading. [;)ql smaller loads;that can tumble freely
Wrinkled Overdrying. M_tch dryer settings to fabric type.
Load left in dryer at the Remove load as soon as tumbling
end of cycle. ,';tcps.
Odors Household chemicals being Proper ventilation needs to be used
drawn into dryer, if Fainting or staining near the dryer.
First use of dryer element Wil be gone after the first cycle.
(electric only).
Unusual Whistle - blocked lint screen Clean lint screen.
Sounds causes Lint Alert to activate.
Thumping of rollers when -I-hJmp will go away after 5 minutes
dryer has set. of ,:lrying.
34
#
KENMORE DRYERS
We Service What We Sell
"We Service What We Sell" is our
assurance you can depend on Sears
for service. Your Electric Dryer has
added value when you consider that
Sears has service units nationwide,
staffed with professional technicians
specifically trained on Sears appliances
and having the parts, tools, and equip-
ment to ensure that we meet our pledge
to you..."We Service What We Sell'.'
Sears Maintenance Agreement
Maintain the value of your Kenmore
Electric Dryer with a Sears Maintenance
Agreement. Sears Electric Dryers are
designed, manufactured, and tested for
years of dependable operation. Yet, any
modern appliance may require service
from time to time.
The Sears Maintenance Agreement
• Is your way to buy tomorrow's service
at today's prices.
• Eliminates r,_pair bills resulting from
normal use.
• Allows for as many service calls
as required.
• Provides for service by professional
Sears Trained Technicians.
• Even if you don't need repairs, the
Maintenanc.a Agreement offers an
annual preventative maintenance
check-up at your request!
This maintenance agreement does not
cover originat installation, reinstallation,
or damage resulting from external causes
such as acts of abuse, theft, fire, flood,
wind, lightning, freezing, power failure,
power reduction, etc.
35
Fortherepairor replacementpartsyou
needdelivereddirectlytoyourhome
Call7 am- 7 pro,7daysaweek
1-800-366-PART
(1-808-366-7278)
Forin-homemajorbrandrepairservice
Call24hoursaday,7 daysaweek
1-800-4-REPAIR
(1-800-473-7247)
Forthelocationof aSearsPartsand
RepairCenterinyourarea
Call24 hoursaday,7daysaweek
1-800-488-1 222
me
_ mn Rimming
liin||
Forinformationon purchasingaSears
MaintenanceAgreementortoinquire
aboutanexisting Agreement
Call9am- 5 pm,Monday- Saturday
1-800-827-6655
Whenrequestingserviceor ordering
parts, alwaysgivethefollowing
information:
• ProductType • Part Number
• ModelNumber • PartDescription
SEARS
36
America'sRepairSpecialists
