website:http://us.lge.com
1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
para el Servicio LG (Atenci6nal Cliente)24 horas al dia, 7 dias a la semana
LSC27990TT
REFRIGERATOR
User's Guide
Please read this guide thoroughly
before operating and keep it handy
for reference at all times.
manuel
le
introduction
Installation
Operation
Suggestion on
food storage
Care and
maintenance
Table of Contents
Entry
Important safety instructions
Identification of parts
@
@
@
Where to install
Door removal
Install the freezer and refrigerator compartment doors
Water supply installation
Water connection instruction guide
Height adjustment
External Equipment Connections
@
@
@
@
@
@
Setup
Adjusting the temperatures and functions
Temperature
Dispenser
Menu

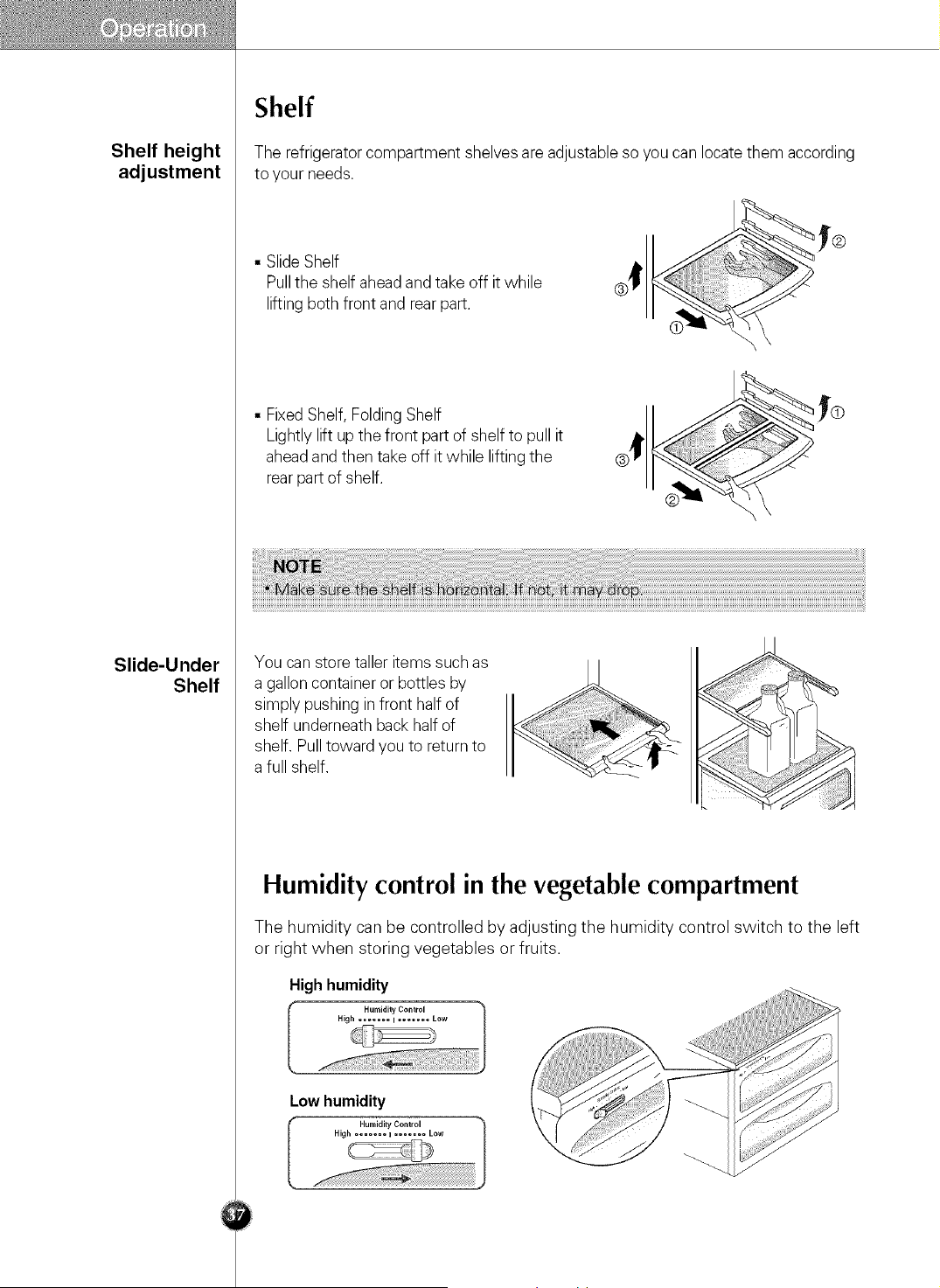

Shelf
Humidity control in the vegetable compartment
OptiFresh temperature bin
OptiFresh
@
Location of foods
Storing foods
@

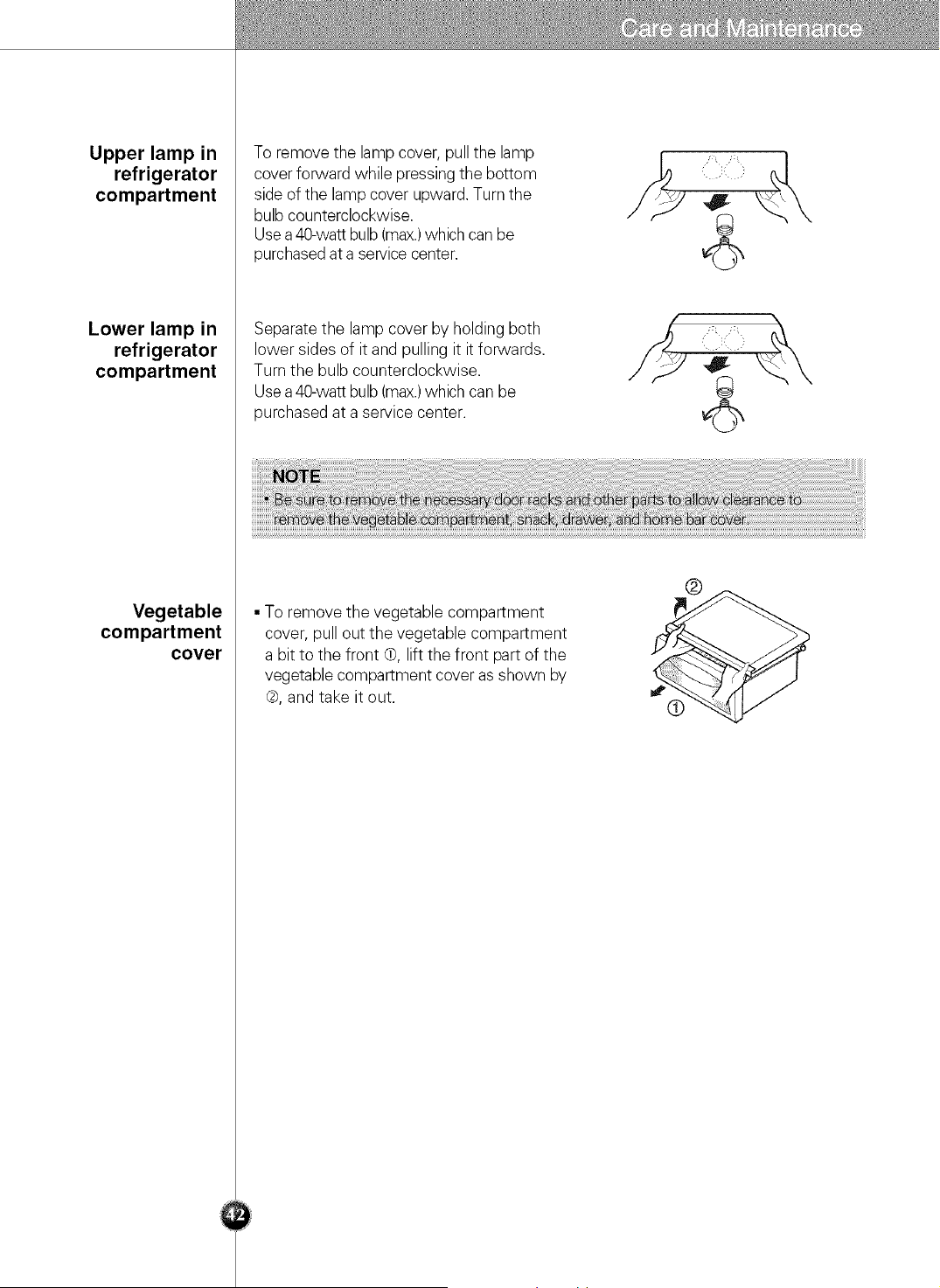

How to remove and replace parts
General information
Cleaning
Troubleshooting
Warranty
Zip code
Recommended
grounding
method
Accessibility of
supply plug
Supply cord
replacement
Warning

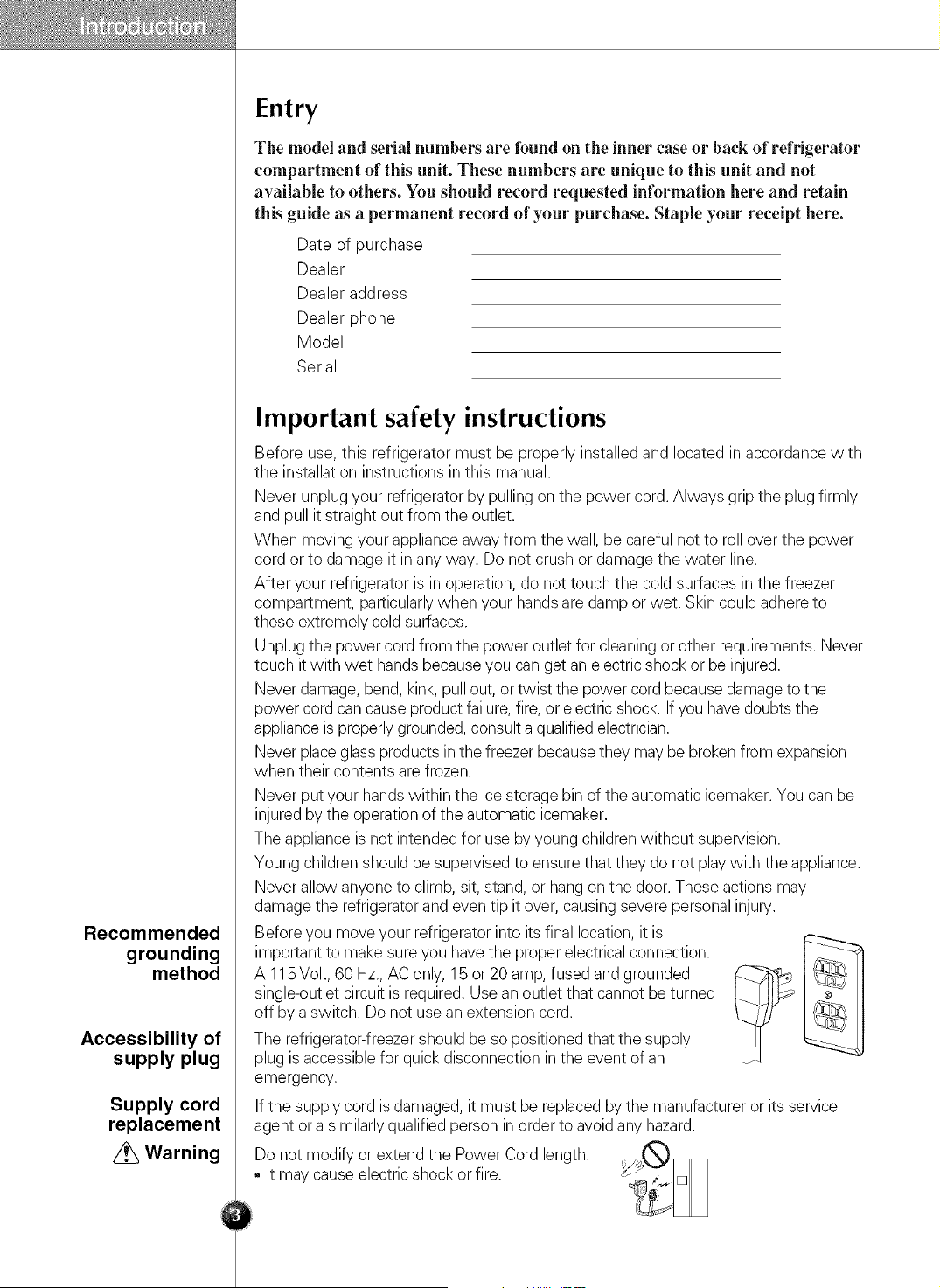

Entry
The model and serial numbers are [bund on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested infm'mation here and retain
this guide as a pernmnent recm'd of your purchase. Staple your receipt here.
Date of purchase
Dealer
Dealer address
Dealer phone
Model
Serial
Important safety instructions
Before use, this refrigerator must be properly installed and located in accordance with
the installation instructions in this manual.
Never unplug your refrigeratorby pulling on the power cord. Always grip the plug firmly
and pull it straight out from the outlet.
When moving your appliance away from the wall, be careful not to roll over the power
cord or to damage it in any way. Do net crush or damage the water line.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment, particularlywhen your handsare damp or wet. Skin could adhere to
these extremely cold surfaces.
Unplug the power cord from the power outlet for cleaning or other requirements. Never
touch it with wet hands becauseyou can get an electric shock or be injured.
Never damage,bend, kink, pull out, or twist the power cord because damage to the
power cord can cause productfailure, fire, or electric shock. If you have doubts the
appliance is properly grounded, consult a qualified electrician.
Never placeglass products inthe freezer because they may be broken from expansion
when their contents are frozen.
Never put your hands within the ice storage bin of the automatic icemaker.You can be
injured by the operation of the automatic icemaker.
The appliance is not intended for use by young children without supervision.
Young children should be supervised to ensure that they do not playwith the appliance.
Never allow anyone to climb, sit, stand, or hangon the door. These actions may
damage the refrigeratorand even tip it over, causing severe personal injury.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection. [ _1
A 115 Volt, 60 Hz., AC only, 15 or 20 amp, fused and grounded
single-outlet circuit is required. Use an outlet that cannot be turned
off by aswitch. De not use an extension cord.
The refrigerator-freezershould be so positioned that the supply
plug is accessible for quick disconnection inthe event of an
emergency.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent ora similarly qualified person inorder to avoid any hazard.
Do not modify or extend the Power Cord length.
• It may cause electric shock or fire.
Child entrapment
warning
Don't store
Grounding
DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer take off the doors but leavethe
shelves in place so that children may not easilyclimb inside.
The appliance is not intended for use by young children without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Don't store or use gasoline or other flammable vapor and liquids inthe vicinity of this or
any other appliance.
In the event of an electric short circuit, grounding (earthing)reduces the risk of electric
shock by providing an escape wire for the electric current.
In order to prevent possible electric shock, this appliance must be grounded.
Improper use of the grounding plug can result in an electric shock. Consult a qualified
electrician or service person if the grounding instructions are not completely
understood, or if you have doubts on whether the appliance is properly grounded.
Automatic
Icemaker
Lamp
Shelf
DoorRack
Drawer
Door Rack
Lower Cover
identification of parts
Freezer Refrigerator
Compartment Compartment
Model LSC27990TT
"_ Dairy Corner
I
I Water Filter
I ...........Lamp
I Shelf
i Door Rack
I
I Shelf
I
I
..........[ ...............................SnackDrawer
!
I ........Lamp
1
i
i
J
Vegetable Drawer
OptiFreshRoom
DoorRack
Strong
and even floor
A proper
distance from
adjacent items
Where water
supply can be
easily connected
in a dry place
Where it is free
from heat
Where to install
Unstable installation may cause vibration and
noise. If the floor to installthe refrigeratoron
is not even, make the refrigerator level by
rotating the height adjusting screw.
To ensure proper air circulation around the
fridge -freezer, please maintain sufficient
space on both the sides as well as top and
maintain at least 2 inches (5 cm) from the
rear wall.
Select a place where a water supply can be
easilyconnected between the automatic ice
maker and dispenser.
Installing the refrigerator in awet or damp
area may cause rust and may be an electrical
hazard.
If this refrigerator is installed where the
ambient temperature is high, the freezing
capacity is deteriorated and the cost of
electricity used increases.
2--_ .....
Bottom Pad
Warning
Remove lower
cover and
water feed tube
Remove the
freezer
compartment
door
Remove the
refrigerator
door
Door removal
Electric Shock Hazard
Disconnectelectricalsupplyto refrigeratorbeforeinstalling.
Failureto do so could resultindeath orseriousinjury.
If your entrancedoor is too narrow for the
refrigerator to passthrough, remove the refrigerator
door and pass the refrigeratorlaterally.
Removethe lower cover by lifting upward, and then pull
up the water feed tube while pressingthe releasering O
shown in the figure to the right.
Water Feed Tube
_t Hinge . _-
1)Remove the hinge cover by looseningthe _/ c°v_rJ_i_ c°rnenseOt'°n
screws. Disconnect all connections except _<_ \_
the groundline. -t_... _ - _/
Upper Hinge I _ "\_'_ Ground Une
2) Removethe keeperby rotating it counter Keep_pper Hinge
clockwise d) andthen lifting the upper
hingeup®. __m_,
3) Removethe freezer compartmentdoor by
lifting it upward.Thistime, the door should
be lifted enoughfor the water feed tube to
be completelypulledout.
I _petubetobe I
1)Loosenthe hinge cover screws and remove
the cover.Removeconnectionwire, if any,
except for the groundline.
Connection
Wires
2) Remove keeper by rotating it clockwise (0)
and then removethe upperhinge by lifting
it up (®).
Upper Hinge Keeper
3) Removethe refrigeratorcompartment door
by lifting it up.
Pass the
refrigerator
Before
installation
Warning
Disposal of the
old appliance
Passthe refrigeratorlaterallythrough the access
dooras shown in the right figure.
Install the freezer and refrigerator
compartment doors
Mount them inthe reverse sequence of removal after they passthrough the access
door.
Water supply installation
• Automatic icemaker operation needs water pressure of 21N121 psi (1.5N8.5
kgf/cm 2)(That is, an instant paper cup (6 oz. or 180 cc)will be fully filled within
3 seconds.)
• If water pressure is less than 21 psi (1.5 kgf/cm2). It is necessary to purchase a
separate pressure pump for normal automatic icemaking and cool water feed.
• Keepthe total length of the feed water pipe tube within 26' (8 m). Be careful for the
tube to avoid being kinked. If the tube is longer than 26' (8 m), the pressure may
drop to an unacceptable level.
• Install the water supply line where it will not be affected by heat.
• Connect to potable water supply only.
This appliance contains fluids (refrigerant and lubricant) and is made of parts and
materials which are reusable and/or recyclable.
All the important materials should be sent to the collection center of waste material
and can be reused after rework (recycling).For recycling, please contact the local
agency.
Connecting
the refrigerator
to a water source
Warning
Tools required
Cold water supply
Water connection instruction guide
Read all directions carefully before you begin.
Connect to potable water supply only.
• Standard screwdriver
• 7/16-inchand 1/2-inchopen-end wrenches or two adjustable wrenches
• 1/4-inch nut driver
• 1/4-inch drill bit
• Hand drill or electric drill (properly grounded)
The icemaker water valve contains a flow washer which is used as a water
pressure regulator.
The icemaker needs to be connected to a cold water line with water pressure
21 psi (Ib/inch2)
Connect
the tubing to
water line
1. Unplug the refrigerator or disconnect power.
2. Turn OFF the main water supply. Turn on the nearest faucet to relieve the
pressure on the line. It may help to open an outside faucet to allow the water to
drain from the line in the house.
3. Find a 1/2-inchvertical COLD water pipe near the refrigerator.
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe. Add 7
feet (2.1m) to allow for moving refrigerator for cleaning. Use 1/4-inchO.D.
(outside diameter) copper tubing. Be sure both ends of copper tubing are cut
square.
5. Using a drill, drill a 1/4-inchhole in the cold water pipe you have selected.
6. Fasten shut-off valve to cold water pipe with pipe clamp. Be sure the outlet
end is solidly in the 1/4"drilled hole in the water pipe and the washer is under
the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws
carefully and evenly so the washer makes a watertight seal. Do not
overtighten or you may crush the copper tubing, especially if soft (coiled)
copper tubing is used. Now you are ready to connect the copper tubing.
7. Slip the compression sleeve and the compression nut onto the copper tubing
as shown. Insert the end of the tubing into the outlet end squarely as far as it
will go. Tighten the compression nut onto the outlet end with a wrench. A flare
nut wrench works best, but an open end wrench will suffice. Do not
overtighten.
8. Place the free end of the tubing into a container or sink, and turn on the main
water supply. Flush out the tubing until the water is clear. Turn off the shutoff
valve on the water pipe. Coil the copper tubing as shown below.
.j_ Cold Water Pipe
.... Pipe Clamp
Packing
Nutx
Shut Off Valve \ AJ_ 2h I Coil of Polyethylene or
Compresd_ Compression Nut _

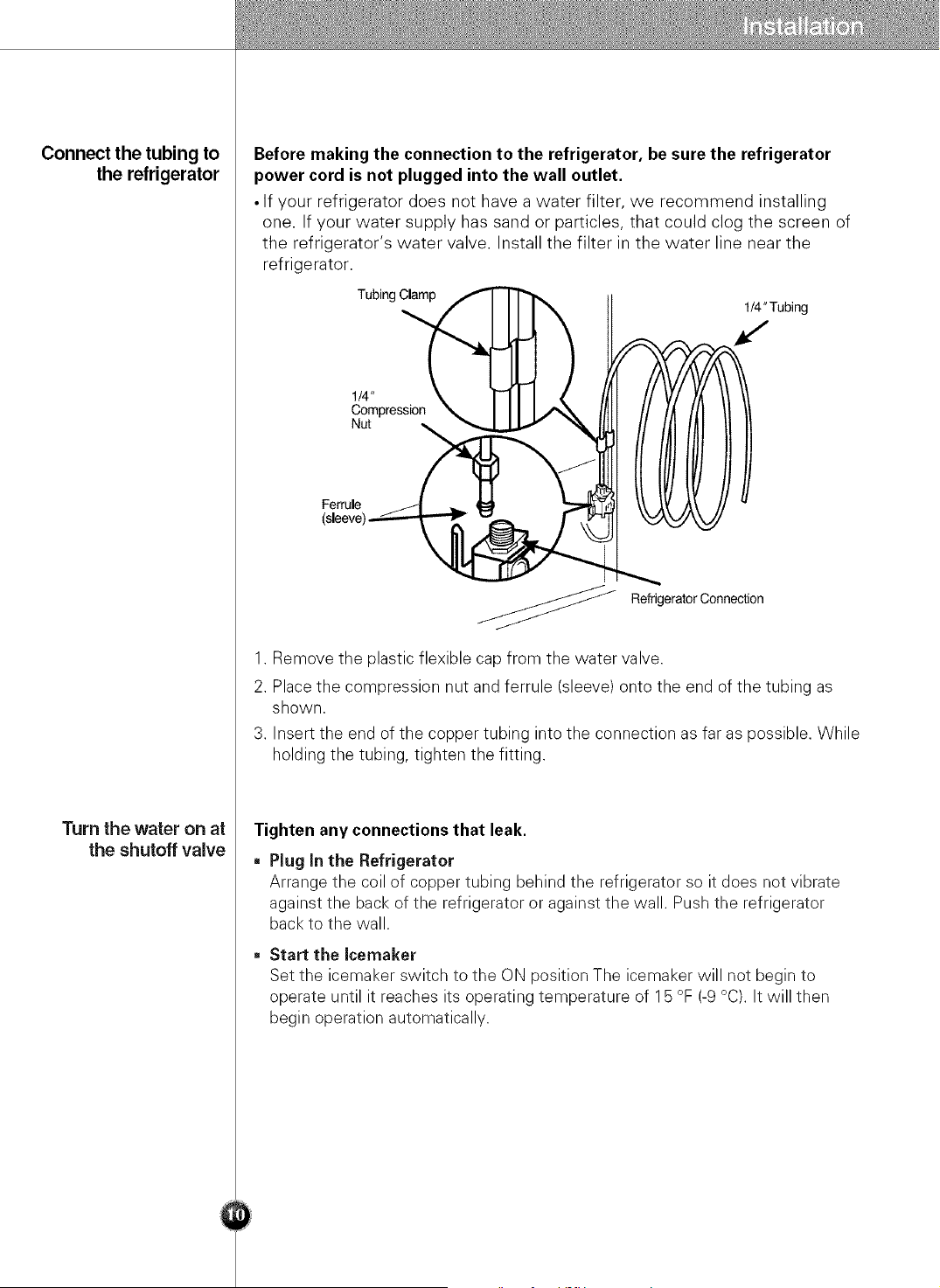

Connect the tubing to
the refrigerator
Turn the water on at
the shutoff valve
Before making the connection to the refrigerator, be sure the refrigerator
power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water filter, we recommend installing
one. If your water supply has sand or particles, that could clog the screen of
the refrigerator's water valve. Install the filter in the water line near the
refrigerator.
1/4" \ F I
Compression _ II
Nut _ _,,
1/4"Tubing
Ferrule
Refrigerator Connection
1. Remove the plastic flexible cap from the water valve.
2. Place the compression nut and ferrule (sleeve) onto the end of the tubing as
shown.
3. Insert the end of the copper tubing into the connection as far as possible. While
holding the tubing, tighten the fitting.
Tighten any connections that leak.
• Plug In the Refrigerator
Arrange the coil of copper tubing behind the refrigerator so it does not vibrate
against the back of the refrigerator or against the wall. Push the refrigerator
back to the wall.
Start the Icemaker
Set the icemaker switch to the ON position The icemaker will not begin to
operate until it reaches its operating temperature of 15 °F (-9°C). It will then
begin operation automatically.
if the freezer
compartment door
is lower than the
refrigerator
compartment door
if the freezer
compartment door
is higher than the
refrigerator
compartment door
=first method
if the freezer
compartment door
is higher than the
refrigerator
compartment door
=second method
CAUTION
After leveling the
door height
Height adjustment
Level them by insertinga flat (- type) driver into the groove of the left height adjusting
screw and rotating it clockwise ((b).
Height difference
Left height
adjustment screw
Level them by inserting a flat ( - type) driver into the groove of the right height
adjusting screw and rotating it clockwise ((b).
Height difference
( !
Right height
adjustment screw
Adjust the level when the refrigerator door is lower than the freezer door during the
use of the refrigerator. Heightdifference
0) Keeper nut
_1_:,_._.1/r_) Tool for
I pr_ _ / adjustment
g_Adju p
hinge pin _ ._ _
Down _,_ %_v'_
1. Using the wide side of the tool for adjustment ®, turn the keeper nut ® ( "...........)
clockwise to loosen the Keeper nut.
2. Using the narrow side of the tool for adjustment, turn the adjustment hinge pin
® ( _..........) clockwise or ( ........# ) counterclockwise to level the refrigerator and
freezer door.
3. After setting the level of the door, turn the keeper nut( ........# ) counterclockwise to
tighten.
Do not force too hard to level the height. The hinge pin can be pulled out.
(Adjustable range of height is a maximum of 2" (5 cm))
The refrigerator door will close smoothly by raising the front side by adjusting the
height adjusting screw. If the door does not close properly because it is improperly
adjusted, the performance of the refrigerator will be affected.
Antenna Connection
Connecting
a VCR / DVD
Cable TV
Connections
E×ternal Equipment Connections
Multi-family Dwellings/Apartments
Bronze Wire
RF coaxial wire (75 ohm)
k
VHF antenna Turn clockwise to tighten.
UHF antenna
outdoor
antenna
Single-family Dwellings/Houses
(Connect to wall jack for outdoor antenna)
Bronze Wire
Be careful not to bend the bronze wire
when connecting the antenna.
J
• In a poor signalareato improvepicturequality, purchase
andinstalla signalamplifier.
• If the antennais not installedproperly,contactyour dealer
for assistance.
• Turnthe end of the cableto the clockwisedirectionto be
connectedto the connectorlocated at the top of the
refrigerator.
Incorrect connectionmay causea bad quality.
Connection
1. Connect the audio/video out sockets of the
VCR to audio/video in sockets of the set.
2. Press the INPUT button to select Component.
3. Press the PLAY button on the VCR.
The VCR playback picture
appears on the screen.
J
_F.._ Typical VCR
AnteTmas Connection Panel
- After subscribing to a local cable TV service and installing a converter, you can
watch cable TV programming.
- For further cable TV information, contact a local cable service provider.
Connection
1. Usethe INPUT button on the
remote control to select TV.
2. Tune to cable service provided
channels using the cable box.
Cable Box Connection Panel
Setup
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures 2N3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
Adjusting the temperatures and functions
Water/raceOutput
Dispenser Push Switch --
Dispenser Lamp (Hidden)
_J
Temperature Button
iHiLockBu.on
ii CalendarandAnniversaryReminder
::::::::::::::::::::::::::::::::::
DispenaerU_.tButtoniii
Dispenser Button Door Alarm Bution
Refrigerator/Freezer
IcePlus
Temperature
- You can adjust the freezer and refrigerator temperature.
Press the TEMPERATURE button.
Using the • or • button, select
the desired refrigerator.
3 Select the temperature using the _lor • button.
Refrigerator temperature options: 46, 41, 37, 34, or 32°F
Freezer temperature options: 7, 1, -2, -5, or -8°F
- For quick freezing.
-The standby screen is shown during _ IcePlus operation.
2
Press the TEMPERATURE button.
Press the • or • button
to select IcePlus.
Press the _lor • button to select Use. 4[ Press the SELECT button.
[ Use ] <--> [ Not in Use ]
6 Return to the standby screen.
Crush/Water/Cube
Automatic
icemaker
Dispenser
- You can select from Crush, Water or Cube options.
- When the dispenser is in use, the active option is indicated in the standby screen.
- Crush _, Water @, Cube @.
2
Press the DISPENSER button.
Select the desired option using
the • and • buttons.
[ Crush ] <--> [ Water ] <--> [ Cube ]
3 Press the SELECT button. 4
5 Return to the standby screen.
Water Amount
Indicator Light
Feeler Arm
Water Amount Power
Switch
Selection Button
• The automatic icemaker can automatically make 6 cubes at a time, 70N120 pieces
per day.This quantity may vary by circumstance, including ambient temperature,
door opening, freezer load. etc.
• Icemaking stops when the ice storage bin is full.
• If you don't want to use the automatic icemaker, turn the icemaker switch to OFF.
If you want to use automatic icemaker again, change the switch to ON.
• The water amount will vary depending on the water amount selection button.
Setting, as well as the water pressure of the connected water line.

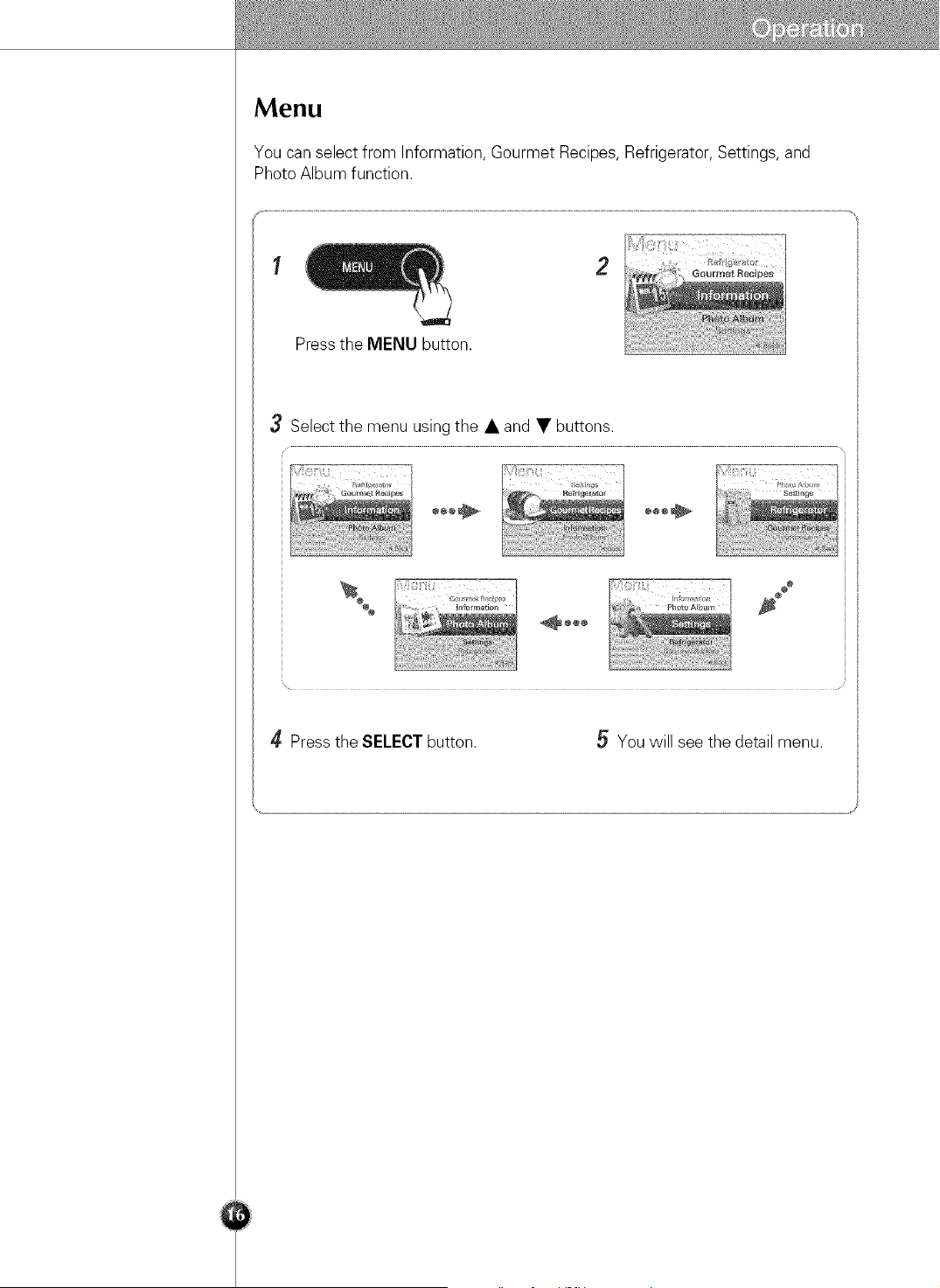

Menu
You can select from Information, Gourmet Recipes, Refrigerator, Settings, and
Photo Album function.
1 2
Press the MENU button.
3 Select the menu using the • and • buttons,
4_ Press the SELECT button, 5 You will see the detail menu,
information You can select from Weather Forecast, Anniversary Reminder,
Date and Time Setting, or Timer function.
L3 Weather Forecast
- Receives and displays the weather and temperature for 5 days, including the
current day.
- Reception of weather forecast information received and displayed on the screen
is subject to vary depending on your region and location of refrigerator.
-Thereby LG does not guarantee and will net be held responsible for accuracy of
the weather information.
- Check your zip code in this manual pages 151 or
www.a mbientdevices.com/cat/device/coverage.html
- Weather forecast information is only available in U=S.A
Press the • or • button to
select Weather Forecast.
Press the • or • button
to select On/Off.
Press the • or • button to
select On.
6
Select the desired region
using the • or • button.
7 Return to the Information menu.
Anniversary Reminder
- Register the anniversary date.
Select the Anniversary reminder using the button.
< To set a new date >
Pressthe •or • button to
select Anniversary Reminder.
@}
1
• F S
Select the month using the • or • button.
Press the • button and then select the date using the • or • button.
Select the menu using
the • or • button.
5
Select the advance time
using the • or • button.
Press the • button
to select Save.
6 Return to the Information menu.
Data & "time Setting
To set the date and time.
1
Select the menu using
the • or • button.
Press the • or • button to select
Data & Time Setting.
Press the • button to select Save.
Select the value using
the _1or I1_button.
5 Return to the Information menu.
Timer
To set the alarm.
1 2
Select the time using
the _1 or • button.
Press the • or • button
to select Timer.
4
5 Return to the Information menu.
Press the • button
to select Save.
............. _J
i!_!i_i!_i!_!!_i_!i!!!!!!!i__!_!i_!_!!!_!!_!_!__!ii_!ii!ii_i!_!_!_!_i_ii_ii_i!!!!_!!_i!_i!_!i_i!!!i_iiiiiiii!i!!!!!i!!ii!iiiii!_i_!_!!i!i_!!i_!i!!!!i!_!_!_i_!__!_____i_i_i_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_!_!__i!i!!i!i_!_!_!!ii!!i!ii!!i!i!_i_iiiiiiiii!!ii!!!!iiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!ii!i!i!i!i!i!ii_i!ii!i!i_!_!iji!ili_iiii_:!li!i_!_ii_i!_i_i_ii_ii!_!_ii_!_i_i!i!_!_!_i_ii!_!_i_iiiiiiiiiii_!_!_!_!_!_¸
Gourmet Recipes
Select the recipe after selecting the menu category of dish.
f
Refrigerator
Select the menu category using the • or • button.
You can select the dish
using the _1 or • button.
You can select the detail menu
using the _1 or • button.
7 Return to the Gourmet Recipes menu.
Press the • button
to select More.
Press the • button
to select List,
Refrigerator
You can select from Filter reset, Door alarm, Dispenser light, Manual, and Service Call
functions.
L1 Filter Reset
Reminds you when to replace the filter.
< When the filter exchange date is still not due. >
2
Pressthe • or Vbutton
to select Filter Reset.
Press the _1 or • button to
select Reset.
Press the SELECT button.
5 Return to Refrigerator menu.
< When the filter exchange date is overdue. >
f
Press the • or I_ button
to select Reset,
5 Return to Refrigerator menu.
2
4
Press the • or • button
to select Filter Reset.
Press the SELECT button.
Door Alarm
This is the function of notifying you every 30 seconds that the refrigerator door is
open for more than 1 minute.
You can turn the door alarm on or off,
1 2
Press the • or • button to
select Door Alarm.
3
Press the_l orl_ button
to select Use or Not in Use.
Press the • button to select Save.
5 Return to the Refrigerator menu.

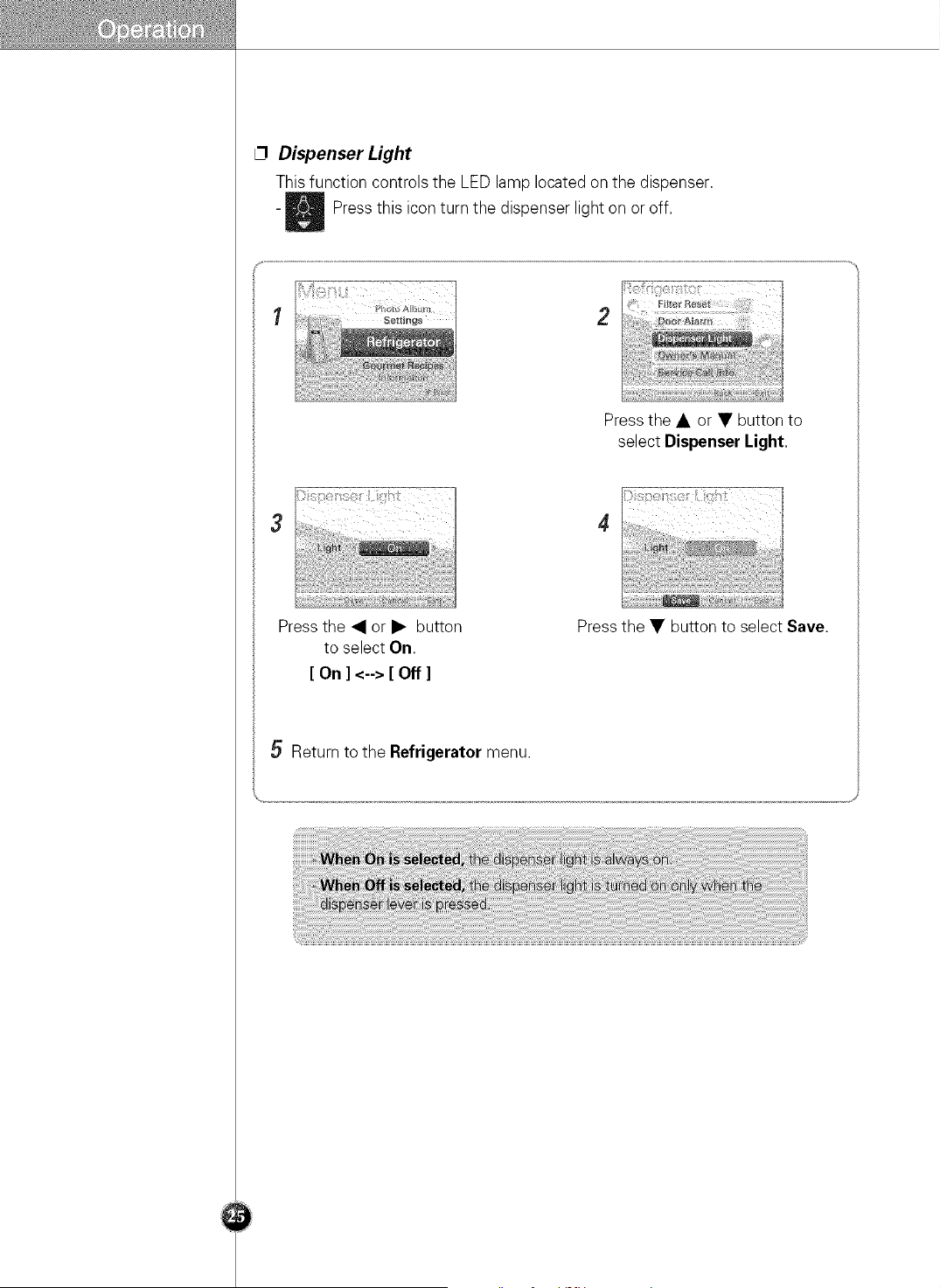

Dispenser Light
This function controls the LED lamp located on the dispenser.
Press this icon turn the dispenser light on or off.
2
Pressthe • or • button to
select Dispenser Light.
3 4
Press the • or I_ button
to select On.
[ On ] <--> [ Off ]
Press the • button to select Save.
5 Return to the Refrigerator menu.
__J
Owner's Manual
You can select from Key Guide, Tem. Adjustment, Child Lock, Weather Forecast,
Proper Food Storage, Fridge Maintenance Guide, Freezer Maintenance Guide or
Elimination of Odor function.
1 2 i
Press the • or •button
to select Owner's Manual.
3
Select the menu using the • or Vbutton.
4 Press the SELECT button. 5 Select the detail menu using
the • or _ button.
6 Press the • button to select List. 7 Return to Refrigerator menu.
..... _J
3. Child Lock 4. Weather Forecast
Press the •or •
button to select
Child Lock.
You can check the
detail menu using the
4i or I_ button.
Press the • or •
button to select
Weather Forecast.
You can check the
detail menu using the
4 or 1_ button.
7. Freezer Maintenance Guide 8. Elimination of Oder
Press the•or •
button to select
:reezerMaintenance
Guide.
You can check the
detail menu using the
4 or I_ button.
Press the • or •
button to select
Elimination of Odor.
You can check the
detail menu using the
4 or 1_ button.

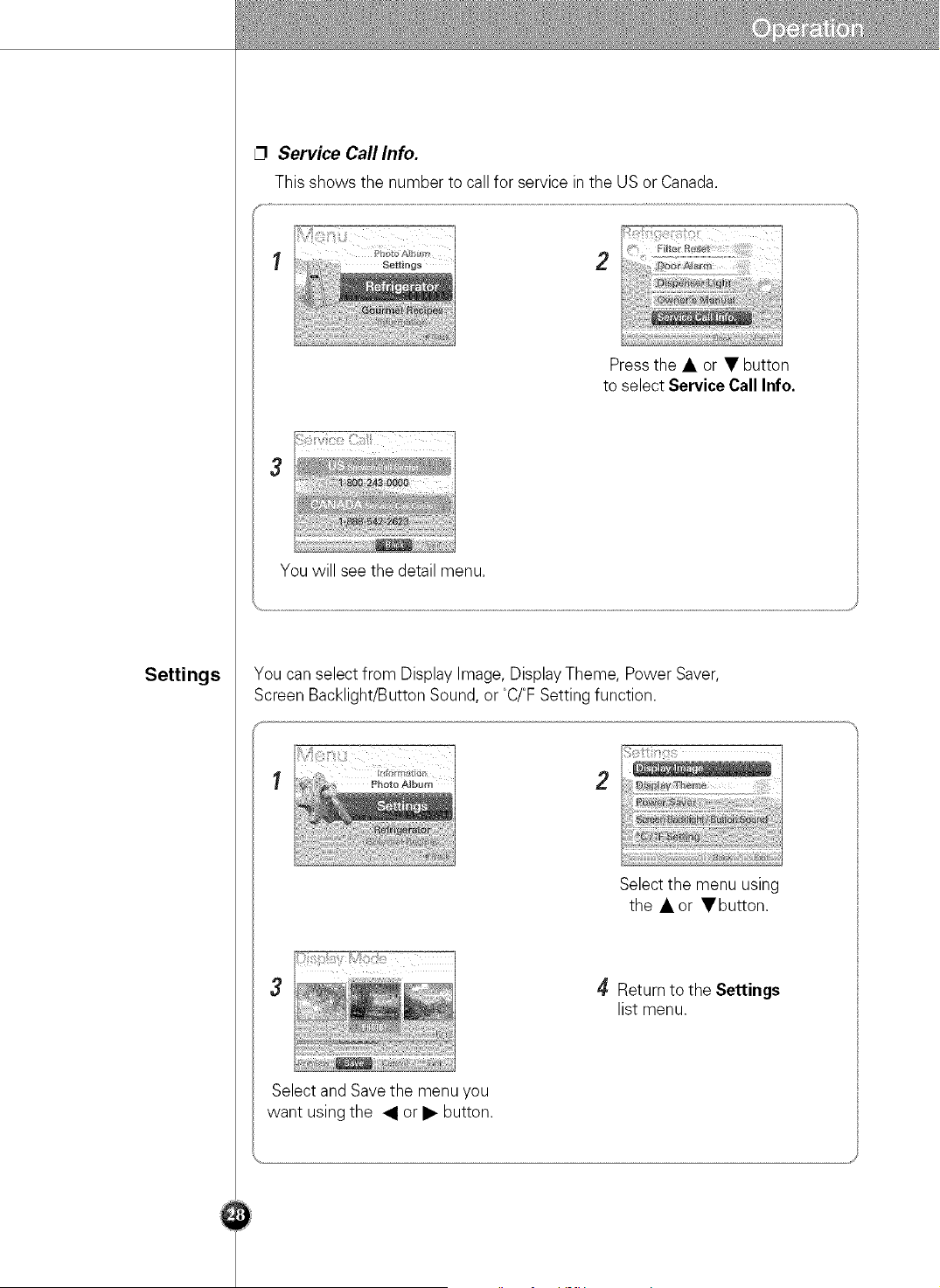

Settings
Service Call Info.
This shows the number to call for service in the US or Canada.
2
Press the • or • button
to select Service Call Info.
You can select from Display Image, Display Theme, Power Saver,
Screen Backlight/Button Sound, or °C/°FSetting function.
Select the menu using
the • or •button.
2
4 Return to the Settings
list menu.
Select and Save the menu you
want using the 4 or • button.
Display Image
You can select the standby screen setting.
Press the • or • button
to select Display Image.
You can preview other
standby screens using
the • or • button.
2
Select the desired photo using
the • or • button.
Press the •button to select Preview.
4
Press the • button to select Save.
Display Theme
You can select the screen theme setting.
1 2
Press the • or • button to
select the Display Theme.
Select the menu using the • or • button.
Press the • button to select Save.
[ Character ] <--> [ Motion ]
L7 Power Saver
You can select the Power Saver function.
< When Power Saver function is selected >
- When selecting [Use of Power Saver], the LCD screen backlight turns off after
eclipse of designated time.
1
Pressthe • or • button
to select Power Saver.
Press the • or • button to select Use.
Select the desired time using the • or • button.
[ lmin ] <--> [ 3min ] <--> [ 5min ]
4_The Power Saver turns the display off at the preset time.
< When Power Saver function is not selected >
- When selecting [Not in Use of Power Saver], the LCD screen is converted to
Screen Protector after a minute.
2
Press the • or • button
to select Not in Use.
Pressthe • or • button
to select Power Saver.
[ Clock ] [ Photo ] [ Not in Use ]
Select the menu using
the • or • button.
• When you select the Photo, the pictures saved
inthe photo album will be shown in slideshow.
• When selecting Not in Use, the current standby
screen is saved as Screen Saver. /
__J
Screen Backlight/Button Sound
- You can adjust the screen brightness.
- When selecting the button sound, you can turn the button sound on or off.
1 Press the • or • button to select
Screen Backlight/Button Sound.
2
Select the brightness value using
the • or I_ button.
Press the • button to select Save.
[ 1 <--> 2<--> 3<--> 4<--> 5 ]
Select and Save the menu you want
using the • or I_ button.
[ On ]<--> [ Off]
°C/°F Setting
Press the • or • button
to select °C/°F Setting.
Select the menu you want
using the • orll_ button.
[ Centigrade] <--> [ Fahrenheit ]
Press the • button to select Save.
Photo Album
You can register a photo or setup the standby screen.
< When setting to the standby screen >
s"
/ h_fo_m_tio_ 2
Press the • button
Select the desired photo using
the • or • button.
4
to select Display Image.
Press the • or • button
to select Preview.
Press the • or • button to
select Save.
6 Return to the standby screen.
< When deleting >
Select the desired photo using
the • or • button,
Press the • button to select
Delete.
Press the • or • button to
select Yes.
Press the • or • button to
select Save.
5 Return to the standby screen.
.... ,s
< When deleting all>
l/
1 2
Pressthe • button to select
Delete All,
Press the • or • button
to select Yes.
Return to the standby screen.
< When registering the photo >
2
When you connect the USB Memory Stick to the USB port, it reads the
photo data and adds the album list.
< When using USB Memory Stick >
f_
When selecting Photo Album and then
connecting the USB Memory Stick, import
item is activated.
4
When selecting Import, it reads
data from the USB Memory
Stick. The Pop-up screen
appears to inform progress
process during reading.
After setting up desired photo from
data read, select Import.
After Import Check popup
screen appears, you can
check photo from the photo
album list.
Lock
Lock can be used to disable the buttons and prevent tamperng with the settings.
Select Lock using the buttons.
- Lock or unlock buttons and dispenser by pressing down the button for 3seconds.
- When lock is selected, the dispenser and buttons will be locked and will not operate.
- When lock is selected, the lock icon will appear on the screen.
< To set the Lock >
2
When you see this message, press
the Lock button for 3 seconds.
4 Return to the standby screen.
You will see this message.
< To cancel the Lock >
2
When you see this message, press
the Lock button for 3 seconds.
3
Return to the standby screen.
You will see this message.
Other functions
How ice/cold
water is supplied
Cautions
Ambient Temperature Display Window.
• Temperature is displayed only between 16°F N 120OF(_9ocN 49oc).
• Temperature less than 15°F (-9°C)is indicated with LO and
temperature more than 121°F (49°C)is indicated with HI.
Diagnostic (failure detection) function
• The diagnostic function automatically detects failure when failure is found in product
during the use of refrigerator.
• If your refrigerator fails, do not turn off the power. Call 1-800-243-000024/7 and select
the option to locatean authorized servicer or call our support line for assistance.
Turning off the appliance will make it more difficult for the service technician to
determine the problem.
Water is cooled while stored in the water tank in freezer door, and then sent to the
dispenser.
Ice is made in the automatic icemaker and sent to the dispenser.
Throw away the ice (about 20 pieces) and water (about 7 glasses)first made after
refrigerator installation.
This is also necessarywhen the refrigerator has not been used for a long time.
Keep children away from the dispenser. _ L_-_
Children may play with or damage the controls. _I
Be careful that food does not block the ice passage.
If foods are placed at the entrance of ice passage, the
t
dispenser may malfunction. The passage may also Freezer
become blocked with frost if only crushed ice is used. Door
Remove the frost that accumulates.
Storing cans or other items in the ice bin may damage
the icemaker or the container may burst.
Never use thin crystal glassor crockery to collect ice.
Such glasses or containers may be broken, and glass fragments could be inthe ice.
Put ice first into a glass before filling water or other beverages.
Water may be splashed if ice is added to existing liquid in a glass.
Keep your hands out of the ice door and passage.
You might break something or injure yourself.
Never remove the ice maker cover.
Shake the ice bin occasionallyto level the ice in it.
Sometimes the ice piles up near the icemaker, causing the icemaker to misinterpret the
bin level and stop producing ice.
If you find ice or water dispensed unexpectedly, contact an Authorized Service
Center. (Call 1-800-243-0000 24/7 and select the option to locate an authorized
servicer.)
Never use too narrow or deep glass.
Ice may be jammed in the ice passageand, thus, the refrigerator may fail.
Keep the glassat a proper distance from ice outlet.
A glasstoo close to the outlet may prevent ice from coming out.
Shelf height
adjustment
Slide-Under
Shelf
Shelf
The refrigerator compartment shelves are adjustable so you can locate them according
to your needs.
• Slide Shelf
Pullthe shelf ahead and take off it while
lifting both front and rearpart.
• Fixed Shelf, Folding Shelf
Lightly lift up the front part of shelf to pull
aheadand then take off it while lifting the
rear part of shelf.
You can store taller items such as
a gallon container or bottles by
simply pushing in front half of
shelf underneath back half of
shelf. Pulltoward you to return to
a full shelf.
Humidity control in the vegetable compartment
The humidity can be controlled by adjusting the humidity control switch to the left
or right when storing vegetables or fruits.
High humidity
I Hurnidily Control
High _=,o=_* I =,o=,*_ Low
Lowhumidity
I Humidity Control ]
High ....... I....... Low
Method to use
When removing
OptiFresh
When installing
OptiFresh
OptiFresh temperature bin
You can select the optimum temperature to store some
types of foods.
-Vegetables, fruits, cold storage items requiring humidity
maintenance can be stored under optimal condition by pressing the button.
Activate
= If you open the refrigerator door, an indicator lamp shows the status of the
OptiFresh. The lamp goes off when the door is closed.
= Press the button to cycle between ON and OFF.
OptiFresh
= First, remove the vegetable bin. /_/l___"_z_
=After holding both ends of the OptiFreshO and ® ztl¢_,_ I
pull it outward.
\
Fit the OptiFresh case on to the ledge 0 and gently
slide it in ®.
If forced, the connecting parts can be damaged.
Snack drawer
Freezer
compartment
shelf
Freezer
compartment
door rack
Freezer
compartment
drawer
Milk product
corner
Refreshment
center
Refrigerator
compartment
shelf
Refrigerator
compartment
door rack
Vegetable drawer
Location of foods
(Refer to Identification of Parts, page 4.)
Store small foods such as bread, snacks, etc.
Store variousfrozen foods such as meat, fish,
ice cream, frozen snacks, etc.
Store small packed frozen food.
Items stored in the door racks don't stay
quite as cold as in the rest of the freezer.
Store ice cream and similar items on a
shelf in the freezer instead.
Store meat, fish, chicken, etc. after
wrapping them with thin foil.
Store dry.
Store milk products such as butter,
cheese, etc.
Store foods of frequent use such as
beverages,etc.
Do not pack the freezer or refrigerator
tightly. Allow a little room for proper air
circulation to aid cooling.
Store small packed food or beverages such
as milk, juice, etc.
Store vegetables or fruits.
Storing foods
• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an
important factor in maintaining its freshness and flavor.
• Do not store food which spoils easily at low temperatures, such as bananasand
melons.
• Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil
other food, and leadto higher energy consumption.
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This
prevents moisture from evaporating, and helps food to keep its flavor and nutrition.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator
temperatures eveR.
• Do not open the door frequently.Opening the door letswarm air enter the refrigerator,
and cause temperatures to rise.
• Never overload the door racks because they may push against by inner racks so that
the door cannot be fully closed.
Freezer
compartment
Refrigerator
compartment
• Do not store bottles in the freezer compartment, they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of flavor and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
• Do not touch the cold foods or containers, especially made of metal, with wet
hands and place glass products in the freezer compartment.
- Damp skin can freezeand stick to cold surfaces, causingfrostbite and other serious
injuries.
• Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and
wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them inan upright position to keep them fresh longer.
Freezer
compartment
lamp
Freezer
compartment
shelf
Door rack and
support
Ice storage bin
After dispenser
is used
How to remove and replace parts
To remove the lamp cover, separate the shelf
over the lamp cover and pull the lamp cover
forwards @)while pressing the bottom side of
the lamp cover upwards d_.Turn the bulb
counterclockwise.
Usea40-watt bulb (max.)which can be purchased
at a service center.
To remove a shelf, push the shelf to the left 0,
lift the left part of the shelf a bit ®, lift the right
part up ®, and take it out.
Lift the door rack holding both sides d) and
pull it out ®.
Hold the ice storage bin as shown in the right
figure andpull it out ® while slightly lifting it 0.
• Do not dismantle the ice storage bin unless
it is necessary.
• Use both handsto remove the ice bin to avoid
dropping it.
The water collector has no self-draining
function. It should be cleaned regularly.
Remove the cover by pulling the front side of
water collector cover and dry it with a cloth.
Upper lamp in
refrigerator
compartment
Lower lamp in
refrigerator
compartment
Vegetable
compartment
cover
To remove the lamp cover, pull the lamp
cover forward while pressing the bottom
side of the lamp cover upward. Turn the
bulb counterclockwise.
Usea40-watt bulb(max.)which can be
purchasedat a service center.
Separate the lamp cover by holding both
lower sides of it and pulling it it forwards.
Turn the bulb counterclockwise.
Usea40-watt bulb(max.)which can be
purchased at a service center.
• To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front 0, lift the front part of the
vegetable compartment cover as shown by
®, and take it out.
Filter
replacement
We recommend replacing the filter when the
water filter indicator light turns on or your water
dispenser or ice maker decreases noticeably.
After changing the water filter cartridge, reset the
water filter status displayand indicator light by
pressing and holding the BUTTON for 3 seconds.
1)Removethe old cartridge.
Rotatethe knobof the cartridge counterclockwise.
When the cartridgeis removed,you willfeel itclick
out of place.
Pullout thecartridge.
Replacewith a new cartridge.
Takethe new cartridgeout of its packagingandremove
protectivecoverfrom the o-rings.With cartridgeknobin
the verticalposition,push the new filter cartridgeinto
the coveruntil it stops.
Ifyou can'tturn the filterfrom sideto side, it isn'tfully
inserted.Pushit infirmlyandtwist it intoplace.Youwill
hearthe snapwhen it clicksinto place.Usingits handle,
twist the cartridgeclockwiseabout1/4 turn. Youwill hear
the snapwhen it clicksinto place.
3)Flushingthe WaterSystemAfter ReplacingFilter.
Dispensewater through the water dispenserfor 3
minutes to purgethe system.
Vacation time
Power failure
if you move
Anti-condensation
pipe
Demo mode setting
Exterior
interior
After cleaning
Warning
General information
During average length vacations, you will probably find it best to leave the refrigerator
in operation. Place freezable items in freezer for longer life.
When you plan to store the refrigerator, remove all food, disconnect the power cord,
clean the interior thoroughly, and block the doors open to prevent mold and mildew.
Be certain the stored refrigerator does not present a child entrapment danger.
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures. However, you should minimize the number of door
openings while the power is off.
Unload the refrigerator to relocate it. (This is probably not necessary to pull it out for
cleaning behind it.) Be sure to let the refrigerator warm up to room temperature, and
dry the inside before closing the doors to pack it for moving.
To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especially just
after installation. Don't be alarmed.This is due to the anti-condensation pipe, which
pumps hot refrigerant to prevent sweating on the outer cabinet wall.
After setting the Lock function pressthe Temperaturebutton and 4 buttonsimultaneously
for 5 seconds.
When enteringthe Demo mode, you will see the letters DEMO on the top left side of the
screenwith adingsound.
When cancelingthe Demomode, do it as the same procedureas the Locksetup andpress
the Temperatureand 4 buttonsimultaneouslyfor 5 seconds.
With a dingsound,you will seethe letters DEMO disappearon the top left side of the
screenandthe Demomode will be canceled.
(Demomode : Demo mode is availablefor displayingthe refrigeratorin salessetting or
similarcondition. It allowsthe display,dispenser,light, and fan to operatewithout running
the compressor.When it set the demonstrationsmode,the coolingair doesn't come out
from refrigerator.)
Cleaning
Itis importantthat your refrigeratorbe kept cleanto prevent undesirableodors.Spilledfood
should be wiped up immediately,since it may acidifyand stain plasticsurfacesif allowed to
settle.
aUse a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator. Wipe with a clean damp cloth and then dry.
Regularcleaning is recommended. Wash all compartments with a baking soda
solution or a mild detergent and warm water. Rinse and dry. Be sure to allow the soda
to dissolve completely so it will net act as an abrasive compound.
Pleaseverify that the power cord is not damaged, power plug is not overheated, or
power plug is well inserted into the power consent.
Always remove the power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps, switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline
solutions, or flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp objects will
stick to extremely cold surfaces.

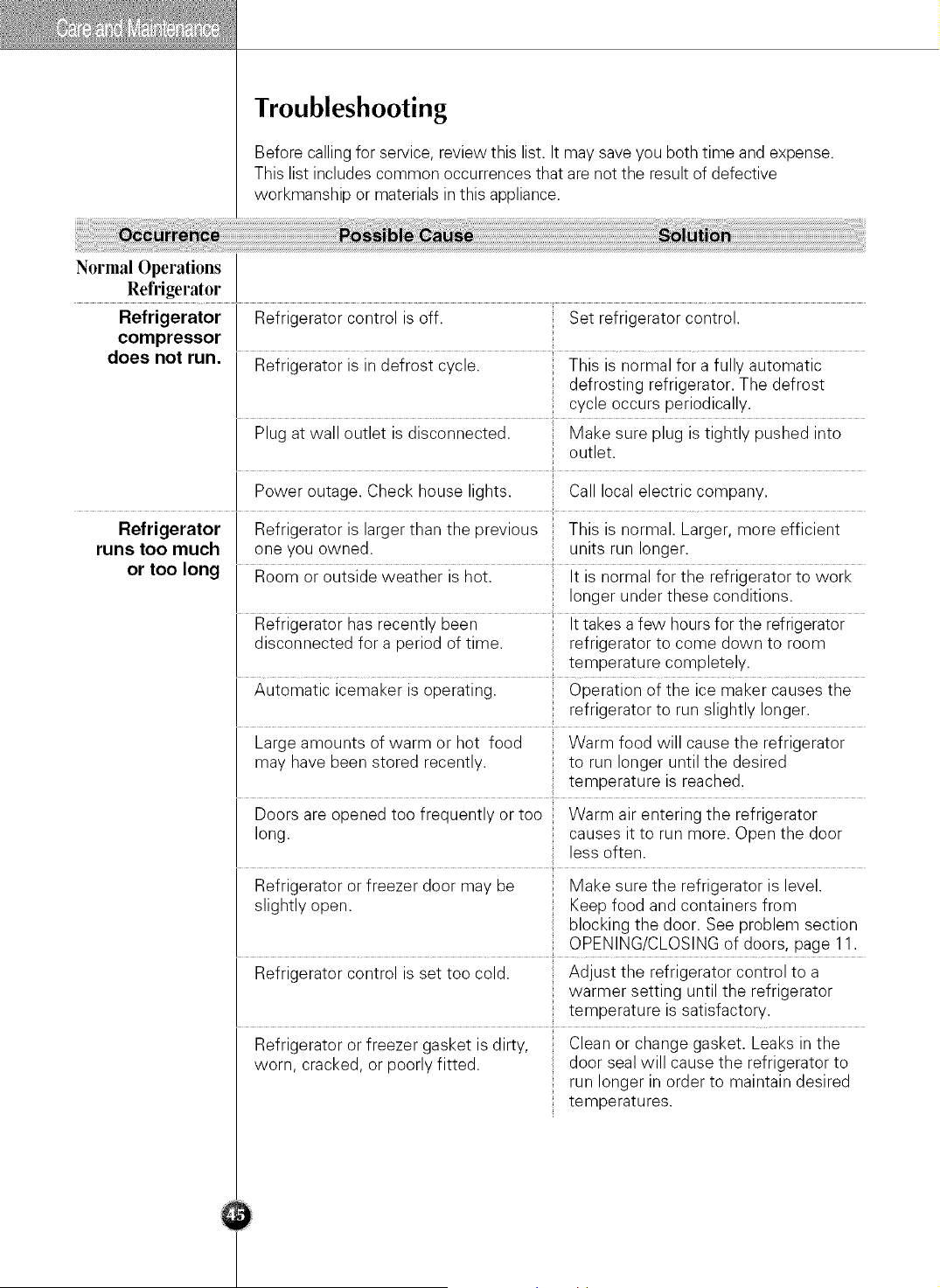

Troubleshooting
Before calling for service, review this list. It may save you both time and expense.
This list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
Normal Operations
Refrigerator
Refrigerator control is off. Set refrigerator control.Refrigerator
compressor
does not run.
Refrigerator is in defrost cycle. This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Plug at wall outlet is disconnected. Make sure plug is tightly pushed into
outlet.
Power outage. Check house lights. Call local electric company.
Refrigerator Refrigerator is larger than the previous This is normal. Larger, more efficient
runs too much one you owned, units run longer.
or too long Room or outside Weather is hot. It is normal for the refrigerator to Work
longer under these conditions.
Refrigerator has recently been It takes a few hours for the refrigerator
disconnected for a period of time. refrigerator to come down to room
temperature completely.
Automatic icemaker is operating. Operation of the ice maker causes the
refrigerator to run slightly longer.
Large amounts of warm or hot food Warm food will cause the refrigerator
may have been stored recently, to run longer until the desired
temperature is reached.
Doors are opened too frequently or too Warm air entering the refrigerator
long. causes it to run more. Open the door
less often.
Refrigerator or freezer door may be Make sure the refrigerator is level.
slightly open. Keep food and containers from
blocking the door. See problem section
OPENING/CLOSING of doors, page 11.
Refrigerator control is set too cold. Adjust the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Refrigerator or freezer gasket is dirty, Clean or change gasket. Leaks in the
worn, cracked, or poorly fitted, door seal will cause the refrigerator to
run longer in order to maintain desired
temperatures.
Refrigerator Thermostatiskeepingthe refrigerator Thisisnormal.TheRefrigeratorgoeson
compressor ataconstanttemperature, andofftokeepthetemperatureconstant.
doesnotrun.
Temperatures are
too cold
Temperature in the Freezer control is set too cold Adjust the freezer control to a warmer
freezer is too cold setting until the freezer temperature is
but the Refrigerator satisfactory.
Temperature is
Satisfactory.
Temperature in the Refrigerator control is set too cold. Adjust the refrigerator control to a
refrigerator is too warmer setting
cold and the freezer
temperature
is satisfactory,
Food stored in
drawers freezes. Refrigerator control is set too cold. Adjust the refrigerator to a warmer setting.
Meat stored in Meat should be stored at a temperature It is normal for ice crystals to form due
fresh meat just below the freezing pointof water (32°F, to the moisture content of meat.
drawer freezes. 0%) for maximum fresh storage time.
Temperatures
are too warm
Temperatures in Freezer control is set too warm. Adjust the freezer or refrigerator control
the refrigerator to a colder setting until the freezer or
or freezer are refrigerator temperature is satisfactory.
too warm. ......
Refrigerator control is set too warm. Adjust the freezer or refrigerator control
Refrigerator control has some effect on to a colder setting until the freezer or
freezer temperature, refrigerator temperature is satisfactory,
Doors are opened too frequently or too Warm air enters the refrigerator/freezer
long. whenever the door is opened.
Open the door less often.
Door is slightly open. Close the door completely.
Large amounts of warm or hot food Wait until the refrigerator or freezer
may have been stored recently, has had a chance to reach its selected
temperature.
Refrigerator has recently been A refrigerator requires several hours to
disconnected for a period of time. cool down completely.
Temperature in the Refrigerator control is set too warm. Adjust the refrigerator control to a
refrigerator colder setting.
is too warm but
the freezer
temperature is
satisfactory.
Sound and Noise
Louder sound Today's refrigerators have increased It is normal for sound levels to be higher.
levelswhen storage capacity and maintain more
Refrigerator is on. even temperatures.
Louder sound Refrigerator operates at higher pressures This is normal. The sound will level off as
levels when during the start of the ON cycle, the refrigerator continues to run.
cam presser
comes on.
Vibrating or Floor is uneven or weak. Be sure floor is level and solid and can
rattling noise. Refrigerator rocks on the floor when it is adequately support refrigerator.
moved slightly.
Items placedon the top of the refrigerator Remove items.
are vibrating.
Dishes are vibrating on the shelves in It is normal for dishes to vibrate slightly.
the refrigerator. Move dishes slightly.
Make sure refrigerator is level and firmly
set on floor.
Refrigerator is touching wall or cabinets. Move refrigerator so that it does not
touch the wall or refrigerator.
Water/Moisture
/Ice Inside
Refrigerator
Moisture collects The weather is hot and humid which This is normal.
on the inside walls increases the rate of frost buildup
of the refrigerator, and internal sweating.
Door is slightly open. See problem section Opening/Closing of
doors, page 11.
Door is opened too often or too long. Open the door less often.
Water/Moisture/Ice
Outside
Refrigerator
Moisture forms Weather is humid. This is normal in humid weather.
on the outside of When humidity is lower, the moisture
the refrigerator should disappear.
or between doors.
Door is slightly open,causing cold air Close the door completely.
from the inside the refrigerator to meet
warm air from the outside.
Moisture forms Moisture may be formed in high Wipe the moisture and open the doors
on the dispenser temperature and high humidity since again.
or refreshment heater turns off if not opening the
center doors for a long time.
Odors in Refrigerator
Interior needs to be cleaned. Clean interior with sponge, warm water,
and baking soda. Be sure the soda is
completely dissolved so it will not act as
an abrasive compound.
Foodwith strong odor is inthe refrigerator. Cover food completely.
Some containers and wrapping materials Use a different container or brand of
produce odors, wrapping materials.
Opening/Closing of
Doors/Drawers
Door(s) will not Food package is keeping door open. Move packages that keep door from
close, closing.
Door(s) will not Door was closed too hard, causing other Close both doors gently.
close, door to open slightly.
Refrigerator is not level. It rocks on the Adjust the height adjusting screw.
floor when it is moved slightly.
Floor is uneven or weak. Be sure floor is level and can adequately
Refrigerator rocks on the floor when it support refrigerator.
is moved slightly. Contact carpenter to correct sagging or
sloping floor.
Refrigerator is touching wall or cabinets. Move refrigerator.
Drawers are Food is touching shelf on top of the Keep less food in drawer.
difficult to move. drawer
Track that drawer slides on is dirty. Clean drawer and track.
Dispenser
Dispenser will not Ice storage bin is empty. When the first supply of ice is dropped
dispense ice into the bin, the dispenser should operate.
Freezertemperature is set too warm. Turn the freezer control to a higher
setting so that ice cubes will be made.
When the first supply of ice is made,
the dispenser should operate.
Household water line valve is not open. Open household water line valve and
allow sufficient time for ice to be made.
When ice is made, dispenser should
operate.
Refrigerator or freezer door is not closed. Be sure both doors are closed.
Dispenser will Ice has melted and frozen around auger Remove ice storage bin, and thaw and the
not dispense due to infrequent use, temperature contents. Clean bin, wipe dry, and replace
ice. fluctuations, and/or power outrages, in proper position. When new ice is made,
dispenser should operate.
lee dispenser Ice cubes are jammed between the ice Remove the ice cubes that are jamming
is jammed, maker arm and back of the bin. the dispenser.
Ice cubes are frozen together. Use the dispenser often so that cubes do
not freeze together.
Ice cubes that have been purchased or Only the ice cubes made by the ice
made in some other way have been maker should be used with the
used in the dispenser, dispenser.
Dispenser will Household water line valve is not open. Open household water line valve.
not dispense
water. Refrigerator or freezer door is net closed. Be sure both doors are closed.
Water has an Water has been in the tank for toe long. Draw and discard 7 glasses of water
odd taste to freshen the supply, Draw and discard
and/or odor. an additional 7 glasses to
completely rinse out tank.
Unit net properly connected to cold Connect unit to cold water line which
water line. supplies water to kitchen faucet.
Sound of ice This sound is normally made when automatically made ice is dropped into
dropping ice storage bin. Volume may vary according to refrigerator's location.
Sound of water This sound is normally made when ice maker is supplied with water after
supply dropping the automatically made ice.
Other Please thoroughly read Automatic Icemaker and Dispenser in this manual
on pages 15.
Weather Forecast
Function is not Reception of weather forecast information received and displayed on the screen is
operate subject to vary depending on your region and location of refrigerator.
Check your zip code in this manual pages 151 or
www.a mbientdevices.com/cat/device/coverage.html
Your LG Refrigerator will be will repaired or replaced, at LG's option, if it proves to be defective in material or workmanship
under normal use, during the warranty period (Warranty Period) set forth below, effective from the date ("Date of Purchase")
of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective
only when used in the United States, including Alaska, Hawaii, and U.S. Territories.
WARRANTY PERIOD:
REFRIGERATOR/FREEZER
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase,
SEALED SYSTEM (Compressor, Condenser, and
Evaporator)
LABOR: One Year from the Date of Purchase.
PARTS: Seven years from the Date of Purchase.
Replacement Units and Repair Parts are warranted for the
remaining portion of the original unit's warranty period.
HOW SERVICE IS HANDLED:
In-Home Service (Except Model GR051):
Please retain dealer's dated bill of sale or delivery
ticket as evidence of the Date of Purchase for proof of
warranty, and submit a copy of the bill of sale to the
service person at the time warranty service is
provided.
Please call 1-800-243-0000 and choose the
appropriate option to locate your nearest LG
Authorized Service Center. (Phones are answered
24 hours a day, 365 days per year.)
Or visit our website at: http://www.lgservice.com
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, iNCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO
THE EXTENT ANY iMPLiED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE
EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR iTS U.S. DISTRIBUTOR
SHALL BE LIABLE FOR ANY iNCIDENTAL, CONSEQUENTIAL, iNDIRECT, SPECIAL, OR PUNITIVE
DAMAGES OF ANY NATURE, INCLUDING WITHOUT LiMITATiON, LOST REVENUES OR PROFITS, OR ANY
OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the
exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so
the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also
have other rights that vary from state to state.
Reception of weather forecast information received and displayed on the screen is subject to vary depending on
your region and location of refrigerator. Thereby LG does not guarantee and will not be held responsible for
accuracy of the weather information. Weather forecast information is only available in U.S.A
THIS LIMITED WARRANTY DOES NOT APPLY TO:
• Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or
correct wiring, or correction of unauthorized repairs.
• Damages or operating problems that result from misuse, abuse, operation outside environmental
specifications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire,
flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or
voltage, or commercial use, or use for other than intended purpose.
• Repairs when your LG refrigerator is used in other than normal, single-family household use.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS
To obtain Customer Assistance, Product
Information, or Dealer or Authorized Service Center
location:
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
ATTN: CIC
Call 1-800-243-0000 (24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: http:l/www.lgservice.com
LG Electronics Inc.
LG Twin Tower, 20, Yoido-Dong,
Youngdungpo-Gu, Seoul, 150-721, Korea.
http://www.lge.com
P/NO : 3828JD8794F Printed in Korea
