Craftsman 351181740 nailer User Manual

Operator's Manual

18 Gauge

%- 1112" Length Brad Nails

%- lV2"Length, V4"Crown Staples

COMBINATION NAILER/STAPLER

Model No.

351.181740

CAUTION" Read and follow

all Safety Rules and Operating

Instructions before First Use

of this Product. Keep this

manual with tool.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

20543.00 Draft (03/31/03)

• Safety

• Operation

• Maintenance

• Parts List

• Espahol

Warranty ......................................... 2

Safety Rules ...................................... 2

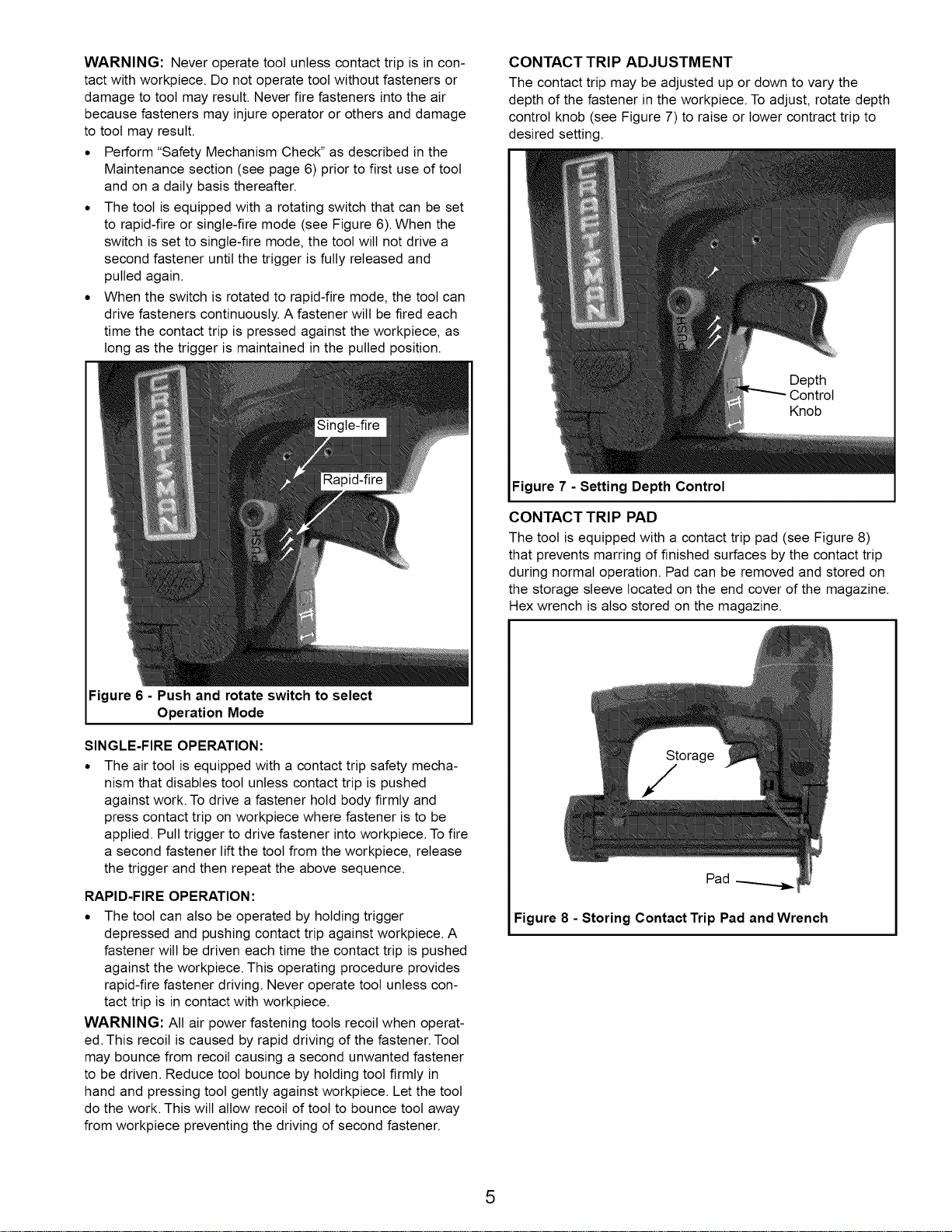

Operation ...................................... 3-6

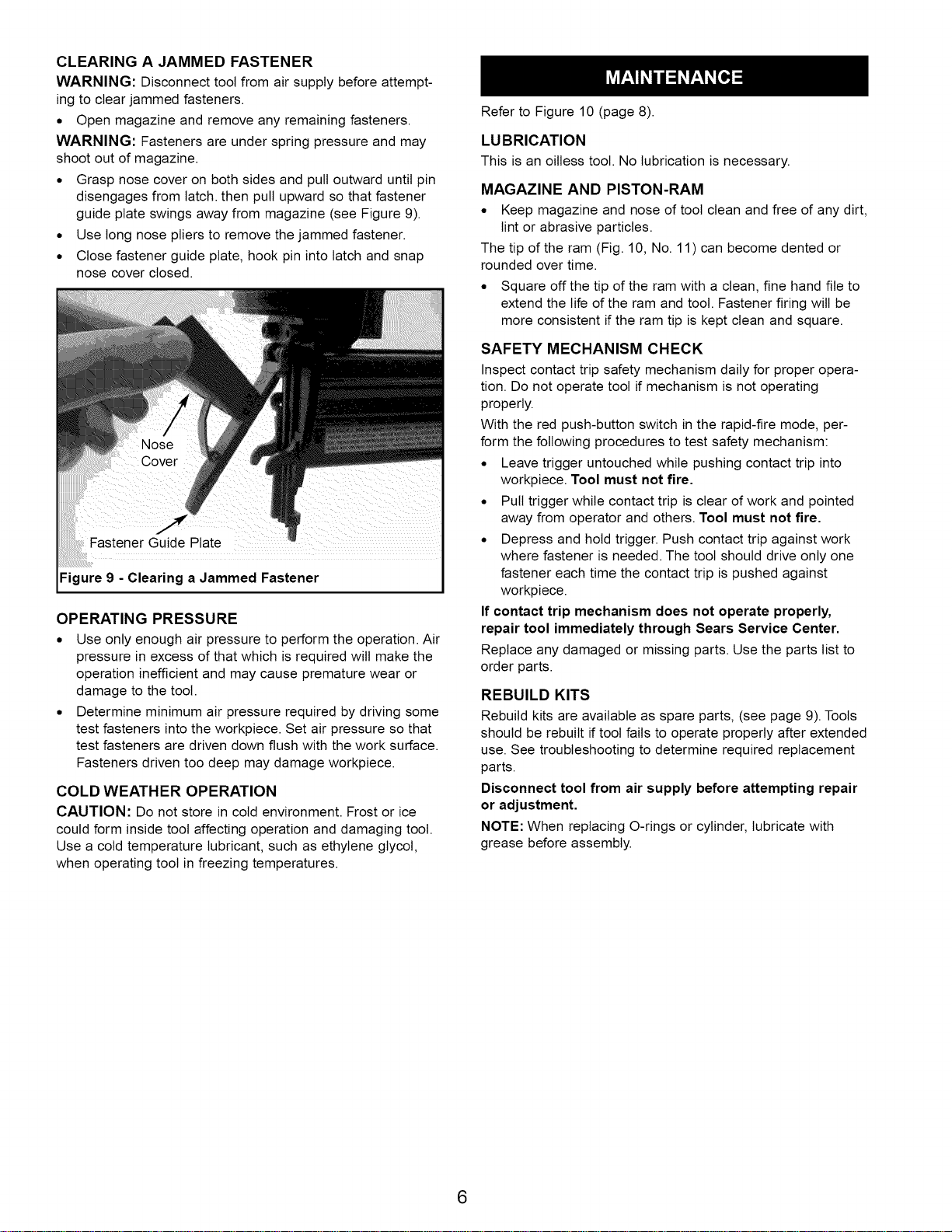

Maintenance ..................................... 6

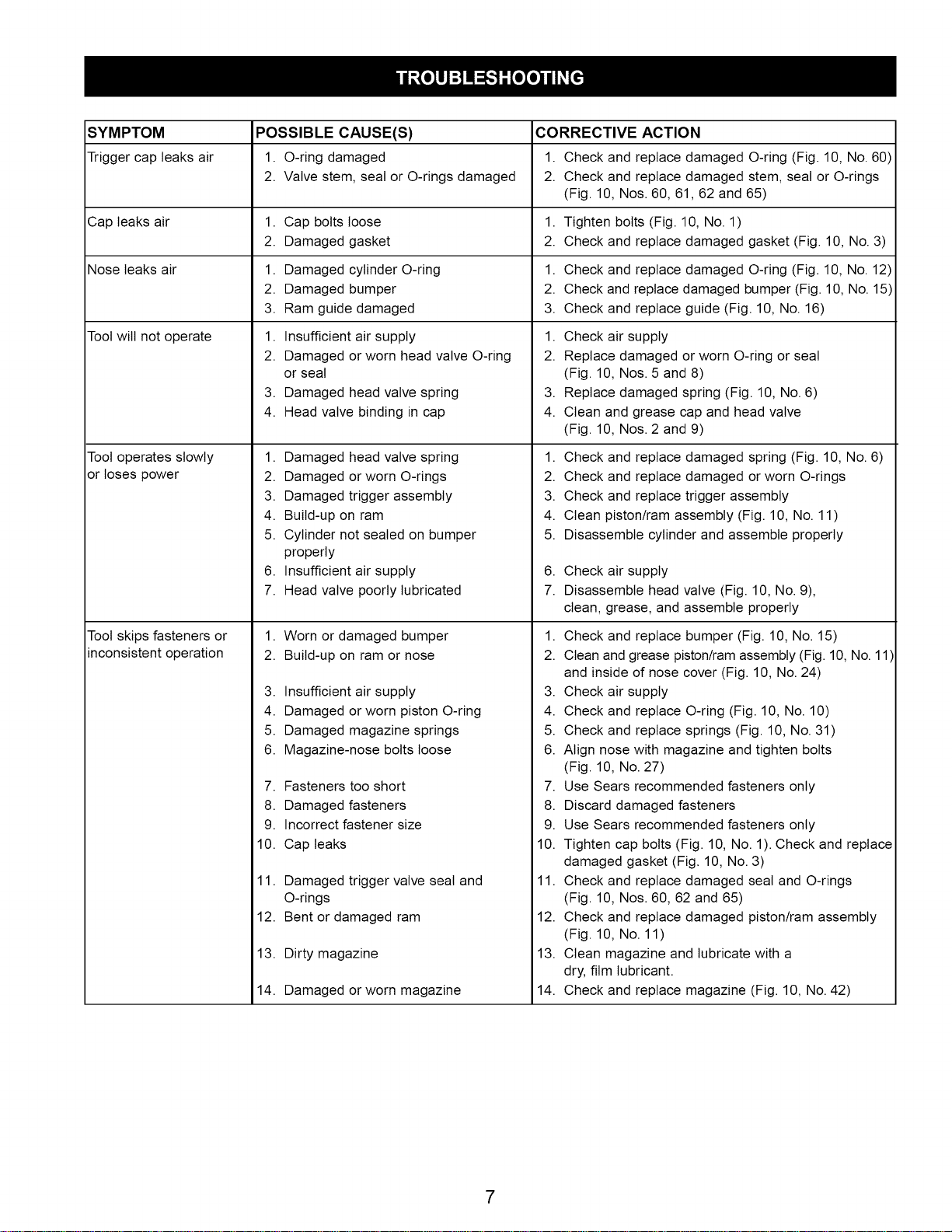

Troubleshooting ................................... 7

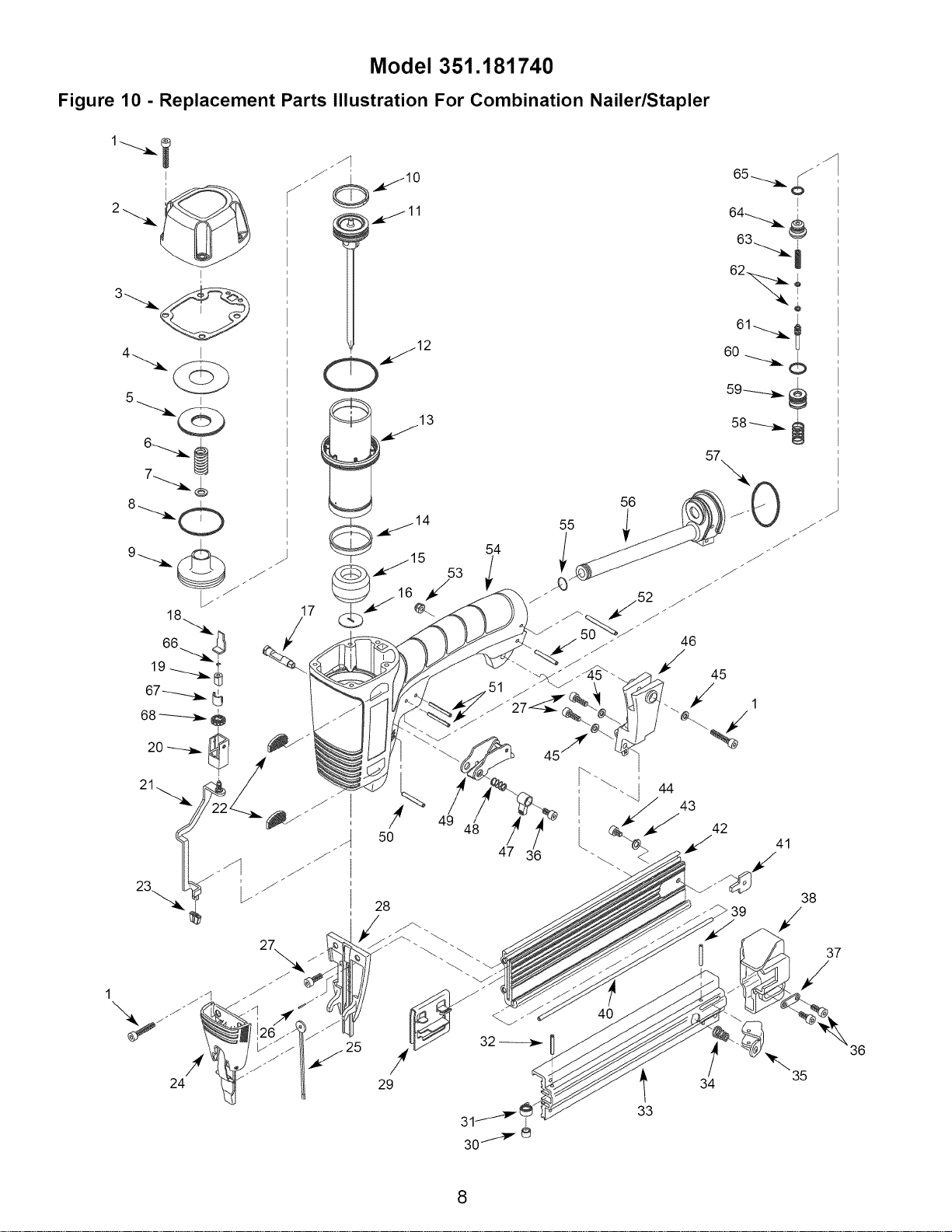

Parts Illustration and List .......................... 8-9

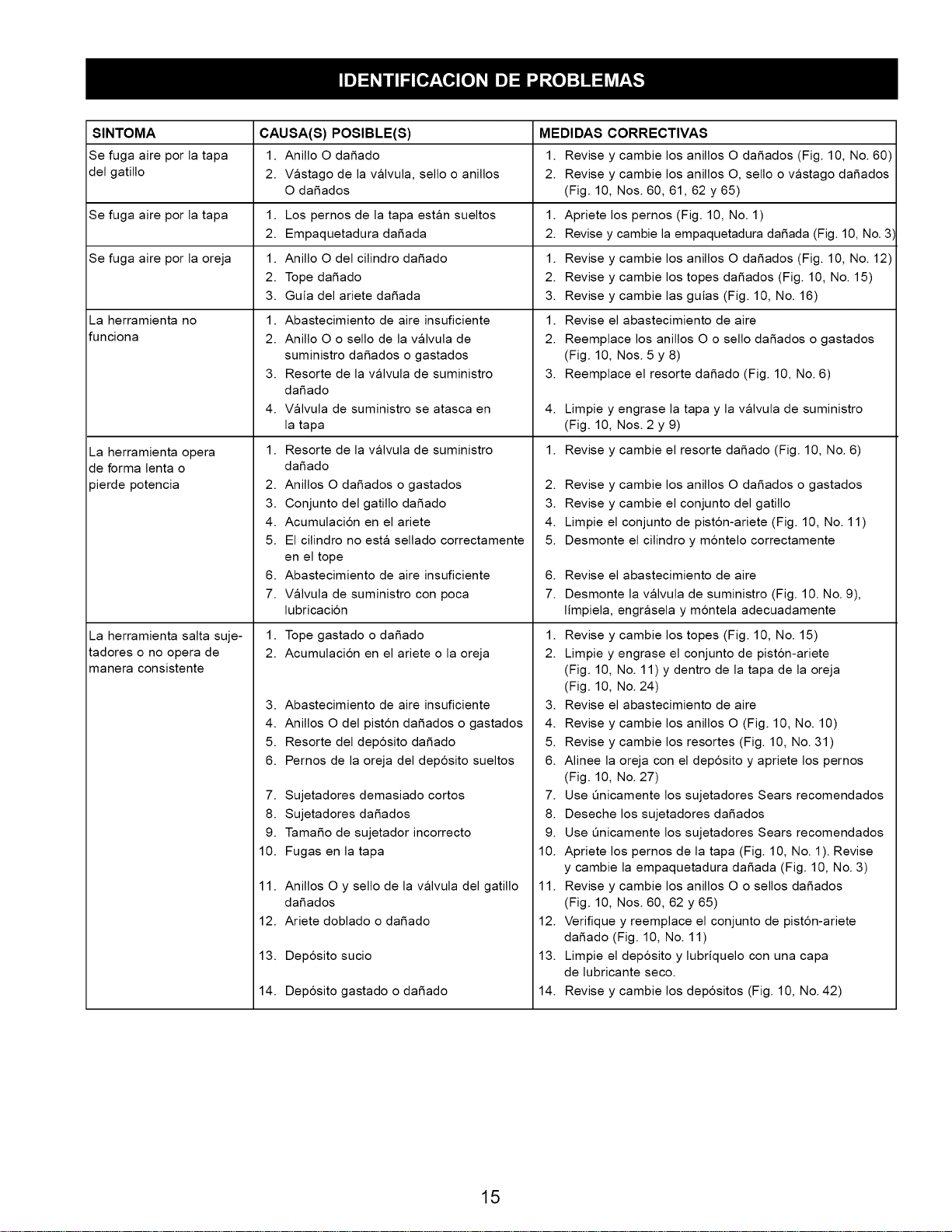

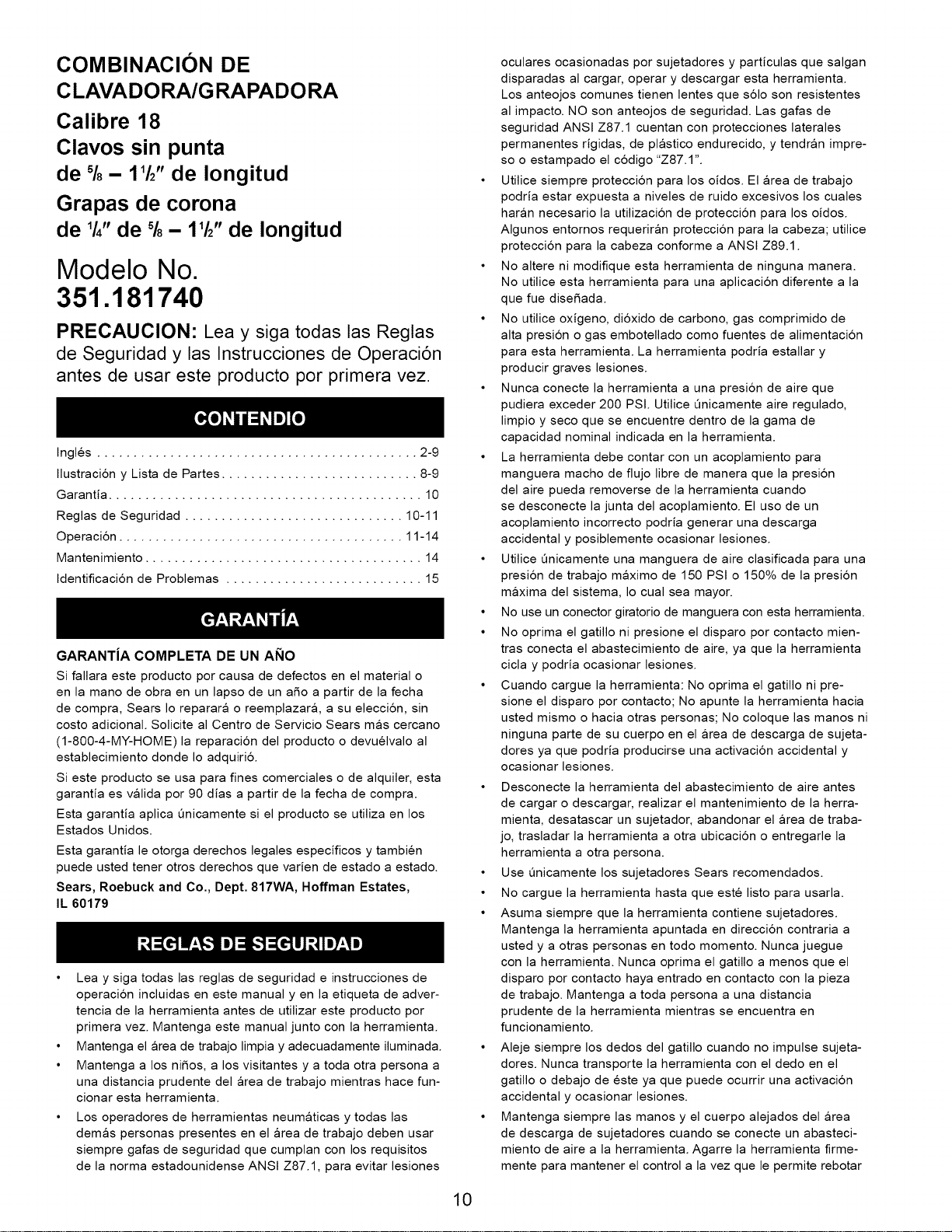

Espa_ol ...................................... 10-15

FULL ONE YEAR WARRANTY

If this product fails due to a defect in material or workmanship

within one year from the date of purchase, Sears wilt at its

option repair or replace it free of charge. Contact your nearest

Sears Service Center (1-800-4-MY-HOME) to arrange for prod-

uct repair, or return this product to place of purchase for

replacement.

If this product is used for commercial or rental purposes, this

warranty wilt apply for 90 days from the date of purchase.

This warranty applies only while this product is used in the

United States.

This warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates,

IL 60179

• Read and follow all safety rules and operating instructions

in this manual and on warning label of tool before using

this tool. Keep this manual with the tool.

• Keep work area clean and properly lighted.

• Keep children, bystanders and visitors at a safe distance

from work area while operating this tool.

• Air toot operators and all others in work area should

always wear safety goggles complying with United States

ANSI Z87.1 to prevent eye injury from fasteners and flying

debris when loading, operating and unloading this tool.

Everyday eyeglasses have only impact resistant lenses.

These are NOT safety glasses. ANSI Z87.1 safety glasses

have permanently attached rigid, hard plastic side shields

and wilt have "Z87.1" printed or stamped on them.

• Always wear ear protection. The work area may include

exposure to excessive noise levels which wilt require nec-

essary ear protection. Some environments wilt require

head protection; use head protection conforming to ANSI

Z89.1.

• Do not alter or modify this tool in any way. Do not use this

tool for any application other than for which it was

designed.

• Do not use oxygen, carbon dioxide, high-pressure com-

pressed gas or bottled gases as the power source for this

tool. The tool will explode and serious personal injury

could result.

• Never connect the tool to air pressure which could poten-

tially exceed 200 psi. Use only clean, dry, regulated air

within rated range as marked on tool.

• The tool must have a male, free-flow hose coupling so that

all air pressure is removed from the tool when the coupling

joint is disconnected. Failure to use proper coupling could

cause accidental discharge, possibly causing injury.

• Only use air hose that is rated for a maximum working

pressure of 150 psi or 150% of the maximum system pres-

sure, whichever is greater.

• Do not use a hose swivel connector with this tool.

• Do not pull trigger or depress contact trip while connecting

to the air supply, as the tool may cycle, possibly causing

injury.

• When loading tool: Do not pull trigger or depress contact

trip; Do not point the tool at yourself or others; Do not

place hand or any part of body in the fastener discharge

area of the tool as accidental actuation may occur and

cause injury.

• Disconnect tool from air supply before loading or unload-

ing, performing tool maintenance, clearing a jammed fas-

tener, leaving work area, moving toot to another location or

handing the tool to another person.

• Use Sears recommended fasteners only.

• Do not load the tool until you are ready to use it.

• Always assume that the tool contains fasteners. Keep the

toot pointed away from yourself and others at all times.

Never engage in horseplay. Never pull the trigger unless

the contact trip is in contact with the workpiece. Keep oth-

ers at a safe distance from the tool while the tool is in

operation.

• Always remove finger from trigger when not driving fasten-

ers. Never carry the tool with finger on or under the trigger

as accidental actuation may occur and cause injury.

• Always keep hands and body away from the fastener dis-

charge area when air supply is connected to the tool. Grip

tool firmly to maintain control while allowing tool to recoil

away from work surface as fastener is driven. If contact trip

is allowed to recontact work surface before trigger is

released, an unwanted fastener may be driven.

• Check operation of the contact trip frequently. Never use

the toot if the contact trip, trigger or springs have become

inoperable, missing or damaged. Do not alter or remove

contact trip, trigger or springs. Never use a tool that is leak-

ing air, has missing or damaged parts, or requires repair.

• Do not drive fasteners on top of other fasteners or with the

tool at too steep an angle. The fasteners can ricochet and

cause injury. Do not drive fasteners close to the edge of

the workpiece. The workpiece is likely to split, allowing the

fastener to fly free and cause injury. Do not attempt to

drive fasteners into hard or brittle materials such as con-

crete, steel or tile.

• Do not overreach. Always place yourself in a firmly bal-

anced position when using or handling the tool. Do not

attach the hose or tool to your body.

• Do not operate tool without fasteners or damage to tool

may result.

• Do not use tool without safety warning label. If label is

missing, damaged or unreadable, contact SEARS to

obtain a new label.

• Only qualified repair personnel must perform tool service.

• When servicing a tool, use only identical repair parts.

• Store tool out of reach of children and other untrained

persons.

DESCRIPTION

The Craftsman 18 Gauge Combination Nailer and Stapler dri-

ves brads from %" to 1W' long and ¼" crown staples from %"

to 11/2"tong. Oilless design eliminates daily oiling and oil stains

on workpiece. Die cast magnesium body with textured rubber

grip minimizes operator fatigue. Large capacity, easy loading

magazine features positive, quick action latch. Tool features

rear exhaust, single and rapid-fire operation, adjustable depth

of drive control, rubber nose tip and storage case. Safety

feature disables tool unless contact trip is pressed against

workpiece. Tapered nosepiece provides operator with greater

visibility for precise fastener placement. Quick release nose

cover allows easy access to jammed fasteners. The 18 Gauge

Combination Nailer and Stapler is excellent for molding,

furniture making, picture framing and upholstery.

SPECIFICATIONS

Capacity .................. 100 brad nails or 100 staples

Nail size ...................... 18 gauge (.049" x .040")

Nail lengths ................................ % to 11/2"

Staple lengths .............................. % to 11/2"

Operating pressure ........................ 60-100 PSI

Air inlet .................................... W' N.RT.

Length ........................................ 93/4"

Height ........................................ 9%_"

Width ......................................... 2%_"

Weight ..................................... 2.8 lbs.

BRAD NAILS

18341 (Box of 5000) ......... 18 gauge brad nails, %" long

19171 (Box of 1000) ......... 18 gauge brad nails, %" long

18342 (Box of 5000) .......... 18 gauge brad nails, 1" long

19172 (Box of 1000) .......... 18 gauge brad nails, 1" tong

18343 (Box of 5000) ........ 18 gauge brad nails, 1W' long

19173 (Box of 1000) ........ 18 gauge brad nails, 1W' long

18360 (Box of 5000) ........ 18 gauge brad nails, 1W' long

19174 (Box of 1000) ........ 18 gauge brad nails, 1W' long

STAPLES

18334 (Box of

19178 (Box of

18336 (Box of

19179 (Box of

18371 (Box of

19180 (Box of

18372 (Box of

18373 (Box of

18374 (Box of

19183 (Box of

5000' . ................. ¼" crown %"

1000' . ................. ¼" crown

5000' . ................. ¼" crown

1000' . ................. ¼" crown

4000' . ................. W' crown

1000' . ................. W' crown

4000' . ................ ¼" crown,

1000' . ................ ¼" crown,

long

%" long

1" long

W' long

V4"long

W' long

AIR SUPPLY LINE

Refer to Figure 1.

DANGER: Do not use oxygen, carbon dioxide, high-pressure

compressed gas or bottled gases as the power source for this

tool. The tool will explode and serious personal injury could

result.

• The air tool operates on compressed air at pressures from

60 to 100 PSI.

• Never connect the tool to air pressure which could poten-

tially exceed 200 PSI. Use only clean, dry, regulated air

within rated range as marked on toot.

Air Delivery Required: 0.94 SCFM @ 90 PSI

(30 shots per minute).

WARNING: Keep hands and body away from discharge area

of tool when connecting air supply. Always disconnect tool

from air supply when servicing or adjusting tool and when tool

is not in use.

• Air operated tools require clean, dry, lubricated com-

pressed air to ensure top performance, low maintenance

and long life.

• Dirt and abrasive materials present in all air lines will dam-

age tool O-rings, valves and cylinders.

• Moisture wilt reduce tool performance and life if not

removed from compressed air.

• A filter-regulator-lubricator system is required and should be

located as close to tool as possible. A distance of less than

15 feet is recommended. Lubricator is not required for

oitless tools.

• Keep air filter clean. A dirty filter wilt reduce the air pressure

to the toot causing a reduction in power and efficiency.

• The air supply system must be able to provide air pressure

of 60 to 100 pounds per square inch at tool.

• All hoses and pipes in the air supply system must be clean

and free of moisture and foreign particles. Hoses must be

rated for a maximum working pressure of 150 PSI or 150%

of maximum system pressure, whichever is greater.

• Do not mount swivel connector in air supply line.

• The air pressure should be properly regulated.

• Different workpiece materials and different fastener lengths

will require different operating pressure.

• Be sure all connections in air supply system are sealed to

prevent air loss.

• Never connect a female quick-disconnect coupling to the

tool side of air line connection. A male, free-flow coupling

should be connected to the tool side of air line connection

(see Figure 1).

WARNING: The female coupling provides a seal preventing

loss of compressed air from compressor tank when discon-

nected from male coupling. If connected to tool side of air

supply, the female coupling could seal a compressed air

charge in the tool which could discharge if the tool trigger is

actuated.

Figure 1 - Air Supply Line

Refer to Figures 2, 3, 4 & 5.

WARNING: Disconnect toot from air supply. Do not toad tool

until you are ready to use it. Do not pull trigger or depress

contact trip while loading toot. Always load with nose of tool

pointing away from you and others. Always wear safety gog-

gles that comply with United States ANSI Z87.1.

NOTE: For best results, use Sears fasteners only.

• Depress latch and slide magazine cover open (see Figure 2).

Figure 2 - Open Magazine

• Load nails: Place nail strip so that the chisel points rest on

the bottom of the magazine (see Figure 3).

Figure 3 - Loading Nails

• Loading staples: Position staples so that the staple strip

straddles and rests on the inner wall of the magazine (see

Figure 4).

Figure 4 - Loading Staples

Slide magazine cover forward over magazine until latch

snaps into place, locking magazine cover (see Figure 5).

Figure 5 - Close Magazine

NAILING AND STAPLING OPERATION

Refer to Figures 6, 7, 8 & 9 (pages 5 and 6).

WARNING: Read and follow all safety rules and operating

instructions in this manual and on warning label of tool before

using this tool. Keep this manual with the tool.

WARNING: Do not use this tool without safety warning

label. If label is missing, damaged or unreadable, contact

Sears to obtain a new label.

WARNING: Never operate tool unless contact trip is in con-

tact with workpiece. Do not operate tool without fasteners or

damage to tool may result. Never fire fasteners into the air

because fasteners may injure operator or others and damage

to tool may result.

° Perform "Safety Mechanism Check" as described in the

Maintenance section (see page 6) prior to first use of tool

and on a daily basis thereafter.

° The tool is equipped with a rotating switch that can be set

to rapid-fire or single-fire mode (see Figure 6). When the

switch is set to single-fire mode, the tool will not drive a

second fastener until the trigger is fully released and

pulled again.

° When the switch is rotated to rapid-fire mode, the tool can

drive fasteners continuously. A fastener wilt be fired each

time the contact trip is pressed against the workpiece, as

long as the trigger is maintained in the pulled position.

Figure 6 - Push and rotate switch to select

Operation Mode

SINGLE-FIRE OPERATION:

• The air tool is equipped with a contact trip safety mecha-

nism that disables tool unless contact trip is pushed

against work. To drive a fastener hold body firmly and

press contact trip on workpiece where fastener is to be

applied. Pull trigger to drive fastener into workpiece. To fire

a second fastener lift the tool from the workpiece, release

the trigger and then repeat the above sequence.

RAPID-FIRE OPERATION:

• The tool can also be operated by holding trigger

depressed and pushing contact trip against workpiece. A

fastener will be driven each time the contact trip is pushed

against the workpiece. This operating procedure provides

rapid-fire fastener driving. Never operate tool unless con-

tact trip is in contact with workpiece.

WARNING: All air power fastening tools recoil when operat-

ed. This recoil is caused by rapid driving of the fastener. Tool

may bounce from recoil causing a second unwanted fastener

to be driven. Reduce tool bounce by holding tool firmly in

hand and pressing tool gently against workpiece. Let the tool

do the work. This will allow recoil of tool to bounce tool away

from workpiece preventing the driving of second fastener.

CONTACT TRIP ADJUSTMENT

The contact trip may be adjusted up or down to vary the

depth of the fastener in the workpiece. To adjust, rotate depth

control knob (see Figure 7) to raise or lower contract trip to

desired setting.

Figure 7 - Setting Depth Control

CONTACT TRIP PAD

The tool is equipped with a contact trip pad (see Figure 8)

that prevents marring of finished surfaces by the contact trip

during normal operation. Pad can be removed and stored on

the storage sleeve located on the end cover of the magazine.

Hex wrench is also stored on the magazine.

Pad

Figure 8 - Storing Contact Trip Pad and Wrench

CLEARING A JAMMED FASTENER

WARNING: Disconnect toot from air supply before attempt-

ing to clear jammed fasteners.

• Open magazine and remove any remaining fasteners.

WARNING: Fasteners are under spring pressure and may

shoot out of magazine.

• Grasp nose cover on both sides and pull outward until pin

disengages from latch, then pull upward so that fastener

guide plate swings away from magazine (see Figure 9).

• Use long nose pliers to remove the jammed fastener.

• Close fastener guide plate, hook pin into latch and snap

nose cover closed.

Figure 9 - Clearing a Jammed Fastener

OPERATING PRESSURE

= Use only enough air pressure to perform the operation. Air

pressure in excess of that which is required will make the

operation inefficient and may cause premature wear or

damage to the tool.

• Determine minimum air pressure required by driving some

test fasteners into the workpiece. Set air pressure so that

test fasteners are driven down flush with the work surface.

Fasteners driven too deep may damage workpiece.

COLD WEATHER OPERATION

CAUTION: Do not store in cold environment. Frost or ice

could form inside tool affecting operation and damaging tool.

Use a cold temperature lubricant, such as ethylene glycol,

when operating tool in freezing temperatures.

Refer to Figure 10 (page 8).

LUBRICATION

This isan oilless tool. No lubrication is necessary.

MAGAZINE AND PISTON-RAM

• Keep magazine and nose of tool clean and free of any dirt,

lint or abrasive particles.

The tip of the ram (Fig. 10, No. 11) can become dented or

rounded over time.

° Square off the tip of the ram with a clean, fine hand file to

extend the life of the ram and tool. Fastener firing wilt be

more consistent if the ram tip is kept clean and square.

SAFETY MECHANISM CHECK

Inspect contact trip safety mechanism daily for proper opera-

tion. Do not operate tool if mechanism is not operating

properly.

With the red push-button switch in the rapid-fire mode, per-

form the following procedures to test safety mechanism:

• Leave trigger untouched while pushing contact trip into

workpiece. Tool must not fire.

• Pull trigger while contact trip is clear of work and pointed

away from operator and others. Tool must not fire.

• Depress and hold trigger. Push contact trip against work

where fastener is needed. The tool should drive only one

fastener each time the contact trip ispushed against

workpiece.

If contact trip mechanism does not operate properly,

repair tool immediately through Sears Service Center.

Replace any damaged or missing parts. Use the parts list to

order parts.

REBUILD KITS

Rebuild kits are available as spare parts, (see page 9). Tools

should be rebuilt if tool fails to operate properly after extended

use. See troubleshooting to determine required replacement

parts.

Disconnect tool from air supply before attempting repair

or adjustment.

NOTE: When replacing O-rings or cylinder, lubricate with

grease before assembly.

SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION

Trigger cap leaks air 1. O-ring damaged 1. Check and replace damaged O-ring (Fig. 10, No. 60)

2. Valve stem, seal or O-rings damaged 2. Check and replace damaged stem, seal or O-rings

(Fig. 10, Nos. 60, 61, 62 and 65)

Cap leaks air 1. Cap bolts loose 1. Tighten bolts (Fig. 10, No. 1)

2. Damaged gasket 2. Check and replace damaged gasket (Fig. 10, No. 3)

Nose leaks air 1. Damaged cylinder O-ring 1. Check and replace damaged O-ring (Fig. 10, No. 12)

2. Damaged bumper 2. Check and replace damaged bumper (Fig. 10, No. 15)

3. Ram guide damaged 3. Check and replace guide (Fig. 10, No. 16)

Tool will not operate

Tool operates slowly

or loses power

Tool skips fasteners or

inconsistent operation

1. Insufficient air supply

2. Damaged or worn head valve O-ring

or seal

3. Damaged head valve spring

4. Head valve binding in cap

1. Damaged head valve spring

2. Damaged or worn O-rings

3. Damaged trigger assembly

4. Build-up on ram

5. Cylinder not sealed on bumper

properly

6. Insufficient air supply

7. Head valve poorly lubricated

1. Worn or damaged bumper

2. Build-up on ram or nose

3. Insufficient air supply

4. Damaged or worn piston O-ring

5. Damaged magazine springs

6. Magazine-nose bolts loose

7. Fasteners too short

8. Damaged fasteners

9. Incorrect fastener size

10. Cap leaks

11. Damaged trigger valve seal and

O-rings

12. Bent or damaged ram

13. Dirty magazine

14. Damaged or worn magazine

1. Check air supply

2. Replace damaged or worn O-ring or seal

(Fig. 10, Nos. 5 and 8)

3. Replace damaged spring (Fig. 10, No. 6)

4. Clean and grease cap and head valve

(Fig. 10, Nos. 2 and 9)

1. Check and replace damaged spring (Fig. 10, No. 6)

2. Check and replace damaged or worn O-rings

3. Check and replace trigger assembly

4. Clean piston/ram assembly (Fig. 10, No. 11)

5. Disassemble cylinder and assemble properly

6. Check air supply

7. Disassemble head valve (Fig. 10, No. 9),

clean, grease, and assemble properly

1. Check and replace bumper (Fig. 10, No. 15)

2. Clean and grease piston/ram assembly (Fig. 10, No. 11

and inside of nose cover (Fig. 10, No. 24)

3. Check air supply

4. Check and replace O-ring (Fig. 10, No. 10)

5. Check and replace springs (Fig. 10, No. 31)

6. Align nose with magazine and tighten bolts

(Fig. 10, No. 27)

7. Use Sears recommended fasteners only

8. Discard damaged fasteners

9. Use Sears recommended fasteners only

10. Tighten cap bolts (Fig. 10, No. 1). Check and replace

damaged gasket (Fig. 10, No. 3)

11. Check and replace damaged seal and O-rings

(Fig. 10, Nos. 60, 62 and 65)

12. Check and replace damaged piston/ram assembly

(Fig. 10, No. 11)

13. Clean magazine and lubricate with a

dry, film lubricant.

14. Check and replace magazine (Fig. 10, No. 42)

Model 351.181740

Figure 10 - Replacement Parts Illustration For Combination Nailer/Stapler

JO_ 1°

_/ 44 43

KEY

NO.

1 06395.00

2 20272.00

3 20273.00

4 20274.00

5 20275.00

6 04210.00

7 06436.00

8 04303.00

9 04302.00

10 20277.00

11 20535.00

12 06909.00

13 20279.00

14 20364.00

15 20280.00

16 20281.00

17 20282.00

18 20502.00

19 20503.00

20 20504.00

21 20537.00

22 20284.00

23 20286.00

24 20538.00

25 15834.00

26 15072.00

27 06078.00

28 20539.00

29 15838.00

30 16604.00

31 15839.00

32 05993.00

33 15116.00

34 15117.00

35 15118.00

36 06086.00

PART NO. DESCRIPTION QTY.

4-0.7 x 22mm Socket Head Bolt 7

Cap 1

Cap Gasket 1

Spacer 1

Seal 1

Head Valve Spring 1

Spacer 1

33.5 x 2mm O-Ring 1

Head Valve Piston 1

Seal 1

Piston Ram Assembly 1

44.17 x 1.78mm O-Ring 1

Cylinder 1

Feed Ring 1

Bumper 1

Ram Guide 1

Throttle 1

Trip Lever 1

Nut 1

Contact Trip Bracket 1

Contact Trip 1

Pad 1

Contact Trip Pad 1

Nose Cover Assembly 1

Guide Bar 1

1x 8mm Spring Pin 1

4-0.7 x 12mm Socket Head Bolt 3

Nose 1

Pusher 1

Bushing 1

Spring 1

3x 18mm Spring Pin 1

Magazine Cover 1

Spring 1

Latch 1

4-0.7 x 8mm Socket Head Bolt 3

Standard hardware item available locally

Not Shown

Recommended Accessories Qty./Box Model No,

A 18 Gauge Brad Nails, %" Long 5000 9-18341

A 18 Gauge Brad Nails, %" Long 1000 9-19171

A 18 Gauge Brad Nails, 1" Long 5000 9-18342

A 18 Gauge Brad Nails, 1" Long 1000 9-19172

A 18 Gauge Brad Nails, 1W' Long 5000 9-18343

A 18 Gauge Brad Nails, 1W' Long 1000 9-19173

A 18 Gauge Brad Nails, 1W' Long 5000 9-18360

A 18 Gauge Brad Nails, 1W' Long 1000 9-19174

A Staples, Y4"Crown-%" Long 5000 9-18334

A Staples, 74" Crown-_4" Long 1000 9-19178

A Staples, 74" Crown-Ys" Long 5000 9-18336

A Staples, 74" Crown-Ys" Long 1000 9-19179

A Staples, 74" Crown-l" Long 4000 9-18371

A Staples, 74" Crown-l" Long 1000 9-19180

A Staples, 74" Crown-lW' Long 4000 9-18372

A Staples, W' Crown-lW' Long 4000 9-18373

A Staples, 74" Crown-lW' Long 4000 9-18374

A Staples, 74" Crown-lW' Long 1000 9-19183

KEY

NO.

PART NO. DESCRIPTION

04332.00

15120.00

16354.00

15837.00

15121.00

20540.00

STD852004

05809.00

20302.00

20541.00

20299.00

17437.00

20300.00

20246.00

20301.00

20276.00

06080.00

N/A

04327.00

20304.00

20305.00

20306.00

20307.00

20308.00

20309.00

06449.00

04325.00

20310.00

20311.00

20547.00

20548.00

20549.00

20542.00

20543.00

9-18335

QTY.

Cover Plate 1

End Cover 1

2.5 x 20mm Spring Pin 1

Wear Rod 1

Plate 1

Magazine 1

4mm Lock Washer* 1

4-0.7 x 6mm Socket Head Bolt 1

Washer 3

Rear Support 1

Push Button !

Spring 1

Trigger 1

3 x 23mm Spring Pin 2

2.5 x 24mm Spring Pin 2

3 x 33mm Spring Pin 1

4-0.7mm Fiber Nut 1

Body 1

9.8 x 1.9mm O-Ring 1

Air Manifold 1

29.82 x 2.62mm O-Ring 1

Trigger Spring 1

Trigger Cap 1

10.82 x 1.78mm O-Ring 1

Valve Stem 1

2.5 x 1.4mm O-Ring 2

TriggerValve Spring 1

TriggerValve Head 1

7.5 x 1.5mm O-Ring 1

E-Ring 1

Nut Guide 1

Knob 1

Warning Label 1

Operator's Manual 1

Storage Case 1

Rebuild Kits

A 20318.00 Trigger Rebuild Kit 1

Fig. 10, Nos. 58, 60, 61, 65 and

two 62

A 20319.00 HeadValve Rebuild Kit 1

Fig. 10, Nos. 3, 4, 5 and 8

A 20544.00 Piston-Ram Assembly Rebuild Kit 1

Fig. 10, Nos. 10, 11, 12 and 15

COMBINACION DE

CLAVADORA/GRAPADORA

Calibre 18

Clavos sin punta

de % - 11/2"de Iongitud

Grapas de corona

de de %- de Iongitud

Modelo No.

351.181740

PRECAUCION: Lea y siga todas las Reglas

de Seguridad y las Instrucciones de Operaci6n

antes de usar este producto por primera vez.

Ingles ............................................ 2-9

Ilustracion y Lista de Partes ........................... 8-9

Garantia ........................................... 10

Reglas de Seguridad .............................. 10-11

Operacion ....................................... 11-14

Mantenimiento ...................................... 14

Identificacion de Problemas ........................... 15

GARANTJA COMPLETA DE UN AI_IO

Si fallara este producto por causa de defectos en el material o

en la mano de obra en un lapso de un a_o a partir de la fecha

de compra, Sears Io reparara o reemplazara, a su eleccion, sin

costo adicional. Solicite al Centro de Servicio Sears mas cercano

(1-800-4-MY-HOME) la reparaci6n del producto o devuelvalo al

establecimiento donde Io adquirio.

Si este producto se usa para fines comerciales o de alquiler, esta

garantia es valida por 90 dias a partir de la fecha de compra.

Esta garantia aplica Qnicamente si el producto se utiliza en los

Estados Unidos.

Esta garantia le otorga derechos legales especificos y tambien

puede usted tener otros derechos que varien de estado a estado.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates,

IL 60179

Lea y siga todas las reglas de seguridad e instrucciones de

operacion incluidas en este manual yen la etiqueta de adver-

tencia de la herramienta antes de utilizar este producto por

primera vez. Mantenga este manual junto con la herramienta.

Mantenga el area de trabajo limpia y adecuadamente iluminada.

Mantenga a los ni_os, a los visitantes y a toda otra persona a

una distancia prudente del area de trabajo mientras hace fun-

cionar esta herramienta.

Los operadores de herramientas neumaticas y todas las

demas personas presentes en el area de trabajo deben usar

siempre gafas de seguridad que cumplan con los requisitos

de la norma estadounidense ANSI Z87.1, para evitar lesiones

oculares ocasionadas por sujetadores y particulas que salgan

disparadas al cargar, operar y descargar esta herramienta.

Los anteojos comunes tienen lentes que s61o son resistentes

al impacto. NO son anteojos de seguridad. Las gafas de

seguridad ANSI Z87.1 cuentan con protecciones laterales

permanentes rigidas, de plastico endurecido, y tendran impre-

so o estampado el c6digo "Z87.1 ".

• Utilice siempre proteccion para los oidos. El area de trabajo

podria estar expuesta a niveles de ruido excesivos los cuales

haran necesario la utilizacion de proteccion para los oidos.

AIgunos entornos requeriran proteccion para la cabeza; utilice

proteccion para la cabeza conforme a ANSI Z89.1.

• No altere ni modifique esta herramienta de ninguna manera.

No utilice esta herramienta para una aplicacion diferente a la

que fue dise_ada.

• No utilice oxigeno, dioxido de carbono, gas comprimido de

alta presion o gas embotellado como fuentes de alimentacion

para esta herramienta. La herramienta podria estallar y

producir graves lesiones.

• Nunca conecte la herramienta a una presion de aire que

pudiera exceder 200 PSI. Utilice Qnicamente aire regulado,

limpio y seco que se encuentre dentro de la gama de

capacidad nominal indicada en la herramienta.

• La herramienta debe contar con un acoplamiento para

manguera macho de flujo libre de manera que la presi6n

del aire pueda removerse de la herramienta cuando

se desconecte la junta del acoplamiento. El uso de un

acoplamiento incorrecto podria generar una descarga

accidental y posiblemente ocasionar lesiones.

• Utilice Qnicamente una manguera de aire clasificada para una

presion de trabajo maximo de 150 PSI o 150% de la presion

maxima del sistema, Io cual sea mayor.

• No use un conector giratorio de manguera con esta herramienta.

• No oprima el gatillo ni presione el disparo por contacto mien-

tras conecta el abastecimiento de aire, ya que la herramienta

cicla y podria ocasionar lesiones.

• Cuando cargue la herramienta: No oprima el gatillo ni pre-

sione el disparo por contacto; No apunte la herramienta hacia

usted mismo o hacia otras personas; No coloque las manos ni

ninguna parte de su cuerpo en el area de descarga de sujeta-

dores ya que podria producirse una activacion accidental y

ocasionar lesiones.

• Desconecte la herramienta del abastecimiento de aire antes

de cargar o descargar, realizar el mantenimiento de la herra-

mienta, desatascar un sujetador, abandonar el area de traba-

jo, trasladar la herramienta a otra ubicacion o entregarle la

herramienta a otra persona.

• Use Qnicamente los sujetadores Sears recomendados.

• No cargue la herramienta hasta que este listo para usarla.

• Asuma siempre que la herramienta contiene sujetadores.

Mantenga la herramienta apuntada en direccion contraria a

usted y a otras personas en todo momento. Nunca juegue

con la herramienta. Nunca oprima el gatillo a menos que el

disparo por contacto haya entrado en contacto con la pieza

de trabajo. Mantenga a toda persona a una distancia

prudente de la herramienta mientras se encuentra en

funcionamiento.

• Aleje siempre los dedos del gatillo cuando no impulse sujeta-

dores. Nunca transporte la herramienta con el dedo en el

gatillo o debajo de este ya que puede ocurrir una activacion

accidental y ocasionar lesiones.

• Mantenga siempre las manos y el cuerpo alejados del area

de descarga de sujetadores cuando se conecte un abasteci-

miento de aire a la herramienta. Agarre la herramienta firme-

mente para mantener el control a la vez que le permite rebotar

lejos de la superficie de trabajo cuando se impulsan los suje-

tadores. Si se permite que el disparo pot contacto vuelva a

hacer contacto con la superficie de trabajo antes de soltarse

el gatillo, podria producirse el impulso no deseado de un

sujetador.

• Verifique con frecuencia el funcionamiento del disparo pot con-

tacto. Nunca utilice la herramienta si el disparo pot contacto, el

gatillo o los resortes no funcionan, faltan o estan da5ados. No

altere ni extraiga el disparo pot contacto, el gatillo o los resortes.

Nunca utilice una herramienta que tenga una fuga de aire,

partes da5adas o que falten, o que necesite ser reparada.

• No impulse sujetadores sobre otros sujetadores o con la herra-

mienta a un angulo demasiado inclinado. Los sujetadores

pueden rebotar y ocasionar lesiones. No impulse sujetadores

cerca del borde de la pieza de trabajo. La pieza de trabajo

podria partirse, permitiendo que el sujetador salga disparado y

ocasione lesiones. No intente impulsar sujetadores en materi-

ales duros o quebradizos tales como concreto, acero o Ioza.

• No trate de alcanzar demasiado lejos. Parese siempre en una

posicion firme y equilibrada cuando use o maneje la herra-

mienta. No sujete la manguera ni la herramienta a su cuerpo.

• No opere la herramienta sin los sujetadores ya que podria

ocasionar da5os a la misma.

• No utilice la herramienta si la misma no incluye la etiqueta

de advertencia de seguridad. Si la etiqueta falta, esta da5ada

o es ilegible, comuniquese con SEARS para adquirir una

etiqueta nueva.

• El servicio de mantenimiento de la herramienta debe set rea-

lizado Onicamente pot personal de reparacion cualificado.

• Cuando le haga el servicio a la herramienta, utilice Onicamente

partes de reparaci6n identicas.

• AImacene la herramienta fuera del alcance de los ni5os y de

personas que no han recibido capacitacion para su uso.

DESCRIPCION

La Combinacion de Clavadora/Grapadora de Crafstman, calibre

18, impulsa clavos sin punta de %" to 1V2"de Iongitud y grapas

de corona de V4",de %"to l_/2"de Iongitud. Su dise5o autolubrica-

do elimina la necesidad de engrasar la herramienta diariamente y

evita manchar la pieza de trabajo con aceite. El cuerpo de magne-

sio fundido a presi6n con agarre de caucho texturizado reduce la

fatiga del operador. El dep6sito de gran capacidad y facil de car-

gar incluye un pestillo de accion rapida positiva. La herramienta

incluye incluye escape posterior, operaci6n de disparo Qnico y dis-

paro rapido, control de impulsion de profundidad variable, punta de

oreja de caucho y estuche de almacenamiento. El mecanismo de

seguridad inhabilita la herramienta a menos que el disparo por

contacto est¢ presionado contra la pieza de trabajo. La ojiva le

proporciona al operador mayor visibilidad para la colocaci6n pre-

cisa del sujetador. La tapa de la oreja de liberacion facilita la

remoci6n de los sujetadores atascados. La Combinacion de

Clavadora/Grapadora calibre 18 es ideal para molduras, fabri-

cacion de muebles, marcos de fotografias y tapizado.

ESPECIFICACIONES

Capacidad ............... 100 clavos sin punta o 100 grapas

Tama_o del clavo ............... Calibre 18 (0.049" x 0.040")

Longitudes del clavo ............................ 5/8- 1VJ'

Longitudes de las grapas ......................... % - 1W'

Presion de operacion ......................... 60-100 PSI

Entrada de aire ............................... V4" N.RT.

Longitud ......................................... 93/4"

Altura ........................................... 9%6"

Ancho .......................................... 25/_''

Peso ......................................... 2.8 Ibs.

CLAVOS 8111 PU11TA

18341 (Caja de 5000)

19171 (Caja de 1000)

18342 (Caja de 5000)

19172 (Caja de 1000)

18343 (Caja de 5000)

19173 (Caja de 1000)

18360 (Caja de 5000)

19174 (Caja de 1000)

GRAPAS
