OWNER’S MANUAL
ONEPERSON & TWOPERSON SAUNAS
WITH CERAMIC OR CARBON HEATERS
SA2400/SA2402/SA2406/SA2409/SA1309
2
ASSEMBLY TIPS & WARNINGS
PARTS IDENTIFIER
ASSEMBLY INSTRUCTIONS
OPERATION INSTRUCTIONS
ENJOYING YOUR SAUNA
HEALTH & SAFETY WARNINGS
CLEANING & MAINTANENCE
TROUBLESHOOTING GUIDE

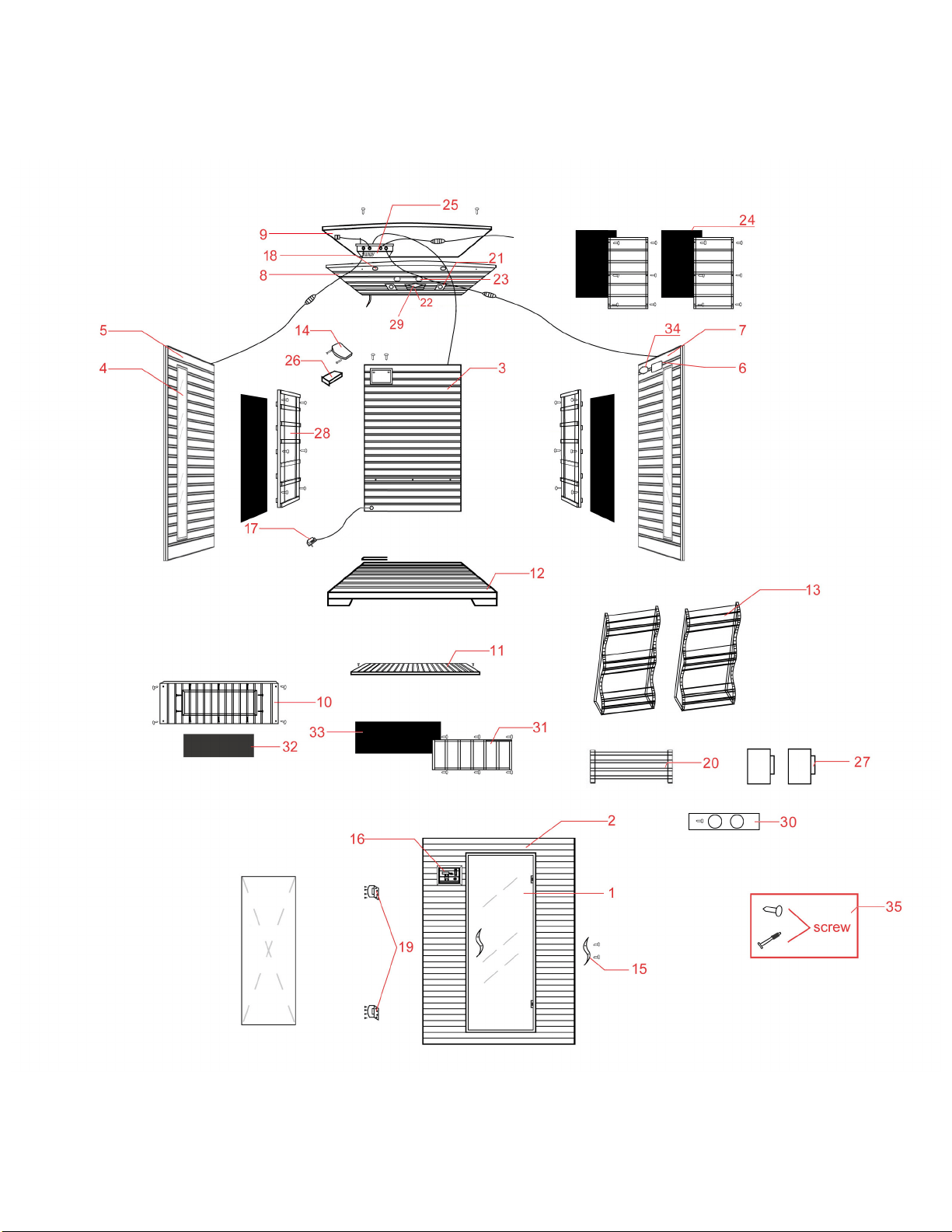

REPLACEMENT PARTS
WARRANTY INFORMATION
3
4
5-10
11
12
13
14
14-15
16-25
26
TABLE OF CONTENTS
The information contained in this manual is subject to change without notice.
3
• Before you begin, read all assembly instructions and safety warnings carefully.
• This sauna requires at least 2 adults to complete assembly.
• Remove all of the contents from boxes and verify that you have all of the parts shown on the Parts
Identier before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.
• This manual is used for the assembly of several sauna models; therefore, some gures or drawings
may not look exactly like your product.
• Cover the sauna oor during assembly to avoid staining the unnished wood surface.
• Retain this Owner’s Manual for future reference.
ELECTRICAL REQUIREMENTS
• We recommend consulting a licensed electrician and checking local ordinances before installing
ANY sauna.
• This sauna requires a standard 15 amp receptacle.
• Refer to the serial plate on the back of the sauna for complete electrical specications.
• This sauna requires a dedicated circuit - No other appliances should share the same outlet with the
sauna.
CHOOSING A LOCATION
• This sauna should only be placed INDOORS on a dry, level surface.
• There should be a minimum of 5 inches clearance between the sauna and any wall.
• Make sure the main power cord will reach the outlet and remains easy to access.
• The sauna should only be used in a dry location as moisture will damage the wood and electrical
components.
• Keep the sauna away from any potential hazards including water sources, ammable objects and
combustible materials.
ASSEMBLY TIPS & WARNINGS

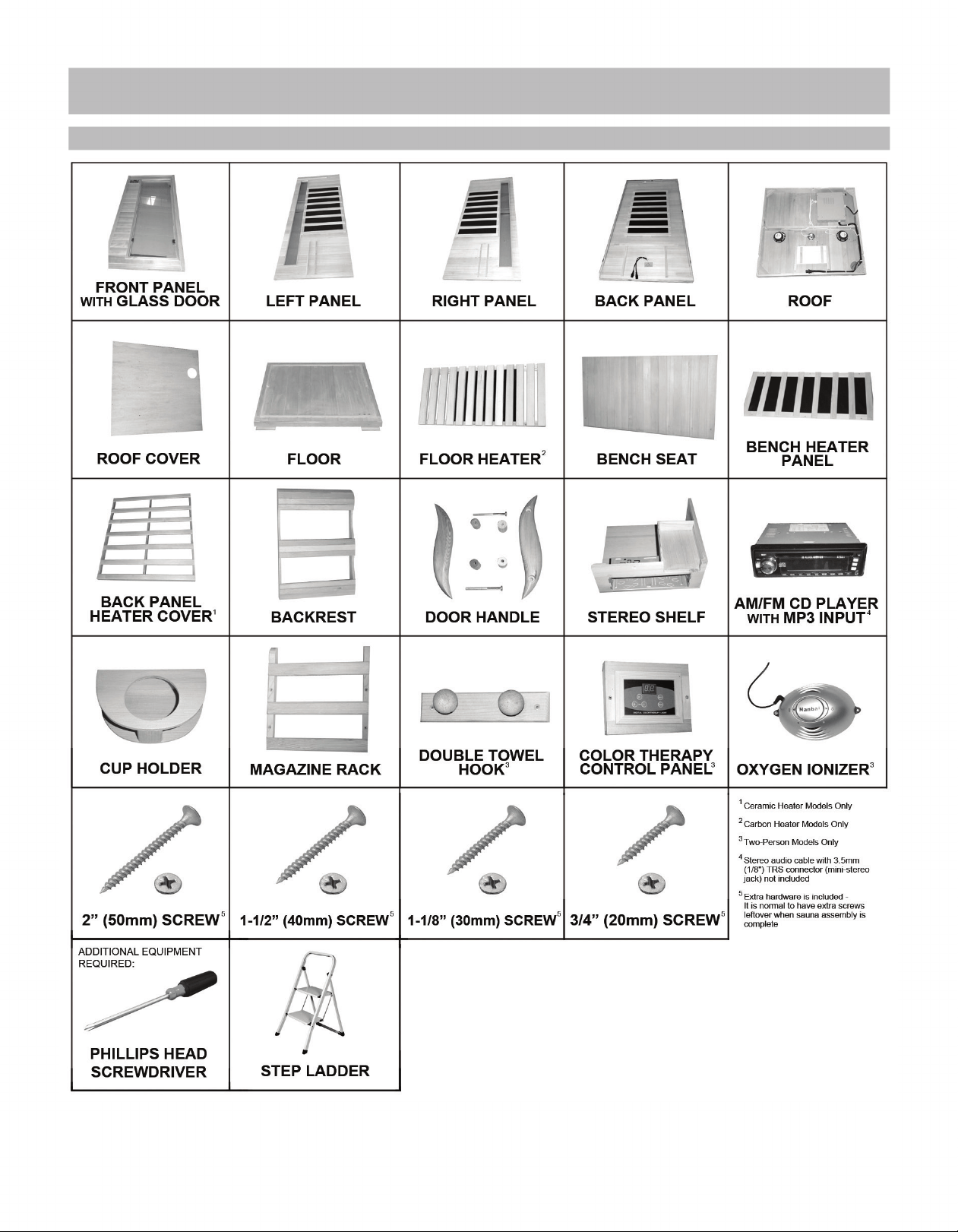

PARTS IDENTIFIER (NOT TO SCALE)
4
* Refer to REPLACEMENT PARTS (PAGE 16-25) to determine the correct part number when ordering replacements.
ASSEMBLY INSTRUCTIONS
1. Begin assembly by determining an appropriate location for your sauna – see ASSEMBLY
TIPS & WARNINGS for details. Attach the BACK PANEL to the FLOOR by lining up the BACK
PANEL with the groove in the back of the FLOOR.
2. Attach the LEFT PANEL to the FLOOR. Buckle the LEFT PANEL to the BACK PANEL.
3. Attach the RIGHT PANEL to the FLOOR. Buckle the RIGHT PANEL to the BACK PANEL.
5
ASSEMBLY INSTRUCTIONS (CONT.)
4. Carbon Heater Models Only: Attach the FLOOR HEATER to the FLOOR with 1-1/2” SCREWS.
Connect the heater plug.
5. Slide the BENCH HEATER PANEL into place between the LEFT and RIGHT PANELS. Connect
the heater plug. Note: For Carbon Heater Models, make sure the FLOOR HEATER cable is placed
through the groove in the bottom of the BENCH HEATER PANEL.
6. Attach BENCH SEAT with 2” SCREWS.
6
7. Ceramic Heater Models Only: Attach BACK PANEL HEATER COVER to BACK PANEL with 2”
SCREWS and to BENCH SEAT with 3/4” SCREWS.
8. Attach the FRONT PANEL to the FLOOR. Buckle the FRONT PANEL to the LEFT and RIGHT
PANELS.
9. Lift the ROOF above the sauna, feeding the control panel and heater cables through the
corresponding holes. Feed the cables for the AM/FM CD PLAYER through the hole in the bot-
tom of the ROOF. Note: For One-Person Models, the ROOF ts inside the four PANELS. Secure the
ROOF to the sauna with 1-1/8” SCREWS. Connect the control panel and heater plugs.
ASSEMBLY INSTRUCTIONS (CONT.)
7
ASSEMBLY INSTRUCTIONS (CONT.)
10. Feed the main power cable through hole in ROOF COVER. Secure the ROOF COVER with
3/4” SCREWS.
11. Attach the DOOR HANDLE to the GLASS DOOR.
12. Gently pull the cables for the AM/FM CD PLAYER through the opening in the front of the
STEREO SHELF. Attach the STEREO SHELF with 3/4” SCREWS.
8
ASSEMBLY INSTRUCTIONS (CONT.)
13. Plug the controller and antenna into the back of the AM/FM CD PLAYER. Note: The red
and white cables are used for an optional video player and can be tucked out of the way. Slide
and lock the AM/FM CD PLAYER into the STEREO SHELF. Note: Use “keys” with to remove the CD
player for maintenance.
14. Attach the MAGAZINE RACK with 1-1/2” SCREWS. Note: A sticker indicates the optimal posi-
tion for this accessory, but attaching it is optional. Consider the position carefully before driving
any screws into the sauna interior.
15. Attach the CUP HOLDER(S) with 3/4” SCREWS. Note: A sticker indicates the optimal position
for this accessory, but attaching it is optional. Consider the position carefully before driving any
screws into the sauna interior.
16. Two-Person Models Only: Attach the DOUBLE TOWEL HOOK with 3/4” SCREWS. Note: A
sticker indicates the optimal position for this accessory, but attaching it is optional. Consider the
position carefully before driving any screws into the sauna interior.
17. Two-Person Models Only: Attach the COLOR THERAPY CONTROL PANEL into the desig-
nated position with 2” SCREWS.
9
ASSEMBLY INSTRUCTIONS (CONT.)
18. Two-Person Models Only: Remove the back cover of the OXYGEN IONIZER by turning is as
indicated. Unwrap and install the fragrance patch, then reattach the back cover. Attach the
OXYGEN IONIZER in the designated position with 3/4” SCREWS. Plug the power cable into the
OXYGEN IONIZER.
19. Plug the main power cable into a dedicated outlet. Note: No other appliances should share
the same outlet with this sauna.
The assembly of your sauna is now complete.
Please review the Operation Instructions and Health & Safety warnings before using your
sauna.
To ensure years of trouble-free use, follow the Cleaning & Maintenance guidelines carefully.
10
CONGRATULATIONS!
OPERATION INSTRUCTIONS
SAUNA CONTROL PANEL
Note: The sauna controls are the same for both the interior and exterior Control Panels.
1. Press POWER to turn ON the sauna.
2. Set the desired TEMPERATURE with the (+) and (-) buttons.
3. Press and hold both (+) and (-) to switch between °F (Fahrenheit) and °C (Celsius).
4. Set the desired TIME with the (+) and (-) buttons.
5. Press INSIDE or OUTSIDE to turn on or o the corresponding light.
6. When the TIME reaches 00, the heaters will turn OFF automatically.
7. After your sauna session, press POWER to turn OFF the sauna.
1. Press POWER to turn ON the Color Therapy Light. The Color Therapy Light will cycle
through all the available colors.
2. Press SELECT to locate your preferred color or pattern, then press SET.
3. Set the desired TIME with the (+) and (-) buttons, then press SET.
4. Press POWER to turn OFF the Color Therapy Light.
1. Press ION to release negatively charged ions to purify the air.
2. Press O3 to disinfect the air with ozone.
11
COLOR THERAPY CONTROL PANEL (Two-Person Models Only)
OXYGEN IONIZER (Two-Person Models Only)
ENJOYING YOUR SAUNA
1. Prior to initial use, wipe down all interior surfaces of the sauna with a damp cloth.
2. Turn on the sauna and set temperature to 104° F for one hour to burn o any factory dust.
3. Always drink plenty of water before, during and after your sauna session to stay properly
hydrated.
4. A normal sauna session should last 30 minutes or less.
5. Allow approximately 10 to 15 minutes for the sauna to warm up before entering.
6. Perspiration will begin within 10 to 15 minutes after entering the sauna.
7. Limit the use of lotions or oils on your body while using your sauna. These products can
block your pores and limit perspiration, decreasing the eectiveness of your sauna session.
8. For spot treatment of a particular area, position that body part closer to the heater, allow-
ing for deeper heating in that area.
9. During your sauna session, place towels on the bench seats and on the oor to absorb per-
spiration and maintain the cleanliness of your sauna.
10. Towel o excess perspiration during your sauna session to help your body perspire more
freely.
11. Open the ceiling vent or the front door to allow fresh air into your sauna.
12. Allow your body to cool down following your sauna session, then rinse the perspiration
o your body in a warm shower.
12
HEALTH & SAFETY WARNINGS
1. Review all instructions and warnings before operating your sauna. A sauna is not a toy. Seri-
ous injury may result from negligence, intentional misuse and failure to follow safety instruc-
tions.
2. Hyperthermia Danger: Hyperthermia occurs when the body absorbs more heat than it can
dissipate. When the elevated body temperatures are suciently high, hyperthermia is a medical
emergency and requires immediate treatment to prevent disability or death. It is very impor-
tant not to allow your body’s core temperature to rise above 103° F. Symptoms of hyperthermia
include dizziness, lethargy, drowsiness and fainting. The eects of hyperthermia may include
failure to perceive heat, failure to recognize the need to exit the sauna, unawareness of the im-
pending health hazard, physical inability to exit the sauna and unconsciousness.
3. If you are feeling uncomfortable, faint or dizzy, exit the sauna immediately.
4. Do not exceed recommended time and temperature guidelines.
5. Do not touch or interfere with the temperature sensor on the control panel.
6. Do not touch or spray water on the heater elements.
7. Do not use the sauna while under the inuence of drugs or alcohol.
8. Do not sleep inside the sauna.
9. Do not use the sauna immediately following strenuous exercise. Allow your body to cool
down for 30 minutes before entering the sauna.
10. Pets should never be placed in the sauna.
11. Pregnant women, children under the age of 6, the elderly and inrm should not use the
sauna.
12. Children over the age of 6 should always be supervised by an adult.
13. People with health problems including open wounds, fever, sunburn or dehydration should
not use the sauna.
14. People suering from obesity or with a history of heart disease, low or high blood pressure,
circulatory system problems or diabetes should consult a physician before using the sauna.
15. Consult a physician before using the sauna if you take any prescription medications.
16. Keep towels and combustible materials away from the heater elements.
17. Remove all towels and materials after your sauna session.
18. Never leave your sauna unattended while in use.
19. Always unplug the sauna and allow it to cool down before performing any cleaning or main-
tenance.
20. Always turn o and unplug the sauna when not in use.
13
CLEANING & MAINTENANCE
1. Always unplug the sauna and allow it to cool down before performing any cleaning or
maintenance.
2. Use furniture polish or furniture oil when cleaning the sauna exterior.
3. The sauna interior surfaces should only be wiped down with a damp cloth. Do NOT use
chemicals, abrasive cleaners or solvents on the unnished interior wood.
4. As with all natural wood products, variations in the color and the grain as well as irregu-
larities such as knots and ne cracks may be present. These characteristics are a part of the
natural beauty of the wood and should not be considered defective.
14
WARNING!
1. Check that the Main Power Cable is plugged into the wall outlet.
2. Check that the circuit breaker for the outlet has not tripped. If the breaker has tripped, check that the
amperage of the breaker is appropriate for your sauna.
3. Check all connections to the Power Supply Box.
4. Check for damage to the Main Power Cable; replace, if necessary.
5. Replace the Power Supply Box, if necessary.
1. Check that all the connections are tight.
2. Replace the Heater Element.
1. Check that all connections are tight.
2. Replace the Heater Circuit Board, if necessary.
Problem
Solution
Solution
Solution
Problem
Problem
THERE IS NO POWER TO THE SAUNA
ONE HEATER DOES NOT WORK
NONE OF THE HEATERS WORK
TROUBLESHOOTING GUIDE
• Always unplug the sauna and allow it to cool down before performing any maintenance.
• Repairs to the electrical components of the sauna should only be performed by a qualied service technician.
• Unauthorized repairs or alterations will void the manufacturer’s warranty.
TROUBLESHOOTING GUIDE (CONT.)
15
1. Check that all the connections are tight.
2. If the numbers are scrambled or the buttons are unresponsive, replace the Control Panel.
3. If the temperature indicator does not work or reads “--” or “EP”, replace the Control Panel with Tempera-
ture Sensor.
1. Check that all the connections are tight.
2. If one light does not work, replace the bulb. Note: Do not touch the glass part of the bulb with your ngers
during installation.
3. If neither the lights nor the radio are working, replace the Power Supply Box.
1. Check that all the connections are tight.
2. Check the fuse; replace if necessary.
3. Replace the radio.
4. If neither the radio nor the lights are working, replace the Power Supply Box.
1. Check that the volume is not turned all the way down and that the fader control is set correctly.
2. If only one speaker is working, check to see that the sound balance on the stereo is not set all the way
to one side.
3. Check that all the connections are tight.
4. Replace the speaker, if necessary.
1. Check that all the connections are tight.
2. Replace the Color Therapy Light or Color Therapy Control Panel, if necessary.
Problem
Problem
Problem
Problem
Problem
THE CONTROL PANEL DOES NOT WORK
THE LIGHTS ARE NOT WORKING
THE RADIO AND/OR CD PLAYER IS NOT WORKING
THE SPEAKERS ARE NOT WORKING
THE COLOR THERAPY LIGHTS ARE NOT WORKING
Solution
Solution
Solution
Solution
Solution
REPLACEMENT PARTS
In the event that you need replacement parts, locate your sauna model in the guide below to
reference the correct part numbers. It is important to use only the replacement parts specied
by the manufacturer. The use of unauthorized substitutes may damage your sauna or cause
electrical hazards resulting in injury or re.
16
SA2400 ONE-PERSON HEMLOCK SAUNA WITH CERAMIC HEATERS
DESCRIPTION
2 FRONT PANEL with GLASS DOOR
5 LEFT PANEL
7 RIGHT PANEL
3 BACK PANEL
8 ROOF
9 ROOF COVER
12 FLOOR
11 BENCH SEAT
10 BENCH HEATER PANEL
28 BACK PANEL HEATER COVER
29 BACKREST
15 DOOR HANDLE
26 STEREO SHELF
14 AM/FM CD PLAYER with MP3 INPUT
18 CUP HOLDER
6 MAGAZINE RACK
31 2” (50mm) SCREW
31 1-1/2” (40mm) SCREW
31 1-1/8” (30mm) SCREW
31 3/4” (20mm) SCREW
30 350W HEATER ELEMENT – BACK PANEL
30 350W HEATER ELEMENT – BENCH HEATER
16 CONTROL PANEL
16 CONTROL PANEL with TEMPERATURE SENSOR
16 CONTROL PANEL FRAME
17 MAIN POWER CABLE
25 POWER SUPPLY BOX
25 HEATER CIRCUIT BOARD
25 20 AMP OVERCURRENT PROTECTOR
24 INTERIOR LIGHT BULB
24 LIGHT HOUSING
24 LIGHT SOCKET
21 SPEAKER
1 GLASS DOOR
19 DOOR HINGE
--- BUCKLE
Please see drawing on next page to assist in identifying parts.
PART NUMBER
SAP2616
SAP2617
SAP2618
SAP2619
SAP2620
SAP2601
SAP2505
SAP2504
SAP2503
SAP2602
SAP3126
SAP2413
SAP2402
SAP2408
SAP2444
SAP2414
SAP2411
SAP2411
SAP2411
SAP2411
SAP2423
SAP2423
SAP2406
SAP2603
SAP2417
SAP2441
SAP2407
SAP2428
SAP2529
SAP2403
SAP2405
SAP2606
SAP2416
SAP2439
SAP2415
SAP2607
QTY
1
1
1
1
1
1
1
1
1
1
1
1 SET
1
1
1
1
2
4
8
18
2
1
1
1
1
1
1
1
1
1
1
1
2
1
2
12
SA2400
17
REPLACEMENT PARTS (CONT.)
18
SA2402 ONE-PERSON HEMLOCK SAUNA WITH CARBON HEATERS
DESCRIPTION
2 FRONT PANEL with GLASS DOOR
5 LEFT PANEL
7 RIGHT PANEL
3 BACK PANEL
8 ROOF
9 ROOF COVER
12 FLOOR
20 FLOOR HEATER
11 BENCH SEAT
10 BENCH HEATER PANEL
13 BACKREST
15 DOOR HANDLE
26 STEREO SHELF
14 AM/FM CD PLAYER with MP3 INPUT
18 CUP HOLDER
28 MAGAZINE RACK
31 2” (50mm) SCREW
31 1-1/2” (40mm) SCREW
31 1-1/8” (30mm) SCREW
31 3/4” (20mm) SCREW
6 330W HEATER ELEMENT – BACK PANEL
6 330W HEATER ELEMENT – LEFT PANEL
6 330W HEATER ELEMENT – RIGHT PANEL
20 80W HEATER ELEMENT – FLOOR HEATER
32 180W HEATER ELEMENT – BENCH HEATER
16 CONTROL PANEL
16 CONTROL PANEL with TEMPERATURE SENSOR
16 CONTROL PANEL FRAME
17 MAIN POWER CABLE
25 POWER SUPPLY BOX
25 HEATER CIRCUIT BOARD
25 20 AMP OVERCURRENT PROTECTOR
23 INTERIOR LIGHT BULB
23 LIGHT HOUSING
23 LIGHT SOCKET
21 SPEAKER
1 GLASS DOOR
19 DOOR HINGE
--- BUCKLE
Please see drawing on next page to assist in identifying parts.
PART NUMBER
SAP2621
SAP2622
SAP2623
SAP2624
SAP2625
SAP2608
SAP2626
SAP2627
SAP2436
SAP2628
SAP2412
SAP2413
SAP2402
SAP2408
SAP2444
SAP2414
SAP2411
SAP2411
SAP2411
SAP2411
SAP2418
SAP2418
SAP2418
SAP2420
SAP2419
SAP2406
SAP2603
SAP2417
SAP2441
SAP2407
SAP2428
SAP2529
SAP2403
SAP2405
SAP2606
SAP2416
SAP2439
SAP2415
SAP2607
QTY
1
1
1
1
1
1
1
1
1
1
1
1 SET
1
1
1
1
2
14
2
16
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
12
SA2402
19
REPLACEMENT PARTS (CONT.)
20
SA2406 TWO-PERSON HEMLOCK SAUNA WITH CERAMIC HEATERS
DESCRIPTION
2 FRONT PANEL with GLASS DOOR
5 LEFT PANEL
7 RIGHT PANEL
3 BACK PANEL
8 ROOF
9 ROOF COVER
12 FLOOR
11 BENCH SEAT
10 BENCH HEATER PANEL
29 BACK PANEL HEATER COVER
28 BACKREST
15 DOOR HANDLE
26 STEREO SHELF
14 AM/FM CD PLAYER with MP3 INPUT
34 CUP HOLDER
33 MAGAZINE RACK
32 DOUBLE TOWEL HOOK
7 COLOR THERAPY CONTROL PANEL
27 OXYGEN IONIZER
35 2” (50mm) SCREW
35 1-1/2” (40mm) SCREW
35 1-1/8” (30mm) SCREW
35 3/4” (20mm) SCREW
6 350W HEATER ELEMENT – BACK PANEL
31 300W HEATER ELEMENT – LEFT PANEL
31 300W HEATER ELEMENT – RIGHT PANEL
31 300W HEATER ELEMENT – BENCH HEATER
16 CONTROL PANEL
16 CONTROL PANEL with TEMPERATURE SENSOR
16 CONTROL PANEL FRAME
24 MAIN POWER CABLE
25 POWER SUPPLY BOX
25 HEATER CIRCUIT BOARD
25 20 AMP OVERCURRENT PROTECTOR
23 INTERIOR LIGHT BULB
18 EXTERIOR LIGHT BULB
23 LIGHT HOUSING
23 LIGHT SOCKET
13 COLOR THERAPY LIGHT
21 SPEAKER
1 GLASS DOOR
19 DOOR HINGE
--- BUCKLE
Please see drawing on next page to assist in identifying parts.
PART NUMBER
SAP2629
SAP2630
SAP2631
SAP2632
SAP2633
SAP2609
SAP2634
SAP2667
SAP2635
SAP2610
SAP3127
SAP2413
SAP2402
SAP2408
SAP2444
SAP2414
SAP2460
SAP2427
SAP2409
SAP2411
SAP2411
SAP2411
SAP2411
SAP2423
SAP2424
SAP2424
SAP2424
SAP2406
SAP2603
SAP2417
SAP2441
SAP2407
SAP2428
SAP2529
SAP2403
SAP2404
SAP2405
SAP2606
SAP2410
SAP2416
SAP2457
SAP2415
SAP2607
QTY
1
1
1
1
1
1
1
1
1
1
1
1 SET
1
1
2
1
1
1
1
6
4
6
24
2
1
1
1
1
1
1
1
1
1
1
2
2
4
4
1
2
1
2
12
SA2406
21
REPLACEMENT PARTS (CONT.)
22
SA2409 TWO-PERSON HEMLOCK SAUNA WITH CARBON HEATERS
DESCRIPTION
2 FRONT PANEL with GLASS DOOR
5 LEFT PANEL
7 RIGHT PANEL
3 BACK PANEL
8 ROOF
9 ROOF COVER
12 FLOOR
31 FLOOR HEATER
11 BENCH SEAT
10 BENCH HEATER PANEL
13 BACKREST
15 DOOR HANDLE
26 STEREO SHELF
14 AM/FM CD PLAYER with MP3 INPUT
27 CUP HOLDER
20 MAGAZINE RACK
30 DOUBLE TOWEL HOOK
6 COLOR THERAPY CONTROL PANEL
34 OXYGEN IONIZER
35 2” (50mm) SCREW
35 1-1/2” (40mm) SCREW
35 1-1/8” (30mm) SCREW
35 3/4” (20mm) SCREW
24 330W HEATER ELEMENT – BACK PANEL
24 330W HEATER ELEMENT – LEFT PANEL
24 330W HEATER ELEMENT – RIGHT PANEL
33 180W HEATER ELEMENT – FLOOR HEATER
32 225W HEATER ELEMENT – BENCH HEATER
16 CONTROL PANEL
16 CONTROL PANEL with TEMPERATURE SENSOR
16 CONTROL PANEL FRAME
17 MAIN POWER CABLE
25 POWER SUPPLY BOX
25 HEATER CIRCUIT BOARD
25 20 AMP OVERCURRENT PROTECTOR
23 INTERIOR LIGHT BULB
18 EXTERIOR LIGHT BULB
23 LIGHT HOUSING
23 LIGHT SOCKET
29 COLOR THERAPY LIGHT
21 SPEAKER
1 GLASS DOOR
19 DOOR HINGE
--- BUCKLE
Please see drawing on next page to assist in identifying parts.
PART NUMBER
SAP2636
SAP2637
SAP2638
SAP2639
SAP2640
SAP2611
SAP2641
SAP2642
SAP2454
SAP2643
SAP2412
SAP2413
SAP2402
SAP2408
SAP2444
SAP2414
SAP2460
SAP2427
SAP2409
SAP2411
SAP2411
SAP2411
SAP2411
SAP2418
SAP2418
SAP2418
SAP2419
SAP2421
SAP2406
SAP2603
SAP2417
SAP2441
SAP2407
SAP2428
SAP2529
SAP2403
SAP2404
SAP2405
SAP2606
SAP2410
SAP2416
SAP2457
SAP2415
SAP2607
QTY
1
1
1
1
1
1
1
1
1
1
2
1 SET
1
1
2
1
1
1
1
4
10
6
24
2
1
1
1
1
1
1
1
1
1
1
1
2
2
4
4
1
2
1
2
12
SA2409
23
REPLACEMENT PARTS (CONT.)
24
SA1309 TWO-PERSON CEDAR SAUNA WITH CARBON HEATERS
DESCRIPTION
2 FRONT PANEL with GLASS DOOR
5 LEFT PANEL
7 RIGHT PANEL
3 BACK PANEL
8 ROOF
9 ROOF COVER
12 FLOOR
31 FLOOR HEATER
11 BENCH SEAT
10 BENCH HEATER PANEL
13 BACKREST
15 DOOR HANDLE
26 STEREO SHELF
14 AM/FM CD PLAYER with MP3 INPUT
27 CUP HOLDER
20 MAGAZINE RACK
30 DOUBLE TOWEL HOOK
6 COLOR THERAPY CONTROL PANEL
34 OXYGEN IONIZER
35 2” (50mm) SCREW
35 1-1/2” (40mm) SCREW
35 1-1/8” (30mm) SCREW
35 3/4” (20mm) SCREW
24 330W HEATER ELEMENT – BACK PANEL
24 330W HEATER ELEMENT – LEFT PANEL
24 330W HEATER ELEMENT – RIGHT PANEL
33 180W HEATER ELEMENT – FLOOR HEATER
32 225W HEATER ELEMENT – BENCH HEATER
16 CONTROL PANEL
16 CONTROL PANEL with TEMPERATURE SENSOR
16 CONTROL PANEL FRAME
17 MAIN POWER CABLE
25 POWER SUPPLY BOX
25 HEATER CIRCUIT BOARD
25 20 AMP OVERCURRENT PROTECTOR
23 INTERIOR LIGHT BULB
18 EXTERIOR LIGHT BULB
23 LIGHT HOUSING
29 COLOR THERAPY LIGHT
21 SPEAKER
1 GLASS DOOR
19 DOOR HINGE
--- BUCKLE
Please see drawing on next page to assist in identifying parts.
PART NUMBER
SAP3000
SAP3001
SAP3002
SAP3003
SAP3004
SAP3005
SAP3006
SAP3007
SAP3008
SAP3009
SAP3010
SAP3011
SAP3012
SAP2408
SAP3013
SAP3014
SAP3015
SAP3016
SAP2409
SAP2411
SAP2411
SAP2411
SAP2411
SAP2418
SAP2418
SAP2418
SAP2419
SAP2421
SAP3017
SAP3018
SAP3019
SAP2441
SAP2407
SAP2428
SAP2529
SAP2403
SAP2404
SAP2405
SAP2410
SAP2416
SAP2457
SAP2415
SAP2607
QTY
1
1
1
1
1
1
1
1
1
1
2
1 SET
1
1
2
1
1
1
1
4
10
6
24
2
1
1
1
1
1
1
1
1
1
1
1
2
2
4
1
2
1
2
12
SA1309
25
SAUNA WARRANTY REGISTRATION CARD
1. This sauna has a 5-Year Warranty against defects in materials and workmanship. To receive the warranty,
the card must be lled out completely and returned. This 5-Year Warranty covers the sauna. The radio in your
sauna is covered by a limited 1-Year Warranty.
2. Please notify Blue Wave Products in advance of any sauna warranty claim prior to shipping the sauna back.
Contact our warranty claim department at warran[email protected].
3. If the warranty claim department determines that the item must be returned, it must be returned with a
receipt showing date of purchase, purchase price, and the dealer from which the sauna was purchased.
No warranty claim will be honored without a receipt.
4. The freight on the item when returned must be prepaid.
5. Warranty claims will only be resolved with the repair of the current product or shipment of a replacement
product. NO REFUNDS will be given.
6. Improper installation, misuse or damages resulting from acts of nature will render this warranty null and
void.
7. This warranty is in lieu of all other warranties expressed or implied and no responsibility is assumed for fu-
ture damage due to misuse. This sauna is intended for INDOOR USE ONLY – outdoor installation of the sauna
WILL VOID THE WARRANTY. We are not responsible for damage to the sauna due to improper installation or
misuse. Additional actions that will void the warranty are: Use of lacquer or paints, placing sauna on non-
approved surface, and outdoor applications.
Surface cracks are not considered defects in material or workmanship, as they are normal characteristics
of all wood.
To send in this warranty card: Fill out below, detach and mail to the following address:
BLUE WAVE PRODUCTS
1745 Wallace Ave. Suite B
St. Charles, IL 60174
SAUNA WARRANTY REGISTRATION FORM
Date Purchased: _____/_____/_____
Name: ____________________________________________________________________________________
Address: __________________________________________________________________________________
City/State/Zip: _____________________________________________________________________________
Phone: ( ) ____________________________________ Email: _____________________________________
Purchased from: ____________________________________________________________________________
Item Number: ____________________________________ Purchase Price: ______________________________
Serial Number: _____________________________________________________________________________
26
