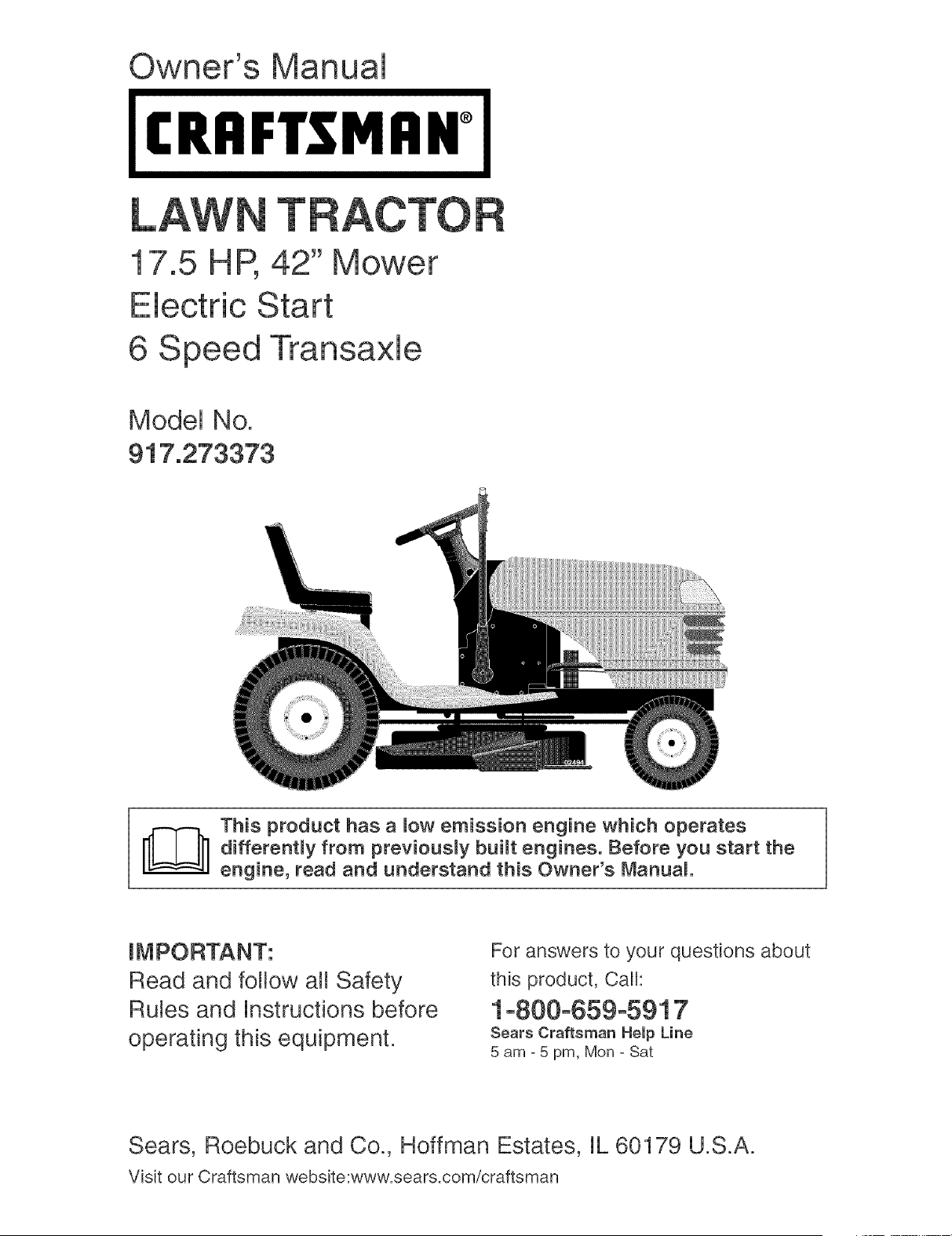

Craftsman 917273373 lawn tractor User Manual

Owner's Manual

CRI FTSMIIN°

17.5 HE 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.273373

[_ This product has a mowemission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow all Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1_800-659°5917

Sears Craftsman Help Line

5 am o5 pm, Men o Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

Warranty.................................................2

SafetyRules...........................................3

ProductSpecifications............................6

AssemblyiPre-Operation........................8

Operation..............................................11

MaintenanceSchedule.........................17

Maintenance.........................................17

Service andAdjustments......................21

Storage.................................................27

Troubleshooting....................................28

Repair Parts..........................................32

Sears Service.........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2)years from the date of purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned upaccordingto the instructionsin the owner'smanual,

Searswill repairor replacefree of chargeany partsthat arefoundto be defectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree labor for these applicablewarrantedpartsfor the two full years.During

the first 30 days of purchase,there will be nocharges to servicethe productat your

homefor issuescoveredby this warranty.(See exclusionsbelow). Foryour conve-

nience, IN HOMEwarrantyservicewill still be availableafterthe first 30 days of pur-

chase, buta trip charge will apply.This charge will be waived if the Craftsmanproduct is

droppedoff at an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.This warrantyapplies onlywhile this productis within

the UnitedStates.

This Warrantydoes notcover:

,_ Expendableitemswhich becomeworn duringnormal use, includingbut not limitedto

blades,spark plugs,air cleaners, belts, and oil filters.

StandardMaintenanceServicing,oil changes, or tune-ups

,, Tire replacementor repaircausedby puncturesfrom outsideobjects,such as nails,

thorns,stumps,or glass.

,, Repairs necessarybecauseof operatorabuse, includingbut not limitedto, damage

causedby towing objectsbeyondthe capabilityof the riding equipment,impacting

objectsthat bend the frameor crankshaft,or over-speedingthe engine.

,, Repairs necessarybecauseof operatornegligence,includingbut not limitedto, elec-

trical and mechanicaldamagecausedby improperstorage,failure to use the proper

gradeand amount of engine oil, failureto keepthe deckclear of flammabledebris,

or failure to maintainthe equipmentaccordingto the instructionscontainedin the

owner'smanual.

,, Engine (fuel system)cleaningor repairscausedby fuel determinedto becontami-

nated or oxidized(stale). In general,fuel should be used within30 days of its pur-

chase date.

,, Normal deteriorationand wear of the exteriorfinishes,or productlabel replacement.

,, Ridingequipmentusedfor commercialor rental purposes.

LIMITEDWARRANTYON BATTERY

For ninety(90) daysfrom date of purchase,if any battery includedwith this riding equip-

ment provesdefectivein materialor workmanshipand our testing determinesthe battery

will not hold a charge, Searswill replacethe batteryat no charge. Duringthe first 30

daysof purchase,there will be no chargesto replacethe batteryat your HOME. After

the first 30 days,foryour convenience,IN-HOMEwarrantyservicewill still be avail-

ablebut a trip charge will apply. Thischarge will be waived if the Craftsmanproduct is

droppedoff at an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.

This battery warrantyapplies onlywhile this productis within the United States.

This warrantygivesyou specificlegal rights,and you mayalso haveother rights,which

vary,from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

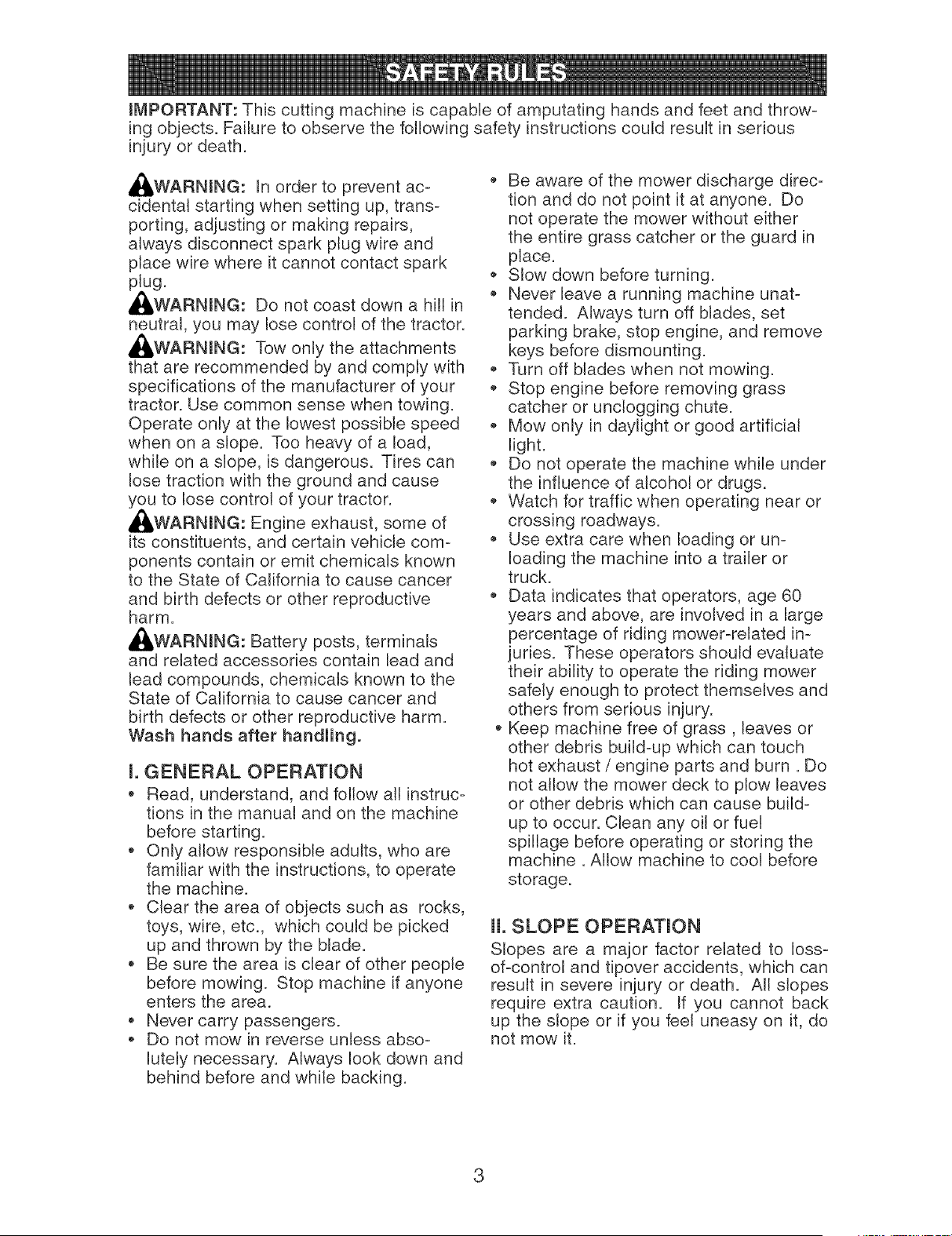

mMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNmNG: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

dHLWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with •

specifications of the manufacturer of your •

tractor. Use common sense when towing.

Operate only at the lowest possible speed •

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can •

lose traction with the ground and cause

you to lose control of your tractor.

_IWARNmNG: Engine exhaust, some of

its constituents, and certain vehicle com- •

portents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_IWARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling. *

L GENERAL OPERATmON

• Read, understand, and follow all instruc-

tions in the manuat and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower=related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

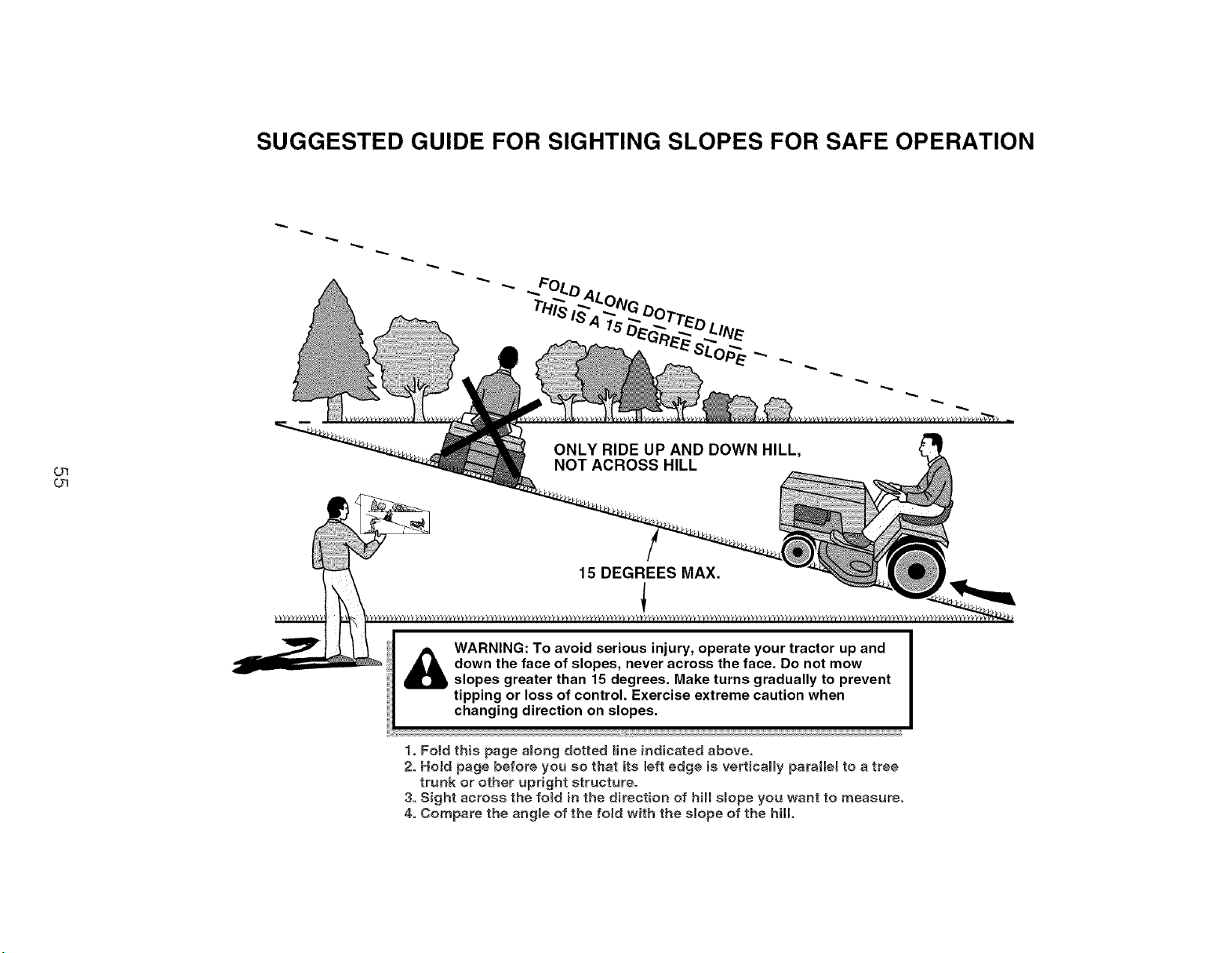

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

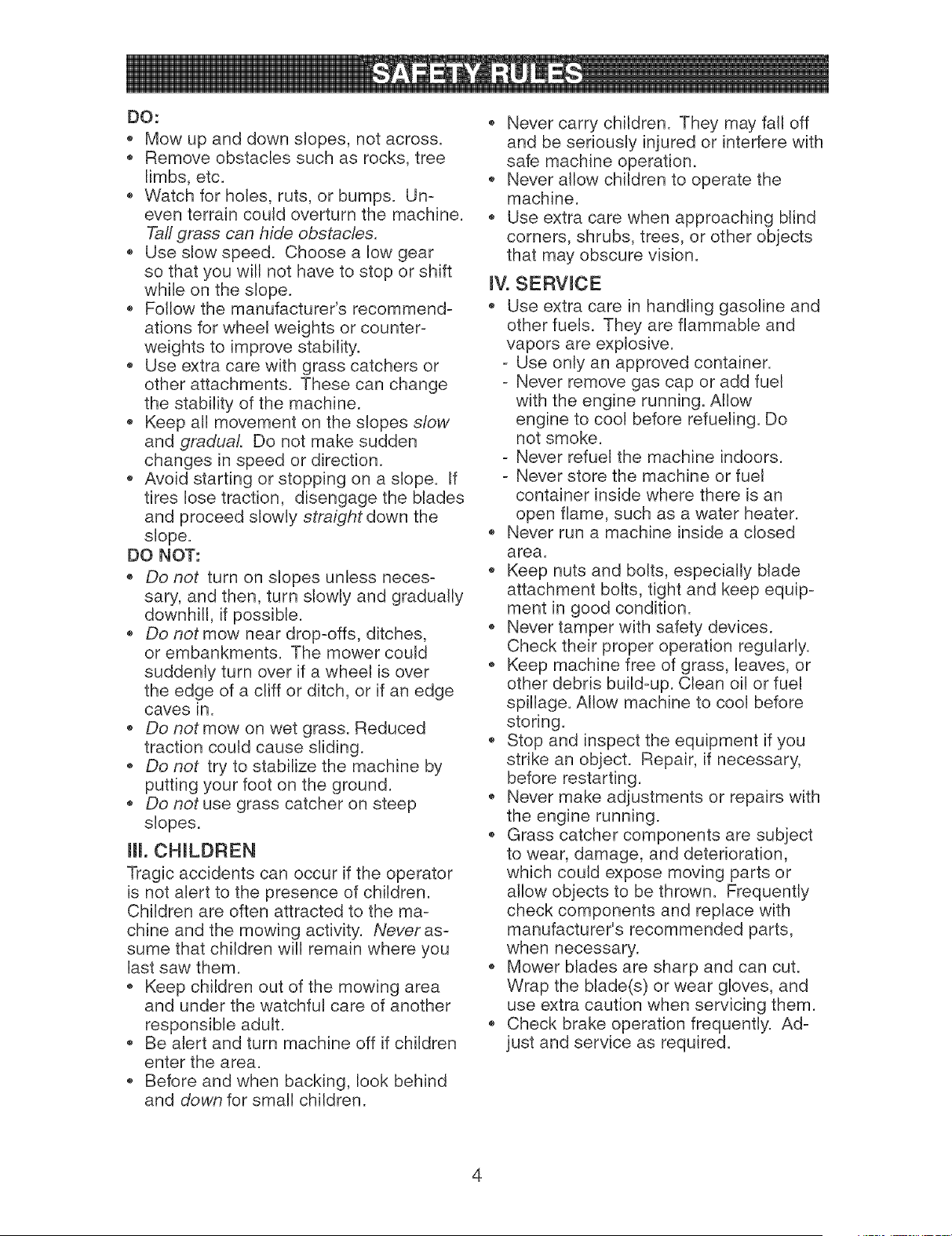

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

* Do not mow on wet grass. Reduced

traction could cause sliding.

* Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

* Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

* Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV, SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

* Never tamper with safety devices.

Check their proper operation regularly.

* Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

* Never make adjustments or repairs with

the engine running.

* Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

* Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

Never carry passengers or children

even with the blades off.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Keep children out of the mowing area

and under the watchful care of another

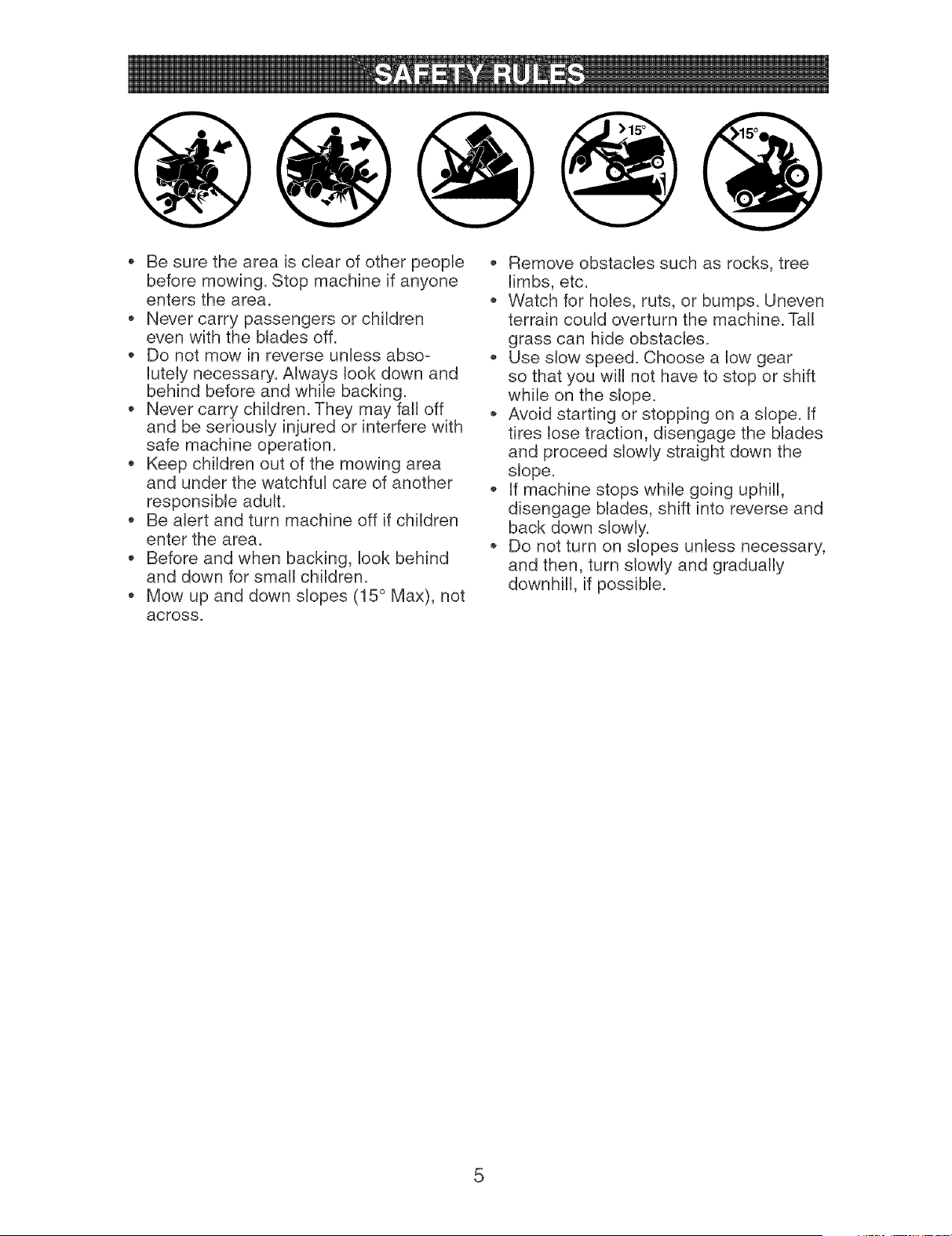

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Mow up and down slopes (15 ° Max), not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use stow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

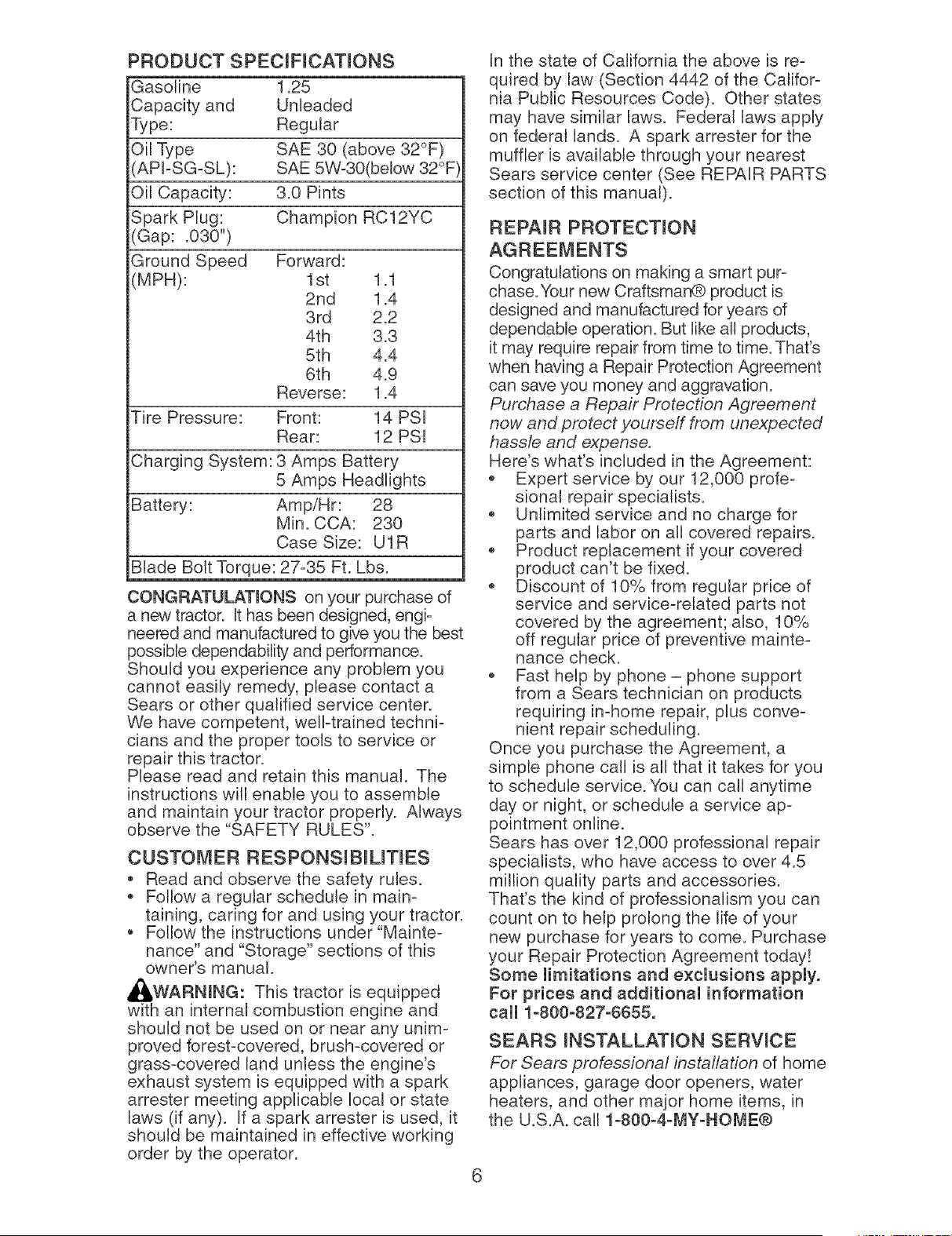

PRODUCT SPECIFICATmONS

Gasoline 1.25

Capacityand Unleaded

Type: Regular

OilType SAE 30 (above32°F)

IAPFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

1st 1.1

2nd 1.4

3rd 2.2

4th 3.3

5th 4.4

6th 4.9

Reverse: 1.4

Tire Pressure: Front: 14 PSI

Rear: 12 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATmONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBIUTmES

Read and observe the safety rules.

Follow a regular schedule in main-

taining, caring for and using your tractor.

* Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_jLWARNmNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAmR PROTECTmON

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman@ product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regutar price of preventive mainte-

nance check.

* Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800o827o6655.

SEARS mNSTALLATmON SERWCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call l oS00o4oMYoNOME®

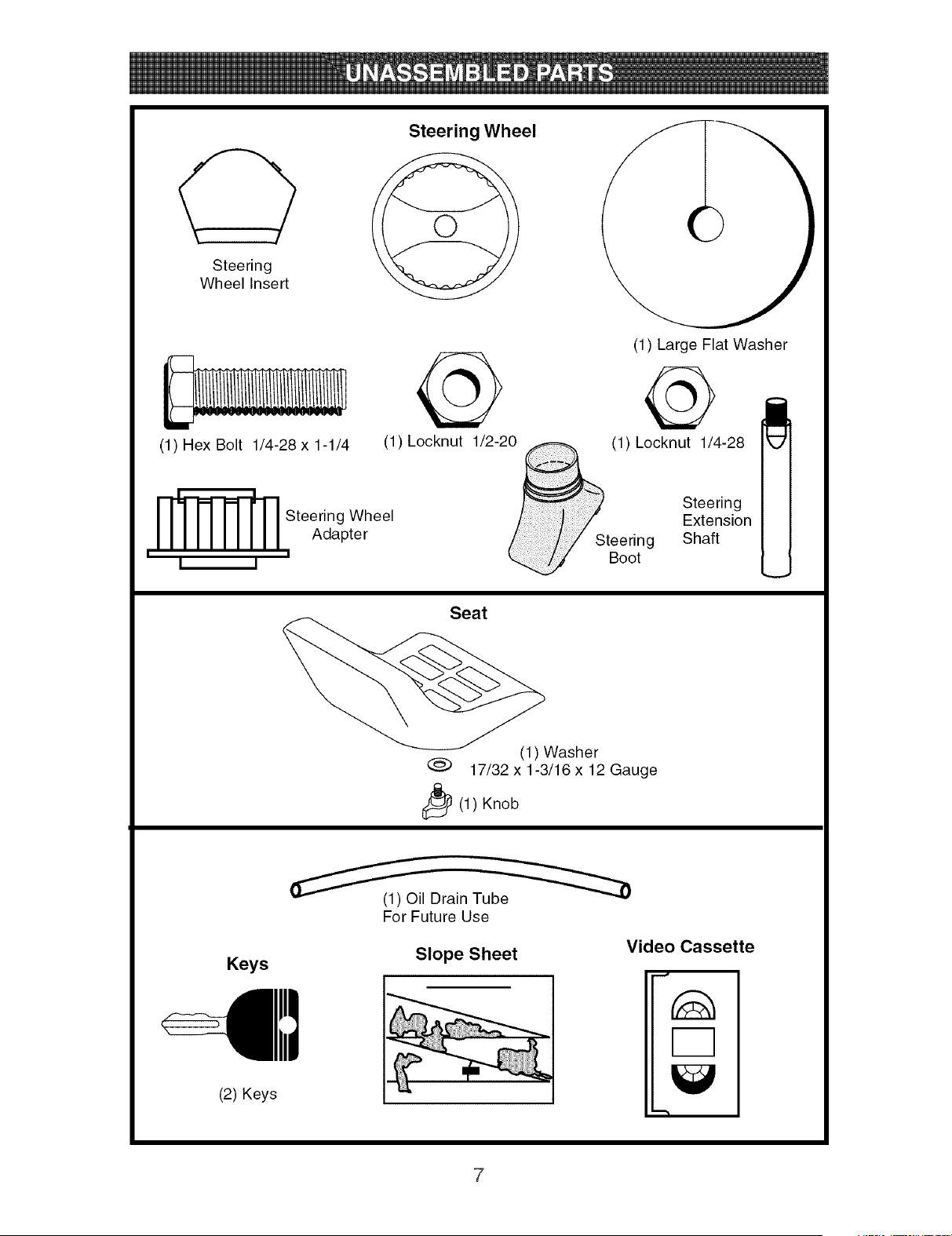

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

[__ Steering Wheel

Adapter

I I

(1) Locknut 1/2-20

Seat

(1) Large Flat Washer

(1) Locknut 1/4-28

Steering

Extension

Steering Shaft

Boot

(1) Washer

@ 17/32 x1-3/16 x12 Gauge

_(1 ) Knob

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet

Video Cassette

(2) Keys

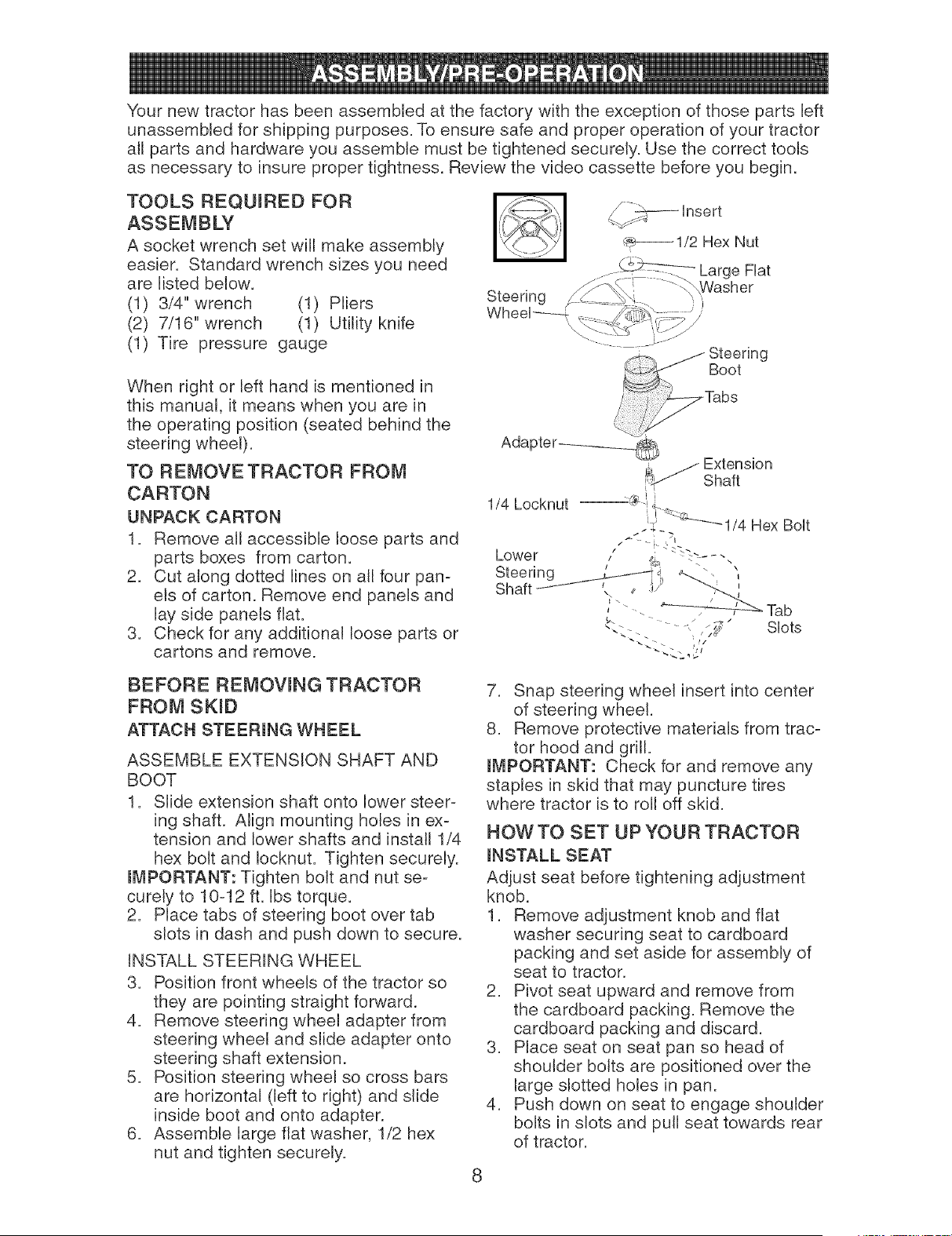

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUmRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

Steering

WheeU_

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels fiat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVmNG TRACTOR

FROM SKID

ATTACH STEERmNG WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting hobs in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

mMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

1/4 Locknut --'_¢- _,_

. __ -_-1/4 Hex BoUt

howe r

Tab

Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

mlV1PORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

mNSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and fiat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which atlows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Shoulder

Bolts

Fiat Washer

Adjustment Knob _

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat

Label

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKiD (See

Operation section for location and

function of controms)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

dutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKiD (See

Operation section for location and

function of controms)

_,WARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fii[ fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

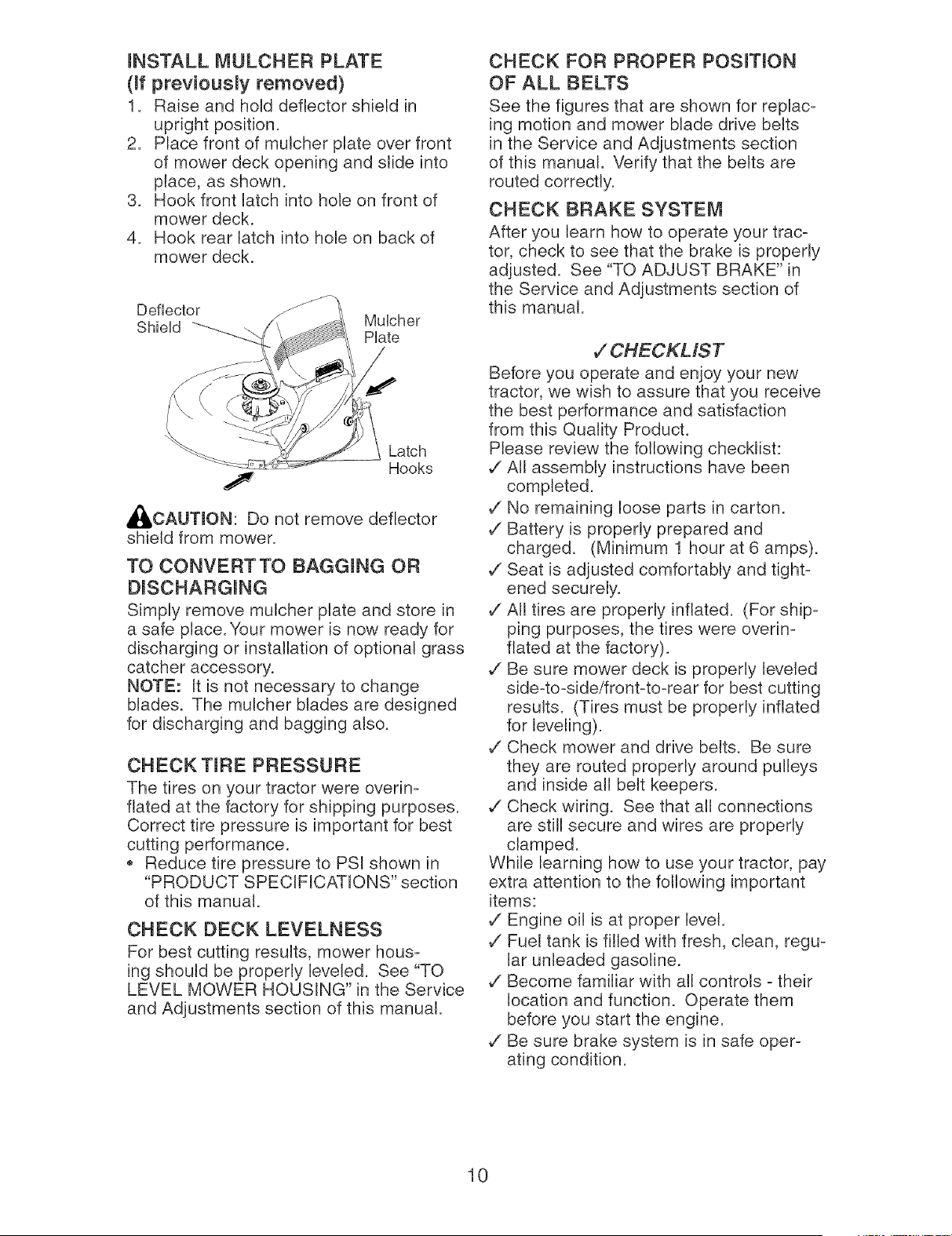

ruNS.TALLMULCHER PLATE

(If previousmy removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mubher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

_LCAUTION: Do not remove deflector

shield from mower.

TO CONVERT'TO BAGGmNG OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK.TmRE PRESSURE

The tires on your tractor were overin-

fiated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSm.TmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYS.TEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

V"CHECKMST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

fiated at the factory).

,/Be sure mower deck is properly leveled

side-to-sideifront-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, dean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

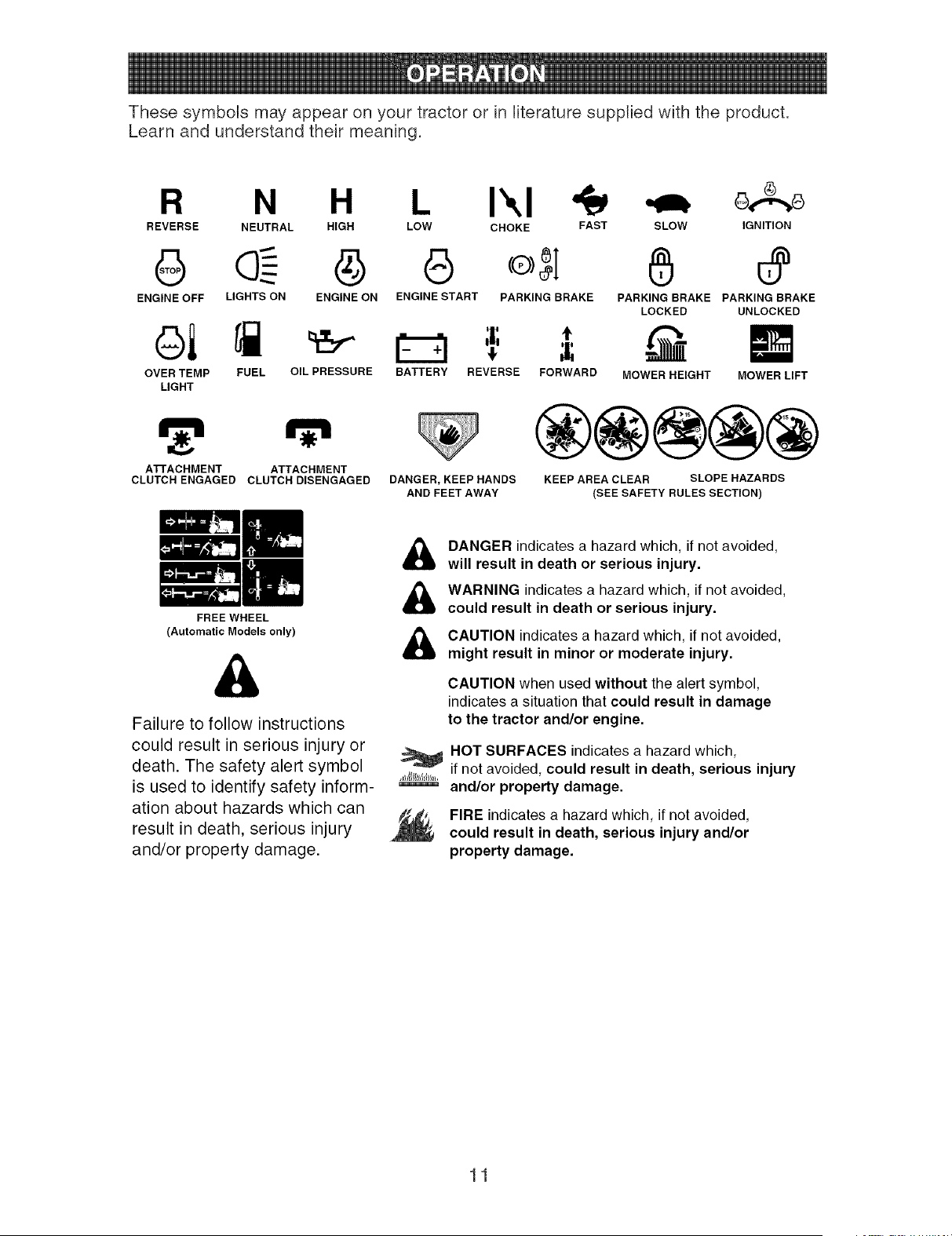

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I\1

REVERSE NEUTRAL HIGH LOW CHOKE FAST

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP

LIGHT

AI-rACHMENT

CLUTCH ENGAGED

BATTERY REVERSE FORWARDFUEL OIL PRESSURE

ATTACHMENT

CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

,_hlll/lll_llh_,

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

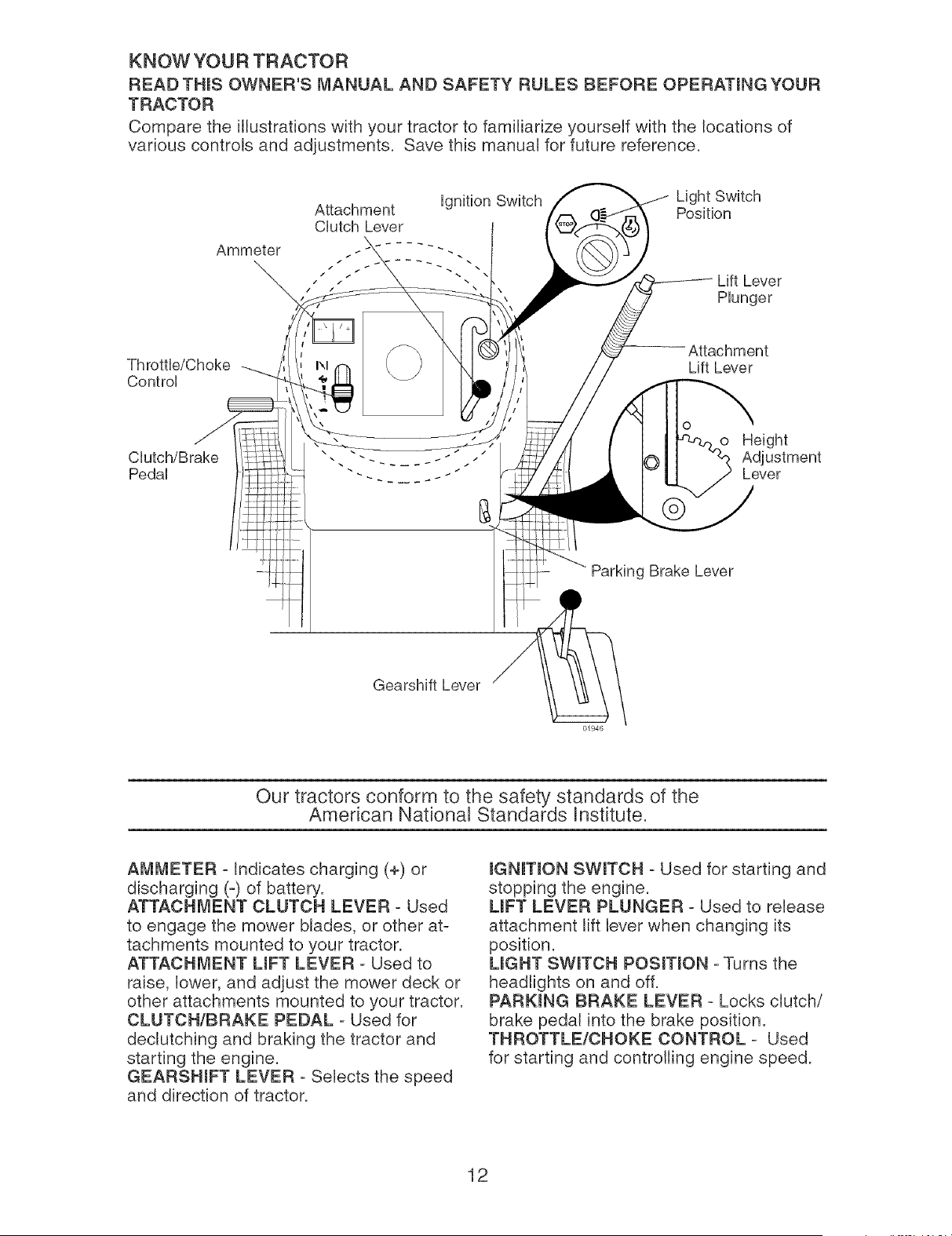

KNOW YOUR TRACTOR

READTHINSOWNER'SMANUAL AND SAFETYRULES BEFOREOPERATmNGYOUR

TRACTOR

Comparethe illustrationswith your tractorto familiarizeyourselfwith the locationsof

variouscontrols and adjustments. Savethis manualfor futurereference.

Attachment

Clutch Lever

Ugnition Switch Light Switch

Position

Ammeter

\\ "

, , " Lift Lever

PDnger

Th rottUe/Choke

ControU

-- Attachment

Lift Lever

o Height

Adjustment

Lever

Parking Brake Lever

Gearshift Lever

01946

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT UFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHmFT LEVER - Selects the speed

and direction of tractor.

mGNmON SWITCH - Used for starting and

stopping the engine.

LiFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

UGHT SWmTCH POSmON - Turns the

headlights on and off.

PARKmNG BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKmNG BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment CUutch Lever

"Eric Position

inition Key

/'Disengaged"

Position

Choke

ControU Parking Brake

"Engaged"

CUutch/ "...... Position

Brake

Pedal

Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPmNG

MOWER BLADES -

To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

To stop ground drive, depress clutch/

brake pedal all the way down.

Move gearshift lever to neutral (N)

position.

ENGINE -

Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

Never use choke to stop engine.

mMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_,CAUTmON: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

* Operating engine at less than full

throttle reduces the battery charging

rate.

Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

mMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTmNG HEmGHT

The position of the attachment lift lever

determines the cutting height.

,, Grasp lift lever.

* Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

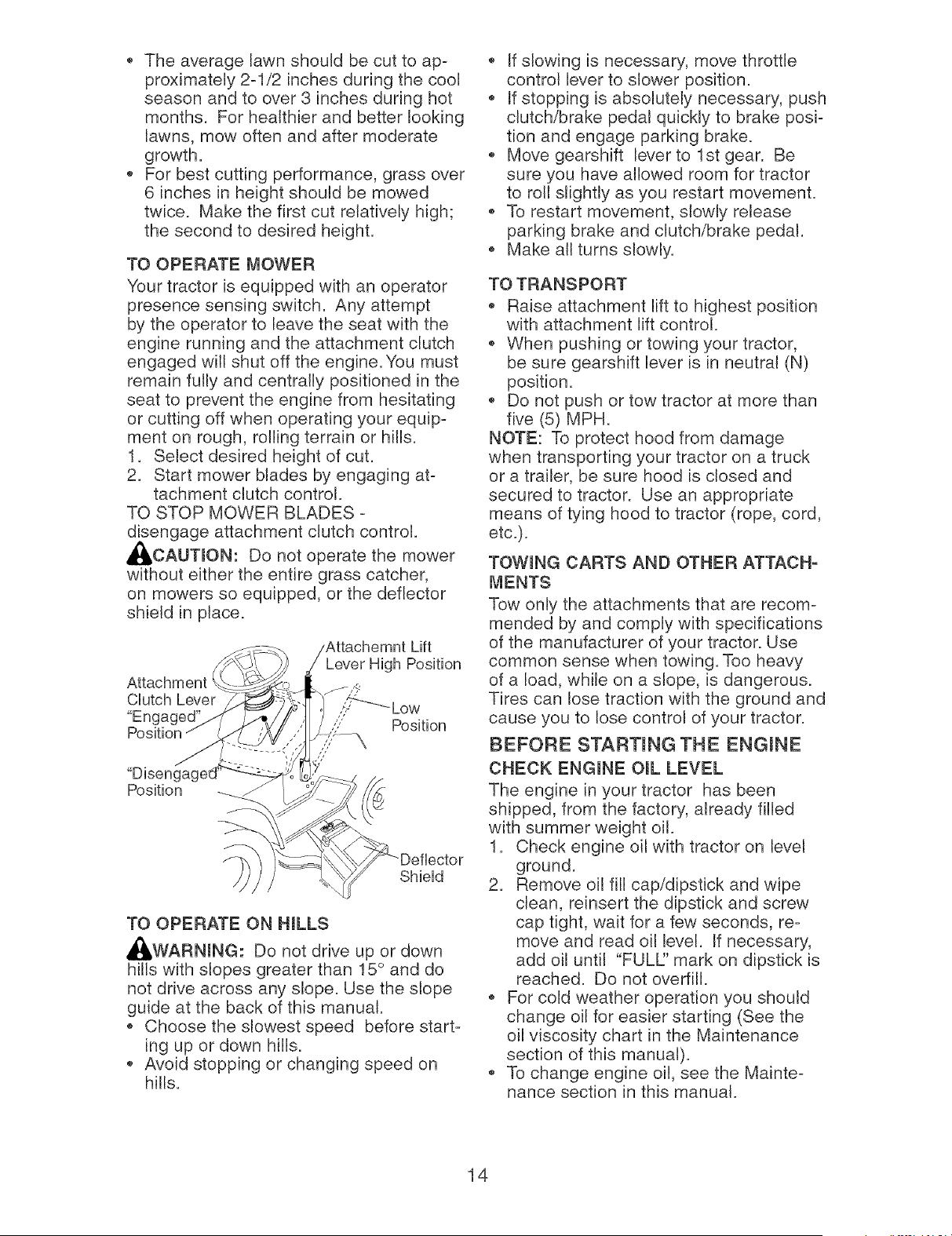

The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_IbCAUTmON: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

TO OPERATE ON HmLLS

_I, WARNmNG: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

Choose the slowest speed before start-

ing up or down hills.

Avoid stopping or changing speed on

hills.

If slowing is necessary, move throttle

control lever to slower position.

If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

To restart movement, slowly release

parking brake and clutch/brake pedal.

Make all turns slowly.

TO TRANSPORT

Raise attachment lift to highest position

with attachment lift control.

, When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWmNG CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGmNE

CHECK ENGmNE Oral LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULE' mark on dipstick is

reached. Do not overfill.

For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

To change engine oil, see the Mainte-

nance section in this manual.

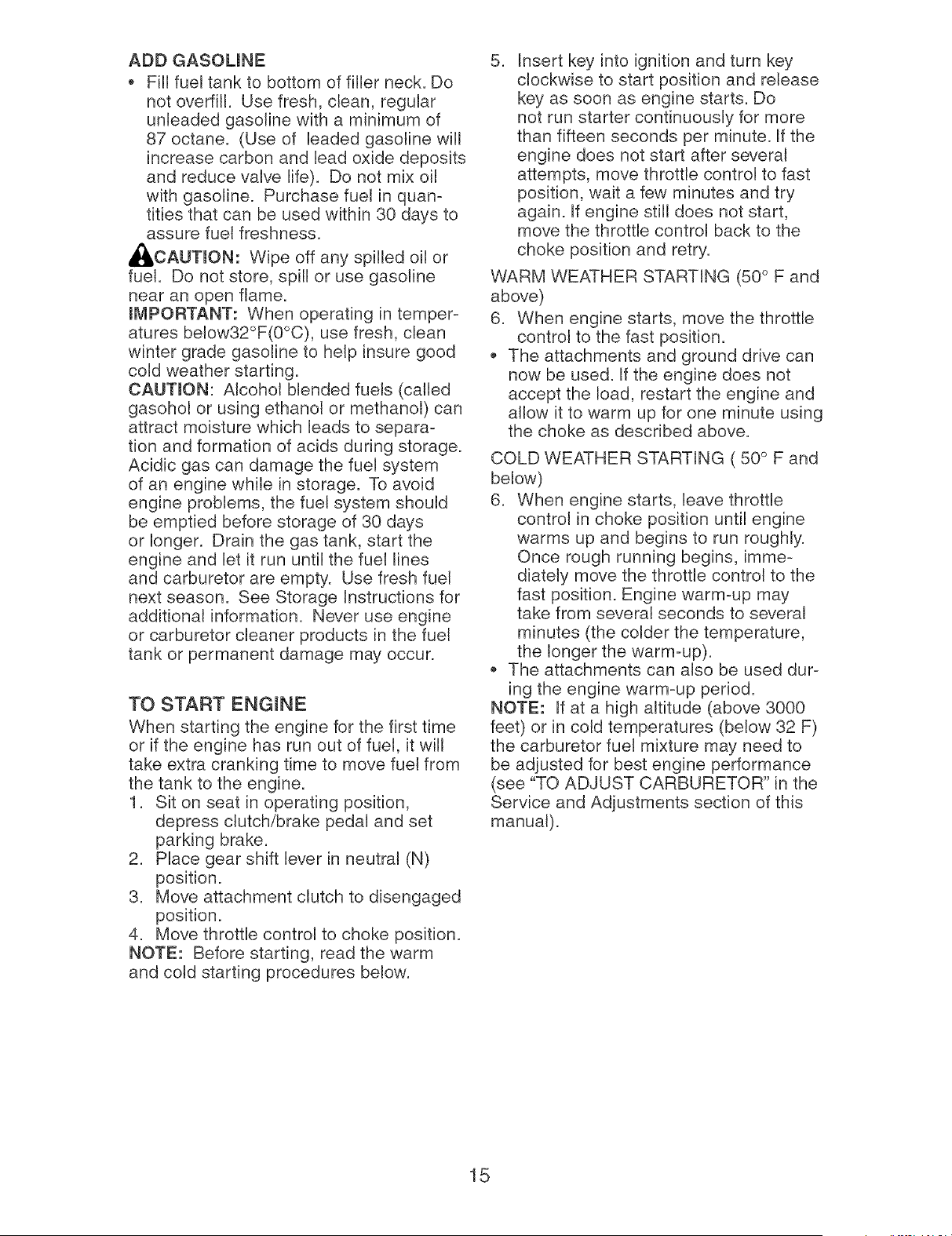

ADD GASOUNE

Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce vah!e life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_CAUTmON: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

mMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTmON: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedat and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

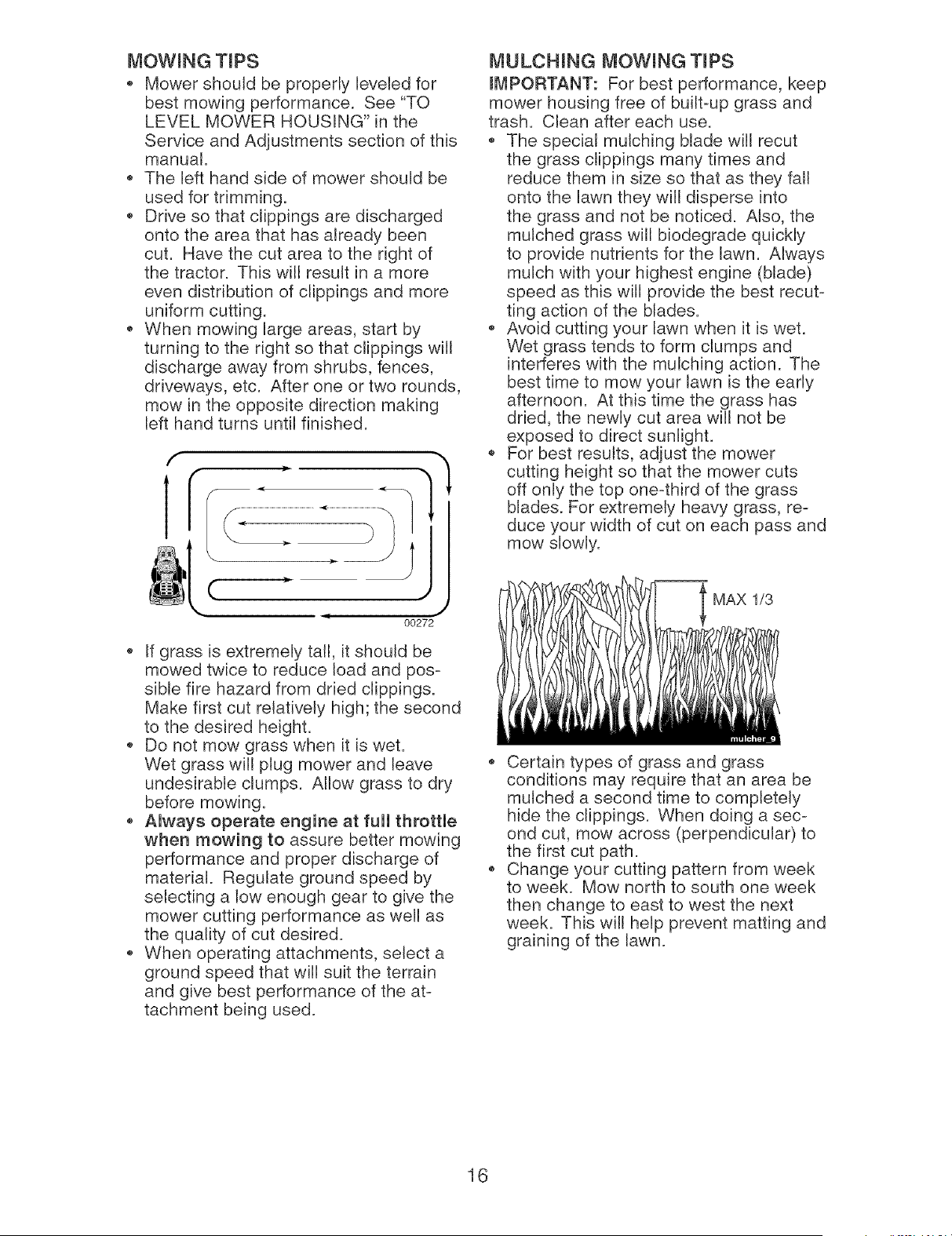

MOWING TIPS

Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

* When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

o For best results, adjust the mower

cutting height so that the mower cuts

off only the top one=third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

* Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

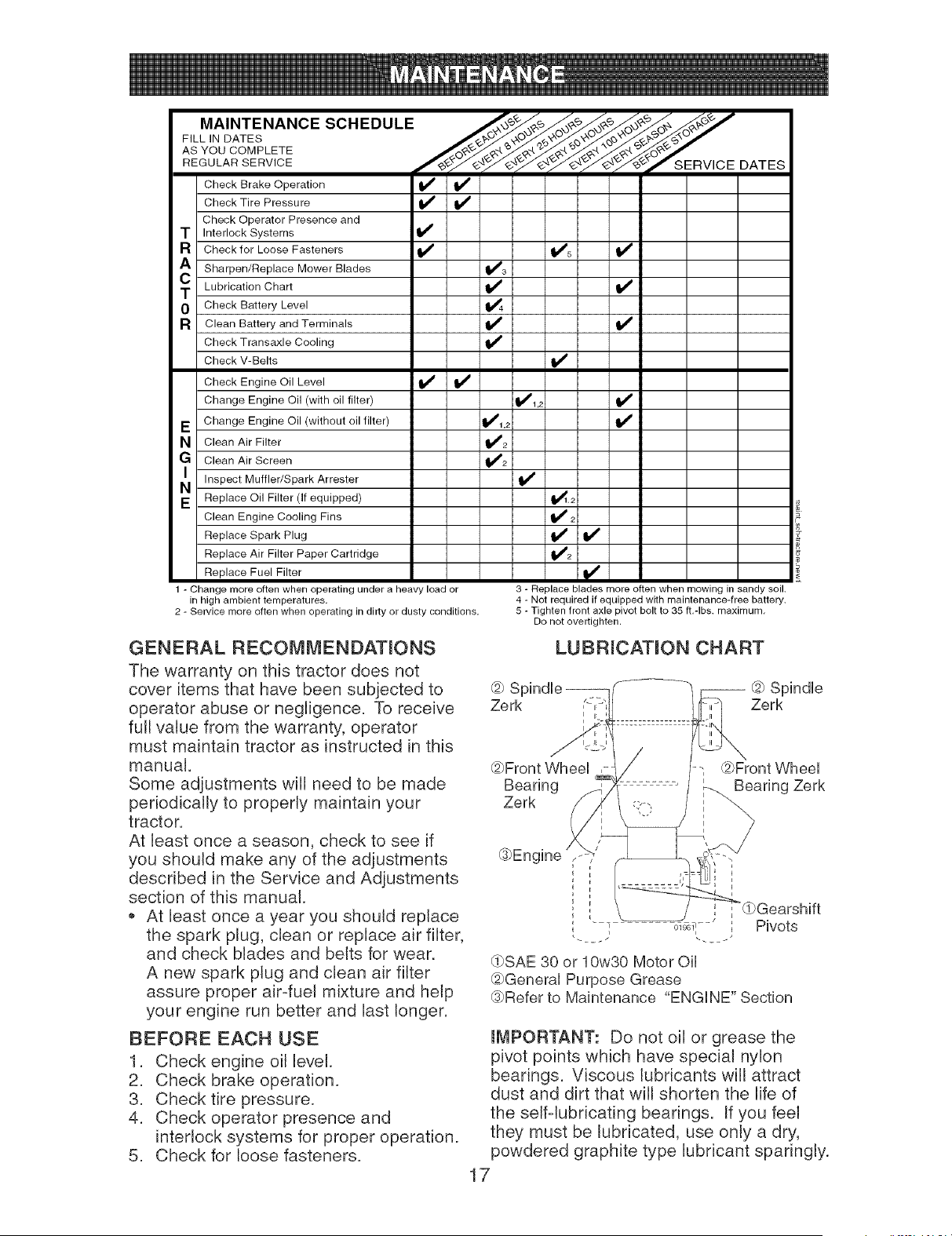

AS YOU COMPLETE

REGULAR SERVICE

/_J/_'_ E R VICED ATES

Check Brake Operation _1_ I_

Check Tire Pressure

Check Operator Presence and

T Interlock Systems If

R Check for Loose Fasteners If I_s If

A Sharpen/Replace Mower Blades 1_3

C Lubrication Chart If If

0 Check Battery Level 1_4

a Clean Battery and Terminals I_ If

Check Transaxle Cooling i/

Check V-Belts I_

Check Engine Oil Level I_ I_

Change Engine Oil (with oil filter) 1_1,2 If

E Change Engine Oil (without oil filter) 111_1,2

N Clean Air Filter 1_2

G Clean Air Screen 1_2

I Inspect Muffler/Spark

Arrester

I,"

E Replace Oil Filter (If equipped) _1,2

Clean Engine Cooling Fins I1_ 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter I_

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions,

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft,-Ibs, maximum,

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

@ S_

Zerk

LUBRICATION CHART

-- @ SpindUe

Zerk

@Front WheeU ,

Bearing

Zerk

@Front WheeU

Bearing Zerk

@Engine /

(0SAE 30 or 10w30 Motor OH

@GeneraU Purpose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant sparingly.

TRACTOR

Alwaysobservesafety rubs when per-

forming any maintenance.

BRAKE OPERATmON

If tractor requiresmore than six (6)feet

stopping distanceat highspeedin highest

gear,then brakemust be adjusted.(See

"TOADJUSTBRAKE"in the Serviceand

Adjustmentssection of this manual).

TmRES

, Maintain properair pressurein all tires

(See "PRODUCTSPECIFICATIONS"

sectionof this manual).

* Keeptires free of gasoline,oil, or insect

controlchemicalswhichcan harm rub-

ber.

* Avoidstumps,stones,deep ruts,sharp

objectsand other hazardsthat may

causetire damage.

NOTE:Toseal tire puncturesand prevent

flat tires due to slow leaks,tire sealant

maybe purchasedfrom your local parts

dealer.Tire sealant also preventstire dry

rot and corrosion.

OPERATORPRESENCESYSTEM

Besure operatorpresenceand interlock

systems are working properly. If your trac-

tor does not functionas described,repair

the problemimmediately.

Theengine should not start unlessthe

clutch/brakepedal is fully depressed

and attachementclutch control is in the

disengagedposition.

When the engine is running,any at-

tempt bythe operatorto leavethe seat

withoutfirst setting the parkingbrake

should shut off the engine.

When the engine is runningand the

attachmentclutch is engaged,any at-

tempt bythe operatorto leavethe seat

should shut off the engine.

The attachmentclutch should neverop-

erate unlessthe operator is in the seat.

BLADE CARE

For best resultsmowerblades must be

keptsharp. Replacebent or damaged

blades.

BLADE REMOVAL

1. Raisemowerto highestpositionto al-

low accessto blades.

2. Removeblade bolt, lockwasherand

flat washersecuring blade.

3. Install newor resharpenedblade

with trailing edge up towardsdeck as

shown.

mlVlPORTANT:Toensure proper assembly,

center hole in blade mustalign with star

on mandrelassembly.

4. Reassemblebladebolt, lockwasher

and flat washer in exact orderas

shown.

5. Tighten bladebolt securely (27-35 Ft.

Lbs.torque).

mMPORTANT:Bladebolt is heat treated.

If bolt needsreplacing,replace onlywith

approvebolt shown in the Repair Parts.

Mandrel Ass

Trailing

Edge Up Center

Hob

Lock Washer

Blade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

batancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt Blade

Center Hob

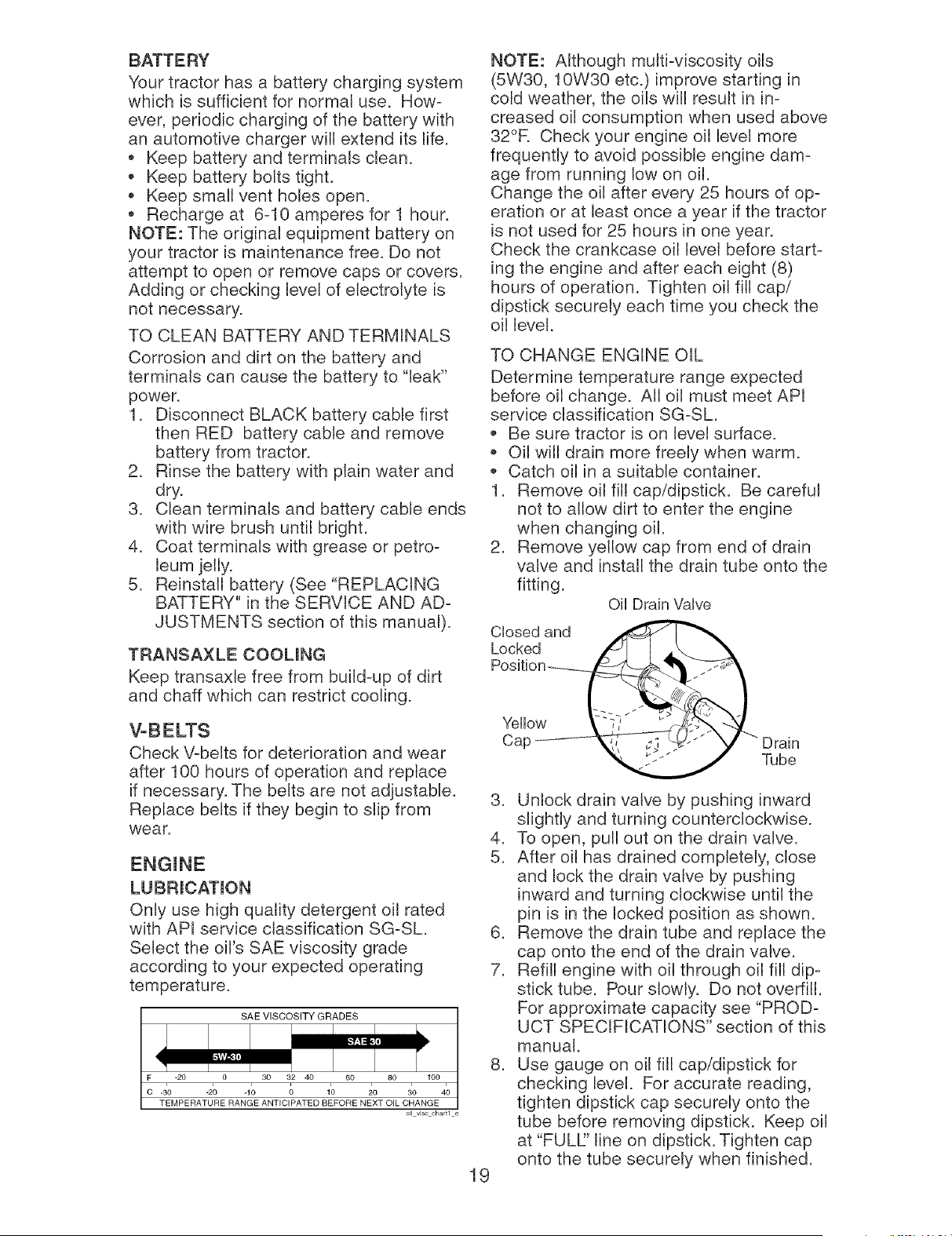

BATT E RY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2. Rinse the battery with plain water and

dry.

3. Clean terminals and battery cable ends

with wire brush until bright.

4. Coat terminals with grease or petro-

leum jelly.

5. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOUNG

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, the oils will resuJt in in-

creased oil consumption when used above

32°R Check your engine oil level more

frequently to avoid possible engine dam-

age from running low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year if the tractor

is not used for 25 hours in one year.

Check the crankcase oil leveJ before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oiJ level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

Be sure tractor is on level surface.

Oil will drain more freely when warm.

Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

LUBRiCATiON

Only use high quality detergent oil rated

with API service classification SG-SL.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES 4o' 1

o_1vi_cchartl e

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL:' line on dipstick. Tighten cap

onto the tube securely when finished.

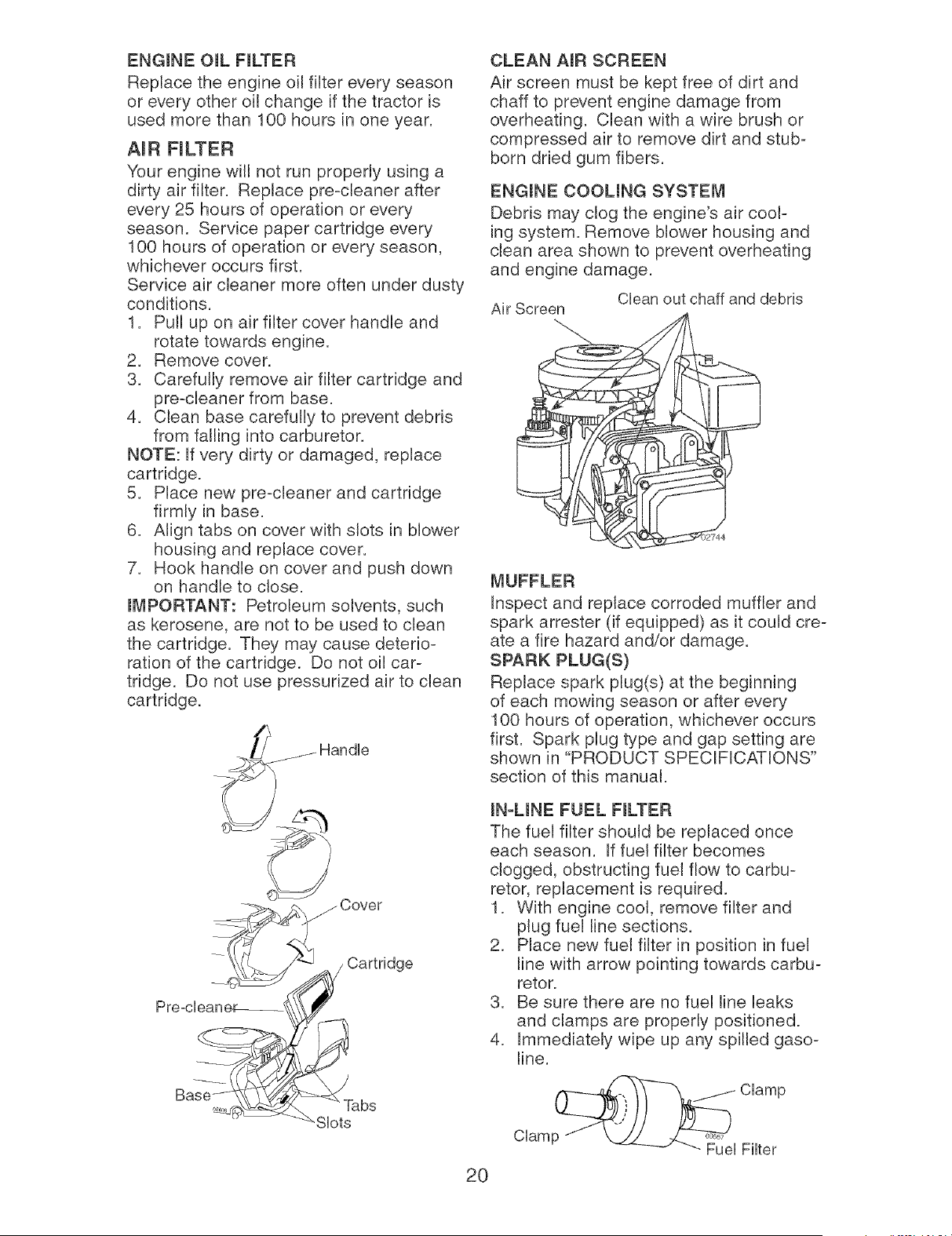

ENGmNEOIL FmLTER

Replacethe engine oil filter every season

or every other oil change if the tractor is

used morethan 100 hoursin one year.

AIR RLTER

Yourengine will not run properlyusing a

dirty air filter. Replacepre-cleanerafter

every 25 hours of operationor every

season. Service papercartridgeevery

100 hours of operationor everyseason,

whicheveroccursfirst.

Serviceair cleaner more often underdusty

conditions.

1. Pull up on air filter cover handleand

rotatetowardsengine.

2. Removecover.

3. Carefullyremoveair filter cartridgeand

pre-cleanerfrom base.

4. Clean basecarefullyto preventdebris

from falling into carburetor.

NOTE:If very dirty or damaged, replace

cartridge.

5. Place new pre-cleanerand cartridge

firmly in base.

6. Align tabs on coverwith slots in blower

housingand replacecover.

7. Hook handleon cover and pushdown

on handleto close.

mMPORTANT:Petroleumsolvents,such

as kerosene,are notto be usedto clean

the cartridge. They maycause deterio-

rationof the cartridge. Do not oil car-

tridge. Do not use pressurizedair to clean

cartridge.

CLEAN AmRSCREEN

Air screen mustbe keptfree of dirt and

chaffto preventenginedamagefrom

overheating. Cleanwith a wire brushor

compressedair to removedirt and stub-

born dried gum fibers.

ENGmNECOOUNG SYSTEM

Debris mayclog the engine's air cool-

ing system.Removeblower housingand

cleanarea shownto preventoverheating

and enginedamage.

Air Screen

Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

Cartridge

Tabs

-Slots

mN-UNE FUEL FmLTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

_ Clamp

Clamp J _..Sz j J_.__

"-- Fuel Filter

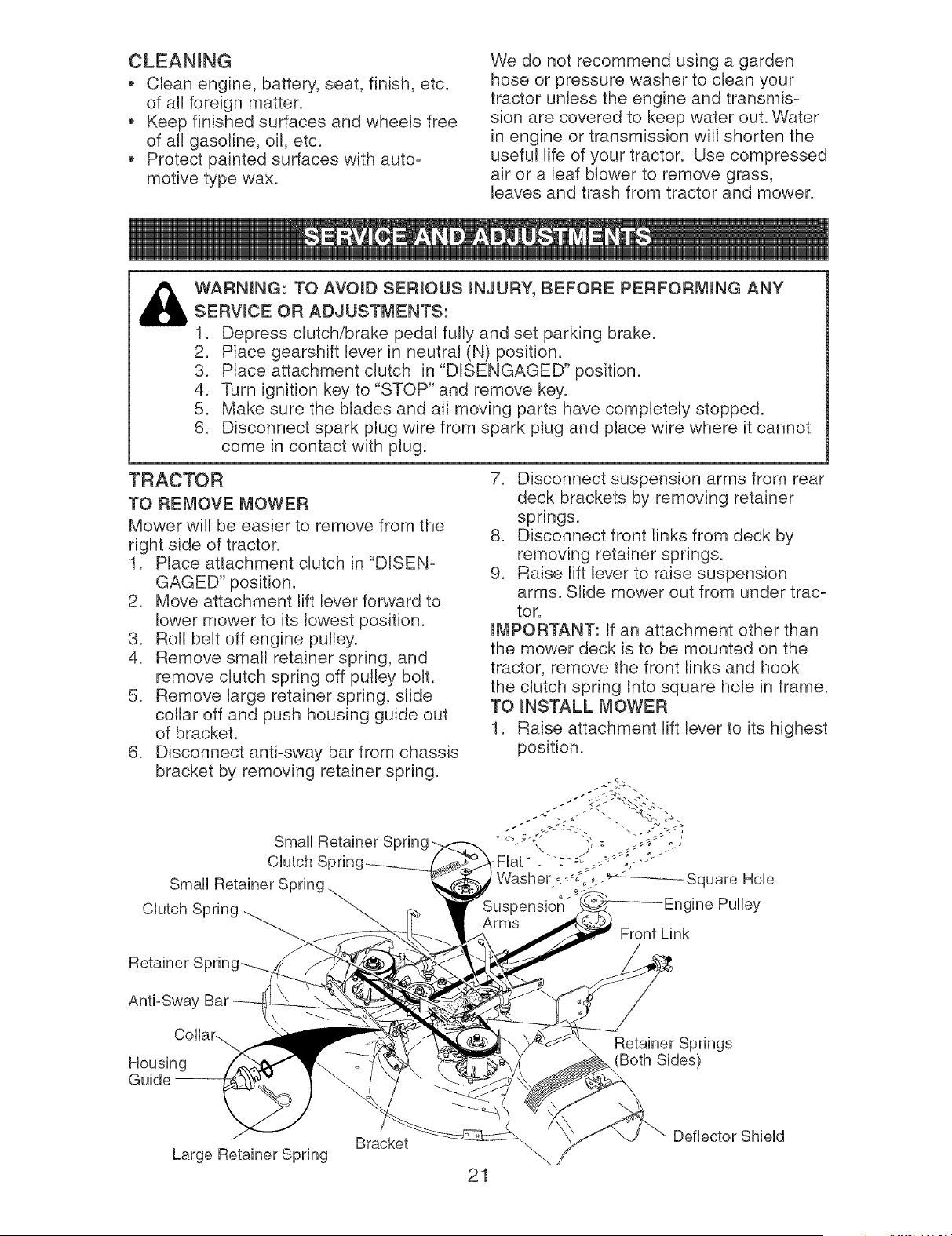

Clean engine, battery, seat, finish, etc.

of all foreign matter.

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

WARNmNG: TO AVOmD SERmOUS mNJURY, BEFORE PERFORMmNG ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

Small Retainer Spring-

Small Retainer S

Clutch Spring

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

mMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO iNSTALL MOWER

1. Raise attachment lift lever to its highest

position.

Front Link

Retainer S

Anti-Sway

Housing

Guide --

Large Retainer Spring

Bracket

\ Retainer Springs

Sides)

Deflector Shield

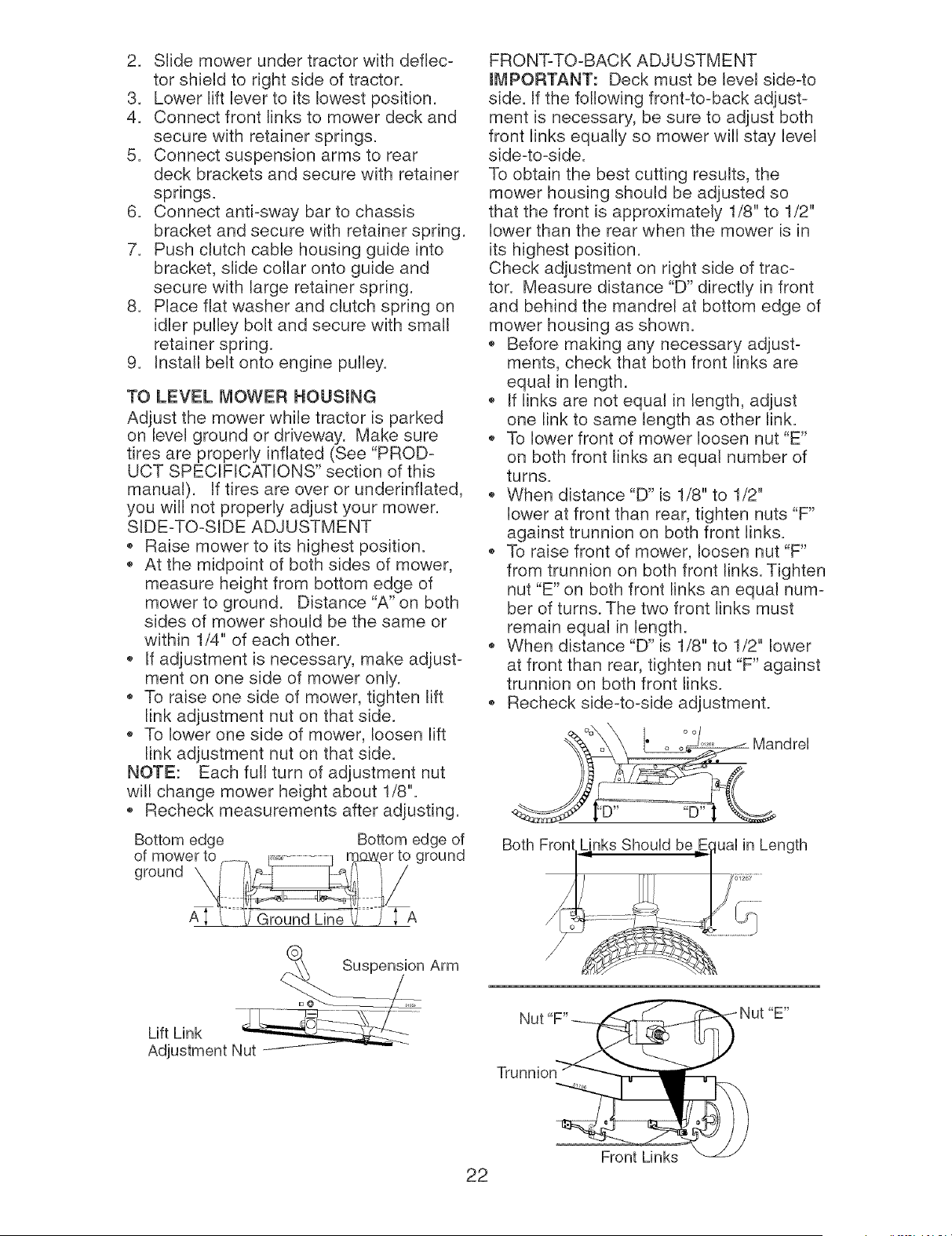

2. Slide mowerundertractor with deflec-

tor shield to right side of tractor.

3. Lowerlift leverto its lowestposition.

4. Connectfront linksto mowerdeck and

secure with retainersprings.

5. Connectsuspensionarms to rear

deck bracketsand secure with retainer

springs.

6. Connectanti-swaybar to chassis

bracketandsecure with retainerspring.

7. Push clutch cablehousingguide into

bracket,slidecollar onto guide and

secure with large retainerspring.

8. Placeflat washerandclutch spring on

idler pulleybolt and securewith small

retainerspring.

9. Install belt onto engine pulley.

TO LEVEL MOWERHOUSmNG

Adjust the mowerwhile tractoris parked

on levelground or driveway.Make sure

tires are properly inflated(See"PROD-

UCTSPECIFICATIONS"section of this

manual). If tires are overor underinflated,

you will not properlyadjust your mower.

SIDE-TO-SIDEADJUSTMENT

Raisemowerto its highestposition.

At the midpointof bothsides of mower,

measureheightfrom bottomedge of

mowerto ground. Distance"A" on both

sides of mowershould be the same or

within 1/4" of each other.

Ifadjustmentis necessary,makeadjust-

menton one side of moweronly.

Toraise one side of mower,tighten lift

link adjustmentnut on that side.

Tolowerone side of mower,loosen lift

link adjustmentnut on that side.

NOTE: Eachfull turn of adjustmentnut

will change mowerheight about 1/8".

Recheckmeasurementsafter adjusting.

Bottom edge Bottom edge of

ion Arm

Lift Link N_

Adjustment

FRONT-TO-BACK ADJUSTMENT

mMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side4o-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

Before making any necessary adjust-

ments, check that both front links are

equal in length.

If links are not equal in length, adjust

one link to same length as other link.

To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

Recheck side-to-side adjustment.

Both Front, _nks Should beE_lual in Length

_B _

Trunnion

Front Links

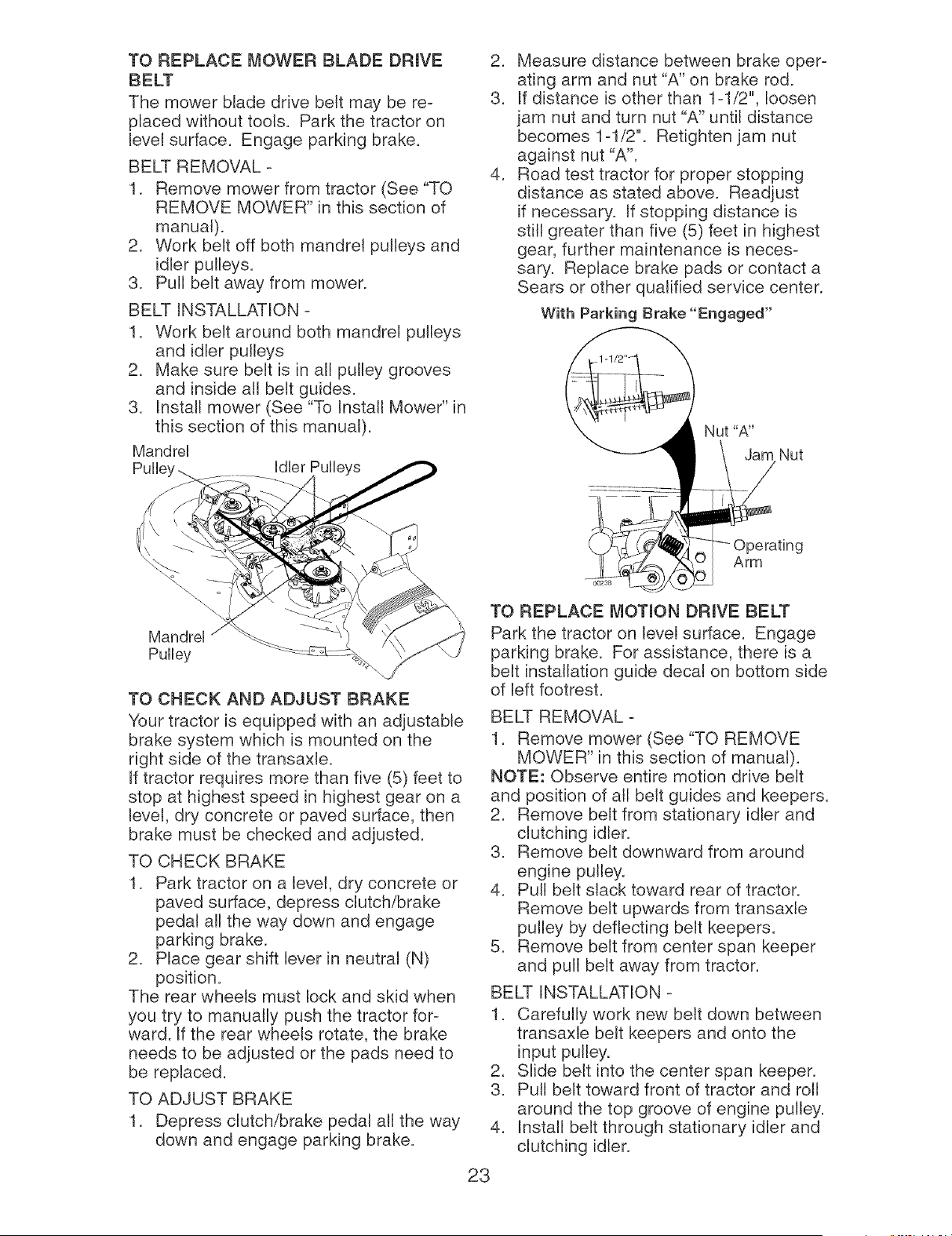

TO REPLACE I_OWER BLADE DRmVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With Parking Brake "Engaged"

Nut "A"

Jam Nut

MandreU

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

Arm

00238

TO REPLACE MOTmON DRmVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

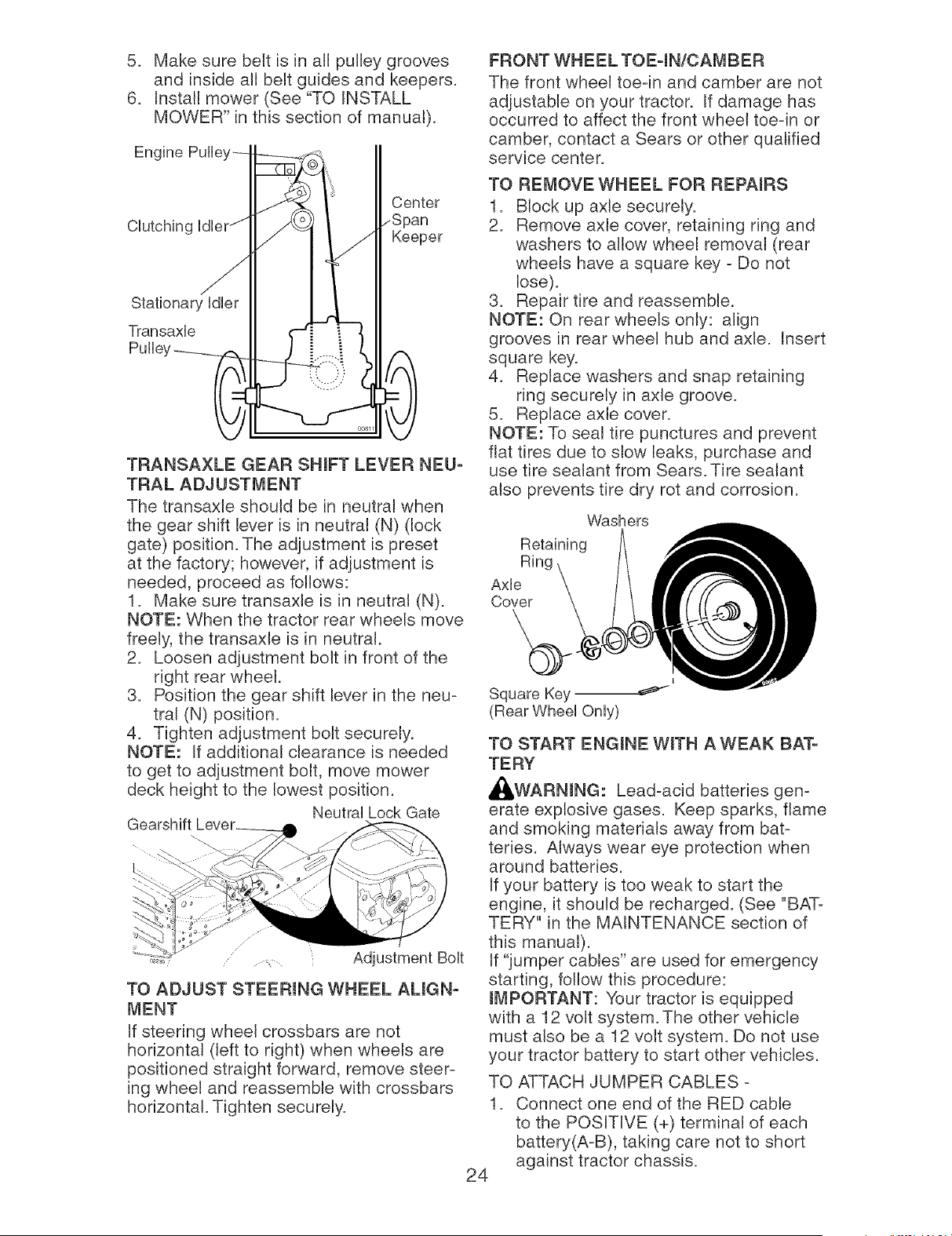

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulley--

Center

Keeper

Stationary UdUer

TransaxUe

PuUUey

TRANSAXLE GEAR SHmFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

NeutraU Lock Gate

Gearshift

..... Adjustment BoUt

TO ADJUST STEERmNG WHEEL ALmGN-

I_IENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE4N/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAmRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Ring

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WiTH A WEAK BAT-

TERY

,_WARNmNG: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

mMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

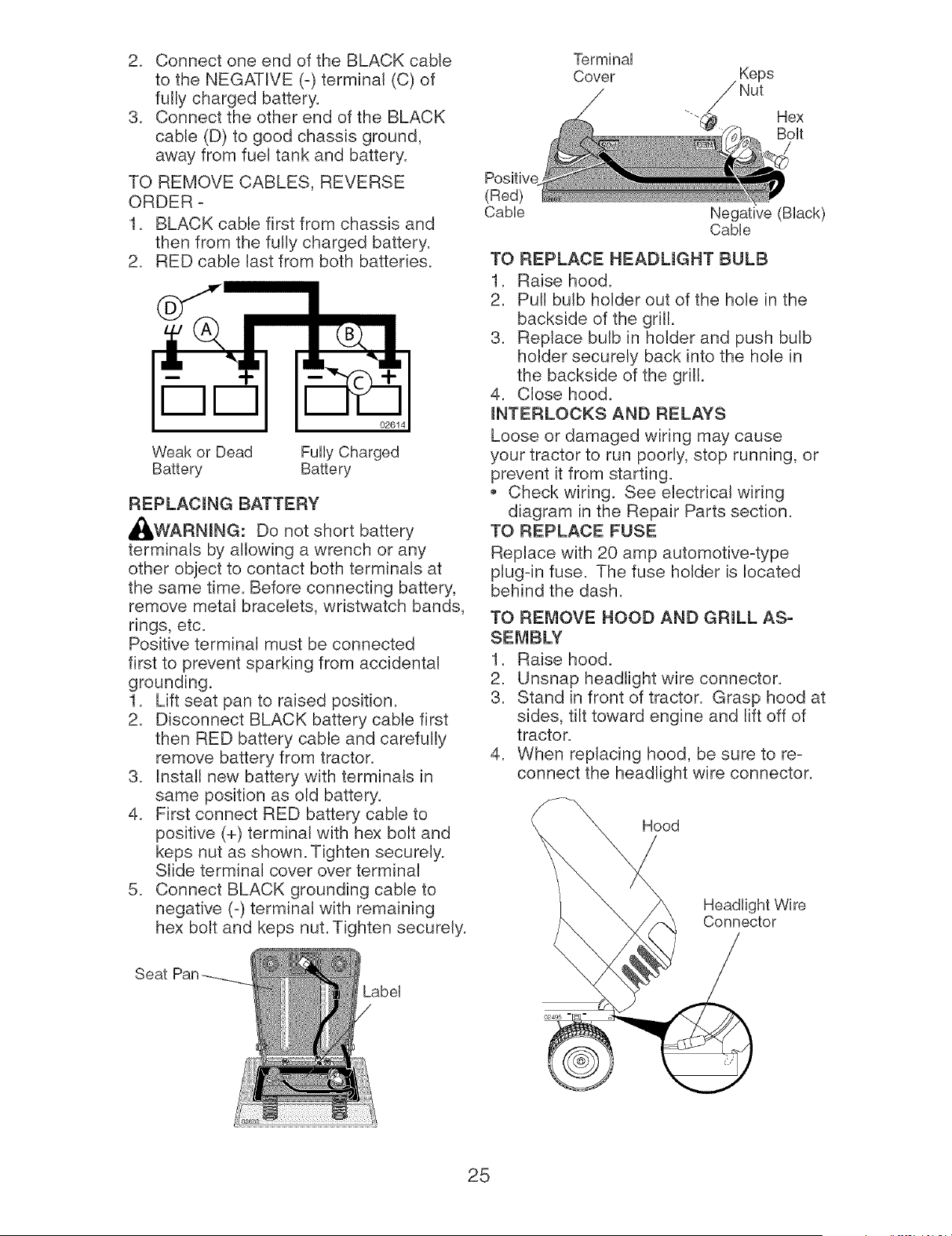

2. Connectone end of the BLACKcable

to the NEGATIVE(-) terminal (C)of

fully charged battery.

3. Connectthe other end of the BLACK

cable(D) to goodchassisground,

awayfrom fuel tank and battery.

TO REMOVECABLES,REVERSE

ORDER-

1. BLACKcablefirst from chassis and

then from the fully charged battery.

2. RED cablelast from both batteries.

02614

Weak or Dead Fully Charged

Battery Battery

REPLACmNG BATTERY

_kWARNmNG: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

Positive

(Red)

CaMe

Terminal

Cover

Keps

Nut

"-_. Hex

Bolt

Negative (Black)

Cable

TO REPLACE HEADUGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

mNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

,, Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRmLL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

Label

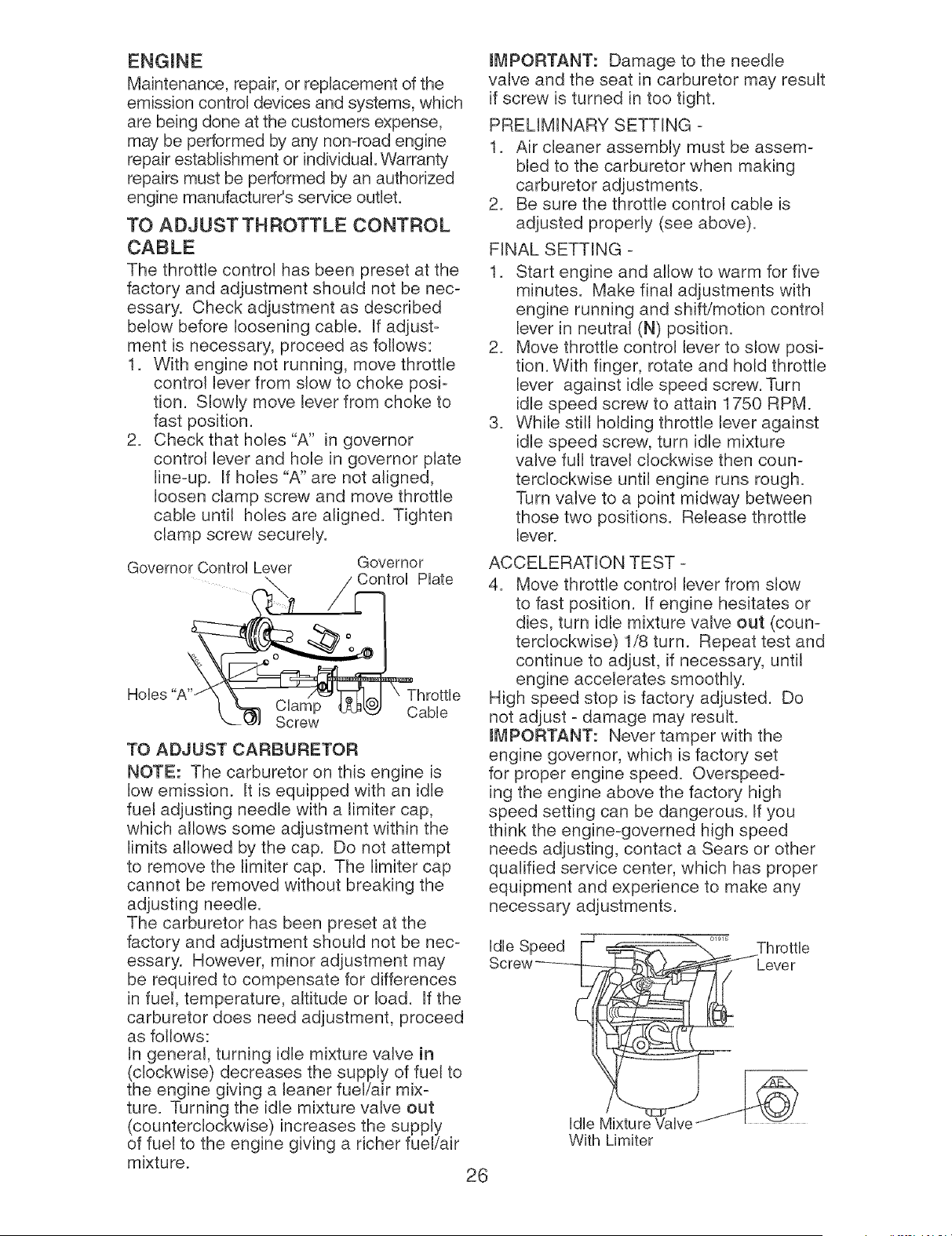

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. W]arranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

mMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

Governor ControU Lever Governor

PUate

(

HoUes ThrottUe

CUamp CaMe

Screw

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limker cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

mMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed F _==_-------._"_:" _ .... Throttle

sc ow-

With Limiter

mixture.

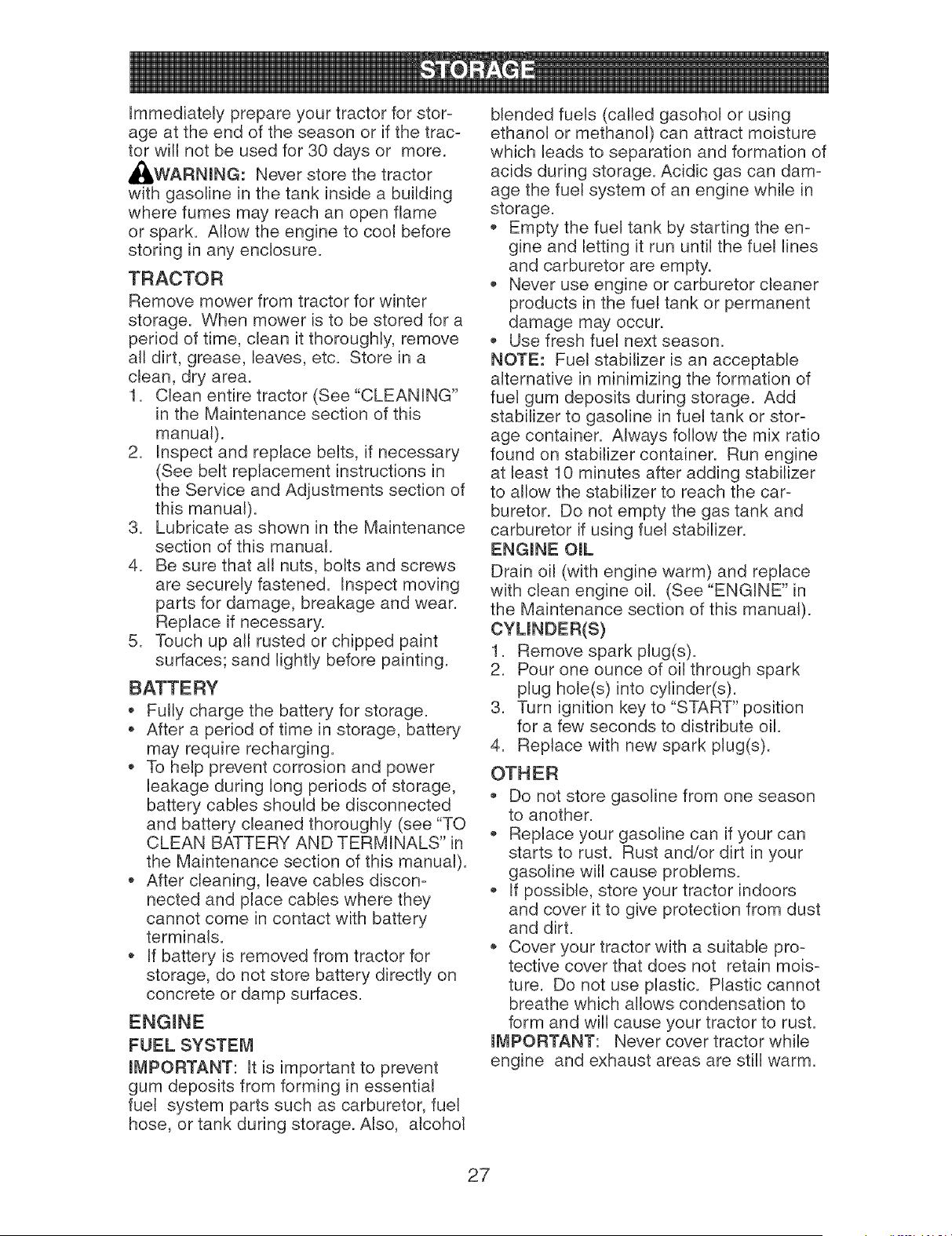

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_I, WARNmNG: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

Fully charge the battery for storage.

After a period of time in storage, battery

may require recharging.

To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

mMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGmNE OraL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

* Do not store gasoline from one season

to another.

* Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

mMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

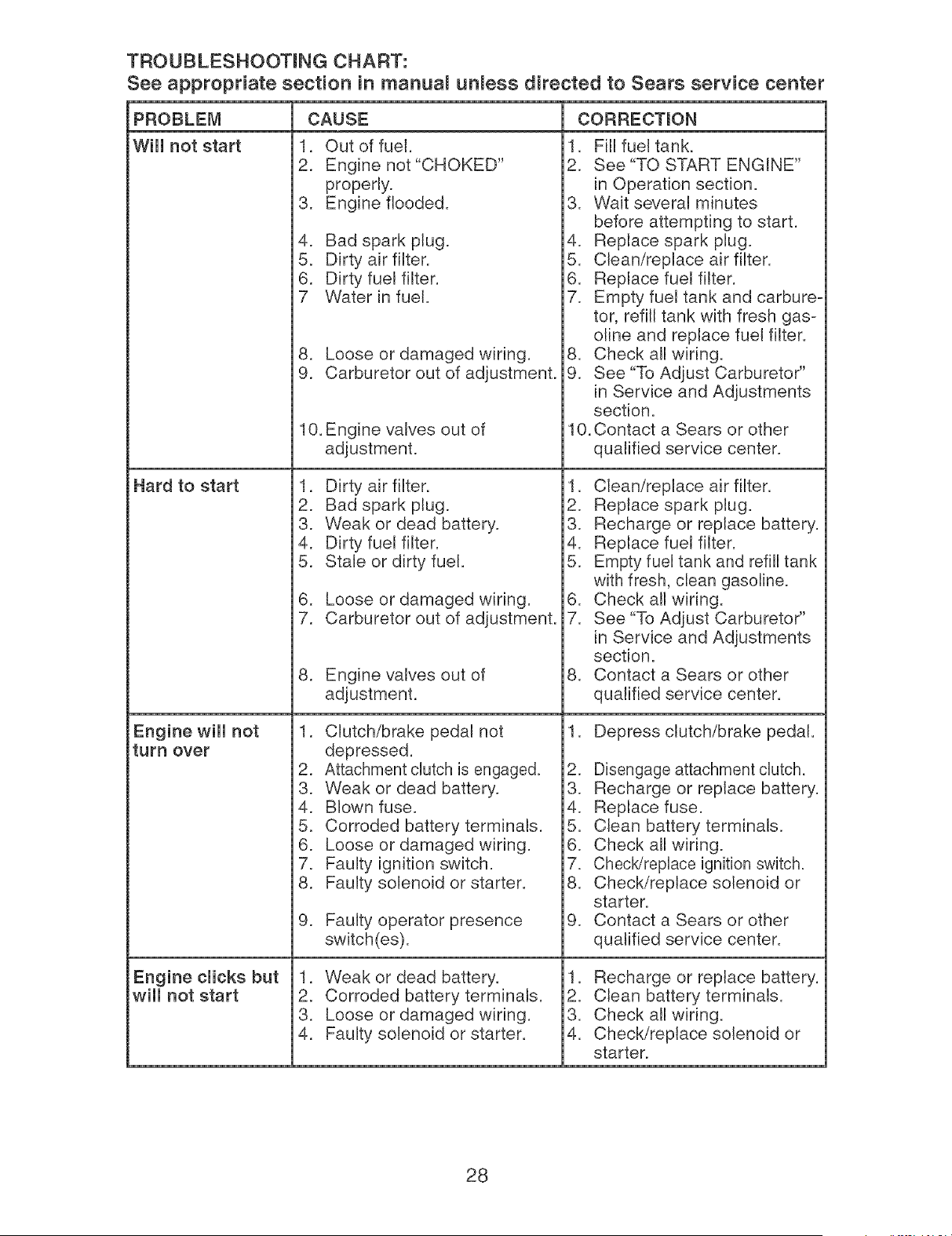

TROUBLESHOOTmNG CHART:

See appropriate section in rnanuam urfless directed to Sears service center

PROBLEi_ CAUSE CORRECTmON

Wiii not start

Hard to start

Engine wiii not

turn over

Engine clicks but

wiii not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fueltank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas=

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check atl wiring.

4. Check/replace solenoid or

starter.

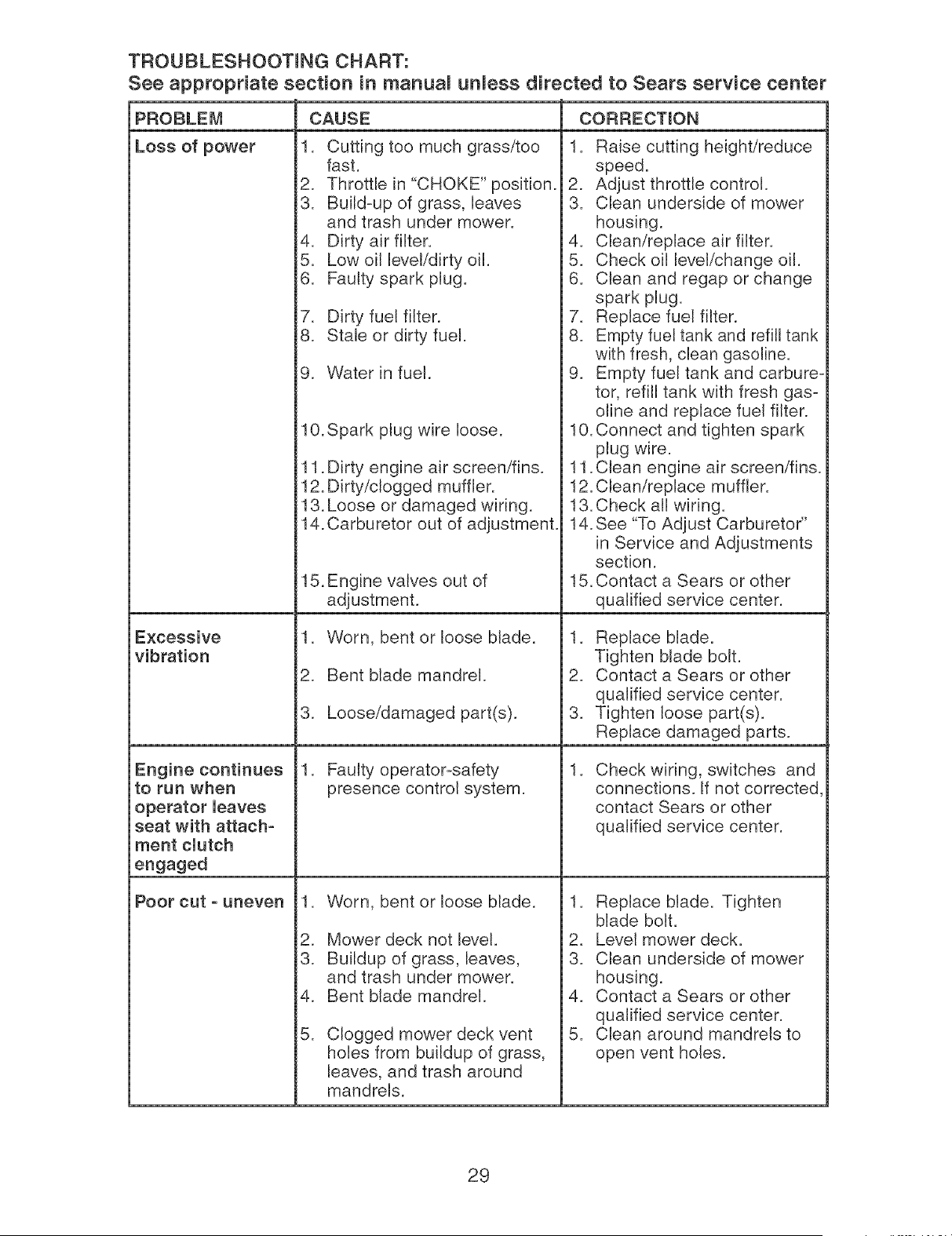

TROUBLESHOOTmNG CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, [eaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty o1[.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

Excessive

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

CORRECTION

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oiine and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

vibration Tighten blade bolt.

2. Bent blade mandrel. 2. Contact a Sears or other

3. Loose/damaged part(s).

Engine continues 1. Faulty operator-safety

to run when

operator leaves

seat with attach-

ment dutch

engaged

Poor cut ° uneven 1.

qualified service center.

Tighten loose part(s).

Replace damaged parts.

1. Check wiring, switches and

presence control system.

Worn, bent or loose blade.

connections. If not corrected,

contact Sears or other

qualified service center.

Replace blade. Tighten

blade bolt.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTmNG CHART:

See appropriate section in rnanuam urfless directed to Sears service center

PROBLEM

Mower blades wiii

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery wiii not

charge

Engine "backfires"

when turning

engine "OFF"

CAUSE

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

CORRECTmON

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

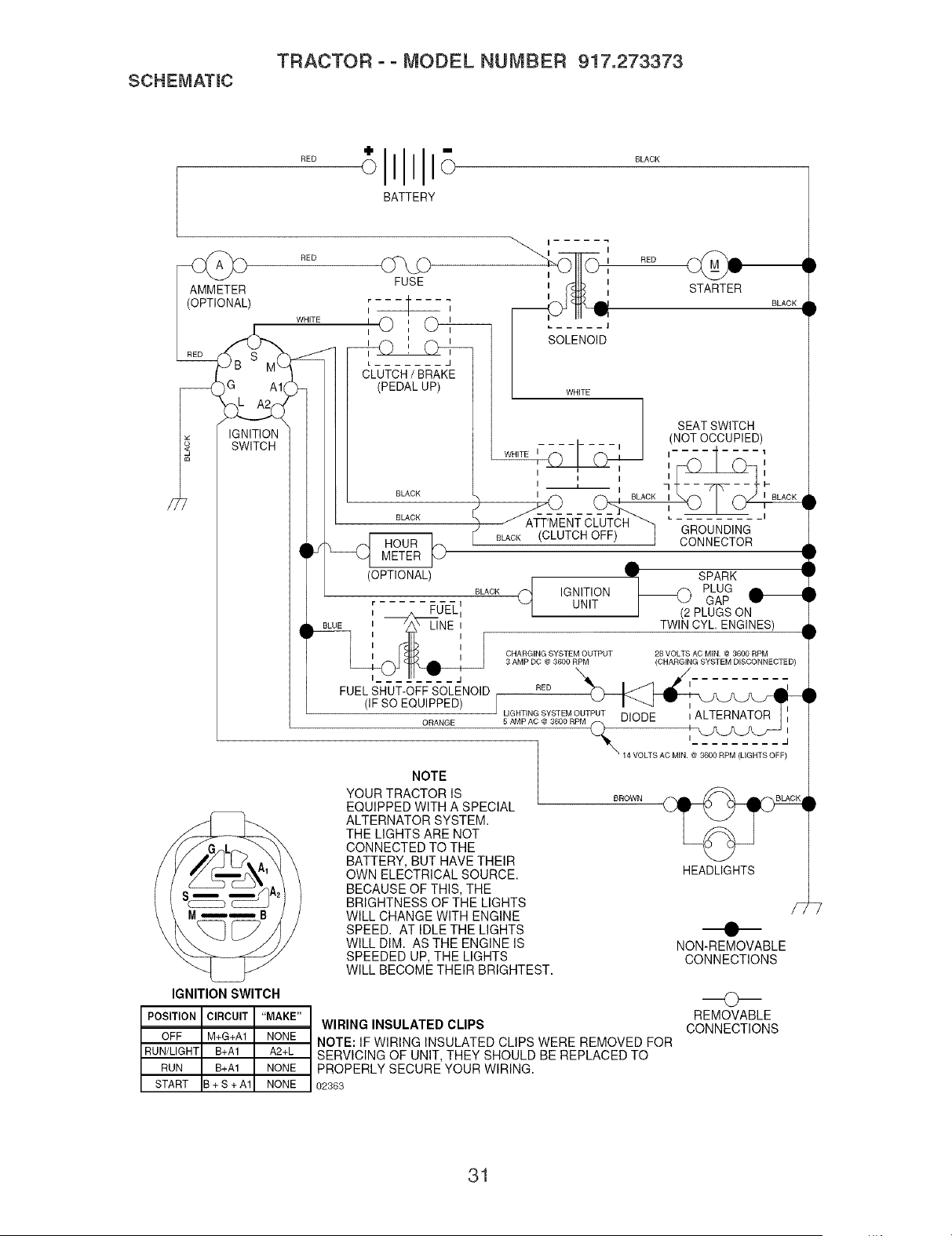

SCHEMATmC

TRACTOR o o MODEL NUMBER 917.273373

BATTERY

RED O: REo

FUSE I

I STARTER

i r--I ' BLBCK

WH,TE ,© , _,, _..... ,

I I SOLENOID

/_ II i i

___( )G AI( (PEDAL UP) WHITE

SWITCH

WHITE I _-,-I-AIII I

WHITE I I ........ _ 1

I I I I I--

BLACK I (_ O BLACK II II BLACK

BLACK JA fTTM-E_lf _ L-U].CH L _1

LACK (CLUTCH OF CONNECTOR

I (_ I _1 SPARK

I BLACK f'4 IGNITION _ PLUG

[-_ LTE-L,I --k J[ UNIT I W oN" "

_ELuZq_(llD iI_i /'_l" UNE i TWIN CYL ENGINES)

I_ iI _ IIIIL iI _ CHAAMRpGDING@SYSToERMpOMUTPUT _C8 VAOLTS ACsM IsNTE@ 3D6_0_RRPM ECT E D)

FUEL SHUT-OFF SOLENOID RED I I

(IF

EQUIPPED)

I LIGHTING SYSTEM OUTPUT I

14 VOLTS AC MINI @ 3600 RPM (LIGHTS OFF)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

BROWN

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B+S+A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

REMOVABLE

CONNECTIONS

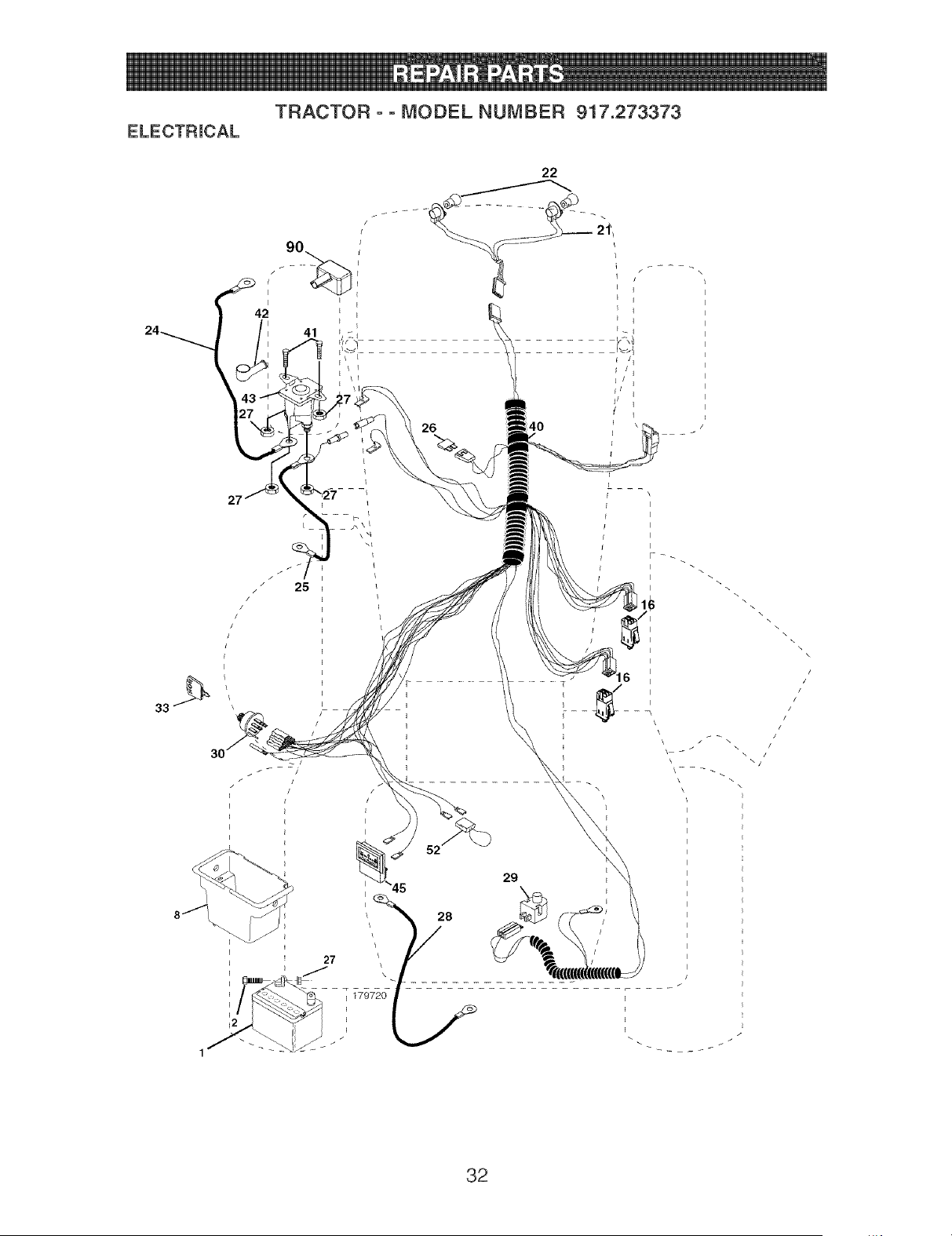

TRACTOR oo MODEL NUMBER 917.273373

ELECTRmCAL

]

i I

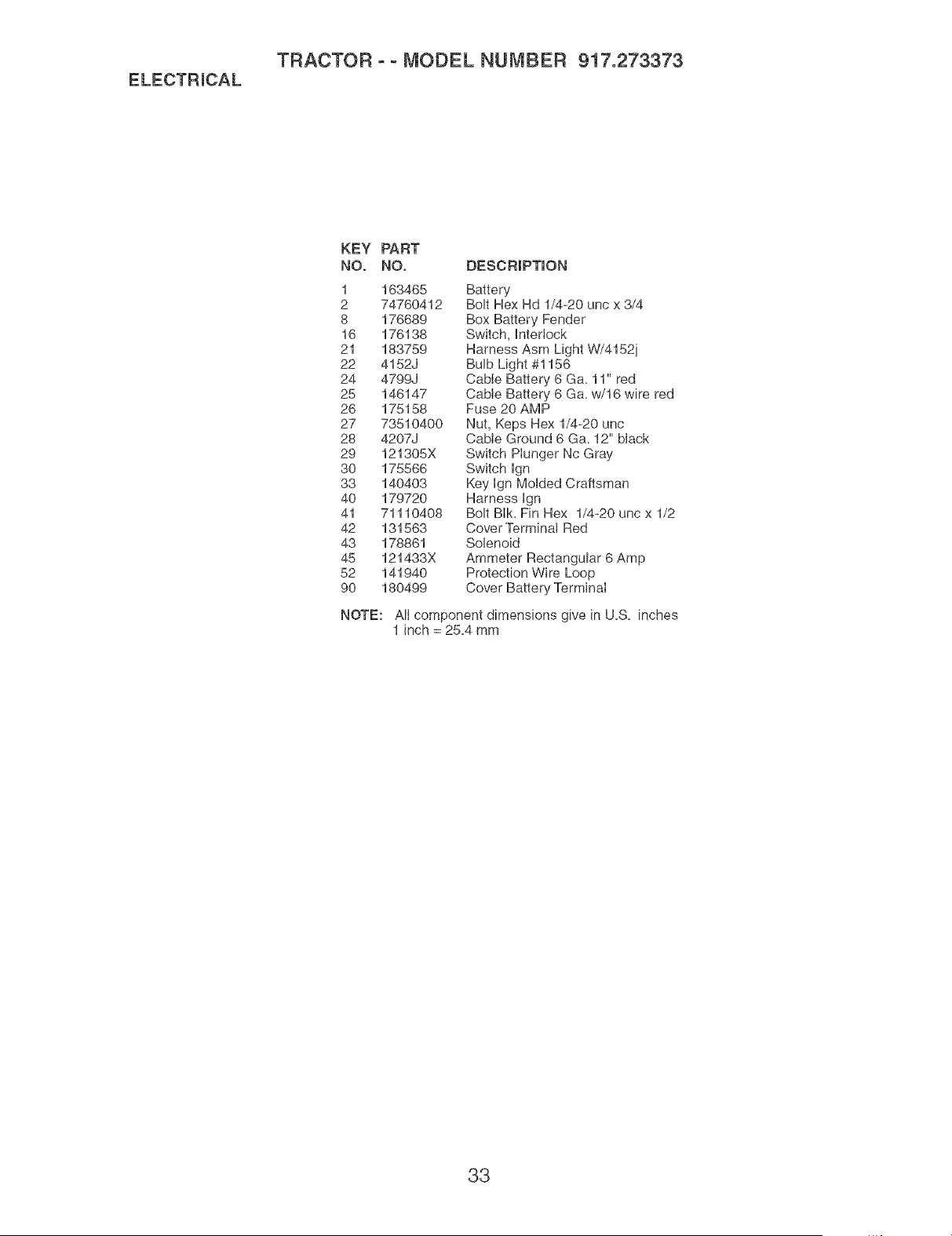

ELECTRICAL

TRACTOR ° ° MODEL NUMBER 917.273373

KEY PART

NO. NO.

1 163465

2 74760412

8 176689

16 176138

21 183759

22 4152J

24 4799J

25 146147

26 175158

27 73510400

2B 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 141940

90 180499

DESCRIPTION

Battery

Bolt Hex Hd 1/4-20 unc x 3/4

Box Battery Fender

Switch, Interlock

Harness Asm Light W/4152j

Bulb Light #1156

CabIe Battery 6 Ga. 11" red

Cabie Battery 6 Ga. w/16 wire red

Fuse 20 AMP

Nut, Keps Hex 1/4-20 uric

Cabte Ground 6 Ga. 12" black

Switch Hunger Nc Gray

Switch Ign

Key Ign Molded Craftsman

Harness Ign

Bolt BIk. Fin Hex 1/4-20 unc x 1/2

Cover Terminal Red

Solenoid

Ammeter Rectangular 6 Amp

Protection Wire Loop

Cover Battery Terminal

NOTE: All component dimensions give in U.S. inches

1 inch = 25.4 mm

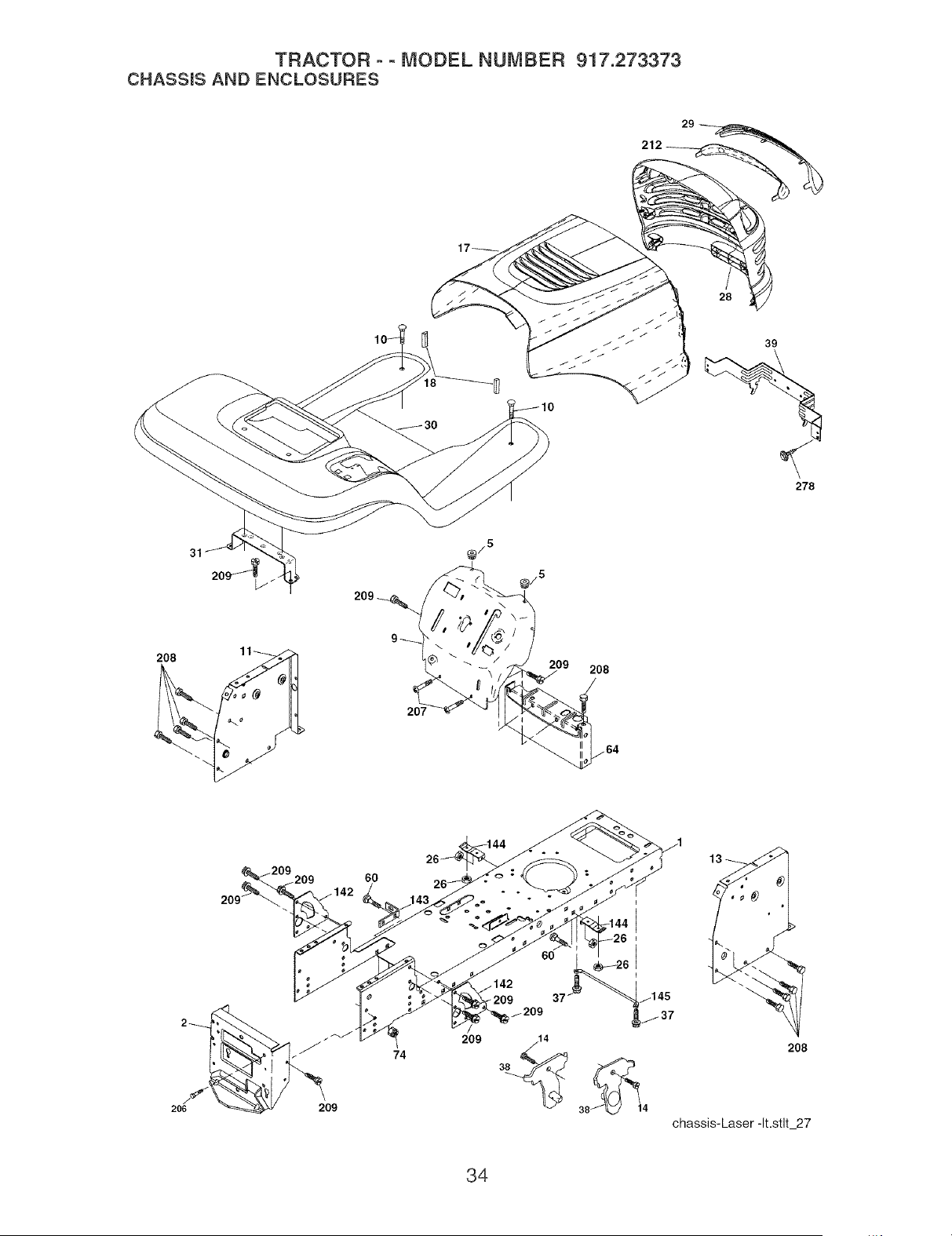

TRACTOR o o MODEL NUMBER 917.273373

CHASSmS AND ENCLOSURES

212

278

@/5

208

2O7

209 208

209

- 209 37

_209

208

chassis-Laser-It.stlt 27

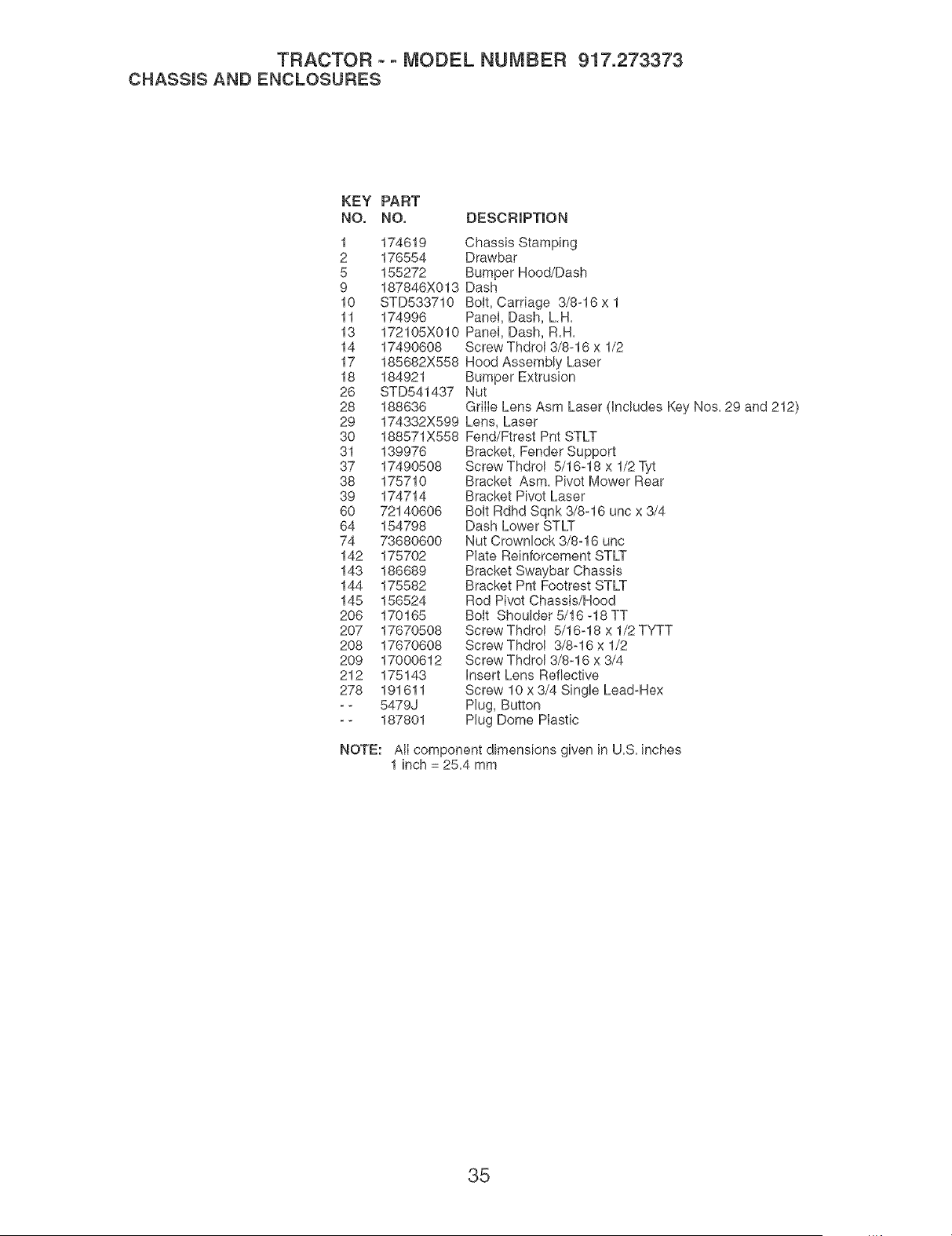

TRACTOR o° MODEL NUMBER 917.273373

CHASSmSAND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

5 155272

9 187846X013

10 STD533710

11 174996

13 172105X010

14 17490608

17 185682X558

18 184921

26 STD541437

28 188636

29 174332X599

30 188571X558

31 139976

37 17490508

38 175710

39 174714

60 72140606

64 154798

74 73680600

142 175702

143 186689

144 175582

145 156524

206 170165

207 17670508

208 17670608

209 17000612

212 175143

278 191611

-- 5479J

-- 187801

Chassis Stamping

Drawbar

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, L.H.

Panel, Dash, R.H.

Screw Thdrol 3/8-16 x 1/2

Hood Assembly Laser

Bumper Extrusion

Nut

Grille Lens Asm Laser dndudes Key Nos. 29 and 212)

Lens, Laser

Fend/Ftrest Pnt STLT

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2 Tyt

Bracket Asm. Pivot Mower Rear

Bracket Pivot Laser

Bolt Rdhd Sqnk 3/8-16 unc x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 unc

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Bolt Shoulder 5/16 -18 TT

Screw Thdrol 5/16-18 x 1/2 TYTT

Screw Thdrol 3/8-16 x 1/2

Screw Thdrol 3/8-16 x 3/4

hsert Lens Reflective

Screw 10 x 3/4 Single Lead-Hex

Plug, Button

Plug Dome Plastic

NOTE: AII component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273373

GROUND DRIVE

113 156

62 120 _

35 37

36 /

26 27

drive-fender stlt 35

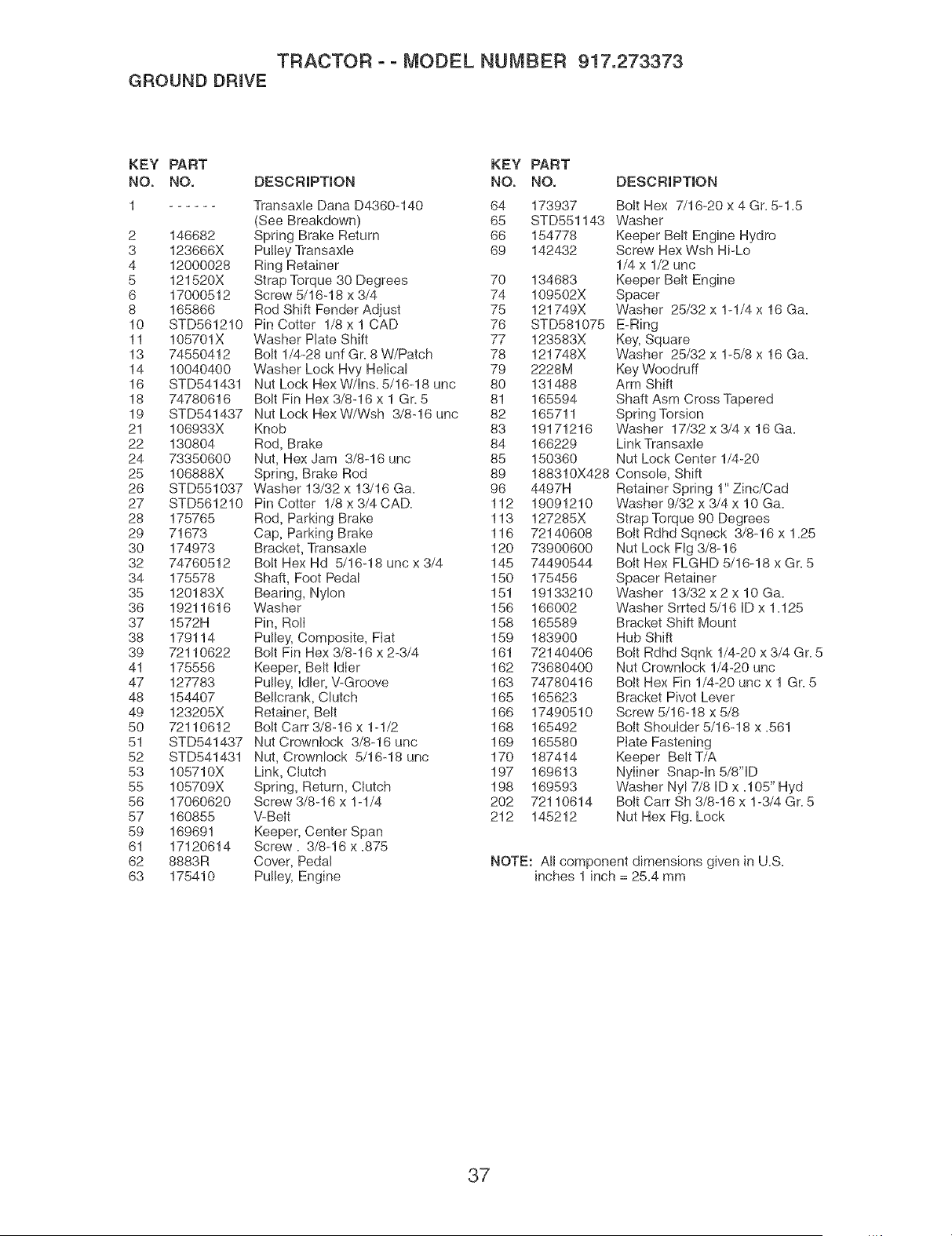

TRACTOR o o MODEL NUMBER 917.273373

GROUND DRmVE

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 Transaxle Dana D4360-140 64

(See Breakdown) 65

2 146682 Spring Brake Return 66

3 123666X Pulley Transaxle 69

4 12000028 Ring Retainer

5 121520X Strap Torque 30 Degrees 70

6 17000512 Screw 5/16-18 x 3/4 74

8 165866 Rod Shift Fender Adjust 75

10 STD561210 Pin Cotter 1/8 x 1 CAD 76

11 105701X Washer Plate Shift 77

13 74550412 Bolt 1/4-28 unf Gr. 8 W/Patch 78

14 10040400 Washer Lock Hvy Helical 79

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 uric 80

18 74780616 Bolt Fin Hex 3/8-16 x 1 Gr. 5 81

19 STD541437 Nut Lock Hex W/Wsh 3/8-16 uric 82

21 106933X Knob 83

22 130804 Rod, Brake 84

24 73350600 Nut, Hex Jam 3/8-16 uric 85

25 106888X Spring, Brake Rod 89

26 STD551037 Washer 13/32 x 13/16 Ga. 96

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 112

28 175765 Rod, Parking Brake 113

29 71673 Cap, Parking Brake 116

30 174973 Bracket, Transaxle 120

32 74760512 Bolt Hex Hd 5/16-18 unc x 3/4 145

34 175578 Shaft, Foot Pedal 150

35 120183X Bearing, Nylon 151

36 19211616 Washer 156

37 1572H Pin, RolI 158

38 179114 Pulley, Composite, Fiat 159

39 72110622 Bolt Fin Hex 3/8-16 x 2-3/4 161

41 175556 Keeper, Belt IdIer 162

47 127783 Pulley, Idler, V-Groove 163

48 154407 Bellcrank, Clutch 165

49 123205X Retainer, Belt 166

50 72110612 Bolt Cart 3/8-16 x 1-1/2 168

51 STD541437 Nut Crownlock 3/8-16 unc 169

52 STD541431 Nut, Crownlock 5/16-18 unc 170

53 105710X Link, Clutch 197

55 105709X Spring, Return, Clutch 198

56 17060620 Screw 3/8-16 x 1-1/4 202

57 160855 V-Belt 212

59 169691 Keeper, Center Span

61 17120614 Screw. 3/8-16 x .875

62 8883R Cover, Pedal

63 175410 Pulley, Engine

PART

NO. DESCRIPTION

173937 Bolt Hex 7/16-20 x 4 Gr. 5-1.5

STD551143 Washer

154778 Keeper Belt Engine Hydro

142432 Screw Hex Wsh Hi-Lo

1/4 x 1/2 unc

134683 Keeper Belt Engine

109502X Spacer

121749X Washer 25/32 x 1- 1/4 x 16 Ga.

STD581075 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16 Ga.

2228M Key Woodruff

131488 Arm Shift

165594 Shaft Asm Cross Tapered

165711 Spring Torsion

19171216 Washer 17/32 x 3/4 x 16 Ga.

166229 Link Transaxle

150360 Nut Lock Center 1/4-20

188310X428 Console, Shift

4497H

19091210

127285X

72140608

73900600

74490544

175456

19133210

166002

165589

183900

72140406

73680400

74780416

165623

17490510

165492

165580

187414

169613

169593

72110614

145212

Retainer Spring 1" Zinc/Cad

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1.25

Nut Lock Fig 3/8-16

Bolt Hex FLGHD 5/16-18 x Gr. 5

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 uric

Bott Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Keeper Belt T/A

Nyliner Snapqn 5/8'qD

Washer Nyl 7/8 ID x .105" Hyd

Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flg. Lock

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TRACTOR ° ° MODEL NUMBER 917.273373

STEERINGASSEMBLY

/ /

68 67 67

8_ 47 67

steering pl.lt 42

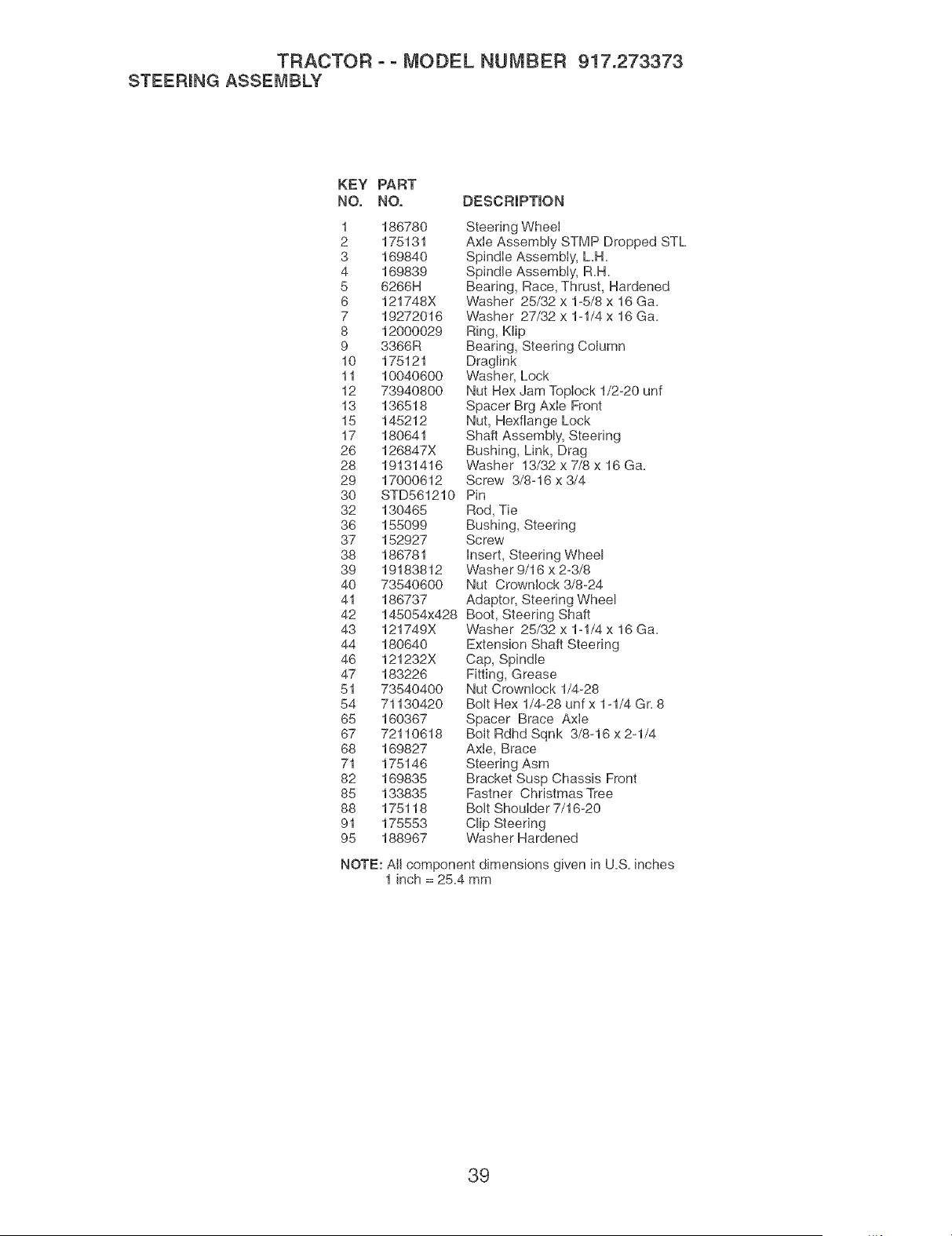

TRACTOR o o MODEL NUMBER 917.273373

STEERmNG ASSEMBLY

KEY PART

NO. NO. DESCRiPTiON

1 186780 Steering Wheel

2 175131 Axle Assembly STMP Dropped STL

3 169840 SpindIe Assembly, LH=

4 169839 Spindle Assembly, R=H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Ga.

7 19272016 Washer 27/32 x 1-1/4 x 16 Ga=

8 12000029 Ring, Klip

9 3366R Bearing, Steering Column

10 175121 Draglink

11 10040600 Washer, Lock

12 73940800 Nut Hex Jam TopIock 1/2-20 unf

13 136518 Spacer Brg AxIe Front

15 145212 Nut, Hexfiange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Ga=

29 17000612 Screw 3/8-16 x 3/4

30 STD561210 Pin

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 186781 Insert, Steering Wheel

39 19183812 Washer 9/16 x 2-3/8

40 73540600 Nut Crownlock 3/8-24

41 186737 Adaptor, Steering Wheel

42 145054x428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga=

44 180640 Extension Shaft Steering

46 121232X Cap, Spindle

47 183226 Fitting, Grease

51 73540400 Nut Crowntock 1/4-28

54 71130420 Boit Hex 1/4-28 unf x 1-1/4 Gr=8

65 160367 Spacer Brace Axle

67 72110618 Bolt Rdhd Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

85 133835 Fastner Christmas Tree

88 175118 Bott ShouIder 7/16-20

91 175553 Clip Steering

95 188967 Washer Hardened

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

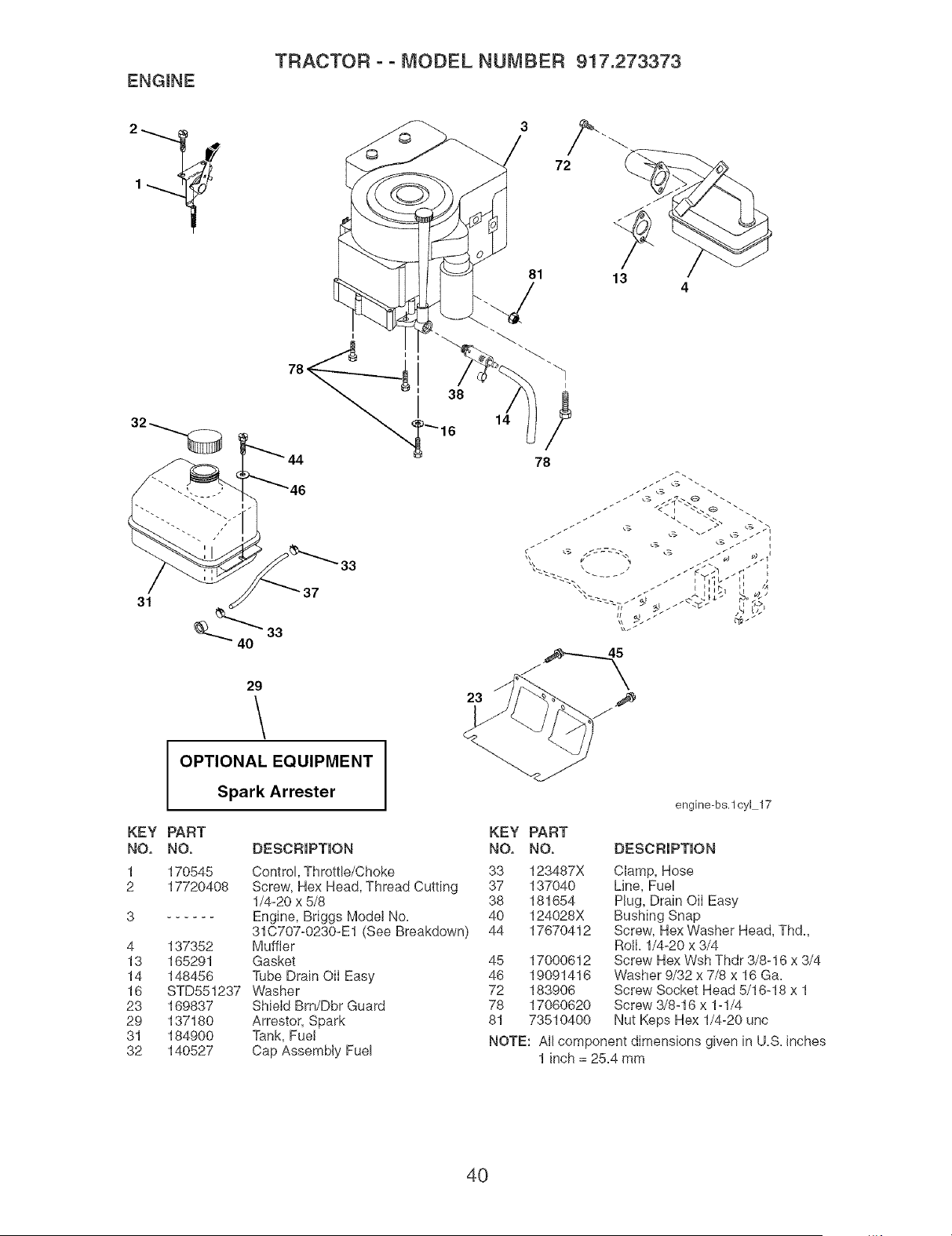

ENGmNE

TRACTOR o o MODEL NUMBER 917.273373

OPTIONAL EQUIPMENT

Spark Arrester

KEY PART

NO. NO.

1 170545

2 17720408

4 137352

13 165291

14 148456

16 STD551237

23 169837

29 137180

31 184900

32 140527

DESCRIPTION

Control, Throttle/Choke

Screw, Hex Head, Thread Cutting

1/4-20 x 5/8

Engine, Briggs Model No.

31C707-0230-E1 (See Breakdown)

Muffler

Gasket

Tube Drain OiI Easy

Washer

Shield Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly Fuel

engine-bs.lcyl 17

KEY PART

NO. NO.

33 123487X

37 137040

38 181654

40 124028X

44 17670412

45 17000612

46 19091416

72 183906

78 17060620

81 73510400

DESCRIPTION

Clamp, Hose

Line, Fuel

Plug, Drain OiI Easy

Bushing Snap

Screw, Hex Washer Head, Thd.

Roll 1/4-20 x 3/4

Screw Hex Wsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga=

Screw Socket Head 5/16-18 x 1

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 uric

NOTE: All component dimensions given in U=S=inches

1 inch = 25=4 mm

TRACTOR o o MODEL NUMBER 917.273373

SEAT ASSEMBLY

seat It.knob 9

\ \

KEY

NO.

PART

NO. DESCRIPTION

188716 Seat

180166 Bracket, Pivot, Seat

71110616 Bolt

19131610 Washer 13/32 x 1 x 10 Ga.

145006 Clip, Push-In Hinged

STD541437 Nut

124181X Spring, Seat

17000616 Screw 3/8-16 x 1-1/2

19131614 Washer 13/32 x 1 x 14 Ga.

180186 Pan, Seat

166369 Knob Seat

121246X Bracket, Switch Mounting

KEY

NO.

PART

NO, DESCRIPTION

121248X Bushing, Snap

72050412 Bolt, Carriage 1/4-20 x 1-1/2

134300 Spacer, Split .28 x .88

121250X Spring

123976X Locknut, Flange 1/4 Gr. 5

171852 Bolt, Shoulder 5/16-18 unc

STD541431 Nut

19171912 Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

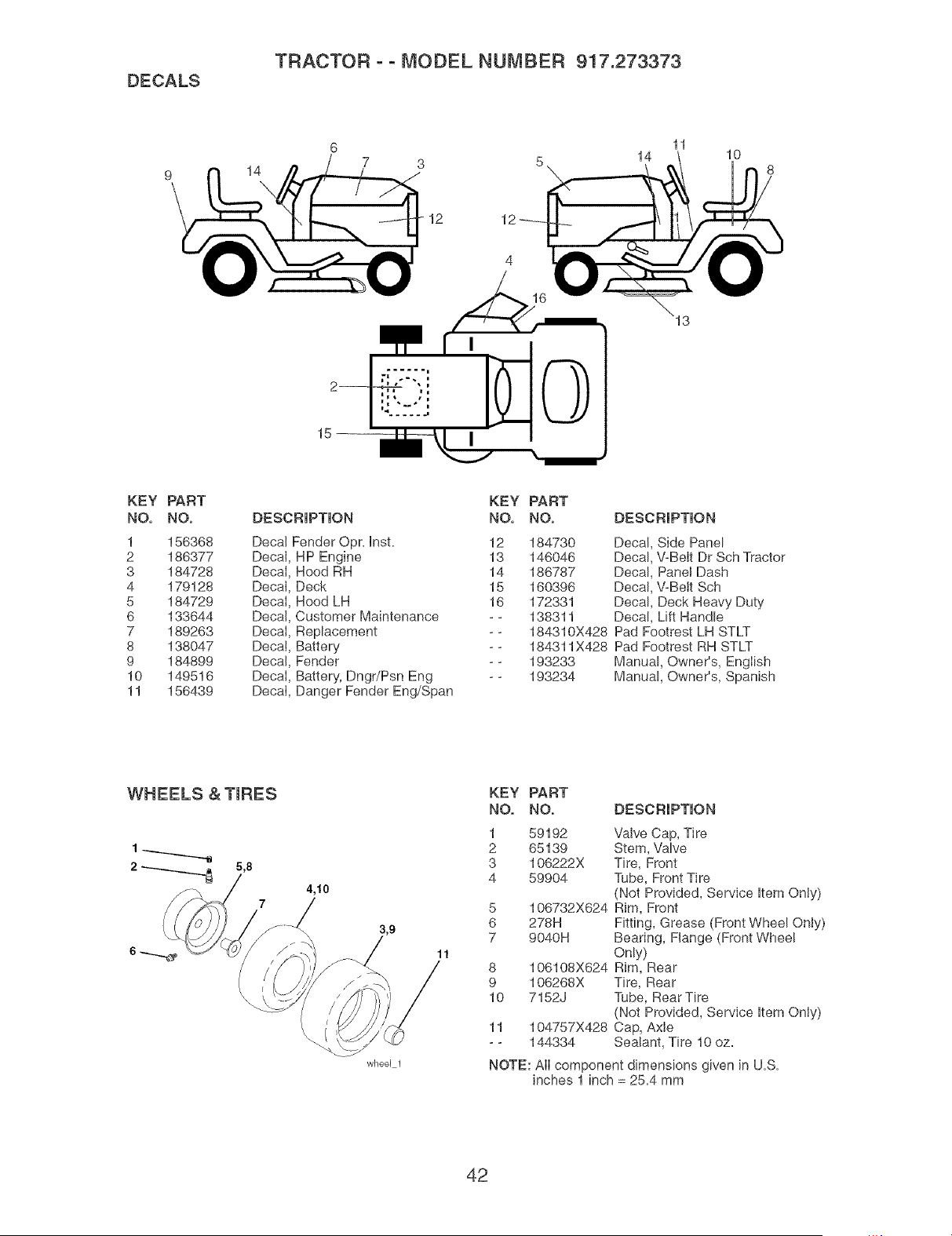

DECALS

TRACTOR - - MODEL NUMBER 917.273373

KEY PART

NO. NO.

1 156368

2 186377

3 184728

4 179128

5 184729

6 133644

7 189263

8 138047

9 184899

10 149516

11 156439

DESCRIPTION

Decal Fender Opr. InsL

Decal, HP Engine

Decal, Hood RH

Decal, Deck

Decal, Hood LH

Decal, Customer Maintenance

Decal, Replacement

Decal, Battery

Decal, Fender

Decal, Battery, Dngr/Psn Eng

Decal, Danger Fender EngiSpan

KEY PART

NO. NO.

12 184730

13 146046

14 186787

15 160396

16 172331

-- 138311

-- 184310X428

-- 184311X428

-- 193233

-- 193234

DESCRIPTION

Decal, Side Panel

Decal, V-Belt Dr Sch Tractor

Decal, Panel Dash

Decal, V-Belt Sch

Decal, Deck Heavy Duty

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Manual, Owner's, English

Manual, Owner's, Spanish

WHEELS & TmRES

4,10

wheel 1

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire

(Not Provided, Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel Onty)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

106268X Tire, Rear

7152J Tube, Rear Tire

(Not Provided, Service Item Oniy)

104757X428 Cap, Axle

144334 Sealant, Tire 10 oz.

NOTE: AII component dimensions given in U.S.

inches 1 inch = 25.4 mm

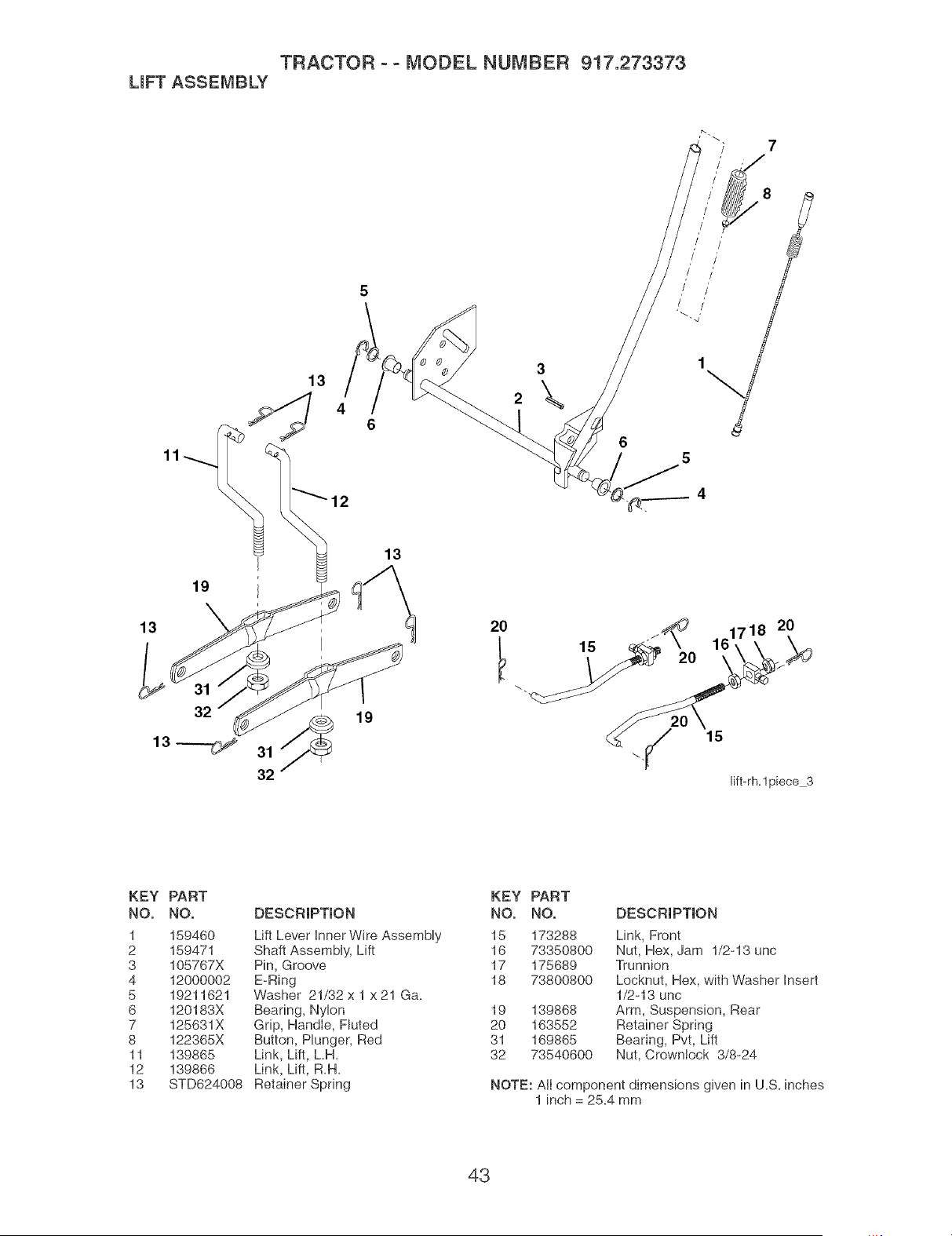

TRACTOR ooMODEL NUMBER 917.273373

UFT ASSEMBLY

31 _

18 20

lift-rh.lpiece 3

KEY PART

NO, NO,

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

13 STD624008

KEY PART

DESCRIPTION NO. NO.

Lift Lever Inner Wire Assembly 15 173288

Shaft Assembly, Lift 16 73350800

Pin, Groove 17 175689

E-Ring 18 73800800

Washer 21/32 x 1 x 21 Ga.

Bearing, Nylon 19 139868

Grip, Handle, Fluted 20 163552

Button, Plunger, Red 31 169865

Link, Lift, LH= 32 73540600

Link, Lift, R=H=

Retainer Spring

DESCRIPTION

Link, Front

Nut, Hex, Jam 1/2-13 uric

Trunnion

Locknut, Hex, with Washer Insert

1/2-13 unc

Arm, Suspension, Rear

Retainer Spring

Bearing, Pvt, Lift

Nut, Crowntock 3/8-24

NOTE: AlI component dimensions given in U=S=inches

1 inch = 25=4 mm

TRACTOR o o MODEL NUMBER 917.273373

MOWER DECK

142

_147

106 _'_._ 102 103 105

\_ _1o4 lo6

101i"_/__,_.__

102/

42 D man-t°path stir 3

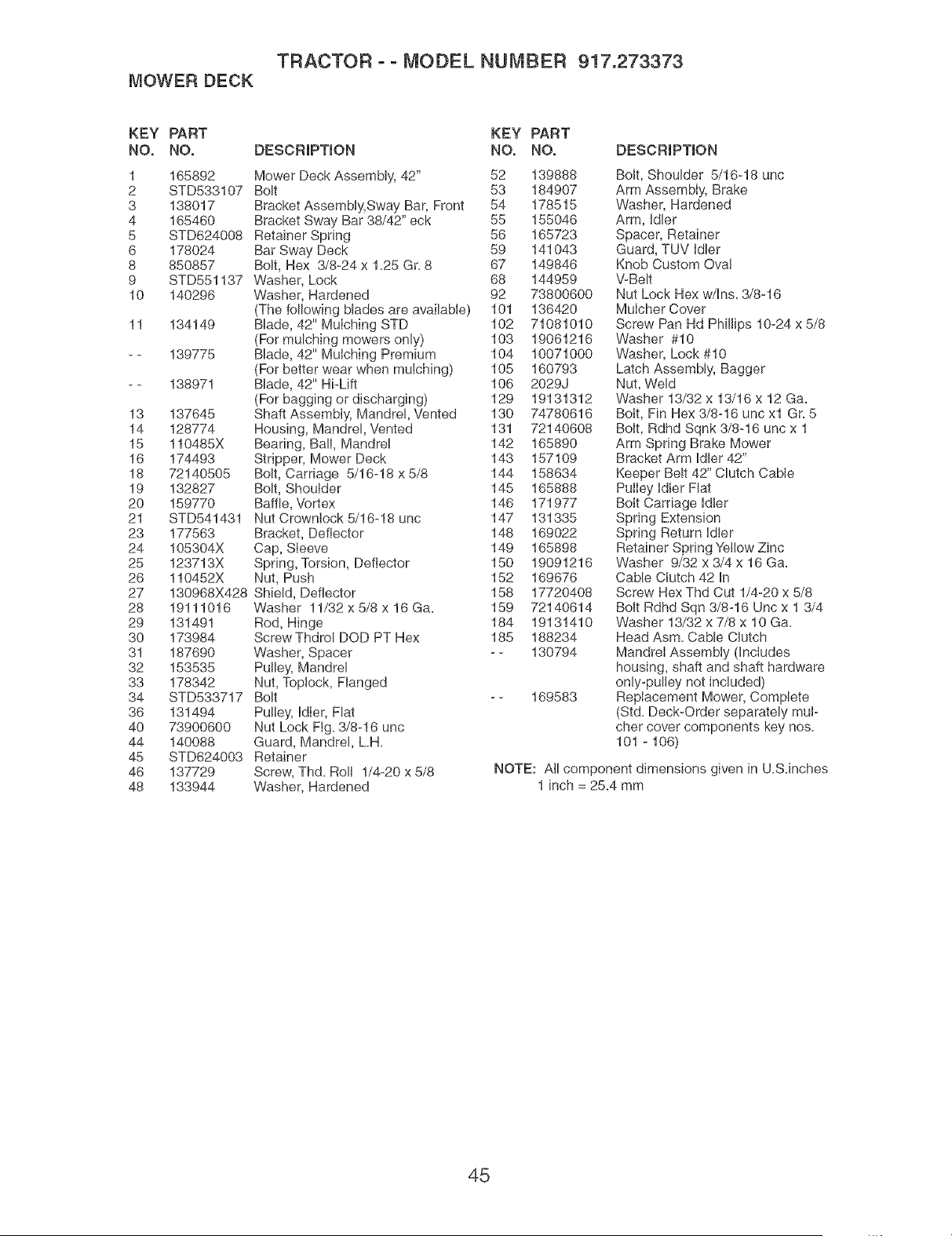

TRACTOR oo MODEL NUMBER 917.273373

MOWERDECK

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO. DESCRiPTiON

1 165892 Mower Deck Assembly, 42" 52 139888

2 STD533107 Bolt 53 184907

3 138017 Bracket Assembly, Sway Bar, Front 54 178515

4 165460 Bracket Sway Bar 38/42" eck 55 155046

5 STD624008 Retainer Spring 56 165723

6 178024 Bar Sway Deck 59 141043

8 850857 Bolt, Hex 3/8-24 x 1=25 Gr=8 67 149846

9 STD551137 Washer, Lock 68 144959

10 140296 Washer, Hardened 92 73800600

(The following blades are available) 101 136420

11 134149 Blade, 42" Mulching STD 102 71081010

(For mulching mowers only) 103 19061216

- - 139775 Blade, 42" Mulching Premium 104 10071000

(For better wear when mulching) 105 160793

- - 138971 Blade, 42" Hi-Lift 106 2029J

(For bagging or discharging) 129 19131312

13 137645 Shaft Assembly, Mandrel, Vented 130 74780616

14 128774 Housing, Mandrel, Vented 131 72140608

15 110485X Bearing, Ball, Mandrel 142 165890

16 174493 Stripper, Mower Deck 143 157109

18 72140505 Bolt, Carriage 5/16-18 x 5/8 144 158634

19 132827 Bolt, Shoulder 145 165888

20 159770 Baffle, Vortex 146 171977

21 STD541431 Nut Crownlock 5/16-18 unc 147 131335

23 177563 Bracket, Deflector 148 169022

24 105304X Cap, Sleeve 149 165898

25 123713X Spring, Torsion, Deflector 150 19091216

26 110452X Nut, Push 152 169676

27 130968X428 Shield, Deflector 158 17720408

28 19111016 Washer 11/32x5/8x16Ga= 159 72140614

29 131491 Rod, Hinge 184 19131410

30 173984 ScrewThdrol DOD PT Hex 185 188234

31 187690 Washer, Spacer - - 130794

32 153535 Pulley, Mandrel

33 178342 Nut, Toplock, Flanged

34 STD533717 Bolt -- 169583

36 131494 Pulley, IdIer, Flat

40 73900600 Nut Lock Fig=3/8-16 unc

44 140088 Guard, Mandrel, LH=

45 STD624003 Retainer

46 137729 Screw, Thd= Roll 1/4-20 x 5/8

48 133944 Washer, Hardened

Bolt, Shoulder 5/16-18 unc

Arm Assembly, Brake

Washer, Hardened

Arm, idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Ova!

V-Belt

Nut Lock Hex w/Ins= 3/8-16

Mulcher Cover

Screw Pan Hd Phillips 10-24 x 5/8

Washer #10

Washer, Lock #10

Latch Assembly, Bagger

Nut, Weld

Washer 13/32 x 13/16 x 12 Ga=

Bolt, Fin Hex 3/8-16 unc xl Gr=5

Bolt, Rdhd Sqnk 3/8-16 unc x 1

Arm Spring Brake Mower

Bracket Arm idler 42"

Keeper Belt 42" Clutch Cable

PulIey idler Flat

Bolt Carriage idler

Spring Extension

Spring Return idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga=

Cable Clutch 42 in

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16 Unc x 1 3/4

Washer 13/32 x 7/8 x 10 Ga=

Head Asm= Cable Clutch

Mandrel Assembly (includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std= Deck-Order separately muF

cher cover components key nos=

101 - 106)

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

TRACTOR ° ° MODEL NUMBER 917.273373

DANA TRANSAXL£ o o MODEL NUMBER £)4360o140

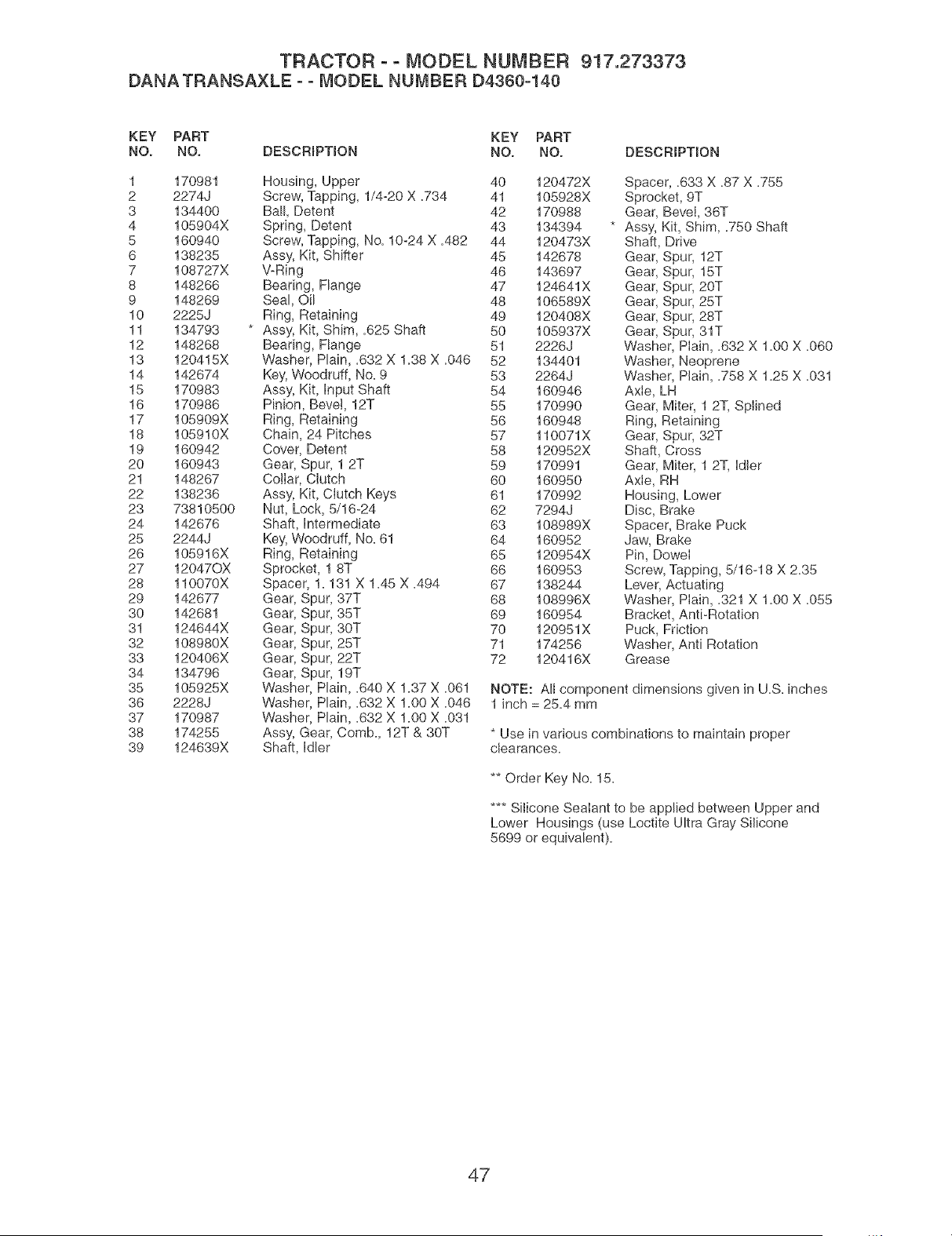

TRACTOR o o MODEL NUMBER 917.273373

DANA TRANSAXLE o o MODEL NUMBER D4360o140

KEY PART KEY PART

NO. NO. DESCRmPTmON NO. NO. DESCRIPTION

1 170981

2 2274J

3 134400

4 105904X

5 160940

6 138235

7 108727X

8 148266

9 148269

10 2225J

11 134793

12 148268

13 120415X

14 142674

15 170983

16 170986

17 105909X

18 105910X

19 160942

20 160943

21 148267

22 138236

23 73810500

24 142676

25 2244J

26 105916X

27 12047OX

28 110070X

29 142677

30 142681

31 124644X

32 108980X

33 120406X

34 134796

35 105925X

36 2228J

37 170987

38 174255

39 124639X

Housing, Upper

Screw, Tapping, 1/4-20 X .734

Ball, Detent

Spring, Detent

Screw, Tapping, No. 10-24 X .482

Assy, Kit, Shifter

V-Ring

Bearing, Flange

Seal, Oil

Ring, Retaining

Assy, Kit, Shim, .625 Shaft

Bearing, Flange

Washer, Plain, .632 X 1.38 X .046

Key, Woodruff, No. 9

Assy, Kit, Input Shaft

Pinion, Beve!, 12T

Ring, Retaining

Chain, 24 Pitches

Cover, Detent

Gear, Spur, 1 2T

Collar, Clutch

Assy, Kit, Clutch Keys

Nut, Lock, 5/16-24

Shaft, Intermediate

Key, Woodruff, No. 61

Ring, Retaining

Sprocket, 1 8T

Spacer, 1. 131 X 1.45 X .494

Gear, Spur, 37T

Gear, Spur, 35T

Gear, Spur, 30T

Gear, Spur, 25T

Gear, Spur, 22T

Gear, Spur, 19T

Washe[ Plain, .640 X 1.37 X .061

Washe[ Plain, .632 X 1.00 X .046

Washe[ Plain, .632 X 1.00 X .031

Assy, Gear, Comb., 12T & 30T

Shaft, Idler

40 120472X Spacer, .633 X .87 X .755

41 105928X Sprocket, 9T

42 170988 Gear, Bevel, 36T

43 134394 * Assy, Kit, Shim, .750 Shaft

44 120473X Shaft, Drive

45 142678 Gear, Spur, 12T

46 143697 Gear, Spur, 15T

47 124641X Gear, Spur, 20T

48 106589X Gear, Spur, 25T

49 120408X Gear, Spur, 28T

50 105937X Gear, Spur, 31T

51 2226J Washer, Plain, .632 X 1.00 X .060

52 134401 Washer, Neoprene

53 2264J Washer, Plain, .758 X 1.25 X .031

54 160946 Axle, LH

55 170990 Gear, Miter, 1 2T, Splined

56 160948 Ring, Retaining

57 110071X Gear, Spur, 32T

58 120952X Shaft, Cross

59 170991 Gear, Miter, 1 2-[, Idler

60 160950 Axie, RH

61 170992 Housing, Lower

62 7294J Disc, Brake

63 108989X Spacer, Brake Puck

64 160952 Jaw, Brake

65 120954X Pin, Dowel

66 160953 Screw, Tapping, 5/16-18 X 2.35

67 138244 Lever, Actuating

68 108996X Washer, Plain, .321 X 1.00 X .055

69 160954 Bracket, Anti-Rotation

70 120951X Puck, Friction

71 174256 Washer, Anti Rotation

72 120416X Grease

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

* Use in various combinations to maintain proper

clearances.

** Order Key No. 15.

*** Silicone Sealant to be applied between Upper and

Lower Housings (use Loctite Ultra Gray Silicone

5699 or equivalent).

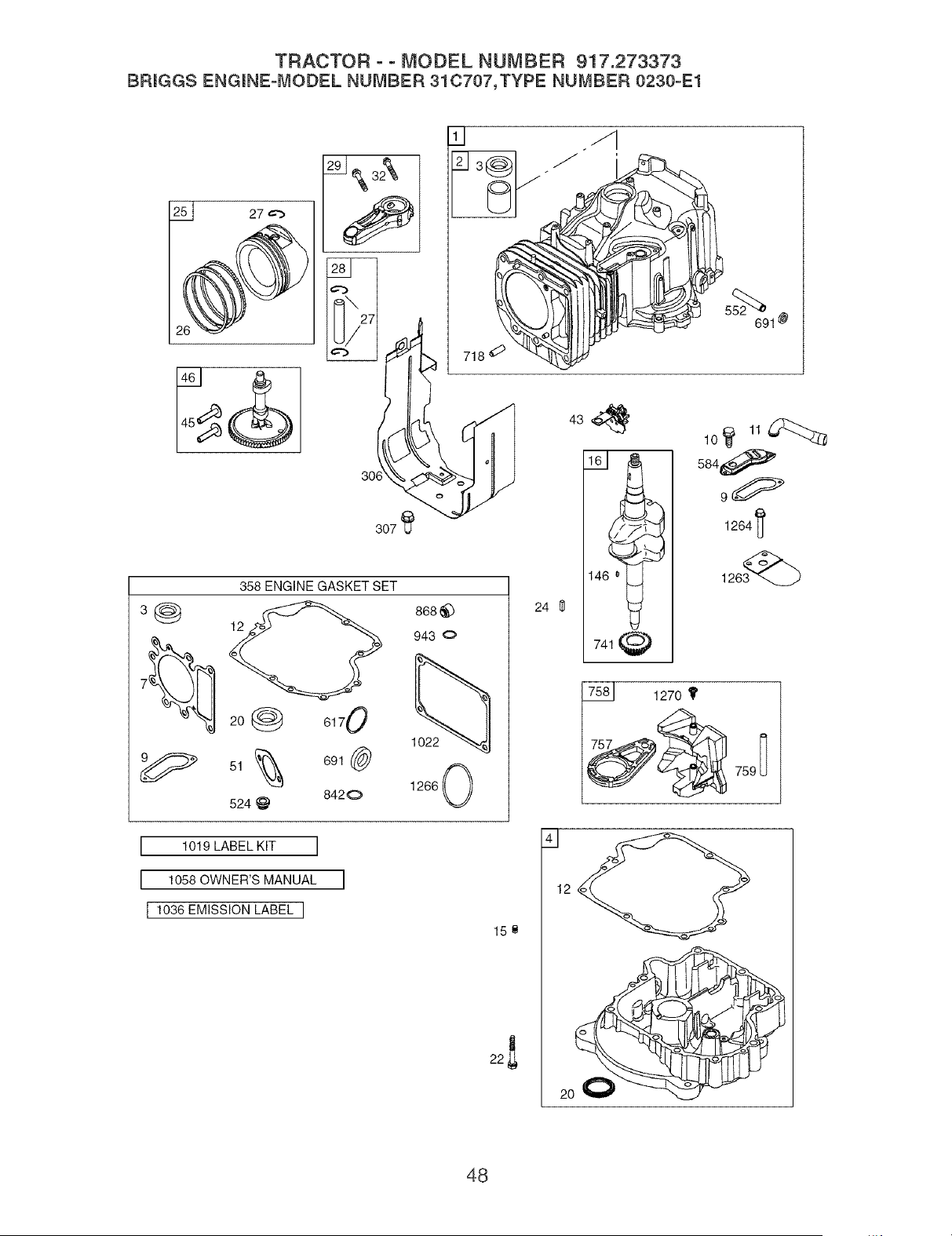

TRACTOR oo MODEL NUMBER 917.273373

BRmGGSENGmNE=MODELNUMBER31C707,TYPE NUMBER0230=E1

25_ 27

30i

307_

358 ENGINE GASKET SET

20@ 617(9

868_)

943 O

51_

524 @

1022

691 (_

8420 1266 0

I 1019 LABEL KIT I

I 1058 OWNER'S MANUAL

i 1036 EMISSION LABEL ]

.Jl

43_

741

584_ _'

1264_

1270

75o_

15_

TRACTOR o o MODEL NUMBER 917.273373

BRmGGS ENGmNE=MODEL NUMBER 31C707,TYPE NUMBER 0230=E1

238

1o22

6170

1022

914

1095 VALVE GASKET SET

617 0 1022

868

13_' _._

847

524 0

616_

404,, _

216 _ 1_

267 '_

1119_

334

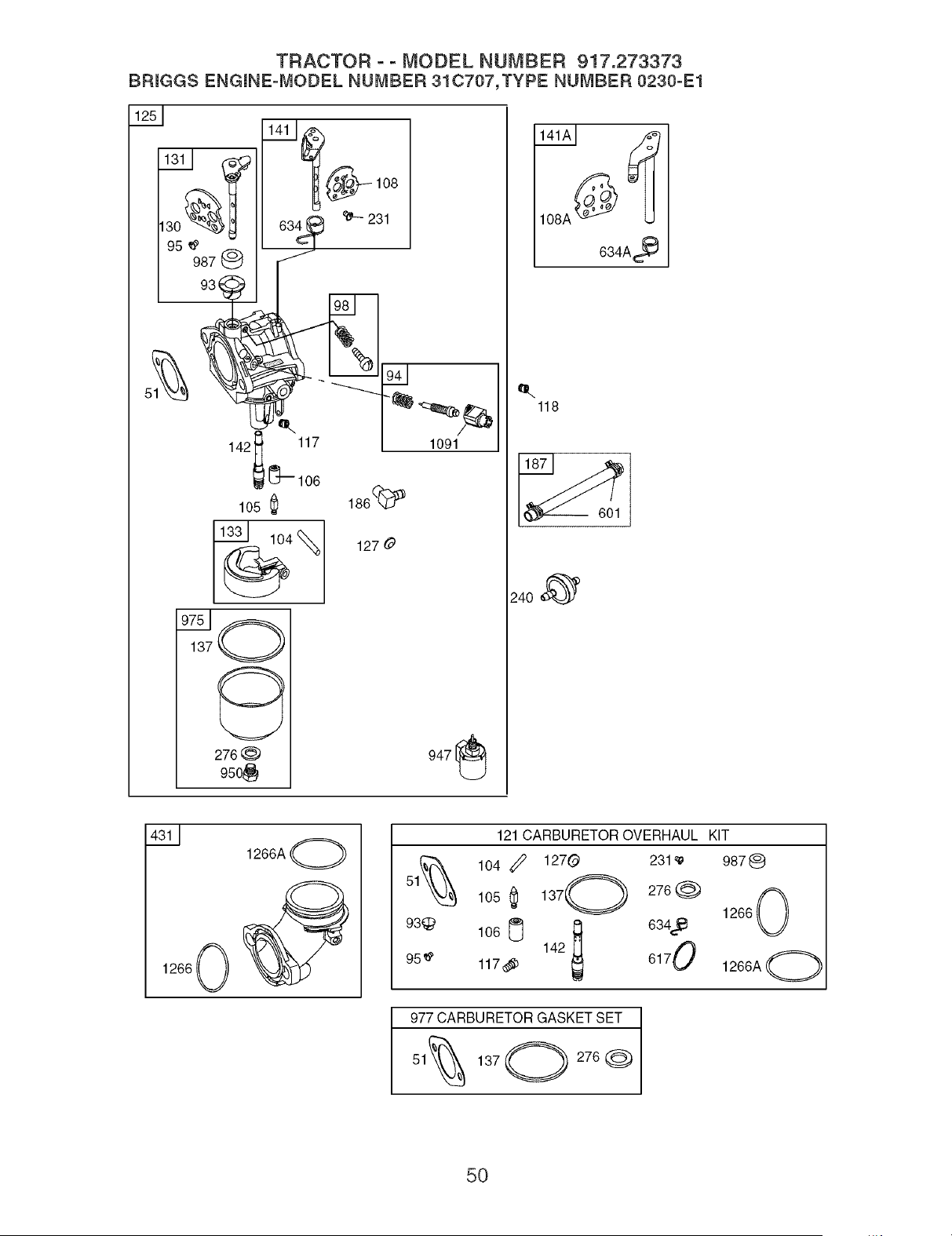

TRACTOR o ° MODEL NUMBER 917.273373

BRmGGS ENGmNE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

130 _ _ 231

95 _'

987

93t

142_ 117

_-- 106

105

137

276@

95o_

1869

127

108A _

634A,_

e.,

118

-- 601

4311

1266

1266A 0

121 CARBURETOR OVERHAUL KIT

104 _ 127_ 231_

51 276@

105 _ 137

634__

93_ 106 [_ 142 6170

95e 117_

987(_

1266@

1266A 0

977 CARBURETOR GASKET SET

51_ 137 0 276@

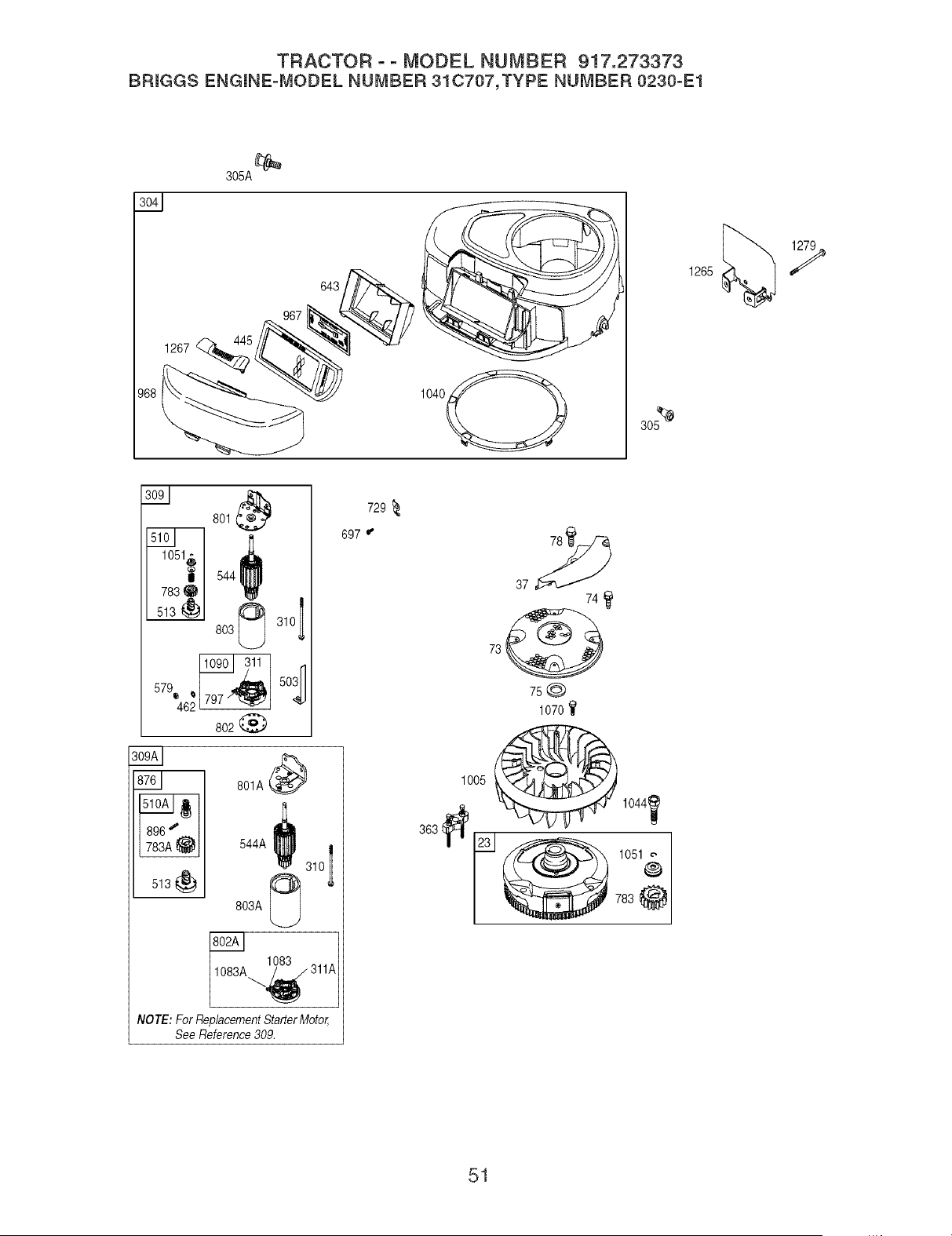

TRACTOR o o MODEL NUMBER 917.273373

BRmGGS ENGmNE-MODEL NUMBER 31C707,TYPE NUMBER 0230oE1

3041

968

305A _

1265

801 (_

603 @ 310 1

_ 60_

67_'46_ 7_7_

802 (_

_7-q-- _OlA(_

783A_ 544A ]

513 31o

803A

_A 1083

_/311A

NOTE: For Replacement Starter Motor,

See Reference 309.

729

697 _

363

73_

75@

1070 _

1005

783 @

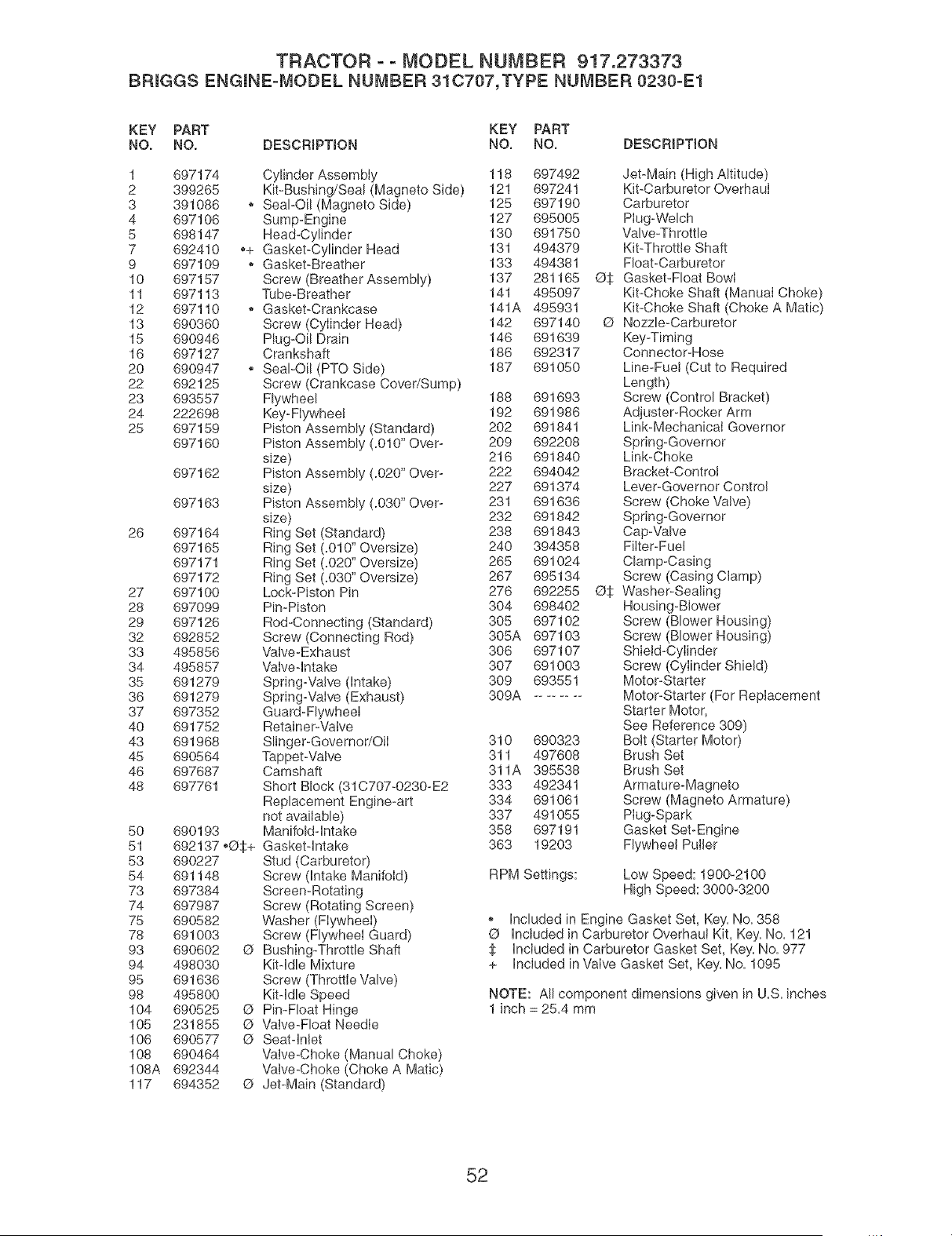

TRACTOR o ° MODEL NUMBER 917.273373

BRmGGS ENGmNE-MODEL NUMBER 31C707,TYPE NUMBER 0230-E1

KEY PART KEY PART

NO. NO. DESCRmPTmON NO. NO. DESCRIPTION

1 697174

2 399265

3 391086

4 697106

5 698147

7 692410

9 697109

10 697157

11 697113

12 697110

13 690360

15 690946

16 697127

20 690947

22 692125

23 693557

24 222698

25 697159

697160

697162

697163

26 697164

697165

697171

697172

27 697100

28 697099

29 697126

32 692852

33 495856

34 495857

35 691279

36 691279

37 697352

40 691752

43 691968

45 690564

46 697687

48 697761

50 690193

51 692137_G$+

53 690227

54 691148

73 697384

74 697987

75 690582

78 691003

93 690602 G

94 498030

95 691636

98 495800

104 690525 O

105 231855 G

106 690577 G

108 690464

108A 692344

117 694352 G

Cylinder Assembiy 118 697492

Kit-Bushing/Seal (Magneto Side) 121 697241

Seal-Oil (Magneto Side) 125 697190

Sump-Engine 127 695005

Head-Cylinder 130 691750

Gasket-Cylinder Head 131 494379

Gasket-Breather 133 494381

Screw (Breather Assembly) 137 281165

Tube-Breather 141 495097

Gasket-Crankcase 141A 495931

Screw (Cylinder Head) 142 697140

Hug-Oil Drain 146 691639

Crankshaft 186 692317

Seal-Oil (PTO Side) 187 691050

Screw (Crankcase Cover/Sump)

Flywheel 188 691693

Key- Flywheel 192 691986

Piston Assembly (Standard) 202 691841

Piston Assembly (.010" Over- 209 692208

size) 216 691840

Piston Assembly (.020" Over- 222 694042

size) 227 691374

Piston Assembly (.030" Over- 231 691636

size) 232 691842

Ring Set (Standard) 238 691843

Ring Set (.010" Oversize) 240 394358

Ring Set (.020" Oversize) 265 691024

Ring Set (.030" Oversize) 267 695134

Lock-Piston Pin 276 692255

Pin-Piston 304 698402

Rod-Connecting (Standard) 305 697102

Screw (Connecting Rod) 305A 697103

Valve-Exhaust 306 697107

VaIveqntake 307 691003

Spring-Valve (Intake) 309 693551

Spring-Valve (Exhaust) 309A

Guard-Flywheel

Retainer-VaIve

Slinger-Governor/OiI 310 690323

Tappet-Valve 311 497608

Camshaft 311A 395538

Short Block (31C707-0230-E2 333 492341

Replacement Engine-art 334 691061

not available) 337 491055

Manifoldqntake 358 697191

Gasketqntake 363 19203

Stud (Carburetor)

Screw (Intake Manifold) RPM Settings:

Screen-Rotating

Screw (Rotating Screen)

Washer (Flywheel)

Screw (Flywheel Guard)

Bushing-Throttle Shaft

Kitqdle Mixture

Screw (Throttle Valve)

Kit-Hie Speed

Pin-Float Hinge

Valve-Float Needle

Seat-inlet

Valve-Choke (Manual Choke)

Valve-Choke (Choke A Matic)

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Plug-Welch

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Gasket-Float BowI

Kit-Choke Shaft (Manual Choke)

Kit-Choke Shaft (Choke A Matic)

Nozzle-Carburetor

Key-Timing

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Adjuster-Rocker Arm

Link-MechanicaI Governor

Spring-Governor

Link-Choke

Bracket-Contro!

Lever-Governor Control

Screw (Choke Valve)

Spring-Governor

Cap-Valve

Filter-Fuel

Clamp-Casing

Screw (Casing Clamp)

Washer-Sealing

Housing-Blower

Screw (Blower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Motor-Starter (For Replacement

Starter Motor,

See Reference 309)

Bolt (Starter Motor)

Brush Set

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Gasket Set-Engine

Flywheel Puller

Low Speed: 1900-2100

High Speed: 3000-3200

,, included in Engine Gasket Set, Key. No. 358

a included in Carburetor Overhaul Kit, Key. No. 121

$ included in Carburetor Gasket Set, Key. No. 977

+ included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

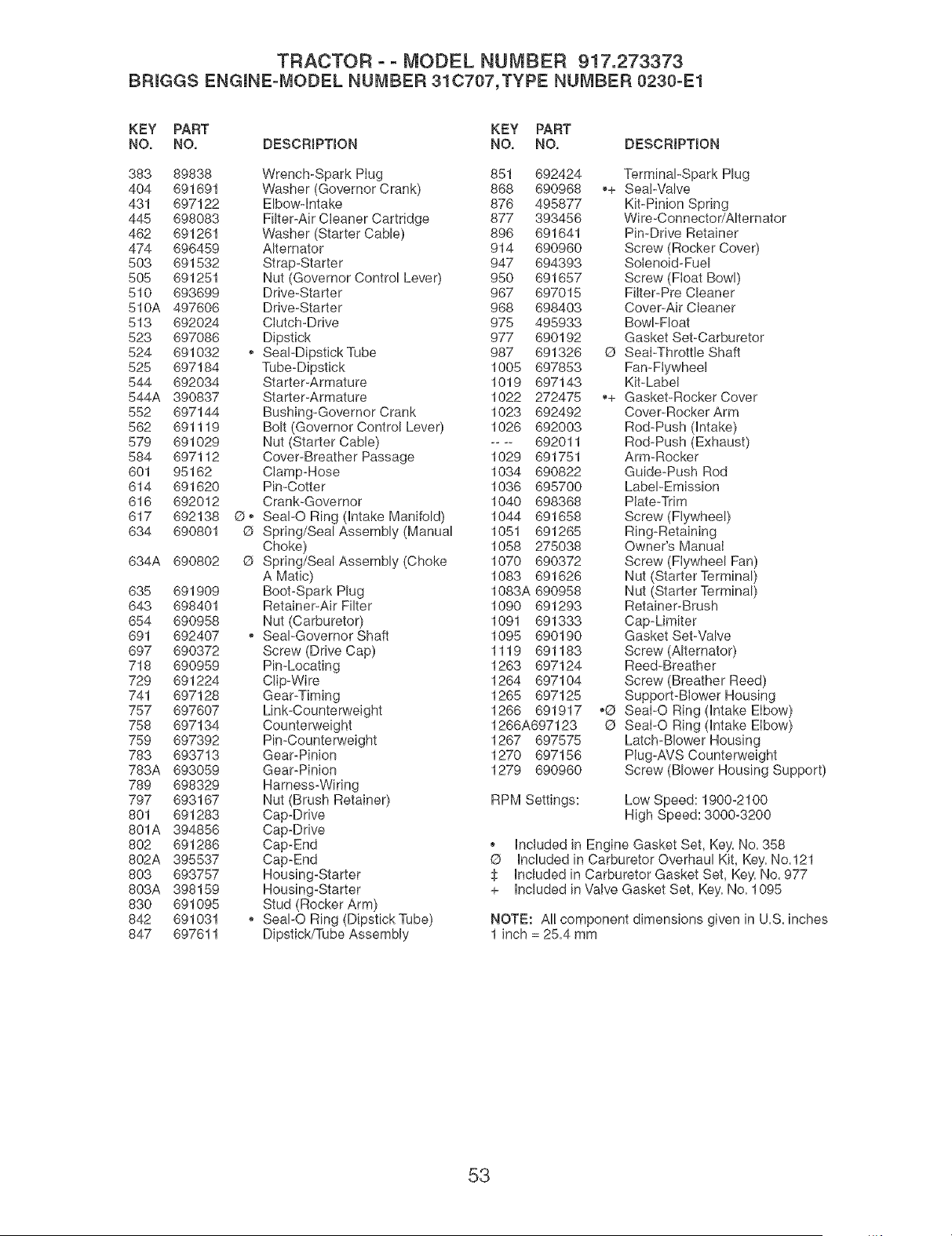

TRACTOR oo MODEL NUMBER 917.273373

BRmGGSENGmNE=MODELNUMBER310707,TYPE NUMBER0230=E1

KEY PART KEY PART

NO. NO. DESCRmPTmON NO. NO. DESCRiPTiON

383 89838 Wrench-Spark Plug 851 692424

404 691691 Washer (Governor Crank) 868 690968

431 697122 Elbowqntake 876 495877

445 698083 Filter-Air Cleaner Cartridge 877 393456

462 691261 Washer (Starter Cable) 896 691641

474 696459 Alternator 914 690960

503 691532 Strap-Starter 947 694393

505 691251 Nut (Governor Control Lever) 950 691657

510 693699 Drive-Starter 967 697015

510A 497606 Drive-Starter 968 698403

513 692024 Clutch-Drive 975 495933

523 697086 Dipstick 977 690192

524 691032 ,, SeaPDipstbk Tube 987 691326

525 697184 Tube-Dipstbk 1005 697853

544 692034 Starter-Armature 1019 697143

544A 390837 Starter-Armature 1022 272475

552 697144 Bushing-Governor Crank 1023 692492

562 691119 Bolt (Governor Control Lever) 1026 692003

579 691029 Nut (Starter Cable) .... 692011

584 697112 Cover-Breather Passage 1029 691751

601 95162 Clamp-Hose 1034 690822

614 691620 Pin-Cotter 1036 695700

616 692012 Crank-Governor 1040 698368

617 692138 O,, SeaPO Ring (Intake Manifold) 1044 691658

634 690801 (_ Spring/Seal Assembly (Manual 1051 691265

Choke) 1058 275038

634A 690802 (_ Spring/Seal Assembly (Choke 1070 690372

A Matic) 1083 691626

635 691909 Boot-Spark Plug 1083A 690958

643 698401 Retainer-Air Filter 1090 691293

654 690958 Nut (Carburetor) 1091 691333

691 692407 ,, SeaPGovernor Shaft 1095 690190

697 690372 Screw (Drive Cap) 1119 691183

718 690959 Pin-Locating 1263 697124

729 691224 Clip-Wire 1264 697104

741 697128 Gear-Timing 1265 697125

757 697607 Link-Counterweight 1266 691917

758 697134 Counterweight 1266A697123

759 697392 Pin-Counterweight 1267 697575

783 693713 Gear-Pinion 1270 697156

783A 693059 GeaFPinion 1279 690960

789 698329 Harness-Wiring

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive

801A 394856 Cap-Drive

802 691286 Cap-End

802A 395537 Cap-End

803 693757 Housing-Starter

803A 398159 Housing-Starter

830 691095 Stud (Rocker Arm)

842 691031 ,, SeaPO Ring (Dipstick Tube)

847 697611 Dipstick/Tube Assembly

TerminaPSpark Plug

o+ SeaFValve

Kit-Pinion Spring

Wire-Connector/Alternator

Pin-Drive Retainer

Screw (Rocker Cover)

Solenoid-Fuel

Screw (Float Bowl)

Filter-Pre Cleaner

Cover-Air Cleaner

BowPFIoat

Gasket Set-Carburetor

@ Seal-Throttle Shaft

Fan-Flywheel

Kit-Label

,,+ Gasket-Rocker Cover

Cover-Rocker Arm

Rod-Push (Intake)

Rod-Push (Exhaust)

Arm-Rocker

Guide-Push Rod

LabePEmission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

OwneCs Manual

Screw (Flywheel Fan)

Nut (Starter Terminal)

Retainer-Brush

Cap-Limiter

Gasket Set-Valve

Screw (Alternator)

Reed-Breather

Screw (Breather Reed)

Support-Blower Housing

_,@ Seal-O Ring (intake Elbow)

@ Seal-O Ring (intake Elbow)

Latch-Blower Housing

Plug-AVS Counterweight

Screw (Blower Housing Support)

RPM Settings: Low Speed: 1900-2100

High Speed: 3000-3200

,, Included in Engine Gasket Set, Key. No. 358

@ included in Carburetor Overhaul Kit, Key. No.121

$ included in Carburetor Gasket Set, Key. No. 977

+ included in Valve Gasket Set, Key. No. 1095

NOTE: Al! component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

!_i_!JJJJJJJJJJJJJJJJiii_i

_iiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiii

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

TM SM

® Registered Trademark / Trademark / - Service Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque deposee de Sears, Roebuck and Co.

193233 7.12.04 MH Printed in U.S.A.

Craftsman 917273373 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917273373 Questions and Answers
