Chef CHC942BB 90cm Electric Ceramic Cooktop

User Manual - Transcript

• Page 2 - English - : CONGRATULATIONS Congratulations and thank you for choosing our Ceramic Cooktop We are sure you will find your new appliance a pleasure to use and a great asset to your cooking Before you use the appliance we recommend that you read through the whole user manual which provides a description of the product and its functions To avoid the risks that are always present when you use a cooking appliance it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards For future reference please store this booklet in a safe place This appliance complies to the requirements of Australian Standard AS4551 CONTENTS General safety 3 Description of the Appliance 4 Operating the appliance 5 Tips on Cooking and Frying 6 Energy Saving 6 Cleaning and care 7 Troubleshooting 8 Disposal 8 Technical Data 9 Installation Instructions 10 Electrical connection 10 Assembly 11 Rating plates 15 Warranty 19 Service 19 Record model and serial number here Model Serial number 2 CONTENTS Ceramic Cooktops CONDITIONS OF USE This appliance is intended to be used in household and similar applications such as Staff kitchen areas in shops offices and other working environments Farm houses By clients in hotels motels and other residential type environments Bed and breakfast type environments
• Page 3 - English - : general safety Ceramic Cooktops GENERAL SAFETY 3 Please comply with these instructions If you do not any damage resulting is not covered by the warranty General safety This appliance may only be installed and connected by trained registered service engineers Builtin appliances may only be used after they have builtin units and work surfaces that meet standards In the event of faults with the appliance or damage to the glass ceramic cracks scratches or splits the appliance must be switched off and disconnected from the electrical supply to prevent the possibility of an electric shock Repairs to the appliance must only be carried out by trained registered service engineers Childrens safety The cooking zones will become hot when you cook Therefore always keep small children away from the appliance The appliance is not intended for use by persons including children with reduced physical sensory or menatl capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for thier safety Children should be supervised to ensure that they do not play with the appliance Correct use This appliance should be used only for normal domestic cooking and frying of food The appliance must not be used as a work surface or as a storage surface Additions or modifications to the appliance are not permitted Do not place or store flammable liquids highly inflammable materials or fusible objects eg plastic film plastic aluminium on or near the appliance Safety during use Remove stickers and film from the glass ceramic There is the risk of burns from the appliance if used carelessly Cables from electrical applainces must not touch the hot surfaces of the appliance or hot cookware Overheated fats and oils can ignite very quickly When cooking with fat or oil eg Chips do not leave the appliance unattended Switch the cooking zones off after each use Safety when cleaning For cleaning the appliance must be switched off and cooled down For safety reasons the cleaning of the appliance with steam jet or high pressure cleaning equipment is not permitted How to avoid damage to the appliance The glass ceramic can be damaged by objects falling onto it The edge of the glass ceramic can be damaged by being knocked by the cookware Cookware made of cast iron cast aluminum or with damaged bottoms can scratch the glass ceramic if pushed across the surface Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway To avoid damaging cookware and glass ceramics do not allow saucepans or frying pans to boil dry Do not use the cooking zones with empty cookware or without cookware

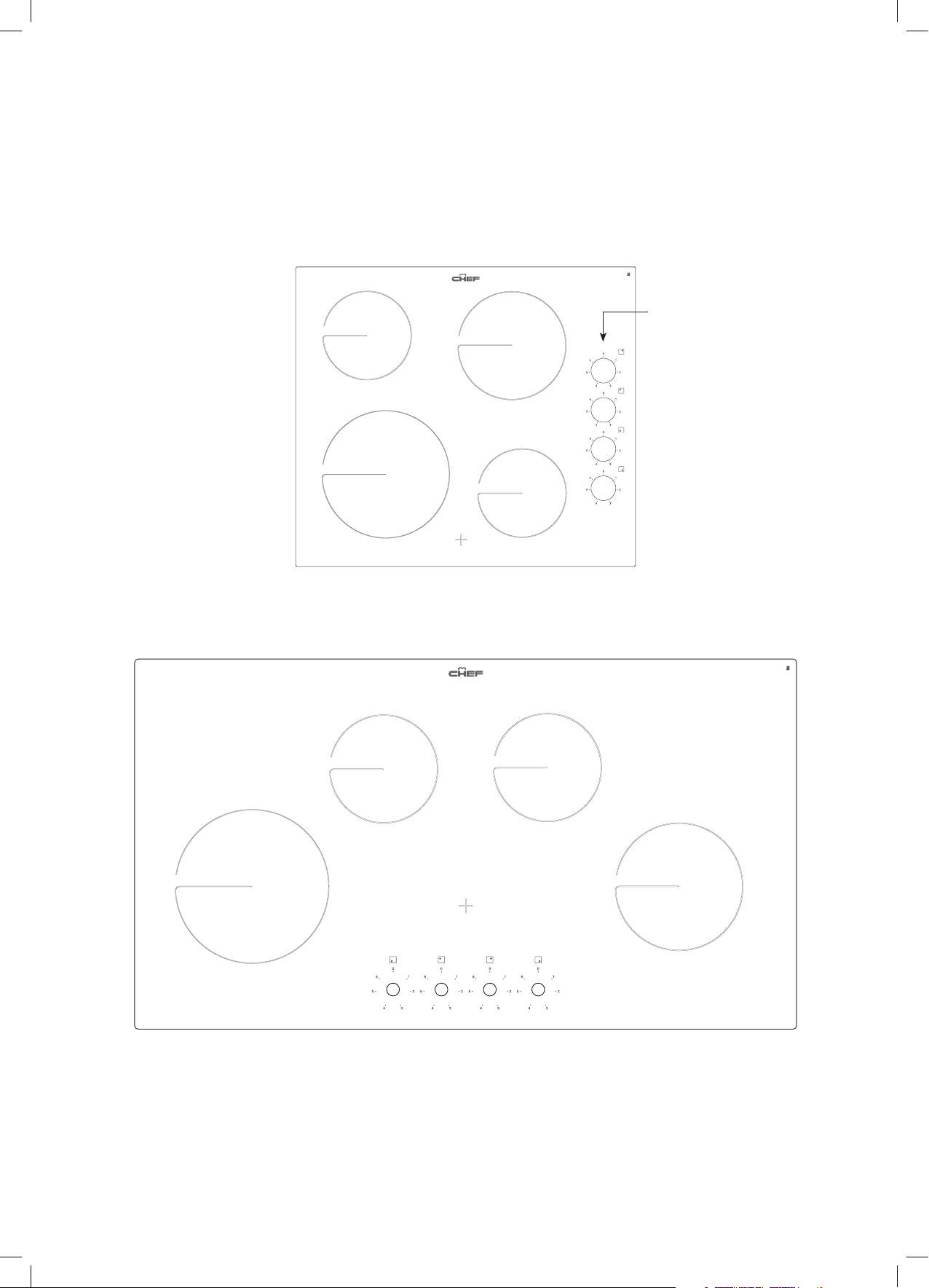

• Page 4 - English - : description Cooking surface layout CHC642BB 4 DESCRIPTION Ceramic Cooktops Hob cooking zone control knobs CHC942BB 1 4 1 2 3 Hob cooking zone control knobs 2 3
• Page 5 - English - : description Control knobs The cooking power can be set anywhere between level 0 and 6 0 and 6 6 Higest 0 Off position Residual heat indicator The residual heat indicator lights up as soon as the corresponding zone is hot WARNING warning Risk of burns from residual heat After being switched off the cooking zones need some time to cool down Look at the residual heat indicator ENVIRONMENTAL TIPS environmental tips Residual heat can be used for melting and keeping food warm Ceramic Cooktops DESCRIPTION 5 operating the appliance TIPS amp INFORMATION tips amp information When a cooking zone is switched on it may hum briefly This is a characteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance Setting the heat setting The residual heat indicator lights up as soon as the corresponding zone is hot HEAT SETTING RING CONTROL KNOB KNOB SETTING To increase Turn clockwise Low High To increase Turn clockwise 0 6 To reduce Off 6 0 1 When boiling watersearing food select a high heat setting 2 As soon as steam forms or the fat or oil is hot set a lower heat setting 3 To end the cooking process turn to the off position
• Page 6 - English - : cooking and frying energy saving 6 COOKING AND FRYING Ceramic Cooktops TIPS amp INFORMATION tips amp information According to the latest scientific knowledge intensive browning of food especially in products containing starch can constitue a health risk due to acrylamides Therefore we recommend cooking at the lowest possible temperatures and not browing foods to much Cookware The residual heat indicator lights up as soon as the corresponding zone is hot ENVIRONMENTAL TIPS environmental tips Always place cookware on the coking zone before it is switched on If possible always place lids on the pans Switch cooking zones off before the end of the cooking time to take advantage of residual heat Bottom of pans and cooking zones should be the same size Incorrect setting Correct setting For a large cooking zone use a large utensil For a small cooking zone use a small utensil
• Page 7 - English - : cleaning and care Ceramic Cooktops CLEANING AND CARE 7 WARNING warning Risk of burns from residual heat WARNING warning Sharp objects and abrasive cleaning materials will damage the appliance Clean with water and washing up liquid WARNING warning Residues from cleaning agents will damage the appliance Remove residues with water and washing up liquid Cleaning the appliance after each use 1 Wipe the appliance with a damp cloth and a little washing up liquid 2 Rub the appliance dry using a clean cloth Removing deposits 1 Place a scraper on the glass ceramic surface at an angle 2 Remove residues by sliding the blade over the surface 3 Wipe the appliance with a damp cloth and a little washing up liquid 4 Rub the appliance dry using a clean cloth REMOVE TYPE IMMEDIATELY AFTER COOLING USE Sugar food containing sugar yes a scraper Plastics tin foil yes a scraper Limescale snd water rings yes cleaner for glass ceramic or stainless steel Fat splashes yes cleaner for glass ceramic or stainless steel Shiny metallic discolourattion yes cleaner for glass ceramic or stainless steel Scrapers and cleaners for glass and stainless steel can be purchase in specialist shops TIPS amp INFORMATION tips amp information Remove stubborn residues with a cleaner for glass ceramic or stainless steel Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance
• Page 8 - English - : 8 TROUBLESHOOTING Ceramic Cooktops PROBLEM POSSIBLE CAUSE REMEDY The cooking zones are not functioning The desired heat setting is not set Set the heat setting The fuse in the houses electrical wiring fuse box has been tripped Check the fuse If the fuses trip a number of times please call an authroised electrician The residual heat indicator is not displaying anything The cooking zone was only on for a short time and is therefore not hot If the cooking zone is supposed to be hot call the customer service department If you are unable to remedy the problem by following the above suggestions please contact your dealer or the customer service department WARNING warning Repairs to the appliance are only to be carried out by qualified service engineers Considerable danger to the user may result from improper repairs TIPS amp INFORMATION tips amp information If the appliance has been wrongly operated the visit from the customer service technician or dealer may not take place free of charge even during the warranty period ENVIRONMENTAL TIPS environmental tips Packaging material The packaging materials are environmentally friendly and can be recycled The plastic components are identified by markings eg gtPElt gtPSlt etc Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities ENVIRONMENTAL TIPS environmental tips Old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment By ensuring this product disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product please contact your local city office your household waste disposal service of the shop where you purchased the product troubleshooting disposal
• Page 9 - English - : Ceramic Cooktops TECHNICAL DATA 9 MODEL CHC642BB CHC942BB PNC 949163419 949163420 Product dimensions w x d mm 610 x 515 930 x 520 Cutout dimenisons w x d mm 560 x 490 485 880 x 490 485 Voltage volts 230 230 Cycles Hz 50 50 Service cord not fitted not fitted Elements No zones Watts No zones Watts front left 1 2300 1 2300 Rear left 1 1200 1 1200 Front right 1 1200 1 1200 Rear right 1 1800 1 1800 Total 6500 6500 technical data
• Page 10 - English - : installation electrical connection Safety instructions The laws ordinances directives and standards in force in the country of use are to be followed safety regulations proper recycling in accordance with he regulations etc Installation may only be carried out by a qualified electrician The minimum distances to other appliances and units are to be observed Antishock protection must be provided by the installation for example drawers may only be installed with a protective floor directly underneath the appliance The cut surfaces of the workshop are to be protected against moisture using a suitable sealant The sealant seals the appliance to the worktop with no gap Avoid installing the appliance next to doors and under windows Otherwise hot cookware may be knocked off the rings when doors are opened WARNING warning Risk of injury from electrical current The electrical mains terminal is live Make electrical mains terminal free of voltage Observe connection schematic Observe electrical safety rules Ensure antishock protection through correct installation by a qualified electrician The appliance must be connected to the electrical supply by a qualified electrician WARNING warning Risk of injury from electrical current Loose and inappropriate plug and socket connections can make the terminal overheat Have the clamping joints correctly installed by a qualified electrician Use strain relief clamp on cable CAUTION The surface temperature exceeds 95C To avoid a hazard underbench access must be restricted Supply cords must have a temperature rating not less than 105C Before connecting check that the nominal voltage of the appliance that is the voltage stated on the rating plate corresponds to the available supply voltage The rating plate is located on the lower casting of the hob The heating element voltage is AC230V The appliance also works perfectly on networks with AC220V or AC240V The hob is to be connected to the mains using a device that allows the applaince to be disconnected from the mains at all poles with a contact opening width of at least 3mm eg automatic line protecting cutout earth leakage trips or fuse A cable with minumum temperature rating of V90HT or one with a higher grade must be used as the mains connecting cable The connection must be carried out as shown in the diagram The connecting links should be fitted according to the appropriate connection diagram The earth lead must be longer than leads carrying electric current The cable connections must be made in accordance with regulations and the terminal screws tightened securely Finally the connecting cable is to be secured with the mains cable cleat and the covering closed by pressing firmly lock into place Before switching on for the first time any protective foil or stickers must be removed from the glass ceramic surface WARNING caution Once connected to the mains supply check that all cooking zones are ready for use by briefly switching each on in turn at the maximum setting Sticking on the seal Clean the worktop around the cutout area Stick the singlesided adhesive sealing tape provided on the underside of the hob around the outside edge ensuring that it is not stretched The two ends of the tape should join in the middle of one side After trimming the tape allow it to overlap by 23mm press the two ends together TIPS amp INFORMATION tips amp information The cutout section in the worktop is illustrated in the drawind with the dimensions 560 x 490 880 x 490mm The applaince can also be built into a shorter cutout section with the dimensions 560 x 485 880 x 485 mm 10 INSTALLATION Ceramic Cooktops

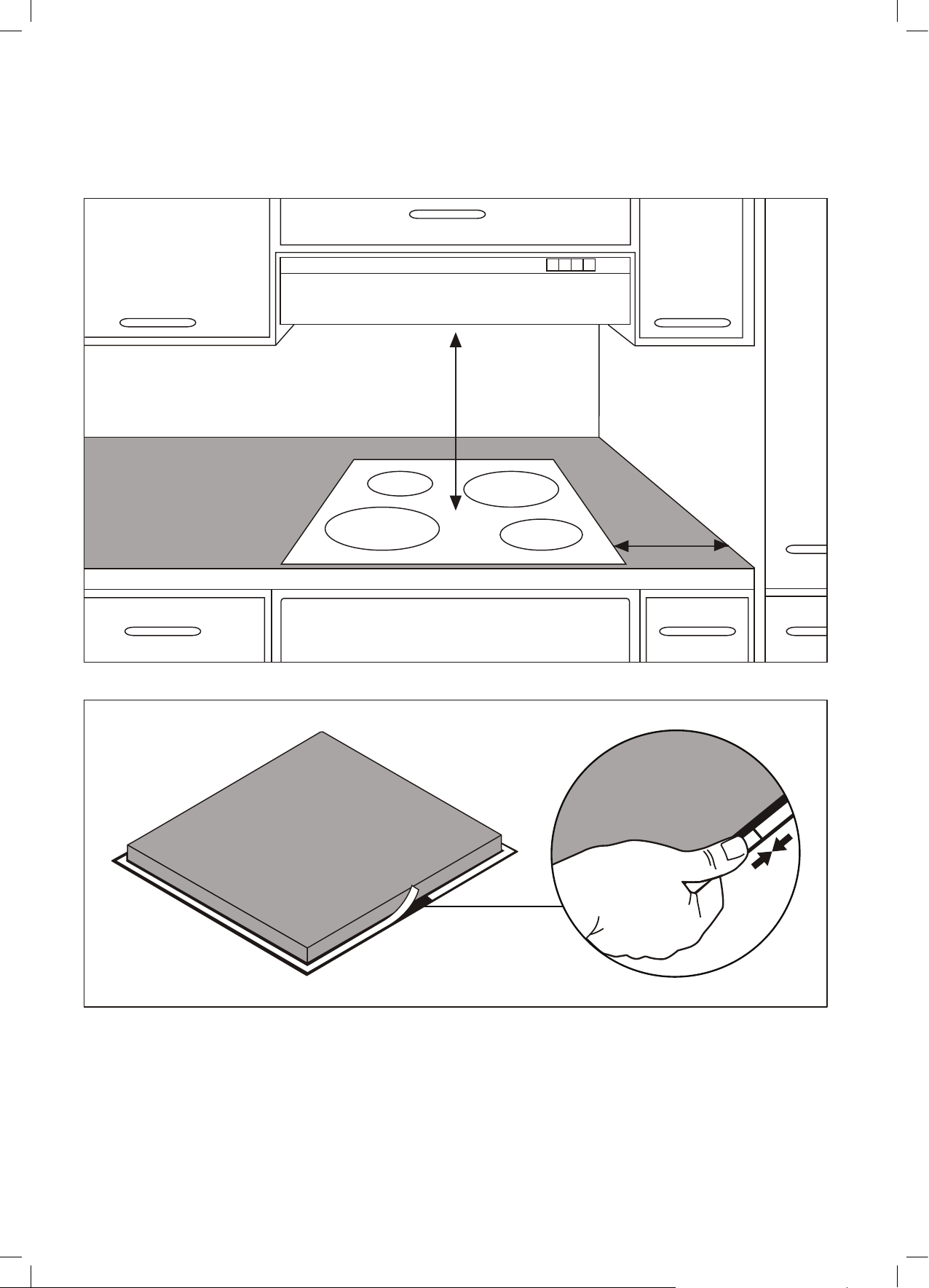

• Page 11: electrical connection assembly Ceramic Cooktops INSTALLATION 11 min 50mm min 600mm

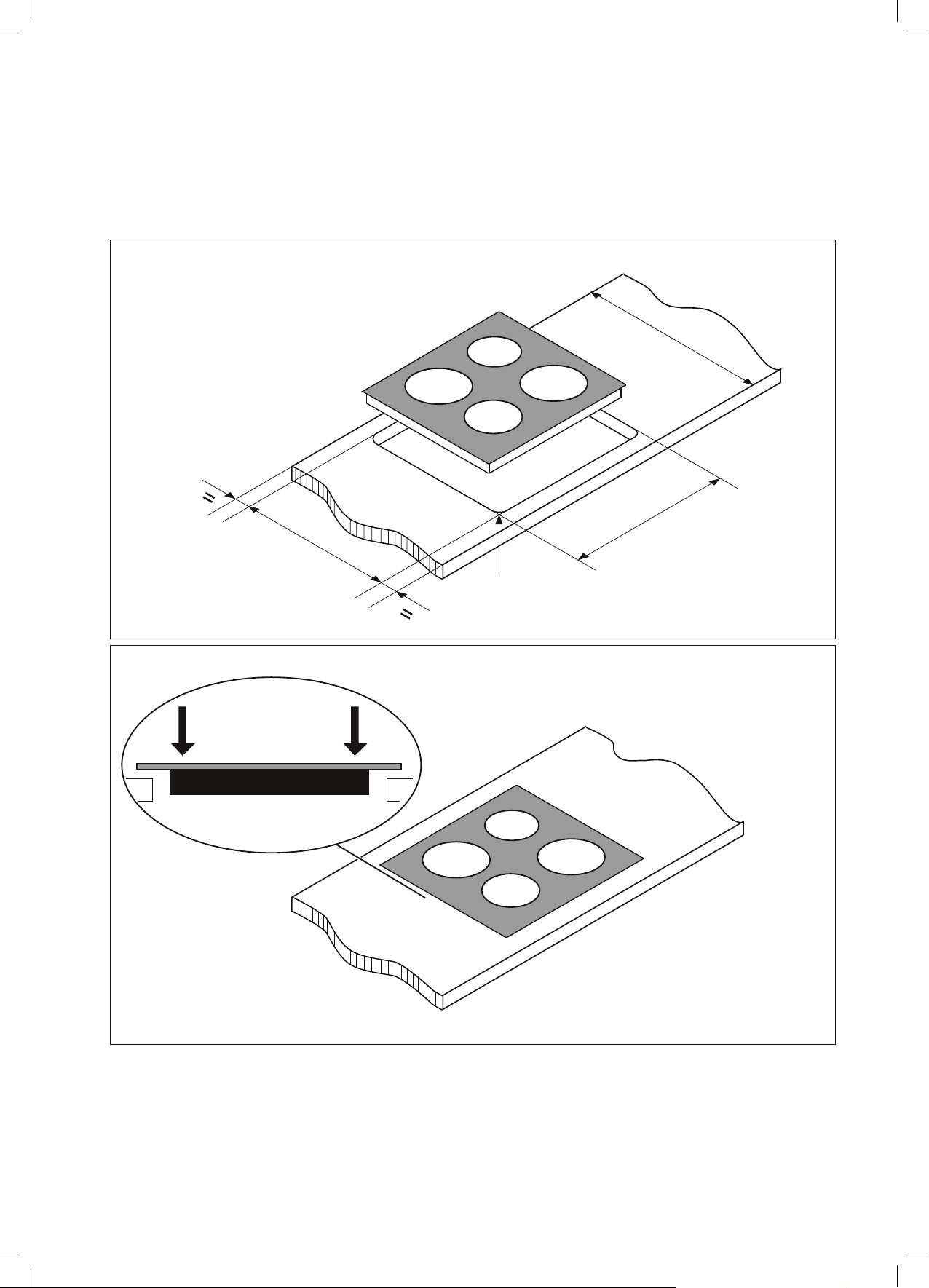

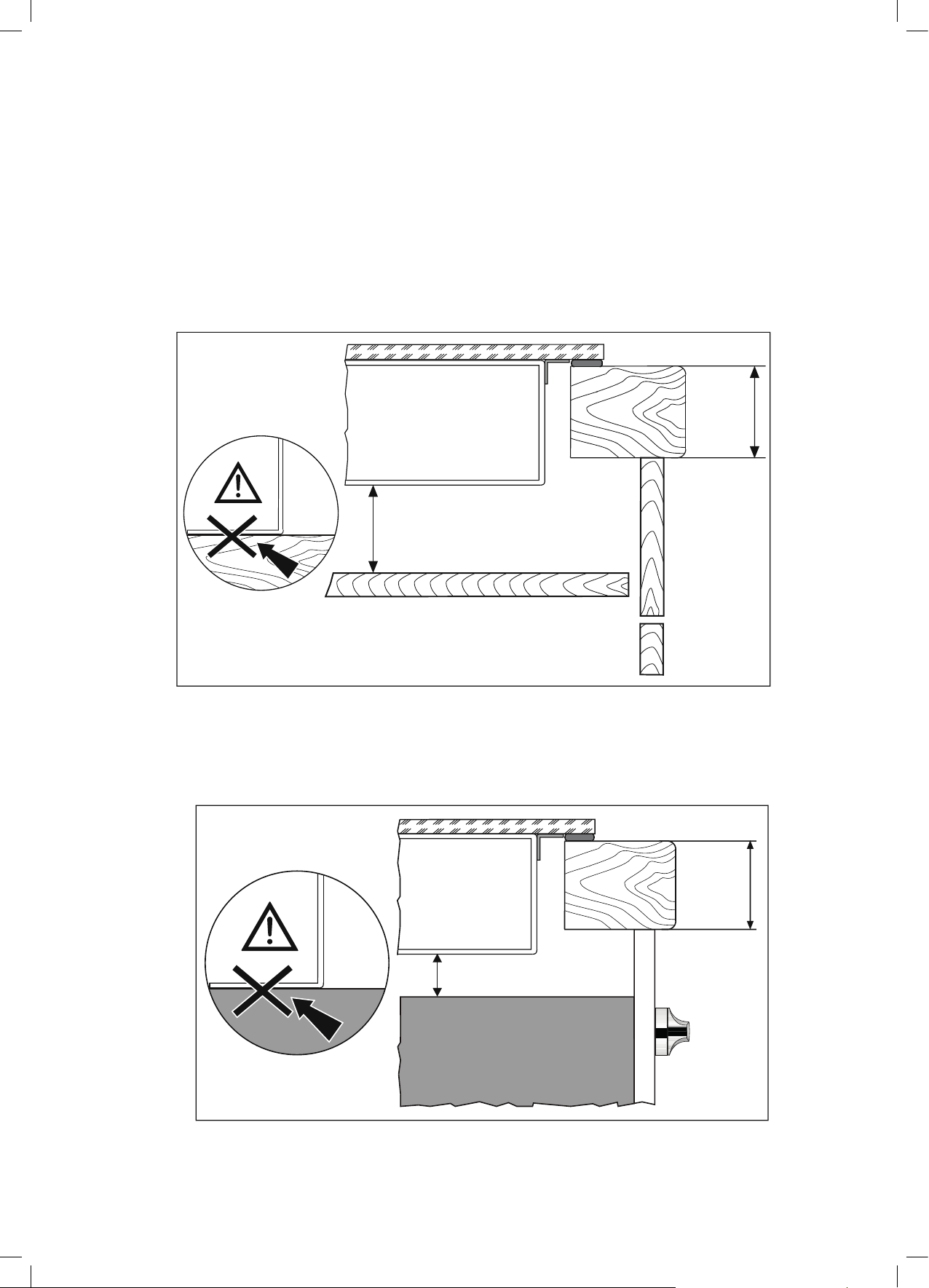

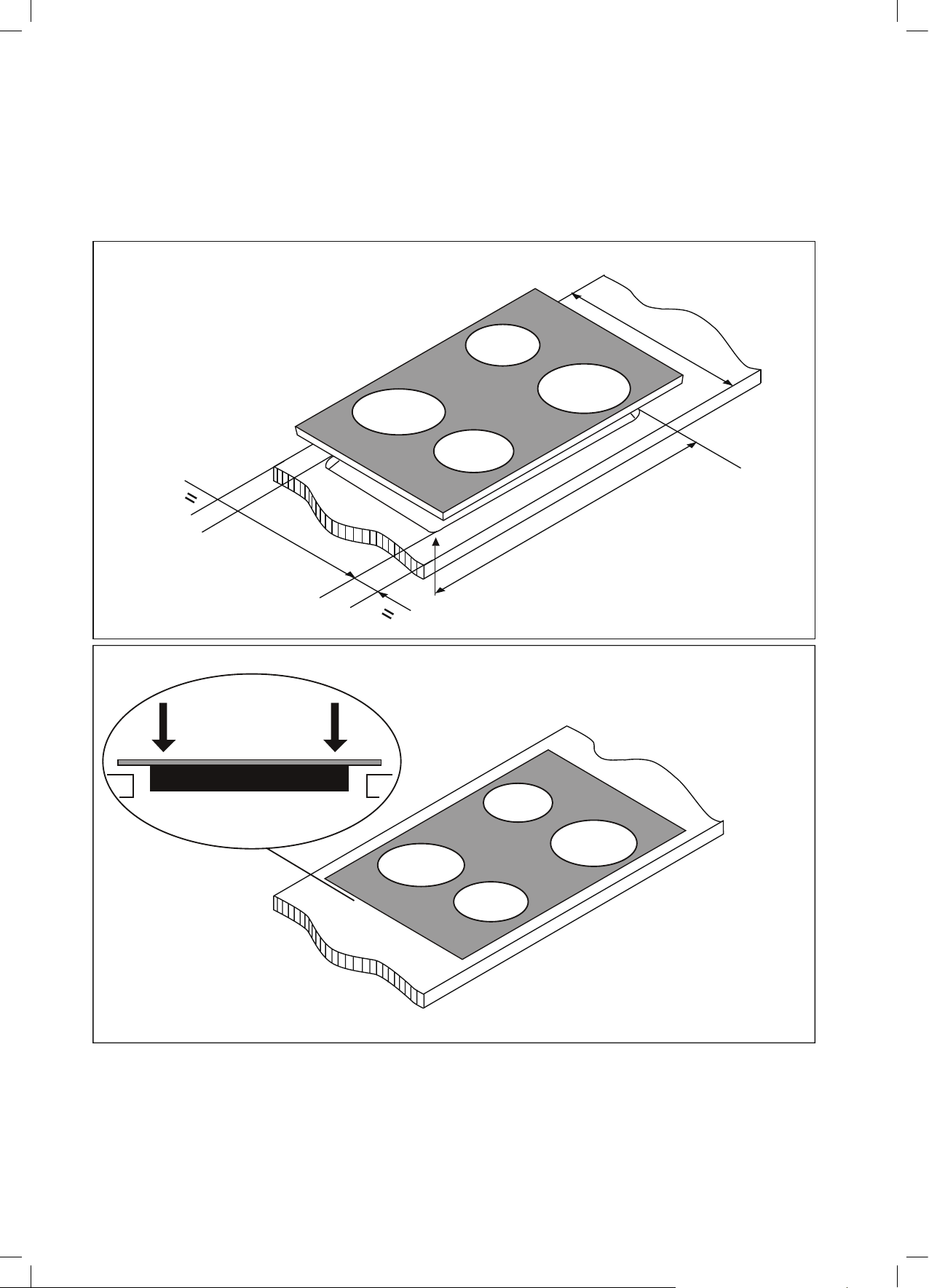

• Page 14 - English - : 14 ASSEMBLY Ceramic Cooktops assembly min 25mm min 25mm min 20mm min 20mm Installation above cupboards or drawers Under hob access must be restricted by the addition of a board mounted at least 20mm from underside of hob Installation above cupboards or drawers Under hob access must be mounted at least 20mm from top of appliance
• Page 15 - English - : Ceramic Cooktops RATING PLATES 15 rating plates Made in China 50Hz04609478 CHC642BB 220 240V MODEL PNC949163419 60 kW S NO 24094916341921046094782000 M M L L Made in China 5060Hz04609480 CHC942BB 220 240V MODEL PNC949163420 65 kW S NO 24094916342021046094802000 M M L L
• Page 16: notes 16 NOTES Ceramic Cooktops
• Page 17: notes Ceramic Cooktops NOTES 17
• Page 18: notes 18 NOTES Ceramic Cooktops
• Page 19 - English - : This document sets out the terms and conditions of the product warranties for Chef Appliances It is an important document Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance This warranty is in addition to other rights you may have under the Australian Consumer Law 1 In this warranty a ACL or Australian Consumer Law means Schedule 2 to the Competition and Consumer Act 2010 b Appliance means any Electrolux product purchased by you and accompanied by this document c ASC means Electroluxs authorised serviced centres d Chef is the brand controlled by Electrolux Home Products Pty Ltd of 163 ORiordan Street Mascot NSW 2020 ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux NZ Limited collectively Electrolux of 35 Niall Burgess Road Mount Wellington in respect of Appliances purchased in New Zealand e WarrantyPeriodmeanstheperiodspeciedinclause3ofthis warranty f you means the purchaser of the Appliance not having purchased the Appliance for resale and your has a corresponding meaning 2 Application This warranty only applies to new Appliances purchased and used in Australia or New Zealand and is in addition to and does not exclude restrict or modify in any way other rights and remedies under a law to which the Appliances or services relate including any non excludable statutory guarantees in Australia and New Zealand 3 Warranty Period Subject to these terms and conditions this warranty continues in Australia for a period of 24 months and in New Zealand for a period of 24 months following the date of original purchase of the Appliance 4 Repair or replace warranty During the Warranty Period Electrolux or its ASC will at no extra charge if your Appliance is readily accessible for service without special equipment and subject to these terms and conditions repair or replace any parts which it considers to be defective Electrolux may in its absolute discretion choose whether the remedy oeredforavalidwarrantyclaimisrepairorreplacementElectroluxorits ASC may use refurbished parts to repair your Appliance You agree that any replaced Appliances or parts become the property of Electrolux 5 Travel and transportation costs Subject to clause 7 Electrolux will bear the reasonable cost of transportation travel and delivery of the Appliance to and from Electrolux or its ASC Travel and transportation will be arranged by Electrolux as part of any valid warranty claim 6 Proof of purchase is required before you can make a claim under this warranty 7 Exclusions You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship This warranty does not cover a lightglobesbatteriesltersorsimilarperishableparts b parts and Appliances not supplied by Electrolux c cosmeticdamagewhichdoesnotaecttheoperationofthe Appliance d damage to the Appliance caused by i negligence or accident ii misuse or abuse including failure to properly maintain or service iii improper negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC iv normal wear and tear v power surges electrical storm damage or incorrect power supply vi incomplete or improper installation vii incorrect improper or inappropriate operation viii insect or vermin infestation ix failure to comply with any additional instructions supplied with the Appliance In addition Electrolux is not liable under this warranty if a the Appliance has been or Electrolux reasonably believes that the Appliance has been used for purposes other than those for which the Appliance was intended including where the Appliance has been used for any nondomestic purpose b theApplianceismodiedwithoutauthorityfromElectroluxinwriting c the Appliances serial number or warranty seal has been removed or defaced 8 How to claim under this warranty To enquire about claiming under this warranty please follow these steps a carefully check the operating instructions user manual and the terms of this warranty b have the model and serial number of the Appliance available c have the proof of purchase eg an invoice available d telephone the numbers shown below 9 Australia For Appliances and services provided by Electrolux in Australia Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure Acceptable quality and major failure have the same meaning as referred to in the ACL 10 New Zealand For Appliances and services provided by Electrolux in New Zealand the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act the Sale of Goods Act and the Fair Trading Act Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply 11Condentiality You accept that if you make a warranty claim Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE CHEF BUILTIN OVENS COOKTOPS AND FREESTANDING COOKER CCookWarrJul19 Important Notice Before calling for service please ensure that the steps listed in clause 8 above have been followed AUSTRALIA FOR SERVICE ortondtheaddressofyournearest authorised service centre in Australia PLEASE CALL 13 13 49 For the cost of a local call FOR SPARE PARTS ortondtheaddressofyournearest spare parts centre in Australia PLEASE CALL 13 13 50 For the cost of a local call NEW ZEALAND FOR SERVICE ortondtheaddressofyournearest authorised service centre in New Zealand PLEASE CALL 0800 10 66 10 FOR SPARE PARTS ortondtheaddressofyournearest spare parts centre in New Zealand PLEASE CALL 0800 10 66 20
• Page 20 - English - : WE ARE PART OF THE ELECTROLUX FAMILY TO ADD A TOUCH OF PROFESSIONAL INSPIRATION TO YOUR HOME VISIT ELECTROLUXCOM 2020 Electrolux Home Products Pty Ltd ABN 51 004 762 341 ANC A05333006 RevA CMANCeramicHobsNov20 Contact us if you need more help Australia phone 13 13 49 email customercareelectroluxcomau website chefcomau LIKE TO KNOW MORE
