Chef CHC645BA 60cm Ceramic Cooktop

User Manual - Transcript

• Page 1: Ceramic Cooktops GENERAL SAFETY 1 Ceramic Cooktops User and Installation Manual MODELS CHC645BA CHC745BA
• Page 2 - English - : 2 CONTENTS Ceramic Cooktops Ceramic Cooktops GENERAL SAFETY 3 Congratulations Congratulations and thank you for choosing our Ceramic Cooktop We are sure you will find your new appliance a pleasure to use and a great asset to your cooking Before you use the appliance we recommend that you read through the whole user manual which provides a description of the product and its functions To avoid the risks that are always present when you use a cooking appliance it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards For future reference please store this booklet in a safe place This appliance complies to the requirements of Australian Standard AS4551 Conditions of use This appliance is intended to be used in household and similar applications such as Staff kitchen areas in shops offices and other working environments Farm houses By clients in hotels motels and other residential type environments Bed and breakfast type environments Record model and serial number here Model Serial number The symbols you will see in this booklet have these meanings WARNING WARNING Indicates information concerning your personal safety WARNING CAUTION Indicates information on how to avoid damaging the appliance TIPS amp INFORMATION IMPORTANT Indicates tips and information about use of the appliance ENVIRONMENTAL TIPS ENVIRONMENTAL TIPS Indicates tips and information about economical and ecological use of the appliance general safety WARNING CAUTION Please comply with these instructions If you do not any damage resulting is not covered by the warranty General safety This appliance may only be installed and connected by trained registered service engineers Builtin appliances may only be used after they have builtin units and work surfaces that meet standards In the event of faults with the appliance or damage to the glass ceramic cracks scratches or splits the appliance must be switched off and disconnected from the electrical supply to prevent the possibility of an electric shock Repairs to the appliance must only be carried out by trained registered service engineers Childrens safety The cooking zones will become hot when you cook Therefore always keep small children away from the appliance The appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance Correct use This appliance should be used only for normal domestic cooking and frying of food The appliance must not be used as a work surface or as a storage surface Additions or modifications to the appliance are not permitted Do not place or store flammable liquids highly inflammable materials or fusible objects eg plastic film plastic aluminium on or near the appliance TIPS amp INFORMATION IMPORTANT Important check for any damage or marks If you find the appliance is damaged or marked you must report it within 7 days if you wish to claim for damagemarks under the manufacturers warranty This does not affect your statutory rights ENVIRONMENTAL TIPS ENVIRONMENTAL TIPS Information on disposal for users Most of the packing materials are recyclable Please dispose of those materials by contacting your local authorities and ask for the correct method of disposal CONTENTS Safety instructions 3 Description of the Appliance4 Daily use 6 Tips on Cooking and Frying 6 Cleaning and Care 8 Troubleshooting 9 Installation Instructions 10 Electrical connection 10 Assembly 11 Disposal 14 Technical Data 14 Warranty 15 Service 15 Safety during use Remove stickers and film from the glass ceramic There is the risk of burns from the appliance if used carelessly Cables from electrical appliances must not touch the hot surfaces of the appliance or hot cookware Overheated fats and oils can ignite very quickly When cooking with fat or oil eg Chips do not leave the appliance unattended Switch the cooking zones off after each use Safety when cleaning For cleaning the appliance must be switched off and cooled down For safety reasons the cleaning of the appliance with steam jet or high pressure cleaning equipment is not permitted How to avoid damage to the appliance The glass ceramic can be damaged by objects falling onto it The edge of the glass ceramic can be damaged by being knocked by the cookware Cookware made of cast iron cast aluminum or with damaged bottoms can scratch the glass ceramic if pushed across the surface Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway To avoid damaging cookware and glass ceramics do not allow saucepans or frying pans to boil dry Do not use the cooking zones with empty cookware or without cookware

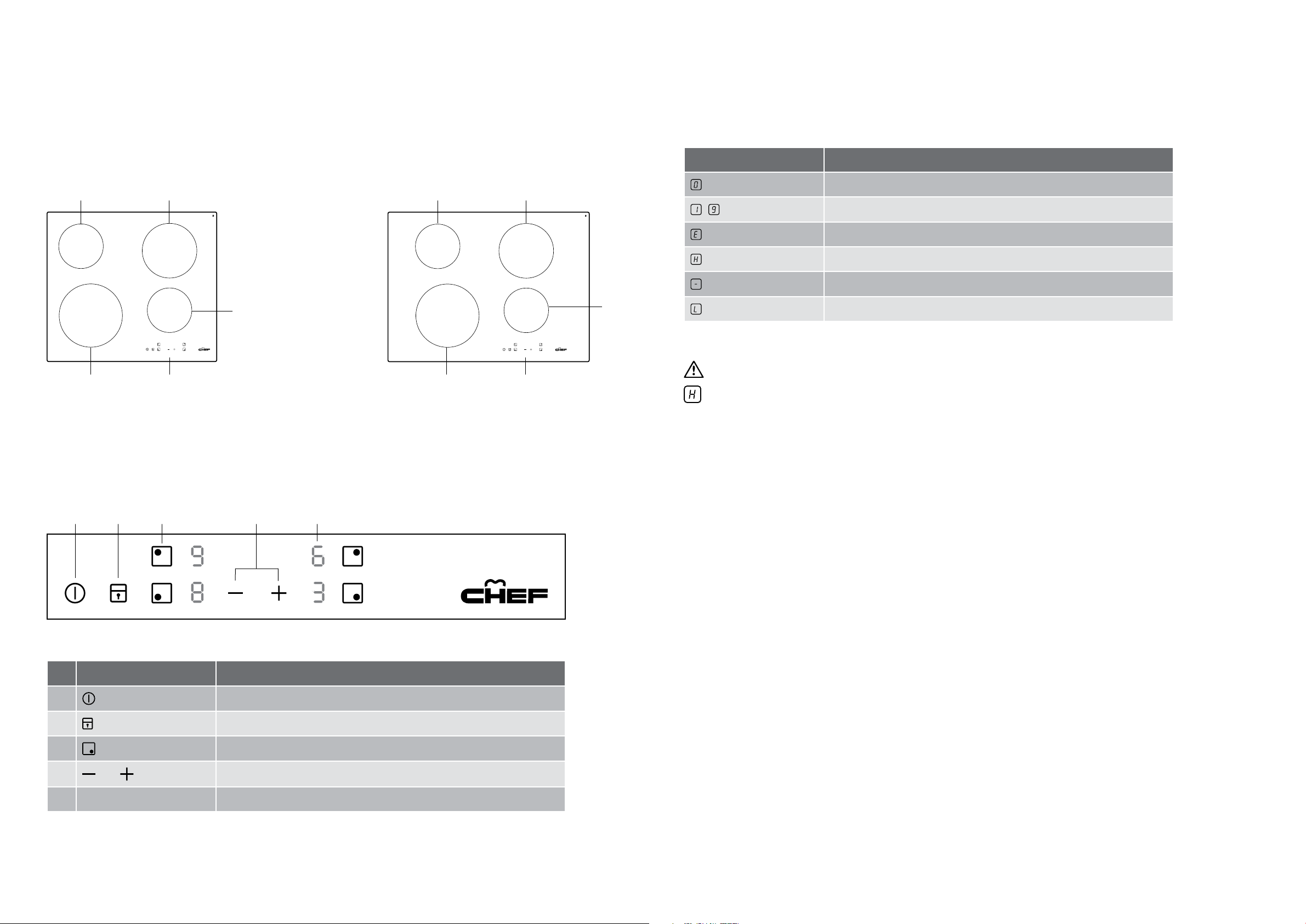

• Page 3 - English - : Ceramic Cooktops DESCRIPTION 54 DESCRIPTION Ceramic Cooktops description CHC645BA Cooking surface layout CHC745BA Cooking surface layout Control panel layout Use the sensor fields to operate the appliance The displays and indicators tell which functions operate 1 2 3 54 Use the sensor fields to operate the appliance The displays and indicators tell which functions operate SENSOR FIELD FUNCTION 1 Activates and deactivates the appliance Locksunlocks the control panel Activates the cooking zone Increases and decreases the heat settings 5 heat setting display Shows the heat setting 1 Cooking zone 2 Cooking zone 3 Cooking zone 4 Control panel 5 Cooking zone Heat setting displays DISPLAY DESCRIPTION The cooking zone is deactivated The cooking zone operates There is a malfunction A cooking zone is still hot residual heat The Automatic Switch Off function operates The Lockthe child safety device is in operation Residual heat indicator WARNING WARNING The risk of burns from residual heat
• Page 4 - English - : Ceramic Cooktops DAILY USE 76 DAILY USE Ceramic Cooktops daily use Activation and deactivation Touch for 1 second to activate or deactivate the appliance Automatic Switch Off The function deactivates the appliance automatically if All cooking zones are deactivated You do not set the heat setting after you activate the appliance You spill something or put something on the control panel for more than 10 seconds a pan a cloth etc Remove the object or clean the control panel You do not deactivate a cooking zone or change the heat setting After some time comes on and the appliance deactivates See below The relation between heat setting and times of the Automatic Switch Off function 6 hours 5 hours 4 hours 15 hours The cooking zone selection To set the cooking zone touch the sensor field related to this zone The display highlights the heat setting indication The heat setting Set the cooking zone Touch to increase the heat setting Touch to decrease the heat setting The display shows the heat setting Touch and at the same time to deactivate the cooking zone cooking and frying energy saving TIPS amp INFORMATION IMPORTANT According to the latest scientific knowledge intensive browning of food especially in products containing starch can constitute a health risk due to acrylamides Therefore we recommend cooking at the lowest possible temperatures and not browning foods to much Cookware The residual heat indicator lights up as soon as the corresponding zone is hot ENVIRONMENTAL TIPS ENVIRONMENTAL TIPS Always place cookware on the coking zone before it is switched on If possible always place lids on the pans Switch cooking zones off before the end of the cooking time to take advantage of residual heat Bottom of pans and cooking zones should be the same size Incorrect setting Correct setting For a large cooking zone use a large utensil For a small cooking zone use a small utensil
• Page 5 - English - : Ceramic Cooktops TROUBLESHOOTING 98 CLEANING AND CARE Ceramic Cooktops cleaning and care WARNING WARNING Risk of burns from residual heat WARNING WARNING Sharp objects and abrasive cleaning materials will damage the appliance Clean with water and washing up liquid WARNING WARNING Residues from cleaning agents will damage the appliance Remove residues with water and washing up liquid Cleaning the appliance after each use 1 Wipe the appliance with a damp cloth and a little washing up liquid 2 Rub the appliance dry using a clean cloth Removing deposits 1 Place a scraper on the glass ceramic surface at an angle 2 Remove residues by sliding the blade over the surface 3 Wipe the appliance with a damp cloth and a little washing up liquid 4 Rub the appliance dry using a clean cloth REMOVE TYPE IMMEDIATELY AFTER COOLING USE Sugar food containing sugar yes a scraper Plastics tin foil yes a scraper Limescale and water rings yes cleaner for glass ceramic or stainless steel Fat splashes yes cleaner for glass ceramic or stainless steel Shiny metallic discolouration yes cleaner for glass ceramic or stainless steel Scrapers and cleaners for glass and stainless steel can be purchase in specialist shops TIPS amp INFORMATION IMPORTANT Remove stubborn residues with a cleaner for glass ceramic or stainless steel Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance troubleshooting PROBLEM POSSIBLE CAUSE REMEDY You cannot activate the appliance or operate it The appliance is not connected to an electrical supply or it is connected incorrectly Check if the appliance is correctly connected to the electrical supply refer to connection diagram Activate the appliance again and set the heat setting in less than 10 seconds You touched 2 or more sensor fields at the same time Touch only one sensor field There is water or fat stains on the control panel Clean the control panel The appliance deactivates You put something on the sensor field Remove the object from the sensor field The residual heat indicator does not come on The cooking zone is not hot because it operated only for a short time If the cooking zone operated sufficiently long to be hot speak to the service centre The sensor fields become hot The cookware is too large or you put it too near to the controls Put large cookware on the rear cooking zones if necessary comes on The Automatic Switch Off operates Deactivate the appliance and activate it again and a number come on There is an error in the appliance Disconnect the appliance from the electrical supply for some time Disconnect the fuse from the electrical system of the house Connect it again If comes on again speak to the service centre If you tried the above solutions and cannot re pair the problem speak to your dealer or the customer service Give the data from the rating plate and an error message that comes on Make sure you operated the appliance correctly If not the servicing by a customer service technician or dealer will not be free of charge also during the warranty period The instructions about the customer service and conditions of guarantee are in the guarantee booklet

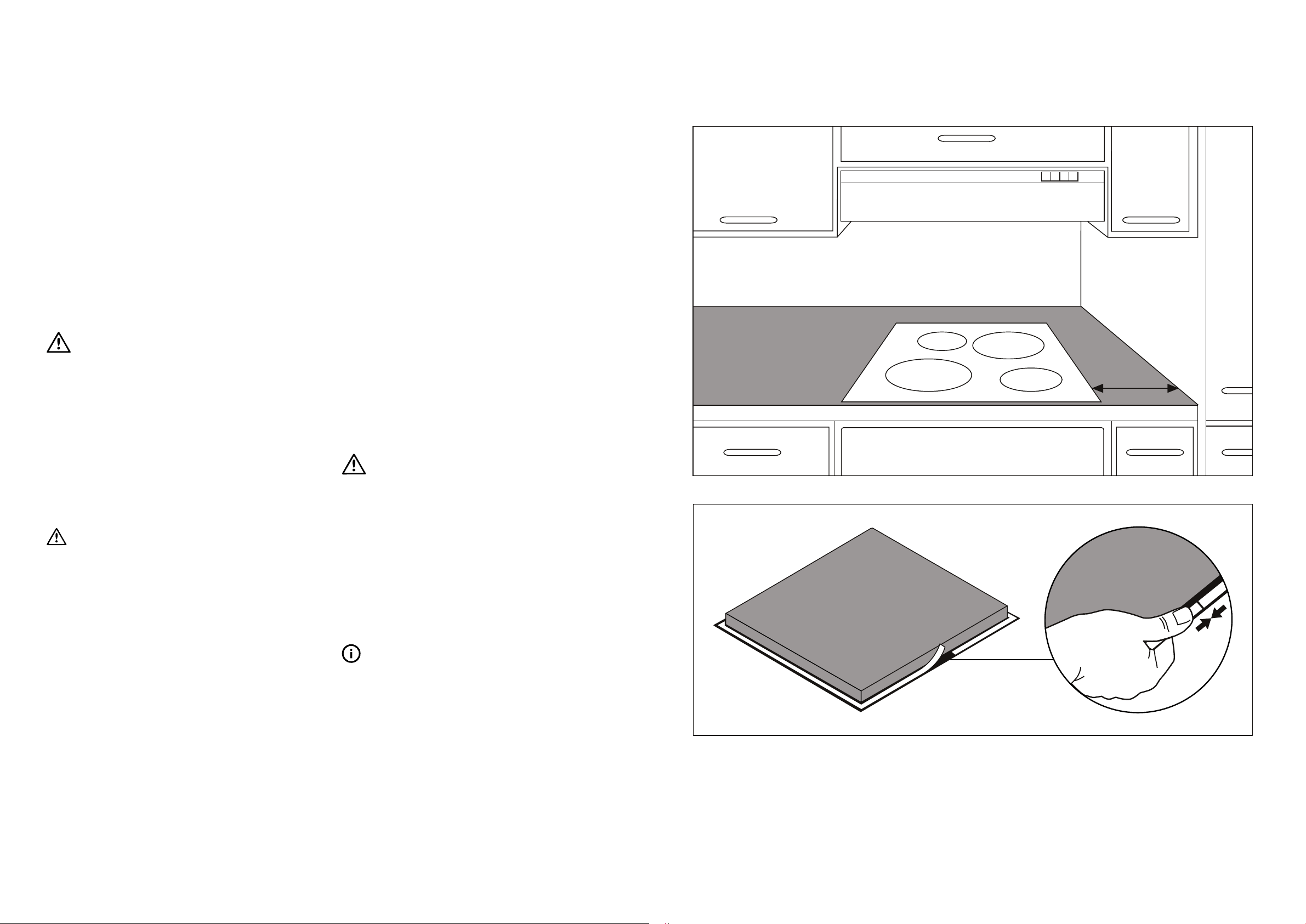

• Page 6 - English - : Ceramic Cooktops ASSEMBLY 1110 INSTALLATION Ceramic Cooktops installation electrical connection assembly Safety instructions The laws ordinances directives and standards in force in the country of use are to be followed safety regulations proper recycling in accordance with he regulations etc Installation may only be carried out by a qualified electrician The minimum distances to other appliances and units are to be observed Antishock protection must be provided by the installation for example drawers may only be installed with a protective floor directly underneath the appliance The cut surfaces of the workshop are to be protected against moisture using a suitable sealant The sealant seals the appliance to the worktop with no gap Avoid installing the appliance next to doors and under windows Otherwise hot cookware may be knocked off the rings when doors are opened WARNING WARNING Risk of injury from electrical current The electrical mains terminal is live Make electrical mains terminal free of voltage Observe connection schematic Observe electrical safety rules Ensure antishock protection through correct installation by a qualified electrician The appliance must be connected to the electrical supply by a qualified electrician WARNING WARNING Risk of injury from electrical current Loose and inappropriate plug and socket connections can make the terminal overheat Have the clamping joints correctly installed by a qualified electrician Use strain relief clamp on cable CAUTION The surface temperature exceeds 95C To avoid a hazard underbench access must be restricted Supply cords must have a temperature rating not less than 105C Before connecting check that the nominal voltage of the appliance that is the voltage stated on the rating plate corresponds to the available supply voltage The rating plate is located on the lower casting of the hob The heating element voltage is AC230V The appliance also works perfectly on networks with AC220V or AC240V The hob is to be connected to the mains using a device that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3mm eg automatic line protecting cutout earth leakage trips or fuse A cable with minimum temperature rating of V90HT or one with a higher grade must be used as the mains connecting cable The connection must be carried out as shown in the diagram The connecting links should be fitted according to the appropriate connection diagram The earth lead must be longer than leads carrying electric current The cable connections must be made in accordance with regulations and the terminal screws tightened securely Finally the connecting cable is to be secured with the mains cable cleat and the covering closed by pressing firmly lock into place Before switching on for the first time any protective foil or stickers must be removed from the glass ceramic surface WARNING CAUTION Once connected to the mains supply check that all cooking zones are ready for use by briefly switching each on in turn at the maximum setting Sticking on the seal Clean the worktop around the cutout area Stick the singlesided adhesive sealing tape provided on the underside of the hob around the outside edge ensuring that it is not stretched The two ends of the tape should join in the middle of one side After trimming the tape allow it to overlap by 23mm press the two ends together TIPS amp INFORMATION IMPORTANT The cutout section in the worktop is illustrated in the drawing with the dimensions 560 x 490 880 x 490mm The appliance can also be built into a shorter cutout section with the dimensions 560 x 485 880 x 485 mm min 50mm

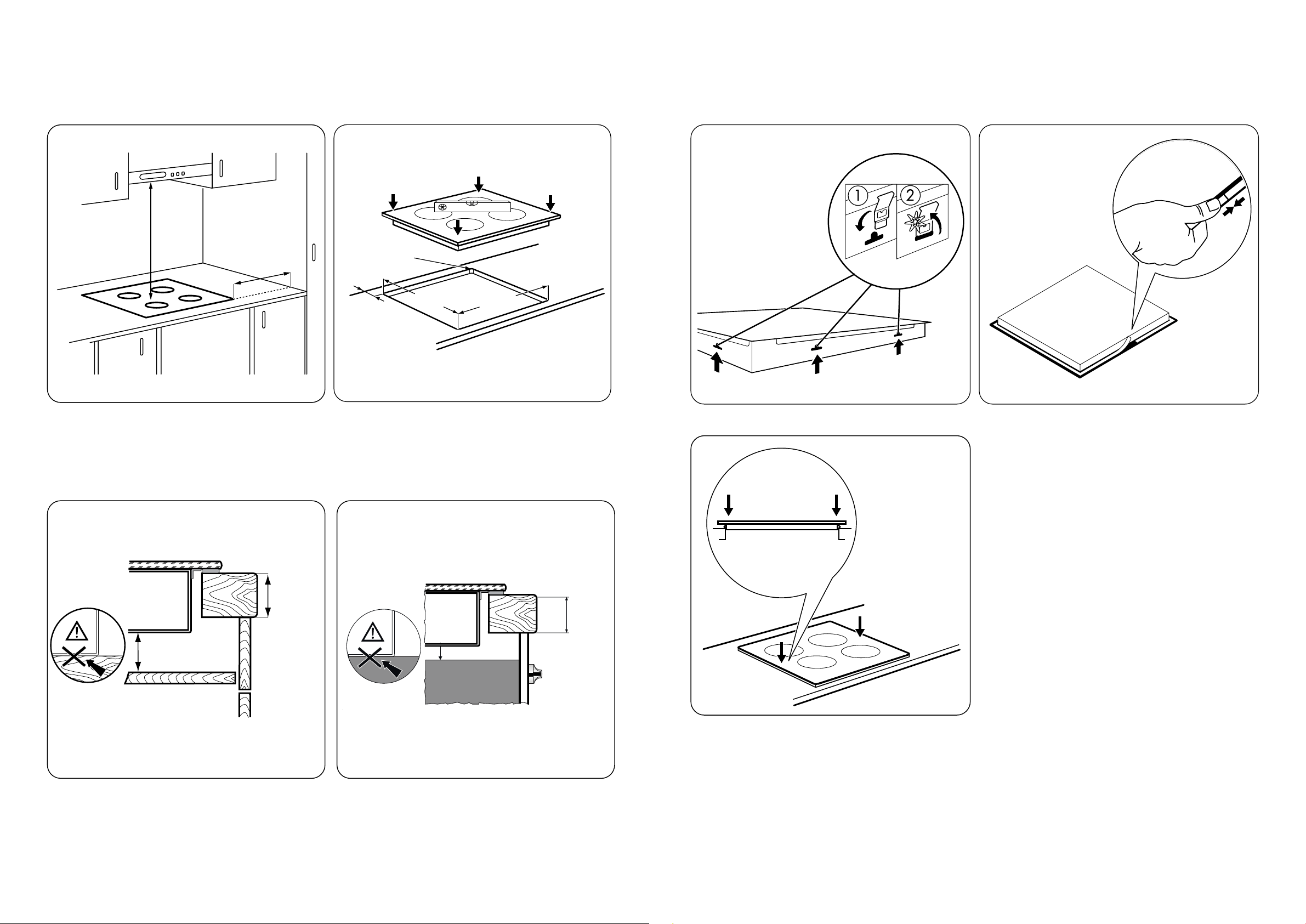

• Page 7 - English - : Ceramic Cooktops ASSEMBLY 1312 ASSEMBLY Ceramic Cooktops assembly min 50mm 55mm R 5mm mm mm min 500mm min 12mm min 20mm min 25mm min 25mm Installation above cupboards or drawers Under hob access must be restricted by the addition of a board mounted at least 20mm from underside of hob Installation above cupboards or drawers Under hob access must be mounted at least 20mm from top of appliance
• Page 8 - English - : This document sets out the terms and conditions of the product warranties for Electrolux Appliances It is an important document Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance 1 In this warranty a acceptable quality as referred to in clause 10 of this warranty has the same meaning referred to in the ACL b ACL means Schedule 2 to the Competition and Consumer Act 2010 c Appliance means any Electrolux product purchased by you and accompanied by this document d ASC means Electrolux authorised service centres e Electrolux means Electrolux Home Products Pty Ltd of 163 ORiordan Street Mascot NSW 2020 ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux NZ Limited collectively Electrolux of 35 Niall Burgess Road Mount Wellington in respect of Appliances purchased in New Zealand f major failure as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux at its discretion to repair an Appliance during the Warranty Period g Warranty Period means the Appliance is warranted against manufacturing defects in Australia for 24 months and in New Zealand for 24 months following the date of original purchase of the Appliance h you means the purchaser of the Appliance not having purchased the Appliance for resale and your has a corresponding meaning 2 This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to and does not exclude restrict or modify in any way any nonexcludable statutory warranties in Australia or New Zealand 3 During the Warranty Period Electrolux or its ASC will at no extra charge if your Appliance is readily accessible for service without special equipment and subject to these terms and conditions repair or replace any parts which it considers to be defective Electrolux or its ASC may use remanufactured parts to repair your Appliance You agree that any replaced Appliances or parts become the property of Electrolux This warranty does not apply to light globes batteries lters or similar perishable parts 4 Parts and Appliances not supplied by Electrolux are not covered by this warranty 5 To the extent permitted by law you will bear the cost of transportation travel and delivery of the Appliance to and from Electrolux or its ASC If you reside outside of the service area you will bear the cost of a travel of an authorised representative b transportation and delivery of the Appliance to and from Electrolux or its ASC In all instances unless the Appliance is transported by Electrolux or an Electrolux authorised representative the Appliance is transported at the owners cost and risk while in transit to and from Electrolux or its ASC 6 Proof of purchase is required before you can make a claim under this warranty 7 You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship Electrolux is not liable in the following situations which are not exhaustive a the Appliance is damaged by i accident ii misuse or abuse including failure to properly maintain or service iii normal wear and tear iv power surges electrical storm damage or incorrect power supply v incomplete or improper installation vi incorrect improper or inappropriate operation vii insect or vermin infestation viii failure to comply with any additional instructions supplied with the Appliance b the Appliance is modied without authority from Electrolux in writing c the Appliances serial number or warranty seal has been removed or defaced d the Appliance was serviced or repaired by anyone other than Electrolux an authorised repairer or ASC 8 This warranty the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply 9 To the extent permitted by law and subject to your nonexcludable statutory rights and warranties Electrolux excludes all warranties and liabilities other than as contained in this document including liability for any loss or damage whether direct or indirect arising from your purchase use or non use of the Appliance 10 For Appliances and services provided by Electrolux in Australia the Appliances come with a guarantee by Electrolux that cannot be excluded under the ACL You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure The benets to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates 11 At all times during the Warranty Period Electrolux shall at its discretion determine whether repair replacement or refund will apply if an Appliance has a valid warranty claim applicable to it 12 For Appliances and services provided by Electrolux in New Zealand the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act the Sale of Goods Act and the Fair Trading Act 13 To enquire about claiming under this warranty please follow these steps a carefully check the operating instructions user manual and the terms of this warranty b have the model and serial number of the Appliance available c have the proof of purchase eg an invoice available d telephone the numbers shown below 14 You accept that if you make a warranty claim Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE BUILTIN OVEN COOKTOP AND FREESTANDING COOKERS Important Notice Before calling for service please ensure that the steps listed in clause 13 above have been followed FOR SERVICE or to nd the address of your nearest state service centre in Australia PLEASE CALL 13 13 49 For the cost of a local call Australia only SERVICE AUSTRALIA ELECTROLUX HOME PRODUCTS electroluxcomau FOR SPARE PARTS or to nd the address of your nearest state spare parts centre in Australia PLEASE CALL 13 13 50 For the cost of a local call Australia only FOR SERVICE or to nd the address of your nearest authorised service centre in New Zealand FREE CALL 0800 10 66 10 New Zealand only SERVICE NEW ZEALAND ELECTROLUX NZ Limited electroluxconz FOR SPARE PARTS or to nd the address of your nearest state spare parts centre in New Zealand FREE CALL 0800 10 66 20 New Zealand only GOVWarrSep15 14 TECHNICAL DATA Ceramic Cooktops technical data MODEL CHC645BA CHC745BA PNC 949163344 949163345 Product Dimensions w x d mm 590 x 520 700 x 520 Cutout Dimensions w x d mm 560 x 490 560 x 490 Voltage Volts 220240 220 240 Frequency Hz 50 60 50 60 Elements Watts Front left 2300 2300 Rear Left 1200 1200 Front Right 1200 1200 Rear Right 1800 1800 Total 6500 6500 ENVIRONMENTAL TIPS ENVIRONMENTAL TIPS Packaging material The packaging materials are environmentally friendly and can be recycled The plastic components are identified by markings eg gtPElt gtPSlt etc Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities Old appliance The symbol on the product or on its packaging indicates that this product may not be treated as household waste Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment By ensuring this product disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product please contact your local city office your household waste disposal service of the shop where you purchased the product disposal
• Page 9 - English - : Chef We are part of the Electrolux Family To add a touch of professional inspiration to your home visit electroluxcomau 2016 Electrolux Home Products Pty Ltd ABN 51 004 762 341 ANC A05333004 RevA CMANCHC645745Dec16 For further information on all appliances or to obtain detailed dimension and installation information call into your Retailer phone or email our Customer Care team or visit our website Australia phone 1300 363 640 fax 1800 350 067 email customercareelectroluxcomau website chefcomau Chef models westinghousecomau Westinghouse models New Zealand phone 0800 234 234 fax 0800 363 600 email customercareelectroluxconz website simpsonconz Simpson models westinghouseconz Westinghouse models Top service Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery home service and spare parts like to know more
