SPECIAL WARNING
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE this installation manual FOR LOCAL ELECTRICAL INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
CLEARANCES ANd dImENSIoNS
For SAFETY CONSIDERATIONS do not install drawer in any combustible cabinetry, which is not in accord with the stated

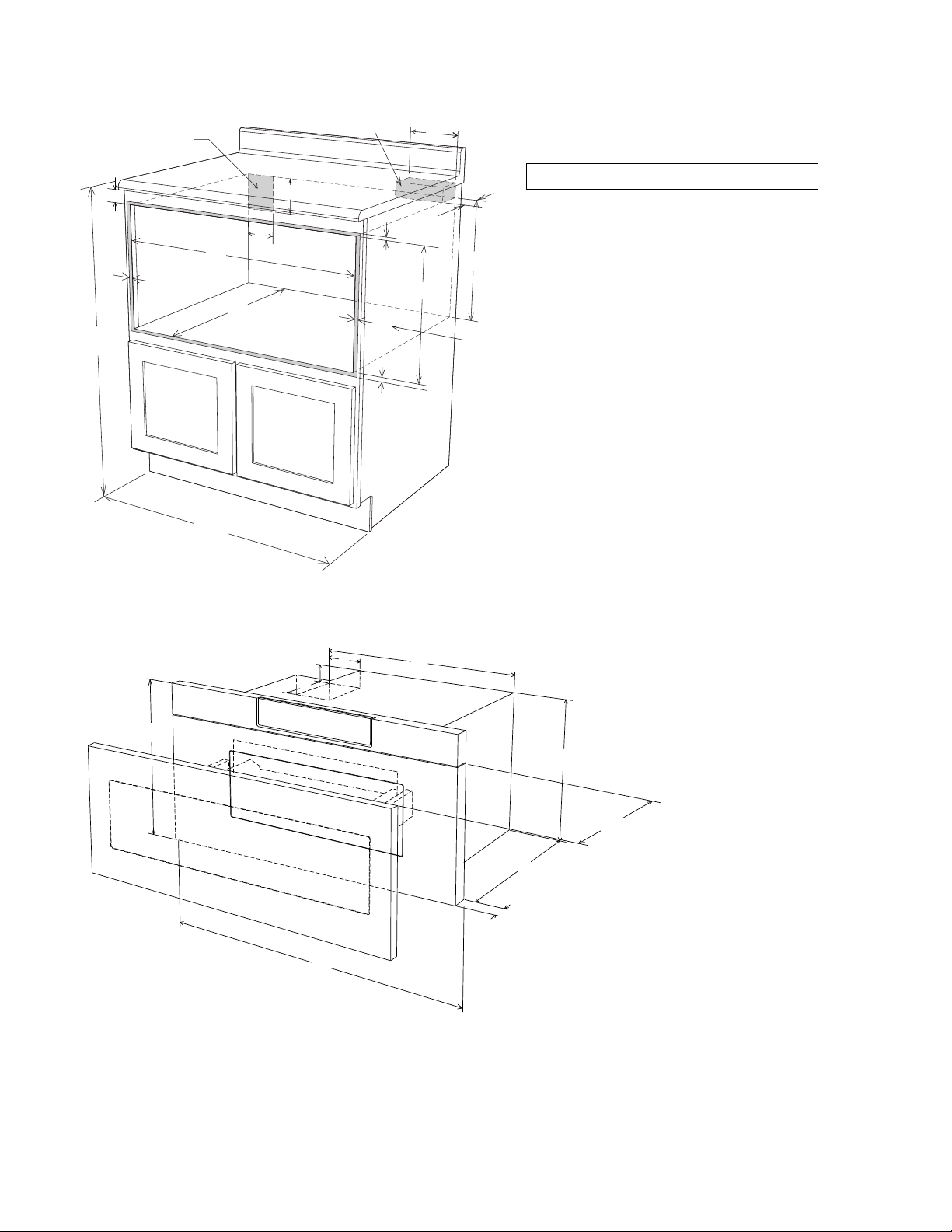

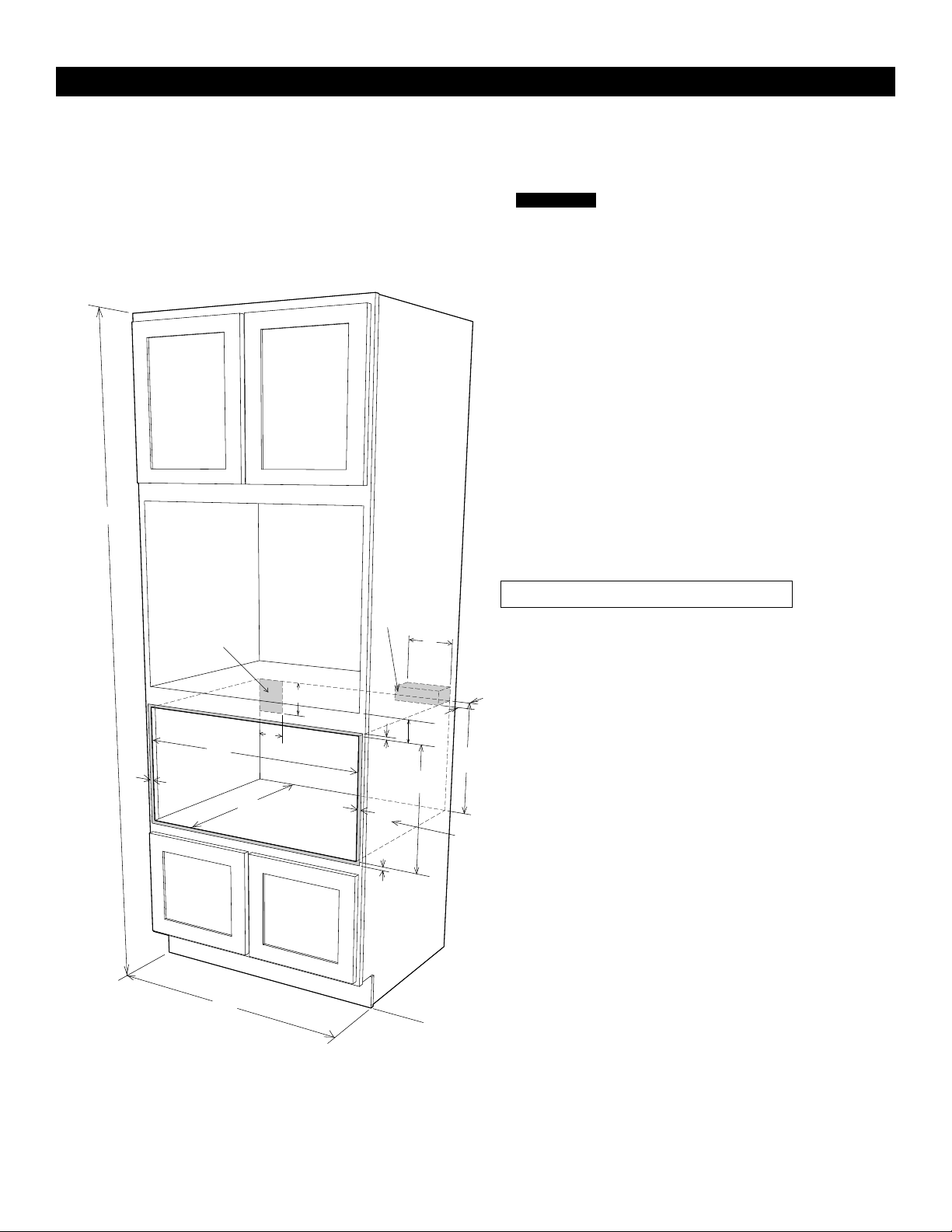

clearances and dimensions on pages 2 - 5. See Figure 1 (for 24") or Figures 4 and 5 (for 30").
Microwave Drawer : SMD2470AS, SMD3070AS
InstallatIon Manual

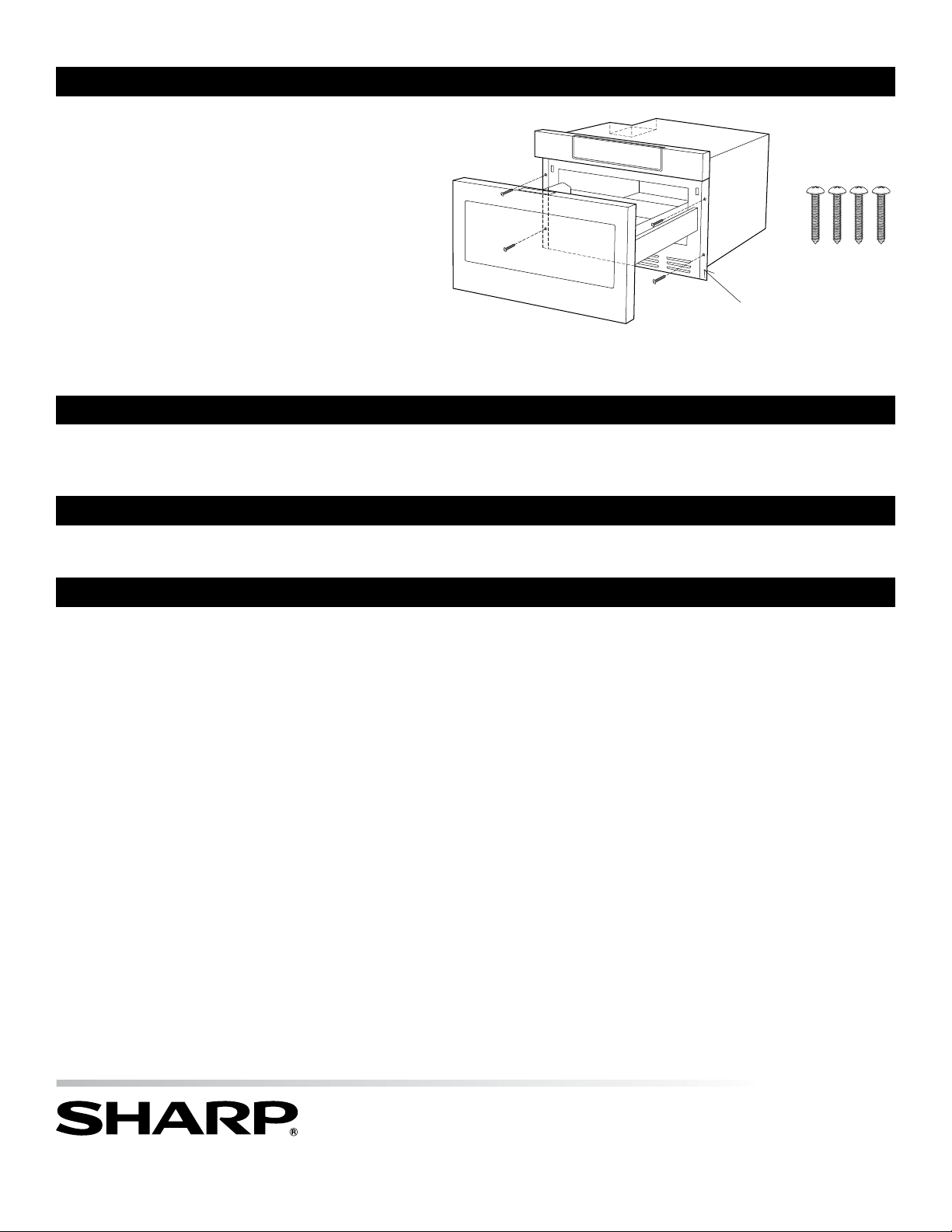

UNPACkING yoUR mICRoWAvE dRAWER
Remove all packing
materials from inside
the Microwave Drawer.
DO NOT REMOVE
THE WAVEGUIDE
COVER, which is
located on the top
of the Microwave
Drawer.
Remove the feature
sticker, if there is one.
Check the drawer for
any damage, such as
misaligned or bent
drawer, damaged drawer seals and sealing surfaces, broken
or loose Microwave Drawer guides and dents inside the cavity
or on the front side of the drawer. If there is any damage, do
not operate the Microwave Drawer and contact your dealer or
a SHARP AUTHORIZED SERVICER.
ImPoRtANt NotES to thE INStALLER
Read all of the Installation Manual before installing the
Microwave Drawer.
Remove all packing material before connecting the electrical
supply.
Observe all governing codes and ordinances.
Be sure to leave these instructions with the consumer.
ImPoRtANt NotES to thE CoNSUmER
Keep this manual with your Operation Manual for future
reference.
As when using any microwave oven generating heat, there
are certain safety precautions you should follow. These are
listed in the Operation Manual. Read all and follow carefully.
Be sure your Microwave Drawer is installed and grounded
properly by a qualied installer or service technician.
ImPoRtANt SAfEty INStRUCtIoNS
If the information in this manual is not followed
exactly, a re or electrical shock may result that could cause
property damage, personal injury or death.
To reduce the risk of tipping, the Microwave
Drawer must be secured by a properly installed Anti-Tip
block.
This Microwave Drawer must be electrically grounded in
accordance with local codes.
Make sure the wall coverings and the cabinets around the
Microwave Drawer can withstand the heat generated by the
Microwave Drawer.
Never leave children alone or unattended in
the area where a Microwave Drawer is in use. Never leave the
drawer open when the microwave is unattended.
Stepping, leaning or sitting on the drawer may
result in serious injuries and can also cause damage to the
Microwave Drawer.
Do not use the Microwave Drawer as a storage space.
This creates a potentially hazardous situation.
Check that the time-of-day is in the display. If not, touch
STOP/CLEAR to prevent unintended use.
1
Mounting
flange
Waveguide
cover
Sealing
surface
Oven
cavity
Sealing
surface
