Operating and installation
instructions
Cooker hood
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 039 030
Contents
2
Warning and Safety instructions...................................................................... 4
Caring for the environment .............................................................................. 13
Guide to the cooker hood................................................................................. 14
Modes of operation ........................................................................................... 16
Before using for the first time .......................................................................... 17
Selecting extraction mode or recirculation mode................................................ 17
Setting up Miele@home ...................................................................................... 17
Connecting via the app .................................................................................. 18
Connecting via WPS ...................................................................................... 19
Sign out of WiFi (reset to factory settings) ..................................................... 20
Setting up Con@ctivity ........................................................................................ 21
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 22
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) ........................... 22
Reattempting the connection......................................................................... 23
Operation (Automatic mode) ............................................................................ 24
Cooking with Con@ctivity (Automatic mode) ...................................................... 24
Cooking process ................................................................................................. 25
Leaving automatic mode temporarily.................................................................. 26
Returning to automatic mode......................................................................... 26
Operation (Manual mode) ................................................................................. 27
Cooking without Con@ctivity (Manual mode) ..................................................... 27
Switching on the fan............................................................................................ 27
To select a power level ........................................................................................ 27
Selecting the second booster level ................................................................ 27
Selecting the run-on time.................................................................................... 28
Switching the fan off ........................................................................................... 28
Dimming/switching the hob lighting on/off ......................................................... 28
Safety switch-off ................................................................................................. 28
Changing settings ............................................................................................. 29
Altering the operating hours counter for the grease filter(s) ................................ 29
Altering or deactivating the charcoal filter operating hours counter ................... 30
Deactivating power management ....................................................................... 30
Buzzer for the sensor controls ............................................................................ 31
Energy saving tips ............................................................................................. 32
Contents
3
Cleaning and care ............................................................................................. 33
Housing ............................................................................................................... 33
Important information for appliances with stainless steel surfaces ............... 33
Operating hours counter ..................................................................................... 34
Grease filter(s) ..................................................................................................... 34
Replacing the grease filter.............................................................................. 36
Charcoal filters .................................................................................................... 36
Resetting the charcoal filter operating hours counter .................................... 37
Disposing of charcoal filters ........................................................................... 37
Reactivatable charcoal filters ......................................................................... 37
Installation.......................................................................................................... 38
Before installation................................................................................................ 38
Installation recommendations ............................................................................. 38
Installation materials............................................................................................ 38
Installation materials for recirculation mode................................................... 39
Appliance dimensions ......................................................................................... 40
Safety distance between hob and cooker hood (S) ............................................ 43
Connection for air extraction............................................................................... 44
Non-return flap ............................................................................................... 45
Condensation ................................................................................................. 45
Silencer........................................................................................................... 46
Electrical connection ........................................................................................... 47
Service................................................................................................................ 48
Contact in the event of a fault ............................................................................. 48
Position of the data plate .................................................................................... 48
Warranty .............................................................................................................. 48
Technical data.................................................................................................... 49
Optional accessories for recirculation mode....................................................... 49
EU Conformity declaration .................................................................................. 50
UK Conformity declaration.................................................................................. 50
Warning and Safety instructions
4
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety
instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This cooker hood is intended for use in domestic households and
similar working and residential environments.
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
Where a recirculation cooker hood is fitted above a gas hob,
please ensure that there is an adequate supply of fresh air into the
room in which it is installed. Please seek the advice of a qualified gas
fitter (e.g. GasSafe in the UK) for more information if necessary.
Warning and Safety instructions
5
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker
hood unsupervised.
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
The hob lighting is very intensive.
Ensure, in particular, that babies/small children do not look at the
light.
Danger of suffocation. Packaging, e.g. plastic wrappings, must be
kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.
Warning and Safety instructions
6
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
Warning and Safety instructions
7
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
8
Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
9
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode,
whereby the air is redirected into the room in which it is installed,
the above restrictions do not apply.
Warning and Safety instructions
10
Correct use
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
The cooker hood can become damaged when exposed to
excessive heat.
- When using the cooker hood over a gas hob, ensure that any
burners in use are always covered by a pan. Switch the cooking
zone off when a pan is removed, even for a short time.
- Select a pan which is suitable for the size of the burner.
- Regulate the flame so that it does not burn up the sides of the
pan.
- Avoid overheating the pan (e.g. when cooking with a wok).
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Warning and Safety instructions
11
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
The cooker hood can get very hot during cooking due to heat
rising from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
Safety regulations prohibit the fitting of a cooker hood over solid
fuel stoves.
An insufficient safety distance between the hob and the cooker
hood can result in damage to the cooker hood.
The minimum safety distances between the top of the hob and the
bottom of the cooker hood given in the “Installation” section of this
manual must be observed, unless the hob manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is fitted beneath the cooker
hood, and they have different minimum safety distances to the
cooker hood, select the greater distance.
The information provided in “Installation” must be observed when
fixing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
Warning and Safety instructions
12
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
There is a risk of fire if the cooker hood is not cleaned as
described in these operating instructions.
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your vapour extraction unit.
Caring for the environment
13
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material
reduces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old
appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with
household waste or if handled
incorrectly. Please do not, therefore,
dispose of your old appliance with
household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, with your dealer
or with Miele, free of charge. By law,
you are solely responsible for deleting
any personal data from the old
appliance prior to disposal. You are
legally obliged to remove any old
batteries which are not securely
enclosed by the appliance and to
remove any lamps without destroying
them, where this is possible. These
must be taken to a suitable collection
point where they can be handed in free
of charge. Please ensure that your old
appliance poses no risk to children
while being stored for disposal.
Guide to the cooker hood
14
Guide to the cooker hood
15
a
Exhaust duct
b
Control elements
c
Charcoal filter
Single-use or reactivatable charcoal filters
Optional accessories for recirculation mode
d
Grease filter
e
Pull-out deflector plate
f
Hob lighting
g
Sensor control for switching the cooker hood on and off
h
Sensor controls for switching the fan on and off and for setting the fan power
level
i
Sensor control for the run-on function
j
Sensor control for the grease filter operating hours counter
k
Sensor control for the charcoal filter operating hours counter
l
Sensor control for switching the lighting on and off and for dimming the lighting
m
Sensor controls for selecting and displaying lighting levels
Modes of operation
16
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The air is drawn in and cleaned by the
grease filter and directed outside.
Recirculation mode
Recirculation mode cooker hoods
require a conversion kit and charcoal
filters (see “Technical Data”)
The air is drawn in and cleaned first by
the grease filter and then by the
charcoal filters. The cleaned air is then
recirculated back into the kitchen.
Before using for the first time
17
Selecting extraction mode or
recirculation mode
The cooker hood is suitable for both
extraction mode and recirculation
mode. The power of the fan is
adapted to suit the selected operating
mode. The cooker hood is delivered
set up for recirculation mode. It has to
be reset for extraction mode.
To reset it for extraction mode, the
operating hours counter for the
charcoal filter(s) has to be deactivated.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Touch B.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
Extraction mode has now been set.
If you do not confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Setting up Miele@home
Requirements:
- A WiFi network
- The Miele app
- A Miele user account. The user
account can be created via the
Miele app.
Your cooker hood is equipped with an
integrated WiFi module. Connect the
cooker hood to your household WiFi
network. You will then be able to
operate the cooker hood via the Miele
app.
If your Miele hob is connected to a
home WiFi network, you can control the
cooker hood automatically via the
Con@ctivity function.
Before installing the cooker hood in
its final location, ensure that the
signal of your WiFi network is strong
enough.
You can connect to the household WiFi
network via the Miele app or via WPS.
Before using for the first time
18
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Connecting via the app
The Miele app can be used to connect
to your network.
Install the Miele app on your mobile
device.
For the registration, you will need:
1. Your WiFi network password
2. Your cooker hood password
The password for your cooker hood
consists of the last 9 digits of the serial
number. This can be found on the
appliance's data plate.
The data plate is visible after removing
the grease filter(s).
Follow the instructions to start
registering the appliance in the app.

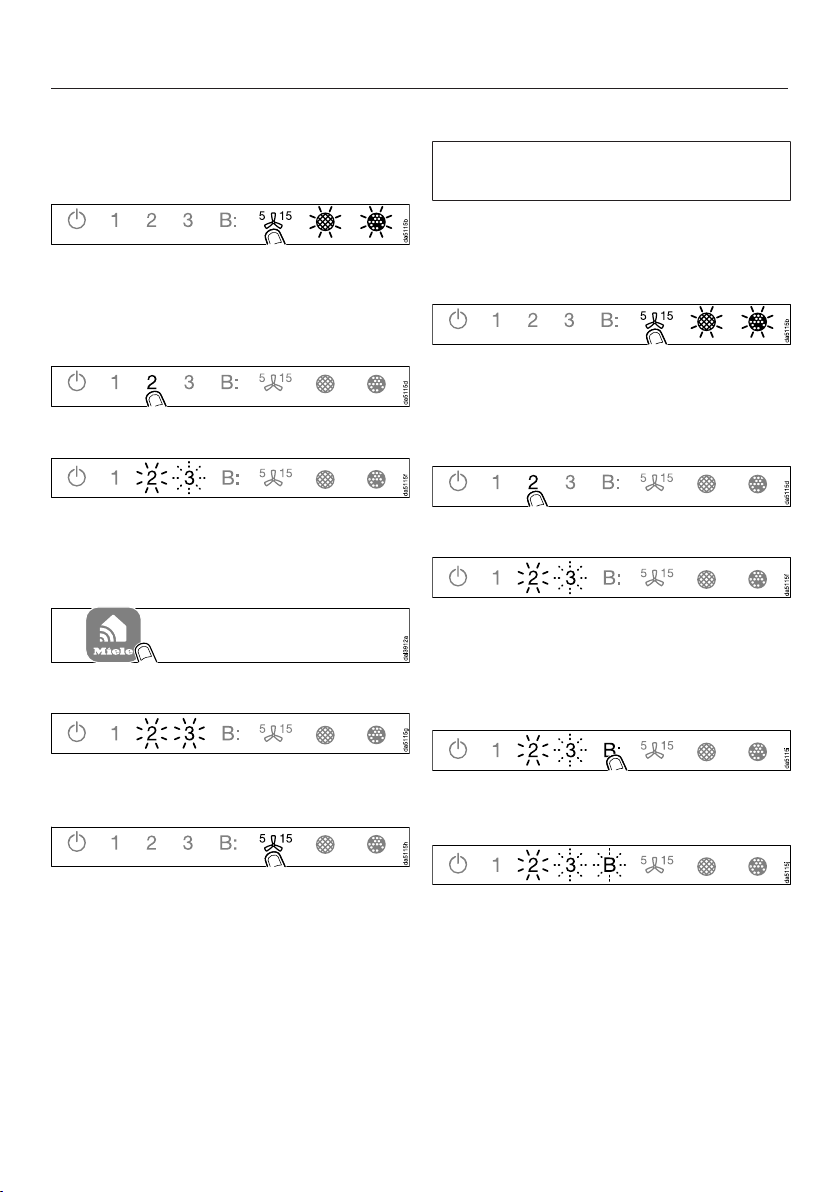

If requested to activate WiFi on the
cooker hood, proceed as follows:
Before using for the first time
19
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 2.
2will light up constantly, 3will flash.
The cooker hood will be ready for
connection in the next 2minutes.
Follow the instructions in the app.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
The cooker hood can now be operated
via the app.
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 2.
2will light up constantly, 3will flash.
The WiFi connection must be started on
the cooker hood at the same time as on
the WPS router.
Press B on the cooker hood after a
few seconds.
After a short while, 2will light up
constantly, and 3and B will flash.
The cooker hood is ready for
connection for the next two minutes
Before using for the first time
20
Start the WPS connection on your
WiFi router.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
The cooker hood can now be operated
via the app.
If the connection fails, you have
probably not activated WPS on your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the Miele app.
Sign out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 1.
If a WiFi connection exists, 2and 3will
light up constantly.
The cooker hood will be ready for
disconnection in the next 2minutes.
Before using for the first time
21
Touch 1.
2will light up constantly, 3will flash.
After a few seconds, 2and 3will flash.
The connection has now been
disconnected.
Quit signing-off mode on the cooker
hood by touching the run-on option
control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Setting up Con@ctivity
Con@ctivity is the direct communication
system between an electric Miele hob
and a Miele cooker hood. It enables the
cooker hood to operate automatically
depending on the operational state of a
Miele hob with onset controls.
- When the hob is switched on, the
cooker hood lighting comes on
automatically and then after a short
time the fan also comes on.
- The cooker hood selects the power
level automatically during cooking.
The power level selected by the
cooker hood depends on the number
of cooking zones being used and
their power levels.
- After switching the hob off the fan
and the hob lighting will switch off
automatically after a specified period
of time.
See “Operation” for detailed information
about this function.
Before using for the first time
22
Con@ctivity via the home WiFi
network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be
activated automatically.
Con@ctivity via a direct WiFi
connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele hob
If you do not have a home network, you
can establish a direct connection
between the hob and the cooker hood.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 3.
2will light up constantly, 3will flash.
The cooker hood will be ready for
connection in the next 2minutes.
Before using for the first time
23
Start the WiFi connection on the hob.
For further details, see the hob
operating instructions.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
Con@ctivity is now activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network.
Should this be required at a later date,
the WiFi connection between the hob
and the cooker hood must be
disconnected (see “Signing out of
WiFi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the cooker hood cancels the
process.
Disconnect the connection to the
cooker hood (see “Signing out of
WiFi”) and to the hob.
Attempt to make the connection
again.
Operation (Automatic mode)
24
When Con@ctivity is active, the
cooker hood always operates in
automatic mode (see “Before using for
the first time” – “Setting up
Con@ctivity”).
If you wish to manually operate the
cooker hood, see “Operation (Manual
mode)” – “Cooking without
Con@ctivity”.
Cooking with Con@ctivity
(Automatic mode)
Switch a cooking zone on at the
desired power level.
The cooker hood lighting will come on.
Pull out the deflector plate.
The fan will come on at power level 2.
The cooker hood selects the fan power
level automatically during cooking.
This is determined by the total output of
the hob, i.e. the number of cooking
zones in operation and the power levels
selected.
If you select a higher power level or
are using several cooking zones on
the hob, the cooker hood will switch
to a higher fan power level.
When you reduce the power level or
the number of cooking zones on the
hob, the fan power level is also
reduced.
Examples for power levels 1 to B
Reaction time
The cooker hood reacts with a slight
delay because altering the power level
on the hob does not immediately result
in a reduction or increase in cooking
vapours.
Because the hob transmits the
information to the cooker hood at
intervals, this can also cause delays.
The reaction can vary from a few
seconds to a couple of minutes.
Operation (Automatic mode)
25
Cooking process
For example, you switch on a cooking
zone at the highest power level to
heat a pan for frying. You reduce the
power level after approx. 10seconds
to 4minutes (60seconds to
5minutes for a for a HiLight hob).
The cooker hood recognises a cooking
process.
The cooker hood switches itself on and
when the hob power level has been
reduced, the hood switches to fan
power level 3 and remains at that level
for approx. 5minutes.
After that, the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Switching off
Switch off all cooking zones.
The cooker hood fan will reduce its
power level in stages over the next few
minutes and will then switch itself off.
This helps to neutralise any lingering
vapours and odours in the air.
- From the Booster setting, the fan
switches immediately to Level 3.
- From Level 3, it will switch to Level 2
after approx. 1minute.
- From Level 2, it will switch to Level 1
after 2minutes.
- After 2minutes at Level 1 the fan
switches itself off.
- After another 30 seconds, the hob
lighting switches off.
The cooking process is then finished.
If the deflector plate remains pulled out,
the cooker hood will switch on
automatically the next time the hob is
switched on:
a few seconds after the hob is switched
on, the cooker hood fan will switch on,
first at level 2 briefly before switching
immediately to level 1. Thereafter
operation will be carried out
automatically.
Operation (Automatic mode)
26
Leaving automatic mode
temporarily
To leave automatic mode temporarily
during cooking:
Manually select a different fan power
level, or
Manually switch the cooker hood off,
or
Activate the run-on function on
the cooker hood. The fan will switch
itself off after the selected run-on
time, and the lighting will remain on.
The cooker hood functions are now
operated manually (see “Operation
(Manual mode)”).
Returning to automatic mode
The cooker hood will resume automatic
mode:
- If the cooker hood has not been used
for approx. 5minutes after selecting
a fan power level manually, or
- If the manually selected fan power
level corresponds to the automatic
one again, or
- The cooker hood fan and the hob
have been switched off for at least
30seconds.
Automatic mode will resume next
time the hob is switched on.
You can also operate the cooker hood
manually for a complete cooking
process.
Switch the cooker hood fan on
before the hob.
If the cooker hood fan and the hob have
been switched off for at least
30seconds after cooking, automatic
mode will resume next time the hob is
switched on.
Operation (Manual mode)
27
Cooking without Con@ctivity
(Manual mode)
The cooker hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Manual operation)” – “Leaving
automatic mode temporarily”).
Switching on the fan
Switch the fan on as soon as you start
cooking. This is to ensure that vapours
are captured right from the start.
Pull out the deflector plate. To ensure
optimum extraction and a low noise
level, pull the deflector plate all the
way out.
The fan will come on at power level 2.
To select a power level
For light to heavy cooking vapours and
odours, select from power levels 1 to 3.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, select Booster
settingB.
Select the power level required by
touching a control from 1 to B.
Selecting the second booster level
When you select the booster level,
the Bsymbol lights up. To increase
the power level further, touch B
again.
The Bsymbol lights up.
The second booster level is activated.
The air throughput is increased for a
short time.
Switching back the booster levels
If Power management is activated
(default setting), the first booster level
Bautomatically switches back to
level3 after 5minutes.
The second booster level B switches
back after 2minutes (even if Power
management is deactivated).
Operation (Manual mode)
28
Selecting the run-on time
It is advisable to run the fan for a few
minutes after cooking has finished. This
helps to remove any lingering vapours
and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
The run-on function enables the fan to
continue running for a pre-determined
time before switching itself off
automatically.
After you have finished cooking,
touch the run-on option control.
- Once: the fan will switch itself off
after 5minutes (5 lights up).
- Twice: The fan will switch itself off
after 15minutes ( 15 lights up).
- If you touch the run-on option
control again, the fan will remain
on ( will go out).
Switching the fan off
Touching the control for the active
power level again switches the fan
off.
The fan also switches off if you push
the deflector plate in.
Dimming/switching the hob
lighting on/off
You can turn the hob lighting on and
off by pulling out the canopy and
pushing it in again or by touching the
lighting control.
When the canopy is retracted, if you
simply want to switch the hob lighting
on, touch the On/Off switch first
followed by the lighting control.
The lighting will switch on at maximum
brightness. All 3bars next to the
lighting control light up.
With the lighting switched on, press
and hold the lighting control. The
brightness will gradually dim until you
release the control.
Press and hold the lighting control
again to increase the brightness to
the level required and then release it.
Alternatively, you can select 3
brightness levels by touching the bars
next to the lighting control.
Safety switch-off
If the power management system has
been deactivated, the fan and hob
lighting will switch off automatically
after 12hours.
Press the On/Off switch to switch
them back on again.
Changing settings
29
Altering the operating hours
counter for the grease filter(s)
You can set the operating hours counter
to suit the type of cooking you do.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter time of 20hours if
you fry a lot.
- If you only cook occasionally, we
recommend that you still select a
short time. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult.
- Select a longer time of 40 or 50hours
if you use very little fat for cooking.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the grease filter symbol.
The grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1 ............................... 20hours
Indicator 2 ............................... 30hours
Indicator 3 ............................... 40hours
Indicator B............................... 50hours
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
grease filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Changing settings
30
Altering or deactivating the
charcoal filter operating hours
counter
Charcoal filters are needed for
recirculation mode.
You can set the operating hours counter
to suit the type of cooking you do.
It has to be deactivated for extraction
mode.
It is set at the factory for 180hours of
use before the filters need replacing.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1 ............................. 120hours
Indicator 2 ............................. 180hours
Indicator 3 ............................. 240hours
Indicator B.......................... deactivated
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
charcoal filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Deactivating power
management
Keep in mind that deactivating this
function may increase energy
consumption.
Activating/deactivating power
management
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 5seconds the 1 fan
power level indicator lights up.
Then touch the following controls in
turn:
- The lighting control
- The 1 control and then
- The lighting control again
When power management is activated,
the 1 and B indicators light up
constantly.
When it is deactivated, the 1 and B
indicators flash.
To deactivate Power management,
touch 1.
The 1 and B indicators will flash.
To activate, touchB.
The 1 and B indicators will light up
constantly.
Confirm the setting with the run-on
option control.
Changing settings
31
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Buzzer for the sensor controls
When a function is selected with the
sensor controls, a short buzzer will
sound for confirmation.
The buzzer can be switched off.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
TouchB.
The buzzer is switched off.
If you want to switch the buzzer on
again, proceed in the same way.
Regardless of the previous setting, the
buzzer will be reactivated when power
is restored to the cooker hood after it
has been disconnected from the
mains electricity supply or after a
power cut.
Energy saving tips
32
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there
is insufficient air flow the cooker
hood cannot operate efficiently and
this causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and
therefore benefit from reduced
energy consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
- If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power
level is usually sufficient. Only use
the Booster setting when
necessary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the
kitchen air after cooking, use the
run-on function. The fan will switch
off automatically after the selected
run-on time.
Cleaning and care
33
Before proceeding with any
maintenance or cleaning task, the
cooker hood must be disconnected
from the power supply (see “Warning
and Safety instructions”).
Housing
General information
The surfaces and controls are
susceptible to scratches and
abrasion.
Please observe the following
cleaning instructions.
All external surfaces and controls can
be cleaned using hot water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Do not use:
- cleaning agents containing soda,
acids, chlorides or solvents,
- abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important information for appliances
with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important for appliances with glass
surfaces
Glass surfaces can be cleaned using
a proprietary non-abrasive cleaning
agent designed specifically for use on
glass.
Cleaning and care
34
Operating hours counter
The cooker hood registers the length of
time for which it has been operated.
When the grease filter symbol or the
charcoal filter symbol lights up, the
operating hours counters are signalling
that the filters need to be cleaned or
replaced.
You can set the operating hours counter
to suit the type of cooking you do (see
“Changing settings”).
Grease filter(s)
Fire hazard
An oversaturated grease filter is a fire
hazard.
Clean the grease filter at regular
intervals.
The re-usable metal grease filter in the
appliance remove solid particles from
the kitchen vapours (grease, dust, etc.),
preventing soiling of the cooker hood.
The grease filter must be cleaned at
regular intervals.
A heavily soiled grease filter hinders
air extraction and will lead to
increased levels of soiling in the
cooker hood and in the kitchen.
Cleaning interval
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filter(s) should therefore be cleaned at
least every 3 to 4 weeks.
The operating hours counter reminds
you to regularly clean the grease filter
by illuminating the grease filter
symbol.
Removing a grease filter
When handling a grease filter, be
careful not to drop it.
This can result in damage to the filter
and the hob below.
Make sure you hold the filter securely
at all times when handling it.

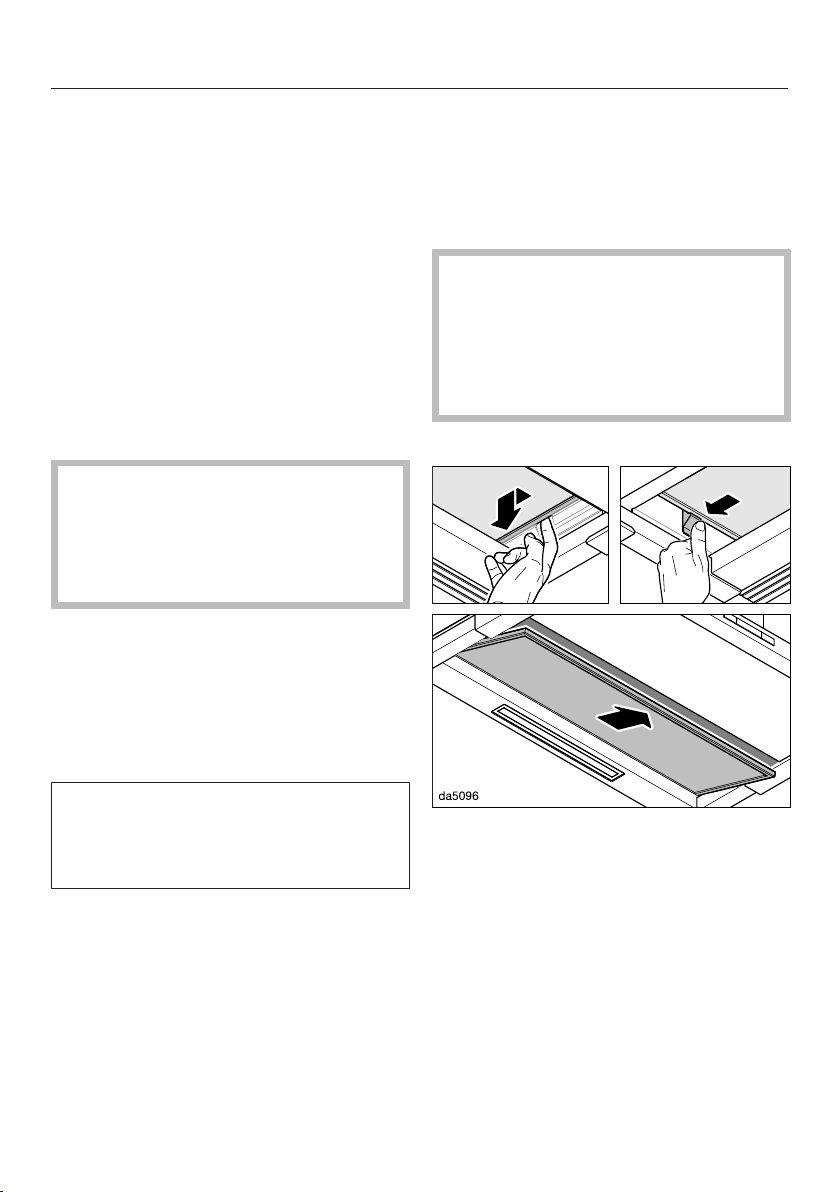

Pull out the deflector plate.
Push the grease filter on the right-
hand side to the left and unlock it on
the left-hand side.
Pull the grease filter down to remove
it.
Cleaning the grease filter by hand
Clean the filter with a soft nylon brush
in a mild solution of hot water and a
small amount of washing-up liquid.
Do not use “neat” washing up liquid.
Cleaning and care
35
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning the grease filter in a
dishwasher
Place the grease filter upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commercially available
household dishwasher detergent.
Select a dishwasher programme with
a wash temperature between 50°C
and 65°C.
Depending on the detergent used,
cleaning the grease filter in a
dishwasher can cause permanent
discolouration to the internal surfaces
of the filter. However, this will not
affect the functioning of the grease
filter in any way.
After cleaning
After cleaning, leave the filter to dry
on an absorbent surface before
replacing it.
When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible casing to
prevent the risk of these catching fire.
Replace the grease filter.
Cleaning and care
36
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset.
With the fan switched on, press the
grease filter control for approx.
3seconds, until only 1 is flashing.
The grease filter symbol goes out.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filter.
Grease filters are available to order via
the Miele Customer Service Department
(see end of these operating instructions
for contact details) or from your Miele
dealer.
Charcoal filters
With recirculation mode, two charcoal
filters must be inserted in addition to
the grease filter. These are designed to
absorb cooking odours.
The charcoal filters are fitted in the
deflector plate above the grease filter.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare
Parts Department (see end of this
booklet for contact details) or from your
Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Cleaning and care
37

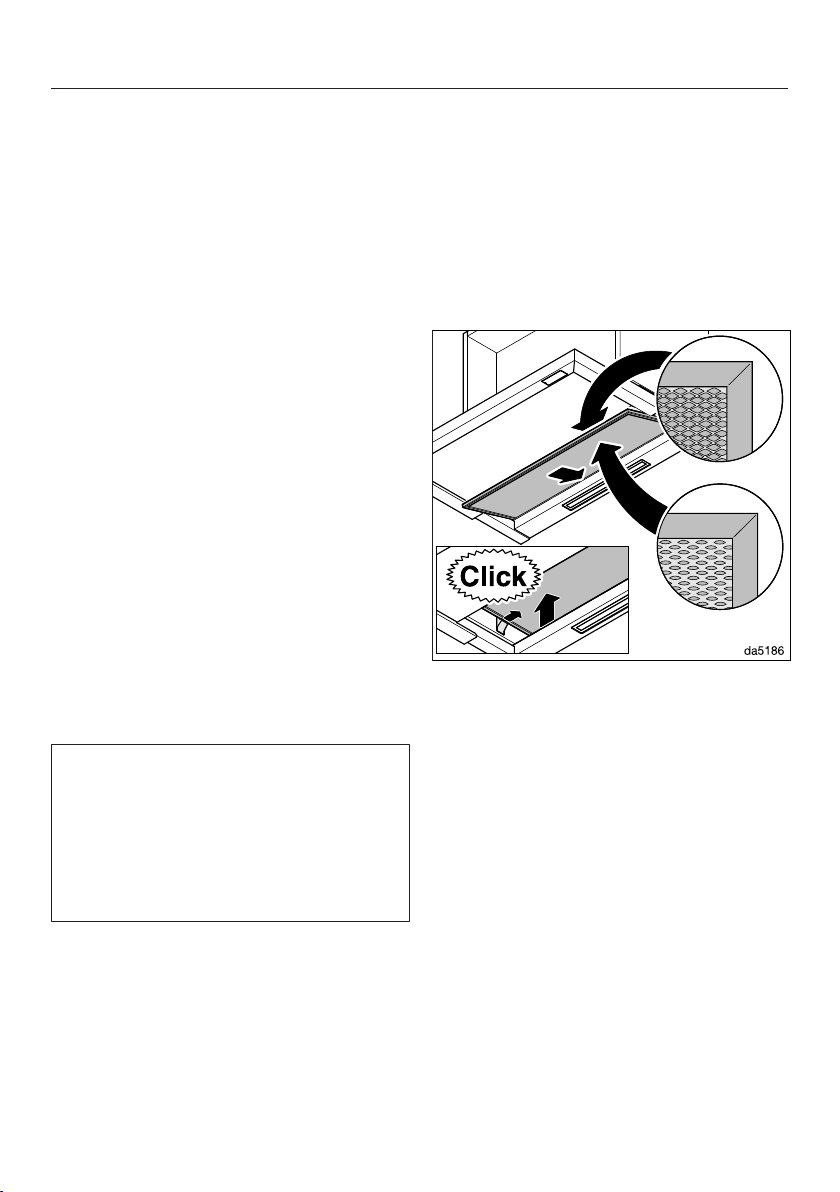

Fitting/replacing charcoal filters
The matching frames must be installed
in order to use the charcoal filters.
Follow the directions on the
installation sheet.
Remove the grease filter from the
cooker hood.
Remove the charcoal filter packaging.
Push the charcoal filters into the
frames until they engage firmly.
Replace the grease filter.
To remove the charcoal filters, press
the holder clip forwards slightly and
pull the filters down to remove them.
When to change the charcoal filters
Replace the charcoal filters when they
no longer absorb kitchen odours
effectively, and at least every 6months.
The operating hours counter will remind
you to replace the charcoal filters by
lighting up the charcoal filter symbol .
Resetting the charcoal filter
operating hours counter
After changing the charcoal filters, the
operating hours counter needs to be
reset.
With the fan switched on, press the
charcoal filter control for approx.
3seconds, until only 1 is flashing.
The charcoal filter symbol will go
out.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filters
Reactivatable charcoal filters are
available for this cooker hood. They can
be used several times after being
reactivated in the oven.
Please follow the operating instructions
supplied with the filters.
Installation
*INSTALLATION*
38
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation recommendations
- To achieve optimum vapour
extraction, the cooker hood must be
positioned centrally over the hob, not
to the side.
- The hob should be no wider than the
cooker hood, and if possible, it
should be narrower.
- The installation area must be easily
accessible. The cooker hood should
be easily accessible and easy to
dismantle in the event that service is
required. This should be taken into
consideration when planning the
position of cupboards, shelves,
ceilings or features in the vicinity of
the cooker hood.

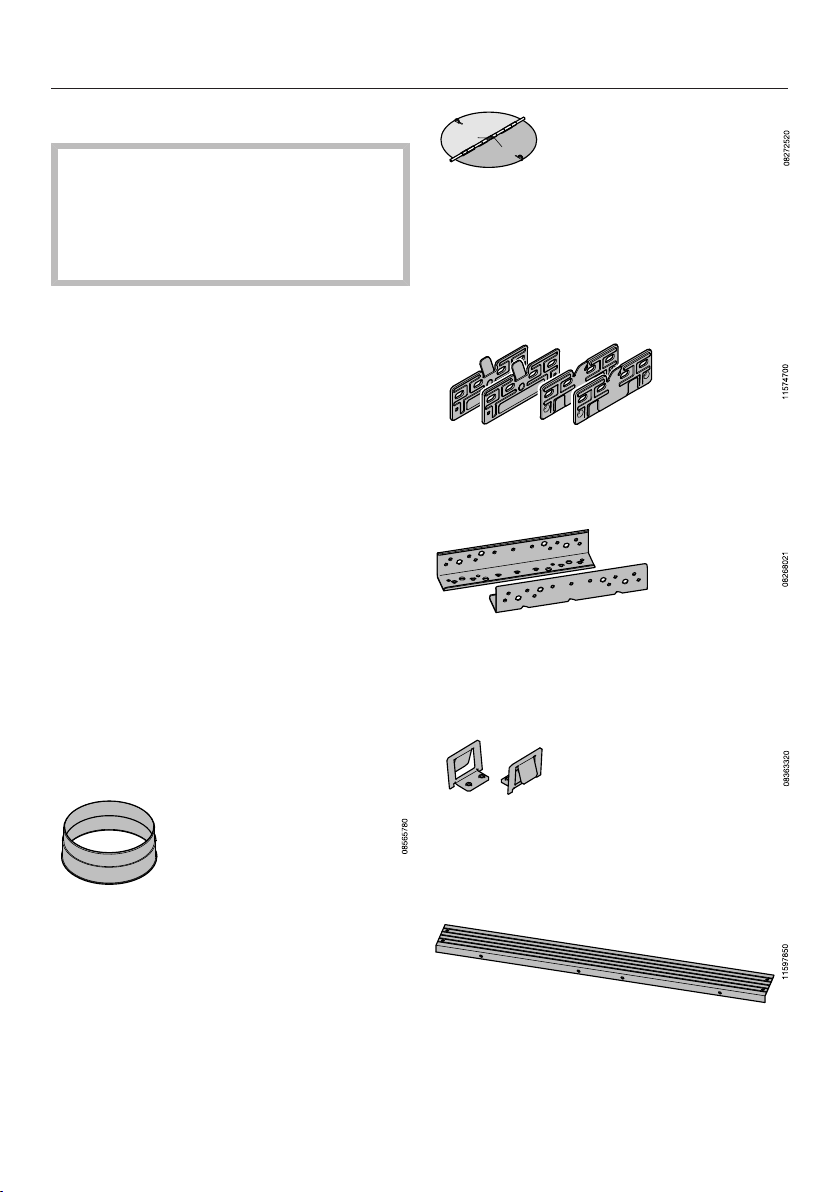

Installation materials
1vent connection
for exhaust ducting 150mm.
1 non-return flap
for fitting into the exhaust socket on
the motor unit (not needed for
recirculation mode). Depending on the
model, the non-return flap may already
be fitted.
4mounting plates
for installation in a 600mm wide
cabinet
2 brackets
for installation in a 900mm wide
cabinet (only for 900mm wide
appliances)
2spring clips
for installation in a 900mm wide
cabinet (only for 900mm wide
appliances)
1spacer strip
for concealing the gap between the
rear of the appliance and the wall
Installation
*INSTALLATION*
39
4screws, M4x8mm
4 (8)* screws, 4x15mm
4screws, 4x30mm
8 (12)* screws, 4x15mm
4screws, M4x12mm*
4screws, M4x8.5mm*
* For 896mm wide appliances
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details on
the individual steps involved in the
installation of this appliance.
Installation materials for recirculation
mode
You need the following optional
accessories for recirculation mode:
DFKS31-x installation kit
contains 2holders and 2 charcoal
filters (DFKS31-P with single-use
charcoal filters or DFKS31-R with
reactivatable charcoal filters)
DUU15x installation kit
contains a directional unit socket, hose
and hose clips (DUU150 for the top of
the cabinet or DUU151 for the sides or
front of the cabinet)
Installation
*INSTALLATION*
40
Appliance dimensions

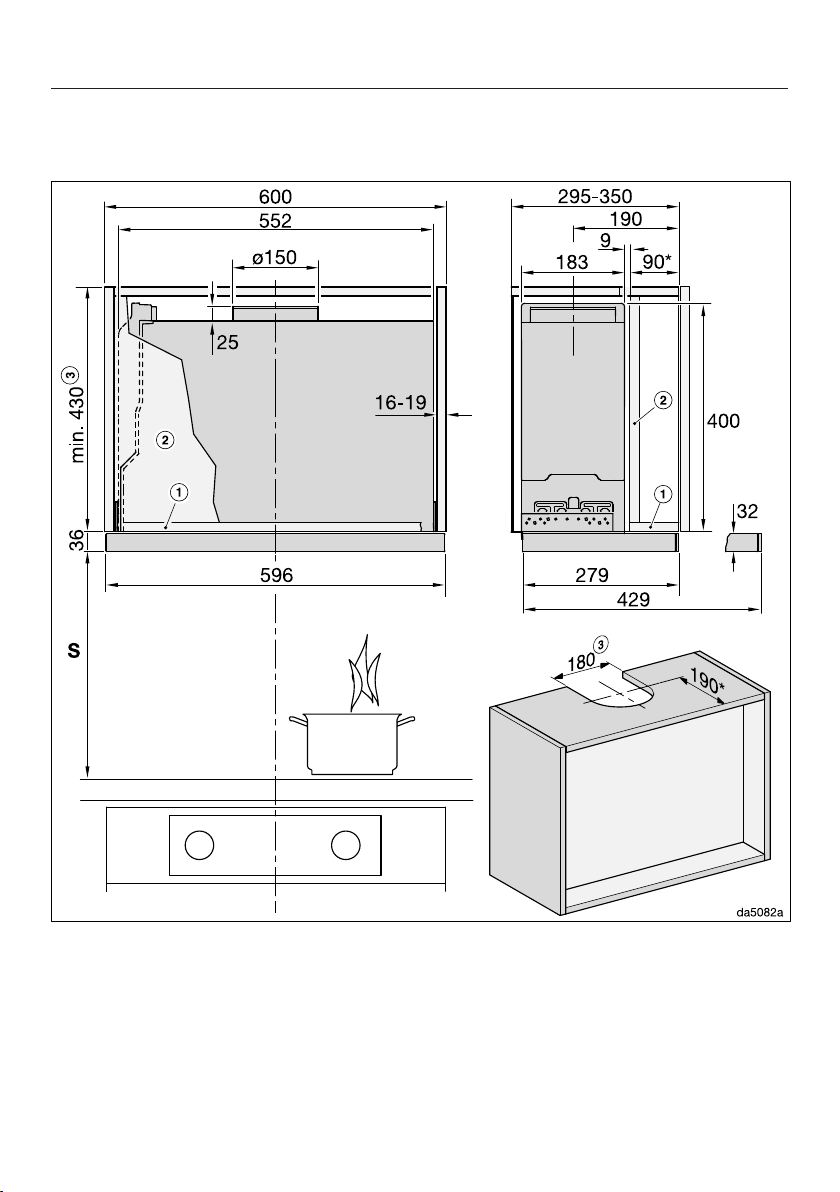

Dia. 1: DA4630 in a 600mm wide cabinet.
The drawing is not to scale
Installation
*INSTALLATION*
41
Dia. 2: DA4930 in a 900mm wide cabinet.
The drawing is not to scale
See diagram 1 for side view
Installation
*INSTALLATION*
42
Dia. 3: DAS4930 in a 600mm wide cabinet or in a 900mm wide cabinet with side
compartments.
The drawing is not to scale
See diagram 1 for side view
Footnotes for diagrams 1to 3:
a
The front section of the cabinet must be fitted with a base panel to secure the
cooker hood.
b
If a partition wall is to be provided in the cabinet, it must be removable.
c
Extraction or recirculation with conversion kit DUU150
* In this installation situation, the deflector plate is flush with the front edge of the
housing unit carcase. If you wish to position the cooker hood further forward or
further back, you must adapt the dimensions accordingly.
Installation
*INSTALLATION*
43
Safety distance between hob and cooker hood (S)
When planning the installation height of your cooker hood, the minimum safety
distance between the top of a cooker or hob and the bottom of the cooker hood
is as follows, unless a greater distance is specified by the manufacturer of your
cooking appliance.
See “Warning and Safety” instructions for further information.
Cooking appliance Minimum distance S
Electric hob 450mm
Electric grill, deep fat fryer (electric) 650mm
Multi-burner gas hob,
total output ≤ 12.6 kW, no burner > 4.5 kW
650mm
Multi-burner gas hob,
total output > 12.6 kW and ≤ 21.6 kW,
no burner > 4.8 kW.
760mm
Multi-burner gas hob,
total output > 21.6 kW,
or multi-burner gas hob where one burner > 4.8 kW.
Not possible
Single burner gas hob, output ≤ 6 kW. 650mm
Single burner gas hob, output > 6 kW and ≤ 8.1 kW. 760mm
Single burner gas hob, output > 8.1 kW Not possible
Installation
*INSTALLATION*
44
Connection for air extraction
If the cooker hood is used at the
same time as a heating appliance
that relies on oxygen from the same
room, there is a risk in certain
circumstances of toxic fumes
building up.
It is essential that the “Warning and
Safety” instructions are observed.
The cooker hood should be installed
according to local and national
building regulations. Seek approval
from the building inspector where
necessary.
Only use smooth pipes or flexible
exhaust ducting made from
approved non-flammable materials
for exhaust ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps,
these must be opened whenever the
cooker hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Installation
*INSTALLATION*
45
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional
accessory) is recommended. Both of
these have a built-in non-return flap.
If the on-site ventilation system does
not have a non-return flap, one is
supplied with the cooker hood.
The non-return flap is fitted in the
exhaust socket of the fan.
Condensation
If the exhaust ducting is to run through
cool rooms or ceiling space, for
example, the significant variations in
temperature between the different areas
can cause condensation to form.
Insulate the exhaust ducting to reduce
temperature variations.
If the exhaust ducting is to be laid
horizontally, it must be laid with a
downwards sloping gradient of at least
1cm per meter. This is to ensure that
condensation cannot drain back into
the cooker hood.
In addition to insulating the exhaust
ducting, it is advisable to also install a
condensate trap for collecting and
evaporating any potential condensation.
Condensate traps for 125mm or
150mm diameter exhaust ducting are
available as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically
and as closely as possible to the cooker
hood above the exhaust connection.
The arrow on the casing indicates the
direction of airflow.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust
ducting.
Installation
*INSTALLATION*
46

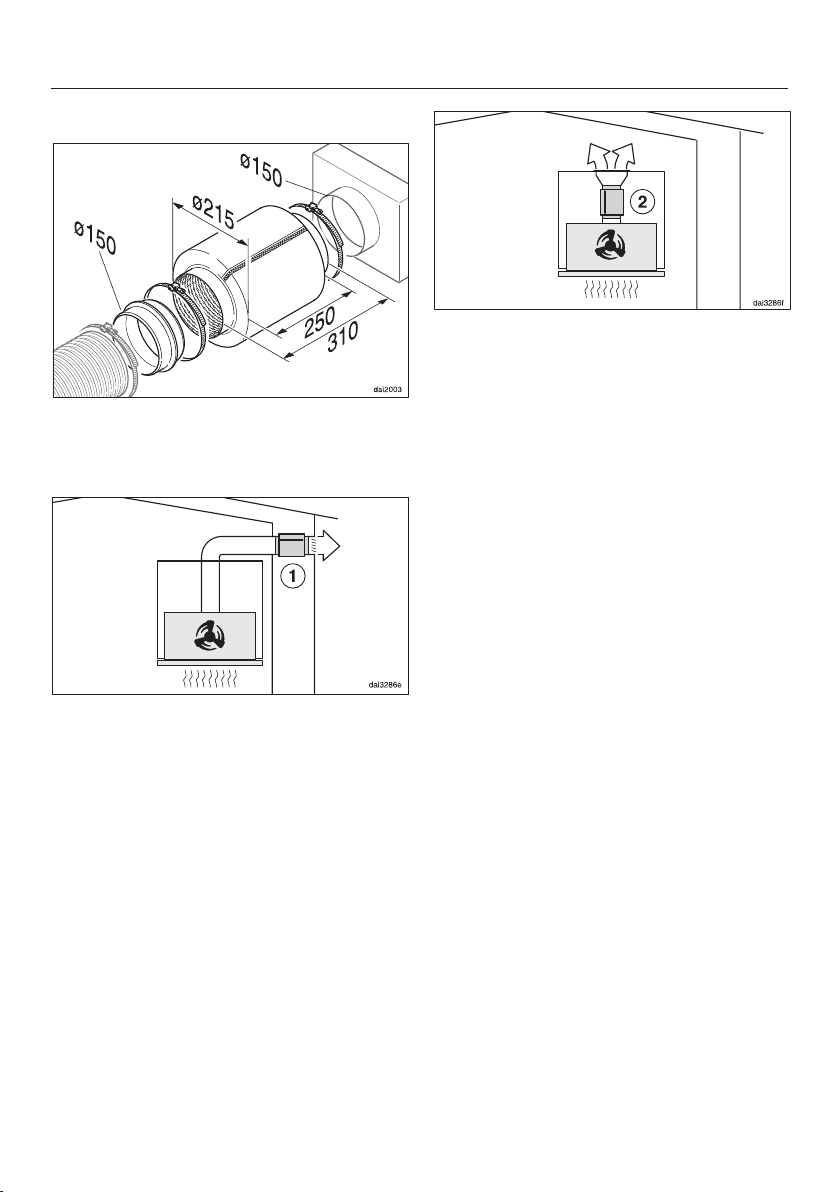

Silencer
To reduce noise levels even further, a
silencer (optional accessory) can be
installed in the exhaust ducting.
In extraction mode, the silencer not only
reduces noise from the fan outside the
house, but also sounds originating
outside reaching the kitchen through
the exhaust ducting (e.g. traffic noise).
For this reason, the silencer must be
positioned as close as possible to the
ducting exit.
In recirculation mode, the silencer
needs to be positioned between the
exhaust vent and the exhaust grille.
Check that there is sufficient space.
Installation
*INSTALLATION*
47
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or
a fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to
multi-socket adapters or extension
cables can overload the cables.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend
using a type residual current device
(RCD) in the relevant electrical
installation for connecting the cooker
hood.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of
the same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified
specialist or the Miele Customer
Service Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not
synchronised with the mains power
supply (e.g. island networks, back-up
systems) is possible. A prerequisite for
operation is that the power supply
system complies with the specifications
of EN50160 or an equivalent standard.
The function and operation of the
protective measures provided in the
domestic electrical installation and in
this Miele product must also be
maintained in isolated operation or in
operation that is not synchronised with
the mains power supply, or these
measures must be replaced by
equivalent measures in the installation.
As described, for example, in the
current version of VDE-AR-E 2510-2.
Service
48
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele Customer
Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate is visible after removing
the grease filter.
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Technical data
49
Fan motor 230W
Hob lighting 3W
Total rated load 233W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 10A
Length of mains connection cable 1.5m
Weight
DAS4630 13kg
DAS4930 14kg
WiFi module
Frequency band 2.400–2.4835GHz
Maximum transmission power <100mW
Optional accessories for recirculation mode
You need the following installation kits for recirculation mode:
- DUU150 or DUU151
- DKFS31-P or DKFS31-R (reactivatable). The installation kits contain 2charcoal
filters and the required original equipment installation frames.
Charcoal filters DKF31-P or DKF31-R (reactivatable) must be purchased as an
optional accessory. The packs contain 2charcoal filters.
Technical data
50
EU Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to www.miele.ie/
domestic/customer-information-385.htm and enter the name of the product or
the serial number
UK Conformity declaration
Miele hereby declares that this cooker hood complies with UK Radio Equipment
Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to www.miele.co.uk and
enter the name of the product or the serial number
Note for test institutes
Energy efficiency must be calculated using extraction mode. The cooker hood is
set up ex-works for recirculation mode. To re-set it for extraction mode the
operating hours counter for the charcoal filter(s) has to be deactivated (see “Before
using for the first time”).
Technical data
51
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAS 4630
Annual Energy Consumption (AEC
hood
) 23,5 kWh/year
Energy efficiency class A+++
Energy efficiency index (EEI
hood
) 28,9
Fluid Dynamic Efficiency (FDE
hood
) 41,3
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 110,0 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 95,1%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
363,1 m
3
/h
Air flow (min. speed)
180 m
3
/h
Air flow (max. speed)
403 m
3
/h
Air flow (intensive or boost setting)
725 m
3
/h
Max. air flow (Q
max
)
725 m
3
/h
Air pressure at best efficiency point 478 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 38 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 56 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
70 dB
Electrical power input at best efficiency point 116,8 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 3,0 W
Average illumination of the lighting system on the cooking surface 330 Ix
Time increase factor 0,5
Technical data
52
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAS 4930
Annual Energy Consumption (AEC
hood
) 23,4 kWh/year
Energy efficiency class A+++
Energy efficiency index (EEI
hood
) 28,9
Fluid Dynamic Efficiency (FDE
hood
) 41,3
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 100,0 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 96,0%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) A
Airflow at best efficiency point
360,9 m
3
/h
Air flow (min. speed)
184 m
3
/h
Air flow (max. speed)
404 m
3
/h
Air flow (intensive or boost setting)
722 m
3
/h
Max. air flow (Q
max
)
722 m
3
/h
Air pressure at best efficiency point 479 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 37 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 55 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
70 dB
Electrical power input at best efficiency point 116,2 W
Power consumption in off mode (P
o
) W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 3,0 W
Average illumination of the lighting system on the cooking surface 300 Ix
Time increase factor 0,5
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: [email protected],
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
sTel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place
Bryanston 2194
P.O. Box 69434
Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1
Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-Mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer:
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
M.-Nr. 12 039 030 / 01en-GB
DAS4630, DAS4930
