Contents
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 6
Warnings 8
Cautions 8
Regulatory notice 10
Installation 13
What’s included 13
Installation requirements 15
Step-by-step installation 23
Vent blockage test 30
Exhaust ducting guide 31
Door reversal 32
Before you start 35
Sort and load 35
Lint lter 35
Drying guidelines 36
Rack guidelines 37
Operations 39
Delicate Dryer 39
Tumble Dryer 43
Simple steps to start 47
Samsung Smart Home 48
Special features 50
Maintenance 52
General cleaning and maintenance instructions 52
Delicate Dryer 54
Tumble Dryer 55
FlexDry_DM9600M-DC68-03381H_EN.indd 2 2017-01-29 10:47:31
SAVE THESE INSTRUCTIONS
Safety information
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of
your dryer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
FlexDry_DM9600M-DC68-03381H_EN.indd 4 2017-01-29 10:47:31
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English 5
WARNING - Gas Appliances:
• State of California Proposition 65 Warning (US only)
This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
• Gas appliances can cause low-level exposure to Proposition 65 listed substances,
including but not limited to, benzene, carbon monoxide, formaldehyde and soot,
substances resulting from the incomplete combustion of natural gas or LP fuels.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with exible plastic venting materials. If exible metal
(foil type) duct is installed, it must be of a specic type identied by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airow and increase the risk of re.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.
FlexDry_DM9600M-DC68-03381H_EN.indd 5 2017-01-29 10:47:31
SAVE THESE INSTRUCTIONS
Safety information
Safety information
SAVE THESE INSTRUCTIONS
English6
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not use the dryer to dry clothes which have traces of any ammable substance,
such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner,
etc., or anything containing wax or chemicals, such as mops and cleaning cloths.
Flammable substances may cause the fabric to catch re by itself.
4. Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
5. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
6. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
7. Do not reach into the appliance if the drum is moving.
8. Do not install or store this appliance where it will be exposed to the weather.
9. Do not tamper with internal controls.
10. Do not repair or replace any part of the appliance or attempt any service unless
specically recommended in the user-maintenance instructions or in published user
repair instructions that you understand and have the skills to carry out.
11. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
12. Clean the lint screen before or after each load.
13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-
like materials.
14. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
15. The interior of the appliance and exhaust duct should be cleaned periodically by
qualied service personnel.
FlexDry_DM9600M-DC68-03381H_EN.indd 6 2017-01-29 10:47:31
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English 7
16. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch
re.
17. This appliance must be grounded. See Electrical requirements and Grounding in
Installation section.
18. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
19. Do not insert your hand under the dryer.
• This may result in injury.
20. Take care that children’s ngers are not caught in the door when closing it.
• This may result in injury.
21. The control board and inlet valve are intentionally not grounded and may present a
risk of electric shock only during servicing.
• Do not contact these parts while the appliance is energized.
WARNING - To reduce the risk of re or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other ammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or ammable liquids or solids should not be placed in the dryer until
all traces of these ammable liquids or solids and their fumes have been removed.
There are many highly ammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers.
• Items containing foam rubber (which may be labeled latex foam) or similarly
textured rubberlike materials must not be dried on a heat setting. Heated foam
rubber materials can, under certain circumstances, ignite spontaneously.
FlexDry_DM9600M-DC68-03381H_EN.indd 7 2017-01-29 10:47:31
SAVE THESE INSTRUCTIONS
Safety information
Safety information
SAVE THESE INSTRUCTIONS
English8
WARNING - What to do if you smell gas:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re department.
Important: Installation and service must be performed by a qualied installer, service
agency, or your gas supplier.
Warnings
WARNING
• Ensure pockets are free of small, irregularly shaped hard objects and foreign material,
i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Gas leaks may occur in your system, resulting in a dangerous situation.
Cautions
CAUTION
• Do not allow children or pets to play on, in, or in front of the appliance. Close
supervision is necessary when the appliance is used near children and pets.
• Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
• Do not reach into the appliance when the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with the controls.
• Do not repair, replace, or attempt to service any part of the appliance unless
specically instructed to in the user repair instructions and you have the understanding
and skills to carry out the procedure.
FlexDry_DM9600M-DC68-03381H_EN.indd 8 2017-01-29 10:47:31
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English 9
• Do not use fabric softeners or products to eliminate static unless the softener or
product is recommended for dryer use by the manufacturer of the fabric softener or
product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust,
and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualied
service personnel.
• This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately or not in accordance with local and national codes. See
the installation instructions for information about grounding this appliance.
• Do not sit on top of the dryer.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL-approved gas detector.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil
or cooking oil. Even after being washed, these items may contain signicant amounts
of these oils.
• Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed
to heat. Heat sources such as your dryer can warm these items, allowing an oxidation
reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items
can become hot enough to catch re. Piling, stacking, or storing these kinds of items
may prevent heat from escaping and can create a re hazard.
• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate,
the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying
cycle until the items have run through the Cool Down cycle. Never pile or stack these
items when they are hot.
FlexDry_DM9600M-DC68-03381H_EN.indd 9 2017-01-29 10:47:31
Regulatory notice
English10
Regulatory notice
FCC Notice
CAUTION
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause
undesired operation.
For products sold in the US and Canadian markets, only channels 1
~
11 are available. You
cannot select any other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated so there is at least 8 inches
(20 cm) between the radiator and your body. This device and its antenna(s) must not be
colocated or operated in conjunction with any other antenna or transmitter.
FlexDry_DM9600M-DC68-03381H_EN.indd 10 2017-01-29 10:47:31
Regulatory notice
English 11
IC Notice
The term “IC” before the radio certication number only signies that Industry Canada
technical specications were met. Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For products sold in the US and Canadian markets, only channels 1
~
11 are available. You
cannot select any other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there is at
least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s)
must not be colocated or operated in conjunction with any other antenna or transmitter.
FlexDry_DM9600M-DC68-03381H_EN.indd 11 2017-01-29 10:47:31
Regulatory notice
Regulatory notice
English12
Open Source License Notice
The software included in this product contains open source software. You may obtain the
complete corresponding source code for a period of three years after the last shipment of
this product by sending an email to mailto:[email protected].
It is also possible to obtain the complete corresponding source code in a physical medium
such as a CD-ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SimpleConnectTP/seq/0
leads to the download page of the source code made available and open source license
information as related to this product. This offer is valid to anyone in receipt of this
information.
FlexDry_DM9600M-DC68-03381H_EN.indd 12 2017-01-29 10:47:31
Installation
English 13
Installation
This FlexDry™ dryer must be installed by a qualied technician. The installer is responsible
for connecting the dryer to the main power while observing the relevant safety
regulations of your area.
What’s included
Make sure all the supplied parts and accessories are included in the product package
(see page 14). If you have a question about the dryer or the accessories, contact a local
Samsung service center or the retailer.
Dryer at a glance
01
02
05
03
04
01 Top door 02 Main panel 03 Front door
04 Lint lter 05 Exhaust duct
FlexDry_DM9600M-DC68-03381H_EN.indd 13 2017-01-29 10:47:31
Installation
Installation
English14

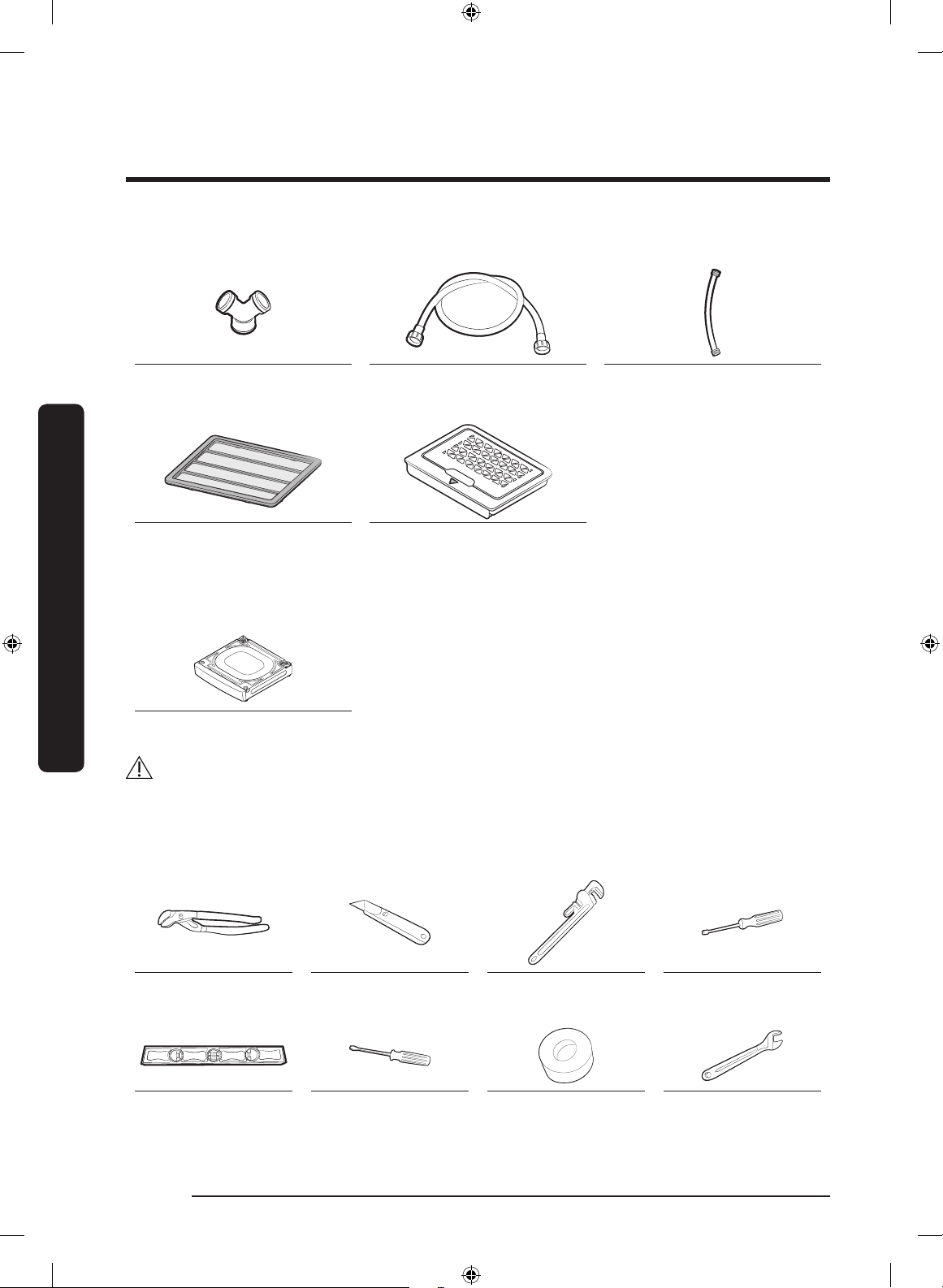

Accessories (supplied)
Y connector Water hose
(Canadian models only)
Short water hose
Flexible rack Dryer-sheet case
Accessories (not supplied)
You must purchase these items at a local service center.
Pedestal
WARNING
Packing materials can be dangerous to children. Keep all packing materials (plastic bags,
polystyrene, etc.) out of children’s reach.
Tools required (not supplied)
Pliers Cutting knife Pipe wrench
(gas models only)
Nut screwdriver
Level Philips screwdriver Duct tape Wrench
FlexDry_DM9600M-DC68-03381H_EN.indd 14 2017-01-29 10:47:32
Installation
English 15
Installation requirements
Read through the following instructions
before installing the dryer and keep this
manual for future reference.
WARNING
The control board and inlet valve are
intentionally not grounded and may
present a risk of electric shock only during
servicing.
Service personnel: Do not contact these
parts while the appliance is energized.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except
in Canada).
• Gas lines (for gas models) that must
meet national and local regulations.
• An exhaust system made of rigid metal
or exible stiff-walled metal exhaust
ducting.
WARNING
Remove the door from all discarded
appliances to prevent a child from
suffocating.
Location considerations
The dryer should be located where there
is enough space at the front for loading
the dryer, and enough space behind for
the exhaust system. This dryer is factory-
ready for the rear exhaust option. To
exhaust out the bottom, right or the left,
use the accessory exhaust kit. Instructions
are included with the kit. Make sure
the room in which the dryer is located
has enough fresh air. The dryer must
be located where there are no air-ow
obstructions. For gas dryers, adequate
clearance must be maintained as noted on
the data plate to ensure adequate air for
combustion and proper dryer operation.
The dryer must not be installed or stored
in an area where it will be exposed to
water and/or weather. The dryer area must
be kept clear of combustible materials,
gasoline, and other ammable vapors and
liquids. A dryer produces combustible lint.
The area around the dryer should be kept
lint-free.
FlexDry_DM9600M-DC68-03381H_EN.indd 15 2017-01-29 10:47:32
Installation
Installation
English16
Alcove or closet installations
WARNING
• The dryer must be exhausted to the outside to reduce the risk of re when installed in
an alcove or closet.
• No other fuel-burning appliance should be installed in the same closet as the dryer.

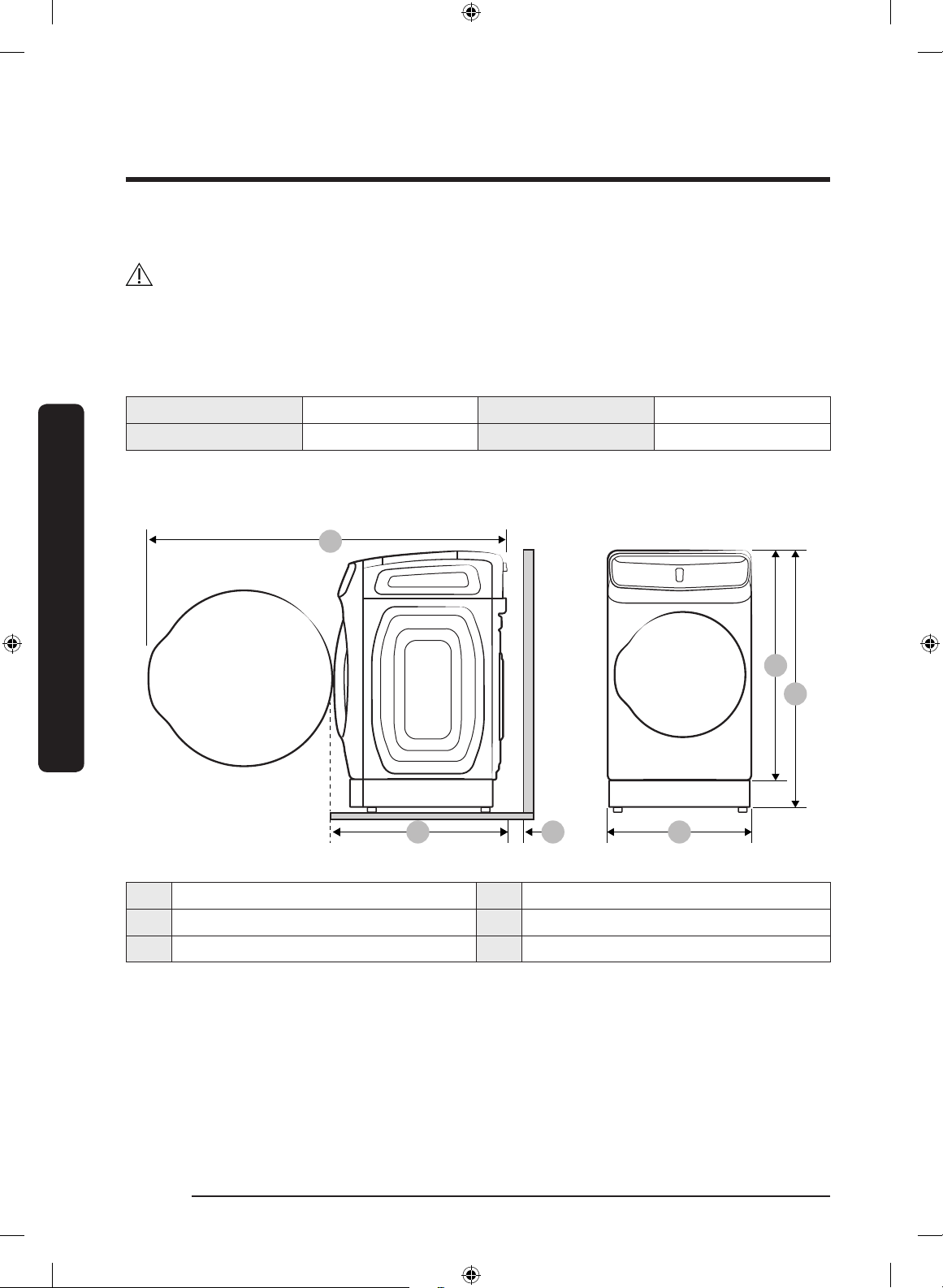

Minimum clearances between the dryer and adjacent walls or other surfaces:
Sides 1 in. (25 mm) Rear 5.9 in. (150 mm)
Top 17 in. (432 mm) Closet front 2 in. (51 mm)
Installation with pedestal
A
C
B D
F
E
A 53.7 in (1365 mm) D 27 in. (686 mm)
B 32.5 in. (825 mm) E 46.9 in (1192 mm)
C 5.9 in. (150 mm) F 52.2 in. (1326 mm)
FlexDry_DM9600M-DC68-03381H_EN.indd 16 2017-01-29 10:47:33
Installation
English 17

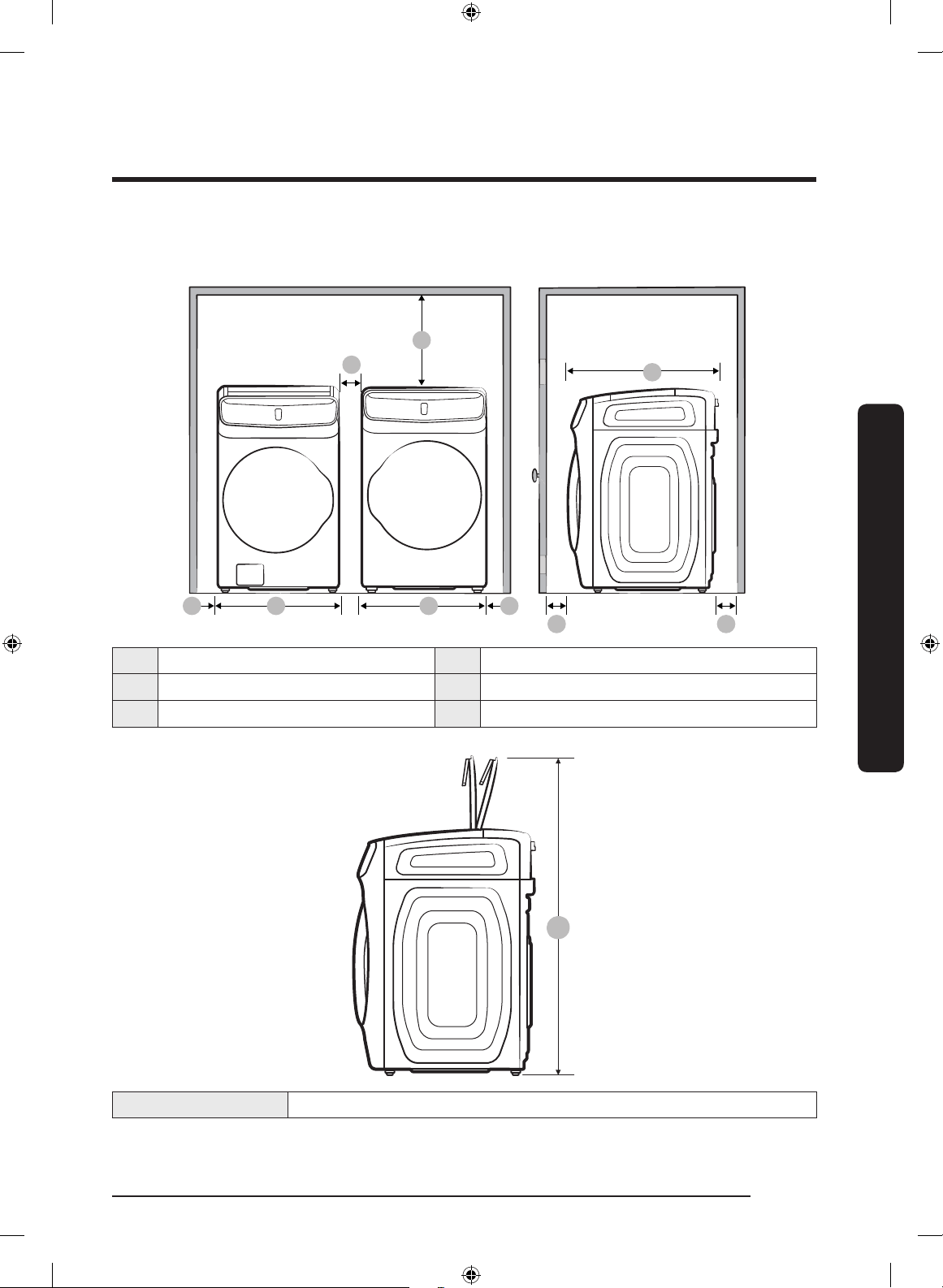

Side by side installation
A
E
A
A
C
B B
F
D
A 1 in. (25 mm) D 32.5 in. (825 mm)
B 27 in. (686 mm) E 2 in. (50 mm)
C 35 in. (890 mm) F 5.9 in. (150 mm)
A
A 61 in. (1550 mm)
FlexDry_DM9600M-DC68-03381H_EN.indd 17 2017-01-29 10:47:33
Installation
Installation
English18

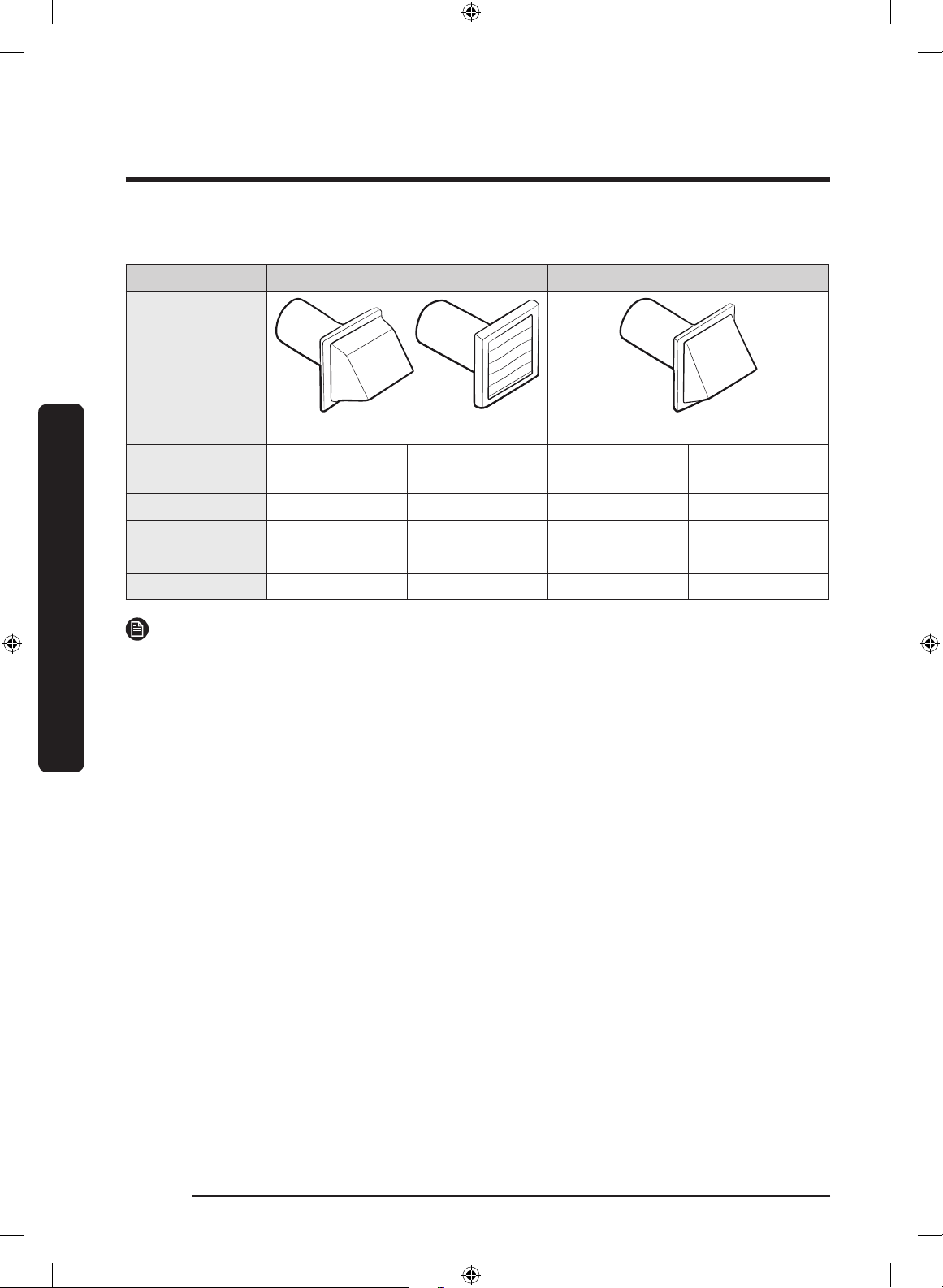

Ducting requirements
Recommended Use only for short-run installation
Weather hood
type
4” (10.2 cm)
2.5” (6.4 cm)
No. of 90°
elbows
Rigid
Metallic
exible*
Rigid
Metallic
exible*
0 80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)
1 68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)
2 57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)
3 47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)
NOTE
* Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct.
If you integrate the dryer’s vent system with an existing exhaust system:
• Make sure the exhaust system meets all applicable local, state, and national regulations.
• Verify you are not using exible plastic duct.
• Make sure to check for and remove all lint buildup from inside the existing ducts.
• Conrm the duct is not kinked or crushed.
• Make sure the exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system must not exceed 0.83 inches of water column
or be less than 0. Note that these values are measured with the dryer running with a
manometer presented to the exhaust duct that connects to the dryer. The dryer drum
must be empty and lint lter clean.
FlexDry_DM9600M-DC68-03381H_EN.indd 18 2017-01-29 10:47:33
Installation
English 19
Exhausting requirements
The dryer must not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building.
Exhausting the dryer to the outside will
prevent large amounts of lint and moisture
from being blown into the room.
In the United States and Canada
• All dryers must be exhausted to the
outside.
• The required exhaust duct is 4 inches
(10.2 cm) in diameter.
• See Ducting requirements in the
Installation section for the maximum
duct length and number of bends that
can be used.
• The total length of exible metal duct
must not exceed 7’ 10½” (2.4 m).
• Do not assemble the duct with screws
or other fasteners that extend into the
duct and catch lint.
• For the United States only: Use only
those foil-type exible ducts, if any,
specically identied for use with the
appliance by the manufacturer and that
comply with the Outline for Clothes
Dryer Transition Duct. Use Subject
2158A.
Outside the United States and Canada
• Refer to the local codes.
WARNING
• You must exhaust the dryer to the
outside to reduce the risk of re when
you install the dryer in an alcove or
closet.
• Do not use a plastic or non-metal
exible duct.
• If your existing ductwork is plastic, non-
metal, or combustible, replace it with
metal.
• Use only a metal exhaust duct that is
non-ammable to ensure containment
of exhaust air, heat, and lint.
FlexDry_DM9600M-DC68-03381H_EN.indd 19 2017-01-29 10:47:33
Installation
Installation
English20
Gas requirements
WARNING
• Use only natural or LP (liquid propane)
gases.
• THE INSTALLATION MUST CONFORM
WITH LOCAL CODES, OR IN THE
ABSENCE OF LOCAL CODES, WITH
THE NATIONAL FUEL GAS CODE ANSI/
Z223.1, LATEST REVISION (FOR THE
UNITED STATES), OR WITH THE CAN /
CGA-B149 INSTALLATION CODES (FOR
CANADA).
• Gas dryers are equipped with a burner
vent for use with natural gas. If you
plan to use your dryer with LP (liquid
propane) gas, it must be converted
for safe and proper performance by a
qualied service technician.
• A 1/2” (1.27 cm) gas supply line is
recommended and must be reduced to
connect to the 3/8” (1 cm) gas line on
your dryer. The National Fuel Gas Code
requires that an accessible, approved
manual gas shut-off valve be installed
within 6” of your dryer.
• Gas dryers installed in residential
garages must be raised 18 inches (46
cm) above the oor.
• Additionally, a 1/8” (0.3 cm) N.P.T.
(National Pipe Thread) plugged tapping,
accessible for test gauge connection,
must be installed immediately upstream
of your dryer’s gas supply connection.
• Your dryer must be disconnected from
the gas supply pipe system during any
pressure testing of the system.
• Do not reuse old exible metal gas
lines. Flexible gas lines must be
design certied by the American Gas
Association (CGA in Canada).
NOTE
• Your dryer uses an automatic ignition
system to ignite the burner. There is no
constant burning pilot.
• Any pipe joint compound used must be
resistant to the action of any liqueed
petroleum gas.
• As a courtesy, most local gas utilities
will inspect a gas appliance installation.
Commonwealth of Massachusetts
installation instructions
Your dryer must be installed by a licensed
plumber or gas tter. A “T” handle manual
gas valve must be installed in the gas
supply line to your dryer. If a exible gas
connector is used to install your dryer, the
connector can be no longer than 3’ (36”).
WARNING
• Gas leaks may occur in your system,
creating a dangerous situation.
• Gas leaks may not be detected by smell
alone.
• Gas suppliers recommend you purchase
and install a UL-approved gas detector.
• Install and use in accordance with the
manufacturer’s instructions.
FlexDry_DM9600M-DC68-03381H_EN.indd 20 2017-01-29 10:47:33
Installation
English 21
Electrical requirements
The wiring diagram is located on the plate
under the control panel or rear frame.
WARNING
• Improperly connecting the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether your
dryer is properly grounded. Do not
modify the plug provided with your
dryer – if it doesn’t t the outlet, have
a proper outlet installed by a qualied
electrician.
• To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with local codes, or in the
absence of local codes, in accordance
with the National Electrical Code, ANSI/
NFPA No. 70-Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA
C22.1 – Latest Revisions and local codes
and ordinances. It is your responsibility
to provide adequate electrical service
for your dryer.
• All gas installations must be done in
accordance with the national Fuel Code
ANSI/Z2231 – Latest Revision (for the
U.S.) or CAN/CGA – B149 Installation
Codes – Latest Revision (for Canada)
and local codes and ordinances.
Grounding
This dryer must be grounded. In the event
of a malfunction or breakdown, the ground
will reduce the risk of electrical shock by
providing a path of least resistance for the
electrical current.
Gas models
WARNING
• Your dryer has a cord with an
equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
• Do not connect the ground wire to
plastic plumbing lines, gas lines, or hot
water pipes.
Electric models
WARNING
• Your dryer has an optional cord with
an equipment-grounding conductor
and a grounding plug. This cord is sold
separately.
• The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
FlexDry_DM9600M-DC68-03381H_EN.indd 21 2017-01-29 10:47:33
Installation
Installation
English22
• If a power cord is not used and the
electric dryer is to be permanently
wired, the dryer must be connected to
a permanently grounded metal wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dryer.
Electrical connections
Before operating or testing, follow all
grounding instructions in the Grounding
section. An individual branch (or separate)
circuit serving only your dryer is
recommended.
Do not use an extension cord.
Gas models – U.S. and Canada
A 120 volt, 60 Hz AC approved electrical
service with a 15-ampere fuse or circuit
breaker is required.
Electric models – U.S. only
Most U.S. dryers require a 120 / 240 volt,
60 Hz AC approved electrical service.
Some require 120 / 208 volt, 60 Hz
approved electrical service. The electric
service requirements can be found on
the data label located behind the door.
A 30-ampere fuse or circuit breaker on
both sides of the line is required.
• If a power cord is used, the cord
should be plugged into a 30-ampere
receptacle.
• The power cord is not provided with
U.S. electric model dryers. This cord is
sold separately.
WARNING
Risk of Electric Shock
When local codes allow, you can connect
the dryer’s electrical supply with a new
power supply cord kit, marked for use with
a dryer, that is U.L. listed and rated at a
minimum of 120 / 240 volts, 30-amperes
with three No. 10 copper wire conductors
terminated with closed loop terminals,
open-end spade lugs with turned up ends,
or with tinned leads.
• Do not reuse a power supply cord from
an old dryer. The power cord electric
supply wiring must be supported at the
dryer cabinet by a suitable UL-listed
strain relief.
• Grounding through the neutral
conductor is prohibited for (1) new
branch-circuit installations, (2) mobile
homes, (3) recreational vehicles, and
(4) areas where local codes prohibit
grounding through the neutral
conductor. (Use a 4-prong plug for a
4 wire receptacle, NEMA type 14-30R.)
Electric models – Canada Only
• A 120 / 240 volt, 60 Hz AC approved
electrical service fused through a
30-ampere fuse or circuit breaker on
both sides of the line is required.
• All Canadian models are shipped
with the power cord attached. The
power cord should be plugged into a
30-ampere receptacle.
NOTE
In Canada, you may not convert a dryer to
208 volts.
FlexDry_DM9600M-DC68-03381H_EN.indd 22 2017-01-29 10:47:33
Installation
English 23
Step-by-step installation
Make sure you have a qualied technician install the dryer. Step by step installation
instructions start below.
STEP 1 Install the exhaust system
1. Select a location and move the dryer to the site. For easy access, we recommend you
install the dryer in the same location as your washer.
2. To change the door direction, see Door reversal.
3. Install the exhaust system as instructed in the Exhaust ducting guide section.
NOTE
• To move the dryer easily, lay two of the carton cushions from the packaging on the
oor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that
it is near its nal location, and then set the dryer upright.
• Secure room around the dryer to facilitate ducting and wiring.
STEP 2 Connect the gas line
First, read through the Gas requirements section, and follow these steps.
1. Remove the protective cap from the gas pipe.
2. Apply a LPG (Liqueed Petroleum Gas)-safe compound or 1.5 wraps of Teon tape to
all threaded connections.
3. Connect the gas supply to the dryer. An additional tting is required to connect
the 3/4” (1.9 cm) female thread end of a exible connector to the 3/8” (1 cm) male
threaded end on the dryer. Tighten up the tting over all threads.
4. Turn on the gas supply, and check for any leaks using a soap solution. If a leak is
found, tighten the connections and try again. DO NOT use an open ame to check for
gas leaks.
FlexDry_DM9600M-DC68-03381H_EN.indd 23 2017-01-29 10:47:33
Installation
Installation
English24
STEP 3 Connect the electrical wiring
First, read through the Electrical requirements section, and then follow these steps.
3-wire system
A. External ground connector
B. Neutral grounding wire (white)
C. Center silver-colored terminal block
screw
D. Neutral wire (white or center wire)
E. ¾” (1.9 cm) UL-listed strain relief
1. Loosen or remove the center terminal
block.
2. Connect the neutral wire (white or
center wire) of the power cable to the
center, silver-colored terminal screw
of the terminal block. Tighten the
screws.
3. Connect the other wires to outer
terminal block screws. Tighten the
screws.
4. Tighten the strain relief screws.
5. Insert the terminal block cover into the
rear panel of the dryer. Then, secure
the cover with a hold-down screw.
CAUTION
• To convert from the 4-wire system
to 3-wire system, connect the ground
strap to the terminal block support to
ground the dryer frame to the neutral
conductor.
• Ring-type terminals are recommended.
If using strap terminals, make sure they
are tightened.
FlexDry_DM9600M-DC68-03381H_EN.indd 24 2017-01-29 10:47:34
Installation
English 25
4-wire system
A. External ground connector
B. Green or bare copper wire of power
cord
C. ¾” (1.9 cm) UL-listed strain relief
D. Center silver-colored terminal block
screw
E. Neutral grounding wire (white)
F. Neutral wire (white or center wire)
1. Remove the external ground
connector’s screw, and connect the
ground wire (green or unwrapped) of
the power cable to the screw.
CAUTION
• To connect the ground wire to the
neutral position without through
contact A (cabinet ground), contact
a technician. This is not user
serviceable.
• Ring-type terminals are
recommended. If using strap
terminals, make sure they are
tightened.
2. Loosen or remove the screws from the
center terminal block.
3. Connect the neutral wire (white or
center wire) and ground wire (white) to
the center screw of the terminal block.
Tighten the screw.
4. Connect the other wires to the outer
terminal block screws. Tighten the
screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block
cover into the rear slot of the dryer.
Secure the cover with a hold-down
screw.
WARNING
• All U.S. models are designed for a 3-wire system connection. The dryer frame is
grounded to the neutral conductor at the terminal block. A 4-wire system connection
is required for new or remodeled construction, mobile homes, or if local codes do not
permit grounding through neutral. If you use the 4-wire system, you cannot ground the
dryer frame to the neutral conductor at the terminal block.
• Remove the terminal block cover plate. Insert the power cord with a UL-listed strain
relief through the hole provided in the cabinet near the terminal block.
FlexDry_DM9600M-DC68-03381H_EN.indd 25 2017-01-29 10:47:34
Installation
Installation
English26
• A strain relief must be used. Do not loosen the nuts already installed on the terminal
block. Be sure they are tight. Use a 3/8” (1 cm) deep well socket.
STEP 4 Connect the water hose (applicable models only)
The dryer must be connected to a cold water tap using the provided water hoses.
1. Close the cold water tap. If you have
a washer cold water hose attached to
the cold water faucet, unscrew and
remove the hose. Then, connect the
female end of the Y connector to the
cold water tap.
2. Connect the straight end of the water
hose to the Y connector. Tighten the
hose coupling by hand.
3. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten. You can damage the
coupling.
4. Connect the angled end of the water
hose to the lling valve at the bottom
rear of the dryer. Turn the coupling by
hand until it is tight.
5. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten. You can damage the
coupling.
6. If you detached the cold water hose
from your washer, attach the hose
to the open end of the Y connector,
tighten the coupling by hand until it is
tight, and then, using a pliers, tighten
an additional two-thirds turn.
7. Open the cold water tap, and then
check for any leaks.
If the Y connector cannot be directly connected to the cold water tap, use the short hose
as shown on the following page.
FlexDry_DM9600M-DC68-03381H_EN.indd 26 2017-01-29 10:47:34
Installation
English 27
Using the short hose as an extension
B
A
C
1. Close the cold water tap. If you have
a washer cold water hose attached to
the cold water faucet, unscrew and
remove the hose. Then, connect the
short hose (B) to the cold water tap.
Turn the coupling by hand until it is
tight.
2. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten. You can damage the
coupling.
3. Connect the Y connector (A) to the
brass male end of the short hose. Turn
the coupling by hand until it is tight.
4. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten. You can damage the
coupling.
5. Connect the angled end of the water
hoses (C) to the lling valve at the
bottom rear of the dryer. Turn the
coupling by hand until it is tight.
6. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten. You can damage the
coupling.
7. If you detached the cold water hose
from your washer, attach the hose
to the free end of the Y connector,
tighten the coupling by hand until it is
tight, and then, using a pliers, tighten
an additional two-thirds turn.
8. Open the cold water tap, and then
check for any leaks.
FlexDry_DM9600M-DC68-03381H_EN.indd 27 2017-01-29 10:47:34
Installation
Installation
English28

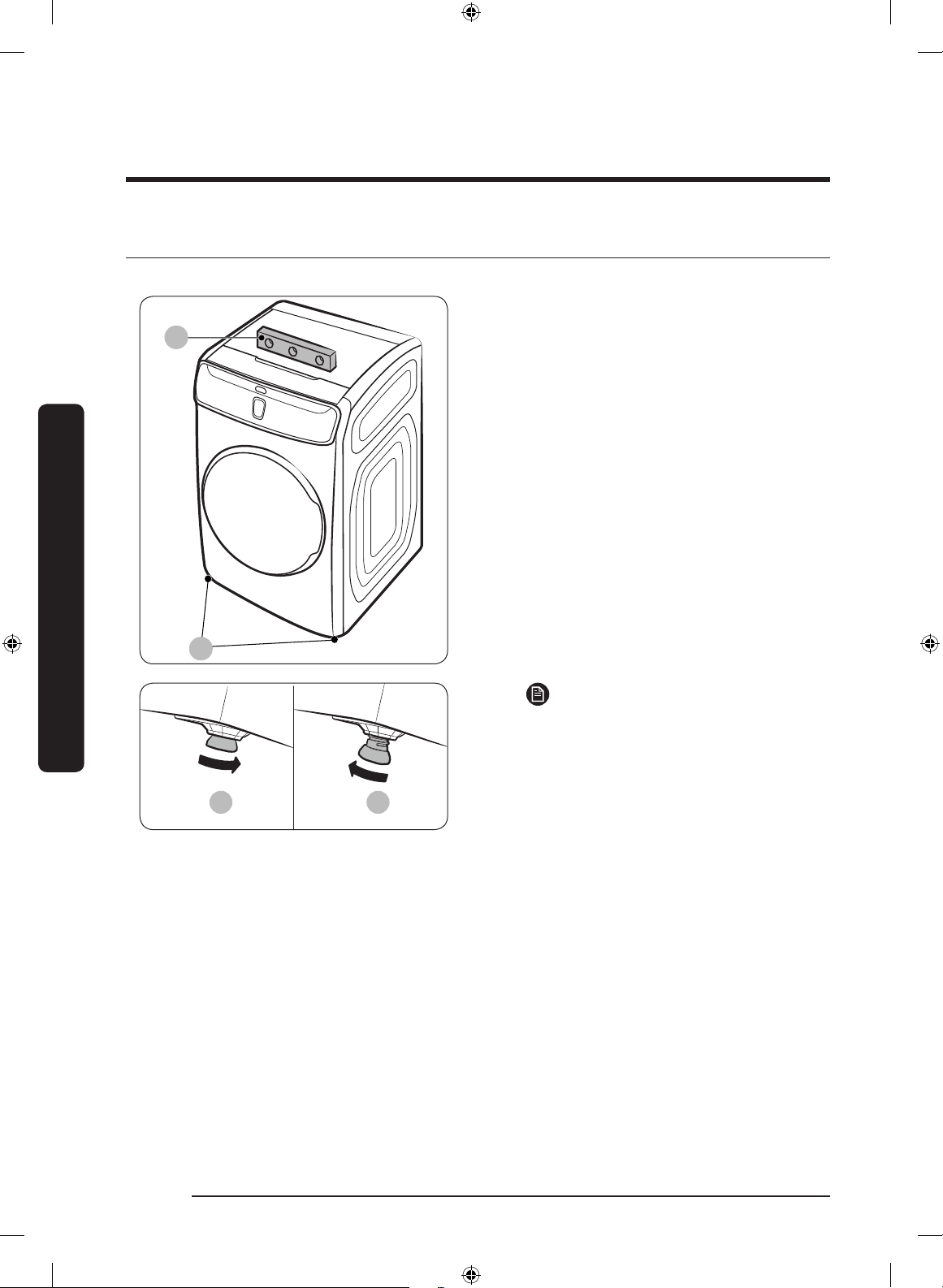

STEP 5 Level the dryer
To ensure optimal performance, the dryer must be level.
A
B
1. Using a level (A), check if the dryer
is level side to side and then front to
back. If the dryer is not level, adjust
the leveling feet (B) at the bottom of
the dryer. Then, check if the dryer is
level again.
A B
NOTE
• To set the dryer to the same height
as your washer, fully retract (A)
the leveling feet by turning them
counterclockwise, then loosen (B)
the feet by turning them clockwise.
Once the dryer is the same height
as the washer, follow the directions
above to level the dryer.
• Adjust the leveling feet only as
much as necessary to level the
dryer. Extending the leveling feet
more than necessary can cause the
dryer to vibrate.
FlexDry_DM9600M-DC68-03381H_EN.indd 28 2017-01-29 10:47:34
Installation
English 29
STEP 6 Power on (Gas models)
Make sure all gas connections, the exhaust line, and all wiring is connected correctly. Then,
plug the power cord into a power source and check the dryer’s installation and operation
using the nal checklist in Step 7 below.
STEP 7 Final check
When installation is complete, conrm that:
• The dryer is plugged into an electrical outlet and grounded properly.
• The exhaust ductwork is connected and the joints are taped.
• You have used rigid or stiff-walled exible metal duct material, not plastic exible duct.
• The dryer is level and is sitting rmly on the oor.
• The dryer starts, runs, heats, and shuts off properly.
For gas models:
• Gas is supplied properly with no leaks.
CAUTION
The burner may not ignite initially due to air in the gas line. Allowing your dryer to
operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes,
turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been
turned on. To conrm gas ignition, check the exhaust for heat.
FlexDry_DM9600M-DC68-03381H_EN.indd 29 2017-01-29 10:47:34
Installation
Installation
English30
Vent blockage test
After the dryer is installed, start the Vent Blockage Test to check if the duct system is
properly installed. The Vent Blockage Test automatically detects the status of the ducts
and reports any blockage or problems. Proper ducting can reduce drying time and save
energy.
NOTE
The Vent Blockage Test must run with the dryer in a cool state. If the dryer warms up
after the installation check, run the AIR FLUFF cycle for several minutes to reduce its
internal temperature.
Running the vent blockage test
1. Make sure the drum is empty, and then close the door.
(If there are any clothes or other items in the drum, the test will not give accurate
results.)
2. Press POWER to turn the dryer on, then simultaneously press and hold the Adjust
Time
and Dry level buttons for 3 seconds. “InS” appears in the dryer’s display. (If
you have started other procedures before the Vent Blockage Test, the dryer will not
enter the Vent Blockage Test mode.)
3. Press START/PAUSE. The Vent Blockage Test starts immediately. During the test, the
number indicator makes a circle in 6 clockwise steps. The test takes about 2 minutes.
Do not open the door during the test.
4. After 2 minutes, when the test is complete, the results is displayed and the dryer
sounds a tone.
If status of the duct system is normal, “0” appears and the dryer sounds a completion
tone.
If the duct system can not exhaust properly, “CLg” appears and the dryer sounds an
alarm tone.
If there are any other problems, an information code appears in the display. For
information about the code, see Information codes section on page 60.
• To stop or cancel the Vent Blockage Test, press POWER to turn off your dryer.
• During the test, if “dc” appears in the display, make sure the door is closed. If
“C1” is displayed, see if there is laundry inside drum. If there is, stop the test and
remove it. Then, start the test again.
• The results remain on the display for about 5 minutes and then automatically turn
off. You can turn the result off immediately by pressing POWER.
FlexDry_DM9600M-DC68-03381H_EN.indd 30 2017-01-29 10:47:34
Installation
English 31
NOTE
• During or after the test, the internal drum is hot. Use caution to prevent burns.
The Vent Blockage Test is used to check for problems to the current duct system when
the dryer is installed for the rst time.
• If the test result displays “CLg” (the duct system is blocked ), refer to the Ducting
requirements section on page 18 and the Exhaust ducting guide section below, and
then take proper measures to correct any problems.
If the test is suspended, it could result in incorrect results. Follow the proper
procedures when testing the dryer.
• Even if the test result is normal (“0”), the duct system could be blocked slightly.
Properly install all duct work according to the installation instructions in this manual.
Exhaust ducting guide
Ducting
1. Make sure the dryer is installed properly so the air exhausts freely.
2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection.
Never use lint-trapping screws.
3. To facilitate the exhaust, keep the ducts as straight as possible.
Cleaning
Clean all old ducts before installing the dryer, and make sure the vent ap opens and
closes freely. We recommend that you clean the exhaust system annually or on a regular
basis.
WARNING
• To prevent re, do not use plastic, thin-foil, or non-metal exible ducts of any kind.
• Do not use a poor exhaust system because it slows down the dryer’s performance.
• Do not use excessively long ducts that have multiple elbows.
• Do not use crushed or clogged venting or ducts.
FlexDry_DM9600M-DC68-03381H_EN.indd 31 2017-01-29 10:47:35
Installation
Installation
English32

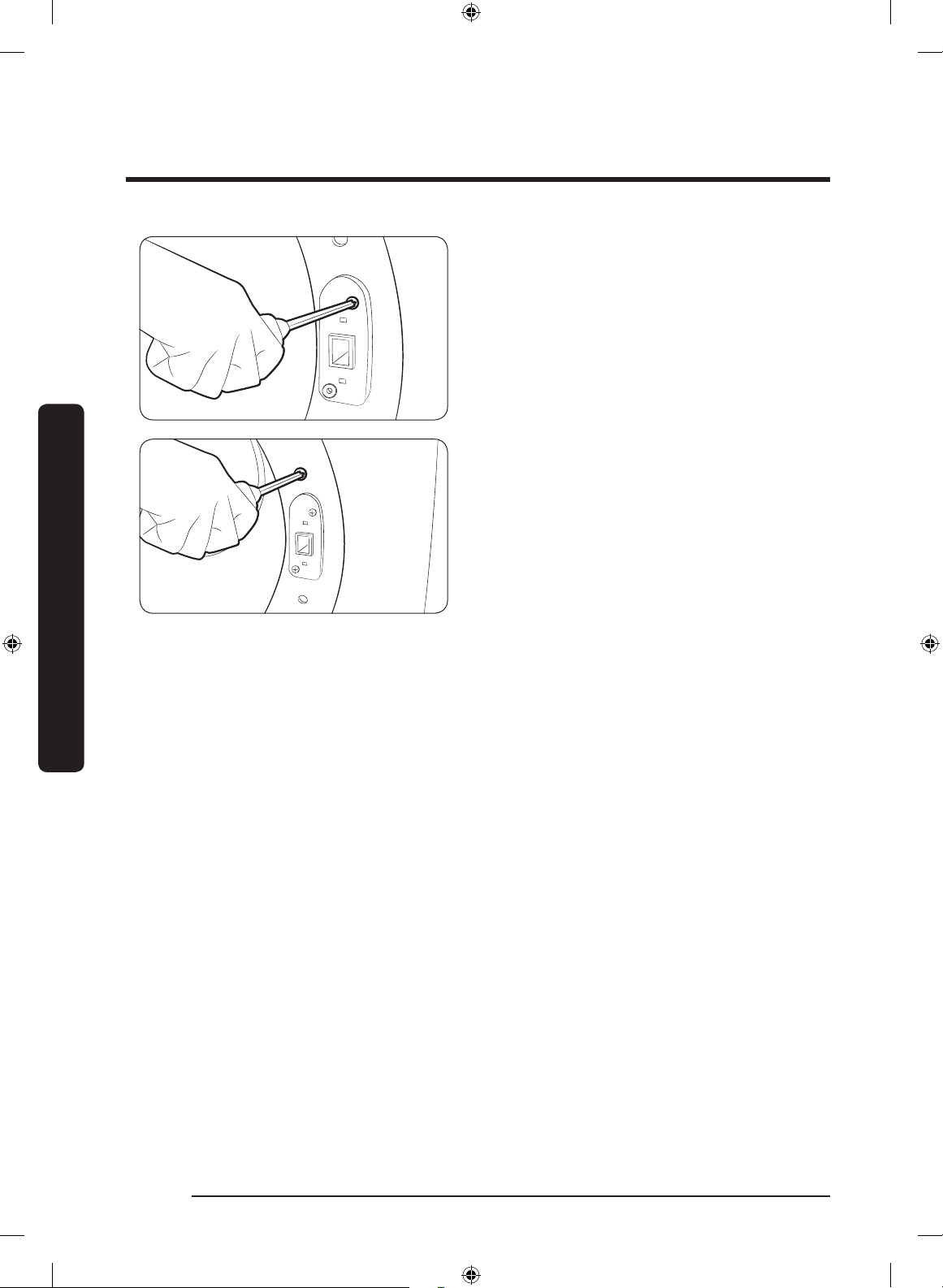

Door reversal
1. Unplug the power cord.
2. Remove two door hinge screws.
3. Lift the door and remove it.
NOTE
There is a screw on the back side of
the hinge that will support the door as
you unscrew the hinge screws.
4. Remove the two screws that are
above and below the cut-out in the
frame front.
5. Remove the two screws above and
below the lever holder on the opposite
side of the door opening.
6. Remove the two screws that hold the
lever holder in place, and then remove
the lever holder.
FlexDry_DM9600M-DC68-03381H_EN.indd 32 2017-01-29 10:47:35
Installation
English 33

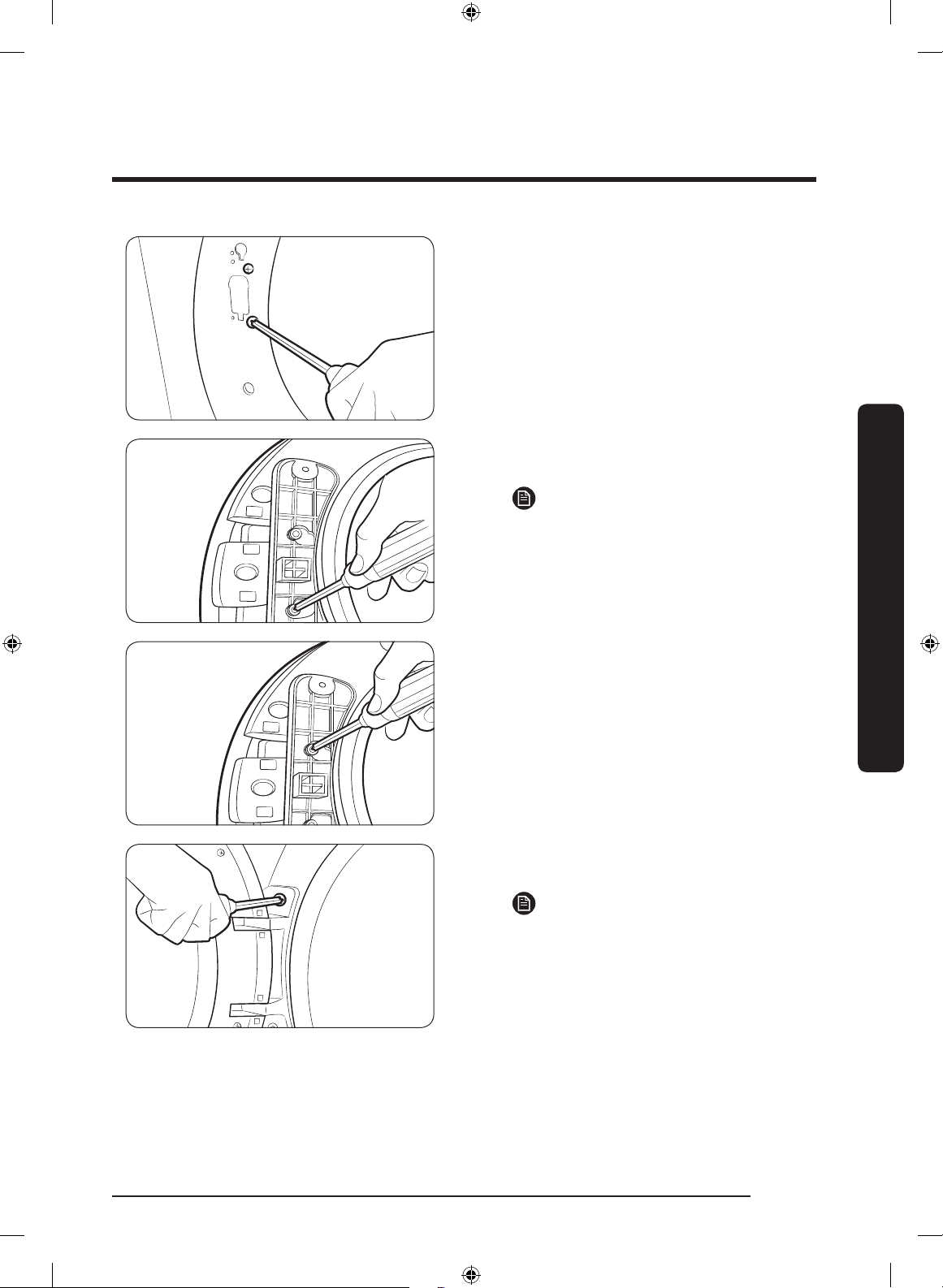

7. Re-insert the two screws that held
the lever holder into the same screw
holes, and then tighten.
8. Remove the single screw from the
back of the door hinge.
NOTE
This is the screw that supports the
door against the frame so you can
unscrew or screw in the hinge without
needing to support the door yourself.
9. Insert the screw you just removed into
the other screw hole on the back of
the door hinge, and then tighten.
10. Place the door on the other side, and
then reattach it to the dryer.
NOTE
Insert the head of the screw on the
back of the hinge into the hole above
the cut out in the frame, and then slide
the door hinge down until it stops.
Make sure the protrusion on the back
of the hinge is pressed into the cut out
before you tighten the hinge screws.
FlexDry_DM9600M-DC68-03381H_EN.indd 33 2017-01-29 10:47:35
Installation
Installation
English34
11. Push the lever holder into the cut out
on the other side of the door opening.
Insert screws, and then tighten as
shown.
12. Re-attach the remaining screws to the
remaining holes above and below the
lever holder, and then tighten.
FlexDry_DM9600M-DC68-03381H_EN.indd 34 2017-01-29 10:47:35
Before you start
English 35
Before you start
Here are a few things you should know before starting your dryer.
Sort and load
• Put one wash load in the dryer at a
time.
• Do not mix heavy and lightweight items
together.
• To improve drying efciency for one or
two items, add a dry towel to the load.
• For best results, untangle items before
inserting them into the dryer.
• Overloading causes uneven drying and
wrinkling.
• Unless recommended on the care label,
do not dry woolens or berglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol,
gasoline, or other ammable materials.

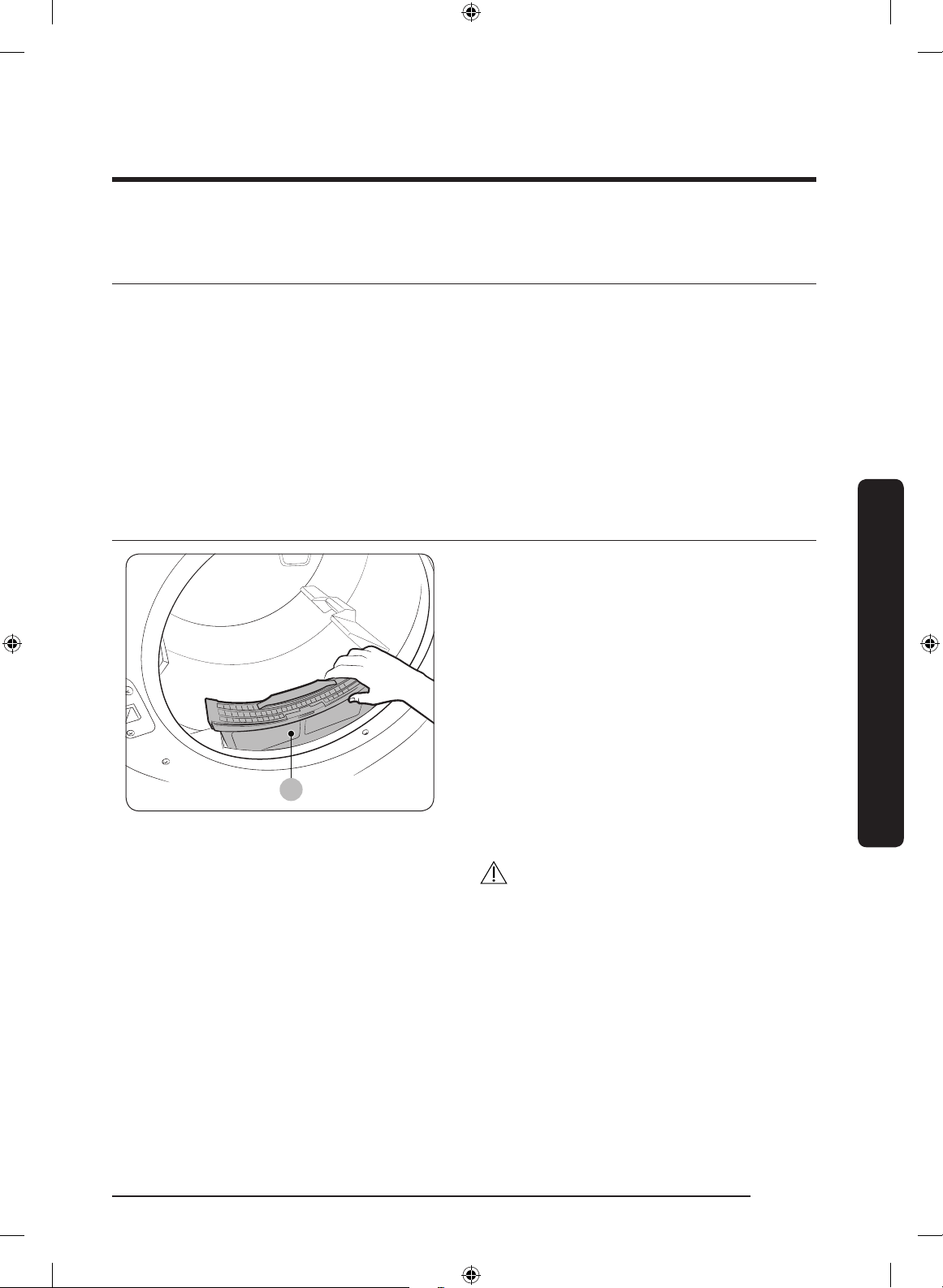

Lint lter
A
To prevent a risk of re, make sure to
clean the lint lter before or after every
load.
1. Turn the dryer off.
2. Open the door, and then pull out the
lint lter (A) from inside the drum.
3. Open the lint lter by separating it at
the top. Remove the lint and any other
debris that has accumulated in the
lter.
4. Close the lint lter, reinsert the lint
lter into the dryer, and then close the
dryer door.
CAUTION
• Do not operate the dryer without the
lint lter in place.
• Do not use a damaged or broken lint
lter. This may reduce performance
and/or cause a re.
FlexDry_DM9600M-DC68-03381H_EN.indd 35 2017-01-29 10:47:35
Before you start
Before you start
English36
Drying guidelines
The best way to dry items is to follow the instructions on the care label. If no drying
instructions are provided, see the following table for reference.
Cycle Description
Bedspreads &
Comforters
Follow the care label instructions or dry using NORMAL.
• Make sure the item is thoroughly dry before using or
storing.
• May require repositioning in the drum to ensure even
drying.
Blankets
Use NORMAL and dry only one blanket at a time for best
tumbling action.
• Make sure blankets are thoroughly dry before using or
storing.
Curtains & Draperies
Use PERM PRESS and the Medium temperature setting to help
minimize wrinkling.
• Dry curtains and draperies in small loads for best results and
remove as soon as possible after the cycle is complete.
Cloth Diapers
Use NORMAL and the Medium temperature setting for soft,
uffy diapers.
Down–lled Items
(jackets, sleeping bags,
comforters, etc.)
Use NORMAL and the Medium temperature setting.
• Add a couple of dry towels to absorb moisture and shorten
drying time.
Foam Rubber (rug
backs, stuffed toys,
shoulder pads, etc.)
Do not dry on a heat setting. Use AIR FLUFF.
WARNING
Drying a rubber item with heat may damage it or cause a re.
Pillows
Use NORMAL.
• Add a couple of dry towels and a pair of clean sneakers to
help the tumbling action and to uff the pillows.
• Do not dry kapok or foam pillows using a heated drying
cycle.
You can dry these items in the dryer only if you use AIR FLUFF.
Plastics (shower
curtains, outdoor
furniture covers, etc.)
Use AIR FLUFF or TIME DRY and the Low or Extra Low
temperature settings depending on the care label instructions.
FlexDry_DM9600M-DC68-03381H_EN.indd 36 2017-01-29 10:47:35
Before you start
English 37
WARNING
Do not dry:
• Fiberglass items (curtains, draperies, etc.)
• Wool, silk items, unless recommended on the label
• Items spotted or soaked with vegetable or cooking oils

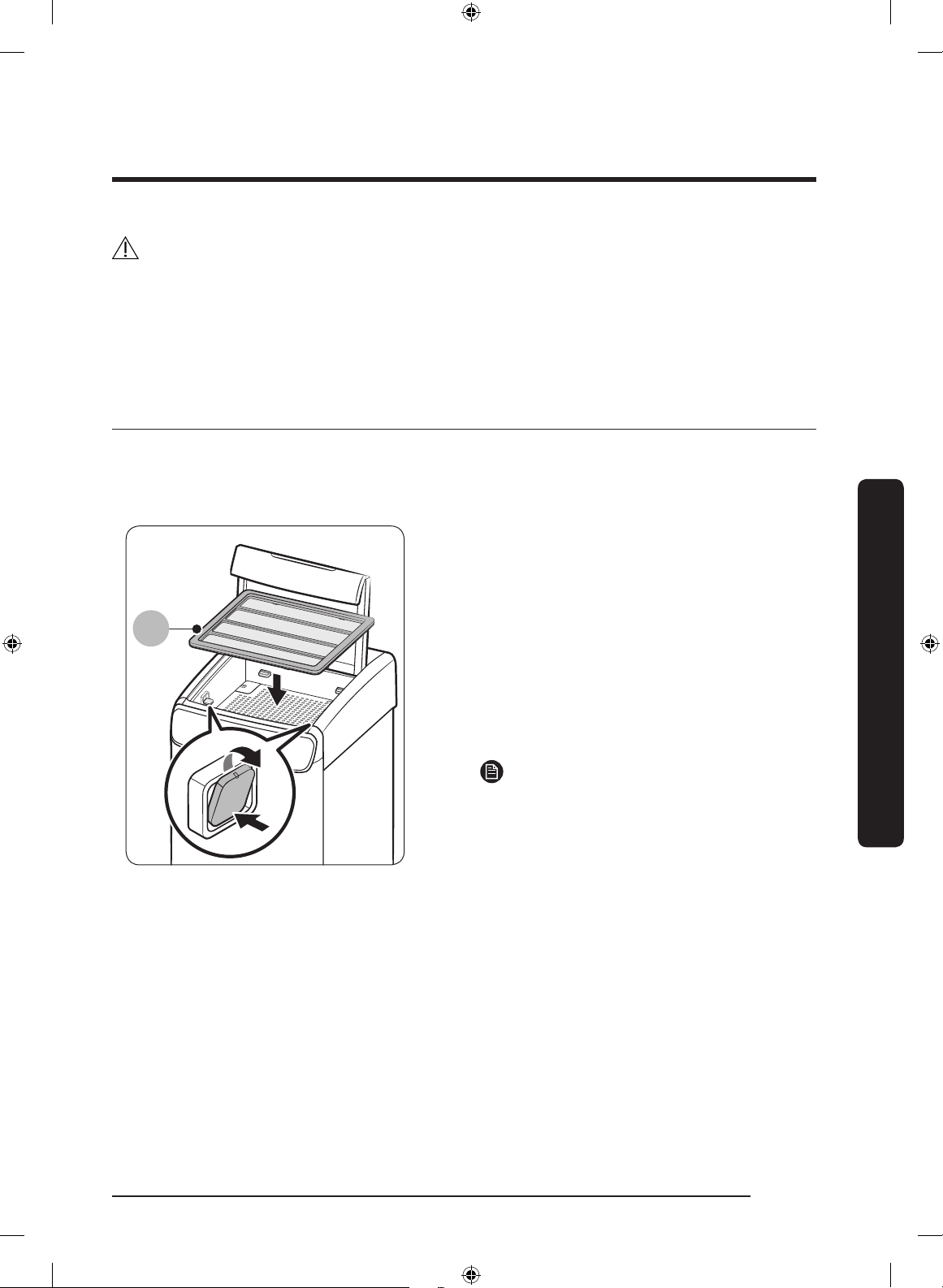

Rack guidelines
Flexible rack
The exible rack is designed to dry delicate items that are not suitable for or cannot be
dried in the Tumble Dryer.
A
To use the exible rack
1. Locate the rack supports (x4) in each
corner of the Delicate Dryer. Push
down the lower area of the front 2
supports to unfold. The rear 2 supports
are xed.
2. Insert the exible rack (A) inside the
Delicate Dryer. Make sure all 4 corners
of the rack sit on the rack supports
properly.
NOTE
You don’t have to use the drying rack. Put
bulky items below the rack and put any
additional items on the rack.
FlexDry_DM9600M-DC68-03381H_EN.indd 37 2017-01-29 10:47:35
Before you start
Before you start
English38
B
3. Insert a folded dryer sheet in dryer-
sheet case (B), and then put the case at
the top center of the rack. Make sure
the dryer-sheet case faces the triangle
mark on the Delicate Dryer because
only the arrow area has the built-in
magnet to secure the lter.
NOTE
If using a large-sized dryer sheet, the
dryer-sheet case may not close normally.
However, this does not affect the drying
performance.
Bulky items are easily wrinkled in the
Delicate Dryer. Do not dry bulky items
in the Delicate Dryer. Please see the
Recommended for the Delicate Dryer
section for reference.
WARNING
Do not dry animals, plants, food items, or
anything else but clothing.
FlexDry_DM9600M-DC68-03381H_EN.indd 38 2017-01-29 10:47:35
Operations
English 39
Operations
This FlexDry™ dryer features the Delicate Dryer and the Tumble Dryer for your
convenience. The Delicate Dryer is a top load dryer that is designed to dry relatively small
loads while the Tumble Dryer is a drum loader you can use to dry normal or relatively
heavy loads. The main panel is divided into 2 independent control panels.
WARNING
To reduce the risk of re, electric shock, or injury, read the Safety information section
before operating this dryer.
CAUTION
Do not spray water onto the main panel . This may cause a system failure.

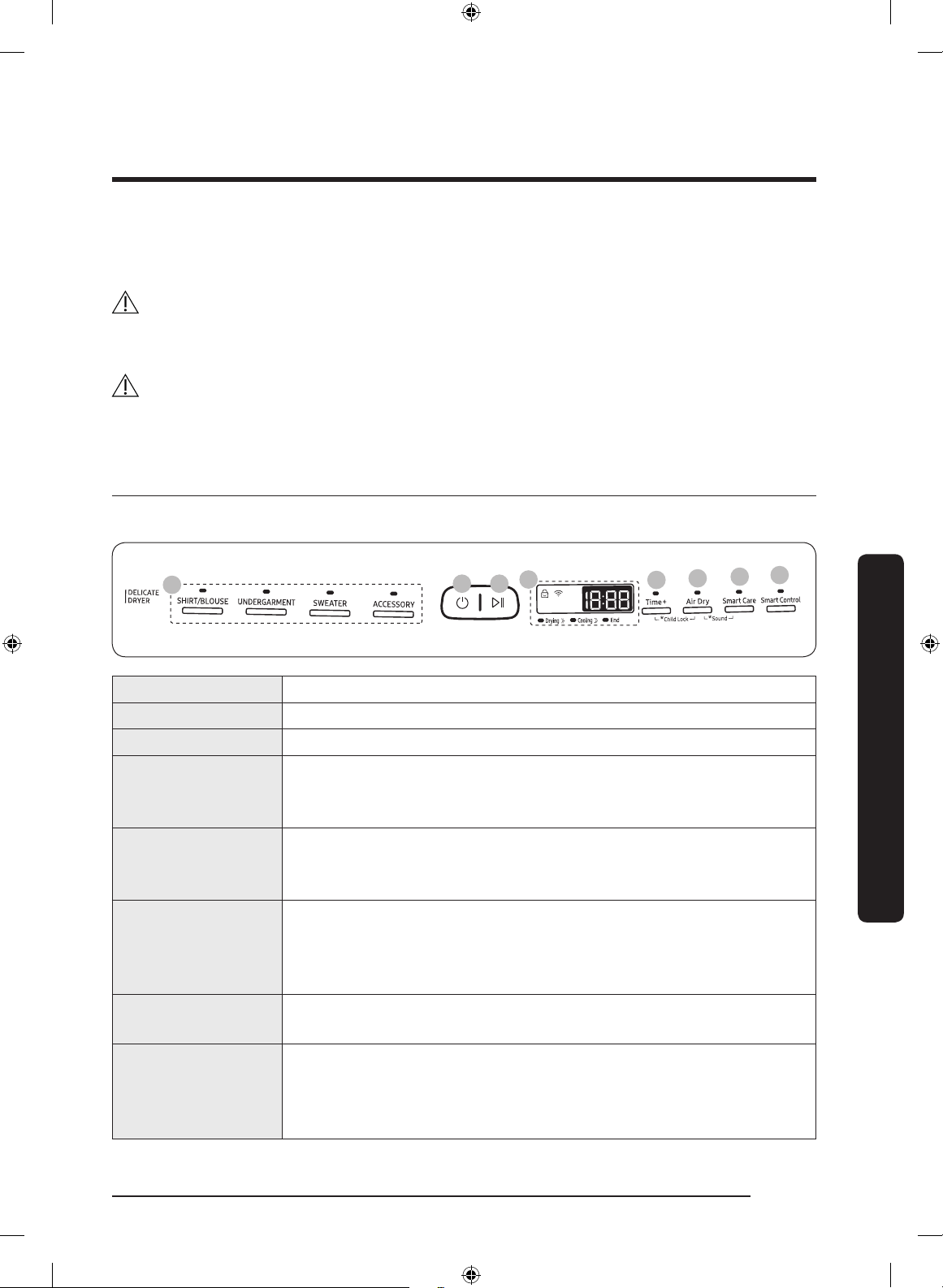

Delicate Dryer
Control panel
01
03
04
05
06
07
08
02
01 Cycle bar Press to select a cycle.
02 POWER Press to turn the Delicate Dryer on or off.
03 START/PAUSE Press to start operation, or press to stop operation temporarily.
04 Status bar
The status bar shows current cycle information and estimated time
remaining or an information code if the Delicate Dryer needs to be
checked.
05 Time+
Press to increase the drying time in 20-minute increments. You
can adjust the drying time up to 100 minutes according to the
type and amount of the clothing.
06 Air Dry
You can dry heat-sensitive clothing without heat, in room
temperature air. Such clothing may require more time to dry. To
extend the drying time, use Time+. This option is for the “shirt/
blouse”, “undergarment” and “accessory” cycle.
07 Smart Care
The Smart Care function helps you diagnose and troubleshoot your
dryer if it has an issue.
08 Smart Control
(Elec.) / Smart
Monitor (Gas)
Press to turn the Smart Control function on or off. You can control
or monitor the dryer remotely. When started, the Smart Control
(Smart Monitor) indicator blinks. For details, see the Samsung
Smart Home section later in this manual.
FlexDry_DM9600M-DC68-03381H_EN.indd 39 2017-01-29 10:47:36
Operations
Operations
English40
Cycle overview
Each cycle of the Delicate Dryer has a predened drying time. You must adjust the drying
time manually if necessary. To extend the drying time, use Time+.
Cycle Description
SHIRT/BLOUSE • For synthetic blouses and blouses with accessories (ornaments)
UNDERGARMENT
• For synthetic reshaping innerwear, innerwear with laces,
spandex fabrics for Pilates or Yoga, and leggings
SWEATER
• For washable wool or wool-blended sweaters, cotton or cotton-
blended sweaters, and knitted cardigans
ACCESSORY • For scarfs, mufers, gloves, and stockings
NOTE
• Make sure you input items appropriate to the selected cycle. Overloads may delay the
drying time. To extend the drying time, use Time+.
• Stretch out the items as straight as possible. Overlapping items may not dry well.
• Use the Tumble Dryer for blue jeans, thick clothing, or towels.
• The drying time may depend on the load conditions. To shorten, use a higher spinning
speed.
• For manual-wash items, use a towel to remove moisture from the items before drying.
FlexDry_DM9600M-DC68-03381H_EN.indd 40 2017-01-29 10:47:36
Operations
English 41
Recommended for the Delicate Dryer
• The drying time depends on the load and the item type. To shorten the drying time, use
Super Speed.
• Overloads may delay the drying time. To extend the drying time, use Time+.
• For manual-wash items, use a towel to remove moisture from the items before drying.
• For machine-washable items, you can reduce the drying time by choosing a higher
spinning rate.
• Arrange items as even and straight as possible. Overlapped items may not be dried
well. Available or recommended items for a specic cycle are as below:
Cycle Picture Load Item
SWEATER
1 EA (max. 2 EA)
Wool or wool-blended
sweaters, cotton
or cotton-blended
sweaters, knitted
cardigans
SHIRT/BLOUSE
1 EA (max. 2 EA)
Synthetic blouses,
blouses with
accessories
(ornaments)
UNDERGARMENT
3 EA (max. 6 EA)
Synthetic reshaping
innerwear, innerwear
with laces, spandex
fabrics for Pilates or
Yoga, leggings
ACCESSORY
2 EA (max. 4 EA)
Scarfs, mufers,
gloves, stockings
The max load is calculated on the condition of using the drying rack.
FlexDry_DM9600M-DC68-03381H_EN.indd 41 2017-01-29 10:47:36
Operations
Operations
English42
Caution
Clothing with accessories or hooks may
get stuck in the mesh of the rack.
• Clothing with accessories must face
upwards.
• Clothing with hooks must be hooked up
before being placed.
Not Recommended for the Delicate Dryer
Do not dry shoes, bags, down/fur products,
rugs, carpets, or bulky items in the Delicate
Dryer.
Use the Tumble Dryer for normal items (ex:
blue jeans, bulky cotton items, towels, etc.)
FlexDry_DM9600M-DC68-03381H_EN.indd 42 2017-01-29 10:47:36
Operations
English 43
Tumble Dryer
Control panel
01
03
04
05 06
07
08
09
10
11
12
02
01 Cycle buttons
Each Cycle button activates three separate cycles. Press the button
that activates the cycle you want repeatedly until the LED for that
cycle illuminates. For more information, see the Cycle overview
starting on page 45.
• CYCLE 1: NORMAL, HEAVY DUTY, DELICATES
• CYCLE 2: REFRESH, WRINKLE AWAY, STEAM SANITIZE
• CYCLE 3: PERM PRESS, TIME DRY, AIR FLUFF
02 POWER Press to turn the Tumble Dryer on or off.
03 START/PAUSE Press to start operation or press to stop operation temporarily.
04 Status bar
The status bar shows current cycle information and estimated time
remaining or an information code if the Tumble Dryer needs to be
checked.
05 Dry Level
Press Dry Level to select a dry level.
• Larger or bulkier loads may require Very or More for complete
dryness.
• The Damp dry level is designed to partially dry items. Use for
items that lay at or hang to dry.
NOTE
This option is not available with: REFRESH, WRINKLE AWAY,
STEAM SANITIZE, ACTIVE WEAR, TIME DRY, and AIR FLUFF.
FlexDry_DM9600M-DC68-03381H_EN.indd 43 2017-01-29 10:47:36
Operations
Operations
English44
06 Temp.
Press Temp. to change the temperature of the current cycle.
High: For sturdy cottons or those labeled Tumble Dry.
Medium: For permanent press, synthetics, lightweight cottons, or
items labeled Tumble Dry Medium.
Low: For heat sensitive items labeled Tumble Dry Low or Tumble
Dry Warm.
Extra Low: Provides the lowest heated drying temperature
possible.
07 Time
Press Time to select a drying time for the selected cycle. This is
available only with TIME DRY, AIR FLUFF, and WRINKLE AWAY.
This button is not available for Sensor Dry cycles because exact
drying times are determined by uctuating humidity levels.
08 Eco Dry
This function is available with NORMAL and TIME DRY.
With the Eco Dry activated, drying takes a longer time but power
consumption is reduced.
The drying time can be extended by up to 3 times normal
depending on the temperature and load. The Eco Dry function is
enabled by default.
09 Anti Static
Anti Static reduces static electricity that occurs from clothing
friction. This is done by spraying steam into the drum in a later
stage of the drying cycle.
NOTE
The Anti Static function is only available with NORMAL, HEAVY
DUTY, PERM PRESS, DELICATES, and TIME DRY.
10 Wrinkle Prevent
Wrinkle Prevent provides approximately 180 minutes of
intermittent tumbling in unheated air at the end of the cycle to
reduce wrinkling. Press Wrinkle Prevent to activate this feature.
The load is dry and can be removed at any time during the
Wrinkle Prevent cycle.
11 Adjust Time
You can change the set time for the selected cycle. This is
available only with TIME DRY, AIR FLUFF, and WRINKLE AWAY. To
change the cycle time, press Adjust Time
or Adjust Time
until the desired time is displayed.
FlexDry_DM9600M-DC68-03381H_EN.indd 44 2017-01-29 10:47:37
Operations
English 45
12 Smart Control
(Elec.) / Smart
Monitor (Gas)
After connecting the Tumble Dryer to your home network using
the Samsung Smart Home app, you can control or monitor the
dryer remotely. When started, the Smart Control (Smart Monitor)
indicator blinks. The dryer enters waiting mode and waits for
remote commands.
Cycle overview
Sensor Dry
Cycle Description
NORMAL
• For most fabrics including cottons and linens.
• If NORMAL is selected, the Eco Dry function is enabled by
default. For more information, see Eco Dry in the Control panel
section.
HEAVY DUTY
• For drying items made out of heavy fabrics, such as jeans,
corduroys, or work clothes, with high temperature heat.
DELICATES • For heat-sensitive items at a low drying temperature.
PERM PRESS
• Use to dry wrinkle-free cottons, synthetic fabrics, knits, and
permanent press fabrics automatically.
FlexDry_DM9600M-DC68-03381H_EN.indd 45 2017-01-29 10:47:37
Operations
Operations
English46
Steam Cycles
Cycle Description
REFRESH
• Use to smooth out wrinkles and reduce odors in loads of one to
four items. With this cycle selected, a small amount of water is
sprayed into the dryer drum after several minutes of tumbling
with heat. Before removing the laundry, conrm that the
laundry load is dry.
WRINKLE AWAY
• For best results, load 2-3 items at once. You can extend the
drying time by a minimum of 20 minutes, depending on the
item type or load. Before removing the laundry, conrm that
the laundry load is dry.
STEAM SANITIZE
• Use to sanitize items by applying steam and high-temperature
heat to the fabric. This cycle can make items soft and reduce
smells. Conrm that the laundry load is wet or partially wet
before starting this cycle.
Manual Dry
Cycle Description
TIME DRY
• You can specify a cycle time in minutes.
• If TIME DRY is selected, the Eco Dry function is enabled by
default. For more information, see Eco Dry in the Control panel
section.
AIR FLUFF • Tumbles the load in room temperature air.
FlexDry_DM9600M-DC68-03381H_EN.indd 46 2017-01-29 10:47:37
Operations
English 47

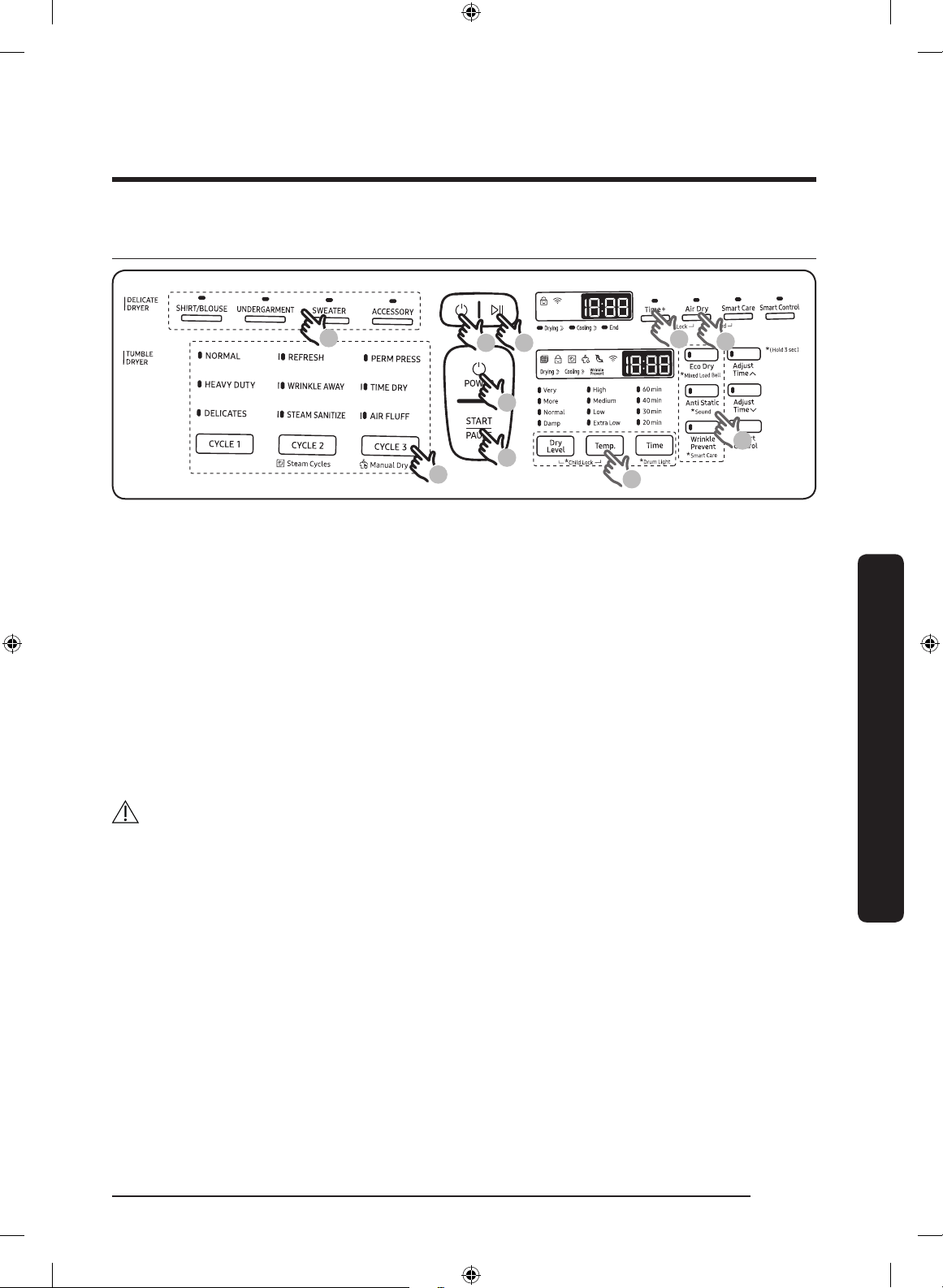

Simple steps to start
01
06
03
04
05
03
01 06
04
05
1. Press POWER on the control panel of a desired dryer (Delicate, Tumble) to turn the
dryer on.
2. Put the items you want to dry into the dryer.
3. Select a cycle.
4. Change the cycle settings (temperature and/or dry level) as appropriate to the items.
5. Select cycle options as needed.
6. Press START/PAUSE.
To change the cycle during operation
1. Press START/PAUSE to stop operation temporarily.
2. Select a different cycle.
3. Press START/PAUSE again to start the new cycle.
WARNING
Do not put anything on top of your dryer while it is running.
FlexDry_DM9600M-DC68-03381H_EN.indd 47 2017-01-29 10:47:37
Operations
Operations
English48
This product is a smart dryer that supports the Samsung Smart
Home service.
The amount of time the EZ setup function (for connecting
the dryer to your network) can take to complete the network
connection varies, depending on your network conditions.
Samsung Smart Home
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung
Smart Home”. Download and install the Samsung Smart Home app provided by Samsung
Electronics to your smart device.
NOTE
• The Samsung Smart Home app is designed for Android 4.0 (ICS) or higher, or iOS 8.0 or
higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
• On other devices, some functions may operate differently.
• For improved performance, the Samsung Smart Home app is subject to change without
notice.
Registering a Samsung account
To use the Samsung Smart Home app, you must rst sign in to your Samsung account. If
you don’t have a Samsung account, select Register in the app, and then follow the on-
screen instructions to create an account.
NOTE
• If you have a registered Samsung account, log into your Samsung account. If you have
a Samsung smartphone, you can go to the Settings menu on your smartphone, select
Accounts, and then sign in to your Samsung account. This will allow you to log in
without additional authentication.
• For third-party smart phones, the app account must be the same as the EZ Setup
account.
FlexDry_DM9600M-DC68-03381H_EN.indd 48 2017-01-29 10:47:37
Operations
English 49
Getting started
Using Samsung Smart Home, you can control your dryer from your smart device remotely.
For improved performance, the content and design of the app is subject to change without
notice.
1. Launch the Samsung Smart Home App on your smartphone.
2. If ‘Dryer’ is not listed, tap Add Device > Select other device > Dryer on the app screen.
3. Press and hold Smart Control on your dryer’s control panel for more than 5 seconds
until the ‘AP’ message appears on the display.
4. When the device registration is complete, turn on the Smart Control function on
your dryer and you can monitor (gas models) or control (electric models) your dryer
remotely.
• For gas models, the Dryer app only serves as a monitoring device. You cannot use
any of the controls available on the app.
FlexDry_DM9600M-DC68-03381H_EN.indd 49 2017-01-29 10:47:37
Operations
Operations
English50
Special features
Child Lock
To prevent children or infants from accidently starting the dryer or setting any of the
dryer’s functions, Child Lock locks all buttons except for the POWER button. Note that each
dryer operates independently and has its own Child Lock function.
To activate the Child Lock
• Press and hold Dry Level and Temp. (or Time+ and Air Dry for the Delicate Dryer)
simultaneously for 3 seconds. Then, press START/PAUSE to activate. The door locks and
the Child Lock indicator turns on.
To deactivate Child Lock temporarily
• You can deactivate Child Lock temporarily for 1 minute. To do this, press and hold Dry
Level and Temp. (or Time+ and Air Dry for the Delicate Dryer) simultaneously for 3
seconds. The door is unlocked for 1 minute and the Child Lock indicator blinks.
NOTE
• If you open the door 1 minute or more after deactivating Child Lock, an alarm sounds
for up to 2 minutes.
• If you close the door within 2 minutes, the door locks and Child Lock is reactivated. If
you do not close the door or the door is not properly closed within two minutes, an
alarm sounds and the door will not lock.
• To add laundry after activating Child Lock, rst deactivate Child Lock or restart the
dryer.
To cancel Child Lock
• Press and hold Dry Level and Temp. (or Time+ and Air Dry for the Delicate Dryer) for
3 seconds to deactivate, and then press and hold the buttons again for 3 seconds to
release Child Lock. The door unlocks and the Child Lock indicator turns off.
FlexDry_DM9600M-DC68-03381H_EN.indd 50 2017-01-29 10:47:37
Operations
English 51
Smart Care
The Smart Care function helps you diagnose and troubleshoot your dryer if it has a
problem. To enable this function, you must rst download the Samsung Smart Dryer app
from the Play Store or the Apple Store, and then install it on a mobile device that has a
built-in camera. The Smart Care function has been optimized for Galaxy and iPhone series
devices. (It is not supported by some models.)
As the dryer operates, it runs a self-diagnosis function in the background. If it senses a
problem, it displays an information code on the display which you can scan using the
app’s Smart Care function. The Smart Care function will then display detailed information
about the code.
1. Press and hold Wrinkle Prevent (or Smart Care for the Delicate Dryer) on the dryer
for 3 seconds to enter the Smart Care mode.
2. Run the Samsung Smart Dryer app on your mobile device, and then tap Smart Care.
3. Hold the mobile device so that the mobile device and the dryer’s status bar face each
other. The app will recognize the information code automatically.
4. When the information code is recognized correctly, the app provides detailed
information about the symptom and recommends further action.
NOTE
• The function name, Smart Care, may differ depending on your language.
• If the dryer display is reecting light, the app may fail to recognize the information
code.
• If the app fails to recognize the information code a number of times consecutively,
enter the information code manually into the app screen.
• The information code history will be deleted after you use this function.
Sound
Mute or unmute the sound (button beeps, indicator beeps and chimes, etc.)
Delicate Dryer
• To mute the dryer’s alarm sound or beeps, press and hold Air Dry and Smart Care for 3
seconds. To unmute, press and hold the same buttons for 3 seconds again.
Tumble Dryer
• To mute the dryer’s alarm sound or beeps, press and hold Anti Static for 3 seconds. To
unmute, press and hold the same button again for 3 seconds.
Drum Light (Tumble Dryer only)
The drum light turns on when the door is opened and turns off after 2 minutes. To
manually turn the drum light on or off, press and hold Time for 3 seconds.
FlexDry_DM9600M-DC68-03381H_EN.indd 51 2017-01-29 10:47:37
Maintenance
English52
Maintenance
Keep this your FlexDry™ dryer clean to prevent decreased performance and to lengthen
its life.
WARNING
• The control board and inlet valve are intentionally not grounded and may present a
risk of electric shock only during servicing.
• Service personnel: Do not contact these parts while the appliance is energized.
General cleaning and maintenance instructions
Main panel
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray liquid cleaning agents directly on the display of the dryer.
• Some laundry pre-treatment soil and stain removers may damage the main panel.
• When using liquid cleaning agents, apply them to the cleaning cloth. Do not apply them
directly to the dryer. Wipe up any spills or overspray immediately.
Exterior
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place heavy or sharp objects or a detergent container on the dryer. They can
scratch or damage the top cover of the dryer.
• The dryer has a high-gloss nish on its entire surface. Be careful not to scratch or
damage the surface.
Exhaust system
• Check and clean the exhaust system on a yearly or regular basis to maintain optimum
performance.
• The external exhaust hood must be cleaned more frequently to ensure proper air ow.
FlexDry_DM9600M-DC68-03381H_EN.indd 52 2017-01-29 10:47:37
Maintenance
English 53
Vent sensor
The dryer features a vent sensor that detects and noties you when it is time to clean the
ductwork. The
indicator lets you know the status of the duct.
Level
Indicator
Status Action
0 Off The ductwork is not clogged. -
1 On
• The duct or lint lter is
clogged.
• High pressure being
applied to the duct
because the duct is too
long or bent.
• Check the lint lter or duct
and clean if necessary.
• Check the duct connections
and shorten or straighten
the duct if necessary.
2 Blinking
• The duct or lint lter is
severely clogged.
• The pressure applied
to the duct is very high
because the duct is too
long or bent.
• Check and clean the lint
lter or duct and make
sure they are not clogged.
• Check the duct connections
and shorten or straighten
the duct work.
If the dryer is in the Level 2 state, the
indicator blinks for 3 hours after the completion
of the current cycle. If you press POWER or open the door, the dryer powers off
immediately.
NOTE
• For duct installation, see Exhaust ducting guide on page 31 and Ducting requirements
on page 18.
• The dryer may keep running even if the duct is clogged, but the drying time will be
extended.
• If the indicator turns on for the rst time and is solid (not blinking), check and clean the
lint lter and/or duct.
• If the indicator turns on again later, it is because the duct is installed or connected with
some restrictions (it’s too long or has too many bends). This is not a system failure.
However, drying time may be extended or the drying performance may be degraded.
FlexDry_DM9600M-DC68-03381H_EN.indd 53 2017-01-29 10:47:37
Maintenance
Maintenance
English54
Delicate Dryer
Flexible rack
• If you use the exible rack, make sure
to clean the rack after every use so that
it is readily available for future use.
• Clean the rack with neutral cleaning
agents and running water.
Upper recesses
• Clean the left and right rear recesses of
the Delicate Dryer after every use.
• Locate the recesses in the rear corners
of the Delicate Dryer, and then remove
the recess covers on both sides.
• The Delicate Dryer may have collected
water while it is operating. After
every use or while the Delicate Dryer
is operating, remove the covers of
the rear recesses, and then clean the
recesses using a soft dry cloth.
• By design, the surface of the Delicate
Dryer is slanted to facilitate collection
of water.
Dryer-sheet case
• Clean the Dryer-sheet case with neutral
cleaning agents and running water.
FlexDry_DM9600M-DC68-03381H_EN.indd 54 2017-01-29 10:47:38
Maintenance
English 55
Tumble Dryer
Stainless steel drum
• Clean the drum after every use.
• To clean the stainless steel drum, use a damp cloth with a mild, non-abrasive cleaner
suitable for easily marred surfaces. Remove cleaner residue and dry with a clean cloth.
Drying rack
• If you used the lower drying rack, make sure to clean the rack after every use so that it
will be readily available for future use.
• Clean the drying rack with neutral cleaning agents and running water.
FlexDry_DM9600M-DC68-03381H_EN.indd 55 2017-01-29 10:47:38
Troubleshooting
English56
Troubleshooting
Checkpoints
If the dryer operates abnormally, rst check the list of problems in the table below and
try the suggested actions.
Symptom Action
Does not run.
• Make sure the door is latched shut.
• Make sure the power cord is plugged into a live electrical
outlet.
• Check your home’s circuit breakers or fuses.
• Press START/PAUSE again if the door was opened during a
cycle.
• Clean the lint lter.
• If you are using the Delicate Dryer but it does not operate
properly, you can turn the Tumble Dryer on and see if an
information code appears.
Does not heat.
• Check your home’s circuit breakers or fuses.
• Some cycles do not require heat. Check the selected cycle
again.
• For a gas dryer, make sure the gas supply is on.
• Clean the lint lter and exhaust duct.
• The dryer may have moved into the cool-down phase of the
cycle.
Does not dry.
• Check all of the above, plus...
• Make sure the exhaust hood outside your home can open and
close freely.
• Check the exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
• Use a 4” rigid metal exhaust duct.
• Do not overload. 1 wash load = 1 dryer load.
• Dry heavy items and light weight items separately.
• Large, bulky items, such as blankets or comforters, may
require repositioning to ensure even drying.
• The load may be too small to tumble properly. Add a few
towels and restart the dryer.
• The load may be too large to tumble properly. Remove some
items and restart the dryer.
• Clean the lint lter.
FlexDry_DM9600M-DC68-03381H_EN.indd 56 2017-01-29 10:47:38
Troubleshooting
English 57
Symptom Action
Is noisy.
• Check the load for objects such as coins, loose buttons, nails,
etc. Remove promptly.
• It is normal to hear the dryer gas valve or heating element
cycle on and off during the drying cycle.
• Make sure the dryer is leveled properly as outlined in the
installation instructions.
• It is normal for the dryer to hum due to the high velocity of
air moving through the dryer drum, fan, or exhaust system.
Dries unevenly.
• Seams, pockets, and other similarly heavy areas may not
be completely dry when the rest of the load has reached
the selected dryness level. This is normal. You can choose
a higher dryness level or a cycle that involves a higher
dryness level.
• If one heavy item is dried with a light weight load, such as
one towel with sheets, it is possible that the heavy item will
not be completely dry when the rest of the load has reached
the selected dryness level.
• For the best drying results, dry heavy items and light weight
items separately.
Has odors.
• Household odors from paint, varnish, strong cleaners, etc.
may enter the dryer with the surrounding room air. This is
normal as the dryer draws the air from the room, heats it,
pulls it through the drum, and exhausts it outside.
• When these odors linger in the air, completely ventilate the
room before using the dryer.
Lint on clothes.
• Make sure the lint lter is cleaned before every load. For
clothes that naturally build up lint, clean the lter during the
cycle.
• Some fabrics are lint producers (for example, a fuzzy white
cotton towel) and they must be dried separately from clothes
that are lint trappers (for example, a pair of black linen
pants).
• Divide larger loads into smaller loads for drying.
• Check pockets thoroughly before drying, then dry clothes.
• Remove lint inside the drum before drying a load.
FlexDry_DM9600M-DC68-03381H_EN.indd 57 2017-01-29 10:47:38
Troubleshooting
Troubleshooting
English58
Symptom Action
Items still wrinkled
after Wrinkle Prevent
(Wrinkle Away,
Wrinkle Release.
• Small loads of 1 to 4 items work best.
• Load fewer items. Load similar-type items.
• Take out the items immediately after drying is complete.
Water drips from
the nozzle when the
Steam cycles starts.
• This is steam condensation. The dripping water will stop after
a short time.
Sprayed water is not
visible during Steam
cycles.
• Sprayed water is difcult to see when the door is closed.
Extended time.
• Sensor Dry automatically senses the moisture in the load
and shuts the dryer off when the selected dryness level is
reached.
The drying time can change according to the type and
amount of laundry. See the cycle chart for reference.
If a problem persists, contact a local Samsung service center.
FlexDry_DM9600M-DC68-03381H_EN.indd 58 2017-01-29 10:47:38
Troubleshooting
English 59
Samsung Smart Home
Symptom Action
I could not nd
“Samsung Smart
Home” in the app
market.
• The Samsung Smart Home app is available for smartphones
that run Android 4.0 (ICS) or higher, or iOS 8.0 or higher.
The Samsung Smart
Home app fails to
operate.
• The Samsung Smart Home app is available for applicable
models only.
• The old Samsung Smart Dryer app cannot connect with
Samsung Smart Home models.
The Samsung Smart
Home app is installed
but is not connected
to my dryer.
• You must log into your Samsung account to use the app.
• Use the Samsung Smart Home app to connect and register
the dryer with your home network access point (AP).
• Make sure that your router is operating normally.
Could not log into the
app.
• You must log into your Samsung account to use the app.
• If you don’t have a Samsung account, follow the app’s
onscreen instructions to create one.
An error message
appears when I try to
register my dryer.
• The connection may fail due to the distance from your access
point (AP) or electrical interference from the surrounding
environment. Wait a moment and try again.
The Samsung
Smart Home app
is successfully
connected to my
dryer but does not
run.
• Exit and restart the Samsung Smart Home app or unplug
your router and then reconnect it.
FlexDry_DM9600M-DC68-03381H_EN.indd 59 2017-01-29 10:47:38
Troubleshooting
Troubleshooting
English60
Information codes
If the dryer fails to operate, you may see an information code on the control panel. To
determine what you should do, check the list of codes in the table below, and then try the
suggested actions.
Code
Action
Delicate Dryer Tumble Dryer
1 DC DC
Operating the dryer with the door open.
• Make sure the door is properly closed.
• Make sure laundry is not caught in the door.
1 FC FC
Invalid power source frequency.
• Try restarting the cycle.
• If this information code remains, contact a Samsung
service center.
1 AC AC
Electronic control problem [Invalid Communication
(SUB PBA <-> MAIN PBA)].
• Contact a Samsung service center.
1 HC HC
High temperature heating check.
• Clean the lint lter.
• If this information code remains, contact a Samsung
service center.
- 9C1
The electronic control needs to be checked.
• Check if power is supplied properly.
• If the information code remains, contact a Samsung
service center.
1 tC tC
The Thermistor1 resistance is very low or high.
• Check for a clogged lint screen .
• Check if the vent system is restricted.
• If this information code remains, contact a Samsung
service center.
1tC5 tC5
The Thermistor2 resistance is very low or high.
• Check for a clogged lint screen.
• Check if the vent system is restricted.
• If this information code remains, contact a Samsung
service center.
- dF
Incorrect door switch.
• Contact a Samsung service center.
FlexDry_DM9600M-DC68-03381H_EN.indd 60 2017-01-29 10:47:38
Troubleshooting
English 61
Code
Action
Delicate Dryer Tumble Dryer
1 AC7 -
Electronic Control Problem [Invalid Communication
(Delicate Dryer MAIN <-> Tumble MAIN PBA)].
- HC2
Gas ignition fails.
• Make sure the gas valve is unlocked.
• Make sure the lter is unclogged.
• Make sure the plumbing is not disconnected nor
clogged.
If any information code keeps appearing on the screen, contact a Samsung service center.
FlexDry_DM9600M-DC68-03381H_EN.indd 61 2017-01-29 10:47:38
Specications
English62
Specications
Fabric care chart
The following symbols provide garment
care direction. The clothing care labels
include symbols for drying, bleaching,
ironing, and dry cleaning. The use of
symbols ensures consistency among
garment manufacturers of domestic
and imported items. Follow care label
directions to optimize garment life and
reduce laundering problems.
Wash cycle
Normal
Permanent press / Wrinkle
resistant / Wrinkle control
Gentle / Delicates
Hand wash
Water temperature
Hot
Warm
Cold
NOTE
The Water Temperature table lists
appropriate wash water temperatures for
various items. The temperature range is
106-126 °F (41-52 °C) for Hot, 84-106 °F
(29-41 °C) for Warm, and 61-84 °F (16-
29 °C) for Cold. (Wash water temperature
must be a minimum of 61 °F (16 °C)
for detergent activation and effective
cleaning.)
Bleach
Any bleach (when needed)
Only non-chlorine (color-safe)
bleach (when needed)
Tumble dry
Normal
Permanent press / Wrinkle
resistant / Wrinkle control
Gentle / Delicates
Special instructions
Line dry / Hang to dry
Drip dry
Dry at
Heat setting
High
Medium
Low
Any heat
No heat / Air
FlexDry_DM9600M-DC68-03381H_EN.indd 62 2017-01-29 10:47:39
Specications
English 63
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do not wash
Do not wring
Do not bleach
Do not tumble dry
No steam (added to iron)
Do not iron
Dry-clean
Dry-clean
Do not dry-clean
Line dry / Hang to dry
Drip dry
Dry at
Protecting the environment
This appliance is manufactured from
recyclable materials. If you decide to
dispose of this appliance, please observe
local waste disposal regulations. Cut off
the power cord so that the appliance
cannot be connected to a power source.
Remove the door so that animals and small
children cannot get trapped inside the
appliance.
FlexDry_DM9600M-DC68-03381H_EN.indd 63 2017-01-29 10:47:40
Specications
Specications
English64

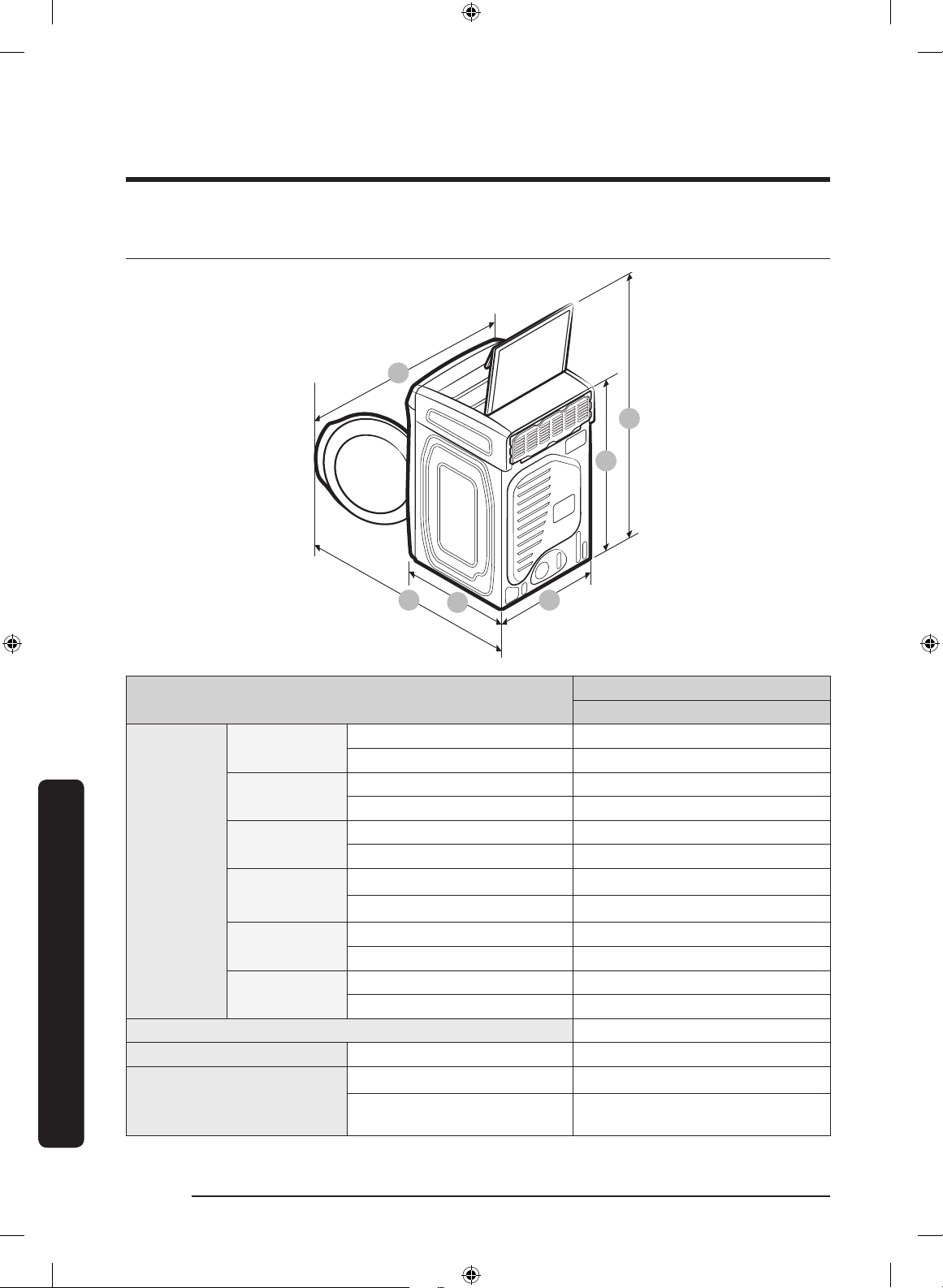

Specication sheet
A
B
C
D
E
F
Type
Front loading dryer
DV*55M9600**
Dimensions
A. Height-top
door opened
Product-inches (cm) 61 (155.0)
Required for Installation-inches 63.5
B. Height-top
door closed
Product-inches (cm) 46.9 (119.2)
Required for Installation-inches -
C. Width
Product-inches (cm) 27 (68.6)
Required for Installation-inches 29
D. Depth
Product-inches (cm) 3.25 (82.5)
Required for Installation-inches 34.5
E. Depth with
door open 90°
Product-inches (cm) 53.7 (136.5)
Required for Installation-inches 55.7
F. Width with
door open 120°
Product-inches (cm) 36.4 (92.4)
Required for Installation-inches 38.4
Water pressure-psl (kPa) 20-116 (137-800)
Weight lb (kg) 165 (75)
Heater rating
Electric (W) Upper : 600 W / Lower : 5300 W
Gas (BTU/hr)
Upper : 600 W / Lower : 22000 BTU/hr
(eq. 6447 W)
FlexDry_DM9600M-DC68-03381H_EN.indd 64 2017-01-29 10:47:41
Specications
English 65
Cycle chart
NOTE
For best results, follow the load size recommendations for each dry cycle.
•
Large load: Fill the drum to about ¾ full. Do not add items over this level as they
need to tumble freely.
•
Medium load : Fill the drum to about ½ full.
•
Small load : Fill the drum with 3-5 items, not more than ¼ full.
Cycle Recommended items
Load
size
Dry Level
NORMAL Cottons, work clothes, linens, mixed loads
Normal Dry
(Adjustable)
HEAVY DUTY
Heavy Fabrics such as jeans, corduroys, heavy
work clothes
Normal Dry
(Adjustable)
BEDDING
Bulky items such as blankets, sheets, comforters,
pillows
Normal Dry
(Adjustable)
PERM PRESS
Shirts, synthetic fabrics, knits, wrinkle-free
cottons, permanent press
Normal Dry
(Adjustable)
DELICATES Underwear, blouses, lingerie
Normal Dry
(Adjustable)
ACTIVE WEAR
Water-repellent wear, performance clothes,
sports wear (Maximum: 4 lbs)
Normal Dry
(Not adjustable)
TIME DRY Any load
-
AIR FLUFF Foam, rubber, plastic
-
REFRESH Shirts, trousers, comforters, pillows
-
WRINKLE AWAY Shirts, trouser, blouses
-
STEAM SANITIZE Bedding, curtains, children’s clothing
Very Dry
(Not adjustable)
FlexDry_DM9600M-DC68-03381H_EN.indd 65 2017-01-29 10:47:41
Specications
Specications
English66
NOTE
• : factory setting, : can be selected
Cycle
Temperature setting
Time setting
High Medium Low Extra Low
NORMAL
HEAVY DUTY
BEDDING
PERM PRESS
DELICATES
ACTIVE WEAR
TIME DRY
AIR FLUFF
REFRESH
WRINKLE AWAY
STEAM SANITIZE
Cycle
Options
Anti Static
Mixed Load
Bell
Wrinkle
Prevent
Adjust Time Eco Dry
NORMAL
HEAVY DUTY
BEDDING
PERM PRESS
DELICATES
ACTIVE WEAR
TIME DRY
AIR FLUFF
REFRESH
WRINKLE AWAY
STEAM SANITIZE
FlexDry_DM9600M-DC68-03381H_EN.indd 66 2017-01-29 10:47:41
English 67
Warranty (U.S.A)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
• One (1) Year All Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject
to availability within the contiguous United States.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to
and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective
during the limited warranty period specied above.
All replaced parts and products become the property of SAMSUNG and must be returned
to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90)
days, whichever is longer.
FlexDry_DM9600M-DC68-03381H_EN.indd 67 2017-01-29 10:47:41
Warranty (U.S.A)
English68
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage that occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts
of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and
failure to follow operating instructions, maintenance and environmental instructions that
are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for
instructions, or xing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND
EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE
REMEDY.
FlexDry_DM9600M-DC68-03381H_EN.indd 68 2017-01-29 10:47:41
English 69
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you. This warranty gives you specic rights, and you may
also have other rights, which vary from state to state.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Visits by a Service Engineer to explain functions, maintenance, or installation is not
covered by warranty.
Please contact the Samsung call center at the number above for help with any of these
issues.
FlexDry_DM9600M-DC68-03381H_EN.indd 69 2017-01-29 10:47:41
English70
Warranty (CANADA)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
• One (1) year part and labor
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the Canada.
To receive warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject
to availability within the Canada.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to
and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective
during the limited warranty period specied above.
All replaced parts and products become the property of SAMSUNG and must be returned
to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90)
days, whichever is longer.
FlexDry_DM9600M-DC68-03381H_EN.indd 70 2017-01-29 10:47:41
English 71
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage that occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts
of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and
failure to follow operating instructions, maintenance and environmental instructions that
are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for
instructions, or xing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND
EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE
REMEDY.
FlexDry_DM9600M-DC68-03381H_EN.indd 71 2017-01-29 10:47:41
Warranty (CANADA)
English72
Some provinces do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
This warranty gives you specic rights, and you may also have other rights, which vary
from province to province.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics Canada Inc.
2050 Derry Road West,
Mississauga, Ontario L5N 0B9 Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Visits by a Service Engineer to explain functions, maintenance, or installation is not
covered by warranty.
Please contact the Samsung call center at the number above for help with any of these
issues.
FlexDry_DM9600M-DC68-03381H_EN.indd 72 2017-01-29 10:47:41
Memo
FlexDry_DM9600M-DC68-03381H_EN.indd 75 2017-01-29 10:47:41
Scan this with your smartphone
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DC68-03381H-00
FlexDry_DM9600M-DC68-03381H_EN.indd 76 2017-01-29 10:47:41
