SAFETY INFORMATION
For your safety and correct operation of the appliance, read this manual
carefully before installation and use. Always keep these instructions
with the appliance even if you move or sell it. Users must fully know the
operation and safety features of the appliance.
The wire connection has to be done by specialized technician.
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor
hood is 650 mm (some models can be installed at a lower height,
please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater
distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
EN
1
13
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust gas.
When the cooker hood is used in conjunction with appliances supplied
with energy other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back into the room
by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufac-
turer or its service agent.
• Connect the plug to a socket complying with current regulations, locat-
ed in an accessible place.
• With regards to the technical and safety measures to be adopted for
fume discharging it is important to closely follow the regulations provid-
ed by the local authorities.
WARNING: Before installing the Hood, remove the protective films.
• Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.
• Do not look directly at the light through optical devices (binoculars,
magnifying glasses…).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
EN
1
14
• The appliance is not to be used by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
Accessible parts may become hot when used with cooking appliances.
• Clean and/or replace the Filters after the specified time period (Fire
hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels (not
applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor-
mation about recycling of this product, please contact your local city of-
fice, your household waste disposal service or the shop where you pur-
chased the product.
EN
1
15
CHARACTERISTICS - INSTALLATION
FIXING OF THE HOOD UNDER THE CABINET

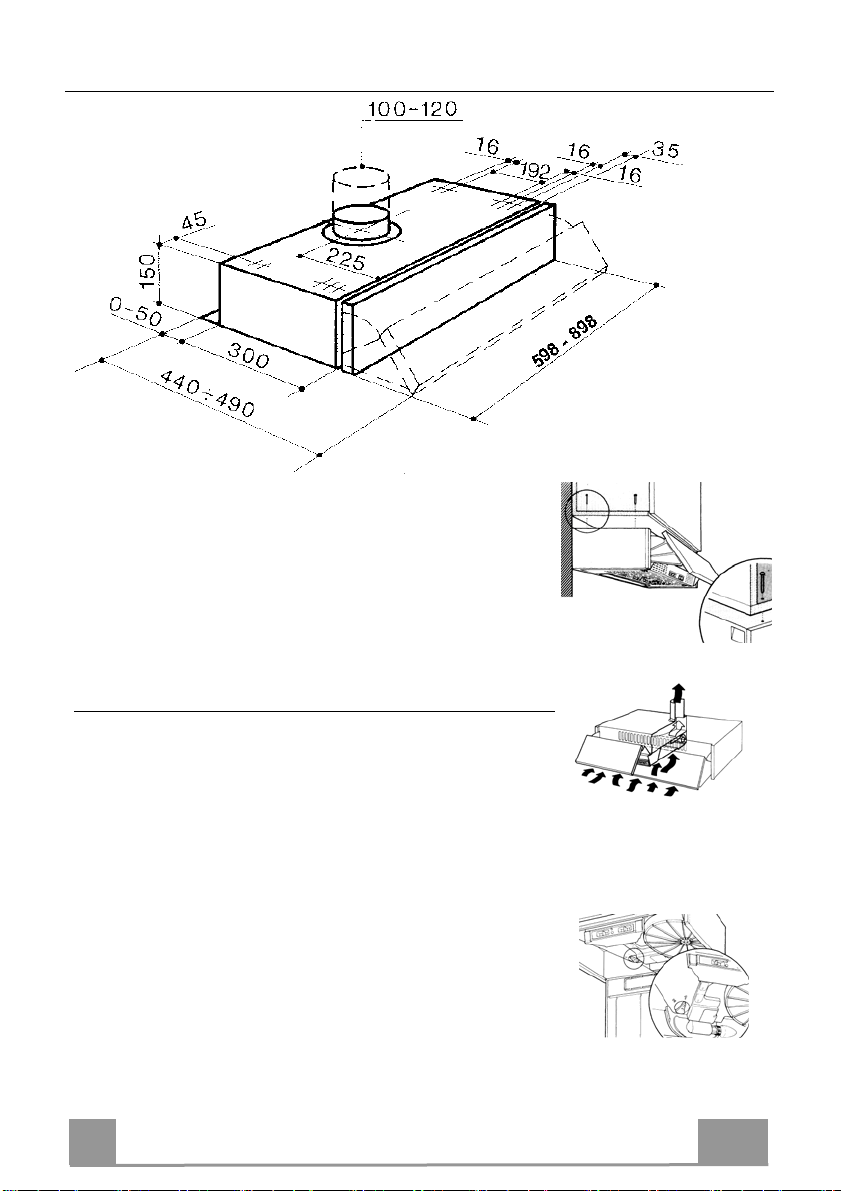

• To drill the cabinet follow the indications given in the dimen-
sional drawing in the chapter which regards hood dimensions.
• To fix the hood onto the cabinet use the 44,4 mm long screws
inserting and tightening them from the inside of the cabinet.
Connection to air outlet
AIR OUTLET IN THE DUCTING MODE
When installing the hood in ducting version, basing on the in-
staller’s choice, a rigid or a flexible pipe is used in order to con-
nect the hood to the air outlet piping.
• Insert the flange on the hood body outlet.
• Open the metal grid and make sure that the conversion knob is
in the ducting position.
• Connect the hood to the air outlet piping with a pipe.
• Fix the pipe with an adequate quantity of pipe clamps. This
material is not supplied together with the hood.
• Remove the charcoal filter if present.
EN
1
16

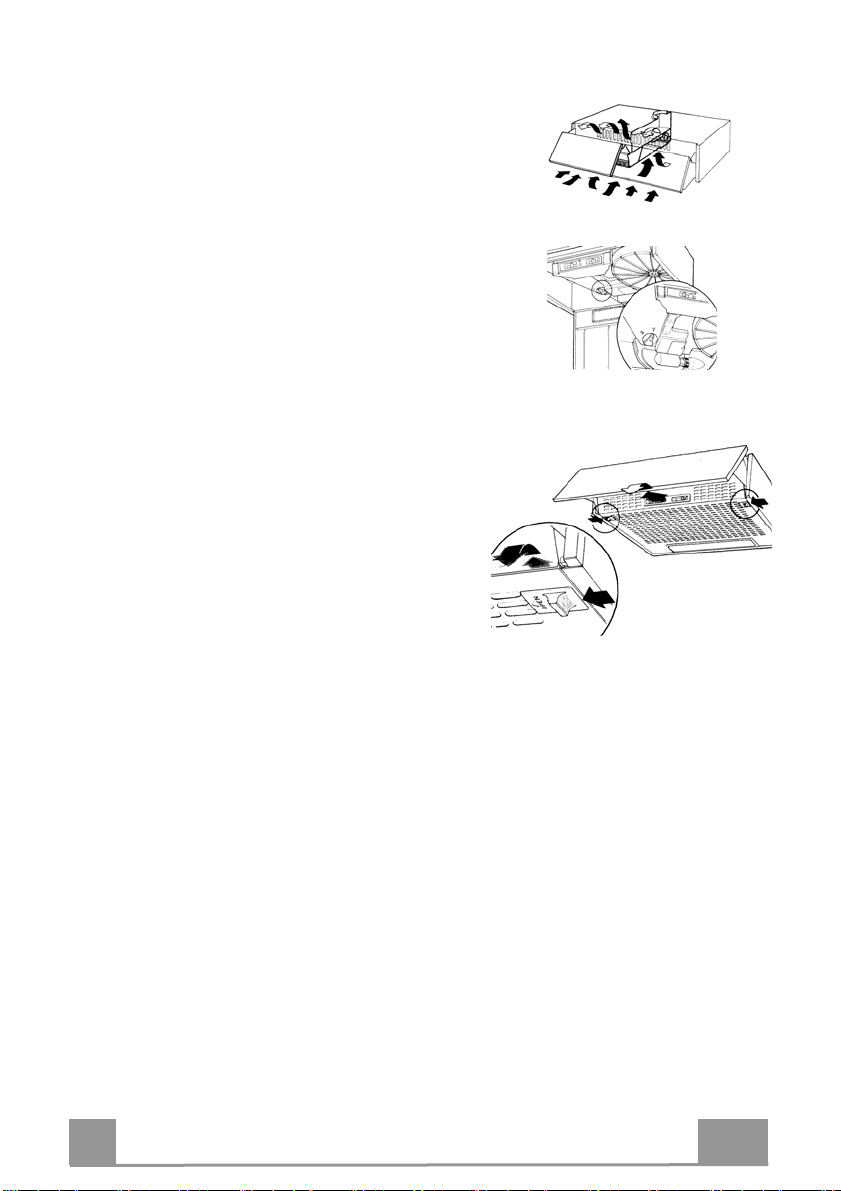

AIR OUTLET IN THE RECYCLING MODE
• Open the metal grid and make sure that the conver-
sion knob is in the recycling position.
• Place the charcoal filter. The charcoal filter is not
supplied together with the hood. (Hoods with two
motors needs to be equipped with two charcoal fil-
ters).
INSTRUCTIONS ON OPENING THE SUCTION GRILL
•
Slide the side stops towards the centre of the hood
and at the same time pull the grill forwards.
• The grill will drop down, turning on the two rear
pins, and will remain hanging from them.
• To disconnect it completely, pull the right hand part
of the grill forwards slightly so that the pin comes out
of the grill through the slot formed on the body of the
hood.
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3
mm..
EN
1
17
USE

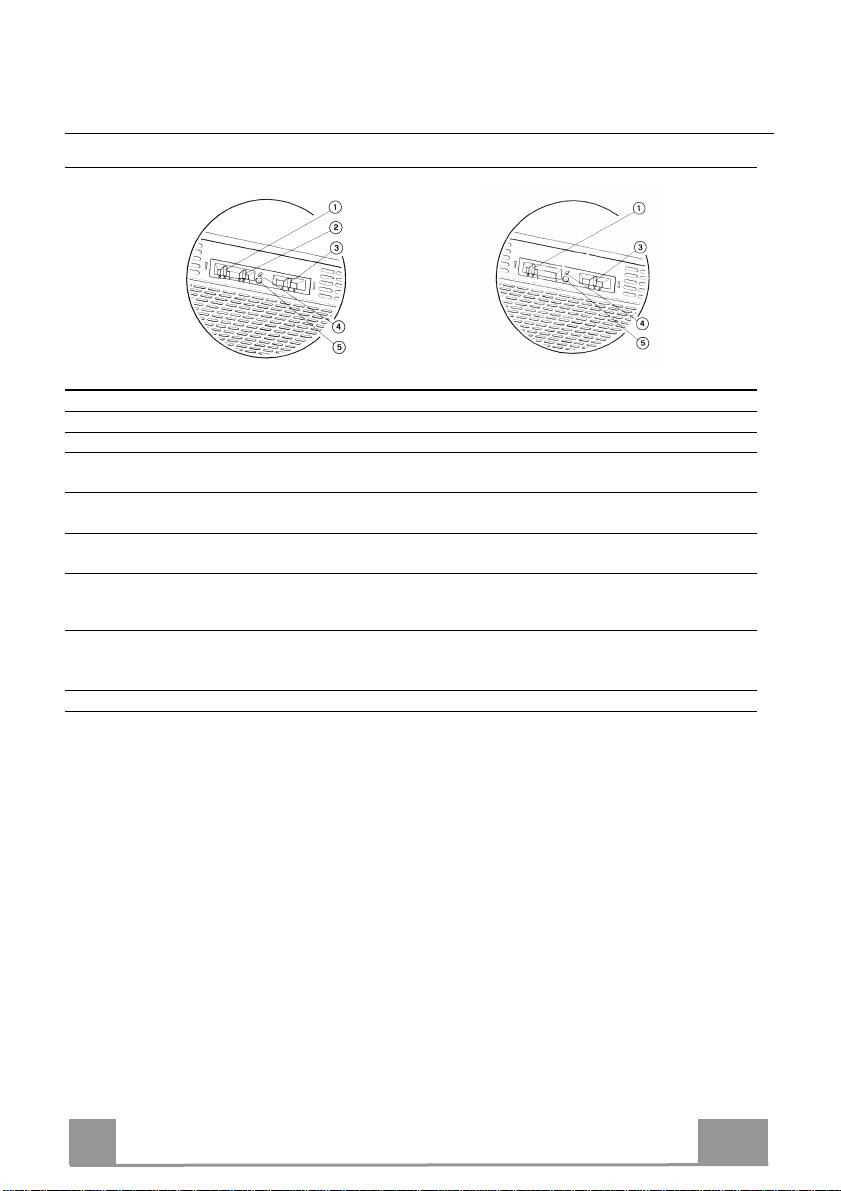

Control board
1 Lighting On/off lighting system.
2 Motor On/off motor.
3 Speed Speed control:
1. Minimum speed, particularly silent, continuous air exchange, suitable in pres-
ence of only few cooking vapours and odours.
2. Medium speed, due to an optimum relation between hood extraction capacity
and the noise level, it is suitable for most of the cooking conditions.
3. Maximum speed, suitable for the cooking conditions when vapours and smells
are of the utmost emission even for a longer time.
OPTIONAL
4 Microswitch Microswitch, which is activated by the movement of the visor. It switches on and
off the hood basing on the conditions which have been earlier established with
the sliders of the control panel.
5 Led Led indicating when the motor is on.
EN
1
18
MAINTENANCE

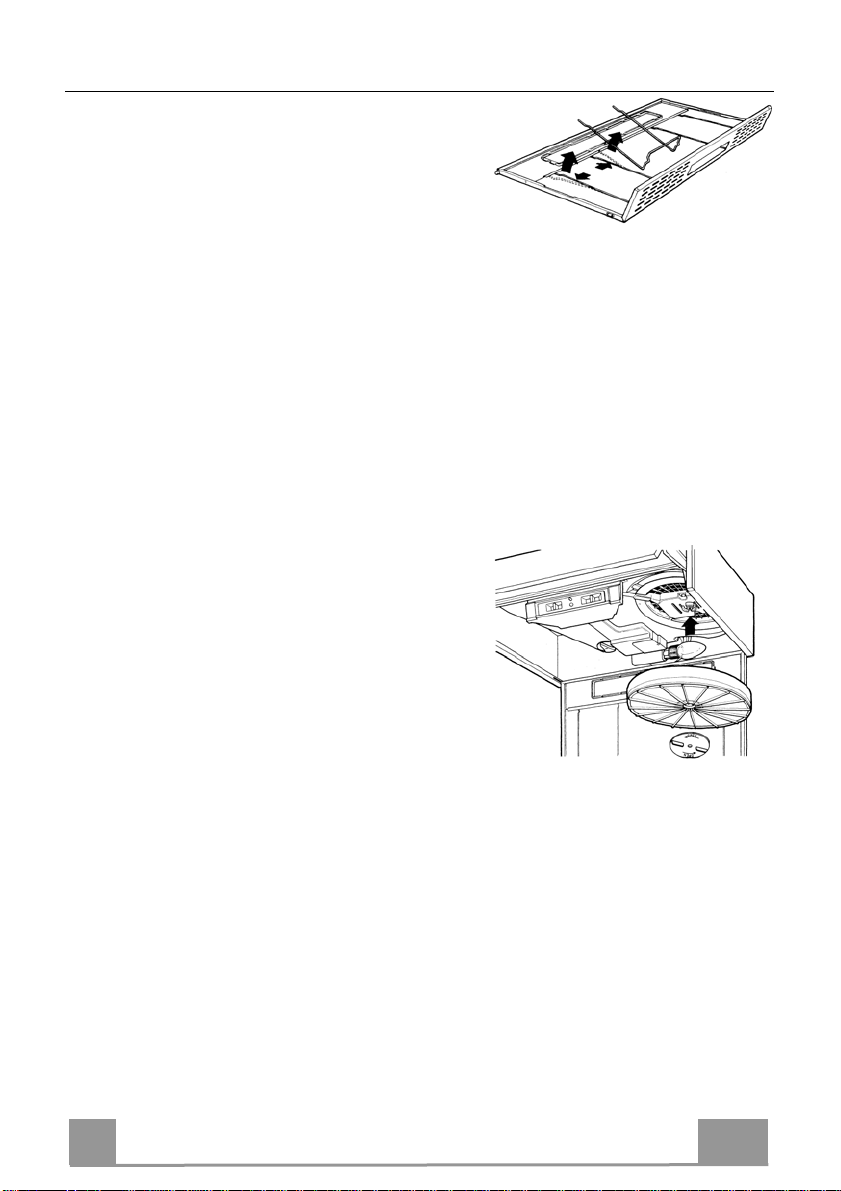

GREASE FILTER
Regular maintenance and cleaning will ensure good
performance and reliability, while extending the work-
ing life of the hood. Special attention should be taken to
keep the grease filter clean at all times and the charcoal
filter (recirculation model) should be replaced regu-
larly. To remove filters for subsequent cleaning and
replacement first open the metal grille panel.
This retain the solid grease particles. It is fitted onto the
reverse side of the lower grille panel and can be either
of a synthetic material or metallic. Maintenance of the
grease filter varies according to the type used: synthetic
grease filters should not be washed and should be re-
placed every three months. The metal grease filters
should be washed once a month in hot water using mild
detergent or liquid soap. It should not be bent and
should be left to dry before being refitted. The filter is
easily removed from grille by pushing the spring wire
clips to one side and removing.
CHARCOAL FILTER
In the recycling mode the charcoal filter absorbs smells
and odours. The charcoal filter cannot be cleaned and
should be replaced at least every six months or more
frequently if the hood is used consistently.
To replace the charcoal filter, support the filter with one
hand, remove the round disk through the centre of the
charcoal filter and rotate it till the filter will come away
.
Replace by reversing the operation.
WARNING! It is a possible fire hazard if the filters
are not cleaned and replaced as recommended.
CLEANING
The metalwork should be cleaned regularly, at least once a month, using household cleaners
and polish. Never use abrasives.
EN
1
19

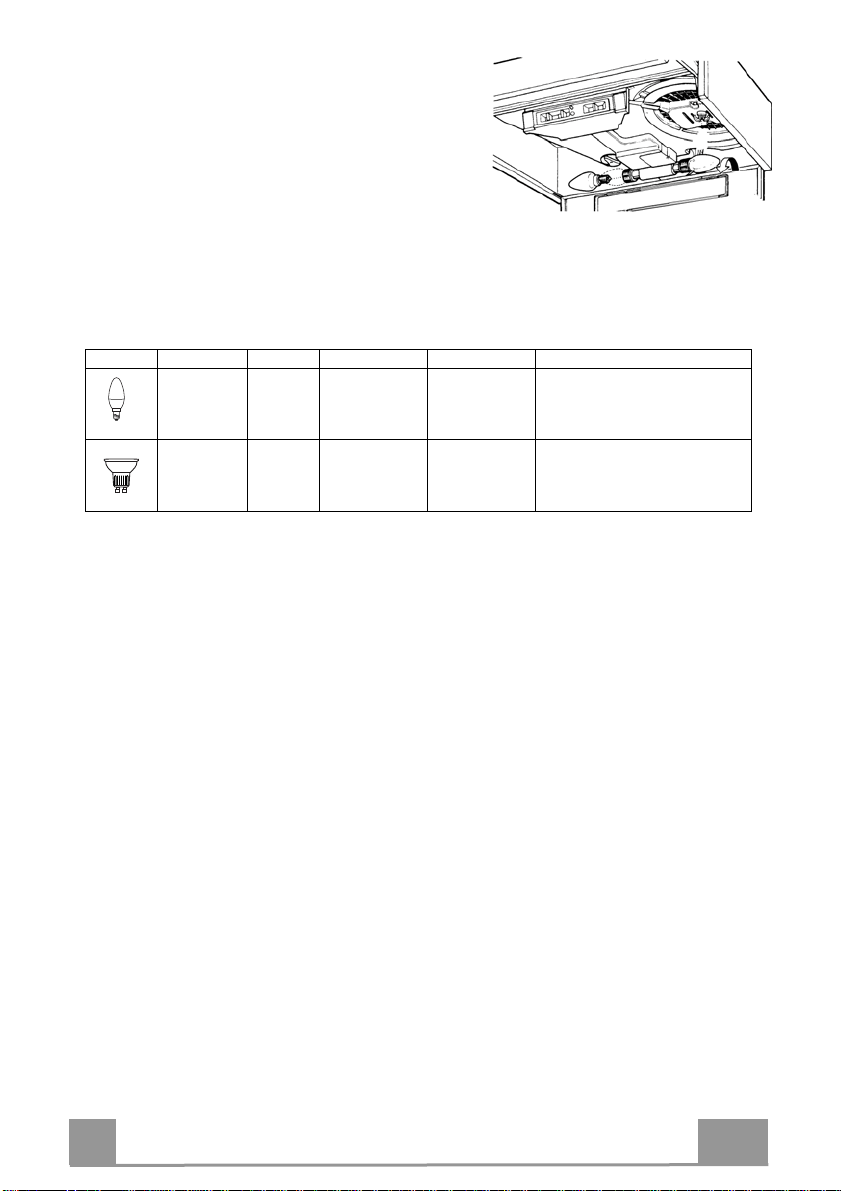

WORKTOP ILLUMINATION
If a lamp fails to function at any time, open the metal
grille panel and check that the lamp is fully screwed
into the holder.
When changing the lamp, an identical replacement
must be fitted to ensure a safe working of the hood.
Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
4 E14 220-240 107 x 37 DRBB/F-4-220-240-E14-35/100
5 GU10 230 52 x 50
DRPAR-5/840-220/240-GU10-35/36
DRPAR-5/830-220/240-GU10-35/36
